Microwave Oven
Owner’s Instructions & Cooking Guide
MS23H3125**
imagine the possibilities
Thank you for purchasing this Samsung product.
This manual is made with 100 % recycled paper.
Please be advised that the Samsung warranty does NOT cover service
calls to explain product operation, correct improper installation, or
perform normal cleaning or maintenance.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 1 2014-08-14 10:53:58
English - 2
safety information
USING THIS INSTRUCTION BOOKLET
You have just purchased a SAMSUNG microwave oven. Your Owner’s
Instructions contains valuable information on cooking with your microwave
oven:
• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
• Cooking tips
LEGEND FOR SYMBOLS AND ICONS
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Warning; Fire hazard Warning; Hot surface
Warning; Electricity Warning; Explosive material
Do NOT attempt. Do NOT touch.
Do NOT disassemble. Follow directions explicitly.
Unplug the power plug
from the wall socket.
Make sure the machine is
grounded to prevent electric
shock.
Call the service center for
help.
Note
Important
contents
Safety information ................................................................................2
Quick look up guide .............................................................................14
Oven features ........................................................................................ 14
Oven ....................................................................................................14
Control panel .......................................................................................15
Accessories .........................................................................................15
Oven use ................................................................................................16
How a microwave oven works .............................................................16
Checking that your oven is operating correctly .....................................16
Setting the time ...................................................................................17
Cooking/Reheating ..............................................................................17
Power levels ........................................................................................18
Adjusting the cooking time ................................................................... 18
Stopping the cooking ...........................................................................18
Setting the energy save mode..............................................................18
Using the deodorisation features .......................................................... 19
Using the kitchen timer features ...........................................................19
Using the sensor cook features ............................................................ 19
Using the healthy cooking features ......................................................21
Using the auto power defrost features .................................................23
Using the my plate features ..................................................................24
Using the soften/melt features .............................................................25
Power steam cooking guide (Only MS23H3125F* models) ................... 26
Switching the beeper o ......................................................................27
Safety-locking your microwave oven ....................................................27
Cookware guide ...................................................................................28
Cooking guide ....................................................................................... 29
Troubleshooting and error code .........................................................30
Troubleshooting ...................................................................................30
Error code ...........................................................................................31
Technical specifications ......................................................................31
MS23H3125AK_EU_DE68-04241A-02_EN.indd 2 2014-08-14 10:53:59
English - 3
01 SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR
FUTURE REFERENCE.
Make sure that these safety precautions are
obeyed at all times.
Before using the oven, confirm that the
following instructions are followed.
WARNING (Microwave function only)
WARNING: If the door or door seals
are damaged, the oven must not be
operated until it has been repaired by a
competent person.
WARNING: It is hazardous for anyone
other than a competent person to carry
out any service or repair operation that
involves the removal of a cover which
gives protection against exposure to
microwave energy.
This appliance is intended to be used in
household only.
WARNING: Only allow children to use
the oven without supervision when
adequate instructions have been given
so that the child is able to use the oven
in a safe way and understands the
hazards of improper use.
WARNING: This appliance can be
used by children aged from 8 years
and above and persons with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge
if they have been given supervision
or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and
user maintenance shall not be made by
children unless they are aged from 8
years and above and supervised.
Only use utensils that are suitable for use
in microwave ovens.
When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 3 2014-08-14 10:54:00
English - 4
The microwave oven is intended for
heating food and beverages. Drying of
food or clothing and heating of warming
pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition
or fire.
If smoke is emitted, switch o or unplug
the appliance and keep the door closed
in order to stifle any flames.
WARNING: Microwave heating of
beverages can result in delayed eruptive
boiling, therefore care must be taken
when handling the container.
WARNING: The contents of feeding
bottles and baby food jars shall be
stirred or shaken and the temperature
checked before consumption, in order to
avoid burns.
Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
The oven should be cleaned regularly
and any food deposits removed.
Failure to maintain the oven in a clean
condition could lead to deterioration of
the surface that could adversely aect
the life of the appliance and possibly
result in a hazardous situation.
The appliance is not intended for
installing in road vehicles, caravans and
similar vehicles etc.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
WARNING: Liquids or other foods must
not be heated in sealed containers since
they are liable to explode;
MS23H3125AK_EU_DE68-04241A-02_EN.indd 4 2014-08-14 10:54:00
English - 5
01 SAFETY INFORMATION
The appliance should not be cleaned
with a water jet.
This oven should be positioned proper
direction and height permitting easy
access to cavity and control area.
Before using the your oven first time,
oven should be operated with the water
during 10 minute and then used.
If the oven generates a strange noise,
a burning smell, or smoke is emitted,
unplug the power plug immediately and
contact your nearest service center.
The microwave oven has to be
positioned so that plug is accessible.
The microwave oven is intended to be
used on the counter or counter top use
only, the microwave oven shall not be
placed in a cabinet.
WARNING (Oven function only) - Optional
WARNING: When the appliance is
operated in the combination mode,
children should only use the oven
under adult supervision due to the
temperatures generated.
During use the appliance becomes hot.
Care should be taken to avoid touching
heating elements inside the oven.
WARNING: Accessible parts may
become hot during use. Young children
should be kept away.
A steam cleaner is not to be used.
WARNING: Ensure that the appliance is
switched o before replacing the lamp to
avoid the possibility of electric shock.
WARNING: The appliance and its
accessible parts become hot during use.
Care should be taken to avoid touching
heating elements. Children less than 8
years of age shall be kept away unless
continuously supervised.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 5 2014-08-14 10:54:00
English - 6
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
door glass since they can scratch the
surface, which may result in shattering of
the glass.
The temperature of accessible surfaces
may be high when the appliance is
operating.
The door or the outer surface may get
hot when the appliance is operating.
Keep the appliance and its cord out of
reach of children less than 8 years.
Appliances are not intended to be
operated by means of an external timer
or separate remote-control system.
This product is a Group 2 Class B ISM
equipment. The definition of group 2 which
contains all ISM equipment in which radio-
frequency energy is intentionally generated
and/or used in the form of electromagnetic
radiation for the treatment of material, and
EDM and arc welding equipment.
For Class B equipment is equipment
suitable for use in domestic establishments
and in establishments directly connected
to a low voltage power supply network
which supplies buildings used for domestic
purposes.
INSTALLING YOUR MICROWAVE OVEN
Place the oven on a flat level surface 85 cm
above the floor. The surface should be strong
enough to safety bear the weight of the oven.
1. When you install your oven,
make sure there is adequate
ventilation for your oven by
leaving at least 10 cm (4 inches)
of space behind and, on the
sides of the oven and 20 cm (8 inches) of
space above.
10 cm
behind
20 cm
above
10 cm on
the side
85 cm of
the floor
MS23H3125AK_EU_DE68-04241A-02_EN.indd 6 2014-08-14 10:54:00
English - 7
01 SAFETY INFORMATION
2. Remove all packing materials inside the
oven.
3. Install the roller ring and turntable. Check
that the turntable rotates freely.
(Turntable type model only)
4. This microwave oven has to be positioned
so that plug is accessible.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
For your personal safety, plug the cable into
a proper AC earthed socket.
Do not install the microwave oven in hot or
damp surroundings like next to a traditional
oven or radiator. The power supply
specifications of the oven must be respected
and any extension cable used must be
of the same standard as the power cable
supplied with the oven. Wipe the interior and
the door seal with a damp cloth before using
your microwave oven for the first time.
CLEANING YOUR MICROWAVE OVEN
The following parts of your microwave oven
should be cleaned regularly to prevent grease
and food particles from building up:
• Inside and outside surfaces
• Door and door seals
• Turntable and Roller rings
(Turntable type model only)
ALWAYS ensure that the door seals are
clean and the door closes properly.
Failure to maintain the oven in a clean
condition could lead to deterioration of the
surface that could adversely aect the life
of the appliance and possibly result in a
hazardous situation.
1. Clean the outside surfaces with a soft cloth
and warm, soapy water. Rinse and dry.
2. Remove any splashes or stains on the inside
surfaces of oven with a soapy cloth. Rinse
and dry.
3. To loosen hardened food particles and
remove smells, place a cup of diluted lemon
juice in the oven and heat for ten minutes at
maximum power.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 7 2014-08-14 10:54:00
English - 8
4. Wash the dishwasher-safe plate whenever
necessary.
DO NOT spill water in the vents. NEVER
use any abrasive products or chemical
solvents. Take particular care when cleaning
the door seals to ensure that no particles:
• Accumulate
• Prevent the door from closing correctly
Clean the microwave oven cavity right after
each use with a mild detergent solution, but
let the microwave oven cool down before
cleaning in order to avoid injury.
When cleaning the upper
part inside the cavity, it will
be convenient to turn heater
downward by 45 ° and clean it.
(Swing heater model only)
STORING AND REPAIRING YOUR
MICROWAVE OVEN
A few simple precautions should be taken
when storing or having your microwave oven
serviced.
The oven must not be used if the door or
door seals are damaged:
• Broken hinge
• Deteriorated seals
• Distorted or bent oven casing
Only a qualified microwave service technician
should perform repair
NEVER remove the outer casing from
the oven. If the oven is faulty and needs
servicing or you are in doubt about its
condition:
• Unplug it from the wall socket
• Contact the nearest after-sales service
centre
If you wish to store your oven away
temporarily, choose a dry, dustfree place.
Reason : Dust and damp may adversely
aect the working parts in the oven.
This microwave oven is not intended for
commercial use.
The Light bulb should not be replaced in
person for safety reasons.
Please contact nearest authorised
Samsung customer care,to arrange for a
qualified engineer to replace the bulb.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 8 2014-08-14 10:54:00
English - 9
01 SAFETY INFORMATION
WARNING
Only qualified sta should be allowed to modify or
repair the appliance.
Do not heat liquids and other food in sealed
containers for microwave function.
For your safety, do not use high-pressure water
cleaners or steam jet cleaners.
Do not install this appliance; near heater,
inflammable material; in a humid, oily or dusty
location, in a location exposed to direct sunlight and
water or where gas may leak; on un level ground.
This appliance must be properly grounded in
accordance with local and national codes.
Remove all foreign substances such as dust or
water from the power plug terminals and contact
points using a dry cloth on a regular basis.
Do not pull or excessively bend or place heavy
objecton the power cord.
In the event of a gas leak (such as propane gas, LP
gas, etc.), ventilate immediately without touching the
power plug.
Do not touch the power plug with wet hands.
Do not turn the appliance o by unplugging the
power plug while an operation is in progress.
Do not insert fingers or foreign substances, If any
foreign substance such as water has entered the
appliance, unplug the power plug and contact your
nearest service centre.
Do not apply excessive pressure or impact to the
appliance.
Do not place the oven over a fragile object such as a
sink or glass object.
Do not use benzene, thinner, alcohol, steam cleaner
or high pressure cleaner to clean the appliance.
Ensure that the power voltage, frequency and
current are the same as those of the product
specifications.
Plug the power plug into the wall socket firmly. Do
not use a multiple plug adapter, an extension cord or
an electric transformer.
Do not hook the power cord on a metal object,
insert the power cord between the objects or behind
the oven.
Do not use a damaged power plug, damaged power
cord or loose wall socket. When the power plug
or power cord is damaged, contact your nearest
service centre.
Do not pour or directly spray water onto the oven.
Do not place objects on the oven, inside or on the
door of the oven.
Do not spray volatile material such as insecticide
onto the surface of the oven.
Do not store flammable materials in the oven. Take
special care when heating dishes or drinks that
contain alcohol as alcohol vapours may contact a
hot part of the oven.
Keep children away from the door when opening or
closing it as they may bump themselves on the door
or catch their fingers in the door.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 9 2014-08-14 10:54:03
English - 10
WARNING: Microwave heating of beverages can
result in delayed eruptive boiling,therefore care must
be taken when handling the container; To prevent
this situation ALWAYS allow a standing time of at
least 20 seconds after the oven has been switched
o so that the temperature can equalize. Stir during
heating, if necessary, and ALWAYS stir after heating.
In the event of scalding, follow these FIRST AID
instructions:
• Immerse the scalded area in cold water for at
least 10 minutes.
• Cover with a clean, dry dressing.
• Do not apply any creams, oils or lotions.
Do not put the tray or rack in water shortly after
cooking because it may cause breakage or damage
of the tray or rack.
Do not operate the microwave oven for deep
fat frying because the oil temperature cannot be
controlled.
This could result in a sudden boil over of the hot
liquid.
CAUTION
Only use utensils that are suitable for use in
microwave ovens; DO NOT use any metallic
containers, Dinnerware with gold or silver trimmings,
Skewers, forks, etc.
Remove wire twist ties from paper or plastic bags.
Reason: Electric arcing or sparking may occur and
may damage the oven.
Do not use your microwave oven to dry papers or
clothes.
Use shorter times for smaller amounts of food to
prevent overheating and burning food.
Do not immerse the power cable or power plug in
water and keep the power cable away from heat.
Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since they
may explode, even after microwave heating has
ended; Also do not heat airtight or vacuum-sealed
bottles, jars, containers, nuts inshells, tomatoes etc.
Do not cover the ventilation slots with cloth or paper.
They may catch fire as hot air escapes from the
oven. The oven may also overheat and switch itself
o automatically, and will remain o until it cools
suciently.
Always use oven mitts when removing a dish from
the oven to avoid unintentional burns.
Stir liquids halfway during heating or after heating
ends and allow the liquid stand at least 20 seconds
after heating to prevent eruptive boiling.
Stand at arms length from the oven when opening
the door to avoid getting scalded by escaping hot air
or steam.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 10 2014-08-14 10:54:04
English - 11
01 SAFETY INFORMATION
Do not operate the microwave oven when it is
empty. The microwave oven will automatically
shut down for 30 minutes for safety purposes. We
recommend placing a glass of water inside the oven
at all times to absorb microwave energy in case the
microwave oven is started accidentally.
Install the oven in compliance with the clearances
stated in this manual. (See installing your microwave
oven.)
Take care when connecting other electrical
appliances to sockets near the oven.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY.
(MICROWAVE FUNCTION ONLY)
Failure to observe the following safety precautions may result in harmful exposure to
microwave energy.
(a) Under no circumstances should any attempt be made to operate the oven
with the door open or to tamper with the safety interlocks (door latches) or to
insert anything into the safety interlock holes.
(b) Do NOT place any object between the oven door and front face or allow
food or cleaner residues to accumulate on sealing surfaces. Ensure that the
door and door sealing surfaces are kept clean by wiping after use first with a
damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a
qualified microwave service technician trained by the manufacturer. It is
particularly important that the oven door closes properly and that there is no
damage to the:
(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces
(d) The oven should not be adjusted or repaired by anyone other than a properly
qualified microwave service technician trained by the manufacturer.
Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic
defect if the damage to the unit and/or damage to or loss of the accessory was
caused by the customer. Items this stipulation covers include:
(a) A dented, scratched, or broken door, handle, out-panel, or control panel.
(b) A broken or missing tray, guide roller, coupler, or wire rack.
• Use this appliance only for its intended purpose as described in this
instruction manual. Warnings and Important Safety Instructions in this
manual do not cover all possible conditions and situations that may occur.
It is your responsibility to use common sense, caution, and care when
installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models,
the characteristics of your microwave oven may dier slightly from those
described in this manual and not all warning signs may be applicable. If you
have any questions or concerns, contact your nearest service centre or find
help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for
domestic home-use only. Do not heat any type of textiles or cushions filled
with grains, which could cause burns and fire. The manufacturer cannot be
held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of
the surface that could adversely aect the life of the appliance and possible
result in a hazardous situation.
CORRECT DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and
its electronic accessories (e.g. charger, headset, USB cable) should not be disposed
of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government oce, for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 11 2014-08-14 10:54:04
English - 12
INSTALLATION & WIRING INSTRUCTIONS
IMPORTANT NOTE :
The mains lead on this equipment is supplied with a moulded plug
incorporating a fuse.
The value of the fuse is indicated on the pin face of the plug and, if it
requires replacing, a fuse approved to BS1363 of the same rating must be
used.
Never use the plug with the fuse cover omitted if the cover is detachable. If
a replacement fuse cover is required, it must be of the same colour as the
pin face of the plug.
Replacement covers are available from your Dealer. If the fitted plug is not
suitable for the power points in your house or the cable is not long enough
to reach a power point, you should obtain a suitable safety approved
extension lead or consult your Dealer for assistance. However, if there is no
alternative to cutting o the plug, remove the fuse and then safely dispose
of the plug. Do not connect the plug to a mains socket, as there is a risk of
shock hazard from the bared flexible cord.
WIRING INSTRUCTIONS
WARNING THIS APPLIANCE MUST BE EARTHED.
This appliance must be earthed. In the event of an electrical short circuit,
earthing reduces the risk of electric shock providing an escape wire for the
electric current. The appliance is equipped with a mains lead which includes
an earth wire for connecting to the earth terminal of your mains plug. The
plug must be plugged into a socket that is properly installed and earthed.

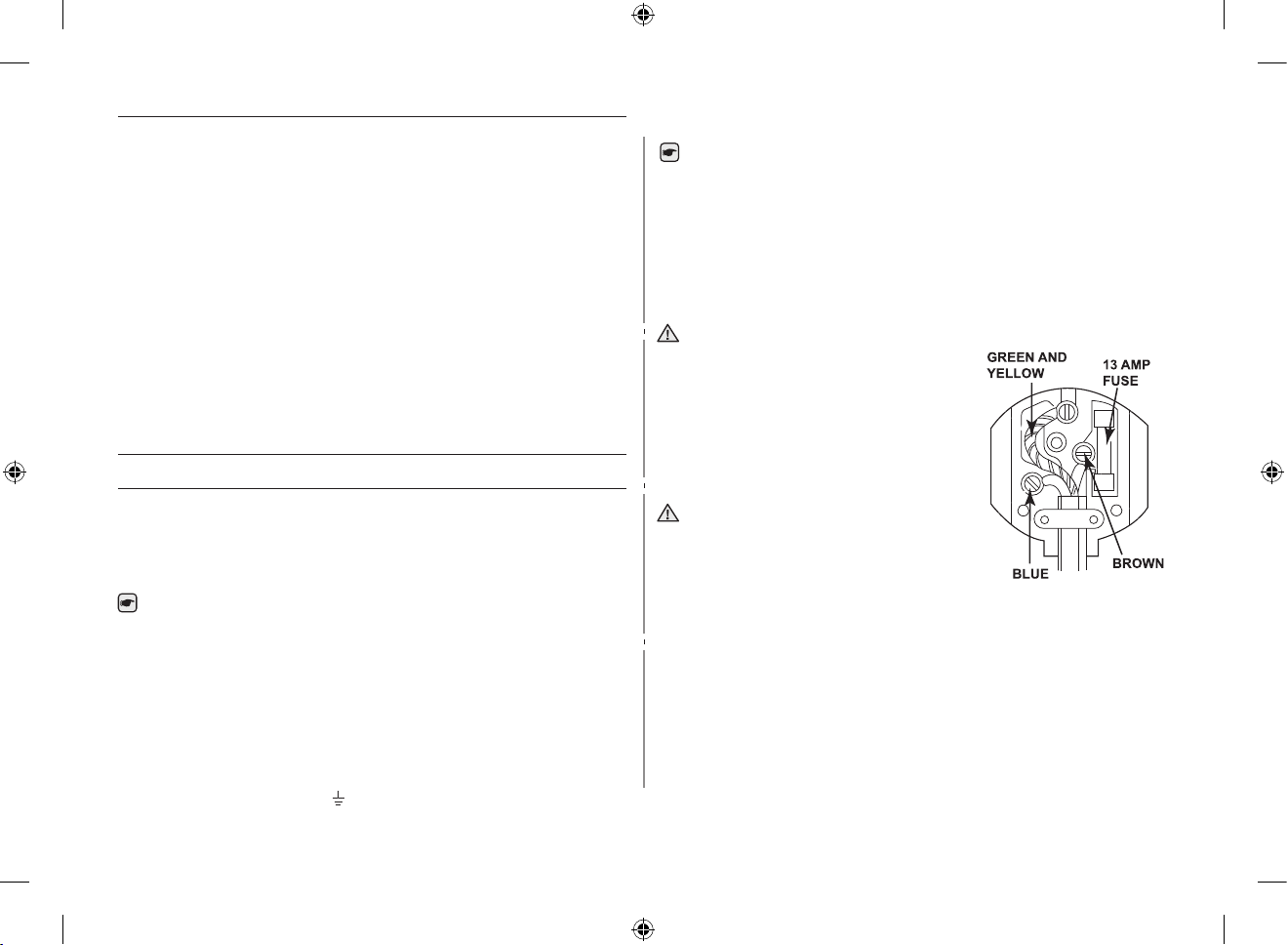

The wires in this mains lead are coloured in accordance with the
following code:
• Green and yellow : Earth
• Blue : Neutral
• Brown : Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings indentifying the terminals in your
plug, proceed as follows.
Connect the green and yellow wire to the terminal in the plug marked with
the letter E or the earth symbol (
) or coloured green or green-and-yellow.
Connect the blue wire to the terminal marked with the letter N or coloured
black.
Consult a qualified electrician or service technician if in doubt about any
of these instructions.
The manufacturer of this oven will not accept any liability for damage to
persons or material for non observance of these requirements.
There are no user-serviceable parts inside the oven and if the mains
lead of this appliance is damaged, it must only be replaced by qualified
service personnel approved by the manufacturer because special tools
are required.
WARNING : Ensure that the plug and
power cord are not damaged before use.
If you have any reason to remove the
moulded plug from this appliance,
immediately remove the fuse and dispose
of the plug.
Do not connect the plug to a mains socket
under any circumstances as there is a
danger of electric shock.
CIRCUITS : Your microwave oven should
be operated on a separate circuit from
other appliances. Failure to do this may
cause the circuit breaker to trip, the fuse
to blow, or the food to cook more slowly.
WARNING
WARNING
MS23H3125AK_EU_DE68-04241A-02_EN.indd 12 2014-08-14 10:54:04
English - 13
01 SAFETY INFORMATION
COOKING INSTRUCTIONS ON FOOD PACKAGING
Microwave Symbols
On the front of your oven there is a microwave oven symbol, as shown
below.
This symbol has been introduced for your benefit when cooking or
reheating packaged food.
Packaged food is also, increasingly, using a microwave symbol similar to
the one below. When you see this
Symbol on food packaging, the cooking instructions are based on either the
IEC Power Output Rating, or the Reheating Categories A, B, C, D or E.
COOKING INSTRUCTIONS
The IEC Power Output rating is an internationally standardised rating, so all
microwave manufacturers now use the same method of measuring power
output.
If food packaging gives cooking instructions based on IEC Power ratings,
set cooking times according to the IEC Power of your oven.
For example :
If the cooking instructions are based on a 650 W oven, then you will need
to reduce some cooking time for the
MS23H3125** (800 W).
Ready meals are now very convenient and popular. These are meals which
are already prepared and cooked by the food manufacturer, and then
frozen, chilled or vacuum sealed for long life.
Increasingly, heating times for such ready meals are being based on the
Heating Categories A, B, C, D and E.
On this instance, simply match the heating category of your oven to the
instructions on the food package, and set your timer accordingly.
For example :
If the heating instructions are 3 minutes on HIGH for a D category oven,
then you will need to set your timer for less than 3 minutes on HIGH for the
MS23H3125** (E category).
Always remember that cooking instructions are intended only as a
guide. If you have followed the instructions and the food is still not
piping hot throughout, simply return it to the oven and cook it until it is.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 13 2014-08-14 10:54:04
English - 14
quick look up guide
If you want to cook some food.
1. Place the food in the oven.
Press the Microwave button to start cooking.
2. Turn the Dial Knob to desired until the appropriate power
level is displayed. At that time, press the Dial Knob to set
the power level.
3. Set the cooking time by turning the Dial Knob.
4. Press the START/+30s button.
Result: Cooking starts. The oven beeps 4 times when
cooking is over.
If you want to auto Power defrost some food.
1. Place the frozen food in the oven. Press the Power Defrost
button.
2. Set the cooking category by turning the Dial Knob. Press
the Dial Knob to set desired.
3. Select the weight by turning the Dial Knob as required.
4. Press the START/+30s button.
If you want to add extra 30 seconds.
Leave the food in the oven.
Press START/+30s one or more times for each extra
30seconds that you wish to add.
oven features
OVEN
1. DOOR HANDLE
2. VENTILATION HOLES
3. LIGHT
4. DISPLAY
5. DOOR LATCHES
6. DOOR
7. TURNTABLE
8. COUPLER
9. ROLLER RING
10. SAFETY INTERLOCK HOLES
11. CONTROL PANEL
8 97
1 2 3
6 11
4
5
10
MS23H3125AK_EU_DE68-04241A-02_EN.indd 14 2014-08-14 10:54:05
English - 15
02 QUICK LOOK UP GUIDE & OVEN FEATURES
CONTROL PANEL
1. DISPLAY
2. SENSOR COOK BUTTON
3. POWER DEFROST BUTTON
4. MICROWAVE BUTTON
5. DEODORISATION BUTTON
6. DIAL KNOB
(WEIGHT/SERVING/TIME/SELECT)
7. STOP/ECO BUTTON
8. HEALTHY COOKING BUTTON
9. MY PLATE BUTTON
10. SOFTEN/MELT BUTTON
11. KITCHEN TIMER BUTTON
12. CHILD LOCK BUTTON
13. START/+30s BUTTON
ACCESSORIES
Depending on the model that you have purchased, you are supplied with several
accessories that can be used in a variety of ways.
1. Roller ring, to be placed in the centre of the oven.
Purpose: The roller ring supports the turntable.
2. Turntable, to be placed on the roller ring with the centre
fitting to the coupler.
Purpose: The turntable serves as the main cooking
surface; it can be easily removed for cleaning.
3. Steam cooker, see page 26 to 27.
(Only MS23H3125F* models)
Purpose: The plastic steam cooker when using power
steam function.
DO NOT operate the microwave oven without the roller ring and turntable.
6
1
3
4
5
7
8
9
10
11
12
13
2
MS23H3125AK_EU_DE68-04241A-02_EN.indd 15 2014-08-14 10:54:06
English - 16
oven use
HOW A MICROWAVE OVEN WORKS
Microwaves are high-frequency electromagnetic waves; the energy released enables
food to be cooked or reheated without the foods form or colour changing.
You can use your microwave oven to:
•
Defrost (manual & auto)
•
Cook
•
Reheat
Cooking Principle.
1. The microwaves generated by the magnetron are distributed
uniformly as the food rotates on the turntable. The food is
thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of
about 1 inch (2.5 cm). Cooking then continues as the heat is
dissipated within the food.
3. Cooking times vary according to the recipient used and the
properties of the food:
•
Quantity and density
•
Water content
•
Initial temperature (refrigerated or not)
As the centre of the food is cooked by heat dissipation, cooking continues even
when you have taken the food out of the oven. Standing times specified in recipes
and in this booklet must therefore be respected to ensure:
•
Even cooking of the food right to the centre.
•
The same temperature throughout the food.
CHECKING THAT YOUR OVEN IS OPERATING
CORRECTLY
The following simple procedure enables you to check that your oven is working correctly
at all times.
Open the oven door by pulling the handle on the right side of the door. Place a glass of
water on the turntable. Then, close the door.
1. Press the Microwave button.
Result: The 800W (maximum cooking power)
indications are displayed.
2. After press the Dial Knob (800 W), set the time 4 to
5minutes by turning the Dial Knob and press the
START/+30s button.
Result: The oven light comes on and the turntable starts
rotating.
1) Cooking starts and when it has finished the
oven beeps 4 times.
2) The end reminder signal will beep 3times
(once every minute).
3) The current time is displayed again.
The oven must be plugged into an appropriate wall socket. The turntable must be
in position in the oven. If a power level other than the maximum is used, the water
takes longer to boil.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 16 2014-08-14 10:54:06
English - 17
03 OVEN USE
SETTING THE TIME
Your microwave oven has an inbuilt clock. When power is supplied, “:0”, “88:88” or
“12:00” is automatically displayed on the display.
Please set the current time. The time can be displayed in either the 24-hour or 12-hour
notation. You must set the clock:
• When you first install your microwave oven
• After a power failure
Do not forget to reset the clock when you switch to and from summer and winter
time.
1. Press the Dial Knob.
To display the time in the...
24-hour notation.
12-hour notation.
2. Turn the Dial Knob to set time display type. (24H or 12H).
At that time, press the Dial Knob to select the type of time.
3. Turn the Dial Knob to set the hour. At that time, press the
Dial Knob to set the hour.
4. Turn the Dial Knob to set the minute.
5. Press the Dial Knob to complete the setup.
COOKING/REHEATING
The following procedure explains how to cook or reheat food.
ALWAYS check your cooking settings before leaving the oven unattended.
First, place the food in the centre of the turntable. Then, close the door.
1. Press the Microwave button.
Result: The 800 W (maximum cooking power)
indications are displayed:
2. Turn the Dial Knob to desired until the appropriate power
level is displayed. At that time, press the Dial Knob to set
the power level.
3. Set the cooking time by turning the Dial Knob.
Result: The cooking time is displayed.
4. Press the START/+30s button.
Result: The oven light comes on and the turntable starts
rotating.
1) Cooking starts and when it has finished the
oven beeps 4 times.
2) The end reminder signal will beep 3times.
(once every minute)
3) The current time is displayed again.
Never switch the microwave oven on when it is empty.
If you wish to heat a dish for a short period of time at maximum power (800W),
simply press the START/+30s button once for each 30 seconds of cooking time.
The oven starts immediately.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 17 2014-08-14 10:54:06
English - 18
POWER LEVELS
You can choose among the power levels below.
Power level Output
HIGH 800 W
MEDIUM HIGH 600 W
MEDIUM 450 W
MEDIUM LOW 300 W
DEFROST 180 W
LOW / KEEP WARM 100 W
If you select higher power level, the cooking time must be decreased.
If you select lower power level, the cooking time must be increased.
ADJUSTING THE COOKING TIME
You can increase the cooking time by pressing the START/+30s
button once for each 30 seconds to be added.
You can also increase the cooking time by turning Dial
Knob
once for each 10 sec to be added.
STOPPING THE COOKING
You can stop cooking at any time to check the food.
1. To stop temporarily;
1) Open the door.
Result: Cooking stops. To resume cooking, close the
door and press START/+30s button again.
2) Press the STOP/ECO button.
Result: Cooking stops. To resume cooking, press
START/+30s button again.
2. To stop completely;
Press the STOP/ECO button.
Result: The cooking stops. If you wish to cancel the
cooking settings, press the STOP/ECO button
again.
You can also cancel any setting before starting by simply pressing STOP/ECO
button.
SETTING THE ENERGY SAVE MODE
The oven has an energy save mode. This facility saves electricity when the oven is not in
use. Normal condition is standby mode and show clock when not using.
•
Press the STOP/ECO button.
Result: Display o.
•
To remove energy save mode, open the door and then
display shows current time. The oven is ready for use.
Auto energy saving function
If you do not select any function when appliance is in the middle of setting or
operating with temporary stop condition, function is canceled and clock will be
displayed after 25 minutes.
Oven Lamp will be turned o after 5 minutes with door open condition.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 18 2014-08-14 10:54:07
English - 19
03 OVEN USE
USING THE DEODORISATION FEATURES
Use this feature after cooking odorous food or when there is a lot of smoke in the oven
interior. First clean the oven interior.
Press the Deodorisation button after you have finished
cleaning. you will hear four beeps.
The deodorisation time has been specified as 5 minutes. It increases by 30 seconds
whenever the START/+30s button is pressed.
The maximum deodorisation time is 15 minutes.
USING THE KITCHEN TIMER FEATURES
You can use timer function with Kitchen Timer button.
1. Press the Kitchen Timer button.
2. Set the kitchen time by turning the Dial Knob.
3. Press the START/+30s button to begin Kitchen Timer
Function.
Result: The display counts down and beeps when the
time has elapsed.
The Microwave does not turn on when the kitchen timer is used.
USING THE SENSOR COOK FEATURES
The Sensor Cook Features has Five pre-programmed cooking times.
You do not need to set either the cooking times or the power level.
You can adjust the Sensor Cook category by turning the dial knob.
First, place the food in the center of the turntable and close the door.
Use only dishes that are microwave-safe.
1. Press the Sensor Cook button.
2. Select the type of food that you are cooking by turning the
Dial Knob. Refer to the table on the following page for a
description of the various pre-programmed settings.
3. Press the START/+30s button.
Result: Cooking starts. When it has finished.
1) The oven beeps four times.
2) The end reminder signal will beep 3times
(once every minute).
3) The current time is displayed again.
Use only recipients that are microwave-safe.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 19 2014-08-14 10:54:07
English - 20
Code/Food
Serving
size
Instructions
1
Broccoli Florets
200-500 g Wash and clean broccoli and prepare florets. Put
them evenly into a glass bowl with lid. Add 30-
45ml water (2-3 tbsp).
Put bowl in the centre of turntable.
Cook covered. Stir after cooking.
This programme is suitable for broccoli as well as
courgette, egg plant, pumpkin or pepper. Stand
for 1-2 minutes.
2
Sliced Carrots
200-500 g Wash and clean carrots and cut into round slices
evenly. Put them into a glass bowl with lid. Add
30-45 ml water (2-3 tbsp).
Put bowl in the centre of turntable.
Cook covered. Stir after cooking.
This programme is suitable for carrots as well as
cauliflower florets or turnip cabbage. Stand for
1-2minutes.
3
Peeled Potatoes
200-800 g Wash and peel the potatoes and cut into a similar
size. Put them into a glass bowl with lid. Add 45-
60 ml (3-4 tbsp) water. Put bowl in the centre of
turntable. Cook covered. Stand for 2-3minutes.
4
Chilled Soup
250-500 g Pour into a deep ceramic plate or bowl and cover
with plastic lid during heating. Put soup in the
centre of turntable.
Stir carefully before and after standing time.
Stand for 2-3 minutes.
5
Frozen Soup
250-500 g Pierce film of frozen soup and put in the centre
of turntable.
Put soup in the centre of turntable.
Stir carefully before and after standing time.
Stand for 2-3 minutes.
Use oven gloves while taking out!
Auto Sensor Cooking Instructions
The Auto Sensor allows you to cook your food automatically by detecting the amount of
gases generated from the food while cooking.
•
When cooking food, many kinds of gases are generated. The Auto Sensor
determines the proper time and power level by detecting these gases from the food,
eliminating the need to set the cooking time and power level.
•
When you cover a container with its lid or plastic wrap during Sensor Cooking, the
Auto Sensor will detect the gases generated after the container has been saturated
with steam.
If using cling film or plastic wrap be sure to leave a small opening near the
edge of dish for ventilation or be sure to pierce at several times.
•
Shortly before cooking ends, the remaining cooking time will begin its count down.
This will be a good time for you to rotate or stir the food for even cooking if it is
necessary.
•
Before auto sensor cooking food may be seasoned with herbs, spices or browning
sauces. A word of caution though, salt or sugar may cause burn spots on food so
these ingredients should be added after cooking.
•
To obtain good cooking results with this function, follow the directions for selecting
appropriate containers and covers in the charts in this book.
•
Always use microwave-safe containers and cover them with their lids or with plastic
wrap. When using plastic wrap, turn back one corner to allow steam to escape at the
proper rate.
•
Always cover with the lid intended for the utensil being used. If the utensil does not
have its own lid, use plastic wrap.
•
Fill containers at least half full.
•
Foods that require stirring or rotating should be stirred or turned toward the end of
the Sensor Cook cycle, after the time has started to count down on the display.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 20 2014-08-14 10:54:07
English - 21
03 OVEN USE
Utensils & Cover For Sensor Cooking
•
To obtain good cooking results with this function, follow the directions for selecting
appropriate containers and covers in the charts in this book.
•
Always use microwave-safe containers and cover them with their lids or with plastic
wrap. When using plastic wrap, turn back one corner to allow steam to escape at the
proper rate.
•
Always cover with the lid intended for the utensil being used. If the utensil does not
have its own lid, use plastic wrap.
•
Fill containers at least half full.
•
Foods that require stirring or rotating should be stirred or turned toward the end of
the Sensor Cook cycle, after the time has started to count down on the display.
Important
•
After installing the oven and plugging into an electrical outlet, do not unplug the
power cord. The gas sensor needs time to stabilize in order to cook satisfactorily.
•
It its not advisable to use the auto sensor cooking feature on a continuous cooking
operation, i.e. one cooking operation immediately after another.
•
Install the oven in a well ventilated location for proper cooling and airflow and to
ensure the sensor will operate accurately.
•
To avoid poor results, do not use the Auto sensor when the room ambient
temperature is too high or too low.
•
Do not use volatile detergent to clean your oven. Gas resulting from this detergent
may aect the sensor.
•
Avoid placing the oven near high moisture or gas emitting appliances, since this will
interfere with the proper performance of the Auto Sensor.
•
Always keep the inside of the oven clean. Wipe all spills with a damp cloth.
This oven is designed for household use only.
USING THE HEALTHY COOKING FEATURES
The Healthy Cooking Features has thirteen pre-programmed cooking times. You do not
need to set either the cooking times or the power level. You can adjust the serving size of
the item by turning the dial knob.
First, place the food in the centre of the turntable and close the door.
1. Press the Healthy Cooking button.
2. Select the category that you are cooking by turning the Dial
Knob.
At that time, press the Dial Knob.
And then, select the food that you are cooking by turning
the Dial Knob.
Refer to the table on the following page for a description of
the various pre-programmed settings.
3. Press the START/+30s button.
Result: Cooking starts. When it has finished.
1) The oven beeps 4 times.
2) The end reminder signal will beep 3times
(once every minute).
3) The current time is displayed again.
Use only recipients that are microwave-safe.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 21 2014-08-14 10:54:07
English - 22
1. Vegetables & Grain
Code/Food
Serving
size
Instructions
1-1
Green Beans
250 g Rinse and clean green beans. Put them
evenly into a glass bowl with lid. Add 30ml
(2 tbsp) water when cooking 250 g. Put bowl
in the centre of turntable. Cook covered. Stir
after cooking. Stand for 1-2minutes.
1-2
Spinach
150 g Rinse and clean spinach. Put into a glass
bowl with lid. Do not add water. Put bowl in
the centre of turntable. Cook covered. Stir
after cooking. Stand for 1-2 minutes.
1-3
Corn on the Cob
250 g
(1 pcs)
Rinse and clean corn on the cob and
put into an oval glass dish. Cover with
microwave cling film and pierce film. Stand
for 1-2minutes.
1-4
Brown Rice
(Parboiled)
125 g Use a large glass ovenware dish with lid. Add
double quantity of cold water (250ml). Cook
covered. Stir before standing time and add
salt and herbs. Stand for 5-10minutes.
1-5
Wholemeal Macaroni
125 g Use a large glass ovenware dish with lid.
Add 500ml hot boiling water, a pinch of
salt and stir well. Cook uncovered. Stir
before standing time and drain thoroughly
afterwards. Stand for 1 minutes.
1
-6
Quinoa
125 g Use a large glass ovenware dish with lid. Add
double quantity of cold water (250ml). Cook
covered. Stir before standing time and add
salt and herbs. Stand for 1-3minutes.
1-
7
Bulgur
125 g Use a large glass ovenware dish with lid. Add
double quantity of cold water (250ml). Cook
covered. Stir before standing time and add
salt and herbs. Stand for 2-5minutes.
2. Poultry & Fish
Code/Food
Serving
size
Instructions
2-1
Chicken Breasts
300 g
(2 pcs)
Rinse pieces and put on a ceramic plate.
Cover with microwave cling film. Pierce film.
Put dish on turntable. Stand for 2 minutes.
2-2
Turkey Breasts
300 g
(2 pcs)
Rinse pieces and put on a ceramic plate.
Cover with microwave cling film. Pierce film.
Put dish on turntable. Stand for 2 minutes.
2-3
Fresh Fish Fillets
300 g
(2 pcs)
Rinse fish and put on a ceramic plate, add 1
tbsp lemon juice. Cover with microwave cling
film. Pierce film. Put dish on turntable. Stand
for 1-2 minutes.
2-4
Fresh Salmon Fillets
300 g
(2 pcs)
Rinse fish and put on a ceramic plate, add 1
tbsp lemon juice. Cover with microwave cling
film. Pierce film. Put dish on turntable. Stand
for 1-2 minutes.
2-5
Fresh Prawns
250 g Rinse prawns on a ceramic plate, add 1 tbsp
lemon juice. Cover with microwave cling film.
Pierce film. Put dish on turntable. Stand for
1-2 minutes.
2-6
Fresh Trout
200 g
(1 fish)
Put 2 fresh whole fish into an ovenproof
dish. Add a pinch salt, 1tbsp lemon juice
and herbs. Cover with microwave cling film.
Pierce film. Put dish on turntable. Stand for
2 minutes.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 22 2014-08-14 10:54:07
English - 23
03 OVEN USE
USING THE AUTO POWER DEFROST FEATURES
The Auto Power Defrost feature enables you to defrost meat, poultry, and fish. The
defrost time and power level are set automatically.
You simply select the programme and the weight.
First, place the frozen food in the centre of the turntable and close the door.
1. Press the Power Defrost button.
2. Select the type of food that you are cooking by turning the
Dial Knob. (Refer to the table on the side).
3. Press the Dial Knob to select the type of food.
4. Set the weight of food by turning the Dial Knob.
5. Press the START/+30s button.
Result:
•
Defrosting begins.
•
The oven beeps half way through defrosting
to remind you to turn the food over.
•
Press START/+30s button again to finish
defrosting.
Use only dishes that are microwave-safe.
The following table presents the various Auto power Defrost programmes, quantities and
appropriate Instructions. Remove all kinds of package material before defrosting. Place
meat, poultry, fish, bread/cake on a ceramic plate.
Code/Food Serving size Instructions
1
Meat
200-1500 g Shield the edges with aluminium foil.
Turn the meat over when the oven beeps. This
programme is suitable for beef, lamb, pork, steaks,
chops and minced meat. Stand for 20-60 minutes.
2
Poultry
200-1500 g Shield the leg and wing tips with aluminium foil.
Turn the poultry over when the oven beeps. This
programme is suitable for whole chicken and
chicken portions. Stand for 20-60 minutes.
3
Fish
200-1500 g Shield the tail of the whole fish with aluminium
foil. Turn the fish over when the oven beeps. This
programme is suitable for whole fishes and fish
fillets. Stand for 20-50minutes.
4
Bread/Cake
125-625 g Put bread on a piece of kitchen paper and turn
over, as soon as the oven beeps. Place cake
on a ceramic plate and if possible, turn over, as
soon as the oven beeps. (Oven keeps operating
and is stopped, when you open the door. This
programme is suitable for all kinds of bread, sliced
or whole, as well as for bread rolls and baguettes.
Arrange bread rolls in a circle. This programme
is suitable for all kinds of yeast cake, biscuit,
cheese cake and pu pastry. It is not, suitable
for short/crust pastry, fruit and cream cakes as
well as for cake with chocolate topping. Stand for
5-20minutes.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 23 2014-08-14 10:54:08
English - 24
USING THE MY PLATE FEATURES
The My Plate feature has two pre-programmed cooking times. You do not need to set
either the cooking times or the power level. You can adjust the number of servings by
turning the dial knob. First, place the food in the centre of the turntable and close the
door.
1. Press the My Plate button.
2. Select the type of food that you are cooking by turning the
Dial Knob.
3. Press the Dial Knob to select the type of food.
4. Select the size of the serving by turning the Dial Knob.
(Refer to the table on the side.)
5. Press the START/+30s button.
Result: Cooking starts. When it has finished.
1) The oven beeps 4 times.
2) The end reminder signal will beep 3times
(once every minute).
3) The current time is displayed again.
Use only recipients that are microwave-safe.
The following table presents the My Plate auto reheat programmes, quantities and
appropriate Instructions. Those programmes are running with microwave energy only.
Code/Food Serving size Instructions
1
Chilled Ready
Meal
300-350 g
400-450 g
Put on a ceramic plate and cover with
microwave cling film. This programme
is suitable for meals consisting of
3components (e.g. meat with sauce,
vegetables and a side dishes like potatoes,
rice or pasta). Stand for 2-3 minutes.
2
Chilled
Vegetarian Meal
300-350 g
400-450 g
Put meal on a ceramic plate and cover
with microwave cling film. This programme
is suitable for meals consisting of
2components (e.g. spaghetti with sauce or
rice with vegetables). Stand for 2-3 minutes.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 24 2014-08-14 10:54:08
English - 25
03 OVEN USE
USING THE SOFTEN/MELT FEATURES
The Soften/Melt feature has four pre-programmed cooking times. You do not need to
set either the cooking times or the power level. You can adjust the number of servings
by turning the dial knob. First, place the food in the centre of the turntable and close the
door.
1. Press the Soften/Melt button.
2. Select the type of food that you are cooking by turning the
Dial Knob.
3. Press the Dial Knob to select the type of food.
4. Select the size of the serving by turning the Dial knob.
(Refer to the table on the side.)
5. Press the START/+30s button.
Result: Cooking starts. When it has finished.
1) The oven beeps 4 times.
2) The end reminder signal will beep 3times
(once every minute).
3) The current time is displayed again.
Use only recipients that are microwave-safe.
The following table presents the Soften/Melt auto reheat programmes, quantities and
appropriate Instructions. Those programmes are running with microwave energy only.
Code/Food Serving size Instructions
1
Melting Butter
50 g
100 g
Cut butter into 3 or 4 pieces and Put them on
small glass bowl. Melt uncovered. Stir after
cooking. Stand for 1-2 minutes.
2
Melting Dark
Chocolate
50 g
100 g
Grate dark chocolate and put in small glass
bowl. Melt uncovered. Stir after melting. Stand
for 1-2 minutes.
3
Melting Sugar
25 g
50 g
Put sugar on small glass bowl. Add 10 ml
water for 25 g and add 20 ml water for 50 g.
Melt uncovered. Take out carefully, use oven
gloves! Use spoon or fork and pour caramel
decorations on baking paper. Let stand for
10minutes until dry and remove from paper.
4
Soften Butter
50 g
100 g
Cut butter into 3 or 4 pieces and Put them in
small glass bowl. Soften uncovered. Stir after
cooking. Stand for 1-2 minutes.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 25 2014-08-14 10:54:08
English - 26
POWER STEAM COOKING GUIDE
(ONLY MS23H3125F* MODELS)
The Power Steamer is based on the principle of steam cooking, and is designed for fast,
healthy cooking in your Samsung Microwave oven.
This accessory is ideal for cooking rice, pasta, vegetables, etc. in record time, while
preserving their nutritional values.
The Microwave Power steamer set is made up of 3 items:
Bowl Insert tray Lid
All parts withstand temperatures from -20 °C to 140 °C.
Suitable for freezer storage. Can also be used separately or together.
CONDITIONS of USE:
Do not use:
•
to cook foods with a high sugar or fat content,
•
with the grill or rotating heat function or on a hob.
Wash all parts well in soapy water before first use.
To find out cooking times, please refer to the instructions in the table on next page.
MAINTENANCE:
Your steamer can be washed in a dishwasher.
When washing by hand, use hot water and washing-up liquid. Do not use abrasive
pads.
Some foods (such as tomato) may discolour the plastic. This is normal and not a
manufacturing fault.
DEFROSTING:
Place the frozen food in the steam bowl without the lid. The liquid will remain in the
bottom of the pot and will not harm the food.
COOKING:
Food
Serving
size
Power
levels
Cooking
time (min.)
Handling
Artichokes
300 g
(1-2 pcs)
800 W 5-6 Bowl with insert tray + Lid
Instructions
Rinse and clean artichokes. Put insert tray into bowl. Set
artichokes on tray. Add one tablespoon lemon juice. Cover with lid.
Stand for 1-2 minutes.
Fresh
Vegetables
300 g 800 W 4-5 Bowl with insert tray + Lid
Instructions
Weigh the vegetables (e.g. broccoli, cauliflower, carrots, pepper)
after washing, cleaning and cutting into similar size. Put tray into
bowl. Distribute vegetables on insert tray. Add 2 tbsp water.
Cover with lid. Stand for 1-2 minutes.
Frozen
Vegetables
300 g 600 W 7-8 Bowl with insert tray + Lid
Instructions
Put the frozen vegetables into the steam bowl. Put insert tray into
bowl. Add 1 tbsp water. Cover with lid. Stir well after cooking and
standing. Stand for 2-3 minutes.
Rice
250 g 800 W 15-18 Bowl + Lid
Instructions
Put rice into the steam bowl. Add 500 ml cold water. Cover
with lid. After cooking let stand white rice 5 minutes, brown rice
10minutes.
Jacket
Potatoes
500 g 800 W 7-8 Bowl + Lid
Instructions
Weigh and rinse the potatoes and put them into steam bowl. Add
3tbsp water. Cover with lid. Stand for 2-3 minutes.
Stew (Chilled)
400 g 600 W 5-6 Bowl + Lid
Instructions
Put stew into the steam bowl. Cover with lid. Stir well before
standing. Stand for 1-2 minutes.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 26 2014-08-14 10:54:08

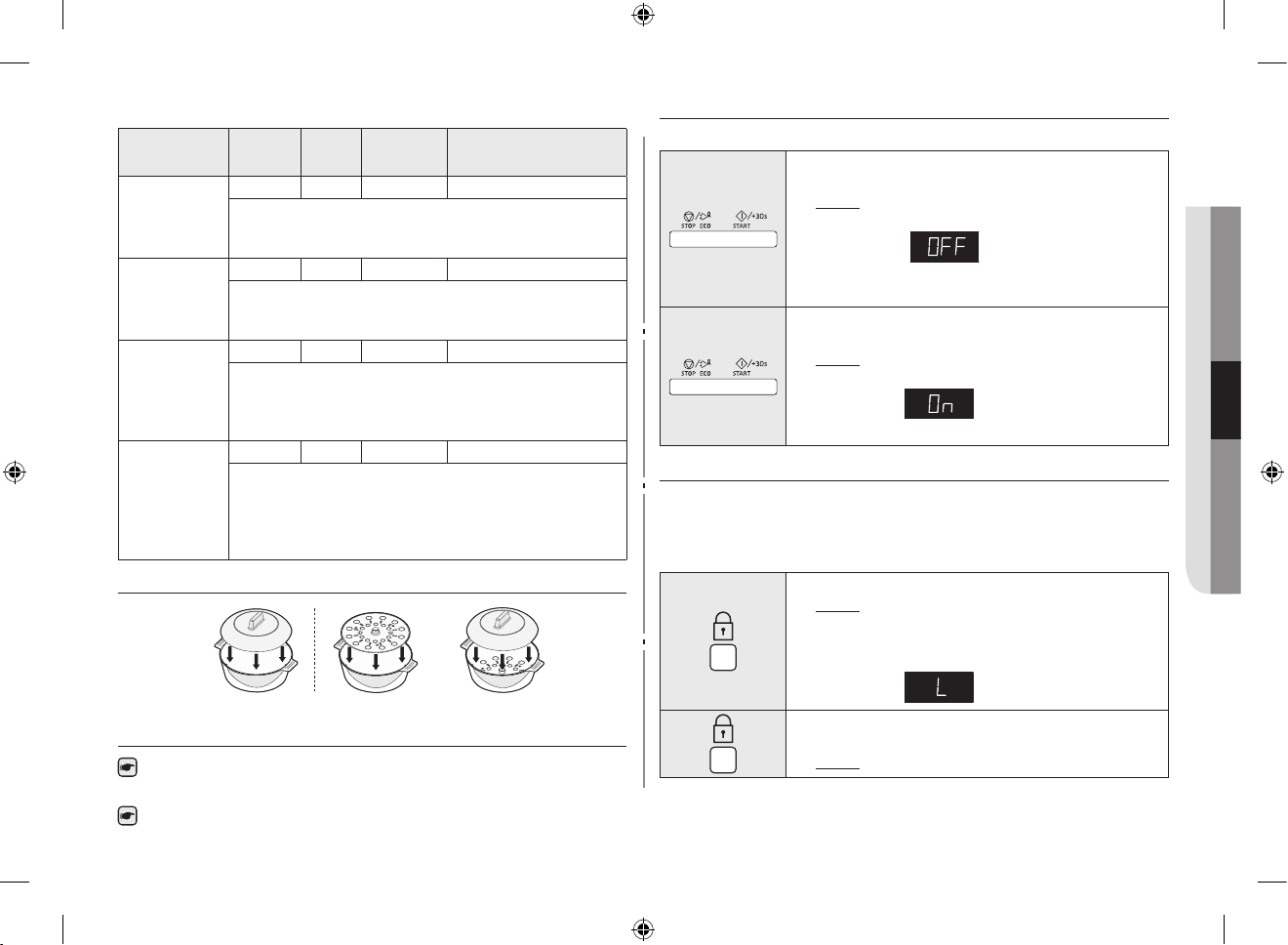

English - 27
03 OVEN USE
Food
Serving
size
Power
levels
Cooking
time (min.)
Handling
Soup (Chilled)
400 g 800 W 3-4 Bowl + Lid
Instructions
Pour into steam bowl. Cover with lid. Stir well before standing.
Stand for 1-2 minutes.
Frozen Soup
400 g 800 W 8-10 Bowl + Lid
Instructions
Put frozen soup into steam bowl. Cover with lid. Stir well before
standing. Stand for 2-3 minutes.
Frozen Yeast
Dumpling with
Jam Filling
150 g 600 W 1-2 Bowl + Lid
Instructions
Moist the top of filled dumplings with cold water. Put 1-2frozen
dumplings side by side into the steam bowl. Cover with lid. Stand
for 2-3 minutes.
Fruit Compote
250 g 800 W 3-4 Bowl + Lid
Instructions
Weigh the fresh fruits (e.g. apples, pears, plums, apricots,
mangoes or pineapple) after peeling, washing and cutting into
similar sizes or cubes. Put into steam bowl. Add 1-2tbsp water
and 1-2tbsp sugar. Cover with lid. Stand for 2-3 minutes.
Handling of power steam cooker
PRECAUTIONS:
Take special care when opening the lid of your steamer, because the steam
escaping may be very hot.
Use oven gloves when handling after cooking.
+
Bowl + Lid
Bowl with insert tray + Lid
SWITCHING THE BEEPER OFF
You can switch the beeper o whenever you want.
1. Press the STOP/ECO and START/+30s
buttons at the
same time.
Result:
•
The following indication is displayed.
•
The oven does not beep each time you
press a button.
2. To switch the beeper back on, press the STOP/ECO and
START/+30s buttons again at the same time.
Result:
•
The following indication is displayed.
•
The oven operates with the beeper on again.
SAFETY-LOCKING YOUR MICROWAVE OVEN
Your microwave oven is fitted with a special Child Safety programme, which enables
the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it
accidentally.
The oven can be locked at any time.
1. Press the Child Lock button for three seconds.
Result:
•
The oven is locked (no functions can be
selected).
•
The display shows “L”.
2. To unlock the oven, press the Child Lock button for three
seconds.
Result: The oven can be used normally.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 27 2014-08-14 10:54:09
English - 28
cookware guide
To cook food in the microwave oven, the microwaves must be able to penetrate the food,
without being reflected or absorbed by the dish used.
Care must therefore be taken when choosing the cookware. If the cookware is marked
microwave-safe, you do not need to worry.
The following table lists various types of cookware and indicates whether and how they
should be used in a microwave oven.
Cookware
Microwave-
safe
Comments
Aluminum foil
✓ ✗
Can be used in small quantities to protect
areas against overcooking. Arcing can occur
if the foil is too close to the oven wall or if too
much foil is used.
Crust plate
✓
Do not preheat for more than 8 minutes.
China and
earthenware
✓
Porcelain, pottery, glazed earthenware
and bone china are usually suitable, unless
decorated with a metal trim.
Disposable
polyester
cardboard dishes
✓
Some frozen foods are packaged in these
dishes.
Fast-food
packaging
•
Polystyrene
cups containers
✓
Can be used to warm food. Overheating may
cause the polystyrene to melt.
•
Paper bags or
newspaper
✗
May catch fire.
•
Recycled paper
or metal trims
✗
May cause arcing.
Cookware
Microwave-
safe
Comments
Glassware
•
Oven-to-
tableware
✓
Can be used, unless decorated with a metal
trim.
•
Fine glassware
✓
Can be used to warm foods or liquids.
Delicate glass may break or crack if heated
suddenly.
•
Glass jars
✓
Must remove the lid. Suitable for warming
only.
Metal
•
Dishes
✗
May cause arcing or fire.
•
Freezer bag
twist ties
✗
Paper
•
Plates, cups,
napkins and
kitchen paper
✓
For short cooking times and warming. Also to
absorb excess moisture.
•
Recycled paper
✗
May cause arcing.
Plastic
•
Containers
✓
Particularly if heat-resistant thermoplastic.
Some other plastics may warp or discolour
at high temperatures. Do not use Melamine
plastic.
•
Cling film
✓
Can be used to retain moisture. Should not
touch the food. Take care when removing the
film as hot steam will escape.
•
Freezer bags
✓ ✗
Only if boilable or oven-proof. Should not be
airtight. Prick with a fork, if necessary.
Wax or grease-
proof paper
✓
Can be used to retain moisture and prevent
spattering.
✓
: Recommended
✓✗
: Use Caution
✗
: Unsafe
MS23H3125AK_EU_DE68-04241A-02_EN.indd 28 2014-08-14 10:54:09
English - 29
04 COOKWARE GUIDE & COOKING GUIDE
cooking guide
MICROWAVES
Microwave energy actually penetrates food, attracted and absorbed by its water, fat and
sugar content.
The microwaves cause the molecules in the food to move rapidly. The rapid movement of
these molecules creates friction and the resulting heat cooks the food.
COOKING
Cookware for microwave cooking:
Cookware must allow microwave energy to pass through it for maximum eciency.
Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but
they can penetrate through ceramic, glass, porcelain and plastic as well as paper and
wood. So food must never be cooked in metal containers.
Food suitable for microwave cooking:
Many kinds of food are suitable for microwave cooking, including fresh or frozen
vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups,
steamed puddings, preserves, and chutneys can also be cooked in a microwave oven.
Generally speaking, microwave cooking is ideal for any food that would normally be
prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips,
techniques and hints).
Covering during cooking
To cover the food during cooking is very important, as the evaporated water rises as
steam and contributes to cooking process. Food can be covered in dierent ways: e.g.
with a ceramic plate, plastic cover or microwave suitable cling film.
Standing times
After cooking is over food the standing time is important to allow the temperature to even
out within the food.
Reheating Liquids and Food
Use the power levels and times in this table as a guide lines for reheating.
Food Serving size Power Time (min.)
Drinks (Coee,
Tea and Water)
150 ml (1 cup)
250 ml (1 mug)
800 W 1-1½
1½-2
Instructions
Pour into cup and reheat uncovered. Put cup/ mug in the centre
of turntable. Keep in microwave oven during standing time and
stir well. Stand for 1-2 minutes.
Soup (Chilled)
250 g 800 W 3-3½
Instructions
Pour into a deep ceramic plate. Cover with plastic lid. Stir well
after reheating. Stir again before serving. Stand for 2-3 minutes.
Stew (Chilled)
350 g 600 W 5½-6½
Instructions
Put stew in a deep ceramic plate. Cover with plastic lid. Stir
occasionally during reheating and again before standing and
serving. Stand for 2-3 minutes.
Pasta with
Sauce (Chilled)
350 g 600 W 4½-5½
Instructions
Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate.
Cover with microwave cling film. Stir before serving. Stand for
3minutes.
Filled Pasta
with Sauce
(Chilled)
350 g 600 W 5-6
Instructions
Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate.
Cover with plastic lid. Stir occasionally during reheating and again
before standing and serving. Stand for 3 minutes.
(continued)
MS23H3125AK_EU_DE68-04241A-02_EN.indd 29 2014-08-14 10:54:09
English - 30
Food Serving size Power Time (min.)
Plated Meal
(Chilled)
350 g 600 W 5½-6½
Instructions
Plate a meal of 2-3 chilled components on a ceramic dish. Cover
with microwave cling-film. Stand for 3 minutes.
Pasta (Frozen)
(Cannelloni,
Macaroni,
Lasagne)
400 g 450 W 16-16½
Instructions
Put frozen pasta into a small flat rectangular glass pyrex dish. Put
the dish directly on the turntable. Stand for 2-3 minutes.
Instant Noodle
1 Small pack (80 g)
1 Big pack (120 g)
800 W 7½-8
9½-10
Instructions
Use a glass pyrex bowl. Put the noodle and add room
temperature 350 ml water in bowl. Cook covered with wrap and
pierce at several times. After cooking, drain water and mix instant
noodle spices.
Boiled Yam
350 g 800 W 12½-13
Instructions
Peel and cut yam 3 cm thick and put on pyrex bowl. Add room
temperature 250 ml water in bowl. Cook covered with wrap and
pierce at several times. After cooking, drain water and serve.
Stand for 1-2 minutes.
troubleshooting and error code
TROUBLESHOOTING
Becoming familiar with a new appliance always takes a little time. If you have any of
the problems listed below, try the solutions given. They may save you the time and
inconvenience of an unnecessary service call.
The following are normal occurrences.
•
Condensation inside the oven
•
Air flow around the door and outer casing
•
Light reflection around the door and outer casing
•
Steam escaping from around the door or vents
The food is not cooked at all.
•
Have you set the timer correctly and pressed the START/+30s button?
•
Is the door closed?
•
Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be
triggered.
The food is either overcooked or undercooked.
•
Was the appropriate cooking length set for the type of food?
•
Was an appropriate power level chosen?
The oven causes interference with radios or televisions.
•
Slight interference may be observed on televisions or radios when the oven is
operating. This is normal.
•
Solution: install the oven away from televisions, radios and aerials.
•
If interference is detected by the oven’s microprocessor, the display may be reset.
•
Solution: Disconnect the power plug and reconnect it. Reset the time.
The light bulb is not working.
•
The Light bulb should not be replaced in person for safety reasons. Please contact
nearest authorised Samsung customer care centre to arrange for a qualified engineer
to replace the bulb.
MS23H3125AK_EU_DE68-04241A-02_EN.indd 30 2014-08-14 10:54:09
English - 31
05 TROUBLESHOOTING & TECHNICAL SPEC
Sparking and cracking occur inside the oven (arcing).
•
Have you used a dish with metal trimmings?
•
Have you left a fork or other metal utensil inside the oven?
•
Is aluminum foil too close to the inside walls?
Smoke and bad smell when initial operating.
•
It’s a temporary condition by new component heating. Smoke and smell will
disappear completely after 10 minutes operation.
To remove smell more quickly, please operate microwave oven with putting lemon
formation or lemon juice in the cabinet.
If the above guidelines do not enable you to solve the problem, then contact your
local SAMSUNG customer service centre.
Please have the following information read;
•
The model and serial numbers, normally printed on the rear of the oven
•
Your warranty details
•
A clear description of the problem
Then contact your local dealer or SAMSUNG aftersales service.
ERROR CODE
“SE” message indicates.
•
Clean the keys and check if there is water on the surface around key. Turn o the
microwave oven and try setting again. If it occurs again, call your local SAMSUNG
Customer Care Centre.
“E-12” message indicates.
•
The “E-12” message is Gas Sensor Short. This error may occur because of the high
humidity in the cavity when you operate the microwave oven once again shortly after
the previous operation of microwave oven for some food is finished.
In this case, because there is a possibility that the Gas Sensor is not out of order
turn o the microwave oven and try setting again. If this error occurs again, call your
local SAMSUNG Customer Care Centre.
For any codes not listed above, or if the suggested solution does not solve the
problem, contact your local SAMSUNG Customer Care Centre.
technical specifications
SAMSUNG strives to improve its products at all times. Both the design specifications and
these user instructions are thus subject to change without notice.
Model MS23H3125**
Power source 230 V ~ 50 Hz
Power consumption
Microwave 1150 W
Output power
100W / 800W (IEC-705)
- 240 V : 800 W
- 230 V : 750 W
Operating frequency 2450 MHz
Magnetron OM75S (31)
Cooling method Cooling fan motor
Dimensions (W x H x D)
Outside
Oven cavity
489 x 275 x 374 mm
330 x 211 x 324 mm
Volume 23 liter
Weight
Net 12 kg approx
MS23H3125AK_EU_DE68-04241A-02_EN.indd 31 2014-08-14 10:54:09
DE68-04241A-02
AUSTRIA 0800 - SAMSUNG (0800 - 7267864)
BELGIUM 02-201-24-18
DENMARK 70 70 19 70
FINLAND 030-6227 515
FRANCE 01 48 63 00 00
GERMANY
0180 6 SAMSUNG bzw.
0180 6 7267864*
(*0,20 €/Anruf aus dem dt. Festnetz, aus dem
Mobilfunk max. 0,60 €/Anruf)
ITALIA 800-SAMSUNG (800.7267864)
CYPRUS 8009 4000 only from landline, toll free
GREECE
80111-SAMSUNG (80111 726 7864) only from land line
(+30) 210 6897691 from mobile and land line
LUXEMBURG 261 03 710
NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min)
NORWAY 815 56480
PORTUGAL 808 20 7267
SPAIN 0034902172678
SWEDEN 0771 726 7864 (SAMSUNG)
SWITZERLAND
0800 726 78 64 (0800-SAMSUNG)
UK 0330 SAMSUNG (7267864)
EIRE 0818 717100
www.samsung.com/be/support (Dutch)
www.samsung.com/be_fr/support (French)
www.samsung.com/ch/support (German)
www.samsung.com/ch_fr/support (French)
www.samsung.com/gr/support
www.samsung.com/fr/support
www.samsung.com/de/support
www.samsung.com/it/support
www.samsung.com/support
www.samsung.com/nl/support
www.samsung.com/no/support
www.samsung.com/pt/support
www.samsung.com/es/support
www.samsung.com/se/support
www.samsung.com/uk/support
www.samsung.com/ie/support
www.samsung.com/at/support
www.samsung.com/dk/support
www.samsung.com/fi/support
MS23H3125AK_EU_DE68-04241A-02_EN.indd 32 2014-08-14 10:54:09
