Washing Machine
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/register
WF0704W7(E/N/S/V/W)
WF0702W7(E/N/S/V/W)
WF0704Y7(E/N/S/V/W)
WF0702Y7(E/N/S/V/W)
WF0704W7-02875A_EN.indd 1 2011-2-21 15:37:14
2_ features
features of your new samsung
washing machine
Your new washing machine will change the way you feel about doing laundry. From its
specialised Eco Bubble function to its energy efficiency, your new Samsung washing
machine has all the benefits to make washing laundry as easy and pleasant as possible.
• EnergySaving
This model offers more efficient energy use compared to standard A rated machine with the
special Bubble generator system and Quiet Drive inverter motor.
• EcoBubbleWash
Samsung’s effective Eco Bubble delivers improved cleanliness with advanced fabric care. Eco
Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.
• QuickWash
No time to waste! Quick Wash program can help your busy life - now you can wash your
favorite clothes (up to 2Kg) in 15 minutes!
• QuietDriveMotor
Samsung’s unique Quiet Drive Motor works without belts or gears, reducing vibration and
making the washer quieter and more durable.
• EcoDrumClean
Using Ecol Drum Clean helps to keep washing machine clean even without any chemical
detergent or bleach. Keep your drum clean and odorless with specialized cleaning program.
• BabyCare
Your Samsung washing machine includes wash programs that add protection to the clothing
of children with sensitive skin. These programs reduce skin irritation in children by minimizing
detergent residue. In addition, these programs classify laundry into various types and the
wash is performed according to the laundry characteristics so that children’s clothes feel
refreshingly clean whenever they are put on.
• WoolCertied
The machine has been tested and passed the required Woolmark Company specification
for machine washable wool products. This mark is the upgraded certification better than the
existing Woolmark, which guarantees not only washing performance but also fabric care for
wool products. Fabrics should be washed according to the instructions on the garment label
as specified by Woolmark and Samsung.
• HandWash
Special care can be determined by the appropriate temperature, the gentle wash action and
the appropriate amount of water.
• DelayEnd
Delay a cycle for up to 19 hours in one-hour increments and increase the convenience of
using your washing machine especially when you have to go out.
• ChildLock
The Child Lock function ensures that curious little hands are kept out of your washing
machine. This safety feature stops your children from playing with the operation of the
washing machine, and alerts you when it is activated.
WF0704W7-02875A_EN.indd 2 2011-2-21 15:37:14
features _3
• DigitalGraphicDisplay
The Digital Graphic Display control panel is clear and easy to use for minimum fuss and
hassle. And while it is easy to operate, the Digital Graphic Display enables you to make quick
and accurate adjustments to your wash for excellent washing results.
• Widedoor
Extra wide door aperture for convenient viewing! Easily add and remove laundry, especially for
large sized laundry items such as bedding, towels etc.
This manual contains important information on the installation, use, and care of your new
Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how
to use the washing machine, and tips for making the most of its state-of-the-art features and
functions. The “Troubleshooting and information codes” section on page 37 tells you what to
do if something goes wrong with your new washing machine.
WF0704W7-02875A_EN.indd 3 2011-2-21 15:37:14
4_ safety information
safety information
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use and care of your appliance. Please take time to
read this manual to take full advantage of your washer’s many benefits and features.
WHATYOUNEEDTOKNOWABOUTSAFETYINSTRUCTIONS
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance and retain it at a safe place near the appliance
for your future reference. Use this appliance only for its intended purpose as described in this instruction
manual.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your washer.
Because these following operating instructions cover various models, the characteristics of your washer
may differ slightly from those described in this manual and not all warning signs may be applicable. If you
have any questions or concerns, contact your nearest service center or find help and information online at
www.samsung.com.
IMPORTANTSAFETYSYMBOLSANDPRECAUTIONS
Whattheiconsandsignsinthisusermanualmean:
WARNING
Hazards or unsafe practices that may result in severepersonalinjury,
deathand/orpropertydamage.
CAUTION
Hazards or unsafe practices that may result inpersonalinjuryand/or
propertydamage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service centre for help.
Note
Thesewarningsignsareheretopreventinjurytoyouandothers.
Pleasefollowthemexplicitly.
Afterreadingthissection,keepitinasafeplaceforfuturereference.
Read all instructions before using the appliance.
As with any equipment using electricity and moving parts, potential hazards exist. To safely
operate this appliance, become familiar with its operation and exercise care when using it.
WF0704W7-02875A_EN.indd 4 2011-2-21 15:37:16
safety information _5
Do not let children (or pets) play on or in your washing machine. The washing machine door does not
open easily from the inside, and children may be seriously injured if trapped inside.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug, the water supply tabs and the
drain pipes.
For washing machines with ventilation openings in the base, ensure that the opening is not obstructed
by carpet or any other obstacles.
Use the new hose-sets and old hose-sets should not be reused.
INSTRUCTIONABOUTTHEWEEEMARK
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in the European Union and other European countries with separate
collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these items from other types of
waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.
WARNING
WF0704W7-02875A_EN.indd 5 2011-2-21 15:37:16
6_ safety information
SEVEREWARNINGSIGNSFORINSTALLATION
The installation of this appliance must be performed by a qualified technician or service
company.
- Failure to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
The appliance is heavy, take care upon lifting it
Plug the power cord into an AC 220-240V / 50Hz wall socket or higher and use the socket
for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as those of the
product specifications. Failure to do so may result in electric shock or fire. Plug the
power plug into the wall socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failure to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over its head, it may result in suffocation.
When the appliance or power plug or power cord is damaged, contact your nearest service
centre.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install this appliance near a heater, inflammable material.
Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct
sunlight and water (rain drops).
Do not install this appliance in a location of low temperature
- Frost may cause tubes to burst
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Do not use an electric transformer.
- It may result in electric shock or fire.
Do not use a damaged power plug, damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
safety information
WARNING
WF0704W7-02875A_EN.indd 6 2011-2-21 15:37:16
safety information _7
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fire.
Do not lay the power cord and tubes where you may fall over them.
CAUTIONSIGNSFORINSTALLATION
This appliance should be positioned in such a way that it is accessible to the power plug.
- Failure to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the
product.
SEVEREWARNINGSIGNSFORUSING
If the appliance is flooded, Turn off the water & power supply immediately and contact your
nearest service centre.
- Do not Touch the power plug with wet hands
- Failure to do so may cause electric shock
If the appliance generates a strange noise, a burning smell or smoke, unplug the power
plug immediately and contact your nearest service centre.
- Failure to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without
touching the power plug. Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not let children play in or on the washer. In addition, when disposing of the appliance,
remove the washer door lever.
- If trapped inside, the child may become trapped and suffocate to death.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
WARNING
CAUTION
WF0704W7-02875A_EN.indd 7 2011-2-21 15:37:16
8_ safety information
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Do not open the washer door by force while it is operating (high-temperature washing/
drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Opening the door by force may result in damage to the product or injury.
Do not insert your hand under the washer.
- This may result in injury.
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while an operation is in
progress.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Do not let children or infirm persons use this washer unsupervised. Do not let children climb
in the appliance
- Failure to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Do not unplug the appliance by pulling at the power cord, always grip plug firmly and pull
straight out from the outlet.
- Damage to the cord may cause short-circuit, fire and/or electric shock
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service
centre.
- Failure to do so may result in electric shock, fire, problems with the product, or injury.
If the water supply hose comes loose from the Water tap and floods the appliance, unplug
the power plug.
- Failure to do so may result in electric shock or fire.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failure to do so may result in electric shock or fire.
safety information
WF0704W7-02875A_EN.indd 8 2011-2-21 15:37:16
safety information _9
CAUTIONSIGNSFORUSING
When the washer is contaminated by a foreign substance such as detergent, dirt, food
waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.
- Failure to do so may result in discolouration, deformation, damage or rust.
The front glass may be broken by a strong impact. Take care when using the washer.
- When the glass is broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the Water
Tap slowly.
Open the Water Tap slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
- If the washer is used when it is flooded because of a draining problem, it may result in
electric shock or fire due to electric leakage.
Insert the laundry into the washer completely so that laundry does not get caught in the
door.
- If laundry gets caught in the door, it may result in damage to the laundry or the washer,
or result in water leakage.
Ensure that the Water Tap is turned off when the washer is not being used.
- Ensure that the screw on the water supply hose connector is properly tightened.
- Failure to do so may result in property damage or injury.
Check if the rubber seal is not contaminated by foreign substances (waste, thread, etc).
- If the door is not closed completely, it may result in water leakage.
Open the Water Tap and check if the water supply hose connector is firmly tightened and
that there is no water leaking before using the product.
- If the screws or the water supply hose connector are loose, it may result in water
leakage.
CAUTION
WF0704W7-02875A_EN.indd 9 2011-2-21 15:37:16
10_ safety information
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems
with the product.
Do not place an object that generates a electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not
touch the water.
- This may result in burns or injury.
Do not wash, spin or dry water-proof seats, mats or clothing (*) unless your appliance has a
special program for washing these items.
- Do not wash thick, hard mats even if the washer mark is on the care label.
- This may result in injury or damage to the washer, walls, floor or clothing due to
abnormal vibrations.
* Woollen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,
sweat suits, and bicycle, motor cycle, car covers, etc.
Do not operate the washer when the detergent box is removed.
- This may result in electric shock or injury due to water leakage.
Do not touch the inside of the tub during or just after drying as it is hot.
- This may result in burns.
Do not insert your hand into the detergent box after opening it.
- This may result in injury as your hand may be caught by the detergent input device. Do
not place any objects (such as shoes, food waste, animals) other than laundry into the
washer.
- This may result in damage to the washer, or injury and death in the case of pets due to
the abnormal vibrations.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long
periods of time.
- This may cause the tub to rust.
- If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the
surface and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat of the oxidation of
the oil.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
safety information
WF0704W7-02875A_EN.indd 10 2011-2-21 15:37:17
safety information _11
Do not use natural hand-washing soap for the washer.
- If it hardens and accumulates inside the washer, it may result in problems with the
product, discolouration, rust or bad odors.

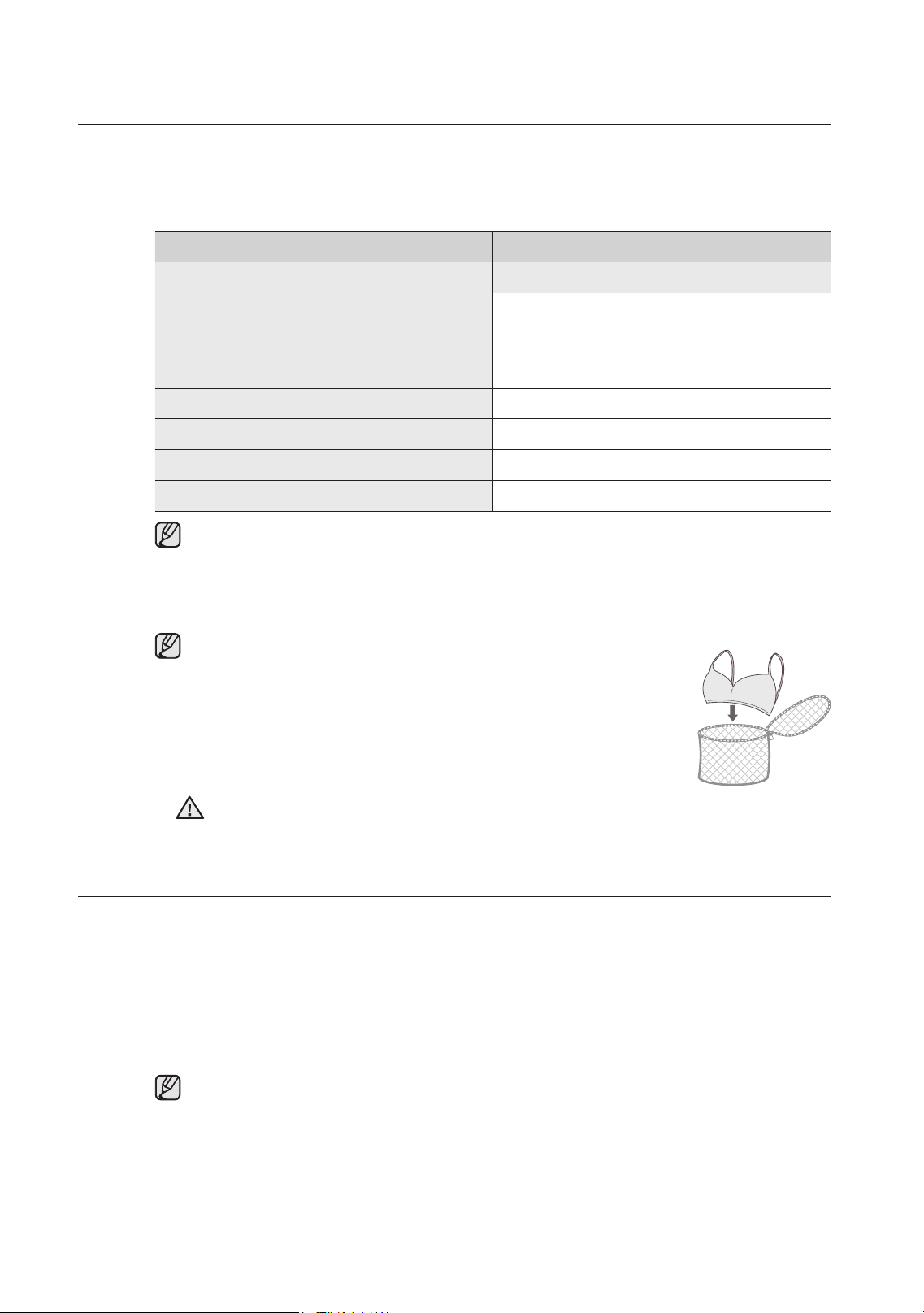

Do not wash large laundry items such as bedding in the washing net.
- Place socks and brassieres into the washing net and wash them with the other laundry.
- Failure to do so may result in injury due to abnormal vibrations.
Do not use hardened detergent.
- If it accumulates inside the washer, it may result in water leakage.
For washing machines with ventilation openings in the base, ensure that the opening is not
obstructed by carpet or any other obstacles.
Make sure that the pockets of all clothing to be washed are empty.
- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Do not wash clothing with large buckles, buttons, or other heavy metal.
SEVEREWARNINGSIGNSFORCLEANING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failure to do so may result in electric shock or fire.
WARNING
WF0704W7-02875A_EN.indd 11 2011-2-21 15:37:17
12_ contents
contents
SETTING UP YOUR WASHING
MACHINE
13
13 Checking the parts
14 Meeting installation requirements
14 Electrical supply and grounding
14 Water Supply
15 Drain
15 Flooring
15 Surrounding temperature
15 Alcove or closet installation
15 Installing your washing machine
WASHING A LOAD OF LAUNDRY
21
21 Washing for the first time
21 Basic instructions
22 Using the control panel

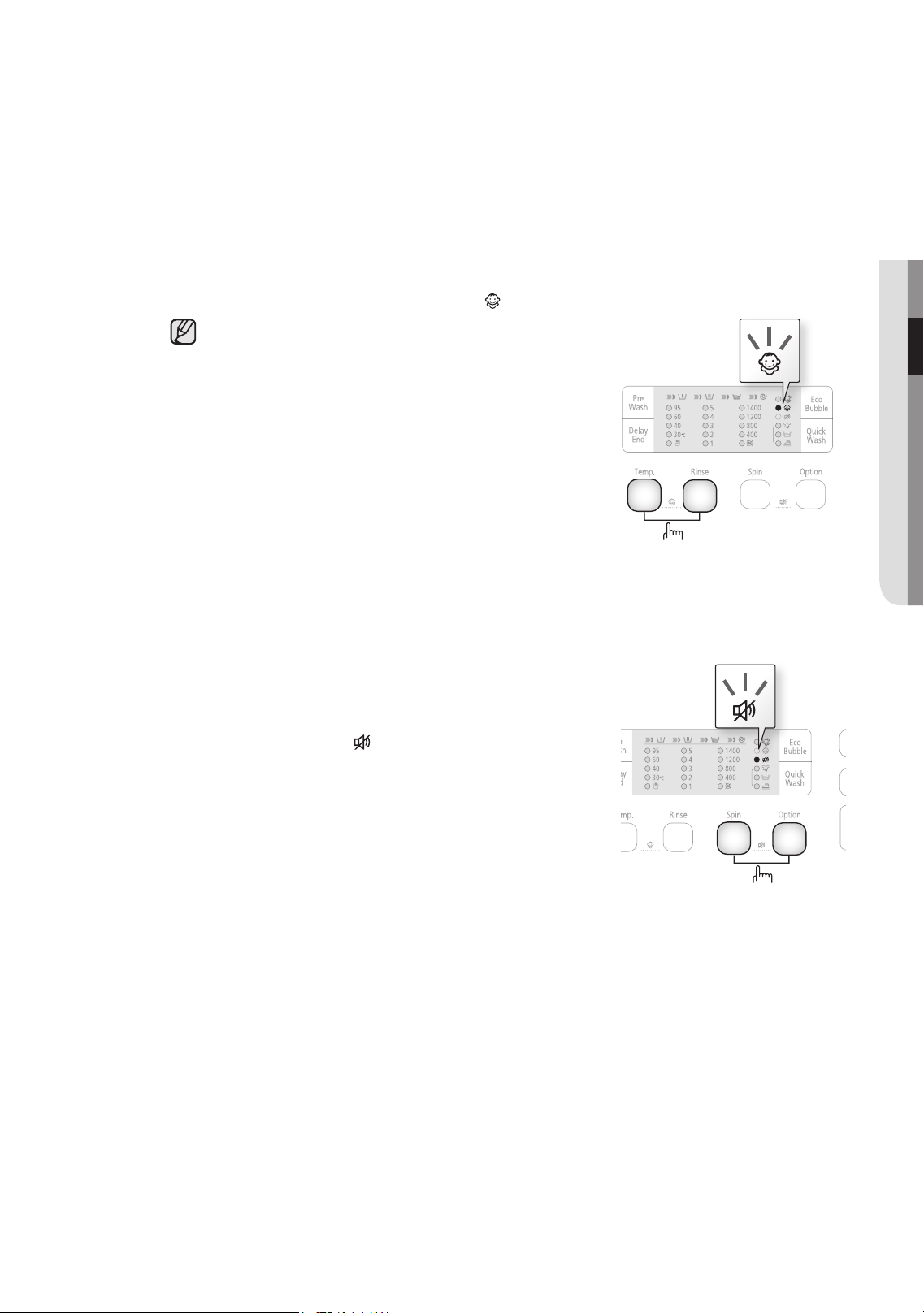

25 Child lock
25 Sound off
26 Delay end
26 My cycle
27 Eco Bubble
28 Washing clothes using the cycle selector
29 Washing clothes manually
29 Laundry guidelines
30 Detergent and additives information
30 Which detergent to use
31 Detergent drawer
31 Liquid Detergent (Selected models)
CLEANING AND MAINTAINING YOUR
WASHING MACHINE
32
32 Eco Drum Clean
33 Draining the washing machine in an
emergency
34 Cleaning the debris filter
34 Cleaning the exterior
35 Cleaning the detergent drawer and drawer
recess
35 Cleaning the water hose mesh filter
36 Repairing a frozen washing machine
36 Storing your washing machine
TROUBLESHOOTING AND
INFORMATION CODES
37
37 Check these points if your washing machine...
38 Information codes
CYCLE CHART
39
39 Cycle chart
APPENDIX
40
40 Fabric care chart
40 Protecting the environment
40 Declaration of conformity
41 Specifications
WF0704W7-02875A_EN.indd 12 2011-2-21 15:37:17
setting up your washing machine _13
01SETTINGUP
setting up your washing
machine
Be sure to have your installer follow these instructions closely so that your new
washing machine works properly and so that you’re not at risk of injury when doing
laundry.

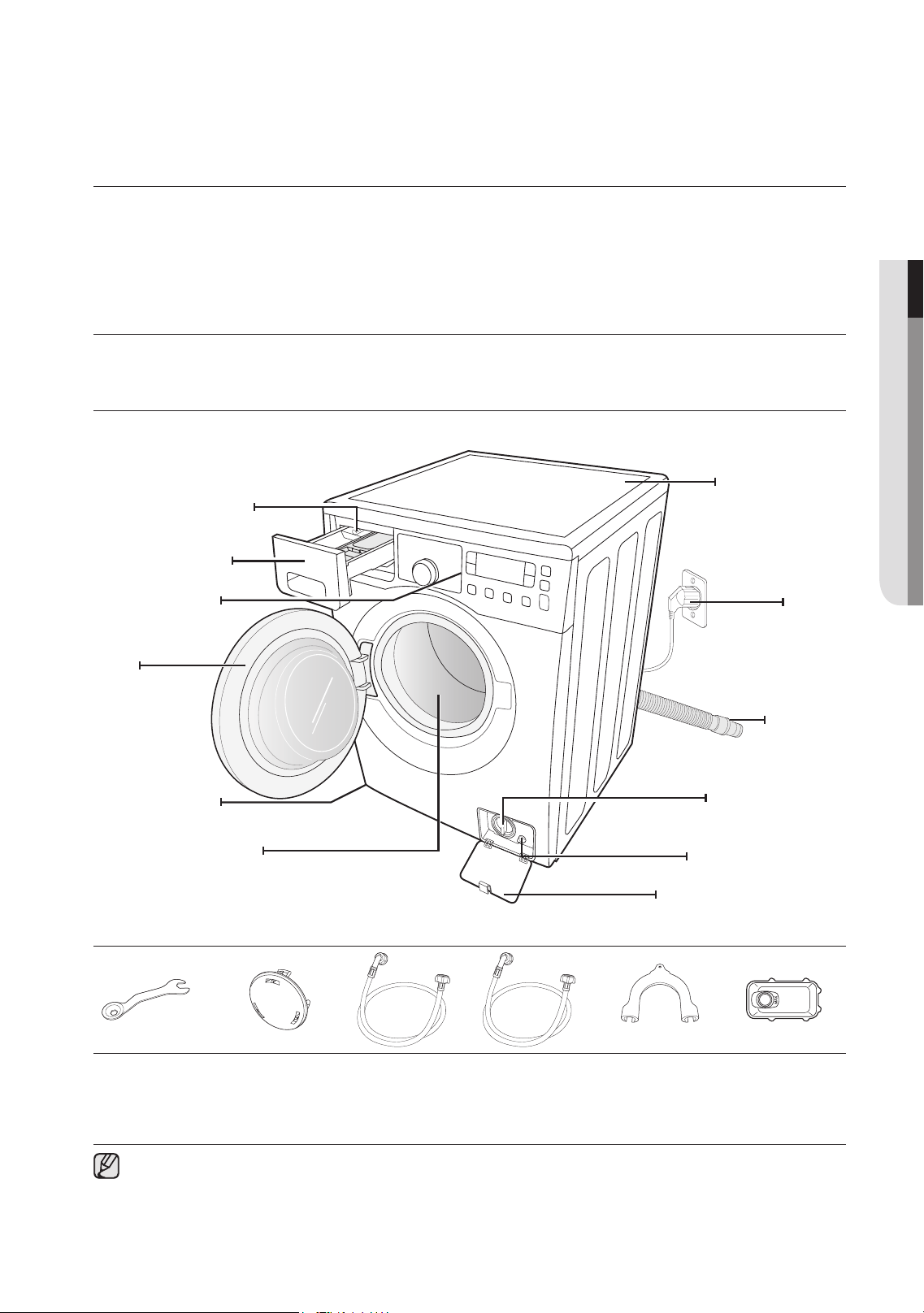

CHECKINGTHEPARTS
Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below.
If your washing machine was damaged during shipping, or if you do not have all of the parts, contact
Samsung Customer Service or your Samsung dealer.
Spanner
*Bolthole
covers
Cold
Hot
(Selected
model)
Hoseguide
Liquid
detergentbox
(Selected
model)
Watersupplyhose
*Boltholecovers : The number of bolt hole covers depends on the model (3~5 covers).
Detergentdrawer
Controlpanel
Door
Levellingfeet
Worktop
Plug
Drainhose
Debrislter
Emergencydraintube
FilterCover
Tub
Releaselever
WF0704W7-02875A_EN.indd 13 2011-2-21 15:37:18
14_ setting up your washing machine
setting up your washing
machine
MEETINGINSTALLATIONREQUIREMENTS
Electricalsupplyandgrounding
Never use an extension cord.
Use only the power cord that comes with your washing machine.
When preparing for installation, ensure that your power supply offers:
• AC 220-240V / 50Hz fuse or circuit breaker
• Individual branch circuit serving only your washing machine
Your washing machine must be grounded. If your washing machine malfunctions or breaks
down, grounding will reduce the risk of electric shock by providing a path of least resistance for
the electric current.
Your washing machine comes with a power cord having a three-prong grounding plug for use in
a properly installed and grounded outlet.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Improperly connecting the equipment-grounding conductor can result in electric shock.
Check with a qualified electrician or serviceman if you are unsure if the washing machine is
properly grounded. Do not modify the plug provided with the washing machine. If it does not fit
the outlet, have a proper outlet installed by a qualified electrician.
WaterSupply
Your washing machine will fill properly when your water pressure is 50 kPa ~ 800 kPa. Water
pressure less than 50 kPa may cause water valve failure, not allowing the water valve to shut
off completely. Or, it may take the washing machine longer to fill than what the controls allow,
resulting in your washing machine turning off. (A fill-time limit, designed to prevent overflows/
flooding if an internal hose becomes loose, is built into the controls.)
The water taps must be within 120cm of the back of your washing machine for the provided inlet
hoses provided to reach your washing machine.
Most plumbing supply stores sell inlet hoses of various lengths up to 305 cm long.
You can reduce the risk of leaks and water damage by:
• Makingwatertapseasilyaccessible.
• Turningofftapswhenthewashingmachineisnotinuse.
• Periodicallycheckingforleaksatwaterinlethosettings.
Before using your washing machine for the first time, check all connections at the water
valve and taps for leaks.
WARNING
WARNING
WF0704W7-02875A_EN.indd 14 2011-2-21 15:37:18
setting up your washing machine _15
01SETTINGUP
Drain
Samsung recommends a standpipe height of 65cm. The drain hose must be routed through
the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside
diameter of the drain hose. The drain hose is attached at the factory.
Flooring
For best performance, your washing machine must be installed on a solidly constructed floor.
Wood floors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting
and soft tile surfaces are contributing factors to vibrations and the tendency for your washing
machine to move slightly during the spin cycle.
Never install your washing machine on a platform or poorly supported structure.
Surroundingtemperature
Do not install your washing machine in areas where water may freeze, since your washing
machine always retains some water in its water valve, pump, and hose areas. Frozen water in
the lines can cause damage to belts, the pump, and other components.
Alcoveorclosetinstallation
To operate safely and properly, your new washing machine requires minimum clearances of:
Sides – 25 mm Rear – 50 mm
Top – 25 mm Front – 465 mm
If both the washing machine and a dryer are installed together, the front of the alcove or closet
must have at least 465 mm unobstructed air opening. Your washing machine alone does not
require a specific air opening.
INSTALLINGYOURWASHINGMACHINE
STEP 1
Selectingalocation
Before you install the washing machine, make sure the location:
• Hasahard,levelsurfacewithoutcarpetingorooringthatmayobstructventilation
• Isawayfromdirectsunlight
• Hasadequateventilation
• Willnotbefreezing(below0˚C)
• Isawayfromheatsourcessuchasoilorgas
• Hasenoughspacesothatthewashingmachinedoesn’tstandonitspowercord
WF0704W7-02875A_EN.indd 15 2011-2-21 15:37:18
16_ setting up your washing machine
STEP 2

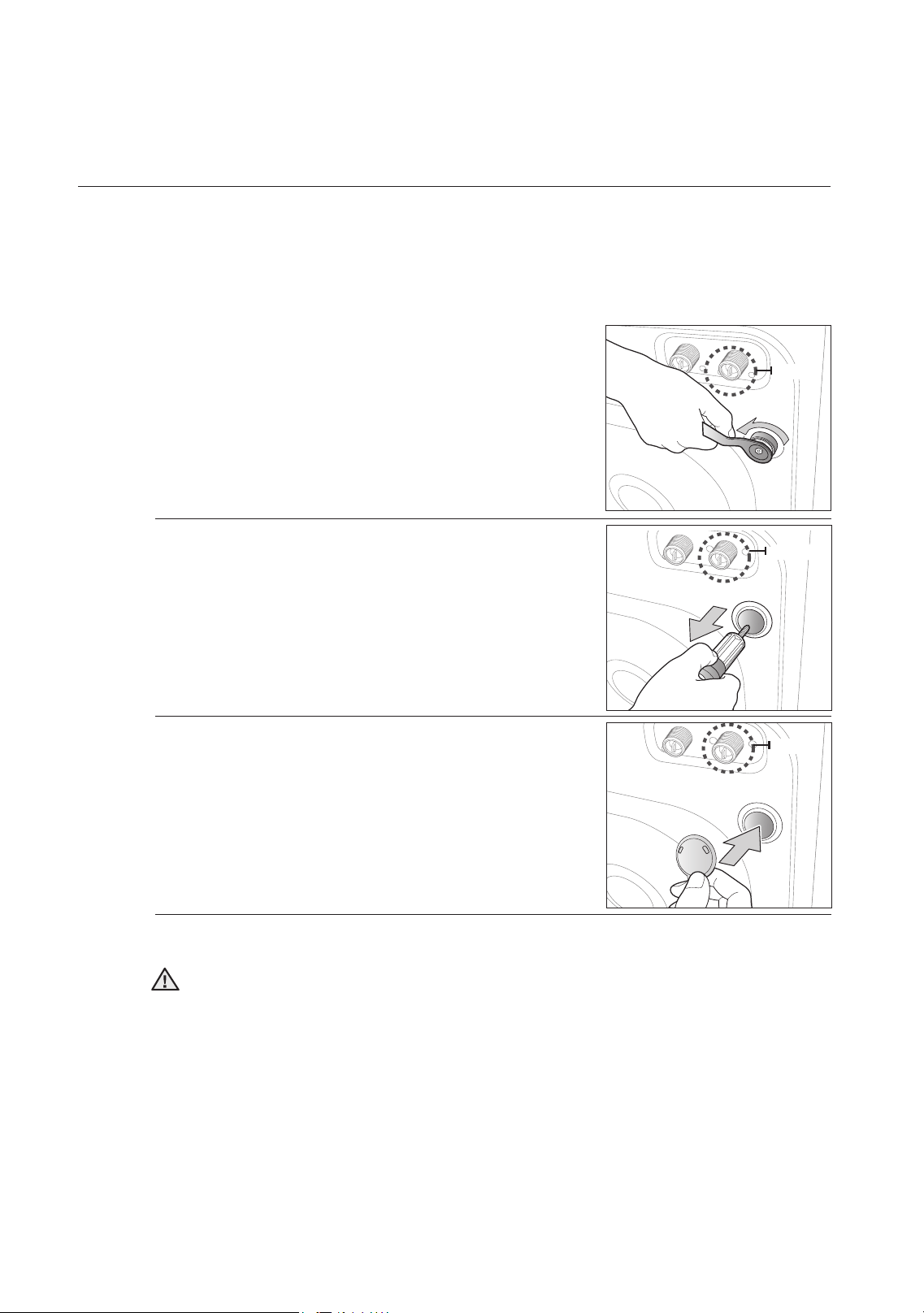

Removingtheshippingbolts
Before installing the washing machine, you must remove all shipping bolts from the back of the
unit.
1. Loosen all the bolts with the supplied wrench.
2. Hold the bolt with the spanner and pull it through the wide
section of the hole. Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Store the shipping bolts away safely in case you have to move the washing machine in the
future.
Packaging materials can be dangerous to children; keep all packaging material (plastic
bags, polystyrene, etc.) well out of the reach of children.
setting up your washing
machine
WARNING
Option
Option
Option
WF0704W7-02875A_EN.indd 16 2011-2-21 15:37:19
setting up your washing machine _17
01SETTINGUP
STEP 3
AdjustingtheLevellingfeet
When installing your washing machine, ensure that the power plug, the water supply and
the drain are easily accessible.
1. Slide the washing machine into position.
2. Level your washing
machine by turning the
levelling feet in and out as
necessary by hand.
3. When your washing machine is level, tighten the nuts using
the wrench supplied with your washing machine.
STEP 4
Connectingthewateranddrain
Connecting the water supply hose
1. Take the L-shaped arm fitting for the cold water
supply hose and connect it to the cold water
supply intake on the back of the machine.
Tighten by hand.
The water supply hose must be connected to
the washing machine at one end and to the
water tap at the other. Do not stretch the water
supply hose. If the hose is too short, replace
the hose with a longer, high pressure hose.
2. Connect the other end of the cold water supply
hose to your sink’s cold water tap and tighten
it by hand. If necessary, you can reposition the
water supply hose at the washing machine end
by loosening the fitting, rotating the hose, and
retightening the fitting.
Forselectedmodelswithanadditionalhotwater
intake:
1. Take the red L-shaped arm fitting for the hot water supply hose and connect it to the hot
water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink’s hot water tap and tighten
it by hand.
3. Use a Y-piece if you only want to use cold water.
Option
WF0704W7-02875A_EN.indd 17 2011-2-21 15:37:21
18_ setting up your washing machine
setting up your washing
machine
Connecting the water supply hose
1. Remove the adaptor from the water supply hose.
2. First, using a ‘+’ type screwdriver, loosen the four screws
on the adaptor. Next, take the adaptor and turn part (2)
following the arrow until there is a 5 mm gap.
3. Connect the adaptor to the water tap by tightening the
screws firmly while lifting the adaptor upwards.
Turn part (2) following the arrow and connect (1) and (2).
4. Connect the water supply hose to the adaptor.
When you release part (3), the hose automatically
connects to the adaptor making a ‘click’ sound.
After you have connected the water supply
hose to the adaptor, ensure that it is connected
correctly by pulling the water supply hose
downwards.
5. Connect the other end of the water supply hose to the inlet
water valve at the rear of the washing machine. Screw the
hose clockwise all the way in.
Adaptor
Watersupply
hose
1
2
5mm
1
2
Watertap
Option
3
WF0704W7-02875A_EN.indd 18 2011-2-21 15:37:22
setting up your washing machine _19
01SETTINGUP
6. Turn on the water supply and ensure that no water leaks
from the water valve, tap or adaptor. If there is a water
leaks, repeat the previous steps.
Do not use your washing machine if there is a water leak.
This may cause electric shock or injury.
• If the water tap has a screw type tap, connect the water
supply hose to the tap as shown.
Use the most conventional type of tap for the water supply. In case the tap is square or too
big, remove the spacing ring before inserting the tap into the adaptor.
Connecting the Aqua Hose (Selected models)
The Aqua Hose was invented for perfect leakage protection.
It is attached to the water supply hose and automatically cuts
off the water flow if the hose is damaged. It also displays a
warning indicator.
• Connect the water supply hose to the tap as shown.
✗
✗
WARNING
WF0704W7-02875A_EN.indd 19 2011-2-21 15:37:23
20_ setting up your washing machine
setting up your washing
machine
Connecting the drain hose
The end of the drain hose can be positioned in three ways:
1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60
and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure
the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose
from moving.
2. ln a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that
the end of the hose is at least 60 cm above the ground.
3. ln a drain pipe: We recommend using a 65 cm high vertical pipe; it must be no shorter than
60 cm and no longer than 90 cm.
The standpipe drain requires;
• minimumdiameter5cm.
• minimumcarry-awaycapacity60literperminute.
STEP 5
Poweringyourwashingmachine
Plug the power cord into a wall sockets, an AC 220-240V / 50Hz approved electrical outlet
protected by a fuse or circuit breaker. (For more information on electrical and grounding
requirements, see page 14.)
Drainhose
Hoseguide
60 ~ 90 cm
60 ~ 90 cm
WF0704W7-02875A_EN.indd 20 2011-2-21 15:37:24
washing a load of laundry _21
02WASHINGALOADOFLAUNDRY
washing a load of laundry
With your new Samsung washing machine, the hardest part of doing laundry will be
deciding which load to wash first.
WASHINGFORTHEFIRSTTIME
Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).
1. Press the Power button.
2. Add a little detergent to the detergent compartment in
the detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Start/Pause button.
This will remove any water that might be left over in the
machine from the manufacturer’s test run.
Compartment : Detergent for prewash, or starch.
Compartment : Detergent for the main wash, water softener, pre-soaking agent, bleach and
stain removal product.
To use liquid detergent, use the liquid detergent box (refer to page 31 of the manual for the
corresponding model). Do not add powdered detergent into the liquid detergent box.
Compartment : Additives, e.g. fabric softener or former (fill no higher than lower edge (MAX)
of “A”)
BASICINSTRUCTIONS
1. Load your laundry into the washing machine.
Do not overload the washing machine. To determine the load capacity for each type of
laundry, refer to the chart on page 30.
• Makesurethatlaundryisnotcaughtinthedoor,asthismaycauseawaterleak.
• Washingdetergentmayremaininthefrontrubberpartofthewasherafterawashcycle.
Remove any remaining detergent, as they may cause a water leak.
• Donottouchthedoorglasswhileyourwashingmachineisrunningoritmaybehot.
• Donotopenthedetergentdrawerorthedebrislterwhileyourwashingmachineis
running or you might be exposed to hot water or steam.
• Donotwashwater-proofeditemsinnormalcycleexceptoutdoorcareprogram.
2. Close the door until it latches.
3. Turn the power on.
4. Add detergent and additives to the dispenser drawer.
5. Select the appropriate cycle and options for the load.
The Wash Indicator light will illuminate and the estimated cycle time will appear in the display.
6. Press the Start/Pause button.
WARNING
WF0704W7-02875A_EN.indd 21 2011-2-21 15:37:26
22_ washing a load of laundry
USINGTHECONTROLPANEL
DIGITAL GRAPHIC
DISPLAY
Displays the remaining wash cycle time, all cycle information, and error
messages.
CYCLE SELECTOR
Select the tumble pattern and spin speed for the cycle.
For detailed information, refer to “Washing clothes using the cycle
selector”. (see page 28)
Cotton - For average or lightly soiled cottons, bed linen, table linen,
underwear, towels, shirts, etc.
Synthetics - For averagely or lightly soiled blouses, shirts, etc., made
of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar
blends.
Denim - A higher water level in the main wash and extra rinse ensure
that no washing powder remains that may mark your clothing.
Bedding - For bed spread, bed sheet, duvet cover etc.
Wash under 1.8kg and only 1 kind of bedding to achieve the best
result.
DarkGarment - Additional rinses and reduced spinning ensure that your
favourite dark clothes are washed gently and rinsed thoroughly.
DailyWash - Use for everyday items such as underwear and shirts.
EcoDrumClean - Use for drum cleaning. It cleanses dirt and bacteria
of drum. Regular use (after every 40 washes) is recommended. No
detergent or bleach needed.
SuperEcoWash - Low temperature Eco Bubble ensures that you
achieve perfect wash results while allowing effective energy saving.
OutdoorCare - Use for outdoor wear such as mountain clothes,
skiwear, and sports wear. Fabrics include functional technology finishes
and fibers such as spandex, stretch, and micro-fiber.
BabyCare - High temperature wash and extra rinses ensure that no
washing powder remains to mark your thin clothes.
washing a load of laundry
543
6 8 97 1110 12
1 2
1
13
1
2
WF0704W7-02875A_EN.indd 22 2011-2-21 15:37:26
washing a load of laundry _23
02WASHINGALOADOFLAUNDRY
Wool -
Only for machine-washable wool. A load should be less than 2.0 kg.
• The wool course washes the laundry using gentle cradling actions.
During the wash, the gentle cradling and soaking actions are
continued to protect the wool fibers from shrinkage / distortion and
for a super gentle clean. This stop operation is not a problem.
• Neutral detergent is recommended for wool course, for improved
washing results and for improved care of the wool fibers.
The wool wash cycle of this machine has been approved
by Woolmark for the washing of machine-washable
Woolmark products provided that the products are
washed according to the instructions on the garment
label and those issued by the manufacturer of this
washing machine, M1001 (Certificate Number issued by
I.W.S. Nominee Co., Ltd.)
HandWash - A very light wash cycle as gentle as a hand wash.
Spin - Performs an additional spin cycle to remove more water.
Rinse+Spin - Use for a load that needs rinsing only or to add rinse-
added fabric softener to a load.
PREWASH
SELECTION BUTTON
Press this button to select pre-wash. Pre-wash is only available with:
Cotton, Synthetics, Denim, Bedding, Dark Garment, Daily Wash, Baby Care.
DELAY END
SELECTION BUTTON
Press this button repeatedly to cycle through the available Delay End
options (from 3 hours to 19 hours in one hour increments).
The hour displayed indicates the time when the wash cycle will be finished.
TEMPERATURE
SELECTION BUTTON
Press this button repeatedly to cycle through the available water
temperature options: (Cold Water ,30˚C,40˚C,60˚Cand95˚C).
RINSE SELECTION
BUTTON
Press this button to add additional rinse cycles. The maximum number
of rinse cycles is five.
SPIN SELECTION
BUTTON
Press the button repeatedly to cycle through the available speeds for the
spin cycle.
WF0704
, 400, 800, 1200, 1400 rpm
WF0702
, 400, 800, 1000, 1200 rpm
“No spin ” - The laundry remains in the drum and no spin cycle is
performed after the final drain.
OPTION SELECTION
BUTTON
Press this button repeatedly to cycle through the options:
Easy Iron Soak Intensive Easy Iron + Soak Easy Iron +
Intensive Soak + Intensive Easy Iron + Intensive + Soak off
“Easy Iron”: Use this option to prepare your laundry so that it can be
easily ironed.
“Soak”: Use this option to effectively remove stains from your laundry by
soaking your laundry.
• The Soak function is performed 13 minutes into the wash cycle.
• The Soak function continues for 30 minutes with six cycles, where
one cycle is a soak cycle that spins for 1 minute and stands still for 4
minutes.
• The Soak function is only available for the following wash programs:
Cotton, Synthetics, Denim, Bedding, Daily Wash, Baby Care.
“Intensive”: Press this button when the laundry is heavily soiled and
needs to be washed intensively. The cycle time is increased for each
cycle.
3
4
5
6
7
8
WF0704W7-02875A_EN.indd 23 2011-2-21 15:37:27
24_ washing a load of laundry
washing a load of laundry
QUICK WASH
SELECTION BUTTON
For lightly soiled garments and less than 2kg laundry that you require
quickly. It takes about minimum 15 minute, but can vary from the
indicated values depending on water pressure, water hardness, water
inlet temperature, room temperature, type and amount of washing and
degree of soiling, utilized detergent unbalaced load, fluctuation in the
electricity supply and extra options selected.
• Press this button repeatedly to choose cycle time: 15min 20min
30min 40min 50min 60min Off
Powdered/Liquid detergent should be under 20g(for 2kg load) or
detergent may remain on the clothes.
ECO BUBBLE
SELECTION BUTTON
Eco Bubble selection is turned on as a default. Press the Eco Bubble
option button once to deselect and the Bubble Generator OFF (shown
on the panel), press it again to turn the function back ON.
• Some wash cycles must have Eco Bubble option ON (will show on
the panel, and the Generator will turn on automatically).
• Other wash cycles do not need this option and automatically turn the
Generator OFF.
• On many cycles, you can manually adjust this option, which will
visibly affect wash time on the panel to achieve results (please see
page 27 for more information).
START/PAUSE
SELECTION BUTTON
Press to pause and restart a cycle.
MY CYCLE
SELECTION BUTTON
Choose your favorite cycle including temperature, spin, soil level, option, etc.
POWER BUTTON
Press it once to turn your washing machine on, press it again to turn
your washing machine off.
If the washing machine is left on for more than 10 minutes without any
buttons being touched, the power automatically turns off.
9
10
11
12
13
WARNING
WF0704W7-02875A_EN.indd 24 2011-2-21 15:37:27
washing a load of laundry _25
02WASHINGALOADOFLAUNDRY
Childlock
The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen
can’t be changed.
Activating/Deactivating
If you want to activate or deactivate the Child Lock function, press the Temp. and Rinse buttons
at the same time for 3 seconds. “Child Lock ” will be lit when this feature is activated.
When the Child Lock function is activated, only the
Power button works. The Child Lock function remains
on even after the power is turned on and off or after the
disconnecting and reconnecting the power cord.
Soundoff
The Sound Off function can be selected during all courses. When this function is selected, sound
is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is
retained.
Activating/Deactivating
If you want to activate or deactivate the Sound Off function,
press the Spin and Option buttons at the same time for 3
seconds. The “Sound Off ” will be lit when this feature is
activated.
3SEC.
3SEC.
WF0704W7-02875A_EN.indd 25 2011-2-21 15:37:29
26_ washing a load of laundry
Delayend
You can set the washing machine to finish your wash automatically at a later time, choosing a
delay of between 3 to 19 hours (in 1 hour increments). The hour displayed indicates the time at
which the wash will be finished.
1. Manually or automatically set your washing machine according to the type of laundry you are
washing.
2. Press the Delay End button repeatedly until the delay time is set.
3. Press the Start/Pause button. The “Delay End ” indicator will be lit, and the clock will
begin counting down until it reaches the set time.
4. To cancel a Delay End function, press the Power button and then turn the washing machine
on again.
Mycycle
Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one button
convenience.
By pushing the My Cycle button, press the My Cycle button to load and use the saved My
Cycle options. The chosen course and option lights will flicker.
You can set all options as follows in the My Cycle mode.
1. Turn the water supply on.
2. Press the Power button.
3. Select cycle using the Cycle Selector.
4. After cycle selection, set each option.
See the “Cycle Chart” on page 39 for available option settings with each cycle.
5. You can then store the selected cycle and options by pressing and holding the My Cycle
button for longer than 3 seconds in My Cycle mode. The cycle and options you select will be
displayed the next time you choose the My Cycle function.
You can change the My Cycle settings by repeating the same process above.
The last used setting will be displayed the next time you choose the My Cycle function.
If you press My Cycle and release it within 3 seconds, the previously saved course and
options appear. If you press and hold My Cycle for 3 second or longer, the currently set
course and options are saved and the LED blinks for 3 seconds.
washing a load of laundry
WF0704W7-02875A_EN.indd 26 2011-2-21 15:37:30
washing a load of laundry _27
02WASHINGALOADOFLAUNDRY
EcoBubble
Eco Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.
The bubble function is available in all courses except for Eco Drum Clean course and the
function availability is as follows.
Course Bubble function Canceling the bubble function
Cotton, Synthetics, Denim, Bedding,
Dark Garment, Daily Wash
Available
Available
Super Eco Wash, Outdoor Care,
Baby Care, Wool, Hand Wash
Not available
Eco Drum Clean Not available -
• Adifferentbubblefunctionmaybeapplieddependingthecourse.
Eco Bubble selection is default. Press it once to deselect bubble option, press it again to
select bubble option.
1. Open the door, place the laundry inside the wash tub and close the door.
2. Press the Power button.
3. Select a function.
4. Place the appropriate amount of detergent and fabric
softener into the corresponding compartments depending
on the amount of laundry and close the detergent drawer.
• Add the appropriate amount of detergent into the
detergent compartment , and add the fabric softener
to softener compartment just under the fiber softener
base line (MAX) of “A”)
• When the Prewash course is selected, add detergent
into the prewash compartment as well.
• To use liquid detergent, leave the liquid detergent box in the drawer(refer to “Liquid
Detergent” section on page 31).
Do not add powdered detergent into the liquid detergent box.
5. Press the Start/Pause button.
• Press the Start/Pause button to start the wash.
• The amount of the laundry is automatically detected and the laundry is washed.
• Once a washing machine operation begins, you cannot add or select the bubble function.
• Enoughbubblesaregeneratedwiththespeciedamountofdetergent.
• PleasecleantheDebrislterfrequently.Periodiccleaninghelpsgeneratesufcient
bubbles.
• Dependingonthedetergentandthelaundry,thebubblesmaybeabsorbedandseem
like a small quantity.
• Althoughbubblesaregeneratedoncethewashbegins,itmaytakeseveralminutesfor
users to see them.
WF0704W7-02875A_EN.indd 27 2011-2-21 15:37:30
28_ washing a load of laundry
Washingclothesusingthecycleselector
Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control”
automatic control system. When you select a wash program, the machine will set the correct
temperature, washing time, and washing speed.
1. Turn on your sink’s water tap.
2. Press the Power button.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling it.
5. Close the door.
6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate
compartments.
Pre-wash is only available when selecting the Cotton, Synthetics, Denim, Bedding, Dark
Garment, Daily Wash, Baby care cycles. It is only necessary if your clothing is heavily soiled.
7.
Use the Cycle Selector to select the appropriate cycle according to the type of material:
Cotton, Synthetics, Denim, Bedding, Dark Garment, Daily Wash, Super Eco Wash, Outdoor
Care, Baby Care, Wool, Hand Wash. The relevant indicators will illuminate on the control panel.
8. At this time, you can control the wash temperature, the amount of rinses, the spinning
speed, and the delay time by pressing the appropriate option button.
9. Press the Start/Pause button and the wash will begin. The process indicator will light up
and the remaining time for the cycle will appear in the display.
PauseOption
Within 5 minutes of starting a wash, it is possible to add/remove laundry items.
1. Press the Start/Pause button to unlock the door.
The door cannot be opened when the water is too HOT or the water level is too HIGH.
2. After closing the door, press the Start/Pause button to restart the wash.
Whenthecycleisnished:
After the total cycle has finished, the power will turn off automatically.
1. Open the door.
2. Remove laundry.
washing a load of laundry
WF0704W7-02875A_EN.indd 28 2011-2-21 15:37:31
washing a load of laundry _29
02WASHINGALOADOFLAUNDRY
Washingclothesmanually
You can wash clothes manually without using the Cycle Selector.
1. Turn the water supply on.
2. Press the Power button on the washing machine.
3. Open the door.
4. Load the articles loosely into the drum one at a time, without overfilling it.
5. Close the door.
6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate
compartments.
7. Press the Temp.buttontoselectthetemperature.(Coldwater,30˚C,40˚C,60˚C,95˚C)
8. Press the Rinse button to select the required number of rinse cycles.
The maximum number of rinse cycles is five.
The wash duration is increased accordingly.
9. Press the Spin button to select the spin speed.( : No Spin)
10. Press the Delay End button repeatedly to cycle through the available Delay End options
(from 3 hour to 19 hours in one hour increments). The hour displayed indicates the time at
which the wash will be finished.
11. Press the Start/Pause button and the machine will begin the cycle.
LAUNDRYGUIDELINES
Follow these simple guidelines for the cleanest laundry and the most efficient wash.
Always check the Care label on clothing before washing.
Sortandwashyourlaundryaccordingtothefollowingcriteria:
• Care Label: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayons.
• Colour: Divide whites and colours. Wash new colour items separately.
• Size: Placing items of different sizes in the same load will improve the wash action.
• Sensitivity: Wash delicate items separately, using the Delicate wash cycle for pure, new
woollen items, curtains and silk articles. Check the labels on the items you are washing or
refer to the fabric care chart in the appendix.
Emptyingpockets
Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects,
such as coins, knives, pins, and paperclips could damage your washing machine. Do not wash
clothing with large buckles, buttons, or other heavy metal objects.
Metal on clothing may damage your clothing as well as the tub. Turn clothing with buttons and
embroidered clothes inside out before washing them. If zips of pants and jackets are open while
washing, the spin basket may be damaged. Zips should be closed and fixed with a string before
washing.
Clothing with long strings may become entangled with other clothes damaging them. Be sure to
fix the strings before starting the wash.
Prewashingcotton
Your new washing machine, combined with modern detergents, will give perfect washing results,
thus saving energy, time, water and detergent. However, if your cotton is particularly dirty,
prewash with a protein-based detergent.
WF0704W7-02875A_EN.indd 29 2011-2-21 15:37:31
30_ washing a load of laundry
Determiningtheloadcapacity
Do not overload the washing machine or your laundry may not wash properly. Use the chart
below to determine the load capacity for the type of laundry you are washing.
Fabric Type Load Capacity
Model
WF0704 / WF0702
Cotton
-average/lightlysoiled
-heavilysoiled
7.0 kg
Synthetics 3.0 kg
Denim 3.0 kg
Bedding 1.8 kg
OutdoorWear 2.0 kg
Wool 2.0 kg
• Whenthelaundryisunbalanced(“UE” lights up on the display), redistribute the load.
If the laundry is unbalanced, the spin efficiency may be degraded.
• WhenwashingBeddingorDuvetcover,thewashtimemaybelengthenedorthespin
efficiency may be degraded.
• ForBeddingorDuvetcover,therecommendedloadcapacityis1.8kgorless.
Make sure to insert brassieres (water washable) into a laundry net (to be
purchased additionally).
• Themetalpartsofthebrassieresmaybreakthroughthematerial
and damage the laundry. Therefore make sure to place them inside
a fine laundry net.
• Small,lightclothingsuchassocks,gloves,stockingsand
handkerchiefs may become caught around the door. Place them
inside a fine laundry net.
Do not wash the laundry net by itself without other laundry. This may cause abnormal
vibrations that could move the washing machine and cause an accident resulting in
injury.
DETERGENTANDADDITIVESINFORMATION
Whichdetergenttouse
The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate
items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry
detergent, which is designed for automatic washing machines.
Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the
degree of soiling, and the hardness of the water in your area. If you do not know how hard your
water is, enquire at your local water authority.
Do not use detergent that has hardended or solidified as the detergent may remain in
the rinse cycle. It may cause your washing machine to not rinse properly or result in the
overflow becoming blocked.
washing a load of laundry
CAUTION
WF0704W7-02875A_EN.indd 30 2011-2-21 15:37:31
washing a load of laundry _31
02WASHINGALOADOFLAUNDRY
Detergentdrawer
Your washing machine has separate compartments for dispensing detergent and fabric softener.
Add all laundry additives to the correct compartment before starting your washing machine.
Do not open the detergent drawer while your washing machine is running or you might be
exposed to hot water or steam.
1. Pull out the detergent drawer on the left side of the control
panel.
2. Add the recommended amount of laundry detergent
directly into the detergent compartment before starting
your washing machine.
To use liquid detergent, use the liquid detergent box (refer
to “Liquid Detergent” for the corresponding model).
•
Do not add powdered detergent into the liquid detergent box.
3. Add the recommended amount of fabric softener into the
softener compartment if required. DO NOT exceed the
MAX FILL ( ) line.
Do NOT add any powder/liquid detergent to the softener
compartment ( ).
4. When using the Prewash option, add the recommended
amount of laundry detergent into the prewash
compartment .
When washing large items do NOT use the following
detergetnt types.
• Tabletandcapsuletypedetergents
• Detergentsusingaballandnet
Concentrated or thick fabric softener and conditioner
must be diluted with a little water before being poured
into the dispenser (prevents the overflow from becoming
blocked).
Be careful that the fabric softener does not overflow, when you close the detergent drawer
after adding fabric softener into the rinse detergent compartment.
LiquidDetergent(Selectedmodels)
To use liquid detergent, place the liquid detergent box into the main wash section of the
detergent drawer and pour liquid detergent into the liquid detergent box.
• DO NOT fill above the MAX line.
• Whenusingpowdereddetergent,removetheliquid
detergent box from the detergent drawer. Powdered
detergent will not dispense with liquid detergent box.
• Afterawash,someliquidmayremaininthedetergent
drawer.
MAX
Liquid
detergentbox
CAUTION
WF0704W7-02875A_EN.indd 31 2011-2-21 15:37:32
32_ cleaning and maintaining your washing machine
cleaning and maintaining your
washing machine
Keeping your washing machine clean improves its performance, wards off
unnecessary repairs, and lengthens its life.
ECODRUMCLEAN
This course is a self-cleaning course that removes mold that may occur inside the washing machine.
1. Press the Power button.
2. Turn the Cycle Selector to the ECO Drum Clean course.
• You can only use the Delay End function.
• The water temperature during the ECO Drum Clean is
setto60˚C.
You cannot change the temperature.
3. Place the appropriate amount of cleansing agent into the
detergent compartment and close the detergent drawer
(when cleaning the drum using a cleansing agent).
• Be sure to use the recommended cleansing agent for
cleaning the drum.
• There are powder-type and liquid-type drum cleansing
agents. The liquid-type cleaning agent is only available
with liquid detergent box (option).
4. Press the Start/Pause button.
• If you press the Start/Pause button, the ECO Drum Clean course begins.
• Using the ECO Drum Clean course, you can clean the drum without using a cleansing agent.
• Never use the ECO Drum Clean course when laundry is in the washing machine. This may
result in damage to the texture or a problem with the washing machine.
• IntheECODrumCleancourse,neverusenormaldetergent.
• Useonly1/10oftheamountofthedrumcleansingagentrecommendedbythe
cleansing agent manufacturer.
• Since using a chlorine bleaching agent may discolour the product, be sure to use only
oxygen bleaching agents.
• Powder-type cleansing agent: Use a [powder-type bleaching agent] or a [cleansing agent for
drum cleaning only].
• Liquid-type cleansing agent: Use a [liquid-type oxygen bleaching agent] or a [cleansing agent
for drum cleaning only].
CAUTION
WF0704W7-02875A_EN.indd 32 2011-2-21 15:37:33
cleaning and maintaining your washing machine _33
03CLEANINGANDMAINTAINING
TheECODrumCleanAutoAlarmFunction
• If the “ECO Drum Clean” indicator on the display and the
lamp on the Cycle Selector are lit after a wash, it indicates
that tub (drum) cleaning is required. In this case, remove the
laundry from the washing machine, turn the power on, and
clean the drum by performing the ECO Drum Clean course.
• If you do not perform the ECO Drum Clean course, the
“ECO Drum Clean” indicator on the display and the lamp
on the Cycle Selector are turned off. However, the “ECO
Drum Clean” indicator on the display and the lamp on the
Cycle Selector are turned on again after two washes are
performed. However, this will not result in a problem with the
washing machine.
• Although generally, the ECO Drum Clean Auto Alarm
appears once a month or so, the frequency may differ
depending on the number of times the washing machine is
used.
• Incaseofthealarm,pleasealsocleanthedebrislter
(referto“Cleaningthedebrislter”sectiononpage
34). Otherwise the performance of the bubble function
may lower down.
DRAININGTHEWASHINGMACHINEINANEMERGENCY
1. Unplug the washing machine from the power supply.
2. Open the filter cover by pressing down and pulling its
handle.
3. Open the emergency drain cap by pulling it.
4. Hold the cap on the end of the emergency drain tube and
slowly pull it out about 15 cm.
5. Allow all the water to flow into a bowl.
Remain water maybe more than you expected. Prepare
larger bowl.
6. Reinsert the emergency drain cap and the drain tube.
7. Replace the filter-cover.
Filtercover
Emergency
draintube
Emergency
draincap
WF0704W7-02875A_EN.indd 33 2011-2-21 15:37:35
34_ cleaning and maintaining your washing machine
CLEANINGTHEDEBRISFILTER
We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of “5E” is
displayed. (Refer to “Draining the washing machine in an emergency” in the previous section.)
If foreign substances accumulate debris filter, the performance of the bubble function will be degraded.
Before cleaning the debris filter, make sure to unplug the power cord.
1. Remove the remaining water first (refer to “Draining the
washing machine in an emergency” on page 33.)
If you separate the filter without draining the remaining
water, the remaining water may trickle out.
2. Open the filter cover by using a key or coin.
3. Unscrew the emergency drain cap by turning it to the left
and drain off all the water.
4. Unscrew the debris filter cap.
5. Wash any dirt or other material from the debris filter. Make
sure the drain pump propeller behind the debris filter is not
blocked.
6. Replace the debris filter cap.
7. Replace the filter cover.
Do not open the debris filter cap while the machine is running or hot
water may flow out.
• Makesuretoreplacetheltercapaftertheltercleaning.Ifthelterisoutofthemachine,your
washing machine may malfunction or leak water.
• Theltershouldbefullyassembledaftertheltercleaning.
CLEANINGTHEEXTERIOR
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth using a
nonabrasive household detergent.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water onto the washing machine.
cleaning and maintaining your
washing machine
Debrisltercap
CAUTION
CAUTION
WF0704W7-02875A_EN.indd 34 2011-2-21 15:37:35
cleaning and maintaining your washing machine _35
03CLEANINGANDMAINTAINING
CLEANINGTHEDETERGENTDRAWERANDDRAWERRECESS
1. Press the release lever on the inside of the
detergent drawer and pull the drawer out.
2. Remove the softener divider and the liquid
detergent box(option) from the detergent
drawer.
3. Wash all parts under running water.
4. Clean the drawer recess with an old toothbrush.
5. Replace the softener divider and the liquid detergent box
(option) by pushing it firmly into the drawer.
6. Push the drawer back into place.
7. To remove any remaining detergent, perform a rinse cycle
without any laundry in the drum.
CLEANINGTHEWATERHOSEMESHFILTER
You should clean the water hose mesh filter at least once a year, or when the error message of “4E” is
displayed:
1. Turn off the water supply to the washing machine.
2. Unscrew the hose from the back of the washing machine. To prevent water from gushing out
due to the air pressure in the hose, cover the hose with a cloth.
3. Gently pull out the mesh filter from the end of the hose using a pair of pliers and rinse it under
water until clean. Also clean inside and outside the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Make sure the connections are watertight and turn on the tap.
Releaselever
Softenerdivider
liquiddetergentbox(Option)
WF0704W7-02875A_EN.indd 35 2011-2-21 15:37:38
36_ cleaning and maintaining your washing machine
cleaning and maintaining your
washing machine
REPAIRINGAFROZENWASHINGMACHINE
If the temperature drops below freezing and your washing machine is frozen:
1. Unplug the washing machine.
2. Pour warm water over the tap to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water tap and check if the water supply and drain
are operating normal.
STORINGYOURWASHINGMACHINE
If you need to store your washing machine for an extended time, it’s better to drain and disconnect it.
Washing machines can be damaged if water is left in the hoses and internal components before storage.
1. Select the Cotton cycle and add bleach to the bleach compartment. Then, push the Quick
Wash button and run your washing machine through the cycle without a load.
2. Turn the water taps off and disconnect the inlet hoses.
3. Unplug your washing machine from the electrical outlet, and leave your washing machine
door open to allow air to circulate inside the tumbler.
If your washing machine has been stored in below-freezing temperatures, allow time for any
leftover water in your washing machine to thaw out before using it.
WF0704W7-02875A_EN.indd 36 2011-2-21 15:37:38
troubleshooting and information codes _37
04TROUBLESHOOTING
troubleshooting and
information codes
CHECKTHESEPOINTSIFYOURWASHINGMACHINE...
PROBLEM SOLUTION
Willnotstart • Make sure your washing machine is plugged in.
• Make sure the door is firmly closed.
• Make sure the water source tap(s) are turned on.
• Make sure to press the Start/Pause button.
Hasnowaterornotenough
water
• Turn the water tap on fully.
• Make sure the water source hose is not frozen.
• Straighten the water intake hoses.
• Clean the filter on the water intake hose.
Hasdetergentremainingin
thedetergentdrawerafter
thewashcycleiscomplete
• Make sure your washing machine is running with sufficient water
pressure.
• Make sure the detergent is added to the center of the detergent
drawer.
Vibratesoristoonoisy • Make sure your washing machine is on a level surface. If the surface
is not level, adjust the washing machine feet to level the appliance.
• Make sure that the shipping bolts are removed.
• Make sure your washing machine is not touching any other object.
• Make sure the laundry load is balanced.
Thewashingmachinedoes
notdrainand/orspin
• Straighten the drain hose. Eliminate kinked hoses.
• Make sure the debris filter is not clogged.
Doorislockedshutorwill
notopen.
• The door will not open until 3 minutes after the machine stops or the
power turns off.
If the problem persists, contact your local Samsung Customer Service.
WF0704W7-02875A_EN.indd 37 2011-2-21 15:37:38
38_ troubleshooting and information codes
INFORMATIONCODES
If your washing machine malfunctions, you may see an information code on the display. If this happens,
please check the table below and try the suggested solution before calling Customer Service.
CODE SYMBOL SOLUTION
dE
• Close the door.
• Make sure the door is firmly closed.
4E
• Make sure the source water tap is turned on.
• Check the water pressure.
• Clean the mesh filters of water hose.
5E
• Clean the debris filter.
• Make sure the drainage hose is installed correctly.
• Clean the water hose mesh filter.
UE
• The laundry load is unbalanced. Redistribute the load. If only one item
of clothing needs washing, such as a bathrobe or pair of jeans, the
final spin result might be unsatisfactory and an “UE” error message
will be shown in the display window.
cE/3E/Uc
• Call the after-sales service.
For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung
Service Centre or local Samsung dealer.
troubleshooting and
information codes
WF0704W7-02875A_EN.indd 38 2011-2-21 15:37:38
cycle chart _39
05CYCLECHART
cycle chart
CYCLECHART
( user option)
PROGRAM Max load(kg)
DETERGENT
Max Temp
(
˚C
)
Spin Speed(MAX) rpm
Pre-wash wash Softener WF0704 WF0702
Cotton 7.0
yes
95 1400 1200
Synthetics 3.0
yes
60 1200 1200
Denim 3.0
yes
60 800 800
Bedding 1.8
yes
40 800 800
DarkGarment 4.0
yes
40 1200 1200
DailyWash 3.0
yes
60 1400 1200
EcoDrumClean - - - - 60 400 400
SuperEcoWash 4.0 - yes
40 1200 1200
OutdoorCare 2.0 - yes
40 1200 1200
BabyCare 4.0
yes
95 1400 1200
Wool 2.0 - yes
40 800 800
HandWash 2.0 - yes
40 400 400
PROGRAM Eco Bubble Intensive Soak Easy Iron Delay end Quick Wash
Cycle time
(min)
Cotton
110
Synthetics
- 80
Denim
- 68
Bedding
- 87
DarkGarment
-
- 73
DailyWash
-
- 54
EcoDrumClean - - - -
- 86
SuperEcoWash
-
- 92
OutdoorCare
- - -
- 77
BabyCare
- 133
Wool
- - -
- 55
HandWash
- - -
- 31
1. A cycle with a prewash takes approx. 15 minutes longer.
2. The cycle duration data has been measured under the conditions specified in Standard IEC 60456 / EN
60456.
3. Cotton60˚C+intensive+EcobubbleareprogramsaccordingtoEN60456.
4. Daily Wash : Short program for test institutes.
5. Course time in individual homes may differ from the values given in the table due to variations in the
pressure and temperature of the water supply, the load and the type of laundry.
6. When the Intensive Wash function is selected, the cycle time is increased for each cycle.
WF0704W7-02875A_EN.indd 39 2011-2-21 15:37:39
40_ appendix
appendix
FABRICCARECHART
The following symbols provide garment care directions. The care labels include four symbols in this order:
washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures
consistency among garment manufacturers of domestic and imported items. Follow the care label
directions to maximize garment life and reduce laundery problems.
Resistant material Canbeironedat100˚Cmax
Delicate fabric Do not iron
Itemmaybewashedat95˚C
Can be dry cleaned using any
solvent
Itemmaybewashedat60˚C
Dry clean with perchloride, lighter
fuel, pure alcohol or R113 only
Itemmaybewashedat40˚C
Dry clean with aviation fuel, pure
alcohol or R113 only
Itemmaybewashedat30˚C
Do not dry clean
Item may be hand washed
Dry flat
Dry clean only Can be hung to dry
Can be bleached in cold water Dry on clothes hanger
Do not bleach Tumble dry, normal heat
Canbeironedat200˚Cmax Tumble dry, reduced heat
Canbeironedat150˚Cmax Do not tumble dry
PROTECTINGTHEENVIRONMENT
• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manufactures’ instructions.
• Use stain removal products and bleaches before the wash cycle only when strictly necessary.
• Save water and electricity by only washing full loads (the exact amount depends upon the program
used).
DECLARATIONOFCONFORMITY
This appliance complies with European safety standards, EC directive 93/68 and EN Standard 60335.
WF0704W7-02875A_EN.indd 40 2011-2-21 15:37:43
appendix _41
06APPENDIX
SPECIFICATIONS
TYPE FRONT LOADING WASHING MACHINE
DIMENSIONS
WF0704 / WF0702
W598mm X D600mm X H844mm
WATERPRESSURE
50 kPa ~ 800 kPa
WATERVOLUME
49 ℓ
NETWEIGHT
WF0704 / WF0702
67 kg
WASHANDSPINCAPACITY
7.0 kg
POWER
CONSUMPTION
MODEL
WF0704 / WF0702
WASHING
220 V 150 W
240 V 150 W
WASH AND
HEATING
220 V 2000 W
240 V 2400 W
SPIN
MODEL
WF0704 / WF0702
230V
350 W
PUMPING
34 W
PACKAGEWEIGHT
MODEL
WF0704 / WF0702
PAPER
1.9 kg
PLASTIC
1.2 kg
SPIN
REVOLUTIONS
MODEL
WF0704 WF0702
rpm
1400 1200
The appearance and specifications of the product are subject to change without prior notice for purposes
of product enhancement.
WF0704W7-02875A_EN.indd 41 2011-2-21 15:37:43
memo
WF0704W7-02875A_EN.indd 42 2011-2-21 15:37:43
memo
WF0704W7-02875A_EN.indd 43 2011-2-21 15:37:43
QUESTIONS OR COMMENTS?
Country CALL OR VISIT US ONLINE AT
U.K 0330 SAMSUNG (7267864) www.samsung.com
Code No. DC68-02875A_EN
WF0704W7-02875A_EN.indd 44 2011-2-21 15:37:43
