Sharp CD-DVD500H Audio User Manual

CD-DVD500H

No. S0170CDVD500H

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

IMPORTANT SERVICE NOTES (FOR U.K. ONLY) .......................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

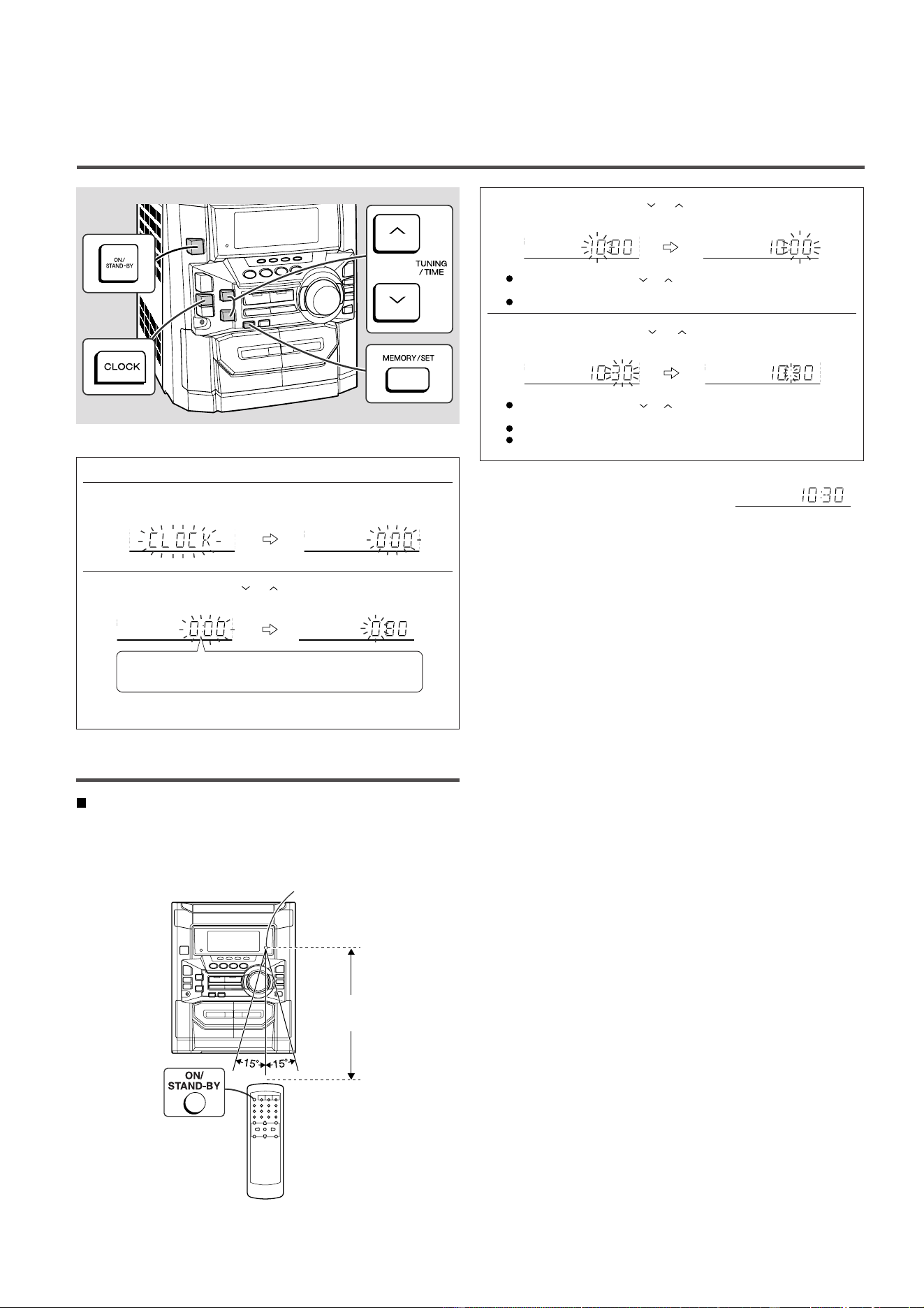

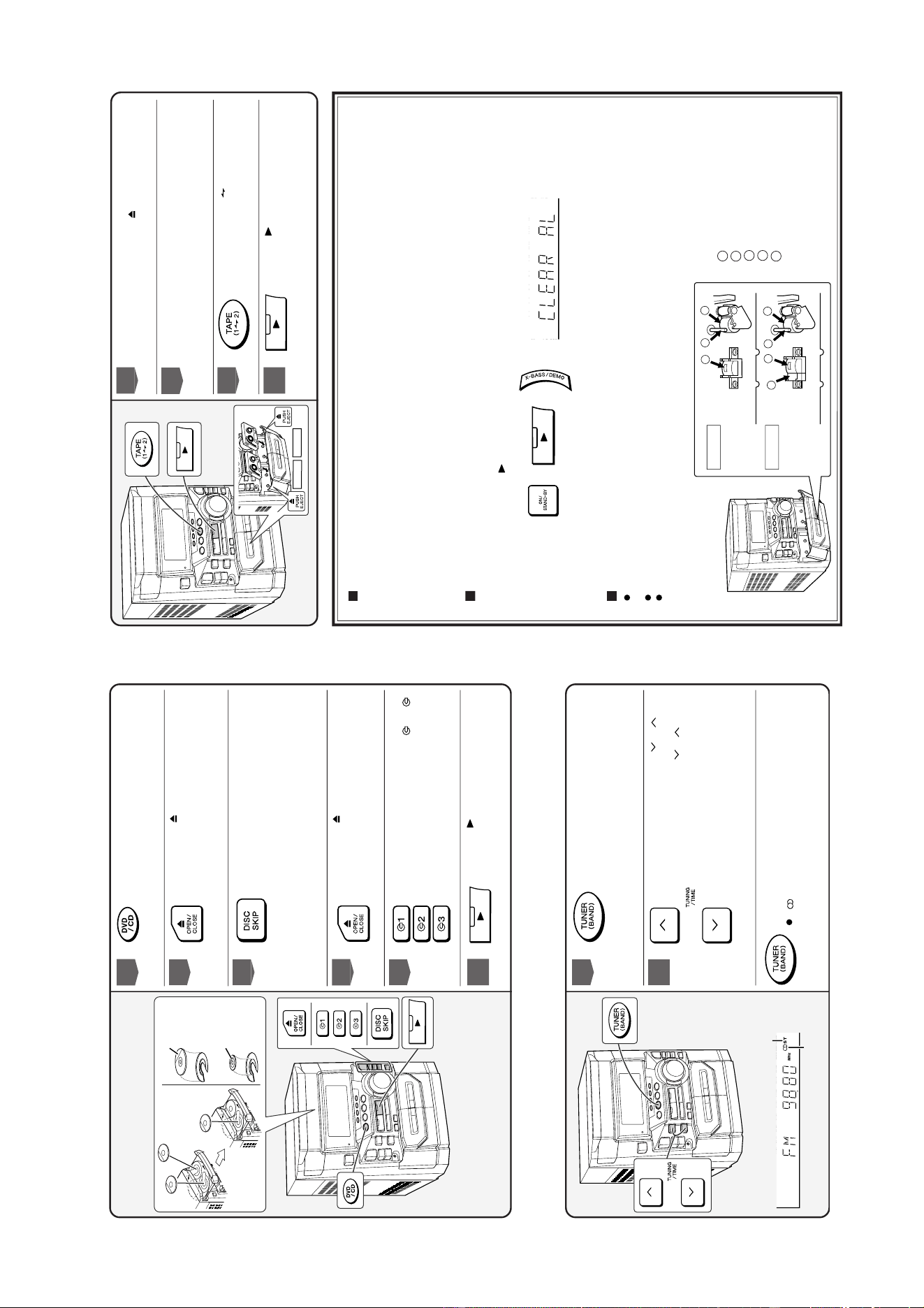

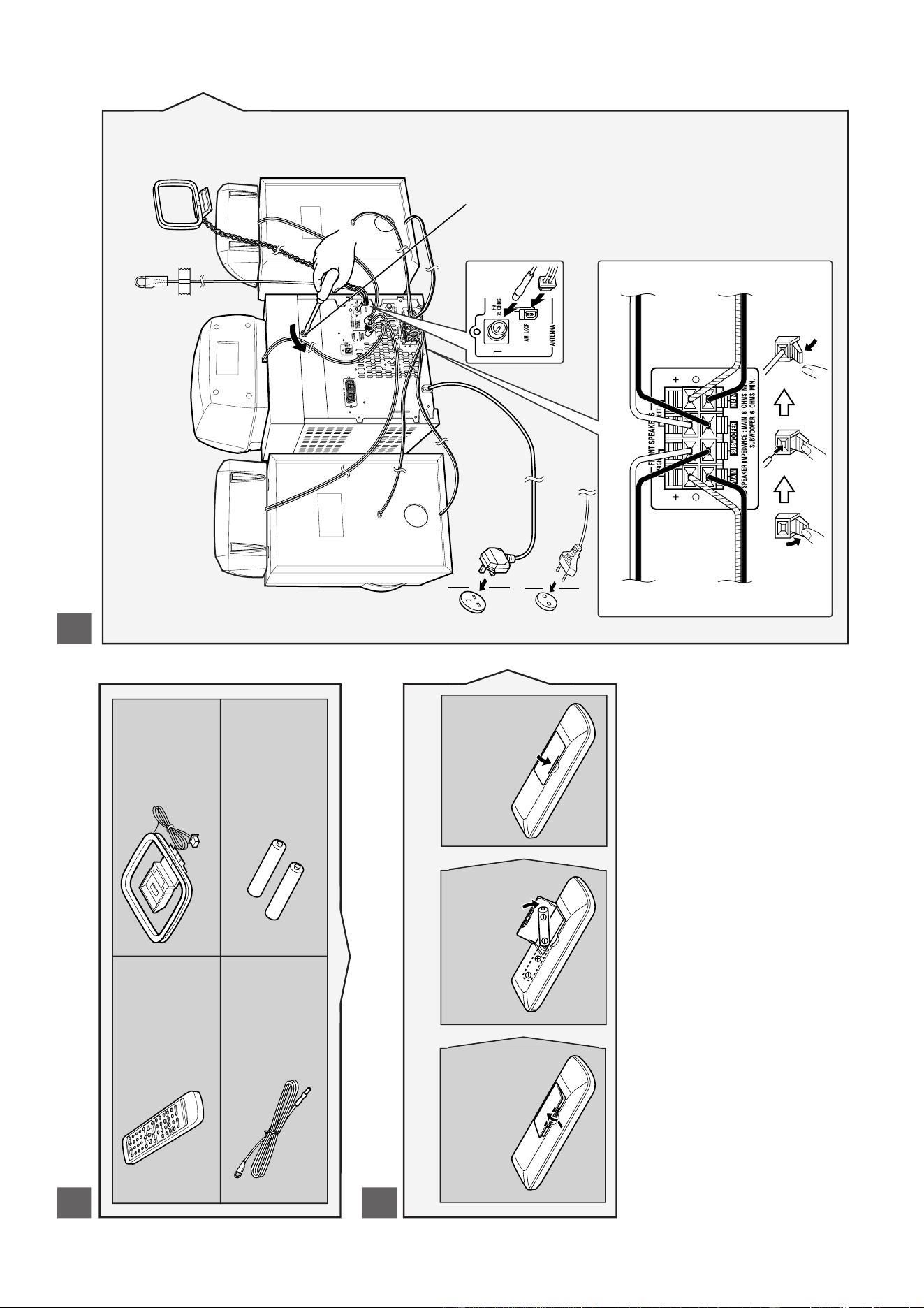

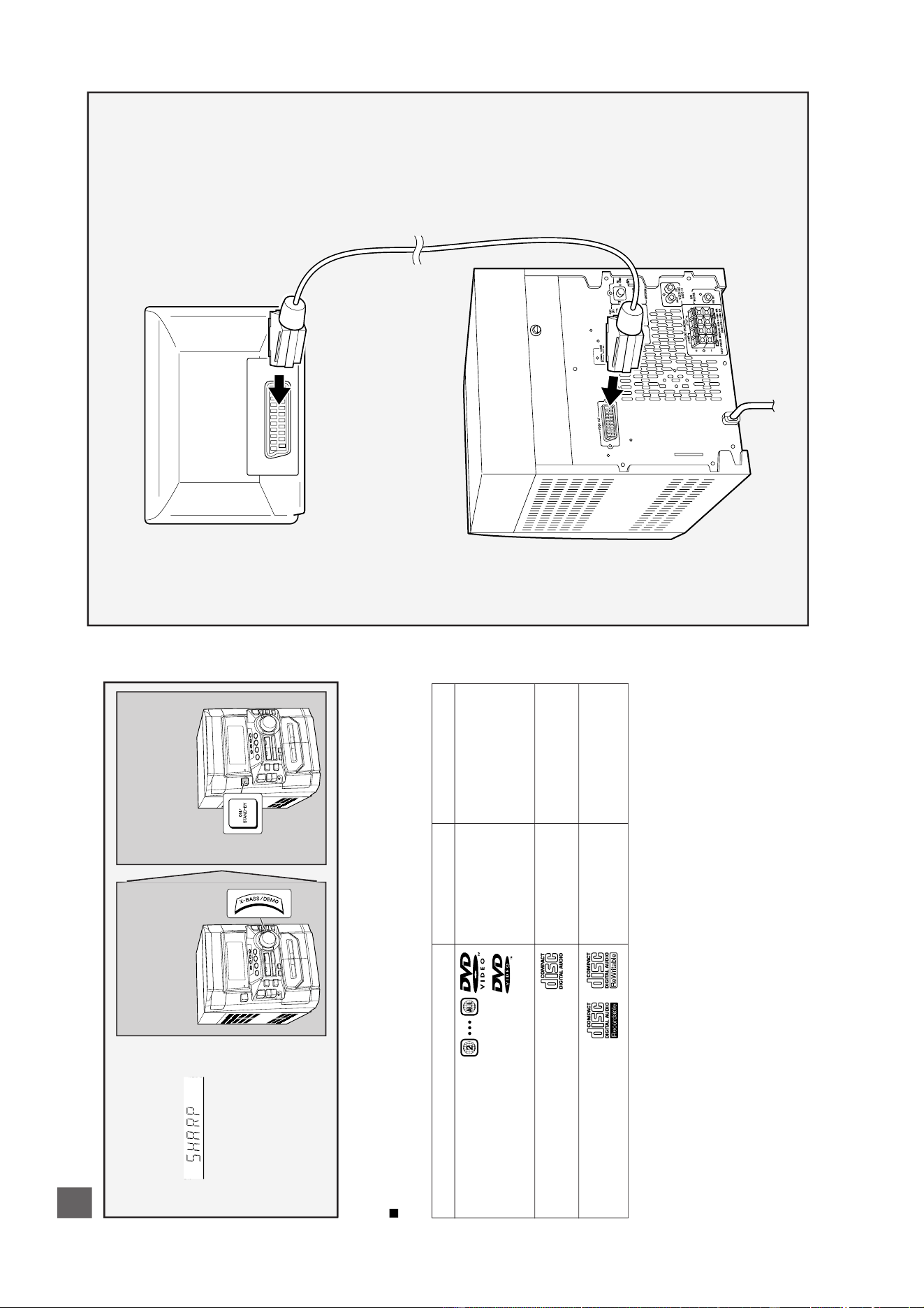

OPERATION MANUAL ...................................................................................................................................................... 7

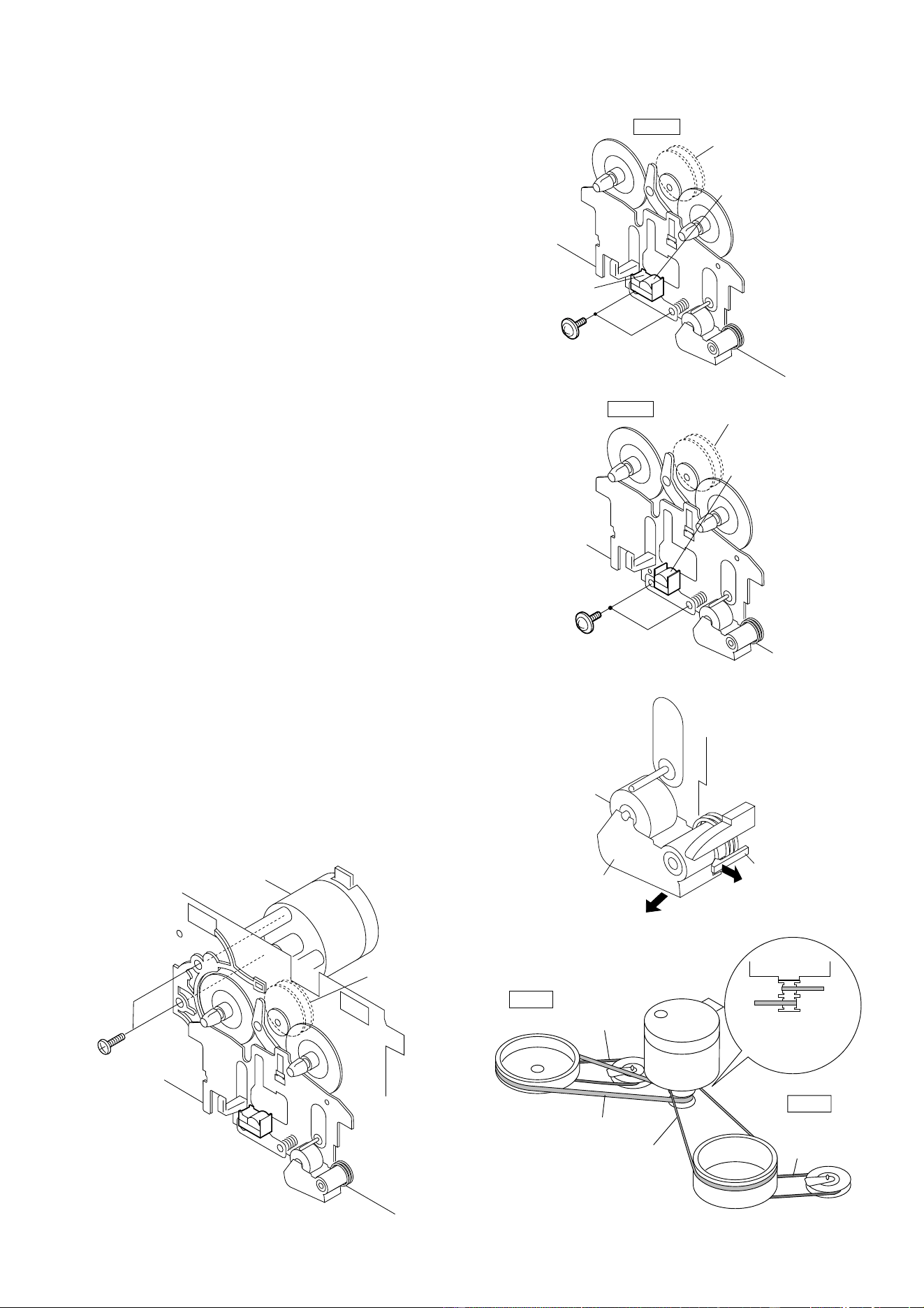

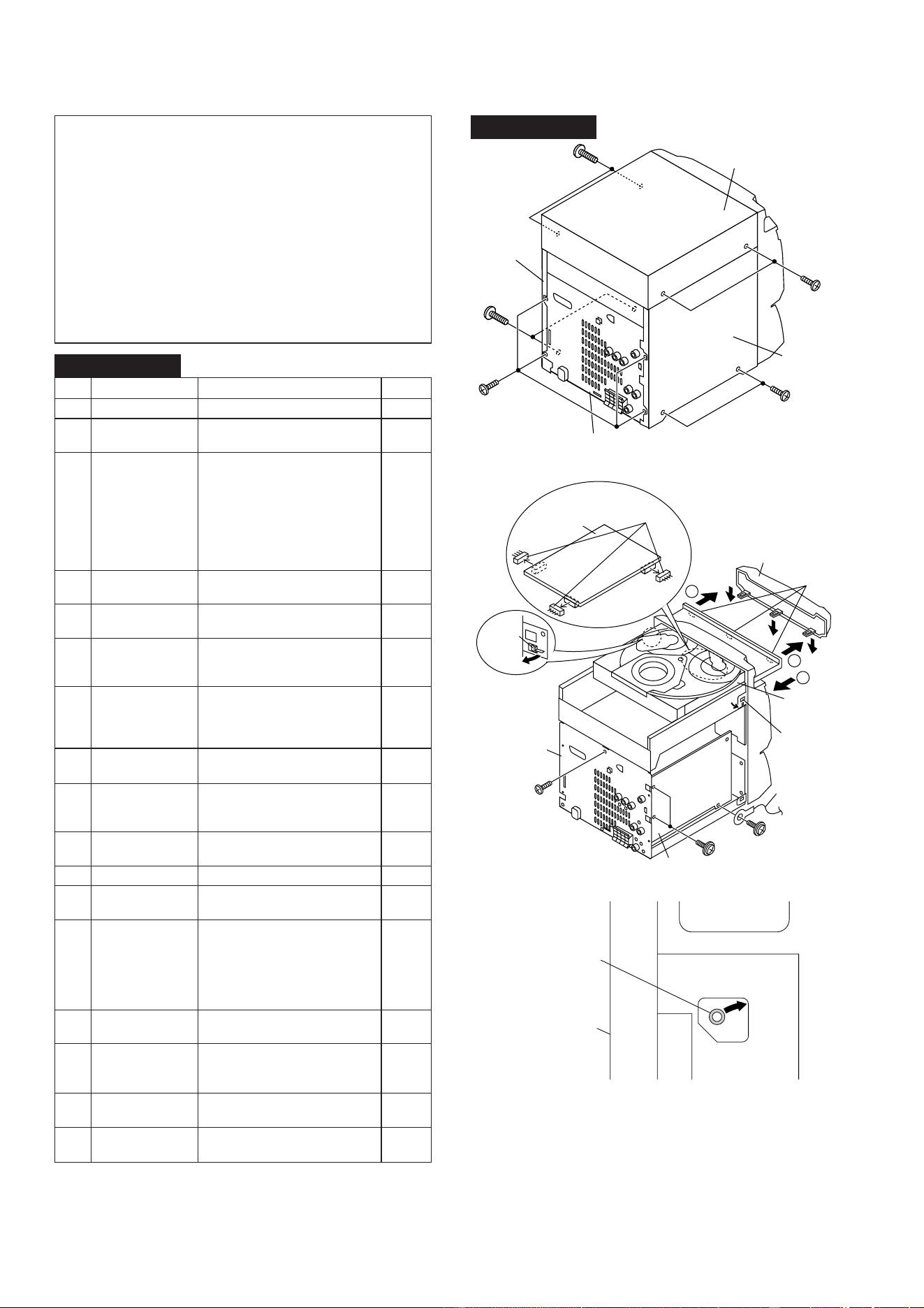

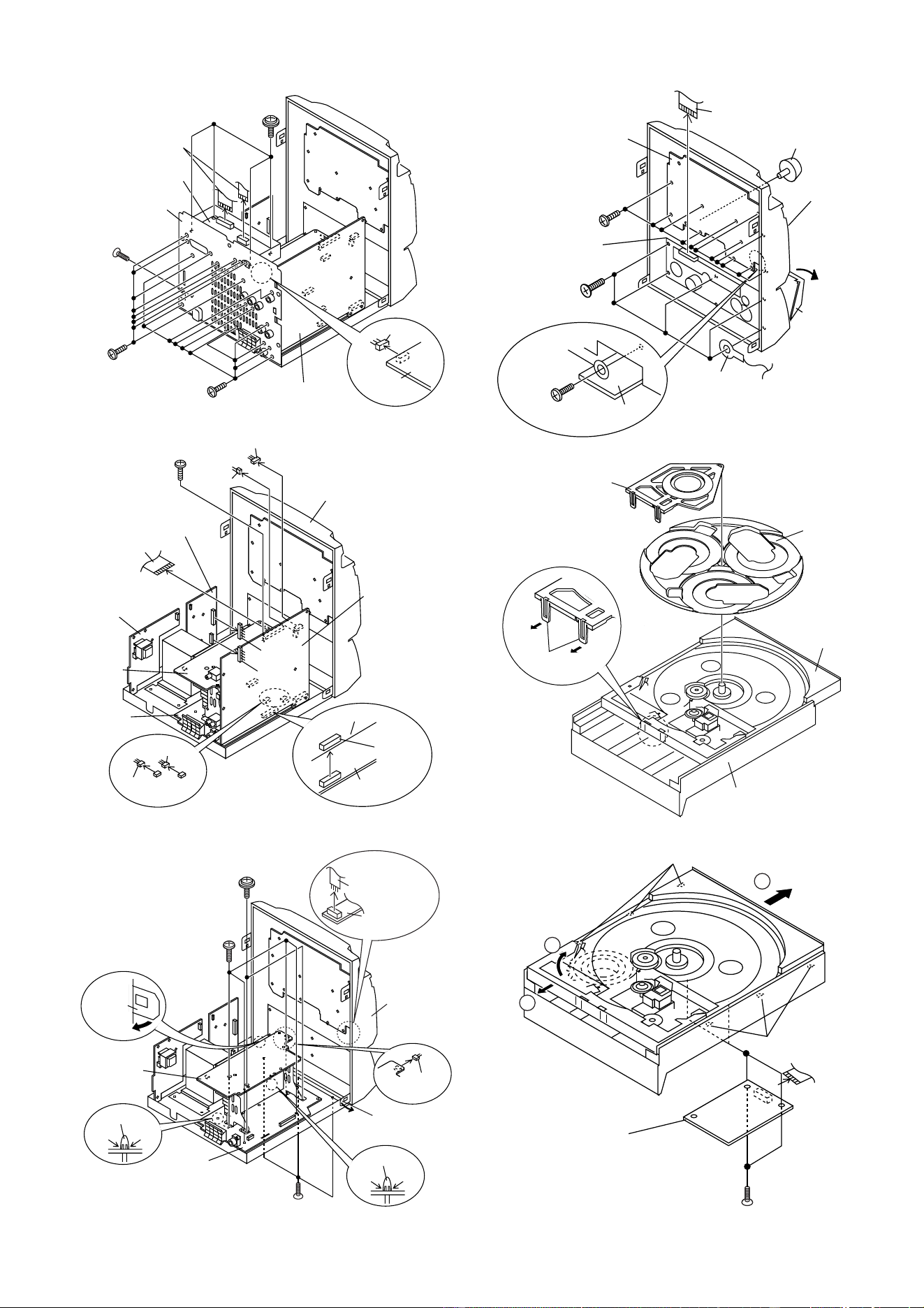

DISASSEMBLY ................................................................................................................................................................ 14

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 17

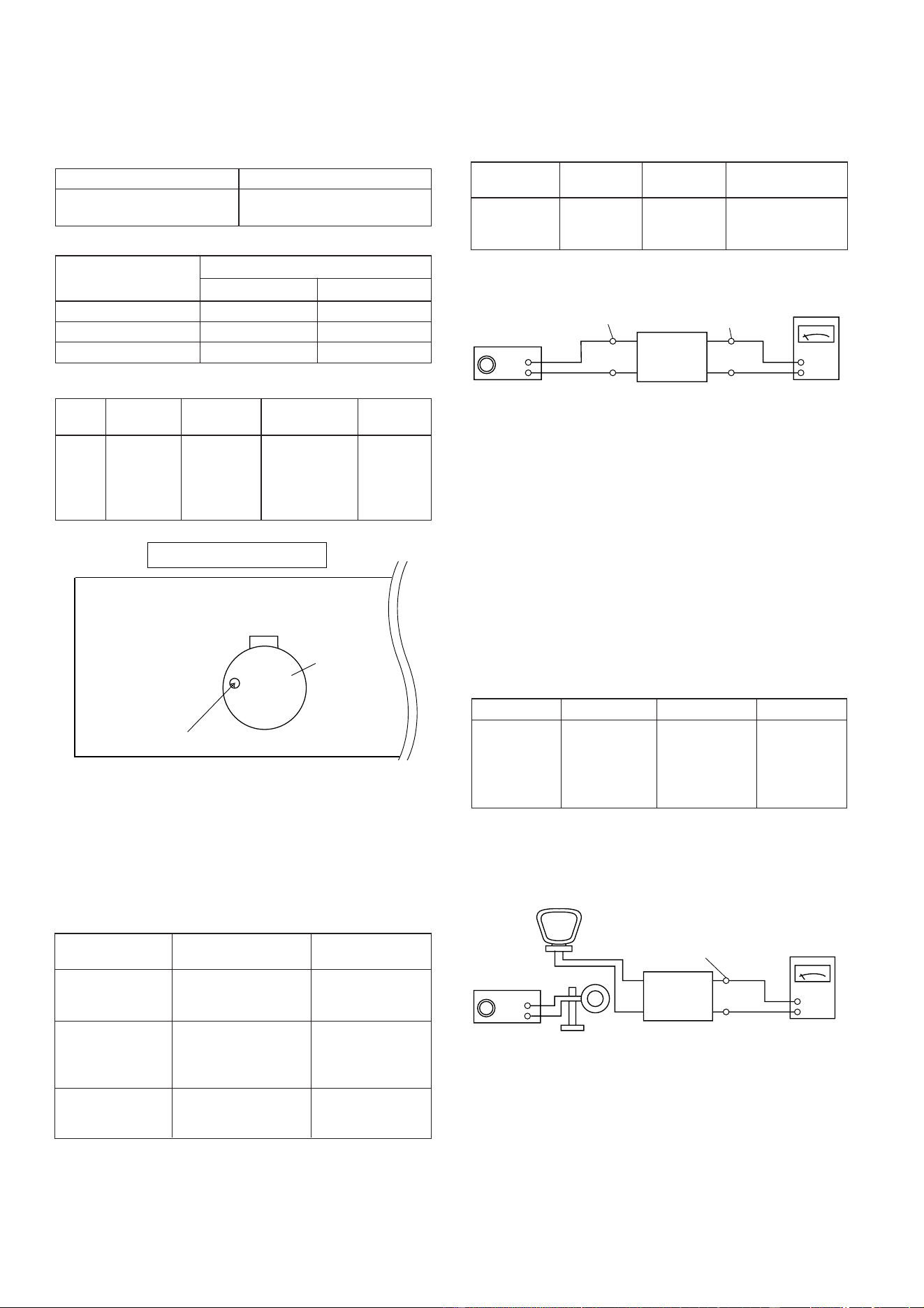

ADJUSTMENT ................................................................................................................................................................. 18

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 31

TYPES OF TRANSISTOR AND LED................................................................................................................................31

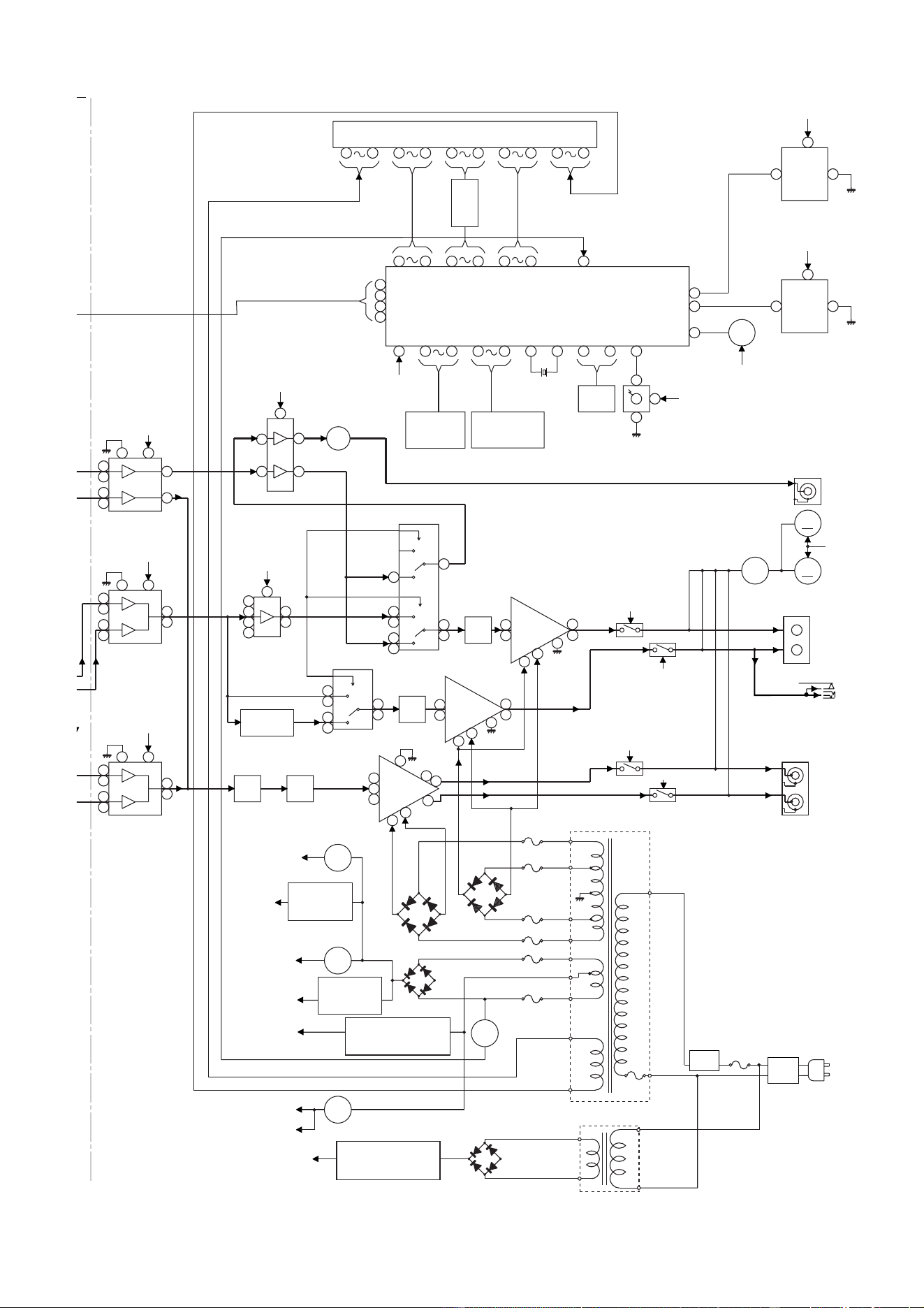

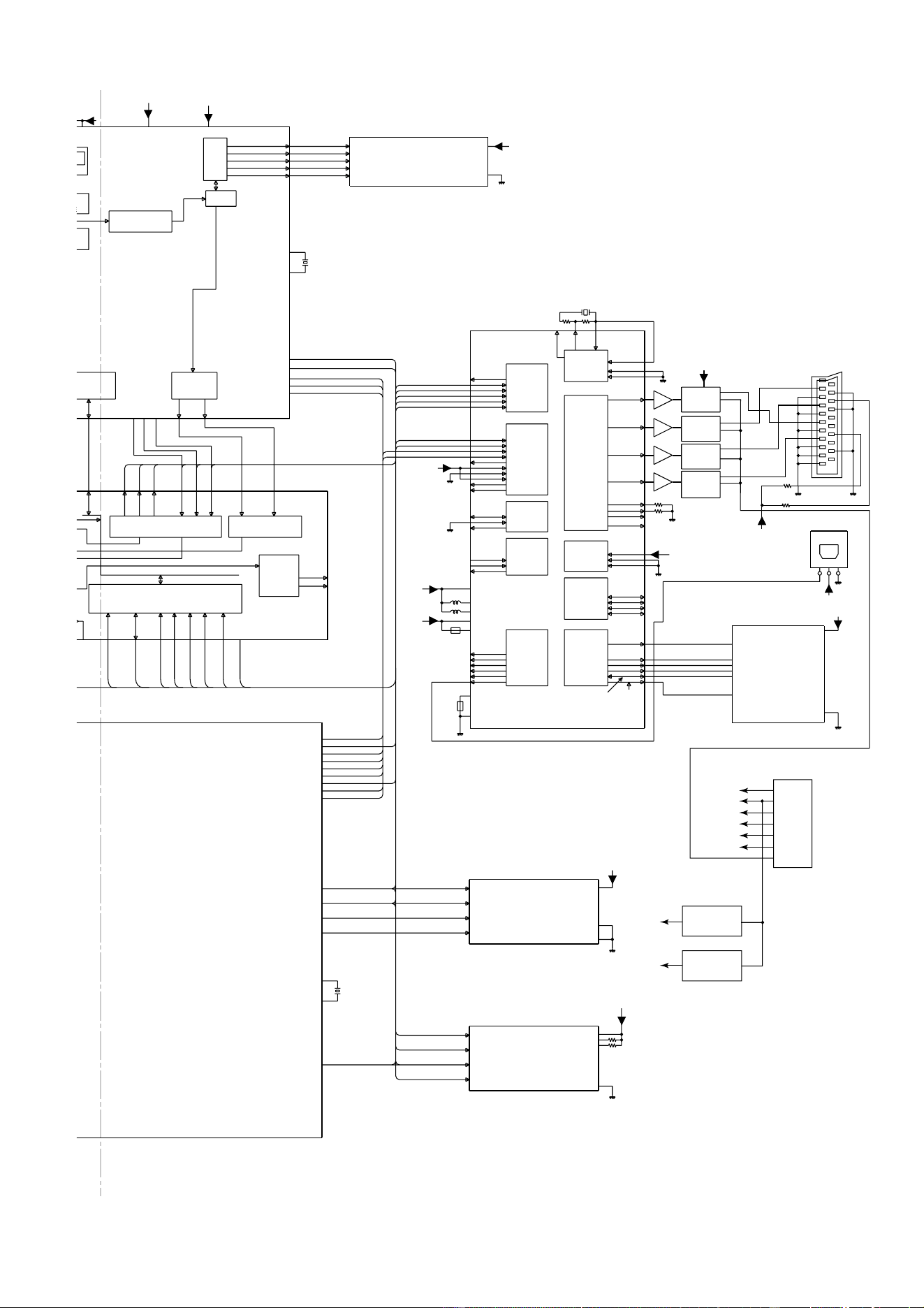

BLOCK DIAGRAM ........................................................................................................................................................... 32

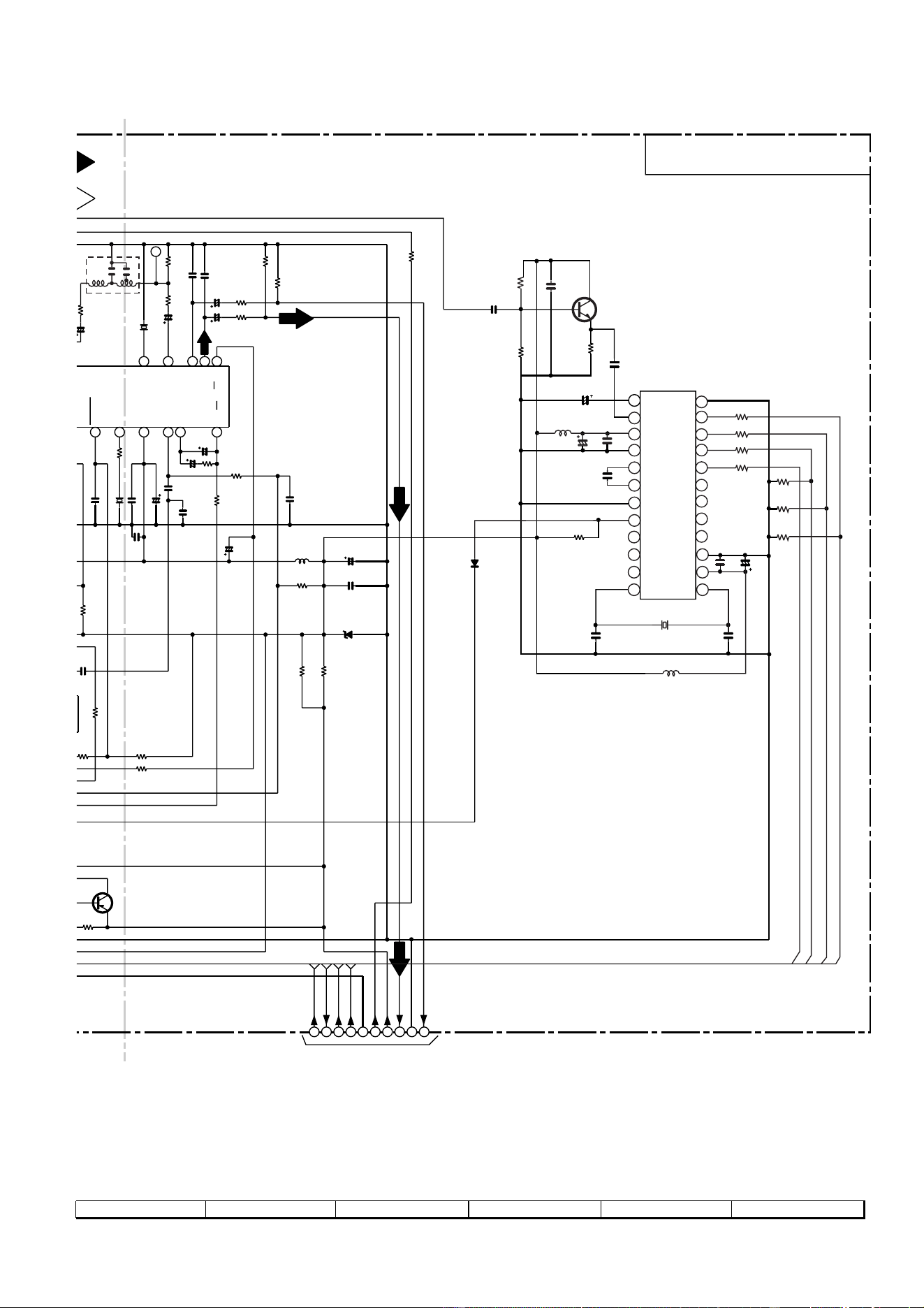

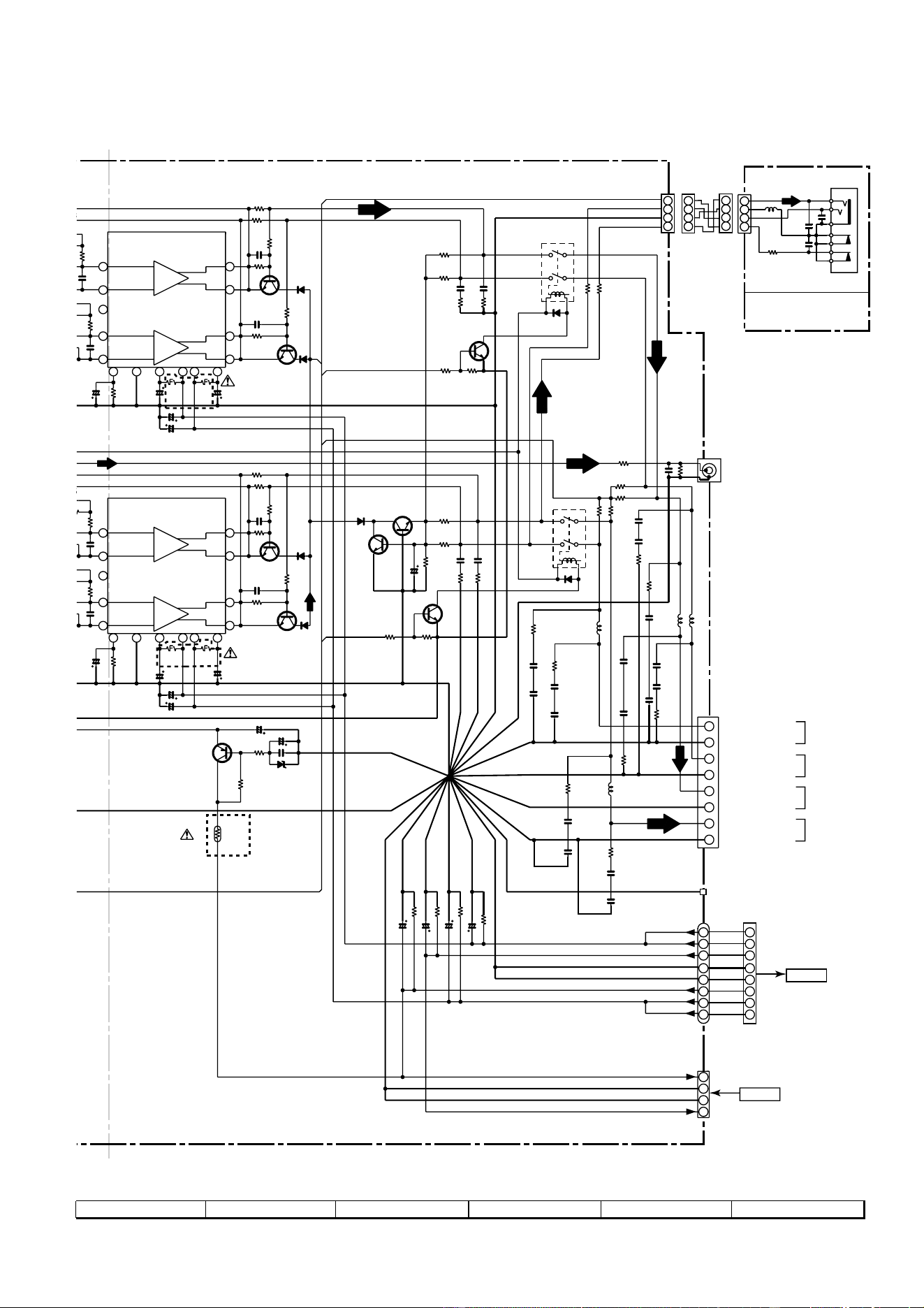

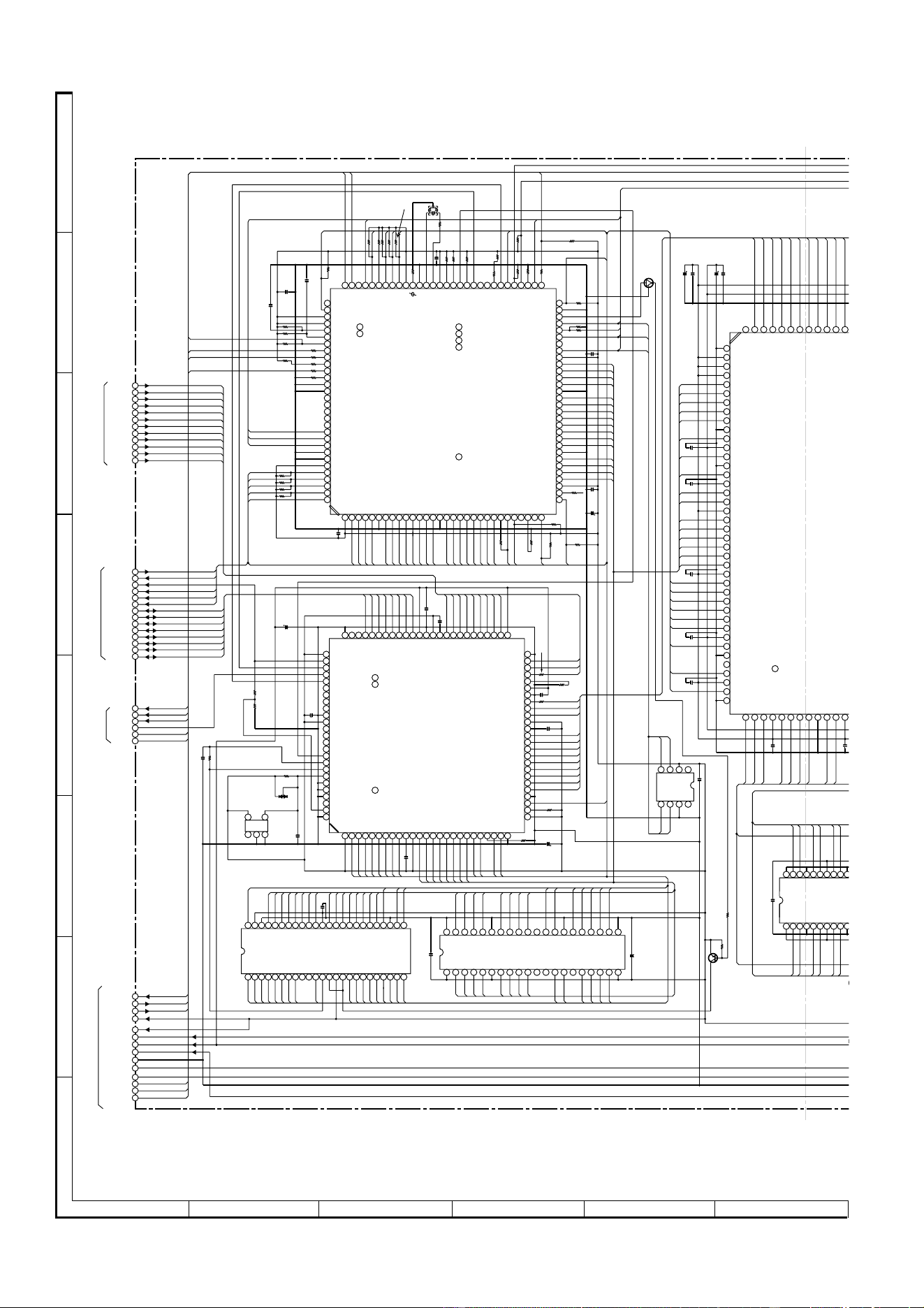

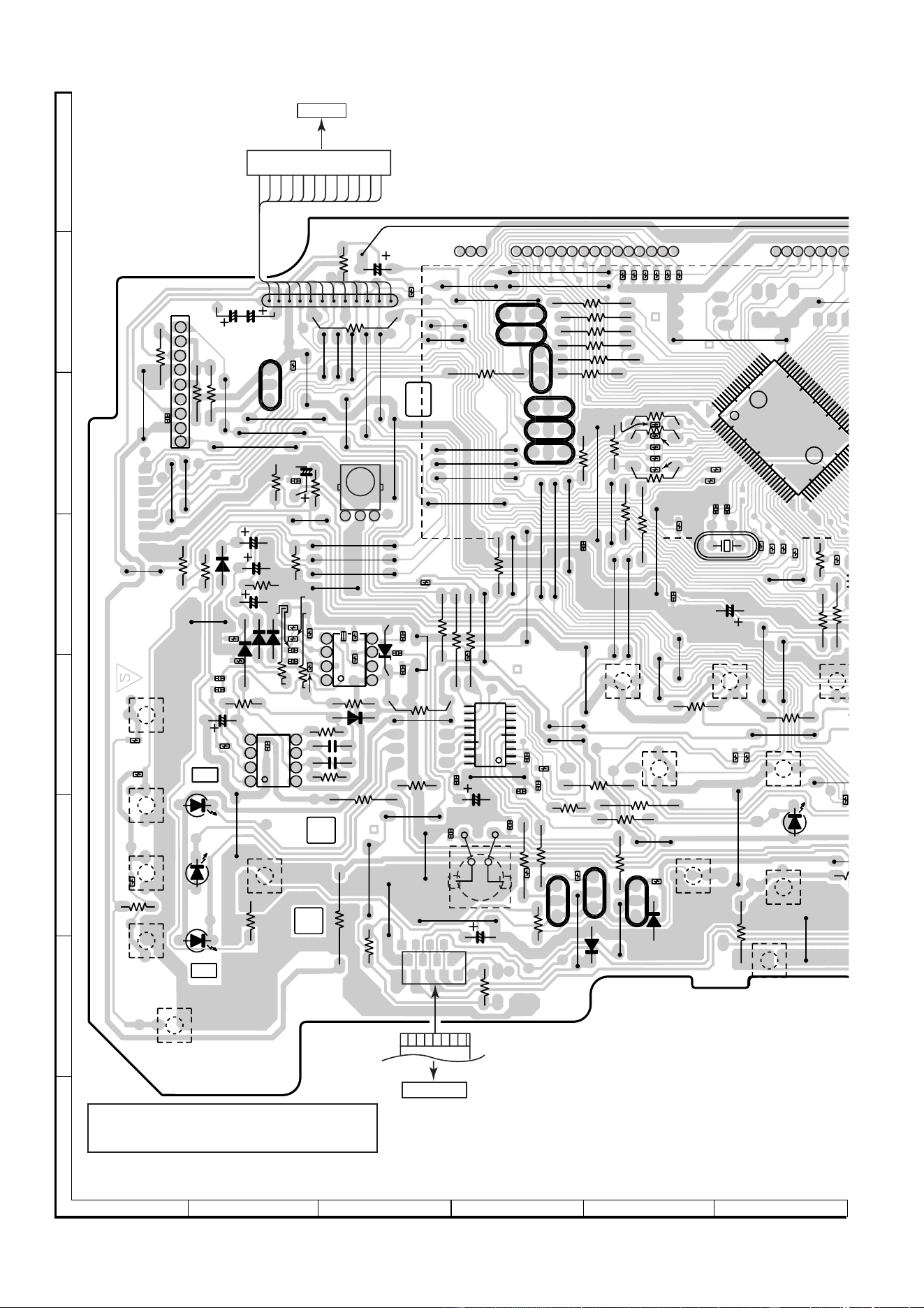

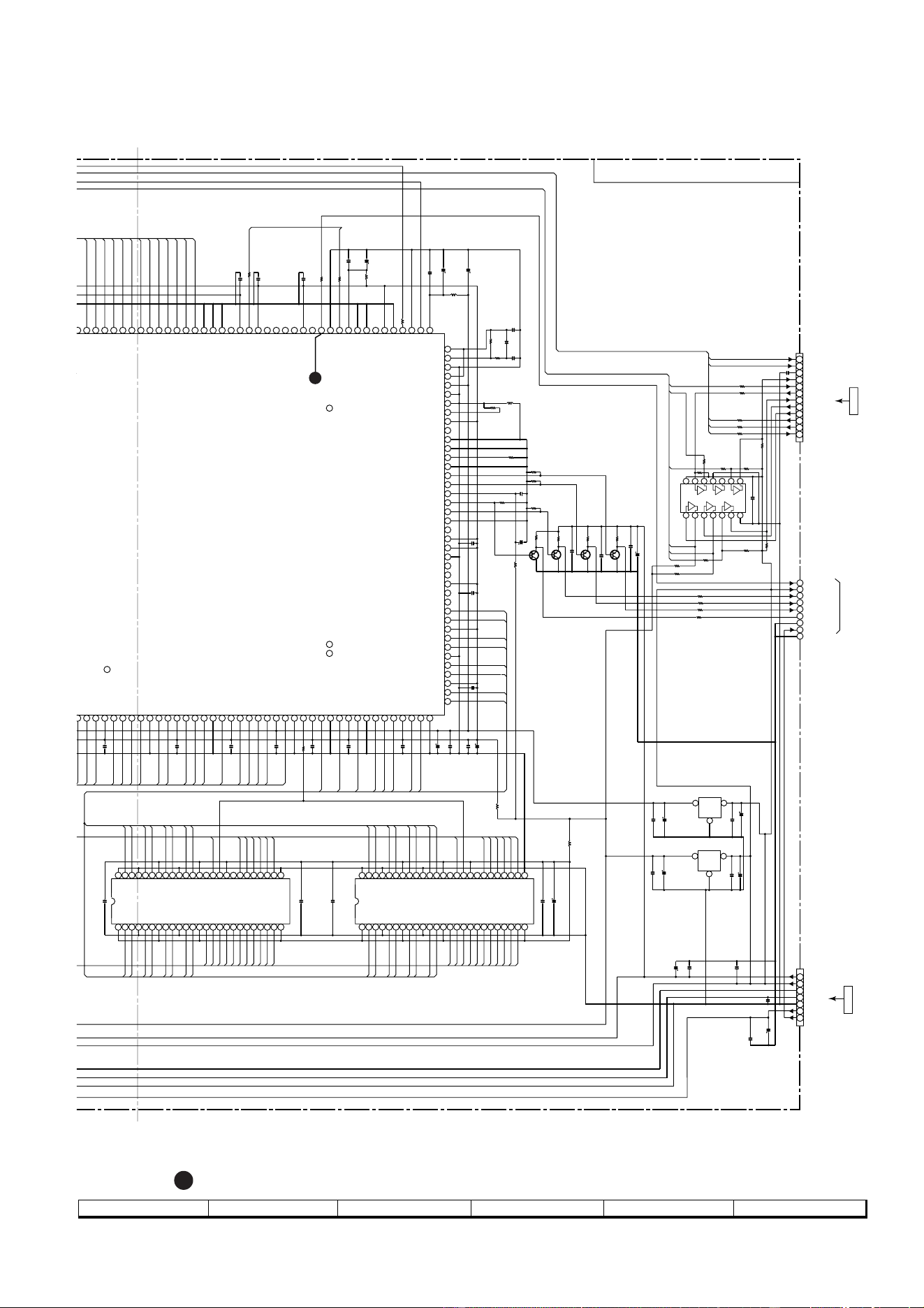

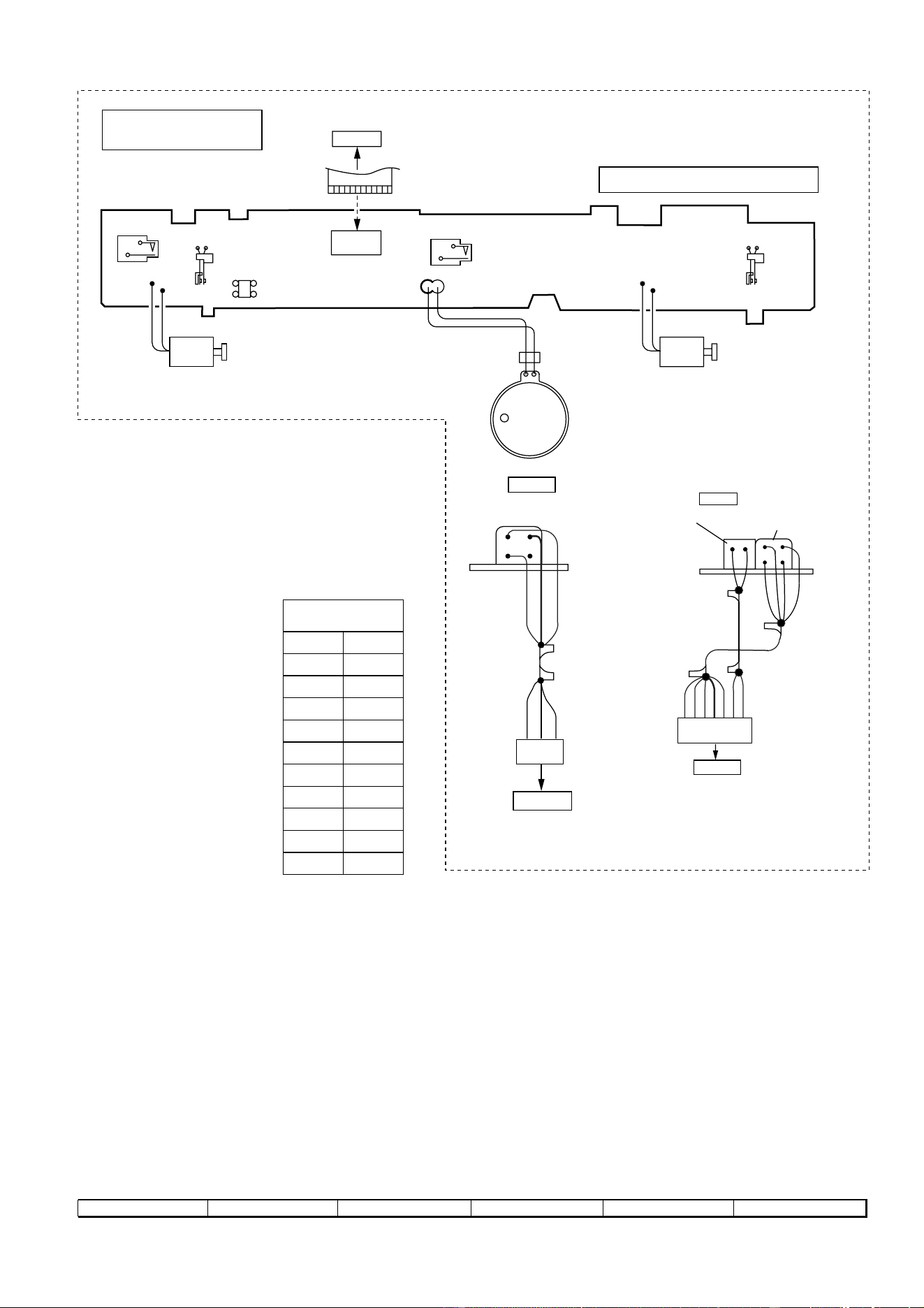

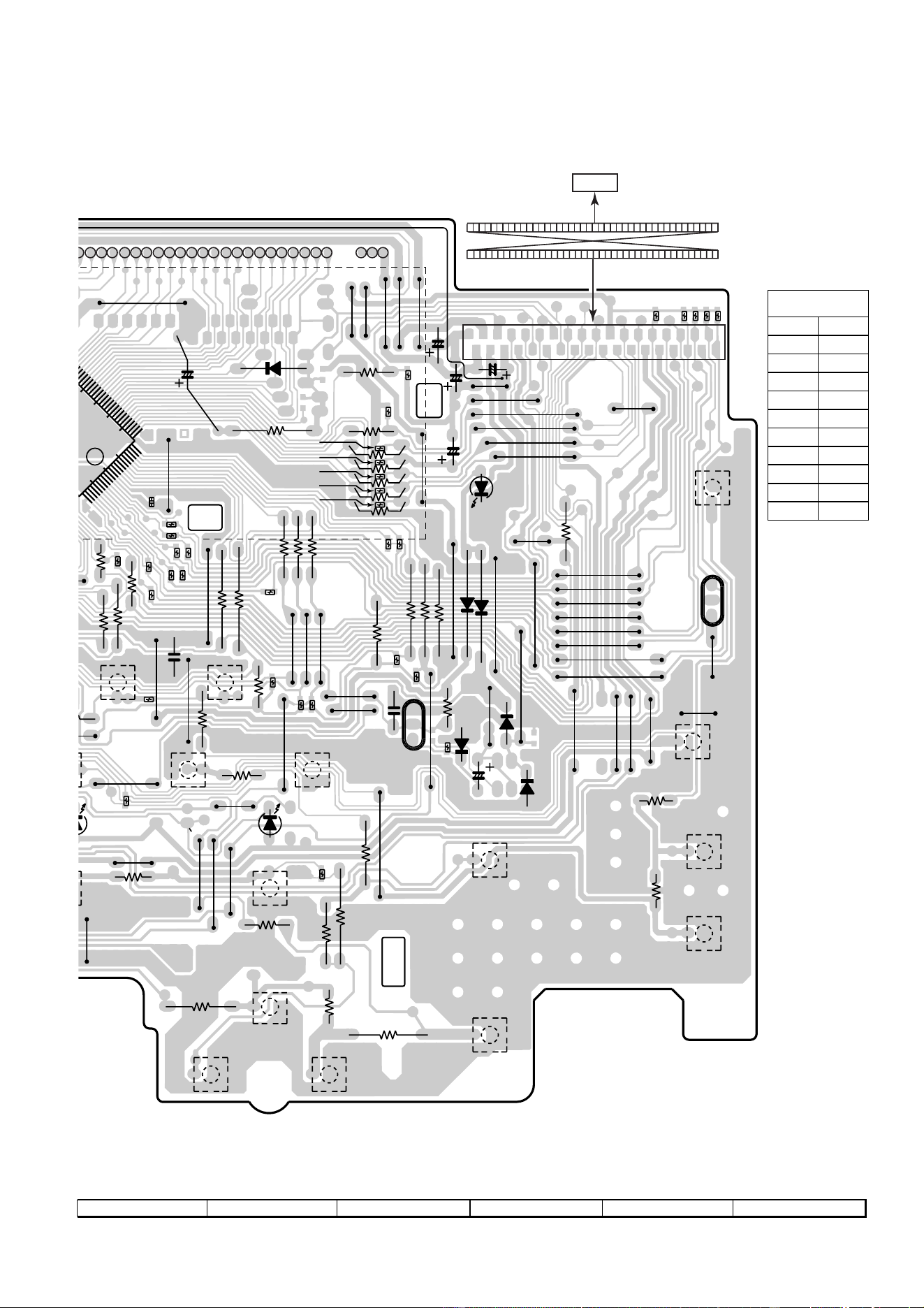

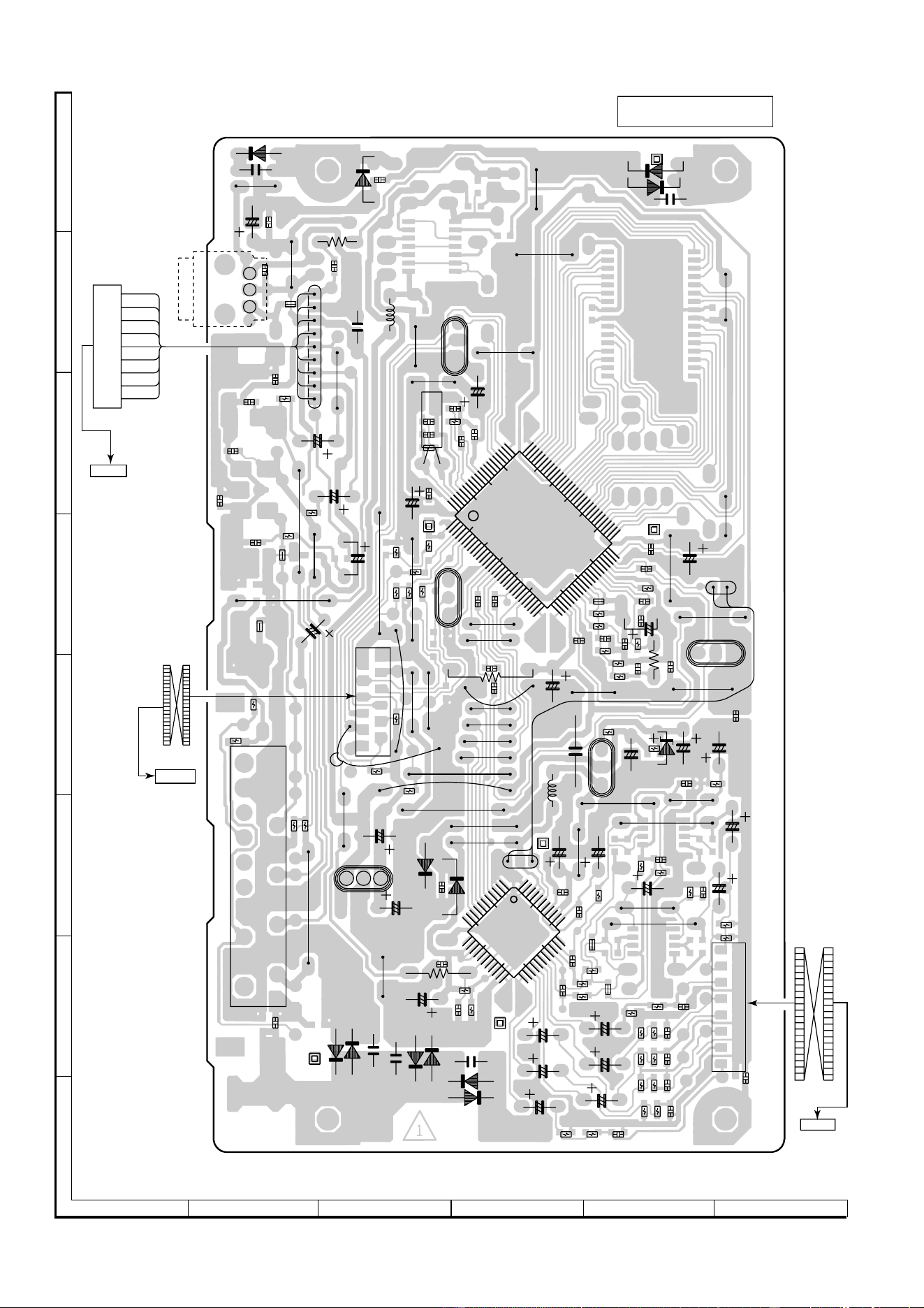

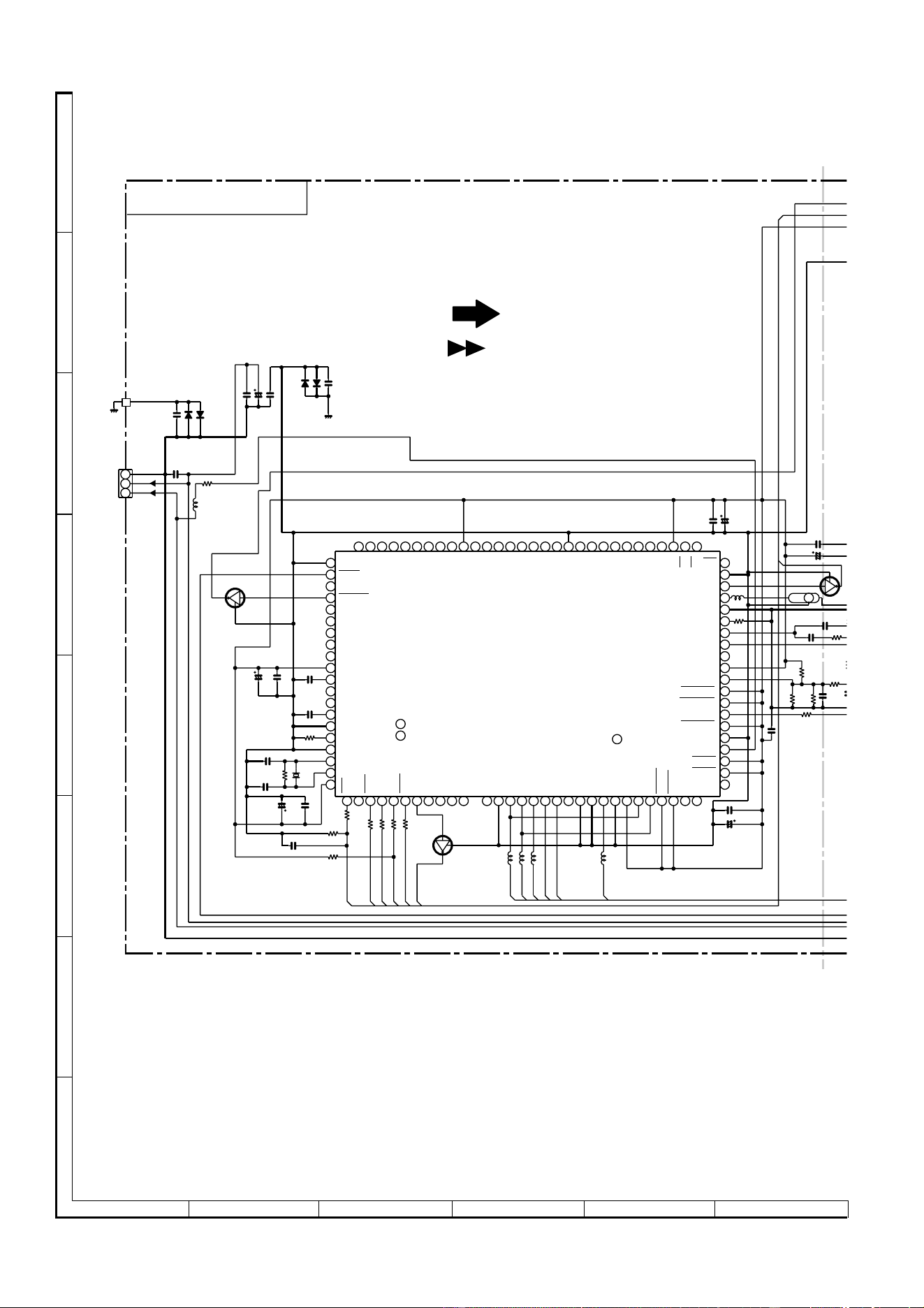

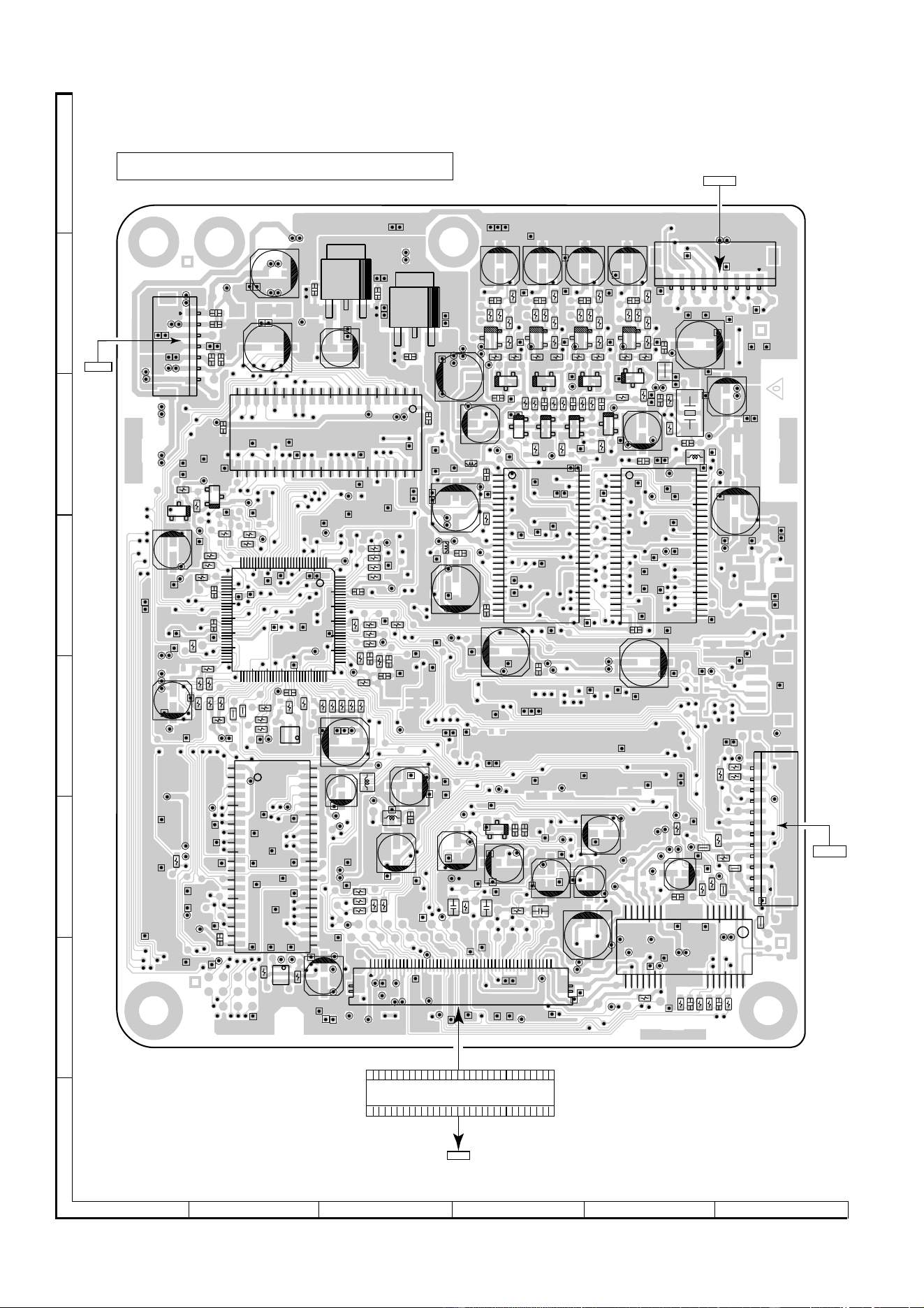

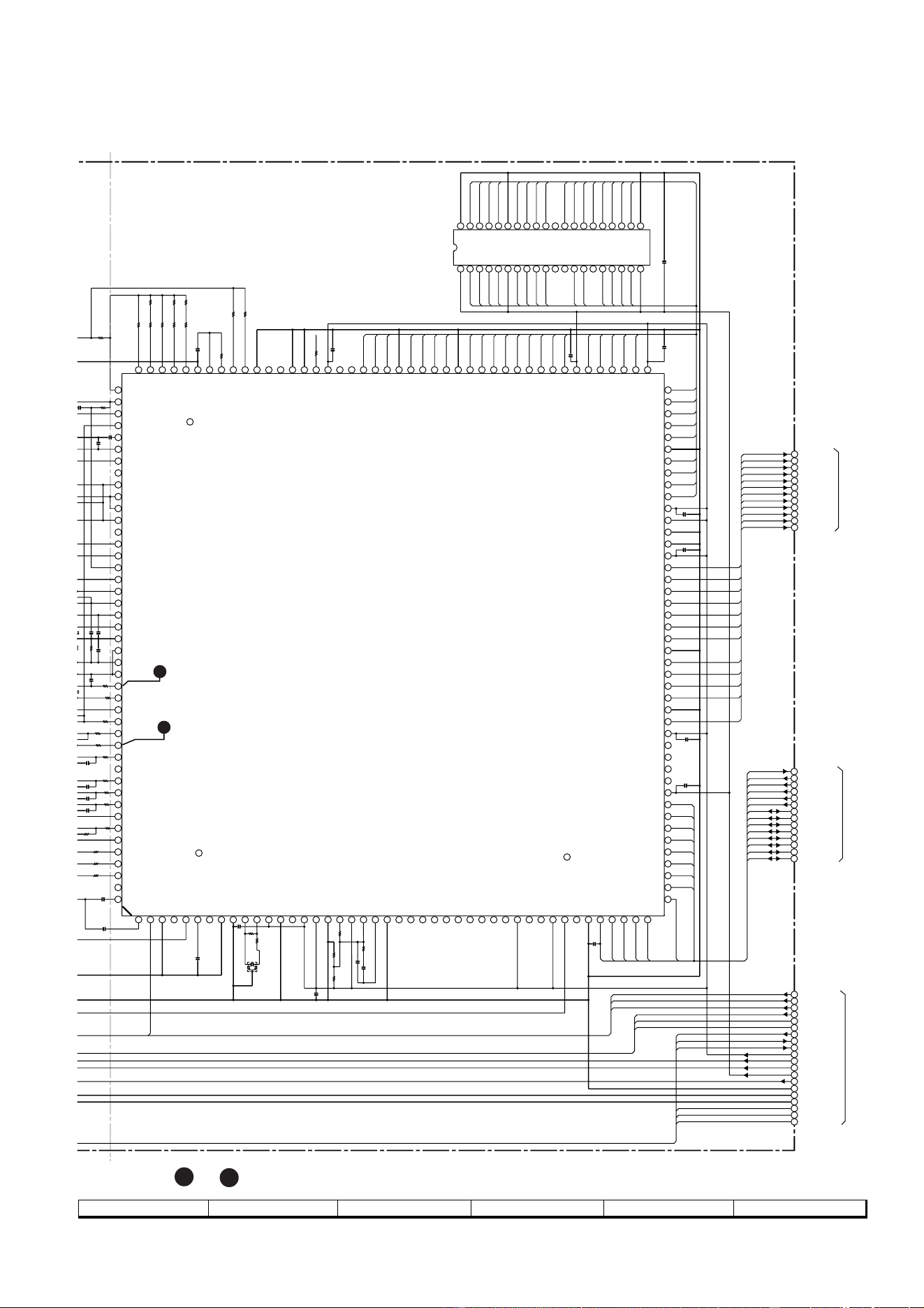

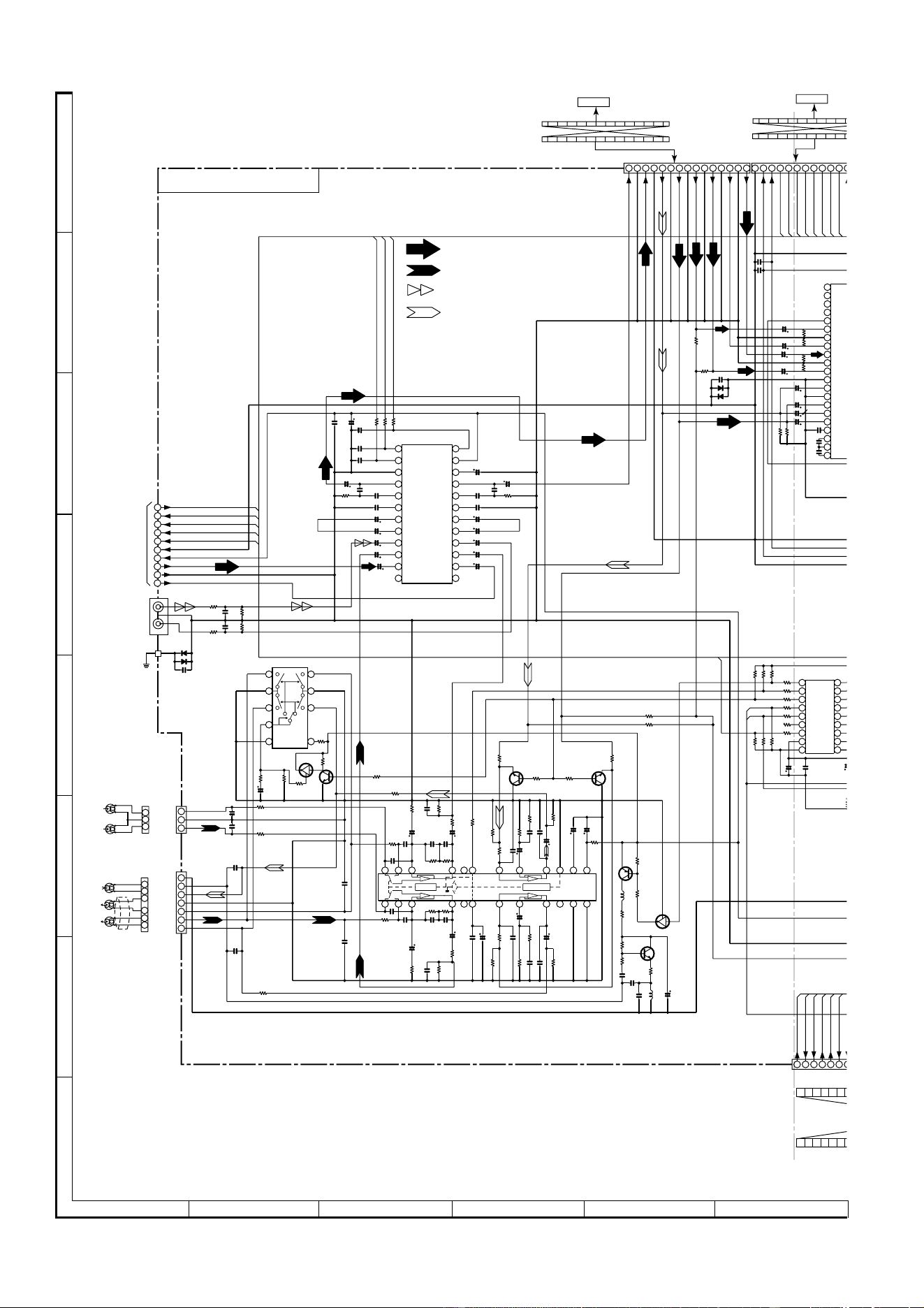

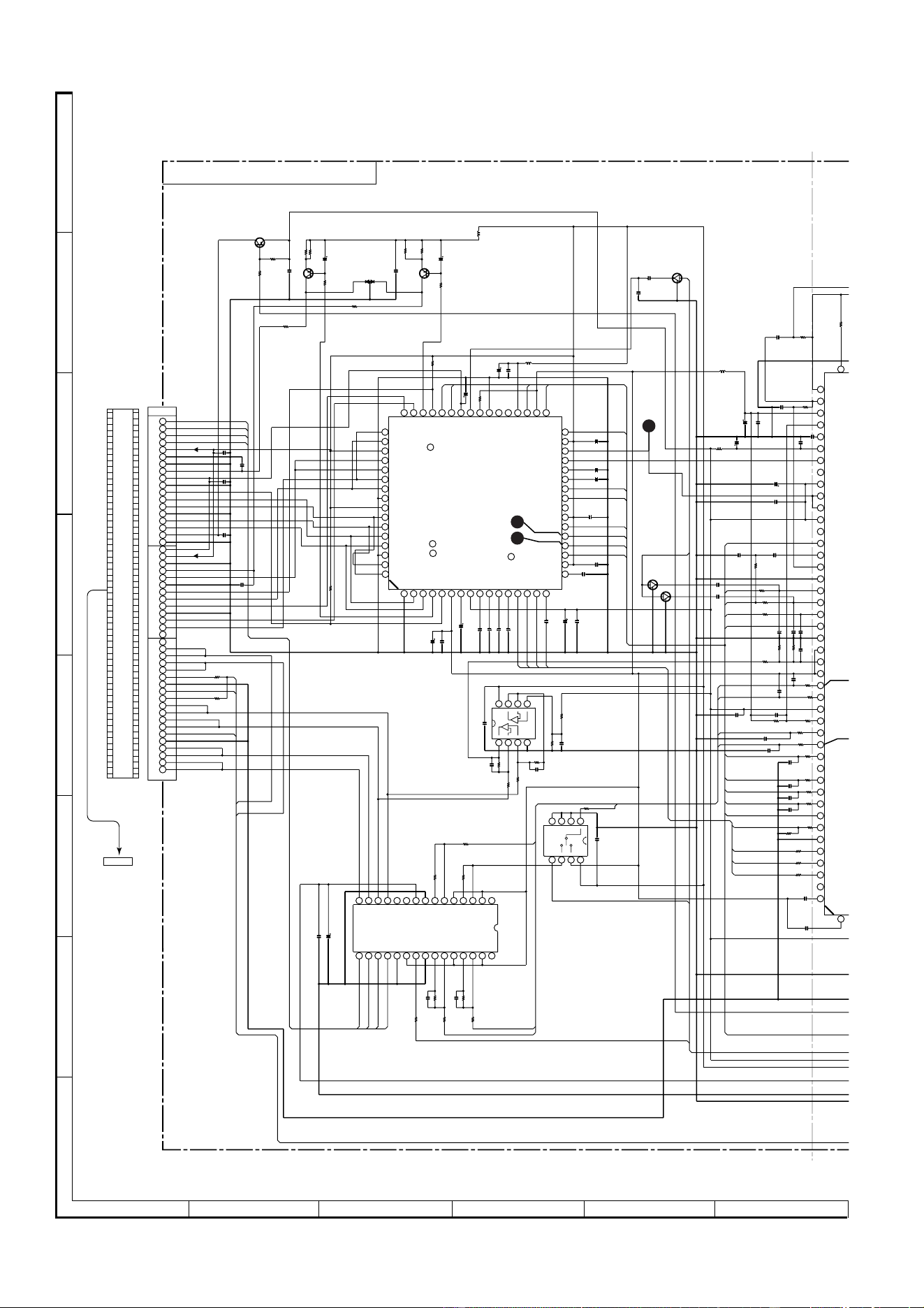

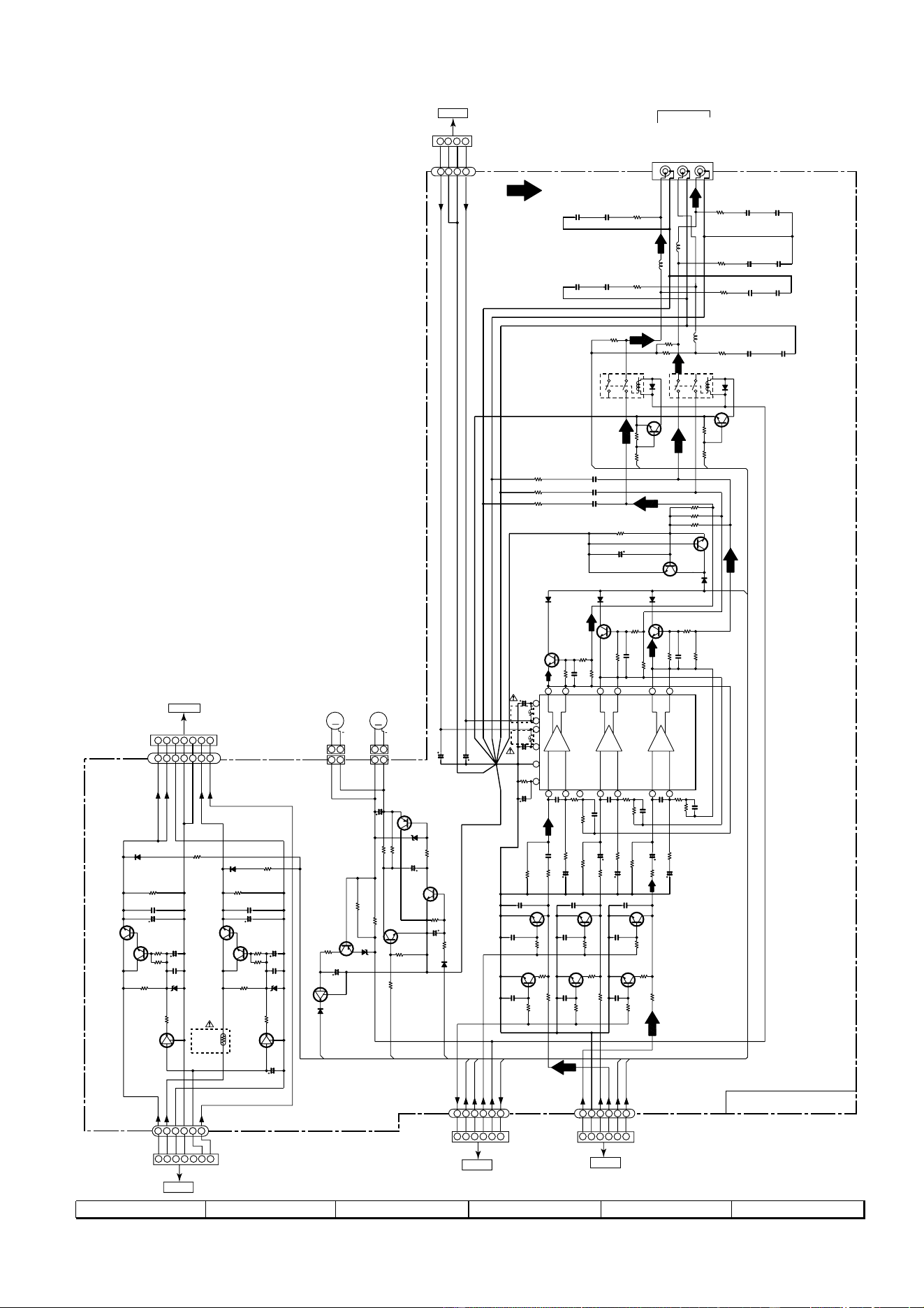

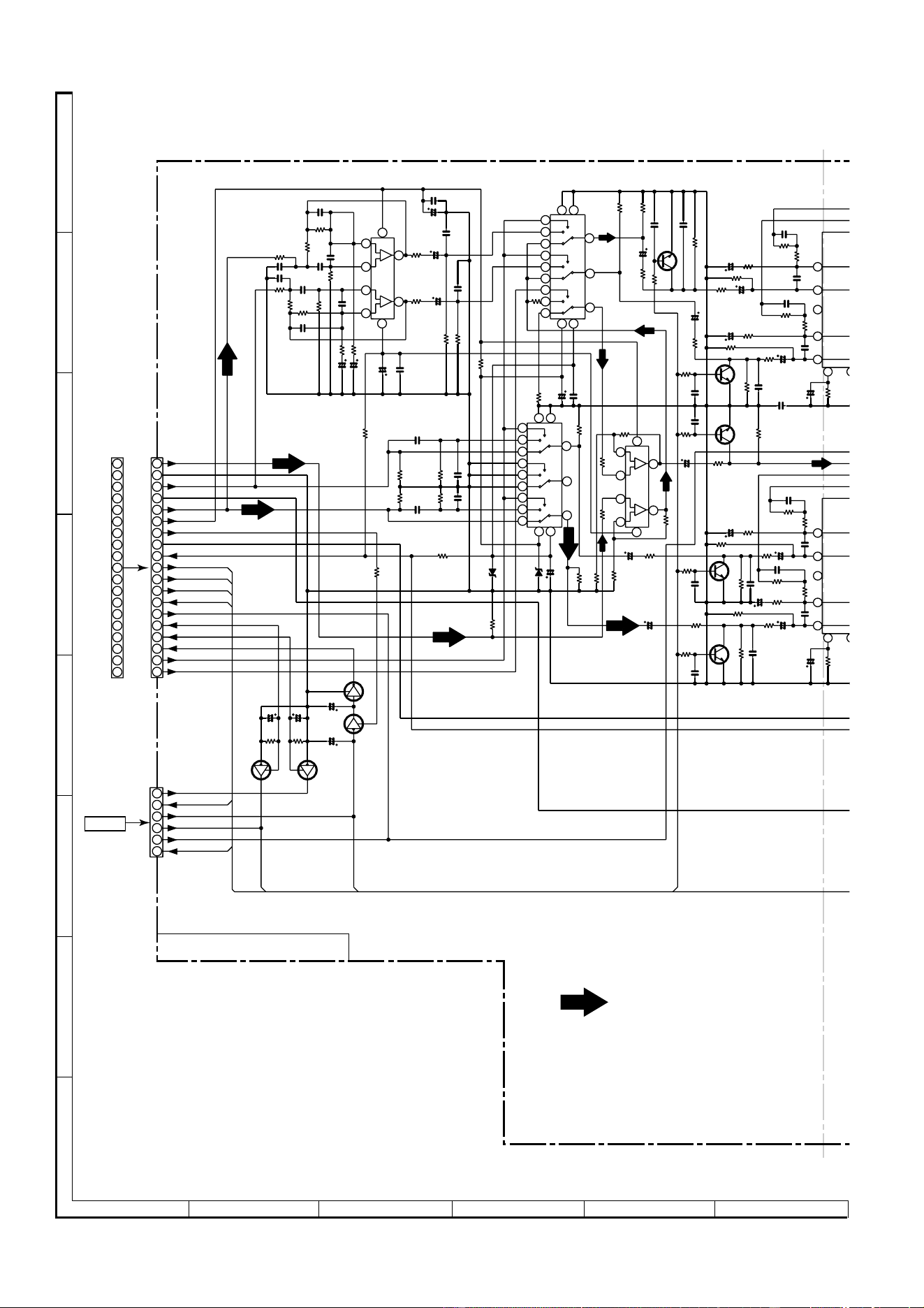

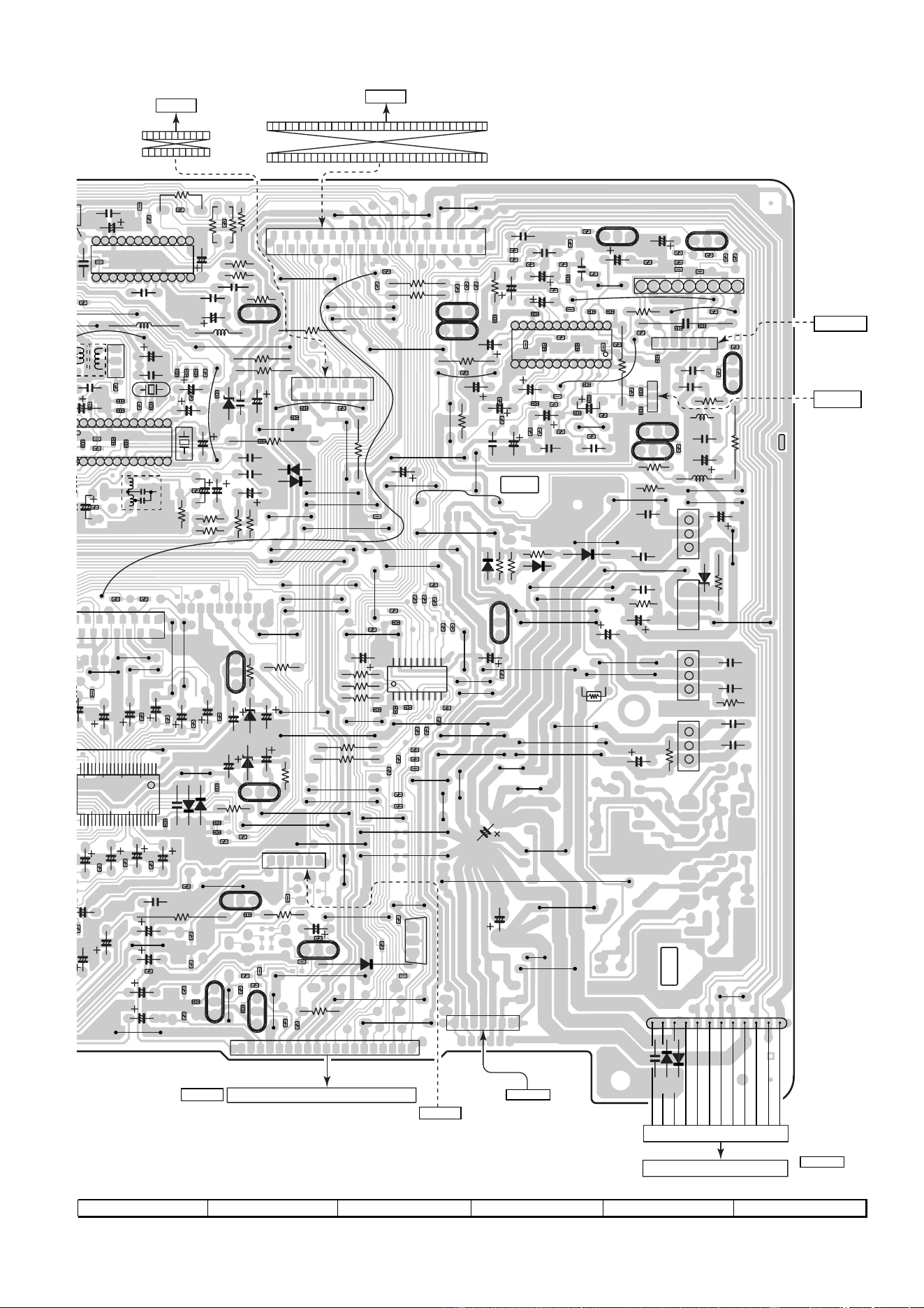

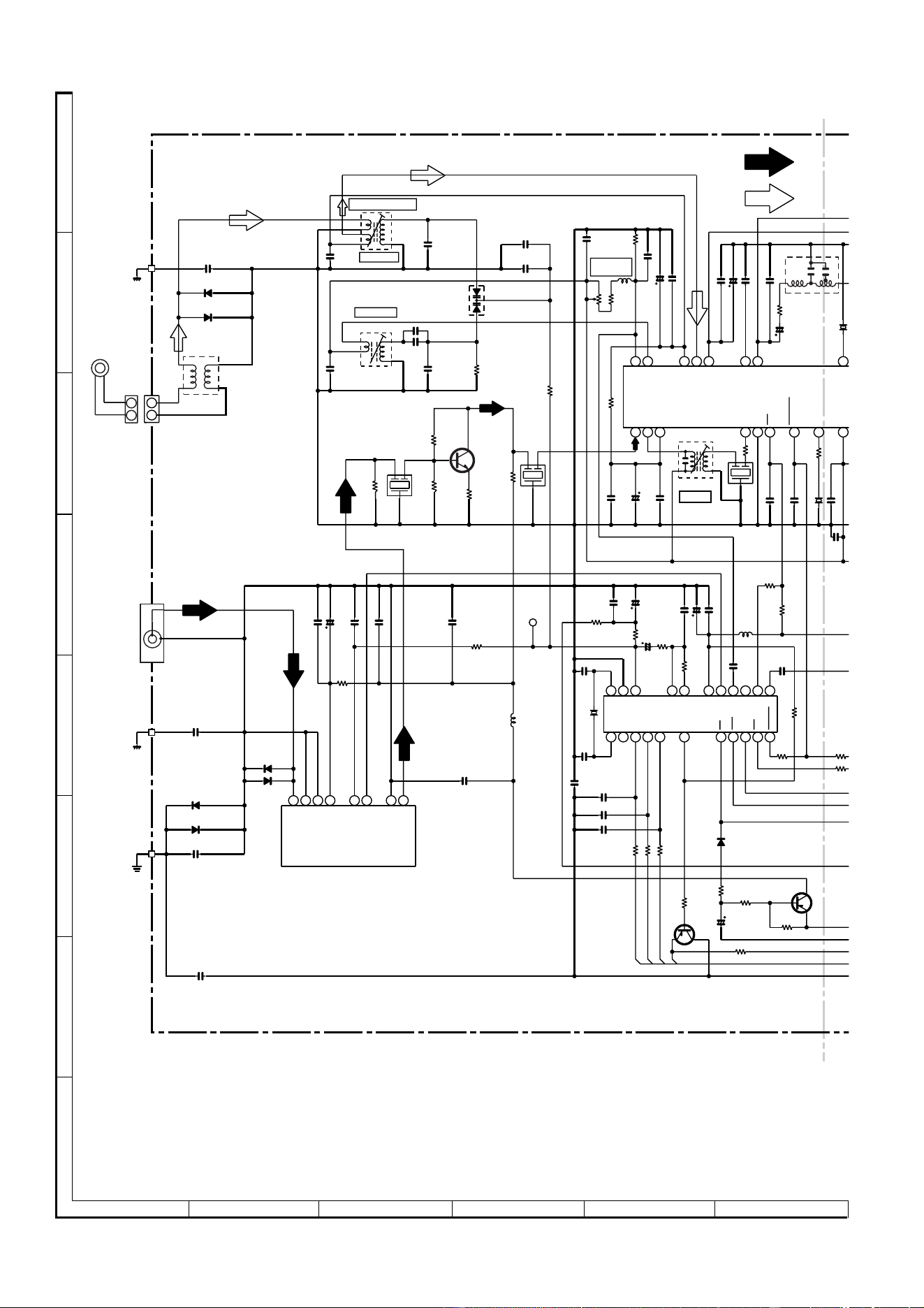

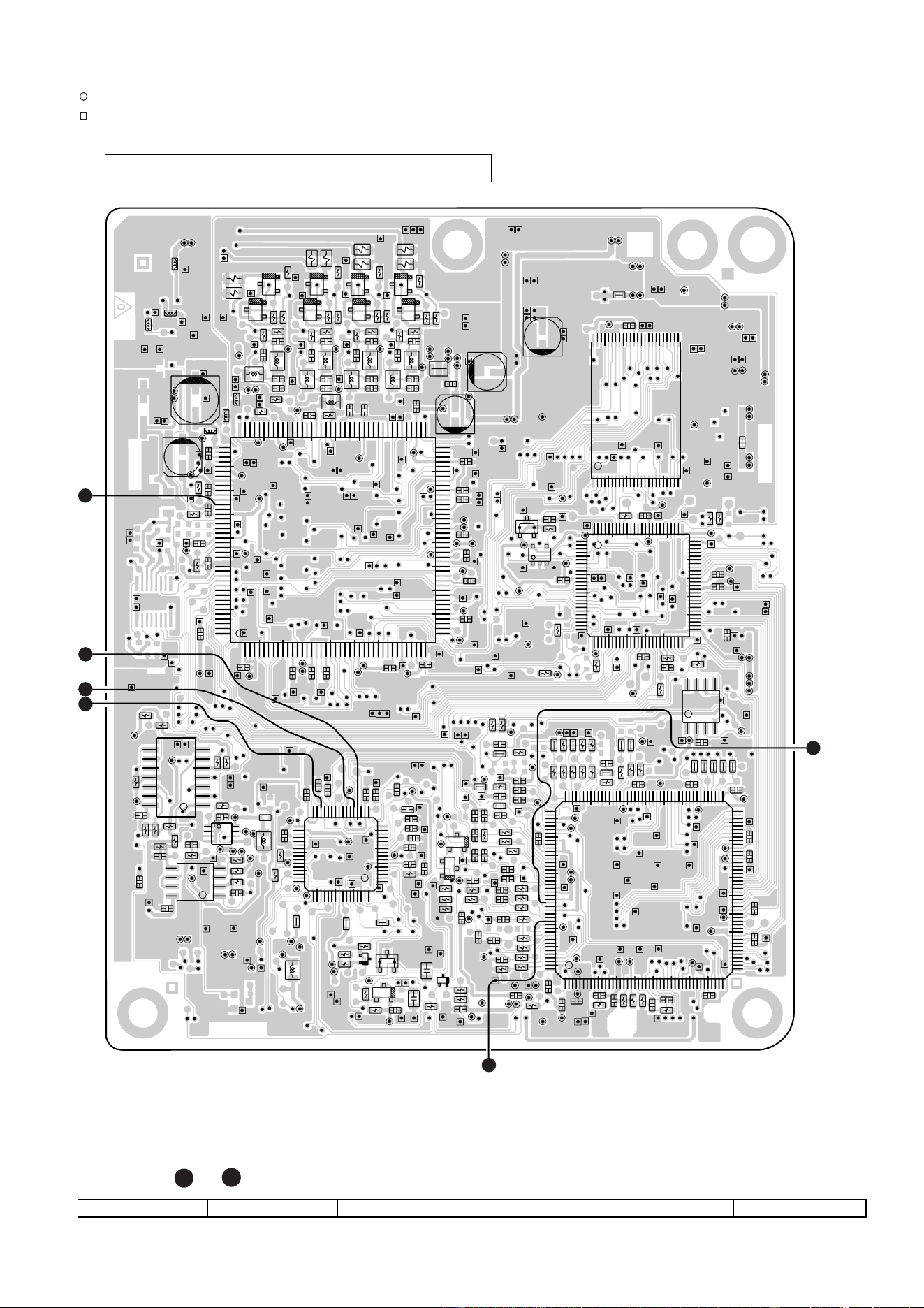

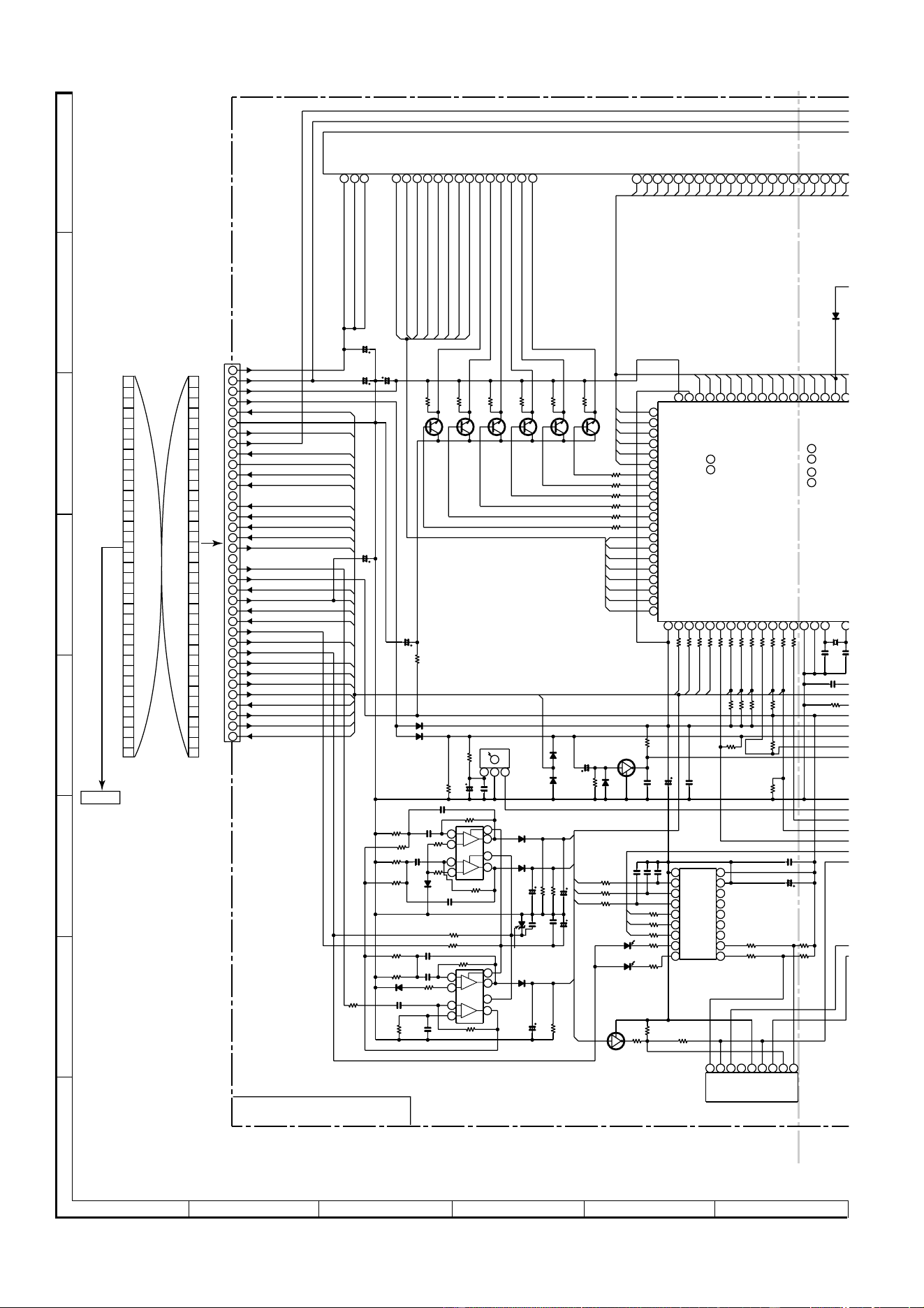

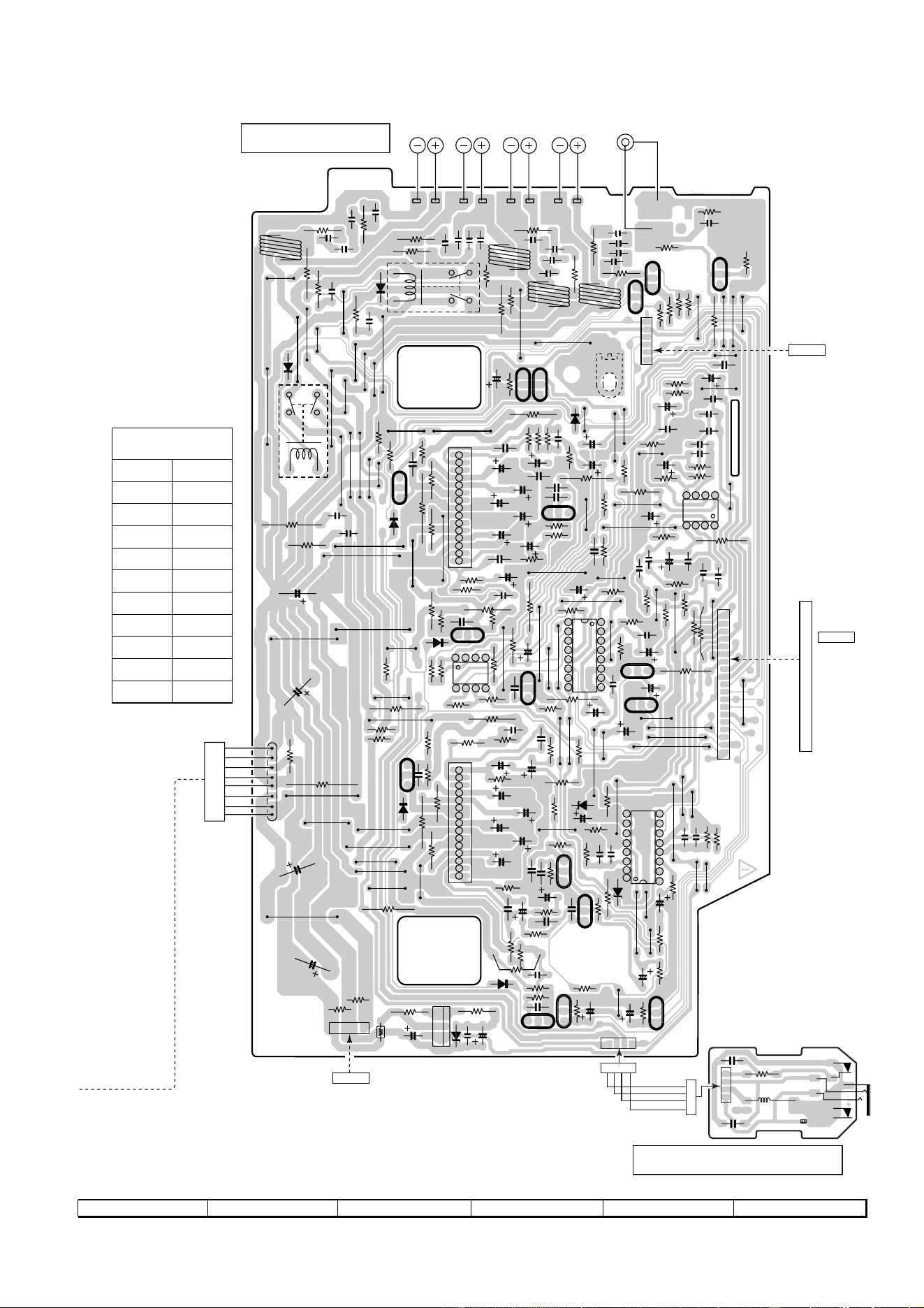

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 36

VOLTAGE ........................................................................................................................................................................ 66

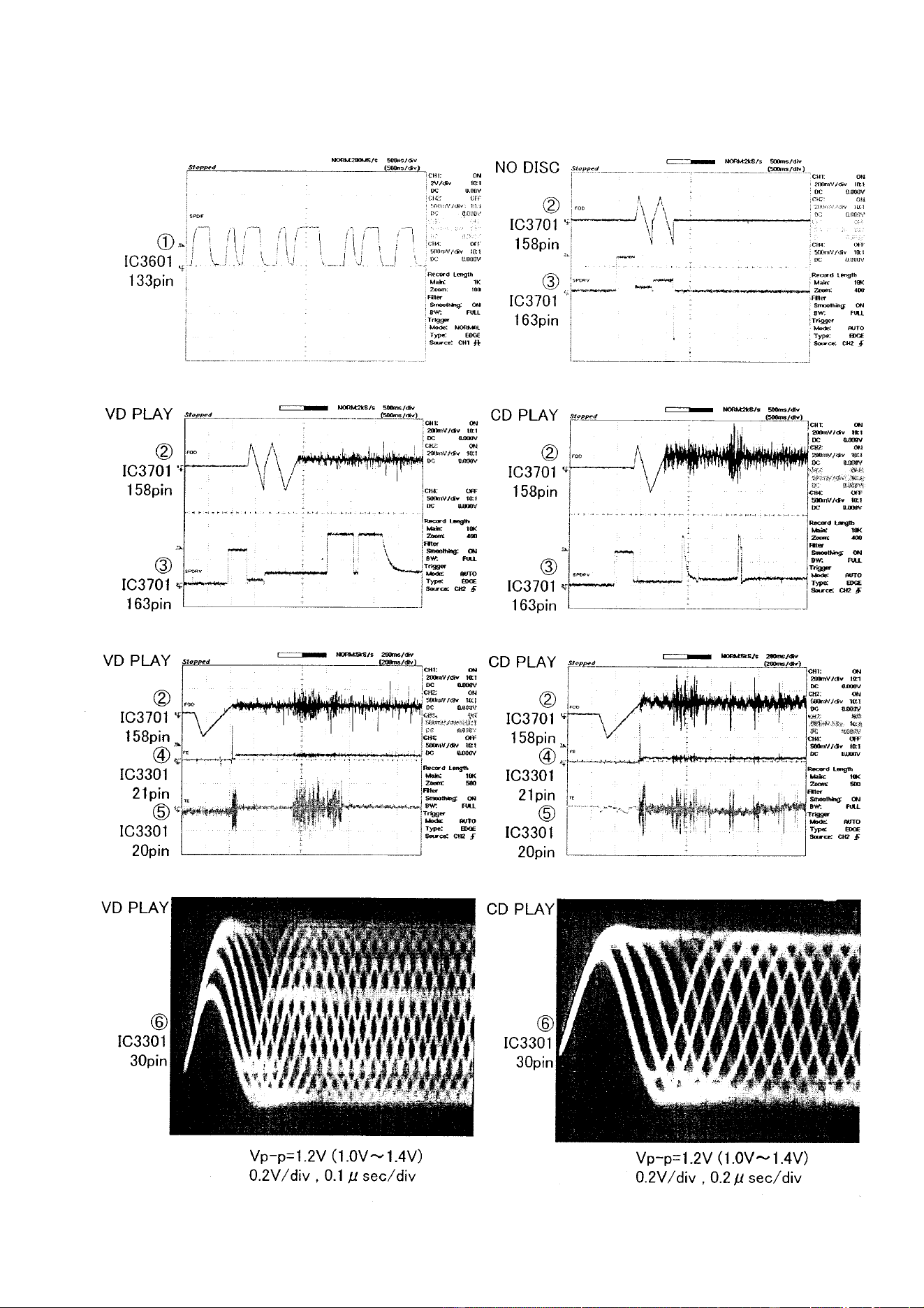

WAVEFORMS OF DVD CIRCUIT ................................................................................................................................... 67

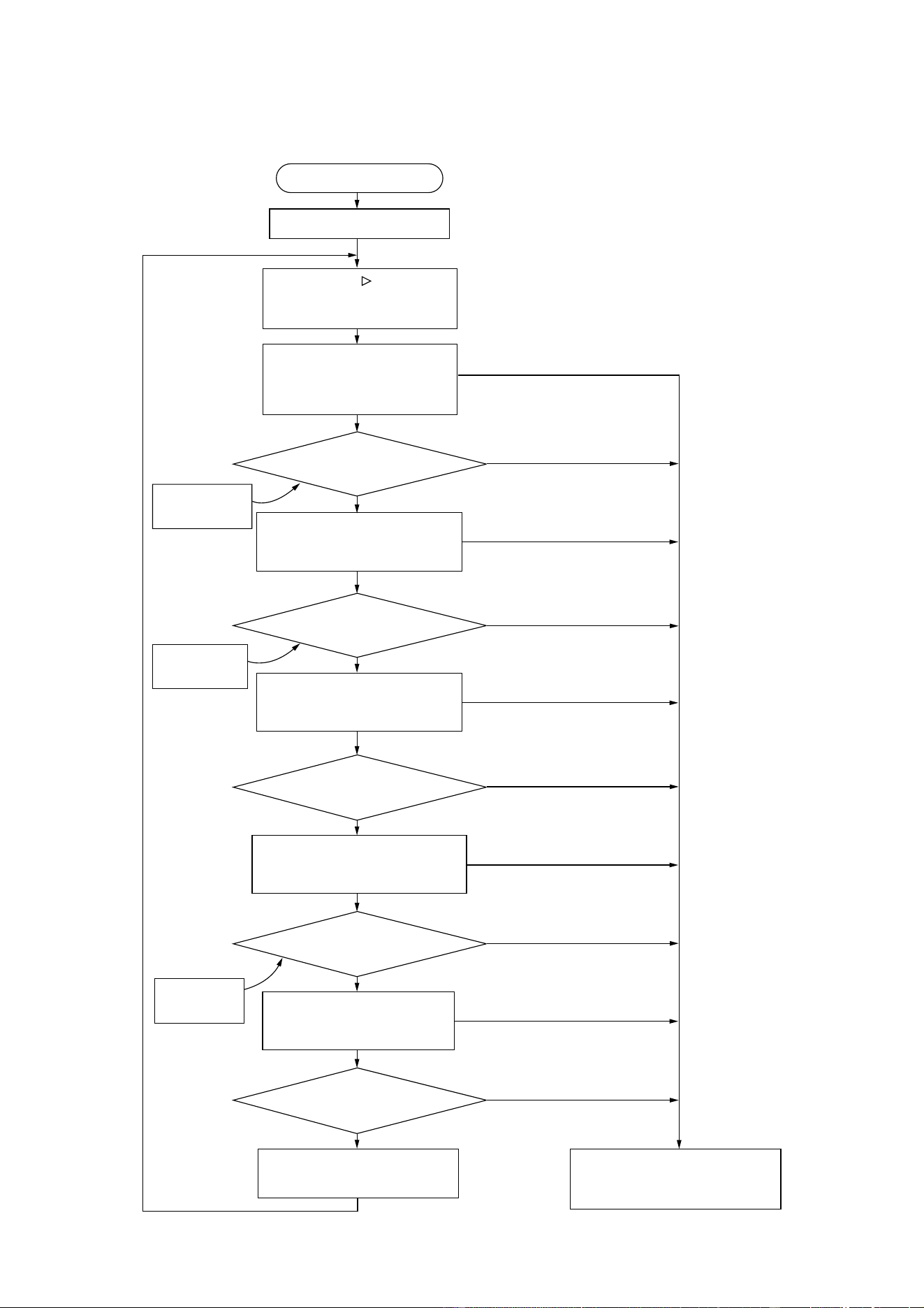

TROUBLESHOOTING ..................................................................................................................................................... 68

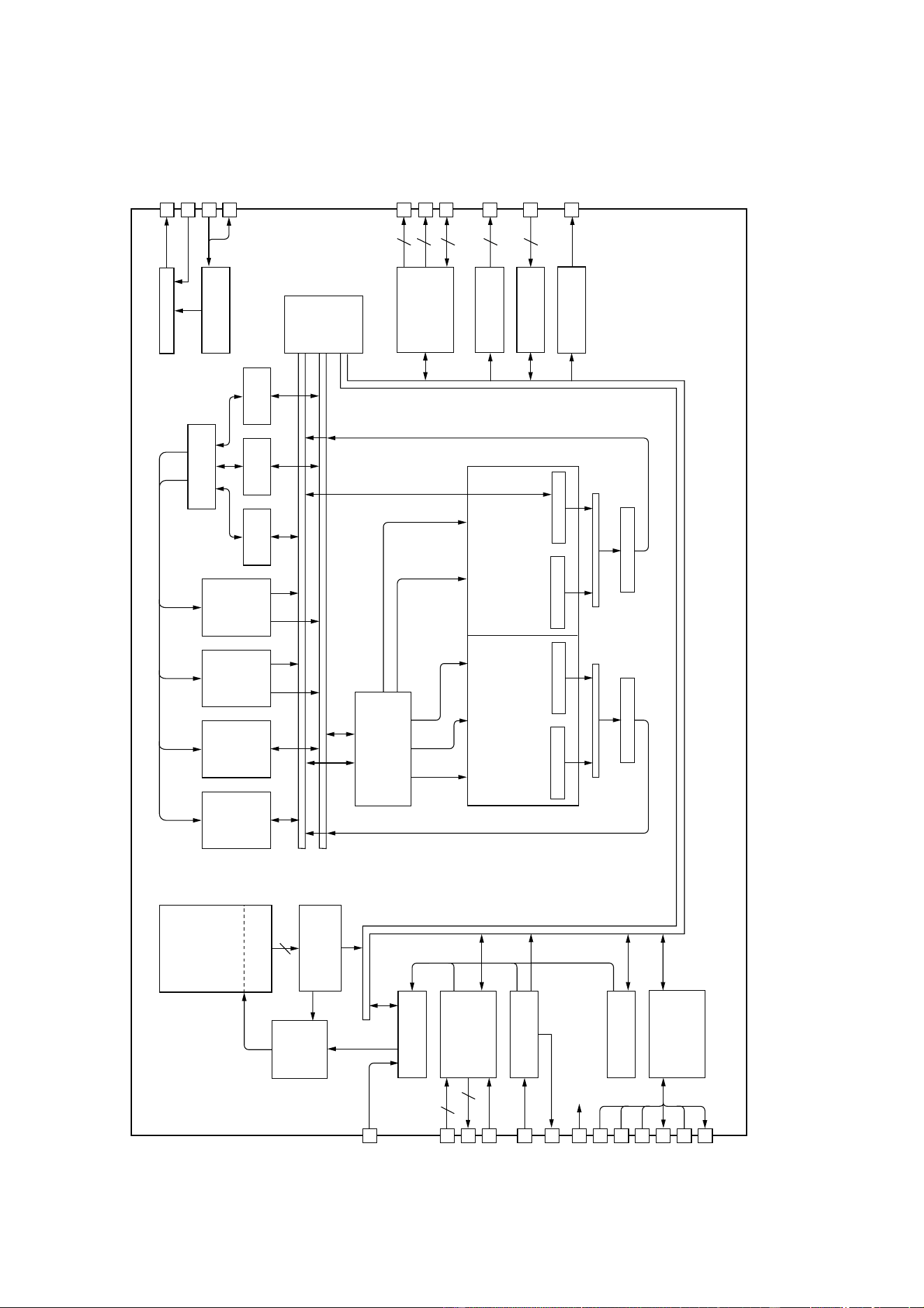

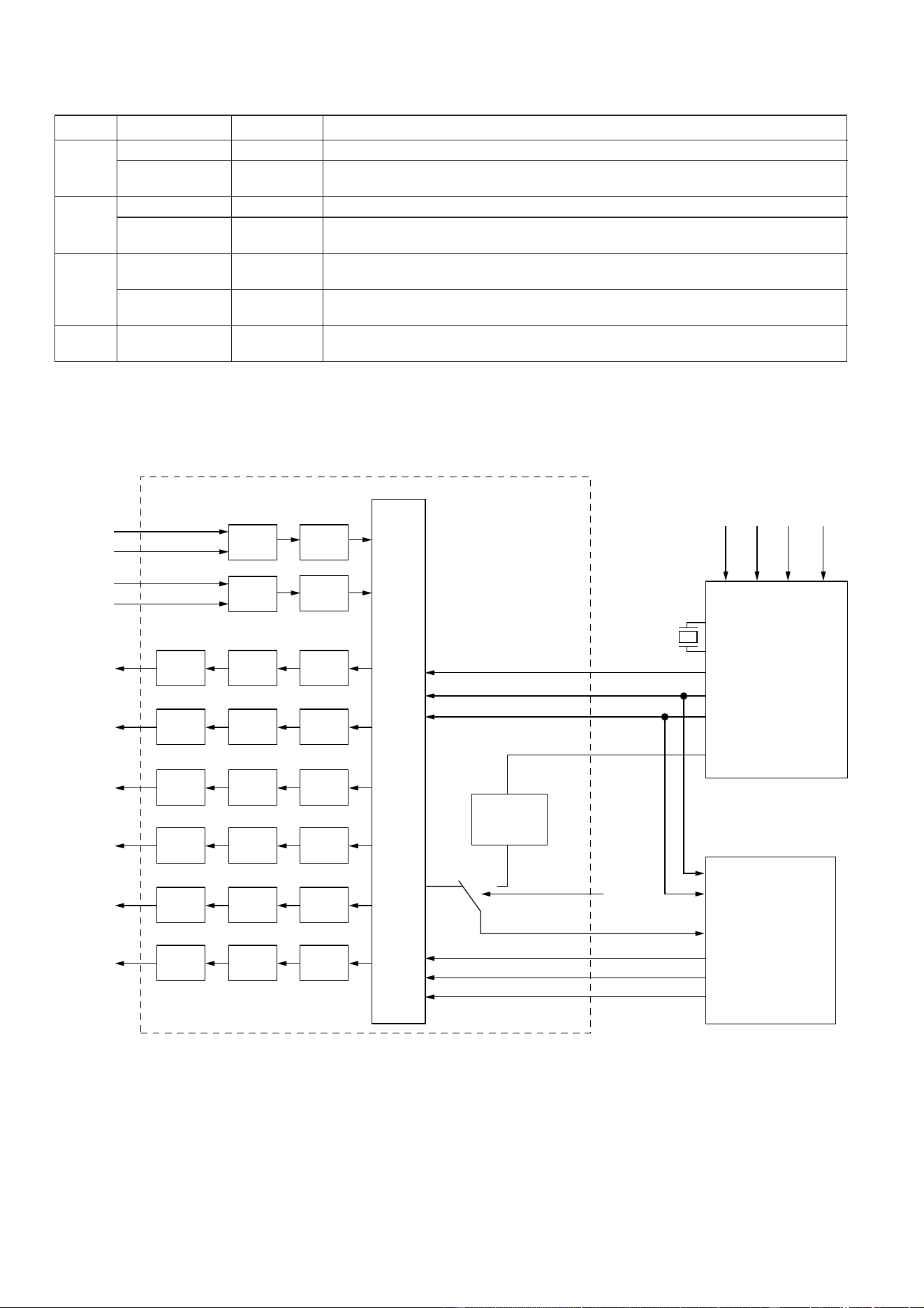

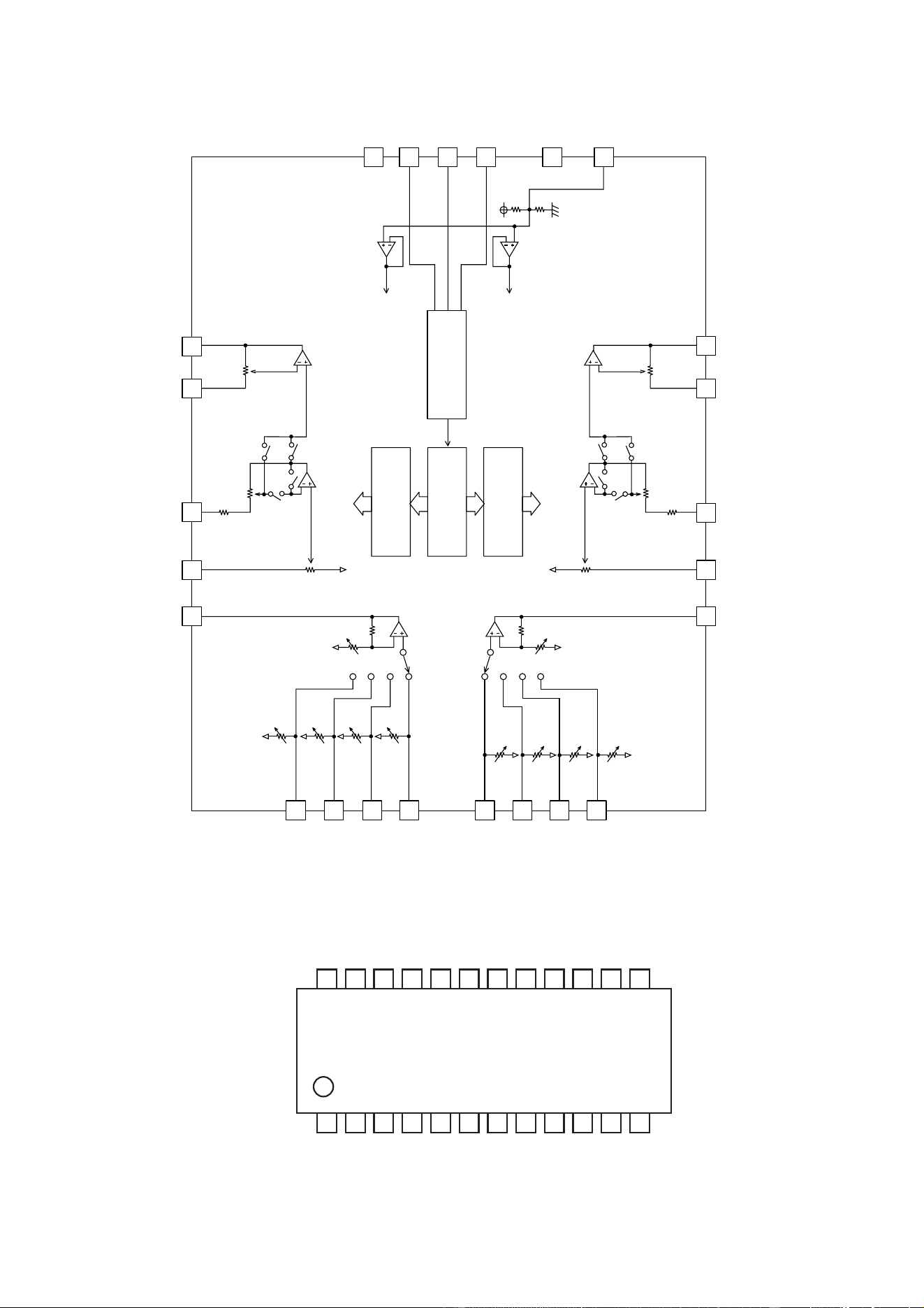

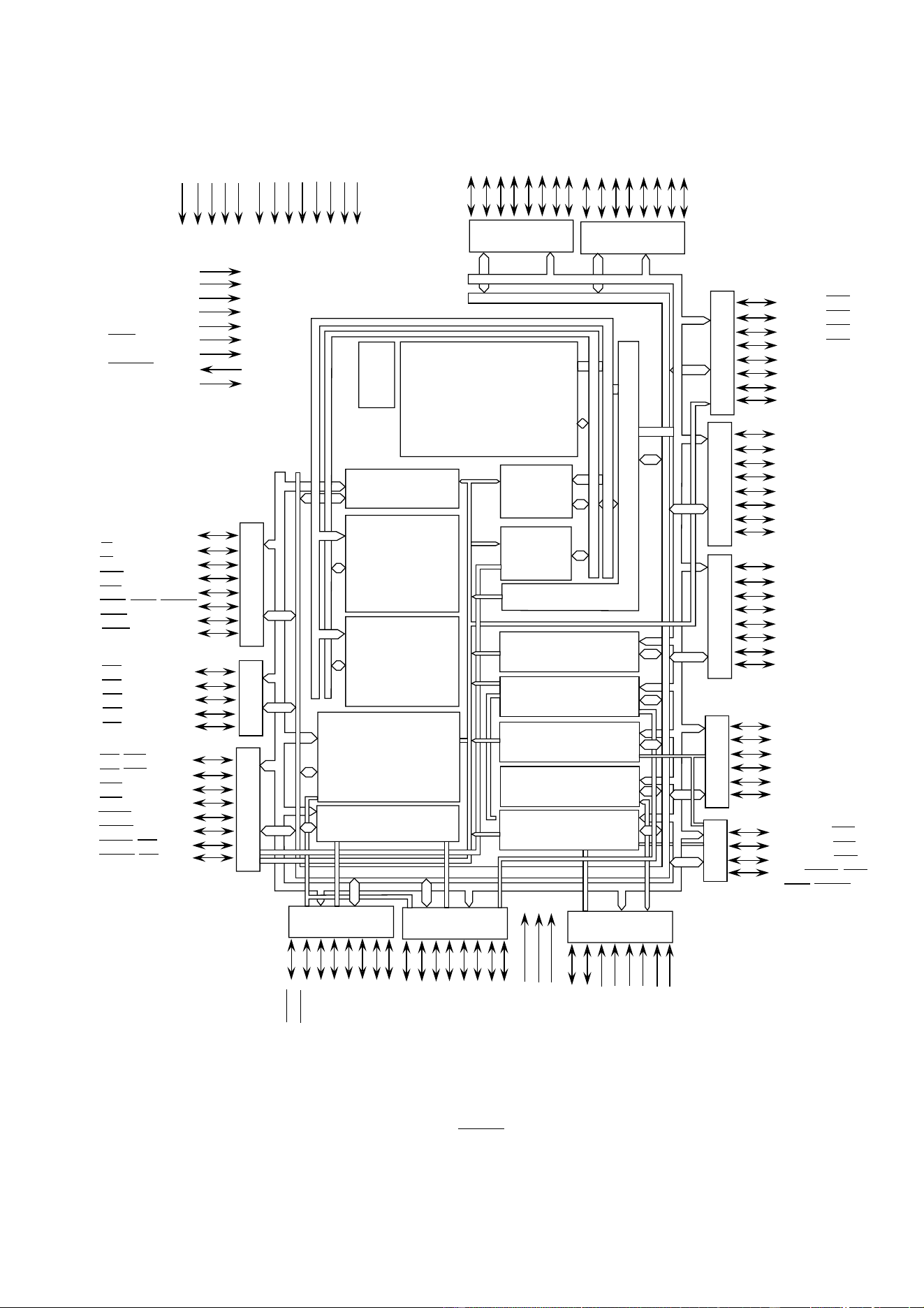

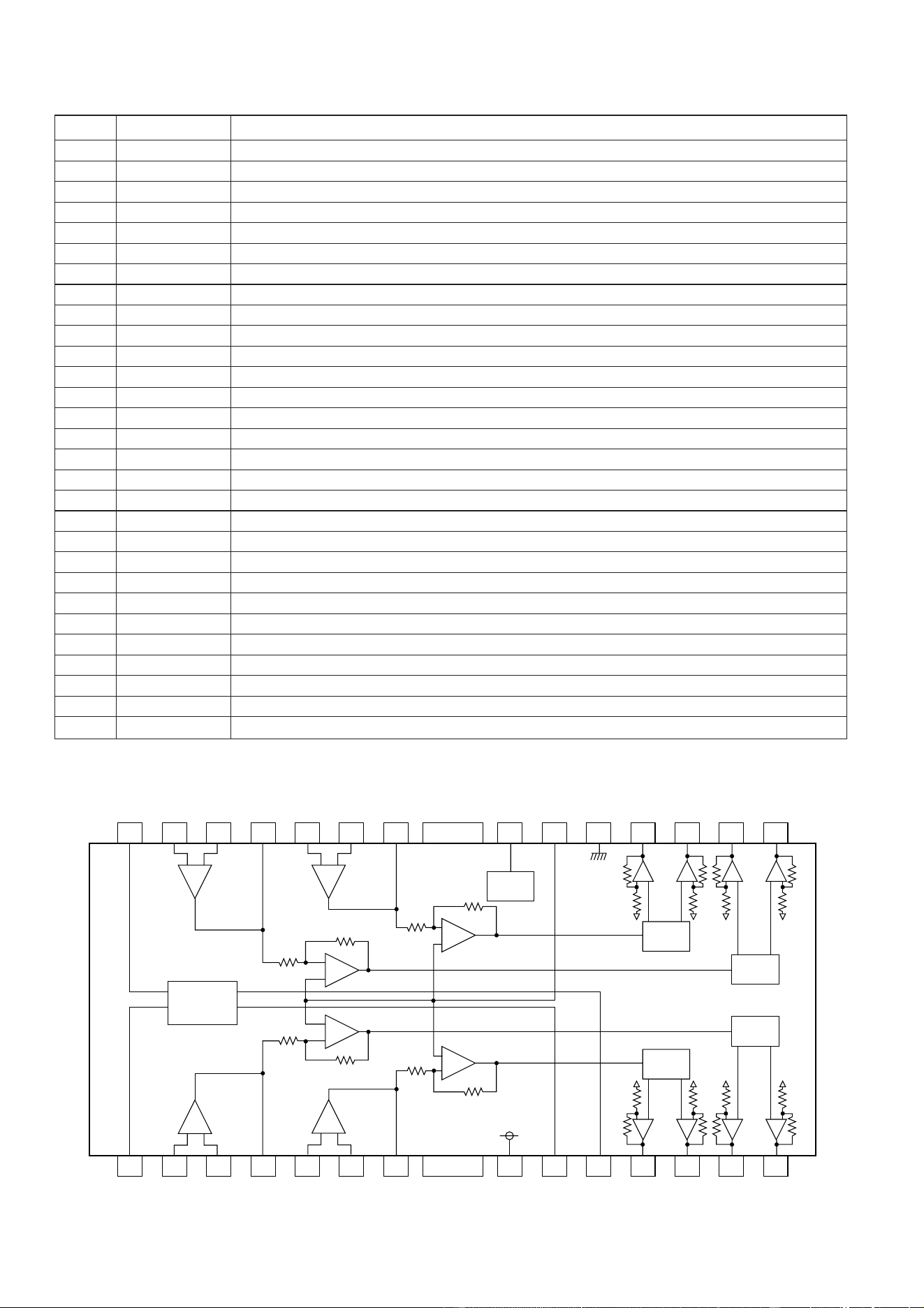

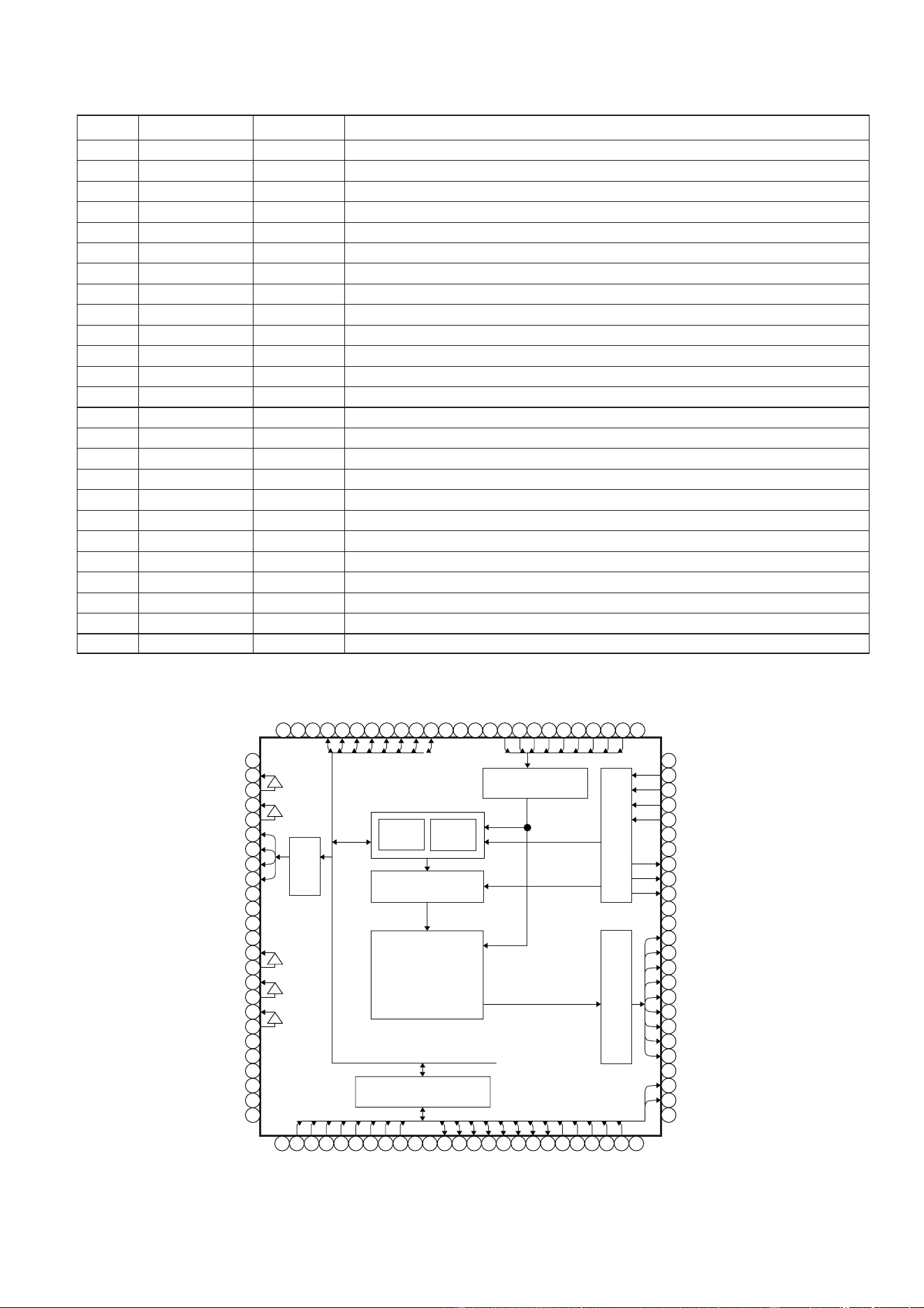

FUNCTION TABLE OF IC................................................................................................................................................ 71

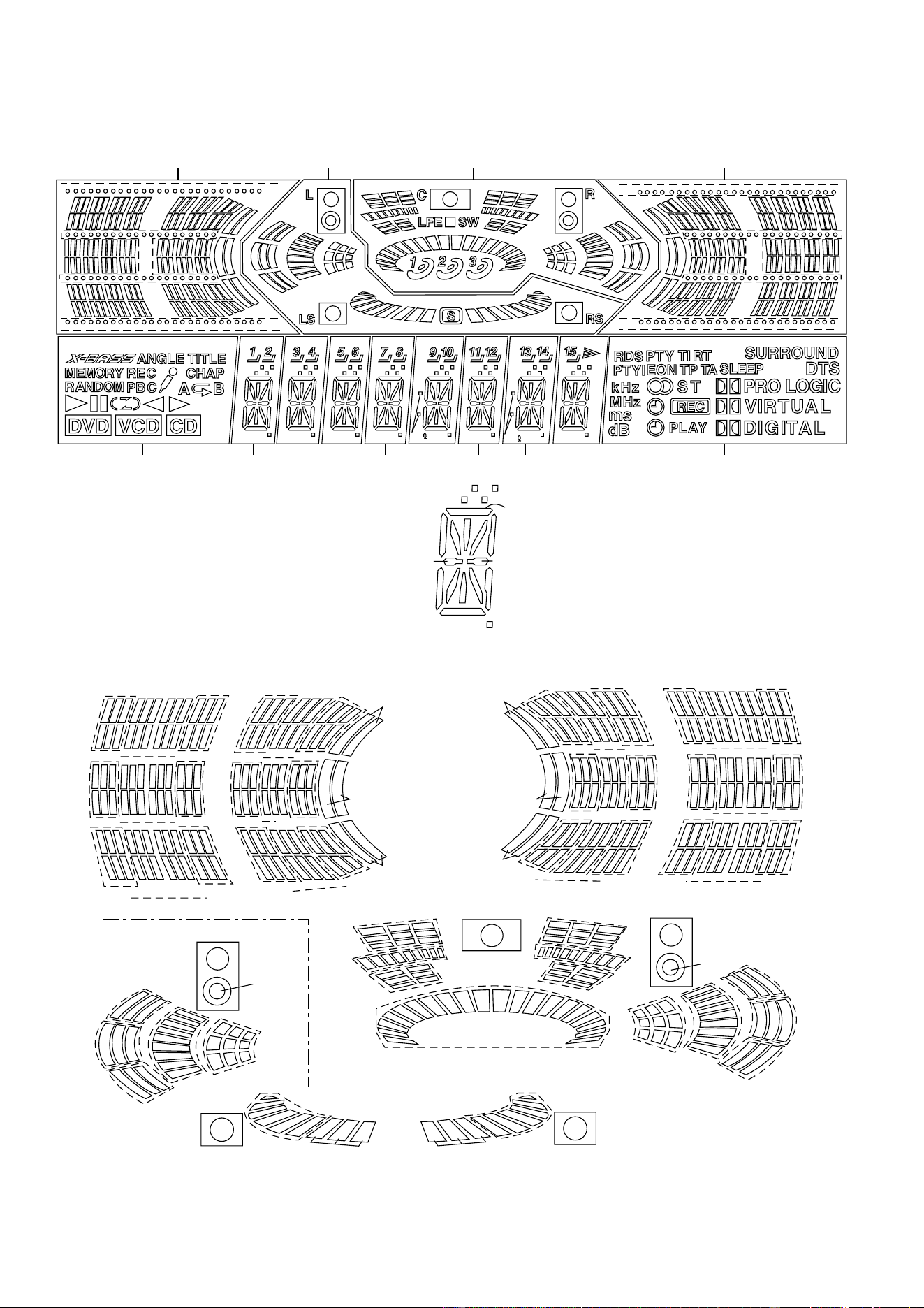

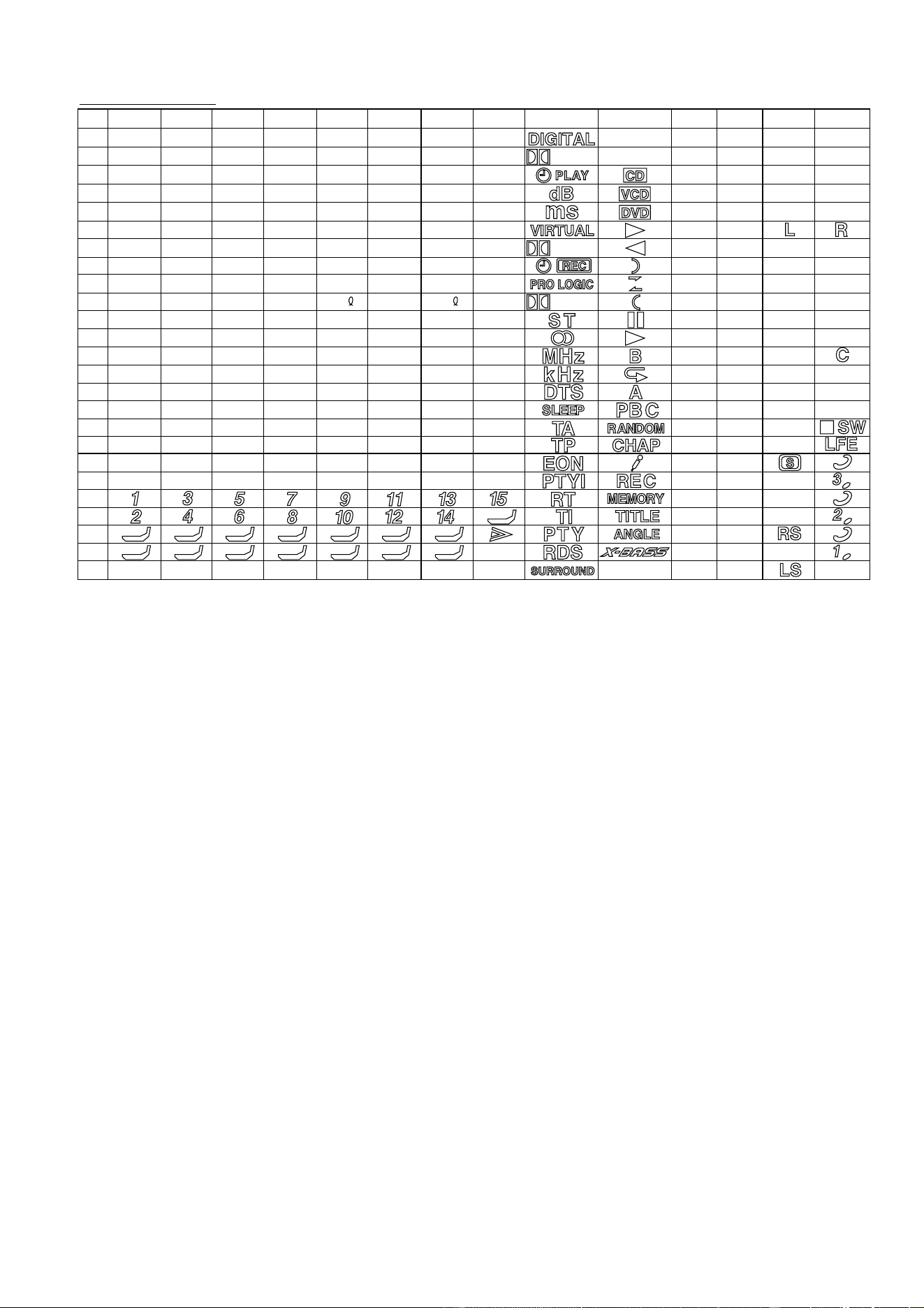

FL DISPLAY ...................................................................................................................................................................... 90

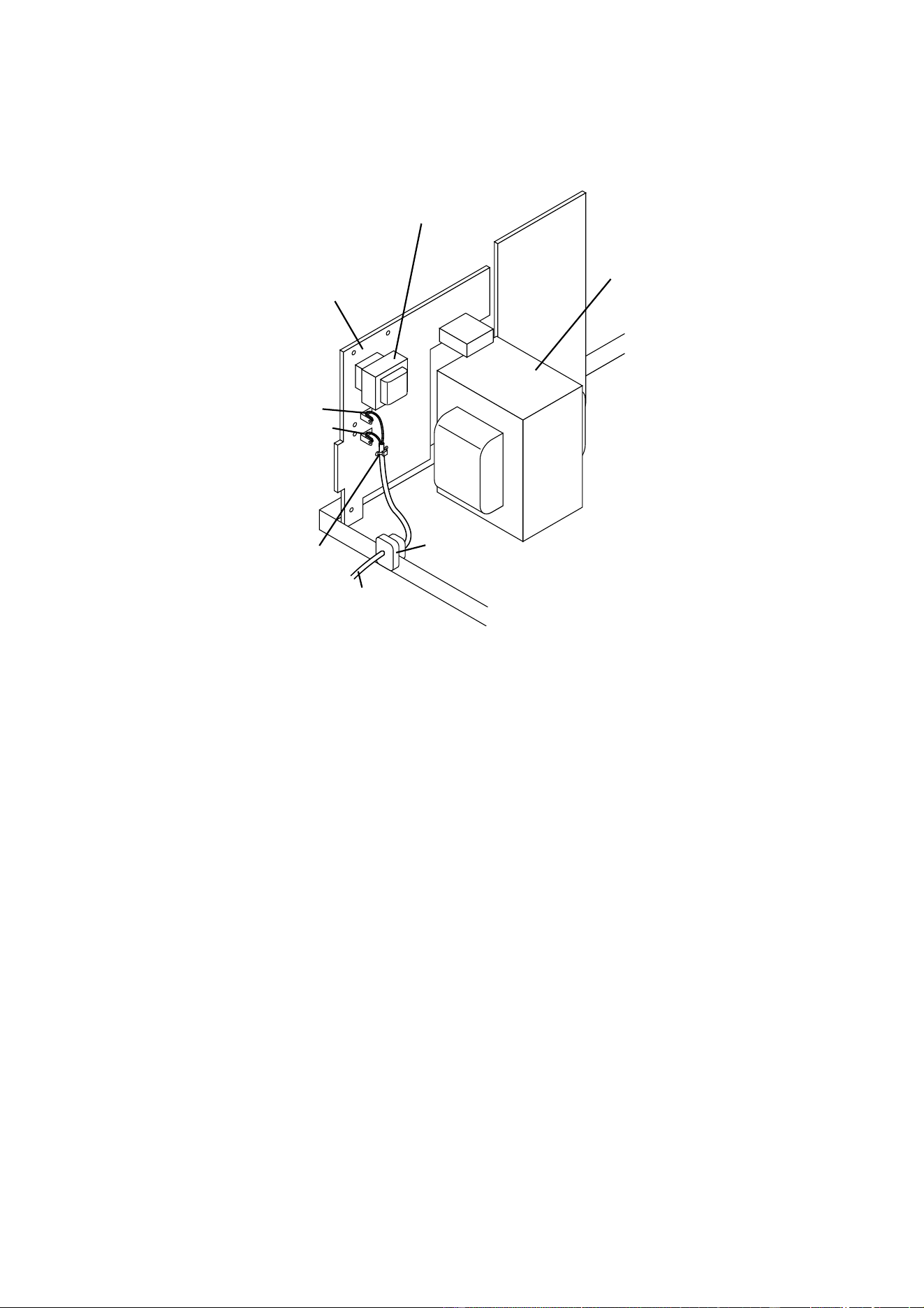

WIRING OF PRIMARILY SUPPLY LEADS (FOR U.K. ONLY) ....................................................................................... 92

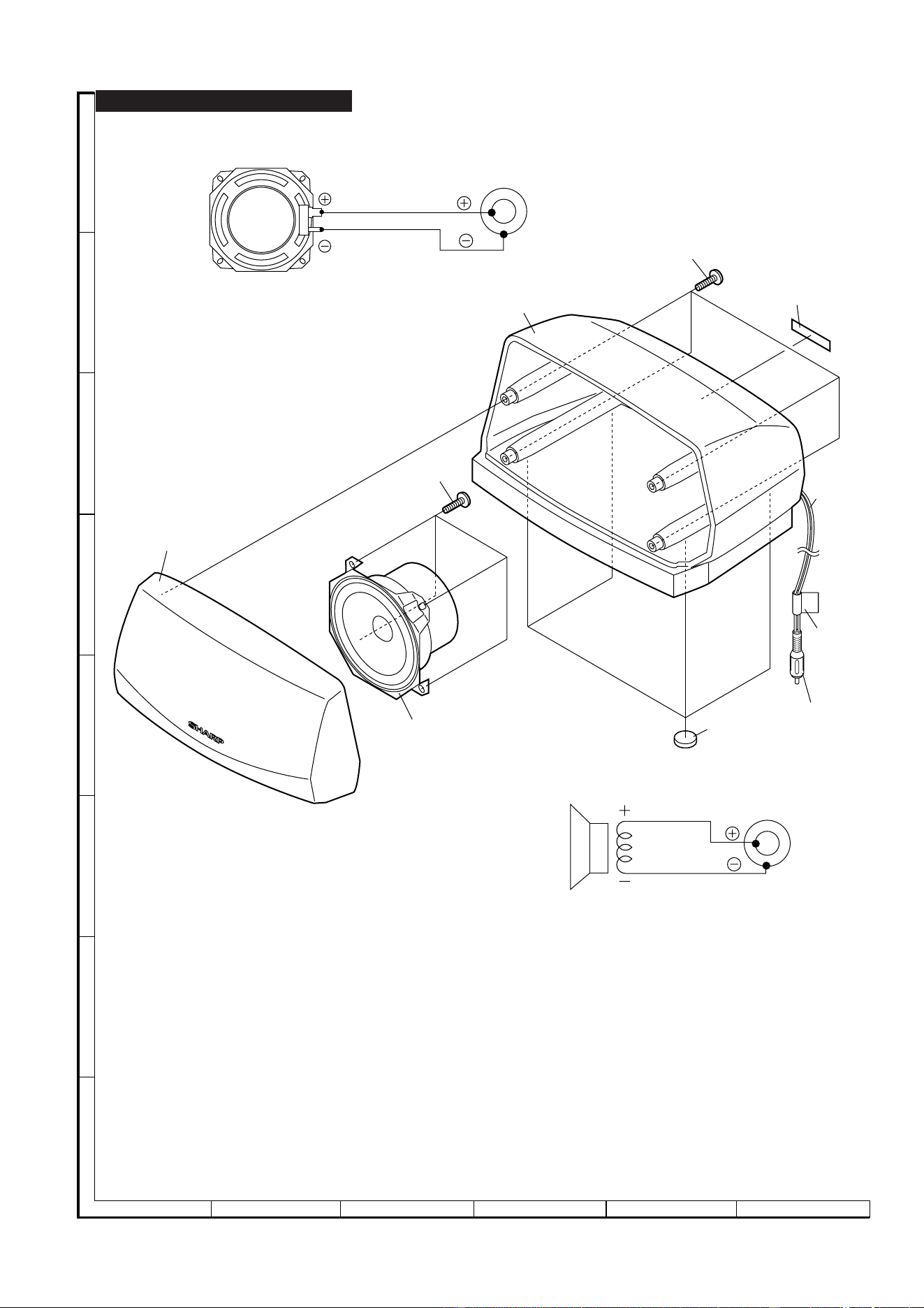

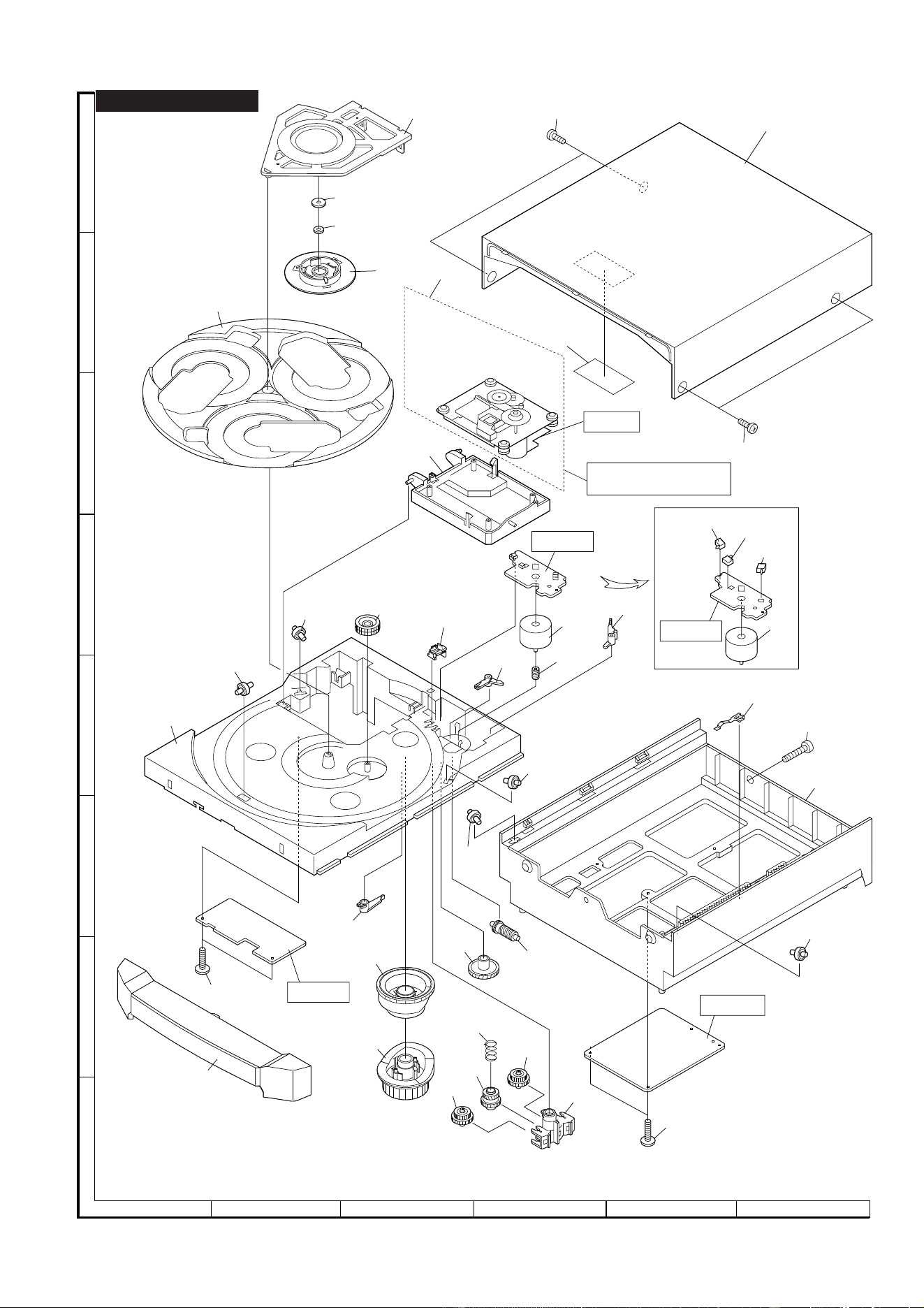

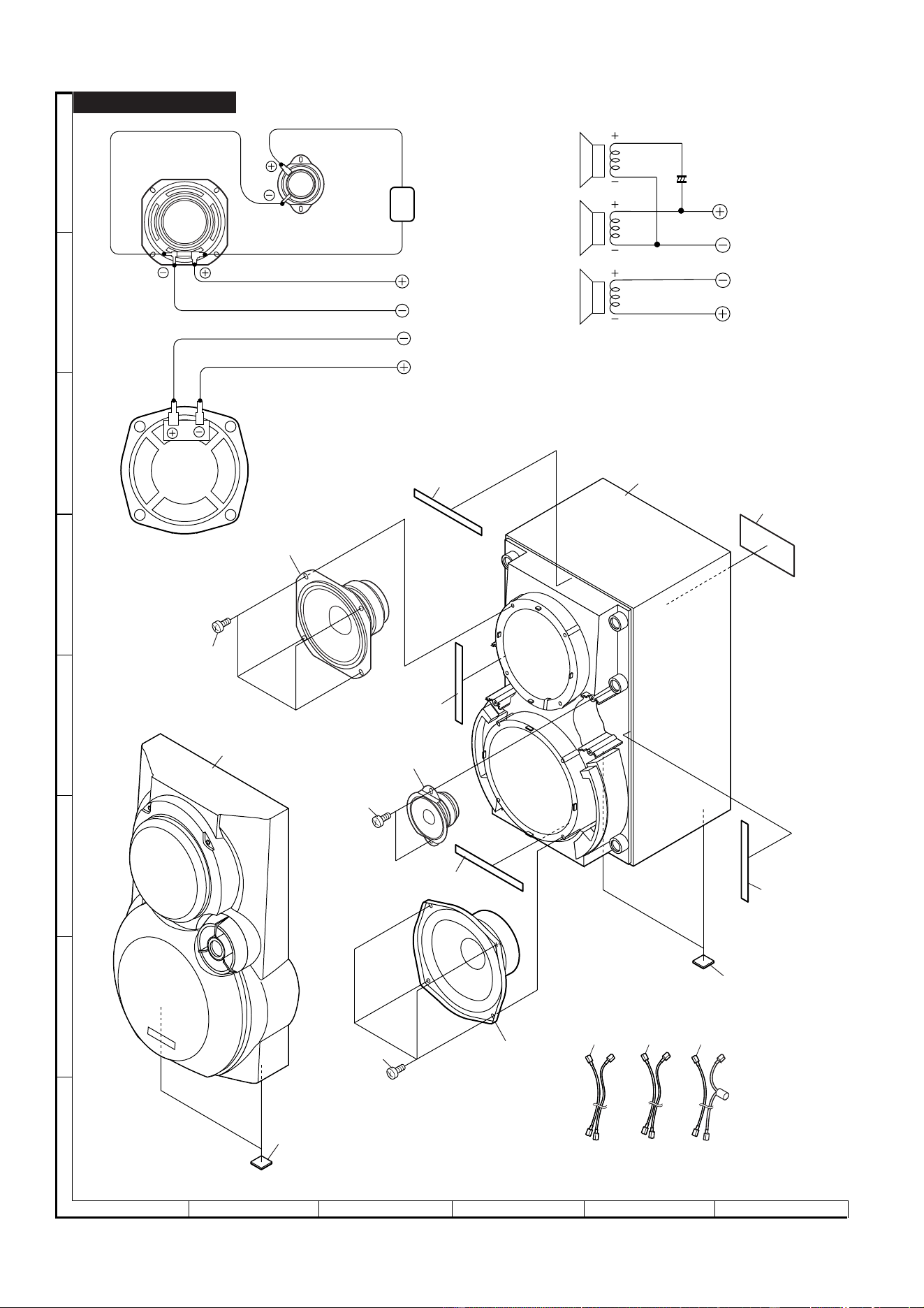

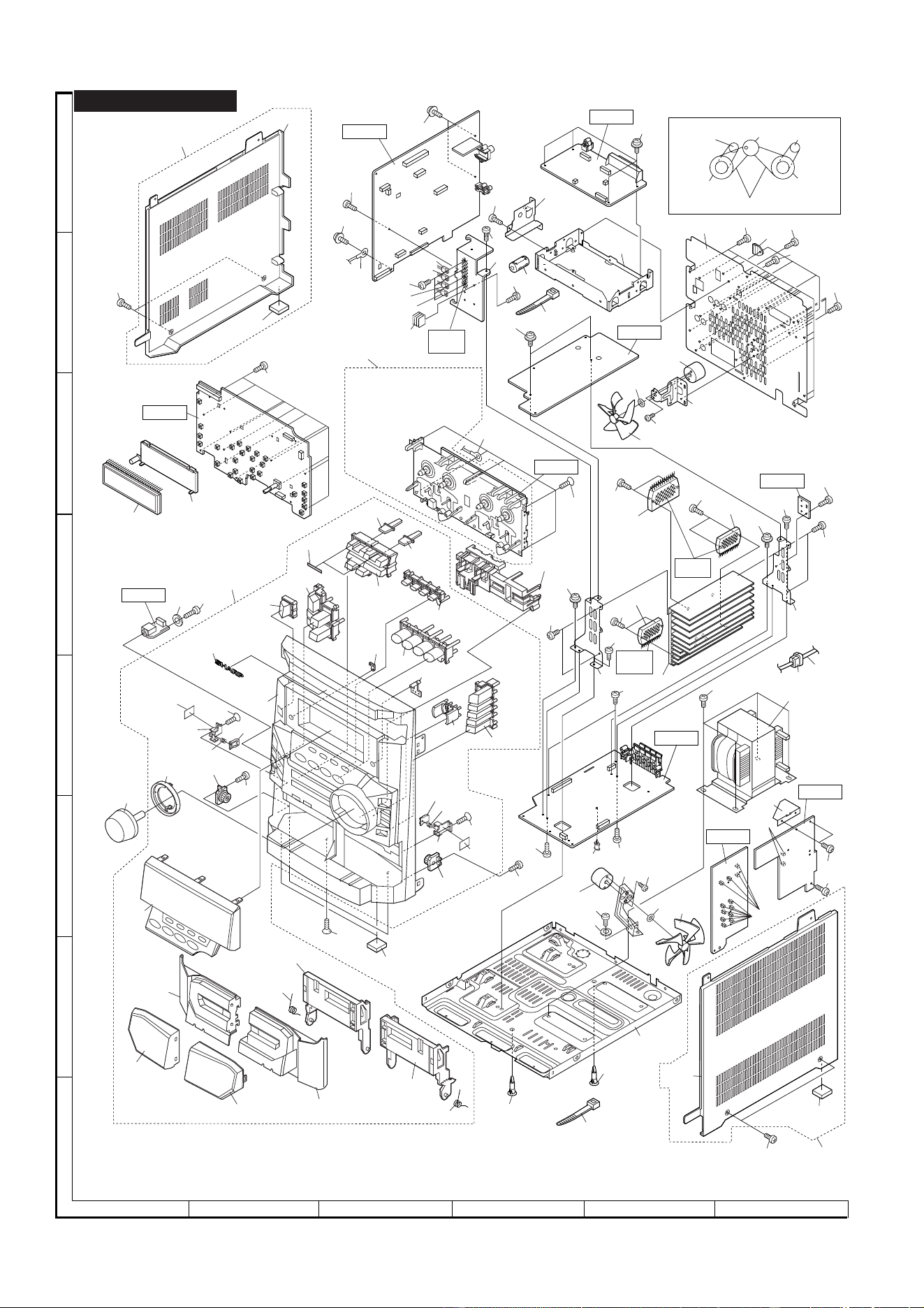

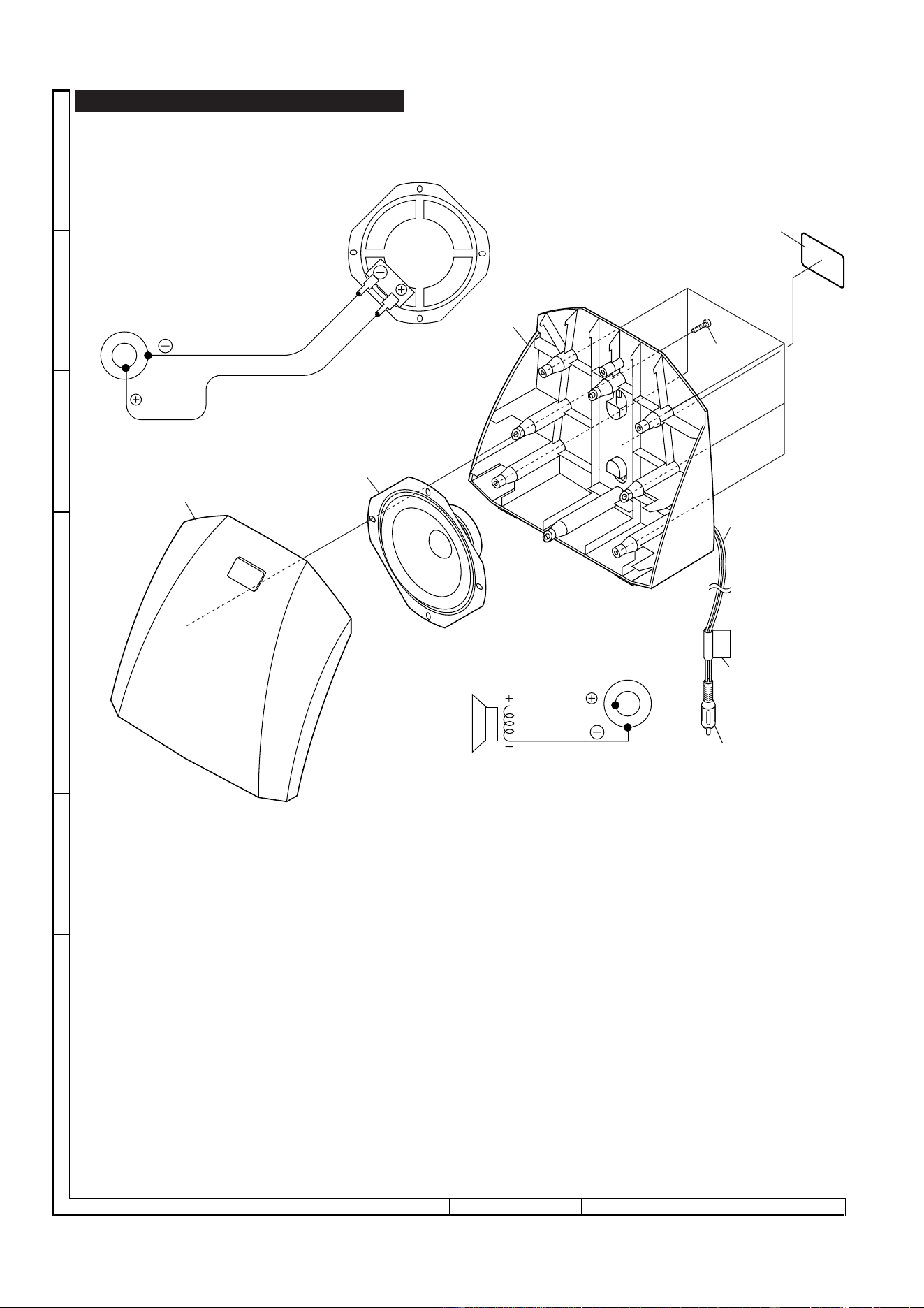

REPLACEMENT PARTS LIST/EXPLODED VIEW

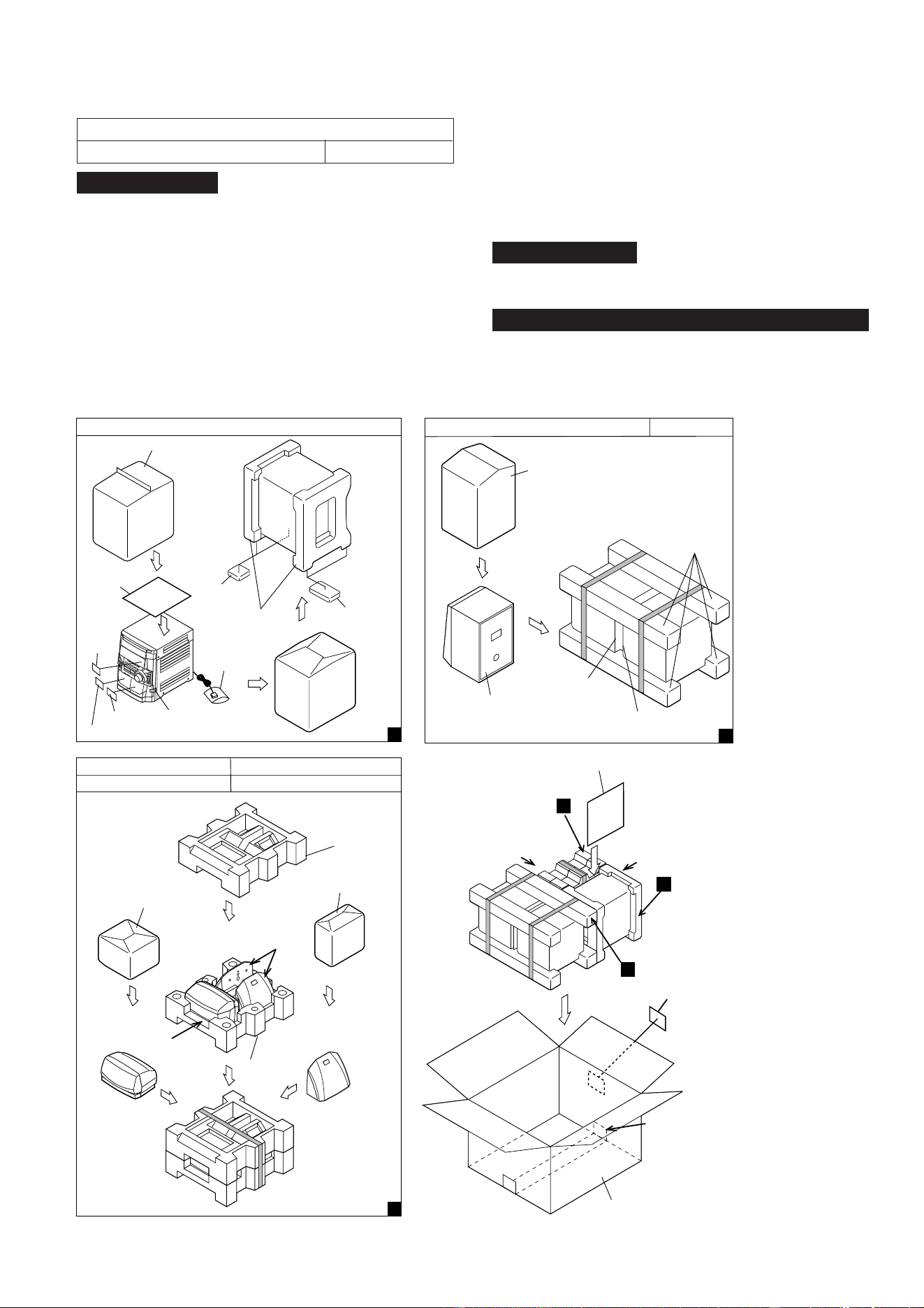

PACKING METHOD (FOR U.K. ONLY)

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

SERVICE MANUAL

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

• Note for users in U.K.

Recording and playback of any material may require consent

which SHARP is unable to give. Please refer particularly to the

provisions of Copyright Act 1956, the Dramatic and Musical

Performers Protection Act 1956, the Performers Protection Acts

1963 and 1972 and to any subsequent statutory enactments and

orders.

DVD MINI COMPONENT SYSTEM

MODEL CD-DVD500H

CD-DVD500H DVD Mini Component System consisting of

CD-DVD500H (main unit), CP-DVD500H (front speaker),

GBOXS0064AWM5 (center speaker), GBOXS2008AWM5

(right surround speaker) and GBOXS4008AWM5 (left

surround speaker).

CD-DVD500H

– 2 –

SAFETY PRECAUTION FOR

SERVICE MANUAL

Precaution to be taken when replacing and servicing the

Laser Pickup.

The AEL (Accessible Emission Level) of Laser Power Output

for this model is specified to be lower than Class 1

Requirements. However, the following precautions must be

observed during servicing to protect your eyes against exposure

to the Laser beam.

(1) When the cabinet has been removed, the power is turned

on without a compact disc, and the Pickup is on a position

outer than the lead-in position, the Laser will light for several

seconds to detect a disc. Do not look into the Pickup Lens.

(2) The Laser Power Output of the Pickup inside the unit and

replacement service parts have already been adjusted prior

to shipping.

(3) No adjustment to the Laser Power should be attempted

when replacing or servicing the Pickup.

(For U.K.)

(Except for U.K.)

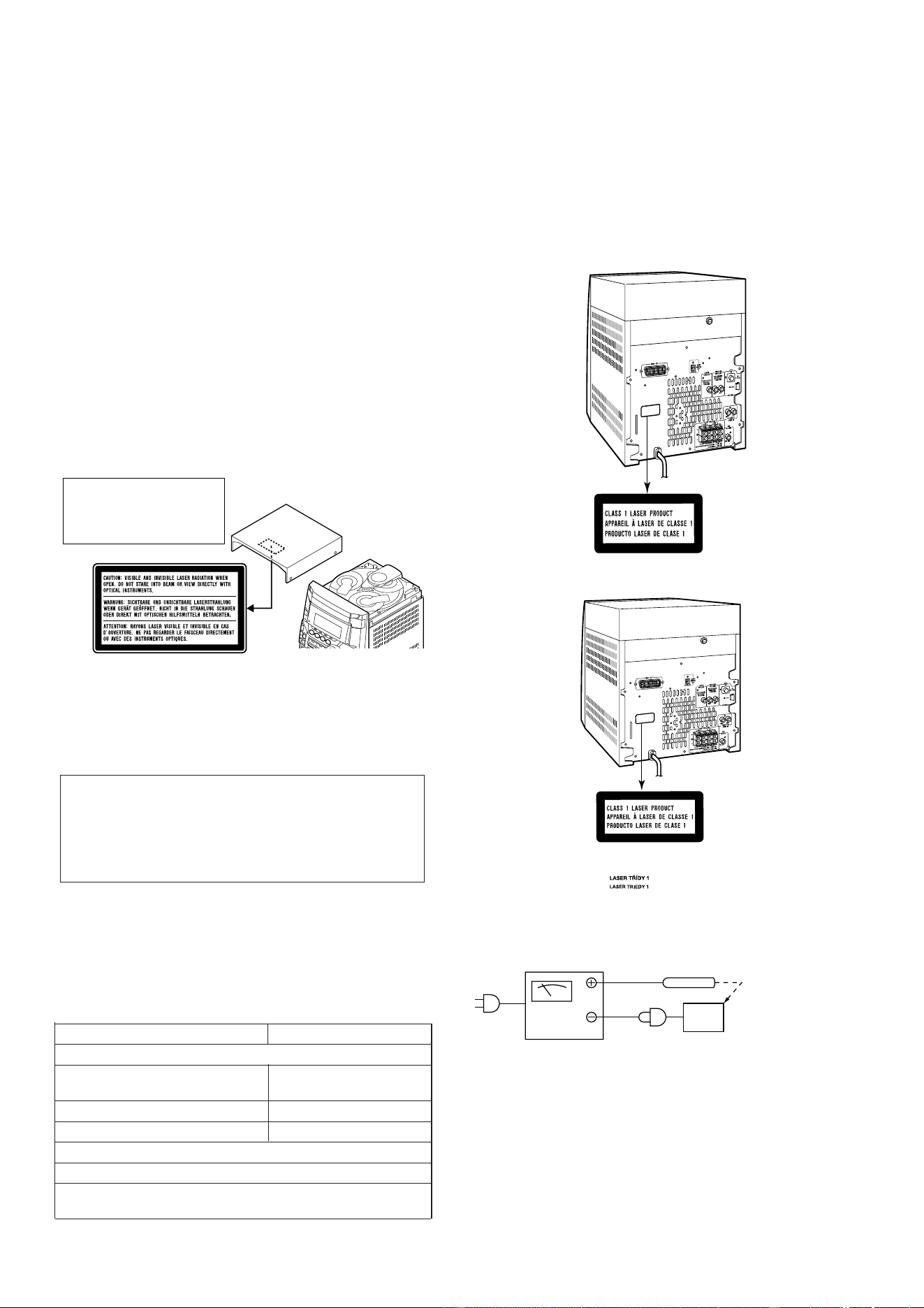

IMPORTANT SERVICE NOTES (FOR U.K. ONLY)

Before returning the unit to the customer after completion of a

repair or adjustment it is necessary for the following withstand

voltage test to be applied to ensure the unit is safe for the

customer to use.

Setting of Withstanding Voltage Tester and set.

Set name set value

Withstanding Voltage Tester

Test voltage 4,240 VPEAK

3,000 VRMS

Set time 6 secs

Set current (Cutoff current) 4 mA

Unit

Judgment

OK: The “GOOD” lamp lights.

NG: The “NG” lamp lights and the buzzer sounds.

PROBE

OUT

UNIT

SHORT-CIRCUIT

AC POWER

SUPPLY CORD

CONNECT THE PROBE

TO GND OF CHASSIS

SCREW

WITHSTANDING

VOLTAGE TESTER

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA

KÄYTTÄJÄN

TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE

LASERSÄTEILYLLE.

VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA

BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR

SYNLIG OCH OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN

FÖR LASERKLASS 1.

Laser Diode Properties

Material: AIGaAs/AIGaInP

Wavelength: 785 nm/650 nm

Emission Duration: continuous

Laser Output: max. 0.69 mW

ADVERSEL-SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE IND I

STRÅLEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE

LASERSÄTEILYLLE ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN

LAITTEEN LÄPI.

VARNING-SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR

ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN GENOM

OPTISKT INSTRUMENT.

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

(4) Under no circumstances look directly into the Pickup Lens

at any time.

(5) CAUTION - Use of controls or adjustments, or performance

of procedures other than those specified herein may result

in hazardous radiation exposure.

– 3 –

CD-DVD500H

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

SPECIFICATIONS

CD-DVD500H

GBOXS0064AWM5

GBOXS2008AWM5

GBOXS4008AWM5

DVD/CD player

Signal system NTSC/PAL

Supported disc types

DVD (Region number 2, ALL), audio CD, CD-R, CD-RW

Video output Output socket: SCART

Output level: 0.7 Vp-p (75 ohms RGB output)

1.0 Vp-p (75 ohms composite output)

Video signal Horizontal resolution: 500 lines

S/N ratio: 60 dB

Audio signals Frequency characteristics:

Linear PCM DVD: 4 Hz to 22 kHz (48 kHz sampling)/

4 Hz to 44 kHz (96 kHz sampling)

CD: 4 Hz to 20 kHz

S/N ratio: 96 dB 1 kHz (CD)

Dynamic range: 96 dB (Linear PCM DVD)

96 dB (CD)

Total harmonic distortion ratio: 0.006 % maximum

Tuner

Frequency range FM: 87.5 - 108 MHz

AM: 522 - 1,620 kHz

Cassette deck

Frequency response 50 - 14,000 Hz (Normal tape)

Signal/noise ratio 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter 0.35 % (DIN 45 511)

General

Power source AC 230 V, 50 Hz

Power consumption Power on: 255 W

Power stand-by: 0.6 W (*)

Dimensions Width: 270 mm (10-11/16")

Height: 330 mm (13")

Depth: 372 mm (14-11/16")

Weight 8.8 kg (19.4 lbs)

(*) This power consumption value is obtained when the demonstration mode is can-

celled in the power stand-by mode. To cancel the demonstration mode.

Amplifier (Except for U.K.)

Output power

Front speakers

(Main)

RMS:

60 W (30 W + 30 W)

(DIN 45 324)

Front speakers

(Subwoofer):

RMS: 80 W (40 W + 40 W) (DIN 45 324)

Centre speaker:

RMS: 30 W (DIN 45 324)

Surround speakers:

RMS: 40 W (20 W + 20 W) (DIN 45 324)

Output terminals Front speakers (Main): 8 ohms

Front speakers (Subwoofer): 6 ohms

Centre speaker: 6 ohms

Surround speakers: 8 ohms

Subwoofer (Pre-out): 10 kohms

Headphones: 16 - 50 ohms (recommended; 32 ohms)

Audio Digital Out: Optical

Input terminals Video/auxiliary (Audio Input): 500 mV/47 kohms

Type 3-way, 130 mm (5-1/8") subwoofer, 100 mm (4")

woofer and 50 mm (2") tweeter

Maximum input power

Subwoofer:

80 W

Main:

60 W

Rated input power

Subwoofer:

40 W

Main:

30 W

Impedance Subwoofer: 6 ohms/ Main: 8 ohms

Dimensions Width: 220 mm (8-5/8")

Height: 330 mm (13")

Depth: 245 mm (9-5/8")

Weight 4.1 kg (9.0 lbs.)/each

Type Full range, 100 mm (4")

Maximum input power

60 W

Rated input power

30 W

Impedance 6 ohms

Dimensions Width: 260 mm (10-1/4")

Height: 142 mm (5-5/8")

Depth: 170 mm (6-11/16")

Weight 1.0 kg (2.2 lbs.)

Type Full range, 100 mm (4")

Maximum input power

40 W

Rated input power

20 W

Impedance 8 ohms

Dimensions Width: 200 mm (7-7/8")

Height: 172 mm (6-3/4")

Depth: 95 mm (3-3/4")

Weight 0.6 kg (1.3 lbs.)/each

Amplifier (For U.K.)

Output power

Front speakers

(Main)

RMS

: 60 W (30 W + 30 W) (10

% T.H.D., 1 kHz)

Front speakers

(Subwoofer):

RMS

80 W (40 W + 40 W)

(10

% T.H.D., 100 Hz)

Centre speaker:

RMS

30 W

(10

% T.H.D., 1 kHz)

Surround speakers:

RMS

40 W (20 W + 20 W)

(10

% T.H.D., 1 kHz)

Output terminals Front speakers (Main): 8 ohms

Front speakers (Subwoofer): 6 ohms

Centre speaker: 6 ohms

Surround speakers: 8 ohms

Subwoofer (Pre-out): 10 kohms

Headphones: 16 - 50 ohms (recommended; 32 ohms)

Audio Digital Out: Optical

Input terminals Video/auxiliary (Audio Input): 500 mV/47 kohms

Specifications for this model are subject to change without

prior notice.

CP-DVD500H

CD-DVD500H

– 4 –

NAMES OF PARTS

CD-DVD500H

Front panel

1. Disc Tray

2. Surround Effect Buttons

3. Timer Set Indicator

4. On/Stand-by Button

5. Tape 2 Cassette Compartment

6. Tape 1 Cassette Compartment

7. Equaliser Mode Select Button

8. Volume Control

9. Extra Bass/Demo Mode Button

10. Disc Tray Open/Close Button

11. Disc Number Select Buttons

12. Disc Skip Button

13. Tuning and Time Up Button

14. DVD/CD/Tape Stop Button (with Indicator)

15. DVD/CD Button

16. Tuner (Band) Button

17. Tape (1 2) Button

18. Video/Auxiliary Button

19. Dimmer Button

20. Clock Button

21. Timer/Sleep Button

22. Headphone Socket

23. DVD/CD/Tape Play Button (with Indicator)

24. DVD Chapter skip, DVD/CD/Tape 2 Fast Forward

or Tuner Preset Up Button

25. Tuning and Time Down Button

26. Memory/Set Button

27. Tape 2 Record Pause Button

28. DVD Chapter skip, DVD/CD Fast Reverse,

Tape 2 Rewind or Tuner Preset Down Button

181716151413

25 26 27 28

Display

1. Extra Bass Indicator

2. Tape 2 Record Indicator

3. DVD Angle Indicator

4. DVD Title Indicator

5. Memory Indicator

6. CD Random Play Indicator

7. DVD Chapter Indicator

8. DVD/CD Play Indicator

9. DVD/CD Pause Indicator

10. Tape Play Indicator

11. DVD/CD Repeat Indicator

12. Left Front Speaker Indicator

13. Low Frequency Effect Indicator

14. Centre Speaker Indicator

15. Right Front Speaker Indicator

16. Subwoofer Indicators

17. Left Surround Speaker Indicator

18. Surround Indicator

19. Right Surround Speaker Indicator

20. Disc Number Indicators

21. Disc Types Indicators

22. CD Music Schedule Indicators

23. Programme Type Indicator

24. Traffic Information Indicator

25. Radio Text Indicator

26. Traffic Announcement Indicator

27. Sleep Indicator

28. RDS Indicator

29. Dynamic PTY Indicator

30. EON Indicator

31. FM Stereo Receiving Indicator

32. Dolby Pro Logic Indicator

33. Dolby Virtual Indicator

34. Timer Recording Indicator

35. Timer Play Indicator

36. Traffic Programme Indicator

37. FM Stereo Mode Indicator

38. Dolb

ital Indicator

12 13 14

17 18 19

16 16

9 10 11

32 4

3837363534

23 24 25 26 27

– 5 –

CD-DVD500H

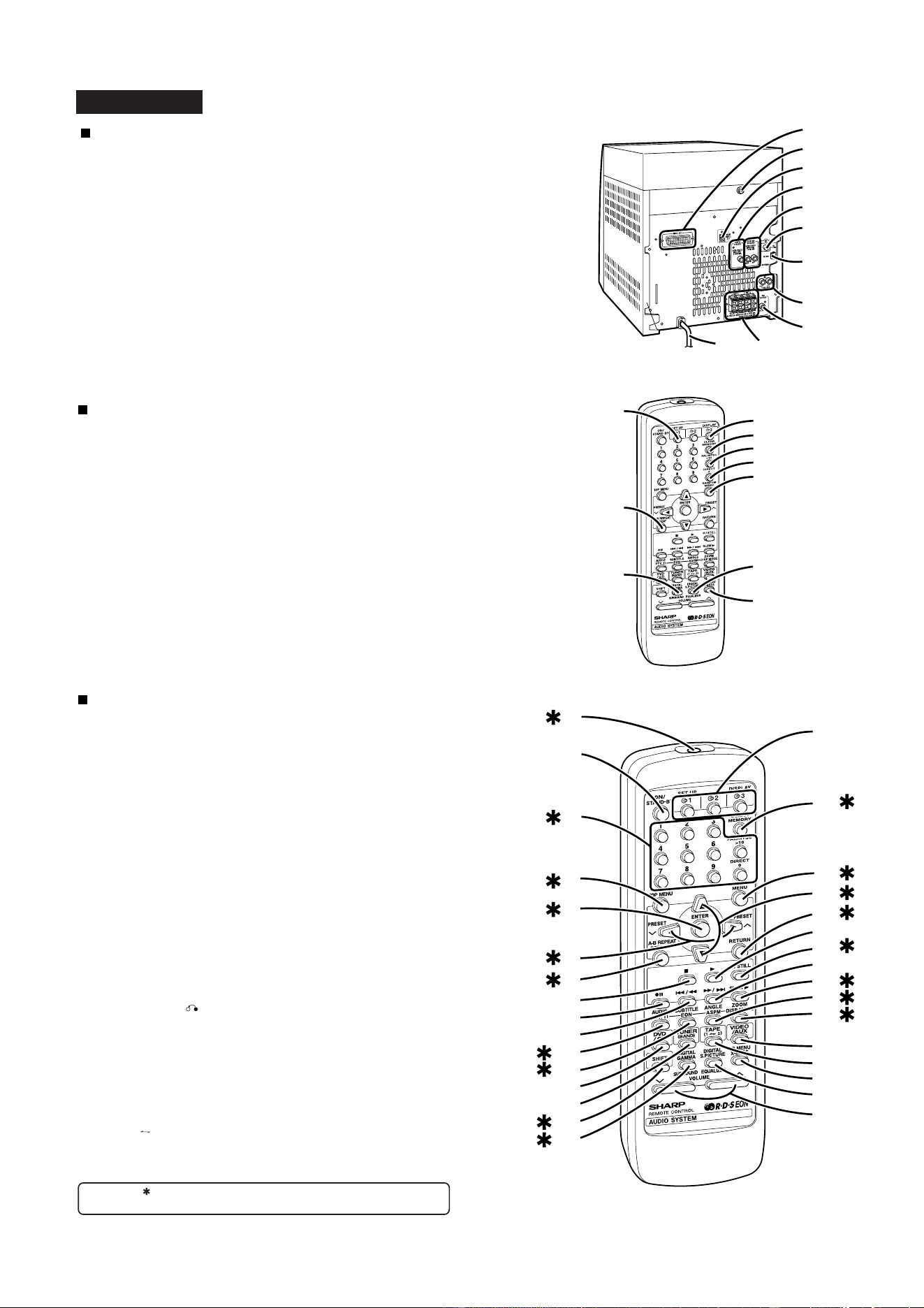

Remote control

1. Remote Control Transmitter

2. On/stand-by Button

3. Direct Buttons

4. DVD Top Menu Button

5. Enter Button

6. Menu Select or Tuner Preset Buttons

7. DVD/CD Repeat Button

8. DVD/CD/Tape Stop Button

9. Tape 2 Record Pause Button

10. DVD Chapter Skip or DVD/CD/Tape Fast Reverse Button

11. DVD Audio or RDS Programme Type/Traffic Information Search

Button

12. DVD Subtitle or RDS EON Button

13. DVD/CD Button

14. Tuner (Band) Button

15. Shift Button

16. Surround Button

17. Disc Number Select Buttons

18. DVD/CD Memory Button

19. DVD Menu Button

20. Menu Select Buttons

21. Return Button ( )

22. DVD/CD/Tape Play Button

23. DVD/CD Pause Button

24. DVD Chapter Skip or DVD/CD/Tape Fast Forward Button

25. DVD Slow Button

26. DVD Angle or RDS ASPM (Auto Station Programme Memory)

Button

27. DVD Zoom or RDS Display Mode Selector Button

28. Video/Auxiliary Button

29. Tape (1 2) Button

30. Extra Bass Button

31. Equaliser Mode Select Button

32. Volume Up or Down Buttons

Buttons with “ ” mark in the illustration can be operated with the remote control only.

Other buttons can be operated on the main unit and the remote control.

Remote control with shift button

1. DVD Setup Button

2. DVD/CD A-B Repeat Button

3. DVD Digital Gamma Button

4. DVD/CD Display Button

5. DVD/CD Clear Button

6. PAL/NTSC Button

7. DVD Direct Button

8. CD Random Button

9. DVD Digital Super Picture Button

10. Speaker Menu Button

Rear panel

1. Video Output Socket

2. Transport Screw

3. Audio Digital Output Socket

4. Centre Speaker Socket

5. Surround Speaker Sockets

6. FM 75 Ohms Aerial Socket

7. AM Loop Aerial Socket

8. Video/Auxiliary (Audio Signal) Input Sockets

9. Subwoofer Pre Output Socket

10. AC Power Lead

11. Front Speaker Terminals

CD-DVD500H

– 6 –

GBOXS0064AWM5

GBOXS2008AWM5

GBOXS4008AWM5

Front speaker (left)

Front speaker (right)

1. Full-Range Speaker

2. Speaker Wire

1. Full-Range Speaker

2. Speaker Wire

Centre speaker

Surround speaker (left)

Surround speaker (right)

1. Woofer

2. Tweeter

3. Subwoofer

4. Speaker Wire for SUBWOOFER Terminals

5. Bass Reflex Duct

6. Speaker Wire for MAIN Terminals

CP-DVD500H

– 7 –

CD-DVD500H

OPERATION MANUAL

To confirm the time display:

Press the CLOCK button.

The time display will appear for about 5 seconds.

Note:

The “CLOCK” or time will flash at the push of the CLOCK button when the AC power

supply is restored after a power failure or unplugging the unit.

Readjust the clock as follows.

To readjust the clock:

Perform “Setting the Clock” from the beginning.

If the time display is flashing, step 3 (for selecting the 24-hour or 12-hour display) will

be skipped.

To change the 24-hour or 12-hour display:

1. Clear all the programmed contents.

[Refer to “Clearing all the memory (reset)”.]

2. Perform “Setting the Clock” from the beginning.

Setting the clock

In this example, the clock is set for the 24-hour (0:00) display.

Press the ON/STAND-BY button to turn the power on.

Press the CLOCK button and within 5 seconds, press the

MEMORY/SET button.

Press the TUNING/TIME ( or ) button to select the 24-hour or

12-hour display and then press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the hour and

then press the MEMORY/SET button.

Press the

TUNING/TIME ( or )

button once to advance the time by 1

hour. Hold it down to advance continuously.

When the 12-hour display is selected, “AM” will change automatically to “PM”.

Press the TUNING/TIME ( or ) button to adjust the minutes

and then press the MEMORY/SET button.

Press the

TUNING/TIME ( or )

button once to advance the time by 1

minute. Hold it down to change the time in 5-minute intervals.

The hour will not advance even if minutes advance from “59” to “00”.

The clock begins counting from “0” seconds. (Seconds are not displayed.)

The time display will disappear after a few seconds.

Note that this can only be set when the unit is first installed or it has been reset.

“0:00” → The 24-hour display will appear. (0:00 - 23:59)

“AM 12:00”→ The 12-hour display will appear. (AM 12:00 - PM 11:59)

“AM 0:00” → The 12-hour display will appear. (AM 0:00 - PM 11:59)

Test of the remote control

Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy your system.

Remote control

Remote sensor

0.2 m - 6 m

(8" - 20')

CD-DVD500H

– 8 –

Using the radio data system (RDS)

RDS is a broadcasting service which a growing number of FM stations provide.

These FM stations send additional signals along with their regular programme

signals. They send their station names, and information about the type of

programme such as sports or music, etc.

When tuned to an RDS station, “RDS” and the station name will be displayed.

“TP” (Traffic Programme) will appear on the display when the received broadcast car-

ries traffic information, and “TA” (Traffic Announcement) will appear whilst a traffic in-

formation is on air.

“EON” will appear whilst the EON (Enhanced Other Networks information) data is broad-

cast.

“PTYI” (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.

“RT” (Radio Text) will appear whilst the unit receives the Radio text data.

Station name (PS)

Programme type (PTY)

(8 languages)

Programme type (PTY)

(English fixed)

Radio text (RT)

Frequency

When you are tuning in to a station other than an RDS station or to an RDS station

which sends weak signal, the display will change in the following order:

FM 98.80 MHz

NO PS NO PTY

NO RT

Information provided by RDS

Each time the DISP MODE button is pressed, the display will switch as follows:

Programmes about people and things that influence them individually

or in groups. Includes: sociology, history, geography, psychology and

society.

Any aspect of beliefs and faiths, involving a God or Gods, the nature of

existence and ethics.

Involving members of the public expressing their views either by phone

or at a public forum.

Features and programmes concerned with travel to near and far desti-

nations, package tours and travel ideas and opportunities. Not for use

for announcements about problems, delays, or roadworks affecting im-

mediate travel where TP/TA should be used.

Programmes concerned with recreational activities in which the listener

might participate. Examples include, Gardening, Fishing, Antique col-

lecting, Cooking, Food & Wine, etc.

Polyphonic, syncopated music characterised by improvisation.

Songs which originate from, or continue the musical tradition of the

American Southern States. Characterised by a straightforward melody

and narrative story line.

Current Popular Music of the Nation or Region in that country’s lan-

guage, as opposed to International ‘Pop’ which is usually US or UK in-

spired and in English.

Music from the so-called “golden age” of popular music.

Music which has its roots in the musical culture of a particular nation,

usually played on acoustic instruments. The narrative or story may be

based on historical events or people.

Programme concerned with factual matters, presented in an investiga-

tive style.

Broadcast when testing emergency broadcast equipment or receivers.

Emergency announcement made under exceptional circumstances to

give warning of events causing danger of a general nature.

No programme type (receive only).

Broadcasts which carry traffic announcements.

Traffic announcements are being broadcast.

Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and

TA (Traffic Announcement).

You can search for and receive the following PTY, TP and TA signals.

Short accounts of facts, events and publicly expressed views, reportage

and actuality.

Topical programme expanding or enlarging upon the news, generally

in different presentation style or concept, including debate, or analy-

sis.

Programmes whose purpose is to impart advice in the widest sense.

Programme concerned with any aspect of sport.

Programme intended primarily to educate, of which the formal element

is fundamental.

All radio plays and serials.

Programmes concerned with any aspect of national or regional culture,

including language, theatre, etc.

Programmes about the natural sciences and technology.

Used for mainly speech-based programmes usually of light-entertain-

ment nature, not covered by other categories. Examples include:

quizzes, panel games, personality interviews.

Commercial music, which would generally be considered to be of cur-

rent popular appeal, often featuring in current or recent record sales

charts.

Contemporary modern music, usually written and performed by young

musicians.

Current contemporary music considered to be “easy- listening”, as op-

posed to Pop, Rock or Classical, or one of the specialised music styles,

Jazz, Folk or Country. Music in this category is often but not always,

vocal, and usually of short duration.

Classical music for general, rather than specialist appreciation. Examples

of music in this category are instrumental music, and vocal or choral

works.

Performances of major orchestral works, symphonies, chamber music,

etc., and including Grand Opera.

Musical styles not fitting into any of the other categories. Particularly

used for specialist music of which Rhythm & Blues and Reggae are

examples.

Weather reports and forecasts and meteorological information.

Stock Market reports, commerce, trading, etc.

For programmes targeted at a young audience, primarily for entertain-

ment and interest, rather than where the objective is to educate.

SOCIAL

RELIGION

PHONE IN

TRAVEL

LEISURE

JAZZ

COUNTRY

NATION M

OLDIES

FOLK M

DOCU-

MENT

TEST

ALARM !

NONE

NEWS

AFFAIRS

INFO

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

POP M

ROCK M

EASY M

LIGHT M

CLASSICS

OTHER M

WEATHER

FINANCE

CHILDREN

Note:

When you select a programme in the EON stand-by mode, the unit will display “TI”

instead of “TA”.

– 9 –

CD-DVD500H

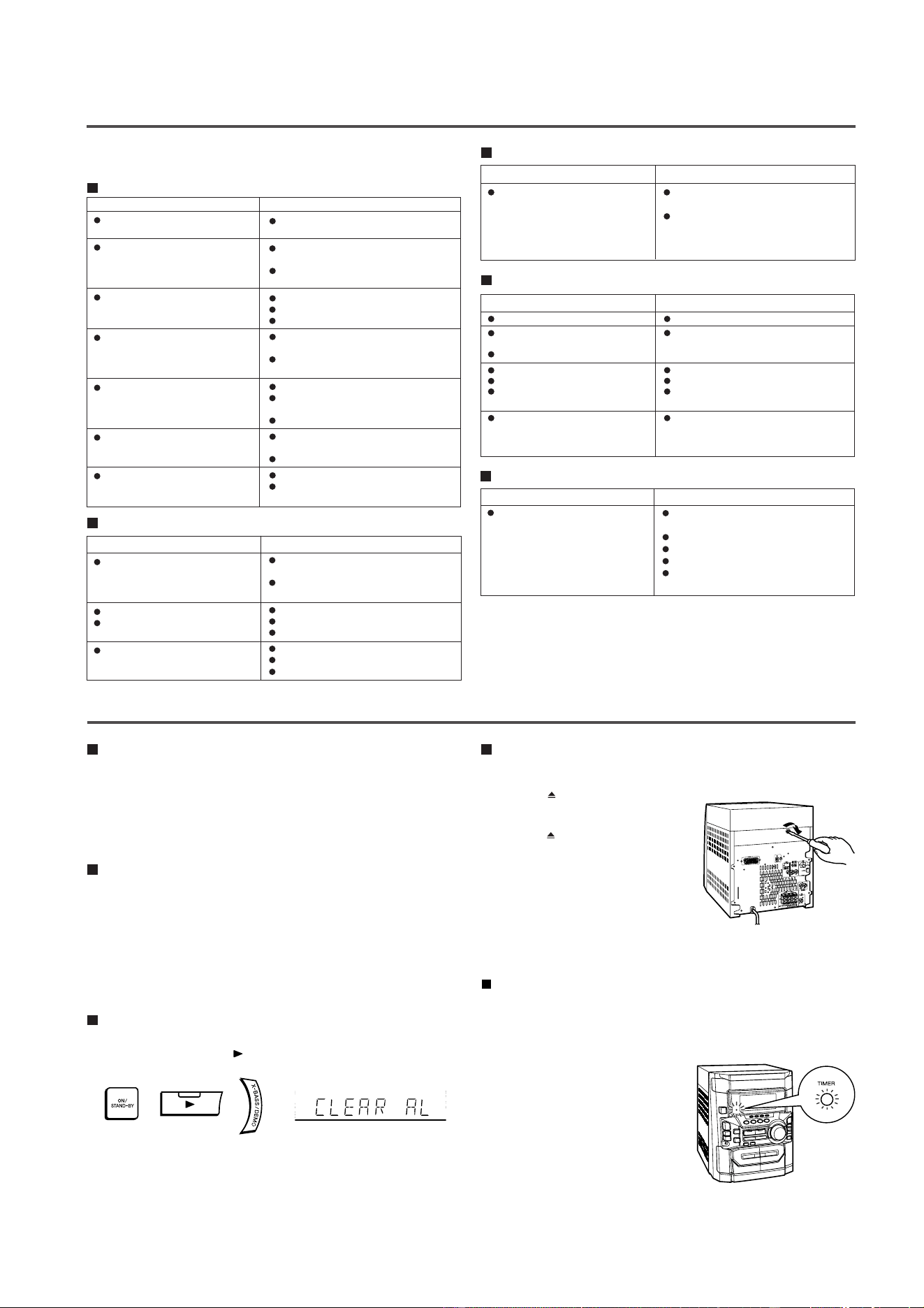

Troubleshooting chart

Many potential “problems” can be resolved by the owner without calling a service tech-

nician. If something is wrong with this product, check the following before calling your

authorised SHARP dealer or service centre.

General

Symptom

The clock is not accurate.

When a button is pressed, the unit

does not respond.

No sound is heard.

The balance between the left and

right channels is bad.

Hum or excessive noise.

No sound is heard, or the sound

is too low, from the centre or sur-

round speakers.

The timer indicator is flashing.

Possible cause

Did a power failure occur?

Reset the clock.

Set this unit to the power stand-by mode

and then turn it back on.

If the unit still malfunctions, reset it.

Is the volume level set to “0”?

Are the headphones connected?

Are the speaker wires disconnected?

Are the front and surround speakers

connected to the wrong channels?

If an external unit is connected, are the left

and right channels connected improperly?

Is the speaker lead plugged in incorrectly?

Does the speaker lead run past other

electronic equipment?

Are the plugs or terminals dirty?

Is the “speaker size” item set to “NO” in

the “setup” operation (page 42)?

Is the volume too low?

Is the speaker wire shorted?

Was the unit used at high volume for

many hours?

Remote control

Symptom

The remote control does not op-

erate.

Possible cause

Is the AC power lead of the unit un-

plugged?

Is the battery polarity wrong?

Are the batteries dead?

Is the distance or angle incorrect?

Does the remote control sensor receive

strong light?

Tuner

Symptom

Radio makes constant unusual

noise or static.

Possible cause

Is the unit placed near the TV or com-

puter?

Is the FM aerial or AM loop aerial placed

improperly?

Move the AC power lead away from the

aerial if located near.

Cassette deck

Symptom

Cannot record.

Cannot record tracks with proper

sound quality.

Cannot erase completely.

Sound skipping.

Cannot hear treble.

Sound fluctuation.

Cannot remove the tape.

Possible cause

Is the erase-protection tab removed?

Is it a normal tape?

(You cannot record on a metal or CrO

tape.)

Is there any slack?

Is the tape stretched?

Are the capstans, pinch rollers, or heads

dirty?

If a power failure occurs during playback,

the heads remain engaged with the tape.

Do not open the compartment forcibly.

Wait until electricity resumes.

DVD/CD player

Symptom

No image from the DVD video

appears on the screen of a con-

nected device.

Playback does not start.

Playback stops in the middle or is

not performed properly.

Playback sounds are skipped, or

stopped in the middle of a track.

Possible cause

Make sure the channel of the connected

TV is set to VIDEO or AV.

Make sure video cables are connected

correctly.

Is the disc loaded upside down?

Does the disc dissatisfy the standards?

Is the disc distorted or scratched?

Is the unit located near excessive vibrations?

Is the disc very dirty?

Has condensation formed inside the unit?

When timer indicator is flashing

When only TIMER indicator is flashing (other indicators have gone out), the unit is

overheated.

Due to a problem in the speaker circuit, the unit will enter the stand-by mode automati-

cally.

In this case, take the following corrective

actions.

1. Unplug the AC power plug from the AC

socket.

Make sure that the unit vent is not blocked.

3. Make sure that the speaker wires have

been correctly connected to the speaker

terminals.

4. After checking items 2 and 3 above, wait

for 2 or 3 hours before trying to use the

unit.

5. Reconnect the AC power lead.

The higher volume causes to flash the timer indicator. If it happens, lower the

volume.

Before transporting the unit

1. Press the ON/STAND-BY button to turn the power on.

2. Press the DVD/CD button.

3. Press the OPEN/CLOSE button to open

the disc tray.

Remove all discs from the unit.

4. Press the OPEN/CLOSE button to close

the disc tray.

Make sure that “NO DISC” is displayed.

5. Press the ON/STAND-BY button to enter the

stand-by mode, “GOOD-BYE” is displayed.

6. When “GOOD-BYE” disappears, unplug

the AC power lead from the AC socket.

7. Insert the transport screw into the back of

the unit and tighten it with a flat-blade

screwdriver.

Condensation

Sudden temperature changes, storage or operation in an extremely humid environ-

ment may cause condensation inside the cabinet (DVD/CD pickup, tape heads, etc.)

or on the transmitter on the remote control.

Condensation can cause the unit to malfunction.

If this happens, leave the power on with no disc (or cassette) in the unit until normal

playback is possible (about 1 hour). Wipe off any condensation on the transmitter with

a soft cloth before operating the unit.

If trouble occurs

When this product is subjected to strong external interference (mechanical shock, ex-

cessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is oper-

ated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1. Set the unit to the stand-by mode and turn the power on again.

2. If the unit is not restored in the previous operation, unplug and plug in the

unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Clearing all the memory (reset)

1. Press the ON/STAND-BY button to enter the power stand-by mode.

2. Whilst pressing down the button and X-BASS/DEMO button, press the

ON/STAND-BY button until “CLEAR AL” appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings and

tuner preset.

Troubleshooting chart

CD-DVD500H

– 10 –

Accessories

AM loop aerial × 1

Remote control × 1

Battery installation of the remote control

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).

Remove the

Insert the batteries

Replace the cover.

battery cover.

as shown.

FM aerial × 1

“AA” size battery

(UM/SUM-3, R6, HP-7 or

similar) × 2

System connections

Wall socket

(AC 230 V, 50 Hz)

(For U.K.)

Front speaker (Right)

Front speaker (Left)

FM aerial

AM loop aerial

Blue

Red

Black

Blue

Red

Black

Surround speaker (Right)

Surround

speaker

(Left)

Centre speaker

Right

Left

Transport screw

Before turning the power on, be

sure to remove this transport

screw on the back of the unit

using a flat-blade screwdriver

or a coin.

This screw is required when

transporting the unit again.

Please keep it.

Wall socket

(AC 230 V, 50 Hz)

(Except for U.K.)

– 11 –

CD-DVD500H

External unit connections

RCA lead

(not supplied)

To the line output sockets

VCR etc.

MD recorder, Dolby Digital

(5.1 ch)/DTS/MPEG audio

processor or amplifier

Optical Digital lead

(not supplied)

Speaker with a

built-in amplifier

To the digital input socket

Front left

Centre

Front right

Surround left

Surround right

Same distance

Front left

Centre

Front right

Example: When installed on the wall

Surround speaker

Wall

60 - 90 cm

(2’ - 3’)

Example: When installed vertically

Example: When installed horizontally

Placing the speakers

CD-DVD500H

– 12 –

Disc type

DVD Video Disc

Region Numbers:

DVD discs that conform to the

region numbers noted above

Audio CD

CD-R/CD-RW

Discs recorded in audio format

Turning on your system

The first time the unit is plugged

in, the unit will enter the demon-

stration mode. You will see words

scroll.

Press the

X-BASS/DEMO

button to cancel

the demonstration

mode.

Prepare the disc you want to play

Supported disc types

Disc contents

Audio and video (movies)

Audio

Disc size

12 cm (5") / 8 cm (3")

12 cm (5") / 8 cm (3") (single)

12 cm (5") / 8 cm (3")

Press the ON/STAND-

BY button to turn the

power on.

To TV with external terminals

Connecting a TV

SCART cable

(commercially available)

SCART INPUT

No sound is played through the TV.

– 13 –

CD-DVD500H

Playing a DVD/CD (DVDs/CDs)

Press the DVD/CD button.

Press the OPEN/CLOSE button to

open the disc tray.

Place the DVD(s) or CD(s) on the disc

tray, label side up.

When loading a third disc, press the

DISC SKIP button to turn the disc tray,

then place the DVD or CD in the open

position.

Press the OPEN/CLOSE button to

close the disc tray.

To select the DVD or CD you want to lis-

ten to first, press one of the 1 - 3

buttons.

Press the button to start playback.

12 cm (5”)

8 cm (3”)

Listening to the radio

FM stereo mode indicator

FM stereo receiving indicator

Press the TUNER (BAND) button repeat-

edly to select the desired frequency

band (FM or AM).

Press the TUNING/TIME ( or ) but-

ton to tune in to the desired station.

When the TUNING/TIME ( or ) button

is pressed for more than 0.5 seconds,

scanning will start automatically and the

tuner will stop at the first receivable

broadcast station.

To receive an FM stereo transmission:

Press the TUNER (BAND) button to display “ST”.

“ ” will appear when an FM broadcast is in ste-

reo.

Listening to a cassette tape (TAPE 1 or TAPE 2)

TAPE 1

TAPE 2

Open the cassette door by pushing the

area marked “ PUSH EJECT”.

Load the cassette into the TAPE 1 or

TAPE 2 cassette compartment with the

side to be played facing toward you.

Press the TAPE (1 2) button to select

the cassette you want to listen to.

Press the button to start playback.

If trouble occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal

supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1. Set the unit to the stand-by mode and turn the power on again.

2. If the unit is not restored in the previous operation, unplug and plug in the unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Clearing all the memory (reset)

1. Press the ON/STAND-BY button to enter the power stand-by mode.

2. Whilst pressing down the button and X-BASS/DEMO button, press the ON/STAND-BY button until “CLEAR

AL” appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset.

Cleaning the tape-handling parts

Dirty heads, capstans or pinch rollers can cause poor sound and tape jams. Clean these parts with a cotton swab

moistened with commercial head/pinch roller cleaner or isopropyl alcohol.

When cleaning the heads, pinch rollers, etc., unplug the unit which contains high voltages.

After long use, the deck’s heads and capstans may become magnetised, causing poor sound. Demagnetise these

parts once every 30 hours of playing/recording time by using a commercial tape head demagnetise. Read the

demagnetiser’s instructions carefully before use.

TAPE 1

TAPE 2

A Playback head

Capstan

Pinch roller

Erase head

Recording/Playback head

CD-DVD500H

– 14 –

1 Top Cabinet 1. Screw ..................... (A1) x4 14-1

2 Side Panel 1. Screw ..................... (B1) x8 14-1

(Left/Right)

3 DVD Player 1. Turn on the power supply, 14-2

Unit/DVD Tray open the disc tray, take out

Cover

the DVD tray cover, and close.

(Note 1)

2. Screw ..................... (C1) x1

3. Hook ....................... (C2) x3

4. Hook ....................... (C3) x2

5. Socket .................... (C4) x3 14-2

4 Dolby PWB 1. Screw ................... (D1) x12 15-1

2. Flat Cable .............. (D2) x2

5 Rear Panel with 1. Screw .................... (E1) x14

14-2,15-1

Fan Motor 2. Socket ..................... (E2) x1 15-1

6 Main PWB 1. Screw ..................... (F1) x2

14-2,15-2

2. Flat Cable .............. (F2) x1 15-2

3. Socket .................... (F3) x6

7 AMP. A/AMP. B 1. Screw ..................... (G1) x6 15-3

PWB with Heat Sink

2. Flat Wire................. (G2) x1

3. Socket .................... (G3) x2 15-2

4. PWB Holder ........... (G4) x2 15-3

8 Front Panel 1. Screw ..................... (H1) x3 15-3

2. Hook ....................... (H2) x2

9 Display PWB 1. Knob ........................ (J1) x1 15-4

2. Screw .................... (J2) x11

3. Flat Cable ............... (J3) x1

10 Tape Mechanism 1. Open the cassette holder. 15-4

2. Screw...................... (K1) x5

Headphones PWB

1. Screw ..................... (L1) x1 15-4

12 Turntable 1. Hook ....................... (M1) x2 15-5

2. Cover ..................... (M2) x1

13 Disc Tray 1.

Turn fully the lock lever in the

14-3

arrow direction

Push the slide chissis backward to

15-6

engage the claw with the groove

and remove it in the direction

of the arrow. ...............

(N1) x6

14 DVD Servo PWB 1. Screw ..................... (P1) x2 15-6

(Note 2) 2. Flat Cable .............. (P2) x1

15 Joint PWB 1. Screw ..................... (Q1) x2 16-1

2. Hook ....................... (Q2) x3

3. Socket .................... (Q3) x2

16 DVD Mechanism 1. Hook ....................... (R1) x2 16-2

2. Hook ....................... (R2) x3

17 DVD Loading 1. Hook ....................... (S1) x6 16-3

Motor PWB

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to

be removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take sufficient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 14-2

Figure 14-3

STEP

REMOVAL

PROCEDURE

FIGURE

Figure 14-1

Note 1: How to open the changer manually. (Fig. 14-3)

1. In this state, turn fully the lock lever in the arrow direction through

the hole on the loading chassis bottom.

2. After that, push forward the slide Chissis.

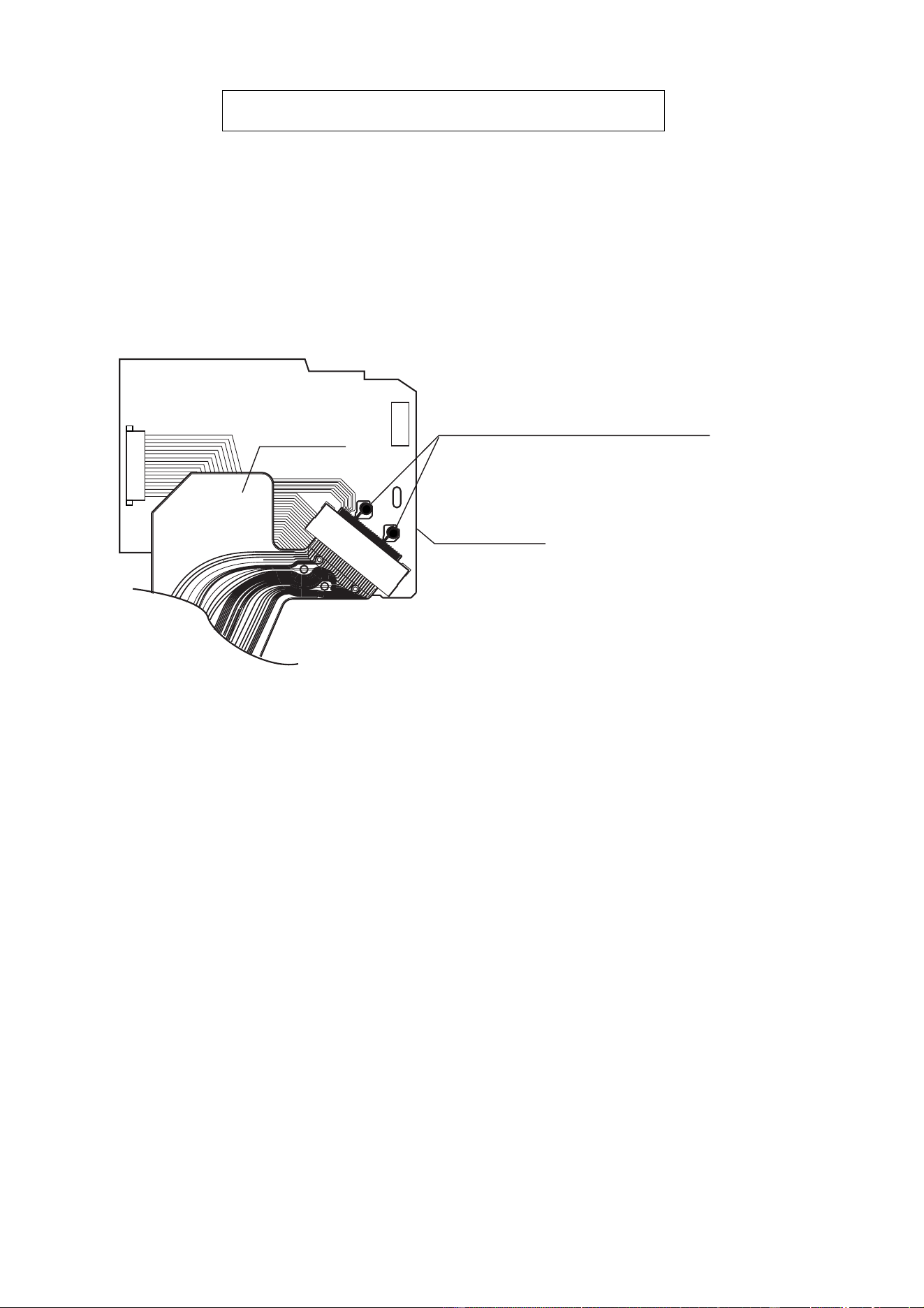

Note 2:

1. After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the front end

of the connector so as to protect the optical pickup from electro-

static damage.

Note 3:

1. Be careful not to break the claw of the DVD mechanism.

2. When fining back the cam gear assembly, let it lock by front

movement.

Lock Lever

DVD Player Unit

(Bottom View)

(B1) x 4

ø3 x 10mm

(B1) x 2

ø3 x 10mm

Rear

Panel

(B1) x 2

ø3 x 10mm

Side Panel

(Right)

Side Panel

(Left)

(A1) x 2

ø3 x 12mm

(A1) x 2

ø3 x 12mm

Top Cabinet

Pull

(C3) x 1

(C4) x 3

DVD Servo

PWB

(C3) x 1

DVD Player

Unit

DVD Tray Cover

(C2) x 3

(F1) x 1

ø3 x 10mm

Lug Wire

(E1) x 2

ø3 x 10mm

Main PWB

Rear

Panel

(C1) x 1

ø3 x 10mm

CD-DVD500H

– 15 –

CD-DVD500H

Figure 15-1

Figure 15-2

Figure 15-3

Figure 15-5

Figure 15-6

(N1) x 3

(P2) x 1

DVD Servo

PWB

(N1) x 3

(P1) x 2

ø3 x 8mm

DVD Player Unit

Slide

Chassis

Turntable

(M2) x 1

(M1) x 2

Figure 15-4

Main PWB

Amp. B

PWB

Dolby

PWB

(E2) x 1

(D2) x 2

(E1) x 11

ø3 x 10mm

Rear

Panel

(D1) x 8

ø3 x 10mm

(E1) x 1

ø3 x 10mm

(D1) x 4

ø3 x 10mm

Main PWB

Amp. A

PWB

Amp. A

PWB

Amp. B

PWB

(F3) x 1

Main PWB

Transformer

PWB

Front

Panel

(F2) x 1

Power PWB

(F3) x 1

(G3) x 1

(F3) x 1

(F1) x 1

ø3 x 10mm

(F3) x 1

(H1) x 3

ø3 x 8mm

Headphones

PWB

(G2) x 1

Amp. A

PWB

Amp. B

PWB

Front

Panel

(G1) x 4

ø3 x 6mm

(G1) x 2

ø3 x 10mm

(G4) x 1

PushPush

(G4) x 1

PushPush

(H2) x 1

(G3) x 1

(J3) x 1

(J2) x 11

ø3 x 10mm

(K1) x 5

ø3 x 10mm

(J1) x 1

Display PWB

Headphones

PWB

Open

Front Panel

Cassette

Holder

Tape

Mechanism

(L1) x 1

ø3 x 10mm

Lug Wire

Washer

CD-DVD500H

– 16 –

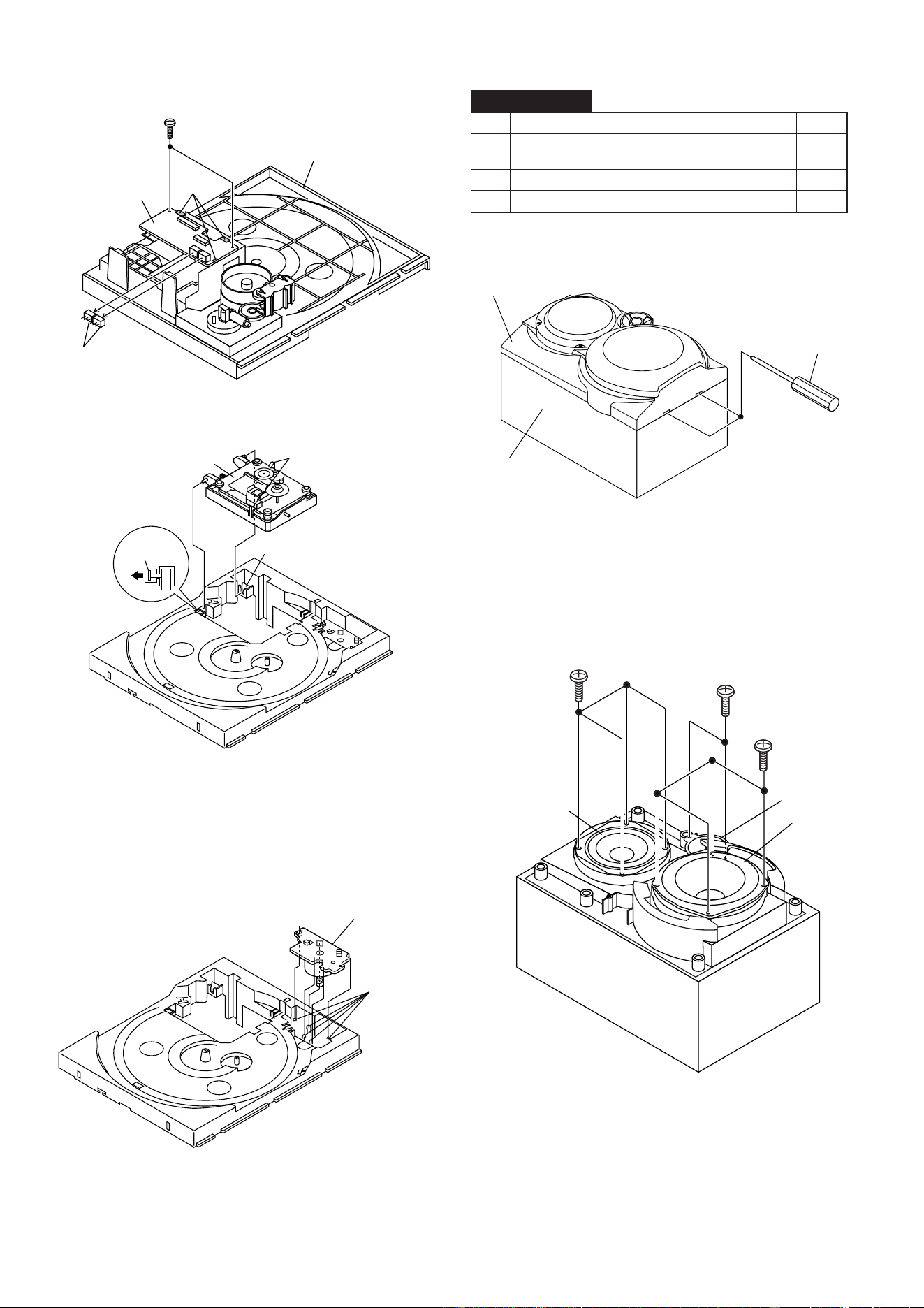

Figure 16-2

Figure 16-5

Figure 16-1

(C1) x 2

ø 3 x 10mm

Woofer

Subwoofer

Tweeter

(A2) x 4

ø 4 x 16mm

(B1) x 4

ø 4 x 16mm

1 Subwoofer 1. Front Panel ............ (A1) x1 16-4

2. Screw ..................... (A2) x4 16-5

2 Woofer 1. Screw ..................... (B1) x4 16-5

3 Tweeter 1. Screw ..................... (C1) x2 16-5

STEP

REMOVAL PROCEDURE

FIGURE

Figure 16-4

CP-DVD500H

Screwdriver

Driver should

be pried away

from Speaker Box.

(A1) x 1

Speaker Box

(Q3) x 2

(Q2) x 3

Joint PWB

Slide

Chassis

(Q1) x 2

ø3 x 8mm

DVD

Mechanism

(R2) x 3

(R1) x 1

(S1) x 6

DVD Loading

Motor PWB

Figure 16-3

– 17 –

CD-DVD500H

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 8 and 10 of the disassembly method to

remove the tape mechanism.

How to remove the record/playback and erase

heads (TAPE 2) (See Fig. 17-1)

1. When you remove the screws (A1) x 2 pcs., the recording/

playback head and three-dimensional head of the erasing

head can be removed.

How to remove the playback head (TAPE 1)

(See Fig. 17-2)

1. When you remove the screws (B1) x 2 pcs., the playback

head.

How to remove the pinch roller (TAPE 1/2)

(See Fig. 17-3)

1. Carefully bend the pinch roller pawl in the direction of the

arrow <A>, and remove the pinch roller (C1) x 1 pc., in the

direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring

mounting position.

How to remove the belt (TAPE 2)

(See Fig. 17-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1)

(See Fig. 17-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 17-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

Figure 17-1

Figure 17-2

Figure 17-3

Figure 17-4Figure 17-5

(A1)x2

Ø2 x 9mm

TAPE 2

Record/Playback

Head

Erase Head

Clutch Ass'y

(B1)x2

Ø2 x 9mm

TAPE 1

Playback

Head

Clutch Ass'y

Pinch Roller

(C1)x1

<A>

<B>

Pinch

Roller

Pawl

Pull

TAPE 2

TAPE 1

Main Belt

(E1)x1

TAPE 2

Main Belt

(D1)x1

TAPE 1

Main Belt

(D1)x1

Main Belt

(E1)x1

FF/REW

Belt

(D2)x1

FF/REW

Belt

(E2)x1

Motor

(F1)x2

Ø 2.6 x 5mm

Motor

Clutch Ass'y

CD-DVD500H

– 18 –

fL: Low-range frequency

fH: High-range frequency

• AM adjustment and confirmation

Figure 18-3 AM IF

TUNER SECTION

• Setting the Test Mode

While holding down the MEMORY/SET button and the X-

BASS button, press the ON/STAND-BY button. Frequencies

are rewritten in memory as shown in table 18. Call them

using the VOLUME knob of tuner circuit adjustment and

check.

Note that once you reinitialize the settings, the frequencies

recorded by users will be changed.

Preset No. Frequency

P01 87.50 MHz P06 522 kHz

P02 108.00 MHz P07 1,620 kHz

P03 90.00 MHz P08 603 kHz

P04 106.00 MHz P09 1,404 kHz

P05 98.00 MHz P10 990 kHz

Adjusting item

Adjusting object

Adjusting

method

IF T351 Set IF waveform

Adjust the indication 450 kHz to maximum.

of set to 1,620 kHz.

Frequency cover fL: T306 (522 kHz) fL: 1.1 ± 0.1 V

(VT line voltage of Adjust the indication fH: 8.0 ± 1.3 V

TP301) of set to 522 kHz. (Only confirmation)

fH: (1,620 kHz)

Tracking fL: T302 (990 kHz) Set the output of

speaker terminal

to maximum.

AM signal oscillator Frequency 400 Hz, 30 %, AM modulation

• FM mute level adjustment

Frequency

Adjusting

object

Adjusting

method

98.0 MHz 25 dB(EMF) VR351 Input: SO301

Output: Speaker

Terminal

FM signal oscillator Frequency 1 kHz, 40 kHz

Adjusting object

Preset No.

Frequency

Figure 18-2 FM Mute Level

Table 18

Electronic

Voltmeter

GND

AM Loop Antenna

AM signal oscillator

Loop Antenna

UNIT

IF : Speaker Terminal

Frequency cover: TP301

Electronic

Voltmeter

UNIT

FM signal oscillator

SO301

Speaker

Terminal

• Erasing the registered broadcast station

When the power is off, press and hold the TUNER (BAND)

button and the X-BASS button, and then press the POWER

button.

All the registered stations are erased.

ADJUSTMENT

MECHANISM SECTION

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm

Fast forward: TW-2231 — 70 to 180 g.cm

Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± 30 Hz Speaker

speed Resistor in Terminal

motor. (Load

resistance:

6 ohms)

• Tape Speed

Figure 18-1

TAPE MECHANISM

Tape

Motor

Variable Resistor in motor

– 19 –

CD-DVD500H

DVD/CD SECTION

• Adjustment

Since this DVD/CD system incorporates the following

automatic adjustment functions, readjustment is not needed

when replacing the pickup. Therefore, different PWBs and

pickups can be combined freely.

Each time a disc is changed, these adjustments are

performed automatically. Therefore, playback of each disc

can be performed under optimum conditions.

Figure 19 ADJUSTMENT POINTS

FE301

AM IF

T302

T306

T351

TRACKING fL

AM BAND

COVERAGE fL

FM MUTE

LEVEL

MAIN PWB

CNP301

AM LOOP

ANTENNA

SO301

FM ANTENNA

TERMINAL

VR351

TP302

R350

R345

TP301

CD-DVD500H

– 20 –

TEST MODE

During POWER off mode, push below each 2 keys and [POWER] key.

Then go to each TEST MODE.

KEY

TEST MODE

CONTENTS

[POWER] [TUN] + [X-BASS] TEST 1 TUNER PRESET MEMORY CLEAR

[POWER] [MEMORY/SET] + [X-BASS] TEST 2 TUNER PRESET FOR PRODUCTION

Test mode for the production and display TEST 3 Test mode for the production

[POWER] [CD] + [X-BASS] TEST 4 Ver. No Display (DVD Microcomputer)

Test mode for the production and display TEST 5 Test mode for the production

[POWER] [>] + [X-BASS] TEST 6 ALL CLEAR (RESET)

Test mode for the production and display TEST 7 Test mode for the production

[POWER] [TUN DOWN] + [X-BASS] TEST 8 PRODUCTION INITIALIZE FOR CHANGER

Test mode for the production and display TEST 11 Test mode for the production

[POWER] [<<] + [X-BASS] TEST 12 Ver. No DISPLAY (SYSTEM MICROCOMPUTER)

[POWER] [CD] + [G.EQ] TEST 15 DVD MICROCOMPUTER (ROM Renewal Mode)

TEST MODE 1 (Write in, operation manual, open to user)

Work: Clear all TUNER PRESET MEMORY.

Function: - TUNER

- BAND: FM ST

- FREQUENCY RECEIVE: F.L. (MINIMUM FREQUENCY)

Figure:

The above figure: Displayed for about 1.0 sec

Other conditions: - Same as TEST MEMORY.

After Action: - Normal operation.

MEMORY

TUNER CL

RUN TEST 1

Clear all TUNER PRESET MEMORY.

Bring BAND SETTING FREQUENCY into operation .

POWER ON

NORMAL OPERATION

"TUNER CLEAR " is displayd for 1sec.

MEMORY

– 21 –

CD-DVD500H

TEST MODE 2

Set TUNER PRESET MEMORY according to the following conditions for each destination.

Conditions

Function : TUNER

Band : FM MONO

Frequency : LOW FREQUENCY

Preset last channel : FM - 1 channel, AM - 6 channels

Volume : LAST MEMORY

Balance : CENTER (A µ-com only)

Preset G-EQ : FLAT

X-Bass : OFF

PRESET LIST

12345678910

FM FM FM FM FM AM AM AM AM AM

87.50 MHz 108.00 MHz 90.00 MHz 106.00 MHz 98.00 MHz 522 kHz 1620 kHz 603 kHz 1404 kHz 990 kHz

TEST MODE 3 (FUNCTION: KEY AND LAST DISPLAY) (Test mode for the production)

TEST 3

ODD

GRID LIGHT UP.

EVEN

GRID LIGHT UP.

1. 0sec TIMER (WAIT)

LIGHT OFF

KEY INPUT

KEY INPUT =

"POWER"?

While each KEY INPUT is performed,

the display allocated to the key appears.

POWER OFF.

TEST CANCEL.

NOTES: 1. REMOCON input in test mode is invalid.

2. Volume "0"

• This is a test mode for producing CD-DVD500H. Do not use except when servicing.

FUNCTION: KEY AND LAST DISPLAY

After the odd grids, even grids and FL pipe segment light up according to each KEY, turn the power off to cancel TEST MODE.

CD-DVD500H

– 22 –

TEST MODE 4

(DVD TEST MODE)

The preparation date display of the program

10000000 ********

(Last updata)

Model number display

10000001 *******#

(Model number)

The version display of the program

10000002 ********

(Program ver.)

Reagion number display

10000003 0000000*

(Region code:Binary display)

Color bar display

20000001 00000000 (FIP)

Dynamic Test

30000000 00000000

Micro-code number display

10000004 ********

(Microcode ver.)

The preparation date display of the servo program

10000005 ********

(Servo ver.)

It is returned to the test mode initial image plane.

Test mode initial image plane

F0000000 *00#####

The "Playback" key of the remote controller is pushed.

The "Reactivation" key of the remote controller is pushed.

The "Playback" key of the remote controller is pushed.

The "Stop" key of the remote controller is pushed.

There is no copy guard signal.

As for the symptom when it was

dubbed in the video tape recorder?

It is returned to the test mode initial image plane.

To (1)

Micro-code is the thing of the process

program of the system integrated circuit.

(* is a region number)

(##### is a program version)

(* is a model number) (# is a region number)

DVD500: 0000500#

(* is a region number)

(Pressing down the DVD/CD button and X-BASS/DEMO button, press POWER button.)

– 23 –

CD-DVD500H

*It is usually returned in power source off for the state.

DVD laser lights, the spindle motor

rotates and the pickup moves to the

outer periphery.

30000001 000000DD

Note: Not to face the light of the laser squarely,

caution!

The "PLAY" key input.

From (1)

STEP TEST

30000201 00000000

STEP TEST

30000202 00000000

STEP TEST

3000E201 000000EE

When a disk is not in.

RF gain adjustment, Track on

Focus on

The "PLAY" key input.

STEP TEST

30000203 00000000

Focus gain adjustment

The "PLAY" key input.

STEP TEST

30000204 00000000

Track gain adjustment

The "PLAY" key input.

(******** is the sector ID.)

(******** is sub-Q.)

After TOC Reading,

Follow-up play condition

STEP TEST

30000205 00000000

Focus balance adjustment

Focus balance of the layer 1,

follow-up play condition after focus gain adjustment

(In case of CD)

STEP TEST

DD000210 00000000

STEP TEST END

CD000210 ********

STEP TEST

DD000211 00000000

STEP TEST END

DD000212 ********

DVD laser off, CD laser on, spin kick,

sled outer periphery feed

ErrDisplay0 ErrDisplay1

30000001 000000CD

Laser off, spin kick, sled outer periphery

feed

ErrDisplay0 ErrDisplay1

30000001 00000000

It is returned to the Dynamic test.

The "Stop" key of the remote controller is pushed.

It is returned to the Dynamic test.

The "PLAY" key input.

To (2)

CD-DVD500H

– 24 –

From (2)

PLAY TEST

30000001 00000000

PLAY TEST

DD######*********

SPIN OFFSET

"3" Key input

"TOP MENU" Key input

"3" Key input

Because a tray opens, adisk is published.

It becomes following play state.

(******** is a sector ID.)(###### is a error rate)

A test jump can be done by inputting the following key

from the remote controller.

PLAY TEST

00000000 0000*****

Following playback, jump test mode

Spin offset adjustment mode

1-131

4 -102 6 102

7 -510 9 510

Clear -511 Enter 511

2 -765 Repeat 765

5 -766 A-B 766

8 -7000 Memory 7000

Before skipping. -15000 After skipping. 15000

>10 Layer Jump

Key Jump Key Jump

(**** is a adjustment result.)

It is returned to the Dynamic test.

The"Stop" key of the remote controller is pushed.

AA BB CC DD EE FF GG HH

Error rate lever ver

1ber=5error

Auto adj value display

AA: Layer0 foeus gain

BB: Layer1 foeus gain

CC: Layer0 foeus balance

DD: Layer1 foeus balance

EE: Tracking gain

FF: Tracking balance

GG: Layer0 RF gain

HH: Layer1 RF gain

– 25 –

CD-DVD500H

TEST MODE 5 (Test mode for the production)

Enter test mode 5.

TAPE test mode is displeyd.

Eg: TA TEST1

Press the < > key or

the remote control’s

<T1_PLAY> or <T2_PLAY> key.

T1 PLAY starts. Display

changes to T1 PLAY.

Eg: TA TEST2

T2 F PLAY starts. Display

changes to T2 PLAY

Eg: TA TEST6

Is it 'AUTO STOP' performed

within 13 sec.?

Is it 'AUTO STOP' performed

within 13 sec.?

Is it 'AUTO STOP' performed

within 13 sec.?

Is it 'AUTO STOP' performed

within 10 sec.?

Is it 'AUTO STOP' performed

within 10 sec.?

T2 R PLAY starts. Display

changes to T2 PLAY.

Eg: TA TEST21

T2 REW starts. Display changes

to T2 REW. Eg: TA

TEST4

T2 FF starts. Display changes

to T2 FF display. Eg: TA

TEST5

'OK' is displayd. Eg: TA

TEST6

Yes

Normally, an operation confirmation mode

functions after entering each operation mode.

When each operation mode cannot be entered,

the STOP operation will be performed and “NG”

will be displayed.

After performing the STOP operation,

‘NG’ is displayed.

Eg: TA TEST7

If T2 FF cannot be confirmed

If T2 REW cannot be confirmed

If T2 R PLAY cannot be confirmed

If T2 F PLAY cannot be confirmed

If T1 PLAY cannot be confiemed

It takes 6 sec. to

detect AUTO

STOP

It take 6 sec. to

detect AUTO

STOP

Need 3 sec. to

detect AUTO

STOP

• This is a test mode for producing CD-DVD500H. Do not use except when servicing.

Function: - TAPE test mode.

CD-DVD500H

– 26 –

TEST MODE 6 (Open to the user by manual explanation)

Function: - Software RESET.

- All the function conditions will be initialized.

- It will jump to A operation in case of power ON.

- After displaying "CLEAR ALL", power will be turnd off.

- Forwarding condition set for CD changer.

- Forwarding condition set for TAPE mechanism.

"CLEAR_AL" display

TEST MODE 7 (Test mode for the production)

• This is a test mode for producing CD-DVD500H. Do not use except when servicing.

Function: AUDIO CIRCUIT TEST

a) The volume steps can be set to 3 levels, i.e. low, medium, and high.

Initial settings of TEST MODE 7

1. Volume : Step 1 (-16dB)

2. Preset G-EQ. : FLAT

3. X-Bass : OFF

4. Function : TEST FUNCTION

Operation

Set the volume levels to the following 3 steps and turn the power on.

Other operations will work normally.

C L LE A AR

TEST MODE STEP NORMAL VOLUME STEP DISPLAY VOLUME

000-∞

1 16 16 -30dB

2 31 MAXIMUM 0dB

BALANCE L MAX CENTER

CTRIM -10 0 +10

STRIM -10 0 +10

R MAX

– 27 –

CD-DVD500H

TEST MODE 8

Function: The SET will be set to "shipping condition". (Right after the shipment from the factory)

- All the functions and conditions are initialized.

- CLEAR ALL TUNER PRESET MEMORY

- CLOCK INITIAL

- CLEAR CD MEMORY

- DVD MEMORY RESET

- Initialize the CD changer mechanism and compact cassette mechanism.

- For CD changer mechanism, set it in upward condition.

Display and key input

When initialize the mechanism, it will display "WAIT" and will not accept any changes by key input.

After "shipping condition" setting is completed, "FINISED" is display and any key input will be disenabled.

If there are any troubles and "shipping condition" cannot be set, "ERR" will be displayed.

"WAIT" display

"FINISHED" display

W A I T

NIF I S HED

CD-DVD500H

– 28 –

TEST MODE 11 (Test mode for the production)

• This is a test mode for producing CD-DVD500H. Do not use except when servicing.

Function: CD CHANGER AGING TEST MODE

START

" > "KEY

TRAY OPEN

DISC SKIP

TRAY CLOSE

DISC X PLAY

DISC SKIP

DISC Y PLAY

DISC Z PLAY

IF AN ERROR OCCURS,

ENTER THE ERROR MODE.

TEST MODE 12 (Test mode for the production)

• This is a test mode for producing CD-DVD500H. Do not use except when servicing.

Function: MOVING VOLUME TEST MODE

START

1 SEC WAIT

MOVING VOL.

PWR ON MODE

MOVING VOL.

PWR OFF MODE

FL COUNT UP

EXAMPLE: FL DISPLAY

99999999

COUNT UP

– 29 –

CD-DVD500H

(DVD ROM RENEWAL MODE)

[Pressing down the DVD/CD button and EQUALIZER button, Press POWER button.]

1. A DVD itself and a personal computer are articulated as

the right figure for. Software the renewal is started more.

2. Pressing down the DVD/CD button and EQUALIZER button,

press POWER button.

WRITE It is displayed.

3. Start a data transfer within 5 seconds -30 seconds after

you go into DVD ROM RENEWAL MODE.

4. AC code is removed after a data transfer is finished.

5. AC code is put again, and it is within DVD test mode,

and program version is confirmed.

Unit

Molex 2pin conector

Fixture for the

ROM renewal

RUNTK0808GEZZ

QCNWK0001AWZZ

Adapter cord

RCA PIN PLUG

RCA PIN JACK

Personal computer

(DOS)

RS232C

Figure 29

TEST MODE 15

Standard Specification of Stereo System Error Message Display Contents

Error Contents DISPLAY Notes

Output while Device Protection Operation. TIMER LED While in Protect Circuit Operate.

FLASHING Over Current Detection.

DC Detection.

TAPE Mechanism Error. 'ER-TA**' 00: Tape Mechanism Error.

01: Initial Error.

02:

03:

DVD/VCD Pickup Mechanism Error. 'ER-CD**' 00: Pickup Mechanism Error.

01: PU-IN SW Detection NG.

02:

03:

04:

CD Changer Mechanism Error. 'ER-CD**' 10: Changer Error.

11: Initial Error.

12:

13:

Tray Error. 'ET-CD**' 20: Tray Error.

21:

22:

23:

Focus Not Match. 'NO DISC'

Communication error. 'ER-CD**' 30: DVD Error.

TUN PLL Unlock. 'ER-TU**' 00: TUN Error.

01: PLL Unlock.

02:

03:

CD-DVD500H

– 30 –

Since the pickup semiconductor laser can easily damaged by

the static electricity, handle the mechanism unit with care.

To prevent damage by the static electricity during

transportation, the LD terminals are short-circuited at 2 points

on the PWB. Unsolder them by a soldering iron after

completing the connection. When you return the mechanism

unit, solder the terminals again.

Notes for handling the mechanism unit

Soldering on the

mechanism PWB (two points)

Flexible PWB

DVD Motor PWB

Figure 30

– 31 –

CD-DVD500H

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

indicates AM

indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means pico-farad and the unit of the capacitor

without such a symbol is microfarad. As to electrolytic

capacitor, the expression “capacitance/withstand voltage”

is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

REF. NO

DESCRIPTION

POSITION POSITION

SW714 DIMMER ON—OFF

SW715 X-BASS ON—OFF

SW716 EQUALIZER ON—OFF

SW722 CD ON—OFF

SW723 TAPE ON—OFF

SW724 TUNING DOWN ON—OFF

SW725 MEMORY SET ON—OFF

SW726 FAST REWIND ON—OFF

SW727 FAST FORWARD ON—OFF

SW728 PLAY ON—OFF

SW729 STOP ON—OFF

SW731 REC/PAUSE ON—OFF

SW732 TUNING UP ON—OFF

SW733 VIDEO ON—OFF

SW734 TUNER ON—OFF

REF. NO

DESCRIPTION

SW1 CAM ON—OFF

SW2 OPEN/CLOSE ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW701 ON/STAND-BY ON—OFF

SW702 CLOCK ON—OFF

SW703 TIMER ON—OFF

SW704 BYPASS ON—OFF

SW705 NORMAL ON—OFF

SW706 PHANTOM ON—OFF

SW707 VIRTUAL ON—OFF

SW708 DISC 1 ON—OFF

SW709 DISC 2 ON—OFF

SW710 DISC 3 ON—OFF

SW711 DISC SKIP ON—OFF

SW712 OPEN/CLOSE ON—OFF

TYPES OF TRANSISTOR AND LED

(1) (2) (3)

(S) (G) (D)

E C B

FRONT

VIEW

KRA107 M

KRC102 M

KRC104 M

KRC107 M

KTA1271 Y

KTA1266 GR

KTA1046 Y

KTA1273 Y

KTC3203 Y

KTC3199 GR

2SA1015 GR

2SB562 C

2SC2878 B

2SC380 O

2SD468 C

KTC2026 Y

2SB1565 F

2SD2012

2SC2412 KR

KRC104 S

KTA1504 Y

2SA1955 A

4204SRT7

4204UYT7

BCE

FRONT

VIEW

FRONT

VIEW

(D)

(3)

(G)

(1)

(S)

(2)

CD-DVD500H

– 32 –

Figure 32 BLOCK DIAGRAM (1/4)

+B10

+B8

+B10

+B9

Q3302

Q3301

Q3303

FLGA

/DFTN

SCD

SCL

SCB

VRCK

FLGA

VRCK

SPV

FDD

SPDRV

SLDRV

DPDC

TEB

EOB

EOF

RFON

RFOP

RPZI

RFRP

LVL

TEI

FEI

156

159

158

TRD

FOD

SPDRV

SLDRV

/SVAL O

SOSO_O

TR+

TR-

FO+

FO-

TR+

TR–

FO–

FO+

SW2

OPEN/CLOSE

SW1

CAM

SW3

DISC NUMBER

T/T UP DOWN

MOTOR

SW4

PICKUP IN

SLED

MOTOR

SPINDLE

MOTOR

–

Vref

Vcc

GND

HOLOGRAM

LASER UNIT

(CD)

GND

OSC

(DVD)

LASER UNIT

HOLOGRAM

GND

Vcc

Vref

–

ACTUATOR

IC3705

NJM2904M

OPE AMP.

–

MICR

TO DISPLAY

UNIT

CP3202

LD_FWD

LD_RVS

DVD_FUNC

CAM_SW

DISC1_SW

UART_RX

DVD_BUSY

DVD_DI

DVD_DO

DVD_CLK

D_GND

DVD_STB

IC3201

74HC07AF

BUFFER AMP.

C3207

56 UART_RXD

UART-RXD

EECS

FIP_CS

S/E_CK

S/E_DO

S/E_DI

KEY3

97 KEY3

IC3507

BR93L66F

EEPROM

55 SUB/EEP_DIN

53 SUB/EEP_DOUT

57 SUB/EEP_CLK

42,3

IC3503

PST9129N

RESET

IC3508

IX1761GE

TRACK BUFFER I/F

VCC

AVCC

VSS

AVSS

70,69 LD_FWD/REV

61 IN_SW

68 LD_SW

100 EJ_SW

90 MUTE

67 CHOP

73 /RESET

71 G_RESET

72-65

5VBUS

N0O-N7O

777991 7880929394

HADR0-7 HDA

PSYC

RAM

(4.2KByte)

MEMORY CTL

ERROR

DETECT

45,51,64

VDD2

VDD1

1,11,26,40,62,76,86

TC9

SER

MD0-7

46-53

MD0-7

MICOM I/F

AVSS 149,154

PVSS 127

XVSS 9

DACVSS 3,8

VSS5 17,22,39,66

61,83,110

VSS3 105,122,171

5 DAC VDD

144,160 AVDD

138 PVDD

169 /DFCT

172 SCD

173 SCL

174 SCB

170 VRCK

37 FLGA

EXT_DA

TRO

FOO

DAC

DEMO

SYNC

PLL

SLICE

LEVEL

GEN.

163

162

166

164

167

168

DMO

FMO

DPDC

TEBC

EQBC

ANMON

DAC IF

(PWM)

139

143

142

146

153

152

151

150

DATA

SLICER

RFON

RFDVD

RFCD

DIGITAL SERVO

SERVO

CONTROL

DEQ

ADC

RFZI

RFRP

LVL

TEI

FEI

LVL

TEO

FEO

DPDB

TEB

EQB

EQF

RFON

RFOP

RPZ

RPO

LDP1

18,23,31,36

VDD

LDO2

MDI2

LDP2

DPD2

DPD1

DPBD

DPAC

1211109

IC3301

TA1323F

RF SIGNAL PROCESSOR

VRCK

VCKF

16 17

ADJUST

CONSTANT

TIME

APC2

DVD_LD

BUS

ADJUST

T-GAIN

ADJUST

F-GAIN

FE-GAIN

ADJUST

TE-GAIN

ADJUST

DETECT

CREATION

LEVEL

3BTE

ADJUST

R-GAIN

APCI

CD_LD

1,28

VCC

GND

19,29,30

LDP

LDN

OUTL

OUTR

LOADING DRIVER

MOTOR DRIVER

BA5984FP

IC3801

–

OPIN4(+)

OPIN3(+)

OPIN2(+)

OPOUT4

OPOUT3

OPOUT2

OPIN4(–)

OPIN3(–)

OPIN2(–)

TRP

FOP

SPP

–

SHIFT

–

LEVEL

–

TRN

FON

SPN

SHIFT

–

LEVEL

SHIFT

–

LEVEL

SLP

OPIN1(+)

OPIN1(–)

OPOUT1

BIAS

MUTE

–

SLN

–

SHIFT

LEVEL

–

DPDTE

CREATION

RF RIPPLE

Vcc

SHIFT

FWD,REV

1,39,56,62

SCD

SCL

SCB

DFTN

VrA

PITP

P2TP

P2TN

P1AI

P1BI

P1CI

P1DI

P2DI

P2CI

P2FN

P2FP

P2BI

P2AI

MDI1

LDOI

103

6,15,24,38,47,59,79,104

1,33,52,76,81

EECS

S/E_CS

+B10

– 33 –

CD-DVD500H

Figure 33 BLOCK DIAGRAM (2/4)

+B10+B10

+B10

+B9

N.C

41 42 43 47 48 49

52 53-60

/SOSO_I

/SVAL_I

SDCK_I

SDCK_O

/SVAL_O

SOSO_O

SD0

O-SD7

/SVAL

/SOSO

SDCK

/ERR_0

/WR,FRCS,/RD

IC501

TORX178A

DIGITAL OUT

CP3201

IC3662

1.8V RGE

IC3661

3.3V RGE

SO7002

VIDEO OUT

+B10

+B7

R3555

R3552

N.C

RY/BY 15

BYTE 47

WP 14

FL_RESET

A1-19

12 RP

D0-15

WE,/CE,/OE/WR,FRCS,/RD

VSS 27,46

11,26,28

29-36,38-45

DO1-16

16-25,1-8,48

A0-18

IC3501

IX1689GE

FLASH ROM

VCC,VPP 37,13

VCC 1,6,20

OE 27

VSS 21,35,40

IC3502

IX0448AW

4M DRAM

A0-8

16-19,22-26

DQ1-16

2-4,7,8,31-34,36-39

13,14

WE,RAS

29,28

LCAS,UCAS

LCAS,CAS

/WA,RAS

D0-15

A1-9

LCAS,CAS

/WA,RAS

D0-15

A1-9

LCAS,CAS 86,116

/HWR,RAS 84,118

D0-15 34-37,39-46,48-51

A0-19 2-5,7-14,16-23

VSS

A_5V

D_5V

M_GND

A_GND

D_GND

M_8V

V_8V

A_5V

D_5V

M_GND

A_GND

D_GND

M_8V

4,10,26

41,47,50

1,7,13,25,38,4434 CKE

IC3602/3603

IX0449AW

16M SDRAM

15-17 WE,CAS,RAS

18 CS

35 CLK

14,36 LDOM/LDOU

21-24,27-32,20,19

A0-11

40,42,43,45,46,48,49

2,3,5,6,8,9,11,12,39

DQ0-15

RAMA0-11

RAMD0-15

RAMDOM

PCLK

RAMCS0(FOR IC3602)

RAMCS1(FOR IC3603)

RAMRAS

RAMWE,RAMCAS

21,35,40

1,6,20

IC3702

IX0447AW

4M EDO DRAM

2-5,7-10,31-34,36-39

16-19,22-26

28,29

27,13

DDAT0-15

DADR0-8

UCAS/LCAS

RAS

OE/WE

N.C

R3613

27.0MHz

X3601

R3612

VCLKX2

127

119

GCLK

120

117

115

118

I/F

PLL/CLOCK

GCLK

PLLCFG-I

PLLCFG-O

R3604

R3603

R7008

R7014

N.C

102

103

106

103

108

111

100

I/F

ENCODER

VIDEO

ANALOG

CVBS/G/Y

CVBS/C

C/B/U

IC3601

IX1720GE

DVD DECODER

CVBS

L.P.F

Q5001,5004

Q5007,5010

Q5013,5014

Q5015,5016

CVBS

L.P.F

Q5003,5006

Q5009,5012

L.P.F

Q3205

BUFF.

Q3204

BUFF.

105

Y/R/V

Q5002,5005

Q5008,5011

L.P.F

Q3203

BUFF.

Q3202

BUFF.

CVBS/C

RSET

VREF

CQSYNC

112

125

129

TEST-SIO

TESTMODE

I/F

ICEMODE

SCNENBL

N.C

VSYNC

HSYNC

VCLK

VIDEO I/F

DIGITAL

62-60

57,59

50,47,45

42,41,43

46,48,51

54,53,55

91,88,85,82,79

76,74,70,88,72

75,78,81,84,87

SDRAM

I/F

RAMME

RAMCAS

RAMRAS

RAMCS0,1

PCLK

RAMDOM

RAMDAT0-15

RAMADD0-11

151

147

150

148

149

152-159

DVD-DSP

I/F

DVDREQ

DVDERR

DVDSTRB

DVDSOS

DVDVALID

DVDDAT0-7

D0-15

A1-4

/RD,/WR

AVCS

WAIT

N.C

AVINT

25-20

18,17

15,13

11,9-5

30-27

31,34

I/F

HOST

HD0-15

HA0-3

HWR,HRD

HCS

HACK

HWID

HORD

HTYPE

HRDY

HIRQ

N.C

143

134

PURPOSE

GPIS

GPSO

GPIO

GENERAL

145

N.C.

Z_RESET

Z_STNBY

124

122

160

RESET/

STANDBY/

I/F

STATUS

STNBY

RESET

IDLE

L3602

L3601

3,16,26,38,44,52,58,67

71,77,83,89,94,98,126

135,140,19,99

130

104

FB3605

121

12,33,63,116,142

N.C

I/F

AUDIO

DIGITAL

AIN

AOUT0-3

AMCLK

ALRCLK

ABCLK

S/PDIF

113

136-138

131

139

141

133

FB3604

101,107,109,110

123,132

10,40,49,56,65,69

80,86,97,128,145,146

14,35,73,114,144

IC3504

IX1687GE

MICROCOMPUTER

/HWR,FROM_CS,/RD 84,120,83

FL3501

(20MHz)

XTAL

EXTAL

HGA_CS

ADAC_DA

ADAC_CK

ADAC_L

AMUTE2

UART_RXD

UART_CTL

S1_H

VMUTE

/SRV_INT

WAIT

SRV_CS

/MA

Z_RESET

Z_STNBY

AV-INT

HGA_INT

AV-CS

110

111

112

108

109

117

119

30-37

VSS 10,25,29,39,44,50

61,63,75,85,100

PDON8O

PDON0O-N7O

OPD

I/F

72-65

5VBUS

N0O-N7O

IPD I/F

HOST I/F

HADR0-7 HDAT0-7 HRD HWR HAS HCS1 HCS2

PDI(0)-(7)/ERR_1

TIMING GEN.

PDRQI PDRQO

PSYCI PDCKI PDCKO PSYCO

/RST 40

/MINT 45

/MA 41

42,43

/MDR,/MWR

/MCE 44

FL3701

(22.5792MHz)

PDCK

/PDRQ

/PSYC

73 72 71

IC3701

TC94A03F

SERVO ECC

SD0_1,SD7_1

60,62-65,67-69

PD0-7PDB

MD0-7

46-53

OUTPUT I/F

MD0-7

MICOM I/F

ECC

90,94

92,93

79-82,84-88

DRAM

I/F

106-109,111-113

96-104

VDD5 54,74,95

VDD3 16,33,59

78,89,116

XVDD 12

DAC VDD

,160 AVDD

DEMODULATION

SYNC DET.

+B10

D_1.8V

D_3.3V

CD-DVD500H

– 34 –

Figure 34 BLOCK DIAGRAM (3/4)

IC501

TORX178B

OPTICAL FIBER

DATA LINK

X501

2.2MHz

IC602

M62446FP

6-CH ELECTRONIC

VOLUME

IC502

74VHC00F

INVERTOR

IC505

AK4527BVQ

6-CH CODE

IC504

IX0443AW

DOLBY DECODER

VSSX

VSSDL

VSS

CKO

VSS

VDD

VCC

GND

VDD

FE301

FM FRONT END

4 32

IC303

LA1832S

FM IF DET./FM MPX./AM IF

ICT21

LC72722

RDS DEORDER

7 18

IC302

LC72131

PLL(TUNER)

23222120

13 14 15

IC102

BA3126N

HEAD

SELECTOR

IC601

LC75341

AUDIO PROCESSOR

JK601

VIDEO IN

AUX

TAPE

VSS VDD

TUNER

AUX

+B4

+B5

P.B.

REC

AC BIAS

RECORD/

PLAYBACK HEAD

ERASE HEAD

TAPE 2

PLAYBACK

HEAD

TAPE 1

L-CH

R-CH

L-CH

R-CH

BIAS OSC

Q128

L104

BIAS

Q126

Q101

Q102

Q121

Q122

SWITCHING

Q124

L103

SWITCHING

MUTING

IC101

AN7345K

PLAYBACK AND RECORD/

PLAYBACK AMP.

REC

L NF

R NF

ALC

REC

T1/T2

NOR/

HIGH

REF

R REC

L REC

POP REDUCE

R NF

L NF

L(T2)

R(T2)

R(T1)

L(T1)

H/N

+B4

SWIN

SW_OUT

DVDD

DVSS

LIN+

RIN+

C_OUT

L_OUT

R_OUT

SL_OUT

ROUT2

ROUT3

LOUT3

LOUT2

ROUT1

LOUT1

SR_OUT

SR_IN

C_IN

R_IN

L_IN

GND_R

SL_IN

FROM CD SECTION

CNP7

LOOP

ANTENNA

CNP301

L341

BALUN

SO301

FM ANTENNA

TERMINAL

AM MIX

CF302

AM RF IN

AM OSC IN

AM IF

450 kHz

FM/AM

OUT

MPX IN

VDDA

VDDD VSSD

VSSA

STEREO

FM+B

GND

AM IF

CF352

T351

10.7 MHz

FM/AM

MO/ST

VCO

CF351

X351

456kHz

FM/AM

MO/ST

OSC

X352

4.5 MHz

CLK

SWITCHING

Q360

QT21

Q301

AM BAND

COVERAGE

AM TRACKING

T302

T306

CF301

6 7

VCC

+B4

TO IC181

Q102

MOTOR

DRIVER

Q102

TAPE 1

SOLENOID DRIVER

Q102

TAPE 2

SOLENOID DRIVER

+B3

TAPE

MECHANISM

ASS'Y

XT21

4.332 MHz

– 35 –

CD-DVD500H

Figure 35 BLOCK DIAGRAM (4/4)

4 1

IC181

BU2092F

INPUT/OUTPUT

EXPANDER

IC702

BU2092F

INPUT/OUTPUT

EXPANDER

IC606

NJM4565M

BUFFER AMP.

IC605

NJM4565M

BUFFER AMP.

IC607

NJM4565M

BUFFER AMP.

IC905

TC4053BP

TRIPLE 2-CH

MULILPEXER

IC906

TC4053BP

TRIPLE 2-CH

MULILPEXER

IC904

KIA4558P

OPE AMP.

IC703,IC704

KIA4558P

OPE AMP.

IC907

KIA4558P

OPE AMP.

RX701

REMOTE SENSOR

XL701

4.194304 MHz

JOG701

JOG

VOLUME

IC701

IX0444AW

SYSTEM MICRCOMPUTER

100

FL701

FL DISPLAY

SOC901

SUBWOOFER

PRE OUT

SO901

SPEAKER

TERMINAL

SOC401

SPEAKER JACK

D802

D801

D806

D804

D803

D805

D881

D882

D884

D883

T.F.

AC 230 V/50 Hz

AC POWER

SUPPLY CORD

F801

T3.15A L 250V

T801

MAIN POWER TRANSFORMER

T802

SUB POWER TRANSFORMER

F804

T6.3A L 250V

F802

T4A L 250V

F803

T4A L 250V

F805

T6.3A L 250V

F806

T4A L 250V

F807

T4A L 250V

IC851

KIA7805AP

CONSTANT VOLTAGE

REGULATOR

IC850

KIA7810AP

VOLTAGE

REGULATOR

IC852

KIA7808AP

VOLTAGE

REGULATOR

IC880

KIA7805AP

CONSTANT VOLTAGE

REGULATOR

+B6 5V

+B4 A_+10V

+B9 A_+5V

+B3 M_+12V

+B7 V_+8V

+B8 M_+8V

+B5 5V

VF1

VF2

-VF

+B1

+B2

–B1

–B2

IC401

STK40224

POWER AMP.

IC901

STK40270N

POWER AMP.

IC902

STK40270N

POWER AMP.

RY402

RY401

RY902

RY901

SURROUND

SUBWOOFER

MAIN

CENTER

Q403

Q404

Q408

Q906

Q907

Q905

Q908

Q401

Q402

Q407

SYSTEM

MUTE

HIGH PASS

FILTER

SYSTEM

MUTE

SYSTEM

MUTE

SYSTEM

MUTE

20ATT

M402

FAN MOTOR

DRIVER

M401

FAN MOTOR

Q423

+B4

+B4 7 V

+B4

+B6

+B4

+B6

+B5

Q917

KEY

SW701-SW712

SW714-SW716

SW722-SW729

SW731-SW734

Q707

LCK

VSS

VDD

LCK

VSS

VDD

AVDD

JOG_0

JOG_1

VLOAD

REMOCON

PSEANA

KEY

CLK

-VF

VF1

VF2

LCK1

LCK2

RESET

Q701

Q702

Q703

Q704

Q705

Q706

JK701

HEADPHONES

+B3

+B10 D_+5V

RY801

L802

LINE

FILTER

Q806

Q850

Q418

Q419

CD-DVD500H

– 36 –

Figure 36 SCHEMATIC DIAGRAM (1/18)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

GND

VCC

V/2

GND

V/2

GND

VCC

SL+

SL–

GND

IN_SW

SP–

SP+

DISC1_SW

CAM_SW

LD/EJ_SW

GND

LD+

LD–

VOSC

FO–

FO+

TR+

TR–

PICK_UP

GNDS

P2DI(D)

P2CI(C)

P2BI(B)

P1AI(A)

P1BI(B)

P1CI

P1DI

LDP1

P2AI(A)

LDP2

GNDR

P1FP(B)

123456789

10 11 12 13 14 15 16

Vrfil

VRCK

SCD

SCL

SCB

DPD2

DPD1

DPBD

DPAC

Vdd

VrD

MDI2

LDO2

P2TN(D)

P2TP(C)

GND

P2FN(A)

P2FP(B)

VCKF

RFS

RFOp

RFOn

VccR

RPP

RPB

RPO

RPZ

VccS

DFTN

FEO

TEO

LVL

VccP

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

VrA

TCC1

P1TP

P1TN

LDO1

MDI1

EQF

EQB

EQF

EQB

RFDC

GND2

Vcc2

FEB

TEB

DPDB

8765

1234

VCC

GND

–

4321

5678

14 13 12 11 10

7654321

15 16 17 18 19 20 21 29 22 23 24 25 26 27 28

LD-FWD

IN1(+)

IN1(–)

OPOUT1

IN2(+)

IN2(–)

OPOUT2

VCC

LD–

LD+

SPIN+

SPIN–

GND

MUTE

OPOUT3

IN3(+)

IN4(-)

IN4(+)

LD-RVS

BIAS

IN3(-)

OPOUT4

TRN

TRP

FON

FOP

SLN

SLP

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

LVL

RFOn

LPFO

PVREF

VCORE

VCOF

PVDD

TESM9

TEST2

RFCD

RFDVD

AVDD

RFCT

RFZI

TEZI

AWIN

AVSS

FEI

TEI

RFRP

AVSS

TESM1

EXTAD

VREF

FOO

TRO

AVDD

AWCTL

FMO

DMO

TEBC

NC(FE

DPDC

EQBC

ANMO

/DFCT

VRCK

VSS3

SCD

SCL

SCB

FGIN

ASLCN

132

PDON2

TR+

FO+

TR–

FO–

SCB

SCL

SCD

VRCK

LVL

RPZ

DFCT

RFRP

ASLCO

TEB

SLDRV

CHOP

SPDRV

TRD

FOD

FO+

FO–

TR–

TR+

LD_RVS

LD_FWD

IN_SW

MUTE

DVD_L

RPZ

LVL

RFRP

FOD

TRD

SLDRV

SPDRV

TEB

DPDB

EQB

EQF

DFCT

VRCK

SCD

SCL

SCB

ASLCO

P1FN(A)

IC3801

BA5984FP

CNS5

JOINT PWB

P52 3-A

DVD SERVO PWB-C (1/3)

0V 0V

1.7V

4.7V

2.3V

R3346

FB3301

10µH

R3906

15K

R3905

8.2K

C3310

47/6.3

C3303

C3304

C3301

C3302

C3305

R3834

8.2K

C3806

0.1

IC3802

TC7W53FU

MULTIPLEXER

R3706

2.2K

R3705

6.8K

C3704

0.01

C3703

82P(CH)

R3703

10K

R3702

10K

R3701

22K

IC3705

NJM2904M

OPE AMP.

C3702

82P(CH)

R3704

22K

C3701

0.01

C3306

0.01

R3303

2.2K

R3310

4.7K

Q3301

KTA1504 Y

R3343

R3311

3.3M

C3308

47/6.3

C3311

2.2/50

C3309

0.01

C3313 0.001

C3314 0.001

C3316 0.001

C3318 0.001

C3320

0.1

C3321

47/6.3

IC3301

TA1323F

RF SIGNAL

PROCESSOR

R3316

3.3M

R3317

10K

C3315

47/6.3

C3317

0.1

L3302

10µH

C3322

0.01

C3324

0.1

C3325

0.0047

C3326

0.0047

C3327

0.1

C3323

0.1

Q3701

KRC104 S

Q3702

KRC104 S

C3332

0.001

C3333

0.001

Q3307

KRC104 S

R3740 47K

C3720

0.0068

R3709

12K

R3711

12K

C3731

0.001

C3717

0.0047

R3728

330

R3725

R3716

180

Q3303

2SA1955 A

C3307

100/6.3

R3738 33K

R3721

2.2K

C3718

0.015

L3701

1µH

R3724

100K

C3735

0.01

C3730

0.1

C3711

0.1

C3710

10/16

C3714

47/6.3

C3713

0.01

C3709

220P

(CH)

R3708

12K

C3715

0.1

R3710

12K

R3715

150K

R3717

18K

R3712

8.2K

C3729

0.0047

R3727

330

C3734

560P

C3728

220P

(CH)

C3716

220P(CH)

R3729

39K

R3730 27K

R3731 27K

R3732

10K

R3734

10K

R3735

10K

R3736

10K

C3726

0.1

C3725

0.1

C3723

0.1

C3722

0.015

C3721 0.015

C3708

0.1

R3718

150

R3719

150

R3720

150

C3732

0.1

C3733

0.1

C3707

47/6.3

L3702

1µH

C3712

0.1

R3714

47K

C3727

0.1

C3319

47/6.3

R3319

R3318

C3312

0.01

R3320

470

R3314

R3315

470

Q3302

2SA1955 A

D3301

DAP202K

R3829

10K

R3825

22K

R3821

22K

C3802

0.01

R3817

C3804

100P(CH)

R3822

22K

R3824

33K

C3805

220P

(CH)

R3826

10K

R3830

47K

C3803

10/16

IC3801

BA5984FP

MOTOR

DRIVER

R3344

C3705

220P

(CH)

C3706

220P(CH)

C3328

0.1

CS3301

FW2

– 37 –

CD-DVD500H

Figure 37 SCHEMATIC DIAGRAM (2/18)

8 9 10 11 12

40 39 38 37 36 35 34 33 32 31 30

123456789

10 11

29 28 27 26 25 24 23 22 21

12 13 14 15 16 17 18 19 20

VSS

VCC

RAS

UCAS

LCAS

D10

D11

D12

D13

D14

D15

D16

VSS

VCC

VSS

VCC

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

LVL

RFOn

LPFO

PVREF

VCOREF

VCOF

PVDD

TESM9

TEST2

RFCD

RFDVD

AVDD

RFCT

RFZI

TEZI

AWIN

AVSS

FEI

TEI

RFRP

AVSS

TESM10

EXTAD

VREF

FOO

TRO

AVDD

AWCTL

FMO

DMO

TEBC

NC(FEBC)

DPDC

EQBC

ANMON

/DFCT

VRCK

VSS3

SCD

SCL

SCB

FGIN

1234567

ASLCN

ASLCO

DACVSS

DACVDD

DVR

10 11 12 13 14 15

DACVSS

XVSS

XVDD

TESM0

TESM1

TESM2

16 17 18 19

20 21 22 23 24 25 26 27 28

VDD3

VSS3

VPFC

TEST0

VLPFI

VLPFO

VSS3

MON0

MON1

MON2

MON3

MON4

MON5

29 30 31 32 33 34 35 36 37

MON6

MON7

MON8

MON9

VDD3

TEST1

FLGA

38 39 40 41 42 43 44

FLGB

VSS3

/RST

/MA

/MRD

/MWR

/MCE

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

VDD5

SMCK

VMCK

VDD3

PD0

PD1

VSS5

PD2

PD3

PD4

VSS3

PD5

PD6

PD7

PD8

/PSYC

/PDRQ

PDCK

VDD5

TESM3

DIGI

TESM4

VDD3

BA0

BA1

BA2

BA3

VSS5

BA4

BA5

BA6

BA7

BA8

108 107 106 105 104 103 102 101 100

99 98 97 96 95 94 93 92 91 90 89

/BCASL

/BWE

BD11

BD10

BD9

BD8

VSS3

BD7

BD6

BD5

BD4

BD3

BD2

BD1

BD0

VDD5

/BCAS

/BRAS

/BOE

VDD3

117 116 115 114

113 112 111 110 109

PLCK

VDD3

BD15

BD14

BD13

VSS5

BD12

129 128 127 126 125 124

123 122 121 120 119 118

PDOP1

PESP

PVSS

PESV

PPW

CFC2

CFC1

VSS3

TESM8

TESM7

TESM6

TESM5

132 131 130

PDON2

PDOP2

PDON1

TO DVD SERVO PWB-C (2/3)

P38 1-C

TO DVD SERVO PWB-C (2/3)

P38 1-D

TO DVD SERVO PWB-C (2/3)

P38 1-H, 1-E

ASLCO

/SRV_RST

/MA

/RD

/WR

/SRV_CS

/SRV_INT

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

SD0_I

SD1_I

SD2_I

SD3_I

SD4_I

SD5_I

SD6_I

SD7_I

/ERR_I

/SOSO_I

/SVAL_I

SDCK_I

DADR0

DADR1

DADR2

DADR3

DADR4

DADR5

DADR6

DADR7

DADR8

RAS

UCAS

LCAS

DDAT0

DDAT1

DDAT2

DDAT3

DDAT4

DDAT5

DDAT6

DDAT7

DDAT8

DDAT15

DDAT14

DDAT13

DDAT12

DDAT11

DDAT10

DDAT9

DDAT8

DADR8

DADR7

DADR6

DADR5

DADR4

DADR3

DADR2

DADR1

DADR0

DDAT7

DDAT6

DDAT5

DDAT4

DDAT3

DDAT2

DDAT1

DDAT0

RAS

LCAS

UCAS

DDAT9

DDAT10

DDAT11

DDAT12

DDAT13

DDAT14

DDAT15

SDCK_I

/SVAL_I

/SOSO_I

/ERR_I

SD0_I

SD1_I

SD2_I

SD3_I

SD4_I

SD5_I

SD6_I

SD7_I

SDCK_I

/SVAL_I

/SOSO_I

/ERR_I

SD0_I

SD1_I

SD2_I

SD3_I

SD4_I

SD5_I

SD6_I

SD7_I

/SRV_INT

/SRV_CS

/SRV_RST

/WR

/RD

/MA

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

/SRV_INT

/SRV_CS

/SRV_RST

/WR

/RD

/MA

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

LVL

RFRP

LVL

RFRP

CHOP

DVD_L

MUTE

CHOP

DVD_L

MUTE

IN_SW

LD_RVS

LD_FWD

IN_SW

LD_RVS

LD_FWD

D_3.3V

A_3.3V

A_5V

D_5V

AT_8V

D_GND

M_GND

A_GND

CAM_SW

DISC1_SW

DVD_FUNC

CAM_SW

DISC1_SW

DVD_FUNC

176

ASLCP

/MINT

R3753

330K

C3746

0.1

C3757

0.1

C3756

0.1

C3759

0.1

C3758

0.1

C3751

0.001

IC3701

TC94A03F

SERVO ECC

133

C3747

0.1

R3744 47K

R3739

4.7K

R3740 47K

C3731

0.001

R3728

330

R3725

R3754

IC3702

IX0447AW

4M EDO RAM

C3744

0.1

C3742

0.1

R3755

470

FL3701

22.5792MHz

C3748

0.01

C3749

0.01

R3760

R3759

R3757

10K

R3758

10K

C3753

0.1

C3752

0.1

C3750

0.1

R3756

R3750

150K

R3743

1.5K

R3745

10K

R3738 33K

R3746

100K

R3742 33K

C3741

0.01

R3748

33K

R3721

2.2K

R3724

100K

C3735

0.01

C3730

0.1

R3717

18K

C3729

0.0047

R3727

330

C3734

560P

C3728

220P

(CH)

R3729

39K

R3730 27K

R3731 27K

R3732

10K

R3734

10K

R3735

10K

R3736

10K

C3723

0.1

R3718

150

R3719

150

R3720

150

C3732

0.1

C3733

0.1

LPFN

• The numbers 2 to 6 are waveform numbers shown in page 67.

CD-DVD500H

– 38 –

Figure 38 SCHEMATIC DIAGRAM (3/18)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

3.3V

0.2V

0.3V

0.4V

3.0V

2.8V

0.3V

3.0V

3.3V

0.3V

0.1V

3.0V

0.3V

1.6V

0.3V

0.9V

0.2V

1.5V

0.3V

0.2V

0.3V

0.2V

3.3V

1.5V

0.2V

1.6V

0.2V

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

50 49 48 47 46 45 44 43 42 4

1 2 3 4 5 6 7 8 9

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15

33 32 31 30 29 28 27 26 25

16 17 18 19 20 21 22 23 24

40 39 38 37 36 35 34 33 32 31 30

1 2 3 4 5 6 7 8 9

10 11

29 28 27 26 25 24 23 22 21

12 13 14 15 16 17 18 19 20

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 90 89 88 87 86 85 84 83 82 81

42 43 44 45 46 47 48 49 50 51 52

4 3 2 1

5 6 7 8

1 2 3

VPP_CTL

MODE_SW

EJ_SW

VDD1

BUFINAO

BUFONAO

BUFINBO

BUFONBO

GPON0O

GPON1O

GPON2O

5VBUSN0O

5VBUSN1O

5VBUSN2O

5VBUSN3O

5VBUSN4O

5VBUSN5O

5VBUSN6O

PDIN0O

PDIN1O

PDIN2O

PDIN3O

PDIN4O

PDIN5O

PDIN6O

PDIN7O

PDON8O

PDON7O

PDON6O

PDON5O

PDON4O

PDON3O

PDON2O

PDON1O

HDAT7

HDAT6

HDAT5

HDAT4

HDAT3

HDAT2

HDAT1

HADR7

HADR6

HADR5

HADR4

HADR3

HADR2

HADR1

VDD2

PDIN8O

VSS

VDD1

VSS

VDD2

5VBUSN7O

VSS

PSYCI

PDRQI

PDCKI

DVDREQ

VDD2

VSS

PDCKO

PDRQO

PSYCO

VSS

PDON0O

VSS

HINT

HWAIT

VDD1

BUF5ONBO

BUF5INBO

BUF5ONAO

BUF5INAO

GPON3O

VSS

VDD1

LIN1O

LIN2O

BUFONCO

BUFINCO

TEST0

TEST1

TEST2

MRST

VSS

HCS2

HCS1

HAS

HWR

HRD

HDAT0

VDD1

VSS

HADR0

VDD1

100

VSS

VDD1

GNDP

HACK

VDDP

HIRQ

HRDY

GNDC

HRD

VDDC

HCS

HWR

HA-0

HA-1

HA-2

HA-3

VDDP

HD-0

HD-1

HD-2

HD-3

HD-4

HD-5

VDD_LVL_SHFT

HD-6

HD-7

VDDP

HD-8

GNDC

HD-9

VDDC

HD-10

GNDP

HD-11

HD-12

HD-13

HD-14

HD-15

HTYPE

VDDP

HWID

HORD

RESERVE(SRV)

DVD_L

MUTE

LD-RVS

/MA

H/P CTL

TRAY_REQ

VCC

VSS

DQ10

DQ9

LCAS

UCAS

RAS

DQ8

DQ7

DQ15

DQ6

DQ5

VCC

DQ4

DQ3

DQ2

DQ1

VSS

VCC

DQ16

DQ14

DQ13

VSS

DQ12

DQ11

IDLE

DVDDAT7

DVDDAT6

DVDDAT5

DVDDAT4

DVDDAT3

DVDDAT2

DVDDAT1

DVDDAT0

DVDREQ

DVDSTRB

DVDVALID

GNDP

VDDP

RAMADD8

RAMADD0

RAMADD7

RAMADD1

RAMADD6

RAMADD2

VDDP

RAMADD5

RAMADD3

RAMADD4

/BYTE

D15

D14

D13

D12

D11

D10

A17

OCNT

GND

NC NC

VCC

HGA_INT

A16

CLK

ADAC_DA

ADAC_L

ADAC_CK

VSS

HGA_CS

AMUTE2

Z_RESET

S1_H

VMUTE

LD-FWD

R/C

VCC

VSS

D10

D11

VSS

D12

D13

D14

D15

VCC

SUB/EEP Dout

SUB/EEP Din

SUB/EEP CLK

/WDGOVF

/RESET

NMI

/STBY

VCC

XTAL

EXTAL

VSS

VCC

/AS

/RD

/HWR

/LWR

LCAS

UART-TXD

AVCC

VREF

KEY1

KEY2

KEY3

AVSS

VSS

MD_0

MD_1

MD_2

VCC

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

UART-RXD

TRAY_ACK

UART-CTL

VSS

A10

A11

A12

A13

A14

A15

DIN

LVL

S/E_CS

LD_SW

Z_STNBY

EEP-CS

A18

CAS

RAS

STANBY

IN_SW

WAIT

VSSO

VCCO

I/O15

I/O14

I/O13

I/O12

I/O11

I/O10

VSSO

VCCO

VSSO

I/O5

I/O4

I/O3

I/O2

I/O1

I/O0

VCC

G_RESET

RFRP

CHOP

PLAY_MODE

SRV_CS

SRV_INT

AV_INT

AV_CS

FROM_CS

/WE

/RP

VPP

/WP

RY/BY

VSS

VDD

/OE

VSS

/CE

STBY_REQ

WOBBLE

159160 158 157 156 155 154 153 152 151 150 149

TO DVD SERVO PWB-C (2/3)

P37 12-C

TO DVD SERVO PWB-C (2/3)

P37 12-F

TO DVD SERVO PWB-C (2/3)

P37 12-H

TO DVD SERVO PWB-C (2/3)

P37 12-H

SDCK_I

/SVAL_I

/SOSO_I

/ERR_I

SD0_I

SD1_I

SD2_I

SD3_I

SD4_I

SD5_I

SD6_I

SD7_I

/SRV_INT

/SRV_CS

/WR

/RD

/MA

/SRV_INT

/SRV_CS

/SRV_RS

/WR

/RD

/MA

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

LVL

RFRP

DVD_L

MUTE

IN_SW

LD_RVS

LD_FWD

IN_SW

LD_RVS

LD_FWD

D_3.3V

A_3.3V

A_5V

D_5V

AT_8V

D_GND

M_GND

A_GND

CAM_SW

DVD_FANC

DISC1_SW

CAM_SW

DVD_FANC

DISC1_SW

LVL

RFRP

CHOP

DVD_L

MUTE

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

SDCK_I

/SVAL_I

/SOSO_I

/ERR_I

SD0_I

SD1_I

SD2_I

SD3_I

SD4_I

SD5_I

SD6_I

SD7_I

D10

D11

D12

D13

D14

D15

/RD

/WR

HGA_CS

/SRV_CS

HGA_INT

SD0_O

SD1_O

SD2_O

SD3_O

SD4_O

SD5_O

SD6_O

SD7_O

/ERR_O

/SOSO_O

/SVAL_O

SDCK_O

SDCK_I

/SVAL_I

/SOSO_I

IC3502

+B+B+B

/ERR_I

SD7_I

SD6_I

SD5_I

SD4_I

SD3_I

SD2_I

SD1_I

SD0_I

MD7

MD6

MD5

MD4

MD3

MD2

MD1

MD0

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

HGA_INT

AV_INT

/SRV_INT

D10

D11

D12

D13

D14

D15

S/E_DO

S/E_DI

S/E_CK

UART-RXD

EECS

/MA

/AS

/RD

/WR

LCAS

DVD_L

MUTE

WAIT

FIP_CS

KEY3

LVL

RFRP

ADAC_DA

ADAC_CK

ADAC_L

CAS

RAS

AVCS

FRCS

/SRV_CS

S/E_DO

S/E_DI

S/E_CK

EECS

/WR

RAS

A4 A5

CAS

LCAS

D10

D11

D12

D13

D14

D15

RAMD0

RAMA4

RAMA3

RAMA2

RAMA6

RAMA1

RAMA7

RAMA0

RAMA5

RAMA8

RAMD1

RAMD2

RAMD3

RAMD4

RAMD5

RAMD10

RAMD11

RAMD12

RAMD13

RAMD14

RAMD15

/SVAL O

SDCK_O

SD0_O

SD1_O

SD2_O

SD3_O

SD4_O

SD5_O

SD6_O

SD7_O

DVDREQ

D15

D14

D13

D12

D11

D10

/WR

/RD

AV_INT

WAIT

AVCS

HGA_CS

C3604

0.1

C3603

100/6.3

C3601

100/6.3

C3602

0.1

Q3503

KRC104 S

R3543 10K

R3522

R3540

4.7K

R3537

10K

R3535

10K

R3534

10K

R3531

4.7K

R3532

10K

R3528

10K

R3524 10K

C3506 0.1

R3520

10K

R3519 1K

R3516 10K

R3514

R3517

R3518

R3513

4.7K

C3508

0.1

C3511

0.1

C3510

0.1

R3506

3.3K

R3505

3.3K

R3507

3.3K

R3530

10K

R3508 10

R3509 10

R3510

4.7K

R3511

10K

R3512 10

C3517

0.01

C3515

0.01

C3516

0.01

C3522

47/6.3

C3523

0.01

C3520

0.01

C3521

0.01

R3566 10K

C3528

0.01

R3569

100

C3527

0.01

R3581

10K

IC3508

IX1761GE

TRACK

BUFFER INTERFACE

C3501

0.1

R3501

R3502

10K

R3503

10K

R3504

10K

R3544

4.7K

R3547

R3546

100K

C3504

0.1

R3554

10K

C3503

0.1

C3502

100/6.3

R3545

R3541

R3556

R3538

10K

R3533

10K

C3605

0.1

C3606

0.1

C3607

0.1

C3609

0.1

C3608

0.1

C3519

0.01

C3610

0.1

C36

0.1

C3640

0.1

R3557

2.2K

R3558

4.7K

Q3502

KTA1504 Y

C3525

0.01

C3526

47/6.3

R3560

10K

C3512

D3501

DAP202K

R3515

150K

C3524

0.0047

R3523

47K

R3564

5.6K

R3565

10K

IC3504

IX1687GE

DVD MICROCOMPUTER

R3568

100

IC3503

PST9129N

RESET

IC3501 IX1689GE

FLASH ROM

IC3

IX04

16M

FL3501

20MHz

R3525 10K

IC3507

BR93L66F

EEPROM

IC3502

IX0448AN

DRAM

– 39 –

CD-DVD500H

Figure 39 SCHEMATIC DIAGRAM (4/18)

8 9 10 11 12

D1.8V

3 1

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

50 49 48 47 46 45 44 43 42 41

1 2 3 4 5 6 7 8 9

40 39 38 37 36 35 34 33 32 31 30

11 12 13 14 15 16 17 18 19 20 21

26 27 28 29

22 23 24 25

50 49 48 47 46 45 44 43 42 41 39 40

1 2 3 4 5 6 7 8 9

10 11 12

38 37 36 35 34 33 32 31 30 29 28

13 14 15 16 17 18 19 20 21 22 23

27 26

24 25

13 12 11 10

1 2 3 4 5 6 7

42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

LD+

LD–

CD/D1_SW

CLAMP SW

DVD_CLK

TUN_FNC

UART RX

DVD_DO

DVD_DI

DVD_STB

DVD_BUSY

D_GND

GNDP

GPSI

GNDC

GPSO

VDDC

VDDP

VDDP-A2

_LVL_SHFT

CVBS/C

GNDP

VCLKx2

IDLE

DVDDAT7

DVDDAT6

DVDDAT5

DVDDAT4

DVDDAT3

DVDDAT2

DVDDAT1

DVDDAT0

DVDREQ

DVDSTRB

DVDVALID

DVDSOS

DVDERR

ABCLK

ALRCLK

AOUT-2

AOUT-1

AOUT-0

VDDP

GPIO

S/PDIF

GNDP-A2

AMCLK

TESTMODE

VDDP

SCNENBL

RESET

STNBY

GNDA

VDDA

GCLK

PLLCFG-0

GCLK1

VDDC

PLLCFG-1

GNDC

AIN

ICEMODE

VREF

GND-DACS

GND-DACP

RSET

GND-DACB

C/B/U

Y/R/V

VDD-DAC

CVBS/G/Y

GND-DACD

COSYNC

VDDP

VDD_LVL_SHFT

GNDP

HSYNC

VDDP

VSYNC

VCLK

RAMCAS

GNDP

RAMDAT0

RAMDAT15

VDDP

RAMDAT1

RAMDAT14

GNDP

RAMDAT2

RAMDAT13

VDDP

RAMDAT3

RAMDAT12

GNDP

RAMDAT4

RAMDAT11

VDDP

RAMDAT5

RAMDAT10

RAMDAT6

GNDC

RAMDAT9

VDDP

RAMDAT7

GNDP

RAMDAT8

VDDP

PCLK

GNDP

RAMDQM

VDDC

RAMWE

RAMRAS

RAMCS1

VDDP

RAMCS0

GNDP

RAMADD11

RAMADD9

RAMADD10

VDDP

RAMADD8

RAMADD0

RAMADD7

RAMADD1

RAMADD6

RAMADD2

VDDP

RAMADD5

RAMADD3

RAMADD4

A_5V

D_5V

M_GND

A_GND

D_GND

M_8V

VSSO

VCCO

I/O15

I/O14

I/O13

I/O12

I/O11

I/O10

VSSO

I/O9

I/O8

VCCO

DOMU

CLK

CKE

VSS

VCC

A10(+)

A11(BS)

RAS

CAS

DOML

VCCO

VSSO

VCCO

I/O7

I/O6

I/O5

I/O4

I/O3

I/O2

I/O1

I/O0

VCC

I/O0

I/O1

I/O2

I/O3

I/O4

I/O5

I/O6

I/O7

VCCO

VSSO

VCCO

DOML

CAS

RAS

A11(BS)

A10(+)

VCC

VSS

CKE

CLK

DOMU

VCCO

I/O8

I/O9

VSSO

I/O10

I/O11

I/O12

I/O13

I/O14

I/O15

VCCO

VSSO

V_8V

VCC

GND

15960 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121

DVD SERVO PWB-C (2/3)

CNS703

FROM DISPLAY PWB

P43 8-H

CNS405

FROM AMP. B PWB

P45 7-E

TO DVD SERVO

PWB-C (3/3)

P53 11-H

+B+B

B+B

RAMD0

RAMA4

RAMA3

RAMA2

RAMA6

RAMA1

RAMA7

RAMA0

RAMA10

RAMA9

RAMA11

RAMCS1

RAMRAS

RAMCAS

RAMDQM

RAMD8

RAMD7

RAMD9

RAMD6

RAMD10

RAMD5

RAMD11

RAMD4

PCLK

RAMWE

RAMCS0

RAMA5

RAMA8

RAMD1

RAMD2

RAMD3

RAMD4

RAMD5

RAMD6

RAMD7

RAMDQM

RAMWE

RAMCAS

RAMCS0

RAMRAS

RAMA11

RAMA10

RAMA0

RAMA1

RAMA2

RAMA3

RAMD0

RAMD1

RAMD2

RAMD3

RAMD4

RAMD5

RAMD6

RAMD7

RAMDQM

RAMWE

RAMCAS

RAMCS1

RAMRAS

RAMA11

RAMA10

RAMA0

RAMA1

RAMA2

RAMA3

RAMA4

RAMA5

RAMA6

RAMA7

RAMA8

RAMA9

RAMD8

RAMD9

RAMD10

RAMD11

RAMD8

RAMD9

RAMD10

RAMD11

RAMD12

RAMD13

RAMD14

RAMD15

RAMD12

RAMD13

RAMD14

RAMD15

RAMDQM

RAMA4

RAMA5

RAMA6

RAMA7

RAMA8

RAMA9

RAMDQM

RDMD12

RDMD3

RDMD13

RDMD14

RDMD1

RDMD15

RDMD0

RDMD2

AMCLK

ABCLK

/EER_O

/SOSO_O

/SVAL_O

SDCK_O

SD0_O

SD1_O

SD2_O

SD3_O

SD4_O

SD5_O

SD6_O

SD7_O

DVDREQ

LD_FWD

LD_RVS

UART-RXD

KEY3

FIP_CS

S/E_CK

S/E_DI

S/E_DO

SPDIF_O

D_5V

CVBS/G/Y

Y/R/V

C/B/U

CVBS

A_GND

D_GND

V_8V

R3204 100

R3228 100

R3203 100

R3208 100

C3207

0.001

R3209 100

R3205

10K

R3212

1.8K

R3215

100

R3211

470

R3216

22K

C3206 0.1

R3206

10K

R3214

1.8K

R3213

470

R3207 10K

R3210 10K

R3661 10

R3662 10

R3663 10

R3664 10

C3673

47/6.3

C3666

0.1

C3664

47/6.3

C3662

0.1

IC3661

IX0445AW

VOLTAGE

REGULATOR

IC3662

IX0472AW

VOLTAGE REGULATOR

C3665

0.1

C3667

47/6.3

C3663

47/6.3

C3661

0.1

C3670

100/6.3

C3671

100/6.3

C3669

0.01

C3668

0.01

C3674

0.1

C3672

0.01

C3628

47/6.3

C3629

100/6.3

C3630

0.1

FB3605

100mA

L3602

47µH

C3631

47/6.3

C3632

0.1

R3615

150

R3616

390

C3633

0.1

FB3606

100mA

C3634

0.1

C3635

0.1

R3621

220

C3610

0.1

C3611

0.1

C3612

0.1

C3613

0.1

R3670

100

C3614

0.1

C3615

0.1

C3616

0.1

C3620

100/6.3

C3619

0.1

C3618

0.1

C3617

100/6.3

FB3601

100mA

C3621

0.1

C3622

0.1

C3623

0.1

X3601

27MHz

R3612

680K

C3627

10P(CH)

R3613

150

C3626

10P(CH)

FB3604

100mA

R3602

10K

R3603

R3604

390

R3607

R3608

C3625

0.1

R3610

C3624

47/6.3

R3227

680

C3201 0.1

R3226

680

C3203

0.1

R3225

680

C3204 0.1

C3205

47/6.3

FB3603

100mA

C3643

0.1

C3646

100/6.3

C3644

0.1

C3641

0.1

IC3603

IX0449AW

16M SDRAM

C3640

0.1

IC3601

IX1720GE

DVD DECORDER

IC3602

IX0449AW

16M SDRAM

Q3202

KTA1504 Y

Q3203

KTA1504 Y

Q3205

KTA1504 Y

L3601

47µH

IC3201

74HC07AF

BUFFER AMP.

CP3202

CP3201

Q3204

KTA1504 Y

R3229

680

• The number 1 are waveform number shown in page 67.

CD-DVD500H

– 40 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

Figure 40 SCHEMATIC DIAGRAM (5/18)

11.6V

11.7V

0.7V

TUNER PWB

P51 11-H

MAIN PWB-A (1/2)

VIDEO IN SIGNAL

RECORD SIGNAL

PLAYBACK SIGNAL

FM SIGNAL

A_GND

TUN_L

TUN_R

TUN_SM

CLK

A_+10V

D_GND

R-CH

L-CH

CHASSIS

L-CH R-CH

A_GND

T1_L

T1_R

A_GND

R-CH

L-CH

ERASE HEAD

T2_L2

T2_L1

T2_R1

T2_R2

ERASE

M_GND

TAPE 1

PLAYBACK HEAD

TAPE 2

RECORD/

PLAYBACK HEAD

123

Hich=T1

–

Nor/CrO2

RIPPLE

ALC

Vcc

ALC

112K

56K

Hich=CHROME

112K

56K

–

GND

CLK

13 12

DVD

TUNER

DECK

AUX

VSS

LOUT

LBASS

LTRE

LIN

CLK

VDD

VREF

ROUT

RBASS

RTRE

RIN

RSEL0

LSEL0

DD_ACK

DD_DIO

DD_CLK

DD_LOCK

DD_CS

DD_LP

DD_RST

A_13V

DD_STATUS

LOCK

DDAC

DDLAT

RESET

R_OUT

L_OUT

A_GND

L_S

CENTER

A_GND

R_S

A_GND

R_F

A_GND

L_F

A_GND

DIO

DDCE

A_10V

D_5V

D_GND

DD_STATUS

DD_LP

DD_ACK

DD_DIO

DD_LOCK

DD_CS

DD_CLK

1 3 4 5

6 2

Q10

VDD

Q11

LCK

CLOCK

DATA

VSS

L_BA

L_TR

BYPA

L_IN

GND

R_IN

GND_

C_IN

C_GN

SL_IN

SR_IN

S_GN

SWIN

AVDD

FAN_CTL

DD_RST

–11DB_ATT

REC/PLAY

T1/T2

T_BIAS

1 2 3 4 5 7 8 9

11 12 13 15

9 8 7 6 4 3 2

12 11

IC101

AN7345K

IC601

LC75341

CNP502

DOLBY PWB

P47 12-D

CNP503

DOL

P47

FFC602

R114

15K

R113

15K

C109

47/16

C124

0.0015

C123

0.0015

R646

270K

R645

270K

R133

3.9K

JK601

VIDEO/AUX IN

R196

4.7K

R195 100

R194 1K

R193 100

R192 1K

C197

0.015

C194

0.33

R668 10K

R667 10K

R666

10K

R665

10K

R109

270K

R108

270K

R134

68K

R107

Q101

KRC104 M

R110

33K

R179

10K

R176

10K

R177

10K

R178

10K

R180

10K

C190

0.022

C189

0.022

D184

DS1SS133

D183

DS1SS133

C187

0.022

C602

0.022

C623

10/50

R605

3.9K

C605

0.1

C601

100/16

C626

100P(CH)

C604

100P(CH)

C603

100P

(CH)

C607

0.1

C611

1/50

C619

1/50

C609

0.0027

C613

1/50

C615

1/50

C617

1/50

R601

R602

C625

22/50

C608

0.1

C610

0.0027

C612

1/50

C614

1/50

C616

1/50

C618

1/50

C620

1/50

C606

0.1

R606

3.9K

C624

10/50

R603

CNP602

C119

560P

C117

0.033

C121

1/50

R124

3.9K

R126

5.6K

R122

100K

C122

1/50

C120

560P

C118

0.033

R121

100K

R123

3.9K

R125

5.6K

C654 22/50

C634 22/50

C645 22/50

C646

22/50

C633

22/50

C632

22/50

C631

22/50

R632

10K

R631

10K

R104

5.6K

R102

5.6K

R101

5.6K

C106

180P(CH)

R106

2.2K

C103

10/16

IC102

BA3126N

HEAD SELECTOR

R103

2.2K

R105

100

Q102

KTC3199 GR

R625

4.7K

R626

4.7K

R627

39K

R628

39K

C600

0.022

D601

DS1SS133

D602

DS1SS133

C630

390P

(CH)

C629

390P

(CH)

Q126

KRC104 M

R156

82K

R157

82K

Q121

KTC3199 GR

R153

10K

R154

10K

Q122

KTC3199 GR

R131

6.8K

R119

C115

100/25

R120

C116

100/25

R139

1.5K

CNP102

C113

47P

(CH)

R117

5.6K

R118

5.6K

C114

47P

(CH)

C105

180P

R132

6.8K

C131

270P(CH)

C111

47P

(CH)

C112

470P(CH)

R166

22K

C154

0.047(ML)

CNP101

R164

4.7K

R167

47K

C128

3.3/50

R168

4.7

C150

0.0082(PP)

R158

220

Q128

KTC3203 Y

C146

220/10

L104

330µH

C102

560P

C101

560P

R146

10K

C142

47/25

C145

22/25

R136

5.6K

Q124

2SA1015 GR

R162

47K

C152

47/25

L103

100µH

R160

C151

0.039(ML)

R142

100

R140

1.5K

C132

270P(CH)

C140

0.0033

C136

0.022

R138

6.8K

C134

22/25

C133

22/25

C141

47/25

C127

0.022

R145

10K

C135

0.022

C139

0.0033

R135

5.6K

R141

100

C108

560P

C107

560P

R137

6.8K

C185

47/16

C184

0.022

R189

100

R190 100

R191 100

C653

22/50

C196

0.0082

IC101

AN7345K

PLAYBACK AND RECORD/

PLAYBACK AMP.

IC601

LC75341

AUDIO PROCESSOR

M62

6-CH EL

IC181

BU209

INPUT/OU

EXPAN

– 41 –

CD-DVD500H

Figure 41 SCHEMATIC DIAGRAM (6/18)

8 9 10 11 12

+B+B

+B +B

–13V

+5V

CNP901

AMP. A PWB

P48 1-E

DD_ACK

DD_DIO

DD_CLK

DD_LOCK

DD_CS

DD_LP

DD_RST

A_13V

DD_STATUS

LOCK

DDAC

DDLAT

RESET

DIO

DDCE

A_10V

D_5V

GND

F_RLY

VOL_LAT

HP_SW/MIC_IN

LCK2

-20DB_ATT

S_MUTE

SPAN

KARA_LAT

DD_STATUS

DIST_OUT

DD_LP

DD_ACK

DD_DIO

DD_LOCK

DD_CS

DD_CLK

CLK

TUN_SM

SP_DET

TUN_FNC

AT_8V

–15V

P_IN

A_10V

SPEANA

–VF

UN_SW 5V

AC_RLY

D_GND

SWD_+5V

M_12V

1 3 4 5 7 8

10 11 12 13 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 3614

6 2

Q10

VDD

Q11

LCK

CLOCK

DATA

VSS

R_BASS3

SW_OUT

D_GND

DVDD

CLK

DATA

LATCH

A_GND

SR_OUT

SL_OUT

C_OUT

R_OUT

L_OUT

AVSS

CL1

CL2

CR1

CR2

R_TRE

R_BASS2

R_BASS1L_BASS1

L_BASS2

L_BASS3

L_TRE

BYPASS_L

BYPASS_R

L_IN

GND

R_IN

GND_R

C_IN

C_GND

SL_IN

SR_IN

S_GND

SWIN

AVDD

CLK

VOL_LAT

CENTER

R-CH

L-CH

CCH

SW-CH

LS-CH

L-CH

RS-CH

L-CH

R-CH

A_GND

A_+10

SWD_5V

M_GND

A_+10V

A_GND

D_GND

M_12V

32 1

C-SPRLY

S-SPRLY

CENTER

A_GND

S_MUTE

–11DB_ATT

HP_SW/MIC_IN

SP_DET

F_RLY

SW-SPRLY

FAN_CTL

RLY2/6

SW-MUTE

A_GND

+5V

M_12V

A_+10

M_GND

–13V

A_GND

R-CH

L-CH

GND

+18V

P_IN

AC_RLY

UN_SW 5V

+9V

VF1

VF2

–VF

GND

+18V

D_GND

CHASSIS

AC_RLY

P_IN

SP_DET

D_GND

SW-MUTE

RLY2/6

SW-SPRLY

S-SPRLY

C-SPRLY

CTL

D_RST

–

11DB_ATT

9 8 7 6 4 3 2

12 11

1 5 10

CLK

LCK2

DISPLAY PWB

P42 1-F

FFC701

CNP701

CNP807

POWER PWB

P44 3-H

CNS407

FROM

AMP. B PWB

P45 11-H

IC852

KIA7808AP

CNP503

DOLBY PWB

P47 12-B

FFC607

18.9V

12.2V

12.9V

CNS404

FROM

AMP B PWB

P45 7-H

+9V

V_8V

TUN_FNC

M_GND

A_GND

+18V

C675

0.0082(ML)

C109

47/16

C627

1/50

R133

3.9K

Q103

KTC3199 GR

C662

10/16

C661

10/16

C690

10/16

C689

10/16

C676

10/16

R604

10K

R890

22K

C862

1/50

R861

10K

R862

10K

D855

DS1SS133

R860

10K

Q851

KTC2026 Y

R892

2.2K

R891

2.2K

R894

Q892

KTC3199 GR

Q859

KRA107 M

R893

Q891

KTC3199 GR

C892

0.001

C891

0.001

R895

2.2K

Q893

KTC3199 GR

C893

0.001

C699

0.068(ML)

R896

R196

4.7K

R195 100

R194 1K

R193 100

R192 1K

C858

0.047(ML)

CNP601

RP851

0.23

Posistor

C852

4700/16

C197

0.015

C199

0.0082

C198

0.015

C195

0.33

C194

0.33

R668 10K

R667 10K

R666

10K

R665

10K

CNP607

R175 10K

R174 10K

R173 4.7K

R172 4.7K

R171 4.7K

R179

10K

R176

10K

R177

10K

R180

10K

R649

R650

R656

100K

IC605

NJM4565M

BUFFER AMP.

R655

100K

R659

3.9K

R653

C657

47/25

C660

0.022

R651

R652

C658

47/25

C666

2.2/50

C659

0.022

C665

2.2/50

R654

R660

3.9K

R657

15K

R663

100K

R664

100K

C668

1/50

R662

3.3K

C667

1/50

R661

3.3K

R658

15K

C664

100P(CH)

C663

100P(CH)

R677

4.7K

R683

100K

R684

100K

C682

10/16

R682

3.3K

C681

1/50

R681

3.3K

R674

R673

R676

100K

IC606

NJM4565M

BUFFER AMP.

R675

100K

R679

3.9K

R671

R672

C671

47/25

C674

0.022

C672

47/25

C673

0.022

C680

2.2/50

C679

2.2/50

R680

1.2K

R678

15K

C678

0.022

C677

100P

(CH)

C691

100P

(CH)

C692

100P(CH)

R692

15K

R694

3.9K

C693

2.2/50

C694

2.2/50

C687

0.022

C686

47/25

R686

R685

C688

0.022

C685

47/25

R693

3.9K

R689

100K

R690

100K

IC607

NJM4565M

BUFFER

AMP.

R687

R688

R695

3.3K

C695

1/50

R696

3.3K

C696

1/50

R698

100K

R697

100K

R691

15K

CNS604

C188

0.022

0220

022

D185

DS1SS133

D186

DS1SS133

C877

0.022

D859

DS1SS133

D860

DS1SS133

CNP603

C655

3.3/50

C656

3.3/50

C654 22/50

BI850

CNS850

CNP851

C183

100P(CH)

C182

100P(CH)

R643 1K

R642 1K

R641 1K

C643 100P(CH)

C641 100P(CH)

C642 100P(CH)

Q601 KTA1271 Y

ZD601 DZ7.5BSC

ZD602

DZ7.5BSC

R633

C649

47/25

C648

47/25

R634

Q602

KTC3203 Y

C634 22/50

C645 22/50

C646

22/50

C633

22/50

C632

22/50

C631

22/50

R644

C644

0.022

R63710K

R63810K

R64010K

R63910K

C640

22/50

C639

22/50

C638

22/50

C637

22/50

C636

22/50

C635

22/50

R63510K

R63610K

C647

47/25

C650

47/25

R632

10K

R631

10K

IC852

KIA7808AP

VOLTAGE

REGULATOR

R865

22K

C867

0.022

C866

220/16

C865

0.022

R183 1K

R182 1K

R181 1K

C185

47/16

C184

0.022

R188 1K

R187 1K

R184 100

R186 100

R185 100

C181

100P

(CH)

R189

100

R190 100

R191 100

C851

2200/35

ZD850

DZ2.4BSB

Q850

KTC2026 Y

R852

560

C857

0.047

(ML)

R854

22K

C856

220/25

R855

10K

IC851

KIA7805AP

CONSTANT VOLTAGE

REGULATOR

C860

47/25

C859

0.047

(ML)

IC850

KIA7810AP

VOLTAGE REGULATOR

C853

0.047(ML)

R853

22K

C855

47/25

C854

0.047

(ML)

D852

DS1SS133

R857

D853

DS1SS133

R858

D851

DS1SS133

R856

R-CH

C653

22/50

C196

0.0082

IC602

M62446FP

6-CH ELECTRONIC

VOLUME

IC181

BU2092F

INPUT/OUTPUT

EXPANDER

CD-DVD500H

– 42 –

Figure 42 SCHEMATIC DIAGRAM (7/18)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

63Hz

10kHz

1kHz

VF1

VF2

–VF

UNSW_5V

AC_RLY

D_GND

P_IN

M_12V

SP_DET

TUNER_FNC

F_RLY

LCK2

SPAN

DIST_OUT

CLK

SPEANA

SWD_5V

–20dB_ATT

S_MUTE

6CH VOL_LATCH

KARAOKE_LATCH

–15V

HP_SW/MIC_IN

A_10V

TUN_SM

DD_STATUS

DD_LOCK

DD_CS

DD_LP

DD_ACK

DD_DIO

DD_CLK

P14

P15

P16

P17

P18

P19

P20

P21

P13

P12

P11

P10

G14

G13

G12

G11

G10

79 78

69 68

P21

P20

P10

P12

P17

P16

P19

P15

P14

P13

P18

P11

VDD2

P10

P11

DIST0/P18

P17

P16

P15

P14

P13

P12

VLOAD

DIST_O

DIST3/P21

DIST2/P20

DIST1/P19

100

G12

G13

G14

G11

G10

AVDD

PLAY SW B/FPA/FPB

O_C/DISC_NO_SW

SPEANA1

KEY0

SPEANA3

VSS1

SPEANA2

DRF(4500ONLY)

HEADPHONE/MIC_IN

KEY1

DVD_STB/WRQ

TUN_SM

KEY2

AVSS

KARAO

L,R 63Hz

L,R 10KHz

TUNER

MOT_S

L,R 1KHz

123456789

11 12 13 14 15 16 17

VSS

DATA

CLOCK

LCK

STOP

F PLAY

CD DISC1

CD DISC2

CD DISC3

R_PLAY

L+

L–

T1_SOL

T2_SOL

VDD

T_MOT

123456789

DVD_RX

HP/MIC_IN

KEY0

KEY1

KEY2

SPEANA1

SPEANA2

SPEANA3

TUN_SM

RD68

220K

+VCC

–

MOT_CNT

–

P_IN

SPEANA3

LCK1

SPEANA2

CLK

SPEANA1

T_MOT

T1_SOL

T2_SOL

3 2 1

5V USWD

5V BACK UP

100

DISPLAY PWB-B1

3 2

1 2 3 6 7 8 9 1011121314

15 16 17 18 19

29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 4

–B

IC705

TA7291S

1 36

36 1

CNP601

MAIN PWB

P41 8-H

FFC701

C713

47/25

C758

10/16

CNP701

RD69

150K

C756

0.022

RD65

15K

RD38 1K

RD37 1K

FL701

FL DISPLAY

LED701

D704

DS1SS133

D703

DS1SS133

R765

47K

RD43

RD88 10

C715

3.3/50

Q707

KRC102 M

R764

100K

R763

100

RX701

REMOTE

SENSOR

C714

0.022

R762

22K

C757

1/50

R796

2.7K

R797

3.9K

R795

2.7K

Q711

KRC102 M

IC705

TA7291S

LOADING MOTOR

DRIVER

RD75

10K

RD76

10K

C720 47/16

C719 0.022

C721

100P

(CH)

C722

100P(CH)

C723

100P

(CH)

RD44 100

RD45 100

IC702

BU2092F

INPUT/

OUTPUT

EXPANDER

RD41 1K

RD42

LED702

RD34 1K

RD36 1K

RD35 1K

R792

10K

R793

10K

R783 1K

R761

C703

1/50

R784

100K

Q706

KTC3199 GR

R794

100K

IC701

IX0444A

SYSTEM MICROC

C70

0.02

R766

10K

D702 DS1SS133

D701

DS1SS133

D714

DS1SS133

R769

10K

R755 1K

R754 1K

R753 1K

R752 1K

R751 1K

R768 10K

R767

10K

C707 0.0

C706

0.022

Q705

KTC3199 GR

Q704

KTC3199 GR

Q703

KTC3199 GR

Q702

KTC3199 GR

Q701

KTC3199 GR

R760

100K

R759

100K

R758

100K

R757

100K

R756

100K

R704 1K

R712 1K

R710 1K

R711 1K

XL701

C704

15P(CH)

R709 1K

R708 1K

R707 1K

R706 1K

R705 1K

R703 1K

R702 1K

R701 1K

RD72

100K

C737

2.2/50

RD71 180K

C731

0.022

C732

0.022

C733

47/25

D712

DS1SS133

C718

220/10

RD56

33K

D709

DS1SS133

D710

DS1SS133

ZD701

DZ6.2BSC

C728

2.2/50

RD57

220K

RD58

2.2M

D708

DS1SS133

C724 270P

C725

270P

C726

0.0068

RD55

470K

RD54

22K

RD53

33K

RD62 100K

RD64

68K

C735

0.0027

C736 0.022

RD52 330

RD61 100K

C730 2.2/50

RD59 820K

RD51 100

IC704

KIA4558P

OPE AMP.

RD60 1M

IC703

KIA4558P

C727 0.0068

RD70 390K

C734 0.0027

RD63

12K

D711

DS1SS133

C717

0.01

D705

DS1SS133

C701

47/50

– 43 –

CD-DVD500H

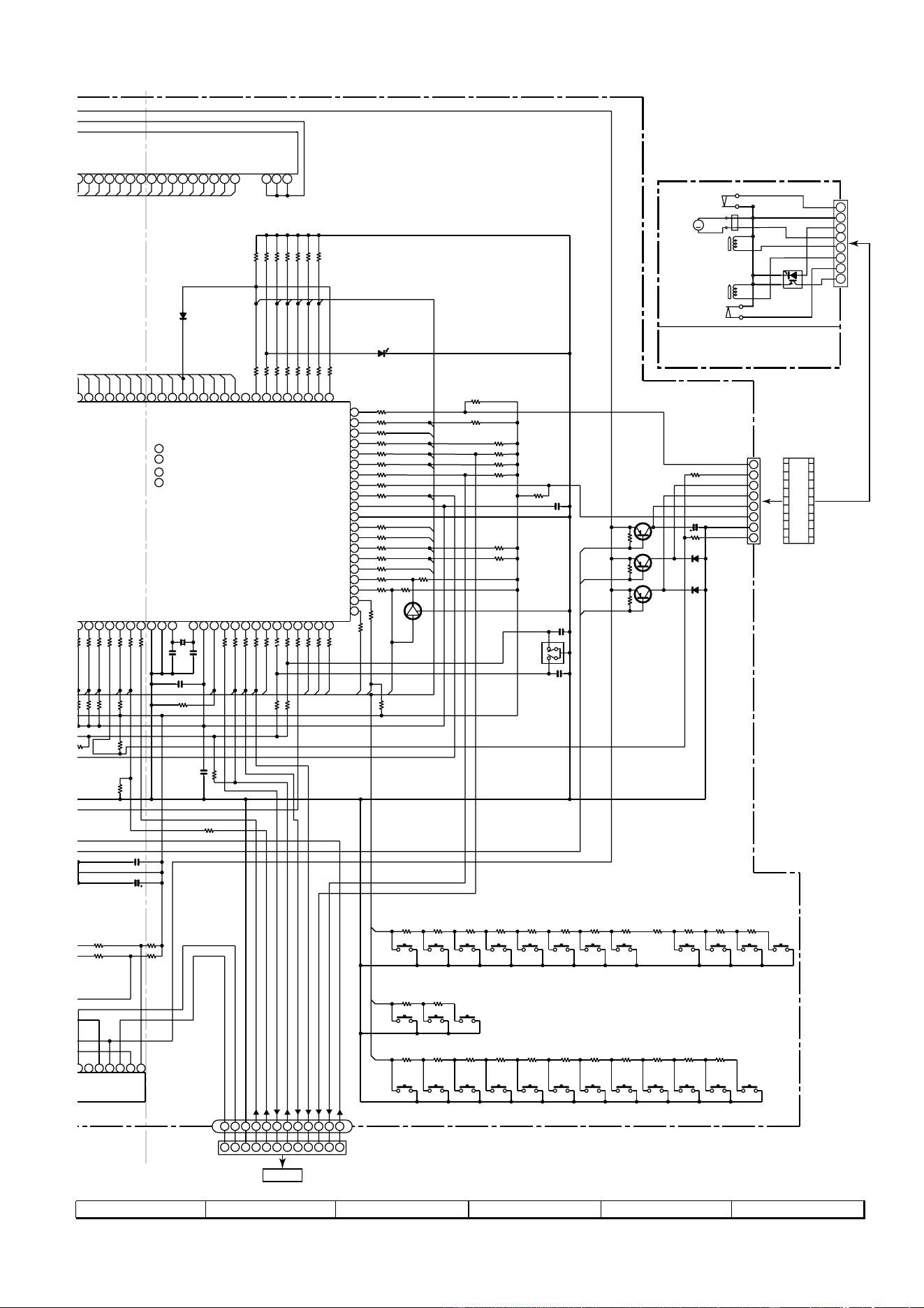

Figure 43 SCHEMATIC DIAGRAM (6/18)

8 9 10 11 12

P14

P15

P16

P17

P18

P19

P20

P21

P22

P23

P24

P25

P13

P12

P11

P10

DIST_OUT

KARA_LAT

VOL_LAT

ATT

F_RLY

SMUTE

AC_RLY

69 68

63 62

54 53

P23

P24

P22

P25

P21

P20

P12

P17

P16

P19

P15

P14

P13

P18

P11

6CH VOL_LATCH

(500/200 ONLY)

P10

P11

SMUTE

AC_RLY_CNT

DIST0/P18

P17

P16

P15

P14

P13

P12

P23

SP_RLY(FRONT)

T1_RUN

DIST_OUT

SPAN/P25

P24

P22

DIST3/P21

DIST2/P20

DIST1/P19

TIMER_LED

–20dB_ATT

PLAY SW B/FPA/FPB

KEY0

LCK2

DD_STATUS

DD_DO

DD_CLK

VSS1

DRF(4500ONLY)

HEADPHONE/MIC_IN

DD_DI

DVD_DI/CD_DI

DVD_CLK/CD_CLK

KEY1

DVD_BUSY/CD_CE

DVD_STB/WRQ

DVD_DO/CD_DO

P_IN

VDD1

VPP/IC

JOG_0

REMOCON

DD_LP

DD_CS

DD_LOCK

VSS0

VDD0

T2_RUN

CD_CLAMP_SW

LCK1

RESET

KEY2

AVSS

CLK

DD_ACK

SP_DET

JOG_1

KARAOKE_LATCH

TUNER_FUNC/CD_RES_OUT

MOT_SPEED_CNT

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

456789

LD+

LD–

D_GND

DVD_STB/WRQ

DVD_RX/DRF

DVD_BUSY/CD_CE

DVD_DO/CD_DO

DVD_DI/CD_DI

DVD_CLK/CD_CLK

TUN_FNC/RES_OUT

CLAMP SW

OC/D1_SW

123456789

101112

121110

987654

321

KEY1

KEY0

KEY2

T1 RUN

F_REC

SOLA

SOLB

+MTR

T2 RUN

GND

T2 PLAY

T1_SOL

T_MOT

T2_SOL

CD_CLK

DVD_RX

VPP

HP/MIC_IN

KEY0

KEY1

CLK

P_IN

SP_DET

TUN_FNC

MOT_CNT

DD_CS

DD_LP

RESET

LCK1

DD_ST

DD_LOCK

DD_ACK

LCK2

TIMER

TO DVD SERVO PWB

P39 12-C

8394041424344454647484950515253 565758

TAPE MECHANISM

PWB-F

TAPE

MOTOR

PLAY

CASSETTE

SOLENOID

FFC702

CP3202

IC705

A7291S

CNP702

R775

10K

D707

DS1SS133

D706

DS1SS133

R774

4.7K

C712

47/25

Q708

KTA1271 Y

Q709

KTA1271 Y

Q710

KTA1273 Y

R780

10K

R781

10K

R782

10K

RD91

3.3K

RD92 10K

RD93 10K

RD94 10K

BI703

R726 100

RD90

3.3K

R727 1K

RD89

10K

RD88 10K

RD86

3.3K

RD87

3.3K

C711

0.001

R799 47K

R785 47K

R798 1K

Q712

KRC104 M

LED709

4204SRT7

RD75

10K

RD76

10K

C720 47/16

C719 0.022

D44 100

D45 100

C702

U2092F

NPUT/

UTPUT

XPANDER

R792

10K

R793

10K

RD32

R794

100K

IC701

IX0444AW

SYSTEM MICROCOMPUTER

R773 10K

R772

10K

C709

0.022

C710

0.001

JOG701

JOG VOLUME

C708

0.022

R719 1K

R718 1K

R770

10K

R771

10K

D714

DS1SS133

R769

10K

R790 47K

R789 47K

R788 47K

R787 47K

R786 47K

R725

100

R724

R778

10K

R777

10K

68 10K

C707 0.022

R736 1K

R735 1K

R734 1K

R733 1K

R741 1K

R740 1K

R739 1K

R738 1K

R737 1K

R732 1K

R731 1K

R730 100

R729 100

R728 1K

R713 1K

R714 100

R715 100

R716 1K

R717 1K

R712 1K

R710 1K

R711 1K

XL701

C704

15P(CH)

C705

18P(CH)

R720 1K

R721 1K

R722 1K

R723 1K

R709 1K

R708 1K

R707 1K

RD31

100K

RD08

5.6K

RD03

SW724

TUNING

DOWN

RD11

33K

SW708

DISC 1

RD05

2.2K

RD10

18K

SW707

VIRTUAL

SW729

PLAY

SW701

POWER

RD06

2.7K

SW716

EQUALIZER

RD13

680

RD14

820

SW711

DISC

SKIP

RD29

15K

RD26

3.9K

SW727

FAST

FORWARD

RD24

2.2K

SW728

STOP

SW733

VIDEO

SW732

TUNING

SW734

TUNER

RD27

5.6K

RD30

33K

SW731

REC/

PAUSE

RD28

10K

RD25

2.7K

SW723

TAPE

SW726

FAST

REWIND

SW725

MEMORY

SET

RD20

680

SW722

RD22

SW715

X_BASS

RD01

680

SW710

DISC 3

RD02

820

SW709

DISC 2

SW705

NORMAL

RD07

3.9K

SW703

TIMER

SW704

BYPASS

RD04

1.5K

SW702

CLOCK

SW706

PHANTOM

SW714

DIMMER

SW712

OPEN/

RD09

10K

RD21

820

RD23

1.5K

DD_DIO

DD_CLK

CNS703

R743 1K

RD96 1K

R744 1K

R749 1K

R748 1K

R747 1K

R746 1K

R745 1K

CD-DVD500H

– 44 –

23456

Figure 44 SCHEMATIC DIAGRAM (9/18)

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

+B(18V)

5.7 V

0.6 V

11.5 V

0.5 V

0 V

-36.4 V

-36.9 V

-49 V

R821

(1/2W)

R823

(1/2W)

R822

(1/2W)

P_IN

–B2

GND

+B2

+18V

GND

ASSIST

P_IN

GND

–VF

VF2

VF1

+B(+9V)

D_GND

AT5V

AC_RLY

+B2

–B2

GND

–B1

+B1

P_IN

+18V

GND

–VF

VF2

VF1

+9V

AC_RLY

AT5V

D_GND

CNS901

FROM AMP. A PWB

P49 12-G

T.F.

TRANSFORMER

PWB-D3

POWER PWB-D1

CNS850

FROM MAIN PWB

P41 12-F

-B

CONSTANT

VOLTAGE REGULATOR

CNP801

CNP807

D811

1N4004S

R816

47K

R817

12K

C814

100/35

DZ804

DZ6.2BSA

R815

C812

47/50

C813

47/50

DZ803

DZ36BSC

C811

100/50

C816

100/50

D810

1N4004S

D808

1N4004S

D809

1N4004S

C815

100/50

C808

100/50

D807

1N4004S

D803

D803~D806:

2A02M

D806

D804

D805

C805

0.22

C806

0.22

C810

100/63

D802

TS6B04GM

C804

0.22

C803

0.22

C802

0.22

C801

0.22

D801

TS6B04GM

T801

POWER

TRANSFORMER

C880

0.0047

D880

DS1SS133

AC POWER

SUPPLY CORD

AC 230 V, 50 Hz

LUG801

LUG802

L802

LINE

FILTER

F801

T3.15A L 250V

C881

0.047(ML)

D884

1N4004S

C882

470/35

D883

1N4004S

D882

1N4004S

D881

1N4004S

IC880

KIA7805AP

D885

DS1SS133

C883

1000/6.3

DZ802

DZ2.4BSB

R812

47K

R813

220K

Q880

KTC3199 GR

R882

47K

C884

0.047(ML)

C885

100/16

BI802

CNS802

CNP802

T802

SUB TANSFORMER

R883

100

Q806

2SB1565 F

R814

4.7K

C809

100/50

F805

T6.3A L 250V

F806

T4A L 250V

F807

T4A L 250V

F803

T4A L 250V

F804

T6.3A L 250V

F802

T4A L 250V

R819

R818

RY801

When Servicing, pay attention as the area

enclosed by this line ( ) is directly

connected with AC main voltage.

– 45 –

CD-DVD500H

Figure 45 SCHEMATIC DIAGRAM (10/18)

8 9 10 11 12

(20W x 2)( 30W )

CENTER & SURROUND

M_8V

D_GND

A_GND

M_GND

D_5V

A_5V

V_8V

2134657

+9V

V_8V

TUN_FNC

M_GND

A_GND

+18V

315426

D407

DS1SS133

D408

DS1SS133

A_GND

C-CH

RS-CH

SR_RLY

C_RLY

LS-CH

264153

M_12V

FAN_CTL

FAN_SIG

20ATT

SP_DET

SMUTE

265413

FAN_SIG

FAN_CTL

SP_DET

C-CH

–

RS-CH

–

LS-CH

C_RLY

SR_RLY

FAN_SIG

SURROUND

SPEAKER R-ch

SURROUND

SPEAKER L-ch

CENTER

SPEAKER

GND

–B

GND

-B

4321

CNP902

AMP. A PWB

P48 1-F

2764513

CNP851

FROM

MAIN PWB

P41 8-E

265413

CNP603

MAIN PWB

P41 12-C

AMP. B PWB-J

CNP904

AMP. A PWB

P49 12-G

FM SIGNAL

IC401

STK40224

CP3201

DVD SERVO PWB

P39 12-G

C462

0.027

(ML)

C431

10/50

C430

10/50

BI403

CNS403

C461

2.2/50

R409

C460

2.2/50

R410

R437

Q403

2SC2878 B

Q401

2SC2878 B

Q404

2SC2878 B

Q408

2SC2878 B

Q402

2SC2878 B

R484

10(1/2W)

R476

12(1/2W)

R480

3.9K

R479

D410

DS1SS133

R486

330(1/2W)

C444 470P

C442 470P

C402

0.001

C401

0.001

C403

0.001

C404

0.001

R481

56K

R483 56K

R482 56K

C426 15P

R440

56K

R411

820

R412

820

R438

820

C425

2.2/50

C406

47/50

C405

47/50

R407

2.2K

R408

2.2K

R436

2.2K

C424

0.001

C443 470P

C423

0.001

R401

2.2K

R402

2.2K

R433

2.2K

R403

8.2K

R404 8.2K

R434 8.2K

R435

R405

Q407

2SC2878 B

R406

CNP402

CNP401

C458

47/16

R478

330(1/2W)

Q421

KTA1271 Y

R471

22K

DZ403

DZ3.9BSB

Q423

KTC3199 GR

R472

D409

DS1SS133

Q420

KRC107 M

R473

220K

Q422

KTC3203 Y

C456

10/50

R477

470K

C455

100/10

DZ404

DZ5.6BSB

Q424

2SB1565 F

C457

47/50

R443

100

R442

100

C427

560P

C409

560P

IC401

STK40224

POWER

AMP.

C410

560P

C428

0.22/50

C432

100/50

R441

22K

L403

0.29 µH

C433

0.022

L401

0.29µH

L402

0.29µH

R446

Q409

KTC3199 GR

R444

10K

R424 56K

R445

0.1(1W)

R450 56K

R423 56K

R426 4.7

C437 0.1(ML)

R451 4.7

C414 0.1(ML)

R425 4.7

C413 0.1(ML)

C418

0.001

C416

0.001

R454

47K

Q412

KTC3199 GR

R453

R455

47K

R452

Q413

KTC3199 GR

D406

DS1SS133

D405

DS1SS133

RY402

RY401

R427

4.7K

R456

4.7K

R430

6.8

C439

0.01

C438

0.01

R457

6.8

C417

0.001

C415

0.010

R429

6.8

C421

0.001

C419

0.001

R431

6.8

R428

4.7K

R449 56K

BI407

Q411

KTC3199 GR

C435 47/50

D404

DS1SS133

D401

DS1SS133

Q410

KTC3199 GR

R421

R417

10K

D402

DS1SS133

R419

0.1(1W)

C411

0.022

Q405

KTC3199 GR

R418

10K

Q406

KTC3199 GR

R422

R420

0.1(1W)

C412

0.022

D403

DS1SS133

R416

56K

C408 15P

C407

15P

R414

R415

56K

R413

R439

SOC401

SPEAKER JACK

C429

100/50

BI406

CNS406

CNS404

BI404

CNS407

SP_DET

CNS402

M402

FAN MOTER

M401

FAN MOTER

CNS401

RP401

0.9

Posistor

R469

220

R470

220

Q414

KRC107 M

C450

220/16

C452

0.022

R467

22K

R459

R460

C448

100/16

R465

470

Q418

2SD2012

C446

0.022

R461

1.5K

DZ401

DZ6.2BSB

Q416

KTC3199 GR

R463

470

C454

3.3/50

Q415

KRC107 M

R464

470

R468

22K

C451

220/16

Q417

KTC3199 GR

DZ402

MTZJ9.1C

R462

1.5K

C447

0.022

C453

0.022

Q419

2SD2012

R466

470

C449

100/16

BI405

CNS405

C440

0.01

C441

0.01

R458

6.8

C420

0.001

C422

0.001

R432

6.8

CD-DVD500H

– 46 –

Figure 46 SCHEMATIC DIAGRAM (11/18)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

DOLBY PWB-H

VIDEO OUT SIGNAL

VDDX

VSSX

SCKI

VSSDL

SCKO

DLCKS

DLON

LPFO

VDDDL

PO7

PO6

PO5

PO4

PO3

STATUS

PO1

RSTO

VSS

AD15

AD14

AD13

AD12

AD11

AD10

AD9

AD8

VDD

AD7

AD6

AD5

AD4

AD3

AD2

AD1

AD0

VSS

IO0

IO1

IO2

IO3

IO4

IO5

IO6

IO7

VDD

VSS

LOCK

CKO

VSSA

CKI

AMPO

AMPI

PLON

VDDA

PDO

TSTSUB2

TSTSUB1

FCONT

TSTSUB0

VSS

TEST3

TEST2

TXO

BCKOB

LRCKOB

TEST1

TEST0

BCKOA

LRCKOA

VDD

SDI1

SDI0

BCKB

LRCKB

SDO3

SDO2

SDO1

SDO0

BCKA

LRCKA

VSS

IRQ

FI3

FI2

FI1

FI0

MIACK

MICK

MIDIO

MILP

MICS

MIMD

RST

515266 65 64 63 62 61 60 59 58 57 56 55 54 5380 79 78 77 76 75 74 73 72 71 70 69 68 67

100

1234

10 11 12 13 14 15 16 17 18 19

GND

100

AD16

FM SIGNAL

R519

2.2K

C500 0.1

C501

10/16

C7018 0.022

CX02

0.022

D509

1SS133

D508

1SS133

IC501

TOTX178A

DIGITAL OUT

R507

100

C7017

0.022

L7003

100mA

CX03 0.022

D506

1SS133

D507 1SS133

C523

0.01

C524

0.47

R51

100

C577

0.022

L511

100mA

BI501A

Q520

L510

100mA

L507

100mA

L506

100mA

L505

100mA

Q505

KRC104 M

R516

18K

C526 10/16

C525

0.1

R512

15K

C527

100P

(CH)

R514

10K

R510

R509

R511

10K

C520

10/16

C519

0.1

R515

4.7K

C517

0.1

R502

R503

R504 1K

R505 100

R506 1K

C511

10/16

C513

0.1

X501

2.2MHz

R500

2.2M

C599

0.047

C506

10P

(CH)

C505

15P

(CH)

R501

C515

0.1

C514

0.1

C504

10/16

C508

0.1

C518

470/10

R508

Q503

KRC104 M

IC504

IX0443AW

DOLBY DECODER

– 47 –

CD-DVD500H

Figure 47 SCHEMATIC DIAGRAM (12/18)

8 9 10 11 12

SPDIF_O

CP5001

DVD SERVO PWB

P53 9-A

D_5V

D_GND

A_GND

G_OUT

R_OUT

B_OUT

V_GND

A_GND

123456 879

10 11

33 32 31 30 29 28 27 26 25 24 23

PDN

LOOP0

DIF1

DIF0

P/S

MCLK

DZF1

AVSS

AVDD

VREFH

VCOM

DZF2

RIN–

RIN+

LIN+

LIN–

ROUT3

LOUT1

LOUT2

LOUT3

CAD0

CAD1

ADIF

TST

DVSS

DVDD

TVDD

DZFE

DFS

DAUX

SDTO

SDTI3

SDTI2

SDTI1

LRCK

BICK

SMUTE

I2C

SDOS

LOOP1

ROUT2

ROUT1

AGND

CENTER

AGND

STATUS

LOCK

RESET

DDLAT

DDAC

DIO

DDCE

A10V

D5V

DGND

FFC607

MAIN PWB

P41 7-A

CNP607

MAIN PWB

P40 4-A

CNP602

12 1

15 1

112

IC571

TA48M033

2 1

C523

0.01

C524

0.47

R513

100

C578

0.022

C579

0.022

C7015

0.022

D512

1SS133

D513

1SS133

C7016

0.022

D502

1SS133

D503

1SS133

D505

1SS133

D504

1SS133

CX04

0.022

D510

1SS133

D511

1SS133

C538

0.001

BI501B

BI501A

Q520

KRC104 M

L570

0.82µH

R574

4.7K

C554

0.1

C552

10/16

R538

4.7K

Q572

2SD468 C

C576

0.022

R578

390

R577

390

C574

47/25

DZ571

MTZJ5.6A

C575

100/10

C573

100/10

C571

47/16

IC571

TA48M033

3.3V

VOLTAGE REGULATOR

C555

0.1

R573

4.7K

R537

4.7K

C553

10/16

C7005

47P(CH)

C7010

0.022

C7009

47P(CH)

R7004

R7005

R7006

R7009

R7008

220

R7014

330

C7012

470/10

C7021

470/10

C7007

470/10

C7004

470/10

BI7001

CNS7001

CNP503

CNP502

SO7002

VIDEO

OUT

C526 10/16

C525

0.1

R512

15K

C527

100P

(CH)

R514

10K

R510

C528 120P(CH)

R509

R511

10K

R515

4.7K

C540 10/16

C541 10/16

C542 10/16

C543 10/16

C544 10/16

C556

0.001

C531

0.1

R556

470

C533

0.1

R559 470

C530

10/16

C545 10/16

C557

0.001

R557 470

R558 470

C532

2.2/50

C535

0.01

C536

0.1

C7011

0.22

CX01

0.022

CX01

0.022

C7020

0.56

C537

10/16

R540

10K

R541

10K

R531

R530

R7010

100K

R549 27K

R550 27K

R551 27K

R552 27K

R553 27K

R554 27K

R536

100K

R535

100K

C546 0.015

C547 0.015

C548 0.015

C549 0.015

C550 0.015

C551

0.015

C558 4.7/25

C559 4.7/25

R544 220

R545 220

R546 220

R547 220

R548 220

R543 220

R542

10K

R532

10K

FFC602

IC505

AK4527BVQ

6-CH

CODE

CD-DVD500H

– 48 –

Figure 48 SCHEMATIC DIAGRAM (13/18)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

0 V 0 V 0 V

0 V

0.6 V

SP_DET

SMUTE

H/P

FAN_CTL

M_12V

FAN_CTL

FAN_SIG

20ATT

SP_DET

SMUTE

20ATT

SMUTE

SW_RLY

2/6_SEL

SW_MUTE

A_GND

S.W.

A_+10V

M_12V

F_RLY

SP_DET

+5V

M_GND

A_–13V

GND

FL-CH

FR-CH

–

CNS406

FROM

AMP. B PWB

P45 10-H

IC905

TC4053BP

IC906

TC4053BP

C903

0.022

R905

4.7K

R901

18K

R902

18K

R906

4.7K

R904

18K

C906

0.022

C907

100P

R907

8.2K

R908

8.2K

C908

100P

R910

1.5K

R909

1.5K

C967

0.022

C966

47/50

C910

10/16

C909

10/16

IC904

KIA4558P

OPE AMP.

R916

R919

68K

R920

68K

C916

0.1(ML)

C914

2.2/50

R913

C969

47/25

C968

0.022

(ML)

C915

0.1(ML)

R1003

390

C912

0.015(ML)

R1000

330

R912

100K

R911

100K

C911

0.015(ML)

R1002

1.2K

R1001

100

DZ901

DZ5.1BSB

R1004

56K

DZ902

DZ5.1BSB

R918

68K

R917

68K

C917

220P

(CH)

C918

220P

(CH)

R1006

100

C972

2.2/50

C973

0.022

R1042

100K

R1055

10K

R1008

R1007

R1010

10K

R922

8.2K

C1012

2.2/50

R1056

5.6K

R1041

100K

R1009

10K

C971

2.2/50

IC907

KIA4558P

OPE AMP.

R1011

2.2K

C1014

10/50

R1012

R940

820

C930

47/50

R934

2.2K

C924

0.001

C1013

2.2/50

R921

8.2K

R935

2.2K

C925

0.001

Q907

2SC2878 B

R1053 220K

C1009

470P

C977

0.22/50

R1014

22K

C997

2.2/50

R1049

56K

R1048

56K

R951

C937

0.0012

R939

C929

47/50

R943

56K

C931

15P

R950

56K

R944

C998

2.2/50

R1052

220K

R1013

22K

C976

0.22/50

C999

2.2/50

R948

R938

820

C928

47/50

R1046

56K

R1050

220K

Q917

2SC2878 B

R1054

220K

C974

0.001

C1005

0.0012

C926

0.001

R936

2.2K

R928

8.2K

C1010

2.2/50

C936

0.0012

R946 56K

C932 15P

R949

C1001

2.2/50

R937

820

C927

47/50

R1047

56K

C935

0.0012

R947

56K

R941

C933

15P

R1051

220K

C1007

470P

Q905

2SC2878 B

R933

2.2K

R927

8.2K

C1011

2.2/50

C923

0.001

R1043

100K

R1044

100K

R1005

C1008

470P

Q916

KRA107 M

C965

3.3/25

C964

1/50

C1015

3.3/25

Q914

KRA107 M

Q913

KRA107 M

C963

1/50

R997

22K

R998

22K

CNP902

CNP901

R903

18K

C905

0.082

(ML)

C904

0.082(ML)

C902

0.15

C901

0.15

Q915

KRC107 M

C913

2.2/50

Q908

2SC2878 B

Q906

2SC2878 B

R945

820

C934

15P

C1006

470P

C938

0.0012

R952

R942

IC905,906

TC4053BP

TRIPLE 2-CH

MULTIPEXER

AMP. A PWB-D2

FM SIGNAL

FROM

MAIN PWB

P41 12-D

CNS604

– 49 –

CD-DVD500H

Figure 49 SCHEMATIC DIAGRAM (14/18)

8 9 10 11 12

0 V

4 V

0 V

4 V

-14.6 V

-15.1 V

-31.8 V

0.7 V

0 V

4 V

0 V

0.7 V

0 V

LUG901

SW_RLY

H/P

SP_DET

F_RLY

FAN_SIG

GND

–B

R-CH

L-CH

GND

–B

GND

–B

L-CH

R-CH

SP_SWL-CH_GND

SP_SWL-CH

SP_SWR-CH_GND

SP_SWR-CH

SP_FR-CH_GND

SP_FL-CH

SP_FL-CH_GND

SP_FR-CH

13 12

R-CH

–

L-CH

13 12

L-CH

–

R-CH

H/P_SW

R-CH

A_GND

L-CH

FRONT

SPEAKER

R-CH

FRONT

SPEAKER

L-CH

SUBWOOFER

L-CH

SUBWOOFER

R-CH

CNS403

FROM

AMP. B PWB

P45 10-A

CNP801

TO POWER PWB

P44 2-H

-B

–

SUB

(40W x 2)

977

0.22/50

R1014

22K

C937

0.0012

R939

R944

IC901

STK40270N1

POWER

AMP.

R972

C942

0.022

C941

0.022

R967

10K

D903

DS1SS133

Q911

KTC3199 GR

C985

100/50

R1018

100

R1016

100

C979

100/50

C983

10/50

C982

10/50

Q937

KTA1046 Y

R1045

1.5K

C991

0.022

R985

6.8

C953

0.01

C951

0.01

C990

100/16

C1003

47/25

R1031

100

RP901

2.2

Posistor

C987

3300/50

C986

3300/50

R1022

22K

C995

4700/50

R1040

22K

R1039

22K

C996

4700/50

R1023

22K

R1025

47K

R1020

Q921

KTC3199 GR

R977

4.7

R980

4.7

C943

0.1(ML)

C946

0.1(ML)

R1024

56K

C988

330/25

D905

DS1SS133

Q919

KTC3199 GR

Q918

KTC3199 GR

R976

56K

R975

56K

Q920

KTC3199 GR

C945

0.1(ML)

R978

4.7

R979

4.7

C944

0.1(ML)

R974

56K

R973

56K

RY902

R987

330

R988

330

D906

DS1SS133

R1034

10K

C993

0.01(ML)

R994

4.7K

R989

4.7K

R990

4.7K

R1032

220

R991

4.7K

RY901

D908

DS1SS133

L904 0.29µH

L903

0.29µH

L901

0.29µH

L902

0.29µH

CNP904

D901

DS1SS133

R970

C940

0.022

R964

10K

D902

DS1SS133

Q910

KTC3199 GR

C939

0.022

R963

10K

R969

Q909

KTC3199 GR

R962

0.1(1W)

R961

0.1(1W)

R1017

100

C984

100/50

R1015

100

C978

100/50

C981

10/50

C980

10/50

R1013

22K

C976

0.22/50

IC902

STK40270N1

POWER AMP.

C936

0.0012

56K

R941

R971

R966

0.1

(1W)

C938

0.0012

D904

DS1SS133

R968

10K

Q912

KTC3199 GR

R965

0.1(1W)

DZ903

DZ13BSC

R1019

R1021

47K

BI901 CNS901

SO901

SPEAKER

TERMINAL

SOC901

SUBWOOFER

PRE OUT

MAIN

(30W x 2)

R742

22K

C753

0.022

C752

0.022

C751

0.022

JK701

HEADPHONES

CNP703

CNP903

CNS901A

CNS901B

L702

2.2µH

R983

6.8

C949

0.01

C947

0.01

R986

6.8

C954

0.01

R996

6.8

C962

0.01

C960

0.01

C952

0.01

R982

6.8

C950

0.01

C948

0.01

R995

6.8

C961

0.01

C959

0.01

R993

6.8

C955

0.01

C957

0.01

R992

6.8

C956

0.01

C958

0.01

HEADPHONES

PWB-B2

CD-DVD500H

– 50 –

Figure 50 SCHEMATIC DIAGRAM (15/18)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

LOOP

ANTENNA

FM S

L354

LOW PASSFILT

123

1718192021222324

FM IF IN

AM MIX OUT

AM OSC OUT

FM AFC

AM OSC IN

AM RF IN

AM LOW CUT

VSM

FM/AM OUT

MPX VCO

VCC

FM DET

STEREO

GND

AM IF IN

REG

TP302

TP301

1234

10 11

1213141516171819202122

MUTE

IO2

IF IN

X OUT

X IN

AM IN

FM IN

VDD

AIN

AOUT

VSS

MO/ST

ST IND

CLK

AM ANT.

4.5 V

0 V

4.6 V

10 V

9.9 V

9.3 V

43 21

ANT

GND

VCC

IF OUT

F OUT

C336

0.022

VR351

10K(B)

R386

C342

0.022

L353

1mH

C377

0.047

C310

100P

(CH)

C311

100P

(CH)

C312

100P

(CH)

C384

0.001

R372

R373

R374

D305

DS1SS133

D306

DS1SS133

C339

100P(CH)

R323

68K

R399

10K

CF352

C334

18P(UJ)

C337

0.022

VD301

SVC348S

T306

AM OSC.

C335

330P

C332

0.022

C331

0.047

R358

8.2K

C343

33P(CH)

R383

5.6K

Q371

KTA1266 GR

Q360

2SB562 C

R384

5.6K

R371

4.7K

C391

47/25

R385

5.6K

D352

DS1SS133

IC302

LC72131

PLL(TUNER)

C390

0.001

R377

47K

L351

100µH

R393

C394

47/25

C387

0.022

R380

1.5K

R379

2.2K

C385

0.01

C392

0.001

C393

1/50

R381

10K

R345

4.7K

C321

100/16

C323

0.022

T302

AM TRACKING

R376

C386

330P

R352

T351

AM IF

CF351

C341

0.022

C346

0.022

CF302

CF301

L342

2.2µH

X352

4.5 MHz

C381

12P(CH)

C382

15P(CH)

R378

82K

C397

0.022

C366

0.001

R336

10K

R346

330

R348

680

R344

470

R349

R347

6.8K

R353

270

C354

0.022

C353

0.022

C399

0.022

C398

C330

15P(UJ)

D304

DS1SS133

D301

DS1SS133

D302

DS1SS133

CNP301

C338

0.001

C352

10/16

C351

0.022

R351

5.6K

C361

0.022

C362

3.3/50

C364

2.2/50

C363

0.022

C365

0.022

C367

1/50

R350

2.7K

X351

456 kHz

R382

150

C380

10/16

C347

0.022

D303

DS1SS133

C301

0.001

C302

0.001

R369

C345

0.022

C350

0.047

FE301

FM FRONT END

AM BAND

COVERAGE fL

FM MUTE

LEVEL

Q301

2SC380 O

SO301

FM ANTENNA

TERMINAL

L341

BALUN

– 51 –

CD-DVD500H

Figure 51 SCHEMATIC DIAGRAM (16/18)

8 9 10 11 12

314265789

MAIN PWB P40 1-D

MAIN PWB-A (2/2)

FM SIGNAL

AM SIGNAL

CT37

0.022

L354

LOW PASSFILTER

10 11 12

1314151617

MPX VCO

MPX IN

R-CH OUT

L-CH OUT

PHASE

(FM/AM)

PHASE

IF OUT

VCC

FM DET

STEREO

MO/ST

TP302

A_+10V

TUN_R

TUN_L

D_GND

TUN_SM

A_GND

CLK

IND

10 V

9.9 V

.3 V

RDS-ID

VDDD

SYNC

VSSD

VREF

CIN

FLOUT

XOUT

VDDA

MPXIN

XIN

VSSA

SYR

C376

0.022

C377

0.047

R370

R391

390

R362

220

R361

220

C372

1/50

C371

1/50

R364

15K

R363

15K

C373 0.018

R357

470K

C374 0.018

R354

3.9K

L352

100µH

R389

3.9K

RT39

220K

R392

390

ZD351

DZ5.1BSB

C395

0.022

C396

100/10

R383

5.6K

DT31

DS1SS133

C370

1/50

R377

47K

376

386

C358

1/50

CF351

R356

C368

1/50

R378

82K

R353

270

C354

0.022

022

C355

22P

(CH)

C399

0.022

C398

100/10

C356

0.001

C357

2.2/50

R360

4.7K

R355

3.3K

IC303

LA1832S

FM IF DET./

FM MPX./AM IF

C367

1/50

R350

2.7K

X351

456 kHz

R359

1.8K

R395

47K

RT34

56K

RT33

56K

RT32

10K

QT21

KTC3199 GR

ICT21

LC72722

RDS

DECORDER

CT23

10/16

CT22

0.022

CT25

560P

CT26

22P(CH)

CT27

22P(CH)

CT29

0.022

CT28

47/10

CT21

47/10

LT21

2.2µH

LT22

2.2µH

CT24

0.022

RT30 1K

RT29 1K

RT28 1K

RT26 1K

RT35

220K

RT36

220K

RT37

220K

XT21

4.332 MHz

CT36

0.022

CD-DVD500H

– 52 –

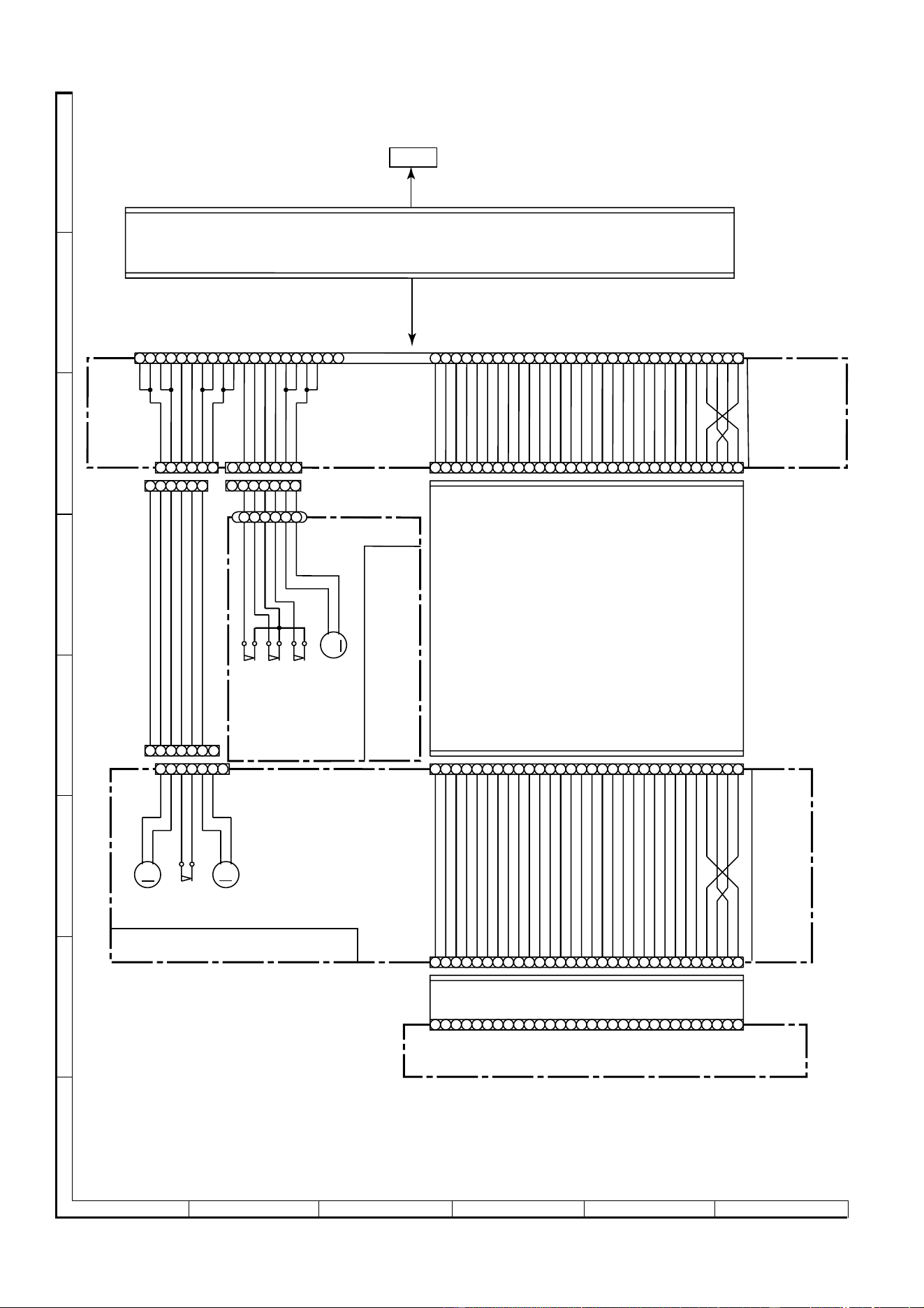

Figure 52 SCHEMATIC DIAGRAM (17/18)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 31.

CS3301

GND

VCC

V/2

GND

VOSC

V/2

VCC

GND

FO+

TR+

TR–

FO–

DVD

PICKUP

UNIT

FLEXBLE

PWB

14 12 1018

25 2027

2123

795

19 15

151924

597

1129

23 21 1727 2025 1626

30 18 101214

1328

VCC

GND

V/2

GND

VOSC

V/2

GND

FO+

TR+

TR–

FO–

VCC

FO–

TR–

TR+

FO+

GND

VCC

V/2

VOSC

GND

V/2

VCC

GND

1213

2526 20

27 2123

2230 10

18 16

1213

2526 20

27 2123

2230

1018 16

FO–

TR–

TR+

FO+

GND

VCC

V/2

VOSC

GND

V/2

VCC

GND

SL+

SL–

GND

IN_SW

SP–

SP+

DISC1_SW

CAM_SW

LD/EJ_SW

GND

LD–

LD+

15 19

2421 22

2725 26

44 48

45 4947

32 3533

14 17

3837

41 4340

–

123456

345612

74153

264 153

345626

741253

–

DVD MOTOR PWB-I

DVD LOADING

MOTOR PWB-H

JOINT

PWB-J

DVD SERVO PWB

P34 1-F

CNP3

CN1

CN2

CNS4

CNP2

BI2

CNS2

CNS5

CN4

CNS1A

CNS1B

FW1

FW2

SLED

MOTOR

SW4

PICKUP IN

SPINDLE

MOTOR

T/T UP/DOWN

MOTOR

SW3

DISC1

SW1

CAM

SW2

OPEN/CLOSE

– 53 –

CD-DVD500H

Figure 53 SCHEMATIC DIAGRAM (18/18)

8 9 10 11 12

DVD SERVO

PWB-C (3/3)

V_OUT

A_GND

G_OUT

R_OUT

B_OUT

SPDIF_O

D_5V

D_GND

987654321

CNS7001

FROM

DOLBY PWB

8-G

4755 48 49 50515253 54

TO DVD SERVO

PWB (2/3)

P39 12-D

VIDEO OUT SIGNAL

CP5001

Q5010

2SC2412 KR

R5040

390

Q5012

2SC2412 KR

C5019

47P(CH)

L5003

27µH

R5019

820

R5016

R5008

390

C5007

68P(CH)

C5010

5P(CH)

C5004

27P(CH)

C5013

39P

(CH)

Q5005

2SC2412 KR

L5006

27µH

R5011

3.9K

R5005

680

Q5001

KTA1504 Y

L5002

27µH

R5004

680

R5010

3.9K

L5005

27µH

R5013

390

Q5004

2SC2412 KR

C5012

39P(CH)

C5003

27P(CH)

C5009

5P(CH)

C5006

68P(CH)

R5007

390

R5041

390

C5022

47/6.3

R5037

270

C5021

47/6.3

R5032

3.3K

R5025

1.2K

R5026

390

R5020

470

R5031

6.8K

R5021

820

R5023

820

R5034

3.3K

R5036

3.3K

R5038

270

R5009

390

Q5006

2SC2412 KR

Q5008

2SC2412 KR

Q5009

2SC2412 KR

Q5011

2SC2412 KR

R5014

390

R5015

390

R5012

3.9K

Q5007

2SC2412 KR

R5033

6.8K

R5035

6.8K

R5017

R5018

R5022

470

R5028

390

R5030

390

R5027

1.2K

R5029

1.2K

C5020

47P(CH)

R5042

390

R5039

270

C5023

47/6.3

C5024

47/6.3

R5006

680

L5004

27µH

Q5002

KTA1504 Y

Q5003

KTA1504 Y

R5003

1.5K

C5008

68P(CH)

C5005

27P(CH)

C5014

39P(CH)

L5007

27µH

C5029

0.01

C5028

100/10

R5001

1.5K

R5002

1.5K

C5001

100/10

C5002

0.01

C5011

5P(CH)

R5024

470

C5018

47P

(CH)

L5009

100mA

L5008

100mA

L5010

Q5016

2SC2412 KR

Q5013

KTA1504 Y

R5072

680

R5071

1.5K

L5012

27µH

Q5014

2SC2412 KR

L5013

27µH

C5032

39P(CH)

C5030

27P(CH)

C5033

5P(CH)

R5073

390

C5031

68P

(CH)

R5075

390

R5074

3.9K

C5034

47P(CH)

R5078

470

R5076

R5077

820

Q5015

2SC2412 KR

R5079

1.2K

R5080

390

R5082

3.3K

R5081

6.8K

R5083

270

R5084

390

CD-DVD500H

– 54 –

Figure 54 WIRING SIDE OF P.W.BOARD (1/12)

23456

R660

R659

R656

C660

R655

R654

R653

C664

C663

R658

R657

R662

C659

R661

R652

R651

R694

R693

R690

C688

R689

R688

R687

C692

IC607

C691

R692

R691

R696

C687

R695

R686

R685

R672

R680

R679

R676

C674

R673

R675

R674

C677

R678

IC606

C678

R671

R650

R649

R682

C673

R677

R637

R681

R639

R684

R683

R664 R663

C892

R698

R697

12 34 5 678 9101112

R892

C893

R894

C891

R891

R893

R861

R890

R642

R665

C641

R643

C642

C643

R666

R667

C644

R638

R668

R640

C198

R632

C197

121

22 42

25 30 35 40

5101520

C196

R636

R631

C199

R635

C602

C603

C604

R605

R606

C605

C606

C607

C608

C610

C609

C629

R625

C630

R626

C600

C347

C341

C332

C335

C339

R323

C337

C363

R358

C343

R350

R351

C351

R645

C354

C361

C366

R646

R353

C399

R356

R355

C187

C190

C189

C395

R354

C356

C355

C376

R352

C353

R360

C342

R384

R385

RT26

RT36

R383

R395

RT39

RT37

RT29

RT28

CT36

CT26

CT27

R376

R377

R359

R399

R389

12345678

23456789

1011

2221201918171615141312

123456789

101112

151413 181716 212019 242322

23456789

101112

242322212019181716151413

C386

C345

R345

R380

R379

R371

C346

C312

R372

R378

R373

C390

R381

R344

C311

C387

R374

C392

C397

C310

C381

C382

IC605

IC602

131415161718192021222324

121110

987654321

BCE

ECB

321

12345

C666

C658

C662

C665

C661

C657

C690

C694

C686

C693

C689

C685

C676

C680

C672

C675

C679

C681

C671

C682

C668

C667

C696

C695

R896

Q892

Q893

Q891

R895

C862

Q859

CNS604

R862

R181

R18

R634

CNP603

R641

C648

C647

Q601

ZD602

R633

ZD601

Q602

C649

C650

R644

C633

D185

D186

C646

C188

C638

C645

C640

C634

C639

C654

C637

C653

C636

C632

C195

C699

C194

C631

C655

C635

C656

R601

C626

C601

C625

C623

C612

C611

IC601

C613

C618

C615

C619

C620

R627

R628

D602

D601

CNP301

L341

D305

D306

D302

D301

C616

C617

C321

C323

L342

C614

T302

C624

C330

C331

VD301

R348

R346

R349

C334

R602

R336

R603

L353

T306

L354

C362

C364

CF302

CF301

C365

C352

C367

CNP602

IC303

ICT21

C357

R357

X351

C368

R364

R362

RT30

RT35

C370

C372

ZD351

R361

C371

C374

C373

R363

C396

CT23

R370

D183

D184

R195

CT25

CT22

CT37

CT24

CT29

QT21

CNP

R604

R392

R391

RT33

RT32

RT34

C358

C377

C398

CT28

CT21

CF351

L352

LT21

XT21

LT22

CF352

T351

C350

R386

VR351

D352

DT31

Q360

Q301

C391

R382

C384

C385

R393

R347

Q371

C393

L351

FE301

IC302

C380

R369

C394

X352

C302

D304

C336

D303

C338

C301

911

468

1012

35791113

246810121

135791113

2 4 6 8 10 12 14

JK601

VIDEO/AUX INPUT

R-CH

L-CH

AM LOOP

ANTENNA

SO301

ANTENNA

TERMINAL

MAIN PWB-A

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

19181716151413121110 9 8

CNP901

CNP502

FFC602

CNP503

DOLBY PWB

P60 1-F

FFC607

115

151

DOLBY PWB

P60 6-H

AMP.A PWB

P59 12-E

– 55 –

CD-DVD500H

Figure 55 WIRING SIDE OF P.W.BOARD (2/12)

8 9 10 11 12

R671

R650

R649

R681

R639

R684

R683

R664 R663

C892

R698

R697

1 2 3 4 5 6 7 8 9 10111213141516171819

R892

C893

R894

C891

R891

R893

R861

R890

R192

R860

R133

R171

R172

R188

R187

R175

R174

C183

R186

C182

R179

R173

R193

C181

R642

R665

C641

R643

C642

C643

R666

R667

C644

R638

R668

R640

242

25 30 35 40

5101520

C343

R350

R351

C351

R645

C354

C361

C366

R646

R353

C399

R356

R355

C187

C190

C189

R180

R196

R194

C184

R191

R190

R177

R178

R189

R176

R139

R141

C131

R125

R131

R145

R123

C119

R121

C111

R119

C102

R164

R105

R167

R107

R166

R114

R110

C106

C108

R106

R103

C107

C101

R120

123456789

R113

R101

R117

C112

R122

C114

C113

R104

C127

R142

C120

R124

R134

R146

C139

C140

R140

R126

R132

C132

R153

R154

R136

R135

R108

R109

C395

R354

C356

C355

C376

R352

C353

R360

RT26

RT36

RT37

RT29

RT28

CT27

123456789

101112

151413 181716 212019 242322

23456789

101112

2322212019181716151413

IC602

12345 6789101112

ECB

321

12345

67 5432

P65 11-E

FROM

TAPE 2

RECORD/

PLAYBACK

ERASE HEAD

FROM

TAPE 1

PLAYBACK

HEAD

P65 10-F

C867

C865

R855

IC852

R865

C866

POWER PWB

P58 3-H

FROM

AMP B PWB

P61 7-F

CNP807

CNS404

IC181

C681

C671

C682

C668

C667

C696

C695

R896

Q892

Q893

Q891

R895

C862

Q859

CNS604

R862

D855

Q851

C852

C877

D860

D859

BI850

CNS850

C859

C858

IC851

RP851

C109

C851

C185

R181

R182

R183

R184

R185

R634

CNP603

R641

C648

C647

Q601

ZD602

R633

ZD601

Q602

C649

C650

R644

C633

D185

D186

C646

C188

C638

C645

C640

C634

C639

C654

C637

C653

C699

L354

C365

C367

CNP602

IC303

ICT21

C357

R357

X351

C368

R364

R362

RT30

RT35

C370

C372

ZD351

R361

C371

C374

C373

R363

C396

CT23

R370

D183

D184

R195

C627

R137

D853

C133

C135

Q103

R858

R857

C128

D852

R856

C121

C123

CT25

CT22

CT37

CT24

CT29

D851

C117

C860

C856

R854

C857

C854

C853

R853

Q124

R162

Q126

CNP101

Q850

IC850

L103

L104

C152

C151

ZD850

C855

R852

R160

Q128

R168

Q101

C154

C150

IC102

C105

1234567

CNP102

C103

R118

R102

C116

Q102

C115

C118

IC101

C136

C142

C122

C141

C124

C134

R138

C145

C146

R158

Q121

Q122

QT21

R157

R156

CNP601

CNP607

R604

R392

R391

RT33

RT32

RT34

C358

C377

C398

CT28

CT21

CF351

L352

LT21

CF352

T351

C350

131415161718192021222324

121110

987654321

BCE

321

123

1357

911

2468

1012

3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35

2 4 6 8 1012141618202224262830323436

3 5 7 9 11 13

2 4 6 8 10 12 14

CNS407

AMP.B PWB

P61 7-E

19181716151413121110 9 8 7 6 5 4 3 2 1

12 11 10 9 8 7 6 5 4 3 2 1

CNP901

CNP701

DISPLAY PWB

P57 10-A

CNP503

DOLBY PWB

P60 1-F

FFC701

FFC607

AMP.A PWB

P59 12-E

CD-DVD500H

– 56 –

Figure 56 WIRING SIDE OF P.W.BOARD (3/12)

23456

RD09

R782

R780

R781

R771

R770

C707

C723

RD35

C722

C721

C710

IC702

R792

C719

C711

RD76

C731

C756

C736

RD71

RD69

RD70

RD63

C734

C735

RD68

RD64

C732

RD53

RD62

RD59

C725

C724

RD08

RD11

C714

C760

R794

R766

C706

R707

R706

R705

R704

R701

RD88

R712

R711

C704

C705

R713

R714

IC701

R715

R716

R721

R756

R757

R758

R759

R760

R784

81 80

100

321

1357

2468

FFC702

P65 9-A

TO TAPE

MECHANISM PWB

RX701

2 3 6 7 8 9 10111213141516171819

20 29 30 31 32 33 34 35

DISPLAY PWB-B1

CNS703

9 8 7 6 5 4 3 2 1

DVD SERVO PWB

P62 6-F

CP3202

RD10

SW710

DISC 3

SW709

DISC 2

SW711

DISC

SKIP

LED705

LED704

RD13

SW715

X-BASS

R774

J132

CNP702

C712

JOG701

R775

RD41

RD14

RD38

Q710

D707

Q708

RD37

Q709

D706

SW716

EQUALIZER

RD25

SW727

FAST

FORWARD

SW728

PLAY

R723

SW7

NORM

R718

LED702

RD05

SW723

TAPE

C718

SW706

PHANTOM

RD06

SW733

VIDEO

RD36

RD42

SW707

VIRTUAL

RD43

RD34

RD45

C720

RD44

RD75

RD51

RD65

ZD701

RD52

D708

RD55

IC704

C727

C726

RD60

RD58

RD56

RD54

D711

IC703

D712

RD72

D710

C737

RD57

C733

RD07

LED703

SW708

DISC 1

SW712

OPEN/

R797

IC705

R768

R796

R795

D709

C730

C728

Q711

R762

C713

C762

C761

RD61

R763

BI703

RD32

R761

R720

Q704

Q705

Q701

Q702

Q703

Q706

R783

R751

R767

R755

R753

R752

R754

R769

R709

R710

R708

R703

R702

XL701

R722

C703

RD89

E C B

– 57 –

CD-DVD500H

Figure 57 WIRING SIDE OF P.W.BOARD (4/12)

8 9 10 11 12

RD27

R764

R778

R777

R772

RD93

RD92

R726

R728

R727

R717

RD04

R716

R721

R725

C709

R731

R732

R729

R730

R789

R799

R785

R788

R786

R738

R787

R739

R790

R793

RD87

RD86

RD91

RD90

RD20

1 3 5 7 9 11131517192123252729313335

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36

1 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 56 57 58

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

TO MAIN

PWB

P55 9-A

136

FFC701

CNP601

RD26

RD24

SW731

REC/

PAUSE

SW726

FAST

REWIND

RD21

SW729

STOP

SW725

MEMORY

SET

RD29

RD23

RD28

RD30

RD22

SW724

TUNING

DOWN

RD02

SW703

TIMER

Q712

SW702

CLOCK

SW714

DIMMER

RD01

D704

D714

D703

D701

C715

SW732

TUNING

D702

D705

R765

RD94

R741

Q707

R740

C717

R798

SW722

LED701

R773

R735

RD31

SW704

BYPASS

R733

RD03

SW734

TUNER

C708

R723

SW705

NORMAL

R719

718

LED702

SW723

TAPE

FL701

R722

R736

R737

R734

R749

RD96

R746

R745

R748

R743

R744

R747

C758

C701

C757

LED709

C702

R724

CNP701

SW701

POWER

CD-DVD500H

– 58 –

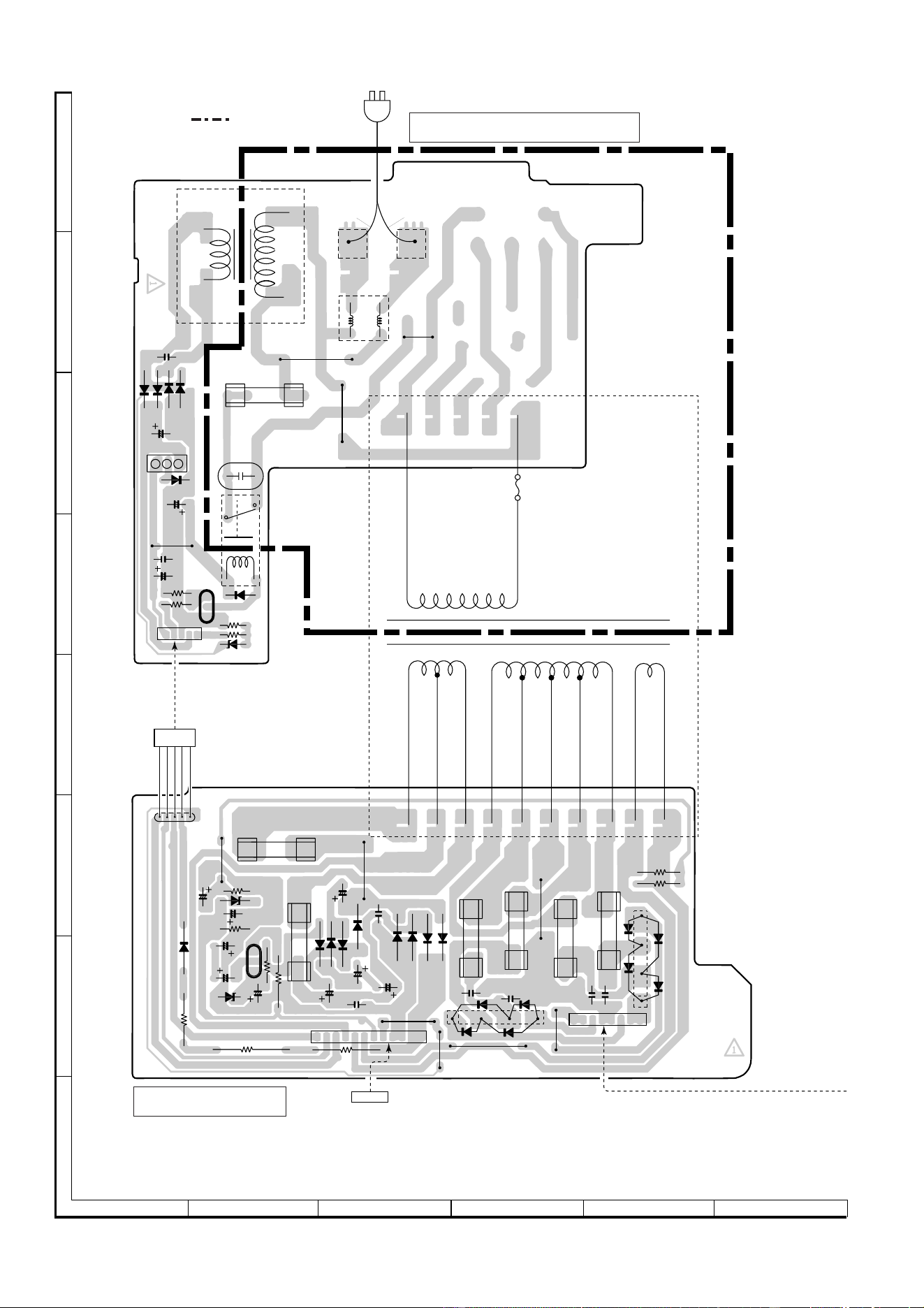

Figure 58 WIRING SIDE OF P.W.BOARD (5/12)

23456

T.F.

AC POWER

SUPPLY CORD

AC 230V, 60 Hz

TRANSFORMER PWB-D3

D811

C814

C811

C816

C813

R816

R817

DZ804

Q806

C812

DZ803

R814

R815

D810

C809

D809

C810

D808

D807

C815

C806

C805

C808

D806

D805

D804

D803

C802

C801

C803

C804

D802

R818

R819

CNP801

D801

CNP807

R821

R823

R822

BI802

123456789

101112

23 45678

12345

LUG801

LUG802

BLUE

BROWN

D881

D882

D883

C882

C881

IC880

D884

L802

C880

D880

DZ802

RY801

R812

R813

Q880

CNP802

R882

R883

D885

C883

C884

C885

123

T802

SUB POWER TRANSFORMER

F801

T3.15A L 250V

123

CNS802

F806

T4A L 250V

F807

T4A L 250V

CNS850

FROM MAIN PWB

P55 12-H

F802

T4A L 250V

F803

T4A L 250V

F804

T6.3A L 250V

F805

T6.3A L 250V

T801

MAIN POWER TRANSFORMER

POWER PWB-D1

When Servicing, pay attention as the area

enclosed by this line ( ) is directly

connected with AC main voltage.

– 59 –

CD-DVD500H

Figure 59 WIRING SIDE OF P.W.BOARD (6/12)

8 9 10 11 12

L902

R990

R978

C944

R979

R982

R992

R986

R983

R993

R996

C945

C948

C950

C954

C952

C960

C962

C956

C958

C961

C959

C953

C951

C957

C955

C949

C947

D908

RY901

C946

R980

C943

R977

C995

C996

R1040

BI901

R1039

C987

C986

R1023

R1022

CNP904

C1003

C991

C990

DZ903

RP901

Q911

Q937

R1045

R1031

C941

C753

C752

R967

R971

D903

C931

R965

R943

R939

R951

C1009

R945

R987

C997

C937

C929

R1049

C1008

R1052

C924

C985

R934

C983

R1018

C982

IC901

C977

R1014

D904

R952

C979

R1016

R1004

R1048

Q912

C942

R968

C998

C930

R940

R944

R950

R975

R972

C938

C934

R976

R966

R988

R933

R1010

R1009

C923

Q905

IC907

R974

R1056

R1055

R1008

C1010

D902

R1044

Q910

C940

R970

R946

R962

R964

R928

C932

R942

R938

C928

C936

R1046

C999

R948

C984

R1050

R1017

C981

D901

Q908

C980

R1013

IC902

C1006

C976

C926

C1005

Q909

R1015

C978

C927

C939

R969

C935

R963

R937

R941

R947

C933

R973

R961

Q918

Q919

R1024

C988

R989

R995

R985

L903

R994

RY902

D906

R991

L904

R1034

C993

R1032

R1054

Q917

8756

4321

Q920

Q921

R1021

R1019

L901

R1025

R1020

R1012

CNP902

LUG901

C974

C969

R904

R916

C968

C914

D905

C904

C916

C902

C1014

R920

C908

R1047

C906

R1011

C910

C1001

R906

R910

R936

R908

R1003

R949

IC904

C909

R909

R1000

C1007

R1051

C907

C966

C967

C903

C901

C905

R907

C972

R1006

R905

R903

R913

R1005

R902

R919

R901

C915

R1043

IC906

C913

Q916

R1001

C973

C965

R927

Q915

C1011

C1015

R1007

R1002

DZ901

C971

R912

C911

C917

R917

R911

IC905

R918

C918

C912

Q906

R1041

DZ902

R1053

C1013

C925

R922

Q907

R921

R1042

C1012

R935

Q913

R997

C963

C964

R998

Q914

8765

4321

12 43

SO901

SPEAKER

TERMINAL

FRONT

R-CH

FRONT

L-CH

SUBWOFER

R-CH

SUBWOFER

L-CH

SOC901

SUBWOOFER

PRE OUT

E C B

CNS406

FROM

AMP. B PWB

P61 7-B

CNP901

3 2 1

1 2 3

B C E

E C B

CNS403

FROM AMP. B PWB

61 9-H

CNS901

AMP. A PWB-D2

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

C751

JK701

HEADPHONES

L702

R742

CNP703

4321

CNP903

CNS901A

CNS901B

4321

HEADPHONES PWB-B2

CNS604

FROM

MAIN PWB

P55 7-H

CD-DVD500H

– 60 –

23456

Figure 60 WIRING SIDE OF P.W.BOARD (7/12)

C551R543R549

C550

R544

R550

C549

R545

R551

C7015

C548

R546

R552

C547

R547

R553

R531

C535

C7011

R554

C546

R548

C557

R559

R532

R558

C556

R557

R535

R536

C533

R556

C555

R537

C531

R573

R574

C576

R538

C554

R577

R578

C578

L505

C528

C577

R514

L506

R509

R513

C525

R512

C519

C527

C524

R511

R510

L510

L507

C523

R508

L511

C517

C515

C508

R501

C514

C7018

C500

L7003

C7017

C7001

R7004

C7005

C506

C505

R500

C7009

C513

C7010

R7005

FD1

R7006

R7008

C7008

R502

R516

R7009

R7010

R503

R505

R506

R504

R7014

R541

R542

C599

R540

C538

C536

IC504

100

IC505

BI501A

BI501B

FFC607

SO7002

VIDEO OUT

MAIN PWB

P54 5-A

MAIN PWB

P54 1-E

CNP602

FFC602

CNP607

C545

C542

D513

D512

C544

C541

C7016

C543

C540

CNP502

C559

C553

C532

C530

C558

L570

Q572

C574

DZ571

C579

C552

C575

C520

R515

R519

Q520

C526

C518

C504

Q503

CX03

D506

D507

D509

CX02

C7020

D508

C501

R507

IC501

DIGITAL

OUT

L501

C7004

X501

C7007

C511

C7012

Q505

CNP503

C573

D511

IC571

D510

C571

C7021

R530

C537

D503

D502

D505

D504

CX04

CX01

BI7001

DOLBY PWB-H

CNS7001

DVD

SERVO PWB

P62 5-A

CP5001

3 2 1

231

– 61 –

CD-DVD500H

Figure 61 WIRING SIDE OF P.W.BOARD (8/12)

8 9 10 11 12

C458

Q424

Q422

R473

R486

R478

R472

Q408

DZ403

Q421

C455

Q420

D409

D407

D408

R471

DZ404

C456

D410

R480

R479

Q423

R477

CNP402

BI403

R476

R484

R442

IC401

R443

D402

C421

C419

C420

C438

C439

R418

R422

R424

Q406

C412

R420

C433

R452

R444

D406

C414

C417

C415

C418

C422

C416

C441

C440

R454

Q409

Q412

C457

R426

D403

R456

R429

R431

R432

R458

R430

R457

RY401

R446

D404

CNP401

E C B

R445

L403

C437

R450

R451

Q410

Q411

C435

R449

L401

L402

R427

R428

C413

R425

R419

R423

RY402

R453

Q413

R455

D405

R421

C401

Q401

R401

D401

C411

R417

R407

Q405

C407

R415

R405

R403

R413

C403

Q403

C405

R411

R483

C409

R408

Q404

R409

C460

C443

R404

C461

C444

C404

C410

R406

R410

R482

Q402

C432

C406

C402

C431

R402

R412

R433

R414

C430

C423

R416

C426

C408

C429

R440

Q407

C428

C427

R441

C462

R439

R438

R437

C425

R435

R436

R434

C442

C424

R481

BI407

BI406

SOC401

SPEAKER JACK

SURROUND

SPEAKER

L-CH

SURROUND

SPEAKER

R-CH

CENTER

SPEAKER

AMP. B PWB-J

M401

FAN MOTOR

CNS401

E C B

B C E

E C B

CNS403

CNP904

AMP.A PWB

P59 8-H

CNS402

M402

FAN MOTOR

CNS407

CNP603

MAIN PWB

P55 9-H

CP3201

DVD PWB

P62 1-B

CNP851

MAIN PWB

P55 10-H

CNS404

CNP902

AMP. A PWB

P59 12-B

CNS406

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

R465

R463

Q418

Q416

DZ402

R470

Q419

R464

Q417

R466

R462

BI405

C454

RP401

R468

R467

C453

C451

C447

Q415

C449

R461

R459

R460

C452

Q414

C448

C450

R469

C446

DZ401

BI404

CNS405

CD-DVD500H

– 62 –

Figure 62 WIRING SIDE OF P.W.BOARD (9/12)

23456

IC3662

C3666

C3670

C3662

IC3661

C5020

C3669

CP3201

C3668

Q5006

C3674

C3672

C3671

C3673

C3665

R5003

C5028

C5029

C3516

1015

25 30 35

C3515

C3205

IC3502

C3641

FB3603

Q3502

R3558

R3557

C3646

R3670

65 70 75

100

105

110

115

120

Q3503

FB3601

C3522

R3538

R3556

R3533

R3504

C3619

R3541

R3503

R3545

R3502

C3620

C3504

R3501

R3554

C3501

C3640

IC3504

R3511

C3503

R3512

R3546

R3510

R3506

C3508

R3509

R3505

C3511

R3543

R3540

R3544

C3510

C3526

R3507

R3537

R3534

R3535

R3520

R3519

R3518

R3517

R3516

R3514

R3522

C3506

R3528

FL3501

R3525

R3531

R3524

C3502

L3701

C3710

C3714

C3715

L3702

Q3307

C3321

IC3702

C3707

R3568

C3310

R3905

R3906

C3305

R3344

C3302

R3718

R3719

R3720

C3752

R3751

C3319

R3755

FL3701

CS3301

R3817

R3822

C3804

R3824

R3826

C3805

R3830

IC3801

C3301

R3343

7814

C3802

C3803

R3821

R3825

C3311

C3308

R3203

C3315

R3204

C3333

C3332

R3829

CP3202

R3208

R3209

R3215

C3601

C3617

C3618

C3643

IC3602

IC3603

51015

C3603

C3644

L3602

C3627

R3607

R3608

R3610

C3624

R3612

Q3202

Q3203

Q3205

Q3204

R3229

X3601

R3225

C3204

R3662

R3226

C3203

R3661

R3227

C3201

R3663

C3626

R3613

Q5003

Q5001

C3628

Q5013

R3664

R5006

R5002

R5005

R5001

R5004

R5072

C5001

Q5004

Q5014

C5002

R5015

R5014

R5013

R5075

R5024

R5022

R5020

R5077

C5019

C5034

C5108

R5018

R5023

R5017

R5021

R5016

R5019

R5076

R5078

R5030

R5028

R5026

R5080

CP5001

C5023

C5022

C5021 C5035

Q5005

R5071

Q5002

R3508

CNS405

FROM

AMP.B PWB

P61 7-E

FW2

CNS5

JOINT PWB

P64 1-G

CNS703

FROM

DISPLAY PWB

P56 3-A

CNS7001

DOLBY PWB

P60 1-C

DVD SERVO PWB-C (TOP VIEW)

– 63 –

CD-DVD500H

Figure 63 WIRING SIDE OF P.W.BOARD (10/12)

8 9 10 11 12

DVD SERVO PWB-C (BOTTOM VIEW)

C3748

C3733

R3757

R3758

R3759

C3746

R3760

C3312

R3320

R3728

R3754

C3732

C3742

C3749

R3319

Q3303

C3751

C3744

C3717

R3318

C3303

R3716

R3725

C3727

30 35

100

105

110115

120

125

130135

140

142

143

145

150

155

160

165

170

175

180

185

186

R3736

C3758

C3726

R3735

C3725

R3734

C3729

C3759

R3732

C3723

IC3701

R3712

R3731

C3722

R3727

R3715

R3730

C3721

R3714

R3729

R3717

C3328

Q3702

C3712

C3731

C3757

R3311

C3706

C3728

C3734

C3309

C3708

C3756

R3708

C3705

R3711

C3322

Q3701

R3710

C3313

C3709

C3716

R3709

C3314

C3316

C3713

C3318

C3730

C3720

R3750

C3735

C3753

R3746

R3744

R3742

R3740

R3738

R3756

R3753

R3724

C3750

C3747

R3748

C3711

C3741

R3745

R3743

R3739

R3721

C3718

C3519

R3210

R3207

IC3507

R3569

R3581

R3513

C3528

C3609

R3547

R3566

C3527

C3523

R3560

C3610

IC3508

C3520

C3611

C3525

IC3503

C3521

C3612

D3501

R3565

R3564

C3613

10 15 20

30354045

100

105

R3515

C3512

C3524

R3523

C3614

C3615

C3616

IC3501

C3663

C5005

C3661

C5008

C3667

C3664

C5014

R5035

R5029

R5012

C3517

Q5009

R5042 R5041

R5039

R5038

R5037

R5040

R5084

L5008

Q5010

Q5016

Q5012

Q5011

R5034

R5032

R5082

R5083

R5036

Q5008

Q5007

Q5015

L5010

R5011

R5010

R5074

R5033

R5027

R5031

R5025

R5081

R5079

C5013

C5012

C5032

L5009

R5073

R5009

R5008

R5007

C5033

C5011

C5010

C5009

L5012

L5007

L5006

L5005

C5007

C5006

C5031

L5013

C5004

C5003

C5030

L5004

L5003

L5002

R3604

L3601

R3602

R3603

C3625

C3629

FB3604

C3621

C3622

C3623

FB3605

FB3606

C3630

C3631

R3615

C3632

R3616

C3633

C3634

IC3601

C3635

R3621

C3604

10 15 20

859095

100105

110

115

200

201

205

210

215

220

225

230

235

240

C3602

C3608

C3607

C3606

C3605

R3212

R3211

R3214

R3213

IC3201

R3205

C3325

R3834

C3320

C3326

C3323

C3324

C3327

C3206

C3806

R3206

IC3802

C3703

R3705

R3216

R3228

C3317

R3704

C3704

L3302

R3706

R3703

R3702

R3317

IC3301

R3701

IC3705

R3316

C3702

C3207

C3701

R3315

R3314

Q3302

R3346

D3301

FB3301

Q3301

C3306

R3310

R3303

C3304

• The numbers 1 to 6 are waveform numbers shown in page 67.

• Through-hole where the top, bottom and ground patterns are connected.

• Through-hole where the top, and bottom patterns are connected.

• Through-hole where the top, bottom and +B patterns are connected.

CD-DVD500H

– 64 –

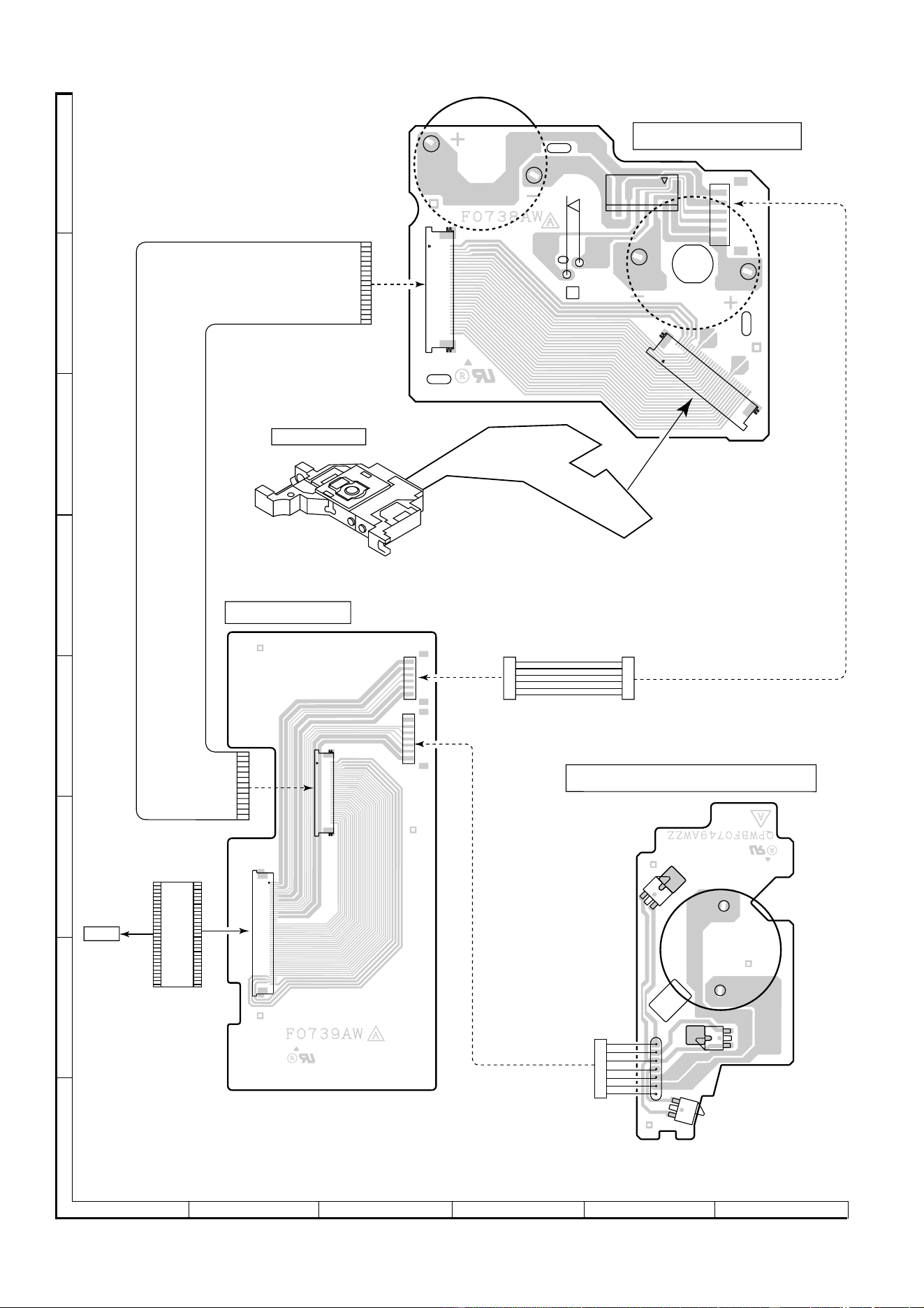

Figure 64 WIRING SIDE OF P.W.BOARD (11/12)

23456

SLED MOTOR

SW4

PICKUP IN

SPINDLE MOTOR

–

CN1

CN4

CNS5

FW2

CS3301

DVD PWB

P62 3-H

CNP3

FW1

DVD PICKUP UNIT

FLEXIBLE PWB

CNP2

CNS1A

CNS1B

CNS4

SW3

DISC

NUMBER

SW2

OPWN/CLOSE

SW1

CAM

T/T UP/DOWN

BI2

CNS2

–

CN2

DVD MOTOR PWB-I

JOINT PWB-J

DVD LOADING MOTOR PWB-H

– 65 –

CD-DVD500H

Figure 65 WIRING SIDE OF P.W.BOARD (12/12)

8 9 10 11 12

P55 12-B

TO MAIN PWB

CNP102

TAPE 2

ERASE HEAD

RECORD/PLAYBACK

HEAD

7 6 5 4 3 2 1

CNP101

P55 12-C

TO MAIN PWB

TAPE 1

PLAYBACK HEAD

TAPE

MOTOR

CNP702

SOLENOID

SWSW

SOLENOID

TAPE MECHANISM PWB-E

TAPE MECHANISM

ASSEMBLY

P56 3-H

TO DISPLAY PWB

FFC702

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CD-DVD500H

– 66 –

VOLTAGE

3.3 V

0 V

1.6 V

0.3 V

0 V

0.3 V

3.0 V

0.1 V

3.0 V

0.3 V

2.8 V

0 V

3.0 V

0.4 V

0.3 V

0.2 V

3.3 V

0 V

3.3 V

0.6 V

0 V

0.2 V

3.3 V

0.2 V

3.3 V

0.2 V

1.5 V

1.6 V

0 V

1.5 V

0.3 V

0.2 V

1.5 V

0.2 V

0 V

1.6 V

1.5 V

0 V

3.3 V

0.2 V

1.4 V

3.1 V

0 V

3.3 V

0.1 V

0 V

3.3 V

NO.

VOLTAGE

IC3504

3.3 V

0 V

3.3 V

1.5 V

0 V

3.3 V

0.3 V

3.3 V

0.2 V

0 V

0.3 V

–– V

3.3 V

0 V

3.3 V

0.9 V

0 V

3.9 V

0.9 V

0 V

––

0 V

3.3 V

0 V

3.3 V

3.2 V

0 V

3.1 V

3.3 V

0 V

NO.

VOLTAGE

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

0 V

3.3 V

0 V

1.6 V

0.2 V

0.1 V

0.2 V

0 V

1.5 V

1.8 V

0.2 V

0 V

0.2 V

3.3 V

2.8 V

1.6 V

3.3 V

1.6 V

0 V

3.3 V

0.3 V

1.6 V

3.3 V

1.7 V

0.9 V

0 V

3.3 V

0 V

0.1 V

3.3 V

0.1 V

0 V

0.1 V

0 V

3.3 V

1.7 V

0.1 V

0 V

3.3 V

1.7 V

0 V

1.7 V

3.3 V

1.7 V

0 V

0.5 V

3.3 V

1.6 V

0 V

0.3 V

1.5 V

3.3 V

2.4 V

0.6 V

0 V

NO.

VOLTAGE

IC3601

2.5 V

0.5 V

3.3 V

1.2 V

0.5 V

0 V

0.2 V

1.6 V

3.3 V

0.7 V

1.7 V

1.6 V

3.6 V

3.3 V

3.0 V

1.6 V

0 V

3.3 V

0.3 V

0 V

0.3 V

2.2 V

0.3 V

0.9 V

0 V

1.2 V

0 V

0.6 V

3.3 V

0 V

1.7 V

1.5 V

0 V

1.6 V

1.5 V

1.7 V

3.3 V

0 V

3.3 V

0 V

3.3 V

1.6 V

0 V

3.3 V

1.6 V

0 V

1.6 V

2.8 V

3.3 V

0 V

1.6 V

3.3 V

1.6 V

1.7 V

0 V

3.3 V

1.6 V

3.3 V

0 V

NO.

VOLTAGE

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

1.6 V

0 V

1.6 V

3.3 V

0 V

1.6 V

0 V

1.5 V

3.3 V

0 V

3.3 V

0 V

1.6 V

3.3 V

0 V

1.2 V

0 V

1.7 V

0 V

1.7 V

3.3 V

––

3.3 V

4.7 V

0 V

4.7 V

3.3 V

0.9 V

3.3 V

0.2 V

0 V

0.1 V

0 V

4.7 V

––

0 V

3.3 V

0 V

4.6 V

2.3 V

4.6 V

0 V

3.3 V

0 V

NO.

VOLTAGE

IC3701

3.3 V

3.0 V

4.7 V

4.6 V

4.7 V

0 V

0.6 V

0 V

1.2 V

0 V

1.2 V

2.5 V

0 V

2.7 V

2.5 V

0 V

2.5 V

––

3.3 V

0 V

––

0 V

0.8 V

1.5 V

1.6 V

0 V

1.6 V

2.9 V

1.6 V

0.6 V

3.3 V

1.5 V

––

3.3 V

1.5 V

3.3 V

––

1.6 V

1.0 V

0 V

1.6 V

0 V

1.6 V

0 V

1.6 V

3.3 V

1.6 V

1.5 V

2.4 V

1.5 V

0 V

––

1.6 V

NO.

VOLTAGE

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

4.8 V

1.5 V

1.2 V

0 V

5.0 V

0 V

4.8 V

2.5 V

2.0 V

1.1 V

0 V

3.3 V

3.2 V

4.8 V

0 V

5.0 V

0 V

5.0 V

0 V

5.0 V

0 V

4.4 V

4.5 V

5.6 V

0 V

5.6 V

1.1 V

5.6 V

5.0 V

0 V

1.1 V

6.0 V

4.8 V

5.6 V

5.0 V

0 V

4.8 V

5.0 V

0 V

NO.

VOLTAGE

IC701

0.7 V

0 V

4.6 V

4.4 V

0 V

4.4 V

1.3 V

–28 V

–31 V

–34 V

–31 V

–34 V

–31.1 V

–36.8 V

–31.1 V

–19.6 V

–33.8 V

–33.7 V

–33.8 V

–22.4 V

–22.2 V

–31.0 V

–25.3 V

–22.6 V

4.8 V

–36.7 V

–19.5 V

–36.2 V

–26.4 V

–28.3 V

–19.4 V

–31.3 V

–24 V

–25 V

NO.

VOLTAGE

7.0 V

0 V

5.0 V

0 V

0.7 V

0 V

4.4 V

0.4 V

5.0 V

NO.

VOLTAGE

IC602

4.7 V

0 V

0.6 V

0 V

4.7 V

1.2 V

0 V

1.2 V

––

4.7 V

––

0 V

1.7 V

0 V

4.7 V

0 V

3.0 V

4.6 V

––

2.5 V

0 V

2.5 V

0 V

NO.

VOLTAGE

IC3720

3.3 V

0.2 V

1.5 V

1.6 V

3.3 V

1.5 V

0.3 V

––

3.3 V

3.1 V

––

1.6 V

0.3 V

3.3 V

0 V

0.3 V

3.0 V

0.3 V

3.0 V

0 V

3.1 V

––

0.2 V

1.5 V

0.2 V

0 V

1.6 V

1.5 V

0 V

NO.

VOLTAGE

IC3502

0 V

2.2 V

1.6 V

0 V

2.2 V

0 V

4.9 V

0 V

3.2 V

0 V

2.4 V

0 V

4.9 V

0 V

0.1 V

4.9 V

0 V

NO.

VOLTAGE

IC505

2.5 V

5.0 V

0 V

2.4 V

0 V

0.5 V

0.1 V

0.2 V

2.9 V

2.6 V

5.0 V

0 V

0.5 V

0 V

0.3 V

4.3 V

0 V

NO.

VOLTAGE

ICT21

1.5 V

0 V

5.0 V

10.0 V

0.4 V

NO.

VOLTAGE

IC601

0 V

0.5 V

2.0 V

0.9 V

1.3 V

0 V

0.5 V

3.5 V

3.4 V

0 V

6.9 V

4.1 V

0 V

0.5 V

0.4 V

0.7 V

0.9 V

1.4 V

0.5 V

0 V

NO.

VOLTAGE

IC101

2.1 V

4.5 V

2.1 V

0 V

4.5 V

3.4 V

4.5 V

4.0 V

3.2 V

3.3 V

3.4 V

1.2 V

1.3 V

2.1 V

2.4 V

1.7 V

0 V

0.4 V

1.5 V

0.3 V

4.5 V

3.0 V

NO.

VOLTAGE

IC303

0 V

1.7 V

8.0 V

0 V

3.7 V

0 V

1.2 V

3.2 V

1.7 V

0 V

NO.

VOLTAGE

IC3801

0 V

4.5 V

0.3 V

0.5 V

12.2 V

8.6 V

4.9 V

0 V

0.5 V

0 V

5.0 V

NO.

VOLTAGE

IC702

2.2 V

0 V

4.4 V

0.4 V

4.5 V

0 V

3.3 V

4.3 V

3.4 V

4.6 V

0 V

4.6 V

0 V

2.3 V

4.6 V

0.8 V

2.1 V

0 V

2.6 V

NO.

VOLTAGE

IC302

0 V

29.3 V

–28 V

0 V

30.6 V

30.5 V

0 V

–28.5 V

0 V

NO.

VOLTAGE

IC401

0 V

3.2 V

0 V

3.2 V

0 V

0.2 V

3.2 V

0 V

4.5 V

0 V

3.2 V

NO.

VOLTAGE

IC502

–0.2 V

0 V

35.0 V

–33.4 V

0 V

36.2 V

–35.8 V

0 V

–35.1 V

0 V

–0.2 V

NO.

VOLTAGE

IC901

–0.2 V

0 V

35.4 V

–33.7 V

0 V

36.0 V

–35.7 V

0 V

–35.2 V

0 V

–0.2 V

NO.

VOLTAGE

IC902

0 V

–5.1 V

0 V

0.4 V

0 V

0.3 V

0 V

5.1 V

NO.

VOLTAGE

IC905

0 V

–11.5 V

0 V

9.9 V

NO.

VOLTAGE

IC904

0 V

–11.5 V

0 V

9.9 V

NO.

VOLTAGE

IC907

0 V

–7.0 V

0 V

7.0 V

NO.

VOLTAGE

IC605,606,607

NO.

VOLTAGE

Q707

0 V

4.8 V

0 V

NO.

VOLTAGE

IC571

5.0 V

3.2 V

0 V

NO.

VOLTAGE

Q503

0 V

4.9 V

0 V

NO.

VOLTAGE

Q505

0 V

3.2 V

0 V

NO.

VOLTAGE

Q712

0 V

5.0 V

0.2 V

NO.

VOLTAGE

Q913

1.5 V

1.4 V

0 V

NO.

VOLTAGE

Q914

0.3 V

0 V

NO.

VOLTAGE

Q915

0 V

4.9 V

0 V

NO.

VOLTAGE

Q916

4.2 V

0 V

4.2 V

NO.

VOLTAGE

IC851

9.0 V

5.0 V

NO.

VOLTAGE

IC852

18.9 V

0 V

8.0 V

NO.

VOLTAGE

IC850

19.0 V

0 V

10.0 V

NO.

VOLTAGE

IC703

0 V

–11.5 V

0 V

6.5 V

NO.

VOLTAGE

IC704

0 V

–11.5 V

0 V

6.5 V

100

0 V

2.0 V

4.6 V

0 V

1.6 V

1.2 V

3.3 V

1.9 V

3.8 V

0 V

2.3 V

1.4 V

4.7 V

0 V

1.7 V

3.2 V

4.7 V

––

1.7 V

0.9 V

1.6 V

2.3 V

0 V

1.5 V

4.7 V

0 V

NO.

VOLTAGE

IC3301

1.6 V

0 V

1.6 V

4.7 V

––

0 V

1.6 V

2.5 V

4.6 V

1.5 V

0 V

4.6 V

2.0 V

4.7V

0.2 V

2.0 V

0 V

2.0 V

0 V

4.7 V

2.0 V

0 V

2.0 V

NO.

VOLTAGE

0 V

5.0 V

6.4 V

5.0 V

3.2 V

0 V

1.0 V

2.2 V

0 V

2.6 V

0 V

3.2 V

1.0 V

2.2 V

3.2 V

0 V

3.2 V

0 V

3.2 V

1.5 V

3.2 V

1.5 V

3.2 V

1.5 V

3.2 V

0 V

1.9 V

0 V

3.2 V

NO.

VOLTAGE

IC504

0 V

3.2 V

0 V

0.1 V

3.2 V

0 V

3.1 V

3.2 V

0 V

3.1 V

3.2 V

0.1 V

3.2 V

3.1 V

0.1 V

0 V

3.2 V

0 V

3.2 V

1.0 V

3.2 V

0 V

2.4 V

1.3 V

3.2 V

NO.

VOLTAGE

100

3.3 V

1.7 V

1.6 V

0 V

0.5 V

0.4 V

3.3 V

2.6 V

1.4 V

0 V

5.6 V

0.6 V

3.3 V

0 V

3.3 V

0.2 V

1.5 V

0.5 V

0.1 V

3.3 V

NO.

VOLTAGE

IC3602

0 V

0.1 V

1.8 V

3.3 V

1.7 V

0 V

3.3 V

1.7 V

1.6 V

0 V

0.5 V

0.3 V

3.3 V

2.4 V

1.2 V

0 V

0.1 V

0.7 V

0 V

NO.

VOLTAGE

3.3 V

1.7 V

1.6 V

0 V

0.5 V

3.3 V

2.7 V

1.4 V

0 V

0.7 V

0.5 V

3.3 V

0 V

3.2 V

3.3 V

0.2 V

1.5 V

0.5 V

0.1 V

3.3 V

NO.

VOLTAGE

IC3603

0 V

0.1 V

0 V

3.3 V

1.8 V

0 V

3.3 V

1.7 V

0 V

0.5 V

0.3 V

3.3 V

2.4 V

1.2 V

0 V

0.1 V

0.7 V

0 V

NO.

VOLTAGE

3.3 V

0 V

1.6 V

0.3 V

3.0 V

0.1 V

0 V

3.3 V

0.2 V

1.5 V

0.2 V

1.6 V

1.5 V

0 V

3.3 V

0 V

3.3 V

0 V

3.3 V

0 V

3.3 V

0 V

3.3 V

1.6 V

0 V

4.7 V

0 V

2.3 V

4.7 V

0 V

NO.

VOLTAGE

IC3508

4.7 V

0 V

3.3 V

0 V

4.7 V

1.8 V

1.5 V

2.3 V

0.5 V

1.4 V

0.5 V

2.1 V

––

0 V

3.3 V

4.6 V

0 V

1.5 V

0 V

––

0 V

3.3 V

––

3.0 V

0 V

3.0 V

0 V

NO.

VOLTAGE

100

– 67 –

CD-DVD500H

WAVEFORMS OF DVD CIRCUIT

CD-DVD500H

– 68 –

TROUBLESHOOTING

Is the disc chucked at the specified location ?

Check the changer mechanism.

Check the connection between pins 3 and 7 of

IC705 and M3.

Does the pickup move in the direction of inner

periphery ?

Replace IC705.

Check the cable connecting to the CS3301.

(Check the CS3301 and line of pins 13 and 14 of

IC3801.)

Check the cable connecting to the CS3301.

Repair the changer mechanism.

Yes

After moving in the direction of inner periphery,

does the pickup move in the direction of outer

periphery ?

Yes

Check the M_8 V line.

Is 8 V being applied to the pins 8 of IC3801 ?

Yes

Replace the IC3801.

Yes

The disc does not rotate.

Is FE signal inputted into the pin 150 of IC3701.

Check or replace IC3701.

Check the line between the IC3301 and IC3701.

When removing disc and applying load to spin

motor (by stopping with hand, etc.), objective lends

moves up and down? (Checking item to symptom)

Note) If load is not applied to spin, lens does not

move and becomes NO DISC immediately.

See FLOW CHART <The [No Disc] indication.

(In case focus servo does not function.)>

Replace IC3301.

Is there input signal on the pins(50,55) and (49,54)

of IC3301?

Is FE signal output to the pin 21 of IC3301 when

the disc is set ?

Check the connection of optical pickup cable.

If it is normal, replace the optical pickup.

Yes

The [No Disc] indication. (In case of focus error)

In case of CD.

For DVD, 58, 59, 63, and 64

– 69 –

CD-DVD500H

Is the focus control signal output to the pin 14 of

IC3701 ?

Check the IC3701 DAC power source periphery

circuit. If it is normal, replace IC3701.

Check the line between the IC3701 and the focus

actuator terminal.

Check M_5 V line.

Is 8V voltage applied to the pins 8 of IC3801 ?

Replace IC3801.

Is the focus control signal from the pin 158 of

IC3701 input into the pin 23 of IC3801 ?

Check the focus control signal (FOD) line between

the IC3801 and IC3701.

Is the focus control drive voltage output from the

pins 17 and 18 of IC3801 ?

Focus control drive voltage applied to 47, 49 pin

of CS3301 (focus actuator terminal) ?

Check the connection of optical pickup cable.

If it is normal, replace the optical pickup

mechanism Unit.

Check the D_3.1 V line and A_5 V line.

Is the drive signal (FLGA) of Q3301 (HF- MOD SW)

being output to the pin 37 of IC3701?

Is the drive signal (LDO2) of Q3302 (LD POWER

CTL) being output to the pin 4 of IC3301 ?

Is the voltage of 3.3 V being applied to the emitter

of Q3301? And, is the voltage of 3.4 V being

applied to the emitter of Q3302 ?

Is the voltage of 3.1V and 2.3V being applied to

the pins 34 and 43 of CS3301, respectively ?

Check the connection of optical pickup cable.

If it is normal, replace the optical pickup

mechanism Unit.

Check the Q3301 and line between Q3302 and

CS3301.

Check the line from the pin 37 of IC3701, to the

base of Q3301.

Check the line between the pin 45 of IC3301 and

the base of Q3302.

Yes

The [No Disc] indication. (In case focus servo does not function.)

The DVD disc is not recognized.

(When the laser beam does not go on)

Check the A_5 V line.

Is the voltage of 3.4V being applied to the emitter

of Q3303 ?

Is the voltage of 2.3V being applied to the pin 29

of CS3301 ?

Check the connection of optical pickup cable.

If it is normal, replace the optical pickup

mechanism Unit.

Check the line between Q3303 and CS3301.

Yes

The CD disc is not recognized.

(When the laser beam does not go on)

CD-DVD500H

– 70 –

Refer to “Disc does not turn.”

Check for contamination of objective lens of

optical pickup.

Replace the optical pickup mechanism Unit.

When chucked, disc starts rotating ?

Check the DVD servo PWB unit.

Place the disc on the tray and close it.

Replace the DVD servo PWB unit.

Is the level of RF signal which is output from

pin 28 of IC3301, normal ?

Yes

Both picture and sound do not operate normally. (1)

Set the disc on the disc tray.

Are the video signals shown above input into

the pins of CP5001?

CP5001 7pin Y/CR

CP5001 9pin C/CB

CP5001 5pin VOUT

Check or replace DOLBY PWB

Check the line between the pins of DVD servo unit

IC3601 and the pins of CP5001.

IC3601 105pin → CP5001 7pin Y/CR

IC3601 106pin → CP5001 9pin C/CB

IC3601 102pin → CP5001 5pin VOUT

Yes

Picture do not operate normally.

Check or replace IC3601.

Set disc to DISC tray and play.

Digital sound signal inputted to pin 34 of

IC504 ?

Check each line between pin 133 of IC3601 and

input pin 34 of IC504.

Check or replace DOLBY PWB

Yes

Sound is not given properly from speaker.

– 71 –

CD-DVD500H

FUNCTION TABLE OF IC

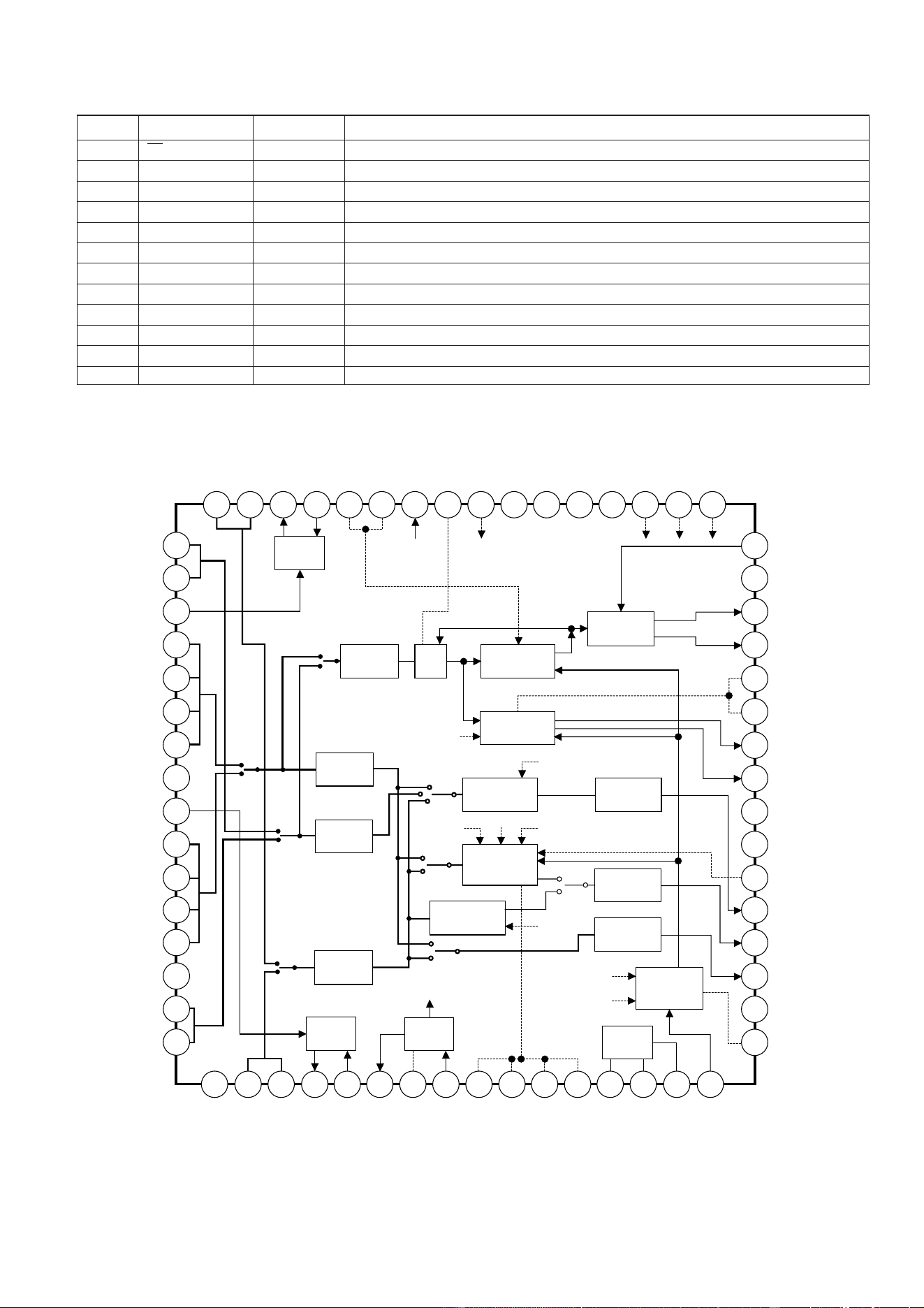

IC3701 VHiTC94A03F-1: Servo ECC (TC94A03F) (1/3)

1 ASLCN Output Data slice negative output.

2 ASLCO Output Analog data slice output. (at differential input, digital slice output enable)

3 DVSS — DAC ground.

4* RO Output R-ch output signal.

5 DVDD Input DAC power supply.

6 DVR Output Amp reference signal output.

7* LO Output L-ch output signal.

8 DVSS — DAC ground.

9 XVSS — Oscillator ground.

10 XI Input Crystal oscillation input.

11 XO Output Crystal oscillation output.

12 XVDD Input Oscillator power supply.

13-15(14*)

TESM0-2 — Test terminal.

16 VDD3 Input 3.3 V digital power supply.

17 VSS3 — 3.3 V digital ground.

18 VPFC Output Clock PLL system phase/frequency comparison output.

19 TEST0 Input Test mode terminal.

20 VLPFI Input VCO system filter input for clock PLL.

21 VLPFO Output VCO system filter output for clock PLL.

22 VSS3 — 3.3 V digital ground.

23*-32* MON0-9 Output Test monitor.

33 VDD3 Input 3.3 V digital power supply.

34*,35* N.C. — —

36 TEST1 Input Test mode terminal.

37 FLGA Input/Output General-purpose I/O or flag monitor.

38* FLGB Input/Output General-purpose I/O or flag monitor.

39 VSS3 — 3.3 V digital ground.

40 /RST Input Reset terminal.

41 /MA Input Microcomputer address enable signal.

42 /MRD Input Microcomputer data read signal.

43 /MWR Input Microcomputer data write signal.

44 /MCE Input Microcomputer chip enable signal.

45 /MINT Output Microcomputer interrupt signal.

46-53 MD0-7 Input/Output Microcomputer data bus.

54 VDD5 Input 5 V power supply.

55*,56* N.C. — —

57* SMCK Output 22 M system clock output.

58* VMCK Output Clock output for data output (signal processing) system.

59 VDD3 Input 3.3 V digital power supply.

60 PD0 Output DVD/CD data output.

61 VSS5 — 5 V ground.

62-65 PD1-4 Output DVD/CD data output.

66 VSS3 — 3.3 V digital ground.

67-70 PD5-PD8 Output DVD/CD data output.

71 /PSYC Output DVD data sector synchronous signal.

72 /PDRQ Output DVD data transfer block.

73 PDCK Output DVD data transfer clock.

74 VDD5 Input 5 V power supply.

75 TESM3 — Test terminal.

76 DIGI Input 1 bit DAC digital IN input.

Pin No.

Function

Terminal Name

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-DVD500H

– 72 –

77 TESM4 — Test terminal.

78 VDD3 Input 3.3 V digital power supply.

79-82 BA0-4 Output External RAM address output.

83 VSS5 — 5 V ground.

84-88 BA4-8 Output External RAM address output.

89 VDD3 Input 3.3 V digital power supply.

90 /BOE Output External RAM/OE signal.

91 /BRAS Output External RAM/RAS signal.

92 /BCAS Output External RAM/CAS signal.

93 /BWL Output External RAM Lower/WE signal.

94 /BWU Output External RAM Upper/WE signal.

95 VDD5 Input 5 V power supply.

96-104 BD0-8 Input/Output External RAM data input/output.

105 VSS3 — 3.3 V digital ground.

106-109 BD9-12 Input/Output External RAM data input/output.

110 VSS5 — 5 V ground.

111-113 BD13-15 Input/Output External RAM data input/output.

114*,115*

N.C. — —

116 VDD3 Input 3.3 V digital power supply.

117 PLCK Input/Output PLL system clock input/output.

118,119 TESM5-6 — Test terminal.

120*,121*

TESM7-8 — Test terminal.

122 VSS3 — 3.3 V digital ground.

123,124 CFC1,2 Output VCO frequency control signal.

125 PPW Output Voltage output for phase comparator offset adjustment.

126 PESV — Signal input for phase comparator offset adjustment.

127 PVSS — 3.3 V PLL system ground.

128 PESP Output Signal output for phase comparator offset adjustment.

129 PDOP1 Output DVD/CD phase control signal. (positive polarity)

130 PDON1 Output DVD/CD phase control signal. (negative polarity)

131 PDOP2 Output DVD/CD phase control signal. (positive polarity)

132 PDON2 Output DVD/CD phase control signal. (negative polarity)

133 LPFN Input Inversion input for data PLL low-pass filter.

134 LPFO Output Data PLL low-pass filter output.

135 PVREF — Reference power supply for data PLL system.

136 VCOREF Input VCO standard reference.

137 VCOF Input VCO auto adjustment filter output.

138 PVDD Input Power supply for 3.3 V PLL system.

139 SLCO1 Input/Output Data slice 6-bit DAC output. (at differential input, RF On)

140* TESM9 — Test terminal.

141 TEST2 Input Test mode terminal.

142 RFCD Input CD RF signal input. (at differential input, RF On)

143 RFDVD Input CD RF signal input. (at differential input, RF On)

144 AVDD Input Power supply for 3.3 V analog system.

145* RFCT Input RFRP center voltage input. (zero cross import)

146 RFZI Input RFRP zero cross signal input.

147 TEZI Input Tracking error signal input. (zero cross import)

148 AWIN Input Signal input for active wide PLL control.

149 AVSS Input Power supply for 3.3 V analog system.

150 FEI Input Focus error signal input.

151 TEI Input Tracking error signal input.

152 RFSB Input Add input for RF level or sub beam signal.

IC3701 VHiTC94A03F-1: Servo ECC (TC94A03F) (2/3)

Pin No.

Function

Terminal Name

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 73 –

CD-DVD500H

Figure 73 BLOCK DIAGRAM OF IC

153 RFRP Input RFRP signal input.

154 AVSS Input Power supply for 3.3 V analog system.

155 TESM10 — Test terminal.

156 EXTAD Input General-purpose external ADC input.

157 VREF Input Reference power supply for analog system: 1.65 V.

158 FOO Output Focus EQ output.

159 TRO Output Tracking EQ output.

160 AVDD Input Power supply for 3.3 V analog system.

161 AWCTL Output Active wide PLL control output.

162 FMO Output Feed EQ output.

163 DMO Output Disc EQ output.

164 TEBC Output Tracking balance control signal.

165* FEBC Output Focus balance control signal.

166 DPDC Output Pit depth adjustment signal of DPD error signal.

167 EQBC Output Boost adjustment signal for RF wide area.

168 ANMON Output General-purpose PWM output.

169 /DFCT Output Black dot detection signal.

170 VRCK Output RF EQ characteristics control clock.

171 VSS3 — 3.3 V digital ground.

172 SCD Output Head amp serial data.

173 SCL Output Head amp serial latch pulse.

174 SCB Output Head amp serial data clock.

175* FGIN Input Disc FG signal input. (with self-bias circuit).

176 ASLCP Output Data slice positive output.

IC3701 VHiTC94A03F-1: Servo ECC (TC94A03F) (3/3)

Pin No.

Function

Terminal Name

Input/Output

The terminal whose name starts with “/” is activated in “L”.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Servo signal

from RF amp

RF signal

from RF amp

ADC DEQ

Servo

Control

DAC I/F DAC

to Driver, RF amp

Digital

Analog

out

1bit DAC

for

CD-DA

Clock

PLL

Micom BUS

Micom

I/F

to Micom

to DECORDER

Output

I/F

ECC

DRAM

I/F

to DRAM

Syndrome

operation

SYNC Dat.

Demodulation

Slice

level

Gen.

Data

Slicer

PLL

to RF amp

Digital Servo

CD-DVD500H

– 74 –

1 GND — GND terminal.

2 P2TP Input TE+ input. (CD)

3 P2TN Input TE– input. (CD)

4 LDO2 Output Drive output 2.

5 MDI2 Input Monitor input 2.

6 VrD Output Digital VREF.

7 Vrfil — Filter capacity for reference.

8 Vdd Input Power terminal.

9 DPAC — DPD AC combination capacity 1.

10 DPBD — DPD AC combination capacity 2.

11 DPD1 — DPD integral capacity 1.

12 DPD2 — DPD integral capacity 2.

13 SCB Input Control line. (Bit clock)

14 SCL Input Control line. (Latch signal)

15 SCD Input Control line. (Sirial Data)

16 VRCK Input Reference clock input.

17 VCKF — Capacity for VRCK time constant adjustment.

18 VccP Input Power terminal.

19 LVL Output Servo addition output.

20 TEO Output TE output.

21 FEO Output FE output.

22 DFTN Input DPD difect.

23 VccS Input Power terminal. (servo)

24* N.C. — —

25 RPZ Output RF ripple output 2.

26 RPO Output RF ripple output 1.

27 RPB — RF ripple bottom.

28 RPP — RF ripple peak.

29 RFOn Output Equivalent RF output. (Differential output)

30 RFOp Output Equivalent RF output. (Differential output)

31 VccR Input Power terminal. (RF)

32 RFS Input RF slice level adjustment.

33 TEB Input TE balance.

34 FEB Input FE balance.

35 DPDB Input Pit depth adjustment.

36 Vcc2 Input Power terminal.

37* N.C. — —

38* N.C. — —

39 GND2 — GND terminal.

40 TCC1 Input Time constant adjustment.

41 RFDC — DC feedback capacity.

42 VrA Output Analog VREF.

43 EQB Input Boost adjustment.

44 EQF Input Frequency adjustment.

45 MDI1 Input Monitor input 1.

46 LDO1 Output Drive output 1.

47 P1TN Input TE– input. (DVD)

49 P1FN Input FE– input. (DVD)

50 P1FP Input FE+ input. (DVD)

51 LDP1 Input APC polarity 1.

52 P1DI Input D input. (DVD)

IC3301 VHiTA1323F+-1: RF Signal Processor (TA1323F) (1/2)

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 75 –

CD-DVD500H

53 P1CI Input C input. (DVD)

54 P1BI Input B input. (DVD)

55 P1AI Input A input. (DVD)

56 GNDR — GND terminal. (RF)

57 LDP2 Input APC polarity 2.

58 P2AI Input A input. (CD)

59 P2BI Input B input. (CD)

60 P2CI Input C input. (CD)

61 P2DI Input D input. (CD)

62 GNDS — GND terminal. (Servo)

63 P2FP Input FE+ input. (CD)

64 P2Fn Input FE– input. (CD)

IC3301 VHiTA1323F+-1: RF Signal Processor (TA1323F) (2/2)

Terminal Name

Pin No.

Input/Output

Function

Figure 75 BLOCK DIAGRAM OF IC

P1TP

P1TN

LDO1

MDI1

EQF

EQB

VrA

RFDC

TCC1

GND2

Vcc2

DPDB

FEB

TEB

RFS

VccR

RFOp

RFOn

RPP

RPB

RPO

RPZ

VccS

DFTN

FEO

TEO

LVL

VccP

VCKF

P1FN

P1FP

LDP1

P1DI

P1CI

P1BI

P1AI

GNDR

LDP2

P2AI

P2BI

P2CI

P2DI

GNDS

P2FP

P2FN

GND

P2TP

P2TN

LDO2

MDI2

rfil

DPAC

DPBD

DPD1

DPD2

SCB

SCL

SCD

RCK

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16

Time

constant

adjustment

RF Ripple

creation

Output

Amp

T-gain

Adjust

sel-PD

Level

detect

F-gain

Adjust

mode-IC

R-gain

Adjust

3Beam-TE

creation

DPD-TE

creation

FE creation

APC1

APC2

Vref

BUS

sel-RF

sel-FE

sel-TE

sel-DPD

sel-LVL

mode-TE

F-gain

Adjust

DPDB

TEB

FEB

TEB

TCC1

VrA

tcc1 (BUS)

TE-gain

Adjust

FE-gain

Adjust

CD-DVD500H

– 76 –

1 VDD1 Input Digital power supply +3.3 V.

2 HADR0 Input CPU Address bus.

3 HADR1 Input CPU Address bus.

4 HADR2 Input CPU Address bus.

5 HADR3 Input CPU Address bus.

6 HADR4 Input CPU Address bus.

7 HADR5 Input CPU Address bus.

8 HADR6 Input CPU Address bus.

9 HADR7 Input CPU Address bus.

10 VSS — Digital GND.

11 VDD1 Input Digital power supply +3.3 V.

12 HDAT0 Input/Output CPU Data bus.

13 HDAT1 Input/Output CPU Data bus.

14 HDAT2 Input/Output CPU Data bus.

15 HDAT3 Input/Output CPU Data bus.

16 HDAT4 Input/Output CPU Data bus.

17 HDAT5 Input/Output CPU Data bus.

18 HDAT6 Input/Output CPU Data bus.

19 HDAT7 Input/Output CPU Data bus.

20 HRD Input CPU Read signal.

21 HWR Input CPU write signal.

22 HAS Input CPU address strobe.

23 HCS1 Input CPU chip select signal 1. (Track Buffer Operation)

24 HCS2 Input CPU chip select signal 2. (bus Voltage Transfer)

25 VSS — Digital GND.

26 VDD1 Input Digital power supply +3.3 V.

27 HWAIT Output CPU wait signal. (Open drain)

28 HINT Output CPU interrupt signal. (Open drain)

29 VSS — Digital GND.

30-38 PDO[0]-[8] Output Output DVD/CDdata.

39 VSS — Digital GND.

40 VDD1 Input Digital power supply +3.3 V.

41 PSYCO Output Output data selector sync signal.

42 PDRQO Output Output data transfer block signal.

43 PDCKO Output Output data transfer clock.

44 VSS — Digital GND.

45 VDD2 Input Digital power supply +5 V.

46 DVDREQ Input Request signal input.

47 PDCKI Input Input data transfer clock.

48 PDRQI Input Input data transfer block signal.

49 PSYCI Input Input data selector sync signal.

50 VSS — Digital GND.

51 VDD2 Input Digital power supply +5 V.

52-60 PDI[8]-[0] Output Input DVD/CD data.

61 VSS — Digital GND

62 VDD1 Input Digital power supply +3.3 V.

63 VSS — Digital GND.

64 VDD2 Input Digital power supply +5 V.

65-72 5VBUS[7]-[0] Input/Output CPU bus 5 V conversion input/output.

73*,74* N.C. — —

75 VSS — Digital GND.

IC3508 RH-iX1761GEZZ: Track Buffer Interface (IX1761GE) (1/2)

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 77 –

CD-DVD500H

76 VDD1 Input Digital power supply +3.3 V.

77 5VBUFO[B] Output 5 V buffer output B.

78 5VBUFI[B] Output 5 V buffer input B. (3.3 V input)

79 5VBUFO[A] Output 5 V buffer output A.

80 5VBUFI[A] Output 5 V buffer input A. (3.3 V input)

81* GPO[3] Output General-purpose output terminal. (CPU control)

82* GPO[2] Output General-purpose output terminal. (CPU control)

83* GPO[1] Output General-purpose output terminal. (CPU control)

84* GPO[0] Output General-purpose output terminal. (CPU control)

85 VSS — Digital GND.

86 VDD1 Input Digital power supply +3.3 V.

87* LI[1] Input Gate Input[1].

88* LI[2] Input Gate Input[2].

89* BUFO[C] Output Schmitt trigger buffer output C.

90* BUFI[C] Input Schmitt trigger buffer input C.

91 BUFO[B] Output Schmitt trigger buffer output B.

92 BUFI[B] Input Schmitt trigger buffer input B.

93 BUFO[A] Output Schmitt trigger buffer output A.

94 BUFI[A] Input Schmitt trigger buffer input A.

95 TEST0 Input Test terminal 0 (Normal: Low, Test: Hi) Function.

96 TEST1 Input Test terminal 1 (Normal: Low, Test: Hi) RAM.

97 TEST2 Input Test terminal 2 (Normal: Low, Test: Hi) Pin.

98* N.C. — —

99 MRST Input 27 MHz Input terminal.

100 VSS — Digital GND.

IC3508 RH-iX1761GEZZ: Track Buffer Interface (IX1761GE) (2/2)

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Figure 77 BLOCK DIAGRAM OF IC

VSS

PSYCI

PDRQI

PDCKI

DVDREQ

VDD2

VSS

PDCKO

PDRQO

PSYCO

VDD1

VSS

PDO[8]

PDO[7]

PDO[6]

PDO[5]

PDO[4]

PDO[3]

PDO[2]

PDO[1]

PDO[0]

VSS

HINT

HWAIT

VDD1

HADR0

HADR1

HADR2

HADR3

HADR4

HADR5

HADR6

HADR7

VSS

VDD1

HDAT0

HDAT1

HDAT2

HDAT3

HDAT4

HDAT5

HDAT6

HDAT7

HRD

HWR

HAS

HCS1

HCS2

VSS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

100

VDD1

5VBUFO[B]

5VBUFI[B]

5VBUFO[A]

5VBUFI[A]

GPO[3]

GPO[2]

GPO[1]

GPO[0]

VSS

VDD1

LI[1]

LI[2]

BUFO[C]

BUFI[C]

BUFO[B]

BUFI[B]

BUFO[A]

BUFI[A]

TEST0

TEST1

TEST2

MRST

VSS

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

VSS

5VBUS[0]

5VBUS[1]

5VBUS[2]

5VBUS[3]

5VBUS[4]

5VBUS[5]

5VBUS[6]

5VBUS[7]

VDD2

VSS

VDD1

VSS

PDI[0]

PDI[1]

PDI[2]

PDI[3]

PDI[4]

PDI[5]

PDI[6]

PDI[7]

PDI[8]

VDD2

IPD

Interface

Host

Interface

RAM

(4.2 Kbyte)

Memory

CTL

Error

Detect

GPO

Interface

OPD

Interface

Timing

Gen.

CD-DVD500H

– 78 –

1* LD-FWD Loading driver FWD input terminal.

2 SL_IN(+) CH 1 Former stage amplifier nonreverse input terminal.

3 SL_IN(-) CH 1 Former stage amplifier reverse input terminal.

4 SLOUT CH 1 Former stage amplifier output terminal.

5 SP_IN(+) CH 2 Former stage amplifier nonreverse input terminal.

6 SP_IN(-) CH 2 Former stage amplifier reverse input terminal.

7 SP_OUT CH 2 Former stage amplifier output terminal.

8 VCC Power terminal.

9* LD(-) Loading driver Negative output.

10* LD(+) Loading driver Positive output.

11 SPIN(-) Driver CH 2 Negative output.

12 SPIN(+) Driver CH 2 Positive output.

13 SL(-) Driver CH 1 Negative output.

14 SL(+) Driver CH 1 Positive output.

15 V04(+) Driver CH 4 Negative output.

16 V04(-) Driver CH 4 Positive output.

17 V03(+) Driver CH 3 Negative output.

18 V03(-) Driver CH 3 Positive output.

19 GND Ground terminal.

20 BIAS Bias input terminal.

21 MUTE Mute control terminal.

22 FO_OUT CH 3 Former stage amplifier output terminal.

23 FO_IN(-) CH 3 Former stage amplifier reverse input terminal.

24 FO_IN(+) CH 3 Former stage amplifier nonreverse input terminal .

25 TR_OUT CH 4 Former stage amplifier output terminal.

26 TR_IN(-) CH 4 Former stage amplifier reverse input terminal.

27 TR_IN(+) CH 4 Former stage amplifier nonreverse input terminal.

28* REV Loading driver REV input terminal.

IC3801 VHiBA5984FP-1: Motor Driver (BA5984FP)

Terminal Name

Pin No.

Function

Positive and negative output the driver have polarity with respect to input.

(An example: 4 pin terminal voltage ‘HIGH’: 14 pin terminal voltage ‘HIGH’)

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Figure 78 BLOCK DIAGRAM OF IC

28 27 26 25 24 23 22 21 20 19 18 17 16 15

1 2 3 4 5 6 7 8 9 10 11 12 13 14

10K

16K

10K

16K

10K

16K

MUTE

REV OUTF

FWD OUTR

Loading Driver

VCC

10K 10K 10K

10K

- +

Level

Shift

- +

Level

Shift

10K

- +

Level

Shift

- +

Level

Shift

– 79 –

CD-DVD500H

Figure 79 BLOCK DIAGRAM OF IC

IC3504 RH-iX1687GEZZ: DVD Microcomputer (IX1687GE)

Port D

PF7/ø

PF6/AS

PF5/RD

PF4/HWR

PF3/LWR

PF2/LCAS/WAIT/BREQO

PF1/BACK

PFD/BREQ

PG4/CS0

PG3/CS1

PG2/CS2

PG1/CS3

PG0/CAS

P67/CS7/IRO3

P66/CS8/IRO2

P66/IRQ3

P64/IRQ0

P63/TEND1

P62/DREQ1

P61/TEND0/CS5

P60/DREQ0/CS4

P10/PO8/TIOCA0/DACK0

P11/PO9/TIOCB0/DACK1

P12/PO10/TIOCC0/TCLKA

P13/PO11/TIOCD0/TCLKB

P14/PO13/TIOCA1

P15/PO13/TIOCB1/TCLKC

P16/PO14/TIOCA2

P17/PO15/TIOCB2/TCLKD

P20/PO0/TIOCA3

P21/PO1/TIOCB3

P22/PO2/TIOCC3/TMRI0

P23/PO3/TIOCD4/TMCI0

P24/PO4/TIOCA4/TMRI1

P24/PO5/TIOCB4/TMCI1

P26/PO6/TIOCA5/TMO0

P27/PO7/TIOCB5/TMO1

Vref

AVcc

AVss

P47/AN7/DA1

P45/AN6/DA0

P45/AN5

P44/AN4

P43/AN3

P42/AN2

P41/AN1

P40/AN0

PA7/A23/IRO7

PA6/A22/IRO6

PA5/A21/IRO5

PA4/A20/IRO4

PA3/A19

PA2/A18

PA1/A17

PA0/A16

PB7/A15

PB6/A14

PB5/A13

PB4/A12

PB3/A11

PA2/A10

PB1/A9

PB0/A8

PC7/A7

PC6/A6

PC5/A5

PC4/A4

PC3/A3

PC2/A2

PC1/A1

PC0/A0

P35/SCX1

P34/SCX0

P33/RxD1

P32/RxD0

P31/TxD1

P30/TxD0

P50/TxD2/IRD4

P51/RxD2/IRD5

P52/SCK2/IRQ6

P53/ADTRG/IRQ7

/WAIT/BREQO

PO7/O15

PO6/O14

PO5/O13

PO4/O12

PO3/O11

PO2/O10

PO1/O9

PO0/O8

PE7/D7

PE6/D6

PE5/D5

PE4/D4

PE3/D3

PE2/D2

PE1/D1

PE0/D0

VSS

VCC

MD2

MD1

MD0

EXTAL

XTAL

STBY

RES

WOTOVF(FWE)*

NM3

Port E

H8S/2000 CPU

DTC

DMAC

RAM*

Interruption controller

Clock

oscillator

Bass controller

Port B

Port A

Inside data bus

Inside address bus

Port C

Port 3

Port 5

WDT

PPG

SCI

D/A converter

A/D converter

RAM

TPU

8 bit timer

Port F

Port G

Port 6

Port 1

Port 2

Port 4

NOTE: *

A FWE terminal is applied only to the F-ZTA edition. A WDTOVF terminal function can't be used by the F-ZTA edition.

A ROM is applied to the master ROM edition, the ZTAT edition, the F-ZTA edition.

CD-DVD500H

– 80 –

1 RST Input Hardware reset input terminal. (L: reset, R: normal operation)

2* MIMD Input Microcomputer I/F mode select input terminal. (L: serial, H: I2C bus)

3 MICS Input Microcomputer I/F chip select input terminal.

4 MILP Input Microcomputer I/F latch pulse input.

5 MIDIO Input/Output Microcomputer I/F data input/output terminal.

6 MICK Input Microcomputer I/F clock input terminal.

7 MIACK Output Microcomputer I/F acknowledge output terminal.

8* FI0 Input Flag input terminal 0.

9* FI1 Input Flag input terminal 1.

10* FI2 Input Flag input terminal 2.

11* FI3 Input Flag input terminal 3.

12* IRQ Input Interrupt input terminal.

13 VSS — Digital ground terminal.

14 LRCKA Input Audio I/F LR clock input terminal A.

15 BCKA Input Audio I/F bit clock input terminal A.

16 SDO0 Output Audio I/F data output terminal 0.

17 SDO1 Output Audio I/F data output terminal 1.

18 SDO2 Output Audio I/F data output terminal 2.

19* SDO3 Output Audio I/F data output terminal 3.

20 LRCKB Input Audio I/F LR clock input terminal B.

21 BCKB Input Audio I/F bit clock input terminal B.

22 SDI0 Input Audio I/F data input terminal 0.

23 SDI1 Input Audio I/F data input terminal 1.

24 VDD Input Digital power supply terminal.

25 LRCKOA Output Audio I/F LR clock output terminal A.

26 BCKOA Output Audio I/F bit clock output terminal A.

27 TEST0 Input Test input terminal 0. (L: test, H: normal operation)

28 TEST1 Input Test input terminal 1. (L: test, H: normal operation)

29* LRCKOB Output Audio I/F LR clock output terminal B.

30* BCKOB Output Audio I/F bit clock output terminal B.

31* TXO Output SPDIF output terminal.

32 TEST2 Input Test input terminal 2. (L: test, H: normal operation)

33 TEST3 Input Test input terminal 3. (L: test, H: normal operation)

34 RX Input SPDIF input terminal.

35 VSS — Digital ground terminal.

36 TSTSUB0 Input Test sub input terminal 0. (L: test, H: normal operation)

37 FCONT Output VCO frequency control output terminal.

38 TSTSUB1 Input Test sub input terminal 1. (L: test, H: normal operation)

39 TSTSUB2 Input Test sub input terminal 2. (L: test, H: normal operation)

40 PDO Output Phase error signal output terminal.

41 VDDA Input Analog power supply terminal.

42* PLON Input Clock select input terminal. (L: external clock, H: VCO clock)

43 AMPI Input Amplifier input terminal for LPF.

44 AMPO Output Amplifier output terminal for LPF.

45 CKI Input External clock input terminal.

46 VSSA — Analog ground terminal.

47 CKO Output DIR clock output terminal.

48 LOCK Output VCO lock detection output terminal.

49 VSS — Digital ground terminal.

50* WR Output External SRAM write signal output terminal.

51* OE Output External SRAM output enable signal output terminal.

IC504 RH-iX0443AWZZ: Dolby Decoder (IX0443AW) (1/2)

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 81 –

CD-DVD500H

52* CE Output External SRAM chip enable signal output terminal.

53 VDD Input Digital power supply terminal.

54* IO7 Input/Output External SRAM data I/O terminal 7.

55* IO6 Input/Output External SRAM data I/O terminal 6.

56* IO5 Input/Output External SRAM data I/O terminal 5.

57* IO4 Input/Output External SRAM data I/O terminal 4.

58* IO3 Input/Output External SRAM data I/O terminal 3.

59* IO2 Input/Output External SRAM data I/O terminal 2.

60* IO1 Input/Output External SRAM data I/O terminal 1.

61* IO0 Input/Output External SRAM data I/O terminal 0.

62 VSS — Digital ground terminal.

63* AD0 Output External SRAM address output terminal 0.

64* AD1 Output External SRAM address output terminal 1.

65* AD2 Output External SRAM address output terminal 2.

66* AD3 Output External SRAM address output terminal 3.

67* AD4 Output External SRAM address output terminal 4.

68* AD5 Output External SRAM address output terminal 5.

69* AD6 Output External SRAM address output terminal 6.

70* AD7 Output External SRAM address output terminal 7.

71 VDD Input Digital power supply terminal.

72* AD8 Output External SRAM address output terminal 8.

73* AD9 Output External SRAM address output terminal 9.

74* AD10 Output External SRAM address output terminal 10.

75* AD11 Output External SRAM address output terminal 11.

76* AD12 Output External SRAM address output terminal 12.

77* AD13 Output External SRAM address output terminal 13.

78* AD14 Output External SRAM address output terminal 14.

79* AD15 Output External SRAM address output terminal 15.

80* AD16 Output External SRAM address output terminal 16.

81 VSS — Digital ground terminal.

82 PO0 Output General-purpose output terminal 0.

83* PO1 Output General-purpose output terminal 1.

84 PO2 Output General-purpose output terminal 2.

85* PO3 Output General-purpose output terminal 3.

86* PO4 Output General-purpose output terminal 4.

87* PO5 Output General-purpose output terminal 5.

88* PO6 Output General-purpose output terminal 6.

89* PO7 Output General-purpose output terminal 7.

90 VDDDL Input Power supply terminal for DLL.

91 LPFO Output LPF output terminal for DLL.

92* DLON Input DLCKS terminal DLON terminal DLL clock setting

"L" "L" SCKI input. (DLL circuit off)

93* DLCKS Input

"L" "H" Quadruple of XI clock

"H" "L" Triple of XI clock

"H" "H" Sextuple of XI clock

94 SCKO Output ASP clock output terminal.

95 VSSDL — Ground terminal for DLL.

96 SCKI Input External system clock input terminal.

97 VSSX — Ground terminal for crystal oscillation circuit.

98 XO Output Crystal oscillation output terminal.

99 XI Input Crystal oscillation input terminal.

100 VDDX Input Power supply terminal for crystal oscillation circuit.

IC504 RH-iX0443AWZZ: Dolby Decoder (IX0443AW) (2/2)

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-DVD500H

– 82 –

Figure 82 BLOCK DIAGRAM OF IC

IRQ

SDin

SDOn

LRCK/BCK

LOCK

/RST

MIMD

/MICS

/MILP

MIDIO

/MICK

MIACK

TXO

FIn

POn

IOn

ADn

/CE,/OE,/WR

LPFO

DLON

SCKI

SCKO

ROM

4 kword x 3

RAM

128 word

40 bit

XRAM

4 kword

YRAM

4 kword

CROM

4 kword

ERAM

4 kword

DLL

DIT

AYAXMZMYMX

ALUMAC

X0,X1,X2

Y0,Y2,Y3

A1 A0 A2 A3

DIR

I bus

Y bus

X bus

PROGRAM

EXECUTE

CONTROL

PROGRAM

INSTRUCTION

DECODER

INTERRUPT

CONTROL

AUDIO

I/F

TIMER

MICROCOMPUTER

I/F

ROUND OFF/LIMIT ROUND OFF/LIMIT

ADRESS OPERATION

C POINTER

Y POINTER

X POINTER

BUS

SWITCH

TIMING

EXTERNAL

SRAM I/F

GENERAL-PURPOSE

OUTPUT PORT

FLAG

IC504 RH-iX0443AWZZ: Dolby Decoder (IX0443AW)

– 83 –

CD-DVD500H

1 SDOS Input SDTO source select pin. (Note 1)

“L”: internal ADC output, “H”: I2C DAUX input

2 I2C Input Serial control mode select pin. “L”: 3-wire serial, “H”: I2C bus

3 SMUTE Input Software mute pin. (Note 1)

Software mute is started with “H” and canceled with “L”.

4 BICK Input Audio serial data clock pin.

5 LRCK Input Input channel clock pin.

6 SDTI1 Input DAC 1 audio serial data input pin.

7 SDTI2 Input DAC 2 audio serial data input pin.

8 SDTI3 Input DAC 3 audio serial data input pin.

9 SDTO Output Audio serial data output pin.

10 DAUX Input Auxiliary audio serial data input pin.

11 DFS Input Double-speed sampling mode pin. (Note 1)

“L”: normal speed, “H”: double speed

12* N.C. — —

13 DZFE Input Zero input detection function enable pin.

“L”: mode 7 (disable) in parallel mode, selectable with DZFM 2-0 bit in serial mode.

“H”: mode 0 (output from DZF1 with AND of 6 ch)

14 TVDD Input Power supply pin for output buffer, 2.7 V - 5.5 V.

15 DVDD Input Digital power supply pin, 4.5 V - 5.5 V.

16 DVSS — Digital ground pin, 0 V.

17 PDN Input Power down & reset pin. When this pin is switched to “L”, it enters the power down state

and the register is initialized. Reset it with the PDN pin if P/S and CAD 0-1 are changed.

18 TST Input Test pin. Connect it to DVSS.

19* N.C. — —

20 ADIF Input Analog input type select pin. “H”: differential input, “L”: single end input

21 CAD1 Input Chip address 1 pin.

22 CAD0 Input Chip address 0 pin.

23 LOUT3 Output DAC3 L channel analog output pin.

24 ROUT3 Output DAC3 R channel analog output pin.

25 LOUT2 Output DAC2 L channel analog output pin.

26 ROUT2 Output DAC2 R channel analog output pin.

27 LOUT1 Output DAC1 L channel analog output pin.

28 ROUT1 Output DAC1 R channel analog output pin.

29 LIN- Input L channel analog inversion input pin.

30 LIN+ Input L channel analog non-inversion pin.

31 RIN- Input R channel analog inversion input pin.

32 RIN+ Input R channel analog non-inversion pin.

33* DZF2 Output Zero input detection 2 pin. (Note 2)

If the group 2 input data has been “0” for 8,192 consecutive times or the RSTN bit is “0”, it

changes to “H”.

OVF Output Analog input overflow detection pin. (Note 3)

It changes to “H” when the analog input to Lch or Rch overflows.

34 VCOM Output Common voltage output pin, AVDD/2

Mount a capacitor of large capacity (approx. 2.2 µF) to remove power source noise.

35 VREFH Input Reference voltage input pin, AVDD.

36 AVDD Input Analog power supply pin, 4.5 V - 5.5 V.

37 AVSS — Analog ground pin, 0 V.

38* DZF1 Output Zero input detection 1 pin. (Note 2)

If the group 1 input data has been “0” for 8,192 consecutive times or the RSTN bit is “0”, it

changes to “H”.

39 MCLK Input Master clock input pin.

40 P/S Input Parallel/serial select pin.

“L”: serial control mode, “H”: parallel control mode

IC505 RH-iX0454AWZZ: 6-Ch Code IC (AK4527BVQ) (1/2)

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-DVD500H

– 84 –

Figure 84 BLOCK DIAGRAM OF IC

IC505 RH-iX0454AWZZ: 6-Ch Code IC (AK4527BVQ) (2/2)

Terminal Name

Pin No.

Input/Output

Function

41 DIF0 Input Audio data interface format 0 pin. (in parallel control mode)

CSN Input Chip select pin. (in 3-wire serial control mode)

Connect it to DVDD in I2C bus control mode.

42 DIF1 Input Audio data interface format 1 pin. (in parallel control mode)

SCL/CCLK Input Control data clock pin. (in serial control mode)

I2C = “L”: CCLK (3-wire serial), I2C = “H”: SCL (I2C bus)

43 LOOP0 Input Loopback mode 0 pin. (in parallel control mode)

Enables digital loopback from ADC to all DACs.

SDA/CDTI Input/Output Control data input pin (in serial control mode)

I2C = “L”: CDTI (3-wire serial), I2C = “H”: SDA (I2C bus)

44 LOOP1 Input Loopback mode 1 pin. (Note 1)

Input from SDTI1 to all DACs.

Notes:

1. When P/S = “L”, the register and OR are assigned to SDOS, SMUTE, DFS and LOOP1 pins.

2. When P/S = “L” and DZFE = “L”, the groups 1 and 2 are selectable with DZM2-0 bit.

3. This pin changes to OVF pin when OVFE bit is set to “1” in the serial control mode.

4. Do not float any input pins.

ADC

HPF

Audio

I/F

HPF

DATTDACLPF

LIN+

LIN-

RIN+

RIN-

LOUT1

ROUT1

LOUT2

ROUT2

LOUT3

ROUT3

AK4527B

MCLK

LRCK

BICK

DAUX

SDOS

SDTO

SDTI1

SDTI2

SDTI3

SDIN1

SDIN2

SDIN3

SDOUT

Format

Converter

LRCK

BICK

SDIN

SDOUT1

SDOUT2

SDOUT3

AC3

RX1 RX2 RX3 RX4

XTI

XTO

MCKO

LRCK

BICK

SDTO

DIR

AK4112A

– 85 –

CD-DVD500H

IC601 VHiLC75341/-1: Audio Processor (LC75341)

Figure 85 BLOCK DIAGRAM OF IC

222324

123

10 11 12 13 14 15 16

LVref

RVref

CONTROL

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CIRCUIT

LOUT

LBASS

0.1uF

LIN

LSEL0

L2 L1

R1 R2

R3 R4

RSEL0

R1N

RTRELTRE

RBASS

0.1uF

ROUT

Yref

VDD

YSS

CCB

INTERFACE

Tuner

Tape

Video

24 23 22 21 20 19 18 17 16 15 14 13

123456789101112

LC75341

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

VDD

VREF

ROUT

RBASS

RTRB

RIN

RSEL0

CD-DVD500H

– 86 –

1*-4* OUT4-OUT1 Port output.

5 AVDD Analog positive power supply terminal.

6 SWin Volume input.

7 GNDS GND terminal.

8 SRin Volume input.

9 SLin Volume input.

10 GNDC GND terminal.

11 Cin Volume input.

12 GNDR GND terminal.

13 Rin Tone input.

14 GNDL GND terminal.

15 Lin Tone input.

16 BYPASSR Volume input to L/R when bypassed.

17 BYPASSL Volume input to L/R when bypassed.

18 LTRE

Tone treble frequency adjustment terminal.

19 LBASS3

Tone bass frequency adjustment terminal.

20 LBASS2

Tone bass frequency adjustment terminal.

21 LBASS1

Tone bass frequency adjustment terminal.

22 CR2 Tone output terminal.

23 RBASS2

Tone bass frequency adjustment terminal.

IC602 VHiM62446FP-1: 6-Ch Electronic Volume (M62446FP)

Terminal

Name

No.

Function

24 RBASS3

Tone bass frequency adjustment terminal.

25 RTRE

Tone treble frequency adjustment terminal.

26 RBASS1

Tone bass frequency adjustment terminal.

27 CR1 L/R volume input.

28 CL2 Tone output terminal.

29 CL1 L/R volume input.

30 AVSS Analog negative power supply terminal.

31 Lout L output.

32 Rout R output.

33 Cout Volume output.

34 SLout Volume output.

35 SRout Volume output.

36 SWout Volume output.

37 AGND Analog GND terminal.

38 DGND Digital GND terminal.

39 LATCH Latch input terminal.

40 DATA Data input terminal.

41 CLK Clock input terminal for data transfer.

42 DVDD Digital power supply terminal.

Terminal

Name

No.

Function

Figure 86 BLOCK DIAGRAM OF IC

OUT4

OUT3

OUT2

OUT1

AVDD

SWin

GNDS

SRin

SLin

GNDC

Cin

GNDR

Rin

GNDL

Lin

BYPASSR

BYPASSL

LTRE

LBASS3

LBASS2

LBASS1

DVDD

CLK

DATA

LATCH

DGND

AGND

SW out

SRout

SLout

Cout

Rout

Lout

AVSS

CL1

CL2

CR1

CR2

RTRE

RBASS3

RBASS2

RBASS1

OUT-

PUT

PORT

MCU

I/F

volume

tonetone

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 87 –

CD-DVD500H

1 AVDD AVDD Input Analog VDD.

2 ANI0 TUN-SM Input RDS VSM

3 ANI1 SPEANA 3 Input SPEANA data input. L, R 16 kHz

4 ANI2 SPEANA 2 Input SPEANA data input. L, R 63 Hz

5 ANI3 SPEANA 1 Input SPEANA data input. L, R 1 kHz

6 ANI4

O/C SW Input CD open/close switch.

DISC NO SW Input CD disc number switch.

7-9 ANI5-ANI7

KEY 2-KEY 0 Input Key input.

PLAY SW_B Input Play switch for T 2.

10 ANI8

FPA Input TAPE 2 A-SIDE full proof.

FPB Input TAPE 2 B-SIDE full proof.

11 ANI9

HEADPHONE Input Headphone switch.

MIC-IN Input MIC-IN sw.

12 P02 DRF Input CD RF level detection.

13 P03 WRQ Input CD DSP write request.

14 AVSS AVSS — Analog ground.

15 VSS1 VSS1 — Ground voltage.

16 X1 X1 Input Main clock.

17 X2 X2 Output Main clock.

18 VDD1 VDD1 Input (+) Power supply

19 Vpp/IC Vpp/IC — GND

20 P20/TI00 CD CE Output CD CE output.

21 P25/SI0/RxD0 CD DO Input CD DSP CODE Q out/MPEG microcomputer data input.

22 P25/SO0/TxD0 CD DI Output CD DSP command/MPEG microcomputer command.

23 P25/SCK0/ASCHK0 CD CLK Output CD DSP clock/MPEG microcomputer clock.

24 P67/INTP2 P_IN Input Power failure control.

25 P66/TIO51 JOG 0 Input Key jog input 0.

26 P65/INTP1 JOG 1 Input Key jog input 1.

27 P64/INTP0 REMOCON Input Remocon input.

28 P63/TIO50 CE Output CE output.

29 P62/SCK1 CLK Output Clock output.

30 P61/SO1 DI Output Data output.

31 P60/SI1 DO Input Data input.

32 P57/SCK2 DD CLK Output Dolby decorder clock.

33 P56/SO2 DD DO Output Dolby decorder data out.

34 P55/SI2 DD DI Input Dolby decorder data in.

35 P54 DD ACK Input Dolby decorder ACK.

36 P53 DD LP Output Dolby decorder latch

37 P52 DD CS Output Dolby decorder CS.

38 P51 DD LOCK Input Dolby decorder lock.

39 P50 DD STATUS Input Dolby decorder status.

40 VSS0 VSS0 — Ground voltage.

41 VDD0 VDD0 Input (+) Power supply.

42 RESET RESET Input Microcomputer reset.

43 P47 T 2 RUN Input TAPE 2 RUN PULSE input.

44 P46 CD CLAMP SW Input CD CHANGER CLAMP switch.

45 P45 DIGI_SEL Output CD FUNC: L/EXP FUNC: H

46 P44 RES OUT Output CD DSP reset & MPEG microcomputer reset.

47 P43 SP DET Input Speaker output detection.

48,49 P42,P41 LCK 2,LCK 1 Output LED driver LCK. (BU2092-1)

50 P40 T 1 RUN Input TAPE 1 RUN PULSE input.

IC701 RH-iX0444AWZZ: System Microcomputer (IX0444AW) (1/2)

Port Name

Terminal Name

Pin No.

Input/Output

Function

CD-DVD500H

– 88 –

IC701 RH-iX0444AWZZ: System Microcomputer (IX0444AW) (2/2)

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Port Name Terminal NamePin No. Input/Output

Function

51 P107/FIP47 DIST_OUT (2) Output Distination output/switch output.

52 P106/FIP46 KARAOKE LATCH Output KARAOKE IC data latch. (When not used. Connect to 0 V)

53 P105/FIP45 6 ch-VOL LATCH Output 6 ch VOL IC data latch.

54 P104/FIP44 NO USE Input Open

55 P103/FIP43 SPRLY (FRONT) Output (Front) Speaker output relay control.

56 P102/FIP42 SMUTE Output System mute control.

57 P101/FIP41 TIMER LED Output Timer LED control.

58 P100/FIP40 AC RLY_CONT Output AC relay control.

59* P97/FIP39 DIST_OUT Output Distination output/switch output.

P96/FIP38 SPN Input Tuner span change.

P96/FIP38 P25 Output FL display segment driver.

61-63 P95/FIP37-P93/FIP35 P24-P22 Output FL display segment driver.

P92/FIP34 DIST3 Input Distination input.

P92/FIP34 P21 Output FL display segment driver.

P91/FIP33 DIST2 Input Distination input.

P91/FIP33 P20 Output FL display segment driver.

P90/FIP32 DIST1 Input Distination input.

P90/FIP32 P19 Output FL display segment driver.

P87/FIP31 DIST0 Input Distination input.

P87/FIP31 P18 Output FL display segment driver.

68-74 P86/FIP31-P80/FIP24 P17-P11 Output FL display segment driver.

75-78 P77/FIP23-P74/FIP20 P10-P7 Output FL display segment driver.

79 VDD2 VDD2 Input (+) Power supply.

80 VLOAD VLOAD Input FL driver (-) power supp. -30 V

81-84 P73/FIP19-P70/FIP16 P6-P3 Output FL display segment driver.

85,86 FIP15,FIP14 P2,P1 Output FL display segment driver.

87-100 FIP13-FIP0 G14-G1 Output FL display segment driver.

– 89 –

CD-DVD500H

Input/OutputPort Name Terminal Name

1 VSS VSS –– GND

2 Data DATA Input Serial data input.

3 Clock CLOCK Input Shipt clock of data.

4 LCK LCK Input Latch clock of data.

5 Q0 T_SOL B Output TAPE 2 Solenoid control.

6 Q1 T_SOL A Output TAPE 1 Solenoid control.

7 Q2 T_MOTOR Output Tape motor control.

8 Q3 PLAY_FWD LED Output Play forward LED.

9 Q4 STOP LED Output Stop LED.

10 Q5 L+ Output Loading Motor Driver Output

11 Q6 L- Output Loading Motor Driver Output

12* Q7 N.C. — —

13* Q8 CD DISC 1 LED Output CD Disc 1 LED.

14* Q9 CD DISC 2 LED Output CD Disc 2 LED.

15* Q10 CD DISC 3 LED Output CD Disc 3 LED.

16* Q11 PLAY_REV LED Output Play reverse LED.

17 OE OE Input Output enable.

18 VDD VDD Input Power.

Pin No.

IC702 VHiBU2092F/-1: Input/Output Expander (BU2092F)

1 VSS VSS — GND

2 Data DATA Input Serial data input.

3 Clock CLOCK Input Shipt clock of data.

4 LCK LCK Input Latch clock of data.

5 Q0 C-SPRLY Output Center speaker relay control.

6 Q1 S-SPRLY Output Surround speaker relay control.

7 Q2 SW-SPRLY Output Subwoofer speaker relay control.

8 Q3 2 ch/6 ch-RLY Output Speaker control.

9 Q4 SW-MUTE Output Subwoofer mute control.

10 Q5 T_BIAS Output Tape record bias.

11 Q6 T_T 1/T 2 Output Tape T 1/T 2 change.

12 Q7 REC/PLAY Output Tape Rec/Play change.

13 Q8 FAN CONT Output Fan control.

14 Q9 -11 dBATT Output -11 dB attenuator.

15 Q10 N.C. — —

16 Q11 DD RESET Output Dolby decorder reset.

17 OE OE Input Output enable.

18 VDD VDD Input Power.

IC181 VHiBU2092F/-1: Input/Output Expander (BU2092F)

Function

Input/OutputPort Name Terminal Name

Pin No.

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-DVD500H

– 90 –

FL701 VVKBJ844GNK-1: FL Display

FL DISPLAY

11G 13G 14G 12G

9G8G7G6G5G4G3G2G1G10G

C O

[ 1G ~ 8G ]

B24

B21

B20

B18

B17

B10

B12

B16

B13

[ 11G ]

[ 13G ]

[ 12G ]

[ 14G ]

B18

B20

B10

B12

B16B13

B21

B24

S13

S14

S15

S10

S11

S12

S13

S10

S11

– 91 –

CD-DVD500H

ANODE CONNECTION

1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

P22

P23

P24

P25

–

B17

B18

B19

B20

B21

B22

B23

B24

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B10

B11

B12

B13

B14

B15

B16

S12

S13

–

S11

S10

S14

S15

S13

S10

S11

S12

–

( 1 )

( 2 )

( 3 )

( 4 )

( 15 )

( 7 )

( 8 )

( 9 )

( 10 )

( 11 )

( 12 )

( 13 )

( 15 )

( 14 )

( DIGITAL )

( VIRTUAL )

(PRO LOGIC)

( 3 )

( 2 )

( 1 )

CD-DVD500H

– 92 –

WIRING OF PRIMARILY SUPPLY LEADS (FOR U.K. ONLY)

If any one of the bands shown in Fig. 92 is removed for some

reason, be sure replace it to the original position and same

appearance as before.

Figure 92

Nylon Band,80mm

92LNBAND1318A

AC Power

Supply Cord

Power B

PWB

Bushing

Brown

Blue

Sub Power Transformer

Power

Transformer

CD-DVD500H

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

DVD MINI COMPONENT SYSTEM

MODEL CD-DVD500H

CD-DVD500H DVD Mini Component System consisting of

CD-DVD500H (main unit), CP-DVD500H (front speaker),

GBOXS0064AWM5 (center speaker), GBOXS2008AWM5

(right surround speaker) and GBOXS4008AWM5 (left

surround speaker).

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

– 1 –

INTEGRATED CIRCUITS

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K

IC102 VHIBA3126N/-1 J AF Head Selector,BA3126N

IC181 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S

IC401 VHISTK40224-1 J BC Power Amp.,STK40224

IC501 VHPTOTX178A-1 J AP Digital Out,TOTX178A

IC504 RH-IX0443AWZZ J BM Dolby Decoder,IX443AW

IC505 RH-IX0454AWZZ J BB 6-Ch Code IC,AK4527BVQ

IC571 VHITA48M033-1 J AK 3.3V Voltage Regulator,

TA48M033

IC601 VHILC75341/-1 J AM Audio Processor,LC75341

IC602 VHIM62446FP-1 J AY 6ch Electronic Volume,

M62446FP

IC605~607 VHINJM4565M-1 J AC Buffer Amp.,NJM4565M

IC701 RH-IX0444AWZZ J BA System Microcomputer,

IX0444AW

IC702 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F

IC703,704 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

IC705 VHITA7291S/-1 J AH Loading Motor Driver,TA7291S

IC850 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP

IC851 VHIKIA7805AP1 J AF Constant Voltage Regulator,

KIA7805AP

IC852 VHIKIA7808AP1 J AF Voltage Regulator,KIA7808AP

IC880 VHIKIA7805AP1 J AF Constant Voltage Regulator,

KIA7805AP

IC901,902 VHISTK40270N1 J AY Power Amp.,STK40270N

IC904 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

IC905,906 VHITC4053BP-1 J AE Triple 2-Ch Multipexer,

TC4053BP

IC907 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

IC3201 VHI74HC07AF-1 J AF Buffer Amp.,74HC07AF

IC3301 VHITA1323F+-1 J AY RF Signal Processor,TA1323F

IC3501 RH-IX1689GEZZ J Flash ROM,IX1689GE

IC3502 RH-IX0448AWZZ J AY 4M DRAM,IX0448AW

IC3503 VHIPST9129N-1 J AE Reset,PST9129N

IC3504 RH-IX1687GEZZ J DVD Microcomputer,IX1687GE

IC3507 VHIBR93L66F-1 J AL EEPROM,BR93L66F

IC3508 RH-IX1761GEZZ J Track Buffer Interface,IX1761GE

IC3601 RH-IX1720GEZZ J DVD Decoder,IX1720GE

IC3602,3603 RH-IX0449AWZZ J BD 16M SDRAM,IX0449AW

IC3661 RH-IX0445AWZZ J AL Voltage Regulator,IX0445AW

IC3662 RH-IX0472AWZZ J AL Voltage Regulator,IX0472AW

IC3701 VHITC94A03F-1 J BH Servo ECC,TC94A03F

IC3702 RH-IX0447AWZZ J AY 4M EDO DRAM,IX0447AW

IC3705 VHINJM2904M-1 J AH Ope Amp.,NJM2904M

IC3801 VHIBA5984FP-1 J AR Motor Driver,BA5984FP

IC3802 VHITC7W53FU-1 J AH Multiplexer,TC7W53FU

ICT21 VHILC72722/-1 J AY RDS Decorder,LC72722

TRANSISTORS

Q101 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q102,103 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR

Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O

Q360 VS2SB562-C/-1 J AD Silicon,PNP,2SB562 C

Q371 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q401~404 VS2SC2878B/-1 J AC Silicon,NPN,2SC2878 B

Q405,406 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q407,408 VS2SC2878B/-1 J AC Silicon,NPN,2SC2878 B

Q409~413 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q414,415 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q416,417 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q418,419 VS2SD2012//-1 J AD Silicon,NPN,2SD2012

Q420 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q421 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q422 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q423 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q424 VS2SB1565F/-1 J AG Silicon,PNP,2SB1565 F

Q503 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q505 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q520 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q572 VS2SD468-C/-1 J AD Silicon,NPN,2SD468 C

Q601 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q602 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q701~706 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q707 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q708,709 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q710 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q711 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q712 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q806 VS2SB1565F/-1 J AG Silicon,PNP,2SB1565 F

Q850,851 VSKTC2026Y/-1 J AE Silicon,NPN,KTC2026 Y

Q859 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q880 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q891~893 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q905~908 VS2SC2878B/-1 J AC Silicon,NPN,2SC2878 B

Q909~912 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q913,914 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q915 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q916 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q917 VS2SC2878B/-1 J AC Silicon,NPN,2SC2878 B

Q918~921 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q937 VSKTA1046Y+-1 J AF Sillicon,PNP,KTA1046 Y

Q3202~3205 VSKTA1504Y/-1 J AB Silicon,PNP,KTA1504 Y

Q3301 VSKTA1504Y/-1 J AB Silicon,PNP,KTA1504 Y

Q3302,3303 VS2SA1955A/-1 J AC Silicon,PNP,2SA1955 A

Q3307 VSKRC104S//-1 J AC Digital,NPN,KRC104 S

Q3502 VSKTA1504Y/-1 J AB Silicon,PNP,KTA1504 Y

Q3503 VSKRC104S//-1 J AC Digital,NPN,KRC104 S

Q3701,3702 VSKRC104S//-1 J AC Digital,NPN,KRC104 S

Q5001~5003 VSKTA1504Y/-1 J AB Silicon,PNP,KTA1504 Y

Q5004~5012 VS2SC2412KR-1 J AB Silicon,NPN,2SC2412 KR

Q5013 VSKTA1504Y/-1 J AB Silicon,PNP,KTA1504 Y

Q5014~5016 VS2SC2412KR-1 J AB Silicon,NPN,2SC2412 KR

QT21 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

DIODES

D183~186 VHDDS1SS133-1 J AB Silicon,DS1SS133

D301~306 VHDDS1SS133-1 J AB Silicon,DS1SS133

D352 VHDDS1SS133-1 J AB Silicon,DS1SS133

D401~410 VHDDS1SS133-1 J AB Silicon,DS1SS133

D502~513 VHD1SS133//-1 J AA Silicon,1SS133

D601,602 VHDDS1SS133-1 J AB Silicon,DS1SS133

D701~712 VHDDS1SS133-1 J AB Silicon,DS1SS133

D714 VHDDS1SS133-1 J AB Silicon,DS1SS133

D801,802 VHDTS6B04GM-1 J AP Silicon,TS6B04GM

D803~806 VHD2A02M+++-X J AC Silicon,2A02M

D807~811 VHD1N4004S/-1 J AB Silicon,1N4004S

D851~853 VHDDS1SS133-1 J AB Silicon,DS1SS133

D855 VHDDS1SS133-1 J AB Silicon,DS1SS133

D859,860 VHDDS1SS133-1 J AB Silicon,DS1SS133

D880 VHDDS1SS133-1 J AB Silicon,DS1SS133

D881~884 VHD1N4004S/-1 J AB Silicon,1N4004S

D885 VHDDS1SS133-1 J AB Silicon,DS1SS133

D901~906 VHDDS1SS133-1 J AB Silicon,DS1SS133

D908 VHDDS1SS133-1 J AB Silicon,DS1SS133

D3301 VHDDAP202K/-1 J AB Silicon,DAP202K

D3501 VHDDAP202K/-1 J AB Silicon,DAP202K

DT31 VHDDS1SS133-1 J AB Silicon,DS1SS133

DZ401 VHEDZ6R2BSB-1 J AC Zener,6.2V,DZ6.2B

DZ402 VHEMTZJ9R1C-1 J AB Zener,9.1V,MTZJ9.1C

DZ403 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB

DZ404 VHEDZ5R6BSB-1 J AC Zener,5.6V,DZ5.6BSB

DZ571 VHEMTZJ5R6A-V J AB Zener,5.6V,MTZJ5.6A

DZ802 VHEDZ2R4BSB-1 J AB Zener,2.4V,DZ2.4BSB

DZ803 VHEDZ360BSC-1 J AB Zener,36V,DZ36BSC

DZ804 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA

DZ901,902 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

DZ903 VHEDZ130BSC-1 J AB Zener,13V,DZ13BSC

LED701,702 VHP4204UYT7-1 J AD LED,Yellow,4204UYT7

LED709 VHP4204SRT7-1 J AD LED,Red,4204SRT7

ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

ZD601,602 VHEDZ7R5BSC-1 J AB Zener,7.5V,DZ7.5BSC

ZD701 VHEDZ6R2BSC-1 J AB Zener,6.2V,DZ6.2BSC

ZD850 VHEDZ2R4BSB-1 J AB Zener,2.4V,DZ2.4BSB

FILTERS

CF301 RFILF0072AFZZ J AG FM IF

CF302 RFILF0072AFZZ J AG FM IF

CD-DVD500H

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

FL3501 RFILC0207GEZZ J AF 20 MHz

FL3701 RCRMC0001GEZZ J AH 22.5792 MHz

TRANSFORMERS

T302 RCILA0062AWZZ J AC AM Tracking

T306 RCILB0066AWZZ J AD AM OSC

T351 RCILI0019AWZZ J AD AM IF

1 T801 RTRNP0389AWZZ J BG Power

1 T802 RTRNP0313AWZZ J AN Power

COILS

FB3301 VPANM100J0000 J AC 10 µH

FB3601 RCILC0353AFZZ J AB Tip Solid Induction,100mA

FB3603~3606 RCILC0353AFZZ J AB Tip Solid Induction,100mA

L103 VP-DH101K0000 J AB 100 µH,Choke

L104 VP-MK331K0000 J AB 330 µH,Choke

L341 RBLN-0001AWZZ J AD Balun

L342 VP-DH2R2K0000 J AB 2.2 µH,Peaking

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L353 VP-DH102K0000 J AB 1 mH,Choke

L354 RFILL0001AWZZ J AE Low Pass Filter

L401~403 RCILZ0137AFZZ J AA 0.29 µH

L501 VP-XFR82K0000 J AD 0.82 µH

L505~507 RCILC0353AFZZ J AB Tip Solid Induction,100mA

L510,511 RCILC0353AFZZ J AB Tip Solid Induction,100mA

L570 VP-XFR82K0000 J AD 0.82 µH

L702 VP-DH2R2K0000 J AB 2.2 µH,Peaking

1 L802 RCILZ0021AWZZ J AF AC Line Filter

L901~904 RCILZ0137AFZZ J AA 0.29 µH

L3302 VPANM100J0000 J AC 10 µH

L3601,3602 VPANM470J0000 J AC 47 µH

L3701,3702 VPANM1R0J0000 J AC 1 µH

L5002~5007 VPANM270J0000 J AD 27 µF

L5008~5010 RCILC0353AFZZ J AB Tip Solid Induction,100mA

L5012,5013 VPANM270J0000 J AD 27 µF

L7003 RCILC0353AFZZ J AB Tip Solid Induction,100mA

LT21,22 VP-XH2R2K0000 J AB 2.2 µH,Choke

VARIABLE RESISTOR

VR351 RVR-M0026AWZZ J AC 10 kohm (B),Semi-VR

[FM Mute Level]

VARIABLE CAPACITOR

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz

X501 RCRSP0028AWZZ J AH Crystal,2.2 MHz

X3601 RCRSC0002AWZZ J AN Crystal,27.0 MHz

XL701 RCRSP0026AWZZ J AG Crystal,4.194304 MHz

XT21 RCRSP0010AWZZ J AH Crystal,4.332 MHz

THERMISTOR

1 RP401 RH-QX0008AWZZ J AF Posistor,0.9 ohms

1 RP850 RH-QX0008AWZZ J AF Posistor,0.9 ohms

1 RP851 RH-QX0011AWZZ J AG Posistor,0.23 ohms

1 RP855 RH-QX0011AWZZ J AG Posistor,0.23 ohms

1 RP901 RH-QX0003AWZZ J AK Posistor,2.2 ohms

CAPACITORS

C101,102 VCKYCY1HB561K J AA 560 pF,50V

C103 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C105 VCKYBT1HB181K J AA 180 pF,50V

C106 VCCCCY1HH181J J AA 180 pF (CH),50V

C107,108 VCKYCY1HB561K J AA 560 pF,50V

C109 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C111~114 VCCCCY1HH470J J AA 47 pF (CH),50V

C115,116 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic

C117,118 VCTYPA1EX333K J AA 0.033 µF,25V

C119,120 VCKYCY1HB561K J AA 560 pF,50V

C121,122 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C123,124 VCTYPA1EX152K J AA 0.0015 µF,25V

C127 VCKYCY1EB223K J AB 0.022 µF,25V

C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C131,132 VCCCCY1HH271J J AA 270 pF (CH),50V

C133,134 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C135,136 VCTYPA1CX223K J AA 0.022 µF,16V

C139,140 VCKYCY1HB332K J AA 0.0033 µF,50V

C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C145 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C146 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar

C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C154 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C181~183 VCCCCY1HH101J J AA 100 pF (CH),50V

C184 VCKYCY1EB223K J AB 0.022 µF,25V

C185 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C187 VCKYCY1EB223K J AB 0.022 µF,25V

C188 VCTYBT1EF223Z J AA 0.022 µF,25V

C189,190 VCKYCY1EB223K J AB 0.022 µF,25V

C194,195 VCFYHA1HA334J J AC 0.33 µF,50V,Thin Film

C196 VCKYCY1HB822K J AA 0.0082 µF,16V

C197,198 VCKYCY1HB153K J AA 0.015 µF,50V

C199 VCKYCY1HB822K J AA 0.0082 µF,16V

C301,302 VCKYBT1HB102K J AA 0.001 µF,50V

C310~312 VCCCCY1HH101J J AA 100 pF (CH),50V

C321 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C323 VCTYBT1EF223Z J AA 0.022 µF,25V

C330 VCCUBT1HJ150J J AA 15 pF (UJ),50V

C331 VCKYPA1HF473Z J AB 0.047 µF,50V

C332 VCKYCY1EB223K J AB 0.022 µF,25V

C334 VCCUBT1HJ180J J AA 18 pF (UJ),50V

C335 VCKYCY1HB331K J AA 330 pF,50V

C336 VCTYBT1EF223Z J AA 0.022 µF,25V

C337 VCKYCY1EB223K J AB 0.022 µF,25V

C338 VCKYBT1HB102K J AA 0.001 µF,50V

C339 VCCCCY1HH101J J AA 100 pF (CH),50V

C341,342 VCKYCY1EB223K J AB 0.022 µF,25V

C343 VCCCCY1HH330J J AA 33 pF (CH),50V

C345~347 VCKYCY1EB223K J AB 0.022 µF,25V

C350 VCKYPA1HF473Z J AB 0.047 µF,50V

C351 VCKYCY1EB223K J AB 0.022 µF,25V

C352 VCEAEA1CW106M J AB 10 µF,16V,Electrolytic

C353,354 VCKYCY1EB223K J AB 0.022 µF,25V

C355 VCCCCY1HH220J J AA 22 pF (CH),50V

C356 VCKYCY1HB102K J AA 0.001 µF,50V

C357 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCKYCY1EB223K J AB 0.022 µF,25V

C362 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCKYCY1EB223K J AB 0.022 µF,25V

C364 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C365 VCTYPA1CX223K J AA 0.022 µF,16V

C366 VCKYCY1HB102K J AA 0.001 µF,50V

C367,368 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C370~372 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCTYPA1CX183K J AA 0.018 µF,16V

C376 VCKYCY1EB223K J AB 0.022 µF,25V

C377 VCKYPA1HF473Z J AB 0.047 µF,50V

C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C381 VCCCCY1HH120J J AA 12 pF (CH),50V

C382 VCCCCY1HH150J J AA 15 pF (CH),50V

C384 VCKYBT1HB102K J AA 0.001 µF,50V

C385 VCTYPA1CX103K J AA 0.01 µF,16V

C386 VCKYCY1HB331K J AA 330 pF,50V

C387 VCKYCY1EB223K J AB 0.022 µF,25V

C390 VCKYCY1HB102K J AA 0.001 µF,50V

C391 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C392 VCKYCY1HB102K J AA 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C395 VCKYCY1EB223K J AB 0.022 µF,25V

C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C397 VCKYCY1EB223K J AB 0.022 µF,25V

C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C399 VCKYCY1EB223K J AB 0.022 µF,25V

C401~404 VCKYBT1HB102K J AA 0.001 µF,50V

C405,406 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C407,408 VCCSPA1HL150J J AA 15 pF,50V

C409,410 VCKYBT1HB561K J AA 560 pF,50V

– 2 –

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

C411,412 VCKZPA1HF223Z J AA 0.022 µF,50V

C413,414 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C415~424 VCKYBT1HB102K J AA 0.001 µF,50V

C425 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C426 VCCSPA1HL150J J AA 15 pF,50V

C427 VCKYBT1HB561K J AA 560 pF,50V

C428 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

C429 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C430,431 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C432 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C433 VCKZPA1HF223Z J AA 0.022 µF,50V

C435 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C437 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C438~441 VCKYPA1HF103Z J AB 0.01 µF,50V

C442~444 VCKYBT1HB471K J AA 470 pF,50V

C446,447 VCKYPA1HF223Z J AB 0.022 µF,50V

C448,449 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C450,451 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic

C452,453 VCKYPA1HF223Z J AB 0.022 µF,50V

C454 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C455 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C456 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C457 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C458 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C460,461 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C462 VCQYKA1HM273J J AB 0.027 µF,50V,Mylar

C500 VCKYCY1EB104K J AD 0.1 µF,25V

C501 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C504 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C505 VCCCCY1HH150J J AA 15 pF (CH),50V

C506 VCCCCY1HH100D J AA 10 pF (CH),50V

C508 VCKYCY1EB104K J AD 0.1 µF,25V

C511 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C513~515 VCKYCY1EB104K J AD 0.1 µF,25V

C517 VCKYCY1EB104K J AD 0.1 µF,25V

C518 VCEAZA1AW477M J AC 470 µF,10V,Electrolytic

C519 VCKYCY1EB104K J AD 0.1 µF,25V

C520 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C523 VCKYCY1EB103K J AA 0.01 µF,25V

C524 VCKYCY1AB474K J AC 0.47 µF,10V

C525 VCKYCY1EB104K J AD 0.1 µF,25V

C526 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C527 VCCCCY1HH101J J AA 100 pF (CH),50V

C528 VCCCCY1HH121J J AA 120 pF (CH),50V

C530 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C531 VCKYCY1EB104K J AD 0.1 µF,25V

C532 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C533 VCKYCY1EB104K J AD 0.1 µF,25V

C535 VCKYCY1EB103K J AA 0.01 µF,25V

C536 VCKYCY1EB104K J AD 0.1 µF,25V

C537 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C538 VCKYCY1HB102K J AA 0.001 µF,50V

C540~545 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C546~551 VCKYCY1EB153K J AA 0.015 µF,25V

C552,553 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C554,555 VCKYCY1EB104K J AD 0.1 µF,25V

C556,557 VCKYCY1HB102K J AA 0.001 µF,50V

C558,559 VCEAZA1EW475M J AC 4.7 µF,25V,Electrolytic

C571 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C573 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C574 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C575 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C576~578 VCKYCY1EB223K J AB 0.022 µF,25V

C579 VCTYBT1EF223Z J AA 0.022 µF,25V

C599 VCKYCY1HB473K J AB 0.047 µF,50V

C600 VCKYCY1EB223K J AB 0.022 µF,25V

C601 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C602 VCKYCY1EB223K J AB 0.022 µF,25V

C603,604 VCCCCY1HH101J J AA 100 pF (CH),50V

C605~608 VCKYCY1EF104Z J AA 0.1 µF,25V

C609,610 VCKYCY1HB272K J AA 0.0027 µF,50V

C611~620 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C623,624 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C625 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C626 VCCCPA1HH101J J AA 100 pF (CH),50V

C627 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic

C629,630 VCCCCY1HH391J J AB 390 pF (CH),50V

C631~640 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C641~643 VCCCCY1HH101J J AA 100 pF (CH),50V

C644 VCKYCY1EB223K J AB 0.022 µF,25V

C645,646 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C647~650 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C653,654 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C655,656 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C657,658 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C659,660 VCKYCY1EB223K J AB 0.022 µF,25V

C661,662 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C663,664 VCCCCY1HH101J J AA 100 pF (CH),50V

C665,666 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C667,668 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C671,672 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C673,674 VCKYCY1EB223K J AB 0.022 µF,25V

C675 VCQYKA1HM822J J AB 0.0082 µF,50V,Mylar

C676 VCEAEA1CW106M J AB 10 µF,16V,Electrolytic

C677 VCCCCY1HH101J J AA 100 pF (CH),50V

C678 VCKYCY1EB223K J AB 0.022 µF,25V

C679,680 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C681 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C682 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C685,686 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C687,688 VCKYCY1EB223K J AB 0.022 µF,25V

C689 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C690 VCEAEA1CW106M J AB 10 µF,16V,Electrolytic

C691,692 VCCCCY1HH101J J AA 100 pF (CH),50V

C693,694 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C695,696 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C699 VCQYKA1HM683K J AB 0.068 µF,50V,Mylar

C701,702 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C703 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C704 VCCCCY1HH150J J AA 15 pF (CH),50V

C705 VCCCCY1HH180J J AA 18 pF (CH),50V

C706,707 VCKYCY1EB223K J AB 0.022 µF,25V

C708 VCTYBT1EF223Z J AA 0.022 µF,25V

C709 VCKYCY1EB223K J AB 0.022 µF,25V

C710,711 VCKYCY1HB102K J AA 0.001 µF,50V

C712,713 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C714 VCKYCY1EB223K J AB 0.022 µF,25V

C715 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C717 VCTYBT1CY103M J AA 0.01 µF,16V

C718 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C719 VCKYCY1EB223K J AB 0.022 µF,25V

C720 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C721~723 VCCCCY1HH101J J AA 100 pF (CH),50V

C724,725 VCKYCY1HB271K J AA 270 pF,50V

C726,727 VCTYBT1CX682M J AA 0.0068 µF,16V

C728 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C730 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C731,732 VCKYCY1EB223K J AB 0.022 µF,25V

C733 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C734,735 VCKYCY1HB272K J AA 0.0027 µF,50V

C736 VCKYCY1EB223K J AB 0.022 µF,25V

C737 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C751 VCKYCY1EB223K J AB 0.022 µF,25V

C752,753 VCTYBT1EF223Z J AA 0.022 µF,25V

C756 VCKYCY1EB223K J AB 0.022 µF,25V

C757 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C758 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C760 VCFYDA1HA563J J AB 0.056 µF,50V,Thin Film

C761,762 VCEAEA1CW106M J AB 10 µF,16V,Electrolytic

C801~806 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester

C808,809 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C810 VCEAZV1JW107M J AC 100 µF,63V,Electrolytic

C811 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C812,813 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C814 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic

C815,816 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C851 VCEAZW1VW228M J AH 2200 µF,35V,Electrolytic

C852 VCEAZW1CW478M J AG 4700 µF,16V,Electrolytic

C853,854 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C855 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C856 VCEAZA1EW227M J AC 220 µF,25V,Electrolytic

C857~859 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C860 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C862 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C865 VCKYPA1HF223Z J AB 0.022 µF,50V

C866 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic

C867 VCKYPA1HF223Z J AB 0.022 µF,50V

C877 VCTYBT1EF223Z J AA 0.022 µF,25V

1 C880 RC-KZ002LAWZZ J AC 0.0047 µF,250V,Ceramic

C881 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C882 VCEAZV1VW477M J AD 470 µF,35V,Electrolytic

C883 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic

C884 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C885 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

C891~893 VCKYCY1HB102K J AA 0.001 µF,50V

C901,902 VCFYHA1HA154J J AC 0.15 µF,50V,Thin Film

C903 VCKYPA1HF223Z J AB 0.022 µF,50V

C904,905 VCQYKA1HM823K J AC 0.082 µF,50V,Mylar

C906 VCKYPA1HF223Z J AB 0.022 µF,50V

C907,908 VCCSPA1HL101J J AA 100 pF,50V

C909,910 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C911,912 VCQYKA1HM153K J AB 0.015 µF,50V,Mylar

C913,914 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C915,916 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C917,918 VCCCPA1HH221J J AA 220 pF (CH),50V

C923~926 VCKYBT1HB102K J AA 0.001 µF,50V

C927~930 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C931~934 VCCSPA1HL150J J AA 15 pF,50V

C935~938 VCKYPA1HB122K J AA 0.0012 µF,50V

C939~942 VCTYBT1EF223Z J AA 0.022 µF,25V

C943~946 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C947~962 VCKYPA1HF103Z J AB 0.01 µF,50V

C963,964 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C965 VCEAZA1EW335M J AB 3.3 µF,25V,Electrolytic

C966 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C967 VCKYPA1HF223Z J AB 0.022 µF,50V

C968 VCQYKA1HM223K J AB 0.022 µF,50V,Mylar

C969 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C971 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C972 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C973 VCKYPA1HF223Z J AB 0.022 µF,50V

C974 VCKYBT1HB102K J AA 0.001 µF,50V

C976,977 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

C978,979 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C980~983 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C984,985 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C986,987 VCEAZW1HJ338M J AL 3300 µF,50V,Electrolytic

C988 VCEAZA1EW337M J 330 µF,25V,Electrolytic

C990 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C991 VCKYPA1HF223Z J AB 0.022 µF,50V

C993 VCQYKA1HM103K J AA 0.01 µF,50V,Mylar

C995,996 RC-EZ0065AWZZ J AN 4700 µF,50V,Electrolytic

C997~999 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C1001 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C1003 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C1005 VCKYPA1HB122K J AA 0.0012 µF,50V

C1006~1009 VCKYBT1HB471K J AA 470 pF,50V

C1010~1012 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C1013 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic

C1014 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C1015 VCEAZA1EW335M J AB 3.3 µF,25V,Electrolytic

C3201 VCKYCY1CB104K J AB 0.1 µF,16V

C3203,3204 VCKYCY1CB104K J AB 0.1 µF,16V

C3205 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3206 VCKYCY1CB104K J AB 0.1 µF,16V

C3207 VCKYCY1HB102K J AA 0.001 µF,50V

C3301~3305 VCKYTV1CF105Z J AB 1 µF,16V

C3306 VCKYCY1EB103K J AA 0.01 µF,25V

C3307 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3308 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3309 VCKYCY1EB103K J AA 0.01 µF,25V

C3310 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3311 VCEAPS225AF1H J AB 2.2 µF,50V,Electrolytic

C3312 VCKYCY1EB103K J AA 0.01 µF,25V

C3313,3314 VCKYCY1HB102K J AA 0.001 µF,50V

C3315 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3316 VCKYCY1HB102K J AA 0.001 µF,50V

C3317 VCKYCY1CB104K J AB 0.1 µF,16V

C3318 VCKYCY1HB102K J AA 0.001 µF,50V

C3319 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3320 VCKYCY1CB104K J AB 0.1 µF,16V

C3321 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3322 VCKYCY1EB103K J AA 0.01 µF,25V

C3323,3324 VCKYCY1CB104K J AB 0.1 µF,16V

C3325,3326 VCKYCY1HB472K J AA 0.0047 µF,50V

C3327,3328 VCKYCY1CB104K J AB 0.1 µF,16V

C3332,3333 VCKYCY1HB102K J AA 0.001 µF,50V

C3501 VCKYCY1CB104K J AB 0.1 µF,16V

C3502 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3503,3504 VCKYCY1CB104K J AB 0.1 µF,16V

C3506 VCKYCY1CB104K J AB 0.1 µF,16V

C3508 VCKYCY1CB104K J AB 0.1 µF,16V

C3510,3511 VCKYCY1CB104K J AB 0.1 µF,16V

C3512 VCKYCY0JB105K J AC 1 µF,6.3V

C3515~3517 VCKYCY1EB103K J AA 0.01 µF,25V

C3519~3521 VCKYCY1EB103K J AA 0.01 µF,25V

C3522 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3523 VCKYCY1EB103K J AA 0.01 µF,25V

C3524 VCKYCY1HB472K J AA 0.0047 µF,50V

C3525 VCKYCY1EB103K J AA 0.01 µF,25V

C3526 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3527,3528 VCKYCY1EB103K J AA 0.01 µF,25V

C3601 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3602 VCKYCY1CB104K J AB 0.1 µF,16V

C3603 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3604~3616 VCKYCY1CB104K J AB 0.1 µF,16V

C3617 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3618,3619 VCKYCY1CB104K J AB 0.1 µF,16V

C3620 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3621~3623 VCKYCY1CB104K J AB 0.1 µF,16V

C3624 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3625 VCKYCY1CB104K J AB 0.1 µF,16V

C3626,3627 VCCCCY1HH100D J AA 10 pF (CH),50V

C3628 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3629 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3630 VCKYCY1CB104K J AB 0.1 µF,16V

C3631 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3632~3635 VCKYCY1CB104K J AB 0.1 µF,16V

C3640,3641 VCKYCY1CB104K J AB 0.1 µF,16V

C3643,3644 VCKYCY1CB104K J AB 0.1 µF,16V

C3646 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3661,3662 VCKYCY1CB104K J AB 0.1 µF,16V

C3663,3664 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3665,3666 VCKYCY1CB104K J AB 0.1 µF,16V

C3667 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3668,3669 VCKYCY1EB103K J AA 0.01 µF,25V

C3670,3671 VCEAPS107AF0J J AC 100 µF,6.3V,Electrolytic

C3672 VCKYCY1EB103K J AA 0.01 µF,25V

C3673 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3674 VCKYCY1CB104K J AB 0.1 µF,16V

C3701 VCKYCY1EB103K J AA 0.01 µF,25V

C3702,3703 VCCCCY1HH820J J AA 82 pF (CH),50V

C3704 VCKYCY1EB103K J AA 0.01 µF,25V

C3705,3706 VCCCCY1HH221J J AA 220 pF (CH),50V

C3707 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3708 VCKYCY1CB104K J AB 0.1 µF,16V

C3709 VCCCCY1HH221J J AA 220 pF (CH),50V

C3710 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic

C3711,3712 VCKYCY1CB104K J AB 0.1 µF,16V

C3713 VCKYCY1EB103K J AA 0.01 µF,25V

C3714 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C3715 VCKYCY1CB104K J AB 0.1 µF,16V

C3716 VCCCCY1HH221J J AA 220 pF (CH),50V

C3717 VCKYCY1HB472K J AA 0.0047 µF,50V

C3718 VCKYCY1EB153K J AA 0.015 µF,25V

C3720 VCKYCY1HB682K J AA 0.0068 µF,50V

C3721,3722 VCKYCY1EB153K J AA 0.015 µF,25V

C3723 VCKYCY1CB104K J AB 0.1 µF,16V

C3725~3727 VCKYCY1CB104K J AB 0.1 µF,16V

C3728 VCCCCY1HH221J J AA 220 pF (CH),50V

C3729 VCKYCY1HB472K J AA 0.0047 µF,50V

C3730 VCKYCY1CB104K J AB 0.1 µF,16V

C3731 VCKYCY1HB102K J AA 0.001 µF,50V

C3732,3733 VCKYCY1CB104K J AB 0.1 µF,16V

C3734 VCKYCY1HB561K J AA 560 pF,50V

C3735 VCKYCY1EB103K J AA 0.01 µF,25V

C3741 VCKYCY1EB103K J AA 0.01 µF,25V

C3742 VCKYCY1CB104K J AB 0.1 µF,16V

C3744 VCKYCY1CB104K J AB 0.1 µF,16V

C3746,3747 VCKYCY1CB104K J AB 0.1 µF,16V

C3748,3749 VCKYCY1EB103K J AA 0.01 µF,25V

C3750 VCKYCY1CB104K J AB 0.1 µF,16V

C3751 VCKYCY1HB102K J AA 0.001 µF,50V

C3752,3753 VCKYCY1CB104K J AB 0.1 µF,16V

C3756~3759 VCKYCY1CB104K J AB 0.1 µF,16V

C3802 VCKYCY1EB103K J AA 0.01 µF,25V

C3803 VCEAPS106AF1C J AB 10 µF,16V,Electrolytic

C3804 VCCCCY1HH101J J AA 100 pF (CH),50V

C3805 VCCCCY1HH221J J AA 220 pF (CH),50V

C3806 VCKYCY1CB104K J AB 0.1 µF,16V

C5001 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic

C5002 VCKYCY1EB103K J AA 0.01 µF,25V

C5003~5005 VCCCCY1HH270J J AA 27 pF (CH),50V

C5006~5008 VCCCCY1HH680J J AA 68 pF (CH),50V

C5009~5011 VCCCCY1HH5R0C J AA 5 pF (CH),50V

C5012~5014 VCCCCY1HH390J J AA 39 pF (CH),50V

C5018~5020 VCCCCY1HH470J J AA 47 pF (CH),50V

C5021~5023 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

– 4 –

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

C5028 VCEAPS107AF1A J AD 100 µF,10V,Electrolytic

C5029 VCKYCY1EB103K J AA 0.01 µF,25V

C5030 VCCCCY1HH270J J AA 27 pF (CH),50V

C5031 VCCCCY1HH680J J AA 68 pF (CH),50V

C5032 VCCCCY1HH390J J AA 39 pF (CH),50V

C5033 VCCCCY1HH5R0C J AA 5 pF (CH),50V

C5034 VCCCCY1HH470J J AA 47 pF (CH),50V

C5035 VCEAPS476AF0J J AC 47 µF,6.3V,Electrolytic

C7001 VCCCCY1HH470J J AA 47 pF (CH),50V

C7004 VCEAZA1AW477M J AC 470 µF,10V,Electrolytic

C7005 VCCCCY1HH470J J AA 47 pF (CH),50V

C7006 VCKYCY1HB103K J AA 0.01 µF,50V

C7007 VCEAZA1AW477M J AC 470 µF,10V,Electrolytic

C7008 VCCCCY1HH470J J AA 47 pF (CH),50V

C7009 VCCCCY1HH470J J AA 47 pF (CH),50V

C7010 VCKYCY1EB223K J AB 0.022 µF,25V

C7011 VCKYCY1EB103K J AA 0.01 µF,25V

C7012 VCEAZA1AW477M J AC 470 µF,10V,Electrolytic

C7015 VCKYCY1EB223K J AB 0.022 µF,25V

C7016 VCKYPA1HF223Z J AB 0.022 µF,50V

C7017,7018 VCKYCY1EB223K J AB 0.022 µF,25V

C7020 VCFYHA1HA564J J AD 0.56 µF,50V,Thin Film

C7021 VCEAZA1AW477M J AC 470 µF,10V,Electrolytic

CT21 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

CT22 VCTYBT1EF223Z J AA 0.022 µF,25V

CT23 VCEAEA1CW106M J AB 10 µF,16V,Electrolytic

CT24 VCTYBT1EF223Z J AA 0.022 µF,25V

CT25 VCKYBT1HB561J J AA 560 pF,50V

CT26,27 VCCCPA1HH220J J AA 22 pF (CH),50V

CT28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

CT29 VCTYBT1EF223Z J AA 0.022 µF,25V

CT36 VCKZPA1HF223Z J AA 0.022 µF,50V

CT37 VCTYBT1EF223Z J AA 0.022 µF,25V

CX01~04 VCKYPA1HF223Z J AB 0.022 µF,50V

RESISTORS

VRS-CY1JB000J J AA

0 ohm,Jumper,0.8×1.55mm,Green

J132 VRD-RT2HD2R2J J AA 2.2 ohms,1/2W

R101 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R102 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R103 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R104 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R105 VRS-CY1JB101J J AA 100 ohm,1/16W

R106 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R107 VRS-CY1JB102J J AA 1 kohm,1/16W

R108,109 VRS-CY1JB274J J AA 270 kohms,1/16W

R110 VRS-CY1JB333J J AA 33 kohms,1/16W

R113,114 VRS-CY1JB153J J AA 15 kohms,1/16W

R117 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R118 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R119,120 VRS-CY1JB560J J AA 56 ohms,1/16W

R121,122 VRS-CY1JB104J J AA 100 kohm,1/16W

R123,124 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R125,126 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R131,132 VRS-CY1JB682J J AA 6.8 kohms,1/16W

R133 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R134 VRS-CY1JB683J J AA 68 kohms,1/16W

R135,136 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R137,138 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R139,140 VRS-CY1JB152J J AA 1.5 kohms,1/16W

R141,142 VRS-CY1JB101J J AA 100 ohm,1/16W

R145,146 VRS-CY1JB103J J AA 10 kohm,1/16W

R153,154 VRS-CY1JB103J J AA 10 kohm,1/16W

R156,157 VRD-ST2CD823J J AA 82 kohms,1/6W

R158 VRD-ST2EE221J J AA 220 ohms,1/4W

R160 VRD-ST2EE820J J AA 82 ohms,1/4W

R162 VRD-ST2CD473J J AA 47 kohms,1/6W

R164 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R166 VRS-CY1JB223J J AA 22 kohms,1/16W

R167 VRS-CY1JB473J J AA 47 kohms,1/16W

R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R171~173 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R174~180 VRS-CY1JB103J J AA 10 kohm,1/16W

R181~183 VRD-ST2CD102J J AA 1 kohm,1/6W

R184,185 VRD-ST2CD101J J AA 100 ohm,1/6W

R186 VRS-CY1JB101J J AA 100 ohm,1/16W

R187,188 VRS-CY1JB102J J AA 1 kohm,1/16W

R189~191 VRS-CY1JB101J J AA 100 ohm,1/16W

R192 VRS-CY1JB102J J AA 1 kohm,1/16W

R193 VRS-CY1JB101J J AA 100 ohm,1/16W

R194 VRS-CY1JB102J J AA 1 kohm,1/16W

R195 VRD-ST2CD101J J AA 100 ohm,1/6W

R196 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R323 VRS-CY1JB683J J AA 68 kohms,1/16W

R336 VRD-ST2CD103J J AA 10 kohm,1/6W

R344 VRS-CY1JB471J J AA 470 ohms,1/16W

R345 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R346 VRD-ST2CD331J J AA 330 ohms,1/6W

R347 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R348 VRD-ST2CD681J J AA 680 ohms,1/6W

R349 VRS-CY1JB330J J AA 33 ohms,1/16W

R350 VRS-CY1JB272J J AA 2.7 kohms,1/16W

R351 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R352 VRS-CY1JB102J J AA 1 kohm,1/16W

R353 VRS-CY1JB271J J AA 270 ohms,1/16W

R354 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R355 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R356 VRS-CY1JB102J J AA 1 kohm,1/16W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R359 VRS-CY1JB182J J AA 1.8 kohms,1/16W

R360 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R361,362 VRD-ST2CD221J J AA 220 ohms,1/6W

R363,364 VRD-ST2CD153J J AA 15 kohms,1/6W

R369 VRD-ST2CD220J J AA 22 ohms,1/6W

R370 VRD-ST2CD102J J AA 1 kohm,1/6W

R371 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R372~374 VRS-CY1JB102J J AA 1 kohm,1/16W

R376 VRS-CY1JB102J J AA 1 kohm,1/16W

R377 VRS-CY1JB473J J AA 47 kohms,1/16W

R378 VRS-CY1JB823J J AA 82 kohms,1/16W

R379 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R380 VRS-CY1JB152J J AA 1.5 kohms,1/16W

R381 VRS-CY1JB103J J AA 10 kohm,1/16W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383~385 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R386 VRD-ST2CD102J J AA 1 kohm,1/6W

R389 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R391,392 VRD-ST2EE271J J AA 390 ohms,1/4W

R393 VRD-ST2CD102J J AA 1 kohm,1/6W

R395 VRS-CY1JB473J J AA 47 kohms,1/16W

R399 VRS-CY1JB103J J AA 10 kohm,1/16W

R401,402 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R403,404 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R405,406 VRD-ST2CD102J J AA 1 kohm,1/6W

R407,408 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R409,410 VRD-ST2CD102J J AA 1 kohm,1/6W

R411,412 VRD-ST2CD821J J AA 820 ohms,1/6W

R413,414 VRD-ST2CD102J J AA 1 kohm,1/6W

R415,416 VRD-ST2CD563J J AA 56 kohms,1/6W

R417,418 VRD-ST2CD103J J AA 10 kohm,1/6W

R419,420 VRS-VV3AAR10J J AB 0.1 ohm,1W

R421,422 VRD-ST2CD102J J AA 1 kohm,1/6W

R423,424 VRD-ST2CD563J J AA 56 kohms,1/6W

R425,426 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R427,428 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R429~432 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R433 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R434 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R435 VRD-ST2CD102J J AA 1 kohm,1/6W

R436 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R437 VRD-ST2CD102J J AA 1 kohm,1/6W

R438 VRD-ST2CD821J J AA 820 ohms,1/6W

R439 VRD-ST2CD102J J AA 1 kohm,1/6W

R440 VRD-ST2CD563J J AA 56 kohms,1/6W

R441 VRD-ST2CD223J J AA 22 kohms,1/6W

1 R442,443 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R444 VRD-ST2CD103J J AA 10 kohm,1/6W

R445 VRS-VV3AAR10J J AB 0.1 ohm,1W

R446 VRD-ST2CD102J J AA 1 kohm,1/6W

R449,450 VRD-ST2CD563J J AA 56 kohms,1/6W

R451 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R452,453 VRD-ST2CD102J J AA 1 kohm,1/6W

R454,455 VRD-ST2CD473J J AA 47 kohms,1/6W

R456 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R457,458 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R459,460 VRD-ST2CD102J J AA 1 kohm,1/6W

R461,462 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R463~466 VRD-ST2CD471J J AA 470 ohms,1/6W

R467,468 VRD-ST2CD223J J AA 22 kohms,1/6W

R469,470 VRD-ST2CD221J J AA 220 ohms,1/6W

R471 VRD-ST2CD223J J AA 22 kohms,1/6W

R472 VRD-ST2CD102J J AA 1 kohm,1/6W

– 5 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

R473 VRD-ST2CD224J J AA 220 kohms,1/6W

R476 VRD-RT2HD120J J AA 12 ohms,1/2W

R477 VRD-ST2CD474J J AA 470 kohms,1/6W

R478 VRD-RT2HD331J J AA 330 ohms,1/2W

R479 VRD-ST2CD102J J AA 1 kohm,1/6W

R480 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R481~483 VRD-ST2CD563J J AA 56 kohms,1/6W

R484 VRD-RT2HD100J J AA 10 ohm,1/2W

R486 VRD-RT2HD331J J AA 330 ohms,1/2W

R500 VRS-CY1JB225J J AA 2.2 Mohms,1/16W

R501~504 VRS-CY1JB102J J AA 1 kohm,1/16W

R505 VRS-CY1JB101J J AA 100 ohm,1/16W

R506 VRS-CY1JB102J J AA 1 kohm,1/16W

R507 VRD-ST2CD101J J AA 100 ohm,1/6W

R508 VRS-CY1JB102J J AA 1 kohm,1/16W

R509,510 VRS-CY1JB102F J AA 1 kohm,1/16W

R511 VRS-CY1JB103J J AA 10 kohm,1/16W

R512 VRS-CY1JB153J J AA 15 kohms,1/16W

R513 VRS-CY1JB101J J AA 100 ohm,1/16W

R514 VRS-CY1JB103J J AA 10 kohm,1/16W

R515 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R516 VRS-CY1JB183J J AA 18 kohms,1/16W

R519 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R530 VRD-ST2CD102J J AA 1 kohm,1/6W

R531 VRS-CY1JB102J J AA 1 kohm,1/16W

R532 VRS-CY1JB103J J AA 10 kohm,1/16W

R535,536 VRS-CY1JB104J J AA 100 kohm,1/16W

R537,538 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R540~542 VRS-CY1JB103J J AA 10 kohm,1/16W

R543~548 VRS-CY1JB221J J AA 220 ohms,1/16W

R549~554 VRS-CY1JB273J J AA 27 kohms,1/16W

R556~559 VRS-CY1JB471J J AA 470 ohms,1/16W

R573,574 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R577,578 VRS-CY1JB391J J AA 390 ohms,1/16W

R601~603 VRD-ST2CD102J J AA 1 kohm,1/6W

R604 VRD-ST2CD103J J AA 10 kohm,1/6W

R605,606 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R625,626 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R627,628 VRD-ST2CD393J J AA 39 kohms,1/6W

R631,632 VRS-CY1JB103J J AA 10 kohm,1/16W

R633,634 VRD-ST2CD102J J AA 1 kohm,1/6W

R635~640 VRS-CY1JB103J J AA 10 kohm,1/16W

R641 VRD-ST2CD102J J AA 1 kohm,1/6W

R642,643 VRS-CY1JB102J J AA 1 kohm,1/16W

R644 VRD-ST2CD100J J AA 10 ohm,1/6W

R645,646 VRS-CY1JB274J J AA 270 kohms,1/16W

R649~654 VRS-CY1JB102J J AA 1 kohm,1/16W

R655,656 VRS-CY1JB104J J AA 100 kohm,1/16W

R657,658 VRS-CY1JB153J J AA 15 kohms,1/16W

R659,660 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R661,662 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R663,664 VRS-CY1JB104J J AA 100 kohm,1/16W

R665~668 VRS-CY1JB103J J AA 10 kohm,1/16W

R671~674 VRS-CY1JB102J J AA 1 kohm,1/16W

R675,676 VRS-CY1JB104J J AA 100 kohm,1/16W

R677 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R678 VRS-CY1JB153J J AA 15 kohms,1/16W

R679 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R680 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R681,682 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R683,684 VRS-CY1JB104J J AA 100 kohm,1/16W

R685~688 VRS-CY1JB102J J AA 1 kohm,1/16W

R689,690 VRS-CY1JB104J J AA 100 kohm,1/16W

R691,692 VRS-CY1JB153J J AA 15 kohms,1/16W

R693,694 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R695,696 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R697,698 VRS-CY1JB104J J AA 100 kohm,1/16W

R701 VRS-CY1JB102J J AA 1 kohm,1/16W

R702,703 VRD-ST2CD102J J AA 1 kohm,1/6W

R704~707 VRS-CY1JB102J J AA 1 kohm,1/16W

R708~710 VRD-ST2CD102J J AA 1 kohm,1/6W

R711~713 VRS-CY1JB102J J AA 1 kohm,1/16W

R714,715 VRS-CY1JB101J J AA 100 ohm,1/16W

R716,717 VRS-CY1JB102J J AA 1 kohm,1/16W

R718~720 VRD-ST2CD102J J AA 1 kohm,1/6W

R721 VRS-CY1JB102J J AA 1 kohm,1/16W

R722~724 VRD-ST2CD102J J AA 1 kohm,1/6W

R725,726 VRS-CY1JB101J J AA 100 ohm,1/16W

R727,728 VRS-CY1JB102J J AA 1 kohm,1/16W

R729,730 VRS-CY1JB101J J AA 100 ohm,1/16W

R731,732 VRS-CY1JB102J J AA 1 kohm,1/16W

R733~737 VRD-ST2CD102J J AA 1 kohm,1/6W

R738,739 VRS-CY1JB102J J AA 1 kohm,1/16W

R740,741 VRD-ST2CD102J J AA 1 kohm,1/6W

R742 VRD-ST2CD223J J AA 22 kohms,1/6W

R743~749 VRD-ST2CD102J J AA 1 kohm,1/6W

R751~755 VRD-ST2CD102J J AA 1 kohm,1/6W

R756~760 VRS-CY1JB104J J AA 100 kohm,1/16W

R761 VRD-ST2CD330J J AA 33 ohms,1/6W

R762 VRD-ST2CD223J J AA 22 kohms,1/6W

R763 VRD-ST2CD101J J AA 100 ohm,1/6W

R764 VRS-CY1JB104J J AA 100 kohm,1/16W

R765 VRD-ST2CD473J J AA 47 kohms,1/6W

R766 VRS-CY1JB103J J AA 10 kohm,1/16W

R767~769 VRD-ST2CD103J J AA 10 kohm,1/6W

R770~772 VRS-CY1JB103J J AA 10 kohm,1/16W

R773 VRD-ST2CD103J J AA 10 kohm,1/6W

R774 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R775 VRD-ST2CD103J J AA 10 kohm,1/6W

R777,778 VRS-CY1JB103J J AA 10 kohm,1/16W

R780~782 VRS-CY1JB103J J AA 10 kohm,1/16W

R783 VRD-ST2CD102J J AA 1 kohm,1/6W

R784 VRS-CY1JB104J J AA 100 kohm,1/16W

R785~790 VRS-CY1JB473J J AA 47 kohms,1/16W

R792,793 VRS-CY1JB103J J AA 10 kohm,1/16W

R794 VRS-CY1JB104J J AA 100 kohm,1/16W

R795,796 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R797 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R798 VRD-ST2CD103J J AA 10 kohm,1/6W

R799 VRS-CY1JB473J J AA 47 kohms,1/16W

R812 VRD-ST2CD473J J AA 47 kohms,1/6W

R813 VRD-ST2CD224J J AA 220 kohms,1/6W

R814 VRD-RT2HD472J J AA 4.7 kohms,1/2W

R815 VRD-ST2CD100J J AA 10 ohm,1/6W

R816 VRD-ST2CD473J J AA 47 kohms,1/6W

R817 VRD-ST2CD123J J AA 12 kohms,1/6W

R818,819 VRD-ST2EE470J J AA 47 ohms,1/4W

R821,822 VRD-RT2HD330J J AA 33 ohms,1/2W

R823 VRD-RT2HD330J J AA 33 ohms,1/2W

R852 VRD-RT2HD561J J AA 560 ohms,1/2W

R853,854 VRD-ST2CD223J J AA 22 kohms,1/6W

R855 VRD-ST2CD103J J AA 10 kohm,1/6W

R856~858 VRD-ST2CD102J J AA 1 kohm,1/6W

R860,861 VRS-CY1JB103J J AA 10 kohm,1/16W

R862 VRD-ST2CD103J J AA 10 kohm,1/6W

R865 VRD-ST2CD223J J AA 22 kohms,1/6W

R880 VRD-ST2CD102J J AA 1 kohm,1/6W

R882 VRD-ST2CD473J J AA 47 kohms,1/6W

R883 VRD-ST2CD101J J AA 100 ohm,1/6W

R890 VRS-CY1JB223J J AA 22 kohms,1/16W

R891,892 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R893,894 VRS-CY1JB102J J AA 1 kohm,1/16W

R895 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R896 VRD-ST2CD102J J AA 1 kohm,1/6W

R901~904 VRD-ST2CD183J J AA 18 kohms,1/6W

R905,906 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R907,908 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R909,910 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R911,912 VRD-ST2CD104J J AA 100 kohm,1/6W

R913 VRD-ST2CD102J J AA 1 kohm,1/6W

R916 VRD-ST2CD102J J AA 1 kohm,1/6W

R917~920 VRD-ST2CD683J J AA 68 kohms,1/6W

R921,922 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R927,928 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R933~936 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R937,938 VRD-ST2CD821J J AA 820 ohms,1/6W

R939 VRD-ST2CD102J J AA 1 kohm,1/6W

R940 VRD-ST2CD821J J AA 820 ohms,1/6W

R941,942 VRD-ST2CD102J J AA 1 kohm,1/6W

R943 VRD-ST2CD563J J AA 56 kohms,1/6W

R944 VRD-ST2CD102J J AA 1 kohm,1/6W

R945 VRD-ST2CD821J J AA 820 ohms,1/6W

R946,947 VRD-ST2CD563J J AA 56 kohms,1/6W

R948,949 VRD-ST2CD102J J AA 1 kohm,1/6W

R950 VRD-ST2CD563J J AA 56 kohms,1/6W

R951,952 VRD-ST2CD102J J AA 1 kohm,1/6W

R961,962 VRS-VV3AAR10J J AB 0.1 ohm,1W

R963,964 VRD-ST2CD103J J AA 10 kohm,1/6W

R965,966 VRS-VV3AAR10J J AB 0.1 ohm,1W

R967,968 VRD-ST2CD103J J AA 10 kohm,1/6W

R969~972 VRD-ST2CD102J J AA 1 kohm,1/6W

R973~976 VRD-ST2CD563J J AA 56 kohms,1/6W

R977~980 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R982,983 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

– 6 –

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

R985,986 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R987,988 VRD-RT2HD331J J AA 330 ohms,1/2W

R989~991 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R992,993 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R994 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R995,996 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R997,998 VRD-ST2CD223J J AA 22 kohms,1/6W

R1000 VRD-ST2EE331J J AA 330 ohms,1/4W

R1001 VRD-ST2CD101J J AA 100 ohm,1/6W

R1002 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R1003 VRD-ST2EE391J J AA 390 ohms,1/4W

R1004 VRD-ST2CD563J J AA 56 kohms,1/6W

R1005 VRD-ST2CD102J J AA 1 kohm,1/6W

R1006 VRD-ST2CD101J J AA 100 ohm,1/6W

R1007,1008 VRD-ST2CD102J J AA 1 kohm,1/6W

R1009,1010 VRD-ST2CD103J J AA 10 kohm,1/6W

R1011 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R1012 VRD-ST2CD102J J AA 1 kohm,1/6W

R1013,1014 VRD-ST2CD223J J AA 22 kohms,1/6W

1 R1015~1018 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R1019,1020 VRD-ST2CD102J J AA 1 kohm,1/6W

R1021 VRD-ST2CD473J J AA 47 kohms,1/6W

R1022,1023 VRD-ST2CD223J J AA 22 kohms,1/6W

R1024 VRD-ST2CD563J J AA 56 kohms,1/6W

R1025 VRD-ST2CD473J J AA 47 kohms,1/6W

R1031 VRD-ST2EE101J J AA 100 ohm,1/4W

R1032 VRD-ST2CD221J J AA 220 ohms,1/6W

R1034 VRD-ST2CD103J J AA 10 kohm,1/6W

R1039,1040 VRD-ST2CD223J J AA 22 kohms,1/6W

R1041~1044 VRD-ST2CD104J J AA 100 kohm,1/6W

R1045 VRD-ST2EE152J J AA 1.5 kohms,1/4W

R1046~1049 VRD-ST2CD563J J AA 56 kohms,1/6W

R1050~1054 VRD-ST2CD224J J AA 220 kohms,1/6W

R1055 VRD-ST2CD103J J AA 10 kohm,1/6W

R1056 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R3203,3204 VRS-CY1JB101J J AA 100 ohm,1/16W

R3205~3207 VRS-CY1JB103J J AA 10 kohm,1/16W

R3208,3209 VRS-CY1JB101J J AA 100 ohm,1/16W

R3210 VRS-CY1JB103J J AA 10 kohm,1/16W

R3211 VRS-CY1JB471J J AA 470 ohms,1/16W

R3212 VRS-CY1JB182J J AA 1.8 kohms,1/16W

R3213 VRS-CY1JB471J J AA 470 ohms,1/16W

R3214 VRS-CY1JB182J J AA 1.8 kohms,1/16W

R3215 VRS-CY1JB101J J AA 100 ohm,1/16W

R3216 VRS-CY1JB223J J AA 22 kohms,1/16W

R3225~3227 VRS-CY1JB681J J AA 680 ohms,1/16W

R3228 VRS-CY1JB101J J AA 100 ohm,1/16W

R3229 VRS-CY1JB681J J AA 680 ohms,1/16W

R3303 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R3310 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3311 VRS-CY1JB335J J AA 3.3 Mohms,1/16W

R3314 VRS-CY1JB470J J AA 47 ohms,1/16W

R3315 VRS-CY1JB471J J AA 470 ohms,1/16W

R3316 VRS-CY1JB335J J AA 3.3 Mohms,1/16W

R3317 VRS-CY1JB103J J AA 10 kohm,1/16W

R3318,3319 VRS-CY1JB470J J AA 47 ohms,1/16W

R3320 VRS-CY1JB471J J AA 470 ohms,1/16W

R3343,3344 VRS-CY1JB1R0J J AA 1 ohm,1/16W

R3346 VRS-CY1JB470J J AA 47 ohms,1/16W

R3501 VRS-CY1JB102J J AA 1 kohm,1/16W

R3502~3504 VRS-CY1JB103J J AA 10 kohm,1/16W

R3505~3507 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R3508,3509 VRS-CY1JB100J J AA 10 ohm,1/16W

R3510 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3511 VRS-CY1JB103J J AA 10 kohm,1/16W

R3512 VRS-CY1JB100J J AA 10 ohm,1/16W

R3513 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3514 VRS-CY1JB102J J AA 1 kohm,1/16W

R3515 VRS-CY1JB154J J AA 150 kohms,1/16W

R3516 VRS-CY1JB103J J AA 10 kohm,1/16W

R3517~3519 VRS-CY1JB102J J AA 1 kohm,1/16W

R3520 VRS-CY1JB103J J AA 10 kohm,1/16W

R3522 VRS-CY1JB100J J AA 10 ohm,1/16W

R3523 VRS-CY1JB473J J AA 47 kohms,1/16W

R3524,3525 VRS-CY1JB103J J AA 10 kohm,1/16W

R3528 VRS-CY1JB103J J AA 10 kohm,1/16W

R3530 VRS-CY1JB103J J AA 10 kohm,1/16W

R3531 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3532~3535 VRS-CY1JB103J J AA 10 kohm,1/16W

R3537,3538 VRS-CY1JB103J J AA 10 kohm,1/16W

R3540 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3541 VRS-CY1JB102J J AA 1 kohm,1/16W

R3543 VRS-CY1JB103J J AA 10 kohm,1/16W

R3544 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3545 VRS-CY1JB102J J AA 1 kohm,1/16W

R3546 VRS-CY1JB104J J AA 100 kohm,1/16W

R3547 VRS-CY1JB102J J AA 1 kohm,1/16W

R3554 VRS-CY1JB103J J AA 10 kohm,1/16W

R3556 VRS-CY1JB102J J AA 1 kohm,1/16W

R3557 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R3558 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3560 VRS-CY1JB103J J AA 10 kohm,1/16W

R3564 VRS-CY1JB562J J AA 5.6 kohms,1/16W

R3565,3566 VRS-CY1JB103J J AA 10 kohm,1/16W

R3568,3569 VRS-CY1JB101J J AA 100 ohm,1/16W

R3581 VRS-CY1JB103J J AA 10 kohm,1/16W

R3602 VRS-CY1JB103J J AA 10 kohm,1/16W

R3603 VRS-CY1JB560F J AA 56 ohms,1/16W

R3604 VRS-CY1JB391F J AA 390 ohms,1/16W

R3607,3608 VRS-CY1JB560F J AA 56 ohms,1/16W

R3610 VRS-CY1JB560F J AA 56 ohms,1/16W

R3612 VRS-CY1JB684J J AA 680 kohms,1/16W

R3613 VRS-CY1JB151J J AA 150 ohms,1/16W

R3615 VRS-CY1JB151J J AA 150 ohms,1/16W

R3616 VRS-CY1JB391J J AA 390 ohms,1/16W

R3621 VRS-CY1JB221J J AA 220 ohms,1/16W

R3661~3664 VRS-CY1JB100J J AA 10 ohm,1/16W

R3670 VRS-CY1JB101J J AA 100 ohm,1/16W

R3701 VRS-CY1JB223J J AA 22 kohms,1/16W

R3702,3703 VRS-CY1JB103J J AA 10 kohm,1/16W

R3704 VRS-CY1JB223J J AA 22 kohms,1/16W

R3705 VRS-CY1JB682J J AA 6.8 kohms,1/16W

R3706 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R3708~3711 VRS-CY1JB123J J AA 12 kohms,1/16W

R3712 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R3714 VRS-CY1JB473J J AA 47 kohms,1/16W

R3715 VRS-CY1JB154J J AA 150 kohms,1/16W

R3716 VRS-CY1JB181J J AA 180 ohms,1/16W

R3717 VRS-CY1JB183J J AA 18 kohms,1/16W

R3718~3720 VRS-CY1JB151J J AA 150 ohms,1/16W

R3721 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R3724 VRS-CY1JB104J J AA 100 kohm,1/16W

R3725 VRS-CY1JB102J J AA 1 kohm,1/16W

R3727,3728 VRS-CY1JB331J J AA 330 ohms,1/16W

R3729 VRS-CY1JB393J J AA 39 kohms,1/16W

R3730,3731 VRS-CY1JB273J J AA 27 kohms,1/16W

R3732 VRS-CY1JB103J J AA 10 kohm,1/16W

R3734~3736 VRS-CY1JB103J J AA 10 kohm,1/16W

R3738 VRS-CY1JB333J J AA 33 kohms,1/16W

R3739 VRS-CY1JB472J J AA 4.7 kohms,1/16W

R3740 VRS-CY1JB473J J AA 47 kohms,1/16W

R3742 VRS-CY1JB333J J AA 33 kohms,1/16W

R3743 VRS-CY1JB152J J AA 1.5 kohms,1/16W

R3744 VRS-CY1JB473J J AA 47 kohms,1/16W

R3745 VRS-CY1JB103J J AA 10 kohm,1/16W

R3746 VRS-CY1JB104J J AA 100 kohm,1/16W

R3748 VRS-CY1JB333J J AA 33 kohms,1/16W

R3750 VRS-CY1JB154J J AA 150 kohms,1/16W

R3753 VRS-CY1JB334J J AA 330 kohms,1/16W

R3754 VRS-CY1JB105J J AA 1 Mohm,1/16W

R3755 VRS-CY1JB471J J AA 470 ohms,1/16W

R3756 VRS-CY1JB100J J AA 10 ohm,1/16W

R3757,3758 VRS-CY1JB103J J AA 10 kohm,1/16W

R3759,3760 VRS-CY1JB102J J AA 1 kohm,1/16W

R3817 VRS-CY1JB102J J AA 1 kohm,1/16W

R3821,3822 VRS-CY1JB223J J AA 22 kohms,1/16W

R3824 VRS-CY1JB333J J AA 33 kohms,1/16W

R3825 VRS-CY1JB223J J AA 22 kohms,1/16W

R3826 VRS-CY1JB103J J AA 10 kohm,1/16W

R3829 VRS-CY1JB103J J AA 10 kohm,1/16W

R3830 VRS-CY1JB473J J AA 47 kohms,1/16W

R3834 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R3905 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R3906 VRS-CY1JB153J J AA 15 kohms,1/16W

R5001~5003 VRS-CY1JB152J J AA 1.5 kohms,1/16W

R5004~5006 VRS-CY1JB681J J AA 680 ohms,1/16W

R5007~5009 VRS-CY1JB391J J AA 390 ohms,1/16W

R5010~5012 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R5013~5015 VRS-CY1JB391J J AA 390 ohms,1/16W

R5016~5018 VRS-CY1JB102J J AA 1 kohm,1/16W

R5019 VRS-CY1JB821J J AA 820 ohms,1/16W

R5020 VRS-CY1JB471J J AA 470 ohms,1/16W

R5021 VRS-CY1JB821J J AA 820 ohms,1/16W

R5022 VRS-CY1JB471J J AA 470 ohms,1/16W

– 7 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

R5023 VRS-CY1JB821J J AA 820 ohms,1/16W

R5024 VRS-CY1JB471J J AA 470 ohms,1/16W

R5025 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R5026 VRS-CY1JB391J J AA 390 ohms,1/16W

R5027 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R5028 VRS-CY1JB391J J AA 390 ohms,1/16W

R5029 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R5030 VRS-CY1JB391J J AA 390 ohms,1/16W

R5031 VRS-CY1JB682J J AA 6.8 kohms,1/16W

R5032 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R5033 VRS-CY1JB682J J AA 6.8 kohms,1/16W

R5034 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R5035 VRS-CY1JB682J J AA 6.8 kohms,1/16W

R5036 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R5037~5039 VRS-TV2AB271J J AA 270 ohms,1/10W

R5040~5042 VRS-TV2AB391J J AA 390 ohms,1/10W

R5071 VRS-CY1JB152J J AA 1.5 kohms,1/16W

R5072 VRS-CY1JB681J J AA 680 ohms,1/16W

R5073 VRS-CY1JB391J J AA 390 ohms,1/16W

R5074 VRS-CY1JB392J J AA 3.9 kohms,1/16W

R5075 VRS-CY1JB391J J AA 390 ohms,1/16W

R5076 VRS-CY1JB102J J AA 1 kohm,1/16W

R5077 VRS-CY1JB821J J AA 820 ohms,1/16W

R5078 VRS-CY1JB471J J AA 470 ohms,1/16W

R5079 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R5080 VRS-CY1JB391J J AA 390 ohms,1/16W

R5081 VRS-CY1JB682J J AA 6.8 kohms,1/16W

R5082 VRS-CY1JB332J J AA 3.3 kohms,1/16W

R5083 VRS-TV2AB271J J AA 270 ohms,1/10W

R5084 VRS-TV2AB391J J AA 390 ohms,1/10W

R7004~7006 VRS-CY1JB750J J AA 75 ohms,1/16W

R7008 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R7009 VRD-ST2CD750J J AA 75 ohms,1/6W

R7010 VRD-ST2CD104J J AA 100 kohm,1/6W

R7014 VRS-CY1JB331J J AA 330 ohms,1/16W

RD01 VRD-ST2CD681J J AA 680 ohms,1/6W

RD02 VRD-ST2CD821J J AA 820 ohms,1/6W

RD03 VRD-ST2CD102J J AA 1 kohm,1/6W

RD04 VRS-CY1JB152J J AA 1.5 kohms,1/16W

RD05 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD06 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD07 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD08 VRS-CY1JB562J J AA 5.6 kohms,1/16W

RD09 VRS-CY1JB103J J AA 10 kohm,1/16W

RD10 VRD-ST2CD183J J AA 18 kohms,1/6W

RD11 VRS-CY1JB333J J AA 33 kohms,1/16W

RD13 VRD-ST2CD681J J AA 680 ohms,1/6W

RD14 VRD-ST2CD821J J AA 820 ohms,1/6W

RD20 VRS-CY1JB681J J AA 680 ohms,1/16W

RD21 VRD-ST2CD821J J AA 820 ohms,1/6W

RD22 VRD-ST2CD102J J AA 1 kohm,1/6W

RD23 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD24 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD25 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD26 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD27 VRS-CY1JB562J J AA 5.6 kohms,1/16W

RD28 VRD-ST2CD103J J AA 10 kohm,1/6W

RD29 VRD-ST2CD153J J AA 15 kohms,1/6W

RD30 VRD-ST2CD333J J AA 33 kohms,1/6W

RD31 VRD-ST2CD104J J AA 100 kohm,1/6W

RD32 VRD-ST2CD102J J AA 1 kohm,1/6W

RD34 VRD-ST2CD102J J AA 1 kohm,1/6W

RD35 VRS-CY1JB102J J AA 1 kohm,1/16W

RD36~38 VRD-ST2CD102J J AA 1 kohm,1/6W

RD41~43 VRD-ST2CD102J J AA 1 kohm,1/6W

RD44,45 VRD-ST2CD101J J AA 100 ohm,1/6W

RD51 VRD-ST2EE101J J AA 100 ohm,1/4W

RD52 VRD-ST2EE331J J AA 330 ohms,1/4W

RD53 VRS-CY1JB333J J AA 33 kohms,1/16W

RD54 VRD-ST2CD223J J AA 22 kohms,1/6W

RD55 VRD-ST2CD474J J AA 470 kohms,1/6W

RD56 VRD-ST2CD333J J AA 33 kohms,1/6W

RD57 VRD-ST2CD224J J AA 220 kohms,1/6W

RD58 VRD-ST2CD225J J AA 2.2 Mohms,1/6W

RD59 VRS-CY1JB824J J AA 820 kohms,1/16W

RD60 VRD-ST2CD105J J AA 1 Mohm,1/6W

RD61 VRD-ST2CD104J J AA 100 kohm,1/6W

RD62 VRS-CY1JB104J J AA 100 kohm,1/16W

RD63 VRS-CY1JB123J J AA 12 kohms,1/16W

RD64 VRS-CY1JB683J J AA 68 kohms,1/16W

RD65 VRD-ST2CD153J J AA 15 kohms,1/6W

RD68 VRS-CY1JB224J J AA 220 kohms,1/16W

RD69 VRS-CY1JB154J J AA 150 kohms,1/16W

RD70 VRS-CY1JB394J J AA 390 kohms,1/16W

RD71 VRS-CY1JB184J J AA 180 kohms,1/16W

RD72 VRD-ST2CD104J J AA 100 kohm,1/6W

RD75 VRD-ST2CD103J J AA 10 kohm,1/6W

RD76 VRS-CY1JB103J J AA 10 kohm,1/16W

RD86,87 VRS-CY1JB332J J AA 3.3 kohms,1/16W

RD88 VRS-CY1JB103J J AA 10 kohm,1/16W

RD89 VRD-ST2CD103J J AA 10 kohm,1/6W

RD90,91 VRS-CY1JB332J J AA 3.3 kohms,1/16W

RD92,93 VRS-CY1JB103J J AA 10 kohm,1/16W

RD94 VRD-ST2CD103J J AA 10 kohm,1/6W

RD96 VRD-ST2CD102J J AA 1 kohm,1/6W

RT26 VRS-CY1JB102J J AA 1 kohm,1/16W

RT28~30 VRD-ST2CD102J J AA 1 kohm,1/6W

RT32 VRD-ST2CD103J J AA 10 kohm,1/6W

RT33,34 VRD-ST2CD563J J AA 56 kohms,1/6W

RT35,36 VRS-CY1JB224J J AA 220 kohms,1/16W

RT37 VRD-ST2CD224J J AA 220 kohms,1/6W

RT39 VRD-ST2CD224J J AA 220 kohms,1/6W

OTHER CIRCUITRY PARTS

BI2/CNS2 QCNWN2025AWZZ J AH Connector Ass’y,7/7Pin

BI403/CNS403 QCNWN2001AWZZ J AE Connector Ass’y,4/4Pin

BI404/CNS404 QCNWN2073AWZZ J Connector Ass’y,6/7Pin

BI405/CNS405 QCNWN2009AWZZ J AH Connector Ass’y,7/7Pin

BI406/CNS406 QCNWN2000AWZZ J AF Connector Ass’y,6/6Pin

BI407/CNS407 QCNWN1999AWZZ J AF Connector Ass’y,6/6Pin

BI501A/501B QCNWN2063AWZZ J AF Connector Ass’y,2/2Pin

BI703/CNS703 QCNWN2008AWZZ J AL Connector Ass’y,12/12Pin

BI802/CNS802 QCNWN1996AWZZ J AF Connector Ass’y,5/5Pin

BI850/CNS850 QCNWN1997AWZZ J AK Connector Ass’y,12/12Pin

BI901/CNS901 QCNWN1998AWZZ J AH Connector Ass’y,8/8Pin

BI7001/CNS7001

QCNWN2011AWZZ J AL Connector Ass’y,9/9Pin

CN1,2 QCNCWXF30AFZZ J AF Plug,30Pin

CN4 QCNCM890FAFZZ J AF Plug,6Pin

CNP2 QCNCM890FAFZZ J AF Plug,6Pin

CNP3 QCNCM890GAFZZ J AE Plug,7Pin

CNP101 QCNCM705CAFZZ J AA Plug,3Pin

CNP102 QCNCM705GAFZZ J AB Plug,7Pin

CNP301 92LCONE2P5268 J AB Plug,2Pin

CNP401,402 92LCONE2P53254 J AB Plug,2Pin

CNP502 QCNCWZG15AWZZ J AD Socket,15Pin

CNP503 QCNCWZG12AWZZ J AC Socket,12Pin

CNP601 QCNCWZG36AWZZ J AF Socket,36Pin

CNP602 QCNCWZG15AWZZ J AD Socket,15Pin

CNP603 92LCONE6P53253 J AC Plug,6Pin

CNP607 QCNCWZG12AWZZ J AC Socket,12Pin

CNP701 QCNCWZF36AWZZ J AF Socket,36Pin

CNP702 QCNCWZY08AWZZ J AC Socket,8Pin

CNP703 92LCONE4P52287 J AC Socket,4Pin

CNP801 92LCONE8P5267 J AC Plug,8Pin

CNP802 92LCONE5P53253 J AB Plug,5Pin

CNP807 92LCONECP5267 J AD Plug,12Pin

CNP851 92LCONE7P53253 J AC Plug,7Pin

CNP901 QCNCM010UAWZZ J AD Plug,19Pin

CNP902 92LCONPB6BPHK J AB Plug,6Pin

CNP903 92LCONE4P52287 J AC Plug,4Pin

CNP904 92LCONE4P5267X J AB Plug,4Pin

CNS1A/1B QCNWN2019AWZZ J AG Connector Ass’y,6/6Pin

CNS4 QCNCWXE30AFZZ J AK Connector,30Pin

CNS5 QCNCW2845RC5J J AM Connector,50Pin

CNS401 QCNWN2014AWZZ J AC Connector,2Pin

CNS402 QCNWN2050AWZZ J AD Connector,2Pin

CNS604 QCNCW010UAWZZ J AD Plug,19Pin

CNS901A/901B QCNWN2081AWZZ J Connector Ass’y,4/4Pin

CP3201 QCNCM890GAFZZ J AE Plug,7Pin

CP3202 QCNCM890MAFZZ J AH Plug,12Pin

CP5001 QCNCM890JAFZZ J Plug,9Pin

CS3301 QCNCW2835RC5J J AL Socket,50Pin

1 F801 QFS-D322CAWNI J AC Fuse,T3.15A L 250V

1 F802,803 QFS-D402CAWNI J AC Fuse,T4.0A L 250V

1 F804,805 QFS-D632CAWNI J AC Fuse,T6.3A L 250V

1 F806,807 QFS-D402CAWNI J AC Fuse,T4.0A L 250V

FE301 RTUNS0016AWZZ J AX FM Front End

FFC602 QCNWN2007AWZZ J AG Flat Cable,15Pin

FFC607 QCNWN2006AWZZ J AF Flat Cable,12Pin

FFC701 QCNWN2003AWZZ J AK Flat Cable,36Pin

FFC702 QCNWN1838AWZZ J AD Flat Cable,8Pin

FL701 VVKBJ844GNK-1 J AZ FL Display

FW1(260-2) QCNWN2013AWZZ J AG Flat Cable,30Pin

– 8 –

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

FW2 QCNWN2012AWZZ J AK Flat Cable,50Pin

JK601 QSOCJ0218AWZZ J AF Jack,Video/AUX Input

JK701 QJAKM0010AWZZ J AF Jack,Headphones

JOG701 QSW-Z0014AWZZ J AF Switch,Jog Type [Volume]

1 LUG801,802 92LLUG1746A J AA Lug,Terminal

LUG901 QLUGP0001AWZZ J AC Lug

M1 ———— — Motor with Chassis [Spindle]

M2 ———— — Motor with Gear [Sled]

M3 RMOTV0373AFZZ J AL Motor [T/T Up/Down Loading]

M401,402 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A

RY401,402 RRLYD0014AWZZ J AK Relay

1 RY801 RRLYD0001SJZZ J AQ Relay

RY901,902 RRLYD0014AWZZ J AK Relay

SO301 QTANC0103AWZZ J AD Antenna FM Terminal

SO901 QTANA0810AWZZ J AF Terminal,Speaker

SO7002 QSOCZ2102REZZ J AK Video Out

SOC401 QSOCJ0309AWZZ J Jack,Speaker

SOC901 QSOCJ0104AWZZ J AD Jack,Pre Out,Super Woofer

SW1 QSW-M0012AWZZ J AM Switch,Leaf Type [Cam]

SW2 QSW-M0012AWZZ J AM Switch,Leaf Type [Open/Close]

SW3 QSW-M0012AWZZ J AM Switch,Leaf Type [Disc Number]

SW4(260-3) QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

SW701 92LSWICHT1663T J AC Switch,Key Type [On/Stand-by]

SW702 92LSWICHT1663T J AC Switch,Key Type [Clock]

SW703 92LSWICHT1663T J AC Switch,Key Type [Timer]

SW704 92LSWICHT1663T J AC Switch,Key Type [Bypass]

SW705 92LSWICHT1663T J AC Switch,Key Type [Normal]

SW706 92LSWICHT1663T J AC Switch,Key Type [Phanton]

SW707 92LSWICHT1663T J AC Switch,Key Type [Virtual]

SW708 92LSWICHT1663T J AC Switch,Key Type [Disc 1]

SW709 92LSWICHT1663T J AC Switch,Key Type [Disc 2]

SW710 92LSWICHT1663T J AC Switch,Key Type [Disc 3]

SW711 92LSWICHT1663T J AC Switch,Key Type [Disc Skip]

SW712 92LSWICHT1663T J AC Switch,Key Type [Open/Close]

SW714 92LSWICHT1663T J AC Switch,Key Type [Dimmer]

SW715 92LSWICHT1663T J AC Switch,Key Type [X-Bass]

SW716 92LSWICHT1663T J AC Switch,Key Type [Equalizer]

SW722 92LSWICHT1663T J AC Switch,Key Type [DVD/CD]

SW723 92LSWICHT1663T J AC Switch,Key Type [Tape]

SW724 92LSWICHT1663T J AC Switch,Key Type [Tuning Down]

SW725 92LSWICHT1663T J AC Switch,Key Type [Memory Set]

SW726 92LSWICHT1663T J AC Switch,Key Type [Fast Rewind]

SW727 92LSWICHT1663T J AC Switch,Key Type [Fast Forward]

SW728 92LSWICHT1663T J AC Switch,Key Type [Play]

SW729 92LSWICHT1663T J AC Switch,Key Type [Stop]

SW731 92LSWICHT1663T J AC Switch,Key Type [Rec/Pause]

SW732 92LSWICHT1663T J AC Switch,Key Type [Tuning Up]

SW733 92LSWICHT1663T J AC Switch,Key Type [Video]

SW734 92LSWICHT1663T J AC Switch,Key Type [Tuner]

CABINET PARTS

201 92LCAB3721AASY J Front Panel Ass’y

201- 1 ———— — Front Panel

(Not Replacement Item)

201- 2 GDORF0097AWSA J AE Holder,Cassette [Tape 1]

201- 3 GDORF0098AWSA J AE Holder,Cassette [Tape 2]

201- 4 GCOVA1352AWSA J AH Cover,Cassette [Tape 1]

201- 5 GCOVA1353AWSA J AH Cover,Cassette [Tape 2]

201- 6 HDECQ0670AWSA J AE Panel,Cassette [Tape 1]

201- 7 HDECQ0671AWSA J AE Panel,Cassette [Tape 2]

201- 8 HDECQ0806AWSA J AK Panel,Amp.

201- 9 JKNBZ0820AWSA J AE Button,On/Stand-by

201-10 JKNBZ0766AWSA J AG Button,Dimmer/Tuning

201-11 JKNBZ0838AWSA J AG Button,Function

201-12 HDECQ0674AWSB J AF Volume Ring

201-13 JKNBZ0770AWSA J AF Button,Disc Control

201-14 JKNBZ0850AWSB J AG Button,Center Operation

201-15 MLIFP0008AWZZ J AD Damper

201-16 JKNBZ0773AWSB J AG Button,X-Bass/Equalizer

201-17 HBDGB1007AWSA J AD Badge,SHARP

201-18 GCOVA1339AWSA J AB Cover,LED,Power

201-19 GCOVA1341AWSA J AB Cover,LED,A

201-20 GCOVA1340AWSA J AB Cover,LED,B

201-21 PSHEF0027AWZZ J AB Flet,Button

201-22 MLOKC0006AWZZ J AB Lock Lever,Cassette [Tape 1]

201-23 MLOKC0007AWZZ J AB Lock Lever,Cassette [Tape 2]

201-24 LHLDZ1328AWZZ J AC Holder,Cassette Lock

201-25 MSPRD0092AWFJ J AB Spring,Cassette [Tape 1]

201-26 MSPRD0093AWFJ J AB Spring,Cassette [Tape 2]

201-27 MSPRC0029AWFJ J AB Spring,Cassette Lock

201-28 JKNBZ0825AWSA J AG Button,Dolby

201-29 GCOVA1394AWSA J AD Cover,Remote Control Sensor

201-30 PSPAK0006AWZZ J Spacer

202 92LCAB3552BASY J AM Side Panel Ass’y,Left

202- 1 ———— — Side Panel,Left

(Not Replacement Item)

202- 2 PCUSG0022AWZZ J AB Cushion,Leg

203 92LCAB3552CASY J AM Side Panel Ass’y,Right

203- 1 ———— — Side Panel,Right

(Not Replacement Item)

203- 2 PCUSG0022AWZZ J AB Cushion,Leg

204 GCAB-1198AWSB J AP Top Cabinet

205 LANGK0288AWFW J AE Bracket,Shield Support

206 GCOVA1403AWSB J AN Cover,DVD Tray

207 GITAR0857AWSA J AM Rear Panel [Except for U.K.]

207 GITAR0858AWSA J Rear Panel [For U.K.]

208 PSLDM3087AWFW J AL Shield

209 LANGK0275AWFW J AF Bracket,Main Heat Sink [Left]

210 LANGK0276AWFW J AF Bracket,Main Heat Sink [Right]

211 LANGK0278AWFW J AE Bracket,Fan Support A

212 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord

213 LCHSM0120AWFW J AQ Chassis,Main

214 LHLDZ1318AWZZ J AE Holder,FL Display

215 LANGK0320AWFW J PWB Support

216 JKNBK0084AWSA J AE Knob,Volume

217 LHLDZ1319AWZZ J AE Holder,Button Block

218 NFANP0001AWZZ J AD Rotary Fan

219 PCUSG0022AWZZ J AB Cushion,Leg

220 PRDAR0203AWFW J AY Heat Sink,Main

221 PRDAR0204AWFW J AM Heat Sink,Sub

1 222 QACCB0009AW00 J AL AC Power Supply Cord

1 222 QACCE0008AW00 J AG AC Power Supply Cord

223 QCNWN1844AWZZ J AC Lug Wire

1 224 QFSHD0001AWZZ J AB Holder,Fuse

226 92LCSPR1431C J AA Spring,Ring

227 LHLDZ1359AWZZ J AD Holder,Gear

228 PMAGF0003AWZZ J AF Magnet

229 LPLTM0011AWFW J AC Plate,York

230 92LNBAND1318A J AA Nylon Band,80mm

231 NGERH0153AWZZ J AC Gear,Drive

232 92LPT0303002 J AB Roller

233 NGERW0020AWZZ J AC Gear,Center

234 MSPRC0033AWFJ J AB Spring,Friction

235 NGERW0021AWZZ J AC Gear,Idler

236 LHLDM1016AWZZ J AE Stabilizer

237 NGERW0022AWZZ J AD Gear,Worm

238 MLEVP0109AWZZ J AB Lever,Cam Lock

239 MLEVP0110AWZZ J AB Lever,Switch A

240 MSPRP0057AWFW J AC Spring,Tray Lock

241 NGERH0152AWZZ J AC Gear,Turntable Drive

245 MCAMP0010AWZZ J AE Gear,Can Upper

246 MCAMP0011AWZZ J AE Gear,Can Lower

247 MLEVP0111AWZZ J AB Lever,Switch B

248 MLEVP0112AWZZ J AB Turntable Actuator

250 LHLDZ1358AWZZ J AF Stabilizer Holder

251 LCHSM0132AWZZ J AN Chassis,Main

252 LHLDZ1360AWZZ J AH Holder,DVD Mechanism

253 GCAB-1197AWZZ J AM Loading Tray

254 NTNT-0020AWZZ J AH Turntable

255 NGERW0023AWZZ J AC Motor Gear

258 KMECB0018AWZZ J BE Tape Mechanism Ass’y

258- 1 92PF513-860 J BB Head Plate Block [Tape 2]

258- 2 92PF525-338 J BE Motor with Pulley [Tape]

258- 3 92PF567-649 J BA Tape Mechanism PWB Ass’y

258- 4 92PFF19U-12 J AL Belt,Main [Tape 2]

258- 5 92PF514-135 J AL Pinch Roller

258- 6 92PF19S-31 J AL Belt,FF/REW [Tape 2]

258- 7 92PFF19N-11 J AL Belt,Main [Tape 1]

258- 8 92PF522-061 J AZ Clutch Ass’y Block [Tape 1]

258- 9 92PFF19S-52 J AL Belt,FF/REW [Tape 1]

258-10 92PF513-861 J AG Head Plate Block [Tape 1]

258-11 92PF522-063 J AZ Clutch Ass’y Block [Tape 2]

258-12 92PFD60F-11 J AK Cam Gear [Tape 1]

258-13 92PFR26C-11 J AN Flywheel [Tape 1]

258-14 92PFR26D-11 J AN Flywheel [Tape 2]

258-15 92PF765-292 J AS Solenoid Ass’y

258-16 92PFD58M-14 J AK Cam Gear [Tape 2]

259 GCOVD1006AWSA J AH Cover,Terminal

260 92LDVDMECA3808 J DVD Mechanism Ass’y

260- 1 PCUSG0091AWZZ J AC Cushion

260- 2(FW1) QCNWN2013AWZZ J AG Flat Cable,30Pin

260- 3(SW4) QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

260- 4 92LMTR3720BASY J AM Feed Motor Ass’y

– 9 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DVD500H

261 92LRDAT1468B J AE Heat Sink,Sub B

262 LBNDJ2006SCZZ J Nylon Band,100mm

263 TCAUS0074AWZZ J Label,Class 3A Caution

264 LANGK0274AWFW J AF Bracket,Fan Support B

265 RCORF0018AWZZ J AG Core

601 LX-BZ0880AFZZ J AC Screw,ø2×2mm

602 XEBSD26P08000 J AA Screw,ø2.6×8mm

603 LX-JZ0010AFFD J AA Screw,ø3×10mm

604 LX-LZ0006AWZZ J AC Push Rivet

605 XBBSD20P04000 J AA Screw,ø2×4mm

606 XEBSD30P10000 J AA Screw,ø3×10mm

607 XEBSF30P12000 J AA Screw,ø3×12mm

608 XESSD30P10000 J AA Screw,ø3×10mm

609 XHBSD30P06000 J AA Screw,ø3×6mm

610 XJBSD30P10000 J AA Screw,ø3×10mm

611 XJBSD30P14000 J AA Screw,ø3×14mm

612 XJBSF30P10000 J AA Screw,ø3×10mm

613 XJSSD30P10000 J AA Screw,ø3×10mm

614 92LSC0314WBZI J AB Screw,ø3×10mm

615 92LSC0310RBZI J AB Screw,ø3×8mm

616 LX-HZ0169AFFD J AA Screw,ø4×8mm

617 LX-LZ0014AWZZ J AC PWB Spacer

619 XWHSD32-10130 J AA Washer,ø3.2×ø13×1.0mm

620 XHBSD30P08000 J AA Screw,ø3×8mm

621 XWSSJ30-07000 J AA Washer,ø3×ø10×0.7mm

622 LX-BZ0076AWF2 J AE Screw,Transport

ACCESSORIES/PACKING PARTS

1 SPAKA0325AWZZ J AL Packing Add.

2 SPAKC1323AWZZ J AY Packing Case

3 SPAKP0032AWZZ J AF Polyethylene Bag,Unit

4 SPAKZ0817AWZZ J AE Ethaform

5 SPAKZ0818AWZZ J AE Packing Add.

6 SSAKA0007AWZZ J AB Polyethylene Bag,Accessories

7 TGAN-3170UMZZ J AE Warranty Card [For U.K.Only]

8 TLABZ0607AWZZ J AB Label,GEA

9 92LBAG1770A J AB Polyethylene Bag,AC Power

Supply Cord

10 92LFANT1535A J AF FM Antenna

11 QANTL0005AWZZ J AG AM Loop Antenna

12 TCAUZ0106AWZZ J Transport Caution

13 TINSE0395AWZZ J AH Operation Manual [For U.K.]

13 TINSZ0745AWZZ J AX Operation Manual

[Except for U.K.]

14 TINSE0396AWZZ J AD Quick Guide [For U.K.]

15 TLABE0611AWZZ J Label,Bar Code

16 TLABZ0941AWZZ J AC Label,Feature [Tape 1]

17 TLABZ0946AWZZ J AC Label,Feature [Tape 2]

18 TLABZ0605AWZZ J AB Label,Saving Energy

19 RRMCG0292AWSA J AW Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92LPWB3721MANS J — Main

PWB-B1,2 92LPWB3721DPLS J — Display/Headphones

(Combined Ass’y)

PWB-C 92LPWB3721DVDS J — DVD Servo

1 PWB-D1~4 92LPWB3721PWRS J — Power/Amp.A/Transformer/

Support (Combined Ass’y)

PWB-E 92PF567-649 J — Tape Mechanism

PWB-F 92LPWB3721ACTS J — Dolby

PWB-G 92LPWB3721AMPS J — Amp.B

PWB-H QPWBF0749AWZZ J AD DVD Loading Motor (PWB Only)

PWB-I QPWBF0738AWZZ J AD DVD Motor (PWB Only)

PWB-J QPWBF0739AWZZ J AF Joint (PWB Only)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

SPEAKER BOX PARTS

901 CPNLS1032AW03 J Front Panel Ass’y,Right

901 CPNLS1033AW03 J Front Panel Ass’y,Left

902 GBOXS2006AWSB J BK Speaker Box Ass’y

903 PCUSG0022AWZZ J AB Foot Cushion

904 PFLT-0049AWZZ J AC Felt

905 QCNWN2023AWZZ J AK Woofer Cord

906 QCNWN2024AWZZ J AK Subwoofer Cord

907 QCNWN2040AWZZ J AK Tweeter Cord Ass’y,with

Capacitor C1,2

908 XESSD30P10000 J AA Screw,ø3×10mm

909 TSPC-0917AWZZ J AC Label,Specifications

910 XEBSD40P16000 J AB Screw,ø4×16mm

SP1,2 RSPA00029AW8T J AQ Tweeter

SP3,4 RSPA00028AW8W J AY Woofer

SP5,6 RSPA10028AW6W J AZ Subwoofer

PACKING PARTS

1 SPAKA0314AWZZ J AL Packing Add.

2 SSAKH0053AWZZ J AC Polyethylene Bag,Speaker

SPEAKER BOX PARTS

901 CWAKP1054AWM3 J Net Frame Ass’y

902 GCAB-1205AWSA J AW Bottom Cabinet

903 QCNWN2041AWZZ J AK Speaker Cord

904 PCUSG0088AWZZ J AC Foot Cushion

905 XEBSD30P14000 J AA Screw,ø3×14mm

906 TLABM0135AWZZ J Label,Parts Code

SP1 RSPA10039AW6S J AX Speaker

SPEAKER BOX PARTS

901 CWAKP1055AWM4 J Net Frame Ass’y

902 GCAB-1206AWSA J AQ Bottom Cabinet

903 QCNWN2042AWZZ J AQ Speaker Cord [Left]

903 QCNWN2043AWZZ J AQ Speaker Cord [Right]

904 XEBSD30P14000 J AA Screw,ø3×14mm

905 TLABM0136AWZZ J Label,Parts Cord [Left]

905 TLABM0137AWZZ J Label,Parts Cord [Right]

SP1,2 RSPA00024AW8P J AR Speaker

PACKING PARTS

1 SPAKA0315AWZZ J AP Packing Add.

2 SSAKH0066AWZZ J AB Polyethylene Bag,Center

Speaker

3 SSAKH0067AWZZ J AB Polyethylene Bag,Surround

Speaker

– 10 –

CP-DVD500H

GBOXS0064AWM5

GBOXS2008AWM5

GBOXS4008AWM5

CD-DVD500H

Figure 11 CABINET EXPLODED VIEW (1/2)

23456

– 11 –

CD-DVD500H

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

202

612x2

202-1

202-2

PWB-A

221

265

610

223

IC851

IC852

261

IC850

Q850

610

612

603x2

603

610x4

610

Silicon

Grease

PWB-F

PWB-G

603x2

603x4

208

205

Tape

Motor

MAIN BELT

FLYWHEEL

ASS'Y

TAPE1

FLYWHEEL

ASS'Y

TAPE2

FF/REW

ROLLER

ASS'Y

FF/REW

ROLLER

ASS'Y

BELT CONNECTION

207

612x18

612x3

612x5

612

259

610

611x2

IC902

609

603

610x2

610

611x2

M401

226

218

211

601x2

PWB-E

223

258

258 258-1, 258-2, 258-3,

258-4, 258-5, 258-6, 258-7,

258-8, 258-9, 258-10,258-11,

258-12, 258-13, 258-14,

258-15, 258-16

(

608x5

PWB-B1

201-10

201-14

201-19

214

FL701

606x11

PWB-B2

606

619

201-15

201-17

201

201-1

201-24

201-22

201-27

608

201-9

217

201-20

201-28

201-18

201-21x2

201-29

201-13

201-16

201-11

T801

616x4

610x2

IC401

212

222

PWB-D2

220

210

609

603

610x2

609x2

209

IC901

Silicon

Grease

Silicon

Grease

611x2

224x12

224x2

PWB-D3

PWB-D4

PWB-D1

230

617

215

610

602

201-15

608

216

602

201-12

201-8

201-4

201-2

201-25

219x2

201-26

201-30

201-23

201-24

201-27

613x3

612x2

201-6

201-7

201-5

201-3

213

203

203-2

203-1

M402

226

218

264

605x2

620

621

262

604

)

201-30

CD-DVD500H

Figure 12 CABINET EXPLODED VIEW (2/2)

23456

– 12 –

CD-DVD500H

250

228

236

254

229

607x2

260

263

260-1,

260-2, 260-3,

260-4

204

607x2

SW3

SW2

SW1

232

PWB-H

PWB-I

248

239

238

234

231

233

231

246

245

227

255

247

237

235

DVD

MECHANISM ASS'Y

252

232

241

PWB-J

PWB-C

232

253

251

240

614x2

615x2

206

622

(

)

Note: Only the unit and consumable parts are supplied as parts supply for the DVD mechanism.

CD-DVD500H

23456

Figure 13 SPEAKER EXPLODED VIEW (1/3)

– 13 –

CP-DVD500H

901

910x4

SP3,4

908x2

SP1,2

904

910x4

903x2

SP5,6

903x2

904

907906905

904

902

909

904

C1,2

Capacitor

2.7µF,100V

Electrolytic (N.P.)

SP1,2

Tweeter

SP3,4

Woofer

SP5,6

Subwoofer

SP5,6

Subwoofer

SP3,4

Woofer

SP1,2

Tweeter

C1,2

Capacitor

2.7µF,100V

(N.P.)

CD-DVD500H

Figure 14 SPEAKER EXPLODED VIEW (2/3)

23456

– 14 –

GBOXS0064AWM5

CENTER

905x4

902

905x4

SP1

904x4

901

903

906

SP1

TAG

LABEL

RCA PIN

BLACK WITH BROKEN WHITE

CD-DVD500H

23456

Figure 15 SPEAKER EXPLODED VIEW (3/3)

– 15 –

GBOXS2008AWM5/GBOXS4008AWM5

SURROUND

904x6

SP1,2

901

902

903

905

SP1,2

BLACK WITH

BROKEN WHITE

TAG

LABEL

RCA PIN

CD-DVD500H

– 16 –

PACKING METHOD (FOR U.K. ONLY)

Setting position of switches and knobs

Tape Mechanism STOP

CD-DVD500H

CP-DVD500H

13. Operation Manual TiNSE0395AWZZ

14. Quick Guide TiNSE0396AWZZ

15. Label, Bar Code TLABE0611AWZZ

16. Label, Feature [Tape 1] TLABZ0941AWZZ

17. Label, Feature [Tape 2] TLABZ0946AWZZ

18. Label, Saving Energy TLABZ0605AWZZ

19. Remote Control RRMCG0292AWSA

1. Packing Add. SPAKA0325AWZZ

2. Packing Case SPAKC1323AWZZ

3. Polyethylene Bag, Unit SPAKP0032AWZZ

4. Ethaform SPAKZ0817AWZZ

5. Packing Add. SPAKZ0818AWZZ

6. Polyethylene Bag, Accessories SSAKA0007AWZZ

7. Warranty Card TGAN-3170UMZZ

9. Polyethylene Bag,

AC Power Supply Cord 92LBAG1770A

10. FM Antenna 92LFANT1535A

11. AM Loop Antenna QANTL0005AWZZ

12. Transport Caution TCAUZ0106AWZZ

1. Packing Add. SPAKA0314AWZZ

2. Polyethylene Bag, Speaker SSAKH0053AWZZ

1. Packing Add. SPAKA0315AWZZ

2. Polyethylene Bag, Center Speaker SSAKH0066AWZZ

3. Polyethylene Bag,

Surround Speaker SSAKH0067AWZZ

GBOXS0064AWM5/GBOXS2008AWM5/GBOXS4008AWM5

UNIT

IDEAL TAPE

Bottom

REAR SIDE

FRONT-SP(L) TOP

FRONT-SP(R) TOP

TOP

FRONT

REAR

PACK TOGETHER

SURROUND-SP

CENTER-SP

Center Speaker

Surround Speaker (L/R)

GBOXS4008AWM5/GBOXS2008AWM5

GBOXS0064AWM5

6, 7, 10, 11, 13, 14, 19

FRONT OF SET

FRONT SIDE

FRONT SIDE OF

CENTER IN REAR SPEAKER

TOP

Front Speaker (L/R)

CP-DVD500H

CD-DVD500H

– 17 –

–– MEMO ––

CD-DVD500H

– 18 –

–– MEMO ––

CD-DVD500H

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

A0110-1082DS•HA•M

SG • SK

SHARP CORPORATION

AV Systems Group

Audio Systems Division

Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

Sharp CD-DVD500H Audio

Product's Documents

Service Manual

Specifications

Sharp CD-DVD500H Questions and Answers

Related Products

Sharp XL-BH250 Audio

Sharp GX-BT7 Audio

Sharp CD-BA150 Audio

Sharp CD-C401H Audio Mini Componet System

Sharp CD-ES111H Audio

Sharp CD-ES222E Audio
