Owner 's Manual for Range

PRODUCT OVERVIEW

Parts

Accessories

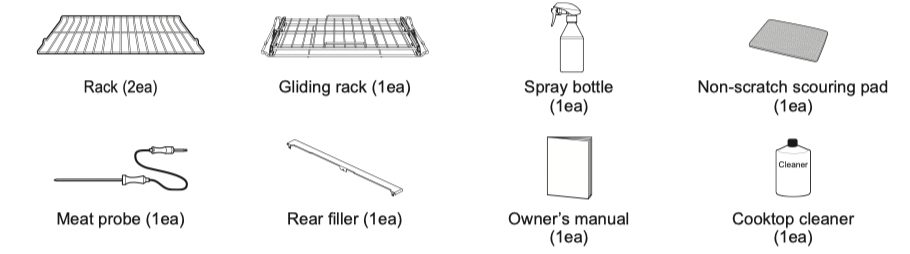

Included Accessories

Anti-tip kit

Optional Accessories

NOTE

• Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing.

• For your safety and for extended product life, only use authorized components.

• The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased, unauthorized components or parts.

• The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

OPERATION

Control Panel Overview

1. Smart DiagnosisTM

Use during the Smart Diagnosis feature.

2. Cook Time / Clock

• Press the button to set the desired amount of time for food to cook. The oven shuts off when the set cooking time runs out.

• Press and hold button for three seconds to set the time of day.

3. Start Time / Setting

• Press the button to set the delayed timed cook. The oven starts at the set time.

• Press and hold button for three seconds to select and adjust oven settings.

4. Temp.

• Press the button to change the oven or meat probe temperature during cooking.

5. Timer On/Off / Wi-Fi

• Press the button to set or cancel automatic timer.

• Press and hold button for three seconds to connect to Wi-Fi network.

6. - /+

• Press the plus button to increase cooking time or oven temperature.

• Press the minus button to decrease cooking time or oven temperature.

7. START / Oven Light

• Press the button to start all oven features.

• Press the button to manually turn the oven light on/ off.

8. Upper CLEAR/OFF

Press the button to end all upper oven features.

9. Lower CLEAR/OFF / Lock Out

• Press the button to end all lower oven feature.

• Press and hold button for three seconds to lock the door and control panel.

10. Oven Mode Knob

Turn the knob to select oven operating mode.

Knob Positions

After cleaning the oven knobs, make sure to replace each knob in the correct position. Failure to do so can result in improper operation of the burners.

Changing Oven Settings

Clock

The clock must be set to the correct time of day in order for the automatic oven timing functions to work properly.

1. Press and hold Cook Time for three seconds. CLO shows in the display.

2. Press plus(+) or minus(-) to select the desired time. Plus(+) to increase the time and minus(-) to decrease the time.

3. Press Start to enter the time and start the clock.

NOTE

• The time of day cannot be changed during a timed baking or self-clean cycle.

• If no other keys are pressed within 25 seconds of pressing Clock, the display reverts to the original setting.

• If the display colon in the clock is blinking, you may have experienced a power failure. Reset the time.

Oven Light

The interior oven light automatically turns on when the door is opened. Press Oven Light to manually turn the oven light on.

NOTE

The oven light cannot be turned on if the Self Clean function is active.

Minimum & Maximum Default Settings

All of the features listed have a minimum and a maximum time or temperature setting that may be entered into the control. An entry acceptance beep sounds each time a control key is pressed.

An entry error tone (two short tones) sounds if the entry of the temperature or time is below the minimum or above the maximum setting for the feature.

* Using Auto Conversion

• Default cook mode times are without setting cook time.

Timer On/Off

The Timer On/Off feature serves as an extra timer in the kitchen that beeps when the set time has run out. It does not start or stop cooking.

The Timer On/Off feature can be used during any of the oven control function.

Setting the Timer (for example, to set 5 minutes)

1. Press Timer On/Off. 0:00 with HR inside it appears and Timer flashes in the display.

2. Press plus(+) or minus(-) to select the desired time. Plus(+) increases the time and minus(-) decreases the time.

3. Press Timer On/Off or Start to start the Timer. The remaining time countdown appears in the display.

4. When the set time runs out, End shows in the display. The indicator tones sound every 15 seconds until Timer On/Off is pressed.

NOTE

• If the remaining time is not in the display, recall the remaining time by pressing Timer On/Off.

• Press Timer On/Off twice to set the time in minutes and seconds.

• Press Timer On/Off once to set the time in hours and minutes.

Canceling the Timer

1. Press Timer On/Off once. The display returns to the time of day.

Wi-Fi

The Wi-Fi button is used to connect the appliance to a home Wi-Fi network.

1. Press Upper CLEAR/OFF and Lower CLEAR/ OFF.

2. Press and hold Timer On/Off for 3 seconds.

3. The power-on chime sounds, "Set" appears in the display, and the Wi-Fi icon ( ) blinks.

4. Register the appliance on the Wi-Fi network using the smart phone app. (See page 35.)

5. To disconnect the appliance from the network, delete it from the registered appliances in the app.

Settings

Press and hold Start Time for three seconds. Then press the Start Time key repeatedly to toggle through and change oven settings.

The Setting key allows you to:

• set the hour mode on the clock (12 or 24 hours)

• enable/disable convection auto conversion

• adjust the oven temperature

• activate/deactivate the preheating alarm light

• set the beeper volume

• switch the temperature scale between Fahrenheit and Celsius

• adjust cooktop on alert volume

Setting the Hour Mode

The control is set to use a 12-hour clock. To reset the clock to 24-hour mode, follow the steps below.

1. Press and hold Start Time for three seconds.
2. Press plus(+) or minus(-) to set the desired hour mode on the clock.
3. Press Start to accept the desired change.

Setting Convection Auto Conversion

If you are new to convection cooking, LG makes converting standard recipes for convection cooking easy. When Conv. Bake and Conv. Roast are selected, Convection Auto Conversion automatically converts the standard recipe temperature entered to a convection temperature by subtracting 25 °F / 14 °C. This auto-converted temperature shows on the display. For example, select Conv. Bake, enter 350 °F, and 325 °F shows on the display after preheat.

Convection Auto Conversion is enabled by default. To change the setting, follow these instructions.

1. Press and hold Start Time for three seconds. Then press Start Time repeatedly until Auto appears in the display

2. Press plus(+) or minus(-) to enable or disable the feature.

3. Press Start to accept the change.

Adjusting the Oven Temperature

Your new oven may cook differently from the one it replaced. Use your new oven for a few weeks to become more familiar with it before changing the temperature settings. If after familiarizing yourself with the new oven, you still think that it is too hot or too cold, you can adjust the oven thermostat yourself.

NOTE To begin, either raise or lower the thermostat 15 °F (8 °C). Try the oven with the new setting. If the oven still needs adjustment, raise or lower the thermostat again, using the first adjustment as a gauge. For example, if the adjustment was too much, raise or lower the thermostat 10 °F (5 °C). If the adjustment was not enough, raise or lower the thermostat 20 °F (12 °C). Proceed in this way until the oven is adjusted to your satisfaction.

1. Press and hold Start Time for three seconds. Then press Start Time repeatedly until U_AJ or L_AJ appears in the display. U_AJ adjusts the upper oven and L_AJ adjust the lower oven.

2. To increase the temperature, press plus (+) until the desired amount appears in the display. To decrease the temperature, press minus (-) until the desired amount appears in the display.

3. Press Start to accept the change.

NOTE

• This adjustment does not affect the broiling or Self Clean temperatures. The adjustment is retained in memory after a power failure. The oven temperature can be increased (+) or decreased (-) as much as 35 °F or 19 °C.

• Once the temperature is increased or decreased, the display shows the adjusted temperature until it is readjusted.

Turning the Preheat Alarm Light On/Off

When the oven reaches its set-temperature, the preheating alarm light flashes 5 times or until the oven door is opened.

You can activate or deactivate the preheating alarm light.

1. Press and hold Start Time for three seconds. Then press Start Time repeatedly until PrE appears in the display.

2. Press plus(+) or minus(-) to turn the function on/off.

3. Press Start to accept the change.

Adjusting the Beeper Volume

1. Press and hold Start Time for three seconds. Then press Start Time repeatedly until BEEP appears in the display.

2. Press plus(+) or minus(-) to select Hi, Lo, Off.

3. Press Start to accept the change.

Selecting Fahrenheit or Celsius

Set the oven temperature display to show either Fahrenheit (°F) or Celsius (°C) units. The oven defaults to Fahrenheit unless changed by the user.

1. Press and hold Start Time for three seconds. Then press Start Time repeatedly until Unit appears in the display.

2. Press plus(+) or minus(-) to select F(Fahrenheit) or C(Celsius).

3. Press Start to accept the change.

Adjusting Cooktop On Alert Volume

1. Press and hold Start Time for 3 seconds. Then press Start Time repeatedly until CtOP appears in the display.

2. Press plus (+) or minus (-) to select Hi, Lo, Off.

3. Press Start to accept the change.

Lock Out

The Lock Out feature automatically locks the oven door and prevents most oven controls from being turned on. It does not disable the clock, timer or the interior oven light.

1. Press and hold Lower CLEAR/OFF for three seconds.

2. The lock melody sounds, Loc appears in the display, and the lock icon blinks in the display.

3. Once the oven door is locked, the lock indicator stops blinking and remains on.

4. To deactivate the Lock Out feature, press and hold Lower CLEAR/OFF for three seconds. The unlock melody sounds and the door and the controls unlock.

Start Time (Delayed Timed Cook)

The automatic timer of the Delayed Timed Cook function turns the oven on and off at the time you select. This feature can be used with the Bake, Conv. Bake and Conv. Roast modes.

Setting a Delayed Timed Cook

For example, to bake at 300 °F and delay the start of baking until 4:30, first set the clock for the correct time of day.

1. Turn the oven mode knob to select the Bake mode. 350 °F appears in the display.

2. Set the temperature: press minus(-) until 300 °F appears in the display.

3. Press Cook Time and press plus(+) or minus(-) to set the baking time.

4. Press Start Time.

5. Set the start time: press plus(+) until 4:30 appears in the display.

6. Press Start. A short beep sounds and Timed Delay and the start time appear in the display. The oven begins baking at the set start time.

NOTE

• To cancel the Delayed Timed Cook function, Press Clear/Off at any time.

• To change the cooking time, repeat step 3 and press Start.

• If the oven clock is set as a 12-hour clock, you can delay the cook time for 12 hours. If the oven clock is set as a 24-hour clock, you can delay the cook time for 24 hours.

The oven will continue to cook for the set amount of time and then turn off automatically. When the cooking time has elapsed:

• End and the time of day show in the display.

• The cook-end indicator tone sounds every 60 seconds until Clear/Off is pressed.

CAUTION

• Use the automatic timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil, such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.

• Eating spoiled food can result in sickness from food poisoning.

Cook Time (Timed Cook)

Set the oven to cook for a specific length of time using the Timed Cook feature. This feature can only be used with the Bake, Conv. Bake and Conv. Roast modes.

Setting the Cook Time Function

For example, to bake at 300 °F for 30 minutes, first set the clock to the correct time of day.

1. Turn the oven mode knob to select the Bake mode. 350 °F appears in the display.
2. Set the oven temperature. For this example, press minus(-) until 300 °F appears in the display.
3. Press Cook Time. Timed flashes in the display. Bake, 0:00 and 300 °F appear in the display.
4. Set the baking time: press plus(+) until 30:00 appears in the display. The baking time can be set for any amount of time between 1 minute and 11 hours and 59 minutes.
5. Press Start.

The oven will continue to cook for the set amount of time and then turn off automatically. When the cooking time has elapsed:

• End and the time of day show in the display.

• The cook end indicator tone sounds every 60 seconds until Clear/Off is pressed.

Changing the Cook Time during Cooking

For example, to change the cook time from 30 minutes to 1 hour and 30 minutes, do the following.

1. Press Cook Time.
2. Change the baking time: press plus(+) until 1 hour and 30 minutes appears in the display.
3. Press Start to accept the change.

Using the Cooktop

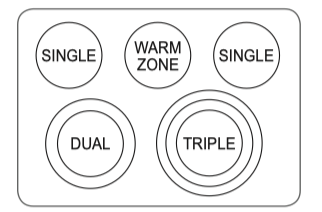

Cooking Areas

The cooking areas on your range are identified by permanent circles on the glass cooktop surface. For the most efficient cooking, fit the pan size to the element size.

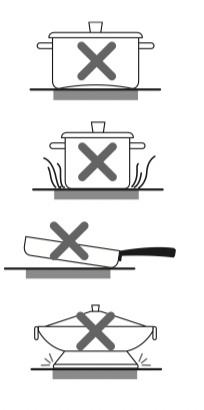

Pans should not extend more than 1 / 2 to 1-inch beyond the cooking area.

When a control is turned on, a glow can be seen through the glass cooktop surface.

NOTE

It is normal for the surface elements to cycle on and off during cooking, even on higher settings. This will happen more frequently if cooking on a lower temperature setting.

NOTE

It is normal to see a very faint red ring around the outer edge of a dual or triple element when using it as a single element at a high heat setting. This is only a reflection from the bright glow of the center element and is not a malfunction.

Hot Surface Indicator

The hot surface indicator light glows as long as any surface cooking area is too hot to touch.

It remains on after the element is turned off and until the surface has cooled to approximately 150 °F.

Using the Cooktop Elements

CAUTION

• Only use cookware and dishes that are safe for oven and cooktop use.

• Always use oven mitts when removing food from the cooktop and oven.

• Do not place sealed containers on the cooktop.

• Do not use plastic wrap to cover food while on the cooktop. Plastic may melt onto the surface and be very difficult to remove.

• Never leave food on the cooktop unattended. Spillovers can cause smoke. Greasy spillovers may catch on fire.

• The surface element may appear to have cooled after it has been turned off. The element may still be hot and touching the element before it has cooled sufficiently can cause burns.

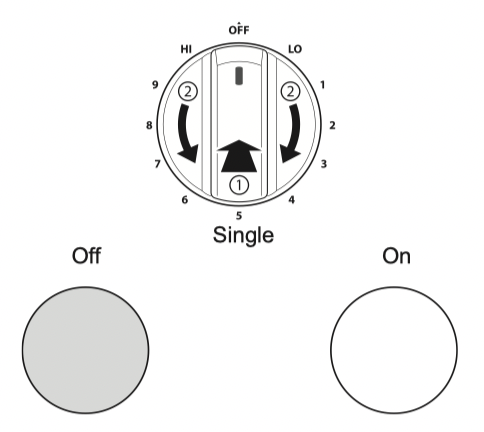

Turning on a Single element

1. Push the Single element knob in.
2. Turn the knob in either direction to the desired setting. The control knob clicks when it is positioned at both Off and Hi.

NOTE

• Hi is the highest temperature available.

• Lo is the lowest temperature available.

Turning on the Dual element

There is one dual element located in the left front position. Use the dual element as a dual or single element.

1. Push in the appropriate knob.

2-A. Turn the knob counterclockwise to use it as a Single element.

2-B. Turn the knob clockwise to use it as a Dual unit.

Turning on a Triple element (on some models)

There is one triple element that can be used as either a single, dual or triple element.

1. Push in the appropriate knob.

2-A . Turn the knob counterclockwise to use the Single element.

2-B. Turn the knob clockwise to the Dual position to use as a Dual element.

2-C. Turn the knob clockwise to the Triple position to use as a Triple element.

Turning on the Warming Zone

The Warming Zone, located in the back center of the glass surface, will keep hot, cooked food at serving temperature. Use the Warming Zone to keep food warm after it has already been cooked. Attempting to cook uncooked or cold food on the Warming Zone could result in a food-borne illness.

CAUTION

FOOD POISON HAZARD: Bacteria may grow in food at temperatures below 140 °F.

• Always start with hot food. Do not use the warm setting to heat cold food.

• Do not use the warm setting for more than 2 hours.

Turning on a Warming Zone element

1. Push the Warming Zone element knob in. Turn the knob in either direction to the desired setting.
2. The control knob clicks when it is positioned at both Off and Hi.

NOTE

• For best results, food on the warmer should be kept in its container or covered with a lid or aluminum foil to maintain food quality.

• The warmer will not glow red like the other cooking elements.

The Recommended Surface Cooking Setting

Using the Proper Cookware

The size and type of cookware will influence the settings needed for the best cooking results. Be sure to follow the recommendations for using proper cookware.

Cookware should have flat bottoms that make good contact with the entire surface heating element. Check for flatness by placing a ruler across the bottom of the cookware. The ruler should touch the cookware across the entire bottom, with no gaps.

Cookware recommendations

• Flat bottom and straight sides

• Heavy-gauge pans

• Pan sizes that match the amount of food to be prepared and the size of the surface element

• Weight of handle does not tilt pan. Pan is well balanced

• Tight-fitting lids

• Flat bottom woks

Cookware should not

• have a curved or warped bottom.

• be smaller or larger than the surface burner.

• have a heavy handle that tilts the pan.

• be a wok with a ring stand.

• have loose or broken handles.

• have loose-fitting lids.

NOTE

• Do not use pans less than 7 inches in diameter on the front elements.

• Do not use foil or foil-type containers. Foil may melt onto the glass. Do not use the cooktop if metal has melted on it. Call an authorized LG Service Center.

Choosing Cookware

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom. The most popular materials available are:

• Aluminum - Excellent heat conductor. Some types of food will cause it to darken (anodized aluminum cookware resists staining and pitting). If aluminum pans slide across the ceramic cooktop, they may leave metal marks which will resemble scratches. Remove these marks immediately.

• Copper - Excellent heat conductor but discolors easily. May leave metal marks on glass-ceramic (see Aluminum above).

• Stainless steel - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

• Cast iron - A poor heat conductor but retains heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

• Porcelain-enamel on metal - Heating characteristics will vary depending on base material. Porcelain-enamel coating must be smooth to avoid scratching ceramic cooktops.

• Glass - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

Home Canning Tips

Be sure that the canner is centered over the surface element and is flat on the bottom.

• The base must not be more than 1 inch larger than the element. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil and may damage the cooktop.

• Some canners are designed with smaller bases for use on smooth surfaces.

• Use the high heat setting only until the water comes to a boil or pressure is reached in the canner.

• Reduce to the lowest heat setting that maintains the boil, or pressure. If the heat is not turned down, the cooktop may be damaged.

Using the Oven

Before Using the Oven

NOTE

• Because the oven temperature cycles, an oven thermometer placed in the oven cavity may not show the same temperature that is set on the oven.

• It is normal for the convection fan to run while preheating during a regular bake cycle.

• The convection fan motor may run periodically during a regular bake cycle.

• The heat turns off if the door is left open during baking. If the door is left open for longer than 30 seconds during baking, the heat turns off. The heat turns back on automatically once the door is closed.

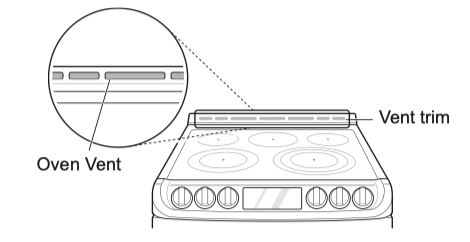

Oven Vent

Areas near the vent may become hot during operation and may cause burns. Do not block the vent opening. Avoid placing plastics near the vent as heat may distort or melt the plastic.

It is normal for steam to be visible when cooking foods with high moisture content.

CAUTION

• The edges of the range vent and vent trim are sharp and may become hot during operation. Wear gloves when cleaning the range to avoid burns or other injury.

Using Oven Racks

The racks have a turned-up back edge that prevents them from being pulled out of the oven cavity.

Removing Racks

1. Pull the rack straight out until it stops.
2. Lift up the front of the rack and pull it out.

Replacing Racks

1. Place the end of the rack on the support. Make sure rack is level and both sides are in the same rack position.
2. Tilt the front end up and push the rack in.

CAUTION

• Replace oven racks before turning the oven on to prevent burns.

• Do not cover the racks with aluminum foil, or any other material, or place anything on the bottom of the oven. Doing so will result in poor baking and may damage the oven bottom.

• Only arrange oven racks when the oven is cool.

Bake

Bake is used to prepare foods such as pastries, breads and casseroles. The oven can be programmed to bake at any temperature from 170 °F (80 °C) to 550 °F (285 °C). The default temperature is 350 °F (175 °C).

Setting the Bake Function (example: Bake at 375°F)

1. Turn the oven mode knob to select Bake.
2. Set the oven temperature: For example, press plus(+) until 375 °F appears in the display.
3. Press Start. The oven starts to preheat. As the oven preheats, the temperature is displayed and rises in 5 degree increments. Once the oven reaches the set temperature, a tone sounds and the oven light blinks on and off.
4. When cooking is complete, press Clear/Off.
5. Remove food from the oven.

NOTE It is normal for the convection fan to operate periodically throughout a normal bake cycle in the lower oven. This is to ensure even baking results.

Changing the Temperature during Cooking

1. Press Temp.
2. Press plus(+) or minus(-) to increase or decrease the set temperature.
3. Press Start.

Baking Tips

• Baking time and temperature will vary depending on the characteristics, size, and shape of the baking pan used.

• Check for food doneness at the minimum recipe time.

• Use metal bakeware (with or without a nonstick finish), heatproof glass-ceramic, ceramic or other bakeware recommended for oven use.

• Dark metal pans or nonstick coatings will cook food faster with more browning. Insulated bakeware will slightly lengthen the cooking time for most foods.

NOTE

The oven bottom has a porcelain-enamel finish. To make cleaning easier, protect the oven bottom from excessive spillovers by placing a cookie sheet on the rack below the rack you are cooking on. This is particularly important when baking a fruit pie or other foods with a high acid content. Hot fruit fillings or other foods that are highly acidic may cause pitting and damage to the porcelain-enamel surface and should be wiped up immediately.

Convection Mode

The convection system uses a fan to circulate the heat evenly within the oven. Improved heat distribution allows for even cooking and excellent results while cooking with single or multiple racks.

Setting the Convection Function (example: Conv. Bake/Roast at 350°F)

1. Turn the oven mode knob to select Conv. Bake or Conv. Roast.
2. Set the oven temperature: For example, press plus(+) until 375 °F appears in the display.
3. Press Start. The display shows Conv. Bake or Conv. Roast and the oven temperature starting at 100 °F.

As the oven preheats, the display shows increasing temperatures in 5-degree increments. Once the oven reaches the set adjusted temperature, a tone sounds and the oven light flashes on and off. The display shows the auto-converted oven temperature, 350 °F and the fan icon.

4. When cooking has finished or to cancel, press Clear/Off.

NOTE

The oven fan runs while convection baking. The fan stops when the door is open. In some cases, the fan may shut off during a convection bake cycle.

Tips for Convection Baking

• Use Convection Bake for faster and more even multiple-rack cooking of pastries, cookies, muffins, biscuits, and breads of all kinds.

• Bake cookies and biscuits on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans with a dark finish will cook faster.

• When using Convection Bake with a single rack, place the oven rack in position 3. If cooking on multiple racks, place the oven racks in positions 1 and 3 (for two racks).

• Multiple oven rack cooking may slightly increase cook times for some foods.

• Cakes, cookies and muffins have better results when using multiple racks.

The Convection Roast feature is designed to give optimum roasting performance. Convection Roast combines cooking with the convection fan to roast meats and poultry. The heated air circulates around the food from all sides, sealing in juices and flavors. Foods are crispy brown on the outside while staying moist on the inside. Convection roasting is especially good for large tender cuts of meat, uncovered.

Tips for Convection Roasting

Use a broiler pan and grid when preparing meats for convection roasting. The broiler pan catches grease spills and the grid helps prevent grease splatters.

1. Place the oven rack in the bottom rack position.
2. Place the grid in the broiler pan.
3. Place the broiler pan on the oven rack.

CAUTION

• Do not use a broiler pan without a grid.

• Do not cover the grid with aluminum foil.

• Position food (fat side up) on the grid.

Recommended Baking and Roasting Guide

Baking results will be better if baking pans are centered in the oven as much as possible. If cooking on multiple racks, place the oven racks in the positions shown.

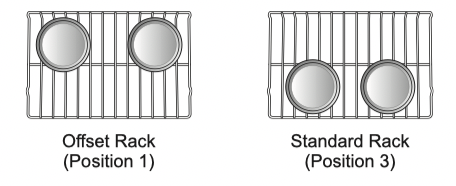

Rack and Pan Placement

Multiple Rack Baking

Single Rack Baking

Baking Rack Guide

Roasting Rack Guide

Broil

The Broil function uses intense heat from the upper heating element to cook food. Broiling works best for tender cuts of meat, fish, and thinly cut vegetables.

Some models may feature a hybrid broiler consisting of an inner broiler that utilizes a carbon heating element which provides instantaneous heat, and a traditional outer broiling element. During normal broiler operation, it is normal for either element to cycle off intermittently.

CAUTION

• Do not use a broiler pan without a grid. Oil can cause a grease fire.

• Do not cover the grid and broiler pan with aluminum foil. Doing so will cause a fire.

• Always use a broiler pan and grid for excess fat and grease drainage. This will help to reduce splatter, smoke, and flare-ups.

• Do not broil meat too close to the burner flame. Trim excess fat from meat before cooking.

NOTE

• This range is designed for closed-door broiling. Close the door to set the Broil function. If the door is open, the Broil function cannot be set and door appears on the display. Close the door and reset the Broil function. Opening the door turns off the broil burner during broiling. If the door is opened during broiling, the broil burner turns off after five seconds. The broiler turns back on automatically once the door is closed.

Speed Broil(Upper Oven)

The Speed Broil setting is designed to reduce the amount of time it takes to broil foods. By utilizing the infrared broil element, which provides heat instantaneously, there is no need for preheating.

Setting the Oven to Broil / Speed Broil

1. Turn the oven mode knob to select Broil or Speed Broil. Press plus(+) or minus(-) to select Hi or Lo.
2. Press Start. The oven begins to heat.
3. Let the oven preheat for approximately five minutes before cooking the food if using broil.
4. Press Clear/Off to cancel at any time or when cooking is complete.

Smoking

Due to the intense heat associated with broiling, it is normal to experience smoke during the cooking process. This smoke is a natural byproduct of searing and should not cause you to worry. If you are experiencing more smoke than you are comfortable with, use the following tips to reduce the amount of smoke in your oven.

1. Always use a broiler pan. Do not use saute pans or regular baking sheets for safety reasons.
2. The broiler pan should always be thoroughly cleaned and at room temperature at the beginning of cooking.
3. Always run your cooktop ventilation system or vent hood during broiling.
4. Keep the interior of your oven as clean as possible. Leftover debris from prior meals can burn or catch fire.
5. Avoid fatty marinades and sugary glazes. Both of these will increase the amount of smoke you experience. If you would like to use a glaze, apply it at the very end of cooking.
6. If you are experiencing significant smoke with any food item, consider:

• Lowering the broiler to the Lo setting.

• Lowering the rack position to cook the food further away from the broiler.

• Using the Hi broil setting to achieve the level of searing you desire, and then either switching to the Lo broil setting, or switching to the Bake function.

7. As a rule, fattier cuts of meat and fish will produce more smoke than leaner items.

8. Adhere to the recommended broil settings and cooking guidelines in the chart on the following page whenever possible.

Recommended Broiling Guide

The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature. For best results when broiling, use a pan designed for broiling.

• This guide is only for reference. Adjust cook time according to your preference.

• For best performance, center food on rack when using Speed Broil/Broil.

Tips for Broiling Beef

• Steaks and chops should always be allowed to rest for five minutes before being cut into and eaten. This allows the heat to distribute evenly through the food and creates a more tender and juicy result.

• Pieces of meat that are thicker than two inches should be removed from the refrigerator 30 minutes prior to cooking. This will help them cook more quickly and evenly, and will produce less smoke when broiling. Cooking times will likely be shorter than the times indicated in the Broiling Chart.

• For bone-in steaks or chops that have been frenched (all meat removed from around the bone), wrap the exposed sections of bone in foil to reduce burning.

Seafood

• When broiling skin-on fish, always use the Lo broil setting and always broil the skin side last.

• Seafood is best consumed immediately after cooking. Allowing seafood to rest after cooking can cause the food to dry out.

• It is a good idea to rub a thin coating of oil on the surface of the broiling pan before cooking to reduce sticking, especially with fish and seafood. You can also use a light coating of non-stick pan spray.

Vegetables

• Toss your vegetables lightly in oil before cooking to improve browning.

Warm

This function will maintain an oven temperature of 170 °F. The Warm function will keep cooked food warm for serving up to three hours after cooking has finished. The Warm function may be used without any other cooking operations.

Setting the Warm Function

1. Turn the oven mode knob to select Warm.
2. Press Start.
3. Press Clear/Off at any time to cancel.

NOTE

• The Warm function is intended to keep food warm. Do not use it to cool food down.

• It is normal for the fan to operate during the Warm function.

Proof

This feature maintains a warm oven for rising yeast leavened products before baking.

Setting the Proof Function

1. Use rack position 2 or 3 for proofing.
2. Turn the oven mode knob to select Proof.
3. Press Start.
4. Press Clear/Off when proofing is finished

NOTE

• To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door unnecessarily. Check bread products early to avoid over proofing.

• Do not use the proofing mode for warming food or keeping food hot. The proofing oven temperature is not hot enough to keep foods at safe temperatures. Use the Warm feature to keep food warm. Proofing does not operate when the oven is above 125 °F. Hot shows in the display.

• It is normal for the fan to operate during the Proof function.

Meat Probe

The meat probe accurately measures the internal temperature of meat, poultry and casseroles. It should not be used during broiling, self clean, warming or proofing. Always unplug and remove the meat probe from the oven when removing food. Before using, insert the probe into the center of the thickest part of the meat or into the inner thigh or breast of poultry, away from fat or bones. Place food in the oven and connect the meat probe to the jack. Keep the probe as far away from heat sources as possible.

Using the Meat Probe

1. Insert the meat probe into the meat.

2. Connect the meat probe to the jack.

3. The meat probe icon flashes in the display if the meat probe is properly connected.

Setting the Meat Probe Function (example: Conv. Roast at 350°F with probe temp at 160°F)

1. Select cook mode. Turn the oven mode knob to select Conv. Roast.

2. Set the oven temperature: press plus(+) or minus(-) until 375 °F appears in the display.

3. Press Start.

4. Set the probe temperature: press plus(+) or minus(-) until 160 °F appears in the display.

5. Press Start.

The default probe temperature is 150 °F (65 °C), but can be changed to any temperature between 80 °F (27 °C) and 210 °F (100 °C). The display shows the changing probe temperature. When the set probe temperature is reached, the oven shuts off automatically.

Changing the Probe Temperature while Cooking

1. Press Temp.

2. Set the oven temperature and probe temperature.

3. Press Start.

IMPORTANT NOTE

Press Clear/Off to cancel the Meat Probe function at any time. To avoid breaking the probe, make sure food is completely defrosted before inserting.

CAUTION

• Always use an oven mitt to remove the temperature probe. Do not touch the broil element. Failure to obey this caution can result in severe personal injury.

• To avoid damage to the meat probe, Do not use tongs to pull on the probe when removing it.

• Do not store the meat probe in the oven.

Recommended Probe Temperature Chart

Remote Start

If the appliance is registered on a home Wi-Fi network, this function starts preheating and then holds the temperature for up to an hour (including preheating time). If the appliance is not registered on the network, “OFF” appears in the display. Follow the instructions on page 35 to register the appliance on the network.

Set the oven mode knob to the Remote Start position to use the function.

Setting Remote Start

1. Open the oven door to make sure the oven is empty and ready for pre-heating. Close the oven door.
2. Within 30 seconds of closing the door, turn the oven mode knob to Remote Start to use the function. If more than 30 seconds passes before you initiate Remote Start, “door” appears in the display. If this occurs, open and close the door and try again.
3. When ON appears in the display, the Remote Start function is ready to use.
4. Follow the directions in the smart phone application to set the cook mode, temperature, and run time (preheating time plus holding time).

NOTE

Do not place food in oven before or during Remote Start run time.

Remote Start is disconnected in the following situations:

• Remote Start is never set up in the smart phone app.

• The Remote Start status is "OFF" or "door".

• Remote Start function can not be started if either upper or lower oven is in use.

• The Remote Start function cannot be started when the oven door is open. A beep alerts you to shut the door.

MAINTENANCE

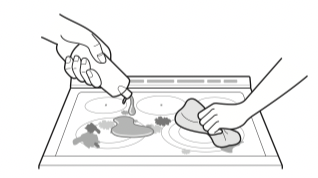

Cleaning the Glass-Ceramic Cooktop

CAUTION

• Do not use scrub pads or abrasive cleaning pads. They may damage your cooktop surface.

• For your safety, wear an oven mitt or pot holder while using a scraper on the hot cooking surface.

• Read and follow all instructions and warnings on the cleaning cream label.

Use ceramic cooktop cleaner on the glass cooktop. Other creams may not be as effective or may scratch, damage or stain the cooktop surface.

To maintain and protect the surface of the glass cooktop, follow these steps:

1. Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.
2. Use ceramic cooktop cleaner daily to help keep the cooktop looking new.
3. Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
4. Use a paper towel to clean the entire cooktop surface.
5. Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue.

NOTE Do not heat the cooktop until it has been cleaned thoroughly.

IMPORTANT

If any sugar or food containing sugar (preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, chocolate) spills, or plastic or foil melts on the cooktop, remove the molten material IMMEDIATELY with a metal razor scraper (it will not damage the decorated cooking surface) while the cooking surface is still hot to avoid the risk of damage to the glass-ceramic surface. For your safety, please use an oven mitt or pot holder while scraping the hot cooking surface.

NOTE

Sugary spillovers(such as preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, chocolate) or melted plastics can cause pitting of the surface of your cooktop.

(Not covered by the warranty)

Burned-On Residue

1. While the cooktop is still hot, remove any burnt on deposits or spilled food from the glass-ceramic cooking surface with a suitable metal razor scraper. (Similar to scraping paint off of a windowpane, it will not damage the decorated cooking surface.) Hold the scraper at an approximate 30° angle to the cooktop.

NOTE

• Do not use a dull or nicked blade.

• To prevent burns, wear an oven mitt or pot holder while using the metal scraper.

2. When the cooking surface has cooled down, apply a few dabs (about the size of a dime) of an approved cleaner in each burner area and work the cleaning cream over the cooktop surface with a damp paper towel.

NOTE Approved Ceramic Cooktop Cleaning Creams

• Weiman Cooktop Cleaning Cream (weiman)

• Cerama Bryte (ceramabryte)

• Golden Ventures Cerama Bryte

3. Rinse with clean water and wipe the cooktop surface with a clean, dry paper towel.

NOTE If you don’t have any ceramic cooktop cleaning cream handy, you can use Easy-Off ® 3 in 1 Glass Top Cleaner Spray, BonAmi ® or Soft Scrub (without bleach) to clean the cooktop. Rinse and dry the cooktop after cleaning.

Maintaining the Cooktop

DO NOT use chlorine bleach, ammonia, or other cleaners not specifically recommended for use on glass-ceramic cooktops.

Let your glass-ceramic cooking surface cool off before cleaning.

Metal Marks and Scratches

1. Be careful not to slide pots and pans across the cooktop. Doing so will leave metal markings on the cooktop surface. To help remove these marks, use a ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop. This should be removed immediately before heating again or the discoloration may be permanent.

CAUTION

Cookware with rough or uneven bottoms can mark or scratch the cooktop surface.

• Do not slide metal or glass across the cooktop surface.

• Do not use cookware with any dirt build-up on the bottom.

EasyClean®

LG’s EasyClean ® enamel technology provides two cleaning options for the inside of the range. The EasyClean ® feature takes advantage of LG’s new enamel to help lift soils without harsh chemicals, and it runs using ONLY WATER for just 10 minutes in low temperatures to help loosen LIGHT soils before hand-cleaning.

While EasyClean ® is quick and effective for small and LIGHT soils, the Self Clean feature can be used to remove HEAVY, built up soils. The intensity and high heat of the Self Clean cycle may result in smoke which will require the opening up of windows to provide ventilation. Compared to the more intense Self Clean process, your LG oven gives you the option of cleaning with LESS HEAT, LESS TIME, and virtually NO SMOKE OR FUMES.

When needed, the range still provides the Self Clean option for longer, more thorough oven cleaning for heavier, built up soils.

Benefits of EasyClean®

• Helps loosen light soils before hand-cleaning

• EasyClean ® only uses water; no chemical cleaners

• Makes for a better self-clean experience

- Delays the need for a self-clean cycle

- Minimizes smoke and odors

- Can allow shorter self-clean time

When to Use EasyClean®

* The Self Clean cycle can be used for soil that has been built up over time.

Cleaning Tips

• Allow the oven to cool to room temperature before using the EasyClean ® cycle. If your oven cavity is above 150 °F (65 °C), Hot will appear in the display, and the EasyClean ® cycle will not be activated until the oven cavity cools down.

• A plastic spatula can be used as a scraper to scrape off any chunks or debris before and during oven cleaning.

• Using the rough side of a non-scratch scouring pad may help to take off burnt-on stains better than a soft sponge or towel.

• Certain non-scratch scrubbing sponges, such as those made of melamine foam, available at your local stores, can also help improve cleaning.

• The range should be level to ensure that the bottom surface of the oven cavity is entirely covered by water at the beginning of the EasyClean ® cycle.

• For best results, use distilled or filtered water. Tap water may leave mineral deposits on the oven bottom.

• Soil baked on through several cooking cycles will be more difficult to remove with the EasyClean ® cycle.

• Do not open the oven door during the EasyClean cycle. Water will not get hot enough if the door is opened during the cycle.

• For hard to reach areas such as the back surface of the lower oven, it is better to use the Self Clean cycle.

EasyClean® Instruction Guide

1. Remove oven racks and accessories from the oven.

2. Scrape off and remove any burnt-on debris with a plastic scraper.

Suggested plastic scrapers:

• Hard plastic spatula

• Plastic pan scraper

• Plastic paint scraper

• Old credit card

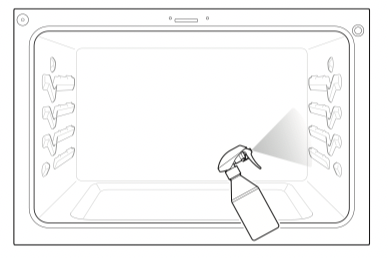

3. Fill a spray bottle (10 oz or 300 ml) with water and use the spray bottle to thoroughly spray the inside surfaces of the oven.

4. Use at least 1 / 5 (2 oz or 60 ml) of the water in the bottle to completely saturate the soil on both the walls and in the corners of the oven.

5. Spray or pour the remaining water (8 oz or 240 ml) onto the bottom center of the oven cavity. The indentation on the oven bottom should be fully covered to submerge all soils. Add water if necessary.

NOTE If cleaning multiple ovens, use an entire bottle of water to clean each oven. Do not spray water directly on the door. Doing so will result in water dripping to the floor.

6. Close the oven door. Turn the oven mode knob to select EasyClean ® . Press Start.

CAUTION

• Some surfaces may be hot after the EasyClean ® cycle. Wear rubber gloves while cleaning to prevent burns.

• During the EasyClean ® cycle, the oven may become hot enough to cause burns. Wait until the cycle is over before wiping the inside surface of the oven. Failure to do so may result in burns.

• Avoid leaning or resting on the oven door glass while cleaning the oven cavity.

7. A tone will sound at the end of the 10 minute cycle. Press Clear/Off to clear the display and end the tone.

8. After the cleaning cycle and during hand-cleaning, enough water should remain on the oven bottom to completely submerge all soils. Add water if necessary. Place a towel on the floor in front of the oven to capture any water that may spill out during hand-cleaning.

9. Clean the oven cavity immediately after the EasyClean ® cycle by scrubbing with a wet, non-scratch scouring sponge or pad. (The scouring side will not scratch the finish.) Some water may spill into the bottom vents while cleaning, but it will be captured in a pan under the oven cavity and will not hurt the burner.

NOTE Do not use any steel scouring pads, abrasive pads or cleaners as these materials can permanently damage the oven surface.

10. Once the oven cavity is cleaned, wipe any excess water with a clean dry towel. Replace racks and any other accessories.

11. If some light soils remain, repeat the above steps, making sure to thoroughly soak the soiled areas. If stubborn soils remain after multiple EasyClean ® cycles, run the Self Clean cycle. Be sure that the oven cavity is empty of oven racks and other accessories, and that the oven cavity surface is dry before running the Self Clean cycle. Consult the Self Clean section of your owner’s manual for further details.

NOTE

• If you forget to saturate the inside of the oven with water before starting EasyClean ® , press Clear/Off to end the cycle. Wait for the range to cool to room temperature and then spray or pour water into the oven and start another EasyClean ® cycle.

• The cavity gasket may be wet when the EasyClean ® cycle finishes. This is normal. Do not clean the gasket.

• If mineral deposits remain on the oven bottom after cleaning, use a cloth or sponge soaked in vinegar to remove them.

• It is normal for the fan to operate during the EasyClean ® cycle.

Self Clean

The Self Clean cycle uses extremely hot temperatures to clean the oven cavity. While running the Self Clean cycle, you may notice smoking or an odor. This is normal; especially if the oven is heavily soiled.

During Self Clean, the kitchen should be well ventilated to minimize the odors from cleaning.

Before Starting Self Clean

• Remove the oven racks, broiler pan, broiler grid, all cookware, aluminum foil or any other material from the oven.

• The kitchen should be well ventilated to minimize the odors from cleaning.

• Wipe any heavy spillovers on the bottom of the oven.

• Make sure that the oven light bulb cover is in place and the oven light is off.

• The oven light cannot be turned on during a Self Clean cycle. The oven light cannot be turned on until the oven temperature has cooled below 500 ˚F (260 ˚C) after a Self Clean cycle is complete.

CAUTION

• Do not leave small children unattended near the appliance. During the Self Clean cycle, the outside of the range can become very hot to the touch.

• If you have pet birds, move them to another well-ventilated room. The health of some birds is extremely sensitive to the fumes given off during the Self Clean cycle of any range.

• Do not line the oven walls, racks, bottom or any other part of the range with aluminum foil or any other material. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).

• Do not force the door open. This can damage the automatic door locking system. Use care when opening the oven door after the Self Clean cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.

NOTE

• Remove oven racks and accessories before starting the Self Clean cycle.

• If oven racks are left in the oven cavity during the Self Clean cycle, they will discolor and become difficult to slide in and out.

• Clean the frame of the oven and door with hot soapy water. Rinse well.

• Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.

• Wipe up any heavy spillovers on the oven bottom.

• Make sure that the oven light bulb cover is in place and the oven light is off.

• It is normal for the fan to operate during the Self Clean cycle.

Setting Self Clean

The Self Clean function has cycle times of 3, 4, or 5 hours.

Self Clean Soil Guide

1. Remove all racks and accessories from the oven.
2. Turn the oven mode knob to select Self Clean. The oven defaults to the recommended four-hour self clean for a moderately soiled oven. Press plus(+) or minus(-) repeatedly to cycle through self-clean times in the upper or lower oven. Both ovens cannot use the self-clean function at the same time.
3. Press Start.
4. Once the self-clean cycle is set, the oven door locks automatically and the lock icon displays. You will not be able to open the oven door until the oven has cooled. The lock releases automatically when the oven has cooled.

CAUTION

Do not force the oven door open when the lock icon is displayed. The oven door remains locked until the oven temperature has cooled. Forcing the door open will damage the door.

Setting Self Clean with a Delayed Start

1. Remove all racks and accessories from the oven.
2. Turn the oven mode knob to select Self Clean. The oven defaults to the recommended four-hour self clean for a moderately soiled oven. Press plus(+) or minus(-) repeatedly to cycle through self-clean times in the upper or lower oven. Both ovens cannot use the self-clean function at the same time.
3. Press Start Time.
4. Press plus(+) or minus(-) to enter the time of day you would like the Self Clean to start
5. Press Start.

NOTE It may become necessary to cancel or interrupt a Self Clean cycle due to excessive smoke or fire in the oven. To cancel the Self Clean function, press Clear/Off.

During Self Clean

• The Self Clean cycle uses extremely hot temperatures to clean the oven cavity. While running the Self Clean cycle, you may notice smoking or an odor. This is normal, especially if the oven is heavily soiled.

• As the oven heats, you may hear sounds of metal parts expanding and contracting. This is normal and will not damage the oven.

• Do not force the oven door open when the lock is displayed. The oven door remains locked until the oven temperature has cooled. Forcing the door open will damage the door.

After the Self Clean Cycle

• The oven door remains locked until the oven temperature has cooled.

• You may notice some white ash in the oven. Wipe it off with a damp cloth or a soap-filled steel wool pad after the oven cools. If the oven is not clean after one self-clean cycle, repeat the cycle.

• If oven racks were left in the oven and do not slide smoothly after a self-clean cycle, wipe racks and rack supports with a small amount of vegetable oil to make them glide more easily.

• Fine lines may appear in the porcelain because it went through heating and cooling. This is normal and will not affect performance.

NOTE

• The Self Clean cycle cannot be started if the Lockout feature is active.

• Once the Self Clean cycle is set, the oven door locks automatically. You will not be able to open the oven door until the oven has cooled. The lock releases automatically.

• Once the door has been locked, the lock indicator light stops flashing and remains on. Allow about 15 seconds for the oven door lock to activate.

• If the clock is set for a 12-hour display (default) the Delayed Self Clean can never be set to start more than 12 hours in advance.

• After the oven is turned off, the convection fan keeps operating until the oven has cooled down.

Changing the Oven Light

The oven light is a standard 40-watt appliance bulb. It turns on when the oven door is open. When the oven door is closed, touch Start to turn it on or off.

1. Unplug the range or disconnect power and make sure that the oven and bulb are cool first.
2. Turn the glass bulb cover in the back of the oven counterclockwise to remove.
3. Turn the bulb counterclockwise to remove it from the socket.
4. Insert the new bulb and turn it clockwise.
5. Insert the glass bulb cover and turn it clockwise.
6. Plug in the range or reconnect the power.

WARNING

• Make sure that the oven and bulb are cool.

• Disconnect the electrical power to the range at the main fuse or circuit breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.

Cleaning the Exterior

Painted and Decorative Trim

For general cleaning, use a cloth with hot soapy water. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave it on for 30 to 60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners.

Stainless Steel Surfaces

To avoid scratches, do not use steel wool pads.

1. Place a small amount of stainless steel appliance cleaner or polish on a damp cloth or paper towel.
2. Clean a small area, rubbing with the grain of the stainless steel if applicable.
3. Dry and buff with a clean, dry paper towel or soft cloth.
4. Repeat as necessary.

NOTE

• Do not use a steel wool pad. it will scratch the surface.

• To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish.

• Always wipe in the direction of the metal surface finish.

• To purchase stainless steel appliance cleaner or polish, or to locate a dealer near you, call our toll-free customer service number: 1-800-243-0000 (USA), 1-888-542-2623 (CANADA) or visit our website at: LG

Front Manifold Panel and Knobs

It is best to clean the manifold panel after each use of the range. For cleaning, use a damp cloth and mild soapy water or a 50/50 solution of vinegar and water. For rinsing, use clean water and polish dry with a soft cloth.

CAUTION

• Do not use abrasive cleansers, strong liquid cleaners, plastic scouring pads or oven cleaners on the manifold panel. Doing so will damage the finish.

• Do not try to bend the knobs by pulling them up or down, and do not hang a towel or other objects on them. This can damage the gas valve shaft.

• The control knobs may be removed for easy cleaning.

• To clean the knobs, make sure that they are in the Off position and pull them straight off the stems.

• To replace the knobs, make sure the knob has the Off position centered at the top, and slide the knob directly onto the stem.

NOTE

To prevent scratching, do not use abrasive cleaners on any of these materials.

Oven Door

• Use soapy water to thoroughly clean the oven door. Rinse well. Do not immerse the door in water.

• You may use a glass cleaner on the outside glass of the oven door. Do not spray water or glass cleaner on the door vents.

• Do not use oven cleaners, cleaning powders, or harsh abrasive cleaning materials on the outside of the oven door.

• Do not clean the oven door gasket. The oven door gasket is made of a woven material that is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.

CAUTION

Do not use harsh cleaners or harsh abrasive cleaning materials on the outside of the oven door. Doing so can cause damage.

Broiler Pan and Grid

• Do not store a soiled broiler pan or grid anywhere in the range.

• Do not clean the broiler pan or grid in a self-cleaning mode.

• Remove the grid from the pan. Carefully pour out the grease from the pan into a proper container.

• Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.

• If food has burned on, sprinkle the grid with cleaner while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.

• Both the broiler pan and grid may be cleaned with a commercial oven cleaner or in the dishwasher.

Oven Racks

Remove the oven racks before operating the self clean cycle.

1. Food spilled into the tracks could cause the racks to become stuck. Clean racks with a mild, abrasive cleaner.
2. Rinse with clean water and dry.

NOTE

If the racks are cleaned using the self clean cycle (not recommended), the color will turn slightly blue and the finish will become dull. After the self clean cycle is complete, and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of vegetable oil. This will make the racks glide more easily into the rack tracks.

Removing and Replacing the Lift-Off Oven Doors

CAUTION

• Be careful when removing and lifting the door.

• Do not lift the door by the handle. The door is very heavy.

Upper Oven

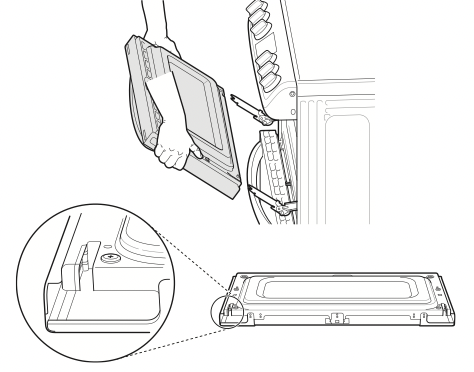

Removing the Door

1. Fully open the door.

2. Lift up and rotate the hinge locks hinge until they stop.

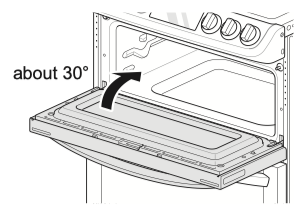

3. Close the door to 30 degrees (you will feel the door stop). The hinge locks will contact the oven frame.

4. Press the hinge release buttons on either the door.

5. Lift the door up until it is clear of the hinges.

Replacing the Door

1. Be sure both hinges are in a 30 degree position.

2. Slide the door back onto the hinges until you hear a solid click and the release buttons have engaged.

3. Fully open the door.

4. Push the hinge locks down onto the door frame.

5. Close the oven door.

Lower Oven

Removing the Door

1. Fully open the door.

2. Unlock the hinge locks, rotating them as far toward the open door frame as they will go.

3. Firmly grasp both sides of the door at the top.

4. Close the door to the removal position (approximately five degrees) which is halfway between the broil stop position and fully closed. If the position is correct, the hinge arms will move freely.

5. Lift door up and out until the hinge arms are clear of the slots.

Replacing the Door

1. Firmly grasp both sides of the door at the top.

2. With the door at the same angle as the removal position, seat the indentation of the hinge arms into the bottom edge of the hinge slots. The notch in the hinge arms must be fully seated into the bottom edge of the slots.

3. Open the door fully. If the door will not open fully, the indentation is not seated correctly in the bottom edge of the slots.

4. Lock the hinge locks, rotating them back toward the slots in the oven frame until they lock.

5. Close the oven door.

Door Care Instructions

Most oven doors contain glass that can break.

CAUTION

• Do not close the oven door until all the oven racks are fully in place.

• Do not hit the glass with pots, pans, or any other object.

• Scratching, hitting, jarring, or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

TROUBLESHOOTING

FAQs

What types of cookware are recommended for use with the cooktop?

• The pans must have a flat bottom and straight sides.

• Only use heavy-gauge pans.

• The pan size must match the amount of food to be prepared and the size of the surface element.

• Use tight fitting lids.

• Only use flat-bottom woks or 12" to 14" roundbottom woks when using an LG supplied wok grate

Why do the heating elements appear to be turning ON and OFF during use of the cooktop or oven?

Depending on your cooktop element setting or the temperature selected in your oven, it is NORMAL for the cooking elements to cycle on and off.

My new oven doesn’t cook like my old one. Is there something wrong with the temperature settings?

No, your oven has been factory tested and calibrated. For the first few uses, follow your recipe times and temperatures carefully. If you still think your new oven is too hot or too cold, you can adjust the oven temperature yourself to meet your specific cooking needs. Refer to the Oven Temperature Adjustment section in this manual for easy instructions on how to adjust your thermostat.

Is it normal to hear a clicking noise coming from the back of my oven when I am using it?

Your new range is designed to maintain a tighter control over your oven’s temperature. You may hear your oven’s heating elements click on and off more frequently on your new oven. This is NORMAL.

Why is the time flashing?

This means that the product has just been plugged in, or that it has experienced a power interruption. To clear the flashing time, press any button and reset the clock if needed.

During convection cooking the fan stops when I open the door. Is that normal?

Yes, this is normal. When the door is opened, the convection fan will stop until the door is closed.

Can I use aluminum foil to catch drippings in my oven cavity?

Never use aluminum foil to line the bottom or sides of the oven. The foil will melt and stick to the bottom surface of the oven and will not be removable. Use a sheet pan lined with parchment paper and placed on a lower oven rack to catch drippings instead. (If foil has already melted onto the bottom of the oven, it will not interfere with the oven's performance.)

Can I use aluminum foil on the racks?

Do not cover racks with aluminum foil. Covering entire racks with foil restricts air flow, leading to poor cooking results. Use a sheet pan lined with parchment paper under fruit pies or other acidic or sugary foods to prevent spillovers from damaging the oven finish.

CAUTION

Foil may be used to wrap food in the oven, but do not allow the foil to come into contact with the exposed heating/broiling elements in the oven. The foil could melt or ignite, causing smoke, fire, or injury.

Can I leave my racks in the oven when running a Self Clean cycle?

No. Although it will not damage the racks, it will discolor them and may make them hard to slide in and out during use. Remove all items from the oven before starting a Self Clean cycle.

What should I do if my racks are sticky and have become hard to slide in and out?

Over time, the racks may become hard to slide in and out. Apply a small amount of olive oil to the ends of the racks. This will work as a lubricant for easier gliding.

What should I do for hard to remove stains on my cooktop?

The cooktop should be cleaned after every use to prevent permanent staining. When cooking foods with high sugar content, such as tomato sauce, clean the stain off with a scraper while the cooktop is still warm. Use an oven mitt when scraping to prevent burns. Refer to the MAINTENANCE section of this owner's manual for further instruction.

Why aren't the function buttons working?

Make sure that the range is not in Lock Out mode. The lock will show in the display if Lock Out is activated. To deactivate Lock Out, press and hold Lower CLEAR/OFF for three seconds. The unlock melody sounds and Loc appears in the display until the controls are unlocked.

My range is still dirty after running the EasyClean ® cycle. What else should I do?

The EasyClean ® cycle only helps to loosen light soils in your oven range to assist in hand-cleaning of your oven. It does not automatically remove all soils after the cycle. Some scrubbing of your oven range is required after running the EasyClean ® cycle.

I tried scrubbing my oven after running EasyClean ® , but some soils still remain. What can I do?

The EasyClean ® feature works best when the soils are fully soaked and submerged in water before running the cycle and during hand-cleaning. If soils are not sufficiently soaked in water, it can negatively affect the cleaning performance. Repeat the EasyClean ® process using sufficient water.

Sugar-based and certain greasy soils are especially hard to clean. If some stubborn soils remain, use the Self Clean feature to thoroughly clean your oven.

Soils on my oven walls are not coming off. How can I get my walls clean?

Soils on the side and rear walls of your oven range may be more difficult to fully soak with water. Try repeating the EasyClean ® process with more than the ¼ cup (2 oz or 60 ml) spray recommended.

Will EasyClean completely?

It depends on the soil type. Sugar-based and certain grease stains are especially hard to clean. Also, if stains are not sufficiently soaked in water, this can negatively affect cleaning performance.

If stubborn or built-up stains remain, use the Self Clean feature. Refer to the Self Clean section of your owner's manual.

Are there any tricks to getting some of the stubborn soils out?

Scraping the soils with a plastic scraper before and during hand-cleaning is recommended. Fully saturating soils with water is also recommended.

However, certain types of soils are harder to clean than others. For these stubborn soils, the Self Clean cycle is recommended. Consult the Self Clean section of your owner's manual for details.

Is it safe for my convection fan, broil burner or heater element to get wet during EasyClean ® ?

Yes. The convection fan, broiler burner or heater element may get a little wet during cleaning. However, direct spray onto the broil burner and heater elements is not necessary because these are self-cleaning during regular use.

Do I need to use all 1¼ cups (10 oz or 300 ml) of water for EasyClean ® ?

Yes. It is highly recommended that 1 cup (8 oz or 240 ml) of water be sprayed or poured on the bottom and an additional ¼ cup (2 oz or 60 ml) of water be sprayed on walls and other soiled areas to fully saturate the soils for better cleaning performance.

I see smoke coming out of my oven range’s cooktop vents during EasyClean ® . Is this normal?

This is normal. This is not smoke. It is actually water vapor (steam) from the water in the oven cavity. As the oven heats briefly during EasyClean ® , the water in the cavity evaporates and escapes through the oven vents.

How often should I use EasyClean?

EasyClean ® can be performed as often as you wish. EasyClean ® works best when your oven is LIGHTLY soiled from such things as LIGHT grease splatter and small drops of cheese. Please refer to the EasyClean ® section in your owner's manual for more information.

What is required for EasyClean® ?

A spray bottle filled with 1¼ cups (10 oz or 300 ml) of water, a plastic scraper, a non-scratch scrubbing pad and a towel. You should not use abrasive scrubbers such as heavy-duty scouring pads or steel wool. Except for a towel, all of the materials you need are included in a special cleaning kit with your new range.

How can I help keep children safe around the range?

Children should be supervised around the range whenever it is in use, and after use until surfaces have cooled. You can also use the Lockout feature to help prevent children from accidentally turning on the cooktop or oven. The Lockout feature disables most control panel buttons and the cooktop control knobs. On some models, it also locks the oven door. Consult the Lockout section of your owner’s manual for details.

(In models without a self-clean option, the Lockout feature locks the controls but does not lock the oven door.)

Before Calling for Service

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

See other models: LFCS22520D LFX21976ST LFXS28596S LMQ850EM WM9500HKA
