Sharp CD-BA120 Audio User Manual

CD-BA120

SHARP CORPORATION

No. XXXXXXXXXXXXX

CONTENTS

Page

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

OPERATION MANUAL ...................................................................................................................................................... 5

QUICK GUIDE ................................................................................................................................................................... 6

DISASSEMBLY .................................................................................................................................................................. 7

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 10

ADJUSTMENT ................................................................................................................................................................. 11

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 13

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 14

BLOCK DIAGRAM ........................................................................................................................................................... 15

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 18

VOLTAGE ........................................................................................................................................................................ 34

TROUBLESHOOTING (CD SECTION) ........................................................................................................................... 35

FUNCTION TABLE OF IC................................................................................................................................................ 39

FL DISPLAY ...................................................................................................................................................................... 45

REPLACEMENT PARTS LIST/EXPLODED VIEW

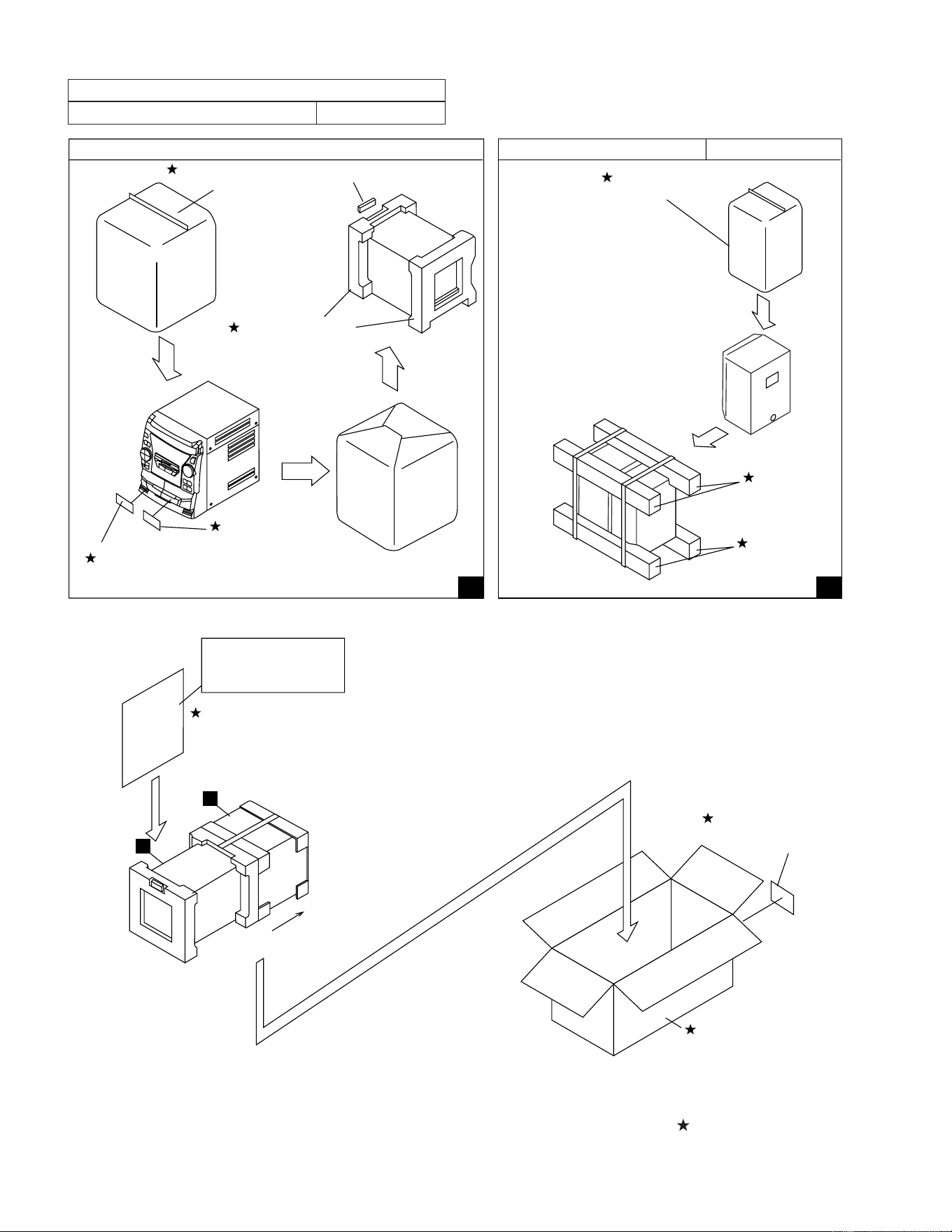

PACKING OF THE SET (FOR U.S.A. ONLY)

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

SERVICE MANUAL

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

CD-BA120 Mini Component System consisting of CD-BA120

(main unit) and CP-BA120 (speaker system).

CD-BA125

CD-BA125 Mini Component System consisting of

CD-BA125 (main unit), CP-BA125 (Front speaker) and

GBOXS0042AWM1 (rear spaeker).

Illustration: CD-BA120

Illustration: CD-BA125

CD-BA120/125

– 2 –

● General

Power source: AC 120 V, 60 Hz

Power consumption: 35 W

Dimensions: Width; 10-5/8" (270 mm)

Height; 11-13/16" (300 mm)

Depth; 14-11/16" (373 mm)

Weight: 10.6 lbs. (4.8 kg)

● Amplifier section

Output power:

(Except for Canada)

(For Canada)

(CD-BA120)

(CD-BA125)

10 watts minimum RMS per

channel into 8 ohms from

100 Hz to 20 kHz, 10 %

total harmonic distortion

Output terminals: Speakers; 8 ohms

Headphones; 16-50 ohms

(recommended; 32 ohms)

● Compact disc player section

Type: 3-disc multi-play compact

disc player

Signal readout: Non-contact, 3-beam semi-

conductor laser pickup

D/A converter: 1-bit D/A converter

Frequency

response: 20 - 20,000 Hz

Dynamic range: 90 dB (1 kHz)

● Tuner section

Frequency range: FM; 87.5-108 MHz

AM; 530-1,720 kHz

● Cassette deck section

Frequency response: 50-14,000 Hz (Normal tape)

Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter: 0.3 % (WRMS)

● Speaker section

Type: 4" (10 cm) full-range speaker

Maximum input power: 20 W

Rated input power: 10 W

Impedance: 8 ohms

Dimensions: Width; 8-11/16" (220 mm)

Height; 11-13/16" (300 mm)

Depth; 7-1/16" (180 mm)

Weight: 4.4 lbs. (2.0 kg)/each

Output power: RMS; 20 W (10 W + 10 W)

(10 % T.H.D.)

Output terminals: Front speakers; 8 ohms

Rear speakers; 16 ohms

Headphones; 16-50 ohms

(recommended; 32 ohms)

● Rear speaker section (CD-BA125 Only)

Type: 3-3/32"(8 cm) full-range speaker

Maximum input power: 5 W

Rated input power: 10 W

Impedance: 16 ohms

Dimensions: Width; 6" (150 mm)

Height; 6" (150 mm)

Depth; 3" (78 mm)

Weight: 0.9 lbs. (0.4 kg)/each

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not

pinched or that hardware is not lodged between the chassis

and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,

cabinet, terminal board, adjustment and compartment covers

or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage

current in the following manner.

* Plug the AC line cord directly into a 120 volt AC outlet.

* Using two clip leads, connect a 1.5k ohm, 10 watt resistor

paralleled by a 0.15µF capacitor in series with all exposed

metal cabinet parts and a known earth ground, such as

conduit or electrical ground connected to earth ground.

* Use a VTVM or VOM with 1000 ohm per volt, or higher,

sensitivity to measure the AC voltage drop across the

resistor (See diagram).

* Connect the resistor connection to all exposed metal parts

having a return path to the chassis (antenna, metal cabinet,

screw heads, knobs and control shafts, escutcheon, etc.)

and measure the AC voltage drop across the resistor.

All check must be repeated with the AC line cord plug connection

reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.

AC.) or more is excessive and indicates a potential shock

hazard which must be corrected before returning the audio

product to the owner.

Specifications for this model are subject to change without

prior notice.

SPECIFICATIONS

CD-BA120/125

CP-BA120/125

TO EXPOSED

METAL PARTS

CONNECT TO

KNOWN EARTH

GROUND

TEST PROBE

0.15 µ F

1.5k ohms

10W

VTVM

AC SCALE

GBOXS0042AWM1

– 3 –

CD-BA120/125

NAMES OF PARTS

CD-BA120/125

1211

24 25 26 27 28 29

30 31

■ Front panel

11.

(CD) Disc Tray

12.

(CD) Disc Number Indicators

13.

Timer Indicator

14.

Record Indicator

15.

Sleep Indicator

16.

Extra Bass Indicator

17.

(CD/TUNER) Memory Indicator

18.

FM Stereo Mode Indicator

19.

FM Stereo Indicator

10.

(CD) Repeat Indicator

11.

(CD/TAPE) Play Indicator

12.

(CD) Pause Indicator

13.

(CD) Disc Skip Button

14.

(CD) Track Down/Review Button

(TUNER) Preset Down Button

(TAPE 2) Rewind Button

15.

(CD) Track Up/Cue Button

(TUNER) Preset Up Button

(TAPE 2) Fast Forward Button

16.

(CD) Open/Close Button

17.

Timer Set Indicator

18.

On/Stand-by Button

19.

Timer/Sleep Button

20.

Clock Button

21.

Function Selector Buttons

22.

Equalizer Mode Selector/Extra Bass/Demo Mode

Button

23.

Volume Up/Down Buttons

24.

Headphone Socket

25.

Memory/Set Button

26.

(CD/TAPE) Stop Button

27.

(CD) Play/Repeat Button

(TAPE) Play Button

28.

(TAPE 2) Record Pause Button

29.

Tuning/Time Up/Down Buttons

30.

(TAPE 1) Cassette Compartment

31.

(TAPE 2) Cassette Compartment

CD-BA120/125

– 4 –

■ Rear panel

11. AC Power Input Socket

12. Rear Speaker Terminals (CD-BA125 Only)

13. Front Speaker Terminals

14. FM/AM Loop Aerial Socket

■ Front speaker

11. Woofer

12. Bass Reflex Duct

13. Speaker Wire

181716

■ Rear speaker (CD-BA125 Only)

11. Full-Range Speaker

12. Speaker Wire

■ Remote control

11. Remote Control Transmitter LED

● CD control section

12. Disc Number Select Buttons

13. Memory Button

14. Pause Button

15. Clear Button

16. Track Down/Review Button

17. Track Up/Cue Button

18. Disc Skip Button

19. Play/Repeat Button

10. Stop Button

11. Random Button

● Tuner control section

12. Preset Up/Down Buttons

● Tape control section

13. (TAPE 1) Play Button

14. (TAPE 2) Record Pause Button

15. (TAPE 1/2) Stop Button

16. (TAPE 2) Play Button

17. (TAPE 2) Rewind Button

18. (TAPE 2) Fast Forward Button

● Common section

19. Equalizer Mode Selector Button

20. Function Selector Buttons

21. On/Stand-by Button

22. Extra Bass Button

23. Volume Up/Down Buttons

CP-BA120/125

GBOXS0042AWM1

CD-BA120/125

– 5 –

CD-BA120/125

OPERATION MANUAL

SETTING THE CLOCK

POWER

ON/

STAND-BY

CLOCK

MEMORY/SET

TUNING/

TIME

( )

In this example, the clock is set for the 12-hour (AM 12:00) sys-

tem.

Press the ON/STAND-BY button to enter the stand-by mode.

Press the CLOCK button.

Within 5 seconds, press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to select the time

display mode.

"AM 12:00" → The 12-hour display will appear.

(AM 12:00 - PM 11:59)

"AM 0:00" → The 12-hour display will appear.

(AM 0:00 - PM 11:59)

"0:00" → The 24-hour display will appear.

(0:00 - 23:59)

●Note that this can only be set when the unit is first installed

or it has been reset (see page 15).

Press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the hour.

● Press the TUNING/TIME ( or ) button once to advance

the time by 1 hour. Hold it down to advance continuously.

● When the 12-hour display is selected, "AM" will change auto-

matically to "PM".

Press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the

minutes.

● Press the TUNING/TIME ( or ) button once to advance

the time by 1 minute. Hold it down to change the time in 5

minute intervals.

● The hour setting will not advance even if minutes advance from

"59" to "00".

Press the MEMORY/SET button.

● The clock starts operating from "0" second.

(Seconds are not displayed.)

And then the clock display will disappear after a few seconds.

To see the time display:

Press the CLOCK button.

● The time display will appear for about 5 seconds.

Note:

● The clock display will flash on and off at the push of the CLOCK

button when the AC power supply is restored after a power

failure occurs or after the AC power cord is disconnected.

If this happens, follow the procedure below to change the clock

time.

To change the clock time:

①

Press the CLOCK button.

②

Within 5 seconds, press the MEMORY/SET button.

③

Perform steps 6 - 9 above.

To change the time display mode:

①

Perform steps 1 - 2 in the section "RESETTING THE

MICROCOMPUTER", on page 15.

②

Perform steps 1 - 9 above.

(Main unit operation)

AM 0:00AM 12:00 0:00

RESETTING THE MICROCOMPUTER

Reset the microcomputer under the following conditions:

● To erase all of the stored memory contents (clock and timer

settings, and tuner and CD presets).

● If the display is not correct.

● If the operation is not correct.

Press the ON/STAND-BY button to enter the stand-by mode.

While pressing down the button and the EQUALIZER/X-

BASS/DEMO button, hold down the ON/STAND-BY button for

at least 1 second.

● "CLEAR AL" will appear.

Caution:

● The operation explained above will erase all data stored in

memory including clock and timer settings, and tuner and CD

presets.

EQUALIZER

X-BASS/

DEMO

POWER

ON/

STAND-BY

CD-BA120/125

– 6 –

MINI COMPONENT SYSTEM

Quick Guide/Guía rápida

CD-BA120

● Remote control x 1

●

Controlador remoto x 1

● 2 “AA” batteries

●

Dos pilas “AA”

Remote Sensor

Sensor remoto

Preparation for use /

Preparación para su uso

Check the supplied accessories /

Compruebe los accesorios suministrados

● FM/AM loop antenna x 1

●

Antena de cuadro de

FM/AM x 1

● Batteries are not included.

●

Las pilas no están incluidas.

8” - 20’ (0.2m - 6m)

0,2m - 6m

■ Speaker connection

■

Conexión de los altavoces

■ Antenna connection

■

Conexión de las antenas

Front speaker

(Right)

Altavoz delantero

(Derecho)

Front speaker

(Left)

Altavoz delantero

(Izquierdo)

● AM Loop Antenna

●

Antena de cuadro

de AM

● FM Antenna

●

Antena de FM

● AC 120 V, 60 Hz

●

120 V de CA, 60 Hz

Red

Rojo

■ Switching between power-on and stand-by mode

■

Cambio entre la conexión de la alimentación y el

modo de reserva

■ Remote control

■

Controlador remoto

Black

Negro

● AC power cord x 1

●

Cable de alimentación de

CA x 1

Listening to a CD /

Audición de discos CD

Listening to a tape /

Audición de una cinta

Listening to the radio /

Audición de la radio

Recording from CDs /

Grabaciones de discos CD

Sound control /

Control del sonido

● Label facing up

●

Etiqueta hacia arriba

■ To stop the playback

■

Para detener la reproducción

■ To stop the recording

■

Para detener la grabación

● Load the disc to be

recorded.

●

Introduzca el disco

que va a grabar.

● CD recording

starts.

●

La grabación de

CD empieza.

■ Volume

■

Volumen

<Pre-programmed equalizer>

Printed in Malaysia

Impreso en Malaysia

TINSZ0533AWZZ A9911.HK

FLAT

ROCK

POPS

JAZZ

CLASSIC

VOCAL

■ To stop the playback

■

Para detener la reproducción

TAPE 1 TAPE 2

TAPE 2

FLAT (X-BASS on)

ROCK (X-BASS on)

POPS (X-BASS on)

JAZZ (X-BASS on)

CLASSIC (X-BASS on)

VOCAL (X-BASS on)

VOCAL (X-BASS off)

CLASSIC (X-BASS off)

JAZZ (X-BASS off)

POPS (X-BASS off)

ROCK (X-BASS off)

FLAT (X-BASS off)

■ Extra bass (X-BASS) / Pre-programmed equalizer

■

Graves extra (X-BASS) / ecualizador preprogramado

– 7 –

CD-BA120/125

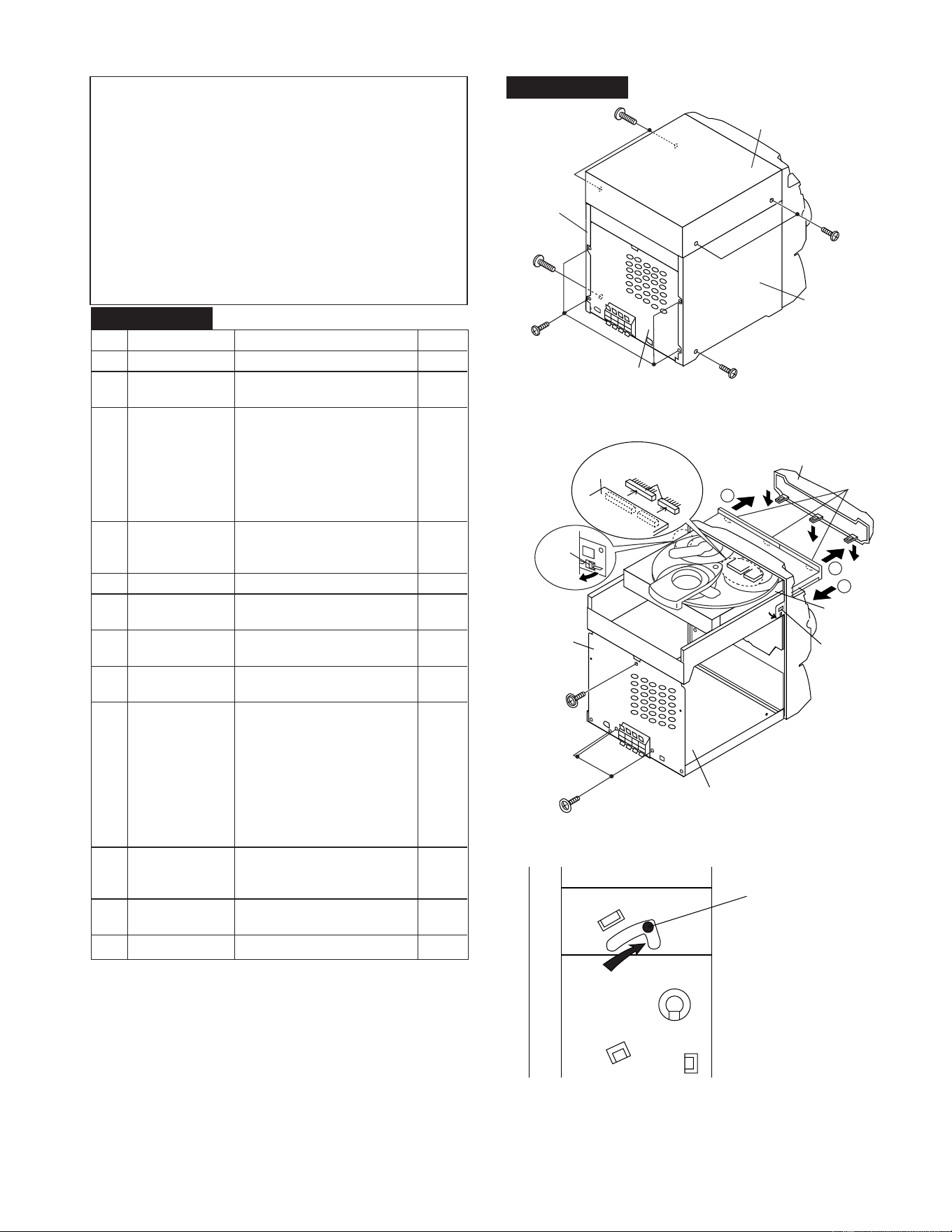

1 Top Cabinet 1. Screw ..................... (A1) x4 7-1

2 Side Panel 1. Screw ..................... (B1) x6 7-1

(Left/right)

3 CD Player Unit/ 1. Turn on the power supply, 7-2

CD Tray Cover

open the disc tray, take out the

CD cover, and close.

(Note 1)

2. Screw ..................... (C1) x1

3. Hook ....................... (C2) x3

4. Hook ....................... (C3) x2

5. Socket .................... (C4) x2

4 Main/Headphones 1. Screw ..................... (D1) x11 7-2,8-2

PWB/Rear Panel 2. Socket .................... (D2) x4 8-2

3. Flat Cable............... (D3) x1

5 Front Panel 1. Screw ..................... (E1) x3 8-2

6 Display PWB 1. Screw .....................

(F1) x9

8-3

2. Flat Cable............... (F2) x1

7 Tape Mechanism 1. Open the cassette holder. 8-3

2. Screw...................... (G1) x6

9 Turntable 1. Hook ....................... (H1) x2 8-4

2. Cover ..................... (H2) x1

10 Disc Tray 1.

Turn fully the lock lever in the

7-3

arrow direction.

While holding the lock lever,rotate

8-1

the cam gear until the cam gear

rib engages with the clamp lever.

Push the slide holder backward to

8-5

engage the claw with the groove

and remove it in the direction

of the arrow. ..............

(J1) x6

11 CD Servo PWB 1. Screw ..................... (K1) x1 8-6

(Note 2) 2. Hook ....................... (K2) x2

3. Socket .................... (K3) x4

12 CD Mechanism 1. Hook ....................... (L1) x2 9-1

2. Hook ....................... (L2) x3

Loading Motor PWB

1. Hook ....................... (M1) x5 9-1

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need be

removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take suffcient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 7-2

Figure 7-3

CD-BA120/125

STEP REMOVAL

PROCEDURE

FIGURE

Note 1:

How to open the changer manually. (Fig. 7-3)

1. In this state, turn fully the lock lever in the arrow direction

through the hole on the loading chassis bottom.

While holding the lock lever, rotate the cam gear anticlockwise

until the cam gear rib engages with the clamp lever.

(Fig. 8-1)

3. After that, push forward the CD slide holder.

Note 2:

1. After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the

front end of the connector so as to protect the optical pickup

from electrostatic damage.

Figure 7-1

CD-BA120/125

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front

movement.

(B1)x4

ø3x12mm

(B1)x1

ø3x10mm

Rear

Panel

(B1)x1

ø3x10mm

Side Panel

(Right)

Side Panel

(Left)

(A1)x2

ø3x12mm

(A1)x2

ø3x12mm

Top Cabinet

(C3)x1

(C1)x1

ø3x12mm

(D1)x3

ø3x12mm

CD Player

Unit

CD Tray Cover

Rear

Panel

Pull

(C3) x1

(C4)x2

(C2) x3

Main PWB

CD Servo

PWB

LOCK LEVER

CD-BA120/125

– 8 –

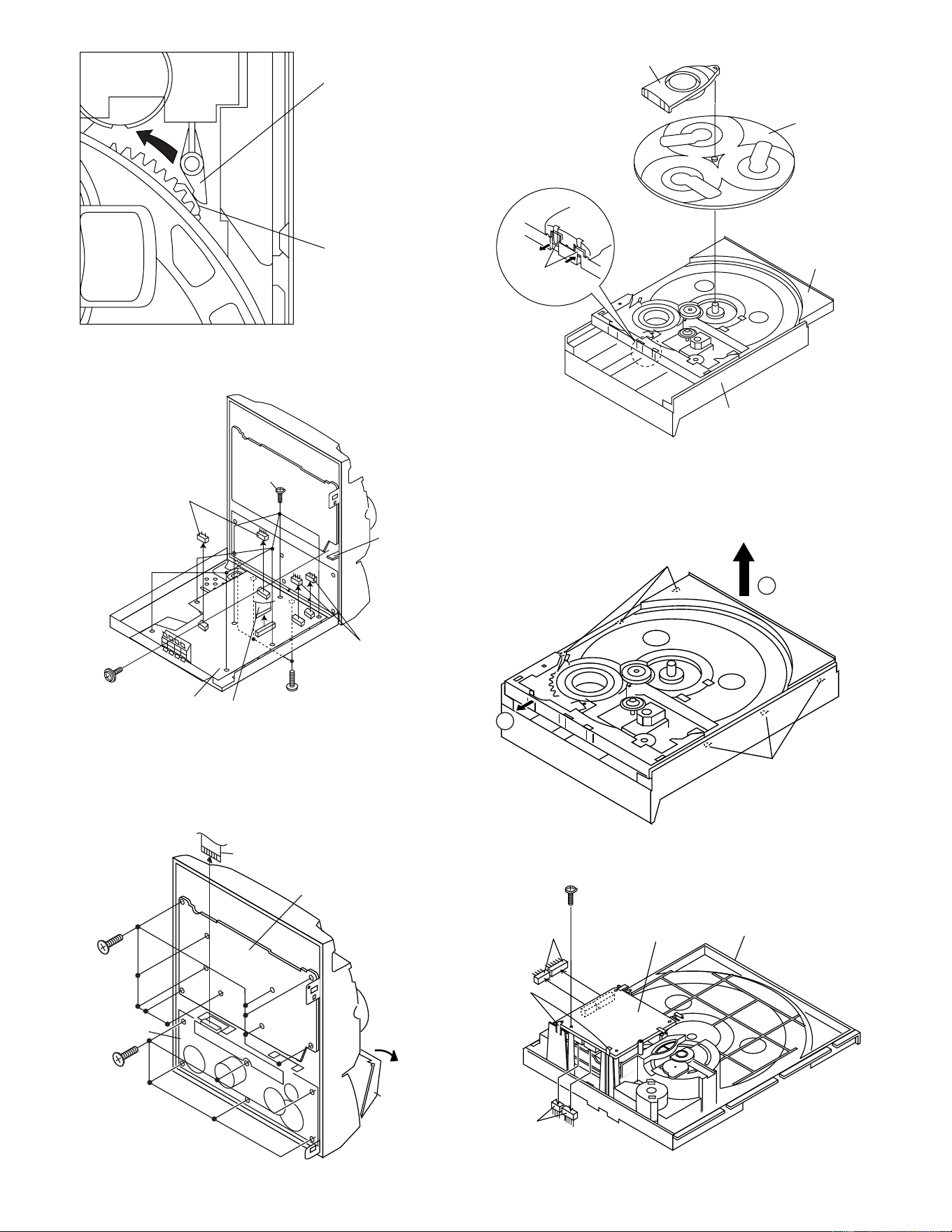

Figure 8-2

Figure 8-3

Figure 8-4

Figure 8-5

Figure 8-6

Turntable

Disc Tray

(H2) x1

CD Player Unit

(H) x2

(J1) x3

(K3) x2

(K2) x2

(K3) x2

CD Servo

PWB

CD Player

Base

(K1)x1

ø3x8mm

(E1)x3

ø3x8mm

(D2)x2

(D3)x1

Main PWB

Headphones

PWB

(D1)x7

ø3x10mm

(D1)x1

ø3x10mm

(F1)x9

ø3x10mm

(F2)x1

(G1)x6

ø3x10mm

Display PWB

Open

Cassette

Holder

Tape

Mechanism

CLAMP LEVER

CAM GEAR RIB

Figure 8-1

– 9 –

CD-BA120/125

CP-BA120/125

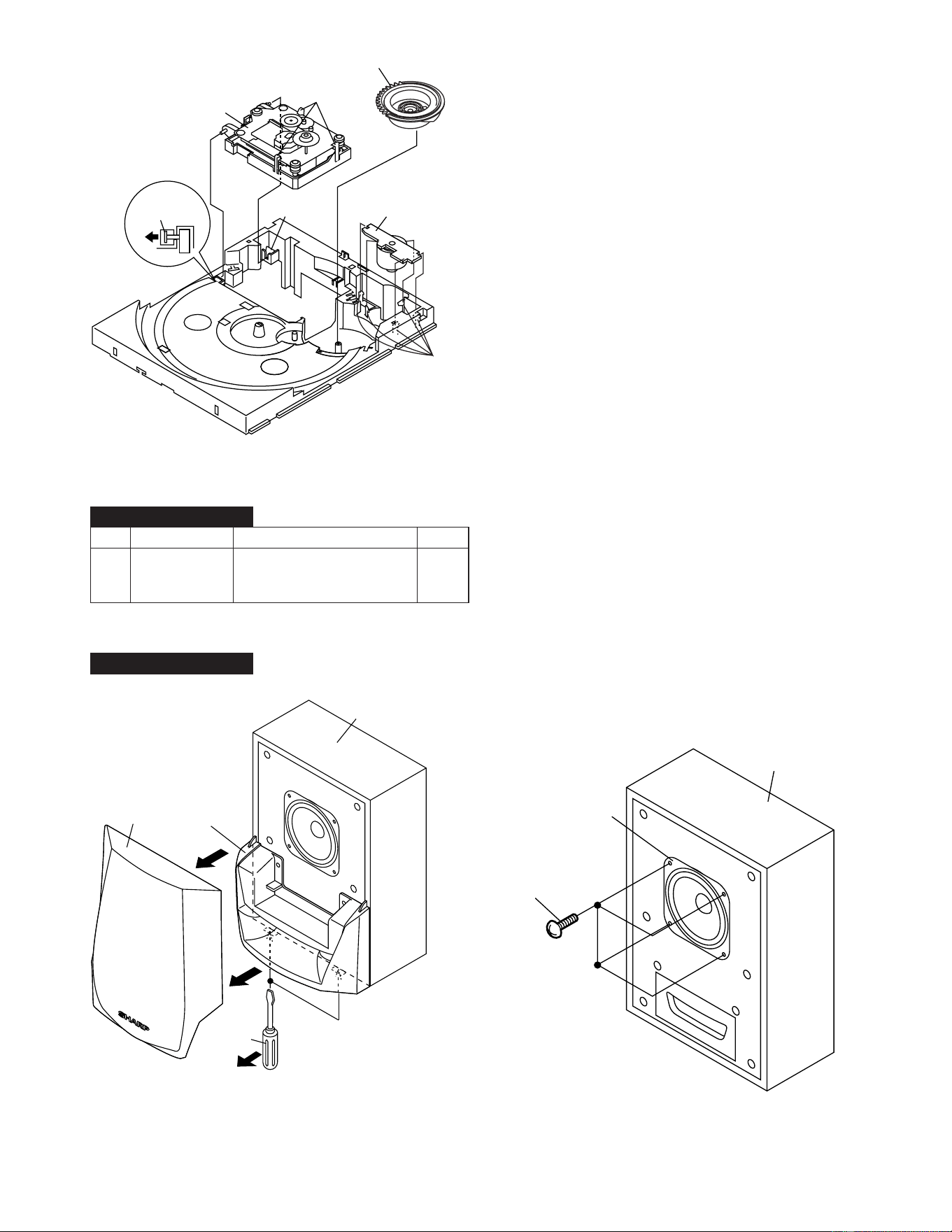

Figure 9-2

Figure 9-1

Figure 9-3

(L2) x3

(L1) x1

(M1) x5

(L1) x1

Motor

PWB

Mechanism

Cam Gear

Driver

Driver should be

pried away from

Speaker Box.

Direction of handle

Speaker Box

(A2)x1

(A1)x1

Speaker Box

Speaker

(A3)x4

ø3.5x13mm

STEP REMOVAL

PROCEDURE

FIGURE

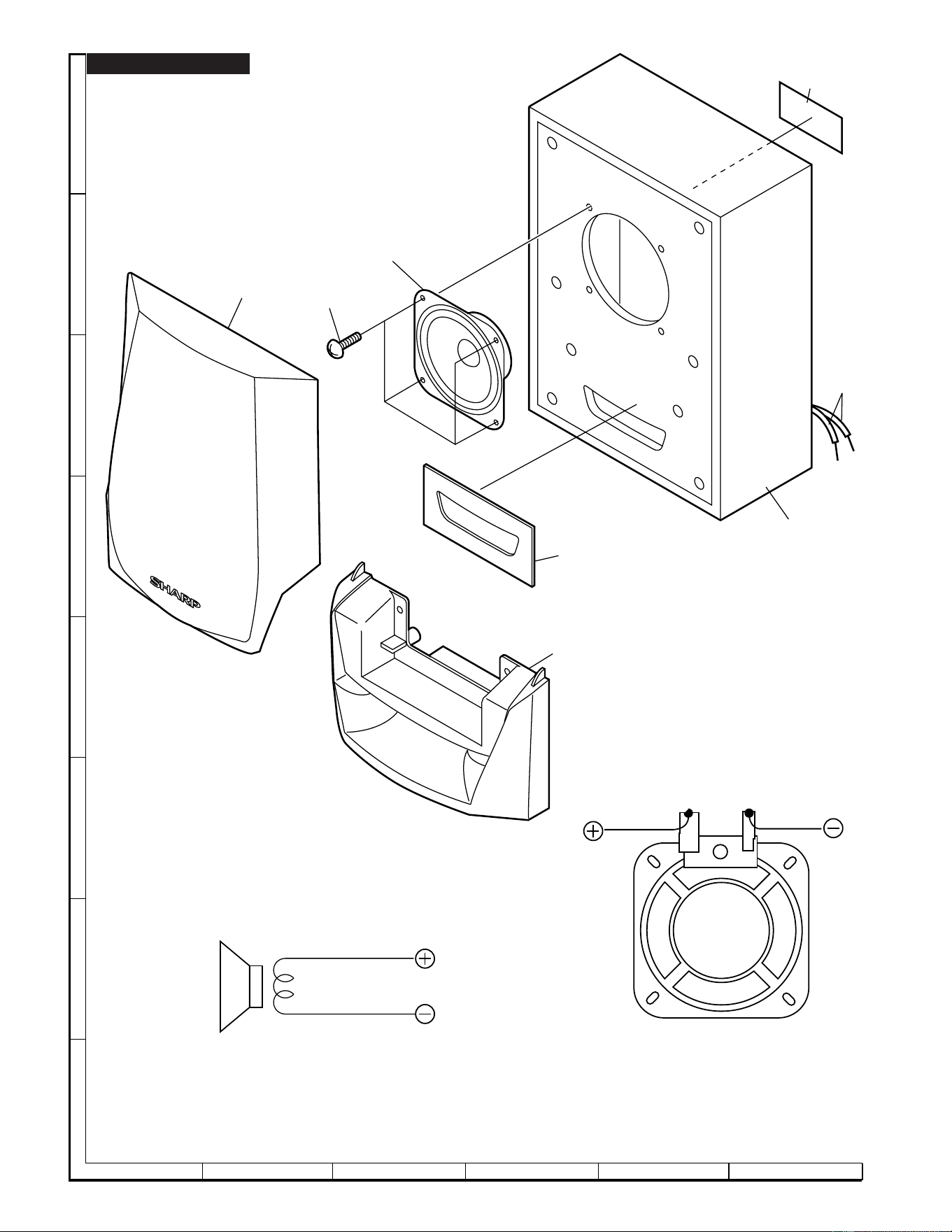

1 Speaker 1. Net .......................... (A1) x1 9-1

2. Duct Panel .............. (A2) x1

3. Screw ...................... (A3) x4 9-2

CD-BA120/125

– 10 –

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 5 and 7 of the disassembly method to

remove the tape mechanism.

How to remove the record/playback and erase

heads (TAPE 2) (See Fig. 10-1)

1. Carefully remove the record/playback head and erase head

screw (A1) x 2 pcs.

How to remove the playback head (TAPE 1)

(See Fig. 10-2)

1. Carefully remove the playback head screw (B1) x 2 pcs.

How to remove the pinch roller (TAPE 1/2)

(See Fig. 10-3)

1. Carefully bend the pinch roller pawl in the direction of the

arrow <A>, and remove the pinch roller (C1) upwards.

Note:

When installing the pinch roller, pay attention to the spring

mounting position.

How to remove the belt (TAPE 1) (See Fig. 10-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 2) (See Fig. 10-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 10-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

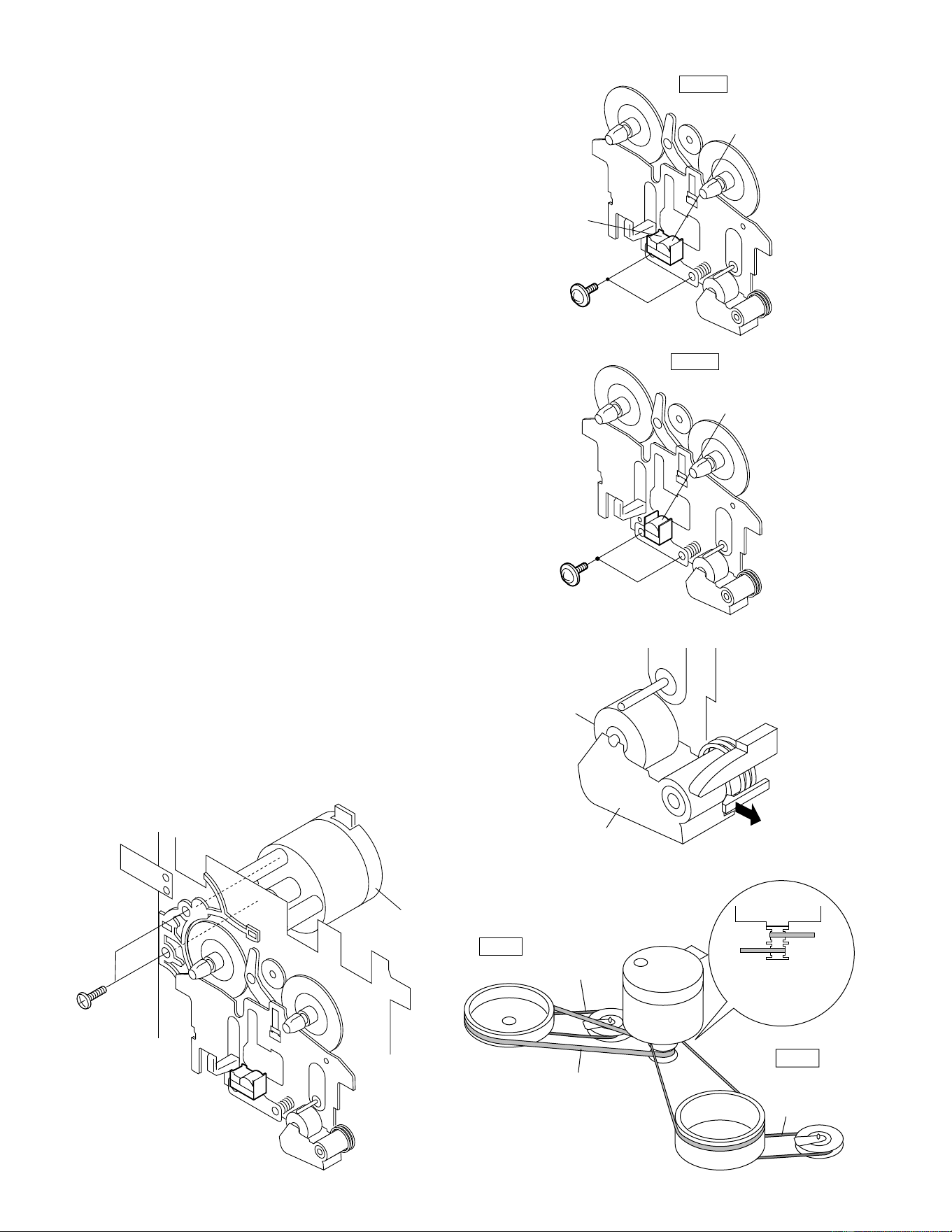

Figure 10-1

Figure 10-2

Figure 10-3

Figure 10-4Figure 10-5

TAPE2

TAPE1

Main Belt

(D1)x1

TAPE2

Main Belt

(E1)x1

TAPE1

Main Belt

FF/REW

Belt

(E2)x1

FF/REW

Belt

(D2)x1

Motor

(A1)x2

Ø2 x 9mm

TAPE2

Record/Playback

Head

Erase Head

(B1)x2

Ø2 x 9mm

TAPE1

Playback

Head

Pinch Roller

(C1)x1

<A>

(F1) x2

Ø 2.6 x 5mm

Motor

– 11 –

CD-BA120/125

How to remove the pickup (See Fig. 11-2)

1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).

2. Remove the stop washer (B3) x 1 pc., to remove the gear

(B4).

3. Remove the pickup.

Figure 11-2

CD MECHANISM SECTION

Perform steps 1, 2, 3, 9, 12 and 13 of the disassembly method

to remove the CD mechanism.

How to remove the loading motor

(See Fig. 11-1)

1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.

Figure 11-1

Note

After removing the connector for the optical pickup from the

connector wrap the conductive aluminium foil around the front

end of connector so as to protect the optical pickup from

electrostatic damage.

(A1)x2

(A1)x1

Loading Motor

CD Base

(A1)x2

(B1) x2

ø2.6 x6mm

Shaft

(B2) x1

Stop Washer

(B3) x1

Gear

(B4) x1

CD Mechanism

Pickup

ADJUSTMENT

MECHANISM SECTION

• Driving Force Check

Torque Meter

Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 80 g. cm 30 to 80 g.cm

Fast forward: TW-2231 — 70 to 180 g.cm

Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± Speaker

speed Resistor in 30 Hz terminal

motor. (Load

resistance:

6 ohms)

• Tape Speed

Figure 11-3

TAPE MECHANISM

Motor

Variable Resistor in motor

CD-BA120/125

– 12 –

CD SECTION

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

*1. Input: Antenna, Output: TP302

*2. Input: Antenna, Output: TP301

TUNER SECTION

fL: Low-range frequency

fH: High-renge frequency

AM IF 450 kHz 1,720 kHz T351 *1

AM Band — 530 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V

AM Tracking 990 kHz 990 kHz (fL): T303 *1

*1. Input: Antenna, Output: TP301

*2. Input: Antenna, Output: Speaker terminal

• FM RF

Signal generator: 1 kHz, 22.5 kHz dev., FM modulated

FM Band — 87.50 MHz T301(fL): *1

Coverage 3.4 V ± 0.1V

FM RF 98.00 MHz 98.00 MHz L312 *2

(10-30 dB)

Test Stage

Instrument

Connection

Frequency

Display

Serring/

Adjusting

Point

Figure 12-1 ADJUSTMENT POINT

Test Stage Frequency

Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

IC301

R381

TP302

TP301

R357

AM IF

FM IF

FM RF

T303

T306

T302

L312

TRACKING fL

AM BAND

COVERAGE fL

T301

T351

FM BAND

COVERAGE fL

TUNER PWB

CNP301

AM LOOP

ANTENNA

Figure 12-2

CD ERROR CODE DESCRIPTION

Error State Code

[Servo System Error]

0001 Cannot detect Pickup-in SW

0002 DSP access error

[Error during close operation]

0101 Open/Close SW Low → High not functioning

0103 Open/Close SW High → Low not functioning

[Error during open operation]

0201 Open/Close SW Low → High not functioning

0203 Open/Close SW High → Low not functioning

[Error during skip operation]

0302 Pickup-in SW is not detected

0306 During Disc 1 search, Open/Close SW or Clamp SW

or Disc SW do not change to low.

0307 Clamp SW Low → High not functioning

0308 Clamp SW High → Low not functioning

Since this CD system incorporates the following automatic

adjustment functions, readjustment is not needed when

replacing the pickup. Therefore, different PWBs and pickups

can be combined freely.

Each time a disc is changed, these adjustments are

performed automatically. Therefore, playback of each disc

can be performed under optimum conditions.

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is

compensated inside the IC.)

* Focus offset adjustment

* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing 12-2

EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will

be 0dB.)

* Focus gain adjustment

* Tracking gain adjustment

• Adjustment

EFBL

FDO

Stopped

CH1=500mV

DC 10:1

CH2=200mV

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K

Zoom : 2k

Mode : SINGLE

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH2

v/DIV

200mV

1999/04/05 20:26:47

– 13 –

CD-BA120/125

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

( ) indicates AM

< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means micro-micro-farad and the unit of the

capacitor without such a symbol is microfarad. As to

electrolytic capacitor, the expression “capacitance/withstand

voltage” is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

REF. NO DESCRIPTION POSITION POSITION

SW714 CD ON—OFF

SW715 TAPE ON—OFF

SW716 TUNING /TIME DOWN ON—OFF

SW717 MEMORY/SET ON—OFF

SW718 REWIND ON—OFF

SW719 FAST FORWARD ON—OFF

SW720 PLAY/REPEAT ON—OFF

SW721 STOP ON—OFF

SW723 REC/PAUSE ON—OFF

SW725 TUNING/TIME UP ON—OFF

SW725 TUNER (BAND) ON—OFF

REF. NO DESCRIPTION

SW1 OPEN/CLOSE ON—OFF

SW2 CLAMP ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW701 POWER ON—OFF

SW702 CLOCK ON—OFF

SW703 TIMER/SLEEP ON—OFF

SW709 DISC SKIP ON—OFF

SW710 OPEN/CLOSE ON—OFF

SW711 X-BASS/DEMO/EQUALIZER ON—OFF

SW712 VOLUME UP ON—OFF

SW713 VOLUME DOWN ON—OFF

Figure 13 TYPES OF TRANSISTOR AND LED

(1) (2) (3)

(S) (G) (D)

E C B

FRONT

VIEW

KTA1266 GR

KRC102 M

KRC104 M

KTA1271 Y

2SC1845 F

KTA1273 Y

KTC3203 Y

KRC107 M

KTC3194 Y

2SC3331

KTC2026

4204SRT7

BCE

FRONT

VIEW

FRONT

VIEW

CD-BA120/125

– 14 –

WAVEFORMS OF CD CIRCUIT

FDO

TDO

Stopped

CH1=500mV

DC 10:1

CH3=500mV

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.000V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500mV

IC2 24

IC2 23

FDO

DRF

Stopped

CH1=500mV

DC 10:1

CH2=10V

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

-3div -1div 0div +1div +3div

CH Position To

CH2

Position

0.20div

IC2 24

IC2 72

IC1 18 ,

IC2 16

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

IC1 27

DRF

Stopped

CH1=10V

DC 10:1

CH2=1V

DC 10:1

100ms/div

(100ms/div)

NORM:100kS/s

=Record Length=

Smoothing : ON CH1 : 0.0V

CH2 : 0.00V

Main : 100K

Zoom : 2K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924ms

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

IC2 72

IC1 18 ,

IC2 16

FDO

SPDO

Stopped

CH1=200mV

DC 10:1

CH2=500mV

DC 10:1

500ms/div

1999/04/07 09:51:15

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K

Zoom : 2K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924ms

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

IC2 24

IC2 25

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500mV

1999/04/05 17:33:17

IC2 24

IC2 1

IC2 2

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887ms

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

IC2 37

DATA

DATACK

LRSY

Stopped

CH1=2V

DC 10:1

CH2=2V

DC 10:1

CH3=2V

DC 10:1

5us/div

(5us/div)

NORM:100kS/s

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 5K

Zoom : 100

Mode : AUTO

Type : EDGE CH3

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH3

v/DIV

2 V

1999/04/05 20:50:17

IC2 57

IC2 58

IC2 59

EFBL

FDO

Stopped

CH1=500mV

DC 10:1

CH2=200mV

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K

Zoom : 2k

Mode : SINGLE

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH2

v/DIV

200mV

1999/04/05 20:26:47

IC2 24

IC1 18 ,

IC2 16

IC1 13 ,

IC2 22

– 15 –

CD-BA120/125

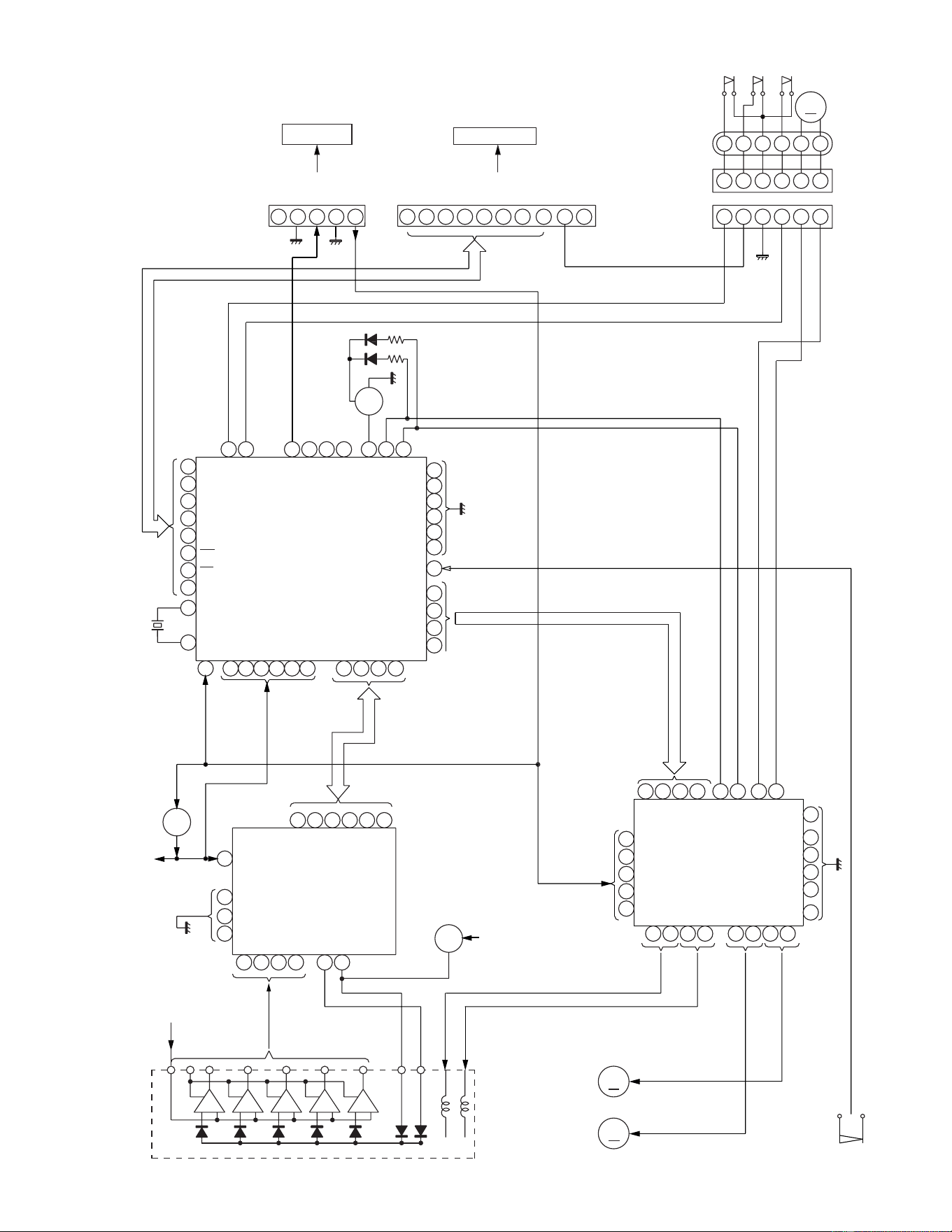

Figure 15 BLOCK DIAGRAM (1/3)

CNP12

CNP11

+3.3V

+5V

CONT5

CONT2

CONT3

CONT4

CONT7

CONT6

SLD0

SPD0

FD0

TD0

+5V

TO DISPLAY SECTION

CLAMP SW

CDINT

WRQ

CLK

CD RES

GND

DRF

CNS4

BI4

CNP4

SLED

MOTOR

SPINDLE

MOTOR

TRACKING COIL

FOCUS COIL

PICKUP UNIT

RFEV

HFL

VVDD

ADAVDD

VDD

LVDD

RVDD

XVDD

VDD5V

RFEV

FE-

TE-

HFL

+3.3V

CONSTANT

VOLTAGR

+5V

LASER

DRIVER

LDD

VCC3

VCC2

VCC4

VCC1

TIN2

TIN1

FIN2

FIN1

IC3

M63001FP

FOCUS/TRACKING/

SPIN/SLIDE DRIVER

IC1

LA9235M

SERVO AMP.

TO MAIN SECTION

(TO IC601)

R-CH

L-CH

AGND

DGND

+5V(+B3)

RCHO

RVSS

LVSS

LCHO

IC2

LC78641E

SERVO/SIGNAL

CONTROL

SW1

OPEN/

XL1

16.9344MHz

217

SW2

CLAMP

SW3

DISC

NUMBER

T/T

UP/DOWN

MOTOR

45 46

47 48 32 31

INT

WRQ

RES

DEF

XOUT

XIN

44 49 50 7 14 15 16

18 19 20

4567

16 26 27

2 1725 4142 3839

SW4

PICKUP IN

+3.3V

CD-BA120/125

– 16 –

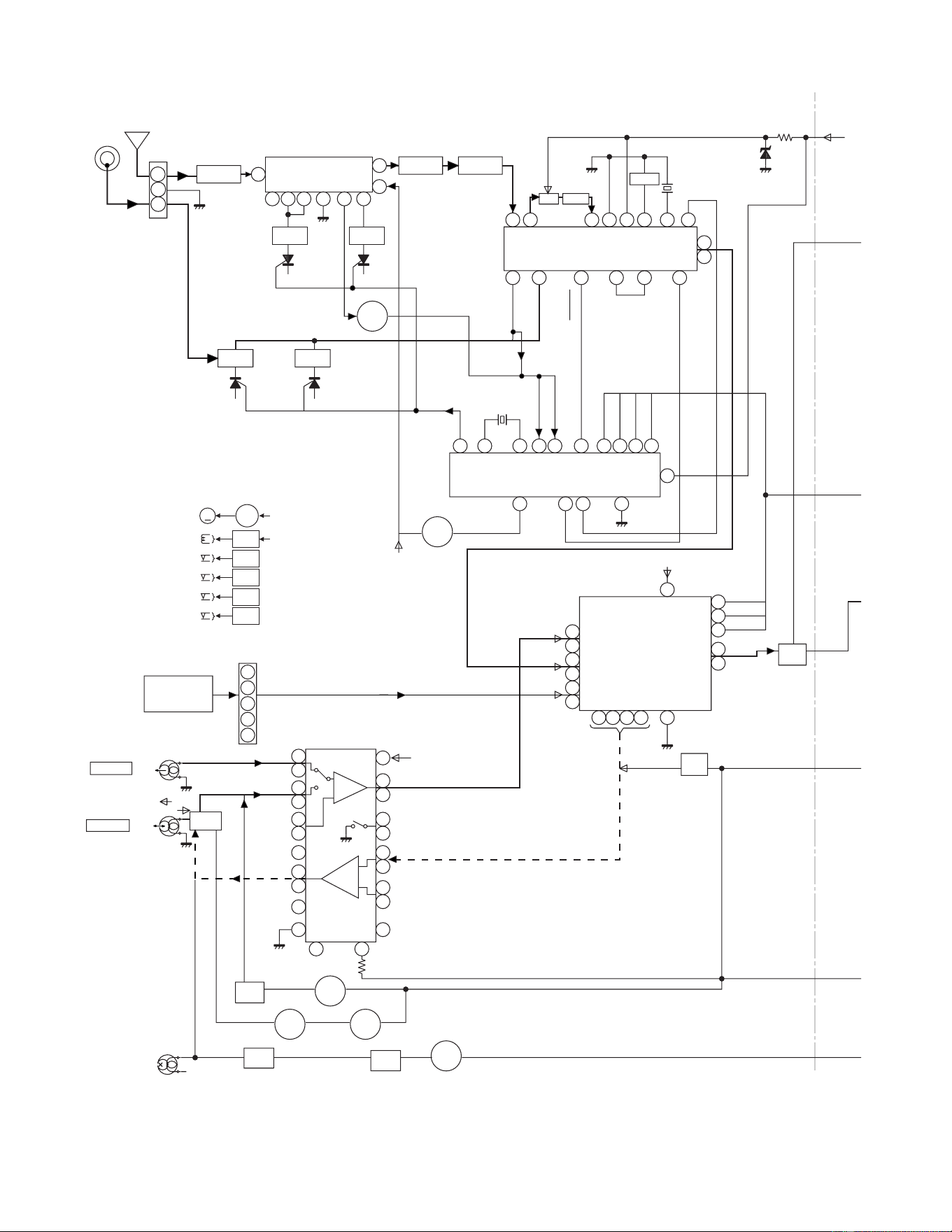

Figure 16 BLOCK DIAGRAM (2/3)

REC/PLAY

SYSTEM

MUTE

Q601

Q602

MO/ST

+B2

SWITCHING

+B2

FM/AM

IC302

LC72131

PLL(TUNER)

FM/AM

OUT

+B4

BIAS

T1/T2

MUTING

Q110

Q111

P.B.

REC

AC BIAS

TAPE

TUNER

CNS402

FROM

CD SECTION

CNP11

ERASE

HEAD

SWITCHING

BIAS

Q102

Q103

Q101

Q113

SWITCHING

Q112

L103

OSC

BIAS

Q114

L104

Q108

Q109

REC PB HEAD

TAPE 2

PB HEAD

TAPE 1

R-CH

L-CH

R-CH

L-CH

IC601

LC75341

AUDIO PROCESSOR

H/N

P.B

+B2

L REC

L NF

R NF

ALC

REC

T1/T2

NOR/

HIGH

REF

R REC

L REC

POP

REDUCE

R NF

L NF

SWITCHING

Q104~

Q107

L(T2)

R(T2)

R(T1)

L(T1)

IC101

AN7345K

PLAYBACK AND RECORD

/PLAYBACK AMP.

FM/AM

MPXIN

STEREO

AM RF IN

AM OSC IN

Q360

FM OSC

OSC BUFF

OSC

X352

4.5MHZ

AM BAND

COVERAGE

AM TRACKING

T303

Q302

X351

456KHz

MO/ST

VCO

DET

VCC

GND

AM IF

CF351

AM IF

IC303

LA1832S

FM/AM IF MPX.

AM MIX

CF352

T351

FM RF

OSC

L312

CF303

T302

FM IF

IC301

TA7358AP

FM FRONT END

BF301

CNP301

1615

T306

T301

Q708

+3B

Q704

Q705

IC701

54PIN

IC701

53PIN

IC701

56PIN

IC701

55PIN

TAPE

MOTOR

SOLENOID

T2 PLAY

T1 PLAY

R. PLAY

F. PLAY

MOTOR

DRIVER

– 17 –

CD-BA120/125

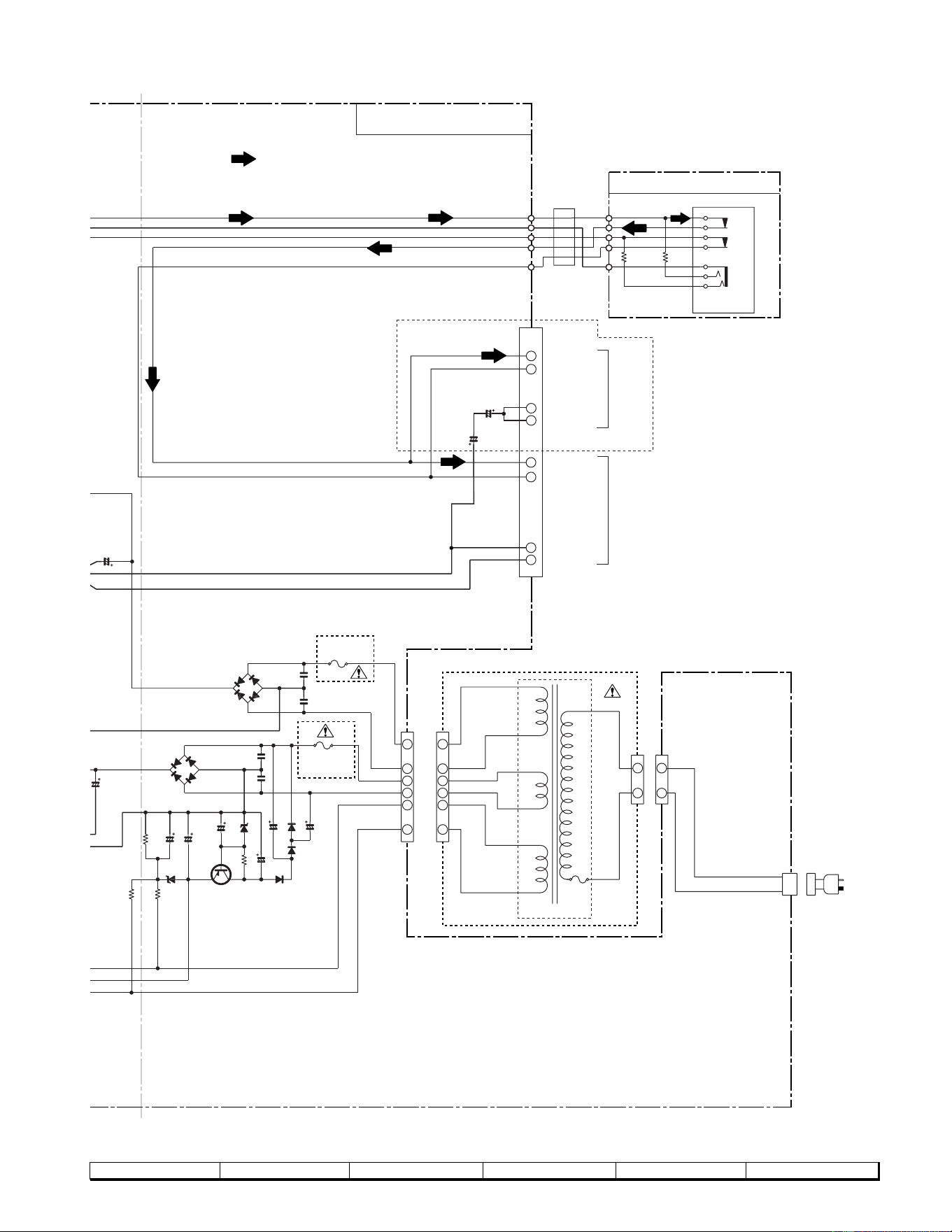

Figure 17 BLOCK DIAGRAM (3/3)

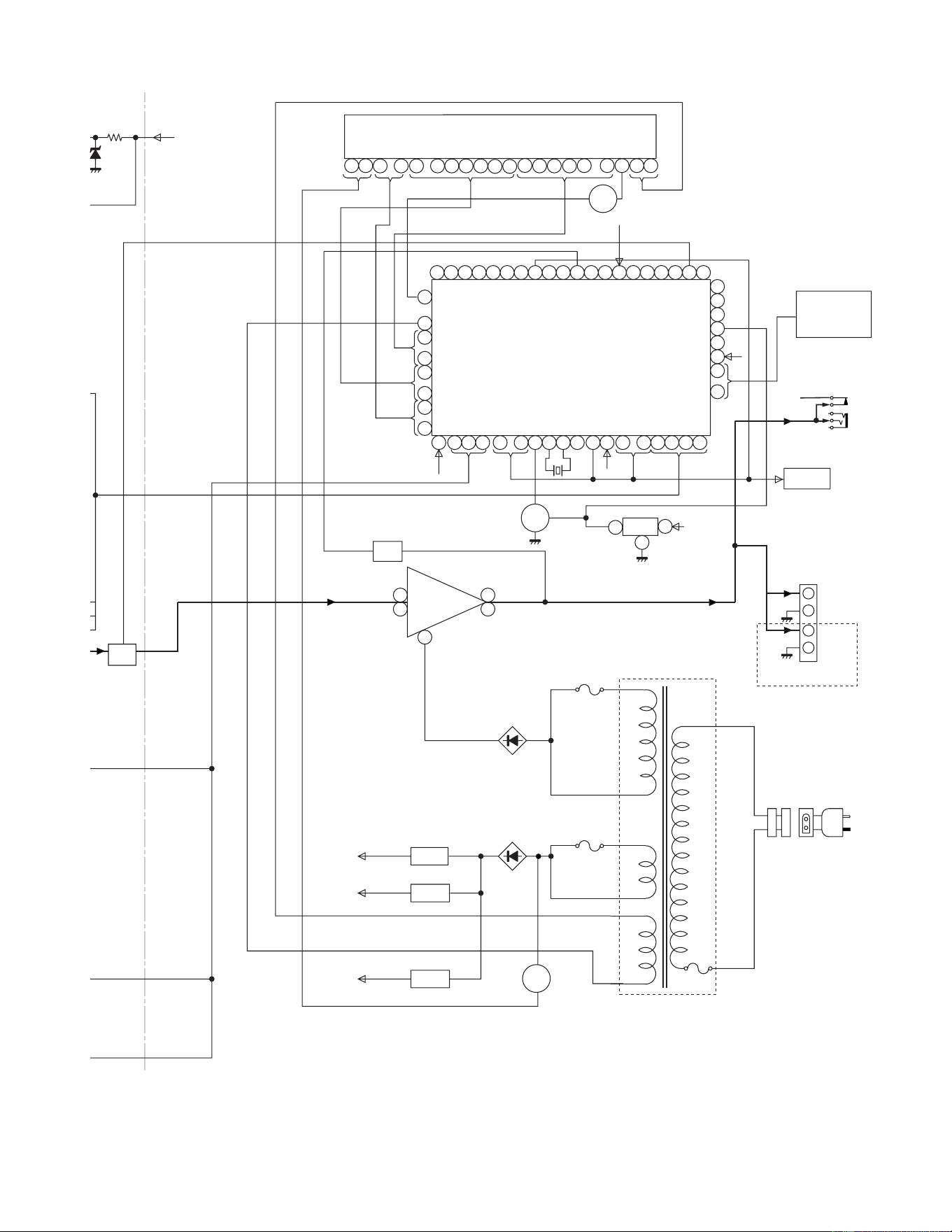

PT801

POWER TRANSFORMER

REC/PLAY

VLOAD

+B4

RESET IC

SYS. STOP

RESET

IC704

Q707

+B2

SPEAKER

TERMINAL

(FRONT)

(REAR)

SO901

+B4

VDD

R-OUT

L-OUT

SP. DET.

UNSWITCH

+5V

A10V

+B4

+B3

+B2

+B1

IC904

IC902

Q903

SYSTEM

MUTE

Q601

Q602

+B4

XL701

D911~D914

D907~D910

F902

1.6A/250V

F901

3A/250V

+Vcc

IC901

LA4282

POWER AMP.

BIAS

T1/T2

AVDD

KEY

SW701~SW703

SW709~SW721

SW723~SW725

TO CD

SECTION

AC POWER

SUPPLY CORD

AC 120V 60Hz

IC701

IX0336AW

SYSTEM

MICROCOMPUTER

FL701

FL DISPLAY

3332

100

6 5

4 1

11 12139 10 15 16 17

21 22

59 58

57 55 54 53

52 51

44 43 42

Q901

Q902

5056

JK901

HEADPHONES

CD-BA125 ONLY

Q701

Q904

2118

2220

191615

CD-BA120/125

– 18 –

Figure 18 SCHEMATIC DIAGRAM (1/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

LOADING M-

VCC4

LD_M+

LD_M-

LOADING M+

SPDO

VCC3

VCC2(SPN)

SP-

SP+

SPO

GND

EFBL

TDO

TEST

HFL

TE-

FE-

RFEV

RF-

RFSW

VCC

REF

ODRV

AGCON

ODRV

REF

AGCON

ODRV

APC

LPF

PH/BH

LDON

EFBL

FIN1

FIN2

REF1

TIN2

TIN1

AGON

LDD

TEST0

GND

VREF

TES1

FIN2

FIN1

TIN2

TIN1

CD SERVO PWB-B

Vcc

Vref

GND

FO-

FO+

TR+

TR-

TR+

FO+

FO-

GND

ACTUATOR

FO+

FO-

TR-

TR+

PICKUP UNIT

GND(D)

PUIN

SP+

SP-

SL+

SL-

CD MOTOR PWB-C

SLDO

FDO

TDO

MUTE

Vref

STANDBY

VCC1

SL-

SL+

GND

TR+

TR-

FO-

FO+

R54 68K

R53 68K

R52 68K

R51 68K

CNP1

R56

68K

R55

68K

100/10

C54

47/10

C55

0.01

C51

47/10

C53

0.001

R25

10K

10/16

0.1

R47

3.3

KTA1266GR

LASER DRIVER

R50

C14

0.33

C13

0.01

R42

120K

100K

10K

C11

0.47/6.3

27K

6.8K

39K

C12

0.1

C18

(CH)

C19

100/10

330

R10

27K

C26

0.047

C22

100P

R80

R79

1.5M

C24

2.2/50

C21

0.1

C23

0.047

R12

680

R11

12K

0.1

C17

0.0047

R15

10K

C20

0.1

C42

68P

C25

0.1

C41

100/10

C28

47/10

C82

0.022

D93

DS1SS133

R43

220K

C47

100/16

C49

100/16

C50

100/16

C46

0.022

IC3

M63001FP

FOCUS/TRACKING/

SPIN/SLED DRIVER

R48

6.8K

C52

0.01

CNP2

CNP3

CNS3A

CNS3B

SPINDLE

MOTOR

SLED

MOTOR

SW4

PICKUP IN

IC1

LA9235M

SERVO AMP.

CNS1A

CNS1B

CNS2A

CNS2B

CNP3A

– 19 –

CD-BA120/125

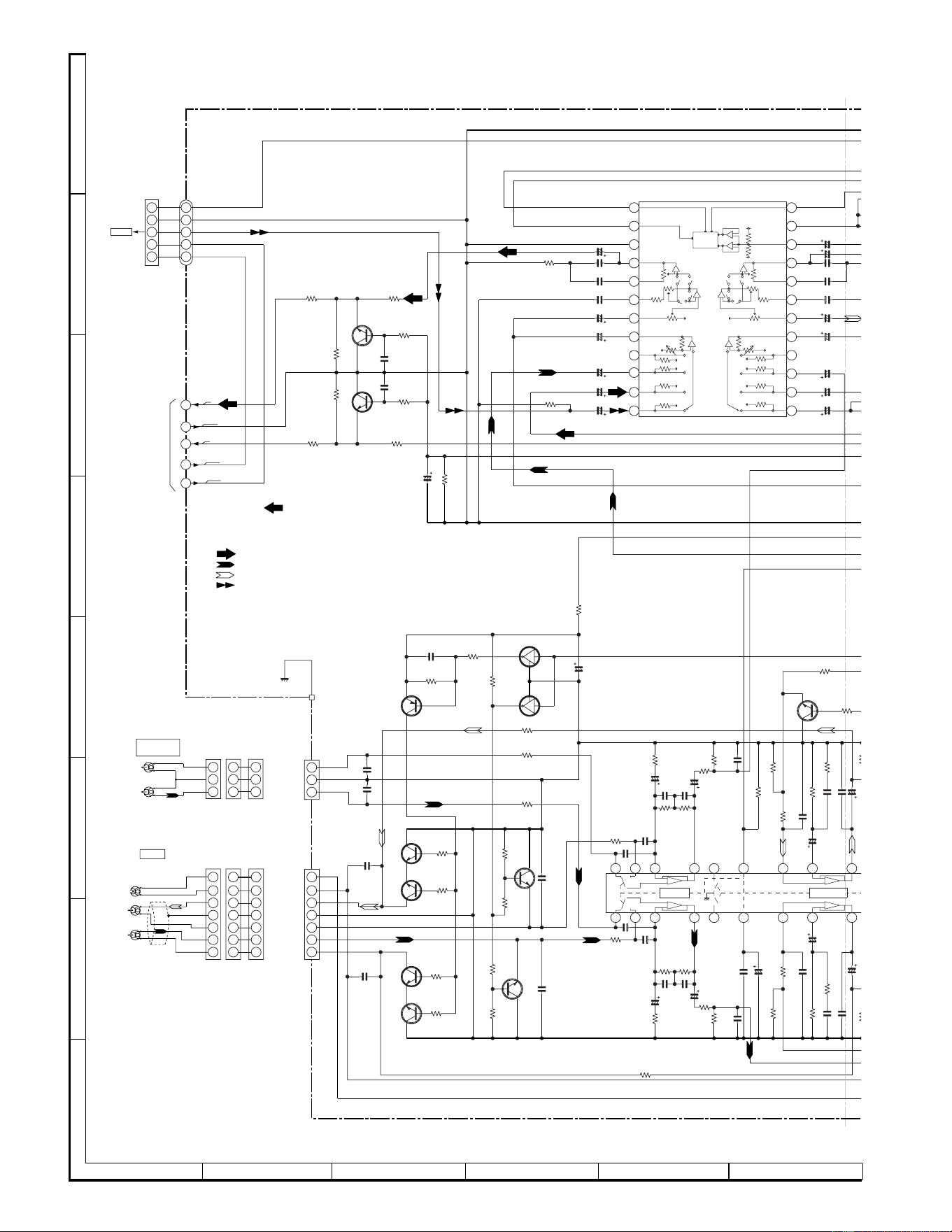

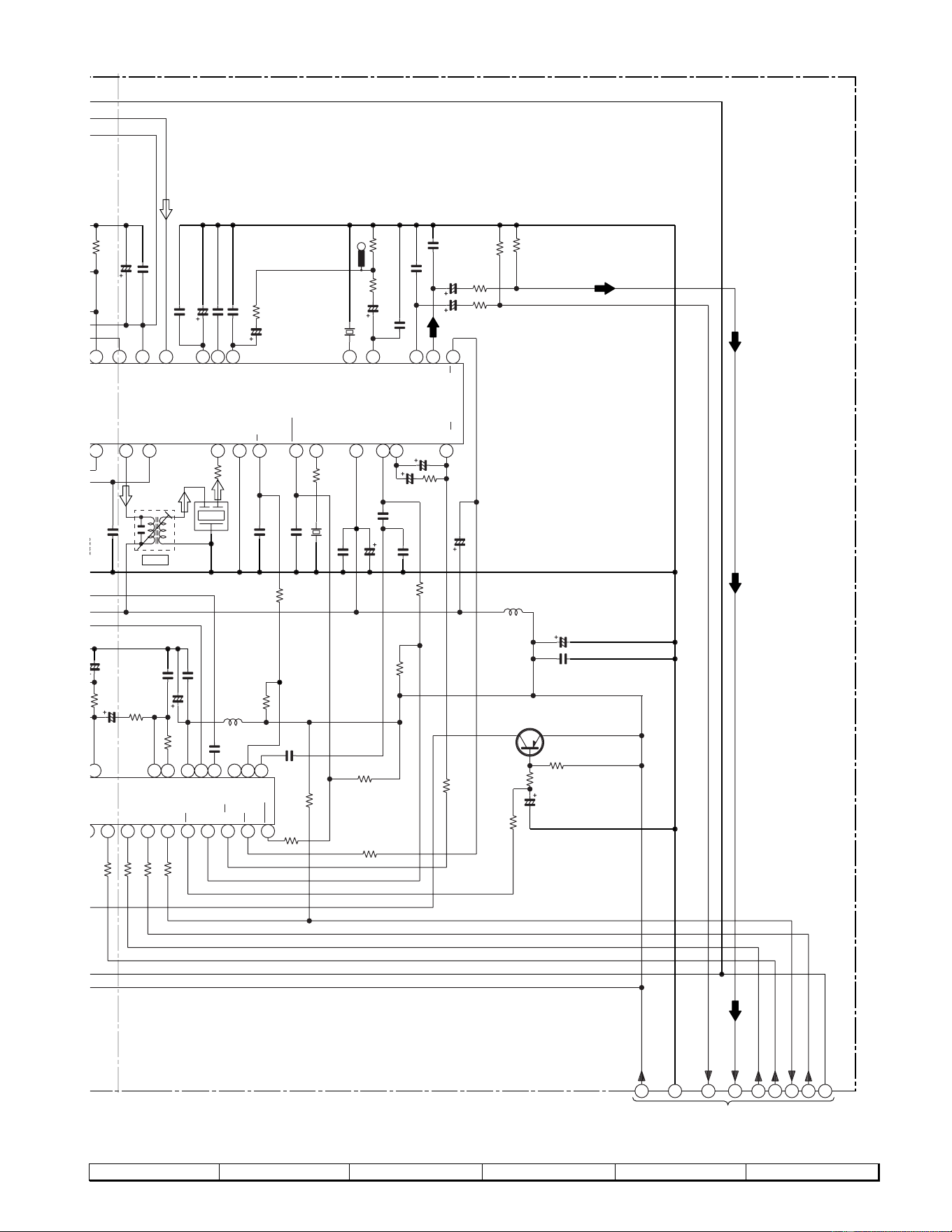

Figure 19 SCHEMATIC DIAGRAM (2/10)

8 9 10 11 12

• The numbers 1 to 13 are waveform numbers shown in page 14.

CD SIGNAL

RES

WRQ

DRF

INT

XVDD

RVSS

RCHO

RVDD

XIN

XOUT

XVSS

ASLRCK

ASDACK

ASDFIN

LRSY

DATACK

DATA

16M

SFSY

SBSY

SBCK

INT

WRQ

SERIAL

OUT

EXTERNAL

AUDIO IN

DIGITAL

FILTER

1BIT

DAC

LPF

INTERPOLATION

MUTE

ATTENUATION

DEEMPHASIS

CLOCK

GENERATOR

SUBCODE

DECODE

CRC

COMMAND

INTERFACE

AGND

R-CH

EMPH

MUTEL

MUTER

LVDD

LCHO

LVSS

+5V

DGND

CNS601

P20 1 - B

TO MAIN PWB

INT

DRF

WRQ

RES

DRF

GND

CD RES

CLK

WRQ

CDINT

CLAMP SW

P27 12 - B

CNS702

TO DISPLAY PWB

DISC_NO

O/C

GND(D)

M-

M+

CD LOADING

MOTOR PWB-E

TEST

DOUT

VDD

C2F

PCK

EFLG

FSX

CONT5

CONT4

CONT3

CONT2

CONT1

LASER

OADING M-

CC4

D_M+

D_M-

OADING M+

SPDO

CC3

CC2(SPN)

P-

P+

JITTC

JITTV

EFMIN

EFBL

FDO

TDO

TBLO

BHREF

PHREF

ADAVSS

ADAVDD

VREF

PH(RFENV)

TDO

SLDO

SPDO

FDO

SPDO

FG(D_Vref)

SLDO

AUDIO

OUT

ERROR

CORRECT

GENERAL

SERVO

PROCESSEROR

AUTO

ADJUST

S/H

JITER

DEFECT

CONTROL

A/DSW

D/A

PCKIST

VVDD

VVSS

PD02

PD01

79 78

FRAME SYNC

DEFECT,PROTECT

EFM DECODE

CLV

CONTROL

GENERAL

SLICE

LEVEL

CONTROL

PLL

VCEC

SLCO

SLCIST

HFL

VDD5V

CONT7

CONT6

VSS

V/vP

FSEQ

DEFECT

EFMO

RES

DEF

O/C

DISC_NO

69 68

L-CH

C19

100/10

330

R10

27K

C26

0.047

C22

100P

R80

R79

1.5M

C24

2.2/50

C21

0.1

C23

0.047

R12

680

R14

1.2K

R11

12K

R13

680

C81

0.022

C27

0.1

C17

0.0047

R15

10K

C20

0.1

C42

68P

C25

0.1

C41

100/10

C28

47/10

C82

0.022

R44

C29

0.1

D93

DS1SS133

R43

220K

R35

R38

270

R39

470

R16

10K

R17 1K

R46 1K

R45 1.2K

R40 1.2K

C31

100/10

C30

0.1

L61

0.82µH

C64

0.47/6.3

ZD61

DZ3.9BSB

R19

C39

10/16

R58

220

2SC3203Y

CONSTANT VOLTAGE

C56

330/6.3

C83

0.022

R84

10K

C40

0.0015

C43

0.0015

R83

10K

C34

0.022

R82

2.2K

R81

2.2K

C38

10/16

R20

220

XL1

16.9344MHz

C45

100/10

C44

0.1

C80

0.1

R73 1K

R71 1K

C72 0.01

R72 1K

C71 100P

C73 100P

C75 100P

C76 100P

C77 100P

C78 100P

R75 1K

R76 1K

R77 1K

R78 1K

C74 100P

R74 1K

L62

2.2µH

R94

10K

R95

10K

R67 1K

R68 1K

IC2

LC78641E

SERVO/SIGNAL

CONTROL

CNP11

CNP12

CNP4

SW3

DISC

NUMBER

SW2

CLAMP

SW1

OPEN/

D21

DS1SS133

R21

470

R22

470

KRC102M

D22

DS1SS133

C47

100/16

BI4

CNS4

T/T

UP/DOWN

CD-BA120/125

– 20 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

Figure 20 SCHEMATIC DIAGRAM (3/10)

321

1312

+5V

GND

M_GND

TO POWER

PWB

P22 1 - G

(CD_GND)

(A_GND)

+5v +B

(1/4W)

CD_GND

L-CH

A_GND

R-CH

TAPE1_R

TAPE1_L

A_GND

ERASE

TAPE2_R2

TAPE2_R1

TAPE2_L1

0.7V

Hich=T1

+ +

Hich=CHROME

56K

112K

56K

112K

TUN

DECK

AUX

LSEL0

CCB

INTERFACE

RSEL0

RIN

RTRE

RBASS

ROUT

VREF

VDD

CLK

LIN

LTRE

LBASS

LOUT

VSS

TAPE2_L2

CNP11

TO CD SERVO

PWB

P19 12 - D

CNS102B

CNS102A

CNS101B

CNS101A

R-CH

L-CH

PLAYBACK

HEAD

TAPE1

RECORD/

PLAYBACK HEAD

TAPE2

R-CH

L-CH

ERASE

HEAD

FM SIGNAL

PLAYBACK SIGNAL

RECORD SIGNAL

CD SIGNAL

BI601

CNS601

Q602

KTC3199 GR

C602

0.001

C601

0.001

Q601

KTC3199 GR

R603

1.5K

R604

1.5K

R607

2.2K

R608

2.2K

R609

10K

R610

10K

R602

330

R601

330

C603

22/25

R625

22K

R615

3.9K

C607 10/50

C609 0.1

C611 0.1

C623

1/50

C629 1/50

C617 1/50

C613 0.0027

C625

1/50

C627

1/50

R617

IC601

LC75341

AUDIO PROCESSOR

C630

1/50

C610 0.1

C612

0.1

C618

1/50

C614

0.0027

C608

10/50

C606

22/50

C628

1/50

C626

1/50

C624

1/50

LUG1

MECHA BASE GND

R102

10K

R101

10K

R103

4.7K

Q101

KTA1266 GR

C101

0.047

R157

100

Q102

KRC104 M

C108

100/16

R104

R137

15K

Q103

KRC104 M

C103

560P

C102

560P

CNP101

Q104

2SC1845

C104

180P

R105

R106

2.2K

R110 47K

R108

3.3K

Q106

2SC1845

CNP102

Q105

2SC1845

C105

180P

R107

2.2K

R109

3.3K

Q107

2SC1845

R113

47K

Q109

KTC3199 GR

C107

560P

R111

4.7K

R112 4.7K

C106

560P

Q108

KTC3199 GR

C123

1/50

R123

5.6K

C121

560P

R119

100K

R121

3.9K

C119

0.033/25

C117

100/16

C115

330P

C137

0.022

R125

33K

R138

15K

R117

R115

C113

330P

C147

0.001

R131 1.5K

C131

0.022

R127

6.8K

C133 0.0033

R129 8.2K

C129

22/25

C127 270

R133

100

C139

3.3/50

C146

0.001

C122

1/50

C116

100/25

C120

560P

R120

3.9K

C118

0.033/25

R118

100K

R124

33K

C128

22/25

R128

6.8K

C126

270

R132

1.5K

R126 68K

C134

R134

100

C112

330P

C130

0.022

R130

8.2K

R116

C114

330P

C132

0.0033

R114

R122

5.6K

R140

10K

Q110

KTC3199 GR

R142

220K

IC101

AN7345K

IC101:PLAYBACK AND RECORD AMP.

– 21 –

CD-BA120/125

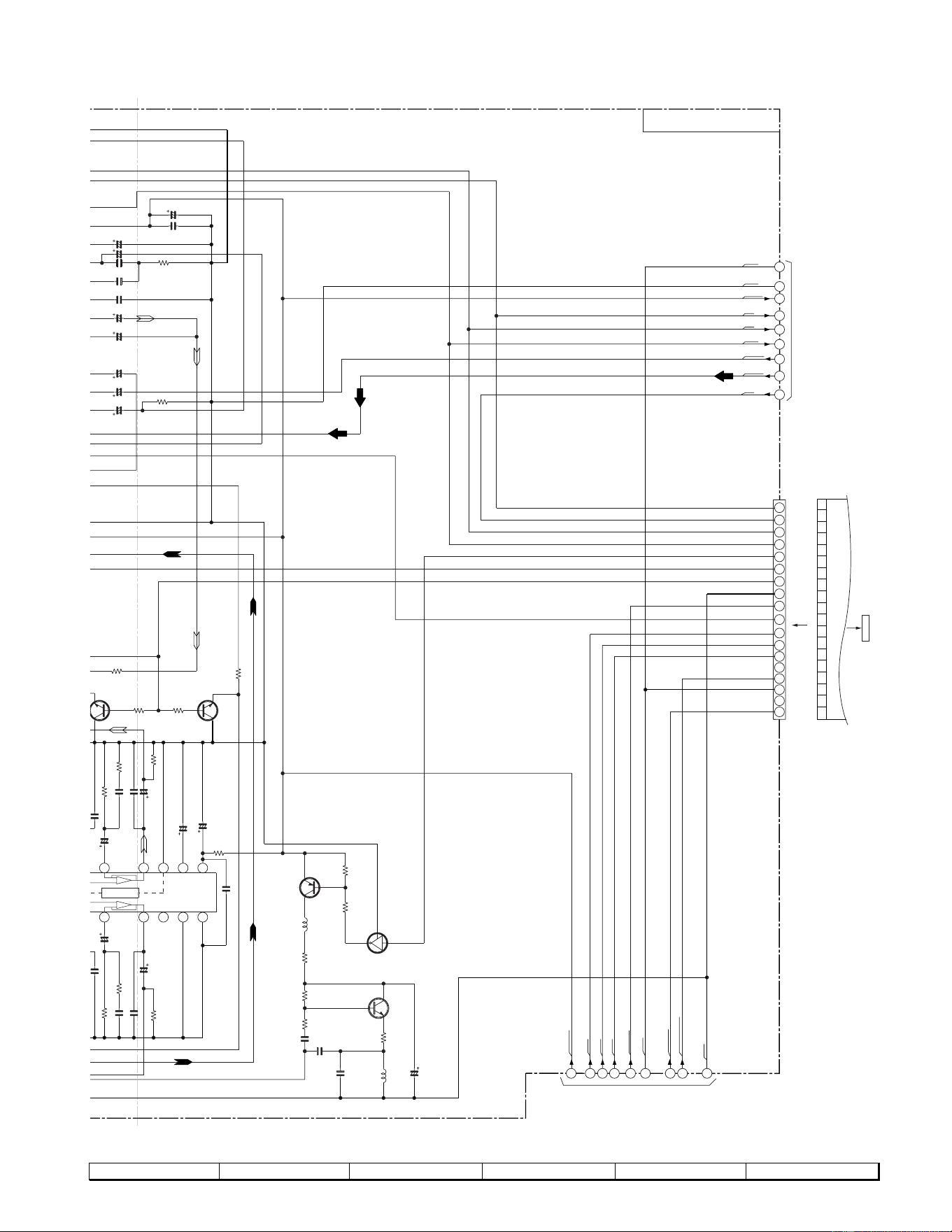

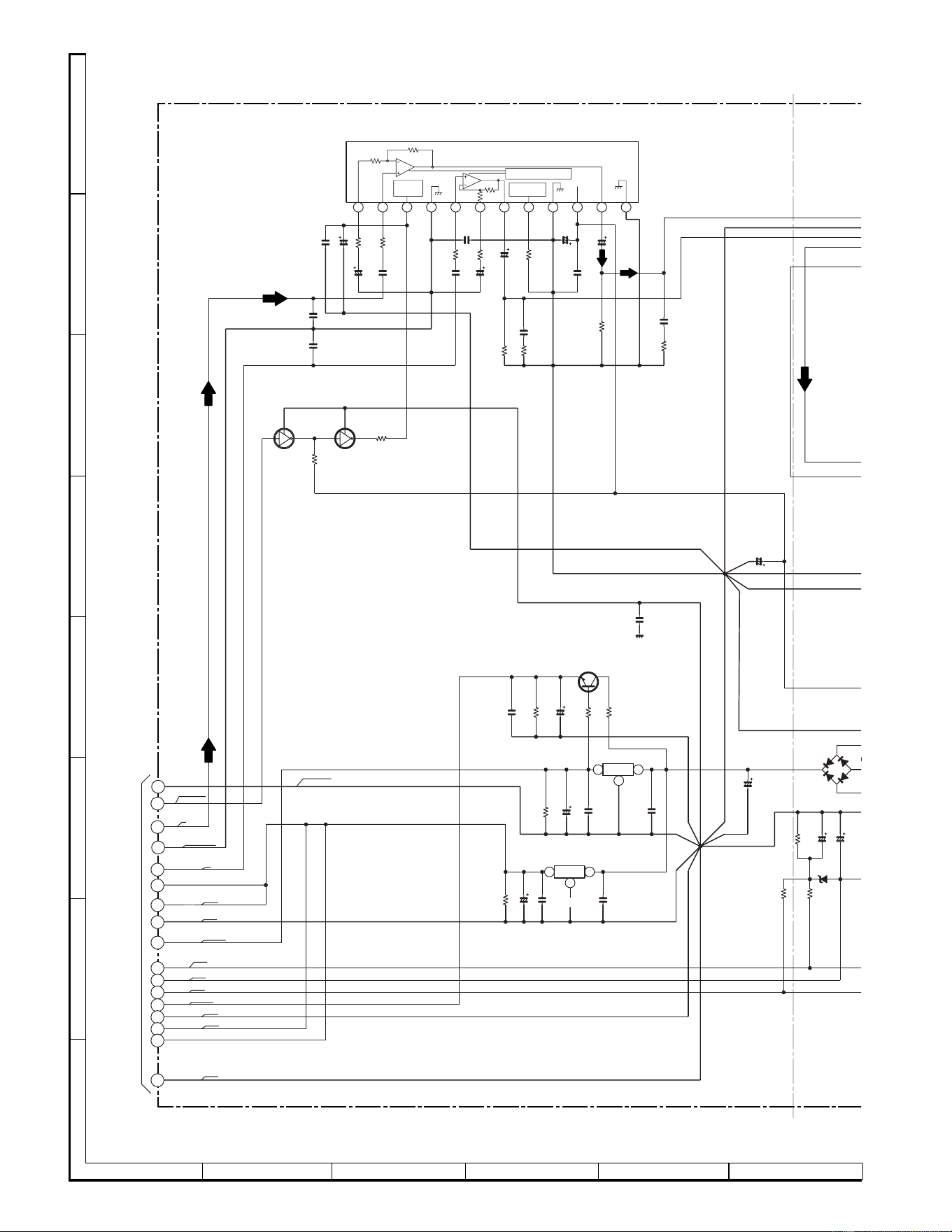

Figure 21 SCHEMATIC DIAGRAM (4/10)

8 9 10 11 12

-VP

GND

A_10V

M_10V

A_10V

GND

VF2

VF1

POWER

UN_SW_5V

CLK

TUN_L

TUN_R

(A_GND)

+B+B

(D_GND)

POWER

FROM POWER PWB

P22 1 - G

(M_GND)

(D_GND)

M_GND

UN_SW 5V

D_GND

M_10V

VF1

VF2

-VP

T_BIAS

SMUTE

REC/PLAY

T_T1/T2

CLK

REC_L

REC_R

TO TUNER PWB

P25 11 - H

0.7V

11.7V

11.6V

Vcc

ALC

GND

ALC

RIPPLE

Nor/CrO2

Hich=CHROME

56K

J K L M N O Q P T

CNP701

P27 12 - C

TO DISPLAY PWB

MAIN PWB-A1(1/3)

C630

1/50

C605

0.022

C604

100/25

C610 0.1

C612

0.1

C618

1/50

R616

3.9K

C614

0.0027

C608

10/50

C606

22/50

C628

1/50

C626

1/50

C624

1/50

R618

R131 1.5K

C131

0.022

R135

10K

C133 0.0033

C135

47/25

C129

22/25

C127

270

R133

100

C148

0.047

Q112

KTA1266 GR

R148

22K

R146

150

(1/2W)

L103

100µH

R147

47K

Q114

KTC3203 Y

C141

0.039

R149

4.7

L104

330µH

C142

47/25

C140

0.0082/100

(ML)

Q113

KRC104 M

R144

47K

R145

4.7K

C145

0.001

R139

220

C138 220/10

C136 22/25

C128

22/25

270

R132

1.5K

C134

47/25

R134

100

R136

10K

C130

0.022

C132

0.0033

R143

220K

R140

10K

Q110

KTC3199 GR

R142

220K

R141

10K

Q111

KTC3199 GR

CNP701

FCC18

CD-BA120/125

– 22 –

23456

+5V (CD +B)

+5V

M 10V

GND

(A_GND)

A 10V

GND

(A_GND)

VF2

-VP

VF1

POWER

GND (M_GND)

GND (CD_GND)

GND (D_GND)

TO TUN

UN SW 5V

R OUT

L OUT

GND1

POWER

OUT1

Vcc

GND2

POWER

OUT2

NF2

IN2

PRE-GND

IN1

NF1

CH2

CH1

VOL. PROTECTOR

OVERTHERMAL

CIRCUIT

MUTE

FILTER

RIPPLE

TO MAIN PWB

P20 1 - C,

P21 10 - H

Q903

KTC2026

C935

22/25

C934

0.047

R924

3.3(1/2W)

R922

22K

R923

D918

1SS133

R925

22K

C938

47/25

C939

0.1 (ML)

C940

0.1 (ML)

IC902

KIA7810AP

VOLTAGE

REGULATOR

R926

10K

C943

47/25

C944

0.022

(ML)

C945

0.1 (ML)

IC904

KIA7805AP

VOLTAGE REGULATOR

C933

68P

R930

220

R929

220

C954

100/35

R928

12K

C955

47/50

C947

3300/25

IN4

D911

IN4004S

D913

IN4004S

D914

IN40

C946

2200/35

ZD903

DZ6R2ASA

R915

820

Q902

KRC102 M

R914

22K

Q901

KRC102 M

C918

220P

R909

56K

C914

470/25

R908

120

R906

R911

270

(1/2W)

R912

4.7

C916

0.047

R910

270

(1/2W)

C909

0.082(ML)

R907

R905

120

C905

0.022

C903

0.001

C908

0.082

(ML)

C904

0.001

C907

100/25

C906

47/25

C910

100/25

C919

10/50

C911

0.022

R913

4.7

C917

0.047

C915

470/25

IC901

LA4282

POWER AMP.

Figure 22 SCHEMATIC DIAGRAM (5/10)

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

– 23 –

CD-BA120/125

Figure 23 SCHEMATIC DIAGRAM (6/10)

8 9 10 11 12

R OUT

L OUT

SP_Lch

SP_Rch

SP_Lch_GND

SP_Rch_GND

SP_Lch

SP_Rch

SP_Lch_GND

SP_Rch_GND

–

REAR

SPEAKER

FRONT

SPEAKER

FM SIGNAL

MAIN PWB-A1 (2/3)

CD-BA125 ONLY

AC POWER

SUPPLY CORD

Q904

KTA1266 GR

R930

220

R929

220

C954

100/35

R928

12K

C955

47/50

C947

3300/25

D917

IN4004S

C956

47/50

ZD902

DZ300BSB

R927

2.2K

C957

47/50

C958

100/50

C959

100/50

D916

IN4004S

D915

IN4004S

C953

0.047

(ML)

C952

0.047

(ML)

D912

IN4004S

D911

IN4004S

D913

IN4004S

D914

IN4004S

CNP901

D910

RL204F

D909

RL204F

D907

RL204F

D908

RL204F

C950

0.047

(ML)

F902

1.6A/250V

F901

3A/250V

C946

2200/35

C951

0.047

(ML)

ZD903

DZ6R2ASA

T801

POWER

TRANSFORMER

T.F

CNP801

SO801

AC INPUT

SOCKET

SO901

SPEAKER

TERMINAL

R916

330

R917

330

JK901

HEADPHONES

C961

22/50

C960

22/50

FW902

HEADPHONES PWB-A3

CD-BA120/125

– 24 –

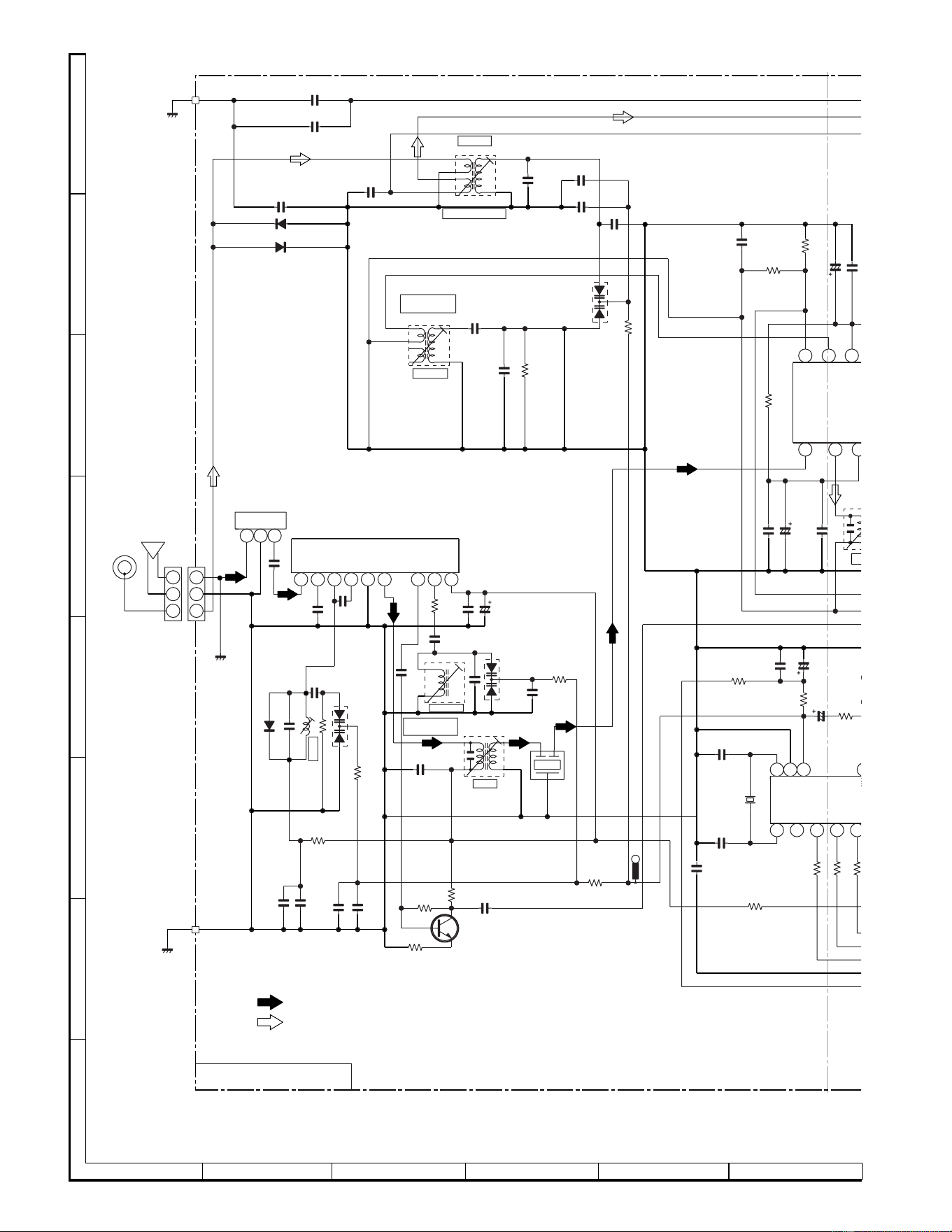

Figure 24 SCHEMATIC DIAGRAM (7/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

FM SIGNAL

AM SIGNAL

MAIN PWB-A1(3/3)

D301

1SS133

C338

0.001

D302

1SS133

C323

0.022

C302

0.001

C301

0.001

T303

C332

0.022

C330

150

C331

0.047

C330

15P

(UJ)

VD301

SVC348S

R323

68K

C334

27P

(UJ)

C335

560P

T306

R336

10K

C305

4.7P(CH)

C303

10P(CH)

IC301

TA7358AP

FM FRONT END

CNP301

C304

0.01

BF301

B.P.F

4321

321

R302

C307

10/16

C324

3.9P(UJ)

C311

18P

C306

0.022

VD302

SVC211C

C309

0.001

R311

100K

C310

15P(CH)

C313

22P

(CH)

VD303

SVC211C

R309

10K

T301

T302

ANTENNA

C308

4.7P

(UJ)

D305

1SS133

R327

L312

R314

C314

0.0047

C316

0.022

C317

0.001

R313

33K

C312

0.022

C315

0.0047

CF303

Q302

KTC3194Y

OSC BUFF

R316

4.7K

R322

680

C318

100P

R325

47K

X352

4.5MHz

C382

15P

(CH)

C381

12P (CH)

R375

820

C384

0.001

R373 1K

R372 1K

R374 1K

IC302

LC72131

PLL(TUNE

VSS

AOUT

AIN

X IN

X OUT

4321

R382

150

R381

10K

C394

47/16

C397

0.022

C393

1/50

R380

1.5K

0.0

C350

0.022

C351

0.022

C352

10/16

321

AM OSC OUT

FM IF IN

REG

AM OSC IN

FM AFC

AM MIX OUT

R351

5.6K

24 23

C362

3.3/50

C361

0.022

R365

10K

C342

0.022

R358

3.9K

AM ANT.

AM TRACKING fL

AM BAND

COVERAGE fL

AM OSC.

FM OSC.

FM BAND

COVERAGE fL

FM IF

FM RF

– 25 –

CD-BA120/125

Figure 25 SCHEMATIC DIAGRAM (8/10)

8 9 10 11 12

R373 1K

R372 1K

R374 1K

R378 1K

IC302

LC72131

PLL(TUNER)

ST IND

CONT

FM/AM

MO/ST

AOUT

AIN

VDD

FM IN

AM IN

IF IN

019

13 12

C394

47/16

R379

2.2K

C393

1/50

R380

1.5K

C387

0.022

C392

0.001

L351

100µH

C385

0.01

C380

10/16

C386

330P

R377

47K

R395

47K

R376

R360

4.7K

R386

22K

R359

1.8K

R387

5.6K

C396

100/10

C395

0.022

L352

100µH

C391

47/16

R384

5.6K

SWITCHING

Q360

KTA1266GR

R385

5.6K

R383

5.6K

TUN_L

CLK

TUN_R

GND

A +10V

A GND

D GND

P21 12 - B

TO MAIN SECTION

T351

CF352

C370

1/50

R393

C358

1/50

R355

3.3K

R388

3.9K

C357

2.2/50

C356

0.001

C355

22P

R352

C399

0.022

C398

100/10

C354

0.022

C353

0.022

C350

0.022

R353

270

CF351

10/16

1110987654321

IC303

LA1832S

FM IF DET./FM MPX./AM IF

VSM

AM OSC OUT

FM IF IN

MO/ST

REG

AM IF IN

GND

STEREO

FM DET

VCC

IF OUT

PHASE

(FM/AM)

L-CH OUT

R-CH OUT

MPX IN

MPX VCO

FM/AM OUT

AM LOW CUT

AM RF IN

AM OSC IN

FM AFC

AM MIX OUT

24 23

R364

8.2K

R363

8.2K

C363 0.022

C364 10/16

R362

10K

C372

1/50

R361

10K

C371

1/50

R357

470K

R356

C366 0.001

C365 0.022

C362

3.3/50

X351

456kHz

C361

0.022

C368

1/50

C369

27P(UJ)

C367

1/50

R350

2.7K

C374

0.015

C373

0.015

CBGHEDIRA

AM IF

CD-BA120/125

– 26 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.

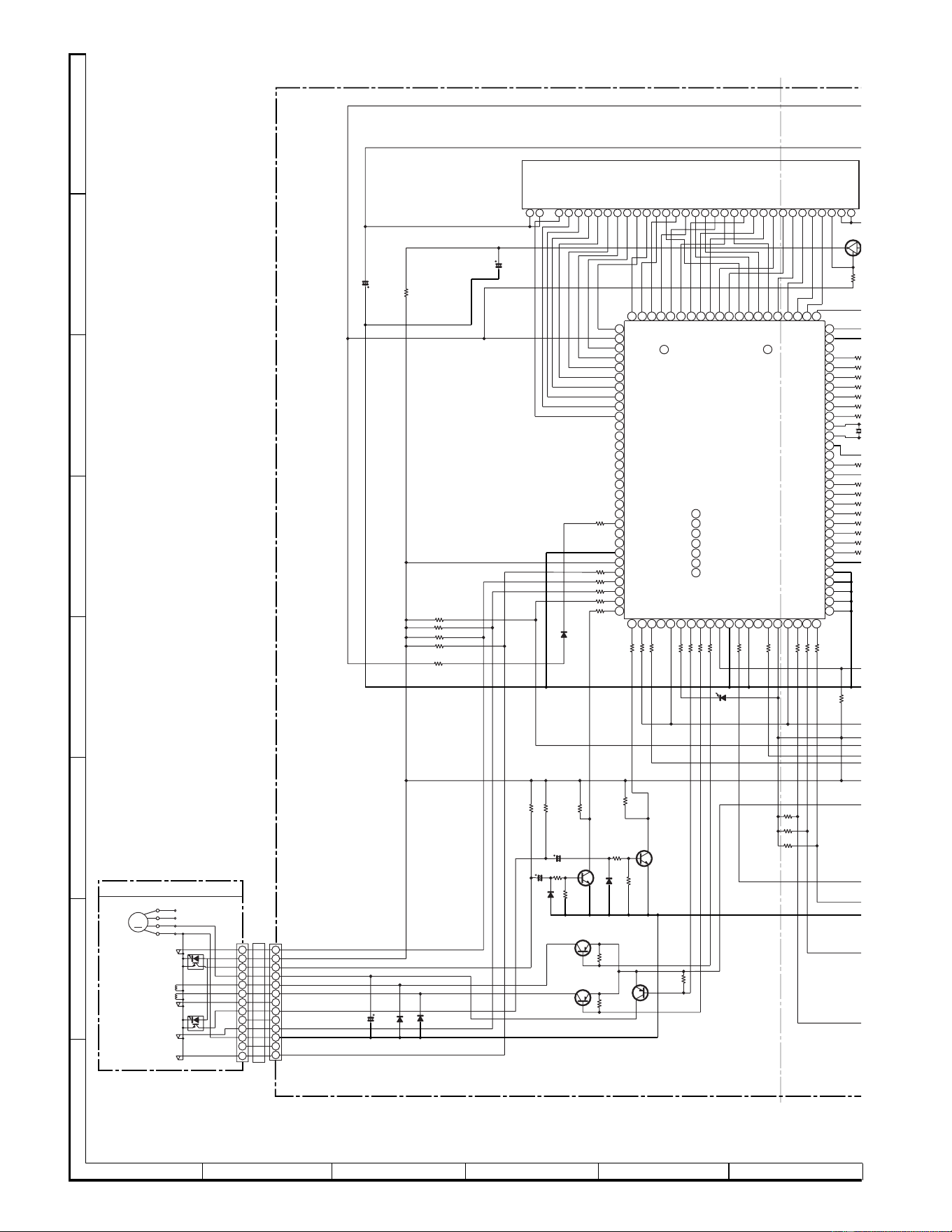

Figure 26 SCHEMATIC DIAGRAM (9/10)

P10

P11

12V

T2 PLAY

T2 RUN

+5V +B

+MTR

SOL2

SOL1

T1 RUN

GND

F_REC

T2 PLAY SW_B

T1 PLAY SW_A

T1 RUN

POWER

P17

P18

P19

P12

P10

P11

P14

P20

P13

P16

P15

T-BIAS

T_T1/T2

VDD

AVDD

RESET

CD CE

CD DI

WRQ

CD INT

P19

P12

P20

P13

S-BUSY

REC/PLAY

RES OUT

VPP/IC

CD CLK

CD DO

CLK

AVSS

M-BUSY/TUN SM

SPEANA3

SPEANA2

SPEANA0

KEY 2

KEY 1

KEY 0

SYS STOP

NO USE

REMOCON

VSS

SMUTE

T_SOL_A

T_MOTOR

TIMER LED

VDD

AC RLY_CONT

KARAOKE LATCH

DIST3

DIST2

DIST1

DIST0

VLOAD

P18

P17

VDD

T_SOL_B

CD CLAMP SW

T2 RUN

FPA

-20dBATT

DRF

XT2

SPEANA1

AVref

FPB

MIC IN

SPN

DISTOUT/SW OUT

SPK_DET

SP_RLY

T1 PLAY

48 47 46 45 44 43 42

41 40 39 38 37 36 35 34 33 32 31

83 84 85 86 87 88 89

90 91 92 93 94 95 96 97 98 99

100

P14

P15

P16

- -

TAPE MECHANISM PWB-E

MM1

TAPE

MOTOR

SOLM1

SOLENOID

SOLM2

SOLENOID

SWM2

T2 PLAY

SWM4

R.PLAY

SWM1

T1 PLAY

SWM3

F.PLAY

PH1

PH2

R737 1K

D703

1SS133

D702

1SS133

C710

47/25

C708

1/50

R743

C705

100/10

R748 10K

R751 10K

R750 10K

R749 10K

R753 10K

D701

1SS133

R742 1K

R734 1K

R733 1K

R735 1K

R736 1K

R778 1K

R792 1K

R732 1K

R726 2.2K

R727 2.2K

R728 2.2K

R729 2.2K

R719

R720

R721

R722

10K

R724

IC701

IX0336AWZZ

SYSTEM

MICROCOMPUTER

LED722

4204SRT

R755

10K

R777

10K

R776

10K

R775

10K

R757

68K

R756

68K

R758

10K

R759

10K

Q702

2SC3331

R763

47K

D705

1SS133

Q703

2SC3331

R762

47K

D704

1SS133

C712

10/16

C711

10/16

R761

R760

R766

10K

Q704

KTA1271Y

Q705

KTA1271Y

R767

10K

Q706

KTA1273Y

R768

10K

R717

R716

R715

R714

R713

R712

R711

R710

R709

XL7

R706

R703

R702

R707

R704

R708

R705

FL701

FL DISPLAY

CNP703

FFC13

– 27 –

CD-BA120/125

8 9 10 11 12

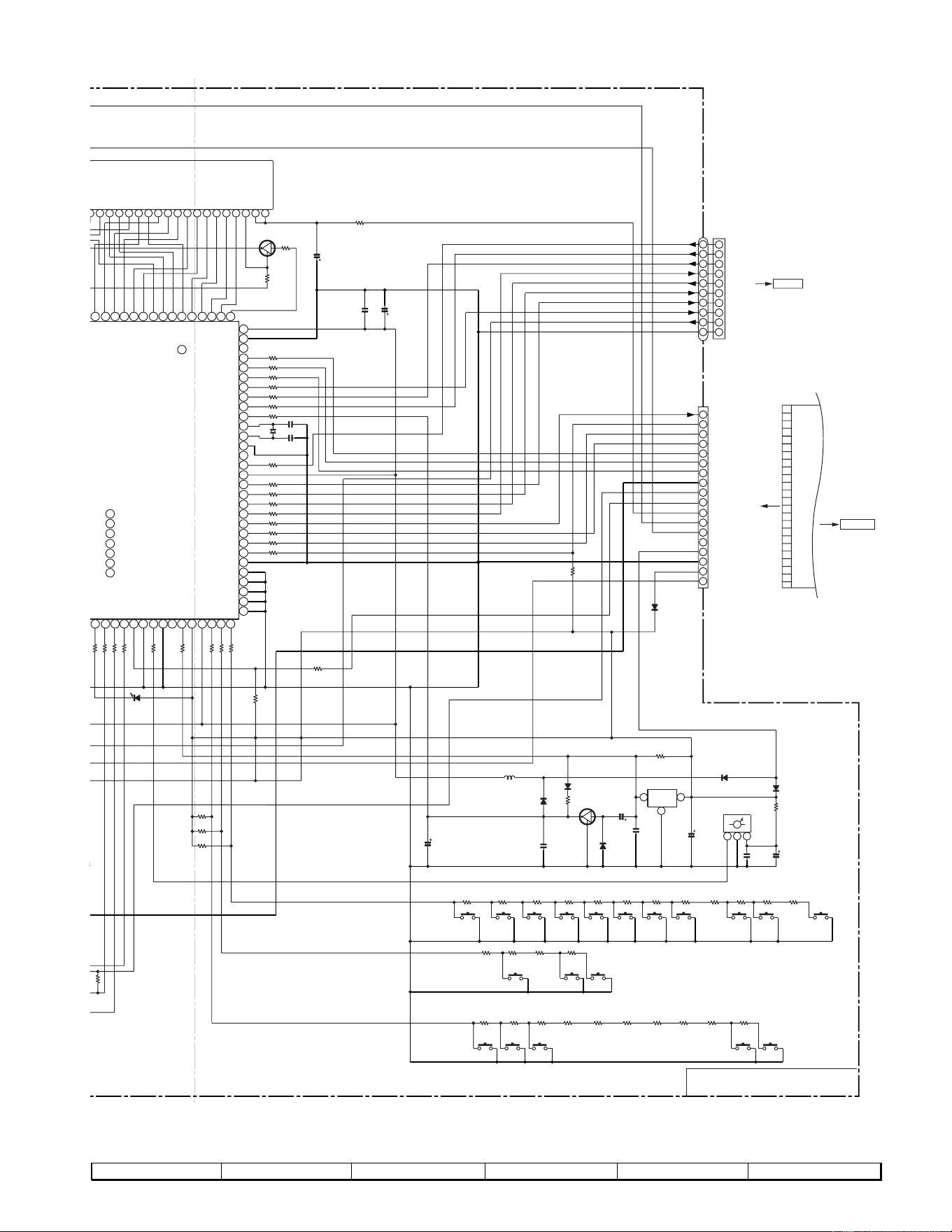

Figure 27 SCHEMATIC DIAGRAM (10/10)

3 2 1

POWER

UN_SW 5V

T2 PLAY SW_B

T1 PLAY SW_A

P17

P18

P19

P12

T-BIAS

T_T1/T2

VDD

AVDD

RESET

CD CE

CD DI

WRQ

CD INT

P19

P12

S-BUSY

REC/PLAY

RES OUT

VPP/IC

CD CLK

CD DO

CLK

AVSS

M-BUSY/TUN SM

SPEANA3

SPEANA2

SPEANA0

KEY 2

KEY 1

KEY 0

SYS STOP

NO USE

REMOCON

VSS

SMUTE

T_SOL_A

T_MOTOR

TIMER LED

P18

P17

VDD

T_SOL_B

CD_GND

CD INT

WRQ(DSP)

CLAMP SW

CD DO

CD DI

CD CE

CD CLK

VF1

VF2

-VP

SMUTE

D_GND

SW_5V

CD CLAMP SW

T2 RUN

-20dBATT

DRF

XT2

SPEANA1

AVref

DRF

REC/PLAY

T_T1/T2

T_BIAS

RES OUT

AC_RLY CONT

M_10V

CLK

5V BACK UP

M_GND

SP_RLY

45 44 43 42

41 40 39 38 37 36 35 34 33 32 31

86 87 88 89

90 91 92 93 94 95 96 97 98 99

100

CNP701

TO MAIN PWB

P21 12 - D

CD INT

WRQ(DSP)

DRF

CD CE

CD DO

CD DI

CD CLK

RES OUT

CLAMP SW

D_GND

CNP12

P19 12 - F

TO CD

SERVO PWB

DISPLAY PWB-A2

R726 2.2K

R727 2.2K

R728 2.2K

R729

R719

R720

R721

R722

10K

R724

IC701

IX0336AWZZ

SYSTEM

MICROCOMPUTER

LED722

4204SRT

R755

10K

R725

R777

10K

R776

10K

R775

10K

331

1273Y

SW710

OPEN/

SW709

DISC

SKIP

RD09

100K

RD08

56K

RD01

680

SW701

POWER

RD02

820

SW702

CLOCK

SW703

TIMER

RD03

RD04

1.5K

RD05

2.2K

RD07

3.9K

RD06

2.7K

RD26

6.8K

RD25

680

SW711

X-BASS

RD11

RD10

820

SW712

VOL UP

RD12

1.5K

SW713

VOL

DOWN

RD13

680

RD14

820

RD15

SW723

REC

RD22

15K

SW724

TUNING

RD23

33K

SW721

STOP

RD19

3.9K

RD17

2.2K

RD20

5.6K

SW718

REWIND

RD21

10K

SW717

MEMORY/

SET

RD18

2.7K

SW720

PLAY

RD16

1.5K

SW719

FAST

FORWARD

SW716

TUNING/

TIME

DOWN

SW715

TAPE

SW714

RD24

100K

SW725

TUNER

R770

47K

D708

1SS133

C713

0.1/50

RX701

REMOTE SENSOR

D711

1SS133

D710

1SS133

D709

1SS133

C717

10/50

C715

3.3/50

D707

1SS133

C714

0.01

Q707

KRC102M

C716

0.022

L701

100uH

R772

4.7K

R773

100

C718

0.022

C719

47/25

IC704

KIA7042P

REST

CNP701

D706

1SS133

R769

10K

R717 1K

R716 1K

R715 1K

R714 1K

R713 1K

R712 1K

R711 1K

R710 1K

R709 1K

XL701

C704

18P

C703

15P

R706 1K

R703 1K

R702 1K

R707 1K

R704 1K

R708 1K

R705 1K

C702

220/10

C701

0.022

R745

100K

R779

3.3 (1/2W)

C707

1/50

Q701

KRC107M

R744

BI702

701

SPLAY

CNS702

FFC18

CD-BA120/125

– 28 –

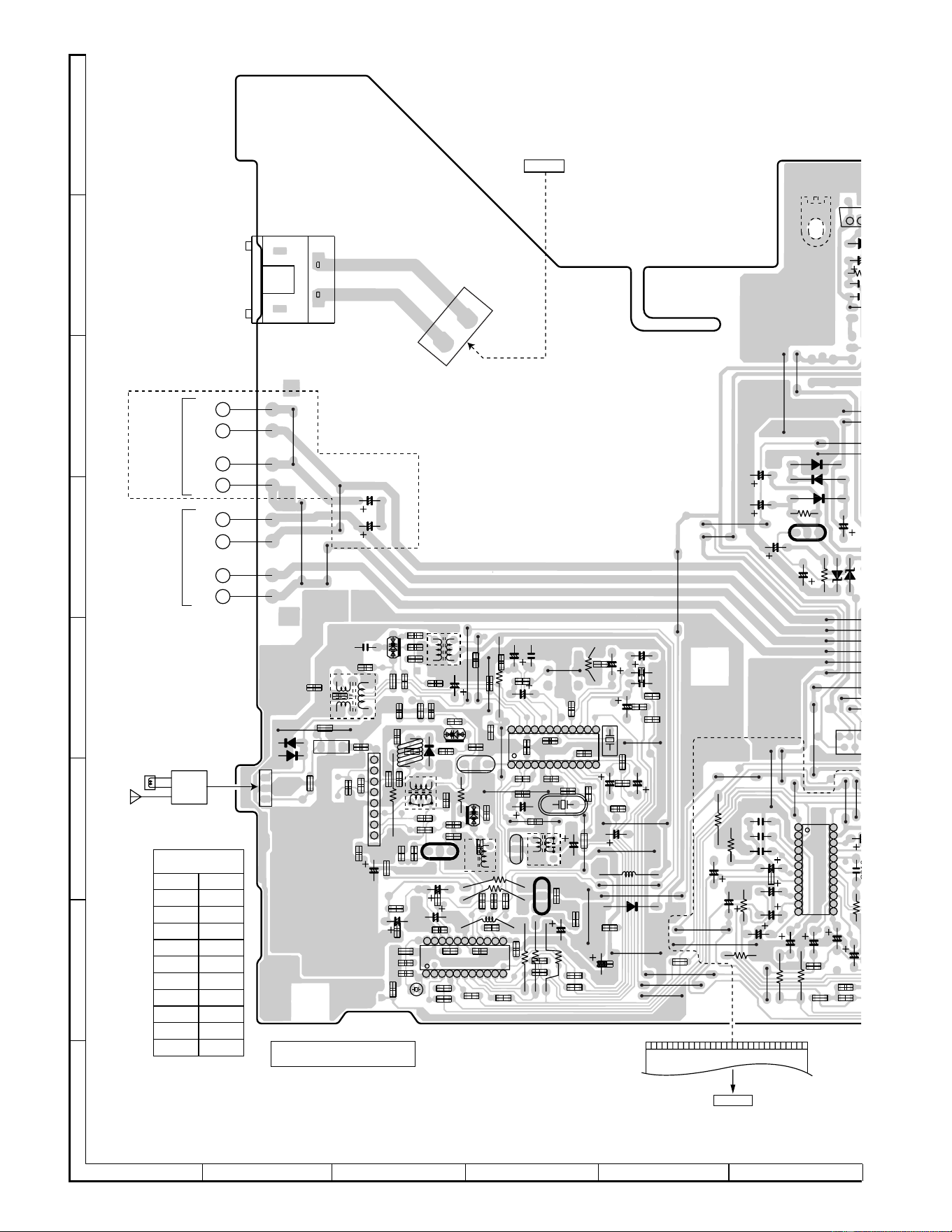

Figure 28 WIRING SIDE OF P.W.BOARD (1/6)

23456

SO901

SPEAKER

TERMINAL

CNP301

X352

IC302

L351

C394

C380

R375

C393

R382

C307

T301

Q302

VD303

IC301

T302

R314

R309

CF303

D301

BF301

L312

D305

D302

VD302

T303

C362

C331

T306

VD301

C960

C961

SO801

AC INPUT SOCKET

C364

C365

C372

R357

C368

R358

C374

C373

C367

C371

X351

IC303

C357

C358

CF351

C352

C370

C398

CF352

T351

L352

Q360

D306

C391

R384

R387

R386

C396

R609

R603

R604

C62

C607

C626

C627

C628

C625

R616

R617

C603

C623

C617

C629

C612

C610

IC601

C613

R615

C611

C609

R625

R928

C955

ZD902

ZD903

C954

Q904

C958

R927

C957

D917

D916

C956

CNP801

D915

C945

C944

R926

C943

LG901

1618

CNP

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

FFC18

P30 6 - G

TO DISPLAY PWB

CNP701

2 3 4 5 6 7 8 9

10 11

1314

1516171819

BCE

321

123456789

10 1112

131415161718192021222324

AM LOOP

ANTENNA

FM ANTENNA

L-CH

–

L-CH

R-CH

–

R-CH

L-CH

–

L-CH

R-CH

–

R-CH

FRONT

SPEAKER

REAR

SPEAKER

CD-BA125 ONLY

CNS801

P33 8 - C

TO POWER

TRASFORMER

ECB

MAIN PWB-A1

R374

R372

R373

C384

C382

C381

C392

R377

C397

R381

C318

R380

C306

R322

R325

C324

R327

R302

C311

C310

C313

C312

C304

C305

C315

C308

C303

C314

R365

R313

C317

R316

C316

C323

C338

C334

C361

R336

C330

R323

C342

C332

C335

C363

R356

R362

R350

R364

C369

R361

R363

R351

C366

C399

C355

R352

R355

R353

C354

C350

C356

C351

R383

C385

R393

R385

R395

C386

R360

C395

R359

R376

R388

R378

C601

R618

C387

R379

R311

C309

C353

R607

– 29 –

CD-BA120/125

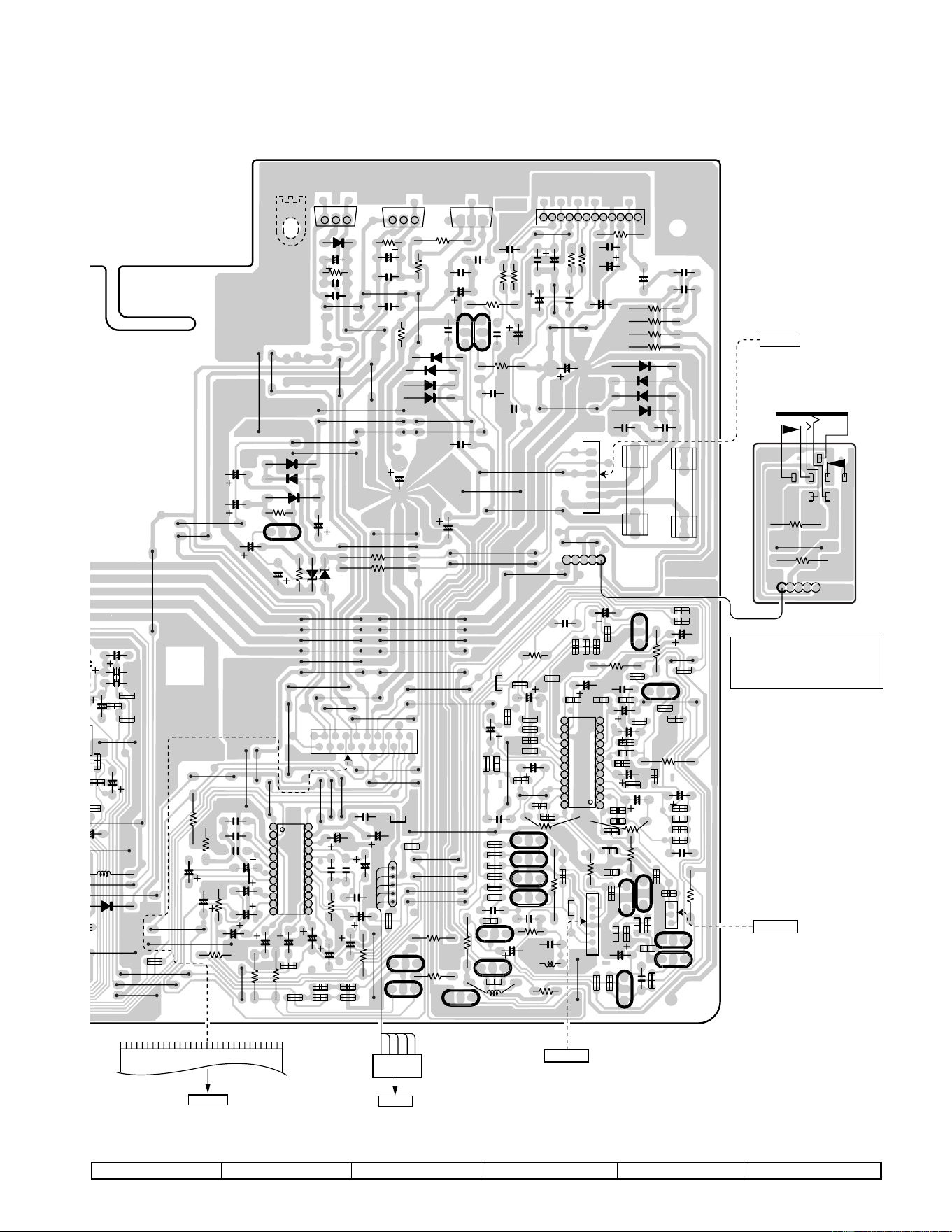

Figure 29 WIRING SIDE OF P.W.BOARD (2/6)

8 9 10 11 12

JK901

HEADPHONES

PWB-A3

R917

C372

C368

C374

C373

C371

C358

C370

L352

D306

R609

R603

R604

C624

R610

C618

C607

C626

C627

C628

C630

C625

R616

C614

R617

C603

C623

C617

C629

C612

C610

IC601

C608

C613

C606

R615

C611

C609

C605

R625

R930

R928

C955

ZD902

ZD903

R929

C954

Q904

C958

R927

C957

D917

D916

C956

D915

C940

C945

C944

C939

R926

C943

C938

D918

R925

IC904

LG901

R916

IC902

IC901

R924

C911

C918

C905

C906

R906

R908

R923

C933

C919

R905

R907

C934

C935

C908

C910

R915

C953

Q901

Q902

R922

C909

C907

D911

R914

C946

D913

D914

C903

D912

C904

C952

CNP901

F902

1.6A/250V

F901

3A/250V

C947

C959

FW901

C134

C130

R142

C136

C128

C122

IC101

C116

R116

C118

Q107

Q105

R114

BI601

R138

Q104

Q106

C148

CNP102

C140

R149

R146

Q114

R602

C141

C142

Q602

Q112

R601

L103

Q601

R145

Q113

Q101

C101

Q102

C108

Q103

CNP101

Q108

R157

Q109

C119

R115

R117

C117

C123

C139

R143

C129

C135

Q111

C131

R139

R140

C138

Q110

C950

C951

D910

D909

D907

D908

R910

R911

R912

R913

C916

C917

C915

R909

C604

L104

Q903

C914

CNS901

P33 8 - C

TO POWER

TRASFORMER

1 2 31 2 3

2 3 4 5 6 7 8 9

10 11 12

BCE

12 3

BCE

123

ECB

CNS601

12345

CNP11

P32 4 - A

TO CD SERVO

PWB

CNS102B

P35 11 - F

P35 10 - F

TO TAPE MECHANISM

TAPE 2 HEAD

CNS101B

TO TAPE MECHANISM

TAPE 1 HEAD

13579

11131517

2468

1012141618

CNP701

FFC18

P30 6 - G

TO DISPLAY PWB

CNP701

ECB

R362

R364

R361

R363

C355

355

395

C601

R618

C146

R124

C132

C145

R122

R130

R128

C126

R126

C120

R120

R118

C114

C112

R109

R104

R107

R106

C105

R137

R108

R148

C104

R147

R144

R101

R102

R103

R110

R113

R112

R111

C103

C106

C107

C102

R119

R105

C121

C115

R121

C113

R123

C137

C147

C127

R127

R131

R133

R125

R129

R135

R141

R134

R132

R136

R608

R607

C602

C133

CD-BA120/125

– 30 –

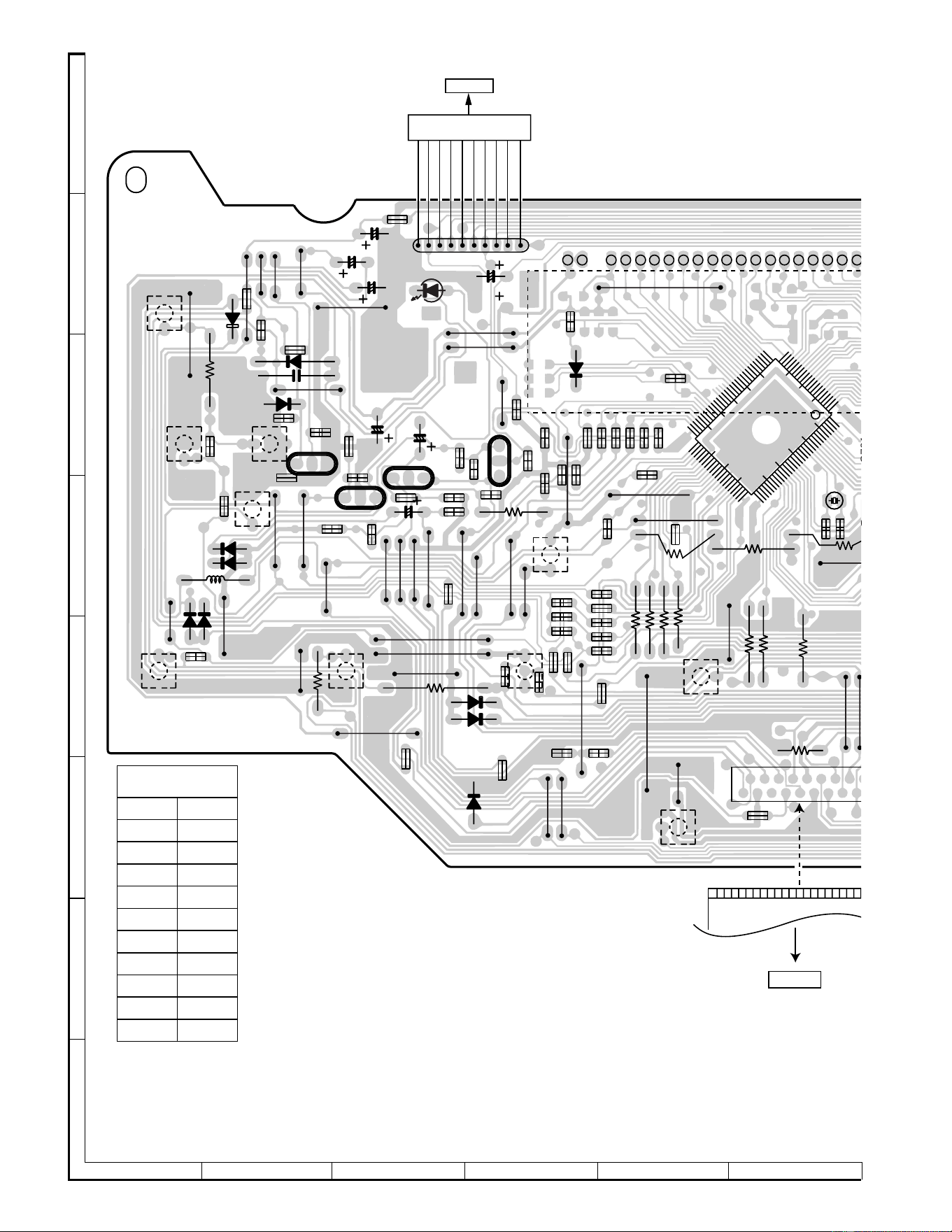

Figure 30 WIRING SIDE OF P.W.BOARD (3/6)

23456

IC704

SW701

POWER

RD01

SW703

TIMER/

SLEEP

L701

D710

D711

SW715

TAPE

D706

D702

D703

RD14

RD24

SW725

TUNER

(BAND)

D705

D704

C711

SW714

Q702

Q707

SW702

CLOCK

C712

C708

D709

C716

D708

D707

LED722

C713

C705

C715

BI702

CNS702

C717

D701

Q703

R732

RD04

SW709

DISC SKIP

RD05

R726

R729

R728

R727

R717

R716

SW717

MEMORY/

SET

SW718

REWIND

SW721

STOP

R769

FOR

R715

XL701

100

C701

FL701

321

3579

11131517

18 16 14

12 10 8 6 4 2

FROM

MAIN PWB

P28 5 - H

CNP701

CNP12

P32 5 - A

TO CD SERVO PWB

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

20191817161514131211

987654321

CNP701

RD02

RD13

R763

R760

R757

R756

RD03

R759

R772

R762

R761

C714

R771

R770

R753

R743

IC701

R748

R736

R737

R735

R734

R733

R758

R750

R751

R749

R792

R778

R722

R775

R776

R721

R777

R720

R719

RD15

RD16

R755

C704

R725

R742

– 31 –

CD-BA120/125

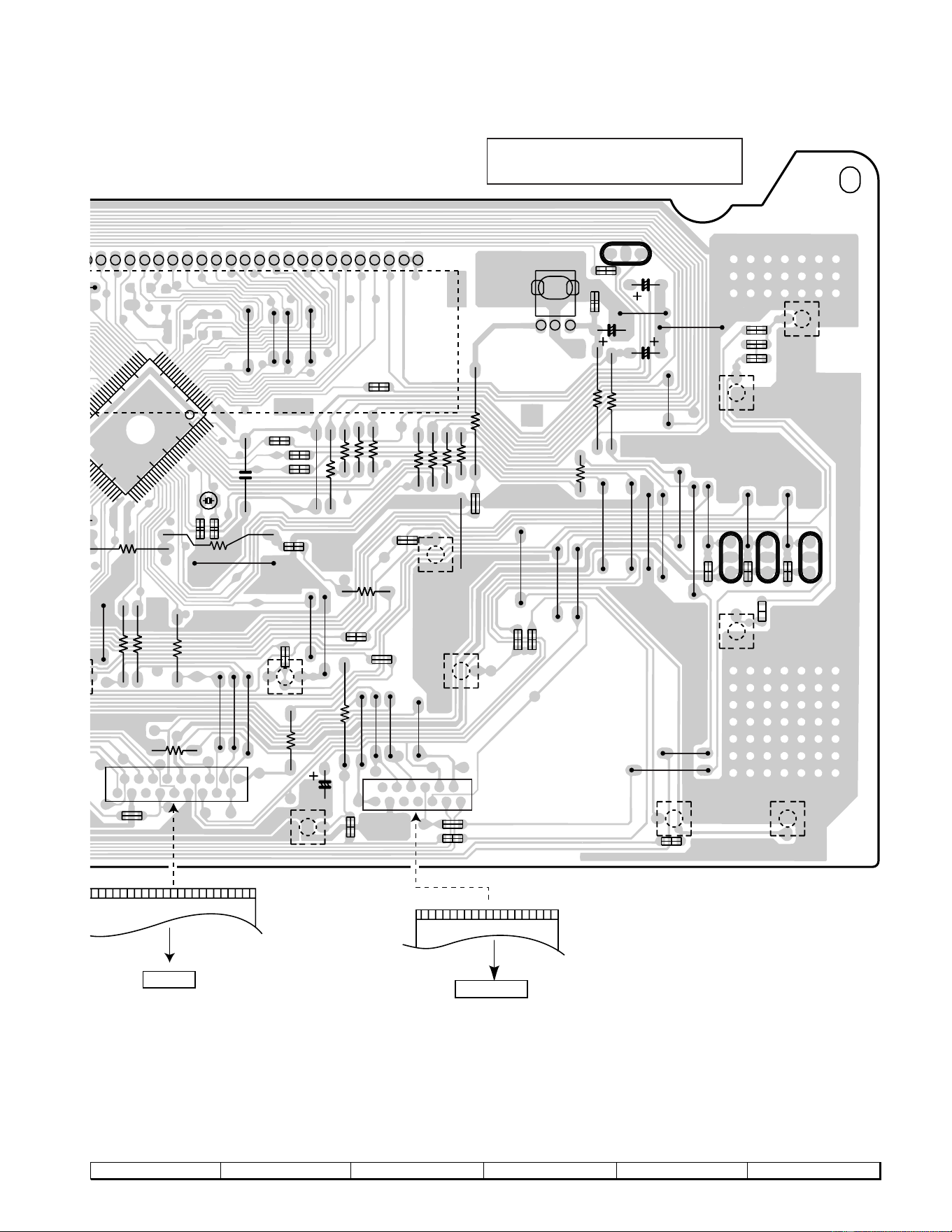

Figure 31 WIRING SIDE OF P.W.BOARD (4/6)

8 9 10 11 12

RD05

R717

R716

SW720

PLAY/

REPEAT

C710

R769

R714

RD18

SW719

FAST

FORWARD

R715

RD08

SW710

OPEN/CLOSE

RD06

XL701

100

C701

R709

R713

R712

R705

R706

R707

FL701

Q701

C702

RX701

REMOTE

SENSOR

C719

C707

R773

R779

R724

R710

R711

R708

SW723

REC/PAUSE

SW716

TUNING/

TIME DOWN

SW724

TUNING/

TIME UP

SW713

VOLUME

DOWN

Q706

Q704

Q705

SW712

VOLUME

SW711

X-BASS/

DEMO

123

135791113

13579

11131517

18 16 14

12 10 8 6 4 2

4681012

FROM

MAIN PWB

P28 5 - H

CNP701

FFC18

FFC13

TAPE MECHANISM PWB

P33 10 - A

33323130292827262524232221

20191817161514131211

CNP701

CNP703

DISPLAY PWB-A2

IC701

RD19

RD17

RD26

RD07

RD09

C704

C703

R704

R703

R702

R744

R745

C718

R768

RD22

RD21

RD20

RD23

RD12

R766

R767

RD11

RD10

RD25

21 3

CD-BA120/125

– 32 –

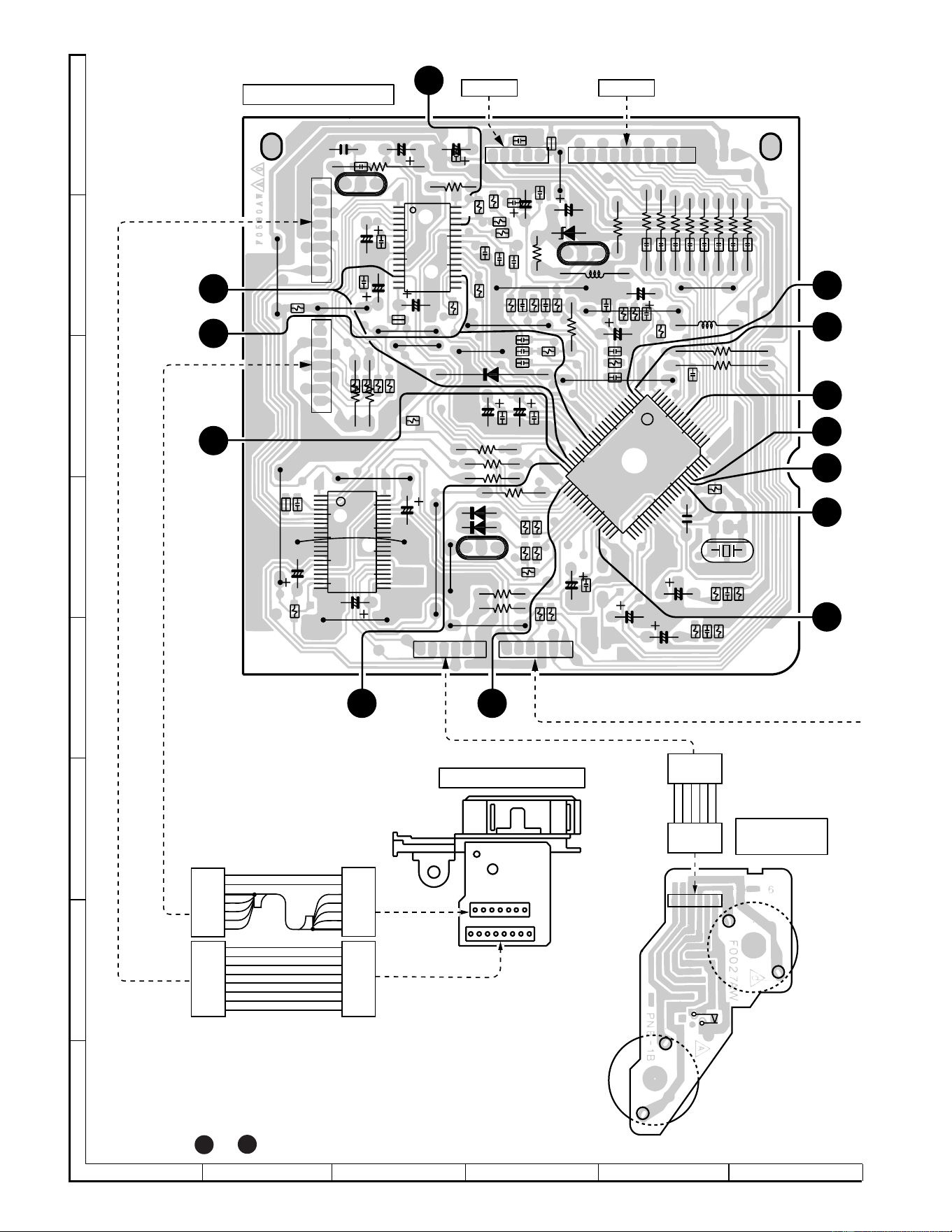

Figure 32 WIRING SIDE OF P.W.BOARD (5/6)

23456

• The numbers 1 to 13 are waveform numbers shown in page 14.

C49

C50

CNP3

CNP4

R16

R17

C31

D22

C56

C39

C38

XL1

C34

D21

R38

R39

R35

R44

C47

C28

C41

R55

R56

CNP1

D93

R80

L61

R67

R68

C24

C19

R72

R77

R76

R75

R74

R73

R78

R71

R19

CNP12

ZD61

L62

C64

C11

R58

CNP11

C45

R25

C51

R47

C52

C54

CNP2

CNS601

P29 9 - H

TO MAIN PWB

CNS703

P30 3 - A

TO DISPLAY PWB

SPINDLE MOTOR

CNS1B

CNS1A

CNS2BCNS2A

CNS3B

CNS3A

PICKUP UNIT(306)

CD SERVO PWB-B

CD MOTOR

PWB-C

SW4

PICKUP IN

SLED MOTOR

12345

CNP3A

ECB

BCE

123

IC2

IC3

R48

C46

R21

R40

R45

R22

R46

R95

R94

C30

R82

C40

R84

R81

C43

R83

C80

R12

C23

R79

R13

C21

C81

R11

C25

R14

C22

R10

C20

C27

C42

C26

R15

C82

C29

R54

R51

R53

R52

C55

R50

R43

IC1

C53

C44

R42

C18

C83

C12

C14

C17

C13

C71

C78

C73

C74

C75

C76

C77

C72

21 22

R20

15 16

40 41

12 45312453679108

123456123456

1 6

– 33 –

CD-BA120/125

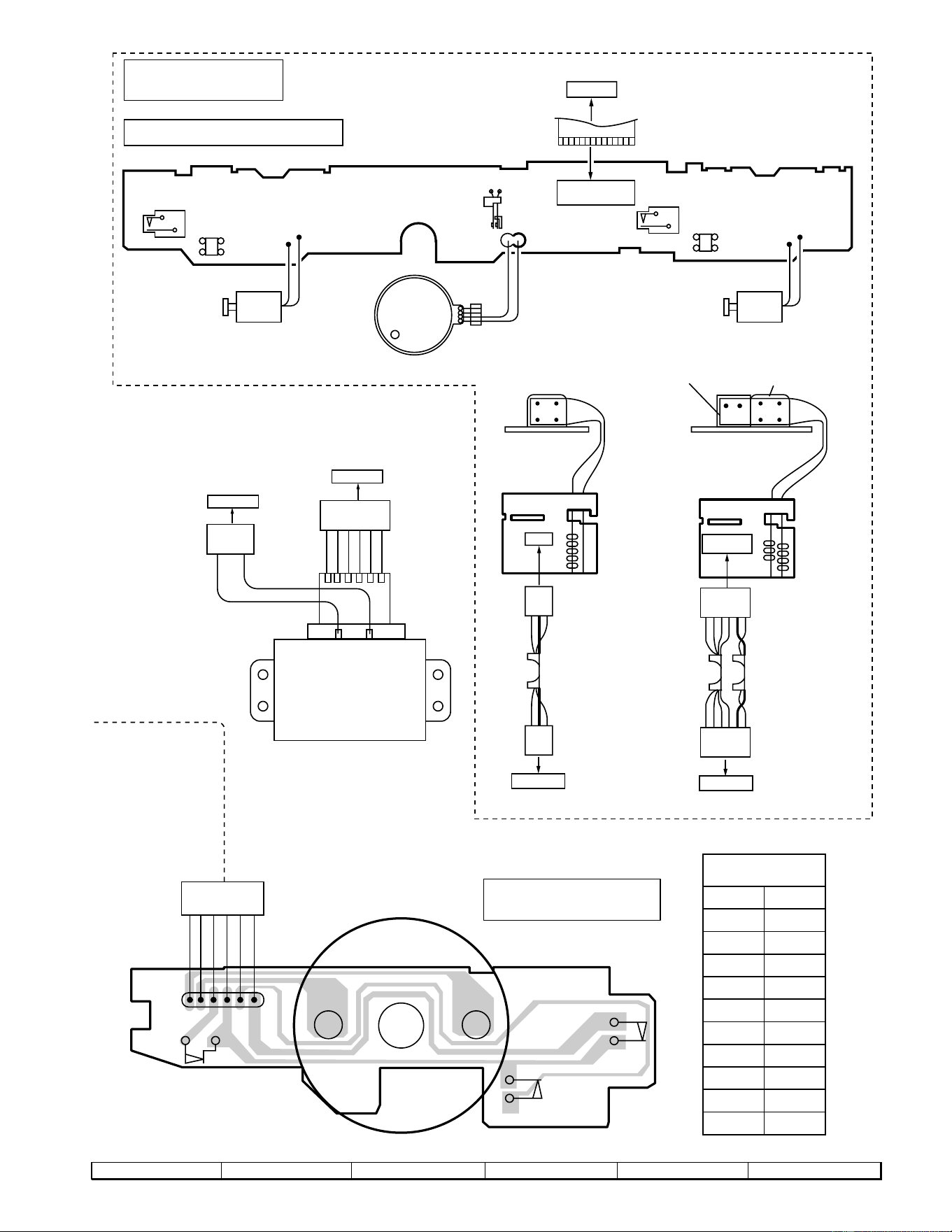

Figure 33 WIRING SIDE OF P.W.BOARD (6/6)

8 9 10 11 12

CD LOADING MOTOR

PWB-E

123

456

BI4

T/T UP/DOWN

MOTOR

–

SW3

DISC

NUMBER

SW2

CLAMP

SW1

OPEN/

MM1

TAPE MOTOR

CNP702

SOLM

SOLENOIDE

SOLM

SOLENOIDE

TAPE MECHANISM PWB-D

TAPE MECHANISM

ASSEMBLY

P31 10 - G

TO DISPLAY PWB

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

564321

CNS901

PT801

POWER

TRANSFORMER

CNP901

P29 12 - B

TO MAIN PWB

123

CNS101B

231

CNS101A

231

CNP101

P29 12 - G

TO MAIN PWB

CNP102

P29 10 - H

TO MAIN PWB

CNS102A

CNS102B

654321

TAPE 1

PLAYBACK HEAD

TAPE 2

ERASE HEAD

RECORD/PLAYBACK

HEAD

CNS801

CNP801

P28 4 - A

TO MAIN SUPPLY

PWB

FC702

CNS4

CD-BA120/125

– 34 –

VOLTAGE

4.67V

4.78V

1.16V

2.25V

4.30V

4.85V

4.75V

4.74V

4.69V

4.78V

5.0V

4.85V

4.69V

4.82V

0.3V

4.81V

4.9V

5.0V

4.9V

5.0V

NO. NO.

VOLTAGE

IC701

VOLTAGE

4.81V

4.29V

–18.6V

–21.7V

–28.2V

–27.1V

–27.7V

4.81V

27.8V

–27.8V

–27.7V

–12.9V

–24.4V

–27.1V

–24.4V

–27.1V

–25.9V

–15.7V

–22.2V

–22.3V

–27.8V

–18.6V

–12.9V

–24.4V

–27.1V

4.78V

1.7V

9.45V

3.8V

4.89V

4.79V

–24.4V

–27.1V

–24.4V

–27.1V

–24.4V

100

1.9V

4.9V

1.6V

2.1V

1.6V

1.8V

2.1V

4.9V

3.5V

4.9V

1.6V

2.1V

4.2V

2.1V

4.9V

2.1V

NO.

VOLTAGE

IC3

16.72V

16.27V

34.2V

16.6V

NO.

VOLTAGE

IC901

2.8V (0.2V)

0V (0V)

0.8V (0V)

1.5V (0V)

3.6V (0.4V)

1.5V (0V)

3.6V (0.4V)

3.5V (0.3V)

3.6V (0.3V)

NO.

VOLTAGE

IC301

19.12V

10.04V

NO.

VOLTAGE

IC902

19.12V

0.64V

5.64V

NO.

VOLTAGE

IC904

10.04V

19.05V

9.57V

NO.

VOLTAGE

Q903

4.9V

NO.

VOLTAGE

IC704

3.0V

3.3V

1.6V

1.7V

4.7V

1.6V

2.4V

3.3V

1.6V

3.0V

3.3V

0.7V

1.6V

3.3V

1.6V

2.1V

3.3V

3.5V

3.3V

1.6V

1.5V

3.0V

3.3V

1.8V

3.0V

1.7V

2.4V

NO.

VOLTAGE

3.4V

3.2V

4.8V

4.9V

4.6V

4.9V

IC2

0.55V

2.16V

1.25V

0.58V

3.17V

3.55V

4.72V

4.37V

3.67V

0.38V

2.16V

0.55V

NO.

VOLTAGE

IC101

4.96V

4.89V

4.78V

5.1V

5.5V

5.0V

4.66V

5.03V

4.97V

10.0V

NO.

VOLTAGE

IC601

9.87V

2.15V

4.83V

4.4V

4.64V

2.27V

2.13V

4.66V

4.86V

0.73V

6.3V

2.33V

NO.

VOLTAGE

IC302

4.65V

2.12V

4.78V

2.12V

2.11V

4.65V

3.02V

4.78V

4.08V

1.63V

1.13V

1.29V

2.08V

1.31V

2.07V

1.43V

1.99V

1.44V

2.08V

4.48V

3.35V

NO.

VOLTAGE

IC303

1.6V

3.3V

1.6V

2.6V

1.6V

3.3V

NO.

VOLTAGE

IC1

– 35 –

CD-BA120/125

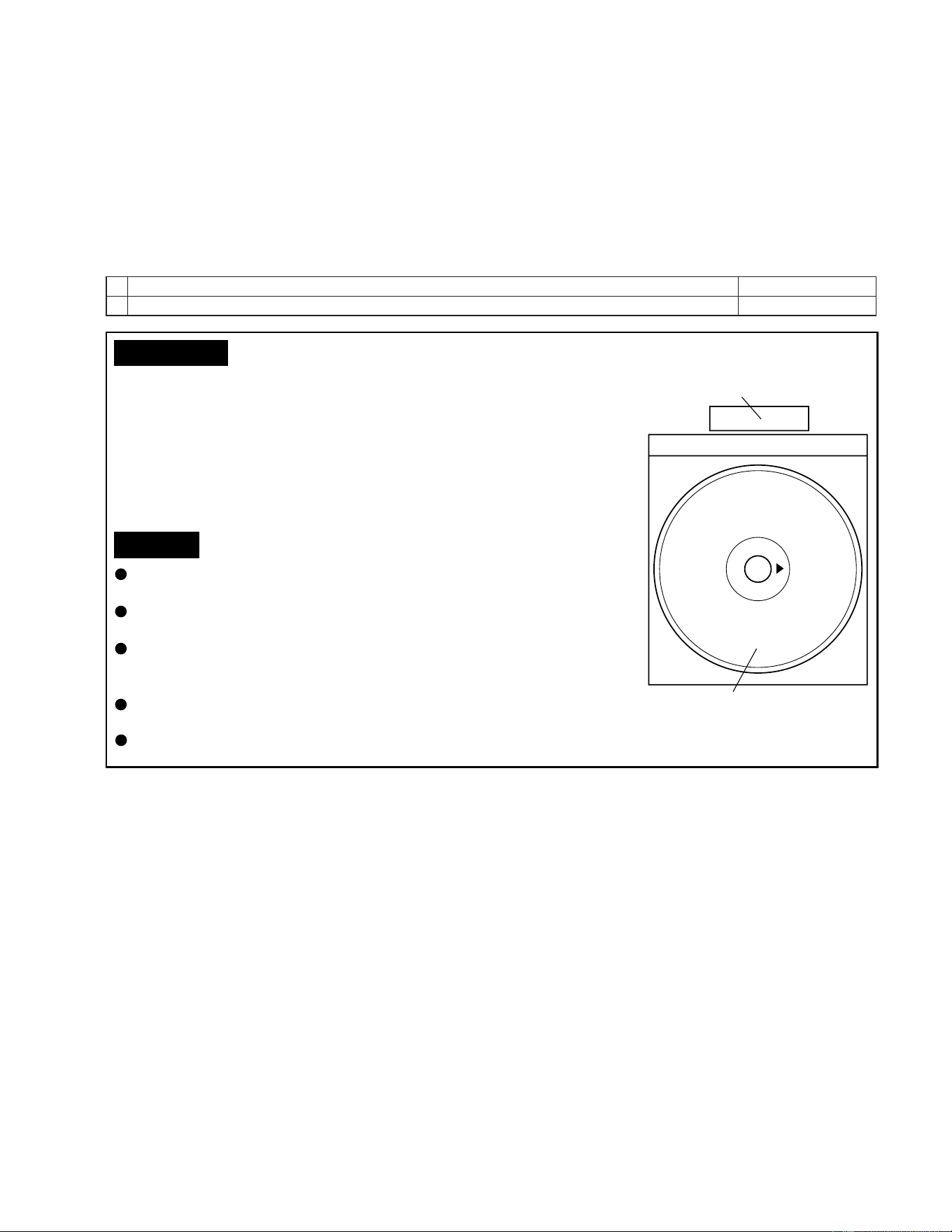

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

TROUBLE SHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean

the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check

the following items.

Remove the cabinet and follow the trouble shooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup

lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

HOW TO USE

CAUTION

Cleaner Fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the

brush on the CD cleaner disc which has the mark next to it.

Place the CD cleaner disc onto the CD disc tray with the brush side down,then

press the play button.

You will hear music for about 20 seconds and the CD player will automatically stop.

If it continuous to tum, press the stop button.

The CD lens cleaner should be effective for 30-50 operations, however if the

brushes become worn out earlier then please the cleaner disc.

If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft

cloth.

Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the

event of this happening then drink and / or rines with clean water and seek medical

advice.

The CD cleaner disk must not be used on car CD players or on computer CD ROM

drives.

(1) Check the power to IC2 (LC78641E), the presence of the clock signal (16.93 MHz) and the status of the RESET terminal

(pin 71 on IC2).

(2) Did the pickup move to the PICKUP-IN Switch (SW4) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, butplayback does not occur.

(1) Focus-HF system check

(2) Tracking system check

(3) Spin system check

(4) PLL system check

(5) Others

1. "E-CD01" is displayed.

When a CD cannot be played

CD-BA120/125

– 36 –

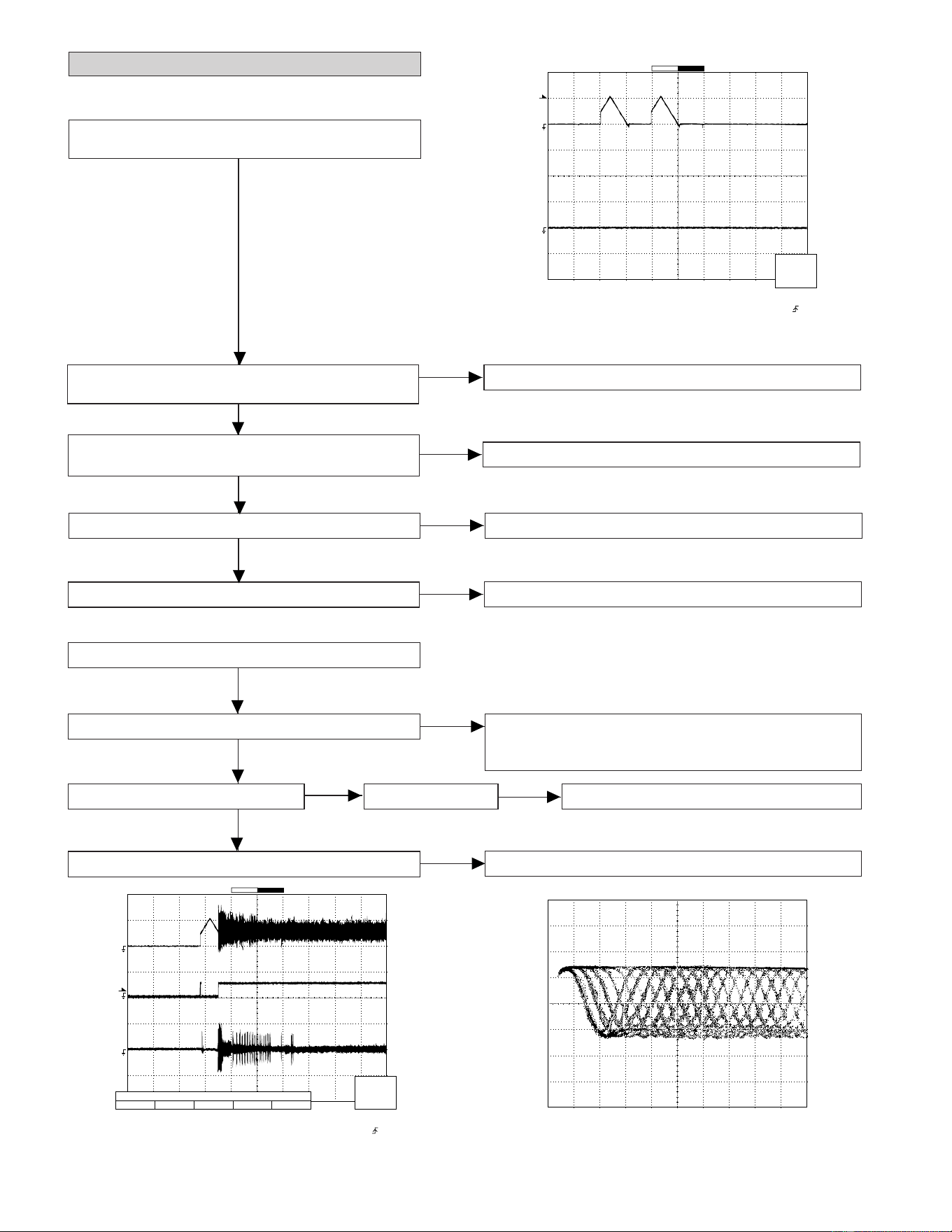

If the level is not normal, check around pins 27~29 on IC1.

1. Is focus servo activated? (Waveform drawing 36-2)

Pins 1~11 on IC1

Check the laser diode driver Q3 peripheral circuit.

Focus error circuit (pins 20 and 21 on IC1)

When a disc is loaded, start playback operation.

2. Does DRF change from "L" to "H"?

Is the disc rotating?

3. Is the HF waveform normal? (Waveform drawing 36-3)

Check the spin system.

If the disc is spinning and a HF waveform is generated,

DRF will go H.

Figure 36-1

Check the laser diode driver Q3 peripheral circuit.

(1) Focus-HF system check

Although a CD is inserted and the cover is closed, "NO

DISC" is displayed.

1. Did the pickup move to the PICKUP-IN Switch (SW4)

position?

Sled motor (M2)

Press the OPEN/CLOSE switch (SW1) without inserting a

disc, and try starting the playback operation.

2. Does the focus (lens) move up and down?

(Waveform drawing 36-1).

Check the focus peripheral circuit.

3. Is the laser lit?

Spindle motor (M1).

4. Is the turntable rotating?

Figure 36-2

Figure 36-3

Yes

FDO

TDO

Stopped

CH1=500mV

DC 10:1

CH3=500mV

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.000V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500mV

FDO

DRF

Stopped

CH1=500mV

DC 10:1

CH2=10V

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

-3div -1div 0div +1div +3div

CH Position To

CH2

Position

0.20div

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

– 37 –

CD-BA120/125

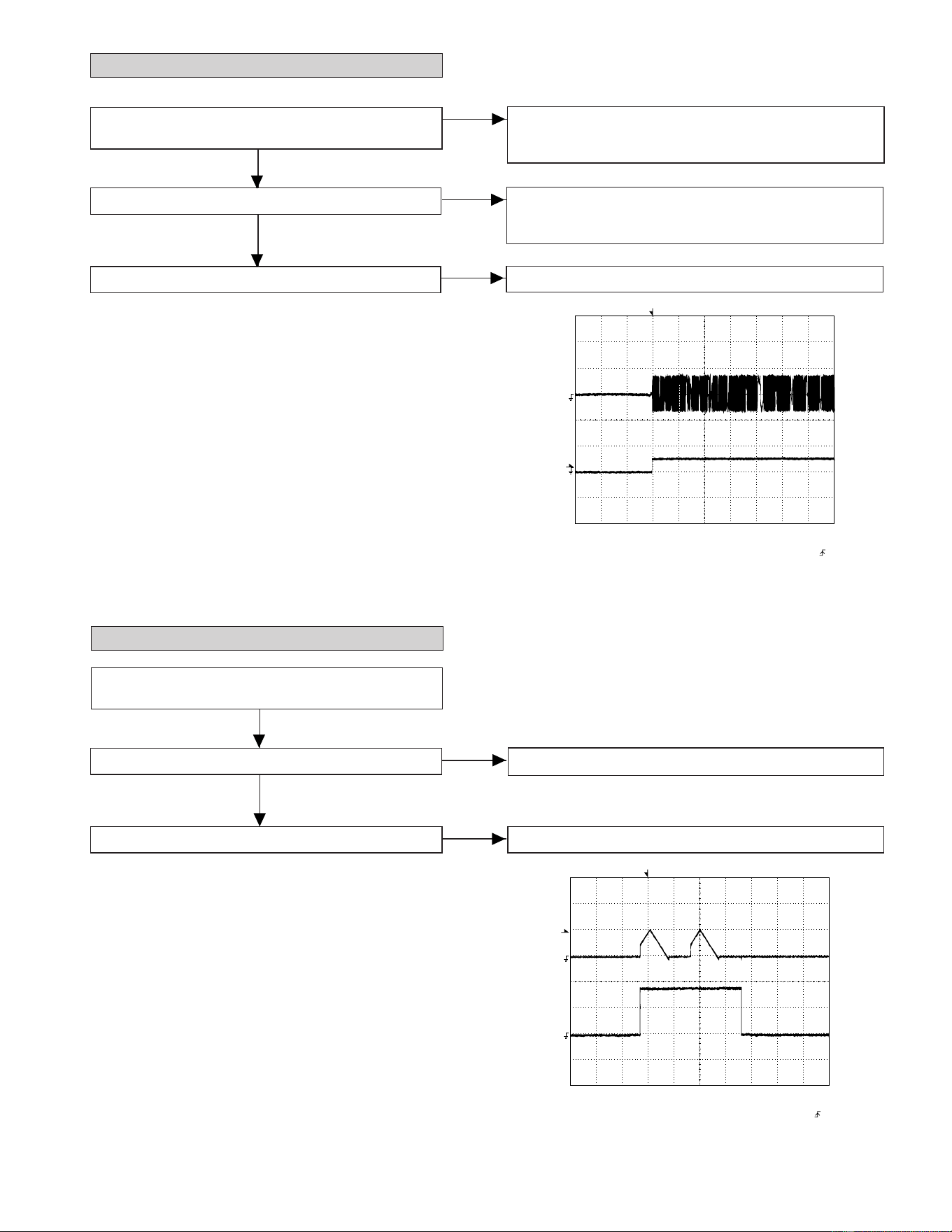

The tracking servo is not activated.

Check the peripheral circuits at pins 18 and 19 on IC1, pin 23 on

IC2, and CNS1A/B.

If the waveform shown in Figure 37-1 appears and soon after

NO DISC appears.

(2) Tracking system check

Check the TE waveform at pin 18 on IC1.

A normal jump operation cannot be completed or the beginning of

the track cannot be found.

Check the around pin 23 on IC2.

"Initialization" is possible, but play is not possible.

Data cannot be read. Check the VCO-PLL system.

"Initialization" is not possible.

Figure 37-1

Figure 37-2

Press the OPEN/CLOSE switch without inserting a disc, and

then try starting the play operation.

(3) Spin system check

The spin driver circuit is OK.

1. The turntable rotates a little. (Waveform drawing 37-2)

Check around pin 25 on IC2, pins 15 and 16 on IC3, and CNS3A/B.

2. The turntable doesn't rotate.

DRF

Stopped

CH1=10V

DC 10:1

CH2=1V

DC 10:1

100ms/div

(100ms/div)

NORM:100kS/s

=Record Length=

Smoothing : ON CH1 : 0.0V

CH2 : 0.00V

Main : 100K

Zoom : 2K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924ms

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

FDO

SPDO

Stopped

CH1=200mV

DC 10:1

CH2=500mV

DC 10:1

500ms/div

1999/04/07 09:51:15

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K

Zoom : 2K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924ms

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

Yes

CD-BA120/125

– 38 –

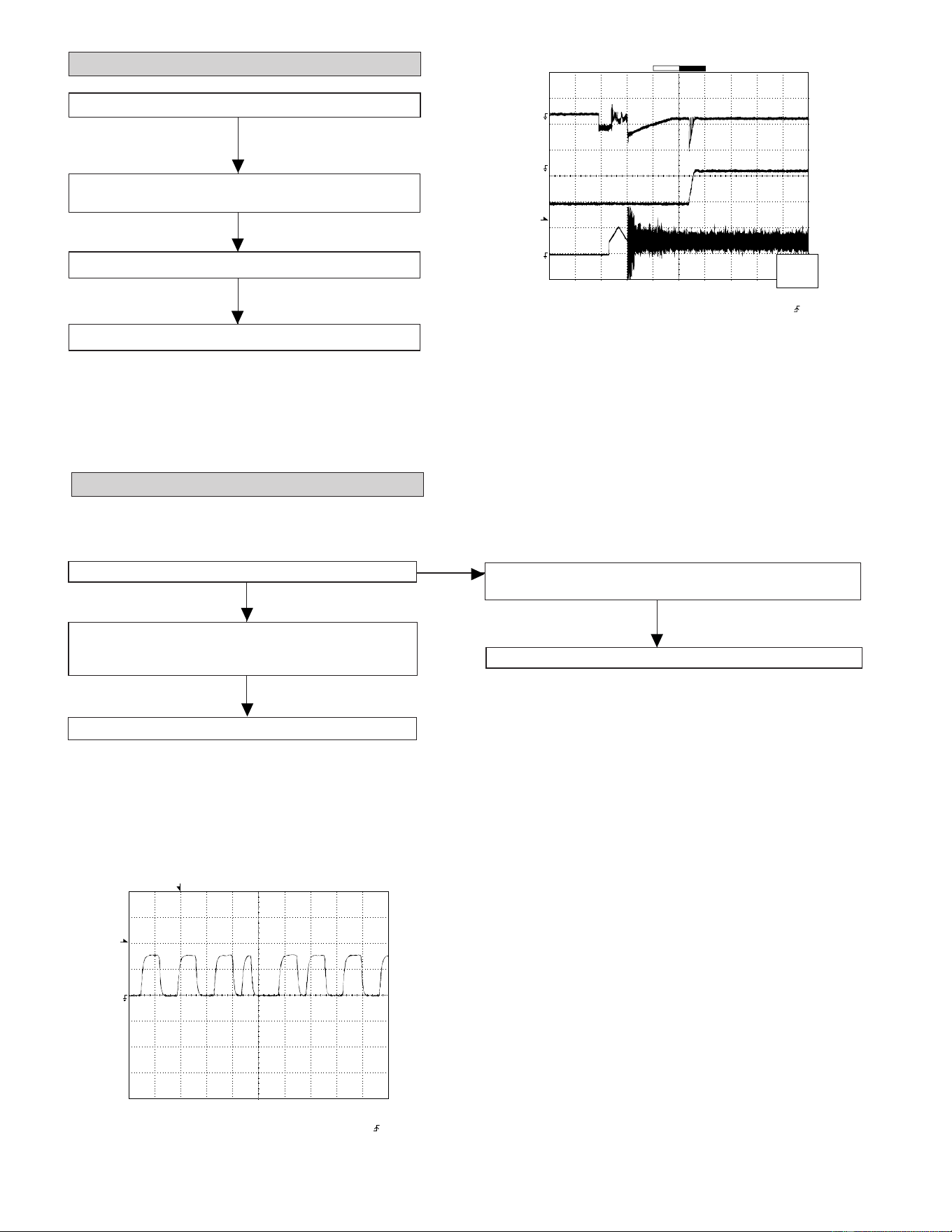

Is pin 35 (C2F) on IC2 "L"?

Yes

The HF waveform is normal and the time is displayed

normally, but no sound is produced. Or the sound has

dropouts.

(5) Others

There are too many error flags on a damaged disc which

makes error correction impossible.

Check again using a known good disc.

1. When playing at normal speed

Check the peripheral circuit at pin 37 (DOUT) on IC2 and

the waveform (Figure 38-2).

If both 1. and 2. are OK.

When a disc is loaded, start play operation.

(4) PLL system check

The HF waveform is normal, but the TOC data cannot be

read.

Check the PDO waveform. (Figure 38-1)

Check around pins 1~6 on IC2.

Figure 38-1

Figure 38-2

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0ns

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500mV

1999/04/05 17:33:17

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887ms

Hold off : 0.2us

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

– 39 –

CD-BA120/125

FUNCTION TABLE OF IC

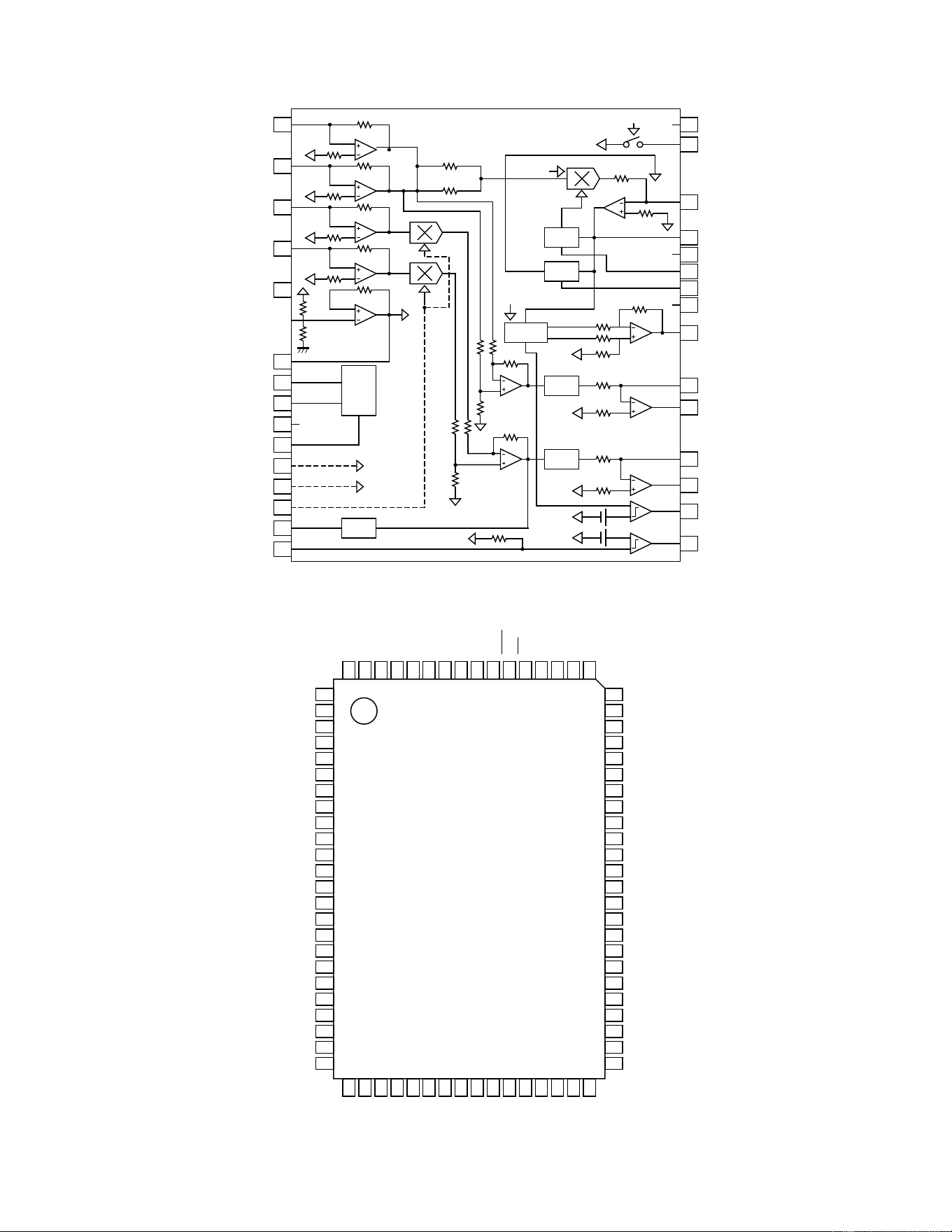

Figure 39 BLOCK DIAGRAM OF IC

IC1 VHiLA9235M/-1: Servo Amp. (LA9235M)

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E)

REF

LA9235M

REF

AGCON

ODRV

AGCON

ODRV

REF

LPF

APC

ODRV

REF

LPF

PH/BH

1 30FIN1 VCC

FIN2

RFSW

3FIN3

FIN4

26 N/C

25 PH

24 BH

23 N/C

5REF1

TESI

14TESO

13EFBL

12AGON

11ODRV

10LDOF

9VEE

8LDD

7LDS

6VREF

TES

17 HFL

18 TE

19 TE-

20 FE

21 FE-

22 RFEV

28 RF-

PDO1

PDO2

VVSS

PCKIST

VVDD

HFL

SLCIST

SLCO

EFMIN

JITTV

JITTC

PH(RFENV)

SPDO

SLDO

LASER

CONT1

CONT2

CONT3

CONT4

CONT5

PCK

C2F

VDD

DOUT

FSX

EFLG

TEST

EFMO

DEFECT

FSEQ

V/P

CONT7

CONT6

VSS

VDD

DRF

RES

WRQ

INT

VREF

ADAVDD

ADAVSS

PHREF

BHREF

TBLO

TDO

FDO

SBCK

SBSY

SFSY

16M

DATA

DATACK

LRSY

ASDACK

ASLRCK

ASDFIN

XVSS

XOUT

XIN

XVDD

RVDD

RCHO

RVSS

LVSS

LCHO

LVDD

MUTER

MUTEL

EMPH

LC78641E

CD-BA120/125

– 40 –

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (1/2)

1 PDO1 Output – For PULL Phase-comparison output terminal for built-in VOC control.

2 PDO2 Output – Phase-comparison output terminal for built-in VOC control.

Rough servo : OFF, phase servo : ON.

3 VVSS – – Ground terminal for built-in VCO.

4 PCKIST AI – Resistor terminal for setting the PDO output current.

5 VVDD – – Power terminal for built-in VCO.

6 FR AI – Resistor terminal for setting the VCO frequency range.

7 HFL Input – Mirror detection signal input terminal.

8 SLCIST AI – For slice level control

Resistance connection terminal for current adjustment of

SLCO output.

9 SLCO Output – Control output.

10 EFMIN Input – EFM signal input terminal.

11* JITTV Output Unfixed Jitter detection/monitor terminal.

12 JITTC Output – Jitter detection/adjustment terminal.

13 BH Input – BH signal input terminal. A/D input.

14 PH(RFENV) Input – PH signal or RFENV signal input terminal. A/D input.

15 FE Input – FE signal input terminal. A/D input.

16 TE Input – TE signal input terminal. A/D input.

17 VREF Input – VREF signal input terminal. A/D input.

18 ADAVDD – – AD for servo, D/A power terminal.

19 ADAVSS – – AD for servo, D/A ground terminal.

20* PHREF Output (1/2VDD) PH reference output terminal. D/A output.

21* BHREF Output (1/2VDD) BH reference output terminal. D/A output.

22 TBLO Output (1/2VDD) Output terminal for tracking balance. D/A output.

23 TDO Output (1/2VDD) Output terminal for tracking control. D/A output.

24 FDO Output (1/2VDD) Output terminal for focus control. D/A output.

25 SPDO Output (1/2VDD) Output terminal for spindle control. D/A output.

26 SLDO Output (1/2VDD) Output terminal for sled control. D/A output.

27* FG Input – FG signal input terminal. (When not used,connect to 0V)

28 LASER Output L LASER ON/OFF control terminal.

29 CONT1 In/Output Input mode General purpose input/output terminal 1.

Controlled with serial data command

30 CONT2 In/Output Input mode General purpose input/output terminal 2.

from microcomputer

When not used,

31 CONT3 In/Output Input mode General purpose input/output terminal 3.

set it as the input terminal

and

32 CONT4 In/Output Input mode General purpose input/output terminal 4.

open it by connecting

to 0V, or set it

33 CONT5 In/Output Input mode General purpose input/output terminal 5.

as the output terminal and open it.

34* PCK Output H Clock monitor terminal for EFM data replay. 4.3218MHz as phase clock.

35* C2F Output H C2 flag output terminal.

36 VDD – – Power terminal of digital system.

37* DOUT Output L Output terminal of digital OUT. (EIAJ format)

38* FSX Output L

Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.

39* EFLG Output L C1,C2 correct monitor terminal.

40 TEST Input – Input terminal for test. Surely connected to 0V.

41* EMPH In/Output Input mode

Emphasis terminal. After resetting, it is configured as an input terminal. It can be controlled

from the outside. It is also becomes a emphasis monitor terminal under command control.

42* MUTEL Output H Mute output terminal for L channel.

43* MUTER Output H Mute output terminal for R channel.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 41 –

CD-BA120/125

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (2/2)

44 LVDD – – L channel Power terminal for L channel.

45 LCHO Output 1/2VDD D/A converter L channel output terminal.

46 LVSS – – Ground terminal for L channel. Surely connected to 0V.

47 RVSS – – R channel Ground terminal for R channel. Surely connected to 0V.

48 RCHO OUTPUT 1/2VDD D/A converter R channel output terminal.

49 RVDD – – Power terminal for R channel.

50 XVDD – – For quartz Power terminal for quartz oscillation.

51 XIN Input Oscillation oscillation Ground terminal of 16.9344MHz quartz oscillation.

52 XOUT Output Oscillation

53 XVSS – – Ground terminal for quartz oscillation. Surely connected to 0V.

54 ASLRCK Input – For anti L/R clock input terminal. (When not used,connect to 0V)

55 ASDACK Input – shock mode Bit clock input terminal. (When not used,connect to 0V)

56 ASDFIN Input – L/R channel data input terminal. (When not used,connect to 0V)

57* LRSY Output L For digital L/R clock output terminal.

58* DATACK Output L data output Bit clock output terminal.

59* DATA Output L L/R channel data output terminal.

60* 16M Output Clock output 16.9344MHz output terminal.

61* SFSY Output L Output terminal of synchronous signal of subcode frame.

It drops when subcode stand by.

62* SBSY Output L Output terminal of synchronous signal of subcode block.

63* PW Output L Output terminal of subcodes P,A,R,S,T,U and W.

64 SBCK Input – Clock input terminal to read subcode. (When not used,connect to 0V)

65 CE Input – For Chip enable signal input terminal.

66 CL Input –

microcomputer

Data transmission clock input terminal.

67 DI Input – interface Data input terminal.

68 DO Output L Data output terminal.

69 INT Output H Interruption signal output terminal.

70 WRQ Output H Interruption signal output terminal.

71 RES Input – Reset input terminal of LC78640. When turning on power, set it at "L".

72 DRF Output L Focus ON detection terminal.

73 VDD5V – – Power terminal for microcomputer interface.

74 VSS – – Ground terminal of digital system. Surely connected to 0V.

75 CONT6 In/Output Input mode General purpose input/output terminal 6.

Controlled with serial data command

from microcomputer

When not used,

76 CONT7 In/Output Input mode General purpose input/output terminal 7.

set it as the input terminal

and

open it by connecting

to 0V, or set it

as the output terminal and open it.

77* V/ *P Output H Monitor output terminal for automatic switch of rough servo/phase control.

"H" for rough servo, and "L" for phase servo.

78* FSEQ Output L

Output terminal synchronous signal detection. "H" is output when synchronous

signal

detected by EFM signal matches synchronous signal

internally generated.

79 DEFECT In/Output Input mode

Defect terminal. After resetting, it is configured as an input terminal. It can be controlled

from the outside. It also becomes a defect monitor terminal under command control

80* EFMO Output Unfixed

EFM signal output terminal.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Be sure to supply the same potential to each power terminal. (VVDD,ADAVDD,VDD,LVDD,RVDD,XVDD)

Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :

CE (65pin), CL (66pin), DI (67pin), DO (68pin), INT (69pin), WRQ (70pin), RES (71pin), DRF (72pin),

CONT6 (75pin), CONT7 (76pin)

CD-BA120/125

– 42 –

IC701 RH-iX0336AWZZ: System Microcomputer (IX0336AW) (1/2)

Port Name Terminal NamePin No. Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

1 VDD VDD — (+) POWER SUPPLY

2 P37 — — GND

3* P36 S-BUSY Output COMMIJNTCATE TO MPEG U–COM

4 P35 T–BTAS Output TAPE RECORD BIAS

5 P34 T–T1/T2 Output TAPE T1/T2 CHANGE

6 P33 REC/PLAY Output TAPE REC/PLAY CHANGE

7 P32 RES OUT Output CD DSP RESET & MPEG UCOM RESET

8 P31 DRF Input CD RF LEVEL DETECTION

9 P30 WRQ Input CD DSP WRITE REQUSET

10 RESET RESET Input RESET

11 X2 X2 Output MAIN CLOCK

12 X1 X1 Input MAIN CLOCK

13 Vpp/IC Vpp/IC — GND

14* XT2 XT2 — OPEN

15 P04 CD TNT Input CD DSP INTERRUPT

16 VDD VDD — (+) POWER SUPPLY

17 P27 CD CLK/MCLK Output CD DSP CLOCK/MPEG UCOM CLOCK

18 P26 CD ID/MDI Outout CD DSP COMMAND/MPEG UCOM COMMA

19 P25 CD DO/MDO Input CD DSP CODE Q OUT/MPEG UCOM DATA INPUT

20 P24 CD CE Output CD DSP CE OUTPUT

21 P23 CE Output CE OUTPUT

22 P22 CLK Output CLOCK OUTPUT

23 P21 DT Output DATA OUTPUT

24 P20 DO Output DATA INPUT

25 AVss AVSS — ANALOG GROUND

26 ANI7 TUN SM Input TUNER SIGNAL METER INPUT

P17 M–BUSY Input COMMUNJCATE TO MPEGU COM M_BUSY

27 ANI6 NO USE Input GND

28 ANI5 SPEANA 2 Input SPEANA DATA INPUT 16 KHz

29 ANI4 SPEANA 1 Input SPEANA DATA INPUT 1 KHz

30 ANI3 SPEANA 0 Input SPEANA DATA INPUT 63 KHz

31-33 ANI2-ANI0 KEY2-KEY0 Input KEY INPUT

34 AVDD AVDD — ANALOG VDD

35 AVREF AVREF — ANALOG REF VOLTAGE

36 INTP3 SYS STOP Input SYSTEM STOP INPUT

37* P02 SPRLY Output SPEAKER OUTPUT RELAY CONTROL

38 INTP1 NO USED Input GND

39 INTP0 REMOCON Input REMOCON INPUT

40 Vss VSS — GROUND VOLTAGE

41 P74 SMUTE Output SYSTEM MUTE CONTROL

42 P73 T_SOL_B Output TAPE2 SOLENOID CONTROL

43 P72 T_SOL_A Output TAPE1 SOLENOID CONTROL

44 P71 T_MOTOR Output TAPE MOTOR CONTROL

45 P70 TIMER LED Output TIMER LED CONTROL

46 VDD VDD — (+) POWER SUPPLY

47* P127 AC RLY_CONT Output AC RELAY CONTROL

48 P126 SPRLY Output SPEAKER OUTPUT RELY CONTROL

49 P125 SP DET Input SPEAKER OUTPUT DETDCTION

50 P124 T1 RUN Input TAPE1 RUN PULSE INPUT

51 P123 T2 RUN Input TAPE2 RUN PULSE INPUT

52 P122 CD CLAMP SW Intput CD CHANGER CLAMP SWITCH

53 P121 PLAY SW_A Input PLAY SWITCH FOR T1

– 43 –

CD-BA120/125

54 P120 PLAY SW_B Input PLAY SWITCH FOR T2

55 P119 PPA Input TAPE2 A–SIDE FULL PROOF

56 P118 FPB Input TAPE2 B_SIDE FULL PROOF

57 P117 MIC SW Input MIC SWITCH

58* P116 KARAOKE LATCH Output KARAOKE LATCH

59* P115 DISTOUT Output DISTINATION OUTPUT

60 FIP39 SPN Input TUNER SPAN CHANGE

61*-62* FIP38-FIP37 NO USE Input OPEN

63*-66* FIP36-FIP33 P22-P19 Output FL DISPLAY DRIVER

67*-70* FIP32-FIP29 P18-P15 Output FL DISPLAY DRIVER

P103-P100 DIST3-DIST0 Input DISTINATION INPUT

71-78 FIP28-FIP21 P14-P7 Output FL DISPLAY DRIVER

79 VLOAD VLOAD –– FL DRIVER (–) POWER SUPPLY.–30V

80-85 FIP20-FIP15 P6-P1 Output FL DISPLAY SEGMENT

86-89 FIP14-FIP11 –– Input OPEN

90-100 FIP30-FIP0 G11-G1 IOutput FL DISPLAY SEGMENT DRIVER

IC701 RH-iX0336AWZZ: System Microcomputer (IX0336AW) (2/2)

Port Name Terminal NamePin No. Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

1 IN2- CH2 inverted input.

2 IN1A- CH1 inverted input.

3 IN1B- CH1 output offset control.

4 OUT1- CH1 inverted output.

5 OUT1+ CH1 non-inverted output.

6 OUT2- CH2 inverted output.

7 OUT2+ CH2 non-inverted output.

8-14 GND GND

15 OUT3+ CH3 non-inverted output.

16 OUT3- CH3 inverted output.

17 IN3- CH3 inverted input.

18 VCC1 Power supply 1 (CH1, CH2, CH3)

19 STANDBY STANDBY signal input.

20 VRFE CH1-CH4 Reference voltage input.

21 MUTE Mute signal input (CH6).

22 IN5- CH5 inverted input.

23 IN5+ CH5 non-inverted input.

24 VCC2 Power supply 2 (CH4).

25 IN4- CH4 inverted input.

26 OUT4- CH4 inverted output.

27 OUT4+ CH4 non-inverted output.

28 VCC3 Power supply 3 (CH5).

29-35 GND GND

36 OUT5+ CH5 non-inverted output.

37 OUT5- CH5 inverted output.

38 OUT6+ CH6 non-inverted output.

39 OUT6- CH6 inverted output.

40 VCC4 Power supply 4 (CH6).

41 IN6- CH6 inverted input.

42 IN6+ CH6 non-inverted input.

IC3 VHiM63001FP-1: Focus/Tracking/Spin/Slide Driver (M63001FP)

Pin No. Terminal

Name

Function

IN2–

IN1A–

IN1B–

OUT1–

OUT1+

OUT2–

OUT2+

OUT3+

OUT3–

IN3–

VCC1

STANDBY

VTEF

MUTE

GND

VCC3

OUT4+

OUT4–

IN4–

VCC2

IN5+

IN5–

IN6+

IN6–

VCC4

OUT6–

OUT6+

OUT5–

OUT5+

M63001FP

Figure 43 BLOCK DIAGRAM OF IC

CD-BA120/125

– 44 –

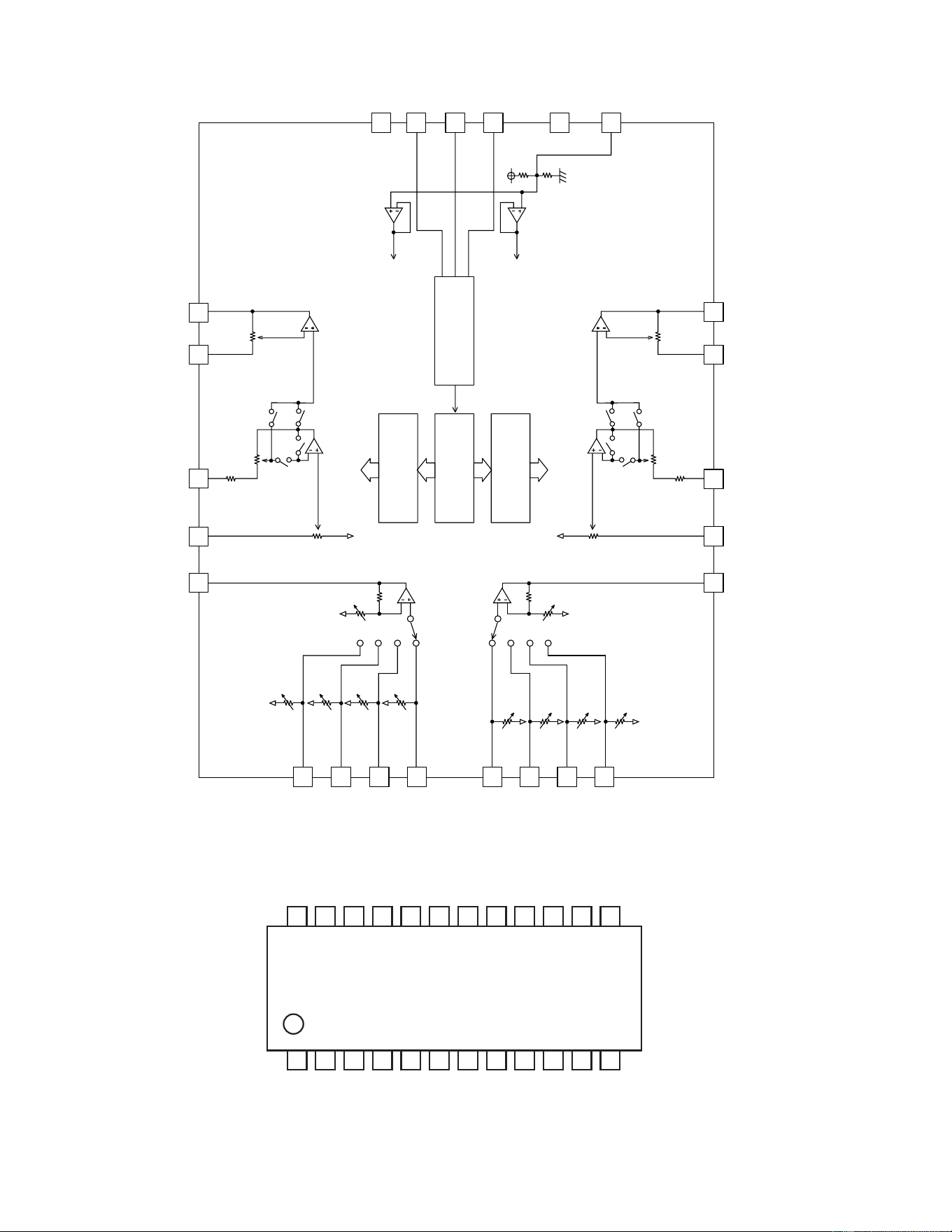

IC601 VHiLC75341/-1: Audio Processor (LC75341)

Figure 44 BLOCK DIAGRAM OF IC

222324

123

10 11 12 13 14 15 16

LVref

RVref

CONTROL

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CIRCUIT

LOUT

LBASS

0.1uF

LIN

LSEL0

L2 L1

R1 R2

R3 R4

RSEL0

R1N

RTRELTRE

RBASS

0.1uF

ROUT

Yref

VDD

YSS

CCB

INTERFACE

Tuner

Tape

Video

24 23 22 21 20 19 18 17 16 15 14 13

123456789101112

LC75341

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

VDD

VREF

ROUT

RBASS

RTRB

RIN

RSEL0

– 45 –

CD-BA120/125

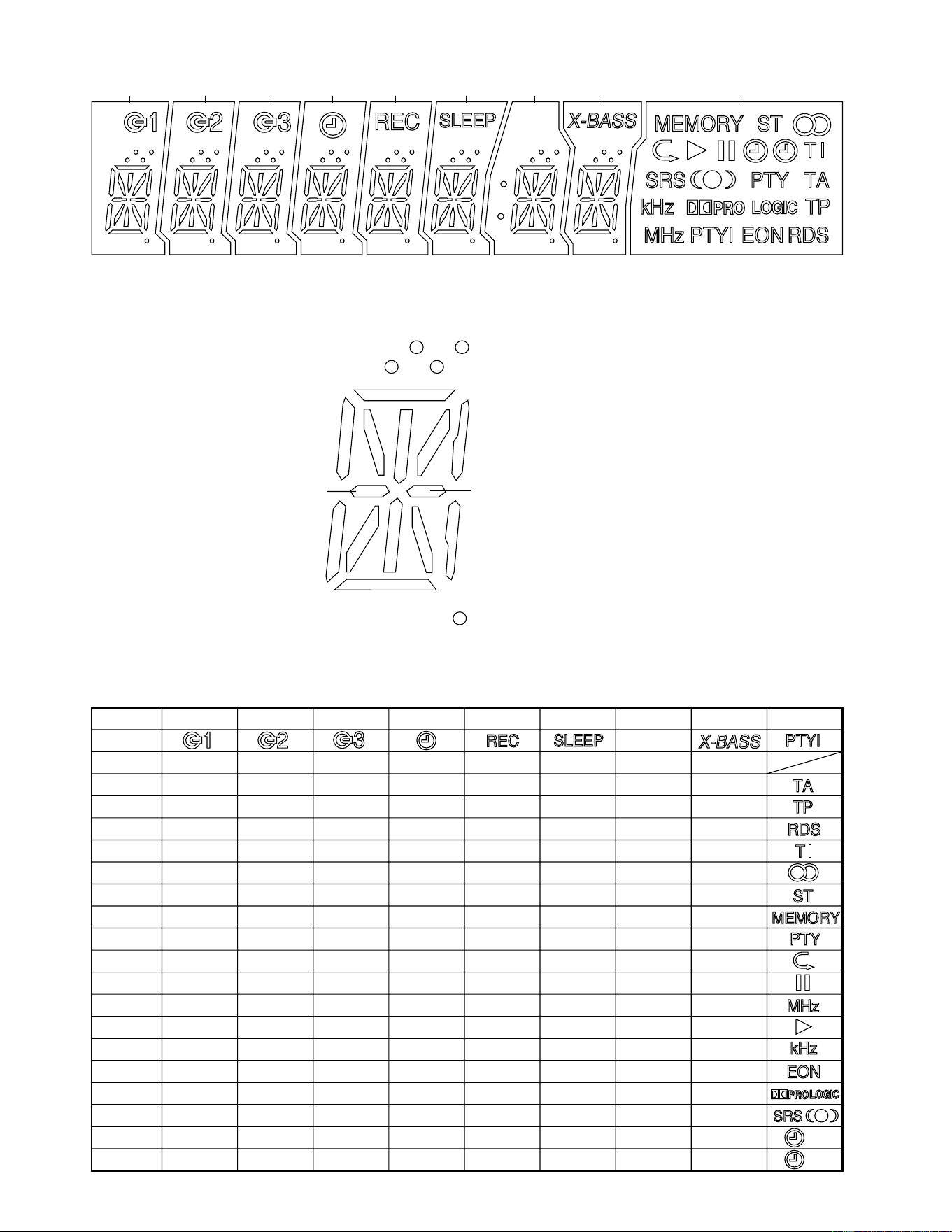

FL701 VVKSVA9MS13-1: FL Display

Figure 45 FL DISPLAY

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

2G 3G 4G 5G 6G 7G 8G 9G1G

(L)

(R)

— M E M O —

– 46 –

CD-BA120/125

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

MODEL

CD-BA120

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

CD-BA120 Mini Component System consisting of CD-BA120

(main unit) and CP-BA120 (speaker system).

CD-BA125 Mini Component System consisting of

CD-BA125 (main unit), CP-BA125 (Front speaker) and

GBOXS0042AWM1 (rear spaeker).

CD-BA125

CD-BA120/125

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA120/125

INTEGRATED CIRCUITS

IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M

IC2 VHILC78641E-1 J AV Servo/Signal Control,LC78641E

IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,

M63001FP

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S

IC601 VHILC75341/-1 J AM Audio Processor,LC75341

IC701 RH-IX0336AWZZ J AX System Microcomputer,

IX0328AW

IC704 VHIKIA7042AP1 J AC Reset,KIA7042AP

IC901 VHILA4282//-1 J AM Power AMP.,STK40204

IC902 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP

IC904 VHIKIA7805P-1 J AF Voltage Regulator,KIA7805P

TRANSISTORS

Q1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q2 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q3 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q101 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q102,103 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q104~107 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F

Q108~111 VS2SC3331//-1 J AB Silicon,NPN,2SC3331

Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q113 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q114 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q601,602 VS2SC3331//-1 J AB Silicon,NPN,2SC3331

Q701 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q702,703 VS2SC3331//-1 J AB Silicon,NPN,2SC3331

Q704,705 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q706 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q707 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q901,902 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q903 VSKTD2026//-1 J

Q904 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

DIODES

D21,22 VHDDS1SS133-1 J AB Silicon,DS1SS133

D93 VHDDS1SS133-1 J AB Silicon,DS1SS133

D301,302 VHD1SS133//-1 J AA Silicon,1SS133

D305,306 VHD1SS133//-1 J AA Silicon,1SS133

D701~705 VHD1SS133//-1 J AA Silicon,1SS133

D707~711 VHD1SS133//-1 J AA Silicon,1SS133

D901,902 VHD1SS133//-1 J AA Silicon,1SS133

D907~910 VHDRL203F//-1 J AC Silicon,RL203F

D911~917 VHD1N4004S/-1 J AB Silicon,1N4004S

D918 VHD1SS133//-1 J AA Silicon,1SS133

LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

VD302,303 VHCSVC211C/-1 J AG Silicon,SVC211C,Variable Cap

ZD61 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB

ZD902 VHEDZ300BSB-1 J AB Zener,30V,DZ300BSB

ZD903 VHEMTZJ6R2A-1 J AA Zener,6.2V,MTZJ6.2A

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter

CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

! PT801 RTRNP0305AWZZ J AZ Power

T301 RCILB0065AWZZ J AC FM, OSC

T302 RCILI0017AWZZ J AB FM IF

T303 RCILA0052AWZZ J AE AM Tracking

T306 RCILB0058AWZZ J AC AM OSC

T351 RCILI0019AWZZ J AD AM IF

COILS

L61 VP-XHR82K0000 J AC 0.82 µH

L62 VP-XH2R2K0000 J AB 2.2 µH,Choke

L103 VP-DH101K0000 J AB 100 µH,Choke

L104 VP-MK331K0000 J AB 330 µH,Choke

L312 RCILR0056AWZZ J AB FM RF

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L701 VP-DH101K0000 J AB 100 µH,Choke

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz

XL1 92LCRSTL1746AT J AH Crystal,16.9344 MHz

XL701 RCRSP0003AWZZ J AH Crystal,

CAPACITORS

C6 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C7 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C8 VCKYTV1HB104K J AB 0.1 µF,50V

C11 RC-EZY474AF0J J 0.47 µF,6.3V,Electrolytic

C12 VCKYTV1HB104K J AB 0.1 µF,50V

C13 VCKYTV1HB103K J AA 0.01 µF,50V

C14 VCKYTV1EF334Z J AB 0.33 µF,25V

C16 VCCSPA1HL6R0J J AA 6 pF,50V

C17 VCKYTV1HB472K J AA 0.0047 µF,50V

C18 VCCCTV1HH3R0C J AA 3 pF (CH),50V

C19 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C20,21 VCKYTV1HB104K J AB 0.1 µF,50V

C22 VCKYTV1HB101K J AA 100 pF,50V

C23 VCKYTV1HB473K J AA 0.047 µF,50V

C24 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C25 VCKYTV1HB104K J AB 0.1 µF,50V

C26 VCKYTV1HB473K J AA 0.047 µF,50V

C27 VCKYTV1HB104K J AB 0.1 µF,50V

C28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C29,30 VCKYTV1HB104K J AB 0.1 µF,50V

C31 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C34 VCTYBT1EF223Z J AA 0.022 µF,25V

C38,39 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C40 VCKYTV1HB152K J AA 0.0015 µF,50V

C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C42 VCCSTV1HL680J J AA 68 pF,50V

C43 VCKYTV1HB152K J AA 0.0015 µF,50V

C44 VCKYTV1HB104K J AB 0.1 µF,50V

C45 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C46 VCKYTV1EF223Z J AA 0.022 µF,25V

C47 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C49,50 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C51 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C52 VCTYPA1CX103K J AA 0.01 µF,16V

C53 VCKYTV1HB102K J AA 0.001 µF,50V

C54 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C55 VCKYTV1HB103K J AA 0.01 µF,50V

C56 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic

C64 RC-EZY474AF0J J 0.47 µF,6.3V,Electrolytic

C71 VCKYTV1HB101K J AA 100 pF,50V

C72 VCKYTV1HB103K J AA 0.01 µF,50V

C73~78 VCKYTV1HB101K J AA 100 pF,50V

C80 VCKYTV1HB104K J AB 0.1 µF,50V

C81~83 VCKYTV1EF223Z J AA 0.022 µF,25V

C101 VCKZPA1HF473Z J AA 0.047 µF,50V

C102,103 VCKYMN1HB561K J AA 560 pF,50V

C104,105 VCKYMN1HB181K J AA 180 pF,50V

C106,107 VCKYMN1HB561K J AA 560 pF,50V

C108 RC-EZD107AF1A J AC 100 µF,50V,Electrolytic

C112~115 VCKYMN1HB331K J AA 330 pF,50V

C116,117 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic

C118,119 VCTYPA1EX333K J AA 0.033 µF,25V

C120,121 VCKYMN1HB561K J AA 560 pF,50V

C122,123 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C126,127 VCKYMN1HB271K J AA 270 pF,50V

C128,129 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C130,131 VCKZPA1HF223Z J AA 0.022 µF,50V

C132,133 VCTYMN1CX332K J AA 0.0033 µF,16V

C134,135 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C136 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C137 VCTYMN1EF223Z J AA 0.023 µF,25V

– 1 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA120/125

C138 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C139 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic

C140 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C141 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar

C142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C145~147 VCKYMN1HB102K J AA 0.001 µF,50V

C148 VCKZPA1HF473Z J AA 0.047 µF,50V

C301 VCKYMN1HB102K J AA 0.001 µF,50V

C303 VCCCMN1HH100J J AA 10 pF (CH),50V

C304 VCTYMN1CY103N J AA 0.01 µF,16V

C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V

C306 VCTYMN1EF223Z J AA 0.022 µF,25V

C307 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C308 VCCSMN1HL4R7C J AA 4.7 pF,50V

C309 VCKYMN1HB102K J AA 0.001 µF,50V

C310 VCCCMN1HH150J J AA 15 pF (CH),50V

C311 VCCSMN1HL180J J AA 18 pF,50V

C312 VCTYMN1EF223Z J AA 0.022 µF,25V

C313 VCCCMN1HH220J J AA 22 pF (CH),50V

C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V

C316 VCTYMN1EF223Z J AA 0.022 µF,25V

C317 VCKYMN1HB102K J AA 0.001 µF,50V

C318 VCKYMN1HB101K J AA 100 pF,50V

C320 VCTYBT1EF223Z J AA 0.022 µF,25V

C323 VCTYMN1EF223Z J AA 0.022 µF,25V

C324 VCCUMN1HJ3R9K J AA 3.9 pF (UJ),50V

C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V

C331 VCKZPA1HF473Z J AA 0.047 µF,50V

C332 VCTYMN1EF223Z J AA 0.022 µF,25V

C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V

C335 VCKYMN1HB561K J AA 560 pF,50V

C342 VCTYMN1EF223Z J AA 0.022 µF,25V

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V

C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V

C355 VCCSMN1HL220J J AA 22 pF,50V

C356 VCKYMN1HB102K J AA 0.001 µF,50V

C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCTYMN1EF223Z J AA 0.022 µF,25V

C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCTYMN1EF223Z J AA 0.022 µF,25V

C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C365 VCKZPA1HF223K J 0.022 µF,50V

C366 VCKYMN1HB102K J AA 0.001 µF,50V

C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V

C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCTYPA1CX153K J AA 0.015 µF,16V

C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C381 VCCCMN1HH120J J AA 12 pF (CH),50V

C382 VCCCMN1HH150J J AA 15 pF (CH),50V

C384 VCKYMN1HB102K J AA 0.001 µF,50V

C385 VCTYMN1CY103N J AA 0.01 µF,16V

C386 VCKYMN1HB331K J AA 330 pF,50V

C387 VCTYMN1EF223Z J AA 0.022 µF,25V

C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C392 VCKYMN1HB102K J AA 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C395 VCTYMN1EF223Z J AA 0.022 µF,25V

C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C397 VCTYMN1EF223Z J AA 0.022 µF,25V

C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C399 VCTYMN1EF223Z J AA 0.022 µF,25V

C601,602 VCKYMN1HB102K J AA 0.001 µF,50V

C603 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C604 VCEAZA1EW107M J AC 100 µF,25V,Electrolytic

C605 VCKZPA1HF223Z J AA 0.022 µF,50V

C606 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C607,608 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C609~612 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C613,614 VCTYPA1CX272K J AA 0.0027 µF,16V

C617,618 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C701 VCTYBT1EF223Z J AA 0.022 µF,25V

C702 RC-EDZ227AF1A J AC 220 µF,10V,Electrolytic

C703 VCCSMN1HL150J J AA 15 pF,50V

C704 VCCSMN1HL180J J AA 18 pF,50V

C705 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C707,708 RC-EDZ105AF1H J AB 1 µF,50V,Electrolytic

C710 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C711,712 RC-EZD106AF1C J AC 10 µF,16V,Electrolytic

C713 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic

C714 VCTYMN1CY103N J AA 0.01 µF,16V

C715 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C716 VCTYBT1EF223Z J AA 0.022 µF,25V

C717 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C718 VCTYMN1EF223Z J AA 0.022 µF,25V

C719 RC-EZD476AF1E J AB 47 µF,25V,Electrolytic

C903,904 VCKYPA1HB102K J AA 0.001 µF,50V

C905 VCKZPA1HF223Z J AA 0.022 µF,50V

C906 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C907 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic

C908,909 VCQYKA1HM823K J AC 0.082 µF,50V,Mylar

C910 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic

C911 VCKZPA1HF223Z J AA 0.022 µF,50V

C914,915 VCEAZA1EW477M J AD 470 µF,25V,Electrolytic

C916,917 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C918 VCKYPA1HB221K J AA 220 pF,50V

C919 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C933 VCCSPA1HL680J J AA 68 pF,50V

C934 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C935 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C938 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C939,940 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C943 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C944 VCKZPA1HF223Z J AA 0.022 µF,50V

C945 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C946 VCEAZW1VW228M J AH 2200 µF,35V,Electrolytic

C947 VCEAZW1EW338M J AG 3300 µF,25V

C950~953 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C954 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C955~957 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C958,959 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C960,961 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic [125 Only]

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

VRS-TV2AB000J J AA 0 ohm,Jumper,1.25×2mm,Green

R3 VRS-TV2AB104J J AA 100 kohm,1/10W

R4 VRS-TV2AB103J J AA 10 kohm,1/10W

R5 VRS-TV2AB393J J AA 39 kohms,1/10W

R6 VRS-TV2AB273J J AA 27 kohms,1/10W

R7 VRS-TV2AB682J J AA 6.8 kohms,1/10W

R8 VRS-TV2AB331J J AA 330 ohms,1/10W

R10 VRS-TV2AB273J J AA 27 kohms,1/10W

R11 VRS-TV2AB123J J AA 12 kohms,1/10W

R12,13 VRS-TV2AB681J J AA 680 ohms,1/10W

R14 VRS-TV2AB122J J AA 1.2 kohms,1/10W

R15 VRS-TV2AB103J J AA 10 kohm,1/10W

R16 VRD-ST2CD103J J AA 10 kohm,1/6W

R17 VRD-ST2CD102J J AA 1 kohm,1/6W

R19 VRD-ST2CD470J J AA 47 ohms,1/6W

R20 VRS-TV2AB221J J AA 220 ohms,1/10W

R21,22 VRS-TV2AB471J J AA 470 ohms,1/10W

R25 VRD-ST2CD103J J AA 10 kohm,1/6W

R35 VRD-ST2CD102J J AA 1 kohm,1/6W

R38 VRD-ST2CD271J J AA 270 ohms,1/6W

R39 VRD-ST2CD471J J AA 470 ohms,1/6W

R40 VRS-TV2AB122J J AA 1.2 kohms,1/10W

R42 VRS-TV2AB124J J AA 120 kohms,1/10W

R43 VRS-TV2AB224J J AA 220 kohms,1/10W

R44 VRD-ST2CD102J J AA 1 kohm,1/6W

R45 VRS-TV2AB122J J AA 1.2 kohms,1/10W

R46 VRS-TV2AB102J J AA 1 kohm,1/10W

R47 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W

R48 VRS-TV2AB682J J AA 6.8 kohms,1/10W

R50 VRS-TV2AB470J J AA 47 ohms,1/10W

R51~54 VRS-TV2AB683J J AA 68 kohms,1/10W

R55,56 VRD-ST2CD683J J AA 68 kohms,1/6W

R58 VRD-ST2CD221J J AA 220 ohms,1/6W

R71~78 VRD-ST2CD102J J AA 1 kohm,1/6W

R79 VRS-TV2AB155J J AA 1.5 Mohms,1/10W

R80 VRD-ST2CD105J J AA 1 Mohm,1/6W

R81,82 VRS-TV2AB222J J AA 2.2 kohms,1/10W

R83,84 VRS-TV2AB103J J AA 10 kohm,1/10W

R88 VRS-TV2AB682J J AA 6.8 kohms,1/10W

R94,95 VRS-TV2AB103J J AA 10 kohm,1/10W

R101,102 VRD-MN2BD103J J AA 10 kohm,1/8W

R103 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R104,105 VRD-MN2BD102J J AA 1 kohm,1/8W

R106,107 VRD-MN2BD222J J AA 2.2 kohms,1/8W

– 2 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA120/125

R108,109 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R110 VRD-MN2BD473J J AA 47 kohms,1/8W

R111,112 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R113 VRD-MN2BD473J J AA 47 kohms,1/8W

R114,115 VRD-ST2CD102J J AA 1 kohm,1/6W

R116,117 VRD-ST2CD560J J AA 56 ohms,1/6W

R118,119 VRD-MN2BD104J J AA 100 kohm,1/8W

R120,121 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R122,123 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R124,125 VRD-MN2BD333J J AA 33 kohms,1/8W

R126 VRD-MN2BD683J J AA 68 kohms,1/8W

R127,128 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R129,130 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R131,132 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R133,134 VRD-MN2BD101J J AA 100 ohm,1/8W

R135,136 VRD-MN2BD103J J AA 10 kohm,1/8W

R137 VRD-MN2BD153J J AA 15 kohms,1/8W

R138 VRD-ST2CD153J J AA 15 kohms,1/6W

R139 VRD-ST2EE181J J AA 180 ohms,1/4W

R140 VRD-ST2CD103J J AA 10 kohm,1/6W

R141 VRD-MN2BD103J J AA 10 kohm,1/8W

R142,143 VRD-ST2CD224J J AA 220 kohms,1/6W

R144 VRD-MN2BD473J J AA 47 kohms,1/8W

R145 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R146 VRD-RT2HD820J J AA 82 ohms,1/2W

R147 VRD-MN2BD473J J AA 47 kohms,1/8W

R148 VRD-MN2BD223J J AA 22 kohms,1/8W

R149 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R157 VRD-ST2EE101J J AA 100 ohm,1/4W

R302 VRD-MN2BD100J J AA 10 ohm,1/8W

R309 VRD-ST2CD103J J AA 10 kohm,1/6W

R311 VRD-MN2BD104J J AA 100 kohm,1/8W

R313 VRD-MN2BD333J J AA 33 kohms,1/8W

R314 VRD-ST2CD220J J AA 22 ohms,1/6W

R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R322 VRD-MN2BD681J J AA 680 ohms,1/8W

R323 VRD-MN2BD683J J AA 68 kohms,1/8W

R325 VRD-MN2BD473J J AA 47 kohms,1/8W

R327 VRD-MN2BD330J J AA 33 ohms,1/8W

R336 VRD-MN2BD103J J AA 10 kohm,1/8W

R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W

R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R352 VRD-MN2BD102J J AA 1 kohm,1/8W

R353 VRD-MN2BD271J J AA 270 ohms,1/8W

R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R356 VRD-MN2BD102J J AA 1 kohm,1/8W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R361,362 VRD-MN2BD103J J AA 10 kohm,1/8W

R363,364 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R365 VRD-MN2BD103J J AA 10 kohm,1/8W

R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W

R375 VRD-ST2CD471J J AA 470 ohms,1/6W

R376 VRD-MN2BD102J J AA 1 kohm,1/8W

R377 VRD-MN2BD473J J AA 47 kohms,1/8W

R378 VRD-MN2BD102J J AA 1 kohm,1/8W

R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R381 VRD-MN2BD103J J AA 10 kohm,1/8W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R386 VRD-ST-2CD223J J AA 22 kohms,1/6W

R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R393 VRD-MN2BD102J J AA 1 kohm,1/8W

R395 VRD-MN2BD473J J AA 47 kohms,1/8W

R601,602 VRD-ST2CD331J J AA 330 ohms,1/6W

R603,604 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R607,608 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R609,610 VRD-ST2CD103J J AA 10 kohm,1/6W

R615,616 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R617 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R618 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R625 VRD-ST2CD223J J AA 22 kohms,1/6W

R702~704 VRD-MN2BD102J J AA 1 kohm,1/8W

R705~717 VRD-ST2CD102J J AA 1 kohm,1/6W

R719~721 VRD-MN2BD102J J AA 1 kohm,1/8W

R722 VRD-MN2BD103J J AA 10 kohm,1/8W

R724 VRD-ST2CD102J J AA 1 kohm,1/6W

R725 VRD-MN2BD102J J AA 1 kohm,1/8W

R726~729 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R732 VRD-ST2CD102J J AA 1 kohm,1/6W

R733~737 VRD-MN2BD102J J AA 1 kohm,1/8W

R742 VRD-MN2BD102J J AA 1 kohm,1/8W

R743 VRD-MN2BD330J J AA 33 ohms,1/8W

R744 VRD-MN2BD102J J AA 1 kohm,1/8W

R745 VRD-MN2BD104J J AA 100 kohm,1/8W

R748~751 VRD-MN2BD103J J AA 10 kohm,1/8W

R753 VRD-MN2BD103J J AA 10 kohm,1/8W

R755 VRD-ST-2CD472J J AA 4.7 kohm,1/6W

R756,757 VRD-MN2BD683J J AA 68 kohms,1/8W

R758,759 VRD-MN2BD103J J AA 10 kohm,1/8W

R760,761 VRD-MN2BD102J J AA 1 kohm,1/8W

R762,763 VRD-MN2BD473J J AA 47 kohms,1/8W

R766~768 VRD-MN2BD103J J AA 10 kohm,1/8W

R769 VRD-ST2CD103J J AA 10 kohm,1/6W

R770 VRD-MN2BD473J J AA 47 kohms,1/8W

R771 VRD-MN2BD104J J AA 100 kohm,1/8W

R772 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R773 VRD-ST2CD101J J AA 100 ohm,1/6W

R775~777 VRD-MN2BD103J J AA 10 kohm,1/8W

R778 VRD-MN2BD102J J AA 1 kohm,1/8W

R779 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W

R792 VRD-ST-2CD102J J AA 1 kohm,1/6W

R905 VRD-ST2CD121J J AA 120 ohms,1/6W

R906,907 VRD-ST2CD102J J AA 1 kohm,1/6W

R908 VRD-ST2CD121J J AA 120 ohms,1/6W

R909 VRD-ST2CD563J J AA 56 kohms,1/6W

R910,911 VRD-RT2HD271J J AA 270 ohms,1/2W

R912,913 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R914 VRD-ST2CD223J J AA 22 kohms,1/6W

R915 VRD-ST2EE821J J AA 820 ohms,1/4W

R916,917 VRD-ST2EE331J J AA 330 ohms,1/4W

R922 VRD-ST2CD223J J AA 22 kohms,1/6W

R923 VRD-ST2CD330J J AA 33 ohms,1/6W

R924 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W

R925 VRD-ST2CD223J J AA 22 kohms,1/6W

R926 VRD-ST2CD103J J AA 10 kohm,1/6W

R927 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R928 VRD-ST2CD123J J AA 12 kohms,1/6W

R929,930 VRD-ST2CD221J J AA 220 ohms,1/6W

R935 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W

RD01 VRD-ST2CD681J J AA 680 ohms,1/6W

RD02 VRD-MN2BD821J J AA 820 ohms,1/8W

RD03 VRD-MN2BD102J J AA 1 kohm,1/8W

RD04 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD05 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD06 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD07 VRD-MN2BD392J J AA 3.9 kohms,1/8W

RD08 VRD-ST2CD563J J AA 56 kohms,1/6W

RD09 VRD-MN2BD104J J AA 100 kohm,1/8W

RD10 VRD-MN2BD821J J AA 820 ohms,1/8W

RD11 VRD-ST-2CD102J J AA 1 kohm,1/8W

RD12 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RD13 VRD-MN2BD681J J AA 680 ohms,1/8W

RD14 VRD-ST2CD821J J AA 820 ohms,1/6W

RD15 VRD-MN2BD102J J AA 1 kohm,1/8W

RD16 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RD17 VRD-MN2BD222J J AA 2.2 kohms,1/8W

RD18 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD19 VRD-MN2BD392J J AA 3.9 kohms,1/8W

RD20 VRD-MN2BD562J J AA 5.6 kohms,1/8W

RD21 VRD-MN2BD103J J AA 10 kohm,1/8W

RD22 VRD-MN2BD153J J AA 15 kohms,1/8W

RD23 VRD-MN2BD333J J AA 33 kohms,1/8W

RD24 VRD-ST2CD104J J AA 100 kohm,1/6W

RD25 VRD-MN2BD681J J AA 680 ohms,1/8W

RD26 VRD-MN2BD682J J AA 6.8 kohms,1/8W

OTHER CIRCUITRY PARTS

BI601/CNS601 QCNWN1540AWZZ J AF Connector Ass’y,5/5Pin

BI702/CNS702 QCNWN1541AWZZ J AH Connector Ass’y,10/10Pin

CNP1 QCNCM704GAWZZ J AC Plug,7Pin

CNP2 QCNCM704HAFZZ J AC Plug,8Pin

CNP3 92LCONE6P53253 J AC Plug,6Pin

CNP3A 92LCONE6P53254 J AC Plug,6Pin

CNP4 QCNCM705FAFZZ J AB Plug,6Pin

CNP11 92LCONE5P53254 J AB Plug,5Pin

CNP12 92LCONEAP53254 J AD Plug,10Pin

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA120/125

CNP101 QCNCM705AFZZ J Plug,3Pin

CNP102 QCNCM707GAFZZ J Plug,7Pin

CNP301 92LCONE3P5268 J AC Plug,3Pin

CNP701 QCNCWZX18AWZZ J AD Plug,18Pin

CNP801 QCNCM049BAWZZ J AC Plug,2Pin

CNP901 QCNCM035FAWZZ J AC Plug,6Pin

CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin

CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin

CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin

CNS701 QCNCWZY18AWZZ J AD Plug,18Pin

CNS703 QCNCWZY13AWZZ J AC Plug,13Pin

! F901 92LFUSET302D J AD Fuse,3A/250V

! F902 92LFUSET162D J Fuse,1.6A/250V

FFC13 QCNWN1544AWZZ J AE Flat Cable,13Pin

FFC18 QCNWN1613AWZZ J AF Flat Cable,18Pin

FL701 VVKSVA9MS13-1 J AZ FL Display

FW901 QCNWN1612AWZZ J AD Connector Ass’y,5Pin

JK901 QJAKM0010AWZZ J AF Jack,Headphones

LG901 QLUGP0001AWZZ J AC Lug

LUG1 QLUGP0002AWZZ J AB Lug

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

M3 92LTWMEN7E6Y J Motor with Worm Pulley

[T/T Up/Down Loading]

RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A

SO801 QSOCA0209AWZZ J AH Socket,AC Input

SO901 QTANA0416AWZZ J AE Terminal,Speaker

SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

SW701 92LSWICHT1663T J AC Switch,Key Type [POWER]

SW702 92LSWICHT1663T J AC Switch,Key Type [CLOCK]

SW703 92LSWICHT1663T J AC Switch,Key Type

[TIMER/SLEEP]

SW709 92LSWICHT1663T J AC Switch,Key Type [DISC SKIP]

SW710 92LSWICHT1663T J AC Switch,Key Type

[OPEN/CLOSE]

SW711 92LSWICHT1663T J AC Switch,Key Type

[X-BASS/DEMO]

SW712 92LSWICHT1663T J AC Switch,Key Type [Volume Up]

SW713 92LSWICHT1663T J AC Switch,Key Type [Volume Down]

SW714 92LSWICHT1663T J AC Switch,Key Type [CD]

SW715 92LSWICHT1663T J AC Switch,Key Type [Tape]

SW716 92LSWICHT1663T J AC Switch,Key Type

[Tuning/Time Down]

SW717 92LSWICHT1663T J AC Switch,Key Type [Memory/Set]

SW718 92LSWICHT1663T J AC Switch,Key Type [Rewind]

SW719 92LSWICHT1663T J AC Switch,Key Type [Fast Forward]

SW720 92LSWICHT1663T J AC Switch,Key Type [Play/Repeat]

SW721 92LSWICHT1663T J AC Switch,Key Type [Stop]

SW723 92LSWICHT1663T J AC Switch,Key Type [REC/PAUSE]

SW724 92LSWICHT1663T J AC Switch,Key Type

[TUNING/TIME UP]

SW725 92LSWICHT1663T J AC Switch,Key Type [Tuner/Band]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0080AWZZ J AC Rail,Guide

304 NSFTM0020AWFW J AD Shaft,Guide

305 92LM-CUSN1524A J AC Cushion

! 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— –– Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

701 XBSSD26P06000 J AA Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 XBBSD20P03000 J AA Screw,ø2×3mm

704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

CABINET PARTS

201 92LCAB3225AASY J Front Panel Ass’y [120]

201 92LCAB3326AASY J Front Panel Ass’y [125]

201- 1 ———— –– Front Panel

(Not Replacement Item)

201- 2 GDORF0076AWSA J AE Holder,Cassette,Tape 1

201- 3 GDORF0077AWSA J AE Holder,Cassette,Tape 2

201- 4 GCOVA1270AWSA J AH Cover,Cassette,Tape 1

201- 5 GCOVA1271AWSA J AH Cover,Cassette,Tape 2

201- 6 HDECQ0541AWSA J AE Panel,Cassette,Tape 1

201- 7 HDECQ0542AWSA J AE Panel,Cassette,Tape 2

201- 8 HDECQ0543AWSA J AH Panel,Amp. [120]

201- 8 HDECQ0567AWSA J Panel,Amp. [125]

201-10 JKNBZ0677AWSA J AG Knob,Volume

201-11 JKNBZ0678AWSA J AD Knob,Function Base

201-12 JKNBZ0674AWSA J AF Knob,Power/Clock

201-13 JKNBZ0712AWSA J AH Knob,Play/Stop

201-14 JKNBZ0713AWSA J AH Knob,FF/REW

201-15 JKNBZ0676AWSA J AF Knob,Tuning

201-16 HDECQ0544AWSA J AH Panel,Decoration

201-20 GCOVA1272AWSA J AE Cover,Function Knob,A

201-21 MLIFP0008AWZZ J AD Damper

201-22 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1

201-23 MSPRD0093AWFJ J AB Spring,Cassette,Tape 2

201-24 92LBADGE1671A J AC Badge,SHARP

201-25 JKNBZ0675AWSA J AF Knob,Disc/X-BASS

201-26 GCOVA1273AWSA J AE Cover,Function Knob,B

201-27 GCOVA1274AWSA J AE Cover,Function Knob,C

202 92LCAB3325BASY J Side Panel Ass’y,Left

202- 1 ———— –– Side Panel,Left

(Not Replacement Item)

202- 2 PCUSG0022AWZZ J AB Cushion,Leg

203 92LCAB3325CASY J Side Panel Ass’y,Right

203- 1 ———— –– Side Panel,Right

(Not Replacement Item)

203- 2 PCUSG0022AWZZ J AB Cushion,Leg

204 92LCOV3303AASY J CD Tray Cover Ass’y

204- 1 ———— –– Cover,CD Tray

(Not Replacement Item)

204- 2 GCOVA1254AWSA J AE Cover,CD Tray Panel,Left

204- 3 GCOVA1255AWSA J AE Cover,CD Tray Panel,Right

205 GCAB-1184AWSA J AP Top Cabinet

206 GITAR0548AWSA J AH Rear Panel [120 for U.S.A.]

206 GITAR0565AWSA J Rear Panel [120 for Canada]

206 GITAR0566AWSA J Rear Panel

[120 for Central America/

Mexico]

206 GITAR0568AWSA J Rear Panel [125 for Canada]

206 GITAR0569AWSA J Rear Panel [125 for Central

America/Mexico]

206 GITAR0573AWSA J Rear Panel [125 for U.S.A.]

208 LANGK0110AWFW1J AD Support,Cassette Lock,Tape 1

209 LANGK0111AWFW1J AD Support,Cassette Lock,Tape 2

213 LCHSM0098AWFW J AQ Main Chassis

214 LHLDZ1087AWSA1 J AC Holder,FL Display

219 MLOKC0003AWZZ J AD Lock Lever,Cassette,Tape 1

220 MLOKC0004AWZZ J AD Lock Lever,Cassette,Tape 2

221 MSPRD0109AWFJ J AB Spring,Cassette Lock,Tape 1

222 MSPRD0110AWFJ J AB Spring,Cassette Lock,Tape 2

224 92LPT0331105 J AM Table Loading

225 PCUSG0022AWZZ J AB Cushion,Leg

226 PRDAR0004BGFW J Heat Sink,Main

230 QCNWN1615AWZZ J AC Lug Wire

! 231 QFSHD0001AWZZ J AB Holder,Fuse

232 92LBE241414 J AD Belt

234 92LEVA0330702 J Velvet Carpet,Chassis

235 92LMAG0104302 J Magnet

236 92LMT0304302 J Plate,Metal

237 92LNBAND1318A J AA Nylon Band,80mm

238 92LNM0305401 J Velvet Carpet

239 92LPT0303002 J AB Roller

240 92LPT0304303 J AB Lever,Stop

241 92LPT0304304 J Stopper

242 92LPT0304305 J AE Lever,Lock

243 92LPT0304306 J Stabilizer

244 92LPT0304307 J AC Support,Cam

245 92LPT0304308 J Lock Gear Pin

246 92LPT0304309 J Cap,Pulley Stopper

247 92LPT0305413 J Cam Gear Lower

248 92LPT0309506 J AD Gear,Turntable Drive

249 92LPT0309507 J AD Gear,Open/Close Drive

250 92LPT0309508 J AD Gear,Planet

251 92LPT0309509 J AD Gear,Drive

252 92LPT0309510 J AE Gear,Pulley

253 92LPT0309511 J AD Gear,Middle

254 92LPT0311101 J AB Lever,Clamp

255 92LPT0311102 J AC Lever,Disc

256 92LPT0312005 J Gear,Cam

– 4 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA120/125

257 92LPT0320201 J AE Support,Stabilizer

258 92LPT0330301 J AU Chassis,Loading

259 92LPT0330803 J AK CD,Chassis

260 92LPT0331003 J AT Chassis,Slide

262 92LSP0304303 J Spring,Stopper

263 92LSP0304305 J AB Spring,Lock

264 92LSP0304306 J Spring,Lock Gear

268 KMECB0011AWZZ J BH Tape Mechanism Ass’y

270 LHLDZ1230AWZZ J AC Holder,LED

271 PRDAR0005BGFW J Heat Sink,Sub

604 XEBSF30P12000 J AA Screw,ø3×12mm

605 XESSD30P10000 J AA Screw,ø3×10mm

606 XHBSD26P04000 J AA Screw,ø2.6×4mm

610 XJBSF30P10000 J AA Screw,ø3×10mm

611 XJBSD30P08000 J AA Screw,ø3×8mm

612 LX-HZ0009AWFD J AC Screw,Special

613 LX-HZ0082AFZZ J AA Screw,ø4×8mm

614 LX-JZ0010AFFD J AA Screw,Special

616 LX-BZ2222AXZZ J Screw,Special

617 LX-JZ0004AWFD J AA Screw,ø3×12mm

618 92LSC0308MBZI J AB Screw,ø3×8mm

619 92LSC0308RBZI J Screw,ø3×8mm

620 XEBSD26P08000 J AA Screw,ø2.6×8mm

PACKING PARTS

SPAKA0242AWZZ J Packing Add.,Left/Right

SPAKC0917AWZZ J Packing Case [120 for Canada]

SPAKC0918AWZZ J Packing Case

[120 for Central America/

Mexico]

SPAKC0968AWZZ J Packing Case

[125 for Central America/

Mexico]

SPAKC0969AWZZ J Packing Case [125 for Canada]

SPAKP0013AWZZ1 J AC Polyethylene Bag,Unit

SPAKZ0573AWZZ J Sheet,CD Tray

92LBAG1460C1 J AB Polyethylene Bag,Accessories

ACCESSORIES

QACCD0020AWZZ J AN AC Power Supply Cord

[Except for Canada]

QACCD0025AWZZ J AN AC Power Supply Cord

[For Canada]

QANTL0007AWZZ J AK AM/FM Loop Antenna

TINSE0299AWZZ J AE Operation Manual

[120 for U.S.A.]

TINSE0302AWZZ J Operation Manual

[125 for U.S.A.]

TINSK0102AWZZ J AF Operation Manual

[120 for Canada]

TINSK0103AWZZ J Operation Manual

[125 for Canada]

TINSZ0532AWZZ J Operation Manual

[120 for Central America

Mexico]

TINSZ0533AWZZ J AB Quick Guide

[120 for U.S.A. Only]

TINSZ0534AWZZ J Operation Manual

[125 for Central America/

Mexico]

TINSZ0538AWZZ J Quick Guide

[125 for U.S.A. Only]

TLABR1090AWZZ J AB Label,Bar Code [120]

TLABR1130AWZZ J Label,Bar Code [125]

TLABZ0711AWZZ J Label,Feature,Tape 1 [120]

TLABZ0712AWZZ J Label,Feature,Tape 2

TLABZ0718AWZZ J Label,Feature,Tape 1 [125]

RRMCG0229AWSA J AR Remote Control

J Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~3 92LPWB3325MANS J –– Main/Display/Headphones

(Combined Ass’y) [BA120]

PWB-A1~3 92LPWB3326MANS J –– Main/Display/Headphones

(Combined Ass’y) [BA125]

PWB-B 92LPWB3303CDUS J –– CD Servo

PWB-C QPWBF0027AWZZ J AD CD Motor (PWB Only)

PWB-D ———— –– Tape Mechanism

PWB-E 92LPC99C017 J CD Loading Motor (PWB Only)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

SPEAKER BOX PARTS

901 92LJ1911B J AU Net Frame Ass’y

902 92L9553C J AW Speaker Box Ass’y

903 92LJ9797C J AE Port Cushion

904 92LP5880 J Label,Specifications [CP-BA125]

904 92LP5879 J AC Label,Specifications [CP-BA120]

905 92LF1377A J AC Screw,

906 92LD4680C J Speaker Cord

907 92LJ1912B J AX Duct Panel

SP1,2 VSP0010PBY38A J AU Speaker

SPEAKER PACKING PARTS

92LN1885B J Packing Add.,Speaker,Bottom

92LN1885T J Packing Add.,Speaker,Top

92LV4974A J AC Polyethylene Bag,Speaker

SPEAKER BOX PARTS REAR SPEAKER

(CD-BA125 Only)

901 92LSRCNF006RS J Net Frame Ass’y

902 92LSRCBC010RS J Bottom Cabinet

903 92LSRCSC004RS J AK Speaker Cord

904 92LSRCSW005RS J AB Screw,ø3×12mm

905 92LSRCPL016RS J Label,Parts Code

SPEAKER PACKING PARTS

92LSRCBP012RS J Packing Add.,Bottom

92LSRCPE006RS J AB Polyethylene Bag,Speaker

92LSRCTP011RS J Packing Add.,Top

CP-BA120/125

GBOXS0042AWM1

– 5 –

CD-BA120/125

– 6 –

23456

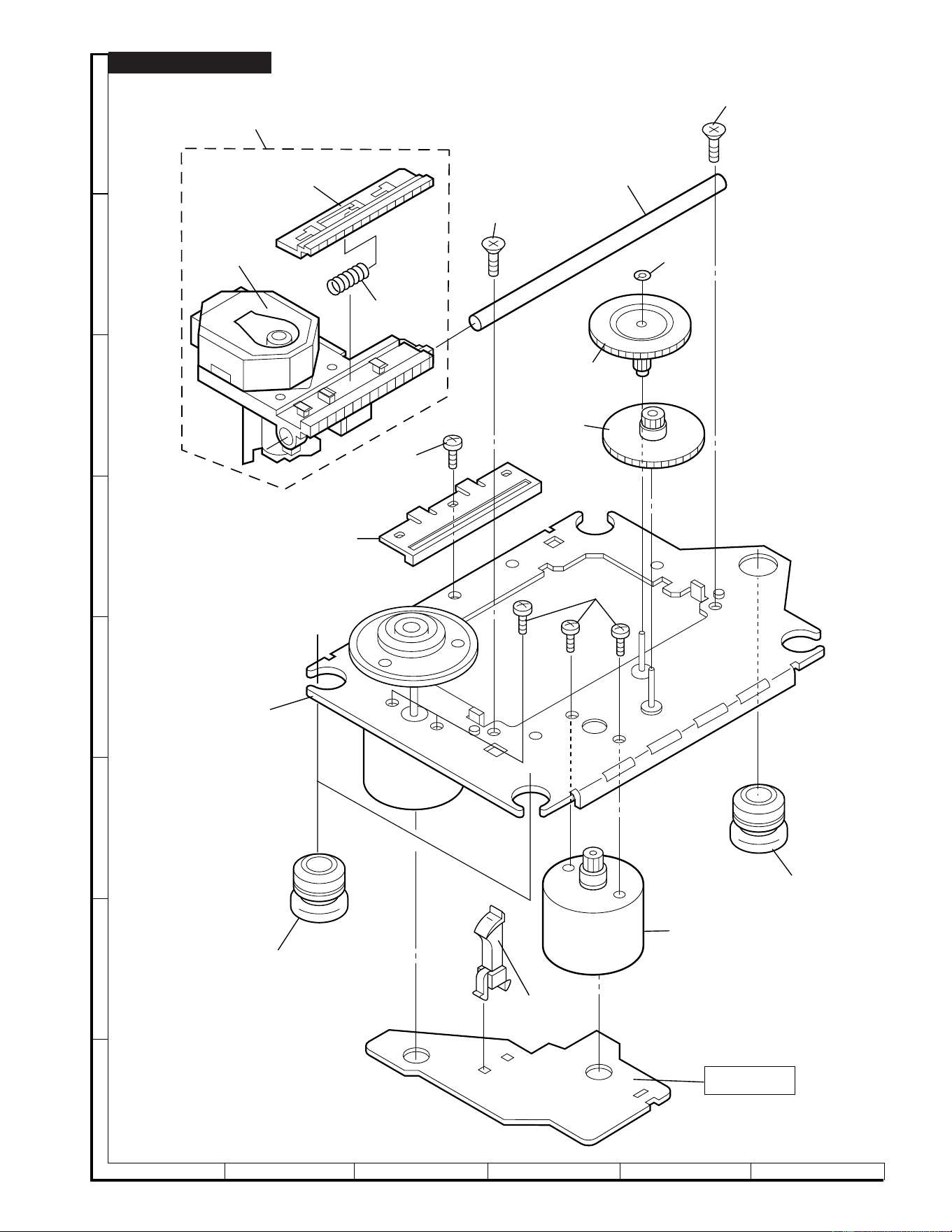

Figure 6 CD MECHANISM EXPLODED VIEW

CD-BA120/125

306-1

701

304

701

302

301

702

303

703x4

305x2

SW4

305

PWB-C

306-2

306-3

306

704

CD-BA120/125

– 7 –

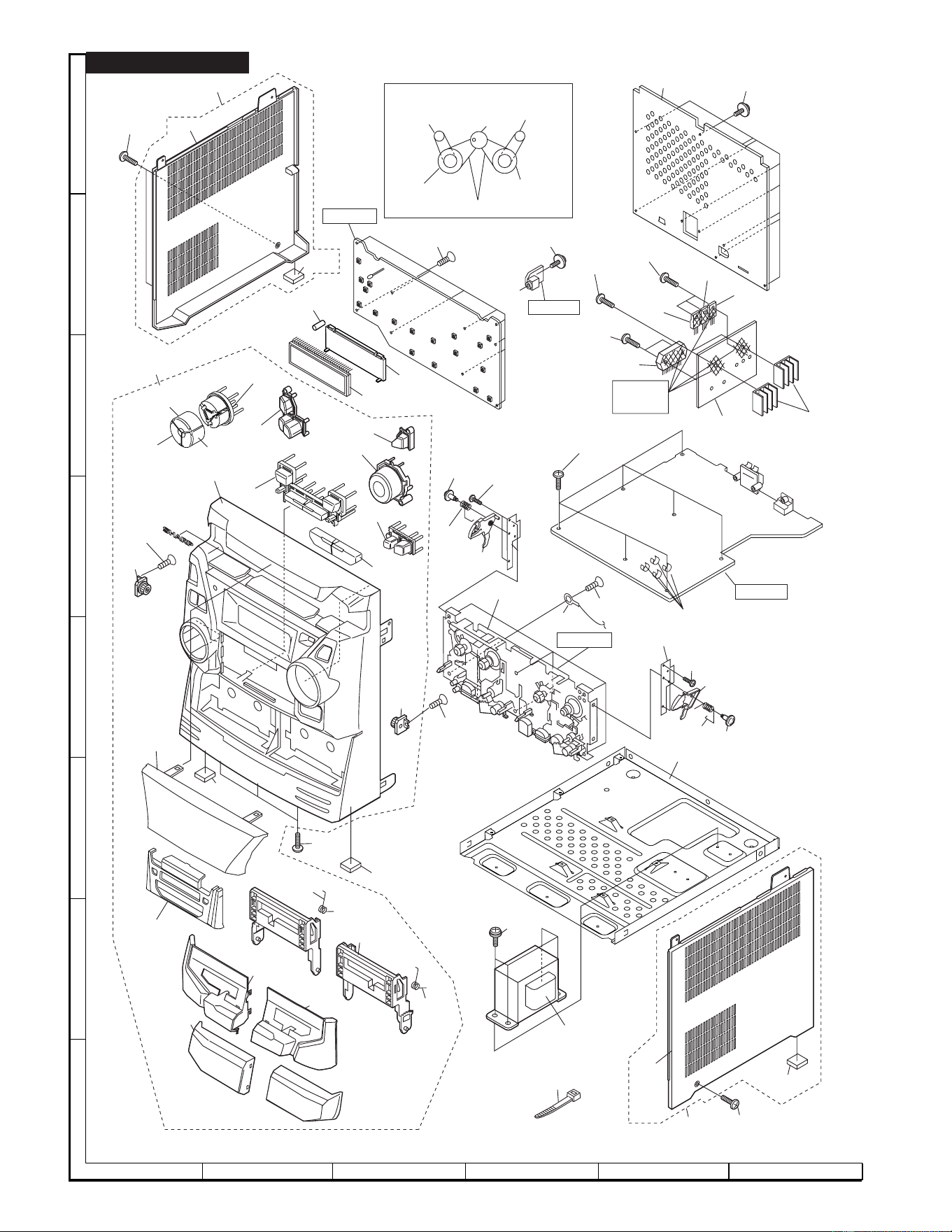

Figure 7 CABINET EXPLODED VIEW (1/2)

23456

Note: Only tape mechanism assembly and consumable parts are supplied for replacement purposes.

CD-BA120/125

202-1

202

610

202-2

PWB-D

206

605x6

613x4

203-1

203-2

203

201-7

201-6

201-4

201-5

201-2

201-16

201-3

201-23

PT801

201-22

201-8

PWB-A3

611x3

610

225

268

620

201-21

201

201-20

201-26

201-27

201-1

616

201-24

620

MM1

MAIN BELT

FLYWHEEL

ASS'Y

TAPE1

FLYWHEEL

ASS'Y

TAPE2

PWB-A1

231x4

617x9

FL701

270

214

213

237x4

612

605x9

606x2

614 x7

610x3

610x2

271x2

226

201-25

201-10

201-15

201-13

201-14

201-12

201-11

221

219

208

612

222

606x2

220

209

230

Silicon

grease

FF/REW

ROLLER

ASS'Y

FF/REW

ROLLER

ASS'Y

BELT CONNECTION

PWB-A2

IC904

IC902

Q905

IC901

CD-BA120/125

– 8 –

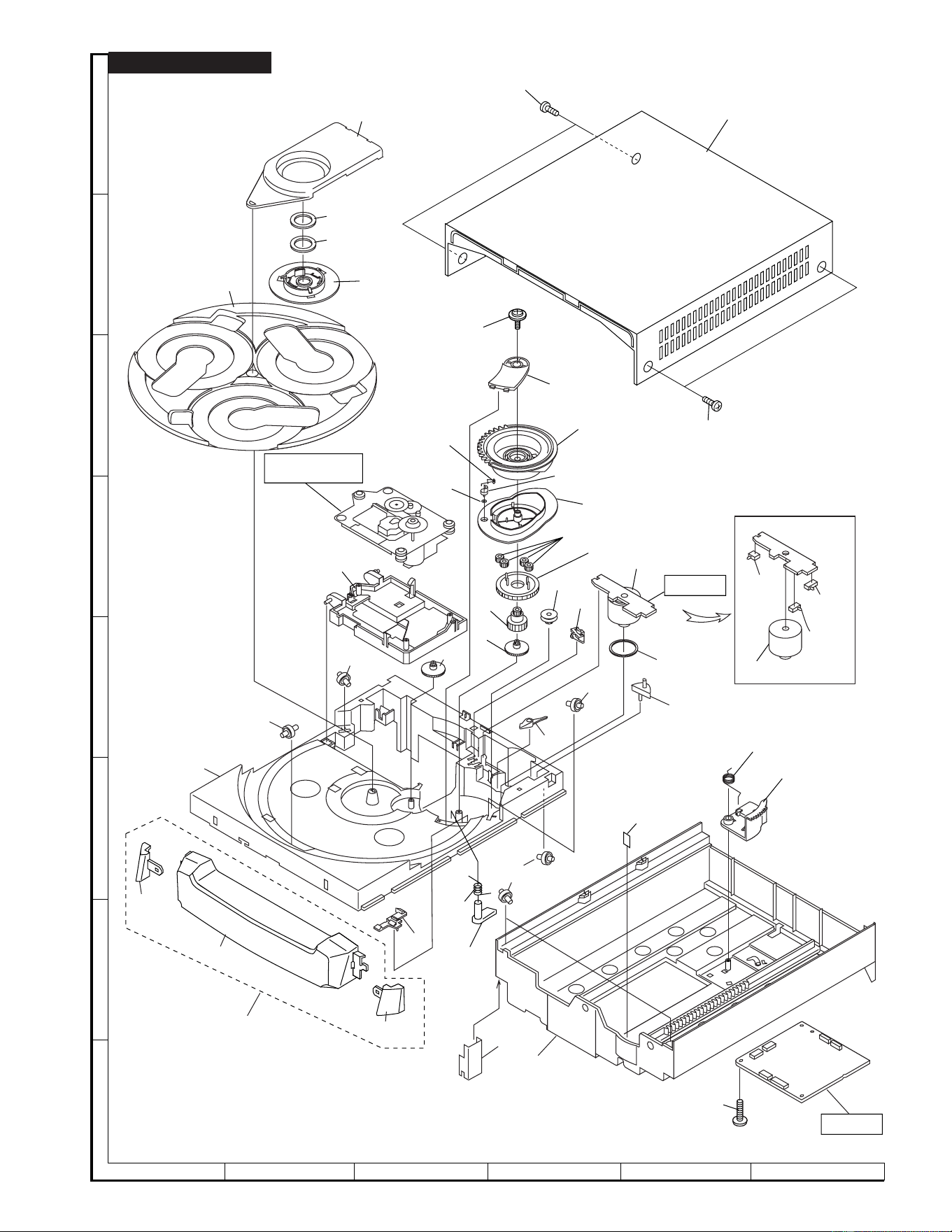

Figure 8 CABINET EXPLODED VIEW (2/2)

23456

CD-BA120/125

248

MECHANISM

205

257

235

236

243

224

259

239

260

204-2

204-1

204-3

258

269

204

240

239x3

604x2

250x4

256

247

262

238

241

244

618

251

252

255

249

253

PWB-B

239

254

246

232

263

234

PWB-E

242

SW3

SW2

SW1

619

264

245

CD-BA120/125

– 9 –

23456

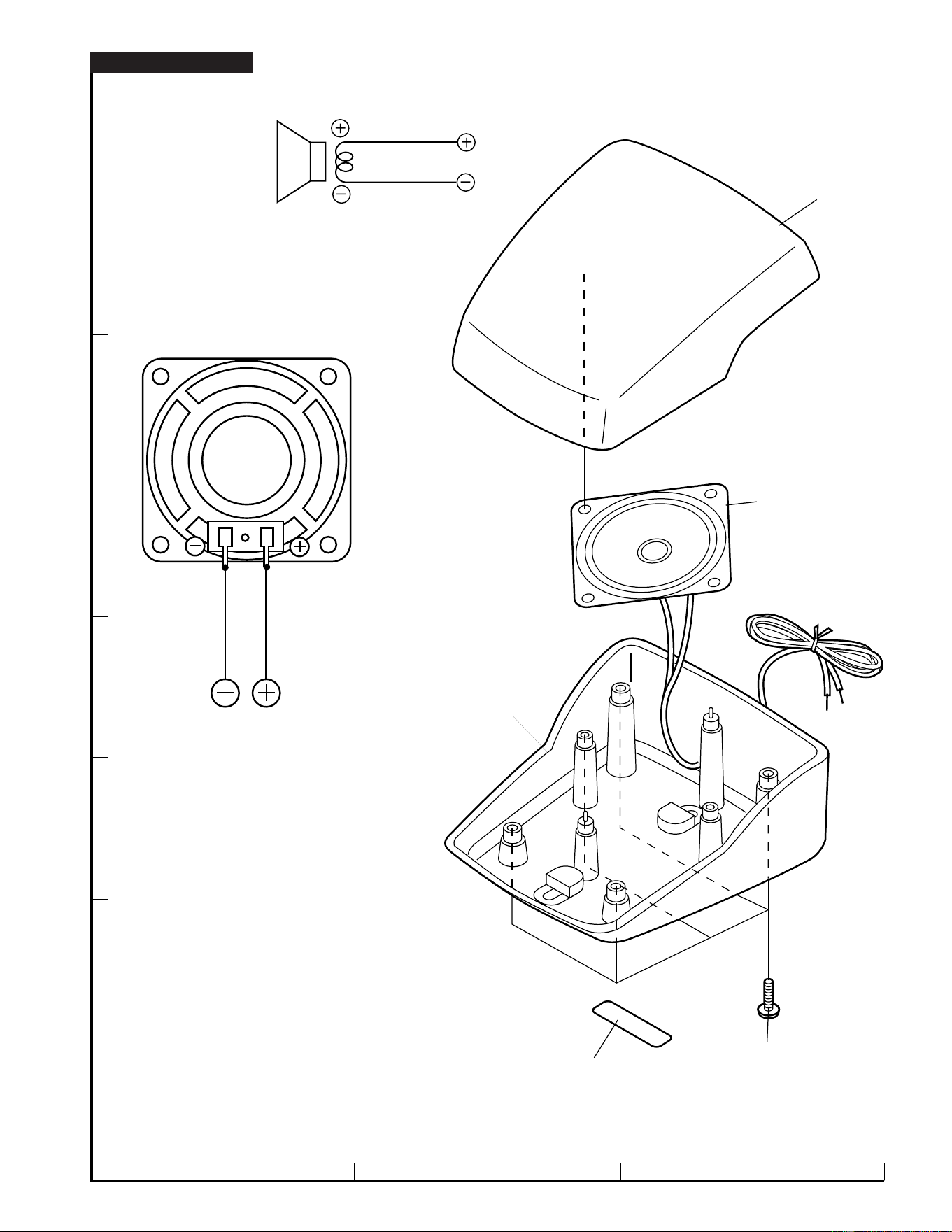

Figure 9 SPEAKER EXPLODED VIEW (1/2)

CP-BA120/125

907

905x4

904

906

902

903

901

SPEAKER

SP1(L-CH)

SP2(R-CH)

SPEAKER

SP1(L-CH)

SP2(R-CH)

SP1(L-CH)

SP2(R-CH)

CD-BA120/125

23456

– 10 –

903

902

904x6

905

SP3(L-CH)

SP4(R-CH)

901

WOOFER

SP3(L-CH)

SP4(R-CH)

BLACKWHITE

WOOFER

SP3(L-CH)

SP4(R-CH)

GBOXS0042AWM1 CD-BA125 ONLY

Figure 10 SPEAKER EXPLODED VIEW (2/2)

CD-BA120/125

PACKING OF THE SET (FOR U.S.A. ONLY)

Setting position of switches and knobs

Tape Mechanism STOP

Not Replacement Item

SPAKP0013AWZZ1

Polyethylene Bag, Unit

UNIT

92LBAG1460C1

Polyethylene Bag, Accessories

AM/FM Loop Antenna

Quick Guide

Operation Manual

SPAKC0895AWZZ (BA120)

SPAKC0897AWZZ (BA125)

Packing Case

TLABR1090AWZZ (BA120)

TLABR1130AWZZ (BA125)

Label ,Bar Code

FRONT SIDE OF

SPEAKERS

SPAKA0242AWZZ

Packing Add., Left/Right

TLABZ0712AWZZ

Label, Feature Tape2

TLABZ0711AWZZ (BA120)

TLABZ0718AWZZ (BA125)

Label, Feature Tape1

92LN1885B

Packing Add.

Bottom

92LN1885T

Packing Add.

Top

92LV4974A

Polyethylene Bag

Bottom

TOP

FRONT

FRONT SPEAKER CP-BA120/125

Remote Control

back

Top

– 11 –

CD-BA120/125

– 12 –

–– MEMO ––

CD-BA120/125

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any from or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

A0002-2627NS•HA•I

SC • SL • LAG

SHARP CORPORATION

Communication Systems Group

Quality & Reliability Control Center

Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

Sharp CD-BA120 Audio

Product's Documents

Service Manual

Specifications

Sharp CD-BA120 Questions and Answers

Related Products

Sharp XL-BH250 Audio

Sharp GX-BT7 Audio

Sharp CD-BA150 Audio

Sharp CD-C401H Audio Mini Componet System

Sharp CD-ES111H Audio

Sharp CD-ES222E Audio
