Sharp CD-BK300W Audio User Manual

– 1 –

CD-BK300W

No. S5133CDBK300W

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

VOLTAGE SELECTION ..................................................................................................................................................... 2

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR ................................................................................................. 3

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

OPERATION MANUAL ...................................................................................................................................................... 6

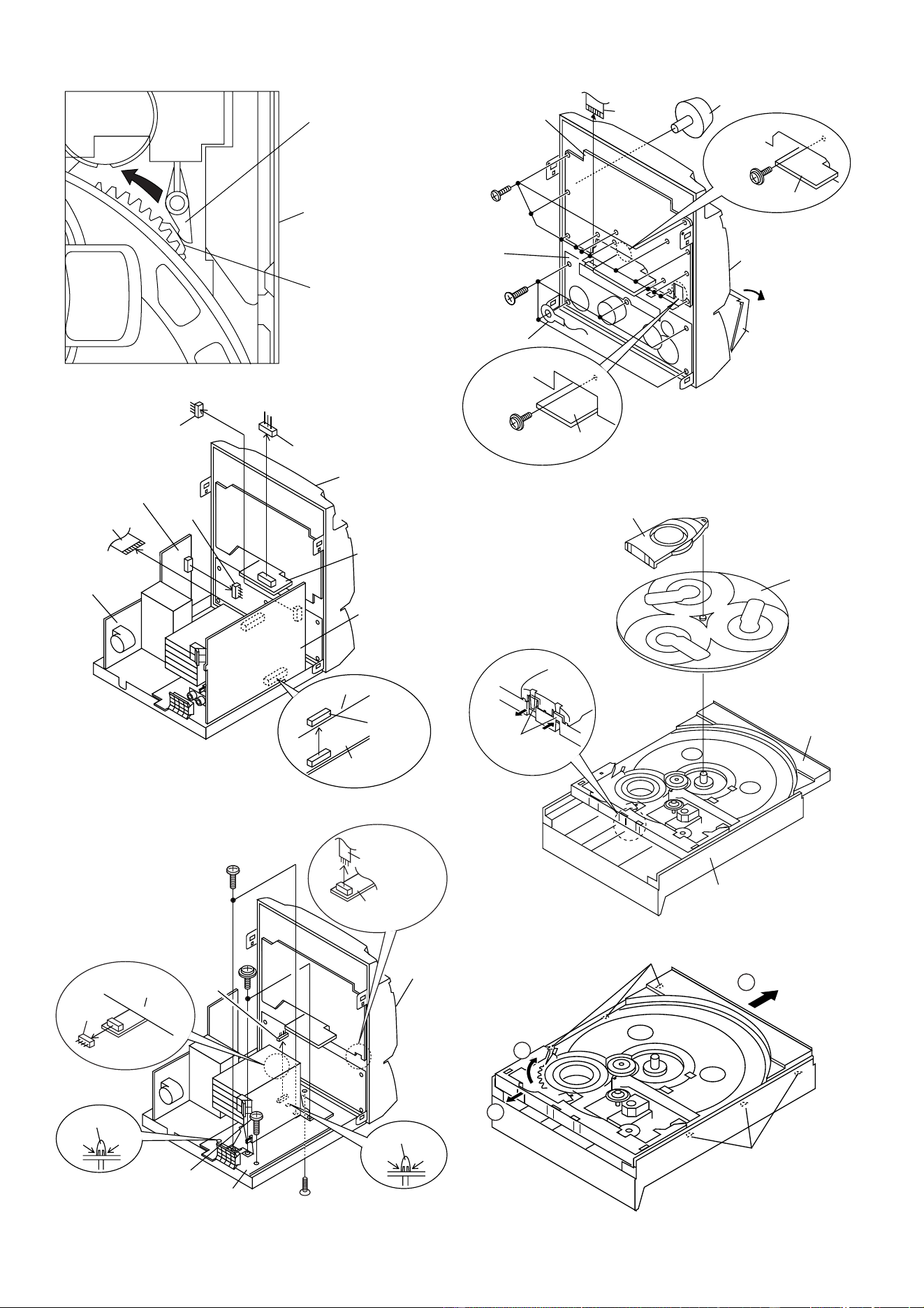

DISASSEMBLY .................................................................................................................................................................. 9

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 12

ADJUSTMENT ................................................................................................................................................................. 13

BLOCK DIAGRAM ........................................................................................................................................................... 17

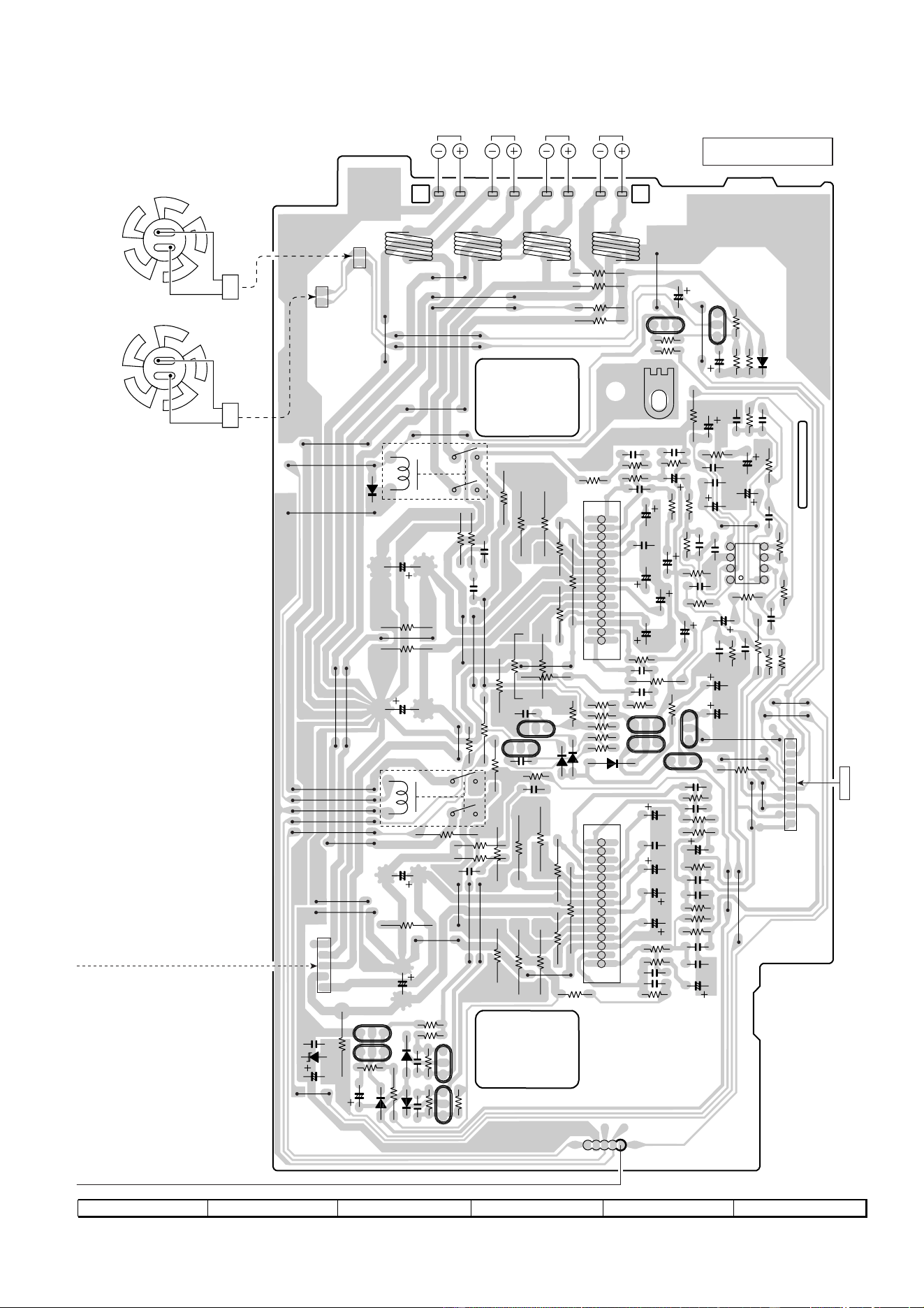

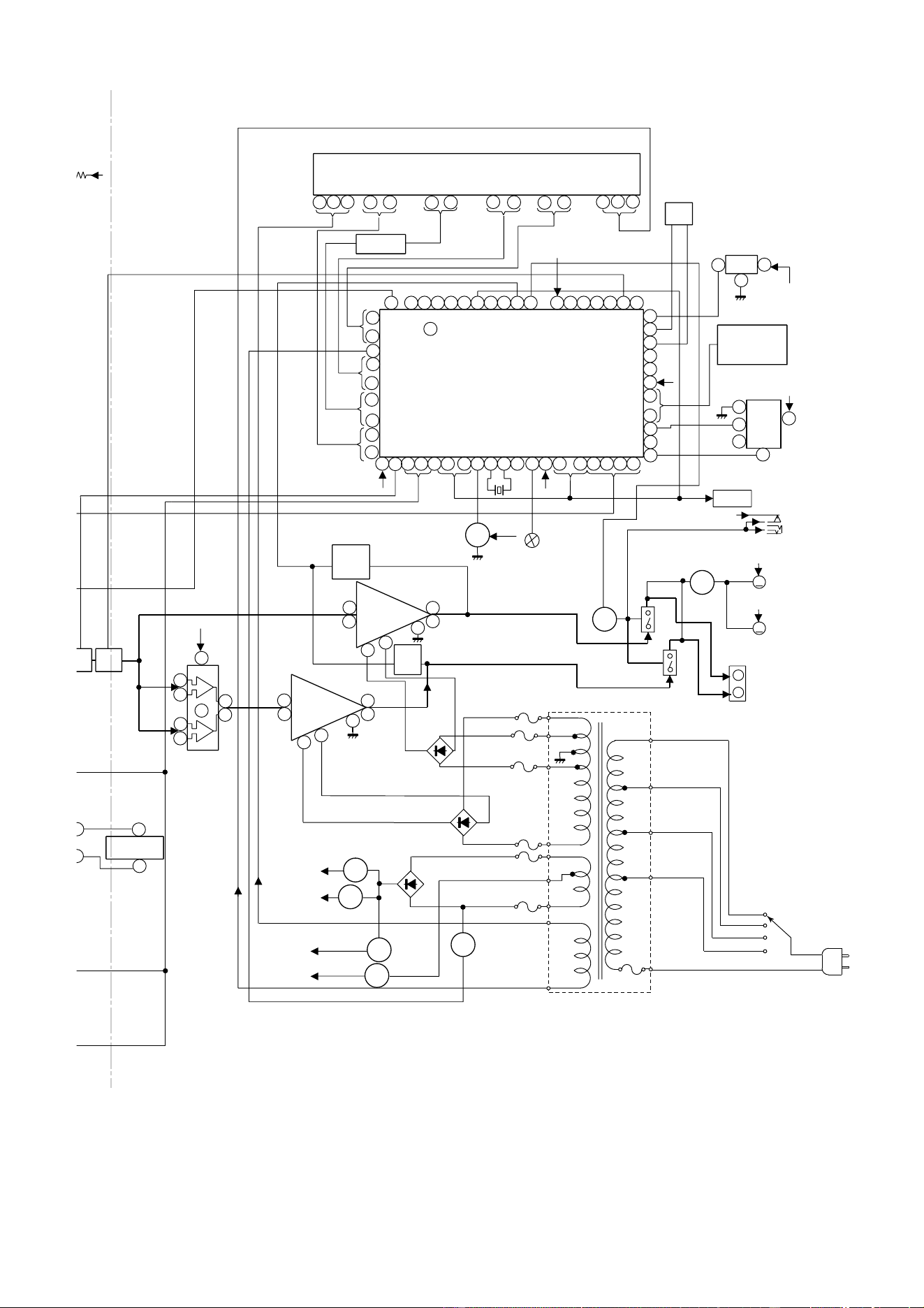

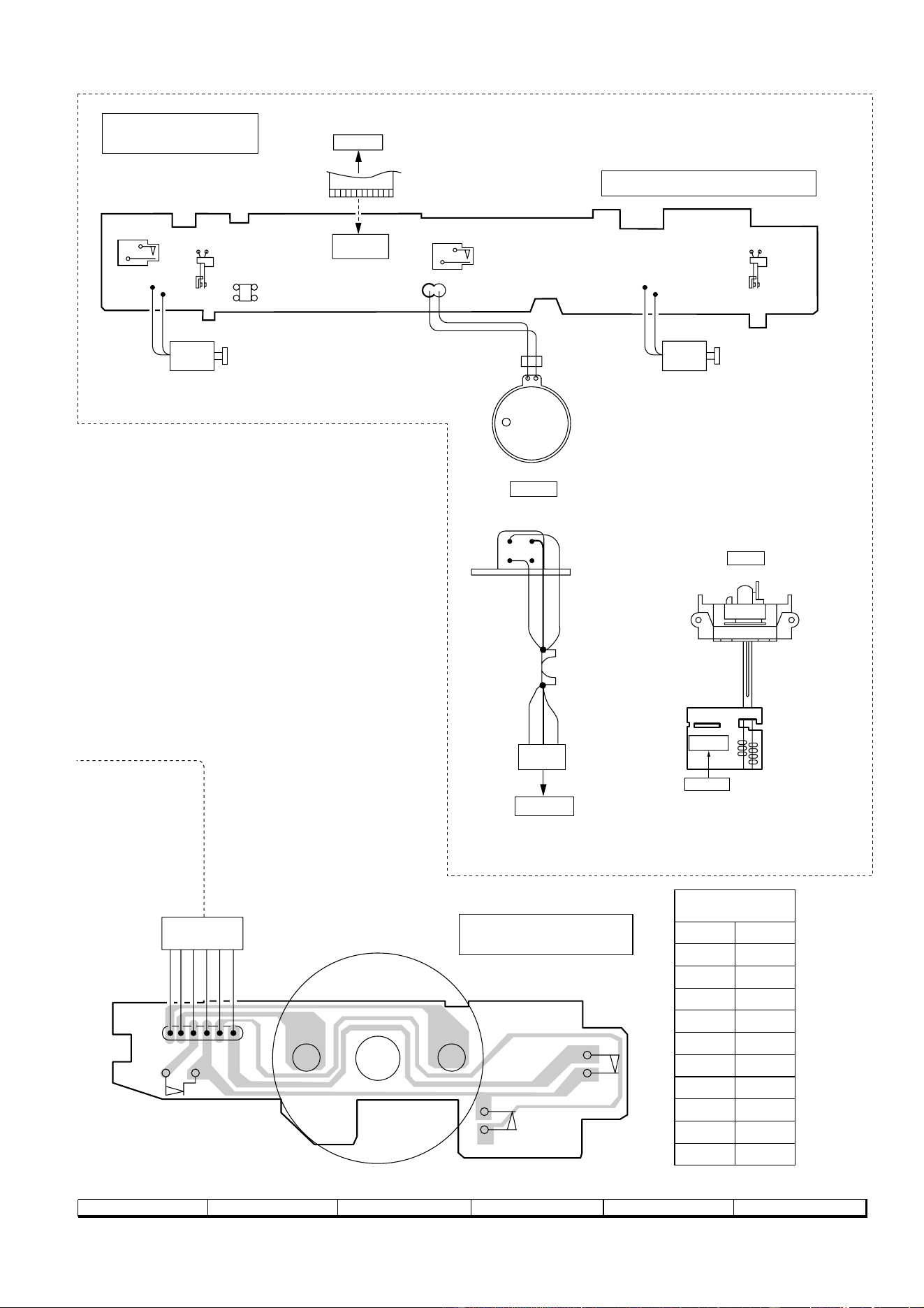

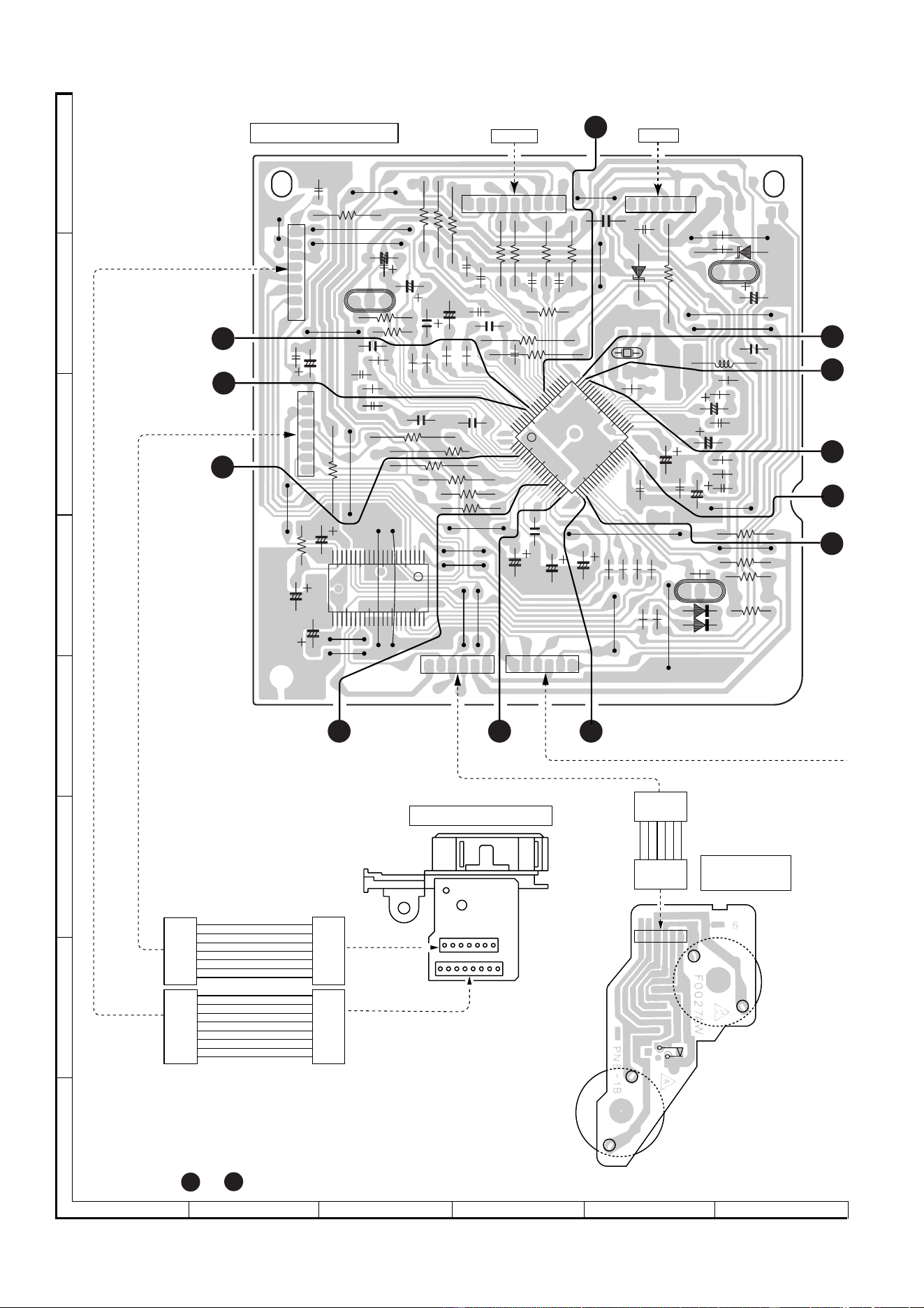

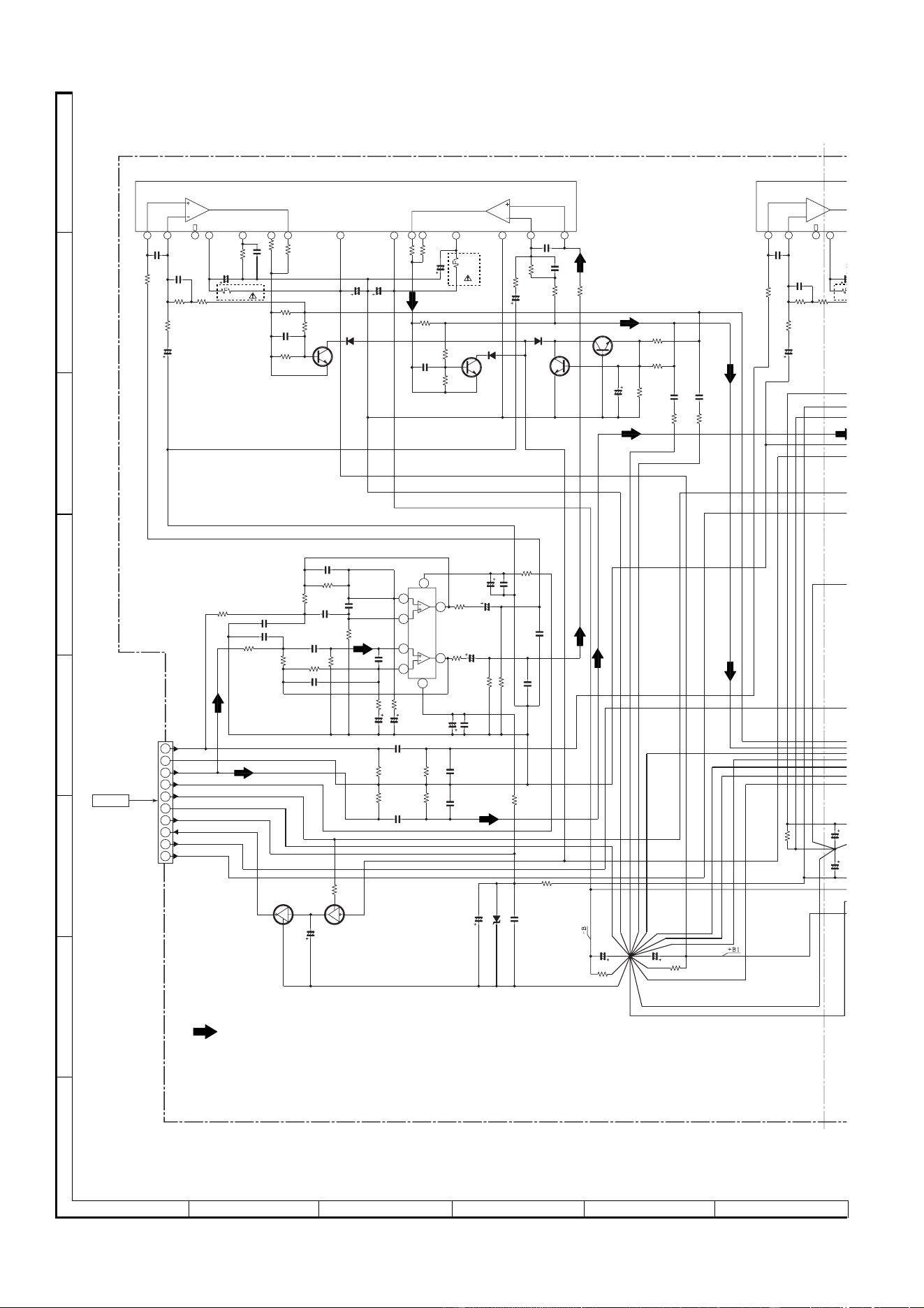

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 20

VOLTAGE ........................................................................................................................................................................ 38

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 39

TYPES OF TRANSISTOR AND LED................................................................................................................................39

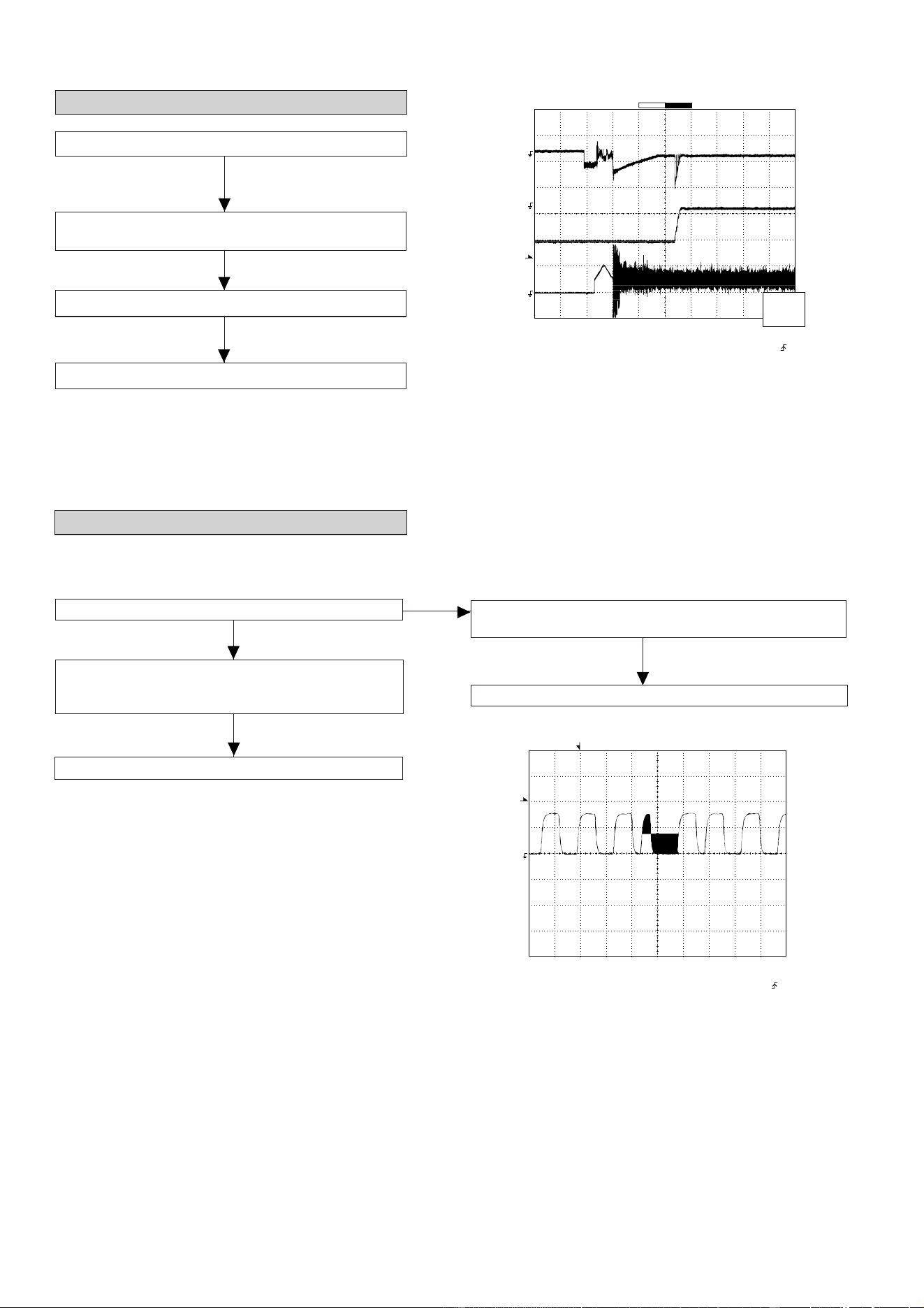

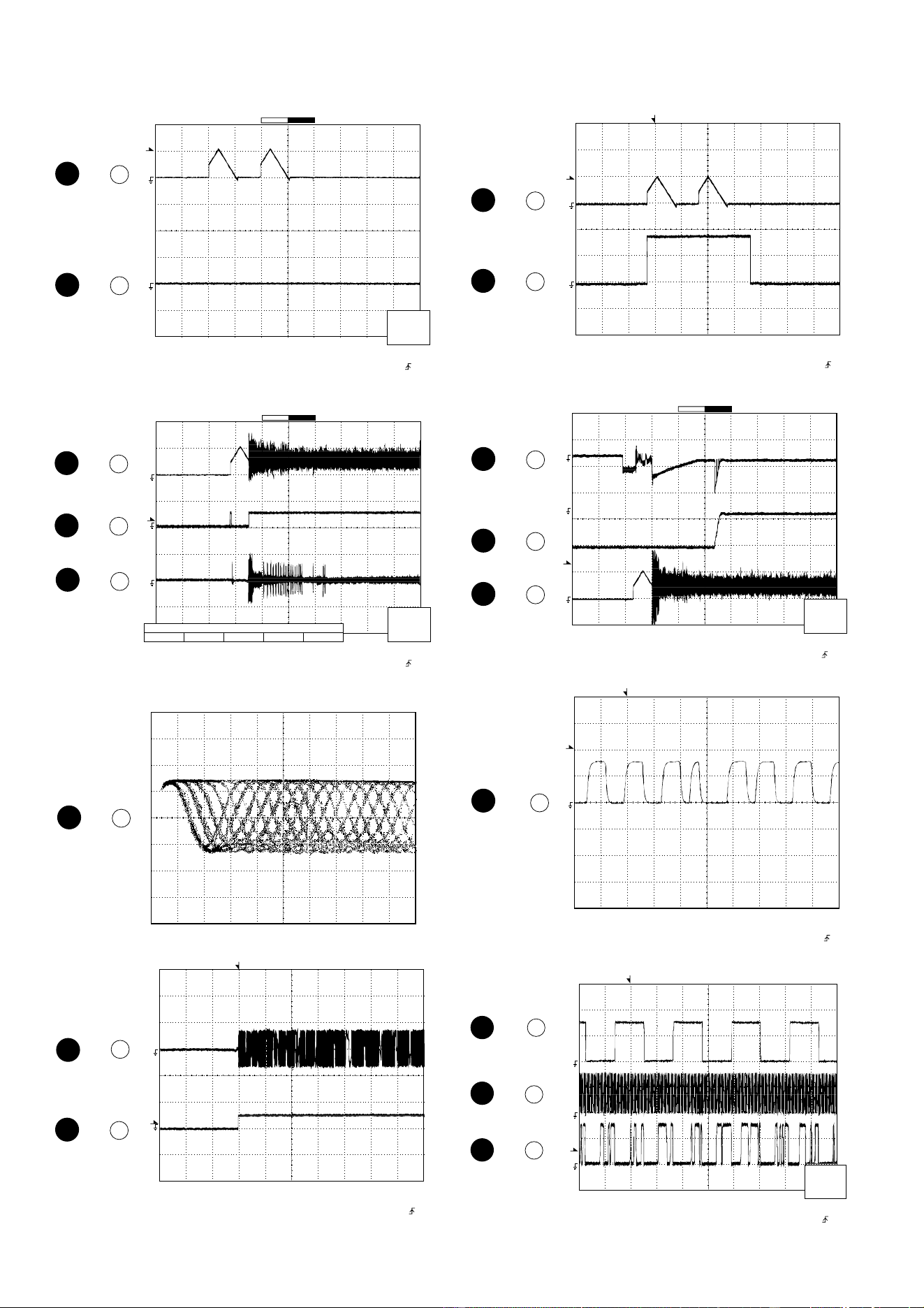

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 40

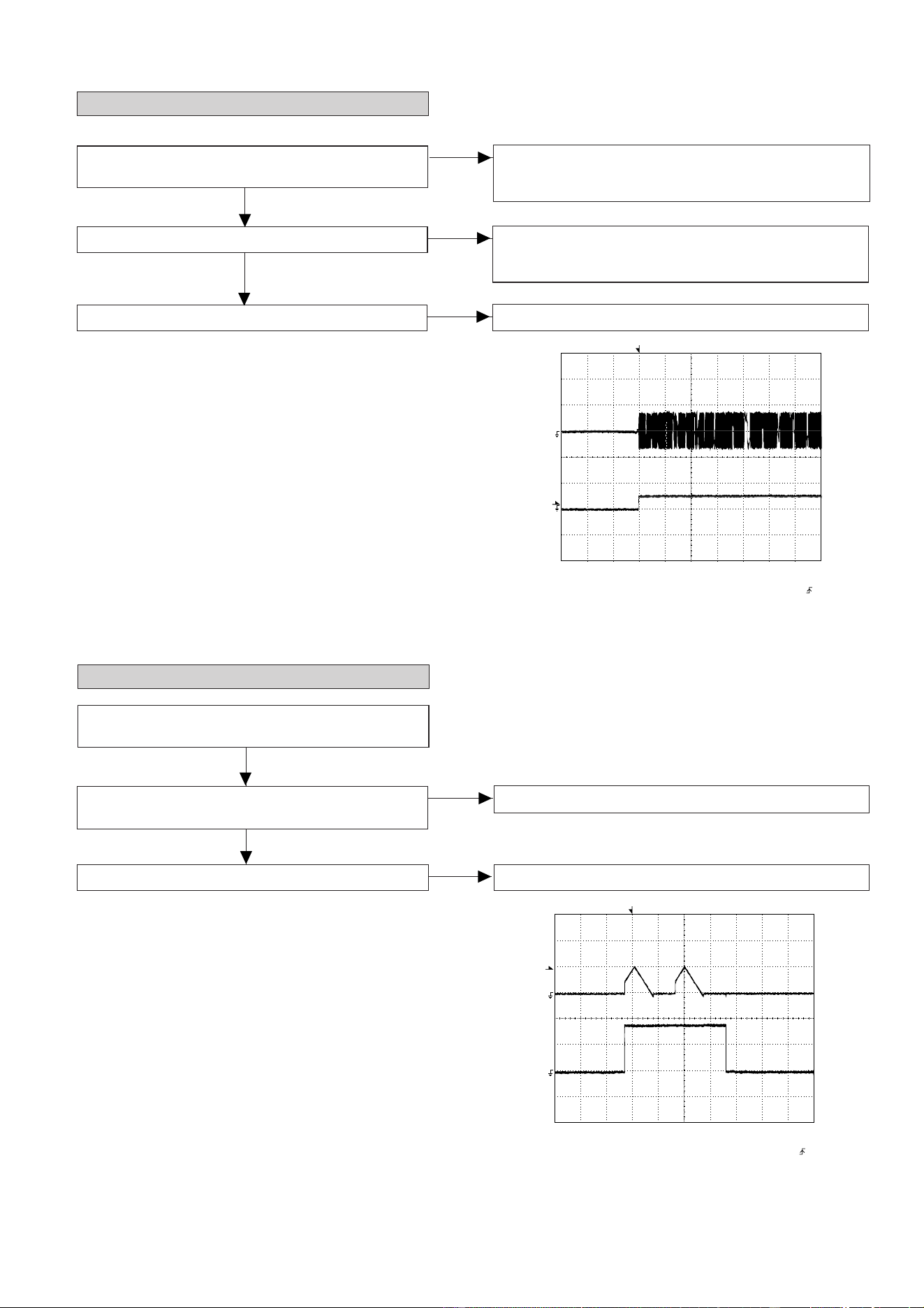

TROUBLESHOOTING ..................................................................................................................................................... 41

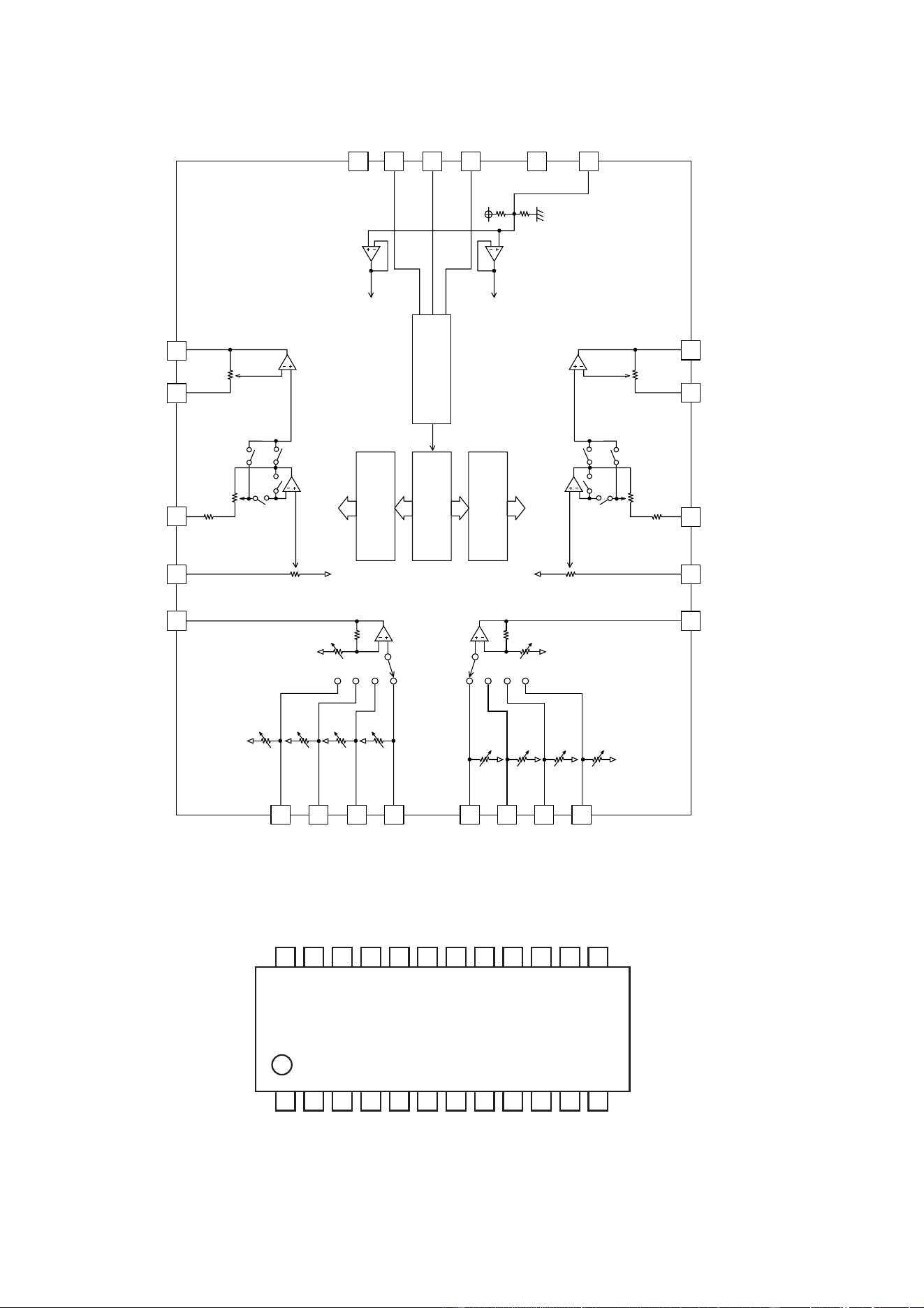

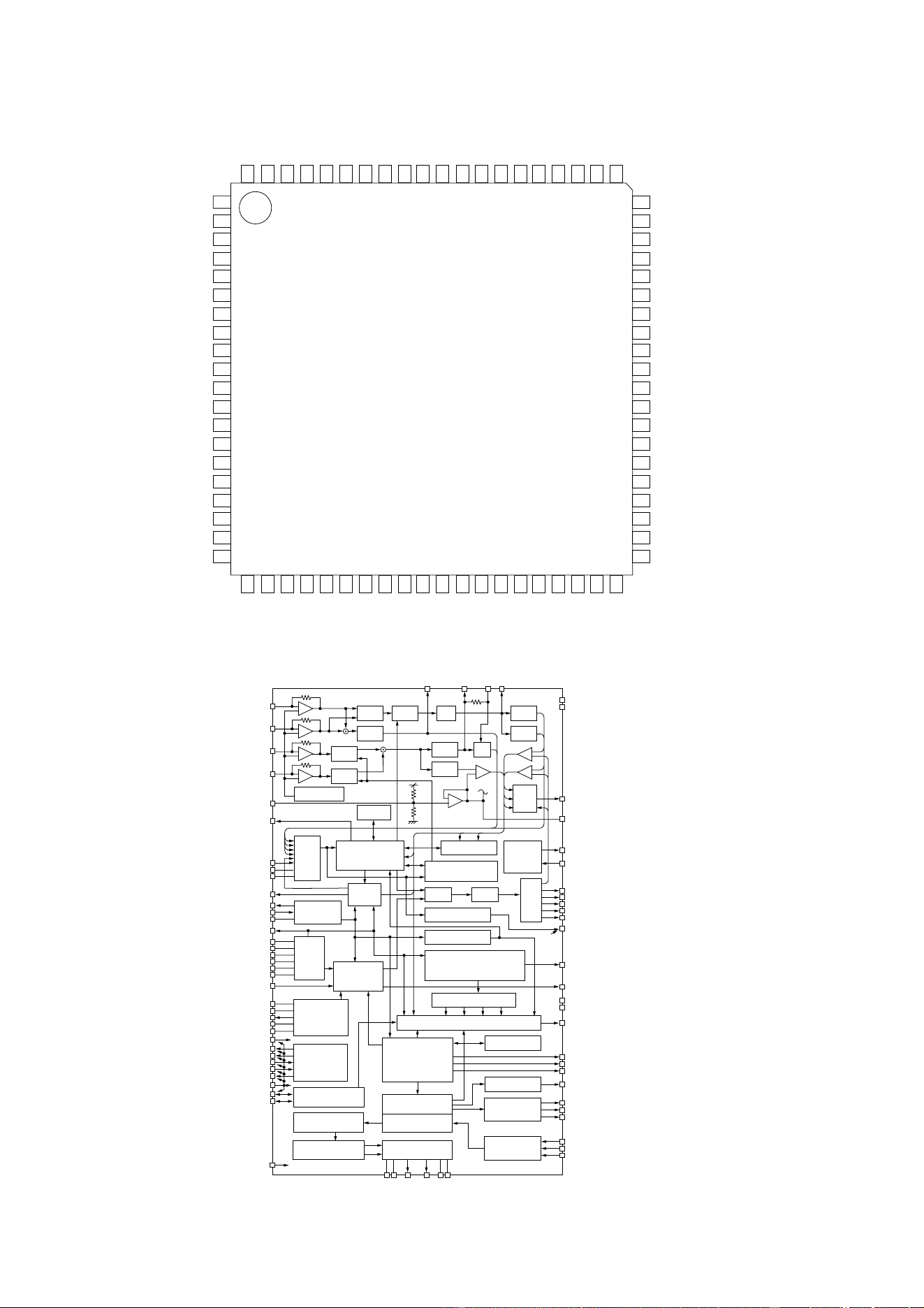

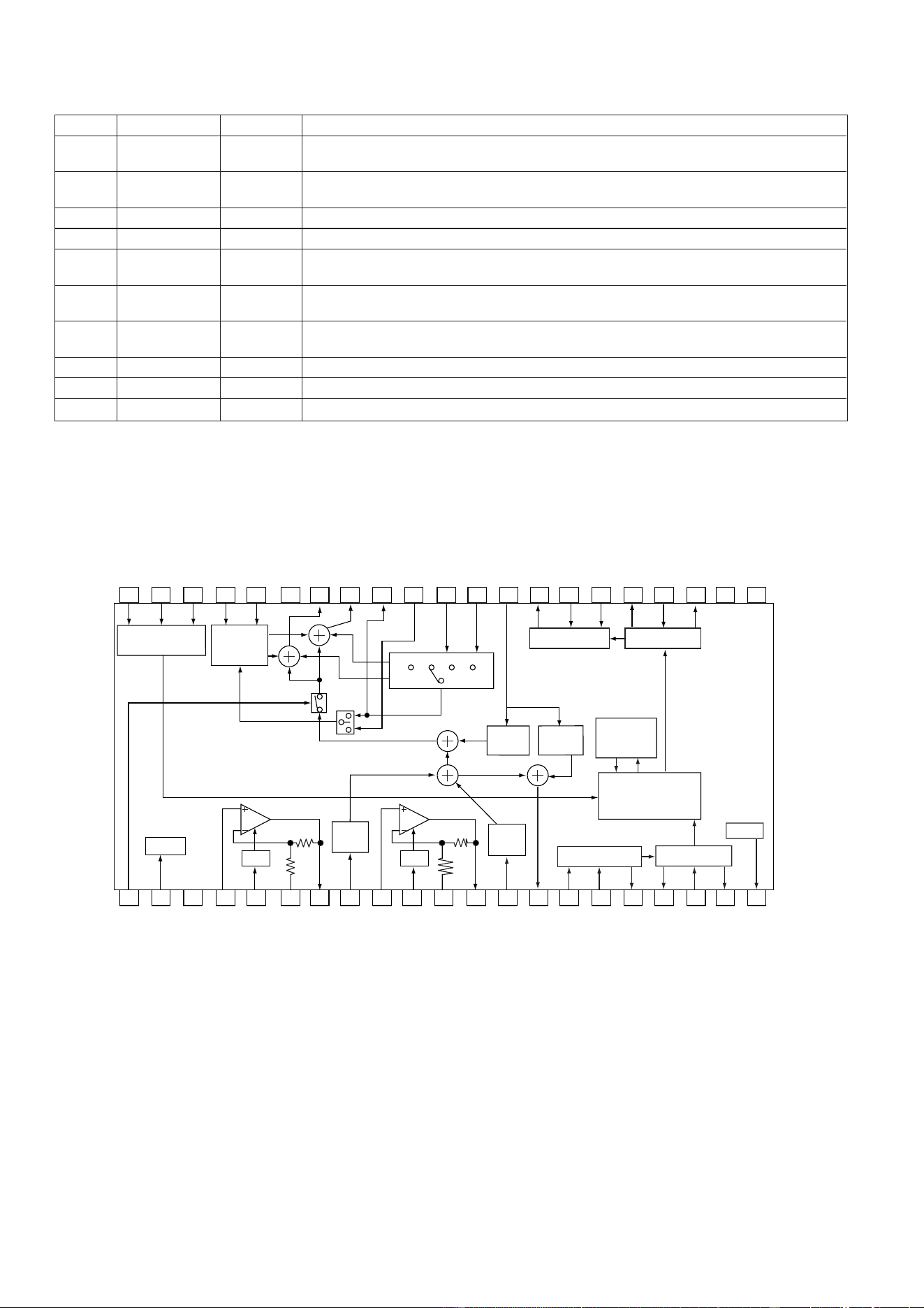

FUNCTION TABLE OF IC................................................................................................................................................ 45

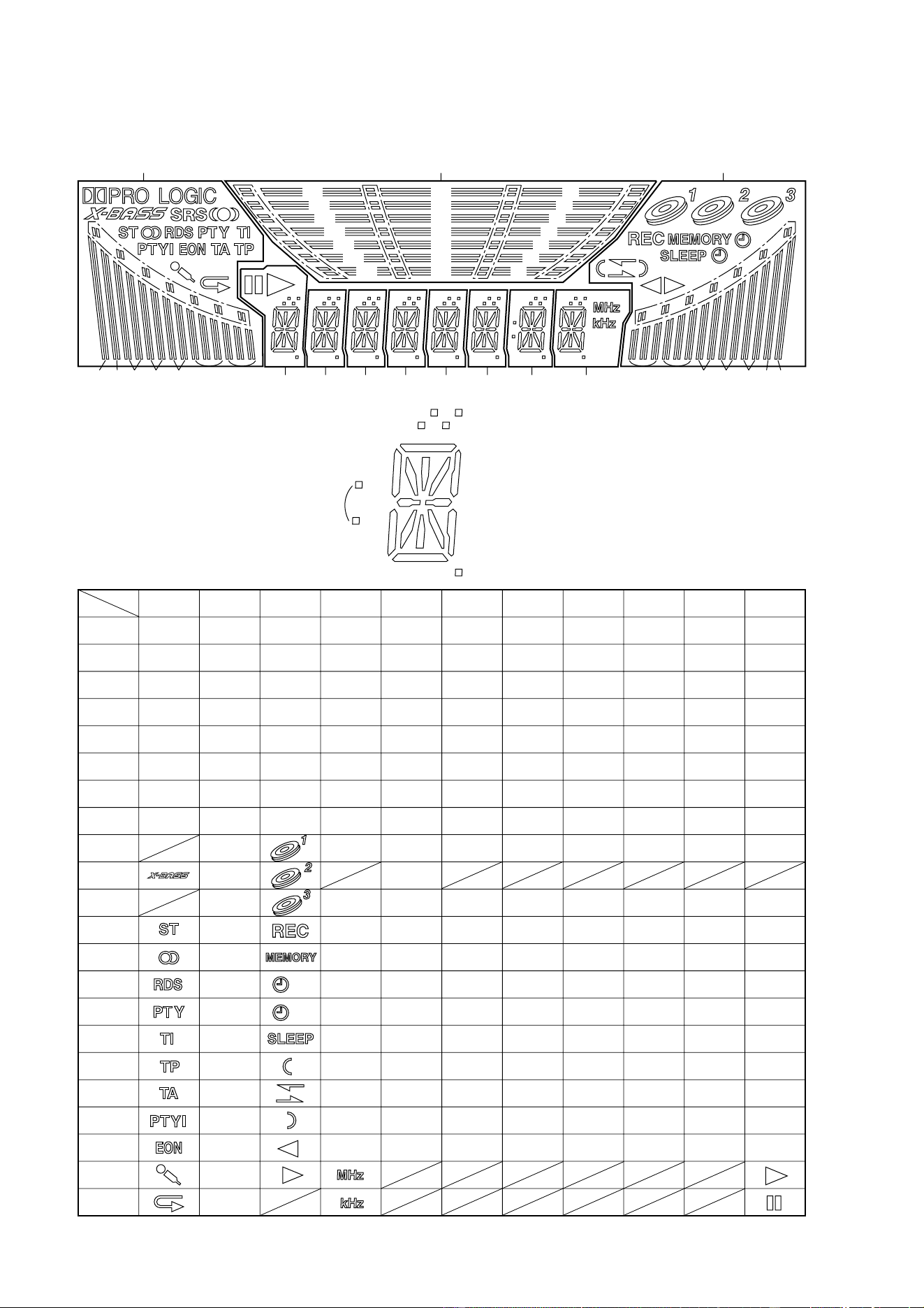

FL DISPLAY ...................................................................................................................................................................... 53

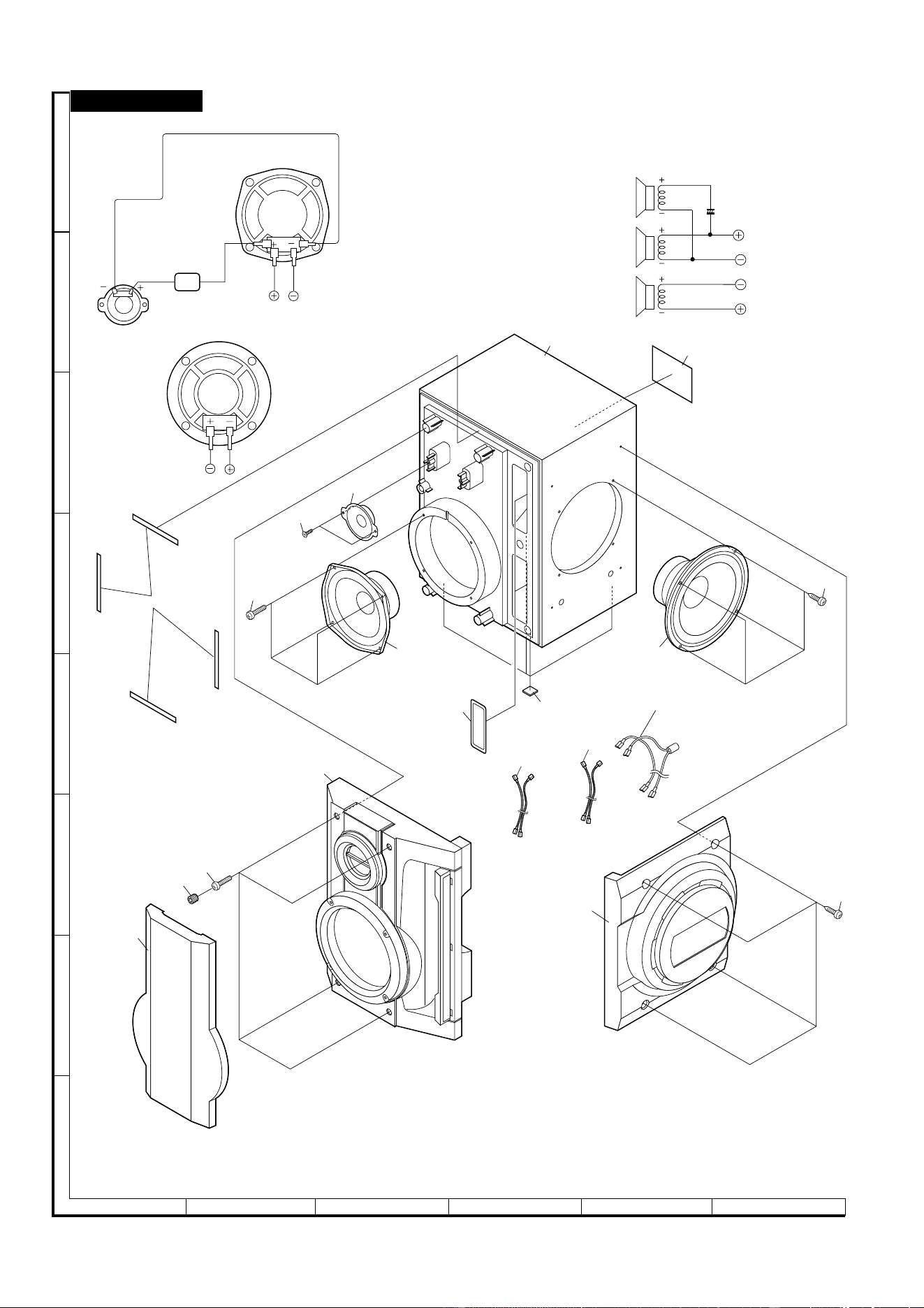

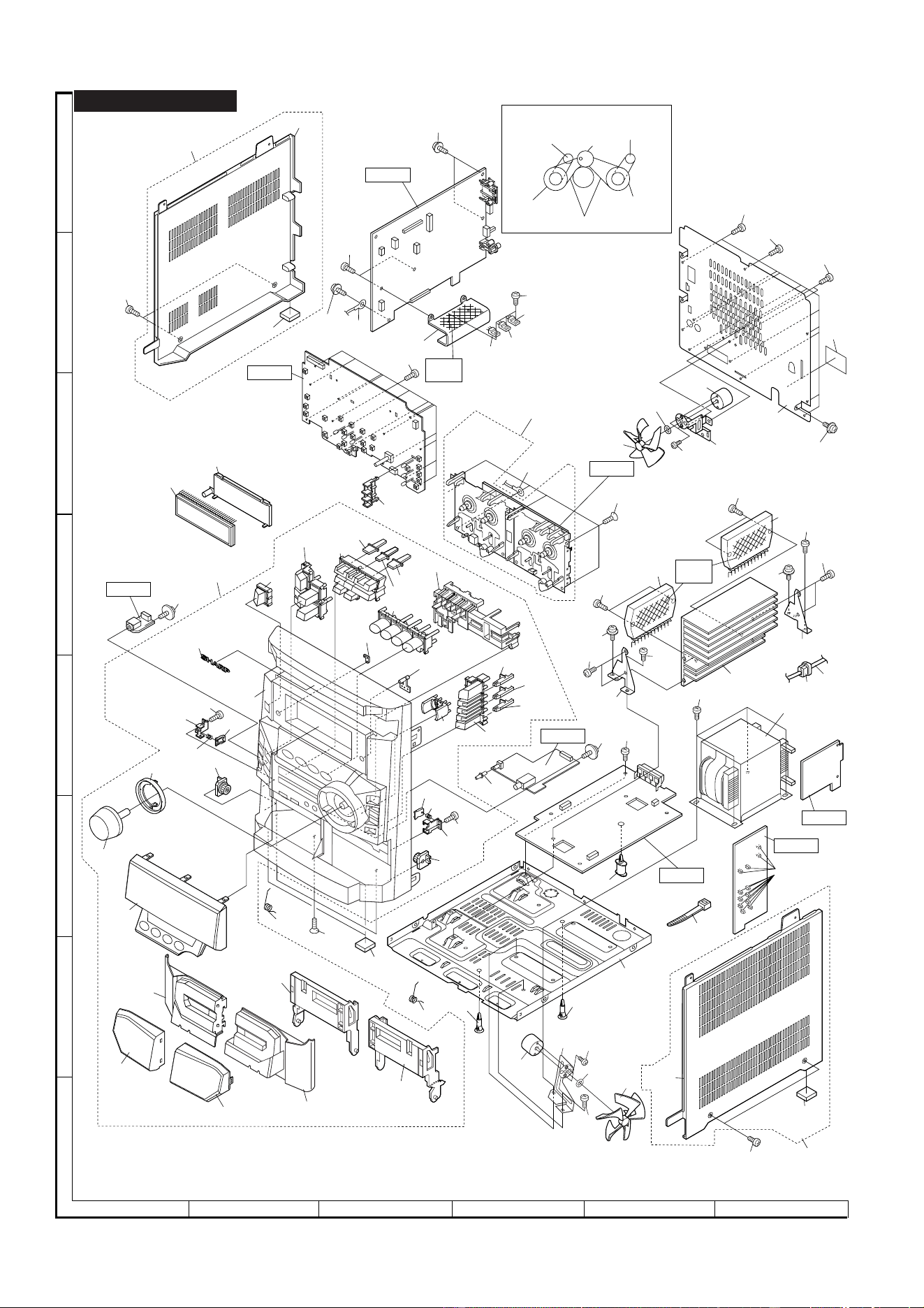

REPLACEMENT PARTS LIST/EXPLODED VIEW

MINI COMPONENT SYSTEM

MODEL CD-BK300W

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

SERVICE MANUAL

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

CD-BK300W Mini Component System consisting of

CD-BK300W (main unit) and CP-BK300 (speaker system).

CD-BK300W

– 2 –

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO

BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA

EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I

STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.

ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.

STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT

INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE

INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.

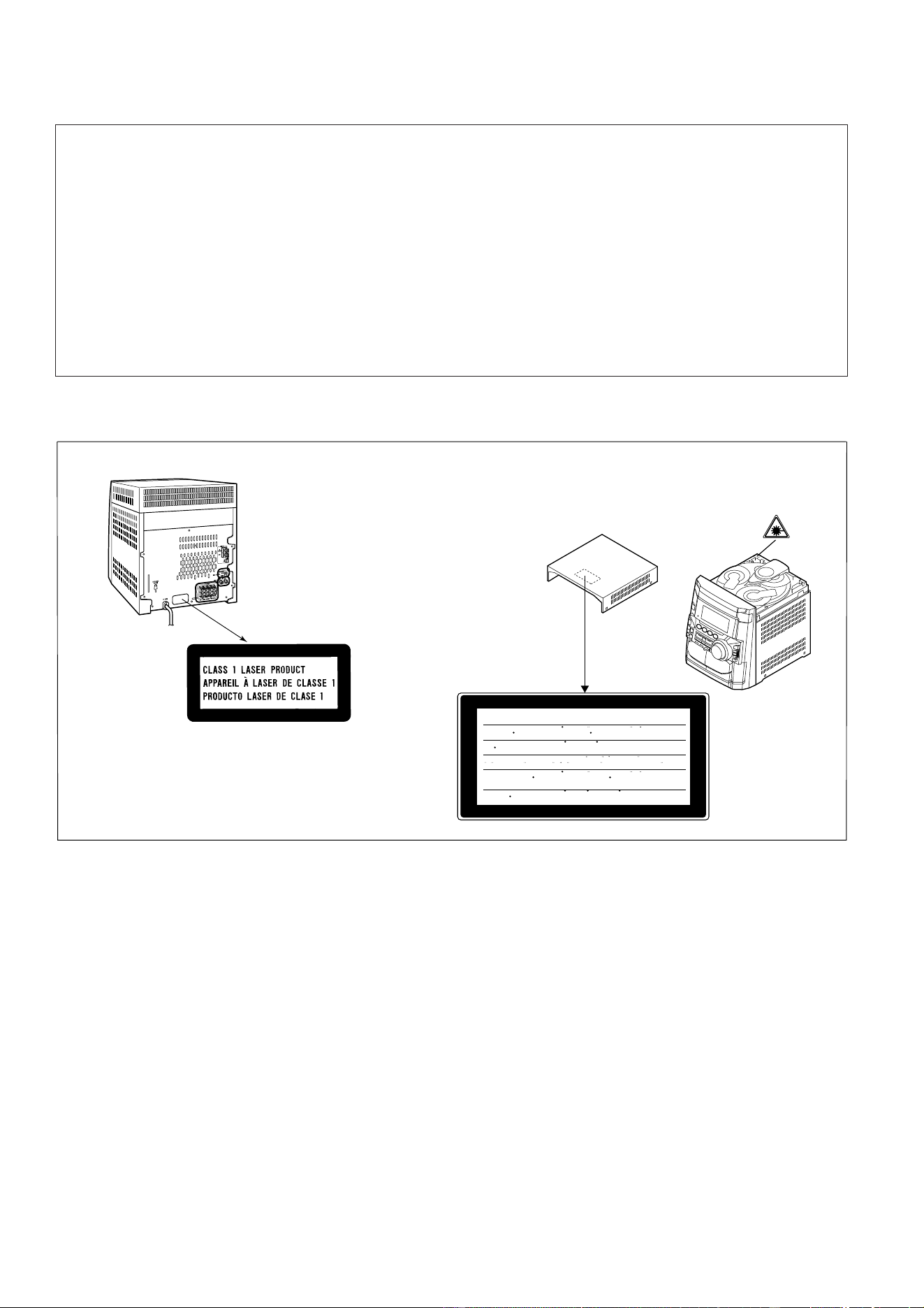

SAFETY PRECAUTION FOR SERVICE MANUAL

WARNINGS

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER

COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS

IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES

AGAINST EXPOSURE TO THE LASER BEAM.

1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE

PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT

LOOK INTO THE PICKUP LENS.

2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY

PRESET BEFORE SHIPMENT.

DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.

3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.

4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

VOLTAGE SELECTION

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage

as follows.

Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V-240 V AC).

– 3 –

CD-BK300W

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

Specifications for this model are subject to change without

prior notice.

SPECIFICATIONS

CD-BK300W

CP-BK300

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

General

Amplifier

CD player

Tuner

Cassette deck

Power source

AC 110/127/220/230 - 240 V, 50/60 Hz

Power consumption

210 W

Dimensions

Width: 270 mm (10-11/16")

Height: 330 mm (13")

Depth: 372 mm (14-11/16")

Weight

8.7 kg (19.2 lbs.)

Output power

MPO: 480 W (240 W + 240 W) (10 % T.H.D.)

Main speaker (woofer and tweeter): 200 W (100 W + 100 W)

Subwoofer: 280 W (140 W + 140 W)

RMS: 250 W (125 W + 125 W) (10 % T.H.D.)

Main speaker (woofer and tweeter): 100 W (50 W + 50 W)

Subwoofer: 150 W (75 W + 75 W)

RMS: 188 W (94 W + 94 W) (0.9 % T.H.D.)

Main speaker (woofer and tweeter): 72 W (36 W + 36 W)

Subwoofer: 116 W (58 W + 58 W)

Output terminals

Speakers: 6 ohms

Headphones: 16 - 50 ohms (recommended: 32 ohms)

Input terminals

Video/Auxiliary (audio signal): 500 mV/47 kohms

Microphone: 1 mV/600 ohms

Type

3-disc multi-play compact disc player

Signal readout

Non-contact, 3-beam semiconductor laser pickup

D/A converter

1-bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

Frequency range

FM: 88 - 108 MHz

AM: 531 - 1,602 kHz

Frequency response

50 - 14,000 Hz (Normal tape)

Signal/noise ratio

55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter

0.3 % (WRMS)

Type

3-way type speaker system

5 cm (2") Tweeter

13 cm (5-1/4") Woofer

16 cm (6-1/2") Subwoofer

Maximum input power

(Total)

250 W

Rated input power

(Total)

125 W

Impedance

6 ohms

Dimensions

Width: 287 mm (11-5/16")

Height: 330 mm (13")

Depth: 281 mm (11-1/16")

Weight

5.0 kg (11.1 lbs.)/each

QACCA0003AW00

QACCL0005AW00

QACCB0011AW00

QACCE0010AW00

QACCZ0007AW00

QACCJ0007AW00

QPLGA0003AWZZ

QPLGA0004AWZZ

CD-BK300W

– 4 –

NAMES OF PARTS

CD-BK300W

Front panel

1. Disc Tray

2. Timer Set Indicator

3. On/Stand-by Button

4. Tape 2 Cassette Compartment

5. Tape 1 Cassette Compartment

6. Equalizer Mode Select Button

7. Volume Control

8. Extra Bass/Demo Mode Button

9. Disc Tray Open/Close Button

10. Disc Number Select Button (with Indicator)

11. Disc Skip Button

12. Tuning and Time Up Button

13. Tape 2 Reverse Play Button (with Indicator)

14. CD Button

15. Tuner (Band) Button

16. Tape (1 2) Button

17. Video/Auxiliary Button

18. Dimmer Button

19. Clock Button

20. Timer/Sleep Button

21. Headphone Socket

22. CD or Tape Stop Button (with Indicator)

23. CD Play, Tape 1 Play or Tape 2 Forward Play Button

(with Indicator)

24. Tape 2 Reverse Mode Select Button

25. CD Track Up or Fast Forward, Tape 2 Fast Wind,

Tuner Preset Up Button

26. Tuning and Time Down Button

27. Memory/Set Button

28. Tape 2 Record Pause Button

29. CD Track Down or Fast Reverse, Tape 2 Fast Wind,

Tuner Preset Down Button

30. Microphone Level Control

31. Microphone Socket

678

171615141312

26 27 28

30 3129

Display

1. Extra Bass Indicator

2. FM Stereo Mode Indicator

3. FM Stereo Receiving Indicator

4. Karaoke Mode Indicator

5. CD Repeat Play Indicator

6. CD Pause Indicator

7. CD Play Indicator

8. Tape 2 Record Indicator

9. Tape Reverse Mode Indicator

10. Disc Number Indicators

11. Timer Play Indicator

12. Memory Indicator

13. Tape 2 Reverse Play Indicator

14. Tape 1 Play or Tape 2 Forward Play Indicator

15. Sleep Indicator

16. Timer Recording Indicator

17. Spectrum Analyzer/Volume Level Indicator

34 6

17 17

13 14 15 16

– 5 –

CD-BK300W

Remote control

1. Remote Control Transmitter

2. Echo Level Up and Down Butto

3. Karaoke Mode Button

4. Disc Number Select Buttons

5. CD Clear Button

6. Tape 2 Record Pause Button

7. CD Track Down or Fast Reverse, Tape 2 Fast Wind,

Tuner Preset Down Button

8. Equalizer Mode Select Button

9. Tape 2 Reverse Play Button

10. CD Button

11. Tuner (Band) Button

12. On/Stand-by Button

13. Extra Bass Button

14. CD Random Button

15. CD Memory Button

16. CD Pause Button

17. CD Track Up or Fast Forward, Tape 2 Fast Wind,

Tuner Preset Up Button

18. CD or Tape Stop Button

19. CD Play or Repeat, Tape 1 Play,

Tape 2 Forward Play Button

20. Video/Auxiliary Button

21. Tape (1

2) Button

22. Volume Up and Down Buttons

Buttons with " " mark in the illustration can be operated on the remote control

only.

Other buttons can be operated both on the main unit and the remote control.

Rear panel

1. FM 75 Ohms Aerial Terminal

2. FM Aerial Earth Terminal

3. AM Loop Aerial Socket

4. Span Selector Switch

5. Video/Auxiliary (Audio Signal) Input Sockets

6. Speaker Terminals

7. AC Power Lead

8. AC Voltage Selector

CD-BK300W

– 6 –

OPERATION MANUAL

CP-BK300

1. Subwoofer

2. Bass Reflex Duct

3. Tweeter

4. Woofer

5. Speaker wire for SUBWOOFER terminals

6. Speaker wire for MAIN terminals

System Connections

Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before plug-

ging the unit into an AC socket. If necessary, adjust the selector to correspond to the

AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage num-

ber appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

Connecting the AC power lead

After making all connections, plug the unit. If you plug the unit first,

the unit will enter the demonstration mode.

Note:

Unplug the AC power lead from the AC socket if the unit will not be in use for a pro-

longed period of time.

AC Plug Adaptor

In areas (or countries) where an AC socket as shown in illustration is used, con-

nect the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC

plug adaptor is not included in areas where the AC wall socket and AC power plug

can be directly connected (see illustration ).

Setting the FM/AM span selector

The International Telecommunication Union (ITU) has established that member coun-

tries should maintain either a 100 kHz or a 50 kHz interval between broadcasting fre-

quencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows

the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).

Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the

interval (span) of your area.

To change the tuning zone:

Caution:

This operation will erase all data stored in memory including clock, timer settings,

tuner preset, and CD programme.

1 Press the ON/STAND-BY button to enter the stand-by mode.

2 Set the SPAN SELECTOR switch (on the rear panel) as follows.

For 50 kHz FM interval (9 kHz in AM) 50/9

For 100 kHz FM interval (10 kHz in AM) 100/10

3 Whilst pressing down the button and the X-BASS/DEMO button, press the ON/

STAND-BY button until "CLEAR AL" appears.

– 7 –

CD-BK300W

Setting the Clock

In this example, the clock is set for the 24-hour (0:00) display.

Note:

The "CLOCK" or time will flash at the push of the CLOCK button when the AC power

supply is restored after a power failure or unplugging the unit.

Readjust the clock as follows.

To readjust the clock:

Perform "Setting the Clock" from the beginning. If the time display is flashing, step 3

(for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

Press the ON/STAND-BY button to turn the power on.

Press the CLOCK button and within 5 seconds, press the MEMO-

RY/SET button.

Press the TUNING/TIME ( or ) button to select 24-hour or 12-

hour display and then press the MEMORY/SET button.

"0:00" The 24-hour display will appear.

(0:00 - 23:59)

"AM 12:00" The 12-hour display will appear.

(AM 12:00 - PM 11:59)

"AM 0:00" The 12-hour display will appear.

(AM 0:00 - PM 11:59)

Note that this can only be set when the unit is first installed or it has been reset.

(Refer to step 3 under "If trouble occurs".)

Press the TUNING/TIME ( or ) button to adjust the hour and then

press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.

Hold it down to advance continuously.

When the 12-hour display is selected, "AM" will change automatically to "PM".

Press the TUNING/TIME ( or ) button to adjust the minutes and

then press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1

minute. Hold it down to change the time in 5-minute intervals.

The hour will not advance even if minutes advance from "59" to "00".

The clock begins counting from "0" seconds. (Seconds are not displayed.)

The time display will disappear after a few seconds.

To confirm the time display:

Press the CLOCK button.

The time display will appear for about 5 seconds.

1 Clear all the programmed contents. [Perform to step 3 under "If trouble occurs" on.]

2 Perform "Setting the Clock" from the beginning.

Remote Control

Test of the remote control

Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the

music.

0.2 m - 6 m

(8" - 20')

Remote sensor

CD-BK300W

– 8 –

Troubleshooting Chart

Many potential "problems" can be resolved by the owner without calling a service

technician.

If something is wrong with this product, check the following before calling your autho-

rised SHARP dealer or service centre.

General

CD player

Tuner

Cassette deck

Karaoke

Remote control

Symptom Possible cause

The clock is not on time. Did a power failure occur? Reset the

clock.

When a button is pressed, the unit

does not respond.

Set this unit to the power stand-by mode

and then turn it back on.

If the unit still malfunctions, reset it. (Refer

to step3 under "If trouble occurs"

No sound is heard. Is the volume level set to "0"?

Are the headphones connected?

Are the speaker wires disconnected?

Is the karaoke mode set to "L-CH", "R-CH"

or "V-CANCEL"?

Symptom Possible cause

Playback does not start. Is the disc loaded upside down?

Playback stops in the middle or is

not performed properly.

Does the disc satisfy the standards?

Is the disc distorted or scratched?

Playback sounds are skipped, or

stopped in the middle of a track.

Is the unit located near excessive vibra-

tions?

Is the disc very dirty?

Has condensation formed inside the unit?

Symptom Possible cause

Radio makes unusual noise con-

secutively.

Is the unit placed near the TV or comput-

er?

Is the FM aerial or AM loop aerial placed

properly? Move the AC power lead away

from the aerial if located near.

Symptom Possible cause

Cannot record. Is the erase-prevention tab removed?

Cannot record tracks with proper

sound quality.

Is it a normal tape? (You cannot record on

a metal or CrO tape.)

Cannot erase completely.

Sound skipping. Is there any slack?

Is the tape stretched?

Cannot hear treble. Are the capstans, pinch rollers, or heads

dirty?

Sound fluctuation.

Cannot remove the tape. If a power failure occurs during playback,

the heads remain engaged with the tape.

Do not open the compartment forcibly.

Wait until electricity resumes.

Symptom Possible cause

The vocal part of a multiplexed

disc is not heard.

Is the karaoke mode set to "L-CH", "R-CH"

or "V-CANCEL"?

Symptom Possible cause

The remote control does not oper-

ate.

Is the AC power lead of the unit plugged

in?

Is the battery polarity respected?

Are the batteries dead?

Is the distance or angle incorrect?

Does the remote control sensor receive

strong light?

Troubleshooting Chart

If trouble occurs

When this product is subjected to strong external interference (mechanical shock,

excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is

operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

Caution:

This operation will erase all data stored in memory including clock, timer settings,

tuner preset, and CD programme.

Before transporting the unit

1 Set the unit to the stand-by mode and turn the power on again.

2 If the unit is not restored in step 1, unplug and plug in the unit, and then turn

the power on.

3 If neither step 1 nor 2 restores the unit, do the following:

Press the ON/STAND-BY button to enter the power stand-by mode.

Whilst pressing down the button and the X-BASS/DEMO button, press the

ON/STAND-BY button until "CLEAR AL" appears.

1 Press the ON/STAND-BY button to turn the power on.

2 Press the CD button.

3 Press the OPEN/CLOSE button to open the disc tray.

Remove all CDs inserted in the unit.

4 Press the OPEN/CLOSE button to close the disc tray.

Make sure that "NO DISC" is displayed.

5 Press the ON/STAND-BY button to enter the stand-by mode, and then unplug

the AC power lead from the AC socket.

– 9 –

CD-BK300W

1 Top Cabinet 1. Screw ....................... (A1) x4 9-1

2 Side Panel 1. Screw ....................... (B1) x8 9-1

(Left/Right)

3 CD Player Unit/ 1. Turn on the power supply, ... 9-2

CD Tray Cover open the disc tray, take out

the CD tray cover, and close.

(Note 1)

2. Screw ....................... (C1) x1

3. Hook ......................... (C2) x3

4. Hook ......................... (C3) x2

5. Socket ...................... (C4) x2

4 Rear Panel with 1. Screw ....................... (D1) x9 9-2

Fan Motor 2. Socket ...................... (D2) x1

5 Main PWB 1. Screw ....................... (E1) x1 9-2

2. Flat Cable ................ (E2) x1 10-2

3. Socket ...................... (E3) x5

10-2,10-3

6 Amp. PWB 1. Screw ....................... (F1) x5 10-3

2. Socket ...................... (F2) x1

3. PWB Holder ............. (F3) x2

7 Front Panel 1. Screw .......................(G1) x1 10-3

8 Display PWB 1. Knob ......................... (H1) x1 10-4

2. Screw ..................... (H2)

x13

3. Flat Cable ................ (H3) x1

9 Tape Mechanism 1. Open the cassette holder. ... 10-4

2. Screw ........................(J1) x5

Headphones PWB

1. Screw ....................... (K1) x1 10-4

Mic PWB

1. Screw ....................... (L1) x1 10-4

12 Turntable 1. Hook ........................ (M1) x2 10-5

2. Cover ...................... (M2) x1

13 Disc Tray 1.

Turn fully the lock lever in the .

9-3

arrow direction

While holding the lock lever,rotate

10-1

the cam gear until the cam gear

rib engages with the clamp lever.

Push the slide chassis backward to

10-6

engage the claw with the groove

and remove it in the direction

of the arrow. .................

(N1) x6

14 CD Servo PWB 1. Screw ....................... (P1) x1 11-1

(Note 2) 2. Hook ......................... (P2) x2

3. Socket ...................... (P3) x4

15 CD Mechanism 1. Hook ......................... (Q1) x2 11-2

2. Hook ......................... (Q2) x3

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to

be removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take sufficient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 9-2

Figure9-3

CD-BK300W

STEP

REMOVAL

PROCEDURE

FIGURE

Figure 9-1

CD-BK300W

Note 1: How to open the changer manually. (Fig. 9-3)

1. In this state, turn fully the lock lever in the arrow direction through

the hole on the loading chassis bottom.

While holding the lock lever, rotate the cam gear anticlockwise until the

cam gear rib engages with the clamp lever.

(Fig. 10-1)

3. After that, push forward the slide Chissis.

Note 2:

1. After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the front end

of the connector so as to protect the optical pickup from electro-

static damage.

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front

movement.

Lock Lever

CD Player Unit

(Bottom View)

(B1) x 4

ø3 x 10mm

(B1) x 2

ø3 x 10mm

Rear

Panel

(B1) x 2

ø3 x 10mm

Side Panel

(Right)

Side Panel

(Left)

(A1) x 2

ø3 x 12mm

(A1) x 2

ø3 x 12mm

Top Cabinet

(E1) x 1

ø3 x 10mm

(C3) x 1

(D1) x 2

ø3 x 10mm

CD Player

Unit

CD Tray Cover

Pull

(C3) x 1

(C4) x 2

(C2) x 3

CD Servo

PWB

(C1) x 1

ø3 x 10mm

(D1) x 6

ø3 x 10mm

Amp.

PWB

(D2)x1

Rear

Panel

Main PWB

Transformer PWB

Lug Wire

(D1) x 1

ø3 x 10mm

CD-BK300W

– 10 –

Figure 10-1

Figure 10-2

Figure 10-3

Figure 10-4

Figure 10-5

Figure 10-6

Clamp Lever

CD Player Unit

(Top View)

Cam Gear Rib

Turntable

Slide

Chassis

(M2) x 1

CD Player Unit

(M1) x 2

(N1) x 3

Main PWB

Amp.

PWB

Transformer

PWB

(E2) x 1

Power PWB

(E3) x 1

Mic PWB

Front Panel

Amp.

PWB

(F1) x 2

ø3 x 10mm

(F1) x 2

ø3 x 10mm

(F2) x 1

(F3) x 1

(F1) x 1

ø3 x 8mm

(G1) x 1

ø3 x 8mm

Push

(F3) x 1

Push

Headphones

PWB

(F4) x 1

Front

Panel

(E3) x 1

Tape

Mechanism

(H3) x 1

(H2) x 13

ø3 x 10mm

(J1) x 5

ø3 x 10mm

(H1) x 1

Display PWB

Headphones

PWB

Open

Front Panel

Cassette

Holder

Tape

Mechanism

(K1) x 1

ø3 x 10mm

Mic PWB

Lug Wire

(L1) x 1

ø3 x 10mm

– 11 –

CD-BK300W

1 Side Panel/ 1. Screw ..................... (A1) x4 11-3

Front Panel 2. Net.......................... (A2) x1

3. Caching Holder ...... (A3) x4

4. Screw ..................... (A4) x4

2 Subwoofer 1. Screw ..................... (B1) x4 11-4

3 Woofer 1. Screw ..................... (C1) x4 11-4

4 Tweeter 1. Screw ..................... (D1) x2 11-4

STEP REMOVAL PROCEDURE FIGURE

Figure 11-3

Figure 11-1

Figure 11-2

CP-BK300

Figure 11-4

(P3) x 2

(P2) x 2

(P3) x 2

CD Servo

PWB

Slide

Chassis

(P1) x 1

ø3 x 8mm

(Q2) x 3

(Q1) x 1

Mechanism

(A1) x 4

ø4 x 20mm

(A4) x 2

ø4 x 20mm

(A3) x 2

Fromt Panel

Side Panel

(A2) x 1

Net

(A4) x 2

ø4 x 20mm

(C1) x 4

ø4 x 16mm

(B1) x 4

ø4 x 16mm

(D1) x 2

ø3 x 10mm

Tweeter

Woofer

Subwoofer

CD-BK300W

– 12 –

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 7 and 9 of the disassembly method to

remove the tape mechanism.

How to remove the record/playback and erase

heads (TAPE 2) (See Fig. 12-1)

1. When you remove the screws (A1) x 2 pcs., the recording/

playback head and three-dimensional head of the erasing

head can be removed.

How to remove the playback head (TAPE 1)

(See Fig. 12-2)

1. When you remove the screws (B1) x 2 pcs., the playback

head.

How to remove the pinch roller (TAPE 1/2)

(See Fig. 12-3)

1. Carefully bend the pinch roller pawl in the direction of the

arrow <A>, and remove the pinch roller (C1) x 1 pc., in the

direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring

mounting position.

How to remove the belt (TAPE 2) (See Fig. 12-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1) (See Fig. 12-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 12-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

Figure 12-1

Figure 12-2

Figure 12-3

Figure 12-4Figure 12-5

(A1) x 2

Ø2 x 6mm

TAPE 2

Record/Playback

Head

Erase Head

Clutch Ass'y

(B1) x 1

Ø2 x 9mm

(B1) x 1

Ø2 x 5mm

TAPE 1

Playback

Head

Clutch Ass'y

Pinch Roller

(C1) x 1

<A>

Pull

<B>

Pull

Pinch

Roller

Pawl

TAPE 2

TAPE 1

Main Belt

(E1) x 1

TAPE 2

Main Belt

(D1) x 1

TAPE 1

FF/REW

Belt

(D2) x 1

FF/REW

Belt

(E2) x 1

Motor

Main Belt

(D1) x 1

Main Belt

(E1) x 1

(F1) x 2

Ø2.6 x 5mm

Motor

Clutch Ass'y

– 13 –

CD-BK300W

(A1) x 2

(A1) x 1

Loading Motor

Motor PWB

Slide

Chassis

(A1) x 2

Pulley

Drive Belt

(A2) x 1

Motor

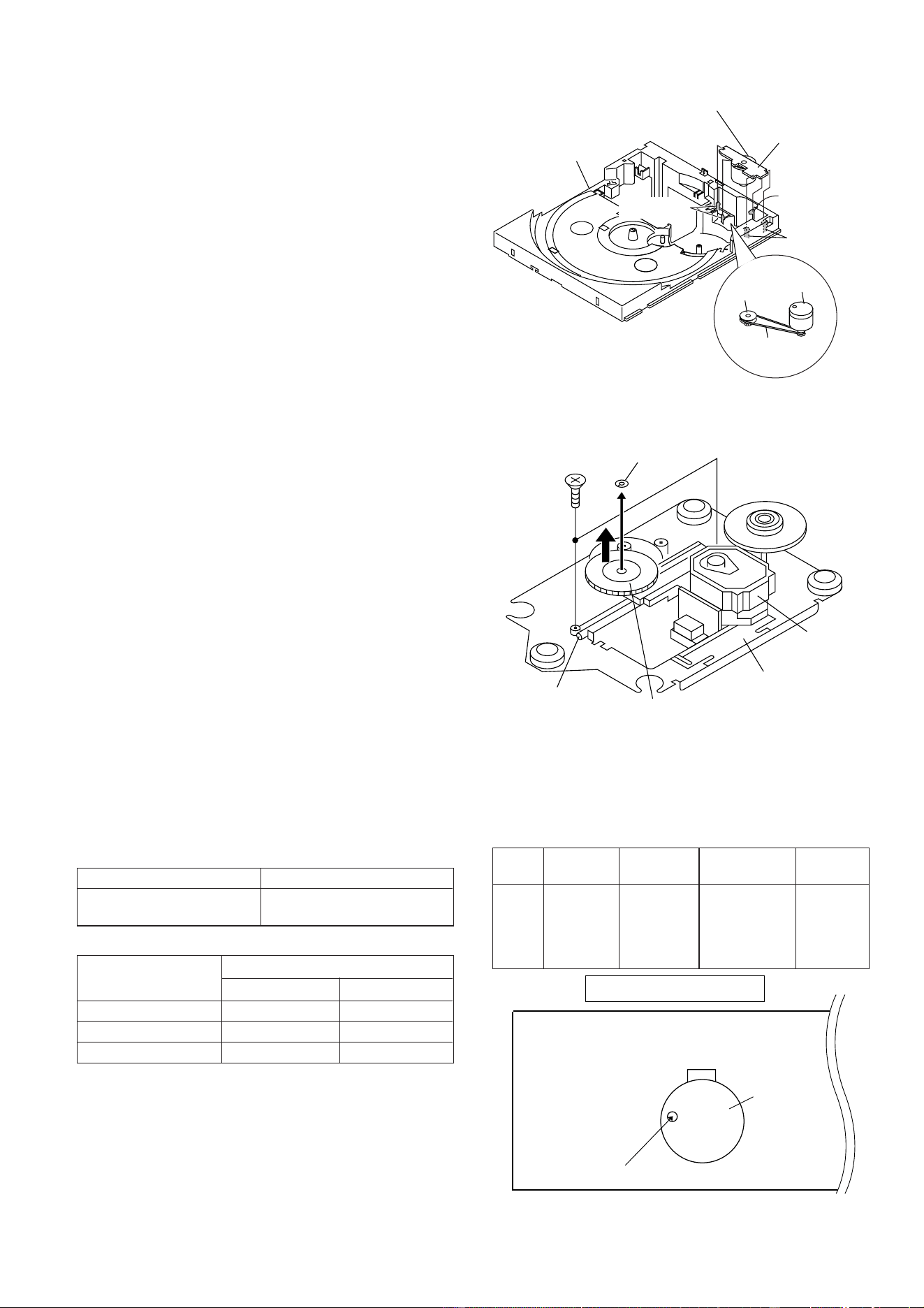

How to remove the pickup (See Fig. 13-2)

1. Remove the stop washer (B1) x 1 pc., to remove the gear

(B2) x 1 pc.

2. Remove the screws (B3) x 2 pcs., to remove the shaft (B4).

3. Remove the pickup.

Note

After removing the connector for the optical pickup from the

connector wrap the conductive aluminium foil around the front

end of connector so as to protect the optical pickup from

electrostatic damage.

Figure 13-2

CD MECHANISM SECTION

Perform steps 1, 2, 3, 12, 13, 14 and 15 of the disassembly

method to remove the CD mechanism.

How to remove the loading motor

(See Fig. 13-1)

1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.

2. Remove the drive belt (A2) x 1pc.

Figure 13-1

ADJUSTMENT

MECHANISM SECTION

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm

Fast forward: TW-2231 — 70 to 180 g.cm

Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± 30 Hz Speaker

speed Resistor in terminal

motor. (Load

resistance:

6 ohms)

• Tape Speed

Figure 13-3

(B3) x 2

ø2.6 x 6mm

Shaft

(B4) x 1

Stop Washer

(B1) x 1

Gear

(B2) x 1

CD Mechanism

Pickup

TAPE MECHANISM

Tape

Motor

Variable Resistor in motor

CD-BK300W

– 14 –

Test Stage

Frequency Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

CD SECTION

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

*1. Input: Antenna Output: TP302

*2. Input: Antenna Output: TP301

TUNER SECTION

fL: Low-range frequency

fH: High-range frequency

AM IF 450 kHz 1,602 kHz T351 *1

AM Band — 531 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V

AM Tracking 990 kHz 990 kHz (fL): T303 *1

*1. Input: Antenna Output: TP301

*2. Input: Antenna Output: Speaker terminal

• FM RF

Signal generator: 1 kHz, 40 kHz dev., FM modulated

FM Band — 87.50 MHz T301(fL): *1

Coverage 1.3 V ± 50 mV

FM RF 98.00 MHz 98.00 MHz L312 *2

(10-30 dB)

Test Stage

Instrument

Connection

Frequency Frequency

Display

Setting/

Adjusting

Point

Figure 14-1 ADJUSTMENT POINTS

Figure 14-2

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is

compensated inside the IC.)

* Focus offset adjustment

* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing

Fig.14-2 EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will

be 0 dB.)

* Focus gain adjustment

* Tracking gain adjustment

• Adjustment

Since this CD system incorporates the following automatic

adjustment functions, readjustment is not needed when

replacing the pickup. Therefore, different PWBs and pickups

can be combined freely.

Each time a disc is changed, these adjustments are

performed automatically. Therefore, playback of each disc

can be performed under optimum conditions.

IC301

AM IF

FM IF

FM RF

T303

T306

T302

L312

TRACKING fL

AM BAND

COVERAGE fL

T301

T351

FM BAND

COVERAGE fL

MAIN PWB

CNP301

AM LOOP

ANTENNA

SO302

FM ANTENNA

TERMINAL

TP302

R357

R316

TP301

EFBL

FDO

Stopped

CH1=500 mV

DC 10:1

CH2=200 mV

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 k

Mode : SINGLE

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH2

v/DIV

200 mV

1999/04/05 20:26:47

– 15 –

CD-BK300W

TEST MODE

• Setting the test mode

Any one of test mode can be set by pressing several keys as follows.

<X-BASS> + <CD> + <POWER> TEST:CD operation test

Function:-CD test mode.

-Enter test mode.

C D T E S T

OPEN/CLOSE operation is using manual.

<< >>, << >> buttons make pick's slide possible.

Do TOC IL. Do normal play

When these following key is input

into PLAY key, track number can

be appoint directly

<<PLAY>> key input.

<<MEMORY>> key input.

<< 1>> key: Track 4

<< 2>> key: Track 9

<< 3>> key: Track 15

<<STOP>> key input.

STOP

Laser ON.

<<MEMORY>> key input.

Tracking OFF play at that

specific point.

<<MEMORY>> key input.

Tracking ON play from

that specific point.

<<STOP>> key input.

STOP

IL isn't done

VOL — Last memory

BAL — CENTER

P.GEQ — FLAT

X-BASS — OFF

To cancel : Power OFF

Sliding the PICKUP with

>>, << >> button

must only be in STOP mode.

<<MEMORY>>

key input

Adjustment result

automatically will

display as below

for each 2 sec :

a) "FOFF_XX"

b) "TOFF_XX"

c) "TBAL_XX"

d) "TGAN_XX"

f) "FGAN_XX"

g) "RFLS_XX"

explanation:

a) Focus off set ="FOFF_XX"

b) Tracking off set ="TOFF_XX"

c) Tracking balance ="TBAL_XX"

d) Tracking Gain ="TGAN_XX"

f) Focus Gain ="FGAN_XX"

g) RF level shift ="RFLS_XX"

Adjustment result automatically will

display as below for each 2 sec :

a) "FOFF_XX"

b) "TOFF_XX"

c) "TBAL_XX"

d) "TGAN_XX"

f) "FGAN_XX"

g) "RFLS_XX"

<<MEMORY>> key input.

CD-BK300W

– 16 –

Standard Specification of Stereo System Error Message Display Contents

Error Contents DISPLAY Notes

Output while Device Protection Operation 'PROTECT' 00: While in Protect Circuit Operate

01: Over Current Detection

02: DC Detection

03:

TAPE Mechanism Error 'ER-TA**' 00: Tape Mechanism Error

01: Initial Error

02:

03:

CD/VCD Pickup Mechanism Error 'ER-CD**' 00: Pickup Mechanism Error

01: PU-IN SW Detection NG

02:

03:

04:

CD Changer Mechanism Error 'ER-CD**' 10: Changer Error

11: Initial Error

12:

13:

Tray Error 'ET-CD**' 20: Tray Error

21:

22:

23:

Focus Not Match 'NO DISC'

IL Time Over 'NOT READ'

TUN PLL Unlock 'ER-TU**' 00: TUN Error

01: PLL Unlock

02:

03:

– 17 –

CD-BK300W

Figure 17 BLOCK DIAGRAM (1/3)

+5V

CNS4

BI4

CNP4

T/T UP DOWN

+3.3V

TO DISPLAY SECTION

TO MAIN SECTION

CONSTANT

VOLTAGE

LASER

DRIVER

+3.3V

+5V

PICKUP UNIT

IC1

LC78645E

CD SERVO

VVDD

LDD

LDS

SW3

DISC

NUMBER

SW2

CLAMP

SW1

OPEN/

CNP8

CNP7

TRACKING COIL

FOCUS COIL

SW4

PICKUP

SLED

MOTOR

SPINDLE

MOTOR

R-CH

XVDD

RVDD

LVDD

ADAVDD

RFVDD

XL1

33.8688 MHz

OC. DISC NO

CLAMP SW

CD RES

CLK

DRF

WRQ

+5V (+B6)

DGND

L-CH

AGND

VCC3

VCC2

VCC4

VCC1

IC2

M63001FP

FOCUS/TRACKING/

SPIN/SLED

DRIVER

XIN

XOUT

RES

WRQ

CLK

TIN2

TIN1

FIN2

FIN1

TD0

FD0

SPDO

SLDO

CONT5

CONT2

CONT3

CONT4

RCHO

RVSS

LVSS

LCHO

987

17 25

41 8339

4765

26 27

316452

3271689

615432

4543 44 25 70

CD-BK300W

– 18 –

Figure 18 BLOCK DIAGRAM (2/3)

VIDEO IN

AUX

JK601

+B4

CLK

+B4

AM IF

OSC BUFF

FM IF

OSC

B.P.F

CNP301

CNS11

–20dB

ATT

Q103-

Q106

–B2

+B4

KIA4558P

OPE AMP.

IC701

(

IX042

IC703

IC702

Q121

Q122

Q603

Q604

Q605

Q606

10.7MHz

450kHz

ANTENNA

REC/PLAY

CLK

SYSTEM

MUTE

MO/ST

SWITCHING

+B4

FM/AM

IC302

LC72131

PLL(TUNER)

FM/AM

OUT

BIAS

T1/T2

MUTING

P.B.

REC

AC BIAS

TAPE

TUNER

MIC

FROM CD SECTION

CNP7

ERASE

HEAD

SWITCHING

BIAS

Q110

Q111

Q109

Q126

SWITCHING

Q124

L103

OSC

BIAS

Q128

L104

Q107

Q108

REC. P.B. HEAD

TAPE 2

P.B. HEAD

TAPE 1

L-CH

R-CH

L-CH

R-CH

IC601

LC75341

AUDIO PROCESSOR

H/N

P.B

+B4

REC

L NF

R NF

ALC

REC

T1/T2

NOR/

HIGH

REF

R REC

L REC

POP REDUCE

R NF

L NF

SWITCHING

L(T2)

R(T2)

R(T1)

L(T1)

IC101

PLAYBACK AND

RECORD/

PLAYBACK AMP.

FM/AMMPXIN

STEREO

AM RF IN

AM OSC IN

Q360

OSC

X352

4.5MHZ

AM BAND

COVERAGE

AM TRACKING

T303

T306

Q302

X351

456kHz

MO/ST

VCOFM

DET

FM+BGNDAM IF

CF351

IC303

LA1832S

FM IFDET.

FM MPX./

AM IF MPX.

AM MIX

CF352

T351

OSC

L312 T301

CF303

T302

IC301

TA7358AP

FM FRONT END

BF301

CNP301

JK1

MIC

15 19

578

12 4598 1713

1216182123

20 1 22 15 16 11

2110

7 18 8 17 3

456

ICK1

M65856SP

MIC AMP.

ICK2

KIA4558P

OPE AMP.

LATCH

MIC IN

VRK1

MIC

VOLUME

CLK

DATA

LOUT

ROUT

L IN

R IN

VCC

+B5

+B4

QK1

– 19 –

CD-BK300W

Figure 19 BLOCK DIAGRAM (3/3)

T801

POWER TRANSFORMER

110 V

127 V

220 V

230-240 V

SW801

VOLTAGE

SELECTOR

AC POWER

SUPPLY CORD

AC 110/127/220/

230-240 V, 50/60 Hz

+B6

IC704

BU2092F

INPUT/OUTPUT

EXPANDER

–VF

VF2

VF1

Q801

+B6

+B5

+5V

UN-SW5V

KIA7805AP

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

AN78L05

Q852

Q821

+B4

+B3

+B1

–B1

+B2

–B2

+B6

+B3

+B5

+B4

JOG

JOG701

Q701-Q703

Q710-Q712

IC903

KIA4558P

OPE AMP.

–20dB

ATT

+B5

RX701

REMOTE

SENSOR

IC701(2/2)

IX0427AW

D804~D807

D803

D802

RY902

SPAN

SELECTOR

SP RELAY

ON-OFF

RESET

RY901

JK670

HEADPHONES

M901

FAN

MOTOR

FAN MOTOR

DRIVER

+B6

M902

FAN

MOTOR

Q910

Q909

Q709

Q902

Q901

Q903

Q904

Q906

Q905

Q907

Q908

Q605

Q606

Q851

Q850

IC902

STK4029S

POWER AMP.

A+10V

M12V

F805

T2A L 250V

F806

T2A L 250V

F804

T5A L 250V

F802

T4A L 250V

F801

T4A L 250V

+Vcc

–Vcc

L-OUT

R-OUT

F803

T5A L 250V

CLK

MAIN

REC/PLAY

VLOAD

RESET

SUBWOOFER

+B5

VDD

KARAOKE

LATCH

VDD

R-OUT

L-OUT

SP. DET.

SYSTEM

MUTE

XL701

4.194304MHz

–Vcc

+Vcc

IC901

STK40271

POWER AMP.

BIAS

T1/T2

AVDD

KEY

SW701-SW703

SW709-SW717

SW722-SW734

TO CD

SECTION

T.F.

IC701(1/2)

IX0427AW

SYSTEM MICROCOMPUTER

FL701

FL DISPLAY

13614 1520 29343553 5657582

6541 7 9 10111213 151617 20212223

404142434445464849505152535455565761

100

SO901

~~ ~

CD-BK300W

– 20 –

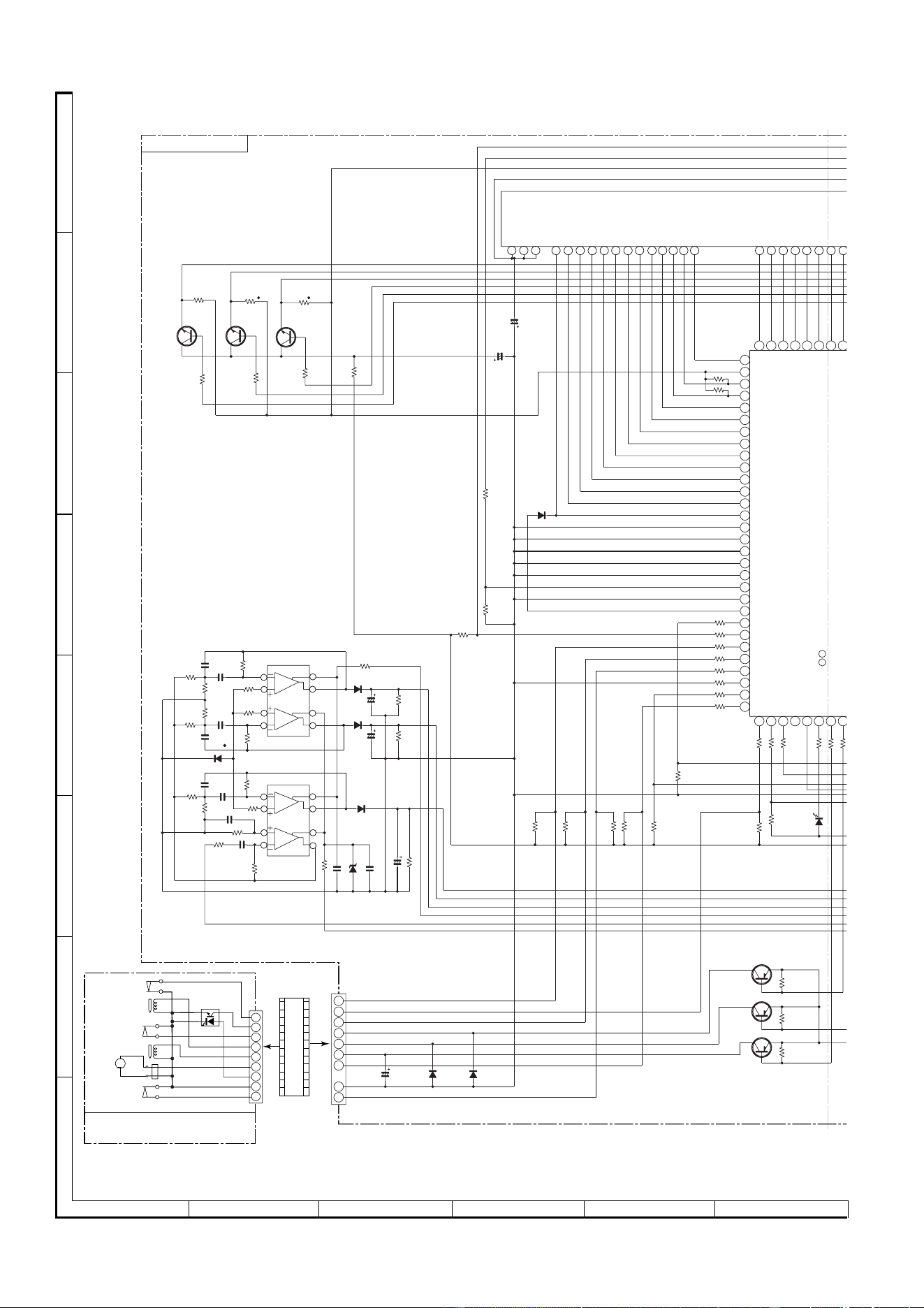

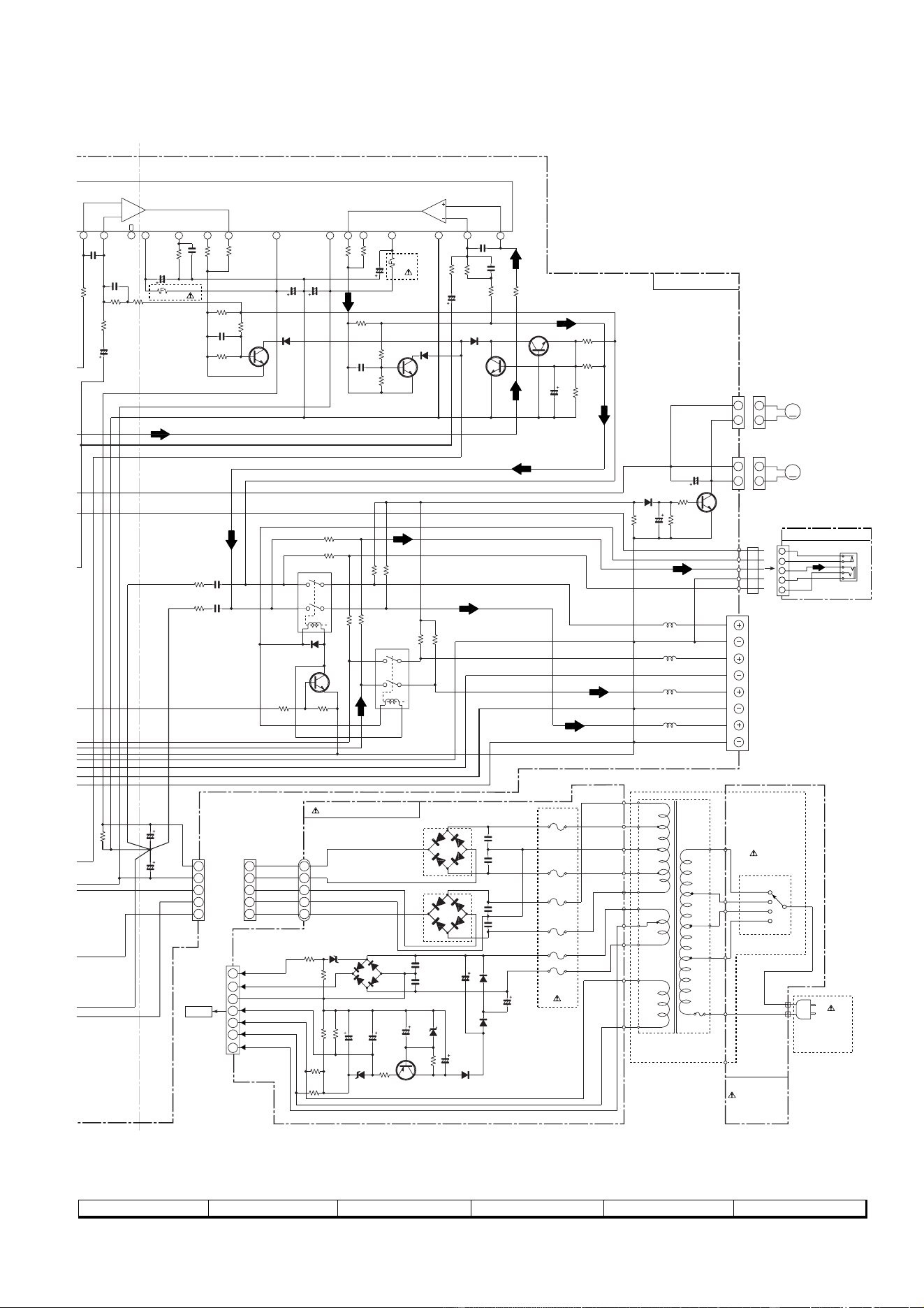

Figure 20 SCHEMATIC DIAGRAM (1/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.

CD SIGNAL

CD MOTOR PWB-G

CD SERVO PWB-C

101112131415161718192021

22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

432

TP3

TP2

TP1

VCC4

M–

M+

VCC3

SPO

VCC2

SLDO

VCC

STANDBY

VREF

MUTE

SP–

SL–

SL+

SP+

TR–

TR+

FO+

FO–

GND

FO–

FO+

TR+

TR–

GND

PUIN

SL+

SL–

SP–

SP+

VREF

VCC

PICKUP UNIT

TR–

TR+

FO+

FO–

VCC

VREF

SLIDE

SPIN

–

PU-IN

–

LASER

DRIVER

CNP1

CNS1A

CNS1B

33K

12K

33K

12K

47/25

0.01

CNP2

CNS2A

CNS2B

C38

0.01

C39

100/10

R44

12K

C41

100/10

CNP3

CNS3A

CNS3B

R13

R14

C12

100P

C11

0.22/50

C10

10/50

100/10

C50

22P

(CH)

R12

330

100P

R10

27K

0.047(ML)

R11

10K

3.3

KTA1266 GR

0.001

C49

47/25

0.0047

0.1

IC2

M63001FP

FOCUS/TRACKING/

SPIN/SLED DRIVER

C40

220/6.3

SPINDLE

MOTOR

SLED

MOTOR

SW4

PICKUP IN

– 21 –

CD-BK300W

Figure 21 SCHEMATIC DIAGRAM (2/10)

8 9 10 11 12

• The numbers 1 to 12 are waveform numbers shown in page 40.

CD RES

O/C, DISC NO

CLAMP SW

FROM

DISPLAY PWB

P25 10-B

DRF

WRQ

FROM

MAIN PWB

P22 1-A

9404142

4321

212223242526272829303132333435363738 39 40

807978777675747372717069686766656463 62 61

TP1

LD_M+

LD_M–

VCC4

M+

FO+

+5V

LDD

LDS

VVDD

PCKIST

VVSS

PDO2

PDO1

CONT2

CONT3

VSS

VDD5

DRF

VRES

VWRQ

DATA

DATACK

LRSY

ASDFIN

ASDACK

ASLRCK

16MOUT

EFLG

C2F

XVSS

FSX/16MIN

XIN

XOUT

XVDD

RVDD

RCHO

RVSS

LVSS

LCHO

LVDD

TEST

DOUT

VDD

VSS

MONI5

MONI4

MONI3

MONI2

MONI1

FSEQ

V/*P

DEFECT

SBCK/FG

CONT5

CONT4

GPDAC

SLDO

SPDO

FDO

TDO

REF1

VREF

ADAVSS

ADAVDD

JITTC

RFMON

TEC

TIN2 F

TIN1 E

FIN2 B

FIN1 A

RSVSS

RFVDD

EFMIN

SLCIST

SLCO

+5V

DGND

L-CH

AGND

R-CH

CNS703

CNS11

CD LOADING

MOTOR PWB-E

CONSTANT

VOLTAGE

R49

DS1SS133

KRC102 M

R45

470

R46

470

R20

10K

R13

R14

R15

R16

R18

R17

C11

.22/50

C10

10/50

7(ML)

R11

10K

C33

100P

C32

100P

C30

100P

C28

100P

C27

0.022

R42

1.2K

R41 12K

C37

0.1

C36

2.2/50

R40

680

R31

R29

2.2K

R28

2.2K

R43

220

XL1

33.8688 MHz

R22

100

C51

0.022

0.82µH

C24

10/50

R25

2.2K

R27

10K

ZD1 DZ3.3BSB

C13

0.022

R26

10K

C25

0.0015

C23

10/50

C44

0.001

R24

2.2K

C16

330/6.3

C48

0.022

R23

220

ZD2

DZ3.9BSB

R30

8.2K

R19

15K

CNP4

CNS4

BI4

CNP8

IC1

LC78645E

CD SERVO

R47

100

C18

100/10

KTC3203 Y

C26

0.0015

C14

100/10

R32 1K

R37 1K

R36 1K

R35 1K

R34 1K

R33 1K

R38 1K

R39

680

C35

0.047

(ML)

C34

100P

CNP7

M3 T/T

UP DOWN

SW1

OPEN/CLOSE

SW2

CLAMP

SW3

DISC NO.

CD-BK300W

– 22 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.

Figure 22 SCHEMATIC DIAGRAM (3/10)

9.3 V

8.6 V

9.3 V

0.7 V

0 V

0.7 V

0 V

11.6 V

11.7 V

0 V

0.7 V

0 V

3.4 V

POWER PWB

P27 8-G

AMP. PWB

P26 1-F

VSS

LOUT

LBASS

LTRE

LIN

CLK

VDD

VREF

ROUT

RBASS

RTRE

RIN

RSEL0

CCB

INTERFACE

LSEL0

12 13

CHASSIS

MECHA BASE

Vcc

ALC

GND

ALC

RIPPLE

Nor/CrO2

Hich=T1

Hich=CHROME

+ +

56K

112K

56K 112K

TO CD SERVO PWB

P21 12-C

CNP7

CNS11

R-CH

A_GND

L-CH

CD_GND

CD_+B

A_+B

R_CH

A_GND

L_CH

A_+10

+5V

GND

-15V

SP_DET

SP_RLY

M_12V

+B (9V)

VF1

VF2

-VF

GND

+B2 (18V)

P_IN

R-CH

L-CH

R-CH

L-CH

TAPE1

PLAYBACK HEAD

TAPE2

RECORD/

PLAYBACK HEAD

T1_R

A_GND

T1_L

ERASE HEAD

M_GND

ERASE

T2_R2

T2_R1

T2_L1

T2_L2

A_GND

REC_R

GND

M_GND

-B -B

-B

24 23 22 21 20 19 18 17 16 15 14 13

121110987654321

A_GND

A_+10V

M_GND

AUX

DECK

TUNER

CNP903

CNP902

IC101

AN7345K

IC601

LC75341

Q821,Q850~852

VOLTAGE

REGULATOR

ZD851

DZ2.4BSB

R620

22K

R601 1K

R602 1K

R603

C625

1/50

C623

1/50

C621

4.7/50

C611

0.0027

C604

0.022

Q850

KTC2026 Y

R856

560

C852

0.047(ML)

R852

22K

C851

22/50

Q603

KTC3199 GR

C835

4700/16

BI903

CNS903

CNS902

C828

0.047(ML)

D816

DS1SS133

C829

0.047(ML)

C830

47/25

Q821

AN78L05

R617

C641

0.0033

R608

10K

C642

0.0033

C628

1/50

C629

1/50

C627

1/50

C626

1/50

C624

1/50

C124

0.0022

R109

4.7K

C123

0.0022

R134

68K

C154

0.047(ML)

R166

22K

R131

33K

R125

5.6K

C121

1/50

C630

1/50

R854

10K

R156

220K

R607

10K

R613

330

R615

2.2K

R614

330

R616

2.2K

Q604

KTC3199 GR

C618

1/50

C617

1/50

R619

22K

R618

C622

4.7/50

C620

1/50

C612

0.0027

C610

0.1(ML)

C608

0.1(ML)

C61

10/

C619

1/50

R605

3.9K

C607

0.1(ML)

C609

0.1(ML)

R113

10K

Q109

KTA1266GR

C153

100/16

Q111

KRC104M

CNP101

CNS102

BI102

R153

10K

C636

0.001

Q852

KIA7805AP

C860

47/25

C858

0.047(ML)

C859

0.047(ML)

R621

2.2K

C635

0.001

Q605

KTC3199 GR

R622

2.2K

Q606

KTC3199 GR

C820

2200/25

Q851

KIA7810AP

C855

0.047(ML)

R853

22K

C857

47/25

C856

0.047(ML)

R115

4.7K

C109

0.047

R114

10K

Q110

KRC104M

R155

150

R157

220K

Q121

KTC3199GR

R167

47K

0.008

R158

220

C146

220/10

C145

22/50

Q124

2SA1015 GR

L103

100µH

R160

C151

0.039(ML)

C602

22/50

C615

0.001

C616

0.001

R610

330

R609

330

C613

10/50

R611

3.9K

R612

3.9K

R132

33K

R126

5.6K

C122

1/50

Q122

KTC3199GR

C132

270P

R112

15K

R154

10K

C116

100/25

R120

R111

15K

R145

10K

C139

0.0033

C135

0.022

R141

100

R139

1.5K

R135

3.9K

C128

3.3/50

C131

270P

R137

6.8K

C107

560P

R110

4.7K

C105

180P

R107

47K

Q107

KTC3199 GR

R103

2.2K

Q103

2SC1845 F

R105

3.3K

Q105

2SC1845 F

R119

C115

100/25

R106

3.3K

R104

2.2K

C102

560P

C101

560P

R101

R102

Q104

2SC1845 F

C142

47/25

R146

10K

R142

100

R136

3.9K

R140

1.5K

C140

0.0033

C136

0.022

R138

6.8K

C134

22/50

C106

180P

Q106

2SC1845 F

Q108

KTC3199 GR

R108

47K

C108

560P

R124

3.9K

R122

100K

C118

0.033

C120

560P

C112

330P

R118

C114

330P

C111

330P

C113

330P

R117

C133

22/50

R123

3.9K

R121

100K

C117

0.033

C119

560P

C127

0.022

C141

47/25

C606

100/16

BI11

IC101

AN7345K

PLAYBACK AND RECORD/

PLAYBACK AMP.

IC601

LC75341

AUDIO PROCESSOR

– 23 –

CD-BK300W

Figure 23 SCHEMATIC DIAGRAM (4/10)

8 9 10 11 12

0 V

11.6 V

0 V

11.6 V

11.7 V

0 V

0.7 V

CD SIGNAL

VIDEO SIGNAL

MIC SIGNAL

RECORD SIGNAL

PLAYBACK SIGNAL

FM SIGNAL

MAIN PWB-A (1/2)

CHASSIS

C603

0.001

D603

DS1SS133

D604

DS1SS133

Vcc

GND

ALC

RIPPLE

TO TUNER SECTION

P28 1-G

R-ch

L-ch

10 kHz/100 kHz

9 kHz/50 kHz

123456789

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

D_GND

UN_SW 5V

A_+10V

SP-DET

+5V

S_MUTE

CLK

SPAN_LCH

SPAN_RCH

-15V

VF2

-VF

VF1

-20dBATT

SP_RLY

T_BIAS

T_T1 T2

REC/PLAY

M_12V

P_IN

SPAN

K-OK LATCH

MIC IN

MIC IN(L)

MIC OUT(L)

MIC IN(R)

MIC OUT(R)

CLK

MIC LATCH

MIC IN

A_GND

A_+10V

TUN_R

A_GND

TUN_L

CLK

D_GND

A_+10V

REC_L

REC_R

-B

CD_GND

D_GND

KOK OUT(L)

KOK IN(L)

KOK OUT(R)

KOK IN(R)

-B

+B+B

CNPK1

MIC PWB

P29 12-C

DISPLAY PWB

P25 12-D

CNP701

Q126

KRC104 M

R601 1K

R602 1K

R603

CNP601

047(ML)

C830

47/25

C642

0.0033

C628

1/50

C626

1/50

C624

1/50

R633

15K

R634

15K

SW601

SPAN SELECTOR

BI602

CNS602

C154

0.047(ML)

R166

22K

C630

1/50

R854

10K

JK601

VIDEO/AUX

INC632

390P

C631

390P

R632

3.3K

R631

3.3K

R618

C622

4.7/50

C620

1/50

C612

0.0027

R606

3.9K

C610

0.1(ML)

C608

0.1(ML)

C614

10/50

C860

47/25

R157

220K

Q121

KTC3199GR

R637

470K

R638

470K

R164

4.7K

R167

47K

C150

0.0082(PP)

R168

4.7

Q128

KTC3203 Y

R158

220

C146

220/10

L104

330µH

R162

47K

Q124

2SA1015 GR

L103

100µH

C152

47/25

R160

C151

0.039(ML)

C602

22/50

FC701

CD-BK300W

– 24 –

Figure 24 SCHEMATIC DIAGRAM (5/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.

PLAY SW_B

FPA (F-REC)

FPB (R-REC)

MIC SW

LCK 0

DISTOUT/SW OUT

NO USE

KARAOKE LATCH

P22/DIST3

P21/DIST2

P20/DIST1

P19/DIST0

P18

P17

P15

P14

P13

P12

P11

P10

VLOAD

P16

NO USE

TAPE MECHANISM

PWB-D

DISPLAY PWB-B1

10V

T2 RU

CD CL

T_SOL A

T_MOTOR

TIMER LED

SP_RLY

VDD

SP_DET

T1 RUN

25 2426272829303132333435363738394041424344

565758

P02

P03

P04

P05

P06

P07

P08

P09

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

P22

R_REC

T1 RUN

F_REC

SOLA

SOLB

+MTR

T2 RUN

GND

T2 PLAY

TAPE

MOTOR

PLAY

F. PLAY

CASSETTE

SOLENOID

-B

R716

100K

R728

47K

R727

47K

R725

10K

R720

10K

R718

10K

R714

10K

R717

10K

R713

10K

D705

DS1SS133

R740 1K

R746

10K

R749

10K

LED722

CS709 0.022

CS708 0.022

ZD701

MTZJ6.2C

RS708 270

CS706

2.2/50

CS707

2.2/50

CS710 2.2/50

RS713 100K

RS711

100K

RS715

100K

RS703

68K

RS701

33K

RS720

180K

RS717

470K

RS709

150K

D702

DS1SS133

RS718

56K

RS714

2.2M

RS702

10K

CS704

0.0027

CS712

0.0068

CS701

270P

CS713

0.022

RS710

270

CS702

270P

IC702

KIA4558P

OPE AMP.

CS711

0.0068

RS712

820K

RS716

RS706

220K

RS704

220K

RS719

15K

RS707

390K

D706

DS1SS133

RS705

12K

CS703

0.0027

D703

DS1SS133

CS705

0.022

IC703

KIA4558P

OPE AMP.

R738 1K

R739 1K

R741 1K

R742 1K

R743 1K

R745 1K

R744 1K

DT704

DS1SS133

C715

22/50

C714

47/50

R794

CNP702

C719

47/25

D712

DS1SS133

D713

DS1SS133

R792

10K

R793

10K

R724

R736

10K

Q704

KTA1271 Y

R752

10K

Q708

KTA1273 Y

R737

10K

Q705

KTA1271 Y

Q701

KTC3199 GR

R701

100K

R702

Q702

KTC3199 GR

R704

100K

R705

R719

R755 2.2K

R754 2.2K

R753 1.8K

R751 1K

R748 1K

R747 1K

Q703

KTC3199 GR

FL701

FL DISPLAY

FC702

– 25 –

CD-BK300W

Figure 25 SCHEMATIC DIAGRAM (6/10)

8 9 10 11 12

100

9493

G11

G10

5 V BACK UP

3456789

CNP601

TO MAIN PWB

P23 10-H

FC701

REW_PLAY

STOP

PLAY

T2 RUN

KEY 2

CD CLAMP SW

KEY 1

KEY 0

VDD

-20dBATT

DSA_STB

T-BIAS

T-T1/T2

REC/PLAY

RES OUT

DRF

WRQ

RESET

XVPP/IC

XT2

SPN

VDD

CD CLK

CD DI

CD DO

CD CE

CLK

AVSS

NO USE

SPEANA2

AVDD

AVREF

P-IN

JOG 1

JOG 0

REMOCON

VSS

SMUTE

T_SOL B

T_SOL A

T_MOTOR

TIMER LED

VDD

SPEANA1

SPEANA0

O/C DISC NO SW

123

8910111213141516

2325 24262728

G01

G02

G03

G04

G05

G06

G07

G08

G09

G10

G11

P01

P02

P03

P04

P05

P06

MIC_IN

WRQ(DSP)

DRF

CD CE

CD DO

CD DI

CD CLK

RES OUT

CLAMP SW

O/C SW

DISC NO WS

KARAOKE LATCH

SPAN

P_IN

M_+12 V

T_T1 T2

-20dB ATT

VF1

-VF

VF2

-15 V

CLK

+5 V

SP DET

A_+10 V

UN_SW 5 V

D_GND

S_MUTE

SPAN_RCH

SPAN_LCH

SP_RLY

T_BIAS

VDD

Q11

Q10

LCK

CLOCK

DATA

VSS

CNP8

-B

+B+B

REC/PLAY

CD SERVO PWB

P21 12-B

R700

10K

RD12

100K

SW712

DISC SKIP

SW711

DISC 3

RD11

33K

RD10

18K

SW710

DISC 2

SW709

DISC 1

RD09

10K

RD08

5.6K

RD07

3.9K

RD06

2.7K

RD05

2.2K

RD04

1.5K

R770 1K

IC701

IX0427AW

SYSTEM

MICROCOMPUTER

IC704

BU2092F

INPUT/OUTPUT EXPANDER

D718

DS1SS133

C728

0.01

Q709

KRC102 M

R796

47K

C729

3.3/50

R797

100K

SW703

TIMER

SW713

OPEN/CLOSE

SW734

TUNER

SW733

VIDEO

RD36

100K

SW732

TUNING UP

RD35

33K

SW731

REC/

PAUSE

RD34

15K

RD33

10K

SW717

REVERSE

MODE

SW730

REVERSE

PLAY

RD15

180K

SW724

TUNING

DOWN

RD26

820

RD28

1.5K

RD27

SW722

RD25

680

SW725

MEMORY

SET

SW726

FAST

REWIND

RD30

2.7K

SW723

TAPE

RD32

5.6K

SW728

PLAY

RD29

2.2K

SW727

FAST

FORWARD

RD31

3.9K

SW729

STOP

SW701

ON/

STAND-BY

RD03

SW702

CLOCK

RD02

820

RD01

680

SW714

DIMMER

SW715

X-BASS

RD14

820

RD13

680

SW716

EQUALIZER

R703 10K

R706 10K

LED722

R721

4.7K

R757

10K

R795

10K

R763

10K

R764

10K

R765

10K

C702 0.022

C701 47/25

LED708

RL706

LED706

RL708

LED707

RL705

LED705

LED702

LED701

RL701

RL702

C726

220/10

C725

0.022

C724

18P

XL701

R773 1K

R774 1K

R775 1K

R776 1K

R777 1K

R778 1K

R779 1K

R780 1K

R781 1K

R782 1K

R783 1K

R784 1K

R785 1K

R786 1K

R787 1K

R788 1K

R789 1K

R790 1K

R791 1K

R771 1K

R772 1K

R769 1K

BI703

CNS703

C722

47/50

C733

47/25

R799

100

D720

DS1SS133

CNP701

RX701

REMOTE SENSOR

C732

0.022

D722

DS1SS133

D723

DS1SS133

JOG701

JOG VOLUME

C720

0.001

C721

0.001

R768 1K

R767 1K

R766 1K

R762 1K

R761 1K

R760 1K

R759 1K

R758 1K

R756 2.2K

R755 2.2K

R754 2.2K

R753 1.8K

D721

DS1SS133

RL707

C723

15P

CD-BK300W

– 26 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.

Figure 26 SCHEMATIC DIAGRAM (7/10)

R-CH

L-CH

Ch1

(2Ch)

Ch2

Ch1

Ch2

Out

+Vcc

CNS902

–

3 4

13 14

2 3

A_GND

A_+10 V

+5 V

-15 V

GND

SP_DET

SP_RLY

M_12 V

R CH

L CH

FROM

MAIN PWB

P22 1-C

FM SIGNAL

C990

3.3/50

Q991

KRA107 M

R997

100

Q990

KRC107 M

CNP902

R973

100K

R972

100K

C942

0.015

R974

68K

R975

68K

C943

220P

R966

330

C944

220P

C957

0.022

C956

47/25

C952

10/50

C951

10/50

R961

1.5K

C947

100P

IC903

KIA4558P

IC903

KIA4558P

OPE AMP.

R958

8.2K

R959

8.2K

C948

100P

C946

0.22

C949

0.022

R963

4.7K

C945

0.22

R965

18K

R957

18K

C955 0.22

C954 0.22

R956

18K

R964

18K

R962 4.7K

C908

47/50

R906

820

R908

R904

56K

C910

15P

C906

220P

R918

R901

100

C903

100/50

R902

22K

C940

0.22

R993

0.22(2W)

R995

0.22(2W)

R912

0.1(1W)

R914

C912

0.022

R916

1.5K

Q902

KTC3199 GR

C901

10/50

D902

DS1SS133

C950 0.022

C816

47/25

ZD803

DZ13BSC

R806

680

C814

3300/63

R819

22K

R971 68K

R970 68K

C961 0.1(ML)

C959

2.2/50

R969

R968

C958

2.2/50

C960 0.1(ML)

C953

47/25

C986

0.022

R967

330

Q901

KTC3199 GR

R911

0.1(1W)

C905

0.022

R915

1.5K

R913

D901

DS1SS133

C902

10/50

R996

0.22(2W)

R994

0.22(2W)

R910

100

C904

100/50

C907

220P

R903

56K

C909

15P

R909

C911

47/50

D903

DS1SS133

R917

Q904

KTC3199 GR

Q903

KTC3199 GR

R919

56K

C914

47/50

R805

22K

C813

3300/63

R923

4.7

R922

4.7

C919

0.1

(ML)

C918

0.1

(ML)

R921

56K

R976

C926

220P

R928

56K

R930

820

C930

1/50

R932

100

C941

0.015

R960

1.5K

C815

0.022

R820

22K

C801

2200/50

C928

15P

R920

56K

R907

820

IC902

POWER AMP.

STK4029S

– 27 –

CD-BK300W

8 9 10 11 12

Figure 27 SCHEMATIC DIAGRAM (8/10)

HEADPHONES PWB-B2

Ch1

(2Ch)

Ch2

Ch1

Ch2

Out

+Vcc

SP_Rch (HI)

SP_Rch (LOW)

SP_Lch (LOW)

SP_Lch (HI)

SP_Rch_GND (HI)

SP_Rch_GND (LOW)

SP_Lch_GND (LOW)

SP_Lch_GND (HI)

220 V

127 V

110 V

230-240 V

LG901

LG902

AC POWER

SUPPLY CORD

AC 110/127/220/

230-240 V, 50/60 Hz

T.F

TO MAIN PWB

P22 1-E

TRANS-

FORMER

PWB-D3

–

2 3

5 6

13 14

P_IN

+B(18V)

GND

-VF

VF2

VF1

+B(+9V)

–

POWER PWB-D1

AMP PWB-D2

–

C926

220P

R928

56K

R930

820

C930

1/50

R932

C922

100/50

R926

22K

R924

100

C939

0.22

R984

0.22(2W)

R986

0.22(2W)

R934

0.1(1W)

R938

C924

0.022

R936

12K

Q906

KTC3199 GR

D905

DS1SS133

C920

10/50

C921

10/50

IC901

STK40271

POWER AMP.

R983

0.22(2W)

R985

0.22(2W)

C923

100/50

R925

100

R933

0.1(1W)

R937

C925

0.022

R935

12K

Q905

KTC3199 GR

D904

DS1SS133

C931

1/50

D906

DS1SS133

R931

R927

56K

R929

820

C927

220P

C929

15P

R977

Q907

KTC3199 GR

Q908

KTC3199 GR

R940

56K

R939

56K

R941

56K

C932

47/50

C937

47/50

R954

R953

68K

C938

10/50

R952

15K

Q910

KTC3203 Y

CNP803

CNP804

FW801

L902

L904

L905

L903

SW801

VOLTAGE SELECTOR

F801

T4A L 250V

F802

T4A L 250V

F803

T5A L 250V

F804

T5A L 250V

F806

T2A L 250V

F805

T2A L 250V

C832

0.047(ML)

C833

0.047(ML)

C803

0.047(ML)

C804

0.047(ML)

D808

DS1N404S

C808

100/50

D809

DS1N404S

C807

100/50

C806

0.047(ML)

C805

0.047(ML)

D803

TS6B04GM

D810

DS1N404S

C809

220/63

ZD801

DZ300BSB

R801

2.2K

Q801

KTA1274 Y

C810

47/50

C811

47/50

R802

ZD802

DZ6.2BSA

C812

100

R804 47K

R803 12K

R822

R821

R807

47K

R814

220K

ZD804

DZ11BSB

D804

DS1N404S

D807

DS1N404S

D806

DS1N404S

D805

DS1N404S

BI901

CNS901

D802

TS6B04GM

RY902

RY901

R980

10K

R979

Q909

KTC3199 GR

D907

DS1SS133

R946

330

R947

330

R951

2.2K

R950

2.2K

R949

2.2K

R948

2.2K

R945

330

R944

330

C935

0.1(ML)

R943

4.7

R942

4.7

C936

0.1(ML)

R820

22K

C801

2200/50

C802

2200/50

CNP901

CNP903

CNS903

T801

POWER

TRANSFORMER

D909

DS1SS133

C928

15P

M901

FAN MOTOR

CNP804

M902

FAN MOTOR

CNP705

JK670

HEADPHONES

SO901

SPEAKER

TERMINAL

CD-BK300W

– 28 –

Figure 28 SCHEMATIC DIAGRAM (9/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.

TP301

IC302

GND

CLK

TUN_R

A_GND

A_12 V

TUN_L

AM ANT.

IC303

FM SIGNAL

AM SIGNAL

MAIN PWB-A (2/2)

R363

10K

R364

10K

R361

10K

R362

10K

C372

1/50

R356

C374 0.015

R357

470K

C368

1/50

X351

456 kHz

C369

27P

C367

1/50

R350

2.7K

C366 0.001

C363 0.022

C364 2.2/50

C365 0.022

C362 3.3/50

C361 0.022

R365

10K

R358

3.9K

C342

0.022

R351 5.6K

R336 10K

R323

68K

C334

22P(CH)

C335

560P

C323

0.022

C401

15P

C331

0.047

C332

0.022

VD301

KDV147B

C373

0.015

C371

1/50

ZD351

DZ5.1BSB

C396

100/10

C395 0.022

R392 270

R391

270

Q360

KTA1266 GR

R383

5.6K

R385

5.6K

C391

47/25

R384

5.6K

R359

1.8K

C388

0.001

R386

22K

R376

R395

47K

R360

4.7K

C386

330P

R377

47K

L351

100µH

C385

0.01

C387

0.022

C380

10/50

C392

0.001

R379

2.2K

R380

1.5K

C393

1/50

C394

47/25

R381

10K

R393

CF351

C354 0.022

C353 0.022

CF352

T351

AM IF

R352

C356

0.001

C357

2.2/50

R355

3.3K

C370

1/50

R388

3.9K

C398

100/10

C399

0.022

R387

5.6K

L352

100µH

C358

1/50

C352 10/50

C350 0.022

C351 0.022

C397

0.022

R382

150

C381

12P(CH)

X352

4.5 MHz

C382

15P(CH)

R375

470

C384

0.001

R378 1K

R372 1K

R374 1K

R373 1K

R316

4.7K

CF303

C318

100P

C313

22P(CH)

R309

10K

C324

3.9P(UJ)

VD303

SVC211C

C312

0.022

C306

0.022

C307

10/50

C311

18P

R302

IC301

TA7358AP

FM FRONT END

C305

4.7P

(CH)

C310 15P(CH)

BF301

B.P.F.

R326

C303

10P(CH)

C304

0.01

CNP301

SO302

FM ANTENNA

TERMINAL

L312

D305 DS1SS133

C308

4.7P(UJ)

R311

100K

C309

0.001

VD302

SKDV147B

R313

33K

R314

C317

0.001

C316

0.022

C315

0.0047

C314

0.0047

R327

R325

47K

R322

680

Q302

KTC3194 Y

R353

270

C355

22P

T303

AM TRACKING

AM BAND

COVERAGE fL

T306

AM OSC.

FM RF

T301

FM OSC.

T302

FM IF

IC302

LC72131

PLL(TUNER)

IC303

LA1832S

FM IF DET./FM MPX./AM IF

CONT

FM/AM

MO/ST

ST IND

MO/ST

VSS

AOUT

AIN

VDD

FM IN

AM IN

X IN

X OUT

IF IN

REG

AM IF IN

GND

STEREO

FM DET

VCC

IF OUT

PHASE

(FM/AM)

PHASE

L-CH OUT

R-CH OUT

MPX IN

MPX VCO

FM/AM OUT

VSM

AM LOW CUT

AM RF IN

AM OSC IN

FM AFC

AM OSC OUT

AM MIX OUT

FM IF IN

TP302

TO MAIN SECTION

P23 12-C

– 29 –

CD-BK300W

8 9 10 11 12

MICSW

DATA

CLOCK

LATCH

PS2

PS1

VCF IL

L OUT

R OUT

SOURCEOUT

KEYCONIN

R IN

L IN

VOL IN

LPF2OUT

LPF2IN2

LPF2IN1

DAINTOUT

DAINTIN

DACONT

VCC

GND

MCLKCONT

VACL

MIC1 IN

ALC1

ALC2

MIC1NF IN

MIC2NF IN

MIC1 OUT

MIC2 OUT

MIC1VOL IN

MIC2VOL IN

MICOUT

LPF1 IN1

LPF2 IN2

LPF1 OUT

AD INTIN

ADCONT

REF

AD INTOUT

MIC2 IN

MIC SIGNAL

MIC I

DATA

CLOCK

MIC LATCH

MIC IN(R)

MIC OUT(R)

A_+10V

A_GND

MIC IN(L)

MIC OUT(L)

CHASSIS

GND

ICK2

KIA4558P

MIC PWB-H

CNS602

FROM

MAIN PWB

P23 12-F

RK40

RK37

390

RK39

CK2

0.47

CK6 0.1

CK41

100/16

CK10 0.1

CK11 0.1

CK7 0.47

CK44

47/25

CK72

100/16

RK42 10K

VRK1

20K(B)

MIC

VOLUME

CK53

47/50

RK48

10K

RK50

10K

CK47

220P

RK43

18K

CK48 220P

RK46

18K

CK45

2.2/50

CK46

2.2/50

RK49

10K

RK41 10K

CK51

1/50

CK52

1/50

RK47

8.2K

RK45

6.8K

RK44

6.8K

CK49

100P

CK50

100P

RK5

CNPK1

CK42

0.022

RK38

100

RK14

100

RK15

100

RK36

390

CK19

0.022

RK8 5.6K

CK23 0.001

CK1 0.01

RK11 1K

RK10 1K

RK9 1K

CK43

47/25

ZDK1

MTZJ5.6B

RK12

100

RK13

1.2K

QK1

KTC3203Y

ICK1

M65856SP

MIC AMP.

RK2 56K

RK3

56K

RK4 10K

RK7

JK1

MIC

CK9 2.2/50

CK8 4.7/50

CK13

0.0047

CK17 220/10

CK18

100/16

CK16 0.22

CK15 0.068

CK25 2.2/50

CK26 2.2/50

CK12

2.2/50

CK14 0.001

CK21 0.068

CK24 2.2/50

CK33 47P

CK30 2.2/50

CK29 2.2/50

CK31 0.15

CK35 47P

CK34 47P

CK22 0.0047

CK20 0.22

DK1

DS1SS133

PINK1

DK2

DS1SS133

RK1

10K

ICK2

KIA4558P

OPE PMP.

123456789

10111213141516171819

2021

424140393837353534333231302928272625242322

MIC PWB-H

CK29

PINK1

CK3

DK2

DK1

CK31

CK35

CK34

RK11

RK10

RK9

RK13

RK12

QK1

ZDK1

RK15

RK14

CNPK1

CNS602

FROM

MAIN PWB

P31 7-A

RK40

RK38

RK36

RK37

CK72

RK39

RK46

CK45

RK41

RK42

CK46

CK47

RK43

CK48

CK50

RK47

RK45

CK49

ICK2

RK49

CK51

RK44

RK48

RK50

CK52

CK53

CK44

CK43

CK41

CK10

CK1

RK4

RK5

RK8

RK7

CK9

CK11

CK13

CK15

CK8

CK14

CK12

RK3

RK1

CK2

CK6

CK7

CK16

RK2

CK17

ICK1

CK18

CK33

CK20

CK42

CK19

CK30

CK26

CK25CK24

CK21

CK22

JK1

MIC

CK23

VRK1

MIC VOLUME

Figure 29 SCHEMATIC DIAGRAM (10/10)

Figure 29 WIRING SIDE OF P.W.BOARD (1/9)

• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.

CD-BK300W

– 30 –

Figure 30 WIRING SIDE OF P.W.BOARD (2/9)

23456

SW601

SPAN

SELECTOR

9 kHz/50 kHz

10 kHz/100 kHz

BCE

ECB

BC E

123

BI602

L352

ZD351

C358

C618

C373

C374

C372

R607

Q603

Q604

Q605

Q606

C623

C628

C630

C629

C626

C625

C624

C627

C622

C621

C620

C619

IC601

R608

C610

C607

C609

C608

C613

C602

C614

C606

T306

C365

C364

C368

R357

R358

C362

C367

C371

IC303

X351

D305

CF303

C357

T302

R309

CF351

C352

C370

Q302

C398

T301

T351

CF352

R382

C393

R375

Q360

C380

L351

R391

R392

C391

C396

IC302

R384

R387

C387

R386

X352

C394

C307

SO302

ANTENNA

TERMINAL

IC301

R314

CNP301

L312

BF301

T303

C401

C331

C603

R632

R631

VD302

VD301

VD303

JK601

VIDEO/AUX

R-CH

L-CH

1015

1213

TO CD SERVO PWB

P36 5-A

CNP7

CNS11

1234 5 6

TO MI

P29

CNS11

1234 5

MAIN PWB-A

AM LOOP

ANTENNA

75 OHMS

GND

C388

R620

R363

R361

R364

R362

R615

R616

C616

R612

R614

R609

R610

C611

C612

R605

R606

R602

R601

R603

C604

R356

C342

C363

R350

C334

C361

C369

C316

R313

C366

R311

C399

C309

R351

C355

C353

R352

R365

R355

C354

C350

R353

C312

C356

C310

C313

C351

C311

R302

R327

C324

R383

R380

R393

C385

C318

R395

R377

R385

C395

R379

C392

C386

R360

R376

R359

R388

R373

R378

R372

R374

C384

C382

C381

C397

R381

R322

C306

R325

C305

C315

C304

C308

C303

C314

R326

R316

C317

R336

C323

R323

C330

C332

C335

R634

C632

C631

R633

D604

D603

C605

– 31 –

CD-BK300W

Figure 31 WIRING SIDE OF P.W.BOARD (3/9)

8 9 10 11 12

BI102

CNS102

C109

Q110

Q111

C153

L103

C150

Q126

R155

C154

C151

L104

R109

R110

Q124

C152

BI102

CNP101

Q108

Q107

C115

R119

C121

C117

C128

C123

IC101

C133

C135

C141

R158

C145

C856

C851

C852

ZD851

R852

R856

C857

BI903

C820

CNS902

C835

R853

Q821

R854

D816

C860

C859

C858

C828

C829

C830

C855

Q121

C146

R157

C136

C642

C142

R156

C641

Q122

C134

R136

C122

C124

BI11

R134

Q105

C118

Q103

R120

C116

Q104

C105

Q106

R168

R160

Q109

R106

Q128

CNP601

C617

Q852

Q851

Q850

13579

11 13 15 17 19 21 23 25 27

20 22 24 26

2468

10 12 14 16 18

CNP903

TO POWER PWB

P34 3-F

CNS903

TAPE2

RECORD/PLAYBACK

ERASE HEAD

FROM TAPE1

PLAYBACK HEAD

P37 10-F

1015

1213

TO MIC PWB

P29 12-G

CNP7

3456 89107

FC701

CNP701

TO DISPLAY PWB

P33 11-A

12345678910

P35 12-E

TO AMP. PWB

CNP902

321

123 123 B

BCE

123

321

BCE

P32 11-E

R114

R113

R115

R164

R162

C108

R107

R108

C107

C101

C102

R101

R117

R121

C119

C111

R102

R123

C113

C127

R125

R131

C131

R139

C132

R141

R137

R135

C139

R145

R154

R153

C140

R138

R618

R140

R146

R142

R617

R132

R124

C114

R126

C120

C112

R112

R111

R122

R118

R105

R103

R104

C106

R166

R167

R638

R637

R619

R613

R611

C635

C615

R621

R622

C636

C616

R612

R614

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CD-BK300W

– 32 –

Figure 32 WIRING SIDE OF P.W.BOARD (4/9)

23456

CNS703

123

100

XL701

R782

SW733

VIDEO

SW716

EQUALIZER

RD15

CNP702

C719

D712

D713

JOG701

Q708

Q705

Q704

RS713

D705

CS710

CS707

CS706

D703

RS710

RS719

R706

R703

R777

R776

R775

R773

R780

R779

RX701

R781

R774

Q701

R719

R705

C722

R702

BI703

Q702

Q703

C714

Q709

D718

C729

C733

R724

D722

D723

IC702

SW713

OPEN/

CLOS

D702

D706

IC703

SW709

DISC 1

ZD701

RS708

SW715

X-BASS

SW710

DISC 2

SW711

DISC 3

SW712

DISC SKIP

LED

LED706

LED707

LED708

13579

2468

FC702

TO TAPE MECHANISM PWB

P37 8-A

DISPLAY PWB-B1

CNP8

TO CD

SERVO PWB

P36 4-A

2423

123 6789

10 11 12 13 14 15 16

C725

C723

C724

R783

R784

R790

R785

R789

R786

R788

R791

R787

R770

RD07

RD35

RD36

RD13

RD14

RL706

RL707

RL7

R757

R795

C720

C721

RS715

R736

R737

RS716

R752

RS717

CS712

CS711

RS718

CS713

RD08

RS711

R778

C728

R796

R716

R704

R701

R797

C732

R799

RS712

RS707

CS708

CS703

CS709

RS705

RS706

CS701

CS702

CS704

RS703

RS701

RS702

RS704

RS714

RS720

CS705

RS709

RD09

RD10

RD12

RD11

– 33 –

CD-BK300W

Figure 33 WIRING SIDE OF P.W.BOARD (5/9)

8 9 10 11 12

CNP701

D721

C726

D720

SW701

ON/

STAND-BY

C701

SW714

DIMMER

SW702

CLOCK

SW732

TUNING

SW703

TIMER

SW724

TUNING

DOWN

SW725

MEMORY

SET

SW731

REC/

PAUSE

SW726

FAST

REWIND

SW730

REVERSE

PLAY

RL705

RL702

RL701

SW722

R754

R759

R755

R756

R760

R761

R758

R721

R747

R738

R740

R739

R741

R742

R745

R744

DT704

C715

R794

FL701

R769

R771

R772

SW723

TAPE

SW734

TUNER

SW729

STOP

SW728

PLAY

SW727

FAST

FORWARD

SW717

REVERSE

MODE

LED722

LED702

LED701

LED705

29 30 31 32 332423 25 26 27 28 34 35 36 37 38 39 40 41 42 43 44 56 57 58

1513 1917 2321

264

1412 1816 22

25 27

24 2620

FC701

CNP601

TO MAIN PWB

P31 8-A

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

R700

R764

R763

R765

C702

R725

IC704

RD01

RD02

RD27

RD28

RD34

RD33

RD26

RD25

RD29

RD32

RD03

R762

R753

R792

R713

R717

R714

R718

R720

R746

R748

R749

R751

R743

R793

R727

R728

IC701

R767

R790

R768

R789

R766

R788

R787

RD05

RD06

RD04

RD31

RD30

RL708

CD-BK300W

– 34 –

23456

Figure 34 WIRING SIDE OF P.W.BOARD (6/9)

230-240 V

220 V

127 V

110 V

127 V

220 V

BCE

123456

JK670

HEADPHONES

CNP705

T.F

T801

POWER TRANSFORMER

12345

CNS901

CNS903

FROM MAIN PWB

P31 12-G

HEADPHONES PWB-B2

TRANSFORMER PWB-D3

POWER PWB-D1

AC POWER

SUPPLY CORD

AC 110/127/220/

230-240 V, 50/60 Hz

R821

R822

D803

C803

C804

C832

D802

C833

ZD804

R814

D804

R807

D805

D806

D807

C806

C805

D808

D809

C807

C808

D810

R802

Q801

R801

C812

C810

R803

F806

T2A L 250V

F805

T2A L 250V

F801

T4A L 250V

F802

T4A L 250V

F803

T5A L 250V

F804

T5A L 250V

ZD801

C809

ZD802

R804

C811

CNP903

BI901

SW801

VOLTAGE SELECTOR

LG902

LG901

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

– 35 –

CD-BK300W

Figure 35 WIRING SIDE OF P.W.BOARD (7/9)

8 9 10 11 12

L903

BCE

ECB

SO902

SPEAKER

TERMINAL

R-CH

(HI)

R-CH

(LOW)

L-CH

(LOW)

L-CH

(HI)

CNS902

FROM MAIN PWB

P31 8-H

AMP. PWB-D2

D907

C813

C801

Q908

C815

R806

Q907

ZD803

R941

C816

R939

C932

D906

C925

Q905

D904

R935

R937

Q906

R936

C924

D905

R938

R940

R931

C802

R985

R983

R933

R925

R820

R926

IC901

R924

C935

R934

R943

R986

R984

R942

R944

RY901

C936

R932

R945

D902

D901

D903

C912

R947

Q902

R916

R946

R914

Q901

R913

R915

R920

C905

C814

R921

R911

R909

R996

R994

R819

R805

R910

C918

IC902

R902

C919

R901

R923

R922

R993

R995

R912

R908

RY902

R948

R949

R950

R951

L905

L904

L902

C937

Q909

R952

Q910

R980

R979

C938

R953

R954

D909

LG903

R966

C955

R965

C945

C956

C960

C910

R960

R970

R904

C957

C952

R959

R918

C958

C986

C906

C951

C953

R906

R968

C947

C903

C940

R962

C950

R961

C948

IC903

C908

R958

C901

C946

R969

R963

R964

C902

C959

C949

C904

C911

R967

C954

C961

R907

R971

R956

R957

C907

R917

C914

C909

R903

C990

R919

Q903

Q990

Q904

Q991

R997

C928

R928

CNP902

C926

C922

R976

R930

C939

C930

R972

C920

C942

C921

C944

R974

R975

C923

R973

C941

R977

R929

C943

C927

C929

C931

R927

CNP803

CNP804

FW801

CNP901

CNS803

M901

FAN MOTOR

CNS804

M902

FAN MOTOR

BCE

CD-BK300W

– 36 –

Figure 36 WIRING SIDE OF P.W.BOARD (8/9)

23456

• The numbers 1 to 12 are waveform numbers shown in page 40.

12 3

R19

R30

R18

R20

C23

C14

C16

C11

CNP4

C10

C12

5101520

25 30 35 40

CNP3

R49

C39

C41

R44

C40

CNP1

CNP2

C49

R10

R38

C37

C50

R37

C36

R36

C35

R35

R34

CNP8

R29

R28

R33

R31

R32

C51

XL1

ZD1

R22

CNP7

C24

ZD2

CNP5

C48

C18

CD SERVO PWB-C

CNS703

P32 1-B

FROM DISPLAY PWB

CNS1B

CNS1A

CNS2B

PICKUP UNIT(306)

CNS3B

CNS3A

CD MOTOR

PWB-G

12345

SPINDLE MOTOR

SW4

PICKUP IN

SLED MOTOR

12345

2165

CNS11

P30 6-A

FROM MAIN PWB

567

ECB

BCE

C25

R26

R24

R17

C44

R45

R16

R46

C13

R15

R14

R13

IC1

IC2

C38

R12

R11

R42

R41

R40

R39

C32

C33

C34

C27

C30

C28

R43

C42

C26

R25

R47

R23

R27

4 2 1

– 37 –

CD-BK300W

Figure 37 WIRING SIDE OF P.W.BOARD (9/9)

8 9 10 11 12

654321

CNS102

TAPE 2

RECORD/PLAYBACK/ERASE HEAD

123

456

BI4

CNS4

SW3

DISC

NUMBER

CD LOADING MOTOR

PWB-E

T/T UP/DOWN

MOTOR

SW2

CLAMP

SW1

OPEN/

–

CNP101

P31 11-D

TO MAIN PWB

TAPE 1

PLAYBACK HEAD

TAPE

MOTOR

CNS702

SOLENOID

SWSW

SOLENOID

TAPE MECHANISM PWB-F

TAPE MECHANISM

ASSEMBLY

P32 4-G

TO DISPLAY PWB

FC702

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

P32 12-C

TO MAIN PWB

CD-BK300W

– 38 –

VOLTAGE

1.6 V

1.0 V

1.6 V

1.8 V

3.3 V

0 V

1.6 V

1.5 V

0.8 V

3.2 V

0 V

1.6 V

0 V

3.2 V

0 V

1.6 V

0 V

3.2 V

0 V

NO.

VOLTAGE

IC1

3.7 V

0 V

3.7 V

3.2 V

0 V

3.2 V

0 V

3.2 V

0 V

4.7 V

0 V

4.9 V

0 V

4.9 V

0 V

3.2 V

0 V

3.2 V

NO.

VOLTAGE

4.7 V

0 V

4.7 V

0 V

4.8 V

2.2 V

1.9 V

0 V

4.7 V

0 V

5.1 V

0 V

5.1 V

0 V

5.1 V

4.7 V

5.1 V

3.1 V

5.0 V

4.9 V

0 V

NO.

VOLTAGE

IC701

2.0 V

12.6 V

3.8 V

4.7 V

0 V

5.1 V

5.0 V

0 V

5.0 V

0 V

5.0 V

0 V

–36.0 V

–15.1 V

–36.2 V

–36.0 V

–22.1 V

–36.1 V

–26.5 V

–31.3 V

–26.4 V

–36.1 V

–35.7 V

–36.1 V

–24.2 V

–24.3 V

–24.1 V

–31.4 V

–28.8 V

–31.1 V

–35.9 V

–26.4 V

NO.

VOLTAGE

1.7 V

1.8 V

2.1 V

2.0 V

0 V

2.1 V

1.6 V

4.9 V

3.0 V

1.6 V

0 V

4.9 V

1.6 V

2.1 V

0 V

4.2 V

0 V

2.1 V

4.9 V

3.7 V

NO.

VOLTAGE

IC2

0 V

5.3 V

5.0 V

5.3 V

5.0 V

10.2 V

0 V

NO.

VOLTAGE

IC601

0 V

0.5 V

2.0 V

0 V

1.3 V

0 V

0.6 V

3.5 V

3.4 V

0 V

7.0 V

4.1 V

0 V

3.4 V

0.6 V

0 V

0.7 V

0 V

2.0 V

0.5 V

0 V

NO.

VOLTAGE

IC101

2.1 V

5.0 V

2.1 V

0 V

5.1 V

2.9 V

5.0 V

4.3 V

3.9 V

3.5 V

1.3 V

2.1 V

2.4 V

2.3 V

0 V

0.4 V

2.7 V

5.0 V

3.5 V

NO.

VOLTAGE

IC303

2.5 V

0 V

5.0 V

0 V

4.7 V

3.9 V

4.0 V

5.0 V

0 V

5.1 V

0 V

2.5 V

5.1 V

0.9 V

1.3 V

0 V

2.5 V

NO.

VOLTAGE

IC302

–14.8 V

14.9 V

0 V

37 V

–35 V

–14.7 V

38.1 V

–38.0 V

–14.8 V

–32.1 V

0 V

–14.9 V

–14.8 V

NO.

VOLTAGE

IC901

–14.7 V

–14.8 V

0 V

46.7 V

–43.4 V

–14.7 V

46.3 V

–46.0 V

–14.7 V

–44.7 V

0 V

–14.7 V

–14.6 V

NO.

VOLTAGE

IC902

0 V

10.1 V

5 V

0 V

–13.5 V

5.0 V

0 V

12.6 V

NO.

VOLTAGE

CNP902

–14.3 V

–14.4 V

–14.0 V

–14.3 V

–14.5 V

–14.6 V

NO.

VOLTAGE

IC903

NO.

VOLTAGE

Q850

22.9 V

13.1 V

12.6 V

NO.

VOLTAGE

Q851

10.2 V

0 V

22.6 V

NO.

VOLTAGE

Q852

11.5 V

0 V

5.0 V

NO.

VOLTAGE

IC301

0 V

0.3 V

0 V

NO.

VOLTAGE

BI903

11.9 V

–31.1 V

–31.3 V

–37.4 V

0 V

23.7 V

3.1 V

– 39 –

CD-BK300W

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

indicates AM

indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means pico-farad and the unit of the capacitor

without such a symbol is microfarad. As to electrolytic

capacitor, the expression “capacitance/withstand voltage”

is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

REF. NO

DESCRIPTION

POSITION POSITION

SW717 REVERSE MODE ON—OFF

SW722 CD ON—OFF

SW723 TAPE ON—OFF

SW724 TUNING/DOWN ON—OFF

SW725 MEMORY SET ON—OFF

SW726 FAST REWIND ON—OFF

SW727 FAST FORWARD ON—OFF

SW728 PLAY ON—OFF

SW729 STOP ON—OFF

SW730 REVESE PLAY ON—OFF

SW731 REC/PAUSE ON—OFF

SW732 TUNING/UP ON—OFF

SW733 VIDEO ON—OFF

SW734 TUNER ON—OFF

SW801 VOLTAGE SELECTOR 230-240 V

REF. NO

DESCRIPTION

SW1 OPEN/CLOSE ON—OFF

SW2 CLAMP ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW601 SPAN SELECTOR

9 kHz/50 kHz

SW701 ON/STAND-BY ON—OFF

SW702 CLOCK ON—OFF

SW703 TIMER ON—OFF

SW709 DISC 1 ON—OFF

SW710 DISC 2 ON—OFF

SW711 DISC 3 ON—OFF

SW712 DISC SKIP ON—OFF

SW713 OPEN/CLOSE ON—OFF

SW714 DIMMER ON—OFF

SW715 X-BASS ON—OFF

SW716 EQUALIZER ON—OFF

TYPES OF TRANSISTOR AND LED

(1) (2) (3)

(S) (G) (D)

E C B

FRONT

VIEW

KTA1266 GR

KRC102 M

KRC104 M

KTA1271 Y

KTA1274 Y

2SC1845 F

KTA1273 Y

KTC3203 Y

KTC3199 GR

KRA107 M

KRC107 M

KTC3194 Y

2SA1015 GR

KTC2026

4204SRT7

4204UYT7

4204UGT7

BCE

FRONT

VIEW

FRONT

VIEW

CD-BK300W

– 40 –

DATA

DATACK

LRSY

Stopped

CH1=2V

DC 10:1

CH2=2V

DC 10:1

CH3=2V

DC 10:1

5us/div

(5us/div)

NORM:100kS/s

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 5K

Zoom : 100

Mode : AUTO

Type : EDGE CH3

Delay : 0.0ns

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH3

v/DIV

2 V

1999/04/05 20:50:17

IC1 58

IC1 59

IC1 60

DOUT

Stopped

CH1=2 V

DC 10:1

500 ns/div

1999/04/07 09:25:28

(500 ns/div)

NORM:200 MS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 1 K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

IC1 39

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0ns

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500mV

1999/04/05 17:33:17

IC1 21

IC1 73

IC1 74

FDO

SPDO

Stopped

CH1=200 mV

DC 10:1

CH2=500 mV

DC 10:1

500 ms/div

1999/04/07 09:51:15

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

IC1 21

IC1 22

DRF

Stopped

CH1=10 V

DC 10:1

CH2=1 V

DC 10:1

100 ms/div

(100 ms/div)

NORM:100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.0 V

CH2 : 0.00 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

IC1 67

IC1 15

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

IC1 4

FDO

DRF

Stopped

CH1=500 mV

DC 10:1

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2

Position

0.20 div

IC1 21

IC1 67

IC1 15

FDO

TDO

Stopped

CH1=500 mV

DC 10:1

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.000 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

IC1 21

IC1 20

WAVEFORMS OF CD CIRCUIT

– 41 –

CD-BK300W

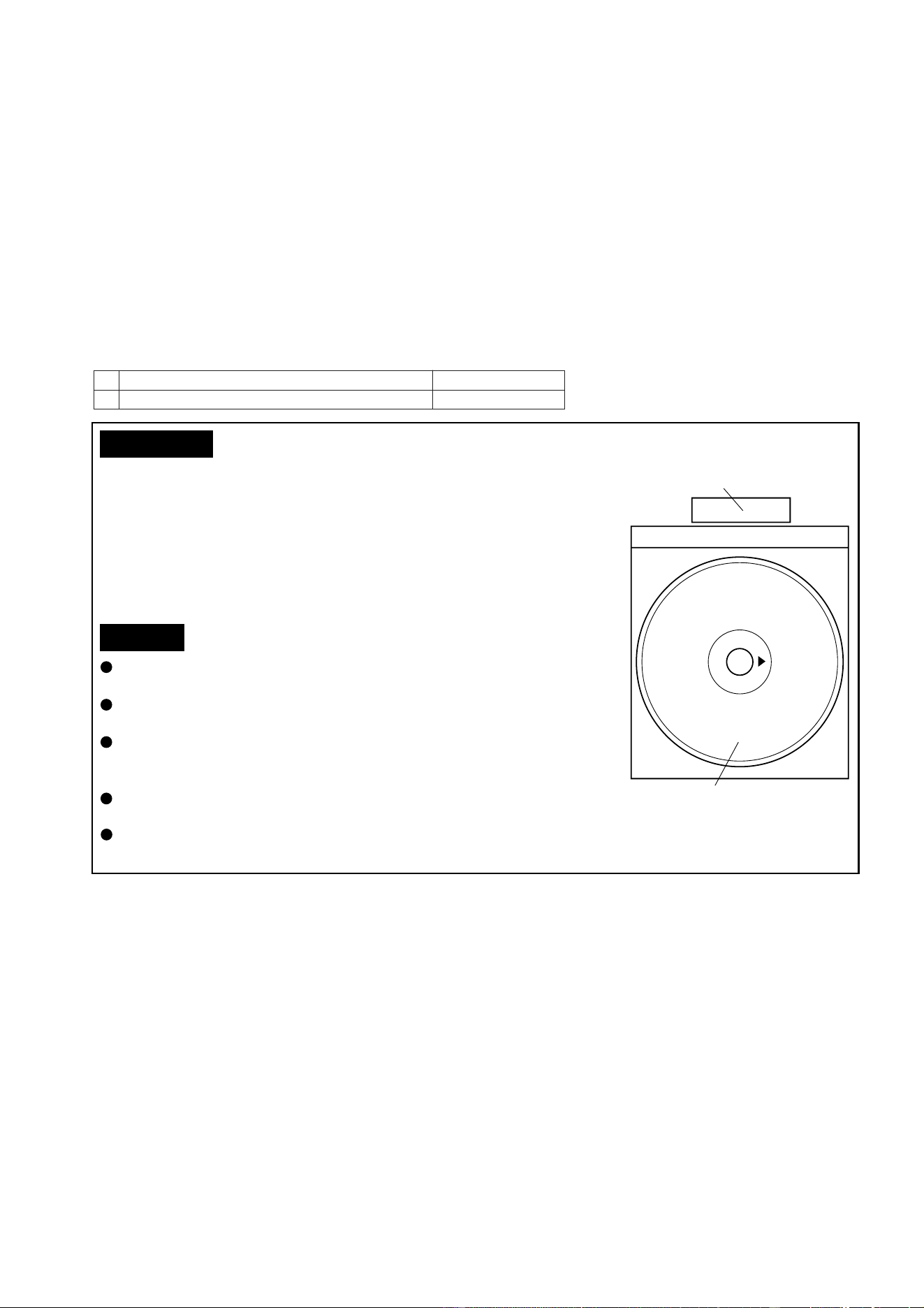

HOW TO USE

CAUTION

Cleaning fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the

brush on the CD cleaner disc which has the mark next to it.

Place the CD cleaner disc onto the CD disc tray with the brush side down,then

press the play button.

You will hear music for about 20 seconds and the CD player will automatically stop.

If it continuous to turn, press the stop button.

The CD lens cleaner should be effective for 30-50 operations, however if the

brushes become worn out earlier then please the cleaner disc.

If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft

cloth.

Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the

event of this happening then drink and / or rinse with clean water and seek medical

advice.

The CD cleaner disc must not be used on car CD players or on computer CD-ROM

drives.

is prohibited by law.

TROUBLE SHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean

the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check

the following items.

Remove the cabinet and follow the trouble shooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup

lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn off the power, and wipe the lens softly using a cleaning paper moistened with commercially available cleaning solution so

as not to damage it. Be careful not to touch the lens with bare hands.

Dust gradually accumulates on the objective lens during use, and it may degrade performance. To avoid this problem, use a

cleaning disc designed for CD optical pickup lenses..

When a CD cannot be played

1. "E-CD01" is displayed.

(1) Check the power to IC1 (LC78645E), the presence of the clock signal (33.8688 MHz) and the status of the RESET terminal

(pin 66 on IC1).

(2) Does the pickup move to the PICKUP-IN Switch (SW4) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, but playback does not occur.

(1) Focus-HF system check

(2) Tracking system check

(3) Spin system check

(4) PLL system check

(5) Others

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

CD-BK300W

– 42 –

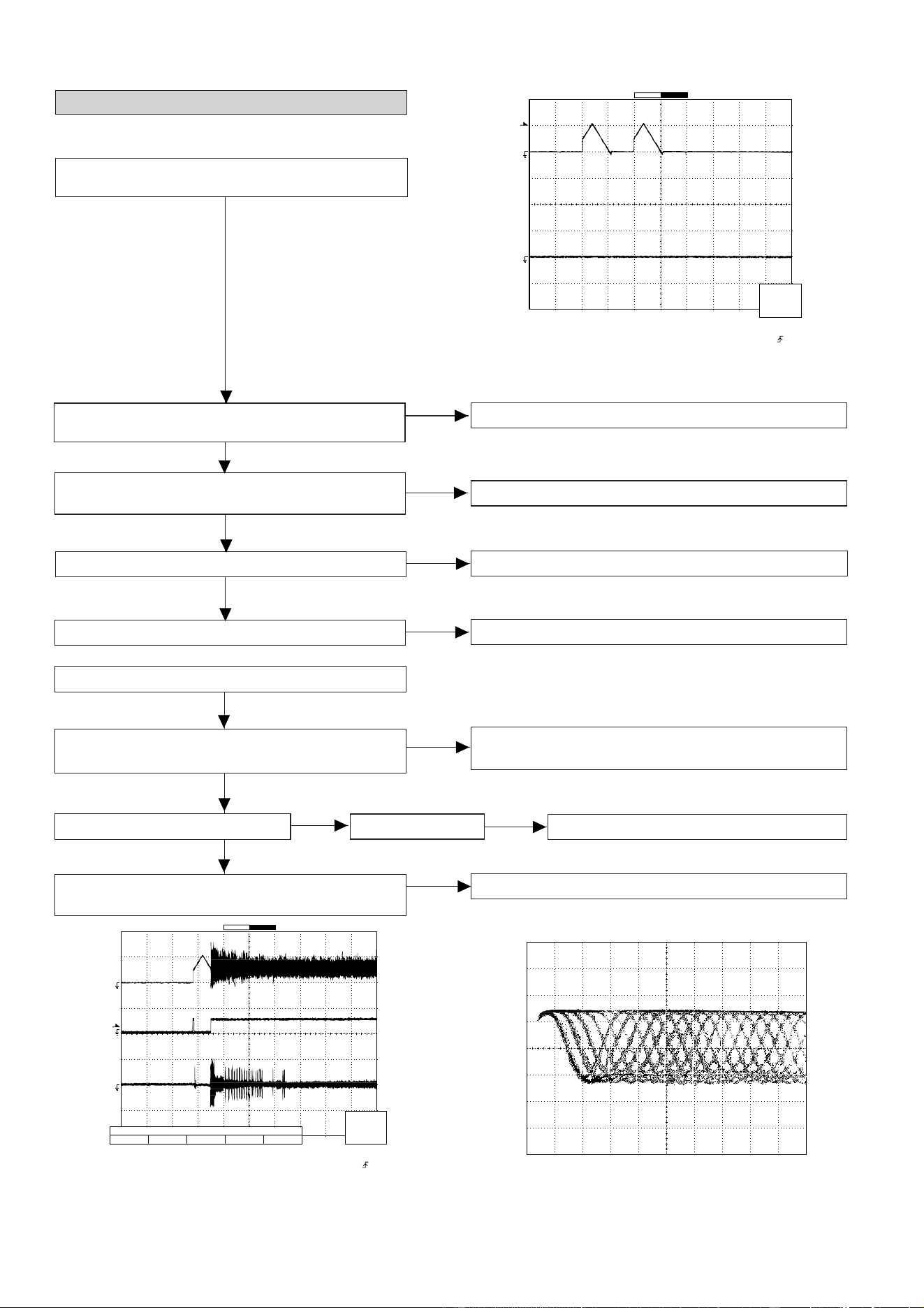

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

FDO

DRF

Stopped

CH1=500 mV

DC 10:1

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2

Position

0.20 div

FDO

TDO

Stopped

CH1=500 mV

DC 10:1

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.000 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

If the level is not normal.

1. Is focus servo activated ?

(Waveform drawing Figure 42-2)

Pins 7~12, 79 and 80 on IC1

Check the laser diode driver Q1 peripheral circuit.

When a disc is loaded, start playback operation.

2. Does DRF change from "L" to "H" ?

Is the disc rotating ?

3. Is the HF waveform normal ? (Waveform drawing

Figure 42-3)

Check the spin system.

If the disc is spinning and a HF waveform is generated,

DRF will go H.

Figure 42-1

Check the laser diode driver Q1 peripheral circuit.

(1) Focus-HF system check.

Although a CD is inserted and the cover is closed, "NO

DISC" is displayed.

1. Does the pickup move to the PICKUP-IN Switch (SW4)

position ?

Sled motor (M2).

Press the OPEN/CLOSE switch (SW1) without inserting a

disc, and try starting the playback operation.

2. Does the focus (lens) move up and down ?

(Waveform drawing Figure 42-1)

Check the focus peripheral circuit.

3. Is the laser lit ?

Spindle motor (M1).

4. Is the turntable rotating ?

Figure 42-2

Figure 42-3

Yes

– 43 –

CD-BK300W

FDO

SPDO

Stopped

CH1=200 mV

DC 10:1

CH2=500 mV

DC 10:1

500 ms/div

1999/04/07 09:51:15

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

DRF

Stopped

CH1=10 V

DC 10:1

CH2=1 V

DC 10:1

100 ms/div

(100 ms/div)

NORM:100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.0 V

CH2 : 0.00 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

The tracking servo is not activated.

Check the peripheral circuits at pins 14, 15 and 20 on IC1, and

CNS1A/B.

If the waveform shown in Figure 43-1 appears and soon after

NO DISC appears ?

(2) Tracking system check.

Check the TE waveform at pin 15 on IC1.

A normal jump operation cannot be completed or the beginning of

the track cannot be found.

Check the around pin 20 on IC1.

"Initialization" is possible, but play is not possible ?

Data cannot be read. Check the VCO-PLL system.

"Initialization" is not possible.

Figure 43-1

Figure 43-2

Press the OPEN/CLOSE switch without inserting a disc, and

then try starting the play operation.

(3) Spin system check.

The spin driver circuit is OK.

1. The turntable rotates a little ? (Waveform drawing

Figure 43-2)

Check around pin 22 on IC1, pins 15 and 16 on IC3, and CNS3A/B.

2. The turntable doesn't rotate.

Yes

CD-BK300W

– 44 –

DOUT

Stopped

CH1=2 V

DC 10:1

500 ns/div

1999/04/07 09:25:28

(500 ns/div)

NORM:200 MS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 1 K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

FDO

PDO2

PDO1

Stopped

CH1=500 mV

DC 10:1

CH3=1 V

DC 10:1

CH4=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

1999/04/05 17:33:17

Is pin 52 (C2F) on IC1 "L" ?

Yes

The HF waveform is normal and the time is displayed

normally, but no sound is produced. Or the sound

has dropouts.

(5) Others.

There are too many error flags on a damaged disc which

makes error correction impossible.

Check again using a known good disc.

1. When playing at normal speed.

Check the peripheral circuit at pin 39 (DOUT) on IC1 and

the waveform (Figure 44-2).

If OK, Check the unit.

When a disc is loaded, start play operation.

(4) PLL system check.

The HF waveform is normal, but the TOC data cannot be

read.

Check the PDO waveform. (Figure 44-1)

Check around pins 73~78 on IC1.

Figure 44-1

Figure 44-2

– 45 –

CD-BK300W

FUNCTION TABLE OF IC

IC1 VHiLC78645E-1: CD Servo (LC78645E) (1/2)

1 SLCO Output — Control output.

2 SLCIST Input —

Resistor connection terminal for SLCO output current

setting.

3 EFMIN Input — RF signal input terminal.

4 RF Output — RF signal monitor terminal.

5 RFVDD Input — RF power terminal.

6 RFVSS — — RF earth terminal. To be connected to 0 V.

7 FIN1 Input — A+C signal input terminal.

8 FIN2 Input — B+D signal input terminal.

9 TIN1 Input — E signal input terminal.

10 TIN2 Input — F signal input terminal.

11 VREF Output RFVDD/2 VREF voltage output terminal.

12 REFI Input — Reference supply setting terminal.

13* FE Output ZHI FE signal monitor terminal.

14 TEC Output — LPF capacitor connection terminal for TE signal.

15* TE Output ZHI TE signal monitor terminal.

16* RFMON Output ZHI RF internal signal monitor terminal.

17 JITTC — — Capacitor connection terminal for jitter detection.

18 ADAVDD Input — Power terminal for servo A/D, D/A.

19 ADAVSS — — Earth terminal for serve A/D, D/A. To be connected to 0 V.

20 TDO Output ADAVDD/2 Output terminal for tracking control. D/A output.

21 FDO Output ADAVDD/2 Output terminal for focus control. D/A output.

22 SPDO Output ADAVDD/2 Output terminal for spindle control. D/A output.

23 SLDO Output ADAVDD/2 Output terminal for sled control. D/A output.

24* GPDAC Output ADAVDD/2 Servo D/A general-purpose output terminal.

25 CONT4 Input/Output Input Mode General-purpose I/O terminal 4.

26 CONT5 Input/Output Input Mode General-purpose I/O terminal 5.

27* SBCK/CONT6 Input/Output Input Mode General-purpose I/O terminal 6 or

Subcode reading clock input terminal.

28 SBCK/FG Input — Subcode reading clock input terminal/FG signal input terminal/external

emphasis setting terminal. Terminal functions are set by commands. When

not used, connect to 0 V.

29* DEFECT Output L Defect terminal.

30* V/*P Output H Auto switching monitor output terminal for rough servo phase control. “H”:

rough servo, “L”: phase servo.

31* FSEQ Output L Sync signal detection output terminal.

The status changes to “H” when the sync signal detected in EFM and the

sync signal of internal generation are identified.

32* MONI1 Output L Internal signal monitor terminal 1.

33* MONI2 Output L Internal signal monitor terminal 2.

34* MONI3 Output L Internal signal monitor terminal 3.

35* MONI4 Output L Internal signal monitor terminal 4.

36* MONI5 Output L Internal signal monitor terminal 5.

37 VSS — — Digital system earth terminal. To be connected to 0 V.

38 VDD Input — Digital system power terminal.

39* DOUT Output L Digital OUT output terminal. (EIAJ format)

40 TEST Input L Input terminal for test. To be connected to 0 V.

41 LVDD Input — Power supply for Left channel.

42 LCHO Output LVDD/2 Left channel output.

43 LVSS — — GND for Left channel. Must be connected to 0 V.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Controlled by commands from the

microcomputer. When not used, set

them as input terminals and connect

to 0 V, or set them as output

terminals and leave open.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Left channel

D/A converter

For slice level

control.

CD-BK300W

– 46 –

44 RVSS — — GND for Right channel. Must be connected to 0 V.

45 RCHO Output LVDD /2 Right channel output.

46 RVDD Input — Power supply for Right channel.

47 XVDD Input — Power supply for crystal oscillator.

48 XOUT Output — Connected for the 33.8688 MHz crystal oscillator ciement.

49 XIN Input —

50 FSX/16MIN Input/Output Input 7.35 kHz Synchronization signal monitor port.

or Clock input port for Digital filter & D/A

51 XVSS — — Crystal GND for crystal oscillator. Must be connected to 0 V.

Oscillator

52* C2F Output H C2 FLAG monitor port.

53* EFLG Output L C1, C2 error corrected monitor port.

54* 16MOUT Output Clock 16.9344 MHz output port.

55 ASLRCK Input — Word clock input port.

(If this port does not use, must be connect to 0 V.)

56 ASDACK Input — Bit clock input port.

(If this port does not use, must be connect to 0 V.)

57 ASDFIN Input —

Left/Right channel data input port.

(If this port does not use, must be connect to 0 V.)

58* LRSY Output L Word clock output port.

59* DATACK Output L Digital data Bit clock output port.

60* DATA Output L Left/Right channel data output port.

61 CE Input — Chip enable signal input port.

62 CL Input —

Microcomputer

Data transfer clock input port.

63 DI Input — Interface Data input port.

64 DO Output (H) Data output port. (N-ch. open drain output.)

65 *WRQ Output H Interruption signal output.

66 *RES Input — Chip reset signal input port.

This port must be set LOW after first applied power on.

67 DRF Output L Focus detection output port.

68 VDD5 Input — Power supply for Microprocessor.

69 VSS — — GND for digital circuit. Must be connected to 0 V.

70 CONT3 Input/Output Input General purpose port 1.

71 CONT2 Input/Output Input General purpose port 2.

72* CONT1 Input/Output Input General purpose port 3.

73 PDO1 Output — Internal VCO control phase comparator output port 1.

74 PDO2 Output Input Internal VCO control phase comparator output port 2.

75 VVSS — — GND for internal VCO. Must be connected to 0 V.

76 PCKIST Input — PDO output current adjustment resistor connection port.

77 VVDD Input — Power supply for internal VCO.

78 FR Input — VCO frequency range adjustment port.

79 LDS Input — LASER power detected signal input port.

80 LDD Output — LASER power control signal output port.

IC1 VHiLC78645E-1: CD Servo (LC78645E) (2/2)

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Right channel

D/A converter

Crystal

Oscillator

Anti-shock

Controlled with serial data command from micro-

computer. When not used, General purpose input/

output terminal 7. set it as the input terminal and open

it by connecting to 0 V, or set it as the output terminal

and open it.

PLL

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Be sure to supply the same potential to each power terminal. (VVDD, ADAVDD, VDD, LVDD, RVDD, XVDD)

Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :

CE(61 pin), CL(62 pin), DI(63 pin), DO(64 pin), WRQ(65 pin), RES(66 pin), DRF(67 pin)

– 47 –

CD-BK300W

Figure 47 BLOCK DIAGRAM OF IC

IC1 VHiLC78645E-1: CD Servo (LC78645E)

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61

SLC0

SLCIST

EFMIN

RFVDD

RFVSS

FIN1

FIN2

TIN1

TIN2

VREF

REFI

TEC

RFMON

JITTC

ADAVDD

ADAVSS

TD0

FD0

SPD0

SLD0

GPDAC

CONT4

CONT5

SBCK/CONT6

SBCK/FG

DEFECT

V/*P

FSEQ

MONI1

MONI2

MONI3

MONI4

MONI5

(3.3V)VSS

VDD

DOUT

TEST

LDD

LDS

VVDD

PCKIST

VVSS

PD02

PD01

CONT1

CONT2

CONT3

VSS

VDD5

DRF

*RES

*WRQ

DATA

DATACK

LRSY

ASDFIN

ASDACK

ASLRCK

16MOUT

EFLG

C2F

XVSS

FSX/16MIN

XIN

XOUT

XVDD

RVDD

RCH0

RVSS

LVSS

LCH0

LVDD

LC78645E

–

MIX

LPF

TBAL

RAM

LEVEL SET

AGC EQ

–

MONI

CONT

A/D

SERVO PROCESSOR

TRACK JUMP

AUTO ADJUST

JITTER

DETECT

1bit DAC

8FS

DIGITAL FILTER

GENERAL-PURPOSE

PORTS

COMMAND

INTERFACE

CLOCK

GENERATOR

CLV,CAV

CONTROL

PLL

VCEC

SLICE LEVEL

CONTROL

APC

S/H

D/A

DRF

RUPTURE DEFECT

FRAME SYNC

DETECT,PROTECT INSERT,

EFN DECODE

VDD

SUBCODE DECODE CRC

MONITOR SIGNAL SELECTOR

RAM

ERROR

CORRECTION

AUDIO CD

AUDIO OUT

SERIAL

OUT

EXTERNAL

AUDIO IN

INTERPOLATION

MUTE

ATTENUATION

DEEMPHSIS

LPF

FIN1

FIN2

TIN1

TIN2

REF1

DETECT

ADIN

ADAVDD

ADAVSS

JITTC

SLC0

EFMIN

SLCIST

PCK

PDO1

PDO2

PCKIST

VVDD

VVSS

SBCK/FG

XIN

XOUT

16MOUT

XVDD

XVSS

*RES

*WRQ

VDD5V

CONT1, 2, 3

TEST

CONT4, 5

SBCK/CONT6

LVDD

LVSS

LCHO

RCHO

RVDD

RVSS

ASDFIN

ASDQCK

ASLRCK

DATA

DATACK

LRSY

DOUT

EFLG

C2F

FSK/16MIN

MONI1~5

VSS

VDD

V/*P

FSEQ

DRF

GPDAC

SPD0

SLD0

TD0

FD0

LDS

LDD

VREF

RFMON

RFVSS

RFVDD

TEC

CD-BK300W

– 48 –

1 VDD VDD Input (+) POWER SUPPLY.

2 P37 -20 dB ATT Output -20 dB ATTENUATOR.

3 P36 NO USE Output GND

DSA_STB Input/Output DSA STRUBE

4 P35 T_BIAS Output TAPE RECORD BIAS.

5 P34 T_T1/T2 Output TAPE T1/T2 CHANGE.

6 P33 REC/PLAY Output TAPE REC/PLAY CHANGE.

7 P32 RES OUT Output CD DSP RESET & MPEG MICROCOMPUTER RESET.

8 P31 DRF Input CD RF LEVEL DETECTION.

9 P30 WRQ Input CD DSP WRITE REQUEST.

10 RESET RESET Input RESET.

11 X2 X2 Output MAIN CLOCK.

12 X1 X1 Input MAIN CLOCK.

13 VPP/IC XVPP/IC — GND

14* XT2 XT2 — OPEN.

15 P04 SPN Input TUNER SPAN CHANGE.

16 VDD VDD Input (+) POWER SUPPLY.

17 P27 CD CLK Output CD DSP CLOCK.

18 P26 CD DI Output CD DSP COMMAND.

19 P25 CD DO Input CD DSP CODE Q OUT.

20 P24 CD CE Output CD DSP CE OUTPUT.

21 P23 CE Output CE OUTPUT.

22 P22 CLK Output CLOCK OUTPUT.

23 P21 DI Output DATA OUTPUT.

24 P20 DO Input DATA INPUT.

25 AVSS AVSS — ANALOG GROUND.

26 ANI7 O/C SW Input CD OPEN/CLOSE SWITCH.

DISC NO SW Input CD DISC NUMBER SWITCH.

DSA_DATA Input/Output DS DATA INPUT.

27 ANI6 NO USE Input GND.

TUNER SM Input TUNER SIGNAL METER INPUT.

DSA_ACK Input/Output DSA ACR.

28 ANI5 SPEANA 2 Input SPEANA DATA INPUT 16 kHz.

29 ANI4 SPEANA 1 Input SPEANA DATA INPUT 1 kHz.

30 ANI3 SPEANA 0 Input SPEANA DATA INPUT 63 kHz.

31-33 ANI2-ANI0 KEY 2-KEY 0 Input KEY INPUT.

34 AVDD AVDD Input ANALOG VDD.

35 AVREF AVREF Input ANALOG REF VOLTAGE.

36 INTP3 P_IN Input POWER FAILURE DETECT.

37 P02 JOG 1 Input JOG VOLUME INPUT 1.

38 P01 JOG 0 Input JOG VOLUME INPUT 0.

39 INTP0 REMOCON Input REMOCON INPUT.

40 VSS VSS — GROUND VOLTAGE.

41 P74 SMUTE Output SYSTEM MUTE CONTROL.

42 P73 T_SOL_B Output TAPE 2 SOLENOID CONTROL.

43 P72 T_SOL_A Output TAPE 1 SOLENOID CONTROL.

44 P71 T_MOTOR Output TAPE MOTOR CONTROL.

45 P70 TIMER LED Output TIMER LED CONTROL.

46 VDD VDD Input (+) POWER SUPPLY.

47* P127 AC RLY_CONT Output AC RELAY CONTROL.

48 P126 SP-RLY Output SPEAKER OUTPUT RELAY CONTROL.

49 P125 SP_DET Input SPEAKER OUTPUT DETECTION.

IC701 RH-iX0427AWZZ: System Microcomputer (IX0427AW) (1/2)

Port Name

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 49 –

CD-BK300W

50 P124 T 1 RUN Input TAPE 1 RUN PULSE INPUT.

51 P123 T 2 RUN Input TAPE 2 RUN PULSE INPUT.

52 P122 CD CLAMP SW Input CD CHANGER CLAMP SWITCH.

53 P121 NO USE Input GND

54 P120 PLAY SW_B Input PLAY SWITCH FOR T 2.

55 P117 FPA Input TAPE 2 A-SIDE FULL PROOF.

56 P116 FPB Input TAPE 2 B-SIDE FULL PROOF.

57 P115 MIC SW Input MIC SWITCH.

58 P114 LCK 0 Output LED DRIVER LCK.

59 P113

DISTOUT

Output DESTINATION OUTPUT.

60 FIP39 NO USE Output GND

61 FIP38 KARAOKE LATCH Output KARAOKE LATCH.

62 FIP37 NO USE Output GND

MPEG_POW Output MPEG POWER CONTROL.

63 FIP36 NO USE Output GND

RDS RST/ESS_ACK Output RDS FAN RESET.

64 FIP35 NO USE Input GND

RDS RDDA/ESS_STB Input RDS TRANSMIT DATA INPUT/DSA STROBE.

65 FIP34 NO USE Output GND

RDS RDCL/ESS_DI Output RDS CLOCK/DSA DATA OUTPUT.

66 FIP33 NO USE Input GND

RDS READY/ESS_DO Input RDS READY/DSA DATA INPUT.

67 P103 DIST3 Input DESTINATION INPUT.

FIP32 P22 Output FL DISPLAY DRIVER.

68 P102 DIST2 Input DESTINATION INPUT.

FIP31 P21 Output FL DISPLAY DRIVER.

69 P101 DIST1 Input DESTINATION INPUT.

FIP30 P20 Output FL DISPLAY DRIVER.

70 P100 DIST0 Input DESTINATION INPUT.

FIP29 P19 Output FL DISPLAY DRIVER.

71-78 FIP28-FIP21 P18-P11 Output FL DISPLAY DRIVER.

79 VLOAD VLOAD Input FL DRIVER (-) POWER SUPP. -30 V

80-89 FIP20-FIP11 P10-P1 Output FL DISPLAY DRIVER.

90-100 FIP10-FIP0 G11-G1 Output FL DISPLAY DRIVER.

IC701 RH-iX0427AWZZ: System Microcomputer (IX0427AW) (2/2)

Port Name

Terminal Name

Pin No.

Input/Output

Function

CD-BK300W

– 50 –

IC601 VHiLC75341/-1: Audio Processor (LC75341)

Figure 50 BLOCK DIAGRAM OF IC

222324

123

10 11 12 13 14 15 16

LVref

RVref

CONTROL

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CIRCUIT

LOUT

LBASS

0.1uF

LIN

LSEL0

L2 L1

R1 R2

R3 R4

RSEL0

R1N

RTRELTRE

RBASS

0.1uF

ROUT

Yref

VDD

YSS

CCB

INTERFACE

Tuner

Tape

Video

24 23 22 21 20 19 18 17 16 15 14 13

123456789101112

LC75341

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

VDD

VREF

ROUT

RBASS

RTRB

RIN

RSEL0

– 51 –

CD-BK300W

1 MIC SW Input Microphone SW L: MIC OFF, H: MIC ON

2 MCLKCONT — Clock Control.

Controls built-in clock generation circuit with external R.

3 VALC — ALC operating voltage setting terminal.

To set ALC operating voltage according to applied voltage.

4 MIC1 IN Input Microphone 1 input.

To connect MIC 1.

5* ALC1 — ALC1 control.

To connect ALC1 attack/recovery time setting capacitor.

6* MIC1NFIN Input Microphone 1 negative feedback input.

To connect low cut-off frequency of MIC1 amplifier setting capacitor.

7* MIC1 OUT Output Microphone 1 output.

8 MIC1 VOLIN Input Microphone 1 volume input.

To connect capacitor to reduce noise generated at time of volume change.

9 MIC2 IN Input Microphone 2 input.

To connect MIC 2.

10 ALC2 — ALC2 control.

To connect ALC2 attack/recovery time setting capacitor.

11 MIC2 NFIN Input Microphone 2 negative feedback input.

To connect low cut-off frequency of MIC2 amplifier setting capacitor.

12 MIC2 OUT Output Microphone 2 output.

13 MIC2 VOLIN Input Microphone 2 volume input.

To connect capacitor to reduce noise generated at time of volume change.

14 MICOUT Output Microphone output.

Mixing output of MIC 1 and MIC 2.

15 LPF1IN1 Input Low pass filter 1 input 1.

Pre-filter before A/D convertor for digital delay.

16 LPF1 IN2 Input Low pass filter 1 input 2.

Pre-filter before A/D convertor for digital delay.

17 LPF1 OUT Output Low pass filter 1 output.

Pre-filter before A/D convertor for digital delay.

18 AD INTOUT Output A/D integrator output.

Composes D/A conversion integrator with external capacitor.

19 AD INTIN Input A/D integrator input.

Composes D/A conversion integrator with external capacitor.

20 ADCONT — A/D control.

To determine adaptive time constant of A/D convertor with ADM system.

21 REF — Reference power output.

To connect 1/2 Vcc output and filter capacitor.

22 GND — Ground.

23 VCC Input Power supply.

24 DACONT — D/A control.

To determine adaptive time constant of D/A convertor with ADM system .

25 DAINTIN Input D/A Integrator input.

Composes D/A conversion integrator with external capacitor.

26 DAINTOUT Output D/A Integrator output.

Composes D/A conversion integrator with external capacitor.

27 LPF2IN1 Input Low pass filter 2 input 1.

Post-filter after D/A convertor for digital delay.

28 LPF2IN2 Input Low pass filter 2 input 2.

Post-filter after D/A convertor for digital delay.

29 LPF2OUT Output Low pass filter 2 output.

Post-filter after D/A convertor for digital delay.

30 VOLIN Input Echo effect/Echo feed back volume input.

To connect capacitor to reduce noise generated at time of volume change.

31 L IN Input Lch line input.

32 R IN Input Rch line input.

ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (1/2)

Port NamePin No. Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-BK300W

– 52 –

ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (2/2)

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

33* KEYCONIN Input Monaural input for external KEYCONTROL IC.

Input/Output interface terminal for external KEYCONTROL IC.

34* SOURCEOUT Output Monaural input for external KEYCONTROL IC.

Input/Output interface terminal for external KEYCONTROL IC.

35 R OUT Output Rch mixing output.

36 L OUT Output Lch mixing output.

37 VCF IL — Vocal cut filter.

Processes frequencies lower then the vocal band.

38* PS1 Input Phase shift input 1.

Determines a constant at time of phase shift.

39* PS2 Input Phase shift input 2.

Determines a constant at time of phase shift.

40 LATCH Input Latch input via serial bus.

41 CLOCK Input Clock input via serial bus.

42 DATA Input Data input via serial bus.

DATA

CLOCK

LATCH

PS2

PS1

VCFIL

LOUT

ROUT

SOURCEOUT

KEYCONIN

RIN

LIN

VOLIN

LPF2OUT

LPF2IN2

LPF2IN1

DAINTOUT

DAINTIN

DACONT

VCC

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

GND

MIC SW

MCLKCONT

VALC

MIC1IN

ALC1

MCLK

MIC

VOL

MIC SW

(L,R)/2

L R STEREO

MIC1NFIN

MIC1OUT

MIC1VOLIN

MIC2IN

ALC2

MIC2NFIN

MIC2OUT

MIC2VOLIN

MICOUT

LPF1IN1

LPF1IN2

LPF1OUT

ADINTOUT

ADINTIN

ADCONT

REF

µ-COM I/F

PHASE

SHIFTER

SURROUND

ALC

MIC

VOL

ECHO

VOL

ECHO

F.BVOL

LPF

16kbit

SRAM

MAIN LOGIC

LPF D/A

VCC GND

1/ZVcc

Figure 52 BLOCK DIAGRAM OF IC

Port NamePin No.

Input/Output

– 53 –

CD-BK300W

FL701 VVKBJ11LM02T1: FL Display

FL DISPLAY

B1 B2 B3 B4 B5 B6 B7

B7 B6 B5 B4 B3 B2 B1

1G 2G 3G 4G 5G 6G 7G 8G

11G 10G

B10

B11

B12

B13

B14

S1S1

col

B21

B20

B19

B18

B17

B16

B15

11G

10G

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

col

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

P22

(Hiper)

(Lower)

CD-BK300W

– 54 –

–– MEMO ––

– 55 –

CD-BK300W

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

CD-BK300W Mini Component System consisting of

CD-BK300W (main unit) and CP-BK300 (speaker system).

MINI COMPONENT SYSTEM

MODEL CD-BK300W

PRICE

RANK

DESCRIPTIONNO. PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK300W

– 1 –

INTEGRATED CIRCUITS

IC1 VHILC78645E-1 J AY CD Servo,LC78645E

IC2 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,

M63001FP

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S

IC601 VHILC75341/-1 J AM Audio Processor,LC75341

IC701 RH-IX0427AWZZ J System Microcomputer,

IX0427AW

IC702,703 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

IC704 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F

IC901 VHISTK40271-1 J AZ Power Amp.,STK40271

IC902 VHISTK4029S-1 J BA Power Amp.,STK4029S

IC903 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

ICK1 VHIM65856SP-1 J AX Mic Amp.,M65856SP

ICK2 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q2 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q3 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F

Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR

Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q603~606 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q701~703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q704,705 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q708 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y

Q821 VHIAN78L05/-1 J AE Constant Voltage Regulator,

AN78L05

Q850 VSKTC2026//-1 J AF Silicon,NPN,KTC2026

Q851 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP

Q852 VHIKIA7805AP1 J AF Constant Voltage Regulator,

KIA7805AP

Q901~909 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q910 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q990 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q991 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

QK1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

DIODES

D1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133

D305 VHDDS1SS133-1 J AB Silicon,DS1SS133

D603,604 VHDDS1SS133-1 J AB Silicon,DS1SS133

D702,703 VHDDS1SS133-1 J AB Silicon,DS1SS133

D705,706 VHDDS1SS133-1 J AB Silicon,DS1SS133

D712,713 VHDDS1SS133-1 J AB Silicon,DS1SS133

D718 VHDDS1SS133-1 J AB Silicon,DS1SS133

D720~723 VHDDS1SS133-1 J AB Silicon,DS1SS133

D802,803 VHDTS6B04GM-1 J AP Silicon,TS6B04GM

D804~810 VHDDS1N404S-1 J AB Silicon,DS1N404S

D816 VHDDS1SS133-1 J AB Silicon,DS1SS133

D901~907 VHDDS1SS133-1 J AB Silicon,DS1SS133

D909 VHDDS1SS133-1 J AB Silicon,DS1SS133

DK1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133

DT704 VHDDS1SS133-1 J AB Silicon,DS1SS133

LED701,702 VHP4204UYT7-1 J AD LED,Yellow,4204UYT7

LED705 VHP4204UYT7-1 J AD LED,Yellow,4204UYT7

LED706~708 VHP4204UGT7-1 J AD LED,Green,4204UGT7

LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7

ZD1 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB

ZD2 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB

ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

ZD701 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C

ZD801 VHEDZ300BSB-1 J AB Zener,30V,DZ300BSB

ZD802 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA

ZD803 VHEDZ130BSC-1 J AB Zener,13V,DZ13BSC

ZD804 VHEDZ110BSB-1 J AB Zener,11V,DZ11BSB

ZD851 VHEDZ2R4BSB-1 J AB Zener,2.4V,DZ2.4BSB

ZDK1 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter

CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

T301 RCILB0065AWZZ J AC FM,OSC

T302 RCILI0017AWZZ J AB FM IF

T303 RCILA0052AWZZ J AE AM Tracking

T306 RCILB0067AWZZ J AD AM,OSC

T351 RCILI0019AWZZ J AD AM IF

1 T801 RTRNP0349AWZZ J Power

COILS

L1 VP-XHR82K0000 J AC 0.82 µH

L103 VP-DH101K0000 J AB 100 µH,Choke

L104 VP-MK331K0000 J AB 330 µH,Choke

L312 RCILR0056AWZZ J AB FM RF

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L902~905 RCILZ0137AFZZ J AA 0.29 µH

VARIABLE RESISTOR

VRK1 92LVRR1674A J AF 20 kohms (B) [Mic Volume]

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

VD302,303 VHCSVC211C/-1 J AG Variable Capacitance,SVC211C

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0015AWZZ J AF Crystal,4.5 MHz

XL1 RCRM-0041AWZZ J AF Ceramic,33.8688 MHz

XL701 RCRSP0003AWZZ J AH Crystal,4.1943 MHz

CAPACITORS

C1 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C2 VCTYMN1CY103N J AA 0.01 µF,16V

C3 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C4 VCKYMN1HB102K J AA 0.001 µF,50V

C5 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar

C6 VCTYPA1CX104K J AB 0.1 µF,16V

C7 VCKYMN1HB101K J AA 100 pF,50V

C8 VCTYMN1CX472K J AA 0.0047 µF,16V

C9 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C10 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C11 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

C12 VCCSPA1HL101J J AA 100 pF,50V

C13 VCTYMN1EF223Z J AA 0.022 µF,25V

C14 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic

C16 VCEAEA0JW337M J AD 330 µF,6.3V,Electrolytic

C18 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C23,24 RC-EZY106AF1H J AB 10 µF,50V,Electrolytic

C25,26 VCTYMN1CX152K J AA 0.0015 µF,16V

C27 VCTYMN1EF223Z J AA 0.022 µF,25V

C28 VCKYMN1HB101K J AA 100 pF,50V

C30 VCKYMN1HB101K J AA 100 pF,50V

C32~34 VCKYMN1HB101K J AA 100 pF,50V

C35 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar

C36 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C37 VCTYPA1CX104K J AB 0.1 µF,16V

C38 VCTYMN1CY103N J AA 0.01 µF,16V

C39 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK300W

C40 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic

C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C42 VCTYMN1CY103N J AA 0.01 µF,16V

C44 VCKYMN1HB102K J AA 0.001 µF,50V

C48 VCKZPA1HF223Z J AA 0.022 µF,50V

C49 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C50 VCCCPA1HH220J J AA 22 pF (CH),50V

C51 VCTYBT1EF223Z J AA 0.022 µF,25V

C101,102 VCKYMN1HB561K J AA 560 pF,50V

C105 VCKYBT1HB181K J AA 180 pF,50V

C106 VCKYMN1HB181K J AA 180 pF,50V

C107,108 VCKYMN1HB561K J AA 560 pF,50V

C109 VCKZPA1HF473Z J AA 0.047 µF,50V

C111~114 VCKYMN1HB331K J AA 330 pF,50V

C115,116 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic

C117,118 VCTYPA1EX333K J AA 0.033 µF,25V

C119,120 VCKYMN1HB561K J AA 560 pF,50V

C121,122 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C123,124 VCTYPA1CX222K J AA 0.0022 µF,16V

C127 VCTYMN1EF223Z J AA 0.022 µF,25V

C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C131,132 VCKYMN1HB271K J AA 270 pF,50V

C133,134 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C135,136 VCKZPA1HF223Z J AA 0.022 µF,50V

C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V

C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C145 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C146 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar

C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C153 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C154 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C303 VCCCMN1HH100J J AA 10 pF (CH),50V

C304 VCTYMN1CY103N J AA 0.01 µF,16V

C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V

C306 VCTYMN1EF223Z J AA 0.022 µF,25V

C307 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C308 VCCUMN1HJ4R7D J AA 4.7 pF (UJ),50V

C309 VCKYMN1HB102K J AA 0.001 µF,50V

C310 VCCCMN1HH150J J AA 15 pF (CH),50V

C311 VCCSMN1HL180J J AA 18 pF,50V

C312 VCTYMN1EF223Z J AA 0.022 µF,25V

C313 VCCCMN1HH220J J AA 22 pF (CH),50V

C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V

C316 VCTYMN1EF223Z J AA 0.022 µF,25V

C317 VCKYMN1HB102K J AA 0.001 µF,50V

C318 VCKYMN1HB101K J AA 100 pF,50V

C323 VCTYMN1EF223Z J AA 0.022 µF,25V

C324 VCCUMN1HJ3R9K J AA 3.9 pF (UJ),50V

C330 VCCSMN1HL150J J AA 15 pF,50V

C331 VCKZPA1HF473Z J AA 0.047 µF,50V

C332 VCTYMN1EF223Z J AA 0.022 µF,25V

C334 VCCCMN1HH220J J AA 22 pF (CH),50V

C335 VCKYMN1HB561K J AA 560 pF,50V

C342 VCTYMN1EF223Z J AA 0.022 µF,25V

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V

C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V

C355 VCCSMN1HL220J J AA 22 pF,50V

C356 VCKYMN1HB102K J AA 0.001 µF,50V

C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCTYMN1EF223Z J AA 0.022 µF,25V

C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCTYMN1EF223Z J AA 0.022 µF,25V

C364 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C365 VCKZPA1HF223Z J AA 0.022 µF,50V

C366 VCKYMN1HB102K J AA 0.001 µF,50V

C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C369 VCCSMN1HL270J J AA 27 pF,50V

C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCTYPA1CX153K J AA 0.015 µF,16V

C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C381 VCCCMN1HH120J J AA 12 pF (CH),50V

C382 VCCCMN1HH150J J AA 15 pF (CH),50V

C384 VCKYMN1HB102K J AA 0.001 µF,50V

C385 VCTYMN1CY103N J AA 0.01 µF,16V

C386 VCKYMN1HB331K J AA 330 pF,50V

C387 VCTYMN1EF223Z J AA 0.022 µF,25V

C388 VCKYMN1HB102K J AA 0.001 µF,50V

C391 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C392 VCKYMN1HB102K J AA 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C395 VCTYMN1EF223Z J AA 0.022 µF,25V

C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C397 VCTYMN1EF223Z J AA 0.022 µF,25V

C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C399 VCTYMN1EF223Z J AA 0.022 µF,25V

C401 VCCSPA1HL150J J AA 15 pF,50V

C602 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C603 VCQYKA1HM102K J AA 0.001 µF,50V,Mylar

C604 VCTYMN1EF223Z J AA 0.022 µF,25V

C605 VCKZPA1HF223Z J AA 0.022 µF,50V

C606 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C607~610 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C611,612 VCTYMN1CX272K J AA 0.0027 µF,16V

C613,614 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C615,616 VCKYMN1HB102K J AA 0.001 µF,50V

C617~620 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C621,622 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C631,632 VCKYMN1HB391K J AA 390 pF,50V

C635,636 VCKYMN1HB102K J AA 0.001 µF,50V

C641,642 VCTYPA1CX332K J AA 0.0033 µF,16V

C701 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C702 VCTYMN1EF223Z J AA 0.022 µF,25V

C714 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C715 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C719 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C720,721 VCKYMN1HB102K J AA 0.001 µF,50V

C722 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C723 VCCSMN1HL150J J AA 15 pF,50V

C724 VCCSMN1HL180J J AA 18 pF,50V

C725 VCTYMN1EF223Z J AA 0.022 µF,25V

C726 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C728 VCTYMN1CY103N J AA 0.01 µF,16V

C729 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C732 VCTYMN1EF223Z J AA 0.022 µF,25V

C733 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C801,802 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic

C803~806 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C807,808 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C809 VCEAZV1JW227M J AC 220 µF,63V,Electrolytic

C810,811 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C812 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic

C813,814 RC-EZ0027AWZZ J AN 3300 µF,63V,Electrolytic

C815 VCKZPA1HF223Z J AA 0.022 µF,50V

C816 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C820 VCEAZV1EW228M J AG 2200 µF,25V,Electrolytic

C828,829 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C830 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C832,833 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C835 VCEAZW1CW478M J AG 4700 µF,16V,Electrolytic

C851 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C852 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C855,856 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C857 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C858,859 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C860 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C901,902 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C903,904 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C905 VCKZPA1HF223Z J AA 0.022 µF,50V

C906,907 VCCSPA1HL221J J AA 220 pF,50V

C908 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C909,910 VCCSPA1HL150J J AA 15 pF,50V

C911 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C912 VCKZPA1HF223Z J AA 0.022 µF,50V

C914 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C918,919 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C920,921 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C922,923 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C924,925 VCKZPA1HF223Z J AA 0.022 µF,50V

C926,927 VCCSPA1HL221J J AA 220 pF,50V

C928,929 VCCSPA1HL150J J AA 15 pF,50V

C930,931 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C932 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C935,936 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C937 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C938 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C939,940 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester

C941,942 VCTYPA1CX153K J AA 0.015 µF,16V

C943,944 VCCSPA1HL221J J AA 220 pF,50V

– 2 –

PRICE

RANK

DESCRIPTION

NO.

PARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK300W

C945,946 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester

C947,948 VCCSPA1HL101J J AA 100 pF,50V

C949,950 VCKZPA1HF223Z J AA 0.022 µF,50V

C951,952 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C953 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C954,955 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester

C956 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C957 VCKZPA1HF223Z J AA 0.022 µF,50V

C958,959 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C960,961 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C986 VCKZPA1HF223Z J AA 0.022 µF,50V

C990 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

CK1 VCTYPA1CX103K J AA 0.01 µF,16V

CK2 VCFYHA1HA474J J AD 0.47 µF,50V,Thin Film

CK3 VCKYBT1HB102K J AA 0.001 µF,50V

CK6 VCFYDA1HA104J J AB 0.1 µF,50V,Thin Film

CK7 VCFYHA1HA474J J AD 0.47 µF,50V,Thin Film

CK8 RC-EZY475AF1H J AB 4.7 µF,50V,Electrolytic

CK9 RC-EZY225AF1H J AB 2.2 µF,50V,Electrolytic

CK10,11 VCFYDA1HA104J J AB 0.1 µF,50V,Thin Film

CK12 RC-EZY225AF1H J AB 2.2 µF,50V,Electrolytic

CK13 VCTYPA1CX472K J AA 0.0047 µF,16V

CK14 VCTYPA1CX102K J AA 0.001 µF,16V

CK15 VCFYDA1HA683J J AB 0.068 µF,50V,Polyester

CK16 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film

CK17 VCEAEA1AW227M J 220 µF,10V,Electrolytic

CK18 VCEAEA1CW107M J 100 µF,16V,Electrolytic

CK19 VCTYBT1EF223Z J AA 0.022 µF,25V

CK20 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film

CK21 VCFYDA1HA683J J AB 0.068 µF,50V,Polyester

CK22 VCTYPA1CX472K J AA 0.0047 µF,16V

CK23 VCKYPA1HB102K J AA 0.001 µF,50V

CK24~26 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CK29,30 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CK31 VCFYDA1HA154J J AB 0.15 µF,50V,Polyester

CK33~35 VCCSBT1HL470J J AA 47 pF,50V

CK41 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

CK42 VCTYBT1EF223Z J AA 0.022 µF,25V

CK43,44 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

CK45,46 RC-EZY225AF1H J AB 2.2 µF,50V,Electrolytic

CK47,48 VCCSPA1HL221J J AA 220 pF,50V

CK49,50 VCCSPA1HL101J J AA 100 pF,50V

CK51,52 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

CK53 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

CK72 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

CS701,702 VCKYMN1HB271K J AA 270 pF,50V

CS703,704 VCTYMN1CX272K J AA 0.0027 µF,16V

CS705 VCTYMN1EF223Z J AA 0.022 µF,25V

CS706,707 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CS708,709 VCTYMN1EF223Z J AA 0.022 µF,25V

CS710 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CS711,712 VCTYMN1CX682K J AA 0.0068 µF,16V

CS713 VCTYMN1EF223Z J AA 0.022 µF,25V

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

R1,2 VRD-ST2CD123J J AA 12 kohms,1/6W

R3 VRD-ST2CD333J J AA 33 kohms,1/6W

R4,5 VRD-ST2CD123J J AA 12 kohms,1/6W

R6 VRD-ST2CD333J J AA 33 kohms,1/6W

R7 VRD-ST2CD470J J AA 47 ohms,1/6W

R9 VRD-ST2CD3R3J J AA 3.3 ohms,1/6W

R10 VRD-ST2CD273J J AA 27 kohms,1/6W

R11 VRD-MN2BD103J J AA 10 kohm,1/8W

R12 VRD-MN2BD331J J AA 330 ohms,1/8W

R13~17 VRD-MN2BD102J J AA 1 kohm,1/8W

R18 VRD-ST2CD102J J AA 1 kohm,1/6W

R19 VRD-ST2CD153J J AA 15 kohms,1/6W

R20 VRD-ST2CD103J J AA 10 kohm,1/6W

R22 VRD-ST2CD101J J AA 100 ohm,1/6W

R23 VRD-MN2BD221J J AA 220 ohms,1/8W

R24,25 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R26,27 VRD-MN2BD103J J AA 10 kohm,1/8W

R28,29 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R30 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R31~38 VRD-ST2CD102J J AA 1 kohm,1/6W

R39,40 VRD-MN2BD681J J AA 680 ohms,1/8W

R41 VRD-MN2BD123J J AA 12 kohms,1/8W

R42 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R43 VRD-MN2BD221J J AA 220 ohms,1/8W

R44 VRD-ST2CD123J J AA 12 kohms,1/6W

R45,46 VRD-MN2BD471J J AA 470 ohms,1/8W

R47 VRD-MN2BD101J J AA 100 ohm,1/8W

R49 VRD-ST2EE1R0J J AA 1 ohm,1/4W

R101,102 VRD-MN2BD102J J AA 1 kohm,1/8W

R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R105 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R106 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W

R109,110 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R111,112 VRD-MN2BD153J J AA 15 kohms,1/8W

R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W

R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R117,118 VRD-MN2BD102J J AA 1 kohm,1/8W

R119,120 VRD-ST2CD560J J AA 56 ohms,1/6W

R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W

R123,124 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R131,132 VRD-MN2BD333J J AA 33 kohms,1/8W

R134 VRD-ST2CD683J J AA 68 kohms,1/6W

R135 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R136 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R137,138 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R139,140 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R141,142 VRD-MN2BD101J J AA 100 ohm,1/8W

R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W

R153,154 VRD-MN2BD103J J AA 10 kohm,1/8W

R155 VRD-ST2EE151J J AA 150 ohms,1/4W

R156,157 VRD-ST2CD224J J AA 220 kohms,1/6W

R158 VRD-ST2EE221J J AA 220 ohms,1/4W

R160 VRD-RT2HD820J J AA 82 ohms,1/2W

R162 VRD-MN2BD473J J AA 47 kohms,1/8W

R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R166 VRD-MN2BD223J J AA 22 kohms,1/8W

R167 VRD-MN2BD473J J AA 47 kohms,1/8W

R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R302 VRD-MN2BD100J J AA 10 ohm,1/8W

R309 VRD-ST2CD103J J AA 10 kohm,1/6W

R311 VRD-MN2BD104J J AA 100 kohm,1/8W

R313 VRD-MN2BD333J J AA 33 kohms,1/8W

R314 VRD-ST2CD220J J AA 22 ohms,1/6W

R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R322 VRD-MN2BD681J J AA 680 ohms,1/8W

R323 VRD-MN2BD683J J AA 68 kohms,1/8W

R325 VRD-MN2BD473J J AA 47 kohms,1/8W

R326 VRD-MN2BD820J J AA 82 ohms,1/8W

R327 VRD-MN2BD330J J AA 33 ohms,1/8W

R336 VRD-MN2BD103J J AA 10 kohm,1/8W

R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W

R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R352 VRD-MN2BD102J J AA 1 kohm,1/8W

R353 VRD-MN2BD271J J AA 270 ohms,1/8W

R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R356 VRD-MN2BD102J J AA 1 kohm,1/8W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R361~365 VRD-MN2BD103J J AA 10 kohm,1/8W

R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W

R375 VRD-ST2CD471J J AA 470 ohms,1/6W

R376 VRD-MN2BD102J J AA 1 kohm,1/8W

R377 VRD-MN2BD473J J AA 47 kohms,1/8W

R378 VRD-MN2BD102J J AA 1 kohm,1/8W

R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R381 VRD-MN2BD103J J AA 10 kohm,1/8W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R386 VRD-ST2CD223J J AA 22 kohms,1/6W

R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W

R393 VRD-MN2BD102J J AA 1 kohm,1/8W

R395 VRD-MN2BD473J J AA 47 kohms,1/8W

R601~603 VRD-MN2BD102J J AA 1 kohm,1/8W

R605,606 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R607,608 VRD-ST2CD103J J AA 10 kohm,1/6W

R609,610 VRD-MN2BD331J J AA 330 ohms,1/8W

R611,612 VRD-MN2BD392J J AA 3.9 kohms,1/8W

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK300W

R613,614 VRD-MN2BD331J J AA 330 ohms,1/8W

R615,616 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R617,618 VRD-MN2BD102J J AA 1 kohms,1/8W

R619,620 VRD-MN2BD223J J AA 22 kohms,1/8W

R621,622 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R631,632 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R633,634 VRD-MN2BD153J J AA 15 kohms,1/8W

R637,638 VRD-MN2BD474J J AA 470 kohms,1/8W

R700 VRD-MN2BD103J J AA 10 kohm,1/8W

R701 VRD-MN2BD104J J AA 100 kohm,1/8W

R702 VRD-ST2CD102J J AA 1 kohm,1/6W

R703 VRD-ST2CD103J J AA 10 kohm,1/6W

R704 VRD-MN2BD104J J AA 100 kohm,1/8W

R705 VRD-ST2CD102J J AA 1 kohm,1/6W

R706 VRD-ST2CD103J J AA 10 kohm,1/6W

R713,714 VRD-MN2BD103J J AA 10 kohm,1/8W

R716 VRD-MN2BD104J J AA 100 kohm,1/8W

R717,718 VRD-MN2BD103J J AA 10 kohm,1/8W

R719 VRD-ST2CD102J J AA 1 kohm,1/6W

R720 VRD-MN2BD103J J AA 10 kohm,1/8W

R721 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R724 VRD-ST2CD330J J AA 33 ohms,1/6W

R725 VRD-MN2BD103J J AA 10 kohm,1/8W

R727,728 VRD-MN2BD473J J AA 47 kohms,1/8W

R736,737 VRD-MN2BD103J J AA 10 kohm,1/8W

R738~742 VRD-ST2CD102J J AA 1 kohm,1/6W

R743 VRD-MN2BD102J J AA 1 kohm,1/8W

R744,745 VRD-ST2CD102J J AA 1 kohm,1/6W

R746 VRD-MN2BD103J J AA 10 kohm,1/8W

R747 VRD-ST2CD102J J AA 1 kohm,1/6W

R748 VRD-MN2BD102J J AA 1 kohm,1/8W

R749 VRD-MN2BD103J J AA 10 kohm,1/8W

R751 VRD-MN2BD102J J AA 1 kohm,1/8W

R752 VRD-MN2BD103J J AA 10 kohm,1/8W

R753 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R754~756 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R757 VRD-MN2BD103J J AA 10 kohm,1/8W

R758~761 VRD-ST2CD102J J AA 1 kohm,1/6W

R762 VRD-MN2BD102J J AA 1 kohm,1/8W

R763~765 VRD-MN2BD103J J AA 10 kohm,1/8W

R766~768 VRD-MN2BD102J J AA 1 kohm,1/8W

R769 VRD-ST2CD102J J AA 1 kohm,1/6W

R770 VRD-MN2BD102J J AA 1 kohm,1/8W

R771~774 VRD-ST2CD102J J AA 1 kohm,1/6W

R775~777 VRD-ST2CD102J J AA 1 kohm,1/6W

R778 VRD-MN2BD102J J AA 1 kohm,1/8W

R779~782 VRD-ST2CD102J J AA 1 kohm,1/6W

R783~791 VRD-MN2BD102J J AA 1 kohm,1/8W

R792,793 VRD-MN2BD103J J AA 10 kohm,1/8W

R794 VRD-ST2CD102J J AA 1 kohm,1/6W

R795 VRD-MN2BD103J J AA 10 kohm,1/8W

R796 VRD-MN2BD473J J AA 47 kohms,1/8W

R797 VRD-MN2BD104J J AA 100 kohm,1/8W

R799 VRD-MN2BD101J J AA 100 ohm,1/8W

R801 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R802 VRD-ST2EE100J J AA 10 ohm,1/4W

R803 VRD-ST2CD123J J AA 12 kohms,1/6W

R804 VRD-ST2CD473J J AA 47 kohms,1/6W

R805 VRD-ST2EE223J J AA 22 kohms,1/4W

R806 VRS-VV3DA681J J AC 680 ohms,2W

R807 VRD-ST2CD473J J AA 47 kohms,1/6W

R814 VRD-ST2CD224J J AA 220 kohms,1/6W

R819,820 VRD-ST2EE223J J AA 22 kohms,1/4W

R821,822 VRD-ST2EE470J J AA 47 ohms,1/4W

R852 VRD-ST2EE223J J AA 22 kohms,1/4W

R853 VRD-ST2CD223J J AA 22 kohms,1/6W

R854 VRD-ST2CD103J J AA 10 kohm,1/6W

R856 VRD-ST2EE561J J AA 560 ohms,1/4W

1 R901 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R902 VRD-ST2CD223J J AA 22 kohms,1/6W

R903,904 VRD-ST2CD563J J AA 56 kohms,1/6W

R906,907 VRD-ST2CD821J J AA 820 ohms,1/6W

R908,909 VRD-ST2CD102J J AA 1 kohm,1/6W

1 R910 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R911,912 VRN-VV3AAR10J J AB 0.1 ohm,1W

R913,914 VRD-ST2CD102J J AA 1 kohm,1/6W

R915,916 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R917,918 VRD-ST2CD102J J AA 1 kohm,1/6W

R919~921 VRD-ST2CD563J J AA 56 kohms,1/6W

R922,923 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W

1 R924,925 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R926 VRD-ST2CD223J J AA 22 kohms,1/6W

R927,928 VRD-ST2CD563J J AA 56 kohms,1/6W

R929,930 VRD-ST2CD821J J AA 820 ohms,1/6W

R931,932 VRD-ST2CD102J J AA 1 kohm,1/6W

R933,934 VRN-VV3AAR10J J AB 0.1 ohm,1W

R935,936 VRD-ST2CD123J J AA 12 kohms,1/6W

R937,938 VRD-ST2CD102J J AA 1 kohm,1/6W

R939~941 VRD-ST2CD563J J AA 56 kohms,1/6W

R942,943 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W

R944~947 VRD-RT2HD331J J AA 330 ohms,1/2W

R948~951 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R952 VRD-ST2CD153J J AA 15 kohms,1/6W

R953 VRD-ST2CD683J J AA 68 kohms,1/6W

R954 VRD-ST2CD102J J AA 1 kohm,1/6W

R956,957 VRD-ST2CD183J J AA 18 kohms,1/6W

R958,959 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R960,961 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R962,963 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R964,965 VRD-ST2CD183J J AA 18 kohms,1/6W

R966,967 VRD-ST2EE331J J AA 330 ohms,1/4W

R968,969 VRD-ST2CD102J J AA 1 kohm,1/6W

R970,971 VRD-ST2CD683J J AA 68 kohms,1/6W

R972,973 VRD-ST2CD104J J AA 100 kohm,1/6W

R974,975 VRD-ST2CD683J J AA 68 kohms,1/6W

R976,977 VRD-ST2CD102J J AA 1 kohm,1/6W

R979 VRD-ST2CD102J J AA 1 kohm,1/6W

R980 VRD-ST2CD103J J AA 10 kohm,1/6W

R983~986 VRS-VV3DAR22J J AB 0.22 ohms.2W

R993~996 VRS-VV3DAR22J J AB 0.22 ohms.2W

R997 VRD-ST2CD101J J AA 100 ohm,1/6W

RD01 VRD-MN2BD681J J AA 680 ohms,1/8W

RD02 VRD-MN2BD821J J AA 820 ohms,1/8W

RD03 VRD-MN2BD102J J AA 1 kohm,1/8W

RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RD05 VRD-MN2BD222J J AA 2.2 kohms,1/8W

RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W

RD07 VRD-MN2BD392J J AA 3.9 kohms,1/8W

RD08 VRD-MN2BD562J J AA 5.6 kohms,1/8W

RD09 VRD-MN2BD103J J AA 10 kohm,1/8W

RD10 VRD-MN2BD183J J AA 18 kohms,1/8W

RD11 VRD-MN2BD333J J AA 33 kohms,1/8W

RD12 VRD-MN2BD104J J AA 100 kohm,1/8W

RD13 VRD-MN2BD681J J AA 680 ohms,1/8W

RD14 VRD-MN2BD821J J AA 820 ohms,1/8W

RD15 VRD-ST2CD184J J AA 180 kohms,1/6W

RD25 VRD-MN2BD681J J AA 680 ohms,1/8W

RD26 VRD-MN2BD821J J AA 820 ohms,1/8W

RD27 VRD-MN2BD102J J AA 1 kohm,1/8W

RD28 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RD29 VRD-MN2BD222J J AA 2.2 kohms,1/8W

RD30 VRD-MN2BD272J J AA 2.7 kohms,1/8W

RD31 VRD-MN2BD392J J AA 3.9 kohms,1/8W

RD32 VRD-MN2BD562J J AA 5.6 kohms,1/8W

RD33 VRD-MN2BD103J J AA 10 kohm,1/8W

RD34 VRD-MN2BD153J J AA 15 kohms,1/8W

RD35 VRD-MN2BD333J J AA 33 kohms,1/8W

RD36 VRD-MN2BD104J J AA 100 kohm,1/8W

RK1 VRD-ST2CD103J J AA 10 kohm,1/6W

RK2,3 VRD-ST2CD563J J AA 56 kohms,1/6W

RK4 VRD-ST2CD103J J AA 10 kohm,1/6W

RK5 VRD-ST2CD102J J AA 1 kohm,1/6W

RK7 VRD-ST2CD102J J AA 1 kohm,1/6W

RK8 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RK9~11 VRD-ST2CD102J J AA 1 kohm,1/6W

RK12 VRD-ST2CD101J J AA 100 ohm,1/6W

RK13 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RK14,15 VRD-RT2HD101J J AA 100 ohm,1/2W

RK36,37 VRD-ST2CD391J J AA 390 ohms,1/6W

RK38 VRD-ST2CD101J J AA 100 ohm,1/6W

RK39,40 VRD-ST2CD102J J AA 1 kohm,1/6W

RK41,42 VRD-ST2CD103J J AA 10 kohm,1/6W

RK43 VRD-ST2CD183J J AA 18 kohms,1/6W

RK44,45 VRD-ST2CD682J J AA 6.8 kohms,1/6W

RK46 VRD-ST2CD183J J AA 18 kohms,1/6W

RK47 VRD-ST2CD822J J AA 18 kohms,1/6W

RK48 VRD-ST2CD103J J AA 10 kohm,1/6W

RK49,50 VRD-ST2CD103J J AA 10 kohm,1/6W

RL701,702 VRD-ST2CD102J J AA 1 kohm,1/6W

RL705 VRD-ST2CD102J J AA 1 kohm,1/6W

RL706~708 VRD-MN2BD102J J AA 1 kohms,1/8W

RS701 VRD-MN2BD333J J AA 33 kohms,1/8W

RS702 VRD-MN2BD103J J AA 10 kohm,1/8W

RS703 VRD-MN2BD683J J AA 68 kohms,1/8W

– 4 –

PRICE

RANK

DESCRIPTIONNO. PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK300W

RS704 VRD-MN2BD224J J AA 220 kohms,1/8W

RS705 VRD-MN2BD123J J AA 12 kohms,1/8W

RS706 VRD-MN2BD224J J AA 220 kohms,1/8W

RS707 VRD-MN2BD394J J AA 390 kohms,1/8W

RS708 VRD-ST2EE271J J AA 270 ohms,1/4W

RS709 VRD-MN2BD154J J AA 150 kohms,1/8W

RS710 VRD-ST2EE271J J AA 270 ohms,1/4W

RS711 VRD-MN2BD104J J AA 100 kohm,1/8W

RS712 VRD-MN2BD824J J AA 820 kohms,1/8W

RS713 VRD-ST2CD104J J AA 100 kohm,1/6W

RS714 VRD-MN2BD225J J AA 2.2 Mohms,1/8W

RS715 VRD-MN2BD104J J AA 100 kohm,1/8W

RS716 VRD-MN2BD105J J AA 1 Mohm,1/8W

RS717 VRD-MN2BD474J J AA 470 kohms,1/8W

RS718 VRD-MN2BD563J J AA 56 kohms,1/8W

RS719 VRD-ST2CD153J J AA 15 kohms,1/6W

RS720 VRD-MN2BD184J J AA 180 kohms,1/8W

OTHER CIRCUITRY PARTS

BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin

BI11/CNS11 QCNWN1842AWZZ J AG Connector Ass’y,6/6Pin

BI102/CNS102 QCNWN1974AWZZ J Connector Ass’y,7/7Pin

BI602/CNS602 QCNWN1876AWZZ J Connector Ass’y,10/10Pin

BI703/CNS703 QCNWN1843AWZZ J AH Connector Ass’y,9/9Pin

BI901/CNS901 QCNWN1995AWZZ J Connector Ass’y,5/5Pin

BI903/CNS903 QCNWN1994AWZZ J Connector Ass’y,7/7Pin

CNP1 QCNCM704GAWZZ J AC Plug,7Pin

CNP2 QCNCM704HAWZZ J AC Plug,8Pin

CNP3 92LCONE6P53253 J AC Plug,6Pin

CNP4 QCNCM705FAFZZ J AB Plug,6Pin

CNP7 92LCONE6P53254 J AC Plug,6Pin

CNP8 92LCONE9P53254 J AD Plug,9Pin

CNP101 QCNCM705CAFZZ J AA Plug,3Pin

CNP301 92LCONE2P5268 J AB Plug,2Pin

CNP601 QCNCWZX27AWZZ J Socket,27Pin

CNP701 QCNCWZF27AWZZ J AE Plug,27Pin

CNP702 QCNCWZY10AWZZ J Socket,10Pin

CNP705 92LCONE5P52287 J AC Socket,5Pin

CNP803 92LCONE2P53253 J AB Plug,2Pin

CNP804 92LCONE2P53253 J AB Plug,2Pin

CNP901 92LCONE5P5267 J AB Plug,5Pin

CNP902 QCNCM010KAWZZ J AC Plug,10Pin

CNP903 92LCONE7P53253 J AC Plug,7Pin

CNPK1 QCNCM705KAWZZ J AC Plug,10Pin

CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin

CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin

CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin

CNS803 QCNWN1841AWZZ J AD Connector,2Pin

CNS804 QCNWN1841AWZZ J AD Connector,2Pin

CNS902 QCNCW010KAWZZ J AD Connector,10Pin

1 F801,802 QFS-D402CAWNI J AC Fuse,T4A L 250V

1 F803,804 QFS-D502CAWNI J AC Fuse,T5A L 250V

1 F805,806 QFS-D202CAWNI J AC Fuse,T2A L 250V

FC701 QCNWN1960AWZZ J Flat Cable,27Pin

FC702 QCNWN1845AWZZ J Flat Cable,10Pin

FL701 VVKBJ11LM02T1 J BC FL Display

FW801 QCNWN1836AWZZ J AD Flat Wire,5Pin

JK1 QJAKJ0007AWZZ J AF Jack,Mic

JK601 QSOCJ0219AWZZ J AD Jack,Video/AUX

JK670 QJAKM0004AWZZ J AK Jack,Headphones

JOG701 QSW-Z0014AWZZ J AF Switch,Push Type [Jog,Volume]

LG901,902 92LLUG1746A J AA Lug Terminal

LG903 QLUGP0001AWZZ J AC Lug

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

M3 92LTWMEN7E6Y J AR Motor with Worm Pulley

[T/T Up/Down Loading]

M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

M902 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

PINK1 QLUGP0002AWZZ J AB Lug

RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A

RY901,902 RRLYD0016AWZZ J AH Relay

SO302 QTANC0206AWZZ J AD Terminal,Antenna

SO901 QTANA0810AWZZ J AF Terminal,Speaker

SW1 SWMPU10780MLB J AH Switch,Push Type [Open/Close]

SW2 SWMPU11470MLB J AE Switch,Push Type [Clamp]

SW3 SWMPU11470MLB J AE Switch,Push Type [Disc Number]

SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pick Up In]

SW601 QSW-S0024AWZZ J AE Switch,Slide Type

[Span Selector]

SW701 92LSWICHT1663T J AC Switch,Key Type [ON/Stand-by]

SW702 92LSWICHT1663T J AC Switch,Key Type [Clock]

SW703 92LSWICHT1663T J AC Switch,Key Type [Timer]

SW709 92LSWICHT1663T J AC Switch,Key Type [Disc 1]

SW710 92LSWICHT1663T J AC Switch,Key Type [Disc 2]

SW711 92LSWICHT1663T J AC Switch,Key Type [Disc 3]

SW712 92LSWICHT1663T J AC Switch,Key Type [Disc Skip]

SW713 92LSWICHT1663T J AC Switch,Key Type [Open/Close]

SW714 92LSWICHT1663T J AC Switch,Key Type [Dimmer]

SW715 92LSWICHT1663T J AC Switch,Key Type [X-Bass]

SW716 92LSWICHT1663T J AC Switch,Key Type [Equalizer]

SW717 92LSWICHT1663T J AC Switch,Key Type

[Reverse Mode]

SW722 92LSWICHT1663T J AC Switch,Key Type [CD]

SW723 92LSWICHT1663T J AC Switch,Key Type [Tape]

SW724 92LSWICHT1663T J AC Switch,Key Type [Tuning Down]

SW725 92LSWICHT1663T J AC Switch,Key Type [Memory Set]

SW726 92LSWICHT1663T J AC Switch,Key Type [Fast Rewind]

SW727 92LSWICHT1663T J AC Switch,Key Type [Fast Forward]

SW728 92LSWICHT1663T J AC Switch,Key Type [Play]

SW729 92LSWICHT1663T J AC Switch,Key Type [Stop]

SW730 92LSWICHT1663T J AC Switch,Key Type [Reverse Play]

SW731 92LSWICHT1663T J AC Switch,Key Type [REC/Pause]

SW732 92LSWICHT1663T J AC Switch,Key Type [Tuning Up]

SW733 92LSWICHT1663T J AC Switch,Key Type [Video]

SW734 92LSWICHT1663T J AC Switch,Key Type [Tuner]

1 SW801 QSOCE0008AWZZ J AH Switch,Slide Type

[Voltage Selector]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0080AWZZ J AC Rail,Guide

304 NSFTM0020AWFW J AD Shaft,Guide

305 92LM-CUSN1524A J AC Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— –– Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

701 XBSSD26P06000 J AA Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 XBBSD20P03000 J AA Screw,ø2×3mm

704 LX-WZ1070AFZZ J AA Washer,ø1.5×3.8×0.25mm

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

CABINET PARTS

201 92LCAB3533AASY J Front Cabinet Ass’y

201- 1 ———— –– Front Panel

(Not Replacement Item)

201- 2 GDORF0097AWSA J AE Holder,Cassette [Tape 1]

201- 3 GDORF0098AWSA J AE Holder,Cassette [Tape 2]

201- 4 GCOVA1352AWSA J AH Cover,Cassette [Tape 1]

201- 5 GCOVA1384AWSA J Cover,Cassette [Tape 2]

201- 6 HDECQ0670AWSA J AE Panel,Cassette [Tape 1]

201- 7 HDECQ0671AWSA J AE Panel,Cassette [Tape 2]

201- 8 HDECQ0745AWSA J Panel,Amp.

201- 9 JKNBZ0820AWSA J Button,ON/Stand-by

201-10 JKNBZ0766AWSA J AG Button,Dimmer/Tuning

201-11 JKNBZ0768AWSA J AE Button,Function

201-12 HDECQ0674AWSA J AE Volume Ring

201-13 JKNBZ0800AWSA J Button,Disc Control

201-14 JKNBZ0801AWSA J Button,Center Operation

201-15 MLIFP0008AWZZ J AD Damper

201-16 JKNBZ0773AWSA J AG Button,X-Bass/Equalizer

201-17 92LBADGE1671A J AC Badge,SHARP

201-18 GCOVA1339AWSA J AB Cover,LED,Power

201-19 GCOVA1380AWSA J Cover,LED,A

201-20 GCOVA1381AWSA J Cover,LED,B

201-21 LHLDZ1327AWZZ J Holder,Button Block

201-22 MLOKC0006AWZZ J AB Lock Lever,Cassette [Tape 1]

201-23 MLOKC0007AWZZ J AB Lock Lever,Cassette [Tape 2]

201-24 LHLDZ1328AWZZ J AC Holder,Cassette Lock

201-25 GCOVA1382AWSA J Cover,LED,C

201-26 GCOVA1344AWSA J Cover,Disc No.LED,A

201-27 GCOVA1345AWSA J Cover,Disc No.LED,B

201-28 GCOVA1346AWSA J Cover,Disc No.LED,C

201-30 MSPRC0029AWFJ J AB Spring,Cassette Lock

– 5 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK300W

201-31 JKNBK0084AWSA J AE Button,Volume

201-32 GCOVA1394AWSA J Cover,Remote Control Sensor

202 92LCAB3552BASY J AM Side Panel Ass’y,Left

202- 1 ———— –– Side Panel,Left

(Not Replacement Item)

202- 2 PCUSG0022AWZZ J AB Cushion,Leg

203 92LCAB3552CASY J AM Side Panel Ass’y,Right

203- 1 ———— –– Side Panel,Right

(Not Replacement Item)

203- 2 PCUSG0022AWZZ J AB Cushion,Leg

204 GCAB-1192AWSA J AN Top Cabinet

206 GCOVA1338AWSA J AH Cover,CD Tray

207 GITAR0692AWSA J Rear Panel

209 LANGK0236AWFW J AE Bracket,Main Heat Sink [Left]

210 LANGK0237AWFW J AE Bracket,Main Heat Sink [Right]

211 LANGK0239AWFW J AF Bracket,Fan Support

212 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord

213 LCHSM0120AWFW J AQ Chassis,Main

214 LHLDZ1332AWZZ J AD Holder,FL Display

216 MSPRD0167AWFJ J Spring,Cassette [Tape 1]

217 MSPRD0168AWFJ J Spring,Cassette [Tape 2]

218 NFANP0001AWZZ J AD Rotary Fan

219 PCUSG0022AWZZ J AB Cushion,Leg

220 PRDAR0182AWFW J AX Heat Sink,Main

221 PRDAR0184AWFW J AH Heat Sink,Sub

1 222 QACCA0003AW00 J AL AC Power Supply Cord

1 222 QACCB0011AW00 J AS AC Power Supply Cord

1 222 QACCE0010AW00 J AK AC Power Supply Cord

1 222 QACCJ0007AW00 J AK AC Power Supply Cord

1 222 QACCL0005AW00 J AN AC Power Supply Cord

1 222 QACCZ0007AW00 J AP AC Power Supply Cord

223 QCNWN1844AWZZ J AC Lug Wire

1 224 QFSHD0001AWZZ J AB Holder,Fuse

225 92LBE231616 J AD Belt

226 92LCSPR1431C J AA Spring,Ring

227 92LEVA0330702 J AD Velvet Carpet,Chassis

228 92LMAG0104302 J AE Magnet

229 92LMT0304302 J AB Plate,Metal

230 92LNBAND1318A J AA Nylon Band,80mm

231 92LNM0305401 J AB Velvet Carpet

232 92LPT0303002 J AB Roller

233 92LPT0304303 J AB Lever,Stop

234 92LPT0304304 J AB Stopper

235 92LPT0304305 J AE Lever,Lock

236 92LPT0304306 J AG Stabilizer

237 92LPT0304307 J AC Support,Cam

238 92LPT0304308 J AB Lock Gear Pin

239 92LPT0304309 J AB Cap,Pulley Stopper

240 92LPT0305413 J AG Cam Gear Lower

241 92LPT0309506 J AD Gear,Turntable Drive

242 92LPT0309507 J AD Gear,Open/Close Drive

243 92LPT0309508 J AD Gear,Planet

244 92LPT0309509 J AD Gear,Drive

245 92LPT0309510 J AE Gear,Pulley

246 92LPT0309511 J AD Gear,Middle

247 92LPT0311101 J AB Lever,Clamp

248 92LPT0311102 J AC Lever,Disc

249 92LPT0312005 J AL Gear,Cam

250 92LPT0320201 J AE Support,Stabilizer

251 92LPT0330301 J AU Chassis,Loading

252 92LPT0330803 J AK CD,Chassis

253 92LPT0331003 J AT Chassis,Slide

254 92LPT0331105 J AM Turntable

255 92LSP0304303 J AB Spring,Stopper

256 92LSP0304305 J AB Spring,Lock

257 92LSP0304306 J AB Spring,Lock Gear

258 KMECB0019AWZZ J Tape Mechanism Ass’y

258- 1 92PF513-853 J Head Plate Block [Tape 2]

258- 2 92PF525-336 J Motor with Pulley [Tape]

258- 3 92PF567-677 J Tape Mechanism PWB Ass’y

258- 4 92PFF19N-21 J Belt,Main [Tape 2]

258- 5 92PF514-133 J AL Pinch Roller

258- 6 92PF19S-31 J Belt,FF/REW [Tape 2]

258- 7 92PFF19N-11 J Belt,Main [Tape 1]

258- 8 92PF522-061 J Clutch Ass’y Block [Tape 1]

258- 9 92PFF19S-52 J Belt,FF/REW [Tape 1]

258-10 92PF513-861 J Head Plate Block [Tape 1]

258-11 92PF522-063 J Clutch Ass’y Block [Tape 2]

259 92LCAUT1706A1 J AC Label,Class 3

260 92LCAUT1706B J AA Label,Laser

261 TSPC-0871AWZZ J Label,Specification [For Taiwan]

261 TSPC-0872AWZZ J Label,Specification

[For Thailand]

262 JKNBK0012AWSG J AK Knob,Karaoke

263 LHLDZ1320AWZZ J Holder,Disc No.LED

264 LANGK0374AWFW J Bracket,Fan Support

601 LX-BZ2222AXZZ J AB Screw,Special

603 LX-JZ0010AFFD J AA Screw,ø3×10mm

604 LX-LZ0006AWZZ J AC Push Rivet

605 XBBSD20P04000 J AA Screw,ø2×4mm

606 XEBSD30P10000 J AA Screw,ø3×10mm

607 XEBSD30P12000 J AA Screw,ø3×12mm

608 XESSD30P10000 J AA Screw,ø3×10mm

609 XHBSD30P06000 J AA Screw,ø3×6mm

610 XJBSD30P10000 J AA Screw,ø3×10mm

611 XJBSD30P14000 J AA Screw,ø3×14mm

612 XJBSF30P10000 J AA Screw,ø3×10mm

613 XJSSD30P10000 J AA Screw,ø3×10mm

614 92LSC0308MBZI J AB Screw,ø3×8mm

615 92LSC0308RBZI J AB Screw,ø3×8mm

616 XHBSD40P08000 J AA Screw,ø4×8mm

617 LX-LZ0014AWZZ J AC PWB Spacer

ACCESSORIES/PACKING PARTS

QANTL0008AWZZ J AH AM Loop Antenna

1 QPLGA0003AWZZ J AF Adaptor,AC Plug

1 QPLGA0004AWZZ J AF Adaptor,AC Plug

SPAKA0293AWZZ J Packing Add.

SPAKC1127AWZZ J Packing Case

[For Australia/New Zealand]

SPAKC1128AWZZ J Packing Case

[Except for Australia/New

Zealand]

SPAKP0032AWZZ J AF Miramat Bag,Unit

SSAKA0007AWZZ J AB Polyethylene Bag,Accessories

TCAUA0049AWZZ J AD Caution Tag [For Taiwan]

TCAUS0019AWZZ J AD Label,Warning [For Thailand]

TCAUZ0035AWZZ J AB Sheet,Caution

TGANE0011AW68 J Warranty Card [For Philippines]

TGANZ0028AW72 J Warranty Card [For Taiwan]

TINSZ0683AWZZ J Operation Manual

[Except for Australia/New

Zealand]

TINSZ0687AWZZ J Operation Manual

[For Australia/New Zealand]

TLABB0001AWZZ J AB Label,Japan [For Set]

TLABE0473AWZZ J Label,Bar Code

TLABE0503AWZZ J Label,Bar Code

TLABG0002AWZZ J AB Label,Hong Kong

TLABG0006AWZZ J AB Carton Label [For Argentina]

TLABG0007AWZZ J AC Set Label [For Argentina]

TLABJ0003AWZZ J AB Label,Japan [For Packing Case]

TLABN0112AWZZ J AA Label,Serial Number

TLABR1224AWZZ J Label,Bar Code

TLABS0319AWZZ J Label,Safety [For Hong Kong]

TLABZ0838AWZZ J Label,FDA

TLABZ0849AWZZ J AC Label,Feature [Tape 2]

TLABZ0882AWZZ J Label,Feature [Tape 1]

TLABZ0884AWZZ J Label,Carton [For Taiwan]

TTAG-0004AWZZ J AC Cord Tag [For Argentina]

92LBAG1770A J AB Polyethylene Bag,AC Cord

92LBAG760C J AA Polyethylene Bag,AC Plug

92LFANT1746A J AD FM Antenna

92LGCARD1266E1 J AC Warranty Card

92LLABL1507B J AA Label,Made in Malaysia

92LPANEL713A J AB Panel,Made in Malaysia

RRMCG0267AWSA J Remote Control

GFTAB1022AWSB J Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92LPWB3553MANS J –– Main

PWB-B1,2 92LPWB3553DPLS J –– Display/Headphones

(Combined Ass’y)

PWB-C 92LPWB3552CDUS J –– CD Servo

1 PWB-D1~3 92LPWB3553PWRS J –– Power/Amp./Transformer

(Combined Ass’y)

PWB-E 92LPC99C017 J AE CD Loading Motor (PWB Only)

PWB-F 92PF567-649 J –– Tape Mechanism

PWB-G QPWBF0027AWZZ J AD CD Motor (PWB Only)

PWB-H 92LPWB3553MICS J –– Mic

– 6 –

PRICE

RANK

DESCRIPTIONNO. PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK300W

CP-BK300W

SPEAKER BOX PARTS

901 HPNLS1021AWSA J AY Front Panel,Left

901 HPNLS1022AWSA J AY Front Panel,Right

902 CWAKP1046AWSC J Net Frame Ass’y

903 GBOXS2003AWSB J Speaker Box Ass’y,Right

903 GBOXS4003AWSB J Speaker Box Ass’y,Left

904 CPNLS1023AWSA J AX Subwoofer Panel Ass’y,Left

904 CPNLS1027AWSA J AX Subwoofer Panel Ass’y,Right

905 PCUSS0049AWZZ J AD Port Cushion

906 PCUSG0022AWZZ J AB Foot Cushion

907 LHLDZ8001AWSA J AD Catching Holder

908 QCNWN1834AWZZ J AK Tweeter Cord

(With Capacitor C1,2)

909 XJBSD40P20000 J AA Screw,ø4×20mm

910 XJBSD40P16000 J AB Screw,ø4×16mm

911 XJBSD30P10000 J AA Screw,ø3×10mm

912 XMBSD40P16000 J AC Screw,ø4×16mm

913 XMBSF40P20000 J AC Screw,ø4×20mm

914 PFLT-0046AWZZ J AC Felt

915 TSPC-0877AWZZ J Label,Specifications

916 QCNWN1912AWZZ J Subwoofer Cord

917 QCNWN1903AWZZ J Woofer Cord

SP1,2 RSPA00009AW6T J AP Tweeter

SP3,4 RSPA10008AW6S J AW Woofer

SP5,6 RSPA10009AW6W J AZ Subwoofer

PACKING PARTS

SPAKA0295AWZZ J Packing Add.

SPAKZ0696AWZZ J Layer Pad

SSAKH0053AWZZ J AC Polyethylene Bag,Speaker

– 7 –

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

CD-BK300W

23456

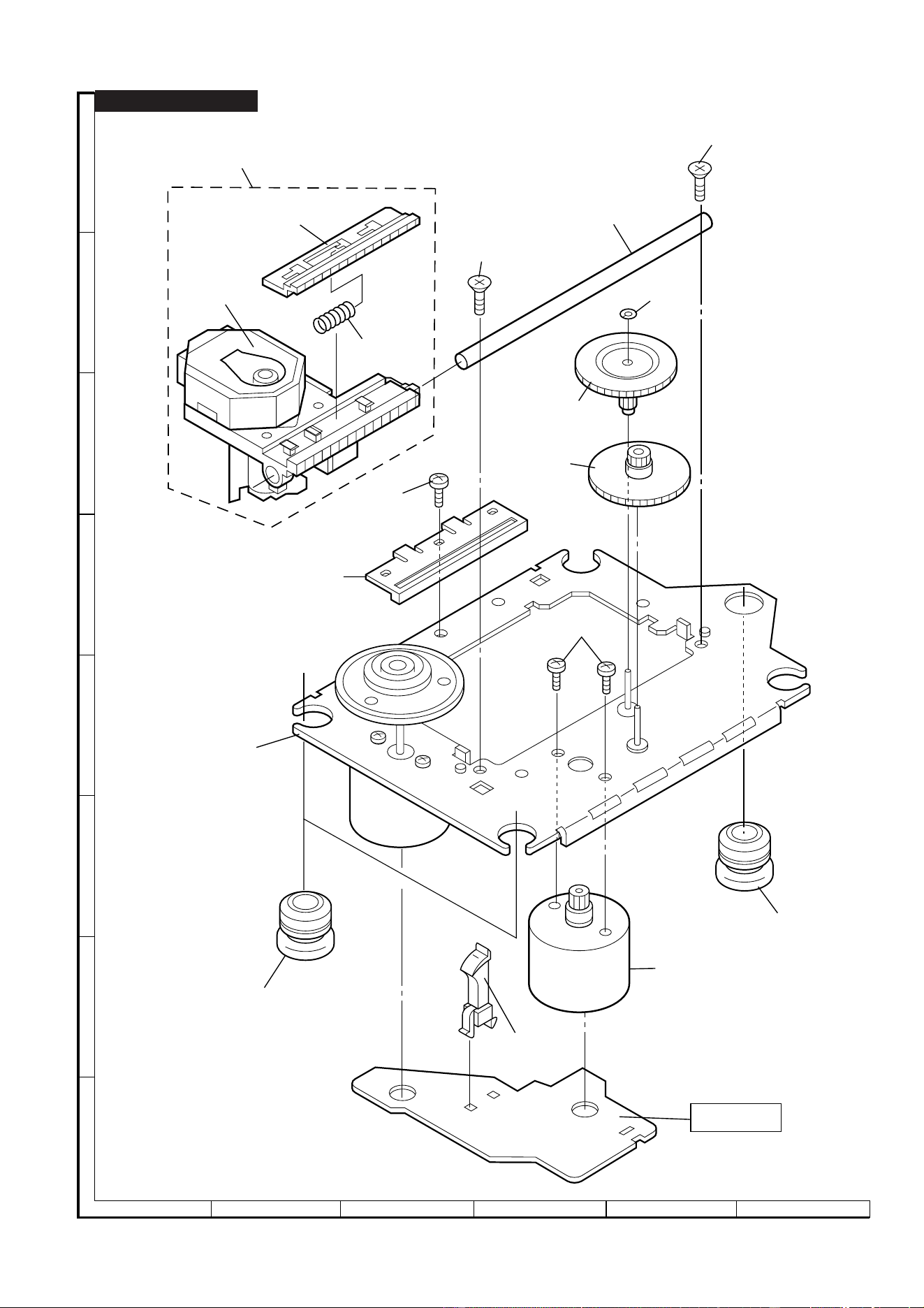

Figure 8 CD MECHANISM EXPLODED VIEW

– 8 –

CD-BK300W

306-1

701

304

701

302

301

702

303

703x2

305x2

SW4

305

PWB-G

306-2

306-3

306

704

CD-BK300W

Figure 9 CABINET EXPLODED VIEW (1/2)

23456

– 9 –

CD-BK300W

Tape

Motor

MAIN BELT

FLYWHEEL

ASS'Y

TAPE1

FLYWHEEL

ASS'Y

TAPE2

FF/REW

ROLLER

ASS'Y

FF/REW

ROLLER

ASS'Y

BELT CONNECTION

202

202-1

PWB-A

202-2

PWB-B1

PWB-B2

221

223

Q851

Q850

Q852

M901

PWB-F

226

218

223

207

211

258

258-1~258-11

IC901

IC902

201-10

201-9

201-14

201-21

201-15

201-19

263

201-25

201-20

201-18

601x1

608x1

214

FL701

610x2

201-15

201-17

201

201-31

201-1

201-12

201-8

201-4

201-6

201-7

201-5

201-2

216

219x2

201-3

217

213

617

604

230

212

222

203

203-2

203-1

224x12

PWB-D3

PWB-D2

PWB-H

601

220

T801

PWB-D1

210

612x2

603x2

603x1

606x13

610x3

610x10

610x2

610

261

605x2

610x1

608x5

609x1

603x1

610x2

616x4

209

611x2

201-23

201-24

201-30

201-32

Silicon

Grease

Silicon

Grease

201-13

201-26

201-27

201-28

262

201-16

201-11

201-24

201-22

201-30

610x2

613x1

608x1

M902

226

218

264

605x2

609

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

CD-BK300W

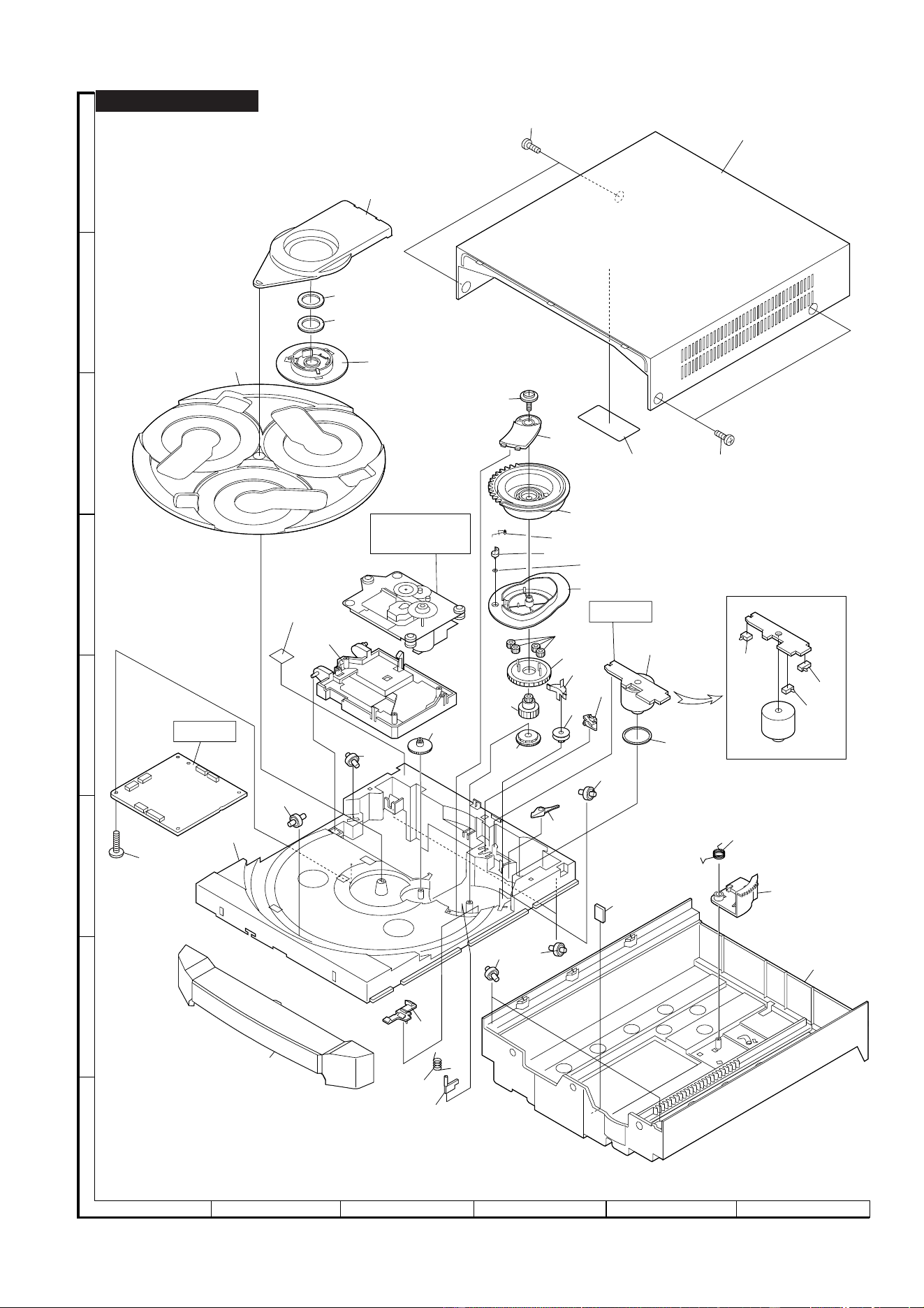

Figure 10 CABINET EXPLODED VIEW (2/2)

23456

– 10 –

CD-BK300W

MECHANISM

204

250

228

229

236

254

252

232

232x4

PWB-C

232

225

SW3

PWB-E

607x2

SW2

SW1

247

253

235

251

256

615

206

238

257

241

246

248

245

244

243x4

242

239

249

255

234

231

240

237

614

227

233

260

259

CD-BK300W

23456

CP-BK300

913x4

909x4

910x4

907x4

912x4

915

903

902

901

916

904

SP1,2

SP5,6

SP3,4

914x4

906x4

905x4

911x2

917

C1,2

Capacitor (N.P.)

3.3µF,100V

C1,2

Capacitor (N.P.)

3.3µF,100V

Electrolytic

SP1,2

TWEETER

SP3,4

WOOFER

SP5,6

SUBWOOFER

SP3,4

WOOFER

SP1,2

TWEETER

SP5,6

SUBWOOFER

(with Capacitor C1,2)

908

Figure 11 SPEAKER EXPLODED VIEW

– 11 –

CD-BK300W

– 12 –

–– MEMO ––

CD-BK300W

SHARP CORPORATION

AV Systems Group

Audio Systems Division

Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

SA • SZ • EX

A0105-1775DS•HA•M

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

Sharp CD-BK300W Audio

Product's Documents

Service Manual

Specifications

Sharp CD-BK300W Questions and Answers

Related Products

Sharp XL-BH250 Audio

Sharp GX-BT7 Audio

Sharp CD-BA150 Audio

Sharp CD-C401H Audio Mini Componet System

Sharp CD-ES111H Audio

Sharp CD-ES222E Audio
