Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
24MP59G
27MP59G
2
ENGLISH
CONTENTS
LICENSE ---------------------------- 3
ASSEMBLING AND PREPARING - 4
- Product Components -------------------------- 4
- Supported Drivers and Software -------------- 5
- Component and Button Description ---------- 6
How to Use the Joystick Button
Input Connector
- Moving and Lifting the Monitor --------------- 8
- Setting up the Monitor set ------------------- 9
Attaching the Stand Base
Mounting on a table
Using the cable holder
USING THE MONITOR SET ------ 12
- Connecting to a PC --------------------------- 12
D-SUB connection
HDMI connection
DisplayPort connection
- Connecting to AV Devices --------------------13
HDMI connection
- Connecting Peripherals ----------------------- 14
Connecting Headphones
CUSTOMIZING SETTINGS ------ 15
TROUBLESHOOTING ------------ 21
SPECIFICATIONS ---------------- 22
- Preset Modes (Resolution) ------------------- 24
- Indicator --------------------------------------- 24
3
ENG
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
Product Components

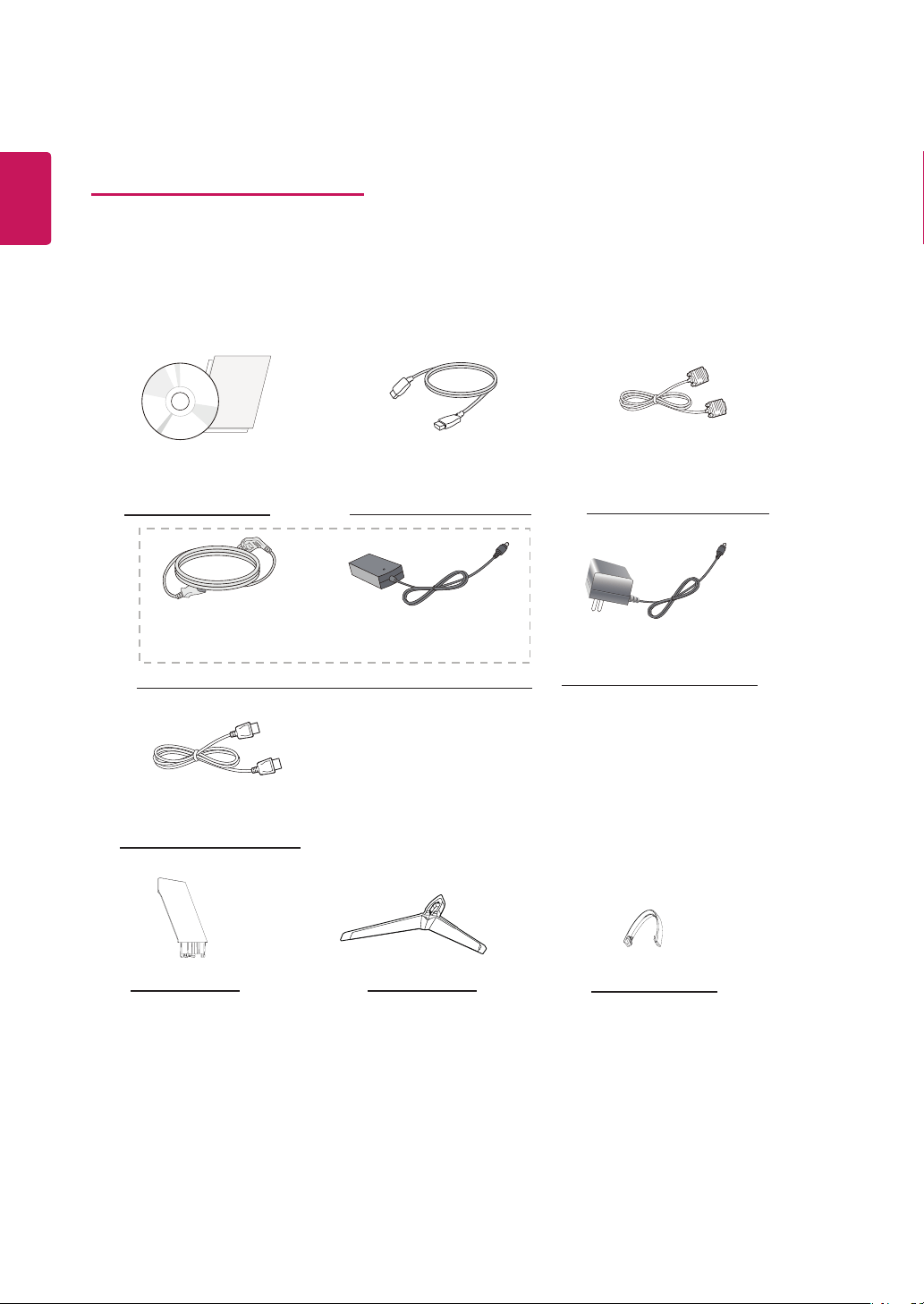

Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
CD(Owner's Manual) /
Card
HDMI Cable
D-SUB Cable
( This cable is not included in all
countries. )
( This cable is not included in all
countries. )
( Depending on the country )
( Depending on the country )
AC-DC AdapterPower Cord
AC-DC Adapter
or
Stand Body
Stand Base
Cable Holder
( This cable is not
included in allcountries. )
DisplayPort Cable
5
ENG
ENGLISH
CAUTION
NOTE
Supported Drivers and Software
You can download and install the latest version from the LGE website (
www.lg.com
).
Drivers and Software Installation Priority
24MP59G
27MP59G
Monitor Driver Recommended O
OnScreen Control Recommended O
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image noises.
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
y
To purchase optional accessories, visit an electronics store or online shopping site or contact the
retail store where you purchased the product.
6
ENG
ENGLISH
24MP59G
27MP59G
Component and Button Description

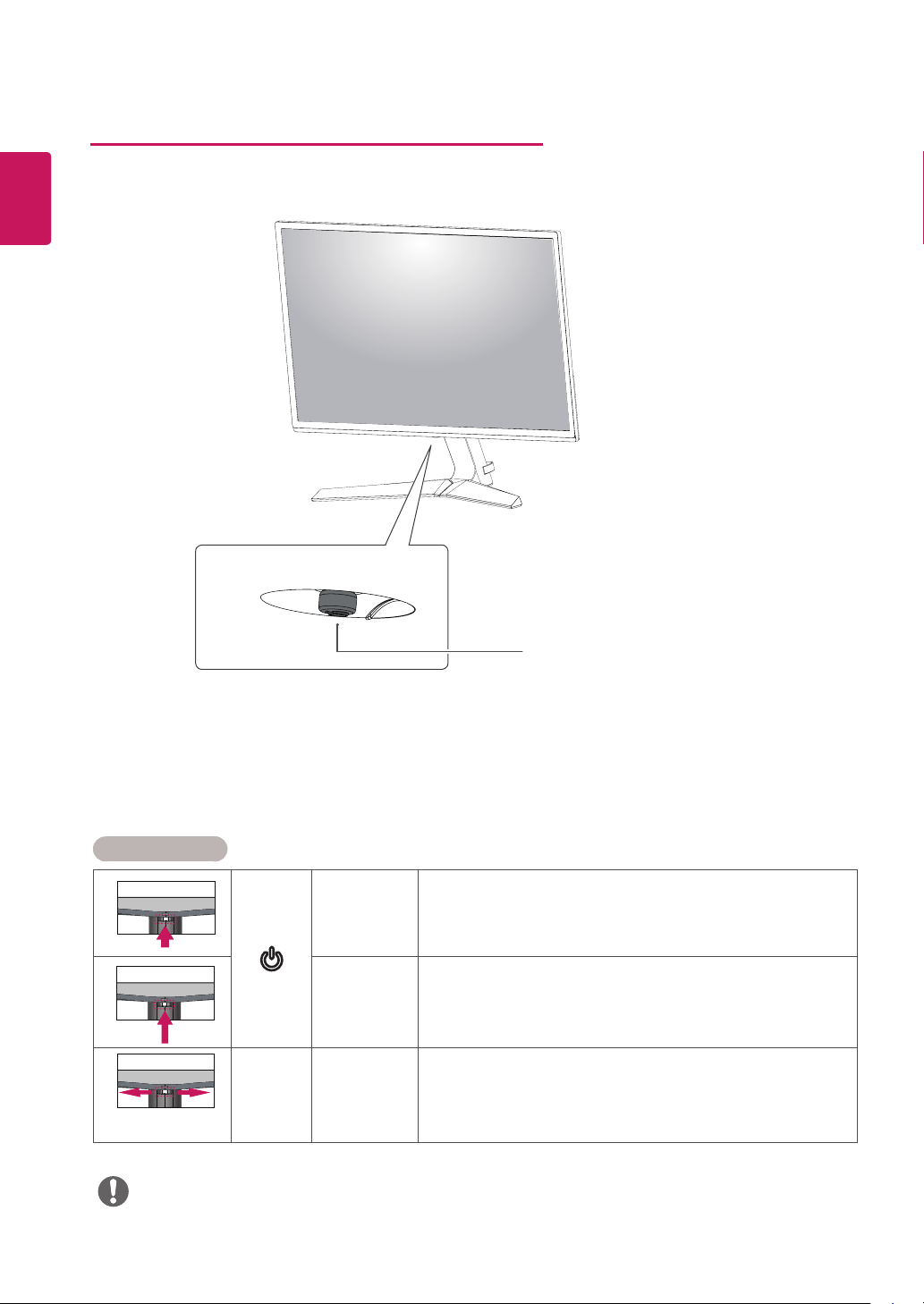

Joystick Button/
Power Indicator
y
On: power is on
y
Off: power is off
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the
monitor.
Power off
Press and hold the joystick button once with your finger to turn off
the monitor.
◄/►
Volume
Control
You can control the volume by moving the joystick button left/right.
y
The joystick button is located at the bottom of the monitor.
NOTE
8
ENG
ENGLISH
Moving and Lifting the Monitor

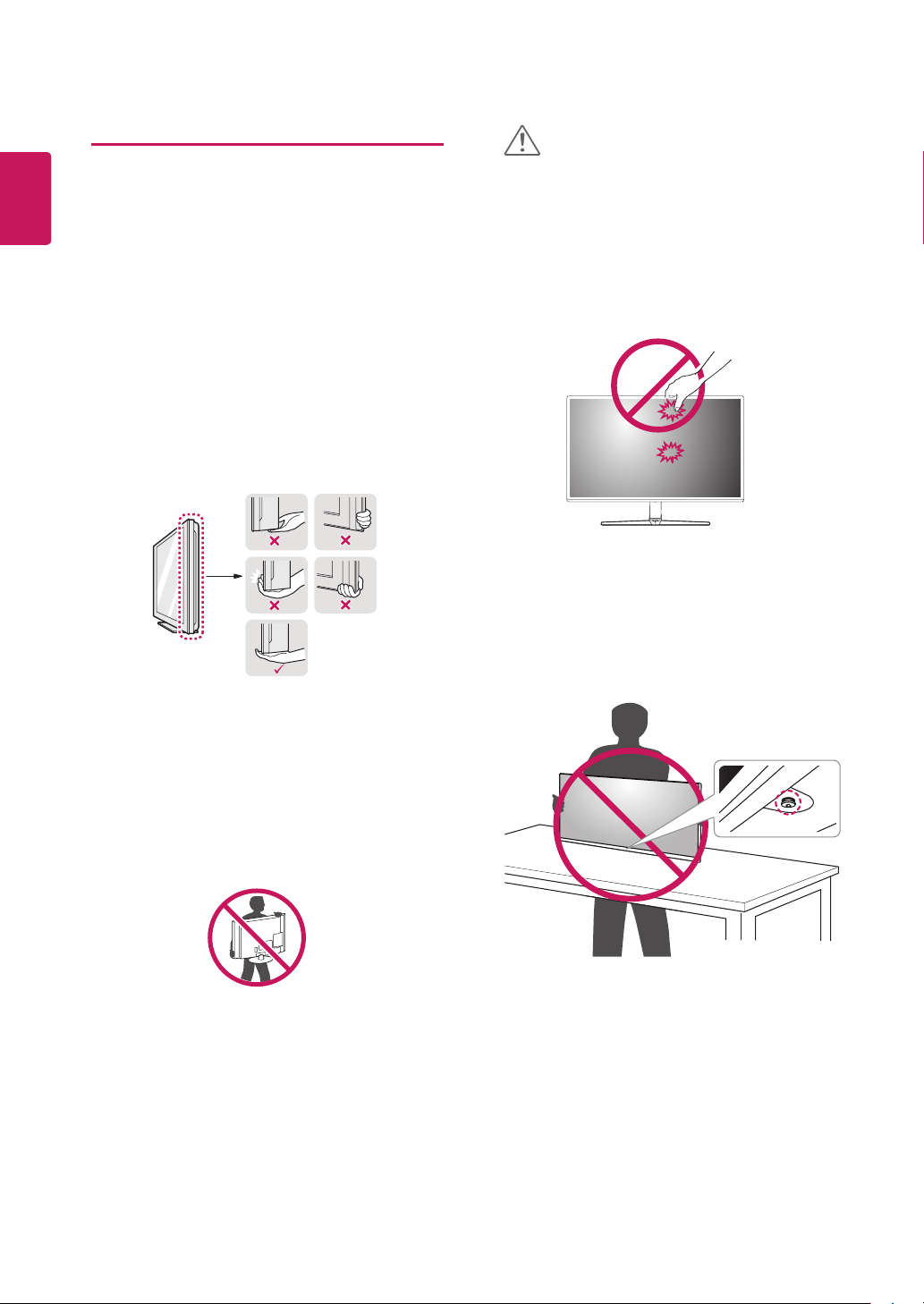

When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When moving the monitor, avoid any strong
shock or vibrations to the product.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
y
If you use the monitor panel without the
stand base, its joystick button may cause
the monitor to become unstable and fall,
resulting in damage to the monitor or human
injury. In addition, this may cause the joystick
button to malfunction.
9
ENG
ENGLISH
Setting up the Monitor set
Attaching the Stand Base
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
2
3
y
To avoid injury to the fingers and foot when
Assembly Stand Body and Base, should hold
Base when assembly stand body and base.
y
Illustrations in this document represent typical
procedures, so they may look different from
the actual product.
y
Do not carry the monitor upside down by just
holding the stand base. This may cause the
monitor to fall off the stand and could result in
personal injury.
y
When lifting or moving the monitor, do not
touch the monitor screen. The force applied
to the monitor screen may cause damage to
it.
y
Do not apply foreign substances (oils,
lubricants, etc.) to the screw parts when
assembling the product. (Doing so may
damage the product.)
y
Applying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be
covered by the product warranty.
CAUTION
y
You can disassemble the stand in the reverse
order of the assembly.
NOTE
WARNING
10
ENG
ENGLISH
Mounting on a table

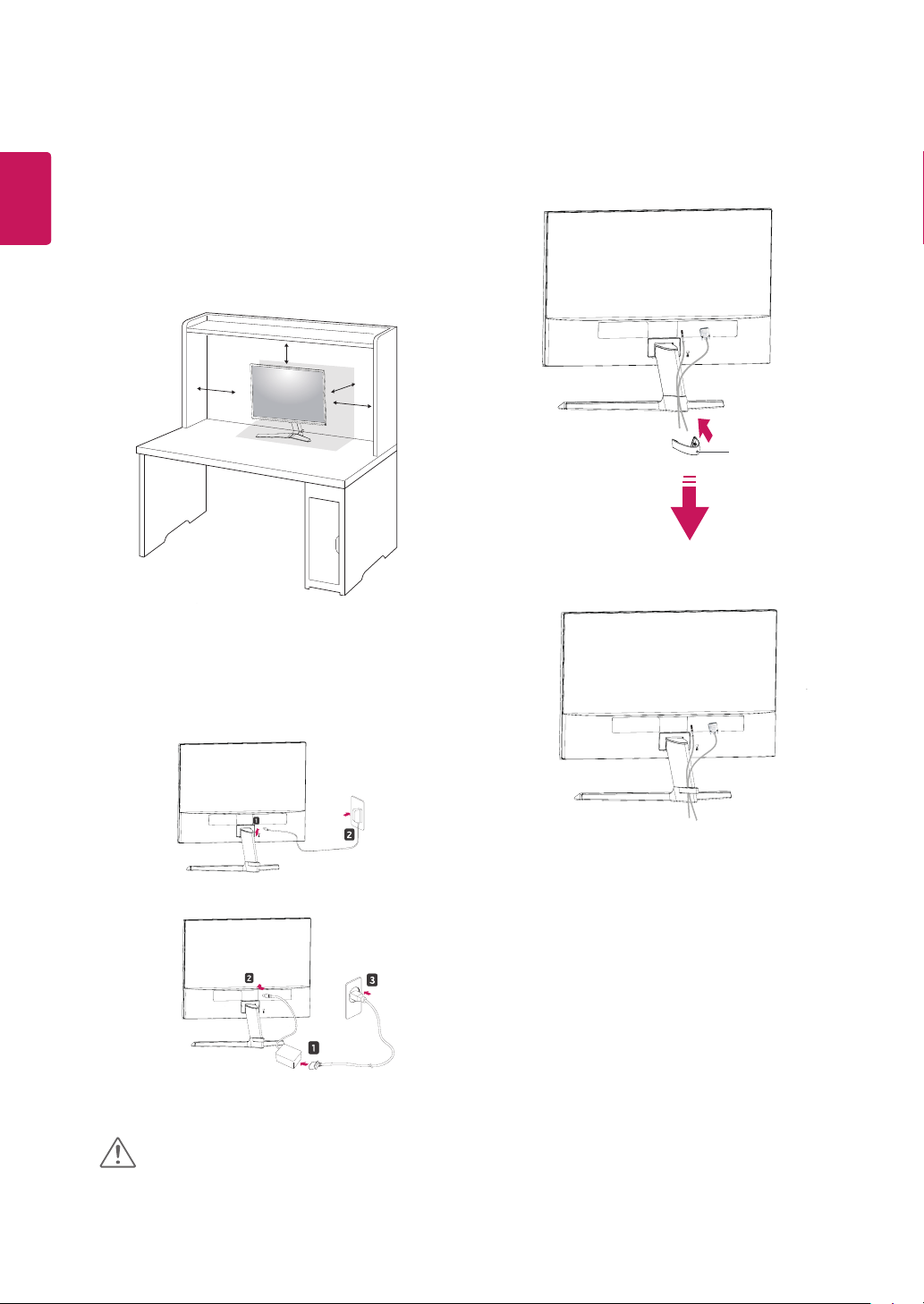

1
Lift and tilt the Monitor set into its upright
position on a table.
Leave a 100 mm (3.94 inches) space from the
wall for proper ventilation.
2
Connect the AC-DC Adapter and Power Cord
to a wall outlet.
3
Press the joystick button on the bottom of the
monitor to turn on the monitor.
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
CAUTION
y
Unplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
or
Using the cable holder
Cable holder
11
ENG
ENGLISH

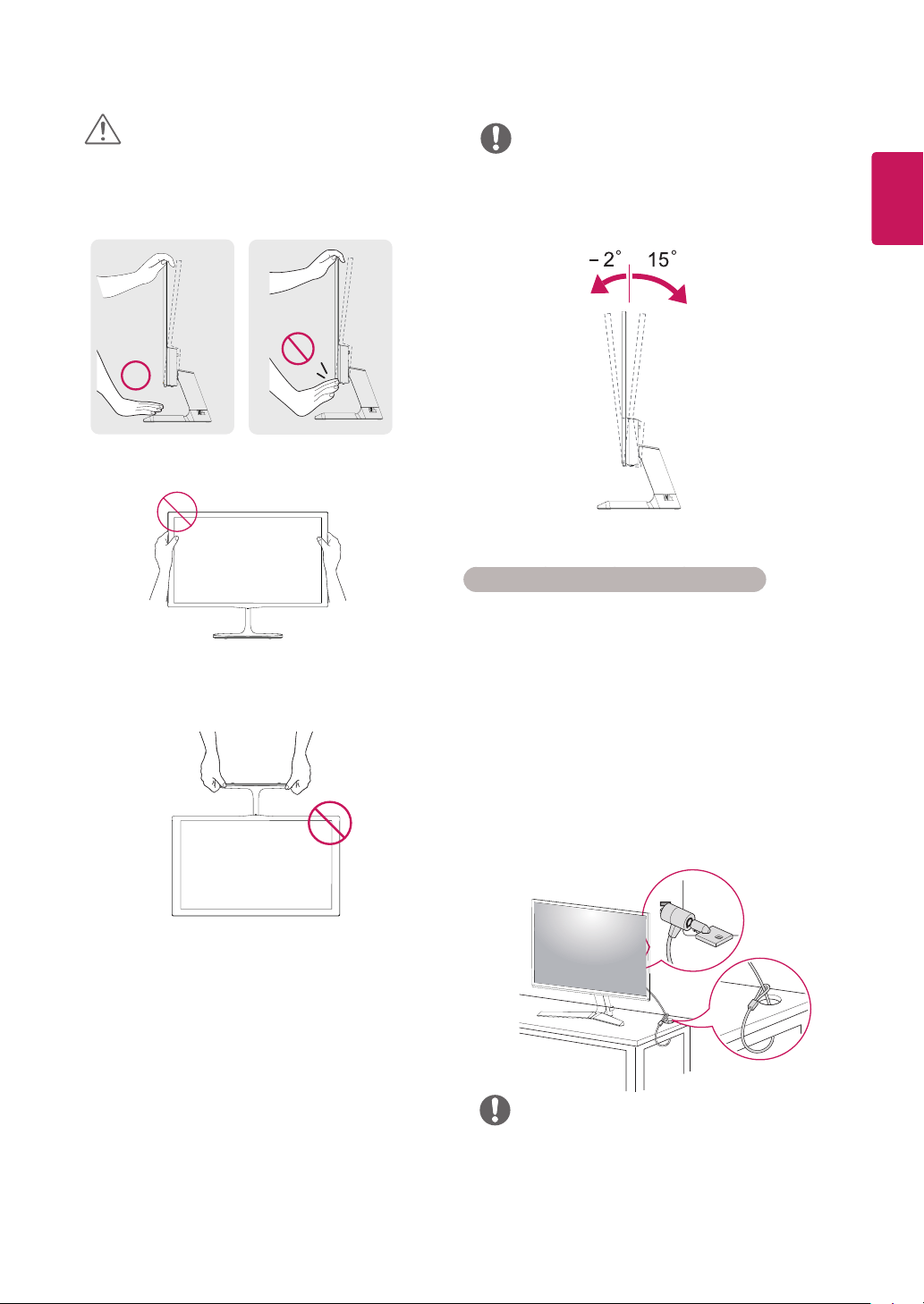

When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Do not touch or press the screen when
adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
WARNING
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the Monitor set and a table.
y
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
Tilt from +15 to -2 degrees up or down to adjust
the angle of the Monitor set to suit your view.
NOTE
Front Rear
12
ENGLISH
USING THE MONITOR SET
Connecting to a PC
y
Your Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations.
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI®/
TM
Cable
- High-Speed HDMI®/
TM
Cable with Ethernet
NOTE
13
ENG
ENGLISH
NOTE
DisplayPort connection
Transmits the digital video and audio signals from
your PC to the monitor. Connect your PC to the
monitor using the DisplayPort cable as illustrated
below.
Press the menu button and then select the input
option.
y
There may be no video or audio output
depending on the DP version of the PC.
y
If you use generic cables not certified by LG,
the screen may not display or there may be
image noises.
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your AV devices to the monitor. Connect your AV
device to the monitor with the HDMI cable as il-
lustrated below.
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
14
ENGLISH
H/P
y
Peripheral devices are sold separately.
y
If you use angled headphones, it may
cause a problem with connecting another
external device to the monitor. Therefore, it is
recommended to use straight headphones.
Angle Type Straight Type
NOTE
y
Depending on the audio settings of the
PC and external device, headphones and
speaker functions may be limited.
(sold separately)
Connecting Peripherals
Connecting Headphones
Connect peripherals to the monitor via the head-
phones port. Connect as illustrated.
15
ENG
ENGLISH
CUSTOMIZING SETTINGS

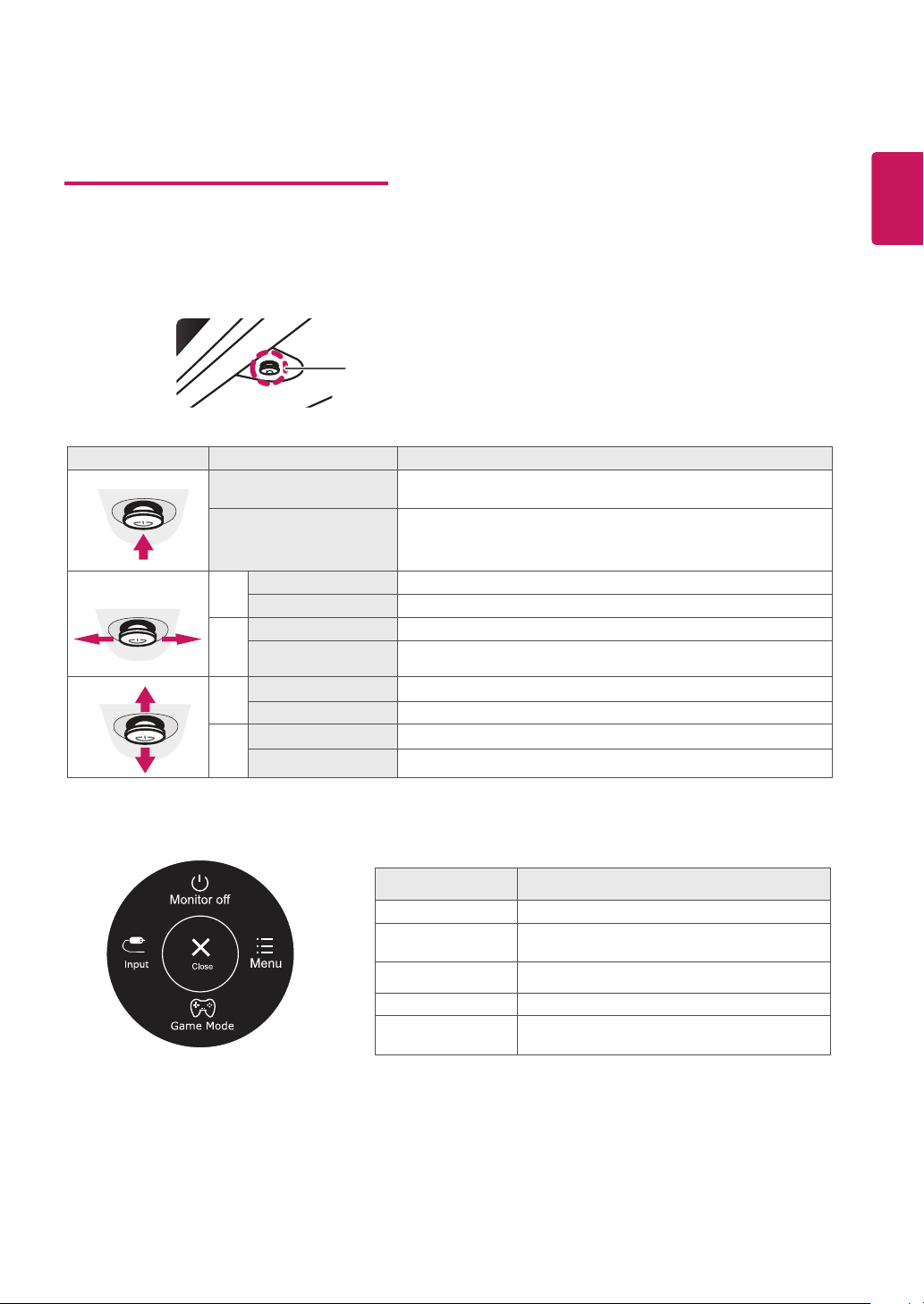

Activating the Main Menu
1
Press the joystick button on the bottom of the monitor.
2
Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3
Press the joystick button once more to close the main menu.
Picture Mode
Joystick Button
Button Menu Status Description
Picture Mode
Main menu disabled
Enables the main menu.
Main menu enabled
Close the main menu.
(Long press the button to turn off the monitor)
Picture Mode
◄
Main menu disabled
Adjusts the monitor volume level. (Only HDMI / DisplayPort.)
Main menu enabled
Enters the input features.
►
Main menu disabled
Adjusts the monitor volume level. (Only HDMI / DisplayPort.)
Main menu enabled
Enters the menu feature.
Picture Mode
▲
Main menu disabled
Enables the main menu.
Main menu enabled
Turns off the monitor.
▼
Main menu disabled
Enables the main menu.
Main menu enabled
Enters the game mode feature.
Main Menu Features
Main Menu Description
Menu
Configures the screen settings.
Game Mode
You can change Picture Mode to a gaming
mode.
Input
Sets input mode.
Monitor off
Turns off the monitor.
Close
Close the main menu.
16
ENG
ENGLISH
Menu > Quick Settings Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume
Adjusts the volume.
NOTE
y
You can adjust Mute/ Unmute by moving the joystick button to ▼ in the Volume menu.
Ratio
Adjusts the screen ratio.
Wide
Displays the video in wide-screen, regardless of the video signal input.
Original
Displays a video according to the input video signal aspect ratio.
SMART ENERGY
SAVING
High
Enables SMART ENERGY SAVING you can save energy with this energy- high
efficient.
Low
Enables SMART ENERGY SAVING you can save energy with this energy- low
efficient.
Off
Disables SMART ENERGY SAVING .
NOTE
y
The display may look the same for Wide, Original options at the recommended resolution (1920 x
1080).
y
The ratio is disabled in the interlaced signal.
y
Saving Data depends on the Panel. So,those values should be different from each panel and panel
vendor.If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or
lower depend on source.
* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.
Customizing settings
17
ENG
ENGLISH
Customizing settings
Menu > Pic-
ture
Description
Picture Mode Custom
Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Reader 1
It is a mode that the screen is adjusted to the best for the new spaper. If you want
screen more bright, you can control brightness in Menu OSD.
Reader 2
It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Optimizes the screen to view photos.
Cinema
Optimizes the screen to improve the visual effects of a video.
Color Weak-
ness
This mode is for users who cannot distinguish between red and green. It enables
users with color weakness to easily distinguish between the two colors.
FPS Game 1
This mode is optimized for FPS games.
FPS Game 2
It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark
FPS games.
RTS Game
This mode is optimized for RTS Game.
Custom(Game)
In this mode, users can customize various elements including game-related options.
Picture Adjust SUPER
RESOLUTION+
High
Optimized picture quality is displayed when a user wants crystal clear im-
ages. It is effective forhigh quality video or game.
Middle
The optimized picture quality is displayed when a user wants images be-
tween low and high modes for comfortable viewing. It is effective for UCC
or SD video.
Low
The optimized picture quality is displayed when a user wants smooth and
natural images. It is effective for slow -moving pictures or still images.
Off
Select this option for everyday viewing. SUPER RESOLUTION+ is turned
off in this mode.
Sharpness
Adjusts the sharpness of the screen.
Black Level
Sets the offset level (for HDMI only).
y
Offset: as a reference for a video signal, this is the darkest color the monitor can
display.
High
Keeps the current contrast ratio of the screen.
Low
Low ers the black levels and raises the white levels from the current contrast ratio
of the screen.
DFC On
Adjusts the brightness automatically according to the screen.
Off
Disables the DFC feature.
Game Adjust
Response Time
Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Middle. For a fast-mov-
ing picture, it is recommended that you use high.
Setting to High may cause image sticking.
High
Sets the response time to High.
Middle
Sets the response time to Middle.
Low
Sets the response time to Low.
Off
Does not use the response time improvement feature.
NOTE
y
This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please
turn off this function.
y
This function can’t distinguish some colors in some images.
18
ENG
ENGLISH
Game Adjust
FreeSync
Provides seamless and natural images by synchronizing the vertical frequency of the
input signal with that of the output signal.
CAUTION
y
Supported Interface: DisplayPort/HDMI.
y
Supported Graphic Card : A graphic card that supports AMD’s FreeSync is
necessary.
y
Supported Version : Make sure to update the graphic card to the latest driver.
y
For more information and requirement, refer to AMD website at http://www.amd.
com/FreeSync
y
FreeSync and 1ms Motion Blur Reduction cannot be enabled simultaneously.
On FreeSync
function on.
Off FreeSync
function off.
Black
Stabilizer
Black Stabilizer:
You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen.
(You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the
dynamic
contrast on the screen.
1ms
Motion Blur
Reduction
On
This mode minimizes motion blur in fast-moving videos. To take full advan-
tage of this function, select 1920X1080@75Hz before enabling
1ms Motion
Blur Reduction
.
This Function is available for 75hz vertical frequency. (Only HDMI / Display-(Only HDMI / Display-
Port.)
Off
Turns
1ms Motion Blur Reduction
Mode off.
NOTE
y
To reduce motion blur, brightness is reduced with backlight control.
y
1ms Motion Blur Reduction and FreeSync feature can not used at the
same time.
y
This function is game-optimized.
y
It is recommended to turn off when you are not using the gaming function.
Cross Hair
Cross Hair provides a mark on the center of the screen for First Person Shooter(FPS)
games. Users can select the
cross hair
that fits their gaming environment among four
different
cross hairs
.
y
When the monitor is off or enters energy saving mode, the Cross Hair feature is
automatically turned
off
.
19
ENG
ENGLISH
Color Adjust Gamma
The higher the gamma value, the darker the image becomes. Likewise, the lower the
gamma value, the lighter the image becomes. If you do not need to adjust the gamma set-
tings, select Off.
Color Temp
Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Custom: The user can adjust it to red, green or blue by customization.
Red/Green/
Blue
You can customize the picture color using Red, Green, and Blue colors.
Six Color
Meets the user requirements for colors through adjusting the color and saturation of the six
colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Satu-
ration, Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue,
Yellow_Saturation) and saving the Six Color settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower the value, less saturated
and bright the colors become. The higher the value, the more saturated and dark the col-
ors become.
Reset
Returns the color settings to the default settings.
Display Horizontal
To move image left and right.
Vertical
To move image up and down.
Clock
To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
Phase
To adjust the focus of the display. This item allows you to remove any horizontal noise
and clear or sharpen the image of characters.
20
ENG
ENGLISH
Menu > General Description
Language
To choose the language in which the control names are displayed.
Power LED
Turns the power indicator on the front side of the monitor on/off.
On
The power indicator is automatically turned on.
Off
The power indicator is turned off.
Automatic Standby
The monitor will automatically switch to standby mode after a certain period.
Resolution
User can set the desired resolution.This option is enabled only when the screen resolution on
your computer is set to the following(D-SUB only).
NOTE
The function is enabled only when the screen resolution on your computer is set to the
following, except that the PC output wrong resolution.
1024x768, 1280x768, 1360x768, 1366x768,Off
1280x960, 1600x900,Off
1440x900, 1600x900,Off
OSD Lock
Prevents incorrect key input.
On
Key input is disabled.
NOTE
y
All function except for the OSD Lock mode, brightness, Contrast, Input and Volume
are disabled.
Off
Key input is enabled.
Customizing settings
Menu > Reset Description
Do you want to reset your settings?
Reset
Returns to the default settings.
Cancel
Cancel the select.
Menu > Auto Configuration Description
Do you want to Auto Configuration?
Yes
Operate the Auto Configuration for optimal display in D-SUB.
Cancel
Cancel the select.
NOTE
y
This function will be enable only in analog input.
21
ENG
ENGLISH
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
y
Check and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
y
Press the Power button.
Do you see an "Out of Range"
message on the screen?
y
This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
Do you see a "NO SIGNAL"
message on the screen?
y
After the monitor is on "NO SIGNAL", the monitor goes to DPM mode.
y
This is displayed when the signal cable between the PC and the
monitor is missing or disconnected. Check the cable and reconnect it.
Can 't you control some functions in OSD?
Can't you select some menu in
OSD?
y
You can unlock the OSD controls at any time by entering the OSD
lock menu and changing items to off.
y
Check
Control Panel ► Display ► Settings
and see if the frequency or the resolution were
changed. If yes, readjust the video card to the recommend resolution.
y
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
y
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
CAUTION
The screen is flickering.
Did you select the recommended
resolution?
y
If the selected resolution is HDMI
1080i
60/50 Hz, the screen may be flickering.
Change the resolution to the recommended resolution
1080P
.
Display image is incorrect
The screen color is mono or
abnormal.
y
Check if the signal cable is properly connected and use a screwdriver to fasten
if necessary.
y
Make sure the video card is properly inserted in the slot.
y
Set the color setting higher than 24 bits (true color) at
Control Panel
►
Settings
.
The screen blinks.
y
Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
y
Be sure to install the display driver from our web site:
http://www.lg.com
.
y
Make sure to check if the video card supports Plug&Play function.
22
ENG
ENGLISH
SPECIFICATIONS
24MP59G
LCD Screen Type TFT (Thin Film Transistor)
LCD(Liquid Crystal Display) Screen
Pixel Pitch 0.2745mm x 0.2745mm
Resolution Maximum Resolution 1920 x 1080 @ 75 Hz (Only HDMI / DisplayPort.)
1920 x 1080 @ 60 Hz (D-sub)
Recommended
Resolution
1920 × 1080 @ 60 Hz
Video Signal Horizontal Frequency HDMI : 30 kHz to 85 kHz
DP : 30 kHz to 85 kHz
D-SUB: 30 kHz to 85 kHz
Vertical Frequency HDMI : 40 Hz to75 Hz
DP : 40 Hz to 75 Hz
D-SUB: 40 Hz to 75 Hz
Synchronization Separate Sync, Digital.
Input Connector HDMI IN, DP(DisplayPort) IN, D
-
SUB IN, HP OUT
Power Input 19 V 1.3 A
Power Consumption On Mode : 17.1 W Typ. (ENERGY STAR® standard ) *
22 W Typ. ( Outgoing condition ) **
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
AC/DC adaptor
Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-32FSG-19 19032EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP51A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PA-1031-23, manufactured by Lite-On Technology Corporation
OUTPUT: 19 V 1.7 A
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
Less than 80%
Storage Temperature
Storage Humidity
-20 °C to 60 °C
Less than 85 %
Dimension Monitor Size (Width x Height x Depth)
With Stand 550.5 mm x 419.9 mm x 204.1 mm
Without Stand 550.5 mm x 332.1 mm x 85.5 mm
Weight (Without
Packaging)
With Stand 3.2 Kg
Without Stand 2.8 Kg
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution).
23
ENG
ENGLISH
SPECIFICATIONS
27MP59G
LCD Screen Type TFT (Thin Film Transistor)
LCD(Liquid Crystal Display) Screen
Pixel Pitch 0.3114mm x 0.3114mm
Resolution Maximum Resolution 1920 x 1080 @ 75 Hz (Only HDMI / DisplayPort.)
1920 x 1080 @ 60 Hz (D-sub)
Recommended
Resolution
1920 × 1080 @ 60 Hz
Video Signal Horizontal Frequency HDMI : 30 kHz to 85 kHz
DP : 30 kHz to 85 kHz
D-SUB: 30 kHz to 85 kHz
Vertical Frequency HDMI : 40 Hz to75 Hz
DP : 40 Hz to 75 Hz
D-SUB: 40 Hz to 75 Hz
Synchronization Separate Sync, Digital.
Input Connector HDMI IN, DP(DisplayPort) IN, D-SUB IN, HP OUT
Power Input 19 V 1.6 A
Power Consumption On Mode : 20.3 W Typ. (ENERGY STAR® standard ) *
26.5 W Typ. ( Outgoing condition ) **
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
AC/DC adaptor Type ADS-45SN-19-3 19040G, manufactured by SHENZHEN HONOR
ELECTRONIC
or Type LCAP21C, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26B-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
OUTPUT: 19 V 2.1 A
Type DA-48F19, manufactured by Asian Power Devices Inc.
OUTPUT: 19 V 2.53 A
Dimension Monitor Size (Width x Height x Depth)
With Stand 634.1 mm x 470.5 mm x 204.1mm
Without Stand 634.1 mm x 382.7 mm x 91.1 mm
Weight (Without
Packaging)
With Stand 4.3 kg
Without Stand 3.9 kg
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution).
24
ENG
ENGLISH
Preset Modes (Resolution)
D-SUB/ HDMI/ DP PC Timing
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
1920 x 1080 83.89 75 +/+ (Only HDMI / DisplayPort.)
HDMI AV Timing
Factory support mode
(Preset Mode)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60
O
Recommend Mode
Indicator
Mode LED Color
On Mode White
Sleep Mode Off
Off Mode Off
Make sure to read the Safety Precautions before using the product.
The model and serial number of the product are located on the
back and on one side of the product.
Record them below in case you ever need service.
MODEL
SERIAL
ENERGY STAR® is a set of power-saving guidelines
issued by the U.S.Environmental Protection Agency
(EPA).
As an ENERGY STAR® Partner LGE U. S. A.,
Inc. has determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.
Refer to ENERGYSTAR.gov for more information on the ENERGY
STAR® program.
Supplier’s Declaration of Conformity
Trade Name LG
Responsible Party LG Electronics USA, Inc.
Address 1000 Sylvan Ave Englewood Cliffs,
NJ 07632
Telephone (201)266-2215
