User Manual for Refrigerator
Operating your French Door Refrigerator

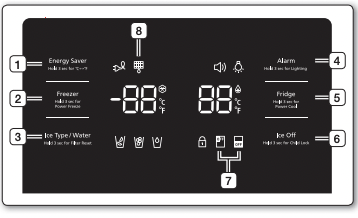

USING THE CONTROL PANEL
|
( 1 ) Energy Saver Hold 3 sec for °C <->°F
|
Touching this button turns Energy Saver mode on and off. When you turn Energy If condensation or water drops appear on the doors. turn the Energy Saver mode off. Touch and hold this button for 3 seconds to switch the temperature units between °C and °F. |
|
( 2 ) Freezer (Hold 3 sec for Power Freeze)
|
Touch this button to set the freezer to your desired temperature. You can set the temperature between -8°F and 5°F (between -23°C and -15°C). Touch and hold this button for 3 seconds to decrease the time needed to freeze products in the Freezer. It can be helpful if you need to quickly freeze easily spoiled items or if the temperature in the freezer has warmed dramatically (For example, if the door was left open). |
|
( 3 ) Ice Type/Water Hold 3 sec for Filter Reset
|
Touch this button to select the ice or water function. You can select water or the types of ice(cubed/crushed ice). Each time you press the button, the cubed and crushed ice modes alternate and the Cubed or Crushed ice icon lights up, indicating your selection. After you replace the water filter, touch and hold this button for 3 seconds to reset the water filter life indicator. |
|
( 4 ) Alarm Hold 3 sec for Lighting
|
To turn the door open alarm on and off If the door alarm is set to On. an alarm beeps if any refrigerator door is left open for more than three minutes. The beeping stops when you close the door. The door alarm function is preset to On int the factory If you touch and hold the Alarm/Lighting button for 3 seconds. the dispenser LED |
|
( 5 ) Fridge Hold 3 sec for Power Cool
|
Touch this button to set the fridge to your desired temperature. You can set the temperature between 34 °F and 44 °F (between 1°C and 7 °C ). Touch and hold this button for 3 seconds to decrease the time needed to cool products in the Refrigerator. It can be helpful if you need to quickly cool easily spoiled items or if the temperature in the fridge has warmed dramatically (For example, if the door was left open). |
|
( 6 ) Ice Off Hold 3 sec for Child Lock
|
See other models: RF28HFEDTSR RF263TEAESG Galaxy Tab S6 UN40C5000 QN75Q7FNAFXZA If you don’t want to make more ice. touch the Ice Off button.Touching this button for 3 seconds turns on Child Lock which locks the display panel and dispenser buttons so the buttons can not be used. The Child Lock icon lights up to indicate you've activated the Child Lock function. Press 3 seconds to unlock. The Child Lock are not going to lock the Cool Pantry. The lights and motors start until the refrigerator turns off again. |
|
( 7 ) Ice Off
|
- There is enough ice in the ice bucket. - You want to save water and energy. - Water is not being supplied to the refrigerator.
|
|
( 8 ) Filter
|
Water filter usage This icon will light up when you need to change the filter. After you use about 300 gallons of water, the filter indicator lights up. (about 6 months). After you install the new water filter, reset the filter indicator by touching the Ice Type Water/ Hold 3 sec for Filter Reset button.
|
|
Cooling Off Mode
|
Cooling Off mode (also called Shop mode). is designed for use by retailers when they are displaying refrigerators on the shop floor. In Cooling Off mode. the refrigerator’s fan motor and lights work normally. but the compressor does not run. and the refrigerator and freezer do not get cold. To start Cooling Off mode. touch and hold the Energy Saver button and the Freezer button for 5 seconds during normal operation. The refrigerator chime sounds and the temperature display flashes OF OF. To cancel Cooling Off mode. touch and hold the Energy Saver and the Freezer buttons again for 5 seconds. |
We recommend you to stop ice making if the following occur:
) illuminates.
CHANGING THE WATER FILTER
WARNING To reduce risk of water damage to your property DO NOT use generic brands of water filters in your SAMSUNG Refrigerator
USE ONLY SAMSUNG BRAND WATER FILTERS. SAMSUNG will not be legally responsible for any damage, including, but not limited to property damage caused by water leakage from the use of a generic water filter. SAMSUNG Refrigerators are designed to work ONLY WITH SAMSUNG Water Filter.
The Filter light turns red to let you know when it is time to change your water filter cartridge. To give you time to get a new filter, the red light comes on just before the capacity of the current filter runs out. Changing the filter on time provides you with the freshest, cleanest water from your refrigerator.

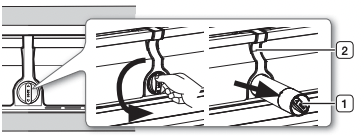

1. Shut off the water supply. Then. turn the water filter (1) about 1/4 turn. counter-clockwise.
2. Pull the water filter ( 1) from the case filter ( 2).
To change the water filter more easily. shut off the water supply valve.
- Sometimes, it is hard to disassemble the water filter because impurities in the water cause it to stick. If you are having difficulties, grip the water filter firmly and pull it hard.
- When you pull the water filter, a little water can leak from the opening. This is normal. To minimize the water leaks, keep the filter cartridge horizontal when you pull it.
- To prevent overflow. empty the water filter tray (3) and dry around the filter case (2).

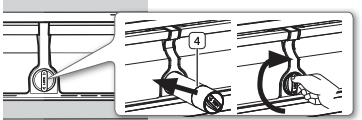

3. Insert the new filter into the filter case ( 4).
4. Push the filter, and then turn it clockwise until it locks.
If you have trouble inserting the water filter because of high water pressure. shut off the water supply valve.
- The locked symbol should be lined up with the indicator line.
5. Touch the Ice Type/Water Hold 3 sec for Filter Reset” button
for about 3 seconds to reset the water filter. The color of of the indicator (
) changes from
6. If you turned off the water supply. turn it back on.
For a replacement water filter, you can visit your local home Improvement center or contact the Samsung Parts distributor. Be sure the replacement water filter has the SAMSUNG logo on the box and on the water filter.
Removing any residual matter inside the water supply line after installing the water filter.
- Turn ON the main water supply and supply water to the refrigerator.
- Select water in the button "ICE TYPE/WATER”,pour Gal (6-7 minutes) to clean the water supplier system and it will take the air out from the lines.
3. If after pour 1 Gal the water doesn’t turn clear is possible an additional flushing in the household lines.
4. Open the Refrigerator door and make sure there are no water leaks coming from the water filter.
Be sure to flush the dispenser system thoroughly, otherwise water may drip from the dispenser. This means that there is still air in the line.
Reverse Osmosis Water Supply
IMPORTANT:
The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa.) If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):
- Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
- Allow the storage tank on the reverse osmosis system to refill after heavy usage.
- If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter.
If you have questions about your water pressure, call a licensed, qualified plumber.
CONTROLLING THE TEMPERATURE
Basic temperature of Freezer and Refrigerator Compartments
The basic temperature and recommended temperatures of the Freezer and Refrigerator Compartments are 0°F and 37°F(or -18°C and 3°C) respectively. If the temperature of the Freezer and Refrigerator Compartments are too high or low, adjust the temperature manually.
Controlling the Freezer temperature
The Freezer temperature can be set between -8°F and 5°F (or between -23°C and -15°C) to suit your particular needs. Press the Freezer button repeatedly until the desired temperature is shown in the temperature display. The temperature will change by 1°F (or 1°C) with each press. See below.
Fahrenheit : 0°F
- 1°F -2°F -3°F -4°F -5°F -6°F -7 °F -8°F 5°F 4°F 3°F 2°F 1°F 0°F.
Centigrade : -18°C -19°C -20°C -21°C -22°C -23°C - 15°C -16°C -17°C -18°C.
The temperature control process for the Fridge works just like the Freezer process. Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will begin adjusting towards the newly set temperature. This will be reflected in the digital display.
The temperature of the Freezer, Fridge or Cool Select Pantry Zone may rise when you open the doors too frequently, or if a large amount of warm or hot food is placed inside.
-This may cause the digital display to blink. Once the Freezer and Fridge temperature return to their normal set temperatures, the blinking will stop.
-If the blinking continues, you may need to “reset” the Refrigerator. Try unplugging the appliance, wait for around 10 minutes and then plug the power cord back in.
-If there is a communication error between the Display and Main Controller, the Convertible Display light may blink. If the blinking continues for a long period of time, please contact a Samsung Electronics Service Center.
USING THE COLD WATER DISPENSER

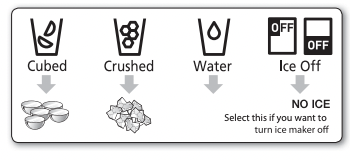

Push the appropriate ice type button to select what you want dispensed.
Using the ice Dispenser
Place a glass underneath the ice dispenser and push gently against the dispenser lever with your glass. Make sure the glass is in line with the dispenser to prevent the ice from bouncing out.
CAUTION Please wait 2 seconds before removing the glass under the dispenser to prevent spills. If the Refrigerator door opens, the Dispenser does not work.
CAUTION When Cubed Ice is selected after using the Crushed Ice mode, a small amount of residual crushed ice might be produced.
CAUTION Do not pull the lever out. You could damage or break the lever’s spring.
Maintaining the Ice Bucket
- To clean the ice bin/bucket, wash with a mild detergent, rinse well, and dry thoroughly it. Do not use harsh or abrasive cleaners or solvents.
- The ice cubes generated by the rapid ice making process will look white, which indicates they are generated normally.
- As the ice maker in the refrigerator room makes ice cubes even faster, move the ice cubes from the refrigerator ice bin to the freezer ice bin if you need more ice cubes.
- If ice doesn’t come out, pull out the ice bucket and press the test button located on the right side of ice maker.
- Do not press the test button continuously when the tray is filled with ice or water. Water may overflow or ice may jam the bucket.
- Normal Use To fill the ice bucket to maximum capacity after installation, follow these steps: Water may overflow or ice may jam the bucket.
WARNING To remove the ice cubes without use the Ice Bucket. turn off the ice maker. (Remove the front cover of the Ice Maker) Ice cubes in the ice machine may leak on the drawer.
WARNING Not put food into the tray of ice.de hielo. If you store food in the ice bucket. ay hinder the ice maker to open or close the door. and damage the ice maker.
WARNING Note that the ice cubes from the ice bucket can spill over the box to remove the tray from the drawer. In this case. you must remove the drawer the ice cubes that have been spilled.
WARNING In case of power outage. ice cubes can melt and then freeze when power returns. causing the dispenser to stop working.
To prevent this from happening after a power outage, remove the ice bucket and discard the ice and wastewater.
If you use all the ice at one time. repeat Steps 2 and 3 on the previous page. However, wait only 8 hours before removing the first 4 to 6 cubes. This procedure will replace ice cubes and ensure their maximum output.
The first ice should be discarded as they may have bad taste.
How to Use Ice Off function
When you select the Off Ice (hielodesactivado). remove all ice cube tray. If not using the ice dispenser. it is possible to stack the cubes. Hold down the button. Remove the tank in the direction of the arrow. Dispose of ice cubes or ice mass. Push the bottom of the tray until it clicks. If the tray does not fit. turn the propeller 90 degrees and try again.
WARNING Use only the ice maker refrigerator. Only a suitably qualified person must install / connect the water supply to the refrigerator. Connect only to a potable water supply.
In order that the ice maker work properly, need a water pressure of 20 ~ 125 psi (138 ~ 862 kPa). Whether traveling for vacation or business and will not use water dispensers and ice for an extended period:
- Close the stopcock. If not. can result in water leakage.
- Remove all food.
- Unplug the refrigerator.
- Remove excess moisture from inside the refrigerator and leave doors open. Otherwise. odor and mold may occur. Do not put fingers. hands or any other inappropriate object in the container or bucket of ice maker. It may cause personal injury or property damage.
- Never put fingers or objects into the dispenser opening. Can cause injury. Never try to take the ice maker.
- Do not wipe or spray the ice tray with water while in the refrigerator. Remove for cleaning.
WARNING When inserting the tray of the ice maker, make sure it is well centrada.De Otherwise, you could lock.
The phenomenon of turbidity
The water entering the cooler circulates through the main filter is a filter for alkaline water. In the filtering process. the pressure of the water leaving the filter increases. and the water is saturated with oxygen and nitrogen. When it is contacted with air. the pressure drops rapidly and the oxygen and nitrogen is oversaturated and generate gas bubbles. Temporarily. water can have a cloudy appearance due to these bubbles of oxygen. After a few seconds. water is colorless.
Please wait 1 second before removing the cup after dispensing water to prevent spills. Do not pull out the lever dispenser after dispensing ice or water. It comes back automatically. Ice is made in cubes. When you select “Crushed”, the ice maker grinds the ice cubes into crushed ice.

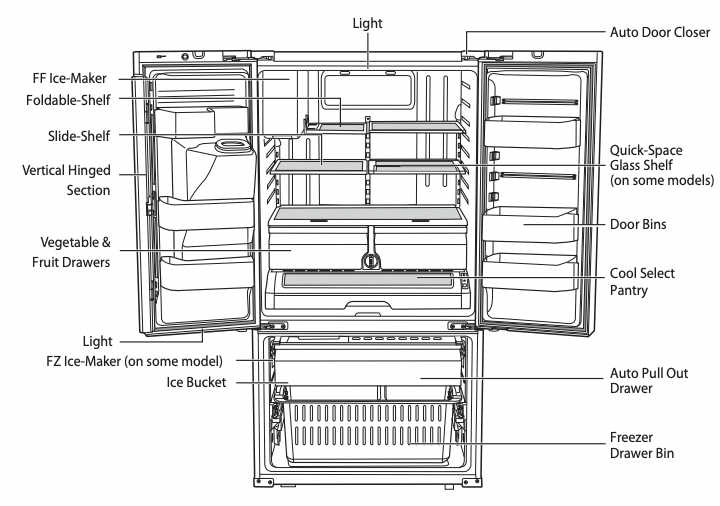

PARTS AND FEATURES
Use this page to become more familiar with the parts and features of the refrigerator
When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid scratching the other door. If the Vertical Hinged Section is reversed, put it back to the right position and close the door. Moisture may appear at times on the Vertical Hinged Section. The door handle may become loose over time. If this happens, tighten the bolts found on the inside of the door. If you close one door with a lot of force, the other door may open.
When the door opens. the interlock switch automatically turns off the auger motor in the ice maker for safety reasons.
When the interior or exterior LED lamp has gone out, please contact your service agents.
USING THE COOL SELECT PANTRY
The Cool Select Pantry is a full-width drawer with adjustable temperature control. This pantry can be used for large party trays, deli items, pizza, beverages or miscellaneous items. There is a temperature control which can adjust the amount of cold air allowed into the pantry. The control is located on the right side of the pantry
- The Pantry has three modes: The Fresh mode, Chilled mode, and Deli mode. Fresh mode is the default. Press the Temp button repeatedly until the mode you want is lit. Once you select a mode, the temperature will change to match the mode you selected.
- The Pantry temperature may change depending on the number of items inside and where they are located, the ambient temperature, and how often the door is opened.
The Pantry Selection Button
1. When you select “Deli”, the temperature of the pantry will be kept around 41°F (or 5°C). This feature helps keep food fresh for a long time.
2. When you select “Fresh”, the temperature of the pantry will be kept around 38°F (or 3°C). This feature helps keep food fresh for a longer time.
3. When you select “Chilled”, the temperature of the pantry will be kept around 34°F (or 1°C). This feature also helps keep meat or fish fresh for a longer time. The table below lists the Pantry modes and the kinds of foods that can be stored safely for each mode.
Fruits and vegetables may be damaged when the “Chilled” mode is set. Do not store lettuce or other leafy produce in this pantry.
CAUTION Do not store glass bottles in this pantry. If they are frozen, they can break and cause personal injury.
CAUTION In case you put a water bowl without its ild into the pantry, condensation may form around surrounding parts.
CLEANING THE REFRIGERATOR
Caring for your Samsung French Door Refrigerator prolongs the life of your appliance and helps keep the refrigerator free of odor and germs.
Cleaning the Interior
Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. You can remove the drawers and shelves for a more thorough cleaning. Just make sure to dry drawers and shelves before putting them back into place.
Cleaning the Exterior
Wipe the control panel and digital display with a damp, clean, soft cloth. Do not spray water directly on the surface of the refrigerator. The doors, handles and cabinet surfaces should be cleaned with a mild detergent and then wiped dry with a soft cloth. To keep your appliance looking its best, polish the exterior once or twice a year.
CAUTION Do not spray water directly on the refrigerator. Use a clean, damp cloth to clean.
CAUTION Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discoloration. deformation. damage. electric shock or fire.
Do not spray inflammable gas near the refrigerator.
- There is a risk of explosion or fire.
CAUTION You can erase the printed letters on the display if you apply stainless cleaner directly to the area where the letters are printed.
Cleaning the Ice / Water Dispenser
Wipe the Ice / Water Dispenser with a clean and soft cloth.
CAUTION When using the crushed ice selection from the dispenser some residual ice chips may start to collect in the ice chute. To prevent that residual ice from melting and running out of the chute you should clean out the residual ice when you see it start to collect in the ice chute.
If the rubber door seals are dirty, the doors may not close properly, and the refrigerator will not operate efficiently. Keep the door seals free of dust or stains by cleaning the doors with a mild detergent and damp cloth. Wipe dry with a clean, soft cloth.
CAUTION Do not clean the refrigerator with benzene, thinner, or car detergent. These substance could cause a fire
Cleaning the rear side of the refrigerator
To keep cords and exposed parts free of dust and dirt accumulation. Vacuum the rear side of the appliance once or twice a year.
CAUTION Do not remove the back cover ( 1 ).
You could suffer an electric shock.

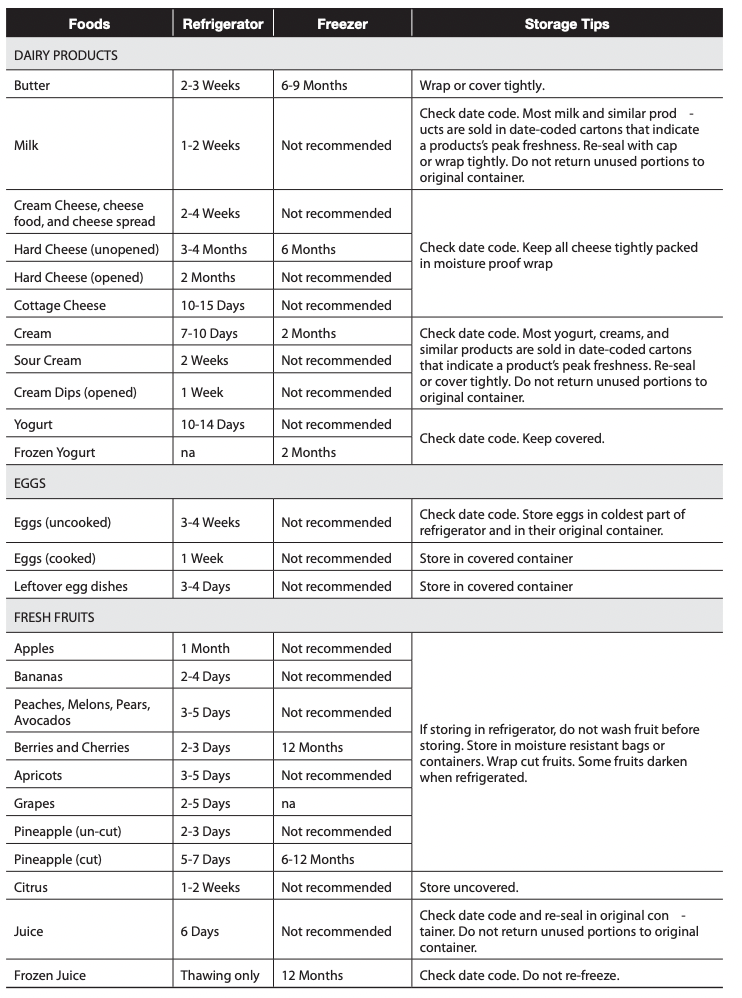

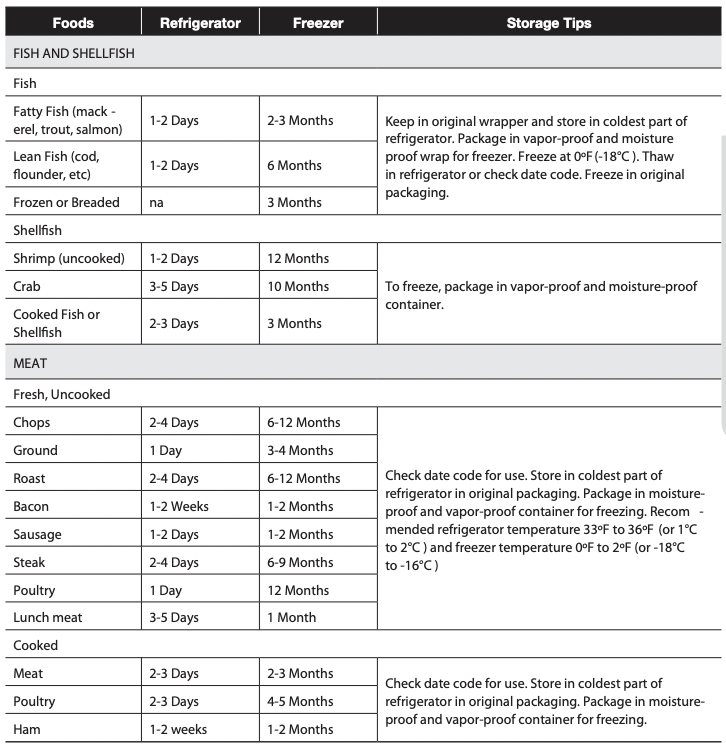

FOOD STORAGE TIPS
Troubleshooting
| PROBLEM | SOLUTION |
| The refrigerator does not work at all or it does not chill sufficiently |
|
| The food in the fridge is frozen. |
|
| You hear unusual noise or sounds. |
|
| The cabinet-door sealing area of the appliance is hot and condensation is occurring. |
|
| Ice Maker is not producing ice. |
|
| You can hear water bubbling in the refrigerator. |
|
| There is a bad smell in the refrigerator |
|
| Frost forms on the walls of the freezer. |
|
| Water dispenser is not functioning. |
|
| Auto close system does not work with the freezer door. |
|
