AmazonBasics Semi-Assembled Office Chair
250 lbs


Caps
Screws
Wrench
1
1
1
1
1
5
6
4
Star Base
Seat Plate
Casters
Gas Lift & Cover
1
2
3
4
5
B
A
C
AmazonBasics Semi-Assembled Office Chair
Seat Cushion
Back Cushion
Arm rest

4
5
Turn the base upside down and press the casters into the holes on the legs as shown.

4
3
5
Place the base upright and insert the gas lift with cover into the base as shown.

6
1
2
A
C
Step 3:
FRONT
Attach the seat plate to the seat cushion with four (A) screws. Make sure the seat plate faces to
the front. Tighten the screws with the wrench (C).

7
Step 4:

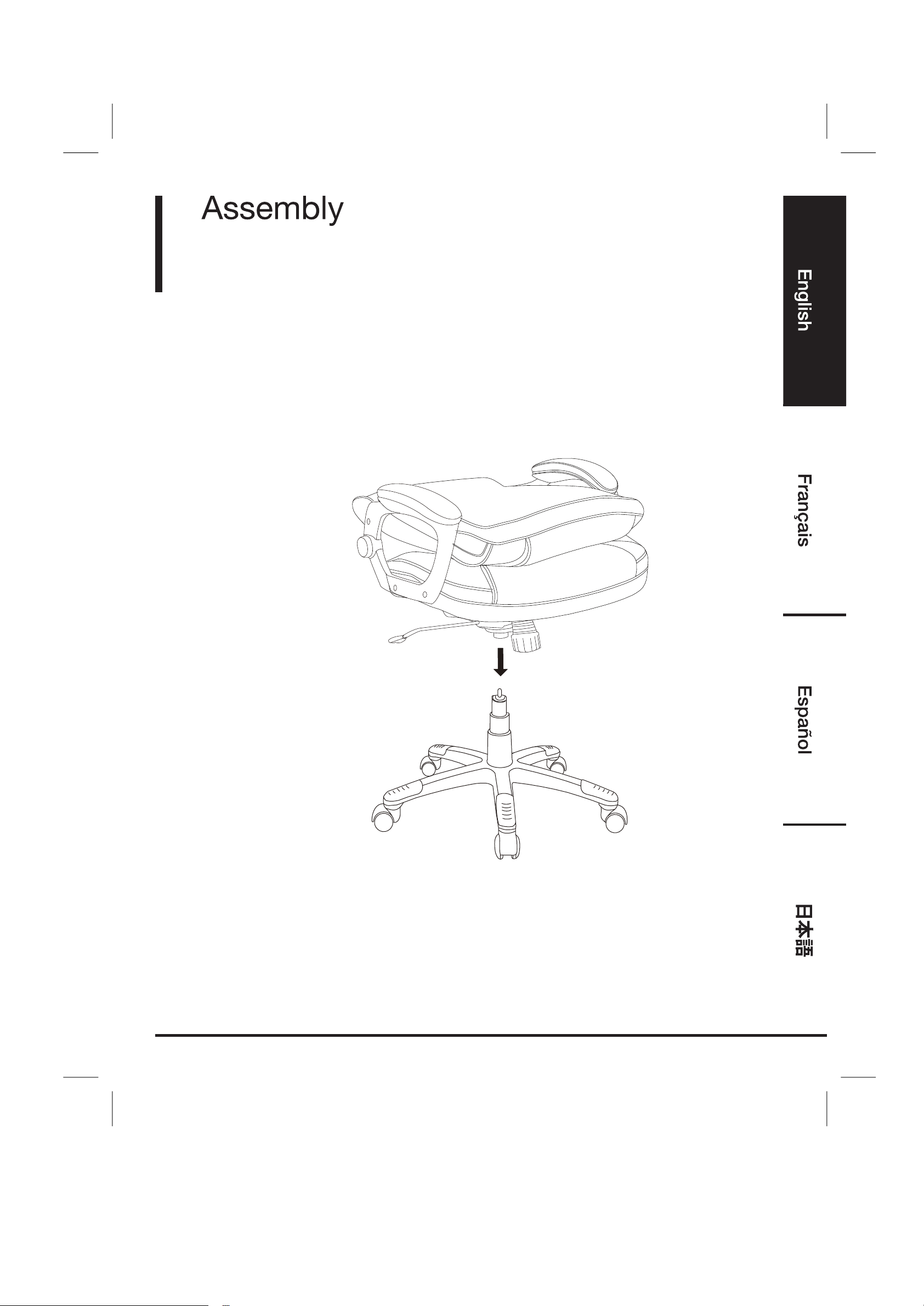

Align the central hole of the seat plate over the gas lift,
Press down until the connection is secure.

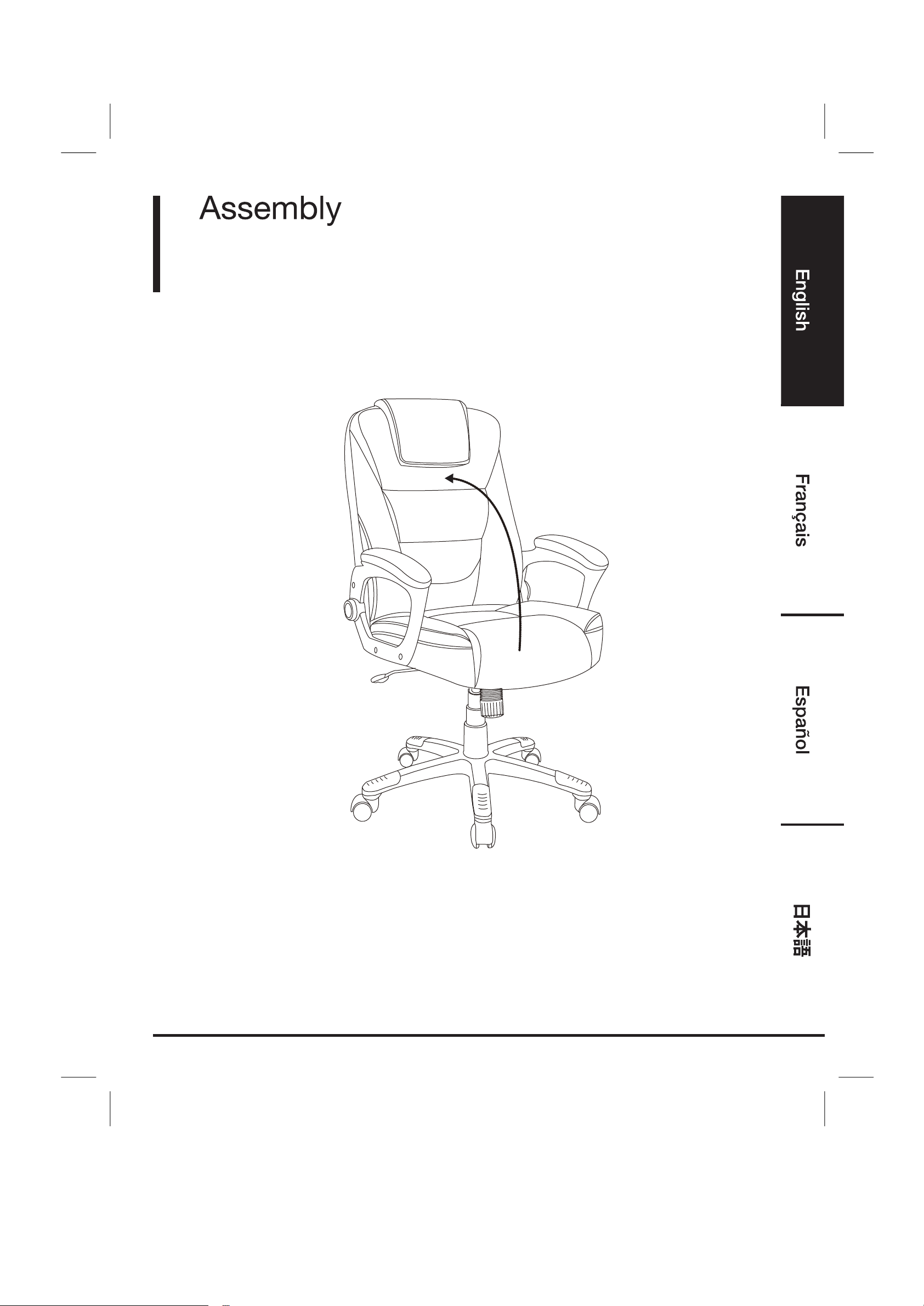

Push the back cushion to upright position as shown, make sure the tools-free pins lock into place.
8
Step 5:

B
9
Press the caps(B) into the arm holes to cover the bolts.
Step 6:

10
Control
handle
To Adjust the Seat Height
Function
To raise your seat, lean forward to lift your body weight from the seat, then pull up the control
handle.
To lower the seat, pull up the control handle while seated.

11
To Adjust the Tilt Tension
To Perform Tilt / Tilt Lock
Function
Control
Handle
Tension Knob
To unlock the tilt, pull the control handle all the way out;
Push the control handle in to lock the tilt function.
Rotate the tension knob clockwise to tighten or counter-clockwise to loosen the tension.

12
Turn the arm knob and press down the back cushion at the same time to fold the back cushoin.
Folding the Back Cushion
Knob
Function

13
18.2 kg / 40.12 lbs
Use a dry cloth to remove dirt.
with
with
at theSelect

14
250 lbs.
Your office chair is equipped with casters for all types of flooring.
This office chair is alternative between Type I and Type III.
on the chair.

15
