Sharp CD-DP900H Mini Component System Audio User Manual

– 1 –

CD-DP900H/E

No. S3219CDDP900H

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

IMPORTANT SERVICE NOTES (FOR U.K. ONLY) .......................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 5

WIRING OF PRIMARILY SUPPLY LEADS (FOR U.K. ONLY) ......................................................................................... 8

OPERATION MANUAL ...................................................................................................................................................... 9

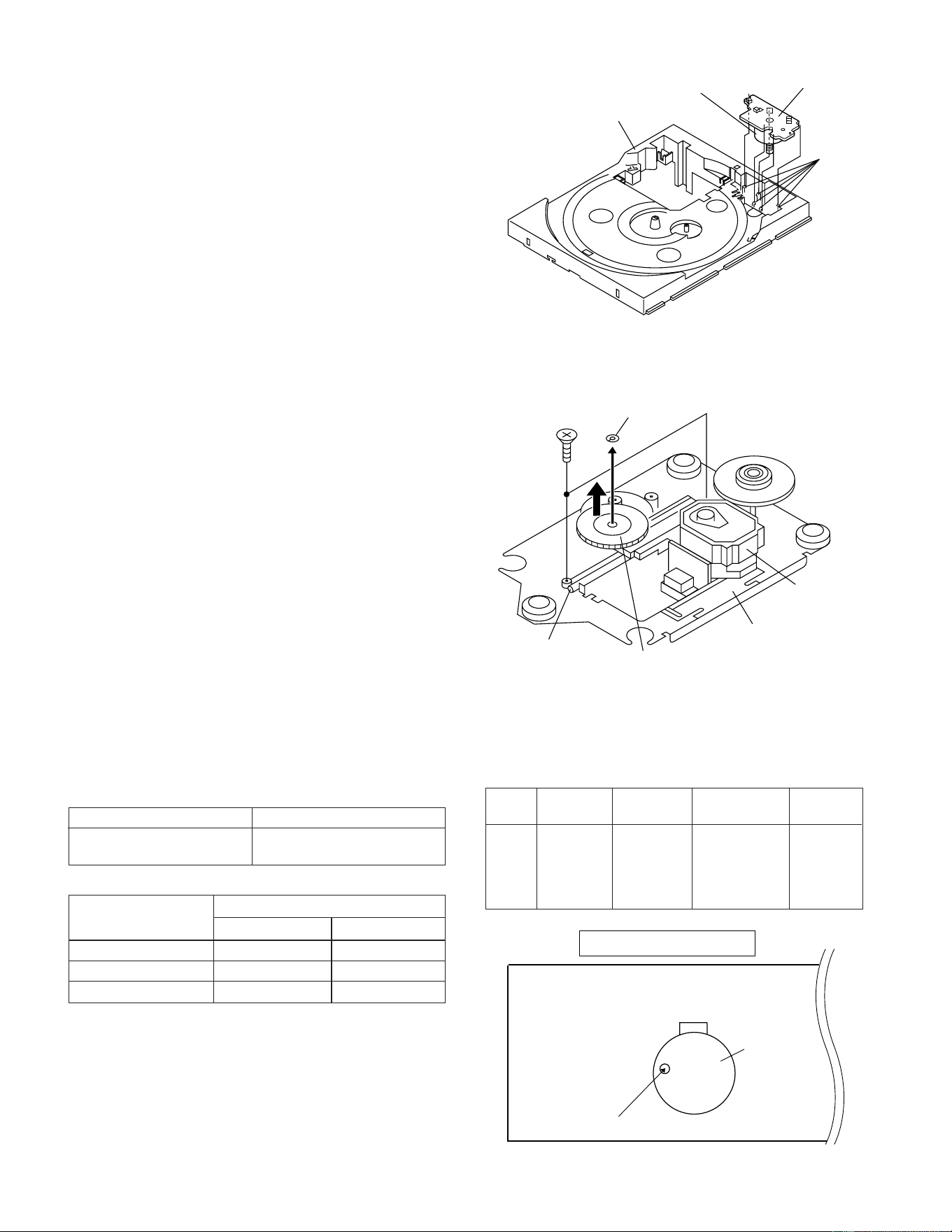

DISASSEMBLY ................................................................................................................................................................ 12

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 15

ADJUSTMENT ................................................................................................................................................................. 16

TEST MODE .................................................................................................................................................................... 19

RDS OPERATION (FOR CD-DP900H ONLY)................................................................................................................. 20

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 23

TYPES OF TRANSISTOR AND LED............................................................................................................................... 23

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 24

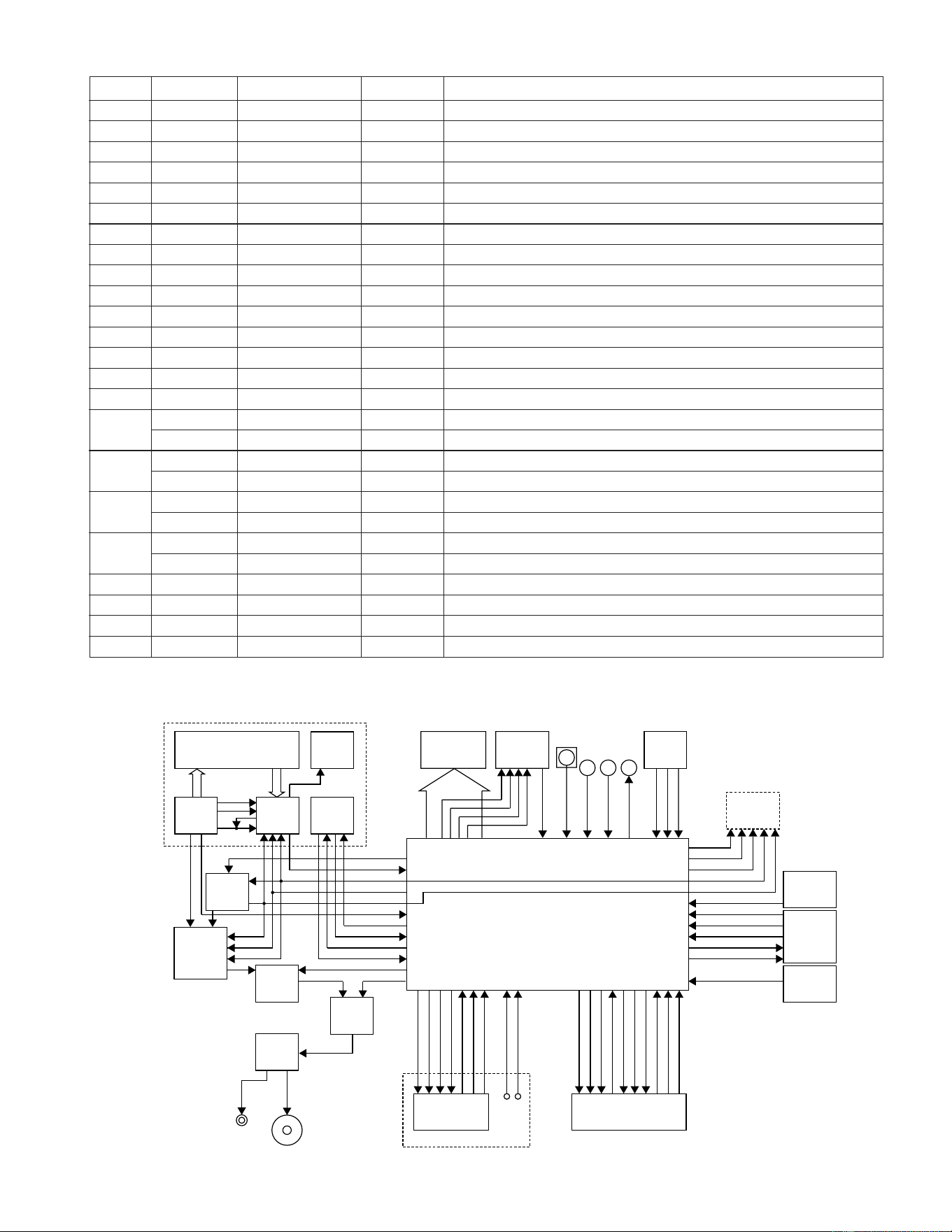

BLOCK DIAGRAM ........................................................................................................................................................... 25

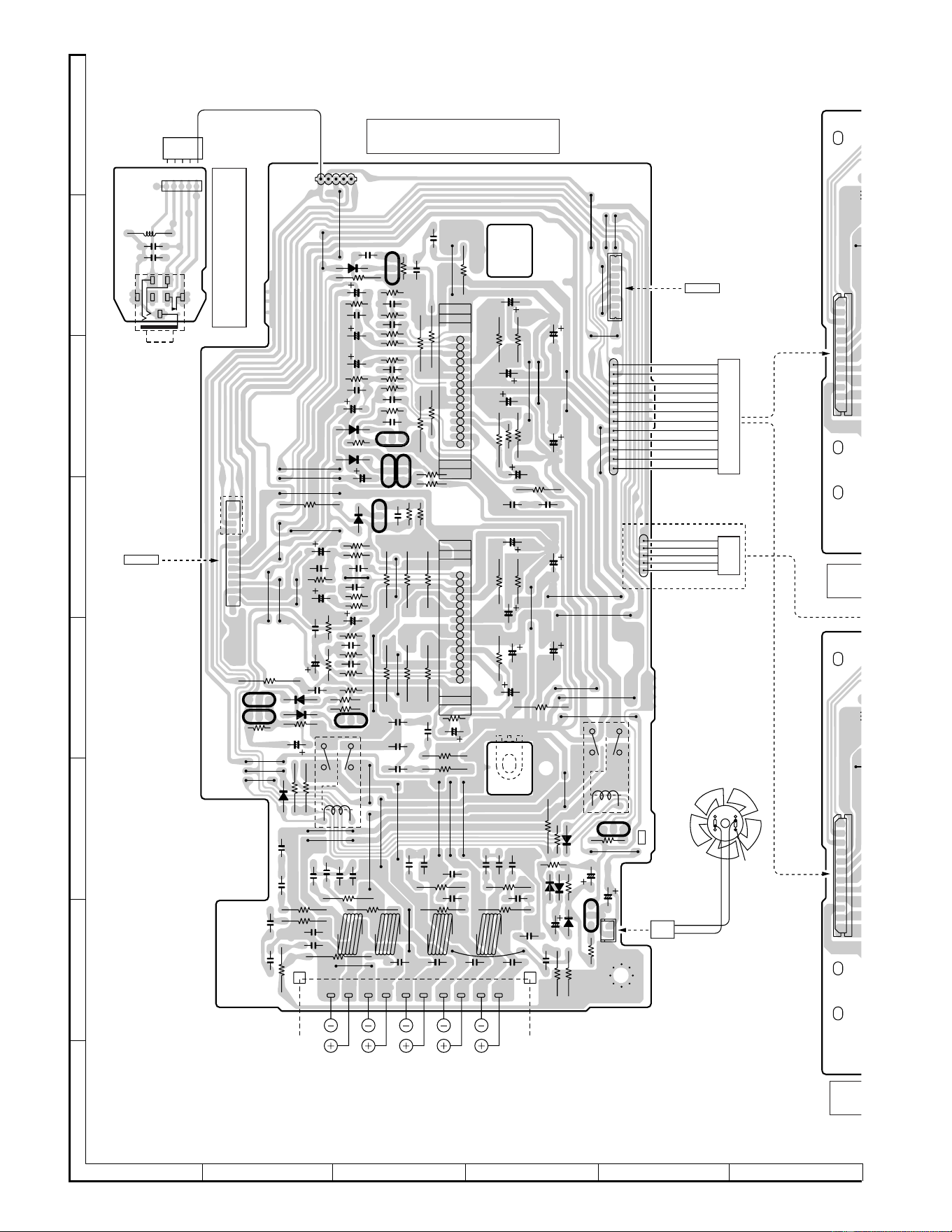

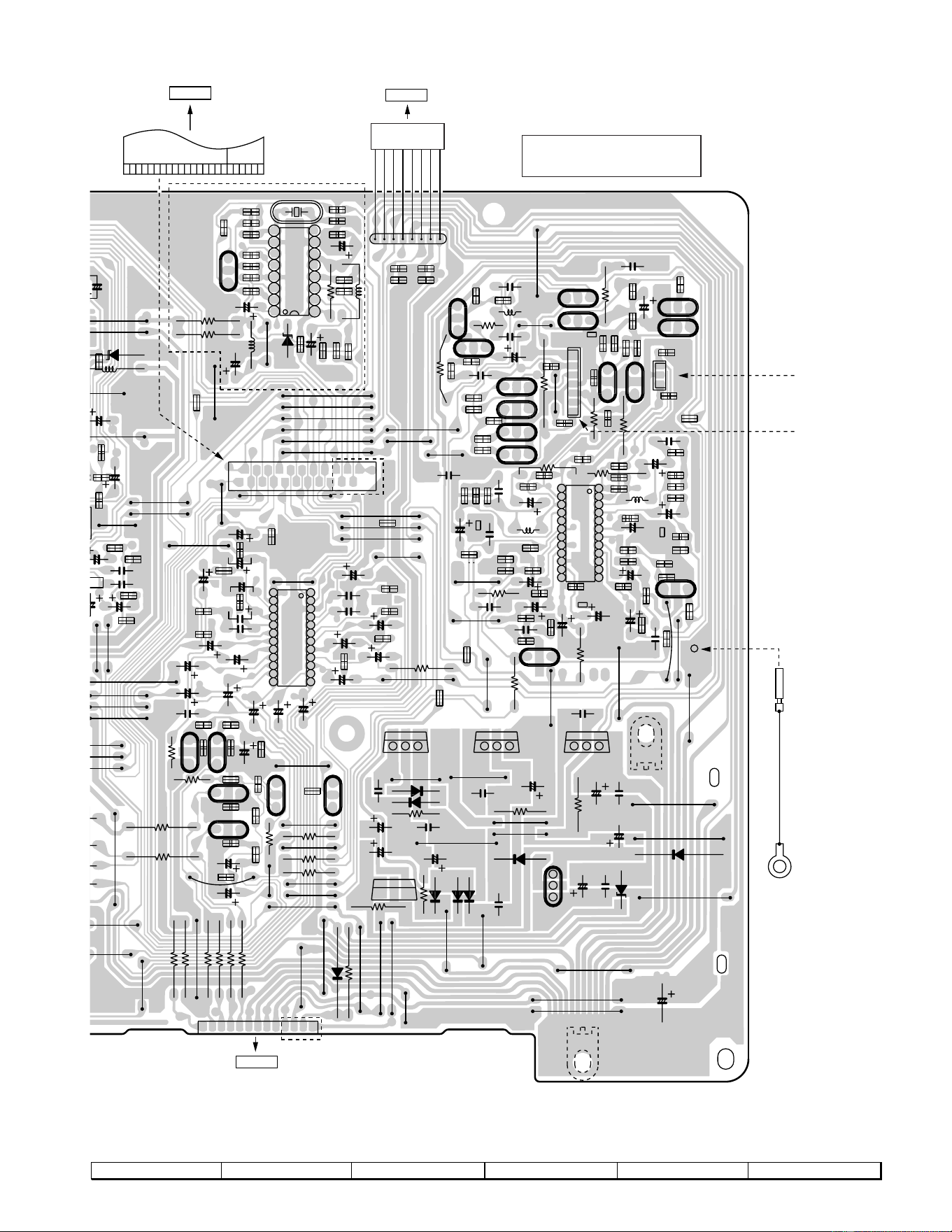

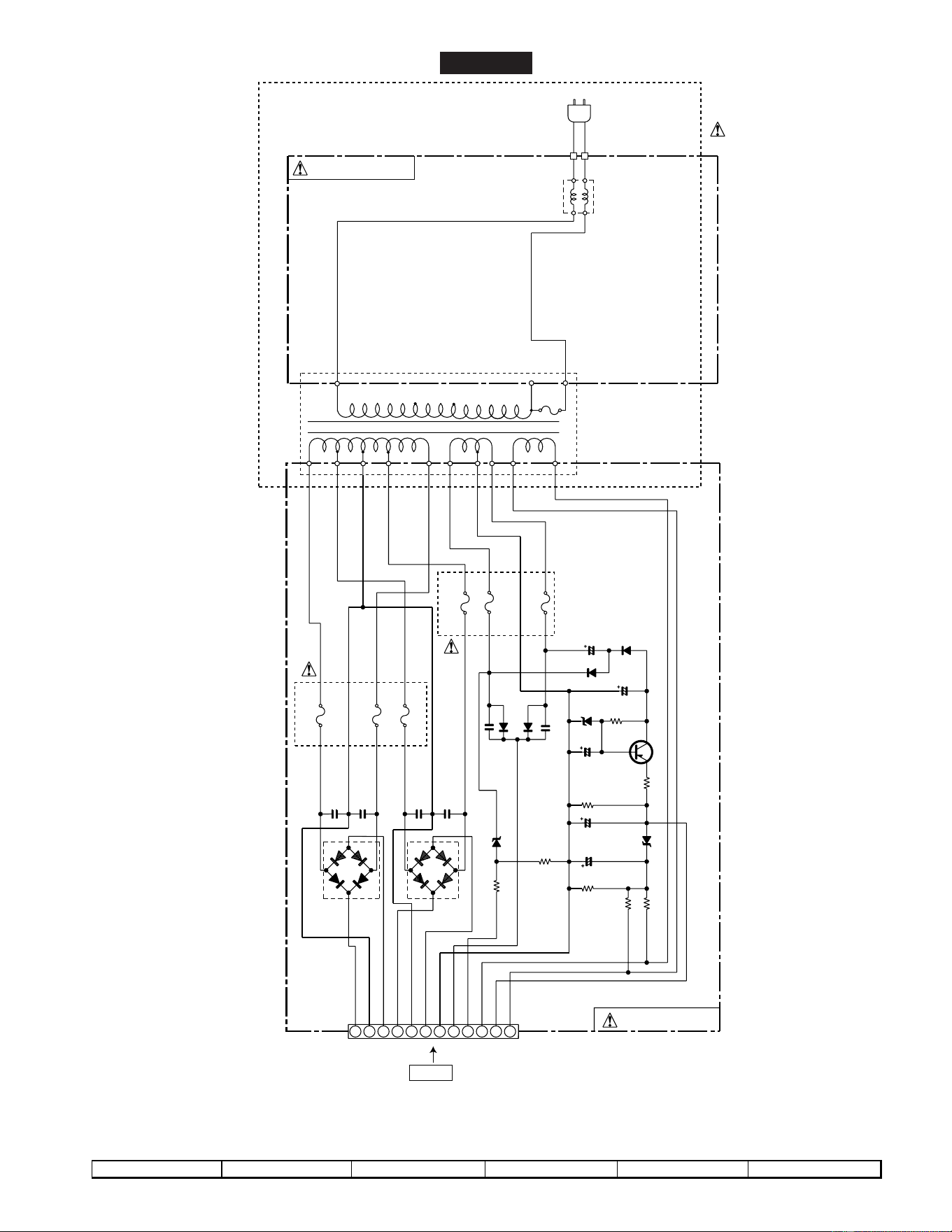

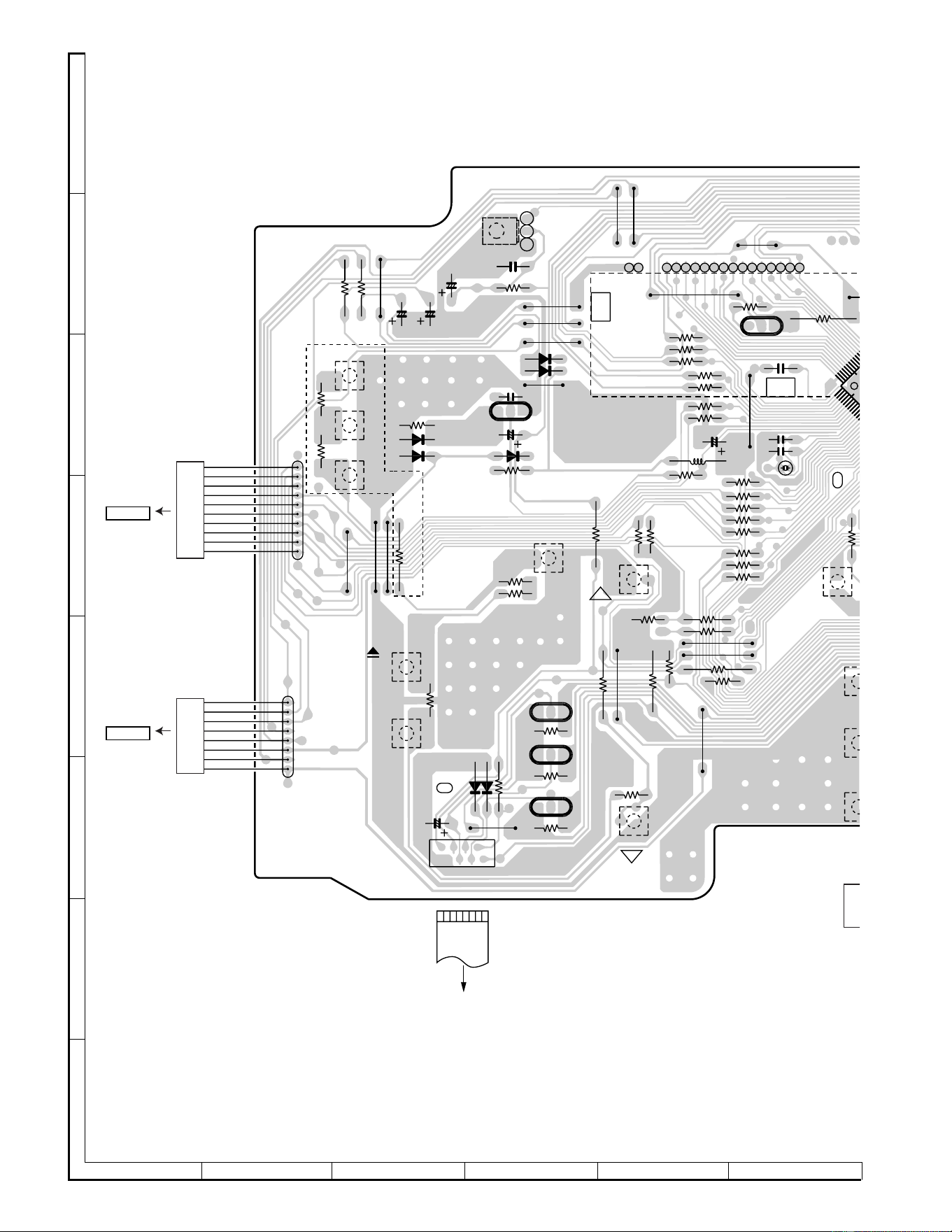

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 28

VOLTAGE ........................................................................................................................................................................ 50

TROUBLESHOOTING ..................................................................................................................................................... 51

FUNCTION TABLE OF IC................................................................................................................................................ 55

FL DISPLAY ......................................................................................................................................................................62

PARTS GUIDE/EXPLODED VIEW

PACKING METHOD (FOR U.K. ONLY)

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

SERVICE MANUAL

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic", and the double-D symbol are

trademarks of Dolby Laboratories.

• Note for users in UK

Recording and playback of any material may require consent which SHARP

is unable to give. Please refer particularly to the provisions of Copyright Act

1956, the Dramatic and Musical Prefomers Protection Act 1956, the

Preformers Protection Acts 1963 and 1972 and to any subsequent statutory

enactments and orders.

Illustration: CD-DP900H

(For CD-DP900H)

MINI COMPONENT SYSTEM

MODEL CD-DP900H

CD-DP900H Mini Component System consisting of CD-DP900H

(main unit), CP-DP900H (front speakers), GBOXS0091AWM1

(centre speaker) and GBOXS0092AWM1 (surround speakers).

MINI COMPONENT SYSTEM

MODEL CD-DP900E

CD-DP900E Mini Component System consisting of CD-DP900E

(main unit), CP-DP900H (front speakers), GBOXS0091AWM1

(centre speaker) and GBOXS0092AWM1 (surround speakers).

Illustration: CD-DP900E

CD-DP900H/E

– 2 –

IMPORTANT SERVICE NOTES (FOR U.K. ONLY)

PROBE

OUT

UNIT

SHORT-CIRCUIT

AC POWER

SUPPLY CORD

CONNECT THE PROBE

TO GND OF CHASSIS

SCREW

WITHSTANDING

VOLTAGE TESTER

SAFETY PRECAUTION FOR SERVICE MANUAL

Precaution to be taken when replacing and servicing the Laser Pickup.

The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class I Requirements.

However, the following precautions must be observed during servicing to protect your eyes against exposure to the Laser beam

(1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than

the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens.

(2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping.

(3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup.

(4) Under no circumstances look directly into the Pickup Lens at any time.

(5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in

hazardous radiation exposure.

(FOR AUSTRALIA/NEW ZEALAND)(FOR EUROPE)

Screw

Figure 2

ADVERSEL-SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE IND I

STRÅLEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE

LASERSÄTEILYLLE ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN

LAITTEEN LÄPI.

VARNING-SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR

ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN GENOM

OPTISKT INSTRUMENT.

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA

KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE

LASERSÄTEILYLLE.

VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA

BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR

OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR

LASERKLASS 1.

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

(FOR U.K.)

NG: The “NG” lamp lights and the buzzor sounds.

OK: The “GOOD” lamp lights.

Judgment

Unit

Set current (Cutoff current)

Set time

Set name

Withstanding Voltage Tester

Test voltage

Set value

4,240 VPEAK

3,000 VRMS

6 secs

4 mA

Before returning the unit to the customer after completion of a

repair or adjustment it is necessary for the following withstand

voltage test to be applied to ensure the unit is safe for the

customer to use.

Setting of Withstanding Voltage Tester and set.

– 3 –

CD-DP900H/E

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

SPECIFICATIONS

■

General

■

Amplifier

Power source

AC 230 V, 50 Hz

Power consumption

Power on: 116 W

Power stand-by: 0.6 W (*)

Dimensions

Width: 270 mm (10-5/8")

Height: 330 mm (13")

Depth: 355 mm (13-15/16")

Weight

7.2 kg (15.9 lbs.)

( * ) This power consumption value is obtained when the demonstration mode is

cancelled in the power stand-by mode.

Output power

PMPO: 438 W

Front speakers:

MPO: 146 W (73 W + 73 W) (DIN 45 324)

RMS: 80 W (40 W + 40 W) (DIN 45 324)

RMS: 64 W (32 W + 32 W) (DIN 45 500)

Centre speaker:

MPO: 37 W (DIN 45 324)

RMS: 20 W (DIN 45 324)

RMS: 16 W (DIN 45 500)

Surround speakers:

MPO: 36 W (18 W + 18 W) (DIN 45 324)

RMS: 20 W (10 W + 10 W) (DIN 45 324)

RMS: 16 W (8 W + 8 W) (DIN 45 500)

Output terminals

Front speakers: 6 ohms

Centre speaker: 6 ohms

Surround speakers: 12 ohms

Headphones: 16 - 50 ohms (recommended: 32 ohms)

Input terminals

Video/Auxiliary (audio signal): 500 mV/47 kohms

CD-DP900H

■

CD player

■

Tuner

■

Cassette deck

Type

3-disc multi-play compact disc player

Signal readout

Non-contact, 3-beam semiconductor laser pickup

D/A converter

1-bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

Frequency range

FM: 87.5 - 108 MHz

AM: 522 - 1,620 kHz

Frequency response

50 - 14,000 Hz (Normal tape)

Signal/noise ratio

55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter

0.35 % (DIN 45 511)

■

Centre speaker

■

Surround speaker

Type

10 cm (4") full-range speaker

Maximum input power

40 W

Rated input power

20 W

Impedance

6 ohms

Dimensions

Width: 260 mm (10-1/4")

Height: 140 mm (5-1/2")

Depth: 169 mm (6-5/8")

Weight

0.9 kg (2.0 lbs.)

Type

10 cm (4") full-range speaker

Maximum input power

20 W

Rated input power

10 W

Impedance

12 ohms

Dimensions

Width: 210 mm (8-1/4")

Height: 130 mm (5-1/8")

Depth: 154 mm (6-1/16")

Weight

0.7 kg (1.5 lbs.)/each

■

Front speaker

Type

2-way type speaker system

5 cm (2") Tweeter

13 cm (5-1/8") Woofer

Maximum input power

80 W

Rated input power

40 W

Impedance

6 ohms

Dimensions

Width: 220 mm (8-11/16")

Height: 330 mm (13")

Depth: 194 mm (7-5/8")

Weight

2.8 kg (6.2 lbs.)/each

Specifications for this model are subject to change without

prior notice.

CD-DP900H/E

– 4 –

CD-DP900E

■

General

■

Amplifier

Power source

AC 230-240 V, 50 Hz

Power consumption

116 W

Dimensions

Width: 270 mm (10-5/8")

Height: 330 mm (13")

Depth: 355 mm (13-15/16")

Weight

7.2 kg (15.9 lbs.)

Output power

Front speakers:

RMS: 80 W (40 W + 40 W) (10 % T.H.D.)

RMS: 64 W (32 W + 32 W) (0.9 % T.H.D.)

Centre speaker:

RMS: 20 W (10 % T.H.D.)

RMS: 16 W (0.9 % T.H.D.)

Surround speakers:

RMS: 20 W (10 W + 10 W) (10 % T.H.D.)

RMS: 16 W (8 W + 8 W) (0.9 % T.H.D.)

Output terminals

Front speakers: 6 ohms

Centre speaker: 6 ohms

Surround speakers: 12 ohms

Headphones: 16 - 50 ohms (recommended: 32 ohms)

Input terminals

Video/Auxiliary (audio signal): 500 mV/47 kohms

■

CD player

■

Tuner

■

Cassette deck

Type

3-disc multi-play compact disc player

Signal readout

Non-contact, 3-beam semiconductor laser pickup

D/A converter

1-bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

Frequency range

FM: 87.5 - 108 MHz

AM: 522 - 1,620 kHz

Frequency response

50 - 14,000 Hz (Normal tape)

Signal/noise ratio

55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter

0.3 % (WRMS)

■

Centre speaker

■

Surround speaker

Type

10 cm (4") full-range speaker

Maximum input power

40 W

Rated input power

20 W

Impedance

6 ohms

Dimensions

Width: 260 mm (10-1/4")

Height: 140 mm (5-1/2")

Depth: 169 mm (6-5/8")

Weight

0.9 kg (2.0 lbs.)

Type

10 cm (4") full-range speaker

Maximum input power

20 W

Rated input power

10 W

Impedance

12 ohms

Dimensions

Width: 210 mm (8-1/4")

Height: 130 mm (5-1/8")

Depth: 154 mm (6-1/16")

Weight

0.7 kg (1.5 lbs.)/each

■

Front speaker

Type

2-way type speaker system

5 cm (2") Tweeter

13 cm (5-1/8") Woofer

Maximum input power

80 W

Rated input power

40 W

Impedance

6 ohms

Dimensions

Width: 220 mm (8-11/16")

Height: 330 mm (13")

Depth: 194 mm (7-5/8")

Weight

2.8 kg (6.2 lbs.)/each

Specifications for this model are subject to change without

prior notice.

– 5 –

CD-DP900H/E

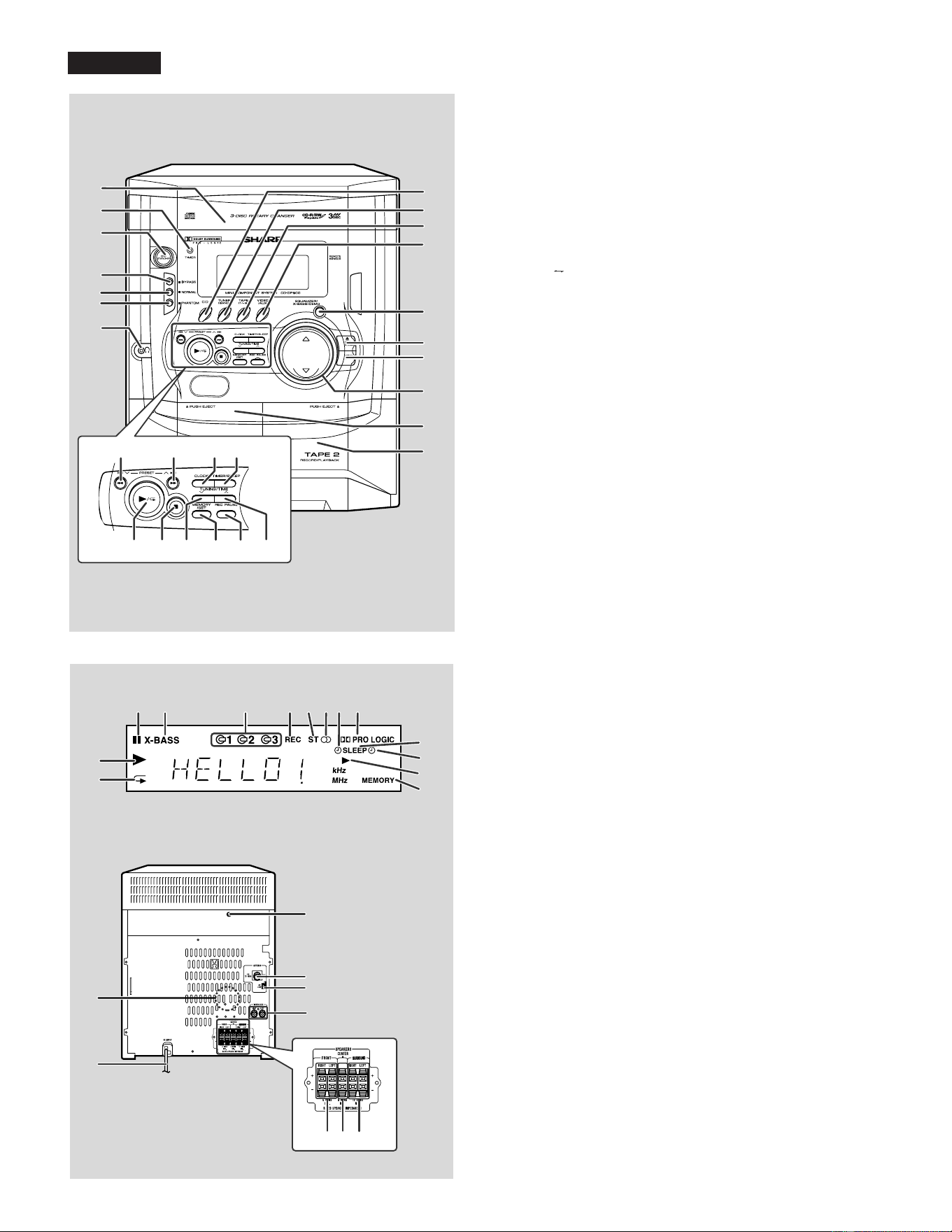

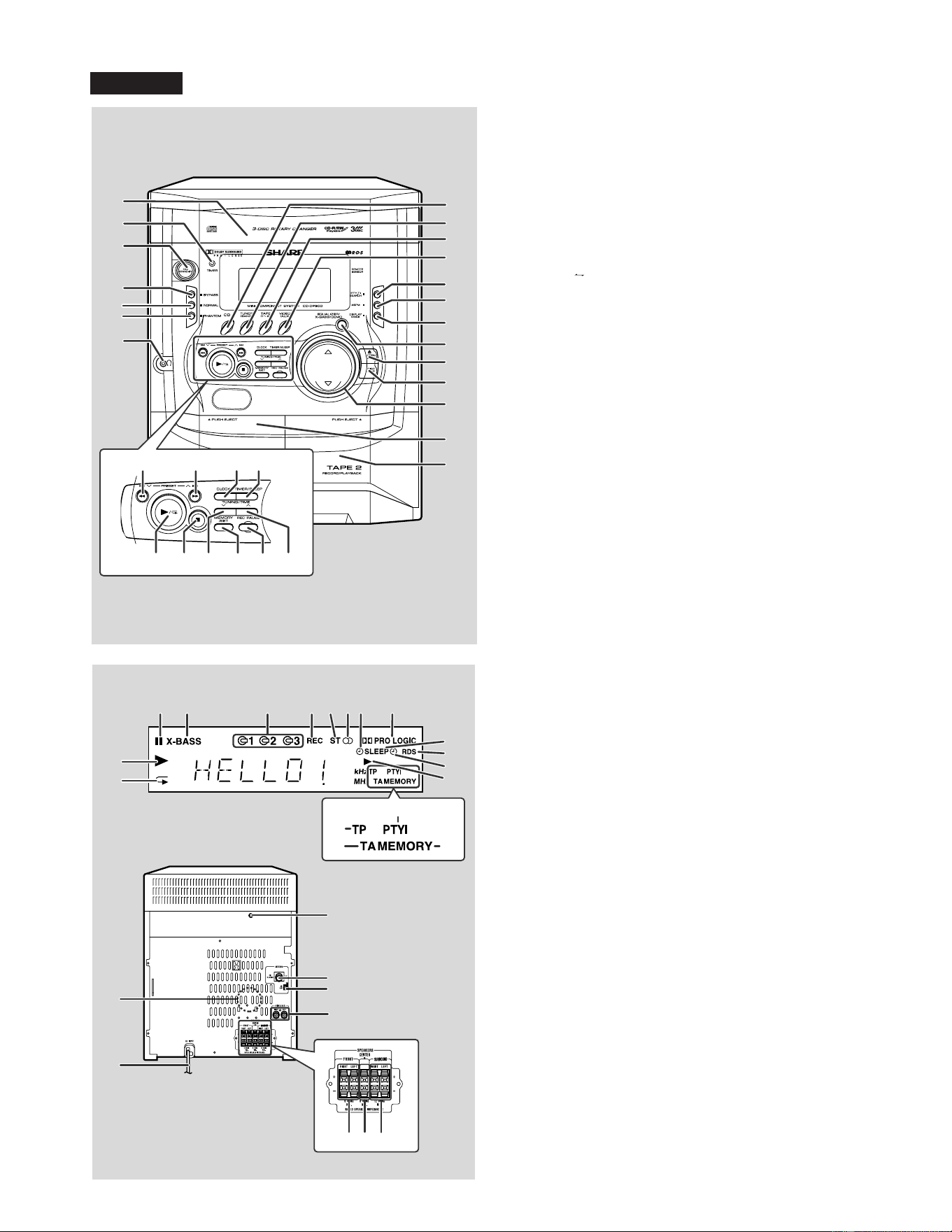

NAMES OF PARTS

23 24

27 28 29 302625

CD-DP900H

■

Front panel

1.Disc Tray

2.Timer Set Indicator

3.On/Stand-by Button

4.Bypass Button (with Indicator)

5.Normal Button (with Indicator)

6.Phantom Button (with Indicator)

7.Headphone Socket

8.CD Button

9.Tuner (Band) Button

10.Tape (1 2) Button

11.Video/Auxiliary Button

12.RDS Programme Type/Traffic Information Search Button

13.RDS ASPM (Auto Station Programme Memory) Button

14.RDS Display Mode Selector Button

15.Equaliser Mode Select/Extra Bass/Demo Mode Button

16.Disc Tray Open/Close Button

17.Disc Skip Button

18.Volume Up and Down Buttons

19.Tape 1 Cassette Compartment

20.Tape 2 Cassette Compartment

21.CD Track Down or Fast Reverse, Tape 2 Rewind,

Tuner Preset Down Button

22.CD Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up Button

23.Clock Button

24.Timer/Sleep Button

25.CD Play or Repeat, Tape Play Button

26.CD or Tape Stop Button

27.Tuning and Time Down Button

28.Memory/Set Button

29.Tape 2 Record Pause Button

30.Tuning and Time Up Button

24567

31 8

■

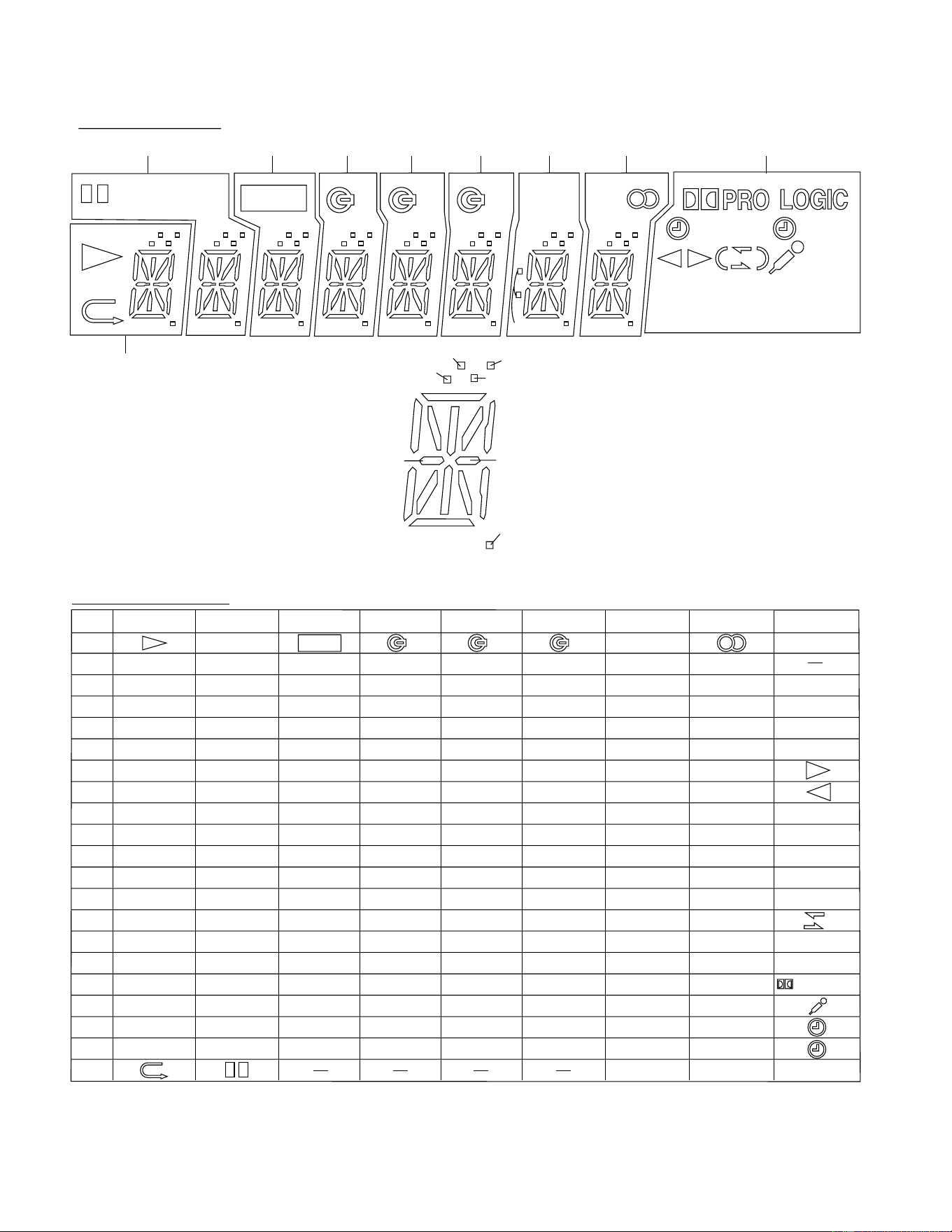

Display

1. CD Pause Indicator

2.Extra Bass Indicator

3.Disc Number Indicators

4.Tape 2 Record Indicator

5.FM Stereo Mode Indicator

6.FM Stereo Receiving Indicator

7.Timer Play Indicator

8.Dolby Pro Logic Indicator

9.CD Play Indicator

10.CD Repeat Play Indicator

11.Sleep Indicator

12.RDS Indicator

13.Timer Recording Indicator

14.Tape Play Indicator

15.Dynamic PTY Indicator

16.Traffic Programme Indicator

17.Traffic Announcement Indicator

18.Memory Indicator

■

Rear panel

1.Cooling Fan

2.AC Power Lead

3.Transport Screw

4.FM 75 Ohms Aerial Socket

5.AM Loop Aerial Socket

6.Video/Auxiliary (Audio Signal) Input Sockets

7.Front Speaker Terminals

8.Centre Speaker Terminals

9.Surround Speaker Terminals

CD-DP900H/E

– 6 –

23 24 272625

24567

31 8

■

Front panel

1.Disc Tray

2.Timer Set Indicator

3.On/Stand-by Button

4.Bypass Button (with Indicator)

5.Normal Button (with Indicator)

6.Phantom Button (with Indicator)

7.Headphone Socket

8.CD Button

9.Tuner (Band) Button

10.Tape (1 2) Button

11.Video/Auxiliary Button

12.Equaliser Mode Select/Extra Bass/Demo Mode Button

13.Disc Tray Open/Close Button

14.Disc Skip Button

15.Volume Up and Down Buttons

16.Tape 1 Cassette Compartment

17.Tape 2 Cassette Compartment

18.CD Track Down or Fast Reverse, Tape 2 Rewind,

Tuner Preset Down Button

19.CD Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up Button

20.Clock Button

21.Timer/Sleep Button

22.CD Play or Repeat, Tape Play Button

23.CD or Tape Stop Button

24.Tuning and Time Down Button

25.Memory/Set Button

26.Tape 2 Record Pause Button

27.Tuning and Time Up Button

■

Display

1. CD Pause Indicator

2.Extra Bass Indicator

3.Disc Number Indicators

4.Tape 2 Record Indicator

5.FM Stereo Mode Indicator

6.FM Stereo Receiving Indicator

7.Timer Play Indicator

8.Dolby Pro Logic Indicator

9.CD Play Indicator

10.CD Repeat Play Indicator

11.Sleep Indicator

12.Timer Recording Indicator

13.Tape Play Indicator

14.Memory Indicator

■

Rear panel

1.Cooling Fan

2.AC Power Lead

3.Transport Screw

4.FM 75 Ohms Aerial Socket

5.AM Loop Aerial Socket

6.Video/Auxiliary (Audio Signal) Input Sockets

7.Front Speaker Terminals

8.Centre Speaker Terminals

9.Surround Speaker Terminals

CD-DP900E

– 7 –

CD-DP900H/E

■

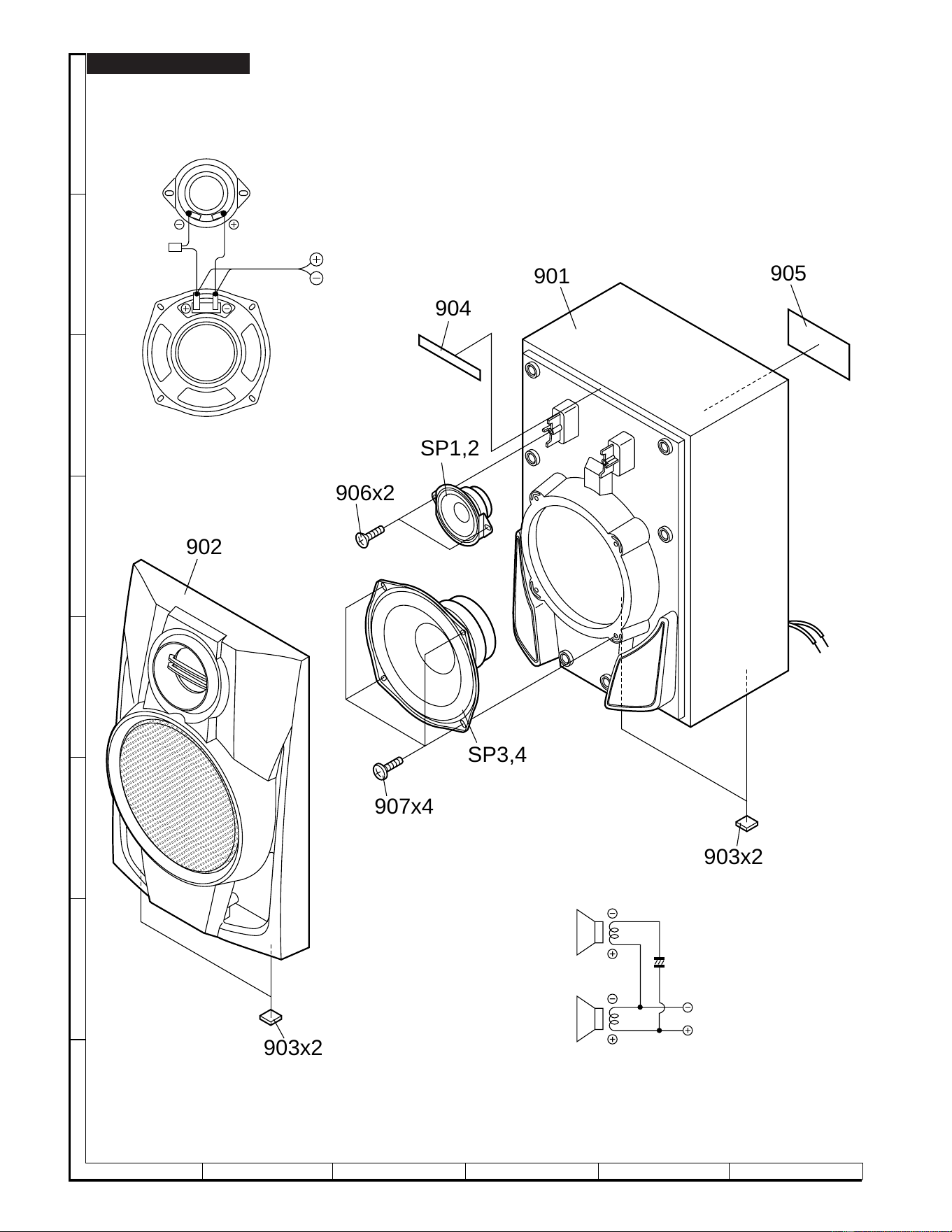

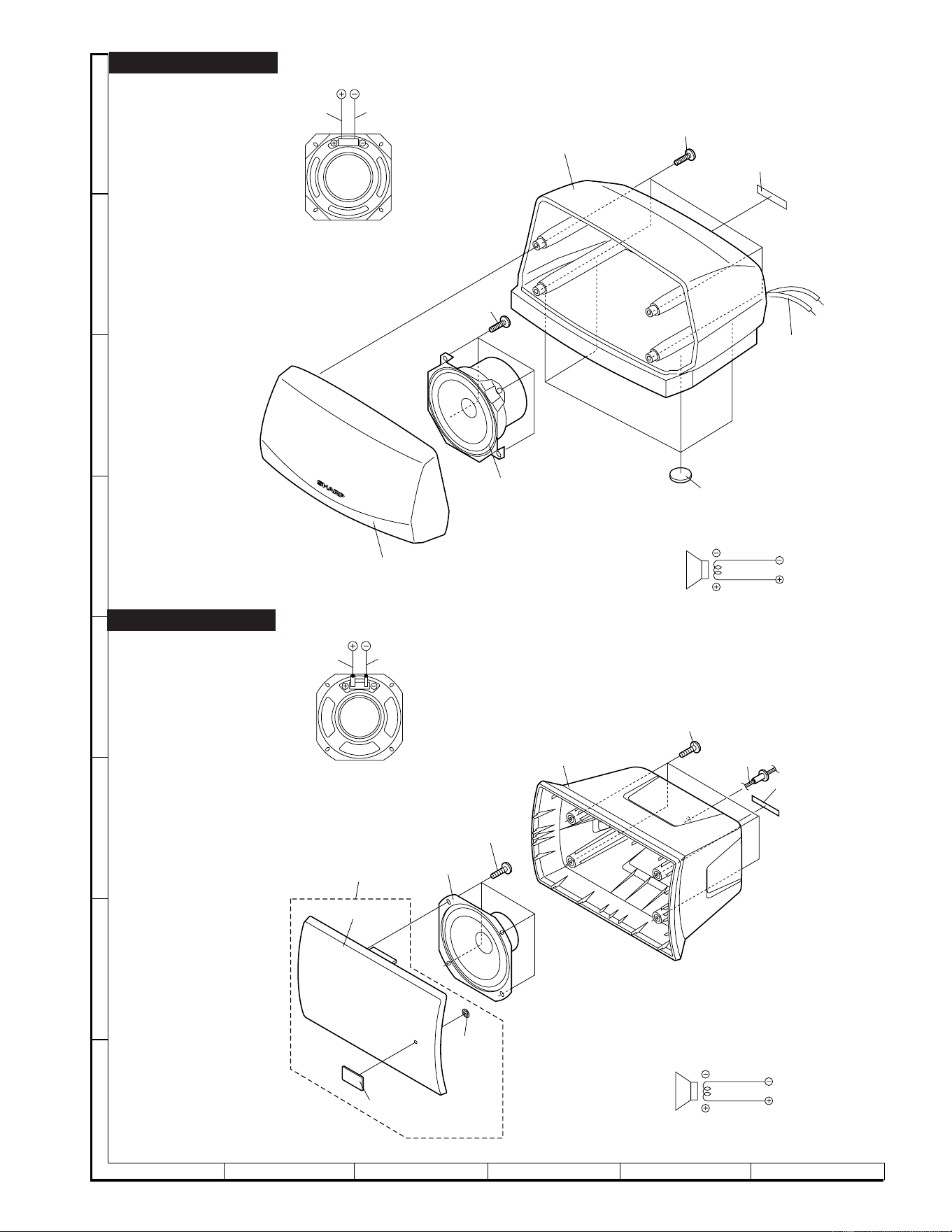

Front speaker

1. Tweeter

2.Woofer

3. Bass Reflex Duct

4. Speaker Wire

■

Centre speaker

1.Full-Range Speaker

2. Speaker Wire

■

Surround speaker

1.Full-Range Speaker

2. S

eaker Wire

CD-DP900H/E

– 8 –

If any one of the bands shown in Fig.8 is removed for some

reason, be sure replace it to the original position and same

appearance as before.

WIRING OF PRIMARILY SUPPLY LEADS (FOR U.K. ONLY)

Nylon Band 80mm

92LNBAND1318A

AC Power

Supply Cord

Power

Transformer

Brown

Blue

Figure 8

■

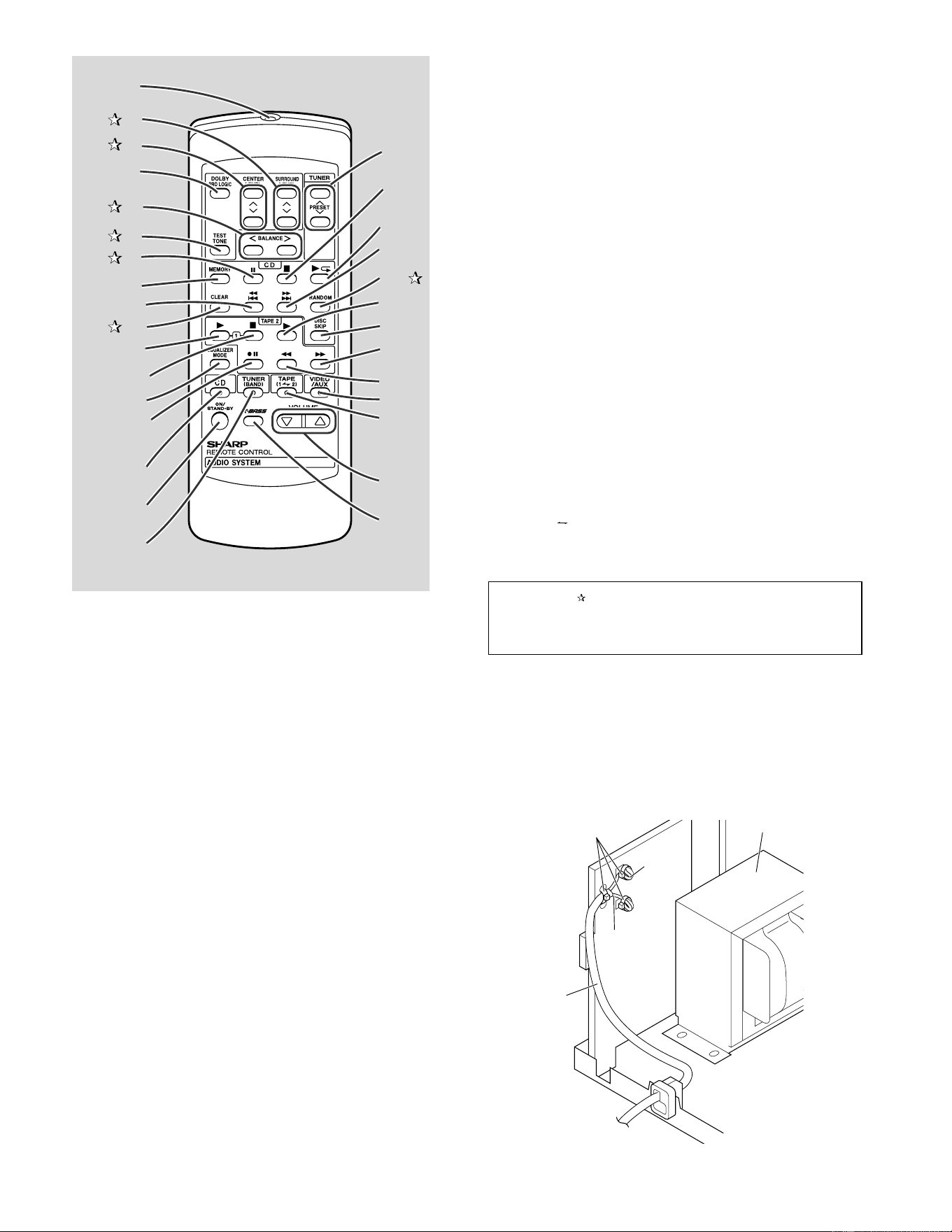

Remote control

Remote Control Transmitter

2.Surround Level Up and Down Buttons

3.Centre Level Up and Down Buttons

Dolby Pro Logic Button

5.Balance Control Up and Down Buttons

6.Test Tone Button

7.CD Pause Button

CD Memory Button

CD Track Down or Fast Reverse Button

10.CD Clear Button

11.

Tape 1 Play Button

12.

Tape 1/Tape 2 Stop Button

13.

Equaliser Mode Select Button

14.

Tape 2 Record Pause Button

15.

CD Button

16.

On/Stand-by Button

17.

Tuner (Band) Button

18.

Tuner Preset Up and Down Buttons

19.

CD Stop Button

20.

CD Play or Repeat Button

21.

CD Track Up or Fast Forward Button

22.CD Random Button

23.

Tape 2 Play Button

24.

Disc Skip Button

25.

Tape 2 Fast Forward Button

26.

Tape 2 Rewind Button

27.

Video/Auxiliary Button

28.

Tape (1 2) Button

29.

Volume Up and Down Buttons

30.

Extra Bass Button

Buttons with " " mark in the illustration can be operated on the

Other buttons can be operated both on the main unit and the

remote control only.

remote control.

– 9 –

CD-DP900H/E

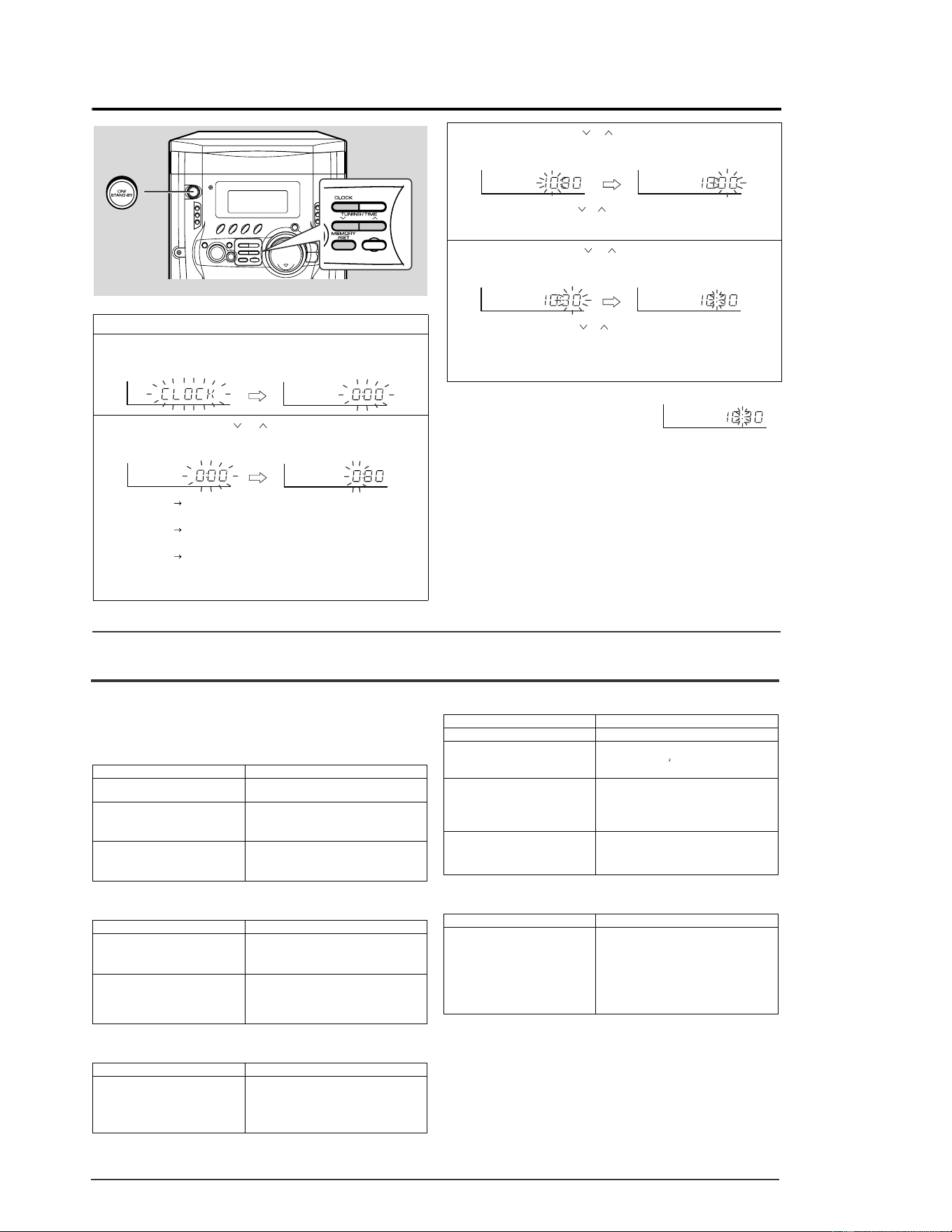

OPERATION MANUAL

In this example, the clock is set for the 24-hour (0:00) display.

Note:

The "CLOCK" or time will flash at the push of the CLOCK button when the AC power

supply is restored after a power failure or unplugging the unit.

Readjust the clock as follows.

To readjust the clock:

Perform "Setting the clock" from step 1. If the time display is flashing, step 3 (for

selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

Press the ON/STAND-BY button to turn the power on.

Press the CLOCK button and within 5 seconds, press the MEMO-

RY/SET button.

Press the TUNING/TIME ( or ) button to select 24-hour or 12-

hour display and then press the MEMORY/SET button.

"0:00" The 24-hour display will appear.

(0:00 - 23:59)

"AM 12:00" The 12-hour display will appear.

(AM 12:00 - PM 11:59)

"AM 0:00" The 12-hour display will appear.

(AM 0:00 - PM 11:59)

Note that this can only be set when the unit is first installed or it has been reset.

Press the TUNING/TIME ( or ) button to adjust the hour and then

press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.

Hold it down to advance continuously.

When the 12-hour display is selected, "AM" will change automatically to "PM".

Press the TUNING/TIME ( or ) button to adjust the minutes and

then press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1

minute. Hold it down to change the time in 5-minute intervals.

The hour will not advance even if minutes advance from "59" to "00".

The clock begins counting from "0" seconds. (Seconds are not displayed.)

The time display will disappear after a few seconds.

To confirm the time display:

Press the CLOCK button.

The time display will appear for about 5 seconds.

1 Clear all the programmed contents.

2 Perform "Setting the Clock" from step 1.

Illustration:CD-DP900H

Setting the clock

●

■

Cassette deck

■

Remote control

■

Condensation

Symptom Possible cause

Cannot record. Is the erase-prevention tab removed?

Cannot record tracks with proper

sound quality.

Is it a normal tape? (You cannot record on

a metal or CrO tape.)

Cannot erase completely.

Sound skipping. Is there any slack?

Is the tape stretched?

Cannot hear treble. Are the capstans, pinch rollers, or heads

dirty?

Sound fluctuation.

Cannot remove the tape. If a power failure occurs during playback,

the heads remain engaged with the tape.

Do not open the compartment forcibly.

Wait until electricity resumes.

Symptom Possible cause

The remote control does not oper-

ate.

Is the AC power lead of the unit plugged

in?

Is the battery polarity respected?

Are the batteries dead?

Is the distance or angle incorrect?

Does the remote control sensor receive

strong light?

Sudden temperature changes, storage or operation in an extremely humid environ-

ment may cause condensation inside the cabinet (CD pickup, tape heads, etc.) or on

the transmitter on the remote control.

Condensation can cause the unit to malfunction. If this happens, leave the power on

with no disc (or cassette) in the unit until normal playback is possible (about 1 hour).

Wipe off any condensation on the transmitter with a soft cloth before operating the

unit.

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service tech-

nician.

If something is wrong with this product, check the following before calling your autho-

rised SHARP dealer or service centre.

■

General

■

●

●●

●

CD player

■

Tuner

Symptom Possible cause

The clock is not on time. Did a power failure occur? Reset the

clock.

When a button is pressed, the unit

does not respond.

Set this unit to the power stand-by mode

and then turn it back on.

If the unit still malfunctions, reset it.

No sound is heard. Is the volume level set to "0"?

Are the headphones connected?

Are the speaker wires disconnected?

Symptom Possible cause

Playback does not start. Is the disc loaded upside down?

Playback stops in the middle or is

not performed properly.

Does the disc satisfy the standards?

Is the disc distorted or scratched?

Playback sounds are skipped, or

stopped in the middle of a track.

Is the unit located near excessive vibra-

tions?

Is the disc very dirty?

Has condensation formed inside the unit?

Symptom Possible cause

Radio makes unusual noise con-

secutively.

Is the unit placed near the TV or comput-

er?

Is the FM aerial or AM loop aerial placed

properly? Move the AC power lead or the

unit away from the aerial if located near.

●

CD-DP900H/E

– 10 –

Accessories

123

Remote control battery installation

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included.

Remove the

Insert the batteries

Replace the cover.

battery cover.

as shown.

FM aerial 1

Remote control 1 AM loop aerial 1

"AA" size battery (UM/SUM-3, R6,

CD-DP900H

CD-DP900E for AUSTRALIA/NEW ZEALAND

HP-

7 or similar) 2

System connections

AM loop aerial

FM aerial

Front speaker

(Left)

Front speaker

(Right)

Surround speaker

(Right)

Surround speaker

(Left)

Centre speaker

Before turning the power on, be sure to remove the transport screw

on the back of the unit using a flat head screwdriver or a coin.

Black

Red

Front speaker (Right)

Surround speaker (Right) Surround speaker (Left)

Front speaker (Left)

Grey

Orange

Centre speaker

VCR, DVD, etc.

To the line

output sockets

RCA lead

(not supplied)

Wall socket

AC 230V, 50 Hz for CD-DP900H

AC 230-240V, 50 Hz for CD-DP900E(UK)

AC 230-240V, 50 Hz for CD-DP900E(AUSTRALIA and NEW ZEALAND)

Illustration:CD-DP900E

– 11 –

CD-DP900H/E

Turn on your system

The first time the unit is plugged

in, the unit will enter the demon-

stration mode. You will see words

scroll.

Press the

EQUALIZER/X-BASS/

DEMO button to cancel

the demonstration mode.

Listening to a CD (CDs)

FM stereo mode indicator

FM stereo receiving indicator

Listening to the radio

Press the CD button.

Press the

7 7

7 OPEN/CLOSE button to

open the disc tray.

Place the CD(s) on the disc tray, la-

bel side up.

When loading a third disc, press the

DISC SKIP button to turn the disc

tray, then place the CD in the open

position.

Press the

7 7

7 OPEN/CLOSE button to

close the disc tray.

To select the CD you want to listen

to first, press the DISC SKIP button.

Press the

0 / R 0 / R

0 / R button to start play-

back.

Press the TUNER (BAND) button re-

peatedly to select the desired fre-

quency band (FM or AM).

Press the TUNING/TIME (

X or

button to tune in to the desired sta-

tion.

When the TUNING/TIME button is

pressed for more than 0.5 seconds,

scanning will start automatically and

the tuner will stop at the first receiv-

able broadcast station.

To receive an FM stereo transmission:

Press the TUNER (BAND) button to display the

“ST” indicator.

“

j” will appear when an FM broadcast is in

stereo.

Press the

ON/STAND-BY button

to turn the power on.

3, 5

2, 4

12 cm (5")

8 cm (3")

●

■

If trouble occurs

When this product is subjected to strong external interference

(mechanical shock, excessive static electricity, abnormal sup-

ply voltage due to lightning, etc.) or if it is operated incorrectly, it

may malfunction.

If such a problem occurs, do the following:

1. Set the unit to the stand-by mode and turn the power

on again.

If the unit is not restored in the previous operation, un-

plug and plug in the unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory

by resetting it.

■

Clearing all the memory (reset)

1. Press the ON/STAND-BY button to enter the power

stand-by mode.

Whilst pressing down the CLOCK button and the

EQUALIZER/X-BASS/DEMO button, press the ON/

STAND-BY button until “CLEAR AL” appears.

Caution:

This operation will erase all data stored in memory including

clock, timer settings, tuner preset, and CD programme.

■

Maintenance

Dirty heads, capstans or pinch rollers can cause poor

sound and tape jams. Clean these parts with a cotton swab

moistened with commercial head/pinch roller cleaner or

isopropyl alcohol.

When cleaning the heads, pinch rollers, etc., unplug the

unit which contains high voltages.

After long use, the deck’s heads and capstans may be-

come magnetised, causing poor sound. Demagenetise

these parts once every 30 hours of playing/recording time

by using a commercial tape head demagnetiser. Read the

demagnetiser’s instructions carefully before use.

Clean the dust or stain on the CD pickup lens using a com-

mercial cleaning disc (brush type).

Listening to a cassette tape (TAPE 1 or TAPE 2)

Open the cassette door by pushing

the area marked “

7 7

7 PUSH EJECT”.

Load a cassette into the TAPE 1 or

TAPE 2 cassette compartment with

the side to be played facing toward

you.

Press the TAPE (1

V 2) button to se-

lect the cassette you want to listen

to.

Press the

0 / R0 / R

0 / R button to start play-

back.

TAPE 1

TAPE 2

A Playback head

B Capstan

C Pinch roller

D Erase head

E Recording/Playback head

TAPE 1 TAPE 2

●

Illustration:CD-DP900E

CD-DP900H/E

– 12 –

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need be

removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take suffcient care on static electricity of integrated

circuits and other circuits when servicing.

1 Top Cabinet 1. Screw ..................... (A1) x4 12-1

2 Side Panel 1. Screw ..................... (B1) x4 12-1

(Left/right) 2. Screw ..................... (B2) x4

3 CD Tray Cover/ 1. Turn on the power supply, 12-2

CD Player Unit open the disc tray, take out

the CD cover, and close.

(Note 1)

2. Screw ..................... (C1) x1

3. Screw ..................... (C2) x1

4. Hook ....................... (C3) x3

5. Hook ....................... (C4) x2

6. Socket .................... (C5) x2

4 Rear Panel 1. Screw ..................... (D1) x8 12-2

2. Socket .................... (D2) x1 13-1

5 Main PWB 1. Screw ..................... (E1) x2 13-1

2. Socket .................... (E2) x3

3. Lug Wire................. (E3) x1

4. Flat Cable .............. (E4) x1

6 Power PWB 1. Screw ..................... (F1) x2 13-2

2. Screw ..................... (F2) x2

3. Socket .................... (F3) x2

4. Flat Wire................. (F4) x1

5. Push Rivet ............. (F5) x5

6. Socket .................... (F6) x1

7 Front Panel 1. Screw ..................... (H1) x3 13-2

8 Display PWB/ 1. Screw .....................

(J1) x12

13-3

2. Flat Cable .............. (J2) x1

Tape Mechanism

1. Open the cassette holder 13-3

2. Screw ..................... (K1) x5

Headphones PWB

1. Screw ..................... (L1) x1 13-3

11 Turntable 1. Hook ....................... (M1) x2 13-4

2. Cover ..................... (M2) x1

12 Loading Tray 1. Hook ....................... (N1) x2 14-1

2. Hook ....................... (N2) x6

13 CD Servo PWB 1. Screw ..................... (P1) x2 14-2

(Note 2) 2. Hook ....................... (P2) x1

3. Socket .................... (P3) x4

14 CD Mechanism 1. Hook ....................... (Q1) x2 14-3

2. Hook ....................... (Q2) x3

Loading Motor PWB

1. Hook ....................... (R1) x5 14-3

STEP REMOVAL

PROCEDURE

FIGURE

Side Panel

(Left)

Top Cabinet

Side Panel

(Right)

(A1)x2

ø3x12mm

(A1)x2

ø3x12mm

(B1)x2

ø3x10mm

(B1)x2

ø3x10mm

(B2)x4

ø3x10mm

(C5)x2

CD Servo

PWB

Pull

CD Player

Unit

CD Tray Cover

Rear

Panel

Main PWB

(C2)x1

ø3x10mm

(D1)x7

ø3x10mm

(D1)x1

ø3x12mm

Hook

(C3)x3

Transport screw

(C1)x1

Hook

(C4)x1

Hook

(C4)x1

Figure 12-2

Figure 12-1

Note 1: How to open the changer manually. (Fig. 12-3)

1. In this state, turn fully the lock lever in the arrow direction through

the hole on the loading tray bottom.

2. After that, push forward the slide chassis.

Note 2:

1. After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the front end

of the connector so as to protect the optical pickup from electro-

static damage.

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front

movement.

Figure 12-3

Lock Lever

CD Player Unit

(Bottom View)

– 13 –

CD-DP900H/E

(E2)x1

(E2)x2

(E3)x1

(E4)x1

Power

Amp.

PWB

Power PWB

Main

PWB

Main

PWB

(D2)x1

(E1)x2

ø3x12mm

Front Panel

(F1)x2

ø3x10mm

(H1)x3

ø3x10mm

(F2)x2

ø3x12mm

(F3)x2

(F6)x1

(CD-DP900H only)

(F4)x1

(F5)x5

Push

Power PWB

Headphones

PWB

Headphones

PWB

Open

Cassette

Holder

Display PWB

Tape

Mechanism

(J1)x12

ø3x10mm

(K1)x5

ø3x10mm

(L1)x1

ø3x10mm

(J2)x1

Figure 13-2

Figure 13-1

Figure 13-3

Turntable

CD Player Unit

Slide

Chassis

(M1) x2

(M 2) x1

Figure 13-4

CD-DP900H/E

– 14 –

1 Front Panel 1. Front Panel ............ (A1) x1 14-4

2 Woofer 1. Screw ..................... (B1) x4 14-4

3 Tweeter 1. Screw .................... (C1) x2 14-4

STEP REMOVAL

PROCEDURE

FIGURE

(Q2) x3

Hook

(Q1) x1

Mechanism

Motor

PWB

Hook

(Q1) x1

Hook

(R1) x5

Tray

(C1)x2

ø3x10mm

(B1)x4

ø4x12mm

,,,,

,,,,,,

,,,,,,,,

,,,,,,,,,,

,,,,,,,,,,,,

,,,,,,,,,,,,,

,,,,,,,,,,,

,,,,,,,,,

,,,,,,,

,,,,,

,,,

Woofer

Front Panel

( A1 ) x1

Screwdriver

Tweeter

Hook

(N2) x3

Hook

(N1) x1

Hook

(N1) x1

Hook

(N2) x3

Tray

Hook

(N1) x1

Slide

Chassis



(P3) x2

Hook

(P2) x1

(P3) x2

CD Servo

PWB

Tray

(P1)x2

ø3x10mm

Figure 14-1

Figure 14-3

Figure 14-2

Figure 14-4

– 15 –

CD-DP900H/E

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 7 and 9 of the disassembly method to

remove the tape mechanism.

How to remove the record/playback and erase

heads (TAPE 2) (See Fig. 15-1)

1. When you remove the screws (A1) x 2 pcs., the recording/

playback head and three-dimensional head of the erasing

head can be removed.

How to remove the playback head (TAPE 1)

(See Fig. 15-2)

1. When you remove the screws (B1) x 2 pcs., the playback

head can be removed.

How to remove the pinch roller (TAPE 1/2)

(See Fig. 15-3)

1. Carefully bend the pinch roller pawl in the direction of the

arrow <A>, and remove the pinch roller (C1) x 1 pc., in the

direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring

mounting position.

How to remove the belt (TAPE 2)

(See Fig. 15-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1)

(See Fig. 15-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 15-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

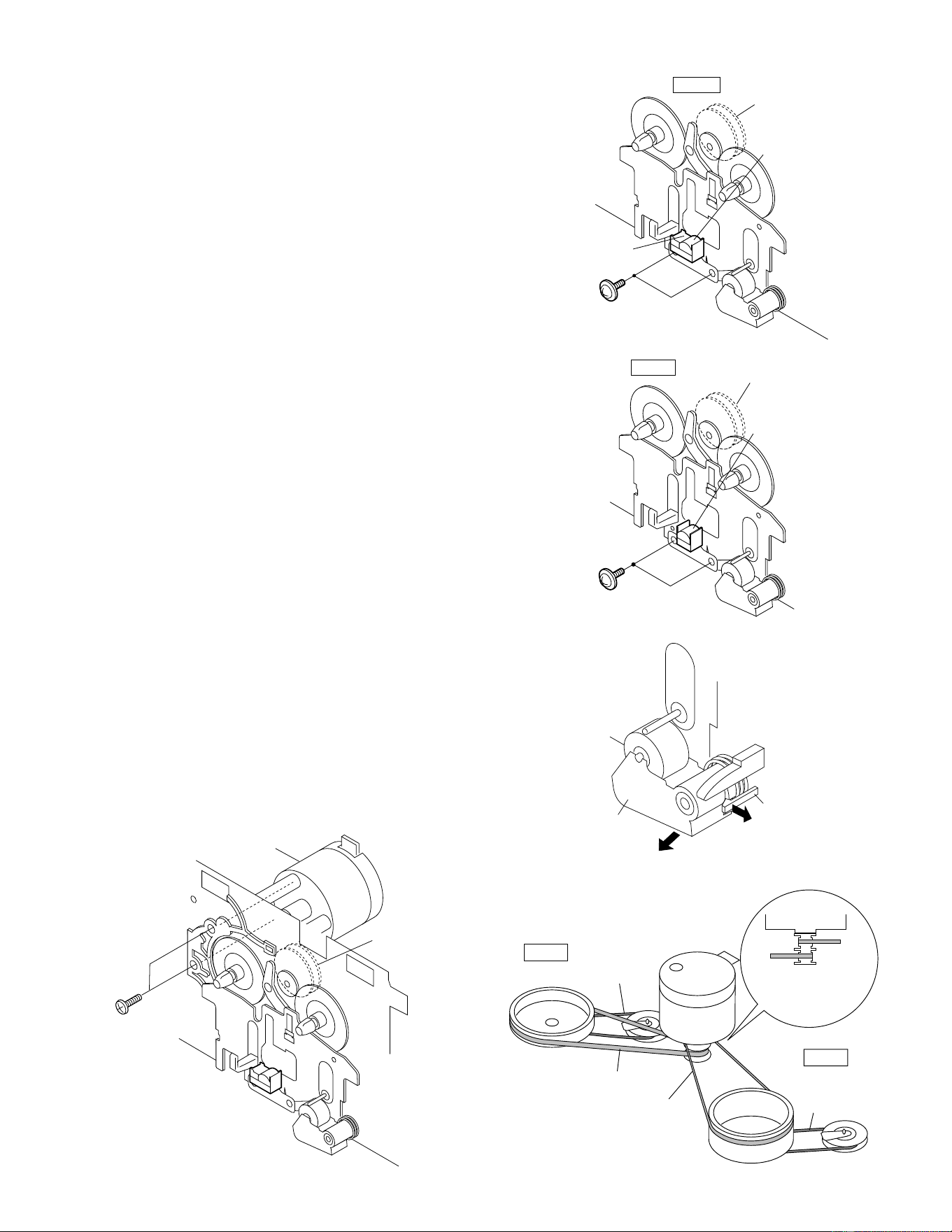

Figure 15-1

Figure 15-2

Figure 15-3

Figure 15-4Figure 15-5

(A1)x2

Ø2x9mm

TAPE 2

Record/Playback

Head

Erase Head

Clutch Ass'y

(B1)x2

Ø2x9mm

TAPE 1

Playback

Head

Clutch Ass'y

Pinch Roller

(C1)x1

<A>

<B>

Pinch

Roller

Pawl

Pull

TAPE 2

TAPE 1

Main Belt

(E1)x1

TAPE 2

Main Belt

(D1)x1

TAPE 1

Main Belt

(D1)x1

Main Belt

(E1)x1

FF/REW

Belt

(D2)x1

FF/REW

Belt

(E2)x1

Motor

(F1)x2

Ø 2.6x5mm

Motor

Clutch Ass'y

CD-DP900H/E

– 16 –

How to remove the pickup (See Fig. 16-2)

1. Remove the stop washer (B1) x 1 pc., to remove the gear

(B2) x 1 pc.

2. Remove the screws (B3) x 2 pcs., to remove the shaft

(B4) x 1 pc.

3. Remove the pickup.

Note

After removing the connector for the optical pickup from the

connector wrap the conductive aluminium foil around the front

end of connector so as to protect the optical pickup from

electrostatic damage.

Figure 16-2

CD MECHANISM SECTION

Perform steps 1, 2, 3, 11, 12,13 and 14 of the disassembly

method to remove the CD mechanism.

How to remove the loading motor

(See Fig. 16-1)

1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.

Figure 16-1

ADJUSTMENT

MECHANISM SECTION

••

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

••

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm

Fast forward: TW-2231 — 70 to 180 g.cm

Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± 30 Hz Speaker

speed Resistor in Terminal

motor. (Load

resistance:

6 ohms)

••

• Tape Speed

Figure 16-3

(B3)x2

ø2.6x6mm

Shaft

(B4)x1

Stop Washer

(B1)x1

Gear

(B2)x1

CD Mechanism

Pickup

TAPE MECHANISM

Tape

Motor

Variable Resistor in motor

(A1)x5

Motor PWB

Motor

Tray

– 17 –

CD-DP900H/E

Figure 17-2

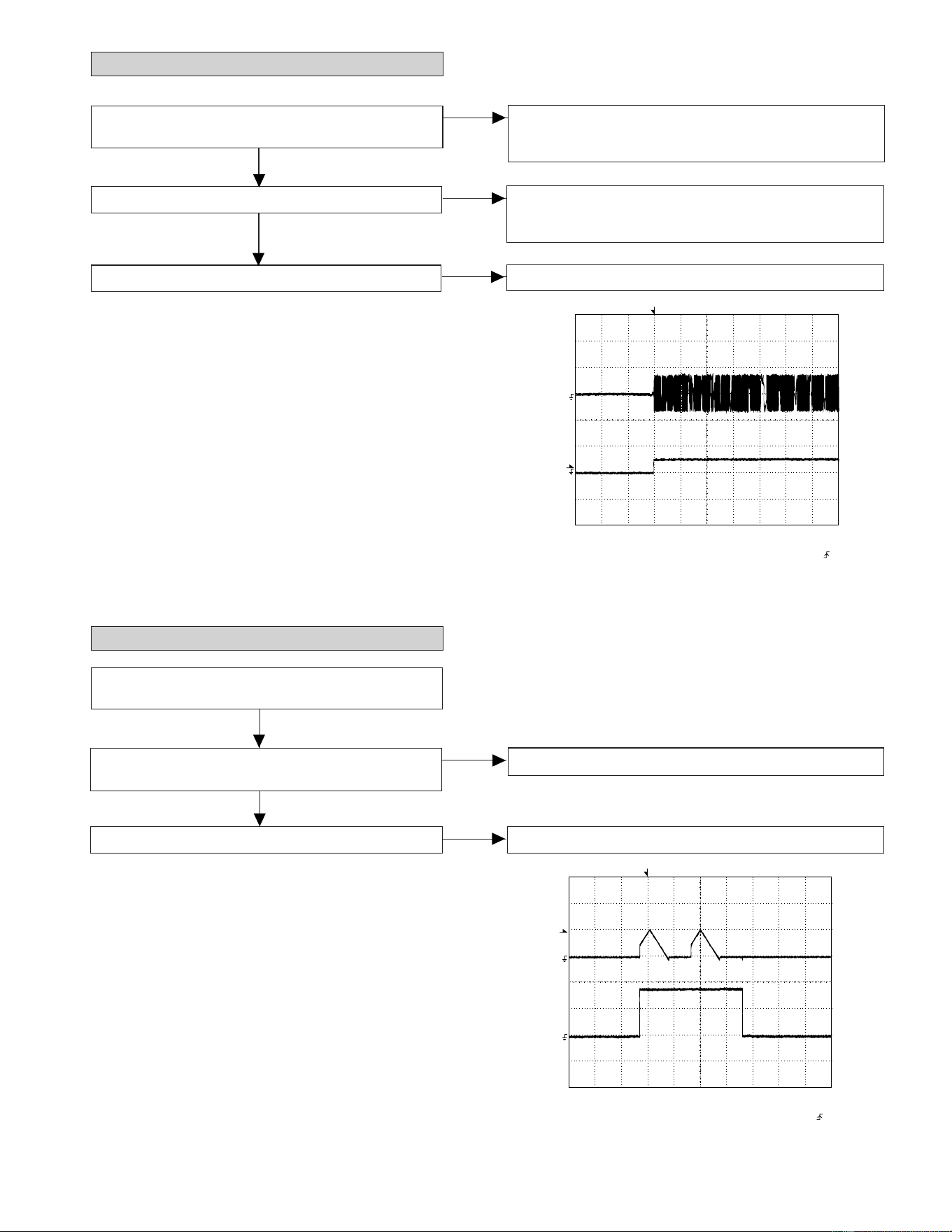

CD ERROR CODE DESCRIPTION

Error

Explanation

When Pickup set inner position, inner switch

cannot detect 'ON' level for 10 secs.

When tray moves to Open/Close, Open/Close switch

10*

cannot detect 'ON' level for 7 secs.

When disc table rotate to target position.

Clamp switch cannot detect 'ON' level for 7 secs.

When disc table set to Disc1 position for 1 st time,

11* "CLAMP SW", "DISC NO SW" and "OPEN/CLOSE"

cannot detect 'ON' level for 14 secs.

When it changes to CD function, DSP cannot read

initial data.

EFBL

FDO

Stopped

CH1=500 mV

DC 10:1

CH2=200 mV

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100K

Zoom : 2k

Mode : SINGLE

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH2

v/DIV

200 mV

1999/04/05 20:26:47

Test Stage

Frequency Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

CD SECTION

••

•

AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

*1. Input: Antenna Output: TP302

*2. Input: Antenna Output: TP301

TUNER SECTION

fL: Low-range frequency

fH: High-range frequency

AM IF 450 kHz 1,702 kHz T351 *1

AM Band — 530 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V

AM Tracking 990 kHz 990 kHz (fL): T303 *1

Figure 17-1 ADJUSTMENT POINTS

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is

compensated inside the IC.)

* Focus offset adjustment

* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing

Fig.17-2 EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will

be 0 dB.)

* Focus gain adjustment

* Tracking gain adjustment

• Adjustment

Since this CD system incorporates the following automatic

adjustment functions, readjustment is not needed when

replacing the pickup. Therefore, different PWBs and pickups

can be combined freely.

Each time a disc is changed, these adjustments are

performed automatically. Therefore, playback of each disc

can be performed under optimum conditions.

T303

CF301

T351

CF352

CF351

CF302

R357

IC303

T306

IC302

FE301

CNP301

SO301

FM75 ohms

AM LOOP

ANTENNA

MAIN PWB

AM Tracking

AM Band Coverage

AM IF

TP301

TP302

* 'CHECKING'

If Error is detected, 'CHECKING' will be display instead of 'ER-

CD**' display. 'ER-CD**' display will only be display when

error had been detected for the 5 th times.

CD-DP900H/E

– 18 –

SP out L-ch Input signal is output.

(SO901) R-ch Input signal is output.

(SO901) SP out C-ch SP cut, no output

(SO901) SP out S-ch

Almost no output (only omitting component)

SP out L-ch Almost no output (only omitting component)

(SO901) R-ch Almost no output (only omitting component)

(SO901) SP out C-ch

Input signal is output.

(SO901) SP out S-ch

Almost no output (only omitting component)

State of set Dolby Pro Logic Dolby Pro Logic On mode

Output point Bypass mode Normal mode Phantom mode

IC501 1 pin L-out Output enabled state Output enabled state Output enabled state

2 pin R-out Output enabled state Output enabled state Output enabled state

IC501 3pin C-out No output Output enabled state No output

IC501 9pin S-out No output Output enabled state Output enabled state

SP OUT L-ch Output enabled state Output enabled state Output enabled state

(SO901) R-ch Output enabled state Output enabled state Output enabled state

SP OUT C-ch No output in MUTE (Q501) state Output enabled state No output in MUTE (Q501) state

(SO901)

SP OUT S-ch No output in MUTE (Q502) state Output enabled state Output enabled state

(SO901)

EXPLANATION OF DOLBY SURROUND PRO LOGIC AND EVALUATION METHOD

Test tone output

• Pro Logic ON Normal mode

Press the remote control TEST TONE button.

→Output of only L-ch →Output of only C-ch

↑ ↓

Output of only S-ch ← Output of only R-ch

The test tone (noise) is repeatedly output for output period

(2 sec).

In this case the following indication appears repeatedly.

→TEST →L-ch →C-ch

↑ ↓

S-ch ← R-ch

• Pro Logic ON Phantom mode

Press the remote control TEST TONE button.

→Output of only L-ch →Output of only R-ch

↑ ↓

← Output of only S-ch

The test tone (noise) is repeatedly output for output period

(2 sec).

In this case the following indication appears repeatedly.

→TEST → L-ch → R-ch

↑ ↓

← S-ch←

Outline

• Namely, two speakers are connected in parallel to one

amplifier.

• In the Pro Logic BYPASS mode the amplifier for C-ch (center

channel) and the amplifier for S-ch (surround channel) are in

MUTE state. The SP output is cut.

• In the normal mode of Pro Logic ON mode the amplifiers for

C-ch and S-ch are in operative state, so that the SP output

appears.

• In the Phantom mode of Pro Logic ON mode the amplifier for

C-ch is in MUTE state, so that the SP output is cut. The

amplifier for S-ch (surround) is in operative state, so that the

SP output appears

•

State of element output and terminal output in specific mode

Relation between VIDEO IN input and output in Pro Logic

ON state

(1) L-ch/R-ch same phase input into VIDEO IN input jack in

VIDEO Function mode

Output point Normal mode

Output point Phantom mode

(2) L-ch/R-ch reverse phase input into VIDEO IN input jack in

VIDEO Function mode

(Reverse phase: Phase difference between L and R is 180°)

Output point Normal mode

SP out L-ch

Almost no output (only omitting component)

(SO901) R-ch

Almost no output (only omitting component)

(SO901) SP out C-ch

Almost no output (only omitting component)

(SO901) SP out S-ch Input signal is output.

Output point Phantom mode

SP out L-ch

Almost no output (only omitting component)

(SO901) R-ch

Almost no output (only omitting component)

(SO901) SP out C-ch SP cut, no output

(SO901) SP out S-ch Input signal is output.

• Accordingly, if you want to output signal waveform to C-ch SP

out, give the same phase input into L-ch/R-ch INPUT in the

Pro Logic Normal mode.

If one of channels receives input, C-ch does not output. Only

L-ch or R-ch outputs.

• If you want to output signal waveform to S-ch SP out, you can

use either Normal mode or Phantom mode. However, 180°

reverse phase input must be given to L-ch/R-ch INPUT.

– 19 –

CD-DP900H/E

TEST MODE

KEY TEST MODE CONTENTS

[ON/STAND-BY] [TUNER] + [X-BASS] TEST 1 TUNER PRESET MEMORY CLEAR

[ON/STAND-BY] [MEMORY/SET] + [X-BASS] TEST 2 TUNER PRESET FOR PRODUCTION

[ON/STAND-BY] [VIDEO] + [X-BASS] TEST 3 KEY AND DISPLAY TEST

[ON/STAND-BY] [CD] + [X-BASS] TEST 4 CD TEST MODE

[ON/STAND-BY] [TAPE] + [X-BASS] TEST 5 TAPE TEST MODE

[ON/STAND-BY] [CLOCK] + [X-BASS] TEST 6 ALL CLEAR(RESET)

[ON/STAND-BY] [TUN UP] + [X-BASS] TEST 7 AUDIO TEST

[ON/STAND-BY] [TUN DOWN] + [X-BASS] TEST 8 PRODUCTION INITIALIZE FOR CHANGER

[ON/STAND-BY] [TUNER] + [ASPM] TEST 10 RDS TEST

During POWER OFF mode, push below each 2 keys [ON/STAND-BY] key.

Then go to each TEST MODE.

CD-DP900H/E

– 20 –

Yes

Hold down the ASPM button for 3 more second.

No operate. After displayed “END”. Return to

previous station.

“ASPM” blinks in the display.

Begin to scan start 87.50 → 108.00 MHz

Preset CH memory full over?

SD (TUNE) DET out OK?

Yes

If count 1st OK?

Yes

If count 2nd OK?

Yes

RDS signal or not? PI—identify

Yes

Comparing PI cord

same or not?

between current receiving

PI and before PI which is

already memorized by

ASPM on this time.

Yes

Comparing freg.

same or not?

between current receiving

frequency and (already)

previouslymemorized

frequency.

Memorized to the lowest vacant

preset channel.

Memorized to the lowest vacant

preset channel.

Compare the field

strength of current

receiving signal.

Is receiving signal stronger

than signal which has same PI

cord and is already

memorized to preset

memory ahead of this

receiving time?

No effect

Effect

Pass

No effect

Pass

No effect

Pass

No effect

Pass

No effect

Displayed the TTL quantity of memorized

stations by ASPM operation on this time.

And return to the previous

receiving freq. automatically.

Begin to ASPM SCAN from the next

CH-SPAN again.

Repeat and continue with same format

ASPM operation untill 108 MHz.

After reached 108 MHz, displayed the TTL

quantity of memorized stations.

And return to the previous receiving freq.

automatically.

Preset CH memory become full over?

Yes

Comparing freg.

same or not?

Between current receiving

frequency and (already)

previously memorized

frequency.

ASPM, summary operation

RDS OPERATION (FOR CD-DP900H ONLY)

– 21 –

CD-DP900H/E

Using the Radio Data System (RDS)

RDS is a broadcasting service which a growing number of FM stations provide.

These FM stations send additional signals along with their regular programme

signals. They send their station names, and information about the type of pro-

gramme such as sports or music, etc.

When tuned to an RDS station, "RDS" and the station name will be displayed.

"TP" (Traffic Programme) will appear on the display when the received broadcast car-

ries traffic information, and "TA" (Traffic Announcement) will appear whilst a traffic

information is on air.

"PTYI" (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is

received.

You can control the RDS by using the buttons on the main unit only.

■

Information provided by RDS

Each time the DISPLAY MODE button is pressed, the display will switch as follows:

When you are tuning in to a station other than an RDS station or to an RDS station

which sends weak signal, the display will change in the following order:

■

Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

"PS", "NO PS" and a station name appear alternately, and the unit does not oper-

ate properly.

If a particular station is not broadcasting properly or a station is conducting tests,

the RDS reception function may not work properly.

When you receive an RDS station whose signal it too weak, information like the

station name may not be displayed.

"NO PS", "NO PTY" or "NO RT" will flash for about 5 seconds, and then the fre-

quency will be displayed.

Notes for radio text:

The first 8 characters of the radio text will appear for 4 seconds and then they will

scroll across the display.

If you tune in to an RDS station which is not broadcasting any radio text, "NO RT"

will be displayed when you switch to the radio text position.

Whilst radio text data is received or when the text contents change, "RT" will be

displayed.

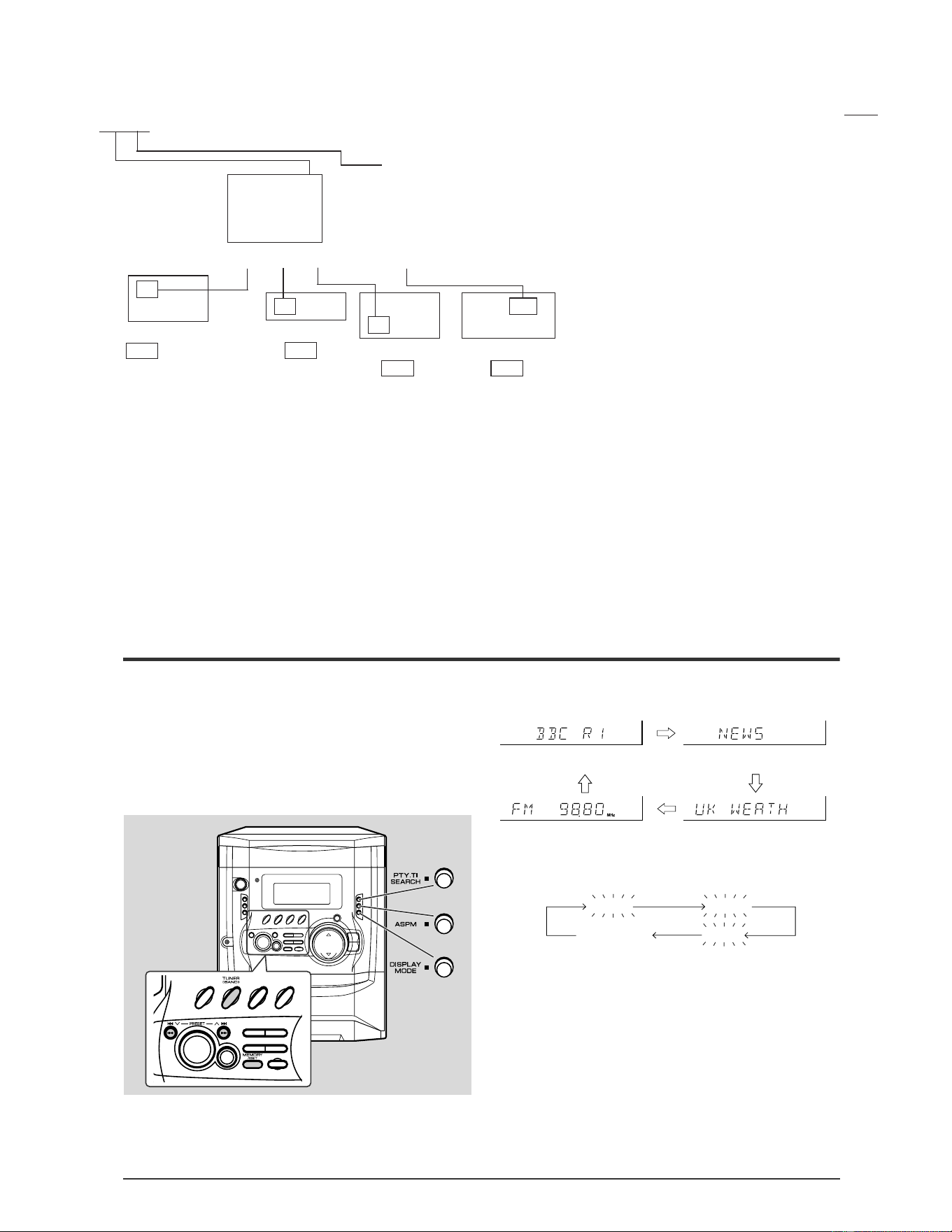

Station name (PS) Programme type (PTY)

Frequency Radio text (RT)

NO PS NO PTY

FM 98.80 MHz

NO RT

●

• ASPM SCAN: 87.50MHz → 108.00 MHz.

• Only RDS signal is memorized by ASPM because RDS signal has PI code and is suitable and convenient for ASPM operation.

ASPM

Comparing field strength, only one strongest RDS station is memorized of all stations (repeater relay stations) that have same

PI code.

Same PI code — freq: different

(AF’S)

PS: same

PTY:

same

Each PI has AF’S list by individually.

Exa: P1 has f1, f2, f3 (same PTY).

P2 has f4, f5 (same PTY).

[For example] Pickup and memorized to preset CH.

f 1

f 2 f 3

P 1 (PI code)

PS 1 (Station Name)

f 5 f 4

P 2

PS 2

f 6

f 7 f 8

P 3

PS 3

f9 f 10

f 11 f 12 f13

P 4

PS 4

Select signals (f1, f5, f7, f10) are memorized in the preset memory by ASPM.

• If tentative - ASPM operation is repeated intentionally, never memorized (over write) at the same frequency.

1st time ASPM → strongest stations of each PI are memorized.

ASPM is not only very usefull for PTY search, but also EON operation.

2nd time ASPM → 2nd strong stations of each PI are memorized and so on.

PTY search function is equal to FM band search function as a result.

---

CD-DP900H/E

– 22 –

Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and

TA (Traffic Announcement).

You can search for and receive the following PTY, TP and TA signals.

NEWS

Short accounts of facts, events and publicly expressed views, report-

age and actuality.

AFFAIRS

Topical programme expanding or enlarging upon the news, generally

in different presentation style or concept, including debate, or analy-

sis.

INFO

Programmes whose purpose is to impart advice in the widest sense.

SPORT

Programme concerned with any aspect of sport.

EDUCATE

Programme intended primarily to educate, of which the formal ele-

ment is fundamental.

DRAMA

All radio plays and serials.

CULTURE

Programmes concerned with any aspect of national or regional cul-

ture, including language, theatre, etc.

SCIENCE

Programmes about the natural sciences and technology.

VARIED

Used for mainly speech-based programmes usually of light-entertain-

ment nature, not covered by other categories. Examples include:

quizzes, panel games, personality interviews.

POP M

Commercial music, which would generally be considered to be of cur-

rent popular appeal, often featuring in current or recent record sales

charts.

ROCK M

Contemporary modern music, usually written and performed by

young musicians.

EASY M

Current contemporary music considered to be "easy-listening", as op-

posed to Pop, Rock or Classical, or one of the specialised music

styles, Jazz, Folk or Country. Music in this category is often but not

always, vocal, and usually of short duration.

LIGHT M

Classical music for general, rather than specialist appreciation. Ex-

amples of music in this category are instrumental music, and vocal or

choral works.

CLASSICS

Performances of major orchestral works, symphonies, chamber mu-

sic, etc., and including Grand Opera.

OTHER M

Musical styles not fitting into any of the other categories. Particularly

used for specialist music of which Rhythm & Blues and Reggae are

examples.

WEATHER

Weather reports and forecasts and meteorological information.

FINANCE

Stock Market reports, commerce, trading, etc.

CHILDREN

For programmes targeted at a young audience, primarily for entertain-

ment and interest, rather than where the objective is to educate.

SOCIAL

Programmes about people and things that influence them individually

or in groups. Includes: sociology, history, geography, psychology and

society.

RELIGION

Any aspect of beliefs and faiths, involving a God or Gods, the nature

of existence and ethics.

PHONE IN

Involving members of the public expressing their views either by

phone or at a public forum.

TRAVEL

Features and programmes concerned with travel to near and far des-

tinations, package tours and travel ideas and opportunities. Not for

use for announcements about problems, delays, or roadworks affect-

ing immediate travel where TP/TA should be used.

LEISURE

Programmes concerned with recreational activities in which the listen-

er might participate. Examples include, Gardening, Fishing, Antique

collecting, Cooking, Food & Wine, etc.

JAZZ

Polyphonic, syncopated music characterised by improvisation.

COUNTRY

Songs which originate from, or continue the musical tradition of the

American Southern States. Characterised by a straightforward melo-

dy and narrative story line.

NATION M

Current Popular Music of the Nation or Region in that country's lan-

guage, as opposed to International 'Pop' which is usually US or UK

inspired and in English.

OLDIES

Music from the so-called "golden age" of popular music.

FOLK M

Music which has its roots in the musical culture of a particular nation,

usually played on acoustic instruments. The narrative or story may be

based on historical events or people.

DOCU-

MENT

Programme concerned with factual matters, presented in an investi-

gative style.

TEST

Broadcast when testing emergency broadcast equipment or receiv-

ers.

ALARM !

Emergency announcement made under exceptional circumstances to

give warning of events causing danger of a general nature.

NONE

No programme type (receive only).

Broadcasts which carry traffic announcements.

Traffic announcements are being broadcast.

– 23 –

CD-DP900H/E

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

( ) indicates AM

< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means micro-micro-farad and the unit of the

capacitor without such a symbol is microfarad. As to

electrolytic capacitor, the expression “capacitance/withstand

voltage” is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

REF. NO DESCRIPTION POSITION POSITION

SW714 VIDEO ON—OFF

SW715 TIMER/SLEEP ON—OFF

SW716 TUNING UP ON—OFF

SW717 REC/PAUSE ON—OFF

SW718 MEMORY SET ON—OFF

SW719 TUNING DOWN ON—OFF

SW720 CLOCK ON—OFF

SW721 VOLUME UP ON—OFF

SW722 VOLUME DOWN ON—OFF

SW723 DISC SKIP ON—OFF

SW724 OPEN CLOSE ON—OFF

SW725 EQUALISER/X-BASS/DEMO ON—OFF

SW727 DISPLAY MODE ON—OFF

SW728 ASPM ON—OFF

SW729 PTY.TI SEARCH ON—OFF

REF. NO DESCRIPTION

SW1 OPEN/CLOSE ON—OFF

SW2 CLAMP ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW701 ON/STAND-BY ON—OFF

SW702 REV ON—OFF

SW703 FF ON—OFF

SW704 STOP ON—OFF

SW705 PLAY ON—OFF

SW706 PHANTOM ON—OFF

SW707 NORMAL ON—OFF

SW708 BYPASS ON—OFF

SW711 CD ON—OFF

SW712 TUNER ON—OFF

SW713 TAPE ON—OFF

(1) (2) (3)

(S) (G) (D)

E C B

FRONT

VIEW

KTA1266 GR

KRC102 M

KRC104 M

KTA1274 Y

KTA1273 Y

KTC3203 Y

KTC3199 GR

2SC380 O

2SC1845 F

KTC2026

SLR342VC

BCE

FRONT

VIEW

FRONT

VIEW

Figure 23 TYPES OF TRANSISTOR AND LED

• SW727~729 (CD-DP900H ONLY)

CD-DP900H/E

– 24 –

DATA

DATACK

LRSY

Stopped

CH1=2 V

DC 10:1

CH2=2 V

DC 10:1

CH3=2 V

DC 10:1

5 µs/div

(5 µs/div)

NORM:100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 5 K

Zoom : 100

Mode : AUTO

Type : EDGE CH3

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH3

v/DIV

2 V

1999/04/05 20:50:17

IC1 58

IC1 59

IC1 60

DOUT

Stopped

CH1=2 V

DC 10:1

500 ns/div

1999/04/07 09:25:28

(500 ns/div)

NORM:200 MS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 1 K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

IC1 39

FDO

PDO2

PDO1

Stopped

CH1=500 mV

DC 10:1

CH3=1 V

DC 10:1

CH4=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

1999/04/05 17:33:17

IC1 21

IC1 73

IC1 74

FDO

SPDO

Stopped

CH1=200 mV

DC 10:1

CH2=500 mV

DC 10:1

500 ms/div

1999/04/07 09:51:15

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

IC1 21

IC1 22

DRF

Stopped

CH1=10 V

DC 10:1

CH2=1 V

DC 10:1

100 ms/div

(100 ms/div)

NORM:100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.0 V

CH2 : 0.00 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

IC1 67

IC1 15

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

IC1 4

FDO

DRF

Stopped

CH1=500 mV

DC 10:1

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2

Position

0.20 div

IC1 21

IC1 67

IC1 15

FDO

TDO

Stopped

CH1=500 mV

DC 10:1

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.000 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

IC1 21

IC1 20

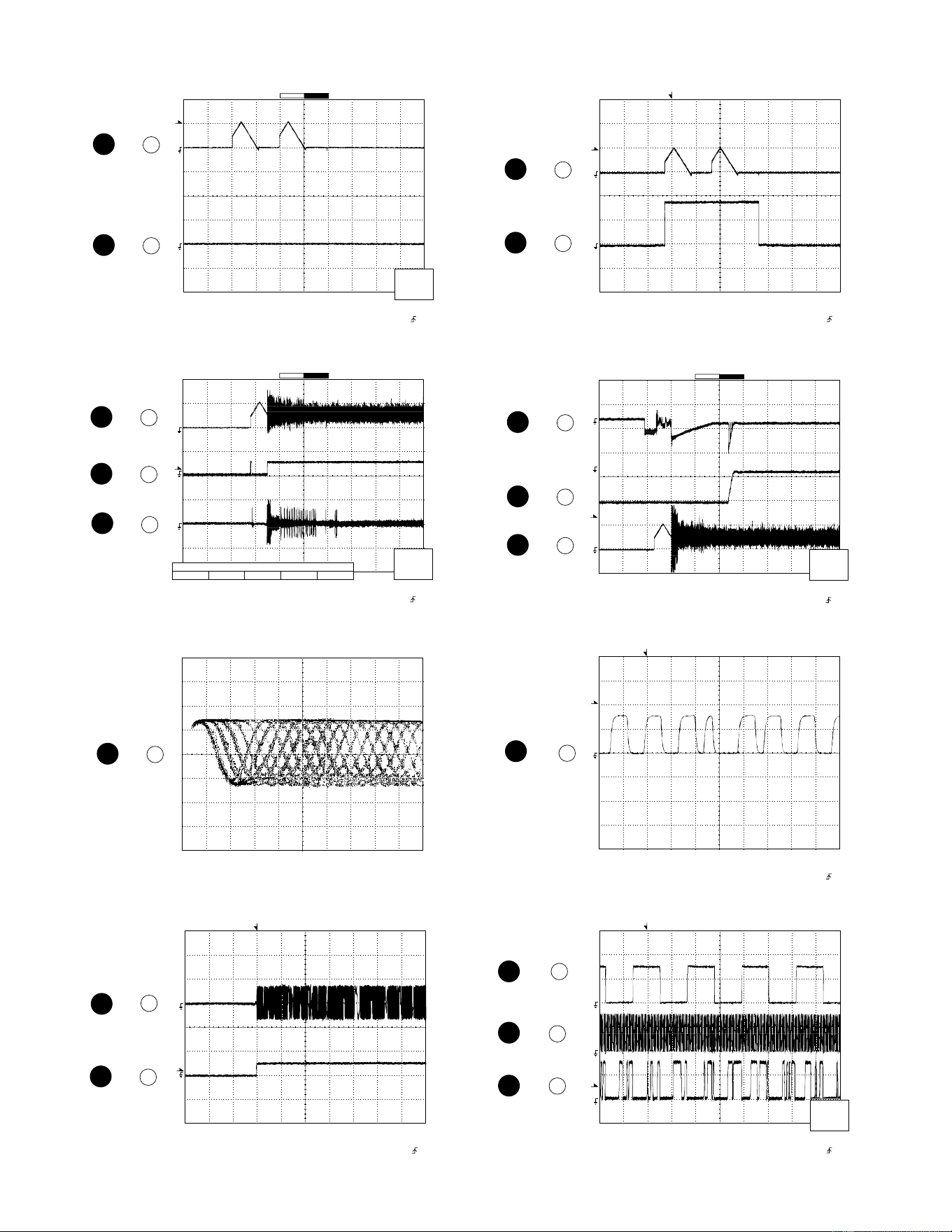

WAVEFORMS OF CD CIRCUIT

– 25 –

CD-DP900H/E

+5V

CNS4

BI4

CNP4

T/T UP/DOWN

MOTOR

+–

+3.3V

TO DISPLAY SECTION

TO MAIN SECTION

CONSTANT

VOLTAGE

LASER

DRIVER

+3.3V

+5V(+B7)

PICKUP UNIT

IC1

LC78645NE

CD SERVO

VDD

LDD

LDS

SW3

DISC

NUMBER

SW2

CLAMP

SW1

OPEN/

CNP8

CNP7

BI401 BI701

TRACKING COIL

FOCUS COIL

SW4

PICKUP IN

SLED

MOTOR

SPINDLE

MOTOR

XVDD

RVDD

LVDD

RFVDD

XL1

33.8688 MHz

O/C

CLAMP SW

CD RES

DRF

WRQ

+6.5V (+B4)

DGND (DRIVER)

+5V (+B8)

VCC3

VCC2

VCC4

VCC1

IC2

M63001FP

FOCUS/TRACKING/

SPIN/SLED

DRIVER

XIN

XOUT

RES

WRQ

CLK

TIN2

TIN1

FIN2

FIN1

TDO

FDO

SPDO

SLDO

CONT5

CONT2

CONT3

CONT4

VDD5

LCHO

VVDD

987

17 25

41 3938

4765

26 27

316452

327168910

687

+5V (+B7)

DGND

L-CH

AGND

R-CH

42 68 25 70

DRF

ADAVDD

+3.3V

DISC NO

ZD1

3.3V

–

Figure 25 BLOCK DIAGRAM (1/3)

CD-DP900H/E

– 26 –

RDS

LC72723

ICT21

VDDD

VDDA

RDCL

READY

RDDA

RST

FLOUT

CIN

4.332MHz

XT21

TAPE MECHANISM

ASSY

T1 PLAY

T2 PLAY

SOLENOID

MOTOR

TAPE

+B8

Q708

Q707

IC701

52 PIN

T2 REC

IC701

51 PIN

28 PIN

MOTOR DRIVER

Q706

FM IF

VIDEO

Q502

Q501

Q122

Q121

+B6

DECORDER

DOLBY

PROLOGIC

M62464AFP

IC501

+B7

MECH

Q706

Q708

FE301

FM FRONT END

CF301

CF302

Q301

ANTENNA

L341

BALUN

AM LOOP

ANTENNA

FM OSC

L354

AN7345K

TUN SM

VIDEO/AUX IN

JK201

+B6

CLK

+B6

AM IF

BI401

Q106

Q103-

456kHz

10.7MHz

450kHz

CLK

MO/ST

SWITCHING

H ONLY

+B6

FM/AM

PLL(TUNER)

LC72131

IC302

OUT

FM/AM

BIAS

T1/T2

REC MUTE

P.B.

REC

AC BIAS

TAPE

TUNER

CNP11

FROM

CD SECTION

HEAD

ERASE

SWITCHING

BIAS

Q110

Q111

Q109

Q126

SWITCHING

Q124

OSC

BIAS

L104

Q128

Q107

Q108

REC PB HEAD

TAPE 2

PB HEAD

TAPE 1

R-CH

L-CH

R-CH

L-CH

AUDIO

PROCESSOR

LC75341M

IC401

+B6

REC

L NF

R NF

ALC

REF

R REC

L REC

POP REDUCE

R NF

L NF

SWITCHING

L(T2)

R(T2)

R(T1)

L(T1)

/PLAYBACK AMP.

PLAYBACK AND RECORD

IC101

FM/AM

MPXIN

STEREO

AM RF IN

AM OSC IN

Q360

OSC

4.5MHZ

X352

COVERAGE

AM BAND

AM TRACKING

T303

T306

X351

MO/ST

VCO

DET

FM+B

GND

AM IF

CF351

FM/AM

LA1832S

IC303

AM MIX

OUT

IF IN

CF352

T351

6 5

25 69 21

1 2

2 1

20 22

16 15

16 2023

H/N

P.B

REC

T1/T2

HIGH

NOR/

IF MPX.

FM IF DET./FM

MPX./AM IF

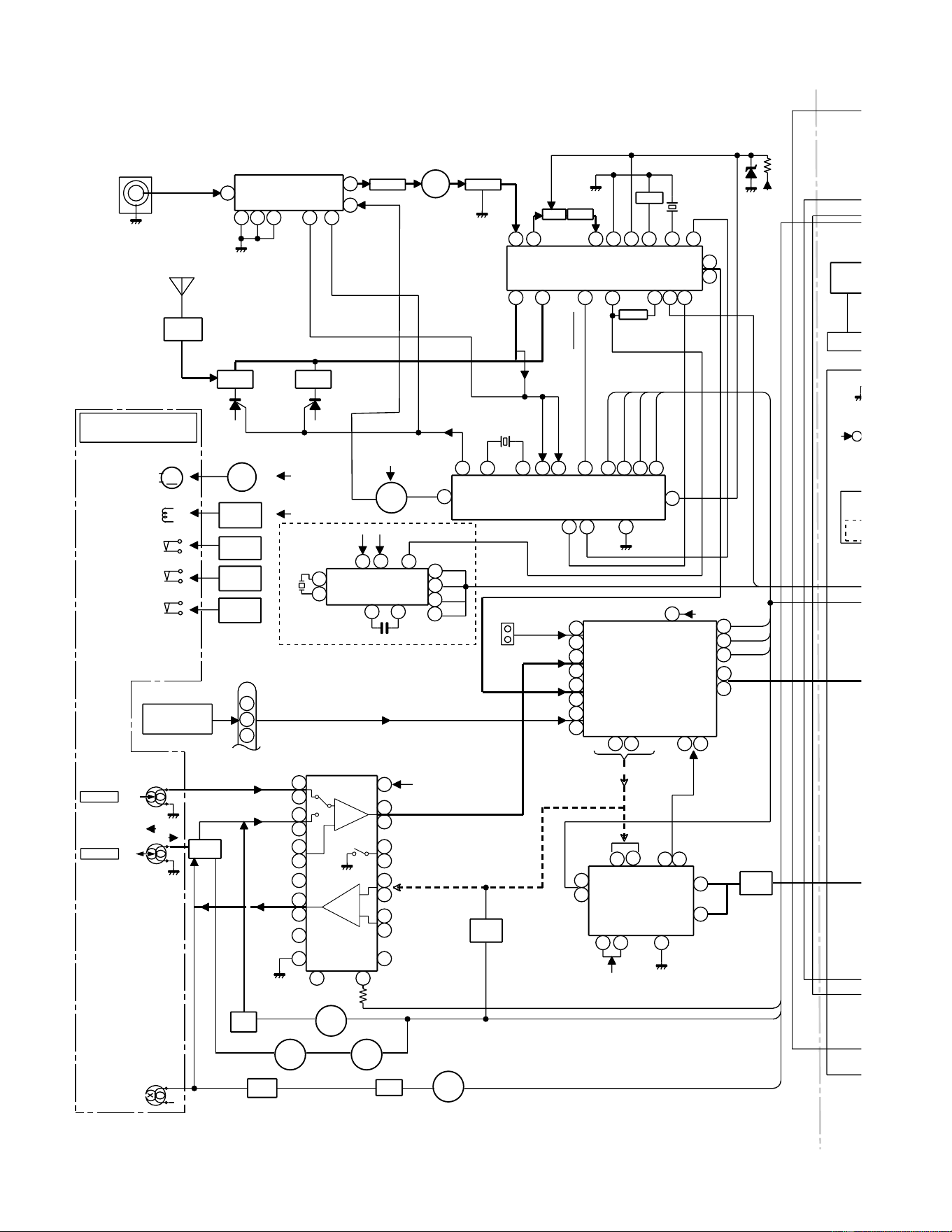

Figure 26 BLOCK DIAGRAM (2/3)

– 27 –

CD-DP900H/E

M+13V

+B4

IC803

KIA7812AP

KIA7805AP

KIA7810AP

AN78L05

IC801~804

TRANSFORMER(SUB)

POWER

PT802

Q803

D814A

D815A

D816A

D817

RL801

E ONLY

+B3

D809A

T2A L250V

F805

FAN

MOTOR

M901

PT801

POWER TRANSFORMER(MAIN)

IC802

VF2

VF1

–VF1

H ONLY

D818

D807

RL902

RL901

SPEAKER

REAR

CENTER

SPEAKER

FRONT

R-CH

L-CH

R-CH

L-CH

–

+B7

BACK UP

MEMORY

+B7

+B5

Q709

XL700

4.194304MHz

Q504

Q503

SW721-SW725

SW727-SW729

H ONLY

SW711-SW720

SW701-SW708

+B7

RX701

MECHANISM

TAPE

Q705

Q706

Q708

VDD

AVDD

SMUTE

VDD

+B7

–VF

+B6

UNSW 5V

+5V

IC804

IC801

T4A L250V

T3.15A L250V

SUPPLY CORD

AC POWER

AC230~240V/50Hz

L801

LINE

FILTER

D808

+B3

–20dB ATT

TUN SM

Q402

Q401

SECTION

TO CD

VF2

VF1

Q804

+B5

+B8

+B1

–B1

+B2

–B2

D802

D801

JK701

HEADPHONES

STK402-071

Q823

POWER AMP.

STK402-020

IC902

A+10V

+7V

T2A L250V

F806

F804

T3.15A L250V

F803

F802

+Vcc

–Vcc

L-OUT

R-OUT

T4A L250V

F801

IX0504AW

R-OUT

L-OUT

–Vcc

+Vcc

POWER AMP.

IC901

CNP8

FROM

CD SECTION

MICROCOMPUTER

SYSTEM

IC701

FL DISPLAY

FL701

17 20 19 18

41 27 19 14 13 5 12 1

21 22 23 24 10 11 12 13 41 25

7893 86 91

5927 62

70 8580

100

654

BI701

Q910

VOLTAGE

REGULATOR

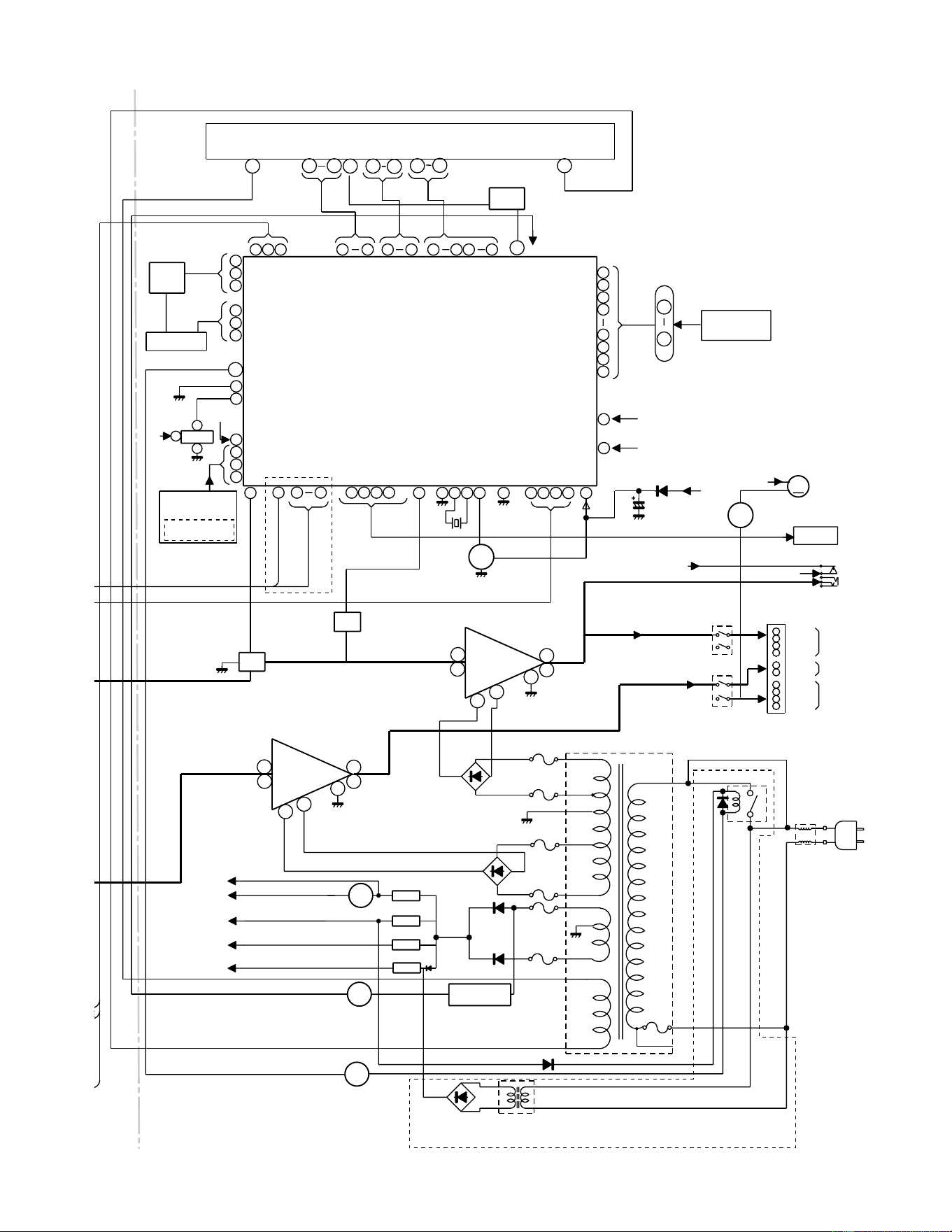

Figure 27 BLOCK DIAGRAM (3/3)

CD-DP900H/E

– 28 –

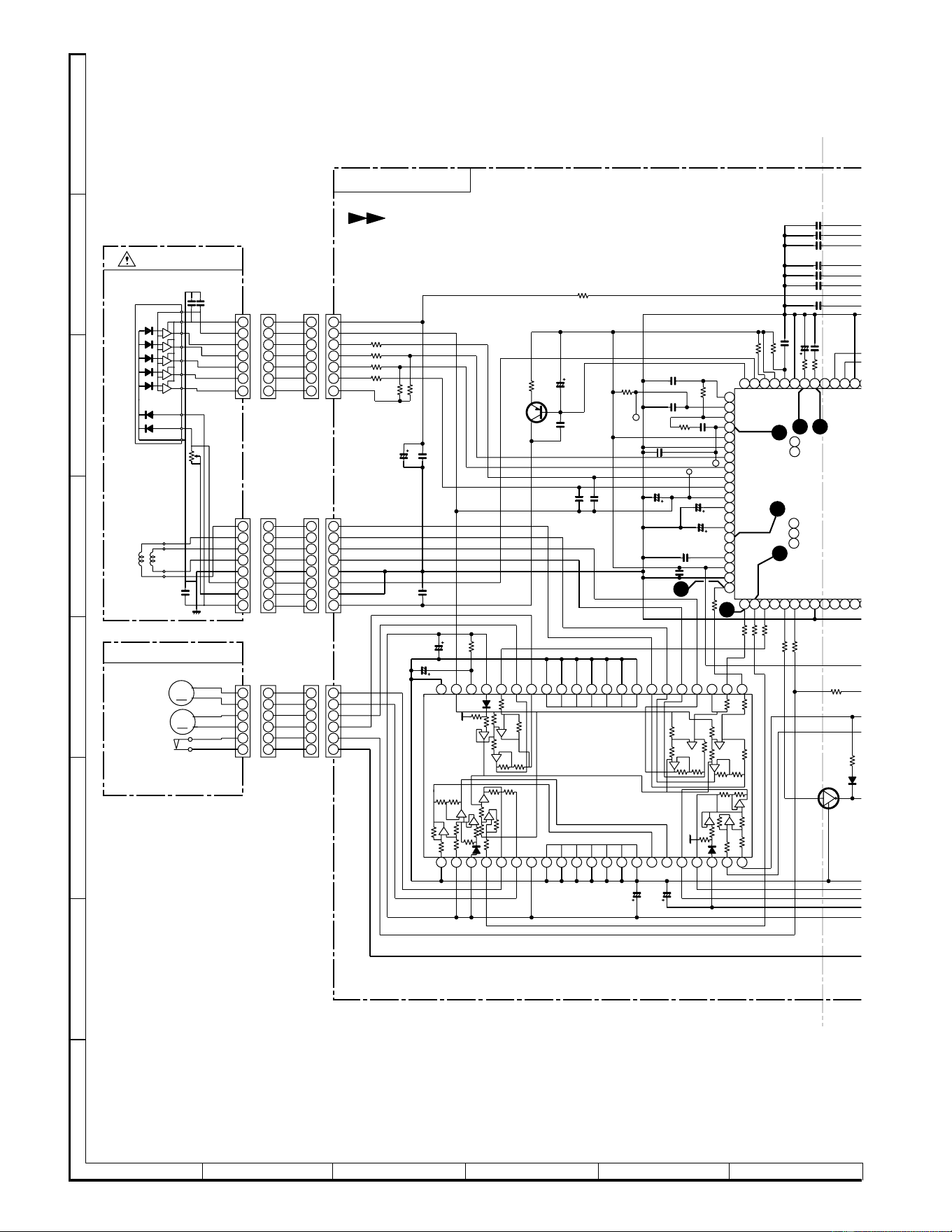

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 23.

LASER DRIVER

79 78

12 13

4 3 2 1

MUTE

TP3

TP2

TP1

LD_M+

LD_M–

VCC4

M–

M+

VCC3

SPO

VCC2

SLDO

VCC

STANDBY

VREF

SP-

SL–

SL+

SP+

TR–

TR+

FO+

FO–

GND

FO–

FO+

TR+

TR–

VREF

VCC

LDD

LDS

VVDD

PCKIST

VVSS

PDO2

PDO1

CONT2

CONT1

CONT3

VSS

MONI1

FSEQ

V/*P

DEFECT

SBCK/FG

SBCK/CONT6

CONT5

CONT4

GPDAC

SLDO

SPDO

FDO

REF1

VREF

TDO

ADAVSS

ADAVDD

JITTC

RFMON

TEC

TIN2 F

TIN1 E

FIN2 B

FIN1 A

RSVSS

RFVDD

EFMIN

SLCIST

SLCO

HPC1LX

PICKUP

VCC

VREF

GND

TR–

TR+

FO+

FO–

GND

PUIN

SL+

SL–

SP–

SP+

SLIDE

SPIN

–

PU-IN

PICKUP UNIT

CD MOTOR PWB-E

CD SERVO PWB-D

+B+B

+B +B

R3 22K

R4 8.2K

R5 8.2K

R6 22K

8.2K

CNP1

CNS1A

CNS1B

47/25

0.01

C38

0.01

C39

100/10

C40

220/6.3

CNP3

CNS3A

CNS3B

CNP3A

C41

100/10

C46

100/10

R44

12K

C52

0.001

C53

0.001

47/25

100/10

C50

22P(CH)

R12

330

0.0027

0.1

KTA1266 GR

3.3

R10

27K

C28 100P(CH

)

C57 56P(CH)

C27 0.022

C34 100P(CH

)

C32 100P(CH

)

C30 100P(CH

)

C33 0.022

C35

0.047

R39

680

R40

680

C36

0.22/50

C37

0.1

R41

12K

R42

1.2K

IC1

LC78645N

CD SERV

R11

10K

C11

0.22/50

C12

100P(CH)

C54

0.022

C10

10/50

R13

R14

R15

R16

R17 1K

R18 1K

R20

10K

R46

820

DS1SS133

KRC10

0.047

IC2

M63001FP

FOCUS/TRACKING/

SPIN/SLED DRIIVER

SW4

PICKUP IN

SPINDLE

MOTOR

SLED

MOTOR

CNP2

CNS2A

CNS2B

CD SIGNAL

Figure 28 SCHEMATIC DIAGRAM (1/14)

– 29 –

CD-DP900H/E

8 9 10 11 12

• The numbers 1 to 12 are waveform numbers shown in page 24.

79 78

69 68

63 62

D_GND (DRIVER)

+7V

DISC NO SW

LD_M+

–

RES OUT

O/C SW

A_5V

LDD

LDS

VVDD

PCKIST

VVSS

PDO2

PDO1

CONT2

CONT1

CONT3

VSS

VDD5

DRF

*RES

*WRQ

DATA

BCK

LRCK

ASDFIN

ASDACK

ASLRCK

16MOUT

EFLG

C2F

XVSS

FSX/16MIN

XIN

XOUT

XVDD

RVDD

RCHO

RVSS

LVSS

LCHO

LVDD

TEST

DOUT

VDD

VSS

MONI5

MONI4

MONI3

MONI2

MONI1

FSEQ

V/*P

DEFECT

SBCK/FG

SBCK/CONT6

CONT5

CONT4

GPDAC

SLDO

SPDO

FDO

REF1

VREF

TDO

ADAVSS

ADAVDD

JITTC

RFMON

TEC

TIN2 F

TIN1 E

FIN2 B

FIN1 A

RSVSS

RFVDD

EFMIN

SLCIST

SLCO

CLAMP SW

CD CLK

CD DI

CD DO

CD CE

DRF

WRQ

D_5V

CD_GND

CD_L

A_GND

CD_R

–

CD LOADING

MOTOR PWB-F

BI701

P37 12 - D

FROM DISPLAY PWB-B1

BI401

P32 5 - H

FROM MAIN PWB-A(2/3)

CONSTANT

VOLTAGE

C28 100P(CH)

C57 56P(CH)

C27 0.022

C34 100P(CH)

C32 100P(CH)

C30 100P(CH)

C33 0.022

C35

0.047

R39

680

R40

680

C36

0.22/50

C37

0.1

R41

12K

R42

1.2K

IC1

LC78645NE

CD SERVO

R15

R16

R17 1K

R18 1K

R20

10K

C13

0.022

R46

820

DS1SS133

KRC102 M

R45

820

R49

C14

100/10

C22

0.01

C44

0.001

R24

2.2K

C23

10/25

R26

10K

C25

0.0015

R27

10K

C26

0.0015

C16

330/6.3

ZD1

DZ3.3BSB

C24

10/25

L1 0.82µH

R22

100

XL1

33.8688 MHz

R43

220

R28

2.2K

R29

2.2K

R32 1K

R38 1K

R33 1K

R34 1K

R35 1K

R36 1K

R37 1K

R25

2.2K

R51

3.3

(1/4W)

Fusible

KTC3203 Y

C18

100/10

R23

220

R47

100

C48

0.022

C51

0.022

C42

0.01

CNP7

CNP4

CNS4

BI4

ZD2

DZ3.9BSB

CNP8

SW1

OPEN/CLOSE

SW2

CLAMP

SW3

DISC NO.

T/T UP/DOWN

LOADING MOTOR

R31

378

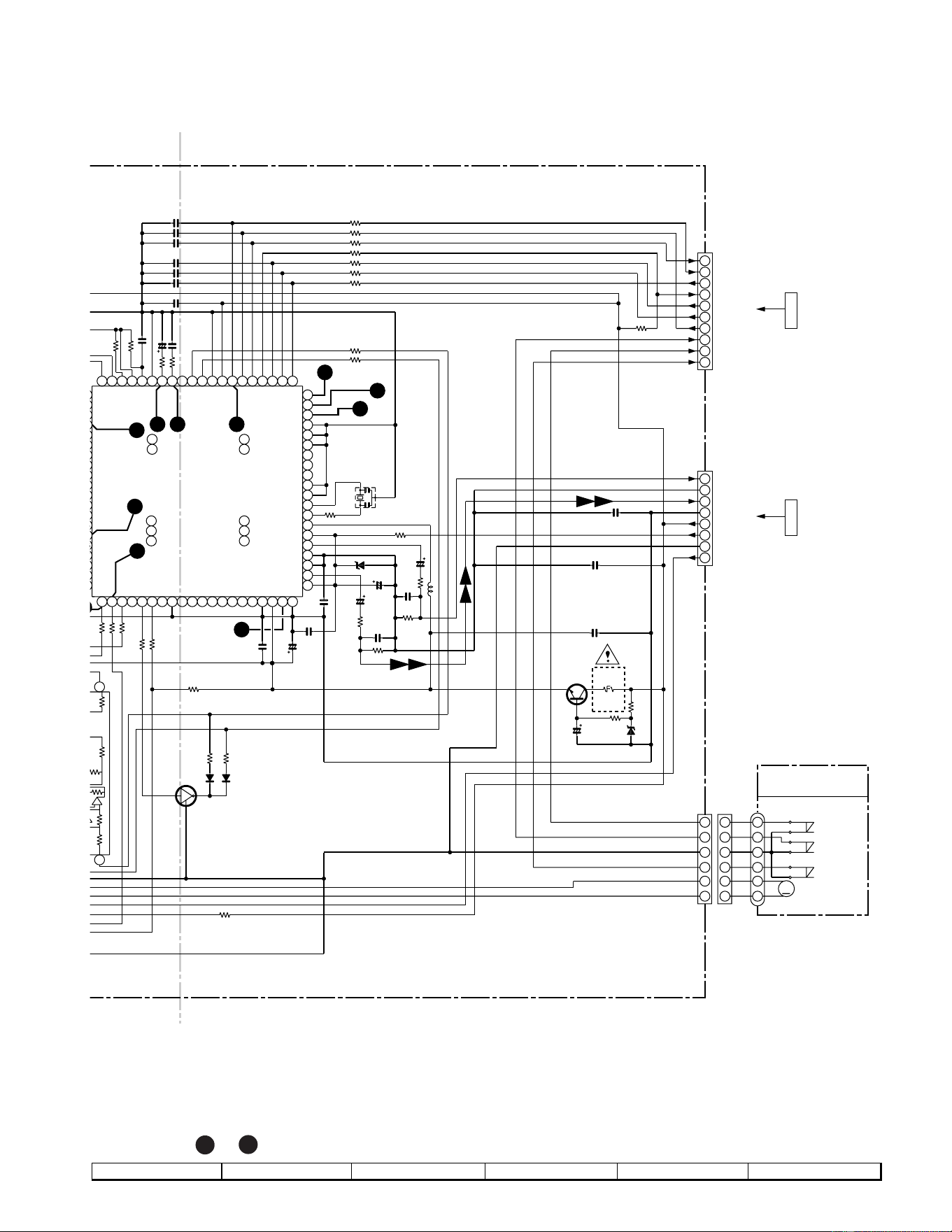

Figure 29 SCHEMATIC DIAGRAM (2/14)

CD-DP900H/E

– 30 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 23.

C119

560P

C121

47/25

R119

C115

47/25

C117

0.033

R121

100K

L101

2.2µH

R123

3.9K

IC101

C113

330P

C111

330P

R117

C114

330P

C112

330P

R118

C120

560P

R122

100K

C118

0.033

R120

C116

47/25

R174

150

C153

100/16

Q110

KRC104 M

R115

4.7K

Q111

KRC104 M

R112

15K

R102

R101

C108

0.001

R108

47K

Q108

KTC3199 GR

R110

4.7K

C107

0.001

Q107

KTC3199 GR

R107

47K

R109

4.7K

R111

15K

Q103

2SC1845 F

R103

2.2K

R105

3.3K

C105

180P

Q105

2SC1845 F

R106

3.3K

Q106

2SC1845 F

C106

180P

R104

2.2K

Q104

2SC1845 F

C101

0.001

Q109

KTA1266 GR

C102

0.001

R114

10K

R113

10K

CNP101

CNP102

L102

2.2µH

3 2

112K

Hich=T1

9.3V

3.4V

0.7V

8.6V

9.3V

A_GND

TAPE1_R

TAPE1_L

PLAYBACK SIGNAL

RECORD SIGNAL

TAPE MECHANISM ASS'Y(208)

TAPE2_L2

TAPE2_L1

TAPE2_R1

TAPE2_R2

ERASE

M_GND

A_GND

MAIN PWB-A(1/3)

ERASE

HEAD

TAPE2

RECORD/

PLAYBACK HEAD

TAPE1

PLAYBACK HEAD

R-CH

L-CH

R-CH

L-CH

AN7345K

PLAYBACK AND

RECORD/

PLAYBACK AMP.

CNS101

CNS102

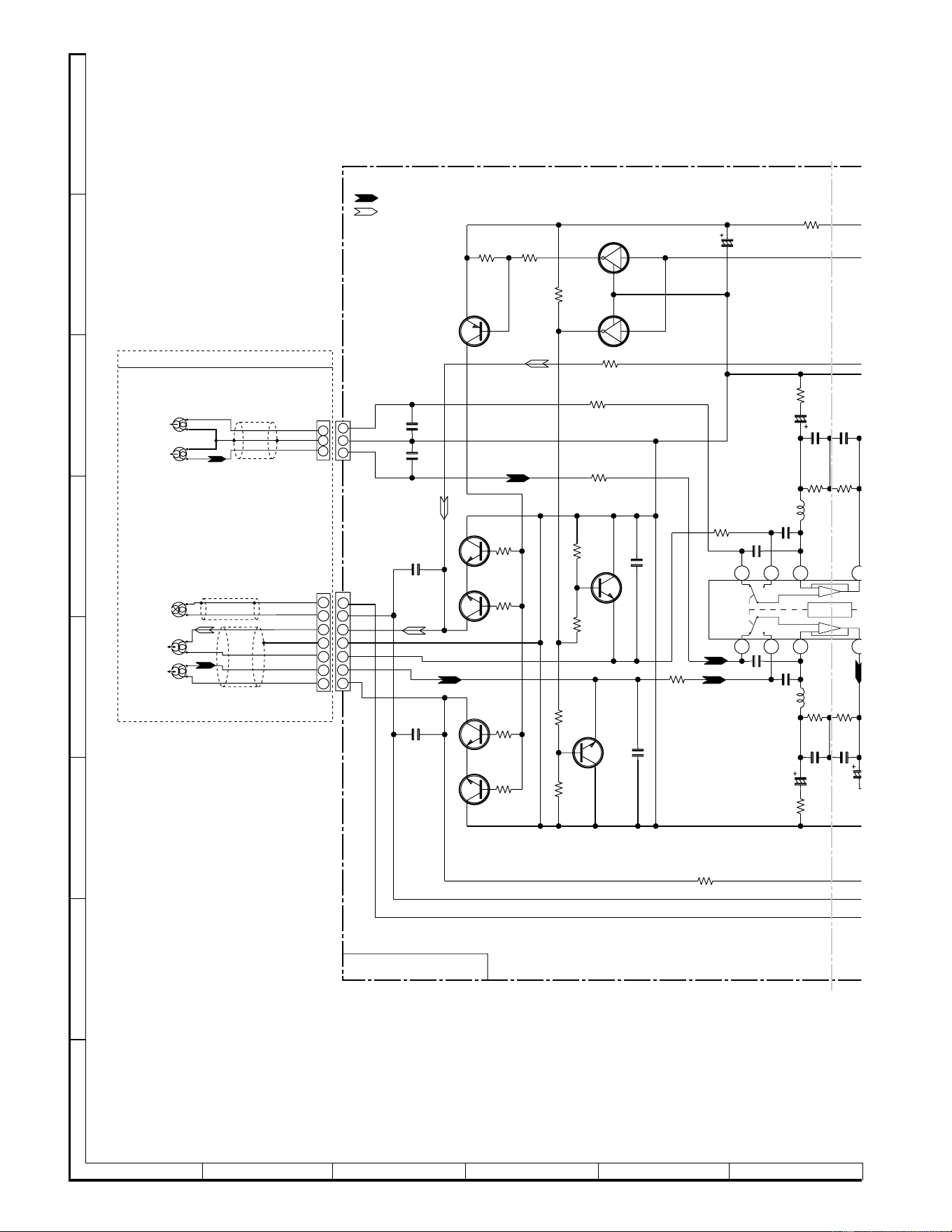

Figure 30 SCHEMATIC DIAGRAM (3/14)

– 31 –

CD-DP900H/E

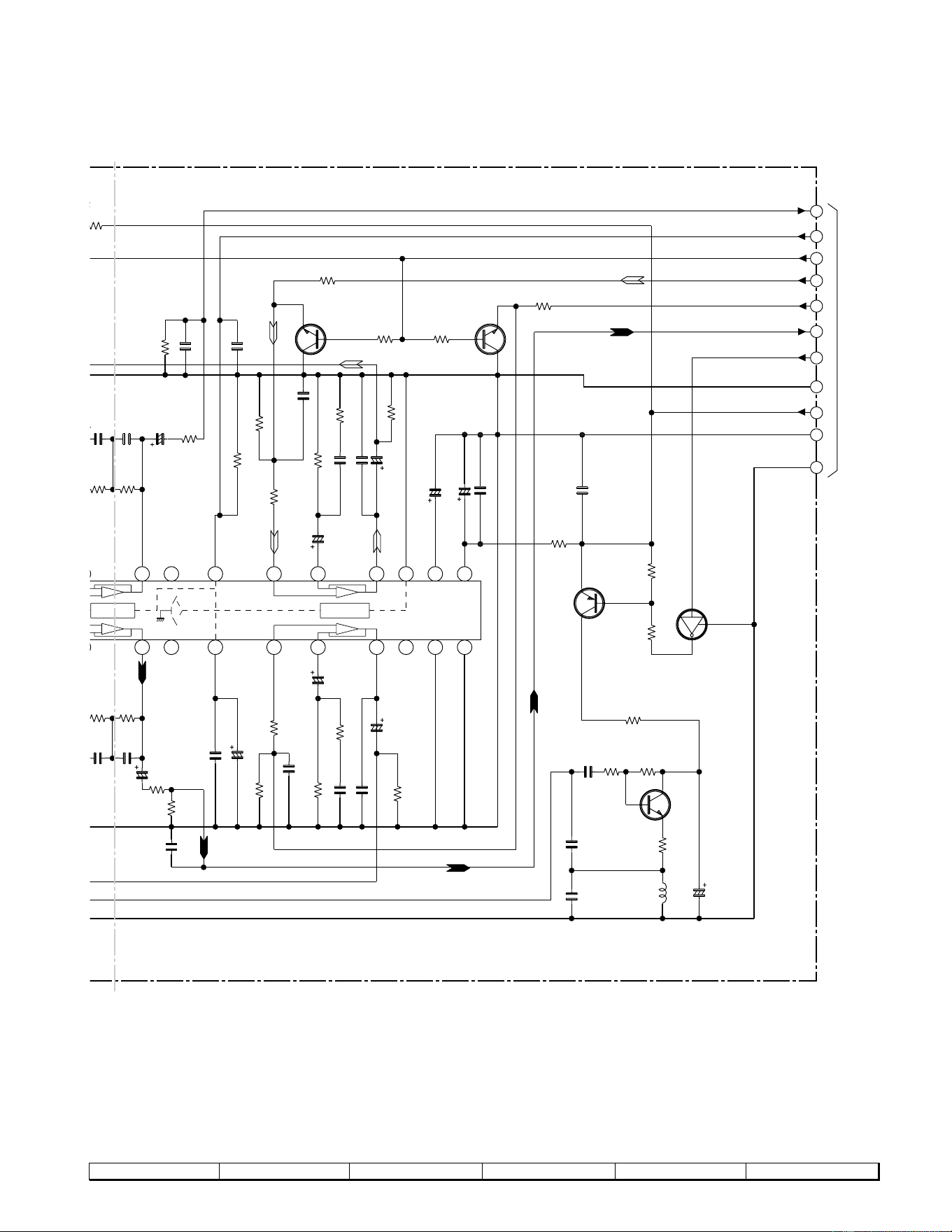

8 9 10 11 12

C152

47/25

Q128

KTC3203 Y

R168

4.7

L104

330µH

R167

47K

R160

82(1/2W)

R166

22K

C154

0.047

C150

0.0082

C151

0.039

Q126

KRC104 M

R164

4.7K

R162

47K

Q124

KTA1266 GR

R158

220

C146

220/10

C145

22/25

C147

470P

R181

100K

Q121

KTC3199 GR

R153

10K

R154

10K

Q122

KTC3199 GR

R182

100K

R146

10K

C142

47/25

C140

0.0033

C136

0.022

R142

100

R140

1.5K

C132

270P

R136

3.9K

R134

68K

C134

22/25

C133

22/25

C141

47/25

R141

100

C131

270P

R137

6.8K

C135

0.022

R145

10K

C139

0.0033

R139

1.5K

R135

3.9K

C128

3.3/50

R131

R125

5.6K

C127

0.022

C119

560P

C121

47/25

R119

121

100K

R123

3.9K

R124

3.9K

R126

5.6K

C120

560P

122

00K

120

R132

C124

C156

174

C122

47/25

R138

6.8K

C155

0.01

L102

.2µH

3.3K

C123

0.001

D_GND

TAPE_R

T1/T2

REC_MUTE

M_GND

A_GND

A_10V

BIAS

TAPE_L

REC_R

REC_L

TO MAIN PWB-A(2/3), AUDIO SECTION

P33 11- A

17 16

112K 56K

112K

56K

Hich=CHROME

+ +

Hich=T1

Nor/CrO2

RIPPLE

ALC

GND

ALC

Vcc

0.7V 0.7V

11.7V

11.6V

3.3K

0.001

Figure 31 SCHEMATIC DIAGRAM (4/14)

CD-DP900H/E

– 32 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 23.

LUG10

(251)

C404

0.0027

R409

100K

Q401

Q504

KTC3199 GR

R524

2.2K

C554

0.001

C553

0.001

Q503

KTC3199 GR

R523

2.2K

C423

10/50

R401

22K

R221

820

C221

0.0068

R220

820

C220

0.0068

BI401

C569

22/50

R546

22K

C568

22/50

R545

22K

R519

2.2K

R530

330

Q502

KTC3199 GR

C552

0.001

C551

0.001

Q501

KTC3199 GR

R513

330

R516

2.2K

R518

4.7K

R529

4.7K

C501

0.1

C502

0.1

C503

10/50

C505

10/50

C506

10/50

C507

1/50

C570

1/50

C508

0.1

C510

0.022

C509

100/16

C567

1/50

ZD502

DZ5.1BSB

R501

470

(1/4)

C511

1/50

C512

0.0047

C513

0.001

C514

0.1

C515

0.22

C516

0.22

C517

0.1

C518

0.0047

C519

0.001

C520

1/50

C521

0.0056

C522

0.047

R512

330K

C523

0.68

C524

0.22

C525

0.22

C526

4.7/50

C527

4.7/50

C528

0.22

C529

0.22

C530

0.1

C531

0.047

C532

0.1

C533

0.1

C534

0.1

C535

0.022

C536

0.022

C538

680P

C537

0.1

C539

0.01

R510

47K

R509

150K

R508

150K

R507

150K

C540

0.01

R511

150K

C542

0.01

R506

47K

R505

150K

R504

150K

R503

100K

C544

47/50

C545

0.0068

C546

4.7/50

C548

100/50

C547

220/50

R502

100K

C550

10/50

C549

10/50

C504

10/50

IC501

M62464AFP

DOLBY PROLOGIC

DECORDER

C543

0.01

C541

680P

CNP501

R520

330

R521

330

C465

0.001

IC802

KIA7810AP

VOLTAGE

REGULATOR

IC803

R806

22K

R993

220

R804

Q823

C808

47/25

C807

ZD804

C806

C832

C831

R823

R992

C834

C835

C809

0.1(ML)

C810

0.1(ML)

IC801

KIA7805AP

VOLTAGE

REGULATOR

C813

0.1

C812

47/25

D816

D812

D815

D813

D814

D809

D811

C811

0.022

R808

10K

C833

D810

IC804

AN78L05

CONSTANT

VOLTAGE

REGULATOR

C805

C814

3300/25

KIA7812AP

VOLTAGE

REGULATOR

CNW1

25341867

CD SERVO PWB-D

P29 11-D

CNP7

S MUTE

FRONT L

FRONT R

CLK

A_GND

+B4

M13V

GND

CENTER

REAR

FRONT_L

FRONT_R

UNSW_5V

CHASSIS

GND

LG1

(250)

LG2

(250)

DS1SS133

1N4004S

22K

0.1

220

22/50

47/25

22/50

10/50

1/50

0.047

DZ8.2B

KTC2026

TO POWER

PWB-C1

P38 1-E

CNP804

CD_GND

D_GND

+7V

A_GND

CD_L

CD_R

RTIN

LTIN

IREF1

VREF1

AVCC

NGC1

NGC2

NGC3

ABR

ABL

RBPF1

RBPF2

LBPF1

LBPF2

RLC6

RLC8

RLC3

RLC7

RLC4

RLC1

RLC2

RLC5

PSC4

PSC1

PSC5

PSC2

PSC6

PSC3

DBC3

DBC2

DBC1

BNR IN

ECHOOUT

DVOLOUT

LPF2OUT

LPF2IN1

DAINTOUT

DAINTIN

DACONT

ADCONT

ADINTOUT

ADINTIN

LPF1OUT

LPF1IN2

LPF1IN1

DIN

DSELOUT

DVSS

REQ

SCK

DATA

DVDD

MICIN

AGND

CMC

SRVOLOUT

SRVOLIN

SROUT

SLOUT

SLVOLIN

SLVOLOUT

PSRIN

PSLIN

SOUT

COUT

CVOLIN

CVOLOUT

ROUT

LOUT

C MUTE

SR MUTE

REAR

CENTER

FM SIGNAL

PLAYBACK SIGNAL

RECORD SIGNAL

CD SIGNAL

VIDEO SIGNAL

TO MA

4321

H:13Pin

E:10Pin

H ONLY

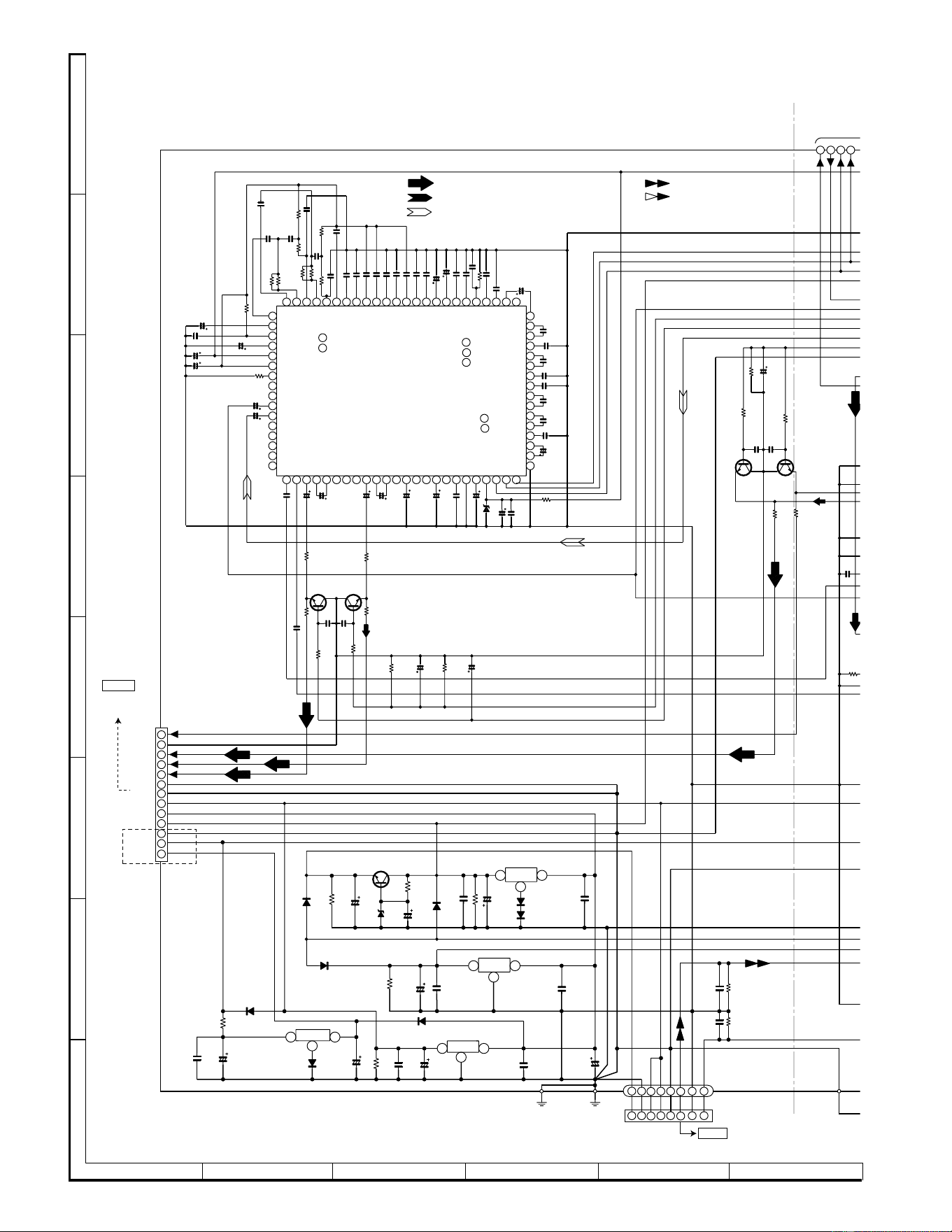

Figure 32 SCHEMATIC DIAGRAM (5/14)

– 33 –

CD-DP900H/E

8 9 10 11 12

TAPE MECHANISM

LUG101

(251)

P37 12-B

TO DISPLAY PWB-B1

P34 1-D

VIDEO/AUX IN

R204

39K

R202

39K

R208

3.9K

R206

3.9K

C204

390P

C202

390P

R410

100K

C410

C413

C414

C427

C425

C415

C416

R405

3.9K

C417

C421

1/50

C418

22/50

C419

0.022

C420

100/16

R527

15K

R408

560

R531

10K

Q402

KTC3199 GR

R407

2.2K

R406

22K

C422

R402

2.2K

R403

560

R525

10K

C401

1/50

R526

15K

C402

0.1

R404

3.9K

C403

0.1

C404

0.0027

C426

2.2/50

C424

4.7/50

C405

1/50

C406

1/50

IC401

LC75341M

AUDIO

PROCESSOR

C408

1/50

C407

1/50

R409

100K

Q401

KTC3199 GR

CNP601

Q504

KTC3199 GR

R524

2.2K

C554

0.001

C553

0.001

KTC3199

R523

2.2K

C423

10/50

R401

22K

R221

820

R220

820

C428

0.0022

C411

R520

330

R521

330

FC701

C465

0.001

C466

0.001

JK201

0.1

0.0027

2.2/50

4.7/50

1/50

10/50

CNW101

CHASSIS

GND

FROM

MAIN PWB-A(3/3)

TUNER SECTION

CD SERVO PWB-D

P29 11-D

11 21

22191510

461

14 16

–20dBATT

M_13V

D_GND

TUN_SM

RDS_READY

RDS_RDCL

RDS_RDDA

RDS_RST

CLK

PROTECT

DP_REQ

C_MUTE

SR_MUTE

SW_5V

UNSW_5V

S_MUTE

T1/T2

T_REC/PLAY

T_BIAS

S MUTE

FRONT L

FRONT R

TUNR

TUNL

+10V

D_GND

A_GND

TUN_SM

CLK

M_GND

A_GND

+10V

D_GND

BIAS

REC_L

REC_R

REC/MUTE

T1/T2

TAPE_L

TAPE_R

(TUNER)

(VIDEO)

(TAPE)

(CD)

CLK

VDD

VREF

ROUT

RBASS

RTRE

RIN

RSELO

R1L1

LSELO

LIN

LTRE

LBASS

LOUT

VSS

1312

MAIN PWB-A (2/3)

GNAL

TO MAIN PWB-A(1/3) DECK SECTION

P31 12-B

TO MAIN PWB-A(3/3),TUNER SECTION

P35 10-H

11 12

17 18

20 21

987

654321EDCB

CNP701

H : 23Pin

E : 17Pin

H ONLY

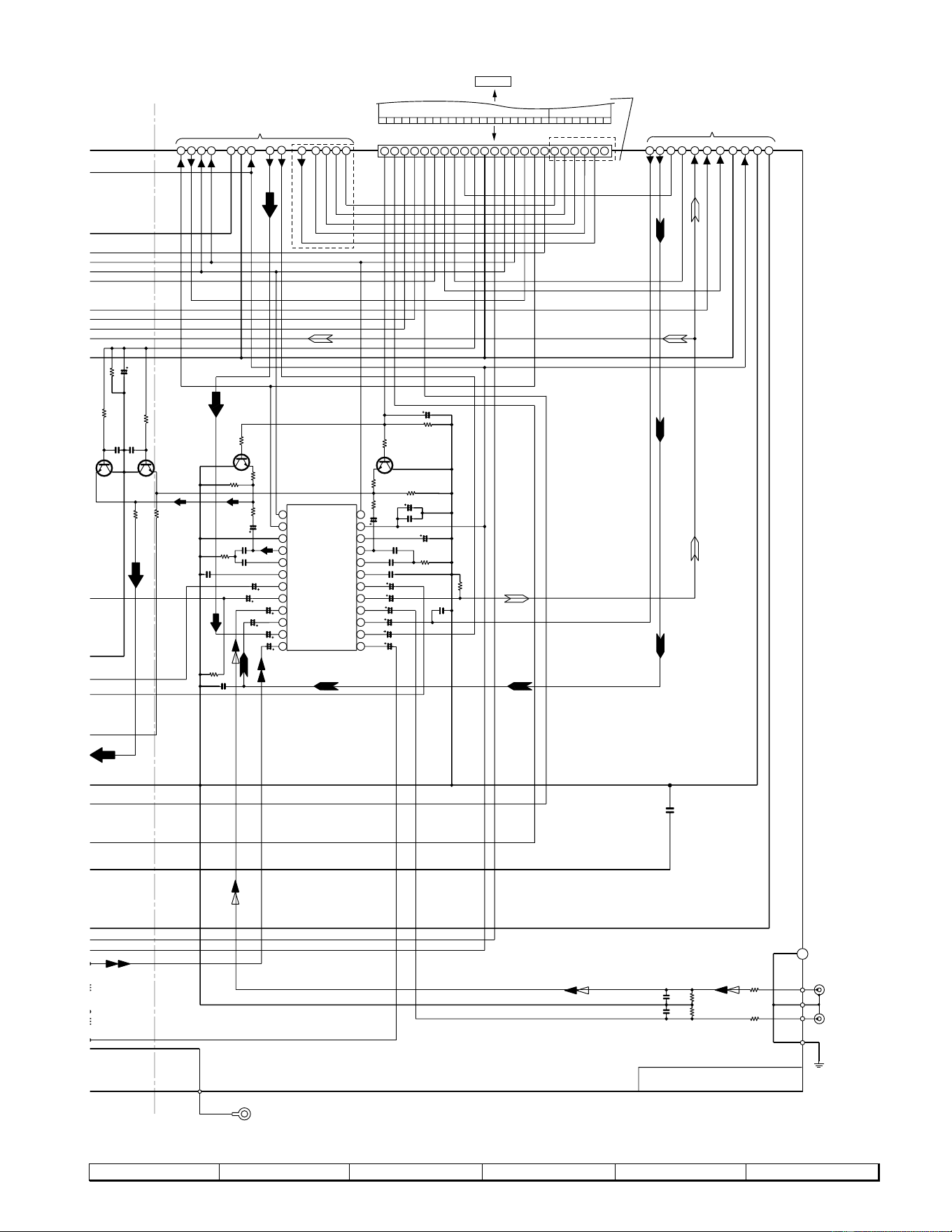

Figure 33 SCHEMATIC DIAGRAM (6/14)

CD-DP900H/E

– 34 –

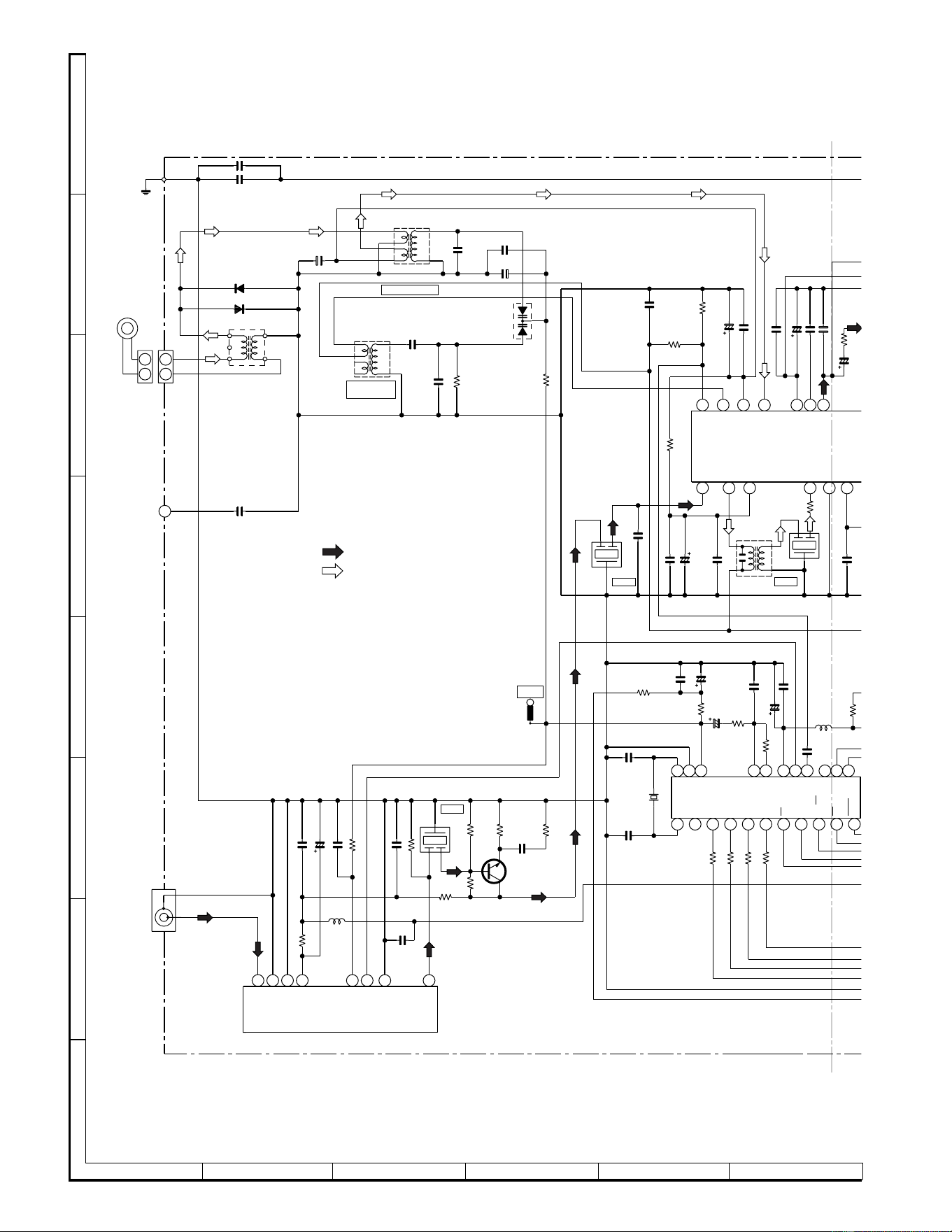

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 23.

R365

10K

R378

FE301

R382

150

VD301

SVC348S

C302

C801A

C330

15P(UJ)

C331

0.047

C332

0.022

D302

DS1SS133

D301

DS1SS133

C338

0.001

T306

R336

10K

C381

12P (CH)

R380

1.5K

C393

1/50

R379

2.2K

C380

10/50

C385

0.01

L351

100µH

R377

47K

R393

C353

0.022

C350

0.022

C352

10/16

C351

0.022

R351

5.6K

C342

0.022

R358

3.9K

C362

3.3/50

C361

0.022

R350

2.7K

1/5

C365

0.022

C366

0.001

C364

10/16

C363

0.022

R372

CNP301

L341

BALUN

X352

4.5MHz

R381

10K

R352

CF352

T351

CF302

C382

15P (CH)

C397

0.022

C394

47/25

C392

0.001

C387

0.022

R374

R373

T303

C323

0.022

C335

560P

C334

27P

(UJ)

R323

68K

SO301

ANTENNA

C345

0.022

CF301

C346

0.022

C347

0.022

R345

4.7K

R344

470

C321

100/16

Q301

2SC380 O

R349

R399

R348

680

R347

6.8K

R346

330

R369

L342

2.2µH

C341

0.022

FM IF

IC302

LC72131

PLL(TUNER)

FM FRONT END

C348

0.01

C344

33P(UJ)

AM BAND

COVERAGE

P33 12-G

CHASSIS

GND

AM LOOP

ANTENN

TO MAIN

PWB-A(2/3)

JK201

AM TRACKING

2 4 2 3 2 2 2 1 2 0 1 9 1 8

6 5 4 3 2 1

REG

AM IF IN

FM/AM OUT

VSM

AM LOW CUT

AM RF IN

AM OSC IN

FM AFC

AM OSC OUT

AM MIX OUT

FM IF IN

GND

AM IF

CONT

FM/AM

STIND

MO/ST

VSS

AOUT

AIN

VDD

FMIN

X IN

IFIN

XOUT

AMIN

19202122 17 16 15 14 13 12

1110987654321

FM IF

4 3 2 1

F OUT

IFOUT

VCC

GND

ANT

TP301

FM 75

OHMS

FM IF

0.001

FM SIGNAL

AM SIGNAL

Figure 34 SCHEMATIC DIAGRAM (7/14)

– 35 –

CD-DP900H/E

8 9 10 11 12

MAIN PWB-A (3/3)

R362

1.2K

R361

1.2K

R386

22K

L354

LOW PASS

FILTER

C385

0.01

L351

100µH

R377

47K

R360

4.7K

C386

C384

R395

47K

R384

5.6K

C391

47/25

R383

5.6K

R392

390

(1/4W)

R385

5.6K

Q360

KTA1266 GR

R391

390

(1/4W)

C395

0.022

C396

100/10

ZD351

DZ5.1BSB

L352

100µH

R376

R393

C370

1/50

R387

5.6K

R359

1.8K

R355

3.3K

C358

1/50

C357

2.2/50

R388

3.9K

C355

22P

C356

0.001

C398

100/10

C399

0.022

C353

0.022

C354

0.022

CF351

R353

270

X351

456kH

C373

0.027

C374

0.027

C369

27P(UJ)

C368

1/50

R356

R357

470K

R350

2.7K

C367

1/50

C365

0.022

C366

0.001

R363

4.7K

R364

4.7K

C372

1/50

C371

1/50

R370

CF352

LT21 LT22

ICT21

IC303

LA1832S

FM IF DET./FM MPX./AM IF

CT23

XT21

CT25

CT30

CT26

CT27

CT22

CT28

CT31

CT21

CT32

CT24

ZDT21

CT29

RT24

QT21

RT25

RT23

RT22

RT30

RT29

RT28

RT27

RT21

RT32

RT31

RT26

22P(CH)

0.022

560P

0.022

47/25

10/16

DZ5.1BSB

0.022

56K 56K

10K

390

10K

6.8K

10K

KTC3199 GR

LC72723

RDS

4.332MHz

VDDA

XIN

VDDD

RDS-ID/

READY

MODE

RST

RDDA

RDCL

VSSD

XOUT

TEST

CIN

MPXIN

VSSA

FLOUT

VREF

2.2µH

13 9BCDE10 56824 7

TO MAIN PWB-A(2/3), AUDIO SECTION

P33 7- A

H ONLY

CLK

A_10V

TUN_L

RST

RDDA

RDCL

READY

TUN_R

TUN_SM

A GND

D GND

91 8

1 0 1 19 8 7 6 5

AM IF IN

STEREO

FM DET

VCC

IF OUT

PHASE

MPX IN

MPX VCO

FM/AM OUT

LOW

CUT

1 7 1 6

MO/ST

GND

(FM/AM)

PHASE

L-CH OUT

R-CH OUT

1 5 1 4

1 3

FM IF

FM/AM

STIND

MO/ST

IFIN

AMIN

14 13 12

11109

TP302

0.001

330P

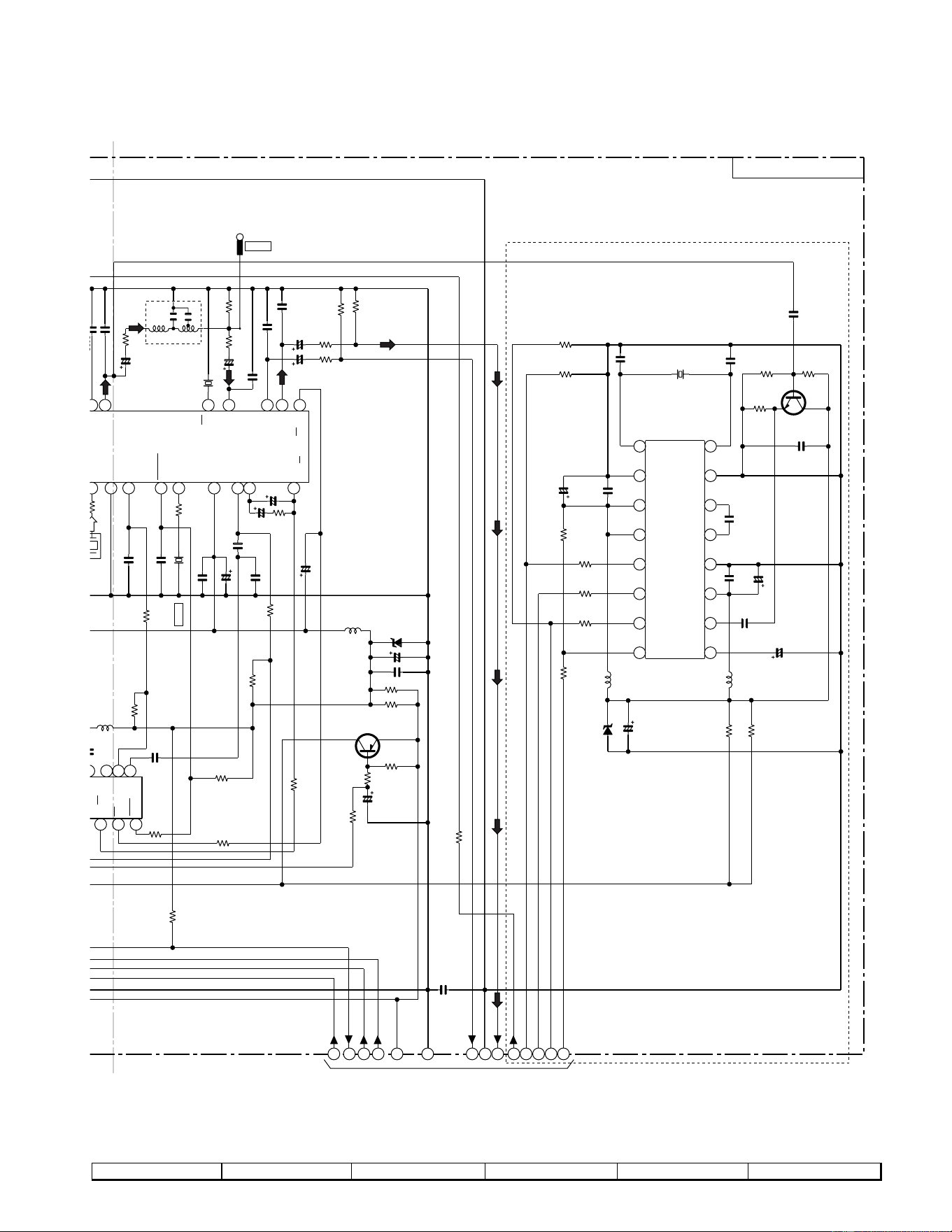

Figure 35 SCHEMATIC DIAGRAM (8/14)

CD-DP900H/E

– 36 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 23.

TAPE MECHANISM

PWB-G

TAPE MECHANISM ASS'Y(208)

7 7

5 9

2 9

2 8

2 7

2 4

2 0

81 82 83 84 85 86 87 88 89 9 0 91 92 93 94 95 96 97 9 8 99

10 0

4 9

4 8

4 7 46 4 5 4 4 43 42 4 1 40 39 3 8 37 3 6 35 3 4

3 4

AC RLY

C_MUTE

H/P_SW

SR_MUTE

DP_REQ

KARAOKE LATCH

MIC SW

O/C_SW

DRF

E : NC

ONLY

M_+13V

CD CLK

S20

S19

S18

S17

DIST

T2_PLAY SW/

FPA/FPB SW

LVL_DET

SPAN

S21

S11

S10

CD CLAMP SW

DISC_NO SW

PROTECT

T1 RUN

RDS RST

RDS RDDA

RDS RDCL

RDS READY

T-BIAS

T_T1/T2

VDD

AVDD

RESET

CD CE

CD DI

S12

S13

S14

T_REC/PLAY

CD RESOUT

VPP/IC

CD DO

CLK

AVSS

TUN SM

KEY 2

KEY 1

KEY 0

P_IN

REMOCON

VSS

SMUTE

T_SOL_A

T_MOTOR

TIMER LED

VDD

P21

P20

P19

P18

P17

P16

P15

P14

P13

P12

P11

P10

P09

P08

P07

P06

P05

P04

P03

P02

P01

G01

G02

G03

G04

G05

G06

G07

G08

G09

T_SOL_B

T2 RUN

–20dBATT

XT2

AVREF

VLOAD

S15

S16

SP_ RLY

JOG1

JOG2

SP DET

WRQ

45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4

AC_RLY_CON

HP_SW

VF2

–VF

VF1

P_IN

SP_RLY

SP_DET

T2_PLAY SW

SOL

T2 RUN

+MTR

SOL2

SOL1

T1 RUN

GND

F_REC

–

SOL

TAPE

MOTOR

P38 1-G

CNP803

TO POWER PWB-C1

1/50

47/25

KTC3199 GR

1.5

100K

DS1SS133

47K

10K

680

2.2K

560

IX0504AW

SYSTEM

MICROCOMPUTER

FL DISPLAY

10K

SLR342VC

TIMER

10K

4.7K

10K

KTA1273 Y

4.7K

DS1SS133

47/25

DS1SS133

H ONLY

BI702

C707

C706

Q705

R793

FL701

R794

R757

R792

D701

R790

R743

R755

R756

R770

R772

R730

R732

R741

R742

R738

R746

R735

R734

R751

R752

R754

R753

R762

R731

R736

R733

R721

R724

R725

R726

R727

R728

R729

R718

R719

R720

IC701

R766

R767

R768

LED701

R761

R764

R765

R779

R777

R778

Q708

Q707

Q706

R740

D710

C712

D709

CNP702

FC702

Figure 36 SCHEMATIC DIAGRAM (9/14)

– 37 –

CD-DP900H/E

8 9 10 11 12

2 9

2 8

2 7

2 4

2 0

8 89 9 0 91 92 93 94 95 96 97 9 8 99

10 0

3 42 4 1 40 39 3 8 37 3 6 35 3 4

3 4

1 2 3

BYPASS

NORMAL

PHANTOM

5V BACK UP

DP_REQ

DRF

CD CLK

T2_PLAY SW/

FPA/FPB SW

LVL_DET

H ONLY

CLOCK

DOWN

TUNING

KEY 0

KEY 1

KEY 2

DOWN

SPAN

CD CLAMP SW

DISC_NO SW

PROTECT

T-BIAS

T_T1/T2

VDD

AVDD

RESET

CD CE

CD DI

T_REC/PLAY

CD RESOUT

VPP/IC

CD DO

CLK

AVSS

TUN SM

KEY 2

KEY 1

KEY 0

P_IN

REMOCON

VSS

SMUTE

SOL

VDD

P04

P03

P02

P01

G01

G02

G03

G04

G05

G06

G07

G08

G09

T_SOL_B

ON/

STAND-BY

REV FF

STOP PLAY

ASPM

DISPLAY

MODE

EQ/

REMOTE SENSOR

TUNING

FPA/FPB

–20dBATT

XT2

AVREF

PTY .TI

VOL UP

VOL

DISC

SKIP

OPEN/

TUNER

P_ RLY

SP DET

WRQ

VIDEO

MEMORY/

SET

TAPE

TIMER/

SLEEP

REC /

PAUSE

17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

O/C_SW

DISC_NO SW

WRQ(DSP)

CLAMP SW

CD DO

CD DI

CD CE

CD CLK

DRF

RES OUT

SW_5V

UNSW_5V

PROTECT

RDS-RST

RDS-RDDA

RDS-RDCL

RDS-READY

–20dB

SR_MUTE

DP_REQ

TUN SM

CLK

T_BIAS

T_T1/T2

REC/PLAY

D_GND

H ONLY

H :23Pin

E:17Pin

H :23Pin

E:17Pin

M_+13V

C_MUTE

S_MUTE

2 1

1 6

1 4

1 8

1 7

2 3

DISPLAY PWB-B1

P33 10-A

CNP601

FC701

TO MAIN PWB-A(2/3)

P29 11-C

CNP8

TO CD SERVO

PWB-D

X-BASS/

DEMO

680

IX0504AW

SYSTEM

OCOMPUTER

220/10

0.022

1/50

1.5

DS1SS133

100µH

47K

0.01

D715

KRC102 M

100K

3.3/50

DS1SS133

UM271

0.022

47/25

100

2.2K1.5K820

680

2.7K 3.9K 5.6K

820 680

1.5K

2.2K 2.7K

10K 5.6K3.9K

2.2K 2.7K 3.9K 5.6K1K 1.5K820 680 10K

10K

SLR342VC

TIMER

10K

4.7K

10K

5.6K

10K

4.7K

100

15P

18P

R736

R733

R721

R724

R725

R726

R727

R718

R719

R720

IC701

C702

C703

C701

R795

CNP701

BI701

D712

D711

D713

L701

R781

C715

DS1SS133

Q709

R782

C714

D714

RX701

C716

C717

R783

RD23

RD22

RD20

RD21

RD19

RD24 RD25 RD26

SW723SW721 SW722

SW724

SW725

SW729

SW727 SW728

RD11RD10 RD12

RD13

RD14 RD15

SW711 SW712 SW713 SW714 SW715 SW716

RD18

RD17

RD16

SW717 SW719SW718 SW720

SW707 SW708SW706SW704 SW705SW703SW702SW701

RD05 RD06 RD07 RD08RD03 RD04RD02RD01 RD09

R766

R767

R768

LED701

R761

R764

R765

R773

R759

R780

R791

R747

R722

R710

R711

R712

R713

R714

R715

R716

R717

R739

R709

R769

R737

XL700

4.194304MHz

C704

C705

R701

R706

R763

R702

R703

R705

R708

R704

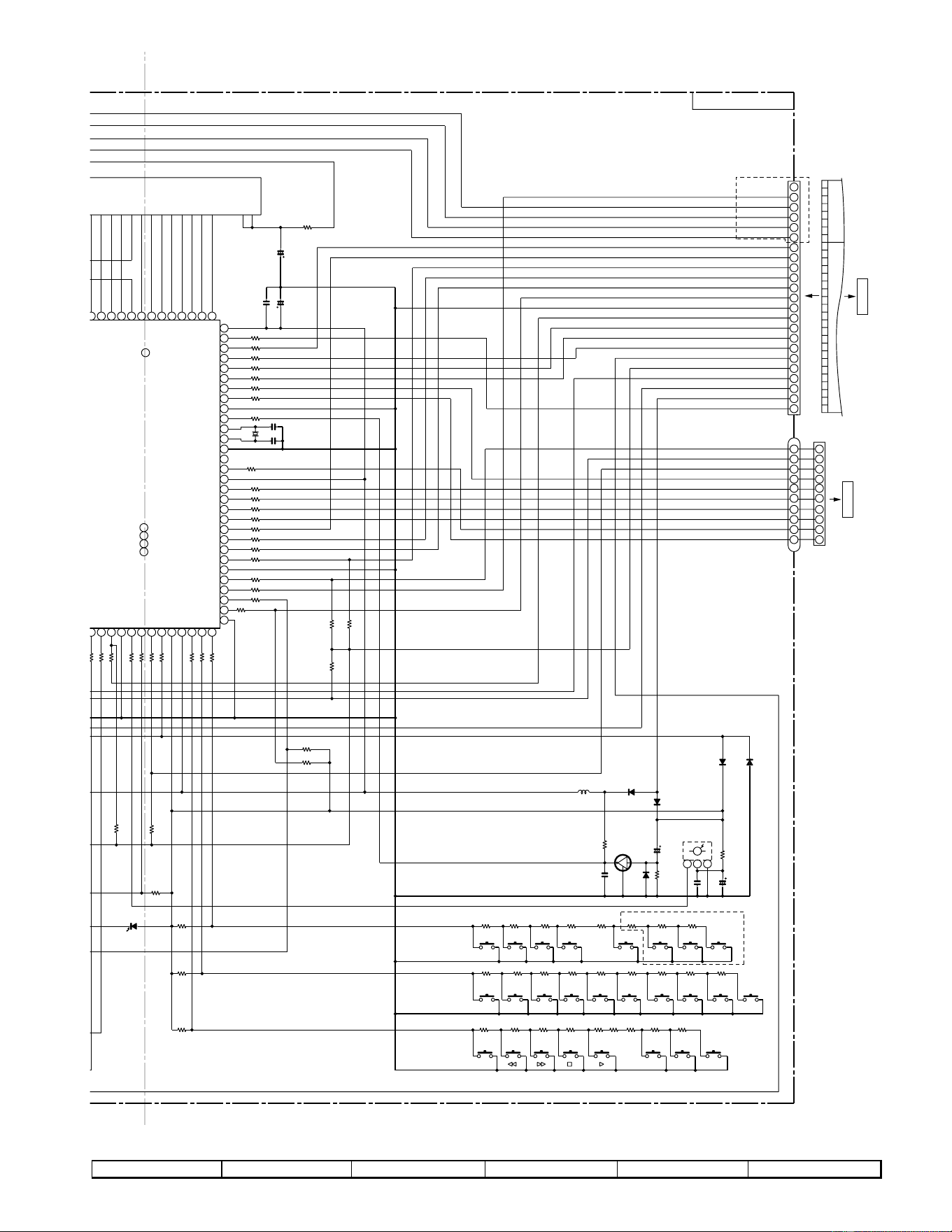

Figure 37 SCHEMATIC DIAGRAM (10/14)

CD-DP900H/E

– 38 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 23.

FROM

MAIN PWB-A(2/3)

P32 1-F

FROM

DISPLAY PWB-B1

P36 1-C

CHASSIS

GND

(2W)

(1W)

(ML)

A_GND

P_IN

H ONLY

+B4

GND

AC_RLY_CON

UNSW_5V

GND

HP_SW

SPK_RLY

–VF

VF1

VF2

A_GND

FRONT_R

H:13Pin

E:10Pin

REAR

CENTER

FRONT_L

M_13V

SP_DETECT

+B3

+5V

CENTER

REAR

FRONT_L

FRONT_R

–VCC

+VCC

CH 2

OUT

CH 1

–

––

+ +

CH 2CH 1

CH 1

12 43567 89

10 11 12 13 14 15

12 43567 89

10 11 12

CNP501

BI702

LUG802

(250)

STK402-071

POWER AMP.

820P

56K

100

0.22

22K

0.22

100/50

0.22/50

820

4.7/50

0.022

6.8K

KTC3199 GR

0.1

DS1SS133

10/50

0.22

100

820

820P

56K

4.7/50

0.1

0.022

6.8K

KTC3199 GR

DS1SS133

KTC3199 GR

DS1SS133

KTC3199 GR

56K

47/50

820P

22K

100

100/50

1K56K

560

0.022

47/50

220P

56K

KTC3199 GR

10K

0.1

10/50

STK402-020

100/50

0.1

10K

0.022

KTC3199

DS1SS133

22K

2200/35

22K

2200/50

22K

2200/50

56K

220P

1/50

4.7

0.1

1/50

56K

220P

56K

1/50

220P

47K

KTC319

IC901

R901

C901

C902

R903

R904

R905

R988

R906

R987

C904

C988

R902

C903

C905

R909

Q901

R908

R907

D901

C906

C907

R989

R990

R910

R914

C911

C912

R915

R916

R917

R918

C910

100/50

R911

R912

C909

R913

Q902

D902

Q903

D903

Q904

R919

R920

C913

R932

C930

C931

R930

R931

C932

R934R933

R937

C938

C933

C934

R939

Q905

R938

R936

R935

C939

C940

IC902

C941

R942

R943

R944

C942

Q906

D904

R809

R810

C816

C815

R803

C803

R802

C804

R940

C937

C936

C935

R923

R924

C921

C920

C919

C918

C916

R922

C917

R921

C914

C915

CNP803

CNP804

R959

Q90

C908

FM SIGNAL

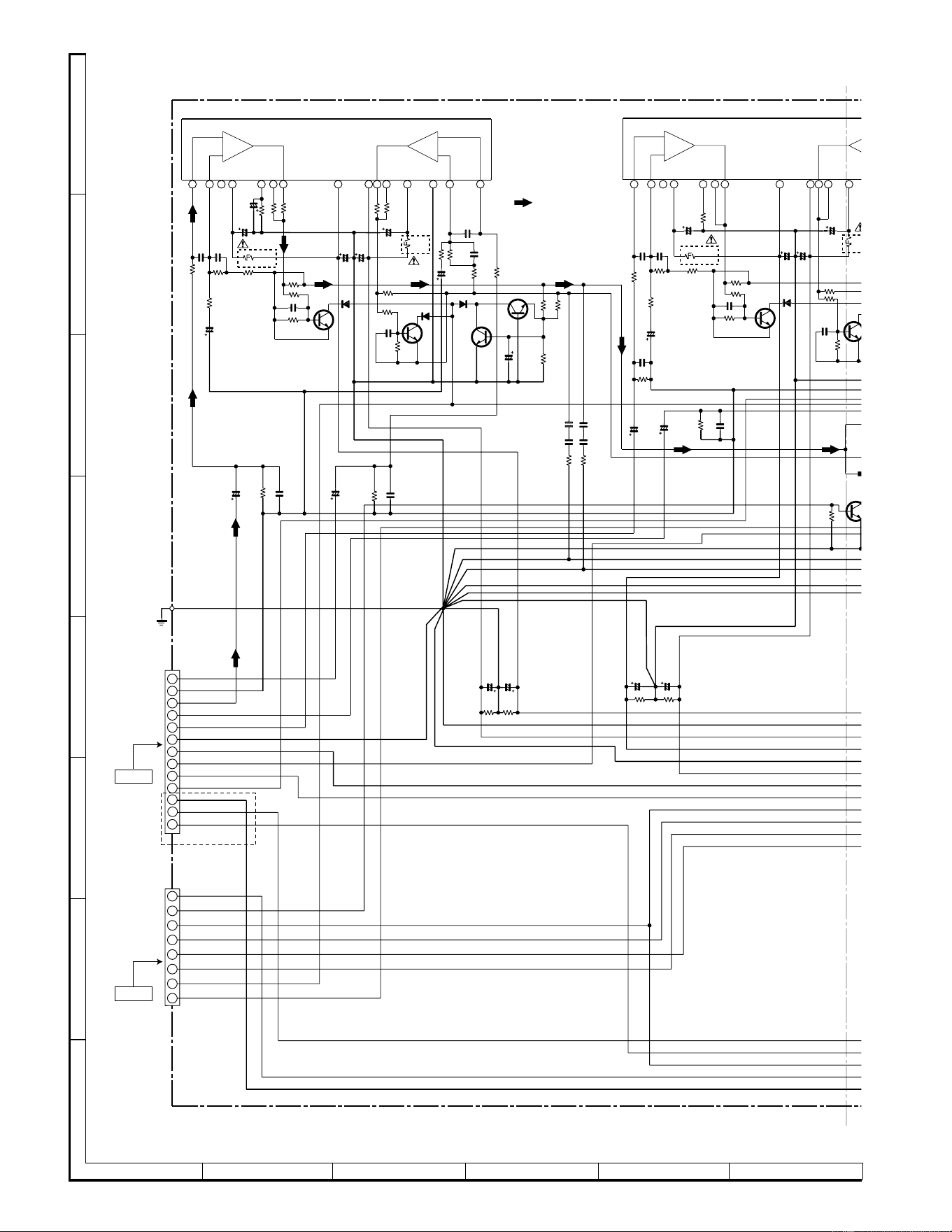

Figure 38 SCHEMATIC DIAGRAM (11/14)

– 39 –

CD-DP900H/E

8 9 10 11 12

H : P40 2-G

E : P41 9-G

TO POWER PWB-C3

P40 6-E

TO POWER PWB-C2

CHASSIS

GND

–VF

VF2

VF1

+B3

P_IN

–B2

+B2

-B1

+B1

GND

L-CH

GND

R-CH

SP_RLY

–

(ML)

(1/2W)

(1W)

POWER PWB-C1

SP_RCH

SP_RCH_GND

SP_LCH_GND

SP_LCH

SP_REAR_LCH

SP_REAR_LCH_GND

SP_REAR_RCH_GND

SP_REAR_RCH

SP_CENTER

SP_CENTER_GND

6 OHMS

12 OHMS

6 OHMS

FRONT

FAN

MOTOR

H ONLY

P_IN

GND

AC_RLY_CON

UNSW_5V

+B4

1 0

REAR

–VCC

CH 2

OUT

–

CH 2

JACK PWB-B2

HEADPHONES

10 11 12 13 14 15

CNP801

CNP802

MP.

10/50

100

100/50

0.1

47/50

560

56K

820P

DS1SS133

KT3199 GR

56K

47/50

10K

0.022

KTC3199 GR

DS1SS133

330

DS1SS133

15K

10/50

DS1SS133

10/50

68K

47/50

KTC3203 Y

2.2µH

100P

6.8

0.001

0.022

4.7

0.022

4.7

0.022

6.8

0.29µH

0.022

6.8

0.022

0.001

0.022

4.7

0.022

4.7

DS1SS133

47K

KTC3199 GR

DS1SS133

4.7

0.1

C940

R941

C941

R942

R943

C945

R945

R947

R946

C943

C944

R948

D906

Q908

R949

R950

R951

C946

R944

C942

D905

Q906

Q907

D904

R954

R955

D910

R972

C959

D911

D909

C961

R974

R973

C960

Q910

CNP806

CNS803

CNS907

CNW907

L702

C719

C718

JK701

M901

SO901

L901

R980

R977

C970

C971

C972

R979

C973

R978

C968

C969

C966

C967

L902

R976

C964

C965

R975

C962

C963

RL901

R956

R957

L904

L903

C978C979

C976

C977

C974

C975

R981

R982

R983

R984

C980

C981

C982

C983

C984

R985

C985

R986

CNS802

CNS801

R952

R953

RL902

D907

R959

Q909

D908

R961

R960

C949

C947

C950

C948

CNP705

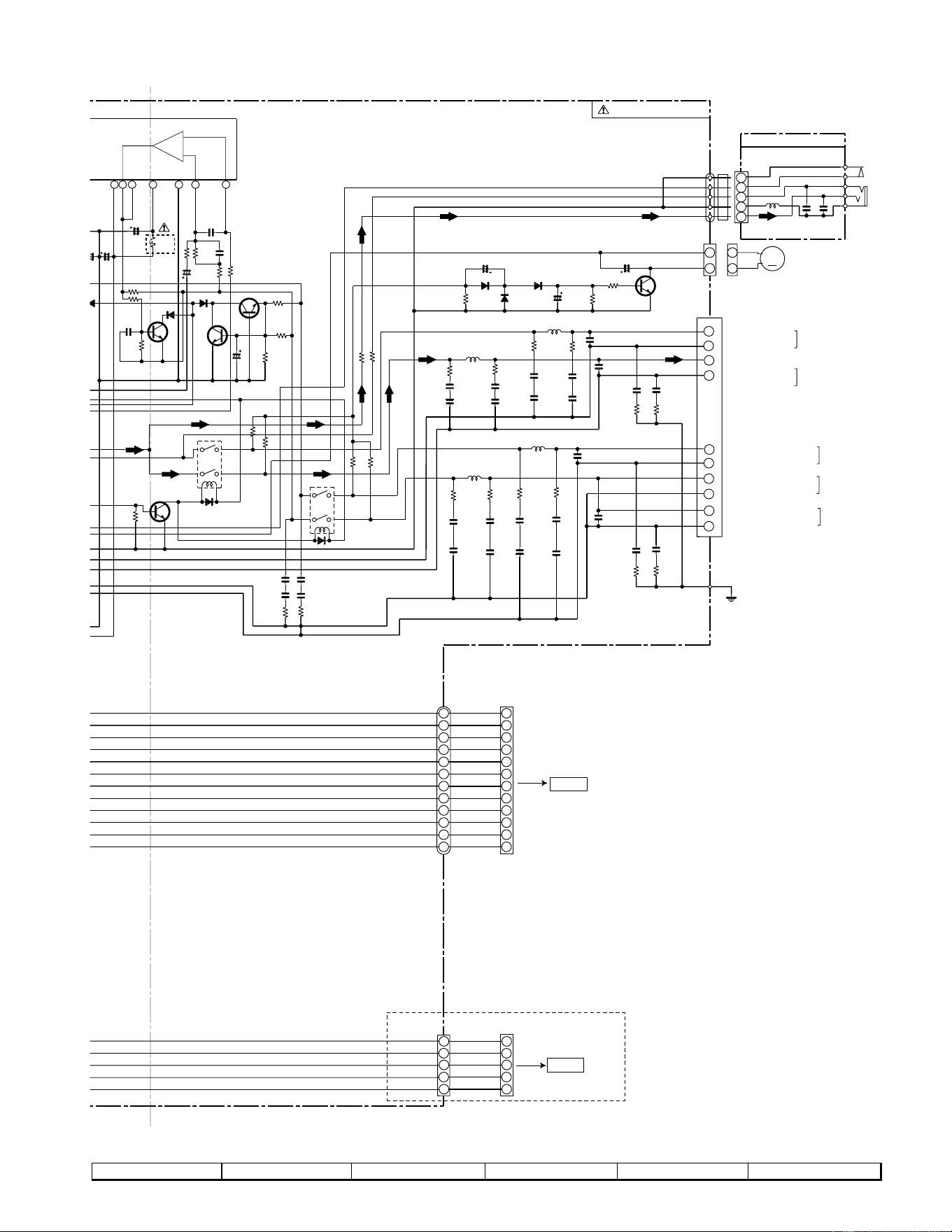

Figure 39 SCHEMATIC DIAGRAM (12/14)

CD-DP900H/E

– 40 –

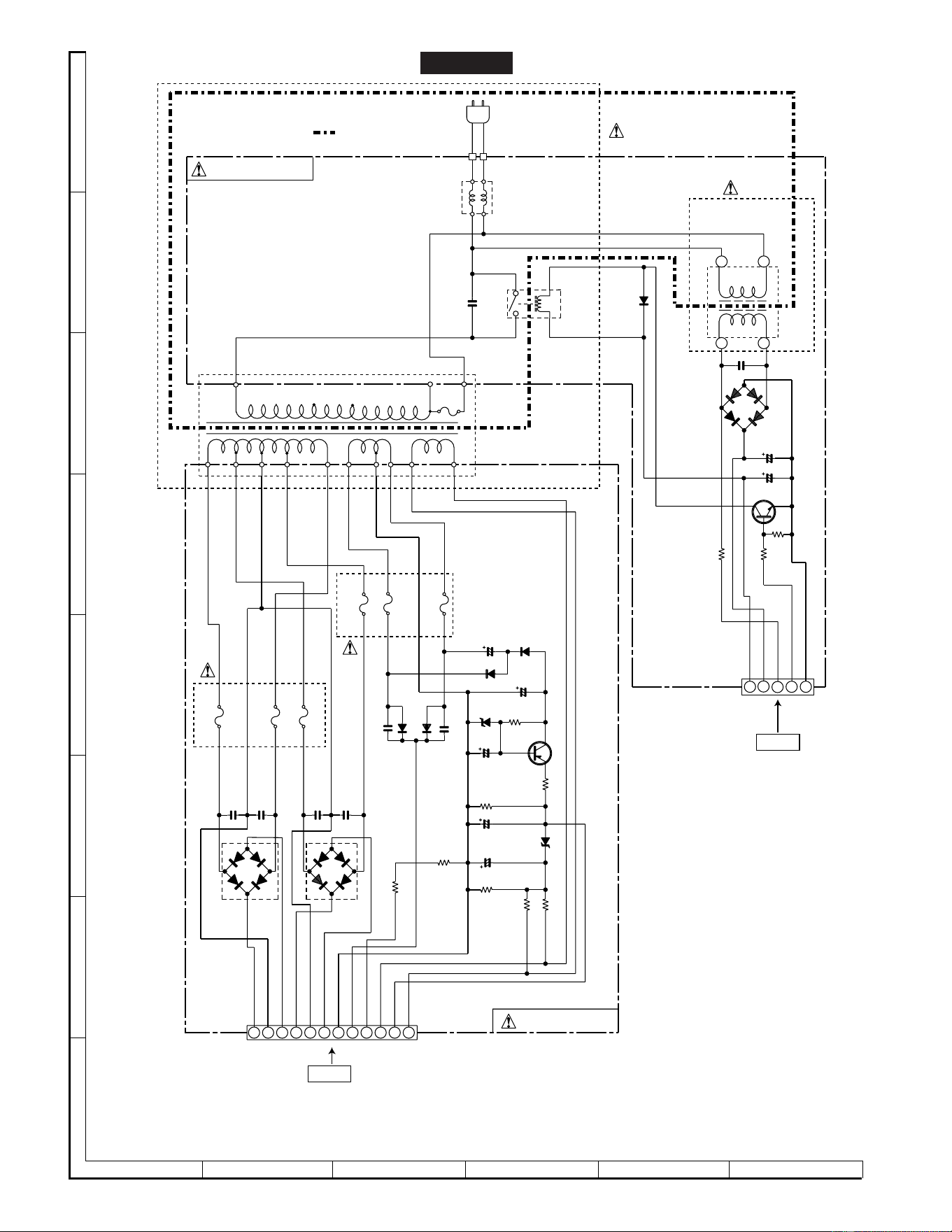

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 23.

CNS802

FROM POWER PWB-C1

P39 9-H

CNS801

FROM POWER PWB-C1

P39 9-E

–VF

VF1

VF2

+B3

P_IN

GND

+B1

+B2

–B2

–B1

8 9 10 11 12 5 4 3 2 1 6 7

P_IN

+B4

GND

AC_RLY_CON

UNSW_5V

2 1 3 4 5

4 3

2 1

LINE FILTER

K801

(255)

K802

(255)

POWER TRANSFORMER

(MAIN)

POWER TRANSFORMER

(SUB)

AC POWER

SUPPLY CORD(248)

AC 230V 50Hz

When Servicing,

Pay attention as the area enclosed

by this line ( ) is directly

connected with AC main voltage.

POWER PWB-C2

POWER PWB-C3

230-240V

0.0047

DS1SS133

0.047

470/35

1N4004S

1000/6.3

C3199 GR

47K

220K

1N4004S

100/50

220/50

MTZJ36C

KTA1274 Y

47/50

47K

47/50

100/35

12K

DZ6.2BSA

47K

0.22

1N4004S

0.22

T2A L250V

T3.15A L250V

T4A L250V

0.22

220K

D3SBA60F

D807

D818

C827

C826

ZD802

R814

Q804

C825

R812

C824

C823

R811

R817

R818

ZD801

R821

C821

F803

F802

C818

C819

C820

R820

D802

CNP801

C822

D808

D809A

CNP802

PT801

D813A

C828

C830

D815A

D816A

D814A

D817

C829

Q803

R816

R815

R819

C801

F805

F806

F804

L801

RL801

PT802

F801

C817

D801

R813

Figure 40 SCHEMATIC DIAGRAM (13/14)

CD-DP900H

– 41 –

CD-DP900H/E

8 9 10 11 12

CNS801

FROM POWER PWB-C1

P39 9-E

–VF

VF1

VF2

+B3

P_IN

GND

+B1

+B2

–B2

–B1

8 9 10 11 12 5 4 3 2 1 6 7

LINE FILTER

POWER TRANSFORMER

(MAIN)

AC POWER

SUPPLY CORD(248)

AC 230-240V 50Hz

POWER PWB-C2

POWER PWB-C3

K801

(255)

K802

(255)

230-240V

1N4004S

100/50

220/50

MTZJ36C

KTA1274 Y

47/50

47K

47/50

100/35

12K

DZ6.2BSA

47K

0.22

1N4004S

0.22

T2A L250V

T3.15A L250V

T4A L250V

0.22

220K

D3SBA60F

DZ6.2BSA

D807

D818

C827

C826

ZD802

R814

Q804

C825

R812

C824

C823

R811

R817

R818

ZD801

R821

C821

F803

F802

C818

C819

C820

R820

D802

ZD805

CNP801

C822

D808

D809A

PT801

F805

F806

F804

L801

F801

C817

D801

R813

Figure 41 SCHEMATIC DIAGRAM (14/14)

CD-DP900E

CD-DP900H/E

– 42 –

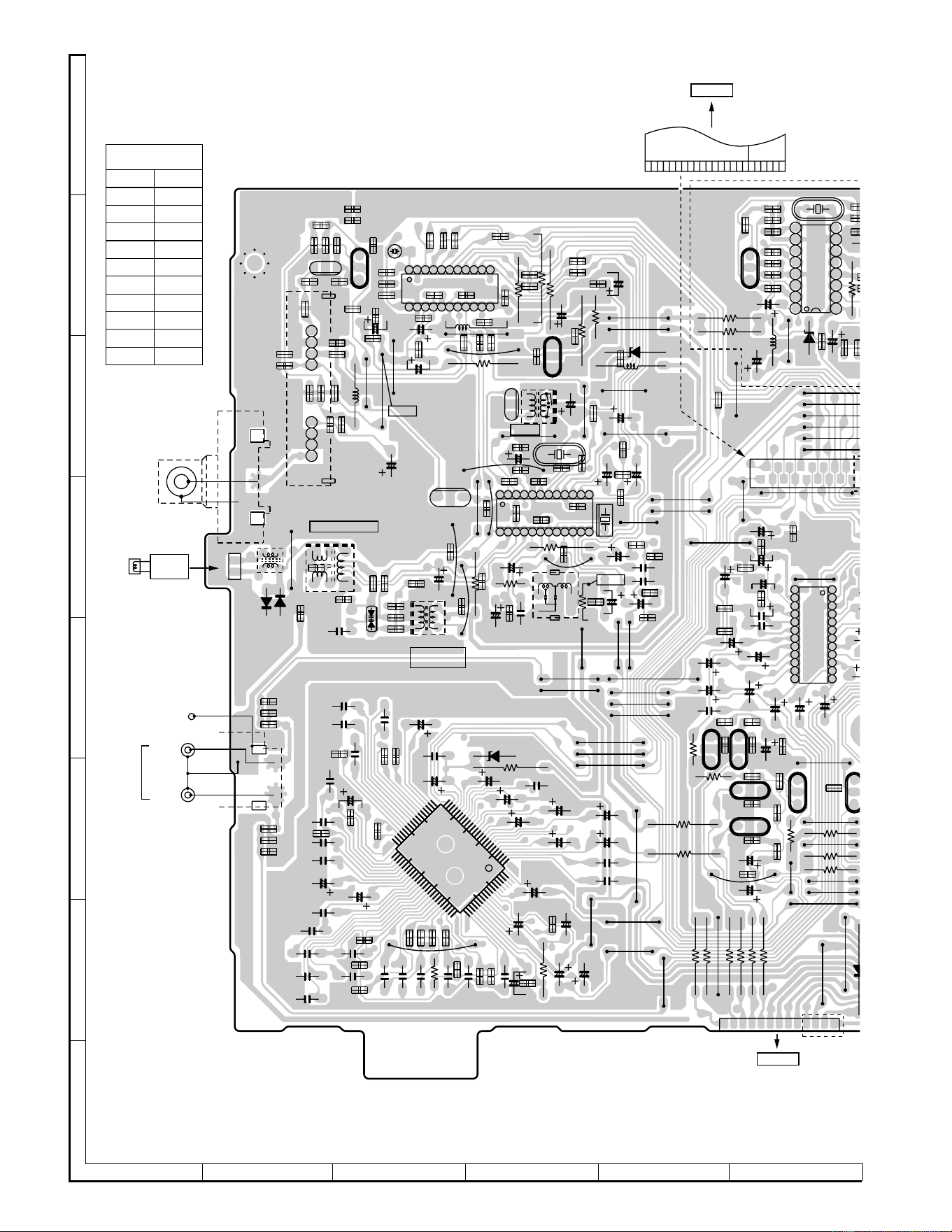

23456

CT22

RT32

R546

R516

C551

R519

C552

R545

R401

C553

C554

R523

R524

R410

R364

R405

C415

R362

R363

C419

R361

R406

R355

RT31

RT30

CT28

CT27

CT30

CT26

RT25

CT25

RT26

RT24

R378

R372

R373

R374

R388

R376

R359

C395

R360

C387

R379

C386

C392

R377

R385

R393

C385

R380

R383

R395

C351

C356

C354

C350

R353

C353

R352

C355

C399

C344

C366

R351

R365

C369

C334

C361

R356

R323

C342

C332

C363

C335

IC501

R502

R506

R509

R508

R510

R507

C545

R504

R505

C538

C536

C535

C204

R208

C519

R512

R204

C521

C512

C513

C518

R202

R206

C202

C338

C330

R336

C323

R369

C347

R345

R346

C346

C345

C341

R381

C397

C381

R348

R344

C382

C384

R347

R349

R399

C348

C302

C801A

AM BAND

COVERAGE

AM TRACKING

TP302

TP301

CNP804

P46 2 - D

TO POWER PWB-C1

R531

C42

D815

CNP501

R513

R530

R521

R526

R527

R520

C568

R40

C569

R52

R529

R407

R40

Q501

R518

Q402

Q502

R408

C423

Q503

Q504

C410

C407

C408

C466

C413

C411

C414

C425

IC401

C427

C416

C417

C372

C418

C421

C374

C373

C420

C422

C358

CNP601

C370

CT31

L352

ZD351

LT22

CT24

ZDT21

RT23

RT22

CT32

RT21

ICT21

QT21

XT21

X352

R386

IC302

C396

R384

R387

L351

C391

R391

C380

R392

C393

R382

Q360

C398

T351

CF352

CF351

C352

C357

CF302

IC303

X351

R370

C371

C367

R350

C362

R358

L354

R357

C368

C365

C364

T306

C511

ZD502

C510

R501

C567

C509

C508

C570

C507

C505

C506

C503

C504

C502

C501

C549

C548

C547

R503

R511

C546

C550

C543

C541

C542

C539

C537

C544

C531

C540

C533

C532

C534

C530

C528

C529

C527

C526

C525

C524

C522

C520

C523

JK201

C517

C514

C516

C515

C331

VD301

D301

D302

T303

CNP301

L341

C321

L342

FE301

C394

Q301

CF301

SO301

FC701

123456789

10 11

13141516171819202122 12

123456789

10 11 12

131415161718192021222324

1357911131517

2468101214161

ECB

123456789

10 11 12 13

CHASSIS

GND

CHASSIS

GND

123

ANTENNA

TERMINAL

75 OHMS

AM LOOP

ANTENNA

AM IF

123

E:17Pin

H:23Pin

E:17Pin

H:23Pin

H ONLY

CNP701

TO DISPLAY PWB-B1

P45 11 - D

VIDEO/AUX IN

L-CH

R-CH

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

H ONLY

H : 13Pin

E : 10Pin

Figure 42 WIRING SIDE OF P.W.BOARD (1/8)

– 43 –

CD-DP900H/E

8 9 10 11 12

R154

R145

R153

R141

C139

C147

R135

C131

R139

R131

R137

C123

C127

R125

C111

R123

C113

C119

R101

R102

R121

C107

C105

C102

C108

R109

R110

C101

R107

R108

R115

R113

R114

CT29

CT23

CT22

C221

C220

R221

R220

RT27

RT28

R164

R162

RT32

RT29

R167

C106

R166

R106

R112

R104

R103

R105

C112

C114

R122

C120

R124

R134

R126

C132

R138

R136

R404

C140

C404

R146

R142

R409

R140

C465

R546

R516

C551

R519

C552

R545

R401

C553

C554

R523

R524

R410

R364

R405

C415

R362

R363

C419

R361

R406

R355

RT31

RT30

CT28

CT27

CT30

CT26

RT25

CT25

RT26

RT24

C355

CNP7

P48 4 - A

TO CD SERVO PWB-D

CNP804

P46 2 - D

TO POWER PWB-C1

R531

C814

ZD804

C835

C805

D816

C833

R808

C811

C812

IC801

C813

R158

C135

C146

C141

C145

Q121

C133

IC101

C128

C121

L101

R119

C115

C117

R117

R118

CNP102

Q107

Q108

CNP101

Q111

Q109

C153

Q110

R174

Q126

C155

BI401

CT21

C151

LT21

L104

R168

Q124

C150

Q128

C152

C154

R160

Q106

R111

Q104

Q103

Q105

R120

C428

C118

C116

L102

C122

C156

C401

C134

R132

C402

C124

C142

C403

C426

C136

C424

C405

Q122

R181

C406

R182

IC802

IC803

C808

D811

C810

C831

D809

R806

R823

C807

C834

C806

D810

C832

Q823

IC804

R804

D812

D813

D814

R992

C809

D815

CNP501

R513

R530

R521

R526

R527

R520

C568

R403

C569

R525

R529

R407

R402

Q501

R518

Q401

Q402

Q502

R408

C423

Q503

Q504

C410

C407

C408

C466

C413

C411

C414

C425

IC401

C427

C416

C417

C372

C418

C421

C374

C373

C420

C422

C358

CNP601

C370

CT31

L352

ZD351

LT22

CT24

ZDT21

RT23

RT22

CT32

RT21

ICT21

QT21

XT21

C396

371

C368

C505

C503

C502

C501

701

CNW101

R993

13579111315171921

246810121416182022

BCE

123

BCE

ECB

BCE

CHASSIS

GND

CHASSIS

GND

123456789

10 11 12 13

12345678

:17Pin

:23Pin

E:17Pin

H:23Pin

H ONLY

CNP701

TO DISPLAY PWB-B1

P45 11 - D

LUG101 (251)

LG1 (250)

LG2 (250)

TO TAPE MECHANISM

P49 11 - F

FROM TAPE 2

RECORD/PLAYBACK/

ERASE HEAD

P49 10 - F

FROM TAPE1

PLAYBACK HEAD

H ONLY

H : 13Pin

E : 10Pin

MAIN PWB-A

Figure 43 WIRING SIDE OF P.W.BOARD (2/8)

CD-DP900H/E

– 44 –

23456

FC702

SW717

SW716

SW715

SW714

R719

R722

XL700

C705

C704

C703

FL701

Q705

R792

R793

RX701

C716

R783

R763

R701

D714

R702

D713

R703

R704

C715

R705

Q709

R706

C714

C702

D712

L701

R781

R708

R769

R709

R710

R711

R712

R759

R747

R764

R713

SW725

R714

R715

SW721

RD23

RD22

R717

R791

R737

R739

R770

R716

R772

RD19

Q706

R777

Q707

R778

RD20

Q708

SW722

R779

CNP702

C712

R740

D710

D709

BI702

SW723

RD21

SW724

RD24

BI701

SW727

RD25

D711

D715

R782

SW728

RD26

SW729

C707

C701

R795

R794

C717

H ONLY

357

2468

100

TO TAPE MECHANISM

PWB-G

P49 9 - B

CNP8

P48 3 - A

TO CD SERVO

PWB-D

CNP803

P46 5 - B

TO POWER

PWB-C1

REMOTE

SENSOR

PTY.TI

SERCH

ASPM

DISPLAY

MODE

EQUALIZER/

X-BASS/DEMO

OPEN/

VIDEO

TIMER/SL

TUNING U

REC/P

VOLME UP

VOLUME DOWN

ECB

321

12 56789

10 11 12 13 14 15 16 17 18 19

DISC

SKIP

Figure 44 WIRING SIDE OF P.W.BOARD (3/8)

– 45 –

CD-DP900H/E

8 9 10 11 12

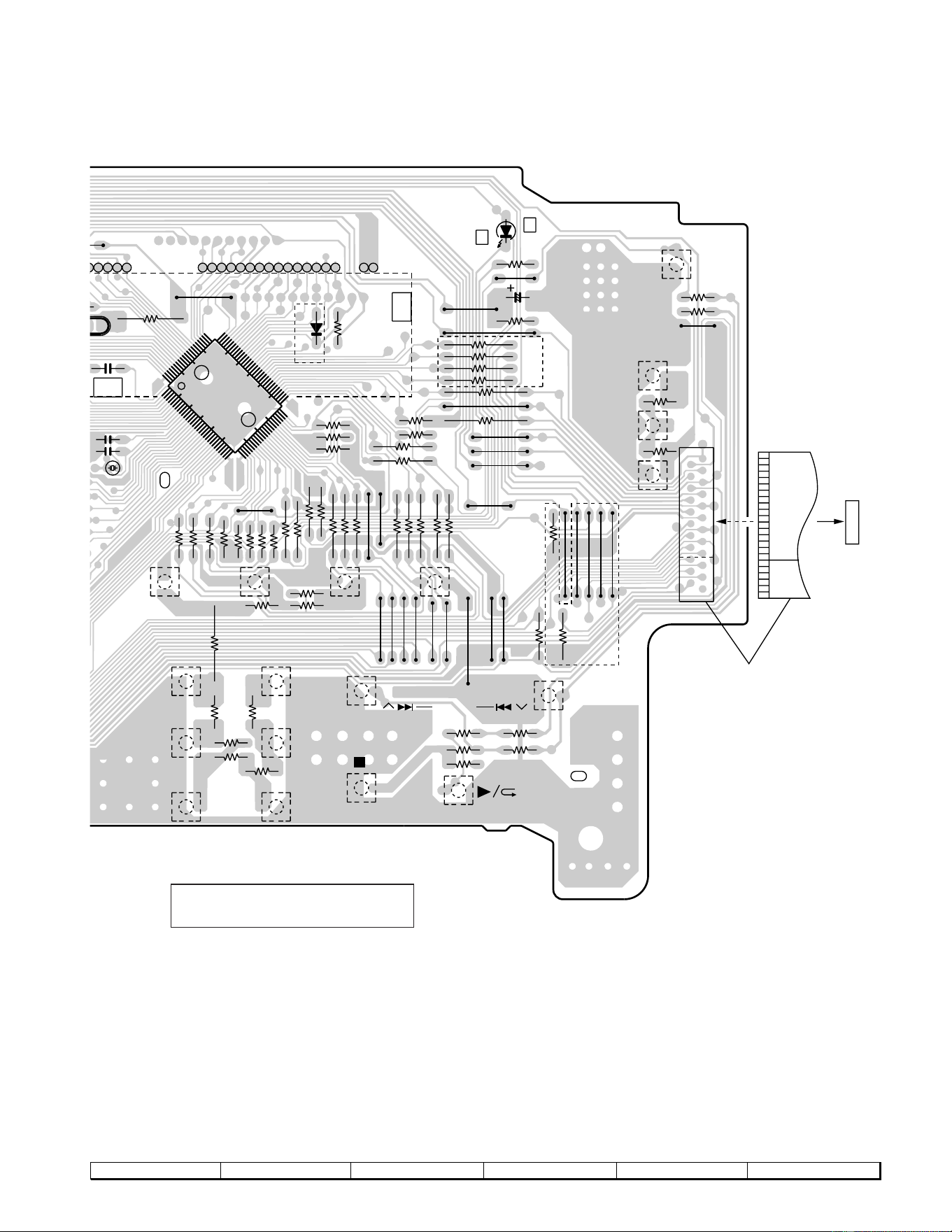

IC701

SW702

R755

CNP701

FC701

SW706

RD08

SW707

RD09

SW708

RD07

RD01

SW701

LED701

R761

C706

R757

R790

R754

R753

R752

R751

R742

R743

R741

R731

R738

R730

R732

R762

R729

R725

R746

R773

R734

R735

R767

R728

R727

R726

R756

SW711

SW712

R780

SW703

RD06RD05

RD02RD03

RD04

SW704

SW705

SW718

SW717

RD17

RD16

SW719

RD15

SW716

RD18

RD14

SW720

SW715

RD13

RD11

RD12

RD10

SW714

SW713

R766

R736

R721

R768

R718

R720

R719

R722

R724

R733

R765

XL700

C705

C704

C703

D701

FL701

R792

793

H ONLY

E:17Pin

H:23Pin

100

CNP601

TO MAIN PWB-A

P42 8 - D

DISPLAY PWB-B1

VIDEO

TAPE

[1-2]

TUNER

[BAND]

PHANTOM

NORMAL

ON/

STAND-BY

TIMER

BYPASS

TIMER/SLEEP

TUNING UP

TUNING DOWN

PRESET

CLOCK

REC/PAUSE

MEMORY

/SET

16 17 18 19 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 44 45

Figure 45 WIRING SIDE OF P.W.BOARD (4/8)

CD-DP900H/E

– 46 –

23456

CNP501

P43 8 - G

FROM

MAIN PWB-A

BI702

P44 2 - E

FROM

DISPLAY PWB-B1

RED

R820

CNP803

CNP801

CNS801

CNS802

RL901

Q909

R959

C961

C960

Q910

CNP806

R973

R979

R978

C973

C970C971C982

C984

L901

L902

C972

C959

D909

R977

R975

C966

C962

R974

D911

D910

R980

R976

C963

C967

C969

C968

C965

C964

R972

D908

R957

R956

R924

C921

R923

C919

C920

C988

C918

R906

R803

C904

R987

R988

R905

C804

C906

IC901

C907

R802

R910

R989

R990

C803

C908

C909

R912

R913

C950C948

R961

R951

Q907

C932

R949

C815

R931

R930

R809

Q905

R935

C938

R936

R938

C939

IC902

C931

R933

R932

C940

C930

R937

R942

R810

R941

R943

R945

C816

R948

C943

R946

C944

C941

R947

R960

C947

R944

Q906

C949

CNS907

CNW907

C942

D905

R950

C936

R940

C937

C945

C933

R939

C934

C935

D904

R934

D906

Q908

C946

R955

Q902

D902

R916

C916

R917

CNP804

C911

C917

R922

R911

C912

R915

C910

R914

C903

R921

C915

R902

C902

R903

C901

C914

R904

R901

R907

R954

R908

C905

R918

D903

Q904

R909

D901

Q903

Q901

R919

R920

C913

RL902

R952

R953

D907

C975

C980

C979

C981

C978

C974

R983

R984

R981

R982

C976

C983

L903

L904

C985

R985

C977

R986

SO901

CNP705

JK701

C719

C718

L702

M901

CNS803

R820

CNP801

SPEAKER

TERMINAL

L-CH

FRONT

R-CH

L-CH

SURROUND

12 OHMS

MIN.

R-CH

CENTER

6 OHMS

MIN.

6 OHMS

MIN.

LUG802 (250)

ECB

BCE

ECB

BCE

ECB

2345

HEADPHONES

CHASSIS

GND

CHASSIS

GND

H ONLY

POWER PWB-C1

JACK PWB-B2

FAN MOTOR

H ONLY

H : 13Pin

E : 10Pin

Figure 46 WIRING SIDE OF P.W.BOARD (5/8)

– 47 –

CD-DP900H/E

8 9 10 11 12

L801

C801

RL801

C817

C818

C819

C820

F806

F805

F804

F803

F802

F801

C826

C827

D807

ZD802

C825

C823

R812

R811

D818

R817

R814

Q804

C824

R818

ZD801

D808

R821

R820

C821

C822

D809A

D802

CNP801

D801

CNP802

R819

PT802

PT801

R815

R816

Q803

D814A

D815A

C828

D816A

D817

D813A

C830

C829

R813

C817

C818

C819

C820

F806

F805

F804

F803

F802

F801

C826

C827

D807

ZD802

C825

C823

R812

R811

D818

R817

R814

Q804

C824

R818

ZD801

D808

R821

R820

C821

C822

D809A

D802

CNP801

D801

R813

ZD805

PT801

L801

54321

CD-DP900E

CD-DP900H

AC POWER

SUPPLY CORD(247)

AC 230-240V

50Hz

POWER TRANSFORMER

(MAIN)

POWER TRANSFORMER

(MAIN)

POWER TRANSFORMER

(SUB)

When Servicing,

Pay attention as the area enclosed

by this line ( ) is directly

connected with AC main voltage.

AC POWER

SUPPLY CORD(247)

AC 230-240V

50Hz

T2A L250V

T3.15A L250V

T4A L250V

K801 (255)

K802 (255)

K801 (255)

K802 (255)

LINE FILTER

POWER PWB-C2

T2A L250V

T3.15A L250V

T4A L250V

POWER PWB-C2

POWER PWB-C3

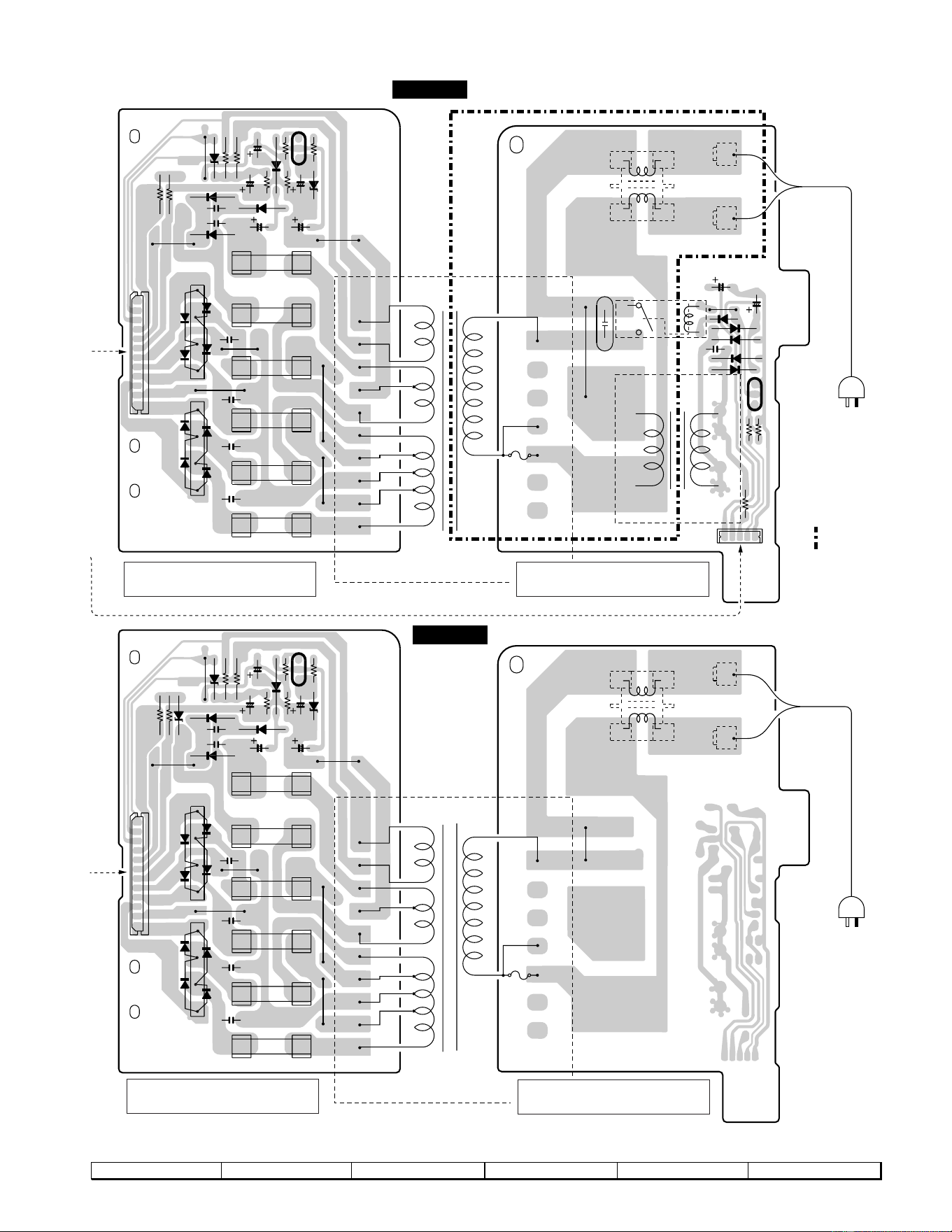

Figure 47 WIRING SIDE OF P.W.BOARD (6/8)

CD-DP900H/E

– 48 –

23456

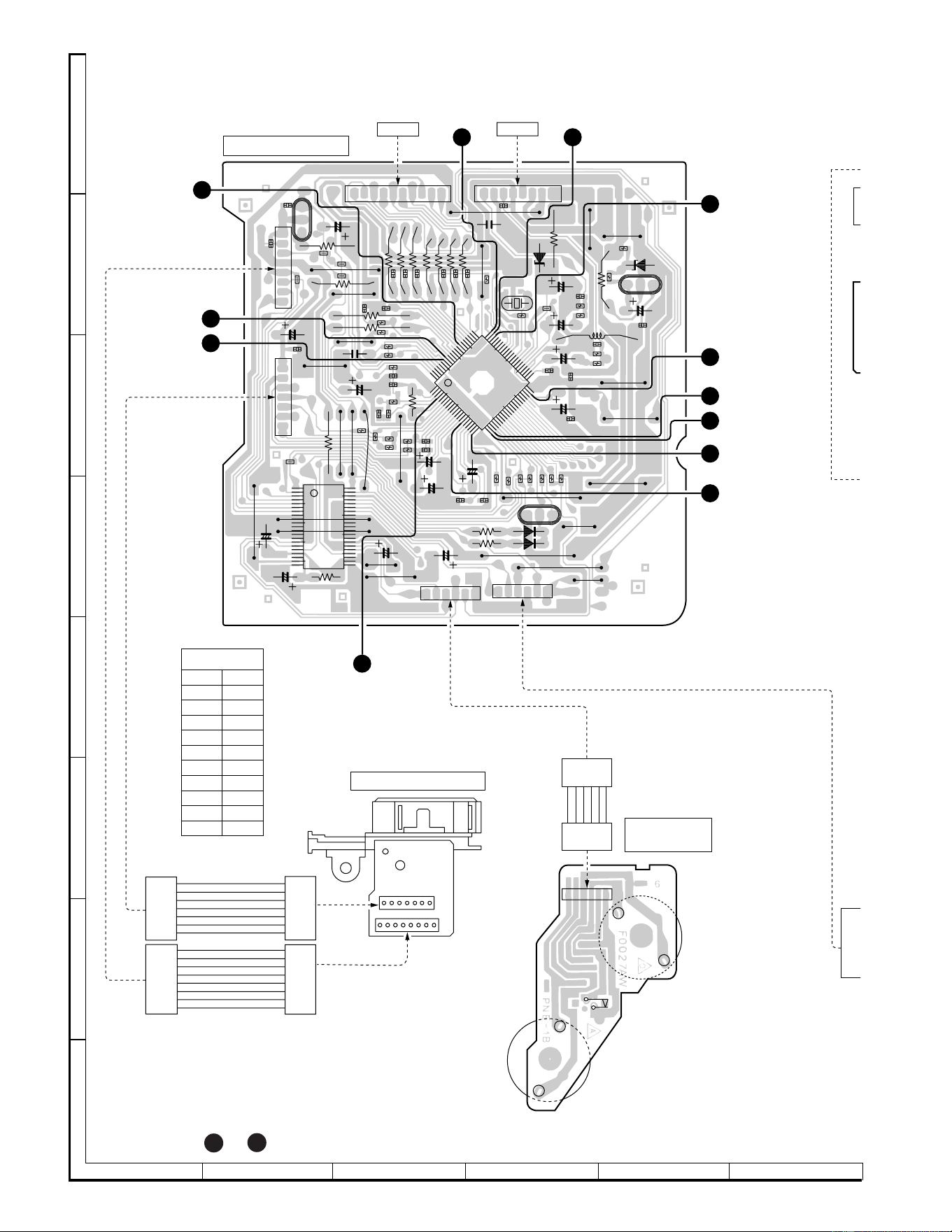

Figure 48 WIRING SIDE OF P.W.BOARD (7/8)

IC2

C50

R12

C52

C53

C12

R13

R14

R15

R16

R17

R18

R20

C13

C48

R23

R47

R24

R26

C25

R25

R27

C26

C44

C22

R43

C42

R31

IC1

C28

C30

C57

C32

C33

C34

R11

R42

R41

C27

R40

R39

C35

C38

C54

C39

CNP1

C40

R44

R49

C41

R10

C10

C46

CNP3

C11

R45

R46

CNP4

C14

C18

ZD2

R51

C23

C16

C24

R22

ZD1

CNP7

C51

XL1

R32

R33

R34

R35

R36

R37

R38

CNP8

R29

R28

C36

C37

CNP2

CNS1B

CNS1A

CNS2B

CNS2A

CNS3B

CNS3A

SW4

PICKUP IN

CNP3A

SLED MOTOR

SPINDLE MOTOR

1112

CD SERVO PWB-D

12345

CD MOTOR

PWB-E

PICKUP UNIT(306)

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

123456

BI701

P44 2 - D

FROM DISPLAY PWB-B1

BI401

P43 9 - B

FROM MAIN PWB-A

12345678910 12345678

B C E

1 2 3

–

12345

• The numbers 1 to 12 are waveform numbers shown in page 24.

– 49 –

CD-DP900H/E

8 9 10 11 12

SW1

OPEN/CLOSE

SW3

DISC

NUMBER

SW2

CLAMP

T/T UP/DOWN

MOTOR

BI4

CNS4

CD LOADING MOTOR PWB-F

TAPE MECHANISM

ASSEMBLY

TAPE MECHANISM PWB-G

TAPE 2

ERASE HEAD

RECORD/PLAYBACK

HEAD

TAPE 1

PLAYBACK HEAD

P43 10 - C

TO MAIN PWB-A

CNP102

CNP101

P43 11 - C

TO MAIN PWB-A

SOLENOID

CNP702

P44 3 - F

TO DISPLAY PWB-B1

FC702

TAPE

MOTOR

SOLENOID

7 6 5 4 3 2 1

–

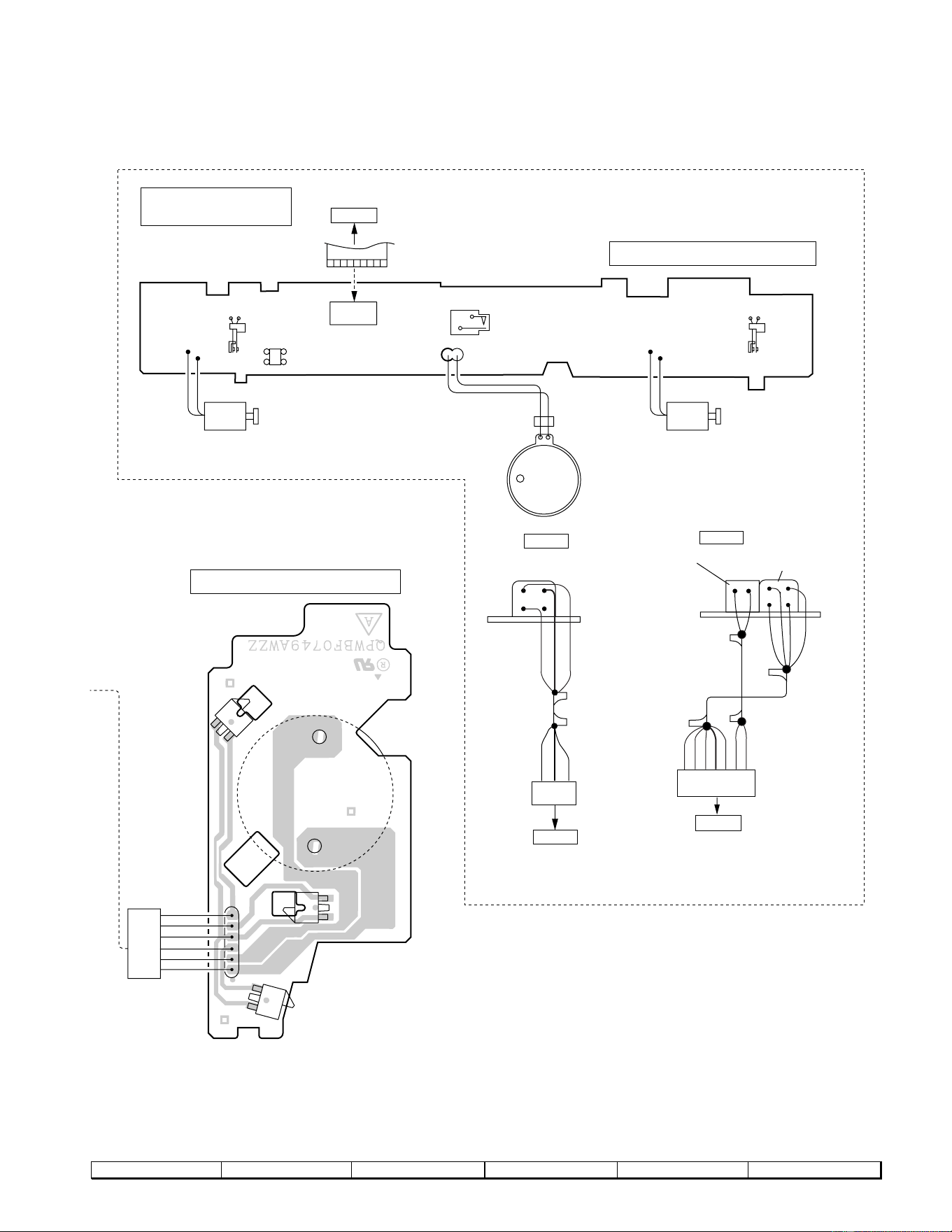

Figure 49 WIRING SIDE OF P.W.BOARD (8/8)

CD-DP900H/E

– 50 –

VOLTAGE

0.27V

0.35V

0.37V

1.4V

1.31V

1.32V

1.33V

1.18V

2.88V

1.27V

0.75V

1.27V

2.51V

1.32V

0.48V

0.47V

2.86V

1.04V

0.28V

2.88V

1.3V

NO. NO.

VOLTAGE

IC2

VOLTAGE

3.24V

1.49V

3.24V

4.22V

2.87V

1.49V

2.88V

1.27V

1.29V

2.88V

4.39V

2.87V

2.88V

4.39V

4.25V

4.39V

2.82V

4.57V

4.58V

4.04V

5.01V

2.79V

4.05V

5.01V

4.05V

2.83V

5.01V

2.79V

4.9V

4.1V

2.8V

2.82V

NO. NO.

VOLTAGE

IC501

VOLTAGE

2.82V

0.64V

2.82V

5.18V

3.3V

4.95V

3.74V

4.96V

4.95V

2.82V

2.81V

2.82V

5.01V

3.63V

5.03V

5.18V

5.14V

5.03V

5.01V

4.98V

4.93V

4.96V

4.54V

4.59V

4.61V

2.35V

1.97V

2.21V

4.74V

4.55V

4.49V

4.48V

4.58V

4.46V

1.19V

0.65V

0.57V

4.7V

4.95V

2.97V

4.95V

4.58V

4.96V

1.85V

4.95V

4.82V

13.25V

1.94V

3.67V

4.57V

4.45V

4.32V

NO. NO.

VOLTAGE

IC701

VOLTAGE

4.94V

4.48V

4.94V

–19.09V

33.7V

–33.6V

–19.2V

4.49V

4.56V

–37.5V

–22.81V

–37.4V

–37V

–37.5V

–18.94V

–22.65V

–37.4V

–26.42V

–22.76V

–37.6V

–26.43V

–15.2V

–33.7V

–37.4V

–22.7V

–33.8V

–33.7V

–33.8V

–33.6V

–33.8V

100

3.5V

3.49V

1.33V

0.37V

2.43V

0.49V

2.49V

1.09V

0.47V

2.54V

3.49V

1.18V

2.65V

2.92V

3.54V

7.56V

NO.

VOLTAGE

IC1

18.83V

4.94V

NO.

VOLTAGE

IC801

18.94V

9.9V

NO.

VOLTAGE

IC802

18.91V

1.32V

13.24V

NO.

VOLTAGE

IC803

7.81V

13.24V

8.34V

NO.

VOLTAGE

IC823

4.92V

4.91V

4.94V

4.91V

4.95V

4.91V

4.92V

4.91V

4.92V

4.94V

4.91V

4.94V

9.89V

4.56V

NO.

VOLTAGE

IC401

0.62V

0.58V

1.32V

0.58V

3.36V

3.35V

6.89V

4.11V

3.36V

0.58V

2.52V

0.37V

3.51V

0.58V

NO.

VOLTAGE

IC101

4.25V

2.11V

4.14V

2.12V

2.11V

2.01V

4.16V

2.98V

2.99V

1.21V

3.1V

1.22V

2.09V

1.9V

2.29V

2.79V

2.45V

2.44V

4.15V

2.66V

NO.

VOLTAGE

IC303

4.56V

2.07V

4.12V

2.98V

3.1V

4.24V

2.05V

2.07V

4.26V

0.89V

1.48V

2.08V

NO.

VOLTAGE

IC302

–22.34V

24.83V

–24.87V

–23.54V

NO.

VOLTAGE

IC901

–32.34V

33.4V

34.6V

–34.6V

–33.5V

NO.

VOLTAGE

IC902

2.57V

2.63V

2.5V

5.1V

2.36V

2.63V

2.49V

5.18V

NO.

VOLTAGE

ICT21

* ICT21

CD-DP900H Only

– 51 –

CD-DP900H/E

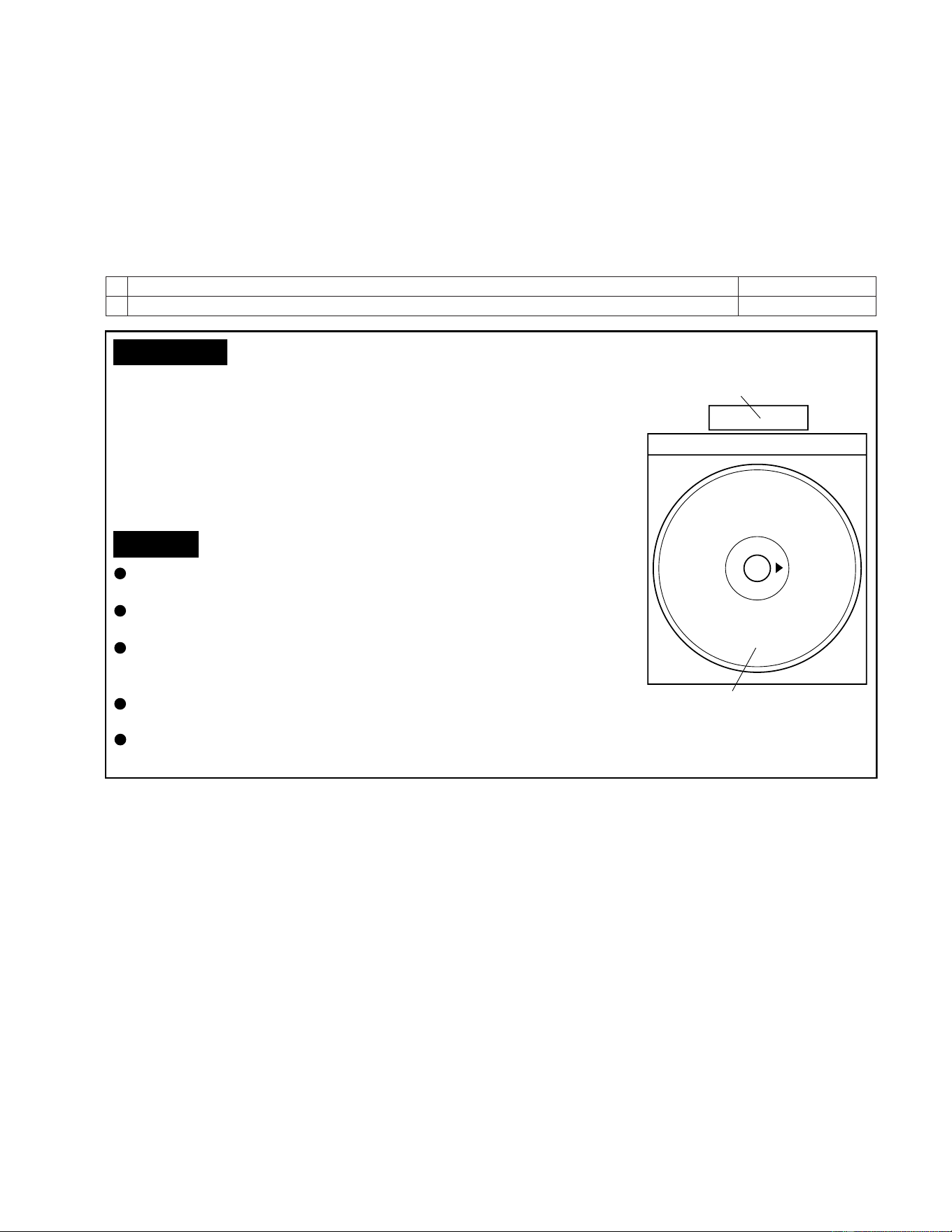

HOW TO USE

CAUTION

Cleaning fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the

brush on the CD cleaner disc which has the mark next to it.

Place the CD cleaner disc onto the CD disc tray with the brush side down,then

press the play button.

You will hear music for about 20 seconds and the CD player will automatically stop.

If it continuous to turn, press the stop button.

The CD lens cleaner should be effective for 30-50 operations, however if the

brushes become worn out earlier then please the cleaner disc.

If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft

cloth.

Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the

event of this happening then drink and / or rinse with clean water and seek medical

advice.

The CD cleaner disc must not be used on car CD players or on computer CD-ROM

drives.

is prohibited by law.

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

TROUBLESHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean

the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check

the following items.

Remove the cabinet and follow the trouble shooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup

lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

When a CD cannot be played

1. "E-CD01" is displayed.

(1) Check the power to IC1 (LC78645NE), the presence of the clock signal (33.8688 MHz) and the status of the RESET terminal

(pin 66 on IC1).

(2) Does the pickup move to the PICKUP-IN Switch (SW4) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, but playback does not occur.

(1) Focus-HF system check

(2) Tracking system check

(3) Spin system check

(4) PLL system check

(5) Others

CD-DP900H/E

– 52 –

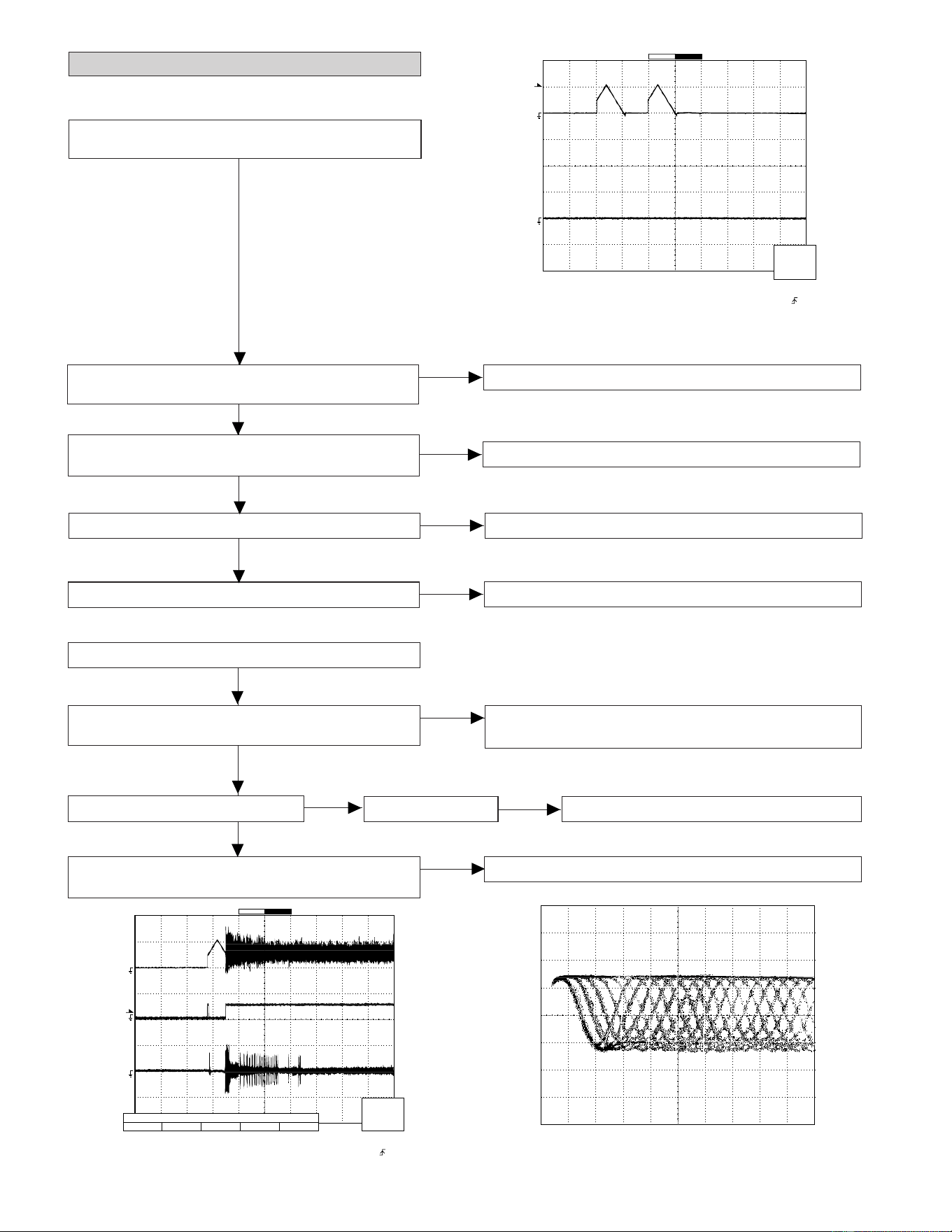

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

FDO

DRF

Stopped

CH1=500 mV

DC 10:1

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2

Position

0.20 div

FDO

TDO

Stopped

CH1=500 mV

DC 10:1

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.000 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

If the level is not normal.

1. Is focus servo activated ?

(Waveform drawing Figure 52-2)

Pins 7~11, 79 and 80 on IC1

Check the laser diode driver Q1 peripheral circuit.

When a disc is loaded, start playback operation.

2. Does DRF change from "L" to "H" ?

Is the disc rotating ?

3. Is the HF waveform normal ? (Waveform drawing

Figure 52-3)

Check the spin system.

If the disc is spinning and a HF waveform is generated,

DRF will go H.

Figure 52-1

Check the laser diode driver Q1 peripheral circuit.

(1) Focus-HF system check.

Although a CD is inserted and the cover is closed, "NO

DISC" is displayed.

1. Does the pickup move to the PICKUP-IN Switch (SW4)

position ?

Sled motor (M2).

Press the OPEN/CLOSE switch (SW1) without inserting a

disc, and try starting the playback operation.

2. Does the focus (lens) move up and down ?

(Waveform drawing Figure 52-1)

Check the focus peripheral circuit.

3. Is the laser lit ?

Spindle motor (M1).

4. Is the turntable rotating ?

Figure 52-2

Figure 52-3

Yes

– 53 –

CD-DP900H/E

FDO

SPDO

Stopped

CH1=200 mV

DC 10:1

CH2=500 mV

DC 10:1

500 ms/div

1999/04/07 09:51:15

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

DRF

Stopped

CH1=10 V

DC 10:1

CH2=1 V

DC 10:1

100 ms/div

(100 ms/div)

NORM:100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.0 V

CH2 : 0.00 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

The tracking servo is not activated.

Check the peripheral circuits at pins 14, 15 and 20 on IC1, and

CNS1A/B.

If the waveform shown in Figure 53-1 appears and soon after

NO DISC appears ?

(2) Tracking system check.

Check the TE waveform at pin 15 on IC1.

A normal jump operation cannot be completed or the beginning of

the track cannot be found.

Check the around pin 20 on IC1.

"Initialization" is possible, but play is not possible ?

Data cannot be read. Check the VCO-PLL system.

"Initialization" is not possible.

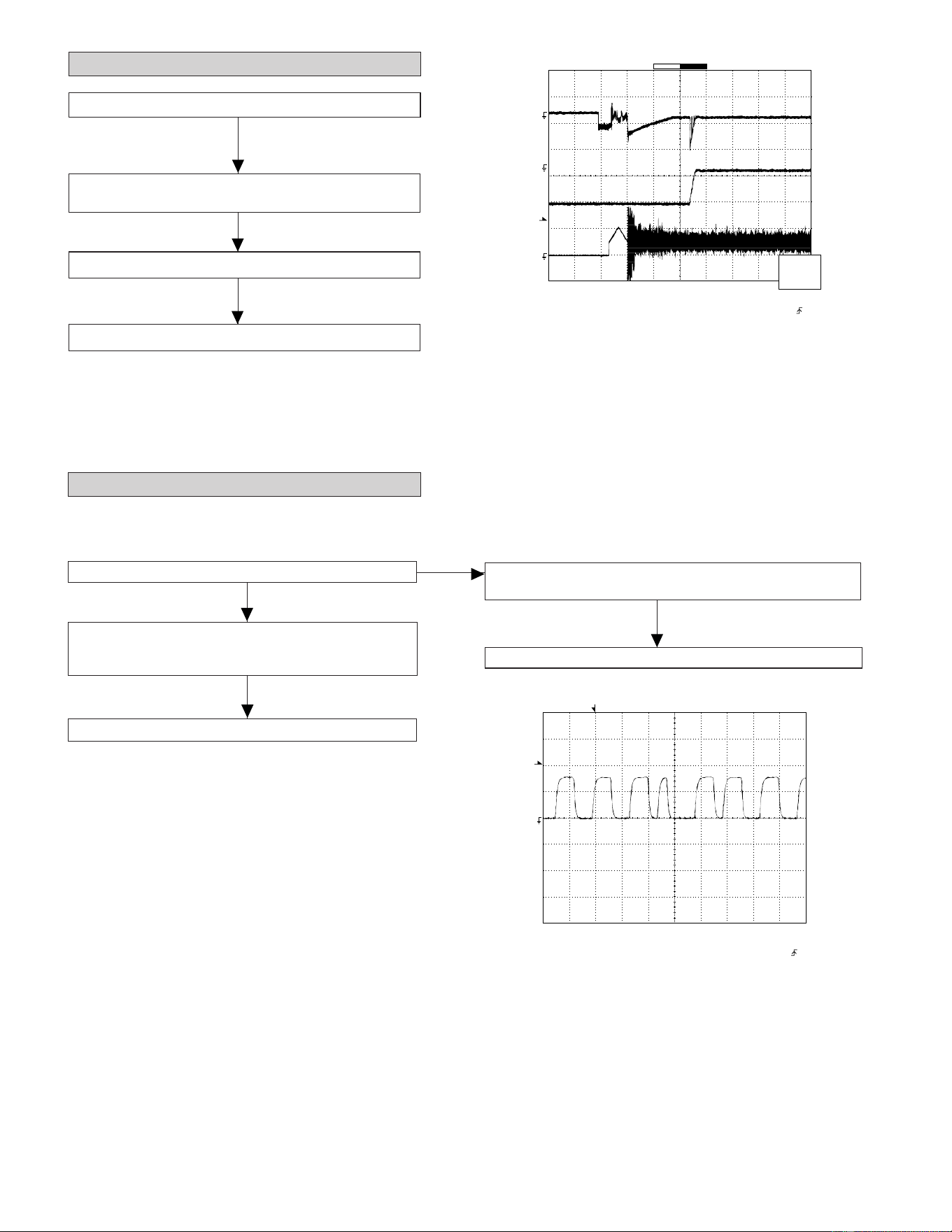

Figure 53-1

Figure 53-2

Press the OPEN/CLOSE switch without inserting a disc, and

then try starting the play operation.

(3) Spin system check.

The spin driver circuit is OK.

1. The turntable rotates a little ? (Waveform drawing

Figure 53-2)

Check around pin 22 on IC1, pins 15 and 16 on IC2, and CNS3A/B.

2. The turntable doesn't rotate.

Yes

CD-DP900H/E

– 54 –

DOUT

Stopped

CH1=2 V

DC 10:1

500 ns/div

1999/04/07 09:25:28

(500 ns/div)

NORM:200 MS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 1 K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

FDO

PDO2

PDO1

Stopped

CH1=500 mV

DC 10:1

CH3=1 V

DC 10:1

CH4=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

1999/04/05 17:33:17

Is pin 52 (C2F) on IC1 "L" ?

Yes

The HF waveform is normal and the time is displayed

normally, but no sound is produced. Or the sound

has dropouts.

(5) Others.

There are too many error flags on a damaged disc which

makes error correction impossible.

Check again using a known good disc.

1. When playing at normal speed

Check the peripheral circuit at pin 39 (DOUT) on IC1 and

the waveform (Figure 54-2).

If OK, Check the unit.

When a disc is loaded, start play operation.

(4) PLL system check.

The HF waveform is normal, but the TOC data cannot be

read.

Check the PDO waveform. (Figure 54-1)

Check around pins 73~78 on IC1.

Figure 54-1

Figure 54-2

– 55 –

CD-DP900H/E

FUNCTION TABLE OF IC

IC1 VHiLC78645NE1: CD Servo (LC78645NE) (1/2)

1 SLCO Output — Control output.

2 SLCIST Input —

Resistor connection terminal for SLCO output current

setting.

3 EFMIN Input — RF signal input terminal.

4 RF Output — RF signal monitor terminal.

5 RFVDD Input — RF power terminal.

6 RFVSS — — RF earth terminal. To be connected to 0 V.

7 FIN1 Input — A+C signal input terminal.

8 FIN2 Input — B+D signal input terminal.

9 TIN1 Input — E signal input terminal.

10 TIN2 Input — F signal input terminal.

11 VREF Output RFVDD/2 VREF voltage output terminal.

12 REF1 Input — Reference supply setting terminal.

13* FE Output ZHI FE signal monitor terminal.

14 TEC Output – LPF capacitor connection terminal for TE signal.

15* TE Output ZHI TE signal monitor terminal.

16* RFMON Output ZHI RF internal signal monitor terminal.

17 JITTC – — Capacitor connection terminal for jitter detection.

18 ADAVDD Input — Power terminal for servo A/D, D/A.

19 ADAVSS — — Earth terminal for serve A/D, D/A. To be connected to 0 V.

20 TDO Output ADAVDD/2 Output terminal for tracking control. D/A output.

21 FDO Output ADAVDD/2 Output terminal for focus control. D/A output.

22 SPDO Output ADAVDD/2 Output terminal for spindle control. D/A output.

23 SLDO Output ADAVDD/2 Output terminal for sled control. D/A output.

24* GPDAC Output ADAVDD/2 Servo D/A general-purpose output terminal.

25 CONT4 Input/Output Input Mode General-purpose I/O terminal 4.

26 CONT5 Input/Output Input Mode General-purpose I/O terminal 5.

27* SBCK/CONT6 Input/Output Input Mode General-purpose I/O terminal 6 or

Subcode reading clock input terminal.

28 SBCK/FG Input — Subcode reading clock input terminal/FG signal input terminal/external

emphasis setting terminal. Terminal functions are set by commands. When

not used, connect to 0 V.

29* DEFECT Output L Defect terminal.

30* V/*P Output H Auto switching monitor output terminal for rough servo phase control. “H”:

rough servo, “L”: phase servo.

31* FSEQ Output L Sync signal detection output terminal.

The status changes to “H” when the sync signal detected in EFM and the

sync signal of internal generation are identified.

32* MONI1 Output L Internal signal monitor terminal 1.

33* MONI2 Output L Internal signal monitor terminal 2.

34* MONI3 Output L Internal signal monitor terminal 3.

35* MONI4 Output L Internal signal monitor terminal 4.

36* MONI5 Output L Internal signal monitor terminal 5.

37 VSS — — Digital system earth terminal. To be connected to 0 V.

38 VDD Input — Digital system power terminal.

39* DOUT Output L Digital OUT output terminal. (EIAJ format)

40 TEST Input L Input terminal for test. To be connected to 0 V.

41 LVDD Input — Power supply for Left channel.

42 LCHO Output LVDD/2 Left channel output.

43 LVSS — — GND for Left channel. Must be connected to 0 V.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Controlled by commands from the

microcomputer. When not used, set

them as input terminals and connect

to 0 V, or set them as output

terminals and leave open.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Left channel

D/A converter

For slice level

control.

CD-DP900H/E

– 56 –

44 RVSS — — GND for Right channel. Must be connected to 0 V.

45 RCHO Output LVDD /2 Right channel output.

46 RVDD Input — Power supply for Right channel.

47 XVDD Input — Power supply for crystal oscillator.

48 XOUT Output — Connected for the 33.8688 MHz crystal oscillator ciement.

49 XIN Input —

50 FSX/16MIN Input/Output Input 7.35 kHz Synchronization signal monitor port.

or Clock input port for Digital filter & D/A

51 XVSS — — Crystal GND for crystal oscillator. Must be connected to 0 V.

Oscillator

52* C2F Output H C2 FLAG monitor port.

53* EFLG Output L C1, C2 error corrected monitor port.

54* 16MOUT Output Clock 16.9344 MHz output port.

55 ASLRCK Input — Word clock input port.

(If this port does not use, must be connect to 0 V.)

56 ASDACK Input — Bit clock input port.

(If this port does not use, must be connect to 0 V.)

57 ASDFIN Input —

Left/Right channel data input port.

(If this port does not use, must be connect to 0 V.)

58* LRCK Output L Word clock output port.

59* BCK Output L Digital data Bit clock output port.

60* DATA Output L Left/Right channel data output port.

61 CE Input — Chip enable signal input port.

62 CL Input —

Microcomputer

Data transfer clock input port.

63 DI Input — Interface Data input port.

64 DO Output (H) Data output port. (N-ch. open drain output.)

65 *WRQ Output H Interruption signal output.

66 *RES Input — Chip reset signal input port.

This port must be set LOW after first applied power on.

67 DRF Output L Focus detection output port.

68 VDD5 Input — Power supply for Microprocessor.

69 VSS — — GND for digital circuit. Must be connected to 0 V.

70 CONT3 Input/Output Input General purpose port 1.

71 CONT2 Input/Output Input General purpose port 2.

72* CONT1 Input/Output Input General purpose port 3.

73 PDO1 Output — Internal VCO control phase comparator output port 1.

74 PDO2 Output Input Internal VCO control phase comparator output port 2.

75 VVSS — — GND for internal VCO. Must be connected to 0 V.

76 PCKIST Input — PDO output current adjustment resistor connection port.

77 VVDD Input — Power supply for internal VCO.

78 FR Input — VCO frequency range adjustment port.

79 LDS Input — LASER power detected signal input port.

80 LDD Output — LASER power control signal output port.

IC1 VHiLC78645NE1: CD Servo (LC78645NE) (2/2)

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Right channel

D/A converter

Crystal

Oscillator

Anti-shock

Controlled with serial data command from micro-

computer. When not used, General purpose input/

output terminal 7. set it as the input terminal and open

it by connecting to 0 V, or set it as the output terminal

and open it.

PLL

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Be sure to supply the same potential to each power terminal. (VVDD, ADAVDD, VDD, LVDD, RVDD, XVDD)

Terminal witch is controlled by the power terminal (VDD5 V) for a microcomputer interface :

CE (61 pin), CL (62 pin), DI (63 pin), DO (64 pin), WRQ (65 pin), RES (66 pin), DRF (67 pin)

– 57 –

CD-DP900H/E

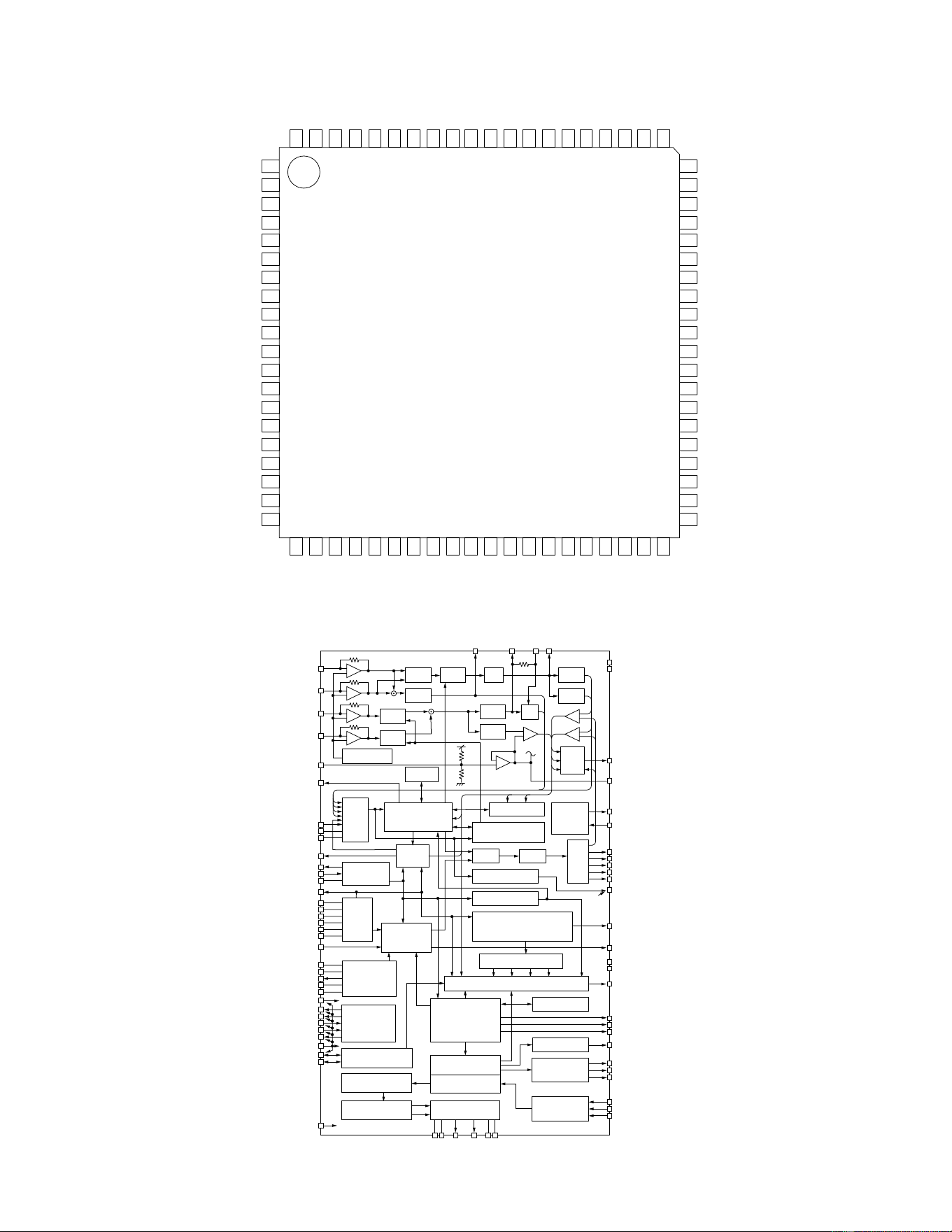

Figure 57 BLOCK DIAGRAM OF IC

IC1 VHiLC78645NE1: CD Servo (LC78645NE)

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61

SLCO

SLCIST

EFMIN

RFVDD

RFVSS

FIN1

FIN2

TIN1

TIN2

VREF

REF1

TEC

RFMON

JITTC

ADAVDD

ADAVSS

TDO

FDO

SPDO

SLDO

GPDAC

CONT4

CONT5

SBCK/CONT6

SBCK/FG

DEFECT

V/*P

FSEQ

MONI1

MONI2

MONI3

MONI4

MONI5

(3.3V)VSS

VDD

DOUT

TEST

LDD

LDS

VVDD

PCKIST

VVSS

PDO2

PDO1

CONT1

CONT2

CONT3

VSS

VDD5

DRF

*RES

*WRQ

DATA

BCK

LRCK

ASDFIN

ASDACK

ASLRCK

16MOUT

EFLG

C2F

XVSS

FSX/16MIN

XIN

XOUT

XVDD

RVDD

RCHO

RVSS

LVSS

LCHO

LVDD

LC78645NE

–

MIX

LPF

TBAL

RAM

LEVEL SET

AGC EQ

–

MONI

CONT

A/D

SERVO PROCESSOR

TRACK JUMP

AUTO ADJUST

JITTER

DETECT

1bit DAC

8FS

DIGITAL FILTER

GENERAL-PURPOSE

PORTS

COMMAND

INTERFACE

CLOCK

GENERATOR

CLV,CAV

CONTROL

PLL

VCEC

SLICE LEVEL

CONTROL

APC

S/H

D/A

DRF

RUPTURE DEFECT

FRAME SYNC

DETECT,PROTECT INSERT,

EFN DECODE

VDD

SUBCODE DECODE CRC

MONITOR SIGNAL SELECTOR

RAM

ERROR

CORRECTION

AUDIO CD

AUDIO OUT

SERIAL

OUT

EXTERNAL

AUDIO IN

INTERPOLATION

MUTE

ATTENUATION

DEEMPHSIS

LPF

FIN1

FIN2

TIN1

TIN2

REF1

DETECT

ADIN

ADAVDD

ADAVSS

JITTC

SLCO

EFMIN

SLCIST

PCK

PDO1

PDO2

PCKIST

VVDD

VVSS

SBCK/FG

XIN

XOUT

16MOUT

XVDD

XVSS

*RES

*WRQ

VDD5V

CONT1, 2, 3

TEST

CONT4, 5

SBCK/CONT6

LVDD

LVSS

LCHO

RCHO

RVDD

RVSS

ASDFIN

ASDQCK

ASLRCK

DATA

BCK

LRCK

DOUT

EFLG

C2F

FSK/16MIN

MONI1~5

VSS

VDD

V/*P

FSEQ

DRF

GPDAC

SPD0

SLD0

TD0

FD0

LDS

LDD

VREF

RFMON

RFVSS

RFVDD

TEC

CD-DP900H/E

– 58 –

1 IN2- CH2 inverted input.

2 IN1A- CH1 inverted input.

3* IN1B- CH1 output offset control.

4 OUT1- CH1 inverted output.

5 OUT1+ CH1 non-inverted output.

6 OUT2- CH2 inverted output.

7 OUT2+ CH2 non-inverted output.

8-14 GND GND

15 OUT3+ CH3 non-inverted output.

16 OUT3- CH3 inverted output.

17 IN3- CH3 inverted input.

18 VCC1 Power supply 1 (CH1, CH2, CH3)

19 STANDBY STANDBY signal input.

20 VRFE CH1-CH4 Reference voltage input.

21 MUTE Mute signal input (CH6).

22 IN5- CH5 inverted input.

23 IN5+ CH5 non-inverted input.

24 VCC2 Power supply 2 (CH4).

25 IN4- CH4 inverted input.

26 OUT4- CH4 inverted output.

27 OUT4+ CH4 non-inverted output.

28 VCC3 Power supply 3 (CH5).

29-35 GND GND

36* OUT5+ CH5 non-inverted output.

37* OUT5- CH5 inverted output.

38 OUT6+ CH6 non-inverted output.

39 OUT6- CH6 inverted output.

40 VCC4 Power supply 4 (CH6).

41 IN6- CH6 inverted input.

42 IN6+ CH6 non-inverted input.

IC2 VHiM63001FP-1: Focus/Tracking/Spin/Sled Driver (M63001FP)

Pin No.

Terminal

Name

Function

IN2–

IN1A–

IN1B–

OUT1–

OUT1+

OUT2–

OUT2+

OUT3+

OUT3–

IN3–

VCC1

STANDBY

VTEF

MUTE

GND

VCC3

OUT4+

OUT4–

IN4–

VCC2

IN5+

IN5–

IN6+

IN6–

VCC4

OUT6–

OUT6+

OUT5–

OUT5+

M63001FP

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Figure 58 BLOCK DIAGRAM OF IC

– 59 –

CD-DP900H/E

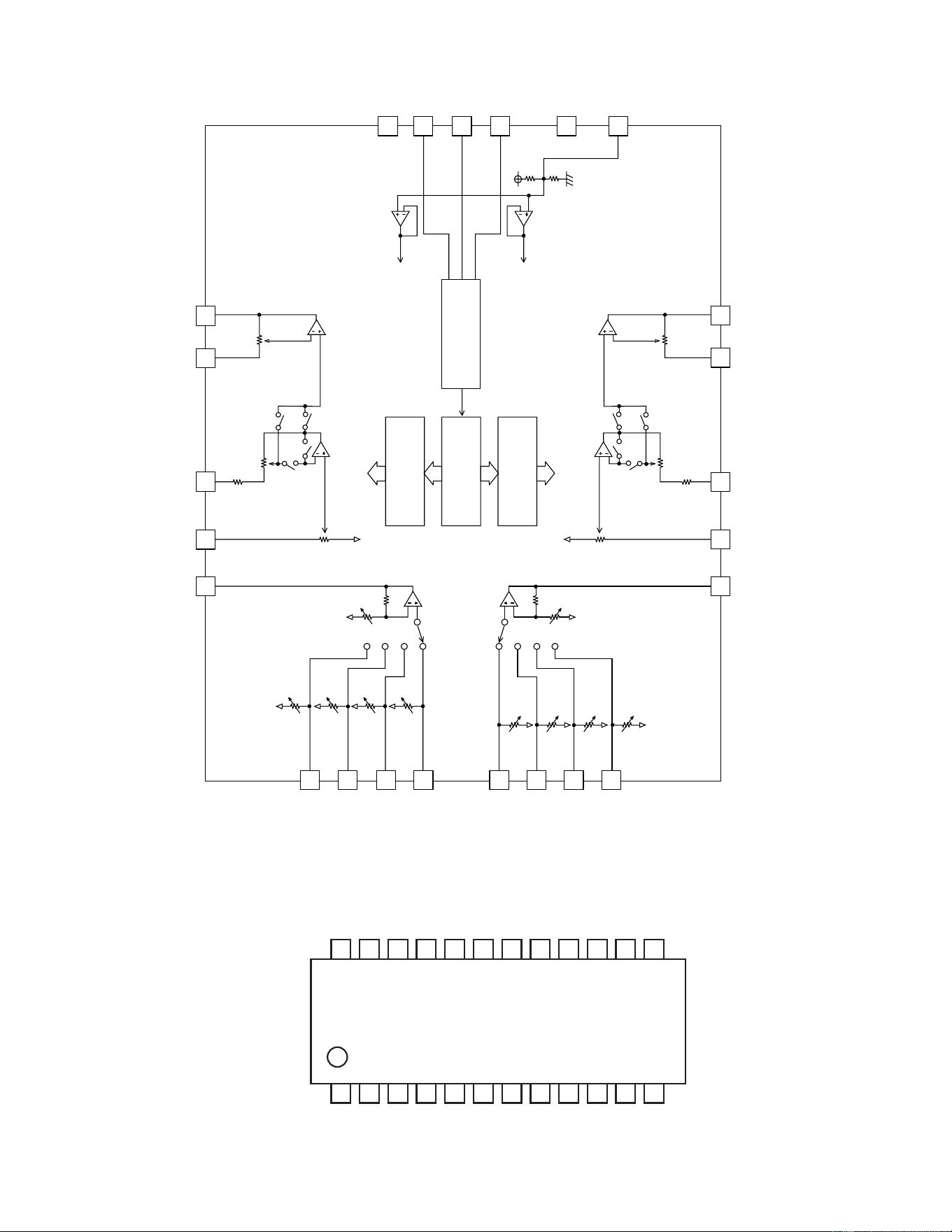

IC401 VHiLC75341/-1: Audio Processor (LC75341M)

Figure 59 BLOCK DIAGRAM OF IC

222324

123

10 11 12 13 14 15 16

LVref

RVref

CONTROL

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CIRCUIT

LOUT

LBASS

LIN

LSEL0

L2 L1

R1 R2

R3 R4

RSEL0

RIN

RTRELTRE

RBASS

ROUT

VREF

VDD

CLK

VSS

CCB

INTERFACE

Tuner

Tape

Video

24 23 22 21 20 19 18 17 16 15 14 13

123456789101112

LC75341M

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

CLK

VDD

VREF

ROUT

RBASS

RTRE

RIN

RSEL0

CD-DP900H/E

– 60 –

IC701 RH-iX0504AWZZ: System Microcomputer (IX0504AW) (1/2)

Port Name

Terminal Name

Pin No.

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

1 VDD VDD — (+) POWER SUPPLY

2 P37 –20dBATT Output –20dB ATTENUATOR

3 P36 DP_REQ Output DOLBY PRO REQUEST

4 P35 T_BIAS Output TAPE RECORD BIAS

5 P34 T_T1/T2 Output TAPE T1/T2 CHANGE

6 P33 T_REC/PLAY Output TAPE REC/PLAY CHANGE

7 P32 CD_RESOUT Output CD DSP RESET

8 P31 CD_WRQ Input CD WRITE READ REQUEST

9 P30 SPAN Input TUNER SPAN CHANGE

10 RESET RESET Input RESET

11 X2 X2 Output MAIN CLOCK

12 X1 X1 Input MAIN CLOCK

13 VPP/IC VPP/IC — GND

14* XT2 XT2 — OPEN

15 P04 CD DRF Input CD DRF LEVEL DETECTION

16 VDD VDD — (+) POWER SUPPLY

17 P27 CD_CLK Output CD DSP CLOCK

18 P26 CD_DI Outout CD DSP COMMAND

19 P25 CD_DO Input CD DSP CODE Q OUT

20 P24 CD_CE Output CD DSP CE OUTPUT

21 P23 CE Output CE OUTPUT

22 P22 CLK Output CLOCK OUTPUT

23 P21 DI Output DATA OUTPUT

24 P20 DO Input DATA INPUT

25 AVSS AVSS — ANALOG GROUND

26 P17 D.NO SW Input CD DISC NO. SW

27 ANI6 TUN_SW Input TUNER SIGNAL METER INPUT

28 ANI5

PLAY2/FPA/FPB SW

Input FPA/FPB SW & PLAY SW2

29 ANI4 PROTECT Input POWER ABNORMAL PROTECT

30 ANI3 LEVEL DET Input SPEAKER OUTPUT LEVEL DETECT

31-33 ANI2-ANI0 KEY2-KEY0 Input KEY INPUT

34 AVDD AVDD — ANALOG VDD

35 AVREF AVREF — ANALOG REF VOLTAGE

36 INTP3 P_IN Input POWER FAILURE DETECT

37 P02 CLAMP SW Input CD CLAMP SW

38 INTP1 SP_DET Input SPEAKER ABNORMAL DETECT

39 INTP0 REMOCON Input REMOCON INPUT

40 VSS VSS — GROUND VOLTAGE

41 P74 SMUTE Output SYSTEM MUTE CONTROL

42 P73 T_SOL_B Output TAPE2 SOLENOID CONTROL

43 P72 T_SOL_A Output TAPE1 SOLENOID CONTROL

44 P71 T_MOTOR Output TAPE MOTOR CONTROL

45 P70 TIMER LED Output TIMER LED CONTROL

46 VDD VDD — (+) POWER SUPPLY

47 P127 AC_RLY Output AC RELAY CONTROL

48 P126 SP_RLY Output SPEAKER RELAY CONTROL

49 P125 JOG1 Input VOLUME JOG INPUT1

50 P124 JOG2 Input VOLUME JOG INPUT2

51 P123 T2_RUN Input TAPE2 RUN PULSE INPUT

52 P122 T1_RUN Input TAPE1 RUN PULSE INPUT

53 P121 SR_MUTE Output DP SURROUND MUTE

– 61 –

CD-DP900H/E

54 P120 O/C SW Input CD OPEN/CLOSE SW

55 P117 MIC_SW Input MIC SWITCH INPUT

56 P116 KARA_LATCH Output KARAOKE LATCH

57 P115 H/P_SW Input HEADPHONE DETECT

58 P114 C MUTE Output DP CENTER MUTE

59 P113

RDS_RST

Output RDS RAM RESET

60 P112 RDS_RDDA Input RDS DATA INPUT

61 P111 RDS_RDCL Output RDS CLOCK

62 P110 RDS_READY Input RDS READY

63-65* P107-P105 ILU_LED1-3 Output ILLUMINATION LED1-3

66* P104 FOR_PLY_LED Output FORWARD PLAY LED

67* P103 REV_PLAY_LED Output REVERCE PLAY LED

68* P102 STOP_LED Output STOP LED

69 P101 DIST Input DISTINATION INPUT

70 FIP29 S21 Output FL SEGMENT DRIVER

FIP28 S20 Output FL SEGMENT DRIVER

P97 DIST0 Output DISTINATION OUTPUT

FIP27 S19 Output FL SEGMENT DRIVER

P96 DIST1 Output DISTINATION OUTPUT

FIP26 S18 Output FL SEGMENT DRIVER

P95 DIST2 Output DISTINATION OUTPUT

FIP25 S17 Output FL SEGMENT DRIVER

P94 DIST3 Output DISTINATION OUTPUT

75-78 FIP24-FIP21 S16-13 Output FL SEGMENT DRIVER

79 VLOAD VLOAD — FL DRIVER POWER SUPP. –30V

80-91 FIP20-FIP9 S12-S1 Output FL SEGMENT DRIVER

92-100 FIP8-FIP0 G9-G1 Output FL GRID DRIVER

IC701 RH-iX0504AWZZ: System Microcomputer (IX0504AW) (2/2)

Port Name

Terminal Name

Pin No.

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

IC701 RH-iX0504AWZZ: System Microcomputer (IX0504AW)

Figure 61 BLOCK DIAGRAM OF IC

A/D KEY2

DP_REQ

DOLBY

PROLOGIC

SR_MUTE

ILLUMI LED

OPE LED

POWER

AUDIO

PROCESSOR

(LC75341)

SPAN

SELECT

TAPE CONTROL

CMAT5Z(1-REV)/

CMAT6Z(1-WAY)

C_MUTE

A/D PROTECT

SYSTEM µ-COM

(µPD780208-xxx-3BA)

ROM:60K RAM:2K

PLAY SW2

T2_RUN

T1_RUN

T_MOTOR

T_SOLB

T_SOLA

A/D T_FPA/FPB SW

T_REC/PLAT

T1/T2

T_BIAS

CD CE

CD DI

CD DO

CD DRF

CD WRQ

CD CLMP SW

A/D OC + DNO SW

CD CL

CD RES OUT

KARA_LATCH

A/D TUN SM

RDS RST

RDS READY

RDS CL

RDS DATA

–20dB

S MUTE

A/D POWER DET

SP_DET

P_IN

AC_RLY

SP_RLY

SPAN

A/D KEY1

A/D KEY0

TIMER

H/P SW

MIC SW

REM

DIST

KEY

RDS

(LC72723)

MUTE

CONT

–20dB

ATT

POWER

AMP

SPEAKER

H/P

MUTE

CONT

PLL

(LC72131)

FRONTEND

TUN SD

TUN MUTE

STEREO

IF CONT

IF IN

JF/MULTI

KARAOKE

TIMER LED

REMOCON

DIST

MULTI COLOR

(9G x 21S)

SANYO 1 CHIP

DIGITAL SERVO

(LC 78645E)

NEW SHARP 3-CHANGER

CD-DP900H/E

– 62 –

FL701 VVKNA09SS29-1

FL DISPLAY

X-BASS

MP3

REC

SLEEP

RDS

EON

kHz

MHz TA MEMORY

PTYIPTY

1 2 3

PTYI

)

(

RDS

MEMORY

PTY

NHz

SLEEP

REC

PRO LOGIC

kHz

EON

(1G~8G)

3G 4G 5G 6G

8G 9G

GRID ASSIGNMENT

2G 3G 4G 5G 6G 7G 8G 9G

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

col

ANODE CONNECTION

(L)

(H)

CD-DP900H/E

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

MINI COMPONENT SYSTEM

MODEL CD-DP900H

CD-DP900H Mini Component System consisting of CD-DP900H

(main unit), CP-DP900H (front speakers), GBOXS0091AWM1

(centre speaker) and GBOXS0092AWM1 (surround speakers).

MINI COMPONENT SYSTEM

MODEL CD-DP900E

CD-DP900E Mini Component System consisting of CD-DP900E

(main unit), CP-DP900H (front speakers), GBOXS0091AWM1

(centre speaker) and GBOXS0092AWM1 (surround speakers).

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DP900H/E

– 1 –

INTEGRATED CIRCUITS

IC1 VHILC78645NE1 J AY CD Servo,LC78645NE

IC2 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,

M63001FP

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S

IC401 VHILC75341/-1 J AM Audio Processor,LC75341M

IC501 VHIM62464AFP1 J BB Dolby Prologic Decorder,

M62464AFP

IC701 RH-IX0504AWZZ J AX System Microcomputer,

IX0504AW

IC801 VHIKIA7805AP1 J AF Voltage Regulator,KIA7805AP

IC802 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP

IC803 VHIKIA7812AP1 J AF Voltage Regulator,KIA7812AP

IC804 VHIAN78L05/-1 J AE Constant Voltage Regulator,

AN78L05

IC901 VHISTK40271-1 J AZ Power Amp,STK402-071

IC902 VHISTK40202-1 J AW Power Amp,STK402-020

ICT21 VHILC72723/-1 J AR RDS,LC72723 [H Only]

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q2 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q3 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F

Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q124 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q401,402 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q501~504 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q705 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q706~708 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q803 VSKTC3199GR-1 J AB

Silicon,NPN,KTC3199 GR [H Only]

Q804 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y

Q823 VSKTC2026//-1 J AF Silicon,NPN,KTC2026

Q901~909 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q910 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

QT21 VSKTC3199GR-1 J AB

Silicon,NPN,KTC3199 GR [H Only]

DIODES

D1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133

D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133

D701 VHDDS1SS133-1 J AB Silicon,DS1SS133 [H Only]

D709~715 VHDDS1SS133-1 J AB Silicon,DS1SS133

D801,802 VHDD3SBA60F-1 J AG Silicon,D3SBA60F

D807,808 VHD1N4004S/-1 J AB Silicon,1N4004S

D809 VHDDS1SS133-1 J AB Silicon,DS1SS133

D809A VHD1N4004S/-1 J AB Silicon,1N4004S

D810~812 VHDDS1SS133-1 J AB Silicon,DS1SS133

D813 VHDDS1SS133-1 J AB Silicon,DS1SS133

D813A VHDDS1SS133-1 J AB Silicon,DS1SS133 [H Only]

D814 VHDDS1SS133-1 J AB Silicon,DS1SS133

D814A VHD1N4004S/-1 J AB Silicon,1N4004S [H Only]

D815 VHDDS1SS133-1 J AB Silicon,DS1SS133

D815A VHD1N4004S/-1 J AB Silicon,1N4004S [H Only]

D816 VHD1N4004S/-1 J AB Silicon,1N4004S

D816A VHD1N4004S/-1 J AB Silicon,1N4004S [H Only]

D817 VHD1N4004S/-1 J AB Silicon,1N4004S [H Only]

D818 VHD1N4004S/-1 J AB Silicon,1N4004S

D901~911 VHDDS1SS133-1 J AB Silicon,DS1SS133

LED701 VHPSLR342VCJ1 J AC LED,Red,SLR342VC [TIMER]

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

ZD1 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB

ZD2 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB

ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

ZD502 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

ZD801 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA

ZD802 VHEMTZJ360C-1 J AB Zener,36V,MTZJ36C

ZD804 VHEDZ8R2BSB-1 J AB Zener,8.2V,DZ8.2B

ZD805 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA [E Only]

ZDT21 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB [H Only]

FILTERS

CF301,302 RFILF0072AFZZ J AG FM IF

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

1 PT801 RTRNP0399AWZZ J BD Power (Main)

1 PT802 RTRNP0313AWZZ J AN Power (Sub) [H Only]

T303 RCILA0052AWZZ J AE AM Tracking

T306 RCILB0067AWZZ J AD AM Band Coverage

T351 RCILI0019AWZZ J AD AM IF

COILS

L1 VP-XHR82K0000 J AC 0.82 µH

L101,102 VP-MK2R2K0000 J AC 2.2 mH

L104 VP-MK331K0000 J AB 330 µH,Choke

L341 RBLN-0002AWZZ J AE Balum

L342 VP-DH2R2K0000 J AB 2.2 µH,Peaking

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L354 RFILL0001AWZZ J AE Low Pass Filter

L701 VP-DH101K0000 J AB 100 µH,Choke

L702 VP-DH2R2K0000 J AB 2.2 µH,Peaking

1 L801 RCILZ0022AWZZ J AG Line Filter

L901~904 RCILZ0137AFZZ J AA 0.29 µH

LT21,22 VP-XH2R2K0000 J AB 2.2 µH,Choke [H Only]

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0019AWZZ J AF Crystal,4.5 MHz

XL1 RCRM-0041AWZZ J AF Ceramic,33.8688 MHz

XL700 RCRSP0003AWZZ J AH Crystal,4.194304 MHz

XT21 RCRSP0018AWZZ J AG Crystal,4.332 MHz [H Only]

CAPACITORS

C1 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C2 VCKYCY1CB103K J AA 0.01 µF,16V

C3 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C4 VCKYCY1HB102K J AA 0.001 µF,50V

C5 VCKYCY1HB473K J AB 0.047 µF,50V

C6 VCKYCY1CB104K J AB 0.1 µF,16V

C8 VCKYCY1HB272K J AA 0.0027 µF,50V

C9 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C10 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C11 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

C12 VCCCCY1HH101J J AA 100 pF (CH),50V

C13 VCKYCY1EF223Z J AB 0.022 µF,25V

C14 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic

C16 RC-EZY337AF0J J AA 330 µF,6.3V,Electrolytic

C18 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic

C22 VCKYCY1CB103K J AA 0.01 µF,16V

C23,24 RC-EZY106AF1E J AB 10 µF,25V,Electrolytic

C25,26 VCKYCY1HB152K J AA 0.0015 µF,50V

C27 VCKYCY1EF223Z J AB 0.022 µF,25V

C28 VCCCCY1HH101J J AA 100 pF (CH),50V

C30 VCCCCY1HH101J J AA 100 pF (CH),50V

C32 VCCCCY1HH101J J AA 100 pF (CH),50V

C33 VCKYCY1EF223Z J AB 0.022 µF,25V

C34 VCCCCY1HH101J J AA 100 pF (CH),50V

C35 VCKYCY1HB473K J AB 0.047 µF,50V

C36 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

C37 VCTYPA1CX104K J AB 0.1 µF,16V

C38 VCKYCY1CB103K J AA 0.01 µF,16V

C39 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic

C40 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic

C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C42 VCKYCY1CB103K J AA 0.01 µF,16V

C44 VCKYCY1HB102K J AA 0.001 µF,50V

C46 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C48 VCKYCY1EF223Z J AB 0.022 µF,25V

C50 VCCCCY1HH220J J AA 22 pF (CH),50V

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DP900H/E

– 2 –

C51 VCKZPA1HF223Z J AA 0.022 µF,50V

C52 VCKYCY1HB102K J AA 0.001 µF,50V

C53 VCKYCY1HB102K J AA 0.001 µF,50V

C54 VCKYCY1EF223Z J AB 0.022 µF,25V

C57 VCCCCY1HH560J J AA 56 pF (CH),50V

C101,102 VCKYMN1HB102K J AA 0.001 µF,50V

C105,106 VCKYMN1HB181K J AA 180 pF,50V

C107,108 VCKYMN1HB102K J AA 0.001 µF,50V

C111~114 VCKYMN1HB331K J AA 330 pF,50V

C115,116 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C117,118 VCTYPA1EX333K J AA 0.033 µF,25V

C119 VCKYMN1HB561K J AA 560 pF,50V

C120 VCKYMN1HB561K J AA 560 pF,50V

C121,122 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C123 VCKYMN1HB102K J AA 0.001 µF,50V

C124 VCKYPA1HB102K J AA 0.001 µF,50V

C127 VCTYMN1EF223Z J AA 0.022 µF,25V

C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C131,132 VCKYMN1HB271K J AA 270 pF,50V

C133,134 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C135,136 VCTYPA1CX223K J AA 0.022 µF,16V

C139 VCTYMN1CX332K J AA 0.0033 µF,16V

C140 VCTYMN1CX332K J AA 0.0033 µF,16V

C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C145 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic

C146 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C147 VCKYMN1HB471K J AA 470 pF,50V

C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar

C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C153 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C154 VCKZPA1HF473Z J AA 0.047 µF,50V

C155 VCKZPA1HF103Z J AA 0.01 µF,50V

C156 VCKYPA1HB102K J AA 0.001 µF,50V

C202 VCKYMN1HB391K J AA 390 pF,50V

C204 VCKYMN1HB391K J AA 390 pF,50V

C220,221 VCTYMN1CX682K J AA 0.0068 µF,16V

C302 VCKYMN1HB102K J AA 0.001 µF,50V

C321 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C323 VCTYMN1EF223Z J AA 0.022 µF,25V

C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V

C331 VCKZPA1HF473Z J AA 0.047 µF,50V

C332 VCTYMN1EF223Z J AA 0.022 µF,25V

C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V

C335 VCKYMN1HB561K J AA 560 pF,50V

C338 VCKYMN1HB102K J AA 0.001 µF,50V

C341,342 VCTYMN1EF223Z J AA 0.022 µF,25V

C344 VCCUMN1HJ330J J AA 33 pF (UJ),50V

C345~347 VCTYMN1EF223Z J AA 0.022 µF,25V

C348 VCTYMN1CY103K J AA 0.01 µF,16V

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V

C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V

C355 VCCSMN1HL220J J AA 22 pF,50V

C356 VCKYMN1HB102K J AA 0.001 µF,50V

C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCTYMN1EF223Z J AA 0.022 µF,25V

C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCTYMN1EF223Z J AA 0.022 µF,25V

C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C365 VCTYPA1CX223K J AA 0.022 µF,16V

C366 VCKYMN1HB102K J AA 0.001 µF,50V

C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V

C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCTYPA1CX273K J AA 0.027 µF,16V

C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C381 VCCCMN1HH120J J AA 12 pF (CH),50V

C382 VCCCMN1HH150J J AA 15 pF (CH),50V

C384 VCKYMN1HB102K J AA 0.001 µF,50V

C385 VCTYMN1CY103K J AA 0.01 µF,16V

C386 VCKYMN1HB331K J AA 330 pF,50V

C387 VCTYMN1EF223Z J AA 0.022 µF,25V

C391 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C392 VCKYMN1HB102K J AA 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C395 VCTYMN1EF223Z J AA 0.022 µF,25V

C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C397 VCTYMN1EF223Z J AA 0.022 µF,25V

C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C399 VCTYMN1EF223Z J AA 0.022 µF,25V

C401 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C402,403 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film

C404 VCTYMN1CX272K J AA 0.0027 µF,16V

C405~408 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C410,411 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C413,414 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C415 VCTYMN1CX272K J AA 0.0027 µF,16V

C416,417 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film

C418 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C419 VCTYMN1EF223Z J AA 0.022 µF,25V

C420 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C421 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C422,423 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C424,425 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C426,427 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C428 VCQYKA1HM222K J AA 0.0022 µF,50V,Mylar

C465 VCKYMN1HB102K J AA 0.001 µF,50V

C466 VCKYPA1HB102K J AA 0.001 µF,50V

C501,502 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film

C503~506 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C507 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C508 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C509 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C510 VCKZPA1HF223Z J AA 0.022 µF,50V

C511 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C512 VCTYMN1CX472K J AA 0.0047 µF,16V

C513 VCKYMN1HB102K J AA 0.001 µF,50V

C514 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C515,516 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film

C517 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C518 VCTYMN1CX472K J AA 0.0047 µF,16V

C519 VCKYMN1HB102K J AA 0.001 µF,50V

C520 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C521 VCTYMN1CX562K J AA 0.0056 µF,16V

C522 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C523 VCFYDA1HA684J J AF 0.68 µF,50V,Thin Film

C524,525 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film

C526,527 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C528,529 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film

C530 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C531 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C532~534 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C535,536 VCTYMN1EF223Z J AA 0.022 µF,25V

C537 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C538 VCKYMN1HB681K J AA 680 pF,50V

C539 VCQYKA1HM103K J AA 0.01 µF,50V,Mylar

C540 VCQYKA1HM103K J AA 0.01 µF,50V,Mylar

C541 VCKYPA1HB681K J AA 680 pF,50V

C542,543 VCQYKA1HM103K J AA 0.01 µF,50V,Mylar

C544 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C545 VCTYMN1CX682K J AA 0.0068 µF,16V

C546 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C547 VCEAZA1HW227M J AC 220 µF,50V,Electrolytic

C548 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C549,550 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C551~554 VCKYMN1HB102K J AA 0.001 µF,50V

C567 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C568,569 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C570 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C701 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C702 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C703 VCTYBT1EF223Z J AA 0.022 µF,25V

C704 VCCSPA1HL150J J AA 15 pF,50V

C705 VCCSPA1HL180J J AA 18 pF,50V

C706 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C707 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C712 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C714 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C715 VCKZPA1HF103Z J AA 0.01 µF,50V

C716 VCTYBT1EF223Z J AA 0.022 µF,25V

C717 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C718,719 VCCSPA1HL101J J AA 100 pF,50V

1 C801 RC-KZ001LAWZZ J AB 0.0047 µF,250VAC,Ceramic

[H Only]

C801A VCKYMN1HB102K J AA 0.001 µF,50V

C803,804 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic

C805 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C806 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C807 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C808 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C809,810 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DP900H/E

– 3 –

C811 VCQYKA1HM223K J AB 0.022 µF,50V,Mylar

C812 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C813 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C814 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic

C815,816 VCEAZW1VW228M J AH 2200 µF,35V,Electrolytic

C817~822 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film

C823 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic

C824,825 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C826 VCEAZA1HW227M J AC 220 µF,50V,Electrolytic

C827 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C828 VCKZPA1HF473Z J AA 0.047 µF,50V [H Only]

C829 VCEAZA0JW108M J AC

1000 µF,6.3V,Electrolytic [H Only]

C830 VCEAZV1VW477M J AD 470 µF,35V,Electrolytic [H Only]

C831 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C832 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C833 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C834,835 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C901 VCKYPA1HB821K J AA 820 pF,50V

C902 VCCSPA1HL3R0C J AA 3 pF,50V

C903 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C904 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C905 VCKZPA1HF223Z J AA 0.022 µF,50V

C906,907 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C908 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C909 VCKZPA1HF223Z J AA 0.022 µF,50V

C910 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C911 VCKYPA1HB821K J AA 820 pF,50V

C912 VCCSPA1HL3R0C J AA 3 pF,50V

C913 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C914 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C915 VCCSPA1HL221J J AA 220 pF,50V

C916 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C917 VCCSPA1HL221J J AA 220 pF,50V

C918~921 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C930 VCKYPA1HB821K J AA 820 pF,50V

C931 VCCSPA1HL3R0C J AA 3 pF,50V

C932 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C933 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C934 VCCSPA1HL221J J AA 220 pF,50V

C935,936 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C937 VCCSPA1HL221J J AA 220 pF,50V

C938 VCKZPA1HF223Z J AA 0.022 µF,50V

C939,940 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C941 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C942 VCKZPA1HF223Z J AA 0.022 µF,50V

C943 VCKYPA1HB821K J AA 820 pF,50V

C944 VCCSPA1HL3R0C J AA 3 pF,50V

C945,946 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C947~950 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C959 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C960 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C961 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C962~969 VCKZPA1HF223Z J AA 0.022 µF,50V

C970,971 VCKYPA1HB102K J AA 0.001 µF,50V

C972~981 VCKZPA1HF223Z J AA 0.022 µF,50V

C982,983 VCKYPA1HB102K J AA 0.001 µF,50V

C984,985 VCKZPA1HF223Z J AA 0.022 µF,50V

C988 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

CT21 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic [H Only]

CT22 VCTYMN1EF223Z J AA 0.022 µF,25V [H Only]

CT23 VCCCMN1HH220J J AA 22 pF (CH),50V [H Only]

CT24 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic [H Only]

CT25 VCCCMN1HH220J J AA 22 pF (CH),50V [H Only]

CT26 VCKYMN1HB561K J AA 560 pF,50V [H Only]

CT27~30 VCTYMN1EF223Z J AA 0.022 µF,25V [H Only]

CT31 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic [H Only]

CT32 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic [H Only]

RESISTORS

R0 VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

R0 VRS-CY1JB000J J AA

0 ohm,Jumper,0.8×1.55mm,Green

R1 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R2 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R3 VRS-CY1JB223J J AA 22 kohms,1/16W

R4 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R5 VRS-CY1JB822J J AA 8.2 kohms,1/16W

R6 VRS-CY1JB223J J AA 22 kohms,1/16W

R7 VRD-ST2CD470J J AA 47 ohms,1/6W

R9 VRD-ST2CD3R3J J AA 3.3 ohms,1/6W

R10 VRD-ST2CD273J J AA 27 kohms,1/6W

R11 VRS-CY1JB103J J AA 10 kohm,1/16W

R12 VRS-CY1JB331J J AA 330 ohms,1/16W

R13 VRS-CY1JB102J J AA 1 kohm,1/16W

R14 VRS-CY1JB102J J AA 1 kohm,1/16W

R15 VRS-CY1JB102J J AA 1 kohm,1/16W

R16 VRS-CY1JB102J J AA 1 kohm,1/16W

R17 VRS-CY1JB102J J AA 1 kohm,1/16W

R18 VRS-CY1JB102J J AA 1 kohm,1/16W

R20 VRS-CY1JB103J J AA 10 kohm,1/16W

R22 VRD-ST2CD101J J AA 100 ohm,1/6W

R23 VRS-CY1JB221J J AA 220 ohms,1/16W

R24,25 VRS-CY1JB222J J AA 2.2 kohms,1/16W

R26,27 VRS-CY1JB103J J AA 10 kohm,1/16W

R28,29 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R31 VRS-CY1JB102J J AA 1 kohm,1/16W

R32 VRD-ST2CD102J J AA 1 kohm,1/6W

R33 VRD-ST2CD102J J AA 1 kohm,1/6W

R34 VRD-ST2CD102J J AA 1 kohm,1/6W

R35 VRD-ST2CD102J J AA 1 kohm,1/6W

R36 VRD-ST2CD102J J AA 1 kohm,1/6W

R37 VRD-ST2CD102J J AA 1 kohm,1/6W

R38 VRD-ST2CD102J J AA 1 kohm,1/6W

R39 VRS-CY1JB681J J AA 680 ohms,1/16W

R40 VRS-CY1JB681J J AA 680 ohms,1/16W

R41 VRS-CY1JB123J J AA 12 kohms,1/16W

R42 VRS-CY1JB122J J AA 1.2 kohms,1/16W

R43 VRS-CY1JB221J J AA 220 ohms,1/16W

R44 VRD-ST2CD123J J AA 12 kohms,1/6W

R45,46 VRD-ST2CD821J J AA 820 ohms,1/6W

R47 VRS-CY1JB101J J AA 100 ohm,1/16W

R49 VRD-ST2EE1R0J J AA 1 ohm,1/4W

1 R51 VRG-ST2EG3R3J J AB 3.3 ohms,1/4W,Fusible

R101,102 VRD-MN2BD102J J AA 1 kohm,1/8W

R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W

R109 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R110 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R111 VRD-ST2CD153J J AA 15 kohms,1/6W

R112 VRD-MN2BD153J J AA 15 kohms,1/8W

R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W

R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R117,118 VRD-ST2CD102J J AA 1 kohm,1/6W

R119 VRD-ST2CD560J J AA 56 ohms,1/6W

R120 VRD-ST2CD560J J AA 56 ohms,1/6W

R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W

R123,124 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R131 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R132 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R134 VRD-MN2BD683J J AA 68 kohms,1/8W

R135,136 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R137,138 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R139 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R140 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R141,142 VRD-MN2BD101J J AA 100 ohm,1/8W

R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W

R153,154 VRD-MN2BD103J J AA 10 kohm,1/8W

R158 VRD-ST2EE221J J AA 220 ohms,1/4W

R160 VRD-RT2HD820J J AA 82 ohms,1/2W

R162 VRD-MN2BD473J J AA 47 kohms,1/8W

R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R166 VRD-MN2BD223J J AA 22 kohms,1/8W

R167 VRD-MN2BD473J J AA 47 kohms,1/8W

R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R174 VRD-ST2EE151J J AA 150 ohms,1/4W

R181,182 VRD-ST2CD104J J AA 100 kohm,1/6W

R202 VRD-MN2BD393J J AA 39 kohms,1/8W

R204 VRD-MN2BD393J J AA 39 kohms,1/8W

R206 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R208 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R220,221 VRD-MN2BD821J J AA 820 ohms,1/8W

R323 VRD-MN2BD683J J AA 68 kohms,1/8W

R336 VRD-MN2BD103J J AA 10 kohm,1/8W

R344 VRD-MN2BD471J J AA 470 ohms,1/8W

R345 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R346 VRD-MN2BD331J J AA 330 ohms,1/8W

R347 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R348 VRD-MN2BD681J J AA 680 ohms,1/8W

R349 VRD-MN2BD330J J AA 33 ohms,1/8W

R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DP900H/E

– 4 –

R352 VRD-MN2BD102J J AA 1 kohm,1/8W

R353 VRD-MN2BD271J J AA 270 ohms,1/8W

R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R356 VRD-MN2BD102J J AA 1 kohm,1/8W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R361,362 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R363,364 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R365 VRD-MN2BD103J J AA 10 kohm,1/8W

R369 VRD-MN2BD150J J AA 15 ohms,1/8W

R370 VRD-ST2CD102J J AA 1 kohm,1/6W

R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W

R376 VRD-MN2BD102J J AA 1 kohm,1/8W

R377 VRD-MN2BD473J J AA 47 kohms,1/8W

R378 VRD-MN2BD102J J AA 1 kohm,1/8W

R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R381 VRD-MN2BD103J J AA 10 kohm,1/8W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R386 VRD-ST2CD223J J AA 22 kohms,1/6W

R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W

R393 VRD-MN2BD102J J AA 1 kohm,1/8W

R395 VRD-MN2BD473J J AA 47 kohms,1/8W

R399 VRD-MN2BD330J J AA 33 ohms,1/8W

R401 VRD-MN2BD223J J AA 22 kohms,1/8W

R402 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R403 VRD-ST2CD561J J AA 560 ohms,1/6W

R404,405 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R406 VRD-MN2BD223J J AA 22 kohms,1/8W

R407 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R408 VRD-ST2CD561J J AA 560 ohms,1/6W

R409 VRD-MN2BD104J J AA 100 kohm,1/8W

R410 VRD-MN2BD104J J AA 100 kohm,1/8W

R501 VRD-ST2EE471J J AA 470 ohms,1/4W

R502 VRD-MN2BD104J J AA 100 kohm,1/8W

R503 VRD-ST2CD104J J AA 100 kohm,1/6W

R504,505 VRD-MN2BD154J J AA 150 kohms,1/8W

R506 VRD-MN2BD473J J AA 47 kohms,1/8W

R507~509 VRD-MN2BD154J J AA 150 kohms,1/8W

R510 VRD-MN2BD473J J AA 47 kohms,1/8W

R511 VRD-ST2CD154J J AA 150 kohms,1/6W

R512 VRD-MN2BD334J J AA 330 kohms,1/8W

R513 VRD-ST2CD331J J AA 330 ohms,1/6W

R516 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R518 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R519 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R520,521 VRD-ST2CD331J J AA 330 ohms,1/6W

R523,524 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R525 VRD-ST2CD103J J AA 10 kohm,1/6W

R526,527 VRD-ST2CD153J J AA 15 kohms,1/6W

R529 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R530 VRD-ST2CD331J J AA 330 ohms,1/6W

R531 VRD-ST2CD103J J AA 10 kohm,1/6W

R545,546 VRD-MN2BD223J J AA 22 kohms,1/8W

R701~706 VRD-ST2CD102J J AA 1 kohm,1/6W

R708~716 VRD-ST2CD102J J AA 1 kohm,1/6W

R717 VRD-ST2CD101J J AA 100 ohm,1/6W

R718~722 VRD-ST2CD102J J AA 1 kohm,1/6W

R724,725 VRD-ST2CD102J J AA 1 kohm,1/6W

R726,727 VRD-ST2CD681J J AA 680 ohms,1/6W

R728 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R729 VRD-ST2CD561J J AA 560 ohms,1/6W

R730 VRD-ST2CD102J J AA 1 kohm,1/6W

R731 VRD-ST2CD103J J AA 10 kohm,1/6W

R732~736 VRD-ST2CD102J J AA 1 kohm,1/6W

R737 VRD-ST2CD101J J AA 100 ohm,1/6W

R738,739 VRD-ST2CD102J J AA 1 kohm,1/6W

R740 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R741,742 VRD-ST2CD102J J AA 1 kohm,1/6W

R743 VRD-ST2CD103J J AA 10 kohm,1/6W

R746 VRD-ST2CD102J J AA 1 kohm,1/6W

R747 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R751~754 VRD-ST2CD102J J AA 1 kohm,1/6W [H Only]

R755,756 VRD-ST2CD103J J AA 10 kohm,1/6W [H Only]

R757 VRD-ST2CD330J J AA 33 ohms,1/6W

R759 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R761,762 VRD-ST2CD103J J AA 10 kohm,1/6W

R763 VRD-ST2CD102J J AA 1 kohm,1/6W

R764,765 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R766~768 VRD-ST2CD103J J AA 10 kohm,1/6W

R769 VRD-ST2CD102J J AA 1 kohm,1/6W

R770 VRD-ST2CD103J J AA 10 kohm,1/6W

R772,773 VRD-ST2CD103J J AA 10 kohm,1/6W

R777~780 VRD-ST2CD103J J AA 10 kohm,1/6W

R781 VRD-ST2CD473J J AA 47 kohms,1/6W

R782 VRD-ST2CD104J J AA 100 kohm,1/6W

R783 VRD-ST2CD101J J AA 100 ohm,1/6W

R790 VRD-ST2CD473J J AA 47 kohms,1/6W

R791 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R792 VRD-ST2CD104J J AA 100 kohm,1/6W

R793 VRD-ST2CD102J J AA 1 kohm,1/6W

R794,795 VRD-ST2EE1R5J J AA 1.5 ohms,1/4W

R802,803 VRD-ST2EE223J J AA 22 kohms,1/4W

R804 VRD-ST2CD223J J AA 22 kohms,1/6W

R806 VRD-ST2CD223J J AA 22 kohms,1/6W

R808 VRD-ST2CD103J J AA 10 kohm,1/6W

R809,810 VRD-ST2EE223J J AA 22 kohms,1/4W

R811 VRD-ST2CD123J J AA 12 kohms,1/6W

R812 VRD-ST2CD473J J AA 47 kohms,1/6W

R813 VRD-ST2CD100J J AA 10 ohm,1/6W

R814 VRD-ST2CD102J J AA 1 kohm,1/6W

R815 VRD-ST2CD102J J AA 1 kohm,1/6W [H Only]

R816 VRD-ST2CD473J J AA 47 kohms,1/6W [H Only]

R817,818 VRD-ST2EE470J J AA 47 ohms,1/4W

R819 VRD-ST2CD224J J AA 220 kohms,1/6W [H Only]

R820 VRD-ST2CD224J J AA 220 kohms,1/6W

R821 VRD-ST2CD473J J AA 47 kohms,1/6W

R823 VRD-ST2CD223J J AA 22 kohms,1/6W

R901 VRD-ST2CD102J J AA 1 kohm,1/6W

R902 VRD-ST2CD821J J AA 820 ohms,1/6W

R903 VRD-ST2CD563J J AA 56 kohms,1/6W

R904 VRD-ST2CD102J J AA 1 kohm,1/6W

1 R905 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R906 VRD-ST2CD223J J AA 22 kohms,1/6W

R907 VRS-VV3AAR10J J AB 0.1 ohm,1W

R908 VRD-ST2CD102J J AA 1 kohm,1/6W

R909 VRD-ST2CD682J J AA 6.8 kohms,1/6W

1 R910 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R911 VRS-VV3AAR10J J AB 0.1 ohm,1W

R912 VRD-ST2CD102J J AA 1 kohm,1/6W

R913 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R914 VRD-ST2CD821J J AA 820 ohms,1/6W

R915 VRD-ST2CD563J J AA 56 kohms,1/6W

R916,917 VRD-ST2CD102J J AA 1 kohm,1/6W

R918~922 VRD-ST2CD563J J AA 56 kohms,1/6W

R923,924 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R930 VRD-ST2CD223J J AA 22 kohms,1/6W

1 R931 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R932 VRD-ST2CD102J J AA 1 kohm,1/6W

R933 VRD-ST2CD563J J AA 56 kohms,1/6W

R934 VRD-ST2CD102J J AA 1 kohm,1/6W

R935 VRS-VV3AAR10J J AB 0.1 ohm,1W

R936 VRD-ST2CD102J J AA 1 kohm,1/6W

R937 VRD-ST2CD561J J AA 560 ohms,1/6W

R938 VRD-ST2CD103J J AA 10 kohm,1/6W

R939,940 VRD-ST2CD563J J AA 56 kohms,1/6W

1 R941 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R942 VRS-VV3AAR10J J AB 0.1 ohm,1W

R943 VRD-ST2CD102J J AA 1 kohm,1/6W

R944 VRD-ST2CD103J J AA 10 kohm,1/6W

R945 VRD-ST2CD561J J AA 560 ohms,1/6W

R946 VRD-ST2CD563J J AA 56 kohms,1/6W

R947,948 VRD-ST2CD102J J AA 1 kohm,1/6W

R949~951 VRD-ST2CD563J J AA 56 kohms,1/6W

R952,953 VRD-ST2CD102J J AA 1 kohm,1/6W

R954,955 VRD-RT2HD331J J AA 330 ohms,1/2W

R956,957 VRD-ST2CD102J J AA 1 kohm,1/6W

R959 VRD-ST2CD473J J AA 47 kohms,1/6W

R960,961 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R972 VRD-ST2CD153J J AA 15 kohms,1/6W

R973 VRD-ST2CD102J J AA 1 kohm,1/6W

R974 VRD-ST2CD683J J AA 68 kohms,1/6W

R975~977 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R978,979 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R980 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R981~984 VRD-ST2EE100J J AA 10 ohm,1/4W

R985,986 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-DP900H/E

– 5 –

R987~990 VRS-VV3DAR22J J AB 0.22 ohms.2W

R992 VRD-ST2EE221J J AA 220 ohms,1/4W

R993 VRD-ST2CD221J J AA 220 ohms,1/6W

RD01 VRD-ST2CD681J J AA 680 ohms,1/6W

RD02 VRD-ST2CD821J J AA 820 ohms,1/6W

RD03 VRD-ST2CD102J J AA 1 kohm,1/6W

RD04 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD05 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD06 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD07 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD08 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD09 VRD-ST2CD103J J AA 10 kohm,1/6W

RD10 VRD-ST2CD681J J AA 680 ohms,1/6W

RD11 VRD-ST2CD821J J AA 820 ohms,1/6W

RD12 VRD-ST2CD102J J AA 1 kohm,1/6W

RD13 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD14 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD15 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD16 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD17 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD18 VRD-ST2CD103J J AA 10 kohm,1/6W

RD19 VRD-ST2CD681J J AA 680 ohms,1/6W

RD20 VRD-ST2CD821J J AA 820 ohms,1/6W

RD21 VRD-ST2CD102J J AA 1 kohm,1/6W

RD22 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD23 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD24 VRD-ST2CD272J J AA 2.7 kohms,1/6W [H Only]

RD25 VRD-ST2CD392J J AA 3.9 kohms,1/6W [H Only]

RD26 VRD-ST2CD562J J AA 5.6 kohms,1/6W [H Only]

RT21 VRD-ST2CD103J J AA 10 kohm,1/6W [H Only]

RT22,23 VRD-ST2EE391J J AA 390 ohms,1/4W [H Only]

RT24 VRD-MN2BD563J J AA 56 kohms,1/8W [H Only]

RT25 VRD-MN2BD103J J AA 10 kohm,1/8W [H Only]

RT26 VRD-MN2BD563J J AA 56 kohms,1/8W [H Only]

RT27~30 VRD-MN2BD102J J AA 1 kohm,1/8W [H Only]

RT31 VRD-MN2BD103J J AA 10 kohm,1/8W [H Only]

RT32 VRD-MN2BD682J J AA 6.8 kohms,1/8W [H Only]

OTHER CIRCUITRY PARTS

BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin

BI401 QCNWN2177AWZZ J AG Connector Ass’y,8/8Pin

BI701 QCNWN2172AWZZ J AH Connector Ass’y,10/10Pin

BI702 QCNWN2265AWZZ J AH Connector Ass’y,8/8Pin

CNP1 QCNCM704GAWZZ J AC Plug,7Pin

CNP2 QCNCM704HAWZZ J AC Plug,8Pin

CNP3 92LCONE6P53253 J AC Plug,6Pin

CNP3A 92LCONE6P53254 J AC Plug,6Pin

CNP4 QCNCM705FAFZZ J AB Plug,6Pin

CNP7 92LCONE8P53254 J AC Plug,8Pin

CNP8 92LCONEAP53254 J AD Plug,10Pin

CNP101 QCNCM705CAFZZ J AA Plug,3Pin

CNP102 QCNCM705GAFZZ J AB Plug,7Pin

CNP301 92LCONE2P5268 J AB Plug,2Pin

CNP501 QCNCW010KAWZZ J AD Socket,10Pin [E]

CNP501 QCNCW010NAWZZ J AC Socket,13Pin [H]

CNP602 QCNCWZX17AWZZ J AD FFC Socket,17Pin [E]

CNP602 QCNCWZX23AWZZ J AD FFC Socket,23Pin [H]

CNP701 QCNCWZF17AWZZ J AD FFC Socket,17Pin [E]

CNP701 QCNCWZF23AWZZ J AK FFC Socket,23Pin [H]

CNP702 QCNCWZY08AWZZ J AC FFC Socket,8Pin

CNP705 QCNCW026EAWZZ J AE Socket,5Pin

CNP801 92LCONECP5267 J AD Plug,12Pin

CNP802 92LCONE5P53253 J AB Plug,5Pin [H Only]

CNP803 92LCONE8P53253 J AC Plug,8Pin

CNP804 QCNCM010KAWZZ J AC Plug,10Pin [E]

CNP804 QCNCM010NAWZZ J AC Plug,13Pin [H]

CNP806 92LCONE2P53253 J AB Plug,2Pin

CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin

CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin

CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin

CNS801 QCNWN2264AWZZ J AK Connector Ass’y 12/12Pin

CNS802 QCNWN1884AWZZ J AF Connector Ass’y,5/5Pin [H Only]

CNS803 QCNWN1582AWZZ J AC Connector Ass’y,2Pin

CNS907 QCNCW019EAWZZ J AB Holder,5Pin

CNW101 QCNWN1860AWZZ J AC Lead Wire with Lug

CNW907 QCNWN1927AWZZ J AD Flat Wire,5Pin

1 F801,802 QFS-D402CAWNI J AC Fuse,T4A L 250V

1 F803,804 QFS-D322CAWNI J AC Fuse,T3.15A L 250V

1 F805,806 QFS-D202CAWNI J AC Fuse,T2A L 250V

FC701 QCNWN1837AWZZ J AG Flat Cable,23Pin [H]

FC701 QCNWN2257AWZZ J AF Flat Cable,17Pin [E]

FC702 QCNWN1838AWZZ J AD Flat Cable,8Pin

FE301 RTUNS0026AWZZ J AU FM Front End

FL701 VVKNA09SS29-1 J AX FL Display,NA09SS29

JK201 QSOCJ0224AWZZ J AC Jack,Video/AUX In

JK701 QJAKM0004AWZZ J AK Jack,Headphones

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

M3 RMOTV0373AFZZ J AL Motor with Worm Pulley

[T/T Up/Down Loading]

M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

RL801 RRLYD0011AWZZ J AE Relay [H Only]

RL901,902 RRLYD0014AWZZ J AK Relay

RX701 VHLGP1UM271-1 J AH Remote Sensor,UM271

SO301 QTANC0101AWZZ J AF Terminal,Antenna

SO901 QTANA1006AWZZ J AH Terminal,Speaker

SW1 QSW-M0012AWZZ J AM Switch,Leaf Type [Open/Close]

SW2 QSW-M0012AWZZ J AM Switch,Leaf Type [Clamp]

SW3 QSW-M0012AWZZ J AM Switch,Leaf Type [Disc Number]

SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

SW701 92LSWICH1401AT J AC

Switch,Key Type [On/Stand-By]

SW702 92LSWICH1401AT J AC Switch,Key Type [REV]

SW703 92LSWICH1401AT J AC Switch,Key Type [FF]

SW704 92LSWICH1401AT J AC Switch,Key Type [Stop]

SW705 92LSWICH1401AT J AC Switch,Key Type [Play]

SW706 92LSWICH1401AT J AC Switch,Key Type [Phantom]

SW707 92LSWICH1401AT J AC Switch,Key Type [Normal]

SW708 92LSWICH1401AT J AC Switch,Key Type [Bypass]

SW711 92LSWICH1401AT J AC Switch,Key Type [CD]

SW712 92LSWICH1401AT J AC Switch,Key Type [Tuner]

SW713 92LSWICH1401AT J AC Switch,Key Type [Tape]

SW714 92LSWICH1401AT J AC Switch,Key Type [Video]

SW715 92LSWICH1401AT J AC

Switch,Key Type [Timer/Sleep]

SW716 92LSWICH1401AT J AC Switch,Key Type [Tuning Up]

SW717 92LSWICH1401AT J AC Switch,Key Type [Rec/Pause]

SW718 92LSWICH1401AT J AC

Switch,Key Type [Memory/Set]

SW719 92LSWICH1401AT J AC

Switch,Key Type [Tuning Down]

SW720 92LSWICH1401AT J AC Switch,Key Type [Clock]

SW721 92LSWICH1401AT J AC Switch,Key Type [Volume Up]

SW722 92LSWICH1401AT J AC Switch,Key Type [Volume Down]

SW723 92LSWICH1401AT J AC Switch,Key Type [Disc Skip]

SW724 92LSWICH1401AT J AC

Switch,Key Type [Open/Close]

SW725 92LSWICH1401AT J AC Switch,Key Type [Equaliser/X-

Bass/Demo]

SW727 92LSWICH1401AT J AC Switch,Key Type

[Display Mode] [H Only]

SW728 92LSWICH1401AT J AC

Switch,Key Type [ASPM] [H Only]

SW729 92LSWICH1401AT J AC Switch,Key Type

[PTY.TI Search] [H Only]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0080AWZZ J AC Rail,Guide

304 NSFTM0020AWFW J AD Shaft,Guide

305 92LM-CUSN1524A J AC Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— — Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

701 XBSSD26P06000 J AA Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 XBBSD20P03000 J AA Screw,ø2×3mm

704 LX-WZ1070AFZZ J AA Washer,ø1.5×3.8×0.25mm

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

CABINET PARTS

201 92LCAB3838BASY J Side Panel Ass’y,Left

201- 1 ———— — Side Panel,Left

(Not Replacement Item)

201- 2 PCUSG0022AWZZ J AB Cushion,Leg

202 92LCAB3838CASY J Side Panel Ass’y,Right

202- 1 ———— — Side Panel,Right

(Not Replacement Item)

202- 2 PCUSG0022AWZZ J AB Cushion,Leg

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-DP900H/E

– 6 –

203 92LCAB4274AASY J Front Panel Ass’y [H]

203 92LCAB4275AASY J Front Panel Ass’y [E]

203- 1 ———— — Front Panel

(Not Replacement Item)

203- 2 GCOVA1417AWSA J AH Cover,Cassette [Tape 1]

203- 3 GCOVA1418AWSA J AH Cover,Cassette [Tape 2]

203- 4 GCOVA1421AWSA J AC Cover,Remote Sensor

203- 5 GCOVA1422AWSA J AB Cover,LED,Timer

203- 6 GDORF0112AWSA J AE Holder,Cassette [Tape 1]

203- 7 GDORF0113AWSA J AE Holder,Cassette [Tape 2]

203- 8 HDECQ0834AWSA J AE Panel,Cassette [Tape 1]

203- 9 HDECQ0835AWSA J AE Panel,Cassette [Tape 2]

203-10 HDECQ0844AWSA J AC Ring,Play/Stop

203-11 HDECQ0850AWSA J AH Panel,FL Display

203-12 HDECQ0880AWSA J AN Panel,Amp. [H]

203-12 HDECQ0904AWSA J AN Panel,Amp. [E]

203-13 JKNBZ0862AWSA J AH Button,Volume

203-14 JKNBZ0863AWSA J AK Button,Operation

203-15 JKNBZ0864AWSA J AC Button,X-Bass/Equalizer

203-16 JKNBZ0865AWSA J AD Button,Function

203-17 JKNBZ0882AWSA J AG Button,RDS [H Only]

203-18 JKNBZ0884AWSA J AE Button,ON/STAND-BY

203-19 JKNBZ0888AWSA J AF Button,Dolby

203-20 LHLDZ1413AWZZ J AF Block,Button

203-21 MLIFP0008AWZZ J AD Damper

203-22 MSPRD0151AWFJ J AB Spring,Cassette [Tape 1]

203-23 MSPRD0152AWFJ J AB Spring,Cassette [Tape 2]

204 GCAB-1197AWZZ J AM Loading Tray

205 GCAB-1215AWSA J AT Top Cabinet

206 GCOVA1416AWSA J AL Cover,CD Tray

207 GITAR1005AWSA J AN Rear Panel [H]

207 GITAR1019AWSA J Rear Panel [E]

208 KMECB0024AWZZ J BF Tape Mechanism Ass’y

208- 1 92PF513-853 J BL Head Plate Block [Tape 2]

208- 2 92PF525-336 J BE Motor with Pulley [Tape]

208- 3 92PF567-677 J BA Tape Mechanism PWB Ass’y

208- 4 92PFF19N-21 J AL Belt,Main [Tape 2]

208- 5 92PF514-133 J AL Pinch Roller

208- 6 92PF19S-31 J AL Belt,FF/REW [Tape 2]

208- 7 92PFF19N-11 J AL Belt,Main [Tape 1]

208- 8 92PF522-061 J AZ Clutch Ass’y Block [Tape 1]

208- 9 92PFF19S-52 J AL Belt,FF/REW [Tape 1]

208-10 92PF513-861 J AG Head Plate Block [Tape 1]

208-11 92PF522-063 J AZ Clutch Ass’y Block [Tape 2]

208-12 92PFD60F-11 J AK Cam Gear [Tape 1]

208-13 92PFR26C-11 J AN Flywheel [Tape 1]

208-14 92PFR26D-11 J AN Flywheel [Tape 2]

208-15 92PF765-292 J AS Solenoid Ass’y

208-16 92PFD58M-14 J AK Cam Gear [Tape 2]

209 LANGK0110AWFW J AE Bracket,Cassette Lock,Tape 1

210 LANGK0111AWFW J AE Bracket,Cassette Lock,Tape 2

212 LANGK0317AWFW J AF Bracket,Fan Support

213 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord

214 LCHSM0153AWFW J AQ Chassis,Main

215 LCHSM0155AWZZ J AS Chassis,Loading

216 LHLDK9001AW00 J AB Wire Holder

217 LHLDM1018AWZZ J AE Stabilizer

218 LHLDZ1357AWZZ J AH Holder,CD Mechanism

219 LHLDZ1358AWZZ J AF Holder,Stabilizer

220 LHLDZ1359AWZZ J AD Holder,Gear

221 LHLDZ1410AWZZ J AD Holder,FL Display

222 LHLDZ1412AWZZ J AC Holder,LED

223 MCAMP0010AWZZ J AE Gear,Can Upper

224 MCAMP0011AWZZ J AE Gear,Can Lower

225 MLEVP0109AWZZ J AB Lever,Cam Lock

226 MLEVP0110AWZZ J AB Lever,Switch A

227 MLEVP0111AWZZ J AB Lever,Switch B

228 MLEVP0112AWZZ J AB Turntable Actuator

229 MLOKC0004AWZZ J AD Lock Lever,Cassette,Tape 1

230 MLOKC0003AWZZ J AD Lock Lever,Cassette,Tape 2

231 MSPRC0033AWFJ J AB Spring,Friction

232 MSPRD0110AWFJ J AB Spring,Cassette Lock,Tape 1

233 MSPRD0109AWFJ J AB Spring,Cassette Lock,Tape 2

234 MSPRP0057AWFW J AC Spring,Tray Lock

235 MSPRP0068AWFW J AB Spring,Motor Gear

236 NFANP0001AWZZ J AD Rotary Fan

237 NGERH0152AWZZ J AC Gear,Turntable Drive

238 NGERH0153AWZZ J AC Gear,Drive

239 NGERW0020AWZZ J AC Gear,Center

240 NGERW0021AWZZ J AC Gear,Idler

241 NGERW0022AWZZ J AD Gear,Worm

242 NGERW0023AWZZ J AC Gear,Motor

243 NTNT-0022AWZZ J AK Turntable

244 PCUSG0022AWZZ J AB Cushion,Leg

245 PMAGF0001AWZZ J AF Magnet

246 PRDAR0227AWFW J AM Heat Sink,Sub

247 PRDAR0235AWFW J Heat Sink,Main

1 248 QACCL0005AW00 J AC Power Supply Cord

[E,Except for U.K.]

1 248 QACCB0009AW00 J AL

AC Power Supply Cord [E,For U.K.]

1 248 QACCE0012AW00 J AH AC Power Supply Cord [H]

1 249 QFSHD0001AWZZ J AB Holder,Fuse

250 QLUGP0001AWZZ J AC Lug Terminal [LG1,2,LUG802]

251 QLUGP0002AWZZ J AB Lug Terminal,Pin [LUG101]

252 TLABS0354AWZZ J AC Label,Class 3A

254 92LCSPR1431C J AA Spring,Ring

1 255 92LLUG1746A J AA Lug Terminal,AC Cord

[K801,802]

256 92LMT0304302 J AB Plate,Metal

257 92LNBAND1318A J AA Nylon Band,80mm

258 92LPT0303002 J AB Roller

601 LX-BZ0082AWFC J AE Screw,Transport

602 LX-EZ0010AWFD J AA Screw,Special

603 LX-HZ0009AWFD J AC Screw,Special

604 LX-JZ0010AFFD J AA Screw,ø3×10mm [E]

604 LX-JZ0039AFFD J AA Screw,ø3×12mm [H]

605 LX-LZ0006AWZZ J AC Push Rivet

606 XBBSD20P04000 J AA Screw,ø2×4mm

607 XEBSD26P08000 J AA Screw,ø2.6×8mm

608 XEBSD30P08000 J AA Screw,ø3×8mm

609 XEBSD30P10000 J AA Screw,ø3×10mm

610 XEBSD30P12000 J AA Screw,ø3×12mm

611 XESSD30P10000 J AA Screw,ø3×10mm

612 XHBSD26P04000 J AA Screw,ø2.6×4mm

613 LX-JZ0036AWFD J Screw,Special

614 XHBSD40P06000 J AA Screw,ø4×6mm

615 XJBSD20P05000 J AA Screw,ø2×5mm

616 XJBSD30P10000 J AA Screw,ø3×10mm

617 LX-JZ0041AWFD J Screw,Special

618 XJBSF30P10000 J AA Screw,ø3×10mm

619 XJSSD30P10000 J AA Screw,ø3×10mm

620 92LSC0310RBZI J AB Screw,ø3×10mm

621 92LSC0314WBZI J AB Screw,ø3×14mm

M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

SW1 QSW-M0012AWZZ J AM Switch,Leaf Type [Open/Close]

SW2 QSW-M0012AWZZ J AM Switch,Leaf Type [Clamp]

SW3 QSW-M0012AWZZ J AM Switch,Leaf Type [Disc Number]

SPEAKER BOX PARTS FRONT SPEAKER

901 GBOXS0096AWSA J Speaker Box Ass’y

902 CPNLS1056AW01 J AX Front Panel Ass’y

903 PCUSG0022AWZZ J AB Cushion,Leg

904 PFLT-0046AWZZ J AC Felt

905 TSPC-1052AWZZ J AD Label,Specification

906 XJBSD30P10000 J AA Screw,ø3×10mm

907 XJBSD40P12000 J AA Screw,ø4×12mm

SP1,2 RSPA00052AW6T J AQ Tweeter

SP3,4 RSPA10060AW6W J AY Woofer

SPEAKER BOX PARTS CENTER SPEAKER

901 CWAKP1054AWM3 J Net Frame Ass’y

902 GCAB-1210AWSA J AW Bottom Cabinet

903 PCUSG0088AWZZ J AC Cushion,Leg

904 QCNWN2096AWZZ J AL Speaker Cord

905 TLABM0152AWZZ J Label,Parts Code

906 XEBSD30P14000 J AA Screw,ø3×14mm

SP1 RSPA10067AW6S J AV Speaker

SPEAKER BOX PARTS REAR SPEAKER

901 CWAKP1067AWM1 J AR Net Frame Ass’y

901- 1 ———— — Net Frame

901- 2 XWUSF63-05100 J Stop Ring

901- 3 HBDGC1004AWZZ J AG Badge,SHARP

904 GCAB-1219AWSA J AS Bottom Cabinet

905 QCNWN2325AWZZ J Speaker Cord

906 TLABM0151AWZZ J Label,Parts Code

907 XEBSD30P14000 J AA Screw,ø3×14mm

908 XJBSD40P20000 J AA Screw,ø4×20mm

PRICE

RANK

DESCRIPTION

NO.

PART CODE

CD-DP900H/E

– 7 –

SP1,2 RSPA10068AWCS J AS Speaker

ACCESSORIES/PACKING PARTS

1 ———— — Battery,SUM-3

(Not Replacement Item)

2 92LBAG1770A J AB Polyethylene Bag,AC Cord

[E Only]

3 92LFANT1535A J AF FM Antenna

4 QANTL0008AWZZ J AH AM Loop Antenna

5 RRMCG0214AWSA J AR Remote Control

6 SPAKA0366AWZZ J AN

Packing Add.,Center/Rear Speaker

7 SPAKA0367AWZZ J AL Packing Add.,Front Speaker

8 SPAKA0369AWZZ J AP Packing Add.,Unit

9 SPAKC1414AWZZ J Packing Case [H]

9 SPAKC1415AWZZ J AX Packing Case [E]

10 SPAKP0013AWZZ J AC Polyethylene Bag,Unit

11 SPAKZ0885AWZZ J AB Sheet,Miramat [H Only]

12 SPAKZ0891AWZZ J AB Sheet,CD Tray Cover [H Only]

13 SSAKA0007AWZZ J AB Polyethylene Bag,Accessories

14 SPAKZ0885AWZZ J Sheet,Protection

15 SSAKH0051AWZZ J AC Polyethylene Bag,Front Speaker

16 SSAKH0066AWZZ J AB Polyethylene Bag,Center

Speaker

17 SSAKH0091AWZZ J Polyethylene Bag,Rear Speaker

18 TCAUZ0057AWZZ J AA Label,Caution [E Only]

19 TGAN-3170UMZZ J AE Warranty Card [E Only]

20 TINSE0456AWZZ J AF Operation Manual [E,For U.K]

20 TINSZ0806AWZZ J AR Operation Manual [H]

20 TINSZ0821AWZZ J AF Operation Manual

[E,Except for U.K.]

21 TINSZ0823AWZZ J AB Quick Guide [E,For U.K. Only]

22 TLABE0655AWZZ J Label,Bar Code [H]

22 TLABE0670AWZZ J Label,Bar Code [E]

23 TLABN0112AWZZ J AA Label,Serial No. [H Only]

24 TLABZ0604AWZZ J AB Label,Energy [H Only]

25 TLABZ0605AWZZ J AB Label,Saving Energy [H Only]

26 TLABZ1125AWZZ J Label,Feature,Tape 1 [H]

26 TLABZ1181AWZZ J Label,Feature,Tape 1 [E]

27 TLABZ1126AWZZ J Label,Feature,Tape 2

28 ———— J – Label,VM No.

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92LPWB4274MANS J – Main

PWB-B1,2 92LPWB4274DPLS J – Display/Jack

1 PWB-C1~3 92LPWB4274PWRS J – Power/Power/Power

PWB-D 92LPWB3838CDUS J – CD Servo

PWB-E QPWBF0027AWZZ J AD CD Motor (PWB Only)

PWB-F QPWBF0749AWZZ J AD CD Loading Motor (PWB Only)

PWB-G 92PF567-677 J BA Tape Mechanism

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Optical Pickup Lens Cleaner

Disc

CD-DP900H/E

23456

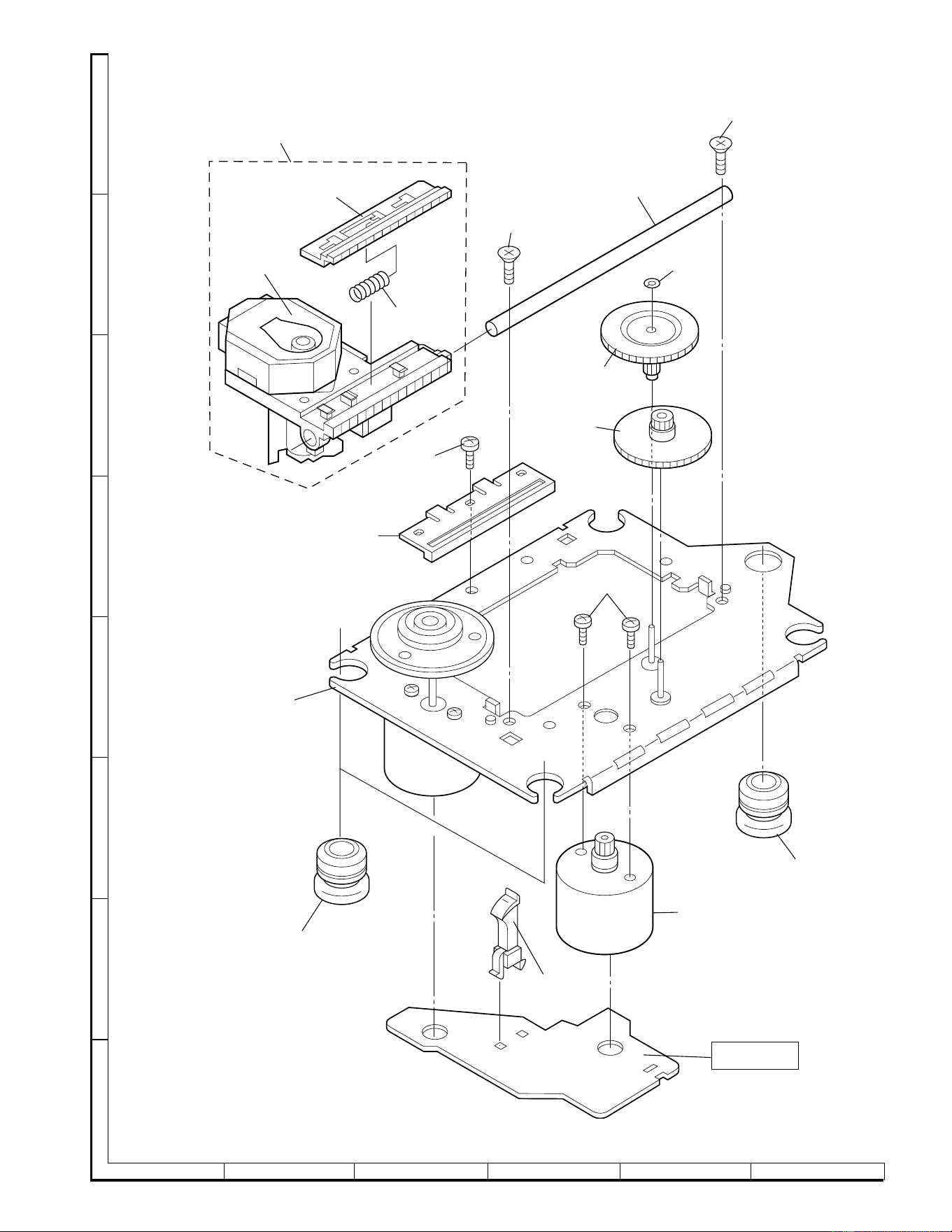

Figure 8 CD MECHANISM EXPLODED VIEW

– 8 –

306-1

701

304

701

302

301

702

303

703x2

305x2

SW4

305

PWB-E

306-2

306-3

306

704

CD-DP900H/E

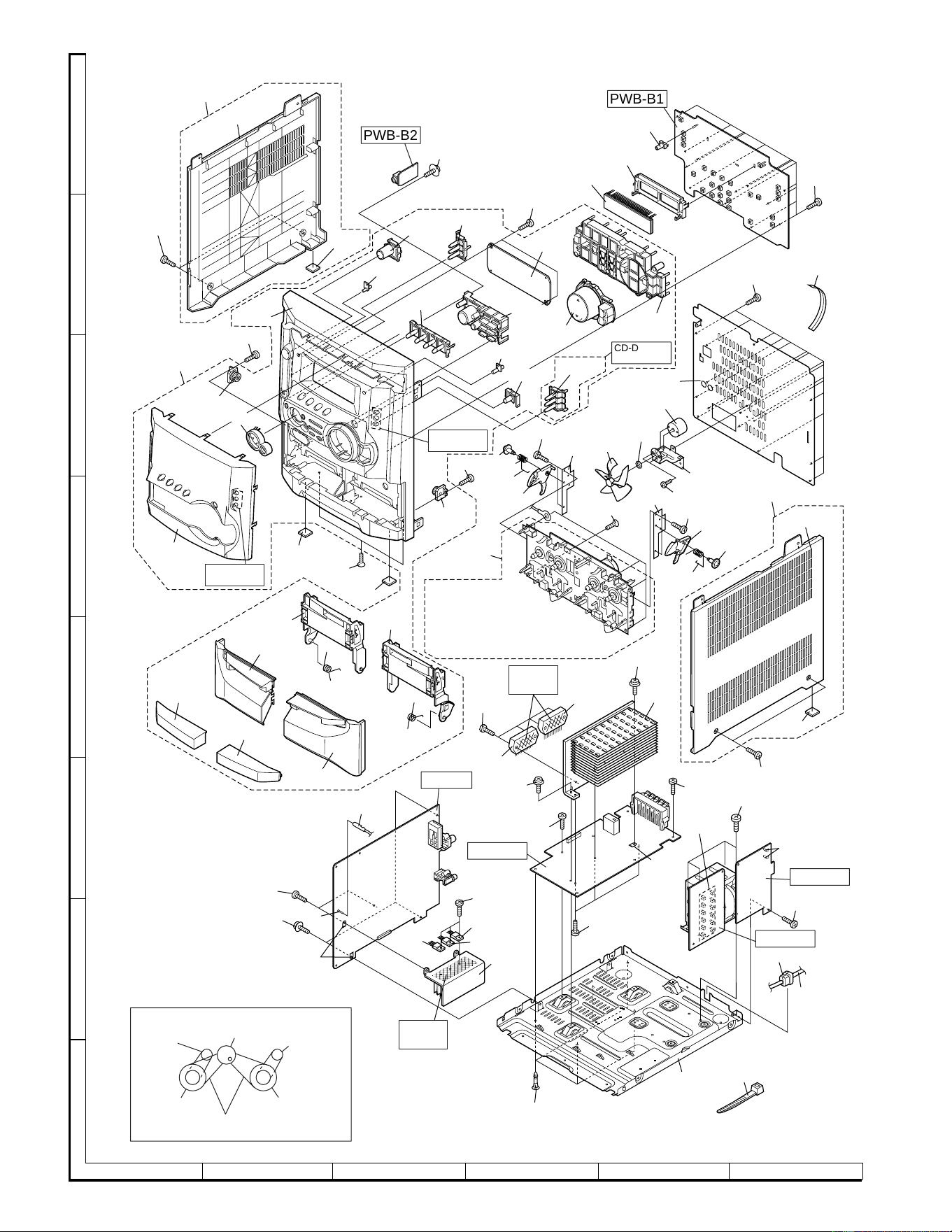

Figure 9 CABINET EXPLODED VIEW (1/2)

23456

– 9 –

Tape

Motor

MAIN BELT

FLYWHEEL

ASS'Y

TAPE1

FLYWHEEL

ASS'Y

TAPE2

FF/REW

ROLLER

ASS'Y

FF/REW

ROLLER

ASS'Y

BELT CONNECTION





yy

{{|

PWB-B2

PWB-B1

CD-DP900H

Only

CD-DP900H

Only

CD-DP900H

Only

PWB-A

PWB-C1

PWB-C3

PWB-C2

Silicon

Grease

Silicon

Grease

201

202

201-1

616x2

201-2

203-18

203-1

607

203

602

203-21

203-10

203-12

244

619x2

203-6

203-2

203-3

203-9

203-8

203-7

203-22

203-23

203-19

203-5

608x2

221

FL701

222

609x12

616x15

216

207

212

254

236

209

210

612x2

603

202-1

202-2

232

233

612x2

616x2

604

617x4

IC902

IC901

604

616

618x3

613x3

IC801

IC802

IC803

246

CNW101

251

250x2

250

249x12

618x2

604x3

616

614x4

616

213

257

214

605x5

248

255x2

247

229

230

606x2

611x5

208

M901

203-11

203-16

203-14

203-13

203-20

203-4

203-15

203-17

208-1,208-2,208-3,

208-4,208-5,208-6,

208-7,208-8,

208-10,,208-11,208-12,

208-13,208-14,208-15, 208-16

208-9,

CD-DP900H/E

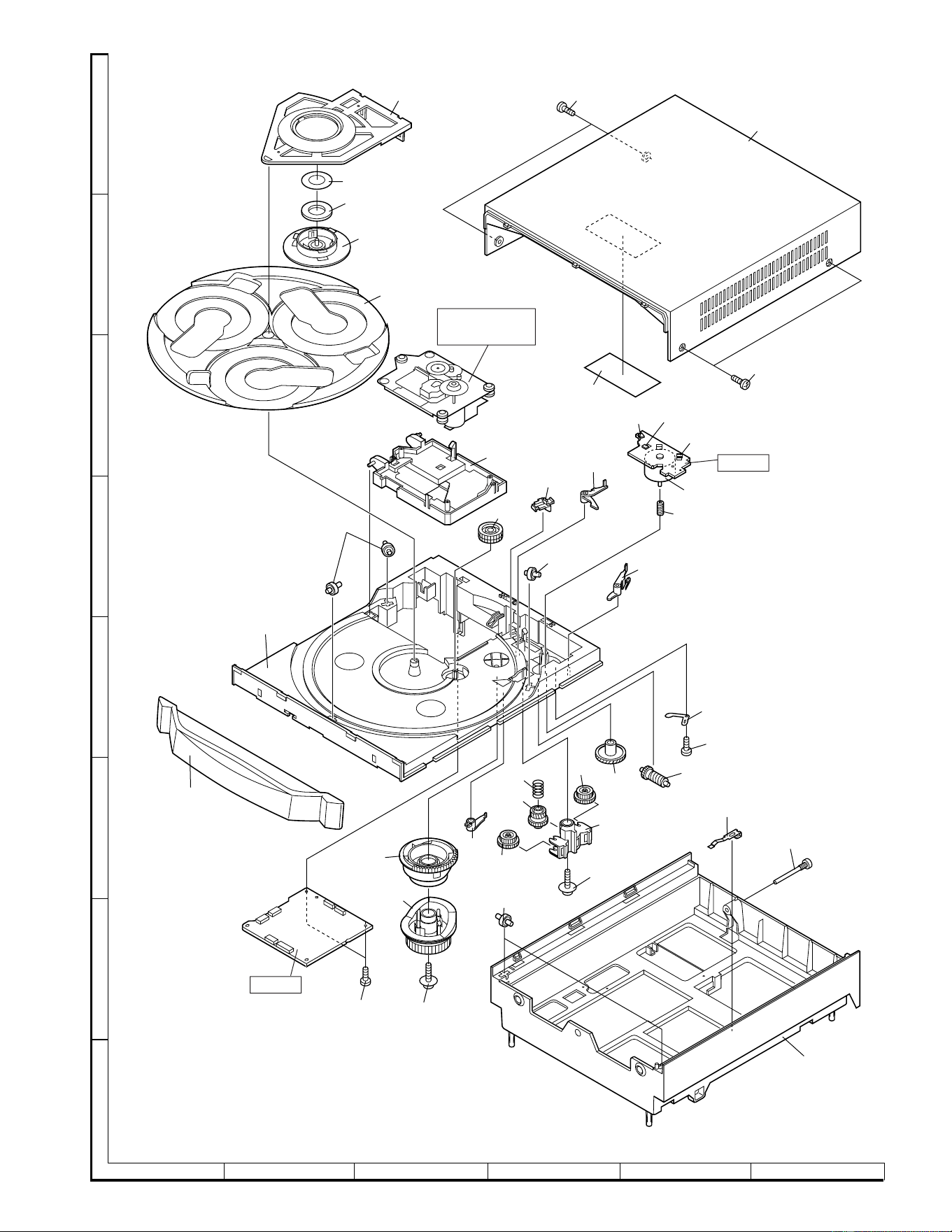

Figure 10 CABINET EXPLODED VIEW (2/2)

23456

– 10 –

MECHANISM

PWB-D

PWB-F

610x2

205

252

219

256

245

217

243

218

228

226

242

SW1

SW2

SW3

258

258x2

204

206

237

235

615

241

240

238

258x2

225

223

224

620x2

621

234

215

601

231

239

220

227

CD-DP900H/E

23456

Figure 11 SPEAKER EXPLODED VIEW (1/2)

– 11 –

FRONT SPEAKER

TWEETER

SP1(L-CH)

SP2(R-CH)

WOOFER

SP3(L-CH)

SP4(R-CH)

Capacitor

2.7 µF,100V,

Electrolytic (N.P.)

Capacitor

TWEETER

SP1(L-CH)

SP2(R-CH)

WOOFER

SP3(L-CH)

SP4(R-CH)

RED

,,,,

,,,,,,

,,,,,,,,

,,,,,,,,,,

,,,,,,,,,,,,

,,,,,,,,,,,,,

,,,,,,,,,,,

,,,,,,,,,

,,,,,,,

,,,,,

,,,

901

904

905

906x2

902

907x4

SP1,2

SP3,4

903x2

CD-DP900H/E

23456

Figure 12 SPEAKER EXPLODED VIEW (2/2)

– 12 –

SURROUND SPEAKER

BlackGray

908x4

904

905

906

907x4

SP1,2

901-3

901-1

901

901-2

CENTER SPEAKER

BlackOrange

902

901

906x4

905

904

903x4

SP1

CD-DP900H/E

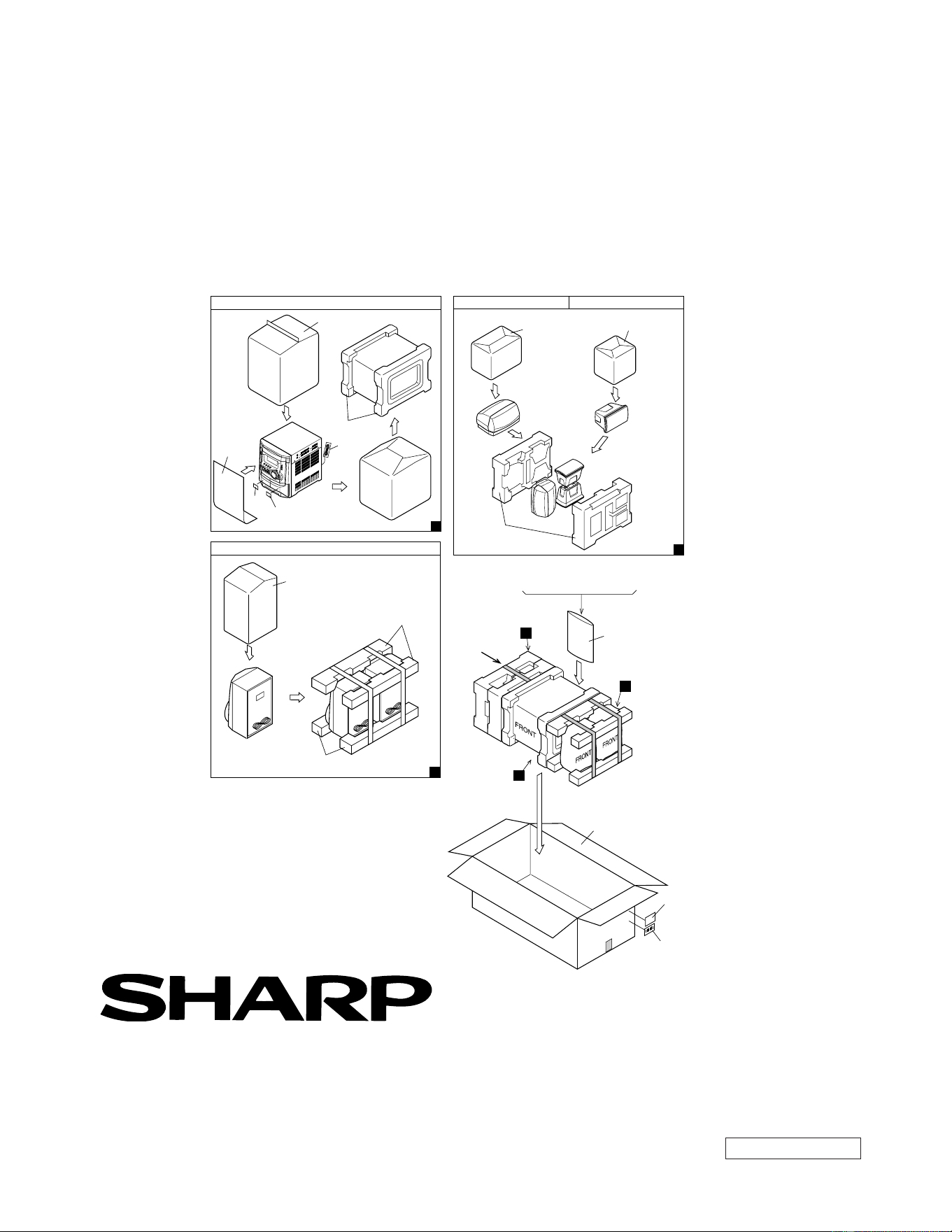

PACKING METHOD (FOR U.K. ONLY)

Unit

Front Speaker(L/R)

Bottom

Center Speaker

Rear Speaker (L/R)

REAR SIDE OF

CENTER / REAR

SPEAKERS

3,4, 5,18, 19, 20, 21

2 92LBAG1770A Polyethylene Bag,AC Cord

3 92LFANT1535A FM Antenna

4 QANTL0008AWZZ AM Loop Antenna

5 RRMCG0214AWSA Remote Control

6 SPAKA0366AWZZ Packing Add.,Center/Rear

Speaker

7 SPAKA0367AWZZ Packing Add.,Front Speaker

8 SPAKA0369AWZZ Packing Add.,Unit

9 SPAKC1415AWZZ Packing Case

10 SPAKP0013AWZZ Polyethylene Bag,Unit

13 SSAKA0007AWZZ

Polyethylene Bag,Accessories

14 SPAKZ0885AWZZ Sheet,Protection

15 SSAKH0051AWZZ Polyethylene Bag,Front

Speaker

16 SSAKH0066AWZZ Polyethylene Bag,Center

Speaker

17 SSAKH0091AWZZ Polyethylene Bag,Rear

Speaker

18 TCAUZ0057AWZZ Label,Caution

19 TGAN-3170UMZZ Warranty card

20 TINSE0456AWZZ Operation Manual

21 TINSZ0823AWZZ Quick Guide

22 TLABE0670AWZZ Label,Bar Code

26 TLABZ1181AWZZ Label,Feature,Tape 1

27 TLABZ1126AWZZ Label,Feature,Tape 2

28 ––––––––––––––– Label,VM No.

SG • SK • SA • SZ

A0203-1069SS•HA•M

Printed in Japan

SHARP CORPORATION

AV Systems Group

Audio Systems Division

Higashihiroshima, Hiroshima 739-0192, Japan

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

Sharp CD-DP900H Mini Component System Audio

Product's Documents

Service Manual

Specifications

Sharp CD-DP900H Questions and Answers

Related Products

Sharp CD-BK137W Mini Component System Audio

Sharp CD-PC3500 Mini Component System

Sharp CD-MPS66 Mini Component System

Sharp CD-ES99 Mini Component System

Sharp CD-DH950P Mini Component System

Sharp XL-HP505 Mini Component System
