Sharp CD-BK137W Mini Component System Audio User Manual

CD-BK137W

No. SY179CDBK137W

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

OPERATION MANUAL ...................................................................................................................................................... 5

VOLTAGE SELECTION ..................................................................................................................................................... 6

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR ................................................................................................. 6

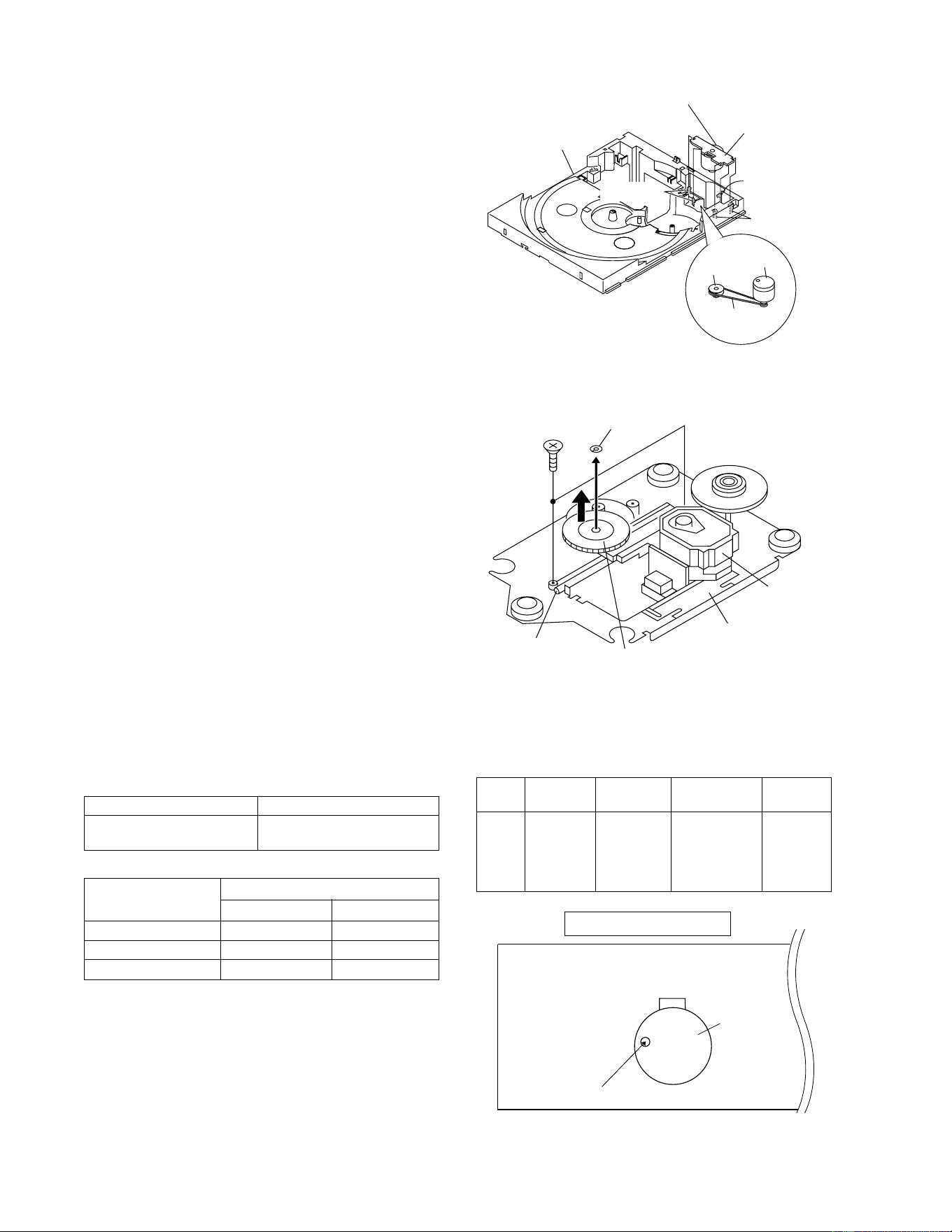

DISASSEMBLY .................................................................................................................................................................. 7

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 10

ADJUSTMENT ................................................................................................................................................................. 11

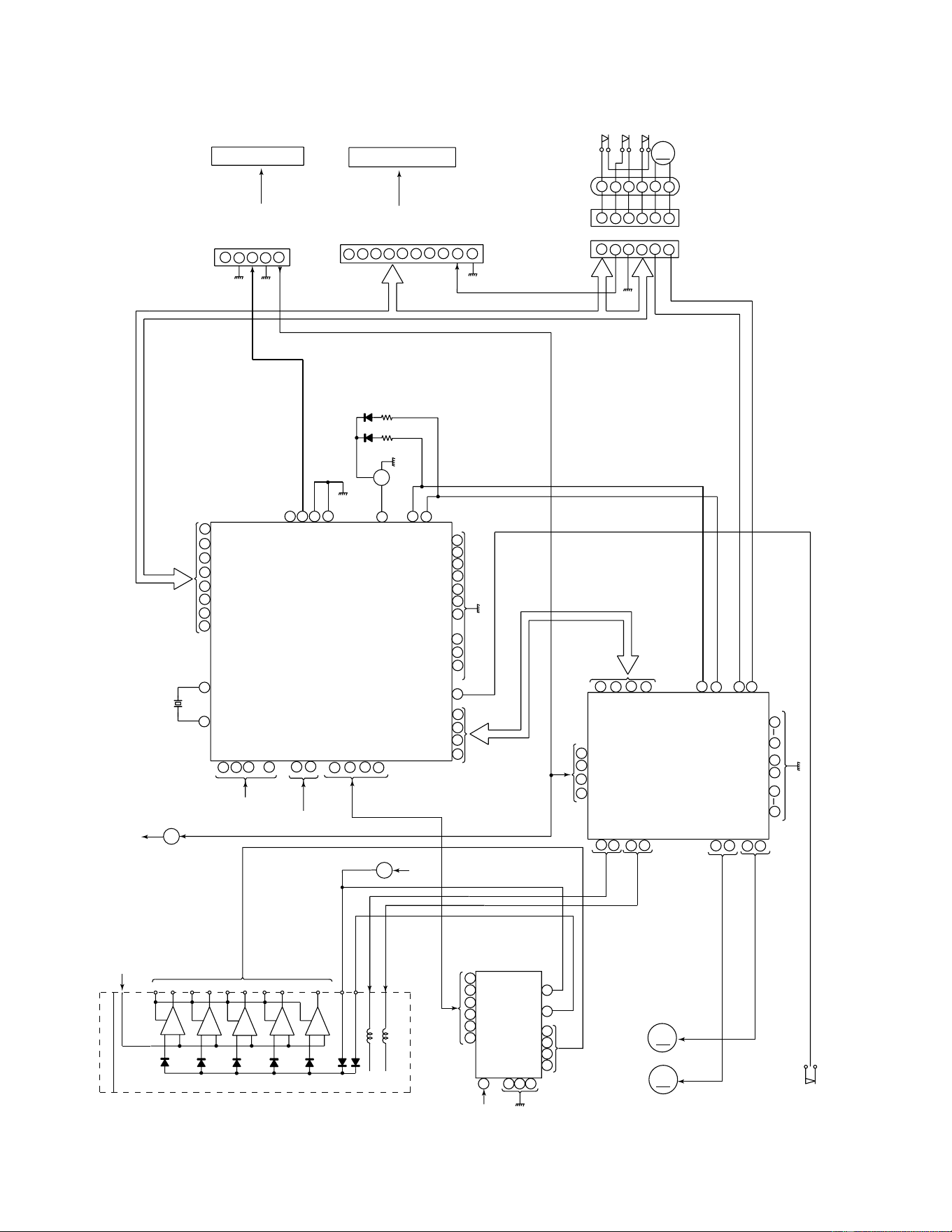

BLOCK DIAGRAM ........................................................................................................................................................... 13

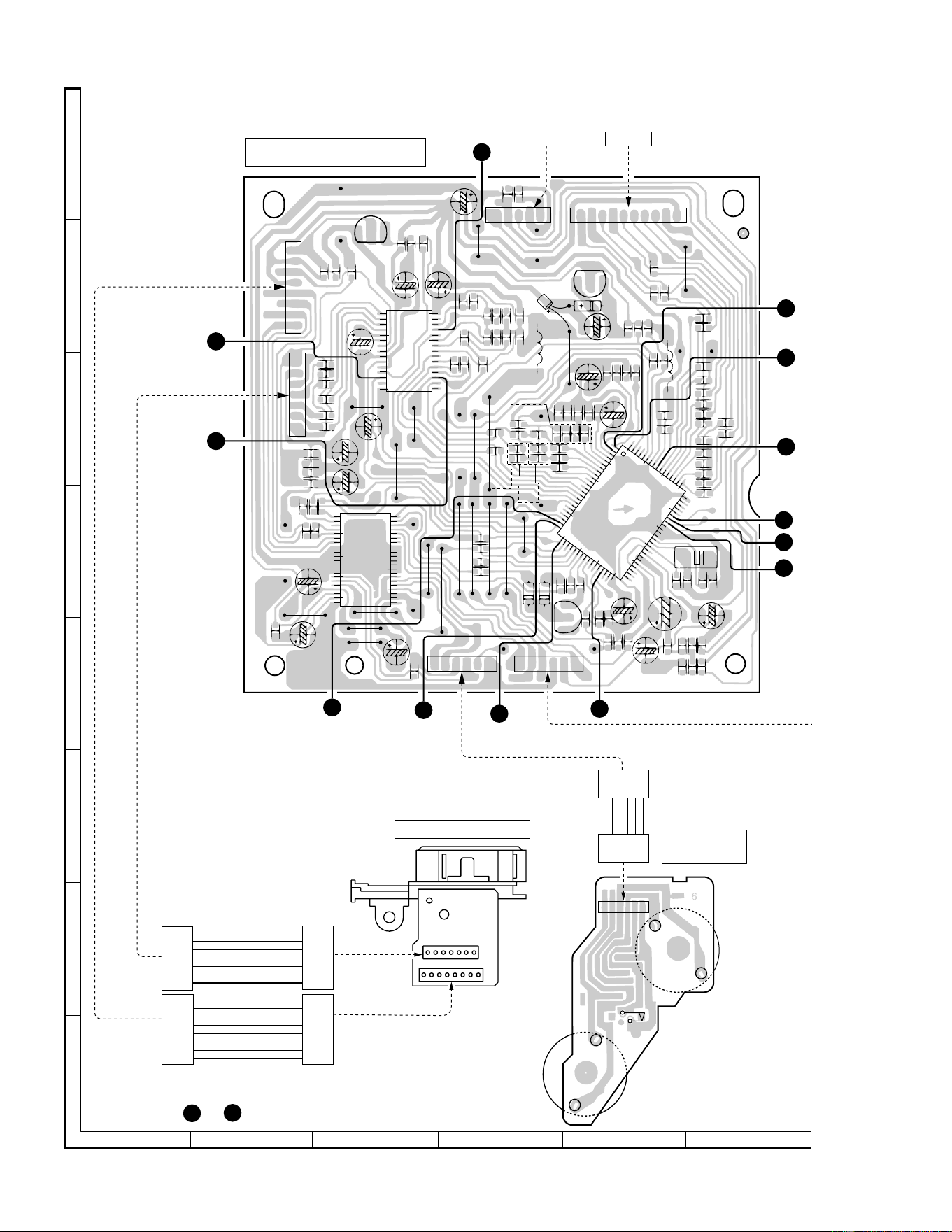

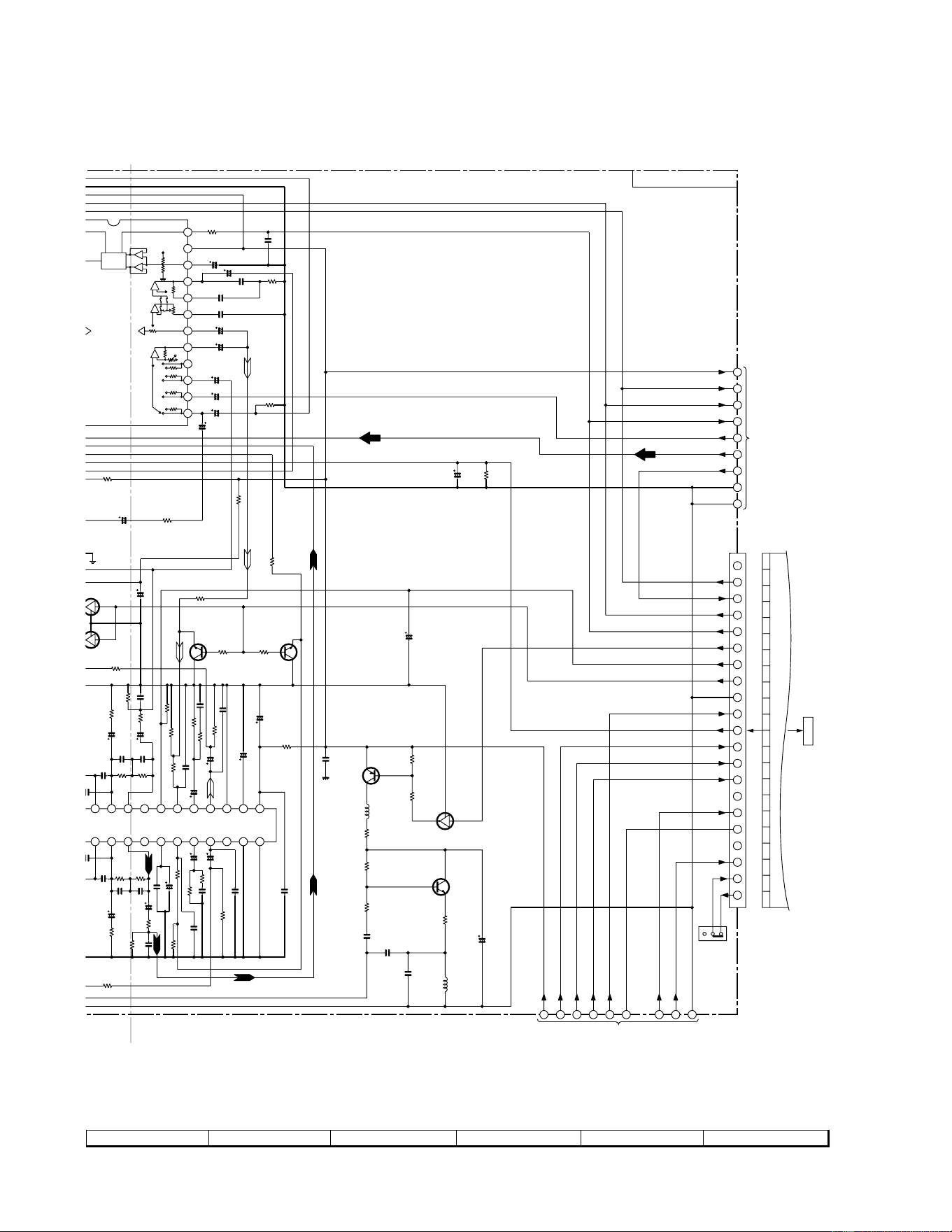

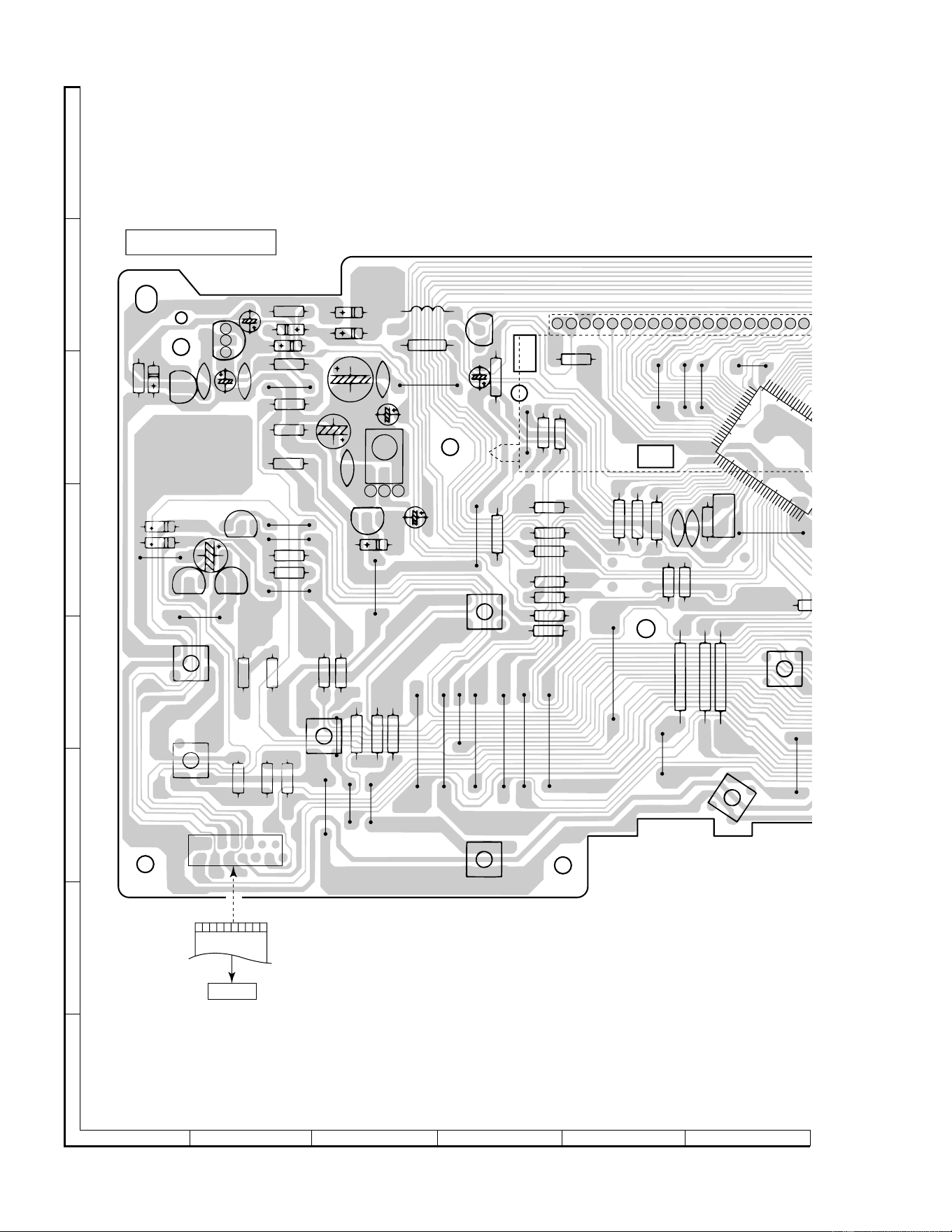

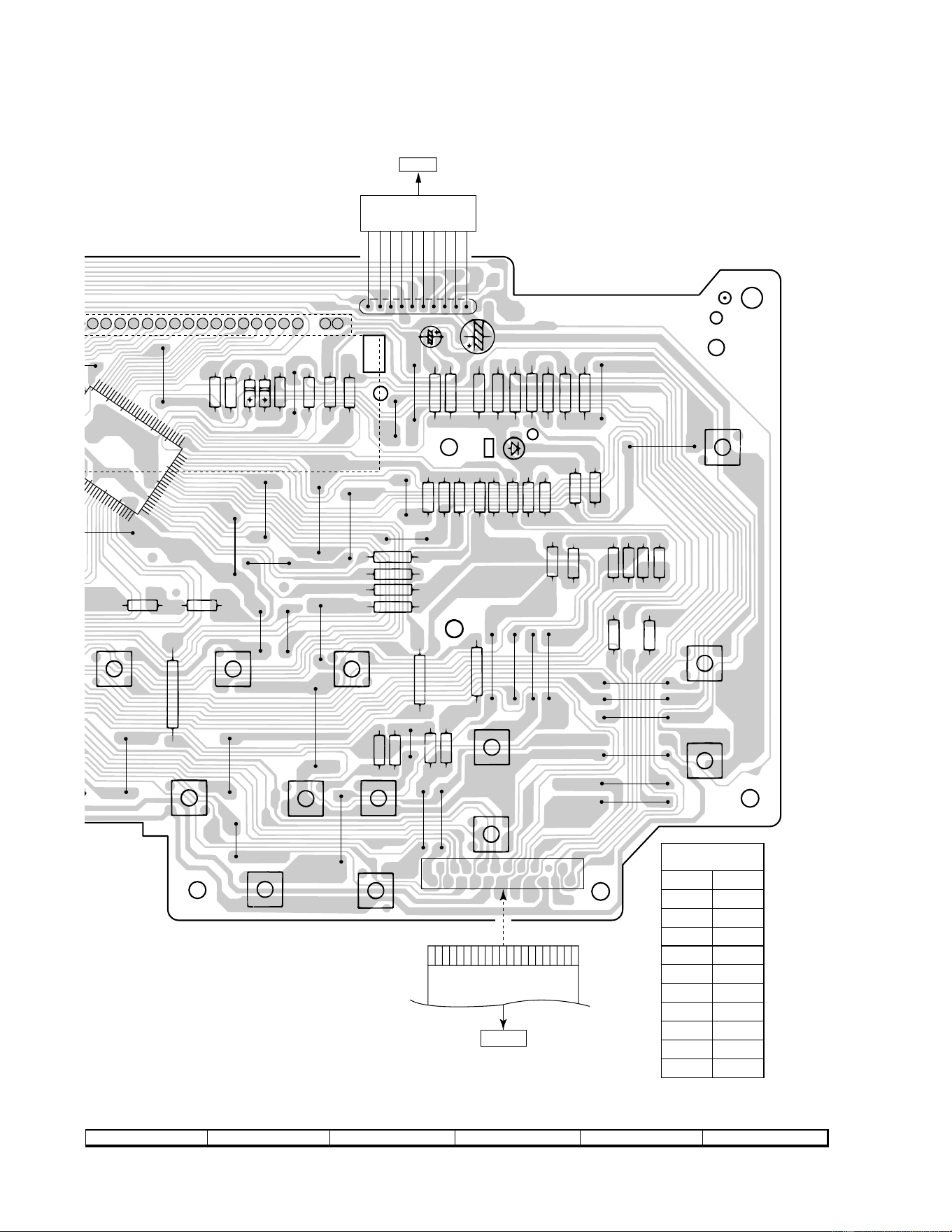

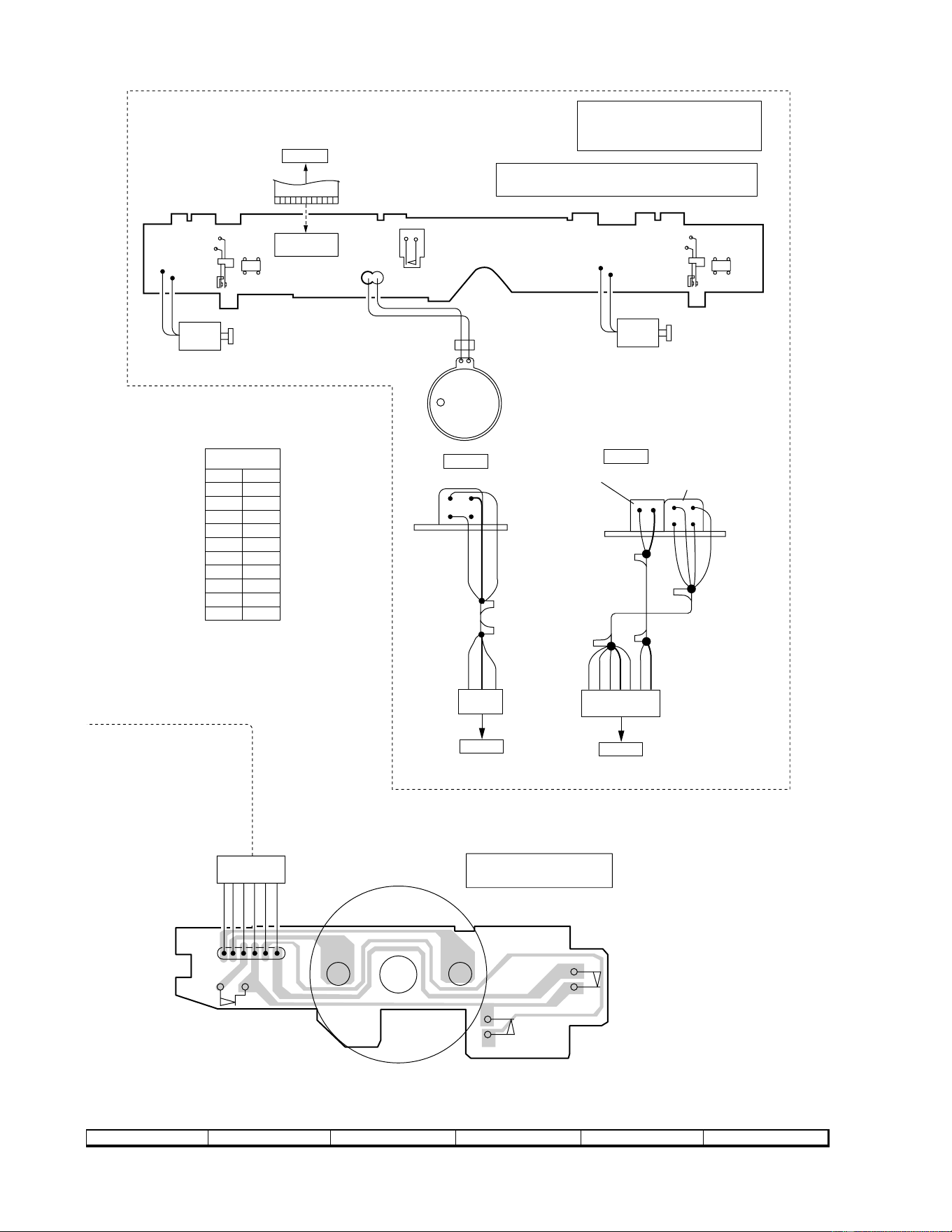

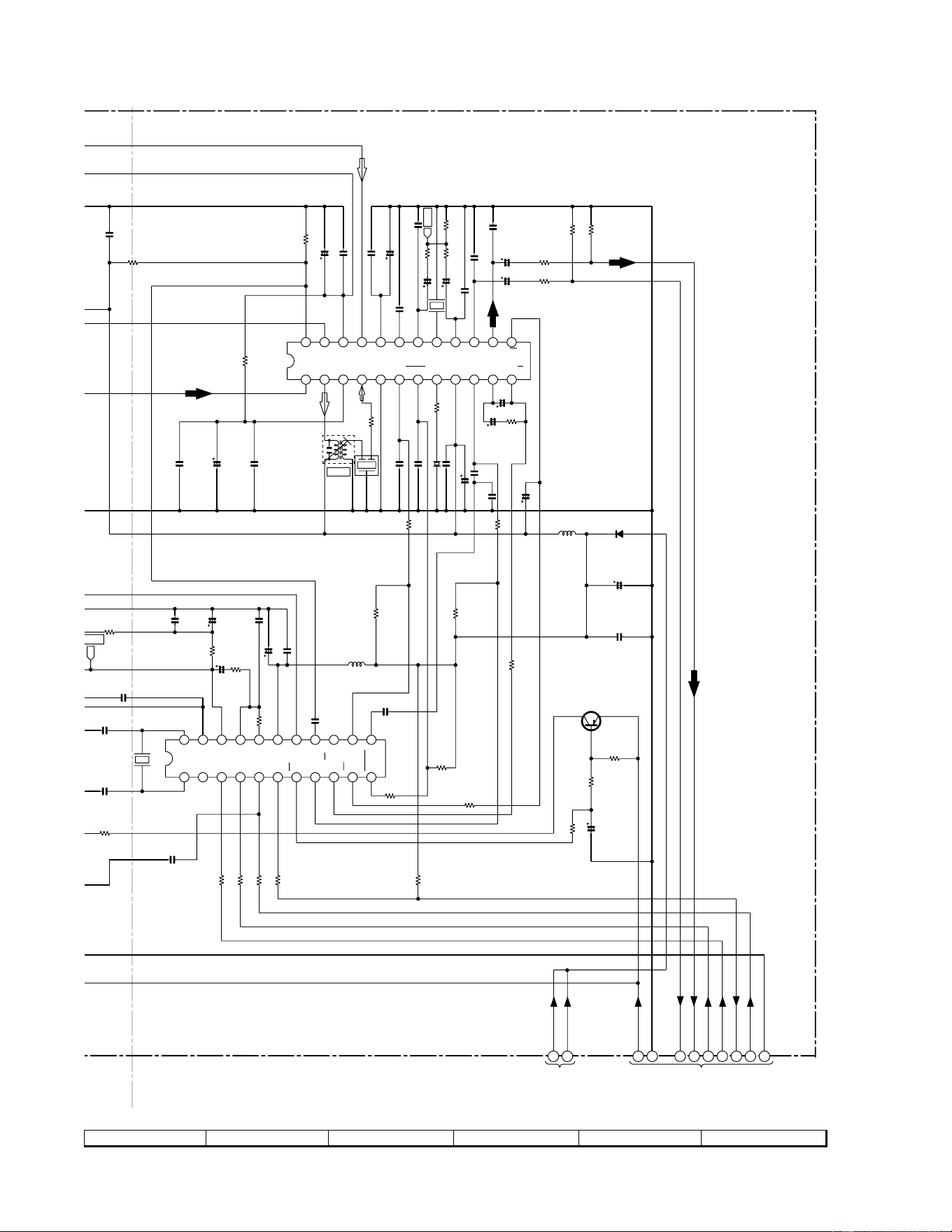

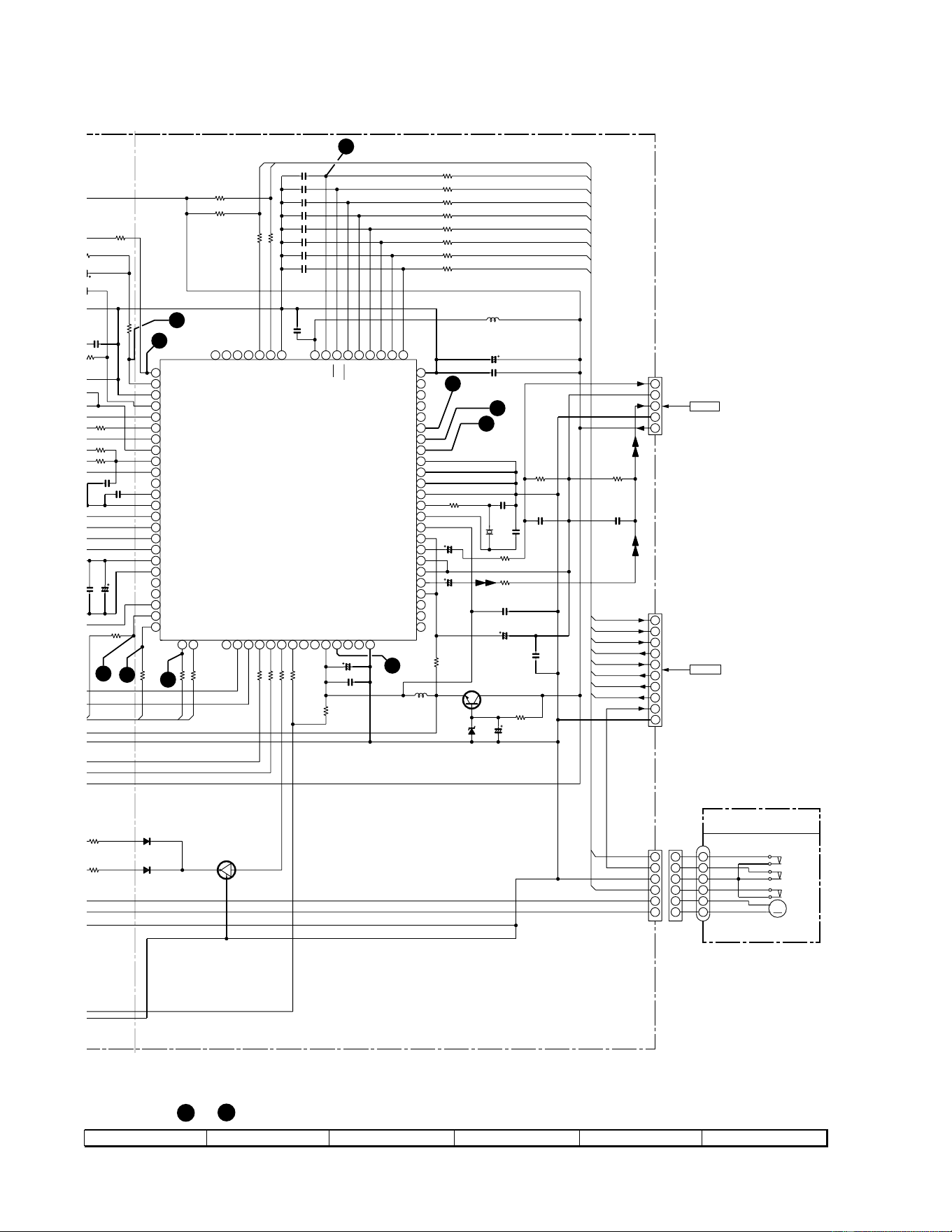

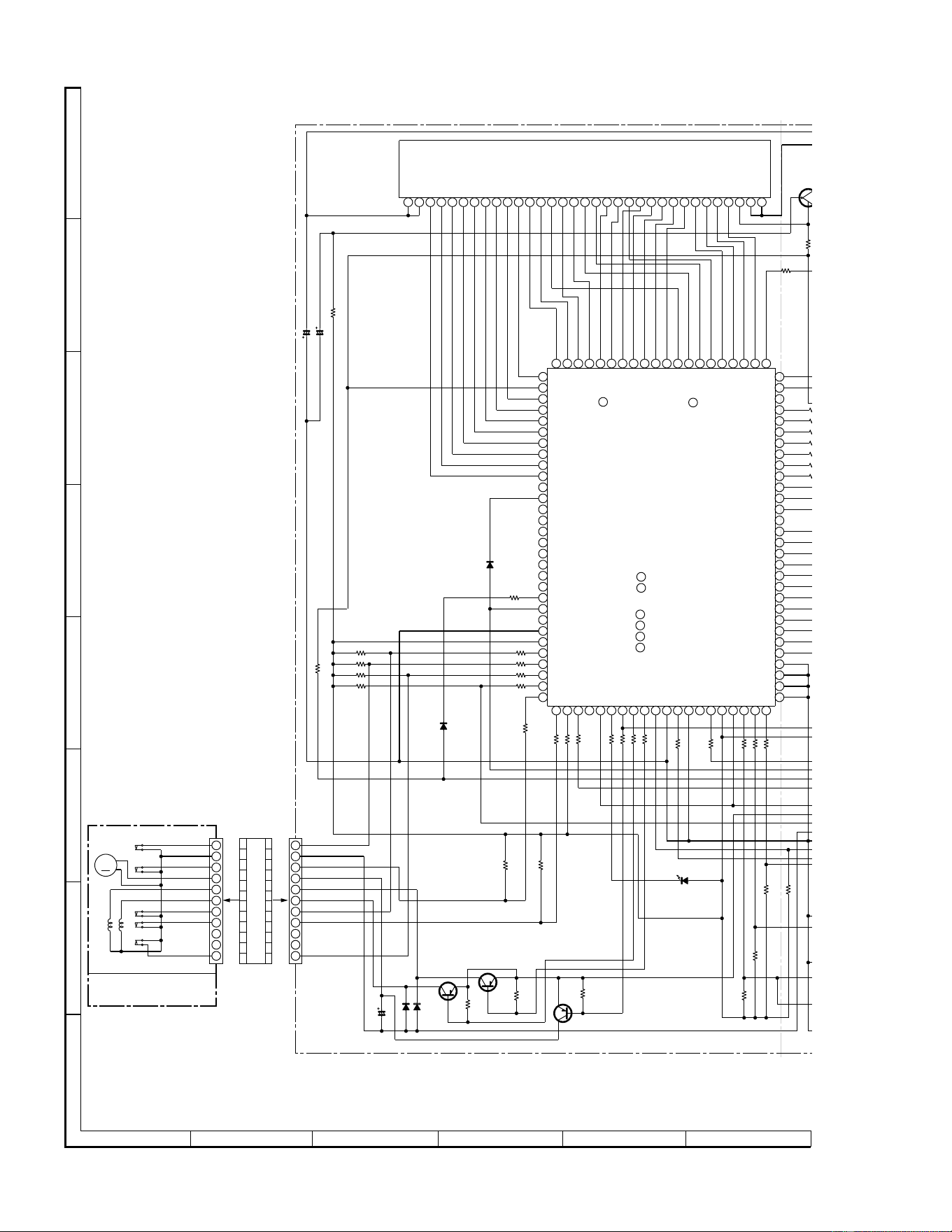

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD ..............................................................................................16

VOLTAGE ........................................................................................................................................................................ 32

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 33

TYPES OF TRANSISTOR AND LED............................................................................................................................... 33

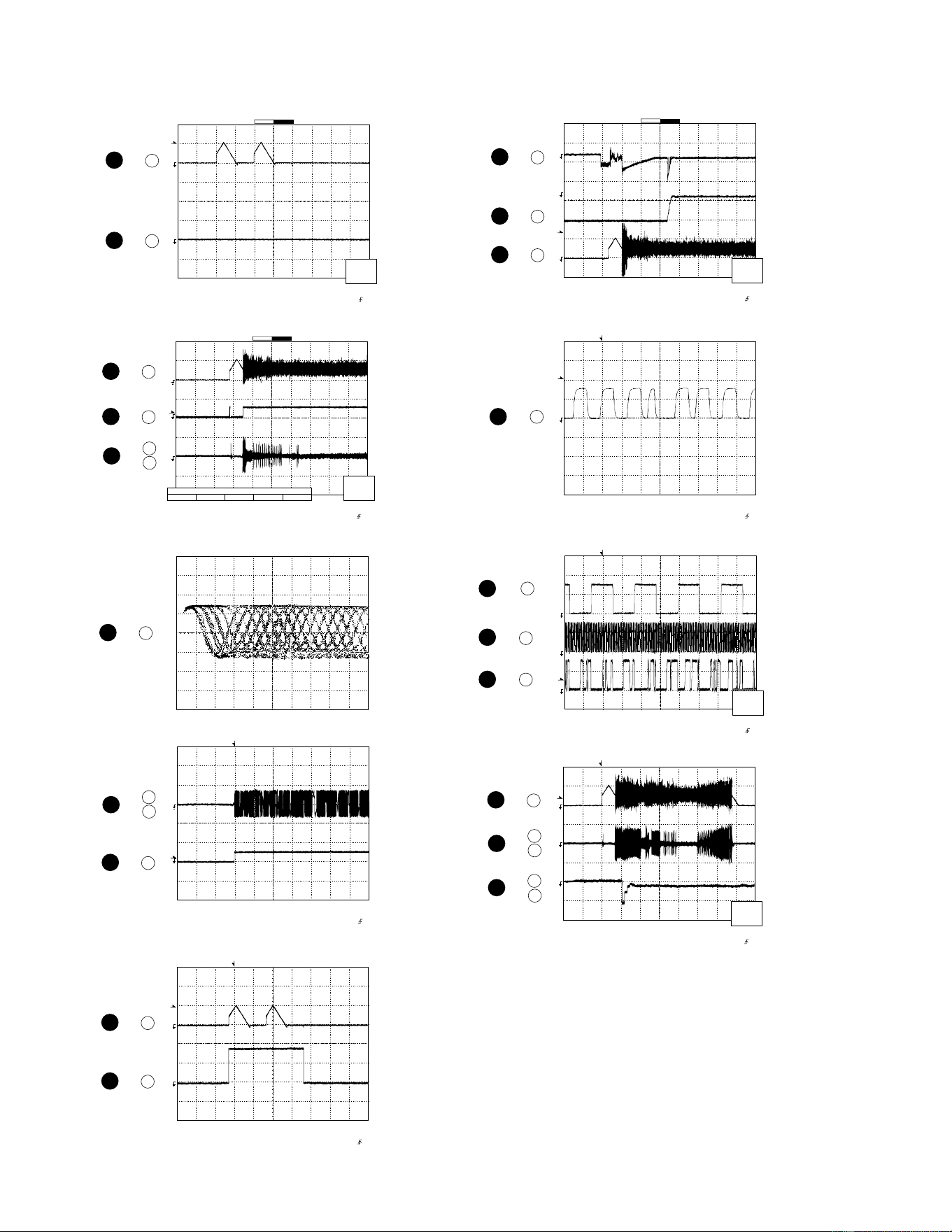

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 34

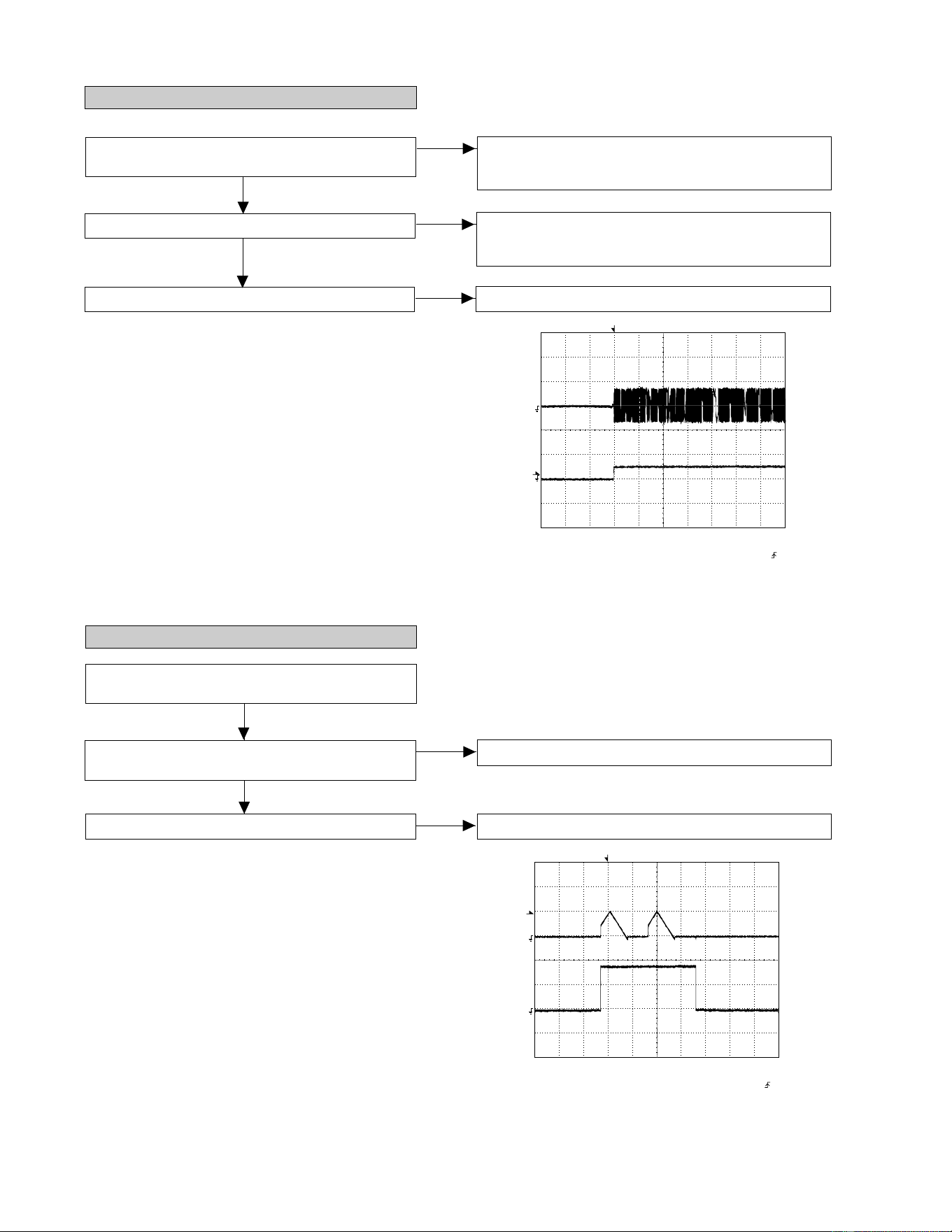

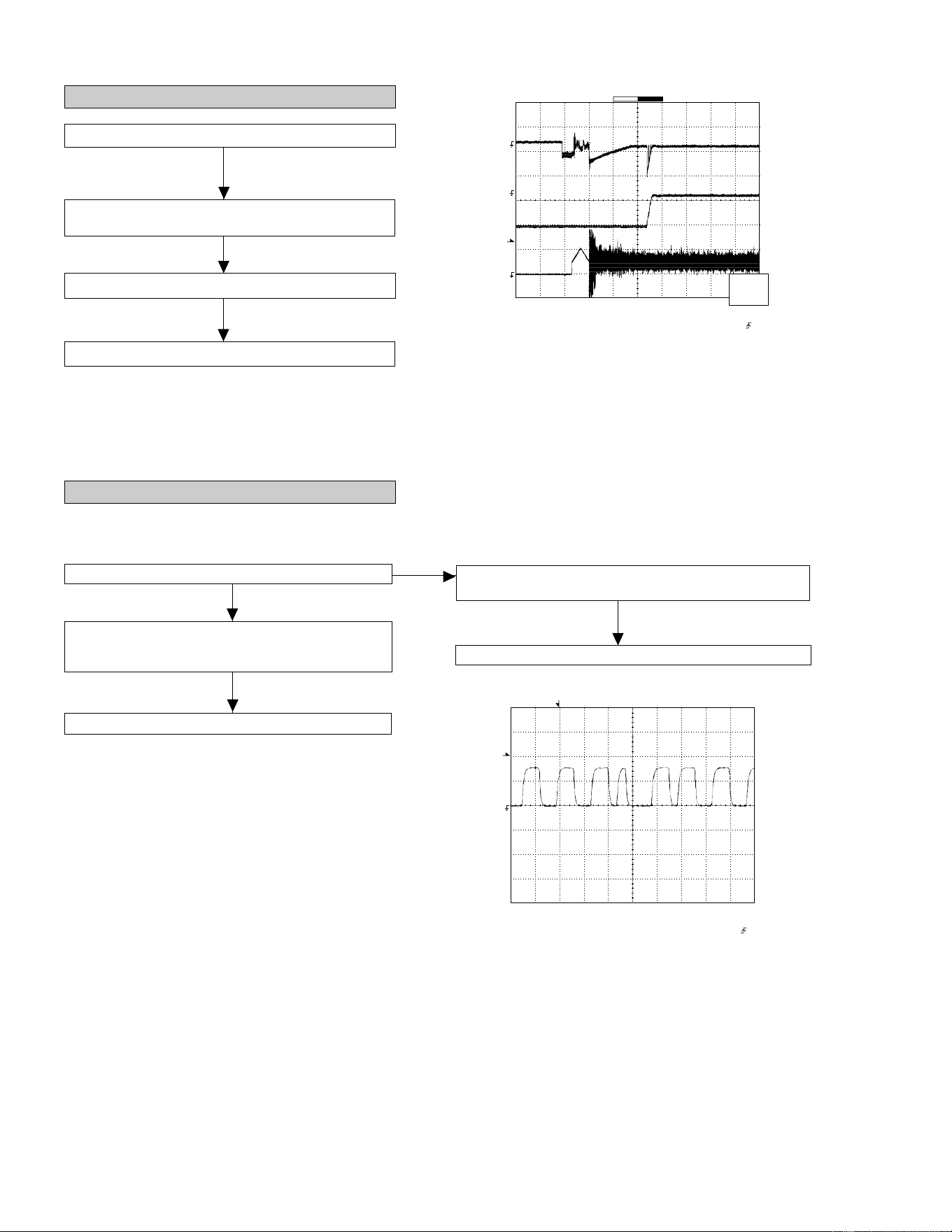

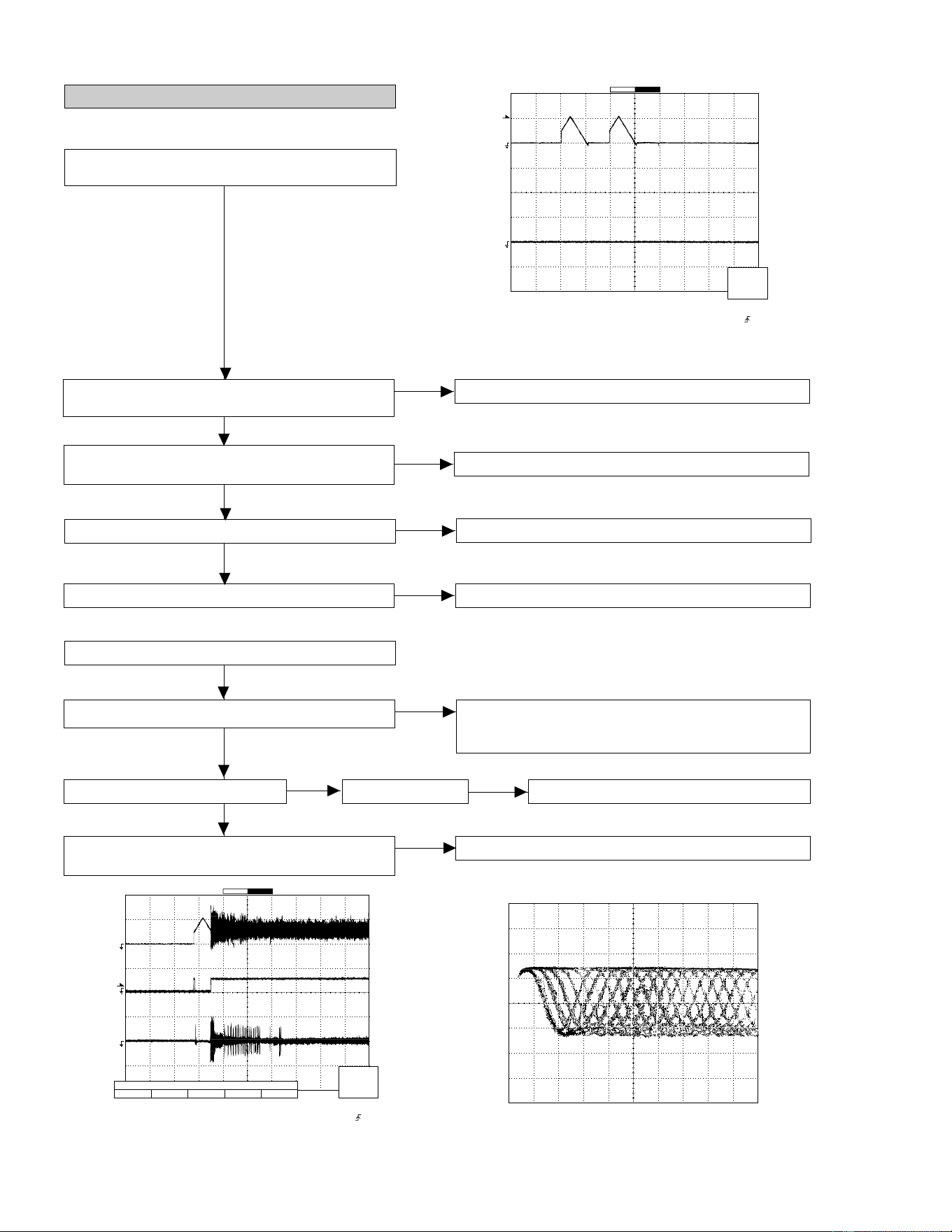

TROUBLESHOOTING ..................................................................................................................................................... 35

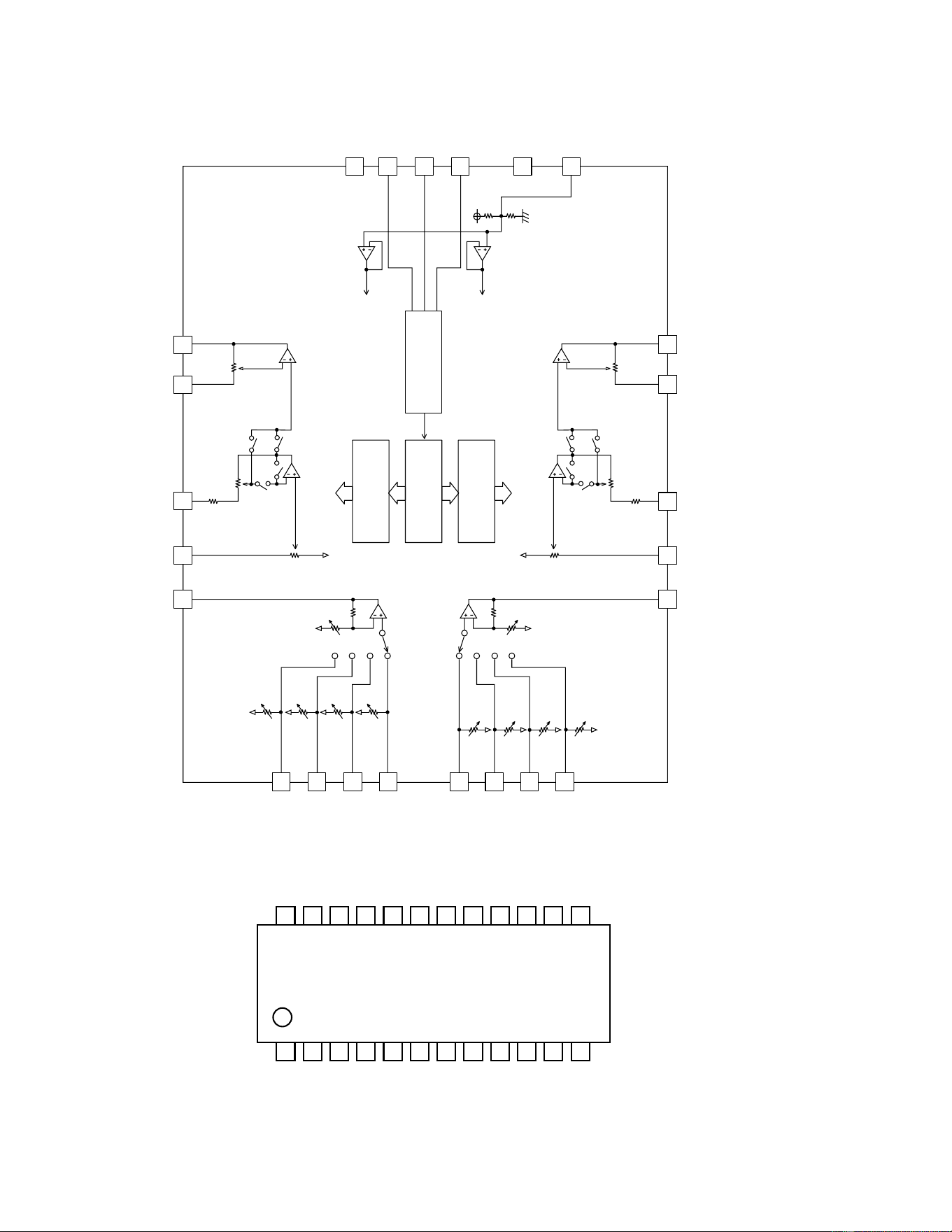

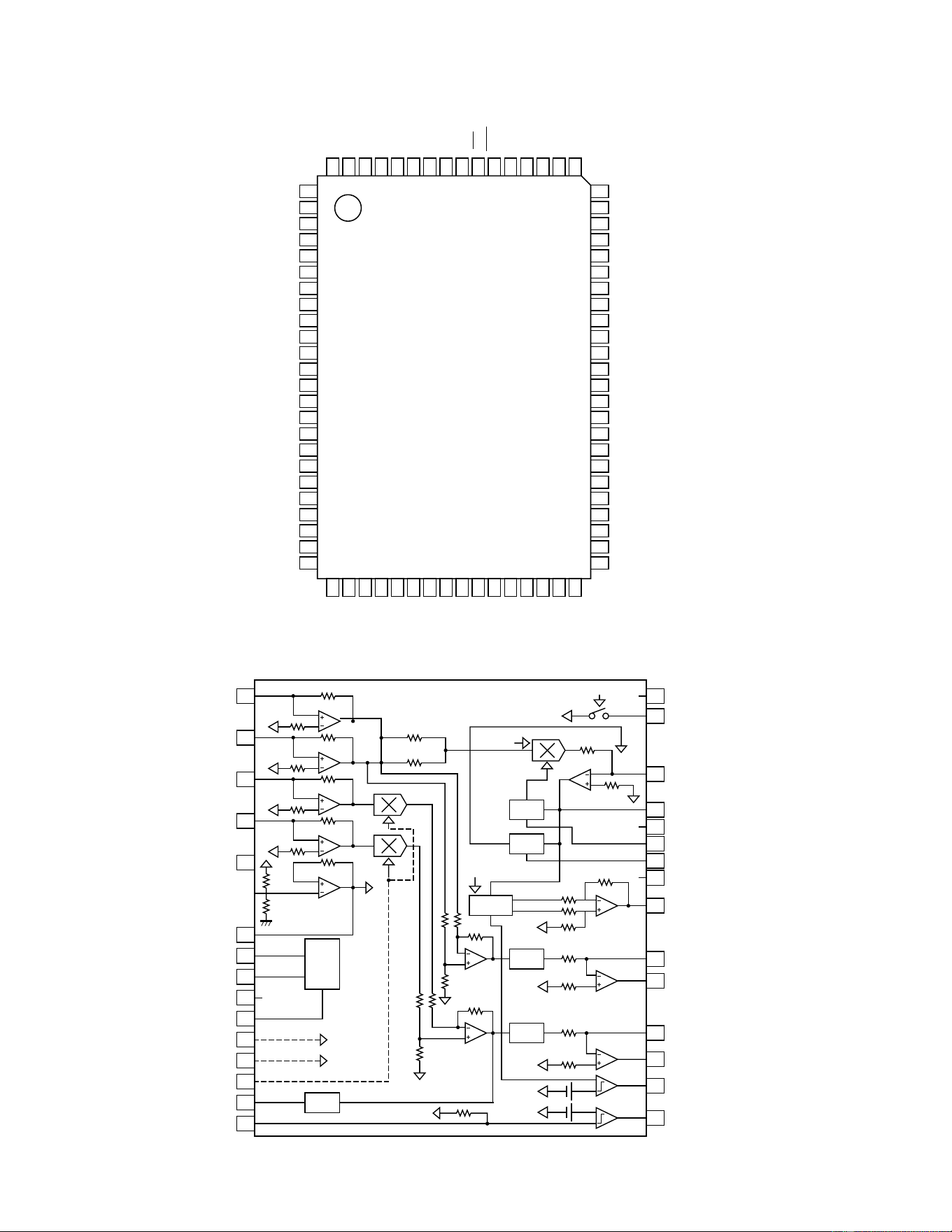

FUNCTION TABLE OF IC................................................................................................................................................ 39

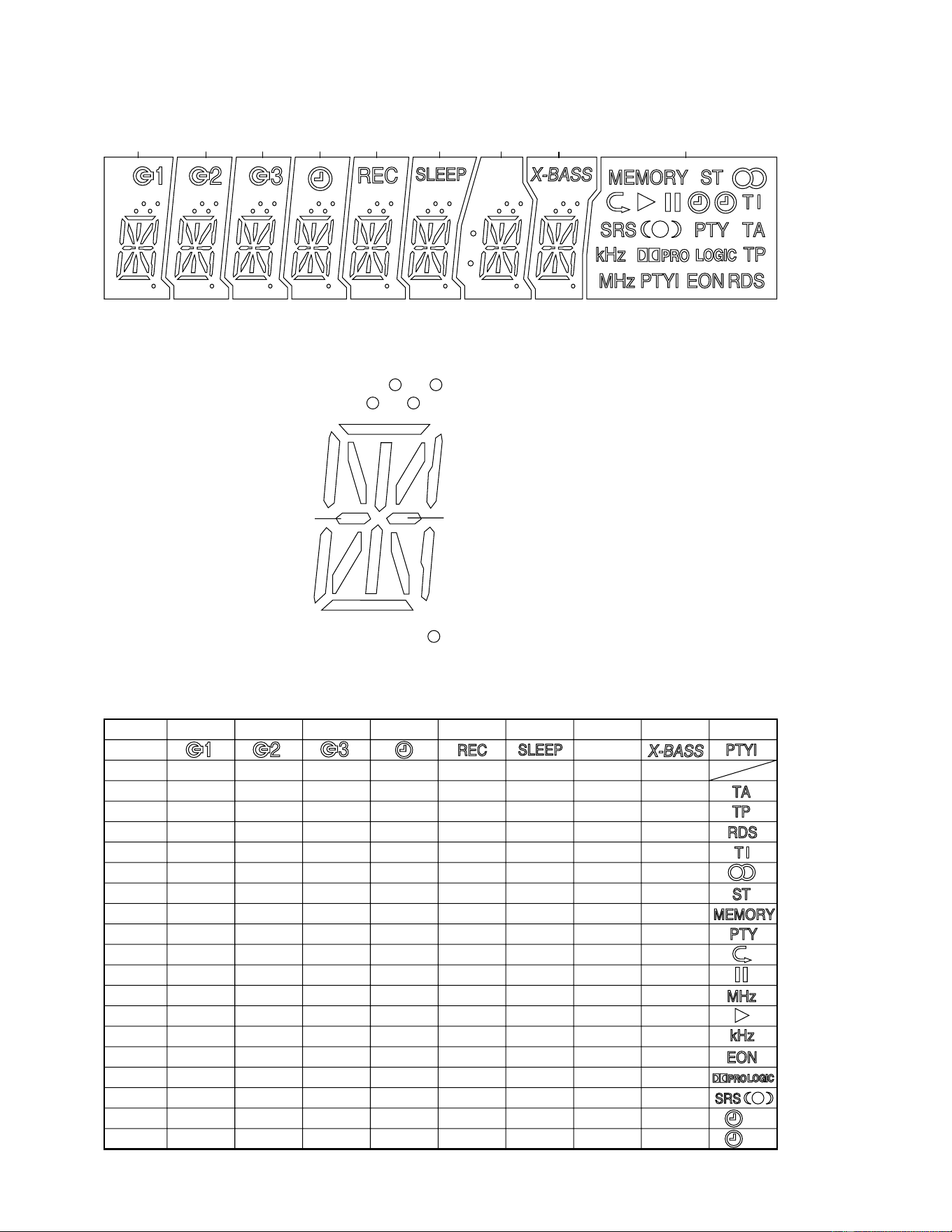

FL DISPLAY ..................................................................................................................................................................... 46

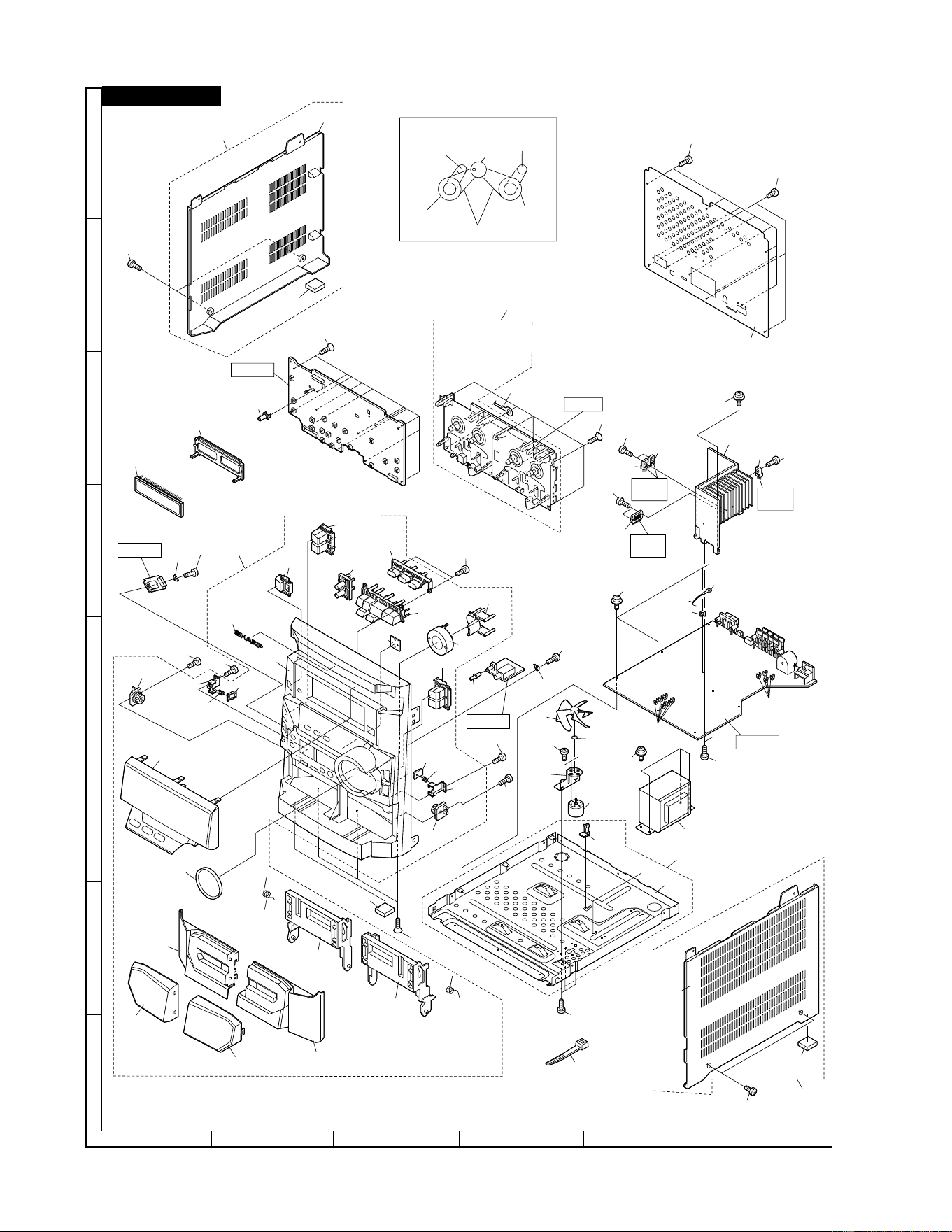

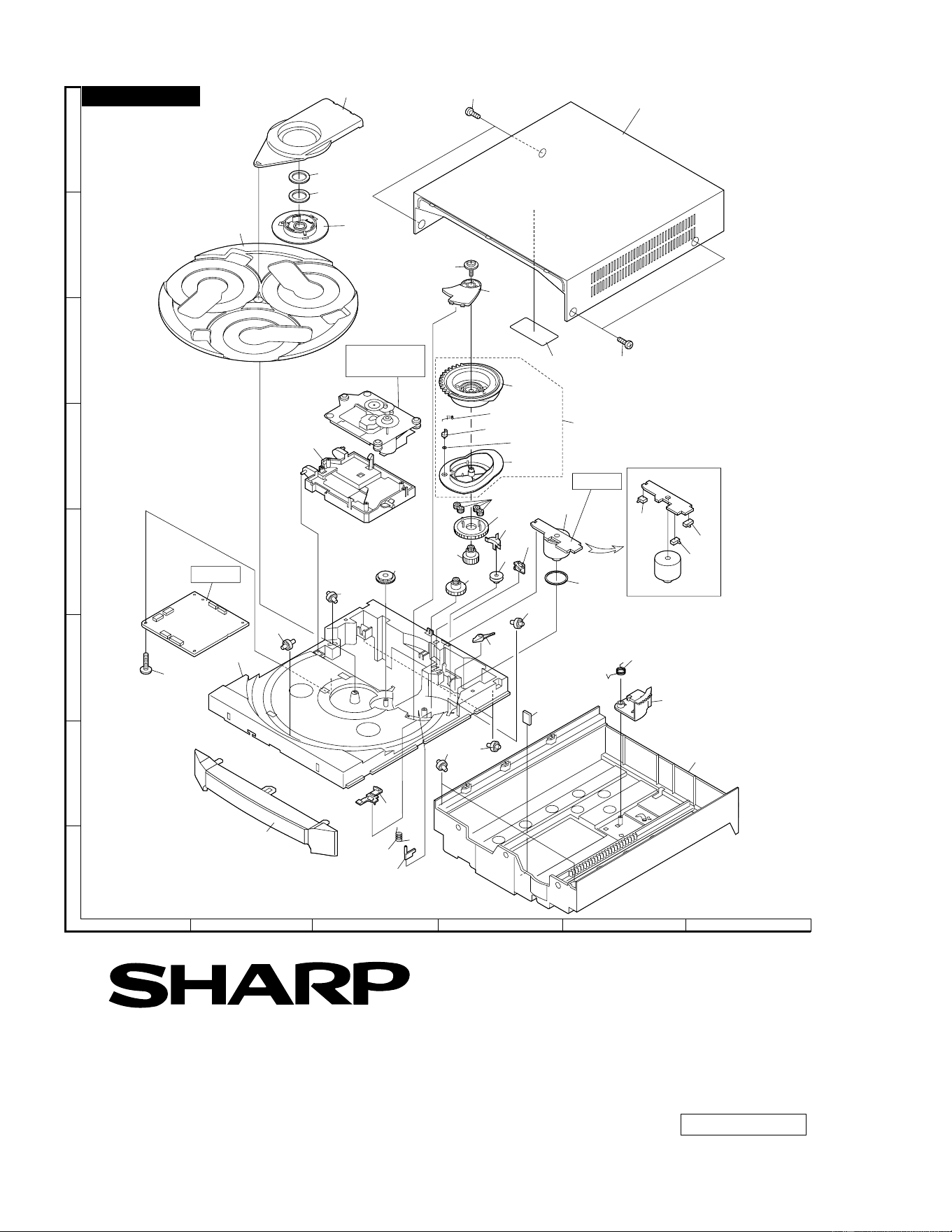

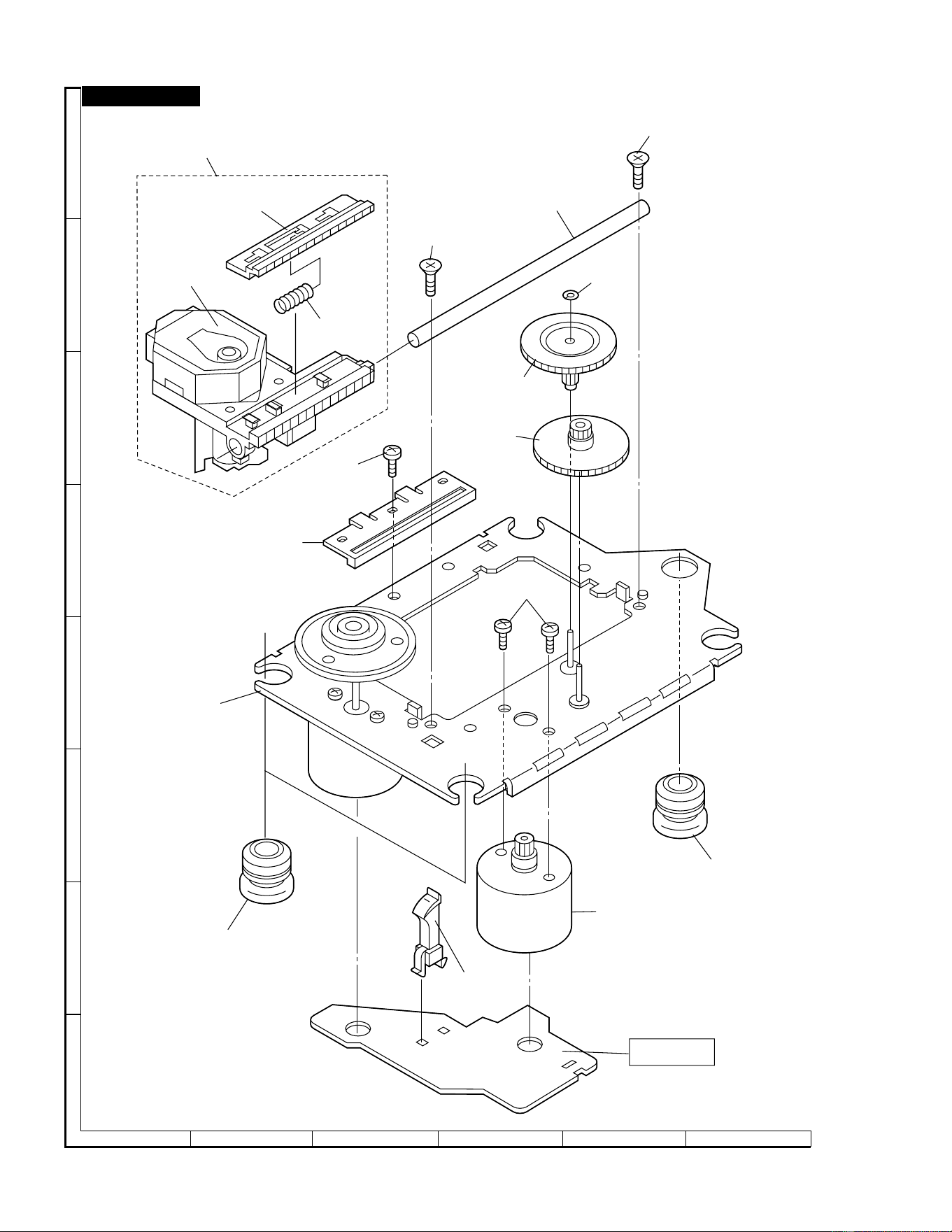

REPLACEMENT PARTS LIST/EXPLODED VIEW

SERVICE MANUAL

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

MINI COMPONENT SYSTEM

MODEL CD-BK137W

CD-BK137W Mini Component System consisting of

CD-BK137W (main unit), CP-BK137 (front speakers) and

92L2390137W010 (surround speakers).

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

CD-BK137W

– 2 –

SAFETY PRECAUTION FOR SERVICE MANUAL

WARNINGS

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER

COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS

IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES

AGAINST EXPOSURE TO THE LASER BEAM.

1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE

PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT

LOOK INTO THE PICKUP LENS.

2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY

PRESET BEFORE SHIPMENT.

DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.

3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.

4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

SPECIFICATIONS

General

Amplifier

CD player

Tuner

Cassette deck

Power source

AC 110/127/220/230 - 240 V, 50/60 Hz

Power consumption

82 W

Dimensions

Width: 270 mm (10-5/8")

Height: 300 mm (11-4/5")

Depth: 344 mm (13-1/2")

Weight

6.2 kg (13.7 lbs.)

Output power

MPO: 104 W (52 W + 52 W) (10 % T.H.D.)

RMS: 66 W (33 W + 33 W) (10 % T.H.D.)

Output terminals

Front speakers: 8 ohms

Surround speakers: 16 ohms

Headphones: 16 - 50 ohms (recommended: 32 ohms)

Type

3-disc multi-play compact disc player

Signal readout

Non-contact, 3-beam semiconductor laser pickup

D/A converter

1-bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

Frequency range

FM: 88 - 108 MHz

AM: 531 - 1,602 kHz

Frequency response

50 - 14,000 Hz (Normal tape)

Signal/noise ratio

55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter

0.3 % (WRMS)

Type

Twin-Drive speaker system

10 cm (4") full-range speaker x 2

Maximum input power

66 W

Rated input power

33 W

Impedance

8 ohms

Dimensions

Width: 200 mm (7-9/10")

Height: 300 mm (11-4/5")

Depth: 229 mm (9")

Weight

2.9 kg (6.4 lbs.)/each

Type

8 cm (3-3/32") full-range speaker

Maximum input power

30 W

Rated input power

15 W

Impedance

16 ohms

Dimensions

Width: 150 mm (6")

Height: 150 mm (6")

Depth: 78 mm (3")

Weight

0.4 kg (0.9 lbs.)/each

CD-BK137W

CP-BK137

Specifications for this model are subject to change without

prior notice.

92L2390137W010

– 3 –

CD-BK137W

NAMES OF PARTS

Display

1. Disc Number Indicators

2. Timer Indicator

3. Tape 2 Record Indicator

4. Sleep Indicator

5. Extra Bass Indicator

6. CD or Tuner Memory Indicator

7. FM Stereo Mode Indicator

8. FM Stereo Receiving Indicator

9. CD Repeat Play Indicator

10. CD or Tape Play Indicator

11. CD Pause Indicator

Front panel

1. Disc Tray

2. Timer Set Indicator

3. On/Stand-by Button

4. Volume Up and Down Buttons

5. Disc Tray Open/Close Button

6. Disc Skip Button

7. Equaliser Mode Select/Extra Bass/Demo Mode Button

8. Tape 2 Cassette Compartment

9. Tape 1 Cassette Compartment

10. Tuning and Time Up Button

11. CD Track Down or Fast Reverse, Tape 2 Rewind,

Tuner Preset Down Button

12. CD Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up Button

13. CD Button

14. Tuner (Band) Button

15. Tape (1 2) Button

16. Clock Button

17. Timer/Sleep Button

18. Headphone Socket

19. CD or Tape Stop Button

20. CD Play or Repeat, Tape Play Button

21. Tuning and Time Down Button

22. Memory/Set Button

23. Tape 2 Record Pause Button

24. Microphone Level Control

25. Microphone Socket

15141211

23 24

1345678

11109

Rear panel

1. AC Power Input Socket

2. AC Voltage Selector

3. Surround Speaker Terminals

4. Front Speaker Terminals

5. Span Selector Switch

6. AM Loop Aerial Socket

7. FM Aerial Earth Terminal

8. FM 75 Ohms Aerial Terminal

1345678

CD-BK137W

– 4 –

Remote control

1. Remote Control Transmitter

2. Disc Number Select Buttons

3. CD Pause Button

4. CD Memory Button

5. CD Clear Button

6. CD Track Down or Fast Reverse Button

7. CD Track Up or Fast Forward Button

8. Tape 1 Play Button

9. Equaliser Mode Select Button

10. Tape 2 Record Pause Button

11. CD Button

12. On/Stand-by Button

13. Extra Bass Button

14. Disc Skip Button

15. CD Stop Button

16. CD Play or Repeat Button

17. CD Random Button

18. Tuner Preset Up and Down Buttons

19. Tape 1/Tape 2 Stop Button

20. Tape 2 Play Button

21. Tape 2 Rewind Button

22. Tape 2 Fast Forward Button

23. Tape (1 2) Button

24. Tuner (Band) Button

25. Volume Up and Down Buttons

Buttons with " " mark in the illustration can be operated on the remote control

only.

Other buttons can be operated both on the main unit and the remote control.

1. Full-Range Speaker

2. Bass Reflex Duct

3. Speaker Wire

1. Full-Range Speaker

2. Speaker Wire

CD-BK137W

92L2390137W010

CP-BK137

– 5 –

CD-BK137W

OPERATION MANUAL

System connections

Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before plug-

ging the unit into an AC socket. If necessary, adjust the selector to correspond to the

AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage num-

ber appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

Connecting the AC power lead

After making all connections, connect the AC power lead to the unit

and then into the wall socket. If you plug in the unit first, it will enter

the demonstration mode.

Notes:

Unplug the AC power lead from the AC socket if the unit will not be in use for a pro-

longed period of time.

Never use a power lead other than the one supplied. Use of a power lead

other than the one supplied may cause an electric shock or fire.

AC Plug Adaptor

In areas (or countries) where an AC socket as shown in illustration is used, con-

nect the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC

plug adaptor is not included in areas where the AC wall socket and AC power plug

can be directly connected (see illustration ).

Setting the FM/AM span selector

The International Telecommunication Union (ITU) has established that member coun-

tries should maintain either a 100 kHz or a 50 kHz interval between broadcasting fre-

quencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows

the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).

Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the

interval (span) of your area.

To change the tuning zone:

Caution:

This operation will erase all data stored in memory including clock, timer settings,

tuner preset, and CD programme.

1 Press the ON/STAND-BY button to enter the stand-by mode.

2 Set the SPAN SELECTOR switch (on the rear panel) as follows.

For 50 kHz FM interval (9 kHz in AM) 50/9

For 100 kHz FM interval (10 kHz in AM) 100/10

3 Whilst pressing down the / button and the EQUALIZER/X-BASS/DEMO but-

ton, press the ON/STAND-BY button until "CLEAR AL" appears.

Setting the clock

In this example, the clock is set for the 24-hour (0:00) display.

Note:

The "CLOCK" or time will flash at the push of the CLOCK button when the AC power

supply is restored after a power failure or unplugging the unit.

Readjust the clock as follows.

To readjust the clock:

Perform "Setting the clock" from the beginning. If the time display is flashing, step 3

(for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

Press the ON/STAND-BY button to turn the power on.

Press the CLOCK button and within 5 seconds, press the MEMO-

RY/SET button.

Press the TUNING/TIME ( or ) button to select 24-hour or 12-

hour display and then press the MEMORY/SET button.

"0:00" The 24-hour display will appear.

(0:00 - 23:59)

"AM 12:00" The 12-hour display will appear.

(AM 12:00 - PM 11:59)

"AM 0:00" The 12-hour display will appear.

(AM 0:00 - PM 11:59)

Note that this can only be set when the unit is first installed or it has been reset.

[Refer to "Clearing all the memory (reset)".]

Press the TUNING/TIME ( or ) button to adjust the hour and then

press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.

Hold it down to advance continuously.

When the 12-hour display is selected, "AM" will change automatically to "PM".

Press the TUNING/TIME ( or ) button to adjust the minutes and

then press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1

minute. Hold it down to change the time in 5-minute intervals.

The hour will not advance even if minutes advance from "59" to "00".

The clock begins counting from "0" seconds. (Seconds are not displayed.)

The time display will disappear after a few seconds.

To confirm the time display:

Press the CLOCK button.

The time display will appear for about 5 seconds.

1 Clear all the programmed contents. [Refer to "Clearing all the memory (reset)".]

2 Perform "Setting the clock" from the beginning.

CD-BK137W

– 6 –

Remote control

Test of the remote control

Face the remote control directly to the remote

sensor on the unit.

The remote control can be used within

the range shown:

Press the ON/STAND-BY button. Does the pow-

er turn on? Now, you can enjoy the music.

Remote sensor

0.2 m - 6 m

(8" - 20')

Troubleshooting

If trouble occurs

When this product is subjected to strong external interference (mechanical shock,

excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is

operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.

2 If the unit is not restored in the previous operation, unplug and plug in the unit,

and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Clearing all the memory (reset)

1 Press the ON/STAND-BY button to enter the power stand-by mode.

2 Whilst pressing down the / button and the EQUALIZER/X-BASS/DEMO but-

ton, press the ON/STAND-BY button until "CLEAR AL" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings,

tuner preset, and CD programme.

Before transporting the unit

1 Press the ON/STAND-BY button to turn the power on.

2 Press the CD button.

3 Press the OPEN/CLOSE button to open the disc tray.

Remove all discs from the unit.

4 Press the OPEN/CLOSE button to close the disc tray.

Make sure that "NO DISC" is displayed.

5 Press the ON/STAND-BY button to enter the stand-by mode, and then unplug

the AC

power lead from the wall socket.

VOLTAGE SELECTION

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage

as follows.

Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V-240 V AC).

QACCB0012AW00

QACCE0007AW00

92L24801800222

92L24802131030

QPLGA0004AWZZ QPLGA0003AWZZ

– 7 –

CD-BK137W

1 Top Cabinet 1. Screw ...................... (A1) x4 7-1

2 Side Panel 1. Screw ...................... (B1) x8 7-1

(Left/Right)

3 CD Tray Cover/ 1. Turn on the power supply, .. 7-2

CD Player Unit open the disc tray, take out

the CD tray cover, and close.

(Note 1)

2. Hook ........................ (C1) x3

3. Screw ...................... (C2) x1

4. Hook ........................ (C3) x2

5. Socket ..................... (C4) x2

4 Rear Panel 1. Screw ...................... (D1) x6 7-2

5 Front Panel 1. Flat Cable ............... (E1) x1 8-3

2. Socket ..................... (E2) x4

3. Tip ........................... (E3) x1

4. Screw ...................... (E4) x3

5. Hook ........................ (E5) x2

6 Main PWB 1. Socket ......................(F1) x3 8-3

2. Screw .......................(F2) x8

7 Mic PWB 1. Screw ...................... (G1) x1 8-4

2. Bracket .................... (G2) x1

8 Display PWB 1. Screw .................... (H1) x11 8-4

2. Flat Cable ............... (H2) x1

Headphones PWB

1. Screw ....................... (J1) x1 8-4

2. Bracket ..................... (J2) x1

10 Tape Mechanism 1. Open the cassette holder. .. 8-4

2. Screw...................... (K1) x6

11 Turntable 1. Hook ......................... (L1) x2 8-5

2. Cover ....................... (L2) x1

12 Disc Tray 1.

Turn fully the lock lever in the

8-1

arrow direction

While holding the lock lever, rotate

8-2

the cam gear until the cam gear

rib engages with the clamp lever.

Push the slide chassis backward

8-6

to engage the claw with the

groove and remove it in the

direction of the arrow

(M1) x6

13 CD Servo PWB 1. Screw ...................... (N1) x1 9-1

(Note 2) 2. Socket ..................... (N2) x4

3. Hook ........................ (N3) x2

14 CD Mechanism 1. Hook ........................ (P1) x2 9-2

2. Hook ........................ (P2) x3

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to

be removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take sufficient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 7-2

STEP

REMOVAL

PROCEDURE

FIGURE

Figure 7-1

Note 1: How to open the changer manually. (Fig. 8-1)

1. In this state, turn fully the lock lever in the arrow direction through

the hole on the loading chassis bottom.

While holding the lock lever, rotate the cam gear anticlockwise until the

cam gear rib engages with the clamp lever.

(Fig. 8-2)

3. After that, push forward the slide chassis.

Note 2:

1. After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the front end

of the connector so as to protect the optical pickup from electro-

static damage.

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front

movement.

CD-BK137W

(A1)x2

ø3x12mm

(B1)x2

ø3x7mm

(B1)x2

ø3x10mm

(B1)x2

ø3x7mm

Rear

Panel

(B1)x2

ø3x7mm

Side Panel

(Right)

Side Panel

(Left)

(A1)x2

ø3x12mm

Top Cabinet

Pull

(C3)x1

(C4)x2

CD Servo

PWB

CD Tray Cover

(C1)x3

(C3)x1

CD Player

Unit

(D1)x5

ø3x10mm

(C2)x1

ø3x10mm

Rear

Panel

(D1)x1

ø3x7mm

CD-BK137W

– 8 –

Figure 8-1

Figure 8-2

Figure 8-3

Figure 8-4

Figure 8-5

Figure 8-6

Lock Lever

CD Player Unit

(Bottom View)

Clamp Lever

CD Player Unit

(Top View)

Cam Gear Rib

(E1)x1

(F2)x3

ø3x10mm

(F2)x5

ø3x10mm

(E2)x1

Front

Panel

(E4)x3

ø3x8mm

Main PWB

Headphones

PWB

(E3)x1

(E5)x1

Pull

(E2)x1

(F1)x1

(E2)x1

(F1)x1

(E2)x1

(E5)x1

Pull

Lug Wire

Mic PWB

(G1)x1

ø3x10mm

Open

Cassette

Holder

Lug Wire

Headphones

PWB

(J1)x1

ø3x10mm

(K1)x6

ø3x10mm

Tape

Mechanism

(H1)x11

ø3x10mm

Display

PWB

Front

Panel

(H2)x1

(G2)x1

(J2)x1

Turntable

Slide

Chassis

(L2)x1

CD Player Unit

(L1)x2

(M1)x3

– 9 –

CD-BK137W

Figure 9-1

Figure 9-2

(N2)x2

(N3)x2

(N2)x2

CD Servo

PWB

Slide

Chassis

(N1)x1

ø3x8mm

(P2)x3

(P1)x1

Slide

Chassis

Mechanism

CP-BK137/92L2390137W010

These speakers CP-BK137 and 92L2390137W010 are avail-

able in assembles only and may not be disassembled.

CD-BK137W

– 10 –

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 5 and 10 of the disassembly method to

remove the tape mechanism.

How to remove the record/playback and erase

heads (TAPE 2) (See Fig. 10-1)

1. When you remove the screws (A1) x 2 pcs., the recording/

playback head and three-dimensional head of the erasing

head can be removed.

How to remove the playback head (TAPE 1)

(See Fig. 10-2)

1. When you remove the screws (B1) x 2 pcs., the playback

head can be removed.

How to remove the pinch roller (TAPE 1/2)

(See Fig. 10-3)

1. Carefully bend the pinch roller pawl in the direction of the

arrow <A>, and remove the pinch roller (C1) x 1 pc., in the

direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring

mounting position.

How to remove the belt (TAPE 2) (See Fig. 10-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1) (See Fig. 10-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 10-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

Figure 10-1

Figure 10-2

Figure 10-3

Figure 10-4Figure 10-5

(A1)x2

Ø2x9mm

TAPE 2

Record/Playback

Head

Erase Head

Clutch Ass'y

(B1)x2

Ø2x9mm

TAPE 1

Playback

Head

Clutch Ass'y

Pinch Roller

(C1)x1

<A>

<B>

Pinch

Roller

Pawl

Pull

TAPE 2

TAPE 1

Main Belt

(E1)x1

TAPE 2

Main Belt

(D1)x1

TAPE 1

Main Belt

(D1)x1

FF/REW

Belt

(D2)x1

FF/REW

Belt

(E2)x1

Motor

(F1)x2

Ø2.6x5mm

Motor

Clutch Ass'y

– 11 –

CD-BK137W

How to remove the pickup (See Fig. 11-2)

1. Remove the stop washer (B1) x 1 pc., to remove the gear

(B2) x 1 pc.

2. Remove the screws (B3) x 2 pcs., to remove the shaft

(B4) x 1 pc.

3. Remove the pickup.

Note

After removing the connector for the optical pickup from the

connector wrap the conductive aluminium foil around the front

end of connector so as to protect the optical pickup from

electrostatic damage.

Figure 11-2

CD MECHANISM SECTION

Perform steps 1, 2, 3, 11,12, 13 and 14 of the disassembly

method to remove the CD mechanism.

How to remove the loading motor

(See Fig. 11-1)

1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.

2. Remove the drive belt (A2) x 1 pc.

Figure 11-1

ADJUSTMENT

MECHANISM SECTION

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm

Fast forward: TW-2231 — 70 to 180 g.cm

Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± 30 Hz Speaker

speed Resistor in Terminal

motor. (Load

resistance:

6 ohms)

• Tape Speed

Figure 11-3

(A1)x2

(A1)x1

Loading Motor

Motor PWB

Slide

Chassis

(A1)x2

Pulley

Drive Belt

(A2)x1

Motor

(B3)x2

ø2.6x6mm

Shaft

(B4)x1

Stop Washer

(B1)x1

Gear

(B2)x1

CD Mechanism

Pickup

TAPE MECHANISM

Tape

Motor

Variable Resistor in motor

CD-BK137W

– 12 –

Figure 12-2

CD ERROR CODE DESCRIPTION

Error State Code

[Servo System Error]

0001 Cannot detect Pickup-in SW

0002 DSP access error

[Error during close operation]

0101 Open/Close SW not functioning (Low → High)

0103 Open/Close SW not functioning (High → Low)

[Error during open operation]

0201 Open/Close SW not functioning (Low → High)

0203 Open/Close SW not functioning (High → Low)

[Error during skip operation]

0302 Pickup-in SW is not detected

0306 During Disc 1 search, Open/Close SW or Clamp SW

or Disc SW do not change to low.

0307 Clamp SW not function (Low → High)

0308 Clamp SW not function (High → Low)

EFBL

FDO

Stopped

CH1=500 mV

DC 10:1

CH2=200 mV

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100K

Zoom : 2k

Mode : SINGLE

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH2

v/DIV

200 mV

1999/04/05 20:26:47

Test Stage

Frequency Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

CD SECTION

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

*1. Input: Antenna Output: TP302

*2. Input: Antenna Output: TP301

TUNER SECTION

fL: Low-range frequency

fH: High-range frequency

AM IF 450 kHz 1,602 kHz T351 *1

AM Band — 531 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V

AM Tracking 990 kHz 990 kHz (fL): T303 *1

*1. Input: Antenna Output: TP301

*2. Input: Antenna Output: Speaker terminal

• FM RF

Signal generator: 1 kHz, 40 kHz dev., FM modulated

FM Band — 87.50 MHz T301(fL): *1

Coverage 1.3 V ± 0.1 V

FM RF 98.00 MHz 98.00 MHz L312 *2

(10-30 dB)

Test Stage

Instrument

Connection

Frequency Frequency

Display

Setting/

Adjusting

Point

Figure 12-1 ADJUSTMENT POINTS

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is

compensated inside the IC.)

* Focus offset adjustment

* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing

Fig.12-2 EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will

be 0 dB.)

* Focus gain adjustment

* Tracking gain adjustment

• Adjustment

Since this CD system incorporates the following automatic

adjustment functions, readjustment is not needed when

replacing the pickup. Therefore, different PWBs and pickups

can be combined freely.

Each time a disc is changed, these adjustments are

performed automatically. Therefore, playback of each disc

can be performed under optimum conditions.

• FM IF

Signal generator: 10.7 MHz, FM modulated

IF 10.7 MHz 98 MHz T302 *1

(Turn the

core of trans-

former T302

fully counter-

clock wise)

Test Stage

Instrument

Connection

Frequency Frequency

Display

Setting/

Adjusting

Point

*1. Input: Antenna Output: TP301

MAIN PWB

TRACKING fL

CNP302

AM LOOP

ANTENNA

T303

SO302

FM ANTENNA

TERMINAL

T301

R316

R356

TP301

TP302

IC301

IC303

L312

T302

T351

T306

AM BAND

COVERAGE fL

AM IF

FM IF

FM RF

FM BAND

COVERAGE fL

– 13 –

CD-BK137W

Figure 13 BLOCK DIAGRAM (1/3)

+B4

CNS4

BI4

CNP4

T/T UP/DOWN

+3.3V

TO DISPLAY SECTION

TO MAIN SECTION

CONSTANT

VOLTAGE

LASER

DRIVER

+3.3V

+B4

PICKUP UNIT

IC2

LC78641E

SERVO/SIGNAL

CONTROL

VVDD

SW3

DISC

NUMBER

SW2

CLAMP

SW1

OPEN/

CNP12

CNP11

TRACKING COIL

FOCUS COIL

SW4

PICKUP

SLED

MOTOR

SPINDLE

MOTOR

R-CH

VDD

RVDD

LVDD

ADAVDD

XL1

16.943 MHz

CLAMP SW

GND

RES

CLK

DRF

WRQ

INT

CD+B(+B4)

DGND

L-CH

AGND

VCC3

VCC2

VCC4

VCC1

IC3

M63001FP

FOCUS/TRACKING/

SPIN/SLED

DRIVER

XIN

XOUT

RES

WRQ

CLK

HFL

TDO

FDO

SPDO

SLDO

CONT5

CONT2

CONT3

CONT4

RCHO

RVSS

LVSS

LCHO

VDD5V

15167

17 25

41 3839

4765

26 27

316452

327168910

15432

48 46 47 32 31

INT

DEF

RFEV

FE-

TE-

30 23 11 9

HFL

+3.3V

FIN1

FIN2

TIN1

TIN2

LDS

LDD

IC1

LA9235M

SERVO AMP.

CD-BK137W

– 14 –

Figure 14 BLOCK DIAGRAM (2/3)

AM LOOP

ANTENNA

SO302

ANTENNA

CNP302

IC101

AN7345K

RECORD/

PLAYBACK AMP.

–V

VF1

UN_

FM+B

+B3

CLK

+B5

AM IF

OSC BUFF

FM IF

OSC

B.P.F

CNS601

Q107

Q105

Q102

Q103

Q601

Q602

10.7 MHz

450kHz

REC/PLAY

CLK

MO/ST

SWITCHING

+B3

+B2

FM/AM

IC302

LC72131

PLL(TUNER)

FM/AM

OUT

BIAS

T1/T2

MUTING

P.B.

REC.

AC BIAS

TAPE

TUNER

P.B.

CNP11

FROM CD SECTION

HEAD

ERASE

SWITCHING

BIAS

Q101

Q113

Q706

SWITCHING

Q114

BIAS

OSC

Q112

L103

Q104

Q106

REC./P.B. HEAD

TAPE 2

P.B. HEAD

TAPE 1

R-CH

L-CH

R-CH

L-CH

IC601

LC75341

AUDIO PROCESSOR

+B3

REC.

L NF

R NF

R REC

L REC

R NF

L NF

SWITCHING

L(T2)

R(T2)

R(T1)

L(T1)

FM/AM

MPXIN

STEREO

AM RF IN

AM OSC IN

Q360

OSC

X352

4.5 MHZ

AM BAND

COVERAGE

AM TRACKING

T303 T306

Q302

X351

456 kHz

MO/ST

VCO

DET

VCC

GND

AM IF

CF351

IC303

LA1832S

FM IF DET.

FM MPX./

AM IF

AM MIX

CF352

T351

OSC

L312 T301

CF302T302

IC301

TA7358AP

FM FRONT END

BF301

178

42 43

5413

98517

20 22 11

1615

1623

H/N

P.B

REC

T1/T2

VR401

MIC

VOLUME

SYSTEM

MUTE

VDD

Q401

Q402

Q403~

Q406

JK1

MIC

SWITCHING

IC701

IX0362AW(2/2)

MOTOR

DRIVER

SOLENOID

DRIVER

TAPE

MECHANISM

ASS'Y

Q704

Q705

– 15 –

CD-BK137W

Figure 15 BLOCK DIAGRAM (3/3)

SW601

SPAN

SELECTOR

KIA7810AP

VOLTAGE REGULATOR

–VP

VF2

VF1

Q908

Q905

CD+B

+B4

UN_SW_5V

+B5

KIA7805AP

VOLTAGE

REGULATOR

IC904

+B3

M+10V

+B2

+B1

-B1

+B6

+B5

+B2

–

+B5

RX701

LED722

REMOTE

SENSOR

D906~D909

JK901

HEADPHONES

Q707

Q901

Q701

IC903

IC901

STK402-070N

POWER AMP.

A+10V

F905

T2.5A L 250V

F903

T4A L 250V

F902

T2.5A L 250V

F901

T2.5A L 250V

F904

T4A L 250V

+Vcc

-Vcc

R-OUT

L-OUT

CLK

SO901

SPEAKER

TERMINAL

SURROUND

SPEAKER

FRONT

SPEAKER

VLOAD

RESET

+B5

+B6

VDD

–

XL701

4.1943 MHz

–

AVDD

AVD1

SW701-SW703

SW709-SW721

SW723-SW725

KEY

TO CD

SECTION

IC701

IX0362AW(1/2)

SYSTEM

MICROCOMPUTER

FL701

FL DISPLAY

333231

56 78

312

4546

1112

1 0 16 1 7 20 2123

2224

100

T.F.

PT801

POWER

TRANSFORMER

110 V

127 V

220 V

230-240 V

SW602

VOLTAGE

SELECTOR

AC POWER

SUPPLY CORD

AC 110/127/220/230-240 V

50/60 Hz

SO902

AC INPUT SOCKET

AC 110/127/220/230-240 V

50/60 Hz

RESET

FAN MOTOR

DRIVER

M901

FAN MOTOR

IC704

KIA7042A

SYSTEM

RESET

CONSTANT

VOLTAGE

IC902

RS604

LR901

AC IN

CD-BK137W

– 16 –

Figure 16 SCHEMATIC DIAGRAM (1/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 33.

R-CH

L-CH

TAPE 2

ERASE HEAD

R-CH

L-CH

TAPE 2

RECORD/PLAYBACK

HEAD

TAPE 1

PLAYBACK HEAD

A_GND

L-CH

CD_GND

+5V

GND(A_GND)

R-CH

+5V

GND(CD_GND)

Q601, Q602: SYSTEM MUTE

TAPE1_R

A_GND

TAPE1_L

SWITCHING

GND

KT-R

KCD-L

KT-L

123456

192021222324

GND

LSELO

AUX

DECK

TUN

AUX

DECK

TUN

INTERFACE

––

–

VSS

LOUT

LBASS

LTRE

LIN

–

CCB

SWITCHING

P20 1 - F

TO POWER SECTION

P25 12 - C

TO CD SERVO PWB

CNP11

MIC PWB-C

Q403~Q406: SWITCHING

C119

0.033

(ML)

C121

560P

C113

330P

C123

1/50

C117

100/16

R117

R123

2.7K

R125

12K

C147

0.001

C137

0.022

C112

330P

C114

330P

C118

0.033

(ML)

C120

560P

R114

R118

100K

R120

3.9K

C116

100/16

C122

1/50

R116

R122

2.7K

C146

0.001

R126

R124

12K

R137

15K

R138

15K

R121

3.9K

R119

100K

R115

C115

330P

C104

180P

Q106

2SC1845 F

Q104

2SC1845 F

R106

2.2K

R108

3.3K

C105

180P

Q107

2SC1845 F

Q105

2SC1845 F

R109

3.3K

R107

2.2K

Q109

2SC3331 S

R111

4.7K

R113

47K

Q108

2SC3331 S

R110

47K

R112

4.7K

R105

R104

Q406

9014 C

R416

330

R428

10K

Q102

KRC104 M

Q103

KRC104 M

R103

4.7K

C108

100/16

Q101

KTA1266 GR

C101

0.047(ML)

R101

10K

R102

10K

C106

560P

C107

560P

R424

4.7K

R420

470K

Q405

9014 C

R415

330

R427

10K

R423

4.7K

R419

470K

C434

1/50

R414

330

R426

10K

R422

4.7K

R418

470K

C435

1/50

Q403

9014 C

Q404

9014 C

R412

330

R410

10K

R421

4.7K

R417

470K

C409

1/50

R429

22K

R435

2.2K

C433

1/50

C414

220/10

C412

1/50

Q407

9014 C

R433

470K

R430

22K

Q408

9014 C

R434

4.7K

R436

4.7K

R411

R438

2.2K

R437

470K

R425

330

C413

1/50

C611

0.1(ML)

C613

0.27(ML)

C617

1/50

C629

1/50

C623

1/50

C625

1/50

C609

0.1(ML)

C627

1/50

C420

1/50

R617

3.3K

R431

2.7K

C615

220P

C616

220P

R615

3.9K

C607

10/50

C604

10/50

C605

0.022

C102

560P

C103

560P

C407

4.7/50

C401

1/50

CNP102 CNP101

R405

100K

VR401

50K(A)

C406

1/50

C408

220/6.3

Q402

9014 C

R401

1.5K

R402

R403

470K

Q401

9014 C

C404

1/50

R404

4.7K

R408

560

R407

C403

220P

C402

1/50

C405

0.0047

R409

5.6K

BI601

CNS601

R601

330

R602

330

R610

15K

R609

15K

Q601

2SC3331 S

Q602

2CC3331 S

R603

3.3K

R604

3.3K

R608

2.2K

R607

2.2K

C602

0.001

C601

0.001

IC601

LC75341

AUDIO PROCESSOR

IC10

AN73

IC101

AN7345K

RECORD/PLAYBACK AMP.

JK1

MIC

VOLUME

JP402

JP401

FM SIGNAL

PLAYBACK SIGNAL

RECORD SIGNAL

CD SIGNAL

MIC SIGNAL

– 17 –

CD-BK137W

Figure 17 SCHEMATIC DIAGRAM (2/10)

8 9 10 11 12

23456789

10 11 12

1314151617181920212223

RIPPLE

VCC

GNDALC

MUTING

GND

REC_R

REC_L

KCD-R

RSELO

RIN

RTRE

ECK

AUX

DECK

TUN

INTERFACE

–

RBASS

–

ROUT

VREF

VDD

CLK

CCB

A_10V

SWITCHING

BIAS OSC

BIAS

2 3

A_10V

1 3 4 5 6 9 2

11 12

A_10V

VF1

–VP

VF2

M_10V

UN_SW_5V

POWER

GND(M_GND)

P20 1 - G

TO POWER SECTION

GND(D_GND)

P23 12 - C

TO DISPLAY PWB

CLK

T_BIAS

T_T1/T2

REC/PLAY

M_GND

M_10V

SMUTE

VF1

–VP

VF2

UN_SW 5V

D_GND

POWER

SPAN

SW OUT

P19 11,12 - H

TO TUNER SECTION

A_10V

CLK

TUN_R

GND(D_GND)

GND(A_GND)

TUN_L

CHING

50/9 kHz

100/10 kHz

MAIN PWB-A (1/3)

SOK2

SW601

SPAN

SELECTOR

R127

6.8K

C135

47/50

C129

22/50

R133

100

C131

0.022

R131

C133

0.0033

R135

10K

C119

0.033

(ML)

C121

560P

C123

1/50

C117

100/16

R117

R123

2.7K

R125

12K

C147

0.001

R129

2.7K

C127

270P

C137

0.022

C139

3.3/50

C114

330P

C118

0.033

(ML)

C120

560P

R118

100K

R120

3.9K

C116

100/16

C122

1/50

R116

R122

2.7K

C136

22/50

C134

47/50

C128

22/50

C126

270P

C146

0.001

C132

0.0033

R136

10K

R128

6.8K

R130

2.7K

R126

68K

R124

12K

C130

0.022

R134

100

R132

Q110

2SC3331 S

R140

10K

R141

10K

Q111

2SC3331 S

R137

15K

R142

220K

C138

220/10

R138

15K

C145

0.001

C140

0.0082(P.P.)

C141

0.039(ML)

C148

0.047(ML)

R148

22K

R149

4.7

R147

47K

R146

Q114

KTC3203 Y

C142

47/50

Q112

KTA1266 GR

Q113

KRC104 M

R144

47K

R145

4.7K

C109

0.001

L103

100µH

C150

10/50

R143

220K

R121

3.9K

R119

100K

C115

330P

102

104 M

103

104 M

C108

100/16

R411

R157

100

R432

2.7K

C413

1/50

R625

22K

C603

4.7/50

CNP701

L104

330µH

R139

220

R618

3.3K

C421

1/50

C628

1/50

C626

1/50

C624

1/50

C619

220P

R389

100

R616

3.9K

C610

0.1(ML)

C612

0.1(ML)

C614

0.27(ML)

C618

1/50

C630

1/50

C608

10/50

C606

22/50

IC601

LC75341

AUDIO PROCESSOR

IC101

AN7345K

FFC701

CD-BK137W

– 18 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 33.

Figure 18 SCHEMATIC DIAGRAM (3/10)

1234

TP301

AM TRACKING fL

RF BY PASS

RF IN

RF OUT

MIX IN

GND

MIX OUT

OSC MONI

OSC

VCC

AM LOOP

ANTENNA

FM IF

FM OSC.

AM BAND

COVERAGE fL

FM RF

BUFFER

MAIN PWB-A (2/3)

D301

1SS133

D302

1SS133

C323

0.022

T303

C330

15P

C332

0.022

VD301

SVC348S

C331

0.047(ML)

R336

10K

R323

68K

C334

27P

T306

AM OSC.

IC301

TA7358AP

FM FRONT END

C303

10P

C321

0.001

BF301

B.P.F

C319

100P

C304

0.001

C305

SO302

FM ANTENNA

TERMINAL

C308

D305

1SS133

L312

C309

0.001

R311

100K

VD302

SVC211C

R313

33K

R314

C315

0.0047

C314

0.0047

C316

0.022

C317

0.001

R322

680

R325

47K

Q302

KTC3194 Y

R327

C302

0.001

C301

0.001

D308

1SS133

D307

1SS133

C318

100P

T302

C312

0.022

T301

C324

R309

10K

C313

22P

VD303

SVC211C

R316

4.7K

CF302

R382

150

C397

0.022

C320

0.022

C381

12P

X352

4.5 MHz

C382

15P

100

R375

820

C35

0.022

C342

0.022

R358

3.9K

CNP302

R302

C306

0.022

C307

10/50

C311

15P

C310

15P

C335

560P

AM ANTENNA

D304

1SS133

D303

1SS133

FM SIGNAL

AM SIGNAL

– 19 –

CD-BK137W

Figure 19 SCHEMATIC DIAGRAM (4/10)

8 9 10 11 12

9101112

131415161718192021222324

1234

91011

1213141516171819202122

1234

P301

TP302

L-CH

OUT

R-CH

OUT

MPX

VCO

RF IN

AFC

AM OSC

OUT

FM IF

AM MIX

OUT

REG

AM IF

GND

VSM

AM LOW

CUT

FM/AM

OUT

FM/AMPHASE

AM IF

A_10V

A_GND

UN_SW_5V

SW_5V

TUN_R

TUN_L

CLK

GND

(D_GND)

P17 12 - C

TO MAIN SECTION

P20 1 - G

TO POWER SECTION

X OUT

VSS

AOUT

AIN

VDD

FM IN

AM IN

N.C

IF IN

X IN

N.C

FM/AM

CONT

FM/AM

ST INO

MO/ST

SD FM DET

OUT

VCC

MO/ST

STEREO

CONSTANT

VOLTAGE

20 287 9 24 25 22 21 26 23 27

R382

150

C397

0.022

C394

47/16

C392

0.001

R381

10K

R380

1.5K

C393

1/50

C380

10/50

C387

0.022

R379

2.2K

C385

0.01

L351

100µH

C386

330P

IC302

LC72131

PLL(TUNER)

R395

47K

R360

4.7K

C320

0.022

C381

12P

X352

4.5 MHz

C382

15P

C388

100P

R375

820

R374

R373

R372

R378

R386

22K

R376

C391

47/16

R384

5.6K

R383

5.6K

R385

5.6K

Q360

KTA1266 GR

R359

1.8K

R387

5.6K

R377

47K

R393

C351

0.022

C352

10/50

C350

0.022

T351

CF352

R352

C353

0.022

C354

0.022

R353

390

C398

100/16

C357

2.2/50

R355

3.3K

C356

0.001

CF351

C399

0.022

C355

22P

R388

3.9K

C370

1/50

L352

100µH

D306

1SS133

C396

100/16

C395

0.022

R351

5.6K

R365

10K

C342

0.022

R358

3.9K

C362

3.3/50

C361

0.022

C364

3.3/50

C363

0.022

C365

0.022

X351

456 kHz

C366

0.001

C367

1/50

R350

2.7K

R357

470K

R356

C368

1/50

C369

27P

C374

0.015(ML)

C373

0.015

(ML)

C371

1/50

R361

1.5K

C372

1/50

R362

1.5K

R364

6.8K

R363

6.8K

IC303

LA1832S

FM IF DET./

FM MPX./AM IF

C358

1/50

CD-BK137W

– 20 –

Figure 20 SCHEMATIC DIAGRAM (5/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 33.

IC901

STK402-070N

POWER AMP.

C902

1/50

C917

0.022

C918

0.022

C920

0.022

C927

0.1

Q902

KTC3199 GR

C930

0.1

C926

0.1

C925

0.1

C903

220P

C904

15P

R903

R905

820

R906

10K

C905

47/50

C906

100/50

C907

100/50

C901

1/50

C919

10/50

C928

47/16

C929

47/16

C931

3300/35

C932

2200/50

C933

2200/50

C936

100/50

C93

47/

R938

12K

R936

22K

R937

22K

R939

47K

C908

10/50

C909

100/50

C910

47/50

R907

100

(1W)

C912

220P

R922

10K

Q906

KTA1266 GR

Q907

KRC107 M

R908

100(1W)

R919

10K

D914

1SS133

R925

100K

R934

22K

R932

22K

C924

0.022

C921

100/16

R935

10K

R923

R924

3.3K

R933

560

ZD901

MTZJ6.2A

D909

1N4004

D906

1N4004

D901

1SS133

LR901

R902

R904

56K

R909

820

R911

R912

R910

56K

C911

15P

R913

68K

R901

68K

Q904

KTC3203 Y

R918

10K

D904

1SS133

D905

1SS133

D913

1N4001

IC903

KIA7810AP

Q905

KTC2026

ZD903

DZ3.9BSB

IC904

KIA7805AP

F902

T2.5A L 250V

F901

T2.5A L 250V

C914

0.1(ML)

R915

4.7

C913

0.1(ML)

R914

4.7

R921

390

R920

390

L901

0.29µH

L902

0.29µH

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

P16 2 - C/P17 10,11 - H/P19 10 - H

TO MAIN SECTION/TUNER SECTION

GND(A_GND)

POWER

GND(CD_GND)

A_10V

SW_5V

UN_SW_5V

VF1

–VP

VF2

M_10V

GND(D_GND)

GND(M_GND)

+5V(CD_+B)

123456789

10 11

Ch1

Out

Ch2

Out

+Vcc

–Vcc

Ch1 Ch2

AC IN

321

-B

FM SIGNAL

– 21 –

CD-BK137W

Figure 21 SCHEMATIC DIAGRAM (6/10)

8 9 10 11 12

–

AC POWER

SUPPLY CORD

AC 110/127/220/230-240 V

50/60 Hz

C941

0.047

(ML)

C935

0.047(ML)

Q903

KTC3199 GR

Q902

KTC3199 GR

C934

0.047(ML)

C940

0.047

(ML)

C931

3300/35

C932

2200/50

C933

2200/50

C936

100/50

C937

47/50

C938

47/50

C939

100/50

C943

100/50

C942

100/50

C944

100/16

R938

12K

R936

22K

R937

22K

R926

R916

1.5K

R917

1.5K

R939

47K

C945

10/50

R931

C946

47/16

Q901

KTC3203 Y

M901

FAN

MOTOR

SOK901

CNS902

D903

1SS133

D910

1N4004S

Q908

KTA1266 GR

D911

1N4004S

D912

1N4004S

R927

22K

R942

33K

C915

22/50

C916

22/50

ZD901

MTZJ6.2A

D909

1N4004S

D906

1N4004S

D908

1N4004S

D907

1N4004S

ZD902

DZ30BSB

R941

2.2K

R940

SO901

SPEAKER

TERMINAL

F905

T2.5A L 250V

CNP901

CNS901

CNS801

CNP801

SO902

AC INPUT SOCKET

SW602

VOLTAGE

SELECTOR

PT801

POWER TRANSFORMER

F904

T4A L 250V

F903

T4A L 250V

IC902

RS604

L901

0.29µH

L902

0.29µH

R943

R930

68K

R929

15K

D902

1SS133

PW901B

PW901A

JK901

HEADPHONES

HEADPHONES PWB-D

SP_L-CH

SP_R-CH

SP_L-CH_GND

SP_R-CH_GND

SP_L-CH

SP_R-CH

SP_L-CH_GND

SP_R-CH_GND

–

220 V

230-240 V

110 V

127 V

AC 110/127/220/230-240 V

50/60 Hz

T.F.

MAIN PWB-A (3/3)

–

AC IN

FAN MOTOR

DRIVER

4321

-B

FRONT

SPEAKER

SURROUND

SPEAKER

CD-BK137W

– 22 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 33.

Figure 22 SCHEMATIC DIAGRAM (7/10)

10V

–

4.9V

TAPE MECHANISM

PWB-F

SOLENOID

–

TAPE

MOTOR

PLAY SW1

END SW1

F_REC

SOL1

SOL2

MTR+

END SW2

GND

PLAY SW2

T2 PLAY

GND

T2 RUN

+MTR

SOL2

SOL1

F_REC

T1 RUN

T1 PLAY

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

P15

P16

P13

P20

P14

P11

P10

P12

P19

P18

P17

49 48 47 46 45 44 43 42 41 40

39 38 37 36 35 34 33 32 31

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

100

KEY3

SPEANA0

SMUTE

VSS

REMOCON

NO USE

SP_PLA

SYS STOP

AVD1

KEY0

AVDD

KEY2

SPEANA2

SPEANA3

M+BUSY/TUN SM

VDD

TIMER LED

T_MOTOR

T_SOL_A

T_SOL_B

T1 RUN

SPK_DET

PLAY_CONT

POWER

T2 RUN

CD CLAMP SW

T1 PLAY SW_A

T2 PLAY SW_B

FPA

FPB

KARAOKE LATCH

MIC IN

DISTOUT/SW OUT

SPN

DIST3

DIST2

DIST1

DIST0

P15

P16

P13

P20

P14

P11

VLOAD

P10

P12

P19

P18

P17

VDD

–20DB ATT

S_BUSY

T_BIAS

T_T1/T2

REC/PLAY

RES OUT

DRF

WRQ

RESET

VPP/IC

XT2

CD INT

VDD

CD CLK

CD DI

CD DO

CD CE

CLK

AVSS

SPEANA1

MOTOR DRIVER

Q705, Q705: SOLENOID DRIVER

Q705

KTA1271 Y

Q706

KTA1273 Y

R768

10K

Q704

KTA1271 Y

D703

1SS133

D702

1SS133

C710

47/16

R767

10K

R766

10K

SOK3

R719

R720

R721

R722

10K

R724

R726

2.2K

R727

2.2K

R728 2.2K

R729 2.2K

R778 1K

R792 1K

R732 1K

R737 1K

R736 1K

R735 1K

R734 1K

R742

D714

1SS133

R750 10K

R749

10K

R751 10K

R748

4.7K

R753 10K

R777

10K

R755

4.7K

R775

10K

R776

10K

R758

10K

R759

10K

R702

R703

R704

R705

R706

R707

R708

R710

R717

R716

R715

R714

R713

R712

R711

KRC10

R744

LED722

4204SRT7

D701

1SS133

R733

C705 100/10

C708 1/50

R743 33

FL701

FL DISPLAY

IC701

IX0362AW

SYSTEM

MICROCOMPUTER

FFC702

– 23 –

CD-BK137W

Figure 23 SCHEMATIC DIAGRAM (8/10)

8 9 10 11 12

–25.6V

–25.4V

4.9V

9.7V

0 31 32 33

34 33 32 31

97 98 99

100

KEY3

KEY0

AVDD

KEY2

SPEANA2

SPEANA3

USY/TUN SM

–20DB ATT

S_BUSY

T_BIAS

T_T1/T2

REC/PLAY

RES OUT

DRF

WRQ

RESET

VPP/IC

XT2

CD INT

VDD

CD CLK

CD DI

CD DO

CD CE

CLK

AVSS

213

3 2

P25 12 - E

TO CD SERVO PWB

CD INT

DRF

WRO(DSP)

CD CE

CD DO

CD DI

CD CLK

RES OUT

CLAMP SW

CD GND

TUN SM

CLK

T-BIAS

T_T1/T2

REC/PLAY

M_GND

M_10V

SMUTE

VF1

–VP

VF2

AC_RLY CONT

UN_SW 5V

D_GND

SW_5V

POWER

SPAN

SW OUT

CNP12

CNP701

P17 12 - E

TO MAIN PWB

DISPLAY PWB-B

RESET

SW701

ON/STAND-BY

RD01

680

SW702

CLOCK

RD02

820

SW703

TIMER/SLEEP

RD03

RD04

1.5K

RD05

2.2K

RD06

2.7K

RD07

3.9K

SW709

DISC SKIP

SW710

OPEN/CLOSE

RD08

56K

RD26

6.8K

RD09

100K

SW714

RD13

680

SW715

TAPE

RD14

820

SW716

TUNING/TIME

DOWN

RD15

SW717

MEMORY/SET

RD16

1.5K

SW718

REWIND

RD17

2.2K

SW719

FAST FORWARD

RD18

2.7K

SW720

PLAY/REPEAT

RD19

3.9K

SW721

STOP

RD21

10K

SW723

REC PAUSE

RD20

5.6K

RD22

15K

SW724

TUNING/TIME UP

SW725

TUNER(BAND)

RD23

33K

RD24

100K

SW711

EQUALIZER/

X-BASS/DEMO

SW712

VOLUME UP

SW713

VOLUME

DOWN

RD12

1.5K

RD10

820

RD11

RD25

680

R719

R720

R721

R777

10K

R755

4.7K

775

10K

R776

10K

R702 1K

R703 1K

R704 1K

R705 1K

R706 1K

R707 1K

R708 1K

R709

R710 1K

R717 1K

R716 1K

R715 1K

R714 1K

R713 1K

R712 1K

R711 1K

R718

D716

1SS133

Q708

KRC107 M

C720

22/10

XL701

4.1943 MHz

R700

C704

30P

C703

30P

C713

0.1/50

C702

1000/6.3

C701

0.022

Q701

KRC107 M

R744

R779

3.3

L701

100µH

R725

C714

0.01

D707

1SS133

R770

47K

D708

1SS133

Q707

KRC102 M

R771

100K

D709

1SS133

C716

0.022

C715

3.3/50

IC704

KIA7042A

SYSTEM RESET

RX701

REMOTE

SENSOR

C717

10/16

C719

47/16

C718

0.022

R773

100

R772

4.7K

R769

10K

D710

1SS133

D711

1SS133

BI702

CNS702

SOK2

R745

100K

C707

1/50

FFC701

CD-BK137W

– 24 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 33.

Figure 24 SCHEMATIC DIAGRAM (9/12)

2.7V

3.3V

1.5V

21 22

–

CD MOTOR PWB-H

ANDBY

VREF

MUTE IN5–

IN5+

SPO VCC1

SLDO SP+

SP–

VCC3SL–

SL+

GND

TR–

TR+

FO–

FO+

SLDO

SP+

SP–

SL+

SL–

PU IN

GND(D)

FDO

TDO

GND

FO–

FO+

TR+

TR–

VCC

VREF

TIN1

FIN1

FIN2

TIN2

SLC

JIT

FIN1

FIN2

TIN1

TIN2

VCC

VREF

REF1

RFSW

RF_

N/C

LDS

LDD

GND

N/C

LDOF

ODRV

AGON

EFBL

TESO

TESI TES

FE_

TE_

HFL

SPDO

TDO

FDO

LD_M+

LD_M–

VCC4

LOADING M+

LOADING M–

PICKUP UNIT

RFEV

VCC2

GND

CD SERVO PWB-E

LASER

DRIVER

CNP1

CNS1A

CNS1B

R51 68K

R52 56K

R53 68K

R54 68K

R56

56K

R55

56K

100/10

C55

0.01

C54

47/10

0.1

10/16

C51

47/10

C53

0.001

R47

KTA1266 GR

C52

0.01

CNP2

CNS2A

CNS2B

C46

0.022

IC3

M63001FP

IC3:

FOCUS/TRACKING/

SPIN/SLED DRIVER

CNP3

CNS3A

CNS3B

CNP3A

SPINDLE

MOTOR

SLED

MOTOR

SW4

PICKUP IN

R48

6.8K

C49

100/10

C50

100/10

C47

100/10

R22

470

R21

470

1SS13

D21

1SS13

R44

R35

C23

0.047

R12

680

R79

1.5M

C24

2.2/50

C21

0.1

R13

680

C81

0.022

C25

0.1

R11

12K

C22

100P

R10

27K

C20

0.1

R14

1.2K

R80

R15

10K

330

C42

68P

C26

0.047

C27

0.1

C17

0.0047

C28

47/10

C29

0.1

C41

100/10

C82

0.022

C18

C11

47/10

6.8K

27K

C12

0.1

R42

56K

39K

C13

0.01

C14

0.33

82K

18K

IC1

LA9235M

SERVO AMP.

R25

10K

R50

C19

100/10

CD SIGNAL

– 25 –

CD-BK137W

Figure 25 SCHEMATIC DIAGRAM (10/10)

8 9 10 11 12

• The numbers 1 to 13 are waveform numbers shown in page 34.

3.3V

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

65666768697071727374757677787980

MUTER

EMPH

MUTEL

LVDD

LCHO

LVSS

RVSS

RCHO

RVDD

XVDD

XIN

XOUT

XVSS

ASLRCK

ASDACK

ASDFIN

LRSY

DATACK

16M

DATA

SBSY

SFSY

SBCK

SPDO

SLDO

FG(D_Vref)

LASER

CONT1

CONT2

CONT3

CONT5

CONT4

PCK

C2F

VDD

DOUT

FSX

TEST

EFLG

INT

WRQ

RES

DRF

VDD5V

VSS

CONT6

CONT7

V/P

FSEQ

DEFECT

EFMO

PD01

VVSS

PCKIST

PD02

VVDD

HFL

SLCIST

SLCO

EFMIN

JITTV

JITTC

PH(RFENV)

VREF

ADAVDD

ADAVSS

PHREF

BHREF

TBLO

TDO

FDO

–

WRQ

DRF

CLK

CLAMP SW

GND

INT

RES

FROM MAIN PWB

P16 1 - B

P23 12 - B

CNS601

CNS702

FROM DISPLAY PWB

DRF

RES

WRQ

INT

VSS

O/C

DISC_NO

CD LOADING

MOTOR PWB-G

O/C

GND(D)

DISC_ON

M+

M–

FDO

SPDO

SLDO

R-CH

AGND

L-CH

DGND

+5V

CONSTANT

VOLTAGE

R22

470

R21

470

D22

1SS133

D21

1SS133

KRC102 M

R44

R35

R38

270

R39

470

R40 1.2K

R45 1.2K

R46 1K

R17 1K

C31

100/10

R16

10K

C30

0.1

ZD61

Z02W3.9Z

KTC3203 Y

C64

47/10

R58

220

C83

0.022

C56

470/6.3

R19

C34

0.022

R81

3.9K

C39

10/16

C38

10/16

R82

3.9K

C58

30P

C40

0.0015

XL1

16.943 MHz

R20

220

C57

30P

R84

10K

C43

0.0015

R83

10K

C44

0.1

C45

100/10

L62

2.2µH

R71 1K

R72 1K

R73 1K

R74 1K

R75 1K

R76 1K

R77 1K

R78 1K

C71 100P

C72 100P

C73 100P

C74 100P

C75 100P

C76 100P

C77 100P

C78 100P

C80

0.1

R68 1K

R67 1K

R94

3.3K

R95

4.7K

047

R12

680

R79

1.5M

C24

2.2/50

C21

0.1

R13

680

R11

12K

R14

1.2K

R80

C26

0.047

C27

0.1

C28

47/10

0.1

100/10

IC2

LC78641E

SERVO/SIGNAL

CONTROL

BI4

CNP4

CNS4

CNP12

CNP11

SW1

OPEN/

T/T UP/DOWN

SW2

CLAMP

SW3

DISC

NUMBER

L61

0.82µH

CD-BK137W

– 26 –

23456

Figure 26 WIRING SIDE OF P.W.BOARD (1/6)

LUG1

Q114

R149

R146

R108

R106

L103

C140

R138

R137

R109

R107

R121

Q107

Q105

Q109

R148

R147

C142

C148

C105

C104

C141

L104

C107

R115

C119

C123

C121

C129

C139

C137

C127

C113

CNP101

C117

C115

R127

IC101

R119

R123

R135

R131

C131

C133

C138

R139

C136

R136

R132

R134

R617

R618

R603

R604

R601

R609

R431

R142

R602

R625

R429

R608

Q601

C628

R607

C603

C601

C150

R126

D909

D907

D906

C931

D908

C145

F905

T2.5A L 250V

F904

T4A L 250V

R133

C135

CNP901

R105

C103

C102

R110

R101

R103

R102

R157

C109

C605

C604

R374

R373

R389

R384

R388

R360

R359

R387

R377

R378

IC302

R372

C610

C612

C618

C382

C385

C392

C342

C386

C387

C381

C391

C313

C311

C393

C306

C307

C312

VD303

Q360

R316

R302

Q302

C316

C301

BF301

R313

C304

R375

R382

R380

T302

T351

R309

R327

R322

R325

T301

C380

C394

C397

X352

C611

C607

C623

C625

C617

C613

C614

C629

C626

C624

C630

C606

C608

C413

C433

Q602

C602

C435

C409

R414

R422

R435

R433

R434

R436

R395

R376

R393

R379

R351

R365

T306

R323

R352

R423

R419

R420

R424

Q405

Q406

C361

C362

C335

C334

C332

C331

C309

L312

C303

D305

D304

CNP302

D307

D308

C315

T303

C374

C373

R355

R438

R437

R426

R427

R428

R425

R361

R363

R364

R362

R357

R350

R356

TP302

R416

R415

R411

C414

C407

JP402

C357

C370

L352

C356

C358

C434

C399

C398

C368

C369

C366

C365

C363

C364

C367

C323

C371

C372

IC303

CF351

R417

R412

R405

R410

L901

R421

Q404

Q407

Q408

Q403

R418

C412

C609

IC601

112

510

152024 13

C420

C627

C146

R615

Q113

Q111

R140

R141

R124

R113

R111

R112

R122

C122

C132

C130

R129

R130

BI601

R125

R117

C106

Q108

Q101

Q112

R144

R145

Q106

Q104

C116

C101

Q110

CNP102

IC902

R936

C934

C935

Q907

Q906

Q904C919

R925

R924

R922

R923

R919

D914

R918

C920

C933

R937

R915

R914

C914

C910

R90

C903

C905

C906

C902

C929

C928

C901

R901

C907

C932

C941

D904

C913

C904

F903

T4A L 250V

C938

D912

D913

D911

C937

C943

C942

C939

C944

R917

R916

Q908

Q901

SOK901

C936

D903

D910

R939

R940

IC903

F902

T2.5A L 250V

F901

T2.5A L 250V

SW602

VOLTAGE SELECT

L902

C126

C128

C120

C134

R120

R128

R118

R104

R116

R114

C118

C112

C114

C108

Q103

R143

C147

Q102

C940

C917

C918

C930

C926

C927

R934

R941

R927

R926

D901

R938

ZD901

ZD902

ZD903

R913

R933

R932

CNP701

R610

R430

R432

C615

C616

C421

C619

R616

R386

C396

C395

D306

C353

C354

C350

C351

R336

R381

R385

R383

C324

C317

C310

C314

C330

X351

C305

C319

C308

R314

R358

R311

VD302

VD301

IC301

C318

C302

C355

L351

C320

C352

CF302

CF352

R353

Q903

Q902

R942

LR901

D301

D302

D303

1234567

BK133W MAIN PCB

230-0137W-000

JM-1 94V0

UPDATE20010406

112

510

152024 13

FROM

TAPE 2 RECORD/

PLAYBACK HEAD

P31 11 - F P31 10 - F

FROM

TAPE MECHANISM GND

FROM

TAPE 1 PLAYBACK

HEAD

12345

CNS601

CNP11

P30 4 - A

TO CD SERVO PWB

SW601

SPAN

SELECTOR

50/9 kHz 100/10 kHz

AM LOOP

ANTENNA

75 OHMS GND

SO302

FM ANTENNA

TERMINAL

ECB

BCE

TP301

123

510

1520

CBE

ECB

BCE

321

BCE

ECB

321

510

1520

12345678

123

BCE

123

230-2

2127 V

110 V

C388

C321

C915

C916

SO901

SPEAKER

TERMINAL

L-CH R-CH

FRONT

SPEAKER

SURROUND

SPEAKER

L-CH R-CH

(265)

– 27 –

CD-BK137W

Figure 27 WIRING SIDE OF P.W.BOARD (2/6)

8 9 10 11 12

JK901

HEADPHONES

54321

PW901B

HEADPHONES

PWB-D

R408

Q401

C403

C404

Q402

C402

R404

R403

R402

R401

R407

R409

JK1

MIC

C406

C405

C401

C408

MIC PWB-C

MIC

VOLUME

E B C

JP401

Q906

Q904

R922

R923

R919

D914

R918

R915

R914

C914

C910

C911

C912

R910

R909

R912

R911

R920

R921

R903

R904

R905

R902

R930

R929

R931

R943

D905

D902

R935

C909

R908

R906

IC901

R907

C903

C905

906

C928

C901

C907

C913

C904

C945

Q905

C908

C946

938

R917

R916

Q901

SOK901

C936

939

IC903

F902

T2.5A L 250V

F901

T2.5A L 250V

CNP801

SW602

VOLTAGE SELECTOR

C918

C930

C921

C925

C924

IC904

R934

R938

ZD901

ZD902

ZD903

R913

R933

R932

BK133W HEADPHONES PCB

BK133W KARAOKE PCB

230-0133W-003

230-0133W-002

CNS901

PT801

POWER

TRANSFORMER

CNS801

MAIN PWB-A

12345

PW901A

SOK2

TO DISPLAY PWB

P29 10 - H

COLOR TABLE

RD(R)

WH(W)

RED

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

BROWN

ORANGE

YELLOW

AC POWER SUPPLY CORD

AC 110/127/220/230-240 V

50/60 Hz

SO902

AC INPUT SOCKET

123

12345

230-240 V

220 V127 V

110 V

AC 110/127/220/230-240 V

50/60 Hz

VR401

FFC701

CNS902

M901

FAN MOTOR

SO901

PEAKER

ERMINAL

CD-BK137W

– 28 –

Figure 28 WIRING SIDE OF P.W.BOARD (3/6)

23456

R771

D709

Q707

C714

C716

C701

Q701

R779

R706

R707

XL701

R700

R704

R703

R702

R708

RD06

RD07

R714

R715

R716

C703

C704

P17

P18

P19

P12

C707

R768

RD09

RD26

RD10

RD11

RD12

RD08

R728

R727

R726

C718

C717

C710

IC704

C715

R770

R772

R705

R744

100

SW715

TAPE

TO TAPE MECHANISM PWB

246 810

357911

SW720

PLAY/

REPEAT

SW712

VOLUME UP

R709

R710

R711

R712

R713

R717

R724

FL701

R773

R722

R769

R766

R767

D711

D707

L701

D710

C702

C719

C713

C720

Q708

Q705

D703

D702

Q706

Q704

D716

SOK3

SW710

OPEN/CLOSE

SW711

EQUALIZER/

X-BASS/DEMO

SW713

VOLUME

DOWN

RX701

D708

SW709

DISC SKIP

1 2 3

321

B C E B C E

B C E

IC701

15161718192021222324252627282930313233

DISPLAY PWB-B

P31 8 - A

FFC702

– 29 –

CD-BK137W

Figure 29 WIRING SIDE OF P.W.BOARD (4/6)

8 9 10 11 12

121

R718

RD18

RD17

RD16

RD15

P10

P11

P14

P20

P13

P16

P15

D714

R745

R742

R737

R734

R735

R743

R748

R749

R751

R750

R736

R729

RD20

RD21

RD22

RD23

RD24

RD19

RD14

RD25

R775

R778

R725

R732

R759

R733

R758

R777

R776

R755

R792

RD03

RD02

RD01

R753

D701

R721

R720

R719

RD04

RD05

RD13

SW714

SW724

TUNING/

TIME UP

SW703

TIMER/SLEEP

SW725

TUNER

(BAND)

SW719

FAST

FORWARD

SW723

REC PAUSE

SW718

REWIND

SW717

MEMORY/SET

SW715

TAPE

SW716

TUNING/

TIME DOWN

SOK2

CNP701

P27 10 - E

TO MAIN PWB

2 4 6 8 10 12 14 16 18 20

3 5 7 9 11 13 15 17 19 21

SW721

STOP

1 2345678910

BI702

CNS702

P30 5 - A

TO CD SERVO PWB

CNP12

C708

C705

LED722

SW701

ON/STAD-BY

SW702

CLOCK

FL701

IC701

123456789

101112131415161718

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

FFC701

CD-BK137W

– 30 –

Figure 30 WIRING SIDE OF P.W.BOARD (5/6)

23456

• The numbers 1 to 13 are waveform numbers shown in page 34.

R52

IC1

C52

C53

R50

R47

R25

R42

C18

C83

C44

C17

C12

C26

C29

C81

C25

C21

R11

R14

R80

C22

C57

C58

C30

R46

R45

R22

R17

R16

R19

C34

R20

R82

R84

R81

R83

C43

C40

R10

C20

C71

R58

R79

R13

R12

R68

R67

C23

C80

R95

R94

R73

R71

R72

C72

C73

C74

C75

C76

C78

R78

C77

R77

C42

C27

R15

R38

R39

R40

R21

IC2

R74

R75

R76

C13

C14

IC3

R48

C46

R55

R56

R51

R53

R54

R44

R35

C55

C82

L62

ZD61

C64

C24

C28

CNP2

CNP1

C50

C47

C41

D21

D22

C31

C38

C56

C39

XL1

123456123456

CNP4

CNP3

C54

C11

L61

12345678910

CNP12

CNS601

P26 4 - A

FROM MAIN PWB

CNS702

P29 9 - A

FROM

DISPLAY PWB

12345

CNP11

C49

C45

C51

C19

SPINDLE MOTOR

SW4

PICKUP IN

SLED MOTOR

12345

CNP3A

CNS1B

CNS1A

CNS2A

CNS2B

PICKUP UNIT(306)

CD MOTOR

PWB-H

CNS3B

CNS3A

12345

CD SERVO PWB-E

B C E

E C B

– 31 –

CD-BK137W

Figure 31 WIRING SIDE OF P.W.BOARD (6/6)

8 9 10 11 12

TAPE 2

SOK3

CNP101

P26 3 - A

TO MAIN PWB

CNP102

P26 2 - A

TO MAIN PWB

P28 2 - G

TO DISPLAY PWB

CD LOADING MOTOR

PWB-G

123

456

BI4

T/T UP/DOWN

LOADING MOTOR

–

SW3

DISC

NUMBER

SW2

CLAMP

SW1

OPEN/

CNS4

TAPE

MOTOR

SOLENOID

SW SW

TAPE 1

PLAYBACK HEAD

ERASE HEAD

RECORD/PLAYBACK

HEAD

7 6 5 4 3 2 1

TAPE MECHANISM PWB-F

TAPE MECHANISM

ASSEMBLY

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

FFC702

CD-BK137W

– 32 –

VOLTAGE

0.7 V

0 V

3.3 V

2.4 V

0 V

1.6 V

0 V

4.7 V

1.7 V

0 V

1.6 V

3.3 V

0 V

1.6 V

0 V

2.1 V

0 V

3.3 V

3.5 V

3.3 V

1.6 V

0 V

NO.

VOLTAGE

IC2

0 V

3.3 V

3.0 V

1.5 V

0 V

1.5 V

3.0 V

3.3 V

1.8 V

3.0 V

0 V

1.7 V

3.3 V

0 V

3.0 V

1.6 V

2.4 V

0 V

4.8 V

4.9 V

4.6 V

0 V

4.9 V

0 V

3.2 V

0 V

3.4 V

NO.

VOLTAGE

4.86 V

0 V

4.85 V

0 V

4.78 V

4.82 V

4.84 V

0 V

4.91 V

4.72 V

2.34 V

2.31 V

0 V

4.91 V

4.88 V

0 V

4.91 V

0 V

4.95 V

0 V

0.37 V

0 V

4.97 V

4.87 V

4.98 V

4.97 V

0 V

4.83 V

0 V

1.94 V

13.76 V

3.55 V

4.85 V

4.72 V

4.97 V

0 V

NO.

VOLTAGE

IC701

0 V

4.97 V

0 V

–29.7 V

–29.5 V

–26.4 V

–20.2 V

–26.4 V

–29.5 V

–20.2 V

–29.5 V

–26.4 V

–29.5 V

–20.2 V

–17.3 V

–29.5 V

–26.4 V

–20.2 V

–23.3 V

–29.5 V

–26.4 V

NO.

VOLTAGE

100

1.6 V

1.8 V

2.1 V

0 V

2.1 V

1.6 V

4.9 V

3.5 V

1.6 V

0 V

4.9 V

1.6 V

2.1 V

1.9 V

0 V

4.2 V

0 V

2.1 V

4.9 V

2.1 V

NO.

VOLTAGE

IC3

0 V

4.96 V

4.89 V

4.78 V

5.1 V

5.5 V

5.0 V

4.66 V

5.03 V

4.97 V

10.0 V

0 V

NO.

VOLTAGE

IC601

0 V

0.55 V

2.16 V

0 V

1.25 V

0 V

0.58 V

3.17 V

3.55 V

0 V

4.72 V

4.37 V

0 V

3.67 V

0.38 V

0 V

2.16 V

0.55 V

0 V

NO.

VOLTAGE

IC101

2.12 V

4.78 V

2.12 V

2.11 V

0 V

4.65 V

3.02 V

4.78 V

4.08 V

1.63 V

1.13 V

2.08 V

1.31 V

1.29 V

2.07 V

0 V

1.43 V

1.99 V

1.44 V

2.08 V

4.48 V

3.35 V

NO.

VOLTAGE

IC303

2.15 V

0 V

4.83 V

9.87 V

4.4 V

0 V

4.64 V

2.27 V

4.66 V

0 V

2.13 V

0 V

4.86 V

0.73 V

6.3 V

0 V

2.33 V

NO.

VOLTAGE

IC302

0 V

16.72 V

0 V

16.72 V

0 V

16.72 V

0 V

NO.

VOLTAGE

IC901

NO.

VOLTAGE

IC902

20.3 V

0 V

9.97 V

NO.

VOLTAGE

IC904

20.3 V

0.67 V

5.7 V

NO.

VOLTAGE

Q905

14.33 V

20.3 V

13.8 V

NO.

VOLTAGE

IC301

0.8 V (0V)

1.5 V (0V)

3.6 V (0.4V)

1.5 V (0V)

0 V (0V)

3.6 V (0.4V)

2.8 V (0.2V)

3.5 V (0.3V)

3.6 V (0.3V)

1.6 V

0 V

2.6 V

0 V

3.3 V

1.6 V

0 V

1.6 V

0 V

1.6 V

0 V

1.6 V

3.3 V

NO.

VOLTAGE

IC1

NO.

VOLTAGE

IC704

5 V

0 V

5 V

– 33 –

CD-BK137W

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

indicates AM

indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ 1 ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means pico-farad and the unit of the capacitor

without such a symbol is microfarad. As to electrolytic

capacitor, the expression “capacitance/withstand voltage”

is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

REF. NO

DESCRIPTION

POSITION

SW712 VOLUME UP ON—OFF

SW713 VOLUME DOWN ON—OFF

SW714 CD ON—OFF

SW715 TAPE ON—OFF

SW716 TUNING/TIME DOWN ON—OFF

SW717 MEMORY/SET ON—OFF

SW718 REWIND ON—OFF

SW719 FAST FORWARD ON—OFF

SW720 PLAY/REPEAT ON—OFF

SW721 STOP ON—OFF

SW723 REC/PAUSE ON—OFF

SW724 TUNING/TIME UP ON—OFF

SW725 TUNER (BAND) ON—OFF

SW1 OPEN/CLOSE ON—OFF

SW2 CLAMP ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW601 SPAN SELECTOR 50/9 Hz—100/10 Hz

SW602 VOLTAGE SELECTOR 110 V—127 V—

220 V—

230-240 V

SW701 ON/STAND-BY ON—OFF

SW702 CLOCK ON—OFF

SW703 TIMER/SLEEP ON—OFF

SW709 DISC SKIP ON—OFF

SW710 OPEN/CLOSE ON—OFF

SW711

EQUALIZER/X-BASS/DEMO

ON—OFF

TYPES OF TRANSISTOR AND LED

REF. NO DESCRIPTION POSITION

(1) (2) (3)

(S) (G) (D)

E C B

FRONT

VIEW

C B E

FRONT

VIEW

B C E

FRONT

VIEW

2SC1845 F

2SC3331 S

KRC102 M

KRC104 M

KRC107 M

4204SRT7KTC20269014 C

FRONT

VIEW

KTA1266 GR

KTA1271 Y

KTA1273 Y

KTC3194 Y

KTC3199 GR

KTC3203 Y

CD-BK137W

– 34 –

WAVEFORMS OF CD CIRCUIT

FDO

TDO

Stopped

CH1=500mV

DC 10:1

CH3=500mV

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2µs

CH3 : 0.000V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500mV

IC2 24

IC2 23

FDO

DRF

Stopped

CH1=500mV

DC 10:1

CH2=10V

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

-3div -1div 0div +1div +3div

CH Position To

CH2

Position

0.20div

IC2 24

IC2 72

IC1 18 ,

IC2 16

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

IC1 27

DRF

Stopped

CH1=10V

DC 10:1

CH2=1V

DC 10:1

100ms/div

(100ms/div)

NORM:100kS/s

=Record Length=

Smoothing : ON CH1 : 0.0V

CH2 : 0.00V

Main : 100K

Zoom : 2K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924ms

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

IC2 72

IC1 18 ,

IC2 16

FDO

SPDO

Stopped

CH1=200mV

DC 10:1

CH2=500mV

DC 10:1

500ms/div

1999/04/07 09:51:15

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K

Zoom : 2K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924ms

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

IC2 24

IC2 25

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K

Zoom : 2K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0ns

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500mV

1999/04/05 17:33:17

IC2 24

IC2 1

IC2 2

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887ms

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

IC2 37

DATA

DATACK

LRSY

Stopped

CH1=2V

DC 10:1

CH2=2V

DC 10:1

CH3=2V

DC 10:1

5us/div

(5us/div)

NORM:100kS/s

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 5K

Zoom : 100

Mode : AUTO

Type : EDGE CH3

Delay : 0.0ns

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH3

v/DIV

2 V

1999/04/05 20:50:17

IC2 57

IC2 58

IC2 59

EFBL

FDO

Stopped

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K

Zoom : 2k

Mode : SINGLE

Type : EDGE CH1

Delay : 0.0ns

Hold off : 0.2µs

CH3 : 0.00V

CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH2

v/DIV

200mV

1999/04/05 20:26:47

IC2 24

IC1 18 ,

IC2 16

IC1 13 ,

IC2 22

CH1=500mV

DC 10:1

CH2=200mV

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

– 35 –

CD-BK137W

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

HOW TO USE

CAUTION

Cleaning fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the

brush on the CD cleaner disc which has the mark next to it.

Place the CD cleaner disc onto the CD disc tray with the brush side down,then

press the play button.

You will hear music for about 20 seconds and the CD player will automatically stop.

If it continuous to turn, press the stop button.

The CD lens cleaner should be effective for 30-50 operations, however if the

brushes become worn out earlier then please the cleaner disc.

If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft

cloth.

Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the

event of this happening then drink and / or rinse with clean water and seek medical

advice.

The CD cleaner disc must not be used on car CD players or on computer CD-ROM

drives.

is prohibited by law.

TROUBLESHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean

the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check

the following items.

Remove the cabinet and follow the trouble shooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup

lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn off the power, and wipe the lens softly using a cleaning paper moistened with commercially available cleaning solution so

as not to damage it. Be careful not to touch the lens with bare hands.

Dust gradually accumulates on the objective lens during use, and it may degrade performance. To avoid this problem, use a

cleaning disc designed for CD optical pickup lenses.

When a CD cannot be played

1. "E-CD01" is displayed.

(1) Check the power to IC2 (LC78641E), the presence of the clock signal (16.943 MHz) and the status of the RESET terminal

(pin 71 on IC2).

(2) Does the pickup move to the PICKUP-IN Switch (SW4) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, but playback does not occur.

(1) Focus-HF system check

(2) Tracking system check

(3) Spin system check

(4) PLL system check

(5) Others

CD-BK137W

– 36 –

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

FDO

DRF

Stopped

CH1=500 mV

DC 10:1

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2

Position

0.20 div

FDO

TDO

Stopped

CH1=500 mV

DC 10:1

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.000 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

If the level is not normal, check around pins 27~29 on IC1.

1. Is focus servo activated ?

(Waveform drawing Figure 36-2)

Pins 1~11 on IC1

Check the laser diode driver Q3 peripheral circuit.

Forcus error circuit (pins 20 and 21 on IC1).

When a disc is loaded, start playback operation.

2. Does DRF change from "L" to "H" ?

Is the disc rotating ?

3. Is the HF waveform normal ?

(Waveform drawing Figure 36-3)

Check the spin system.

If the disc is spinning and a HF waveform is generated,

DRF will go H.

Figure 36-1

Check the laser diode driver Q3 peripheral circuit.

(1) Focus-HF system check.

Although a CD is inserted and the cover is closed, "NO

DISC" is displayed.

1. Does the pickup move to the PICKUP-IN Switch (SW4)

position ?

Sled motor (M2).

Press the OPEN/CLOSE switch (SW1) without inserting a

disc, and try starting the playback operation.

2. Does the focus (lens) move up and down ?

(Waveform drawing Figure 36-1).

Check the focus peripheral circuit.

3. Is the laser lit ?

Spindle motor (M1).

4. Is the turntable rotating ?

Figure 36-2 Figure 36-3

Yes

– 37 –

CD-BK137W

FDO

SPDO

Stopped

CH1=200 mV

DC 10:1

CH2=500 mV

DC 10:1

500 ms/div

1999/04/07 09:51:15

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

DRF

Stopped

CH1=10 V

DC 10:1

CH2=1 V

DC 10:1

100 ms/div

(100 ms/div)

NORM:100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.0 V

CH2 : 0.00 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

The tracking servo is not activated.

Check the peripheral circuits at pins 18 and 19 on IC1, pin 16 on

IC2, and CNS1A/B.

If the waveform shown in Figure 37-1 appears and soon after

NO DISC appears ?

(2) Tracking system check.

Check the TE waveform at pin 18 on IC1.

A normal jump operation cannot be completed or the beginning of

the track cannot be found.

Check the around pin 23 on IC2.

"Initialization" is possible, but play is not possible ?

Data cannot be read. Check the VCO-PLL system.

"Initialization" is not possible.

Figure 37-1

Figure 37-2

Press the OPEN/CLOSE switch without inserting a disc, and

then try starting the play operation.

(3) Spin system check.

The spin driver circuit is OK.

1. The turntable rotates a little ?

(Waveform drawing Figure 37-2)

Check around pin 25 on IC2, pins 15 and 16 on IC3, and CNS3A/B.

2. The turntable doesn't rotate.

Yes

CD-BK137W

– 38 –

DOUT

Stopped

CH1=2 V

DC 10:1

500 ns/div

1999/04/07 09:25:28

(500 ns/div)

NORM:200 MS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 1 K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

FDO

PDO2

PDO1

Stopped

CH1=500 mV

DC 10:1

CH3=1 V

DC 10:1

CH4=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM:20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

1999/04/05 17:33:17

Is pin 35 (C2F) on IC2 "L" ?

Yes

The HF waveform is normal and the time is displayed

normally, but no sound is produced. Or the sound

has dropouts.

(5) Others.

There are too many error flags on a damaged disc which

makes error correction impossible.

Check again using a known good disc.

1. When playing at normal speed.

Check the peripheral circuit at pin 37 (DOUT) on IC2 and

the waveform (Figure 38-2).

If OK, Check the unit.

When a disc is loaded, start play operation.

(4) PLL system check.

The HF waveform is normal, but the TOC data cannot be

read.

Check the PDO waveform. (Figure 38-1)

Check around pins 1~6 on IC2.

Figure 38-1

Figure 38-2

– 39 –

CD-BK137W

FUNCTION TABLE OF IC

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (1/2)

1 PD01 Output — For PULL Phase-comparison output terminal for built-in VCO control.

2 PD02 Output Input Phase-comparison output terminal for built-in VCO control.

Rough servo : OFF, phase servo : ON.

3 VVSS — — Ground terminal for built-in VCO.

4 PCKIST Input — Resistor terminal for setting the PDO output current.

5 VVDD Input — Power terminal for built-in VCO.

6 FR Input — Resistor terminal for setting the VCO frequency range.

7 HFL Input — Mirror detection signal input terminal.

8 SLCIST Input — For slice level control

Resistance connection terminal for current adjustment of

SLCO output.

9 SLCO Output — Control output.

10 EFMIN Input — EFM signal input terminal.

11* JITTV Output Unfixed Jitter detection/monitor terminal.

12 JITTC Output — Jitter detection/adjustment terminal.

13 BH Input — BH signal input terminal. A/D input.

14 PH(RFENV) Input — PH signal or RFENV signal input terminal. A/D input.

15 FE Input — FE signal input terminal. A/D input.

16 TE Input — TE signal input terminal. A/D input.

17 VREF Input — VREF signal input terminal. A/D input.

18 ADAVDD Input — AD for servo, D/A power terminal.

19 ADAVSS — — AD for servo, D/A ground terminal.

20* PHREF Output (1/2VDD) PH reference output terminal. D/A output.

21* BHREF Output (1/2VDD) BH reference output terminal. D/A output.

22 TBLO Output (1/2VDD) Output terminal for tracking balance. D/A output.

23 TDO Output (1/2VDD) Output terminal for tracking control. D/A output.

24 FDO Output (1/2VDD) Output terminal for focus control. D/A output.

25 SPDO Output (1/2VDD) Output terminal for spindle control. D/A output.

26 SLDO Output (1/2VDD) Output terminal for sled control. D/A output.

27* FG Input — FG signal input terminal. (When not used, connect to 0 V)

28 LASER Output L LASER ON/OFF control terminal.

29 CONT1 Input/Output Input mode General purpose input/output terminal 1.

Controlled with serial data command

30 CONT2 Input/Output Input mode General purpose input/output terminal 2.

from microcomputer

When not used,

31 CONT3 Input/Output Input mode General purpose input/output terminal 3.

set it as the input terminal

and

32 CONT4 Input/Output Input mode General purpose input/output terminal 4.

open it by connecting

to 0 V, or set it

33 CONT5 Input/Output Input mode General purpose input/output terminal 5.

as the output terminal and open it.

34* PCK Output H Clock monitor terminal for EFM data replay. 4.3218 MHz as phase clock.

35* C2F Output H C2 flag output terminal.

36 VDD Input — Power terminal of digital system.

37* DOUT Output L Output terminal of digital OUT. (EIAJ format)

38* FSX Output L

Output terminal of synchronous signal of 7.35 kHz divided from quartz oscillation.

39* EFLG Output L C1, C2 correct monitor terminal.

40 TEST Input — Input terminal for test. Surely connected to 0 V.

41* EMPH Input/Output Input mode

Emphasis terminal. After resetting, it is configured as an input terminal. It can be controlled

from the outside. It is also becomes a emphasis monitor terminal under command control.

42* MUTEL Output H Mute output terminal for L channel.

43* MUTER Output H Mute output terminal for R channel.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

In this unit, the terminal with asterisk mark (*) is open terminal which is not connected to the outside.

CD-BK137W

– 40 –

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (2/2)

44 LVDD Input — L channel Power terminal for L channel.

45 LCHO Output 1/2VDD D/A converter L channel output terminal.

46 LVSS — — Ground terminal for L channel. Surely connected to 0 V.

47 RVSS — — R channel Ground terminal for R channel. Surely connected to 0 V.

48 RCHO Output 1/2VDD D/A converter R channel output terminal.

49 RVDD Input — Power terminal for R channel.

50 XVDD Input — For quartz Power terminal for quartz oscillation.

51 XIN Input Oscillation oscillation Ground terminal of 16.9344 MHz quartz oscillation.

52 XOUT Output Oscillation

53 XVSS — — Ground terminal for quartz oscillation. Surely connected to 0 V.

54 ASLRCK Input — For anti L/R clock input terminal. (When not used, connect to 0 V)

55 ASDACK Input — shock mode Bit clock input terminal. (When not used, connect to 0 V)

56 ASDFIN Input —

L/R channel data input terminal. (When not used, connect to 0 V)

57* LRSY Output L For digital L/R clock output terminal.

58* DATACK Output L data output Bit clock output terminal.

59* DATA Output L L/R channel data output terminal.

60* 16M Output Clock output 16.9344 MHz output terminal.

61* SFSY Output L Output terminal of synchronous signal of subcode frame.

It drops when subcode stand by.

62* SBSY Output L Output terminal of synchronous signal of subcode block.

63* PW Output L Output terminal of sub codes P,A,R,S,T,U and W.

64 SBCK Input — Clock input terminal to read sub code. (When not used, connect to 0 V)

65 CE Input — For Chip enable signal input terminal.

66 CL Input —

microcomputer

Data transmission clock input terminal.

67 DI Input — interface Data input terminal.

68 DO Output L Data output terminal.

69 INT Output H Interruption signal output terminal.

70 WRQ Output H Interruption signal output terminal.

71 RES Input — Reset input terminal of LC78640. When turning on power, set it at "L".

72 DRF Output L Focus ON detection terminal.

73 VDD5V Input — Power terminal for microcomputer interface.

74 VSS — — Ground terminal of digital system. Surely connected to 0 V.

75 CONT6 Input/Output Input mode General purpose input/output terminal 6.

Controlled with serial data command

from microcomputer

When not used,

76 CONT7 Input/Output Input mode General purpose input/output terminal 7.

set it as the input terminal

and

open it by connecting

to 0 V, or set it

as the output terminal and open it.

77* V/P Output H Monitor output terminal for automatic switch of rough servo/phase control.

"H" for rough servo, and "L" for phase servo.

78* FSEQ Output L Output terminal synchronous signal detection. "H" is output when

synchronous signal detected by EFM signal matches synchronous signal

internally generated.

79* DEFECT Input/Output Input mode Defect terminal. After resetting, it is configured as an input terminal. It can be

controlled from the outside.

It also becomes a defect monitor terminal under command control

80* EFMO Output Unfixed EFM signal output terminal.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

In this unit, the terminal with asterisk mark (*) is open terminal which is not connected to the outside.

Be sure to supply the same potential to each power terminal. (VVDD, ADAVDD, VDD, LVDD, RVDD, XVDD)

Terminal witch is controlled by the power terminal (VDD5 V) for a microcomputer interface :

CE (65 pin), CL (66 pin), DI (67 pin), DO (68 pin), INT (69 pin), WRQ (70 pin), RES (71 pin), DRF (72 pin),

CONT6 (75 pin), CONT7 (76 pin)

– 41 –

CD-BK137W

Figure 41 BLOCK DIAGRAM OF IC

IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E)

IC1 VHiLA9235M/-1: Servo Amp. (LA9235M)

PDO1

PDO2

VVSS

PCKIST

VVDD

HFL

SLCIST

SLCO

EFMIN

JITTV

JITTC

PH(RFENV)

SPDO

SLDO

LASER

CONT1

CONT2

CONT3

CONT4

CONT5

PCK

C2F

VDD

DOUT

FSX

EFLG

TEST

EFMO

DEFECT

FSEQ

V/P

CONT7

CONT6

VSS

VDD 5V

DRF

RES

WRQ

INT

VREF

ADAVDD

ADAVSS

PHREF

BHREF

TBLO

TDO

FDO

SBCK

SBSY

SFSY

16M

DATA

DATACK

LRSY

ASDACK

ASLRCK

ASDFIN

XVSS

XOUT

XIN

XVDD

RVDD

RCHO

RVSS

LVSS

LCHO

LVDD

MUTER

MUTEL

EMPH

LC78641E

REF

LA9235M

REF

AGCON

ODRV

AGCON

ODRV

REF

LPF

APC

ODRV

REF

LPF

PH/BH

1 30FIN1 VCC

FIN2

RFSW

3TIN1

TIN2

26 NC

25 PH

24 BH

23 NC

5REF1

TESI

14TESTO

13EFBL

12AGON

11ODRV

10LDOF

9GND

8LDD

7LDS

6VREF

TEST

17 HFL

18 TE

19 TE-

20 FE

21 FE-

22 RFEV

28 RF-

CD-BK137W

– 42 –

1 VDD VDD Input (+) POWER SUPPLY.

2 P37 -20 dB ATT Output -20 dB ATTENUATOR.

3* P36 NO USE Output GND

DSA_STB Input/Output DSA STRUBE

4 P35 T_BIAS Output TAPE RECORD BIAS.

5 P34 T_T1/T2 Output TAPE T1/T2 CHANGE.

6 P33 REC/PLAY Output TAPE REC/PLAY CHANGE.

7 P32 RES OUT Output CD DSP RESET & MPEG MICROCOMPUTER RESET.

8 P31 DRF Input CD RF LEVEL DETECTION.

9 P30 WRQ Input CD DSP WRITE REQUEST.

10 RESET RESET Input RESET.

11 X2 X2 Output MAIN CLOCK.

12 X1 X1 Input MAIN CLOCK.

13 VPP/IC XVPP/IC — GND

14* XT2 XT2 — OPEN.

15 P04 SPN Input TUNER SPAN CHANGE.

16 VDD VDD Input (+) POWER SUPPLY.

17 P27 CD CLK Output CD DSP CLOCK.

18 P26 CD DI Output CD DSP COMMAND.

19 P25 CD DO Input CD DSP CODE Q OUT.

20 P24 CD CE Output CD DSP CE OUTPUT.

21 P23 CE Output CE OUTPUT.

22 P22 CLK Output CLOCK OUTPUT.

23 P21 DI Output DATA OUTPUT.

24 P20 DO Input DATA INPUT.

25 AVSS AVSS — ANALOG GROUND.

26 ANI7 O/C SW Input CD OPEN/CLOSE SWITCH.

DISC NO SW Input CD DISC NUMBER SWITCH.

DSA_DATA Input/Output DS DATA INPUT.

27 ANI6 NO USE Input GND

TUNER SM Input TUNER SIGNAL METER INPUT.

DSA_ACK Input/Output DSA ACR.

28 ANI5 SPEANA 2 Input SPEANA DATA INPUT 16 kHz.

29 ANI4 SPEANA 1 Input SPEANA DATA INPUT 1 kHz.

30 ANI3 SPEANA 0 Input SPEANA DATA INPUT 63 kHz.

31-33 ANI2-ANI0 KEY 2-KEY 0 Input KEY INPUT.

34 AVDD AVDD Input ANALOG VDD.

35 AVREF AVREF Input ANALOG REF VOLTAGE.

36 INTP3 P_IN Input POWER FAILURE DETECT.

37* P02 JOG 1 Input JOG VOLUME INPUT 1.

38 P01 JOG 0 Input JOG VOLUME INPUT 0.

39 INTP0 REMOCON Input REMOCON INPUT.

40 VSS VSS — GROUND VOLTAGE.

41 P74 SMUTE Output SYSTEM MUTE CONTROL.

42 P73 T_SOL_B Output TAPE 2 SOLENOID CONTROL.

43 P72 T_SOL_A Output TAPE 1 SOLENOID CONTROL.

44 P71 T_MOTOR Output TAPE MOTOR CONTROL.

45 P70 TIMER LED Output TIMER LED CONTROL.

46 VDD VDD Input (+) POWER SUPPLY.

47* P127 AC RLY_CONT Output AC RELAY CONTROL.

48 P126 SP-RLY Output SPEAKER OUTPUT RELAY CONTROL.

49 P125 SP_DET Input SPEAKER OUTPUT DETECTION.

IC701 RH-iX0362AWZZ: System Microcomputer (IX0362AW) (1/2)

Port Name

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 43 –

CD-BK137W

50 P124 T 1 RUN Input TAPE 1 RUN PULSE INPUT.

51 P123 T 2 RUN Input TAPE 2 RUN PULSE INPUT.

52 P122 CD CLAMP SW Input CD CHANGER CLAMP SWITCH.

53 P121 NO USE Input GND

54 P120 PLAY SW_B Input PLAY SWITCH FOR T 2.

55 P117 FPA Input TAPE 2 A-SIDE FULL PROOF.

56 P116 FPB Input TAPE 2 B-SIDE FULL PROOF.

57 P115 MIC SW Input MIC SWITCH.

58* P114 LCK 0 Output LED DRIVER LCK.

59 P113

DISTOUT

Output DESTINATION OUTPUT.

60 FIP39 NO USE Output GND

61* FIP38 KARAOKE LATCH Output KARAOKE LATCH.

62* FIP37 NO USE Output GND

MPEG_POW Output MPEG POWER CONTROL.

63* FIP36 NO USE Output GND

RDS RST/ESS_ACK Output RDS FAN RESET.

64* FIP35 NO USE Input GND

RDS RDDA/ESS_STB Input RDS TRANSMIT DATA INPUT/DSA STROBE.

65* FIP34 NO USE Output GND

RDS RDCL/ESS_DI Output RDS CLOCK/DSA DATA OUTPUT.

66* FIP33 NO USE Input GND

RDS READY/ESS_DO Input RDS READY/DSA DATA INPUT.

67* P103 DIST3 Input DESTINATION INPUT.

FIP32 P22 Output FL DISPLAY DRIVER.

68* P102 DIST2 Input DESTINATION INPUT.

FIP31 P21 Output FL DISPLAY DRIVER.

69 P101 DIST1 Input DESTINATION INPUT.

FIP30 P20 Output FL DISPLAY DRIVER.

70* P100 DIST0 Input DESTINATION INPUT.

FIP29 P19 Output FL DISPLAY DRIVER.

71-78 FIP28-FIP21 P18-P11 Output FL DISPLAY DRIVER.

79 VLOAD VLOAD Input FL DRIVER (-) POWER SUPP. -30 V

80-89 FIP20-FIP11 P10-P1 Output FL DISPLAY DRIVER.

90-100 FIP10-FIP0 G11-G1 Output FL DISPLAY DRIVER.

IC701 RH-iX0362AWZZ: System Microcomputer (IX0362AW) (2/2)

Port Name

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-BK137W

– 44 –

IC601 VHiLC75341/-1: Audio Processor (LC75341)

Figure 44 BLOCK DIAGRAM OF IC

222324

123

10 11 12 13 14 15 16

LVref

RVref

CONTROL

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CIRCUIT

LOUT

LBASS

LIN

LSEL0

L2 L1

R1 R2

R3 R4

RSEL0

R1N

RTRELTRE

RBASS

ROUT

VREF

VDD

CLK

VSS

CCB

INTERFACE

Tuner

Tape

Video

24 23 22 21 20 19 18 17 16 15 14 13

123456789101112

LC75341

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

CLK

VDD

VREF

ROUT

RBASS

RTRB

RIN

RSEL0

– 45 –

CD-BK137W

1 TO CH2 inverted input.

2 FD CH1 inverted input.

3* FO CH1 output offset control.

4 FO+ CH1 inverted output.

5 FO- CH1 non-inverted output.

6 TR+ CH2 inverted output.

7 TR- CH2 non-inverted output.

8-14 GND GND

15 SL- CH3 non-inverted output.

16 SL+ CH3 inverted output.

17 SLDO CH3 inverted input.

18 VCC1 Power supply 1 (CH1, CH2, CH3)

19 STANDBY STAND-BY signal input.

20 VRFE CH1-CH4 Reference voltage input.

21 MUTE Mute signal input (CH6).

22 IN5- CH5 inverted input.

23 IN5+ CH5 non-inverted input.

24 VCC2 Power supply 2 (CH4).

25 SPO SPDO CH4 inverted input.

26 SP+ CH4 inverted output.

27 SP- CH4 non-inverted output.

28 VCC3 Power supply 3 (CH5).

29-35 GND GND

36* OUT5+ CH5 non-inverted output.

37* OUT5- CH5 inverted output.

38 LOADING M- CH6 non-inverted output.

LOADING M+

CH6 inverted output.

40 VCC4 Power supply 4 (CH6).

41 LD_M- CH6 inverted input.

42 LD_M+ CH6 non-inverted input.

IC3 VHiM63001FP-1: Focus/Tracking/Spin/Sled Driver (M63001FP)

Pin No.

Terminal

Name

Function

Figure 45 BLOCK DIAGRAM OF IC

In this unit, the terminal with asterisk mark (*) is open terminal

which is not connected to the outside.

FO+

FO–

TR+

TR–

SL–

SL+

SLDO

VCC1

STANDBY

VTEF

MUTE

GND

VCC3

SP–

SP+

SPO SPDO

VCC2(SPN)

IN5+

IN5–

LD_M+

LD_M–

VCC4

LOADING M+

LOADING M–

OUT5–

OUT5+

M63001FP

CD-BK137W

– 46 –

FL701 VVKSVA9MS13-1: FL Display

FL DISPLAY

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

2G 3G 4G 5G 6G 7G 8G 9G1G

(L)

(R)

CD-BK137W

MINI COMPONENT SYSTEM

MODEL CD-BK137W

CD-BK137W Mini Component System consisting of

CD-BK137W (main unit), CP-BK137 (front speakers) and

92L2390137W010 (surround speakers).

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK137W

– 1 –

INTEGRATED CIRCUITS

IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M

IC2 VHILC78641E-1 J AV Servo/Signal Control,LC78641E

IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,

M63001FP

IC101 VHIAN7345K/-1 J AM Record/Playback Amp.,AN7345K

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S

IC601 VHILC75341/-1 J AM Audio Processor,LC75341

IC701 RH-IX0362AWZZ J AV System Microcomputer,

IX0362AW

IC704 VHIKIA7042AP1 J AC System Reset,KIA7042A

IC901 VHISTK40270N1 J AY Power Amp.,STK402-070N

IC902 92L5660100W000 J Silicon,RS604

IC903 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP

IC904 VHIKIA7805AP1 J AF Voltage Regulator,KIA7805AP

TRANSISTORS

Q1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q2 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q3 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q101 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q102,103 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q104~107 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F

Q108~111 VS2SC3331//-1 J AB Silicon,NPN,2SC3331 S

Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q113 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q114 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q401~408 92L2830901403 J Silicon,NPN,9014 C

Q601,602 VS2SC3331//-1 J AB Silicon,NPN,2SC3331 S

Q701 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q704,705 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q706 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q707 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q708 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q901 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q902,903 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q904 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q905 VSKTC2026//-1 J AF Silicon,NPN,KTC2026

Q906 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q907 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q908 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

DIODES

D21,22 VHD1SS133//-1 J AA Silicon,1SS133

D301~308 VHD1SS133//-1 J AA Silicon,1SS133

D701~703 VHD1SS133//-1 J AA Silicon,1SS133

D707~711 VHD1SS133//-1 J AA Silicon,1SS133

D714 VHD1SS133//-1 J AA Silicon,1SS133

D716 VHD1SS133//-1 J AA Silicon,1SS133

D901~905 VHD1SS133//-1 J AA Silicon,1SS133

D906~912 VHD1N4004S/-1 J AB Silicon,1N4004S

D913 92L2810400130 J Silicon,1N4001

D914 VHD1SS133//-1 J AA Silicon,1SS133

LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7

ZD61 VHEZ02W3R9Z-1 J AC Zener,3.9V,Z02W3.9Z

ZD901 VHEMTZJ6R2A-1 J AA Zener,6.2V,MTZJ6.2A

ZD902 VHEDZ300BSB-1 J AB Zener,30V,DZ30BSB

ZD903 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter

CF302 RFILF0124AFZZ J AD FM IF,10.7 MHz

CF351 RFILF0003AWZZ J AK FM IF,10.7 MHz

CF352 RFILA0009AWZZ J AE AM IF,450 kHz

TRANSFORMERS

1 PT801 92L29517250140 J BN Power with CNS801/CNS901

T301 RCILB0065AWZZ J AC FM OSC.

T302 RCILI0017AWZZ J AB FM IF

T303 RCILA0052AWZZ J AE AM Antenna

T306 RCILB0058AWZZ J AC AM OSC.

T351 RCILI0019AWZZ J AD AM IF

COILS

L61 VP-XHR82K0000 J AC 0.82 µH,Choke

L62 VP-XH2R2K0000 J AB 2.2 µH,Choke

L103 VP-DH101K0000 J AB 100 µH,Choke

L104 VP-MK331K0000 J AB 330 µH,Choke

L312 RCILR0056AWZZ J AB FM RF

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L701 VP-DH101K0000 J AB 100 µH,Choke

L901,902 RCILZ0137AWZZ J 0.29 µH

VARIABLE RESISTOR

VR401 92L29200503030 J AG 50 kohms (A) [Mic Volume]

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

VD302,303 VHCSVC211C/-1 J AG Variable Capacitance,SVC211C

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz

XL1 92LCRSTL1746A J AC Crystal,16.943 MHz

XL701 RCRSP0003AWZZ J AH Crystal,4.1943 MHz

CAPACITORS

C6 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C7 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C8 92L27100104108 J 0.1 µF,25V

C11 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C12 92L27100104108 J 0.1 µF,25V

C13 92L27100103108 J 0.01 µF,50V

C14 92L27100334008 J 0.33 µF,50V

C17 92L27100472108 J 0.0047 µF,50V

C18 92L27100030108 J 3 pF,50V

C19 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C20,21 92L27100104108 J 0.1 µF,25V

C22 92L27100101108 J 100 pF,50V

C23 92L27100473108 J 0.047 µF,50V

C24 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C25 92L27100104108 J 0.1 µF,25V

C26 92L27100473108 J 0.047 µF,50V

C27 92L27100104108 J 0.1 µF,25V

C28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C29,30 92L27100104108 J 0.1 µF,25V

C31 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C34 92L27100223108 J 0.022 µF,50V

C38,39 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C40 92L27100152108 J 0.0015 µF,50V

C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C42 92L27100680508 J 68 pF,50V

C43 92L27100152108 J 0.0015 µF,50V

C44 92L27100104108 J 0.1 µF,25V

C45 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C46 92L27100223108 J 0.022 µF,50V

C47 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C49,50 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C51 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C52 92L27100103108 J 0.01 µF,50V

C53 92L27100102108 J 0.001 µF,50V

C54 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C55 92L27100103108 J 0.01 µF,50V

C56 VCEAZA0JW477M J AC 470 µF,6.3V,Electrolytic

C57,58 92L27100300508 J 30 pF,50V

C64 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic

C71~78 92L27100101108 J 100 pF,50V

C80 92L27100104108 J 0.1 µF,25V

C81~83 92L27100223108 J 0.022 µF,50V

C101 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C102,103 92L2700056143 J 560 pF,50V

C104,105 VCCSPA1HL181J J AA 180 pF,50V

CD-BK137W

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-BK137W

C106,107 92L2700056143 J 560 pF,50V

C108 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C109 92L2700010243 J 0.001 µF,50V

C112~115 92L2700033143 J 330 pF,50V

C116,117 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C118,119 VCQYKA1HM333K J AB 0.033 µF,50V,Mylar

C120,121 92L2700056143 J 560 pF,50V

C122,123 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C126,127 92L2700027143 J 270 pF,50V

C128,129 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C130,131 VCKZPA1HF223Z J AA 0.022 µF,50V

C132,133 92L2700033243 J 0.0033 µF,50V

C134,135 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C136 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C137 VCKZPA1HF223Z J AA 0.022 µF,50V

C138 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C139 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C140 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C141 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar

C142 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C145~147 92L2700010243 J 0.001 µF,50V

C148 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C150 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C301,302 92L2700010243 J 0.001 µF,50V

C303 92L2691010043 J 10 pF,50V

C304 92L2700010243 J 0.001 µF,50V

C305 92L2691005043 J 5 pF,50V

C306 VCKZPA1HF223Z J AA 0.022 µF,50V

C307 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C308 92L2691005043 J 5 pF,50V

C309 92L2700010243 J 0.001 µF,50V

C310,311 92L2691015043 J 15 pF,50V

C312 VCKZPA1HF223Z J AA 0.022 µF,50V

C313 92L2691022043 J 22 pF,50V

C314,315 92L2700047243 J 0.0047 µF,50V

C316,317 92L2700010243 J 0.001 µF,50V

C318,319 92L2691010143 J 100 pF,50V

C320 VCKZPA1HF223Z J AA 0.022 µF,50V

C321 92L2700010243 J 0.001 µF,50V

C323 VCKZPA1HF223Z J AA 0.022 µF,50V

C324 92L2691004043 J 4 pF,50V

C330 92L2691015043 J 15 pF,50V

C331 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C332 VCKZPA1HF223Z J AA 0.022 µF,50V

C334 92L2691027043 J 27 pF,50V

C335 92L2700056143 J 560 pF,50V

C342 VCKZPA1HF223Z J AA 0.022 µF,50V

C350,351 VCKZPA1HF223Z J AA 0.022 µF,50V

C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C353,354 VCKZPA1HF223Z J AA 0.022 µF,50V

C355 92L2691022043 J 22 pF,50V

C356 92L2700010243 J 0.001 µF,50V

C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCKZPA1HF223Z J AA 0.022 µF,50V

C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCKZPA1HF223Z J AA 0.022 µF,50V

C364 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C365 VCKZPA1HF223Z J AA 0.022 µF,50V

C366 92L2700010243 J 0.001 µF,50V

C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C369 92L2691027043 J 27 pF,50V

C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCQYKA1HM153K J AB 0.015 µF,50V,Mylar

C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C381 92L2691012043 J 12 pF,50V

C382 92L2691015043 J 15 pF,50V

C385 92L2700010343 J 0.01 µF,50V

C386 92L2700033143 J 330 pF,50V

C387 VCKZPA1HF223Z J AA 0.022 µF,50V

C388 92L2691010143 J 100 pF,50V

C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C392 92L2700010243 J 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C395 VCKZPA1HF223Z J AA 0.022 µF,50V

C396 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C397 VCKZPA1HF223Z J AA 0.022 µF,50V

C398 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C399 VCKZPA1HF223Z J AA 0.022 µF,50V

C401,402 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C403 VCCSPA1HL221J J AA 220 pF,50V

C404 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C405 92L2700047243 J 0.0047 µF,50V

C406 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C407 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C408 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic

C409 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C412,413 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C414 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C420,421 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C433 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C434,435 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C601,602 92L2700010243 J 0.001 µF,50V

C603 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

C604 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C605 VCKZPA1HF223Z J AA 0.022 µF,50V

C606 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C607,608 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C609~612 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C613,614 VCQYKA1HM274K J AB 0.27 µF,50V,Mylar

C615,616 VCCSPA1HL221J J AA 220 pF,50V

C617,618 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C619 VCCSPA1HL221J J AA 220 pF,50V

C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C701 VCKZPA1HF223Z J AA 0.022 µF,50V

C702 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic

C703,704 92L2691030043 J 30 pF,50V

C705 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C707,708 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C710 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C713 RC-EZD104AF1H J AB 0.1 µF,50V,Electrolytic

C714 92L2700010363 J 0.01 µF,50V

C715 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C716 VCKZPA1HF223Z J AA 0.022 µF,50V

C717 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic

C718 VCKZPA1HF223Z J AA 0.022 µF,50V

C719 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C720 VCEAZA1AW226M J 22 µF,10V,Electrolytic

C901,902 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C903 VCCSPA1HL221J J AA 220 pF,50V

C904 92L2691015043 J 15 pF,50V

C905 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C906,907 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C908 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C909 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C910 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C911 92L2691015043 J 15 pF,50V

C912 VCCSPA1HL221J J AA 220 pF,50V

C913,914 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C915,916 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C917,918 VCKZPA1HF223Z J AA 0.022 µF,50V

C919 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C920 VCKZPA1HF223Z J AA 0.022 µF,50V

C921 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C924 VCKZPA1HF223Z J AA 0.022 µF,50V

C925~927 92L2700010463 J 0.1 µF,50V

C928,929 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

C930 92L2700010463 J 0.1 µF,50V

C931 VCEAZW1VW338M J 3300 µF,35V,Electrolytic

C932,933 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic

C934,935 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C936 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C937,938 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C939 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C940,941 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C942,943 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C944 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C945 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C946 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic

RESISTORS

92L32100000008 J

0 ohm,Jamper,ø1.25×2mm,Green

R3 92L32150823008 J 82 kohms,1/10W

R4 92L32150183008 J 18 kohms,1/10W

R5 92L32150393008 J 39 kohms,1/10W

R6 92L32150273008 J 27 kohms,1/10W

R7 92L32150682008 J 6.8 kohms,1/10W

R8 92L32150331008 J 330 ohms,1/10W

R10 92L32150273008 J 27 kohms,1/10W

R11 92L32150123008 J 12 kohms,1/10W

R12,13 92L32150681008 J 680 ohms,1/10W

R14 92L32150122008 J 1.2 kohms,1/10W

– 2 –

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK137W

R15,16 92L32150103008 J 10 kohm,1/10W

R17 92L32150102008 J 1 kohm,1/10W

R19 92L32150470008 J 47 ohms,1/10W

R20 92L32150221008 J 220 ohms,1/10W

R21,22 92L32150471008 J 470 ohms,1/10W

R25 92L32150103008 J 10 kohm,1/10W

R35 92L32150102008 J 1 kohm,1/10W

R38 92L32150271008 J 270 ohms,1/10W

R39 92L32150471008 J 470 ohms,1/10W

R40 92L32150122008 J 1.2 kohms,1/10W

R42 92L32150563008 J 56 kohms,1/10W

R44 92L32150102008 J 1 kohm,1/10W

R45 92L32150122008 J 1.2 kohms,1/10W

R46 92L32150102008 J 1 kohm,1/10W

R47 92L32159330008 J 3.3 ohms,1/10W

R48 92L32150682008 J 6.8 kohms,1/10W

R50 92L32150470008 J 47 ohms,1/10W

R51 92L32150683008 J 68 kohms,1/10W

R52 92L32150563008 J 56 kohms,1/10W

R53,54 92L32150683008 J 68 kohms,1/10W

R55,56 92L32150563008 J 56 kohms,1/10W

R58 92L32150221008 J 220 ohms,1/10W

R67,68 92L32150102008 J 1 kohm,1/10W

R71~78 92L32150102008 J 1 kohm,1/10W

R79 92L32150155008 J 1.5 Mohms,1/10W

R80 92L32150105008 J 1 Mohm,1/10W

R81,82 92L32150392008 J 3.9 kohms,1/10W

R83,84 92L32150103008 J 10 kohm,1/10W

R94 92L32150332008 J 3.3 kohms,1/10W

R95 92L32150472008 J 4.7 kohms,1/10W

R101,102 VRD-ST2CD103J J AA 10 kohm,1/6W

R103 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R104,105 VRD-ST2CD102J J AA 1 kohm,1/6W

R106,107 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R108,109 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R110 VRD-ST2CD473J J AA 47 kohms,1/6W

R111,112 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R113 VRD-ST2CD473J J AA 47 kohms,1/6W

R114,115 VRD-ST2CD102J J AA 1 kohm,1/6W

R116,117 VRD-ST2CD560J J AA 56 ohms,1/6W

R118,119 VRD-ST2CD104J J AA 100 kohm,1/6W

R120,121 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R122,123 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R124,125 VRD-ST2CD123J J AA 12 kohms,1/6W

R126 VRD-ST2CD683J J AA 68 kohms,1/6W

R127,128 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R129,130 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R131,132 VRD-ST2CD102J J AA 1 kohm,1/6W

R133,134 VRD-ST2CD101J J AA 100 ohm,1/6W

R135,136 VRD-ST2CD103J J AA 10 kohm,1/6W

R137,138 VRD-ST2CD153J J AA 15 kohms,1/6W

R139 VRD-ST2CD221J J AA 220 ohms,1/6W

R140,141 VRD-ST2CD103J J AA 10 kohm,1/6W

R142,143 VRD-ST2CD224J J AA 220 kohms,1/6W

R144 VRD-ST2CD473J J AA 47 kohms,1/6W

R145 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R146 VRD-ST2EE820J J AA 82 ohms,1/4W

R147 VRD-ST2CD473J J AA 47 kohms,1/6W

R148 VRD-ST2CD223J J AA 22 kohms,1/6W

R149 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R157 VRD-ST2CD101J J AA 100 ohm,1/6W

R302 VRD-ST2CD220J J AA 22 ohms,1/6W

R309 VRD-ST2CD103J J AA 10 kohm,1/6W

R311 VRD-ST2CD104J J AA 100 kohm,1/6W

R313 VRD-ST2CD333J J AA 33 kohms,1/6W

R314 VRD-ST2CD220J J AA 22 ohms,1/6W

R316 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R322 VRD-ST2CD681J J AA 680 ohms,1/6W

R323 VRD-ST2CD683J J AA 68 kohms,1/6W

R325 VRD-ST2CD473J J AA 47 kohms,1/6W

R327 VRD-ST2CD330J J AA 33 ohms,1/6W

R336 VRD-ST2CD103J J AA 10 kohm,1/6W

R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R351 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R352 VRD-ST2CD102J J AA 1 kohm,1/6W

R353 VRD-ST2CD391J J AA 390 ohms,1/6W

R355 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R356 VRD-ST2CD102J J AA 1 kohm,1/6W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R359 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R360 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R361,362 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R363,364 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R365 VRD-ST2CD103J J AA 10 kohm,1/6W

R372~374 VRD-ST2CD102J J AA 1 kohm,1/6W

R375 VRD-ST2CD821J J AA 820 ohms,1/6W

R376 VRD-ST2CD102J J AA 1 kohm,1/6W

R377 VRD-ST2CD473J J AA 47 kohms,1/6W

R378 VRD-ST2CD102J J AA 1 kohm,1/6W

R379 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R380 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R381 VRD-ST2CD103J J AA 10 kohm,1/6W

R382 VRD-ST2CD151J J AA 150 ohms,1/6W

R383~385 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R386 VRD-ST2CD223J J AA 22 kohms,1/6W

R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R388 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R389 VRD-ST2CD101J J AA 100 ohm,1/6W

R393 VRD-ST2CD102J J AA 1 kohm,1/6W

R395 VRD-ST2CD473J J AA 47 kohms,1/6W

R401 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R402 VRD-ST2CD102J J AA 1 kohm,1/6W

R403 VRD-ST2CD474J J AA 470 kohms,1/6W

R404 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R405 VRD-ST2CD104J J AA 100 kohm,1/6W

R407 VRD-ST2CD105J J AA 1 Mohm,1/6W

R408 VRD-ST2CD561J J AA 560 ohms,1/6W

R409 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R410 VRD-ST2CD103J J AA 10 kohm,1/6W

R411 VRD-ST2CD102J J AA 1 kohm,1/6W

R412 VRD-ST2CD331J J AA 330 ohms,1/6W

R414~416 VRD-ST2CD331J J AA 330 ohms,1/6W

R417~420 VRD-ST2CD474J J AA 470 kohms,1/6W

R421~424 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R425 VRD-ST2CD331J J AA 330 ohms,1/6W

R426~428 VRD-ST2CD103J J AA 10 kohm,1/6W

R429,430 VRD-ST2CD223J J AA 22 kohms,1/6W

R431,432 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R433 VRD-ST2CD474J J AA 470 kohms,1/6W

R434 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R435 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R436 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R437 VRD-ST2CD474J J AA 470 kohms,1/6W

R438 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R601,602 VRD-ST2CD331J J AA 330 ohms,1/6W

R603,604 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R607,608 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R609,610 VRD-ST2CD153J J AA 15 kohms,1/6W

R615,616 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R617,618 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R625 VRD-ST2CD223J J AA 22 kohms,1/6W

R700 VRD-ST2CD105J J AA 1 Mohm,1/6W

R702~721 VRD-ST2CD102J J AA 1 kohm,1/6W

R722 VRD-ST2CD103J J AA 10 kohm,1/6W

R724,725 VRD-ST2CD102J J AA 1 kohm,1/6W

R726~729 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R732~737 VRD-ST2CD102J J AA 1 kohm,1/6W

R742 VRD-ST2CD102J J AA 1 kohm,1/6W

R743 VRD-ST2CD330J J AA 33 ohms,1/6W

R744 VRD-ST2CD102J J AA 1 kohm,1/6W

R745 VRD-ST2CD104J J AA 100 kohm,1/6W

R748 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R749~751 VRD-ST2CD103J J AA 10 kohm,1/6W

R753 VRD-ST2CD103J J AA 10 kohm,1/6W

R755 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R758,759 VRD-ST2CD103J J AA 10 kohm,1/6W

R766~769 VRD-ST2CD103J J AA 10 kohm,1/6W

R770 VRD-ST2CD473J J AA 47 kohms,1/6W

R771 VRD-ST2CD104J J AA 100 kohm,1/6W

R772 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R773 VRD-ST2CD101J J AA 100 ohm,1/6W

R775~777 VRD-ST2CD103J J AA 10 kohm,1/6W

R778 VRD-ST2CD102J J AA 1 kohm,1/6W

R779 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W

R792 VRD-ST2CD102J J AA 1 kohm,1/6W

R901 VRD-ST2CD683J J AA 68 kohms,1/6W

R902,903 VRD-ST2CD102J J AA 1 kohm,1/6W

R904 VRD-ST2CD563J J AA 56 kohms,1/6W

R905 VRD-ST2CD821J J AA 820 ohms,1/6W

R906 VRD-ST2CD103J J AA 10 kohm,1/6W

1 R907,908 92L3240103305 J 100 ohms,1W

R909 VRD-ST2CD821J J AA 820 ohms,1/6W

R910 VRD-ST2CD563J J AA 56 kohms,1/6W

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-BK137W

R911,912 VRD-ST2CD102J J AA 1 kohm,1/6W

R913 VRD-ST2CD683J J AA 68 kohms,1/6W

R914,915 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R916,917 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R918,919 VRD-ST2CD103J J AA 10 kohm,1/6W

R920,921 VRD-ST2CD391J J AA 390 ohms,1/6W

R922 VRD-ST2CD103J J AA 10 kohm,1/6W

R923 VRD-ST2CD102J J AA 1 kohm,1/6W

R924 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R925 VRD-ST2CD104J J AA 100 kohm,1/6W

R926 VRD-ST2CD102J J AA 1 kohm,1/6W

R927 VRD-ST2CD223J J AA 22 kohms,1/6W

R929 VRD-ST2CD153J J AA 15 kohms,1/6W

R930 VRD-ST2CD683J J AA 68 kohms,1/6W

R931 VRD-ST2CD102J J AA 1 kohm,1/6W

R932 VRD-ST2CD223J J AA 22 kohms,1/6W

R933 VRD-ST2EE561J J AA 560 ohms,1/4W

R934 VRD-ST2CD223J J AA 22 kohms,1/6W

R935 VRD-ST2CD103J J AA 10 kohm,1/6W

R936,937 VRD-ST2CD223J J AA 22 kohms,1/6W

R938 VRD-ST2CD123J J AA 12 kohms,1/6W

R939 VRD-ST2CD473J J AA 47 kohms,1/6W

R940 VRD-ST2EE100J J AA 10 ohm,1/4W

R941 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R942 VRD-ST2CD333J J AA 33 kohms,1/6W

R943 VRD-ST2EE100J J AA 10 ohm,1/4W

RD01 VRD-ST2CD681J J AA 680 ohms,1/6W

RD02 VRD-ST2CD821J J AA 820 ohms,1/6W

RD03 VRD-ST2CD102J J AA 1 kohm,1/6W

RD04 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD05 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD06 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD07 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD08 VRD-ST2CD563J J AA 56 kohms,1/6W

RD09 VRD-ST2CD104J J AA 100 kohm,1/6W

RD10 VRD-ST2CD821J J AA 820 ohms,1/6W

RD11 VRD-ST2CD102J J AA 1 kohm,1/6W

RD12 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD13 VRD-ST2CD681J J AA 680 ohms,1/6W

RD14 VRD-ST2CD821J J AA 820 ohms,1/6W

RD15 VRD-ST2CD102J J AA 1 kohm,1/6W

RD16 VRD-ST2CD152J J AA 1.5 kohms,1/6W

RD17 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD18 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD19 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD20 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD21 VRD-ST2CD103J J AA 10 kohm,1/6W

RD22 VRD-ST2CD153J J AA 15 kohms,1/6W

RD23 VRD-ST2CD333J J AA 33 kohms,1/6W

RD24 VRD-ST2CD104J J AA 100 kohm,1/6W

RD25 VRD-ST2CD681J J AA 680 ohms,1/6W

RD26 VRD-ST2CD682J J AA 6.8 kohms,1/6W

OTHER CIRCUITRY PARTS

BI4/CNS4 92L33528111060 J Connector Ass’y,6/6Pin

BI601/CNS601 92L33530260500 J Connector Ass’y,5/5Pin

BI702/CNS702 92L33528361100 J Connector Ass’y,10/10Pin

CNP1 92L33607150000 J Plug,7Pin

CNP2 92L33608170000 J Plug,8Pin

CNP3 92L33660100000 J Plug,6Pin

CNP3A 92LCONE6P53254 J AC Plug,6Pin

CNP4 92L33606130000 J Plug,6Pin

CNP11 92L33605110100 J Plug,5Pin

CNP12 92L33610210010 J Plug,10Pin

CNP101 92L33603210100 J Plug,3Pin

CNP102 92L33607210100 J Plug,7Pin

CNP302 92L33602170000 J Plug,2Pin

CNP701 92L33609604210 J Socket,21Pin

CNP801 92L33680010500 J Plug,5Pin

1 CNP901 92L3362501081B J Plug,8Pin

CNS1A/B 92L33528780070 J Connector Ass’y,7/7Pin

CNS2A/B 92L33528780080 J Connector Ass’y,8/8Pin

CNS3A/B 92L33528610060 J Connector Ass’y,6/6Pin

CNS902 92L33517180020 J Connector Ass’y,2Pin

1 F901,902 92LFUSET252E J AD Fuse,T2.5A L 250V

1 F903,904 92LFUSET402E J AD Fuse,T4A L 250V

1 F905 92LFUSET252E J AD Fuse,T2.5A L 250V

FFC701 92L33557240210 J Flat Cable,21Pin

FFC702 92L33557130110 J Flat Cable,11Pin

FL701 VVKSVA9MS13-1 J AZ FL Display

JK1 92L26410100310 J AF Socket,Mic

JK901 92L26402100040 J AF Socket,Headphones

JP401 92L33428260030 J Connector Ass’y,3Pin

JP402 92L33603210100 J Plug,3Pin

LR901 92L5650133W000 J AN Relay

LUG1 92L16310130000 J Lug Terminal

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

M3 92LTWMEN7E6Y J AR Motor with Worm Pulley

[T/T Up/Down Loading]

M901 92L26201650100 J AT Motor,Air Cooling Fan

PW901A 92L33426190050 J Flat Wire,5Pin

PW901B 92L3362501051B J Socket,5Pin

RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A

SO302 QTANC0206AWZZ J AD Terminal,FM Antenna

SO901 92L26400147800 J AL Terminal,Speaker

1 SO902 QSOCA0204AWZZ J AF AC Input Socket

SOK2 92L33628210100 J Socket,21Pin

SOK3 92L33620110100 J Socket,11Pin

SOK901 92L3362501021A J Plug,2Pin

SW1 SWMPU10780MLB J AH Switch,Push Type [Open/Close]

SW2 SWMPU11470MLB J AE Switch,Push Type [Clamp]

SW3 SWMPU11470MLB J AE Switch,Push Type [Disc Number]

SW4 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

SW601 QSW-S0024AWZZ J AE Switch,Slide Type

[Span Selector]

1 SW602 QSOCE0008AWZZ J AH Switch,Slide Type

[Voltage Selector]

SW701 92LSWICHT1663T J AC Switch,Key Type [ON/Stand-by]

SW702 92LSWICHT1663T J AC Switch,Key Type [Clock]

SW703 92LSWICHT1663T J AC Switch,Key Type [Timer/Sleep]

SW709 92LSWICHT1663T J AC Switch,Key Type [Disc Skip]

SW710 92LSWICHT1663T J AC Switch,Key Type [Open/Close]

SW711 92LSWICHT1663T J AC Switch,Key Type

[Equalizer/X-Bass/Demo]

SW712 92LSWICHT1663T J AC Switch,Key Type [Volume Up]

SW713 92LSWICHT1663T J AC Switch,Key Type [Volume Down]

SW714 92LSWICHT1663T J AC Switch,Key Type [CD]

SW715 92LSWICHT1663T J AC Switch,Key Type [Tape]

SW716 92LSWICHT1663T J AC Switch,Key Type

[Tuning/Time Down]

SW717 92LSWICHT1663T J AC Switch,Key Type [Memory/Set]

SW718 92LSWICHT1663T J AC Switch,Key Type [Rewind]

SW719 92LSWICHT1663T J AC Switch,Key Type [Fast Forward]

SW720 92LSWICHT1663T J AC Switch,Key Type [Play/Repeat]

SW721 92LSWICHT1663T J AC Switch,Key Type [Stop]

SW723 92LSWICHT1663T J AC Switch,Key Type [REC Pause]

SW724 92LSWICHT1663T J AC Switch,Key Type

[Tuning/Time Up]

SW725 92LSWICHT1663T J AC Switch,Key Type [Tuner (Band)]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0080AWZZ J AC Rail,Guide

304 NSFTM0020AWFW J AD Shaft,Guide

305 92LM-CUSN1524A J AC Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— — Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

701 XBSSD26P06000 J AA Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 XBBSD20P03000 J AA Screw,ø2×3mm

704 LX-WZ1070AFZZ J AA Washer,ø1.5×3.8×0.25mm

M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

SW4 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

CABINET PARTS

201 92LCAB133WASSY J Front Panel Ass’y

201- 1 ———— — Front Panel

(Not Replacement Item)

201- 2 92L60100100002 J AG Cassette Holder [Tape 1]

201- 3 92L60110100002 J AG Cassette Holder [Tape 2]

201- 4 92L62600100001 J Cover,Cassette Holder [Tape 1]

201- 5 92L62610100001 J Cover,Cassette Holder [Tape 2]

201- 6 92L60300100001 J AE Panel,Cassette Holder [Tape 1]

201- 7 92L60310100001 J AE Panel,Cassette Holder [Tape 2]

– 4 –

PRICE

RANK

DESCRIPTION

NO.

PART CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK137W

201- 8 92L60320100006 J Panel,Display

201- 9 92L80200100002 J AD Button,ON/Stand-by

201-10 92L80420100002 J AE Button,Timer/Sleep

201-11 92L80210100001 J AE Button,Function

201-12 92L80410100001 J AC Volume Ring

201-13 92L80230100002 J AE Button,Disk Skip

201-14 92L80220100001 J AG Button,Operation

201-15 92L80250100002 J AC Button,Tuning/Time

201-16 92L13820100000 J Damper

201-17 92L54000100010 J Spring,Cassette Holder [Tape 1]

201-18 92L54010100010 J Spring,Cassette Holder [Tape 2]

201-19 92L80430100001 J AE Button,Equalizer

201-20 92L18100100010 J AB Cover,Remote Sensor

201-21 92L62630100010 J Bracket,Cassette Holder Lock

Lever [Tape 1]

201-22 92L54020100010 J Spring,Cassette Holder Lock

201-23 92L62400100001 J Lock Lever,Cassette Holder

[Tape 1]

201-24 92L62410100001 J Lock Lever,Cassette Holder

[Tape 2]

201-25 92L80400100001 J AE Button,Volume

201-26 92L80600100001 J Badge,SHARP

201-28 92L62660100010 J Bracket,Cassette Holder Lock

Lever [Tape 2]

202 92LLSD100WASSY J Side Panel Ass’y,Left

202- 1 ———— — Side Panel,Left

(Not Replacement Item)

202- 2 92L13800100000 J Cushion,Leg

203 92LRSD100WASSY J Side Panel Ass’y,Right

203- 1 ———— Side Panel,Right

(Not Replacement Item)

203- 2 92L13800100000 J Cushion,Leg

204 92L60010100002 J Top Cabinet

205 92L80440100001 J AB Knob,Mic Volume

206 92L60120100001 J AG Cover,CD Tray

207 92L15800137010 J Rear Panel

208 92L15600100010 J Bracket,PWB

209 92L62640100010 J Holder,LED

210 92LBTM133WASSY J Main Chassis Ass’y

210- 1 ———— — Main Chassis

(Not Replacement Item)

210- 2 92L62650100010 J Holder,PWB

214 92L62620100010 J Holder,Display

219 92L13800100000 J Cushion,Leg

220 92L1510133W010 J Heat Sink

223 92L33426120110 J Lug Wire

1 224 QFSHD0001AWZZ J AB Fuse Holder

225 92LBE231616 J AD Belt

227 92LEVA0330702 J AD Velvet Carpet,Chassis

228 92LMAG0104302 J AE Magnet

229 92LMT0304302 J AB Plate,Metal

230 92LNBAND1318A J AA Nylon Band,80mm

231 92LTWPT0312005 J AL Cam Gear Ass'y

231-1 92LNM0305401 J AB Velvet Carpet

231-2 92LPT0304304 J AB Stopper

231-3 92LPT0305413 J AG Cam Gear Lower

231-4 92LPT0312005 J AL Gear,Cam

231-5 92LSP0304303 J AB Spring,Stopper

232 92LPT0303002 J AB Roller

233 92LPT0304303 J AB Lever,Stop

235 92LPT0304305 J AE Lever,Lock

236 92LPT0304306 J AG Stabilizer

237 92LPT0304307 J AC Support,Cam

238 92LPT0304308 J AB Lock Gear Pin

239 92LPT0304309 J AB Cap,Pulley Stopper

241 92LPT0309506 J AD Gear,Turntable Drive

242 92LPT0309507 J AD Gear,Open/Close Drive

243 92LPT0309508 J AD Gear,Planet

244 92LPT0309509 J AD Gear,Drive

245 92LPT0309510 J AE Gear,Pulley

246 92LPT0309511 J AD Gear,Middle

247 92LPT0311101 J AB Lever,Clamp

248 92LPT0311102 J AC Lever,Disc

250 92LPT0320201 J AE Support,Stabilizer

251 92LPT0330301 J AU Chassis,Loading

252 92LPT0330803 J AK Chassis,CD

253 92LPT0331003 J AT Chassis,Slide

254 92LPT0331105 J AM Turntable

256 92LSP0304305 J AB Spring,Lock

257 92LSP0304306 J AB Spring,Lock Gear

258 KMECB0023AWZZ J Tape Mechanism Ass’y

258- 1 92PF513-853 J BL Head Plate Block [Tape 2]

258- 2 92PF525-336 J BE Motor with Pulley [Tape]

258- 3 92PF567-677 J BA Tape Mechanism PWB Ass’y

258- 4 92PFF19N-21 J AL Belt,Main [Tape 2]

258- 5 92PF514-133 J AL Pinch Roller

258- 6 92PF19S-31 J AL Belt,FF/REW [Tape 2]

258- 7 92PFF19N-11 J AL Belt,Main [Tape 1]

258- 8 92PF522-061 J AG Clutch Ass’y Block [Tape 1]

258- 9 92PFF19S-52 J AL Belt,FF/REW [Tape 1]

258-10 92PF513-861 J AG Head Plate Block [Tape 1]

258-11 92PF522-063 J AZ Clutch Ass’y Block [Tape 2]

261 92L2032100W020 J Label,Laser

262 92L15600133000 J Bracket,Wire

263 92L15800133000 J Bracket,Fan Motor

264 92L62420100001 J Rotary Fan

265 92L16300035141 J Lug Wire

266 92L54000133000 J Spring,Ring

601 92L12930080444 J Screw,ø3×8mm

602 92L12930100434 J Screw,ø3×10mm

603 92L1293010434A J Screw,ø3×10mm

604 92L1293012434A J Screw,ø3×12mm

605 92L1304008434A J Screw,ø4×8mm

606 92L13126100437 J Screw,ø2.6×10mm

607 92L13130100437 J Screw,ø3×10mm

608 92L13130100447 J Screw,ø3×10mm

609 92L13130120437 J Screw,ø3×12mm

610 92L12930070434 J Screw,ø3×7mm

611 92LSC0308MBZI J AB Screw,ø3×8mm

612 92LSC0308RBZI J AB Screw,ø3×8mm

614 92L13020040434 J Screw,ø2×4mm

ACCESSORIES/PACKING PARTS

1 QACCB0012AW00 J AS AC Power Supply Cord

1 QACCE0007AW00 J AH AC Power Supply Cord

1 QPLGA0003AWZZ J AF Adaptor,AC Plug

1 QPLGA0004AWZZ J AF Adaptor,AC Plug

92L1350133W010 J Packing Add.,Left

92L1351133W010 J Packing Add.,Right

92L1352133W010 J Packing Add.,Top

92L1353133W010 J Packing Add.,Bottom

92L1940100W010 J Polyethylene Bag,Accessories

92L19409816010 J Polyethylene Bag,Remote

Control

92L19418470000 J Mirror Mat

92L19465650401 J Polyethylene Bag,Unit

92L2010137W010 J Operation Manual

[Except for Australia/New Zealand]

92L2010137W020 J Operation Manual

[For Australia/New Zealand]

92L20200196000 J Warranty Card

[For Australia/New Zealand Only]

92L2033137W010 J Label,Feature [Tape 2]

92L2033137W020 J Label,Feature [Tape 1]

92L2034090W010 J VM No.Label

92L2034090W020 J Label,Packing Case Mark

92L2060137W020 J Packing Case

92L2080133W010 J Paper Sheet A

92L2080133W020 J Paper Sheet B

1 92L24801800222 J AC Power Supply Cord

1 92L24802131030 J AP AC Power Supply Cord

92L33324152100 J FM Antenna

92L47300100010 J AM AM Loop Antenna

RRMCG0229AWSA J AR Remote Control

GFTAB1022AWSB J AK Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92L2370137W000 J — Main

PWB-B 92L2370100W600 J — Display

PWB-C 92L2370133W100 J — Mic

PWB-D 92L2370133W200 J — Headphones

PWB-E 92L2370100W300 J — CD Servo

PWB-F 92PF567-649 J — Tape Mechanism

PWB-G 92LPC99C017 J AE CD Loading Motor (PWB Only)

PWB-H QPWBF0027AWZZ J AD CD Motor (PWB Only)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

– 5 –

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-BK137W

SPEAKER BOX PART

901 92L2392137W000 J Front Speaker Box Ass’y

PACKING PARTS

92LPA044 J Packing Add.

92L19450600201 J Polyethylene Bag,Speaker

SPEAKER BOX PART

901 92L2391137W000 J Surround Speaker Ass’y

– 6 –

CP-BK137

92L2390137W010

CD-BK137W

23456

Figure 7 CD MECHANISM EXPLODED VIEW

– 7 –

CD-BK137W

306-1

702

303

306-2

306-3

306

701

304

701

302

301

704

703x2

SW4

305

305x2

PWB-H

CD-BK137W

23456

Figure 8 CABINET EXPLODED VIEW (1/2)

– 8 –

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

601x3

202

202-1

202-2

610x2

Tape

Motor

MAIN BELT

FLYWHEEL

ASS'Y

TAPE 1

FLYWHEEL

ASS'Y

TAPE 2

FF/REW

ROLLER

ASS'Y

FF/REW

ROLLER

ASS'Y

BELT CONNECTION

207

607x8

610x3

PWB-F

223

IC904

IC903

Q905

608x6

Silicon

Grease

220

PWB-B

608x11

201-10

201-9

201-14

214

FL701

201

208

209

201-11

201-15

201-16

201-25

608

201-24

201-28

201-22

201-13

201-19

208

201-20

219x2

201-3

201-18

230

201-7

201-5

201-2

201-17

201-4

201-6

201-12

201-8

PWB-D

201-16

201-26

201-1

607

608

606

201-21

201-23

201-22

605x4

224x6

224x4

603x5

265

262

603x3

610x2

203

203-2

203-1

210-1

210

PWB-C

607

264

266

263

M901

210-2

PT801

205

PWB-A

606x2

602x2

IC901

Silicon

Grease

602

Silicon

Grease

606

604x2

614x2

602x3

258

258-1, 258-2, 258-3,

258-4, 258-5, 258-6,

258-7, 258-8, 258-9,

258-10, 258-11

CD-BK137W

CABINET EXPLODED VIEW (2/2)

23456

250

229

236

254

MECHANISM

252

204

609x2

231-4

231-5

231-2

231-1

231

237

611

261

SW3

SW2

SW1

232

225

PWB-G

247

235

251

256

246

248

245

244

243x4

242

239

231-3

227

232x4

232

PWB-E

253

612

241

233

206

238

257

228

CD-BK137W

A0112-1281DS•HA•M

SA • SZ • EX

Printed in Japan

SHARP CORPORATION

AV Systems Group

Audio Systems Division

Higashihiroshima, Hiroshima 739-0192, Japan

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

Sharp CD-BK137W Mini Component System Audio

Product's Documents

Service Manual

Specifications

Sharp CD-BK137W Questions and Answers

Related Products

Sharp CD-DP900H Mini Component System Audio

Sharp CD-PC3500 Mini Component System

Sharp CD-MPS66 Mini Component System

Sharp CD-ES99 Mini Component System

Sharp CD-DH950P Mini Component System

Sharp XL-HP505 Mini Component System
