Table of contents
Instructions for use Rangehood
Environmental protection
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
Saving energy
■ During cooking, ensure that there is a sufficient supply of air so that the extractor hood can work efficiently and with a low level of operating noise.
■ Adjust the fan speed to the intensity of the cooking fumes. Only use intensive mode where this is required. A lower fan speed means that less energy is consumed.
■ If there are intensive cooking fumes, select a higher fan speed in good time. If cooking fumes have already spread in the kitchen, the extractor hood must be operated for longer.
■ Switch off the extractor hood if you no longer require it.
■ Switch off the lighting if you no longer require it.
■ Clean and, if required, replace the filter at regular intervals in order to increase the effectiveness of the ventilation system and to prevent the risk of fire.
Operating modes
Exhaust air mode
The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.
Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heat-producing appliances.
■ Before conveying the exhaust air into a nonfunctioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.
■ If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
Air recirculation
The air which is drawn in is cleaned by the grease filters and an activated carbon filter, and is conveyed back into the kitchen.
Note: To bind odours in air recirculation mode, you must install an activated carbon filter. The different options for operating the appliance in air recirculation mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from customer service or from the Online Shop.
Operating the appliance
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.

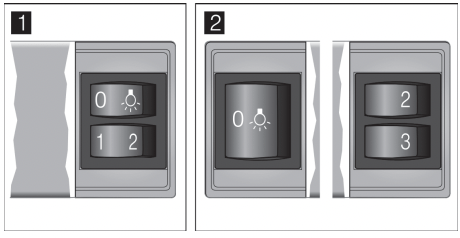

Control panel model 1 and 2
Setting the fan
Switching on
Pull out the filter pull-out. The fan starts at the selected level.
Press buttons 1, 2 or 3 in order to change the fan strength.
Switching off
Slide the filter pull-out in as far as the limit stop.
Note: When you pull out the filter pull-out again, the fan starts up at the fan speed that was last selected.

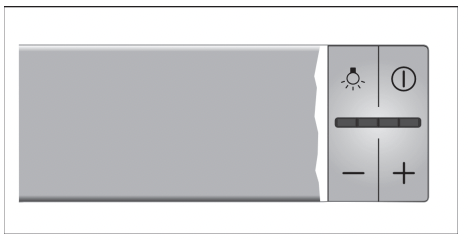

Control panel model 3
Setting the fan
Switching on
Pull out the filter pull-out and press the
button. The fan starts at setting 2.
Press the + or - button to change the fan strength.
Switching off
Press the button. Slide the filter pull-out in.
Intensive setting
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
Press the + button until all of the LEDs in the display light up. The intensive setting is activated.
After approx. six minutes, the electronics automatically reduce the fan to a lower setting . If you want to end the intensive setting before the preset time expires, press the - button until the required fan setting is reached.
The run time is limited. The fan is then automatically reduced to a lower fan setting. You can switch back manually at any time.
Fan run-on time
If you slide in the filter pull-out, the run-on time will be activated for as long as the extractor hood is operating.
After approx. 10 minutes, the fan switches off automatically.
Lighting
The lighting can be switched on and off independently of the ventilation.
Press the
button.
Cleaning and maintenance
Warning Risk of burns! The appliance will become hot during operation, especially near the bulbs. Allow the appliance to cool down before cleaning.
Warning Risk of electric shock! Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.
Warning Risk of electric shock! Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
Warning Risk of injury! Components inside the appliance may have sharp edges. Wear protective gloves.
Cleaning agents
To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use any of the following:
■ Harsh or abrasive cleaning agents,
■ Cleaning agents with a high alcohol content,
■ Hard scouring pads or cleaning sponges,
■ High-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the cleaning agents.
| Area | Cleaning agent |
| Stainless steel |
Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. Clean stainless steel surfaces in the grind direction only. Special stainless steel cleaning products are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth. |
| Painted surfaces |
Hot soapy water: Clean using a damp dish cloth and dry with a soft cloth/towel. Do not use any stainless steel cleaners. |
| Aluminium and plastic |
Glass cleaner: Clean with a soft cloth. |
| Glass |
Glass cleaner: Clean with a soft cloth. Do not use a glass scraper. |
| Controls |
Hot soapy water: Clean using a damp dish cloth and dry with a soft cloth/towel. Risk of electric shock caused by penetrating moisture. Risk of damage to the electronics from penetrating moisture. Never clean operating controls with a wet cloth. Do not use any stainless steel cleaners. |
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
Warning Risk of fire! Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
■ Do not use any aggressive, acidic or alkaline cleaning agents.
■ When cleaning the metal mesh grease filters, also clean the holder for the metal mesh grease filters in the appliance using a damp cloth.
■ The metal mesh grease filters can be cleaned in the dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for stubborn dirt. It can be ordered via the Online Shop.
■ Soak the metal mesh grease filters in a hot soapy solution.
■ Clean the filters with a brush and then rinse them thoroughly.
■ Leave the metal mesh grease filters to drain.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the dishwasher, slight discolouration may occur. This has no effect on the function of the metal mesh grease filters.
■ Do not clean heavily soiled metal mesh grease filters together with utensils.
■ Place the metal mesh grease filters loosely in the dishwasher. The metal mesh grease filters must not be wedged in.

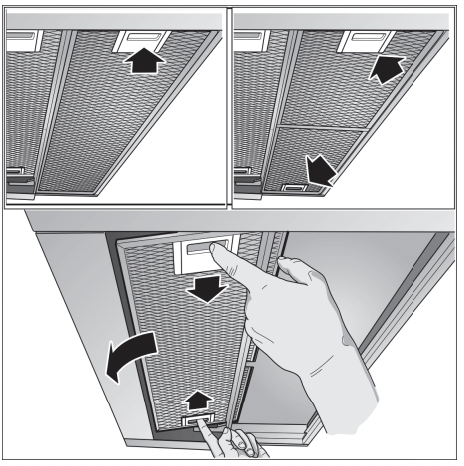

Removing metal grease filter
- Open the lock and fold down the metal grease filter. While doing this, place your other hand under the metal grease filter.
- Take the metal grease filter out of the holder.
Notes
– Fat may accumulate in the bottom of the metal grease filter.
– Hold the metal grease filter level to prevent grease from dripping out.
3. Clean the metal grease filter.

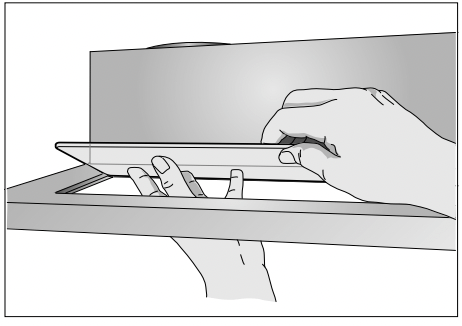

On appliances with a glass plate in the filter pull-out:
■ The glass plate can be removed easily and can be cleaned in the dishwasher.
■ To remove it, carefully lift the glass plate.
Installing the metal mesh grease filter
- Insert the metal mesh grease filter. While doing this, place the other hand under the metal mesh grease filter.
- Fold the metal mesh grease filter upwards, locking it in place.
Trouble shooting
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
Warning Risk of electric shock! Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Malfunction table
| Problem | Possible cause | Solution |
| The appliance does not work | The plug is not plugged in. | Connect the appliance to the electricity supply |
| Power cut | Check whether other kitchen appliances are working | |
| Faulty fuse | Check in the fuse box to make sure that the fuse for the appliance is OK | |
| The lighting does not work. | The bulbs are faulty. | For information on changing the bulbs, see the "Replacing Bulbs" section. |
Replacing bulbs
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
Warning
Risk of burns!
Halogen bulbs become very hot when switched on.
There is still a risk of burning for some time after they have been switched off. Allow the halogen bulbs to cool down before replacing them.
Warning
Risk of electric shock!
When changing the bulbs, the bulb socket contacts are live. Before changing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
Important! Only use bulbs of the same type and wattage.

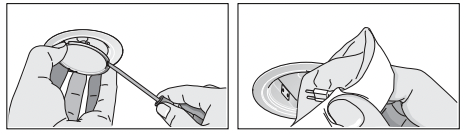

Replacing halogen bulbs
Note: When inserting halogen bulbs, do not touch the glass tube. Use a clean cloth to insert the halogen bulbs.
- Carefully remove the bulb ring using a suitable tool.
- Pull out the bulb and replace it with a bulb of the same type.
3. Insert the bulb cover.
4. Insert the mains plug or switch on the fuse again.
LED lights
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
Warning
Risk of injury!
The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.

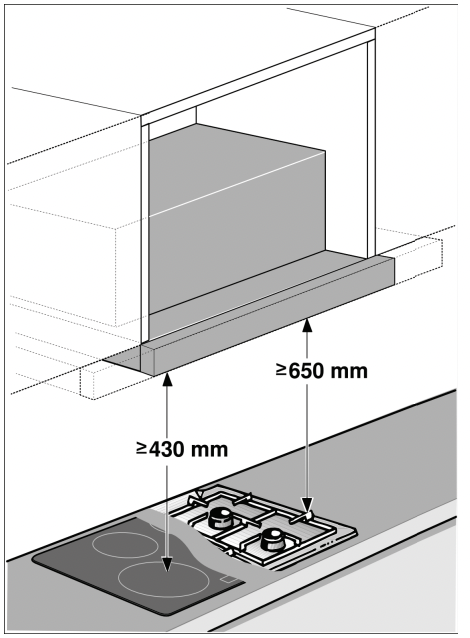

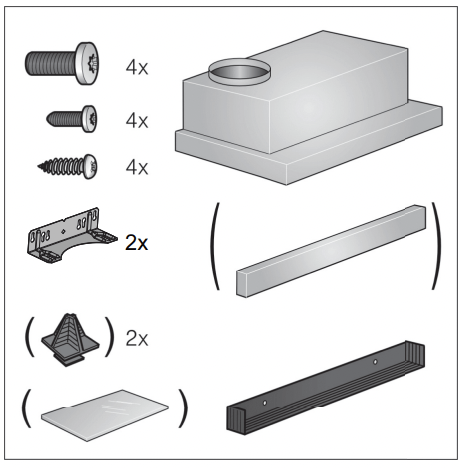

INSTALLATION INSTRUCTIONS
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
■ This appliance is installed in a upper cabinet.
■ Follow the enclosed installation instructions for additional special accessories (e.g. for circulating-air mode).
■ The surfaces of the appliance are sensitive. Avoid damaging them during installation.

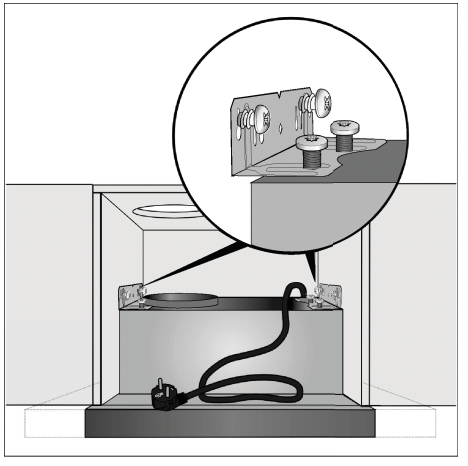

1. Use the angle brackets to hang the appliance on the screws and align it.

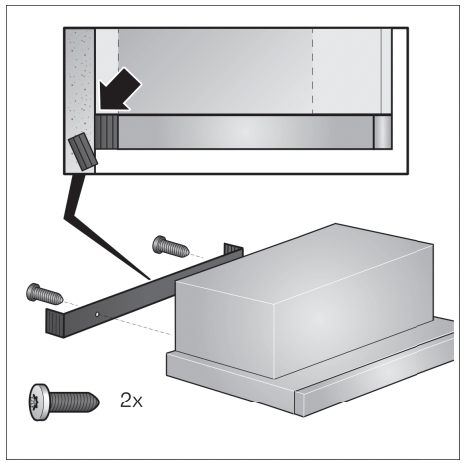

2. Measure the distance from the appliance to the wall and mark this on the filler strip.
3. If required, shorten the filler strip to the required dimension.
4. Remove the appliance and screw in the filler strip.
5. Remount the appliance, align it and screw it in place. Carefully screw in all screws.
6. Establish the electrical connection.
Note: The extractor hood's housing can be concealed within the upper cabinet. In doing so, you must observe the following:
■ The intermediate floor must not be placed on the extractor hood's housing.
■ The front panel must not be secured to the housing.
■ Access must be available in order to change the filter and for after-sales service.

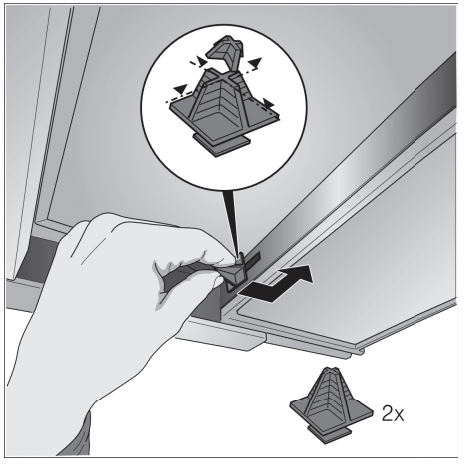

Change the filter pull-out's limit stop
On some versions of the appliance, the limit stop for the filter pull-out can be changed. Spacers are included with these appliances in order to set the appliance's handle strip so that it is flush with the fitted unit.
- Pull the filter pull-out forwards.
- Shorten the spacer to the required dimension and insert it into the specified slot.
Connecting the pipes
Note: If using an aluminium pipe, smooth the connection area beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe connector and seal.
Exhaust-air pipe Ø 120 mm
- Attach the reducing connector directly to the air-pipe connector.
- Attach the exhaust air pipe to the reducing connector.
- Seal both joints appropriately
