Peugeot 3008
Handbook
On-line handbook
Select one of the following means of access to view your handbook
on-line...
Referring to the handbook on-line also gives you access to the latest
information available, easily identified by the bookmark, associated
with this symbol:
If the "MyPEUGEOT" function is not available on the PEUGEOT
public website for your country, you can find your handbook at
the following address:
http://public.servicebox.peugeot.com/ddb/
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.
Select:
Find your handbook on the PEUGEOT website, under "MyPEUGEOT".
Scan this code for direct access to your handbook.
This personal space offers advice and other useful information for the
care and maintenance of your vehicle.
Key
This handbook describes all of the equipment available in the whole
range.
Welcome
Thank you for choosing a 3008.
This handbook has been designed to help you make the
most of using your vehicle in all circumstances.
safety warning additional information
contributes to the protection of the environment
Your vehicle will be fitted with some of the equipment described in this
document, depending on its trim level, version and the specification for
the country in which it is sold.
The descriptions and illustrations are given without any obligation.
Automobiles PEUGEOT reserves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the handbook.
This document is an integral part of your vehicle. It should be passed on
to the new user in the event of sale or transfer.
.
.
Contents
3008-2_en_Chap00a_sommaire_ed01-2016
Digital instrument panel 12
Indicator and warning lamps 16
Indicators 32
Manual test 40
Distance recorders 41
Lighting dimmer 42
Trip computer 43
Monochrome screen C 45
Touch screen 48
Remote control 54
Keyless Entry and Starting 58
Back-up procedures 64
Central locking 68
Alarm 70
Doors 74
Boot 75
Hands-free tailgate 76
Electric windows 82
Panoramic opening sunroof 84
Driving position 88
Front seats 90
Steering wheel adjustment 99
Mirrors 99
i-Cockpit Amplify function 102

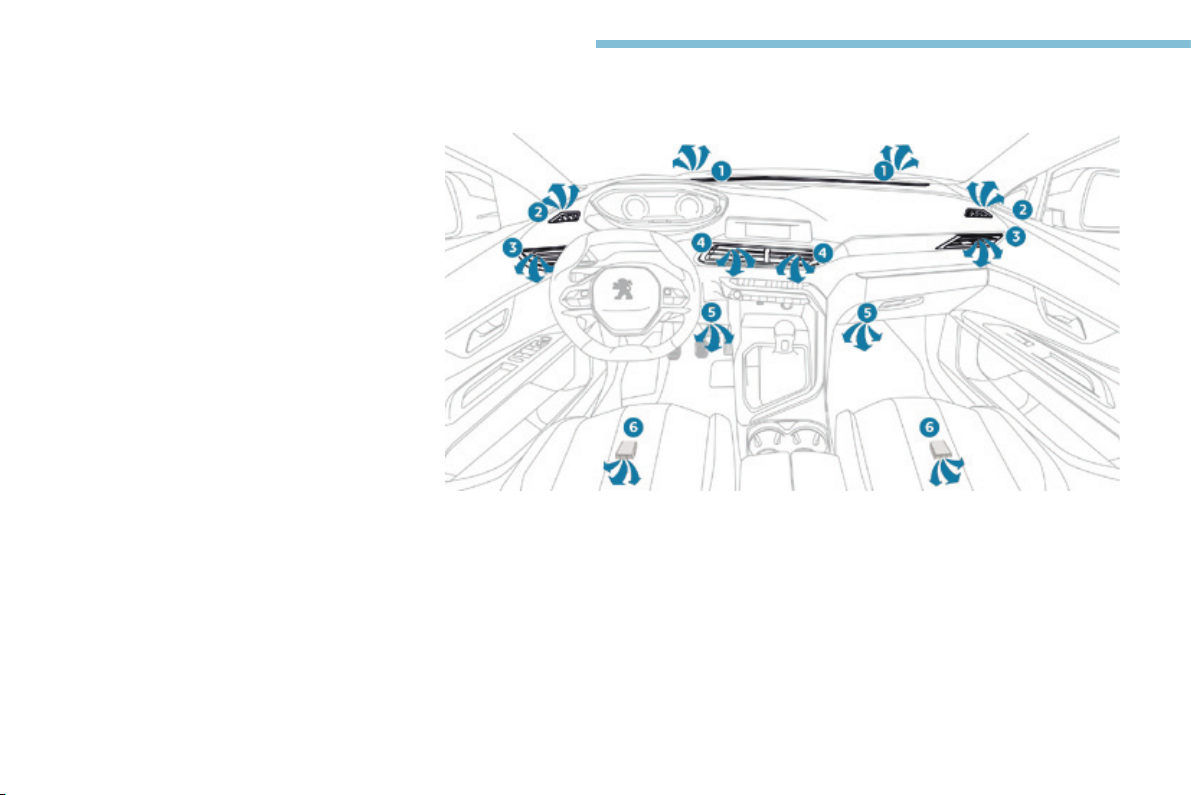

Heating and Ventilation 104
Manual air conditioning 106

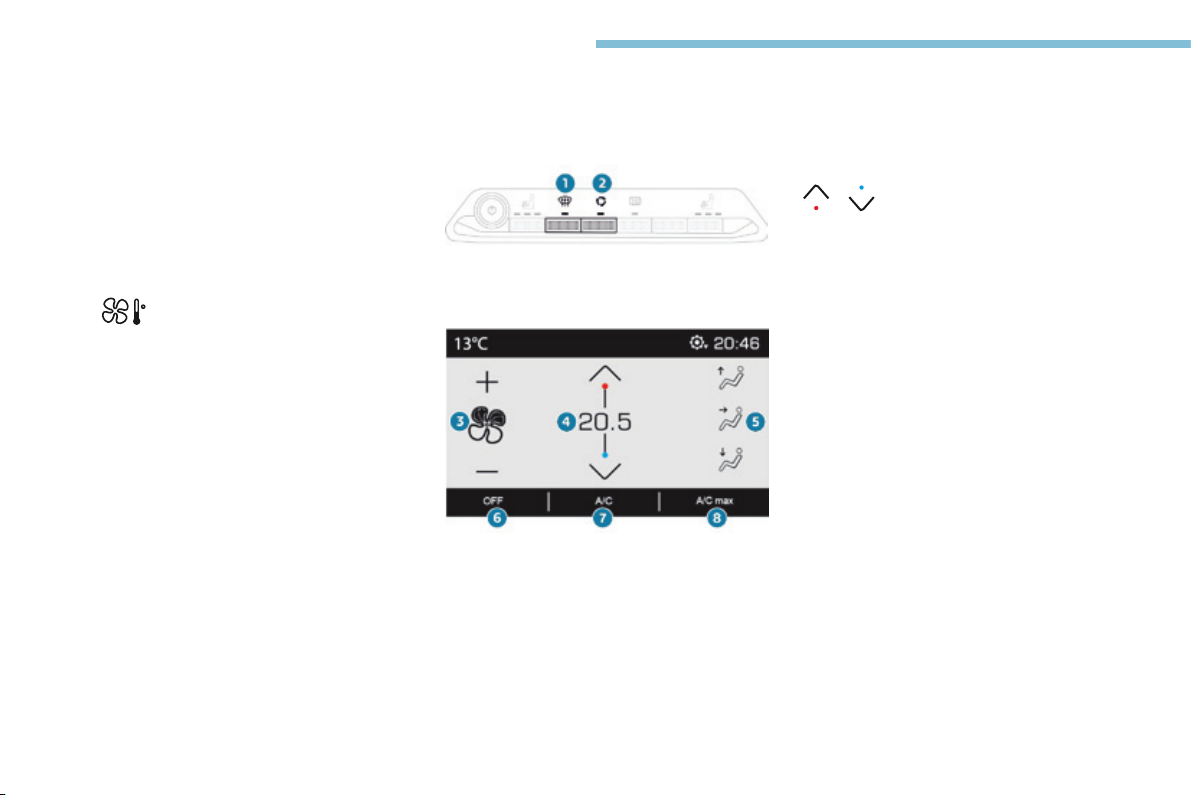

Semi-automatic mono-zone
air conditioning 108
Dual-zone automatic air conditioning 111
Front demist - defrost 116
Heated windscreen 117
Rear screen demist - defrost 118
Front ttings 119
Courtesy lamps 128
Interior mood lighting 129
Rear seats 130
Rear ttings 133
Boot ttings 135
Boot lamp 140
Exterior lighting control stalk 141
Direction indicators 144
Headlamp beam height adjustment 145
Automatic illumination of headlamps 146
Automatic headlamp dipping 149
Cornering lighting 151
Wiper control stalk 152
Automatic rain sensitive wipers 155
General safety recommendations 156
Hazard warning lamps 157
Horn 157
Emergency or assistance 158
Electronic stability programme (ESC) 160
Advanced Grip Control 164
Hill Assist Descent Control 166
Seat belts 168
Airbags 172
Child seats 177
Deactivating the passenger's front airbag 179
ISOFIX child seats 186
i-Size child seats 190
Child lock 193
Overview
Eco-driving
Instruments
Access
Ease of use and comfort Lighting and visibility
Safety
.
Contents
3008-2_en_Chap00a_sommaire_ed01-2016
For the audio and telematic systems,
refer to the supplement to the handbook
or go to the following internet address:
http://public.servicebox.peugeot.com/ddb/
Driving recommendations 195
Starting / Switching off the engine
with the key 197
Starting / Switching off the engine
with Keyless Entry and Starting 200
Electric parking brake 203
Manual gearbox 210
Automatic gearbox 211
Hill start assist 216
Dynamic Pack 217
Gear shift indicator 218
Stop & Start 219
Under-ination detection 223
Memorising speeds 226
Speed limit recognition 227
Speed limiter 231
Cruise control 234
Dynamic cruise control with Stop
function 238
Distance alertandActive Safety Brake 247
Fatigue detection system 252
Lane Departure Warning System 254
Assisted Lane Departure Warning
System 255
Blind Spot Monitoring System 260
Parking sensors 263
Panoramic vision 265
Park Assist 272
Fuel tank 281
Misfuel prevention (Diesel) 282
Towing a trailer 284
Towbar with quickly detachable towball 285
Energy economy mode 290
Very cold climate screens 291
Snow chains 292
Fitting roof bars 293
Bonnet 294
Petrol underbonnet layout 295
Diesel underbonnet layout 296
Checking levels 297
Checks 301
AdBlue
®
and SCR system
(BlueHDi Diesel) 303
Warning triangle 307
Running out of fuel (Diesel) 308
Tool kit 309

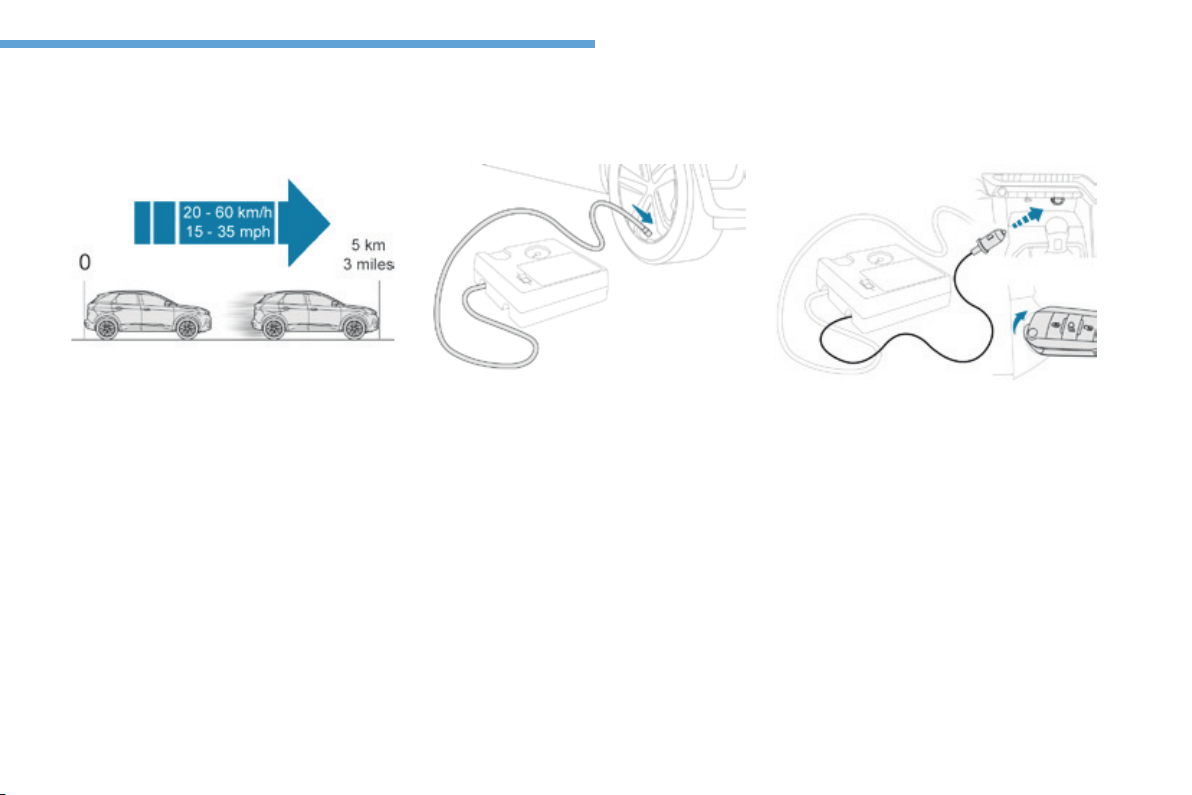

Temporary puncture repair kit 312
Spare wheel 317
Changing a bulb 323
Changing a fuse 331
12 V battery 332
Towing the vehicle 336
Petrol engines 338
Petrol weights 339
Diesel engines 340
Diesel weights 342

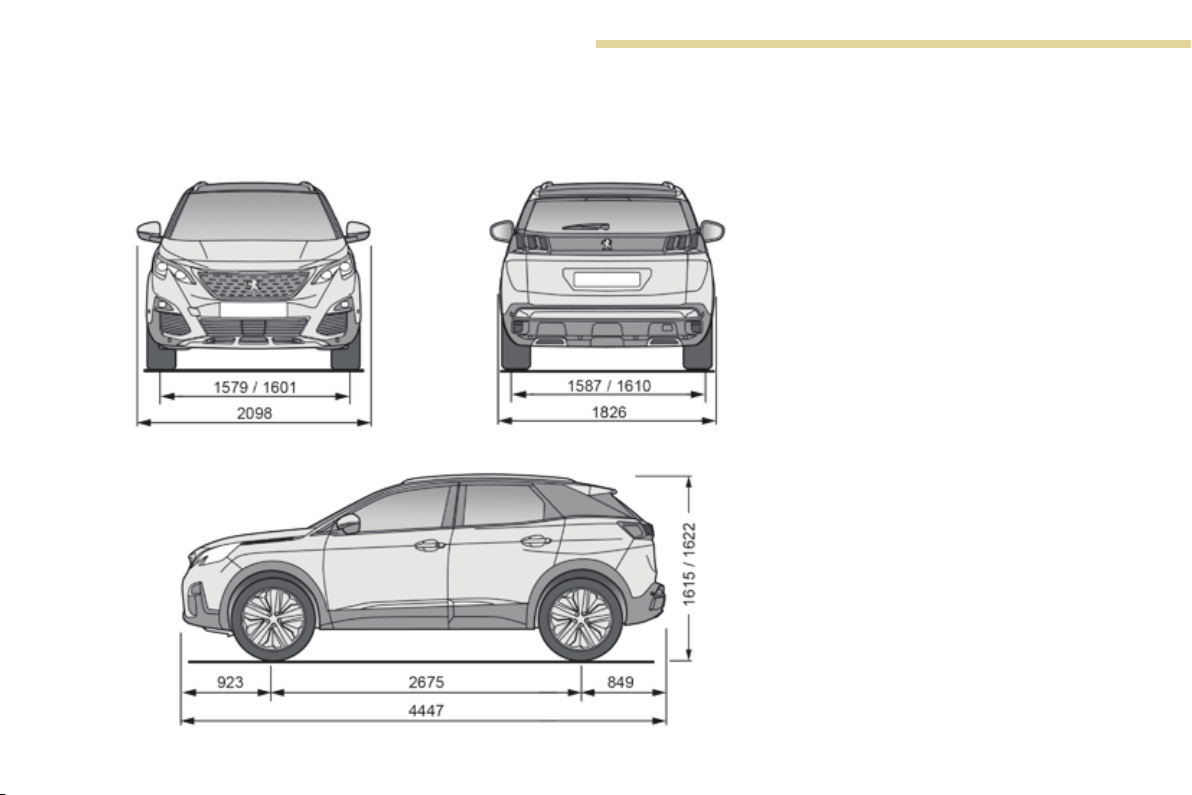

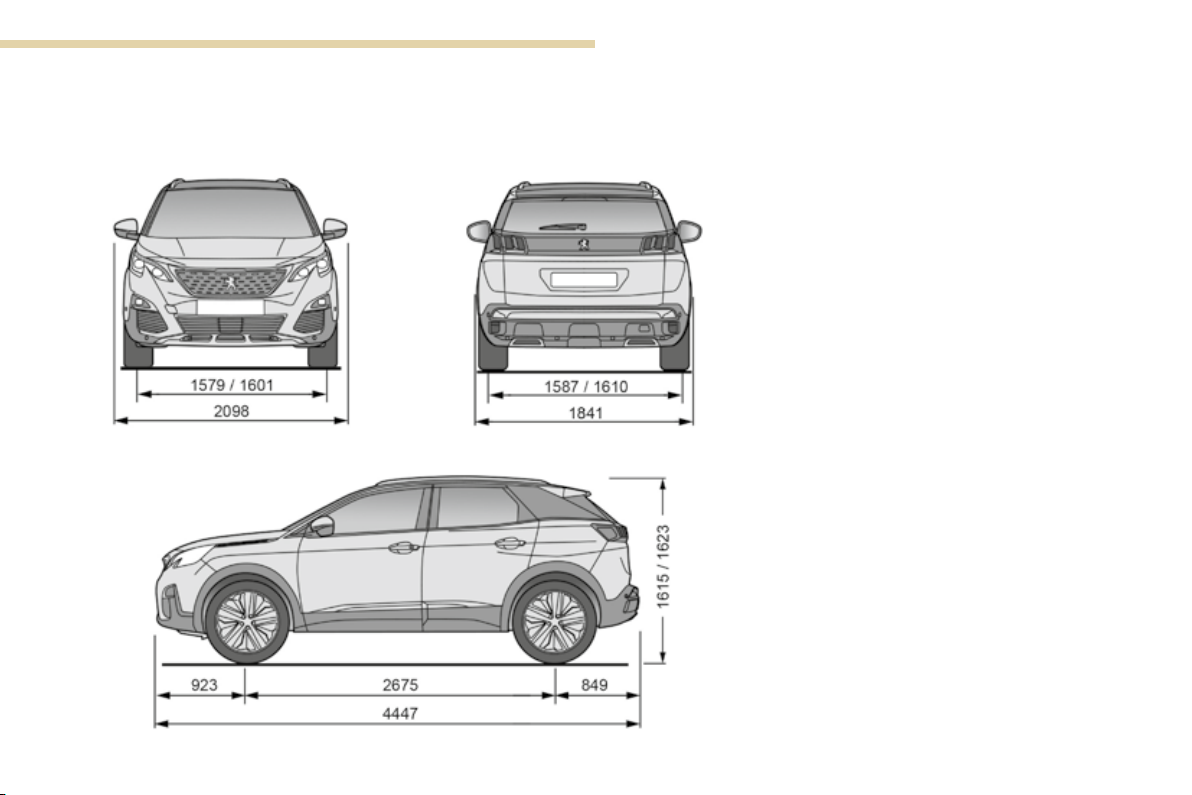

Dimensions 344
Identication markings 345
Driving Practical information
In the event of a breakdown
Technical data
Alphabetical index
Overview
4
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Towing 336-337
Very cold climate screens 291

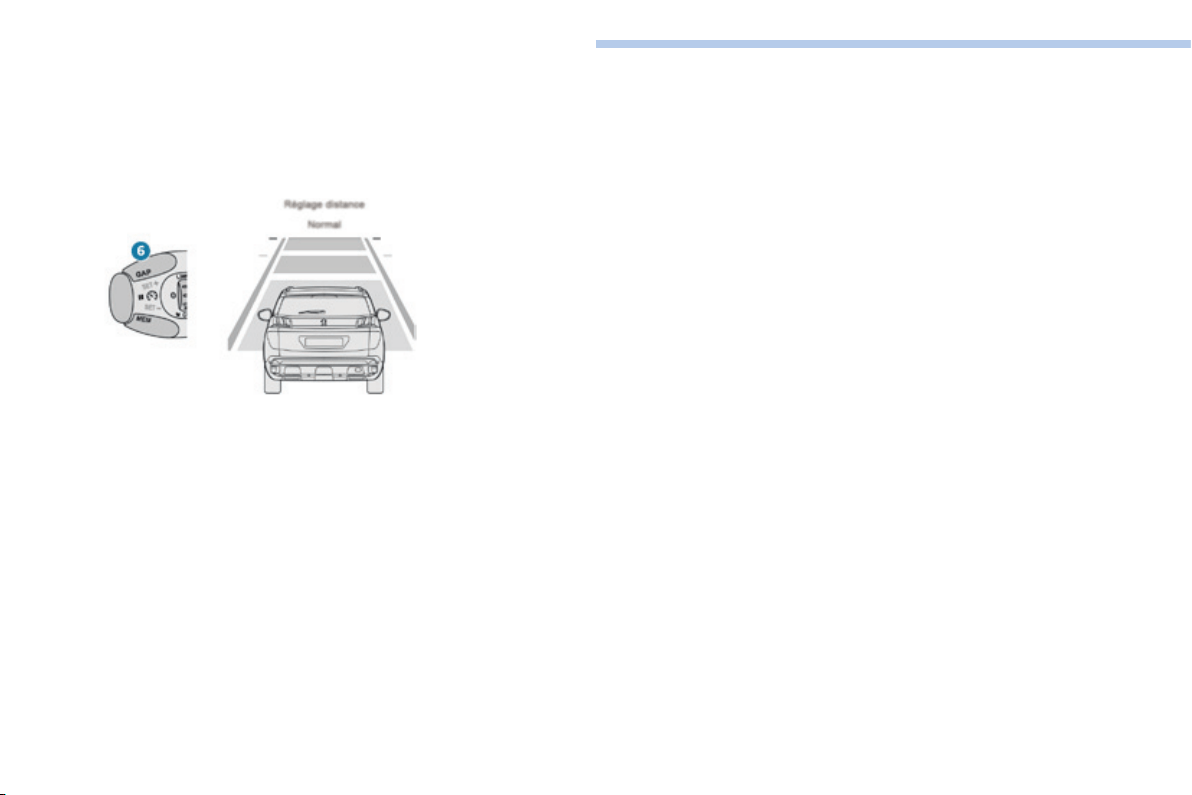

Dynamic cruise control with
Stop function 238-246
Front parking sensors 263-264
Park Assist 272-279
Front foglamps 142
Cornering lighting 151
Remote control key 54, 63-67
Locking / Unlocking 55-57
Starting the engine 197-199
Automatic illumination of
headlamps 146-147
Automatic headlamp dipping 149-150
Automatic rain sensitive wipers 155
Fatigue detection system 252-253
Lane Departure Warning System 254
Assisted Lane Departure Warning
System 255-259
Speed limit recognition 227-230

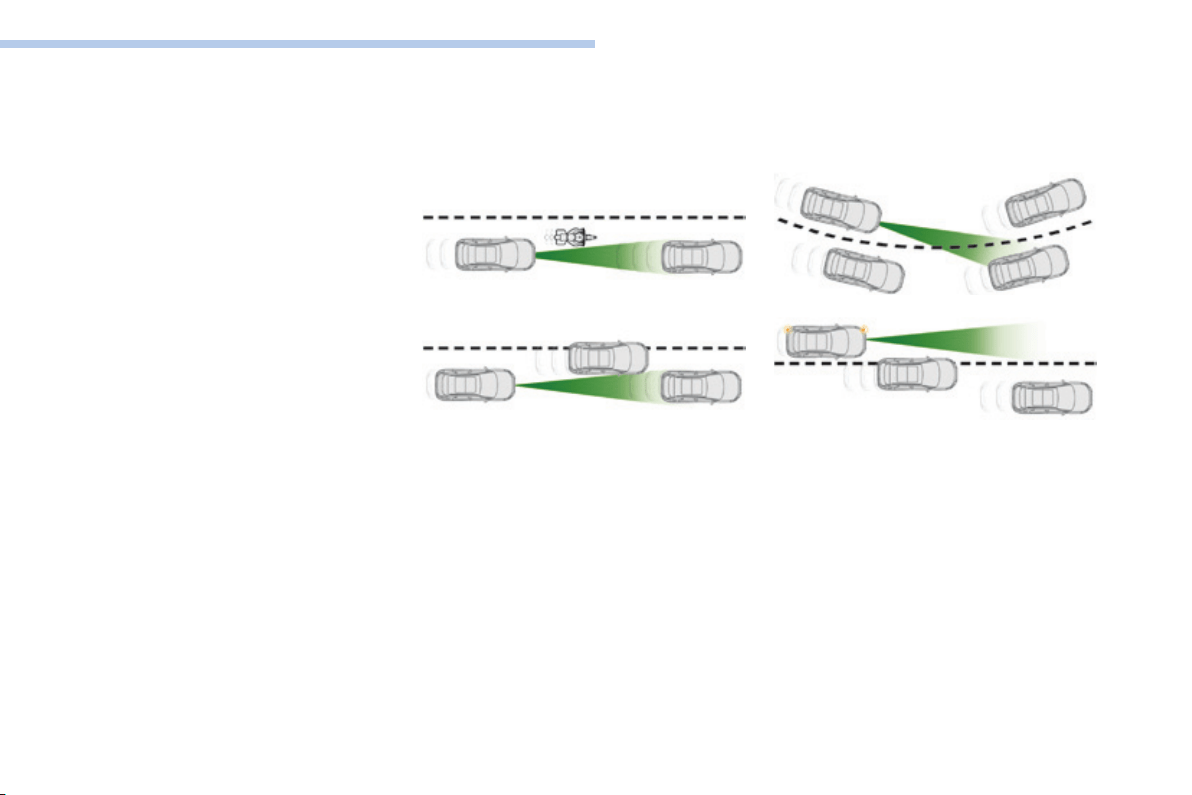

Distance alert / Active Safety
Brake 247-251
Electric windows 82-83
Doors 74
Central locking 68-69
Alarm 70-73
Electronic stability programme
(ESC) 160-163
Advanced Grip Control 164-165
Hill Assist Descent Control 166-167
Main lighting 141, 143-144
Adjusting the headlamp beam
height 145
Changing front bulbs 323-327
Heated windscreen 117
Demisting the windscreen 116
Windscreen wiper 152-154
Visiopark 2 265-266, 269-271
Electronic key 54, 63-67
Hands-free access 58-62
Keyless starting 197, 200-202
Exterior
.Overview
5
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Roof bars 293
Panoramic opening sunroof 84-87
Under-inflation detection 223-225
Tyre pressures 223, 315, 345
Snow chains 292
Visiopark 1 & 2 265-271
Rear parking sensors 263-264
Child lock 193-194
Towing 336-337
Towbar 196, 284
Quickly detachable towball 285-289
Trailer stability assist 163
Fuel tank 281-283
Misfuel prevention 282
AdBlue tank 303-306
Door mirrors 99-100
Guide-me-home / welcome
lighting 146-148
Blind Spot Monitoring System 260-262
Changing rear bulbs 328-330
Defrosting the rear screen 118
Rear wiper 153-154
Boot 57, 59, 75
Hands-free tailgate access 76-81
Tools 309-311
Temporary puncture repair kit 312-316
Spare wheel 317-322
Exterieur
Overview
6
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Interior
Boot fittings 135-140
- load space cover
- 12 V socket
- boot lamp
- adjustable boot floor
- lashing eyes
- high load retaining net
Warning triangle 307
Tools 309-311
Temporary puncture repair kit 312-316

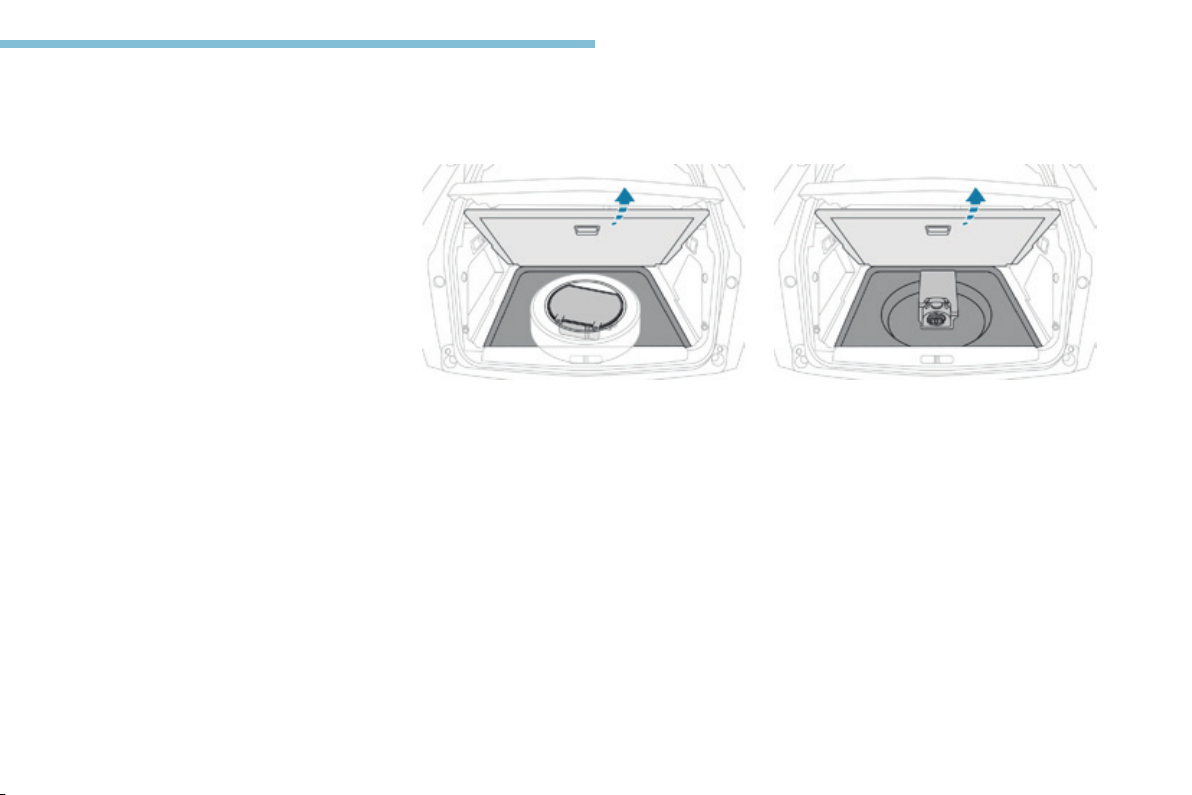

Spare wheel 317-322
Child seats 177-192
ISOFIX mountings 186-189
i-Size child seats 190-191
Airbags 172-176
Front seats 90-97
Multipoint massage 98
Seat belts 168-171
Rear seats 130-132
Rear fittings 133-134
- 12 V socket
- 230 V / 50 Hz socket
- rear armrest
- ski flap
Front fittings 119-127
- USB port
- 12 V socket
- front armrest
- mats
Wireless charger 122-123
Scented air freshener 125-126
Glove box 120
Deactivating the passenger's front
airbag 174, 178-181
.Overview
7
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Instruments and controls
Digital instrument panel 12-15
Warning lamps 16-31
Indicators, gauges 32-40
Setting buttons 40-42
- CHECK / trip distance recorder
- dashboard lighting dimmer /
mood lighting
Door mirrors 99-100
Electric windows 82-83
Changing a fuse 331
Opening the bonnet 294
Manual gearbox 210
Automatic gearbox 211-215
Electric parking brake 203-209
Blind / Panoramic opening
sunroof 84-87
Courtesy lamps 128
Interior mood lighting 129
Emergency or assistance call 158-159
Seat belts / passenger's front airbag
warning lamp display 169-170, 174
Rear view mirror 101
Heating / Ventilation 104-105
Manual air conditioning 106-107
Semi-automatic mono-zone air
conditioning 108-110
Automatic dual-zone air
conditioning 111-115
Demisting / Defrosting, front 116
Demisting / Defrosting, rear screen 118
Heated seats 97
Monochrome screen C 45-47
Touch screen 48-53
i-Cockpit Amplify function 102-103
Hazard warning lamps 157
Anti-theft / Starting with the START/
STOP button 200-202
Advanced Grip Control 164-165
Hill Assist Descent Control 166-167
Overview
8
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Multifunction steering wheel
Memorising speeds 226
Speed limit recognition 227-230
Speed limiter 231-233
Cruise control 234-237
Dynamic cruise control with
Stop function 238-246
Adjusting the steering wheel 99
Wiper controls 152-155
Trip computer 43-44
Dynamic Pack 217
Lighting controls 141-144, 146-150
Alarm volumetric and anti-tilt
monitoring 70-73
Heated windscreen 117
Electric child lock 194
Horn 157
Adjusting the headlamp beam height 145
Unlocking - Opening / Closing the
hands-free tailgate 76-81
Stop & Start 219-222
Side switch panel
Instruments and controls
.Overview
9
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Technical data - Maintenance
Battery 332-335
Energy economy mode 290
Running out of Diesel fuel 308
AdBlue 37-40
Checking levels 297-300
- oil
- brake fluid
- coolant
- screenwash fluid
- additive (Diesel with particle filter)
Petrol engines 338-339
Diesel engines 340-343
Dimensions 344
Identification markings 345
Checking components 301-302
- battery
- air filter / passenger
compartment filter
- oil filter
- particle filter (Diesel)
- brake pads / discs
Changing bulbs 323-330
- front
- rear
Changing a fuse 331
Bonnet 294
Petrol underbonnet 295
Diesel underbonnet 296
Eco-driving
3008-2_en_Chap00c_eco-conduite_ed01-2016
10
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic gearbox, give preference to automatic mode and
avoid pressing the accelerator pedal heavily or suddenly.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the ambient light
level does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2
emissions.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also help reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
The gear efficiency indicator invites you to engage the most suitable
gear: as soon as the indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox, this indicator appears
only in manual mode.
.Eco-driving
3008-2_en_Chap00c_eco-conduite_ed01-2016
11
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrogen oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Instruments
12
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Head-up digital screen
Digital screen
The representation below shows the "DIALS"
display mode.
1. Fuel gauge.
2. Analogue speedometer (mph or km/h).
3. Gear shift indicator, selector mode and the
gear with an automatic gearbox.
4. Digital speedometer (mph or km/h).
5. Cruise control or speed limiter setting,
display of speed limit signs.
6. Rev counter (x 1000 rpm or tr/min).
7. Coolant temperature gauge (°Celsius).
8. Trip distance recorder (miles or km).
9. Total distance recorder (miles or km).
Control buttons
A. Lighting dimmer for the instruments and
controls* (available in night mode).
or
Instrument panel mood lighting**.
B. Short press: start a manual test.
Long press: reset the service indicator or
trip recorder (depending on the context).
Personalisable digital instrument panel
Depending on the display mode selected, some information can be hidden or represented differently.
* Versions with monochrome screen.
** Versions with touch screen.
1
13
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Displays
Permanent information
Whatever the display mode selected, the
instrument panel displays:
- in fixed locations:
● gearbox and gear shift indicator
information,
● the fuel gauge,
● the engine coolant temperature indicator,
● the distance recorders.
- in variable locations:
● the digital speedometer,
● status or alert messages displayed
temporarily.
Most warning and indicator lamps do not have
a fixed position.
The warning and indicator lamps in the second
line are displayed from right to left in order of
priority.
For certain functions that have indicator lamps
for both operation and for deactivation, there is
only one dedicated location.
Personalisation of the
instrument panel
You can modify the appearance of the
instrument panel, by choosing:
- a display colour**,
- a display mode.
Display language
This depends on the language selected
in the screen configuration menu.
Choosing a display colour
This depends on the colour scheme activated
by the i-Cockpit Amplify function:
F "Relax": grey,
F "Boost": red,
F "Normal" (no colour scheme activated):
blue.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
** Versions with touch screen.
Optional information
Depending on the display mode selected and
the systems activated, the following information
may appear:
- the rev counter,
- the trip computer,
- driving aids,
- the speed limiter or cruise control,
- the media currently playing,
- navigation instructions,
- engine information from the Dynamic Pack.
Instruments
14
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Choice of display mode
To modify the display mode of the instrument
panel:
F turn the thumbwheel on the left of the
steering wheel to display and run through
the different modes in the right hand part of
the instrument panel,
F once the desired display mode appears,
press the thumbwheel to confirm.
The new display mode is applied immediately.
Each mode corresponds to the type of
information displayed in the instrument panel.
- "DIALS": standard display of the analogue
and digital speedometers, rev counter, fuel
gauge, coolant temperature indicator and
distance recorders.
- "NAVIGATION": standard display with in
addition information related to the current
route navigation (map and instructions).
- "DRIVING": standard display with in
addition information related to the driving
assistance system in use.
* Versions with monochrome screen.
** Versions with touch screen.
- "MINIMAL": reduced display with the digital
speedometer and the distance recorders
and, in the event of an alert only, fuel
gauge and coolant temperature indicator.
- "TRIP COMPUTER"*: minimal display with
in addition the rev counter, instantaneous
information and the trip recorder selected
(1 or 2).
or
- "PERSONAL"**: minimal display with in
addition the selection made in the touch
screen of the type of information displayed
in the personalisable areas on the left and
right.
1
15
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
To enter settings for the "PERSONAL"
display mode and select the information to be
displayed in the personalisable areas of the
instrument panel:
F select the Settings menu in the
upper bar of the touch screen,
F press the "Perso" button,
F for each personalised area, left and right,
select a type of information using the
corresponding scroll arrows in the touch
screen:
● "Driving aids",
● "Default" (empty),
● "Engine info" (Dynamic Pack),
● "G-meters" (Dynamic Pack),
● "Temperatures" (engine oil),
● "Media",
● "Navigation",
● "Trip computer",
● "Rev counter".
F a nominal preview appears alongside the
corresponding arrows,
F confirm to save and quit.
If the current display mode is "PERSONAL", the
new selection is displayed immediately.
F select "Configuration",
As a safety measure, these adjustments should
be carried out with the vehicle stationary.
Instruments
16
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on in the
instrument panel for a few seconds when the
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
For more information, refer to the
corresponding tables of warning and
indicator lamps.
Associated warnings
The illumination of most of these warning lamps
is accompanied by the display of a message
and an audible signal.
1
17
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Left-hand
direction indicator
flashing with buzzer. The lighting stalk has been pushed
down.
Right-hand
direction indicator
flashing with buzzer. The lighting stalk has been pushed
up.
Hazard warning
lamps
flashing with audible
signal.
The hazard warning lamps switch,
located on the dashboard, has been
operated.
The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps
fixed. The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps
fixed. The lighting stalk has been pulled
towards you.
Pull the stalk to return to dipped beam headlamps.
+
or
Automatic
headlamp
dipping
fixed. The function has been activated
via the Driving menu of the touch
screen.
The lighting stalk is in the "AUTO"
position.
The camera, located at the top of the windscreen,
manages the illumination of main or dipped beam,
depending on the exterior lighting and the driving
conditions.
For more information on Automatic headlamp
dipping, refer to the corresponding section.
Operation indicator lamps
For more information on the Lighting control stalk, refer to the corresponding section.
If one or more of the following indicator lamps come on, this confirms that the corresponding system has been switched on.
Instruments
18
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Diesel engine
pre-heating
fixed. When the ignition is switched on
with a key in the ignition switch or
a starting instruction made using
the "START/STOP" button, the
engine temperature makes engine
pre-heating necessary.
The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
With an ignition switch and key, wait until the indicator
lamp goes off before starting.
With Keyless Entry and Starting, once it goes off,
starting is immediate, on condition that the brake
pedal remains pressed with an automatic gearbox, or
the clutch pedal is pressed fully down with a manual
gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Stop & Start fixed. When the vehicle stops (red lights, traffic
jams, ...) the Stop & Start system has put
the engine into STOP mode.
The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
flashes for a few
seconds, then goes
off.
STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically.
For more information on Stop & Start, refer to the
corresponding section.
Rear foglamps fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk.
Turn the ring on the lighting control stalk rearwards to
switch off the rear foglamps.
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk.
Turn the ring on the lighting control stalk rearward
twice to switch off the front foglamps.
1
19
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Passenger's
airbag system
fixed in the seat belt
and passenger's front
airbag warning lamps
display.
The control switch, located in the
glove box, has been placed in the
"ON" position.
The passenger's front airbag is
activated.
In this case, do not install a rearward facing child seat
on this seat.
Move the control switch to the "OFF" position to
deactivate the passenger's front airbag. In this case,
you can install a rearward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp on).
Deactivation of
the automatic
functions of the
electric parking
brake
fixed. The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty.
Activate the function again or contact a PEUGEOT
dealer or a qualified workshop in the event of a fault.
For more information on the Electric parking brake,
refer to the corresponding section.
Electric parking
brake
fixed. The electric parking brake is applied. Release the parking brake to switch off the warning
lamp: with your foot on the brake pedal, briefly push
the parking brake control lever.
Observe the safety recommendations.
For more information on the Electric parking brake,
refer to the corresponding section.
Instruments
20
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Hill Assist
Descent Control
fixed. The system has been activated, but
is paused because the speed is too
high.
Between 18 and 30 mph (30 and 50 km/h), the system
is paused.
Reduce the speed of the vehicle.
fixed. The system has been activated, but
the conditions for regulation are not
met (gradient, gear engaged).
flashing. The system is regulating the speed of
the vehicle.
The vehicle is being braked; the brake lamps come on
during the descent.
For more information on the Hill Assist Descent
Control system, refer to the corresponding section.
Blind Spot
Monitoring
System
fixed. The system has been activated. For more information on the Blind Spot Monitoring
System, refer to the corresponding section.
Automatic
wiping
fixed. The wiper control stalk has been
pushed down.
Automatic front wiping is activated.
To deactivate automatic wiping, push the wiper control
stalk down again or put the wiper control stalk in
another position.
1
21
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Stop & Start fixed, accompanied
by the display of a
message.
The Stop & Start system is
deactivated.
The engine will not cut out at the next stop in the
traffic.
Reactivate the system by pressing the button again.
For more information on Stop & Start, refer to the
corresponding section.
Passenger's
airbag system
fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display.
The control switch, located in the
glove box, is set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rearward facing child seat, unless
there is a fault with the airbags (airbag warning lamp
on).
Set the control to the "ON" position to activate the
passenger's front airbag. In this case, do not install a
rearward facing child seat on this seat.
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This may be accompanied by the display of a message and an audible signal.
Distance alert /
Active Safety
Brake
fixed, accompanied by
a message.
The system has been deactivated,
via the vehicle configuration menu in
the screen.
For more information on the Distance alert / Active
Safety Brake system, refer to the corresponding
section.
Assisted Lane
Departure
Warning System
fixed, accompanied
by the display of a
message.
The system has been deactivated. There will be no correction of the vehicle's trajectory
should there be a change of direction.
For more information on the Assisted Lane
Departure Warning System, refer to the
corresponding section.
Instruments
22
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Warning lamps
STOP fixed, associated with
another warning lamp,
accompanied by the
display of a message
and an audible signal.
Illumination of this warning lamp
is related to a serious fault with
the engine, braking system, power
steering, automatic gearbox or a
major electrical fault.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.
When the engine is running or the vehicle is being driven, illumination of one or more of the following warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated alert message.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
1
23
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Maximum
coolant
temperature
fixed. The temperature of the cooling
system is too high.
Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
qualified workshop.
or
Service temporarily,
accompanied by the
display of a message.
One or more minor faults for which
there is no specific warning lamp
have been detected.
Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate the
filter by driving at a speed of at least 40 mph
(60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a PEUGEOT
dealer or a qualified workshop.
fixed, accompanied
by the display of a
message.
One or more major faults for which
there is no specific warning lamp
have been detected.
Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a PEUGEOT dealer or a qualified workshop.
fixed, associated with the
flashing and then fixed
display of the service
indicator spanner.
The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Instruments
24
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Battery charge* fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
Warning / indicator lamp State Cause Action / Observations
Door(s) open fixed, associated with
a message identifying
the door.
Speed below 6 mph (10 km/h), a door
or the boot is not properly closed.
Close the door or boot.
fixed, associated with
a message identifying
the door, together with
an audible signal.
Speed above 6 mph (10 km/h), a door
or the boot is not properly closed.
* Depending on the country of sale.
Engine oil
pressure
fixed. There is a fault with the engine
lubrication system.
You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.
1
25
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Seat belts
not fastened /
unfastened
fixed. The driver and/or the front/rear
passenger has not fastened or has
unfastened their seat belt.
Pull the strap then insert the tongue in the buckle.
The illuminated dots represent the passengers that
have not fastened / unfastened their seat belt.
They come on:
- fixed for 30 about seconds on starting the vehicle,
- fixed from 0 to 12 mph (0 to 20 km/h) when
driving,
- flashing above 12 mph (20 km/h), accompanied by
an audible signal for about 120 seconds.
Warning / indicator lamp State Cause Action / Observations
Electric parking
brake
flashing. The electric parking brake is not
applied automatically.
The application/release is faulty.
You must stop as soon as it is safe to do so.
Park on flat level ground, engage a gear
(select P mode for an automatic gearbox), switch
off the ignition and contact a PEUGEOT dealer or a
qualified workshop.
Electric parking
brake fault
fixed. The electric parking brake has a fault. Contact a PEUGEOT dealer or a qualified workshop
without delay.
For more information on the Electric parking brake,
refer to the corresponding section.
Anti-lock
Braking System
(ABS)
fixed. The anti-lock braking system has a
fault.
The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.
Instruments
26
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Brakes fixed. A minor fault with the braking system. Drive carefully.
As soon as possible, have the system checked by a
PEUGEOT dealer or a qualified workshop.
fixed. The brake fluid level has dropped
significantly.
You must stop as soon as it is safe to do so.
Top-up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.
The electronic brake force distribution
(EBFD) system has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Dynamic
stability control
(DSC/ASR)
flashing. The DSC/ASR regulation is
operating.
The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed. The DSC/ASR system has a fault. Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Distance alert /
Active Safety
Brake
flashing. The system is operating. The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
fixed, accompanied
by a message and an
audible signal.
The system has a fault. Have the system checked by a PEUGEOT dealer or a
qualified workshop.
1
27
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Lane Departure
Warning System
flashing, accompanied
by an audible signal.
A lane marking has been crossed on
the left or right.
Turn the steering wheel in the opposite direction to
return to the correct trajectory.
For more information on the Lane Departure
Warning System, refer to the corresponding section.
fixed, accompanied
by the display of a
message.
The system has a fault. Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Assisted Lane
Departure
Warning System
fixed. The system is not available The system has been deactivated or is on automatic
standby.
For more information on the Assisted Lane Departure
Warning System, refer to the corresponding section.
flashing. You are about to cross a solid lane
marking without operating the
direction indicators.
The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ fixed, accompanied
by the display of a
message, an audible
signal and the Service
warning lamp.
The system has a fault. Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
For more information on the Assisted Lane
Departure Warning System, refer to the
corresponding section.
Instruments
28
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Airbags on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault.
Have them checked by a PEUGEOT dealer or a
qualified workshop.
Warning / indicator lamp State Cause Action / Observations
Under-inflation fixed. The pressure in one or more wheels
is too low.
Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels.
Under-inflation detection is not assured.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
1
29
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Engine
autodiagnosis
system
flashing. The engine management system has
a fault.
Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.
Warning / indicator lamp State Cause Action / Observations
Low fuel level fixed with reserve
level represented in
red, accompanied
by the display of a
message and an
audible signal.
When it first comes on there remains
approximately 6 litres of fuel in the
tank.
You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, accompanied by a message and an
audible signal, until a sufficient addition of fuel is
made.
This audible signal and message are repeated with
increasing frequency as the fuel level drops and
approaches "0".
Fuel tank capacity: approximately 53 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Instruments
30
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
AdBlue
®
(BlueHDi Diesel)
fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.
The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the AdBlue
®
topped-up as soon as possible: go
to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue
®
to its tank.
flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range.
The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the AdBlue
®
to avoid a breakdown
or go to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue
®
to its tank.
flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented.
The AdBlue
®
tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine.
To be able to start the engine, you must top-up the
AdBlue
®
or go to a PEUGEOT dealer or a qualified
workshop.
It is essential to add at least 4 litres of AdBlue
®
to its
tank.
For topping-up or for more information on AdBlue
®
and the SCR system, refer to the corresponding section.
1
31
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
+
+
SCR emissions
control system
(BlueHDi Diesel)
fixed, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message.
A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range.
After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a PEUGEOT dealer or a qualified
workshop without delay, to avoid a breakdown.
flashing, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message.
You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must call on a
PEUGEOT dealer or a qualified workshop.
Instruments
32
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Coolant temperature gauge
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
With the engine running:
- in zone A, the temperature is correct,
- in zone B, the temperature is too high;
this warning lamp and the central STOP
warning lamp come on, accompanied by
the display of a message and an audible
signal.
For more information on Checking
levels, refer to the corresponding
section.
Indicators
After first switching off the ignition,
open the bonnet cautiously and check
the coolant level.
1
33
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Service indicator
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information is displayed automatically in the
instrument panel.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due
When the ignition is switched on, the system issues
an alert to indicate when the next service is due.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the permanent display of the servicing spanner
alongside the total distance recorder.
Example: 1 700 miles (2 800 km) or 9 months
remain before the next service is due.
Less than 600 miles (1 000 km)
remain before the next service is due
When the ignition is switched on, the system
issues an alert to indicate that the next service
is due very soon.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the flashing and then fixed display of the
servicing spanner alongside the total mileage
recorder.
Example: 560 miles (900 km) or 2 months
remain before the next service is due.
The servicing spanner remains on as a
reminder that a service is required soon.
The servicing spanner remains on as a
reminder that a service is required very soon.
System which informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.
The point at which the service is due is
calculated from the last reset of the service
indicator, according to the mileage covered and
the time elapsed since the last service.
For BlueHDi Diesel versions, depending on the
country of sale, the degree of deterioration of
the engine oil may also be taken into account.
Instruments
34
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Service overdue
When the ignition is switched on, the system
issues an alert to indicate that the next service
is overdue.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the flashing and then fixed display of the
servicing spanner alongside the total mileage
recorder.
Example: the service is overdue by 186 miles
(300 km).
The servicing spanner remains on until the
service has been carried out.
With BlueHDi Diesel versions, when
the ignition is switched on, this alert
is completed by the fixed illumination
of this warning lamp.
The alert may be triggered if you
have exceeded the period since
the last service, as indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the alert
may also be triggered early, depending
on the degree of deterioration of the
engine oil, which depends on the driving
conditions in which the vehicle is used.
1
35
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Resetting the service indicator
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5 minutes for the reset
to be registered.
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F switch off the ignition,
F press and hold the trip distance recorder
reset button,
F switch on the ignition; the distance recorder
display begins a countdown,
F when the display indicates "=0", release
the button; the spanner disappears.
Retrieving the service
information
You can access the service information at any
time.
F Press the trip distance recorder reset
button.
The service information is displayed for a
few seconds, then disappears.
Instruments
36
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Engine oil level indicator*
Oil level correct
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section.
Oil level indicator fault
In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check
the engine oil level using the manual
dipstick located under the bonnet.
For more information on Checking
levels, refer to the corresponding
section.
Oil level incorrect
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.
* Depending on version.
The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.
1
37
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
AdBlue
®
range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
®
tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of the risk of non-starting related to a lack of AdBlue
®
1 500 miles" and, depending on the level in the
AdBlue tank, followed by a message indicating
that you can top-up with at least 10 litres.
Remaining range greater than 1 500 miles (2 400 km)
Pressing this button will temporarily
display the remaining range with the
message "AdBlue: range greater than
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
®
tank is
empty.
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
Instruments
38
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
150 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped-up.
It is essential to top-up as soon as possible and
before the tank is completely empty; otherwise
it will not be possible to restart the engine after
the next stop.
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the
AdBlue warning lamp comes on, accompanied
by an audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
900 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped-up.
The reserve level has been reached: it is
recommended that you top-up as soon as
possible.
To be able to start the engine, it is
essential to add at least 4 litres of
AdBlue
®
to its tank.
For more information on AdBlue
®
and the
SCR system, and topping-up in particular,
refer to the corresponding section.
When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Top-up AdBlue: Starting impossible".
The AdBlue
®
tank is empty: the system required
by regulations prevents engine starting.
Breakdown related to a lack of AdBlue
®
These messages are completed by the
recommendation to not top-up by more than
10 litres of AdBlue.
1
39
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
In the event of a fault with the SCR emissions control system
In the event of the detection of a fault
The AdBlue, SERVICE and self-diagnostic
warning lamps comes on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.
During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "Emissions fault: Starting prevented in
150 miles") indicating the remaining range
express in miles or kilometres.
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a PEUGEOT dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a PEUGEOT dealer or a
qualified workshop as soon as possible.
Otherwise, you will not be able to restart your
engine.
Instruments
40
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Starting prevented
Every time the ignition is switched on, the SERVICE
and engine diagnostic warning lamps come on and
the AdBlue warning lamp flashes, accompanied by
an audible signal and the display of the message
"Emissions fault: Starting prevented".
To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
This function allows you, at any time, to check
certain indicators and display the alerts log.
This information is also displayed
automatically every time the ignition is
switched on.
Manual test in the
instrument panel
The following information is displayed in the
instrument panel:
- the engine oil level,
- when the next service is due,
- the driving range for the AdBlue and the
SCR system for BlueHDi Diesel versions,
- current alerts.
F With the engine running, briefly press this
button.
1
41
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Distance recorders
When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country.
The change of units is done via the
screen configuration menu, with the
vehicle stationary.
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset by the driver.
Resetting the trip recorder
F With the ignition on, press the button until
zeros appear.
Instruments
42
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Instrument panel lighting
dimmer
Version with monochrome screen
The brightness of the instrument panel mood
lighting is adjusted in the touch screen.
F Select the Settings menu in the
upper bar of the touch screen.
Operates only when the vehicle's exterior
lighting is on ("night" mode).
It allows adjustment of the brightness of the
instrument panel and controls.
F Press this button to adjust the
brightness.
F When the lighting reaches the
minimum setting, release the
button, then press it again to
increase brightness.
or
F When the lighting reaches the maximum
setting, release the button, then press it
again to decrease brightness.
F Release the button once the desired level
of brightness is reached.
Instrument panel mood
lighting
F Press this button.
F Press the "Brightness" button.
F Adjust the brightness by pressing the
arrows or moving the cursor.
F Confirm to save and quit.
Version with touch screen
It allows the instrument panel mood lighting to
be switched on or off.
1
43
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Trip computer
Information display in the
instrument panel
F Press the button on the end of the wiper
control stalk to display the various tabs in
succession.
The display of trip computer information
is permanent when you select the "TRIP
COMPUTER" or "PERSONAL" display mode.
For all other display modes, pressing the end
of the wiper stalk displays this information in a
new window.
System that gives you information on the current journey (range, fuel consumption…).
- The current information tab with:
● the range,
● the current fuel consumption,
● the Stop & Start time counter.
- Trip "1" with:
● the average speed.
● the average fuel consumption,
● the distance travelled,
for the first trip.
- Trip "2" with:
● the average speed,
● the average fuel consumption,
● the distance travelled,
for the second trip.
Trip reset
F When the desired trip is displayed, press
the button on the end of the wiper control
stalk for more than two seconds.
Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Instruments
44
3008-2_en_Chap01_instruments-de-bord_ed01-2016
A few definitions…
Range
(miles or km)
When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
Average fuel consumption
(mpg or l/100 km or km/l)
Distance travelled
(miles or km)
Stop & Start time counter
(minutes / seconds or hours /
minutes)
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop.
This function is only displayed from
20 mph (30 km/h).
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).
Calculated over the last few seconds.
Calculated since the last trip computer reset.
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on.
Calculated since the last trip computer reset.
Average speed
(mph or km/h)
Calculated since the last trip computer reset.
1
45
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Monochrome screen C
Displays in the screen Controls Main menu
Depending on the context, it displays:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- visual parking sensor information,
- current audio source,
- telephone or Bluetooth system information,
- settings menus for the screen and the
vehicle equipment.
From the audio system control panel, press:
F the "MENU" button for access to the main
menu,
F the "5" or "6" buttons to scroll through the
items in the screen,
F the "7" or "8" buttons to change a setting
value,
F the "OK" button to confirm,
or
F the "Back" button to abandon the
operation in progress.
F Press the "MENU" button:
- "Multimedia",
- "Telephone",
- "Connections",
- "Personalisation-configuration",
F Press the "7" or "8" button to select the
menu required, then confirm by pressing
the "OK" button.
"Multimedia" menu
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(Frequency search (RDS), DAB / FM auto
tracking, RadioText (TXT) display) or to choose
the media play mode (Normal, Random,
Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio equipment and
telematics" section.
Instruments
46
3008-2_en_Chap01_instruments-de-bord_ed01-2016
"Telephone" menu
"Connections" menu
With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be paired and the connection mode to be
defined (hands-free, playing audio files).
For more information on the "Connections"
application, refer to the "Audio equipment and
telematics" section.
With the audio system switched on, this menu
allows you to make a call, view the calls log or
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio equipment and
telematics" section.
This menu gives access to the following
functions:
- "Define the vehicle parameters",
- "Choice of language",
- "Display configuration",
- "Comfort":
● "Rear wipe in reverse gear".
For more information on the Wipers,
refer to the "Lighting and visibility"
section.
● "Parking assistance".
For more information on Parking
assistance, refer to the "Driving"
section.
● "Fatigue Detection System".
For more information on the Fatigue
detection system, refer to the "Driving"
section.
Dene the vehicle parameters
This menu allows the activation or deactivation
of the following equipment, depending on
version:
- "Lighting":
● "Follow-me-home headlamps".
● "Welcome lighting".
For more information on Exterior lighting,
refer to the "Lighting and visibility" section.
"Personalisation-configuration" menu
- "Access to the vehicle":
● "Plip action".
For more information on the Remote control
and selective door unlocking in particular, refer
to the "Access" section.
- "Driving assistance":
● "Auto. emergency braking".
For more information on the Active
Safety Brake, refer to the "Driving"
section.
● "Speed recommendation".
For more information on Speed limit
recognition, refer to the "Driving"
section.
● "Tyre inflation".
For more information on Under-
inflation detection and reinitialisation in
particular, refer to the "Driving" section.
1
47
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Choice of language
This menu allows selection of the language
used by the screen and the instrument" panel.
Display conguration
This menu gives access to the following
settings:
- "Choice of units",
- "Date and time adjustment",
- "Display parameters",
- "Brightness".
Adjusting the date and time
F Press the "7" or "8" button to display
the "Display configuration" menu, then
press "OK".
F Press the "5" or "6" button to select the
"Date and time adjustment" button, then
press "OK".
F Press the "7" or "8" button to select
the setting to modify. Confirm by
pressing "OK", then modify the setting and
confirm again to save the modification.
F Adjust the settings one by one, confirming
with the "OK" button.
F Press the "5" or "6" button, then the
"OK" button to select the "OK" box and
confirm or the "Back" button to cancel.
As a safety measure, the driver must
only carry out operations that require
sustained attention when stationary.
Instruments
48
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Touch screen
This system gives access to:
- the permanent display of the time and
the ambient temperature (a blue symbol
appears when there is a risk of ice),
- the heating/air conditioning controls,
- menus for adjusting settings for vehicle
functions and systems,
- audio system and telephone controls and
the display of associated information,
- the display of visual parking aids (visual
parking sensor information, Park Assist, ...),
- Internet services, and the display of
associated information.
General operation
and, depending on equipment, allows:
- access to the navigation system controls
and the display of associated information.
As a safety measure, the driver
should only carry out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.
Recommendations
This screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Principles
Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen.
Certain menus may be displayed over two
pages. Press the "OPTIONS" button to go to
the second page.
To deactivate or activate a function,
select "OFF" or "ON".
To modify a setting or access additional
information, press the symbol for the function.
Use this button to confirm.
Use this button to return to the
previous page.
After a few moments with no action
on the second page, the first page is
displayed automatically.
For the audio and telematic systems,
refer to the supplement to the handbook
or go to the following internet address:
http://public.servicebox.peugeot.com/ddb/
1
49
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Air conditioning.
Allows control of the settings for
temperature, air flow...
Connected navigation or Mirror
Screen*.
See more information in "Audio
equipment and telematics".
Menus
i-Cockpit Amplify function.
Allows a vehicle ambience to be
personalised.
Radio Media.
See more information in "Audio
equipment and telematics".
Driving.
Allows the activation, deactivation and
adjustment of settings for certain functions.
Telephone.
See more in "Audio equipment and
telematics".
Applications.
Allows direct access to certain
i-Cockpit Amplify functions
(scented air freshener...).
Volume / mute.
See more in "Audio equipment and
telematics".
* Depending on equipment.
Upper bar
Certain information is always displayed in the
upper bar of the touch screen:
- Repeat of the air conditioning information,
and direct access to the corresponding
menu.
- Repeat of information from the Radio
Media, Telephone menus and navigation
instructions*.
- Access to Configuration of the touch
screen and the digital instrument panel.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
For more information on Semi-automatic
mono-zone air conditioning and Automatic
dual-zone air conditioning, refer to the
corresponding sections.
The functions accessible from this menu are
arranged under two tabs: "Settings" and
"Driving assistance".
For more information on the Scented air
freshener, refer to the corresponding section.
See more information in "Audio equipment and
telematics".
Instruments
50
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Driving menu
"Settings" tab
Button Comments
"Lighting" - "Directional headlamps": activation/deactivation of cornering lighting.
- "LED daytime running lamps" (depending on the country of sale).
"Vehicle access" - "Driver plip action": activation/deactivation of selective unlocking of the driver's door.
- "Unlock boot only": activation/deactivation of selective unlocking at the tailgate.
- "Motorized tailgate": activation/deactivation of motorized operation of the tailgate.
- "Hands-Free Tailgate Access": activation/deactivation of the hands-free tailgate access system.
"Comfort" - "Rear wiper in reverse": activation/deactivation of the rear wiper coupled with reverse gear.
- "Guide-me-home lighting": activation/deactivation of automatic guide-me-home lighting.
- "Welcome lighting": activation/deactivation of exterior welcome lighting.
- "Mood lighting": activation/deactivation of mood lighting and adjustment of brightness.
- "Auto mirror dipping in reverse": activation/deactivation of automatic dipping of door mirrors in reverse gear.
"Safety" - "Collision risk alert and automatic braking": activation/deactivation of collision risk alert and automatic emergency
braking.
- "Recommended speed display": activation/deactivation of speed limit recognition.
- "Fatigue Detection System": activation/deactivation of the driver fatigue detection system.
For more information on one of these functions, refer to the corresponding section.
1
51
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
"Driving assistance" tab
Corresponding function "Comments"
"Speed settings" Memorisation of speed settings for the speed limiter or cruise control.
"Under-inflation initialization" Reinitialization of the under-inflation detection system.
"Lane departure detection assistance." Activation/deactivation of the function.
"Help staying in lane" Activation/deactivation of the function.
Parking sensors Activation/deactivation of the function.
"Park Assist" Activation/deactivation of the function.
"Automatic headlamp dip" Activation/deactivation of the function.
"Stop & Start" Activation/deactivation of the function.
"Blind spot monitoring" Activation/deactivation of the function.
"Panoramic visual aid" Activation of the Visiopark 2 function.
"Wheel anti-slip regulation" Activation/deactivation of the function
For more information on one of these functions, refer to the corresponding section.
Instruments
52
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Conguration
The functions available through this menu are detailed in the table below.
Button Comments
Turn off the screen (black screen).
To return to the current screen, press the black screen or one of the menu buttons.
Adjustment of the brightness of the instrument panel mood lighting.
Choice and settings for three user profiles.
Settings for the touch screen and the digital instrument panel...
Activation and adjustment of Wi-Fi settings.
1
53
Instruments
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Button Corresponding function Comments
Screen configuration Adjustment of the display settings (scrolling of text, animations...) and brightness.
Instrument panel perso Select the type of information displayed in the digital instrument panel.
System configuration Choice of units:
- temperature (°Celsius or °Fahrenheit)
- distance and fuel consumption (l/100 km, mpg or km/l).
Languages Choice of language used for the touch screen and the digital instrument panel.
Time / Date Setting the time, date and format.
Option of synchronisation with GPS.
Settings
The settings possible for the touch screen and the digital instrument panel are presented in the table below.
Acc ess
54
3008-2_en_Chap02_ouvertures_ed01-2016
Remote control
The remote control can be used for the
following functions, depending on version:
- unlocking / locking / deadlocking the
vehicle,
- unlocking and opening the boot,
- switch on the lighting from a distance,
- folding / unfolding the door mirrors,
- activation / deactivation of the alarm,
- opening the windows,
- closing the windows and the opening roof,
- locating the vehicle,
- vehicle immobiliser.
In normal operating conditions, it is preferable
to use the remote control.
General points
The key, integral with the remote control, can
be used for the following functions, depending
on version:
- unlocking / locking / deadlocking the
vehicle,
- turning the child lock on or off,
- activation / deactivation of the passenger's
front airbag,
- back-up door locking,
- switching on the ignition and starting /
stopping the engine.
Ejecting the key
Version with Keyless Entry and Starting
F Pull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button.
Version without Keyless Entry and Starting
F Press this button; the key is ejected from its
housing.
To avoid damaging the mechanism, first press
this button to fold it.
Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure
of the remote control, the central locking,
the battery...
For more information on the Back-up
procedures, refer to the corresponding
section.
2
Acc ess
55
3008-2_en_Chap02_ouvertures_ed01-2016
F Press this button.
Total unlocking
Unlocking the vehicle
Selective unlocking of the
driver's door
Setting is via the vehicle configuration menu in
the screen.
F To unlock just the driver's door,
make a first press on this button.
F To unlock the other doors and
the boot, press this button again.
On the first press of the locking button, flashing
of the direction indicators for a few seconds
signals:
- total or selective unlocking of the vehicle
for versions without alarm,
- deactivation of the alarm for other versions.
Depending on version, the door mirrors unfold.
Opening the windows
Locking the vehicle
Normal locking
F Press this button.
On pressing the locking button, illumination
of the direction indicators for a few seconds
signals:
- locking of the vehicle for versions without
alarm,
- activation of the alarm for other versions.
Depending on version, the door mirrors fold.
If one of the doors or the boot is not
fully closed, the locking does not take
place. However, if your vehicle has an
alarm, this will be totally activated after
about 45 seconds.
If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically
lock itself again after about 30 seconds.
If the alarm had been previously
activated, it will be reactivated
automatically.
The folding and unfolding of the door
mirrors with the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
Depending on version, pressing and
holding the unlocking buttons opens
the windows to the desired position.
The windows stop when you release the button.
Acc ess
56
3008-2_en_Chap02_ouvertures_ed01-2016
Deadlocking
F Make a first press on this button.
F Within five seconds, press this
button again to deadlock the
vehicle.
Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Locating your vehicle
F Press this button.
This will switch on the courtesy lamps and door
mirror spot lamps and the direction indicators
will flash for around ten seconds.
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
For versions without alarm, deadlocking is
confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button.
Closing the windows and sunroof
Pressing and holding the locking
button closes the windows and,
depending on version, the sunroof to
the desired position.
When closing the windows and sunroof
you must ensure that nothing prevents
their correct closing.
If, on versions with alarm, you want to
leave the windows and/or sunroof partly
open, you must first deactivate the
volumetric alarm protection.
For more information on the Alarm,
refer to the corresponding section.
This operation also starts closing of the blind.
2
Acc ess
57
3008-2_en_Chap02_ouvertures_ed01-2016
If selective unlocking of the boot is
deactivated, pressing the unlocking
button unlocks the whole vehicle.
Remote operation of
exterior lighting
Availability of this function depends on version.
F Make a short press on this
remote control button.
Pressing again before the end of the timed
period switches off the lighting immediately.
Unlocking and opening the
boot
Selective unlocking of the boot
F Make a long press on this button
to unlock the boot and start the
motorised opening of the tailgate.
The doors and fuel filler flap remain locked.
The sidelamps, dipped beam headlamps,
number plate lamps and door mirror spotlamps
come on for 30 seconds.
The setting for selective unlocking of the boot
is done in the vehicle configuration menu in the
screen.
By default, selective unlocking of the boot is
activated.
If motorised operation of the tailgate
is deactivated, pressing the unlocking
button releases the tailgate.
To lock the vehicle, it is necessary to
close the tailgate manually.
On pressing the boot unlocking button, flashing
of the direction indicators for a few seconds
signals:
- total or selective unlocking of the vehicle
for versions without alarm,
- deactivation of the alarm for other versions.
Depending on version, the door mirrors unfold.
The setting for motorised operation
of the tailgate is done in the
Driving menu of the touch screen.
By default, motorised operation is deactivated.
Acc ess
58
3008-2_en_Chap02_ouvertures_ed01-2016
Keyless Entry and Starting
System that allows the unlocking, locking
and starting of the vehicle, while keeping the
electronic key on your person.
Unlocking the vehicle
Complete unlocking
The electronic key can also be used as
a remote control.
For more information on the operation
of the Remote control, refer to the
corresponding section.
F With the electronic key on your person and
in the recognition zone A, pass your hand
behind one of the front door handles or
press the tailgate opening control (located
in the middle).
If motorised operation of the tailgate is
activated, this action triggers its automatic
opening.
Opening the windows
Depending on version, keeping your hand
behind the door handle or pressing the tailgate
control allows the windows to be opened to the
desired position.
Flashing of the direction indicators for a few
seconds signals:
- the unlocking of the vehicle for versions
without alarm,
- the deactivation of the alarm for other
versions.
Depending on version, the door mirrors unfold.
2
Acc ess
59
3008-2_en_Chap02_ouvertures_ed01-2016
Selective unlocking of the
driver's door
F To unlock only the driver's door, with the
electronic key on your person, pass your
hand behind the driver's door handle.
F To unlock the complete vehicle, pass your
hand behind the front passenger door
handle with the electronic key close to
the passenger door, or press the tailgate
opening control (located in the middle) with
the electronic key close to the rear of the
vehicle.
Activation or deactivation of the
selective unlocking of the driver's
door is done in the Driving menu of
the touch screen.
When unlocking the driver's door, flashing
of the direction indicators for a few seconds
signals:
- the selective unlocking of the vehicle for
versions without alarm,
- the deactivation of the alarm for other
versions.
Depending on version, the door mirrors unfold.
Selective unlocking of the boot
F Press the tailgate opening button to unlock
just the boot.
The doors remain locked.
If selective unlocking of the boot is
deactivated, pressing this control also
unlocks the door.
Activation or deactivation of selective
locking of the boot is done in the
Driving menu of the touch screen.
Acc ess
60
3008-2_en_Chap02_ouvertures_ed01-2016
If one of the doors or the boot is still
open or if the electronic key for the
Keyless Entry and Starting system has
been left inside the vehicle, the central
locking does not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.
As a safety measure (children on
board), never leave the vehicle without
taking the electronic key for the Keyless
Entry and Starting system with you,
even for a short period.
Be aware of the risk of theft when the
electronic key for the Keyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.
The automatic folding and unfolding
of the door mirrors can be deactivated
by a PEUGEOT dealer or a qualified
workshop.
In order to preserve the battery in the
electronic key and the vehicle's battery,
the "hands-free" functions are put into
long-term standby after 21 days without
use. To restore these functions, press
one of the remote control buttons or
start the engine with the electronic key
in the reader.
For more information on starting with
Keyless Entry and Starting, refer to
the corresponding section.
If the vehicle is unlocked by mistake
and with no action on the doors or boot,
the vehicle will lock again automatically
after about 30 seconds.
If fitted to your vehicle, the alarm will
also be reactivated automatically.
2
Acc ess
61
3008-2_en_Chap02_ouvertures_ed01-2016
Ensure that nothing could prevent the
correct closing of the windows and
sunroof.
Be particularly aware of children when
operating the windows.
Illumination of the direction indicators for a few
seconds signals:
- locking of the vehicle for versions without
alarm,
- activation of the alarm for other versions.
Depending on version, the door mirrors fold.
For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on your
person.
Locking the vehicle
Normal locking
F With the electronic key in the recognition
zone A, press with a finger or thumb
on one of the front door handles (at the
markings) or press the locking button on
the tailgate (on the right).
It is not possible to lock the vehicle if one of the
electronic keys is left inside the vehicle.
Closing the windows and sunroof
Maintaining pressure on the door handle or
the tailgate control allows the windows and,
depending on version, the sunroof to be closed
to the desired position.
This operation also closes the sunroof blind.
Acc ess
62
3008-2_en_Chap02_ouvertures_ed01-2016
Accumulations (water, dust, grime,
salt...) on the inner surface of the door
handle may affect detection.
If cleaning the inner surface of the door
handle using a cloth does not restore
detection, contact a PEUGEOT dealer
or a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer, …)
may be identified by the system as the
desire to open the vehicle.
Deadlocking
F With the electronic key in the recognition
zone A, press a finger or thumb on one of
the front door handles (at the markings)
or on the locking control located on the
tailgate (to the right).
F Within five seconds, press one of these
locking controls again to deadlock the
vehicle.
At the first press on one of the locking controls,
illumination of the direction indicators for a few
seconds signals:
- the locking of the vehicle for versions
without alarm,
- the activation of the alarm for other
versions.
Depending on version, the door mirrors fold.
At the second press, illumination of the
direction indicators for a few seconds signals
the deadlocking of the vehicle for versions
without alarm.
Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
control button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
2
Acc ess
63
3008-2_en_Chap02_ouvertures_ed01-2016
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
For vehicles with an ignition switch, do not forget to remove the key and turn the steering to engage the steering lock.
Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the
key code.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a new key.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Acc ess
64
3008-2_en_Chap02_ouvertures_ed01-2016
Back-up procedures
These procedures should be used in the
following cases:
- remote control cell battery flat,
- remote control fault,
- vehicle in an area subject to strong
electromagnetic interference.
In the first case, you can also replace the
remote control cell battery.
Refer to the corresponding section.
In the second case, you can also reinitialise the
remote control.
Refer to the corresponding section.
Unlocking
F Insert the key in the door lock barrel.
F Turn the key towards the front of the
vehicle.
For versions without alarm, the unlocking is
confirmed by flashing of the direction indicators
for a few seconds.
Depending on version, the door mirrors unfold.
If the alarm is activated, the siren
sounds on opening the door; switch on
the ignition to stop it.
Normal locking
F Insert the key in the door lock barrel.
F Turn the key towards the rear of the
vehicle.
For versions without alarm, the locking is
confirmed by flashing of the direction indicators
for a few seconds.
Depending on version, the door mirrors fold.
If your vehicle is fitted with an alarm,
this function will not be activated when
locking with the key.
Total unlocking / locking of the vehicle with the key
2
Acc ess
65
3008-2_en_Chap02_ouvertures_ed01-2016
Deadlocking
Without central locking
These procedures should be used in the
following cases:
- central locking fault,
- battery disconnected or discharged.
Driver's door
F Turn the key towards the rear of the vehicle
to lock it, or towards the front to unlock it.
Passenger doors
Unlocking a door
F Pull the interior opening control for the
door.
Locking
F Open the doors.
F For the rear doors, check that the child lock
is not on.
Refer to the corresponding section.
F Remove the black cap on the edge of the
door, using the key.
F Without forcing, insert the key into the
aperture; then, without turning it, move the
latch sideways towards the inside of the
door.
F Remove the key and refit the black cap.
F Close the doors and check from the
outside that the vehicle is locked.
F Insert the key in the door lock barrel.
F Turn the key towards the rear of the vehicle
to lock it.
F Within five seconds, turn the key towards
the rear of the vehicle again to deadlock it.
For versions without alarm, at the second
manoeuvre the deadlocking is confirmed
by flashing of the direction indicators for
a few seconds.
Depending on version, the door mirrors fold.
Acc ess
66
3008-2_en_Chap02_ouvertures_ed01-2016
Changing the battery
A message appears in the instrument panel screen when replacement of the battery is needed.
Version without Keyless Entry and Starting
Battery type: CR1620 / 3 volts.
Version with Keyless Entry and Starting
Battery type: CR2032 / 3 volts.
F Unclip the cover using a small screwdriver
at the cut-out.
F Lift off the cover.
F Remove the discharged battery from its
housing.
F Fit the new battery into its housing
observing the polarity.
F Clip the cover onto the casing.
The remote control must be reinitialised after
replacing the battery.
For more information on reinitialising the
remote control, refer to the corresponding
section.
2
Acc ess
67
3008-2_en_Chap02_ouvertures_ed01-2016
Following replacement of the battery or in the event of a remote control fault, it may be necessary to reinitialise the remote control.
Version with Keyless Entry and
Starting
Reinitialising the remote control
Version without Keyless Entry
and Starting
F Place the electronic key against the back-
up reader on the steering column and hold
it there until the ignition is switched on.
F Switch on the ignition by pressing the
"START/STOP" button.
The electronic key is now fully operational
again.
F Switch off the ignition.
F Turn the key to position 2 (ignition on).
F Press the closed padlock button for a few
seconds.
F Switch off the ignition and remove the key
from the switch.
The remote control is now fully operational
again.
F If your vehicle has a manual gearbox, place
the gear lever in neutral then fully depress
the clutch pedal.
F If your vehicle has an automatic gearbox,
select position P then press the brake
pedal firmly.
If the fault persists after reinitialisation, contact
a PEUGEOT dealer or a qualified workshop
without delay.
Acc ess
68
3008-2_en_Chap02_ouvertures_ed01-2016
Central locking
Manual mode
Unlocking
This function allows the doors and boot to be locked or unlocked simultaneously from inside the vehicle.
Locking
When locking / deadlocking
from the outside
When the vehicle is locked or
deadlocked from the outside, the red
indicator lamp flashes and the button is
inactive.
F After normal locking, pull one of the
interior door levers to unlock the
vehicle.
F After deadlocking, it is necessary
to use the remote control, Keyless
Entry and Starting or the integral
key to unlock the vehicle.
Automatic mode
This is the automatic central locking of the
vehicle when driving, also called anti-intrusion
security.
For more information on Anti-intrusion
security, refer to the corresponding section.
If one of the doors is open, the central
locking from the inside does not take
place.
F Press this button to lock the
vehicle.
The red indicator lamp in the button
comes on.
F Press this button again to unlock
the vehicle.
The red indicator lamp in the button
goes off.
2
Acc ess
69
3008-2_en_Chap02_ouvertures_ed01-2016
Activation / Deactivation
Anti-intrusion security
Operation
This system allows automatic simultaneous locking of the doors and boot as soon as the speed of the vehicle exceeds 6 mph (10 km/h).
If one of the doors or the boot is open, the
automatic central locking does not take place.
Carrying long or
voluminous objects
If you want to drive with the boot open,
you should press the central locking
button to lock the doors. Otherwise,
every time the speed of the vehicle
exceeds 6 mph (10 km/h), the locks
will rebound and the alerts mentioned
above will appear.
Pressing the central locking button
unlocks the vehicle.
Above 6 mph (10 km/h), this unlocking
is temporary.
You can activate or deactivate this function
permanently.
Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
This is signalled by the sound of
the locks rebounding, accompanied
by illumination of this symbol in the
instrument panel, an audible signal
and the display of an alert message.
The state of the system stays in memory when
switching off the ignition.
F With the ignition on, press this
button until an audible signal
starts and a corresponding
message is displayed.
Acc ess
70
3008-2_en_Chap02_ouvertures_ed01-2016
* Depending on version.
Alarm*
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...
- interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- anti-tilt**
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.
** Depending on engine.
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
2
Acc ess
71
3008-2_en_Chap02_ouvertures_ed01-2016
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the
vehicle.
F Lock the vehicle with the remote control or
the Keyless Entry and Starting system.
The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
Deactivation
F Press the unlocking button on the remote
control.
or
F Unlock the vehicle with the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the button goes off and the
direction indicators flash for about 2 seconds.
Following an instruction to lock
the vehicle, the exterior perimeter
monitoring is activated after a delay of
5 seconds and the interior volumetric
and anti-tilt monitoring after a delay of
45 seconds.
If an opening (door, boot or bonnet)
is not fully closed, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after a
delay of 45 seconds at the same time
as the interior volumetric and anti-tilt
monitoring.
When the vehicle automatically locks
itself again (as happens if a door or
boot is not opened within 30 seconds
of unlocking), the monitoring system is
also reactivated.
Acc ess
72
3008-2_en_Chap02_ouvertures_ed01-2016
Locking the vehicle
with exterior perimeter
monitoring only
Deactivating the interior
volumetric and anti-tilt monitoring
F Switch off the ignition and within
10 seconds, press the button until the
indicator lamp is on continuously.
F Get out of the vehicle.
F Immediately lock the vehicle using the
remote control or the Keyless Entry and
Starting system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Reactivating the interior
volumetric and anti-tilt
monitoring
F Deactivate the perimeter monitoring by
unlocking the vehicle with the remote
control or the Keyless Entry and Starting
system.
The indicator lamp in the button goes off.
F Reactivate all monitoring by locking the
vehicle with the remote control or the
Keyless Entry and starting system.
The indicator lamp in the button flashes once
per second again.
Deactivate the interior volumetric and anti-tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window or sunroof partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea.
To be effective, the deactivation must
be carried out each time the ignition is
switched off.
2
Acc ess
73
3008-2_en_Chap02_ouvertures_ed01-2016
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault with the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Failure of the remote control
To deactivate the monitoring functions:
F unlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F open the door; the alarm is triggered,
F switch on the ignition; the alarm stops; the
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
30 seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
F Lock or deadlock the vehicle using the
key (integral to the remote control) in the
driver's door lock.
Acc ess
74
3008-2_en_Chap02_ouvertures_ed01-2016
Doors
Opening
From outside
F After unlocking the vehicle or with the
electronic key of the Keyless Entry and
Starting system in the recognition zone,
pull the door handle.
From inside
F Pull the interior control lever of a front door;
this unlocks the vehicle completely.
Closing
- with the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an alert message for a few
seconds.
With the selective unlocking activated:
- opening the driver's door unlocks
the driver's door only (if the vehicle
has not already been completely
unlocked).
- opening one of the passenger
doors unlocks the rest of the
vehicle.
When the selective unlocking is
activated, the first press of the remote
control unlocking button permits
unlocking of the driver's door only.
When a door is not closed correctly:
- with the vehicle moving (speed above
6 mph (10 km/h)), in addition to the warning
lamp and alert message, there is an
audible signal for a few seconds.
2
Acc ess
75
3008-2_en_Chap02_ouvertures_ed01-2016
Boot
Opening the tailgate
F With the vehicle unlocked or with the
electronic key of the Keyless Entry and
Starting system in the recognition zone,
press the central tailgate control.
F Raise the tailgate.
Closing the tailgate
When selective unlocking is activated,
the electronic key must be close to the
rear of the vehicle.
F Lower the tailgate using the interior grips.
F Release the grips and press down on the
outside of the tailgate to close it.
With the exterior tailgate control
The tailgate is not designed to take a
bicycle carrier.
If the tailgate is not properly closed:
- engine running, this warning
lamp and a message appear in
the instrument panel for a few
seconds,
- vehicle running (speed above 6 mph
(10 km/h)), this warning lamp and a
message appear in the instrument panel
for a few seconds, accompanied by an
audible signal.
Acc ess
76
3008-2_en_Chap02_ouvertures_ed01-2016
Hands-free tailgate
General points
The motorised operation of the tailgate can be
activated or deactivated in the vehicle settings
menu.
The motorised tailgate must only be operated
with the vehicle stationary.
Never introduce a finger in the locking
system of the motorised tailgate - Risk
of a serious injury!
Anti-pinch
The motorised tailgate has an obstacle
detection system that automatically interrupts
and reverses its movement by a few degrees to
allow the obstacle to be cleared.
Please note that this anti-pinch system is not
active at the end of the closing travel (around
1 cm from completely closed).
Bicycle carrier / Towbar
The motorised tailgate is not designed to
support a bicycle carrier.
When installing a bicycle carrier on a towbar
with connection of a cable to the towbar socket,
the motorised operation of the tailgate will be
automatically deactivated.
If using a towbar or bicycle carrier not
recommended by PEUGEOT, it is essential
to deactivate the motorised operation of the
tailgate.
Check that there is enough space to
allow for the movement of the motorised
tailgate.
To avoid the risk of injury through
pinching or trapping, before and during
operation of the motorised tailgate:
- ensure that there is no person close
to the rear of the vehicle,
- watch the activity of your
passengers, particularly any
children.
2
Acc ess
77
3008-2_en_Chap02_ouvertures_ed01-2016
Operation
There are several ways of operating the
motorised tailgate:
A. using the electronic key of the Keyless
Entry and Starting system,
B. using the exterior control on the tailgate,
C. using the interior tailgate control,
D. using the control on the dashboard,
E. using the "hands-free access" procedure
below the rear bumper.
Motorised opening
There are several possibilities.
F Make a long press on the central button A
of the electronic key.
or
F Press the exterior control B on the tailgate
with the electronic key on your person.
or
F Press twice in succession on the
dashboard control D.
The command is confirmed by an audible
signal.
The tailgate opens, either completely as the
default setting, or to the memorised position.
Motorised closing
There are several possibilities.
F Make a long press on the central button A
of the electronic key.
or
F Press the exterior control B on the tailgate.
or
F Press the interior tailgate control C.
or
F Press twice in succession on the
dashboard control D.
The command is confirmed by an audible
signal.
Activation and deactivation of
motorised operation of the tailgate
is done in the Driving menu of the
touch screen.
This function is deactivated by default.
It is possible to stop the movement of
the tailgate.
Pressing one of these controls again
interrupts the movement.
Following the interruption of a
movement, pressing one of these
controls again resumes the movement.
Acc ess
78
3008-2_en_Chap02_ouvertures_ed01-2016
"Hands-free" motorised
opening
This movement first unlocks just the
boot, or the vehicle if the latter was
locked.
F With the electronic key of the Keyless Entry
and Starting system on your person,
F Use the "hands-free" access E by passing
a foot rapidly below the rear bumper.
The command is confirmed by an audible
signal.
The tailgate opens, either completely by
default, or to the memorised position.
Ensure that you are steady on your feet
before passing a foot rapidly below the
rear bumper.
Take care not to touch the exhaust
system, which may be hot - Risk of
burns!
Passing your foot rapidly below the
bumper again while the tailgate is
opening interrupts the movement.
A third pass of your foot reverses the
direction of movement.
"Hands-free" motorised closing
F With the electronic key of the Keyless Entry
and Starting system on your person,
F Use the "hands-free" access E by passing
a foot rapidly below the rear bumper.
The command is confirmed by an audible
signal.
Passing your foot rapidly below the
bumper again while the tailgate is
closing interrupts the movement.
A third pass of your foot reverses the
direction of movement.
Activation / deactivation of the
Hands-Free Tailgate Access function
is done in the Driving menu of the
touch screen.
This function is deactivated by default.
2
Acc ess
79
3008-2_en_Chap02_ouvertures_ed01-2016
When opening and closing a motorised tailgate
manually, there is no assistance from gas-filled
struts. Resistance to opening and closing is
therefore entirely normal.
Repeated opening and closing of
the motorised tailgate can cause
overheating of its electric motor, after
which opening and closing will not be
possible.
Allow at least 10 minutes for the electric
motor to cool down before operating the
tailgate again.
If you are unable to wait, operate it
manually.
Detection of obstacles
If an obstacle (person or object) is
encountered, the anti-pinch system stops the
closing movement and raises the tailgate by a
few centimetres to clear the obstacle.
Memorising an opening
position
Where height is restricted (garage with a low
ceiling, ...) it is possible to limit and memorise
the opening angle of the motorised tailgate.
This memorisation is done as follows:
F open the tailgate to the desired position,
F press button C or the exterior control B for
more than 3 seconds.
Memorisation of the maximum opening position
of the tailgate is confirmed by an audible signal.
To cancel the memorised position:
F stop the tailgate in an intermediate
position,
F press button C or the exterior control B for
more than 3 seconds.
Cancellation of the memorised position is
confirmed by an audible signal.
Manual operation
The tailgate can be opened and closed
manually, even if motorised operation is
activated.
However, any manual operation must be done
with the tailgate first stopped.
It is possible to activate automatic locking of
the vehicle on closing the tailgate, using the
Hands-Free Tailgate Access function.
F Press this button; its indicator
lamp comes on.
Pressing this button again deactivates the
function; its indicator lamp goes off.
Automatic locking by the Hands-
Free Tailgate Access function
Acc ess
80
3008-2_en_Chap02_ouvertures_ed01-2016
Precautions in use
In wintry conditions
In the event of an accumulation of snow
on the tailgate, clear the snow before
commanding a motorised opening of
the tailgate.
The formation of ice can block the
tailgate and prevent its opening: wait
until the ice melts with the heating of
the passenger compartment.
When washing
When washing the vehicle in an
automatic car wash, don't forget to
lock your vehicle to avoid the risk of
unexpected opening.
Reinitialising the motorised
tailgate
This operation is necessary where there is
no movement - after detection of an obstacle,
connecting or recharging the battery, ...
F Open the tailgate manually, if necessary.
F Fully close the tailgate manually.
If the problem persists, contact a PEUGEOT
dealer or a qualified workshop.
2
Acc ess
81
3008-2_en_Chap02_ouvertures_ed01-2016
Back-up release
Unlocking
F Fold back the rear seats to gain access to
the lock from inside the boot.
F Insert a small screwdriver into hole A of the
lock to unlock the tailgate.
F Move the latch to the left.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
To manually unlock the boot in the event of a
battery or central locking failure.
Recommendations related to the "Hands-free tailgate
access" function
If several passes of your foot below the rear
bumper fail to open the tailgate, wait a few
seconds before starting again.
The function is automatically deactivated in the
event of heavy rain or accumulation of snow.
If the function fails to operate, check that
the electronic key is not exposed to strong
electromagnetic interference (a smartphone, ...).
The function may not work correctly with a
prosthetic leg.
The function may not work correctly if your
vehicle is fitted with a towbar.
In some circumstances, the tailgate may only
open or close, particularly if:
- your vehicle is fitted with a towbar,
- you hitch or unhitch a trailer,
- you fit or remove a bicycle carrier,
- you load or unload bicycles from a bicycle
carrier,
- you place or lift something behind the
vehicle,
- an animal approaches the rear bumper,
- you are washing your vehicle,
- a service is being carried out on your
vehicle,
- you are accessing the spare wheel
(depending on version).
To avoid such operating problems, keep the
electronic key away from the recognition zone
or deactivate "Hands-free tailgate access".
Ensure that no object or person might
prevent the correct opening or closing
of the tailgate.
Be particularly aware of children when
operating the tailgate.
Acc ess
82
3008-2_en_Chap02_ouvertures_ed01-2016
Electric windows
Manual operation
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
1. Left-hand front.
2. Right-hand front.
3. Right-hand rear.
4. Left-hand rear.
5. Deactivate the electric window switches
located at the rear seats.
Automatic operation
Safety anti-pinch
To open or close the window, press or pull
the switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.
The electric window switches
remain operational for approximately
45 seconds after switching off the
ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate
them, switch the ignition on again.
2
Acc ess
83
3008-2_en_Chap02_ouvertures_ed01-2016
For the safety of your children, press switch 5
to prevent operation of the rear windows
irrespective of their positions.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that nothing is preventing
correct closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be particularly aware of children when
operating the windows.
Be aware of passengers or other
persons present when closing the
windows using the electronic key or the
"Keyless Entry and Starting" system.
Deactivating the rear
controls for the rear
windows
The indicator lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is off (deactivated).
Use of the rear electric windows from the
driver's controls remains possible.
Reinitialising the electric
windows
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
- lower the window completely, then raise it,
it will rise in steps of a few centimetres with
each action. Repeat the operation until the
window closes completely,
- continue to pull the switch for at least one
second after reaching this position, window
closed.
Acc ess
84
3008-2_en_Chap02_ouvertures_ed01-2016
Panoramic opening sunroof
The control buttons for the sunroof and blind
can be used:
- with the ignition on, if the state of charge of
the battery is adequate,
- with the engine running,
- in STOP mode of Stop & Start,
- during the 45 seconds after switching off
the ignition,
- during the 45 seconds after locking the
vehicle.
Opening
The panoramic sunroof and its blind are
opened and closed using the buttons in the roof
console.
A. Blind control button.
B. Sunroof control button.
Ensure that any luggage or accessories
carried on the roof bars do not interfere
with the movement of the sunroof.
Do not place heavy loads on the fixed
or mobile glass of the sunroof.
Before operating the sunroof or blind
control buttons, ensure that no object or
person might prevent the movement.
Principles
Complete opening of the sunroof involves partly
raising the mobile glass, then sliding it over the
fixed glass.
Any intermediate position is possible.
Opening the sunroof also opens its blind.
However, the blind can be left open when the
sunroof is closed.
With the sunroof fully closed or
partly raised:
F press and release the rear of
button B without going beyond
the point of resistance to fully
raise the sunroof.
With the sunroof open in the raised position:
F press and release the rear of button B
without going beyond the point of
resistance to open the sunroof.
With the sunroof partly or fully closed:
F press and release the rear of button B
going beyond the point of resistance to fully
close the sunroof.
Any new action on this button interrupts the
movement.
Operating the sunroof
F Press and hold the rear of button B without
going beyond the point of resistance; the
sunroof opens and stops when you release
the button.
2
Acc ess
85
3008-2_en_Chap02_ouvertures_ed01-2016
If the sunroof is wet, following a shower
or washing the vehicle, wait until it is
completely dry before opening.
Do not operate the sunroof if it is
covered by snow or ice - Risk of
damage!
Use only plastic scrapers to remove
snow or ice.
Do not extend your head or arms
through the open sunroof when driving -
Risk of serious injury!
Closing
F press and hold the front of button B without
going beyond the point of resistance; the
sunroof closes and stops when you release
the button.
Never leave the vehicle with the sunroof
open.
Anti-pinch system
If the sunroof encounters an obstacle when
closing, the movement is automatically
reversed.
The anti-pinch system is designed to be
effective at speeds of up to 75 mph (120 km/h).
Reinitialisation
Following reconnection of the battery or in
the event of a fault or jerky movement of
the sunroof, the opening sunroof must be
reinitialised:
F press the rear of button B until the sunroof
is fully open,
F press and hold the rear of button B again
for at least 3 seconds.
Check the condition of the sunroof
seals regularly (presence of dust or
deposits, dead leaves...).
Before using a car wash, first check that
the sunroof is closed. If using a high
pressure jet wash, keep the tip of the
lance at least 30 centimetres from the
seals.
With the sunroof partially or fully
open:
F press and release the front of
button B going beyond the point
of resistance to fully close the
sunroof.
Any new action on this button
interrupts the movement.
With the sunroof partly or fully open:
F press and release the front of button B
without going beyond the point of
resistance to close the sunroof to its raised
position.
F press and release the front of button B
again to fully close the sunroof.
With the sunroof fully or partly raised:
F press and release the front of button B
without going beyond the point of
resistance to fully close the sunroof.
Acc ess
86
3008-2_en_Chap02_ouvertures_ed01-2016
Operating the sunroof blind
Opening
F Press and hold the rear of button A, without
going beyond the point of resistance; the
blind opens and stops when you release
the button.
During simultaneous closing of the
sunroof and the blind, if the blind
catches up with the sunroof, the
blind then suspends its movement
and automatically resumes when the
sunroof stops.
The closing movement of the blind is limited by
the position of the opening sunroof: the blind
cannot be further forward than the front of the
mobile glass.
Closing
Any new action on this button interrupts the
movement.
Anti-pinch system
If the blind encounters an obstacle when
closing, the movement is automatically
reversed.
Reinitialisation
Following reconnection of the battery or in the
event of a fault or jerky movement of the blind,
the blind must be reinitialised:
F press the rear of button A until the blind is
fully open,
F press and hold the rear of button A again
for at least 3 seconds.
F Press the rear of button A going
beyond the point of resistance to
fully open the blind.
Any new action on this button interrupts the
movement.
F Press the front of button A,
going beyond the point of
resistance to fully close the
blind.
F Press and hold the front of button A,
without going beyond the point of
resistance; the blind closes and stops
when you release the button.
2
Acc ess
87
3008-2_en_Chap02_ouvertures_ed01-2016
When locking the vehicle, pressing
and holding the locking button also
closes the windows and the sunroof
and then the blind. The movements
are interrupted when you release the
locking button.
Never leave the electronic key inside
the vehicle if you get out of the vehicle,
even for a short time.
If something is trapped when closing
the sunroof or blind, you should reverse
the movement of the sunroof or blind.
To do this, press the control button in
question.
The driver must ensure that passengers
use the sunroof and blind correctly.
Be particularly aware of children when
operating the sunroof or blind.
88
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Driving position
Adopting a good driving position helps improve your comfort and protection.
It also optimises interior and exterior visibility as well as access to controls.
Sitting comfortably
Driver
Sit fully back in the seat with your pelvis, back
and shoulders in contact with the seat backrest.
Adjust the height of the seat so that your eyes
are level with the middle of the windscreen.
Your head should be at a distance of at least
10 cm from the roof.
Adjust the longitudinal position of the seat so
that you can fully depress the pedals with your
legs still slightly bent.
Passenger
Sit fully back in the seat with your pelvis, back
and shoulders in contact with the seat backrest.
Adjust the longitudinal position of the seat so
that you are at a distance of at least 25 cm from
the dashboard.
Adjust the head restraint so that its upper edge
is level with the top of your head.
If your vehicle has electric seats, the
ignition must be on to adjust them.
The distance between your knees and the
dashboard should be at least 10 cm, for easy
access to the controls in the dashboard.
Adjust the seat backrest angle to the most
vertical position possible; the backrest must not
be reclined more than 25° from vertical.
Adjust the head restraint so that its upper edge
is level with the top of your head.
Adjust the length of the seat cushion to support
your thighs.
Adjust the lumbar support to fit the shape of
your spine.
Adjust the steering wheel so that it is at
distance of at least 25 cm from your chest and
you are able to hold it with your arms slightly
bent.
The steering wheel must not obstruct your view
of the instrument panel.
As a safety measure, the seats and
steering wheel must only be adjusted
when stationary.
The presence in the vehicle of certain seat adjustments described in this section depends on the trim level and country of sale.
3
Ease of use and comfort
89
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Before moving off
If your vehicle has electric door mirrors,
the ignition must be on to adjust them.
When driving
Adjust the interior and exterior door mirrors so
as to reduce blind spots.
Maintain a good driving position and hold the
steering wheel with both hands at the quarter
to three position, so that you can easily and
quickly reach the controls behind and near the
steering wheel.
Fasten your seat belt: place the diagonal belt in
the middle of your shoulder and adjust the lap
belt so that is tightened over your pelvis.
Ensure that all passengers have fastened their
seat belts correctly.
Never adjust the seats or steering
wheel when driving.
Always keep your feet on the floor.
90
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Front seats
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat.
There is a risk of trapping or pinching passengers if present in the rear seats or jamming the
seat if large objects are placed on the floor behind the seat.
Manual seats
1. Adjusting the seat forwards and backwards
F Raise the control bar and slide the seat
forwards or backwards.
F Release the bar to engage the seat in
position in the runners.
2. Adjusting the seat height
F Raise or lower the control as many times
as needed to obtain the desired seat
height.
3. Adjusting the seat backrest angle
F Turn the knob forwards or backwards to
recline the backrest to the desired angle.
4. Adjusting the height of the head restraint
Refer to the corresponding section.
5. Adjusting the lumbar support
(only on the driver's seat)
F Turn the knob forwards or backwards to
increase or decrease the level of lumbar
support.
3
Ease of use and comfort
91
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
"AGR" certified seats
Additional adjustments
1. Adjustment of the length of the seat cushion
F Pull the handle forwards to release the
cushion, then move the front part of the
seat cushion forwards or backwards.
2. Adjusting the seat cushion angle
electrically
F Press and hold the front or rear of the
control to raise or lower the front of the seat
cushion.
3. Adjusting the lumbar support electrically
The control allows independent adjustment of
the depth and vertical position of the lumbar
support.
F Press and hold the front or rear of the
control to increase or reduce the lumbar
support.
F Press and hold the top or bottom of the
control to raise or lower the lumbar support
area.
92
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Placing the passenger seat in the table position
The backrest of the passenger seat can be fully
folded forward and secured in this position.
This function, when associated with folding
of the backrest of the rear seats, helps in
transporting long and voluminous objects.
First steps:
F lower the head restraint,
F move the seat fully back to allow space for
the head restraint when folding,
F adjust the seat to the lowest position,
F check that there is nothing that might
interfere with folding of the backrest (seat
belt, child seat, items of clothing, bags...).
Folding the backrest
F Pull the control fully up to release the
backrest.
F Tip the backrest fully forward.
In this position, the backrest can
support a maximum load of 30 kg.
When the front passenger seat is
fully folded, only the outer rear seat
behind the driver can be occupied by a
passenger.
Returning the backrest to the
normal position
F Pull the control fully up to release the
backrest.
F Raise the backrest and guide it back until it
latches into place.
F Check that the backrest has engaged
correctly.
3
Ease of use and comfort
93
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Front head restraints
Adjusting the height
Upward:
F pull the head restraint up to the desired
position; the head restraint can be felt to
click into position.
Downward:
F press the lug A and push the head restraint
down to the desired position.
The adjustment is correct when the
upper edge of the head restraint is level
with the top of your head.
Removing a head restraint
F Pull the head restraint up as far as it will
go.
F Press the lug A to free the head restraint
and then pull it fully out.
F Stow the head restraint securely.
Retting a head restraint
F Introduce the head restraint rods into the
guides in the seat backrest.
F Push the head restraint down as far as it
will go.
F Press the lug A to free the head restraint
and push it down.
F Adjust the height of the head restraint.
Never drive with the head restraints
removed; they should be in place and
correctly adjusted for the occupant of
the seat.
94
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat.
There is a risk of trapping or pinching
passengers if present in the rear seats
or jamming the seat if large objects are
placed on the floor behind the seat.
To adjust the seat electrically, switch
on the ignition, or start the engine if the
vehicle has gone into energy economy
mode.
These electric adjustments remain
available for about a minute after
opening the driver's door. They are
deactivated about a minute after
switching off the ignition.
Electric driver's seat
3
Ease of use and comfort
95
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
1. Adjusting the angle and height of the seat
cushion / Adjusting the seat forwards and
backwards
F Raise or lower the front of the control to
obtain the desired seat cushion angle.
F Raise or lower the rear of the control to
raise or lower the seat.
F Slide the control forwards or backwards to
move the seat forwards or backwards.
2. Adjusting the seat backrest angle
F Turn the control forwards or backwards to
recline the backrest to the desired angle.
3. Adjusting the height of the head restraint
Refer to the corresponding section.
4. Adjusting the length of the seat cushion
F Pull the handle forwards to release the
cushion, then move the front part of the
seat cushion forwards or backwards.
5. Adjusting the lumbar support
The control allows independent adjustment of
the depth and vertical position of the lumbar
support.
F Press and hold the front or rear of the
control to increase or reduce the lumbar
support.
F Press and hold the top or bottom of the
control to raise or lower the lumbar support
area.
96
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Storing driving positions
Associated with the electric driver's seat,
this function allows two driving positions to
be stored to facilitate adjustment if there is a
frequent change of driver.
It takes account of the electric adjustments of
the seat and the door mirrors.
Storing a position
Using buttons M / 1 / 2
F Sit in the driver's seat.
F Switch on the ignition.
F Adjust your seat and the door mirrors.
F Press button M, then press button 1 or 2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a new position cancels the
previous position.
You can interrupt the current movement
by pressing button M, 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.
Recalling a stored position
Ignition on or engine running
F Press button 1 or 2 to recall the
corresponding position.
An audible signal confirms that adjustment is
complete.
3
Ease of use and comfort
97
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Heated seats
The function is active only with the engine
running.
Switching on
F Press the button for your seat.
F Each press changes the level of heating;
the corresponding number of indicator
lamps come on:
● 1 indicator lamp = low.
● 2 indicator lamps = medium.
● 3 indicator lamps = high.
Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the temperatures of the seat and
the passenger compartment are at
adequate levels you can switch off the
function; lower current consumption
reduces fuel consumption.
Switching off
F Press the button again until all of the
indicator lamps are off.
The state of the function is not held in memory
when the ignition is switched off.
Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
- if wearing damp clothing,
- if child seats are fitted.
To avoid breaking the heating element
in the seat:
- do not place heavy objects on the
seat,
- do not kneel or stand on the seat,
- do not place sharp objects on the
seat,
- do not spill liquids onto the seat.
To avoid the risk of short-circuit:
- do not use liquid products for
cleaning the seat,
- never use the heating function
when the seat is damp.
98
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
System with a choice of type of massage and
adjustment of its intensity.
This system operates with the engine running,
as well as in STOP mode of Stop & Start.
Activation / Settings
The massage settings are adjusted in the touch
screen.
The system is switched on, either directly using
the button on the front seat, or by activating
a personalised ambience with the i-Cockpit
Amplify function
Multipoint massage
F Press this button; its indicator
lamp comes on.
The system is activated immediately with the
last settings used and the settings page is
displayed in the touch screen.
If the settings suit you and you make no
changes, the display returns to its previous
state.
If you want to modify the settings:
F select another type of massage from the
five offered,
F select a massage intensity from the
3 levels offered: "1" (Low), "2" (Medium)
or "3" (High).
The modifications are taken into account
immediately.
Once activated, the system starts a one hour
massage cycle, made up of sequences of
6 minutes of massage followed by 3 minutes
at rest.
The system stops automatically at the end of
the cycle; the indicator lamp in the button goes
off.
The multipoint massages are also
manage by the i-Cockpit Amplify
function.
Using the button on the front seat:
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
3
Ease of use and comfort
99
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F Adjust the height and reach to suit your
driving position.
F Push the control lever to lock the
adjustment mechanism.
As a safety measure, these operations
should only be carried out with the
vehicle stationary.
Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking.
They can also be folded for parking in confined
spaces.
Door mirrors
Demisting / Defrosting
If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates by switching on the heated
rear screen.
For more information on Demisting and
defrosting the rear screen, refer to the
corresponding section.
Adjustment
F Move control A to the right or to the left to
select the corresponding mirror.
F Move control B in all four directions to
adjust.
F Return control A to the central position.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
As a safety measure, the mirrors should
be adjusted to reduce the blind spots.
100
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
If necessary the mirrors can be folded
manually.
Unfolding
F From outside: unlock the vehicle using the
remote control or the key.
F From inside: with the ignition on, pull the
control A in the central position rearwards.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
They return to their initial position:
-
a few seconds after coming out of reverse gear,
- once the speed of the vehicle exceeds
6 mph (10 km/h),
- on switching off the engine.
This function can be activated or
deactivated in the Driving menu of
the touch screen.
If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked. Pull again on control A.
Folding
F From outside: lock the vehicle using the
remote control or the key.
F From inside: with the ignition on, pull the
control A in the central position rearwards.
F Select the"Setting" tab then "Comfort"
and "Auto mirror dipping in reverse".
3
Ease of use and comfort
101
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Rear view mirror
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F Adjust the mirror so that the glass is
directed correctly in the "day" position.
Day / night position
F Pull the lever to change to the "night" anti-
dazzle position.
F Push the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
102
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
i-Cockpit Amplify function
This function allows the driving ambiences to be managed.
Specific system settings are offered for each ambience.
These ambiences can be personalised in the touch screen.
Content of an ambience Access to the i-Cockpit Amplify home page
Direct access by this button
Access via the Applications menu
An ambience is defined as the settings for each
of the following systems:
Activating an ambience
From the home page:
F Select an ambience: "Relax" or "Boost".
Depending on the settings made for the
ambience, the systems are activated
immediately.
Deactivating an ambience
From the home page:
F Press "Deactivate the ambience".
or
F Select another ambience.
The ambience is automatically deactivated
when the ignition is switched off.
F Select "i-Cockpit Amplify".
- the passenger compartment
mood lighting,
(activation / deactivation and
adjustment of brightness)
- the audio ambience,
(choice of predetermined settings for
the audio system equaliser)
- scented air freshener,
(activation / deactivation, selection of
a fragrance and a setting for diffusion
intensity)
- multipoint massage,
(selection of the seat, activation /
deactivation, selection of a type of
massage and a setting for intensity)
- Dynamic pack.
(activation / deactivation)
3
Ease of use and comfort
103
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Personalising an ambience
From the home page:
F Select an ambience to activate it.
F Press "Settings" to display the settings
page for the ambience.
F Select a system for which you wish to
modify the settings.
F After making the modifications, press any
area of the screen outside the system
settings window to return to the ambience
settings page.
F After making all of the desired
modifications to settings, press "Save
settings".
The modifications are taken into account
immediately.
It is possible to temporarily modify an
ambience at any time, by modifying the
settings for one or more of the systems
managed in the ambience, without
going via the i-Cockpit Amplify function.
For example, you can deactivate or
modify the intensity of the current
massage by pressing the massage
button on your seat, or activate or
deactivate the passenger compartment
mood lighting in the Driving menu.
In this case, the new settings will not be
saved as part of the current ambience.
104
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Heating and Ventilation
Air intake
The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
Depending on your vehicle, the controls are
accessible in the "Air conditioning" menu of
the touch screen or are grouped together on
control panel on the centre console.
Air distribution
1. Windscreen demisting/defrosting vents.
2. Front side window demisting/defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
To close the air vents:
F side vents; place the cursor in the central
position, then move it sideways towards the
door.
F centre vents; place the cursor in the central
position, then move it sideways towards the
centre of the dashboard.
3
Ease of use and comfort
105
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Start,
refer to the corresponding section.
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F Do not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in perfect working order.
F Ensure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
We recommend the use of a combined passenger compartment filter. Thanks to
its special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F To ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Recommendations for ventilation and air conditioning
106
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Manual air conditioning
F Turn this knob from blue (cold)
to red (hot).
Temperature adjustment Air distribution adjustment
Windscreen and side windows.
Central and side vents.
Footwells.
F Press this button as many times as
necessary to obtain the desired air
distribution.
1. Temperature.
2. Air conditioning On / Off.
3. Air distribution.
4. Air flow.
5. Air recirculation.
The air conditioning system operates only with
the engine running.
The air distribution can be adapted by
combining the corresponding indicator lamps.
3
Ease of use and comfort
107
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Air flow adjustment Air conditioning On / OffRecirculation of interior air
The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting
in winter, above 3°C.
F Press this button to activate
the function; its indicator lamp
comes on.
F Press the "large fan" or "small
fan" button to increase or
decrease the air flow.
The corresponding indicator lamps
come on.
Switching on
Switching off
The air conditioning does not operate
when the air flow adjustment is set to
off.
To obtain cool air more quickly, you can
use recirculation of the interior air for a
few moments. Then return to the intake
of exterior air.
If you keep pressing the "small fan" until all
of the indicator lamps go off (system off), the
temperature is no longer controlled.
However, a slight flow of air can still be felt,
resulting from the forward movement of the
vehicle.
Avoid the prolonged use of air
recirculation - Risk of misting and
deterioration of air quality!
The intake of exterior air avoids misting of the
windscreen and side windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.
F Press this button again to deactivate the
function; its indicator lamp goes off.
Switching off the air conditioning may result in
some discomfort (humidity, misting).
F Press this button again; its
indicator lamp goes off.
F Press this button, its indicator
lamp comes on.
108
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Semi-automatic mono-zone air conditioning
1. Automatic visibility programme.
2. Air recirculation.
3. Air flow.
4. Temperature.
5. Air distribution.
6. System Off.
7. Air conditioning On / Off.
8. Maximum air conditioning.
The air conditioning system operates only with
the engine running.
The temperature at the nozzles and vents
is regulated by the system according to the
temperature in the passenger compartment
and the temperature setting.
Press the Air conditioning menu
button to display the system controls
page.
Temperature adjustment
The setting corresponds to a level of comfort
and not to a temperature in degrees Celsius or
Fahrenheit (depending on the unit selected).
A setting of around 21 provides optimum
comfort. Depending on your requirements, a
setting between 18 and 24 is normal.
F Press one of these buttons
to reduce (blue) or increase
(red) the setting.
3
Ease of use and comfort
109
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Air flow adjustment
Avoid driving too long without
ventilation - Risk of misting and
deterioration of air quality!
Air distribution adjustment Recirculation of interior air
Press one of these buttons to
increase (+) or decrease (-) the speed
of the booster fan.
The air flow symbol (a fan) fills progressively
according to the air flow wanted.
By reducing the air flow to minimum, you are
stopping ventilation.
Windscreen and side windows.
Central and side vents.
Footwells.
The air distribution can be adapted by using
several buttons: illumination of the indicator
lamp confirms the presence of fan boosted air
in the direction indicated, the indicator lamp off
indicates the absence of fan boosted air in the
direction indicated.
For a uniform distribution of air in the
passenger compartment, the three buttons can
be activated simultaneously.
These buttons are used to arrange
the distribution of air in the passenger
compartment by combining several air outlets.
F Press this button to activate the
function; its indicator lamp comes
on.
F Press this button again to deactivate the
function; its indicator lamp goes off.
Avoid the prolonged use of air
recirculation - Risk of misting and
deterioration of air quality!
The intake of exterior air prevents the formation
of mist on the windscreen and side windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.
110
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Maximum air conditioning
This function allows rapid cooling of the air in
the passenger compartment.
The system automatically adjusts the
temperature setting to the lowest possible, air
distribution towards the centre and outer vents,
air flow to maximum and activates recirculation
of interior air.
F Press this button to activate the
function; its indicator lamp comes
on.
Automatic visibility
programme
For more information on Front demisting -
defrosting, refer to the corresponding section.
Air conditioning On / Off
The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting
in winter, above 3°C.
Switching on
The air conditioning does not operate
when the air flow adjustment is set to
off.
To obtain cool air more quickly, you can
use recirculation of interior air for a few
moments. Then return to the intake of
exterior air.
Switching off
Switching off the air conditioning may result in
some discomfort (humidity, misting).
F Press this button, its indicator
lamp comes on.
F Press this button again, its
indicator lamp goes off.
Switching off the system
This action deactivates all functions of the air
conditioning system.
Temperature is no longer regulated. A slight air
flow can still be felt however, resulting from the
forward movement of the vehicle.
F Press this button; its indicator lamp
comes on and all other indicator
lamps of the system go off.
Avoid driving for too long with the
system switched off - Risk of misting
and deterioration of air quality!
Pressing any button reactivates the
system with the settings that were
previously in use.
F Press this button again to deactivate the
function and return to the previous settings;
its indicator lamp goes off.
3
Ease of use and comfort
111
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Dual-zone automatic air conditioning
1. Automatic visibility programme.
2. Recirculation of interior air.
3. Temperature adjustment on driver's side.
4. Temperature adjustment on passenger's
side.
5. Air distribution adjustment.
6. Air flow adjustment.
7. System off.
8. Air conditioning On/Off.
9. Automatic comfort programme on / off.
10. Maximum air conditioning.
11. Access to the secondary page.
12. Selection of settings for the automatic
comfort programme.
13. Air Quality System (AQS).
14. Mono-zone / Dual-zone.
This air conditioning system operates with
the engine running, but the ventilation and its
controls are available with just the ignition on.
Operation of the air conditioning and regulation
of temperature, air flow and air distribution in
the passenger compartment are automatic.
Press the Air conditioning menu
button to display the controls for the
air conditioning.
F Press one of these buttons to
increase the value.
F Press one of these buttons to
decrease the value.
It is recommended that you avoid a difference
of more than 3 in the settings for left and right.
Temperature adjustment
The driver and front passenger can each
choose their own temperature setting.
The value indicated corresponds to a level of
comfort and not to a precise temperature.
62)7
$872
$872
1250$/
$872
)$67
112
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Automatic comfort
programme
F Press this button to activate or
deactivate the automatic mode of
the air conditioning system.
When the indicator lamp in the button is on, the
air conditioning system operates automatically:
the system manages the temperature, air
flow and air distribution in the passenger
compartment in an optimum way according to
the comfort level you have selected.
It is possible to modulate the intensity of the
automatic comfort programme by choosing one
of three settings offered in the secondary page,
accessible from the "OPTIONS" button.
To change the current setting, shown by
illumination of the corresponding indicator
lamp, press this button repeatedly until the
desired setting is displayed:
"Soft": provides soft and quiet
operation by limiting air flow.
"Normal": offers the best
compromise between a comfortable
temperature and quiet operation
(default setting).
"Fast": provides strong and effective
air flow.
Use the "Normal" or "Fast" setting to assure
the comfort of passengers in the rear seats.
This setting is associated with automatic mode
only. However, on deactivation of AUTO mode,
the indicator for the last setting remains on.
Changing the setting does not reactivate AUTO
mode if deactivated.
In cold weather with the engine cold,
the air flow is increased gradually until
the system has warmed up, in order
to limit the delivery of cold air into the
passenger compartment.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value setting, there
is no need to alter the value displayed
in order to reach more quickly the
required level of comfort. The system
compensates automatically and
corrects the temperature difference as
quickly as possible.
3
Ease of use and comfort
113
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Automatic visibility
programme
For more information on Front demisting /
defrosting, refer to the corresponding section.
"Air Quality System" (AQS)
function
Using a pollution sensor, this function
automatically activates recirculation of the
interior air once it detects a certain level of
polluting substances in the exterior air.
When the air quality returns to a satisfactory
level, recirculation of interior air is automatically
deactivated.
This function is not designed to detect
unpleasant odours.
The function is automatically activated when
the screenwash is used or when in reverse
gear.
The function does not operate if the ambient
temperature is below 5°C, to avoid the risk of
misting of the windscreen and side windows.
To activate or deactivate the function, go to the
secondary page by pressing the "OPTIONS"
button.
Windscreen and side windows.
Centre and side vents.
Footwells.
Manual control
You can manually adjust one or more settings,
while retaining automatic control of the other
functions:
- air flow,
- air distribution.
As soon as you modify a setting, the indicator
lamp in the "AUTO" button goes off.
F Press this button again to
reactivate the automatic comfort
programme.
Air ow adjustment
F Press one of these buttons to
increase or decrease the speed
of the booster fan.
The air flow symbol (a fan) is filled in
progressively as the speed of the fan is
increased.
By reducing the air flow to minimum, you are
stopping ventilation.
"OFF" is displayed alongside the fan.
Avoid driving for too long with the
ventilation off - Risk of misting and
deterioration of air quality!
Air distribution adjustment
You can modulate the distribution of air in the
passenger compartment using these three buttons.
Each press on a button activates or deactivates
the function. The indicator lamp is on when the
button is activated. For a uniform distribution in
the passenger compartment, all three buttons
can be pressed simultaneously.
In AUTO mode, the indicator lamps in all three
buttons are off.
114
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
The air conditioning is designed to operate
efficiently in all seasons, with the windows
closed.
It allows you:
- in summer, to lower the temperature,
- in winter, above 3 °C, to improve demisting.
Air conditioning On / Off
Switching on
Switching off
Maximum air conditioning
F Press this button to activate the
function; its indicator lamp comes
on.
F Press this button again to deactivate the
function and return to the previous settings;
its indicator lamp goes off.
This function allows faster cooling of the air in
the passenger compartment.
The system automatically adjusts the
temperature setting to the lowest possible, air
distribution towards the centre and outer vents,
air flow to maximum and activates recirculation
of interior air.
Avoid prolonged operation of the air
recirculation - Risk of misting and of
deterioration of the air quality!
The intake of exterior air avoids misting of the
windscreen and side windows.
Recirculation of the interior
air
Recirculation of interior air prevents exterior
odours and smoke from entering the passenger
compartment.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.
F Press this button to activate
the function; its indicator lamp
comes on.
F Press this button again to deactivate the
function; its indicator lamp goes off.
F Press this button; its indicator
lamp comes on.
The air conditioning cannot operate
when the air flow is set to off.
F Press this button again; its
indicator lamp goes off.
Switching the air conditioning off may cause
some deterioration of the conditions in the
passenger compartment (humidity, misting).
3
Ease of use and comfort
115
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Mono-zone / Dual-zone
The passenger temperature setting can be
indexed to the driver's setting (mono-zone
function).
It is available in the secondary page by
pressing the "OPTIONS" button.
F Press this button to activate the
"MONO" function; its "ON" status
is displayed.
The function is automatically deactivated if the
passenger uses their temperature adjustment
buttons (dual-zone function).
Ventilation with the ignition on
With the ignition on, you can use the ventilation
system, controlling the air flow and distribution
in the passenger compartment.
This function is also available for a few minutes
after switching off the ignition, depending on
the state of charge of the vehicle's battery.
You can also make use of the residual
heat in the engine to warm the passenger
compartment, using the temperature
adjustment buttons.
This function does not activate operation of the
air conditioning.
Switching off the system
F Press this button; its indicator lamp
comes on and all other indicator
lamps for the system go off.
This action deactivates all functions of the air
conditioning system.
Temperature is no longer regulated. A slight air
flow can still be felt however, resulting from the
forward movement of the vehicle.
Avoid driving for long periods with
the system off - Risk of misting and
deterioration of air quality!
Pressing any button reactivates the
system with the settings that were
previously in use.
116
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Front demist - defrost
With semi-automatic and
automatic air conditioning
With Stop & Start, when the demisting,
air conditioning and air flow functions
are activated, STOP mode is not
available.
Automatic visibility programme
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
The system automatically manages the air
conditioning (depending on version), air
flow and air intake, and provides optimum
distribution towards the windscreen and side
windows.
F To switch it off, press this button; its
indicator lamp goes off.
With manual air
conditioning
F Adjust the temperature to maximum (red).
F Adjust the air flow to maximum; all the
indicator lamps come on.
F Adjust the air distribution to the
"Windscreen" position; its associated
indicator lamp comes on.
F Check that recirculation of interior air is
deactivated; its indicator lamp must be off.
F Switch on the air conditioning by pressing
the "A/C" button; its indicator lamp comes
on.
F Press this button to demist or
defrost the windscreen and side
windows as quickly as possible;
its indicator lamp comes on.
The system allows the manual modification of
air flow without causing automatic deactivation
of the automatic visibility programme.
3
Ease of use and comfort
117
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Heated windscreen
Switching on
Switching off
With the engine running, press this
button; its indicator lamp comes on.
Pressing the button again switches off
the system; its indicator lamp goes off.
The system is automatically deactivated every
time the engine is switched off.
The system is active if the ambient temperature
is below 0°C.
In cold weather, this system heats the bottom of
the windscreen, as well as the areas alongside
the windscreen pillars.
Without changing the settings for the air
conditioning system, it allows faster release
of the windscreen wiper blades when they
are frozen to the windscreen and avoids
the accumulation of snow resulting from the
operation of the windscreen wipers.
118
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Rear screen demist - defrost
Switching on
Switching off
F Press this button to demist/
defrost the rear screen and
(depending on version) the door
mirrors.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
The rear screen demist - defrost
can only operate when the engine is
running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption.
F It is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing the
button again.
The indicator lamp associated with the button goes off.
The indicator lamp associated with the button
comes on.
3
Ease of use and comfort
119
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Front ttings
1. Grab handle
2. Sun visor
3. Card holder
4. Storage compartment below the
steering wheel
5. Illuminated glove box
6. Door pockets
7. Scented air freshener
8. USB port
9. Front 12 V accessory socket (120 W)
10. Storage compartment
or
CD player
or
Wireless charger
11. Storage compartment
12. Cup holder
13. Front armrest with storage
compartment
14. Rear 12 V accessory socket (120 W)
15. Storage compartment
16. 230 V socket
120
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Cigarette lighter /
12 V accessory socket
F To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
F To connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
Component which protects against sunlight
from the front or the side, also equipped with an
illuminated vanity mirror.
F With the ignition on, raise the concealing
flap; the mirror is illuminated automatically.
This sun visor is also equipped with a ticket
holder.
Sun visor Illuminated glove box
It can be used for storing a water bottle, the
vehicle's handbook pack...
F To open the glove box, raise the handle.
The glove box is illuminated when the lid is
opened.
It gives access to the passenger's front airbag
deactivation switch A.
It also gives access to the housing for scented
air freshener B cartridges.
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.
3
Ease of use and comfort
121
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
When connected to the USB port, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the current
delivered by the vehicle.
For more information on Audio and telematics
and the USB port in particular, refer to the
corresponding section.
The USB port also allows a smartphone to be
connected by MirrorLink™ or CarPlay
®
, so that
certain applications on the smartphone can be
used in the touch screen.
USB port
The USB port allows the connection of a
portable device, such as a digital audio player
of the iPod
®
type or a USB memory stick.
The USB player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
The management of these files is from the
steering mounted controls or the audio system.
122
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Wireless charger
Operation
The charger works with the engine running and
in STOP mode of Stop & Start.
Charging is managed by the smartphone.
This system allows the wireless charging of a
portable device, such as a smartphone, using
the principle of magnetic induction, based on
the Qi 1.1 standard.
The portable device to be charged must be
compatible with the Qi standard, either by
design or by using a compatible holder or shell.
The charging zone is identified by the
Qi symbol.
For versions with Keyless Entry and Starting,
operation of the charger may be interrupted
when opening a door or switching off the
ignition.
FOCAL
®
premium Hi-Fi
system
Your vehicle is equipped with a high-fidelity
acoustic system designed by the French brand
FOCAL
®
, a specialist in acoustics for more
than 35 years and recognised throughout the
world for its patented innovations and its unique
audio signature.
10 speakers incorporating exclusive FOCAL
®
technologies offer the pleasure of pure and
detailed sound inside the vehicle:
- High fidelity woofer / mid-range speakers:
Polyglass technology delivering balance
and precise sound.
- TNF tweeters: Inverted dome aluminium
technology giving optimum sound
dispersion and very detailed treble.
- Sub-woofer: 200 mm triple coil Power
Flower™ technology for defined and
dynamic reproduction of low frequencies.
- 12-way active amplification - 515 Watts:
Hybrid Class AB / Class D technology
providing breadth and finesse in the high
frequency signals, as well as real power in
the bass.
3
Ease of use and comfort
123
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Charging
F First ensure that the charging zone is clear
of other articles.
F Place a portable device in the middle of the
charging zone.
F Once the portable device is detected, the
charge indicator lamp comes on in green.
If the indicator lamp is on in orange:
Do not leave metal objects (coins, keys,
the vehicle's remote control...) in the
charging zone while a portable device
is charging - Risk of overheating or
interruption of the charge!
- remove the portable device, then return it
to the middle of the charging zone.
or
- remove the portable device and try again in
a quarter of an hour.
If the problem persists, have the system
checked by a PEUGEOT dealer or a qualified
workshop.
F Charging of the portable device's battery
then starts.
F Once the portable device's battery is fully
charged, the charge indicator lamp goes off.
Checking operation
The state of the charge indicator lamp allows
the operation of the charger to be monitored.
The system only supports charging one
portable device at a time.
Charge
indicator lamp
Significance
Off Engine switched off.
No compatible portable
device detected.
Charging finished.
On, green Compatible portable device
detected.
Charging...
Flashing,
orange
Foreign object detected in the
charging zone.
Portable device not well
centred in the charging zone.
On orange Fault with the portable
device's battery meter.
Temperature of the portable
device's battery too high.
Charger fault.
124
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Front armrest
Comfort arrangement for the driver and front passenger.
It includes a cooled storage space.
Opening
F Raise the latch below the lid.
The lid opens in two sections.
Storage
The small movable flat top can be fitted at the
front or at the rear of the storage space.
A ventilation outlet delivers cooled air.
Closing
F Fold both parts of the lid.
3
Ease of use and comfort
125
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
A complete air freshener system for the passenger compartment. It is supplied by a three-fragrance
cartridge.
This system operates only with the engine running.
Scented air freshener
Activation / Settings
Activation and adjustment of settings is done in
the touch screen:
- either directly in the Applications menu,
- or by personalising an ambience for the
i-Cockpit Amplify function.
In the Applications menu:
The scented air freshener is also
managed by the i-Cockpit Amplify
function.
Changing the cartridge
Access to the cartridge is in the glove box.
F select "Scented air freshener",
F select a fragrance from the three offered,
F select a delivery intensity to activate the
system,
or
F select "OFF" to deactivate it.
Modifications are taken into account
immediately.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
F With the ignition on, pull the tongue to
release the empty cartridge.
F Remove the empty cartridge from its
housing.
The air freshener stops working with the
cartridge removed.
126
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Recommendations
Do not discard the original cartridge, which
serves as a blanking plug if the air freshener is
not used.
Retain the cartridge sealing caps which serve
as packaging if the cartridge is not used.
Replacement cartridges are available from
PEUGEOT dealers or from the brand's internet
website.
As a safety measure:
- use only the cartridges designed for
the system,
- do not try to fit or remove a
cartridge when driving,
- do not try to refill or dismantle the
cartridges.
Keep cartridges out of the reach of
children or pets.
Avoid contact between the fluid in the
cartridge and the skin or eyes.
In the event of ingestion of the fluid in
the cartridge, consult a doctor, showing
them the product packaging or label.
F Remove the two seals from the new
cartridge.
F Insert the new cartridge into its housing
observing the direction of fitment.
The air freshener is ready to operate again.
3
Ease of use and comfort
127
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
Removal
Refitting
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
- never fit one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by PEUGEOT have
two fixings located below the seat.
Fitting
To remove the mat on the driver's side:
F move the seat as far back as possible,
F unclip the fixings,
F remove the mat.
To refit the mat on the driver's side:
F position the mat correctly,
F refit the fixings by pressing,
F check that the mat is secured correctly.
128
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
1. Front courtesy lamp
2. Front map reading lamps
Courtesy lamps
Front and rear courtesy lamps
Front and rear map reading
lamps
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
In permanent lighting mode, the lighting time
varies according to the circumstances:
-
with the ignition off, approximately ten minutes,
-
in energy economy mode, approximately
thirty seconds,
-
with the engine running, unlimited
.
Take care not to put anything in contact
with the courtesy lamps.
3. Rear courtesy lamp
4. Rear map reading lamps
When the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if
it is in the "permanently off" position.
To switch off the rear courtesy lamp, put
it in the "permanently off" position.
In this position, the courtesy
lamp comes on gradually:
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- on opening a door,
- when the remote control locking button is
used to locate your vehicle.
Permanently off.
Permanent lighting.
F With the ignition on, press the
corresponding switch.
3
Ease of use and comfort
129
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Interior mood lighting
The dimmed passenger compartment lighting improves visibility in the vehicle when the light is poor.
The interior mood lighting switches off
automatically when the sidelamps are switched
off.
At night, the interior mood lighting comes on
automatically when the sidelamps are switched
on.
The interior mood lighting can be
activated or deactivated and its
brightness adjusted in the Driving
menu of the touch screen.
The interior mood lighting is also
managed by the i-Cockpit Amplify
function.
Depending on version, the interior mood
lighting includes:
- two LEDs located in the front courtesy
lamp,
- a light source in the storage compartment
at the front of the centre console,
- a light source for each of the front
footwells,
- light guides on the front door panels and
the sides of the centre console,
- illuminated bezels for the front cup holders,
- a light source for each of the front door
pockets,
- illuminated rails for the panoramic sunroof
blind.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
130
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Rear seats
Rear head restraints
Bench seat with a fixed cushion and split folding backrests (2/3-1/3) to adapt the boot load space.
They have two positions:
- a high position, for when the seat is in
use:
F pull the head restraint fully up.
- a low position, for stowing, when the seat
is not in use:
F press the lug A to release the head
restraint and push it fully down.
The rear head restraints can be removed.
Never drive with passengers seated at
the rear when the head restraints are
removed; they must be in place and in
the high position.
The head restraint for the centre seat
and those for outer seats are not
interchangeable.
To remove a head restraint:
F pull the head restraint as far up as it will go,
F press the lug A to release the head
restraint and remove it completely,
F stow the head restraint.
To refit a head restraint:
F introduce the rods of the head restraint
into the guides of the corresponding seat
backrest,
F push the head restraint down as far as it
will go,
F press the lug A and then push the head
restraint fully down.
3
Ease of use and comfort
131
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
The folding of the backrest is
accompanied by a slight lowering of the
corresponding cushion.
To obtain a flat surface, it is necessary
to place the adjustable boot floor in the
high position.
When the backrest is released, the red
indicator is visible in the release grip.
Folding from the passenger compartment
F Press the backrest release grip 1.
F Guide the backrest 3 down to the horizontal
position.
Folding the backrests
Each section of the backrest has two release
controls:
- a grip 1 on the outer edge of the backrest,
- a lever 2 on the boot side trim.
First:
F lower the head restraints,
F if necessary, move the front seats forward,
F fold away the rear armrest,
F check that nothing or no person might
interfere with the folding of the backrests
(clothing, luggage, ...),
F check that the outer seat belts are lying
correctly on the backrests.
Folding or unfolding the seat backrests
must only be done with the vehicle
stationary.
132
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Returning the backrests to
their original position
Folding from the boot
F Pull the backrest release lever 2 towards
you.
The backrest 3 folds fully onto the cushion.
First check that the outer seat belts are
lying vertically alongside the backrest
latching rings.
F Put the backrest 3 in the upright position
and push on it to latch it home.
F Check that the red indicator is no longer
visible in the release grip 1.
F Ensure that the outer seat belts are not
trapped during the manoeuvre.
Caution, a backrest that has not latched
correctly compromises the safety of
passengers in the event of sudden
braking or an accident.
The contents of the boot may be thrown
forward - Risk of serious injury!
3
Ease of use and comfort
133
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Rear ttings
A 230 V / 50 Hz socket (maximum power:
150 W) is located on the back of the centre
console under a protective cover.
This socket works with the engine running, as
well as in STOP mode with Stop & Start.
F Raise the protective cover.
F Check that the green indicator lamp is on.
F Connect your multimedia or other electrical
device (telephone charger, laptop
computer, CD-DVD player, baby food
warmer...).
230 V / 50 Hz power socket
In the event of a fault with the socket, the green
warning lamp flashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Connect only one device at a time to
the socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case
(electric shaver, ...).
As a safety measure, when electrical
consumption is high and when required
by the vehicle's electrical system
(particular weather conditions, electrical
overload...), the current supply to
the socket will be cut off; the green
indicator lamp goes off.
F To connect a 12 V accessory (max power:
120 W), lift the cover and connect a
suitable adaptor.
12 V accessory socket
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.
134
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Rear armrest
F Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.
Ski flap
Opening
F Lower the rear armrest.
F Pull the flap handle downwards.
F Lower the flap.
F Load the objects from inside the boot.
Comfort and storage arrangement for rear
passengers.
Arrangement for storing and transporting long
objects.
3
Ease of use and comfort
135
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Boot ttings
1. Load space cover
2. 12 V accessory socket (120 W)
3. Boot lamp
4. Rear seat folding controls
5. Hooks
6. Stowing rings
7. Adjustable boot floor (2 positions)
8. Storage well / Tool box under the floor
The stowing rings are designed for
securing luggage by attaching a
retaining net to the rings.
Such nets are available as an option or
as an accessory.
For more information, contact a
PEUGEOT dealer.
For the installation of a high load
retaining net, refer to the corresponding
section.
136
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Luggage cover
It is in two parts:
- a fixed part with an open storage space,
- a mobile part which rises as the tailgate
opens, with an open storage space.
To remove the luggage cover:
F unhook the two cords,
F raise the moving part slightly, then unclip it
on each side,
F unclip the fixed part on each side, then
remove the luggage cover.
The luggage cover can be stowed under the
boot floor.
Under sudden deceleration, objects
placed on the luggage cover may be
turned into projectiles.
12 V accessory socket
F To connect a 12 V accessory (max power:
120 W), remove the cap and connect an
appropriate adaptor.
F Switch on the ignition.
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.
3
Ease of use and comfort
137
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
High load retaining net
This removable net allows the use of the entire
loading volume up to the roof:
- behind the front seats (row 1) when the rear
seats are folded,
- behind the rear seats (row 2) when the
luggage cover is removed.
It provides protection for the occupants of the
vehicle in the event of sudden braking.
Behind the front seats
F Fold the rear seats.
F Remove the cover trims located on each
side of the roof.
F Position the net's upper hooks in the roof,
on each side in turn.
F Attach the net straps to the lower
anchorages, located on the front seat outer
runners.
F Pull on the straps to stretch the net.
Behind the rear seats
F Remove the luggage cover.
F Remove the cover trims on each side,
located high up in the roof.
F Position the net's upper hooks in the roof,
on each side in turn
F Attach the net straps to the lower rings,
located on each of the boot side trims.
F Pull on the straps to stretch the net.
Once fitted, the net does not prevent
folding of the rear seat backrests.
138
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Adjustable boot floor
This two-position floor allows you to optimise
the volume of the boot by means of the outer
stops placed on the sides:
- High position (100 kg max): you obtain a
flat floor up to the front seats, when the
rear seats are folded.
- Low position (150 kg max): maximum boot
volume.
To change the height of the floor:
F Push the floor fully forwards then use the
side stops to move the floor to the desired
position.
To support the floor in the raised position:
F From the high position, raise the floor
towards the load space cover.
F Take it past the retractable stops, then rest
the floor on these stops.
On certain versions, the adjustable boot
floor cannot be fitted in the low position.
3
Ease of use and comfort
139
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Sliding boot floor
F From the high position, press the handle
and pull the boot floor towards you, as far
as it will go.
This position facilitates loading and unloading
of the boot.
Maximum load: 100 kg.
Storage well
F Raise the boot floor fully for access to the
storage well.
Depending on version, this houses:
- a temporary puncture repair kit with the
vehicle's tools,
- a spare wheel with the vehicle's tools.
It also allows storage of the luggage cover.
140
Ease of use and comfort
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Boot lamp
This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
The lighting time varies according to the
circumstances:
- when the ignition is off, approximately
ten minutes,
- in energy economy mode, approximately
thirty seconds,
- when the engine is running, no limit.
4
Lighting and visibility
141
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Without AUTO lighting
With AUTO lighting
F Turn the ring A to place the desired symbol
against the mark.
Exterior lighting control stalk
Lighting off (ignition off) /
Daytime running lamps (engine running).
Automatic illumination of headlamps.
Daytime running lamps / Dipped
beam / Main beam.
Sidelamps only.
Dipped or main beam headlamps.
Displays
Selection of main lighting mode
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.
Headlamp dipping
F Pull the stalk B toward you to switch
between dipped and main beam
headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Main lighting
"Highway" function
On versions fitted with "Full LED"
technology headlamps, the range
of the dipped beam headlamps is
automatically increased once the
speed of the vehicle is above 68 mph
(110 km/h).
A fault with a lamp is signalled by
the permanent illumination of this
warning lamp, accompanied by the
display of a message and an audible
signal.
Lighting and visibility
142
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
In good or rainy weather, by both
day and night, use of the front and
rear foglamps is prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you should
switch on the foglamps and dipped
beam headlamps manually, as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the foglamps
when they are no longer necessary.
Foglamps
Rear foglamps
The sidelamps or dipped or main beam
headlamps must be on.
Front and rear foglamps
The main or dipped beam headlamps
must be on.
Rotate and release ring C:
F forward to switch on the rear foglamps.
F backward to switch them off.
Rotate and release ring C:
F forward a first time to switch on the front
foglamps,
F forward a second time to switch on the rear
foglamps,
F backward a first time to switch off the rear
foglamps,
F backward a second time to switch off the
front foglamps.
4
Lighting and visibility
143
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Switching on the lighting
after switching off the
ignition
To reactivate the lighting control stalk,
turn the ring A to position "0" - lighting
off, then to the position of your choice.
When the driver's door is opened, a
temporary audible signal warns you that
the vehicle's lighting is on.
They switch off automatically after a
period which depends on the state of
charge of the battery (entry to energy
economy mode).
Daytime running lamps /
Sidelamps
The light-emitting diodes (LEDs) in these
lamps, front and rear, come on automatically
when the engine is started.
They provide the following functions:
- Daytime running lamps (lighting control
stalk at position "0" or "AUTO" with
adequate light level).
- Sidelamps (lighting control stalk at
position "AUTO" with a low ambient light
level or "Sidelamps only" or "Main or
dipped beam headlamps").
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a PEUGEOT dealer or a
qualified workshop.
Switching off the lighting
when switching off the ignition
When the ignition is switched off, all of the
lamps switch off immediately, except for the
dipped beam headlamps if automatic guide-
me-home lighting is activated.
Lighting and visibility
144
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Direction indicators
F Left: lower the lighting stalk passing the
point of resistance.
F Right: raise the lighting stalk passing the
point of resistance.
Three ashes of the direction
indicators
F Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will
flash 3 times.
If you forget to cancel the
direction indicators for more than
twenty seconds, the volume of the
audible signal will increase if the speed
is above 40 mph (60 km/h).
On versions fitted with LED direction indicators,
the line of LEDs is illuminated sequentially.
The brightness of the daytime runnning lamps
is reduced during sequential operation of the
direction indicators.
Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F Depending on version, within one minute
of switching off the ignition, operate the
lighting control stalk up or down depending
on the traffic side (for example: when
parking on the left; lighting control stalk
upwards; the right hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position.
4
Lighting and visibility
145
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Headlamp beam height adjustment
Automatic adjustment of
"Full LED" technology
headlamps
This system automatically adjusts the height
of the beams from this type of headlamp,
according to the load in the vehicle, to avoid
causing a nuisance to other road users.
Do not touch the "Full LED" technology
headlamps. Risk of electrocution!
Have the system checked by a
PEUGEOT dealer or a qualified
workshop.
The initial setting is position "0".
Manual adjustment of
halogen headlamps
To avoid causing a nuisance to other road
users, the beams of the halogen headlamps
should be adjusted according to the load in the
vehicle.
0 Driver or driver + front passenger.
- Driver + front passenger + rear
passengers.
1 5 people.
- 5 people + a load in the boot.
2 Driver + a load in the boot.
If a fault occurs, this warning lamp
comes on in the instrument panel,
accompanied by a message and an
audible signal.
The system then places the headlamp beams
in the lowest position.
Lighting and visibility
146
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Automatic guide-me-home
lighting
With the "Automatic illumination of headlamps"
function activated, under low ambient light, the
sidelamps, dipped beam headlamps and door
mirror spotlamps come on automatically when
the ignition is switched off.
Activation, deactivation and the duration of the
guide-me-home lighting are set in the vehicle
parameters menu in the screen.
Automatic illumination of headlamps
When a low level of ambient light is detected by a sunshine sensor, the number plate
lamps, sidelamps and dipped beam headlamps are switched on automatically, without any action
on the part of the driver. They can also come on if rain is detected, at the same time as automatic
operation of the windscreen wipers.
As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
Activation
F Turn the ring to the "AUTO" position.
Activation of the function is accompanied by
the display of a message.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed in
the instrument panel accompanied by
an audible signal and/or a message.
Contact a PEUGEOT dealer or a
qualified workshop.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located at the top centre of the
windscreen behind the rear view mirror;
the associated functions would no
longer be controlled.
Deactivation
F Turn the ring to another position.
Deactivation of the function is accompanied by
the display of a message.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
4
Lighting and visibility
147
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Manual guide-me-home
lighting
The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F A further "headlamp flash" switches the
function off.
Switching off
For versions without "Automatic illumination
of headlamps", the manual guide-me-home
lighting switches off automatically after
30 seconds.
For versions with "Automatic illumination of
headlamps", the period of operation of the
manual guide-me-home lighting is the same
as that set for the automatic guide-me-home
lighting.
Automatic exterior
welcome lighting
With the "Automatic illumination of headlamps"
function activated, under low ambient light, the
sidelamps, dipped beam headlamps and door
mirror spotlamps come on automatically when
the vehicle is unlocked.
Activation, deactivation and the duration of the
exterior welcome lighting are set in the vehicle
parameters menu in the screen.
Lighting and visibility
148
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Door mirror spotlamps
Switching on
Whatever the position of the front courtesy
lamp switch, they also come on with the
exterior welcome lighting and the guide-me-
home lighting.
- when you unlock the vehicle,
- when you open a door,
- when you use the remote control to locate
the vehicle.
When the front courtesy lamp
switch is in this position,
the spotlamps come on
automatically:
To make your approach to the vehicle easier,
these illuminate:
- the zones facing the driver’s and
passenger’s doors,
- the zones forward of the door mirrors and
rearward of the front doors.
Remote operation of
exterior lighting
Availability of this function depends on version.
F Make a short press on this
remote control button.
Pressing again before the end of the timed
period switches off the lighting immediately.
The sidelamps, dipped beam headlamps,
number plate lamps and door mirror spotlamps
come on for 30 seconds.
Switching off
They go off automatically after 30 seconds.
4
Lighting and visibility
149
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Automatic headlamp dipping
This system is a driving aid.
The driver remains responsible for the
vehicle's lighting, its correct use for the
prevailing conditions of light, visibility,
traffic and observation of driving and
vehicle regulations.
The system will be operational as soon as
you have exceeded 15 mph (25 km/h).
If the speed drops below 9 mph (15 km/h),
the system no longer operates.
System which automatically changes between dipped and main beam according to the ambient light level and the driving conditions, using a camera
located at the top of the windscreen.
Lighting and visibility
150
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Activation
F Turn the lighting control stalk ring to the
"AUTO" position.
Operation
Once the function is activated, the system
operates as follows:
If the ambient light level is sufficient and/or if
the traffic conditions do not allow illumination of
the main beam headlamps:
Pause
If the situation requires a change of headlamp
beam, the driver can take over at any time.
F Flashing the headlamps pauses the
function and the system changes to
"automatic illumination of headlamps"
mode:
- if the "AUTO" and "Dipped beam"
indicator lamps are on, the system
changes to main beam,
- if the "AUTO" and "Main beam" indicator
lamps are on, the system changes to
dipped beam.
To reactivate the system, flash the headlamps
again.
- dipped beam is
maintained, this indicator
lamp comes on in the
instrument panel.
If the ambient light level is very low and the
traffic conditions permit:
- main beam comes
on automatically: this
indicator lamp comes on
in the instrument panel.
Deactivation
The system may suffer interference or
not work correctly:
- under conditions of poor visibility
(falling snow, heavy rain or thick
fog, ...),
- if the windscreen is dirty, misted or
obscured (by a sticker, ...) in front of
the camera,
- if the vehicle is facing highly
reflective signs.
The system is not able to detect:
- road users that do not have their
own lighting, such as pedestrians,
- vehicles whose lighting is obscured
(for example: vehicles running
behind a safety barrier on a
motorway),
- vehicles at the top or bottom of a
steep slope, on twisty roads, on
crossroads.
F In the Driving menu, select
"Driving assistance", then
"Automatic headlamp dip".
F In the Driving menu, select the
"Driving assistance" tab, then
"Automatic headlamp dip"; the
system changes to "automatic
illumination headlamps" mode.
The state of the system stays in memory when
the ignition is switched off.
4
Lighting and visibility
151
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Cornering lighting
Present on vehicles fitted with "Full LED"
technology headlamps, this system makes use
of the beam from a front foglamp to illuminate
the inside of a bend, when the main or dipped
beam headlamps are on and the vehicle speed
is below 25 mph (approximately 40 km/h)
(urban driving, winding road, junctions, parking
manoeuvres...).
With cornering lighting
Activation / Deactivation
Switching on
This system starts:
- when the corresponding direction indicator
is switched on,
or
- from a certain angle of rotation of the
steering wheel.
Switching off
The system does not operate:
- below a certain angle of rotation of the
steering wheel,
- above 25 mph (40 km/h),
- when reverse gear is engaged.
Without cornering lighting
The cornering lighting can be
activated or deactivated in the
Driving menu of the touch screen.
Lighting and visibility
152
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Programming
Your vehicle may also include some functions
that can be configured:
- automatic rain sensitive windscreen wipers,
- rear wiping on engaging reverse gear.
In wintry conditions, remove snow, ice
or frost present on the windscreen,
around the wiper arms and blades and
the windscreen seal, before operating
the wipers.
Without AUTO wiping
With AUTO wiping
Windscreen wiper
A. Wiping speed control stalk: raise or lower
the stalk to the desired position.
Fast wiping (heavy rain).
Normal wiping (moderate rain).
Intermittent wiping (proportional to
the speed of the vehicle).
Park.
Single wipe (press downwards or pull
the stalk briefly towards you, then
release).
Automatic wiping (press
down, then release).
or
Wiper control stalk
Single wipe (pull the stalk briefly towards you).
Do not operate the wipers on a dry
windscreen. Under extremely hot or
cold conditions, ensure that the wiper
blades are not stuck to the windscreen
before operating the wipers.
4
Lighting and visibility
153
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
B. Rear wiper selection ring: turn the ring
to place the desired symbol against the
marking.
Rear wiper
Park.
Intermittent wipe.
Wash-wipe.
F Pull the wiper control stalk towards you.
The screenwash and then the wiper operate for
a fixed time.
The screenwash includes a wiper blade
system with integral washer jets called
"Magic Wash".
The screenwash fluid is sprayed from
all along the length of the wiper blade;
this improves visibility and reduces the
consumption of screenwash fluid.
Windscreen washReverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are operating.
The function is activated or deactivated via the
vehicle settings menu in the screen.
In the event of snow or hard frost,
deactivate the automatic rear wiper via
the vehicle settings menu in the screen.
Turn the ring fully; the rear screen wash, then
the rear wiper automatically operate for a set
duration.
This function is activated by default.
Lighting and visibility
154
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
wiper blades. It can also be useful, in winter, to
release the wiper blades from the windscreen.
F Any action on the wiper stalk within
one minute after switching off the ignition
places the wiper blades vertically on the
screen.
F To park the wiper blades again, switch on
the ignition and operate the wiper stalk.
To maintain the effectiveness of the
wiper blades, it is advisable to:
- handle them with care,
- clean them regularly using soapy
water,
- avoid using them to retain
cardboard on the windscreen,
- replace them at the first signs of
wear.
Screenwash uid low level
When the low fluid level is reached in the
reservoir, this warning lamp comes on in
the instrument panel, accompanied by a
message and an audible signal.
The warning lamp come son when the ignition
is switched on, or every time the stalk is
operated, until the reservoir is refilled.
Next time you stop, refill the screenwash fluid
reservoir.
To avoid damaging the wiper blades or
the pump, do not operate the screenwash
if the screenwash reservoir is empty.
Only operate the screenwash if there
is no risk of the fluid freezing on the
windscreen and hindering visibility.
Always use screenwash fluid suitable
for low temperatures during the winter
period.
4
Lighting and visibility
155
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Automatic rain sensitive windscreen wipers
Switching on
F Briefly push the control stalk down.
A wiping cycle confirms that the instruction has
been accepted.
Switching off
F Briefly push the control stalk down again,
or place the control stalk in another
position (Int, 1 or 2).
The automatic rain sensitive windscreen
wipers must be reactivated by pushing
the control stalk downwards, if the
ignition has been off for more than
one minute.
This warning lamp comes on in the
instrument panel, accompanied by a
message.
This warning lamp goes off in the
instrument panel, accompanied by a
message.
The windscreen wipers operate automatically, adapting their speed to the intensity of the rainfall without any action on the part of the driver.
Detection of rainfall is by means of a sensor at the top centre of the windscreen, behind the rear view mirror.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have them checked by PEUGEOT dealer or a
qualified workshop.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the top
centre of the windscreen.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
Safety
156
3008-2_en_Chap05_securite_ed01-2016
General safety recommendations
Labels are applied at various
points on your vehicle. They carry
safety warnings as well as vehicle
identification information. Do not
remove them: they form an integral part
of your vehicle.
For any work on your vehicle, use
a qualified workshop that has the
technical information, skills and
equipment required, all of which a
PEUGEOT dealer is able to provide.
We draw your attention to
the following points:
- The fitting of electrical equipment
or accessories not listed by
PEUGEOT may cause excessive
current consumption and faults and
failures with the electrical system of
your vehicle. Contact a PEUGEOT
dealer for information on the range
of recommended accessories.
- As a safety measure, access to
the diagnostic socket, used for
the vehicle's electronic systems,
is reserved strictly for PEUGEOT
dealers or qualified workshops,
equipped with the special tools
required (risk of malfunctions of the
vehicle's electronic systems that
could cause breakdowns or serious
accidents). The manufacturer
cannot be held responsible if this
advice is not followed.
- Any modification or adaptation
not intended or authorised by
Automobiles PEUGEOT or
carried out without meeting the
technical requirements defined
by the manufacturer would lead
to the suspension of the legal and
contractual warranties.
Installation of accessory
radio communication
transmitters
Before installing a radio communication
transmitter, you must contact a
PEUGEOT dealer for the specification
of transmitters which can be fitted
(frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalysers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle...
5
Safety
157
3008-2_en_Chap05_securite_ed01-2016
Hazard warning lamps
Visual warning with all of the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
F Press this button, all of the direction
indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the force of deceleration, the hazard warning
lamps come on automatically. They switch off
automatically the first time you accelerate.
It is also possible to switch them off by pressing
the switch on the dashboard.
Horn
Audible warning to alert other road users to an
imminent danger.
F Press the central part of the multifunction
steering wheel.
Safety
158
3008-2_en_Chap05_securite_ed01-2016
Emergency or assistance call
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
PEUGEOT Connect SOS
In an emergency, press this
button for more than 2 seconds.
Flashing of the green LED and
a voice message confirm that
the call has been made to the
"PEUGEOT Connect SOS" call
centre*.
Pressing this button again immediately cancels
the request.
The green LED goes off.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call.
"PEUGEOT Connect SOS" immediately locates
your vehicle, starts communication with you in
your language**, and where necessary sends
the appropriate public emergency services**. In
countries where the service is not available, or
when the locating service has been expressly
declined, the call is sent directly to the
emergency services (112) without the vehicle
location.
** Depending on the geographical cover of
"PEUGEOT Connect SOS", "PEUGEOT
Connect Assistance" and the official national
language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT
CONNECT services is available from dealers
or at www.peugeot.co.uk.
* Subject to the general conditions for the
service available from dealers and subject to
technological and technical limitations.
If you benefit from the PEUGEOT
Connect Packs offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyPEUGEOT personal space, via
the Internet website for your country.
5
Safety
159
3008-2_en_Chap05_securite_ed01-2016
PEUGEOT Connect Assistance
If you purchased your vehicle outside
the PEUGEOT dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
For technical reasons and in particular
to improve the quality of "PEUGEOT
CONNECT services" services to
customers, the manufacturer reserves
the right to carry out updates to the
vehicle's on-board telematic system.
A fault with the system does not
prevent the vehicle being driven.
Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been made**.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
The red indicator lamp is on continuously:
replace the back-up battery.
The red indicator lamp flashes: replace the
back-up battery.
Operation of the system
For all countries except Russia, Belarus
and Kazakhstan.
For Russia, Belarus and Kazakhstan.
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
The red indicator lamp flashes
then goes off: there is a system
fault.
The red indicator lamp is on
continuously: there is a system
fault.
** Depending on the geographical cover of
"PEUGEOT Connect SOS", "PEUGEOT
Connect Assistance" and the official national
language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT
CONNECT services is available from dealers
or at www.peugeot.co.uk.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "PEUGEOT
Connect SOS" and "PEUGEOT Connect
Assistance" buttons, followed by a press on
"PEUGEOT Connect Assistance" to confirm.
To reactivate geo-location, simultaneously
press the "PEUGEOT Connect SOS" and
"PEUGEOT Connect Assistance" buttons
again, followed by a press on "PEUGEOT
Connect Assistance" to confirm.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible.
Safety
160
3008-2_en_Chap05_securite_ed01-2016
Electronic stability programme (ESC)
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
These systems improve the stability and
manoeuvrability of your vehicle when braking
and contribute towards improved control in
corners, in particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the event of
emergency braking.
The electronic brake force distribution system
manages the braking pressure wheel by wheel.
Emergency braking assistance
In an emergency, this system enables you to
reach the optimum braking pressure more
quickly and therefore reduce the stopping
distance.
It is triggered in relation to the speed at which
the brake pedal is pressed. This is felt by a
reduction in the resistance of the pedal and an
increase in the effectiveness of the braking.
Anti-slip regulation (ASR)
This system (also known as Traction Control)
optimises traction in order to avoid wheel
slip by acting on the brakes of the driving
wheels and on the engine. It also improves
the directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that required by the
driver, this system monitors each wheel and
automatically acts on the brake of one or more
wheels and on the engine to return the vehicle
to the required path, within the limits of the laws
of physics.
A set of the following Electronic Stability systems:
- anti-lock braking system (ABS) and electronic brake force distribution (EBFD),
- emergency braking assistance,
- wheel anti-slip regulation (ASR) or traction control,
- dynamic stability control (DSC).
- trailer stability assist (TSA).
Trailer stability assist (TSA)
This system allows control of the vehicle to be
retained when towing a trailer, so as to avoid
the risk of snaking.
It is available on vehicles with factory-fitted
trailer wiring (preparation for towbar option
or the towbar with quickly-detachable towball
pack).
5
Safety
161
3008-2_en_Chap05_securite_ed01-2016
Anti-lock braking system (ABS) and electronic brake force
distribution (EBFD)
The fixed illumination of this warning
lamp signals that there is a fault with
the ABS.
Illumination of this warning lamp, coupled
with the STOP and ABS warning
lamps, accompanied by the display of a
message and an audible signal, signals
that there is a fault with the electronic
brake force distribution (EBFD).
You must stop as soon as it is safe to do so.
Call a PEUGEOT dealer or a qualified
workshop.
When changing wheels (tyres and
rims), ensure that these are approved
for your vehicle.
In emergency braking, press very
firmly and maintain this pressure.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal.
Intelligent traction control
system
Depending on version, your vehicle has a
system to help driving on snow: intelligent
traction control.
This system detects situations of difficult
surface grip that could make it difficult to move
off or make progress on deep fresh snow or
compacted snow.
In these situations, the intelligent traction
control limits the amount of wheel spin to
provide the best traction and trajectory control
for your vehicle.
The use of snow tyres is strongly
recommended on surfaces offering low
levels of adhesion.
The vehicle retains conventional braking. Drive
carefully at moderate speed.
Contact a PEUGEOT dealer or a qualified
workshop as soon as possible.
Safety
162
3008-2_en_Chap05_securite_ed01-2016
Anti-slip regulation (ASR) / Dynamic stability control (DSC)
Operation
These systems are activated automatically
every time the vehicle is started.
They come into operation in the event of a
problem of grip or trajectory.
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate the
ASR system, so that the wheels can turn freely
and regain grip.
Reactivate the system as soon as the level of
grip permits.
Deactivation is done in the Driving
menu of the touch screen.
Reactivation
The ASR system is reactivated automatically
every time the ignition is switched back on or
from 30 mph (50 km/h).
Below 30 mph (50 km/h), you can reactivate it
manually:
Operating fault
This is indicated by flashing of this
warning lamp in the instrument panel.
Illumination of this warning lamp,
accompanied by the display of a
message and an audible signal,
indicates a fault with the system.
Contact a PEUGEOT dealer or a qualified
workshop to have the systems checked.
It is confirmed by the display of a message.
The ASR system no longer acts on the
operation of the engine or the brakes in the
event of an involuntary change of trajectory.
ASR / DSC
These systems offer increased safety
in normal driving, but they should not
encourage the driver to take extra risks
or drive at high speed.
It is in conditions of reduced grip
(rain, snow, black ice) that the risk of
loss of grip increases. It is therefore
important for your safety to keep these
systems activated in all conditions, and
particularly in difficult conditions.
The correct operation of these
systems depends on observation of
the manufacturer's recommendations
regarding as much the wheels (tyres
and rims), braking and electronic
components as the assembly and repair
procedures used by PEUGEOT dealers.
To benefit in full from the effectiveness
of these systems in wintry conditions,
the vehicle must be fitted with four snow
tyres, allowing the vehicle to retain
neutral behaviour on the road.
After an impact, have these systems
checked by a PEUGEOT dealer or a
qualified workshop.
Reactivation is done in the Driving
menu of the touch screen.
It is confirmed by the display of a
message.
5
Safety
163
3008-2_en_Chap05_securite_ed01-2016
Trailer stability assist
Operation
The system is activated automatically when the
ignition is switched on.
The electronic stability programme (ESC) must
not have any faults.
Between 36 and 100 mph (60 and 160 km/h), if
the system detect oscillations (snaking) in the
movement of the trailer, it acts on the brakes to
stabilise the trailer and, if necessary, reduces
engine power to slow down the vehicle.
For information on the weights and towed
loads, refer to the "Technical data" section or
the registration certificate for your vehicle.
For advice on driving safely when Towing
a trailer, refer to the corresponding section.
When towing, this system reduces the risk of the vehicle or trailer snaking.
It is available on vehicles with factory-fitted trailer wiring (preparation for towbar option or the towbar with quickly-detachable towball pack).
The correction is signalled by the
flashing of this indicator lamp in the
instrument panel and illumination of
the brake lamps.
Operating fault
Should a fault occur with the system,
this warning lamp comes on in the
instrument panel, accompanied by
the display of a message and an
audible signal.
If you continue to tow a trailer, reduce your
speed and drive carefully!
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
The trailer stability assist system offers
increased safety in normal driving,
provided that the recommendations on
towing a trailer are observed. It should
not encourage the driver to take risks,
such as towing a trailer in adverse
operating conditions (overloading,
failure to observe the trailer nose
weight, worn or under-inflated tyres,
faulty braking system, ….) or drive at
too high a speed.
In certain certain cases, oscillation of
the trailer may not be detected by the
ESC system, particularly with a light
trailer.
When driving on slippery or poor
surfaces, the system may not be able to
prevent sudden snaking of the trailer.
Safety
164
3008-2_en_Chap05_securite_ed01-2016
Advanced Grip Control
Standard (ESC)
F Place the knob in this position.
Snow
Special patented traction control system which
improves traction on snow, mud and sand.
This system, the operation of which has been
optimised for each situation, allows you to
manoeuvre in most conditions of poor grip
(encountered during touring use).
This mode is calibrated for a low level of wheel
spin, based on the different levels of grip
normally encountered on the road.
This mode adapts its strategy to the conditions
of grip encountered for each of the two front
wheels on moving off.
(mode active up to 30 mph (50 km/h))
F Place the knob in this position.
The accelerator pedal should be pressed
sufficiently to allow the system to use the power
of the engine. Operation at high engine speeds
is completely normal.
Every time the ignition is switched off,
the system automatically resets to this
mode.
A five-position selector knob allows you to
choose the setting best suited to the driving
conditions encountered.
An indicator lamp associated with each mode
comes on, accompanied by the display of a
message to confirm your choice.
Associated with all-season M+S (Mud and
Snow) tyres, this system offers a compromise
between safety, adhesion and traction.
Operating modes
5
Safety
165
3008-2_en_Chap05_securite_ed01-2016
All terrain (mud, damp grass, ...)
This mode, when moving off, allows
considerable spin on the wheel with the least
grip to optimise clearing of the mud and to
regain grip. At the same time, the wheel with
the most grip is controlled in such a way as to
transmit as much torque as possible.
When moving, the system optimises wheel spin
to respond to the driver's requirements as fully
as possible.
(mode active up to 50 mph (80 km/h))
F Place the knob in this position.
Sand
This mode allows little spin on the two driving
wheels at the same time to allow the vehicle to
move forward and limit the risks of getting stuck
in the sand.
(mode active up to 75 mph (120 km/h))
F Place the knob in this position.
You can deactivate certain
ESC systems (ASR and DSC)
by turning the knob to the
"OFF" position.
Driving advice
Your vehicle is designed principally to
drive on tarmac roads but it allows you
to drive on other less passable terrain
occasionally.
However, it does not permit off-road
driving such as:
- crossing and driving on terrain
which could damage the underbody
or strip away components (fuel
pipe, fuel cooler...) due to obstacles
or stones in particular,
- driving on terrain with steep
gradients and poor grip,
- crossing a stream.
Do not use the other modes on sand as
the vehicle may become stuck.
These systems are reactivated
automatically from 30 mph (50 km/h) or
every time the ignition is switched on.
Safety
166
3008-2_en_Chap05_securite_ed01-2016
Hill Assist Descent Control
System that provides assistance when
descending on loose or soft surfaces (gravel,
mud...) or a steep gradient.
This system reduces the risk of slip or loss
of control of the vehicle when descending,
whether going forward or in reverse.
During a descent, it assists the driver in
maintaining a constant speed, depending
on the gear engaged, while progressively
releasing the brakes.
Operation
By default, the system is not selected.
The state of the system does not stay in
memory when the ignition is switched off.
The driver can select the system with the
engine running and the vehicle stationary or at
speeds of up to about 30 mph (50 km/h).
F Once the vehicle starts its descent, you
can release the accelerator and brake
pedals, speed is regulated by the system:
- if the gearbox is in first or second
gear, speed is reduced and the
indicator flashes rapidly,
- if the gearbox is in neutral or if
the clutch pedal is depressed,
speed is reduced and the
indicator flashes slowly; in this
case, the speed maintained
during the descent is lower.
Switching on
F With the speed below 30 mph
(50 km/h), press this button until
its indicator lamp comes on to
select the system; this indicator
appears in grey in the instrument
panel.
F
With the speed below 18 mph (30 km/h),
the system becomes active; this indicator
comes on in green in the instrument panel.
If you release the accelerator and brake pedals
while the vehicle is stationary on a gradient, the
system will release the brakes for progressive
movement of the vehicle.
The brake lamps come on automatically when
the system is regulating the speed of the
vehicle.
5
Safety
167
3008-2_en_Chap05_securite_ed01-2016
For the system to operate, the slope
must be steeper than 5%.
The system can be used with the
gearbox in neutral.
Otherwise, engage a gear appropriate
for the speed of the vehicle, to avoid the
engine stalling.
With an automatic gearbox, the system
can be used with the selector at N, D
or R.
If the speed of the vehicle exceeds 18 mph
(30 km/h), regulation is automatically paused
and the indicator in the instrument panel
changes back to grey, but the indicator lamp in
the button still stays on.
Regulation resumes automatically as soon as
the speed of the vehicle drops below 18 mph
(30 km/h), provided that the conditions of
gradient and release of the pedals are met.
You can press the accelerator or brake pedal
at any time.
Operating fault
If a fault occurs with the system,
this warning lamp comes on,
accompanied by the display of a
message in the instrument panel.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.
Switching off
F Press this button until its indicator lamp
goes off; the indicator goes off in the
instrument panel.
Above 43 mph (70 km/h), the system is
automatically deactivated; the indicator lamp in
the button goes off.
The system is not available:
- if the speed of the vehicle is above
43 mph (70 km/h),
- if the speed of the vehicle is
being controlled by the Dynamic
cruise control with Stop function,
depending on the type of gearbox.
When the system is regulating,
the Active Safety Brake system is
automatically deactivated.
Safety
168
3008-2_en_Chap05_securite_ed01-2016
F To adjust the anchorage point, squeeze the
control A and slide it to one of the notches.
Height adjustment
Seat belts
Front seat belts
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
Fastening
Unfastening
F Press the red button on the buckle.
F Guide the seat belt as it reels in.
F Pull the strap, then insert the tongue in the
buckle.
F Check that the seat belt is fastened
correctly by pulling the strap.
5
Safety
169
3008-2_en_Chap05_securite_ed01-2016
Rear seat belts
The rear seats are each fitted with a three-point
inertia reel seat belt.
The outer rear seats are fitted with pyrotechnic
pretensioners and force limiters.
Front seat belts not fastened /
unfastened warning lamp
When the ignition is switched on, this
warning lamp comes on in the seat
belt and passenger's front airbag
warning lamps display, if the driver
and/or the front passenger has not
fastened their seat belt.
1. Front and/or rear seat belts not fastened /
unfastened warning lamp.
2. Front left seat belt warning lamp.
3. Front right seat belt warning lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belts not fastened /
unfastened warning lamps
display
The corresponding warning lamp 2 or 3 comes
on in red on the seat belt and passenger's front
airbag warning lamps display if the seat belt is
not fastened or is unfastened.
From approximately 12 mph (20 km/h),
this warning lamp flashes for two minutes
accompanied by an audible signal. Once these
two minutes have elapsed, this warning lamp
remains on until the driver and/or the front
passenger fastens their seat belt.
Safety
170
3008-2_en_Chap05_securite_ed01-2016
Fastening
F Pull the strap, then insert the tongue in the
buckle.
F Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F Guide the seat belt as it reels in.
This warning lamp comes on in
the seat belt and passenger's front
airbag warning lamps display,
when one or more rear passengers
unfasten their seat belt.
Seat belt unfastened warning
lamp
Seat belt unfastened warning
lamps display
When the ignition is switched on, with the
engine running or when the vehicle is moving at
less than 12 mph (20 km/h), the corresponding
warning lamps 4, 5 and 6 come on in red for
approximately 30 seconds, if the seat belt is not
fastened.
When the vehicle is moving at more than
12 mph (20 km/h), the corresponding warning
lamp 4, 5 or 6 comes on in red, accompanied
by an audible signal and the display of a
message, if a rear passenger has unfastened
their seat belt.
From approximately 12 mph (20 km/h),
this warning lamp flashes for two minutes
accompanied by an audible signal. Once the
two minutes have elapsed, this warning lamp
remains on until one or more rear passengers
fasten their seat belt.
5
Safety
171
3008-2_en_Chap05_securite_ed01-2016
The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfill their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the length
of the strap to your size. The seat belt is
stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on Child seats, refer to
the corresponding section.
In the event of an impact
Depending on the nature and seriousness
of the impact, the pretensioning device may
be deployed before and independently of the
airbags. Deployment of the pretensioners
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a PEUGEOT dealer or a qualified
workshop.
Advice
In order to be effective, a seat belt must:
- be tightened as close to the body as
possible,
- be pulled in front of you with a smooth
movement, checking that it does not
twist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modified to avoid
affecting its performance.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
PEUGEOT dealer is able to provide.
Have your seat belts checked regularly by a
PEUGEOT dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
PEUGEOT dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
Safety
172
3008-2_en_Chap05_securite_ed01-2016
Airbags
General information
System designed to contribute towards
improving the safety of the occupants (with
the exception of the rear centre passenger)
in the event of violent collisions. The airbags
supplement the action of the seat belts fitted
with force limiters (all except the centre rear
passenger belt).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
- in the case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle (with the exception of the
rear centre passenger); immediately after
the impact, the airbags deflate rapidly so
that they do not hinder visibility or the exit
of the occupants,
- in the case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt
alone contributes towards ensuring your
protection in these situations.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
Deployment of one or more of the
airbags is accompanied by a slight
emission of smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience slight
irritation.
The noise of detonation associated with
the deployment of one or more airbags
may result in a slight loss of hearing for
a short time.
5
Safety
173
3008-2_en_Chap05_securite_ed01-2016
Front airbags
Deployment
The airbags are deployed, except the
passenger's front airbag if it is deactivated, in
the event of a serious front impact to all or part
of the front impact zone A, in the longitudinal
centreline of the vehicle on a horizontal plane
and directed from the front to the rear of the
vehicle.
The front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steering wheel, driver's side, and the
dashboard, passenger's side, to cushion their
forward movement.
System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
Safety
174
3008-2_en_Chap05_securite_ed01-2016
F With the ignition off, insert the key in the
passenger airbag deactivation switch.
F Turn it to the "OFF" position.
F Remove the key keeping the switch in the
new position.
Reactivating the
passenger's front airbag
When you remove the child seat, with
the ignition off, turn the switch to the
"ON" position to reactivate the front airbag and
so assure the safety of your front passenger in
the event of an impact.
When the ignition is switched on, this
warning lamp comes in the seat belt
warning display screen. It stays on
while the airbag is deactivated.
To assure the safety of your child,
the passenger's front airbag must be
deactivated when you install a rearward
facing child seat on the front passenger
seat.
Otherwise, the child risks being
seriously injured or killed if the airbag
were deployed.
When the ignition is switched on,
this warning lamp comes on in the
seat belt warning display screen for
approximately one minute to signal
that the front airbag is activated.
If this warning lamp comes on in the
instrument panel, you must contact
a PEUGEOT dealer or a qualified
workshop to have the system
checked.
The airbags may no longer be
deployed in the event of a serious
impact.
Operating fault
Deactivating the
passenger's front airbag
5
Safety
175
3008-2_en_Chap05_securite_ed01-2016
Lateral airbags
System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or part of the side impact zone, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel.
Curtain airbags
System contributing towards greater protection
for the driver and passengers (with the
exception of the rear centre passenger) in the
event of a serious side impact in order to limit
the risk of injury to the side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.
Operating fault
If this warning lamp comes on in the
instrument panel, you must contact
a PEUGEOT dealer or a qualified
workshop to have the system checked.
The airbags may no longer be deployed in the
event of a serious impact.
In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbags may not
be deployed.
In the event of a rear or front collision,
none of the lateral airbags is deployed.
Safety
176
3008-2_en_Chap05_securite_ed01-2016
Advice
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause injuries
with deployment of the airbags.
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a PEUGEOT dealer.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a PEUGEOT dealer or a
qualified workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.
For the airbags to be fully effective, observe the safety recommendations below:
The vehicle's front door panels include side
impact sensors.
A damaged door or any unauthorised or
incorrectly executed work (modification or
repair) on the front doors or their interior trim
could compromise the operation of these
sensors - Risk of malfunction of the lateral
airbags!
Such work must only be done by a
PEUGEOT dealer or a qualified workshop.
5
Safety
177
3008-2_en_Chap05_securite_ed01-2016
General points relating to child seats
Although one of PEUGEOT's main criteria when designing your vehicle, the safety of your children
also depends on you.
* The regulations on carrying children are
specific to each country. Refer to the
legislation in force in your country.
For maximum safety, please observe the
following recommendations:
- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight, on seats fitted with a seat
belt or ISOFIX mountings*,
- statistically, the safest seats in your
vehicle for carrying children are the
rear seats,
- a child weighing less than 9 kg must
travel in the rearward facing position
both in the front and in the rear.
PEUGEOT recommends that children
should travel on the rear seats of your
vehicle:
- rearward facing up to the age of 3,
- forward facing over the age of 3.
Safety
178
3008-2_en_Chap05_securite_ed01-2016
Passenger seat in the fully back and
highest position.
Child seat at the front*
Rearward facing Forward facing
* Refer to the legislation in force in your country
before installing a child seat on this seating
position.
Ensure that the seat belt is properly
tightened.
For child seats with a support leg,
ensure that this is in firm and steady
contact with the floor. If necessary,
adjust the passenger's seat.
When a rearward facing child seat is installed
on the front passenger seat, adjust the
vehicle seat to the fully back and highest
position, with the backrest straightened.
The passenger's airbag must be deactivated.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
When a forward facing child seat is installed on
the front passenger seat, adjust the vehicle
seat to the fully back and highest position,
with the backrest straightened. Leave the
passenger's airbag active.
5
Safety
179
3008-2_en_Chap05_securite_ed01-2016
Passenger airbag OFF
Deactivating the passenger's front airbag
The warning label present on both sides of the
passenger's sun visor repeats this advice. In
line with current legislation, the following tables
contain this warning in all of the languages
required.
For information on deactivating the
passenger's front airbag, refer to the
"Airbags" section.
Never install a rearward facing child
restraint system on a seat protected by
an active front airbag. This could cause
the death of the child or serious injury.
AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. Това може да причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CS
NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ.
DA
Brug ALDRIG en bagudvendt barnestol på et sæde, der er beskyttet af en AKTIV AIRBAG. BARNET risikerer at blive ALVORLIGT
KVÆSTET eller DRÆBT.
DE
Montieren Sie auf einem Sitz mit AKTIVIERTEM Front-Airbag NIEMALS einen Kindersitz oder eine Babyschale entgegen der
Fahrtrichtung, das Kind könnte schwere oder sogar tödliche Verletzungen erleiden.
EL
Μη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ.
EN
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the
CHILD can occur.
ES
NO INSTALAR NUNCA un sistema de retención para niños de espaldas al sentido de la marcha en un asiento protegido mediante un
AIRBAG frontal ACTIVADO, ya que podría causar lesiones GRAVES o incluso la MUERTE del niño.
ET
Ärge MITTE KUNAGI paigaldage "seljaga sõidusuunas" lapseistet juhi kõrvalistmele, mille ESITURVAPADI on AKTIVEERITUD.
Turvapadja avanemine võib last TÕSISELT või ELUOHTLIKULT vigastada.
FI
ÄLÄ KOSKAAN aseta lapsen turvaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVATYYNY. Sen
laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAKAVAN LOUKKAANTUMISEN.
FR
NE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GRAVEMENT.
HR
NIKADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZRAČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HU
SOHA ne használjon menetiránynak háttal beszerelt gyermekülést AKTIVÁLT (BEKAPCSOLT) FRONTLÉGZSÁKKAL védett ülésen. Ez a
gyermek HALÁLÁT vagy SÚLYOS SÉRÜLÉSÉT okozhatja.
IT
NON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale
ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GRAVI al bambino.
LT
NIEKADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TRAUMUOTAS.
Safety
180
3008-2_en_Chap05_securite_ed01-2016
5
LV
NEKAD NEuzstādiet uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera sēdvietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS GAISA
SPILVENS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
MT
Qatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla.
NL
Plaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waarvan de AIRBAG is INGESCHAKELD. Bij het afgaan van de
airbag kan het KIND LEVENSGEVAARLIJK GEWOND RAKEN.
NO
Installer ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE,
BARNET risikerer å bli DREPT eller HARDT SKADET.
PL
NIGDY nie instalować fotelika dziecięcego w pozycji "tyłem do kierunku jazdy" na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETRZNĄ w stanie AKTYWNYM. Może to doprowadzić do ŚMIERCI DZIECKA lub spowodować u niego POWAŻNE OBRAŻENIA
CIAŁA.
PT
NUNCA instale um sistema de retenção para crianças de costas para a estrada num banco protegido por um AIRBAG frontal ACTIVADO.
Esta instalação poderá provocar FERIMENTOS GRAVES ou a MORTE da CRIANÇA.
RO
Nu instalati NICIODATA un sistem de retinere pentru copii, dispus cu spatele in directia de mers, pe un loc din vehicul protejat cu AIRBAG
frontal ACTIVAT. Aceasta ar putea provoca MOARTEA COPILULUI sau RANIREA lui GRAVA.
RU
ВО ВСЕХ СЛУЧАЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье,
защищенном ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНКА или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖДЕНИЙ.
SK
NIKDY neinštalujte detské zádržné zariadenie orientované smerom dozadu na sedadlo chránené AKTIVOVANÝM čelným AIRBAGOM.
Mohlo by dôjsť k SMRTEĽNÉMU alebo VÁŽNEMU PORANENIU DIEŤAŤA.
SL
NIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLAZINA pred sprednjim sopotnikovim sedežem
AKTIVIRANA. Takšna namestitev lahko povzroči SMRT OTROKA ali HUDE POŠKODBE.
SR
NIKADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VAZDUŠNIM JASTUKOM ispred njega, jer
mogu nastupiti SMRT ili OZBILJNA POVREDA DETETA.
SV
Passagerarkrockkudden fram MÅSTE vara avaktiverad om en bakåtvänd bilbarnstol installeras på denna plats. Annars riskerar barnet att
DÖDAS eller SKADAS ALLVARLIGT.
TR
KESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya
ÇOK AĞIR YARALANMASINA sebep olabilir.
Safety
181
3008-2_en_Chap05_securite_ed01-2016
Safety
182
3008-2_en_Chap05_securite_ed01-2016
Child seat at the rear
Rearward facing
When a rearward facing child seat is installed
on a rear passenger seat, move the vehicle's
front seat forward and straighten the backrest
so that the rearward facing child seat does not
touch the vehicle's front seat.
Forward facing
When a forward facing child seat is installed
on a rear passenger seat, move the vehicle's
front seat forward and straighten the backrest
so that the legs of the child in the forward
facing child seat do not touch the vehicle's front
seat.
Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that this is in firm contact with
the floor. If necessary, adjust the front
seat of the vehicle.
Centre rear seat
A child seat with a support leg must never be
installed on the centre rear passenger seat.
The incorrect installation of a child seat
in a vehicle compromises the protection
of the child in the event of an accident.
5
Safety
183
3008-2_en_Chap05_securite_ed01-2016
Child seats recommended by PEUGEOT
Group 0+: from birth to 13 kg Groups 2 and 3: from 15 to 36 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rearward facing position.
L5
"RÖMER KIDFIX XP"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
L6
"GRACO Booster"
The child is restrained by the seat belt.
PEUGEOT offers a range of recommended child seats which are secured using a three point seat belt.
Safety
184
3008-2_en_Chap05_securite_ed01-2016
Locations for child seats secured using the seat belt
Weight of the child / indicative age
Seat
Passenger's
front airbag
Under 13 kg
(groups 0 (b)
and 0+)
Up to about
1 year
From 9 to 18 kg
(group 1)
From 1 to about
3 years
From 15 to
25 kg
(group 2)
From 3 to about
6 years
From 22 to
36 kg
(group 3)
From 6 to about
10 years
Row 1 (c)
Passenger seat
with height
adjustment*
Deactivated "OFF"
U U U U
Activated "ON" X UF UF UF
Passenger seat
without height
adjustment**
Deactivated "OFF"
U U U U
Activated "ON" X UF UF UF
Row 2 (d)
Seat behind the
driver's seat
U U U U
Seat behind the
passenger's seat
U U U U
Centre rear seat (e) U U U U
In accordance with European regulations, this table indicates the options for installing child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
* Fully high position.
** Backrest straightened.
5
Safety
185
3008-2_en_Chap05_securite_ed01-2016
U: seating position suitable for the installation
of a child seat secured using the seat belt
and approved for universal use rearward
facing and/or forward facing.
UF: seating position suitable for the installation
of a child seat secured using the seat belt
and approved for universal use forward
facing.
X: seating position not suitable for installing a
child seat for the weight group indicated.
(a) Universal child seat: child seat which can be
installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats
and "car cots" cannot be installed on the
front passenger seat.
(c) Consult the legislation in force in your
country before installing your child on this
seat.
(d) To install a child seat at the rear, rearward
or forward facing, move the front seat
forward, then straighten the backrest to
allow enough room for the child seat and
the child's legs.
(e) A child seat with a support leg must never
be installed at this seating position.
Remove and stow the head restraint
before installing a child seat with
backrest on a passenger seat.
Refit the head restraint once the child
seat has been removed.
Safety
186
3008-2_en_Chap05_securite_ed01-2016
"ISOFIX" mountings
There are three rings for each seat:
- two rings A, located between the vehicle
seat back and cushion, indicated by a
marking,
This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats are fitted with two
latches which are secured on the two rings A.
Some seats also have an upper strap, known
as the Top Tether, which is attached to ring B.
Your vehicle has been approved in accordance with the latest ISOFIX regulation.
To secure the child seat to the TOP TETHER:
- remove and stow the head restraint before
installing the child seat on the seat (refit it
once the child seat has been removed),
- pass the upper strap of the child seat
behind the seat backrest, between the
apertures for the head restraint rods,
- fix the hook of the upper strap to the ring B,
- tighten the upper strap.
- a ring B behind the seat and identified by a
marking, referred to as the Top Tether for
fixing the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Follow strictly the fitting instructions
provided by with the child seat.
When fitting an ISOFIX child seat to
the left hand rear seat, before fitting the
seat, first move the centre rear seat belt
towards the middle of the vehicle, so
as to avoid the seat interfering with the
operation of the seat belt.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the summary table.
The seats, represented below, are fitted with
regulation ISOFIX mountings:
5
Safety
187
3008-2_en_Chap05_securite_ed01-2016
ISOFIX child seats recommended by PEUGEOT
PEUGEOT offers a range of ISOFIX child seats listed and type approved for your vehicle.
Refer also to the child seat
manufacturer's fitting instructions for
information on installing and removing
the seat.
"RÖMER Baby-Safe Plus"
and its ISOFIX base
(size category: E)
Group 0+: from birth to 13 kg
Installed rearward facing using an ISOFIX
base which is attached to the rings A.
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This child seat can also be secured with a
seat belt. In this case, only the shell is used
and attached to the vehicle's seat by the
three-point seat belt.
"RÖMER Duo Plus ISOFIX"
(size category: B1)
Group 1: from 9 to 18 kg
Is installed only in the forward facing
position.
Is attached to the rings A and the upper
ring B, referred to as the TOP TETHER,
using an upper strap.
Three seat body angles: sitting, reclining,
lying down.
This child seat can also be used on seats
not equipped with ISOFIX mountings. In
this case, it must be secured to the vehicle's
seat by the three-point seat belt. Adjust the
position of the vehicle's front seat so that the
child's feet are not touching the backrest.
Safety
188
3008-2_en_Chap05_securite_ed01-2016
Locations for ISOFIX child seats
In line with European regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
Weight of the child / indicative age
Under 10 kg
(group 0)
Up to about
6 months
Under 10 kg
(group 0)
Under 13 kg
(group 0+)
Up to about 1 year
From 9 to 18 kg
(group 1)
From about 1 to 3 years
Type of ISOFIX child seat Cot Rearward facing Rearward facing Forward facing
ISOFIX size category F G C D E C D A B B1
Seat
Passenger's
front airbag
Row 1 (a)
Passenger's seat
with height
adjustment
Deactivated
"OFF"
X IL IL IUF / IL
Activated "ON"
X X X IUF / IL
Passenger's seat
without height
adjustment
Deactivated
"OFF"
X IL IL IUF / IL
Activated "ON"
X X X IUF / IL
Row 2
Seat behind driver's
seat
IL (b) IL IL IUF / IL
Seat behind
passenger's seat
IL (b) IL IL IUF / IL
Centre rear seat Not ISOFIX
5
Safety
189
3008-2_en_Chap05_securite_ed01-2016
(a) Refer to the legislation in force in your
country before installing a child at this
seating position.
(b) The installation of a cot at this seating
position may prevent the use of one or both
other seats in this row.
IUF: seating position suitable for the installation
of an Isofix Universal seat, Forward facing
secured using the upper strap.
IL: seating position suitable for the installation
of an Isofix Semi-Universal seat either:
- rearward facing fitted with an upper strap
or a support leg,
- forward facing fitted with a support leg,
- a cot fitted with an upper strap or a
support leg.
For securing the upper strap using the ISOFIX
mountings, refer to the corresponding section.
X: seating position not suitable for the
installation for an ISOFIX seat or cot of the
weight group indicated.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
Safety
190
3008-2_en_Chap05_securite_ed01-2016
Locations for i-Size child seats
The i-Size child seats have two latches that engage on the two rings A.
The i-Size child seats also have:
- either an upper strap which is attached to the ring B
- or a support leg which sits on the vehicle's floor, compatible with the seat approved for i-Size
the role of which is to prevent the child seat from tipping forward in the event of a collision.
For more information on ISOFIX mountings, refer to the corresponding section.
In accordance with the new European regulations, this table indicates the options for installing i-Size child seats on seats in the vehicle fitted with
ISOFIX mountings approved for i-Size.
Seating position Passenger's front airbag i-Size restraint system
Row 1 (a) Passenger seat
Deactivated, "OFF" i-U
Activated, "ON" i-UF
Row 2
Seat behind the driver's seat i-U
Seat behind the front passenger's seat i-U
Centre rear seat Not i-Size
5
Safety
191
3008-2_en_Chap05_securite_ed01-2016
i-U: suitable for i-Size restraints of the
"universal" category, forward facing or
rearward facing.
i-UF: only suitable for i-Size restraint systems
in the "Universal" category, forward
facing.
X: seating position not suitable for i-Size
restraint systems in the "Universal"
category.
Remove and stow the head restraint
before installing a child seat on a
passenger seat.
Refit the head restraint once the child
seat has been removed.
(a) Refer to the current legislation in your
country before installing a child at this
seating position.
Safety
192
3008-2_en_Chap05_securite_ed01-2016
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You must remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
Advice
Installing a booster seat
Children at the front
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it forwards if necessary.
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's front airbag
when a rearward facing child seat is installed
on the front passenger seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
At rear seating positions, always leave
sufficient space between the front seat and:
- a rearward facing child seat,
- the child's feet for a child seat fitted
forward facing.
To do this, move the front seat forwards
and, if necessary, move its backrest into the
upright position.
As a safety precaution, do not leave:
- a child or children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
5
Safety
193
3008-2_en_Chap05_securite_ed01-2016
Manual child lock
Turning the child lock on
F Using the ignition key or the integral key,
depending on version, turn the red control
as far as it will go:
- to the right on the left-hand rear door,
- to the left on the right-hand rear door.
Turning the child lock off
F Using the ignition key or the integral key,
depending on version, turn the red control
as far as it will go:
- to the left on the left-hand rear door,
- to the right on the right-hand rear door.
Do not confuse the child lock control,
which is red, with the back-up locking
control, which is black.
Mechanical system to prevent opening of a rear door using its interior control.
The control, red in colour, is located on the edge of each rear door.
It is identified by a symbol marked on the bodywork.
Safety
194
3008-2_en_Chap05_securite_ed01-2016
Electric child lock
Remotely operated system to prevent opening of the rear doors using their interior controls.
The control is located on the dashboard, driver's side.
Switching on
F Press this button.
The indicator lamp in the button comes on,
accompanied by a confirmation message.
This indicator lamp remains on until the child
lock is switched off.
Switching off
F Press this button again.
The indicator lamp on button goes off,
accompanied by a confirmation message.
This indicator lamp remains on while child lock
is switched on.
Any other status of the indicator lamp
indicates a fault with the electric child
lock. Have it checked by a PEUGEOT
dealer or a qualified workshop.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of a serious impact, the
electric child lock is switched off
automatically to permit the exit of the
rear passengers.
6
Driving
195
3008-2_en_Chap06_conduite_ed01-2016
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Important!
If you are obliged to drive through water:
- check that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
- deactivate the Stop & Start system,
- drive as slowly as possible without stalling.
In all cases, do not exceed 6 mph
(10 km/h),
- do not stop and do not switch off the
engine.
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park
or run the engine over areas where
inflammable substances and materials
are present: grass, leaves, etc.
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position N or P, depending on the type
of gearbox.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a PEUGEOT dealer or a qualified workshop.
6
Driving
197
3008-2_en_Chap06_conduite_ed01-2016
It has 3 positions:
- position 1 (Stop): insert and removing the
key, steering column locked,
- position 2 (Ignition on): steering column
unlocked, ignition on, Diesel preheating,
engine running,
- position 3 (Starting).
Ignition on position
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preserve the remaining
battery charge.
Starting / Switching off the engine with the key
Ignition switch
Avoid attaching heavy objects to the
key or the remote control, which would
weigh down on its blade in the ignition
switch and could cause a malfunction.
It could adversely affect the deployment
of the front airbag.
Switching off the engine leads to a loss
of braking assistance.
Anti-theft protection
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
For reasons of safety and theft
protection, do not leave your electronic
key in the vehicle, even when you are
close to it.
It is recommended that you keep it on
your person.
Electronic engine immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In this case, your vehicle does not start; contact
a PEUGEOT dealer if required.
Driving
198
3008-2_en_Chap06_conduite_ed01-2016
Starting the engine
F With a petrol engine, operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
F With a Diesel engine, turn the key to
position 2, ignition on, to operate the
engine pre-heating system.
Wait until this warning lamp goes off
in the instrument panel then operate
the starter motor by turning the key
to position 3 without pressing the
accelerator pedal, until the engine
starts. Once the engine is running,
release the key.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a PEUGEOT dealer or a qualified
workshop.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death!
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off.
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example).
In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on.
In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
With the parking brake applied and the gearbox
in neutral or position N or P:
F depress the clutch pedal fully (manual
gearbox),
or
F press the brake pedal firmly (automatic
gearbox),
F insert the key into the ignition switch; the
system recognises the code,
F unlock the steering column by simultaneously
turning the steering and the key.
6
Driving
199
3008-2_en_Chap06_conduite_ed01-2016
Switching off the engine
Energy economy mode
After switching off the engine (position 1-Stop),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps, ...
F Check that the parking brake is correctly
applied, particularly on sloping ground.
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle.
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
When you leave the vehicle, keep the
key with you and lock the vehicle.
For more information on Energy
economy mode, refer to the
corresponding section.
Key left in the "Ignition on"
position
If the key has been left in the ignition switch
at position 2 (Ignition on), the ignition will
be switched off automatically after one hour.
To switch the ignition back on, turn the key
to position 1 (Stop), then back to position 2
(Ignition on).
F Stop the vehicle.
F With the engine running at idle, turn the key
to position 1.
F Remove the key from the ignition switch.
F To lock the steering column, turn the
steering until it locks.
Driving
200
3008-2_en_Chap06_conduite_ed01-2016
Starting / Switching off the engine with
Keyless Entry and Starting
Starting the engine
F Briefly press the "START/
STOP" button while maintaining
pressure on the pedal until the
engine starts.
The presence of the "Keyless Entry
and Starting" electronic key in the
recognition zone is essential.
If the electronic key is not detected in
this zone, a message is displayed.
Move the electronic key into this zone
so that the engine can be started.
If there is still a problem, refer to the
"Key not detected - Back-up starting"
section.
If one of the starting conditions is not met,
a reminder message is displayed in the
instrument panel.
In some circumstances, it is necessary
to turn the steering wheel slightly while
pressing the "START/STOP" button to
assist unlocking of the steering column; a
message warns you when this is needed.
F With a manual gearbox, put the gear lever
into neutral.
F With the electronic key inside the vehicle,
fully depress the clutch pedal.
or
F With an automatic gearbox, place the
gear selector at position P or N.
F With the electronic key inside the vehicle,
fully depress the brake pedal.
The steering column unlocks and the engine
starts.
F With a manual gearbox, you should keep
the clutch pedal fully depressed until the
warning lamp goes off and not press the
"START/STOP" button again until the
engine is running.
or
F With an automatic gearbox, you should
keep the brake pedal fully depressed until
the warning lamp goes off and not press
the "START/STOP" button again until the
engine is running.
For Diesel engines, in temperatures below
zero and/or with a cold engine, the engine will
not start until the pre-heater warning lamp has
gone off.
If this warning lamp comes on after
pressing the "START/STOP" button:
As a safety measure, never leave the
vehicle while the engine is running.
6
Driving
201
3008-2_en_Chap06_conduite_ed01-2016
Switching off the engine
F Immobilise the vehicle, engine at idle.
F With a manual gearbox, put the gear lever
into neutral.
or
F With an automatic gearbox, place the
gear selector at position P or N.
Never leave your vehicle with the
electronic key still inside.
Switching off the engine leads to a loss
of braking assistance.
If the vehicle is not immobilised, the
engine will not stop.
F With the electronic key inside
the vehicle, press the "START/
STOP" button.
The engine stops and the steering
column locks.
Ignition on
(without starting)
With the Keyless Entry and Starting remote
control inside the vehicle, pressing the "START/
STOP" button, with no action on the pedals,
allows the ignition to be switched on.
This also allows the accessories to be used
(for example: audio system, lighting...).
F Press the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F Press the button again to switch off the
ignition and allow the vehicle to be locked.
With the ignition on, the system
automatically goes into energy
economy mode to maintain an adequate
state of charge in the battery.
Driving
202
3008-2_en_Chap06_conduite_ed01-2016
Key not detected
Back-up starting
A back-up reader is fitted to the steering
column to allow the engine to be started if
the system does not detect the key in the
recognition zone, or when the battery in the
electronic key is discharged.
F Place and hold the remote control against
the reader.
F If your vehicle has a manual gearbox, place
the gear lever in neutral then fully depress
the clutch pedal.
F If your vehicle has an automatic gearbox,
select position P then press the brake
pedal firmly.
F Press the "START/STOP" button.
The engine starts.
Emergency switch-off
In the event of an emergency only, the engine
can be switched off without conditions (even
when driving).
Press the "START/STOP" button for about
five seconds.
In this case, the steering column locks as soon
as the vehicle stops.
F To confirm the instruction to switch off the
engine, press the "START/STOP" button
for about five seconds.
In the event of a fault with the electronic key,
contact a PEUGEOT dealer or a qualified
workshop.
Back-up switch off
When the electronic key is not detected or is
no longer in the recognition zone, a message
appears in the instrument panel when closing a
door or trying to switch off the engine.
6
Driving
203
3008-2_en_Chap06_conduite_ed01-2016
Electric parking brake
The system provides, in automatic operation,
the application of the parking brake on
switching off the engine and release as the
vehicle moves off.
The driver can take over at any time to apply
or release the parking brake, by operating the
control lever:
F by briefly pulling the control lever to apply
the brake,
F by briefly pushing the control lever, while
pressing the foot brake, to release it.
Automatic mode is activated by default.
Indicator lamp
This indicator lamp comes on in the
instrument panel and in the control
lever to confirm the application of the
parking brake.
It goes off to confirm the release of the parking
brake.
The indicator lamp in the control lever flashes
during manual application or release.
In the event of a battery failure, the
electric parking brake no longer works.
As a safety measure, if the parking
brake is not applied, immobilise the
vehicle by engaging a gear (with a
manual gearbox) or placing the chocks
supplied against one of the wheels.
Contact a PEUGEOT dealer or a
qualified workshop.
Driving
204
3008-2_en_Chap06_conduite_ed01-2016
When towing, parking on a steep slope,
or if your vehicle is heavily laden,
turn the wheels towards the kerb and
engage a gear (with a manual gearbox)
or place the gear selector at position P
with an automatic gearbox.
For towing, you vehicle is approved for
parking on slopes of up to 12%.
Manual operation
Manual application
With the vehicle stationary: briefly pull the control lever.
If you push the control lever without
pressing the brake pedal, the parking
brake will not be released and a
message is displayed.
Manual release
With the ignition on or the engine running, to
release the parking brake:
F press the brake pedal,
F while maintaining pressure on the brake
pedal, briefly push the control lever.
The complete release of the parking brake
is confirmed by the brake indicator lamp and
the P indicator lamp in the control lever going
off, accompanied by the display of the message
"Parking brake released".
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
Before leaving the vehicle, check that
parking brake is applied: the indicator
lamps in the instrument panel and
the control lever must be on fixed, not
flashing.
If the parking brake is not applied, there
is an audible signal and a message is
displayed on opening the driver's door.
Label on door panel
Confirmation of the instruction is signaled by
flashing of the indicator lamp in the control
lever.
Application of the parking brake
is confirmed by illumination of
the brake indicator lamp and
the P indicator lamp in the control
lever, accompanied by the display of
the message "Parking brake applied".
6
Driving
205
3008-2_en_Chap06_conduite_ed01-2016
Automatic operation
Automatic release
Ensure first that the engine is running and the
driver's door is properly closed.
The electric parking brake releases
automatically and progressively when the
vehicle is moving.
With a manual gearbox
F Fully depress the clutch pedal,
engage 1
st
gear or reverse.
F Press the accelerator pedal and release
the clutch pedal.
With an automatic gearbox
F Press the brake pedal.
F Select position D, M or R.
F Release the brake pedal and press the
accelerator pedal.
With an automatic gearbox, if the brake
does not release automatically, check
that the front doors are correctly closed.
When stationary with the engine running, do not
depress the accelerator pedal unnecessarily,
you risk releasing the parking brake.
The complete release of the parking brake
is confirmed by the brake indicator lamp and
the P indicator lamp in the control lever going
off, accompanied by the display of the message
"Parking brake released".
Automatic application
With the vehicle stationary, the parking brake
is automatically applied when the engine
is switched off by pressing the START/STOP
button.
Application of of the parking brake
is confirmed by illumination of
the brake indicator lamp and the
P indicator lamp in the control lever,
accompanied by the display of the
message "Parking brake applied".
Automatic application does not take
place if the engine stalls or goes into
STOP mode of Stop & Start.
With automatic operation, you can also
manually apply or release the parking
brake using the control lever.
Driving
206
3008-2_en_Chap06_conduite_ed01-2016
Special cases
In some situations, you may need to operate
the parking brake manually.
Immobilisation of the vehicle
with the engine running
To immobilise the vehicle with the engine
running, briefly pull the control lever.
In very cold conditions (ice), it is
recommended that the parking brake
not be applied.
To immobilise your vehicle, engage a
gear or fit the chocks supplied against
one of the wheels.
Application of of the parking
brake is confirmed by illumination
of the brake indicator lamp and
the P indicator lamp in the control
lever, accompanied by the display of
the message "Parking brake applied".
Parking the vehicle with the
brake released
Immobilisation of the vehicle with the
parking brake released
F Switch off the engine.
Illumination of the warning lamps in the
instrument panel and control lever confirm
application of the parking brake.
F Switch on the ignition again, without
starting the engine.
F Release the parking brake manually by
pushing the control lever while keeping
your foot on the brake.
The complete release of the parking
brake is confirmed by the brake
indicator lamp and the P indicator
lamp in the control lever going off,
accompanied by the display of the
message "Parking brake released".
F Switch off the ignition.
With an automatic gearbox, P mode is
automatically selected when the ignition
is switched off. The wheels are blocked.
6
Driving
207
3008-2_en_Chap06_conduite_ed01-2016
Deactivating automatic operation
In some situations, such as very cold weather
or towing (caravan, recovery), it may be
necessary to deactivate automatic operation of
the system.
F Start the engine.
F Apply the parking brake with the control
lever, if it is released.
F Take your foot off the brake pedal.
F Push and hold the control lever in the
release direction for at least 10 seconds
and no more than 15 seconds.
F Release the control lever.
F Press and hold the brake pedal.
F Pull the control lever in the apply direction
for 2 seconds.
Deactivation of the automatic functions
is confirmed by illumination of this
indicator lamp in the instrument panel.
F Release the control lever and the brake
pedal.
From this point, the parking brake can only
be applied and released manually using the
control lever.
Repeat this procedure to reactivate automatic
operation.
Reactivation of automatic operation is
confirmed by the indicator lamp in the
instrument panel going off.
Emergency braking
The emergency braking should only be
used in an exceptional situation.
In the event of a failure of the main service
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc.), a continuous
pull on the control lever will brake the vehicle.
Braking takes place while the control lever is
being pulled. It is interrupted if the control lever
is released.
The ABS and DSC systems provide stability of
the vehicle during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed in the instrument panel.
If the ABS and DSC systems malfunction,
signalled by the illumination of one or both
warning lamps in the instrument panel, then
stability of the vehicle is no longer guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever until the vehicle is
immobilised.
Driving
208
3008-2_en_Chap06_conduite_ed01-2016
Operating faults
The various alert situations are described in this table.
In the event of a fault with the electric parking brake it is recommended that you contact a PEUGEOT dealer or a qualified workshop without delay.
Situations Consequences
Display of the message "Parking brake fault" and this warning lamp. - Automatic release is not available.
- If you attempt an automatic release, a help message is displayed on
acceleration when the parking brake is applied, prompting you to use
manual release.
Display of the message "Parking brake fault" and these warning lamps. - Secondary braking does not have full power.
- If automatic release is not available, a help message is displayed on
acceleration when the parking brake is applied, prompting you to use
manual release.
Display of the message "Parking brake fault" and these warning lamps. - Automatic application is not available: use the control lever.
- The electric parking brake can only be used manually.
- If automatic release is also not available, a help message is displayed
on acceleration when the parking brake is applied, prompting you to use
manual release.
Display of the message "Parking brake fault" and these warning lamps. - If manual application and release do not work, the control lever is faulty.
- The automatic functions must be used in all circumstances: they are
automatically reactivated in the event of failure of the control lever.
- You can no longer immobilise the vehicle with the engine running.
6
Driving
209
3008-2_en_Chap06_conduite_ed01-2016
Situations Consequences
Display of the message "Parking brake fault" and these warning lamps. The parking brake is faulty, the manual and automatic functions may not operate.
When stationary, to immobilise your vehicle:
F Pull and hold the control lever for about 7 to 15 seconds, until the
warning lamp comes on in the instrument panel.
If this procedure does not work, you should make your vehicle safe:
F Park on a level surface.
F Engage a gear with a manual gearbox or select position P with an
automatic gearbox.
F If possible, place a chock against one of the wheels.
Call on a PEUGEOT dealer or a qualified workshop.
Display of the message "Parking brake fault" and these warning lamps. - The parking brake does not have its full performance to securely hold
the vehicle in all situations.
You should make your vehicle safe:
F Park on a level surface.
F Engage a gear with a manual gearbox, or select position P with an
automatic gearbox.
F If possible, place a chock against one of the wheels.
Call on a PEUGEOT dealer or a qualified workshop.
The flashing of the P warning lamps on starting the vehicle indicates that the
parking brake is not correctly applied.
As soon as possible, stop the vehicle and try to completely release the
parking brake, using the control lever, with your foot on the brake pedal.
Display of the message "Battery fault" and this warning lamp. - The state of charge of the battery is very low and requires immobilisation
of the vehicle in a safe place: engage a gear with a manual gearbox or
place a chock against one of the wheels.
- Once the battery is completely discharged, the controls do not operate:
to release the parking brake, call on a PEUGEOT dealer or a qualified
workshop.
Driving
210
3008-2_en_Chap06_conduite_ed01-2016
6-speed manual gearbox
Engaging reverse gear Engaging 5
th
or 6
th
gear
F Move the lever fully to the right to engage
5th or 6th gear.
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine, always select
neutral and depress the clutch pedal.
F Raise the trigger under the knob and move
the gear lever to the left then forwards.
Failure to follow this advice could cause
permanent damage to the gearbox
(inadvertent engagement of 3
rd
or
4
th
gear).
6
Driving
211
3008-2_en_Chap06_conduite_ed01-2016
Automatic gearbox (EAT6)
P. Park.
For parking the vehicle: the wheels are
blocked.
R. Reverse.
N. Neutral.
For moving the vehicle with the ignition off: for
certain car washing machines, when towing the
vehicle...
D. Automatic drive mode.
The gearbox manages the gear changes
according to the driving style, the profile of the
road and the load in the vehicle.
M. Manual mode.
The driver changes gear using the steering
mounted control paddles.
Gearbox selector positions
A. Button P.
To put the gearbox into P.
B. Unlock button.
To unlock the gearbox and come out of P or
change to R.
This button should be pressed before pressing
the selector.
C. Button M.
To change from D to permanent manual mode.
D. Display panel showing the operation of the
gearbox P, R, N, D.
Push selector
Six-speed automatic gearbox with push selector. It also offers a manual mode with steering mounted paddle gear changes.
Move the selector by pressing it forward
once or twice (N or R) or rearward (N or D),
if necessary going beyond the point of
resistance.
The selector returns to its initial position when
released.
SPORT
SPORT
Driving
212
3008-2_en_Chap06_conduite_ed01-2016
Steering mounted control paddles
In M or D mode, the steering mounted control
paddles allow the driver to change gear
manually.
F Pull the right-hand "+" paddle toward you
and release to change up a gear.
F Pull the left-hand "-" paddle toward you
and release to change down a gear.
The steering mounted control paddles
cannot be used to select neutral or to
select or come out of reverse.
"Sport" button
Activating the Sport programme or the
Dynamic pack is not recommended in the
following situations:
- one of the special modes (other than
standard mode) of Grip control is on,
- low fuel level reached,
- low AdBlue level reached.
Sport programme
With the engine running, when the programme
associated with the button is active, the
gearbox delays changing up for a more
dynamic driving style.
The programme is automatically deactivated
when the ignition is switched off.
Pressing this button has no effect when
a trailer is connected.
In D mode, pressing this button
activates the Sport programme.
"S" appears in the instrument panel.
Dynamic pack
You can activate or deactivate the function:
- by pressing this button,
or
- via the i-Cockpit Amplify function, by
modifying the setting for an ambience in
the touch screen.
For more information on the Dynamic Pack
and the i-Cockpit Amplify function, refer to
the corresponding section.
The indicator lamp in the button is on
when the Dynamic pack is activated.
6
Driving
213
3008-2_en_Chap06_conduite_ed01-2016
With the ignition on, the state of the gearbox is
displayed in the instrument panel:
P: park.
R: reverse.
N: neutral.
D1...D6: automatic mode.
S: Sport programme or Dynamic pack.
M1...M6: manual mode.
-: instruction not accepted in manual mode.
Displays in the instrument panel
If the driver's door is opened with the ignition
on, a message is displayed asking you to put
the gearbox into P mode.
The state of the gearbox is displayed in the
instrument panel for a few moments after
switching off the ignition.
With the engine running, if it is necessary to
press the brake pedal or the Unlock button
in order to change mode, an alert message is
displayed in the instrument panel.
Only appropriate attempted changes of mode
are accepted.
Operation
General points
To release the gearbox:
- from P mode:
F press the brake pedal firmly,
F press the Unlock button,
F while maintaining pressure on the brake
pedal and on the Unlock button, select
another mode.
- from neutral N:
F speed below 3 mph (5 km/h),
F press the brake pedal firmly,
F maintaining pressure on the brake pedal,
select another mode.
To engage reverse:
F speed below 3 mph (5 km/h),
F press the Unlock button,
F push forward once or twice.
To change to manual mode:
F with D mode first selected,
F press the M button; the indicator lamp in
the button comes on.
To come out of manual mode:
F push forward to return to D.
or
F press the M button; the indicator lamp in
the button goes off.
With the engine running and the brakes
released, if R, D or M is selected,
the vehicle moves off, even without
pressing the accelerator pedal.
Never leave children unsupervised
inside the vehicle with the engine
running.
Never press the accelerator and brake
pedals at the same time - Risk of
damage to the gearbox!
In the event of a battery failure, you
must place the chocks supplied with the
vehicle tools against one of the wheels
to immobilise the vehicle.
Driving
214
3008-2_en_Chap06_conduite_ed01-2016
The vehicle must be stationary to switch off the
ignition.
To put the vehicle into free-wheel with the
engine off:
F vehicle stationary, engine running,
select N,
F switch off the engine,
F switch the ignition on within five seconds,
F with your foot on the brake pedal, push the
selector forward or rearward and release to
confirm N and release the electric parking
brake manually,
F switch off the ignition.
If you exceed the period of five seconds, the
gearbox goes into P mode; you must then start
the procedure again from the beginning.
Special aspects of automatic
mode
The gearbox selects the gear that offers
optimum performance, taking account of the
ambient temperature, the profile of the road,
the load on the vehicle and the style of driving.
For maximum acceleration without touching
the selector, press the accelerator fully down
(kick-down). The gearbox changes down
automatically or holds the gear selected until
the maximum engine speed is reached.
When braking, the gearbox changes down
automatically to provide effective engine
braking.
The steering mounted controls allow the driver
to temporarily select a gear, if the road and
engine speed permit.
Special aspects of manual mode
The change from one gear to another takes
place only if the if the road speed and engine
speed permit.
If the engine speed is too high or too low, the
gear selected flashes for a few seconds, then
the gear actually engaged is displayed.
With N engaged, opening the driver's
door results in an audible signal.
Closing the driver's door stops the
signal.
Moving off
From P mode:
F Press the brake pedal firmly.
F Start the engine.
F Maintaining pressure on the brake pedal,
press the Unlock button.
F Push twice rearward going beyond
the point of resistance to select the
automatic D mode, or forward to engage
reverse R.
From neutral N:
F Press the brake pedal firmly.
F Start the engine.
F Maintaining pressure on the brake
pedal, push rearward to select the
automatic D mode, or forward, while
pressing the Unlock button to engage
reverse R.
Then, from P or N:
F Release the brake pedal.
F Accelerate progressively to automatically
release the electric parking brake.
F With the parking brake released, the
vehicle then moves off.
6
Driving
215
3008-2_en_Chap06_conduite_ed01-2016
In severe wintry conditions (temperature
below -23°C), it is recommended that
the engine be allowed to run for a few
minutes before moving off, to ensure
the correct operation and durability of
the engine and gearbox.
Stopping the vehicle
Whatever the state of the gearbox when the
ignition is switched off, P mode is engaged
automatically, with the exception of N, in which
case P mode will be engaged after a delay of
5 seconds (allowing the change to free-wheel).
Check that P mode has been engaged and
that the electric parking brake was applied
automatically; if not, apply it manually.
Operating faults
Malfunction of the gearbox Malfunction of the selector
In the event of a minor fault
In the event of a serious fault
Stop as soon as it is safe to do so, away
from the traffic, and call a PEUGEOT
dealer or a qualified workshop.
When the ignition is switched off,
the gearbox goes into P mode
automatically.
You are alerted by the illumination of
this warning lamp.
The corresponding indicator lamps
for the selector panel and the electric
parking brake control lever must
be on, as well as the ones in the
instrument panel.
This is signalled by the illumination of
this warning lamp, accompanied by the
display of a message and an audible
signal, when the ignition is switched on.
The gearbox goes into back-up mode: D mode
stays in third gear, the steering mounted control
paddles are inoperative, M mode is no longer
available. You may feel a pronounced jolt when
engaging reverse. This does not present any
risk for the gearbox.
Do not drive faster than 62 mph (100 km/h),
keeping to the speed limit.
Go to a PEUGEOT dealer or a qualified
workshop.
You are alerted by the illumination of this
warning lamp, accompanied by the display
of a message and an audible signal.
In certain cases, the selector lamps may not
come on, but the state of the gearbox is still
displayed in the instrument panel.
Drive cautiously and go to a PEUGEOT or a
qualified workshop.
Driving
216
3008-2_en_Chap06_conduite_ed01-2016
Hill start assist
On an ascending slope, with the vehicle
stationary, the vehicle is held for a momentarily
when you release the brake pedal:
- provided you are in first gear or neutral with
a manual gearbox,
- provided you are in position D or M with an
automatic gearbox.
Operation
On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a fault in the system occurs, these warning
lamps come on. Contact a PEUGEOT dealer
or a qualified workshop to have the system
checked.
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
This system only operates when:
- the vehicle is completely stationary, with
your foot on the brake pedal,
- certain gradient conditions are met,
- with the driver’s door closed.
The hill start assist system cannot be
deactivated.
Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to leave the vehicle with the
engine running, apply the parking brake
manually then ensure that the parking
brake warning lamp and the warning
lamp P in the lever of the electric
parking brake control are on fixed (not
flashing).
6
SPORT
Driving
217
3008-2_en_Chap06_conduite_ed01-2016
Dynamic Pack
This pack adapts:
- the display colour for the instrument panel,
- the acoustic ambience of the engine,
- the level of power assistance for the steering,
- acceleration,
- the management of gear changes with an
automatic gearbox,
- the display in the instrument panel of
information on the vehicle's dynamic
parameters.
Activation
F Press and hold this button until
the instrument panel colour
changes (red); the indicator lamp
in the button comes on.
Displays
F Press the end of the wiper control stalk to
display the various dynamic parameters in
the instrument panel.
F Press repeatedly to go from one screen to
another.
You can also display this information with the
"PERSONAL" mode of the instrument panel.
If the indicator lamp flashes, activation
is not possible (for example, if Park
Assist is selected) and the instrument
panel display colour returns to its
normal mode.
If the indicator lamp continues flashing
for a long time, contact a PEUGEOT
dealer or a qualified workshop.
This telemetry information (power
output, turbocharger pressure, torque,
longitudinal and lateral acceleration, ...)
is given as an indication only.
The Dynamic pack is also managed
by the i-Cockpit Amplify function.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.
Driving
218
3008-2_en_Chap06_conduite_ed01-2016
Gear shift indicator*
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
- You press the accelerator pedal.
Example:
- You are in third gear.
- The system may suggest that you engage
a higher gear.
The information appears in the instrument
panel in the form of an arrow.
System which reduces fuel consumption by recommending the most appropriate gear.
With an automatic gearbox, the system
is only active in manual mode.
* Depending on engine.
On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the
gear recommended.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking, ...).
The system never suggests:
- engaging first gear,
- engaging reverse gear.
Operation
On BlueHDi Diesel 135 and 150 versions with
manual gearbox, in certain driving conditions
the system may suggest changing into neutral
so that the engine can go into standby (STOP
mode with Stop & Start). In this case,
N is displayed in the instrument panel.
6
Driving
219
3008-2_en_Chap06_conduite_ed01-2016
Stop & Start
Operation
Going into engine STOP mode
This indicator lamp comes on in the
instrument panel and the engine
goes into standby automatically:
- with a manual gearbox, at speeds below
12 mph (20 km/h) or vehicle stationary with
the PureTech 130 petrol and BlueHDi 115
and 120 Diesel versions, when you place
the gear lever in neutral and you release
the clutch pedal,
A time counter calculates the sum of the
periods in STOP mode during a journey. It
resets itself to zero every time the ignition is
switched on with the key or the START/STOP
button.
- with an automatic gearbox, vehicle
stationary, when you press the brake pedal
or put the gear selector in N mode.
The Stop & Start system puts the engine
temporarily into standby - STOP mode -
during stops in the traffic (red lights,
traffic jams, ...). The engine restarts
automatically - START mode - as soon as
you want to move off. The restart takes place
instantly, quickly and silently.
Perfect for urban use, the Stop & Start system
reduces fuel consumption and exhaust
emissions as well as the noise level when
stationary.
Never refuel with the engine in
STOP mode; you must switch off the
ignition with the key or the START/
STOP button.
For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
Stop & Start does not affect the
operation of vehicle systems such as
braking, power steering...
Driving
220
3008-2_en_Chap06_conduite_ed01-2016
Going into engine START mode Special cases: START invoked
automatically
This indicator lamp goes off and the
engine starts automatically:
- with a manual gearbox, when you fully
depress the clutch pedal,
- with an automatic gearbox:
● gear selector in D or M mode, when you
release the brake pedal,
● or gear selector in N mode and brake
pedal released, when you place the gear
selector in D or M mode,
● or when you engage reverse.
As a safety measure or to maintain comfort
levels in the vehicle, START mode is invoked
automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 15 mph
(25 km/h) with a manual gearbox (2 mph
(3 km/h) with PureTech 130 petrol and
BlueHDi 115 and 120 Diesel versions),
or 2 mph (3 km/h) with an automatic
gearbox.
- the electric parking brake is being applied,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
In this case, this indicator lamp flashes
for a few seconds, then goes off.
This operation is perfectly normal.
Special cases: STOP mode not
available
STOP mode is not invoked when:
- the vehicle is on a steep slop (rising or
falling),
- the driver's door is open,
- the driver's seat belt is not fastened,
- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start (with
the key or the START/STOP button),
- the electric parking brake is applied or
being applied,
- the engine is needed to maintain a
comfortable temperature in the passenger
compartment,
- demisting is active,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
In this case, this indicator lamp flashes
for a few seconds then goes off.
This operation is perfectly normal.
6
Driving
221
3008-2_en_Chap06_conduite_ed01-2016
Deactivation / Reactivation
In certain circumstances, such as the need
to maintain the temperature in the passenger
compartment, it may be useful to deactivate the
Stop & Start system.
The system can be deactivated at any time,
once the ignition is switched on.
If the engine is in STOP mode, it then restarts.
The Stop & Start system is reactivated
automatically every time the ignition is
switched on.
Opening the bonnet
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid the risk of injury
related to an automatic change to
START mode.
Driving on flooded roads
Before driving through a flooded road,
it is strongly recommended that you
deactivate the Stop & Start system.
For more information on Driving
advice, particularly on flooded roads,
refer to the corresponding section.
With the button on the
dashboard
Pressing the button again reactivates the
system; the associated indicator lamp goes off.
The indicator lamp in the instrument panel goes
off, accompanied by the display of a message.
F Press this button; the associated indicator
lamp comes on.
Deactivation is confirmed by the illumination
of this indicator lamp and the display of a
message in the instrument panel.
Activation and deactivation of the
function is done in the Driving menu
of the touch screen.
With the touch screen button
Deactivation is confirmed by the illumination
of this indicator lamp and the display of a
message in the instrument panel.
Select the "Driving assistance" tab, then
"Stop & Start".
A new selection reactivates the system.
The indicator lamp in the instrument panel goes
off, accompanied by the display of a message.
Driving
222
3008-2_en_Chap06_conduite_ed01-2016
Operating fault
The Stop & Start system requires a
12 V battery of specific technology and
specification.
All work on this type of battery must be
carried out only by a PEUGEOT dealer
or a qualified workshop.
For more information on the
12 V battery, refer to the corresponding
section.
In the event of a fault with the system,
this warning lamp flashes for a few
moments in the instrument panel,
then remains on, accompanied by the
display of a message.
In the event of a fault in STOP mode,
the vehicle may stall.
All of the instrument panel warning lamps
come on.
It is then necessary to switch off the ignition
and start the engine again with the key or the
"START/STOP" button.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
6
Driving
223
3008-2_en_Chap06_conduite_ed01-2016
Under-ination detection
System which automatically checks the pressures of the tyres while driving.
The under-inflation detection system
does not replace the need for vigilance
on the part of the driver.
This system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres impairs
road holding, extends braking distances
and causes premature tyre wear,
particularly under arduous conditions
(high loading, high speed, long journey).
The inflation pressures defined for
your vehicle can be found on the tyre
pressure label.
For more information on the
Identification markings, refer to the
corresponding section.
Driving with under-inflated tyres
increases fuel consumption.
The system monitors the pressures in the four
tyres, once the vehicle is moving.
It compares the information given by the four
wheel speed sensors with reference values,
which must be reinitialised every time the
tyre pressures are adjusted or a wheel
changed.
The system triggers an alert as soon as it
detects a drop in the inflation pressure of one
or more tyres.
Snow chains
The system does not have to be
reinitialised after fitting or removing
snow chains.
Checking tyre pressures
This check should be done when the
tyres are "cold" (vehicle stopped for
1 hour or after a journey of less than
6 miles (10 km) at moderate speeds).
Otherwise, add 0.3 bar to the pressures
shown on the label.
Driving
224
3008-2_en_Chap06_conduite_ed01-2016
It is necessary to reinitialise the system every
time one or more tyre pressures are adjusted,
and after changing one or more wheels.
Reinitialisation
This is given by fixed illumination of
this warning lamp, accompanied by
an audible signal and, depending on
equipment, the display of a message.
Under-inflation alert
F Reduce speed immediately, avoid
excessive steering movements and sudden
braking.
F Stop the vehicle as soon as it is safe
to do so.
F If you have a compressor, such as the one
in the temporary puncture repair kit, check
the pressures of the four tyres when cold.
F If it is not possible to make this check
immediately, drive carefully at reduced
speed.
or
F In the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (depending on equipment).
The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check.
The alert is maintained until the system
is reinitialised.
Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre pressure label.
The under-inflation alert can only
be relied on if the reinitialisation of
the system has been done with the
pressures in the four tyres correctly
adjusted.
The under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
6
Driving
225
3008-2_en_Chap06_conduite_ed01-2016
Touch screenMonochrome screen C
Operating fault
The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
A message appears, accompanied by an
audible signal.
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.
Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.
Reinitialisation of the function is
done in the "Personalisation-
configuration" menu of the screen.
F Select the "Define the vehicle
parameters" menu.
F Select the "Driving assistance" menu.
F Select the "Tyre inflation" menu.
F Select the "Reinitialisation" function.
F Select "Yes" to confirm.
The reinitialisation is confirmed by an audible
signal.
Reinitialisation of the function is done
in the Driving menu of the touch
screen.
F In the Driving menu, select the
"Settings" tab.
F In the page, select the "Under-inflation
reinitialisation" function.
F Select "Yes" to confirm.
The reinitialisation is confirmed by the display
of a message and an audible signal.
Driving
226
3008-2_en_Chap06_conduite_ed01-2016
Memorising speeds
This function allows speeds to be saved, which can then be offered to set the two systems: the speed limiter (to limit the speed of the vehicle) or the
cruise control (for a vehicle cruising speed).
You can memorise up to six speed settings for each of the two systems.
By default, some speed settings are already memorised.
As a safety measure, the driver must
only modify the speed settings when
stationary.
This function is accessible in the
Driving menu of the touch screen.
F Select the "Driving assistance" tab.
F Select "Speed settings".
F Select the "Speed limiter" or "Cruise
control" tab, depending on the system for
which you want to memorise new speed
settings.
F Select the speed setting you want to
modify.
F Enter the new value using the numerical
keypad and confirm.
F Confirm to save the modifications and quit
the menu.
"MEM" buttonModifying a speed setting
This button allows you to select a memorised
speed setting for use with the speed limiter or
the cruise control.
For more information on the Speed limiter or
the Cruise control, refer to the corresponding
section.
6
Driving
227
3008-2_en_Chap06_conduite_ed01-2016
Speed limit recognition
This system allows the speed limit detected by
the camera to be displayed in the instrument
panel.
Specific speed limits, such as those for heavy
goods vehicles, are not displayed.
The display of the speed limit in the instrument
panel is updated as you pass a speed limit sign
intended for cars (light vehicles).
The units for the speed limits (mph or
km/h) depend on the country you are
driving in.
It should be taken into account so that
you observe the speed limit.
For the system to operate correctly
when you change country, the units for
speed in the instrument panel must be
those for the country you are driving in.
The automatic reading of road signs is a
driving assistance system and does not
always display speed limits correctly.
The speed limit signs present on the
road always take priority over the
display by the system.
The system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
The driver must observe the driving
regulations and must adapt the speed
of the vehicle to suit the weather and
traffic.
It is possible for the system to not
display the speed limit if it does not
detect a speed limit sign within a preset
period.
The system is designed to detect signs
that conform to the Vienna Convention
on road signs.
To maintain correct operation of the
system: regularly clean the area in front
of the camera.
Principles
Using a camera at the top of the windscreen,
this system detects and reads speed limit and
end of speed limit signs.
The system also takes account of information
on speed limits from the navigation system
mapping.
It is necessary to update your
navigation mapping regularly in order to
receive accurate information on speed
limits from the system.
Driving
228
3008-2_en_Chap06_conduite_ed01-2016
Display in the instrument panel
1. Indication of the speed limit.
or
2. Indication of the end of the speed limit.
Display of the speed
The system is active but is not detecting speed
limit information.
On detection of speed limit information, the
system displays the value.
The driver can, if desired, adjust the speed of
the vehicle according to the information given
by the system.
Activation / Deactivation
The system is activated or deactivated via the
vehicle parameters menu in the screen.
6
Driving
229
3008-2_en_Chap06_conduite_ed01-2016
Memorising the speed
setting
This memorisation is in addition to the display
of Speed limit recognition.
The driver can choose to adapt the speed
setting to the speed limit suggested, by
pressing the memorisation button for the speed
limiter, the standard cruise control and the
dynamic cruise control with Stop function.
This speed setting then replaces the previous
speed setting for the speed limiter and/or cruise
control.
For more information on the Speed
limiter, Cruise control, or Dynamic
cruise control with Stop function,
refer to the corresponding sections.
Steering mounted controls
1. Select speed limiter/cruise control mode.
2. Memorise a speed setting.
Operating limits
The legislation on speed limits is specific to
each country.
The system does not take account of reduced
speed limits in the following cases:
- poor weather (rain, snow),
- atmospheric pollution,
- trailer, caravan,
- driving with a space-saver type spare
wheel or snow chains fitted,
- puncture repair using the temporary repair
kit,
- young drivers,
- ...
The system may be disrupted or not work at all
in the following situations:
- poor visibility (inadequate street lighting,
falling snow, rain, fog),
- windscreen area ahead of the camera dirty,
misty, frosty, covered with snow, damaged
or masked by a sticker,
- fault with the camera,
- obsolete or incorrect mapping,
- hidden road signs (other vehicles,
vegetation, snow),
- speed limit signs that do not conform to the
standard, are damaged or distorted.
Display in the instrument panel
3. Speed limiter indication.
4. Memorise the speed.
5. Current speed setting.
Driving
230
3008-2_en_Chap06_conduite_ed01-2016
Memorising the speed
F Switch on the speed limiter/cruise control.
Speed limiter/cruise control information is
displayed.
On detection of a speed limit sign, the system
displays the speed limit and offers to make it a
new speed setting.
"MEM" flashes in the screen for a few seconds.
F Make an initial press on this button to
request saving of the speed suggested.
If the difference between the speed setting
and the speed displayed by the recognition
system is less than 6 mph (10 km/h), the
MEM symbol is not displayed.
F Press this button again to confirm and save
the new speed setting.
After a predetermined period, the screen
returns to the current display.
6
Driving
231
3008-2_en_Chap06_conduite_ed01-2016
6. Speed limiter on / pause indication.
7. Speed limiter mode selection indication.
8. Programmed speed value.
9. Select a memorised speed or, depending
on version,
Speed suggested by the speed limit
recognition system.
Displays in the instrument panel
Speed limiter
1. Select speed limiter mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter On / Pause.
5. Display memorised speed settings or,
depending on version,
Accept the speed suggested by the speed
limit recognition system.
Steering mounted controls
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter is a driving aid that
cannot, in any circumstances, replace the
need to observe speed limits or the need
for vigilance on the part of the driver.
The speed limiter is switched on manually.
The minimum programmed speed is 20 mph
(30 km/h).
The programmed speed remains in the system
memory when the ignition is switched off.
For more information on Memorising speeds
or Speed limit recognition, refer to the
corresponding section.
Driving
232
3008-2_en_Chap06_conduite_ed01-2016
Switching on
F If the speed setting is suitable (last speed
setting programmed in the system), press
button 4 to switch the speed limiter on.
F Turn the thumbwheel 1 to the
"LIMIT" position to select the speed
limiter; the function is paused.
F Pressing button 4 again temporarily
interrupts the function (pause).
Adjusting the limit speed
setting
You do not have to switch the speed limiter on
in order to set the speed.
To modify the limit speed setting from the
current speed of the vehicle:
F in steps of +/- 1 mph (km/h), make
successive short presses on button 2 or 3,
F continuously, in steps of +/- 5 mph (km/h),
press and hold button 2 or 3.
To modify the limit speed setting using
memorised speeds and from the touch screen:
F press button 5 to display the six memorised
speed settings,
F press the button for the desired speed
setting.
This setting becomes the new limit speed.
To modify the speed limiter setting using the
speed suggested by the speed limit recognition
system:
F the speed suggested is displayed in the
instrument panel,
F make a first press on button 5; a message
is displayed to confirm the memorisation
request,
F press button 5 again to save the suggested
speed.
This value is then displayed in the instrument
panel as the new speed limiter setting.
6
Driving
233
3008-2_en_Chap06_conduite_ed01-2016
On a steep descent or in the event of
sharp acceleration, the speed limiter
will not be able to prevent the vehicle
from exceeding the programmed speed.
The use of mats not approved by
PEUGEOT may interfere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
correctly,
- do not fit one mat on top of another.
Temporarily exceeding the
programmed speed
F If you want to temporarily exceed the
programmed limit speed, press firmly on
the accelerator pedal, going beyond the
point of resistance.
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes.
Switching off
When the limit speed is exceeded but is not
due to action by the driver, there is an audible
signal to complete the alert.
Once the speed of the vehicle returns to
the programmed setting, the speed limiter
functions again: the display of the programmed
speed setting becomes steady again.
F Turn the thumbwheel 1 to the "0" position:
the display of information on the speed
limiter disappears.
Operating fault
Flashing dashes indicate a fault with the speed
limiter.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Driving
234
3008-2_en_Chap06_conduite_ed01-2016
Cruise control
1. Select cruise control mode selection.
2. Set the current speed of the vehicle as the
cruise setting or lower the cruise setting.
3. Set the current speed of the vehicle as the
cruise setting or raise the cruise setting.
4. Pause / Resume cruise control.
5. Display memorised speed settings or,
depending on version,
Accept the speed suggested by the speed
limit recognition system.
Steering mounted controls
6. Cruise control pause / resume indication.
7. Cruise control mode selected indication.
8. Cruise speed setting.
9. Select a memorised cruise speed or,
depending on version,
The speed suggested by the speed limit
recognition system.
Displays in the instrument panel
The operation of the cruise control can be
interrupted (pause):
- by pressing control 4 or by pressing the
brake pedal,
- automatically, if operation of the dynamic
stability control system is triggered.
Switching off the ignition cancels any
programmed speed setting.
The cruise control is switched on
manually.
It requires a minimum vehicle speed of
25 mph (40 km/h) as well as:
- with a manual gearbox, the
engagement of third gear or higher,
- with an automatic gearbox, the gear
selector in D mode or second gear
or higher in M mode.
Speed regulation remains active after
changing gear on vehicles fitted with a
manual gearbox and Stop & Start.
System which automatically maintains the cruising speed of the vehicle at a setting programmed by the driver, without any action on the accelerator
pedal.
The cruise control system is a driving aid
that cannot, in any circumstances, replace
the need to observe speed limits, nor the
need for vigilance on the part of the driver.
As a safety measure, you are advised to
keep your feet near the pedals at all times.
For more information on Memorising speeds
or Speed limit recognition, refer to the
corresponding section.
6
Driving
235
3008-2_en_Chap06_conduite_ed01-2016
Switching on
F To start the cruise control and set a cruise
speed, once the vehicle has reached the
desired speed, press button 2 or 3: the
current speed of your vehicle becomes the
cruise speed setting.
You can release the accelerator pedal.
F Turn the thumbwheel 1 to the
"CRUISE" position to select cruise control
mode; the function is paused.
F Pressing button 4 interrupts operation of
the system (pause).
F Pressing button 4 again restores operation
of the cruise control (ON).
Modifying the cruise speed
setting
The cruise control must be active.
To modify the cruise speed setting using
memorised speeds and from the touch screen:
F press button 5 to display the six memorised
speed settings,
F press the button for the desired speed
setting.
This setting becomes the new cruise speed.
Take care: pressing and holding
button 2 or 3 results in a rapid change
in the speed of your vehicle.
To modify the cruise speed setting from the
current speed of the vehicle:
F in steps of + or - 1 mph (km/h), make
repeated short presses on button 2 or 3,
F continuously, in steps of + or - 5 mph (km/h),
press and hold button 2 or 3.
Driving
236
3008-2_en_Chap06_conduite_ed01-2016
As a precaution, it is recommended
that the cruise speed chosen be close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.
Temporarily exceeding the
programmed speed
When descending a steep hill, the
cruise control system cannot prevent
the vehicle from exceeding the
programmed speed.
When required (overtaking manoeuvre...), it is
possible to exceed the programmed speed by
pressing the accelerator pedal.
The cruise control is temporarily overridden
and the programmed speed setting flashes.
To return to the programmed speed, simply
release the accelerator pedal.
Once the vehicle has returned to the
programmed speed, the cruise control takes
over again: the display of the programmed
speed setting becomes steady again.
You may have to brake to control the speed of
your vehicle. In this case, the cruise control is
automatically paused.
To activate the system again, with the speed
of the vehicle above 25 mph (40 km/h), press
button 4.
Switching off
F Turn the thumbwheel 1 to the "0" position:
the cruise control information disappears
from the screen.
To modify the cruise speed setting using the
speed suggested by the speed limit recognition
system:
F the speed suggested is displayed in the
instrument panel,
F make a first press on button 5; a message
is displayed to confirm the memorisation
request,
F press button 5 again to save the suggested
speed.
This value is then displayed in the instrument
panel as the new cruise speed setting.
6
Driving
237
3008-2_en_Chap06_conduite_ed01-2016
Only use the cruise control if the traffic
conditions will allow you to drive for a
certain time at a steady speed and at a
safe distance from the vehicle ahead.
Do not activate the cruise control in
urban areas, in heavy traffic, on winding
or steep roads, on slippery or flooded
roads, or in conditions of poor visibility
(heavy rain, fog, falling snow...).
In some circumstances, it may not be
possible to maintain or reach the cruise
speed set: towing, vehicle heavily
loaded, steep climb.
The use of mats not approved by
PEUGEOT may interfere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
correctly,
- never fit one mat on top of another.
Operating fault
Flashing dashes indicate a fault with the cruise
control system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Driving
238
3008-2_en_Chap06_conduite_ed01-2016
Dynamic cruise control with Stop function
The dynamic cruise control is a driving
aid that cannot in any circumstances
replace the observation of speed limits
and safe distances, nor the need for
vigilance on the part of the driver.
It is recommended that you always keep
your feet close to the pedals.
The driver must be ready to take back
control of their vehicle at any time,
using the brake or accelerator pedal as
appropriate.
This system provides two functions:
- automatic regulation of the speed of the
vehicle to a value programmed by the driver,
- automatic adjustment of the distance
between your vehicle and the vehicle ahead.
It manages the acceleration and deceleration
of the vehicle by automatically acting on the
engine and the braking system.
To do this, the system has a radar, located in
the middle of the front bumper, with a maximum
range of 150 metres.
Principles
This system detects a vehicle running in front of
your vehicle, travelling in the same direction.
It automatically adapts the speed of your
vehicle to that of the vehicle in front, to maintain
a constant distance.
If the vehicle in front is running more slowly, the
system slows, or even stops your vehicle, using
engine braking and the braking system.
If the braking system is used to decelerate the
vehicle, the brake lamps come on.
If the vehicle in front accelerates or changes
lane, the cruise control progressively
accelerates your vehicle to return to the
programmed speed.
If the driver operates a direction indicator to
overtake a slower vehicle, the dynamic cruise
control allows your vehicle to temporarily
approach the vehicle in front to assist the
overtaking manoeuvre, though never exceeding
the programmed speed.
6
Driving
239
3008-2_en_Chap06_conduite_ed01-2016
Steering mounted controls
1. Select cruise control mode.
2. Use the current speed as the speed
setting / Lower the speed setting.
3. Use the current speed as the speed
setting / Raise the speed setting.
4. Pause / Resume cruise control.
5. Use the speed suggested by the speed
limit recognition system.
6. Display and adjust the inter-vehicle
distance setting.
For more information on Speed limit
recognition, refer to the corresponding
section.
Displays in the instrument panel
7. Indication of the presence / absence of a
target vehicle.
8. Indication of cruise control activation /
deactivation.
9. Speed setting.
10. Indication that vehicle is held stationary.
11. Speed suggested by the speed limit
recognition system.
12. Inter-vehicle distance setting.
13. Position of the vehicle detected by the radar.
If a vehicle is detected, the symbol 7 is filled
with the colour associated with the cruise
control mode. By default, the symbol 7 is
empty.
In cruise control activated mode, the symbol 8
appears in green. By default, the symbol 8
appears in grey.
This information is visible in the instrument
panel in "DRIVING" display mode.
Driving
240
3008-2_en_Chap06_conduite_ed01-2016
Switching on
The cruise control is switched on manually, it
requires a vehicle speed of between 18 and
112 mph (30 and 180 km/h).
An automatic gearbox must be in position D
or M.
F With the ignition on, turn the thumbwheel 1
to the "CRUISE" position: cruise control
mode is selected, but not started (grey).
F Vehicle moving, press one of the buttons 2
or 3: the current speed of your vehicle
becomes the cruise speed setting.
The cruise control is activated (green).
By default, the inter-vehicle distance is set at
"Normal" (2 dashes).
Otherwise, the last setting made will be used
when switching on the system.
When the cruise control is operating,
Stop & Start is automatically
deactivated.
Pause
The dynamic cruise control can be paused
manually by:
- action by the driver:
● on button 4,
● on the brake pedal,
● on the electric parking brake control,
● when changing from D to N with an
automatic gearbox.
- or automatically, if operation of the ESC
system is triggered for reasons of safety.
Following braking of the vehicle
bringing it to a complete stop, the
system holds the vehicle stationary;
the cruise control is paused. The driver
should press the accelerator pedal to
move off, then reactivate the system
by exceeding 18 mph (30 km/h) and
pressing button 2, 3 or 4.
If the driver takes no action following
this immobilisation, the electric parking
brake is applied automatically after a
few minutes.
Switching off the ignition cancels any
programmed speed setting.
6
Driving
241
3008-2_en_Chap06_conduite_ed01-2016
When the cruise control is paused,
it can only be reactivated when all of
the safety conditions are met. The
message "Activation not possible,
conditions unsuitable" is displayed while
reactivation is not possible.
Wait until the speed of the vehicle
is close to the speed setting before
reactivating the system - by pressing
button 2 or 3 - in order to set your
current speed as the new speed setting.
Modification of the speed
setting
Engine running and cruise control on (green),
you can modify the speed setting.
As a precaution, it is recommended that
you select a cruise speed setting close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.
Modication from the speed limit
recognition system
F The speed to be memorised is displayed in
the instrument panel.
F Make an initial press on button 5; a
message is displayed to confirm the
memorisation request.
F Press button 5 again to save the suggested
speed.
The speed is then displayed in the instrument
panel as the new speed setting.
Modication from the current
speed
F By successive short presses on button 2 or
3, to raise or lower the setting in steps of +
or - 1 mph (km/h),
F By a maintained press on button 2 or 3,
to raise or lower the setting in steps
of + or - 5 mph (km/h).
For more information on Speed limit
recognition, refer to the corresponding
section.
Take care: a prolonged press on
button 2 or 3 will cause a very quick
change in the speed of your vehicle.
Driving
242
3008-2_en_Chap06_conduite_ed01-2016
Modification of the inter-
vehicle distance setting
Three predefined inter-vehicle distance settings
are offered:
- "Distant" (3 dashes),
- "Normal" (2 dashes),
- "Close" (1 dash).
Engine running and cruise control selected
(grey), you can modify the inter-vehicle
distance setting:
F press button 6 to display the selection
screen for inter-vehicle distance,
F press button 6 repeatedly to cycle through
the predefined settings.
The selection screen closes after a
few seconds.
The modification is then taken into account.
This setting remains in memory, whatever the
state of the system and when the ignition is
switched off.
Exceeding the programmed
setting
It is possible to exceed the speed setting
temporarily by depressing the accelerator
pedal.
The cruise control no longer manages the
braking system during this period.
Simply release the accelerator pedal to return
to the programmed speed.
If the programmed speed setting is exceeded,
the display of the speed setting disappears
and a message "Cruise control suspended"
is displayed until the accelerator pedal is
released.
6
70
70
Driving
243
3008-2_en_Chap06_conduite_ed01-2016
Driving situations and associated alerts
To benefit from all of the information available in the instrument panel, you must first select the "DRIVING" display mode.
The following table describes the alerts and the messages displayed for the different driving situations.
The display of these alerts is not sequential.
Indicator Display
Associated message Comment
according to the inter-vehicle
distance selected
"Cruise control paused" System paused.
No vehicle detected.
according to the inter-vehicle
distance selected
"Cruise control paused" System paused.
A vehicle has been detected.
according to the inter-vehicle
distance selected
"Cruise control on" System activated.
No vehicle detected.
according to the inter-vehicle
distance selected
"Cruise control on" System activated.
A vehicle has been detected.
or
"Cruise control suspended" System activated.
The driver has temporarily taken control of the vehicle by
accelerating.
70
70
70
70
Driving
244
3008-2_en_Chap06_conduite_ed01-2016
Indicator Display
Associated message Comment
+
"Take back control of the
vehicle"
The driver should take control of the vehicle by accelerating or
braking, depending on the circumstances.
+
"Take back control of the
vehicle"
The system cannot manage the critical situation alone
(emergency braking of the target vehicle, rapid insertion of
another vehicle between the two vehicles).
The driver must immediately take back control of the
vehicle.
or
"Activation not possible,
conditions unsuitable"
The system refuses to activate the cruise control (speed outside
the operating range, winding road).
or
according to the inter-vehicle
distance selected and the actual
distance from the target vehicle
"Cruise control paused"
(for a few seconds)
The system has brought the vehicle to a complete stop and is
holding it immobilised.
The driver should accelerate to move off again.
The cruise control remains paused until the driver reactivates it
with the speed of the vehicle above 18 mph (30 km/h).
6
Driving
245
3008-2_en_Chap06_conduite_ed01-2016
Limits of operation
The system cannot exceed the limits of the
laws of physics.
It is recommended that the system be
deactivated when the "space-saver" spare
wheel is in use.
The system should not be activated when
towing a trailer.
In certain critical situations, the system will
encourage the driver to immediately take back
control:
- if the vehicle in front slows down too much
or too suddenly, and the driver does not
brake,
- if a vehicle comes between your vehicle
and the vehicle in front.
As the radar's field of detection is quite narrow,
it is possible that the system may not detect:
- vehicles of reduced width (motorcycles,
scooters...),
- vehicles not running in the middle of the
lane,
- vehicles entering a corner,
- vehicles suddenly pulling out.
The cruise control does not take account of:
- pedestrians, cyclists, animals,
- stationary vehicles (traffic jam, red light,
breakdown...),
- vehicles crossing a junction,
- vehicles driving in the opposite direction.
Driving
246
3008-2_en_Chap06_conduite_ed01-2016
Operating fault
Have the system checked by a PEUGEOT
dealer or a qualified workshop.
In the event of a fault with the cruise
control, you are alerted by the
illumination of this warning lamp
and the display of a message in the
instrument panel, accompanied by an
audible signal.
The cruise control operates by day and at
night, in fog or moderate rainfall.
However, it is strongly recommended that
you always keep a safe distance from
vehicles ahead, according to the driving
conditions, the weather and the road
surface.
Use the cruise control only where the
driving conditions allow running at a
constant speed and at an adequate safe
distance.
Do not use the cruise control in urban
areas, heavy traffic, on winding or steep
roads or on slippery or flooded surfaces.
In certain circumstances, it may not
be possible for the speed setting to be
maintained or even attained: loaded
vehicle, ascending a steep hill, ...
The system is not intended for driving in the
following situations:
- the front end of the vehicle has been
modified (addition of driving lamps),
- driving on a racing circuit,
- running on a rolling road,
- use of snow chains or non-slip covers.
As a safety measure, do not use the
system if the brake lamps are faulty.
Do not use the system if the front
bumper is damaged.
The operation of the radar, located in the
front bumper, may be disturbed in certain
weather conditions, for example: with
accumulations of snow, ice, mud, ...
Clean the front bumper, removing the snow,
mud, ...
The use of mats not approved by
PEUGEOT may interfere with the operation
of the cruise control.
To avoid any risk of jamming the pedals:
- ensure that mats are secured correctly,
- never fit one mat on top of another.
6
Driving
247
3008-2_en_Chap06_conduite_ed01-2016
Distance alert and Active Safety Brake
This system includes three functions:
- Distance alert (alert if there is a risk of
collision),
- Intelligent emergency braking assistance,
- Active Safety Brake (automatic emergency
braking).
Points on the Active Safety Brake
function
The speed of the vehicle must be between 3
and 87 mph (5 and 140 km/h) when a moving
vehicle is detected.
The speed of the vehicle must not be higher
than 50 mph (80 km/h) when a stationary
vehicle is detected.
The speed of the vehicle must not be higher
than 36 mph (60 km/h) when a pedestrian is
detected.
The DSC system must not be deactivated or
faulty.
All occupants must have fastened their seat
belts.
Driving at steady speed on roads with few
bends is required.
This system is designed to assist the
driver and improve road safety.
It is the driver's responsibility to
continuously monitor the state of
the traffic, observing the driving
regulations.
This system does not avoid the need for
vigilance on the part of the driver.
The vehicle is fitted with a radar located in the
front bumper and a camera at the top of the
windscreen.
Conditions for activation and operation
The system is active from about 4 mph (7 km/h)
and is deactivated below about 3 mph (5 km/h).
It takes account of:
- registered vehicles running in the same
direction or stationary,
- pedestrians present in the traffic lane
(bicycles, motorcycles, animals and objects
on the road are not necessarily detected).
Distance alert: it warns the driver if their
vehicle is at risk of collision with the
vehicle in front or a pedestrian present in
their traffic lane.
Intelligent emergency braking assistance:
it completes the braking action taken by the
driver if this is inadequate.
Active Safety Brake: it intervenes following
the alert if the driver does not react quickly
enough and does not operate the vehicle's
brakes.
If the driver fails to act, it contributes
towards avoiding a collision or limiting
its severity by reducing the speed of your
vehicle.
Following an impact, the system
is automatically disabled; contact
a PEUGEOT dealer or a qualified
workshop to have the system checked.
Driving
248
3008-2_en_Chap06_conduite_ed01-2016
Depending on the degree of risk of collision
detected by the system and the alert threshold
chosen by the driver, different levels of alert can be
triggered and displayed in the instrument panel.
Because of limits in the operation of the
system, it is possible that warnings are
not given, are given too late or seem
unjustified.
Consequently, the driver must always
remain attentive and able to react at any
time to avoid an accident.
Distance alert
Level 1: visual alert only, signalling
to you that the vehicle in front is very
close.
The message "Vehicle close" is
displayed.
Limits of operation
In the following cases, it is recommended
that the system be deactivated in the vehicle
configuration menu:
- when towing a trailer or caravan,
- when carrying long objects on roof bars or
a roof rack,
- before using an automatic car wash, with
the engine running,
- before placing the vehicle on a rolling road
in a workshop,
- when the vehicle is being towed, with the
engine running,
- when a "space-saver" type spare wheel is
fitted (depending on version),
- following impact damage to the windscreen
close to the detection camera,
- if the front bumper has been damaged,
- if the brake lamps are not working.
This level of alert is based on the inter-vehicle
time between your vehicle and the vehicle in
front.
Level 2: visual and audible alert,
warning you that a collision is
imminent.
The message "Brake!" is displayed.
This level of alert is based on the time before
collision. It takes account of the vehicle
dynamics, the speed of your vehicle and the
one in front, the environmental conditions, the
operation of the vehicle (cornering, pedals
pressed, etc.) to trigger the alert at the best
moment.
Where the speed of your vehicle is too
high approaching another vehicle, the
first level of alert may not be displayed:
the level 2 alert may be displayed
directly.
Important: the level 1 alert is never
displayed if the "Close" threshold has
been selected.
6
Driving
249
3008-2_en_Chap06_conduite_ed01-2016
Modifying the alert trigger
threshold
This threshold determines how you wish to be
warned of the presence of a vehicle moving
or stationary in front of you, or a pedestrian
present in your traffic lane.
The current threshold can be modified via the
vehicle configuration menu in the screen.
You can select one of three thresholds:
- "Distant",
- "Normal",
- "Close".
The last threshold selected is kept in memory
when the ignition is switched off.
Intelligent emergency
braking assistance
If the driver brakes, but not sufficiently to
avoid a collision, this system will complete the
braking, within the limits of the laws of physics.
This assistance will only be provided if you
press the brake pedal.
Driving
250
3008-2_en_Chap06_conduite_ed01-2016
Active Safety Brake
This function, also called automatic emergency
braking, aims to reduce the speed of impact or
avoid a frontal collision by your vehicle where
the driver fails to react.
Using a radar and a camera, this function acts
on the vehicle's braking system.
If the radar and the camera have
confirmed the presence of a vehicle
or a pedestrian, this warning lamp
flashes once the function is acting on
the vehicle's brakes.
Important: if operation of the
automatic emergency braking is
triggered, you should take back
control of your vehicle and brake
with the pedal to add to or finish the
automatic braking action.
The driver can take back control of the vehicle
at any time by sharply turning the steering
wheel and/or pressing the accelerator pedal.
Operation of the function may be felt by
slight vibration in the brake pedal.
If the vehicle comes to a complete stop,
the automatic braking is maintained for
1 to 2 seconds.
With a manual gearbox, in the event
of the automatic emergency braking
bringing the vehicle to a complete stop,
the engine may stall.
With an automatic gearbox, in the event
of the automatic emergency braking
bringing the vehicle to a complete stop,
keep the brake pedal pressed to stop
the vehicle moving off again.
The point at which braking is triggered
may be adjusted according to the
reaction from the driver, such as
movement of the steering wheel or
pressing the accelerator pedal.
6
Driving
251
3008-2_en_Chap06_conduite_ed01-2016
Deactivation / Activation Operating fault
In the event of a fault, you are alerted
by the illumination of this warning
lamp, accompanied by the display of
a message and an audible signal.
Clean the windscreen regularly,
particularly the area in front of the
camera.
Do not allow snow to accumulate on
the bonnet or roof of the vehicle as this
could mask the camera's view.
Clean the front bumper, removing mud,
snow, ...
If the front bumper is to be repainted,
contact a PEUGEOT dealer or a
qualified workshop. Certain types of
paint could interfere with the operation
of the radar.
Check that the sensors (camera and radar) are
not covered by dirt, mud, frost, snow...
If the problem persists, contact a PEUGEOT
dealer or a qualified workshop to have the
system checked.
By default, the system is automatically
activated at every engine start.
The system can be deactivated or activated in
the vehicle settings menu in the screen.
Deactivation of the system is
signalled by the illumination of this
indicator lamp, accompanied by the
display of a message.
There may be interference in the
operation of the camera or it may not
work at all in the following situations:
- poor visibility (inadequate street
lighting, falling snow, heavy rain,
dense fog, ...),
- dazzle (headlamps of an
approaching vehicle on the other
side of the road, low sun, reflection
on a wet road, leaving a tunnel,
alternating between light and
shade, ...),
- camera or radar masked (mud,
frost, snow, ...).
In these situations, detection
performance may be reduced.
Driving
252
3008-2_en_Chap06_conduite_ed01-2016
Fatigue detection system
It is recommended that you take a break as soon as you feel tired or at least every two hours.
Depending on version, the function either has the "Driving time warning" only, or this combined with the "Fatigue detection system".
Driving time warning
The system triggers an alert once it detects that
the driver has not taken a break after two hours
of driving at a speed above 40 mph (65 km/h).
This alert takes the form of the display of a
message encouraging you to take a break,
accompanied by an audible signal.
If the driver does not follow this advice, the
alert is repeated hourly until the vehicle is
stopped.
The system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
Do not take the wheel if you are tired.
As soon as the speed of the vehicle
drops below 40 mph (65 km/h), the
system goes into standby.
The driving time is counted again once
the speed is above 40 mph (65 km/h).
Activation / Deactivation
The system is activated or deactivated via the
vehicle configuration menu.
For more information on the menu, refer to the
part covering your screen in the "Dashboard
instruments" section.
The state of the system stays in memory when
the ignition is switched off.
The system resets itself if one of the following
conditions is met:
- engine running, the vehicle has been
stationary for more than 15 minutes,
- the ignition has been switched off for a
few minutes,
- the driver's seat belt is unfastened and
their door is open.
6
Driving
253
3008-2_en_Chap06_conduite_ed01-2016
After three first level alerts, the system triggers
a new alert with the message "Take a break!",
accompanied by a more pronounced audible
signal.
In certain driving conditions (poor road
surface or strong winds), the system
may give alerts independent of the
driver's level of vigilance.
The following situations may interfere
with the operation of the system or
prevent it working:
- poor visibility (inadequate lighting
of the roadway, falling snow, heavy
rain, dense fog, ...),
- dazzle (headlamps of an oncoming
vehicle, low sun, reflections on
a damp road, leaving a tunnel,
alternating shade and light, ...),
- windscreen area located in front
of the camera: dirty, misted, frost-
covered, snow-covered, damaged
or covered by a sticker,
- lane markings absent, worn,
masked (snow, mud) or multiple
(roadworks, ...),
- close to the vehicle ahead (lane
markings not detected),
- roads that are narrow, winding, ...
Once the system considers that the behaviour
of the vehicle suggests a certain level of fatigue
or inattention by the driver, it triggers the first
level of alert.
The driver is then alerted by the message
"Take care!", accompanied by an audible
signal.
Fatigue detection system
Depending on version, the "Driving time
warning" may be combined with the "Fatigue
detection system".
Using a camera placed at the top of the
windscreen, the system assesses the driver's
level of vigilance by identifying variations in
trajectory compared to the lane markings.
This system is particularly suited to fast roads
(speed higher than 40 mph (65 km/h))
Driving
254
3008-2_en_Chap06_conduite_ed01-2016
Lane Departure Warning System
Activation / Deactivation
Select the "Driving assistance" tab, then
"Lane departure detection assistance.".
System which, using a camera which
recognises solid or broken lines, detects the
involuntary crossing of longitudinal traffic lane
markings on the ground.
To provide safe driving, the camera analyses
the image then, if the driver's attention drops
and the speed is higher than 37 mph (60 km/h),
triggers a warning if there is an unexpected
change of direction.
This system is particularly useful on motorways
and main roads.
This system is a driving aid that cannot,
in any circumstances, replace the need
for vigilance on the part of the driver.
Activation and deactivation of the
function is done via the Driving
menu in the touch screen.
The status of the system remains in memory
when the ignition is switched off.
Detection
If an unexpected change of direction
is detected, you are alerted by
this warning lamp flashing in the
instrument panel and an audible
signal.
No warning is transmitted while the direction
indicator is active and for approximately
20 seconds after the direction indicator is
switched off.
Operating fault
In the event of a fault, this warning
lamp comes on in the instrument
panel, accompanied by the display
of a message and an audible signal.
Contact a PEUGEOT dealer or a
qualified workshop.
The detection may be impeded:
- if the markings on the ground are
worn,
- if there is little contrast between the
markings on the ground and the
road surface,
- if the windscreen is dirty,
- in certain weather conditions: fog,
heavy rain, snow, shade, bright
sunlight or direct exposure to the
sun (low sun, leaving a tunnel, ...).
6
Driving
255
3008-2_en_Chap06_conduite_ed01-2016
Assisted Lane Departure Warning System
Using a camera placed at the top of the windscreen to identify lane markings on the ground, this system corrects the trajectory of the vehicle while
alerting the driver if it detects a risk of involuntary crossing of a line.
This system is particularly useful on motorways and main roads.
Conditions for operation
The speed of the vehicle must be between 40
and 112 mph (65 and 180 km/h).
The carriageway must have at least one lane
marking (solid or broken) on the ground.
The driver must hold the wheel with both
hands.
The change of trajectory is not accompanied by
operation of the direction indicators.
The ESC system must be activated.
This system is a driving aid which
cannot, in any circumstances, replace
the need for vigilance on the part of the
driver.
The driver remains responsible for the
vehicle in all circumstances. The system
helps the driver only when there is a risk
of the vehicle involuntarily wandering
from the lane it is being driven on.
It does not manage the safe driving
distance, the speed of the vehicle or the
brakes.
The driver must hold the steering wheel
in a way that allows control to be taken
back in circumstances where the system
is not able to intervene (where there are
no lane markings, for example).
It is necessary to observe the driving
regulations and take a break every
two hours.
Driving
256
3008-2_en_Chap06_conduite_ed01-2016
While the direction indicators are on and for
a few seconds after switching them off, the
system considers that any change of trajectory
is voluntary and no correction is triggered
during this period.
However, with the "Blind Spot Monitoring
System" activated, if the driver starts changing
lane and another vehicle is detected in the
vehicle's blind spot, the system will correct
the trajectory of the vehicle even though the
direction indicators are on.
For more information on the Blind Spot
Monitoring System, refer to the corresponding
section.
If the system detects that the driver is
not holding the wheel firmly enough
during an automatic correction of
trajectory, it interrupts the correction.
An alert is triggered to encourage
the driver to take back control of the
vehicle.
If the driver wishes to maintain the
trajectory of the vehicle, they can
prevent the correction by keeping a firm
grip on the wheel (during an avoiding
manoeuvre, for example).
The correction is interrupted if the
direction indicators are operated.
Operation
Once the system identifies a risk of the vehicle
involuntarily crossing one of the lane markings
detected, it makes the correction to the
trajectory necessary to return the vehicle to its
initial path.
The driver will then notice a turning movement
of the steering wheel.
This warning lamp flashes during
trajectory correction.
6
Driving
257
3008-2_en_Chap06_conduite_ed01-2016
Driving situations and associated alerts
To benefit from all of the information needed in the instrument panel, you must first select the "DRIVING" display mode.
The table below describes the alerts and messages displayed according to the driving situation.
The display of these alerts is not sequential.
State of the
system
Warning
lamp
Associated display
and message
Comment
OFF System deactivated.
ON System active, conditions not met:
- speed below 40 mph (65 km/h),
- no lane marking recognised,
- ESC deactivated or operation triggered,
- "sporty" driving.
ON Automatic deactivation / standby of the system (for example: detection of a trailer, use of the
"space-saver" spare wheel provided with the vehicle).
ON Detection of lane markings.
Speed above 40 mph (65 km/h).
ON The system corrects the trajectory on the side concerned or the risk of involuntary crossing is
detected (orange line).
ON
"Take back the wheel".
- If, during correction, the system detects that the driver has not held the wheel for a few
seconds, it interrupts the correction and returns control to the driver.
- During correction of the trajectory, the system determines that the correction will not be
enough and a solid line is crossed: the driver is warned that they must complete the correction
of trajectory.
Driving
258
3008-2_en_Chap06_conduite_ed01-2016
Limits of operation
The system goes into standby automatically in
the following cases:
- ESC deactivated or operation triggered,
- speed below 40 mph (65 km/h) or above
112 mph (180 km/h),
- connected electrically to a trailer,
- use of the "space-saver" spare
wheel detected (as detection is not
immediate, deactivation of the system is
recommended),
- dynamic driving style detected, pressure
on the brake or accelerator pedal,
- driving where there are no lane markings,
- operation of the direction indicators,
- driving in a tight corner,
- inactivity by the driver detected during
correction.
The system may not operate correctly
or at all in the following situations:
- conditions of poor visibility
(inadequate street lighting,
snowfall, rain, fog),
- dazzle (headlamps of on oncoming
vehicle, low sun, reflections on a
wet road surface, leaving a tunnel,
alternating light and shade),
- area of the windscreen in front of
the camera dirty, misted, frosted,
snow-covered, damaged or
covered by a sticker,
- road markings absent, worn,
hidden (snow, mud) or multiple
(roadworks),
- running close to the vehicle in front
(the lane markings may not be
detected),
- narrow, twisty roads.
Risk of undesirable operation
Deactivation of the system is recommended in
the following situations:
- driving on a road surface in poor condition,
- unfavorable weather conditions,
- driving on slippery surfaces (black ice).
The system is not designed for the following
driving situations:
- driving on a speed circuit,
- driving with a trailer,
- driving on a rolling road,
- driving on unstable surfaces.
6
Driving
259
3008-2_en_Chap06_conduite_ed01-2016
Activation / Deactivation
Activation / deactivation of the
system is done in the Driving menu
of the touch screen.
The state of the system stays in memory when
the ignition is switched off.
In the event of a fault with the system, you are
alerted by the illumination of these warning
lamps in the instrument panel, accompanied by
the display of a message and an audible signal.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.
Operating fault
Select the "Driving assistance" tab then
"Help staying in lane".
Driving
260
3008-2_en_Chap06_conduite_ed01-2016
Blind Spot Monitoring System
This system warns the driver of the presence of
another vehicle in the blind spot angle of their
vehicle (areas masked from the driver's field
of vision), as soon as this presents a potential
danger.
Activation / Deactivation
Activation and deactivation of the
system is done in the Driving menu
of the touch screen.
Select the "Driving assistance" tab, then
"Blind spot monitoring".
A warning lamp appears in the door mirror on
the side in question:
- immediately, when being overtaken,
- after a delay of about one second, when
overtaking a vehicle slowly.
This system is designed to improve
safety when driving and is in no
circumstances a substitute for the use
of the interior rear view mirror and door
mirrors. It is the driver's responsibility to
constantly check the traffic, to assess
the distances and relative speeds
of other vehicles and to predict their
movements before deciding whether to
change lane.
This system is a driving aid that cannot,
in any circumstances, replace the need
for vigilance on the part of the driver.
This indicator lamp comes on in the
instrument panel.
To deactivate the system, select
"Blind spot monitoring" again in the
"Driving assistance" tab.
The indicator lamp goes off.
Sensors fitted in the front and rear bumpers
monitor the blind spots.
The state of the system remains in memory on
switching off the ignition.
The system is automatically deactivated
when towing with a towbar approved by
PEUGEOT.
6
Driving
261
3008-2_en_Chap06_conduite_ed01-2016
Operation
The alert is given by a warning lamp which
comes on in the door mirror on the side in
question as soon as a vehicle - car, lorry,
bicycle - is detected.
The following conditions must be met for this:
- all vehicles are moving in the same
direction and in adjacent lanes,
- the speed of your vehicle is between 7 and
87 mph (12 and 140 km/h),
- you overtake a vehicle with a speed
difference of less than 6 mph (10 km/h),
- a vehicle overtakes you with a speed
difference of less than 15 mph (25 km/h),
- the traffic is flowing normally,
- in the case of an overtaking manoeuvre,
if this is prolonged and the vehicle being
overtaken remains in the blind spot,
- you are driving on a straight or slightly
curved road,
- your vehicle is not pulling a trailer,
a caravan...
No alert will be given in the following situations:
- in the presence of non-moving objects
(parked vehicles, barriers, street lamps,
road signs...),
- with vehicles moving in the opposite
direction,
- driving on a winding road or a sharp corner,
- when overtaking (or being overtaken by) a
very long vehicle (lorry, coach...) which is
at the same time detected at the rear in the
blind spot angle and present in the driver's
forward field of vision,
- in very heavy traffic: vehicles detected in
front and behind are confused with a lorry
or a stationary object,
- when overtaking quickly.
Driving
262
3008-2_en_Chap06_conduite_ed01-2016
Operating fault
High pressure jet wash
When washing your vehicle, direct the
lance at least 30 cm away from the
sensors.
The system may suffer temporary
interference in certain weather
conditions (rain, hail...).
In particular, driving on a wet surface
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud, ice
or snow.
Take care not to cover the warning zone
in the door mirrors or the detection
zones on the front and rear bumpers
with adhesive labels or other objects;
they may hamper the correct operation
of the system.
In the event of a fault, this warning lamp flashes
for a few moments in the instrument panel,
accompanied by illumination of the Service
warning lamp and the display of a message.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
In addition to the fixed warning lamp in the door
mirror on the side in question, a correction of
trajectory will be felt if you cross a lane marking
with the direction indicators on, to help you
avoid a collision.
Assisted Blind Spot
Monitoring System
Conditions for operation
The following systems must be activated:
- Blind Spot Monitoring System,
- Assisted Lane Departure Warning System.
For more information on the Blind Spot
Monitoring System and the Assisted Lane
Departure Warning System, refer to the
corresponding sections.
6
Driving
263
3008-2_en_Chap06_conduite_ed01-2016
Parking sensors
This system indicates the proximity of an
obstacle (examples: pedestrian, vehicle, tree,
gate) which comes within the field of detection
of sensors located in the bumper.
Certain types of obstacle (examples: stake,
roadworks cone) detected initially will no longer
be detected at the end of the manoeuvre, if
they are located in blind spots in the sensors'
field of detection.
This system cannot in any circumstances replace
the need for vigilance on the part of the driver.
Rear parking sensors
The system is switched on by engaging reverse
gear.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or
left) indicates the side on which the obstacle is
located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Visual assistance
This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.
Driving
264
3008-2_en_Chap06_conduite_ed01-2016
Front parking sensors
The system will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fitted on
a towbar (vehicle fitted with a towbar
installed in line with the manufacturer's
recommendations).
In bad or wintry weather, ensure that
the sensors are not covered with mud,
ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.
Deactivation / Activation
The deactivation or activation of the system
is done in the vehicle parameters menu in the
screen.
The state of the system is held in memory when
the ignition is switched off.
The parking sensors are deactivated while the
Park Assist system is measuring a space.
For more information on Park Assist, refer to
the corresponding section.
Operating fault
High pressure jet wash
When washing your vehicle, do not
direct the lance within 30 cm of the
sensors.
In the event of a fault, when reverse
gear is engaged this warning lamp
comes on in the instrument panel,
accompanied by the display of a
message and an audible signal
(short beep).
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in forward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
6
Driving
265
3008-2_en_Chap06_conduite_ed01-2016
Panoramic vision
General points
Visiopark 1 - Visiopark 2
With the engine running, this system allows
views of the vehicle's surroundings to be
displayed in the touch screen, using one
camera for Visiopark 1, and two cameras for
Visiopark 2.
The screen is divided into two parts: on the
left, a contextual view; on the right, a view from
above the vehicle.
The parking sensors complete the information
on the view from above the vehicle.
Different contextual views can be displayed in
the left-hand part:
- standard view,
- 180° view,
- reconstructed view.
AUTO mode is activated by default.
In this mode, the system chooses the best view
to display (standard or zoom) according to the
information from the parking sensors.
You can change the type of view at any time
during a manoeuvre.
F Press the button at the bottom left-hand
corner of the touch screen.
F Select the type of view:
● "Standard view",
● "180° view",
● "Zoom view",
● "AUTO view".
The display is immediately updated with the
type of view selected.
The state of the system is not kept in memory
when the ignition is switched off.
Driving
266
3008-2_en_Chap06_conduite_ed01-2016
The images provided by the camera(s)
may be distorted by the relief.
In the presence of areas in shade,
or in conditions of bright sunlight or
inadequate lighting, the image may be
darkened and with lower contrast.
Maintenance
In bad or wintry weather, ensure that the
sensors and camera lenses are not covered
with mud, ice or snow.
Check the cleanliness of the camera lenses
regularly.
If necessary, clean the camera lenses with a
soft, dry cloth.
High pressure jet wash
When washing your vehicle, keep the tip of the
lance at least 30 cm from the cameras.
This system is a visual aid that cannot
in any circumstances replace the need
for vigilance on the part of the driver.
Principle of image reconstruction
Using one or both cameras, this system
records the vehicle's surroundings during the
manoeuvre.
An image from above your vehicle in its near
surroundings is reconstructed in real time, as
you progress in the manoeuvre.
This representation facilitates the alignment of
your vehicle when parking and allows obstacles
close to the vehicle to be seen.
This reconstructed view is automatically
deleted if the vehicle remains stationary for
too long.
With Visiopark 2, the view is reconstructed
using both cameras, when going forward and
when reversing.
On activation of the system, it is possible
that the central view is not reconstructed. If
the system is activated after the vehicle has
already been driven, the central view may be
completely reconstructed.
6
Driving
267
3008-2_en_Chap06_conduite_ed01-2016
Visiopark 1
Rear vision
To activate the camera, located in the tailgate,
engage reverse and keep the speed of the
vehicle below 6 mph (10 km/h).
The system is deactivated:
- automatically above about 6 mph
(10 km/h),
- automatically on opening the tailgate,
- when coming out of reverse (the image
remains displayed for 7 seconds),
- by pressing the red cross in the top left-
hand corner of the touch screen.
AUTO mode
This mode is activated by default.
Using sensors in the rear bumper, the
automatic view changes from a rear view to a
view from above, as an obstacle is approached
during a manoeuvre.
Standard view
The area behind the vehicle is displayed in the
screen.
The blue lines represent the width of your
vehicle, with the mirrors unfolded; their
direction changes with the position of the
steering wheel.
The red line represents a distance of 30 cm
from the rear bumper, and the two blue lines,
1 m and 2 m respectively.
This view is available with AUTO mode or in the
view selection menu.
Driving
268
3008-2_en_Chap06_conduite_ed01-2016
Zoom view
The camera records the vehicle's surroundings
during the manoeuvre in order to reconstruct
a view from above the rear of the vehicle in its
near surroundings, allowing the vehicle to be
manoeuvred around obstacles nearby.
This view is available with AUTO mode or in the
view selection menu.
180° view
The 180° view facilitates reversing out of a
parking bay, making it possible to see the
approach of vehicles, pedestrians and cyclists.
This view is not recommended for carrying out
a complete manoeuvre.
It is made up of 3 areas: left A, centre B and
right C.
This view is available only from the view
selection menu.
Obstacles may appear further away
than they actually are in reality.
It is important to check the sides of the
vehicle during the manoeuvre, using the
mirrors.
The rear parking sensors also
provide information on the vehicle's
surroundings.
6
Driving
269
3008-2_en_Chap06_conduite_ed01-2016
Visiopark 2
The vehicle has a camera at the front, fitted
in the grille, and a camera at the rear, located
close to the tailgate opening control.
Using these cameras, the system displays
the vehicle's near surroundings in the touch
screen, offering views from the rear of the
vehicle (rear vision), when reverse gear is
engaged and views from the front of the vehicle
(front vision), when the gearbox is in neutral or
a gear is engaged.
Rear vision
The system is activated automatically on
engaging reverse.
The system is deactivated:
- automatically above about 6 mph
(10 km/h),
- when coming out of reverse (the image
remains displayed for 7 seconds),
- by pressing the red cross in the top left-
hand corner of the touch screen.
If a trailer is connected or a bicycle
carrier fitted to the towball, the area
behind the vehicle in the view from
above becomes black.
Reconstruction of the surroundings is
achieved by the front camera only.
Driving
270
3008-2_en_Chap06_conduite_ed01-2016
Front and rear vision AUTO mode
This mode is activated by default.
Using sensors in the front bumper, the
automatic view changes from front view to the
view from above as an obstacle is approached
during a manoeuvre.
Standard view
The area in front of your vehicle is displayed in
the screen.
The blue lines represent the width of your
vehicle, with the mirrors unfolded; their
direction changes with the position of the
steering wheel.
The red line represents a distance of 30 cm
from the front bumper, and the two blue lines,
1 m and 2 m respectively.
This view is available with AUTO mode or in the
view selection menu.
With the engine running and the
speed below 12 mph (20 km/h), the
system is activated in the Driving
menu of the touch screen:
F Select "Panoramic visual aid".
AUTO mode is displayed by default, with front
vision, if the gearbox is in neutral or with a
gear engaged, or with rear vision, if reverse is
engaged.
The system is deactivated:
- automatically above about 18 mph
(30 km/h) (the image disappears
temporarily from 12 mph (20 km/h)),
- by pressing the red cross in the top left-
hand corner of the touch screen.
6
Driving
271
3008-2_en_Chap06_conduite_ed01-2016
Zoom view
The camera records the vehicle's surroundings
during the manoeuvre in order to reconstruct
a view from above the front of the vehicle in its
near surroundings, allowing the vehicle to be
manoeuvred around obstacles nearby.
This view is available with AUTO mode or in the
view selection menu.
180° view
The 180° view facilitates the exit from of a
parking bay in forward gear, making it possible
to see the approach of vehicles, pedestrians
and cyclists.
This view is not recommended for carrying out
a complete manoeuvre.
It is made up of 3 areas: left A, centre B and
right C.
This view is available only from the view
selection menu.
The rear vision views are similar to those for
the Visiopark 1.
For more information on Visiopark 1, refer to
the corresponding section.
Obstacles may appear further away
than they actually are in reality.
It is important to check the sides of the
vehicle during the manoeuvre, using the
mirrors.
The front and rear parking sensors also
provide information on the vehicle's
surroundings.
Driving
272
3008-2_en_Chap06_conduite_ed01-2016
Park Assist
This system provides active assistance with
parking. It detects a parking space then
operates the steering to park in the space.
It operates the steering while the driver
manages the accelerator, brakes, gears and
clutch (manual gearbox). During phases of
entry into and exit from a parking space, the
system provides visual and audible information
to the driver in order to make the manoeuvres
safe. It may be necessary to move forwards
and backwards more than once.
During a manoeuvre, the steering
wheel turns quickly: do not hold the
steering wheel, do not place your
hands between the spokes of the
steering wheel and take care with
loose and bulky clothing (scarves, ties,
handbags...) - Risk of injury!
When Park Assist is activated, it
prevents a change to STOP mode of
Stop & Start. In STOP mode, activation
of Park Assist restarts the engine.
This manoeuvring assistance system
cannot, in any circumstances, replace
the need for vigilance on the part of the
driver.
The driver must remain in control of their
vehicle ensuring that the space remains
clear throughout the manoeuvre.
In some circumstances, the sensors may
not detect small obstacles located in
their blind spots.
The driver can take control at any time by
gripping the steering wheel.
The Park Assist system provides assistance for
the following manoeuvres:
A. Entry into a parallel parking space
B. Exit from a parallel parking space
C. Bay parking
The Park Assist system cannot work
with the engine off.
6
Driving
273
3008-2_en_Chap06_conduite_ed01-2016
The Park Assist system takes control
of the power steering for a maximum
of 4 manoeuvre cycles. The function
is deactivated after these 4 cycles.
If you think that your vehicle is not
positioned correctly, you should then
take control of the steering to carry out
the manoeuvre.
The sequence of manoeuvres and the
driving instructions are displayed in the
instrument panel.
You should always check the
surroundings of your vehicle before
starting a manoeuvre.
The assistance is
deactivated: the display of
this symbol indicates that
the steering manoeuvres
are no longer controlled by
the system: you must take
control of the steering.
The assistance is
activated: the display of this
symbol and a speed limit
indicate that the steering
manoeuvres are controlled
by the system: do not touch
the steering wheel.
The parking sensors function is
not available during parking space
measurement. It intervenes later when
manoeuvring to warn you that your
vehicle is approaching an obstacle: the
audible signal becomes continuous
when the obstacle is less than thirty
centimetres away.
If you have deactivated the parking
sensors, they are automatically
reactivated during assisted parking
manoeuvres.
Activation of Park Assist deactivates the
Blind Spot Monitoring System.
Driving
274
3008-2_en_Chap06_conduite_ed01-2016
Operation
Assistance with parallel parking
manoeuvres
F Select "Park Assist" in the
Driving menu of the touch
screen to activate the function.
To enter a parking space, the system
does not identify spaces that are clearly
smaller or larger than the vehicle.
This indicator lamp comes on in the
instrument panel to confirm activation
of the function.
F Limit the speed of the vehicle to
a maximum of 12 mph (20 km/h)
and select "Enter parking slot"
in the touch screen.
F Operate the direction indicator on the
parking side chosen to activate the
measurement function. You should drive
at a distance of between 0.5 m and 1.5 m
from the row of parked vehicles.
F Drive slowly following the instructions until
the system finds a free space.
F When you have identified a parking space.
6
Driving
275
3008-2_en_Chap06_conduite_ed01-2016
F Move forwards slowly until a message is
displayed, accompanied by an audible
signal, asking you to engage reverse gear.
F Select reverse, release the steering wheel
and start moving without exceeding 4 mph
(7 km/h).
F The assisted parking manoeuvre is in
progress.
Without exceeding 4 mph (7 km/h), move
forwards and backwards, aided by the
warnings from the "Parking sensors"
system, until the indication of the end of the
manoeuvre.
F At the end of the manoeuvre, the indicator
lamp goes out in the instrument panel,
accompanied by the display of a message
and an audible signal.
The assistance is deactivated: you can
take over control.
Driving
276
3008-2_en_Chap06_conduite_ed01-2016
Assistance in exiting from a
parallel parking space
F Select "Park Assist" in the
"Driving" menu of the touch
screen to activate the function.
F Press on "Exit parking slot" in
the touch screen.
F Operate the direction indicator for the exit
side chosen.
F Engage reverse or forward gear and
release the steering wheel.
F The assisted parking manoeuvre is in
progress. Without exceeding 3 mph
(5 km/h), move forwards and backwards,
aided by the warnings from the "Parking
sensors" system, until the indication of the
end of the manoeuvre.
F When you want to leave a parallel parking
space, start the engine.
This indicator lamp comes on in
the instrument panel to confirm the
activation of the function.
The manoeuvre is complete when the vehicle's
front wheels are clear of the parking space.
At the end of the manoeuvre, the indicator lamp
in the instrument panel goes off, accompanied
by the display of a message and an audible
signal.
The assistance is deactivated: you can take
over control.
6
Driving
277
3008-2_en_Chap06_conduite_ed01-2016
F Select "Park Assist" in the
"Driving" menu of the touch
screen to activate the function.
Assistance with bay parking
manoeuvres
This indicator lamp comes on in
the instrument panel to confirm the
activation of the function.
F Operate the direction indicator on the
parking side chosen to activate the
measurement function. You should drive
at a distance of between 0.5 m and 1.5 m
from the row of parked vehicles.
F Move forwards slowly until a message is
displayed, accompanied by an audible
signal, asking you to engage reverse gear.
F Limit the speed of the vehicle to
a maximum of 12 mph (20 km/h)
and select "Start parking in a
bay" in the touch screen.
When several successive bays are
found, the vehicle will be directed
towards the last one.
F Once you have identified a parking zone:
F Drive slowly following the instructions until
the system finds a free space.
Driving
278
3008-2_en_Chap06_conduite_ed01-2016
F Select reverse, release the steering wheel
and start moving without exceeding 4 mph
(7 km/h).
F The assisted parking manoeuvre is in
progress.
Without exceeding 4 mph (7 km/h), follow
the instructions displayed in the instrument
panel, aided by the warnings from the
"Parking sensors" system, until the
indication of the end of the manoeuvre.
At the end of the manoeuvre, the indicator lamp
goes out in the instrument panel, accompanied
by the display of a message and an audible
signal.
The assistance is deactivated: you can take
over control.
During parking and exit from parking
manoeuvres, the reversing camera and
360 Vision functions may come into
operation. They facilitate monitoring
of the surroundings of the vehicle, by
displaying additional information in the
instrument panel.
For more information on Panoramic
vision, refer to the corresponding
section.
During a bay parking manoeuvre, the
Park Assist system is automatically
deactivated once the rear of the vehicle
is within 50 cm of an obstacle.
6
Driving
279
3008-2_en_Chap06_conduite_ed01-2016
The system is deactivated by pressing the control.
The system is deactivated automatically:
- on switching off the ignition,
- if the engine stalls,
- if no manoeuvre is started within 5 minutes
of selection of the type of manoeuvre,
- after a prolonged stop of the vehicle during
a manoeuvre,
- if the road wheel anti-slip regulation (ASR)
is triggered,
- if the speed of the vehicle exceeds the
stated limit,
- when the driver interrupts movement of the
steering wheel,
- after 4 manoeuvre cycles,
- on opening the driver's door,
- if one of the front wheels encounters an
obstacle.
The operation indicator lamp goes off in the
instrument panel and a message is displayed
accompanied by an audible signal.
The driver should then take back control of the
vehicle's steering.
Deactivation
The system is switched off automatically:
- when towing a trailer, connected
electrically,
- if the driver's door is opened,
- if the speed of the vehicle is above 42 mph
(70 km/h).
To switch the system of for a prolonged period,
contact a PEUGEOT dealer or a qualified
workshop.
Operating faults
In the event of a fault with the power
steering, this warning lamp flashes in
the instrument panel, accompanied
by a message.
Contact a PEUGEOT dealer or a qualified
workshop.
Switching off
If the lateral distance between your
vehicle and the space is too great, the
system may not be able to measure the
space.
Anything projecting beyond the envelope
of the vehicle (a ladder on the roof, for
example) is not taken into account by the
Park Assist system during a manoeuvre.
In bad weather or in winter, ensure that
the sensors are not covered by road
dirt, ice or snow.
In the event of a fault, have the system
checked by a PEUGEOT dealer or a
qualified workshop.
If the system is deactivated during a
manoeuvre, the drive should reactivate
it to repeat the measurement.
In the event of a fault, this warning
lamp flashes for a few seconds,
accompanied by an audible signal.
If the fault occurs during the use
of the system, the warning lamp
goes off.
High pressure jet washing
When washing your vehicle, keep the lance at
least 30 cm away from the sensors.
3008-2_en_Chap07_infos-pratiques_ed01-2016
RECOMMENDS
PEUGEOT & TOTAL,
A PARTNERSHIP TO DELIVER
BETTER PERFORMANCE!
2015 was marked by PEUGEOT's return to Rally-Raid,
one of the most difficult motorsport disciplines in the
world. To obtain the best performance in these trials,
PEUGEOT Sport chose TOTAL QUARTZ for the
PEUGEOT 2008 DKR, a lubricant of high technology
which protects the engine in the most severe
conditions.
TOTAL QUARTZ protects your engine against the effects
of time.
TOTAL QUARTZ Ineo First is a high performance lubricant,
the result of work done together by PEUGEOT and TOTAL
R&D. Specially formulated for the engines in PEUGEOT
vehicles, its innovative technology significantly reduces CO
2
emissions and keeps your engine clean.
7
Practical information
281
3008-2_en_Chap07_infos-pratiques_ed01-2016
Fuel tank
Fuel tank capacity: approximately 53 litres.
When the low fuel level is reached in the
fuel tank, this warning lamp comes on on
the instrument panel, accompanied by
the display of a message and an audible
signal. When it first comes on there remains
approximately 6 litres of fuel in the tank.
Low fuel level
A label affixed to the inside of the flap reminds
you of the type of fuel to be used depending on
your engine.
Additions of fuel must be of at least 5 litres, in
order to be registered by the fuel gauge.
Opening the filler cap may create a noise a
caused by an inrush of air. This vacuum is
entirely normal, resulting from the sealing of the
fuel system.
To fill the tank in complete safety:
F the engine must be switched off,
F with the vehicle unlocked, press the rear
part of the filler flap,
F turn the filler cap to the left,
F remove the filler cap and hook it onto the
clip located on the inside of the filler flap,
F fill the tank, but do not continue after the
3rd cut-off of the pump; this could cause
malfunctions.
If your vehicle is fitted with Stop & Start,
never refuel with the engine in
STOP mode; you must switch off the
ignition using the key, or the START/
STOP button if your vehicle has Keyless
Entry and Starting.
Until sufficient fuel is added, this warning lamp
appears every time the ignition is switched on,
accompanied by the display of a message and
an audible signal. When driving, this message
and audible signal are repeated with increasing
frequency as the fuel level drops towards "0".
Refuel as soon as possible to avoid running out
of fuel.
For more information on Running out of fuel
(Diesel), refer to the corresponding section.
Refuelling
When you have filled the tank:
F put the filler cap back in place,
F turn it to the right,
F close the filler flap.
282
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Misfuel prevention (Diesel)*
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the
wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle.
* Depending on the country of sale.
It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
slowly.
Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Not all Diesel vehicles are fitted with
misfuel protection, so before travelling
abroad, we recommend that you check
with the PEUGEOT dealer network,
whether your vehicle is suitable for the
fuel pumps in the country in which you
intend to travel.
Operation
7
Practical information
283
3008-2_en_Chap07_infos-pratiques_ed01-2016
Fuel used for petrol
engines
The petrol engines are compatible with
bio-fuels that conform to current and future
European standards and can be obtained from
filling stations:
Fuel used for Diesel
engines
The Diesel engines are compatible with
biofuels that conform to current and future
European standards and can be obtained from
filling stations:
- Diesel fuel that meets
standard EN590 mixed with
a biofuel that meets standard
EN14214 (possibly containing
up to 7 % Fatty Acid Methyl
Ester),
- Petrol that meets the EN228
standard, mixed with a bio-
fuel meeting the EN15376
standard.
The only petrol additives authorised for
use are those that meet the B715001
standard.
The use of any other type of (bio)
fuel (vegetable or animal oils, pure
or diluted, domestic fuel...) is strictly
prohibited (risk of damage to the engine
and fuel system).
The use of B20 or B30 fuel
meeting standard EN16709
is possible in your Diesel
engine. However, this use,
even occasional, requires
strict application of the special
servicing conditions referred to as
"Arduous conditions".
- Diesel fuel that meets
standard EN16734 mixed with
a biofuel that meets standard
EN14214 (possibly containing
up to 10 % Fatty Acid Methyl
Ester),
- Paraffinic Diesel fuel that
meets standard EN15940
mixed with a biofuel that
meets standard EN14214
(possibly containing up to 7 %
Fatty Acid Methyl Ester).
The only Diesel additives authorised for
use are those that meet the B715000
standard.
For more information, contact a PEUGEOT
dealer or a qualified workshop.
284
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Towing a trailer
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
We recommend the use of genuine
PEUGEOT towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a
qualified workshop.
If the towbar is not fitted by a
PEUGEOT dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
For more information on Driving
advice, particularly when towing, refer
to the corresponding section.
For more information on Weights (and
the towed loads which apply to your
vehicle) refer to the corresponding
section.
You must observe the maximum trailer
weight, indicated on the registration
certificate or in the technical
specification for your vehicle.
7
Practical information
285
3008-2_en_Chap07_infos-pratiques_ed01-2016
Towbar with quickly detachable towball
Presentation
A. Locked position
The latch is positioned to the right.
The trigger is facing toward the rear.
B. Unlocked position
The latch is positioned to the left.
The trigger is facing toward the front.
Observe the legislation in force in the
country in which you are driving.
For information on the trailer weights
for your vehicle, refer to the "Technical
data" section.
For driving safely when Towing a
trailer, refer to the corresponding
section.
No tools are required to install or remove the
towball on this genuine towbar system.
1. Carrier.
2. Protective plug.
3. Safety eye.
4. Trauiler wiring harness connection socket.
5. Detachable towball.
6. Locking / unlocking latch.
7. Locking / unlocking trigger.
8. Key-operated safety lock.
9. Safety lock protective cap.
10. Stowing bag.
286
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Before each use
Check that the towball is correctly fitted, verifying the follow points:
- the towball is correctly engaged (position A),
- the safety lock is on and the key removed; the trigger can no longer be operated,
- the towball must not be able to move in its carrier; test by shaking it with your hand.
If the towball is not locked, the trailer could separate - Risk of an accident!
During use
Never release the locking system with a trailer or load carrier on the towball.
Never exceed the maximum authorised weight for the vehicle plus trailer - the Gross Train
Weight or GTW.
You must not exceed the maximum nose weight on the towbar: if exceeded, this could result
in detachment from the vehicle - Risk of an accident!
Check that the trailer lighting and signalling work correctly.
Before setting off, check the adjustment of the headlamp beam height.
For more information on Adjusting the headlamp beam height, refer to the corresponding
section.
Following use
When travelling without a trailer or load on a towbar-mounted carrier, the towball must be
removed and the protective plug inserted in the carrier. This measure applies particularly
where the towball might obscure visibility of the number plate or its lighting.
Maintenance
Correct operation is only possible if the towball
and its carrier are kept clean.
Before cleaning the vehicle with a high-
pressure jet wash, the towball must be removed
and the protective plug fitted to the carrier.
Go to a PEUGEOT dealer or a qualified
workshop for any work on the towbar system.
7
Practical information
287
3008-2_en_Chap07_infos-pratiques_ed01-2016
Fitting the towball
F Below the rear bumper, unclip and remove
the protective plug from the carrier.
F On the towball, push the latch to the left
and hold it in this position.
F At the same time press the trigger forward
to release the mechanism (position B).
F Insert the end of the towball into the carrier,
pushing it in as far as it will go.
F Ensure that the two pins are in contact with
the cut-outs in the carrier, that the trigger
has returned to rear and the latch to the
right to secure the mechanism (position A).
F Insert the key in the lock and turn it to the
right.
F Remove the key from the lock.
F Install and clip in place the protective cap
by rotating it to the left.
288
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Removing the towball
F Attach the trailer to the towball.
F Attach the trailer safety cable to the eye
provided on the towball carrier.
F Raise the protective cover on the socket
and connect the trailer wiring harness.
F Disconnect the trailer wiring harness from
the socket on the carrier.
F Detach the trailer safety cable from the eye
on the carrier.
F Detach the trailer from the towball.
F Unclip and remove the protective cap, by
turning it to the right.
F Insert the key in the lock and turn it to the
left.
F Remove the key from the lock.
7
Practical information
289
3008-2_en_Chap07_infos-pratiques_ed01-2016
F On the towball, push the latch to the left
and hold it in this position.
F At the same time, push the trigger forward
to release the mechanism (position B).
F Press the trigger fully in and remove the
towball by pulling it toward you.
F Install the protective plug on the carrier,
located below the rear bumper.
F Stow the towball in its bag.
290
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Load reduction mode Energy economy mode
Switching to economy mode
A message appears in the instrument panel
screen indicating that the vehicle has switched
to economy mode and the active functions are
put on standby.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
- for less than ten minutes, to use the
equipment for approximately five minutes,
- for more than ten minutes, to use the
equipment for up to approximately
thirty minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
System which manages the duration of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum
combined duration of about forty minutes.
A flat battery prevents the engine from
starting.
For more information on the 12 V
battery, refer to the corresponding
section.
If a telephone call is being made at this
time, it will be maintained for around
10 minutes with the Bluetooth hands-
free system of your audio system.
7
Practical information
291
3008-2_en_Chap07_infos-pratiques_ed01-2016
Very cold climate screens*
Removable protective screens which prevent
the accumulation of snow at the radiator
cooling fan.
Before fitting or removing a screen,
ensure that the engine is off and the
cooling fan has stopped.
* Depending on the country of sale.
It is recommended that the screens
be fitted and removed by a PEUGEOT
dealer or a qualified workshop.
Fitting
The arrangement is of two symmetrical parts
which are placed either side of the radar
location in the front bumper.
Removing
F Insert a finger into the cut-out at the top of
the screen.
F Pull toward you to unclip the screen.
Repeat these operations for the other screen.
Do not forget to remove the very cold
climate screens:
- when the ambient temperature
exceeds 10° C,
- when towing,
- for running at speeds above 75 mph
(120 km/h).
F Offer up the corresponding screen to the
lower grille in the bumper.
F First engage the two lower fixing lugs in the
bumper.
F Raise the screen until the three upper
fixing lugs engage in the bumper.
F Check that the screen is secure by
pressing around its edge.
Repeat these operations for the other screen.
292
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.
Advice on installation
F If you have to fit the chains during a
journey, stop the vehicle on a flat surface
on the side of the road.
F Apply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F Fit the chains following the instructions
provided by the manufacturer.
F Move off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F Stop your vehicle and check that the snow
chains are correctly tightened.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.
The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Original
tyre size
Maximum
link size
215/65 R17 9 mm
225/55 R18 9 mm
205/55 R19 9 mm
235/50 R19
cannot be fitted with chains
7
Practical information
293
3008-2_en_Chap07_infos-pratiques_ed01-2016
Fitting roof bars
Fitting directly to the roof
Maximum load on the roof bars, evenly
spread and with a load height not
exceeding 40 cm (except for bicycle
carriers): 80 kg.
For more information, contact a
PEUGEOT dealer or a qualified
workshop.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the vehicle's anchorage points.
For transporting objects which are
longer than the vehicle, refer to local
legislation.
Recommendations
- Distribute the load evenly, avoiding
overloading on one side.
- Arrange the heaviest part of the load
as close as possible to the roof.
- Lash the load securely.
- Drive gently: the vehicle will be
more susceptible to the effects of
side winds and the stability of the
vehicle may be affected.
- On a long journey, check the
security of the load at every stop.
- Remove the roof bars once they are
no longer needed.
As a safety measure and to avoid
damaging the roof, it is essential to use
the transverse bars approved for your
vehicle.
Observe the instructions on fitting and
use contained in the guide supplied with
the roof bars.
You must attach the transverse bars only at
the four anchorage points located at the edge
of the roof. These points are hidden by the
vehicle's doors when closed.
The roof bar fixings include a stud which
must be fitted to the aperture at each of the
anchorage points.
Fitting on longitudinal
bars
You must attach the transverse bars at the
engraved markings on the longitudinal bars.
294
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Bonnet
F Pull the release lever, located at the bottom
of the door aperture, towards you.
Opening
F Open the left hand front door.
F Lift the safety catch and raise the bonnet.
Closing
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
START mode.
When the engine is hot, handle the
exterior safety catch and the stay with
care (risk of burns), using the protected
area.
When the bonnet is open, take care not
to damage the safety catch.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.
F Unclip the stay from its housing and place
it in the support slot to hold the bonnet
open.
F Take the stay out of its support slot.
F Clip the stay back into its housing.
F Lower the bonnet and release it at the end
of its travel.
F Pull on the bonnet to check that it has
latched correctly.
The location of the interior bonnet
release lever prevents opening of the
bonnet when the left hand front door
is shut.
Do not open the bonnet under very
windy conditions.
The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
be caught by the fan blades.
7
Practical information
295
3008-2_en_Chap07_infos-pratiques_ed01-2016
Petrol engines
1. Screenwash fluid reservoir.
2. Coolant header tank.
3. Brake fluid reservoir.
4. Battery / Fuses.
5. Remote earth point (-).
6. Fusebox.
7. Air filter.
8. Engine oil dipstick.
9. Engine oil filler cap.
296
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Diesel engines
1. Screenwash fluid reservoir.
2. Coolant header tank.
3. Brake fluid reservoir.
4. Battery / Fuses.
5. Remote earth point (-).
6. Fusebox.
7. Air filter.
8. Engine oil dipstick.
9. Engine oil filler cap.
The Diesel fuel system operates under
very high pressure.
All work on the system must only be
carried out by a PEUGEOT dealer or a
qualified workshop.
7
Practical information
297
3008-2_en_Chap07_infos-pratiques_ed01-2016
Checking levels
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Engine oil level
Checking using the dipstick
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless otherwise indicated.
If a level drops significantly, have the corresponding system checked by a PEUGEOT dealer or a qualified workshop.
It is normal to top-up the oil level between
two services (or oil changes). PEUGEOT
recommends that you check the level, and top-
up if necessary, every 3 000 miles (5 000 kms).
A = MAX
B = MIN
If you find that the level is above the A mark or
below the B mark, do not start the engine.
- If the level is above the MAX mark (risk
of damage to the engine), contact a
PEUGEOT dealer or a qualified workshop.
- If the level is below the MIN mark, you
must top-up the engine oil.
Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and
the cooling fan could start at any time
(even with the ignition off).
To ensure that the reading is correct,
your vehicle must be parked on a level
surface with the engine having been off
for more than 30 minutes.
The location of the dipstick is shown in the
corresponding underbonnet layout view.
F Take the dipstick by its coloured grip and
remove it completely.
F Wipe the end of the dipstick using a clean
non-fluffy cloth.
F Refit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B.
298
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Topping-up the engine oil level
The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F Unscrew the oil filler cap to reveal the filler
aperture.
F Add oil in small quantities, avoiding any
spills on engine components (risk of fire).
F Wait a few minutes before checking the
level again using the dipstick.
F Add more oil if necessary.
F After checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
After topping-up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping-up.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
Brake fluid level
Changing the uid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specication
The brake fluid must conform to the
manufacturer's recommendations.
The brake fluid level should be close
to the "MAX" mark. If it is not, check
the brake pad wear.
7
Practical information
299
3008-2_en_Chap07_infos-pratiques_ed01-2016
Screenwash fluid level
Top up the level when necessary.
Fluid specication
For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
In wintry conditions, it is recommended that you
use an ethyl alcohol or methanol based fluid.
Coolant level
Check the coolant level regularly.
It is normal to top-up this fluid
between services.
When the engine is hot, the temperature of the
coolant is regulated by the fan.
In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid the risk of scalding in the event of
an urgent need to top-up, with a cloth around
the cap, unscrew it by two turns to allow the
pressure to drop. When the pressure has
dropped, remove the cap and top-up the level.
Once the pressure has dropped, remove the
cap and top-up the level.
The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
be caught by the fan blades.
The check and top-up must only be done with
the engine cold.
A low coolant level presents a risk of serious
damage to your engine.
The coolant level should be close to the "MAX"
mark but should never exceed it.
If the level is close to or below the "MIN" mark,
it is essential to top-up.
Fluid specication
The coolant must conform to the
manufacturer's recommendations.
300
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Used products
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Topping-up
The reservoir must be topped-up without delay
by a PEUGEOT dealer or a qualified workshop.
The additive reservoir low level is
indicated by fixed illumination of this
warning lamp, accompanied by an
audible signal and a message that
the particle filter additive level is too
low.
Diesel fuel additive level
(Diesel with particle filter)
7
Practical information
301
3008-2_en_Chap07_infos-pratiques_ed01-2016
Checks
Particle filter (Diesel)
illumination of this warning lamp accompanied
by a message in the multifunction screen.
As soon as the traffic conditions permit,
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried
out only by a PEUGEOT dealer or a
qualified workshop.
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this indicates a
low additive level.
For more information on Checking levels,
refer to the corresponding section.
Unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Otherwise, have them checked by a PEUGEOT dealer or a qualified workshop.
Air filter and passenger compartment filter
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Oil filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
12 V battery
The battery does not require any
maintenance.
However, check regularly that the
terminals are correctly tightened
(versions without quick release terminals) and
that the connections are clean.
For more information and the precautions to
take before starting work on the 12 V battery,
refer to the corresponding section.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g.
city driving), replace them twice as often if
necessary.
A clogged passenger compartment filter may
have an adverse effect on the performance
of the air conditioning system and generate
undesirable odours.
The start of saturation of the particle
filter is indicated by the temporary
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is perfectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
302
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval
for this component.
Electric parking
brake
This system does not require any
routine servicing. However, in
the event of a problem, have the
system checked by a PEUGEOT
dealer or a qualified workshop.
Brake pads
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
Brake disc wear
For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.
For more information on the Electric parking
brake, refer to the corresponding section.
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval
for this component.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, PEUGEOT selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
have the condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
7
Practical information
303
3008-2_en_Chap07_infos-pratiques_ed01-2016
AdBlue
®
and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
performance or fuel consumption of Diesel
engines, PEUGEOT has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
SCR system
Using a fluid called AdBlue
®
containing urea, a
catalytic converter turns up to 85% of nitrogen
oxides (NOx) into nitrogen and water, which are
harmless to health and the environment.
The AdBlue
®
is held in a special tank with
a capacity of about 17 litres: this provides
a driving range of about 12 500 miles
(20 000 km). An alert is triggered automatically
to warn you when the reserve level is
reached: you can then drive about 1 500 miles
(2 400 km) before the tank is empty.
During each scheduled service of your vehicle
by a PEUGEOT dealer or a qualified workshop,
the AdBlue
®
tank is refilled in order to allow
normal operation of the SCR system.
If the estimated mileage of your vehicle
between two services is greater than
12 500 miles (20 000 km), it will be necessary
to top-up the AdBlue
®
.
Once the AdBlue
®
tank is empty, a
system required by regulations prevents
starting of the engine.
If the SCR system is faulty, the level
of emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a PEUGEOT dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1 100 km), a system will be triggered
automatically to prevent engine starting.
In either case, a range indicator gives
you the distance you can travel before
the vehicle is immobilised.
Freezing of the AdBlue
®
AdBlue
®
freezes at temperatures below
around -11°C.
The SCR system includes a heater
for the AdBlue
®
tank, allowing you
to continue driving in all weather
conditions.
304
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Topping-up the AdBlue
®
Precautions in use
Use only AdBlue
®
fluid that meets the
ISO 22241 standard.
The supply in a non-drip container or bottle
simplifies topping-up. You can obtain 1.89 litre
(half a US gallon) bottles or 5 litre containers
from a PEUGEOT dealer or a qualified
workshop.
Keep AdBlue
®
out of the reach of
children, in its original container or
bottle.
Never transfer AdBlue
®
to another
container: it would lose its purity.
Never dilute AdBlue
®
with water.
Never pour AdBlue
®
into the Diesel fuel
tank.
Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
Filling the AdBlue
®
tank is an operation
included in every routine service on your
vehicle by a PEUGEOT dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank, it
may be necessary to top-up the fluid between
services, more particularly if an alert (warning
lamps and a message) signals the requirement.
You can go to a PEUGEOT dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.
AdBlue
®
is a urea-based solution. This liquid is
non-flammable, colourless and odourless (kept
in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release of
ammonia cannot be excluded: do not inhale the
fluid. Ammonia vapour has an irritant effect on
mucous membranes (eyes, nose and throat).
7
Practical information
305
3008-2_en_Chap07_infos-pratiques_ed01-2016
Recommendations on storage Procedure
Park the vehicle
F Before topping-up, ensure that the vehicle
is parked on a flat and level surface.
F Switch off the ignition to stop the engine
and remove the key from the switch.
or
F With Keyless Entry and Starting, press
the "START/STOP" button to stop the
engine.
Open the ller
F With the vehicle unlocked, open the fuel
filler flap; the blue filler cap for the AdBlue
®
tank is located to the left of the black fuel
filler cap.
F Turn the blue cap a 6
th
of a turn anti-
clockwise.
F Remove the blue cap downwards.
Never store bottles of AdBlue
®
in your
vehicle.
Before topping-up, in wintry conditions, ensure
that the temperature is above -11°C. Otherwise
the AdBlue
®
may be frozen and so cannot be
poured into its tank.
Park your vehicle in a warmer area for a
few hours to allow the top-up to be carried out.
AdBlue
®
freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the fluid can be kept
for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Do not dispose of AdBlue
®
bottles or
containers in the household waste.
Place them in a container provided for
this purpose or take them to your dealer.
306
Practical information
3008-2_en_Chap07_infos-pratiques_ed01-2016
Top-up
F Obtain a bottle of AdBlue
®
. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
®
tank.
F After emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
Ret the ller cap
F Refit the blue cap and turn it a 6
th
of a turn
clockwise, to its stop.
F Close the filler flap.
Important: if your vehicle's AdBlue
®
tank is completely empty - which is
confirmed by the alert messages and
the impossibility of starting the engine -
you must add at least 4 litres and no
more than 10 litres.
If any fluid is spilt or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the fluid has crystallised, clean it off
using a sponge and hot water.
Important: when topping-up after
running out of AdBlue, signalled
by the message "Top-up AdBlue:
starting impossible", you must wait for
about 5 minutes before switching the
ignition on again, without opening the
driver's door, unlocking the vehicle,
introducing the remote control key
into the ignition switch, or placing
the Keyless Entry and Starting
electronic key inside the vehicle.
Switch on the ignition, then wait for
10 seconds before starting the engine.
8
In the event of a breakdown
307
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Warning triangle
As a safety precaution, before leaving your vehicle to set up and install the triangle, switch on the hazard warning lamps and put on your high visibility
vest.
Storage compartment
A compartment for stowing a warning triangle is
provided in the tailgate interior trim.
F Open the tailgate.
F Release the cover by turning the fixing a
quarter turn anti-clockwise.
For other versions, refer to the
instructions provided with the triangle.
Assembling the triangle
For versions supplied with a triangle as original
equipment:
F remove the triangle from its case,
F unfold the legs,
F open out the two sides of the triangle,
F clip together to complete the assembly.
Positioning the triangle
F Place the triangle behind the vehicle, as
required by local legislation.
In the event of a breakdown
308
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Running out of fuel (Diesel)
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For more information on Misfuel
prevention (Diesel), refer to the
corresponding section.
BlueHDi engines
If the engine does not start first
time, don't keep trying, but start the
procedure again from the beginning.
F Fill the fuel tank with at least five litres of
Diesel.
F Switch on the ignition (without starting the
engine).
F Wait around 6 seconds and switch off the
ignition.
F Repeat the operation 10 times.
F Operate the starter to run the engine.
8
In the event of a breakdown
309
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Tool kit
This is a set of tools provided with the vehicle.
Its content depends on your vehicle's
equipment:
- temporary puncture repair kit,
- spare wheel.
Access to the tools
The main tools are stowed in the boot under
the floor.
For access to them:
F open the boot,
F place the adjustable boot floor in the high
position,
F raise the floor past the two retractable
stops,
F lay the floor on these two stops to hold it
up.
For versions with a temporary
puncture repair kit:
F unclip the two fixings to open its cover.
In the event of a breakdown
310
3008-2_en_Chap08_en cas-de-panne_ed01-2016
For versions with a spare wheel:
F unclip the carrier box by pulling it up,
F unclip the two fixings to open its cover.
All of these tools are specific to your
vehicle and can vary according to
equipment.
Do not use them for any other
purposes.
The jack must only be used to change
a wheel with a damaged or punctured
tyre.
Do not use any jack other than the one
supplied with this vehicle.
If the vehicle does not have its original
jack, contact a PEUGEOT dealer or a
qualified workshop to obtain the correct
jack for it.
The jack meets European standards,
as defined in the Machinery
Directive 2006/42/CE.
The jack does not require any
maintenance.
8
In the event of a breakdown
311
3008-2_en_Chap08_en cas-de-panne_ed01-2016
List of tools
4. Temporary puncture repair kit.
Includes a 12 V compressor and a
cartridge of sealant, to effect a temporary
repair to a tyre and adjust the tyre
pressure.
For more information on Towing the vehicle
and using the removable towing eye, refer to
the corresponding section.
1. Chocks to immobilise the vehicle
(depending on equipment).
2. Socket for the security bolts (located in the
glove box) (depending on equipment).
For adapting the wheelbrace to the special
"security" bolts.
3. Removable towing eye.
For versions with a temporary
puncture repair kit:
For more information on the Temporary
puncture repair kit, refer to the corresponding
section.
For versions with a spare wheel:
5. Wheelbrace.
For removing the wheel trim and removing
the wheel bolts.
6. Jack with integral handle.
For raising the vehicle.
7. Wheel bolt cover remover (depending on
equipment).
For removing the wheel bolt head finishers
on alloy wheels.
For more information on the Spare wheel, refer
to the corresponding section.
In the event of a breakdown
312
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Temporary puncture repair kit
Comprising a compressor and a sealant
cartridge, it allows the temporary repair of
a tyre so that you can drive to the nearest
garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Composition of the kit
1. 12 V compressor, with integral pressure
gauge.
2. Sealant cartridge, with integral hose.
3. Speed limit sticker.
The speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair.
8
In the event of a breakdown
313
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Repair procedure
F Switch off the ignition.
F Secure the speed limit sticker inside the
vehicle.
Avoid removing any foreign bodies
which have penetrated into the tyre.
F Uncoil the pipe stowed under the
compressor.
F Connect the pipe from the compressor to
the sealant cartridge.
F Remove the valve cap from the tyre to be
repaired, and place it in a clean area.
F Connect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly.
F Turn the sealant cartridge and secure it in
the cut-out provided on the compressor.
In the event of a breakdown
314
3008-2_en_Chap08_en cas-de-panne_ed01-2016
If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a PEUGEOT dealer or a qualified
workshop for assistance.
Take care, the sealant product is
harmful if swallowed and causes
irritation to the eyes.
Keep this product out of the reach of
children.
The use-by date is marked on the
cartridge.
After use, do not discard the
cartridge by the roadside, take it to a
PEUGEOT dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a PEUGEOT
dealer or a qualified workshop.
F Check that the compressor switch is at
the "O" position.
F Uncoil fully the electric cable, stowed under
the compressor.
F Connect the compressor's plug to the
vehicle's 12 V socket.
F Switch on the ignition.
F Start the compressor by placing the switch
at the "I" position and leave it running until
the tyre pressure reaches 2.0 bar.
The sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains).
Only the 12 V sockets located at the front of the vehicle and in the boot can be used to
power the compressor.
The 12 V socket located at the back of the centre console is not suitable for this purpose.
8
In the event of a breakdown
315
3008-2_en_Chap08_en cas-de-panne_ed01-2016
F Place the switch in the "O" position.
F Remove the kit.
F Drive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60 km/h)), to plug the puncture.
F Stop to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures
F Remove the valve cap from the tyre and
place it in a clean area.
F Uncoil the pipe stowed under the
compressor.
F Screw the pipe onto the valve and tighten
firmly.
F Check that the compressor switch is at
the "O" position.
F Uncoil fully the electric cable, stowed under
the compressor.
F Connect the compressor's plug to the
vehicle's 12 V socket.
F Switch on the ignition.
In the event of a breakdown
316
3008-2_en_Chap08_en cas-de-panne_ed01-2016
F Start the compressor by placing the switch
at the "I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
To deflate: press the black button on the
compressor pipe, at the valve connector.
F Once the correct pressure is reached, put
the switch to the "O" position.
F Remove the kit then stow it.
The tyre inflation pressures are given
on this label.
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on Under-
inflation detection, refer to the
corresponding section.
8
In the event of a breakdown
317
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Spare wheel
Access to the spare wheel
The spare wheel is installed in the boot under
the floor.
For access to the spare wheel, first refer to
section on Access to the tools.
Depending on version, the spare wheel
is a standard size steel or alloy wheel.
For some countries of sale, it is the
"space saver" type.
Procedure for replacing a wheel with a punctured or damaged tyre by the spare wheel, using the
tools provided with the vehicle.
Removing the wheel
F Slacken the central nut.
F Remove the fixing parts (nut and bolt).
F Raise the spare wheel towards you from
the rear.
F Take the wheel out of the boot.
In the event of a breakdown
318
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Putting the wheel back in place
F Put the wheel back in its housing.
F Slacken the nut on the bolt by a few turns.
F Position the fixing parts (nut and bolt) in the
middle of the wheel.
Tyre under-ination detection
The spare wheel is not fitted with a
sensor.
The punctured tyre must be repaired or
replaced by by a PEUGEOT dealer or a
qualified workshop.
F Tighten fully until the central nut clicks, to
retain the wheel correctly.
F Return the tool box to the middle of the
wheel and clip it in place.
8
In the event of a breakdown
319
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Removing a wheel
* mode P for an automatic gearbox.
List of operations
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and non-slippery.
Apply the parking brake unless it has
been programmed to automatic mode,
switch off the ignition and engage first
gear* to lock the wheels.
Check that the braking warning lamps
in the instrument panel are on (not
flashing).
The occupants must get out of the
vehicle and wait where they are safe.
If necessary, place a chock under the
wheel diagonally opposite the wheel to
be changed.
Never go underneath a vehicle raised
using a jack; use an axle stand.
F Remove the bolt cover from each of
the bolts using the tool 7 (according to
equipment).
F Fit the security socket 2 on the
wheelbrace 5 to slacken the security bolt.
F Slacken the other bolts using the
wheelbrace 5 only.
Wheel with wheel trim
When removing the wheel, first
remove the wheel trim by pulling at the
valve aperture using the wheelbrace.
When refitting the wheel, after
tightening the wheel bolts, refit the
wheel trim, starting by placing its
aperture in line with the valve and then
pushing it into place all round its edge
with the palm of your hand.
In the event of a breakdown
320
3008-2_en_Chap08_en cas-de-panne_ed01-2016
F Place the foot of the jack 6 on the ground
and ensure that it is directly below the
front A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed.
Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
Take care to position the jack only at one of the jacking points A or B under the vehicle,
ensuring that the head of the jack is centred under the contact area of the vehicle.
Otherwise, there is a risk of damage to the vehicle and/or the jack dropping - Risk of injury!
F Remove the bolts and store them in a clean
place.
F Remove the wheel.
F Extend the jack 6 until its head comes into
contact with the jacking point A or B used;
the contact area A or B on the vehicle must
be engaged with the central part of the
head of the jack.
F Raise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
8
In the event of a breakdown
321
3008-2_en_Chap08_en cas-de-panne_ed01-2016
List of operations
F Put the wheel in place on the hub.
F Screw in the bolts by hand to the stop.
F Pre-tighten the security bolt using the
wheelbrace 5 fitted with the security
socket 2.
F Pre-tighten the other bolts using the
wheelbrace 5 only.
F Lower the vehicle fully.
F Fold the jack 6 and detach it.
Fitting a wheel
Fitting a steel or "space-
saver" spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting it is
normal to notice that the washers do
not come into contact with the steel or
"space-saver" spare wheel. The wheel
is secured by the conical contact of
each bolt.
In the event of a breakdown
322
3008-2_en_Chap08_en cas-de-panne_ed01-2016
F Tighten the other bolts using the
wheelbrace 5 only.
F Refit the bolt covers to the bolts (according
to equipment).
F Store the tools.
F Tighten the security bolt using the
wheelbrace 5 fitted with the security
socket 2.
After changing a wheel
To store the punctured wheel in the
boot correctly, first remove the central
cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer or a qualified
workshop without delay.
Have the punctured wheel repaired and
replace it on the vehicle as soon as
possible.
8
In the event of a breakdown
323
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Changing a bulb
The headlamps have polycarbonate
lenses with a protective coating:
F do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
F use a sponge and soapy water or a
pH neutral product,
F when using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F Do not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Front lamps
Model with "Full LED" headlamps
1. Daytime running lamps / sidelamps
(LEDs).
2. Main beam / dipped beam headlamps
(LEDs).
3. Direction indicators (LEDs).
4. Foglamps (LEDs).
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Light-emitting diodes (LEDs)
For the replacement of this type of lamp, go to
a PEUGEOT dealer or a qualified workshop.
In the event of a breakdown
324
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Model with halogen headlamps
1. Daytime running lamps / sidelamps
(LEDs)*.
2. Dipped beam headlamps (H7).
3. Main beam headlamps (HB3).
4. Direction indicators (PWY24W).
5. Foglamps (H11).
For bulbs with lugs (type H7...) take
care to observe their correct installation
so as to ensure the best lighting
performance.
* LEDs: light-emitting diodes.
Daytime running lamps / sidelamps
For the replacement of this type of LED lamp
and lighting guides, contact a PEUGEOT dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
PEUGEOT dealers.
Changing direction indicator
bulbs
(on models with halogen
headlamps)
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
F Turn the bulb holder a quarter of a turn and
pull it out.
F Turn the bulb a quarter of a turn and
change it.
For reassembly, carry out these operations in
reverse order.
8
In the event of a breakdown
325
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Changing dipped beam headlamp
bulbs
(on models with halogen
headlamps)
F Remove the protective cover by pulling the
tab.
F Pull the connector toward the rear to
disconnect it.
F Pull the bulb toward the rear to extract it.
F Change the bulb.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs
(on models with halogen
headlamps)
F Remove the protective cover by pulling the
tab.
F Turn the bulb holder a quarter turn and pull
it out.
F Pull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
In the event of a breakdown
326
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Changing foglamp bulbs
(on models with halogen
headlamps)
F Introduce a flat screwdriver in the hole in
the finisher.
F Pull and lever to unclip the front bumper
finisher.
F Using a Torx screwdriver, remove the two
module fixing screws.
F Remove the module from its housing.
F Disconnect the bulb holder connector.
F Turn the bulb holder a quarter of a turn and
pull it out.
F Change the assembly.
To refit, carry out these operations in reverse
order.
To replace this type of bulb, you can
also contact a PEUGEOT dealer or a
qualified workshop.
8
In the event of a breakdown
327
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Changing the side spotlamps
(LEDs)
For the replacement of this type of light emitting
diode lamp, contact a PEUGEOT dealer or a
qualified workshop.
Changing direction indicator side
repeaters (LEDs)
For the replacement of this type of light-
emitting diode lamp, contact a PEUGEOT
dealer or a qualified workshop.
In the event of a breakdown
328
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Direction indicators
(on the wings)
F Open the tailgate then unclip the access
cover on the side in question.
F Slacken the lamp fixing nut using a 10 mm
box spanner or socket.
F To avoid losing the nut if it drops into the
wing trim, first place a cloth below it.
F Manually unscrew and remove the lamp
fixing nut.
F Disengage the retaining clip, while pushing
the lamp out slightly.
Rear lamps
1. Brake lamps (LEDs).
2. Sidelamps / daytime running lamps
(LEDs).
3. Direction indicators (WY16W amber).
4. Reversing lamps (W16W).
5. Foglamp (P21W).
LEDs: light-emitting diodes.
F From the outside, carefully remove the
lamp by pulling it to the rear, then up.
F Disconnect the lamp connector.
F Turn the bulb holder a quarter turn and pull
it out using a standard pair of pliers.
F Pull the bulb out and replace it.
For reassembly, carry out these operations in
reverse order.
8
In the event of a breakdown
329
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Reversing lamp
(tailgate)
F Open the tailgate, then introduce a flat
screwdriver into the cut-out to unclip the
access cover on the side in question.
F Slacken the lamp fixing nut using a 10 mm
box spanner or socket.
F Manually unscrew and remove the lamp
fixing nut.
F Disengage the retaining clip, while pushing
the lamp out slightly.
F From the outside, carefully remove the
lamp by pulling it to the rear.
F Disconnect the lamp connector by pressing
on each side.
F Turn the bulb holder a quarter turn and pull
it out.
F Pull the bulb out and replace it.
For reassembly, carry out these operations in
reverse order.
Changing foglamp bulbs
These bulbs are replaced from outside the rear
bumper:
F pass your hand under the bumper,
F turn the bulb holder a quarter turn and
remove it,
F turn the bulb a quarter turn, pull it out and
fit a new bulb.
For reassembly, carry out these operations in
reverse order.
Take care not to touch the silencer;
there is a risk of burns if changing a
bulb within a few minutes of switching
off the ignition.
In the event of a breakdown
330
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Third brake lamp (light emitting
diodes - LEDs)
Contact a PEUGEOT dealer or qualified
workshop.
Number plate lamps
F Insert a thin screwdriver into the slot in the
lens.
F Push it outwards to unclip it.
F Remove the lens.
F Pull the bulb out and change it.
8
In the event of a breakdown
331
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Changing a fuse
Before changing a fuse:
F the cause of the failure must be identified
and rectified,
F all electrical consumers must be switched
off,
F the vehicle must be immobilised with the
ignition off,
F identify the failed fuse using the allocation
tables and layout diagrams available.
Changing a fuse
The fuse allocation tables and
corresponding layout diagrams are
available at the following website:
http://public.servicebox.peugeot.com/ddb/
You can also contact a PEUGEOT
dealer or a qualified workshop.
To change a fuse, you must:
F use the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F always replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
fire).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PEUGEOT dealer or a qualified workshop.
Good Failed
Tweezer
The replacement of a fuse not shown
in the allocation tables may cause a
serious malfunction of your vehicle.
Contact a PEUGEOT dealer or a
qualified workshop.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.
In the event of a breakdown
332
3008-2_en_Chap08_en cas-de-panne_ed01-2016
12 V battery
Procedure for starting the engine using another battery or charging a discharged battery.
General points
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.
If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
Lead-acid starter batteries
Access to the battery
The battery is located under the bonnet.
For access to the (+) terminal:
F release the bonnet using the interior lever,
then the exterior safety catch,
F raise the bonnet and secure it with its stay.
(+) Positive terminal.
It has a quick-release clamp.
(-) Negative terminal.
As the battery negative terminal is not
accessible, a remote earth point is located
close to the battery.
8
In the event of a breakdown
333
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Starting using another battery
F Start the engine of the vehicle with the
good battery and leave it running for a
few minutes.
F Operate the starter on the broken down
vehicle and let the engine run.
If the engine does not start straight away,
switch off the ignition and wait a few
moments before trying again.
F Wait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F Refit the plastic cover to the (+) terminal,
if your vehicle has one.
F Allow the engine to run for at least
30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.
Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.
F Raise the plastic cover on the (+) terminal,
if your vehicle has one.
F Connect the red cable to the positive
terminal (+) of the flat battery A (at the
metal elbow) then to the positive
terminal (+) of the slave battery B or the
booster.
F Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).
F Connect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
In the event of a breakdown
334
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Charging the battery using a battery charger
For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
- if you use your vehicle essentially for short
journeys,
- if the vehicle is to be taken off the road for
several weeks.
Contact a PEUGEOT dealer or a qualified
workshop.
F Switch off the ignition.
F Switch off all electrical consumers (audio
system, lighting, wipers, ...).
F Switch off the charger B before connecting
the cables to the battery, so as to avoid any
dangerous sparks.
F Ensure that the charger cables are in good
condition.
F Raise the plastic cover, if your vehicle has
one, on the (+) terminal.
F Connect the charger B cables as follows:
- the positive (+) red cable to the (+)
terminal of the battery A,
- the negative (-) black cable to the earth
point C on the vehicle.
F At the end of the charging operation, switch
off the charger B before disconnecting the
cables from the battery A.
If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.
If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.
Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.
Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a PEUGEOT dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
It is not necessary to disconnect the
battery.
8
In the event of a breakdown
335
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Disconnecting the battery
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).
In order to maintain an adequate state of charge
for starting the engine, it is recommended that
the battery be disconnected if the vehicle is
taken out of service for a long period.
Before disconnecting the battery:
F close all openings (doors, tailgate, windows,
sunroof),
F switch off all electrical consumers (audio
system, wipers, lighting, ...),
F switch off the ignition and wait for
four minutes.
At the battery, it is only necessary to disconnect
the (+) terminal.
Following reconnection of the
battery
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself initialise or reset certain systems,
such as:
- the remote control or electronic key
(depending on version),
- the sunroof and its electric blind,
- the electric windows,
- the date and time,
- the radio preset stations.
Quick-release terminal clamp
Disconnecting the (+) terminal
F Raise the lever A fully to release the
clamp B.
F Remove the clamp B by lifting it off.
Reconnecting the (+) terminal
F Raise the lever A fully.
F Refit the open clamp B on the (+) terminal.
F Push the clamp B fully down.
F Lower the lever A to lock the clamp B.
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
In the event of a breakdown
336
3008-2_en_Chap08_en cas-de-panne_ed01-2016
Towing the vehicle
The towing eye is stowed in a tool box, under
the boot floor.
For more information on access to the Tool kit,
refer to the corresponding section.
Access to the tools
General recommendations
In the following cases, you must always call
on a professional recovery service:
- vehicle broken down on a motorway or
fast road,
- four-wheel drive vehicle,
- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,
- towing with only two wheels on the
ground,
- where there is no approved towing arm
available...
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
8
In the event of a breakdown
337
3008-2_en_Chap08_en cas-de-panne_ed01-2016
F On the front bumper, unclip the cover by
pressing at the top.
F Screw the towing eye in fully.
F Install the towing arm.
Towing your vehicle
F On the rear bumper, unclip the cover by
pressing at the left.
F Screw the towing eye in fully.
F Install the towing arm.
F Switch on the hazard warning lamps on
both vehicles.
F Move off gently, drive slowly and for a short
distance.
Towing another vehicle
F Unlock the steering and release the parking
brake.
F Switch on the hazard warning lamps on
both vehicles.
F Move off gently, drive slowly and for a short
distance.
F Place the gear lever in neutral
(position N on an automatic
gearbox).
Failure to observe this instruction
could result in damage to
certain components (braking,
transmission...) and the absence
of braking assistance the next time
the engine is started.
Technical data
338
3008-2_en_Chap09_caracteristiques_ed01-2016
Petrol engines and gearboxes
Petrol engine 1.2 litre PureTech 130 S&S 1.6 litre THP 150 1.6 litre THP 160
1.6 litre THP 165
S&S
Gearbox
Manual
(6-speed)
EAT6
automatic
(6-speed)
EAT6
automatic
(6-speed)
EAT6
automatic
(6-speed)
EAT6
automatic
(6-speed)
Model code:
MR... M4...
HNYH/S
HNYH/1S
HNYW/S
HNYW/1S
5FEA 5FMA 5GZW/S
Cubic capacity (cc) 1 199 1 598 1 598 1 598
Bore x stroke (mm) 75 x 90.5 77 x 85.8 77 x 85.8 77 x 85.8
Max power*: EU standard (kW) 96 110 120 121
Max power speed (rpm) 5 500 6 050 6 000 6 000
Max torque: EU standard (Nm) 230 240 240 240
Max torque speed (rpm) 1 750 1 400 1 400 1 400
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes Yes
Engine oil capacity (in litres) (with filter
replacement)
3.5 4.25 4.25 4.25
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
9
Technical data
339
3008-2_en_Chap09_caracteristiques_ed01-2016
Petrol weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol engine 1.2 litre PureTech 130 S&S 1.6 litre THP 150 1.6 litre THP 160
1.6 litre THP 165
S&S
Gearbox
Manual
(6-speed)
EAT6
automatic
(6-speed)
EAT6
automatic
(6-speed)
EAT6
automatic
(6-speed)
EAT6
automatic
(6-speed)
Model code:
MR... M4...
HNYH/S -
HNYH/1S
HNYW/S -
HNYW/1S
5FEA 5FMA 5GZW/S
Unladen weight 1 250 - 1 254 - - - 1 300
Kerb weight* 1 325 - 1 329 - - - 1 375
Gross vehicle weight (GVW) 1 910 - - - 1 950
Gross train weight (GTW)
on a 12% gradient
3 310 - 3 210 - - - 3 500
Braked trailer (within the GTW limit)
on a 10% or 12% gradient
1 400 - 1 300 - - - 1 550
Unbraked trailer 660 - - - 685
Recommended nose weight 70 - - - 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
Technical data
340
3008-2_en_Chap09_caracteristiques_ed01-2016
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Diesel engine
1.6 litre BlueHDi
100 S&S
1.6 litre BlueHDi 115 S&S 1.6 litre BlueHDi 120 S&S
Gearbox
Manual
(5-speed)
Manual
(6-speed)
EAT6
automatic
(6-speed)
Manual
(6-speed)
EAT6
automatic
(6-speed)
Model code:
MC...
BHY6/S
BHXH/S
BHXH/1S
BHXW/S
BHXW/1S
BHZH/S
BHZH/1S
BHZW/S
BHZW/1S
Cubic capacity (cc) 1 560 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3 75 x 88,3
Max power*: EU standard (kW) 73 85 88
Max power speed (rpm) 3 750 3 750 3 750
Max torque: UE standard (Nm) 254 300 300
Max torque speed (rpm) 1 750 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particle filter Yes Yes Yes
Engine oil capacity (in litres) (with filter
replacement)
3.75 3.75 3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
9
Technical data
341
3008-2_en_Chap09_caracteristiques_ed01-2016
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
Diesel engine 2.0 litre BlueHDi 150
2.0 litre BlueHDi 150
S&S
2.0 litre BlueHDi 180
S&S
Gearbox
Manual
(6-speed)
EAT6
automatic
(6-speed)
Manual
(6-speed)
EAT6
automatic
(6-speed)
Model code:
MJ...
- -
AHRH/S
AHSH/S
AHXH/S
AHWW/S
Cubic capacity (cc) - - 1 997 1 997
Bore x stroke (mm) - - 85 x 88 85 x 88
Max power*: EU standard (kW) - - 110 132
Max power speed (rpm) - - 4 000 3 750
Max torque: EU standard (Nm) - - 370 400
Max torque speed (rpm) - - 2 000 2 000
Fuel Diesel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes Yes
Particle filter Yes Yes Yes Yes
Engine oil capacity (in litres) (with filter
replacement)
- - 6.1 5.1
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Diesel engines and gearboxes
Technical data
342
3008-2_en_Chap09_caracteristiques_ed01-2016
Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Diesel engine
1.6 litre BlueHDi
100 S&S
1.6 litre BlueHDi 115 S&S 1.6 litre BlueHDi 120 S&S
Gearbox
Manual
(5-speed)
Manual
(6-speed)
EAT6
automatic
(6-speed)
Manual
(6-speed)
EAT6
automatic
(6-speed)
Model code:
MC...
BHY6/S
BHXH/S -
BHXH/1S
BHXW/S
BHZH/S -
BHZH/1S
BHZW/S
Unladen weight - 1 300 - 1 304 1 315 1 300 - 1 304 1 315
Kerb weight* - 1 375 - 1 379 1 390 1 375 - 1 379 1 390
Gross vehicle weight (GVW) - 1 970 - 1 980 1 990 1 970 - 1 980 1 990
Gross train weight (GTW)
on a 12% gradient
- 3 470 - 3 380 3 290 3 470 - 3 380 3 290
Braked trailer (within the GTW limit)
on a 10% or 12% gradient
- 1 500 - 1 400 1 300 1 500 - 1 400 1 300
Unbraked trailer - 685 695 685 695
Recommended nose weight - 70 70 70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
9
Technical data
343
3008-2_en_Chap09_caracteristiques_ed01-2016
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Diesel engine 2.0 litre BlueHDi 150
2.0 litre BlueHDi 150 S&S 2.0 litre BlueHDi 180 S&S
Gearbox
Manual
(6-speed)
EAT6 automatic
(6-speed)
Manual
(6-speed)
EAT6 automatic
(6-speed)
Model code:
MJ...
- -
AHRH/S
AHSH/S
AHXH/S
AHWW/S
Unladen weight - - 1 425 1 465
Kerb weight* - - 1 500 1 540
Gross vehicle weight (GVW) - - 2 050 2 090
Gross train weight (GTW)
on a 12% gradient
- - 3 700 3 730
Braked trailer (within the GTW limit)
on a 10% or 12% gradient
- - 1 650 1 640
Unbraked trailer - - 745 750
Recommended nose weight - - 70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
Diesel weights and towed loads (in kg)
Technical data
344
3008-2_en_Chap09_caracteristiques_ed01-2016
Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
9
Technical data
345
3008-2_en_Chap09_caracteristiques_ed01-2016
Identication markings
A. Vehicle identification number (VIN),
under the bonnet.
The number is engraved on the body structure.
D. Tyres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information on the tyres:
- the tyre pressures, unladen and laden,
- the reference, size, type, load index and
speed rating,
- the spare tyre pressure.
It also indicates the paint colour code.
B. Vehicle identification number (VIN),
on the dashboard.
The number is on a label, visible through the
windscreen.
Never reduce the pressure of a warm
tyre.
Low tyre pressures increase fuel
consumption.
Different visible markings for the identification of your vehicle.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.
C. Manufacturer's label.
This self-destructing label is affixed to the right-
hand door aperture.
It bears the following information:
- the name of the manufacturer,
- the European Whole Vehicle Type Approval
number,
- the vehicle identification number (VIN),
- the maximum authorised vehicle weight
(the Gross Vehicle Weight or GVW),
- the maximum authorised vehicle + trailer
weight (the Gross Train Weight or GTW),
- the maximum weight on the front axle,
- the maximum weight on the rear axle.
Alphabetical index
346
3008-2_en_Chap11_index-alpha_ed01-2016
180° rear vision .............................................267 Air intake ....................................................... 111
Air vents ........................................................104
Alarm ............................................................... 70
Amplifier, audio .............................................122
Anti-lock braking
system (ABS) ......................................160, 161
Anti-theft .......................................................197
Armrest, front ................................................124
Armrest, rear .................................................134
Assistance call ..............................................158
Assistance, emergency
braking ................................................160, 249
Audio system
(radio) ............................................................ 45
C
Capacity, fuel tank ........................................281
Cartridge, fragrance .............................125, 126
Central locking ..........................................60, 68
Changing a bulb ........................... 323, 328, 330
Changing a fuse ............................................331
Changing a wheel .........................................309
Changing a wiper blade ................................154
Changing the remote control
battery ...........................................................66
Charger, induction .........................................122
Charger, wireless ..........................................122
CHECK ............................................................ 40
Checking the engine
oil level ..........................................................36
Checking the levels ...............................297-300
Checking tyre pressures
(using the kit) ..............................................312
Checks .................................295, 296, 301, 302
Checks, routine .....................................301, 302
Child lock ...............................................193, 194
Children .................................184, 186-188, 190
Children (safety) ....................................193, 194
Backrest, folding .............................................92
Battery ...................................290, 301, 332-335
Battery, charging ...........................................334
Battery, remote control .............................63, 66
Blanking screen
(snow shield) ............................................... 291
Blind ................................................................84
Blind spot monitoring system ......... 20, 260, 262
Blind spot monitoring system,
active.....................................................20, 262
Blind spot sensors ..................................20, 260
BlueHDi .....................................37, 40, 303, 308
Bonnet ...........................................................294
Boot .....................................................75, 76, 79
Brake discs .................................................... 302
Brake lamps ..................................................328
B
Brakes .....................................................26, 302
Braking assistance
system ......................................................... 160
Braking, automatic
emergency ..............................21, 26, 247, 250
Braking, dynamic
emergency ......................................... 203, 208
Bulbs (changing) .......................... 323, 328, 330
Accessories ..........................................156, 201
Active Safety Brake...................21, 26, 247, 250
AdBlue
®
.....................................30, 37, 303, 304
Additive, Diesel .............................................301
Adjusting headlamps ....................................145
Adjusting head restraints ................................93
Adjusting seat .....................................90, 91, 94
Adjusting the air distribution ......................... 111
Adjusting the air flow .....................................111
Adjusting the date ...........................................45
Adjusting the height and reach
of the steering wheel ....................................99
Adjusting the lumbar support ..............90, 91, 94
Adjusting the seat belt height .......................168
Adjusting the temperature ............................111
Adjusting the time ...........................................45
Advanced Grip Control .................................164
Advice on driving ..................................195, 196
Airbags .................................................... 28, 172
Airbags, curtain .....................................175, 176
Airbags, front.........................................173, 176
Airbags, lateral ......................................175, 176
Air conditioning ................................10, 107, 110
Air conditioning, automatic ...........................105
Air conditioning, digital ..........................111, 116
Air conditioning, dual-zone
automatic .............................................111, 116
Air conditioning, manual ...............105, 106, 116
Air conditioning, mono-zone .................108, 116
A
.
Alphabetical index
347
3008-2_en_Chap11_index-alpha_ed01-2016
Demisting ...................................................... 116
Demisting, front .............................................116
Demisting, rear ..............................................118
Demisting, rear screen .................................118
Dials and gauges ............................................12
Dimensions ...................................................344
Dipstick ....................................................36, 297
Direction indicators .............. 144, 323, 324, 328
Display screen,
instrument panel ......................................... 218
Distance alert ............................21, 26, 247, 248
Door pockets .................................................119
Doors ...............................................................74
Doors, rear ....................................................194
Driver’s attention
warning .......................................................253
Driving .............................................................88
Driving abroad...............................................143
Driving economically.......................................10
Driving positions (storing) ...............................96
Driving time warning .....................................252
Dynamic pack ...............................................217
Dynamic stability control
(DSC) ................................... 26, 160, 162, 164
Emergency switching off ............................... 202
Emergency warning lamps ...................157, 307
Emissions control system,
SCR ..............................................................31
Energy economy mode .................................290
Engine compartment ........................... 295, 296
Engine, Diesel ...................... 283, 296, 308, 340
Engine, petrol ...............................283, 295, 338
Engines ................................................ 338, 340
Environment ..............................................10, 63
Child seats .............171, 177, 178, 182-184, 192
Child seats, conventional ......................183, 184
Child seats, i-Size .........................................190
Child seats, ISOFIX ...................... 186-188, 190
Cigarette lighter.............................................120
Closing the boot ............................56, 61, 62, 75
Closing the doors .......................... 56, 60-62, 74
Configuration, vehicle ........................ 45, 48, 50
Control, emergency
boot release .................................................. 81
Control, emergency door ................................64
Control, heated seats ......................................97
Controls, steering mounted ..........................211
Control stalk, lighting .......................17, 141, 144
Control stalk, wipers .....................152, 153, 155
Courtesy lamps ............................................. 128
Cover, load space .........................................136
Cruise control .......................226, 229, 234, 238
Cruise control by speed
limit recognition ..........................................229
Cruise control, dynamic
with Stop function .............................. 229, 238
Cup holder .....................................................119
F
Fatigue detection ..................................252, 253
Filling the fuel tank .................................281-283
Filter, air ........................................................301
Filter, Diesel fuel ...........................................296
Filter, oil .........................................................301
Filter, particle ....................................... 300, 301
Filter, passenger
compartment ..............................................301
Fitting a wheel ...............................................319
Fitting roof bars .............................................293
Fittings, boot .................................................135
Fittings, interior ..................................... 119, 120
Fittings, rear ..................................................133
Flap, fuel filler ........................................281, 282
Flashing indicators ................................ 144, 324
Floor, boot, adjustable ..................................138
Foglamps ......................................................142
Foglamps, front ............. 142, 151, 323, 324, 326
Foglamps, rear ......................................142, 329
Folding the rear seats ...................................130
D
Date (setting) ................................................... 45
Daytime running lamps .................143, 323, 324
Deactivating the passenger
airbag .......................................................... 173
Deadlocking ..............................................56, 62
Defrosting .............................................. 116, 118
Defrosting, front ............................................116
E
Eco-driving (advice) ........................................ 10
Economy mode .............................................290
Electronic brake force distribution
(EBFD) ................................................160, 161
Emergency braking assistance (EBA) .......... 160
Emergency call .............................................158
Alphabetical index
348
3008-2_en_Chap11_index-alpha_ed01-2016
Headlamps, automatic dipping ............... 17, 149
Headlamps, automatic
illumination .................................. 141, 146, 147
Headlamps, dipped beam ................17, 323-325
Headlamps, halogen ..................................... 324
Headlamps, main beam ...................17, 323-325
Head restraints, front ......................................93
Head restraints, rear .....................................130
Heating ....................................10, 104, 106, 108
Hi-Fi system ..................................................122
Hill Assist Descent
Control ..................................................20, 166
Hill start assist ...............................................216
Horn...............................................................157
Inflating tyres ..........................................10, 345
Inflating tyres and
accessories (using the kit) ..........................312
Instrument panel .....................12, 13, 40, 42, 43
Intelligent Traction
Control ........................................................161
ISOFIX ..........................................................187
Isofix mountings ............................................186
i-Cockpit amplify
function .................................98, 102, 125, 217
Ignition ...................................................199, 201
Immobiliser, electronic ............................63, 197
Indicator, AdBlue
®
range .......................................................30, 37
Indicator, coolant
temperature ..................................................32
Indicator, engine
oil level ....................................................36, 40
Indicator lamps,
operation ...........................................17, 19, 21
Indicator lamps,
status ............................................................19
Indicators, direction ..............................144, 324
Jack ............................................................... 310
Jump starting ................................................333
I
J
Key ..................................................... 54, 63, 64
Key, electronic .....................................58, 60-62
Keyless Entry
and Starting ...................... 58, 61-63, 197, 200
Key not recognised .......................................202
Key with remote
control ......................................................... 197
Kit, temporary puncture
repair ................................................... 309, 312
K
Fuel..........................................................10, 283
Fuel consumption ............................................10
Fuel tank................................................281, 282
Fuses .............................................................331
Gauge, fuel....................................................281
Gearbox,
automatic .......10, 211, 216, 217, 219, 302, 332
Gearbox, manual .... 10, 210, 216, 217, 219, 302
Gear lever .......................................................10
Gear lever, automatic
gearbox .......................................................211
Gear lever, manual
gearbox ....................................................... 210
Gear shift indicator .......................................218
Glove box ......................................................120
Grab handles ................................................119
G
Hands-free access .......................................... 78
Hands-free tailgate .............................76, 78, 79
Hazard warning lamps ..........................157, 307
Headlamp adjustment ................................... 145
H
.
Alphabetical index
349
3008-2_en_Chap11_index-alpha_ed01-2016
Labels, identification .....................................345
Lamp, boot ....................................................140
Lamps, parking .............................................144
Lamps, rear ...................................................328
Lamps with "Full LED"
technology ..........................................151, 323
Lane departure warning
active.......................................21, 27, 255, 262
Lane Departure Warning
System (LDWS) ....................................27, 254
LEDs - Light-emitting
diodes ................................ 143, 323, 324, 328
Level, brake fluid ...........................................298
Level, Diesel additive ........................... 300, 301
Level, engine coolant ..............................32, 299
Level, engine oil ......................................36, 297
Levels and checks ................................295-300
Level, screenwash
fluid .....................................................154, 299
Light-emitting
diodes - LEDs .................... 143, 323, 324, 328
Lighting ............................................................17
Lighting, cornering ........................................ 151
Lighting dimmer ..............................................42
Lighting, exterior ...........................................141
Lighting, guide-me
home ..............................................57, 146-148
Lighting, interior ....................................128, 129
Lighting, mood ........................................42, 129
Lighting, welcome ......................................... 147
Loading ...........................................10, 137, 293
Load reduction mode ....................................290
Locating your vehicle ......................................56
Locking ................................................55, 61, 63
Locking from
the inside ......................................................68
Long objects, transporting ............................ 134
Low fuel level ................................................281
L
Maintenance, routine ......................................10
Map reading lamps .......................................128
Markings, identification .................................345
Massage function ........................................... 98
Massage, multi-point ......................................98
Mat ................................................................127
Memorising a speed .....................................226
Mirror, rear view ............................................101
Mirrors, door............................99, 100, 118, 260
Mirror, vanity .................................................120
Misfuel prevention ......................................... 282
Motorised tailgate ...............................76, 77, 79
Mountings, Isofix ........................................... 186
M
Net, high load retaining .................................137
Number plate lamps ......................................330
N
Opening the boot ......................................58, 75
Opening the doors ....................................58, 74
Opening the fuel filler flap .............................281
Opening the windows .....................................55
Pads, brake ...................................................302
Paint ..............................................................345
Paint colour code ..........................................345
Parcel shelf, rear ........................................... 136
Park Assist ............................................272, 274
Parking brake ................................................302
Parking brake, electric ...................25, 203, 208
Parking sensors, front ...................................264
Parking sensors, rear....................................263
Personalisation ...............................................13
PEUGEOT Connect
Assistance ..................................................158
PEUGEOT Connect Packs ...........................158
PEUGEOT Connect SOS .............................158
Plates, identification......................................345
Player, USB ...................................................121
Port, USB ......................................................121
Pre-heater, Diesel ........................................... 18
Pressures, tyres ....................................316, 345
Pre-tensioning seat
belts ............................................................171
Priming the fuel system ................................308
Protecting children ........................173, 177, 178,
182, 184, 186-188, 190
Puncture ........................................................ 312
P
Oil change .....................................................297
Oil consumption ............................................297
OIl, engine ..................................................... 297
On-board tools ......................................139, 309
Opening the bonnet ......................................294
O
Alphabetical index
350
3008-2_en_Chap11_index-alpha_ed01-2016
Range, AdBlue .................................... 30, 37, 38
Rear screen, demisting .................................118
Recharging the battery .................................334
Reduction of electrical load ..........................290
Regeneration of
the particle filter .......................................... 301
Reinitialisation of the under-inflation
detection system .................................224, 225
Reinitialising the remote
control ...........................................................67
Reminder, key in ignition ...............................199
Remote control ........................ 54-56, 60, 62, 63
Removing a wheel ........................................319
Removing the mat .........................................127
Replacing bulbs ...........................323, 328, 330
Replacing fuses ............................................331
Replacing the air filter ...................................301
Replacing the oil filter ...................................301
Replacing the passenger
compartment filter ......................................301
Reservoir, screenwash .................................299
Resetting the service indicator .......................35
Resetting the trip recorder ..............................41
Reset trip ......................................................... 43
Rev counter ..................................................... 12
Reversing lamps ...........................................328
Roof bars ....................................................... 293
Running out of fuel (Diesel) ..........................308
Table of weights ....................................339, 342
Table position .................................................. 92
Tables of engines .................................338, 340
Tailgate ............................................................ 75
Tank, fuel ...............................................281, 282
Technical data ............................... 338-340, 342
Telephone .....................................................122
Temperature, coolant ......................................32
Third brake lamp ...........................................330
Three flashes
(direction indicators) ...................................144
T
Starting using another
battery ................................................ 202, 333
Stay, bonnet ..................................................294
Steering wheel,
adjustment ....................................................99
Stopping the vehicle .....................197, 200, 211
Stop & Start ........................18, 21, 44, 105, 116,
219, 281, 294, 301, 335
Storage ..........................119, 120, 124, 134, 135
Storage box ................................................... 139
Storage compartments ................................. 119
Storage wells ........................................135, 139
Storing driving positions .................................96
Stowing rings ................................................135
Sunroof, panoramic ........................................84
Sun visor .......................................................120
Switching off the engine ...............................197
Synchronising the remote
control ...........................................................67
Saturation of the particle
filter (Diesel) ...............................................301
Scented air freshener ...........................125, 126
Screen, monochrome .....................................45
Screens, very cold
conditions ..................................................291
Screenwash, front ......................................... 153
Screenwash, rear .......................................... 153
SCR (Selective Catalytic
Reduction) ............................................31, 303
SCR system ............................................31, 303
Seat belts .......................................168-171, 183
Seat belts, rear ......................................169, 170
Seats, electric .................................................96
Seats, front ................................................90, 96
Seats, heated ..................................................97
Seats, rear .....................................................130
Selector, gear ................................................211
Serial number, vehicle ..................................345
Service indicator .......................................33, 40
Servicing ...................................................10, 33
Settings, equipment ........................... 45, 48, 50
Sidelamps .................... 143, 144, 323, 324, 328
Side repeater ................................................327
Ski flap ..........................................................134
Snow chains ......................................... 223, 292
Snow screen .................................................291
Socket, 12V ................................................... 314
Socket, 12 V accessory ........120, 133, 136, 314
Socket, 230 V ................................................133
Speakers .......................................................122
Speed limiter ................................ 226, 229, 231
Speed limit recognition .................................227
Speedometer ..................................................12
Spotlamps, side ....................................148, 327
Stability control (ESC)...................160, 163, 164
Starting the vehicle .......................197, 200, 211
R
Safety, children .....................173, 177, 178, 182,
184, 186-188, 190
S
.
Alphabetical index
351
3008-2_en_Chap11_index-alpha_ed01-2016
U
Under-inflation
(detection) ...................................................223
Unlocking ..................................................55, 58
Unlocking from the inside ...............................68
Unlocking the boot .................................... 57, 59
Unlocking the tailgate ...............................57, 59
Ticket holder .................................................119
Time (setting) ..................................................45
Tool box ......................................................... 139
Tools ..............................................................309
Total distance recorder ................................... 41
Touch screen.......................42, 48, 50, 102, 121
Towball, quickly
detachable ..................................................285
Towbar .......................................... 163, 196, 284
Towbar with quickly
detachable towball ......................................285
Towed loads ..........................................339, 342
Towing another vehicle .................................336
Traction control (ASR) ........... 26, 160, 162, 164
Trailer ........................................... 163, 196, 284
Trailer stability assist (TSA) ..................160, 163
Trajectory control systems ............................160
Triangle, warning...........................................307
Trip computer ............................................43, 44
Trip distance recorder .....................................41
Tyres ........................................................10, 345
Tyre under-inflation
detection .............................................223, 316
V
Ventilation ...............................10, 104-106, 108
Visibility ......................................................... 116
Vision, 180° forward .....................................269
Vision, panoramic .........................................265
Visio Park ......................................265, 267, 269
W
Warning and indicator
lamps ................................................16, 21, 22
Warning lamp, braking
system ........................................................... 26
Warning lamp, Diesel
engine pre-heater ......................................... 18
Warning lamps ..............................19, 22, 25, 40
Warning lamp, Service....................................23
Weights .................................................339, 342
Welcome lighting.....................................57, 148
Wheel, spare ................................. 309, 317, 345
Window controls .............................................82
Windscreen, heated ......................................117
Wiper blades (changing) ...............................154
Wiper, rear.....................................................153
Wipers .............................................20, 152, 155
Wipers, automatic
rain sensitive .......................................152, 155
04-16
3008-2_en_Chap12_Couverture_ed01-2016 - Copie
Reproduction or translation of all or part of
this document is prohibited without written
authorisation from Automobiles PEUGEOT.
Automobiles PEUGEOT declares, by
application of the provisions of the European
legislation (Directive 2000/53) relating to End
of Life Vehicles, that it achieves the objectives
set by this legislation and that recycled
materials are used in the manufacture of the
products that it sells.
Printed in the EU
Anglais
www.peugeot.com
3008-2_en_Chap12_Couverture_ed01-2016 - Copie
Anglais
16P84.0040
*16P84.0040*
1
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
PEUGEOT Connect Nav
GPS satellite navigation - Applications - Multimedia audio - Bluetooth
®
GPS satellite navigation - Applications - Multimedia audio - Bluetooth
®
GPS satellite navigation - Applications - Multimedia audio - Bluetooth
telephone
®
telephone
®
Contents
First steps 2
Steering mounted controls 5
Menus 6
Voice commands 8
Navigation 14
Connected navigation 30
Applications 40
Radio Media 56
Telephone 68
Settings 80
Frequently asked questions 90
The system is protected in such a way
that it will only operate in your vehicle.
Displaying of the
Energy Economy
Mode
message signals that a change
to standby is imminent.
The different functions and settings
described vary according to the version
and configuration of your vehicle.
The link below gives access to OSS
(Open Source Software) codes for the
system.
http://www.psa-peugeot-citroen.com/oss
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
2
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
First steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.
Volume.
Use the buttons either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen.
All of the touch areas of the screen are white.
Press the cross to go back a level.
Press "OK" to confirm.
The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (spectacles cloth) with
no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.
3
.
12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Select the audio source (depending on
version):
- FM / DAB * / AM * radio stations.
- USB memory stick.
- CD player.
- Media player connected via the auxiliary
socket (Jack, cable not supplied).
- Telephone connected by Bluetooth * using
Bluetooth * audio streaming.
* Depending on equipment.
Certain information is displayed permanently in
the upper band of the touch screen:
- Reminder of the air conditioning
information and direct access to the
corresponding menu.
- Go directly to the selection of the audio
source, to the list of radio stations (or list of
titles depending on the source).
- Go to the message notifications, emails,
map updates and, depending on the
services, the navigation notifications.
- Go to the settings for the touch screen and
the digital instrument panel.
In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes.
The return to normal takes place when
the temperature in the passenger
compartment has dropped.
In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with
the possibility of entering a multitude
of settings (radio presets, audio
settings, navigation history, contact
favourites, ...); these settings are taken
into account automatically.
5
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Steering mounted controls
Media
(short press): change the
multimedia source.
Telephone
(short press): call.
Call in progress
(short press):
access to telephone menu.
Telephone
(long press): reject an
incoming call, end call, access to
telephone menu.
Decrease volume.
Voice commands
:
Short press, system voice
commands.
Long press, smartphone voice
commands via the system.
Mute / Restore the sound.
Or
Mute by pressing the volume
increase and decrease buttons
simultaneously.
Restore the sound by pressing one of
the two volume buttons.
Radio
(rotate): automatic search for
the previous / next station.
Media
(rotate): previous / next track,
move in a list.
Short press
: confirm a selection;
other than selection, access to
presets.
Radio
: display the list of stations.
Media
: display the list of tracks.
Radio
(press and hold): update the
list of stations received.
Increase volume.
6
12:1318,5 21,523 °C
21,518,5
12:1323 °C 12:1318,5 21,523 °C
12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Connected navigation
Driving
Applications
Enter navigation settings and choose a
destination.
Use services available in real time, depending
on equipment.
Activate, deactivate and configure certain
vehicle functions.
Operate certain applications on a smartphone
connected via CarPlay
®
or MirrorLink
®
or MirrorLink
®
TM
.
Check the state of the Bluetooth
®
and Wi-Fi
®
and Wi-Fi
®
connections.
Menus
Air conditioning
Manage the various temperature and air flow
settings.
According to version
7
.
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C 12:1318,5 21,523 °C 12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Settings
Radio Media
Telephone
Configure a personal profile and/or configure
the sound (balance, ambience, ...) and the
display (language, units, date, time, ...).
Select an audio source, a radio station, display
photographs.
Connect a telephone by Bluetooth
®
, read
messages and emails and send quick
messages.
8
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Voice commands
First steps
Steering mounted controls
Information - Using the system
Press the Push To Talk
button and tell me what you'd
like after the tone. Remember
you can interrupt me at any
time by pressing this button. If you
press it again while I'm waiting for you
to speak, it'll end the conversation. If
you need to start over, say "cancel".
If you want to undo something, say
"undo". And to get information and tips
at any time, just say "help". If you ask
to me do something and there's some
information missing that I need, I'll
give you some examples or take you
through it step by step. There's more
information available in "novice" mode.
You can set the dialogue mode to
"expert" when you feel comfortable.
To ensure that voice commands are
always recognised by the system,
please observe the following
recommendations:
- speak in a normal tone without
breaking up words or raising your
voice.
- always wait for the "beep" (audible
signal) before speaking.
- for best operation, it is
recommended that the windows
and opening roof be closed to
avoid extraneous interference
(according to version).
- before making a voice command,
ask other passengers to not speak.
The voice commands, with a choice
of 12 languages (English, French,
Italian, Spanish, German, Dutch,
Portuguese, Polish, Turkish, Russian,
Arabic, Brazilian), are made using the
language previously chosen and set in
the system.
The voice commands in Arabic for:
"Navigate to address" and "Display POI
in the city", are not available.
Alternative synonyms can be used for
some voice commands.
E.g. Guide to / Navigate to / Go to / ...
Example of a "voice command" for
navigation:
"Navigate to address 11 Regent
Street, London"
.
Example of a "voice command" for
the radio and media:
"Play artist Madonna"
.
Example of a "voice command" for
the telephone:
"Call David Miller"
.
Pressing this button activates the
voice commands function.
9
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Global voice commands
These commands can be made from any screen page after pressing the "Voice command" or "Telephone" button located on the steering
wheel, as long as there is no telephone call in progress.
"Voice command"
Help message
Help
There are lots of topics I can help you with.
You can say: "help with phone", "help with navigation", "help with media" or "help with
radio". For an overview on how to use voice controls, you can say "help with voice
controls".
Voice command help
Navigation help
Radio help
Media help
Telephone help
Set dialogue mode as <...>
Select "beginner" or "expert" mode.
Select profile <...>
Select profile 1, 2 or 3.
Yes
Say "yes" if I got that right. Otherwise, say "no" and we'll start that again.
No
10
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
"Navigation" voice commands
These commands can be issued from any screen page after pressing the "Voice command" or "Telephone" button on the steering wheel, as
long as there is no telephone call in progress.
Depending on the country, give the destination instructions (address) in the language used by the system.
"Voice command"
Help message
Navigate home
To start guidance or add a stopover, say "navigate to" and then the address or contact
name.
For example, "navigate to address 11 Regent Street, London", or "navigate to contact, John
Miller".
You can specify if it's a preferred or recent destination.
For example, "navigate to preferred address, Tennis club", "navigate to recent destination,
11 Regent Street, London". Otherwise, just say, "navigate home".
To see points of interest on a map, you can say things like "show hotels in Banbury" or
"show nearby petrol station".
For more information you can ask for "help with route guidance".
Navigate to work
Navigate to preferred address <...>
Navigate to contact <...>
Navigate to address <...>
Show nearby POI <...>
Remaining distance
To get information about your current route, you can say "tell me the remaining time",
"distance" or "arrival time".
Try saying "help with navigation" to learn more commands.
Remaining time
Arrival time
Stop route guidance
11
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
"Radio Media" voice commands
These commands can be issued from any screen page after pressing the "Voice command" or "Telephone" button on the steering wheel, as
long as there is no telephone call in progress.
"Voice command"
Help message
Tune to channel <...>
You can pick a radio station by saying "tune to" and the station name or frequency.
For example "tune to channel Talksport" or "tune to 98.5 FM".
To listen to a preset radio station, say "tune to preset number". For example "tune to preset
number five".
What's playing
To display the details of the current "track", "artist" and "album", you can say "What's
playing"
Play song <...>
Use the command "play" to select the type of music you'd like to hear.
You can pick by "song", "artist", or "album".
Just say something like "play artist, Madonna", "play song, Hey Jude", or "play album,
Thriller".
Play artist <...>
Play album <...>
Media voice commands are available only for a USB connection.
12
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
"Voice command"
Help message
Call contact <...>
*
To make a phone call, say "call" followed by the contact name, for example: "Call David
Miller".
You can also include the phone type, for example: "Call David Miller at home".
To make a call by number, say "dial" followed by the phone number, for example,
"Dial 107776 835 417".
You can check your voicemail by saying "call voicemail".
To send a text, say "send quick message to", followed by the contact, and then the name of
the quick message you'd like to send.
For example, "send quick message to David Miller, I'll be late".
To display the list of calls, say "display calls".
For more information on SMS, you can say "help with texting".
Dial <...> *
Display contacts
*
Display calls
*
Call (message box | voicemail)
*
* This function is available only if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.
"Telephone" voice commands
If a telephone is connected to the system, these voice commands can be issued from any main screen page after pressing the "Telephone"
button on the steering wheel, as long as there is no telephone call in progress.
If there is no telephone connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.
13
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
"Voice command"
Help message
Send text to <...>
To hear your messages, you can say "listen to most recent message".
When you want to send a text, there's a set of quick messages ready for you to use. Just
use the quick message name and say something like "send quick message to Bill Carter,
I'll be late".
Check the phone menu for the names of the supported messages.
Please say "call" or "send quick message to", and then select a line from the list.
To move around a list shown on the display, you can say "go to start", "go to end", "next
page" or "previous page".
To undo your selection, say "undo". To cancel the current action and start again, say
"cancel".
Listen to most recent message
*
"Test message" voice commands
If a telephone is connected to the system these voice commands can be issued from any main screen page after pressing the "Telephone"
button on the steering wheel, as long as there is no telephone call in progress.
If no telephone has been connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.
* This function is only available if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.
The system only sends pre-recorded "Quick messages".
14
12:1318,5 21,523 °C
12:1318,5 21,523 °C
1
12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Navigation
According to version
Level 1
Level 2
Level 3
15
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Navigation
Select the orientation of the map; north up,
vehicle direction up or perspective.
Navigation
Display the traffic information available.
Navigation
World map
Manually locate an area on the world map or enter
the latitude and longitude coordinates.
Around the vehicle
Display the location criteria selected.
Around home
Around the destination
2D mode
Switch to a 2D map.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
Start navigation to the current address.
Save the current address.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
16
12:1318,5 21,523 °C
1
2
3
4
5
6
7
12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
17
.
7
2
3
4
5
6
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Navigation
Stations
Activate or deactivate the content available
(stations, car parks, risk areas and danger areas).
Car park
Danger area
Map color
Select day or night mode for display of the map.
POI on map
Travel
Select the POIs available.
Active life
Commercial
Public
Geographic
Select all
Select or deselect all.
Save your choice or selection.
View map
Modify city
Select or modify a city.
Weather
Display on the map the content available in non-
connected mode.
Petrol Station
Car park
Traf fic
Danger area
Select POI
Select from the POIs available.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
18
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
19
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
Comments
Zoom in
Zoom in around the city selected.
Around the vehicle
Select a location option.
On the route
At the destination
Weather
Weather information transmitted in TMC mode.
Filling stations
Filling stations around the vehicle
Display the list of POIs.
Filling stations on the route
Filling stations at the destination
Car park
Car parks around the vehicle
Car parks on the route
Car parks at the destination
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
20
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
21
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
Comments
Traf fic
Traffic observed
Traffic information sent in real time.
Danger area
List of danger areas
Display the list of danger areas (roadworks,
breakdowns, accidents, ...).
Select POI
Configure a category of POI to display.
22
1
17
18
8
11
9
12
10
13
16
14
15
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
23
.
1
1
1
1
17
18
8
11
9
12
10
13
16
14
15
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
Comments
Navigation
MENU
Enter address
Select the country.
Save the current address.
Confirm the current address.
Navigation
MENU
My destinations
Recent
Display the lists of destinations and start
navigation.
Preferred
My home
My work
Contact
Delete one or more destinations.
Navigation
MENU
Points of interest
Travel
List of categories available.
After selection of category, select the point of
interest.
Active life
Commercial
Public
Geographic
Search
Search for a point of interest.
Navigation
MENU
Search
Point of interest
Enter a point of interest.
Address
Enter the address of a point of interest.
Local
/
Connected
Enter settings for the POI search mode in a local
or connected database depending on the services
subscribed to.
Confirm the entry.
24
1
19
21
20
22
23
24
25
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
25
.
1
1
1
19
21
20
23
22
24
25
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
Comments
Navigation
MENU
Guidance criteria
Fast
Select the guidance criteria (motorways, tolls and
how traffic is taken into account).
Short
Compromise
Ecological
See on map
Display the route selected using the criteria.
Save your selections.
Navigation
MENU
Routes / waypoints
Waypoints
Display the waypoints saved.
Route
Display details of the route.
Add waypoint
Add a waypoint
Add a waypoint from a list offered.
Preview
Display the map.
Finish
Press to calculate the route.
Delete one or more waypoints.
Move a waypoint in the list.
Navigation
MENU
Settings
Aspects
Enter choices and select the volume for the voice
and stating the names of streets.
Options
Alerts
Vocal
Mapping
Save the selections adopted.
26
1
1
8
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Choosing a new destination
Select "
Enter address
".
Select "
See on map
" to select the
"
Guidance criteria
".
Select the "
Country
".
Press "
OK
" to select the "
Guidance
criteria
".
Press "
OK
" to start navigation.
Press "
OK
" to start navigation.
And / Or
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Towards a new destination
Towards a recent destination
Select "
My destinations
".
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Enter the "
City
", the "
Street
" and the
"
Number
" and confirm by pressing
on the suggestions displayed.
Select the "
Recent
" tab.
Select the address chosen in the list to display
the "
Guidance criteria
".
To use the navigation system, it is
necessary to enter the "
City
", the
"
Street
" and the "
Number
" using the
virtual keypad, or to take them from the
list of "
Contacts
" or from the "
History
"
of addresses.
Without confirmation of the street
number, you will be guided to one end
of the street.
Select "
Position
" to see the point of
arrival geographically.
27
.
1
10
1
1
9
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Or
Towards a contact
Select "
My destinations
".
Select the "
Contact
" tab.
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Select a contact in the list offered to start
navigation.
Press "
OK
" to start calculation of the
route.
Towards points of interest (POI)
Points of Interest (POI) are listed in different
categories.
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Select "
Points of interest
".
Select "
Search
" to enter the name
and address of a POI.
Select the "
Travel
", or "
Leisure
"
or "
Commercial
" or "
Public
" or
"
Geographic
" tab.
Or
Or
Towards "My home" or "My
work"
Select "
My destinations
".
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Select the "
Preferred
" tab.
Select "
My home
".
Select "
My work
".
Select a previously saved favourite destination.
28
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Towards GPS coordinates
Towards a point on the map
Press
Navigation
to display the
primary page.
Press
Navigation
to display the
primary page.
Explore the map by sliding a finger on the
screen.
Explore the map by sliding a finger on the
screen.
Tap the screen to place a marker and
display the sub-menu.
Or
Or
Or
And
Select the destination by pressing on the map.
Press this button to start navigation.
Press this button to start navigation.
Press this button to display the world
map.
Using the grid, select by zoom the
desired country or region.
Press this button to save the address
displayed
Press this button to save the address
displayed.
Press this button to enter the GPS
coordinates.
Press this button to enter the value
for "
Latitude
" using the virtual
keypad.
Press this button to enter the value
for "
Longitude
" using the virtual
keypad.
A marker is displayed in the middle of
the screen, with the "
Latitude
" and
"
Longitude
" coordinates.
A long press on a point opens a list of
POIs nearby.
29
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
TMC (Traffic Message
Channel)
TMC (Traffic Message Channel)
messages are linked to a European
standard on the broadcasting of traffic
information via the RDS system on FM
radio, transmitting traffic information in
real time.
The TMC information is then displayed
on a GPS Navigation system map and
taken into account straight away during
navigation, so as to avoid accidents,
traffic jams and closed roads.
The display of danger areas depends
on the legislation in force and
subscription to the service.
30
12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Connected navigation
Network connection provided by the vehicle
OR
Network connection provided by the user
Depending on the equipment level of the vehicle
According to version
31
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.
vehicle stationary . vehicle stationary
Connected navigation connection
The principles and standards
are constantly changing. For
communication between your
smartphone and the system to operate
correctly, we recommend that you
keep your smartphone's operating
system up to date, and the time and
date on your smartphone and the
system correct.
The services offered with connected
navigation are as follows.
A Connected Services pack:
- Weather,
- Filling stations,
- Car park,
- Traffic,
- POI, local search.
A Danger area pack (option).
Activate the Bluetooth function on
the telephone and ensure that it is
visible to all (see the "Connect-App"
section).
Connect the USB cable.
The smartphone is in charge mode
when connected by USB cable.
The system is automatically
connected to the modem included
for the "Emergency or assistance
calls" services and does not require
a connection provided by the user via
their smartphone.
On the arrival of "TOMTOM
TRAFFIC", the services are
available.
For access to connected navigation, you
can use the connection provided by the
vehicle via the "Emergency or assistance
call" services or use your smartphone as
a modem.
Activate and enter settings for
sharing the smartphone connection.
Restrictions of use:
- With CarPlay
®
, connection sharing is
only with a Wi-Fi connection.
- With MirrorLink
TM
, connection
sharing is only with a USB
connection.
The quality of services depends on the
quality of the network connection.
Select a Wi-Fi connection found by
the system and connect to it (see the
"Connect-App" section).
USB connection
Network connection provided by
the vehicle
Network connection provided by
the user
Bluetooth connection
Wi-Fi connection
32
12:1318,5 21,523 °C
12:1318,521,523 °C
12:1318,521,523 °C
1
12:1318,5 21,523 °C
12:1318,5 21,523 °C
7
27
28
26
29
30
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
33
.
7
28
27
26
29
30
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Navigation
Select the orientation of the map; north up,
vehicle direction up or perspective.
Navigation
TOMTOM TRAFFIC
On connection of the system to a network,
"TOMTOM TRAFFIC" is displayed instead of
"TMC", for use of all of the options available, in
real time.
Navigation
Weather
Select the options.
The map display the route chosen, depending on
options.
Stations
Car park
Traffic
Danger area
Map color
Select the display mode for the map.
POI on map
Commercial
Select the POIs available.
Geographic
Leisure
Public
Travel
Save the options.
View map
Modify city
Select or change a city.
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
34
31
32
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
35
.
31
32
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
Comments
Select city
Select or change a city.
Around the vehicle
Select or change a city.
On the route
At the destination
Weather
Weather information
Display the weather forecast for the day or the
following days.
Filling stations
Filling stations around the vehicle
Display the list of filling stations and the
associated information (address, prices, fuels, ...).
Filling stations on the route
Filling stations at the destination
By distance
By price
Car park
Car parks around the vehicle
Display the list of car parks and the associated
information (address, distance, spaces available,
price, ...).
Car parks on the route
Car parks at the destination
Sort by distance
Sort by spaces
Sort by price
Zoom out / zoom in using the touch buttons or
with two fingers on the screen.
36
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
37
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
Comments
Traf fic
Traffic observed
Display traffic information in real time: type,
description and duration (in minutes).
Danger areas
List of danger areas
Display danger areas (roadworks, breakdowns,
accidents, ...) in real time.
Points of interest
Points of
interest
Select POI
Display the list of POIs for the location selected.
38
22
23
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Settings specific to
connected navigation
For access to connected navigation,
you have to select the option:
"
Authorise sending information
".
Select "
Options
".
Select "
Alerts
".
- "
Allow declaration of danger
areas
"
- "
Guidance to final destination
on foot
"
- "
Authorise sending
information
"
Activate or deactivate:
Activate or deactivate "
Warn of
danger zones
".
The display of danger zones is
conditioned by the legislation in force
and subscription to the service.
The temperature displayed at 6 o'clock
in the morning will be the maximum
temperature for the day.
The temperature displayed at 6 o'clock
in the evening will be the minimum
temperature for the night.
Select "
Settings
".
Press
Navigation
to display the
primary page.
Press the "
MENU
" button to go to the
secondary page.
Display the weather
Select "
Weather
".
Press this button to display the first
level of information.
Press this button to display the
detailed weather information.
Select "
View map
".
Press
Navigation
to display the
primary page.
Press this button to display the list of
services.
39
.
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
To distribute information on the
declaration of danger zones, you
should check the option: "
Allow
declaration of danger areas
".
Declaration of "Danger
areas"
Press
Navigation
to display the
primary page.
Press the "
Declare a new danger
area
" button located in the upper bar
of the touch screen.
Select the option "
Type
" to choose
the type of "Danger area".
Select the "
Speed
" option and enter
it using the virtual keypad.
Press "
OK
" to save and distribute the
information.
You can download the system and map
updates from the Brand's website.
The update procedure can also be
found on the website.
"Danger areas" pack
updates
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
System settings
".
Select "
View
" to view the version of
the various modules installed in the
system.
Select "
Update(s) due
".
Select the "
System info
" tab.
40
12:1318,5 21,523 °C
3
2
1
12:1318,5 21,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Applications
According to version / according to equipment
Level 1
Level 2
Level 3
41
.
2
2
3
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Internet Browser
Connectivity
Applications
Press "
Internet Browser
" to display
the browser home page.
Select your country of residence.
Press "
Connectivity
" to go to the
CarPlay
®
or
®
or
®
MirrorLink
TM
function.
Press "
Connectivity
" to go to the
"
Internet Browser
" function.
Press "
Applications
" to display the
applications home page.
Connection to the internet is via one of
the network connections provided by
the vehicle or the user.
Press
Applications
to display the
primary page.
Press
Applications
to display the
primary page.
Press
Applications
to display the
primary page.
Press "
OK
" to save and start the
browser.
42
12:1318,5 21,523 °C
2
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
CarPlay
®
CarPlay
®
CarPlay
smartphone connection
®
smartphone connection
®
43
.
2
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a smartphone
allows applications on a smartphone that
are adapted to the CarPlay
®
technology
®
technology
®
to be displayed in the vehicle's screen,
having first activated the CarPlay
®
function in the smartphone.
As the principles and standards are
constantly changing,
it is recommended
that you keep your smartphone's
operating system updated
.
For the list of eligible smartphones, go
to the Brand's internet website in your
country.
Connect a USB cable. The
smartphone charges when
connected by a USB cable.
Connect a USB cable. The
smartphone charges when connecte
d by a USB cable.
Press "
Telephone
" to display the
CarPlay
®
interface.
®
interface.
®
Press "
CarPlay
" to display the
CarPlay
®
interface
®
interface
®
On connecting the USB cable, the
CarPlay
®
function deactivates the
®
function deactivates the
®
system's Bluetooth
®
mode.
®
mode.
®
In the system, press "
Applications
"
to display the primary page.
Or
Press "
Connectivity
" to go to the
CarPlay
®
function.
®
function.
®
44
12:1318,5 21,523 °C
2
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
MirrorLink
TM
smartphone connection
45
.
2
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a smartphone
allows applications on a smartphone
that are adapted to the MirrorLink
TM
technology to be displayed in the
vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between the
smartphone and the system to work
correctly, the smartphone must be
unlocked; update the operating system
of your smartphone as well as the date
and time in the smartphone and the
system.
For the list of eligible smartphones,
connect to the Brand's internet website
in your country.
The "
MirrorLink
TM
" function requires
the use of a compatible smartphone
and applications.
There may be a wait for the availability
of applications, depending on the
quality of your network.
When connecting a smartphone to
the system, it is recommended that
Bluetooth
®
be started on the smartphone
®
be started on the smartphone
®
Depending on the smartphone, it may be
necessary to activate the "
MirrorLink
TM
"
function.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.
Connect a USB cable. The
smartphone charges when
connected by a USB cable.
Press "
MirrorLink
TM
" to start the
system's application.
Once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink
TM
technology.
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons
From the system, press on
"
Applications
" to display the primary
page.
As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
Press "
Connectivity
" to go to the
MirrorLink
TM
function.
46
12:1318,521,523 °C
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
47
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Applications
MirrorLink
TM
Go to or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink
TM
technology.
Go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up one
level.
"Home": go to or return to the "Car mode" page on
your smartphone.
Go to the primary page of the "Applications"
menu.
48
12:1318,5 21,523 °C
7
7
8
8
3
3
2
1
4
6
5
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
According to equipment
Level 2
Level 3
49
.
4
5
6
7
7
8
8
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Comments
Applications
Scented air
freshener
Select the fragrance.
Off
Switch off the scented air freshener.
Low
Adjust the intensity of diffusion of the fragrance.
Medium
High
Confirm the selection and settings.
Applications
Trip computer
Instant
System providing information about the current
journey (range, fuel consumption…).
Trip 1
Trip 2
Back to the Applications page.
Applications
i-Cockpit Amplify
Relax
Select an ambience combining each of the
equipment presets and/or save it in a user profile.
Boost
Profile management
i-Cockpit Amplify
Relax
Select an ambience combining each of the
equipment presets and/or save it in a user profile.
Boost
Profile management
50
9
13
12
11
10
14
7
7
8
8
3
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
According to equipment
Level 3
Level 4
Level 5
51
.
13
12
10
11
9
14
7
7
8
8
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 3
Level 4
Level 5
Comments
Applications
i-Cockpit Amplify
Relax
Boost
OR
i-Cockpit Amplify
Relax
Boost
Settings
Lighting
Adjust the intensity of the ambience lighting.
Ambience
Adjust the sound ambience.
Dynamic
Set the driving mode.
Fragrance
Select a fragrance.
Driver massage
Select and configure the driver massage.
Passenger Massage
Select and configure the passenger massage.
Save settings
Save the settings.
Reset the mode
Reset the parameters of the ambience.
Confirm the selections and settings.
Deactivate
Deactivate the "i-Cockpit Amplify" function.
Profile management
Profile 1
Configure the profiles.
Profile 2
Profile 3
Common profile
Save the settings.
Confirm the selections and settings.
52
12:1318,5 21,523 °C
15
20
16
21
17
19
18
1
3
2
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
53
.
1
1
1
1
19
20
21
15
16
17
18
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Comments
Applications
OPTIONS
Bluetooth
connection
All
Display all telephones detected and saved.
Connected
Display all telephones connected.
Search
Start the search for a device to be connected.
Applications
OPTIONS
Wi-Fi network
connection
Secured
Display the secured Wi-Fi networks.
Not secured
Display the not secured Wi-Fi networks.
Stored
Display the stored Wi-Fi networks.
Applications
OPTIONS
Manage connection
Display the status of the subscription to the
connected services, the status of the network
connection and the connection mode.
Applications
OPTIONS
Share Wi-Fi
connection
Activation
Activate or deactivate the Wi-Fi connection
sharing.
Settings
Select a Wi-Fi network found by the system and
connect.
Save the settings.
54
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Bluetooth
®
connection
®
connection
®
Procedure from the system
Connection sharing
Press on "
Connect-App
" to display
the primary page.
Press on "
Bluetooth connection
".
Select "
Search
".
The list of detected telephones is
displayed.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
"Bluetooth" function in your telephone.
The "
Mobile internet data
" profile
must be activated for connected
navigation (where the vehicle does not
have "Emergency and assistance call"
services), having first activated sharing
of this connection on your smartphone.
The system offers to connect the
telephone with 3 profiles:
- "
Telephone
" (hands-free kit, telephone
only),
- "
Streaming
" (wireless play of audio files
on the telephone),
- "
Mobile internet data
".
Select the name of the chosen
telephone in the list.
Press "
OK
" to confirm.
Select one or more profiles.
Press the "
OPTIONS
" button to go to
the secondary page.
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
Procedure from the telephone
Select the name of the system in the
list of devices detected.
In the system, accept the connection request
from the telephone.
Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).
To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.
Depending on the type of telephone, you
may be asked to accept or not the transfer
of your contacts and messages.
55
.
1
1
1
20
21
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Wi-Fi connection
Sharing the Wi-Fi connection
Managing connections
To protect from any piracy and provide
maximum security for your systems,
it is recommended that you use a
security code or a complex password.
The Wi-Fi connection and the sharing
of the Wi-Fi connection are exclusive.
Press "
OK
" to confirm.
Press "
OK
" to start the connection.
Press "
Connect-App
" to display the
primary page.
Network connection by the smartphone Wi-Fi.
Creation of a local Wi-Fi network by the
system.
Press
Connect-App
to display the
primary page.
Press
Connect-App
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Wi-Fi network connection
".
Select "
Share Wi-Fi connection
".
Select "
Manage connection
".
And / Or
Select the "
Secured
", "
Not secured
"
or "
Stored
" tab.
Select the "
Activation
" tab to
activate or deactivate sharing of the
Wi-Fi connection.
Select the "
Settings
" to change the
name of the system network and the
password.
With this function you can view the access
to connected services, the availability of
connected services and modify the connection
mode.
Using the virtual keypad, enter the
"
Key
" for the Wi-Fi network and the
"
Password
".
Select a network.
56
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C
2
1
4
3
FM/87.5 MHz
87.5MHz
12:1318,5 21,523 °C
AM/531 kHz
PO
kHz
12:1318,5 21,523 °C
2
1
3
4
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Radio Media
According to version
Level 1
Level 2
57
.
3
2
4
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Radio Media
Source
Radio
Select change of source.
USB
iPod
CD
AUX
Bluetooth
Radio Media
Frequency /
Presets
Frequency
Carry out an automatic or manual search for radio
stations.
Presets
Make a long press on an empty location to preset
a station.
Radio Media
Band
FM
Press the Band button to change waveband.
DAB
AM
Radio Media
List
Radio stations
Open the list and press a radio station to select it.
58
1
9
6
7
8
5
10
11
13
14
15
12
9
9
6
6
7
7
8
8
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
59
.
5
12
8
6
13
14
15
9
7
10
11
1
1
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Comments
Radio Media
OPTIONS
Audio settings
Ambience
Select the sound ambience.
Distribution
Sound distribution by the Arkamys
®
system.
®
system.
®
Sound
Adjust the volume or activate volume linked to
speed.
Voice
Adjust the voice volume.
Ringtone
Adjust the ringtone volume.
Save settings.
Radio Media
OPTIONS
Radio settings
General
Activate or deactivate settings.
Announcements
Save settings.
Radio Media
OPTIONS
Radio stations
FM
Display the list of radio stations for the band
selected.
DAB
AM
Presets
Select a preset radio station.
Frequency
Enter a frequency manually.
Change the screen display mode.
Update the list according to reception.
60
21
1
17
18
19
20
16
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
61
.
17
20
18
21
19
1
1
16
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Comments
Radio Media
OPTIONS
Music files
Albums
Choose a selection mode.
Artists
Genres
Playlists
Folders
Radio Media
OPTIONS
Managing photos
USB
Display photos.
The system supports the following image formats:
.gif, .jpg, .jpeg, .bmp, .png, .raw and .tiff with a
maximum file size of 10 Mb per image.
63
.
1
2
2
2
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Press
Radio Media
to display the
menu.
Press the "
OPTIONS
" button to go to
the secondary page.
Press "
Frequency
".
Press "
Frequency
".
Enter the values using the virtual
keypad.
First enter the units then click on the
decimals zone to enter the figures
after the decimal point.
Press one of the buttons for an
automatic search for radio stations.
Press
Radio Media
to display the
primary page.
Radio
Selecting a station
Radio reception may be affected by
the use of electrical equipment not
approved by the Brand, such as a USB
charger connected to the 12 V socket.
The exterior environment (hills,
buildings, tunnel, car park, below
ground...) may prevent reception,
even in RDS station tracking mode.
This phenomenon is normal in the
propagation of radio waves and is in no
way indicative of a fault with the audio
system.
Select "
Radio stations
" in the
secondary page.
Or
Or
Move the cursor for a manual search
for frequencies up or down.
Select a radio station or frequency.
(refer to the corresponding section)
Press "
Presets
".
Make a long press on one of the
buttons to preset the station.
Preset a station
Press "
OK
" to confirm.
64
1
1
10
10
11
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Press
Radio Media
to display the
primary page.
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Radio settings
".
Select "
Radio settings
".
Select "
General
".
Select "
General
".
Select "
Announcements
".
Activate/deactivate "
Station follow
".
Activate / Deactivate "
Display radio
text
".
Activate / Deactivate "
Traffic
announcement
".
Activate/Deactivate RDS
RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
The "Radio Text" function allows
information transmitted by the radio
station, relating to the station or the
song playing, to be displayed.
Display text information
Play TA messages
The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
that carries this type of message. While
traffic information is being broadcast,
the current media is automatically
interrupted so that the TA message can
be heard. Normal play of the media
previously playing is resumed at the
end of the message.
65
.
1
10
3
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Select the audio source.
Press
Radio Media
to display the
primary page.
Press "
Band
" to select the "
DAB
"
waveband.
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
DAB-FM auto tracking
"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
"DAB-FM auto tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).
If "DAB-FM auto tracking" is activated,
there is a difference of a few seconds
when the system switches to "FM"
analogue radio with sometimes a
variation in volume.
Once the digital signal is restored, the
system automatically changes back to
"DAB".
Digital radio provides higher quality
reception.
The different multiplexes offer a
choice of radio stations arranged in
alphabetical order.
If the "DAB" station being listened to
is not available on "FM" ("
DAB-FM
"
option greyed out), or "DAB/FM auto
tracking" is not activated, the sound
will cut out while the digital signal is too
weak.
Select "
Radio settings
".
Select "
General
".
Activate / Deactivate "
Station
follow
".
Press "
OK
".
DAB radio (Digital Audio Broadcasting)
Terrestrial Digital Radio
66
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Media
USB port
Selecting the source
Select "
Source
".
Press
Radio Media
to display the
primary page.
The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a USB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.
Insert the USB memory stick into the USB port
or connect the USB device to the USB port
using a suitable cable (not supplied).
Auxiliary (AUX) socket
First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.
This source is only available if "Auxiliary input"
has been checked in the audio settings.
(depending on equipment)
Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).
Choose the source.
Bluetooth
®
Bluetooth
®
Bluetooth
audio streaming
®
audio streaming
®
Streaming allows you to listen to music from
your telephone.
The Bluetooth profile must be activated. First
adjust the volume on your portable device (to a
high level).
Then adjust the volume of your audio system.
If play does not start automatically, it may be
necessary to start the audio playback from the
telephone.
Control is from the portable device or by using
the system's touch buttons.
Once connected in streaming mode,
the telephone is considered to be a
media source.
To protect the system, do not use a
USB hub.
CD player
(depending on equipment)
Insert the CD in the player.
67
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Connecting Apple
®
Connecting Apple
®
Connecting Apple
players
®
players
®
Connect the Apple
®
player to the USB port
®
player to the USB port
®
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts).
The default classification used is by
artist. To modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.
The version of software in the audio system
may not be compatible with the generation of
your Apple
®
player.
®
player.
®
The audio equipment will only play audio
files with ".wma, .aac, .flac, .ogg and .mp3"
file extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4,...) can be played.
".wma" files must be of the standard wma 9 type.
The sampling rates supported are 32, 44 and
48 KHz.
In order to be able to play a burned CDR or
CDRW, when burning it is preferable to select
standards ISO 9660 level 1, 2 or Joliet.
If the disc is burned in another format, it may
not be played correctly.
It is recommended that the same burning
standard is always used on an individual disc,
with as low a speed as possible (4x maximum)
for the best sound quality.
In the particular case of a multi-session CD,
the Joliet standard is recommended.
It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.
Information and advice
Use only USB memory sticks formatted FAT 32
(file allocation table).
The system supports USB mass
storage devices, BlackBerry
®
devices
®
devices
®
or Apple
®
players via USB ports. The
®
players via USB ports. The
®
adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied) or via Bluetooth streaming,
depending on compatibility.
It is recommended that the original USB
cable for the portable device is used.
To protect the system, do not use a
USB hub.
68
12:1318,5 21,523 °C
12:1318,5 21,523 °C
4
1
1
8
14
5
3
9
12
6
2
10
7
11
13
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Telephone
According to version
Level 1
Level 2
Level 3
69
.
14
12
13
3
2
5
6
7
4
8
9
10
11
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Telephone
Bluetooth
Contact
All
View contacts according to presentation choices.
Select a contact or a favourite saved in the
system via the profile selected to start the call.
Telephone
Address
Favourites
Sort the contacts by Surname-First name or First
name-Surname.
Update the contacts from the telephone.
Search
Search for a contact in the directory.
Create
Telephone
Create a new contact in the system.
Address
Email
Telephone
Bluetooth
Calls
All
View calls according to choice of presentation.
Select a contact to start the call.
Incoming
Outgoing
Missed
View details for the contact.
70
19
20
21
22
1
15
16
17
18
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
71
.
1
1
1
19
20
21
22
15
16
17
18
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Comments
Telephone
OPTIONS
Bluetooth
connection
All
Display all telephones detected and saved.
Connected
Display all connected telephones.
Search
Start the search for a device to connect.
Telephone
OPTIONS
Messages
All
Display messages according to the choice made.
Received
Sent
Telephone
OPTIONS
Email
Received
Display emails according to the choice made.
Sent
Not read
Mailbox
72
23
27
24
28
25
29
26
30
1
23
24
25
26
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
73
.
1
1
27
28
29
30
23
24
25
26
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Comments
Telephone
OPTIONS
Settings
Security
Make driving safe.
Voicemail
Enter and save the number for the telephone
voicemail.
Ringtone
Adjust the ringtone volume.
Statistics
Display data for the telephone connected.
Save the options.
Telephone
OPTIONS
Quick messages
Delayed
Select a quick message from the categories, as
required.
My arrival
Not available
Other
74
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Pairing a Bluetooth
®
Pairing a Bluetooth
®
Pairing a Bluetooth
telephone
®
telephone
®
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with theBluetooth hands-free
system of your audio system must be
done with the
vehicle stationary
and
the ignition on.
Procedure from the telephone
Select the system name in the list of
devices detected.
In the system, accept the connection request
from the telephone.
Procedure from the system
Press on
Telephone
to display the
primary page.
Press on "
Bluetooth search
".
Select "
Search
".
The list of telephones detected is
displayed.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
"Bluetooth" function in your telephone.
The system offers to connect the telephone
with 3 profiles:
-
Telephone
(hands-free kit, telephone
only),
-
Streaming
(wireless play of audio files on
the telephone),
-
Mobile internet data
.
Depending on the type of telephone,
you may be asked to accept or not
the transfer of your contacts and
messages.
Select the name of the chosen
telephone in the list.
Press "
OK
" to confirm.
Select one or more profiles.
Or
Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).
To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.
The "
Mobile internet data
" profile
must be activated for connected
navigation, having first activated
sharing of the connection on your
smartphone.
Connection sharing
75
.
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Press
Telephone
to display the
primary page.
Select "
Bluetooth connection
" to
display the list of paired devices.
On return to the vehicle, if the last
telephone connected is present again,
it is automatically recognised and
within about 30 seconds of switching
on the ignition, the connection is
established without any action on your
part (Bluetooth activated).
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used. Check in your telephone's
manual and with your service provider
for the services available to you.
The ability of the system to connect
with just one profile depends on the
telephone.
All three profiles may connect by default.
Go to the Brand's website for more information
(compatibility, additional help, ...).
To modify the connection profile
:
Automatic reconnection
Press the "details" button.
Press the "
OPTIONS
" button to go to
the secondary page.
Press "
OK
" to confirm.
Select one or more profiles.
The profiles compatible with the system
are HFP, OPP, PBAP, A2DP, AVRCP,
MAP and PAN.
76
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted
TEL
button to accept an
incoming call.
Make a long press
on the steering mounted
TEL
button
to reject the call.
Or
And
Select "
End call
".
Press on the name of the telephone
chosen in the list to disconnect it.
Press again to connect it.
Select the basket at top right of the
screen to display a basket alongside
the telephone chosen.
Press the basket alongside the
telephone chosen to delete it.
Managing paired telephones
This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.
Press
Telephone
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Bluetooth connection
" to
display the list of paired peripheral
devices.
Deleting a telephone
77
.
2
3
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
on the steering mounted button.
Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.
Making a call
Calling a new number
Press
Telephone
to display the
primary page.
Enter the phone number using the
digital keypad.
Press "
Call
" to start the call.
Calling a contact
Press
Telephone
to display the
primary page.
Or make a long press
on the steering mounted
TEL
button.
Select "
Contact
".
Select the desired contact from the list offered.
Select "
Call
".
Calling a recently used number
Press
Telephone
to display the
primary page.
Make a long press
Select "
Calls
".
Select the desired contact from the list offered.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Or
78
2
12
13
14
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
The access to "
Messages
" depends on
the compatibility of the smartphone and
the integral system.
Depending on the smartphone, access
to your messages or email may be
slow.
Managing messages
The "
Email
" function allows email
addresses to be entered for a contact,
but the system is not able to send
emails.
Managing contacts / entries
Press
Telephone
to display the
primary page.
Select "
Contact
".
Select "
Create
" to add a new contact.
In the "
Telephone
" tab, enter the
telephone numbers for the contact.
In the "
Address
" tab, enter the
addresses for the contact.
In the "
Email
" tab, enter the email
addresses for the contact.
Press "
Answer
" to send a quick
message stored in the system.
Press
Telephone
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Messages
" to display the list
of messages.
Select the "
All
" or "
Received
" or
"
Sent
" tab.
Select the detail of the message
chosen in one of the lists
Press "
Call
" to start the call.
Press "
Play
" to hear the message.
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used.
Check in the manual for your
smartphone and with your service
provider for the services available to
you.
79
.
1
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Managing email
Press
Telephone
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Email
" to display the list of
messages.
Select the "
Received
" or "
Sent
" or
"
Not read
" tab.
Select the email chosen in the list.
Press "
Play
" to start playing the
email.
Access to "
Email
" depends on the
compatibility of the smartphone and the
integral system.
Managing quick messages
Press
Telephone
to display the
primary page.
Press on the "
OPTIONS
" button to
go to the secondary page.
Select "
Quick messages
" to display
the list of messages.
Select the "
Delayed
" or "
My arrival
"
or "
Not available
" or "
Other
" tab
with the possibility of creating new
messages.
Select the message chosen in one of
the lists.
Press "
Create
" to write a new
message.
Press "
Transfer
" to select the
addressee(s).
Press "
Play
" to start playing the
message.
80
12:1318,5 21,523 °C
1
2
3
3
4
4
5
5
6
6
7
7
3
4
5
6
7
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Settings
According to version
Level 1
Level 2
81
.
2
5
6
7
3
4
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Settings
Color schemes
Color schemes: 1,2,3, ...
Having chosen the color scheme, save the
setting.
Settings
Audio settings
Ambience
Select the sound ambience.
Distribution
Sound distribution by the Arkamys
©
system.
©
system.
©
Sound
Adjust the volume or activate linked to speed.
Voice
Adjust the voice volume.
Ringtone
Adjust the ringtone volume.
Save the settings.
Settings
Turn off screen
Function allowing the display to be switched off.
Pressing the screen reactivates it.
Settings
Profile (1, 2, 3)
Activate the profile selected.
82
1
15
16
15
16
9
8
10
11
12
13
14
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
83
.
1
15
16
1
1
11
12
13
14
9
8
10
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
Comments
Settings
OPTIONS
System
settings
Units
Distance and fuel
consumption
Set the units used for distance, fuel consumption
and temperature.
Temperature
Factory settings
Reinitialize
Restore the factory settings.
System info
View
View the versions of the different modules
(system, mapping, risk areas) installed in the
system as well as the updates available.
Save the settings.
Settings
OPTIONS
Languages
All
Select the language then confirm.
Europe
Asia
America
Having selected the language, save the setting.
Settings
OPTIONS
Screen configuration
Animation
Activate or deactivate settings.
Brightness
Move the cursor to adjust the brightness of the
screen and/or of the instrument panel.
Save the settings.
84
1
17
18
19
20
21
22
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
85
.
1
17
18
1
1
20
19
21
22
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Level 2
Level 3
Level 4
Comments
Settings
OPTIONS
Setting
the time-date
Date
Date
Enter the date and select the date format.
Date format:
Time
Time
Set the time.
Time Zone
Define the time zone.
Time format:
Select the time format: 12h / 24h.
Synchronisation with
GPS (UTC):
Activate or deactivate synchronisation with the
satellites.
Save the settings.
Settings
OPTIONS
Setting of the
profiles
Profile 1
Enter settings for the profiles.
Profile 2
Profile 3
Common profile
Save the settings.
Settings
OPTIONS
Driver screen
configuration
Personalisation of the
dashboard
Choose and select the display information
required on the dashboard.
Confirm the selections.
86
3
4
5
6
7
1
19
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Profile settings
Audio settings
Press
Settings
to display the primary
page.
Select "
Audio settings
".
Select "
Ambience
"
Or
"
Position
"
Or
"
Sound
"
Or
"
Voice
"
Or
"
Ringtone
".
On-board audio: Arkamys
©
Sound
©
Sound
©
Staging optimises the distribution of
sound in the passenger compartment.
The settings for "
Position
" (All
passengers, Driver and Front only) are
common to all sources.
Activate or Deactivate "
Touch tones
",
"
Volume linked to speed
" and
"
Auxiliary input
".
The sound distribution (or spatialisation
with the Arkamys
©
system) is audio
processing that allows the quality of the
sound to be adapted according to the
number of passengers in the vehicle.
Available only with the front and rear
speakers configuration.
The audio
Ambience
settings
(6 ambiences available) as well as the
Bass
,
Medium
and
Treble
settings
are different and independent for each
sound source.
Activate or Deactivate "
Loudness
".
Press "
OK
" to save the settings.
Press "
OK
" to confirm.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Profile 1
", "
Profile 2
",
"
Profile 3
" or "
Common profile
".
Select "
Setting of the profiles
".
Press this button to enter a name for
the profile using the virtual keypad.
As a safety measure and because it
requires the sustained attention of the
driver, changes to settings must only be
done with the
vehicle stationary
.
vehicle stationary . vehicle stationary
87
.
3
2
4
5
6
7
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Select a "
Profile
" (1 or 2 or 3) to
associate the "
Audio settings
" with
it.
Select "
Audio settings
".
Select "
Ambience
".
Or
"
Distribution
".
Or
"
Sound
".
Or
"
Voice
".
Or
"
Ringtone
".
The location for the photograph is
square; the system deforms the original
photograph if in another format.
Initialisation of the profile selected
activates the English language by default.
Press "
OK
" to save the settings.
Press "
OK
" to accept the transfer of
the photograph.
Press "
OK
" again to save the
settings.
Press this button to add a photograph
to the profile.
Insert a USB memory stick containing
the photograph in the USB port.
Select the photograph.
Press this button to initialise the
profile selected.
88
1
1
1
8
9
10
15
16
1
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
System settings
".
Select "
Screen configuration
".
Select "
Units
" to change the units
for distance, fuel consumption and
temperature.
Select "
Languages
" to change the
language.
Activate or deactivate "
Automatic
scrolling
".
Move the cursor to adjust the
brightness of the screen and/or of the
instrument panel.
Select "
Factory settings
" to return
to the initial settings.
Select "
System info
" to display the
versions of the different modules
installed in the system.
Modifying system settings
Returning the system to factory settings
activates the English language by
default.
Select "
Animation
".
Select "
Brightness
".
Select the language
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Setting the time-date
".
Setting the date
89
.
1
17
18
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Press the "
OPTIONS
" button to go to
the secondary page.
Select "
Date
".
Select "
Time
".
Select "
Setting the time-date
".
Adjustment of the time and date is only
available if "GPS synchronisation" is
deactivated.
The change between winter and
summer time is done by changing the
time zone.
The system does not automatically
manage the change between winter
and summer time (depending on
country).
Setting the time
Press this button to define the date.
Press this button to adjust the time
using the virtual keypad.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
Press "
OK
" to confirm.
Press this button to define the time
zone.
Select the display format of the date.
Select the display format for the time
(12h / 24h).
Activate or deactivate
synchronisation with the satellites
(UTC).
Every time the color scheme is
changed, the system restarts,
temporarily displaying a black screen.
As a safety measure, the procedure
for changing the color scheme is only
possible with the vehicle stationary.
Press
Settings
to display the primary
page.
Select "
Color schemes
".
Select a color scheme in the list then
press "
OK
" to confirm.
Color schemes
90
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
The following table groups together the answers to the most frequently asked questions concerning your audio system.
QUESTION
ANSWER
SOLUTION
The route calculation is not
successful.
The route settings may conflict with the current location (exclusion of
toll roads on a toll motorway).
Check the route settings in the "Navigation"
menu.
The POIs do not appear.
The POIs have not been selected.
Select the POIs in the list of POIs.
The audible warning of
"Danger areas" does not
work.
The audible warning is not active.
Activate audible warnings (without the possibility
of adjusting the volume) in the "Navigation" menu.
The system does not
suggest a detour around an
incident on the route.
The guidance criteria do not take account of TMC messages.
Select setting for the "Traffic info" function in
the list of route settings (Without, Manual or
Automatic).
I receive a "Danger area"
alert which is not on my
route.
Other than guidance, the system announces all "Danger areas"
positioned in a cone located in front of the vehicle. It may provide an
alert for "Danger areas" located on nearby or parallel roads.
Zoom in on the map to view the exact position of the
"Danger area". Select "On the route" to no longer
receive alerts other than navigation instructions or
to reduce the time for the announcement.
Frequently asked questions
Navigation
91
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
Certain traffic jams along
the route are not indicated
in real time.
On starting, it is several minutes before the system begins to receive
the traffic information.
Wait until the traffic information is being received
correctly (display of the traffic information icons
on the map).
In certain countries, only major routes (motorways...) are listed for
the traffic information.
This phenomenon is normal. The system is
dependent on the traffic information available.
The altitude is not
displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly.
Wait until the system has started up completely so
that there is GPS coverage by at least 4 satellites.
Depending on the geographical environment (tunnel...) or the
weather, the conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
92
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Radio
QUESTION
ANSWER
SOLUTION
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode.
This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Have the aerial checked by a franchised dealer.
I cannot find some radio
stations in the list of
stations received.
The station is not received or its name has changed in the list.
Press on the "Update list" button in the "Radio
stations" secondary menu.
Some radio stations send other information in place of their name
(the title of the song for example).
The system interprets this information as the name of the station.
The name of the radio
station changes.
93
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
Media
QUESTION
ANSWER
SOLUTION
Playback of my USB
memory stick starts only
after a very long wait
(around 2 to 3 minutes).
Some files supplied with the memory stick may greatly slow down
access to reading the memory stick (multiplication by 10 of the
catalogue time).
Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
The CD is ejected
automatically or is not
played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player does not recognise.
Check that the CD is inserted in the player the
right way up.
Check the condition of the CD: the CD cannot be
played if it is too badly damaged.
Check the content in the case of a recorded CD:
refer to the advice in the "AUDIO" section.
The audio system's CD player does not play
DVDs.
Some recorded CDs will not be played by the
audio system because they are not of adequate
quality.
The CD has been recorded in a format that is not compatible with the player (udf, ...).
The CD is protected by an anti-pirating protection system which is
not recognised by the audio system.
There is a long waiting
period following the insertion
of a CD or connection of a
USB memory stick.
When a new medium is inserted, the system reads a certain
amount of data (directory, title, artist, etc.). This may take from a few
seconds to a few minutes.
This phenomenon is normal.
The CD player sound is
poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are
unsuitable.
Set the treble or bass level to 0, without selecting
an ambience.
94
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
I cannot connect my
Bluetooth telephone.
The telephone's Bluetooth function may be switched off or the
telephone may not be visible.
Check that your telephone's Bluetooth function is
switched on.
Check in the telephone settings that it is "visible
to all".
The Bluetooth telephone is not compatible with the system.
You can check the compatibility of your telephone
at the Brand's website (services).
The volume of the
telephone connected
in Bluetooth mode is
inaudible.
The volume depends both on the system and on the telephone.
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of telephone
communication.
Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, ...).
Telephone
QUESTION
ANSWER
SOLUTION
Some characters in the
media information are not
displayed correctly while
playing.
The audio system does not display some types of characters.
Use standard characters to name tracks and
folders.
Playing of streaming files
does not start.
The peripheral device connected does not support automatic play.
Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio.
The Bluetooth profile does not allow the transfer of this information.
95
.
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
Some contacts are
duplicated in the list.
The options for synchronizing contacts are synchronizing the
contacts on the SIM card, the contacts on the telephone, or both.
When both synchronizations are selected, some contacts may be
duplicated.
Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order.
Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order.
Modify the display setting in the telephone
directory.
The system does not receive
SMS text messages.
The Bluetooth mode does not permit sending SMS text messages to
the system.
QUESTION
ANSWER
SOLUTION
In changing the setting
of treble and bass the
equalizer setting is
deselected.
The selection of an equalizer setting imposes the settings for treble
and bass and vice-versa.
Modify the treble and bass or equalizer settings
to obtain the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected.
The selection of a distribution setting imposes the balance settings
and vice-versa.
Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing an
distribution setting,
the balance setting is
deselected.
Settings
96
Audio and Telematics
Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
There is a difference in
sound quality between the
different audio sources.
For optimum sound quality, the audio settings can be adapted to
the different sound sources, which may result in audible differences
when changing source.
Check that the audio settings are adapted to the
sources listened to. Adjust Balance, Treble, Bass
to the middle position, select the "None" musical
ambience and set the loudness correction to the
"Active" position in CD mode or to the "Inactive"
position in radio mode.
With the engine off, the
system switches off after a
few minutes of use.
When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
The date and time cannot
be set.
Setting of the date and time is only available if the synchronisation
with the satellites is deactivated.
Settings menu / Options / Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).
97
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
PEUGEOT Connect Radio
Multimedia audio system - Applications - Bluetooth
®
Multimedia audio system - Applications - Bluetooth
®
Multimedia audio system - Applications - Bluetooth
telephone
®
telephone
®
Contents
First steps 98
Steering mounted controls - Type 1 100
Steering mounted controls - Type 2 101
Menus 102
Applications 104
Radio Media 112
Telephone 124
Settings 138
Frequently asked questions 149
The system is protected in such a way
that it will only operate in your vehicle.
The display of the Energy Economy
Mode message signals that a change
to standby is imminent.
The different functions and settings
described vary according to the version
and configuration of your vehicle.
The link below gives access to OSS
(Open Source Software) codes for the
system.
http://www.psa-peugeot-citroen.com/oss
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
98
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
First steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.
Volume.
Use the buttons either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen. All
of the touch areas of the screen are white.
Press in the grey zone to go back a level or
confirm.
Press the back arrow to go back a level or
confirm.
The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (spectacles cloth) with
no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.
99
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Select the audio source (depending on
version):
- FM / DAB * / AM * stations.
- Telephone connected by Bluetooth * and
using Bluetooth * audio streaming.
- CD player.
- USB memory stick.
- Media player connected to the auxiliary
socket (Jack, cable not supplied).
* Depending on equipment.
Certain information is displayed permanently in
the upper band of the touch screen:
- Reminder of the air conditioning
information, and direct access to the
corresponding menu.
- Reminder of the Radio Media and
Telephone menu information.
- Access to the Settings of the touch screen
and digital instrument panel.
In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes
The return to normal takes place when
the temperature in the passenger
compartment has dropped.
In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with the
possibility of entering a multitude of
settings (radio presets, audio settings,
ambiences, ...); these settings are
taken into account automatically.
100
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Steering mounted controls - Type 1
Radio
:
Short press: display the list of radio
stations.
Long press: update the list.
Media
:
Short press: display the list of folders.
Long press: display the sorting
options.
Decrease volume.
Radio
:
Select the previous / next preset
radio station.
Select the previous / next item in a
menu or a list.
Media
:
Select of the previous / next track
Select the previous / next item in a
menu or a list.
Mute / Restore sound by
simultaneously pressing the increase
and decrease volume buttons.
Change audio source (Radio; USB;
AUX (if a device is connected); CD;
Streaming)
Confirm a selection.
Increase volume.
101
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Media
(short press): change the
multimedia source.
Telephone
(short press): call.
Call in progress
(short press):
access to telephone menu.
Telephone
(long press): reject an
incoming call, end call, access to
telephone menu.
Decrease volume.
Voice commands
:
Short press, smartphone voice
commands via the system.
Mute/ Restore the sound.
Or
Mute by pressing the volume
increase and decrease buttons
simultaneously.
Restore the sound by pressing one of
the two volume buttons.
Radio
(rotate): previous / next preset.
Media
(rotate): previous / next track,
move in a list.
Short press
: confirm a selection;
other than selection, access to
presets.
Radio
: display the list of stations.
Media
: display the list of tracks.
Radio
(press and hold): update the
list of stations received.
Increase volume.
Steering mounted controls - Type 2
102
21,518,5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Menus
Radio Media
Applications
Select an audio source or radio station.
Access configurable equipment.
Air conditioning
Manage the different temperature and air flow
settings.
Navigation
Configure the guidance and select your
destination via MirrorLink
TM
or CarPlay
®
.
According to version.
103
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Settings
Driving
Telephone
Configure a personal profile and/or configure
the sound (balance, ambience, ...) and the
display (language, units, date, time, ...).
Activate, deactivate or configure certain vehicle
functions.
Connect a telephone by Bluetooth
®
.
Operate certain applications on a smartphone
connected via MirrorLink
TM
or CarPlay
®
.
104
1
2
2
3
3
4
4
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Applications
According to version / according to equipment.
105
.
2
3
4
4
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Applications
Scented air
freshener
Select the fragrance.
OFF
Deactivate the scented air freshener.
Low
Adjust the intensity of diffusion of the fragrance.
Medium
High
Confirm the selection and the settings.
Applications
Temperature
conditioning
State
Activate/deactivate the temperature conditioning.
Settings
Configure the pre-conditioning
Save the parameters.
Confirm the settings.
Applications
i-Cockpit Amplify
Relax
Select an ambience combining each of the
equipment pre-sets and/or save it in a user profile.
Boost
Profile management
i-Cockpit Amplify
Relax
Select an ambience combining each of the
equipment pre-sets and/or save it in a user profile.
Boost
Profile management
106
1
7
8
6
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
107
.
1
6
7
8
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Applications
Trip computer
Instant
System providing information about the current
journey (range, consumption…).
Trip 1
Trip 2
Go to the Applications page.
Applications
Photos
Photo gallery
Photos
Go to the photo gallery.
Go back a level.
Applications
OPTIONS
Bluetooth connection
Search
Start the search for a device to be connected.
Delete
Delete one or more devices.
108
9
13
12
11
10
14
4
4
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
According to equipment
109
.
13
12
10
11
9
14
4
4
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Applications
i-Cockpit Amplify
Relax
Boost
OR
i-Cockpit Amplify
Relax
Boost
Settings
Fragrance
Select a fragrance.
Lighting
Adjust the intensity of the ambience lighting.
Ambience
Adjust the sound ambience.
Driver massage
Select and configure the driver massage.
Passenger Massage
Select and configure the passenger massage.
Dynamic
Set the driving mode.
Save settings
Save the settings.
Reset the mode
Reset the ambience parameters.
Confirm the selections and settings.
Deactivate
Deactivate the "i-Cockpit Amplify function.
Profile management
Profile 1
Configure the profiles.
Profile 2
Profile 3
Common profile
Save the settings.
Confirm the selections and settings.
111
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Insert a USB memory stick in the USB port.
The system can read folders and image files in
the formats: .tiff; .gif; .jpg/jpeg; .bmp; .png.
Viewing photos
Press
Applications
to display the
primary page.
Press "
Photos
".
Select a folder.
Press this button to display the
details of the photo.
Press the back arrow to go back a
level.
Select an image to view.
To protect the system, do not use a
USB hub.
112
2
1
3
4
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Radio Media
According to version
Level 1
Level 2
113
.
1
2
3
4
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Radio Media
SOURCES
Radio
Select change of source.
Bluetooth
CD
AUX
USB
iPod
Radio Media
Frequency
FM / DAB / AM
Display the current radio station.
Radio Media
List
Update the list according to the stations received.
Preset
Make a short press to preset the station.
Radio Media
Preset
Select a preset station or preset a station.
Radio Media
OPTIONS
AM band / DAB band / FM band
Press the Band button to change waveband.
Audio settings
Configure the audio settings.
News
Activate or deactivate the options.
TA
RDS
FM-DAB Follow-up
Radio Media
87.5 M Hz
Enter a frequency of the FM and AM bands on the
virtual keypad.
114
1
2
3
4
5
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
115
.
1
1
1
2
3
4
5
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Radio Media
SOURCES
Radio
Frequency
Display the current radio station.
List
Display the list of stations received.
Preset
Select a preset station or preset a station.
OPTIONS
FM band / DAB band /
AM band
Press the band button to change band.
Audio settings
Configure the audio settings.
News
Activate or deactivate the options.
TA
RDS
FM-DAB Follow-up
Radio Media
SOURCES
Bluetooth
OPTIONS
Audio settings
Configure the audio settings.
Radio Media
SOURCES
CD
Display the details of the music being played.
OPTIONS
Audio settings
Configure the audio settings.
116
1
5
5
6
7
8
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
117
.
1
1
6
7
5
5
8
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Radio Media
SOURCES
AUX
OPTIONS
Audio settings
Configure the audio settings.
Radio Media
SOURCES
USB
Player
Display the details of the music being played.
Tracks list
Display the current selection.
Library
Display the music library.
OPTIONS
Audio settings
Configure the audio settings.
118
4
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Press
Radio Media
to display the
menu.
Press
Radio Media
to display the
primary page.
Press the frequency.
Enter the FM and AM waveband
values using the virtual keypad.
Press one of the buttons for an
automatic search for radio stations.
Radio
Selecting a station
Radio reception may be affected by
the use of electrical equipment not
approved by the Brand, such as a USB
charger connected to the 12V socket.
The exterior environment (hills,
buildings, tunnel, car park, below
ground...) may prevent reception,
even in RDS station tracking mode.
This phenomenon is normal in the
propagation of radio waves and is in no
way indicative of a fault with the audio
system.
Or
Or
Or
Move the cursor for a manual search
for frequencies up or down.
Select a radio station or frequency.
Select a radio station or frequency.
Press "
Preset
".
Press the "
OPTIONS
" button to go to
the secondary page.
Make a short press on the star
outline. If the star is solid, the radio
station is already preset.
Make a long press on one of the
buttons to preset the station.
Press "
Band
" to change waveband.
Press in the grey zone to confirm.
Preset a station
Changing waveband
Press "
OK
" to confirm.
119
.
5
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Press in the grey zone to confirm.
Press in the grey zone to confirm.
Press in the grey zone to confirm.
Press
Radio Media
to display the
primary page.
Press
Radio Media
to display the
primary page.
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Activate/deactivate "
RDS
".
Activate / Deactivate "
News
".
Activate / Deactivate "
TA
".
TA ". TA
Activate/ Deactivate RDS
RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.
The "Radio Text" function allows
information transmitted by the radio
station and related to the station or the
song playing to be displayed.
Display text information
Play TA messages
The TA (Traffic Announcement)
function gives priority to TAalert
messages. To operate, this function
needs good reception of a radio station
that carries this type of message. While
traffic information is being broadcast,
the current media is automatically
interrupted so that the TA message can
be heard. Normal play of the media
previously playing is resumed at the
end of the message.
120
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Audio settings
Press
Radio Media
to display the
primary page.
Press "
Audio settings
".
On-board audio: Arkamys
©
Sound
©
Sound
©
Staging optimises the distribution of
sound in the passenger compartment.
The sound distribution (or spatialisation
with the Arkamys
©
system) is audio
©
system) is audio
©
processing that allows the quality of the
sound to be adapted according to the
number of passengers in the vehicle.
On the "
Tone
" tab, the
Ambience
audio
settings and
Bass
,
Medium
and
Treble
are different and independent for each
audio source.
On the "
Balance
" tab, the
All
passengers
,
Driver
and
Driver and Driver
Front only
settings are common to all sources.
On the "
Sound
" tab, activate or
deactivate "
Volume linked to speed
",
"
Auxiliary input
" and "
Touch tones
".
Press the "
OPTIONS
" button to go to
the secondary page.
Select the "
Tone
" or "
Balance
"
or "
Sound
" or "
Ringtones
" tab to
configure the audio settings.
Press the back arrow to confirm.
121
.
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
DAB radio (Digital Audio Broadcasting)
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
FM-DAB Follow-up
Terrestrial Digital Radio
"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
the "FM-DAB Follow-up" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).
If the "FM-DAB Follow-up" is activated,
there is a difference of a few seconds
when the system switches to "FM"
analogue radio with sometimes a
variation in volume.
Once the digital signal is restored, the
system automatically changes back to
"DAB".
Digital radio provides higher quality
reception.
The different multiplexes offer a
choice of radio stations arranged in
alphabetical order.
If the "DAB" station being listened
to is not available on "FM", or if the
"FM-DAB Follow-up" is not activated,
the sound will cut out while the digital
signal is too weak.
Activate / Deactivate "
FM-DAB
Follow-up
".
Press
Radio Media
to display the
primary page.
Press the "
OPTIONS
" button to go to
the secondary page.
Press "
Band
" to select "
DAB band
".
Press in the grey zone to confirm.
Press in the grey zone to confirm.
122
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Media
USB port
Selecting the source
Press the "
SOURCES
" button.
Press
Radio Media
to display the
primary page.
The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a USB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.
Insert the USB memory stick in the USB port or
connect the USB device to the USB port using
a suitable cable (not supplied).
Auxiliary socket (AUX)
First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.
This source is only available if "Auxiliary input"
has been checked in the audio settings.
Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).
Choose the source.
Bluetooth Streaming
®
Bluetooth Streaming
®
Bluetooth Streaming
Streaming allows you to listen to music from
your telephone.
The Bluetooth profile must be activated. First
adjust the volume on your portable device (to a
high level).
Then adjust the volume of your system.
If play does not start automatically, it may be
necessary to start the audio playback from the
smartphone.
Control is from the portable device or by using
the system's touch buttons.
Once connected in Streaming mode,
the smartphone is considered to be a
media source.
To protect the system, do not use a
USB hub.
123
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Connecting Apple
®
Connecting Apple
®
Connecting Apple
players
®
players
®
Connect the Apple
®
player to the USB port
®
player to the USB port
®
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts), you can also
use a classification structured in the
form of a library.
The default classification used is by
artist. To modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.
The version of software in the audio system
may not be compatible with the generation of
your Apple
®
player.
®
player.
®
The audio equipment will only play audio
files with ".wav, .wma, .aac, .ogg and .mp3"
file extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
".wma" files must be of the standard wma 9 type.
The sampling rates supported are 11, 22, 44
and 48 KHz.
It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.
In order to be able to play a burned CDR or
CDRW, select standards ISO 9660 level 1, 2 or
Joliet if possible when burning the CD.
If the disc is burned in another format, it may
not be played correctly.
It is recommended that the same burning
standard is always used on an individual disc,
with the lowest speed possible (4x maximum)
for the best acoustic quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.
Information and advice
Use only USB memory sticks formatted FAT32
(file allocation table).
The system supports USB Mass
Storage devices, BlackBerry
®
devices
®
devices
®
or Apple
®
players via USB ports. The
®
players via USB ports. The
®
adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied) or via Bluetooth streaming,
depending on compatibility.
It is recommended that the original USB
cable for the portable device is used.
To protect the system, do not use a
USB hub.
124
4
4
4
1
1
1
5
5
5
3
3
3
2
2
2
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Telephone
According to version
Level 1
Level 2
Level 3
125
.
1
2
3
4
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Telephone
Bluetooth
search
PHONE
Bluetooth connection
Search
Start the search for a device to be connected.
Delete
Delete one or more devices.
MirrorLink
Open the MirrorLink function.
CarPlay
Open the CarPlay function.
Telephone
Bluetooth
search
Keypad
Enter a telephone number.
Telephone
Bluetooth
search
Recent calls
All
View the calls according to the presentation
selected.
Select a contact to make the call.
Outgoing
Missed
Incoming
Telephone
Bluetooth
search
Contacts
Search
Confirm
Search for a contact in the contacts directory.
Telephone
Go to the details of the contact sheet.
126
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
127
.
5
5
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Telephone
OPTIONS
On hold (auto)
ON - OFF
Activate or deactivate the automatic placing on
hold of the current conversation.
Telephone
OPTIONS
Sort contacts by name
Sort contacts by first
name
Sort the contacts by Surname-first name or First
name-surname.
Telephone
OPTIONS
Ring volume
Adjust the volume of the ringtone.
128
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
MirrorLink
TM
smartphone connection
129
.
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM
technology to be displayed
in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between
the smartphone and the system to
work correctly, the smartphone must
be unlocked;
update the operating
system of your smartphone as
well as the date and time in the
smartphone and the system
.
For the list of eligible smartphones,
connect to the Brand's internet website
in your country.
The "MirrorLink
TM
" function requires
a compatible smartphone and
applications.
There may be a wait for the availability
of applications, depending on the
quality of your network.
When connecting a smartphone to
the system, it is recommended that
"Bluetooth
®
" be started on the smartphone
Depending on the smartphone, it may be
necessary to activate the "
MirrorLink
TM
MirrorLink
TM
MirrorLink
" function.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.
Connect the USB cable. The
smartphone charges when
connected by a USB cable.
Press "
MirrorLink
TM
" to start the
application in the system.
Once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to the MirrorLink
TM
technology.
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons
Telephone not connected by
Bluetooth
®
Bluetooth
®
Bluetooth
Telephone connected by Bluetooth
®
Telephone connected by Bluetooth
®
Telephone connected by Bluetooth
From the system, press "
Telephone
"
to display the primary page.
From the system, press "
Telephone
"
to display the primary page.
As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
Press the "
PHONE
" button to display
the secondary page.
Press "
MirrorLink
TM
" to start the
application in the system.
130
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
131
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Telephone
MirrorLink
TM
Go to or return to the applications already
downloaded to your smartphone and adapted to
the MirrorLink
TM
technology.
Go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up one
level.
"Home": go to or return to the "Car mode" page on
your smartphone.
Go to the primary page of the "Telephone" menu.
132
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
CarPlay
®
CarPlay
®
CarPlay
smartphone connection
®
smartphone connection
®
133
.
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the
vehicle
stationary
.
stationary . stationary
The synchronisation of a smartphone
allows applications on a smartphone that
are adapted to the CarPlay
®
technology
®
technology
®
to be displayed in the vehicle's screen,
having first activated the CarPlay
®
function in the smartphone.
As the principles and standards are
constantly changing,
it is recommended
that you keep your smartphone's
operating system updated
.
For the list of eligible smartphones, go
to the Brand's internet website in your
country.
Connect the USB cable. The
smartphone charges when
connected by a USB cable.
Connect the USB cable. The
smartphone charges when
connected by a USB cable.
From the system, press
Telephone
to display the CarPlay
®
interface.
®
interface.
®
Press "
CarPlay
" to display the
CarPlay
®
interface.
®
interface.
®
On connecting the USB cable, the
CarPlay
®
function deactivates the
®
function deactivates the
®
system's Bluetooth
®
mode.
®
mode.
®
From the system, press
Telephone
to display the primary page.
Press the "
PHONE
" button to go to
the secondary page.
Or
If the smartphone is already
connected by Bluetooth
®
.
You can go to the CarPlay
®
navigation at any time by pressing
the system's
Navigation
button.
134
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Pairing a Bluetooth
®
Pairing a Bluetooth
®
Pairing a Bluetooth
telephone
®
telephone
®
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the
vehicle stationary
and the ignition on.
Procedure from the telephone
Select the name of the system in the
list of devices detected.
In the system, accept the connection request
from the telephone.
Procedure from the system
Press
Telephone
to display the
primary page.
Press "
Bluetooth search
".
The list of telephones detected is
displayed.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
Bluetooth function in your telephone.
Depending on the type of telephone,
you may be asked to accept or not
the transfer of your contacts and
messages.
Select the name of the chosen
telephone in the list.
Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).
To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.
135
.
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Press
Telephone
to display the
primary page.
Press "
Bluetooth connection
" to
display the list of paired devices.
On return to the vehicle, if the last
telephone connected is present again,
it is automatically recognised and
within about 30 seconds of switching
on the ignition, the connection is
established without any action on your
part (Bluetooth activated).
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used. Check in your telephone's
manual and with your service provider
for the services available to you.
The ability of the system to connect
with just one profile depends on the
telephone.
All three profiles may connect by
default.
Go to the Brand's website for more information
(compatibility, additional help, ...).
To modify the connection profile :
Automatic reconnection
Press the "details" button of a paired
device.
Press the "
PHONE
" button to go to
the secondary page.
Press "
OK
" to confirm.
Select one or more profiles.
The profiles compatible with the system
are HFP, OPP, PBAP, A2DP, AVRCP,
MAP and PAN.
The system offers to connect the telephone
with 3 profiles:
- "
Telephone
" (hands-free kit, telephone
only),
- "
Streaming
" (wireless playing of the audio
files on the telephone),
- "
Internet data
".
136
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted
PHONE
button to accept an
incoming call.
Make a long press
on the steering mounted
PHONE
button to reject the call.
Or
And
Press "
End call
".
Press on the name of the telephone
chosen in the list to disconnect it.
Press again to connect it.
Press the basket at the top right
of the screen to display a basket
alongside the telephone chosen.
Press the basket alongside the
telephone chosen to delete it.
Managing paired telephones
This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.
Press
Telephone
to display the
primary page.
Press the "
PHONE
" button to go to
the secondary page.
Press "
Bluetooth connection
" to
display the list of paired peripheral
devices.
Deleting a telephone
Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.
Making a call
Calling a new number
Press
Telephone
to display the
primary page.
Enter the phone number using the
digital keypad.
Press "
Call
" to start the call.
137
.
4
3
5
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
on the steering mounted button.
Calling a contact
Setting the ringtone
Press
Telephone
to display the
primary page.
Or make a long press
on the steering mounted
PHONE
button.
Press "
Contacts
".
Select the desired contact from the list offered.
Press "
Call
".
Calling a recently used number
Press
Telephone
to display the
primary page.
Make a long press
Press "
Recent calls
".
Select the desired contact from the list offered.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Or
Press
Telephone
to display the
primary page.
Press "
Ring volume
" to display the
volume bar.
Press the arrows or move the cursor
to set the ring volume.
Press the "
OPTIONS
" button to go to
the secondary page.
138
3
4
1
2
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Settings
According to version / according to equipment
Level 1
Level 2
Level 3
139
.
1
2
3
4
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Settings
Brightness
Ambience
Move the cursor to adjust the brightness of the
screen and/or of the instrument panel.
Settings
Profiles
Profile 1
Select a profile.
Profile 2
Profile 3
Common profile
Name:
Profile name
modification
Configure the profiles.
Reset the profile
Yes / No
Profile activated
Activate/deactivate the profile selected.
Save the settings.
Settings
Dark
Function which switches off the lit display.
Pressing the screen reactivates it.
140
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
According to equipment
Level 1
Level 2
141
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Comments
Settings
Configuration
System configuration
Configure certain system parameters.
Ambience
Select an ambience for the screen integrated in
the system.
Language
Select the display language for the the screen
and/or the instrument panel.
Screen configuration
Set the configuration of the screen and/or the
instrument panel.
Customization
Configure the instrument panel for a personalised
display.
Date and time
Set the date and time and select the display
format.
142
6
5
7
8
9
10
11
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
143
.
6
5
7
8
9
10
11
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Settings
Configuration
System
configuration
Units
Distance and fuel
consumption
Configure the display units for the distance,
consumption and temperature.
Temperatures
Factory settings
Reset
Restore the original settings.
System info
View
Consult the version of the different modules
installed in the system.
Save the parameters.
Settings
Configuration
Ambience
Select an ambience for the screen integrated in
the system.
Confirm the selection and start the change of
ambience.
Settings
Configuration
Language
All
Select the display language for the screen and/or
the instrument panel.
Europe
Asia
America
Save the parameter.
144
14
15
14
15
12
13
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
145
.
12
13
14
15
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Level 1
Level 2
Level 3
Comments
Settings
Configuration
Screen
configuration
Brightness
Select the display brightness level.
Animation
Automatic scrolling
Activate or deactivate the parameters.
Animated transitions
Save the parameters.
Settings
Configuration
Temperature conditioning
Customization
Choose and select the display information
required.
Confirm
Confirm the selections.
Settings
Configuration
Date and time
Time
Time
Set the time.
Time Zone
Set the time zone.
AM
Select the display format.
12h
GPS Synchronisation
Activate or deactivate the synchronisation with the
satellites.
Save the settings.
Date
Date
Set the date and select the display format.
Setting the date
Save the settings.
146
1
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Profile settings
Adjust the brightness
Press "
OK
" to save.
Select "
Profile 1
" or "
Profile 2
" or
"
Profile 3
" or "
Common profile
".
Press "
Profiles
".
Press this button to enter a name for
the profile using the virtual keypad
As a safety measure and because it
requires the sustained attention of the
driver, changes to settings must only be
done with the
vehicle stationary
.
vehicle stationary . vehicle stationary
Press this button to activate the
profile.
Press this button to initialise the
profile selected.
Press
Settings
to display the primary
page.
Move the cursor to adjust the brightness
of the screen and/or of the instrument
panel (according to version).
Press
Brightness
.
Press in the grey zone to confirm.
Press the back arrow to confirm.
Press the back arrow again to
confirm.
147
.
5
6
7
12
13
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press
Settings
to display the primary
page.
Press "
Configuration
" to go to the
secondary page.
Press "
Configuration
" to go to the
secondary page.
Press "
Configuration
" to go to the
secondary page.
Press "
System configuration
".
Press "
Screen configuration
".
Press "
Units
" to change the units
for distance, fuel consumption and
temperature.
Select "
Language
" to change the
language.
Activate or deactivate: "
Automatic
scrolling
".
Select "
Animated transitions
".
Move the cursor to set the brightness
of the screen and/or instrument panel
(according to version).
Press "
Factory settings
" to return to
the initial settings.
Press "
System info
" to display the
versions of the different modules
installed in the system.
Modifying system settings
Returning the system to factory settings
activates the English language by
default (according to version).
Press "
Animation
".
Press "
Brightness
".
Select the language
Press the back arrow to confirm.
Press the back arrow to confirm.
Press the back arrow to confirm.
148
15
14
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Press
Settings
to display the primary
page.
Select "
Date
".
Select "
Time
".
Press "
Date and time
".
Adjustment of the time and date is only
available if "GPS Synchronisation:" is
deactivated.
The change between winter and
summer time is done by changing the
time zone.
The system does not automatically
manage the change between winter
and summer time (depending on the
country of sale).
Setting the time
Press this button to define the date.
Press this button to adjust the time
using the virtual keypad.
Press the back arrow to save the
date.
Press this button to define the time
zone.
Select the display format of the date.
Select the display format for the
time (12h / 24h).
Activate or deactivate
synchronisation with satellites (UTC).
Press
Settings
to display the primary
page.
Press "
Date and time
".
Setting the date
Press "
Configuration
" to go to the
secondary page.
Press "
Configuration
" to go to the
secondary page.
Press "
OK
" to save the time.
Press the back arrow to save the
settings.
Press the back arrow again to
confirm.
149
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Radio
QUESTION
ANSWER
SOLUTION
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the "RDS" function by means of the
upper band to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode.
This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Have the aerial checked by a franchised dealer.
I cannot find some radio
stations in the list of
stations received.
The station is not received or its name has changed in the list.
Press the round arrow on the "List" tab of the
"Radio" page.
Some radio stations send other information in place of their name
(the title of the song for example).
The system interprets this information as the name of the station.
The name of the radio
station changes.
Frequently asked questions
The following table groups together the answers to the most frequently asked questions concerning your audio system.
150
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
Media
QUESTION
ANSWER
SOLUTION
Playback of my USB
memory stick starts only
after a very long wait
(around 2 to 3 minutes).
Some files supplied with the memory stick may greatly slow down
access to reading the memory stick (multiplication by 10 of the
catalogue time).
Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
Some characters in the
media information are not
displayed correctly while
playing.
The audio system does not display some types of characters.
Use standard characters to name tracks and
folders.
Playing of streaming files
does not start.
The peripheral device connected does not support automatic play.
Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio.
The Bluetooth profile does not allow the transfer of this information.
151
.
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
I cannot connect my
Bluetooth telephone.
The telephone's Bluetooth function may be switched off or the
telephone may not be visible.
Check that your telephone's Bluetooth function is
switched on.
Check in the telephone settings that it is "visible
to all".
The Bluetooth telephone is not compatible with the system.
You can check the compatibility of your telephone
at the Brand's website (services).
The volume of the
telephone connected
in Bluetooth mode is
inaudible.
The volume depends both on the system and on the telephone.
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of telephone
communication.
Reduce the ambient noise level (close the
windows, reduce the booster fan speed, slow
down, ...).
Contacts are not shown in
alphabetical order.
Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order.
Modify the display setting in the telephone
directory.
Telephone
152
Audio and Telematics
Transversal-Peugeot_en_Chap02_RCC-2-2-0_ed01-2016
QUESTION
ANSWER
SOLUTION
In changing the setting
of treble and bass the
equalizer setting is
deselected.
The selection of an equalizer setting imposes the settings for treble
and bass and vice-versa.
Modify the treble and bass or equalizer settings to
obtain the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected.
The selection of a distribution setting imposes the balance settings
and vice-versa.
Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing a
distribution setting,
the balance setting is
deselected.
There is a difference in
sound quality between the
different audio sources.
For optimum sound quality, the audio settings can be adapted to
the different sound sources, which may result in audible differences
when changing source.
Check that the audio settings are adapted to the
sources listened to. Adjust the audio functions to
the middle position.
With the engine off, the
system switches off after a
few minutes of use.
When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
Settings
153
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Bluetooth
®
audio system
Contents
First steps 154
Steering mounted controls - Type 1 155
Steering mounted controls - Type 2 156
Menus 157
Radio 158
DAB (Digital Audio Broadcasting) radio 160
Media 162
Telephone 167
Frequently asked questions 172
Your audio system is coded in such
a way that it will only operate in your
vehicle.
All work on the system must be
carried out exclusively by a dealer or
qualified workshop, to avoid any risk of
electrocution, fire or mechanical faults.
To avoid discharging the battery, the
audio system may switch off after a few
minutes if the engine is not running.
The different functions and adjustments
described vary according to the version
and configuration of your vehicle.
As a safety measure and because it
requires the sustained attention of the
driver, the pairing of your Bluetooth
telephone to the Bluetooth hands-free
audio system must only be carried out
with the
vehicle stationary
and the
ignition on.
154
Audio and Telematics
First steps
Press: On / Off
Rotate: adjust volume.
Short press: change audio source
(Radio; USB; AUX (if a device is
connected); CD; Streaming).
Long press: display the
Telephone
menu (if a telephone is connected).
Radio
:
Short press: display the list of radio
stations.
Long press: update the list.
Media:
Short press: display the list of folders.
Long press: display the sorting
options.
Select the screen display mode,
between:
Date; Audio functions; Trip computer;
Telephone.
Adjust audio settings:
Front/rear fader; left/right balance;
bass/treble; loudness; audio
ambience.
Activation / Deactivation of automatic
volume adjustment (linked to the
speed of the vehicle).
Radio
:
Manual step by step search up /
down for radio stations.
Select previous / next MP3 track.
Media:
Select previous / next folder / genre /
artist / playlist on the USB device.
Scroll in a list.
Abandon the current operation.
Go up one level (menu or folder).
Confirm or display contextual menu.
Buttons 1 to 6.
Short press: select the preset radio
station.
Long press: preset a station.
Radio:
Automatic step by step search up /
down for radio stations.
Media:
Select previous / next CD, USB,
streaming track.
Scroll in a list.
Access to main menu.
Activate / Deactivate TA (traffic
announcements)
Long press: select type of announcement.
Select waveband: FM / DAB / AM.
155
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Steering mounted controls - Type 1
Radio
:
Short press: display the list of radio
stations.
Long press: update the list.
Media
:
Short press: display the list of folders.
Long press: display the sorting
options.
Decrease volume.
Radio
:
Select the previous / next preset
radio station.
Select the previous / next item in a
menu or a list.
Media:
Select of the previous / next track.
Select the previous / next item in a
menu or a list.
Mute / Restore sound by
simultaneously pressing the increase
and decrease volume buttons.
Other than telephone calls
:
Short press: change audio source
(Radio; USB; AUX (if a device is
connected); CD; Streaming), confirm
if the "
Telephone
" menu is open.
Long press: open the "
Telephone
"
menu.
In the event of a telephone call
:
Short press: accept the call.
Long press: reject the call.
During a telephone call:
Short press: open the contextual
telephone menu.
Long press: end the call.
Confirm a selection.
Increase volume.
156
Audio and Telematics
Steering mounted controls - Type 2
Decrease volume.
Mute / Restore sound.
Other than telephone call
:
Short press: change audio source
(Radio; USB; AUX (if a device is
connected); CD; Streaming), confirm
if the "
Telephone
" menu is open.
Long press: open the "
Telephone
"
menu.
In the event of a telephone call:
Short press: accept the call.
Long press: reject the call.
During a telephone call:
Short press: open the contextual
telephone menu.
Long press: end the call.
Increase volume.
Access to the main menu.
Start voice recognition of your
smartphone via the system.
Radio :
Short press: display the list of radio
stations.
Long press: update the list.
Media:
Short press: display the list of folders.
Long press: display the sorting
options.
Radio:
Select the previous / next preset
radio station.
Select the previous / next item in a
menu or a list.
Media:
Select the previous / next track.
Select the previous / next item in a
menu or a list.
Press the thumbwheel: confirm.
157
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Menus
"Multimedia
": Media settings, Radio
settings.
Depending on version.
Move from one menu to another.
Enter a menu.
"
Trip computer
".
"
Maintenance
": Diagnosis, Warning
log, ... .
"Connections
": Manage
connections, search for devices.
"
Telephone
": Call, Directory
management, Telephone
management, End call.
"
Personalisation-configuration
":
Define the vehicle settings, Choice
of language, Display configuration,
Choice of units, Date and time
adjustment.
Press the "
MENU
" button.
158
Audio and Telematics
RDS
Short procedure
Long procedure
The external environment (hills,
buildings, tunnels, basement car
parks, ...) may block reception,
including in RDS mode. This is a
normal effect of the way in which radio
waves are transmitted and does not
indicate any failure of the audio system.
Press the "
MENU
" button.
Select "
Audio functions
".
Press
OK
.
Select the "
FM waveband
preferences
" function.
Press
OK
.
Select "
RDS
".
Press
OK
, RDS is displayed in the
screen.
In "
Radio
" mode, press the
OK
button to
activate or deactivate RDS directly.
RDS, if activated, enables you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the country as radio stations
do not cover 100 % of the territory. This
explains the loss of reception of a station
that can occur during a journey.
If RDS is not available, the RDS symbol
appears barred in the screen.
Radio
Selecting a station
Press the
SOURCE
button
repeatedly and select the radio.
Press this button to select a
waveband (FM / AM / DAB).
Press one of the buttons to carry
out an automatic search for radio
stations.
Press one of the buttons to carry out
a manual search up / down for radio
frequencies.
Press this button to display the list of
stations received locally.
To update this list, press for more
than two seconds. The sound is cut
while updating.
159
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Receiving TA messages
Press the
TA
button to activate or
deactivate traffic messages.
The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
transmitting this type of message.
When a traffic report is transmitted, the
current audio source (Radio, CD, ...)
is interrupted automatically to play the
TA message. Normal playback of the
audio source resumes at the end of the
transmission of the message.
Take care when increasing the volume
while listening to TA messages. The
volume may prove too high on return to
the original audio source.
Select "
RadioText (TXT) display
"
and confirm
OK
to save.
Select or deselect categories.
With the radio displayed on the
screen, press
OK
to display the
contextual menu.
Make a long press on this button to
display the list of categories.
Receiving INFO messages
The INFO function gives priority to TA
traffic announcements. To be active,
this function needs good reception
of a radio station that transmits this
type of message. When a message is
transmitted, the current audio source
(Radio, CD, USB, ...) is interrupted
automatically to receive the INFO
message. Normal play resumes at the
end of the message transmission.
Radio text is information transmitted by
the radio station related to the current
programme or song.
Display RADIO TEXT
Activate or deactivate the reception of
the corresponding messages.
160
1
3
5
2
4
6
6 5 4 3
21
Audio and Telematics
Long press: select the desired
categories of announcements from
Transport, News, Entertainment and
Flash special (availability according
to the station).
Change of station within the same
"multiplex service".
Starting of a search for the previous /
next "multiplex service".
Change of band (FM1, FM2, DAB, ...)
Digital radio provides a superior audio
quality and also additional categories of
traffic announcements (TA INFO).
The different "multiplex services"
offer a choice of radio stations in
alphabetical order.
Terrestrial digital radio
DAB (Digital Audio Broadcasting) radio
Display options:
if active but not available, the display
will be struck out.
According to version
Preset radio station, buttons 1 to 6.
Short press: select the preset radio
station.
Long press: preset a radio station.
Display the name of the multiplex
service being used.
Display the list of all radio stations
and "multiplexes".
Represents the signal strength for
the band being listened to.
Display RadioText (TXT) for the
current radio station.
Display the name of the current radio
station.
If the current "DAB" radio station is not
available on "FM", "DAB FM" is struck
out.
When changing region, an update
of the list of preset radio stations is
advisable.
161
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Select "
Multimedia
" and confirm.
Select "
DAB / FM auto tracking
"
and confirm.
Press the "
MENU
" button.
When the radio station is displayed in
the screen, press on "
OK
" to display
the contextual menu.
(Frequency search (RDS), DAB / FM
auto tracking, RadioText (TXT) display,
Information on the station, ...)
DAB / FM tracking
"DAB" does not have 100% coverage of
the country.
When the digital signal is weak,
"DAB / FM auto tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding analogue "FM" station
(if there is one).
When "DAB / FM auto tracking" is
active, the DAB station will be selected
automatically.
If "DAB / FM auto tracking" is activated,
there will be a difference of a few
seconds in the programme when the
system changes to analogue "FM" radio,
with sometimes a variation in volume.
If the "DAB" station you are listening
to is not available on "FM" ("
DAB/FM
"
option barred), or if "DAB / FM auto
tracking" is not on, the sound will be cut
when the digital signal is too weak.
162
Audio and Telematics
Media
USB port
This unit consists of a USB port and an
auxiliary Jack socket, depending on version.
Insert a USB memory stick into the USB port
or connect a USB peripheral device to the USB
port using a suitable cable (not supplied).
The system changes automatically to "USB"
source.
The system creates playlists (temporary
memory), which can take from a few seconds
to several minutes on the first connection.
Reducing the number of non-music files and
the number of folders reduces this waiting
time. Playlists are updated every time a new
USB memory stick is connected.
Press this button to display the
contextual menu for the Media
function.
Press this button to select the play
mode.
Press this button to confirm.
Play mode
The play modes available are:
-
Normal
: the tracks are played in order,
depending on the classification of the
selected files.
-
Random
: the tracks in an album or folder
are played in a random order.
-
Random on all media
: all of the tracks
saved in the media are played in random
order.
-
Repeat
: the tracks played are only those
from the current album or folder.
The choice made is displayed at the top of the
screen.
While connected by USB, the portable
device may be charged automatically.
To protect the system, do not use a
USB hub.
Any additional equipment connected
to the system must conform to
the standard of the product or
standard IEC 60950-1.
163
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Choosing a track to play
F i l e c l a s s i fi c a t i o n
P l a y i n g fi l e s
Make a long press on this button to
display the different classifications.
Choose by "
Folder
" / "
Artist
" /
"
Genre
" / "
Playlist
" * .
Press
OK
to select the desired
classification, then press
OK
again
to confirm.
Make a long press on this button to
display the chosen classification.
Navigate in the list using the left /
right and up / down buttons.
Confirm the selection by pressing
OK
.
Press one of these buttons to go to
the previous / next track in the list.
Press and hold one of these buttons
for fast forward or fast back.
Press one of these buttons to go
to the next "
Folder
" / "
Artist
" /
"
Genre
" / "
Playlist
" * in the list.
* Depending on availability and the type of
device used.
Press one of these buttons to go to
the previous / next track.
Press one of these buttons to go to
the previous / next folder.
164
Audio and Telematics
Jack auxiliary (AUX) socket
Connect the portable device (MP3 player, …) to
the auxiliary Jack socket using an audio cable
(not supplied).
Press the
SOURCE
button several
times in succession and select
"
AUX
".
First adjust the volume on your portable device
(to a high level). Then adjust the volume on
your audio system. Operation of controls is via
the portable device.
Do not connect a device to both the
Jack auxiliary socket and the USB port
at the same time.
CD player
Insert circular compact discs only.
Some anti-pirating systems, on original discs
or CDs copied using a personal recorder, may
cause faults which are no reflection on the
quality of the vehicle's player.
Insert a CD in the player, play begins
automatically.
To play a disc which has already
been inserted, press the
SOURCE
button several times in succession
and select
CD
.
Press one of the buttons to select a
track on the CD.
Press the
LIST
button to display the
list of tracks on the CD.
Press and hold one of the buttons for
fast forward or fast back.
Playing an MP3 compilation
Insert an MP3 CD compilation in the player.
The audio equipment searches for all of the
music tracks, which may take anything between
a few seconds and several tens of seconds,
before play begins.
On a single disc, the CD player can
read up to 255 MP3 files spread
over 8 folder levels.
However, it is advisable to keep to a
limit of two levels to reduce the access
time before the CD is played.
While the CD is being played, the folder
structure is not followed.
All of the files are displayed on a single
level.
External CD players connected via the
USB port are not recognised by the
system.
Any additional equipment connected
to the system must conform to the
standard of the product or standard IEC
60950-1.
165
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
To play a disc which has already
been inserted, press the
SOURCE
button several times in succession
and select
CD
.
Press one of the buttons to select a
folder on the CD.
Press one of the buttons to select a
track on the CD.
Press the
LIST
button to display
the list of directories of the MP3
compilation.
Press and hold one of the buttons for
fast forward or backward play.
Bluetooth
®
Bluetooth
®
Bluetooth
audio streaming
®
audio streaming
®
Streaming allows music files on the telephone
to be played via the audio system.
Connect the telephone.
(Refer to the "
Pairing a telephone
" section).
Audio files can be selected using the buttons
on the audio system control panel and the
steering mounted controls ** . Contextual
information may be displayed in the screen.
Activate the streaming source by
pressing the
SOURCE
* button.
Connecting Apple
®
Connecting Apple
®
Connecting Apple
players
®
players
®
Connect the Apple
®
player to the USB port
®
player to the USB port
®
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the
portable device connected (artists / albums /
genres / playlists).
The version of software in the audio system
may not be compatible with the generation of
your Apple
®
player.
®
player.
®
* In certain cases, play of the audio files must
be initiated from the keypad.
** If the telephone supports the function. The
audio quality depends on the quality of
transmission by the telephone.
166
Audio and Telematics
The CD player can play files with .mp3, .wma,
.wav and .aac file extensions, with a bit rate of
of 32 to 320 Kbps.
It also supports TAG mode (ID3 tag, WMA
TAG).
Other file types (mp4, ...) may be played.
Files of the ".wma" type should be to the wma9
standard.
The sampling rates supported are 11, 22, 44
and 48 KHz.
Via the USB port, the system can play audio
files with the extension ".mp3, .wma, .wav, .cbr,
.vbr" with a bit rate of 32 to 320 Kbps.
No other file types (.mp4, ...) can be played.
Files of the ".wma" type should be to
the wma9 standard.
The sampling rates supported are 11, 22, 44
and 48 KHz.
File names should have less than 20 characters,
avoiding special characters (e.g.: " ? ; ù) so as to
avoid any reading or display problems.
In order to be able to play a recorded CDR or
CDRW, the ISO 9660 level 1.2 or Joliet file
format is recommended when recording.
If the disc is recorded in another format, it may
not be played correctly.
It is recommended that the same recording
format is always used for an individual disc,
with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the
Joliet format is recommended.
Information and advice
To protect the system, do not use a USB hub.
It is recommended that you use
genuine Apple
®
USB cables for correct
®
USB cables for correct
®
operation.
Use only USB memory sticks formatted
FAT32 (File Allocation Table).
167
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Telephone
Pairing a Bluetooth
®
Pairing a Bluetooth
®
Pairing a Bluetooth
telephone
®
telephone
®
As a safety measure and because it
requires the sustained attention of the
driver, the pairing of your a Bluetooth
telephone to the Bluetooth hands-free
audio system must only be carried out
with the v
ehicle stationary
and the
ignition on
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth telephone
used.
Refer to the instructions for your
telephone and to your service provider
for the services available to you.
Activate the telephone's Bluetooth
function and ensure that it is "visible to
all" (telephone configuration).
Go to the Brand's website for more
information (compatibility, more
help, ...).
* If your telephone is fully compatible.
The "
Telephone
" menu gives access to the
following functions in particular: "
Directory
" * ,
"
Calls list
", "
View paired devices
".
Depending on the type of telephone, you may
be asked to accept or confirm access by the
system to each of these functions.
If pairing fails, the number of attempts is not
restricted.
A message appears in the screen confirming
the pairing.
Procedure from the telephone
Completing the pairing
Procedure from the system
Select the name of the system in the
list of devices detected.
To complete the pairing, whichever
procedure is used (from the telephone
or from the system), check that the
code displayed in the system and the
telephone is the same and confirm.
Press the
MENU
button.
Select the "
Connections
" menu.
Confirm with
OK
.
A window is displayed with a search in progress
message.
In the list of devices detected, select a
telephone to pair. Only one telephone can be
paired at a time.
Confirm with
OK
.
Select "
Search for a Bluetooth
device
".
Information and advice
168
Audio and Telematics
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
The telephone connection
automatically includes hands-free
operation and audio streaming.
The ability of the system to connect
to just one profile depends on the
telephone. Both profiles may connect
by default.
A number indicates the profile of the
connection with the system:
- 1 for media or 1 for telephone.
- 2 for media and telephone.
When you delete a pairing in the
system, remember to delete it from your
telephone as well.
Indicates that a device is connected.
Indicates the audio streaming profile.
Indicates the hands-free telephone
profile.
Press the
MENU
button.
Managing connections
Select "
Connections
".
Select "
Connections management
"
and confirm. The list of paired
devices is displayed.
Select a telephone.
Then select and confirm:
- "
Connect telephone
" /
"
Disconnect telephone
":
to connect / disconnect the
telephone or the hands-free kit
only.
- "
Connect media player
" /
"
Disconnect media player
":
to connect / disconnect
streaming only.
- "
Connect telephone +
media player
" / "
Disconnect
telephone + media player
":
to connect / disconnect the
telephone (hands-free kit and
streaming).
- "
Delete connection
": to delete
the pairing.
169
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Select the "
YES
Select the " YES Select the "
" tab in the screen
using the buttons.
Confirm with
OK
.
Confirm with
OK
.
Press this button at the steering
mounted controls to accept the call.
Making a call
In the "
Telephone
" menu.
Select "
Call
".
Select "
Calls list
".
Select "
Dial
".
Or
Or
Select "
Directory
".
Press this button for more than two
seconds for access to your directory,
then navigate using the thumb wheel.
In the "
Telephone
" menu.
Select "
End call
".
Ending a call
During a call, press one of the
buttons for more than 2 seconds.
Confirm with
OK
to end the call.
The system accesses the telephone's
contacts directory, depending on its
compatibility, and while it is connected
by Bluetooth
With certain telephones connected by
Bluetooth, you can send a contact to
the directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
170
Audio and Telematics
During a call, press
OK
to display the
contextual menu.
In the contextual menu, select "
End
call
" to end the call.
Managing calls
Hang up
(so that the caller cannot hear)
In the contextual menu:
- select "
Micro OFF
" to switch off
the microphone.
- deselect "
Micro OFF
" to switch
the microphone on.
In the contextual menu:
- select "
Telephone mode
" to
transfer the call to the telephone
(for example, to leave the vehicle
while continuing a conversation).
- deselect "
Telephone mode
" to
transfer the call to the vehicle.
Microphone off
Telephone mode
If the contact has been cut off, when you
reconnect on returning to the vehicle,
the Bluetooth connection will be restored
automatically and sound returned to the
system (depending on the compatibility of the
telephone).
In some cases telephone mode must be
activated from the telephone.
From the contextual menu, select
"
DTMF tones
" and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
"
Switch
" and confirm to return to a
call left on hold.
Interactive voice response
Dual call
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
Confirm with
OK
.
171
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
To modify the contacts saved in the
system, press
MENU
then select
"
Telephone
" and confirm.
Select "
Directory management
"
and confirm.
You can:
- "
Consult an entry
",
- "
Delete an entry
",
- "
Delete all entries
".
Make a long press on
SRC/TEL
.
The system accesses the telephone's
contacts directory, depending on
its compatibility, and while it is
connected by Bluetooth.
With certain telephones connected
by Bluetooth you can send a contact
to the directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
Select "
Directory
" to see the list of
contacts.
Directory
Confirm with
OK
.
OR
Voice recognition
This function allows you to use your
smartphone's voice recognition via the system.
To start voice recognition, depending on the
type of steering mounted controls:
Make a long press on the end of the lighting
control stalk.
Press this button.
Voice recognition requires the use of a
compatible smartphone first connected
to the vehicle by Bluetooth.
172
Audio and Telematics
The table below gives answers to the most frequently asked questions on your audio system.
QUESTION
ANSWER
SOLUTION
With the engine off, the
audio system switches off
after a few minutes of use.
When the engine is switched off, the audio system operating time
depends on the state of charge of the battery.
The switch-off is normal: the audio equipment switches to economy
mode and switches off to prevent discharging of the vehicle's
battery.
Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display.
In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction in volume or CD play
stopping.
Switch the audio system off for a few minutes to
allow the system to cool.
Frequently asked questions
QUESTION
ANSWER
SOLUTION
There is a difference in
sound quality between the
different audio sources
(radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience and Loudness) can be adapted to the different
sound sources, which may result in audible differences when
changing source (radio, CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience and Loudness) are adapted to
the sources listened to. It is advisable to set the
audio functions (Bass, Treble, Front-Rear Balance
and Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
Radio
173
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
QUESTION
ANSWER
SOLUTION
The preset stations do
not function (no sound,
87.5 Mhz is displayed...).
An incorrect waveband is selected.
Press the BAND button to return to the waveband
(FM, FM2, DAB, AM) on which the stations are
preset.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information.
The radio station is not part of the regional traffic information
network.
Tune to a radio station which broadcasts traffic
information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, underground car parks...)
block reception, including in RDS mode.
This phenomenon is normal and does not indicate
a fault in the audio system.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or into an underground car park).
Have the aerial checked by a franchised dealer.
Sound cut-outs of 1 to
2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for another
frequency giving better reception of the station.
Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
174
Audio and Telematics
Media
QUESTION
ANSWER
SOLUTION
The Bluetooth connection
is broken.
The state of charge of the device may be too low.
Charge the battery of the portable device.
The message "USB device
error" is displayed in the
screen.
The USB memory stick is not recognised.
The USB memory stick may be corrupt.
Reformat the USB memory stick.
The CD is ejected every
time or is not played.
The CD is upside down, cannot be read, does not contain audio
files or contains audio files of a format not recognised by the audio
system.
The CD is protected by an anti-pirating system not recognised by
the audio system.
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The sound from the CD is
poor.
The CD used is scratched or of poor quality.
Insert a good quality CD and store them in
suitable conditions.
The audio settings (base, treble, ambience) are unsuitable.
Return bass and treble settings to 0, without
selecting an ambience.
I am unable to play
the music files on my
smartphone via the USB
port.
Depending on the smartphone, access by the audio system to music
on the smartphone may have to be approved on the latter.
Manual activate the MTP profile on the
smartphone (USB settings menu).
175
.
Audio and Telematics
Transversal-Peugeot_en_Chap03_RD6_ed01-2016
QUESTION
ANSWER
SOLUTION
I am unable to access my
voicemail.
Few telephones or service providers allow the use of this function.
Call your voicemail box, via the telephone menu,
using the number supplied by your service
provider.
I am unable to access my
directory of contacts.
Check the compatibility of your telephone.
You did not give access to your contacts when pairing the telephone.
Accept or confirm access by the system to the
contacts on your telephone.
I am unable to continue a
conversation when getting
into my vehicle.
Telephone mode is activated.
Deselect telephone mode to transfer the call to
the vehicle.
I am unable to pair my
telephone by Bluetooth.
Telephones (models, versions of operating systems) have their own
specific aspects in the pairing procedure and some telephones are
not compatible.
Before starting the pairing procedure, delete the
pairing of the telephone from the system
and
of
the system from the telephone, so as to see the
compatibility of the telephones.
Telephone
PEUGEOT 3008
ADDENDUM TO USER GUIDE
On-line user guide
Select one of the following means of access to view your user guide
online...
Visiting the user guide online also gives you access to the latest
information available, easily identified by the bookmark, associated with
this symbol:
If the "MyPeugeot" section is not available on the Peugeot website
for your country, you can find your user guide at the following
address:
http://public.servicebox.peugeot.com/ddb/
- the language,
- the vehicle, its body style,
- the publication period of your user guide corresponding to the date
your vehicle went into circulation.
Select:
Find your user guide on the Peugeot website, under "MyPeugeot".
Scan this QR code to access your user guide directly.
This personal space offers advice and other useful information for the care
and maintenance of your vehicle.
2
Acc ess
1
Hands-free tailgate
General points
Activation and deactivation of the motorised
tailgate function is done in the vehicle settings
menu.
Movement requests of the tailgate should only
be carried out with the vehicle stationary.
Safety anti-pinch
The motorised tailgate has an obstacle
detection system that automatically interrupts
and reverses its movement by a few degrees to
allow the obstacle to be cleared.
Please note that this anti-pinch system is not
active at the end of the closing travel (around
1 cm from completely closed).
Check that there is enough space to
allow for the movement of the motorised
tailgate.
Do not insert your finger in the motorised
tailgate locking system - risk of serious
injury!
To avoid the risk of injury through pinching
or trapping, before and during operation of
the motorised tailgate:
- ensure that there is no person close to
the rear of the vehicle,
- watch the activity of your passengers,
particularly any children.
Bicycle carrier / Towbar
The motorised tailgate is not designed to
support a bicycle carrier.
When installing a bicycle carrier on a towbar
with connection of a cable to the towbar socket,
the motorised operation of the tailgate will be
automatically deactivated.
If using a towbar or bicycle carrier not
recommended by PEUGEOT, it is essential
to deactivate the motorised operation of the
tailgate.
Acc ess
2
Opening / Closing
F Press and hold the central button A of the
electronic key.
or
F Press the exterior control B of the tailgate
with the electronic key on your person.
or
F Press the interior tailgate control C (closing
only).
or
F Press control D on the dashboard twice
repeatedly.
or
F With the electronic key on you, use the
"hands-free" access E by performing a
"kicking" movement below the rear bumper.
The command is confirmed by an audible
signal.
Activation / deactivation of the
motorised operation of the tailgate
is done in the Driving menu of the
touch screen.
This function is deactivated by default.
Motorised operation
There are several ways of operating the
motorised tailgate:
A. using the electronic key of the Keyless
Entry and Starting system,
B. using the exterior control on the tailgate,
C. using the interior tailgate control,
D. using the control on the dashboard,
E. using the "hands-free access" procedure
below the rear bumper.
2
Acc ess
3
Hands-Free Access
Activation and deactivation of the
"Hands-Free Tailgate Access"
system is done in the Driving menu
of the touch screen.
This function is deactivated by default.
The tailgate opens, either completely
by default, or to the position memorised
beforehand.
If motorised operation is not activated,
these actions release the tailgate.
The request to open the tailgate with one
of the controls A, B or E enables you to
unlock the vehicle or the tailgate alone
beforehand, if selective unlocking of the
boot is activated.
Closing the tailgate with the "hands-free"
access function enables you to lock the
vehicle.
At any point, It is possible to interrupt the
operation of the tailgate.
Pressing one of these controls again
interrupts the movement in progress.
Following the interruption of a movement,
pressing one of these controls again
resumes the movement.
Ensure that you are steady on your
feet before performing the quick foot
movement.
Take care not to touch the exhaust system
which may be hot - Risk of burns!
Automatic locking using "Hands-
Free Tailgate Access" function
To activate automatic locking of the vehicle
when closing the tailgate using the Hands-Free
Tailgate Access function:
F Press this button. The indicator
lamp will light up.
Pressing this button again
deactivates the function. The
indicator lamp turns off.
Acc ess
4
Reinitialising the motorised
tailgate
This operation is necessary where there is
no movement - after detection of an obstacle,
connecting or recharging the battery, etc.
F Open the tailgate manually, if necessary.
F Fully close the tailgate manually.
If the problem persists, contact a PEUGEOT
dealer or a qualified workshop.
Memorising an opening
position
To limit the motorised tailgate opening angle:
F open the tailgate to the desired position,
F press button C or the exterior control B for
more than 3 seconds.
Memorisation of the maximum opening position
of the tailgate is confirmed by an audible signal.
Manual operation
The tailgate can be manoeuvred by hand, even
with motorised operation activated.
The tailgate must be immobile.
When opening and closing a motorised tailgate
manually, there is no assistance from gas
struts. Resistance to opening and closing is
therefore entirely normal.
Repeatedly opening and closing of the
motorised tailgate can cause overheating
of its electric motor, after which opening
and closing will not be possible.
Allow at least 10 minutes for the electric
motor to cool down before operating the
tailgate again.
If you are unable to wait, operate it
manually.
To cancel the memorised position:
F stop the tailgate in an intermediate
position,
F press button C or the exterior control B for
more than 3 seconds.
Cancellation of the memorised position is
confirmed by an audible signal.
2
Acc ess
5
Precautions in use
In wintry conditions
In the event of an accumulation of snow
on the tailgate, clear the snow before
commanding a motorised opening of the
tailgate.
The formation of ice can block the tailgate
and prevent its opening: wait until the ice
melts with the heating of the passenger
compartment.
When washing
When washing the vehicle in an automatic
car wash, don't forget to lock your vehicle
to avoid the risk of unexpected opening.
Recommendations related to the "Hands-Free Tailgate
Access" function
If several kicking movements to operate the
tailgate have no effect, wait a few seconds
before trying again.
The function automatically deactivates in heavy
rain or following a build-up of snow.
If it does not work, check that the electronic key
is not exposed to a source of electromagnetic
pollution (smartphone etc.).
The function may not work correctly with a
prosthetic leg.
The function may not work correctly if your
vehicle is fitted with a towbar.
In some circumstances, the tailgate may open
or close by itself, particularly if:
- you hitch or unhitch a trailer,
- you fit or remove a bicycle carrier,
- you load or unload bicycles from a bicycle
carrier,
- you place or lift something behind the
vehicle,
- an animal approaches the rear bumper,
- you are washing your vehicle,
- your vehicle is being serviced,
- you are accessing the spare wheel
(depending on version).
To avoid such operating problems, keep the
electronic key away from the sensor zone or
deactivate the "Hands-Free Tailgate Access"
function.
6
Ease of use and comfort
The programmable heating operates independently from the engine.
With the engine off, it preheats the coolant circuit to ensure optimal engine operating temperature
as soon as it is started up.
The programmable heating is switched on by the long range remote control. It may be immediate or
deferred thanks to a programming function.
Programmable heating
Always switch off the programmable heating when refuelling to avoid any risk of fire or
explosion.
The programmable heating is powered by the vehicle fuel tank. Before use, ensure that
the remaining quantity of fuel is sufficient. If the fuel tank is in its reserve, we strongly
recommend you do not programme the heating.
To avoid the risks of intoxication or asphyxia, the programmable heating must not be used,
even for short periods, in a closed environment such as a garage or workshop which are not
equipped with an exhaust gas extraction system.
Do not park the vehicle on a flammable surface (dry grass, dead leaves, paper, etc.) - risk of
fire!
The volumetric alarm movement detector
may be disrupted by the programmable
heating air flows when it is operating.
To avoid any untimely triggering of the
alarm when using the programmable
heating, it is advisable that the volumetric
monitoring is deactivated.
Adapting the programmable heating
enables you to use it to preheat the
passenger compartment of your vehicle.
Contact a PEUGEOT dealer or a qualified
workshop.
Presentation
The heating programming remote control has
the following buttons and displays:
Remote control
1. Buttons for functions scroll-down menu.
2. Function symbols:
clock, temperature, operating time,
programmed time, heater operation,
heating management.
3. Digital displays:
time, temperature, operating time,
programmed time or heating level.
4. Off button.
5. On button.
3
Ease of use and comfort
7
lit up: deferred programmed start-up.
flashing: heating on.
turned off: heating off.
Operating indicator light
F Press button 1 several times to display the
functions.
The first press on the left or right button
displays the time.
Then, the left button is used to scroll to the
programmed time then the heating level ("C1"
to "C5").
The right button is used to scroll to the
passenger compartment temperature then
the heater operating time when immediately
switched on.
Function display
The passenger compartment temperature
information is only available when the
engine is off.
Setting the time
F After having displayed the time, using
button 1, press on buttons 4 and 5
simultaneously within 10 seconds.
This symbol will flash.
F Set the time with button 1.
F Press simultaneously on buttons 4 and 5 to
save it.
This symbol will be displayed.
8
Ease of use and comfort
Immediate switching on
During these operations, if the message
"FAIL" appears, it means that the signal
has not been received. Follow the
procedure again after having changed
position.
Adjusting the operating time
F Press on button 1 to display the operating
time.
F Press on button 5 until the message "OK"
appears.
When the signal has been received, the
message "OK" is displayed along with the
operating time.
The heater starts and this symbol is
displayed.
This indicator light flashes during
heating.
F To deactivate the function, press on button
4 until the message "OK" appears.
This symbol and the indicator light
will turn off.
This symbol will be displayed.
F After having displayed the operating time,
press on buttons 4 and 5 simultaneously
within 10 seconds.
This symbol will flash.
F Adjust the time by pressing on the buttons
1: by 10 min increment and maximum value
of 30 mins.
3
Ease of use and comfort
9
Deferred switching on
You must programme your start time for the
system to automatically calculate the optimal
time to start the heater.
This symbol will be displayed.
F After having displayed the programming
time, press on buttons 4 and 5
simultaneously within 10 seconds.
The factory value setting is 30 minutes.
F Set the time by pressing on button 1.
F Press simultaneously on buttons 4 and 5 to
save it.
This symbol will be displayed.
F Press on button 1 to display the
programming time.
This symbol will be displayed.
This symbol will flash.
Programming the start time
F Press simultaneously on buttons 4 and 5 to
save the operating time.
10
Ease of use and comfort
F After having displayed the programming
time using button 1, press on button 5 until
the message "OK" appears.
Activation / Deactivation
When the signal has been received,
the message "OK" is displayed along
with this symbol.
This indicator lights up until the
heater starts.
Stopping the heating
F Press button 5.
This symbol will remain displayed.
Changing the heating level
The system has 5 heating levels: C1 (lowest
level) to C5 (highest level).
F After having displayed the heating level
using button 1, press simultaneously on
buttons 4 and 5.
The letter "C" will flash.
F Adjust the heating level by pressing on
button 1.
F Press simultaneously on buttons 4 and 5 to
save the selected level.
The letter "C" will be displayed.
The presets are replaced by the new
entries. The programmed times are
memorised until the next change.
When the start time is activated, it is not
possible to change the heating level. You
must first deactivate the start time.
This symbol is displayed when the
heater starts.
HTM: Heat Thermo Management
F To deactivate the programming, press on
button 4 until the message "OK" appears.
This symbol will disappear.
This indicator light turns off.
During these operations, if the message
"FAIL" appears, it means that the signal
has not been received. Follow the
procedure again after having changed
position.
3
Ease of use and comfort
11
Operating fault
In the event of a fault with the programmable
heating, contact a PEUGEOT dealer or a
qualified workshop.
Changing the battery
F Unclip the case.
F Replace the battery observing the
polarities.
F Reset the remote control.
The remote control is powered by a 6V-28L
battery which is provided.
Information on the screen indicates when this
battery needs to be changed.
Resetting the remote control
If the battery is disconnected or when changing
the battery, the remote control must be reset.
F After turning on the power, within the next
5 seconds, press button 4 for 1 second.
If the operation is successful, the message
"OK" will be displayed on the remote
control's screen.
If there is a fault, the message "FAIL" will
appear.
F Start the operation again.
Do not throw away used batteries, take
them to an approved collection point.
Lighting and visibility
12
Windscreen wash
Wiper control stalk
F Pull the wiper control stalk towards you.
The windscreen wash and then the wiper will
operate for a fixed period.
The windscreen wash includes a wiper
blade system with integral washer jets.
The screenwash fluid is sprayed from
along the length of the wiper blade.
This improves visibility and reduces the
consumption of screenwash fluid.
In some cases, depending on the
composition or the colour of the liquid and
the outside lighting, the liquid spray may
be hardly perceptible.
To avoid damaging the wiper blades, do
not operate the windscreen washer if the
windscreen washer reservoir is empty.
Only operate the windscreen washer if
there is no risk of the fluid freezing on the
windscreen and hindering visibility. Always
use windscreen washer fluid suitable for
low temperatures during the winter period.
5
Safety
13
Trailer stability assist
When towing, this system reduces the risk of the vehicle or trailer swaying.
Operation
The system is activated automatically when the
ignition is switched on.
The electronic stability programme (ESC) must
not have any faults.
Between 36 and 100 mph (60 and 160 km/h),
if the system detects swaying movements in
the trailer, it acts on the brakes to stabilise the
trailer and, if necessary, reduces engine power
to slow down the vehicle.
The correction is signalled by the
flashing of the indicator lamp in the
instrument panel and activation of the
brake lights.
Operating fault
Should a fault occur with the system,
this warning lamp comes on in the
instrument panel, accompanied by
the display of a message and an
audible signal.
The trailer stability assist system
offers increased safety in normal
driving conditions, provided that the
recommendations on towing a trailer are
observed. It must not encourage the driver
to take additional risks, such as towing
a trailer in adverse operating conditions
(overloading, failure to observe the trailer
nose weight, worn or under-inflated tyres,
faulty braking system, etc.) or drive at too
high a speed.
In certain cases, the swaying of the trailer
may not be detected by the ESC system,
particularly with a light trailer.
When driving on slippery or poor surfaces,
the system may not be able to prevent
sudden swaying of the trailer.
If you continue to tow a trailer, reduce your
speed and drive carefully!
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
For information on the weights and towed
loads, refer to the "Technical data" section or
the registration certificate for your vehicle.
For advice on driving safely when Towing a
trailer, refer to the corresponding section.
Driving
14
Distance alert and Active Safety Brake
This system includes three functions:
- Distance alert (alert if there is a risk of
collision),
- Intelligent emergency braking assistance,
- Active Safety Brake (automatic emergency
braking).
Distance alert: it warns the driver if their
vehicle is at risk of collision with the vehicle in
front or a pedestrian present in their traffic lane.
Intelligent emergency braking assistance:
it supplements the braking action taken by the
driver if this is inadequate.
Active Safety Brake: it intervenes following
the alert if the driver does not react quickly
enough and does not operate the vehicle's
brakes.
If the driver fails to act, it contributes
towards avoiding a collision or limiting
its severity by reducing the speed of your
vehicle.
Activation and operating conditions
The vehicle has a camera located at the top of
the windscreen, and depending on the version,
a radar located in the front bumpers.
The system is activated from about 4 mph
(7 km/h) and is deactivated below about 3 mph
(5 km/h).
It takes account of:
- registered vehicles running in the same
direction or stationary,
- pedestrians in the traffic lane (bicycles,
motorcycles, animals and objects on the
road are not necessarily detected).
This system is designed to assist the
driver and improve road safety.
It is the driver's responsibility to
continuously monitor the state of the
traffic, observing the driving regulations.
This system does not replace the need for
vigilance on the part of the driver.
6
Driving
15
Operating limits
In the following cases, deactivating the
system via the vehicle's configuration menu is
recommended:
- when towing a trailer,
- when carrying long objects on roof bars or
a roof rack,
- before using an automatic car wash, with
the engine running,
- before placing the vehicle on a rolling road
in a workshop,
- when the vehicle is being towed, with the
engine running,
- when a "space-saver" type spare wheel is
fitted (depending on version),
- following impact damage to the windscreen
close to the detection camera,
- if the front bumper has been damaged,
- if the brake lamps are not working.
Because of limits in the operation of the
system, it is possible that warnings are
not given, are given too late or seem
unjustified.
Consequently, the driver must always
remain attentive and able to react at any
time to avoid an accident.
Distance alert
Depending on the degree of risk of collision
detected by the system and the alert threshold
chosen by the driver, different levels of
alert can be triggered and displayed in the
instrument panel.
Level 1: visual alert only, signalling
that the vehicle in front is very close.
The message "Vehicle close" is
displayed.
This level of alert is based on the inter-vehicle
time between your vehicle and the vehicle in
front.
Level 2: visual and audible alert,
warning you that a collision is
imminent.
The message "Brake!" is displayed.
This level of alert is based on the time before
collision. It takes into account the vehicle
dynamics, the speed of your vehicle and the
one in front, the environmental conditions, the
operating conditions of the vehicle (on a curve,
pedals pressed, etc.) to trigger the alert at the
relevant moment.
Driving
16
Where the speed of your vehicle is too
high approaching another vehicle, the first
level of alert may not be displayed: the
level 2 alert may be displayed directly.
Important: alert level 1 is never displayed
when the "Close" trigger threshold has
been selected.
Modifying the alert trigger
threshold
This threshold determines how you wish
to be alerted of the presence of a moving
or stationary vehicle in front of you, or a
pedestrian present in your traffic lane.
The current threshold can be modified via the
vehicle configuration menu.
You can select one of three thresholds:
- "Distant",
- "Normal",
- "Close".
The last threshold selected is kept in memory
when the ignition is switched off.
Intelligent emergency
braking assistance
If the driver brakes, but not sufficiently to avoid
a collision, this system will supplement the
braking, within the limits of the laws of physics.
This assistance will only be provided if you
press the brake pedal.
Active Safety Brake
This function, also called automatic emergency
braking, aims to reduce the speed of impact or
avoid a frontal collision with your vehicle where
the driver fails to react.
Using a radar and a camera, depending on
the version, this function acts on the vehicle's
braking system.
6
Driving
17
If the camera and/or radar have
confirmed the presence of a vehicle
or a pedestrian, this warning lamp
flashes once the function is acting on
the vehicle's brakes.
Important: if operation of the
automatic emergency braking is
triggered, you must take back control
of your vehicle and brake with the
pedal to supplement or finish the
automatic braking action.
The driver can take back control of the vehicle
at any time by sharply turning the steering
wheel and/or pressing the accelerator pedal.
The point at which braking is triggered
may be adjusted according to the reaction
from the driver, such as movement of the
steering wheel or pressing the accelerator
pedal.
Operation of the function may be felt by
slight vibration in the brake pedal.
If the vehicle comes to a complete stop,
the automatic braking is maintained for 1
to 2 seconds.
With a manual gear box, in the event of
automatic emergency braking until the
vehicle comes to a complete stop, the
engine may stall.
With an automatic gear box, in the event
of automatic emergency braking until
the vehicle comes to a complete stop,
maintain the brake pedal down to stop the
vehicle from starting off again.
Specic conditions for operation
The vehicle's speed must be between 3 mph
and 53 mph (5km/h and 85 km/h) (versions with
camera alone) or 87 mph (140 km/h) (versions
with camera and radar) when a moving vehicle
is detected.
The vehicle's speed must not exceed 50 mph
(80km/h) when a stopped vehicle is detected.
The vehicle's speed must not exceed 37 mph
(60 km/h) when a pedestrian is detected.
The ESC system must not be defective.
The CDS must not be deactivated.
All passengers seatbelts must be fastened.
Driving at steady speed on roads with few
bends is required.
After an impact, the function automatically
stops operating. Consult a PEUGEOT
dealer or a qualified workshop to have the
system checked.
Driving
18
Deactivation / Activation
By default, the system is automatically
activated at every engine start-up.
The system can be deactivated or activated via
the vehicle settings menu.
Deactivation of the system is
signalled by the illumination of this
indicator lamp, accompanied by the
display of a message.
Clean the windscreen regularly,
particularly the area in front of the camera.
Do not allow snow to accumulate on the
bonnet or roof of the vehicle as this could
conceal the detection camera.
Clean the front bumper, removing mud,
snow, etc.
If the front bumper is to be repainted or
retouched, contact a PEUGEOT dealer
or a qualified workshop. Certain types of
paint could interfere with the operation of
the radar.
Operating fault
Check that the sensors (camera and radar) are
not covered by dirt, mud, frost, snow, etc.
If the fault persists, contact a PEUGEOT dealer
or a qualified workshop to have the system
checked.
In the event of a fault with the system,
you are alerted by the tell-tale lighting
up, accompanied by the display of a
message and an audible signal.
The camera my be disrupted or not work
in the following situations:
- poor visibility (inadequate street
lighting, falling snow, heavy rain,
dense fog, etc.),
- dazzle (headlamps of an oncoming
vehicle, low sun, reflections on
a damp road, leaving a tunnel,
alternating shade and light, etc.),
- obstruction of the camera or radar
(mud, frost, snow, etc.).
In these situations, detection performance
may be reduced.
9
Technical data
19
Characteristics of engines and towed loads
Engines
The engine characteristics are detailed on the
vehicle's registration certificate, and in the
sales documentation.
Weights and towed loads
When the ambient temperature is high,
leaving the engine running for 1 to
2 minutes after stopping the vehicle to
allow it to cool is recommended.
The weights and towed loads relating to your
vehicle are stated in the registration certificate,
and in the sales documentation.
These values are also shown on the
manufacturer's nameplate or label.
For more information, contact a PEUGEOT
dealer or a qualified workshop.
The GTW and towed load values indicated are
valid up to a maximum altitude of 1,000 metres.
The towed load value must be reduced by 10%
for each additional 1,000 metres of altitude.
The recommended nose weight corresponds
to the weight permitted on the towbar
(dismantlable with or without a tool).
GTW: Gross train weight
High ambient temperatures may result
in a reduction in the performance of
the vehicle to protect the engine. If the
ambient temperature is above 37°C, limit
the towed load.
Towing with a towing vehicle which is only
slightly laden may negatively affect its
handling.
Towing a trailer increases the braking
distance.
With a towing vehicle, never exceed the
speed of 62 mph (100 km/h) (observe the
local legislation in force).
The maximum power corresponds to
the value type-approved on a test bed,
according to the conditions defined in
European legislation (Directive 1999/99/
EC).
For more information, contact a PEUGEOT
dealer or a qualified workshop.
Technical data
20
Petrol engines and towed loads
Engines
1.2 litre PureTech
130 S&S
1.2 litre PureTech
130 S&S
1.6 litre THP 150 1.6 litre THP 160
1.6 litre THP 165
S&S
Gearboxes
BVM6
(Manual 6-speed)
EAT6
(Auto. 6-speed)
EAT6
(Auto. 6-speed)
EAT6
(Auto. 6-speed)
EAT6
(Auto. 6-speed)
Codes
EB2DTS MCM
STT
EB2DTS AT6III
STT
EP6FDTM AT6III
EP6FDTMD
AT6III
EP6FDT AT6III
STT
Model codes
MR... M4...
HNYH/C1B
HNYH/C1F
-
HNYH/C1K
HNYW/C1B
HNYW/C1F
5GYW/C1A 5GXV/C1A
5GZW/C1B
5GZW/C1F
Cylinder capacity (cm³) 1,19 9 1,199 1,598 1,598 1,598
Max power: EU standard (kW) 96 96 110 120 121.4
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient
1,400 - 1,300 1,200 600 600 1,550
Unbraked trailer (kg) 660 670 600 600 685
Recommended nose weight (kg) 80 80 70 70 80
9
Technical data
21
Diesel engines and towed loads
Engines
1.6 litre BlueHDi
100 S&S
1.6 litre BlueHDi
115 S &S
1.6 litre BlueHDi
115 S &S
1.6 litre BlueHDi
120 S&S
1.6 litre BlueHDi
120 S&S
Gearboxes
BVM
(Manual 5-speed)
BVM6
(Manual 6-speed)
EAT6
(Auto. 6-speed)
BVM6
(Manual 6-speed)
EAT6
(Auto. 6-speed)
Codes DV6FD BE4 STT
DV6FC ML6C
STT
DV6FC AT6III
STT
DV6FC ML6C
STT
DV6FC AT6III
STT
Model codes
MC...
BHYB/C2B
BHYB/C2F
BHXH/C2B
BHXH/C2F
BHXW/C2B
BHXW/C2F
BHZH/C2B
BHZH/C2F
-
BHZH/C2K
BHZW/C2B
BHZW/C2F
Cylinder capacity (cm³) 1,560 1,560 1,560 1,560 1,560
Max power: EU standard (kW) 73 85 85 88 88
Fuel Diesel Diesel Diesel Diesel Diesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient
1,300 1,500 1,300 1,500 - 1,400 1,300
Unbraked trailer (kg) 680 685 695 685 695
Recommended nose weight (kg) 80 80 80 80 80
Technical data
22
Diesel engines and towed loads
Engines 2.0 litre BlueHDi 150 2.0 litre BlueHDi 150
2.0 litre BlueHDi 150
S&S
2.0 litre BlueHDi 180
S&S
Gearboxes
BVM6
(Manual 6-speed)
EAT6
(Auto. 6-speed)
BVM6
(Manual 6-speed)
EAT6
(Auto. 6-speed)
Codes DW10FD ML6C DW10FD AM6III DW10FD ML6C STT DW10FC AM6III STT
Model codes
MR... M9...
AHXG/C2A AHXV/C2A
AHRH/C2B
AHRH/C2F
AHSH/C2B
AHSH/C2F
AHXH/C2B
AHXH/C2F
AHWW/C2B
AHWW/C2F
Cylinder capacity (cm³) 1 997 1 997 1 997 1 997
Max power: EU standard (kW) 110 110 110 133
Fuel Diesel Diesel Diesel Diesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient
600 600 2,000 1,700
Unbraked trailer (kg) 600 600 745 750
Recommended nose weight (kg) 70 70 80 80
9
Technical data
23
Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
Technical data
24
Identication markings
Different visible markings for the identification of your vehicle.
A. Vehicle identification number (VIN),
under the bonnet.
The number is engraved on the body structure.
B. Vehicle identification number (VIN), on
the dashboard.
The number is recorded on a label, visible
through the windscreen.
C. Manufacturer's label.
This self-destructing label is affixed near to the
right-hand door.
It bears the following information:
- the name of the manufacturer,
- the European Whole Vehicle Type Approval
number,
- the spare tyre pressure.
It also indicates the paint colour code.
The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm. In this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.
Never reduce the pressure of a warm
tyre.
Low tyre pressures increase fuel
consumption.
- the vehicle identification number (VIN),
- the maximum authorised vehicle weight
(the Gross Vehicle Weight or GVW),
- the maximum authorised train weight
(GTW),
- the maximum weight on the front axle,
- the maximum weight on the rear axle.
D. Tyres / paint code label.
This label is affixed near to the driver's door.
It bears the following information about the tyres:
- the tyre pressures, unladen and laden,
- the tyre specification, made up of the
dimensions and type as well as the load
and speed indices,
