Smeg Gas Cooker TR4110RW1 Victoria Aesthetic

Product's Documents

Below are documents related to this product, you can read online or download:

User Manual

This is the main product document for model TR4110RW1.

The file format is pdf, 52 pages, you can download this manual here .

background
Table of contents
55
EN
1 Instructions 56
1.1 General safety instructions 56
1.2 Manufacturer liability 60
1.3 Appliance purpose 61
1.4 Identification plate 61
1.5 This user manual 61
1.6 Disposal 61
1.7 How to read the user manual 62
2 Description 63

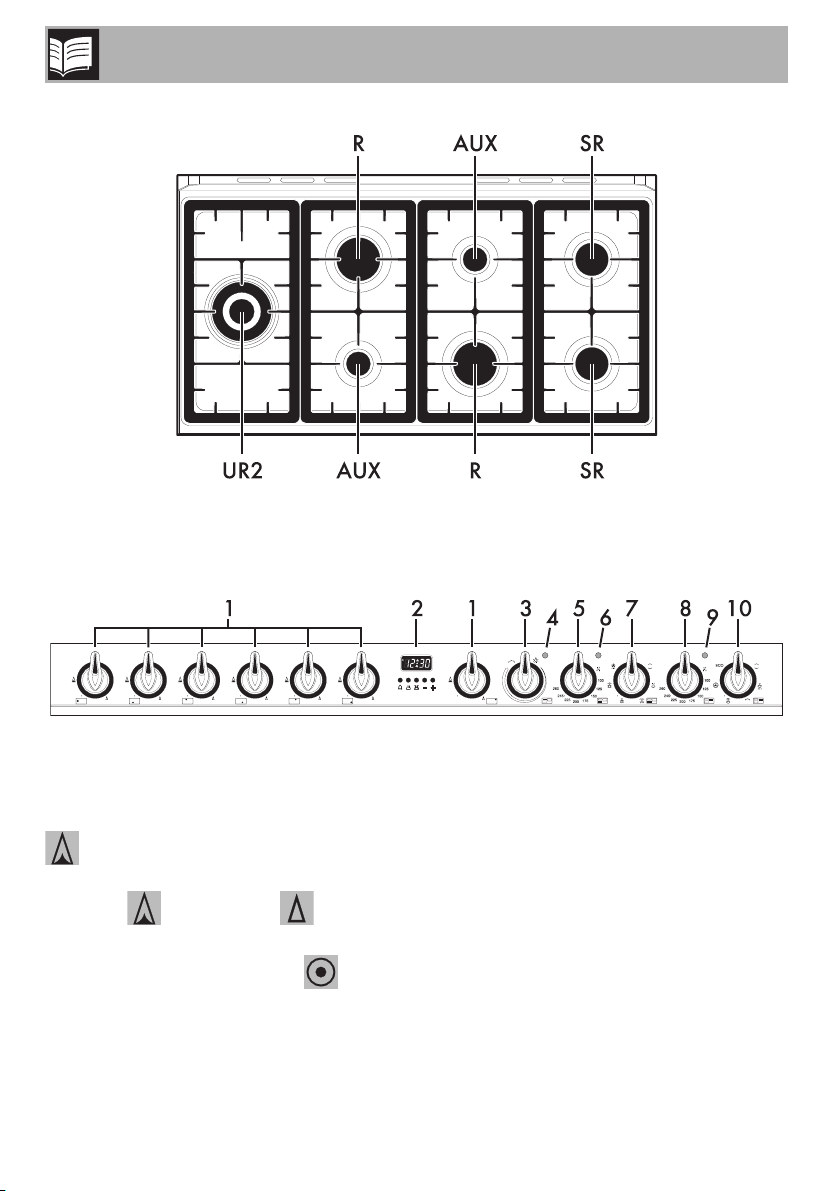

2.1 General Description 63
2.2 Cooking hob 64
2.3 Control panel 64
2.4 Other parts 65

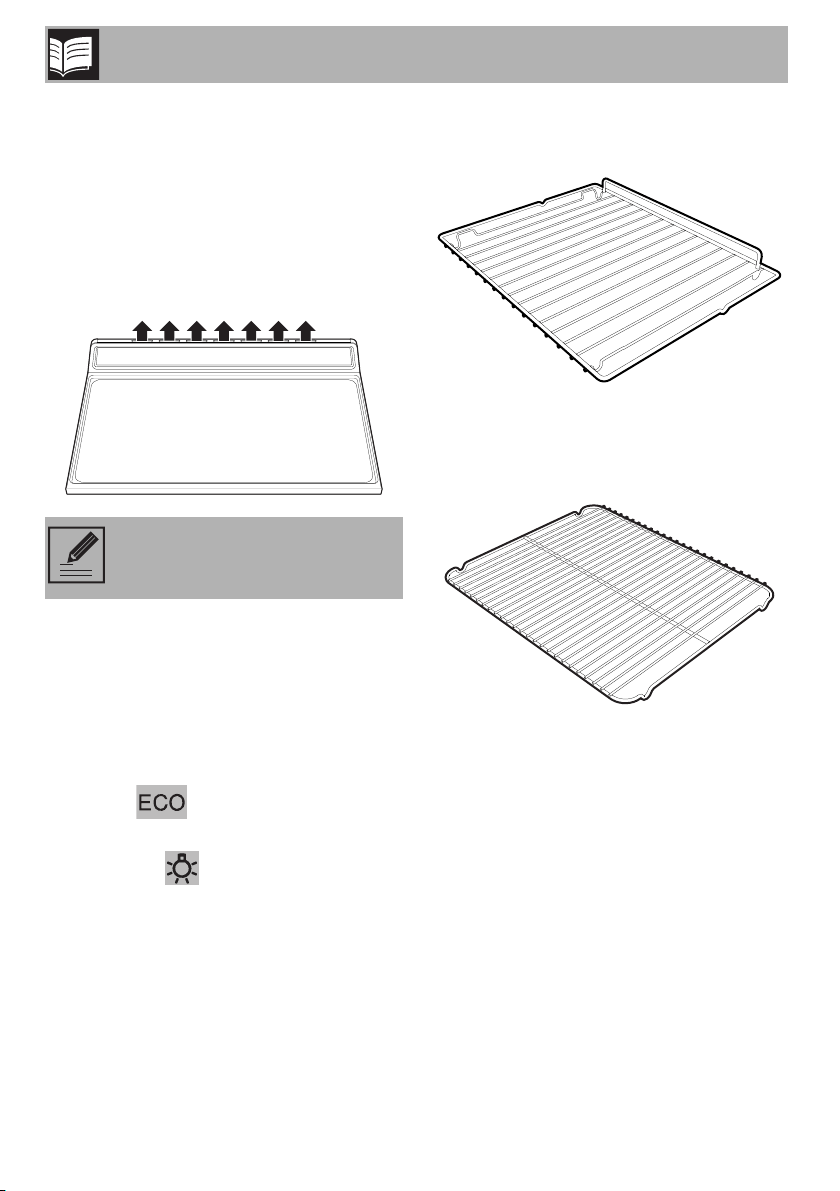

2.5 Available accessories 66
3 Use 68
3.1 To save energy 70
3.2 Using the storage compartment 70

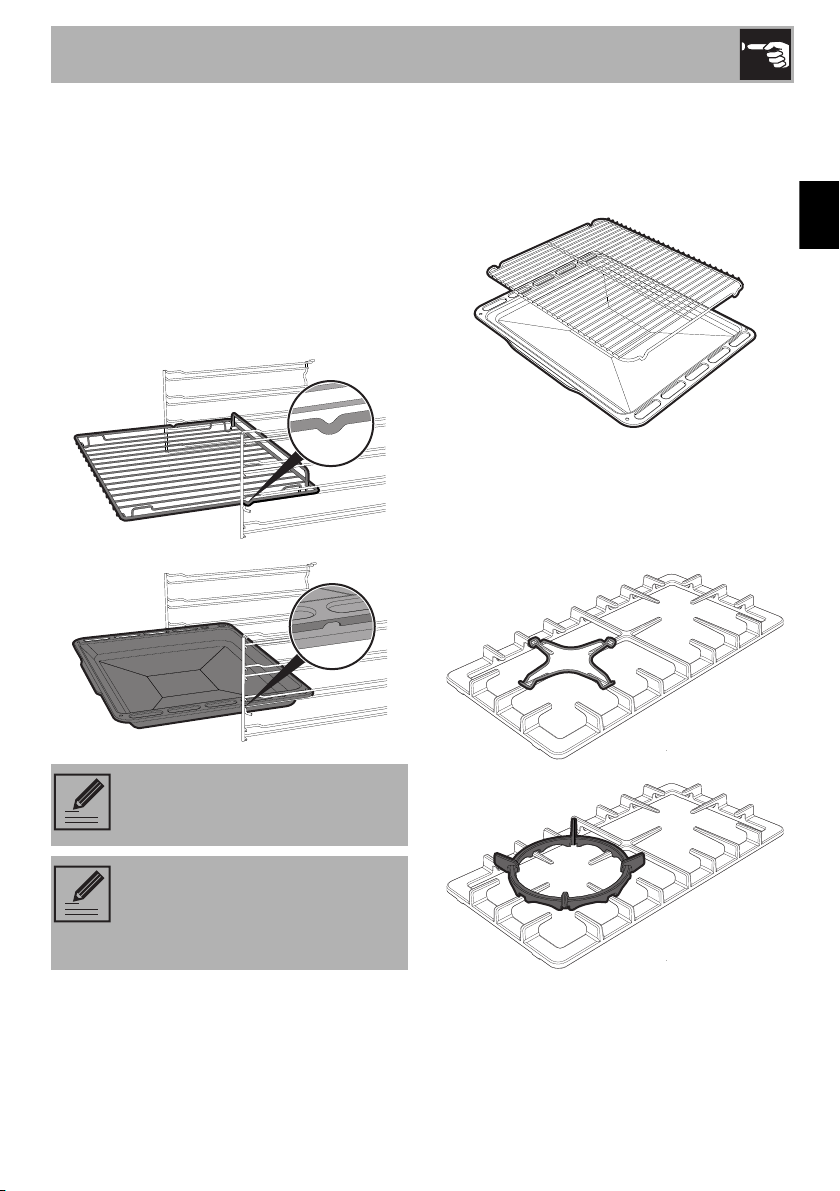

3.3 Using the accessories 71
3.4 Using the hob 72
3.5 Using the ovens 73
3.6 Cooking advice 76

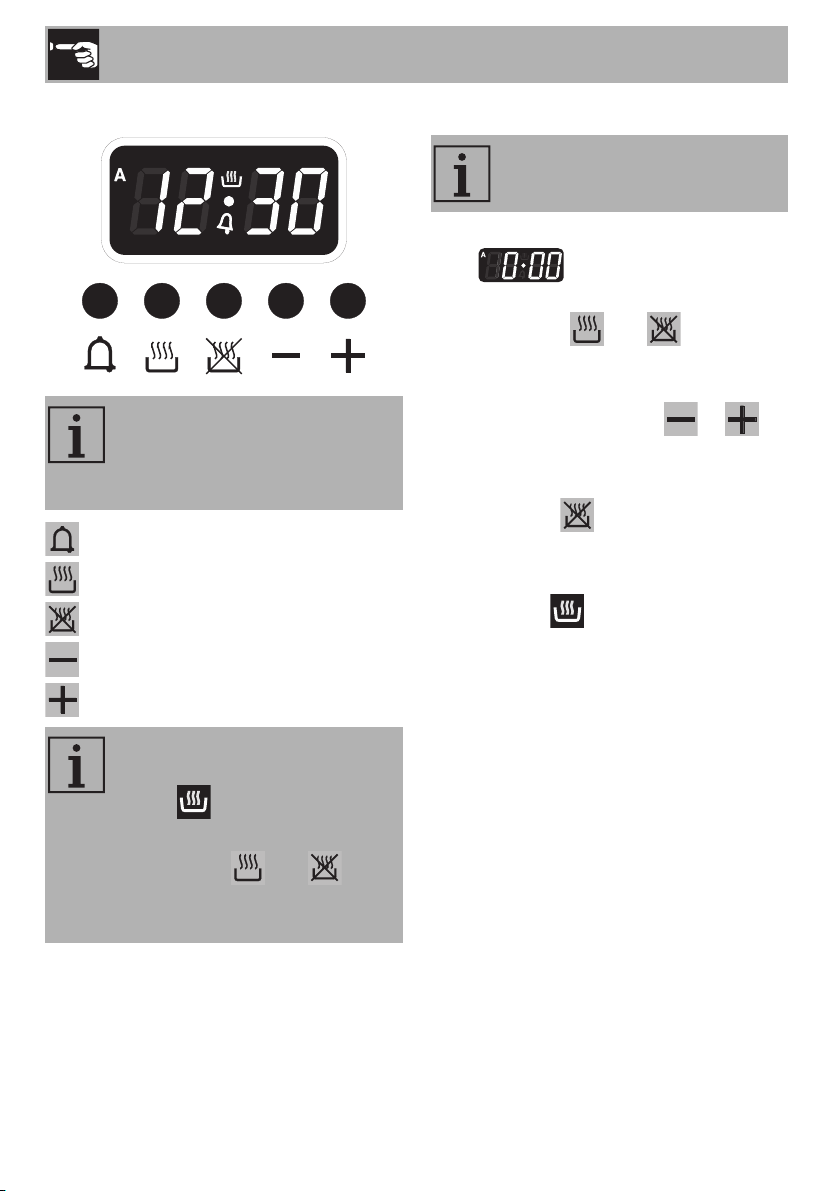

3.7 Programmer clock 78
4 Cleaning and maintenance 83
4.1 Cleaning the hob 84

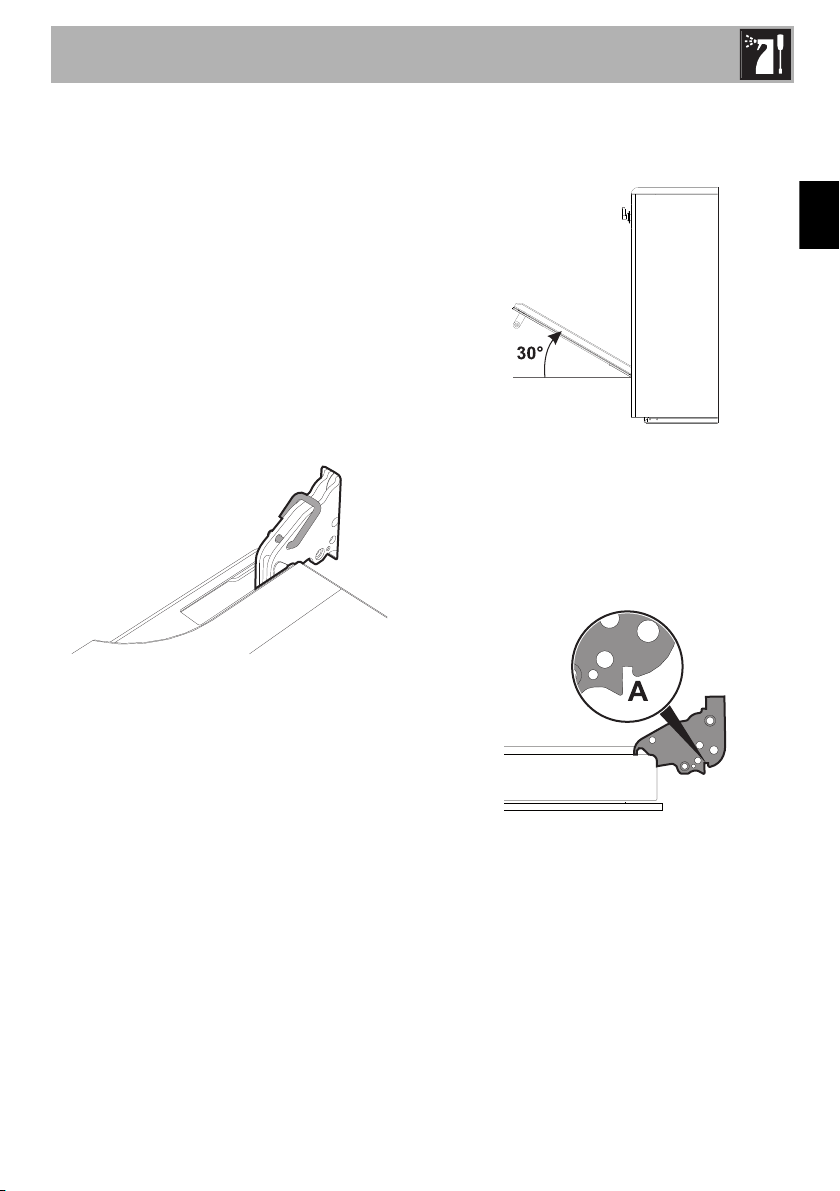

4.2 Cleaning the doors 85

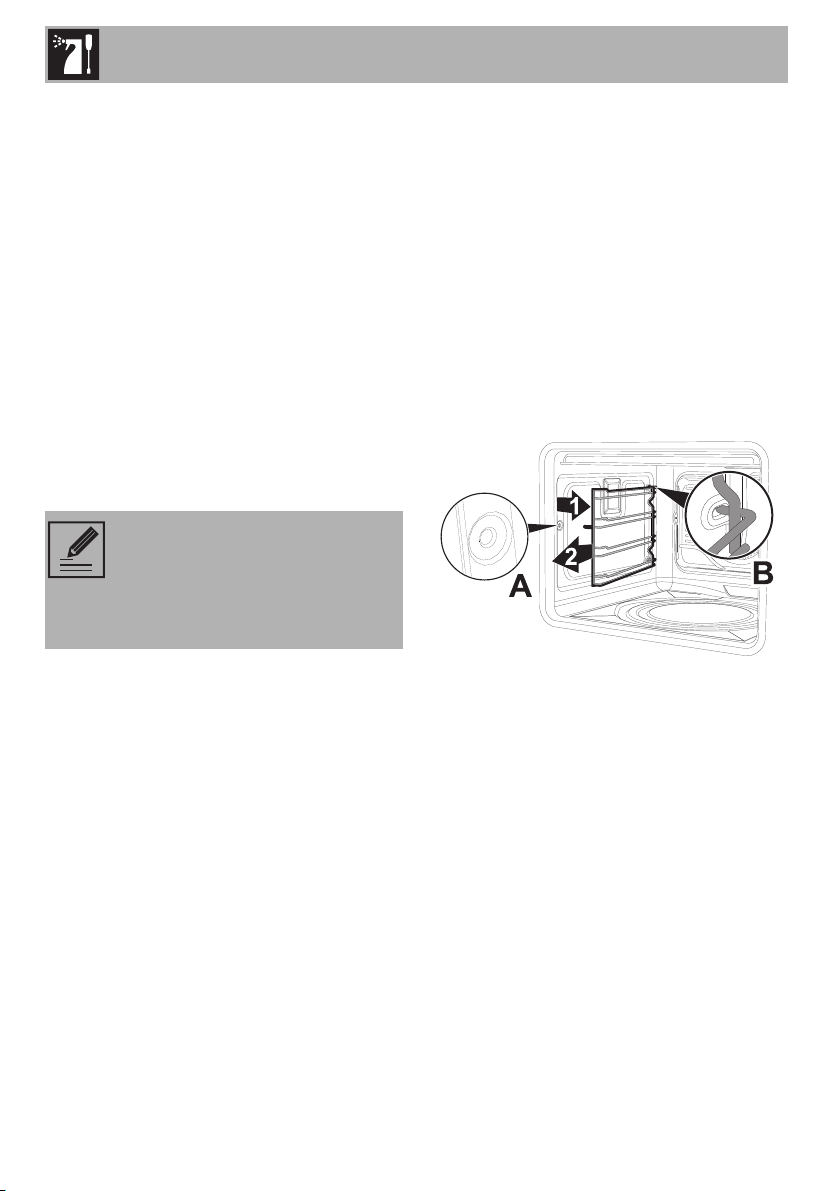

4.3 Cleaning the oven cavities 88
4.4 Vapor Clean (multifunction oven only) 89

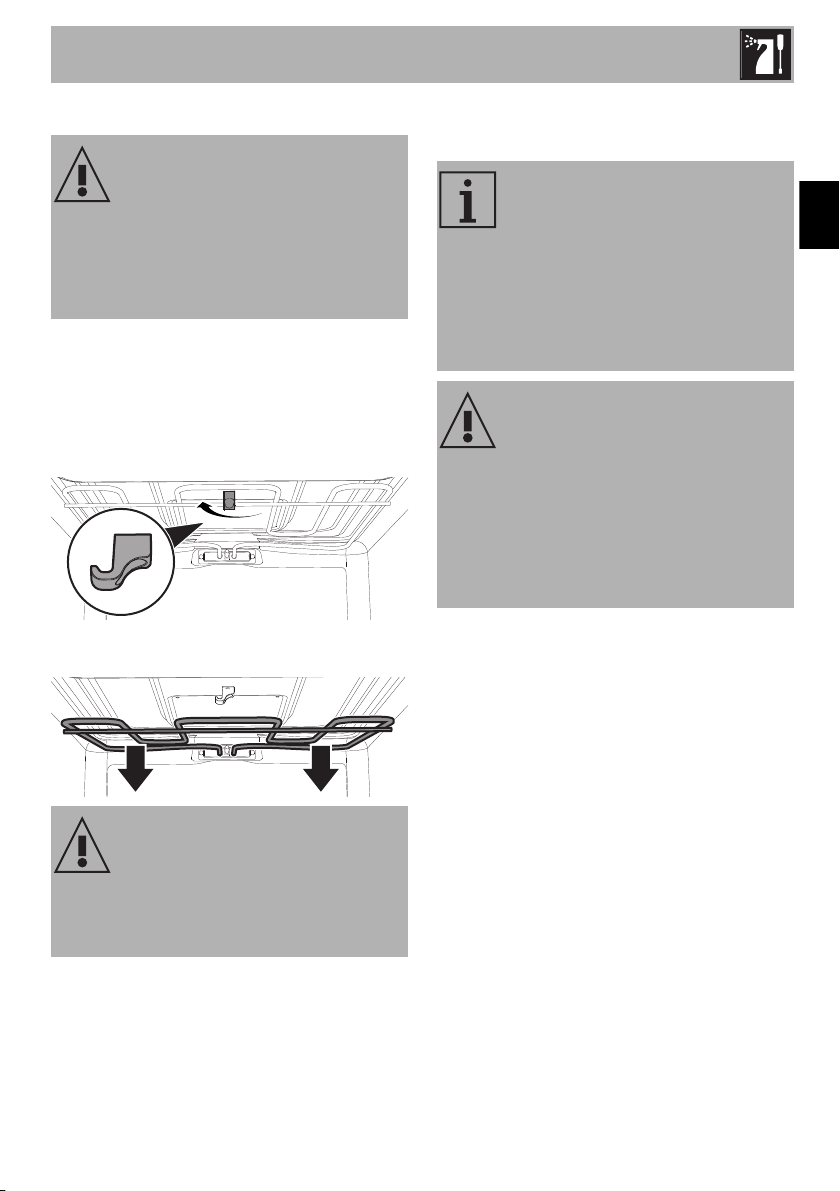

4.5 Extraordinary maintenance 91
5 Installation 93
5.1 Gas connection 93

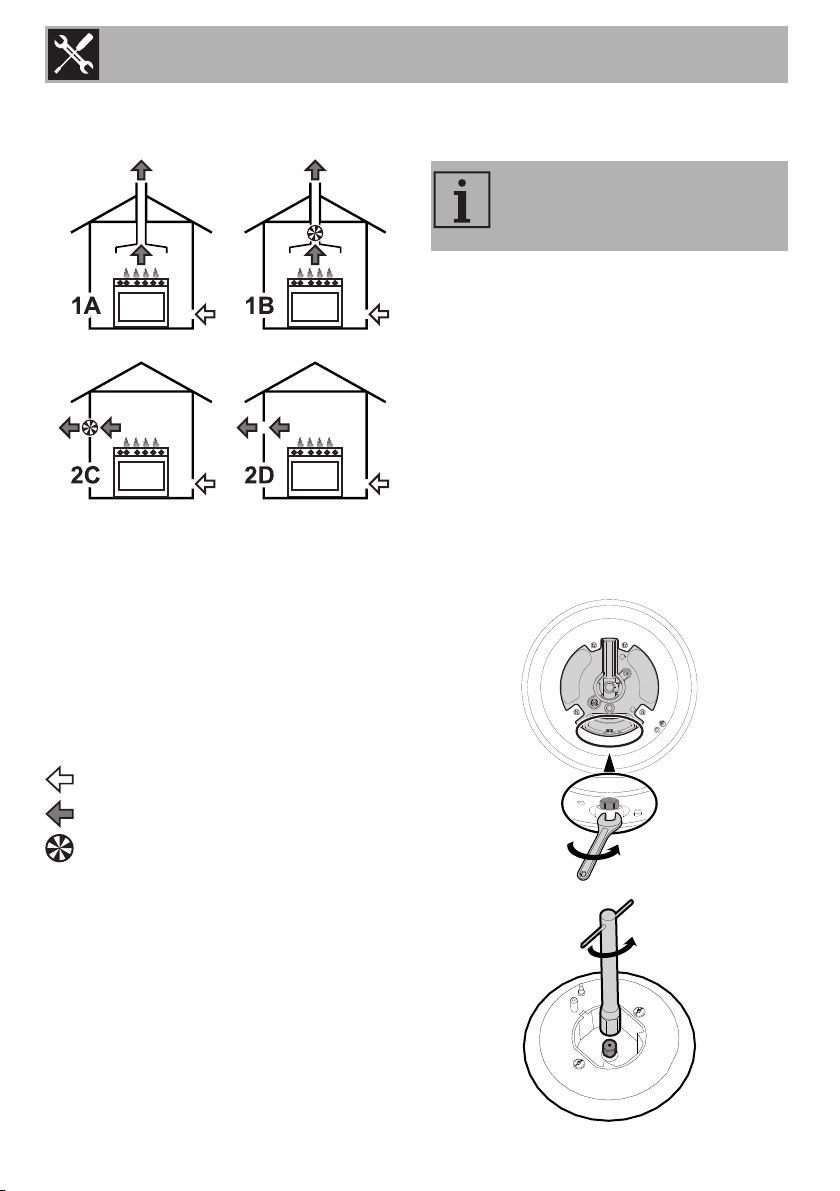

5.2 Adaptation to different types of gas 96
5.3 Positioning 101
5.4 Electrical connection 104
5.5 Instructions for the installer 106
We advise you to read this manual carefully, as it contains all the instructions for maintaining
the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
background
Instructions
56
1 Instructions
1.1 General safety instructions
Risk of personal injury
During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
Protect your hands by wearing
oven gloves when moving food
inside the oven.
Never try to put out a fire or
flames with water: turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
Children must not play with the
appliance.
Keep children under the age of 8
at a safe distance unless they are
constantly supervised.
Keep children under the age of 8
away from the appliance when it
is in use.
Cleaning and maintenance must
not be carried out by
unsupervised children.

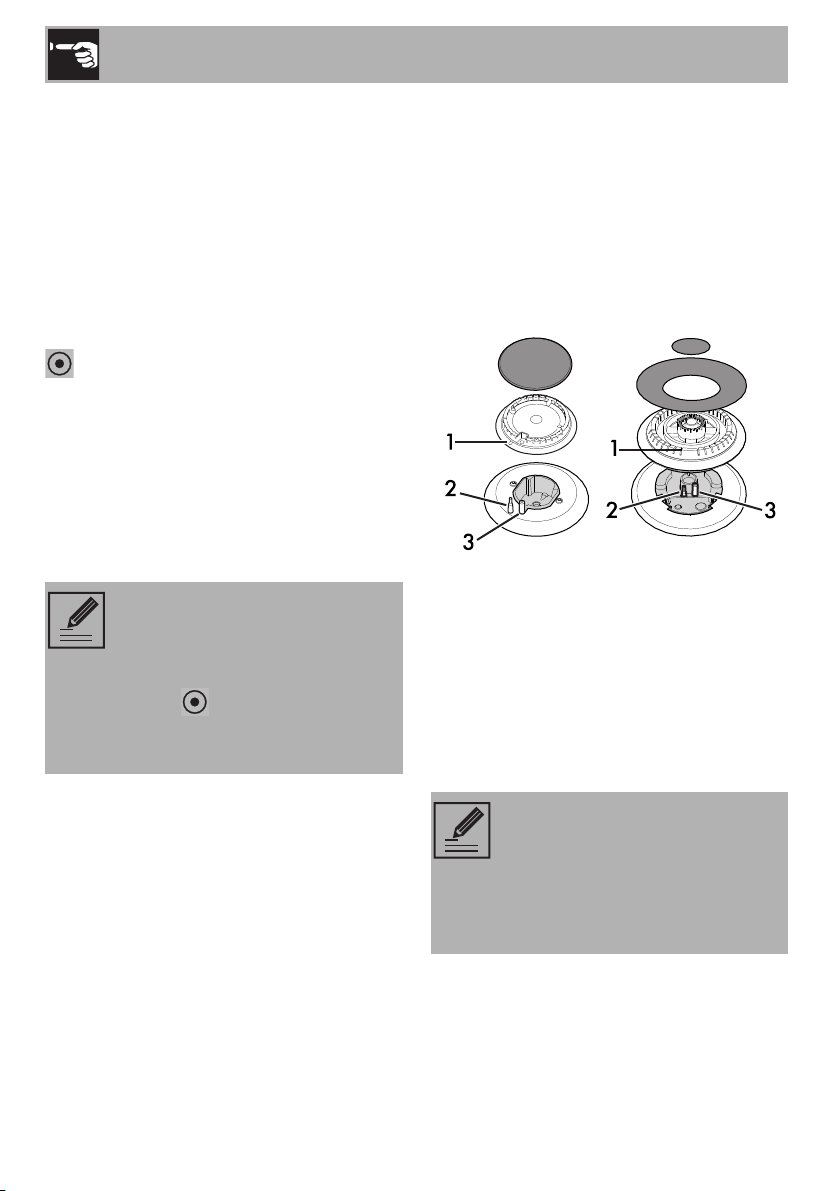

Make sure that the flame-
spreader crowns are correctly
positioned in their seats with their
respective burner caps.
Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
The cooking process must always
be monitored. A short cooking
process must be continuously
surveyed.
background
Instructions
57
EN
While cooking do not place
metal objects, such as cutlery or
dishes on the hob surface as they
may overheat.
Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
Do not pour water directly on very
hot trays.
Keep the oven door closed
during cooking.
If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
Do not open the storage
compartment (where present)
when the oven is on and still hot.
The items inside the storage
compartment could be very hot
after using the oven.
DO NOT USE OR STORE
FLAMMABLE MATERIALS IN
THE STORAGE
COMPARTMENT (IF AVAILABLE)
OR NEAR THE APPLIANCE.
DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
Switch off the appliance
immediately after use.
DO NOT MODIFY THIS
APPLIANCE.
Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
Before performing any operation
on the appliance, switch off the
power supply.
Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
Do not pull the cable to remove
the plug.
If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
background
Instructions
58
Risk of damaging the appliance
Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
Racks and trays should be
inserted as far as they will go into
the side guides. The mechanical
safety locks that prevent them from
being removed must face
downwards and towards the
back of the oven cavity.
Do not sit on the appliance.
Do not use steam jets to clean the
appliance.
Do not obstruct ventilation
openings and heat dispersal slots.
Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful
Never leave objects on the
cooking surface.
DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
Do not spray any spray products
near the oven.
Do not use plastic cookware or
containers for cooking.
Do not place sealed tins or
containers in the oven cavity.
Remove all trays and racks which
are not required during cooking.
Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
Do not place pans or trays
directly on the bottom of the oven
cavity.
If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
Do not use the open door to
place pans or trays on the internal
glazing pane.
Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
background
Instructions
59
EN
All pans must have smooth, flat
bottoms.
If any liquid does boil over or spill,
remove the excess from the hob.
Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
Do not put empty pans or frying
pans on switched on cooking
zones.
Do not use steam jets to clean the
appliance.
Do not use rough or abrasive
materials or sharp metal scrapers.
Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Do not wash the removable
components such as the hob
grids, flame-spreader crowns and
burner caps in a dishwasher.
Never use the oven door to lever
the appliance into place when
fitting.
Avoid exerting too much pressure
on the door when open.
Do not use the handle to lift or
move this appliance.
Installation
THIS APPLIANCE MUST NOT BE
INSTALLED IN A BOAT OR
CARAVAN.
The appliance must not be
installed on a pedestal.
Position the appliance into the
cabinet cut-out with the help of a
second person.
To prevent any possible
overheating, the appliance should
not be installed behind a
decoration door or a panel.
Have the gas connection
performed by authorised staff.
background
Instructions
60
Installation using a hose must be
carried out so that the length of
the hose does not exceed
2 metres when fully extended for
steel hoses and 1.5 metres for
rubber hoses.
The hoses should not come into
contact with moving parts and
should not be crushed in any way.
If required, use a pressure
regulator that complies with
current regulations.
After carrying out any operation,
check that the tightening torque of
gas connections is between
10 Nm and 15 Nm.
At the end of the installation,
check for any leaks with a soapy
solution, never with a flame.
Have the electrical connection
performed by authorised
technicians.
The appliance must be connected
to ground in compliance with
electrical system safety standards.
Use cables withstanding a
temperature of at least 90 °C.
The tightening torque of the
screws of the terminal board
leads must be 1.5 - 2 Nm.
For this appliance
Ensure that the appliance is
switched off before replacing the
bulb.
Do not rest any weight or sit on
the open door of the appliance.
Take care that no objects are
stuck in the doors.
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
background
Instructions
61
EN
1.3 Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate.
The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user's reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.6 Disposal
This appliance must be
disposed of separately from
other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
background
Instructions
62
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
background
Description
63
EN
2 Description

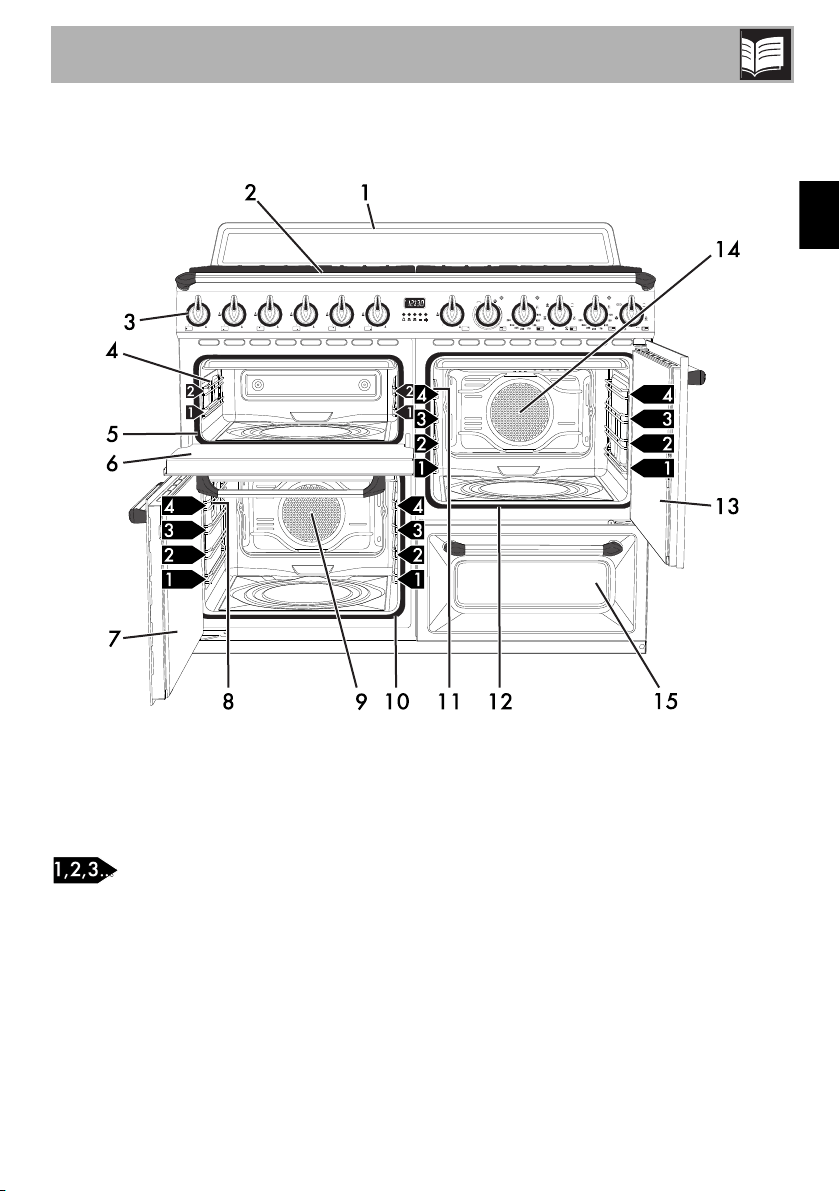

2.1 General Description
1 Upstand
2 Cooking hob
3 Control panel
Rack/tray support frames
4 Auxiliary oven light
5 Auxiliary oven seal
6 Auxiliary oven door
7 Left multifunction oven door
8 Left multifunction oven light
9 Left multifunction oven fan
10 Left multifunction oven seal
11 Right multifunction oven light
12 Right multifunction oven seal
13 Right multifunction oven door
14 Right multifunction oven fan
15 Storage compartment
background
Description
64
2.2 Cooking hob
AUX = Auxiliary
SR = Semi-rapid
R = Rapid
UR2 = Ultra-rapid
2.3 Control panel
1 Hob burner knobs
For lighting and adjusting the hob burners.
Press and turn the knobs anti-clockwise to
in order to light the relative burners.
Turn the knobs to the zone between the
maximum and minimum setting to
adjust the flame.
Return the knobs to the position to turn
off the burners.
2 Programmer clock
For displaying the current time, setting
programmed cooking operations and the
minute minder timer.
3 Auxiliary oven variable grill knob
It turns on the light inside the oven or starts
the grill heating element to a temperature
ranging from a minimum of 50 °C to a
maximum of 245 °C.
background
Description
65
EN
4 Auxiliary oven variable grill indicator
light
The indicator light comes on to indicate that
the auxiliary oven is heating up. It turns off
as soon as it reaches the set temperature. It
flashes regularly to indicate that the
temperature set inside the oven is kept
constant.

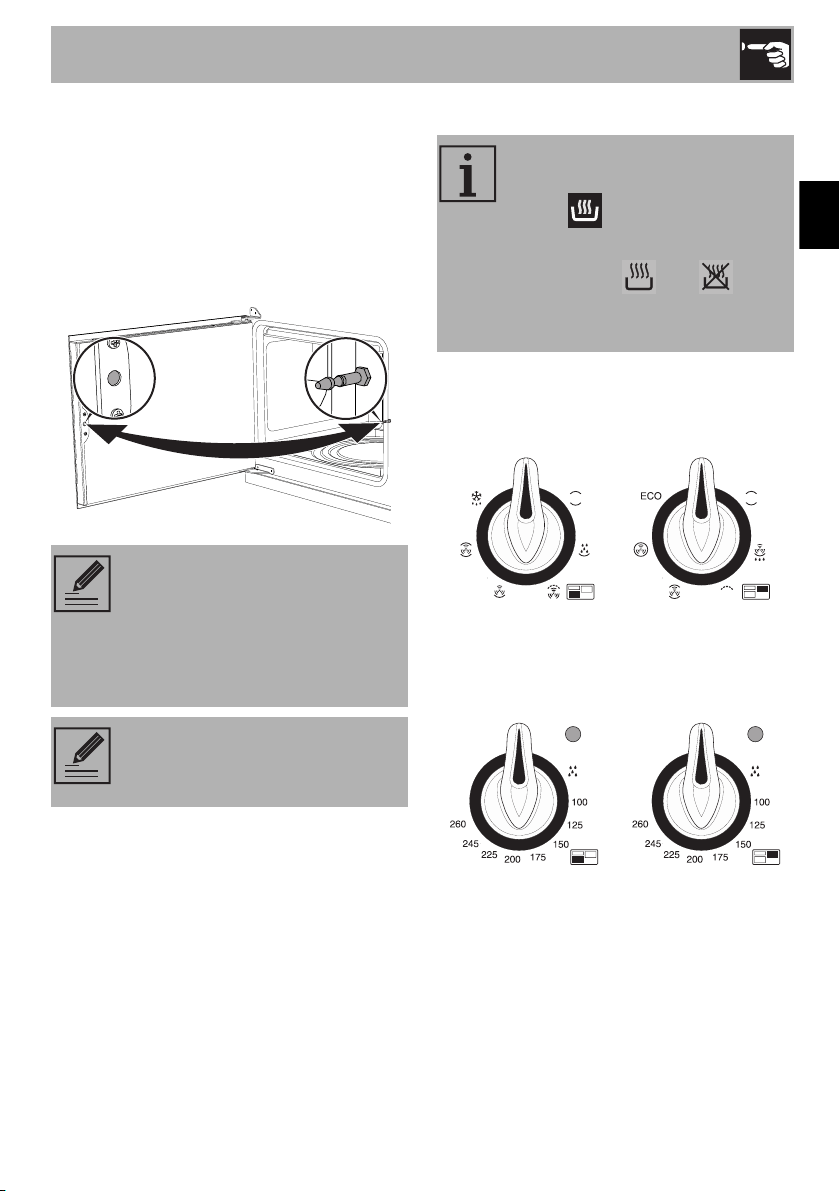

5 Left multifunction oven temperature
knob
This knob allows you to select the cooking
temperature and the Vapor Clean
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
6 Left multifunction oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
7 Left multifunction oven function knob
The oven's various functions are suitable for
different cooking methods. After selecting
the required function, set the cooking
temperature using the temperature knob.
8 Upper multifunction oven temperature
knob
This knob allows you to select the cooking
temperature and the Vapor Clean
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
9 Upper multifunction oven indicator
light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
10 Upper multifunction oven function
knob
The oven's various functions are suitable for
different cooking methods. After selecting
the required function, set the cooking
temperature using the temperature knob.
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
background
Description
66
Cooling fan
The fan cools the ovens and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Interior lighting
The internal light of the appliance comes on
when any function is started:
Multifunction ovens: turn the function
knob to any function (apart from the
function ).
Auxiliary oven: turn the variable grill
knob to the symbol or select a
cooking temperature.
2.5 Available accessories
Rack
Used for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Do not obstruct ventilation
openings and heat dispersal slots.
background
Description
67
EN

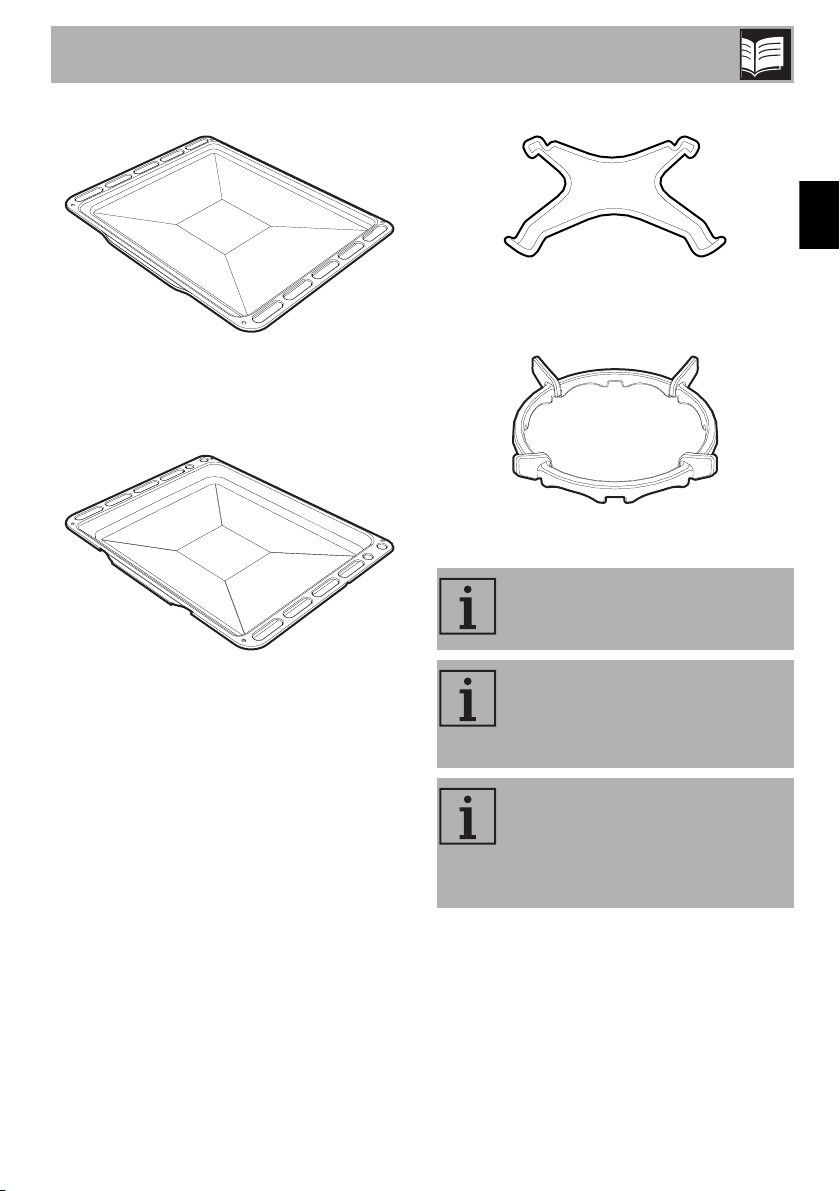

Tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Ring reducer
Useful when using small cookware.
WOK ring
Useful when using a wok.
Not all accessories are available
on some models.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Service Centres. Use only original
accessories supplied by the
manufacturer.
background
Use
68
3 Use
Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
Do not touch the heating elements inside
the appliance.
• Do not pour water directly on very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Oils and fats could catch fire if
overheated. Be very careful.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
Do not use the open door to place pans
or trays on the internal glazing pane.
• Do not pour water directly on very hot
trays.
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
background
Use
69
EN
Precautions
A gas leak can cause an explosion.
If you smell gas or there are faults in the gas
system:
Immediately turn off the gas supply or
close the valve on the gas cylinder.
Extinguish all naked flames and
cigarettes.
Do not turn on power switches or
appliances and do not remove plugs
from power sockets. Do not use phones
or mobile phones inside the building.
Open the window in order to ventilate
the room.
Call customer assistance services or your
gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service centre:
Yellowing of the burner plate.
Damage to kitchen utensils.
The burners do not ignite properly.
It is difficult to keep the burners lit.
The burners go out when the appliance
is in use.
It is difficult to turn the gas valves.
If the appliance does not work properly,
contact your local Authorised Service
Centre.
First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the cooking
compartments.
3. Remove and wash all the appliance's
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty appliance to the
maximum temperature to burn off any
residues left by the manufacturing
process.
High temperature inside the
storage compartment during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
Do not use or leave flammable materials
near the oven or the storage
compartment.
• Do not use plastic cookware or
containers for cooking.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
background
Use
70
3.1 To save energy
Preheat the appliance only if the recipe
requires it.
Unless differently stated on the package,
defrost frozen food before placing it in
the cooking compartment.
In case of multiple cooking, it is
recommended to cook food one after
the other to exploit the already hot
cooking compartment.
Use dark metal moulds: They help to
absorb the heat better.
Remove all trays and racks which are not
required during cooking.
Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
Reduce any opening of the door to a
minimum to avoid heat dispersal.
Keep the cooking compartment clean at
all times.
3.2 Using the storage compartment
The storage compartment is at the bottom
right of the cooker. It can be used to store
cookware or metallic objects necessary
when using the appliance.
background
Use
71
EN
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Ring reducers
The ring reducers must be placed on the
hob grids. Make sure they are placed
properly.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
background
Use
72
3.4 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anti-
clockwise to the maximum flame symbol,
until the burner ignites. If the burner does not
light in the first 15 seconds, turn the knob to
and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently. Wait a few moments and repeat
the operation. Keep the knob pressed in
longer.
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their housings with
their respective burner caps. Make sure that
the holes 1 of the flame-spreader crowns
are aligned with the thermocouples 2 and
igniters 3.
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that flames
do not reach up the sides of the pan. Once
the contents come to the boil, turn down the
flame far enough to ensure that the liquid
does not boil over.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least
60 seconds before lighting it
again.
Cookware diameters:
• Aux.: 12 - 14 cm.
• Semi rapid: 16 - 24 cm.
• Rapid: 18 - 26 cm.
• Ultra-rapid: 18 - 28 cm.
background
Use
73
EN
3.5 Using the ovens
Opening and closing the doors of
multifunction ovens
Multifunction ovens are equipped with a
swing door. To open, pull the door handle
towards you. To close, push the doors until
you hear a mechanical “click”.
Switching on multifunction ovens
To switch on the multifunction oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
The doors are not held in place
when open and may tend to
reclose. During use, pay attention
not to come into contact with the
internal glass pane to prevent
burns.
Over time the swing doors might
get difficult to open and close.
Grease the hinges.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the keys and at the
same time to reset the programmer
clock.
background
Use
74
Multifunction oven functions
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
In pyrolytic models, the special
defrost and proving functions are
brought together under the same
function.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and allows you to
give the food an even browning at
the end of the cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
background
Use
75
EN
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2nd and
4th shelf).
Fan with round heating element
The combination of the fan and the
round heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
Ideal for cooking meat, fish and
vegetables. It is not recommended
for leavened foods.
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function.

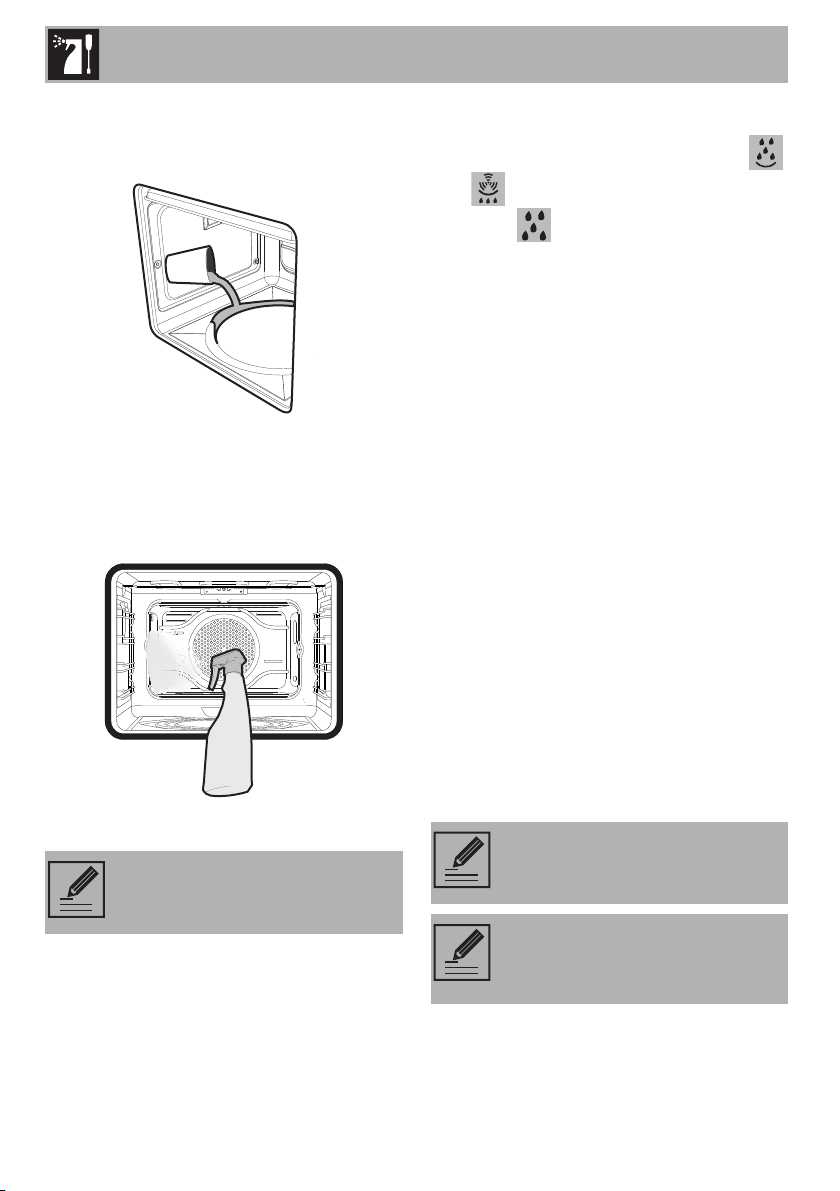

Vapor Clean
This function makes cleaning easier
using the steam produced by a
small quantity of water poured onto
the appropriate groove placed on
the bottom.
background
Use
76
Switching on the auxiliary oven
To switch on the auxiliary oven:
Select the temperature using the variable
grill knob. The temperature ranges
approximately from a minimum of 50 °C
to a maximum of 245 °C.
Auxiliary oven functions
3.6 Cooking advice
General advice
Use a fan assisted function to achieve
consistent cooking at several levels.
It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan with grill
Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
We recommend placing the food at the
centre of the rack.
Light bulb
Turns on the light inside the oven
cavity.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and allows you to
give the food an even browning at
the end of the cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
background
Use
77
EN
With the Grill function, we recommend
that you turn the temperature knob to the
maximum value near the symbol to
optimise cooking.
Foods should be seasoned before
cooking. Foods should also be coated
with oil or melted butter before cooking.
Use the oven tray on the first bottom shelf
to collect liquids produced by grilling.
Advice for cooking desserts/pastries and
biscuits
Use dark metal moulds: They help to
absorb the heat better.
The temperature and the cooking time
depend on the quality and consistency
of the dough.
To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10 °C,
selecting a longer cooking time if
necessary.
While cooking desserts or vegetables,
excessive condensation may form on the
glass. In order to avoid this, open the
door very carefully a couple of times
while cooking.
Advice for defrosting and proving
Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
Avoid overlapping the food.
To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
The most delicate parts can be covered
with aluminium foil.
For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
Reduce any opening of the door to a
minimum to avoid heat dispersal.
Keep the inside of the appliance clean at
all times.
background
Use
78
3.7 Programmer clock
Minute minder timer key
Cooking duration key
End of cooking key
Decrease key
Increase key
Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Press the keys and at the same
time. The dot between the hours and the
minutes flashes.
2. The time can be set using or .
Keep the key pressed in to increase or
decrease rapidly.
3. Press the key or wait 5 seconds. The
dot between the hours and the minutes
stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
The programmer clock controls
exclusively the right multifunction
oven and has not any control on
the other ovens.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the keys and at the
same time to reset the programmer
clock.
If the time is not set, the oven will
not switch on.
background
Use
79
EN
Timed cooking
1. After selecting a cooking function and
temperature, press the key. The
display will show the digits
and the symbol displayed between
the hours and the minutes.
2. Use the or key to set the
required minutes.
3. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
4. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer
sounds.
5. To turn off the buzzer just press any key
of the programmer clock.
6. Press the keys and at the same
time to reset the programmer clock.
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Press the key. The sum of the current
time plus the pre-set cooking duration
will appear on the display.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
It is not possible to set a cooking
time of more than 10 hours.
After the setting, to display the
cooking time left press the
key.
To reset the set program, press the
keys and at the same
time and switch off the oven
manually.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
background
Use
80
3. Use the or key to set the
required minutes.
4. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
5. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer
sounds.
6. To turn off the buzzer just press any key
of the programmer clock.
7. Press the keys and at the same
time to reset the programmer clock.
Minute minder timer
The minute minder timer can be activated at
any time.
1. Press the key. The display shows the
digits and the indicator light
flashing between the hours and the
minutes.
2. Use the or key to set the
required minutes.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the symbols
and appear on the display.
After the setting, to display the
cooking time left press the
key. To display the end of cooking
time, press the key.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
It is not possible to set a cooking
time of more than 24 hours.
After the minute minder timer has
been programmed, the display will
go back to showing the current
time. Press the key to display
the remaining time.
background
Use
81
EN
Adjusting the buzzer volume
The buzzer volume can be set to 3 different
levels. When the buzzer is in operation,
press the key to change the setting.
Deleting the set data
Press keys and at the same time to
reset the programs set.
Then switch off the oven manually if cooking
is in progress.
Auxiliary oven cooking information table
Food
Weight
(kg)
Function Level
Temperature
(°C)
Time
(minutes)
Sausages 1.5 Grill 2 MAX 13 - 15
1
nd
surface 2
nd
surface
Pork chops 1.5 Grill 2 MAX 15 5
Spare ribs 1.5 Grill 2 MAX 10 10
Bacon 0.7 Grill 2 MAX 7 8
Pork fillet 1.5 Grill 2 MAX 10 5
Beef fillet 1 Grill 2 MAX 10 7
The times indicated in the table do not include preheating times and are provided only as a guide.
background
Use
82
Multifunction oven cooking information table
Food
Weight
(kg)
Function Level
Temperature
(°C)
Time
(minutes)
Lasagne
3 - 4 Static 1 220 - 230 45 - 50
Pasta bake
3 - 4 Static 1 220 - 230 45 - 50
Roasted veal
2 Turbo/Round 2 180 - 190 90 - 100
Pork loin
2 Turbo/Round 2 180 - 190 70 - 80
Sausages
1.5 Fan with grill 4 260 15
Roast beef
1 Turbo/Round 2 200 40 - 45
Roast rabbit
1.5 Round 2 180 - 190 70 - 80
Turkey breast
3 Turbo/Round 2 180 - 190 110 - 120
Roast pork neck
2 - 3 Turbo/Round 2 180 - 190 170 - 180
Roast chicken
1.2 Turbo/Round 2 180 - 190 65 - 70
1
nd
surface 2
nd
surface
Pork chops
1.5 Fan with grill 4 260 15 5
Spare ribs
1.5 Fan with grill 4 260 10 10
Bacon
0.7 Grill 5 260 7 8
Pork fillet
1.5 Fan with grill 4 260 10 5
Beef fillet
1 Grill 5 260 10 7
Salmon trout
1.2 Turbo/Round 2 150 - 160 35 - 40
Delicate fish
1.5 Turbo/Round 2 160 60 - 65
Flounder
1.5 Turbo/Round 2 160 45 - 50
Pizza
1 Turbo/Round 2 260 8 - 9
Bread
1 Round 2 190 - 200 25 - 30
Focaccia
1 Turbo/Round 2 180 - 190 20 - 25
Ring cake
1 Round 2 160 55 - 60
Jam tart
1 Round 2 160 35 - 40
Ricotta cake
1 Round 2 160 - 170 55 - 60
Jam tarts
1 Turbo/Round 2 160 20 - 25
Chiffon cake
1.2 Round 2 160 55 - 60
Profiteroles
1.2 Turbo/Round 2 180 80 - 90
Sponge cake
1 Round 2 150 - 160 55 - 60
Rice pudding
1 Turbo/Round 2 160 55 - 60
Brioches
0.6 Round 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.
background
Cleaning and maintenance
83
EN
4 Cleaning and maintenance
Instructions
Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always use specific products only that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp
scrapers as they will damage the surface.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the hob grids,
flame-spreader crowns and burner caps
in a dishwasher.
We recommend the use of
cleaning products distributed by
the manufacturer.
After cleaning, dry the appliance
thoroughly to prevent water or
detergent drips from interfering
with its operation or creating
unsightly marks.
background
Cleaning and maintenance
84
4.1 Cleaning the hob
Cooking hob grids
Remove the grids and clean them in
lukewarm water and non-abrasive
detergent. Make sure to remove any
encrustations. Dry them thoroughly and
return them to the hob.
Flame-spreader crowns and burner caps
For easier cleaning, the flame-spreader
crowns and the burner caps can be
removed. Wash them in hot water and non-
abrasive detergent. Carefully remove any
encrustation, then wait until they are
perfectly dry. Refit the flame-spreader
crowns making sure that they are correctly
positioned in their housings with their
respective burner caps.
Igniters and thermocouples
For correct operation the igniters and
thermocouples must always be perfectly
clean. Check them frequently and clean
them with a damp cloth if necessary.
Remove any dry residues with a wooden
toothpick or a needle.
Knobs
The knobs should be cleaned with a soft
cloth dampened with warm water, then
dried carefully. They can be removed by
pulling them out of their housing.
The continuous contact between
the grids and the flame can cause
modifications to the enamel over
time in those parts exposed to
heat. This is a completely natural
phenomenon which has no effect
on the operation of this
component.
Do not use aggressive products
containing alcohol or products for
cleaning steel and glass when
cleaning the knobs, as these
products could cause permanent
damage.
background
Cleaning and maintenance
85
EN
4.2 Cleaning the doors
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
Removing the door (auxiliary oven only)
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:
1. Open the door completely and insert
two pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges
in the relevant slots in the oven, making
sure that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
background
Cleaning and maintenance
86
Removing the internal glass panes
For easier cleaning the internal glass panes
of the door can be removed.

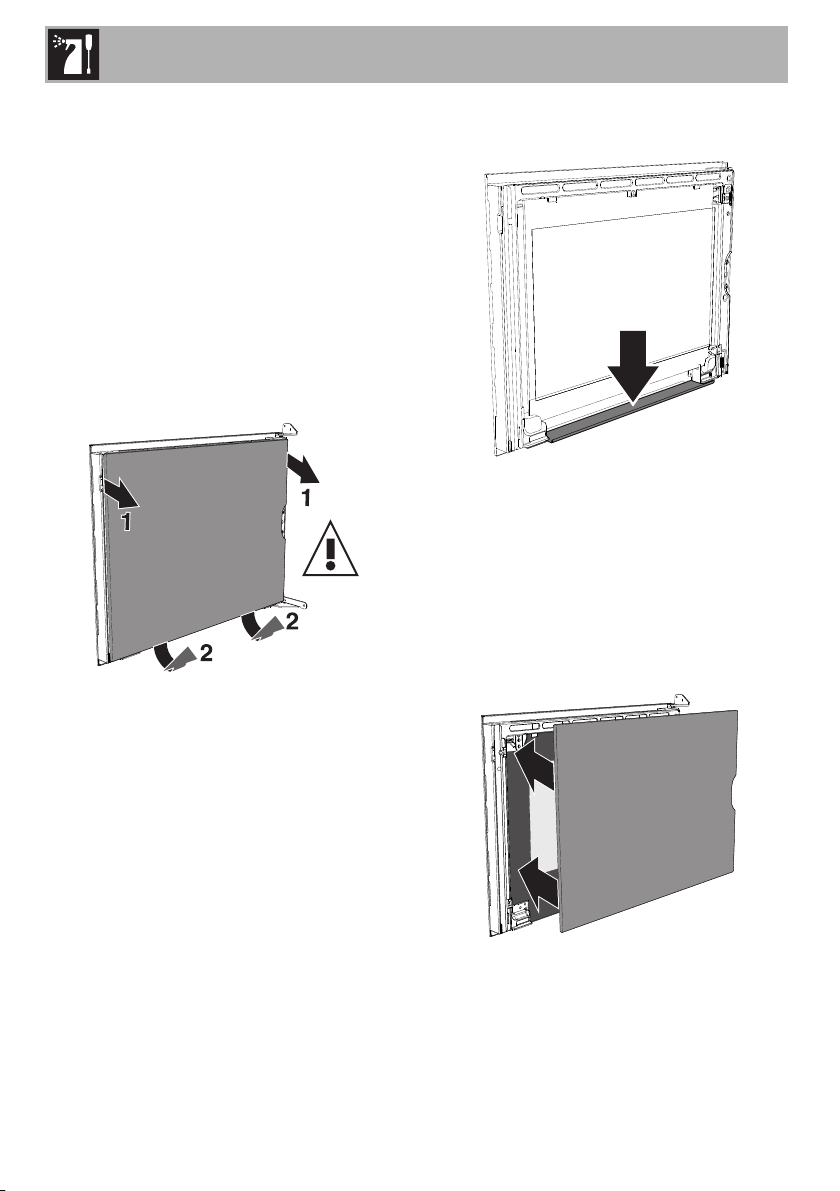

Multifunction oven doors
1. Remove the internal glass panel by
pulling the top part gently, following the
movement indicated by the arrows (1).
2. Then, pull the bottom part upwards (2).
This way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. After removing the inner glass it is
possible to access the drip catcher strip.
Use kitchen paper to clean. In case of
stubborn dirt, wash with a damp sponge
and an ordinary detergent.
4. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
background
Cleaning and maintenance
87
EN

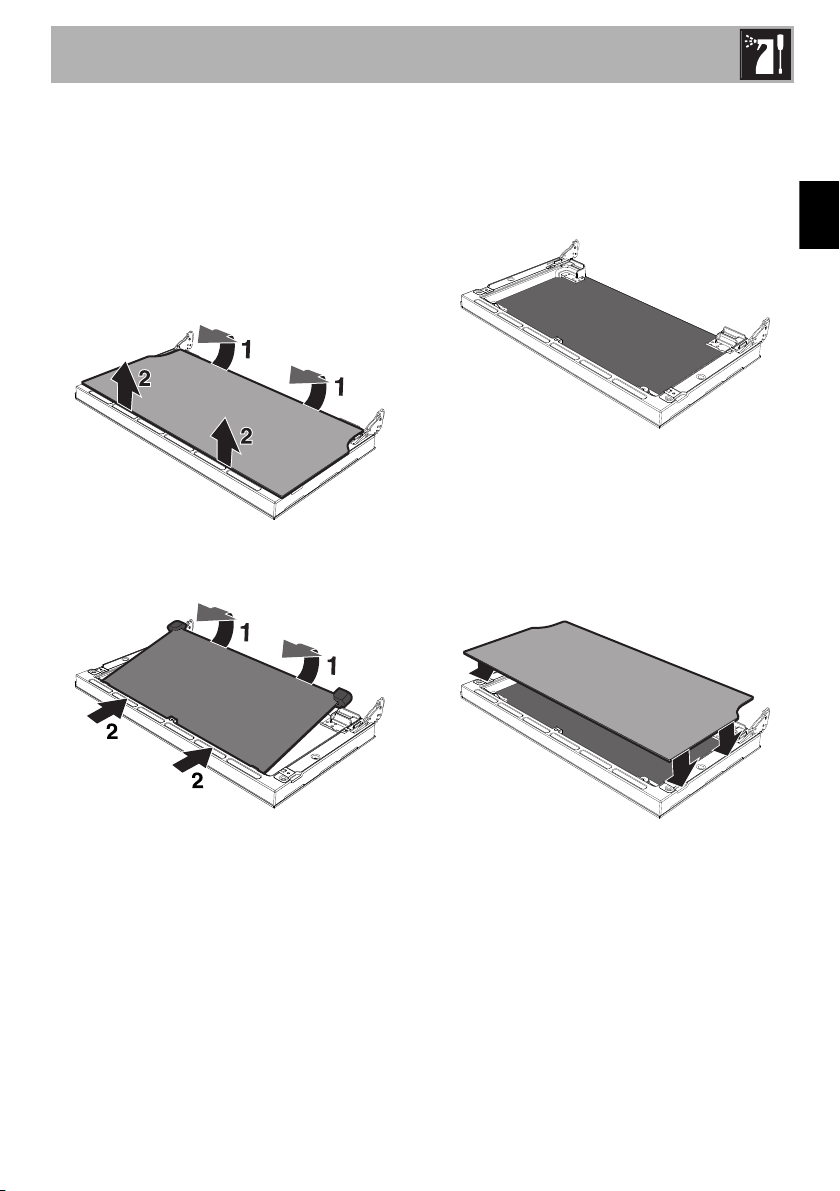

Auxiliary oven door
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). This
way, the 4 pins attached to the glass
detach from their housings in the door.
3. Remove the intermediate glass pane by
lifting it upwards.
4. Clean the external glass pane and the
panes removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Refit the panes in the reverse order of
removal.
6. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
background
Cleaning and maintenance
88
4.3 Cleaning the oven cavities
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts before
cleaning.
For easier cleaning, it is recommended to
remove:
The door (auxiliary oven only);
The rack/tray support frames;
Removable guides, where fitted;
The seal
Removing racks/trays support frames
Removing the guide frames enables the
sides to be cleaned more easily. This
operation should be performed each time
the automatic cleaning cycle is used
(on some models only).
To remove the guide frames. Pull the frame
towards the inside of the oven to unhook it
from its groove A, then slide it out of the
seats B at the back.
When cleaning is complete, repeat the
above procedures to put the guide frames
back in.
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
background
Cleaning and maintenance
89
EN
Cleaning the top section
The appliance is fitted with a tilting heating
element that makes it easier to clean the top
part of the oven.
1. Free the upper heating element by gently
lifting it and rotating its retaining latch by
90 degrees.
2. Gently lower the heating element until it
stops.
3. When you have finished cleaning, place
the heating element back in position and
turn the retaining latch to lock it in place.
4.4 Vapor Clean (multifunction oven
only)
Preliminary operations
Before starting the Vapor Clean cleaning
cycle:
• Completely remove all accessories from
inside the oven.
High temperature inside the oven
during use
Danger of burns
• The following operations must be
carried out only with the oven
completely cold and turned off.
Improper use
Risk of damage to the appliance
• Do not excessively flex the element
during cleaning.
Vapor Clean is an assisted
cleaning procedure which
facilitates the removal of dirt. This
process makes it possible to clean
the inside of the oven very easily.
The dirt residues are softened by
the heat and water vapour for
easier removal afterwards.
Improper use
Risk of damage to surfaces
• Remove any large amounts of food
residues or spills from previous cooking
operations from the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
background
Cleaning and maintenance
90
• Pour approx. 40 cc of water onto the
floor of the oven. Make sure it does not
overflow out of the cavity.
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray against the side
walls, upwards, downwards and
towards the deflector.
• Close the door.
Vapor Clean setting
1. Turn the function knob to the symbol
/ and the temperature knob to the
symbol .
2. Set a cooking time of 18 minutes using
the programmer clock.
3. At the end of the cooking time, the timer
will switch the oven cavity heating
elements off and the buzzer will start to
sound.
End of the Vapor Clean cycle
4. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
5. Use an anti-scratch sponge with brass
filaments on tougher encrustations.
6. In case of grease residues use specific
oven cleaning products.
7. Remove any remaining water from the
oven.
For improved hygiene and to avoid food
being affected by any unpleasant odours,
we recommend that the oven is dried using
a fan assisted function at 160 °C for
approximately 10 minutes.
We recommend spraying approx.
20 times at the most.
We recommend wearing rubber
gloves for these operations.
For easier manual cleaning of
parts that are difficult to reach, we
recommend removing the door.
background
Cleaning and maintenance
91
EN
4.5 Extraordinary maintenance

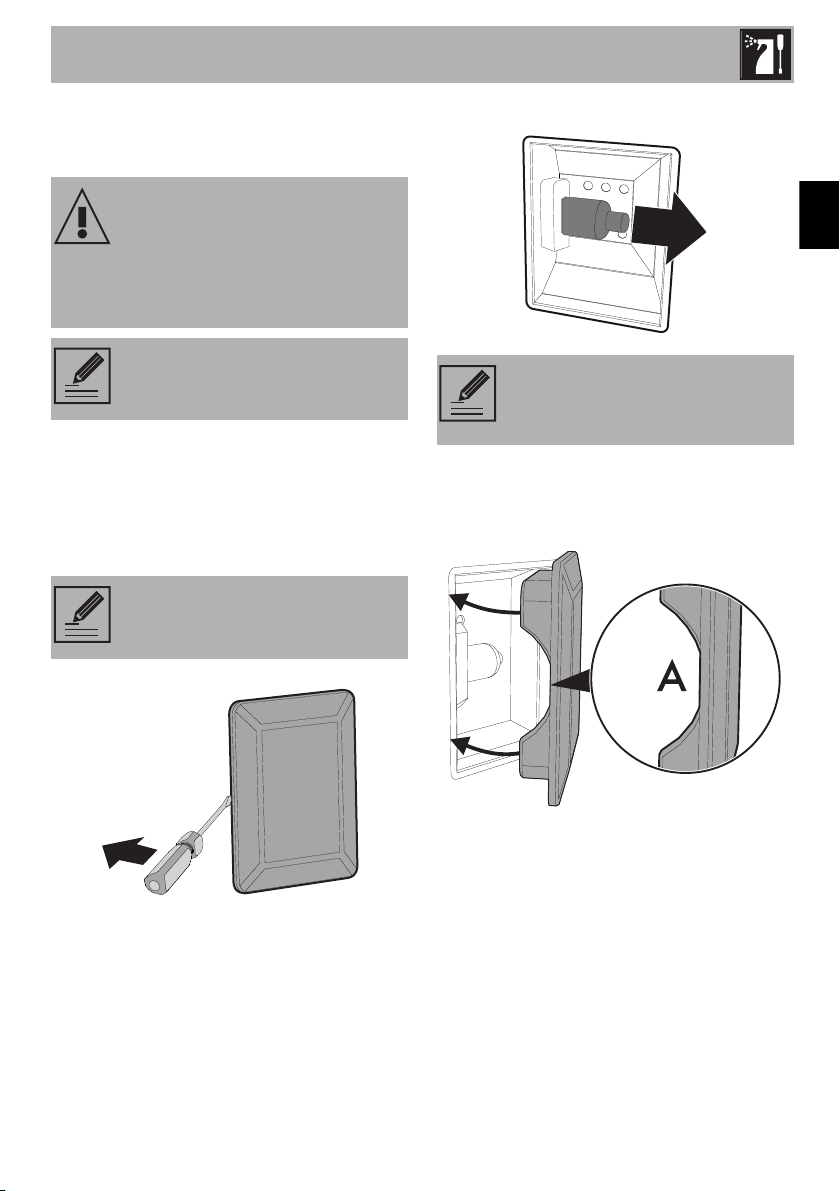

Replacing the internal light bulb
1. Completely remove all accessories
from inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool
(e.g. a screwdriver).
4. Slide out and remove the light bulb.
5. Fit the new light bulb.
6. Refit the cover. Ensure the moulded part
of the glass (A) is facing the door.
7. Press the cover completely down so
that it attaches perfectly to the bulb
support.
Live parts
Danger of electrocution
Unplug the appliance from the mains.
The oven is fitted with a 40W light
bulb.
Take care not to scratch the
enamel of the oven cavity wall.
Do not touch the halogen light
bulb directly with your fingers, use
an insulating material.
background
Cleaning and maintenance
92
Installing and removing the seal
To remove the seal:
Unhook the clips in the 4 corners then
pull the seal outwards.
To refit the seal:
Hook the clips in the 4 corners onto the
seal.
Seal maintenance tips
The seal should be soft and elastic.
To keep the seal clean, use a non-
abrasive sponge and wash with
lukewarm water.
What to do if...
The appliance does not work:
The switch is defective: check the fuse
box to see whether the switch is in
working order.
Loss of power: check that the appliance
indicator lights are operational.
The gas burner does not light:
Loss of power or moisture in the igniters:
light the gas burner with a lighter or
match.
The oven does not heat up:
Defective fuse: check and replace the
switch if necessary.
The function knob has not been set: set
the function knob.
All food prepared in the oven cavity burns
within a short time:
Defective thermostat: contact an
Authorised Service Centre
The door glass mists up when the oven is
hot:
Completely normal behaviour caused by
the difference in temperature which has
no effect on the oven’s performance.
The display is completely off:
Check the mains power supply.
Check that any circuit breaker/switch
upstream of the appliance power supply
connection is in the “ON” position.
If the problem has not been
resolved or in the case of other
types of fault, contact your local
technical support centre.
background
Installation
93
EN
5 Installation
5.1 Gas connection
General information
Connection to the gas mains can be made
using a continuous wall steel hose in
compliance with the guidelines established
by the standards in force. The appliance is
preset for natural gas G20 (2H) at a
pressure of 20 mbar. For supplying it with
other types of gas, see chapter “5.2
Adaptation to different types of gas”. The
gas inlet connection is threaded ½”
external gas (ISO 228-1).
Connection with a rubber hose
Verify that all following conditions are met:
• The hose is attached to the hose
connector with safety clamps.
• No part of the hose is in contact with hot
walls (max. 50 °C).
• The hose is not under traction or tension
and has no kinks or twists.
• The hose is not in contact with sharp
objects or sharp corners.
• If the hose is not perfectly airtight and
leaks gas, do not try to repair it; replace
it with a new hose.
• verify that the hose is not past its expiry
date (serigraphed on the hose itself).
Make the connection to the gas mains
using a rubber hose whose specifications
comply with current standards (verify that
the reference standard is stamped on the
hose).
Gas leak
Danger of explosion
• After carrying out any operation, check
that the tightening torque of gas
connections is between 10 Nm and
15 Nm.
• If required, use a pressure regulator that
complies with current regulations.
• At the end of the installation, check for
any leaks with a soapy solution, never
with a flame.
• Installation using a hose must be carried
out so that the length of the hose does
not exceed 2 metres when fully
extended for steel hoses and 1.5 metres
for rubber hoses.
• The hoses should not come into contact
with moving parts and should not be
crushed in any way.
background
Installation
94
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread
ISO 228-1), placing the seal 2 between
them. The hose connector 4 can also be
screwed to the hose connector 3,
depending on the diameter of the gas hose
used. After having tightened the hose
connector(s), push the gas hose 6 onto the
hose connector and secure it with the
clamp 5 that is compliant with the standard
in force.
Connection with a steel hose
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the connector 3 to the gas
connector 1 of the appliance, placing the
seal 2 between them.
Connection with a steel hose with
bayonet fitting
Carry out the connection to the gas mains
using a steel hose with bayonet fitting
compliant with B.S. 669. Apply insulating
material to the thread of the gas hose
connector 4 and then tighten the adapter 3.
Screw the assembly to the movable
connector 1 of the appliance, placing the
supplied seal 2 between them.
Connection using a rubber hose
complying with current standards is
only permitted if the hose can be
inspected along its entire length.
The inside diameter of the hose
must be 8 mm for LPG and 13 mm
for Natural gas and Town gas.
background
Installation
95
EN
Connection with a steel hose with conical
fitting
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread
ISO 228-1), placing the supplied seal 2
between them. Apply insulating material to
the thread of connector 3, then tighten the
steel hose 4 to the connector 3.
Connection to LPG
Use a pressure regulator and make the
connection on the gas cylinder following
the guidelines set out in the standards in
force.
The supply pressure must comply with the
values indicated in the table in “Gas types
and Countries”.
Room ventilation
The appliance should be installed in rooms
that have a permanent air supply in
accordance with the standards in force. The
room where the appliance is installed must
have enough air flow for the regular
combustion of gas and the necessary air
change in the room itself. The air vents,
protected by grilles, must be the right size to
comply with current regulations and
positioned so that no part of them is
obstructed, not even partially.
The room must be kept adequately
ventilated in order to eliminate the heat and
humidity produced by cooking: In
particular, after prolonged use, you are
recommended to open a window or to
increase the speed of any fans.
Extraction of the combustion products
The combustion products may be extracted
by means of hoods connected to a natural
draught chimney whose efficiency is certain
or via forced extraction. An efficient
extraction system requires precision
planning by a specialist qualified in this
area and must comply with the positions
and clearances indicated by the applicable
standards.
background
Installation
96
When the job is complete, the installer must
issue a certificate of conformity.
1 Extraction using a hood
2 Extraction without a hood
A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-
mounted extractor fan
D Directly outdoors through wall
Air
Combustion products
Extractor fan
5.2 Adaptation to different types of
gas
In case of operation with other types of gas,
the burner nozzles must be changed and
the minimum flame adjusted on the gas
cocks.
Replacing nozzles
1. Remove the grids, burner caps and
flame-spreader crowns to access the
burner cups.
2. Replace the nozzles using a 7 mm
spanner according to the gas to be used
(see “Burner and nozzle specifications
tables”).
The appliance is preset for natural
gas G20 at a pressure of
20 mbar.
background
Installation
97
EN
3. Replace the burners in their respective
housings.
Adjusting the minimum setting for natural
or town gas
Light the burner and turn it to the minimum
position. Extract the gas cock knob and turn
the adjustment screw next to the tap rod
(depending on the model) until the correct
minimum flame is achieved.
Refit the knob and verify that the burner
flame is stable. Turn the knob rapidly from
the maximum to the minimum setting: The
flame should not go out. Repeat the
operation on all gas cocks.
Adjusting the minimum setting for LPG
Tighten the screw located at the side of the
tap rod clockwise all the way.
Lubricating the gas cocks
Over time the gas taps may become difficult
to turn and get blocked. Clean them
internally and replace the lubrication
grease.
Following adjustment to a gas
other than the one originally set in
the factory, replace the gas setting
label on the appliance with the
one corresponding to the new gas.
The label is inserted inside the
nozzle pack (where present).
Lubrication of the gas cocks should
be performed by a specialised
technician.
background
Installation
98
Gas types and Countries
Gas types
IT
GB-IE FR-BE
DE AT ES PT SE RU DK PL HU
1 Natural gas G20
G20 20 mbar
•• ••••••••
G20/25 20/25 mbar
2 Natural gas G20
G20 25 mbar
3 Natural gas G25.1
G25.1 25 mbar
4 Natural gas G25
G25 20 mbar
5 Natural gas G2.350
G2.350 13 mbar
6 LPG G30/31
G30/31 28/37 mbar
•••
G30/31 30/37 mbar
••
G30/31 30/30 mbar
••
7 LPG G30/31
G30/31 37 mbar
8 LPG G30/31
G30/31 50 mbar
••
9 Town gas G110
G110 8 mbar
••
It is possible to identify the
available gas types based on the
country the appliance is to be
installed in. Refer to the heading
number to identify the correct
values in the “Burner and nozzle
specifications tables”.
background
Installation
99
EN
Burner and nozzle specifications tables
1 Natural gas G20 AUX SR R UR2
Rated heating capacity (kW)
1.0 1.8 3.0 4.2
Nozzle diameter (1/100 mm)
72 97 115 155
Pre-chamber (printed on nozzle)
(X) (Z) (Y) (H3)
Reduced flow rate (W)
400 500 800 1200
2 Natural gas G20 AUX SR R UR2
Rated heating capacity (kW)
1.1 1.8 3.0 4.2
Nozzle diameter (1/100 mm)
72 94 110 145
Pre-chamber (printed on nozzle)
(X) (Z) (H8) (H3)
Reduced flow rate (W)
400 500 800 1200
3 Natural gas G25.1 AUX SR R UR2
Rated heating capacity (kW)
1.1 1.8 3.1 4.1
Nozzle diameter (1/100 mm)
77 100 134 152
Pre-chamber (printed on nozzle)
(X) (Y) (F3) (F3)
Reduced flow rate (W)
400 500 800 1200
4 Natural gas G25 AUX SR R UR2
Rated heating capacity (kW)
1.0 1.8 3.0 4.0
Nozzle diameter (1/100 mm)
77 100 134 165
Pre-chamber (printed on nozzle)
(F1) (Y) (F3) (H3)
Reduced flow rate (W)
400 500 800 1200
5 Natural gas G2.350 AUX SR R UR2
Rated heating capacity (kW)
1.0 1.8 2.9 3.8
Nozzle diameter (1/100 mm)
94 120 165 190
Pre-chamber (printed on nozzle)
(Y) (Y) (F3) (F3)
Reduced flow rate (W)
400 500 800 1200
background
Installation
100
The nozzles not provided are available at Authorised Service Centres.
6 LPG G30/31 AUX SR R UR2
Rated heating capacity (kW)
1.0 1.75 3.0 4.0
Nozzle diameter (1/100 mm)
50 65 85 100
Pre-chamber (printed on nozzle)
--- -
Reduced flow rate (W)
400 500 800 1300
Rated flow rate G30 (g/h)
73 127 218 291
Rated flow rate G31 (g/h)
71 125 214 286
7 LPG G30/31 AUX SR R UR2
Rated heating capacity (kW)
1.1 1.9 3.0 4.2
Nozzle diameter (1/100 mm)
50 65 81 95
Pre-chamber (printed on nozzle)
--- -
Reduced flow rate (W)
450 550 900 1500
Rated flow rate G30 (g/h)
80 138 218 305
Rated flow rate G31 (g/h)
79 136 214 300
8 LPG G30/31 AUX SR R UR2
Rated heating capacity (kW)
1.0 1.8 3.0 4.1
Nozzle diameter (1/100 mm)
43 58 74 80
Pre-chamber (printed on nozzle)
(H2) (M) (Z) (F4)
Reduced flow rate (W)
400 500 1000 1500
Rated flow rate G30 (g/h)
73 131 218 298
Rated flow rate G31 (g/h)
71 129 214 293
9 Town gas G110 AUX SR R UR2
Rated heating capacity (kW)
1.0 1.8 2.8 3.4
Nozzle diameter (1/100 mm)
145 185 260 340
Pre-chamber (printed on nozzle)
(/8) (/2) (/3) 0190
Reduced flow rate (W)
400 500 800 1000
background
Installation
101
EN
5.3 Positioning
This appliance may be installed next to
walls, one of which must be higher than the
worktop, at a minimum distance of X mm
from the side of the appliance, as shown in
figures “A” and “C” relative to the
installation classes.
Any wall units positioned above the
worktop of the appliance must be at a
minimum distance of at least Y mm. If a
hood is installed above the hob, refer to the
hood instruction manual to ensure the
correct clearance is left.
Depending on the type of installation, this
appliance belongs to classes:
A - Class 1
(Free-standing appliance)
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
Avoid exerting too much pressure on the
door when open.
Heat production during appliance
operation
Risk of fire
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (not less than
90 °C).
X 150 mm
Y 750 mm
background
Installation
102

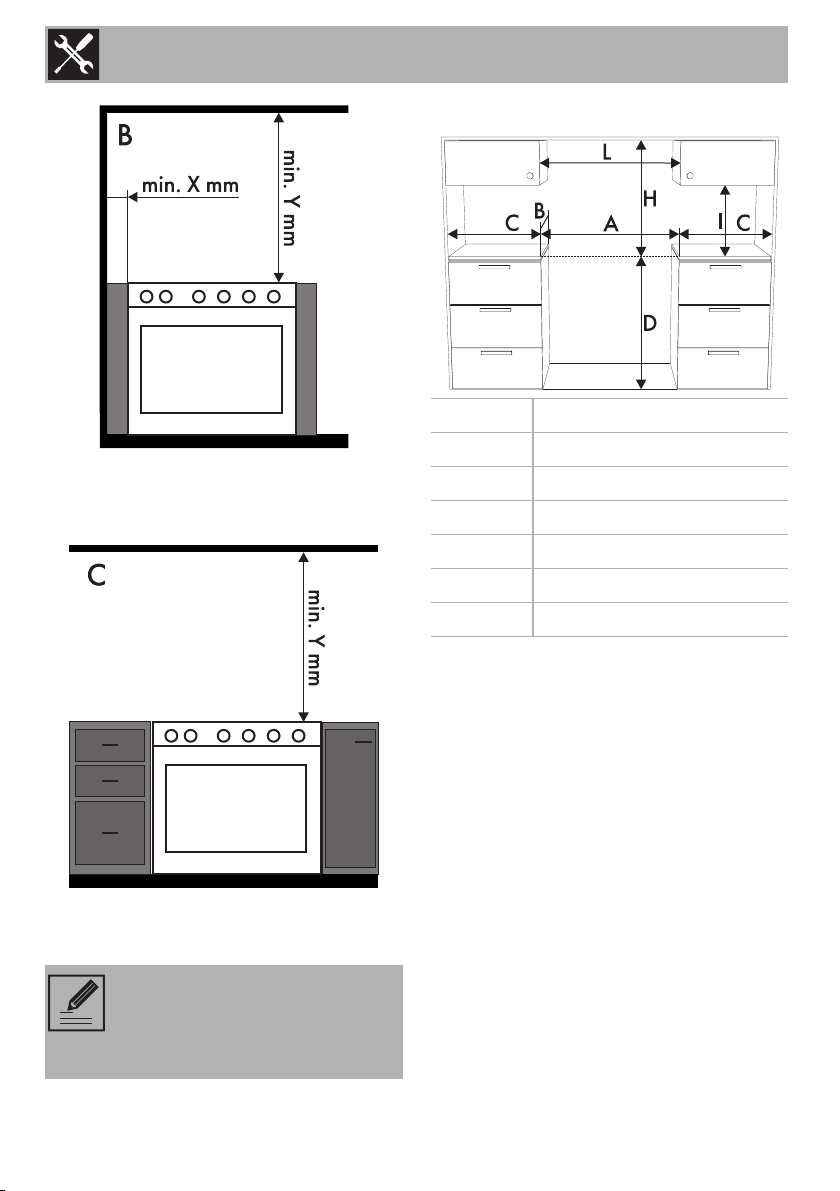

B - Class 2 subclass 1
(Built-in appliance)
C - Class 2 subclass 1
(Built-in appliance)
Appliance overall dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A).
The appliance must be installed by
a qualified technician and
according to the regulations in
force.
A 1100 mm
B 600 mm
C
1
min. 150 mm
D 900 - 915 mm
H 750 mm
I 450 mm
L
2
1100 mm
background
Installation
103
EN

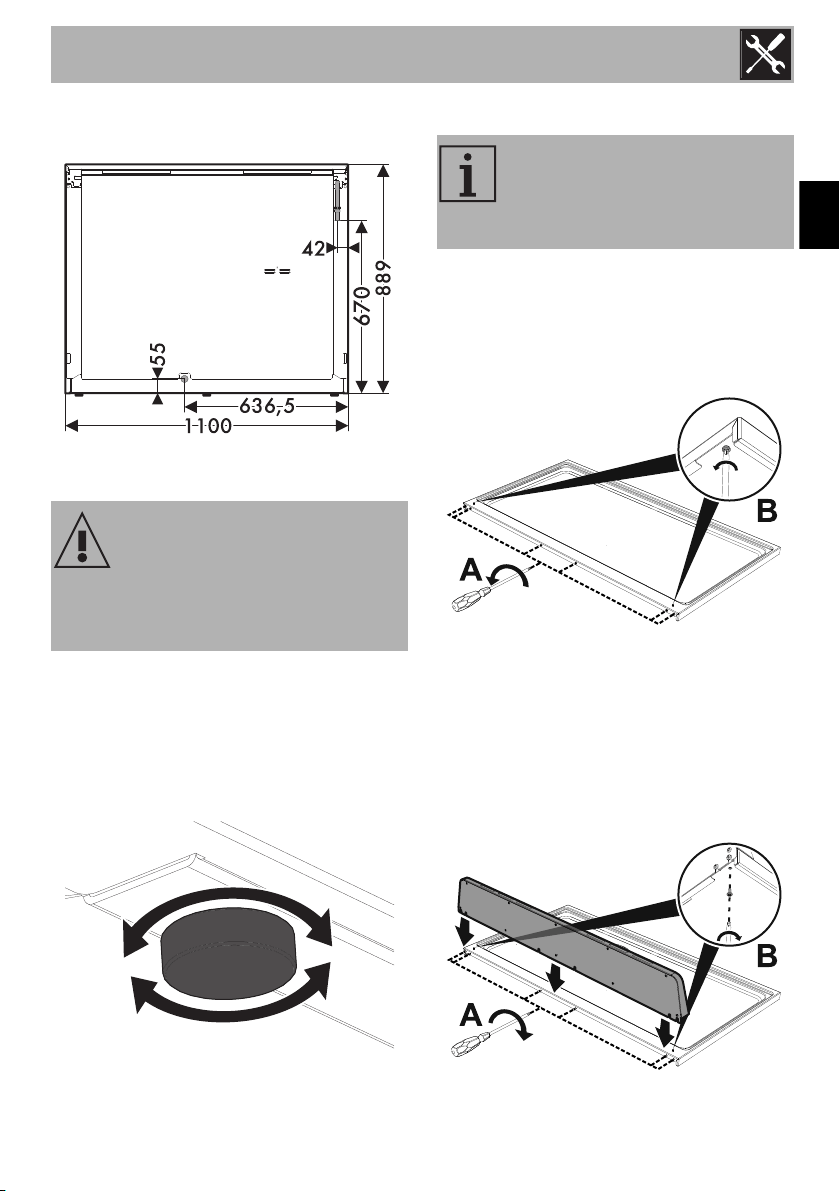

Appliance dimensions
Position of gas and electrical connections.
Positioning and levelling
The appliance must sit level on the floor to
ensure stability.
• After making the gas and electrical
connections, level and stabilise the
appliance on the floor by screwing the
foot in or out.
Assembling the upstand
The upstand must always be positioned and
secured correctly on the appliance.
1. Loosen the 6 screws on the back of the
hob (A) and unscrew the 2 screws (B) on
the side part of the upstand.
2. Place the upstand on the hob. Align the
6 bottom slots of the upstand with the
6 screws on the back of the hob that
were previously loosened.
3. Tighten the 6 screws on the back of the
hob (A) and the 2 screws under the
hob (B) to secure the upstand.
Heavy appliance
Risk of damage to the appliance
• Insert the front feet first and then the rear
ones.
The upstand provided is an
integral part of the product; it must
be fastened to the appliance prior
to installation.
background
Installation
104
Mounting the toe skirt
The toe skirt must always be positioned and
secured correctly on the appliance.
1. Place the toe skirt in the front bottom part
of the appliance.
2. Screw the two side screws to fasten the
toe skirt to the appliance.
3. Cover the holes of the toe skirt with the
plugs provided.
5.4 Electrical connection
General information
Check the mains characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The toe skirt provided is an integral
part of the product; it must be
fastened to the appliance prior to
installation.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technicians.
• Use personal protective equipment.
• The appliance must be connected to
ground in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the
plug.
• Use H05V2V2-F cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws of the
terminal board leads must be 1.5 - 2 Nm.
background
Installation
105
EN
The appliance can work in the following
modes:
220-240 V 1N~
3 x 6 mm² three-core cable.
380-415 V 2N~
4 x 4 mm² four-core cable.
220-240 V 2~
3 x 6 mm² three-core cable.
220-240 V 3~
4 x 4 mm² four-core cable.
380-415 V 3N~
5 x 1.5 mm² five-core cable.
The values indicated above refer
to the cross-section of the internal
lead.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
background
Installation
106
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters, gang sockets or
extensions as these could cause
overheating and a risk of burns.
5.5 Instructions for the installer
The plug must be accessible after
installation. Do not bend or trap the
power cable.
The appliance must be installed
according to the installation diagrams.
Do not try to unscrew or force the
threaded elbow of the fitting. You may
damage this part of the appliance, which
may void the manufacturer’s warranty.
Use soap and water to check for gas
leaks on all connections. DO NOT use
naked flames to find leaks.
Turn on all the burners separately and at
then all together to make sure that the
gas valve, burner and ignition are
working properly.
Turn the burner knobs to the minimum
position and check that the flame is
stable for each individual burner and all
the burners together.
If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
Once the appliance has been installed,
please explain to the user how to use it
correctly.

Specifications

Indexed Terms: Gas Cooker

Smeg TR4110RW1 Questions and Answers

Questions and Answers

Related Products
