60cm Induction Cooktop
Model CI6SE3
INSTRUCTION /
INSTALLATION MANUAL
PLEASE READ THE USER MANUAL CAREFULLY BEFORE USE
www.glendimplex.com.au
Page ii CI6SE3 60cm Induction Cooktop
Product / Installer details
For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the
information is always at hand.
Product Details
Model number: ________________________________________________________________________________________
Description: ___________________________________________________________________________________________
Serial number: _________________________________________________________________________________________
(Located on the product rating label)
Purchase Details
Date of purchase: ______________________________________________________________________________________
Place of purchase: _____________________________________________________________________________________
Store name: ___________________________________________________________________________________________
Address: ______________________________________________________________________________________________
Telephone: ____________________________________________________________________________________________
Invoice / receipt number: ________________________________________________________________________________
Installation Details
Electrical date of installation: ___________________________________________________________________________
Electrician Installers Details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Gas date of installation: _________________________________________________________________________________
Gas installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Plumbing date of installation: ___________________________________________________________________________
Plumbers installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
CI6SE3 60cm Induction Cooktop Page iii
Dear Customer,
Congratulations on the purchase of your new product from
Glen Dimplex Australia Pty Ltd.
We recommend you please take some time to read the instruction manual
thoroughly to familiarise yourself with the functionality and operations to ensure
optimum performance of your new appliance.
After reading the manual, please store it in a safe and accessible location for
future reference.
Installation
The installation of your new appliance must be carried out by a qualied
installer / technician in accordance to local regulations.
The packaging of your appliance has been selected from environmentally
friendly materials and can usually be recycled. Please ensure these are disposed
of correctly.
Customer Care
Our Customer Care centre is available should you wish to learn more about your
appliance in relation to how to use it to its best potential, or tips on cleaning as
well as available accessories.
For further details please contact our Customer Care team on
1800 444 357 or email: customercar[email protected]
Thank you
Regards,
Glen Dimplex Australia
Page 1 CI6SE3 60cm Induction Cooktop
CONTENTS
Contents ______________________________________________________ 1
Safety Warnings - Installation __________________________________ 2-3
Safety Warnings - Operation and Maintenance ___________________ 3-6
Product Overview _______________________________________________ 7
What is Induction Cooking? ______________________________________ 8
Before using your new cooktop ___________________________________ 8
Using the Touch Controls ________________________________________ 8
Choosing the right cookware _____________________________________ 9
Using your Cooktop ____________________________________________ 10
Using boost function ___________________________________________ 11
Locking the controls ___________________________________________ 12
Residual Heat Indicators ________________________________________ 12
Auto Shutdown ________________________________________________ 12
Using the Timer ____________________________________________ 13-15
Cooking Guidelines _________________________________________ 16-17
Heat Settings _________________________________________________ 17
Care and Cleaning _____________________________________________ 18
Troubleshooting Guide - hints and tips ___________________________ 19
Failure Display and Inspection ___________________________________ 20
Technical Specication _________________________________________ 20
Installation - material and dimensions ____________________________ 21
Installation - ventilation and clearances ___________________________ 22
Installation - xing cooktops to work surface ______________________ 23
Installation - electrcial connection ________________________________ 24
CI6SE3 60cm Induction Cooktop Page 2
SAFETY WARNINGS
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY
BEFORE USING THE APPLIANCE.
Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out
any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Means for disconnection must be incorporated in the xed wiring in
accordance with the wiring rules.
• Alterations to the domestic wiring system must only be made by a qualied
electrician.
• Failure to follow this advice may result in electrical shock or death.
Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any
time.
• Please make this information available to the person responsible for installing
the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably
qualied person.
Page 3 CI6SE3 60cm Induction Cooktop
SAFETY WARNINGS
• This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
• WARNING: Use only cooktop guards designed by the manufacturer of the
cooking appliance or indicated by the manufacturer of the appliance in the
instructions for use as suitable or cooktop guards incorporated in the appliance.
The use of inappropriate guards can cause accidents.
• Failure to install the appliance correctly could invalidate any warranty or liability
claims.
• Regarding the details of installation, thanks to refer to the section ‘Installation’.
Operation and Maintenance
Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface is broken
or cracked, switch the appliance off immediately at the mains power supply (wall
switch) and contact a qualied technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
Health Hazard
• This appliance complies with electromagnetic safety standards.
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to cause
burns.
• Do not let your body, clothing or any item other than suitable cookware contact
the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on
the hob surface since they can get hot.
CI6SE3 60cm Induction Cooktop Page 4
SAFETY WARNINGS
• Children less than 8 years of age shall be kept away unless continuously
supervised.
• Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.
Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety cover
is retracted. Use with extreme care and always store safely and out of reach of
children.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Never leave the appliance unattended when in use. Boil over causes smoking
and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in
this manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in
use.
Page 5 CI6SE3 60cm Induction Cooktop
SAFETY WARNINGS
•
Children or persons with a disability which limits their ability to use the
appliance should have a responsible and competent person to instruct them in
its use. The instructor should be satised that they can use the appliance without
danger to themselves or their surroundings.
•
Do not leave children alone or unattended in the area where the appliance is in
use.
• Children or persons with a disability which limits their ability to use the
appliance should have a responsible and competent person to instruct them in
its use. The instructor should be satised that they can use the appliance without
danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specically
recommended in the manual. All other servicing should be done by a qualied
technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the glass surface as
this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the ceramic glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
• This appliance is intended to be used in a domestic household environment
only! Commercial use of any kind is not covered under the manufacturer’s
warranty!
• WARNING: The appliance and its accessible parts become hot during use.
• Care should be taken to avoid touching heating elements.
CI6SE3 60cm Induction Cooktop Page 6
SAFETY WARNINGS
• Children less than 8 years of age shall be kept away unless continuously
supervised.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• WARNING: Unattended cooking on a cooktop with fat or oil can be dangerous
and may result in re. NEVER try to extinguish a re with water, but switch off the
appliance and then cover ame e.g. with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the
possibility of electric shock, for hob surfaces of glass-ceramic or similar material
which protect live parts.
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
• CAUTION: The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
• Power cord can’t be accessible after installation.
Page 7 CI6SE3 60cm Induction Cooktop
Congratulations on the purchase of your new cooktop. We recommend that
you spend some time to read this Instruction / Installation Manual in order to
fully understand how to install correctly and operate it.
Read all the safety instructions carefully before use and keep this Instruction
/ Installation Manual for future reference.
Product Overview – CI6SE3
Top View
The Control Panel
1. max. 2300/3000 W zone
2. max. 1200/1500 W zone
3. max. 1800/2100 W zone
4. max. 1200/1500 W zone
5. Control panel
1. ON/OFF switch
2. Select power level
3. Setting the timer
4. Child lock
5. Select heating zone
6. Boost control
CI6SE3 60cm Induction Cooktop Page 8

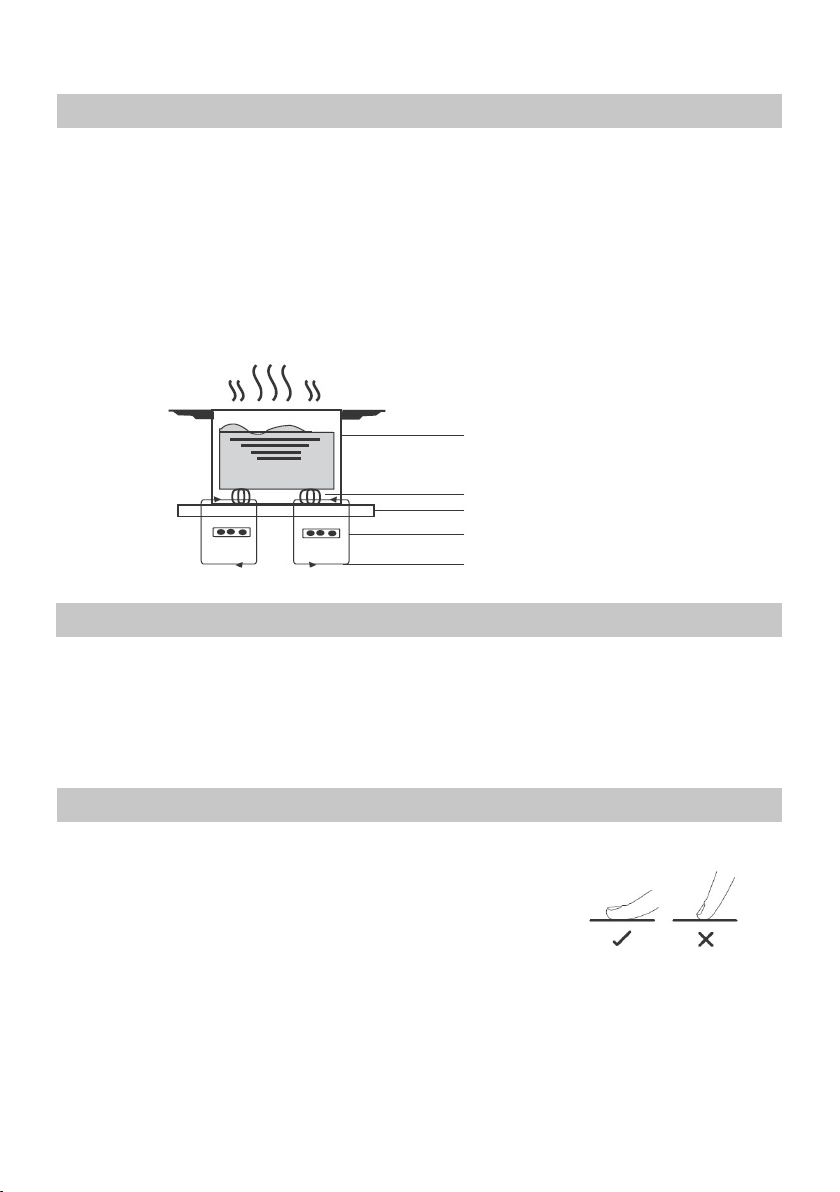

Iron pot
Magnetic circuit
Ceramic glass plate
Induction coil
Induced current
What is Induction Cooking?
Induction cooking is a safe, advanced, efcient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly
in the pan, rather than indirectly through heating the glass surface. The glass
becomes hot only because the pan eventually warms it up. NOTE: Cookware
for Induction cooktops, due to the nature of the technology, need to have
magnetic properties in order to work. Refer to ‘Choosing the right cookware’ for
details about this.
Before using your new Cooktop
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective lm that may still be on your Induction cooktop.
• DO NOT use the cooktop if cracked or damaged in any way.
Using the Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your nger, not its tip. See illustration.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g.
a utensil or a cloth) covering them. Even a thin lm of water may make the
controls difcult to operate.
Page 9 CI6SE3 60cm Induction Cooktop
Choosing the right cookware
• Only use cookware with a base suitable for induction cooking. Look for the
induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet
test. Move a magnet towards the base of the pan. If it is attracted, the pan is
suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. Follow the steps under ‘To start cooking’.
3. If does not ash in the display and the water is heating, the pan is
suitable.
• Cookware made by the following materials is not suitable: pure stainless steel,
aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic,
and earthenware.
Size of Cooking Zone (mm) Cookware minimum diameter (mm)
160 120
180 140
210 160
Do not use cookware with jagged edges or those with a curved base. Make sure
that the base of your pan is smooth, sits at against the glass.
Ideally cookware should be the same size as the cooking zone. Refer table
above. Always centre your pan on the cooking zone.
Always lift pans off the cooktop – do not slide, or they may scratch the glass
CI6SE3 60cm Induction Cooktop Page 10
Using your cooktop
To start cooking
After power on, the buzzer beeps once, all the indicators light up for 1 second
then go out, indicating that the cooktop has entered the state of standby mode.
1. Touch the ON/OFF
switch. all the indicators show “– “
2. Place a suitable pan on the cooking zone that you wish to use.
Make sure the bottom of the pan and the surface of the cooking
zone is clean and dry.
3. Touch the desired heating zone selection control, an indicator
next to the key will ash.
4. Select a heat setting by touching the “+” or “-” controls.
• If you don’t choose a heat setting within 1 minute, the Induction
cooktop will automatically switch off. You will need to start again at
step 1.
• You can modify the heat setting at any time during cooking.
When you have finished cooking
1. Touch the desired heating zone selection that you wish to switch
off.
2. Turn the cooking zone off by touching “+” or “-” control to “0”.
Make sure the display shows “0”.
3. Turn the whole cooktop off by touching the ON/OFF control.
Page 11 CI6SE3 60cm Induction Cooktop
4. Beware of hot surfaces. Each zone is tted with residual heat indicators and
an “H” will show when the each of the cooking zones are too hot to touch. It
will disappear when the surface has cooled down to a safe temperature. It can
also be used as an energy saving function if you want to heat further pans, use
the hotplate that is still hot.
Using boost function
Activate the boost function
1. Select the desired zone. For example, Front left zone.
2. Touching the “boost” key until power level indication
shows “P”.
Cancel boost function
1. Select the desired zone. For example, Front left zone.
2. Touch the “+” or “-” to cancel the Boost function, and select
the level you want to set.
• NOTE: For technical reasons and protection of the cooktop the Boost function
will only last for 5 minutes, after that the zone will go to level 9 automatically.
CI6SE3 60cm Induction Cooktop Page 12
Locking the controls
• You can lock the controls to prevent unintended use (for example accidentally
turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
Touch the keylock control. The timer indicator will show “Lo “.
To unlock the controls
1. Make sure the cooktop is turned on.
2. Touch and hold the keylock
control for 3 seconds.
3. You can now start using your cooktop.
When the cooktop is in lock mode, all the controls are disabled except
the ON/OFF, you can always turn the cooktop off with the ON/OFF
control in an emergency, but you shall unlock the cooktop rst in the
next operation.
Residual Heat Indication
When the cooktop has been operating for some time, there will be some
residual heat. The letter “H” appears to warn you to keep away from it.
Auto Shutdown
Safety feature of the cooktop is auto shut down. This occurs whenever you
forget to switch off a cooking zone. The default shutdown times are shown in
the table below:
Power level 1 2 3 4 5 6 7 8 9
Default shutdown time (hours) 8 8 8 4 4 4 2 2 2
Page 13 CI6SE3 60cm Induction Cooktop
Using the Timer
You can use the timer in two different ways:
You can use it as a minute minder. In this case, the timer WILL NOT turn any
cooking zone off when the set time has been reached. The second way is to set
a cut-off timer where the cooking zone WILL TURN OFF when the time set is
reached. The maximum time that can be set is 99 minutes and can be used on
several zones at the the same time.
Using the Timer as a Minute Minder
1. Make sure the cooktop is turned on and zone selection key is not activated
(zone indication ‘-‘ is not blinking).
Note: you can set minute minder before or after cooking zone power setting
nished.
2. Touch timer key, “00” will show in the timer display and
“0” will blink.
3. Set the time by touching the “+” or “-” controls of the timer (e.g. 5)
4. Touch timer control again, then “0” will ash.
5. Set the time by touching the “+” or “-”, now the timer you set is 95 minutes.
6. When the time is set, it will begin to count down immediately. The display will
show the remaining time.
CI6SE3 60cm Induction Cooktop Page 14
7. Buzzer will bip for 30 seconds and the timer indicator shows
“- -” when the setting time nished.
Using the Timer to switch off one or more cooking zones
1. Touching the heating zone selection control that you want
to set the timer for.
2. Touch timer key, “00” will show in the timer display and “0”
will blink.
3. Set the time by touching the “+” or “-” controls
4. Touch timer control again, then “0” will ash.
5. Set the time by touching the “+” or “-” controls now the timer you set is 95
minutes.
6. When the time is set, it will begin to count down immediately. The display will
show the remaining time.
NOTE: There will be a red dot in the right bottom corner of
power level indication which indicating that zone is selected
Page 15 CI6SE3 60cm Induction Cooktop
7. When cooking timer expires, the corresponding cooking zone will switch off
automatically.
NOTE: Other cooking zones will keep operating if they had been turned on
previously.
If the timer is set on more than one zone:
1. When you set the timer for several cooking zones, red dots of the relevant
cooking zones are indicated. The timer display shows the min. timer. The dot of
the corresponding zone blinks.
2. Once the countdown timer expires, the corresponding zone will switch off.
Then it will show the new min. timer and the dot of corresponding zone will
ash.
NOTE: Touch the heating zone selection control, the corresponding timer will be
shown in the timer indicator.
Cancelling the timer
1. Touching the heating zone selection control that you want to
cancel the timer.
2. Touching the timer control, the indicator will ash.
3. Touching “+” or “-” control to set the timer to “00”, the timer
is cancelled.
(set to 15 minutes )
(set to 45 minutes )
CI6SE3 60cm Induction Cooktop Page 16
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly, particularly if you
are using Boost. At extremely high temperatures oil and fat will ignite
spontaneously and this presents a serious re risk.
Cooking Tips
• When food comes to the boil, reduce the power setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated
through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising
occasionally to the surface of the cooking liquid. It is the key to delicious soups and
tender stews because the avours develop without overcooking the food. You should
also cook egg-based and our thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting
higher than the lowest setting to ensure the food is cooked properly in the time
recommended.
Searing steak
To cook juicy avoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan
and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the
thickness of the steak and how cooked you want it. Times may vary from about 2 – 8
minutes per side. Press the steak to gauge how cooked it is – the rmer it feels the more
‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and
become tender before serving
Page 17 CI6SE3 60cm Induction Cooktop
For stir-frying
1. Choose a compatible at-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking
large quantities, cook the food in several smaller batches.
3. Preheat the pan briey and add two tablespoons of oil.
4. Cook any meat rst, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a
lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Heat Settings
NOTE: The below table is a guide ONLY for heat setting selections and could
vary based on the power and size of the individual cooking zones. We suggest
to use a heat setting initially and increase or decrease settings based on your
personal preferences. If this is your rst experience with an Induction cooktop
you may notice a big difference from your previous cootop fuel type.
Heat setting Suitability
1 - 2 • delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
3 - 4 • reheating
• rapid simmering
• cooking rice
5 - 6 • pancakes
7 - 8 • sauteing
• cooking pasta
9 • stir-frying
• searing
• bringing soup to the boil
• boiling water
CI6SE3 60cm Induction Cooktop Page 18
Care and Cleaning
Refer to the SAFETY WARNINGS section at the front of this manual for
detailed information regarding safety when cleaning. Cooktop should be
powered off before any Maintenance or cleaning is carried out. Use of steam
cleaners for cleaning is not permitted. The below table is a guide to carry out
cleaning of your cooktop.
What?
How? Important!
Everyday soiling on
glass (ngerprints,
marks, stains left by
food or non-sugary
spillovers on the glass)
1. Switch the power to the cooktop
off.
2. Apply a cooktop cleaner while the
glass is still warm (but not hot!)
3. Rinse and wipe dry with a clean
cloth or paper towel.
4. Switch the power to the cooktop
back on.
• When the power to the cooktop is
switched off, there will be no ‘hot surface’
indication but the cooking zone may still
be hot! Take extreme care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive cleaning
agents may scratch the glass. Always
read the label to check if your cleaner or
scourer is suitable.
• Never leave cleaning residue on the
cooktop: the glass may become stained.
Boilovers, melts, and
hot sugary spills on the
glass
Remove these immediately with a
sh slice, palette knife or razor blade
scraper suitable for ceramic glass
cooktops, but beware of hot cooking
zone surfaces:
1. Switch the power to the cooktop
off at the wall.
2. Hold the blade or utensil at a 30°
angle and scrape the soiling or spill to
a cool area of the cooktop.
3. Clean the soiling or spill up with a
dish cloth or paper towel.
4. Follow steps 2 to 4 for ‘Everyday
soiling on glass’ above.
• Remove stains left by melts and sugary
food or spillovers as soon as possible.
If left to cool on the glass, they may be
difcult to remove or even permanently
damage the glass surface.
• Cut hazard: when the safety cover is
retracted, the blade in a scraper is razor-
sharp. Use with extreme care and always
store safely and out of reach of children.
Spillovers on the touch
controls
1. Switch the power to the cooktop
off.
2. Soak up the spill
3. Wipe the touch control area with a
clean damp sponge or cloth.
4. Wipe the area completely dry with
a paper towel.
5. Switch the power to the cooktop
back on.
• The cooktop may beep and turn itself
off, and the touch controls may not
function while there is liquid on them.
Make sure you wipe the touch control area
dry before turning the cooktop back on.
Note: To keep the ceramic glass surface in good condition a cleaner like Hillmark’s
Cerapol is recommended. For stubborn stains a scraper should be used to remove
excess spills.
Page 19 CI6SE3 60cm Induction Cooktop
Troubleshooting Guide - hints and tips
Refer to the below Troubleshooting Guide should you experince any issues with your
cooktop. If these are not helpful please contact our Customer Care team for assistance.
Problem
Possible causes What to do
The cooktop cannot be
turned on.
No power. Make sure the cooktop is connected to
the power supply and that it is switched
on.
Check whether there is a power outage
in your home or area. If you’ve checked
everything and the problem persists,
call to book a service call.
The touch controls are
unresponsive.
The controls are locked. Unlock the controls. See section ‘Using
your ceramic cooktop’ for instructions.
The touch controls are
difcult to operate.
There may be a slight lm of water over
the controls or you may be using the
tip of your nger when touching the
controls.
Make sure the touch control area is dry
and use the ball of your nger when
touching the controls.
The glass is getting
scratched.
Rough-edged cookware. Dragging of
cookware across ceramic surface.
Unsuitable, abrasive scourer or cleaning
products being used.
Use cookware with at and smooth
bases. See ‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans make
crackling or clicking
noises.
This may be caused by the construction
of your cookware (layers of different
metals vibrating differently).
This is normal for cookware and does
not indicate a fault.
The induction cooktop
makes a low humming
noise when used on a
high heat setting.
This is caused by the technology of
induction cooking.
This is normal, but the noise should
quieten down or disappear completely
when you decrease the heat setting.
Fan noise coming from
the induction cooktop.
A cooling fan built into your induction
cooktop has come on to prevent the
electronics from overheating. It may
continue to run even after you’ve turned
the induction cooktop off.
This is normal and needs no action. Do
not switch the power to the induction
cooktop off at the wall while the fan is
running.
Pans do not become
hot and appears in the
display.
The induction cooktop cannot detect
the pan because it is not suitable
for induction cooking.The induction
cooktop cannot detect the pan because
it is too small for the cooking zone or
not properly centered on it.
Use cookware suitable for induction
cooking. See section ‘Choosing the
right cookware’. Centre the pan and
make sure that its base matches the
size of the cooking zone.
The induction cooktop
or a cooking zone
has turned itself off
unexpectedly, a tone
sounds and an error
code is displayed
(typically alternating
with one or two digits
in the cooking timer
display).
Technical fault Please note down the error letters
and numbers, switch the power to the
induction cooktop off at the wall, and
contact a qualied technician.
CI6SE3 60cm Induction Cooktop Page 20
Failure Display and Inspection
If an abnormality comes up, the induction cooktop will enter the protective
state automatically and display corresponding protective codes:
Error code
Meaning What to do
E4 / E5 Temperature sensor failure Please contact Customer Care Team
E7 / E8 Failure of the IGBT Temperature
sensor
Please contact Customer Care Team
E2 / E3 Abnormal supply voltage Please inspect whether power supply is
normal. Power on after the power supply
is normal.
E6 / E9 Bad induction cookop heat radiation Please restart after the induction cooktop
cools down
Note: The above is a summary of the most common failures. DO NOT disassemble
the unit by yourself to avoid any dangers and damages to the induction cooktop.
Technical Specification
Induction (ceramic glass) cooktop
Model: CI6SE3
Number of cooking zones
4 (with booster functions)
Supply voltage
220 - 240V ~ 50 Hz or 60Hz*
Connected load
7200 Watts
Product Dimension - D x W x H (mm)
590 x 520 x 58
Cut out Dimensions - A x B (mm)
560 x 490
*60Hz frequency relates to other countries around the world, not Australia.
Note: As we continually strive to improve our products we may change specications
and designs without prior notice.
Page 21 CI6SE3 60cm Induction Cooktop
Installation - materials and dimensions
Before you install the cooktop, make sure that
• The work surface is square and level, and no structural members interfere with
space requirements. Work surface to be made of heat-resistant material. Work
surface material thickness should be at least 30mm thick.
• If the cooktop is installed above an oven, the oven has a built-in cooling fan.
Both appliances generate a lot of heat during operation.
• The installation will comply with all clearance requirements and applicable
standards and regulations. A minimum of 50mm space shall be preserved
around the cutout opening for installation and use of larger cookware.
• A suitable isolating switch providing full disconnection from the mains power
supply is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations.
• The isolating switch must be of an approved type and provide a 3mm air gap
contact separation in all poles (or in all active [phase] conductors if the local
wiring rules allow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the hob
installed
• If any doubts regarding instalaltion requirements you may consult local
building authorities and current by-laws.
• Use of heat-resistant and easy-to-clean nishes (such as ceramic tiles) for the
wall surfaces surrounding the cooktop is recommended.
• Cut out the work surface according to the sizes shown in table below.
Warning: The work surface material must use the impregnated wood or other
insulated material.
Model No. L (mm) W (mm) H (mm) D (mm) A - (mm) B (mm) X (mm)
CI6SE3 590 520 58 54 560 490 50 Min.
CI6SE3 60cm Induction Cooktop Page 22
Installation - ventilation and clearances
In all circumstances, make sure the cooktop is well ventilated and the air
intakes and outlets are not blocked. DO NOT install the cooktop if glass
is cracked or any other damaged realised.
The safety distance between the cooktop and the cupboard above the cooktop
should be at least 760mm. Any rangehood installed above the cooktop should
be no less than 650mm above the surface of the cooktop. Be aware that due
to the nature of Induction cooktops excessive condensation may be present
especially in the colder months or climates.
NOTE: If the cooktop is installed above an opening drawer or cupboard a
thermal protection heat barrier MUST BE tted 50mm below the base of the
underside of the cooktop to avoid possibly scalding when accessing the drawer
or cupboard.
Refer to the below illustration and table re other ventilation and clearance
requirement.
A (mm)
B (mm) C (mm) D E
760 *
50 Min. 20 Min. Air intake Air outlet
* This dimension relates to adjoining cupboards. For a rangehood installed
above the cooktop the minimum distance is 650mm from cooktop surface
highest point to the bottom of the rangehood lters.
After the cooktop has been installed, make sure that
• The power supply cable is not accessible through cupboard doors or
drawers.
• There is adequate ow of air from outside the cabinetry to the base of the
cooktop.
• The isolating switch is easily accessible by the customer.
Page 23 CI6SE3 60cm Induction Cooktop
Installation - fixing cooktop to work surface
Fitting moisture / dirt seal
• The cooktop should be placed on a stable, smooth surface (use the
packaging). Fit moisture / dirt seal to underside edge of the cooktop. See
below illuistration. When cooktop afxed to work surface this seal will reduce
risk of moisture and dirt from getting underneath the edge of the ceramic glass
surface.
Locating and fitting the fixing brackets and cooktop to work surface
• Whilst the cooktop is upside down the xing brackets should be put into
place
• Fit the xing brackets to the base of the cooktop in the four corner locations.
The brackets can be reversed base on the thickness of the work surface.
• Place cooktop into pre-cut housing in work surface.
• Fix the cooktop to the work surface by screwing the four brackets on the
bottom of cooktop (see picture) after installation.
Bracket positions Fixing of brackets for various work surface thicknesses
CI6SE3 60cm Induction Cooktop Page 24
Installation - electrical connection
The cooktop MUST BE installed by qualified personnel or
technicians. Please never conduct the operation by yourself.
• The cooktop shall not be mounted close to cooling equipment, dishwashers
and rotary dryers. There will be a dedicated power source for the cooktop.
• The cooktop shall be installed ith suffcient ventilation to ensure its reliability.
• The wall, work surface, adjoining cupboards, doors and adhesives shall be
able to withstand high heat generated by the cooktop.
• For cleaning, steam cleaners are not to be used.
• This ceramic cooktop can be connected only to a supply with system
impedance no more than 0.427 ohm. In case necessary, please consult your
supply authority for system impedance information.
• The cable must not be bent or compressed. If the cable is damaged or needs
replacing, this should be done only by a qualied after-sales technician. Regular
checks on the cable by a qualied technician is recommended.
• If the appliance is being connected directly to the mains supply, an omnipolar
circuit breaker must be installed with a minimum gap of 3mm between the
contacts.
• The installer must ensure that the correct electrical connection has been made
and that it complies with safety regulations.
Connecting the cooktop to the mains power supply
The power supply should be connected in compliance with the relevant local
standards to a single-pole circuit breaker. The method of connection is shown
below. Power cord is not accessible afetr installation.
