Handbook
On-line handbook
Select one of the following means of access to view your
handbook on-line...
Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with
this symbol:
If the "MyPEUGEOT" function is not available on the PEUGEOT
public website for your country, you can find your handbook at the
following address:
http://public.servicebox.peugeot.com/ddb/
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of
your vehicle.
Select:
Find your handbook on the PEUGEOT website, under
"MyPEUGEOT".
Scan this code for direct access to your handbook.
This personal space offers advice and other useful information
for the care and maintenance of your vehicle.
Key
Warning:
this symbol marks warnings which it is essential to observe for your
own safety, for the safety of others or to avoid any risk of damaging
your vehicle.
Information:
this symbol draws your attention to additional information for better
use of your vehicle.
Protection of the environment:
this symbol accompanies advice relating to protection of
the environment.
Page reference:
this symbol invites you to refer to the pages which provide details of
the function.
This handbook describes all of the equipment available in the whole
range.
Your vehicle will be fitted with some of the equipment described
in this document, depending on its trim level, version and the
specification for the country in which it is sold.
Thank you for choosing a 301.
This handbook has been designed to help you make the most of your
vehicle in all circumstances.
WELCOME
The descriptions and illustrations are given without any obligation.
Automobiles PEUGEOT reserves the right to modify the technical
specifications, equipment and accessories without having to update
this edition of the handbook.
This document is an integral part of your vehicle. It should be passed
on to the new user in the event of sale or transfer.
.
.
Contents
301_en_Chap00a_sommaire_ed01-2016
Instrument panel 10
Indicator and warning lamps 11
Service indicator 23

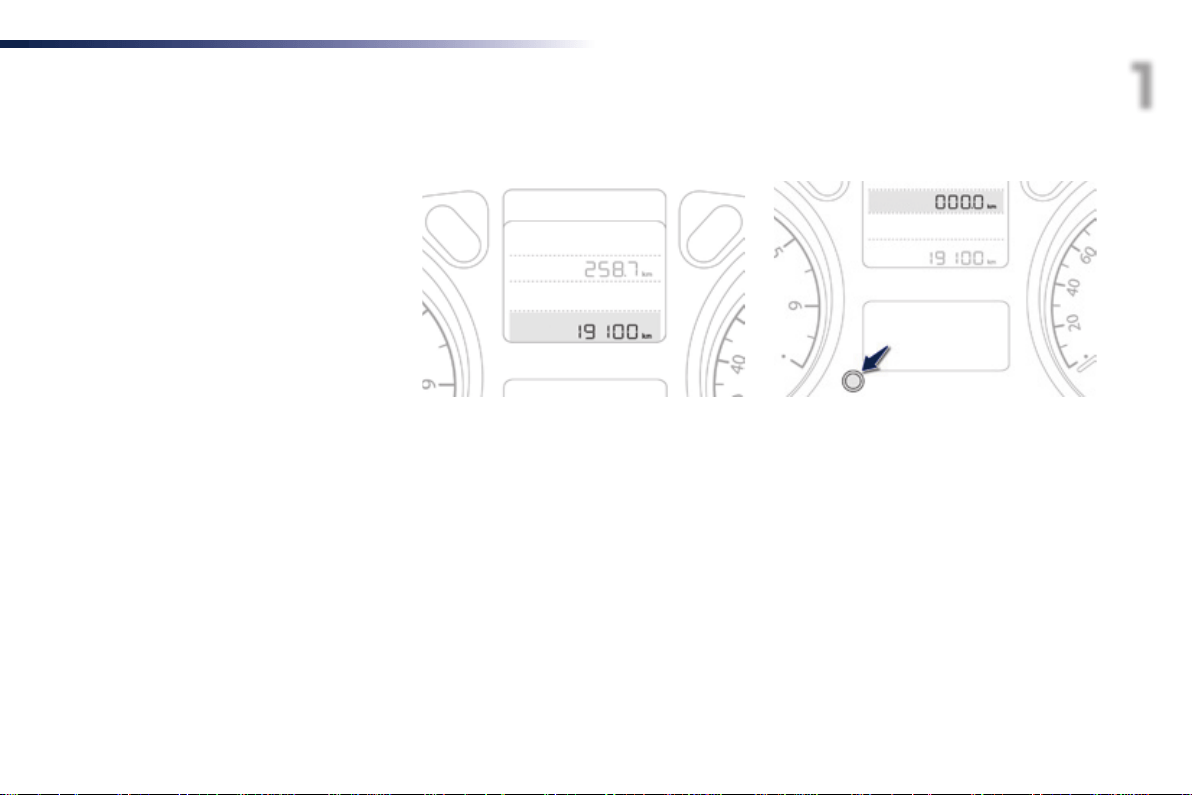

Distance recorders 25

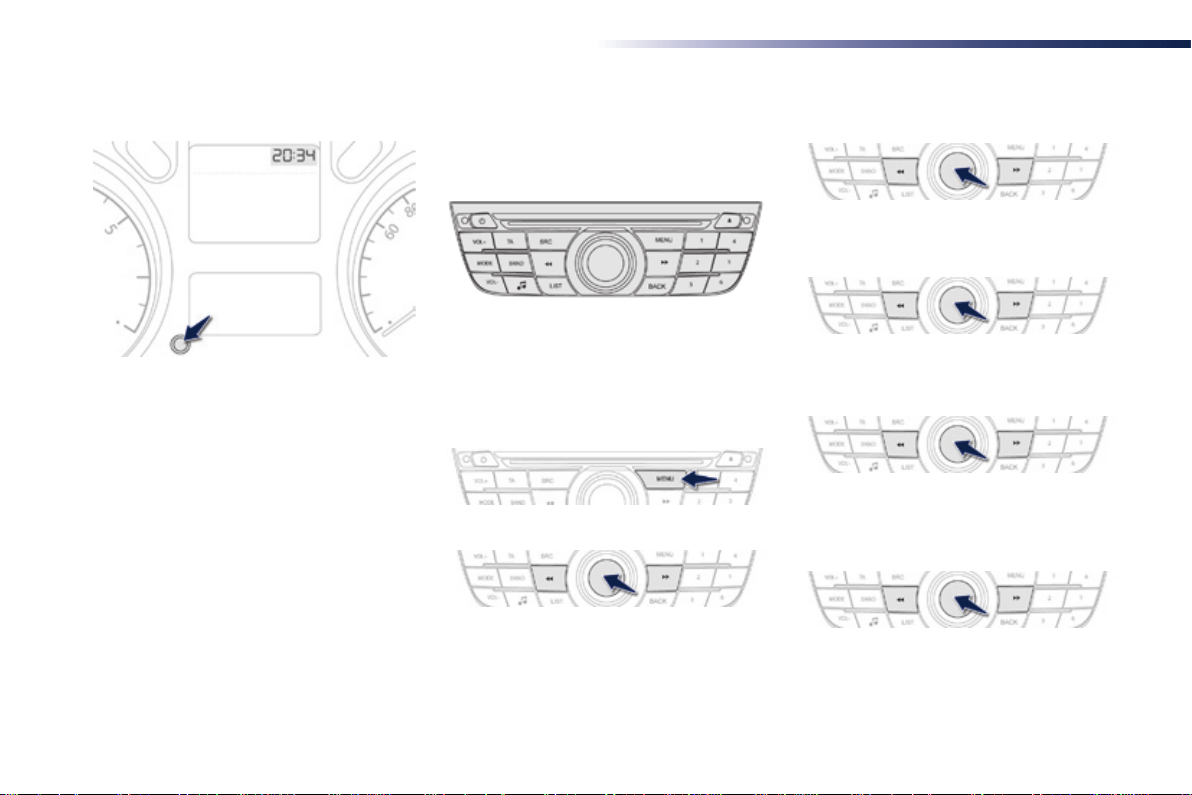

Setting the date and time 26

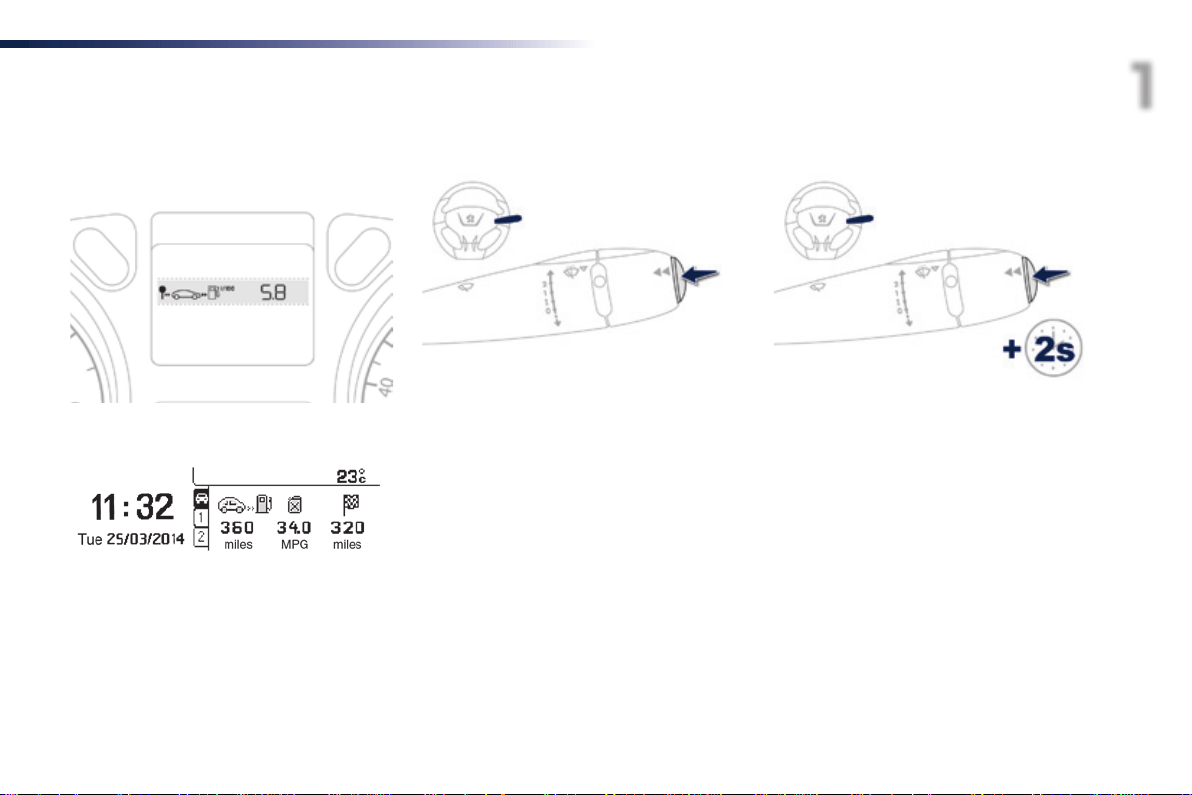

Trip computer 27
Monochrome screen C
(Audio system / Bluetooth) 29
Monitoring
Overview
Remote control key 33
Alarm 37
Doors 39
Boot 40
Windows 42
Access

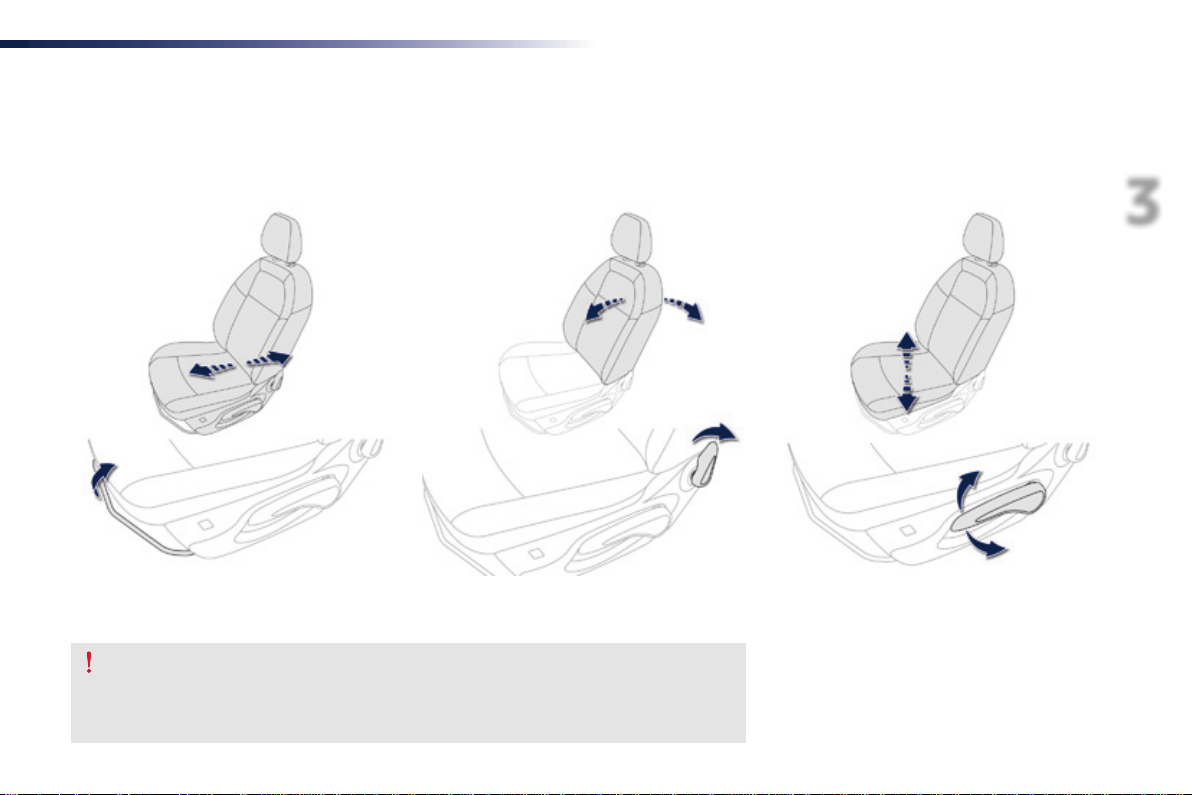

Front seats 43

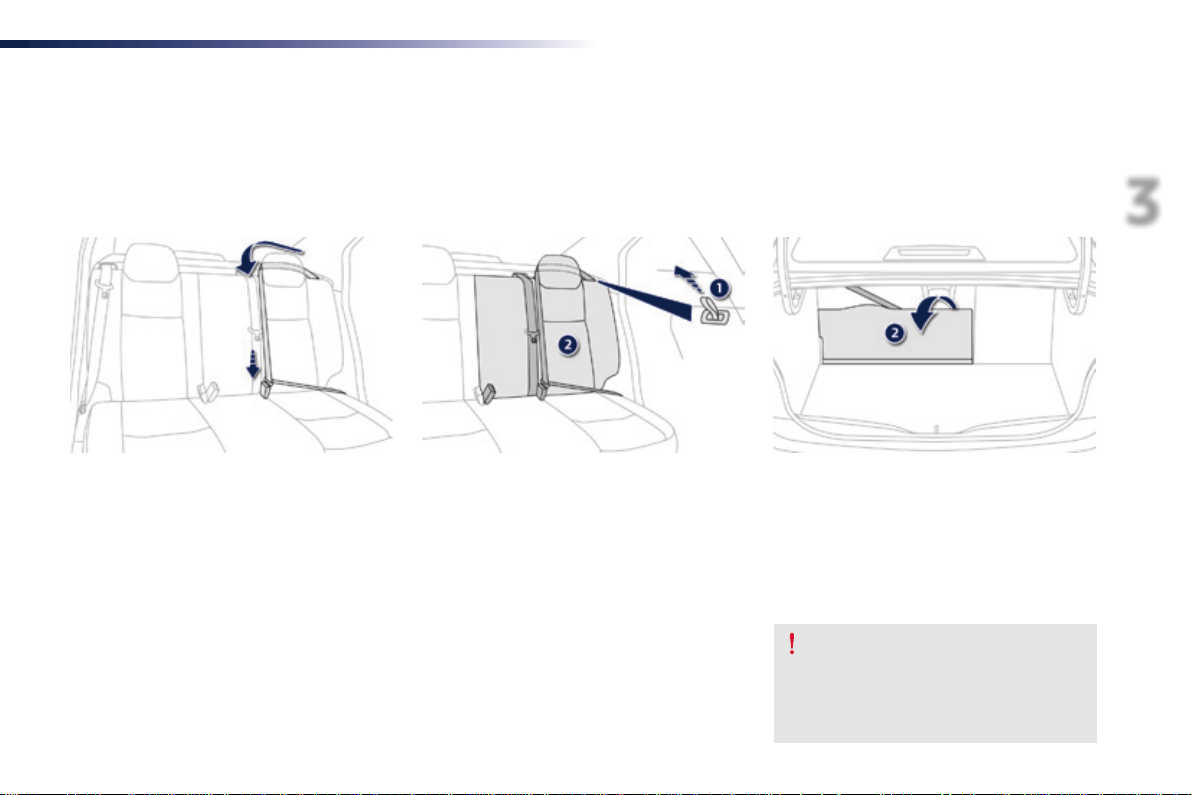

Rear seats 45
Mirrors 46
Steering wheel adjustment 48
Ventilation 49
Heating 51
Manual air conditioning
(without display screen) 51
Electronic air conditioning
(with display screen) 53

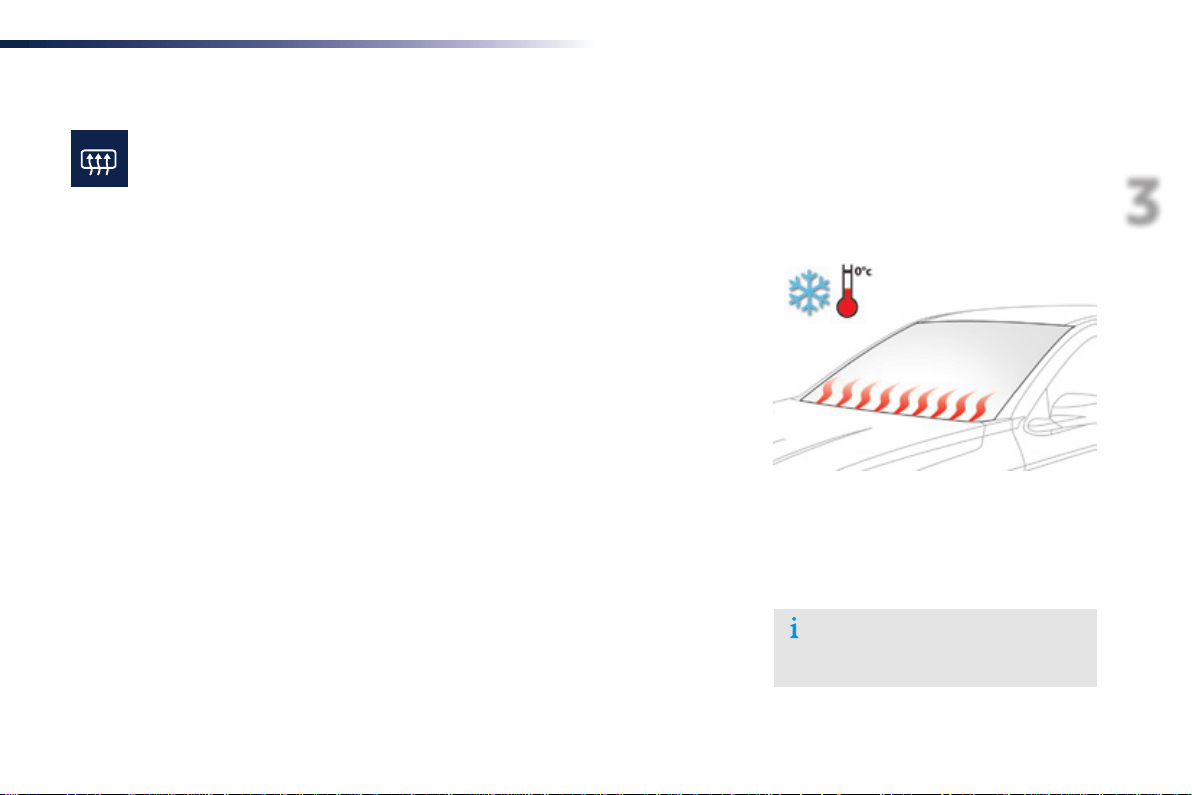

Front demist - defrost 56
Rear screen demist - defrost 57
Comfort
Driving recommendations 63
Starting-switching off the engine 64
Parking brake 67
Manual gearbox 68
Electronic gearbox 69
Automatic gearbox 73
Automatic gearbox (EAT6) 77
Gear efciency indicator 81

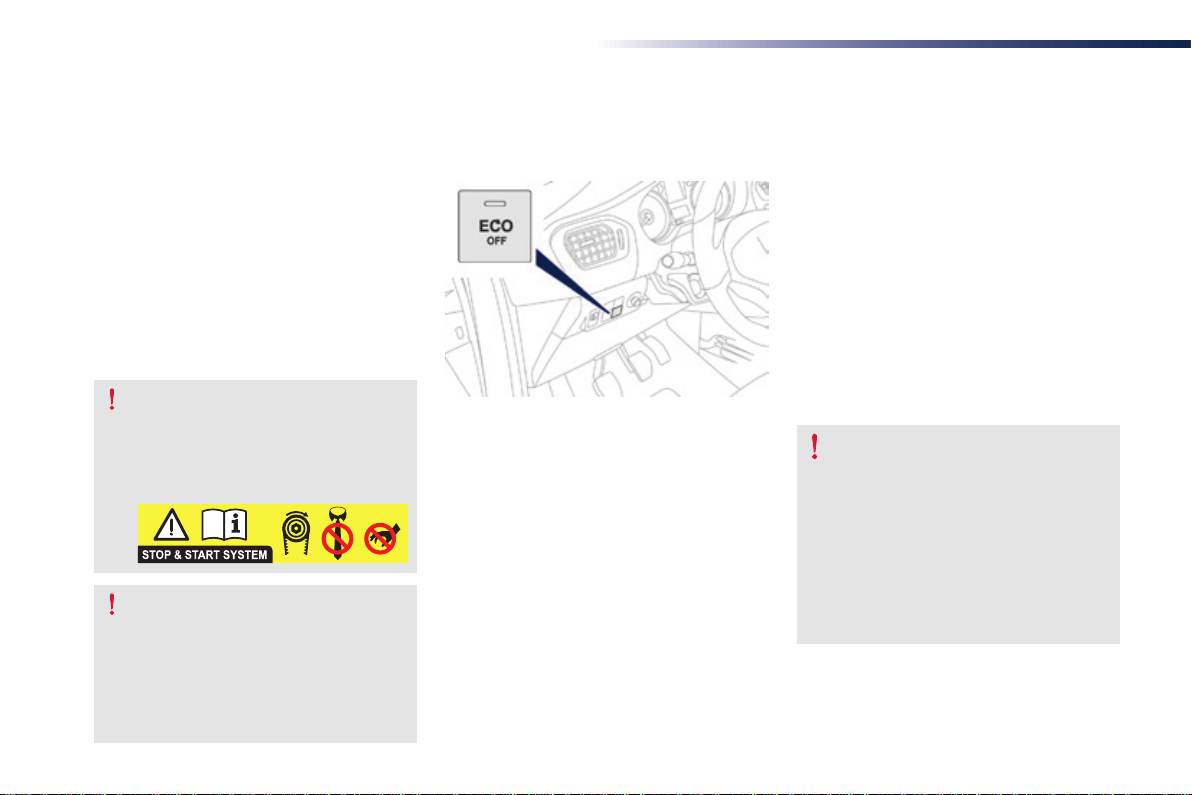

Stop & Start 82
Speed limiter 85
Cruise control 87
Rear parking sensors 89
Driving

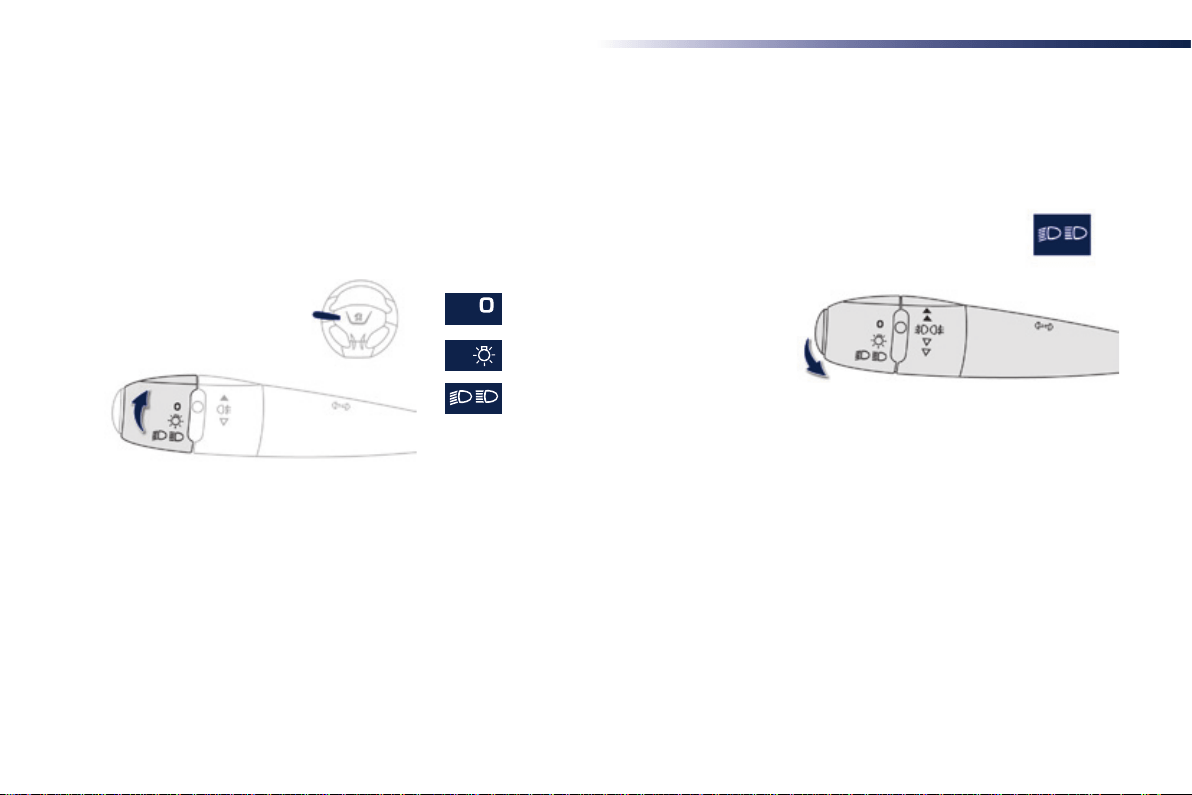

Lighting control 91
Headlamp beam height adjustment 96
Wiper control stalk 97
Courtesy lamps 99
Visibility
Eco-driving
Interior ttings 58
Boot ttings 61
Fittings
.
.
Contents
301_en_Chap00a_sommaire_ed01-2016
Direction indicators 100
Hazard warning lamps 100
Horn 100
Under-ination detection 101
Braking assistance systems 105
Trajectory control systems 106
Front seat belts 107
Airbags 110
Safety

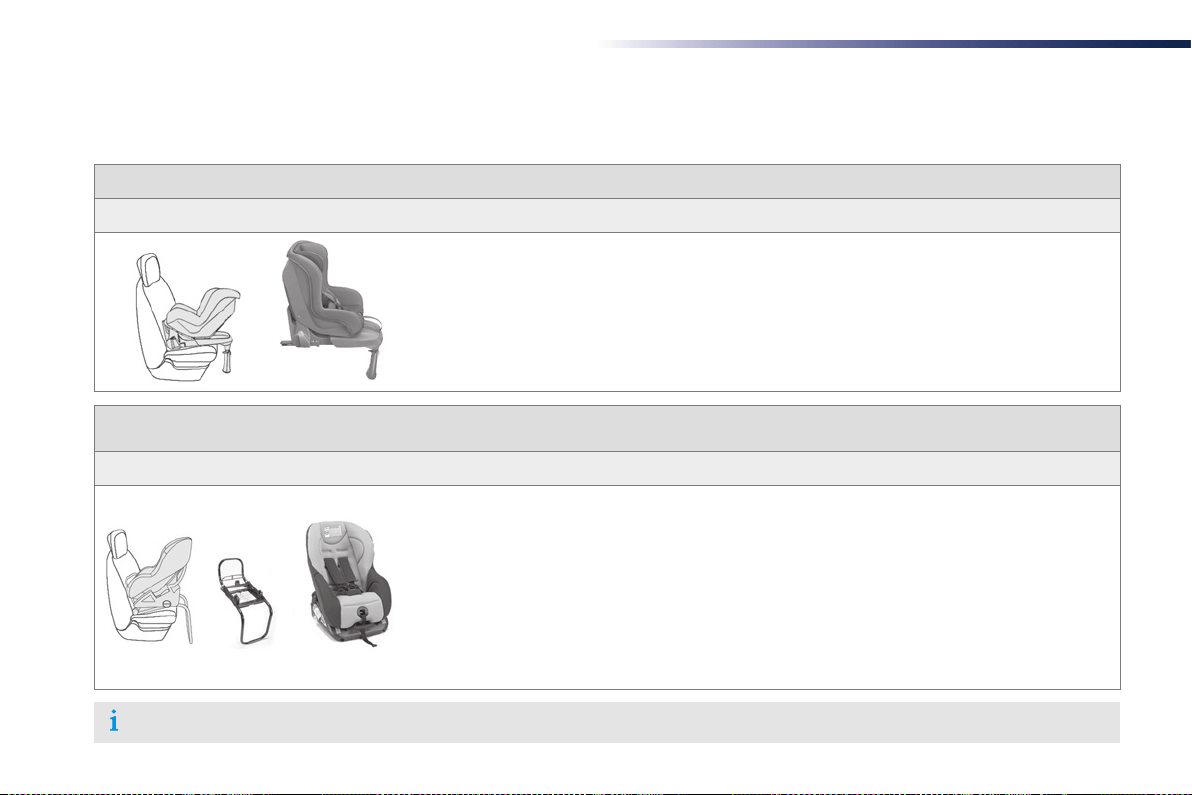

Child seats 114
Deactivating the passenger's front airbag 117

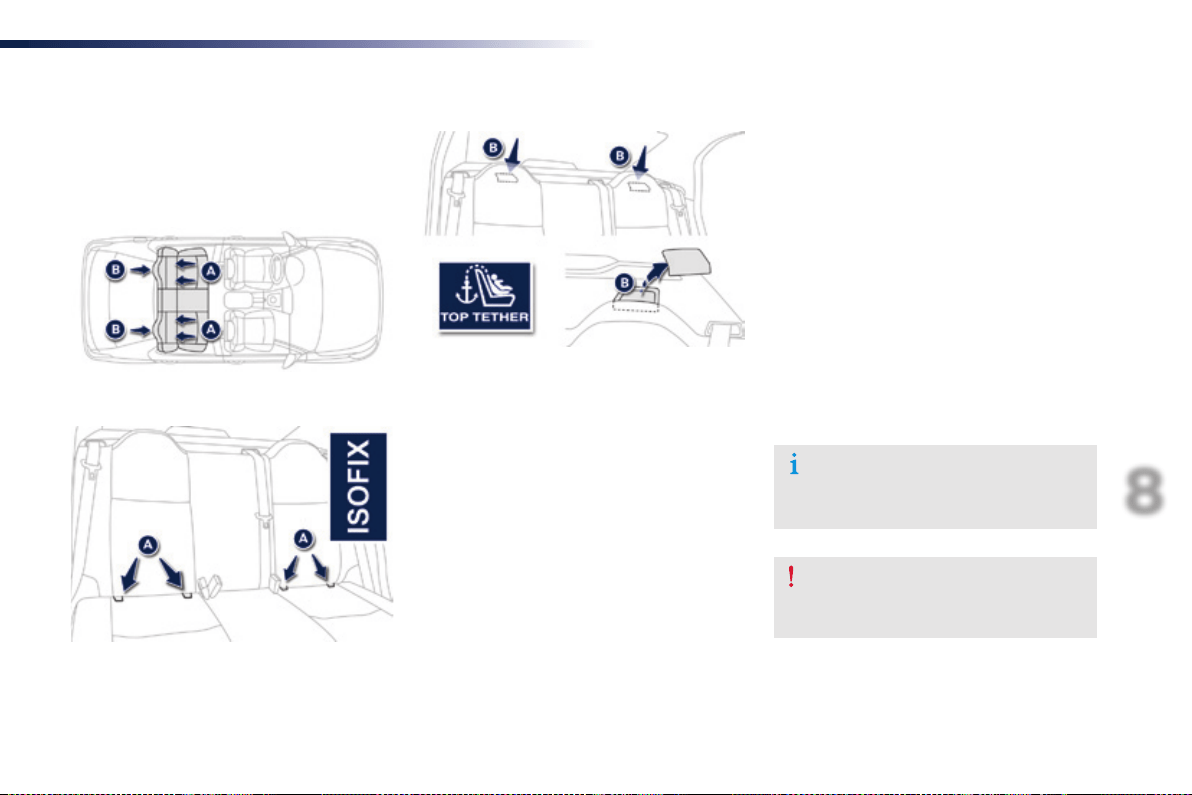

ISOFIX mountings 123
Child lock 128
Child safety
Fuel tank 129
Misfuel prevention (Diesel) 130
Running out of fuel (Diesel) 132
AdBlue
®
additive and SCR system
(BlueHDi Diesel) 133
Temporary puncture repair kit 140

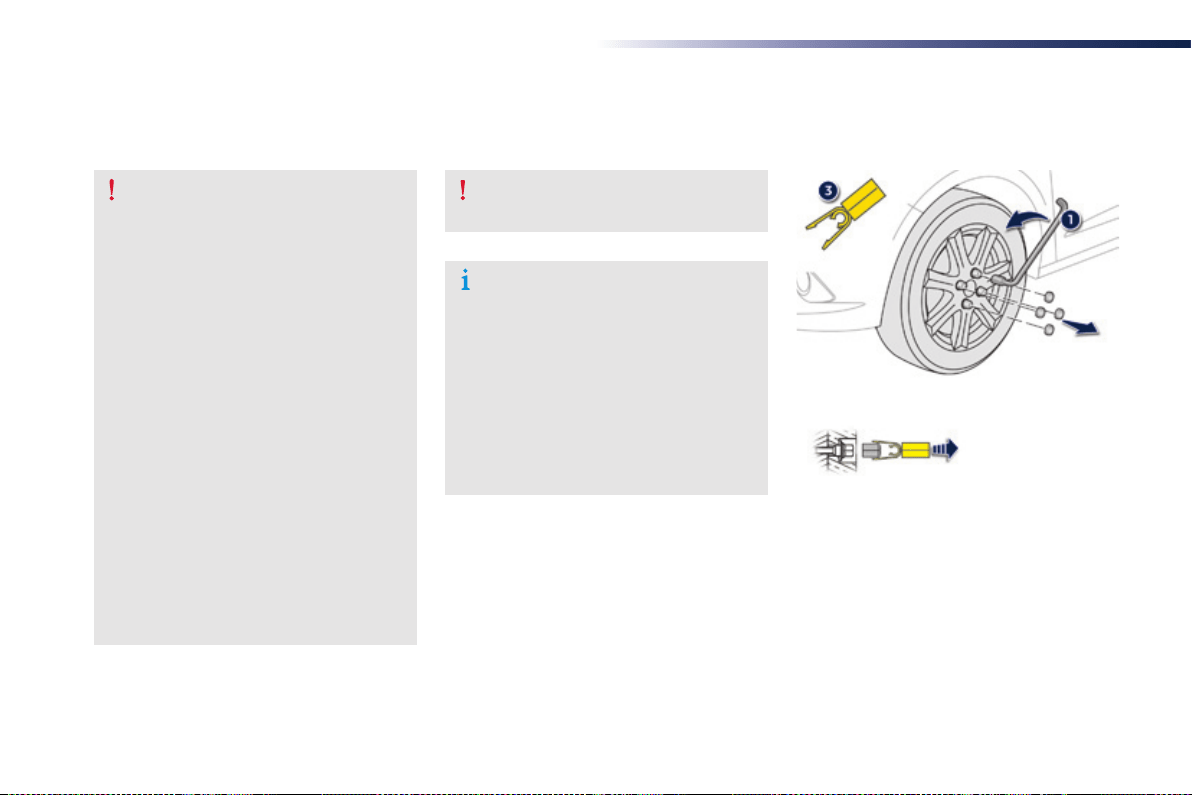

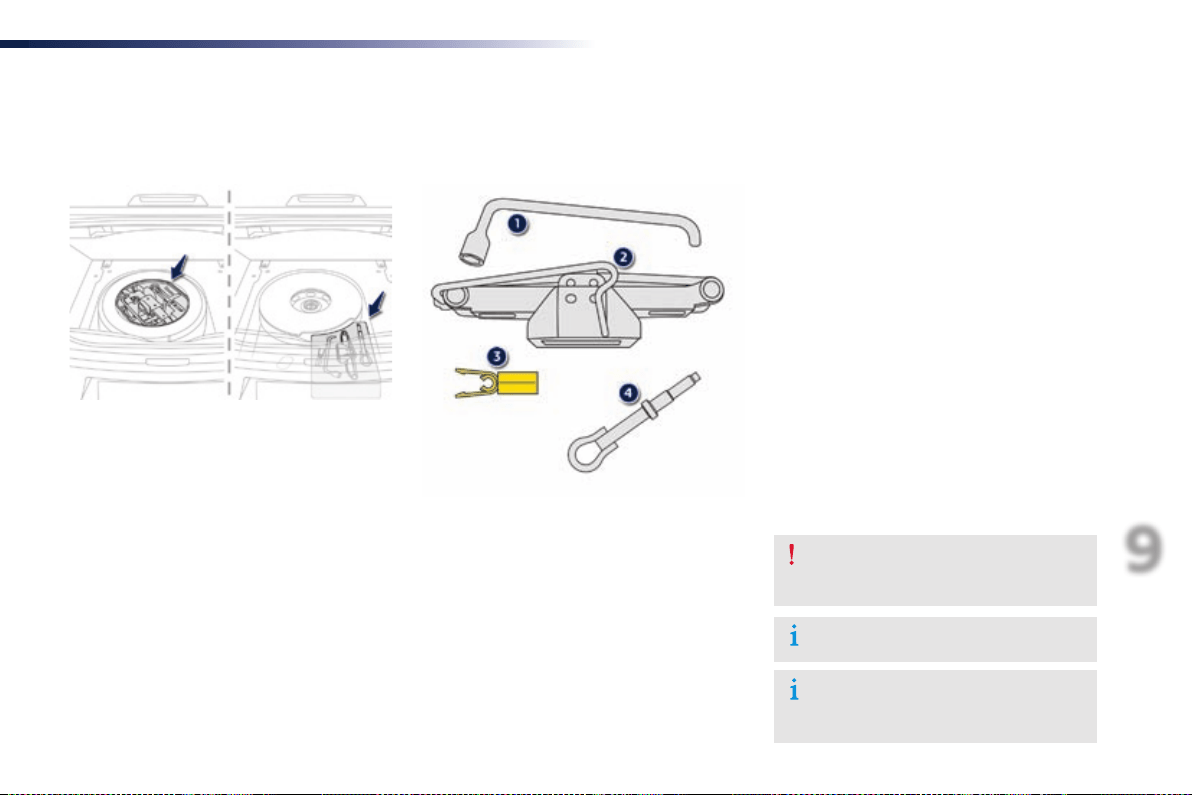

Spare wheel 145
Snow chains 152
Changing a bulb 153
Changing a fuse 159

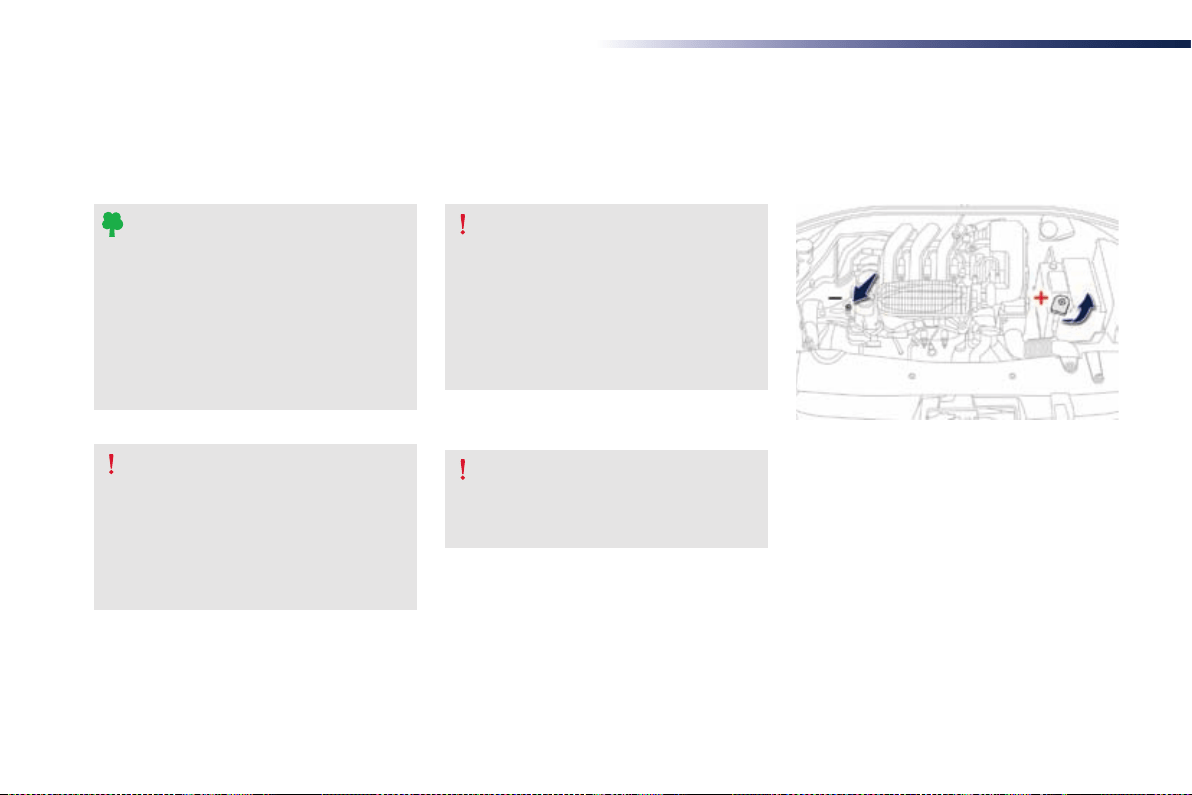

12 V battery 164
Electrical energy economy mode 168
Changing a wiper blade 169
Towing the vehicle 170

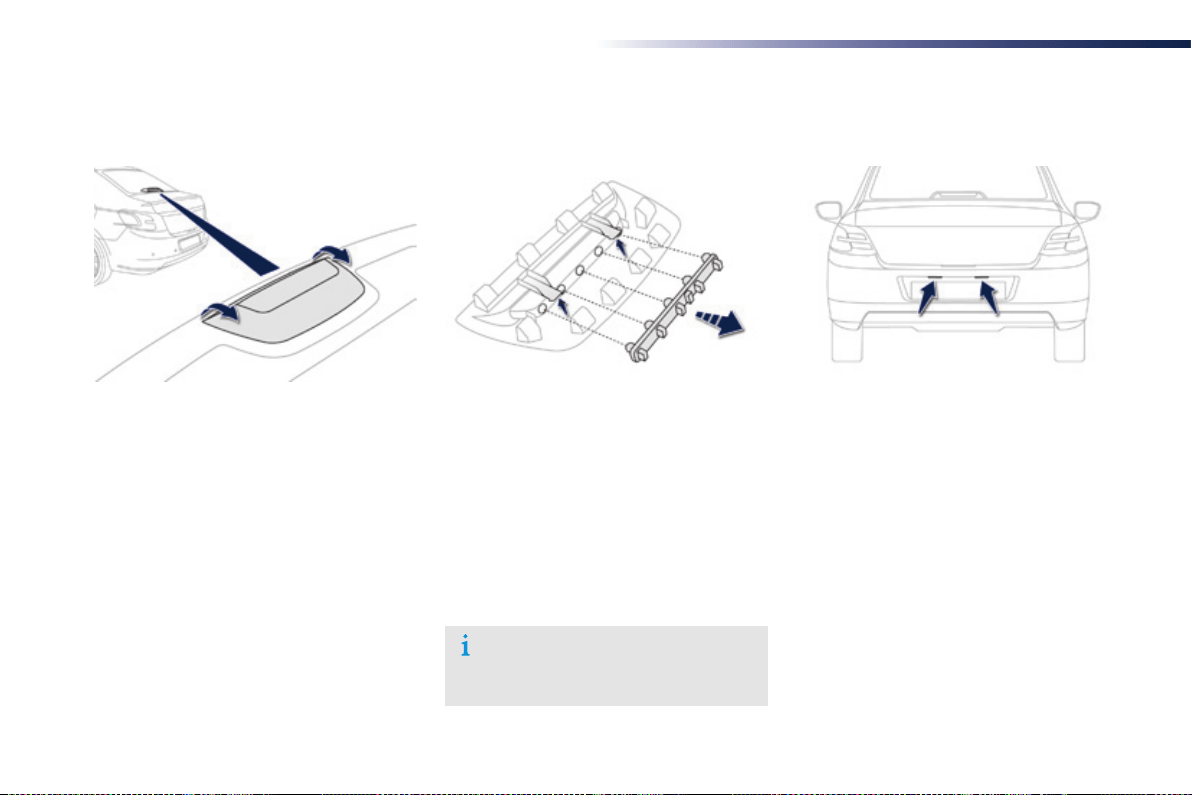

Towing a trailer 172
Very cold climate screen(s) 174
Advice on care and maintenance 175
Accessories 175
Mats 177
Roof bars 178
Practical information
Petrol engines 188
Petrol weights 189
Diesel engines 190
Diesel weights 191
Dimensions 192
Identication markings 193
Technical data
Audio system / Bluetooth 195

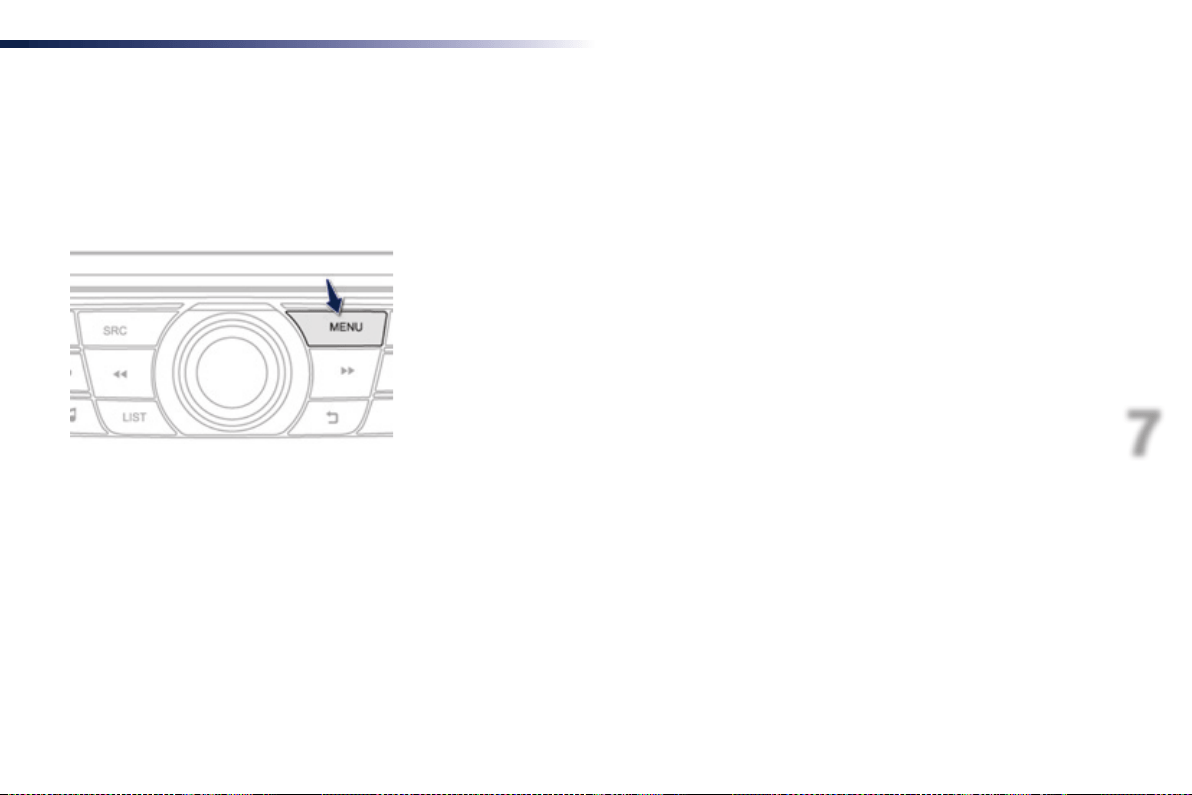

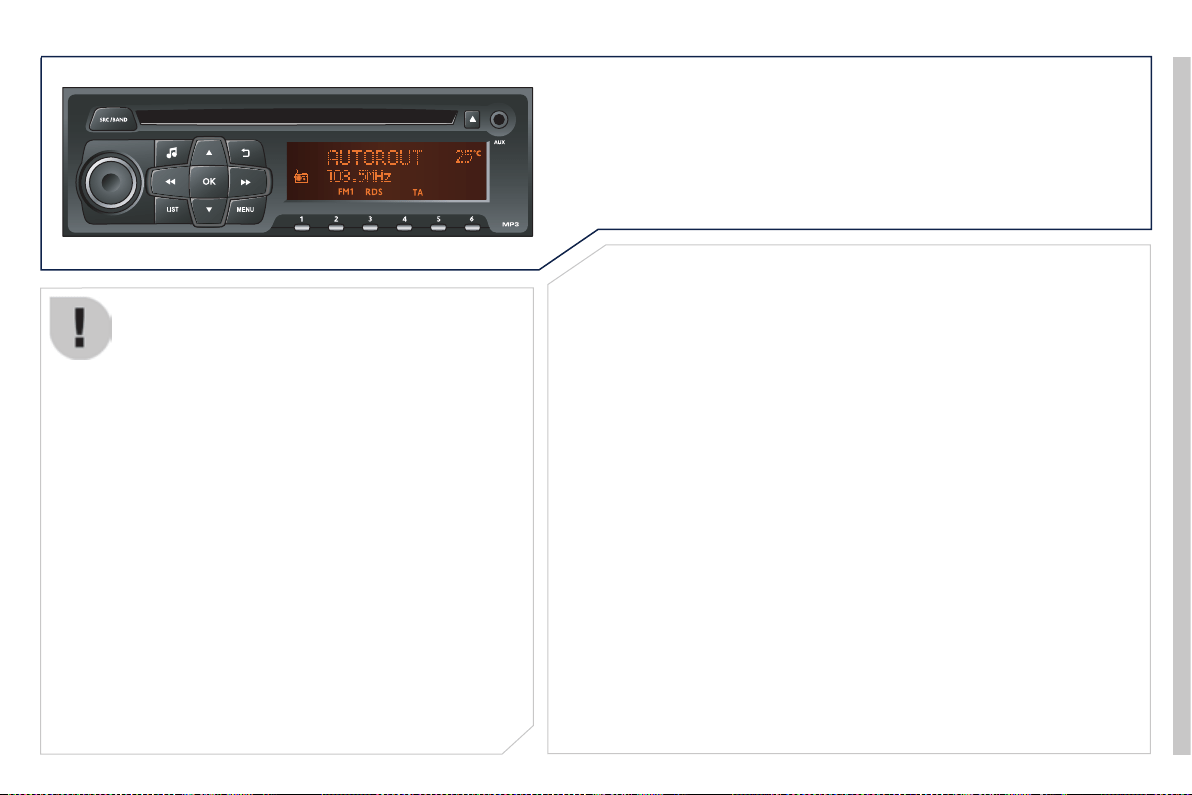

Audio system 227
Audio equipment and telematics
Visual search
Alphabetical index
Checks

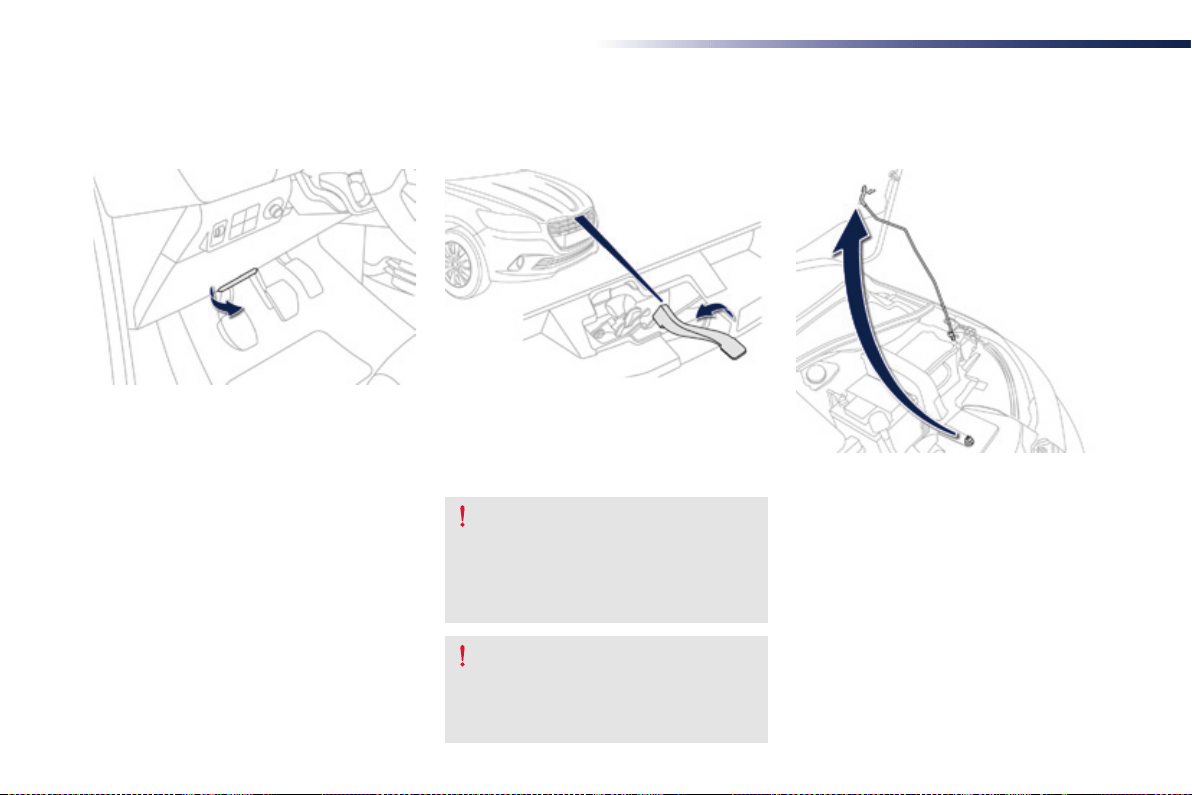

Bonnet 180
Petrol engines 181
Diesel engine 182
Checking levels 183
Checks 186
4
101
140
89
Overview
301_en_Chap00b_vue-ensemble_ed01-2016

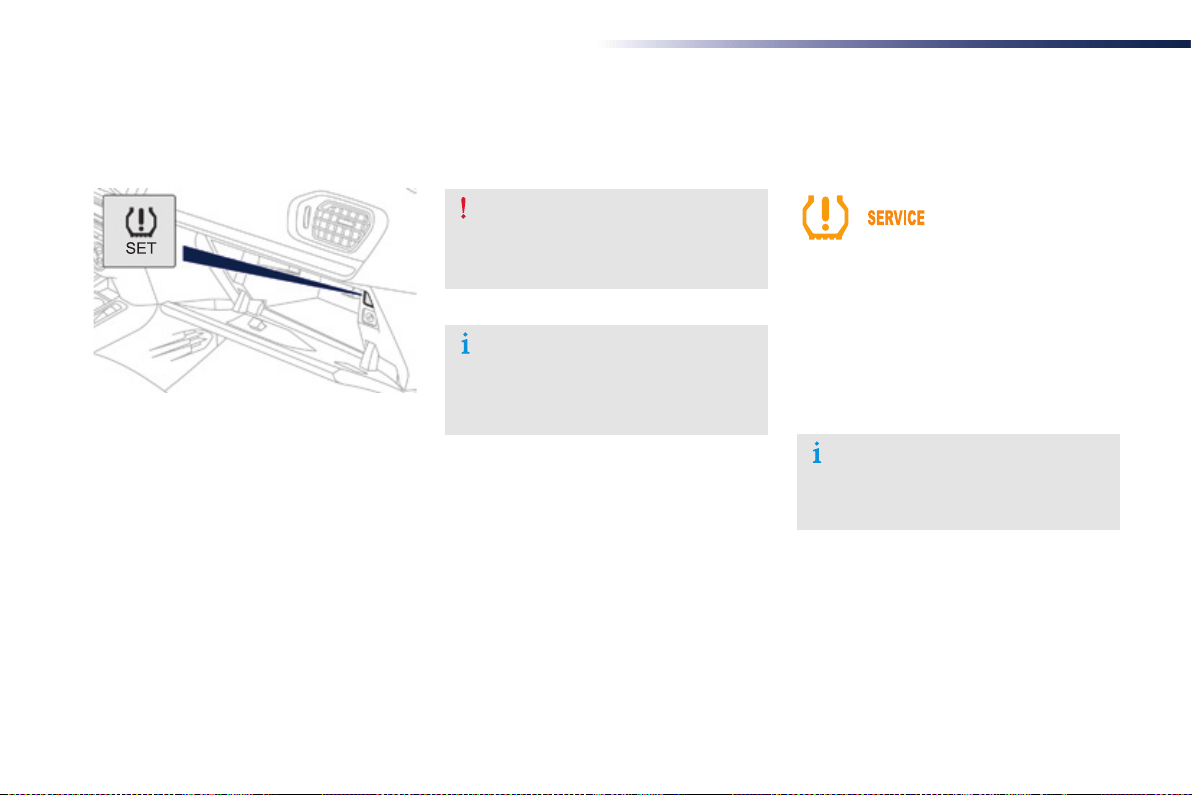

Under-ination detection
This system automatically checks the pressures of
the tyres when driving and alerts you in the event of
under-inflation.

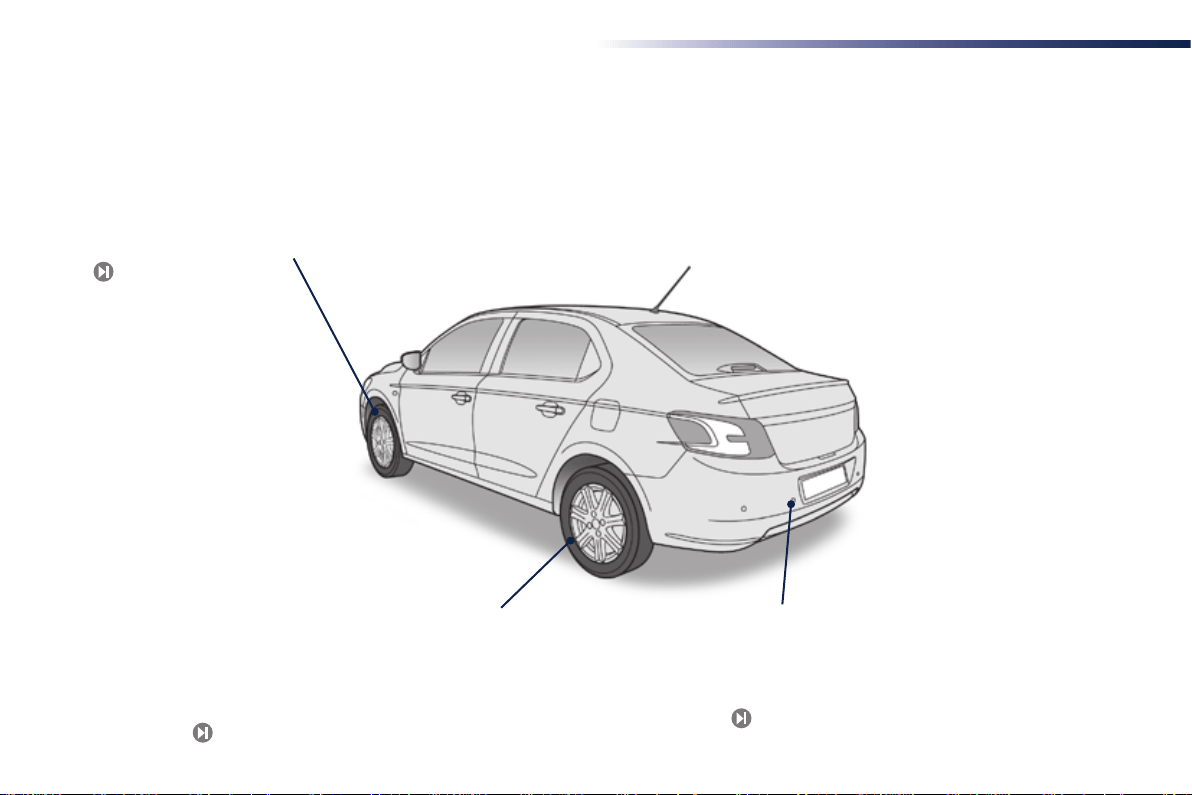

Exterior

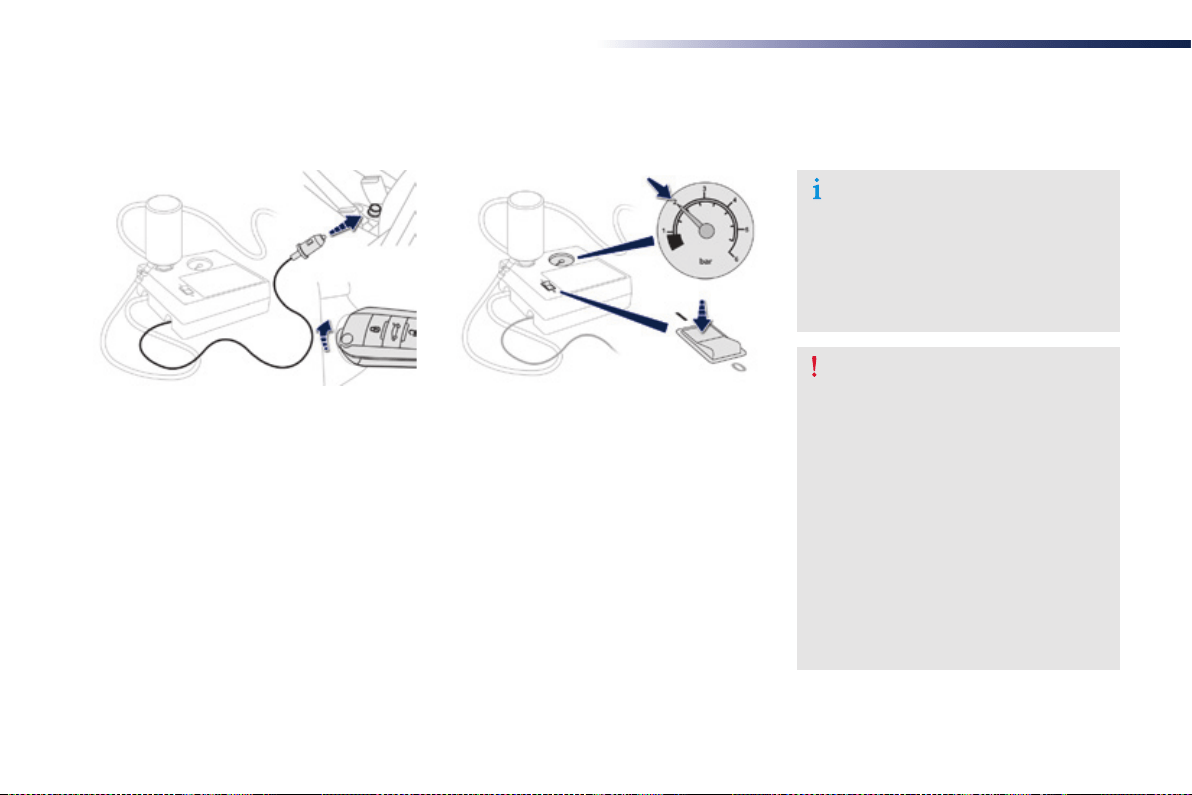

Temporary puncture repair kit
This kit is a complete system consisting of a compressor and
a sealant cartridge, to allow the temporary repair of a tyre.
Rear parking sensors
This system provides a warning when manoeuvring
backwards by detecting obstacles located behind
the vehicle.
.
5
195
227
53
85 / 87
Overview
301_en_Chap00b_vue-ensemble_ed01-2016
Interior
Electronic air conditioning (with display screen)
This system, equipped with a display screen, provides you with optimum
control of temperature and air circulation in the passenger compartment.
Speed limiter / Cruise control
These two systems allow you to control the
speed of your vehicle according to a value you
have set.
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
auxiliary inputs, ...

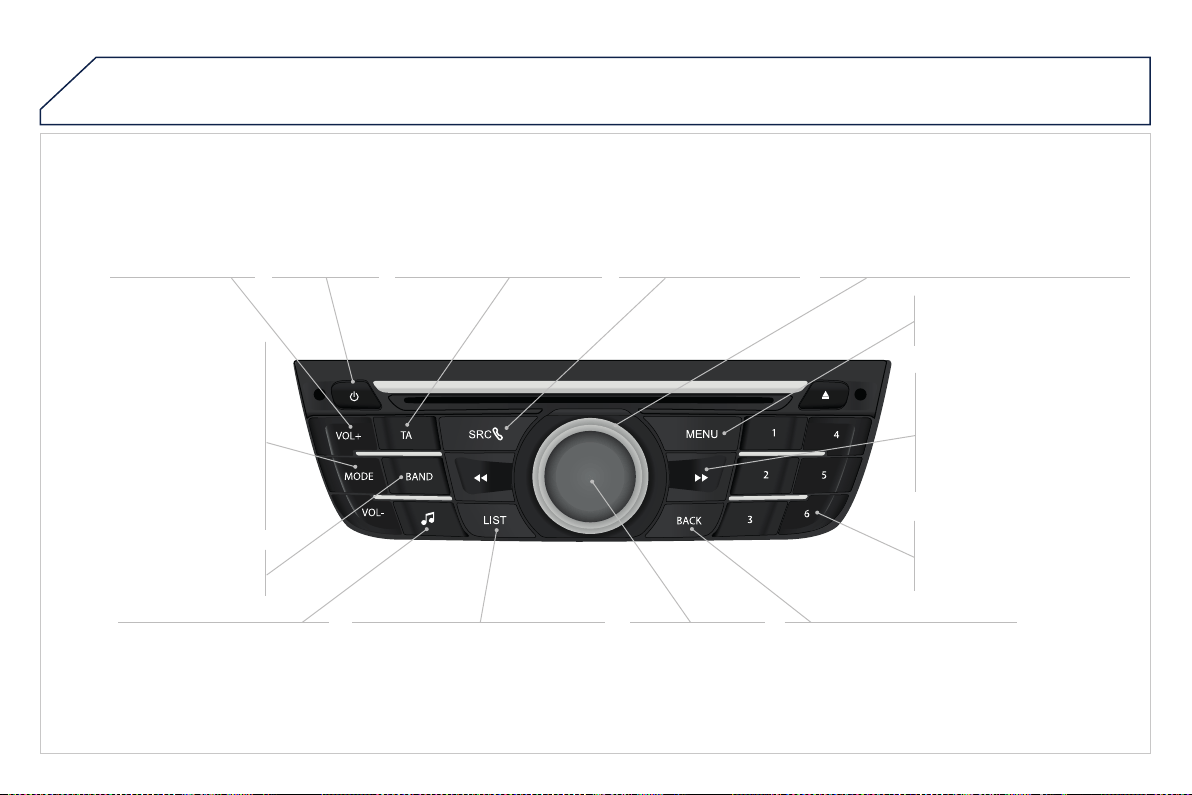

Audio system / Bluetooth
Audio system
6
Overview
301_en_Chap00b_vue-ensemble_ed01-2016

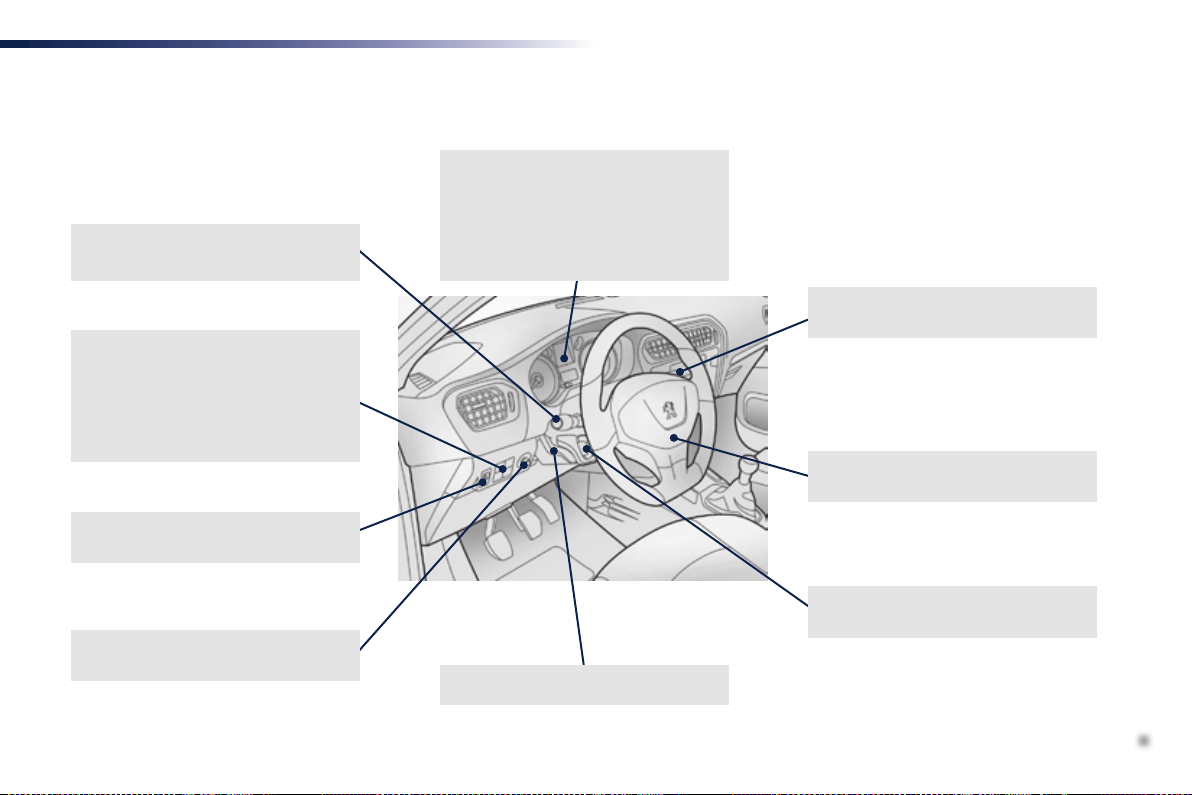

Instruments and controls
1. Cruise control / speed limiter controls.
2. Steering wheel adjustment control.
3. Lighting and direction indicator stalk.
4. Instrument panel.
5. Driver's airbag and horn.
6. Cigarette lighter / 12 V accessory socket.
USB port / auxiliary socket.
7. Heated seat control.
8. Fuel filler flap release.
Boot lid release lever*.
9. Bonnet release.
10. Fusebox.
11. Headlamp height adjustment.
12. Dynamic Stability Control (ESP/ASR)
button.
Boot lid release button*.
Alarm warning lamp.
13. Door mirror adjustment control.
14. Side adjustable and air vent.
15. Front door glass demisting/defrosting vent.
* Depending on version.
.
7
Overview
301_en_Chap00b_vue-ensemble_ed01-2016
Instruments and controls
1. Steering lock and ignition switch.
2. Wiper and screenwash / trip computer
control stalk.
3. Central locking button.
4. Open storage.
or
Monochrome screen C (Audio system /
Bluetooth).
5. Adjustable centre air vents.
6. Windscreen demisting/defrosting vent.
7. Passenger's airbag.
8. Glove box.
Passenger's airbag deactivation switch.
9. Hazard warning lamps button.
10. Audio system.
11. Heating / Air conditioning controls.
12. Ashtray / Cup holder.
13. Electric window switches.
14. Gear lever.
15. Parking brake.
8
Eco-driving
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2
emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently, change up without waiting and
drive by changing up quite soon.
With an automatic or electronic gearbox, stay in Drive "D" or Auto "A",
according to the type of gearbox, without pressing the accelerator pedal
heavily or suddenly.
The gear shift indicator invites you to select the most suitable gear:
once the indication is displayed in the instrument panel, follow the
advice straight away.
For vehicles fitted with an electronic or automatic gearbox, this indicator
only appears in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm,
ventilate it by opening the windows and air vents before using the air
conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (window blinds...).
Switch off the air conditioning as soon as the desired temperature is
attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and foglamp when the level of light does not
require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
.
9
Eco-driving
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter...) and
observe the schedule of operations recommended by the manufacturer.
When refuelling, do not continue after the 3
rd
cut-off of the nozzle to
avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
10
Monitoring

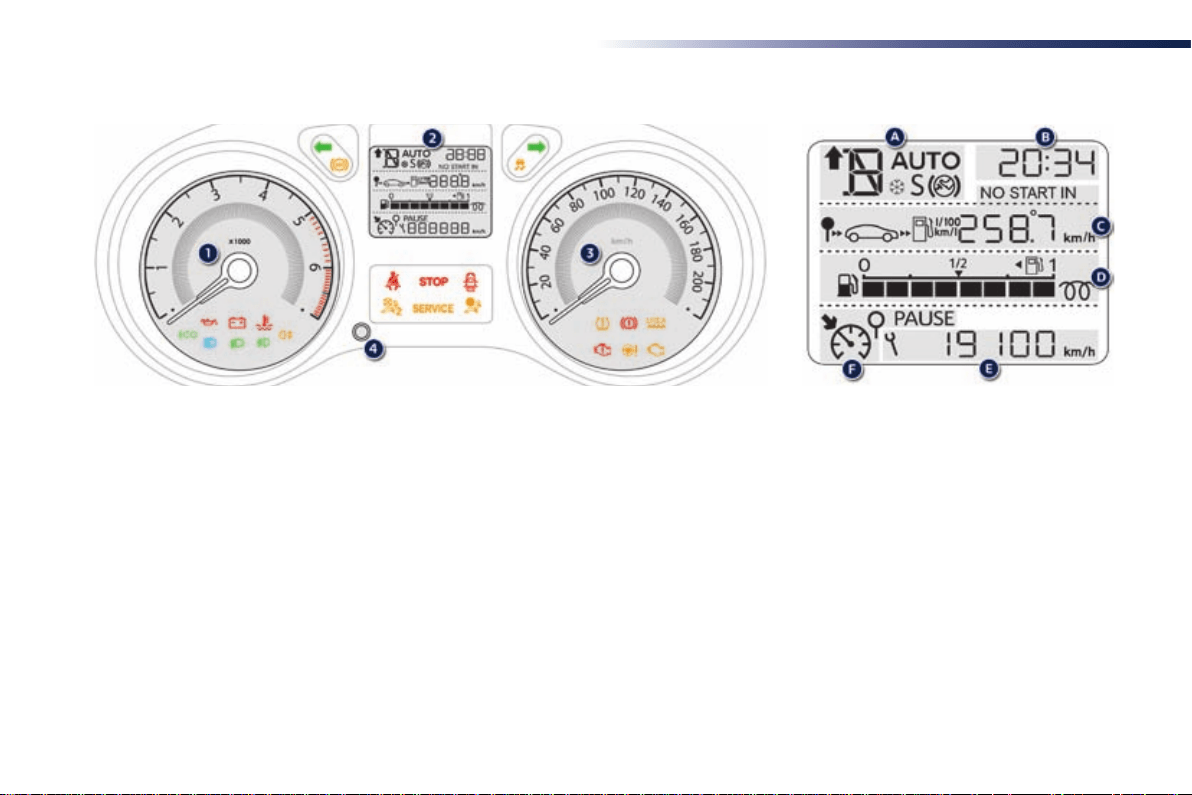

Instrument panel for petrol - Diesel
1. Rev counter (x 1 000 rpm).
2. Screen.
3. Speedometer (mph or km/h).
A. Electronic or automatic gearbox
information.
Gear shift indicator.
B. Time.
C. Range for the fuel or AdBlue additive and
the SCR system (miles or km)
or
Trip distance recorder.
D. Fuel gauge / Diesel preheater.
E. Service indicator (miles or km)
then,
total distance recorder.
These two functions are displayed
successively when switching on
the ignition.
F. Speed limiter or cruise control settings.
4. Reminder of service information
Reset the selected function to zero
(trip distance recorder or service indicator)
Adjust the time.
Dials
Screen
1
11
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Indicator and warning lamps
Certain warning lamps may come on
in one of two different modes. Only by
relating the type of illumination to the
operating status of the vehicle can it
be ascertained whether the situation is
normal or whether a fault has occurred.
When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition is
switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
The illumination of certain warning lamps may
be accompanied by an audible signal and a
message in the multifunction screen.
The warning lamps may come on continuously
(fixed) or flash.
Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or of the occurrence of a fault
(warning lamp).
12
Monitoring
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
Warning / indicator lamp State Cause Action / Observations
Left-hand
direction
indicator
flashing with buzzer. The lighting stalk is pushed down.
Right-hand
direction
indicator
flashing with buzzer. The lighting stalk is pushed up.
Dipped beam
headlamps
fixed. The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps
fixed. The lighting stalk is pulled towards
you.
Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk.
Turn the ring on the lighting control stalk rearward
twice to switch off the front foglamps.
Rear foglamp fixed. The rear foglamp has been switched
on using the ring on the lighting
control stalk.
Turn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.
For more information on the lighting controls, refer to the "Visibility" section.
1
13
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Diesel engine
pre-heating
fixed. The key is at position 2 (ignition on) in
the ignition switch.
Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in very low temperatures).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Parking brake fixed. The parking brake is applied or not
properly released.
Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer to
the "Driving" section.
Foot on the
brake pedal
fixed. The brake pedal must be pressed. With an electronic gearbox, press the brake pedal to
start the engine (lever in position N).
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
flashing. With an electronic gearbox, if you
hold the vehicle on an incline using
the accelerator for too long, the
clutch overheats.
Use the brake pedal and/or the parking brake.
14
Monitoring
Warning / indicator lamp State Cause Action / Observations
Stop & Start fixed. When the vehicle stops (red lights,
traffic jams,...) the Stop & Start system
has put the engine into STOP mode.
The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
flashes for a few
seconds, then goes
off.
STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically.
For more information on Stop & Start, refer to the
corresponding section.
1
15
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the screen.
Warning / indicator lamp State Cause Action / Observations
Passenger's
airbag system
fixed. The control, located in the glove box,
is set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault with
the operation of the airbags (Airbag
warning lamp on).
Set the control to the ON position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rearward
facing position.
ESP/ASR fixed. The button, located at the bottom
left of the dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability programme.
ASR: anti-slip regulation.
Press the button to activate the ESP/ASR. Its indicator
lamp goes off.
The ESP/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
16
Monitoring
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning / indicator lamp State Cause Action / Observations
STOP fixed, associated with
another warning lamp.
It is associated with the engine
oil pressure or the engine coolant
temperature.
Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or qualified workshop.
Service on temporarily. Minor faults have occurred for which
there is no specific warning lamp.
Identify the fault by reading the message shown in the
screen, such as, for example:
- saturation of the particle emissions filter (Diesel),
- the power steering,
- a minor electrical fault,
- ...
For any other faults, contact a PEUGEOT dealer or
a qualified workshop.
fixed. Major faults have occurred for which
there is no specific warning lamp.
Identify the fault by reading the message shown in
the screen and then contact a PEUGEOT dealer or
qualified workshop.
1
17
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Braking fixed. The brake fluid level has dropped
significantly.
You must stop as soon as it is safe to do so.
Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by
a PEUGEOT dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.
The electronic brake force distribution
(EBFD) system has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Maximum
coolant
temperature
fixed red. The temperature of the cooling
system is too high.
Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
qualified workshop.
Under-inflation fixed, accompanied by
an audible signal and
a message.
The pressure in one or more tyres is
too low.
Check the tyre pressures as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on under-inflation detection,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.
The system has fault: the tyre
pressures are no longer monitored.
Check the tyre pressures as soon as possible.
Have the system checked by a PEUGEOT dealer or
a qualified workshop.
18
Monitoring
Warning / indicator lamp State Cause Action / Observations
Dynamic
stability control
(ESP/ASR)
flashing. The ESP/ASR regulation is active. The system optimises traction and improves the
directional stability of the vehicle.
fixed. Unless it has been deactivated
(button pressed and its indicator lamp
on) the ESP/ASR system has a fault.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Engine
autodiagnosis
system
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.
flashing. The engine management system has
a fault.
Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Anti-lock
Braking System
(ABS)
fixed. The anti-lock braking system has a
fault.
The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.
Engine fault fixed, orange The engine has a minor fault. Contact a PEUGEOT dealer or a qualified workshop
as soon as possible.
fixed, red. The engine has a major fault causing
a breakdown.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or qualified workshop.
1
19
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Engine oil
pressure
fixed. There is a fault with the engine
lubrication system.
You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.
Battery charge fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or
a qualified workshop.
Door(s) open /
Electric opening
boot lid open
fixed if the speed is
below 6 mph
(10 km/h).
A door or the electric opening boot is
still open.
Close the door or boot.
fixed and accompanied
by an audible signal
if the speed is above
6 mph (10 km/h).
Low fuel level fixed. When it first comes on there remains
approximately 5 litres of fuel in the
tank.
You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 50 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
20
Monitoring
Warning / indicator lamp State Cause Action / Observations
Airbags on temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off.
This lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Power steering fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Driver's seat
belt not fastened
or unfastened /
Front
passenger's seat
belt unfastened
fixed or flashing
accompanied by an
increasing audible
signal.
The driver has not fastened or has
unfastened their seat belt.
The front passenger has unfastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
1
21
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Warning / indicator lamp State Cause Action / Observations
AdBlue
®
additive
(BlueHDi Diesel)
fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.
The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the AdBlue
®
additive tank topped up as soon
as possible: go to a PEUGEOT dealer or a qualified
workshop, or carry out this operation yourself.
+ flashing associated with
the SERVICE warning
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.
The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the AdBlue
®
additive tank to avoid
a breakdown: go to a PEUGEOT dealer or a qualified
workshop, or carry out this operation yourself.
flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented.
The AdBlue
®
tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine.
To be able to start the engine, you must top-up the
AdBlue
®
additive tank: go to a PEUGEOT dealer
or a qualified workshop, or carry out this operation
yourself.
It is essential to add at least 3.8 litres of AdBlue
®
to
the additive tank.
For topping-up or for more information on the AdBlue
®
additive, refer to the corresponding section.
22
Monitoring
Warning / indicator lamp State Cause Action / Observations
+
+
SCR emissions
control system
(BlueHDi Diesel)
fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.
A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range.
After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a PEUGEOT dealer or a qualified workshop
without delay, to avoid a breakdown.
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.
You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must call on a
PEUGEOT dealer or a qualified workshop.
1
23
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Service indicator
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 739 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off; the distance recorder
resumes its normal operation. The screen then
indicates the total distance.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 400 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
For BlueHDi Diesel versions, the
degree of deterioration of the engine oil
is also taken into account (depending
on the country of sale).
The point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
24
Monitoring
Service overdue
For 5 seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example: the service is overdue by 186 miles
(300 km).
For 5 seconds after the ignition is switched on,
the screen indicates:
For BlueHDi Diesel versions, this alert
may also be accompanied by the fixed
illumination of the service warning lamp
when the ignition is on.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be taken into account.
Service indicator zero reset
After each service, the service indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:
F switch off the ignition,
F press and hold the trip distance recorder
zero reset button,
F switch on the ignition; the distance recorder
display begins a countdown,
F when the display indicates "=0", release
the button; the spanner disappears.
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
The rate of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.
1
25
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Retrieving the service
information
You can access the service information at any
time.
F Press the trip distance recorder zero reset
button.
The service information is displayed for a
few seconds, then disappears.
System which measures the total distance
travelled by the vehicle during its life.
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Total distance recorder
System which measures a distance travelled
during a day or other period since it was reset
to zero by the driver.
F With the ignition on, press the button until
zeros appear.
Trip distance recorder
Distance recorders
26
Monitoring
Setting the date and time
Instrument panel
Use the left-hand button on the instrument
panel to carry out the operations in the
following order:
F press the button for more than
two seconds: the minutes flash,
F press the button to increase the minutes,
F press the button for more than
two seconds: the hours flash,
F press the button to increase the hours,
F press the button for more than
two seconds: 24H or 12H is displayed,
F press the button to select 24H or 12H,
F press the button for more than two seconds
to complete the adjustments.
After approximately 30 seconds without any
action, the screen returns to the normal display.

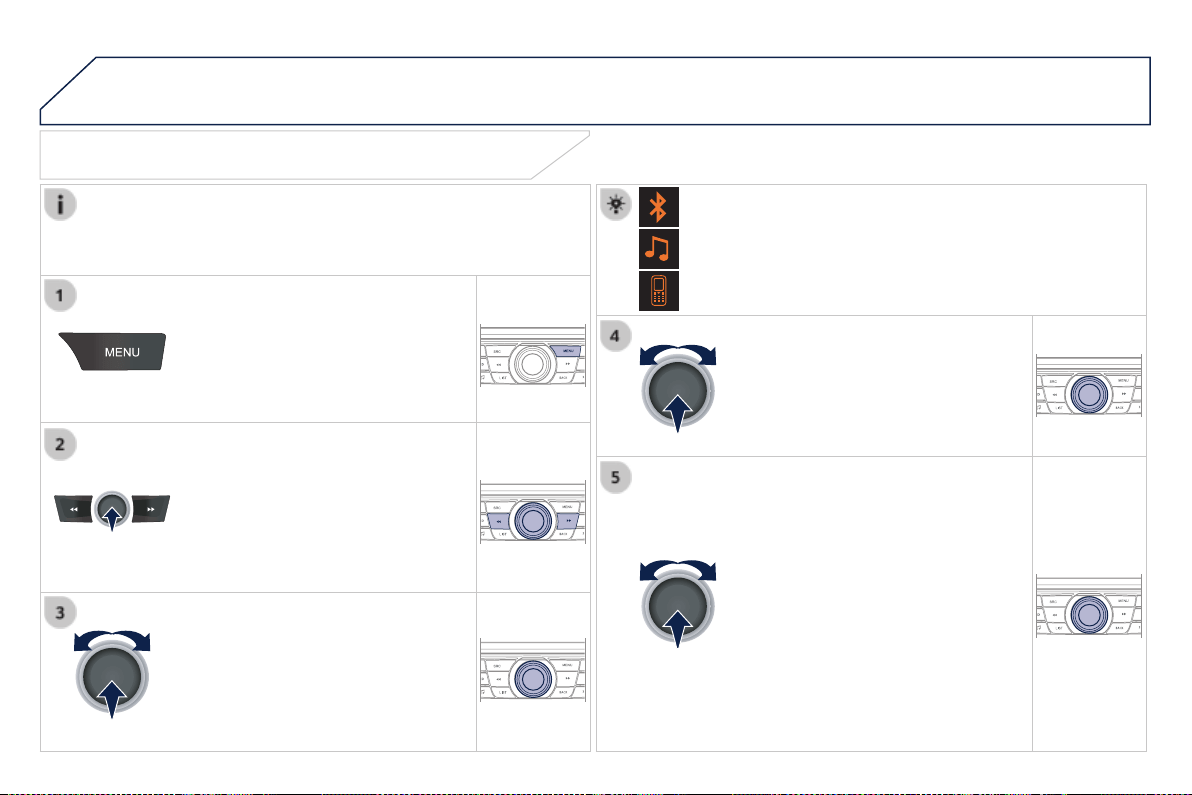

Audio system / Bluetooth
Use the audio system buttons to carry out the
operations in the following order:
F press the "MENU" button,
F using the arrows, select the
"Personalisation - Configuration" menu
then confirm by pressing the control knob,
F using the arrows, select the "Screen
configuration" menu then confirm,
F using the arrows, select the "Set date and
time" menu then confirm,
F select the setting then confirm,
F modify the setting then confirm again to
register the modification,
F adjust the settings one by one, confirming
each time,
F select the "OK" tab in the screen then
confirm to exit the "Set date and time"
menu.
1
27
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Zero reset
F Press the control for more than
two seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.
System that gives you information on the current journey (range, fuel consumption…).
Trip computer
Screen in instrument panel
Monochrome screen C
Information displays
F Press the button, located at the end of the
wiper stalk, to display the various items of
trip computer information in succession.
The trip computer provides the following
information:
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
F The next press then returns you to the
normal display.
28
Monitoring
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop.
This function is only displayed from
30 km/h.
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
Trip computer, a few definitions
Range
(km)
The number of kilometres which
can be covered with the fuel
remaining in the tank. Related
to the average fuel consumption
over the last few kilometres
travelled.
When the range falls below 30 km, dashes are
displayed. After filling with at least 5 litres of
fuel, the range is recalculated and is displayed
when it exceeds 100 km.
Current fuel consumption
(l/100 km or km/l)
Calculated during the last few
seconds.
Average fuel consumption
(l/100 km or km/l)
Calculated since the last trip reset.
Average speed
(km/h)
Calculated since the last trip reset.
Distance travelled
(km)
Calculated since the last trip
reset.
1
29
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
Monochrome screen C (Audio system / Bluetooth)
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- status of doors and boot,
- parking sensors,
- audio sources (radio, CD, USB port, jack
socket...),
- trip computer (refer to the "Instruments and
controls" section).
Warning or information messages may appear
temporarily. These can be cleared by pressing
the "BACK" button.
From your Audio system / Bluetooth control

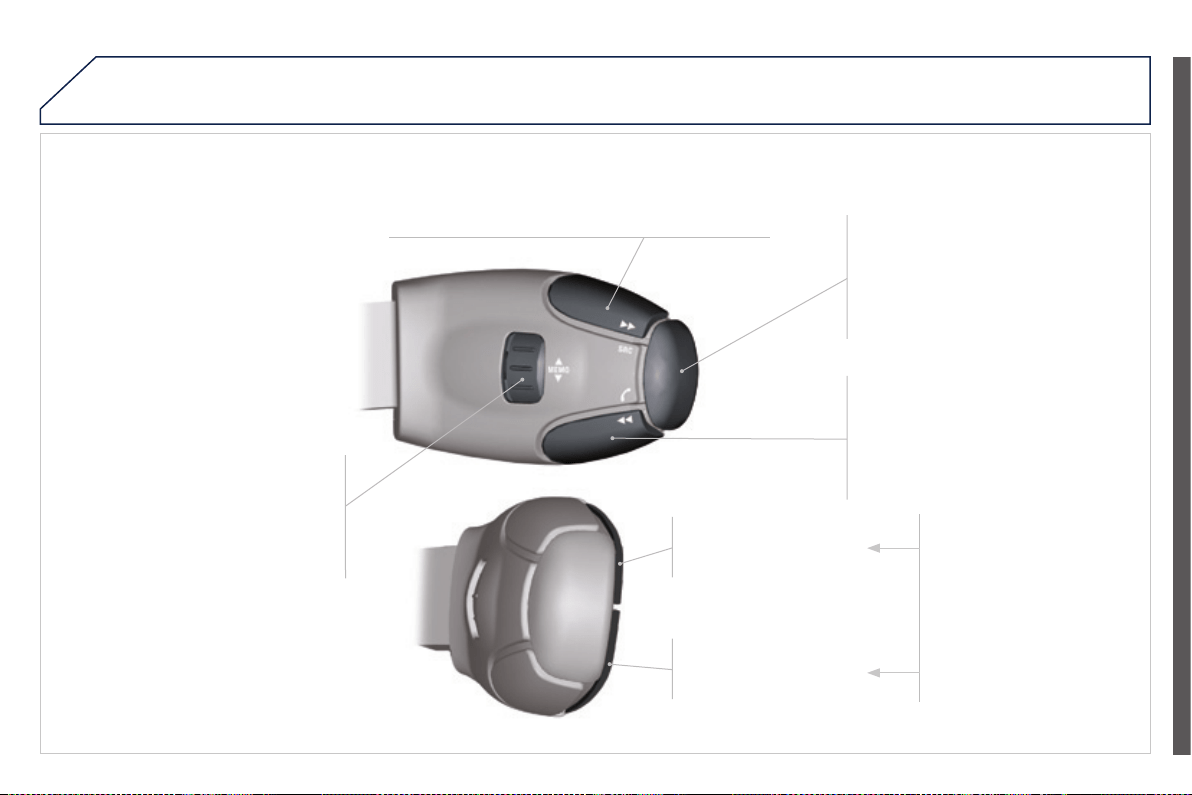

panel, you can press:
F the "MENU" button to gain access to the
main menu,
F the "MODE" button to select the display
of information in "Full screen" or "New
window" mode,
F the "7" or "8" buttons to navigate in a list,
F press the central button to confirm,
or
F the "BACK" button to abandon the
operation in progress or go back up one
level in the menu.
Displays in the screen Controls
F Press the "MENU" button to gain access
to the main menu:
- "Multimedia",
- "Telephone",
- "Trip computer",
- "Bluetooth connection",
- "Personalisation-configuration",
F Press the "7" or "8" buttons to select the
menu required, then confirm by pressing
the centre button.
Main menu
30
Monitoring
With the Audio system / Bluetooth switched
on, once this menu has been selected you can
make a call and refer to the different telephone
contacts lists.
For more information on the "Telephone"
application, refer to the Audio system /
Bluetooth part of the "Audio and Telematics"
section.
"Telephone" menu
Once this menu has been selected, you can
consult information concerning the status of
the vehicle.
Alert log
This summarises the status and alert
messages of the functions, displaying them in
succession in the multifunction screen.
F Press the "MENU" button to gain access
to the general menu.
F Press the double arrows, then the centre
button to select the "Trip computer"
menu.
F In the "Trip computer" menu, select the
"Alert log" line and confirm.
With the Audio system / Bluetooth switched
on, once this menu has been selected you
can activate or deactivate the functions linked
with use of the radio, CD or the MP3 player
(USB port / jack socket).
For more information on the "Multimedia"
application, refer to the Audio system /
Bluetooth part of the "Audio and Telematics"
section.
"Multimedia" menu
"Trip computer" menu
1
31
Monitoring
301_en_Chap01_controle-de-marche_ed01-2016
"Bluetooth
connection" menu
With the Audio system / Bluetooth switched
on, once this menu has been selected you
can connect or disconnect a Bluetooth device
(telephone, media player) and define the
connection mode (hands-free kit, playing audio
files).
For more information on the "Bluetooth
connection" application, refer to the Audio
system / Bluetooth part of the "Audio and
Telematics" section.
Once this menu has been selected, you can
gain access to the following functions:
- "Define the vehicle parameters",
- "Choice of language",
- "Display configuration".
"Personalisation-
Configuration" menu
Dene the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment,
classified by category:
- "Driving assistance",
- "Driving lighting",
- "Comfort lighting".
32
Monitoring
For safety reasons, configuration by the
driver of the multifunction screen must
only be done when stationary.
Choice of language
Once this menu has been selected, you can
change the language used by the display from
a defined list.
Display conguration
Once this menu has been selected, you can
gain access to the following settings:
- "Choice of units",
- "Set date and time",
- "Display settings",
- "Brightness".
33
2
Acc ess
301_en_Chap02_ouvertures_ed01-2016
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well
as providing protection against theft.
Remote control key
Unfolding / folding the key Unlocking the vehicle
Unlocking using the key
F Turn the key in the driver's door lock
towards the front of the vehicle to unlock.
Unlocking using the remote
control
F Press the open padlock to unlock
the vehicle.
Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
F Press this button to unfold or fold the key.
Unlocking and partial opening of
the boot
F Press this button for more than
one second to unlock the boot.
The boot opens slightly.
This action unlocks the vehicle
first.
34
Acc ess
301_en_Chap02_ouvertures_ed01-2016
If one of the doors or the boot is still
open, the central locking does not
take place; the vehicle locks then
immediately unlocks, identifiable by the
sound of the locks rebounding.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock
again automatically after thirty seconds
unless a door or the boot is open.
Locking using the remote control
F Press the closed padlock to lock
the vehicle.
Locking the vehicle
Locking is confirmed by fixed lighting of
the direction indicators for approximately
two seconds.
Locking using the key
F Turn the key in the driver's door lock,
towards the rear of the vehicle to lock it.
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
Locating your vehicle
F Press the closed padlock on the
remote control.
This will switch on the courtesy lamps and the
direction indicators will flash for a few seconds.
Check that the doors and boot are fully
closed.
35
2
Acc ess
301_en_Chap02_ouvertures_ed01-2016
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
If the battery is flat, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
Changing the battery
F Remove the flat battery from its location.
F Fit the new battery into its location
observing the original direction of fitment.
F Clip the cover onto the casing.
In the event of a fault with the remote control,
you can no longer unlock, lock or locate
your vehicle.
F First of all, use the key in the lock to unlock
or lock your vehicle.
F Then, reinitialise the remote control.
Fault with the remote
control
Reinitialisation
F Switch off the ignition and remove the
ignition key.
F Press the closed padlock immediately for a
few seconds.
F Turn the key to position 2 (Ignition on).
F Switch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
Battery ref.: CR2032 / 3 volts.
F Unclip the cover using a small screwdriver
at the cutout.
F Lift off the cover.
36
Acc ess
301_en_Chap02_ouvertures_ed01-2016
Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the
emergency services more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving
the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer,
to ensure that only your keys can be used to open and start the vehicle.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
37
2
Acc ess
301_en_Chap02_ouvertures_ed01-2016
System which protects and provides a deterrent
against theft and break-ins. It provides
perimeter protection as well as a self-protection
function.
Alarm
Perimeter protection
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Locking the vehicle with
alarm
Activation
F
Switch off the ignition and get out of the vehicle.
F Press the locking button on the
remote control.
The perimeter protection is activated 5 seconds
after pressing the locking button on the remote
control.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the alarm is
activated.
F Press the unlocking button on
the remote control.
Deactivation
The alarm is deactivated: the
indicator lamp goes off.
The alarm is activated: a indicator
lamp in the switch panel to the left
of the steering wheel flashes once
per second.
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.
38
Acc ess
301_en_Chap02_ouvertures_ed01-2016
Triggering of the alarm Locking the vehicle without
activating the alarm
F Lock the vehicle using the key.
Failure of the remote control
To deactivate the monitoring functions:
F Unlock the vehicle using the key.
F Open the door; the alarm is triggered.
F Switch on the ignition; the alarm stops.
Faults
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
When the ignition is switched on, fixed
illumination of the indicator lamp indicates a
fault with the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
When the vehicle is unlocked using
the remote control, rapid flashing
of the indicator lamp informs you
that the alarm was triggered during
your absence. When the ignition
is switched on, this flashing stops
immediately.
39
2
Acc ess
301_en_Chap02_ouvertures_ed01-2016
Doors
From outside
F After unlocking the vehicle using the
remote control or the key, pull the door
handle.
Opening
From inside
F Pull the interior control lever of a front door;
this unlocks the vehicle completely.
- when the engine is running,
this warning lamp comes on,
accompanied by a message in
the multifunction screen for a
few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message in the
multifunction screen for a few seconds.
Closing
When a door is not closed correctly:
Secondary control
For mechanically locking and unlocking the
doors in the event of a fault with the central
locking system or a battery failure.
Driver's door
Insert the key in the lock to lock or unlock
the door.
Passenger doors
F On the rear doors, check that the child lock
is not on.
F Remove the black cap located on the edge
of the door, using the key.
F Insert the key into the aperture without
forcing, then without turning, move the
latch sideways towards the inside of
the door.
F Remove the key and refit the cap.
40
Acc ess
301_en_Chap02_ouvertures_ed01-2016
Boot
Opening
Unlocking and releasing the boot
using the remote control
F Press the centre button on the
remote control for more than
one second.
The boot lid is released and opens
slightly.
Releasing the boot from the
inside
Opening the boot
F Raise the boot lid to its fully open position.
F Lower the boot lid using one of the interior
grab handles.
Closing
Electric boot opening
- when the engine is running,
this warning lamp comes on,
accompanied by a message in the
multifunction screen for a few seconds,
- when the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message in the multifunction screen for a
few seconds.
F Press the boot opening switch located
on the left of the dashboard (electric boot
opening).
or
Mechanical boot opening
There is no associated warning for the boot lid
not being fully closed.
You should ensure that the boot is closed
correctly.
If the boot is not closed correctly:
F Raise the control lever below the driver's
door (mechanical boot opening).
The boot lid is released and opens slightly.
41
2
Acc ess
301_en_Chap02_ouvertures_ed01-2016
Locking / unlocking from the inside
F Press the switch.
This allows the doors and the boot to be locked
or unlocked.
Automatic central locking of the
doors
The doors can lock automatically while driving
(speed above 6 mph (10 km/h)).
To turn this function on or off (on by default).
F press and hold the button until there is an
audible signal and/or a message in the
screen.
Locking from outside
When the vehicle is locked from
outside, the switch does not operate.
F To unlock the vehicle, pull the
interior door lever.
If one of the doors is open, the doors
are not locked.
Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.
Boot release
Unlocking
F Fold back the rear seats to gain access to
the lock from inside the boot.
F Insert a small screwdriver into hole A of the
lock to unlock the boot lid.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
If your vehicle is fitted with a fixed
bench seat, contact a PEUGEOT dealer
or a qualified workshop.
42
Acc ess
301_en_Chap02_ouvertures_ed01-2016
Windows
Electric controls
Manual controls
The electric window switches remain
operational for about 45 seconds after
switching off the ignition or until a front
door is opened. During this period of
45 seconds, if you open a door while
operating a window, the window stops.
Operating the switch again has no
effect until the ignition is switched on
again.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be particularly aware of children when
operating the windows.

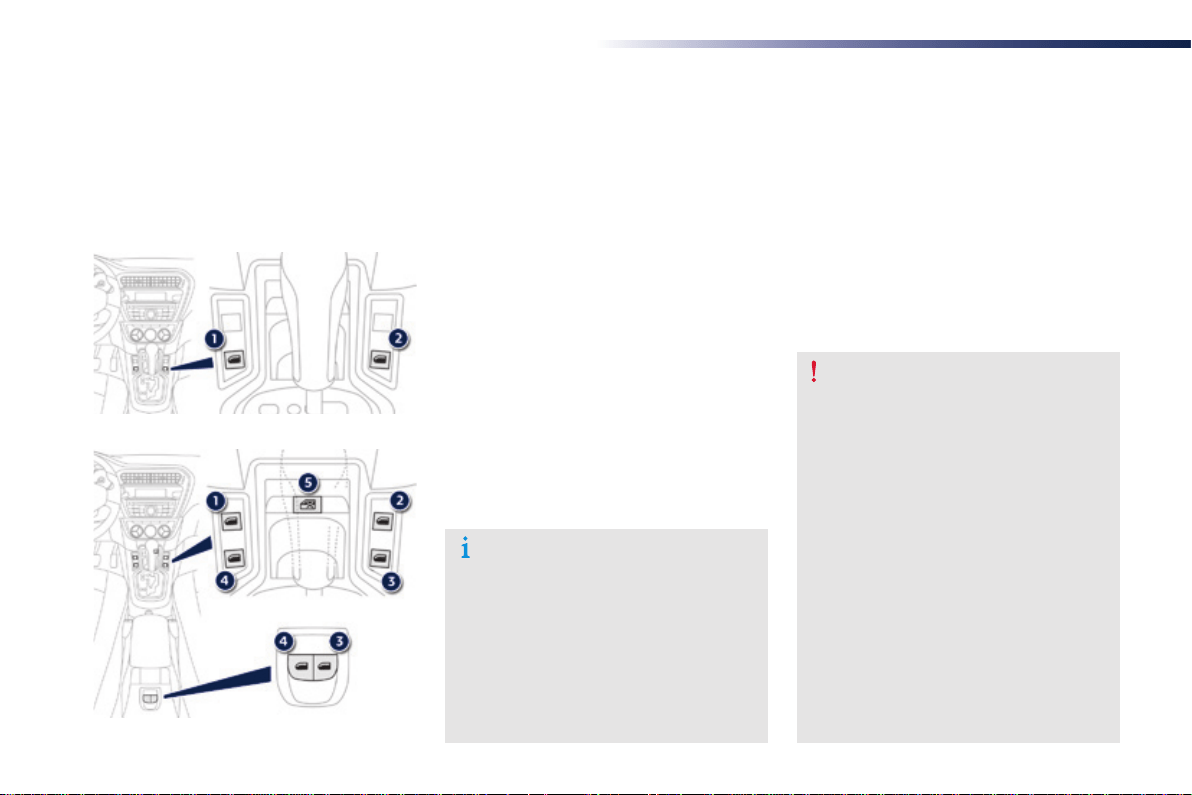

1. Left hand front electric window.
2. Right hand front electric window.
3. Right hand rear electric window.
4. Left hand rear electric window.
5. Deactivating the rear electric window
switches.
To open or close the window, press or pull the
switch. The window stops as soon as the switch
is released.
Turn the window winder located on the door
trim panel.
Deactivating the rear window
controls
For the safety of your children, press switch 5
to prevent operation of all of the windows,
irrespective of their position.
With the warning lamp on, the switches are
deactivated. With the warning lamp off, the
switches are active.
Model with front electric windows
Model with front and rear electric windows
43
3
Comfor t
301_en_Chap03_confort_ed01-2016
Front seats
F Raise the control and slide the seat
forwards or backwards.
F Pull the control upwards to raise or push
it downwards to lower, as many times as
required, to obtain the position required.
F Push the control rearwards.
Forwards-backwards Height
(driver only)
Seat backrest angle
As a safety measure, adjustments to the driver's seat must only be done when stationary.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence
of objects on the floor behind the seat or rear passengers. If the seat jams, stop the
movement immediately.
44
Comfor t
301_en_Chap03_confort_ed01-2016
F To raise the head restraint, pull it upwards.
F To remove the head restraint, press the
lug A and pull the head restraint upwards.
F To put the head restraint back in place, engage
the head restraint stems in the openings
keeping them in line with the seat back.
F To lower the head restraint, press the lug A
and the head restraint at the same time.
The head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Adjusting the height of the
head restraint
Press the control.
The temperature is controlled automatically.
Pressing a second time stops operation.
Heated seat control
45
3
Comfor t
301_en_Chap03_confort_ed01-2016
Rear seats
F Move the corresponding front seat forward
if necessary.
F Check that the corresponding seat belt is
positioned correctly against the backrest
and buckle it.
F Straighten the seat backrest 2 and
secure it.
F Unbuckle and reposition the seat belt on
the side of the backrest.
When repositioning the seat backrest,
take care not to trap the seat belts.
Ensure that the backrest has latched
properly into place.
F Pull the strap 1 to release the seat
backrest 2.
F Fold the seat backrest 2 on to the cushion.
Folding the backrest
Depending on version, your vehicle may be fitted with a fixed rear bench seat. For removing and refitting it, contact a PEUGEOT dealer or a qualified
workshop.
Bench seat with fixed one-piece cushion and split backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.
Repositioning the seat backrest
46
Comfor t
301_en_Chap03_confort_ed01-2016

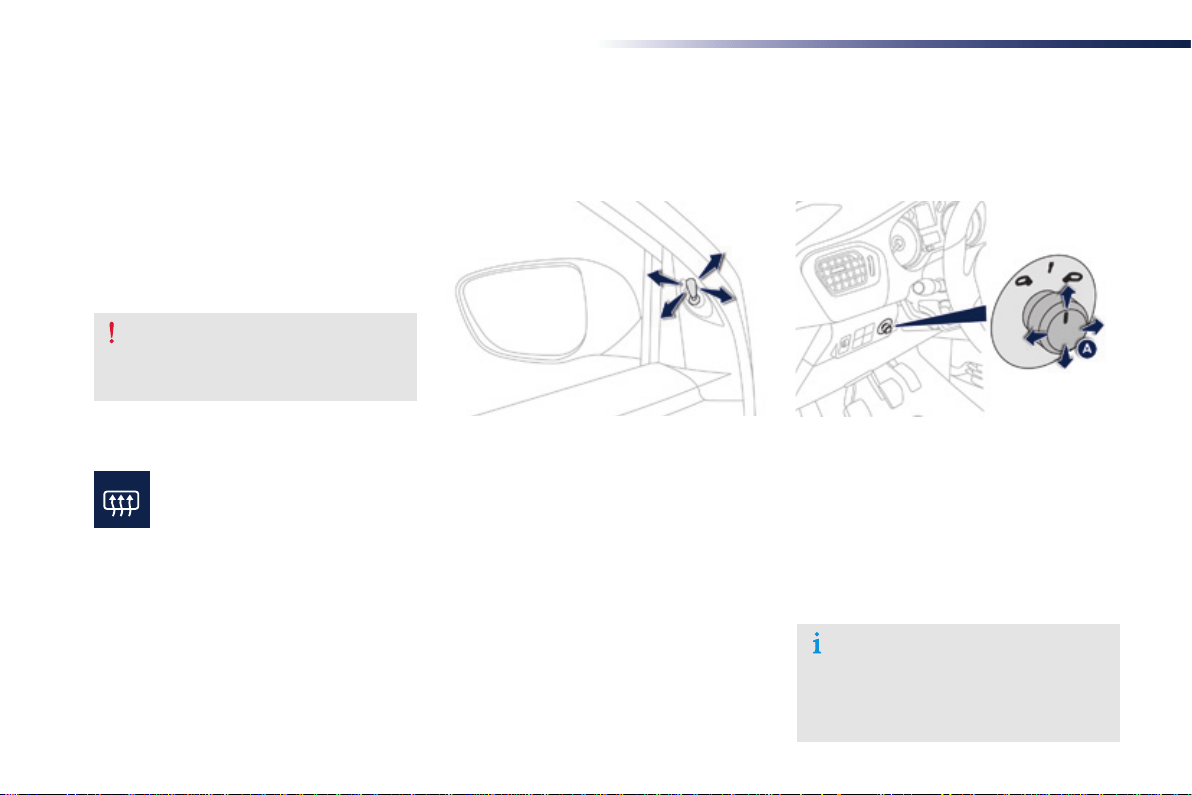

Mirrors
Each fitted with an adjustable mirror glass
providing the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
Door mirrors
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Demisting - Defrosting AdjustmentAdjustment
Manual model
Folding
F When parked, fold the mirror manually to
protect it.
Unfolding
F Before moving off, unfold the mirror.
Electric model
F Move the lever in all four directions to
adjust the mirror.
F Move control knob A to the right or to the
left to select the corresponding mirror.
F Move the control knob in all four directions
to adjust.
F Return the control knob to the central
position.
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.
For more information on demisting
and defrosting the rear screen, refer
to the corresponding section.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
47
3
Comfor t
301_en_Chap03_confort_ed01-2016
Manual folding
You can fold the mirrors manually (tight parking
space, narrow garage...).
F Turn the mirror towards the vehicle.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...
Rear view mirror
Manual day/night model
Adjustment
F Adjust the mirror so that the glass is
directed correctly in the "day" position.
Day / night position
F Pull the lever to change to the "night" anti-
dazzle position.
F Push the lever to change to the normal
"day" position.
48
Comfor t
301_en_Chap03_confort_ed01-2016
Steering wheel adjustment
F When stationary, lower the control lever
to release the steering wheel adjustment
mechanism.
F Adjust the height to suit your driving
position.
F Pull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
49
3
Comfor t
301_en_Chap03_confort_ed01-2016
Ventilation
Air intake flow
The incoming air follows various paths
depending on the controls selected by the
driver:
- direct arrival in the passenger
compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air
conditioning).
Control panel
The controls of this system are grouped
together on control panel A on the centre
console.
1. Windscreen demisting-defrosting vents.
2. Front side window demisting-defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Air distribution
Air intake
The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
50
Comfor t
301_en_Chap03_confort_ed01-2016
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in perfect working order.
F Ensure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
F To ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
51
3
Comfor t
301_en_Chap03_confort_ed01-2016

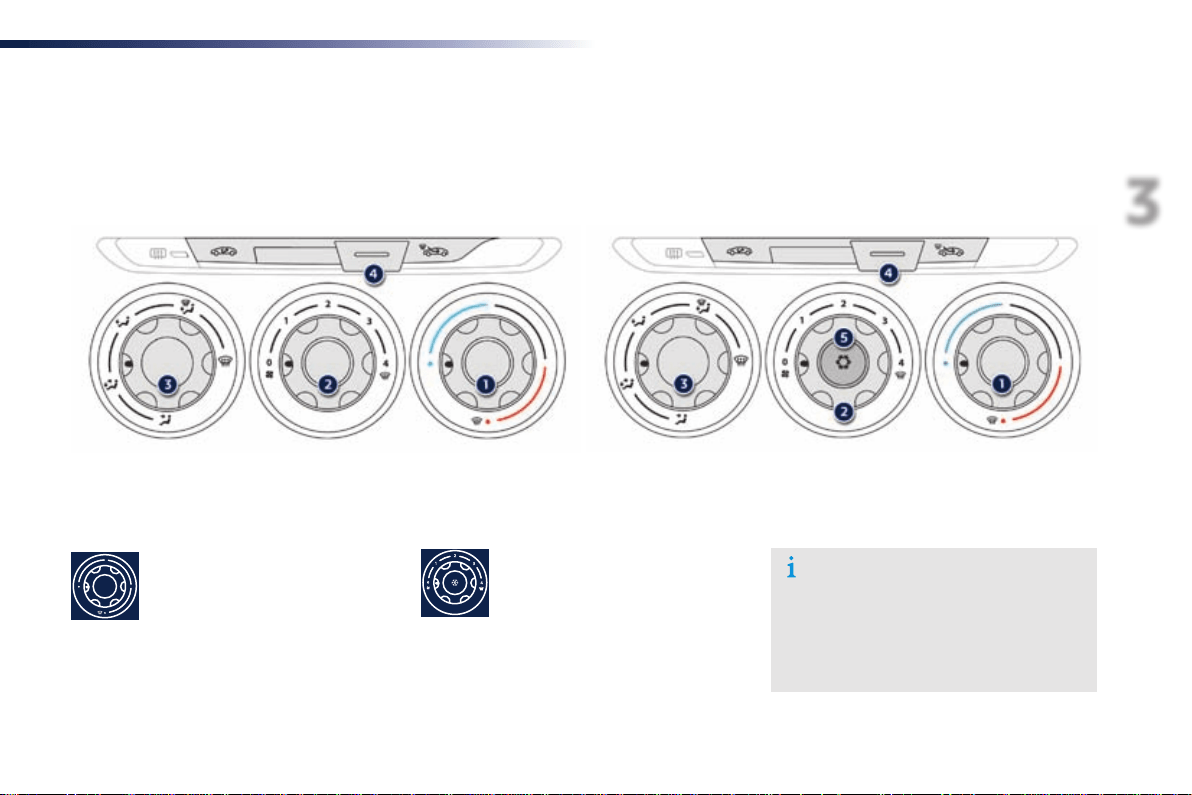

1. Temperature level adjustment
F Turn the control knob from
blue (cold) to red (hot) to
adjust the temperature to your
requirements.
This system only operates with the engine running.
2. Air ow adjustment
F Turn the control knob from
position 1 to position 4 to obtain
a comfortable air flow.
If you put the air flow control in position 0
(system off), the temperature is no
longer controlled. However, a slight flow
of air can still be felt, resulting from the
movement of the vehicle.
Manual air conditioning
(without display screen)
Heating / Ventilation
This system only operates when the engine is running.
52
Comfor t
301_en_Chap03_confort_ed01-2016
3. Air distribution adjustment
Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Centre and side air vents, footwells.
The air distribution can be adapted
by placing the control knob in an
intermediate position or by closing
the vents.
F Move the manual control to the
right to return to the "Exterior air
intake" position.
F Move the manual control to the
left for the "Recirculation of
interior air" position.
5. Air conditioning On / Off
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting
in winter, above 3 °C.
Switching on
F Press the button 5, the associated indicator
lamp comes on.
Switching off
F Press the button 5 again, the associated
indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
The air conditioning does not operate
when the air flow adjustment control 2
is in position "0".
To obtain cooled air more quickly, you can use
recirculation of interior air for a few moments.
Then return to fresh air intake.
Centre and side vents.
4. Air intake / Air recirculation
The recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist.
53
3
Comfor t
301_en_Chap03_confort_ed01-2016
Electronic air conditioning (with display screen)
These systems only operate with the engine running.
1. Air intake / Air recirculation
The recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.
2. Temperature level adjustment
F Press the "5" (red for hot) and
"6" (blue for cold) buttons, to
adjust the temperature to your
requirements.
The temperature bars come on
or go off progressively in the air
conditioning screen.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air quality
and the formation of mist.
F Press the button to recirculate the interior
air. The indicator lamp comes on to confirm
this.
F Press the button again to permit
the intake of exterior air. The
indicator lamp goes off to confirm
this.
3. Front demist - defrost
See the corresponding section.
54
Comfor t
301_en_Chap03_confort_ed01-2016
4. Air conditioning On/Off
F Press the "A/C" button, the
symbol in the air conditioning
screen comes on.
Switching off
This button allows the rapid
cooling of the air in the passenger
compartment.
5. Air conditioning: A/C MAX
button
Switching on
F Press the "A/C MAX" button, the symbol in
the air conditioning screen comes on.
F Press the "A/C" button again, the symbol
in the air conditioning screen goes off.
Switching off may lead to unpleasant conditions
(humidity, misting).
Switching on
Switching off
F Press the "A/C MAX" button again, the
symbol in the air conditioning screen goes
off.
6. Air distribution adjustment
F Press this button successively to
direct the air flow towards:
- windscreen and side windows
(demisting or defrosting),
- windscreen, side windows and
air vents,
- windscreen, side windows, air
vents and footwells,
- windscreen, side windows and
footwells,
- footwells,
- air vents and footwells,
- air vents.
55
3
Comfor t
301_en_Chap03_confort_ed01-2016
7. Air ow adjustment
F Press the "Large fan" button to
increase air flow.
F Press the "Small fan" button to
reduce air flow.
Deactivating the system
F Press the "Small fan" air flow button until
all the bars in the air conditioning screen
go off.
This action deactivates all functions of the air
conditioning system.
The temperature level is no longer controlled.
A slight flow of air can still be felt however,
resulting from the forward movement of the
vehicle.
Pressing the "Large fan" air flow button again
reactivates the system.
The air flow bars come on progressively.
Avoid driving for long with the system
deactivated (risk of misting and
deterioration of air quality).
The air flow bars go off progressively.
56
Comfor t
301_en_Chap03_confort_ed01-2016
Front demist - defrost
These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.
With the heating /
ventilation system
With the manual air
conditioning system
(without screen)
With electronic air
conditioning (with screen)
F Put the temperature and air flow controls to
the dedicated marked position.
F Put the air intake control to the "Exterior air
intake" position
(manual control moved to the right).
F Put the air distribution control to the
"Windscreen" position.
F Press this button.
The lamp in the button comes on.
F Press this button again to switch
it off.
The lamp in the button goes off.
F Put the temperature and air flow controls to
the dedicated marked position.
F Put the air intake control to the "Exterior air
intake" position
(manual control to the right).
F Put the air distribution control to the
"Windscreen" position.
F Switch on the air conditioning by pressing
the appropriate button; the lighting of the
associated control comes on.
57
3
Comfor t
301_en_Chap03_confort_ed01-2016
Rear screen demist - defrost
The control button is located on the heating / ventilation or air conditioning system control
panel.
Switching on
The rear screen demisting/defrosting can only
operate when the engine is running.
F Press this button to demist/defrost the
rear screen and (depending on version)
the door mirrors. The indicator lamp
associated with the button comes on.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
F It is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.
F Switch off the demisting/defrosting of the
rear screen and door mirrors, if fitted,
as soon as appropriate, as lower current
consumption results in reduced fuel
consumption.
Heated lower windscreen*
In cold conditions, the heated rear window
switch also allows the lower windscreen to be
heated, so as to free the wiper blades when
frozen to the glass by frost or snow.
The function is active when the ambient
temperature is below 0°C.
* Depending on the country of sale.
58
Fittings
301_en_Chap04_amenagements_ed01-2016
Interior ttings
1. Sun visor
2. Glove box
(see details on a following page)
3. Door pockets
4. Open storage compartment
5. Ashtray / Cup holder
6. USB port / Jack socket
Cigarette lighter / 12 V accessory
socket
(see details on a following page)
7. Central armrest with storage
or
Ashtray holder / Cup holder / Bottle
holder
59
4
Fittings
301_en_Chap04_amenagements_ed01-2016
Glove boxSun visor
Provides protection against sunlight from the
front or the side.
The passenger's sun visor is fitted with a vanity
mirror with concealing flap and a ticket holder.
It can b e used to hold a water bottle,
the vehicle's handbook pack...
Depending on version, it may have a lid.
In this case:
F To open the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A.
60
Fittings
301_en_Chap04_amenagements_ed01-2016
USB port / Jack auxiliary socket
This "AUX" connection box, consisting of
a JACK auxiliary socket and a USB port, is
located on the centre console.
It allows the connection of portable device, such
as a digital audio player of the iPod
®
type or a USB
memory stick.
It reads the audio file formats (MP3, OGG, WMA,
WAV, ...) which are transmitted to your audio
system and played via the vehicle's speakers.
You can manage these files using the audio
system control panel and display them in the
multifunction screen.
When connected to the USB port, the portable
device charges automatically.
While charging, a message is displayed if the
power consumption of the portable device
exceeds the amperage supplied by the vehicle.
Front armrest
Comfort and storage system for the driver and
front passenger.
Storage
F For access to the closed storage box, lift
the lever to open the lid.
F For access to the open storage box below
the armrest, lift the complete armrest
towards the rear.
Cigarette lighter /
12 V accessory socket
F To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
F To connect a 12 V accessory
(max power: 120 W), remove the cigarette
lighter and connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.
For more information on the use of this
system, refer to the "Audio equipment
and telematics" section.
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.
61
4
Fittings
301_en_Chap04_amenagements_ed01-2016
Boot ttings
1. Boot lamp
2. Storage box
(see details on a following page)
62
Fittings
301_en_Chap04_amenagements_ed01-2016
Storage box
F Raise the boot floor for access to the
storage box.
This has areas for the storage of a box of spare
bulbs, a first aid kit, two warning triangles...
It also houses the vehicle tools, the temporary
puncture repair kit...
63
5
Driving
301_en_Chap05_conduite_ed01-2016
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position N or P, depending on the type
of gearbox.
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
If you are obliged to drive through water:
- check that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
- deactivate the Stop & Start system,
- drive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10 km/h),
- do not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a PEUGEOT dealer or a qualified workshop.
Important!
Driving on flooded
roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
64
Driving
301_en_Chap05_conduite_ed01-2016

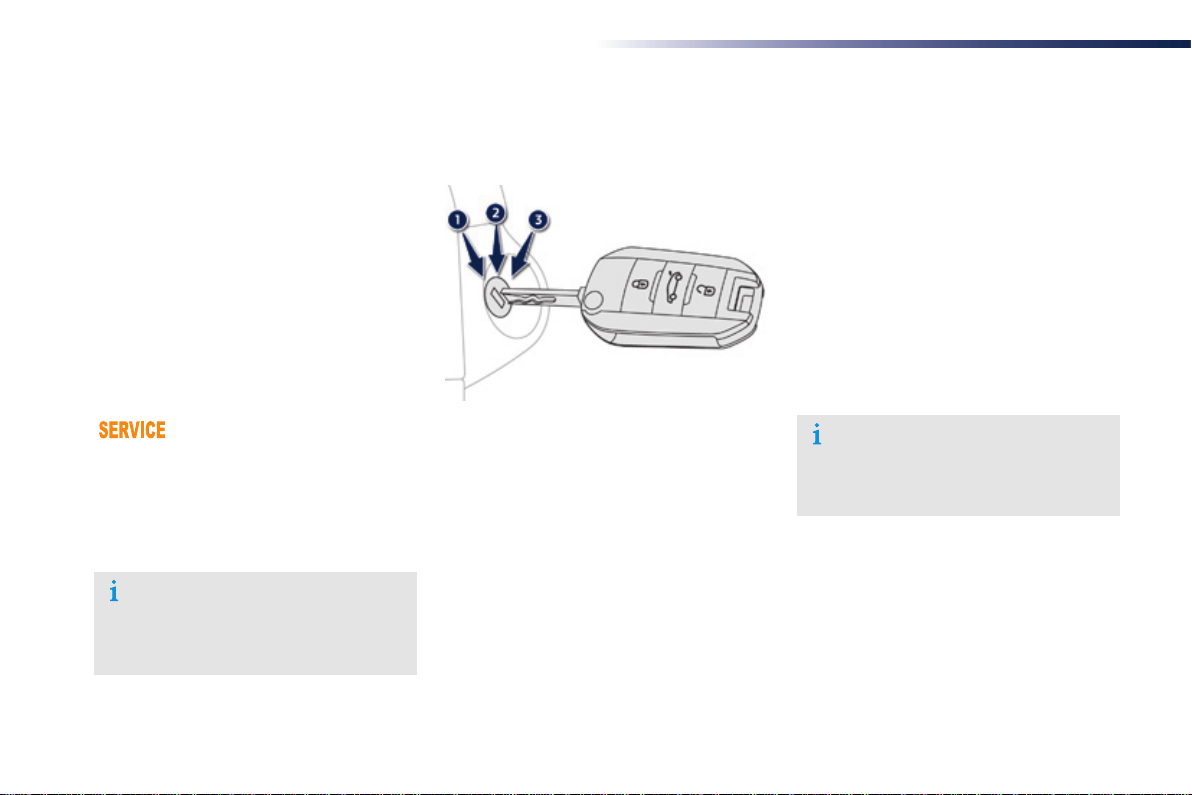

Starting-switching off the engine
It has 3 positions:
- position 1 (Stop): insert and removing
the key,
- position 2 (Ignition on): steering column
unlocked, ignition on, Diesel preheating,
engine running,
- position 3 (Starting).
Ignition switch
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preserve the remaining
battery charge.
Ignition on position
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and a message
in the screen.
In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
65
5
Driving
301_en_Chap05_conduite_ed01-2016
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example).
Starting the engine
F With a petrol engine, operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
F With a Diesel engine, turn the key to
position 2, ignition on, to operate the
engine pre-heating system.
With the parking brake applied and the gearbox
in neutral or position N or P:
F depress the clutch pedal fully (manual
gearbox),
or
F press the brake pedal firmly (electronic or
automatic gearbox),
F insert the key into the ignition switch; the
system recognises the code,
F unlock the steering column by simultaneously
turning the steering and the key.
Wait until this warning lamp goes off in the
instrument panel then operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a PEUGEOT dealer or a qualified
workshop.
In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death.
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off.
In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
66
Driving
301_en_Chap05_conduite_ed01-2016
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle.
For more information, refer to the
"Practical information" section, under
"Energy economy mode".
When you leave the vehicle, keep the
key with you and lock the vehicle.
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
Switching off the engine
F Check that the parking brake is correctly
applied, particularly on sloping ground.
F Stop the vehicle.
F With the engine running at idle, turn the key
to position 1.
F Remove the key from the ignition switch.
F To lock the steering column, turn the
steering until it locks.
Energy economy mode
After switching off the engine (position 1-Stop),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps, ...
Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompanied by an
audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop).
If the key has been left in the ignition
switch at position 2 (Ignition on),
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop), then back to
position 2 (Ignition on).
67
5
Driving
301_en_Chap05_conduite_ed01-2016
Parking brake
Application
F Pull the parking brake lever up to
immobilise your vehicle.
Release
F Pull the parking brake lever up gently,
press the release button then lower the
lever fully.
When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, engage a gear and
switch off the ignition.
When the vehicle is being driven, if this
warning lamp and the STOP warning lamp
come on, accompanied by an audible
signal and a message in the screen, indicating that the
parking brake is still on or has not been fully released.
68
Driving
301_en_Chap05_conduite_ed01-2016
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
- always select neutral,
- press the clutch pedal.
Manual gearbox
F Fully depress the clutch pedal.
F Push the gear lever fully to the right then
backwards.
Engaging reverse gear
69
5
Driving
301_en_Chap05_conduite_ed01-2016
Gear selector
Electronic gearbox
Displays in the instrument panel
Gear selector positions
N. Neutral
R. Reverse
1 2 3 4 5. Gears in manual mode.
AUTO. This comes on when automated mode
is selected. It goes off when changing
to manual mode.
R. Reverse
F With your foot on the brake, move the
selector forwards to select this position.
N. Neutral.
F With your foot on the brake, select this
position to start the engine.
A. Automated mode.
F Move the selector backwards to select
this mode.
M + / -. Manual mode with sequential gear
changing.
F Move the selector backwards, then to the
left to select this mode, then:
- push forwards to change up a gear,
- or push backwards to change down a gear.
Five-speed electronically controlled gearbox
which offers a choice between the comfort of
automated operation or the pleasure of manual
gear changing.
Two driving modes are offered:
- automated mode for automatic control
of the gears by the gearbox, without any
action by the driver,
- manual mode for the sequential changing
of the gears by the driver, using the gear
selector.
F Place your foot on the brake
when this warning lamp flashes
(e.g.: starting the engine).
70
Driving
301_en_Chap05_conduite_ed01-2016
N appears in the instrument panel.
You must keep your foot on the brake
pedal while starting the engine.
The vehicle then moves off on its own
(refer to the section on the "Creep
function").
F Select automated mode (position A),
manual mode (position M) or reverse
(position R).
AUTO and 1, 1 or R appear in the
instrument panel.
F Release the parking brake.
F Progressively take your foot off the brake
pedal.
Moving off
F Select position N.
F Press the brake pedal fully.
F Start the engine.
Do not press the brake and clutch
pedals simultaneously. This can cause
rapid clutch wear.
The creep function may be temporarily
unavailable if the clutch temperature is
too high or the slope too steep.
Do not leave children unsupervised
inside the vehicle when the engine is
running.
F Accelerate away.
Creep function
This function allows the vehicle to be
manoeuvred more easily at low speeds (when
parking, in traffic jams...).
With the gear selector in position A, M or R,
the vehicle moves as soon as you take your
foot off the brake pedal, at low speed and
with the engine at idle.
If the engine does not start:
- If N is flashing in the instrument
panel, move the selector to
position A then to position N.
- If the message "Foot on the brake"
is displayed, press the brake pedal
firmly.
71
5
Driving
301_en_Chap05_conduite_ed01-2016
Automated mode
AUTO and the gear engaged appear
in the instrument panel.
Manual mode
The gears engaged appear in
succession in the instrument panel.
The gearbox then operates in auto-adaptive
mode, without any action on the part of the
driver. It continuously selects the most suitable
gear taking account of:
- optimisation of fuel consumption,
- driving style,
- road conditions,
- vehicle load.
For optimum acceleration, when overtaking
another vehicle for example, press the
accelerator pedal fully down, beyond the point
of resistance.
The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
pedal during gear changes.
When braking or slowing down, the gearbox
changes down automatically so that the vehicle
picks up in the right gear.
Under full acceleration, the change up will
not take place unless the driver operates the
gear selector (unless the engine is close to its
maximum speed).
Never select neutral (position N) when
moving.
You can change mode at any time by
moving the gear selector from A to M or
the other way round.
Never select neutral (position N) when
moving.
You can change mode at any time by
moving the gear selector from A to M or
the other way round.
F Select position A. F Select position M.
Reverse
To engage reverse, the vehicle must be
immobilised with your foot on the brake.
F Select position R.
At low speed, if reverse gear is requested,
the N warning lamp flashes and the gearbox
goes into neutral automatically.
To engage reverse, put the gear selector into
position N, then to position R.
There is an audible signal on
engagement of reverse.
72
Driving
301_en_Chap05_conduite_ed01-2016
AUTO and - appear in the instrument
panel.
F Select position N.
F Press the brake pedal.
F Wait for around 30 seconds until N or a
gear appears in the instrument panel.
F Move the gear selector to position A, then
to position N.
F With your foot still on the brake pedal, start
the engine.
The gearbox is operational again.
Reinitialisation
Following disconnection of the battery, it is
necessary to reinitialise the gearbox.
F Switch on the ignition.
Before doing anything under the
bonnet, ensure that the gear selector
is in neutral (position N) and that the
parking brake is applied.
In exceptional circumstances, the
gearbox may need an automatic
reinitialisation: starting and gear
changing are no longer possible.
AUTO and - appear in the
instrument panel.
For all parking situations, you must
apply the parking brake to immobilise
the vehicle.
When immobilising the vehicle with the
engine running, you must put the gear
selector into neutral (position N).
Before switching off the engine:
- change to position N to be in neutral,
or
- leave the vehicle in gear; in this case the
vehicle cannot be moved.
Follow the procedure described above.
Stopping the vehicle
With the ignition on, if this warning
lamp comes on and AUTO
flashes, accompanied by an audible signal and
a message in the multifunction screen, this
indicates a gearbox fault.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Operating fault
73
5
Driving
301_en_Chap05_conduite_ed01-2016
Four-speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
Two driving modes are available:
- automatic operation with electronic
management of the gears by the gearbox,
with a sport programme for a more
dynamic style of driving and a snow
programme to make driving easier when
grip is poor.
- manual operation for sequential changing
of the gears by the driver.
Automatic gearbox
1. Gear selector knob.
2. Button "S" (sport).
3. Button "T" (snow).
Gear selection gate
Gear selector positions
P. Park.
- Immobilisation of the vehicle, parking brake
on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle stationary,
engine at idle.
N. Neutral.
- Immobilisation of the vehicle, parking brake
on.
- Starting the engine.
D. Automatic operation.
M + / -. Manual operation with sequential
changing of the four gears.
F Push forwards to change up through the
gears.
or
F Pull backwards to change down through
the gears.
Displays in the instrument panel
When you move the selector in the gate to
select a position, the corresponding indicator is
displayed in the instrument panel.
P. Park
R. Reverse
N. Neutral
D. Drive (Automatic driving)
S. Sport programme
T. Snow programme
1 2 3 4. Gears engaged during manual
operation
-. Invalid value during manual operation
Foot on brake
F Press the brake pedal when this
indicator lamp is displayed in the
instrument panel (e.g.: starting
the engine).
74
Driving
301_en_Chap05_conduite_ed01-2016
F Apply the parking brake.
F Select position P or N.
F Start the engine.
If this procedure is not followed, there is an
audible signal, accompanied by the display of
an warning message.
F With the engine running, press the brake
pedal.
F Release the parking brake.
F Select position R, D or M.
F Gradually release the brake pedal.
The vehicle moves off immediately.
Moving off
When the engine is running at idle,
with the brakes released, if position R,
D or M is selected, the vehicle moves
even without the accelerator being
pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P.
If position N is selected inadvertently
while driving, allow the engine to
return to idle then select position D to
accelerate.
Never select position N while the
vehicle is moving.
Never select positions P or R unless the
vehicle is completely stationary.
Automatic operation
F Select position D for automatic changing
of the four gears.
The gearbox then operates in auto-adaptive
mode, without any intervention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the selector, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a higher gear for
safety reasons.
If the ambient temperature is below
-23°C, the engine should be left at idle
for four minutes, to ensure the correct
operation and life of the engine and
gearbox.
75
5
Driving
301_en_Chap05_conduite_ed01-2016
Manual operation
F Select position M for sequential changing
of the four gears.
F Push the selector towards the + sign to
change up a gear.
F Pull the selector towards the - sign to
change down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears
engaged appear in succession in the
instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1
automatically.
The sport and snow programmes do not
operate in manual mode.
Sport and snow programmes
Sport programme "S"
F Press button "S", after starting the engine.
The gearbox automatically favours a dynamic
style of driving.
S appears in the instrument panel.
Snow programme "T"
F Press button "T", after starting the engine.
The gearbox adapts to driving on slippery
roads.
This programme improves starting and drive
when traction is poor.
T appears in the instrument panel.
Return to standard
automatic operation
F At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode.
These two special programmes supplement the
automatic operation in very specific conditions
of use.
76
Driving
301_en_Chap05_conduite_ed01-2016
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Stopping the vehicle
Before switching off the engine, you can engage
position P or N to place the gearbox in neutral.
In both cases, apply the parking brake to
immobilise the vehicle.
Operating fault
and a message in the multifunction screen,
indicates a gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P
to R and from N to R. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a PEUGEOT dealer or a qualified
workshop as soon as possible.
There is a risk of damage to the
gearbox:
- if you press the accelerator and
brake pedals at the same time,
- if you force the movement of the
selector from the P position to
another position when the battery is
flat.
To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam...), put the selector
in the N position and apply the parking
brake.
If the selector is not in position P,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, a warning
message appears in the screen.
F Return the selector to position P;
the message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking
pace.
When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible signal
77
5
Driving
301_en_Chap05_conduite_ed01-2016
Automatic gearbox (EAT6)
Six-speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
Two driving modes are available:
- automatic operation for electronic
management of the gears by the gearbox,
with the sport programme for a more
dynamic driving style or the snow
programme to improve driving on slippery
surfaces,
- manual operation for sequential changing
of the gears by the driver.
P. Park.
- Immobilisation of the vehicle, parking brake
on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle stationary,
engine at idle.
N. Neutral.
- Immobilisation of the vehicle, parking brake
on.
- Starting the engine.
D. Automatic operation.
M + / -. Manual operation with sequential
changing of the six gears.
F Push forward to change up through the
gears.
or
F Pull backward to change down through the
gears.
Gear selector positions
When you move the selector to select a
position, the corresponding indicator is
displayed in the instrument panel.
P. Park
R. Reverse
N. Neutral
D. Drive (Automatic operation)
S. Sport programme.
T. Snow programme.
1 2 3 4 5 6. Gears engaged during manual
operation
-. Invalid value during manual operation
Displays in the instrument panel
Foot on brake
F Press the brake pedal when this
indicator lamp is displayed in the
instrument panel (e.g.: starting
the engine).
Gear selector gate
1. Gear selector.
2. "S" (sport) button.
3. "T" (snow) button.
78
Driving
301_en_Chap05_conduite_ed01-2016
When the engine is running at idle,
with the brakes released, if position R,
D or M is selected, the vehicle moves
even without the accelerator being
pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P.
If position N is selected inadvertently
while driving, allow the engine to return
to idle then select position D before
accelerating.
If the ambient temperature is below
-23°C, the engine should be left at idle
for four minutes, to ensure the correct
operation and life of the engine and
gearbox.
Moving off
F Apply the parking brake.
F Select position P or N.
F Start the engine.
If these conditions are not met, there is an
audible signal, accompanied by the display of
an warning message.
F With the engine running, press the brake
pedal.
F Release the parking brake.
F Select position R, D or M.
F Gradually release the brake pedal.
The vehicle moves off immediately.
79
5
Driving
301_en_Chap05_conduite_ed01-2016
Never select position N while the
vehicle is moving.
Never select positions P or R unless the
vehicle is completely stationary.
Automatic operation
Reverse
When selecting reverse R with the ignition on,
the rear parking sensors are activated.
For more information, refer to the "Rear parking
sensors" section.
Creep function (moving without
using the accelerator)
This function provides great flexibility in
manoeuvring the vehicle at low speed (when
parking, in traffic jams, …).
With the engine at idle, parking brake released
and position D, M or R selected, the vehicle
moves as soon as you take your foot off
the brake pedal (even without pressing the
accelerator).
F Select position D for automatic changing
of the six gears.
The gearbox then operates in auto-adaptive
mode, without any intervention on the part
of the driver. It continuously selects the most
suitable gear according to the style of driving,
the profile of the road and the load in the
vehicle.
For maximum acceleration without touching
the selector, press the accelerator pedal down
fully (kick down). The gearbox changes down
automatically or maintains the gear selected
until the maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide efficient engine
braking.
As a safety measure, if you release the
accelerator sharply, the gearbox will not
change up.
These two special programmes complete
the automatic operation, for use in particular
circumstances.
Sport and snow programmes
"S" sport programme
F Press the "S" button, once the engine has
started.
The gearbox automatically allows a more
dynamic driving style.
T snow programme
F Press the "T" button, once the engine has
started.
The gearbox adapts itself to driving on slippery
roads.
This programme helps moving off and improves
traction when grip is poor.
At any time, press the button selected
again to leave the programme engaged
and return to auto-adaptative mode.
S appears in the instrument panel.
T appears in the instrument panel.
80
Driving
301_en_Chap05_conduite_ed01-2016
There is a risk of damage to the gearbox:
- if you press the accelerator and
brake pedals at the same time,
- if you force the movement of the
selector from the P position to
another position when the battery is
discharged.
If the selector is not in position P,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, a warning
message appears in the screen.
F Return the selector to position P;
the message disappears.
When driving on flooded roads or when
crossing a ford, proceed at walking
pace.
To reduce fuel consumption when at
a prolonged standstill with the engine
running (traffic jam...), put the selector
in the N position and apply the parking
brake.
Manual operation
Invalid value during manual
operation
Stopping the vehicle
Before switching off the engine, you can
engage position P or N to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle.
Operating fault
F Select position M for sequential changing
of the six gears.
F Move the selector towards the + sign to
change up a gear.
F Move the selector towards the - sign to
change down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears
engaged appear in succession in the
instrument panel.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox engages first gear
automatically.
With the ignition on, illumination of
this warning lamp, accompanied
by an audible signal and a message in the
multifunction screen, indicates a gearbox fault.
In this case, the gearbox switches to back-
up mode and is locked in 3rd gear. You may
feel a substantial knock when changing from
P to R and from N to R. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Contact a PEUGEOT dealer or a qualified
workshop as soon as possible.
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
The sport and snow programmes are
not available when operating manually.
81
5
Driving
301_en_Chap05_conduite_ed01-2016
Gear efciency indicator
System which reduces fuel consumption by advising the driver to change up.
On vehicle fitted with a manual
gearbox, the arrow is accompanied by
the gear recommended.
With an electronic or automatic
gearbox, the system is only active in
manual mode.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking, ...).
The system never suggests:
- engaging first gear,
- engaging reverse gear,
- engaging a lower gear.
Operation
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
Example:
- You are in third gear.
- You press the accelerator pedal.
- The system may suggest that you engage
a higher gear.
The information appears in the instrument
panel in the form of an arrow.
82
Driving
301_en_Chap05_conduite_ed01-2016
Stop & Start
Operation
Going into engine STOP mode
The "ECO" warning lamp comes
on in the instrument panel and the
engine goes into standby:
- with a 5-speed electronic gearbox, with
the vehicle stationary, when you press
the brake pedal or put the gear selector in
position N.
A time counter calculates the sum of the
periods in STOP mode during a journey. It rests
itself to zero every time the ignition is switched
on with the key.
The Stop & Start system puts the engine
temporarily into standby - STOP mode - during
stops in the traffic (red lights, traffic jams, or
other...). The engine restarts automatically -
START mode - as soon as you want to move
off. The restart takes place instantly, quickly
and silently.
Perfect for urban use, the Stop & Start system
reduces fuel consumption and exhaust
emissions as well as the noise level when
stationary.
Never refuel with the engine in
STOP mode; you must switch off the
ignition with the key.
For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as for
example, braking, power steering...
83
5
Driving
301_en_Chap05_conduite_ed01-2016
Going into engine START mode Special cases: START invoked
automatically
The "ECO" warning lamp goes
off and the engine starts with an
electronic gearbox:
- gear selector in position A or M, when you
release the brake pedal,
- or gear selector in position N and the brake
pedal released, when you move the gear
selector to position A or M,
- or when you engage reverse gear.
For reasons of safety and for your comfort,
START mode is invoked automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 2 mph
(3 km/h) with an electronic gearbox,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
The "ECO" warning lamp flashes for
a few seconds, then goes off.
This operation is perfectly normal.
Special cases: STOP mode not
available
STOP mode is not invoked when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the engine is needed to maintain a
comfortable temperature in the passenger
compartment,
- demisting is active,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
The "ECO" warning lamp flashes for
a few seconds then goes off.
This operation is perfectly normal.
84
Driving
301_en_Chap05_conduite_ed01-2016
In the event of a fault with the system, the
indicator lamp in the "ECO OFF" button
flashes for a few moments, then comes on
continuously.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall. All of the warning lamps
in the instrument panel come on. It is then
necessary to switch off the ignition and start
the engine again using the key.
Operating fault
The Stop & Start system requires a
12 V battery with a special specification
and technology.
All work on this type of battery must be
carried out only by a PEUGEOT dealer
or a qualified workshop.
For more information on the 12 V
battery, refer to the corresponding
section.
Press this button to deactivate the system.
Deactivation is confirmed by illumination of the
indicator lamp in the button and the display of
a message.
Pressing this button again reactivates the
system.
The indicator lamp in the button goes off,
accompanied by the display of a message.
Deactivation / Manual
reactivation
In certain cases, such as the need to maintain
a comfortable temperature in the passenger
compartment, it may be useful to deactivate the
Stop & Start system.
The system can be deactivated at any time, once
the ignition is on.
If the engine is in STOP mode, it then restarts.
The Stop & Start system is reactivated
automatically every time the ignition is switched on.
Opening the bonnet
Before doing anything under the bonnet,
deactivate the Stop & Start system to
avoid the risk of injury related to an
automatic change to START mode.
Driving on flooded roads
Before driving through a flooded road,
it is strongly recommended that you
deactivate the Stop & Start system.
For more advice on driving, particularly
on flooded roads, refer to the
corresponding section.
85
5
Driving
301_en_Chap05_conduite_ed01-2016
Speed limiter
System which prevents the vehicle from
exceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal in the normal
manner no longer has any effect.
The speed limiter is switched on manually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched off by manual
operation of the control.
The programmed speed can be exceeded
temporarily by pressing the accelerator firmly.
To return to the programmed speed, simply
slow down to a speed below the programmed
speed.
The speed limiter cannot, in any
circumstances, replace the need to
respect speed limits, nor can it replace the
need for vigilance on the part of the driver.
The controls of this system are grouped
together on stalk A.
1. Speed limiter mode selection thumb wheel.
2. Value decrease button.
3. Value increase button.
4. Speed limiter on / off button.
Steering mounted controls
The programmed information is grouped
together in the instrument panel screen.
5. Speed limiter on / off indication.
6. Speed limiter mode selection indication.
7. Programmed speed value.
Displays in the instrument panel
The programmed speed remains in the memory
when the ignition is switched off.
86
Driving
301_en_Chap05_conduite_ed01-2016
F Turn thumb wheel 1 to the "LIMIT"
position: the speed limiter mode
is selected but is not switched on
(PAUSE).
You do not have to switch the speed limiter
on in order to set the speed.
Programming Leaving limiter mode
F Turn thumb wheel 1 to the "0" position:
the speed limiter mode is deselected. The
display returns to the distance recorder.
On a steep descent or in the event of
sharp acceleration, the speed limiter
will not be able to prevent the vehicle
from exceeding the programmed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is secured
correctly,
- do not fit one mat on top of another.
In the event of a speed limiter fault, the speed
is cleared and the dashes then flash.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Operating fault
F Set the speed value by pressing button 2 or 3 (e.g.: 55 mph
(90 km/h)).
You can then change the programmed speed using buttons 2 and 3:
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmly past the point of resistance.
The speed limiter is deactivated temporarily and the programmed
speed, which is still displayed, flashes, accompanied by an audible
signal.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the programmed speed and the audible signal stops.
F Switch the speed limiter back on by pressing button 4 again.
F Switch the speed limiter on by pressing button 4.
F Switch the speed limiter off by pressing button 4: the display
confirms that it has been switched off (PAUSE).
87
5
Driving
301_en_Chap05_conduite_ed01-2016
Cruise control
System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The cruise control is switched on manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h), as well as the engagement of:
- fourth gear on a manual gearbox,
- second gear on a or automatic or electronic
gearbox, in sequential mode,
- position A on an electronic gearbox or
position D on an automatic gearbox.
The cruise control is switched off manually
or by pressing the brake or clutch pedal or on
triggering of the trajectory control systems for
safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
The controls of this system are grouped
together on stalk A.
1. Cruise control mode selection thumb
wheel.
2. Value decrease button.
3. Value increase button.
4. Cruise control off/resume button.
Steering mounted controls
The cruise control cannot, in any
circumstances, replace the need to
respect speed limits, nor can it replace the
need for vigilance on the part of the driver.
The programmed information is grouped
together in the instrument panel screen.
5. Cruise control off/resume indication.
6. Cruise control mode selection indication.
7. Programmed speed value.
Displays in the instrument panel
88
Driving
301_en_Chap05_conduite_ed01-2016
F Turn thumb wheel 1 to the "CRUISE"
position: the cruise control mode
is selected but is not switched on
(PAUSE).
Programming
You can then change the programmed speed using buttons 2 and 3:
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is secured
correctly,
- never fit one mat on top of another.
In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the
dashes. Have it checked by a PEUGEOT dealer
or a qualified workshop.
Operating fault
Leaving cruise control mode
F Turn thumb wheel 1 to the "0" position: the cruise control mode is
deselected. The display returns to the distance recorder.
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed
results in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the speed.
F Set the programmed speed by
accelerating to the required speed,
then press button 2 or 3 (e.g.: 70 mph
(110 km/h)).
F Switch off the cruise control by pressing button 4: the screen
confirms that it has been switched off (PAUSE).
F Switch the cruise control back on by pressing button 4 again.
89
5
Driving
301_en_Chap05_conduite_ed01-2016
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre due to
the presence of blind spots.
Rear parking sensors
This function cannot, in any
circumstances, take the place of the need
for vigilance on the part of the driver.
The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The system is switched off when you come out
of reverse gear.
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches
the obstacle.
The sound emitted by the speaker (right or left)
indicates the side on which the obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Visual assistance
This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.
90
Driving
301_en_Chap05_conduite_ed01-2016
In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
In the event of a malfunction of
the system, when reverse gear
is engaged this warning lamp
is displayed in the instrument panel and/or a
message appears in the screen, accompanied
by an audible signal (short beep).
Contact a PEUGEOT dealer or a qualified
workshop.
Operating fault
The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by PEUGEOT).
Deactivation / Activation of
the rear parking sensors
The function is deactivated or
activated via the vehicle configuration
menu.
The status of the function is stored
when the ignition is switched off.
For more information on access to the parking
sensors menu, refer to the "Personalisation -
Configuration" part of the "Instruments and
controls" section.
91
6
Visibility
301_en_Chap06_visibilite_ed01-2016
Lighting control
System for selection and control of the various front and rear lights providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility
progressively in relation to the climatic and light
conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearly when
the road is clear.
Additional lighting
Other lamps are installed to fulfil the
requirements of particular conditions of
visibility:
- a rear foglamp,
- front foglamps.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
92
Visibility
301_en_Chap06_visibilite_ed01-2016
Selection ring for main lighting
mode
Turn the ring to align the desired symbol with
the marking.
Lighting off (ignition off) / Daytime
running lamps (engine running).
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
Pull the stalk to switch the lighting between
dipped / main beam headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining
a pull on the stalk.
Display
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.
93
6
Visibility
301_en_Chap06_visibilite_ed01-2016
Foglamps selection ring
The foglamps operate with dipped and main beam headlamps.
Front foglamps and rear
foglamp
When the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F Turn the ring rearwards to switch off the
foglamps, the sidelamps will then switch
off.
Rotate and release the ring:
F forwards a first time to switch on the front
foglamps,
F forwards a second time to switch on the
rear foglamp,
F rearwards a first time to switch off the rear
foglamp,
F rearwards a second time to switch of the
front fog lamps.
Rear foglamp only
F To switch it on, turn the ring forwards.
F To switch it off, turn the ring rearwards.
94
Visibility
301_en_Chap06_visibilite_ed01-2016
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of thirty minutes to
prevent discharging of the battery.
Switching off the lamps
when the ignition is
switched off
On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.
95
6
Visibility
301_en_Chap06_visibilite_ed01-2016
The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Manual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F A further "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Daytime running lamps*
On starting the vehicle, the daytime running
lamps come on automatically, if the lighting
control stalk is in the "0" position.
* Depending on the country of sale.
The daytime running laps go off if
the sidelamps and dipped beam
headlamps are switched on.
This function cannot be deactivated.
96
Visibility
301_en_Chap06_visibilite_ed01-2016
Headlamp beam height adjustment
To avoid causing a nuisance to other road users, the headlamp beams should be adjusted
according to the load in the vehicle.
This adjustment can be carried out using the control located:
- under the bonnet,
- below and to the left of the steering wheel (depending on version).
The initial setting is position "0".
0 1 or 2 people in the front seats.
- 5 people.
1 5 people + maximum authorised load in
the boot.
- Driver + maximum authorised load in the
boot.
The higher number positions can be used,
but may limit the area illuminated by the
headlamps.
Under the bonnet
F Raise the bonnet for access to the control
(one per headlamp).
F Turn the control to adjust the height of the
headlamp beam.
Travelling abroad
The design of the dipped beam
headlamps allows, without modification,
driving in a country that drives on the
other side of the road to the country in
which your vehicle was sold.
To the left of the steering wheel
97
6
Visibility
301_en_Chap06_visibilite_ed01-2016
Wiper control stalk
Manual controls
The wipers are controlled directly by the driver.
Windscreen wipers
Wiping speed control stalk: raise or lower the
stalk to the desired position.
Fast wipe (heavy rain).
Normal wipe (moderate rain).
Intermittent wipe (proportional to the
speed of the vehicle).
Park.
Single wipe (press down and
release).
Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen wipers,
operate for a pre-determined time.
The screenwash jets are not adjustable.
Do not try to move them (risk of
damage).
98
Visibility
301_en_Chap06_visibilite_ed01-2016
Special position of
the windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
wiper blades. It can also be useful, in winter, to
release the wiper blades from the windscreen.
To maintain the effectiveness of the
wiper blades, it is advisable to:
- handle them with care,
- clean them regularly using soapy
water,
- avoid using them to retain
cardboard on the windscreen,
- replace them at the first signs of
wear.
F Any action on the wiper stalk within one
minute after switching off the ignition,
places the wiper blades vertically on the
screen.
F To park the wiper blades again, switch on
the ignition and operate the wiper stalk.
99
6
Visibility
301_en_Chap06_visibilite_ed01-2016
Courtesy lamps
In this position, the courtesy lamp
comes on gradually:
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
F With the ignition on, press the
corresponding switch.
A. Courtesy lamps
B. Map reading lamps
With the "permanent lighting" mode, the
duration of lighting varies, depending on
the circumstances:
- with the ignition off, approximately
ten minutes,
- in energy economy mode,
approximately thirty seconds,
- with the engine running, unlimited.
Front map reading lamps
Front and rear courtesy lamps
100
Safety
301_en_Chap07_securite_ed01-2016
Direction indicators
F Left: lower the lighting stalk beyond the
point of resistance.
F Right: raise the lighting stalk beyond the
point of resistance.
Three ashes of the direction
indicators
F Press briefly upwards or downwards,
without going beyond the point of
resistance; the direction indicators will
flash 3 times.
Hazard warning lamps
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
F You can also switch them off by pressing
the button.
F Press this button, all of the direction
indicators flash.
They can operate with the ignition off.
Horn
F Press the central part of the steering
wheel.
Audible warning system to alert other road
users to an imminent danger.
Visual warning with of all the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
101
7
Safety
301_en_Chap07_securite_ed01-2016
Under-ination detection
The under-inflation detection system
does not replace the need for vigilance
on the part of the driver.
This system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres impairs
road holding, extends braking distances
and causes premature tyre wear,
particularly under arduous condition
(high loading, high speed, long journey).
The inflation pressures defined for
your vehicle can be found on the tyre
pressure label.
For more information on the
identification markings, refer to the
corresponding section.
Tyre pressures should be checked
when the tyres are "cold" (vehicle
stopped for 1 hour or after a journey of
less than 6 miles (10 km) at moderate
speeds).
Otherwise (when hot), add 0.3 bar to
the pressures shown on the label.
Driving with under-inflated tyres
increases fuel consumption.
System which automatically checks the pressures of the tyres while driving.
The system monitors the pressures in the four
tyres, once the vehicle is moving.
It compares the information given by the four
wheel speed sensors with reference values,
which must be reinitialised every time the
tyre pressures are adjusted or a wheel
changed.
The system triggers an alert as soon as it
detects a drop in the inflation pressure of one
or more tyres.
102
Safety
301_en_Chap07_securite_ed01-2016
Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre pressure label.
The under-inflation alert can only be
relied on if the reinitialisation of the
system has done with the pressures in
the four tyres correctly adjusted.
The under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check.
The alert is maintained until the system
is reinitialised.
Under-inflation alert
This is given by fixed illumination of
this warning lamp, accompanied by
an audible signal and the display of
a message.
F Reduce speed immediately, avoid
excessive steering movements and sudden
braking.
F Stop the vehicle as soon as it is safe to do
so.
F If you have a compressor (such as the one
in the temporary puncture repair kit), check
the pressures of the four tyres when cold.
If it is not possible to carry out this check
straight away, drive carefully at reduced
speed.
or
F In the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (depending on equipment),
Reinitialisation
It is necessary to reinitialise the system every
time one or more tyre pressures are adjusted,
and after changing one or more wheels.
103
7
Safety
301_en_Chap07_securite_ed01-2016
Reinitialisation of the system must be done with the ignition on and the vehicle stationary:
- in the vehicle configuration menu for vehicles fitted with a display screen,
- using the button in the glove box for vehicles without display screen.
Monochrome screen C
F Press the "7" or "8" button to select the
"Driving assistance", category, then
confirm by pressing the central button.
F Press the "7" or "8", button to select "Tyre
pressures", then "Reinitialisation", then
confirming by pressing the central button.
A message confirms the reinitialisation.
F Press the MENU button for access to the
main menu.
F Press the "7" or "8" button to select the
"Personalisation-configuration", menu
then confirm by pressing the central button.
F Press the "7" or "8" button to select the
"Define vehicle parameters", menu, then
confirm by pressing the central button.
104
Safety
301_en_Chap07_securite_ed01-2016
Vehicles without display screen
F Open the glove box.
F Make a long press on this button.
Reinitialisation is confirmed by an low-pitched
audible signal.
A high-pitched audible signal indicates that the
reinitialisation has not been done.
The new pressure settings registered are
considered to be reference values by the
system.
Operating fault
The under-inflation alert is only
dependable if the system has been
reinitialised with all four tyres inflated to
the correct pressures.
Snow chains
The system does not have to be
reinitialised after fitting or removing
snow chains.
Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.
The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.
105
7
Safety
301_en_Chap07_securite_ed01-2016
Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).
Braking assistance systems
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the stability and
manoeuvrability of your vehicle when braking,
in particular on poor or slippery surfaces.
Activation
The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.
Operating fault
Emergency braking assistance
System which, in an emergency, enables you
to obtain the optimum braking pressure more
quickly, thus reducing the stopping distance.
When braking in an emergency, press
firmly without releasing the pressure.
When braking in an emergency, press
very firmly without releasing the
pressure.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.
If this warning lamp comes on,
accompanied by an audible signal
and a message in the screen, it
indicates a malfunction of the anti-lock braking
system which could result in loss of control of
the vehicle when braking.
If this warning lamp comes on,
together with the STOP and ABS
warning lamps, accompanied by an
audible signal and a message in the screen, it
indicates a malfunction of the electronic brake
force distribution which could result in loss of
control of the vehicle when braking.
You must stop as soon as it is safe to do so.
In either case, contact a PEUGEOT dealer or a
qualified workshop.
Activation
It is triggered by the speed at which the brake
pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.
Coasting with the engine off results in a
loss of power assistance for braking.
106
Safety
301_en_Chap07_securite_ed01-2016
Anti-slip regulation (ASR)
and electronic stability
programme (ESP)
The anti-slip regulation (also known as Traction
Control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability programme acts on the
brake of one or more wheels and on the engine
to keep the vehicle on the trajectory required by
the driver, within the limits of the laws of physics.
This is indicated by flashing of this
warning lamp in the instrument panel.
The ASR/ESP systems offer
exceptional safety in normal driving, but
this should not encourage the driver to
take extra risks or drive at high speed.
The correct functioning of these
systems depends on observation of
the manufacturer's recommendations
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the assembly
and repair procedures used by the
PEUGEOT dealer network.
After an impact, have these systems
checked by a PEUGEOT dealer or a
qualified workshop.
Operating fault
Illumination of the warning lamp,
accompanid by a message in the
screen indicates a malfunction of
these systems.
Reactivation
These systems are reactivated automatically
every time the ignition is switched of, or from
30 mph (50 km/h).
F Press this button again to reactivate them
manually.
The lamp in the button goes off.
The symbol going off in the instrument panel
indicates the reactivation of the ASR and
ESP systems.
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground, ...), it may be advisable to deactivate
the ASR and ESP systems, so that the wheels
can move freely and regain grip.
Trajectory control systems
Activation
These systems are activated automatically
each time the vehicle is started.
They come into operation in the event of a grip
or trajectory problem.
The display of this symbol indicates
that the ASR and ESP systems are
deactivated.
F Press this button button, located on
the dashboard (driver's side), until the
corresponding symbol appears in the
instrument panel screen.
The lamp in the button comes on.
Contact a PEUGEOT dealer or a qualified
workshop to have the ASR/ESP systems
checked.
Coasting with the engine off results in a
loss of power assistance for the steering.
107
7
Safety
301_en_Chap07_securite_ed01-2016
Seat belts
Front seat belts
Fastening
F Pull the strap, then insert the tongue in the
buckle.
F Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F Guide the seat belt as it is reeled in.
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
When the ignition is switched on,
this warning lamp comes on in the
instrument panel, if the driver has not
fastened their seat belt.
Seat belt not fastened /
unfastened warning lamp
From approximately 12 mph (20 km/h) this warning
lamp flashes for two minutes accompanied by an
audible signal of increasing volume. Once these
two minutes have elapsed, this warning lamp
remains on until the driver fastens their seat belt.
This warning lamp also comes on in the instrument
panel if the driver and/or front passenger unfastens
their seat belt while driving.
108
Safety
301_en_Chap07_securite_ed01-2016

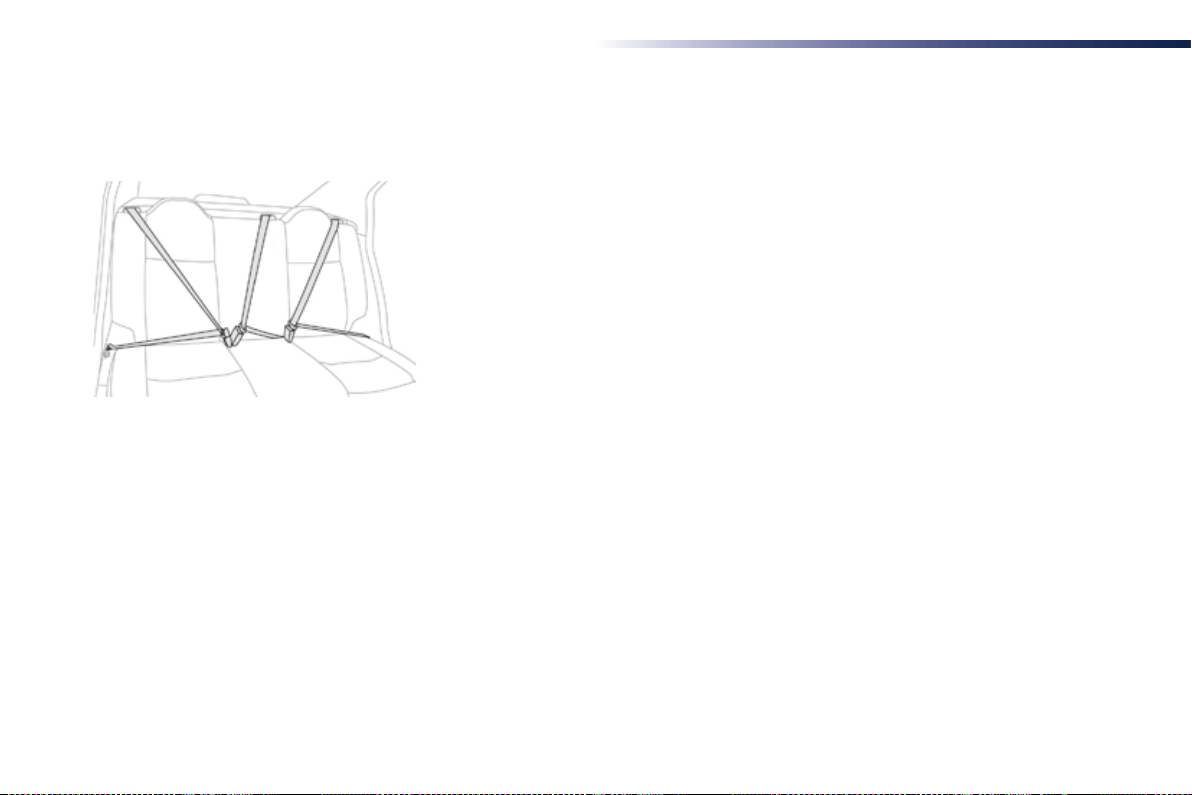

Rear seat belts
The rear seats are each fitted with a three-point
inertia reel seat belt.
Depending on version, the centre rear seat is
fitted with a seat belt with or without reel, and
has three or two-point anchorages.
Fastening
F Pull the strap, then insert the tongue in
the buckle.
F Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F Guide the seat belt as it is reeled in.
109
7
Safety
301_en_Chap07_securite_ed01-2016
The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on child seats, refer to
the corresponding section.
In order to be effective, a seat belt must:
- be tightened as close to the body as
possible,
- be pulled in front of you with a smooth
movement, checking that it does not
twist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modified to avoid
affecting its performance.
In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
PEUGEOT dealer is able to provide.
Have your seat belts checked regularly by a
PEUGEOT dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
PEUGEOT dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
In the event of an impact
Depending on the nature and
seriousness of the impact, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a PEUGEOT dealer or a qualified
workshop.
Advice
110
Safety
301_en_Chap07_securite_ed01-2016
Airbags
Designed to contribute towards the safety of
the occupants in the event of violent collisions.
The airbags supplement the action of the force-
limiting seat belts.
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
- in the case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle; immediately after the impact,
the airbags deflate rapidly so that they
do not hinder visibility or the exit of the
occupants,
- in the case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt alone
contributes towards providing your
protection in these situations.
The airbags do not operate when the
ignition is switched off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
The deployment of an airbag is
accompanied by a slight emission
of smoke and a noise, due to the
detonation of the pyrotechnic charge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience slight
irritation.
The detonation noise associated with
the deployment of an airbag may result
in a slight loss of hearing for a short
time.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Front airbags
Deployment
The airbags are deployed, except the passenger's
front airbag if it has been deactivated, in the event
of a serious front impact to all or part of the front
impact zone A, in the longitudinal centreline of the
vehicle on a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the
steering wheel, driver's side, and the dashboard,
passenger's side to cushion their forward
movement.
System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
111
7
Safety
301_en_Chap07_securite_ed01-2016
Deactivation
When the ignition is on, this warning
lamp comes on in the instrument
panel while the airbag is deactivated.
To assure your child's safety, you
must deactivate the passenger's front
airbag when you install a rearward
facing child seat on the front passenger
seat. Otherwise, the child risks being
seriously injured or killed if the airbag is
deployed.
Reactivation
Only the passenger's front airbag can be
deactivated.
F With the ignition off, insert the key into
the passenger airbag deactivation switch.
F Turn it to the "OFF" position,
F Remove the key keeping the switch in the
new position.
When you remove the rearward facing child
seat, with the ignition on, turn the switch to
the "ON" position to reactivate the airbag and
so assure the safety of your front passenger in
the event of an impact.
Operating fault
If this warning lamp comes on in the
instrument panel, you must contact
a PEUGEOT dealer or a qualified
workshop without delay to have the
system checked. The airbags may no
longer be deployed in the event of a
serious impact.
112
Safety
301_en_Chap07_securite_ed01-2016

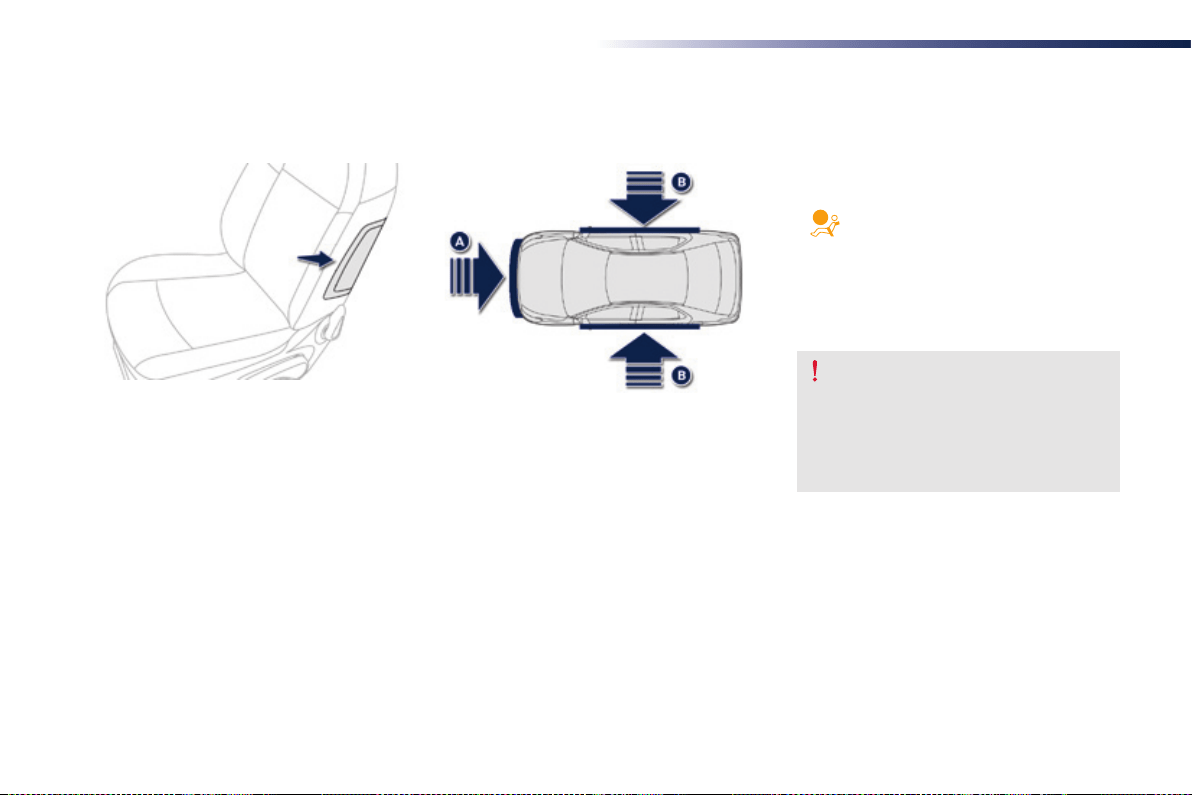

Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag contributes towards the
protection of the front occupant of the vehicle,
between the lower thorax and the head.
System that contributes towards improving the
protection of the driver and front passenger in
the event of a serious side impact, in order to
limit the risk of injury to the chest, between the
hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
If this warning lamp comes on in the
instrument panel, you must contact
a PEUGEOT dealer or a qualified
workshop to have the system
checked. The airbags may no longer
be deployed in the event of a serious
impact.
Operating fault
In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
In the event of a rear or front collision,
the airbag is not deployed.
113
7
Safety
301_en_Chap07_securite_ed01-2016
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a PEUGEOT dealer or a
qualified workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a PEUGEOT dealer.
For more information on accessories, refer
to the corresponding section.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause
injuries with deployment of the airbags.
Advice
For the airbags to be fully effective, observe the safety recommendations below:
114
Child safety
301_en_Chap08_securite-enfants_ed01-2016
General points relating to child seats
For maximum safety, please observe the
following recommendations:
- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight, on seats fitted with a seat
belt or ISOFIX mountings*,
- statistically, the safest seats in your
vehicle for carrying children are the
rear seats,
- a child weighing less than 9 kg must
travel in the rearward facing position
both in the front and in the rear.
PEUGEOT recommends that children
should travel in the outer rear seats of
your vehicle:
- rearward facing up to the age of 3,
- forward facing over the age of 3.
Although one of PEUGEOT main criteria when designing your vehicle, the safety of your children
also depends on you.
* The regulations on carrying children are
specific to each country. Refer to the
legislation in force in your country.
115
8
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Child seat at the rear
Rearward facing
When a rearward facing child seat is installed
on a rear passenger seat, move the vehicle's
front seat forwards and straighten the backrest
so that the rearward facing child seat does not
touch the vehicle's front seat.
Forward facing
When a forward facing child seat is installed
on a rear passenger seat, move the vehicle's
front seat forwards and straighten the backrest
so that the legs of the child in the forward
facing child seat do not touch the vehicle's front
seat.
Ensure that the seat belt is correctly
tightened. For child seats with a support
leg, ensure that the support leg is in
stable contact with the floor.
116
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Child seat in the front*
Rearward facing Forward facing
Passenger seat adjusted to the intermediate
longitudinal position.
Ensure that the seat belt is correctly
tensioned.
For child seats with a support leg,
ensure that the support leg is in stable
contact with the floor. If necessary,
adjust the passenger seat.
When a rearward facing child seat is installed
on the front passenger seat, adjust the seat to
the intermediate longitudinal position, with the
backrest straightened.
The passenger's front airbag must be
deactivated. Otherwise, the child would
risk being seriously injured or killed if the
airbag were to inflate.
When a forward facing child seat is installed on
the front passenger seat, adjust the vehicle's
seat to the intermediate longitudinal position
with seat backrest straightened and leave the
passenger's front airbag activated.
* Refer to the current legislation in your country
before installing your child on the front seat.
117
8
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Passenger airbag OFF
Deactivating the passenger's front airbag
Never install a rearward facing child
restraint system on a seat protected by
an active front airbag. This could cause
the death of the child or serious injury.
For information on deactivating the
passenger's front airbag, refer to the
"Airbags" section.
The warning label present on both sides of the
passenger's sun visor repeats this advice. In
line with current legislation, the following tables
contain this warning in all of the languages
required.
This label is located on the middle door pillar,
passenger side.
118
AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. Това може да причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CS
NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ.
DA
Brug ALDRIG en bagudvendt barnestol på et sæde, der er beskyttet af en AKTIV AIRBAG. BARNET risikerer at blive ALVORLIGT
KVÆSTET eller DRÆBT.
DE
Montieren Sie auf einem Sitz mit AKTIVIERTEM Front-Airbag NIEMALS einen Kindersitz oder eine Babyschale entgegen der Fahrtrichtung,
das Kind könnte schwere oder sogar tödliche Verletzungen erleiden.
EL
Μη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
EN
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the
CHILD can occur
ES
NO INSTALAR NUNCA un sistema de retención para niños de espaldas al sentido de la marcha en un asiento protegido mediante un
AIRBAG frontal ACTIVADO, ya que podría causar lesiones GRAVES o incluso la MUERTE del niño.
ET
Ärge MITTE KUNAGI paigaldage “seljaga sõidusuunas“ lapseistet juhi kõrvalistmele, mille ESITURVAPADI on AKTIVEERITUD. Turvapadja
avanemine võib last TÕSISELT või ELUOHTLIKULT vigastada.
FI
ÄLÄ KOSKAAN aseta lapsen turvaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVATYYNY. Sen
laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAKAVAN LOUKKAANTUMISEN.
FR
NE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GRAVEMENT
HR
NIKADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZRAČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HU
SOHA ne használjon menetiránynak háttal beszerelt gyermekülést AKTIVÁLT (BEKAPCSOLT) FRONTLÉGZSÁKKAL védett ülésen. Ez a
gyermek HALÁLÁT vagy SÚLYOS SÉRÜLÉSÉT okozhatja.
IT
NON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale
ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GRAVI al bambino.
LT
NIEKADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TRAUMUOTAS.
LV
NEKAD NEuzstādiet uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera sēdvietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS GAISA
SPILVENS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
Child safety
301_en_Chap08_securite-enfants_ed01-2016
119
8
MT
Qatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla
NL
Plaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waarvan de AIRBAG is INGESCHAKELD. Bij het afgaan van de
airbag kan het KIND LEVENSGEVAARLIJK GEWOND RAKEN
NO
Installer ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE,
BARNET risikerer å bli DREPT eller HARDT SKADET.
PL
NIGDY nie instalować fotelika dziecięcego w pozycji "tyłem do kierunku jazdy" na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETRZNĄ w stanie AKTYWNYM. Może to doprowadzić do ŚMIERCI DZIECKA lub spowodować u niego POWAŻNE OBRAŻENIA
CIAŁA.
PT
NUNCA instale um sistema de retenção para crianças de costas para a estrada num banco protegido por um AIRBAG frontal ACTIVADO.
Esta instalação poderá provocar FERIMENTOS GRAVES ou a MORTE da CRIANÇA.
RO
Nu instalati NICIODATA un sistem de retinere pentru copii, dispus cu spatele in directia de mers, pe un loc din vehicul protejat cu AIRBAG
frontal ACTIVAT. Aceasta ar putea provoca MOARTEA COPILULUI sau RANIREA lui GRAVA.
RU
ВО ВСЕХ СЛУЧАЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье,
защищенном ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНКА или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖДЕНИЙ
SK
NIKDY neinštalujte detské zádržné zariadenie orientované smerom dozadu na sedadlo chránené AKTIVOVANÝM čelným AIRBAGOM.
Mohlo by dôjsť k SMRTEĽNÉMU alebo VÁŽNEMU PORANENIU DIEŤAŤA.
SL
NIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLAZINA pred sprednjim sopotnikovim sedežem
AKTIVIRANA. Takšna namestitev lahko povzroči SMRT OTROKA ali HUDE POŠKODBE.
SR
NIKADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VAZDUŠNIM JASTUKOM ispred njega, jer
mogu nastupiti SMRT ili OZBILJNA POVREDA DETETA.
SV
Passagerarkrockkudden fram MÅSTE vara avaktiverad om en bakåtvänd bilbarnstol installeras på denna plats. Annars riskerar barnet att
DÖDAS eller SKADAS ALLVARLIGT.
TR
KESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya
ÇOK AĞIR YARALANMASINA sebep olabilir.
Child safety
301_en_Chap08_securite-enfants_ed01-2016
120
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Child seats recommended by PEUGEOT
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rearward facing position.
Groups 2 and 3: from 15 to 36 kg
L4
"KLIPPAN Optima"
From 22 kg (approximately 6 years), the booster is used on its own.
L5
"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
PEUGEOT offers a range of recommended child seats which are secured using a three point seat
belt.
121
8
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Installing a child seat using the seat belt
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 (b) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger seat without
height adjuster (c) (e)
U U U U
Outer rear seats (d) U U U U
Centre rear seat X X X X
(a) Universal child seat: child seat that can be installed in all vehicles using a seat belt.
(b) Group 0: from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front
passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
(d) To install a child seat at the rear, rearward or forward facing, move the seat in front forward,
then straighten the backrest to allow enough space for the child seat and the child's legs.
(e) When a rearward facing child seat is installed on the front passenger seat, the passenger's
airbag must be deactivated. Otherwise, the child would risk being seriously injured or
killed if the airbag were deployed. When a forward facing child seat is installed on the front
passenger seat, the passenger's airbag must remain activate.
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
U: Seat suitable for the installation of a
child seat secured using a seat belt and
universally approved, rearward facing and/
or forward facing.
X: Seat not suitable for the installation of a
child seat of the weight group indicated.
122
Child safety
301_en_Chap08_securite-enfants_ed01-2016
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it forwards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
- a rearward facing child seat,
- the child's feet for a child seat fitted
forward facing.
To do this, move the front seat forwards
and, if necessary, move its backrest into the
upright position.
Advice
As a safety precaution, do not leave:
- a child or children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You must remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
Children at the front
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's front airbag
when a rearward facing child seat is installed
on the front passenger seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
123
8
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Your vehicle has been approved in accordance
with the latest ISOFIX regulations.
The seats, represented below, are fitted with
regulation ISOFIX mountings:
"ISOFIX" mountings
- two rings A, located between the vehicle
seat back and cushion, indicated by
a marking,
To secure the child seat to the TOP TETHER:
- pass the child seat strap over the centre of
the vehicle's seat backrest,
- raise the TOP TETHER,
- secure the upper strap fixing to the ring B,
- tighten the upper strap.
Observe strictly the fitting instructions
provided with the child seat.
For information on the possibilities for fitting
ISOFIX child seats to your vehicle, refer to the
table of seating positions.
- a ring B, located under a cover on the back
of the top of the seat backrest, referred to as
the TOP TETHER for fixing the upper strap.
Its position is indicated by a marking.
The ISOFIX mountings are three rings for each seat:
The TOP TETHER is used to secure the upper
strap of child seats that have one. This device
limits forward tipping of the child seat, in the
event of a front impact.
This ISOFIX mounting system ensures fast,
reliable and safe fitting of the child seat in
your vehicle.
The ISOFIX child seats are fitted with two
latches which are secured easily on the two
rings A.
Some also have an upper strap (or top tether)
which is attached to ring B.
When installing an ISOFIX child seat on the
right hand rear seat, before securing the seat,
first move the centre rear seat belt towards the
middle of the vehicle, so as to not interfere with
the operation of the seat belt.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
124
Child safety
301_en_Chap08_securite-enfants_ed01-2016
ISOFIX child seats recommended by PEUGEOT and approved
for your vehicle
Follow the instructions for fitting child seats contained in their manufacturer's installation guide.
"RÖMER Baby-Safe Plus and its Baby-Safe Plus ISOFIX base" (size category: E)
Group 0+: from birth to 13 kg
Installed rearward facing using an ISOFIX base which is attached to the rings A.
The base has a support leg, adjustable for height, which sits on the vehicle's floor.
This child seat can also be secured with a seat belt. In this case, only the shell is used and attached to
the vehicle's seat by the three-point seat belt.
125
8
Child safety
301_en_Chap08_securite-enfants_ed01-2016
"RÖMER Duo Plus ISOFIX" (size category B1)
Group 1: from 9 to 18 kg
Is installed only in the forward facing position.
Is attached to the anchorage rings A and the upper anchorage ring B,
referred to as the Top Tether, using an upper strap.
Three seat body angles: sitting, reclining, lying down.
This seat can be used on seats not equipped with ISOFIX mountings.
In this case, it must be attached to the vehicle's seat using the three-point seat belt.
Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
126
Child safety
301_en_Chap08_securite-enfants_ed01-2016
"Baby P2C Midi" and its ISOFIX base (size categories: D, C, A, B, B1)
Group 1: from 9 to 18 kg
Installed rearward facing using an ISOFIX base which is attached to the anchorage rings A.
The base has a support leg, adjustable for height, which sits on the vehicle's floor.
This child seat can also be used forward facing.
This seat can not be secured with a seat belt.
We recommend that you use the seat in the rearward facing position up to the age of 3 years.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
FAIR G 0/1 S and its RWF A and FWF A ISOFIX bases
(size category C for the rearward facing version, size category A for the forward facing version)
Group 0+ and 1: from birth to 18 kg
Installed in the rearward facing position for children under 18 kg and forward facing for children
between 13 and 18 kg, using its ISOFIX base, which is attached to the rings A.
Use the rearward facing (RWF) type A ISOFIX base
or the forward facing (FWF) type A ISOFIX base.
6 positions of inclination of the shell.
This child seat can also be used in a forward facing position
on seating positions not equipped with ISOFIX mountings.
In this case the shell of the child seat must be attached
to the vehicle seat using the three-point seat belt.
127
8
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Installing ISOFIX child seats
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with
ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between A and G,
is indicated on the child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg
(group 0)
Up to 6 months
approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat* rearward facing rearward facing forward facing
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seats
X IL-SU IL-SU
IUF
IL-SU
IUF: seat suitable for the installation of an Isofix Universal seat, Forward facing and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an Isofix Semi-Universal seat which is:
- rearward facing fitted with a "Top Tether" upper strap or a support leg,
- forward facing fitted with a support leg,
For securing the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.
X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
* Infant car seats and "car cots" cannot be installed on the front passenger seat.
128
Child safety
301_en_Chap08_securite-enfants_ed01-2016
Manual child lock
Locking
F With the ignition key, turn the red control
one quarter of a turn:
- to the right on the left-hand rear door,
- to the left on the right-hand rear door.
Unlocking
F With the ignition key, turn the red control
one quarter of a turn:
- to the left on the left-hand rear door,
- to the right on the right-hand rear door.
Mechanical system to prevent opening of the
rear door using its interior control.
The control is located on the edge of each
rear door.
129
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Low fuel level
When the low fuel level in the tank is
reached, this warning lamp comes
on in the instrument panel.
Opening the filler cap may result in an
inrush of air. This vacuum is entirely
normal and results from the sealing of
the fuel system.
Fuel tank
Capacity of the tank: approximately 50 litres.
A label on the inside of the filler flap reminds
you of the type of fuel to use according to your
engine.
Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Refuelling
F Open the filler cap by turning it a 1/4 turn to
the left.
F Remove the filler cap and hang it on its
carrier (on the filler flap).
F Fill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.
F Refit the filler cap turning it a 1/4 turn to the
right.
F Push the filler flap to close it.
Opening
F Raise the lever.
When it first comes on, around 5 litres of fuel
remain in the tank.
You must refuel as soon as possible to avoid
running out.
If you run out of fuel (Diesel), refer the the
"Checks" section.
130
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle.
Misfuel prevention (Diesel)*
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
slowly.
Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Before travelling abroad, we
recommend that you check with the
PEUGEOT dealer network, whether
your vehicle is suitable for the fuel
pumps in the country in which you want
to travel.
If you have put in the wrong fuel for
your vehicle, you must have have
the tank drained and refilled with
the correct fuel before you start
the engine.
Fuel supply cut-off
Your vehicle is fitted with a safety system
that cuts off the supply of fuel in the event of
an impact.
* Depending on the country of sale.
131
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Fuel used for petrol engines
The petrol engines are compatible with
E10 bio-petrol (containing 10 % ethanol),
conforming to European standards EN 228
and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
Fuel used for Diesel
engines
The Diesel engines are compatible with
biofuels available at the pumps which meet
current and future European standards:
- Diesel fuel that meets standard EN 590
mixed with a biofuel that meets standard
EN14214,
- Diesel fuel that meets standard EN16734
mixed with a biofuel that meets standard
EN14214 (possibly containing up to 10 %
Fatty Acid Methyl Ester),
- Paraffinic Diesel fuel that meets standard
EN15940 mixed with a biofuel that meets
standard EN14214 (possibly containing up
to 7 % Fatty Acid Methyl Ester).
The use of B20 or B30 fuel meeting
standard EN16709 is possible in your Diesel
engines. However, this use, even occasional,
requires strict application of the special
servicing conditions referred to as "Arduous
conditions". For more information, contact a
PEUGEOT dealer or a qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
Only the use of Diesel fuel additives that meet
the standard B715000 is authorised.
132
Practical information
301_en_Chap09_info-pratiques_ed01-2016
On vehicle fitted with HDi engines, the fuel
system must be primed if you run out of fuel;
refer to the engine compartment view on the
"Diesel engine" section.
If the tank on your vehicle is fitted with
a misfuel prevention device, refer to the
corresponding section.
Running out of fuel (Diesel)
If the engine does not start first time,
don't keep trying. Start the procedure
again from the beginning.
HDi 92 engine
F Fill the fuel tank with at least five litres of
diesel.
F Open the bonnet.
F Squeeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F Operate the starter until the engine starts
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F If the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F Close the bonnet.
BlueHDi engine
F Fill the fuel tank with at least five litres of
Diesel.
F Switch on the ignition (without starting the
engine).
F Wait around 6 seconds and switch off the
ignition.
F Repeat the operation 10 times.
F Operate the starter to run the engine.
133
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
AdBlue
®
additive and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
performance or fuel consumption of Diesel
engines, PEUGEOT has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
Presentation of the SCR system
Using an additive called AdBlue
®
containing
urea, a catalytic converter turns up to 85%
of nitrous oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment.
The AdBlue
®
additive is held in a special
tank located under the boot at the rear of
the vehicle. It has a capacity of 17 litres: this
provides a driving range of about 12 500 miles
(20 000 km), after which an alert is triggered
warning you when the reserve remaining is
enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle
by a PEUGEOT dealer or a qualified workshop,
the AdBlue
®
additive tank is refilled in order to
allow normal operation of the SCR system.
If the estimated mileage between two services
is greater than 12 500 miles (20 000 km), we
recommend that you go to a PEUGEOT dealer
or a qualified workshop to have the necessary
top-up carried out.
Once the AdBlue
®
tank is empty, a
system required by regulations prevents
starting of the engine.
If the SCR is faulty, the level of
emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a PEUGEOT dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1 100 km), a system will be triggered
automatically to prevent engine starting.
134
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Range indicators
Once the AdBlue
®
tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
®
level, the shortest range figure is
the one displayed.
In the event of the risk of non-starting related to a lack of AdBlue
®
Range greater than 1 500 miles (2 400 km)
When the ignition is switched on, no
information on range is displayed automatically
in the instrument panel.
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the UREA
warning lamp comes on, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before engine
starting is prevented - (For example "NO
START IN 900 miles" means that "Starting will
be prevented in 900 miles).
When driving, this display appears every
150 miles (300 km) until the additive tank has
been topped-up.
Go to a dealer PEUGEOT or a qualified
workshop to have the AdBlue
®
tank topped-up.
You can also top-up the tank yourself.
For more information on topping-up the
AdBlue
®
additive, refer to the corresponding
section.
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
®
tank is
empty.
135
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Breakdown related to a lack of AdBlue
®
additive
When switching on the ignition, the SERVICE
warning lamp comes on and the UREA
warning lamp flashes, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
0 km or miles - ("NO START IN 0 miles" means
"Starting prevented").
The AdBlue
®
tank is empty: the system required
by regulations prevents engine starting.
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the SERVICE
warning lamp comes on and the UREA
warning lamp flashes, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance indicating the remaining range
expressed in miles or kilometres before engine
starting is prevented - (For example "NO
START IN 180 miles" means "Starting will be
prevented in 180 miles).
When driving, this display appears every
30 seconds until the additive tank has been
topped-up.
Go to a PEUGEOT dealer or a qualified
workshop to have the AdBlue
®
tank topped-up.
You can also top-up the tank yourself.
Otherwise you will not be able to restart your
engine.
For more information on topping-up the
AdBlue
®
additive, refer to the corresponding
section.
To be able to start the engine,
we recommend that you call on a
PEUGEOT dealer or a qualified
workshop for the top-up required. If
you carry out the top-up yourself, it is
essential to add at least 3.8 litres of
AdBlue
®
to the additive tank.
For more information on topping-up
the AdBlue
®
additive, refer to the
corresponding section.
136
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Starting prevented
Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by the temporary display
of "NO START IN" and 0 miles or kilometres -
("NO START IN 0 miles" means "Starting
prevented").
To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
In the event of a fault with the the SCR emissions control system
In the event of the detection of a fault
The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving, when
the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.
During an authorised driving phase
(between 650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), the
SERVICE and engine diagnostic warning lamps
come on and the UREA warning lamp flashes,
accompanied by an audible signal and the
temporary display in the instrument panel of
"NO START IN" and a distance, indicating the
remaining range express in miles or kilometres
before engine starting is prevented - (e.g.: "NO
START IN 350 miles" means "Starting will be
prevented in 350 miles").
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a PEUGEOT dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after a self diagnosis test of the SCR
emissions control system.
While driving, this display appears every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the ignition.
You should go to a PEUGEOT dealer or a qualified
workshop as soon as possible.
Otherwise, you will not be able to restart your
engine.
137
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Freezing of the AdBlue
®
additive
The AdBlue
®
additive freezes at
temperatures below around -11°C.
The SCR system includes a heater
for the AdBlue
®
tank, allowing you to
continue driving in very cold conditions.
Topping-up the AdBlue
®
additive
Precautions in use
Use only AdBlue
®
additive that meets the
ISO 22241 standard.
The supply in a non-drip bottle simplifies
topping-up. You can obtain 1.89 litre (half a US
gallon) bottles from a PEUGEOT dealer or a
qualified workshop.
Keep AdBlue
®
out of the reach of
children, in its original bottle.
Never transfer AdBlue
®
to another
container: it would lose its purity.
Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
Filling the AdBlue
®
tank is an operation
included in every routine service on your
vehicle by a PEUGEOT dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a PEUGEOT dealer or a
qualified workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.
The AdBlue
®
additive is an urea-based
solution. This liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has an irritant
effect on mucous membranes (eyes, nose and
throat).
138
Practical information
301_en_Chap09_info-pratiques_ed01-2016

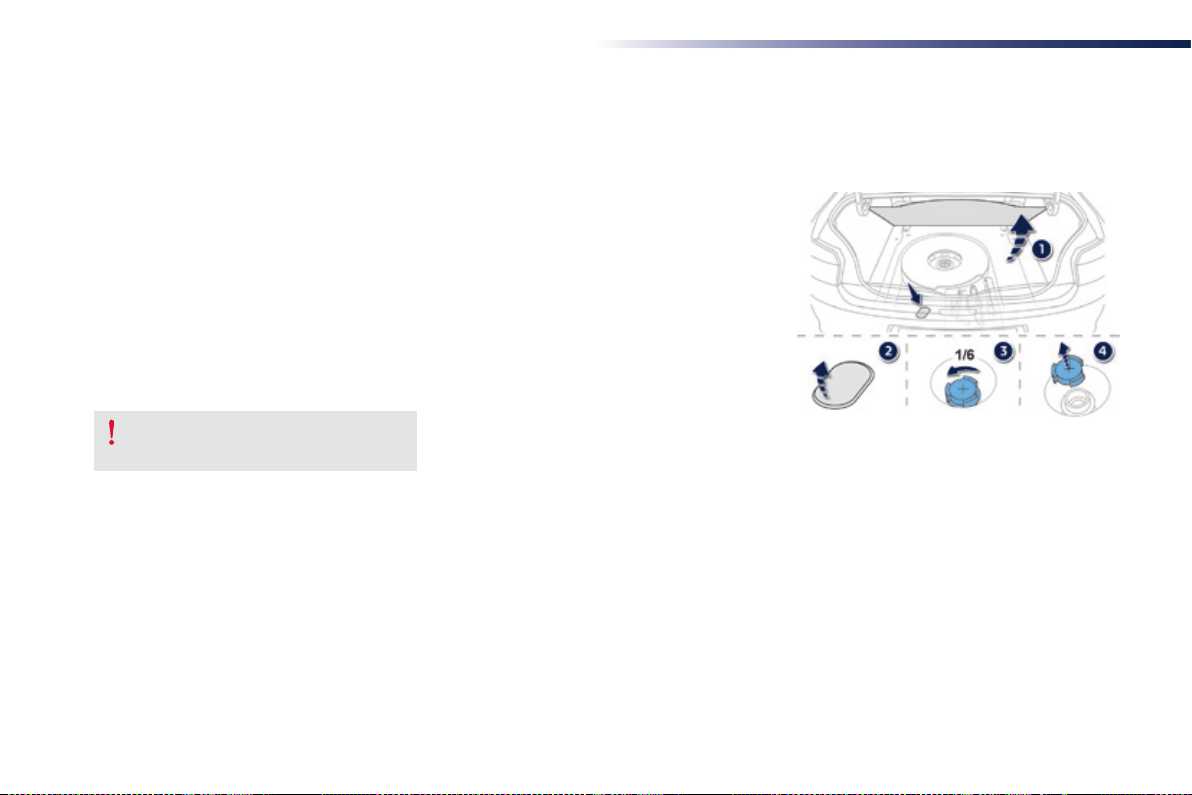

Recommendations on storage Procedure
F Switch off the ignition and remove the key.
F For access to the AdBlue
®
tank, open the
boot, remove the boot floor and then lift out
the storage box containing the tools.
F Unclip the plastic blanking plug.
F Insert your fingers into the aperture and
turn the blue cap a 6
th
of a turn anti-
clockwise.
F Carefully lift off the cap, without dropping it.
Never store bottles of AdBlue
®
in your
vehicle.
Before topping-up, ensure that the vehicle is
parked on a flat and level surface.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
®
may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
AdBlue
®
freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
139
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
F Obtain a bottle of AdBlue
®
. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
®
tank.
F After emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
F Refit the blue cap to the tank and turn it
a 6
th
of a turn clockwise, to its stop.
F Refit the plastic blanking plug, clipping it in
the orifice.
F Return the storage box containing the tools
to its location.
F Refit the boot floor and close the boot.
Important: if your vehicle's AdBlue
®
tank
is completely empty - which is
confirmed by the alert displays and the
impossibility of starting the engine -
you must add at least 3.8 litres (so two
1.89 litre bottles).
If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
Important: in the event of a top-up after
a breakdown because of a lack of
additive, you must wait around 5 minutes
before switching on the ignition, without
opening the driver's door, locking the
vehicle or introducing the key into the
ignition switch.
Switch on the ignition, then, after
10 seconds, start the engine.
Never dispose of AdBlue
®
additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
140
Practical information
301_en_Chap09_info-pratiques_ed01-2016
1. 12 V compressor, with integral pressure
gauge.
2. Sealant cartridge, with integral hose.
3. Speed limit sticker.
Composition of the kit
The speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.
This kit is installed in the storage box, under the
boot floor.
Comprising a compressor and a sealant
cartridge, it allows the temporary repair of
a tyre so that you can drive to the nearest
garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Temporary puncture repair kit
Access to the kit
The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
141
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Repair procedure
F Switch off the ignition.
F Secure the speed limit sticker inside the
vehicle.
F Uncoil the pipe stowed under the
compressor.
F Connect the pipe from the compressor to
the sealant cartridge.
F Turn the the sealant cartridge and secure it
in the cut-out provided on the compressor.
Avoid removing any foreign bodies
which have penetrated into the tyre.
F Remove the valve cap from the tyre to be
repaired, and place it in a clean area.
F Connect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly.
142
Practical information
301_en_Chap09_info-pratiques_ed01-2016
F Check that the compressor switch is at
the "O" position.
F Uncoil fully the electric cable, stowed under
the compressor.
F Connect compressor's plug to the vehicle's
12 V socket.
F Switch on the ignition.
If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a PEUGEOT dealer or a qualified
workshop for assistance.
Take care, the sealant product is
harmful if swallowed and causes
irritation to the eyes.
Keep this product out of the reach of
children.
The use-by date is marked on the
cartridge.
After use, do not discard the
cartridge by the roadside, take it to a
PEUGEOT dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a PEUGEOT
dealer or a qualified workshop.
F Start the compressor by placing the switch
at the "I" position and leave it running until
the tyre pressure reaches 2.0 bar.
The sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains).
143
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures.
F Check that the compressor switch is at
the "O" position.
F Uncoil fully the electric cable, stowed under
the compressor.
F Connect the compressor's plug to the
vehicle's 12 V socket.
F Switch on the ignition.
F Place the switch in the "O" position.
F Remove the kit.
F Drive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60 km/h)), to plug the puncture.
F Stop to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
F Remove the valve cap from the tyre and
place it in a clean area.
F Uncoil the pipe stowed under the
compressor.
F Screw the pipe onto the valve and tighten
firmly.
144
Practical information
301_en_Chap09_info-pratiques_ed01-2016
F Start the compressor by placing the switch
at the "I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
To deflate: press the black button on the
compressor pipe, at the valve connector.
F Once the correct pressure is reached, put
the switch to the "O" position.
F Remove the kit then stow it.
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on under-inflation
detection, refer to the corresponding
section.
Tyre under-ination
detection
After repair of the tyre, the warning
lamp will remain on until the system is
reinitialised.
For more information on under-inflation
detection, refer to the corresponding
section.
145
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Spare wheel
The tools are installed in the boot under the
floor.
To gain access to them:
F open the boot,
F lift the floor and remove it.
F remove the storage box containing the
tools.
Access to the tools
List of tools
Procedure for changing a wheel with a punctured tyre for the spare wheel using the tools provided with the vehicle.
These tools are specific to your vehicle and
can vary according to the level of equipment.
Do not use them for any purpose other than
detailed below.
1. Wheelbrace.
For removing the wheel trim and removing
the wheel bolts.
2. Jack with integral handle.
For raising the vehicle.
3. Wheel bolt cover removal tool.
For removing the wheel bolt cover on alloy
wheels.
4. Towing eye.
For more information on towing, refer to the
corresponding section.
The jack must only be used to change a
wheel with a damaged tyre.
The jack does not require any
maintenance.
The jack conforms to European
legislation, such as defined in the
Machinery Directive 2006/42/CE.
146
Practical information
301_en_Chap09_info-pratiques_ed01-2016
The spare wheel is installed in the boot under
the floor.
Depending on engine, the spare wheel is
a standard wheel or the space-saver type
(BlueHDi 100).
Access to the spare wheel
Taking out the wheel
F Unclip the tool storage box (standard spare
wheel).
F Unscrew the central nut.
F Remove the fixing parts (nut and bolt).
F Raise the spare wheel towards you from
the rear.
F Take the wheel out of the boot.
147
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Putting the wheel back in place
F Put the wheel back in its housing.
F Unscrew the nut a few turns on the bolt.
F Position the fixing parts (nut and bolt) in the
middle of the wheel.
F Tighten the central nut until it clicks to
retain the wheel correctly.
If there is no wheel in the well, the fixing
parts (nut and bolt) cannot be refitted.
F Clip the tool storage box back into place
(standard spare wheel).
148
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake, switch off the
ignition and engage first gear* to block
the wheels.
Check that the parking brake warning
lamp in the instrument panel comes on.
The occupants must get out of the
vehicle and wait where they are safe.
Ensure that the jack is correctly
positioned at one of the vehicle's
jacking points.
Incorrect use of the jack could cause
the vehicle to drop.
Never go underneath a vehicle raised
using a jack; use an axle stand.
List of operations
Do not use a jack other than the one
supplied by the manufacturer.
* Position R for an electronic gearbox; P for an
automatic gearbox.
Wheel with wheel trim
When removing the wheel, first
remove the wheel trim using the
wheelbrace 1 by pulling at the valve
aperture.
When refitting the wheel, refit the
wheel trim, starting by placing its cutout
in line with the valve and then pressing
round its edge with the palm of your
hand.
F Remove the wheel bolt cover using the
tool 3 (alloy wheels).
F Slacken the bolts using the wheelbrace 1
only.
149
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
F Place the foot of the jack 2 on the ground
and ensure that it is directly below the
front A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed.
F Extend the jack 2 until its head comes into contact with the jacking point A or B used; the
vehicle’s contact surface at A or B must engage with the central part of the head of the jack.
F Raise the vehicle until there is sufficient space between the wheel and the ground to admit the
spare (not punctured) wheel easily.
Ensure that the jack is stable. If the ground is slippery or loose, the jack might slip or drop - Risk
of injury!
Take care to position the jack only at one of the vehicle’s jacking points A or B under the vehicle,
ensuring that the contact surface of the vehicle’s jacking point is centred on the head of the jack.
Otherwise there is a risk of damage to the vehicle and/or that the jack might drop - Risk of injury!
150
Practical information
301_en_Chap09_info-pratiques_ed01-2016
F Remove the bolts and store them in a clean
place.
F Remove the wheel.
Fitting a wheel
Fitting the spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the spare wheel.
The wheel is secured by the conical
surface of each bolt.
After changing a wheel
When using a "space-saver" type of
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
Stowing the wheel with
punctured tyre
The wheel with punctured tyre can be
stowed under the floor, in the housing
for the standard spare wheel.
To stow an alloy wheel, first remove the
trim from the middle of the wheel so that
the fixing parts (nut and bolt) can be put
in place.
In the case of a "space-saver" type
spare wheel, the wheel with punctured
tyre cannot be stowed under the floor. It
must be stowed in the boot; use a cover
to protect the inside of the boot.
151
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
F Lower the vehicle fully.
F Fold the jack 2 and detach it.
F Tighten the bolts using the wheelbrace 1
only.
F Refit the wheel bolt cover (alloy wheels).
F Stow the tools in their box.
List of operations
F Put the wheel in place on the hub.
F Screw in the bolts fully by hand.
F Pre-tighten the bolts using the
wheelbrace 1 only.
152
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when
braking.
Advice on installation
F If you have to fit the chains during a
journey, stop the vehicle on a flat surface
on the side of the road.
F Apply the parking brake and position any
wheel chocks to prevent movement of
your vehicle.
F Fit the chains following the instructions
provided by the manufacturer.
F Move off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F Stop your vehicle and check that the snow
chains are correctly tightened.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.
185/65 R15
9 mm
195/55 R16
For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
153
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Changing a bulb
Front lamps
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
F use a sponge and soapy water or a
pH neutral product,
F when using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F Do not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

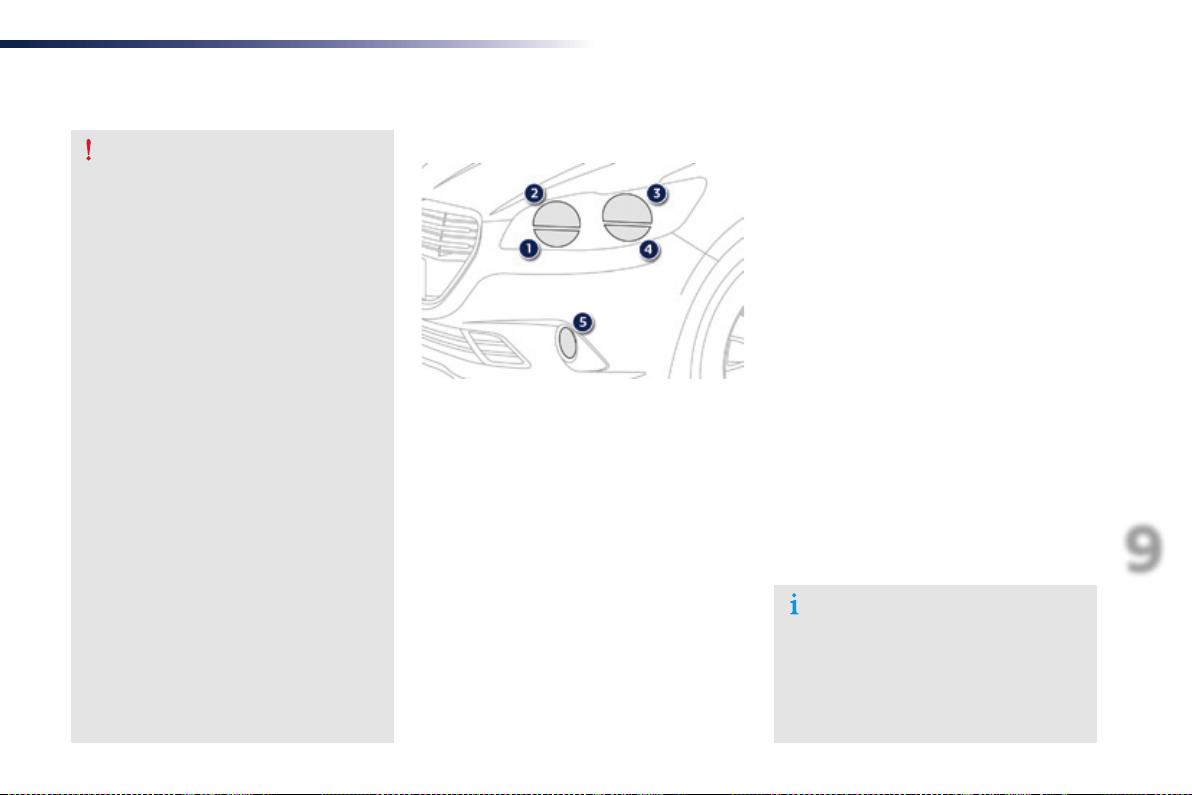

1. Direction indicators (PY21W amber).
2. Main beam headlamps (H1-55W).
3. Dipped beam headlamps (H7-55W).
4. Daytime running lamps / sidelamps
(W21/5W).
or
Sidelamps (W5W).
5. Front foglamps (H11-55W).
154
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Changing direction indicator
bulbs
F Turn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F Remove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlamp bulbs
F Remove the protective cover by pulling on
the tab.
F Disconnect the bulb connector.
F Push the spring to one side to release the
bulb.
F Remove the bulb and change it.
To refit, carry out these operations in reverse
order.
155
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Changing dipped beam headlamp
bulbs
F Remove the protective cover by pulling the
tab.
F Disconnect the bulb connector by lifting it
off.
F Pull the bulb out and change it.
To refit, carry out these operations in reverse
order.
Changing daytime running lamp /
sidelamp bulbs
F Pull the bulb holder pressing on the tabs on
both sides.
F Remove the bulb and change it.
To refit, carry out these operations in reverse
order.
156
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Changing front foglamp bulbs
F Access to the front foglamp is through the
aperture below the bumper.
If necessary, unscrew and completely
remove the cover.
F Turn the bulb holder a quarter turn anti-
clockwise and pull it out.
F Disconnect the bulb connector.
F Remove the bulb and change it.
To refit, carry out these operations in reverse
order.
If you experience any difficulty
in replacing bulbs, contact your
PEUGEOT dealer or a qualified
workshop.
Changing direction indicator side
repeaters
F Insert a screwdriver towards the centre of
the repeater between the repeater and the
base on the body.
F Tilt the screwdriver to extract the repeater
and remove it.
F Disconnect the repeater connector.
F Replace the module.
To refit, carry out these operations in reverse
order.
Contact a PEUGEOT dealer or
a qualified workshop to obtain a
replacement side repeater module.
157
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Changing bulbs
These bulbs are changed from inside the boot:
F open the boot,
F remove the access grille from the
corresponding side trim panel,
F slacken and remove the nut,
F disconnect the lamp unit connector,
F unclip the lamp unit by lowering the tongue
and carefully extract it pulling in line
towards the outside,
F remove the four screws and lift off the bulb
holder,
F turn the failed bulb a quarter of a turn and
change it.
To refit, carry out these operations in reverse
order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp.
1. Brake lamps / sidelamps (P21/5W).
2. Direction indicators (PY21W amber).
3. Reversing lamps (R10W).
4. Foglamp (P21W).
Rear lamps
158
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Third brake lamp
(5 W5W bulbs)
Number plate lamps
(W5W)
F Insert a thin screwdriver into one of the
transparent lens.
F Push it outwards to unclip it and remove it.
F Remove the failed bulb and change it.
To reassemble, carry out these operations in
reverse order.
Ensure that the housing cover is
correctly positioned on its support
before clipping it into place.
To change these bulbs, it is necessary to
remove the housing from the rear shelf,
working from the rear seats:
F pull the housing cover towards you and up
to disengage it,
F disconnect the lamp connector,
F unclip the bulb holder by lifting the two lugs
and remove it,
F replace the failed bulb.
To reassemble, carry out these operations in
reverse order.
159
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Changing a fuse
The extraction tweezer is fitted to the back of
the dashboard fusebox cover.
F unclip the cover by pulling at the top right,
then left,
F disengage the cover completely and turn it
over,
Access to the tools
F remove the tweezer.
160
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Changing a fuse
Good Failed
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.
Before changing a fuse:
F the cause of the failure must be identified
and rectified,
F all electrical consumers must be switched
off,
F the vehicle must be immobilised with the
ignition off,
F identify the failed fuse using the tables and
layout drawings in the following pages.
To replace a fuse, you must:
F use the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F always replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
fire).
Tweezer
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a PEUGEOT dealer or a qualified
workshop.
If the fuse fails again soon after
replacement, have the vehicle's electrical
system checked by a PEUGEOT dealer
or a qualified workshop.
161
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "Access to the tools".
Fuse N° Rating Functions
F02 5 A Headlamp adjusters, diagnostic socket, air conditioning panel.
F09 5 A Alarm, alarm (accessory).
F11 5 A Additional heating.
F13 5 A Parking sensors, parking sensors (accessory).
F14 10 A Air conditioning panel.
F16 15 A Cigarette lighter, 12 V socket.
F17 15 A Audio system, audio system (accessory).
F18 20 A Audio system / Bluetooth, audio system (accessory).
F19 5 A Monochrome screen C.
F23 5 A Courtesy lamps, map reading lamps.
F26 15 A Horn.
F27 15 A Screenwash pump.
F28 5 A Anti-theft.
Fuse tables
162
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Fuse N° Rating Functions
F29 - Not used.
F30 10 A Heated door mirrors.
F31 25 A Heated rear window.
F32 - Not used.
F33 30 A Front electric windows.
F34 30 A Rear electric windows.
F35 30 A Heated front seats.
F36 - Not used.
F37 20 A Trailer interface.
163
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Fuse N° Rating Functions
F14 15 A Heated lower windscreen.
F15 5 A Air conditioning compressor.
F16 15 A Front foglamps.
F18 10 A Right hand main beam headlamp.
F19 10 A Left hand main beam headlamp.
F29 40 A Front wiper motor.
F30 80 A Pre-heater plugs (Diesel).
Access to the fuses
F Unclip the cover.
F Change the fuse (see corresponding
paragraph).
F When you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse table
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand side).
164
Practical information
301_en_Chap09_info-pratiques_ed01-2016
12 V battery
Procedure for starting the engine using another battery or charging a discharged battery.
The battery is located under the bonnet.
To gain access to it:
F open the bonnet using the interior release
lever, then the exterior safety catch,
F secure the bonnet stay,
F remove the plastic cover on the (+) terminal.
Access to the batteryGeneral points
Lead-acid starter batteries
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried
out only by a PEUGEOT dealer or a
qualified workshop.
If you have an electronic or automatic
gearbox, never try to start the engine by
pushing the vehicle.
The (-) terminal of the battery is not accessible.
A remote earth point is located on the engine.
165
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Starting using another
battery
F Start the engine of the vehicle with the
good battery and leave it running for a
few minutes.
F Operate the starter on the broken down
vehicle and let the engine run.
If the engine does not start straight away,
switch off the ignition and wait a few
moments before trying again.
Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.
F Raise the plastic cover on the (+) terminal,
if your vehicle has one.
F Connect the red cable to the positive
terminal (+) of the flat battery A (at
the metal elbow) then to the positive
terminal (+) of the slave battery B or the
booster.
F Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).
F Connect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
F Wait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F Refit the plastic cover to the (+) terminal, if
your vehicle has one.
F Allow the engine to run for at least
30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
166
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Charging the battery using
a battery charger
For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
- if you use your vehicle essentially for short
journeys,
- if the vehicle is to be taken off the road for
several weeks.
Contact a PEUGEOT dealer or a qualified
workshop.
Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a PEUGEOT dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.
If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.
Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.
It is not necessary to disconnect the
battery.
F Switch off the ignition.
F Switch off all electrical consumers (audio
system, lighting, wipers, ...).
F Switch off the charger B before connecting
the cables to the battery, so as to avoid any
dangerous sparks.
F Ensure that the charger cables are in good
condition.
F Raise the plastic cover, if your vehicle has
one, on the (+) terminal.
F Connect the charger B cables as follows:
- the positive (+) red cable to the (+)
terminal of the battery A,
- the negative (-) black cable to the earth
point C on the vehicle.
F At the end of the charging operation, switch
off the charger B before disconnecting the
cables from the battery A.
167
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Disconnecting the (+) terminal
F Raise the lever A fully to release the
clamp B.
Reconnecting the (+) terminal
F Position the open clamp B of the cable on
the positive post (+) of the battery.
F Press down on the clamp to position it
correctly on the battery post.
F Lock the clamp by lowering the lever A.
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
Disconnecting the battery
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery:
F close all openings (doors, boot, windows,
roof),
F switch off all electrical consumers (audio
system, wipers, lighting, ...),
F switch off the ignition and wait for four
minutes.
Having exposed the battery, it is only
necessary to disconnect the (+) terminal.
Following reconnection of the
battery
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
- the remote control,
- the date and time,
- the radio preset stations.
Quick release terminal
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).
168
Practical information
301_en_Chap09_info-pratiques_ed01-2016
System which manages the duration of use of
certain functions to retain a sufficient level of
charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc. for
a maximum combined duration of about
thirty minutes.
Electrical energy economy mode
Switching to economy mode
Once this time has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode and the
active functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
F To restore these functions immediately,
start the engine and let it run for at least
five minutes.
A flat battery prevents the engine from
starting (refer to the corresponding
section).
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
169
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Changing a wiper blade
Before removing a front
wiper blade
F Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on
the windscreen.
Removing
F Raise the corresponding wiper arm.
F Unclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in
place and clip it.
F Fold down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F Operate the wiper stalk again to park the
wiper blades.
170
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Towing the vehicle
Access to the tools
The towing eye is installed in the boot under
the floor.
To gain access to it:
F open the boot,
F lift the floor and remove it,
F remove the towing eye from the holder.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
- vehicle broken down on a motorway or fast road,
- four-wheel drive vehicle,
- when it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,
- towing with only two wheels on the ground,
- where there is no approved towing arm available...
Procedure for having your vehicle towed.
171
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Towing your vehicle Towing another vehicle
F On the front bumper, unclip the cover by
pressing on the left edge.
F Screw the towing eye in fully.
F Install the towing bar.
Put the gear lever into neutral
(position N for an electronic or
automatic gearbox).
Failure to follow this instruction may
cause damage to some components
(braking, transmission...) and the
absence of braking assistance when
the engine is restarted.
F Unlock the steering by turning the key
in the ignition one notch and release the
parking brake.
F Switch on the hazard warning lamps on
both vehicles.
F Move off gently, drive slowly and for a short
distance.
This towing is strictly prohibited (risk of
damaging your vehicle).
172
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Towing a trailer
We recommend the use of genuine
PEUGEOT towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a
qualified workshop.
If the towbar is not fitted by a
PEUGEOT dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
173
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Driving advice
Distribution of loads
F Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity
to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F If the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
Tyres
F Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling
on the trailer.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
The rear parking sensors will be
deactivated automatically if a genuine
PEUGEOT towbar is used.
174
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Very cold climate screen(s)*
Removable protective screen(s) which prevents the accumulation of snow at the radiator cooling fan.
Depending on version, you have one or two screens.
Fitting
F Offer up the corresponding screen to the
lower or upper section of the front bumper.
F Press around its edge to engage its fixing
clips one by one.
Removal
F Use a screwdriver as a lever to release
each of the fixings of each screen in turn.
* Depending on the country of sale.
Do not forget to remove the very cold
climate screen (or screens):
- when the ambient temperature
exceeds 10 °C,
- when towing,
- at speeds above 75 mph (120 km/h).
175
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Accessories
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network.
These accessories and parts are all suitable for your vehicle and benefit from PEUGEOT's
recommendation and warranty.
"Comfort":
door deflectors, side blinds and rear screen
blind, smoker kit, portable scented air
freshener, boot dividers, coat hanger, armrest,
insulated module, reading lamp, cruise control,
boot storage, front and rear parking sensors,
glove box lid...
"Transport solutions":
towbars, towbar harnesses, roof bars, bicycle
carrier on towbar, bicycle carrier on roof bars,
ski carrier, roof boxes....
"Security and safety":
wheel security bolts, child seats, breathalyzer,
first aid kit, warning triangle, high visibility vest,
snow chains, non-slip covers, foglamp kit, fire
extinguisher...
Tow bar, which mst be fitted by
PEUGEOT dealer or a qualified
workshop.
Advice on care and maintenance
Recommendations on the care and
maintenance your vehicle are given in the
warranty and maintenance record.
"Styling":
gear lever knob, spoiler, parking brake lever
grip, spoiler, alloy wheels, foglamp trims,
chromed mirror shells, aluminium footrest,
chrome exhaust tailpipes, stickers, door sill
finishers, ligne S badge, wheel trims, front
spoiler...
176
Practical information
301_en_Chap09_info-pratiques_ed01-2016
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
"Protection":
mats* (carpet or rubber), seat covers, alarm,
front and rear mud flaps, boot liner, boot carpet,
side rubbing strips, bumper protective strips,
transparent boot sill protector, shield under
engine...
The fitting of electrical equipment or
accessories which are not recommended
by PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a PEUGEOT dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication transmitters
Before installing any after-market radio
communication transmitter, you can
contact a PEUGEOT dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
By visiting a PEUGEOT dealer, you can also
obtain products for cleaning and maintenance
(exterior and interior) - including ecological
products in the "TECHNATURE" range, topping
up products (screenwash...), touch-up pens
and paint aerosols for the exact colour of your
vehicle, refills (cartridge for the temporary
puncture repair kit...), ...
"Multimedia":
audio systems, portable satellite and semi-
integral navigation systems, fixed and portable
hands-free kit, universal solar charger,
speakers and wiring, 230 V socket, rear
multimedia bracket, telephone bracket...
177
9
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Mats
Removable carpet protection.
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
Fitting Removal Refitting
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
- never fit one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
To remove the mat on the driver's side:
F move the seat as far back as possible,
F unclip the fixings,
F remove the mat.
To refit the mat on the driver's side:
F position the mat correctly,
F refit the fixings by pressing,
F check that the mat is secured correctly.
178
Practical information
301_en_Chap09_info-pratiques_ed01-2016
Roof bars
For safety reasons and to avoid damaging the
roof, it is essential to use the transverse bars
listed for your vehicle.
When fitting roof bars, use only the four fixing
points located in the roof frame. The points are
masked by the vehicle doors when closed.
The roof bar fixings include a stud to be fitted to
the hole at each fixing point.
Observe the fitting instructions and the
conditions of use in the guide supplied with
the bars.
Maximum authorised weight on the roof
bars: 75 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.
301_en_Chap10_verications_ed01-2016
PEUGEOT & TOTAL,
A PARTNERSHIP TO DELIVER
BETTER PERFORMANCE!
2015 was marked by PEUGEOT's return to Rally-Raid,
one of the most difficult motorsport disciplines in the
world. To obtain the best performance in these trials,
PEUGEOT Sport chose TOTAL QUARTZ for the
PEUGEOT 2008 DKR, a lubricant of high technology
which protects the engine in the most severe
conditions.
TOTAL QUARTZ protects your engine against the effects
of time.
RECOMMENDS
TOTAL QUARTZ Ineo First is a high performance lubricant,
the result of work done together by PEUGEOT and Total
R&D. Specially formulated for the engines in PEUGEOT
vehicles, its innovative technology significantly reduces CO
2
emissions and keeps your engine clean.
180
Checks
301_en_Chap10_verications_ed01-2016
Bonnet
Closing
F Take the stay out of the support notch.
F Clip the stay in its housing.
F Lower the bonnet and release it near the
end of its travel.
F Pull on the bonnet to check that it is fully
latched.
F Unclip the bonnet stay from its housing.
F Fix the stay in the notch to hold the bonnet
open.
Do not open the bonnet when there is a
very strong wind.
When the engine is hot, handle the
exterior safety catch and the stay with
care (risk of burns).
Opening
F Push the exterior safety catch to the left
and raise the bonnet.
F Pull towards you the interior release lever,
located in the lower dashboard.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.
181
10
Checks
301_en_Chap10_verications_ed01-2016
Petrol engines
1. Screenwash fluid reservoir.
2. Coolant header tank.
3. Air filter.
4. Brake fluid reservoir.
5. Battery.
6. Fusebox.
7. Engine oil dipstick.
8. Engine oil filler cap.
To avoid damaging the electrical units,
never use a high pressure jet wash in
the engine compartment.
182
Checks
301_en_Chap10_verications_ed01-2016
To avoid damaging the electrical units,
never use a high pressure jet wash in
the engine compartment.
Diesel engine
1. Screenwash fluid reservoir.
2. Coolant header tank.
3. Air filter.
4. Brake fluid reservoir.
5. Battery.
6. Fusebox.
7. Engine oil dipstick.
8. Engine oil filler cap.
9. Priming pump.
183
10
Checks
301_en_Chap10_verications_ed01-2016
Checking levels
Engine oil level
The check of the oil level is carried
out with the dipstick, located under
the bonnet. For the position of the
dipstick, refer to the under-bonnet
view on a previous page.
Checking with dipstick
If you find that the oil level is above the A mark
or below the B mark, do not start the engine.
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless otherwise indicated.
If a level drops significantly, have the corresponding system checked by a PEUGEOT dealer or a qualified workshop.
It is normal to top up the oil level
between two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 km).
To ensure the accuracy of the reading, your
vehicle must be on a level surface, with the
engine off for at least 30 minutes.
- If the level is above
the MAX mark (risk of
engine damage), contact
a PEUGEOT dealer or a
qualified workshop.
- If the level is below the
MIN mark, you must top-
up the engine oil.
Refer to the under-bonnet view for the location
of the dipstick on your vehicle.
F Take the dipstick by its coloured grip and
pull it out completely.
F With the end of the dipstick with a clean
and non-fluffy cloth.
F Refit the dipstick and push it fully down,
then pull it out again for a visual check of
the oil level: the level must be between the
two marks A and B.
184
Checks
301_en_Chap10_verications_ed01-2016
The brake fluid level should be close
to the "MAX" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the uid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specication
The brake fluid must conform to the
manufacturer's recommendations.
Topping-up the engine oil
Oil grade
The oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.
Refer to the under-bonnet view for the location
of the oil filler cap on your vehicle.
F Unscrew the filler cap for access to the
filler orifice.
F Pour in the oil in small quantities, avoiding
spills onto the engine (risk of fire).
F Wait a few minutes before checking the
level again using the dipstick.
F Top-up again if necessary.
F After checking and topping up, carefully
refit the oil filler cap and the dipstick to its
housing.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emissions control system, never use
additives in the engine oil.
185
10
Checks
301_en_Chap10_verications_ed01-2016
Coolant level
The coolant level should be close
to the "MAX" mark but should never
exceed it.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying out any
work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.
Changing the coolant
The coolant does not have to be replaced at
routine services.
Fluid specication
The coolant must conform to the
manufacturer's recommendations.
When the engine is warm, the temperature of
the coolant is regulated by the fan.
The cooling fan may start after switching
off the engine: take care with articles and
clothing that might be caught by the fan
blades.
Fluid specication
For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
In wintry conditions, it is recommended that you
use an ethyl alcohol or methanol based fluid.
Screenwash fluid level
Top up the level when necessary.
Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
without delay.
Diesel additive level (Diesel
engine with particle filter)
A low additive level is indicated by illumination
of the service warning lamp, accompanied
by an audible warning and a message in the
screen (if a display screen is fitted).
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used products
186
Checks
301_en_Chap10_verications_ed01-2016
Checks
12 V battery
The battery does not require any
maintenance.
However, check regularly that the terminals are
correctly tightened (versions without quick release
terminals) and that the connections are clean.
Particle filter (Diesel)
The start of saturation of the
particle filter is indicated by
the fixed illumination of this warning lamp
accompanied by a warning message in the
screen (if a display screen is fitted).
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this indicates a
low additive level.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burnt" smell, which
is perfectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Otherwise, have them checked by a PEUGEOT dealer or a qualified workshop.
Air filter and passenger compartment filter
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Oil filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
When carrying out any operation on the 12 V
battery, refer to the corresponding section for
details of the precautions to be taken before
starting work.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g.
city driving), replace them twice as often if
necessary.
A clogged passenger compartment filter may
have an adverse effect on the performance
of the air conditioning system and generate
undesirable odours.
187
10
Checks
301_en_Chap10_verications_ed01-2016
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Electronic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the checking
interval for this component.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the level
checking interval for this component.
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake pads
For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.
Brake disc wear
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, PEUGEOT selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Checking this system must be done by a
PEUGEOT dealer or a qualified workshop.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
188
Technical data
301_en_Chap11_caracteristiques-techniques_ed01-2016
Engine PureTech 72
PureTech
82
PureTech
82 S&S
VTi 115
Gearbox
Manual
(5-speed)
ETG
electronic
(5-speed)
Manual
(5-speed)
ETG
electronic
(5-speed)
Manual
(5-speed)
Automatic
(4-speed)
EAT6
automatic
(6-speed)
Model code: DD... HMY0 HMY0/P HMZ6 HMZ6/PS
NFP0
NFP6
NFP9 NFPT
Cubic capacity (cc) 1 199 1 199 1 199 1 587
Bore x stroke (mm) 75 x 90.5 75 x 90.5 75 x 90.5 78.5 x 82
Max power: EU standard (kW)* 53 60 60 85
Max power engine speed (rpm) 5 500 5 750 5 750 6 050
Max torque: EU standard (Nm) 110 118 118 150
Max torque engine speed (rpm) 3 000 2 750 2 750 4 000
Fuel
Unleaded 91 RON to
98 RON
Unleaded
91 RON to
98 RON
Unleaded
91 RON to
98 RON
Unleaded 91 RON to 98 RON
Catalytic converter yes yes yes yes
Engine oil capacity in litres
(with filter replacement)
3.25 3.25 3.25 3.5
Petrol engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
189
11
Technical data
301_en_Chap11_caracteristiques-techniques_ed01-2016
Engine PureTech 72
PureTech
82
PureTech
82 S&S
VTi 115
Gearbox
Manual
(5-speed)
ETG
electronic
(5-speed)
Manual
(5-speed)
ETG
electronic
(5-speed)
Manual
(5-speed)
Automatic
(4-speed)
EAT6
automatic
(6-speed)
Model code: DD... HMY0 HMY0/P HMZ6 HMZ6/PS
NFP0
NFP6
NFP9 NFPT
Unladen weight 980 980 980 1 090 1 115
Kerb weight* 1 055 1 055 1 055 1 165 1 190
Gross vehicle weight (GVW) 1 459 1 467 1 470 1490 1 524 1 559 1 585
Gross train weight (GTW)
on a 12% gradient
1 909 1 917 1 920 1 990 2 274 2 309 2 335
Braked trailer (within the GTW limit)
on a 10% or 12% gradient
450 450 500 750
Braked trailer** (with load transfer within the
GTW limit)
720 720 720 1 010
Unbraked trailer 450 450 450 580
Recommended nose weight 55 55 55 55
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol weights (in kg)
190
Technical data
301_en_Chap11_caracteristiques-techniques_ed01-2016
Engine HDi 92 BlueHDi 100
Gearbox Manual (5-speed) Manual (5-speed)
Model code: DD... 9HJC 9HP0 BHY6
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3
Max power: EU standard (kW)* 68 73
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 230 254
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter yes yes
Particle filter no yes yes
Engine oil capcity in litres
(with filter replacement)
3.75 3.75
Diesel engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
191
11
Technical data
301_en_Chap11_caracteristiques-techniques_ed01-2016
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Engine HDi 92 BlueHDi 100
Gearbox Manual (5-speed) Manual (5-speed)
Model code: DD... 9HJC 9HP0 BHY6
Unladen weight 1 090 1 090
Kerb weight* 1 165 1 165
Gross vehicle weight (GVW) 1 549 1 548 1 585
Gross train weight (GTW)
on a 12% gradient
2 299 2 298 2 335
Braked trailer (within the GTW limit)
on a 10% or 12% gradient
750 750
Brakled trailer** (with load transfer within the
GTW limit)
1 010 1 010
Unbraked trailer 580 580
Recommended nose weight 55 55
Diesel weights (in kg)
192
Technical data
301_en_Chap11_caracteristiques-techniques_ed01-2016
Dimensions (in mm)
193
11
Technical data
301_en_Chap11_caracteristiques-techniques_ed01-2016
Identication markings
A. Vehicle identification number (VIN)
under the bonnet.
This number is engraved on the bodywork
near the passenger compartment filter.
The tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures introduces the risk
of a burst tyre and also increase fuel
consumption.
B. Vehicle identification number on the
dashboard.
This number is indicated on a self-
adhesive label which is visible through the
windscreen.
C. Manufacturer's label.
The VIN is indicated on a self-destroying
label affixed to the lower right hand centre
pillar.
D. Tyre/paint label.
This label is affixed to the driver's side
centre pillar.
It bears the following information:
- the tyre pressures, for unladen and laden
conditions,
- the tyre sizes,
- the spare tyre inflation pressure,
- the paint colour code.
Various visible markings for the identification of your vehicle.
194
Technical data
301_en_Chap11_caracteristiques-techniques_ed01-2016
195
301_en_Chap12a_RD5(RD45)_ed01-2016
Your audio system is coded in such a way that it will
only operate in your vehicle.
Audio system / Bluetooth
®
01 First steps
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio system may switch
off after a few minutes.
CONTENTS
02 Steering mounted controls
03 Main menu
04 Audio
05 Using the telephone
06 Audio settings
07 Screen menu map(s)
Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
196
197
198
199
209
218
219
221
01
196
301_en_Chap12a_RD5(RD45)_ed01-2016
On / Off.
FIRST STEPS
Volume adjustment.
Select screen display
between modes:
Full screen: Audio (or
telephone if call in progress) /
In a window: Audio
(or telephone if call in
progress) - Time or Trip
computer.
Long press: black screen
(DARK).
Select AM / FM wavebands.
Select preset radio station.
Long press: store a station.
Display the list of stations received,
CD/MP3 tracks or folders.
Long press: managing the
classication of MP3/WMA les /
update the list of stations received.
TA (Trafc Announcement)
function On / Off.
Long press: access to type of
information.
Conrmation
or display of
contextual menu.
Automatic search up / down
for radio frequencies.
Select previous / next CD,
USB, streaming track.
Navigation in a list.
Abandon the current operation.
Up one level (menu or folder).
Manual step by step search up / down for
radio frequencies.
Select previous / next MP3 folder.
Select previous / next folder / genre / artist /
playlist in the USB device.
Navigation in a list.
Select source:
Radio, CD, AUX, USB,
Streaming.
Accept an incoming call.
Access to main menu.
Audio settings:
audio ambiences, treble, bass,
loudness, distribution, left/
right balance, front/rear fader,
automatic volume.
02
197
301_en_Chap12a_RD5(RD45)_ed01-2016
STEERING MOUNTED CONTROLS
Radio: automatic search for a higher frequency.
CD / MP3 / USB: selection of the next track.
CD / USB: continuous press: fast forwards play.
Move in the list.
Change audio source.
Conrm a selection.
Call/end call on the telephone.
Press for more than 2 seconds:
telephone main menu.
Radio: automatic search for a lower
frequency.
CD / MP3 / USB: selection of the
previous track.
CD / USB: continuous press: fast
reverse.
Move in the list.
Radio: select the previous/next pre-set
station.
USB: select genre / artist / folder from the
classication list.
Select the previous/next item in a menu.
Volume increase.
Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
03
198
301_en_Chap12a_RD5(RD45)_ed01-2016
MAIN MENU
"Multimedia": Media
parameters, Radio
parameters.
Screen C
"Trip computer":
Warning log.
"Telephone": Call, Directory
management, Telephone
management, Hang up.
"Personalisation-conguration":
Dene the vehicle parameters, Choice of
language, Display conguration, Choice
of units, Date and time adjustment.
For a detailed global view of the menus
available, refer to "Screen menu map"
section.
"Bluetooth connection":
Connections management,
Search for a device.
04
199
301_en_Chap12a_RD5(RD45)_ed01-2016
AUDIO
Press SRC/TEL several times in
succession and select radio.
Press BAND to select a waveband.
Press LIST to display the list of stations
received in alphabetical order.
A press changes to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...).
Radio
Select the desired radio station by
turning the control knob and conrm by
pressing.
Selecting a station
A long press on LIST builds or updates
the list of stations; audio reception is cut
momentarily.
The exterior environment (hills, buildings, tunnel, car park, below
ground...) may prevent reception, even in RDS station tracking
mode. This phenomenon is normal in the propagation of radio
waves and is in no way indicative of a fault with the audio system.
04
TA
200
301_en_Chap12a_RD5(RD45)_ed01-2016
RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the
station during a journey.
AUDIO
RDS Receiving TA messages
The TA (Trafc Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a trafc
report is transmitted, the current audio source (Radio, CD,
USB, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.
Press TA to activate or deactivate the
reception of trafc messages.
When the radio is displayed on the
screen, press the control knob to display
the contextual menu.
Select "RDS" and conrm to save.
"RDS" is displayed in the screen.
04
201
301_en_Chap12a_RD5(RD45)_ed01-2016
AUDIO
Radio text is information transmitted by the radio station related to
the current programme or song.
With the radio displayed on the screen,
press the control knob to display the
contextual menu.
Turn the control knob to select "RADIO
TEXT" then press to conrm.
Display RADIO TEXT
Screen C
04
202
301_en_Chap12a_RD5(RD45)_ed01-2016
AUDIO
Audio CD
Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no reection on the
quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.
To play a disc which has already been
inserted, press the SRC/TEL button
several times in succession and select
"CD".
Press one of the buttons to select a
track on the CD.
Playing a CD
Press LIST to display the list of tracks
on the CD.
Press and hold one of the buttons for
fast forward or backward.
04
203
301_en_Chap12a_RD5(RD45)_ed01-2016
AUDIO
CD, USB
Information and advice
On a single disc, the CD player can read up to 255 MP3 les spread
over 8 directory levels. However, it is recommended that this be kept
to 2 levels so as to limit the time taken to access and play the CD.
During play, the folder structure is not observed.
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Do not connect a hard disk or USB device other than audio players to
the USB port. This may cause damage to your installation.
The audio system will only play les with extension ".mp3" or ".wma"
and a compression rate that is constant or variable between 32 Kbps
and 320 Kbps.
It is advisable to restrict le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.
The playlists accepted are types .m3u and .pls.
The number of les is limited to 5 000 in 500 directories on a
maximum of 8 levels.
04
204
301_en_Chap12a_RD5(RD45)_ed01-2016
CD, USB
AUDIO
Playing a compilation
Insert an MP3 compilation in the CD player
or connect a memory stick to the USB port,
directly or via an extension lead.
The system creates playlists (temporary memory) the creation time
for which can take from a few seconds to several minutes.
The playlists are updated every time the ignition is switched off or a
USB memory stick is connected.
Play starts automatically after a period which depends on the
capacity of the USB memory stick.
Use only USB memory sticks formatted FAT32 (File Allocation
Table).
At a rst connection, the order suggested is by folder.
When connecting again, the order previously chosen is
retained.
To play a disc or memory stick which
has already been inserted, press SRC /
TEL several times in succession and
select "CD" or "USB".
Turn the control knob to select the next
or previous track.
Press one of the buttons to select the
next or previous folder in the order
chosen.
Press and hold one of the buttons for
fast forwards or backwards.
Press LIST to display the menu of
folders in the compilation.
04
BACK
205
301_en_Chap12a_RD5(RD45)_ed01-2016
Select a line in the list.
Select a track or a folder.
Skip a track.
Up a level in the menu.
AUDIO
USB memory stick - File classification
Having selected the desired classication
("By folders", "By artists", "By genres",
"By playlists") press the control knob.
Then press the control knob to conrm and
save the modications.
- By folders: all folders containing audio
les recognised on the peripheral device,
in alphabetical order without following the
folder structure.
- By artists: all of the artist names dened
in the ID3 Tags, in alphabetical order.
- By genres: all of the genres dened in the
ID3 Tags.
- By playlists: if playlists have been saved.
Make a long press on LIST or press
MENU, select "Multimedia", then
"Media parameters" and nally "Choice
of track listing" to display the different
classications.
04
206
301_en_Chap12a_RD5(RD45)_ed01-2016
AUDIO
APPLE
®
players or portable player
Management of the device is via the audio system controls.
The audio les on a Mass Storage portable player* can
be heard through the vehicle's speakers by connecting
it to the USB port (cable not supplied).
If the portable player is not recognised by the USB port, connect it to
the auxiliary Jack socket.
The Apple
®
player must be updated regularly for the best connection.
The playlists are those dened in the Apple
®
player.
The Apple
®
player must be generation 5 or later.
* Check your player's manual.
04
VOL+
VOL-
207
301_en_Chap12a_RD5(RD45)_ed01-2016
AUDIO
Auxiliary socket (AUX)
Auxiliary JACK socket
Do not connect a device to the USB port and to the auxiliary Jack
socket at the same time.
The auxiliary Jack socket permits the connection of a
portable non-mass storage device or an Apple
®
player if
not recognised by the USB port.
Connect the portable device to the auxiliary Jack socket using a
suitable cable (not supplied).
Press the SRC/TEL button several times
in succession and select "AUX".
First adjust the volume on your portable device.
Then adjust the volume of the audio
system.
The display and management of controls is on the
portable device.
04
208
301_en_Chap12a_RD5(RD45)_ed01-2016
AUDIO
Streaming - Playing audio files via
Bluetooth
Depending on the compatibility of the phone
Pair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth proles
(Proles A2DP / AVRCP).
Activate the streaming source by pressing SRC/
TEL. Control of playback is via the audio system. The
contextual information can be displayed in the screen.
In certain cases, playing of the audio les must be initiated from
the telephone.
The audio quality depends on the quality of the transmission from
the telephone.
Play mode
The play modes available are:
- Normal: the tracks are played in order, depending on the
classication of the selected les.
- Random: the tracks in an album or folder are played in a random
order.
- Random all: all of the tracks saved in the media are played in
random order.
- Repeat: the tracks played are only those from the current album
or folder.
Press the control knob for access to
the contextual menu.
or
Press MENU.
Select "Multimedia" and conrm.
Select "Media parameters" and
conrm.
Select "Playback mode" and
conrm.
Select the desired play mode then
press the control knob to conrm and
save the modications.
05
209
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
Pairing a telephone
First connection
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult your telephone's manual and your operator to nd out which services are available to you.
Activate the telephone's Bluetooth function and
ensure that it is "visible to all" (refer to the telephone
user guide).
Press MENU.
A window is displayed "Search in progress…".
Select the telephone to be connected
from the list. Only one telephone can
be connected at a time.
Select "Search for a device".
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary and the ignition on.
Visit www.peugeot.co.uk for more information (compatibility, additional help, ...).
Select "Bluetooth connection" and
conrm.
05
210
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
A virtual keypad is displayed on the
screen: enter a code of at least 4 digits
then press the control knob to conrm.
A message is displayed on the screen of the
telephone: enter the same code and conrm.
A message appears in the screen to conrm the result of the
connection.
Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.
If pairing fails, try again; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be congured in the telephone to allow
the connection each time the vehicle is started.
In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.
Pair/connect the telephone then listen: see the AUDIO section.
Streaming - Playing audio files via
Bluetooth
05
211
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
To see the telephone status,
press MENU.
Select "Telephone" and conrm.
Select "Telephone management"
and conrm.
Select "Telephone status" and conrm.
Telephone status
The screen displays: the name of the telephone, the name of the
network, network signal strength, conrmation of the Bluetooth
connection and the streaming connection.
05
212
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
The telephone connection automatically includes hands free operation
and audio streaming.
The ability of the system to connect to just one prole depends on
the telephone. Both proles may connect by default.
Press MENU.
Select "Bluetooth connection" and
conrm.
Indicates connection of the audio steaming prole.
Managing connections
Select "Connections management"
and conrm. The list of paired
telephones is displayed.
Select a telephone and conrm.
Indicates connection of the hands-free prole.
Then select and conrm:
- "Connect telephone" / "Disconnect
telephone": to connect / disconnect
the telephone or the hands-free
connection only.
- "Connect media player" /
"Disconnect media player": to
connect / disconnect only streaming.
- "Connect telephone + media
player" / "Disconnect telephone +
media player": to connect /
disconnect the telephone (hands-free
and streaming).
- "Delete connection": to delete the
pairing.
Indicates that a device is connected.
05
213
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
To display the "TELEPHONE" menu:
- Make along press on SRC/TEL.
- Or, press the control knob to
display the contextual menu.
Select "Call" and conrm.
- Or, press MENU, select
"Telephone" and conrm.
Select "Call" and conrm.
Select "Dial" to enter a number and
conrm.
To display the "TELEPHONE" menu:
- Make a long press on SRC/TEL.
- Or, press the dial to display the
contextual menu. Select "Call" and
conrm.
- Or, press MENU, select
"Telephone" and conrm.
Select "Call" and conrm.
Press the control knob to conrm to
start the call.
Select "Calls list" and conrm.
Making a call - Dialling
Select numbers one at a time using
the 7 and 8 buttons and conrm.
Making a call - Recently called
numbers*
Select the number and conrm to start
the call.
The calls list includes calls sent and received in the vehicle using the
connected telephone.
* Depending on the compatibility of the telephone.
Correction allows numbers to be deleted one at a time.
It is possible to make a call directly from the telephone; park the
vehicle rst as a safety measure.
05
BACK
214
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
To display the "TELEPHONE" menu:
- Make a long press on SRC/TEL.
- Or, press the dial to display the
contextual menu. Select "Call" and
conrm.
- Or, press MENU, select
"Telephone" and conrm.
Select "Call" and conrm.
Select "Directory" and conrm.
An incoming call is announced by a ring and a superimposed display
in the multifunction screen.
Mobile
(depending on the information
available in the contact records of
the telephone connected).
"YES" to accept the call is selected by
default.
Press the control knob to accept the
call.
Select "NO" and conrm to reject the
call.
Making a call - From the directory of contacts
Select a contact then conrm.
Receiving a call
Select the number and conrm.
A long press on BACK or on SCR/TEL
also rejects an incoming call.
Business
Home
or
Press one of these buttons to accept
the call.
05
215
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
During a call, press the control knob to
display the contextual menu.
Hang up
In the contextual menu:
- select "Micro OFF" to switch off the
microphone.
- deselect "Micro OFF" to switch the
microphone on.
Managing calls
A long press on one of these buttons
also ends the call.
In the contextual menu, select
"Hang up" to end the call.
Secret - Mute
(so that the caller cannot hear)
05
216
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
From the contextual menu, select
"DTMF tones" and conrm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
"Switch" and conrm to return to a call
left on hold.
Interactive voice response
Call on hold
In the contextual menu:
- select "Telephone mode" to
transfer the call to the telephone.
- deselect "Telephone mode" to
transfer the call to the vehicle.
In certain cases, the combined mode has to activated from
the telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).
Combined mode
(to leave the vehicle without ending the call)
05
217
301_en_Chap12a_RD5(RD45)_ed01-2016
USING THE TELEPHONE
Directory
The telephone directory is sent to the system, depending on the
compatibility of the telephone.
The directory is temporary and depends on the Bluetooth
connection.
Contacts imported from the telephone to the audio system directory
are saved in a permanent directory visible to all, whatever the
telephone connected.
To modify the contacts saved in the
system, press MENU then select
"Telephone" and conrm.
Select "Directory management" and
conrm.
You can:
- "Consult an entry",
- "Delete an entry",
- "Delete all entries".
Select "Directory" to see the list of
contacts.
For access to the directory make a long
press on SRC/TEL.
or
Press the control knob then select
"Call" and conrm.
06
218
301_en_Chap12a_RD5(RD45)_ed01-2016
Press ¯ to display the audio settings
menu.
The settings available are:
- Ambience,
- Bass,
- Treble,
- Loudness,
- Distribution: Personalised or Driver,
- Left / right balance,
- Fader (front / rear balance),
- Auto. volume.
Screen C
The distribution (or spatialisation using the Arkamys
©
system), is
an audio process which allows the sound quality to be improved
according to the setting chosen, corresponding to the position of the
listeners in the vehicle.
AUDIO SETTINGS
Select and conrm "Other settings…"
to display the next setting in the list.
The Ambience, Treble and Bass audio settings are different and
independent for each sound source.
On-board audio: Arkamys
©
Sound Staging.
With Sound Staging, the driver and passengers are immersed in an
"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible by software in the audio
system which processes the digital signals from the media players
(radio, CD, MP3…) without changing the audio settings. This
processing takes account of the characteristics of the passenger
compartment to produce optimum results.
The Arkamys
©
software installed in your audio system processes
the digital signal from the media players (radio, CD, MP3, ...) and
recreates a natural musical scene, with harmonious placement of
instruments and voices in the space in front of passengers, level
with the windscreen.
07
219
301_en_Chap12a_RD5(RD45)_ed01-2016
SCREEN MENU MAP(S)
Screen C
MEDIA
Media parameters
Choice of playback mode
Choice of track listing
TELEPHONE
Call
Dial
Directory
Calls list
Voice mail box
Directory management
Consult an entry
Delete an entry
Delete all entries
Telephone management
Telephone status
Hang up
BLUETOOTH CONNECTION
Normal
Random
Random all
Repeat
By folders
By artists
By genres
By playlists
Radio parameters
1
2
2
1
2
2
2
2
1
2
2
2
1
2
1
1
1
3
3
3
3
3
3
3
3
1
Connections management
Search for a device
MAIN FUNCTION
Option A1
Option A11
Option A
Option B...
1
2
3
1
07
220
301_en_Chap12a_RD5(RD45)_ed01-2016
SCREEN MENU MAP(S)
PERSONALISATION -
CONFIGURATION
Define the vehicle parameters
Driving assistance
Parking assistance
Vehicle lighting
Daytime lights
Interior lighting
Follow-me-home headlamps
Choice of language
Display configuration
Choice of units
Date and time adjustment
Display parameters
Brightness
1
2
3
2
3
2
3
1
1
2
2
2
2
221
301_en_Chap12a_RD5(RD45)_ed01-2016
FREQUENTLY ASKED QUESTIONS
The following tables contain answers to the most frequently asked questions.
QUESTION ANSWER SOLUTION
There is a difference in
sound quality between
the different audio
sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set the
AUDIO functions (Bass, Treble, Front-Rear Fader,
Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambience
setting is deselected.
When changing the
ambience setting, treble
and bass are reset to
zero.
Choosing an ambience imposes settings for treble and bass. Modifying
one without the other is not possible.
Modify the treble and bass settings or the
ambience setting to obtain the desired sound
quality.
When changing the
balance setting,
distribution is deselected.
Choosing a distribution setting imposes a balance setting. Modifying one
without the other is not possible.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
222
301_en_Chap12a_RD5(RD45)_ed01-2016
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 MHz is
displayed...).
The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.
This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or in an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for another frequency
giving better reception of the station.
Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
The trafc announcement
(TA) is displayed. I do
not receive any trafc
information.
The radio station does not broadcast trafc information. Tune to a radio station which broadcasts trafc
information.
The stored stations are
not found (no sound,
87.5 MHz is displayed...).
An incorrect waveband is selected. Press the BAND button to return to the waveband
on which the stations are stored.
223
301_en_Chap12a_RD5(RD45)_ed01-2016
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
The CD is ejected
automatically or is not
played by the player.
The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not
play DVDs.
- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor.
The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
I am unable to connect
my Bluetooth telephone.
It is possible that Bluetooth is switched off on the telephone or that the
telephone has not been made not visible.
- Check that your telephone has Bluetooth
switched on.
- Check in the telephone's settings that it is
"Visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone
on www.peugeot.co.uk (services).
The Bluetooth connection
is cut.
The battery of the peripheral may not be sufciently charged. Recharge the battery of the peripheral device.
224
301_en_Chap12a_RD5(RD45)_ed01-2016
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
The message "USB
peripheral error"
or "Peripheral not
recognised" is displayed
in the screen.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick (FAT32).
A telephone connects
automatically,
disconnecting another
telephone.
Automatic connection overrides manual connection. Modify the telephone settings to remove automatic
connection.
The Apple
®
player is
not recognised when
connecting to the USB
port.
The Apple
®
player is of a generation that is not compatible with a USB
connection.
Connect the Apple
®
player to the AUX Jack socket
using a suitable cable (not supplied).
The hard disk or device
is not recognised when
connecting to the USB
port.
Some hard disks and devices need a power supply greater than is
provided by the audio system.
Connect the device to the 230 V socket, the 12 V
socket or an external power supply.
Caution: ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).
When streaming, the
sound cuts momentarily.
Some telephones prioritise connection of the "hands-free" prole. Delete the "hands-free" connection prole to
improve streaming.
In "Random all" play,
not all of the tracks are
played.
In "Random all" play, the system can only take into account up to
999 tracks.
225
301_en_Chap12a_RD5(RD45)_ed01-2016
QUESTION ANSWER SOLUTION
With the engine off, the
audio system switches
off after a few minutes
of use.
When the engine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode
and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display.
In order to protect the installation if the surrounding temperature is too
high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes to
allow the system to cool.
FREQUENTLY ASKED QUESTIONS
226
301_en_Chap12a_RD5(RD45)_ed01-2016
227
301_en_Chap12b_RDE1_ed01-2016
Audio system
01 First steps
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off after
activation of economy mode.
CONTENTS
02 Audio system
03 Audio settings
04 Screen menu map(s)
Frequently asked questions
p.
p.
p.
p.
p.
228
229
237
238
239
01
301_en_Chap12b_RDE1_ed01-2016
FIRST STEPS
228
Selection of source:
FM1, FM2, AM, CD, AUX.
Adjust audio settings:
sound ambience, treble, bass,
loudness, left/right balance,
automatic volume.
Abandon the current
operation.
Go up one level (menu or
folder).
Automatic search for a lower/
higher radio frequency.
Select the previous/next CD
track.
Navigation in a list.
Press and hold: fast forward
or backward. Eject CD.
Manual search step by step
for a lower/higher radio
frequency.
Select the previous/next
MP3 track.
Navigation in a list.
Open the main
menu.
Select a preset radio station.
Radio: long press: preset a radio
station.
Display the list of stations received,
the CD/MP3 tracks or MP3 folders.
Long press: update the list of
stations received.
On / Off and
volume adjustment.
02
229
301_en_Chap12b_RDE1_ed01-2016
AUDIO
Press the SRC/BAND button several
times in succession and select the FM1,
FM2 or AM waveband.
Press a button to listen to the
corresponding preset station.
Press to change to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...).
Radio
Select the desired radio station then
conrm by pressing OK.
Selecting a station
Make a long press on LIST to construct
or update the list of stations; the sound
is interrupted temporarily.
The external environment (hills, buildings, tunnels, basement car
parks) may block reception, including in RDS mode. This is a normal
effect of the way in which radio waves are transmitted and does not
indicate any failure of the audio equipment.
Selecting a preset station
Make a long press on a button to
preset the station being listened to. The
name of the station is displayed and an
audible signal conrms that it has been
preset.
Press LIST to display the list of stations
received, in alphabetical order.
02
230
301_en_Chap12b_RDE1_ed01-2016
RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative frequencies. However, in
certain conditions, coverage by an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a
journey.
AUDIO
RDS
Press MENU.
Select "Radio" then conrm by
pressing OK.
Select "RDS" then conrm by
pressing OK.
Select "On" or "Off" to switch RDS on
or off, then conrm with OK to save the
selection.
Receiving TA messages
The TA (Trafc Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a radio
station transmitting this type of message. When a trafc report is
transmitted, the current audio source (Radio, CD, ...) is interrupted
automatically to play the TA message. Normal playback of the audio
source resumes at the end of the transmission of the message.
Select "RADIO" then conrm by
pressing OK.
Select "Trafc TA" then conrm by
pressing OK.
Select "On" or "Off" to switch on or off
the reception of trafc announcements
then conrm by pressing OK to save
the selection.
Press MENU to switch on or off the
reception of trafc announcements.
02
231
301_en_Chap12b_RDE1_ed01-2016
AUDIO
Radio Text is information transmitted by the radio station on the
station or on the song being played.
Press MENU.
Select "Radio" or "Media" (depending
on the current sound source) then
conrm by pressing OK.
Select "RADIO TEXT" then conrm by
pressing OK.
Display RADIO TEXT
Audio CD
Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no reection on the
quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.
To play a disc which has already been
inserted, press the SRC/BAND button
several times in succession until "CD" is
displayed.
Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forward or backward.
Playing a CD
Select "On" or "Off" to switch radio
text on or off, then conrm with OK to
save the selection.
02
232
301_en_Chap12b_RDE1_ed01-2016
AUDIO
CD
Information and advice
On a given disc, the CD player can read up to 255 MP3 les spread
over 8 levels. However, it is advisable to keep to a limit of two levels to
reduce the access time before the CD is played.
The folder structure is not observed during playback.
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctly.
It is recommended that the same recording standard is always used
for a given disc, with as low a speed as possible (4x maximum) for
optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
The audio system can only play les with ".mp3", ".wma" or ".wav"
extensions.
A high compression level can degrade the sound quality.
Playlists accepted are types .m3u and .pls.
The system can recognise up to 5 000 les in 500 folders on 8 levels.
It is advisable to restrict le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.
02
233
301_en_Chap12b_RDE1_ed01-2016
CD
AUDIO
Playing a compilation
Insert an MP3 compilation on the CD player.
The system constitutes playlists (in temporary memory) which may
take between a few seconds to several minutes.
To play a disc already inserted, press
SRC/BAND several times in succession
until "CD" is displayed.
Press one of the buttons to select the
previous or next track.
Press one of the buttons to select the
previous or next folder depending on the
classication selected.
Press and hold one of the buttons for
fast forward or backward.
02
234
301_en_Chap12b_RDE1_ed01-2016
Select a line in the list.
Jump a page.
Go back one level.
Select a folder /Playlist.
Start play of the track selected.
Go back to the rst level to select the track classication:
- By Folders: all folders containing audio les recognised on the
peripheral, in alphabetical order, ignoring the folder structure.
- By Playlist: depending on the playlists saved.
Press LIST to display the compilation
folder structure.
AUDIO
02
235
301_en_Chap12b_RDE1_ed01-2016
AUDIO
Auxiliary socket (AUX)
Auxiliary JACK socket
Connect the portable device to the auxiliary Jack socket using a
suitable cable (not supplied).
The auxiliary Jack socket permits the connection of a portable
device.
Press the SRC/BAND button
successively and select "AUX".
First adjust the volume on your portable device.
Then adjust the volume of the audio
system.
The display and management of controls is on the
portable device.
02
236
301_en_Chap12b_RDE1_ed01-2016
AUDIO
Play mode
The play modes available are:
- Normal: the tracks are played in order, depending on the
classication of the selected les.
- Random: the tracks in an album or folder are played in a random
order.
- Random all: all of the tracks saved in the media ar played in
random order.
- Repeat: the tracks played are only those from the current album
or folder.
Press MENU.
Select "Media" then conrm by
pressing OK.
Select the desired play mode and
conrm with OK to save the changes.
03
237
301_en_Chap12b_RDE1_ed01-2016
Press ¯ to display the audio settings
menu.
The settings available are:
- AMBIANCE,
- BASS,
- TREBLE,
- LOUDNESS,
- BALANCE (L/R),
- AUTO VOLUME.
The AMBIANCE, TREBLE and BASS settings are different and
independent for each sound source.
Select the settings to adjust.
Adjust the setting then conrm by
pressing OK.
AUDIO SETTINGS
04
238
301_en_Chap12b_RDE1_ed01-2016
Radio
MENU
Trafc
RDS
TEXT INFO
Media
Play
Normal
Random
Displaying
SCROLLING
1
2
2
2
1
2
3
3
1
2
Random all
Repeat
3
3
Unit
Celsius
Fahrenheit
1
2
2
SCREEN MENU MAP(S)
TEXT INFO
2
Language
1
MAIN FUNCTION
Option A1
Option A11
Option A
Option B...
1
2
3
1
239
301_en_Chap12b_RDE1_ed01-2016
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
There is a difference in
sound quality between
the different audio
sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambiance, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambiance, Loudness) are adapted to
the sources listened to. It is advisable to set the
AUDIO functions (Bass, Treble, Front-Rear Fader,
Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambiance
setting is deselected.
When changing the
ambiance setting, treble
and bass are reset to
zero.
Choosing an ambiance imposes settings for treble and bass. Modifying
one without the other is not possible.
Modify the treble and bass settings or the
ambiance setting to obtain the desired sound
quality.
The following tables contain answers to the most frequently asked questions.
240
301_en_Chap12b_RDE1_ed01-2016
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 MHz is
displayed...).
The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Switch on the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.
This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.
Switch off the RDS function if the phenomenon is
too frequent and always on the same route.
The trafc announcement
(TA) is displayed. I do
not receive any trafc
information.
The radio station does not broadcast trafc information. Tune to a radio station which broadcasts trafc
information.
The stored stations are
not found (no sound,
87.5 MHz is displayed...).
An incorrect waveband is selected. Press the SRC button to return to the waveband
(AM, FM1, FM2) on which the stations are stored.
241
301_en_Chap12b_RDE1_ed01-2016
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
The CD is ejected
automatically or is not
played by the player.
The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- The audio system's CD player does not play
DVDs.
- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor.
The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambiance) are unsuitable. Set the treble or bass level to 0, without selecting
an ambiance.
In "Random all" play,
not all of the tracks are
played.
In "Random all" play, the system can only take into account up to
999 tracks.
With the engine off, the
audio system switches
off after a few minutes
of use.
When the engine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode
and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display.
In order to protect the installation if the surrounding temperature is too
high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes to
allow the system to cool.
242
Visual search
301_en_Chap13_recherche-visuelle_ed01-2016
Exterior
Remote control key 33-36
- opening / closing
- anti-theft protection
- starting
- battery
Boot 40-41
- opening / closing
- emergency release
Temporary puncture
repair kit 140-144
Wipers 97-98
Changing a wiper blade 169
Changing bulbs 157-158
- rear lamps
- 3
rd
brake lamp
- number plate lamps
- foglamp
Fuel tank, misfuel
prevention 129-131
Running out of fuel (Diesel) 132
Accessories 175-176
ESP/ASR 106
Tyre pressures 193
Spare wheel 145-151
- tools
- removing / refitting
Snow chains 152
Under-inflation detection 101-104
Lighting controls 91-95
Daytime running lamps 95
Headlamp beam height adjustment 96
Changing bulbs 153-156
- front lamps
- foglamps
- direction indicator repeaters
Towing 170-171
Very cold climate screen(s) 174
Door mirrors 46-47
Doors 33-36, 39
- opening / closing
- central locking
- secondary control
Alarm 37-38
Electric windows 42
Rear parking
sensors 89-90
Towbar 172-173
.
243
Visual search
301_en_Chap13_recherche-visuelle_ed01-2016
Interior
Boot fittings 61-62
- boot lamp
- storage box
AdBlue
®
tank 137-139
Front seats 43-44
Child seats 114-122
ISOFIX child seats 123-127
Manual child lock 128
Airbags 110-113
Interior fittings 58-60
- sun visor
- glove box
- front armrest
- USB port / Auxiliary socket
- 12 V accessory socket /
cigarette lighter
Deactivating the passenger's
front airbag 111
Seat belts 107-109
Rear seats 45
244
Visual search
301_en_Chap13_recherche-visuelle_ed01-2016
Instruments and controls
Opening the bonnet 180
Manual gearbox 68
Electronic gearbox 69-72
Automatic gearbox 73-76
Automatic gearbox
(EAT6) 77-80
Gear shift
indicator 81
USB port / Jack socket 60
12 V accessory socket /
Cigarette lighter 60
Dashboard fuses 159-162
Electric windows, deactivating 42
Heating, ventilation 49-51
Manual air conditioning
(without display screen) 51-52
Electronic air conditioning
(with display screen) 53-55
Front demist/defrost 56
Rear screen demist/
defrost 57
Heated lower windscreen 57
Audio system / Bluetooth 195-225
Audio system 227-241
Setting the date/time 26
Monochrome screen C
(Audio system / Bluetooth) 29-32
Courtesy lamps 99
Interior rear view mirror 47
Parking brake 67
Hazard warning lamps 100
Locking/unlocking
from inside 41
.
245
Visual search
301_en_Chap13_recherche-visuelle_ed01-2016
Door mirror
adjustment 46-47
Deactivating the ESP/ASR
system 106
Stop & Start 82-84
Opening the boot lid
(depending on version) 40
Alarm warning lamp 37-38
Instrument panels 10
Warning lamps 11-22
Service indicator 23-25
Gear shift
indicator 81
Distance recorders 25
Lighting controls 91-95
Direction indicators 100
Horn 100
Instruments and controls (cont.)
Headlamp beam height adjustment 96
Wiper control 97-98
Trip computer 27-28
Speed limiter 85-86
Cruise control 87-88
Steering wheel adjustment 48
246
Visual search
301_en_Chap13_recherche-visuelle_ed01-2016
Maintenance - Technical data
Petrol weights 189
Diesel weights 191
Changing bulbs 153-158
- front
- rear
Running out of fuel, Diesel 132
AdBlue
®
additive and SCR system
(BlueHDi Diesel) 133-139
Opening the bonnet 180
Under the bonnet, petrol 181
Under the bonnet, Diesel 182
Petrol engines 188
Diesel engines 190
Battery 164-167
Load reduction, economy mode 168
Engine compartment
fuses 159-160, 163
Checking levels 183-185
- oil
- brake fluid
- coolant
- screenwash fluid
- additive (Diesel with particle filter)
Checking components 186-187
- battery
- air / passenger compartment filter
- oil filter
- particle filter (Diesel)
- brake pads / discs
Identification markings 193
Dimensions 192
.
247
Alphabetical index
301_en_Chap14_index-alpha_ed01-2016
ABS and EBFD systems ............................... 105
Accessories ..................................................175
AdBlue
®
........................................... 21, 133, 137
Additive, AdBlue ......................21, 133, 134, 137
Adjusting head restraints ................................44
Adjusting seat .................................................43
Adjusting the date ...........................................26
Adjusting the height of the steering wheel .....48
Adjusting the time ...........................................26
Advice on care and maintenance .... 175, 181, 182
Advice on driving ............................................63
Airbags .................................................... 20, 110
Airbags, curtain .............................................113
Airbags, front......................................... 110, 113
Airbags, lateral ...................................... 112, 113
Air conditioning .................................................8
Air conditioning, electronic
(with display screen) ...............................50, 53
Air conditioning, manual
(without display screen) ..........................50, 51
Air vents ..........................................................49
Alarm ............................................................... 37
Anti-lock braking system (ABS) .................... 105
Anti-theft .........................................................64
Armrest ............................................................ 58
Armrest, front ..................................................60
Ashtray ............................................................58
ASR and ESP systems .................................106
Audible warning ............................................100
Audio streaming (Bluetooth) .................208, 210
Audio system (radio) .............................195, 227
Battery ............................................ 164-167, 186
Battery, charging ........................................... 166
Battery, remote control .............................35, 36
Blanking screen (snow shield) ......................174
BlueHDi ...........................................23, 133, 134
Bluetooth (hands-free) ..................................209
Bonnet ...........................................................180
Boot .................................................................40
Boot (opening) .................................................33
Brake discs ....................................................187
Brake lamps ..................................................157
Brakes ..................................................... 17, 187
Braking assistance system ...........................105
Bulbs (changing) ...................................153, 157
Date (setting) ................................................... 26
Daytime running lamps ...........................95, 155
Deactivating the passenger airbag ...............110
Defrosting ..................................................51, 57
Defrosting, front ..............................................56
Defrosting, lower windscreen .........................57
Demisting ........................................................51
Demisting, front ...............................................56
Demisting, rear screen ...................................57
Capacity, fuel tank ........................................129
Cap, fuel filler ................................................ 129
CD .................................................................202
CD, MP3 ............................................... 203, 204
Central locking ................................................34
Changing a bulb .................................... 153, 157
Changing a fuse ............................................159
Changing a wheel .................................145, 146
Changing a wiper blade ..........................98, 169
Changing the remote control battery .............. 35
Checking the levels ................................183-185
Checking tyre pressures (using the kit) ........140
Checks ..................................181, 182, 186, 187
Checks, routine ..................................... 186, 187
A B
C
D
Child lock ........................................121, 127, 128
Children .......................................... 121, 124-127
Children (safety) ............................................128
Child seats .....................109, 114-116, 120-122
Child seats, conventional .............................. 120
Child seats, ISOFIX ...............................123-127
Cigar lighter .....................................................60
Cleaning (advice) ..........................................175
Clock ...............................................................26
Closing the boot ........................................34, 40
Closing the doors ......................................34, 39
Control, electric windows ................................42
Control, emergency boot release ...................41
Control stalk, lighting ......................................91
Control stalk, wipers .......................................97
Courtesy lamps ...............................................99
Cruise control .................................................. 87
Cup holder .......................................................58
248
Alphabetical index
301_en_Chap14_index-alpha_ed01-2016
Ignition .............................................................66
Immobiliser, electronic ..............................36, 64
Indicator lamps, operation ........................11, 15
I
Dials and gauges ............................................10
Diesel ............................................................131
Dimensions ...................................................192
Dipstick ..........................................................183
Direction indicators .......................100, 154, 157
Display screen, instrument panel .............10, 81
Display screen, multifunction (with audio
system)..........................................................29
Door pockets ...................................................58
Doors ...............................................................39
Driving conomically ...........................................8
Eco-driving ....................................................... 8
Eco-driving (advice) ..........................................8
Economy mode .............................................168
Electronic brake force
distribution (EBFD) .....................................105
Emergency braking assistance (EBA) ..........105
Emergency braking system ..........................105
Emergency warning lamps ...........................100
Emissions control system, SCR .....................22
Energy economy mode .................................168
Engine compartment ............................181, 182
Engine, Diesel .........13, 131, 132, 182, 190, 191
Engine, petrol ................................131, 181, 188
Engines .........................................188, 190, 191
Environment ................................................8, 36
ESP/ASR ....................................................... 106
Gauge, fuel....................................................129
Gearbox, automatic ..................73, 77, 164, 187
Gearbox, electronic ..................69, 82, 164, 187
Gearbox, manual ....................................68, 187
Gear lever .........................................................8
Gear lever,
automatic gearbox ........................................ 73
Gear lever,
electronic gearbox ...................................... 187
Hazard warning lamps ..................................100
Hazard warning lamps,
automatic operation ....................................100
Headlamp adjustment .....................................96
Headlamps ......................................................91
Headlamps, dipped beam .......................91, 155
Headlamps, halogen ..................................... 153
Headlamps, main beam .......................... 91, 154
Head restraints, front ......................................44
Heating .................................................. 8, 51, 53
Horn...............................................................100
E
F
G
H
Filling the fuel tank ................................. 129-131
Filter, air ........................................................186
Filter, oil .........................................................186
Filter, particle ........................................185, 186
Filter, passenger compartment ..................... 186
Fitting a wheel ............................................... 148
Fitting roof bars ............................................. 178
Fittings, boot ...................................................61
Fittings, interior .........................................58, 59
Flap, fuel filler ........................................129, 130
Flashing indicators ................................100, 154
Foglamp, rear .......................................... 93, 157
Foglamps, front .......................................93, 156
Fuel............................................................8, 131
Fuel consumption ..............................................8
Fuel tank........................................................130
Fusebox, dashboard .....................................159
Fusebox, engine compartment ..................... 159
Fuses .............................................................159
Gear lever, manual gearbox ...........................68
Gear shift indicator .........................................81
Glove box ........................................................59
.
249
Alphabetical index
301_en_Chap14_index-alpha_ed01-2016
Labels, identification ..................................... 193
Lamps, front ..................................................153
Level, AdBlue
®
additive .................................133
Level, brake fluid ........................................... 184
Level, Diesel additive ....................................185
Level, engine coolant .................................... 185
Level, engine oil ............................................183
Levels and checks .................................181-185
Level, screenwash fluid ................................185
Lighting ............................................................91
Lighting, guide-me home ................................95
Lighting, interior ..............................................99
Loading .....................................................8, 178
Load reduction mode ....................................168
Locating your vehicle ......................................34
Low fuel level ................................................129
Maintenance (advice) ....................................175
Maintenance, routine ........................................8
Map reading lamps .........................................99
Markings, identification .................................193
Mat ................................................................177
Menu, main ...................................................198
Mirror, rear view ..............................................47
Mirrors, door....................................................46
Mirror, vanity ...................................................59
Misfuel prevention .........................................130
Mountings, Isofix ........................... 123, 126, 127
MP3 CD ................................................ 203, 204
Number plate lamps ...................................... 158
Opening the bonnet ......................................180
Opening the boot ......................................33, 40
Opening the doors ....................................33, 39
Pads, brake ...................................................187
Paint colour code ..........................................193
Parking brake ..........................................67, 187
Parking sensors, rear......................................89
Petrol ............................................................. 131
Player, MP3 CD .................................... 203, 204
Port, USB ................................................60, 205
Pre-heater, Diesel ........................................... 13
Pressures, tyres .................................... 144, 193
Pre-tensioning seat belts ..............................109
Priming the fuel system ................................132
Protecting children .... 110, 114-116, 121, 124-127
Puncture ........................................................ 140
L N
M
O
P
Indicators, direction ..............................100, 154
Inflating tyres ....................................................8
Inflating tyres and accessories
(using the kit) ..............................................140
Input, auxiliary .......................................207, 235
Instrument panel .............................................10
Isofix mountings ............................ 123, 126, 127
Jack .......................................................145, 146
Jump starting ................................................165
Key with remote control ............... 33, 34, 36, 64
Kit, hands-free ..............................................209
Kit, temporary puncture repair ......................140
J
K
250
Alphabetical index
301_en_Chap14_index-alpha_ed01-2016
Radio .............................................................199
Range, AdBlue ..............................................134
Rear screen,
demisting ......................................................57
Recharging the battery .................................166
Reduction
of electrical load .........................................168
Regeneration
of the particle filter ...................................... 186
Reinitialisation
of the under-inflation
detection system .........................................102
Reinitialising the remote control .....................35
Reminder,
key in ignition ................................................66
Reminder,
lighting on .....................................................94
Remote control ................................... 33, 34, 36
Removing a wheel ........................................148
Removing the mat ......................................... 177
Replacing bulbs ....................................153, 157
Replacing fuses ............................................159
Replacing the air filter ...................................186
Replacing the oil filter ...................................186
Replacing the passenger
compartment filter ......................................186
Reservoir, screenwash .................................185
Resetting the service indicator .......................24
Resetting the trip recorder .............................. 25
Rev counter ..................................................... 10
Reversing lamps ...........................................157
Roof bars .......................................................178
Running out of fuel
(Diesel) .......................................................132
Safety, children ............... 110, 114-116, 124-126
Screen C, monochrome
(Audio system / Bluetooth) ...........................29
Screen menu map .........................219, 220, 238
Screen, monochrome ...........................219, 238
Screen, multifunction
(with audio system) ...............................29, 198
Screens, very cold conditions .....................174
Screenwash, front ........................................... 97
SCR (Selective Catalytic Reduction) ............ 133
SCR system ..................................................133
Seat belts ...................................... 107, 109, 120
Seats, front ......................................................43
Seats, rear .......................................................45
Selector, gear ............................................69, 77
Serial number, vehicle ..................................193
Service indicator .............................................23
Servicing ...........................................................8
Sidelamps .......................................91, 155, 157
Side repeater ................................................156
Snow chains .................................................. 152
Socket, 12 V accessory ..................................60
Socket, auxiliary ............................................207
Socket, JACK ..........................................60, 207
Sockets, audio ........................60, 205, 207, 235
Sockets, auxiliary ..........................................235
Speed limiter ...................................................85
Speedometer ..................................................10
Stability control (ESP) ...................................106
Starting the engine .........................................64
Starting the vehicle ...................... 64, 69, 73, 77
Starting using another battery ......................165
Steering mounted controls, audio ................197
Steering wheel, adjustment ............................48
Stopping the vehicle .................... 64, 69, 73, 77
Stop & Start ...............................14, 82, 164, 167
Storage ......................................................58-60
Storage box .....................................................62
Sun visor .........................................................59
Switching off the engine .................................64
Synchronising the remote control ................... 35
Table of weights ....................................189, 191
Tables of engines ..........................188, 190, 191
Tables of fuses .............................................. 159
Tank, AdBlue
®
additive .........................133, 137
Tank, fuel ...............................................129, 130
Technical data ........................................188-191
Telephone .....................................................211
Third brake lamp ...........................................158
Three flashes (direction indicators) ..............100
Time (setting) ..................................................26
Tools ...................................................... 145, 146
Topping-up the AdBlue
®
additive .................137
Total distance recorder ...................................25
Towbar ...........................................................172
Towed loads ..........................................189, 191
Towing another vehicle .................................170
Traction control (ASR) ..................................106
Traffic information (TA) .................................200
Trailer ............................................................172
Trip computer .............................................27-29
Trip distance recorder .....................................25
Tyres ..................................................................8
Tyre under-inflation
detection ....................... 17, 101, 103, 104, 144
T
SR
.
251
Alphabetical index
301_en_Chap14_index-alpha_ed01-2016
Under-inflation (detection) ............................101
Unlocking ........................................................33
Unlocking the boot ..........................................33
UREA ....................................................133, 134
Windscreen, heated ........................................ 57
Wiper blades (changing) .........................98, 169
Wipers .............................................................97
Ventilation .......................................8, 49-51, 53
Warning and indicator lamps ..............11, 15, 16
Warning lamp, braking system .......................17
Warning lamp,
Diesel engine pre-heater ..............................13
Warning lamps ................................................16
Warning lamp, SCR emissions
control system ..............................................22
Washing (advice)...........................175, 181, 182
Weights .................................................189, 191
Wheel, spare .........................................145, 146
Window controls .............................................42
U
V
W
11-15
Reproduction or translation of all or part of
this document is prohibited without written
authorisation from Automobiles PEUGEOT.
Automobiles PEUGEOT declares, by
application of the provisions of the European
legislation (Directive 2000/53) relating to End
of Life Vehicles, that it achieves the objectives
set by this legislation and that recycled
materials are used in the manufacture of the
products that it sells.
Printed in the EU
Anglais
For any work on your vehicle, use a qualified
workshop that has the technical information,
competence and equipment required, which a
PEUGEOT dealer is able to provide.
We draw your attention to the following
points:
- The tting of electrical equipment or
accessories not listed by PEUGEOT may
cause faults and failures with the electrical
system of your vehicle. Contact a
PEUGEOT dealer for information on the
range of recommended accessories.
- As a safety measure, access to the
diagnostic socket, used for the vehicle's
electronic systems, is reserved strictly for
PEUGEOT dealers or qualied workshops,
equipped with the special diagnostic tool
required (risk of malfunctions of the vehicle's
electronic systems that could cause
breakdowns or serious accidents). The
manufacturer cannot be held responsible if
this advice is not followed.
- Any modication or adaptation not intended
or authorised by Automobiles PEUGEOT
or carried out without meeting the technical
requirements dened by the manufacturer
would lead to the suspension of the legal
and contractual warranties.
Labels are applied at various
points on your vehicle. They carry
safety warnings as well as vehicle
identification information. Do not
remove them: they form an integral
part of your vehicle.
Anglais
AN. 16301.0040
www.peugeot.com
