User Manual Gas Dryer

Installation

This dryer must be installed by a qualified technician. The installer is responsible for connecting the dryer to the main power while observing the relevant safety regulations of your area.

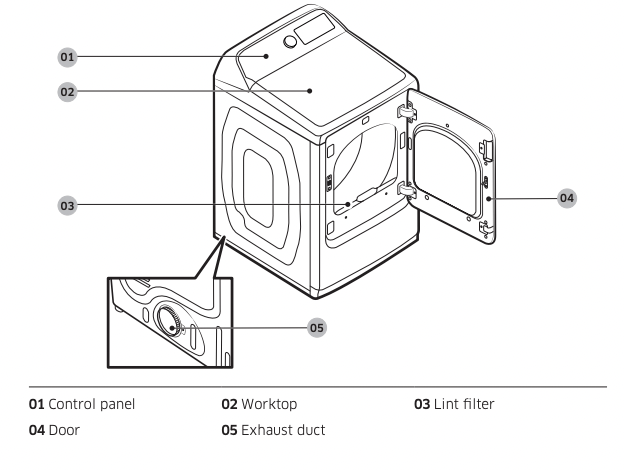

What’s included

Make sure all the parts are included in the product package. If you have a problem with the dryer or the parts, contact a local Samsung customer center or the retailer.

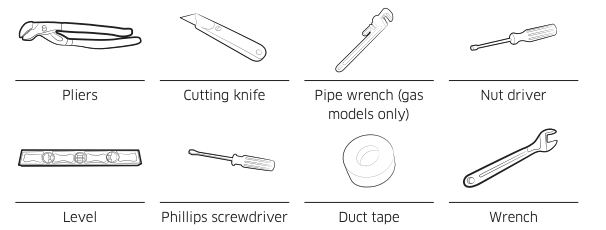

Tools needed for installation

WARNING

Packing materials can be dangerous to children. Keep all packing materials (plastic bags, polystyrene, etc.) out of children’s reach.

Step-by-step installation

Make sure you have a qualified technician install the dryer. Step by step installation instructions start below.

• Do not remove the protective film on the door before completing the product installation. If you remove the protective film before the installation is complete, the door may get scratched or damaged during installation.

• Make sure the installation location allows enough space for the dryer door to be fully open.

STEP 1 Install the exhaust system

1. Select a location and move the dryer to the site. For easy access, we recommend you install the dryer in the same location as your washer.

2. To change the door direction, see “Switching the door position” on page 31.

3. Install the exhaust system as instructed in the “Exhaust ducting guide” section.

CAUTION

Before installing your dryer, remove the packing in the duct.

NOTE

  • To move the dryer easily, lay two of the carton cushion-from the packaging on the floor. Tip the dryer on its side so it lies across both cushion-tops. Push the dryer so that it is near its final location, and then set the dryer upright.
  • Secure room around the dryer to facilitate ducting and wiring.

STEP 2 Connect the gas line (for gas models)

Before connecting the gas line, make sure you have read the “Gas requirements” section on page 16.

1. Remove the protective cap from the gas pipe.

2. Apply an LPG (Liquefied Petroleum Gas)-safe compound or 1.5 wraps of Teflon tape to all threaded connections.

3. Connect the gas supply to the dryer. An additional fitting is required to connect the 3/4” (1.9 cm) female thread end of a flexible connector to the 3/8” (1 cm) male threaded end on the dryer. Tighten up the fitting over all threads.

4. Turn on the gas supply, and check for any leaks using a soap solution. If a leak is found, tighten the connections and try again. Do not use an open flame to check for gas leaks.

STEP 3 Connect the electrical wiring (for electric models)

Before connecting the electrical wiring, make sure you have read the “Electrical requirements” section on page 17.

3-wire system

A. External ground connector

B. Neutral grounding wire (white)

C. Center silver-colored terminal block screw

D. Neutral wire (white or center wire)

E. 3/4” (1.9 cm) UL-listed strain relief

  1. Loosen or remove the center terminal block.
  2. Connect the neutral wire (white or center wire) of the power cable to the center, silver-colored terminal screw of the terminal block. Tighten the screws.
  3. Connect the other wires to outer terminal block screws. Tighten the screws.
  4. Tighten the strain relief screws.
  5. Insert the terminal block cover into the rear panel of the dryer. Then, secure the cover with a hold-down screw.

CAUTION

  • To convert from the 4-wire system to 3-wire system, connect the ground strap to the terminal block support to ground the dryer frame to the neutral conductor.
  • Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

4-wire system

A. External ground connector

B. Green or bare copper wire of power cord

C. 3/4” (1.9 cm) UL-listed strain relief

D. Center silver-colored terminal block screw

E. Neutral grounding wire (white)

F. Neutral wire (white or center wire)

  1. Remove the external ground connector’s screw and connect the ground wire (green or unwrapped) of the power cable to the screw.

CAUTION

- To connect the ground wire to the neutral position without through contact A (cabinet ground), contact a technician. This is not user serviceable.

- Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

2.Loosen or remove the screws from the center terminal block.

3. Connect the neutral wire (white or center wire) and ground wire (white) to the center screw of the terminal block. Tighten the screw.

4. Connect the other wires to the outer terminal block screws. Tighten the screws.

5. Tighten the strain relief screws.

6. Insert the tab of the terminal block cover into the rear slot of the dryer. Secure the cover with a hold-down screw.

WARNING

  • All U.S. models are designed for a 3-wire system connection. The dryer frame is grounded to the neutral conductor at the terminal block. A 4-wire system connection is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral. If you use the 4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal block.
  • Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet near the terminal block.
  • A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure they are tight. Use a 3/8” (1 cm) deep well socket.

STEP 4 Connect the water hose

The dryer must be connected to a cold water tap using the provided water hoses.

  1. Close the cold water tap. If you have a washer’s cold water hose attached to the cold water tap, unscrew and remove the hose. Then, connect the female end of the Y-connector to the cold water tap.
  2. Connect the straight end of the water hose to the Y-connector.
  3. Using pliers, tighten the coupling an additional two-thirds turn. Do not overtighten because the coupling may be damaged.
  4. Connect the angled end of the water hose to the filling valve at the bottom of the rear frame. Turn the coupling manually until it is tight.
  5. Using pliers, tighten the coupling an additional two-thirds turn. Do not overtighten because the coupling may be damaged.
  6. If you detached the cold water hose from your washer, attach the hose to the open end of the Y-connector, tighten the coupling by hand until it is tight, and then, using a pliers, tighten an additional two-thirds turn.
  7. Open the cold water tap, and then check for any leaks.

If the Y-connector cannot be directly connected to the cold water tap, use the short hose. See the “Using the short hose as an extension” section on page 26.

Using the short hose as an extension

  1. Close the cold water tap. If you have a washer’s cold water hose attached to the cold water tap, unscrew and remove the hose. Then, connect the short hose (B) to the cold water tap. Turn the coupling by hand until it is tight.
  2. Using pliers, tighten the coupling an additional two-thirds turn. Do not overtighten because the coupling may be damaged.
  3. Connect the Y-connector (A) to the brass male end of the short hose. Turn the coupling by hand until it is tight.
  4. Using pliers, tighten the coupling an additional two-thirds turn. Do not overtighten because the coupling may be damaged.
  5. Connect the angled end of the water hoses (C) to the filling valve at the bottom of the rear frame. Turn the coupling manually until it is tight.
  6. Using pliers, tighten the coupling an additional two-thirds turn. Do not overtighten because the coupling may be damaged.
  7. If you detached the cold water hose from your washer, attach the hose to the free end of the Y-connector, tighten the coupling by hand until it is tight, and then, using a pliers, tighten an additional two-thirds turn.
  8. Open the cold water tap, and then check for any leaks.

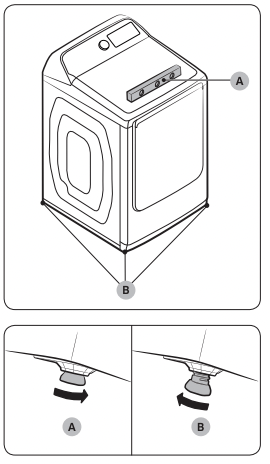

STEP 5 Level the dryer

To ensure optimal performance, the dryer must be level

Using a level (A), check if the dryer is level side to side and then front to back. If the dryer is not level, turn the leveling feet (B) clockwise to lower the dryer or counterclockwise to raise the dryer.

NOTE

  • To set the dryer to the same height as your washer, fully retract (A) the leveling feet by turning them counterclockwise, then loosen (B) the feet by turning them clockwise. Once the dryer is the same height as the washer, follow the directions above to level the dryer.
  • Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate.

STEP 6 Power on (for gas models)

Make sure all gas connections, the exhaust line, and all wiring is connected correctly. Then, plug the power cord into a power source and check the dryer’s installation and operation using the final checklist in Step 7 below.

STEP 7 Final check

When installation is complete, confirm that:

  • The dryer is plugged into an electrical outlet and grounded properly.
  • The exhaust ductwork is connected, and the joints are taped.
  • You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct.
  • The dryer is level and is sitting firmly on the floor.
  • The dryer starts, runs, heats, and shuts off properly.

For gas models:

The gas is supplied properly with no leaks (For gas models only).

CAUTION

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been turned on. To confirm gas ignition, check the exhaust for heat.

Vent blockage test

After the dryer is installed, start the Vent Blockage Test to check if the duct system is properly installed. The Vent Blockage Test automatically detects the status of the ducts and reports any blockage or problems. Proper ducting can reduce drying time and save energy.

NOTE

The Vent Blockage Test must run when the dryer is cool. If the dryer warms up after the installation check, run the AIR FLUFF cycle for several minutes to reduce its internal temperature.

Running the vent blockage test

  1. Make sure the drum is empty, and then close the door. (If there are any clothes or other items in the drum, the test will not give accurate results.)
  2. Press the Power button to turn the dryer on, then simultaneously press and hold the Adjust Time and Dryness buttons for 3 seconds. “InS or In” appears in the dryer’s display. (If you have started other procedures before the Vent Blockage Test, the dryer will not enter the Vent Blockage Test mode.)
  3. Press the Start/Pause (Hold to Start) button. The Vent Blockage Test starts immediately. During the test, the number indicator makes a circle in 6 clockwise steps. The test takes about 2 minutes. Do not open the door during the test.
  4. After 2 minutes, when the test is complete, the results are displayed and the dryer sounds a tone. If status of the duct system is normal, “End or 0” appears and the dryer sounds a completion tone. If the duct system can not exhaust properly, “CLg or Cg” appears and the dryer sounds an alarm tone. If there are any other problems, an information code appears in the display. For information about the code, see the Information codes” section on page 52.
  • To stop or cancel the Vent Blockage Test, press the Power button to turn off your dryer.
  • During the test, if “dc” appears in the display, make sure the door is closed. If “C1” is displayed, see if there is laundry inside drum. If there is, stop the test and remove it. Then, start the test again.
  • The results remain on the display for about 5 minutes and then automatically turn off. You can turn the results off immediately by pressing the Power button.

NOTE

  • During or after the test, the internal drum is hot. Use caution to prevent burns. The Vent Blockage Test is used to check for problems in the current duct system when the dryer is installed for the first time.
  • If the test result displays “CLg or Cg” (the duct system is blocked), refer to the “Ducting requirements” section on page 14 and the “Exhaust ducting guide” section below, and then take proper measures to correct any problems. If the test is suspended, it could result in incorrect results. Follow the proper procedures when testing the dryer.
  • Even if the test result is normal (“End or 0”), the duct system could be blocked slightly. Properly install all duct work according to the installation instructions in this manual.

Exhaust ducting guide

Ducting

  1. Make sure the dryer is installed properly so the air exhausts freely.
  2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection. Never use lint-trapping screws.
  3. To facilitate the exhaust, keep the ducts as straight as possible.

Cleaning

Clean all old ducts before installing the dryer, and make sure the vent flap opens and closes freely. We recommend that you to clean the exhaust system annually or on a regular basis.

WARNING

  • To prevent fire, do not use plastic, thin-foil, or non-metal flexible ducts of any kind.
  • Do not use a poor exhaust system because it slows down the dryer’s performance.
  • Do not use excessively long ducts that have multiple elbows.
  • Do not use crushed or clogged venting or ducts.

Switching the door position

To reverse the direction of the door, we recommend that you contact a qualified technician.

  1. Put a soft rug on the floor to rest the door on after you have removed it. This will prevent the door from being scratched.
  2. Unplug the power cord of the dryer.
  3. Remove the four hinge screws from the door, and then remove the door by lifting it up slightly.
  4. Remove the two screws from the lever holder, and then remove the holder cover.
  5. Put the lever holder on the other side as shown, and then tighten the screws. Install the holder cover on the opposite side as shown.
  6. Use a flat-head screwdriver to remove the two hinge covers from the original side. Install the hinge covers on the opposite side as shown.

7. Locate and remove the 10 screws as shown. Note that screw B (x2) is longer than the others.

8. Remove the glass holder, and switch the positions of:

  • a. the hinge cover and the door handle.
  • b. the hinge holder and the glass-guide holder

9. Remove the door lever, and then move it to the other side as shown.

10.Remove the hole cover (C), and then insert and tighten the glass holder using the removed 10 screws.

11.Install the hole cover on the opposite side as shown.

12.Reinstall the door on the front frame, and then carefully insert and tighten the 4 hinge screws.

Before you start

Here are a few things you should know before starting your dryer.

Sort and load

  • Put one wash load in the dryer at a time.
  • Do not mix heavy and lightweight items together.
  • To improve drying efficiency for one or two items, add a dry towel to the load.
  • For best results, untangle items before inserting them into the dryer. Tangled items may degrade the drying efficiency or cause the door to open.
  • Overloading reduces the tumbling performance, resulting in uneven drying and wrinkling.
  • Unless recommended on the care label, do not dry woolens or fiberglass items.
  • Avoid drying unwashed items.
  • Do not dry items soiled with oil, alcohol, gasoline, etc.

Functional prerequisite

Lint filter

To prevent a risk of fire, make sure to clean the lint filter before or after every load.

  1. Turn off the dryer.
  2. Open the door and pull out the lint filter (A) from inside the drum.
  3. Remove the lint, and then clean the lint filter.
  4. Reinsert the lint filter, and then close the door.

CAUTION

  • Do not operate the dryer without the lint filter in place.
  • Do not use a damaged or broken lint filter. This may reduce performance and/or cause fire.

Operations

WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the “Safety information” before operating this appliance.

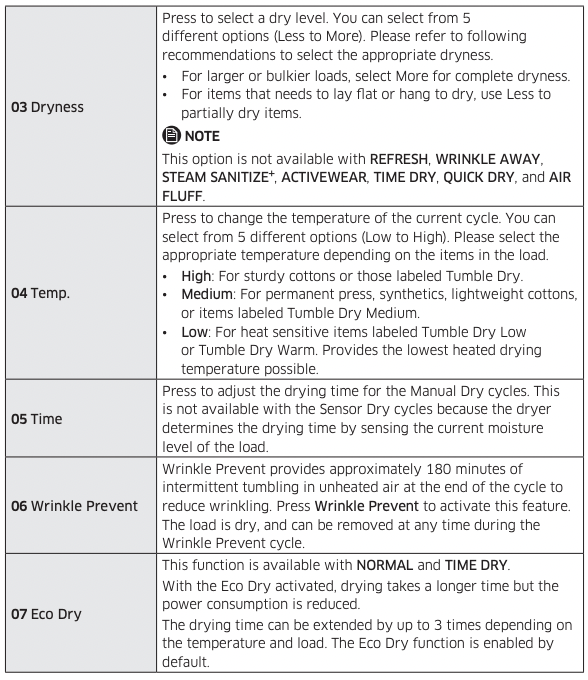

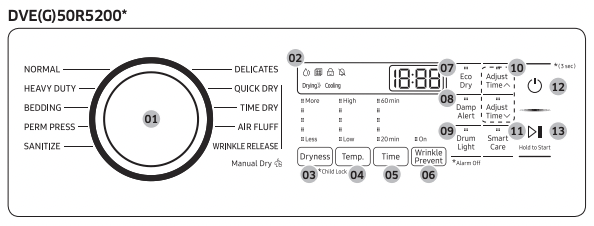

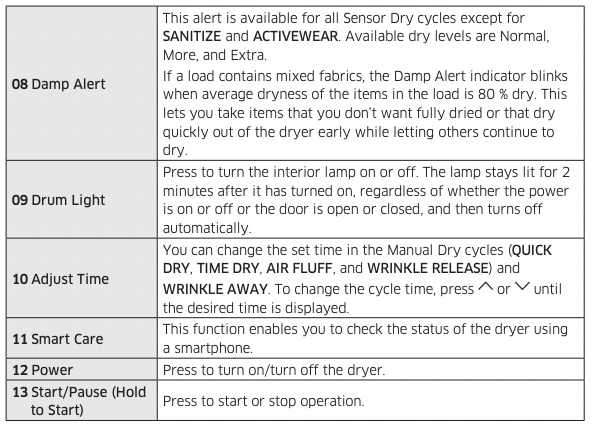

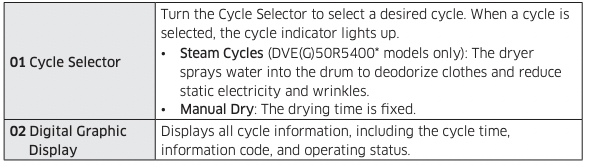

Control panel

NOTE

Do not take extremely tangled items from your washer and put them into the dryer. They can degrade the drying efficiency of the dryer or cause the door to open. We recommend that you untangle the items before putting them into the dryer. Also, do not put objects on the dryer, especially on the control panel.

CAUTION

Do not spray water directly onto the control panel. This may cause a system failure.

Simple steps to start

  1. Press Power to turn the dryer on.
  2. Turn the Cycle Selector to select a cycle.
  3. Change the cycle settings (Dryness, Temp., and Time) as necessary.
  4. Select desired options as necessary.
  5. Press and hold Start/Pause (Hold to Start).

To change the cycle during operation

  1. Press Start/Pause (Hold to Start) to stop operation.
  2. Select a different cycle, and repeat steps 2-4 above if necessary.
  3. Press and hold Start/Pause (Hold to Start) again to start the new cycle.

Cycle overview

Standard Cycles

  • NORMAL For most fabrics including cottons and linens. If NORMAL is selected, the Eco Dry function is enabled by default. For more information, see Eco Dry in the “Control panel” section.
  • HEAVY DUTY For drying items made out of heavy fabrics, such as jeans, corduroys, or work clothes, with high temperature heat.
  • BEDDING For bulky items such as blankets, sheets, and comforters.
  • SANITIZE (DVE(G)50R5200* models only) Use to sanitize items by applying high-temperature heat to the fabric. This cycle can make items soft and reduce smells.
  • DELICATES For heat-sensitive items at a low drying temperature.
  • PERM PRESS For drying wrinkle-free cottons, synthetic fabrics, knits, and permanent press fabrics automatically.
  • ACTIVEWEAR(DVE(G)50R5400* models only) For exercise wear and outdoor wear such as sports jerseys, training pants, water-repellent jackets, and other performance clothing. Thick fabrics like a zipper or velcro closure of a jacket, or training socks may not be completely dried.

Manual Dry

You can change the drying settings manually to your preference.

  • QUICK DRY A quick drying cycle running for 30 minutes. The default cycle time is 30 minutes. However, you may manually change the cycle time if necessary.
  • TIME DRY You can specify a cycle time in minutes. If TIME DRY is selected, the Eco Dry function is enabled by default. For more information, see Eco Dry in the “Control panel” section.
  • AIR FLUFF Tumbles the load in room temperature air.
  • WRINKLE RELEASE (DVE(G)50R5200* models only) The WRINKLE RELEASE cycle will release wrinkles from items that are clean, dry, and only slightly wrinkled, such as clothes from a crowded closet, suitcase or items that have been in the dryer too long after the cycle has ended. WRINKLE RELEASE can be used with any temperature selection.

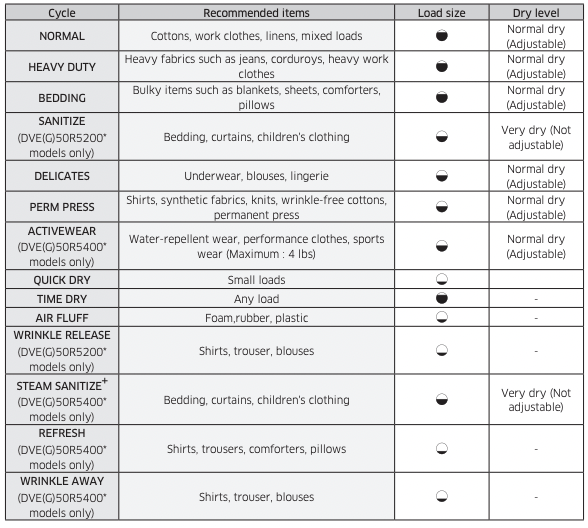

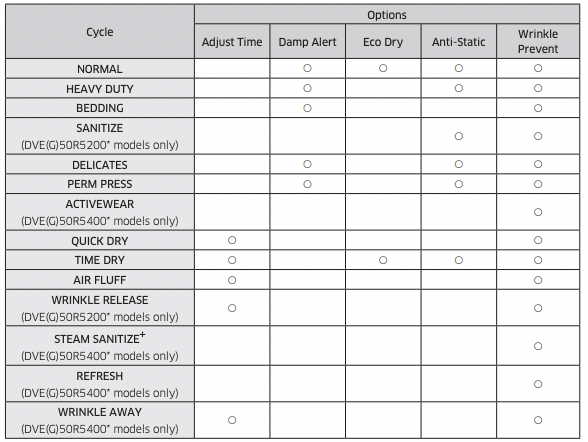

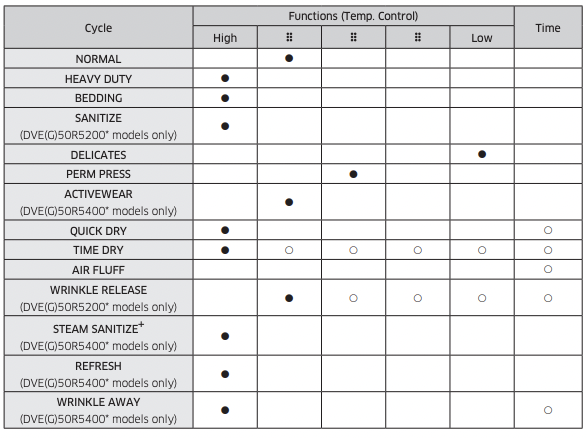

Cycle chart

NOTE

For best results, follow the load size recommendations for each dry cycle.

  • Large load: Fill the drum to about 3/4 full. Do not add items over this level as they need to tumble freely.
  • Medium load : Fill the drum to about 1/2 full.
  • Small load : Fill the drum with 3-5 items, not more than 1/4 full.

NOTE

: factory setting, : can be selected

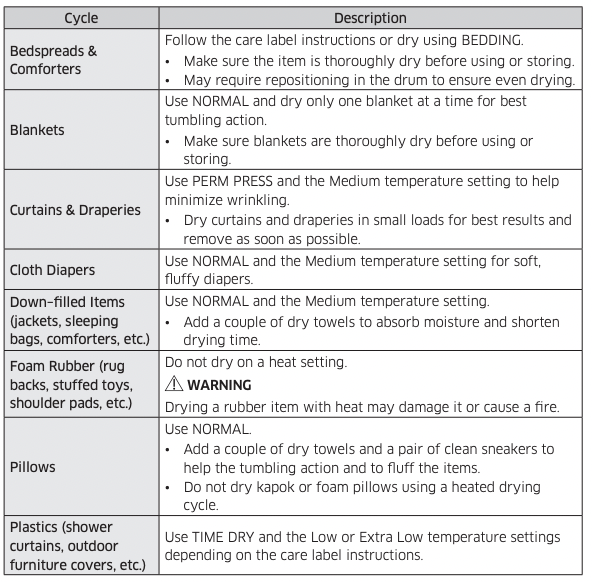

Cycle guide

The best way to dry items is to follow the instructions on the care label. If no drying instructions are provided, see the following table for reference.

WARNING

Do not dry:

  • Fiberglass items (curtains, draperies, etc.)
  • Woolens, unless recommended on the label
  • Items spotted or soaked with vegetable or cooking oils

Special features

Child Lock

Child Lock prevents children from playing with the dryer. When Child Lock is activated, all buttons except for the Power button are disabled.

To activate/deactivate Child Lock, simultaneously press and hold Dryness and Temp. for seconds.

NOTE

Once Child Lock is activated, it will remain active even after you restart the dryer. If other buttons, except for the Power button, do not respond, check the Child Lock indicator. If the indicator is on, follow the instructions above to turn Child Lock off.

Alarm Off

You can turn the alarm on or off. When the alarm is off, the melody of cycle completion and the power-off beep will not sound. However, the other sounds stay active.

  • Press and hold Drum Light for 3 seconds to turn the alarm on or off.
  • Your setting will be retained even after you turn off the dryer. You can turn the alarm back on by pressing and holding the same button for 3 seconds.

Smart Care

To enable this function, you must first download the SmartThings app at the Play Store or the App Store and install it on a mobile device featuring a camera function. The Smart Care function has been optimized for Galaxy & iPhone series (applicable models only).

  1. When the dryer detects an issue to check, an information code appears on the display. To enter Smart Care mode, press Smart Care.
  2. The dryer starts the self-diagnosis procedure and displays an information code if a problem is detected.
  3. Run the SmartThings app on your mobile device, and then tap Smart Care.
  4. Put the mobile device close to the dryer’s display so that the smartphone camera and the dryer face each other. The app automatically recognizes the information code.
  5. When the information code is recognized correctly, the app provides detailed information about the problem with applicable solutions.

NOTE

  • The function name, Smart Care, may differ depending on the language.
  • If light is reflected off the dryer’s display, the app may fail to recognize the information code.
  • If the app fails to recognize the information code, you can enter the code manually in the app.

Maintenance

Keep the dryer clean for best performance and to lengthen its life cycle.

WARNING

Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel - Do not contact the following parts while the appliance is energized: Control board and inlet valve.

Cleaning

Control panel

  • Clean with a soft, damp cloth. Do not use abrasive substances.
  • Do not spray liquid cleaning agents directly onto the dryer display.
  • Some laundry pre-treatment soil and stain removers may damage the control panel.
  • When using liquid cleaning agents, apply them to the cleaning cloth. Do not apply them directly to the dryer. Wipe up any spills or overspray immediately.

Drum

  • Remove any stains from the drum with an all-purpose cleaner.
  • Tumble old towels or rags to remove any remaining stains or cleaning substances. Stains may be still visible but will not affect subsequent loads.

Powder coated drum

To clean the powder coated drum, use a damp cloth with a mild, non-abrasive cleaner suitable for easily marred surfaces. Remove cleaner residue and dry with a clean cloth.

Dryer exterior

  • Clean with a soft, damp cloth. Do not use abrasive substances.
  • Protect the surface from sharp objects.
  • Do not place any heavy or sharp objects or a detergent container on the dryer. They can scratch or damage the top cover of the dryer.
  • The dryer has a high-gloss finish on the entire surface. Be careful not to scratch or damage the surface.

Exhaust system

  • Check and clean the exhaust system on a regular basis to maintain optimum performance.
  • The external exhaust hood must be cleaned frequently to ensure proper air flow.

Troubleshooting

Checkpoints

If the dryer operates abnormally, first check the list of problems in the table below and try the suggested actions.

Does not run.

  • Make sure the door is latched shut.
  • Make sure the power cord is plugged into a live electrical outlet.
  • Check your home’s circuit breakers or fuses.
  • Press or tap Start/Pause (Hold to Start) again if the door is opened during a cycle.
  • Clean the lint filter.

Does not heat.

  • Check your home’s circuit breakers or fuses.
  • Some cycles do not require heating. Check the selected cycle again.
  • For a gas dryer, make sure the gas supply is on.
  • Clean the lint filter and exhaust duct.
  • The dryer may have moved into the cool-down phase of the cycle.
  • Turn off the Eco Dry option for the NORMAL or TIME DRY cycles. When the Eco Dry option is on, the dryer performs an air dry process in the beginning of the cycle to reduce energy consumption. The air dry process does not use heated air, so you may feel that the dryer is not being heated, but this is normal.

Does not dry.

  • Check all of the above, plus...
  • Make sure the exhaust hood outside your home can open and close freely.
  • Check the exhaust system for lint buildup. Ducting should be inspected and cleaned annually.
  • Use a 4” rigid metal exhaust duct.
  • Do not overload. 1 wash load = 1 dryer load.
  • Dry heavy items and light weight items separately.
  • Large, bulky items, such as blankets or comforters, may require repositioning to ensure even drying.
  • Make sure that your washer is draining properly and extracting adequate water from the load.
  • The load may be too small to tumble properly. Add a few towels and restart the dryer.
  • The load may be too large to tumble properly. Remove some items and restart the dryer.
  • Clean the lint filter.

Is noisy.

  • Check the load for objects such as coins, loose buttons, nails, etc. Remove promptly.
  • It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle.
  • Make sure the dryer is leveled properly as outlined in the installation instructions.
  • It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum, fan, or exhaust system.

Dries unevenly.

  • Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. You can choose a higher dryness level or a cycle that involves a higher dryness level.
  • If one heavy item is dried with a light weight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level.
  • For the best drying results, dry heavy items and light weight items separately.

Has odors.

  • Household odors from paint, varnish, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler, and exhausts it outside.
  • When these odors linger in the air, completely ventilate the room before using the dryer.
  • Use a cycle featuring the Refresh function. If odors persist, wash and dry the item again.
  • Use the REFRESH cycle (DVE(G)50R5400* models only). If odors persist, wash and dry the items again.

Lint on clothes.

  • Make sure the lint filter is cleaned before every load. For clothes that naturally build up lint, clean the filter during the cycle.
  • Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they must be dried separately from clothes that are lint trappers (for example, a pair of black linen pants).
  • Divide larger loads into smaller loads for drying.
  • Check pockets thoroughly before drying, then dry clothes.
  • Remove lint inside the drum before drying.

Items still wrinkled after WRINKLE PREVENT (WRINKLECARE, WRINKLE RELEASE).

  • Small loads of 1 to 4 items work best.
  • Load fewer items. Load similar-type items.
  • Take out the items immediately after drying is complete.

Water drips from the nozzle when STEAM CARE starts.

  • This is steam condensation. The dripping water will stop after a short time.

Sprayed water is not visible during STEAM CARE.

  • Sprayed water is difficult to see when the door is closed.

Extended time.

  • Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the selected dryness level is reached. The drying time can change according to the type and amount of laundry. See the cycle chart for reference.

If a problem persists, contact a local Samsung service center

Information codes

If the dryer fails to operate, you may see an information code on the display panel. To determine what you should do, check the list of codes in the table below, and then try the suggested actions.

dC

Operating the dryer with the door open.

  • Make sure the door is properly closed.
  • Make sure laundry is not caught in the door.

FC

Invalid power source frequency.

  • Try restarting the cycle.
  • If this information code remains, contact a Samsung service center.

AC

Electronic control problem (Invalid Communication).

  • Contact a Samsung service center.

HC

High temperature heating check

  • Clean the lint filter.
  • If this information code remains, contact a Samsung service center. (enter the line test mode)

9C1

The electronic control needs to be checked.

  • Check if power is supplied properly.
  • If the information code remains, contact a Samsung service center.

tC

The Thermistor1 resistance is very low or high.

  • Check for a clogged lint screen
  • Check if the vent system is restricted.
  • If this information code remains, contact a Samsung service center. tC5

tC5

The Thermistor2 resistance is very low or high.

  • Check for a clogged lint screen.
  • Check if the vent system is restricted.
  • If this information code remains, contact a Samsung service center.

dF

Incorrect door switch.

  • Contact a Samsung service center.

If any information code keeps appearing on the display, contact a Samsung service center.



See other models: DVG45R6100C/A3 DVE45R6100C/A3 WF56H9100AV/A2 WA50R5400AV/US RF28R7201DT/AA

Samsung DVG50R5200W/A3 | File type: PDF | Filename: Samsung DVG50R5200W:A3 DV5200 7.4 cu. ft. Gas Dryer with Sensor Dry in White.pdf | Size: 15.1 MB | Language: English, Spanish

Download User Manual

Product Infomation and Reviews - DVG50R5200W/A3 photo

DVG50R5200W A3 Photo

View more photos

Samsung in United States

1-800-726-7864 Mon - Fri: 8AM - 12AM (EST) / Sat - Sun: 9AM - 11PM (EST) Sat - Sun: HOME APPLIANCE 9AM - 6PM (EST)

Samsung DVG50R5200W/A3 Questions and Answers

Find answers or Ask a question.
  • Total questions: 3
  • Questions unAnswered : 3

Q: How do i access and replace the belt??it sounds like my belt came off and now my dryer refuses to spin.it starts but makes a terrible sound while attempting to spin. Reply

Q: Hi
There is no hot air , what is the reason for that .
It started ok the first load , second load , there was no hot air Reply

Q: How to get front off to convert to lp Reply
