Haier HRF360TW Top Mount Refrigerator

User Manual - Transcript

• Page 4 - English - : In the interest of your safety and to ensure the correct use before installing and first using the appliance read this user manual carefully including its hints and warnings To avoid unnecessary mistakes and accidents it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features Save these instructions and make sure that they remain with the appliance if it is moved or sold so that everyone using it through its life will be properly informed on appliance use and safety For the safety of life and property keep t he precautions of these users instructions as the manufacturer is not responsible for damages caused by omission y This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved y Children should be supervised to ensure that they do not play with the appliance y Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised y Keep all packaging well away from children There is risk of suffocation y If you are discarding the appliance pull the plug out of the socket cut the connection cable as close to the appliance as you can and remove the door to prevent playing children to suffer electric shock or to close themselves into it y If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock latch on the door or lid be sure to make that spring lack unusable before you discard the old appliance This will prevent it from becoming a death trap for a child Safety information Childrenandvulnerablepeoplesafety General safety WARNING Keep ventilation openings in the appliance enclosure or in the builtin structure clear of obstruction WARNING Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer WARNING Do not damage the refrigerant circuit
• Page 5 - English - : Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance The refrigerant isobutane R600a is contained within the refrigerant circuit of the appliance a natural gas with a high level of environmental compatibility which is nevertheless flammable During transportation and installation of the appliance be certain that none of the components of the refrigerant circuit become damaged avoid open flames and sources of ignition thoroughly ventilate the room in which the appliance is situated It is dangerous to alter the specifications or modify this product in any way Any damage to the cord may cause a short circuit fire andor electric shock This product contains flammable refrigerant isobutane R600a It is hazardous for anyone other than an Authorised Service Person to service this appliance In Queensland the authorized Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out Servicing or repairs which involve the removal of covers This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops offices and other working environments farm houses and by clients in hotels motels and other residential type environments bed and breakfast type environments catering and similar nonretail applications WARNING Do not use other electrical appliances such as ice cream makers inside of re frigerating appliances unless they are approved for this purpose by the manufacture WARNING Any electrical componentsplug power cord compressor and etc must be replaced by a certified service agent or qualified service personnel Safety information WARNING The light bulb supplied with this appliance is a special use lamp bulb usable only with the appliance supplied This special 1 use lamp is not usable for domestic lighting 1 If there is a light in the compartment WARNING Do not touch the light bulb if it has been on for a long 1 period of time because it could be very hot
• Page 6 - English - : Do not put hot on the plastic parts in the appliance Do not place food products directly against the rear wall 1 Frozen food must not be refrozen once it has been thawed out Store prepacked frozen food in accordance with the frozen food 1 manufacture s instructions Appliance s manufactures storage recommendations should be strictly adhered to Refer to relevant instructions Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container which may cause it to explode 1 resulting in damage to the appliance Ice lollies can cause frost burns if consumed straight from the 1 appliance If the supply cord is damaged it must be replaced by the manufacturer service agent or similarly qualified persons in order to avoid a hazard Do not replace the LED lamp yourself it must only be replaced by either the manufacturer or the authorised service agent Daily use 1 If there is a freezer compartment 2 If there is a freshfood storage compartment Care and cleaning Before maintenance switch off the appliance and disconnect the mains plug from the mains socket Do not clean the appliance with metal objects Do not use sharp objects to remove frost from the appliance Use a 1 plastic scraper Regularly examine the drain in the refrigerator for defrosted water If necessary clean the drain If the drain is blocked water will collect in 2 te bottom of the appliance Safety information Power cord must not be lengthened Make sure that the power plug is not squashed or damaged by the back of the appliance A squashed or damaged power plug may overheat and cause a fire Make sure that you can come to the mains plug of the appliance Do not pull the mains cable If the power plug socket is loose do not insert the power plug There is a risk of electric shock or fire You must not operate the appliance without the lamp This appliance is heavy Care should be taken when moving it Do not remove nor touch items from the freezer compartment if you hands are dampwet as this could cause skin abrasions or frostfreezer burns Avoid prolonged exposure of the appliance to direct sunlight
• Page 7 - English - : Service y Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person y This product must be serviced by an authorized Service Center and only genuine spare parts must be used Energy saving y Dont put hot food in the appliance y Dont pack food close together as this prevents air circulating y Make sure food dont touch the back of the compartments y If electricity goes off dont open the doors y Dont open the doors frequently y Dont keep the doors open for too long time y Dont set the thermostat on exceeding cold temperatures y Some accessaries such as drawers can be removed to get larger storage volume and lower energy consumption Safety information Installation Important For electrical connection carefully follow the instructions given in specific paragraphs y Unpack the appliance and check if there are damages on it Do not connect the appliance if it is damaged Report possible damages immediately to the place you bought it In that case retain packing y It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor y Adequate air circulation should be around the appliance lacking this leads to overheating To achieve sufficient ventilation follow the instructions relevant to installation y Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts compressor con denser to prevent possible burn y The appliance must not be located close to radiators or cookers y Make sure that the mains plug is accessible after the installation of the appliance
• Page 8 - English - : This appliance does not contain gasses which could damage the ozone layer in either its refrigerant circuit or insulation materials The appliance shall not be discarded together with the urban refuse and rubbish The insulation foam contains flammable gases the appliance shall be disposed according to the appliance regulations to obtain from your local authorities Avoid damaging the cooling unit especially the heat exchanger The materials used on this appliance marked by the symbol are recyclable Environment Protection The materials with the symbol are recyclable Dispose the packaging in a suitable collection containers to recycle it Packaging materials Disposal of the appliance Safety information 1 Disconnect the mains plug from the mains socket 2 Cut off the mains cable and discard it The symbol on the product or on its packaging indicates that this product may not be treated as household waste Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product For more detailed information about recycling of this product please contact your local council your ho usehold waste disposal service or the shop where you purchased the product
• Page 9 - English - : maybe slightly The actual Shelves Freezer Compartment Chill Crisper Door Rack Feet Fresh Compartment 1Freezer compartment capacity 74L 2Fresh compartment capacity 271L 2 1
• Page 10 - Czech - : quot amp tĂƌŶŝŶŐdŚŝƐŝƐĂƚĞĐŚŶŝĐĂůƉƌŽĐĞĚƵƌĞĂŶĚƌĞƋƵŝƌĞƐůĂLJŝŶŐƚŚĞƉƌŽĚƵĐƚĚŽǁŶĂŶĚƌĂŝƐŝŶŐŝƚĂŐĂŝŶƚ ŝƐƌĞĐŽŵŵĞŶĚĞĚŽŶůLJƚŽďĞĐĂƌƌŝĞĚŽƵƚďLJƉĞƌƐŽŶƐĐŽŵĨŽƌƚĂďůĞǁŝƚŚƚĞĐŚŶŝĐĂůƉƌŽĐĞĚƵƌĞƐĂŶĚǁŚŽ ĂƌĞƉŚLJƐŝĐĂůůLJĂďůĞƚŽůŝĨƚϭϱŬŐƐŽĨǁĞŝŐŚƚĨƵŶƐƵƌĞƵƐĞϮƉĞŽƉůĞƚŽůŝĨƚƚŚĞƉƌŽĚƵĐƚ ΎΎΎ EhZdWZKhdEKdKEEddKdgtdZgtWKtZ tEZZzEKhddWZKhZΎΎΎ dŚĞƉƌŽĚƵĐƚĐŽƵůĚďĞƉĞƌŵĂŶĞŶƚůLJĚĂŵĂŐĞĚŝĨƚŚŝƐƉƌŽĐĞĚƵƌĞŝƐĐĂƌƌŝĞĚŽƵƚǁŝƚŚƚŚĞƌĞĨƌŝŐĞƌĂƚŽƌ ŽƉĞƌĂƚŝŶŐŶLJĚĂŵĂŐĞĐĂƵƐĞĚďLJŶŽƚĨŽůůŽǁŝŶŐĂůůŝŶƐƚƌƵĐƚŝŽŶƐŝŶƚŚĞƉƌŽĐĞĚƵƌĞĐŽƌƌĞĐƚůLJĐŽƵůĚ ĂĨĨĞĐƚƚŚĞƉƌŽĚƵĐƚǁĂƌƌĂŶƚLJ
• Page 11: Move the hinge hole covers from left side to right side
• Page 13 - English - : Reverse Door 1 Place the upper door back on Ensure the door is aligned horizontally and vertically so that the seal are closed on all sides before finally tightening the top hinge Then inert the top hinge and screw it to the top of unit and then fix hinge cover in accessary bag by screw 1 Fix the screw cover

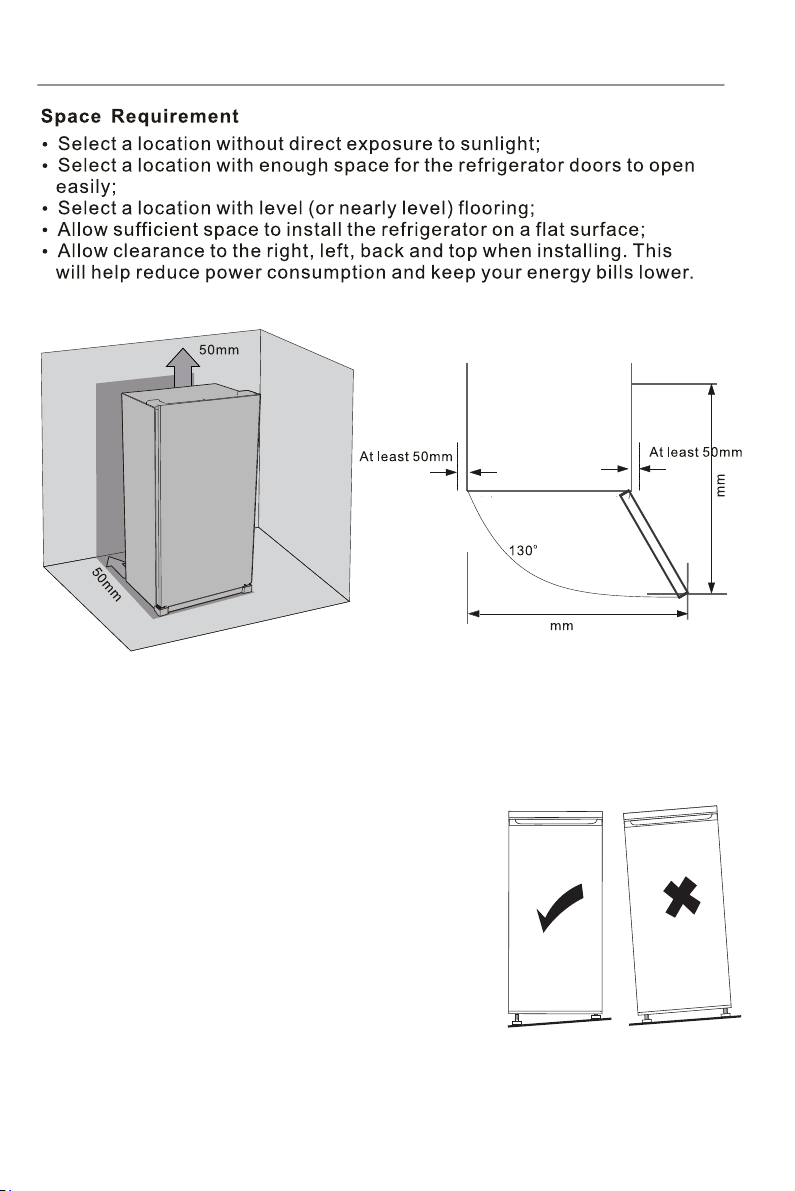

• Page 14 - English - : To do this adjust the two levelling feet at front of the unit If the unit is not level the doors and magnetic seal alignments will not be covered properly Levelling the unit Installation
• Page 16 - English - : Freezer compartment Temperature Setting Plug on your appliance There are 3 settings COLD COLDER and COLDEST The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often Fridge compartment Temperature Setting Plug on your appliance There are 4 settings OFF COLD COLDER and COLDEST COLD is warmest setting and COLDEST is coldest setting OFF is off The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often Neither fridge or freezer compartment works when the setting is OFF
• Page 19: forst burns in a timely manner Do with plug the appliance into the mains power supply and then you may use the appliance
• Page 20 - French - : or There will be some soundnoise during normal operation compressor or refrigerant circulation quotquotquot 75 7 5 quot 2quot 0 quot5 quot quot 55 5 2 2quot7 quot5 25 72 quot 68 amp5quot 5 quotgt5 2quot quot5 2 7 2 7 7 quot 18quot 27quot 1
