1
WARNING
TO
PREVENT
FIRE
OR
SHOCK
HAZARDS,
DO
NOT
EXPOSE
THIS
PRODUCT
TO
RAIN
OR
MOISTURE.
WARNING:
Do
not
install
this
equipment
in
a
confined
space
such
as
a
book
case
or
similar
unit.
NOTE
TO
CABLE/TV/SATELLITE
DISH
INSTALLER:
This
reminder
is
provided
to
call
the
cable
TV
system/satellite
dish
installer's
attention
to
Article
820-40
of
the
National
Electric
Code
(U.S.A.).
The
code
provides
guidelines
for
proper
grounding
and,
in
particular,
specifies
that
the
cable
ground
shall
be
connected
to the
grounding
system
of
the
building,
as
close to the
point
of
the
cable
entry
as
practical.
REGULATORY
INFORMATION
:
FCC
PART
15
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
when
the
equipment
is
operated
in
a
residential
installation.
This
equipment
generates,
uses
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instruction
manual,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
-
Reorient
or
relocate
the
receiving
antenna.
-
Increase
the
separation
between
the
equipment
and
receiver.
-
Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
-
Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
REGULATORY
INFORMATION:
FCC
Part
68
?
This
product
complies
with
Part
68
of
the
FCC
rules
and
the
requirements
adopted
by
the
Administative
Council
for
Terminal
Attachment
(ACTA).
On
the
back
of
this
product
is
a
label
that
contains,
among
other
information,
the
FCC
registration
number
and
Ringer
Equivalent
Number
(REN)
for
this
product.
If
requested,
this
information
must
be
provided
to the
telephone
company.
?
The
REN
is
used
to
determine
the
number
of
devices
that
may
be
connected
to the
telephone
line.
Excessive
RENs
on
the
telephone
line
may
result
in
the
devices
not
ringing
in
response
to
an
incoming
call.
Typically,
the
sum
of
the
RENs
should
not
exceed
five
(5).
To be
certain
of
the
number
of
devices
that
may
be
connected
to the
line
(as
determined
by
the
total
RENs)
contact
the
local
telephone
company.
?
If
this
product
causes
harm
to the
telephone
network,
the
telephone
company
will
notify
you
in
advance
that
temporary
discontinuance
of
service
may
be
required.
But
if
advance
notice
isn't
practical,
the
telephone
company
will
notify
the
customer
as
soon
as
possible.
Also,
you
will
be
advised
of
your
right
to
file
a
complaint
with
the
FCC
if
you
believe
it
is
necessary.
?
The
telephone
company
may
make
changes
to
its
facilities,
equipment,
operations
or
procedures
that
could
affect
the
proper
operation
of
this
product.
If
this
happens,
the
telephone
company
will
provide
advance
notice
so
you
can
make
the
necessary
modifications
to
maintain
uninterrupted
service.
?
Connection
to
party
line
service
is
subject
to
state
tariffs.
(Contact
the
state
public
utility
commission,
public
service
commission,
or
corporate
commission
for
information.)
?
If
trouble
is
experienced
with
this
product,
for
repair
or
warranty
information,
please
contact
Hughes
Network
Systems,
Inc.
If
the
product
is
causing
harm
to
the
telephone
network,
the
telephone
company
may
request
that
you
disconnect
the
product
until
the
problem
is
resolved.
?
An
FCC
compliant
telephone
cord
and
modular
plug
is
provided
with
this
equipment.
This
equipment
is
designed
to
be
connected
to the
telephone
network
or
premises
wiring
using
a
compatible
modular
jack
which
is
also
compliant.
See
installation
instructions
for
details.
COMPLIANCE:
The
responsible
party
for
this
product's
compliance
is:
Hughes
Network
Systems,
Inc.
11717
Exploration
Lane,
Germantown,
MD
20876
Phone:
1-800-274-8995
CAUTION
DO
NOT
ATTEMPT
TO
MODIFY
THIS
PRODUCT
IN
ANY
WAY
WITHOUT
WRITTEN
AUTHORIZATION
FROM
HUGHES
NETWORK
SYSTEMS,
INC.
UNAUTHORIZED
MODIFICATION
OR
CHANGES
COULD
VOID
THE
USER'S
AUTHORITY
TO
OPERATE
THIS
PRODUCT.
THIS
EQUIPMENT
IS
INTENDED TO
RECEIVE
AND
DECODE
SIGNALS
TRANSMITTED
ACCORDING
TO ATSC
DIGITAL
TELEVISION
STANDARD
A/53,
DIRECTV
SPECIFICATION
AND
IS
INTENDED TO
BE
USED
WITH
AN
APPROPRIATE
ANTENNA,
DISH
AND
DISPLAY
DEVICE
THAT
YOU
MUST
PROVIDE.
Dolby
Digital
Manufactured
under
license
from
Dolby
Laboratories.
"Dolby"
and
the
double-D
symbol
are
trademarks
of
Dolby
Laboratories.
Confidential
Unpublished
Works.
â“’1992-1997
Dolby
Laboratories,
Inc.
All
rights
reserved.
Macrovision
Information
This
product
incorporates
copyright
protection
technology
that
is
protected
by
U.S.
patents
and
other
intellectual
property
rights.
Use
of
this
copyright
protection
technology
must
be
authorized
by
Macrovision,
and
is
intended
for
home
and
other
limited
pay-per-view
uses
unless
otherwise
authorized
by
Macrovision.
Reverse
engineering
or
disassembly
is
prohibited.
CAUTION
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
THE
LIGHTNING
FLASH
WITH
ARROWHEAD
SYMBOL,
WITHIN
AN
EQUILATERAL
TRIANGLE,
IS
INTENDED
TO
ALERT
THE
USER
TO
THE
PRESENCE
OF
UNINSULATED
"DANGEROUS
VOLTAGE"
WITHIN
THE
PRODUCT'S
ENCLOSURE
THAT
MAY
BE
OF
SUFFICIENT
MAGNITUDE
TO
CONSTITUTE
A
RISK
OF
ELECTRIC
SHOCK
TO
PERSONS.
THE
EXCLAMATION
POINT
WITHIN
AN
EQUILATERAL
TRIANGLE
IS
INTENDED
TO
ALERT
THE
USER
TO
THE
PRESENCE
OF
IMPORTANT
OPERATING
AND
MAINTENANCE
(SERVICING)
INSTRUCTIONS
IN
THE
LITERATURE
ACCOMPANYING
THE
APPLIANCE.
CAUTION:
TO
REDUCE
THE
RISK OF
ELECTRIC
SHOCK
DO
NOT
REMOVE
COVER
(OR BACK).
NO
USER
SERVICEABLE
PARTS
INSIDE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.
SAFETY
WARNING
2
This
device
complies
with
Part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions
:
(1)
this
device
may
not
cause
harmful
interference,
and
(2)
this
device
must
accept
any
interference
received,
including
interference
that
may
cause
undesired
operation.
Equipment
Classification
:
Part
15
TV
Interface
Device
Type
of
Product(EUT)
:
DIRECTV
HD
Receiver
Manufacturer
:
Hughes
Network
Systems,
Inc.
Address
:
11717
Exploration
Lane.
Germantown,
MD
20876
We
hereby
declare
that
the
equipment
bearing
the
trade
and
model
number
specified
above
was
tested
conforming
to
the
applicable
FCC
Rules
under
the
most
accurate
measurement
standards
possible,
and
that
all
the
necessary
steps
have
been
taken
and
are
in
force
to
assure
that
production
units
of
the
same
equipment
will
continue
to
comply
with
the
Commission's
requirements.
Trade
Name
/
Model
:
HUGHES/
HTL-HD
Responsible
Party
:
Hughes
Network
Systems,
Inc.
Address
:
11717
Exploration
Lane.
Germantown,
MD
20876
Telephone
:
1-800-274-8995
CAUTION:
PLEASE
READ
AND
OBSERVE
ALL
WARNINGS
AND
INSTRUCTIONS
IN
THIS
OWNER'S
MANUAL
AND
THOSE
MARKED
ON
THE
UNIT.
RETAIN
THIS
BOOKLET
FOR
FUTURE
REFERENCE.
This
set
has
been
designed
and
manufactured
to
assure
personal
safety.
Improper
use
can
result
in
electric
shock
or
fire
hazard.
The
safeguards
incorporated
in
this
unit
will
protect
you
if
you
observe
the
following
procedures
for
installation,
use,
and
servicing.
This
unit
does
not
contain
any
parts
that
can
be
repaired
by
the
user.
DO
NOT
REMOVE
THE
CABINET
COVER,
OR
YOU
MAY
BE
EXPOSED
TO
DANGEROUS
VOLTAGE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL
ONLY.
1.
Read
these
instructions.
--
All
these
safety
and
operating
instructions
should be
read
before
the
product
is
operated.
2.
Keep
these
instructions.
--
The
safety,
operating
and
use
instructions
should be
retained
for
future
reference.
3.
Heed
all
warnings.
--
All
warnings
on
the
product
and
in
the
operating
instructions
should
be
adhered
to.
4.
Follow
all
instructions.
--
All
operating
and
use
instructions
should be
followed.
5.
Do
not
use
this
apparatus
near
water.
--
For
example:
near
a
bath
tub,
wash
bowl,
kitchen
sink,
laundry
tub,
in
a
wet
basement;
or
near
a
swimming
pool;
and
like.
6.
Clean
only
with
dry
cloth.
--
Unplug
this
product
from
the
wall
outlet
before
cleaning.
Do
not
use
liquid
cleaners.
7.
Do
not
block
any
ventilation
openings.
Install
in
accordance
with
the
manufacturer's
instructions.
--
Slots
and
openings
in
the
cabinet
are
provided
for
ventilation
and
to
ensure
reliable
operation
of
the
product
and
to
protect
it
from
over-
heating.
The
openings
should
never
be
blocked
by
placing
the
product
on
a
bed,
sofa,
rug
or
other
similar
surface.
This
product
should
not
be
placed
in
a
built-in
installation
such
as
a
bookcase
or
rack
unless
proper
ventilation
is
provided
or
the
manufacturer's
instructions
have
been
adhered
to.
8.
Do
not
install
near
any
heat
sources
such
as
radiators,
heat
registers,
stoves,
or
other
apparatus
(including
amplifiers)
that
produce
heat.
9.
Do
not
defeat
the
safety
purpose
of
the
polarized
or
grounding-type
plug.
A
polarized
plug
has
two
blades
with
one
wider
than
the
other.
A
grounding
type
plug
has
two
blades
and
a
third
grounding
prong.
The
wide
blade
or
the
third
prong
are
provided
for
your
safety.
If
the
provided
plug
does
not
fit
into
your
outlet,
consult
an
electrician
for
replacement
of
the
obsolete
outlet.
10.
Protect
the
power
cord
from
being
walked
on
or
pinched
particularly
at
plugs,
convenience
receptacles,
and
the
point
where
they
exit
from
the
apparatus.
11.
Only
use
attachments/accessories
specified
by
the
manufacturer.
12.
Use
only
with
the
cart,
stand,
tripod,
bracket,
or
table
specified
by
the
manufacturer,
or
sold
with
apparatus.
When
a
cart
is
used,
use
caution
when
moving
the
cart/
apparatus
combination
to
avoid
injury
from
tip-over.
13.
Unplug
this
apparatus
during
lightning
storms
or
when
unused
for
long
periods
of
time.
14.
Refer
all
servicing
to
qualified
service
personnel.
Servicing
is
required
when
the
apparatus
has
been
damaged
in
any
way,
such
as
power-
supply
cord
or
plug
is
damaged,
liquid
has
been
spilled
or
objects
have
fallen
into
the
apparatus,
the
apparatus
has
been
exposed
to
rain
or
moisture,
does
not
operate
normally,
or
has
been
dropped.
IMPORTANT
SAFETY
INSTRUCTIONS
3
4
Due
to
copyright
restrictions,
you
may
not
be
able
to
view
some
high-definition
programs
in
high-definition
format
using
this
product.
If
HD
viewing
is
prohibited
due
to
copyright
restric-
tions,
you
would
need
to
connect
other
interfaces
to
view
the
program.
In
certain
markets,
access
to
local
channels
requires
a
DIRECTV
Multi-Satellite
Dish
Antenna.
For
the
most
current
information
about
the
availability
of
local
channels
in
your
area,
contact
your
retailer
or
visit
DIRECTV.com.
For
access
to
all
DIRECTV
High-Definition
program-
ming,
a
triple
LNB
Multi-Satellite
dish
antenna,
along
with
a
DIRECTV
HD
Receiver
and
High-Definition
television
equipment
is
required.
Satellite
dish
antenna
sold
separately.0
Activation
of
programming
may
be
subject
to
credit
approval
and
requires
valid
service
address,
social
security
number
and/or
major
credit
card.
Deposit
or
prepayment
may
be
required.
Programming
subject
to
change.
You
must
be
physically
located
in
the
U.S.
to
subscribe
to
DIRECTV
service.
DIRECTV
services
not
available
outside the
U.S.
DIRECTV
programming
is
sold
separately
and
independently
of
DIRECTV
System
hardware.
A
valid
programming
subscription
is
required
to
operate
DIRECTV
System
hardware.
Activate
your
DIRECTV
programming
today
at
1-800-DIRECTV
(1-800-347-3288).
DIRECTV,
Inc.
DIRECTV,
the
Cyclone
Design
logo
and
Advanced
Program
Guide
are
trademarks
of
DIRECTV,
Inc.,
a
unit
of
Hughes
Electronics
Corp.
and
are
used
with
permission.
Safety
Warning
. . . .
...
.
...
.
...
.
.... .... .... .... ....
.1
DECLARATION
OF
CONFORMITY
. . .
....
.
...
.
...
.
...
.
...
.2
IMPORTANT
SAFETY
INSTRUCTIONS
.
...
.
...
.
...
.
...
. .
.3-4
Table
of
Contents
. .
.... .... .... .... .... .... ....
...5-6
1.
Introduction
1-1.
A
New
World
of
Digital
Entertainment
. . . .
....
.
...
.
...7
1-2.
Main
Features
.
...
.
.... .... .... .... .... .... ....
.8
2.
Important
Overview
2-1.
Sending
Signals
. . . .
.... .... .... .... .... .... ....
.9
2-2.
TV
Signal
Formats
. . .
...
.
.... .... .... .... ....
...10

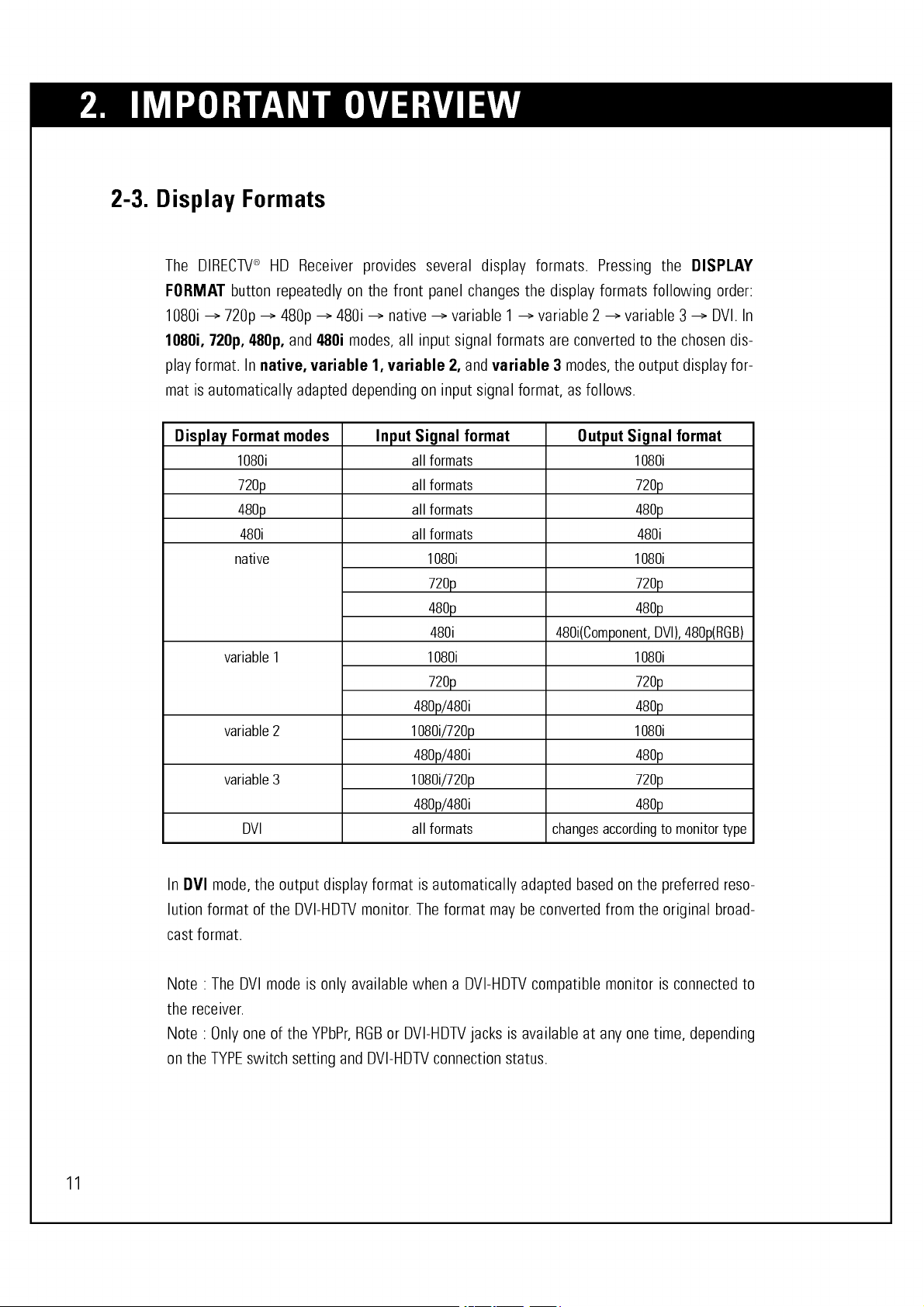

2-3.
Display
Formats
.
...
.
...
.
...
.
.... .... .... ....
...11
2-4.
Normal
and
Wide
Format
Signals
. .
...
.
...
.
...
. .
.12-13
2-5.
Audio
Signals
. . . .
...
.
...
.
...
.
.... .... ....
. .
.14-15
2-6.
On-Screen
Display
.
...
.
.... .... .... .... ....
. .
.16-17
3.
Setup
and
Connections

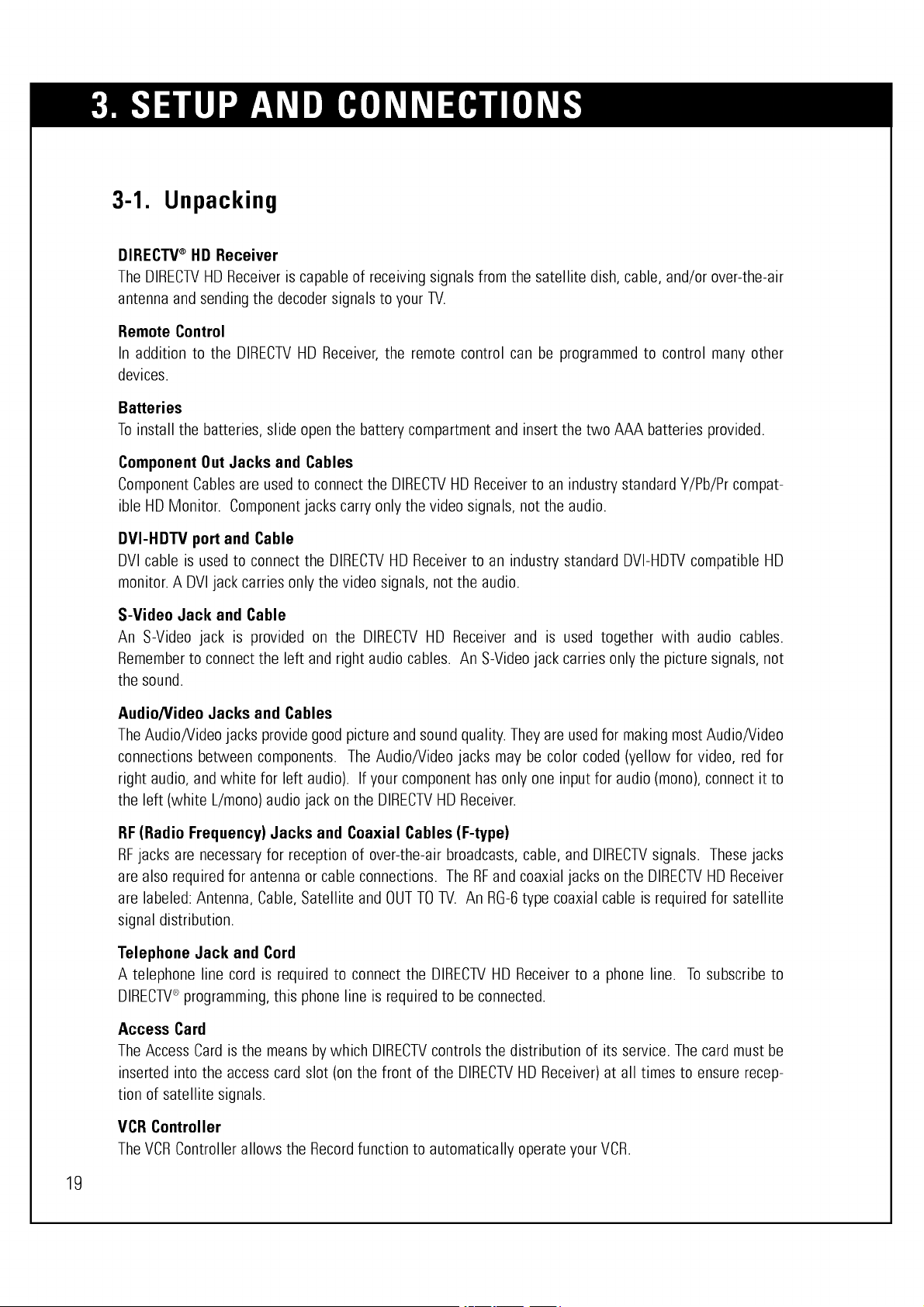

3-1.
Unpacking
. . .
...
.
...
.
...
.
...
.
...
.
.... ....
. .
.18-19

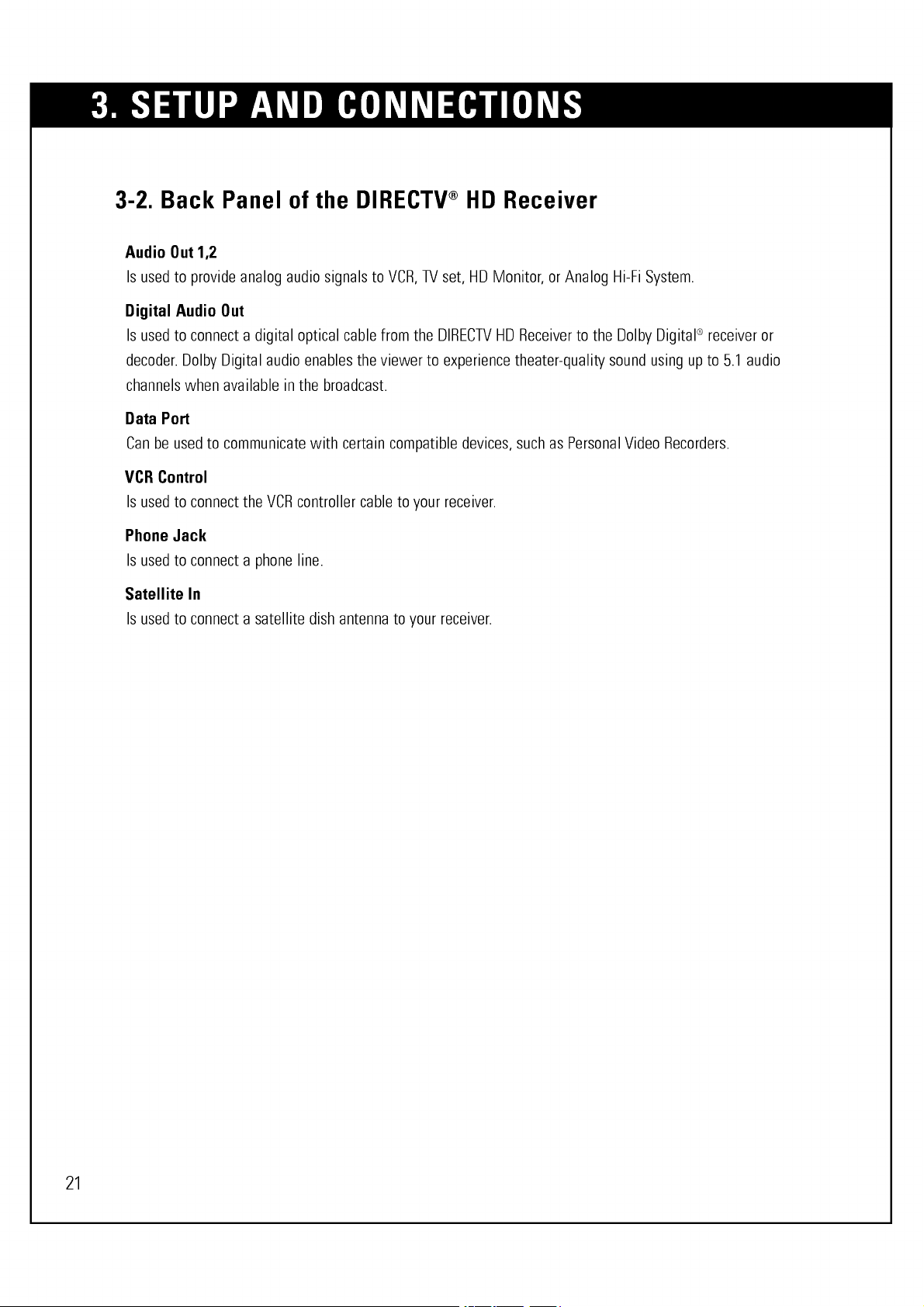

3-2.
Back
Panel
of
the
DIRECTV
HD
Receiver
. . . .
....
.
.20-21
3-3.
General
Recommendations
.
...
.
...
.
...
.
...
.
...
.
...22
3-4.
Connecting
to
Antennas
. . . .
...
.
...
.
...
.
...
. . .
.23-26
3-5.
TV
Connection
. . .
...
.
...
.
...
.
...
.
...
.
...
. . .
.27-30
3-6.
VCR
Connection
. . .
...
.
...
.
...
.
...
.
...
.
...
. . .
.31-32
3-7.
Audio
Connection
.
...
.
...
.
...
.
...
.
...
.
...
. . .
.33-34
4.
Front
Panel
and
4-1.
Using
the
Front
Panel
of
the
DIRECTV
HD
Receiver
. . . .
.35
Remote
Control
4-2.
Using
the
Remote
Control
. . .
...
.
...
.
...
.
...
. . .
.36-38

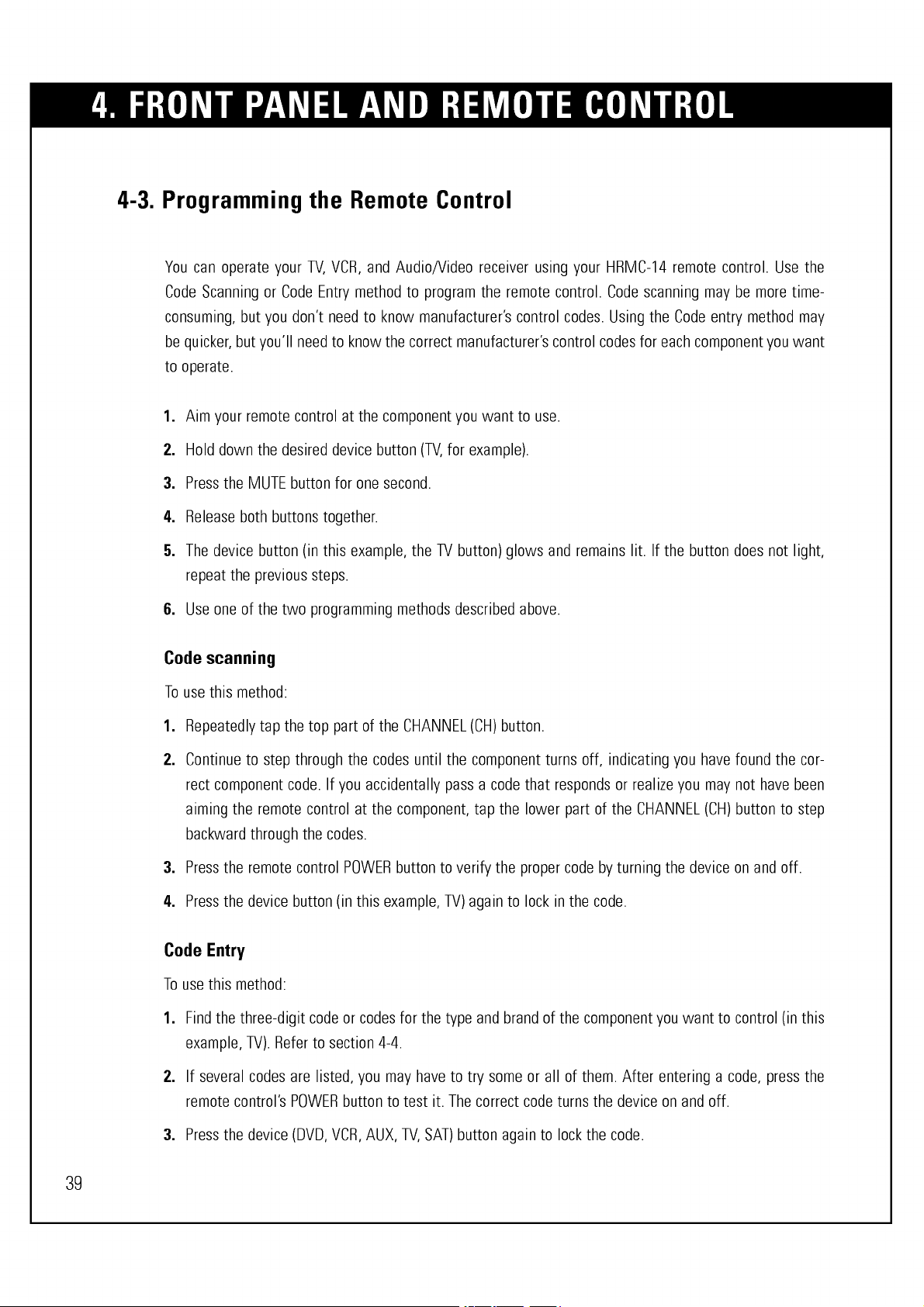

4-3.
Programming
the
Remote
Control
. . . .
.... .... ....
...39

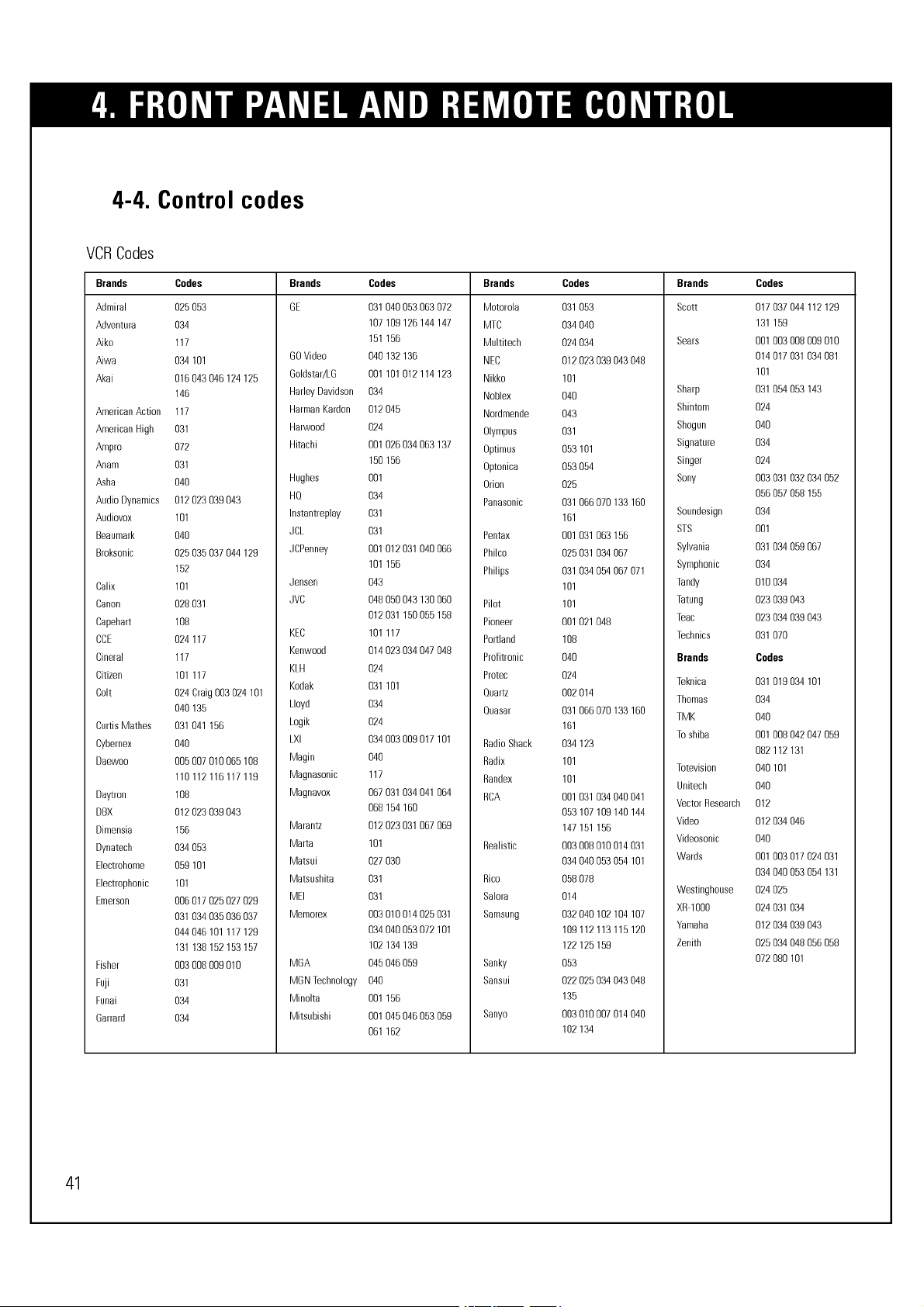

4-4.
Control
codes
. . . .
...
.
...
.
...
.
...
.
...
.
...
. . .
.40-42
5.
Initial
Setup
. .
.... .... .... .... .... .... .... .... .... .... .... .... .... ....
.43
6.
Basic
Operation
6-1.
Viewing
the
Channel
Banner
.
.... .... .... ....
. .
.44-45
6-2.
Channel
Surfing
.
...
.
...
.
...
.
...
.
...
.
...
.
...
.
...46
6-3.
Freeze
Screen
. . .
...
.
...
.
...
.
...
.
...
.
...
.
...
.
...47
6-4.
Subscription
to
DIRECTV
programming
and
ANT/CABLE-Only
operation
. . . .
.... .... .... ....
...48
5
6

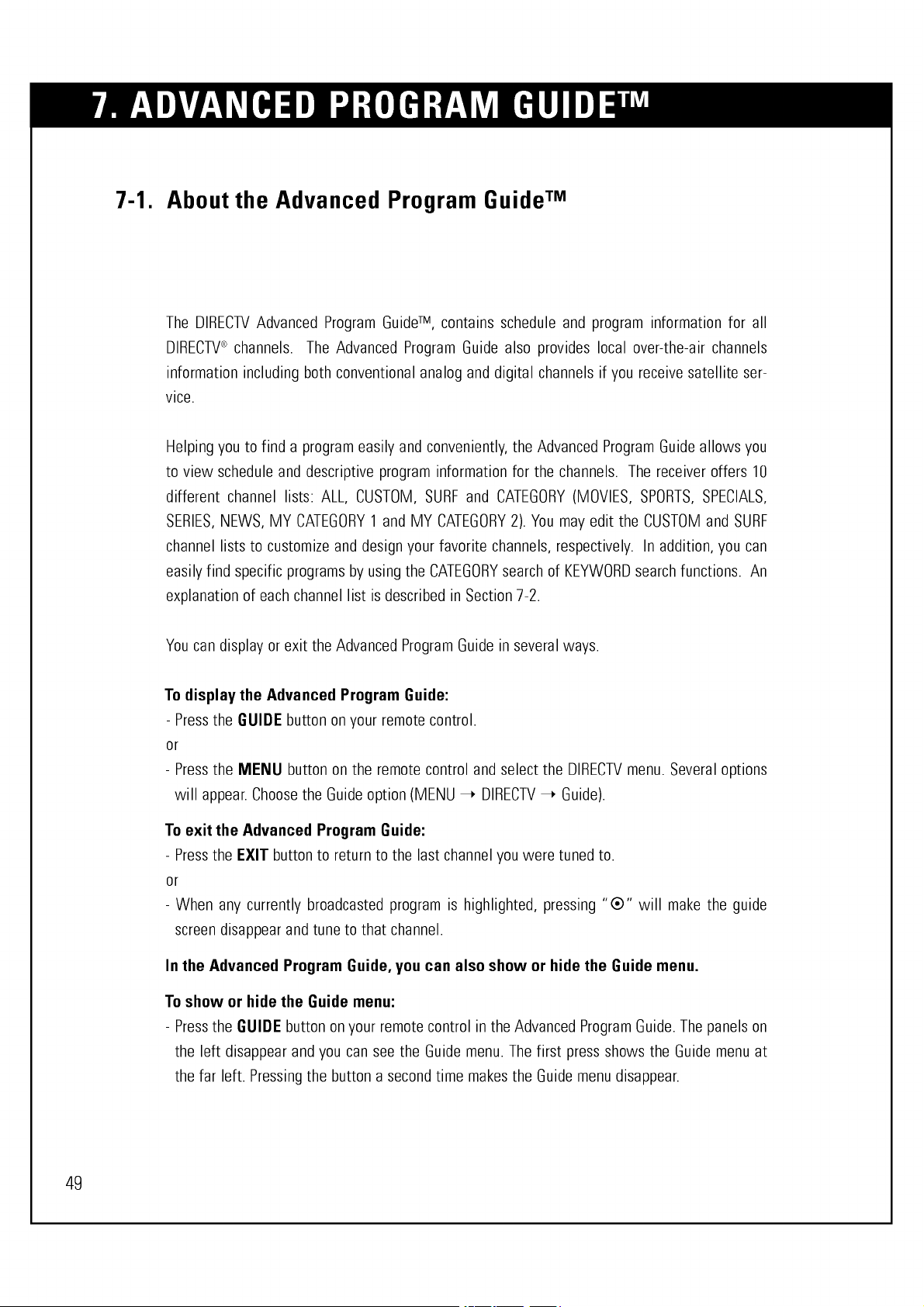

7.
Advanced
Program
GuideTM
7-1.
About
the
Advanced
Program
GuideTM
. . . .
.... ....
...49
7-2.
Layout
of
the
Advanced
Program
GuideTM
Screen
. . . .
.50-51
7-3.
Moving
through
the
Advanced
Program
GuideTM
. . . .
.52-53
7-4.
Selecting
a
Program
. .
...
.
...
.... .... .... ....
....54
7-5.
Getting
More
Program
Information
. . . .
.... ....
. .
.55-56
7-6.
Setting
a
Timer/Record
Event
for
Future
Viewing
.
...
...57
7-7.
Purchasing
DIRECTV
Pay
Per
View
Programs
. . . .
...
. .
.58
7-8.
Searching
for
Programs
by
Category
. . .
.... ....
. .
.59-60
7-9.
Searching
for
Programs
by
Keyword
. .
.... .... ....
...61
8.
Customization
8-1.
Accessing
the
On-screen
Menu
.
.... .... .... ....
...62
8-2.
The
Structure
of
the
On-Screen
Menus
. . . .
.... ....
...63
8-3.
Managing
Program
Purchases
. .
.... .... .... ....
...64
8-4.
Checking
Messages
. .
...
.
...
.
...
.
...
.
...
.
...
.
...65
8-5.
Setting
a
Timer/Record
Event
. . .
...
.
...
.
...
.
...
.
...66
8-6.
Modifying
a
Timer/Record
Event
.
.... .... .... ....
...67
8-7.
Initializing
the
System
. .
...
.
...
.
...
.
...
.
...
. . .
.68-75
8-8.
Managing
Channels
. . . .
...
.
...
.
...
.
...
.
...
. . .
.76-79
8-9.
Setting
the
Clock
. .
...
.
...
.
...
.
...
.
...
.
...
. . .
.80-81
8-10.
Setting
Default
Signal
Out
. . . .
...
.
...
.
...
.
...
.
...82
8-11.
Hook-up
.
.... .... .... .... .... .... .... ....
....83
8-12.
Setting
the
Audio
. . . .
...
.
...
.
...
.
...
.
...
. . .
.84-88
8-13.
Choosing
the
Aspect
Ratio
. .
...
.
...
.
...
.
...
. . .
.89-91
8-14.
Setting
Digital
Caption
. . .
...
.
...
.
...
.
...
.
...
.
...92
8-15.
Setting
Digital
Caption
Style
. .
.... .... .... ....
....93
8-16.
Setting
Closed
Caption
. . .
...
.
...
.
...
.
...
.
...
.
...94
8-17.
Advanced
. . . .
.... .... .... .... .... .... ....
....95
8-18.
Running
Demo
.
...
.
...
.
...
.
...
.
...
.
...
.
...
.
...96
8-19.
Setting
Locks
. . . .
.... .... .... .... .... ....
.
.97-102
8-20.
Getting
the
System
Information
. . . .
...
.
...
. . .
.103-107
8-21.
Testing
the
System
. . . .
...
.
...
.
...
.
...
. . .
.108-109
8-22.
Replace
Card
. .
.... .... .... .... .... .... ....
.
.110
8-23.
VCR
Control
Setup
. .
.... .... .... .... .... ....
.
.111
8-24.
Remote
Control
Setup
.
...
.
...
.
...
.
...
.
...
.
...
.
.112
9.Help.
. . .
.... .... .... .... .... .... .... .... .... .... .... .... .... ....
.
.113-114
Product
Specifications
. . . .
.... .... .... .... .... ....
.
.115

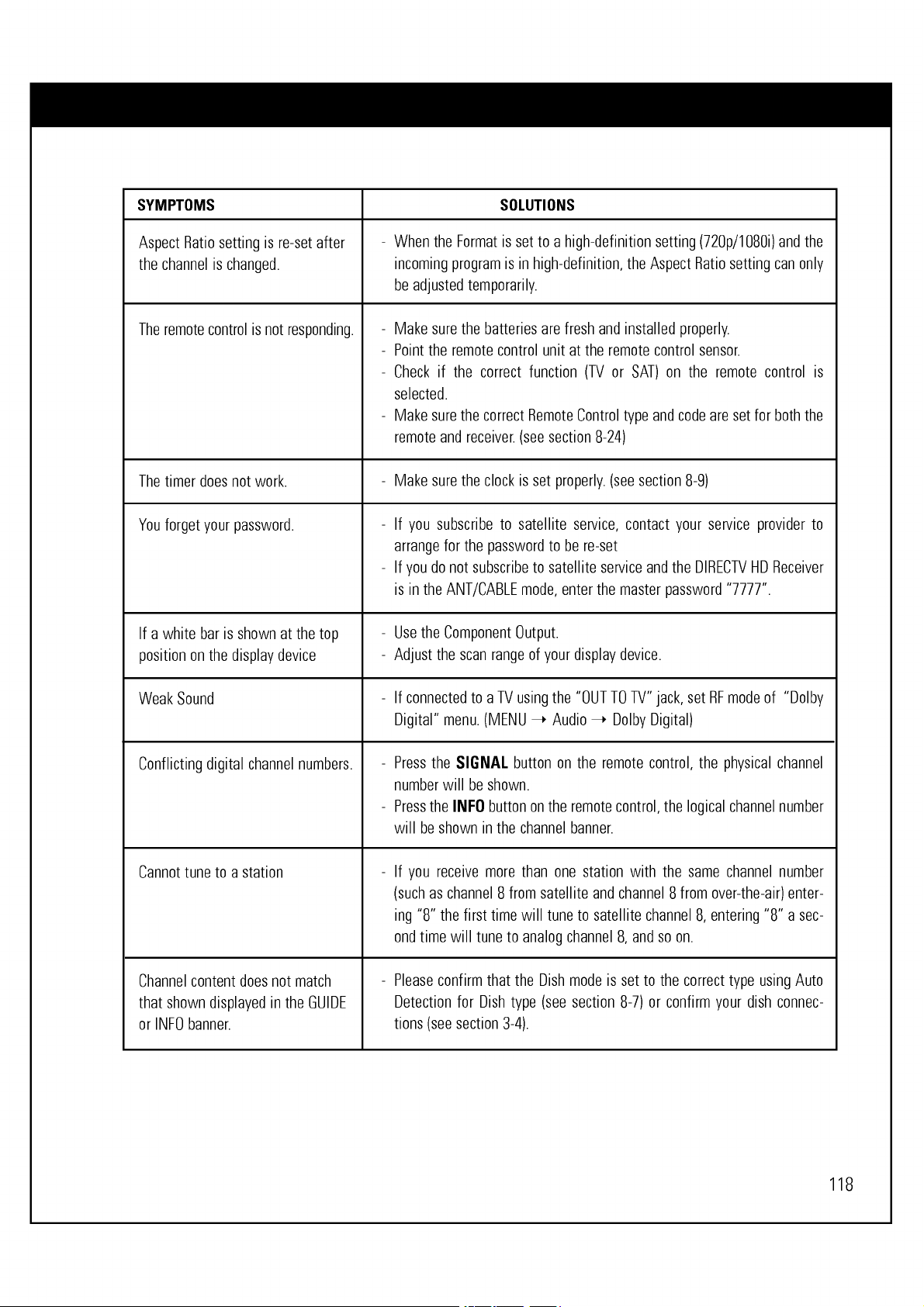

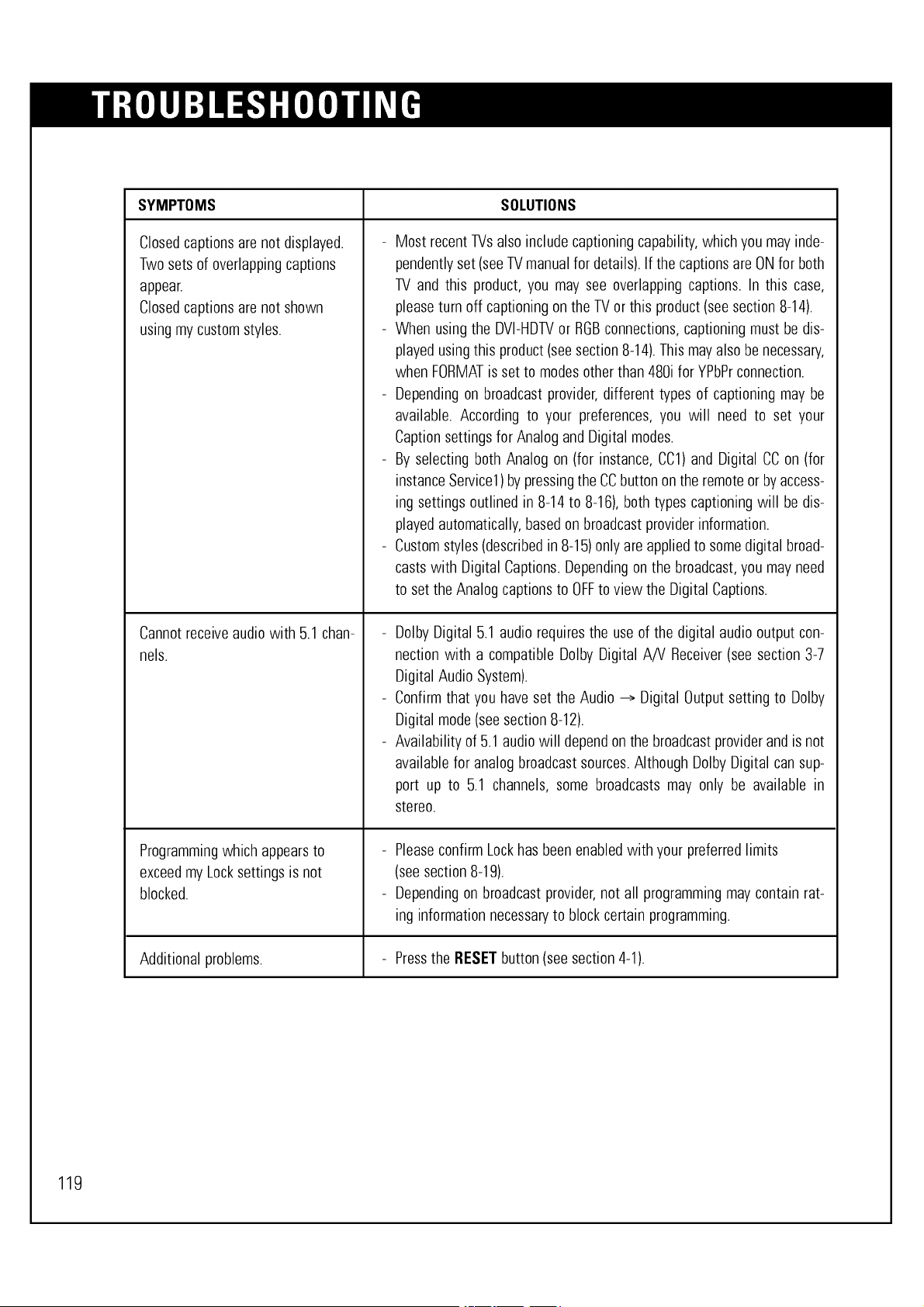

Troubleshooting
. . .
.... .... ....
...
.
...
.
...
.
...
.116-119

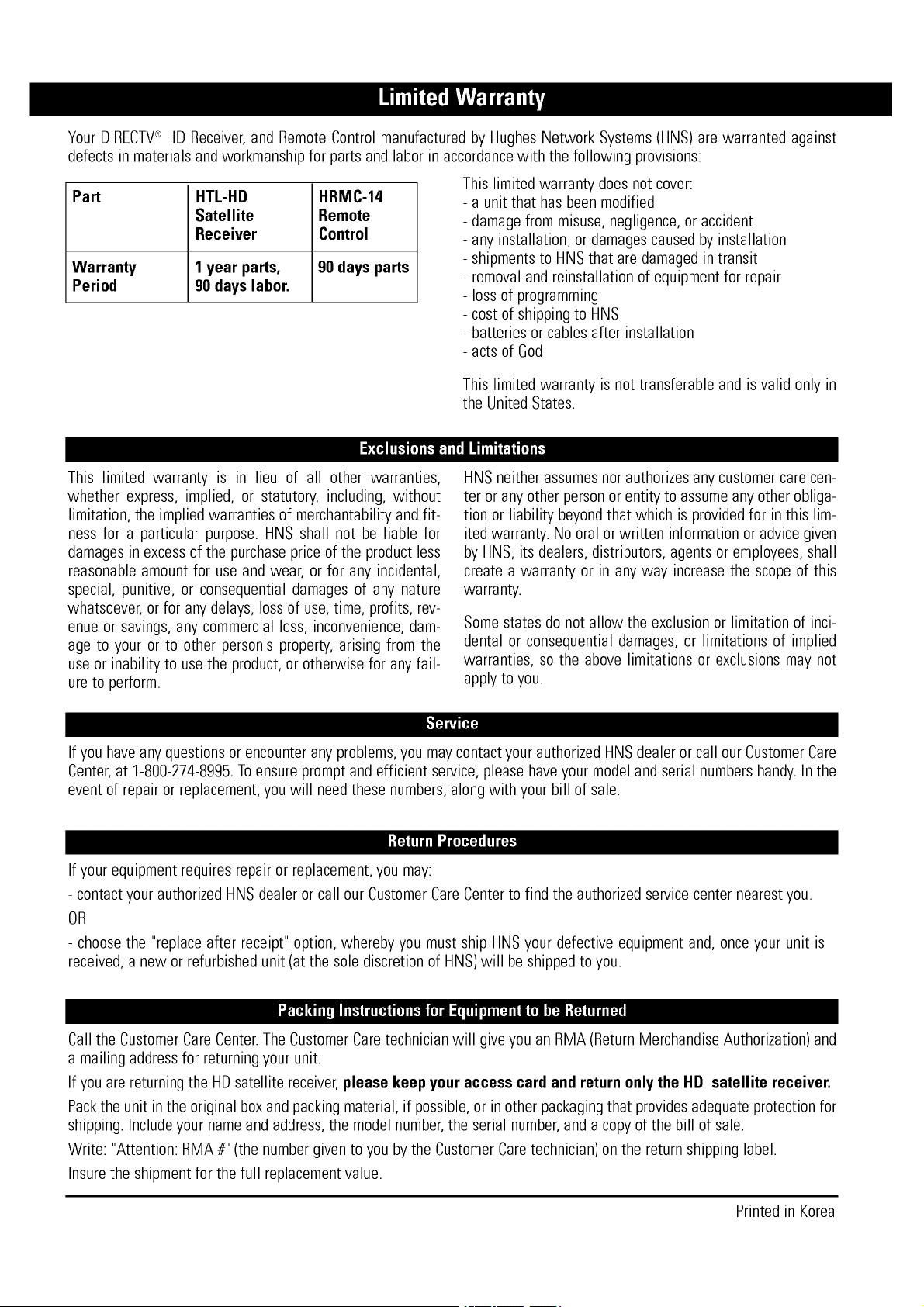

Warranty.
. . .
....
...
.
...
.
...
.
...
.
...
.
...
. .
.Rear
Cover
7
1-1.
A
New
World
of
Digital
Entertainment
Welcome
to
the
HTL-HD
DIRECTV
HD
Receiver,
an
advanced
HDTV/digital
satellite
receiver
that
showcases
a
new
generation
of
digital
entertainment.
The
DIRECTV
HD
Receiver
delivers
a
variety
of
programs
from
DIRECTV
and
has
a
built-in
HD
Receiver
that
serves
as
a
digital
receiver that
makes
it
possible
to
view
digital
programs
even
on
your
analog
TV.
However
an
analog
TV
will
not
display
the
HD
quality.
The
Advanced
Program
GuideTM
delivered
via
satellite
service
also
enables
you
to
access
and
view
program
listings
for
over-the-air
broadcasts
and
cable
as
well
as
DIRECTV
programming.
The
ATSC
Tuner
uses
Hughes'
4th
generation
VSB
technology
for
improved
over-the-air
digital
recep-
tion.
The
built-in
NTSC
tuner
with
4th
digital
comb
filter
provides
optimum
Video
and Audio
from
terrestri-
al/cable
analog
programming.
1.
INTRODUCTION
8
Ultimate
Entertainment
?
A
Wide
Variety
of
Programs
Hundreds
of
channels
are
available
by
subscription
from
DIRECTV.
?
DIRECTV
Advanced
Program
GuideTM
Instant
access
for
up
to
seven
days
of
program
listings.
Ability
to
jump
a
day
or
6
hours
at
a
time.
Ability
to
search
and
tune
by
program
title,
key
word,
or
category.
Technical
Flexibility
?
Seamless
Tuning
between
Channels
Tune
seamlessly
to
over-the-air,
cable
and
satellite.
?
Multiple
Output
Jacks
Multiple
output
jacks
are
provided
on
the
back
panel
of
the
DIRECTV
HD
Receiver
ensuring
max-
imum
connectivity
to
a
variety
of
display
devices.
?
Screen
Format
Adaptability
Various
screen
formats
are
available
including
1080i,
720p, 480p,
480i,
variable
1,
variable
2,
vari-
able
3,
DVI,
and
true
native
modes.
?
ANT/CABLE
Only
Mode
Viewing
analog/digital
broadcasting
with
an
over-the-air
antenna
and
cable
service.
?
Simultaneous
480i
Display
Output
Supporting
simultaneous
480i
Display
Output
for
VCR-recording
or
viewing
on an
analog
TV.
Superior
Performance
?
Crisp
High-definition
or
resolution
with
a
16:9
aspect
ratio.
?
Superior
Sound
Sensational
sound
with
Dolby
Digital
5.1
channels.
?
DVI-HDTV
Output
For
an
all-digital
connection
to
DVI-HDTV
monitors.
Convenient
Use
?
Help
Easy-to-use
on-screen
menus
with
instant
spot
help
and
brief
on-screen
user's
guide.
?
Hook-up
The
on-screen
menus
show
connection
schemes
on
the
DIRECTV
HD
Receiver.
?
Setup
Wizard
Easy-to-use
Wizard
based
System
Setup.
?
Easy
Recording
to
VCR
Up
to
seven
days
of
program
guide
information
from
which
shows
can
be
easily
selected
for
auto-
matic
VCR
recording.
1-2.
Main
Features
2-1.
Sending
Signals
9
2.
IMPORTANT
OVERVIEW
Digital
broadcasting
is
a
new
way
of
sending
programs
over
the
airwaves
with
superior
quality
video
and
audio.
The
DIRECTV
HD
Receiver
enables
you
to
take
full
advantage
of
digital
broadcasting.
To
fully
enjoy
it,
it
is
helpful
to
understand
the
ways
that
program
signals
are
sent.
There
are
two
types
of
TV
signal
formats;
analog
(often
called
NTSC
format;
National
Television
System
Committee)
and
digital
(ATSC
format;
Advanced
Television
System
Committee).
Digital
formats
are
classified
into
three
categories:
High-Definition
(HD),
Enhanced
Definition
(ED),
and
Standard
Definition
(SD)
according
to
the
resolution
or
digital
quality.
There
are
also
three
ways
that
program
signals
can
be
received;
over-the-air
(NTSC,
ATSC),
cable
and
satellite.
TV
HD
Receiver
Phone
Jack
Digital
signal
Analog
signal
DIRECTV
Sat
A
101
Sat
C
110 Sat
B
119
Satellite
Analog
Cable
service
10
Signal
Format
Analog
Digital
SD/ED
HD
2-2.
TV
Signal
Formats
The
digital
TV
standards
allow
several
different
formats.
Broadcasters
can
choose
between
four
formats:
?
480p
-
The
is
704
x
480
pixels,
sent
at
60
complete
frames
per
second
(480i
is
also
possible,
sent
at
60
interlaced
frames
per
second).
?
720p
-
The
is
1280
x
720
pixels,
sent
at
60
complete
frames
per
second.
?
1080i
-
The
is
1920
x
1080
pixels,
sent
at
60
interlaced
frames
per
second
(30
complete
frames
per
second).
(The
"p"
and
"i"
designations
stand
for
"progressive"
and
"interlaced."
In
a
progressive
for-
mat,
the
full
updates
every
sixtieth
of
a
second.
In
an
interlaced
format,
half of
the
pic-
ture
updates
every
sixtieth
of
a
second.)
The
480i
format
is
called
SD.
480p
format
is
called
the
ED
format.
480i
is
roughly
equivalent
to
a
normal
analog
TV
picture.
The
720p
and
1080i
formats
are
called
the
HD
formats.
Some
analog
televisions
can
display
a
720
pixels
wide
by
480
pixels
high,
that's
a
total
of
345,600
pixels.
HD
digital
signals
can
have
a
maximum
resolution
of
1920
x
1080,
that's
2,073,600
pixels,
or
six
times
more
pixels
than
the
older
resolution.
Pictures
will
be
crisper
and
cleaner,
with
more
detail
in
every
close-up
and
every
panorama.
Standard
Comparison
Table
Active
Lines
480 480 720
or
1080
Sound
Stereo
(2
ch)
Dolby
Digital
(5.1
ch)
Dolby
Digital
(5.1
ch)
MPEG
Audio
(2
ch)
Aspect
Ratio
4:3
4:3or16:9
16:9
Resolution
720
x
480
640
x
480
1280
x
720
704
x
480
1920
x
1080
11
2-3.
Display
Formats
Display
Format
modes
Input
Signal
format
Output
Signal
format
1080i
all
formats
1080i
720p
all
formats
720p
480p
all
formats
480p
480i
all
formats
480i
native
1080i 1080i
720p 720p
480p 480p
480i
480i(Component,
DVI),
480p(RGB)
variable
1
1080i 1080i
720p 720p
480p/480i
480p
variable
2
1080i/720p
1080i
480p/480i
480p
variable
3
1080i/720p
720p
480p/480i
480p
DVI
all
formats
changes
according
to
monitor
type
The
DIRECTV
HD
Receiver
provides
several
display
formats.
Pressing
the
DISPLAY
FORMAT
button
repeatedly
on
the
front
panel
changes
the
display
formats
following
order:
1080i
→
720p
→
480p
→
480i
→
native
→
variable
1
→
variable
2
→
variable
3
→
DVI.
In
1080i,
720p,
480p,
and
480i
modes,
all
input
signal
formats
are
converted
to
the
chosen
dis-
play
format.
In
native,
variable
1,
variable
2,
and variable
3
modes,
the
output
display
for-
mat
is
automatically
adapted
depending
on
input
signal
format,
as
follows.
In
DVI
mode,
the
output
display
format
is
automatically
adapted
based
on
the
preferred
reso-
lution
format
of
the
DVI-HDTV
monitor.
The
format
may
be
converted
from
the
original
broad-
cast
format.
Note
:
The
DVI
mode
is
only
available
when
a
DVI-HDTV
compatible
monitor
is
connected
to
the
receiver.
Note
:
Only
one
of
the
YPbPr,
RGB
or
DVI-HDTV
jacks
is
available
at
any
one
time,
depending
on
the
TYPE
switch
setting
and
DVI-HDTV
connection
status.
12
2-4.
Normal
and
Wide
Format
Signals
When
you
view
a
high-definition
picture(16:9)
with
480i
or
480p
format
setting,
the
RATIO
but-
ton
on
the
remote
control
changes
the
wide
mode
in
the
cycle
of
Letterbox
→
Cropped,
→
Squeezed.
When
you
view
a
standard
definition
(4:3)
with
720p
or
1080i
format
setting,
the
RATIO
button
on
the
remote
control
changes
the
wide
mode
in
the
cycle
of
Normal
→
Wide
→
Panorama
→
Zoom
→
CINE-Zoom.
(Refer
to
section
8-13,
'
Choosing
the
Aspect
Ratio
'
)
Standard
Definition
(4:3)
Standard
Definition
Output
Format
(4:3)
No
Adjustment
Options
High-Definition
(16:9)
WHEN
YOU
SET
THE
DISPLAY
FORMAT
TO
SDTV
(480i/480p)
Letter
box
Choose
when
you
want
to
view
a
wide
format
(16:9)
on
a
nor-
mal
screen
(4:3)
without
squeezing.
Cropped
Choose
when
you
want
to
view
a
filling
the
entire
screen
while
keeping
the
wide
format.
Left
and
right
portions
of
the
pic-
ture
will
not
be
shown.
(cropped)
Squeezed
Choose
when
you
want
to
view
a
full
filling
the
entire
screen
with
no
black
bars.
The
in
a
16:9
format
will
be
horizontally
adjusted
or
squeezed
to
fit
the
4:3
ratio
monitor.
antenna
Program
Format
13
2.
IMPORTANT
OVERVIEW
2-4.
Normal
and
Wide
Format
Signals
WHEN
YOU
SET
THE
DISPLAY
FORMAT
TO
HDTV
(1080i/720p)
Normal
Choose
when
you
want
to
view
a
with
an
original
4:3
aspect
ratio
on
your
16:9
TV.
Black
or
gray
bars
will
show
at
the
left
and
right
sides.
Wide
Choose
when
you
want
to
evenly
stretch
the
width
of
a
normal
to
fill
the
entire
screen.
Panorama
Choose
when
you
want
to
evenly
stretch
the
edges
of
a
normal
to
fill
a
wide
screen.
Zoom
Choose
when
you
want
to
fill
the
entire
screen
with
the
picture.
The
will
be
altered
both
horizontally
(stretched)
and
vertically
(cropped).
The
top
and
bottom
portions
of
the
will
not
be
shown.
Zoom1
shows
you
the
with
a
trade-
off
between
distortion
and
screen
coverage.
CINE-Zoom
Choose
when
you
want
to
adjust
zooming.
Standard
Definition(4:3)
High-Definition
(16:9)
*Three
temporary
adjustment
options
available
Adjustment
Required
antenna
High-Definition
Output
Format
(16:9)
Program
Format
*Note.
The
HDTV
formats
should
always
be
broadcast
16:9
aspect
ratio.
However,
you
may
choose
one
of
three
temporary
options
to
select
for
your
preference.
The
three
options
are
Standard,
Expand
and
Shrink.
14
2-5.
Audio
Signals
Dolby
Digital
Sound
with
5.1
Channels
sub-woofer
right
speaker
left
speaker
center
channel
speaker
surround
sound
speaker
surround
sound
speaker
Digital
Audio
Signals
The
DIRECTV
HD
Receiver
will
be
the
focal
center
of
your
home
entertainment
system
comprising
a
variety
of
components,
such
as
TV,
DVD,
VCR,
etc.
and
external
audio
systems.
Since
digital
programs
being
broadcast
contain
digital-quality
audio,
you
can
create
a
home
theater
by
sending
audio
signals
from
the
DIRECTV
HD
Receiver
to
your
audio
system
externally.
HD
digital
signals
use
the
Dolby
Digital
audio
encoding
system
-
the
same
digital
sound
used
in
many
movie
theaters,
on
DVDs,
and
in
many
home
theater
systems.
When
you
tune
to
a
channel,
the
DIRECTV
HD
Receiver
can
send
signals
either
to
a
Dolby
Digital
decoder/receiver
or
to
a
PCM
(normal
digital)
decoder.
(*
Refer
to
Section
3-7
Connection
for
Audio
for
making
the
required
external
connections
to
your
system.)
Dolby
Digital
audio,
formally
known
as
Audio
Coding
3rd
Generation
is
a
coding
technique
that
can
provide
up
to
five
independent,
full
frequency
response
audio
channels
(three
in
left,
center,
and
right,
two
in
rear
left
and
right,)
and
one
low
frequency
effect
for
a
sound
you
can
feel.
15
The
analog
audio
outputs
may
be
used
to
drive
an
external
Hi-Fi
audio
system
instead
of
the
TV
speakers.
These
stereo
outputs
are
activated
by
setting
the
Analog
Mode
in
the
Audio
menu
to
Stereo.
If
you
set
the
Analog
Mode
to
SAP
(Second
Audio
Program),
you
can
hear
the
program's
dia-
log
in
another
language
such
as
French
or
Spanish,
if
provided
on
the
analog
broadcast.
1
8 8
TYPE
CABLE
IN
ANT
IN
UTTOTV
Y
Pr
1
L2
R2
R1
L1
2
Pb
OPTICAL
(1080
/720p/480p/480
Analog
stereo
amplifier
AUDIO
IN
Audio
cables
Analog
Audio
Signals
2-5.
Audio
Signals
16
2-6.
On-Screen
Display
Advanced
Program
GuideTM
The
DIRECTV
Advanced
Program
Guide
is
an
on-screen
listing
of
current
and
future
programs
that
are
available
from
DIRECTV.
The
DIRECTV
HD
Receiver
offers
you
a
comprehensive
pro-
gram
list
that
contains
information
about
programs
with
hundreds
of
channels,
including
ana-
log
Antenna
and
digital
(ATSC).
If
you
do
not
subscribe
to
DIRECTV
programming,
you
will
not
be
able
to
see
the
Advanced
Program
Guide.
Main
Menu
You
can
adjust
the
setup
through
a
user-friendly
on-screen
menu
using
the
remote
control.
While
viewing
a
program,
the
on-screen
menu
will
appear
on
your
TV
screen
if
you
press
the
MENU
button
on
your
remote
control.
The
on-screen
menu
is
operated
using
a
simple,
straight-forward
'Highlight
and
Select'
process.
You
just
highlight
a
menu
item
by
using
"DEF
G
"
on
your
remote
control,
and
select
it
by pressing
"
".
The
on-screen
menu
also
offers visual
cues
for
easy
guidance.
17
2.
IMPORTANT
OVERVIEW
2-6.
On-Screen
Display
Help
First,
certain
features
and
terminologies
used
in
the
on-screen
menus
require
your
basic
understanding
to
fully
utilize
their
capabilities.
The
DIRECTV
HD
Receiver
provides
a
power-
ful
feature
called
"Help"
that
describes
highlighted
menu
item
to
help
you
understand
the
fea-
tures.
Press
and
hold
the
"HELP
(?)"
button
to
display
the
"Help".
Once
you
release
the
but-
ton,
the
Help
menu
disappears
from
the
screen.
Second,
if
you
press
the
"HELP
(?)"
button
while
you
are
viewing
a
program
with
no
menus
on
-screen,
the
DIRECTV
HD
Receiver
provides
a
comprehensive
on-screen
user's
guide.
It
describes
how
to
use
your
receiver.
This
is,
in
fact,
an
on-line
version
of
this
Operating
Guide.
18
3.
SETUP
AND
CONNECTIONS
3-1.
Unpacking
Make
sure
you
have
received
all
these
items
listed
below
with
the
DIRECTV
HD
Receiver.
S
VIDEO
Jack
Audio/Video
Jacks
OUT
TO
TV
Phone
Jacks
YP
B
Component
Jacks
DVI-HDTV
Jack
PR
VCR
CONTROL
Remote
Control
Cables
Batteries
AAA
AAA
Access
Card
ACCESS
CARD
19
3-1.
Unpacking
DIRECTV
HD
Receiver
The
DIRECTV
HD
Receiver
is
capable
of
receiving
signals
from
the
satellite
dish,
cable,
and/or
over-the-air
antenna
and
sending
the
decoder
signals
to
your
TV.
Remote
Control
In
addition
to
the
DIRECTV
HD
Receiver,
the
remote
control
can
be
programmed
to
control
many
other
devices.
Batteries
To
install
the
batteries,
slide
open
the
battery
compartment
and
insert
the
two
AAA
batteries
provided.
Component
Out
Jacks
and
Cables
Component
Cables
are
used
to
connect
the
DIRECTV
HD
Receiver
to
an
industry
standard
Y/Pb/Pr
compat-
ible
HD
Monitor.
Component
jacks
carry
only
the
video
signals,
not
the
audio.
DVI-HDTV
port
and
Cable
DVI
cable
is
used
to
connect
the
DIRECTV
HD
Receiver
to
an
industry
standard
DVI-HDTV
compatible
HD
monitor.
A
DVI
jack
carries
only
the
video
signals,
not
the
audio.
S-Video
Jack
and
Cable
An
S-Video
jack
is
provided
on
the
DIRECTV
HD
Receiver
and
is
used
together
with
audio
cables.
Remember
to
connect
the
left
and
right
audio
cables.
An
S-Video
jack
carries
only
the
signals,
not
the
sound.
Audio/Video
Jacks
and
Cables
The
Audio/Video
jacks
provide
good
and
sound
quality.
They
are
used
for
making
most
Audio/Video
connections
between
components.
The
Audio/Video
jacks
may
be
color
coded
(yellow
for
video,
red
for
right
audio,
and
white
for
left
audio).
If
your
component
has
only
one
input
for
audio
(mono),
connect
it
to
the
left
(white
L/mono)
audio
jack
on
the
DIRECTV
HD
Receiver.
RF
(Radio
Frequency)
Jacks
and
Coaxial
Cables
(F-type)
RF
jacks
are
necessary
for
reception
of
over-the-air
broadcasts,
cable,
and
DIRECTV
signals.
These
jacks
are
also
required
for
antenna
or
cable
connections.
The
RF
and
coaxial
jacks
on
the
DIRECTV
HD
Receiver
are
labeled:
Antenna,
Cable,
Satellite
and
OUT
TO
TV.
An
RG-6
type
coaxial
cable
is
required
for satellite
signal
distribution.
Telephone
Jack
and
Cord
A
telephone
line
cord
is
required
to
connect
the
DIRECTV
HD
Receiver
to
a
phone
line.
To
subscribe
to
DIRECTV
programming,
this
phone
line
is
required
to
be
connected.
Access
Card
The
Access
Card
is
the
means
by
which
DIRECTV
controls
the
distribution
of
its
service.
The
card
must
be
inserted
into
the
access
card
slot
(on
the
front
of
the
DIRECTV
HD
Receiver)
at
all
times
to
ensure
recep-
tion
of
satellite
signals.
VCR
Controller
The
VCR
Controller
allows
the
Record
function
to
automatically
operate
your
VCR.
20
3-2.
Back
Panel
of
the
DIRECTV
HD
Receiver
100
0 0
SATELLITE
IN
TYPE
CABLE
IN
ANT
IN
OUT
TO
TV
Y
Pr
1
L2
R2
R1
L1
2
Pb
OPTICAL
VCR
CONTROL
(1080
/720p/480p/480
)
Ant
In
Is
used
to
connect
an
over-the-air
or
terrestrial
antenna.
Cable
In
Is
used
to
connect
a
coaxial
cable
coming
from
your
cable
TV
service
outlet
or
cable
box.
Out
to
TV
Provides
an
RF
connection
between
the
DIRECTV
HD
Receiver
and
older
TVs.
All
decoded
signals
are
pro-
vided
on
channel
3
or
4
as
selected
in
the
Output
Channel
section
of
the
Setup
menu.
When
the
DIRECTV
HD
Receiver
is
in
the
standby
mode,
Cable
or
Antenna
signals
are
passed
through
as
chosen
in
the
Out
to
TV
section
of
the
Setup
menu.
Video
Out
1,2
Is
used
to
provide
baseband
composite
video
signal
to
a
VCR
or
TV
set.
Video
connection
generally
pro-
vides
picture quality
that
is
superior
to
RF
connections.
For
a
better
quality picture
connection,
use
the
S-
Video
jack
if it
is
available.
Component
Out
Is
used
to
connect
to
a
Y/Pb/Pr-compatible
HD
monitor.
Three
video
and
two
audio
jacks
for
a
Y/Pb/Pr
monitor
need
to
be
connected
and
the
TYPE
switch
must
be
set
to
left
position.
RGB/DVI-HDTV
Out
Is
used
to
connect
to
either
a
RGB-compatible
or
DVI-HDTV
compatible
HD
monitor.
Either
a
RGB
port
for
a
RGB
monitor
or a
DVI-HDTV
port
for
a
DVI-HDTV
monitor
need
to
be
connected
and
the
TYPE
switch
must
be
set
to
right
position.
Notes
?
The
DVI-HDTV
port
has
a
higher
priority
when
both
the
RGB
and
DVI-HDTV
ports
are
connected.
?
For
the
best
access
to
High-Definition
Programming
at
the
highest
available
resolution
broadcast
by
DIRECTV,
connect
the
DVI-HDTV
output
to
the
corresponding
DVI
input
that
supports
high-bandwidth
Digital
Content
Protection
(HDCP)
technology
on
a
High-Definition
Television
(HDTV)
or
HDTV
monitor.
Please
check
your
HDTV
or
HDTV
Monitor
user
manual
or
contact
the
television
manufacturer
to
find
out
if
your
HDTV
or
HDTV
Monitor
supports
HDCP.)
21
3-2.
Back
Panel
of
the
DIRECTV
HD
Receiver
Audio
Out
1,2
Is
used
to
provide
analog
audio
signals
to
VCR,
TV
set,
HD
Monitor,
or
Analog
Hi-Fi
System.
Digital
Audio
Out
Is
used
to
connect
a
digital
optical
cable
from
the
DIRECTV
HD
Receiver
to
the
Dolby
Digital
receiver
or
decoder.
Dolby
Digital
audio
enables
the
viewer
to
experience
theater-quality
sound
using
up
to
5.1
audio
channels
when
available
in
the
broadcast.
Data
Port
Can
be
used
to
communicate
with
certain
compatible
devices,
such
as
Personal
Video
Recorders.
VCR
Control
Is
used
to
connect
the
VCR
controller
cable
to
your
receiver.
Phone
Jack
Is
used
to
connect
a
phone
line.
Satellite
In
Is
used
to
connect
a
satellite
dish
antenna
to
your
receiver.
22
3-3.
General
Recommendations
You
can
connect
the
DIRECTV
HD
Receiver
in
a
variety
of
configurations.
The
answers
to
the
follow-
ing
questions
will
determine
the
correct
setup
for
you.
-
What
type
of
antennas
do
you
have?
Satellite
dish,
cable,
and/or
over-the-air
antennas.
-
What
type
of
connectors
does
your
TV
or
VCR
have:
Y/Pb/Pr,
RGB,
DVI-HDTV,
S-VIDEO,
A/V
(RCA-
type),
or
RF
coaxial?
-
Do
you
have
an
external
audio
or
audio/video
system?
Consider
integrating
the
DIRECTV
HD
Receiver
into
a
home
theater
configuration
to
take
advantage
of
the
audio
capabilities
of
your
Dolby
Digital
System
(Digital)
or
Hi-Fi
System
(Analog).
-
Does
your
TV
have
Y/Pb/Pr
connectors?
Use
it
to
connect
your
TV
to
the
DIRECTV
HD
Receiver.
An
Y/Pb/Pr
connection
provides
a
better
than
S-VIDEO,
RCA-type
video,
or
RF
connections.
-
Does
your
TV
have
an
S-VIDEO
jack?
Use
it
to
connect
your
TV
to
the
DIRECTV
HD
Receiver.
An
S-VIDEO
connection
provides
a
better
than
RCA-type
video
or
RF
connections.
-
Does
your
TV
have
RCA-type
A/V
connectors,
but
no
S-video
jack?
Use
your
TV's
A/V
connectors
to
connect
your
components.
An
A/V
connection
provides
better
and
audio
when
compared
to
an
RF
connection.
Although
there
are
numerous
connections
possible
for
optimum
video
and
audio
performance,
try
to
fol-
low
the
guidelines
listed
below
when
you
hook
up
your
components.
Detailed
hook-up
instructions
are
provided
on
the
following
pages.
Protect
your
components
from
power
surges
by
turning
off
the
component
and
unplugging
power
cords
when
you
make
connections.
Protect
your
component
from
overheat-
ing
by
keeping
the
ventilation
holes
open
and
not
stacking
components.
Non-Satellite
Sources
Round
Dish
(Satellite
A)
Oval
Dish
(Satellite
A,
B)
Oval
Dish
(Satellite
A,
B,
C)
Analog
TV
HD
Monitor
(Y/Pb/Pr
type)
HD
Monitor
(RGB
type)
HD
Monitor
(DVI-HDTV
type)
VCR
Digital
Audio
System
Analog
Hi-Fi
System
23
24
25
26
27
28
29
30
31-32
33
34
To
Antennas
To
TV/Monitor
To
A/V
Systems
Connection
Component
Page
CAUTION:
Make
all
connections
before
plugging
the
power
supply
cord
into
a
standard
120V,
60Hz
AC
power
outlet.
23
3-4.
Connecting
to
Antennas
-
Non-Satellite
Sources
Receiving
Signals
1.
Connect
the
"Antenna"
to
the
"ANT
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
2.
Connect
the
cable
TV
signal
to
the
"CABLE
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
1080
0
80
SATELLITE
IN
TYPE
CABLE
IN
ANT
IN
OUT
TO
TV
Y
Pr
1
L2
R2
R1
L1
2
Pb
OPTICAL
VCR
CONTROL
(1080
/720p/480p/480
)
Antenna
Cable
TV
wall
jack
24
3-4.
Connecting
to
Antennas
-
Round
Dish
(Satellite
A)
Receiving
Signals
1.
Connect
the
"Antenna"
to
the
"ANT
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
2.
Connect
the
cable
TV
signal
to
the
"CABLE
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
3.
Connect
the
"Jack
1" of
the
dish
antenna
to
the
"SATELLITE
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
(For
proper
dish
installation,
refer
to
the
"Installer's
Guide"
provided
with
your
satellite
dish
antenna.
Use
RG6
type
cable.)
4.
Connect
the
"Phone
Wall
Jack"
to
"PHONE
JACK"
on
the
DIRECTV
HD
Receiver
using
a
phone
cable.
1080
0
80
SATELLITE
IN
TYPE
CABLE
IN
ANT
IN
OUT
TO TV
Y
Pr
1
L2
R2
R1
L1
2
Pb
OPTICAL
VCR
CONTROL
(1080
/720p/480p/480
)
LNB
Sat
A
Dish
Jack
1
Phone
wall
jack
Antenna
Cable
TV
wall
jack
While
you
are
a
subscriber
to
a
DIRECTV
pro-
gram
package,
you
can
still
view
over-the-air
and
cable
TV
programs,
if
you
make
connec-
tions
to
the
over-the-air
and/or
cable
jacks.
A
triple
LNB
multi-satellite
dish
with
a
SAT
C
LNB
is
required
to
receive
all
DIRECTV
High-Definition
programming,
along
with
this
DIRECTV
HD
Receiver.
25
3.
SETUP
AND
CONNECTIONS
3-4.
Connecting
to
Antennas
-
Oval
Dish
(Satellite
A,
B)
Receiving
Signals
1.
Connect
the
"Antenna"
to
the
"ANT
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
2.
Connect
the cable
TV
signal
to
the
"CABLE
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
3.
Connect
the
"Jack
1"
of
the
multi-switch
to
the
"SATELLITE
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
(For
proper
dish
installation,
refer
to
the
"Installer's
Guide"
provided
with
your
satellite
dish
antenna.
Use
RG6
type
cable.)
4.
Connect
the
"Phone
Wall
Jack"
to
"PHONE
JACK"
on
the
DIRECTV
HD
Receiver
using
a
phone
cable.
1080
0
80
RGB
OUT
DATA
PORT
DVI-HDTV
OUT
SATELLITE
IN
TYPE
CABLE
IN
ANT
IN
OUT
TO TV
Y
COMPONENT
OUT
(1080
/720p/480p/480
)
Pr
1
L2
R2
R1
L1
2
AUDIO
OUT
Pb
OPTICAL
DIGITAL
AUDIO
OUT
S
VIDEO
OUT
VCR
CONTROL
(1080
/720p/480p/480
)
PHONE
JACK
VIDEO
OUT
LNB
Sat
B
LNB
Sat
A
Dish
5x4
Multi-switch
Output
Phone
wall
jack
Antenna
Cable
TV
wall
jack
NOTE
While
you
are
a
subscriber
to
a
DIRECTV
program
package,
you
can
still
view
over-
the-air
and
cable
TV
programs,
if
you
make
connections
to
the
over-the-air
and/or
cable
jacks.
NOTE
A
triple
LNB
multi-satellite
dish
with
a
SAT
C
LNB
is
required
to
receive
all
DIRECTV
High-Definition
programming,
along
with
this
DIRECTV
HD
Receiver.
26
3-4.
Connecting
to
Antennas
-
Oval
Dish
(Satellite
A,
B,
C)
Receiving
Signals
1.
Connect
the
"Antenna"
to
the
"ANT
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
2.
Connect
the
cable
TV
signal
to
the
"CABLE
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
3.
Connect
"Output"
of
the
multi-switch
to
the
"SATELLITE
IN"
jack
on
the
DIRECTV
HD
Receiver
using
a
coaxial
RF
cable.
(For
proper
dish
installation,
refer
to
the
"Installer's
Guide"
provided
with
your
satellite
dish
antenna).
4.
Connect
the
"Phone
Wall
Jack"
to
"PHONE
JACK"
on
the
DIRECTV
HD
Receiver
using
a
phone
cable.
*
Sat
C
may
also
be
connected
via
a
SAT
B/SAT
C
combiner
with
a
4x4
multi-switch
(not
supplied
by
HUGHES).
1
8 8
RGB OUT
DATA
PORT
DVI-HDTV
OUT
SATELLITE
IN
TYPE
CABLE
IN
ANT
IN
OUT
TO
TV
Y
COMPONENT
OUT
(1080
/720p/480p/480
)
Pr
1
L2
R2
R1
L1
2
AUDIO
OUT
Pb
OPTICAL
DIGITAL
AUDIO
OUT
S
VIDEO
OUT
VCR
CONTROL
(1080
/720p/480p/480
)
PHONE
JACK
VIDEO
OUT
Phone
wall
jack
LNB
Sat
B
LNB
Sat
C
LNB
Sat
A
Dish
5x4
Multi-switch*
Output
Antenna
Cable
TV
wall
jack
NOTE
While
you
are
a
subscriber
to
a
DIRECTV
program
package,
you
can
still
view
over-the-air
and
cable
TV
programs,
if
you
make
connections
to
the
over-the-air
and/or
cable
jacks.
NOTE
A
triple
LNB
multi-satellite
dish
with
a
SAT
C
LNB
is
required
to
receive
all
DIRECTV
High-Definition
programming,
along
with
this
DIRECTV
HD
Receiver.
27
3.
SETUP
AND
CONNECTIONS
3-5.
TV
Connection
-
Analog
TV
TV
Viewing
1.
Connect
the
"OUT
TO
TV"
jack
on
the
DIRECTV
HD
Receiver
to
the
"ANT
IN"
jack
on
your
TV
using
a
coaxial
RF
cable.
2.
Connect
the
"AUDIO
OUT"
and
"VIDEO
OUT"
jacks
on
the
DIRECTV
HD
Receiver
to
the
"A/V
IN"
jack
on
your
TV
using
RCA-type
cables.
3.
Select
Antenna
In
or
A/V
In
source
on
your
TV.
(Refer
to
TV
user's
manual.)
1
8 8
RGB OUT
DATA
PORT
DVI-HDTV
OUT
SATELLITE
IN
TYPE
CABLE
ANT
IN
OUT
TO
TV
Y
CO
ONENT
OUT
(1
/
0p/480p/480
)
Pr
1
R2
R1
L1
2
AUDIO
OUT
Pb
OPTICAL
DIGITAL
AUDIO
OUT
S
VIDEO
OUT
VCR
CONTROL
(1080
/720p/480p/480
)
PHONE
JACK
VID
Phone
wall
jack
L
Analog
TV
AIN
V
R
LNB
Sat
B
LNB
Sat
C
LNB
Sat
A
Dish
5x4
Multi-switch
Output
Antenna
Cable
TV
wall
jack
28
3-5.
TV
Connection
-
HD
Monitor
(Y/Pb/Pr
type)
TV
Viewing
1.
Connect
the
"OUT
TO
TV"
jack
on
the
DIRECTV
HD
Receiver
to
the
"ANT
IN"
jack
on
your
TV
using
a
coaxial
RF
cable.
2.
Connect
the
"COMPONENT
OUT"
jacks
on
the
DIRECTV
HD
Receiver
to
the
"COMPONENT
IN"
jacks
of
your
TV
using
RCA-type
cables.
(The
"TYPE"
switch
must
be
set
toward
the
"Y/Pb/Pr"
jacks.)
3.
Connect
the
L/R
"AUDIO
OUT"
jacks
on
the
DIRECTV
HD
Receiver to
the
L/R
"AUDIO
IN"
jacks
on
your
TV
using
RCA-type
cables.
4.
Select
Antenna
In
or
DVI-HDTV
In,
source
on
your
TV.
(Refer
to
TV
user's
manual.)
1
8 8
RGB
OUT
DATA
PORT
DVI-HDTV
OUT
SATELLITE
IN
TYPE
CABLE
ANT
IN
OUT
TO
TV
Y
OMPONENT
80
/720p/
Pr
1
R2
R1
L1
2
AUDIO
OUT
OPTICAL
DIGITAL
AUDIO
OUT
S
VIDEO
OUT
VCR
CONTROL
(1080
/720p/480p/480
)
PHONE
JACK
VIDEO
OUT
HD-Ready
TV
AIN
YPbPr
LR
Phone
wall
jack
LNB
Sat
B
LNB
Sat
C
LNB
Sat
A
Dish
5x4
Multi-switch
Output
Antenna
Cable
TV
wall
jack
29
3.
SETUP
AND
CONNECTIONS
3-5.
TV
Connection
-
HD
Monitor
(RGB
type)
1
8 8
DATA
DVI-HDTV
OUT
SATELLITE
IN
TYPE
CABLE
ANT
IN
OUT
TO
TV
Y
OMPONENT
OUT
80
/720p/480p/480
)
Pr
1
R2R1
L1
2
AUDIO
OUT
Pb
OPTICAL
DIGITAL
AUDIO
OUT
S
VIDEO
OUT
VCR
CONTROL
(1080
/720p/480p/480
)
PHONE
JACK
VIDEO
OUT
HD-Ready
TV
AIN
YPbPr
LR
Phone
wall
jack
LNB
Sat
B
LNB
Sat
C
LNB
Sat
A
Dish
5x4
Multi-switch
Output
Antenna
Cable
TV
wall
jack
TV
Viewing
1.
Connect
the
"OUT TO
TV"
jack
on
the
DIRECTV
HD
Receiver
to
the
"ANT
IN"
jack
on
your
TV
using
a
coaxial
RF
cable.
2.
Connect
the
"RGB
OUT"
jack
on
the
DIRECTV
HD
Receiver
to
the
"RGB
IN"
jack
of
your
TV
using
VGA-type
connector.
(The
"TYPE"
switch
must
be
set
toward
the
"RGB/DVI-HDTV"
jacks.)
3.
Connect
the
L/R
"AUDIO
OUT"
jacks
on
the
DIRECTV
HD
Receiver to
the
L/R
"AUDIO
IN"
jacks
on
your
TV
using
RCA-type
cables.
Note
:
The
RGB
OUT
jack
supports
480p,
720p,
and
1080i
formats.
4.
Select
Antenna
In
or
RGB
In,
source
on
your
TV.
(Refer
to
TV
user's
manual.)
30
3-5.
TV
Connection
-
HD
Monitor
with
HDCP
(DVI-HDTV
type)
TV
Viewing
1.
Connect
the
"OUT
TO
TV"
jack
on
the
DIRECTV
HD
Receiver
to
the
"ANT
IN"
jack
on
your
TV
using
a
coaxial
RF
cable.
2.
Connect
the
"DVI-HDTV
OUT"
jack
on
the
DIRECTV
HD
Receiver
to
the
"DVI-HDTV
IN"
jack
of
your
TV
using
DVI-HDTV
type
connector.
(The
"TYPE"
switch
must
be
set
toward
the
"RGB/DVI-HDTV"
jacks.)
3.
Connect
the
L/R
"AUDIO
OUT"
jacks
on
the
DIRECTV
HD
Receiver
to
the
L/R
"AUDIO
IN"
jacks
on
your
TV
using
RCA-type
cables.
Note
:
For
the best
access
to
high-definition
programming
at
the
highest
available
resolution
broadcast
by
DIRECTV,
connect
the
DVI-HDTV
output
to
the
corresponding
DVI-HDTV
input
that
supports
high-band-
width
Digital
Content
Protection
(HDCP)
technology
on
a
High-Definition
Television
(HDTV)
or
HDTV
moni-
tor.
Please
check
your
HDTV
or
HDTV
Monitor
user
manual
or
contact
the
television
manufacturer
to
find
out
if
your
HDTV
or
HDTV
Monitor
supports
HDCP.
4.
Select
Antenna
In
or
DVI-HDTV
In,
source
on
your
TV.
(Refer
to
TV
user's
manual.)
1
8 8
RGB
OUT
DATA
PORT
DVI-HDTV
OUT
SATELLITE
IN
TYPE
CABLE
ANT
IN
OUT
TO
TV
Y
OMPONENT
OUT
80
/720p/480p/480
)
Pr
1
R2
R1
L1
2
AUDIO
OUT
Pb
OPTICAL
DIGITAL
AUDIO
OUT
S
VIDEO
OUT
VCR
CONTROL
(1080
/720p/480p/480
)
PHONE
JACK
VIDEO
OUT
HD-Ready
TV
AINLR
Phone
wall
jack
LNB
Sat
B
LNB
Sat
C
LNB
Sat
A
Dish
5x4
Multi-switch
Output
Antenna
Cable
TV
wall
jack
DVI-HDTV
IN
31
3.
SETUP
AND
CONNECTIONS
3-6.
VCR
Connection
T.IN
V
L
RIN
1
8 8
RGB
OUT
DATA
PORT
DVI-HDTV
OUT
SATELLITE
IN
TYPE
CABLE
ANT
IN
OUTTO
TV
Y
ONENT
O
720p/480
80
Pr
1
L2
R2R1
L1
2
AUDIO
OUT
Pb
OPTICAL
DIGITAL
AUDIO
OUT
S
VIDEO
OUT
VCR
CONTROL
(1080
/720p/480p/480
)
PHONE
JACK
VIDEO
OUT
Antenna
Cable
TV
wall
jack
VCR
Phone
wall
jack
LNB
Sat
B
LNB
Sat
C
LNB
Sat
A
Dish
5x4
Multi-switch
Output
TV
Viewing
Refer
to
Section
3-5,
'TV
Connection'.
VCR
Recording
1.
Connect
the
"OUT
TO
TV"
jack
on
the
DIRECTV
HD
Receiver
to
the
"ANT
IN"
jack
on
your
VCR
using
a
coaxial
RF
cable.
2.
Connect
the
"AUDIO OUT"
and
"VIDEO
OUT"
jacks
on
the
DIRECTV
HD
Receiver
to
the
"A/V
IN"
jacks
on
your
VCR
using
RCA-type
cables.
(If
your
VCR
is
equipped
with
an
S-Video
jack,
use
the
"S-Video"
jack.)
Note:
The
OUT
TO
TV
and
VIDEO
OUT(480i)
1,
2
jacks
are
always
available
sources
output
no
matter
what
display
format
is
selected.
32
3-6.
VCR
Connection
-
VCR
Controller
Connect
the
VCR
Controller
to
allow
the
Timer
and
Rec
feature
to
automatically
operate
your
VCR.
See
"VCR
Control
Setup"
on
page
111
for
information
about
setting
up
the
Digital
Satellite
Receiver
to
operate
with
your
VCR.
1.
Connect
the
VCR
Controller
to
the
VCR
CONTROL
jack
on
the
DIRECTV
HD
Receiver.
2.
Place
the
VCR
Controller
under
and
in
front of
the
VCR.
The
VCR
Controller
must
extend
just
on
front
of
the
infrared
sensor
of
the
VCR.
Note:
If
the
infrared
sensor
is
not
marked
on
your
VCR,
shine
a
flashlight
into
the
front
panel
of
the
VCR
to
locate
the
sensor.
SATELLITE
IN
TYPE
CABLE
IN
ANT
IN
OUT
TO TV
Y
Pr
1
L2
R2
R1
L1
2
Pb
OPTICAL
VCR
CONTROL
(1080
/720p/480p/480
)
VCR
(front
view)
VCR
(side
view)
1/2"
to
1"
IR
Sensor
VCR
Controller
33
3-7.
Audio
Connection
-
Digital
Audio
System
Dolby
Digital
Connection
1.
Connect
the
"DIGITAL
AUDIO
OUT"
jack
on
the
DIRECTV
HD
Receiver
to
the
"SPDIF
IN"
jack
on
your
Dolby
Digital
or
Pro
Logic
decoder
using
a
digital
optical
cable.
(A
digital
optical
cable
is
not
supplied.)
SATELLITE
IN
TYPE
CABLE
IN
ANT
IN
OUT
TO
TV
Y
Pr
L2
R2
R1
L1
2
Pb
OPTICAL
VCR
CONTROL
(1080
/720p/480p/480
)
A/V
Receiver
To
enjoy
Dolby
Digital
audio
when
it
is
available
in
a
broadcast,
set
the
HD
Receiver's
Digital
Output
to
the
Dolby
Digital
setting
(see
section
8-12).
34
3-7.
Audio
Connection
-
Analog
Hi-Fi
System
Hi-Fi
System
Connection
1.
Connect
the
Left
and
Right
"AUDIO
OUT"
jacks
from
the
DIRECTV
HD
Receiver
to
the
Left
and
Right
"INPUT"
jacks
on
your
Hi-Fi
audio
system.
100
0 0
TYPE
CABLE
IN
ANT
IN
UTTOTV
Y
Pr
1
L2
R2
R1
L1
2
Pb
OPTICAL
(1080
/720p/480p/480
)
Analog
stereo
amplifier
AUDIO
IN
Audio
cables
When
viewing
a
digital
broadcast
with
Dolby
Digital
audio,
you
will
be
able
to
hear
the
broadcast's
audio
from
the
analog
audio
left
and
right
jacks.
However,
a
digital
audio
con-
nection
to
a
Dolby
Digital
audio
receiver
is
required
to
enjoy
Dolby
Digital
audio
with
up
to
5.1
channels.
35
4.
FRONT
PANEL
AND
REMOTE
CONTROL
4-1.
Using
the
Front
Panel
of
the
DIRECTV
HD
Receiver
1
POWER
Turns
the
DIRECTV
HD
Receiver
on
or
off.
2
Access
Card
and
RESET
button
Door
The
Access
Card
is
the
means
by
which
DIRECTV
controls
the
distribution of
its
services.
The
card
must
be
inserted
into
the
access
card
slot
at
all
times
to
enable
reception
of
satellite
signals.
The
RESET
button
resets
the
HD
Receiver.
3
Display
Window
Shows
DIRECTV
HD
Receiver
status
:
Current
output
format,
interface
type,
and
channel
number.
Also
displays
artist
and
song
information
of
satellite
music-only
channels.
4
Remote
Control
Sensor
Receives
signals
from
the
remote
control.
5
MENU
Shows
the
main
menu
on
the
screen.
You
can
return
to
normal
viewing
by
pressing
the
EXIT
button.
6
GUIDE
Shows
the
DIRECTV
Advanced
Program
GuideTM
screen
that
shows
you
a
program
schedule
containing
a
list
of
current
and
future
programs.
You
can
also
access
the
Advanced
Program
Guide
via
the
main
menu
(DIRECTV
Guide).
You
can
return
to
normal
viewing
by
pressing
the
EXIT
button.
The
Guide
is
only
available
with
satellite
service.
7
SELECT
If
the
main
menu
is
displayed,
pressing
the
SELECT
button
will
activate
the
selected
MENU
item.
If
the
SELECT
but-
ton
is
pressed
while
you
are
in
normal
viewing,
the
information
banner
will
be
displayed.
8
Arrow
Keys
(CH
v/V)
Allows
you
to
navigate
on-screen
menus
and
to
adjust
the
system
settings
and
preferences.
Use
the
arrow
keys
to
move
to
a
menu
option
and
then
use
the
SELECT
button
to
access
it.
9
EXIT
Clears
all
on-screen
displays
and
returns
to
normal
viewing
from
any
menu.
q;
INFO
Shows
station
and
program
information
in
the
banner
shown
at
the
top
of
the
screen.
To
remove
the
banner,
press
the
button
again
or
wait
for
10
seconds.
You
can
also
change
the
Audio
language,
when
available,
with
"FG".
qa
FORMAT
Sets
the
output
resolution
to
either
native,
1080i,
720p,
480p,
480i,
variable
1,
variable
2,
variable
3,
or
DVI
formats.
Choose
the best
display
format
for
your
TV.
(Refer
to
Section
2-3,
'Display
Formats')
2
3
8
1
4
567
10
11
9
1080i
720p 480p
480i
DVI
RGB
YPBPR
Display
format
indicator
Standby
mode
indicator
Multi
function
indicator
Display
interface indicator
36
4-2.
Using
the
Remote
Control
POWER
Turns
the
DIRECTV
HD
Receiver
on
and
off.
If
your
remote
control
is
programmed
to
control
other
components
such
as
VCR,
DVD,
etc.,
Power
will
turn
the
component
on
and
off.
If
you
want
to
control
other
components
from
different
manufacturers,
you
must
first
pro-
gram
your
remote
control.
For
further
instructions
on
remote
control
programming,
please
refer
to
the
section
4-3
of
this
operating
guide
or
the
Program
Remote
section
of
on-screen
help.
DEVICE
KEYS
Selects
the
device
that
will
be
controlled
by
the
remote.
For
exam-
ple,
if
your
remote
control
is
set
to
VCR,
the
CH
v/V
button
will
change
the
channel
number
of
the
VCR.
If
you
want
to
control
other
devices
from
different
manufacturers,
you
must
first
program
your
remote
control.
Digit
Buttons
(0~9)
Allows
you
to
enter
channel
numbers
for
direct
tuning
or
to
scroll
to
the
designated
page
of
the
program
list
on
the
Guide
menu.
Digit
buttons
can
be
used
to
enter
numerical
values
wherever
required
e.g.
to
enter
a
password.
Dash
(-)
Is
used
to
enter
a
channel
number
for
multiple
program
channels
such
as
2-1, 2-2,
etc.
A
broadcaster
may
transmit
multiple
programs
on
a
single
channel.
Multiple
programs
are
distinguished
by
a
unique
sub-channel
number,
separated
by
a
dash
(-).
SELECT
(
)
Use
with
numbered
buttons
for
instant
channel
selection.
When
you
press
a
channel
number,
for
example,
22,
the
receiver
awaits
anoth-
er
stroke
for
three
seconds and
then
tunes
to
22.
and
selecting
the
highlighted
option
in
a
menu
with
"
".
If"
"
is
pressed
while
you
are
in
normal
viewing,
the
information
banner
is
displayed.
MUTE
Is
used
to
temporarily
turn
off
the
sound.
Press
again
to
restore
the
sound.
1
2
3
4
5
1
2
3
4
5
6
6
37
4.
FRONT
PANEL
AND
REMOTE
CONTROL
4-2.
Using
the
Remote
Control
VOL
v/V
Increases/decreases
the
sound
level
of
the
TV.
CH
v/V
Scrolls
the
channels
up
or
down
while
you
are
viewing
a
program,
or
scrolls
the
program
list
in
the
Guide
menu
page
by
page.
Press
and
hold
the
but-
ton
to
speed
up
and
continue
scrolling
channels.
RATIO
Changes
the
aspect
ratio.
When
you
view
a
with
a
wide
(16:9)
aspect
ratio
in
480i
or
480p
format,
the
button
changes
the
display-
ing
options
in
the
cycle
of
Letterbox
→
Cropped
→
Squeezed.
When
you
view
a
with
a
normal
(4:3)
aspect
ratio
in
720p
or
1080i
format,
the
button
changes
the
screen
format
in
the
cycle
of
Normal
→
Wide
→
Panorama
→
Zoom
→
CINE-Zoom.
When
you
view
a
with
a
wide
(16:9)
aspect
ratio
in
720p
or
1080i
format,
the
button
temporarily
changes
the
RATIO
options
to
Standard,
Expand,
or
Shrink.
Detailed
descriptions
of
the
TV
aspect
ratios
are
given
in
section
2-4
or
the
TV
Aspect
Ratio
of
the
Preference
menu.
INPUT
Allows
you
to
select
programming
from
additional
program
sources
con-
nected
to
the
satellite
receiver
such
as
a
DVD
player,
VCR's
or
a
terrestrial
TV
antenna
signal.
Repeatedly
press
INPUT
to
cycle
through
each
avaliable
input
source
in
your
system.
FREEZE
Freezes
the
current
image.
With
digital
video
sources,
pressing
a
second
time
enlarges
the
image.
Pressing
again
returns
to
the the
live
video.
PREV
CH
Returns
to
the
last
channel
viewed.
Allows
you
to
move
back
and
forth
between
the
last
two
channels
viewed.
CC/DATE
(Closed
Caption)
Changes
the
Digital
Caption
options
and
the
Closed
Caption
options
of
the
DIRECTV
HD
Receiver.
The
digital
caption
mode
and
the
closed
caption
mode
can
also
be
selected
in
the
Preferences
menu.
You
can
also
change
the
date
of
the
Advanced
Program
GuideTM
by pressing
the
CC
button
when
the
Guide
is
displayed.
NOTE
:
Closed
Caption
will
appear
only
when
it
is
provided
by
the
broad-
caster.
8
9
10
11
12
13
8
9
10
11
12
13
7
7
38
4-2.
Using
the
Remote
Control
MENU
Brings
up
the
main
menu.
You
can
return
to
normal
viewing
by
pressing
the
EXIT
button
or
pressing
the
MENU
button
again.
GUIDE
Brings
up
the
DIRECTV
Advanced
Program
Guide,
showing
ALL
channels.
You
can
also
access
the
Advanced
Program
Guide
via
the
main
menu.
Return
to
normal
viewing
by
pressing
the
EXIT
button
or
pressing
the
GUIDE
button
again.
SURF
Shows
the
list
of
your
surf
channels.
A
Surf
channel
list
can
contain
up
to
fifty
channels.
You
can
return
to
normal
viewing
by pressing
the
EXIT
button
or
pressing
the
SURF
button
again.
Refer
to
Section
6-2
for
creating
and
cus-
tomizing
your
own
Surf
channel
list.
INFO
Shows
station
and
program
information
in
the
banner
shown
at
the
top
of
the
screen.
To
remove
the
banner,
press
the button
again
or
wait
for
10
seconds.
You
can
also
change
the
audio
language,
when
available,
with
"FG".
HELP
(?)
Shows
the
on-screen
"Help"
menu
while
you
are
in
normal
viewing.
The
"HELP
(?)"
button
also
serves
when
you
are
in
an
on-screen
menu.
To
see
the
help
description
of
the
selected
option
in
the
menu,
press
and
hold
the
"HELP
(?)"
button.
Navigation
Allows
you
to
navigate
the
on-screen
menus
and
adjust
the
system
settings
and
preferences,
by
moving
to
a
menu
option
with
"DEF
G
".
EXIT
Clears
all
on-screen
displays
and
returns
to
TV
viewing
from
any
menu.
Component
Control
Buttons
Provides
control
for
DVD
players,
VCRs,
and
similar
components.
The
remote
control
must
be
programmed
for
the
brand
of
component
being
used.
For
fur-
ther
instructions
on
remote
control
programming,
please
refer
to
Section
4-3
of
this
operating
guide
or
the
Program
Remote
section
of
on-screen
help.
DVD/Skip
Button
Provides
search
control
for
DVD
players.
Press
the
skip
"Forward"
or
skip
"Backward"
button
on
the
remote
control,
a
chapter
(DVD)
or
track
(CD)
is
skip-
ping
backward
or
forward
correspondingly
after
every
time
the button
is
pressed.
14
15
16
17
18
19
20
21
22
14
15
16
17
18
19
20
21
22
39
4-3.
Programming
the
Remote
Control
You
can
operate
your
TV,
VCR,
and
Audio/Video
receiver
using
your
HRMC-14
remote
control.
Use
the
Code
Scanning
or
Code
Entry
method
to
program
the
remote
control.
Code
scanning
may
be
more
time-
consuming,
but
you
don't
need
to
know
manufacturer's
control
codes.
Using
the
Code
entry
method
may
be
quicker,
but
you'll
need
to
know
the
correct
manufacturer's
control
codes
for
each
component
you
want
to
operate.
1.
Aim
your
remote
control
at
the
component
you
want
to
use.
2.
Hold
down
the
desired
device button
(TV,
for
example).
3.
Press
the
MUTE
button
for
one
second.
4.
Release
both
buttons
together.
5.
The
device
button
(in
this
example,
the
TV
button)
glows
and
remains
lit.
If
the button
does
not
light,
repeat
the
previous
steps.
6.
Use
one
of
the
two
programming
methods
described
above.
Code
scanning
To
use
this
method:
1.
Repeatedly
tap
the
top
part
of
the
CHANNEL
(CH)
button.
2.
Continue
to
step
through
the
codes
until
the
component
turns
off,
indicating
you
have
found
the
cor-
rect
component
code.
If
you
accidentally
pass
a
code
that
responds
or
realize
you
may
not
have
been
aiming
the
remote
control
at
the
component,
tap
the
lower
part
of
the
CHANNEL
(CH)
button
to
step
backward
through
the
codes.
3.
Press
the
remote
control
POWER
button
to
verify
the
proper
code
by
turning
the
device
on
and
off.
4.
Press
the
device
button
(in
this
example,
TV)
again
to
lock
in
the
code.
Code
Entry
To
use
this
method:
1.
Find
the
three-digit
code
or
codes
for
the
type
and
brand
of
the
component
you
want
to
control
(in
this
example,
TV).
Refer
to
section
4-4.
2.
If
several
codes
are
listed,
you
may
have
to
try
some
or
all
of
them.
After
entering
a
code,
press
the
remote
control's
POWER
button
to
test
it.
The
correct
code
turns
the
device
on
and
off.
3.
Press
the
device
(DVD,
VCR,
AUX,
TV,
SAT)
button
again
to
lock
the
code.
40
4-4.
Control
codes
Brands
Codes
Admiral
072
081
096
160
161
Aiko
103
Akai
070
146
Alaron
028
A
Mark
112 143
America
Action
043
Amstrad
052
Anam
043 054 056 080
112
AOC
004 058 070
112
Audiovox
043 076
103 120
Baysonic
043
Bell&Howell
072
Blaupunkt
088
Bradford
043
Brooksonic
096
Cairn
206
Candle
002 003 004 070
Capehart
058
Carver
164
CCE
001
004 024
Celebrity
001
Cetronic
043
Cineral
103 120
Citizen
002 003 004 043 070
101
103
143
Classic
043
Concerto
004
Contec
043 050
051
Coronado 143
Craig
043 054
191
Crosley
164
Crown
043
143
Curtis
004
011
070 072
081
101
120
143 164
CXC
043
Daewoo
004 016 043 044 076
103
114
120
127
128
136 143 192
Daytron
004
143
Denon
011
Dumont
004 073
Dynasty
043
Dynatech
062
Electroband 001
Electrohome
024 076
120
143
Emerson
004 005 028 043
047
048 050
051
070 076
096
120
143
151
153
154 155
191
Brands
Codes
Fisher
007 057
Fujitsu
028
198
210
211
Funal
028 043 052
Futuretech
043
GE
004 008 009 034 056
070 073 074
081
120
130
145 155
160
165
161
167
Gibralter
004 073
Goldstar/LG
004
106 110
112 119
127
143 193
Gradiente
004 038
106
Grunpy
028 043
Hall
Mark
004
Harley
Davidson
028
Harvard
043
Hitachi
004
007
009 010
011
012 023 072 075
143
158
Harman
164
Infinity
164
Inteq
073
JBL
164
JCB
001
JCPenney
004 008 009 024 030
065 070
101
143 156
160
Jensen
013
JVC
001
034 038 083
199
208
KEC
043
Kenwood
001
070
Kloss
002 059
KMC
143
KTV
043 070
143 154
Lodgenet
072
Loewe
209
211
Logik
072
Luxman
004
LXI
007
015 052
081
160
164
Magnavox
003 004 022 059 060
061
063 064 070 094
127
160
164
Majestic
072
Marantz
070
164
Matsui
164
Matsushita
080
Megatron-Memorex004
007
028 072 096
Metz
088
Brands
Codes
MGA
004 024 024 028 042
070
Midland
073
Minerva
088
Minutz
008
Mitsubishi
004 024 028 040 042
081
146
214
Motorola
081
MTC
070 004 062
101
Multitech
043
NAD
015 025
NEC
004 016 019 024 040
056 070
130
134
Nikei
043
Nikko
103
NTC
103
Onking
043
Onwa
043
Optimus
080
Optonica
019
081
Orion
028 096
201
202 203
204 205
Panasonic
034 056 080
164
212
Philco
003 004 024 056 059
060 063 064 070
164
Philips
164
093 038 005 059
127
070 003 004
213
Pioneer
025 070 004 018 023
190
Portland
004
143
065
103
Prism
034
Proscan
160
161
167
145
065
Proton
004 058
112 143
171
173
Quasar
034 056 080
164
Radio
Shack
004 019
043
127
143
RCA
160
161
156 165
065
070 004 023 024 056
074
081
152
167
145
Realistic
007
019 043
047
Runco
073
130
Sampo
004 070 058
207
Samsung
101
004 050 089
105
160
127
143 133
215
Sansei
120
Sansui
096
Sanyo
007
020 053
057
082
Scotch
004
Scott
004 028 043 048
143
Brands
Codes
Sears
004
007
015 028 030
052
057
082 094
143
160
164
167
Seleco
200
Semivox
043
Semp
015
Sharp
004 014 019 022 028
081
143
Siemens
088
Signature
072
Sony
001
079
126
Soundesign
003 004 028 043
Spectricon
112
Squareview
052
SSS
004 043
Starlight
043
Supre
Macy
002
Supreme
001
Sylvania
003 044 059 060 063
064 070
127
160
164
Symphonics
194
052
Tandy
081
Tatung
056 062
Technics
034 080
Technol
Ace
028
Techwood
004
Teknika
002 003 004 024 028
043 072
101
103
143
164
Telerent
072
Tera
173
TMK
004
TNCI
073
Toshiba
015 030
007
040 062
101
Universal
008 009
Video
Concepts
146
Vidikron
164
Vidtech
004
Wards
004 008 009 019 028
060
061
063 064 072
074
143 164 165
Westinghouse
120
076
Yamaha
004 070
York
004
Yupiteru
043
Zenith
011
072 073 095 096
103
Zonda
112
TV
Codes
41
4-4.
Control
codes
Brands
Codes
Admiral
025 053
Adventura
034
Aiko
117
Aiwa
034
101
Akai
016 043 046
124 125
146
American
Action
117
American
High
031
Ampro
072
Anam
031
Asha
040
Audio
Dynamics
012 023 039 043
Audiovox
101
Beaumark
040
Broksonic
025 035
037
044
129
152
Calix
101
Canon
028
031
Capehart
108
CCE
024
117
Cineral
117
Citizen
101
117
Colt
024
Craig
003 024
101
040
135
Curtis
Mathes
031 041
156
Cybernex
040
Daewoo
005
007
010 065
108
110
112 116
117
119
Daytron
108
DBX
012 023 039 043
Dimensia
156
Dynatech
034 053
Electrohome
059
101
Electrophonic
101
Emerson
006
017
025
027
029
031
034 035 036
037
044 046
101
117
129
131
138 152 153
157
Fisher
003 008 009 010
Fuji
031
Funai
034
Garrard
034
Brands
Codes
GE
031
040 053 063 072
107
109
126 144
147
151
156
GO
Video
040
132 136
Goldstar/LG
001
101
012
114 123
Harley
Davidson
034
Harman
Kardon
012 045
Harwood
024
Hitachi
001
026 034 063
137
150
156
Hughes
001
HQ
034
Instantreplay
031
JCL
031
JCPenney
001
012
031
040 066
101
156
Jensen
043
JVC
048 050 043
130
060
012
031
150
055
158
KEC
101
117
Kenwood
014 023 034
047
048
KLH
024
Kodak
031
101
Lloyd
034
Logik
024
LXI
034 003 009
017
101
Magin
040
Magnasonic
117
Magnavox
067
031
034
041
064
068
154
160
Marantz
012 023
031
067
069
Marta
101
Matsui
027
030
Matsushita
031
MEI
031
Memorex
003 010 014 025
031
034 040 053 072
101
102
134 139
MGA
045 046 059
MGN
Technology
040
Minolta
001
156
Mitsubishi
001
045 046 053 059
061
162
Brands
Codes
Motorola
031
053
MTC
034 040
Multitech
024 034
NEC
012 023 039 043 048
Nikko
101
Noblex
040
Nordmende
043
Olympus
031
Optimus
053
101
Optonica
053 054
Orion
025
Panasonic
031
066 070
133
160
161
Pentax
001 031
063
156
Philco
025
031
034
067
Philips
031
034 054
067
071
101
Pilot
101
Pioneer 001 021
048
Portland
108
Profitronic
040
Protec
024
Quartz
002 014
Quasar
031
066 070
133
160
161
Radio
Shack
034
123
Radix
101
Randex
101
RCA
001 031
034 040
041
053
107
109 140
144
147
151
156
Realistic
003 008 010 014
031
034 040 053 054
101
Rico
058 078
Salora
014
Samsung
032 040
102 104
107
109
112 113 115
120
122 125 159
Sanky
053
Sansui
022 025 034 043 048
135
Sanyo
003 010
007
014 040
102
134
Brands
Codes
Scott
017 037
044
112 129
131
159
Sears
001
003 008 009 010
014
017
031
034
081
101
Sharp
031
054 053
143
Shintom
024
Shogun
040
Signature
034
Singer
024
Sony
003
031
032 034 052
056
057
058
155
Soundesign
034
STS
001
Sylvania
031
034 059
067
Symphonic
034
Tandy
010 034
Tatung
023 039 043
Teac
023 034 039 043
Technics
031
070
Brands
Codes
Teknica 031
019 034
101
Thomas
034
TMK
040
To
shiba
001
008 042
047
059
082
112
131
Totevision
040
101
Unitech
040
Vector
Research
012
Video
012 034 046
Videosonic
040
Wards
001
003
017
024
031
034 040 053 054
131
Westinghouse
024 025
XR-1000
024
031
034
Yamaha
012 034 039 043
Zenith
025 034 048 056 058
072 080
101
VCR
Codes
42
4-4.
Control
codes
Brands
Codes
Adcom
146 149
227
244
AMC
083 084
Arcam
100
Audio
File
093 098
Audio
Techinica
221
Aiwa
111
114
117
156
170
199
203
219
231 241
254
Akal
181
233
Anam
180
Bose
064
137
219
B&K
150
152
Carver
013 098
107
126 129
160
163
220
245 249
Clarion
151
169
Denon
101
133
191
202 208
246
247
Englighten
ed
Audio
078
153
Fisher
107
129
157
163 176
Fosgate
228 248
Brands
Codes
GE
123
216
Harmon
073
195
248 249
Haitai
119
Hitachi
088
JCPenney
109
154 178
Jensen
099
Jerrold
141
JVC
112 198
252
Kenwood
096
104
119 125 148
151
163
171
173
242
Krell
223
Lexicon
215
250
Luxman
066
120
205
229
LXI
123
177
Magnavox
126
162 185 186
224
228
Marantz
074
105
126 128 139
155
162 186
232
McIntosh
251
Mondial
069
225
Brands
Codes
MCS
178
Mitsubishi
253
Meridian
013
067
NAD
128
Nakamichi
072
212 234 235
Niles
236
Onkyo
094
115 116
209
211
255
Optimus
121
125
140
181
Panasonic
131
144
187
200
Parasound
085 086
090
Philips
126
136 186
197
Pioneer 081
093
138 165 189
195
230
243
Quasar
131
187
RCA
109
166
213
Realistic
103
122 123 124
172
174
177
179
180
194
Rotel
204
218 239
Sansui
075
126 139 196 197
214
Brands
Codes
Sanyo
129
157
Samsung
068
Scott
180 190
Sharp
096
125
151 161
169
182 193
Sherwood
089
127
Sony
097
117 147
183 188
192
200
237
238
253
Soundstream
197
Starcom
141
Symphonic
124
Teac
062
102
159
180
Technics
131
165 184
187
200
202 208
To
shiba
175
Wards
163
Yamaha
092
120
125 166 169
216
240
Zenith
061
222
AUX
(AUDIO)
Brands
Codes
Hamlin
015
017
022
Jerrold/G.I
010
021
025
Brands
Codes
Oak
008 016 023
Pioneer
007
026
027
Brands
Codes
Scientific
Atlanta
002 006
013
TOCOM
003
Brands
Codes
Zenith
004
AUX
(CATV)
Brands
Codes
Alpine
009
Apex
Digital
075 076
Arcam
065
Cyberhome
087
Daewoo
087
Denon
030
226
GE
035 036
Goldstar/
LG
028
041
Harmon
Kardon
217
Brands
Codes
Hitachi
011
Hiteker
076
JVC
031
Kenwood
070
Magnavox
008
038 042
Marantz
006 007
McIntosh
071
Mitsubishi
032
NAD
077
Brands
Codes
Onkyo
207
Optimus
034
Panasonic
003 039
Philips
006
007 038 042
063
Pioneer
005
010 034
Proceed
002
RCA
035
036
Samsung
029
040 095
Proscan
035 036
Brands
Codes
Sharp
004
Sony
037
080
Technics
003
Theta
Digital
034
To
shiba
001
038 082
091
206
Yamaha
039 079
Zenith
028
041
DVD
player
Brands
Codes
California
Audio 047
Denon
043
044
Fisher
047
Kenwood
060
Magnavox
048
057
Brands
Codes
Mitsubishi
057
NAD
057
Panasonic
047
051
054
Philips
048
Pioneer
055
057
Brands
Codes
Quasar 047
RCA
046
Sharp
060
Sony
050
053
Sanyo
052
Brands
Codes
Technics
047
051
054
To
shiba
060
Yamaha
045 059
DVD-Laser
Disc
Player
43
5.
INITIAL
SETUP
IMPORTANT:
Check
your
TV
owner's
manual
for
the
prefered
or
required
video
format.
The
appropriate
format
should
be
set
using
the
FORMAT
button
on
the
front
panel
of
the
DIRECTV
HD
Receiver.
If
the
correct
format
is
not
selected,
the
on-screen
display
and
video
may
not
appear
correctly
or
may
not
appear
at
all.
If
an
does
not
appear,
check
the
Format
setting
(see
section
2-3).
When
you
turn
on
the
DIRECTV
HD
Receiver
for
the
first
time,
you
will
be
asked
if
you
want
to
set
up
DIRECTV
programming.
If
you
have
chosen
to
subscribe
to
DIRECTV
programming,
you
should
initialize
the
system
according
to
section
8-7.
(See
section
8-7
if
applicable.)
If
you
do
not
have
a
dish,
you
should
select
"NO".
This
means
you
can
receive
only
off-air
and
cable
broadcasts
(analog
&
digital).
Although
this
setup
process
will
be
displayed
only
once,
you
can
change
your
selection
at
any
time
in
the
future
using
the
DIRECTV
Initial
setup
menu.
If
you
have
chosen
to
subscribe
to
DIRECTV
service,
you
should
contact
DIRECTV
at
1-800-
DIRECTV
(or
1-800-347-3288)
and
order
programming.
When
you
order
programming,
you
need
to
know
your
access
card
number.
To
get
this
num-
ber,
press
MENU
on
the
remote
control,
then
select
SYSTEM
on
the
Menu.
Select
System
Test
on
the
screen,
and
you
will
see
the
Access
Card
Identifier.
Another
way
to
find
the
num-
ber
is
by
taking
out
the
access
card
and
referring
to
the
number
printed
on
it.
44
6-1.
Viewing
the
Channel
Banner
6.
BASIC
OPERATION
The
Channel
Banner
appears
whenever
you
tune
to
a
new
channel
or
press
the
INFO
button
on
the
remote
control
while
viewing
a
program.
It
displays
channel
and
program
information
in
the
banner
shown
at
the
top
of
the
screen.
To
remove
the
banner,
press
INFO
again,
EXIT
or
wait
for
10
seconds.
The
icons
in
the
Channel
Banner
represent
the
status
or
availability
of
important
features.
The
icons
will
be
highlighted
when
the
feature
is
active
or
available
as
provided
by
the
broadcast-
er
and
service
provider.
The
information
available
on
the
Channel
Banner
is
described
below.
Time
(Program
start
and
finish
(duration))
Channel
Logo
Rating
Channel
Number
High-Definition
Message
Lock
Date
Program
Description
Input
Source
Dolby
Digital
Closed
Caption
Alternate
Audio
45
6-1.
Viewing
the
Channel
Banner
Input
Source
Icon
(DIRECTV)
Indicates
from
which
source
the
current
program
signal
is
being
received.
The
DIRECTV
HD
Receiver
can
receive
a
signal
from
ANT,
ANT/Digital,
CABLE
or
DIRECTV.
Lock
Icon
(
)
Indicates
that
the
parental
or
spending
limit
lock
system
is
activated
(see
section
8-19).
Alternate
Audio
(
/)*
DIRECTV
and
digital
channels
sometimes
provide
multiple
audio
tracks,
often
in
a
different
language.
When
multiple
audio
tracks
are
available,
the Alternate
Audio
icon
changes
its
appearance
to
indicate
that
you
can
select
one
of
those
audio
setups
with
"FG"
buttons.
Message
Icon
(
)
Indicates
that
your
DIRECTV
HD
Receiver
has
messages
from
DIRECTV.
The
message
icon
will
appear
in
the
channel
banner
to
indicate
that
a
new
message
has
arrived
or
there
are
unread
messages
in
the
box.
HDIcon(
)*
Indicates
that
the
current
program
is
broadcast
in
the
HD
format.
Dolby
Digital
Icon
(
D
)*
Indicates
that
the
currently
selected
audio
track
is
Dolby
Digital
audio
and
may
contain
up
to
5.1
channels
depending
on
the
broadcast.
CCIcon(
)*
Indicates
that
the
current
program
contains
the
closed
caption
data
service.
Channel
Logo
Displays
the
logo
of
the
current
satellite
channel.
If
a
channel
logo
is
not
available,
the
channel
name
will
be
displayed
instead.
Channel
Number
Displays
the
current
channel
number.
Start
and
End
Time*
Displays
the
start
time
and end
time
of
the
current
program.
Rating*
Displays
the
rating
of
the
current
program.
Date
Displays
the
current
date
and
time.
Program
Description*
Displays
a
brief
description
of
the
current
program
(if
available).
Category*
Displays
the
genre
of
the
current
program.
*
Items
are
based
on
information
provided
by
the
broadcaster
or
service
provider.
Occasionally
incorrect
information
may
be
provided.
For
example,
a
service
such
as
"HD"
may
be
available
even
if
the
icon
is
not
highlighted,
or
a
service
such
as
"Alternate
Audio"
may
not
be
available
even
if
the
Icon
is
highlighted.
ENGLISH
46
6-2.
Channel
Surfing
The
surf
list
appears
on
the
TV
screen
when
you
press
the
SURF
button
on
the
remote
control.
It
enables
you
to
surf
up
to
50
favorite
channels
that
were
chosen
in
the
Edit
Channel
section
of
the
Setup
menu
or
directly
added
in
the
SURF
guide
as
described
below.
The
surf
list
consists
of
the
channel
logos
or
channel
numbers.
If
the
logo
of
a
certain
channel
is
not
available,
the
channel
number
is
displayed
instead.
You
are
also
able
to
add
or
delete
the
logo
of
a
channel
on
the
surf
list
by
pressing
the
INFO
but-
ton
on
the
remote.
A
dialog
box
will
ask
what
you
want
to
do
with
the
highlighted
logo
area:
you
can
replace
the
highlighted
logo
area
with
the
current
channel,
or
delete
it.
You
can
easily
move
the
highlight
on
the
surf
list
using
"DEF
G
"
on
the
remote
control.
The
next
page
is
accessible
by
using
PAGE
D/E
button
on
the
remote.
You
can
tune
to
a
favorite
channel
by
pressing
"
".
Or
the
EXIT
button
on
the
remote
will
clear
the
surf
list
and
take
you
back
to
the
current
channel.
Scroll
Bar
47
6.
BASIC
OPERATION
6-3.
Freeze
Screen
Pressing
the
FREEZE
button
freezes
the
current
image.
Pressing
the
FREEZE
button
again
enlarges
the
image.
The
can
then
be
scanned
vertically
and
horizontally.
Pressing
the
FREEZE
button
once
again
returns
the
to
live
video.
FREEZE
Mode
Screen
Multi-Freeze
Mode
Screen
NOTE
The
Multi-Freeze
mode
is
only
available
for
digital
channels.
48
6-4.
Subscription
to
DIRECTV
programming
and
ANT/CABLE-Only
operation
The
DIRECTV
HD
Receiver
is
designed
to
receive
signals
from
DIRECTV,
ANT
and/or
CABLE
sources.
If
you
are
a
DIRECTV
customer,
you
can
enjoy
programming
provided
by
DIRECTV.
You
can
also
receive
the
analog
and
digital
over-the-air
broadcasts,
with
the
benefit
of
the
Advanced
Program
GuideTM
which
is
an
integrated
electronic
program
guide.
The
Advanced
Program
Guide
provides
program
listings
and
information
on
analog
and
digital
channels
from
over-the-air
local
stations
as
well
as
DIRECTV
channels.
You
can
easily
navigate
and
tune
to
hundreds
of
channels from
various
signal
sources
with
the
Advanced
Program
Guide.
If
you
don't
subscribe
to
DIRECTV
programming,
however,
the
function
of
the
DIRECTV
HD
Receiver
will
be
limited
to
receiving
signals
only
from
ANT
and/or
CABLE.
You
can
still
enjoy
HD
services
provided
by
over-the-air
digital
broadcast
along
with
the
conventional
analog
broadcast.
Without
the
DIRECTV
service,
however,
no
electronic
program
guide
is
available.
49
7-1.
About
the
Advanced
Program
GuideTM
The
DIRECTV
Advanced
Program
GuideTM,
contains
schedule
and
program
information
for
all
DIRECTV
channels.
The
Advanced
Program
Guide
also
provides
local
over-the-air
channels
information
including
both
conventional
analog
and
digital
channels
if
you
receive
satellite
ser-
vice.
Helping
you
to
find
a
program
easily
and
conveniently,
the
Advanced
Program
Guide
allows
you
to
view
schedule
and
descriptive
program
information
for
the
channels.
The
receiver
offers
10
different
channel
lists:
ALL,
CUSTOM,
SURF
and
CATEGORY
(MOVIES,
SPORTS,
SPECIALS,
SERIES,
NEWS,
MY
CATEGORY
1
and
MY
CATEGORY
2).
You
may
edit
the
CUSTOM
and
SURF
channel
lists
to
customize
and
design
your
favorite
channels,
respectively.
In
addition,
you
can
easily
find
specific
programs
by
using
the
CATEGORY
search
of
KEYWORD
search
functions.
An
explanation
of
each
channel
list
is
described
in
Section
7-2.
You
can
display
or
exit
the
Advanced
Program
Guide
in
several
ways.
To
display
the
Advanced
Program
Guide:
-
Press
the
GUIDE
button
on
your
remote
control.
or
-
Press the
MENU
button
on
the
remote
control
and
select
the
DIRECTV
menu.
Several
options
will
appear.
Choose
the
Guide
option
(MENU
DIRECTV
Guide).
To
exit
the
Advanced
Program
Guide:
-
Press
the
EXIT
button
to
return
to
the
last
channel
you
were
tuned
to.
or
-
When
any
currently
broadcasted
program
is
highlighted,
pressing
" "
will
make
the
guide
screen
disappear
and
tune
to
that
channel.
In
the
Advanced
Program
Guide,
you
can
also
show
or
hide
the
Guide
menu.
To
show
or
hide
the
Guide
menu:
-
Press the
GUIDE
button
on
your
remote
control
in
the
Advanced
Program
Guide.
The
panels
on
the
left
disappear
and
you
can see
the
Guide
menu.
The
first
press
shows
the
Guide
menu
at
the
far
left.
Pressing
the button
a
second
time
makes
the
Guide
menu
disappear.
50
7-2.
Layout
of
the
Advanced
Program
GuideTM
Screen
The
on-screen
guide
maintains
ten
different
channel
lists,
each
of
which
shows
you
only
those
channels
and
programs
that
belong
to
that
channel
list.
The
meaning
and
generation
of
each
channel
list
is
described
below
Note:
When
viewing
the
Program
Guide,
press
the
GUIDE
button
on
the
remote
control
to
view
the
items
below
in
the
Guide
menu
(see
section
7-1).
ALL
As
the
default
guide
type
when
pressing
the
GUIDE
button,
the
ALL
category
shows
program
listings
for
all
channels
to
which
you
may
subscribe.
The
guide
shows
DIRECTV
channels
that
your
dish
antenna
can
receive,
and
over-the-air
channels
that
you
have
selected
to
add
into
the
channel
list
during
the
initial
setup
procedure.
Program
details
for
non-satellite
channels
may
not
be
available
depending
on
the
satel-
lite
service
provider.
CUSTOM
Shows
the
program
listings
that
belong
to
the
CUSTOM
channel
list.
You
can
customize
the
CUSTOM
channel
list
by
hiding
channels
from
the
All
Channel
List
that
you
do
not
wish
to
view
(see
section
8-8).
SURF
Shows
program
listings
only
for
those
channels
in
the
SURF
channel
list.
You
can
generate
a
SURF
chan-
nel
list,
which
is
a
short
list
of
channels
you
tune
to
most
frequently,
by
setting
a
favorite
icon
to
the
chan-
nels
from
the
menu
sequence
MENU
SETUP
Surf
List/Ch.
Edit
(see
section
8-8).
CATEGORY
(MOVIES/SPORTS/SPECIALS/SERIES/NEWS)
Lists
only
Movies/Sports/Specials/Series/News
programs
from
channels
in
the
All
channel
list.
The
DIRECTV
HD
Receiver
generates
the
list
automatically
based
on
the
category
information
for
programs
appearing
within
the
next
few
hours
in
the
Advanced
Program
GuideTM.
MY
CATEGORY
1/
MY
CATEGORY
2
Shows
only
user-defined
programs.
You
can
edit
MY
CATEGORY
1,
MY
CATEGORY
2
list
from
the
menu
sequence
Guide
My
Category
EDIT
(see
section
7-8).
51
7.
ADVANCED
PROGRAM
GUIDETM
7-2.
Layout
of
the
Advanced
Program
GuideTM
Screen
The
guide
screen
also
provides
two
search
menus:
Category
Searches
for
programs
that
belong
to
a
given
category.
The
DIRECTV
HD
Receiver
first
shows
you
currently
applicable
categories
and
allows
you
to
search
for
programs
in
that
category
(see
section
7-8).
Keyword
Searches
for
programs
that
have
or
are
related
to
a
specific
keyword.
You
can
choose
a
key-
word
for
program
titles
or
credit
titles
(for
example,
actor/actress,
director,
writer,
awards,
etc.)
(see
section
7-9).
When
accessing
an
on-screen
guide,
you
will
always
return
to
the
guide
menu,
one
of
the
10
channel
lists
or
one
of
the
two
search
menus,
that
you
have
previously
viewed.
NOTE
After
first
installing
satellite
service,
it
may
take
several
hours
before
all
program
information
is
fully
available
in
the
Advanced
Program
GuideTM.
52
7-3.
Moving
through
the
Advanced
Program
GuideTM
The
Advanced
Program
GuideTM
is
operated
based
on
a
simple
and
straightforward
"Highlight
and
Select"
process.
1.
Use
"DEF
G
"
on
your
remote
control
to
navigate
the
guide
screen.
2.
Press
" "
to
select
or
execute
the
highlighted
menu
or
function.
The
on-screen
guide
shows
you
program
listings
for
six
channels
within
a
one
and
one
half
hour
time
slot,
for
example:
6:00-7:30.
In
order
to
view
a
list
of
future
programs
or
other
channels,
you
may
continuously
press
"DEF
G
"
to
scroll
horizontally
or
vertically.
This
may
take
a
while
to
reach
a
specific
channel
or
program,
if
the
channel
or
program
is
listed
far
from
the
current-
ly
highlighted
program.
The
Advanced
Program
Guide
thus
offers
you
shortcuts
to
minimize
your
effort
in
navigating
channels
and
time
slots.
Line
Scrolling
You
can
reach
other
time
slots
or
channels
that
are
currently
hidden
from
the
screen
using
the
arrow
buttons
"DEF
G
".
Move
horizontally
to
reach
other
time
slots
and
move
vertically
to
reach
other
channels.
Page
Scrolling
You
can
move
through
channels
faster
by
scrolling
page-by-page
with
the
PAGE
E/D
buttons
on
the
remote
control.
Each
button
stroke
scrolls
one
page
up
or
down.
Date
Scrolling
Pressing
the
CC
button
on
the
remote
control
to
jump
to
the
Date
Change
Box.
Alternatively,
you
can
move
the
highlight
to
the
Date
Change
Box
and
change
the
date
to
jump
to
the
time
slot
of
that
day.
Pressing
"FF"
button
will
show
you
a
previous
6
hours
guide.
Press
the
GUIDE
button
to
return
immediately
to
the
guide
menus,
the
left-most
column
of
the
guide
screen.
This
is
very
useful
when
the
highlight
is
located
far
from
the
current
time
and
you
want
to
return
to
the
guide
menus.
53
7.
ADVANCED
PROGRAM
GUIDETM
7-3.
Moving
through
the
Advanced
Program
GuideTM
NOTE
Press
the
GUIDE
button
to
return
immediately
to
the
guide
menus,
the
left-most
column
of
the
guide
screen.
This
is
very
useful
when
the
highlight
is
located
far
from
the
current
time
and
you
want
to
return
to
the
guide
menus.
Direct
Jumping
You
can
quickly
jump
to
a
page
that
contains
a
specific
channel
by
directly
entering
a
channel
number
using
the
digit
buttons
"0~9"
on
the
remote
control.
Pressing
" "
following
the
digit
button
strokes
will
move
to
the
channel
immediately.
In
Guide
view
You
can
preview
the
highlighted
channel
in
the
In
Guide
at
left-top
window.
You
can
also
quickly
jump
to
a
In
Guide
window
by
pressing
the
PREV
CH
button
on
the
remote
control.
This
press
moves
the
highlight
to
the
In
Guide
at
the
left-top.
Pressing
the
CH
v/V
button
takes
you
to
another
TV
channel.
Pressing
the
' '
button
returns
you
to
TV
viewing.
54
7-4.
Selecting
a
Program
The
top
region
of
the
guide
screen
displays
the
schedule
and
program
information
of
the
cur-
rently
highlighted
program.
You
can
also
see
other
detailed
information
about
the
program
by
pressing
the
INFO
button.
When
you
select
the
highlighted
program
by pressing
"
",
what
happens
or
appears
next
depends
on
whether
the
highlighted
program
is
currently
on-air
or
scheduled
in
the
future,
and
whether
or
not
it
is
a
pay-per-view
program.
Current
Program
/
non
Pay-Per-View
If
the
selected
program
is
a
current
program
and
not
one
of
the
PPV
programs,
you
will
tune
directly
to
the
program.
Current
Program
/
DIRECTV
Pay-Per-View
If
the
selected
program
is
a
current
pay
per
view
program,
you
will
be
asked
if
you
want
to
pur-
chase
this
program.
Future
Program
/
non
Pay-Per-View
If
the
selected
program
is
scheduled
in
the
future
and
is
not
a
PPV,
you
will
be
offered
a
dialog
box
that
enables
you
to
reserve
this
program
for
watching.
If
you
select
Timer
option
in
the
Guide
menu,
this
program
is
put
on
the
Timer/Record
List
and
you
will
be
reminded
by
a
message
at
the
bottom
of
the
screen
10
seconds
before
its
airing
time.
Future
Program
/
DIRECTV
Pay-Per-View
If
the
selected
program
is
a
pay-per-view
program
scheduled
in
the
future,
you
will
also
be
asked
if
you
want
to
purchase
this
program.
Once
you
confirm
the
purchase,
this
program
is
put
on
the
Purchase
list.
You
can
view
the
Purchase
list
from
the
menu
sequence
Menu
DIRECTV
Purchase
List
and
cancel
any
purchase
on
the
list
anytime
before
its
airing
time.
A
continuous connection
to
a
land-based
phone
line
is
required
to
perform
this
function
with
your
remote
control.
(Note:
Pay-per-view
programs
can
only
be
purchased
within
the
24
hours
of
the
program
times.)
55
7.
ADVANCED
PROGRAM
GUIDETM
7-5.
Getting
More
Program
Information
Pressing
the
INFO
button
will
display
available
additional
information
about
the
highlighted
program.
Depending
on
the
broadcaster
and
service
provider,
information
may
include
actor
and
role
relationships,
original
material,
production
studio,
the
date
on
which
the
program
was
first
shown,
and
so
on.
To
display
program
details:
1.
Move
the
highlight
to
a
desired
program
using
"DEFG"
on
the
remote
control.
2.
Press the
INFO
button
on
the
remote
control
to
display
the
available
additional
information.
3.
To
move
the
highlight
to
the
left
menu
bar,
press
"F"
on
remote
control.
To
return
to
the
additional
information
box,
press
"G".
4.
To
view
this
TV
program,
move
the
highlight
to
the
left
menu
bar,
move
the
highlight
to
the
"View"
menu,
locat-
ed
on
the
left
side
of
the
additional
information
box,
and
press
""
.
56
5.
If
you
want
to
check
any
other
broadcasting
schedules
for
this
same
program,
move
the
highlight
to
the
"Showings"
menu,
located
on
the
left
side
of
the
additional
information
box,
and
press
"
".
6.
To
return
to
the
previous
guide
screen,
Move
the
highlight
to
the
"Back"
menu,
located
on
the
left
side
of
the
additional
information
box,
and
press
"
".
7-5.
Getting
More
Program
Information
57
7.
ADVANCED
PROGRAM
GUIDETM
7-6.
Setting
a
Timer/Record
Event
for
Future
Viewing
If
you
want
to
view
a
program
scheduled
in
the
future,
you
can
put
that
program
on
the
Timer/Record
List
so
that
program
will
be
automatically
tuned.
A
timer
event
will
automatically
tune
to
the
selected
channel
at
the
specified
time.
A
Record
event
will
also
turn
on
the
DIRECTV
HD
Receiver
if
it
is
turned
off
and
will
automatically
control
your
VCR
to
record the
program;
if
the
VCR
Controller
is
correctly
set
up
(see
sections
3-6
and
8-23).
Timer/Record
Events
may
also
be
manually
set
through
the
menu
(see
section
8-5).
To
schedule
a
future
viewing
:
1.
Move
the
highlight
to
a
future
program
you
want
to
watch
using
"DEFG"
on
the
remote
con-
trol.
2.
Press the
" "
button
on
the
remote
control
to
display
the
available
additional
information.
3.
Pressing
"F"
will
move
the
highlight
to
the
"Timer"
menu,
located
on
the
left
side
of
the
addition-
al
information
box,
then
press
"
".
4.
A
dialog
box
will
appear
for
your
review.
5.
Move
the
highlight
to
the
"OK"
option
in
the
dialog
box
and
press
" "
to
confirm.
6.
The
program
name
will
be
preceded
by
the
Timer
mark.
If
you
want
to
cancel
any
reservation,
exe-
cute
the
menu
sequence
MENU
DIRECTV
Timer/Record
List
and
press
" "
when
the
high-
light
is
on
the
reservation.
NOTE
A
reminder
message
will
appear
at
the
bottom
of
the
screen
10
seconds
before
the
reserved
program
actually
starts.
The
receiver
will
auto-
matically
tune
to
the
program
if
you
do
not
cancel
it.
Pay
per
view
programs
can
only
be
purchased
within
24
hours
of
the
program
times.
58
7-7.
Purchasing
DIRECTV
Pay
Per
View
Programs
If
you
subscribe
to
DIRECTV
programming,
you
may
preview
pay
per
view
movies
on
channel
200,
the
DIRECTV
promo
channel,
to
determine
if
you
would
like
to
purchase
them.
To
purchase
Pay
Per
View
(PPV)
programs:
1.
From
the
program
guide,
press
INFO
button
to
see
detailed
information
about
the
selected
pro-
gram.
If
this
program
is
a
pay
per
view
program,
the
"PURCHASE"
menu
will
be
appear
at
left-
menu.
Selecting
the
"PURCHASE"
menu
will
show
you
the
dialog
box.
2.
Move
the
highlight
to
the
right
to
"Buy"
in
the
dialog
box
and
press
"
".
Another
pop-up
box
will
be
displayed
to
verify
your
purchase.
(A
continuous connection
to
a
land
based
phone
line
is
required
to
order
PPV
with
your
remote
control.)
59
7.
ADVANCED
PROGRAM
GUIDETM
7-8.
Searching
for
Programs
by
Category
You
can
search
for
specific
programs
by
categories.
The
category
information
of
each
program
is
provided
by
the
Advanced
Program
GuideTM
so
that
you
can
choose
one
of
them
to
search
for
matching
programs.
You
can
also
set
a
search
range
of
One
Day
or
One
Week.
In
the
search
result
one
program
may
have
multiple
showings
on
different
channels
and/or
at
different
time
slots.
Note
:
You
can
also
specify
an
user-defined
category
using
"MY
CATEGORY".
To
search
programs
by
Category
:
1.
While
viewing
the
Program
Guide,
press
the
GUIDE
button
on
the
remote
control
to
view
the
Guide
menu.
2.
Highlight
the
SEARCH
in
the
guide
menu.
Pressing
" "
will
show
search
sub-menu.
Select
Category
sub-menu
and
press
"
".
The
Category
Search
screen
consist
of
two
columns:
the
first
column
from
the
left
shows
the
cat-
egory
names,
and
the
right
column
lists
programs
resulting
from
a
category
search.
3.
Move
the
highlight
to
the
category
column.
If
a
category
has
a
sub-category,
the
arrow
(G)
mark
will
be
displayed
at
the
left
side.
Pressing
" "
will
move
to
the
sub-category
list.
When
the
highlight
is
on
the
selected
category
name,
pressing
" "
will
move
the
highlight
to
'Search'
button.
Pressing
" "
again
will
start
the
search
process.
4.
Programs
resulting
from
the
search
will
be
listed
in
the
right
column.
The
highlight
goes
to
the
top
program
on
the
list
and
its
program
information
will
be
displayed
at
the
top
region
of
the
guide
screen.
You
can see
program
infor-
mation
on
each
program
by
moving
the
highlight
using
"DE".
5.
In
the
result
column,
pressing
"D"
will
move
the
highlight
to
the
top-most
tab.
You
can
select
one
of
the
tab
menus
(Program,
Channel
and
Adver.
tab
).
Selecting
Program
tab
will
show
searched
programs,
selecting
the
Channel
tab
will
show
searched
Channels
and
the
Adver.
tab
selection
will
show
searched
Advertisements.
(Note
:
If
the
result
list
is
too
big
and
it
is
difficult
to
navigate
the
list,
press
SURF
button
on
the
remote
control.
It
will
show
the
'Quick
Jump'
pop-up
box,
and
is
easy
to
move
to
some
location
within
the
total
list.)
6.
If
you
choose
a
program
and
press
"
",
the
detailed
information
screen
will
be
displayed.
60
7-8.
Searching
for
Programs
by
Category
When
you
search
for
programs
by
category,
you
can
also
use
the
user-defined
"MY
CATEGORY"
feature.
You
may
specify
two
user-defined
categories.
One
is
the
"MY
CATEGORY1"
and
the
other
is
the
"MY
CATEGORY2".
These
categories
can
also
be
modified
in
the
EDIT
menu
(in
the
guide
menu->My
CATEGORY->EDIT).
Note
:
You
can
also
specify
an
user-defined
category
using
"MY
CATEGORY".
To
search
programs
by
MY
CATEGORY
:
1.
While
viewing
the
Program
Guide,
press
the
GUIDE
button
on
the
remote
control
to
view
the
Guide
menu.
2.
Highlight
the
MY
CATEGORY
in
the
guide
menu.
Pressing
" "
will
show
search
sub-menu.
Select
EDIT
sub-menu
and
press
"
".
The
My
Category
Edit
screen
consist
of
two
columns:
the
first
column
from
the
left
shows
the
cate-
gory
names,
and
the
right
column
shows
the
selected
category
name.
3.
Select
the
MY
CATEGORY1
or
MY
CATEGORY2
using
"FG".
And
move
the
highlight
to
the
category
column.
If
a
cat-
egory
has
sub-category,
the
arrow
(G)
mark
will
be
displayed
at
the
left
side.
Pressing
" "
will
move
to
the
sub-cat-
egory
list.
When
the
highlight
is
on
the
selected
category
name,
pressing
" "
will
move
the
highlight
to
'Save'
but-
ton.
Pressing
" "
again
will
modify
the
"MY
CATEGORY1"
or
the
"MY
CATEGORY2".
4.
If
you
select
the
"MY
CATEGORY1"
or
the
"MY
CATEGORY2",
the
guide
screen
will
list
only
user-defined
programs
in
the
All
channel
list.
61
7.
ADVANCED
PROGRAM
GUIDETM
7-9.
Searching
for
Programs
by
Keyword
You
can
also
search
for
programs
by
keywords
which
can
be
found
in
program
titles
or
credit
titles
such
as
actor/actress
name,
director
name,
etc.
To
search
programs
by
keyword:
1.
While
viewing
the
Program
Guide,
press
the
GUIDE
button
on
the
remote
control
to
view
the
Guide
menu.
2.
Highlight
SEARCH
in
the
guide
menu.
Pressing
" "
will
show
the
search
sub-menu.
Select
the
Keyword
sub-menu
and
press
"
".
The
Keyword
Search
screen
consists
of
two
columns:
the
first
column
from
the
left
is
the
key
input
box,
and
the
right
column
lists
programs
found
from
a
keyword
search.
3.
Enter
a
word
using
the
on
screen
keyboard.
Highlight
the
first
letter
and
press
"
"totypeitin.
4.
While
entering
a
word,
the
'Candidate'
pop-up
box
will
show
eight
candidate
keywords.
Press
0-9
button
on
the
remote
control
to
enter
a
word
quickly.
5.
When
a
word
is
complete
or
even
when
only
a
partial
word
is
typed
in,
you
may
move
the
highlight
to
the
Search
button
with
"G",
and
press
" "
start
the
search.
6.
The
programs
resulting
from
the
search
will
be
listed
in
the
right
column.
Program
information
will
be
displayed
at
the
top
region
of
the
guide
screen.
You
can
see
program
information
on
each
program
by
moving
the
highlight
using
"DE".
7.
In
the
result
column,
pressing
"D"
will
move
the
highlight
to
the
top-most
tab.
You
can
select
one
of
tab
menus(Program,
Channel
and
Adver.
tab
).
Selecting
Program
tab
will
show
searched
programs,
selecting
Channel
tab
will
show
searched
Channels
and
selecting
Adver.
tab
will
show
searched
Advertisements.
8.
If
you
choose
a
program
and
press
"
",
detailed
information
about
the
program
will
be
displayed.
62
8-1.
Accessing
the
On-screen
Menu
8.
CUSTOMIZATION
In
the
menu
system,
there
are
several
ways
to
customize
the
settings
provided.
To
navigate
the
menu
levels,
you
will
see
" "
or
"G"
on
the
right
side
of
the
menu
label
to
help
you
go
to
the
next
level.
To
display
and
exit
the
Menu:
Press the
MENU
button
on
the
remote
control
to
display
the
menu.
A
second
press
of
the
MENU
button
or
a
press
of
the
EXIT
button
will
take
you
back
to
TV
viewing.
To
go
to
the
next
level:
Press
" "
or
"G
"
on
the
remote
control.
To
go
back
to
the
previous
level:
Press
"F
"
or
MENU
button
on
the
remote
control.
63
8-2.
The
Structure
of
the
On-Screen
Menus
DIRECTV
SETUP
AUDIO
PREFERENCE
LOCK
SYSTEM
Guide
Purchase
List
Mail
List
Timer/Record
Timer/Record
List
Initial
Setup
Channel
Scan
Manual
Ch.
Add
Surf
List/Ch.
Edit
Clock
Out
to
TV
Hook-up
Help
Digital
Output
Audio
Mode
Dolby
Digital
Audio
Language
TV
Aspect
Ratio
DTV
Caption
DTV
Caption
Style
Closed
Caption
Advanced
Demo
Lock
System
Block
Channel
Movie
Rating
TV
Rating
--
Children
TV
Rating
--
General
Spending
Limit
System
Info
System
Test
Replace
Card
VCR
Control
Setup
Remote
Control
64
8-3.
Managing
Program
Purchases
Purchase
List
Shows
a
history
of
recently
purchased
programs
and
display
upcoming
DIRECTV
Pay
Per
View
purchases.
Upcoming
DIRECTV
Pay
Per
View
purchases
can
be
canceled.
You
may
do
this
by
selecting
the
program.
A
pop-up
screen
will
ask
you
if
you
want
to
cancel
the
program.
If
you
select
a
past
DIRECTV
Pay
Per
View
purchase,
you
can
see
each
charge
of
the
PPV
programs
pur-
chased and
shown.
To
review
programs
in
the
Purchase
List:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
"
"on
the
remote
control.
3.
Scroll
down
to
the
Purchase
List
using
"
".
4.
Move
the
highlight
to
the
right
with
" "
to
scroll
the
purchase
list.
5.
Press
" "
to
return
to
the
previous
level
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
view-
ing.
NOTE
CAM:
Conditional
Access
Module,
usually
referred
to
as
the
access
card.
A
removable,
electronic
subassembly
provides
conditional
access
control
of
the
subscriber
terminal.
CAM
Slot
No:
The
CAM
slot
number
indicates
which
slot
the
purchase
occupied.
A
satellite
service
provider
customer
ser-
vice
representative
may
use
these
slot
numbers
to
help
resolve
billing
issues.
65
8.
CUSTOMIZATION
8-4.
Checking
Messages
Allows
you
to
view
the
messages
that
are
sent
from
DIRECTV.
For
example,
you
may
receive
a
mes-
sage
requesting
your
attention
to
a
new
service
or
special
program
offering.
To
check
the
Mail Box:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
" "
on
the
remote
control.
3.
Scroll
down
to
the
Mail
List
menu
using
"E".
4.
Move
the
highlight
to
the
right
with
"G"
to
select
a
mail
item
from
the
list.
5.
Press
" "
and
the
full
text
of
the
mail
will
be
displayed
in
the
pop-up
dialogue
box.
6.
Select
"Delete"
on
the
pop-up
box
if
you
want
to
delete
it.
7.
Press
"F"
to
return
to
the
previous
level
or
press
the
EXIT
button
on
the
remote
control
if
you
want
to
return
to
TV
viewing.
NOTE
The
Message
icon
will
be
displayed
in
the
Channel
Banner
only
when
at
least
one
unread
message
is
in
the
mail
list.
66
8-5.
Setting
a
Timer/Record
Event
Allows
you
to
set
up
a
timer
or
record
event
manually.
You
can see
the
event
list
in
the
Timer/Record
List
menu
(DIRECTV
Timer/Record
List).
You
can
also
set
a
one
time
Time/Record
event
in
the
Guide
(see
section
7-6).
A
Timer
event
will
automatically
tune
to
the
selected
channel
at
the
selected
time.
A
Record
event
will
also
turn
on
the
DIRECTV
HD
Receiver
if
it
is
turned
off
and
will
automatically
control
your
VCR
to
record the
program
if
the
VCR
Controller
is
correctly
set
up
(see
sections
3-6
and
8-23).
To
add
a
program
to
the
Timer/Record
List
:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
" "
on
the
remote
control.
3.
Scroll
down
to
the
Timer/Record
menu
using
"E".
4.
Press
"G"
or
"
".
The
pop-up
dialogue
box
will
be
displayed.
5.
Select
a
Type
option,
either
Timer
or
Record.
Then
select
a
Channel,
Date,
Time,
Duration
and
Repeat
options.
6.
Pressing
" "
will
show
the
confirm
dialogue
box.
Press
" "
again.
7.
After
adding
a
program,
you
can
check
the
new
item
in
the
Timer/Record
List
(see
next
page
'8-6.
Modifying
a
Timer/Record
Event'.
)
8.
Press
MENU
button
to
return
to
the
previous
level
or
press
the
EXIT
button
on
the
remote
control
if
you
want
to
return
to
TV
viewing.
67
8.
CUSTOMIZATION
8-6.
Modifying
a
Timer/Record
Event
The
Timer/Record
List
shows
the
programs
you
have
reserved
in
the
Guide
menu
or
in
the
Timer/Record
menu.
You
may
cancel
any
program
in
the
list
by
selecting
the
program.
You
may
also
modify
any
event
in
the
list
that
was
created
in
the
Timer/Event
menu.
To
modify
or
delete
a
program
in
the
Timer/Record
List:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
"
"on
the
remote
control.
3.
Scroll
down
to
Timer/Record
List
using
"E".
4.
Move
the
highlight
to
the
right
with
"G"
to
select
a
program
from
the
list.
5.
Press
" "
and
the
pop-up
dialogue
box
will
be
displayed.
6.
Select
"Delete"
in
the
pop-up
box
if
you
want
to
cancel,
then
the
highlight
will
return
to
the
list.
Or
Select
"Modify"
in
the
pop-up
box
if
you
want
to
modify
type,
channel,
date,
time,
duration
and
repeat
options.
The
Timer/Record
dialogue
will
appear
for
modification.
(Note
:
If
the
program
was
reserved
in
the
Guide
menu,
"Modify"
can
not
be
selected.)
7.
Press
"F"
to
return
to
the
previous
level
or
press
the
EXIT
button
on
the
remote
control
if
you
want
to
return
to
TV
viewing.
68
8-7.
Initializing
the
System
About
Initial
Setup
The
DIRECTV
HD
Receiver
is
capable
of
receiving
three
types
of
signals;
ANT,
CABLE
and
DIRECTV
programming
if
you
are
a
DIRECTV
customer.
Initial
Setup
lets
you
initialize
your
system
to
function
properly
with
your
dish
antenna.
Setup
Wizard
Provides
whole
sequential
process
from
dish
selection
(Step
1)
to
channel
setup
(Step
5).
Step
1.
Dish
Setup
As
first
step,
you
should
select
one
of
three
dish
setup
modes
(
Manual
Selection/Auto
Detection
/No
Dish
).
Manual
Selection
allows
you
to
select
the
correct
dish
type
among
three
different
types
available;
Round
Dish
for
Satellite
Network
A
only,
Oval
Dish
for
Satellite
Networks
A
and
B,
or
Oval
Dish
for
Satellite
Networks
A,
B,
and
C.
For
advice
on
selecting
a
dish that
will
provide
the
services
that
you
desire,
contact
DIRECTV
(1-800-DIRECTV)
or
your
local
DIRECTV
retail
expert.
If
you
already
have
a
dish,
refer
to
its
user's
guide
to
determine
its
type.
To
receive
all
available
HD
programming,
you
should
install
and
select
the
Oval
dish
type
(Oval
dish
(Sat
A,
B,
C)).
The
Auto
Detection
feature
will
help
you
select
your
dish
if
you
are
unsure
of
your
dish
type.
If
you
are
not
a
DIRECTV
customer
and
want
to
view
programming
only
from
Antenna/Cable,
then
select
the
No
Dish
Mode.
69
8.
CUSTOMIZATION
8-7.
Initializing
the
System
To
Select
your
dish
type
in
Manual
Selection:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
" "
on
the
remote
control.
3.
Scroll
down
to
Initial
Setup
using
"E".
4.
Move
the
highlight
to
the
right
with
"G"
to
choose
Setup
Wizard.
5.
Press
" "
and
the
Setup
Wizard
menu
will
be
displayed.
6.
Select
the
Manual
Selection
option
and
press
"
".
7.
In
the
Manual
Selection
screen,
select
your
dish
type
using
"DE".
8.
Press
" "
to
move
to
the
next
step
of
the
initial
setup.
Step
2.
Dish
Positioning
Your
Location
provides
the
coordinates
of
elevation,
azimuth,
and
tilt
based
upon
your
ZIP
code.
Elevation
is
the
up/down
angle
of
the
dish.
Azimuth
is
the
side-to-side
direction,
while
tilt
is
the
circular
rotation
of
the
dish
itself
around
the
pointing
axis.
Full
instructions
for
the
installation
of
your
dish
are
provided
with
your
satellite
dish
antenna.
To
enter
your
location:
1.
Enter
your
ZIP
code
using
the
digit
buttons
on
the
remote
control.
2.
Press
" "
to
show
the
elevation,
azimuth
and
tilt.
Point
your
dish
properly
with
the
azimuth,
elevation
and
tilt
values
given.
3.
Press
" "
to
move
to
the
next
step
of
the
initial
setup.
70
8-7.
Initializing
the
System
Step
3.
Signal
Strength
Depending
on
the
Dish
Type
you
have
selected,
the
Signal
Strength
menu
shows
you
up
to
three
sig-
nal
strength
bars
for
Satellite
Networks
A,
B,
and
C,
in
order
to
help
you
adjust
the
dish
to
the
cor-
rect
position
with
the
elevation,
azimuth,
and
tilt
values
obtained
from
the
Your
Location
menu.
While
the
maximum
signal
strength
is
100,
there
will
be
no
apparent
difference
in
quality
between
signal
strengths
of
60
to
85.
The
higher
the
signal,
the
less
likely
you
are
to
experience
pic-
ture
quality
degradation
during
adverse
weather
conditions
such
as
heavy
rain
or
snow.
A
transponder
is
a
receiver/transmitter
on
the
satellite.
It
receives
signals
from
DIRECTV
and
retrans-
mits
them
to
your
dish.
The
DIRECTV
HD
Receiver
is
capable
of
displaying
the
signal
strength
of
most
transponders
by
using
the
following
method.
To
see
the
signal
strength:
1.
Move
the
highlight
to
select
the
desired
satellite
using
"FG".
2.
Set
an
each
transponder
using
"DE"
3.
Press
" "
to
move
to
the
next
step
of
the
initial
setup.
NOTE
Depending
on
your
location
in
the
United
States,
certain
transponders
may
not
be
available.
It
is
normal
for
the
signal
strength
level
of
a
few
transponders
to
be
at
zero.
NOTE
If
you
have
selected
an
Oval
Dish
and
SAT
B
and/or
SAT
C
do
not
display
a
signal
strength
on
any
transponder,
re-
check
your
dish
installation
or
perform
Step
1:
Dish
Setup
again.
71
8.
CUSTOMIZATION
8-7.
Initializing
the
System
Step
4.
Add
Local
Network
Adds
program
information
for
channels
available
over
the
air
(terrestrial)
in
a
selected
local
area
as
defined
by
the
satellite
service
provider.
You
can
select
two
distinct
areas
by
ZIP
code
to
view
the
chan-
nels
being
broadcast
from
both
areas.
This
is
useful
if
you
live
between
two
major
broadcast
centers
and
are
capable
of
receiving signals
from
both.
After
this
Channel
Setup
process,
the
channel
list
of
over
the
air
stations
will
be
added
to
the
guide.
To
Add
Local
Network:
1.
If
you
want
to
add
over
the
air
digital
and
analog
channels
to
your
guide,
you
must
select
"YES",
then
the
next
input
screen
will
be
displayed.
NOTE:
If
you
select
"NO",
you
don't
need
to
do
the
following
procedure.
2.
Press
" "
if
your
ZIP
code
is
correct
for
the
primary
local
channels.
The
channel
search
progress
will
be
shown.
3.
If
the
ZIP
code
is
missing
or
incorrect,
select
the
ZIP
code
for
your
city
using
"E"and
pressing
"
".
4.
If
you
want
to
add
secondary
local
channels
from
another
area,
enter
a
secondary
ZIP
code
using
the
digit
buttons
on
the
remote
control
and
press
"
".
5.
Repeat
steps
2
to
4.
6.
Press
" "
to
move
to
the
next
step
of
the
initial
setup.
7.
Press
"F"
to
return
to
the
previous
level
or
press
the
EXIT
button
on
the
remote
control
if
you
want
to
return
to
TV
viewing.
Note
:
The
Add
Local
Network
feature
only
adds
station
and
program
information
to
the
guide.
Depending
on
your
location,
such
stations
may
be
received
by
connecting
an
antenna
to
the
ANT
IN
jack
(see
section
3-4).
If
off-air
digital
and
analog
channel
data
is
selected
"YES",
then
some
local
analog
(NTSC)
and
digital
(ATSC)
channels
may
appear
in
the
GUIDE
for
which
reception
may
be
poor
or
not
viewable.
To
hide
these
channels,
refer
to
section
8-8
Managing
Channels
and
section
7-2
Advanced
Program
Guide.
72
8-7.
Initializing
the
System
Step
5.
Create
Channel
list
The
Setup
wizard
will
show
the
summary
screen
of
the
setup
sequence.
The
next
page
will
create
the
channel
list
automatically.
When
the
Setup
Wizard
function
is
complete,
press
the
" "
button
on
the
remote
control
to
finish
the
Initial
Setup.
73
8.
CUSTOMIZATION
8-7.
Initializing
the
System
Dish
Setup
Status
Shows
the
dish
type
and
up
to
two
distinct
areas
by
ZIP
code.
To
see
the
dish
setup
status:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
" "
on
the
remote
control.
3.
Scroll
down
to
the
Initial
Setup
using
"E".
4.
Move
the
highlight
to
the
right
with
"G"
to
select
Dish
Setup
Status.
5.
Move
the
highlight
to
Dish
Setup
Status
and
press
"
".
The
Dish
Information
dialogue
box
will
be
displayed.
6.
Press
"F"
to
return
to
the
previous
menu.
74
8-7.
Initializing
the
System
Dish
Positioning
Provides
the
coordinates
of
elevation,
azimuth,
and
tilt
based
upon
your
ZIP
code.
Elevation
is
the
up/down
angle
of
the
dish.
Azimuth
is
the
side-to-side
direction,
while
tilt is
the
circular
rotation
of
the
dish
itself
around
the
pointing
axis.
Full
instructions
for
the
installation
of
your
dish
are
provided
with
your
satellite
dish
antenna.
To
enter
your
location:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
" "
on
the
remote
control.
3.
Scroll
down
to
Initial
Setup
using
"E".
4.
Move
the
highlight
to
the
right
with
"G"
to
select
Dish
Positioning.
5.
Move
the
highlight
to
Dish
Position
and
press
"
".
The
positioning
dialogue
box
will
be
displayed.
6.
Enter
your
ZIP
code
using
the
digit
buttons
on
the
remote
control.
7.
Press
" "
to
show
the
elevation,
azimuth
and
tilt.
Point
your
dish
properly
with
the
azimuth,
elevation
and
tilt
values
given.
8.
Press
"F"
to
return
to
the
previous
menu.
75
8.
CUSTOMIZATION
8-7.
Initializing
the
System
Signal
Strength
Depending
on
the
Dish
Type
that
is
selected,
the
Signal
Strength
menu
shows
you
up
to
three
signal
strength
bars
for
Satellite
Networks
A,
B,
and
C,
in
order
to
help
you
adjust
the
dish
to
the
correct
position
with
the
elevation,
azimuth,
and
tilt
values
obtained
from
the
Your
Location
menu.
While
the
maximum
signal
strength
is
100,
there
will
be
no
apparent
difference
in
picture quality
between
signal
strengths
of
60
to
85.
The
higher
the
signal,
the
less
likely
you
are
to
experience
picture quality
degra-
dation
during
adverse
weather
conditions
such
as
heavy
rain
or
snow.
A
transponder
is
a
receiver/transmitter
on
the
satellite.
It
receives
signals
from
DIRECTV
and
retrans-
mits
them
to
your
dish.
The
DIRECTV
HD
Receiver
is
capable
of
displaying
the
signal
strength
of
most
transponders
by
using
the
following
method.
To
see
the
dish
setup
status:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Select
the
DIRECTV
menu
by
pressing
" "
on
the
remote
control.
3.
Scroll
down
to
Initial
Setup
menu
using
"E".
4.
Move
the
highlight
to
the
right
with
"G"
to
select
Signal
Strength.
5.
When
the
highlight
is
on
the
Signal
Strength,
press
"
".
The
signal
strength
dialogue
box
will
be
displayed.
6.
Move
the
highlight
to
select
the
desired
transponder
and
satellite.
7.
Press
"F"
to
return
to
previous
menu.
NOTE
Depending
on
your
location
in
the
United
States,
certain
transpon-
ders
may
not
be
available.
It
is
normal
for
the
signal
strength
level
of
a
few
transponders
to
be
at
zero.
76
8-8.
Managing
Channels
Channel
Scan
(Channel
Search)
Automatically
finds
all
channels
(both
analog
and
digital)
available
through
the
antenna
and
cable
inputs,
and
stores
all
the
active
channels
in
the
channel
list.
Inactive
or
weak
channels
may
not
appear
in
the
list.
In
that
case,
add
missing
channels
manually
in
the
Manual
Ch.
Add
menu.
The
channel
list
created
here
can
be
seen
in
the
Surf
List/Ch.
Edit
menu.
To
scan
the
channels:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Setup
menu
by
pressing
"
".
4.
Channel
Scan
will
be
automatically
highlighted.
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
channel
find
box.
6.
Select
"Start"
button
and
press
" "
and
the
moving
yellow
bar
will
indicate
the
progress
scan-
ning
the
channels.
When
the
scanning
process
begins,
"Start"
will
change
to
"Next".
If
you
press
"Next",
the
scanning
of
the
current
signal
source
will
be
ignored
and
the
scanning
of
the
next
sig-
nal
source
will
proceed.
7.
When
the
scanning
is
completed,
the
scanned
result
will
be
stored.
8.
Press
the
EXIT
button
on
the
remote
control
if
you
want
to
return
to
TV
viewing.
77
8.
CUSTOMIZATION
8-8.
Managing
Channels
Manual
Ch.
Add
Manually
adds
a
channel
to
your
channel
list
without
rescanning
all
the
channels
again.
Channel
Scan
may
not
pick
up
every
channel
that
is
available
on
Air
and
Cable.
Therefore,
it
may
be
necessary
for
you
to
add
channels
manually
using
this
feature.
Note
:The
Manual
Channel
Add
feature
is
not
available
in
ANT/CABLE
mode.
Use
the
Channel
Scan
and
Surf
List/Ch.
Edit
menus
to
add
channels
in
the
ANT/CABLE
mode.
To
add
the
channels
missed
in
your
channel
list:
1.
Press
the
MENU
button
on
the
remote
control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Setup
menu
by
pressing
"
".
4.
Scroll
down
to
Manual
Ch.
Add
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
"
to
display
the
channel
add
box.
6.
Enter the
channel
number
desired
using
the
digit
buttons
on
the
remote
control.
7.
Press
" "
and
the
pop-up
box
of
the
result
will
be
displayed.
8.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
Note
:
Over-the-air
local
digital
channels
(ATSC)
may
have
different
channel
assignments
than
their
analog
(NTSC)
broadcast
counterparts.
78
8-8.
Managing
Channels
Surf
List/Ch.
Edit
The
default
channel
list
is
made
in
the
Channel
Scan
menu.
Surf
List/Ch.
Edit
allows
you
to
create
two
other
types
of
channel
lists;
custom
list
and
surf
list.
A
custom
list
can
be
created
by
toggling
each
chan-
nelonoroffwith"
".
Once
a
channel
is
highlighted,
you
will
be
able
to
see
whether
the
channel
is
currently
shown
or
hidden
by
referring
to
the
small
window
at
the
top-left
corner
of
the
screen.
To
create
your
own
surf
list,
with
up
to
50
favorite
channels,
press
the
SURF
button
on
the
remote
con-
trol
when
a
channel
is
highlighted.
To
edit
the
channel
list:
1.
Press
the
MENU
button
on
the
remote
control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Setup
menu
by
pressing
"
".
4.
Scroll
down
to
Surf
List/Ch.
Edit
using
"E
".
5.
Press
"G
"
to
display
the
channel
editing
screen.
To
create
a
custom
list:
1.
Use
"DEF
G
"
to
move
the
highlight
on
the
channel
editing
menu.
2.
Choose
"Shown"
or
"Hidden"
by
pressing
"
".
The
screen
shown
at
the
top
left
will
indicate
if
the
highlighted
channel
is
shown
or
hidden.
To
create
a
surf
list:
1.
Use
"DEF
G
"
to
move
the
highlight
on
the
channel
editing
menu.
2.
Choose
"Surf"
or
"No
Surf"
using
the
SURF
button
on
the
remote
control.
6.
Press
the
MENU
button
to
return
to
the
previous
screen
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
Use
the
"Show
All"
button
to
show
all
the
channels.
Use
the
"Hide
All"
button
to
hide
all
the
channels.
79
8.
CUSTOMIZATION
8-8.
Managing
Channels
80
8-9.
Setting
the
Clock
Clock
(Auto)
Enables
adjustment
of
the
time
zone
and
activation
of
daylight
savings
time.
Normally,
your
clock
is
set
using
signals
transmitted
by
DIRECTV.
To
set
auto
clock:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Setup
menu
by
pressing
"
".
4.
Scroll
down
to
Clock
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Select
your
time
zone
by
pressing
"G
"
repeatedly.
7.
Scroll
down
to
Daylight
Saving
and
press
"G
"
to
switch
daylight
saving
on
or
off.
8.
If
you
want
to
reset
the
clock,
scroll
up
again
to
"Auto
Set"
and
press
"
".
9.
Press the
MENU
button
to
return
to
the
previous
menu
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
81
8.
CUSTOMIZATION
8-9.
Setting
the
Clock
Clock
(Manual)
Enables
you
to
set
the
time
manually
for
the
ANT/CABLE
source
only.
To
set
clock
manually:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Setup
menu
by
pressing
"
".
4.
Scroll
down
to
Clock
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Use
"DE
"
to
move
the
highlight
in
the
entry
boxes.
7.
Set
the
Year,
Date
and Time
using
the
number
buttons
on
the
remote
control.
8.
Press
MENU
button
to
return
to
the
previous
screen
or
press
the
EXIT
button
on
the
remote
con-
trol
to
return
to
TV
viewing.
82
8-10.
Setting
Default
Signal
Out
Output
Channel
If
you
use
the
OUT
TO
TV
jack,
select
channel
3
or
4
to
send
RF
signal
from
your
DIRECTV
HD
Receiver
to
your
TV.
Your
TV
must
be
tuned
to
the
selected
channel
to
display
the
pic-
ture.
Loop
Through
A
signal
from
CABLE
IN
or
ANT
IN
jacks
is
passed
through
to
the
OUT
TO
TV
jack
when
your
HD
Receiver
is
in
the
standby
(power
off)
mode.
To
set
Out
to
TV
settings
of
the
DIRECTV
HD
Receiver:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Setup
menu
by
pressing
"
".
4.
Scroll
down
to
Out
to
TV
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Select
your
output
channel
to
Channel
3
or
Channel
4
with
"FG".
Select
your
default
signal
source
to
Antenna
or
Cable
with
"FG".
7.
Press
the
MENU
button
to
return
to
the
previous
menu
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
83
8.
CUSTOMIZATION
8-11
Hook-up
Help
Graphically
depicts
possible
ways
to
connect
the
DIRECTV
HD
Receiver
to
your
dish
antenna
and
other
components.
Since
the
connection
that
is
best
for
you
depends
on
the
components
in
your
sys-
tem,
keep
in
mind
that
an
alternative
connection
may
also
be
possible.
To
see
Hook-up:
1.
Press the
MENU
button
on
the
remote
control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Setup
menu
by
pressing
"
".
4.
Scroll
down
to
Hook-up
using
"E".
5.
Press
"G
"
to
display
the
Hook-up
diagrams.
Seven
possible
hook-up
connections
will
be
shown.
6.
Scroll
up
and
down
the
hook-up
figure
options
shown
to
determine
the
correct
connections
for
your
system.
7.
Press
the
MENU
button
to
return
to
the
previous
screen
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
84
8-12.
Setting
the
Audio
Digital
Output
If
you
are
using
an
external
audio
system
that
supports
Dolby
Digital
audio,
select
Dolby
Digital
audio
mode.
If
you
are
using
an
external
audio
system
that
has
a
PCM
only
decoder,
select
PCM
(Digital).
If
you
are
not
using
an
external
audio
system,
select
OFF.
Do
not
select
the
Dolby
Digital
setting
if
connecting
to
an
audio
system
that
is
not
capa-
ble
of
decoding
Dolby
Digital
audio.
Doing
so
may
cause
the
audio
receiver
to
create
high-pitched
noise
that
could
potentially
cause
harm
to
audio
equipment.
To
set
the
digital
audio
mode:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Audio
menu
by
pressing
"
".
4.
Digital
Output
will
be
automatically
highlighted.
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Select
one
of
the three
options
and
press
" "
to
return
to
the
previous
level.
7.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
85
8.
CUSTOMIZATION
8-12.
Setting
the
Audio
PCM
(Digital)
Pulse
Code
Modulation
(PCM)
decoders
support
L/R
stereo
only.
If
selected,
audio
outputs
are
decoded
and
transmitted
to
the
Digital
Output
(SPDIF)
in
PCM
mode.
Dolby
Digital
Audio
Dolby
Digital
audio,
formerly
known
as
Audio
Coding
3rd
Generation
or
5.1
channel
audio,
is
a
coding
technique
that
provides
up
to
five
independent,
full
frequency
response
audio
chan-
nels
and
one
low
frequency
bass
channel.
NOTE
Refer
to
section
2-5
to
see
more
detailed
information.
NOTE
Please
make
sure
that
your
A/V
ampli-
fier
supports
Dolby
Digital
decoding,
as
not
all
A/V
amplifiers
support
5.1
decoding.
86
8-12.
Setting
the
Audio
Audio
Mode
Allows
you
to
choose
the
default
audio
mode
when
a
program
is
broadcasting
in
analog
format.
When
you
view
a
program
broadcast
in
mono,
you
will
hear
only
mono
sound,
even
though
stereo
mode
is
set.
When
Second
Audio
Program
"SAP"
mode
is
set,
the
program's
sec-
ond
audio
program
is
broadcast
in
mono,
if
provided.
To
Set
the
Analog
Audio
Mode:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Audio
menu
by
pressing
"
".
4.
Scroll
down
to
Audio
Mode
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Select
one
of
the
three
options
and
press
" "
to
return
to
the
previous
level.
7.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
87
8.
CUSTOMIZATION
8-12.
Setting
the
Audio
Dolby
Digital
Audio
Allows
you
to
choose
a
Dolby
Digital
audio
mode
according
to
which
analog
audio
output
port
you
use
to
adjust
the
adequate
audio
level.
If
you
connect
audio
line
output
to
your
TV,
select
'Line
Mode'.
If
you
use
the
OUT
TO
TV
port
to
connect
to
your
TV,
select
'RF
Mode'.
To
set
the
Dolby
Digital:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Audio
menu
by
pressing
"
".
4.
Scroll
down
to
Dolby
Digital
using
"E".
5.
Move
the
highlight
to
the
right
with
"G".
6.
Select
the
Line
Mode
or
RF
Mode
option
and
press
" "
to
return
to
the
previous
level.
7.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
88
8-12.
Setting
the
Audio
Audio
Language
If
available,
allows
you
to
hear
a
program
in
other
languages
if
the
program
is
broadcast
in
digital
format.
You
may
select
a
language
while
you
are
viewing
a
program
by
selecting
an
option
on
the
audio
language
box
in
the
channel
banner
and
pressing
"FG"
repeatedly
to
select
the desired
language.
To
set
the
digital
audio
language:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Audio
menu
by
pressing
"
".
4.
Scroll
down
to
Audio
Language
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Select
one
of
the
eight
language
options
and
press
" "
to
return
to
the
previous
level.
7.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
89
8.
CUSTOMIZATION
8-13.
Choosing
the
Aspect
Ratio
Allows
you
to
choose
the
screen
format.
When
you
view
a
high-definition
using
the
video
480i
or
480p
output
format,
you
can
choose
Letterbox,
Cropped
or
Squeezed.
When
you
view
a
standard-definition
using
the
720p
or
1080i
output
format,
you
can
choose
Normal,
Wide,
Panorama,
Zoom
or
Cine-Zoom.
When
you
view
a
high-definition
using
the
720p
or
1080i
output
format,
you
can
temporarily
choose
Standard,
Expand,
Shrink.
(Refer
to
section
2-4
Normal
and
Wide
Format
Signals.)
Choosing
the
screen
format
of
your
TV:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Preference
menu
by
pressing
"
".
4.
TV
Aspect
Ratio
will
be
automatically
highlighted.
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Select
one
of
the
options
and
press
" "
to
return
to
the
previous
level.
7.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
Note
:
The
RATIO
button
on
the
remote
control
may
also
be
used
to
toggle
through
the
available
aspect
ratio
settings
of
the
current
content
and
output
format.
90
8-13.
Choosing
the
Aspect
Ratio
Modes
for
viewing
high-definition
content
(16:9)
WHEN
OUTPUT
FORMAT
IS
480i
OR
480p
MODE
:
Letter
Box
Use
for
a
with
an
original
16:9
aspect
ratio
(in
a
wide
format).
Letterbox
mode
will
shrink
the
to
fill
the
screen,
with
black
(or
gray)
bars
appearing
at
the
top
and
bottom
of
the
screen.
Cropped
Use
for
a
filling
the
entire
screen
by
cropping
(removing)
the
left
and
right
portions
of
the
picture.
Squeezed
Use
for
a
full
filling
the
entire
screen
with
no
black/gray
bars.
The
in
a
16:9
format
will
be
horizontally
adjusted
or
squeezed
to
fit
the
4:3
ratio
monitor.
Modes
for
viewing
normal
(4:3)
on
a
wide
TV
(16:9)
display
WHEN
OUTPUT
FORMAT
IS
720p
OR
1080i
MODE
:
Normal
Use
for
a
with
an
original
4:3
aspect
ratio
on
your
16:9
monitor,
with
black/gray
bars
appearing
at
the
left
and
right
sides.
Wide
Use
for
a
adjusted
horizontally
(in
a
linear
proportion)
to
fill
the
entire
screen.
Panorama
Use
to
adjust
a
in
a
non-linear
proportion
(more
at
both
sides)
to
create
a
spectacular
view.
Zoom
Use
when
you
want
to
fill
the
entire
screen
with
no
black/gray
bars
appearing.
The
will
be
altered
both
horizontally
(stretched)
and
vertically
(cropped).
The
top
and
bottom
portions
of
the
will
be
cut.
CINE-Zoom
Use
to
adjust
zooming.
The
can
be
adjusted
in
multiple
steps
to
provide
the
best
dis-
play
for
many
program
formats
on
your
display
device.
91
8-13.
Choosing
the
Aspect
Ratio
Modes
for
viewing
high-definition
content
(16:9)
WHEN
OUTPUT
FORMAT
IS
720p
OR
1080i
MODE
:
(Note:
you
may
choose
one
of
three
appearance
options
for
your
preference)
Standard
Choose
when
you
want
to
view
a
with
no
adjustment.
Expand
Choose
when
you
want
to
view
a
in
the
16:9
ratio.
The
will
be
horizontally
adjusted
or
expanded
to
fit
16:9
ratio
size.
Left
and
right
portions
of
the
will
not
be
shown.
Shrink
Choose
when
you
want
to
view
a
in
the
4:3
ratio.
The
will
be
horizontally
adjusted
or
squeezed
to
fit
4:3
ratio
size.
Black
or
gray
bars
will
show
at
the
left
and
right
side.
Aspect
Ratio
Summary
Program
Format
Output
Format
Available
Aspect
Ratio
SD(480i/p)
4
:
3
SD(480i/p)
4
:
3
No
Adjustment
Options
HD(720p/1080i)
16
:
9
SD(480i/p)
4
:
3
Letter
Box,
Cropped,
Squeezed
SD(480i/p)
4
:
3
HD(720p/1080i)
16
:
9
five
Aspect
Ratio
controls
(Normal,
Wide,
Panorama,
Zoom,
Cine-Zoom)
HD(720p/1080i)
16
:
9
HD(720p/1080i)
16
:
9
three
temporary
Aspect
Ratio
controls
(Standard,
Expand,
Shrink)
The
aspect
ratio
setting
changes
both
the
high-definition
outputs
(Component,
RGB/DVI-HDTV)
and
the
standard-definition
outputs
(Video
1/2,
S-Video,
Out
to
TV).
When
using
a
VCR
or
DVR
to
record
programming
from
the
standard
definition
outputs,
make
sure
the
correct
aspect
ratio
is
selected.
92
8-14.
Setting
Digital
Caption
Allows
you
to
select
a
mode
for
displaying
Digital
Caption
Data.
In
the
Digital
Caption
Service,
Services
1-6
typically
represent
different
Language
Services,
if
available.
Service
1
Service
1
is
designated
as
the
Primary
Caption
Service.
This
service
contains
the
verbatim,
or
near-verbatim
captions
for
the
primary
language
being
spoken
in
the
accompanying
pro-
gram
audio.
Service
2
Service
2
is
designated
as
the
Secondary
Language
Service.
This
service
contains
captions
in
a
secondary
language
which
are
translations
of
the
captions
in
the
Primary
Caption
Service.
Services
3-6
The
other
services
are
not
pre-assigned.
It
is
up
to
the
discretion
of
the
individual
caption
provider
to
utilize
the
remaining
service
channels.
To
set
DTV
Caption:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Preference
menu
by
pressing
"
".
4.
Scroll
down
to
DTV
Caption
using
"E".
5.
Move
the
highlight
to
the
right
with
"G".
6.
Select
one
of
options
and
and
press
" "
to
return
to
the
previous
level.
7.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
93
8.
CUSTOMIZATION
8-15.
Setting
Digital
Caption
Style
Allows
you
to
customize
the
caption
style
to
your
preference
by
allowing
you
to
change:
Font,
Edge
Type,
Color,
etc.
Note
:
If
the
Style
setting
is
"Set
By
Program"
the
captions
will
appear
as
defined
by
the
program
provider.
To
set
DTV
Caption
Style:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Preference
menu
by
pressing
"
".
4.
Scroll
down
to
DTV
Caption
Style
using
"E".
5.
Move
the
highlight
to
the
right
with
"G"
to
move
to
the
caption
style
box.
6.
Select
each
value
from
Style
to
Edge
Color.
Move
the
highlight
using
"ED",
and
Select
a
value
for
each
option
with
"FG".
7.
Press the
MENU
button
on
the
remote
control
to
return
to
the
previous
level.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
94
8-16.
Setting
Closed
Caption
Allows
you
to
select
a
mode
for
displaying
analog
Closed
Caption
Data.
In
the
Analog
Caption
Service,
Captions
1-4
display
program's
dialog,
and
Text
1-4
display
for
a
data
service
information.
(Note:
Closed
Captions
will
appear
only
when
they
are
provided
by
the
broadcaster.)
Caption1
(CC1)
CC1
is
the
primary
caption
service
that
synchronizes
the
captioning
language
with
the
sound,
used
by
most
broadcasters.
The
captioning
is
displayed
in
the
same
language
as
the
program's
dialog.
Caption2
(CC2)
CC2
is
the
special
non-synchronous
caption
service
that
does
not
need
to
be
in
sync
with
the
sound
and
may
provide
simplified
captioning,
which
is
usually
delayed.
Caption3
(CC3)
CC3
serves
as
an
alternate
captioning
service
channel.
The
captioning
is
often
a
secondary
lan-
guage
translation
such
as
French,
Spanish,
simplified
English
or
displayed
at
a
slower
rate.
Caption4
(CC4)
CC4
is
another
special
non-synchronous
caption
service
that
does
not
need
to
be
in
sync
with
the
sound
and
may
provide
simplified
captioning,
usually
delayed.
Text
1-4
Text1-4
usually
display
information
at
the
bottom
position
and
is
used
for
a
data
service,
generally
not
program
related.
To
set
Closed
Caption:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Preference
menu
by
pressing
"
".
4.
Scroll
down
to
Closed
Caption
using
"E".
5.
Move
the
highlight
to
the
right
with
"G".
6.
Select
one
of
options
and and
press
" "
to
return
to
the
previous
level.
7.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
95
8.
CUSTOMIZATION
8-17.
Advanced
Advanced
Setup
Allows
you
to
configure
special
settings
such
as
the
background
matte
color
for
wide
aspect
ratio
programming,
the
channel
banner
time-out
period
and
the
contrast
range
of
DVI
output.
To
set
advanced
Setup
Menu:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Preference
menu
by
pressing
"
".
4.
Scroll
down
to
Advanced
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
"
6.
Select
your
default
background
Matte
Color
which
appears
with
certain
aspect
ratio
settings
with
"FG".
Or
Select
a
time-out
duration
for
the
Information
banner
either,
'Short'
or
'Long'.
Or
Select
a
Banner
style
of
"Small",
"Medium"
or
"Large"
to
be
displayed
when
changing
channels
or
pressing
the
INFO
button.
Or
Select
each
DVI
Level
between
'Standard'
which
is
recomended
for
most
TVs
or
'Expand'
which
is
recommended
for
most
digital
monitors.
7.
Press the
MENU
button
on
the
remote
control
to
return
to
the
previous
level.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
96
8-18.
Running
Demo
Shows
you
how
to
navigate
through
the
on-screen
menus
of
the
DIRECTV
HD
Receiver.
To
run
Demo:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Preference
menu
by
pressing
"
".
4.
Scroll
down
to
Demo
using
"E".
5.
Press
"G
"
to
display
the
Demo
screen.
Demo
will
run
automatically.
6.
Press
"F
"
anytime
to
return
to
the
previous
screen
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
97
8-19.
Setting
Locks
Lock
System
Allows
you
to
set
up
specific
channels,
ratings
and
spending
limits
through
blocking
schemes.
Also
allows
you
to
activate
or
disable
all
of
the
lock
schemes
previously
set
up.
A
password
is
required
to
gain
access
to
this
menu
if
the
lock
system
is
activated.
You
can
change
the
password
by
inputting
a
new
password
twice.
When
the
system
is
unlocked,
the
Block
Channel,
Program
Rating
and
Spending
Limits
are
not
effective.
To
activate
or
deactivate
the
Lock
System:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Lock
menu
by
pressing
"
".
4.
If
unlocked,
Lock
System
will
be
automatically
highlighted,
otherwise
requires
a
password.
To
lock
the
system:
1.
Move
the
highlight
to
the
right
with
"G
"
in
Lock
On/Off
box.
2.
Switch
On
or
Off
by
using
"G
"
Whenever
you
switch
the
lock
system
on,
you
need
to
enter
the
password
as
a
reminder.
To
set
the
password:
1.
Move
the
highlight
to
the
Set
Password
with
"E".
2.
Enter
the
password
by
using
the
digit
buttons
on
the
remote
control.
3.
Enter
the
password
again
for verification.
5.
Press
"F
"
to
return
to
the
previous
screen
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
8.
CUSTOMIZATION
98
8-19.
Setting
Locks
Block
Channel
Blocks
any
channels
that
you
do
not
want
to
view
or
that
you
do
not
want
your
kids
to
watch.
If
you
tune
in
a
blocked
channel,
a
black
screen
with
a
pop-up
screen
will
appear.
You
will
have
to
enter
the
correct
password
to
view
the
channel.
Once
you
turn
off
your
DIRECTV
HD
Receiver,
Block
Channel
will
automatically
be
reactivated.
To
block
channels:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Lock
menu
by
pressing
"
".
4.
Scroll
down
to
Block
Channel
using
"E".
5.
Press
"G
"
to
display
the
Block
Channel
screen.
6.
Use
"DEF
G
"
to
move
the
highlight
in
the
channel
editing
screen.
7.
Toggle
Blocked
or
Unblocked
using
"
".
The
screen
shown
at
the
top
left
will
indicate
if
the
highlighted
channel
is
blocked
or
unblocked.
8.
Press
"F
"
to
return
to
the
previous
screen
or
press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
NOTE
When
you
tune
to
a
blocked
channel,
a
password
is
required
for
access.
The
Channel
Block
feature
should
not
be
used
as
the
only
parental
control.
Since
station
assignments
may
change
from
time
to
time,
controls
such
as
rat-
ing
and
spending
limits
should
always
be
used
as
the
primary
parental
control.
Additionally,
the
Channel
Block
settings
may
be
reset
if
there
is
an
interruption
to
the
AC
power
(such
as
if
set
is
unplugged
or
there
is
a
power
failure).
99
8-19.
Setting
Locks
Movie
Rating
Blocks
movies
according
to
the
movie
ratings
limit,
as
defined
by
the
Motion
Association
of
America,
so
children
cannot
view
certain
movies.
You
can
set
the
ratings
limit
by
blocking
out
all
the
movies
with
the
ratings
above
a
specified
level.
Keep
in
mind
that
the
movie
ratings
limit
applies
only
to
movies
shown
on
TV,
not
TV
programs
such
as
soap
operas.
To
block
movie
programs:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Lock
menu
by
pressing
"
".
4.
Scroll
down
to
Movie
Rating
using
"E".
5.
Select
the
level
you
want
using
"DE
"
and
press
" "
to
return
to
the
previous
level.
6.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
NOTE
MOVIE/MPAA
rating
G:
General
Audiences
All
ages
admitted.
PG:
Parental
Guidance
Suggested.
Some
material
may
not
be
suitable
for
children.
PG-13:
Parents
Strongly
Cautioned
Some
material
may
not
be
appropriate
for
children
under
13.
R:
Restricted
Under
17
requires
parent
or
adult
guardian
present.
NC-17:
No
viewers
17
and
under.
X:
No
viewers
17
and
under.
8.
CUSTOMIZATION
NOTE
The
Lock
feature
relies
on
correct
rating
information
to
be
provided
by
broadcaters
and
service
providers.
If
broadcast
rating
information
is
missing
or
incorrect,
the
Lock
fea-
ture
cannot
function
as
designed.
100
8-19.
Setting
Locks
TV
Rating
for
Children's
Programs
Keeps
children
from
watching
certain
children's
TV
programs
according
to
the
ratings
limit
as
defined
by
the
TV
Parental
Guidelines
Monitoring
Board.
This
rating
applies
only
to
TV
programs
for
children.
Unless
you
block
TV
programs
intended
for
mature
audiences
in
the
TV
Rating
--
General
menu,
your
children
may
view
those
programs.
To
block
TV
programs:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Lock
menu
by
pressing
"
".
4.
Scroll
down
to
TV
Rating-Children
using
"E".
5.
Select
Age
or
Content,
if
you
want
to
lock
a
TV
program
based
on
age
or
content.
6.
Select
the
level
you
want
using
"DE"
and
press
" "
to
return
to
the
previous
level.
7.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
NOTE
TV
Rating
Children
Programs
TV-Y:
All
Children.
This
program
is
designed
to
be
appropriate
for
all
children.
TV-Y7:
Directed
to
Older
Children.
This
program
is
designed
for
children
age
7
and
above.
101
8-19.
Setting
Locks
TV
Rating
for
General
Programs
Blocks
TV
programs
that
you
and
your
family
do
not
wish
to
watch,
based
on
the
rating
scheme
defined
by
the
TV
Parental
Guidelines
Monitoring
Board.
To
block
TV
programs:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Lock
menu
by
pressing
"
".
4.
Scroll
down
to
TV
Rating-General
using
"E".
5.
Select
Age
or
Content,
if
you
want
to
lock
a
TV
program
based
on
age
or
content.
6.
Select
the
level
you
want
using
"DE"
and
press
" "
to
return
to
the
previous
level.
7.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
NOTE
TV
Rating
for
General
Programs
TV-G:
General
Audience.
Most
parents
would
find
this
program
suitable
for
all
ages.
TV-PG:
Parental
Guidance
Suggested.
This
program
contains
material
that
parents
may
find
unsuit-
able
for
younger
children.
TV-14:
Parents
Strongly
Cautioned.
This
program
contains
some
material
that
many
parents
would
find
unsuitable
for
children
under
14
years
of
age.
TV-MA:
Mature
Audience
Only.
This
program
is
specifically
designed
to
be
viewed
by
adults
and
therefore
may
be
unsuitable
for
children
under
17.
8.
CUSTOMIZATION
102
8-19.
Setting
Locks
Spending
Limit
Sets
a
spending
limit
for
individual
Pay
Per
View
(PPV)
programs.
After
a
spending
limit
is
set
and
the
system
is
locked,
you
must
enter
the
password
to
purchase
a
PPV
program
that
costs
more
than
your
spending
limit
allows.
The
system
will
temporarily
unlock
the
limit
you
previ-
ously
set.
Once
the
receiver
is
turned
off
and
then
turned
back
on,
the
lock
will
be
reactivat-
ed.
To
set
the
spending
limit
of
each
PPV
program:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
Lock
menu
by
pressing
"
".
4.
Scroll
down
to
Spending
Limit
using
"E".
5.
Move
the
highlight
to
the
right
with
"G
".
6.
Enter the
maximum
amount
of
money
to
be
spent
on
each
PPV
program.
7.
Press
" "
to
return
to
the
previous
level.
8.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
103
8-20.
Getting
the
System
Information
General
Info
Shows
you
general
information
about
your
DIRECTV
HD
Receiver.
To
view
General
information
in
the
HD
Receiver:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
System
Info
will
be
automatically
highlighted.
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
information
option
box.
6.
General
Info
will
be
automatically
highlighted.
7.
Press
" "
and
the
pop-up
dialogue
box
will
be
displayed.
8.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
8.
CUSTOMIZATION
104
8-20.
Getting
the
System
Information
Feature
List
When
in
Satellite
mode,
allows
you
to
see
which
major
features
are
available
for
your
DIRECTV
HD
Receiver.
To
view
Feature
list
in
the
HD
Receiver:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
System
Info
will
be
automatically
highlighted.
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
information
option
box.
6.
Scroll
down
using
"E"
on
the
remote
control
to
select
Feature
List.
7.
Press
" "
and
the
pop-up
dialogue
box
will
be
displayed.
8.
You
can
see
the
feature
list
on
the
right
side
of
the
menu.
9.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
105
8-20.
Getting
the
System
Information
Tuner
List
When
in
Satellite
mode,
shows
you
what
kind
of
tuners
are
built
in
your
DIRECTV
HD
Receiver.
To
upgrade
the
software
in
the
HD
Receiver:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
System
Info
will
be
automatically
highlighted.
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
information
option
box.
6.
Scroll
down
using
"E"
on
the
remote
control
to
select
Tuner
List.
7.
Press
" "
and
the
pop-up
dialogue
box
will
be
displayed.
8.
You
can see
the
Tuner
list
on
the
right
side
of
the
menu.
9.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
8.
CUSTOMIZATION
106
8-20.
Getting
the
System
Information
System
Upgrade
When
in
Satellite
mode,
shows
you
the
current
software
version.
If
there
is
a
software
upgrade
planned,
you
will
be
notified
by
a
pop-up
box
on
your
TV
screen
and
the
pop-up
box
will
ask
you
if
you
want
to
upgrade
your
system.
To
upgrade
the
software
in
the
DIRECTV
HD
Receiver:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
System
Info
will
be
automatically
highlighted.
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
information
option
box.
6.
Scroll
down
to
System
Upgrade
using
"E".
7.
Press
"
",
then
you
can see
the
current
software
version
on
the
right
side
of
the
menu.
The
next
version
will
be
seen
if
DIRECTV
plans
to
upgrade
the
software.
8.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
The
DIRECTV
HD
Receiver
is
able
to
receive
upgrades
or
modifications
to
some
of
its
features
and
functions
via
satellite
service.
These
modifications
will
automatically
be
made,
usually
at
times
when
the
receiver
would
likely
be turned
off.
If
your
receiver
is
on
when
an
upgrade
or
modification
is
sent,
you
may
experience
a
disruption
in
reception
for
a
minute
or
two.
Your
reception
should
return
to
normal
after
the
modification
is
complete.
Your
receiver
must
be
plugged
in
and
connected
to
satellite
service
to
receive
any
upgrades.
Please
consult
the
Upgrade
Menu
to
find
a
schedule
of
upgrades
or
modifications
planned
by
DIRECTV.
(Note:
Do
not
unplug
your
receiver
while
an
upgrade
is
in
progress.
)
107
8-20.
Getting
the
System
Information
Basic
Test
When
in
Satellite
mode,
diagnoses
essential
system
components
of
your
DIRECTV
HD
Receiver.
Once
the Basic
System
Test
is
done,
your
HD
Receiver's
status
will
be
displayed.
If
any
problems
are
detected,
a
short
message
will
be
displayed.
To
test
basic
items
in
the
HD
Receiver
:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
Scroll
down
to
System
Test
using
"E".
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
system
test
option
box.
6.
"Basic
Test"
Info
will
be
automatically
highlighted.
7.
Press
" "
and
the
pop-up
dialogue
box
will
be
displayed.
8.
Press
" "
to
activate
the
System
Basic
test.
It
will
run
automatically
from
DIRECTV
Tuner
to
Phone
Connection
and
if
there
is
any
problem
in
your
system,
the
pop-up
box
will
be
displayed.
9.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
8.
CUSTOMIZATION
108
8-21.
Testing
the
System
Satellite
Dish
Antenna
(Outdoor
Unit)
Test
When
in
Satellite
mode,
diagnoses
the
Satellite
Dish
Antenna
(LNB
and
Satellite
Antenna)
connected
to
the
HD
Receiver.
Once
the
Satellite
Dish
Antenna
(Outdoor
Unit)
Test
is
done,
Satellite
signal
status
will
be
displayed.
If
any
problems
are
detected,
a
short
message
will
be
displayed.
To
test
the
Outdoor
Unit
:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
Scroll
down
to
System
Test
using
"E".
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
system
test
option
box.
6.
Scroll
down
to
Outdoor
Unit
Test
using
"E"
on
the
remote
control.
7.
Press
" "
and
the
pop-up
dialogue
box
will
be
displayed.
8.
Press
" "
to
activate
the
system
outdoor
unit
test.
It
will
run
automatically
and
if
there
is
any
problem
in
your
system,
the
pop-up
box
will
be
displayed.
9.
Press the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
109
8-21.
Testing
the
System
Transponder
Test
When
in
Satellite
mode,
diagnoses
all
transponder
signals
of
each
Satellite.
Once
the
Transponder
Test
is
done,
all
transponder
signal
status
of
the
selected
Satellite
will
be
dis-
played.
To
test
the
Transponder:
1.
Press the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
Scroll
down
to
System
Test
using
"E".
5.
Move
the
highlight
to
the
right
with
"G"
to
display
the
system
test
option
box.
6.
Scroll
down
to
Transponder
Test
using
"E"
on
the
remote
control.
7.
Press
" "
and
the
pop-up
dialogue
box
will
be
displayed.
8.
Select
one
of
SAT
A/SAT
B/SAT
C
with
"FG".
9.
Move
the
highlight
to
the
Start
Button
and
press
" "
to
activate
the
system
transponder
test.
It
will
run
automatically
and
if
there
is
any
problem
in
your
system,
the
pop-up
box
will
be
dis-
played.
10.
Press
MENU
button
to
return
to
the
previous
level
or
press
the
EXIT
button
on
the
remote
con-
trol
to
return
to
TV
viewing.
Note
:
Depending
on
your
location
in
the
United
States,
certain
transponders
may
not
be
available.
It
is
normal
for
the
signal
strength
level
of
a
few
transponders
to
be
at
zero.
8.
CUSTOMIZATION
110
If
you
are
a
DIRECTV
customer,
DIRECTV
may
issue
you
a
replacement
access
card
periodically
when
in
Satellite
mode.
This
menu
enables
you
to
transfer
information,
such
as
the
record
of
your
purchas-
es,
from
the
old
card
onto
a
new
one.
The
access
card
fits
into
the
slot
on
the
front
panel
of
the
DIRECTV
HD
Receiver.
Once
you
proceed
past
"Read
the
old
card",
"Replace
Card"
cannot
be
cancelled.
To
replace
the
card
:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
Scroll
down
to
Replace
Card
using
"E".
5.
Pressing
"
".
Replay
Card
Wizard
will
be
displayed.
6.
If
you
want
the
process
to
proceed,
follow
the
instructions
in
the
Replay
Card
Wizard.
7.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
8-22.
Replace
Card
111
8-23.
VCR
Control
Setup
8.
CUSTOMIZATION
Allows
you
to
set
up
the
DIRECTV
HD
Receiver
to
control
your
VCR
for
automatic
recording
when
used
with
the
Record
feature
(see
section
8-5).
To
set
up
the
VCR
Control:
1.
Press
the
MENU
button
on
the
Remote
Control
to
display
the
on-screen
menu.
2.
Scroll
down
using
"E"
on
the
remote
control.
3.
Select
the
System
menu
by
pressing
"
".
4.
Scroll
down
to
VCR
Control
Setup
using
"E".
5.
Pressing
"
".
VCR
Control
Setup
Wizard
will
be
displayed.
6.
If
you
want
the
process
to
proceed,
follow
the
instructions
in
the
VCR
Control
Setup
Wizard.
7.
Press
the
EXIT
button
on
the
remote
control
to
return
to
TV
viewing.
112
Your
DIRECTV
HD
Receiver's
remote
control
can
send
signals
to
the
HD
Receiver.
You
can
choose
to
assign
one
of
four
remote
ID's
for
IR
(Infrared)
Control.
This
can
be
useful
if
you
have
more
than
one
HNS
satellite
receiver
in
your
home.
8-24.
Remote
Control
Setup
113
9.
HELP
The
Help
feature
is
designed
to
let
you
understand
each
function
of
the
Menu
and
Advanced
Program
GuideTM
in
an
easy
and
convenient
way.
When
you
navigate
through
the
Menu
and
the
Advanced
Program
Guide,
press
and
hold
the
"HELP
(?)"
button
on
your
remote
control
if
you
want
information
about
the
highlighted
item.
The
information
will
be
displayed
on
the
right
side
of
the
TV
screen.
Simply
press
and
hold
"HELP
(?)"
button
to
see
the
helpful
information.
NOTE
Pressing
the
"HELP
(?)"
button
on
your
remote
control
with
no
menu
on-screen,
will
activate
the
overall
Help
feature.
However,
when
the
MENU
or
the
Advanced
Program
Guide
is
already
displayed,
pressing
the
"HELP
(?)"
button
will
activate
the
specific
Help
feature.
9-1.
Help
114
9-1.
Help
The
Help
is
an
on-screen
version
of
this
Operating
Guide.
You
can
review
many
features
of
the
DIRECTV
HD
Receiver
by
navigating
through
a
simple
structure.
It
contains
a
brief
overview
of
the
DIRECTV
HD
Receiver,
the
use
and
programming
of
the
remote
control,
a
functional
expla-
nation
of
the
front
and
back
panel,
and
an
instructive
note
about
the
Menu
and
the
Advanced
Program
GuideTM.
To
see
the
Help
feature:
1.
Press the
"HELP
(?)"
button
on
the
remote
control
to
display
the
Help
screen.
2.
Scroll
up
and
down
to
select
Help
menu
items
using
"DE"
on
the
remote
control.
3.
Move
the
highlight
using
"DEF
G
".
The
explanations
of
the
highlighted
item
will
be
displayed
on
the
right
side
or
at
the
bottom
of
the
screen.
4.
Press the
EXIT
button
on
the
remote
control
if
you
want
to
return
to
TV
viewing.
115
Specifications
For
Model
No.
HTL-HD
Television
System
NTSC,
Analog
American
Standard
(480i)
ATSC,
Digital
TV
standard
(1080i,
720p,
480p,
480i)
DIRECTV
Channel
Coverage
Digital
TV
1-69
VHF
2-13
UHF
14-69
CATV
1-125
DIRECTV
variable
Inputs/Outputs
ATSC/NTSC
RF
Inputs
Antenna
(1),
Cable
TV
(1)
(Terrestrial)
RF
Output
Out
To
TV
(1)
(selectable
Channel
3
or
4)
DIRECTV
RF
Input
Satellite
In
(1)
DVI-HDTV
Output
DVI-HDTV
Out
(1),
DVI-D
Single
Link
connector
1080i,
720p, 480p,
480i
digital
RGB
EIA-861
Compliant,
HDCP
1.0
Compliant
RGB
Output
15-pin
Connector
(1)
1080i,
720p,
480p
RGB
Component
Video
Output
Component
Out
(1),
Phono
Jack
connector
1080i,
720p, 480p,
480i
YPbPr
S-Video
Output
S-Video
Out
(1),
4-pin
Mini-DIN
480i
Y/C
Video
Output
Video
Out
(2),
Phono
Jack
connector
480i
Composite
NTSC
Digital
Audio
Optical
(selectable
Dolby
Digital
or
PCM
output)
Analog
Audio Audio
Out
(2)
(Fixed
Output
Level)
Access
Card
Smart
Card
(Slot
on
the
front)
Data
Port
9-pin
Serial
Port
(1)
VCR
Control
IR
blaster
(1)
Supplied
Accessories
Remote
Control
Batteries
AAA
type
Batteries
(2)
Cables
DVI-D
Single
Link
Cable
(1)
Component
Cable
(1)
S-Video
Cable
(1)
Audio/Video
Cable
(1)
RF
Cable
(1)
Telephone
Cable
(1)
VCR
Controller
(1)
Dimension
430mm
(W)
x
69mm
(H)
x
326mm
(D)
(Excluding
Feet)
Mass
3.84kg
Power
Requirements
AC
120V,
60Hz
Power
Consumption
40W
(Maximum)
20W
(Standby:
Single
LNB)
Design
and
specifications
are
subject
to
change
without
notice.
116
Hughes
and
DIRECTV
are
dedicated
to
providing
you
with
quality
support
and
customer
service.
If
you
have
questions
or
difficulties
that
you
cannot
resolve
using
the
tips
in
this
troubleshooting
section,
consult
your
dealer
or
call
DIRECTV
at
1-800-531-5000
regarding
problems
with
DIRECTV
Service
problems
and
Hughes
Customer
Care Center
at
:
1-800-274-
8995
regarding
your
DIRECTV
HD
Receiver.
SYMPTOMS
SOLUTIONS
No
power.
No
signal.
No
picture.
Macroblocking
in
picture.
No
Signal
message.
Searching
for
satellite
signal.
Please
standby
OSD/VFD.
-
Is
the
AC
power
cord
plugged
in?
-
Check
your
antenna
input
or
location.
-
Check
your
cable
input.
-
Check
your
satellite
input
or
set
up.
-
Make
sure
that
the
correct
format
is
selected.
-
Press the
DISPLAY
FORMAT
button
on
the
front
panel
to
change
for-
mats.
(see
section
4-1)
-
Make
sure
that
the
right
component
type
is
selected.
If
the
DIRECTVHD
Receiver
is
connected
to
your
monitor
or
TV
via
Y/Pb/Pr
port
on
the
back
panel,
the
"TYPE"
switch
must
be
flipped
to
the
left.
Otherwise,
you
may
not
be
able
to
see
a
picture.
(see
section
3-5)
If
the
DIRECTV
HD
Receiver
is
connected
to
your
monitor
or
TV
via
RGB/DVI-HDTV
port
on
the
back
panel,
the
"TYPE"
switch
must
be
flipped
to
the
right.
Otherwise,
you
may
not
be
able
to
see
a
picture.
(see
section
3-5).
-
Make
sure
the
Initial
Setup
process
has
been
performed
(see
section
8-7).
-
Select
the
Channel
Scan
or
Manual
Channel
Add
functions
if
you
have
not
already
done
so
(see
section
8-8).
-
If
you
are
only
receiving
a
few
satellite
channels,
you
may
need
to
call
your
service
provider
to
have
your
programming
activated.
-
Check
to
make
sure
all
the
cables
are
installed
correctly
and
that
the
proper
source
is
selected
on
your
TV.
For
example,
channel
3
or
4,
480i.
-
The
satellite
or
digital
TV
signal
strength
may
be
low.
Check
the
signal
strength
and
adjust
the
satellite
dish
or
TV
antenna
as
recommended
by
the
dish
or
antenna
installation
instructions
(see
section
8-7).
-
Make
sure
the
broadcaster
or
service
provider
is
supplying
programming
on
the
selected
channel.
Use
the
SIGNAL
button
to
check
for
digital
video
signals
(see
section
4-2).
-
You
may
be
trying
to
access
a
pay
per
view
program.
Follow
the
on-screen
instructions
to
order
the
program.
-
Due
to
copyright
restrictions,
you
may
not
be
able
to
view
some
high-
definition
programs
in
the
high-definition
format.
-
Make
sure
the
Access
Card
is
inserted
correctly.
-
For
more
information
about
connections,
please
refer
to
Section
3
of
this
manual.
117
SYMPTOMS
SOLUTIONS
The
Program
Guide
shows
channels
I
don't
receive.
Cannot
receive
high-definition
chan-
nels.
Normal
but
no
sound.
is
distorted.
Video
does
not
fill
the
TV
screen.
Available
channels
are
missing.
A
previously
available
channel
is
no
longer
available.
4:3
Aspect
ratio
cannot
be
selected.
-
Contact
your
service
provider
to
subscribe
to
all
available
channels.
-
Adjust
your
antenna
or
satellite
dish
to
receive
all
available
channels.
(see
section
3-4)
-
Use
the
Custom
Guide
feature
to
select
channels
that
you
receive.
(see
section
7-2)
-
Whenever
you
access
the
GUIDE,
make
sure
you
select
the
CUSTOM
guide
(see
section
7-2)
to
show
only
channels
not
HIDDEN
(see
section
8-8).
In
order
to
ensure
that
you
do
not
miss
any
new
channel
additions
or
special
programming,
when
entering
the
GUIDE,
it
will
default
to
ALL.
-
Make
sure
that
a
multi-sat
dish
is
used
to
receive
all
available
HD
satel-
lite
services
(see
section
3-4).
-
Make
sure
there
is
a
good
signal
strength
on
available
satellites
or
off-air
antenna
(see
section
8-7
or
press
the
SIGNAL
button
on
the
remote
control).
-
Check
volume
levels.
-
Make
sure
the
TV
or
Amp
is
not
muted.
-
Check
that
the
DIRECTV
HD
Receiver
is
connected
properly.
(see
section
3-7)
-
Make
sure
the
proper
format
is
selected.
(see
section
2-3)
-
Make
sure
the
proper
aspect
ratio
is
selected.
(see
section
2-4)
-
Make
sure
the
video
output
is
connected
to
the
TV.
(see
section
3-5)
-
Adjust
the
aspect
ratio
setting
of
your
TV
or
monitor
if
available.
-
Check
the
HD
Receiver's
Aspect
Ratio
setting
(see
section
8-13),
press
the
RATIO
button
on
the
remote
control,
or
check
your
TV's
aspect
ratio
setting.
-
Check
with
your
service
provider
or
local
broadcaster
to
confirm
if
a
full
video
is
broadcast.
-
If
you
are
a
DIRECTV
customer,
you
can
add
a
channel
by
running
the
"Manual
Ch.
Add"
from
the
SETUP
menu
or
find
all
available
channels
by
running
the
"Channel
Scan"
in
the
SETUP
menu.
(see
section
8-8)
-
Otherwise,
if
the
DIRECTV
Receiver
is
in
the
ANT/CABLE
mode,
you
can
find
available
channels
by
running
the
"Channel
Scan"
in
the
SETUP
menu.
(see
section
8-8)
-
Digital
channels
can
be
dynamically
changed
by
broadcasters
and
service
providers.
A
channel
that
may
have
been
available
in
the
past
may
have
been
moved
or
deleted.
Consult
your
local
broadcaster
or
service
provider.
-
Aspect
ratio
depends
on
both
the
incoming
program
format
and
the
DIS-
PLAY
FORMAT
setting.
Once
the
button
for
the
format
is
set
to
a
stan-
dard
definition
(480i/480p)
and
the
incoming
program
is
standard
defini-
tion,
the
aspect
ratio
can
not
be
adjusted
and
a
warning
message
will
appear
on
the
screen.
(see
section
8-13)
118
SYMPTOMS
SOLUTIONS
Aspect
Ratio
setting
is
re-set
after
the
channel
is
changed.
The
remote
control
is
not
responding.
The
timer
does
not
work.
You
forget
your
password.
If
a
white
bar
is
shown
at
the
top
position
on
the
display
device
Weak
Sound
Conflicting
digital
channel
numbers.
Cannot
tune
to
a
station
Channel
content
does
not
match
that
shown
displayed
in
the
GUIDE
or
INFO
banner.
-
When
the
Format
is
set
to
a
high-definition
setting
(720p/1080i)
and
the
incoming
program
is
in
high-definition,
the
Aspect
Ratio
setting
can
only
be
adjusted
temporarily.
-
Make
sure
the
batteries
are
fresh
and
installed
properly.
-
Point
the
remote
control
unit
at
the
remote
control
sensor.
-
Check
if
the
correct
function
(TV
or
SAT)
on
the
remote
control
is
selected.
-
Make
sure
the
correct
Remote
Control
type
and
code
are
set
for
both
the
remote
and
receiver.
(see
section
8-24)
-
Make
sure
the
clock
is
set
properly.
(see
section
8-9)
-
If
you
subscribe
to
satellite
service,
contact
your
service
provider
to
arrange
for
the
password
to
be
re-set
-
If
you
do
not
subscribe
to
satellite
service
and
the
DIRECTV
HD
Receiver
is
in
the
ANT/CABLE
mode,
enter
the
master
password
"7777".
-
Use
the
Component
Output.
-
Adjust
the
scan
range
of
your
display
device.
-
If
connected
to
a
TV
using
the
"OUT TO
TV"
jack,
set
RF
mode
of
"Dolby
Digital"
menu.
(MENU
Audio
Dolby
Digital)
-
Press
the
SIGNAL
button
on
the
remote
control,
the
physical
channel
number
will
be
shown.
-
Press
the
INFO
button
on
the
remote
control,
the
logical
channel
number
will
be
shown
in
the
channel
banner.
-
If
you
receive
more
than
one
station
with
the
same
channel
number
(such
as
channel
8
from
satellite
and
channel
8
from
over-the-air)
enter-
ing
"8"
the
first
time
will
tune
to
satellite
channel
8,
entering
"8"
a
sec-
ond
time
will
tune
to
analog
channel
8,
and
so
on.
-
Please
confirm
that
the
Dish
mode
is
set
to
the
correct
type
using
Auto
Detection
for
Dish
type
(see
section
8-7)
or
confirm
your
dish
connec-
tions
(see
section
3-4).
119
SYMPTOMS
SOLUTIONS
Closed
captions
are
not
displayed.
Two
sets
of
overlapping
captions
appear.
Closed
captions
are
not
shown
using
my
custom
styles.
Cannot
receive
audio
with
5.1
chan-
nels.
Programming
which
appears
to
exceed
my
Lock
settings
is
not
blocked.
Additional
problems.
-
Most
recent
TVs
also
include
captioning
capability,
which
you
may
inde-
pendently
set
(see
TV
manual
for
details).
If
the
captions
are
ON
for
both
TV
and
this
product,
you
may
see
overlapping
captions.
In
this
case,
please
turn
off
captioning
on
the
TV
or
this
product
(see
section
8-14).
-
When
using
the
DVI-HDTV
or
RGB
connections,
captioning
must
be
dis-
played
using
this
product
(see
section
8-14).
This
may
also
be
necessary,
when
FORMAT
is
set
to
modes
other
than
480i
for
YPbPr
connection.
-
Depending
on
broadcast
provider,
different
types
of
captioning
may
be
available.
According
to
your
preferences,
you
will
need
to
set
your
Caption
settings
for
Analog
and
Digital
modes.
-
By
selecting
both
Analog
on
(for
instance,
CC1)
and
Digital
CC
on
(for
instance
Service1)
by
pressing
the
CC
button
on
the
remote
or
by
access-
ing
settings
outlined
in
8-14
to
8-16),
both
types
captioning
will
be
dis-
played
automatically,
based
on
broadcast
provider
information.
-
Custom
styles
(described
in
8-15)
only
are
applied
to
some
digital
broad-
casts
with
Digital
Captions.
Depending
on
the
broadcast,
you
may
need
to
set
the
Analog
captions
to
OFF
to
view
the
Digital
Captions.
-
Dolby
Digital
5.1
audio
requires
the
use
of
the
digital
audio
output
con-
nection
with
a
compatible
Dolby
Digital
A/V
Receiver
(see
section
3-7
Digital
Audio
System).
-
Confirm
that
you
have
set
the
Audio
→
Digital
Output
setting
to
Dolby
Digital
mode
(see
section
8-12).
-
Availability
of
5.1
audio
will
depend
on
the
broadcast
provider
and
is
not
available
for
analog
broadcast
sources.
Although
Dolby
Digital
can
sup-
port
up
to
5.1
channels,
some
broadcasts
may
only
be
available
in
stereo.
-
Please
confirm
Lock
has
been
enabled
with
your
preferred
limits
(see
section
8-19).
-
Depending
on
broadcast
provider,
not
all
programming
may
contain
rat-
ing
information
necessary
to
block
certain
programming.
-
Press the
RESET
button
(see
section
4-1).
Your
DIRECTV
HD
Receiver,
and
Remote
Control
manufactured
by
Hughes
Network
Systems
(HNS)
are
warranted
against
defects
in
materials
and
workmanship
for
parts
and
labor
in
accordance
with
the
following
provisions:
This
limited
warranty
does
not
cover:
-
a
unit
that
has
been
modified
-
damage
from
misuse,
negligence,
or
accident
-
any
installation,
or
damages
caused
by
installation
-
shipments
to
HNS
that
are
damaged
in
transit
-
removal
and
reinstallation
of
equipment
for
repair
-
loss
of
programming
-
cost
of
shipping
to
HNS
-
batteries
or
cables
after
installation
-
acts
of
God
This
limited
warranty
is
not
transferable
and
is
valid
only
in
the
United
States.
Part
Warranty
Period
HTL-HD
Satellite
Receiver
1
year
parts,
90
days
labor.
HRMC-14
Remote
Control
90
days
parts
Printed
in
Korea
This
limited
warranty
is
in
lieu
of
all
other
warranties,
whether
express,
implied,
or
statutory,
including,
without
limitation,
the
implied
warranties
of
merchantability
and
fit-
ness
for
a
particular
purpose.
HNS
shall
not
be
liable
for
damages
in
excess
of
the
purchase
price
of
the
product
less
reasonable
amount
for
use
and
wear,
or
for
any
incidental,
special,
punitive,
or
consequential
damages
of
any
nature
whatsoever,
or
for
any
delays,
loss
of
use,
time,
profits,
rev-
enue
or
savings,
any
commercial
loss,
inconvenience,
dam-
age
to
your
or
to
other
person's
property,
arising
from
the
use
or
inability
to
use
the
product,
or
otherwise
for
any
fail-
ure
to
perform.
HNS
neither
assumes
nor
authorizes
any
customer
care cen-
ter
or
any
other
person
or
entity
to
assume
any
other
obliga-
tion
or
liability
beyond
that
which
is
provided
for
in
this lim-
ited
warranty.
No
oral
or
written
information
or
advice
given
by
HNS,
its
dealers,
distributors,
agents
or
employees,
shall
create
a
warranty
or
in
any
way
increase
the
scope
of
this
warranty.
Some
states
do
not
allow
the
exclusion
or
limitation
of
inci-
dental
or
consequential
damages,
or
limitations
of
implied
warranties,
so
the
above
limitations
or
exclusions
may
not
apply
to
you.
If
you
have
any
questions
or
encounter
any
problems,
you
may
contact
your
authorized
HNS
dealer
or
call
our
Customer
Care
Center,
at
1-800-274-8995.
To
ensure
prompt
and
efficient
service,
please
have
your
model
and
serial
numbers
handy.
In
the
event
of
repair
or
replacement,
you
will
need
these
numbers,
along
with
your
bill
of
sale.
If
your
equipment
requires
repair
or
replacement,
you
may:
-
contact
your
authorized
HNS
dealer
or
call
our
Customer
Care
Center
to
find
the
authorized
service
center
nearest
you.
OR
-
choose
the
"replace
after
receipt"
option,
whereby
you
must
ship
HNS
your
defective
equipment
and,
once
your
unit
is
received,
a
new
or
refurbished
unit
(at
the
sole
discretion
of
HNS)
will
be
shipped
to
you.
Call
the
Customer
Care
Center.
The
Customer
Care
technician
will
give
you
an
RMA
(Return
Merchandise
Authorization)
and
a
mailing
address
for
returning
your
unit.
If
you
are
returning
the
HD
satellite
receiver,
please
keep
your
access
card
and
return
only
the
HD
satellite
receiver.
Pack
the
unit
in
the
original
box
and
packing
material,
if
possible,
or
in
other
packaging
that
provides
adequate
protection
for
shipping.
Include
your
name
and
address,
the
model
number,
the
serial
number,
and
a
copy
of
the
bill
of
sale.
Write:
"Attention:
RMA
#"
(the
number
given
to
you
by
the
Customer
Care
technician)
on
the
return
shipping
label.
Insure
the
shipment
for
the
full
replacement
value.
