MULTIMEDIA PROJECTOR
User’s Manual
2
Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and
ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and
matrix liquid crystal display (LCD) technology.
This projector is designed compact in size
and weight. It is easy to carry and installed
anywhere you wish to use.
The projector has the Multi-scan system to
conform to almost all computer output signals
quickly (p.31). Up to WUXGA resolution can
be accepted.
- The digital zoom function allows you to
focus on the crucial information during a
presentation (pp.38,40)
- The MIC function and 10W audio output
allows you to make a presentation without
any external audio equipment (p.27).
Brightness of the projection lamp can be
selected (pp.28, 59).
With the Direct Power Off function, you can
disconnect the power cord from the wall outlet
or turn off the breaker even during projection
(p.23).
The Logo function allows you to customize
the screen logo (pp.53-55). You can capture
an image for the screen logo and use it for the
starting-up display or between presentations.
Operation menu is available in 20 languages:
English, German, French, Italian, Spanish,
Portuguese, Dutch, Swedish, Finnish, Polish,
Hungarian, Romanian, Russian, Turkish,
Kazakh, Vietnamese, Chinese, Korean,
Japanese and Thai (p.51).
The Security function helps you to ensure
security of the projector. With the Key lock
function, you can lock the operation on the top
control or remote control unit (p.60). PIN code
lock function prevents unauthorized use of
the projector (pp.22, 60-61).
Lamp and filter maintenance functions
provide for better and proper maintenance of
the projector.
This projector is loaded with the Wired LAN
network function. You can operate and
manage the projector via network. For details,
refer to the user’s manual of “Network Set-up
and Operation.”
This function enables Auto input, Auto
Keystone correction and Auto PC adjustment
by simple pressing the AUTO SET button on
the top control (p.52).
At the time of simple projection on the colored
wall, you can get the close color image to the
color image projected on a white screen by
selecting the similar color to the wall color
from the preset four colors.
The projector provides a switchable interface
terminal. You can use the terminal as
computer input or monitor output conveniently
(p.56).
The Power management mode function
reduces power consumption and maintains
the lamp life (p.56).
This is a printed version of the program
sound or other information displayed on
the screen. You can turn on the feature and
switch the channels. (p.58)
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
8
Openings in the cabinet are provided for ventilation.
To ensure reliable operation of the product and to
protect it from overheating, these openings must not
be blocked or covered.
Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable object or spray can
near the projector, hot air is exhausted from the
ventilation holes.
– Keep the exhaust vent at least 3’ (1 m) away from
any objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic parts. These areas
will become hot while the projector is being used.
– Do not put anything on the cabinet. Objects put on
the cabinet will not only get damaged but also may
cause fire hazard by heat.
– Make sure that there is no object under the
projector to prevent from covering the bottom
openings.
Cooling fans are provided to cool down the projector.
The fans’ running speed is changed according to the
temperature inside the projector.
When moving the projector, retract the adjustable
foot to prevent damage to the cabinet and use a
suitable carrying case.
When this projector is not in use for an extended
period, put it into a suitable case to protect the
projector.
Exhaust Vent
(Hot air exhaust)
Do not pitch the projector more
than 30 degrees from above and
below.
Do not point the projector up to project
an image.
Do not point the projector down to
project an image.
Do not put the projector on either side
to project an image.
Install the projector properly. Improper installation
may reduce the lamp life and cause a fire hazard.
Do not roll the projector more than
20 degrees from side to side.
20°
20°
30°
30°
– Do not drop or bump the projector, otherwise
damages or malfunctions may result.
– When carrying the projector, use a suitable
carrying case.
– Do not transport the projector by courier or any
other transport service in an unsuitable transport
case. This may cause damage to the projector.
For information about transporting the projector
by courier or any other transport service, consult
your dealer.
– Do not put the projector in a case before the
projector is cooled enough.
Air Intake Vent
Air Intake Vent (Filter)
9
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that
the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be
unable to insert the plug into the outlet, contact your electrician.
GROUND
Multimedia Projector, Model: LV-7290, LV-7295, LV-7390, LV-8225
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
Tel No. (516)328-5600
This Class B digital apparatus complies with Canadian ICES-003.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
10
⑤ ⑦ ⑧
③②
⑥
①
②
③
④
⑤
⑥
⑦
(See page 67 for attaching.)
⑧
⑨
⑩
⑪
⑫
Note:
Replace only with the same types of the supplied
cords or cables. Using improper cords or cables
may cause an electric shock or a fire.
⑬
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
⑭
⑮
Note:
⑪
LAN Connection Terminal is for the Network
function. Refer to the user’s manual of “Network
Set-up and Operation” .
This slot is for a Kensington lock used to deter
theft of the projector.
*Kensington is a registered trademark of ACCOKensington is a registered trademark of ACCO
Brands Corporation.
Do not turn on a projector with lens cap attached.
High temperature from light beam may damage
lens cap and result in fire hazard.
⑪
⑨
⑮
①
⑬⑬⑫
⑭
④
⑩
Loading page 11...
12
⑦
Lights yellow when the projection lamp
reaches its end of life (pp.68, 75).
⑧
– Lights red when the projector detects an
abnormal condition.
– Blinks red when the internal temperature of
the projector exceeds the operating range
(pp.65, 75).
④
Turn the projector on or off (pp.21-23).
⑤
– Lights red when the projector is in stand-by
mode.
– Lights green during operations.
– Blinks green in the Power management
mode (p.56).
⑥
Open or close the On-Screen Menu (p.24).
② ▲▼◄►
– Select an item or adjust the value in the On-
Screen Menu (p.24).
– Pan the image in the Digital zoom +/- mode
(pp.38, 40).
– Adjust the volume level (Point ◄►buttons)
(p.27).
③
Execute the setting of Auto setup (includes
Auto input, Auto PC and Auto Keystone
functions) in the setting menu (pp.26, 52).
①
– Execute the selected item (p.24).
–Zoom in or out the image in the Digital zoom
mode (pp.38, 40).
OK
POWER
AUTO SET
MENU
LAMP REPLACE
WARNING
VOLVOL
①
②
③
④
⑤
⑧
⑥
⑦
13

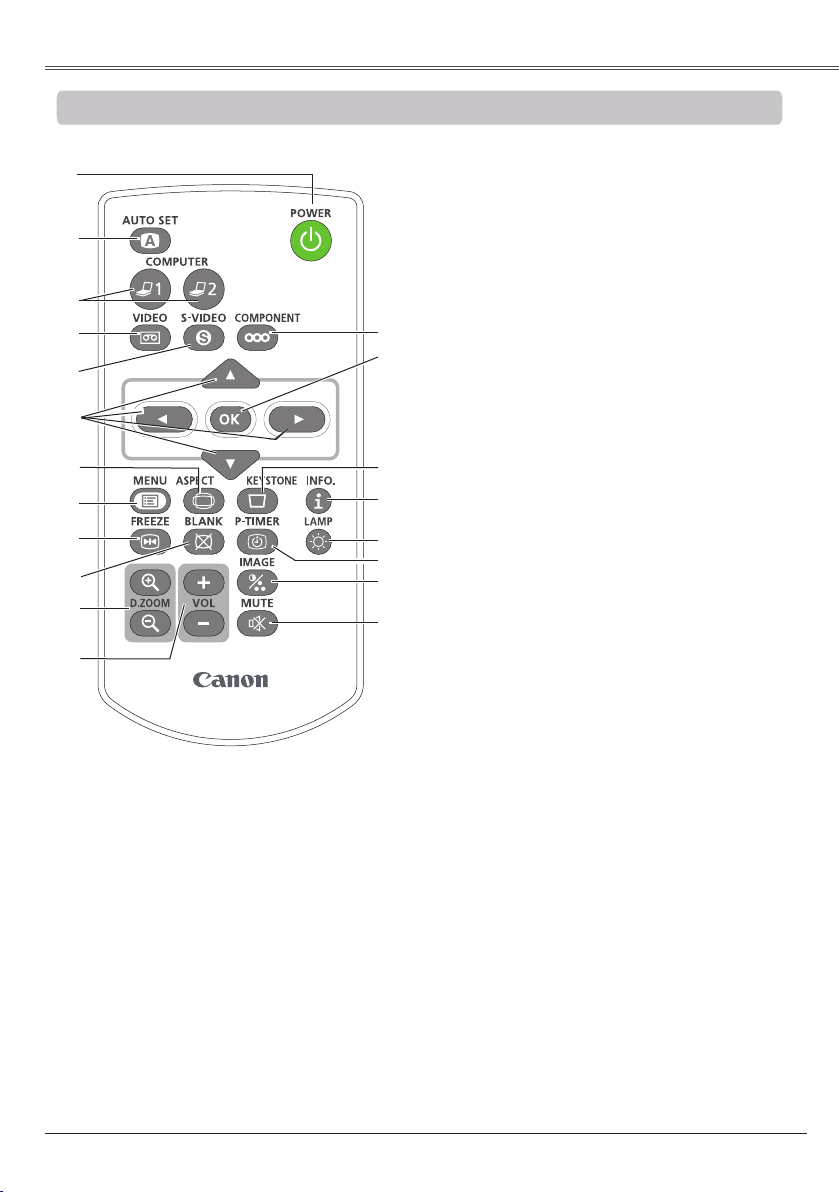

To ensure safe operation, please observe the
following precautions:
– Do not bend, drop or expose the remote
control unit to moisture or heat.
– For cleaning, use a soft dry cloth. Do not
apply benzene, thinner, spray, or any chemical
material.
⑦
⑭
⑩
⑳
④
⑱
②
⑧
⑨
⑬
⑯
⑤
⑥
⑪
⑫
⑲
⑮
③
②
Execute the setting of Auto setup (includes
Auto input, Auto PC and Auto Keystone
functions) in the setting menu. (pp.26, 52)
⑤
Select the S-VIDEO input source. (p.41)
⑥ ▲▼◄►
buttons
– Select an item or adjust the value in the
On-Screen Menu. (p.24)
– Pan the image in the Digital zoom +/-
mode. (pp.38, 40)
⑬
Mute the sound. (p.27)
⑦
Select a screen mode. (pp.29,37-40,47-50)
⑮
Operate the P-timer function. (pp.29, 57)
⑩
Temporarily turn off the image on the screen.
(p.29)
⑯
Select a lamp mode. (pp.28, 59)
⑱
Correct keystone distortion. (p.26)
⑲
– Execute the selected item. (p.24)
– Zoom in or out the image in Digital zoom
mode. (pp.38, 40)
⑧
Open or close the On-Screen Menu. (p.24)
⑨
Freeze the picture on the screen. (p.28)
⑫
Adjust the volume level. (p.27)
①
Turn the projector on or off. (pp.21-23)
③
Select the COMPUTER 1 or COMPUTER 2
input source. (pp.30, 42)
⑪ D.ZOOM +/-
Zoom in and out the images. (pp.28, 38, 40)
⑭
Select the image mode. (pp.29, 35, 44)
⑳
Select the COMPONENT input source. (p.42)
④
Select the VIDEO input source. (p.41)
⑰
⑰
Operate the information function. (p.64)
①
14

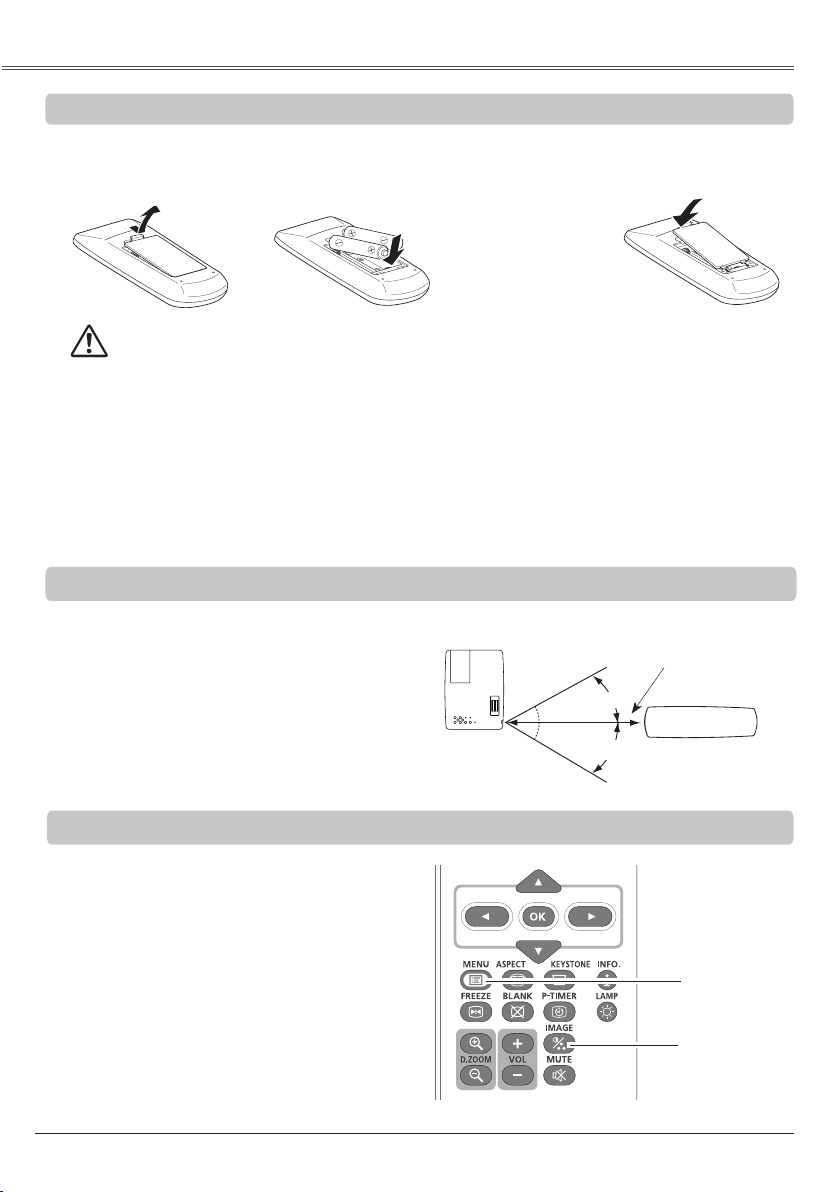

To ensure safe operation, please observe the following precautions :
● Use two (2) AAA type batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid.
● Do not expose the remote control unit to moisture or heat.
● Do not drop the remote control unit.
● If the battery has leaked on the remote control unit, carefully wipe the case clean and install new batteries.
● Risk of an explosion if battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions or your local disposal rule or guidelines.
Open the battery
compartment lid.
Install new batteries
into the compartment.
Replace the
compartment lid.
For correct polarity (+
and –), be sure battery
terminals are in contact
with pins in compartment.
1
2
3
Point the remote control unit toward the projector
(Infrared Remote Receiver) when pressing the buttons.
Maximum operating range for the remote control unit is
about 16.4'(5 m) and 60 degrees in front of the projector.
16.4'
(5 m)
30°
Remote control unit
30°
The 2 different remote control codes (Code 1–Code
2) are assigned to this projector. Switching the remote
control codes prevents interference from other remote
control units when several projectors or video equipment
next to each other are operated at the same time.
Change the remote control code for the projector first
before changing that for the remote control unit. See
"Remote control" in the Setting Menu on page 59.
Press and hold the MENU and IMAGE buttons for more
than five seconds to switch between the and
. The initial code is set to .
15
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.
• The brightness in the room has a great influence on picture quality. It is recommended to limit
ambient lighting in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.
A
B
100"
150"
200"
250
167
125
83
300"(wide)
40"
300"(tele )
Max. Zoom Min. Zoom
(Inch Diagonal)
(Center)
A : B = 6:1
Screen Size
(W x H) mm
4 : 3 aspect ratio
40”
Zoom (max)
813 x 610
3.6'(1.1m)
100”
2032 x 1524
9.5'(2.9m)
150”
3048 x 2286
14.3'(4.4m)
200”
4064 x 3048
19.1'(5.8m)
300”
6096 x 4572
28.6'(8.7m)
Zoom (min)
4.5'(1.4m) 11.4'(3.5m) 17.1'(5.2m) 22.9'(7.0m) 34.4'(10.5m)
For LV-7390
A : B = 13:1
Screen Size
(W x H) mm
16:10 aspect ratio
40”
Zoom (max)
862 x 538
4.0'(1.2m)
100”
2154 x 1346
10.1'(3.1m)
150”
3231 x 2019
15.1(4.6m)
200”
4308 x 2692
20.2'(6.2m)
300”
6462 x 4039
30.3'(9.3m)
Zoom (min)
4.8'(1.5m) 12.1'(3.7m) 18.2'(5.5m) 24.3'(7.4m) 36.4'(11.1m)
For LV-7290, LV-7295
For LV-8225
A : B = 6 : 1
Screen Size
(W x H) mm
4 : 3 aspect ratio
40”
Zoom (max)
813 x 610
4.3'(1.30m)
100”
2032 x 1524
10.7'(3.26m)
150”
3048 x 2286
16.1'(4.90m)
200”
4064 x 3048
21.5'(6.55m)
300”
6096 x 4572
32.3'(9.84m)
Zoom (min)
5.1'(1.55m) 12.9'(3.92m) 19.4'(5.90m) 25.8(7.87m) 38.7'(11.80m)
For LV-8225
A:B = 13:1
Screen Size
(W x H) mm
16:10 aspect ratio
40” 100” 150” 200” 300”
862 x 538 2154 x 1346 3231 x 2019 4308 x 2692 6462 x 4039
Zoom (max) 4.0’(1.2m) 10.1’(3.1m) 15.1’(4.6m) 20.2’(6.2m) 30.3’(9.3m)
Zoom (min) 4.8’(1.5m) 12.1’(3.7m) 18.2’(5.5m) 24.3’(7.4m) 36.4’(11.1m)
For LV-7390
A:B = 6:1
Screen Size
(W x H) mm
4:3 aspect ratio
40” 100” 150” 200” 300”
813 x 610 2032 x 1524 3048 x 2286 4064 x 3048 6096 x 4572
Zoom (max) 3.6’(1.1m) 9.5’(2.9m) 14.3’(4.4m) 19.1’(5.8m) 28.6’(8.7m)
Zoom (min) 4.5’(1.4m) 11.4’(3.5m) 17.1’(5.2m) 22.9’(7.0m) 34.4’(10.5m)
For LV-7290, LV-7295
A:B = 6:1
Screen Size
(W x H) mm
4:3 aspect ratio
40” 100” 150” 200” 300”
813 x 610 2032 x 1524 3048 x 2286 4064 x 3048 6096 x 4572
Zoom (max) 4.3’(1.30m) 10.7’(3.26m) 16.1’(4.90m) 21.5’(6.55m) 32.3’(9.84m)
Zoom (min) 5.1’(1.55m) 12.9’(3.92m) 19.4’(5.90m) 25.8’(7.87m) 38.7’(11.80m)
16

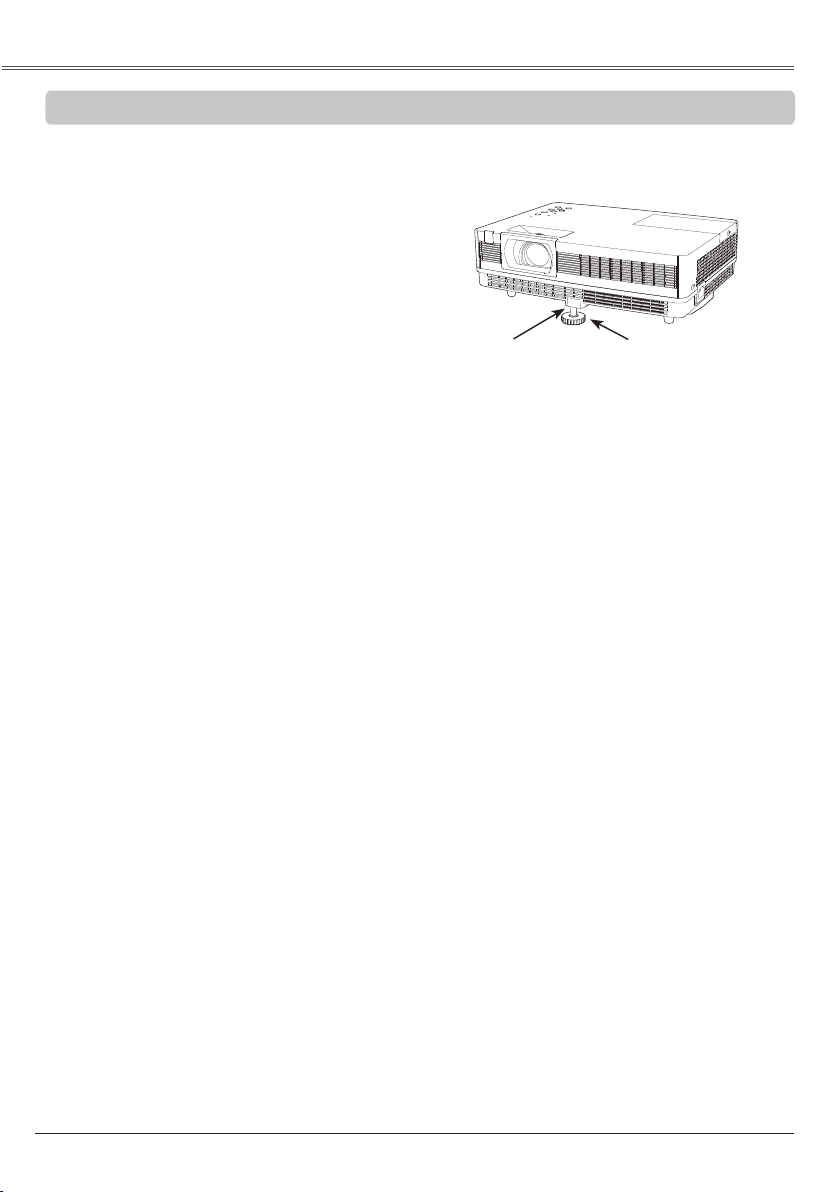

Adjustable FootFoot Lock Latch
Projection angle can be adjusted up to 10.0 degrees
with the adjustable foot.
Lift the front of the projector and push the foot lock
latch on the projector.
Release the foot lock latch to lock the adjustable foot
and rotate the adjustable foot to adjust the position
and tilt.
To retract the adjustable foot, lift the front of the
projector and push and undo the foot lock latch.
Keystone distortion of the projected image can be
corrected by menu operation. (pp 26, 38, 40, 48, 50)
Loading page 17...
18

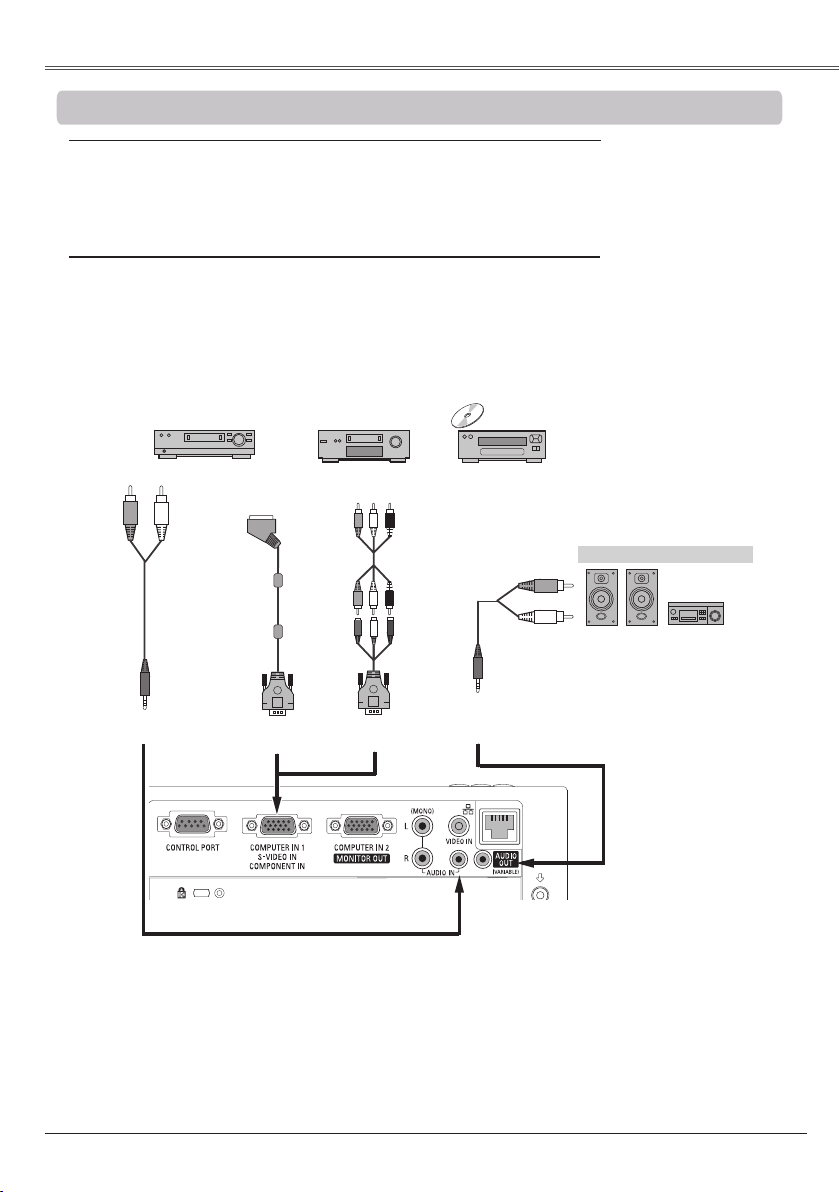

(MIC)-
External Audio Equipment
Audio cable
(stereo)
S-VIDEO
cable
Audio Output
S-VIDEO Output
Audio Input
AUDIO IN
(PC or MIC)
S-VIDEO-
VGA cable
VIDEO
cable
COMPUTER IN 1
/ S-VIDEO IN
/COMPONENT IN
VIDEO IN
Audio
cable
(stereo)
AUDIO OUT
(stereo)
AUDIO IN
Audio
cable
(stereo)
• VIDEO Cable
• S-VIDEO Cable
• S-VIDEO-VGA Cable
• Audio Cables
(Cables are not supplied with the projector. )
• When the MIC function is set to in the Sound menu, the MIC function is disabled.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 78 for ordering optional cables.
Audio
cable
(stereo)
Composite VIDEO
Audio output
MIC
output
When using AUDIO
IN(PC/MIC) terminal
as MIC input, need
to connect to this
terminals for PC audio
input. (p.17)
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
19
(MIC)-
External Audio Equipment
AUDIO IN
Audio
cable
(stereo)
Audio Input
COMPONENT VIDEO Output
(Y, Pb/Cb, Pr/Cr)
Audio Output
RGB Scart 21-
pin Output
Scart-
VGA
cable
COMPONENT-
VGA cable
AUDIO OUT
(stereo)
COMPONENT
cable
COMPUTER IN 1/ S-VIDEO IN /
COMPONENT IN
• Audio Cables
• Scart-VGA Cable
• COMPONENT Cable
• COMPONENT-VGA Cable
(Cables are not supplied with this projector.)
Audio
cable
(stereo)
• When using MIC function, see pages 17-18 for detail about connection.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 78 for ordering optional cables.
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
20
This projector uses nominal input voltages of 100-240 V
AC and it automatically selects the correct input voltage.
It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce the risk
of electrical shock, do not plug into any other type of
power system.
If you are not sure of the type of power being supplied,
consult your authorized dealer or service center.
Connect the projector with all peripheral equipment
before turning the projector on.
:
Unplug the AC power cord when the projector is not in use. When this projector is connected to
an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power.
Connect the AC power cord
(supplied) to the projector.
To the AC outlet.
To power cord
connector on your
projector.
To the AC outlet.
To the AC outlet.
Ground
AC power cord must meet requirement of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
Ground
The AC outlet must be near this equipment
and must be easily accessible.
Before using the AC Power Cord, attach the ferrite core (supplied) as shown below. (See below for mounting
location.)
The Power Cord with ferrite core must be used for RF interference suppression.
0.39" (10 mm)
AC Power Cord
Ferrite Core
Keep closing until it makes
a clicking sound.
21
The preparation display will disappear after 30 seconds.
(See page 59 for Lamp mode status.)
Connect the projector’s AC power cord into an
AC outlet. The POWER indicator lights red. Open OpenOpen
the lens cap.
Press the POWER button on the top control or
on the remote control unit. The POWER indicator
lights green and the cooling fans start to operate.
The preparation display appears on the screen
and the countdown starts.
2
3
1
Complete peripheral connections (with a
computer, VCR, etc.) before turning on the
projector.
The Filter warning and Lamp replacement
icons may appear on the screen depending
on the usage state of the projector.
4
After the countdown, the input source that was
selected the last time and the Lamp mode status
icon (p. 59) appear on the screen.
• When the Logo select function is set to ,
the logo will not be shown on the screen
(p.53).
• When or is selected in
the Display function, the preparation display
will not be shown on the screen (p.53).
• When the Auto input function is set to
On 2, the input signal will be searched
automatically (p.52).
• When is selected in the Display function,
the VIDEO/PC selection window and the
input signal guidance window are not shown
on the screen (p.53).
5
If there is no signal input when start on the
projector, or the current signal is missed while
operating the projector, the VIDEO/PC selection
window will be displayed on the screen, please
move the pointer to input source desired by
pressing the Point ▲▼ buttons and press the OK
button. And then follow the input signal guidance
window to correct the signal and connection.
If the projector is locked with a PIN code, PIN
code input dialog box will appear. Enter the PIN
code as instructed on the next page.
Lamp mode status
16
22
PIN (Personal Identification Number) code is a security
code that allows the person who knows it to operate the
projector. Setting a PIN code prevents unauthorized use
of the projector.
A PIN code consists of a four-digit number. Refer to the
PIN code lock function in the Setting Menu on pages
60-61 for locking operation of the projector with your PIN
code.
Use the Point ▲▼ buttons to enter a number. Press the
Point ► button to fix the number and move the red frame
pointer to the next box. The number changes to . If
you fixed an incorrect number, use the Point ◄ button to
move the pointer to the number you want to correct, and
then enter the correct number.
Repeat this step to complete entering a four-digit number.
After entering the four-digit number, move the pointer
to “Set”. Press the OK button so that you can start to
operate the projector.
If you entered an incorrect PIN code, and the
number () will turn red for a moment. Enter the
correct PIN code all over again.
If you forget your PIN code, the projector can no longer
be started. Take special care in setting a new PIN code.
Write down the number as a reminder. Should the PIN
code be missing or forgotten, consult your dealer or
service center.
After the OK icon disappears, you
can operate the projector.
•If the PIN code number is not entered or wrong
PIN code number is entered within three
minutes after the PIN code dialog box appeared,
the projector will be turned off automatically.
•The “1234” is set as the initial PIN code at the
factory.
23
OFF.
disappears after 4 seconds.
Press the POWER button on the top control or on
the remote control unit, and appears
on the screen.
Press the POWER button again to turn off the
projector. The POWER indicator starts to blink
red, and the cooling fans keep running. (You can
select the level of fans’ quietness and speed.
See “Fan” on page 62.) At this time, you can
unplug the AC power cord even if the fans are still
running.
1
2
3
When the projector has cooled down enough, the
POWER indicator stops blinking and you can turn
on the projector.
• When the Direct power on function is
set to On, the projector will be turned on
automatically by connecting the AC power
cord to an AC outlet (p.56).
• The running speed of cooling fans is
changed according to the temperature
inside the projector.
• Do not put the projector in a case before
the projector is cooled enough.
• If the WARNING indicator blinks or lights
red, see “WARNING indicator” on page 65.
• While the POWER indicator is blinking,
the lamp is being cooled down and the
projector cannot be turned on. Wait until
the POWER indicator stops blinking to turn
on the projector again.
• The fan rotation will terminate directly if the
AC power cord is unplugged immediately
after the projector is turned off.
• The projector can be turned on after the
POWER indicator turns red. The waiting
time to restart will be shortened when the
normal power-off processing for fan cooling
is completed, compared with the time the
AC power cord is immediately unplugged
after the power-off.
• When using the Direct Power Off
function, you can not restart the
projector immediately after the power
is disconnected. If the external power
supply is suddenly cut off, the fans stop
immediately. The lamp remains high
temperature and needs to be cooled.
You can disconnect the power cord from the wall
outlet or turn off the breaker even during projection
without pressing the POWER button.
Direct Power Off Function
24
OK
POWER
AUTO SET
MENU
LAMP REPLACE
WARNING
VOLVOL
The projector can be adjusted or set via the On-Screen
Menu. The menus have a hierarchical structure, with
a main menu that is divided into submenus, which
are further divided into other submenus. For each
adjustment and setting procedure, refer to respective
sections in this manual.
Use the Point ▲▼ buttons to highlight or select
a main menu item. Press the Point ► or the OK
button to access the submenu items. (The selected
item is highlighted in orange.)
Use the Point ▲▼ buttons to select the desired
submenu item and press the OK button to set or
access the selected item.
Press the MENU button on the top control or the
remote control unit to display the On-Screen Menu.
1
2
3
►
Use the Point ▲▼◄► buttons to adjust the setting
or switch between each option and press the OK
button to activate it and return to the submenu.
4
Press the Point ◄ button to return to the main
menu. Press the MENU button to exit the On-
Screen Menu.
5
The currently set item
is marked.
The selected item is
highlighted in orange.
25
Main Menu
For detailed functions of each menu, see “Menu Tree” on pages 73-74.
Main Menu
③
Used to select an image mode from among , , ,
, and . (pp.35, 44)
④
For Computer source, used to adjust computer image [, , , ,
, , ,
Reset and
]. (p.36)
For VIDEO source, used to adjust picture image [, , , Tint, , ,
, , , , ,
Reset and
]. (pp.45-46)
②
Select , , , , ,
, , Reset, and to adjust the parameters to
match with the PC input signal format. (pp.32-33)
⑤
For Computer source, used to adjust size of the image [
,
Full,
, , True,
,
., , , Ceiling, Rear
and Reset]
.
(pp.37-38)
For VIDEO source, used to set size of image [,
Full,
, , ,
.,
, Ceiling, Rear
and Reset
]
.
(pp.47-48)
For COMPUTER source, used to adjust size of the image [
,
Full
,
,
,
True
,
,
,
,
,
Ceiling
,
Rear
,
and Reset]
.
(pp.39-40)
For VIDEO source, used to set size of image [, Full, ,,,,
,, Ceiling, Rear,and Reset]. (pp.49-50)
①
Used to select an input source from COMPUTER 1, COMPUTER 2 or VIDEO. (pp.30, 41-42)
⑥
Used to adjust the volume or mute the sound or set configurations to the MIC functions (p.27).
⑧
Display the input source information. (p.64)
⑩
The key operation is displayed.
⑦
Used to set the projector’s operating configurations. (pp.51-63)
⑨
See user’s manual of “Network Set-up and Operation”.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
Sub-Menu
26
Rotate the Zoom Ring to zoom in and out.
Rotate the Focus Ring to adjust the focus of the image.
If a projected picture still has keystone distortion after
pressing the AUTO SET button on the top control or
the remote control unit, correct the image manually as
follows:
Press the KEYSTONE button on the remote control unit.
The Keystone dialog box appears. Use the Point ▲▼
buttons to correct keystone distortion. The keystone
adjustment can be stored (pp.38, 40, 48, 50).
Reduce the upper width
with the Point ▲ button.
Reduce the lower width
with the Point ▼ button.
•The white arrows indicate that there is no
correction.
•A red arrow indicates the direction of correction.
•An arrow disappears at the maximum
correction.
•If you press the KEYSTONE button on the
remote control unit once more while the
keystone dialog box is being displayed, the
keystone adjustment will be canceled.
•The adjustable range is limited depending on
the input signal.
Auto setup function is provided to automatically execute the setting of Auto setup (includes Auto input, Auto PC and
Auto Keystone functions) in the setting menu by just pressing the AUTO SET button on the top control or the remote
control unit. Refer to page 52 for the setting of the Auto setup function.
• Auto Keystone corrects vertical distortion
only; it does not correct horizontal distortion.
• Auto Keystone cannot work when Ceiling
feature is set to On in the Setting menu
(pp.38, 40, 48, 50).
• Perfect correction of the image distortion
cannot be ensured with the Auto setup
function. If the distortion cannot be corrected
properly by pressing the AUTO SET button,
adjust manually by pressing the KEYSTONE
button on the remote control unit or selecting
Keystone in the Aspect menu (pp.38, 40, 48,
50).
• , ,
and position of some
computers cannot be fully adjusted with
the Auto PC Adjustment function. When
the image is not provided properly with this
operation, manual adjustments are required
(pp.33-34).
Zoom Ring
Focus Ring
OK
POWER
AUTO SET
MENU
LAMP REPLACE
WARNING
VOLVOL
27
1
2

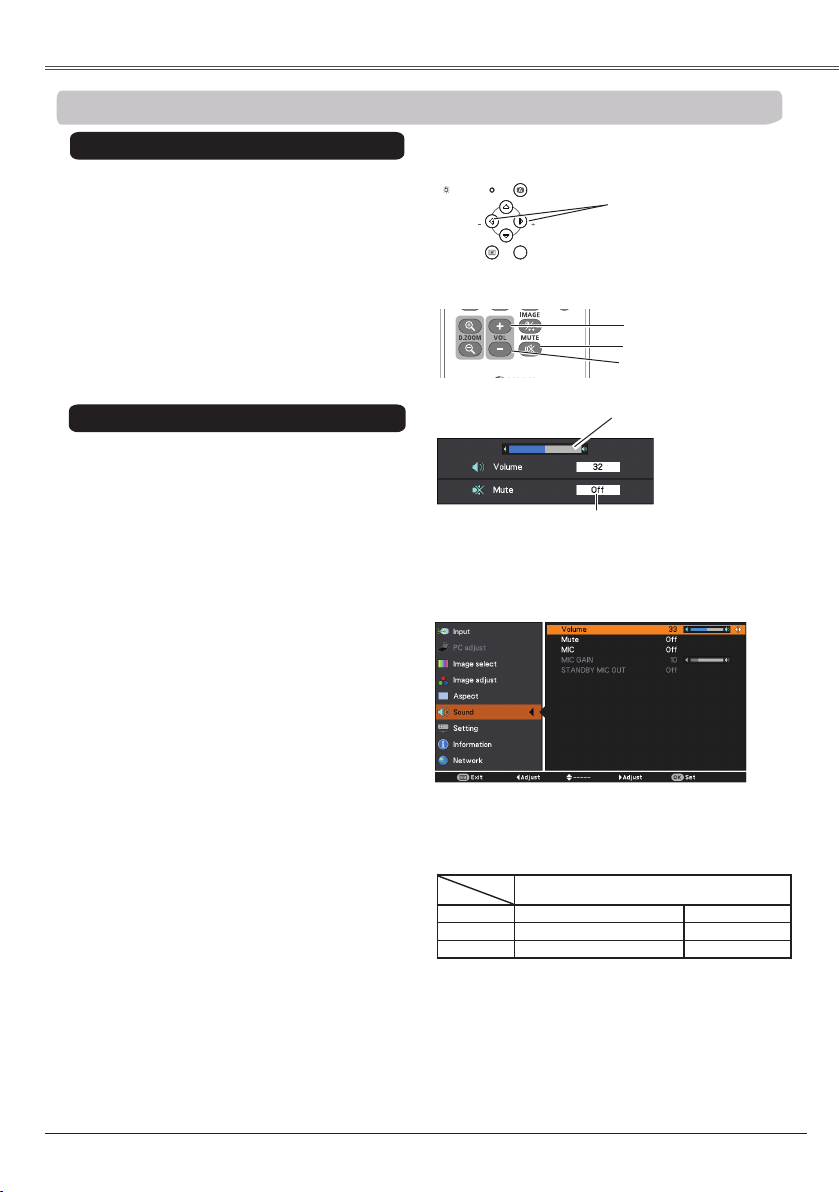

Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select
. Press the Point ► or the OK button to
access the submenu items.
Press the VOLUME+/– buttons on the top control or
on the remote control unit to adjust the volume. The
volume dialog box appears on the screen for a few
seconds.
Press the MUTE button on the remote control unit to
select On to temporarily turn off the sound. To turn
the sound back on, press the MUTE button again to
select or press the VOLUME +/– buttons. The
Mute function is also effective for the AUDIO OUT
jack.
Press the OK button to switch the mute function
. When the sound is turned off, On is displayed.
Press the VOLUME +/– buttons again or adjust MIC
gain’s volume to turn the sound back on.
Use the Point ▲▼ buttons to select the desired
submenu item and press the OK button to access
the selected item.
Mute
Press the Point ► button to turn up the volume;
Press the Point ◄ button to turn down the volume.
Mute
Menu Operation
Approximate level of
the volume.
Press the MUTE button to set the Mute
function On or . The dialog box
disappears after 4 seconds.
Direct Operation
OK
POWER
AUTO SET
MENU
LAMP REPLACE
WARNING
VOLVOL
Use the Point ▲▼ buttons to switch the MIC function
On/and then press the OK button. When On
is selected, the synthesis volume (MIC and RCA) is
output.
MIC
Press the Point ► button to turn up the MIC mixing
gain; Press the Point ◄ button to turn down the MIC
mixing gain.
• When is selected in MIC function, the MIC GAIN and STANDBY MIC OUT functions are not
available.
• Only the Standby mode is set to , can be selected.
• If the MIC function is turned on when connecting PC audio to the AUDIO IN (a mini jack), loud
sound may be output suddenly depending on the setting value of MIC GAIN.
When setting the STANDBY MIC OUT function to On
and in Standby mode status, only MIC input volume
can be output.
AUDIO IN
MIC Setup RCA L/R terminal Mini jack
MIC Off VIDEO audio input PC audio input
MIC On VIDEO or PC audio input MIC input
Loading page 28...
29
Press the P-TIMER button on the remote control unit
to operate the Count up/Count down function. Refer
to p.57 for detail of Setting for the P-timer function.
To stop the count time, press the P-TIMER button.
To cancel the P-timer function, press and hold the P-
TIMER button.

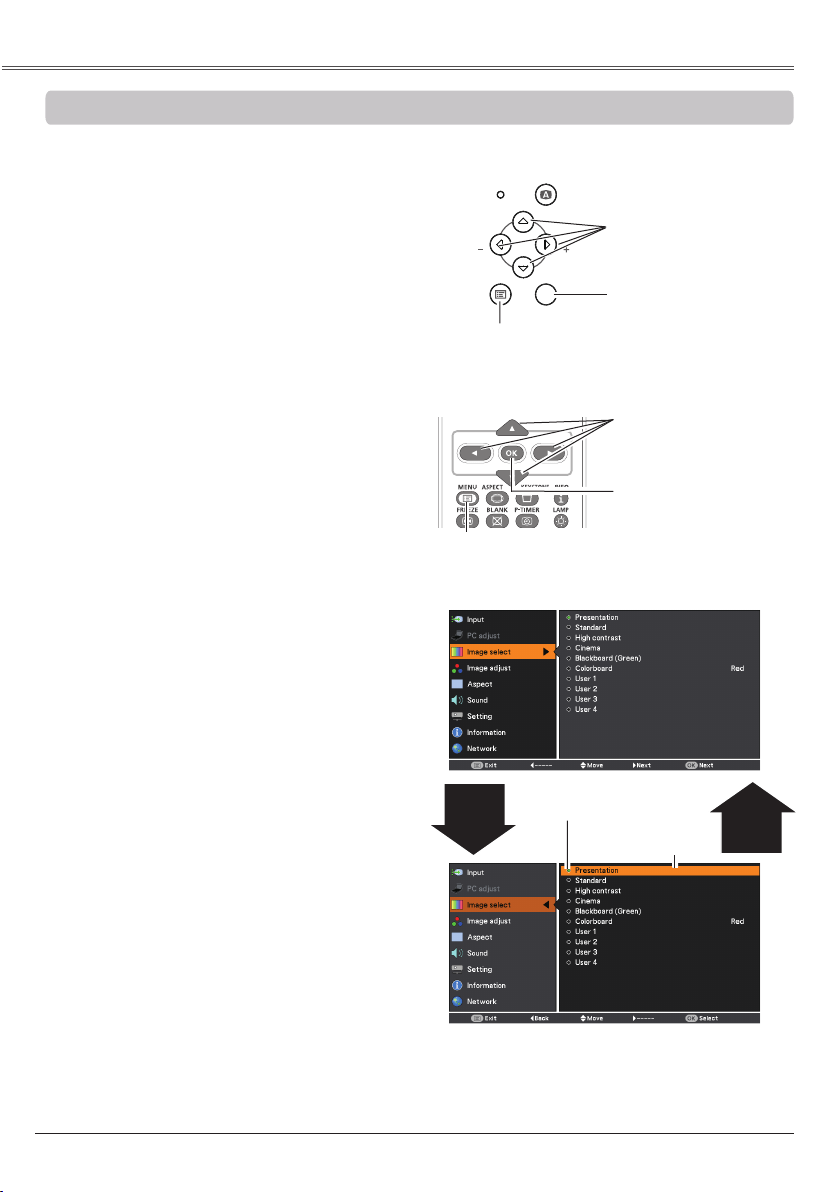

Press the IMAGE button on the remote control unit
to select a desired image mode of the screen. See
pages 35, 44 for details.
disappears after 4 seconds.
See the previous page for the description of
other buttons.
Select the screen size (See pages 37-40, 47-50 for
details).
black out→ the captured image → normal →
• • • • •
Press the BLANK button on the remote control unit to
black out the image. To restore to normal, press the
BLANK button again or press any button. When the
projected image is captured and is set as User in the
Logo selection (p. 53), the screen changes each time
you press the BLANK button as follows.
When use the MUTE button to release the
Blank function, the mute function can not
be operated at the same time.
30
Choose either or by pressing the COMPUTER 1 or
COMPUTER 2 button on the remote control unit.
Before using these buttons, correct input source should be selected through Menu operation as described below.
1
2
3
When the Auto input function is set to On 1
or On 2 in the Auto setup function, the input
signal will be searched automatically (p.52).
COMPUTER 1
Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select
and then press the Point ► or the OK button.
Use the Point ▲▼ buttons to select COMPUTER 1.
When COMPUTER 1 is selected, press the Point
► button to access the submenu items. Use the
Point ▲▼ buttons to select the
input source and then press the OK button.
Direct Operation
Menu Operation
OR
Use the Point ▲▼ buttons to select COMPUTER 2
and then press the OK button.
Loading page 31...
32

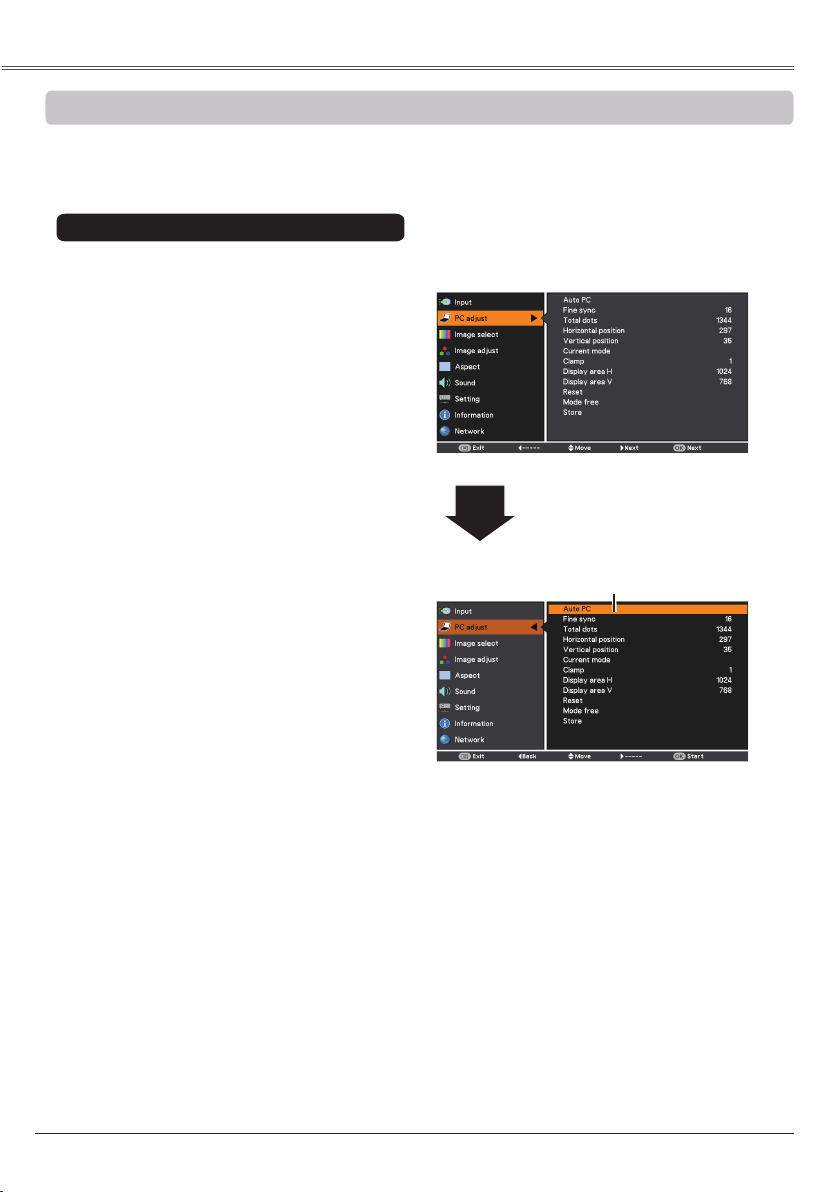

Auto PC Adjustment function is provided to automatically adjust , , and
to conform to your computer.
The adjusted parameters from the Auto PC
Adjustment can be stored in the projector. Once the
parameters are stored, the setting can be done just
by selecting a in the PC System Menu
(p.31). See also “Store” on page 34.
• , ,
and of some computers
cannot be fully adjusted with the Auto PC
Adjustment function. When the image is not
provided properly with this operation, manual
adjustments are required (pp. 33-34).
• The Auto PC Adjustment cannot be operated
when , 575i, , , , 1035i or
is selected in the PC System Menu
(p. 31).
Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select PC
and then press the Point ► or the OK
button.
1
2
Use the Point ▲▼ buttons to select and
then press the OK button.
Menu Operation
Use Point ▲▼ buttons to select
PC and press the OK button.
appears while the Auto
PC adjustment is in process.
Loading page 33...
34
To store the adjusted data, selectand then press
the Point ► or the OK button. Move the highlight to one
of the Modes 1 to 10 in which you want to store, and
then press the OK button.
To clear the stored data, select and then
press the Point ► or the OK button. Move the highlight
to the Mode that you want to clear and then press the
OK button.
• cannot be selected when , 575i, , , , 1035i or is
selected in the PC System Menu (p.31).
• When input computer signal to the projector,will become available.
Reset
To reset the adjusted data, select Reset and press the
OK button. A confirmation box appears and then select
. All adjustments will return to their previous figures.
This Mode has stored
parameters.
Values of ,
, ,
H, and .
Vacant
Press OK button to
store the data.
Press MENU
button to close this
dialog box.
35
User 1
User 2
User 3
User 4
Select the desired image mode among ,
, , ,
, , User 1, User 2, User 3 and
User 4 by pressing the IMAGE button on the remote
control unit.
Picture mode with improved halftone for graphics.
For the image projected on a blackboard.
This mode helps enhance the image projected on
a blackboard. This is mainly effective on a green
colored board, not truly effective on a black colored
board.
Direct Operation
For viewing pictures in a bright room.
Normal picture mode preset on the projector.
For viewing with the user preset image mode in the
Image Adjust Menu (see page 36).
1
2
Menu Operation
At the time of simple projection on the colored wall,
you can get the close color image to the color image
projected on a white screen by selecting the similar
color to the wall color from the preset four colors.
Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select
and then press the Point ► or the OK
button.
Use the Point ▲▼ buttons to select the desired
item and then press the OK button.
Picture mode adjusted with fine tone.
36
Reset
Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select
and then press the Point ► or the OK
button.
1
2
Use the Point ▲▼ buttons to select the desired
item and then press the OK button to display the
adjustment dialog box. Use the Point ◄► buttons
to adjust the setting value.
• When White balance Red, or blue is
adjusted, will change to User.
• When or
is selected in Image select, will
change to or .
Press the Point ◄ button to decrease the contrast;
press the Point ►button to increase the contrast (from
0 to 63).
Press the Point ◄ button to decrease the brightness;
press the Point ►button to increase the brightness
(from 0 to 63).
Press the Point ◄ button to lighten R/G/B tone; press
the Point ► button to deepen R/G/B tone (from 0 to 63).
Use the Point ◄► buttons to select the desired Color
temp. level (, , Mid, or ).
Use the Point ◄► buttons to adjust the gamma value
to obtain a better balance of contrast (from 0 to 15).
Press the Point ◄ button to decrease the sharpness
of the image; press the Point ► button to increase the
sharpness of the image (from 0 to 15).
To reset the adjusted data, select Reset and press the
OK button. A confirmation box appears and then select
. All adjustments will return to their previous figures.
Use the Point ◄►
buttons to adjust the
setting value.
Selected Image mode
To store the adjusted data, select and press the
Point ► or the OK button. Use the Point ▲▼ buttons
to select one from User 1 to User 4 and press the OK
button.
A confirmation box appears and then select . Stored
data can be called up by selecting an in the
Image Mode Selection on page 35.
A confirmation box appears
and then select .
Press the Point ◄► buttons to select or On.
...... Disabled.
On ...... The iris function is activated.
37
Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select
and then press the Point ► or the OK
button.
Use the Point ▲▼ buttons select the desired
item and then press the OK button .
This projector has the picture screen resize function, which enables you to customize the image size.
Provide the image to fit the screen size.
True
Provide the image in its original size. When the
original image size is larger or smaller than the
screen size (1024 x 768), the projector enters to the
panning mode automatically. Use the Point ▲▼◄►
buttons to pan the image. When adjusted, the arrows
will turn red. When reached to the correction limits,
the arrows will disappear.
Full
Provide the full screen image.
• This projector cannot display any resolution
higher than 1920 x 1200. If your computer’s
screen resolution is higher than it, reset the
resolution to the lower before connecting to
the projector.
• The image data in other than 1024 x 768
is modified to fit the screen size in initial
mode.
• True and are disabled
and cannot be displayed when , 575i,
,1035i or is selected
in the PC System Menu (p. 31).
• When True is selected in the Screen menu,
can not be selected.
1
2
Provide the last stored aspect screen image.
Provide the image at the 16:9 wide screen ratio.
Adjust the screen scale and position manually with
this function. Press the Point ► button at
. and the Custom adjustment menu is displayed
on the screen, you can use the Point ▲▼ buttons to
choose the item you want to adjust.
.......... Adjust the Horizontal/Vertical
screen scale.
H&V ................... When set to On, the aspect
ratio is fixed. The
appears dimmed and becomes
unavailable. Adjust , then
the screen scale is automatically
modified based on the aspect
ratio.
..... Adjust the Horizontal/Vertical
screen position.
........... Save the adjusted scale or
position to all the inputs. Press the
OK button at to display
a confirmation box. To save the
scale or position, press the OK
button at . When
is selected, the saved scale or
position is used.
Reset ................. Reset the all adjusted values.
Press the OK button at Reset to
display a confirmation box. To
reset, press the OK button at .
• When no signal is detected, is set
automatically .
• The adjustable range for and
is limited depending on the
input signal.
Scale the image proportionally to fit the entire screen.
Either side of image may go over the screen.
38
Select . The On-Screen Menu
disappears and appears. Press the OK
button to expand the image size. Use the Point
▲▼◄► buttons to pan the image. The Panning
function can work only when the image is larger
than the screen size. A projected image can be also
expanded by pressing the D.ZOOM or the OK button
on the remote control unit.
To exit the Digital zoom +/– mode, press any button
except the D.ZOOM buttons, OK and Point buttons.
Select . The On-Screen Menu
disappears and appears. Press the OK
button to compress image size.
The projected image can be also compressed by
pressing the D.ZOOM or the OK button on the remote
control unit.
To return to the previous screen size, select a screen
size from the Screen Size Adjustment Menu or select
an input source from the Input Source Selection Menu
(see page 30) again, or adjust the screen size with the
D.ZOOM buttons.
• The minimum compression ratio is limited
depending on the input signal, when the
Keystone function is working or when the
custom is selected for the screen size.
• True and are disabled
and cannot be displayed when , 575i,
,1035i or is selected
in the PC System Menu (p.31).
• cannot be selected when
True is selected.
• The minimum compression ratio is limited at
Normal screen size.
When this function is set to On, the picture will be top/
bottom and left/right reversed. This function is used to
project the image from a ceiling-mounted projector.
Ceiling
When this function is set to On, the picture will be
left/right reversed. This function is used to project the
image from rear of the screen.
Rear
To reset the adjusted data, select Reset and press the
OK button. A confirmation box appears and then select
Yes. All adjustments will return to their previous figures.
Reset
This function is used to adjust keystone distortion of the
projected image. Use the Point ▲▼ buttons to choose
the item you want to adjust.
To correct keystone distortion, press the OK button.
Keystone appears on the screen. Use the Point ▲▼
buttons to correct keystone distortion (p.26).
To store or reset the keystone correction, press the
Point ► button.
............. Keep the keystone correction
even when the AC power cord is
unplugged.
Reset ............. Release the keystone correction when
the AC power cord is unplugged.
Ceiling
Rear
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...
Loading page 45...
Loading page 46...
Loading page 47...
Loading page 48...
Loading page 49...
Loading page 50...
Loading page 51...
Loading page 52...
Loading page 53...
Loading page 54...
Loading page 55...
Loading page 56...
Loading page 57...
Loading page 58...
Loading page 59...
Loading page 60...
Loading page 61...
Loading page 62...
63
This function returns all setting values except for the
, , ,
and to the factory
default settings.
This function records anomalous operations while the
projector is in operation and use it when diagnosing
faults. Up to 10 warning logs are displayed with the
latest warning message at the top of the list, followed
by previous warning messages in chronological
order.
When the Factory default function is executed, all
the warning log records will be deleted.
This function is used to set a frequency for the filter
cleaning.
Use the Point ▲▼ buttons to select Filter counter and
then press the Point ► or the OK button to access the
submenu items.
.........Show the total accumulated time
of the filter use timer setting.
..................... To set a timer, when the projector
reaches the time, the Filter warning
icon (Fig.1) appears on the screen and
the total accumulated time turns red,
indicating that the filter replacement is
necessary.
... After replacing the filter, be
sure to reset the timer. The Filter warning
icon will not turn off until the filter counter
is reset. For details about resetting

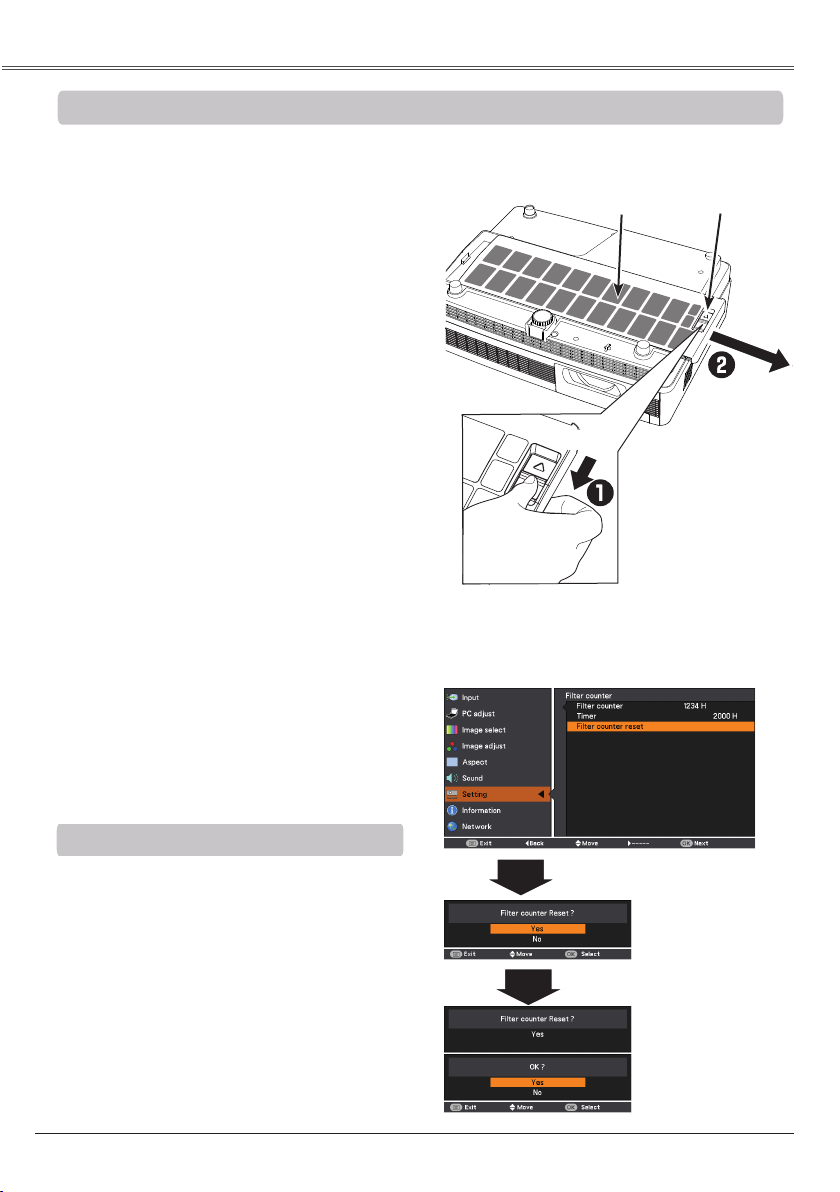

the timer, refer to “Resetting the Filter
Counter” on page 66.
Press the OK button to select , and then
use the Point ▲▼ buttons to set the timer. Select
from () depending on the
use environment.
Filter warning icon appears on the screen at a set
time (/2000H/3000H/4000H).
Fig.1 Filter warning icon
• This icon also appears at turning on.
• The Filter warning icon (Fig.1) will not appear
when the Display function is set to (p.53),
during (p.28), or (p.29).
64
The Information Menu is used for checking the status of the image signal being projected and the operation of the
projector.
The horizontal frequency of the input signal is
displayed in , or when no signal.
The vertical frequency of the input signal is displayed
in , or when no signal. Numbers of Hz
doubles when during Interlace.
The cumulative lamp operating time is displayed.
Press the INFO. button on the remote control unit to
display the Information Menu.
Press the Point ▲▼ buttons to select the Information.
The Information Menu is displayed.
See below for displayed information.
, or , and are displayed.
The selected Screen size is displayed.
The selected input source is displayed.
The selected lamp mode is displayed.
Language
The selected language is displayed.
The selected Key lock icon is displayed.
or On 1 or On 2 is displayed.
The selected remote code is displayed.
Direct Operation
Menu Operation
The serial number of the projector is displayed. The
serial number is used to service the projector.
65
OK
POWER
AUTO SET
MENU
LAMP REPLACE
WARNING
VOLVOL
The WARNING indicator shows the state of the function which protects the projector. Check the state of the
WARNING indicator and the POWER indicator to take proper maintenance.
When the temperature inside the projector reaches
a certain level, the projector will be automatically
shut down to protect the inside of the projector. The
POWER indicator is blinking while the projector is
being cooled down. When the projector has cooled
down enough (to its normal operating temperature),
it can be turned on again by pressing the POWER
button.
When the projector detects an abnormal condition, it
is automatically shut down to protect the inside of the
projector and the WARNING indicator lights red. In
this case, unplug the AC power cord and reconnect
it, and then turn the projector on once again to verify
operation. If the projector cannot be turned on and
the WARNING indicator still lights red, unplug the AC
power cord and contact the service center.
The WARNING indicator continues to
blink even after the temperature inside
the projector returns to normal. When
the projector is turned on again, the
WARNING indicator stops blinking.
– Did you provide appropriate space for
the projector to be ventilated? Check the
installing condition to see if the air vents of
the projector are not blocked.
– Has the projector been installed near an Air-
Conditioning/ Heating Duct or Vent? Move
the installation of the projector away from
the duct or vent.
– Is the filter clean? Clean the filter
periodically.
WARNING
blinking red
OK
POWER
AUTO SET
MENU
LAMP REPLACE
WARNING
VOLVOL
WARNING
lights red
66
Filter prevents dust from accumulating on the optical elements inside the projector. Should the Filter become clogged
with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely
affect the life of the projector. If a “Filter warning” icon appears on the screen, replace the Filter immediately.
Replace the filter by following the steps below.
- Do not operate the projector with the filter
removed. Dust may accumulate on the optical
elements degrading picture quality.
- Do not put anything into the air vents. Doing so
may result in malfunction of the projector.
- Do not wash the filter with water or any other
liquid Matter. Otherwise the filter may be
damaged.
When using the projector under dusty or
smoky conditions, dust may accumulate
on a lens, LCD panels, or optical elements
inside the projector degrading the quality of a
projected image. When the symptoms above
are noticed, contact your authorized dealer or
service center for proper cleaning.
Be sure to reset the Filter counter after cleaning or
replacing the filter.
Press the MENU button to display the On-Screen
Menu. Use the Point ▲▼ buttons to select Setting
and then press the Point ► or the OK button.
Use the Point ▲▼ buttons to select
and then press the Point ► or the OK button. Use
the Point ▲▼buttons to select
reset and then press the OK button.
appears. Select to continue.
1
2
appears.
Select , then
another confirmation
box appears.
Select again
to reset the Filter
counter.
Another confirmation dialog box appears, select
to reset the Filter counter.
3
Turn off the projector, and unplug the AC power
cord from the AC outlet.
Place the latch in the OPEN position and pull out
the filter in the arrow direction.
1
2
Slide the new filter (along the guide rails. Make
sure that the filter is inserted completely.) Place
the latch back in the LOCK position.
3
4
Filter Latch
Connect the AC power cord to the projector and
turn on the projector.
5
Reset the filter counter.
OPEN
LOCK
• When replacing the
filter, it is required
a certain space to
pull out the filter
completely.
• When installing the
projector, install the
projector with keeping
a certain space for
replacing the filter.
67
Unplug the AC power cord before cleaning.
Gently wipe the projection lens with a cleaning
cloth that contains a small amount of non-abrasive
camera lens cleaner, or use a lens cleaning paper or
commercially available air blower to clean the lens.
Avoid using an excessive amount of cleaner. Abrasive
cleaners, solvents, or other harsh chemicals might
scratch the surface of the lens.
Unplug the AC power cord before cleaning.
Gently wipe the projector body with a soft dry
cleaning cloth. When the cabinet is heavily soiled,
use a small amount of mild detergent and finish with
a soft dry cleaning cloth. Avoid using an excessive
amount of cleaner. Abrasive cleaners, solvents, or
other harsh chemicals might scratch the surface of
the cabinet.
When the projector is not in use, put the projector in
an appropriate carrying case to protect it from dust
and scratches.
When moving this projector or while not using it over
an extended period of time, attach the lens cap.
Attach the lens cap according to the following
procedures.
1
2
Thread the string through the hole on the lens
cap and then tie a knot in the string to secure it
in place.
To pass the other end of the string into the hole
on the bottom of the projector and pull at it.
Do not use any flammable solvents or air
sprays on the projector and in its vicinity.
The explosion or fire hazard may occur
even after the AC power cord is unplugged
because the temperature inside the projector
is extremely high due to the lamps. In
addition, there is a risk that the internal parts
may be damaged not only by the flammable
air spray but also by the cold air.
Loading page 68...
69
This projector uses a high-pressure lamp which must be handled carefully and
properly.
Improper handling may result in accidents, injury, or create a fire hazard.
● �amp life may differ from lamp to lamp and according to the environment of use. Lamp life may differ from lamp to lamp and according to the environment of use.
There is no guarantee of the same life for each lamp. Some lamps may fail or
terminate their life in a shorter period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the �AMP If the projector indicates that the lamp should be replaced, i.e., if the LAMP
REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after
the projector has cooled down.
(Follow carefully the instructions in the Lamp Replacement section of this manual.)
Continuous use of the lamp with the LAMP REPLACE indicator lighted may
increase the risk of lamp explosion.
● A �amp may explode as a result of vibration, shock or degradation as a result of A Lamp may explode as a result of vibration, shock or degradation as a result of
hours of use as its lifetime draws to an end. Risk of explosion may differ according
to the environment or conditions in which the projector and lamp are being used.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately.
Contact an authorized service center for a checkup of the unit and replacement of the
lamp. Additionally, check carefully to ensure that there are no broken shards or pieces
of glass around the projector or coming out from the cooling air circulation holes. Any
broken shards found should be cleaned up carefully. No one should check the inside of
the projector except those who are authorized trained technicians and who are familiar
with projector service. Inappropriate attempts to service the unit by anyone, especially
those who are not appropriately trained to do so, may result in an accident or injury
caused by pieces of broken glass.
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give
the following information to the dealer.
●
●
70
– Solutions
– Plug the power cord of the projector into the AC outlet.
– See if the POWER indicator lights red.
– Wait until the POWER indicator stops blinking to turn on the
projector again. The projector can be turned on after the
POWER indicator turns red. See page 21.
– Check the WARNING indicator. If the WARNING indicator lights
red, projector cannot be turned on. See page 70.
– Check the projection lamp. See page 68.
– Unlock the Key lock function for the projector. See page 60.
– Make sure or are not chosen at display
function. See page 53.
– Make sure User or are not chosen at Logo (select)
function. See page 53.
– Make sure Auto input function is adjusted properly.
See page 52.
– That is the Filter warning icon. See page 60.
.
– That is the Lamp replacement icon or the Filter warning icon.
See page 68 or 60.
– Adjust focus of the projector. See page 26.
– Provide proper distance between the projector and the
projection screen. See page 15.
– Check the projection lens to see if it needs cleaning.
See page 67.
– Moving the projector from a cool to warm place may result in
moisture condensation on the projection lens. In such cases,
leave the projector off and wait until condensation evaporates.
– Check the Ceiling/Rear function. See pages 38,40,48,50.
– Check the Ceiling function. See pages 38,40,48,50.
– Check if the or is adjusted properly.
See pages 36, 45.
– Check if is selected properly. See pages 35,44.
– Check the Lamp mode function. See pages 28, 59.
– Check the LAMP REPLACE indicator. If it lights, the end of lamp
life is approaching. Replace the lamp with a new one promptly.
See page 68.
Before calling your dealer or service center for assistance, check the items below once again.
– Make sure you have properly connected the projector to peripheral equipment as described on
pages 17-19.
– Make sure all equipment is connected to AC outlet and the power is turned on.
– When the projector does not project an image from the connected computer, restart the computer.
71
– Check the connection between your computer or video
equipment and the projector. See pages 17-19.
– See if the input signal is correctly output from your computer.
Some laptop computers may need to change the setting for
monitor output when connecting to a projector. See your
computer’s instruction manual for the setting.
– It takes about 30 seconds to display an image after turning on
the projector. See page 21.
– Check the Input signal, color system, video system or computer
system mode.
– Make sure the temperature is not out of the specified Operating
Temperature (41˚F–95˚F [5˚C–35˚C]).
– When is operating, the image cannot be displayed.
Press the BLANK button or any other button on the
remote control unit.
– Check the audio cable connection from audio input source.
– Adjust the audio source.
– Press the Volume + button. See page 27.
– Press the Mute button. See page 27.
– When the AUDIO OUT is plugged-in, the projector's built-in
speaker is not available.
– Is the image projected? You will hear the Computer and VIDEO
sound only when the image is projected.
– Check the Input signal, color system,video system or computer
system mode.
– Make sure the is not selected on Image select
menu. See pages 35,44.
– Check the Display function. See page 53.
– Check the Input signal. Auto PC adjustment function can not
work when , , , , 575i, 1035i or is
selected. See page 31.
– Make sure you selected after adjusting setting. Some
settings can not be stored if not registered with . See
pages 36,46.
– Power management mode function can not work while
or function is running. See page 56.
– Check the connection and the input signal to see if there is
signal.
–
Make sure is not selected at any function of.
See page
52.
– Make sure On is not selected at the Ceiling function.
See pages 38,40,48,50.
–Make sure the Auto keystone function is not set to Manual.
Press the AUTO SET button on the top control. See
pages 26, 52.
72
– Check menu or menu and adjust them.
See pages 33-34, 38-40.
– PIN code lock is being set. Enter a PIN code (the “1234” or numbers
you have set). See pages 22, 60-61.
– Check the batteries.
– Make sure no obstruction is between the projector and remote
control.
– Make sure you are not too far from the projector when using the
remote control unit. Maximum operating range is 16.4'(5 m).
– Make sure the code of the remote control unit is conformed to the
projector’s code. See page 59.
– Unlock the Key lock function for the remote control unit function.
See page 60.
– Check the status of the projector with referring to "Indicators and
projector Condition". See page 75.
– Your operation is invalid. Operate correctly.
–
The top control is not available if the top control is locked at
under of Setting section. See page 60.
– The projector detects an abnormal condition. Unplug the AC power cord
and contact the dealer where you purchased the projector or the service
center.
appears on the screen
If problems still persist after following all operating instructions, contact the dealer where you
purchased the projector or the service center. Specify the model number and explain about the
problem. We will advise you how to obtain service.
73
Menu Tree
Volume
Mute On/Off
0-63
ANALOG PC
COMPONENT
S-VIDEO
ANALOG PC
SCART
VIDEO
COMPUTER 1
COMPUTER 2
MIC
On/Off
MIC GAIN
0-63
STANDBY MIC OUT
On/Off
Presentation
Cinema
Blackboard (Green)
User 1
Standard
Colorboard Red/Blue/Yellow/Green
User 4
High contrast
Input Source Information Display
Language
20 languages provided.
Blue/User/Black
Off /On/Countdown off
Logo select
Standby
On/Off
Code 1–Code 2
Background
Display
Logo
Power management mode
Direct power on
Remote control
Exit
Off
Security
Timer (1–30 Min)
L 1/L 2Fan
Off
User
Capture
Yes/No
Off/On
Logo PIN code change
Logo PIN code lock
Off
Projector
Remote control
Key lock
Default
Off/On 1/On 2
PIN code change
On/Off
Standby mode
Auto PC
Auto keystone
Auto
Manual
Off
Warning log
Yes/NoFactory default
Auto input Off/On 1/On 2Auto setup
Closed Caption
Closed Caption
Off/CC1/CC2/CC3/CC4
Color Color/White
Lamp mode
High/Normal/Eco
HLamp counter
Yes/No
Lamp counter
Lamp counter reset
Menu position
COMPUTER 2/Monitor outTerminal
H
Filter counter
Yes/No
Off/2000H/3000H/4000H
Filter counter
Timer
Filter counter reset
P-timer
Eco/Network
Count up
Count down
Timer
Start/Stop/Restart
Reset
Exit
Off/On 1/On 2Fan control
Video delay control Off/On
PIN code lock
74
Auto
1080i
1035i
720p
575p
480p
575i
480i
0–63
0–63
Off
(2)
Auto
PAL
SECAM
NTSC
NTSC 4.43
PAL-M
PAL-N
(3)
Contrast
Brightness
Color
Tint
Red
Green
Blue
Sharpness
Reset
Store
Gamma
Progressive
0–63
0–63
0–63
0–15
0–15
User 1
Yes/No
OffNoise reduction
L1
L2
0–63
0–63
User 4
L2
L1
Film
Color temp.
Scale
Reset
H/V
H/V
Yes/No
Yes/No
Custom adj.
On/Off
H&V
Mid
Low
XLow
User
High
Position
Common
Auto iris Off/On
SVGA 1
Mode 1
Mode 2
- - - -
Total dots
Horizontal position
Vertical position
Display area H
Display area V
Reset
Contrast
Brightness
Color temp.
Red
Gamma
Store
0–63
0–63
0–63
0–15
User 1
User 4
Yes/No
* Systems displayed in the System Menu vary depending on an
input signal.
Reset
Yes/No
Sharpness
0–15
Mode 10
Clamp
Green
Blue
0–63
0–63
Store
Mode free
(1)
Mode 1
Scale
H&V
H/V
H/V
Yes/No
Yes/No
On/Off
Auto PC
Fine sync 0–31
Mid
Low
XLow
User
High
Current mode
Mode 1
Mode 10
Normal
Full
Digital zoom –
Custom
Digital zoom +
Custom adj.
Zoom
16:9
Common
Position
Reset
Auto iris
Off/On
Ture
Ceiling
Keystone
Reset
Rear
Ceiling
Keystone
Reset
Rear
Custom
Normal
Full
Zoom
16:9
Scale
Reset
H/V
H/V
Yes/No
Yes/No
Custom adj.
On/Off
H&V
Position
Common
Scale
H&V
H/V
H/V
Yes/No
Yes/No
On/Off
Normal
Full
Digital zoom –
Custom
Digital zoom +
Custom adj.
Zoom
16:9
Common
Position
Reset
True
Ceiling
Keystone
Rear
Ceiling
Keystone
Reset
Rear
Natural wide
Normal
Full
Zoom
16:9
Custom
Reset
4:3 / 16:9 / Default(16:10)
Screen aspect
4:3 / 16:9 / Default(16:10)
Screen aspect
75
Check the indicators for projector condition.
• • • green. • • • red • • • off
• • • blinks green.
When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow.
When this indicator lights yellow, replace the projection lamp with a new one promptly. (pp. 62,68)
The projector is off. (The AC power cord is unplugged.)
The projector is in stand-by mode. Press the POWER button
to turn on the projector.
POWER
green
LAMP
REPLACE
WARNING
red
The projector is preparing for stand-by or the projection lamp
is being cooled down. The projector cannot be turned on
until cooling is completed and the POWER indicator stops
blinking.
The temperature inside the projector is abnormally high. The
projector cannot be turned on. When the projector is cooled
down enough and the temperature returns to normal, the
POWER indicator stops blinking and the projector can be
turned on. (The WARNING indicator keeps blinking.)
The projector detects an abnormal condition and cannot
be turned on. Unplug the AC power cord and plug it again
to turn on the projector. If the projector is turned off again,
unplug the AC power cord and contact the dealer or the
service center for service and checkup. Do not leave the
projector on. It may cause an electric shock or a fire hazard.
The projector is in the Power management mode.
The projector has been cooled down enough and the
temperature returns to normal. When turning on the
projector, the WARNING indicator stops blinking.
The projector is operating normally.
• • • blinks red.
76
Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less
than 140 MHz of Dot Clock.
When selecting these modes, PC adjustment can be limited.
VGA 1 640 x 480 31.47 59.88
VGA 2 720 x 400 31.47 70.09
VGA 3 640 x 400 31.47 70.09
VGA 4 640 x 480 37.86 74.38
VGA 5 640 x 480 37.86 72.81
VGA 6 640 x 480 37.50 75.00
MAC LC13
640 x 480 34.97 66.60
MAC 13 640 x 480 35.00 66.67
MAC 16 832 x 624 49.72 74.55
SXGA 1
1152 x 864
64.20 70.40
SVGA 1 800 x 600 35.156 56.25
SVGA 2 800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600
53.674
85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31
SVGA 11 800 x 600 38.00 60.51
XGA 10 1024 x 768
XGA 11 1024 x 768
XGA 12 1024 x 768
XGA 13 1024 x 768
62.04 77.07
XGA 14 1024 x 768
61.00 75.70
XGA 15 1024 x 768
35.522
86.96
(Interlace)
46.90 58.20
XGA 8 1024 x 768
47.00 58.30
XGA 9
1024 x 768
58.03 72.00
SXGA 4 1280 x 1024
63.48 79.35
36.00
87.17
(Interlace)
63.34 59.98
SXGA 5 1280 x 1024
SXGA 6 1280 x 1024
SXGA 7 1280 x 1024
63.74 60.01
71.69 67.19
SXGA 10 1280 x 960
81.13 76.107
60.00 60.00
XGA 1 1024 x 768
XGA 4 1024 x 768
48.36 60.00
XGA 6 1024 x 768
XGA 7 1024 x 768
56.476 70.07
48.50 60.02
44.00 54.58
SXGA 8 1280 x 1024
SXGA 9 1280 x 1024
63.98 60.02
79.976 75.025
XGA 5 1024 x 768 60.31 74.92
VGA 7 640 x 480 43.269 85.00
575i
768 x 576
15.625
50.00
(Interlace)
480i 640 x 480 15.734
60.00
(Interlace)
SXGA 12 1152 x 900 71.40 75.60
SXGA 11 1152 x 900 61.20 65.20
SVGA 10 800 x 600 32.70 51.09
SXGA 13 1280 x 1024 50.00
86.00
(Interlace)
SXGA 2
1280 x 1024 62.50 58.60
SXGA 3 1280 x 1024 63.90 60.00
XGA 2 1024 x 768 68.677 84.997
XGA 3 1024 x 768 60.023 75.03
SXGA 18 1280 x 1024 46.43
86.70
(Interlace)
SXGA 19
1280 x 1024
63.79 60.18
SXGA 14 1280 x 1024
SXGA 15 1280 x 1024
SXGA 16 1280 x 1024
SXGA 17 1152 x 900
50.00
94.00
(Interlace)
63.37 60.01
76.97 72.00
61.85 66.00
MAC 1280 x 960 75.00 75.08
MAC 1280 x 1024 80.00 75.08
SXGA+ 1
1400 x 1050 63.97 60.19
MAC21 1152 x 870 68.68 75.06
WXGA 2 1360 x 768
WXGA 3 1376 x 768
WXGA 4 1360 x 768
47.70 60.00
48.36 60.00
56.16 72.00
WXGA 1
1366 x 768 48.36
60.00
SXGA+ 2
1400 x 1050
65.35 60.12
SXGA+ 3
1400 x 1050 65.12 59.90
SXGA 20
1280 x 1024 91.146 85.024
480p
640 x 480 31.47 59.88
575p 768 x 575 31.25 50.00
WXGA 7 1280 x 768
WXGA 8 1280 x 768
60.289 74.893
68.633 84.837
WXGA 6
1280 x 768 47.776 59.87
MAC 19 1024 x 768 60.24 75.08
WXGA 10 1280 x 800
41.200 50.000
WXGA 9
1280 x 800 49.600 60.050
WXGA 11 1280 x 800 49.702 59.810
1080i
1920 x 1080 33.75
60.00
(Interlace)
720p 1280 x 720
1035i 1920 x 1035
45.00 60.00
33.75
60.00
(Interlace)
1080i
1920 x 1080 28.125
50.00
(Interlace)
UXGA 4 1600 x 1200 93.75 75.00
UXGA 1 1600 x 1200
UXGA 2 1600 x 1200
UXGA 3 1600 x 1200
75.00 60.00
81.25 65.00
87.5 70.00
720p 1280 x 720 37.50 50.00
WUXGA 2 1920 x 1200
WSXGA+ 1 1680 x 1050
74.038 59.950
65.290 59.954
WUXGA 1
1920 x 1200 74.556
59.885
WXGA+ 2 1440 x 900
74.918 60.000
WXGA+ 1
1440 x 900 55.935 59.887
WXGA 12 1280 x 800 63.98 60.02
The specifications are subject to change without notice.
77
Projector Type Multi-media Projector
Dimensions (W x H x D) 13.13" x 3.98" x 9.72" (333.5mm x 101.0mm x 247.0mm)
(Not including protrusions)
Net Weight 6.57 lbs (2.98 kg)
Foot Adjustment 0˚ to 10˚
LCD Panel System LV-7290, LV-7295: 0.55”; LV-7390: 0.63”; LV-8225: 0.59"
TFT Active Matrix type, 3 panels
Panel Resolution LV-7290, LV-7295, LV-7390: 1,024 x 768 dots
LV-8225: 1,280 x 800 dots
Number of Pixels LV-7290, LV-7295, LV-7390: 2,359,296 (1,024 x 768 x 3 panels)
LV-8225: 1,024,000 pixels (1,280 x 800 dots)
Color System
PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N
SD/HD TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
Input Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 50–100 Hz
Projection Image Size (Diagonal) Adjustable from 40” to 300”
Throw Distance LV-7290, LV-7295: 4.3' -38.7' (1.3m - 11.8m)
LV-7390: 3.6' - 34.4' (1.1m - 10.5m)
LV-8225: 4.0' - 36.4' (1.2m - 11.1m)
Projection Lens F 2.0 ~ 2.15 lens with f 18.38 mm ~ 22.06 mm
with manual zoom and focus
Projection Lamp 215 W
VIDEO Input Jack RCA Type x 1
Audio Input Jack RCA Type x 2
Computer In 1/S-VIDEO In/COMPONENT
In/Computer In 2/Monitor Out
/MIC Audio Input Jack
Mini Jack (stereo) x 1
Computer In 1/S-VIDEO In
/COMPONENT Input Jack
Mini D-sub 15 pin x 1
Computer In 2 / Monitor Out Terminal Mini D-sub 15 pin x 1
Control port D-sub 9 pin x 1
Audio Output Jack Mini Jack (stereo) x 1 (variable)
LAN Connection Terminal RJ-45
Internal Audio Amp 10 W RMS
Built-in Speaker 1 speaker, ø1.6" (40mm)
Voltage and Power Consumption AC 100–120 V (3.6A Max. ),
50/60 Hz (The U.S.A and Canada)
AC 100–240 V (3.6A -2.0A Max. ),
50/60 Hz (For other countries)
Operating Temperature 41˚F–95˚F (5 ˚C–35 ˚C)
Storage Temperature 14˚F–140˚F (-10˚C–60 ˚C)
Battery AAA Type 1.5V x 2
Operating Range 16.4' (5 m)/±30˚
Dimensions(W x H x D)(W x H x D) 2.0" x 0.7" x 4.3" (52 mm x 18 mm x 110 mm)
Net Weight 2.37 oz (67 g) (including batteries)
78
Model No.
LV-CA32
LV-CA33
LV-SC01
LV-RC03
LV-CL17
LV-CL18
LV-CL19
The parts listed below are optionally available. When ordering those parts, specify the item name and
Model No. to the sales dealer.
User’s Manual (CD-ROM)
Important Information and Quick Start Guide
Warranty card
AC Power Cord
Remote controller and Batteries
VGA Cable
Lens Cap with String
PIN Code Label
Ferrite core
Filter Cover for Ceiling Mount
● The specifications are subject to change without notice. The specifications are subject to change without notice.
● �CD panels are manufactured to the highest possible standards. Even though 99.99 of �CD panels are manufactured to the highest possible standards. Even though 99.99 of
the pixels are effective, a tiny fraction of the pixels (0.01 or less) may be ineffective by the
characteristics of the LCD panels.
79
This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and
Information System Industries Association). This projector supports all commands defined by PJLink
Class 1 and is verified conformance with PJLink Standard Class 1.
For PJ Link password, see the user’s manual of “Network Set-up and Operation.”
PJLink is a registered trademark of JBMIA and pending trademark in some countries.
Projector Input
ANALOG PC
COMPUTER 2
COMPONENT
SCART
PJLink Input
RGB 4
RGB 2
RGB 5
RGB 3
RGB 1
VIDEO 2VIDEO
S-VIDEO
COMPUTER 1
VIDEO
Parameter
14
12
15
13
11
22
ANALOG PC
The supplied filter cover is designed for
preventing dust accumulation on the filter
when mounting the projector on the ceiling.
Place the filter cover on the filter as the
picture shown below.
Turn over the projector.
1
2
Attach the projector to the ceiling mount
in accordance with the instruction manuals
which come with the ceiling mount.
3
• To keep the filter cover in position, be
sure to attach the drop-prevention wire by
threading it through the hole of the filter
cover.
• If the LV-CL17 Projector Attachment
is applied, the supplied filter cover is
unnecessary.
Front feet
Projector
Caps
Filter Cover
(supplied)
Hole
Drop-prevention Wire
(not supplied)
To Ceiling Mount
80
5
1
2
34
10
9 678
15
14
13
11
12
Red/Cr/S-C Input
Ground (Horiz.sync.)
Green/Y/S-Y Input
-----
Blue/Cb/--- Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
+5V Power
Horiz. sync. Input/Output (Composite H/V sync.)
Ground (Vert.sync.)
DDC Data
Ground
Vert. sync.
DDC Clock
9
13
10
12
11
14
15
RX –
TX +
TX –
RX +
2
3
4
5
6
7
1
-----
-----
----------
-----
R X D
T X D
-----
SG
-----
-----
-----
Serial
1
2
3
4
5
6
7
8
-----9
5
1
2
34
10
9 678
15
14
13
11
12
Red Input/Output
Ground (Horiz.sync.)
Green Input/Output
-----
Blue Input/Output
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
-----
Horiz. sync. Input/Output
Ground (Vert.sync.)
-----
-----
Vert. sync.
-----
9
13
10
12
11
14
15
81
Put the label below (supplied) on in a
prominent place of the projector's body while it
is locked with a PIN code.
While the projector is locked with the PIN code.
82
Unit: mm(inch)
Screw Holes for Ceiling Mount
Screw: M4
Depth: 12.0(0.47)
79.6(3.13)
46.2(1.82)
3.7(0.15)
17.1(0.67)
33.6(1.32)
35.9(1.41)
85.4(3.36)
83.8(3.30)
10.0˚
247.0(9.72)
4.6(0.18)
80.2(3.16)
138.0(5.43)
122.2(4.81)
114.0(4.49)
137.3(5.41)
96.7(3.81)
333.5(13.13)
67.3(2.65)
99.5(3.92)
31.7(1.25) 64.6(2.54)
104.6(4.12)
85.2(3.35)
28.6(1.13) 43.2(1.70)
21.9(0.86)
101.0(3.98)
5.6(0.22)
71.5(2.81)
322.1(12.68)
20.7(0.92)
40.7(1.60)
88.7(3.49)
126.3(4.97)
122.3(4.48)
98.1(3.86)
195.5(7.70)
70.5(2.78)
71.7(2.82)
24.5(0.96)
2.9(0.11)
105.6(4.16)
24.0(0.94)
Loading page 83...
