E
English
Multimedia Projector
Owner’s Manual
LV-7355 LV-7350
2
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintain it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “Trouble-shooting” section in the end of this booklet. If the problem still persists, contact the sales
dealer where you purchased the projector or the service center.
TO THE OWNER
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible.
Eye damage could result. Be especially careful that children do not stare directly into the beam.
● This projector should be set in the way indicated. If not, it may result in a fire hazard.
● Take appropriate space on the top, sides and rear of the projector
cabinet for allowing air circulation and cooling the projector.
Minimum distance should be taken. If the projector is to be built
into a compartment or similarly enclosed, the minimum distances
must be maintained. Do not cover the ventilation slot on the
projector. Heat build-up can reduce the service life of your
projector, and can also be dangerous.
● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation
holes.
● Remote Control Unit, supplied to this projector, emits the laser beam as the laser pointer function from Laser
Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate
laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye
damage may result.
● If the projector is not to be used for an extended time, unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
20cm
50cm 50cm
50cm
SIDE and TOP REAR
3
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Voor de klanten in Nederland
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
4
COMPLIANCES
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that
the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you
be unable to insert the plug into the outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC POWER CORD REQUIREMENT
Federal Communication Commission Notice
Multimedia Projector, Model : LV-7355U, LV-7350U, LV-7355E, LV-7350E
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
For use in Germany
This product is intended for use in residential, commercial and light industry environment.
Canadian Radio Interference Regulations
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
5
TABLE OF CONTENTS
FEATURES AND DESIGN 6
BEFORE OPERATION 14
COMPUTER INPUT 22
VIDEO INPUT 30
SETTING 35
APPENDIX 37
PREPARATION 7
NAME OF EACH PART OF PROJECTOR 7
SETTING-UP PROJECTOR 8
CONNECTING AC POWER CORD 8

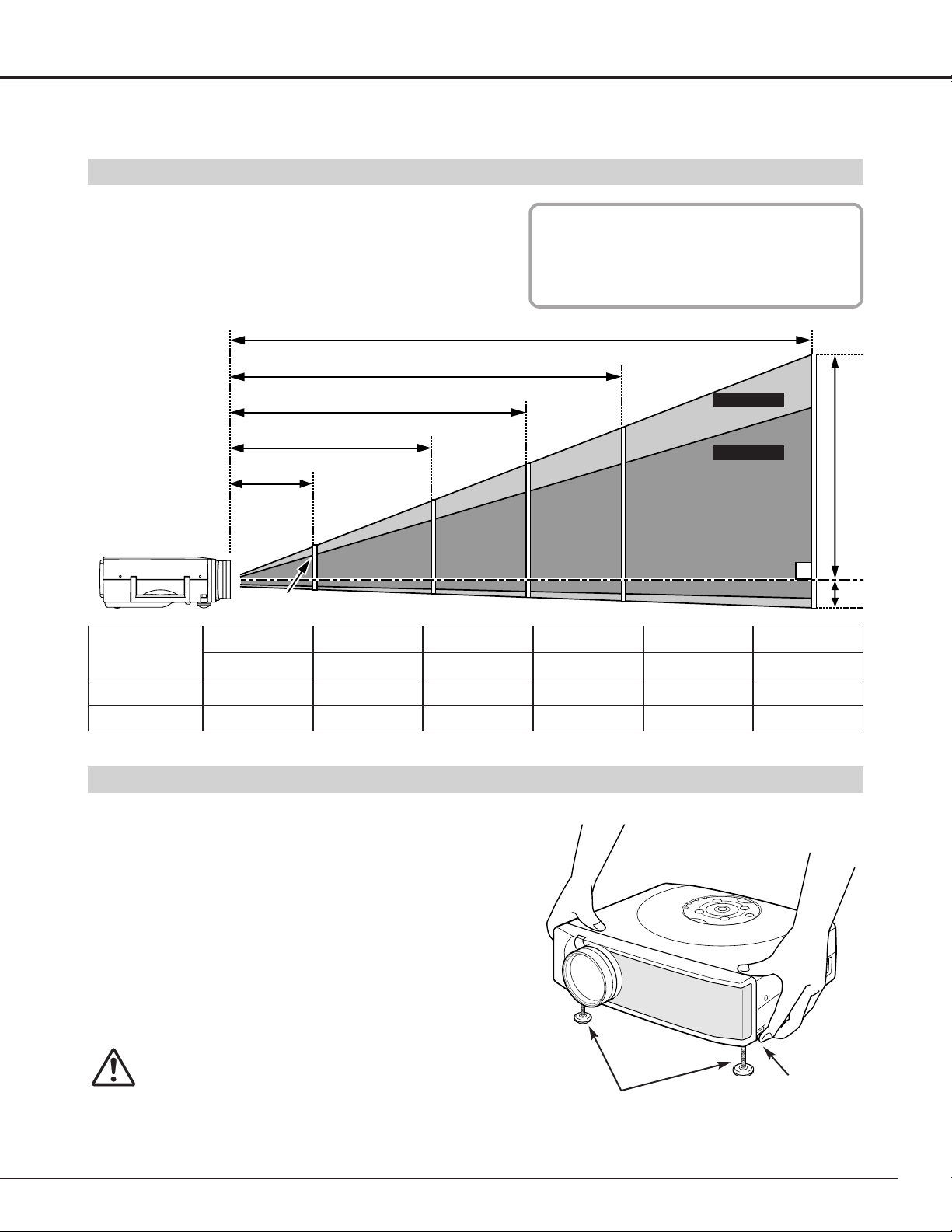

POSITIONING PROJECTOR 9
ADJUSTABLE FEET 9

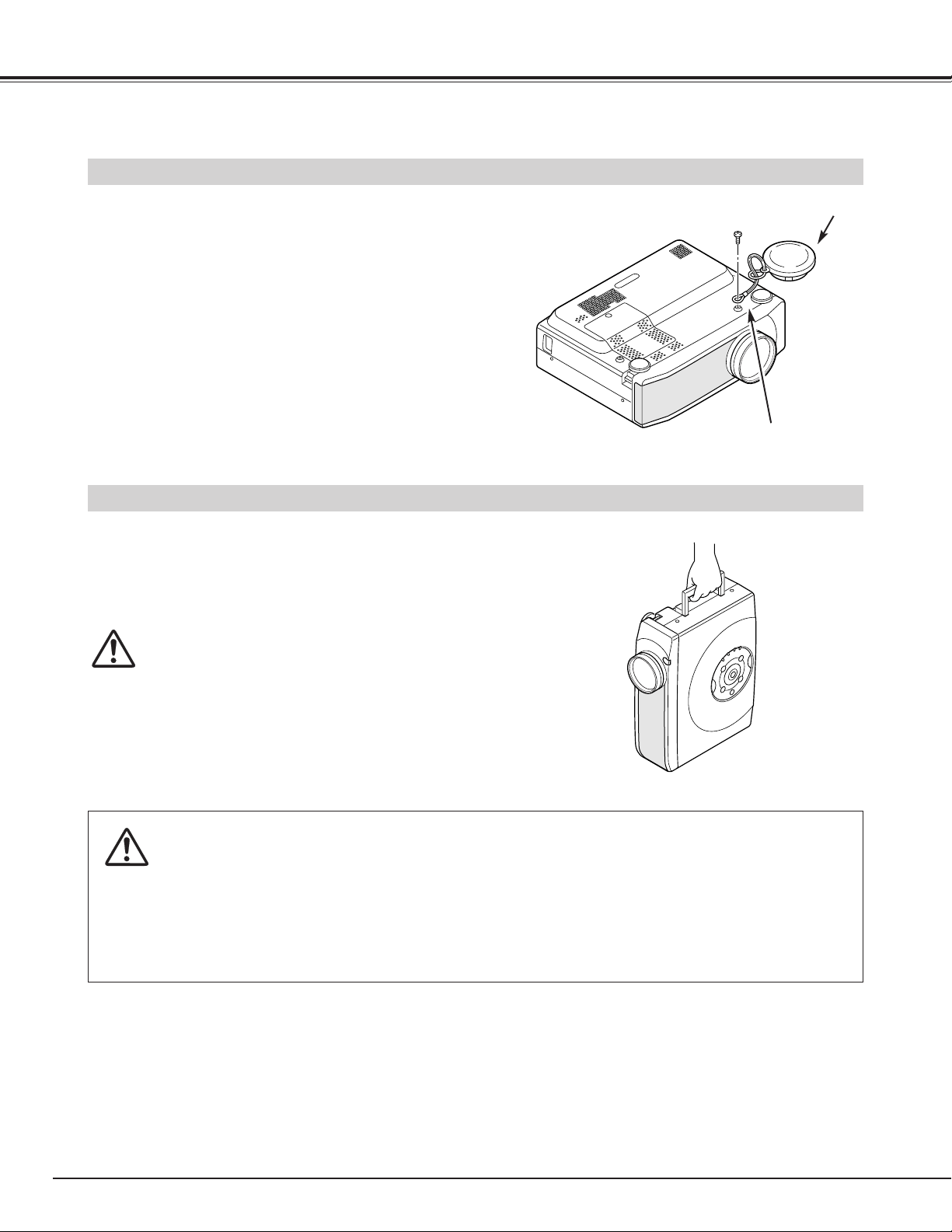

MOUNTING LENS COVER 10
MOVING PROJECTOR 10
CONNECTING PROJECTOR 11

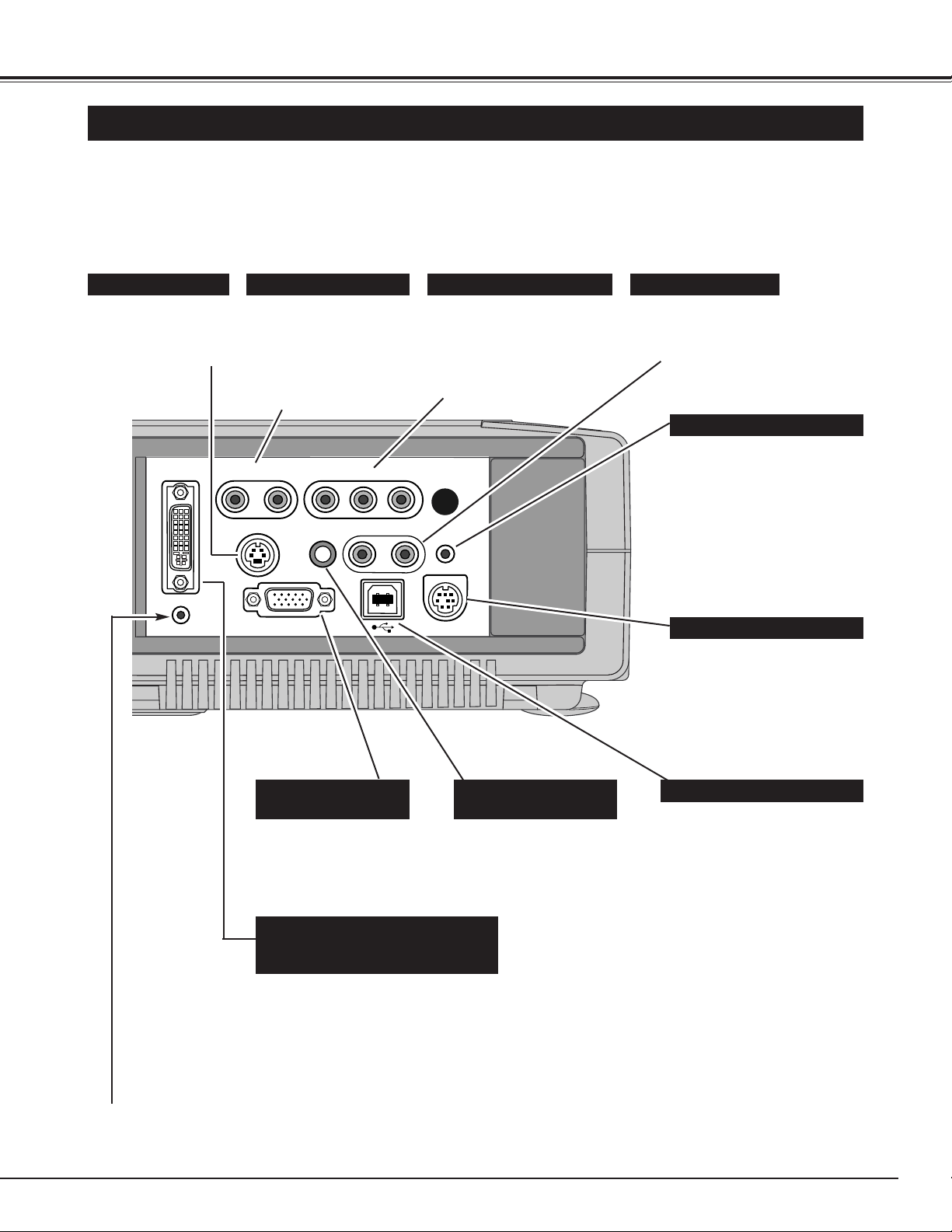

TERMINALS OF PROJECTOR 11

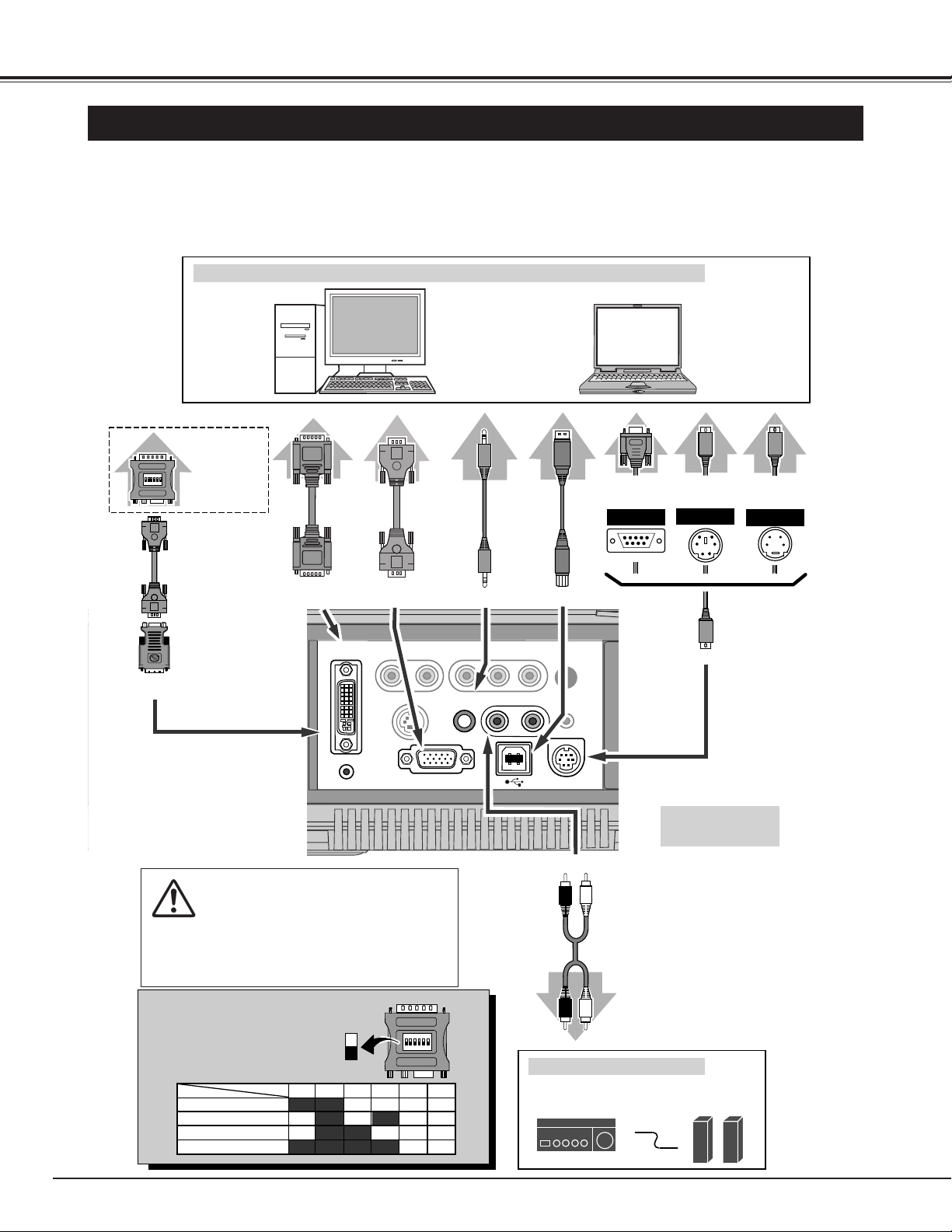

CONNECTING TO COMPUTER 12

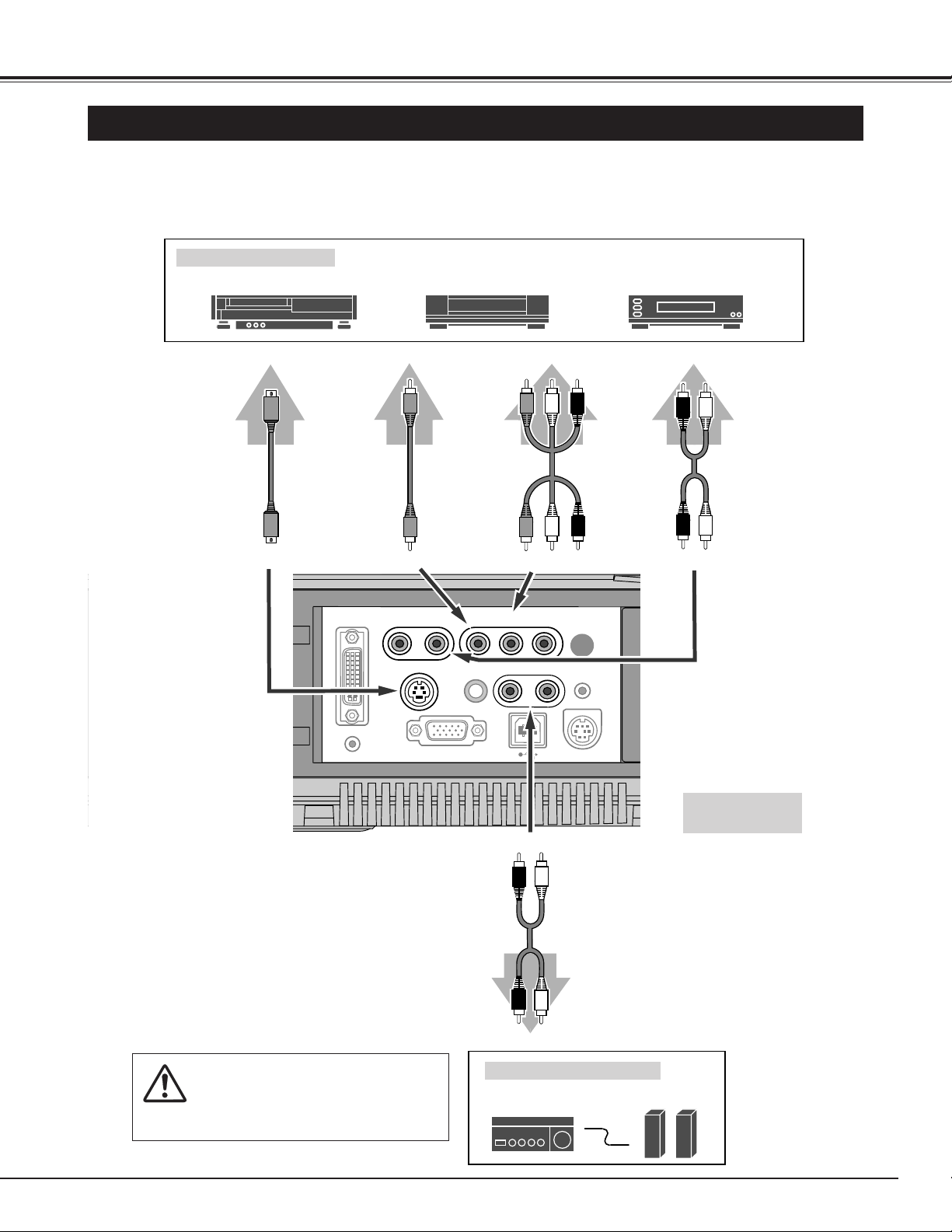

CONNECTING TO VIDEO EQUIPMENT 13

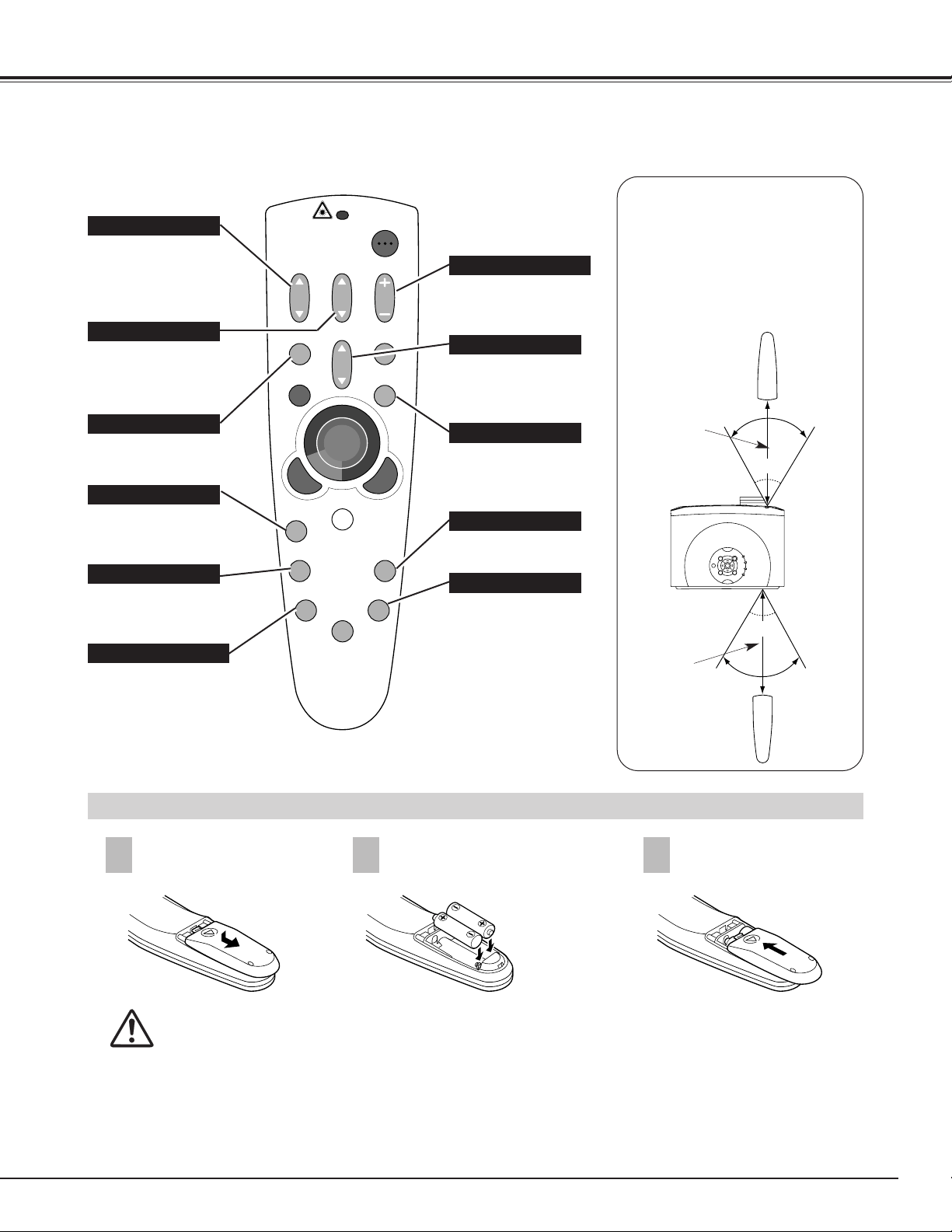

OPERATION OF REMOTE CONTROL 14
LASER POINTER FUNCTION 14
REMOTE CONTROL BATTERIES INSTALLATION 15

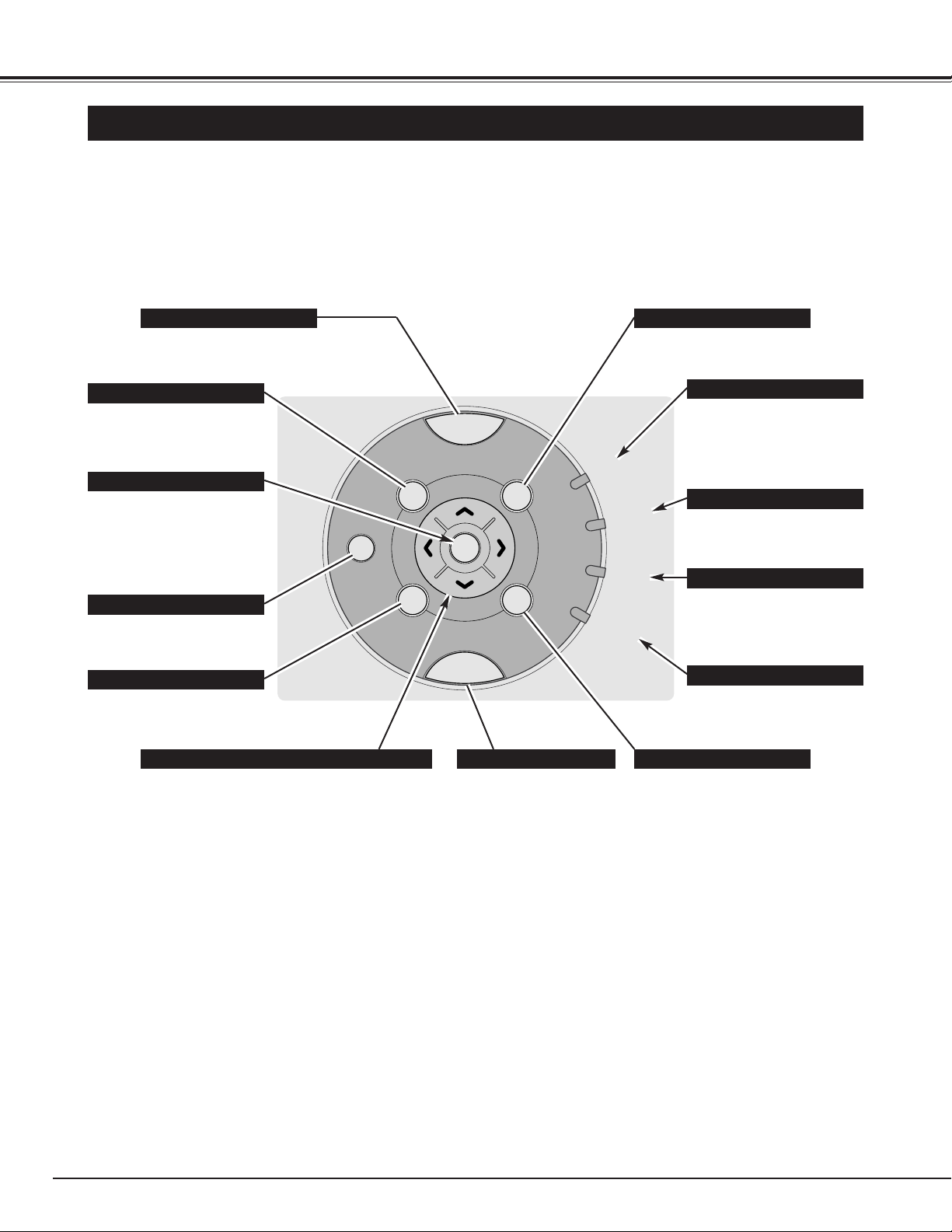

TOP CONTROLS AND INDICATORS 16
OPERATING ON-SCREEN MENU 17
HOW TO OPERATE ON-SCREEN MENU 17
FLOW OF ON-SCREEN MENU OPERATION 17
MENU BAR 18
SELECTING INPUT SOURCE 22
SELECTING COMPUTER SYSTEM 22
COMPATIBLE COMPUTER SPECIFICATIONS 23
PC ADJUSTMENT 24
AUTO PC ADJUSTMENT 24

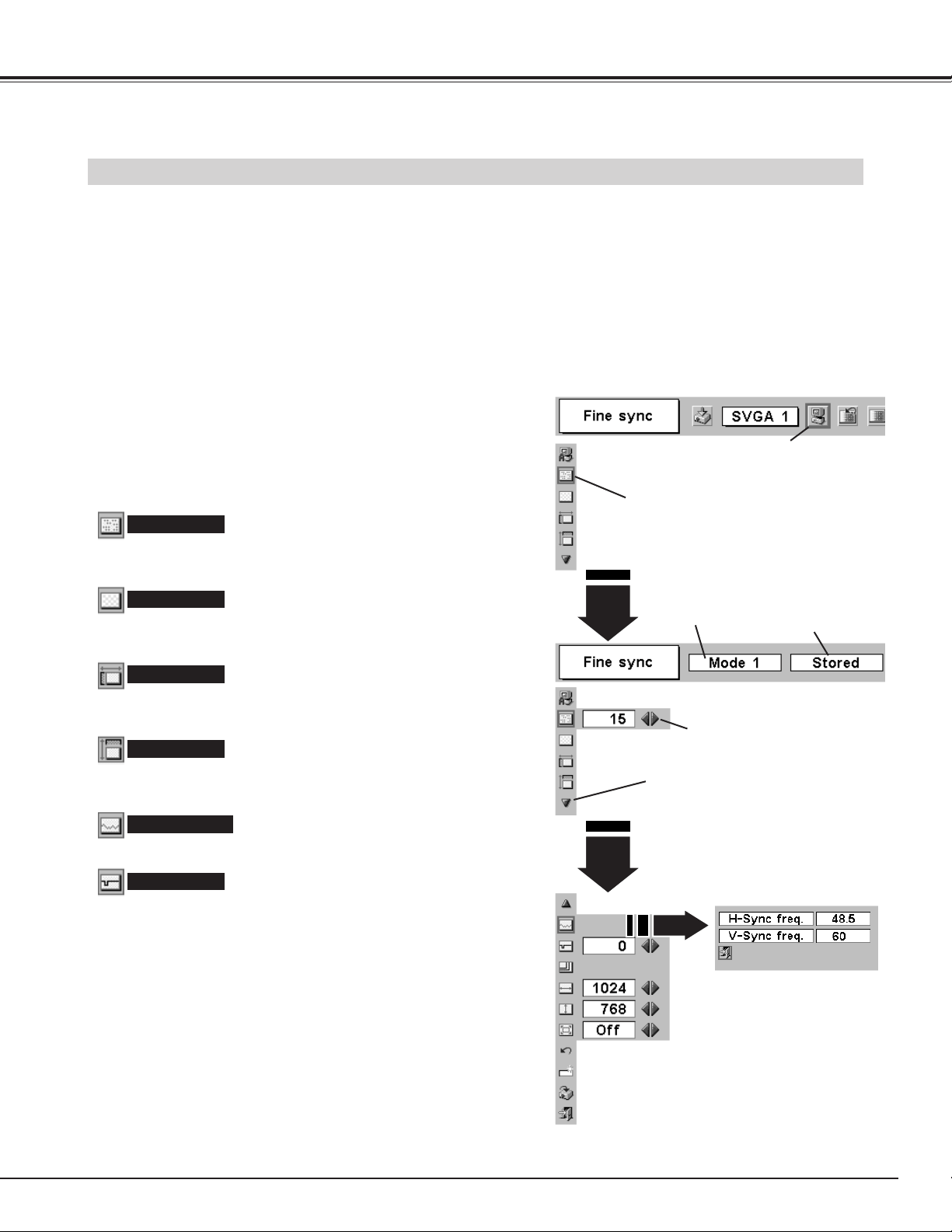

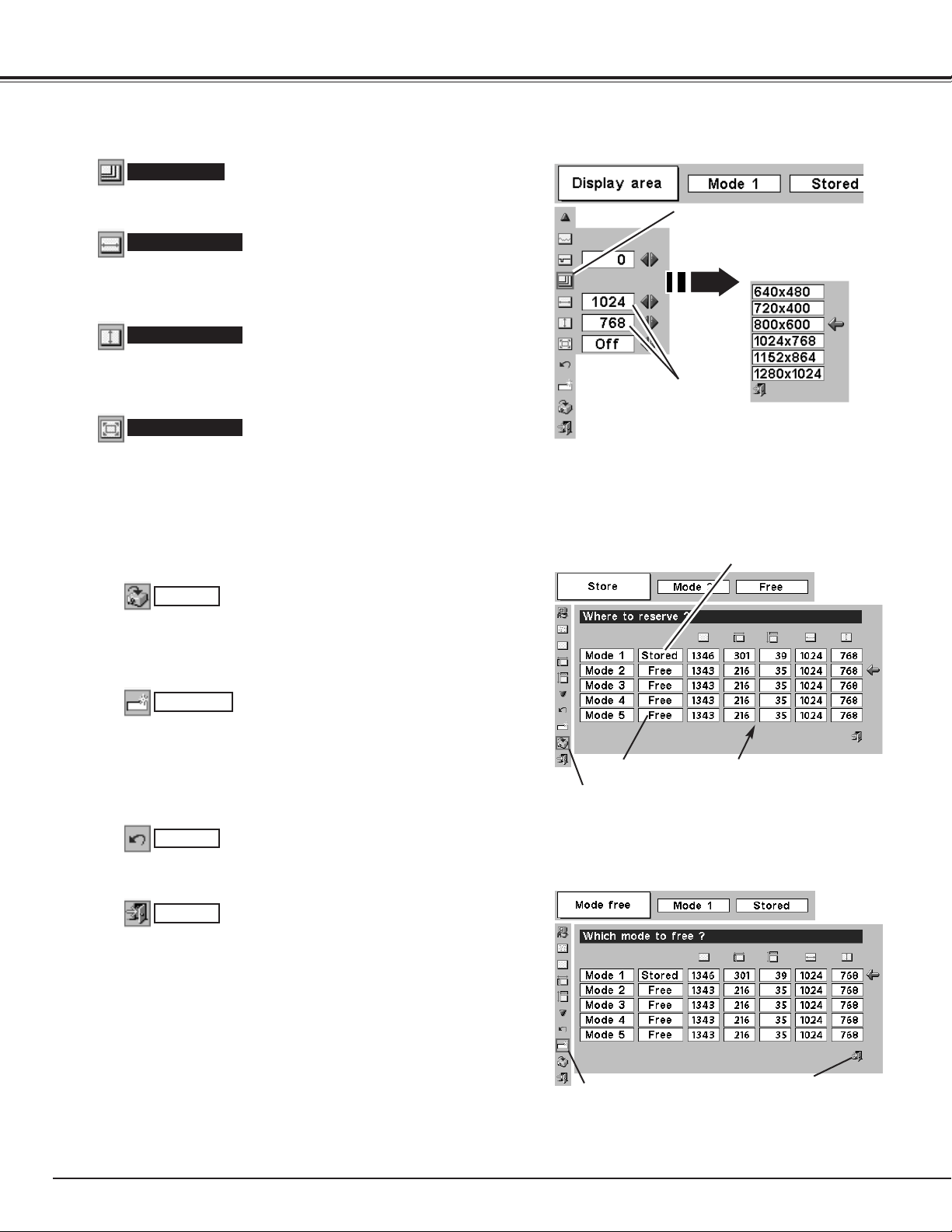

MANUAL PC ADJUSTMENT 25
PICTURE IMAGE ADJUSTMENT 27
IMAGE LEVEL SELECT 27
IMAGE LEVEL ADJUSTMENT 28
PICTURE SCREEN ADJUSTMENT 29
SELECTING INPUT SOURCE 30
SELECTING VIDEO SYSTEM 31
PICTURE IMAGE ADJUSTMENT 32
IMAGE LEVEL SELECT 32
IMAGE LEVEL ADJUSTMENT 33
PICTURE SCREEN ADJUSTMENT 34

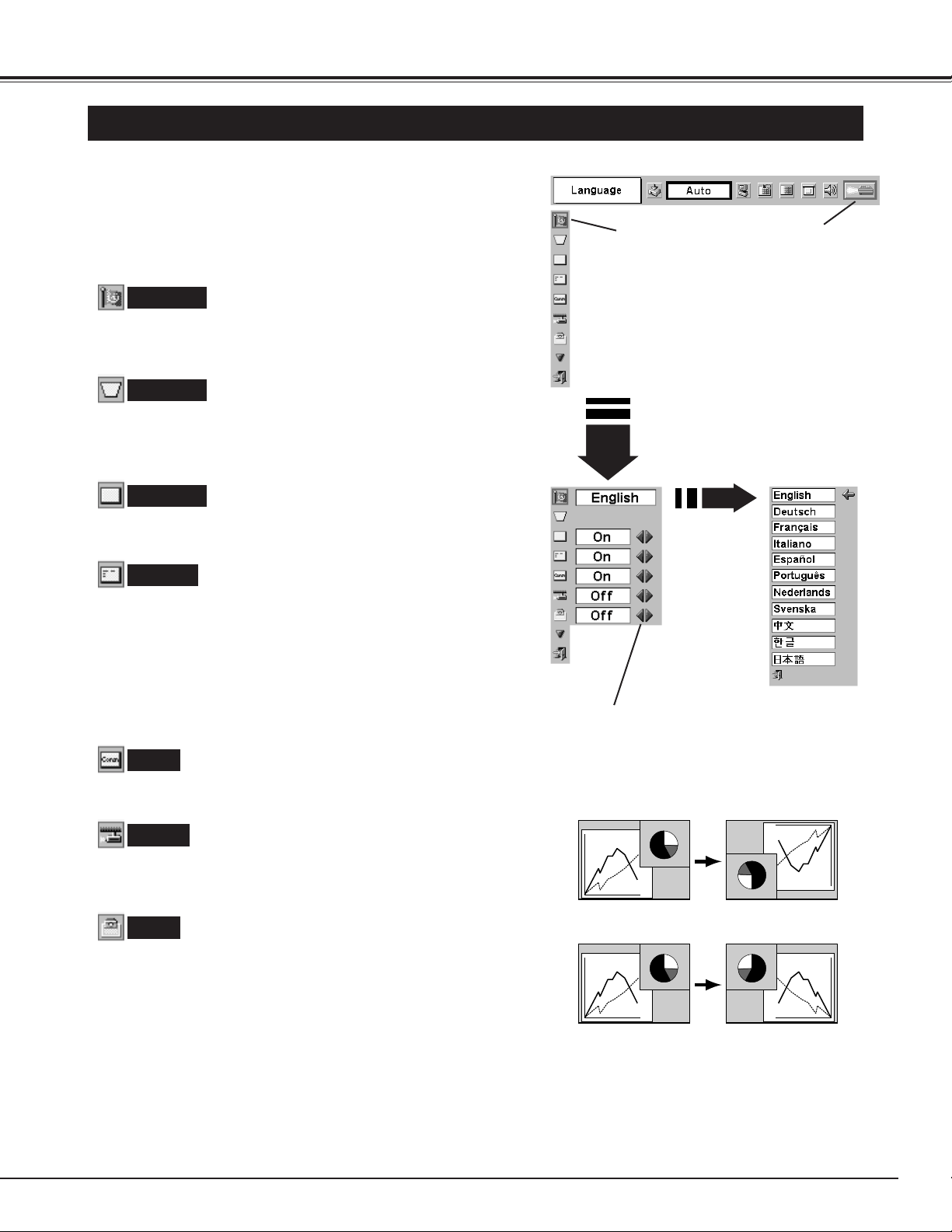

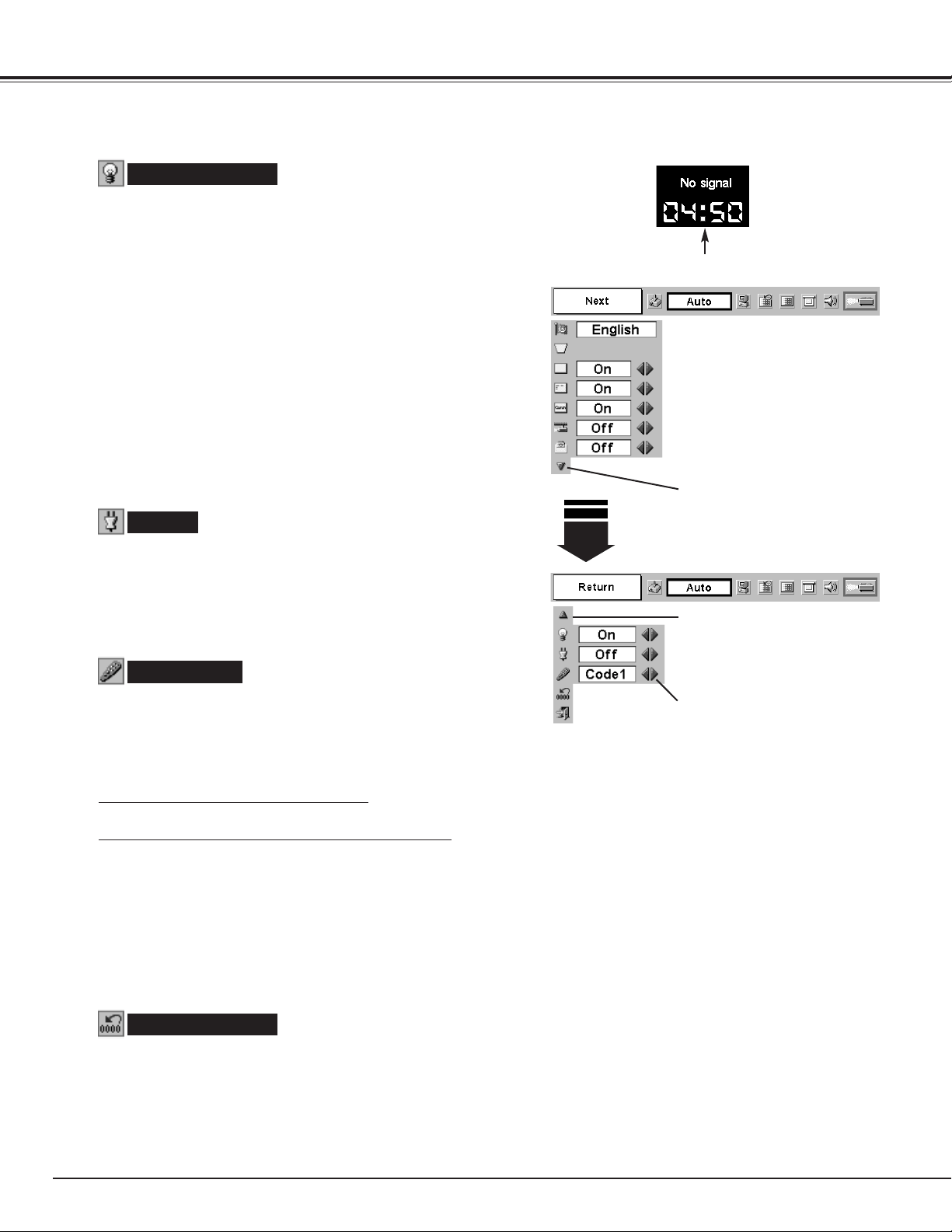

SETTING MENU 35
LAMP REPLACEMENT 37
LAMP REPLACE 37
LAMP REPLACE COUNTER 38
OPERATING WIRELESS MOUSE 39
INSTALLATION 39
OPERATING WIRELESS MOUSE 39
MAINTENANCE 40
WARNING TEMP. INDICATOR 40

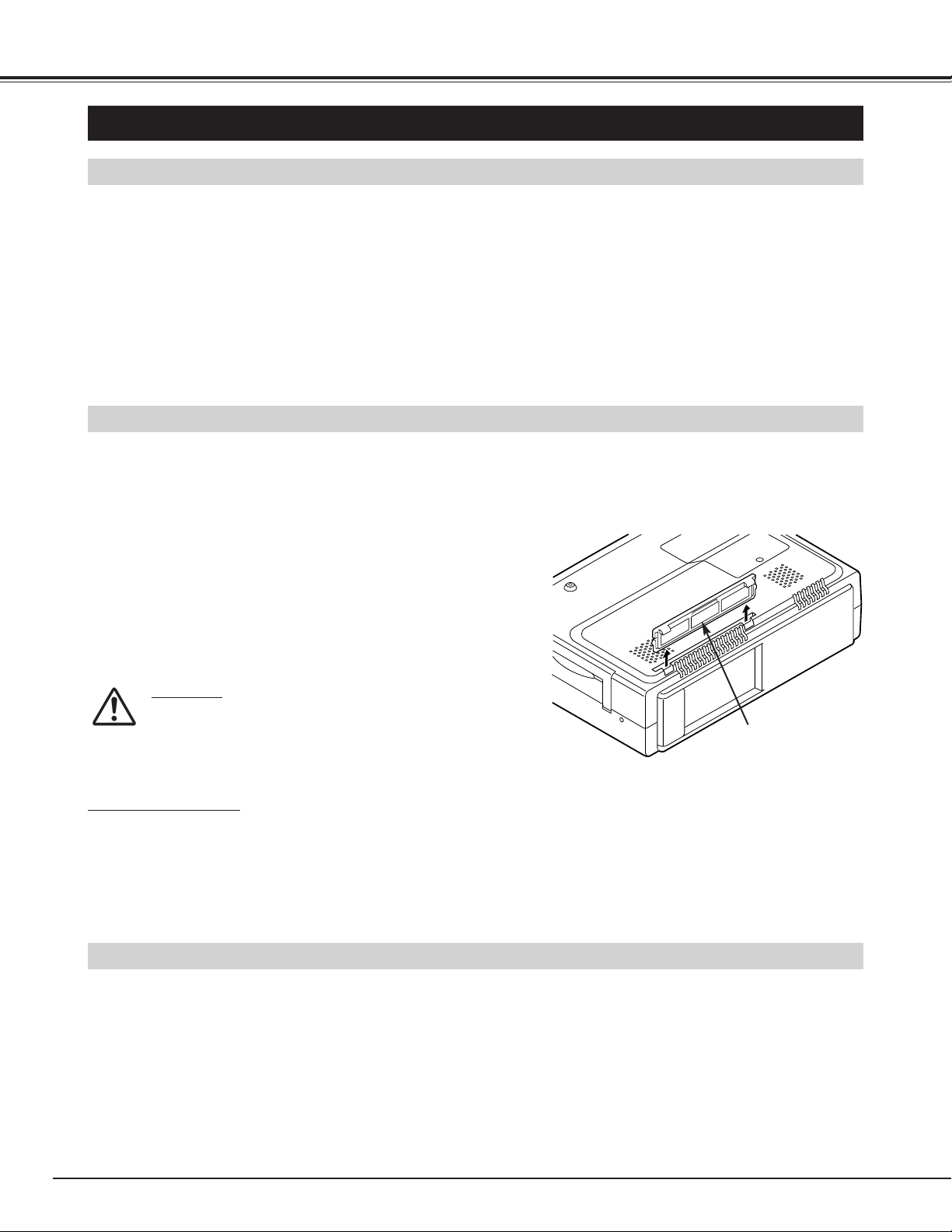

AIR FILTER CARE AND CLEANING 40
CLEANING PROJECTION LENS 40
TROUBLESHOOTING 41
TECHNICAL SPECIFICATIONS 43
CONFIGURATIONS OF TERMINALS 44
OPTIONAL PARTS 45
BASIC OPERATION 19
TURNING ON / OFF PROJECTOR 19
TURNING ON PROJECTOR 19
TURNING OFF PROJECTOR 19
ADJUSTING SCREEN 20
ZOOM ADJUSTMENT 20
FOCUS ADJUSTMENT 20
KEYSTONE ADJUSTMENT 20
TURBO BRIGHT FUNCTION 20
NO SHOW FUNCTION 21
PICTURE FREEZE FUNCTION 21
P-TIMER FUNCTION 21

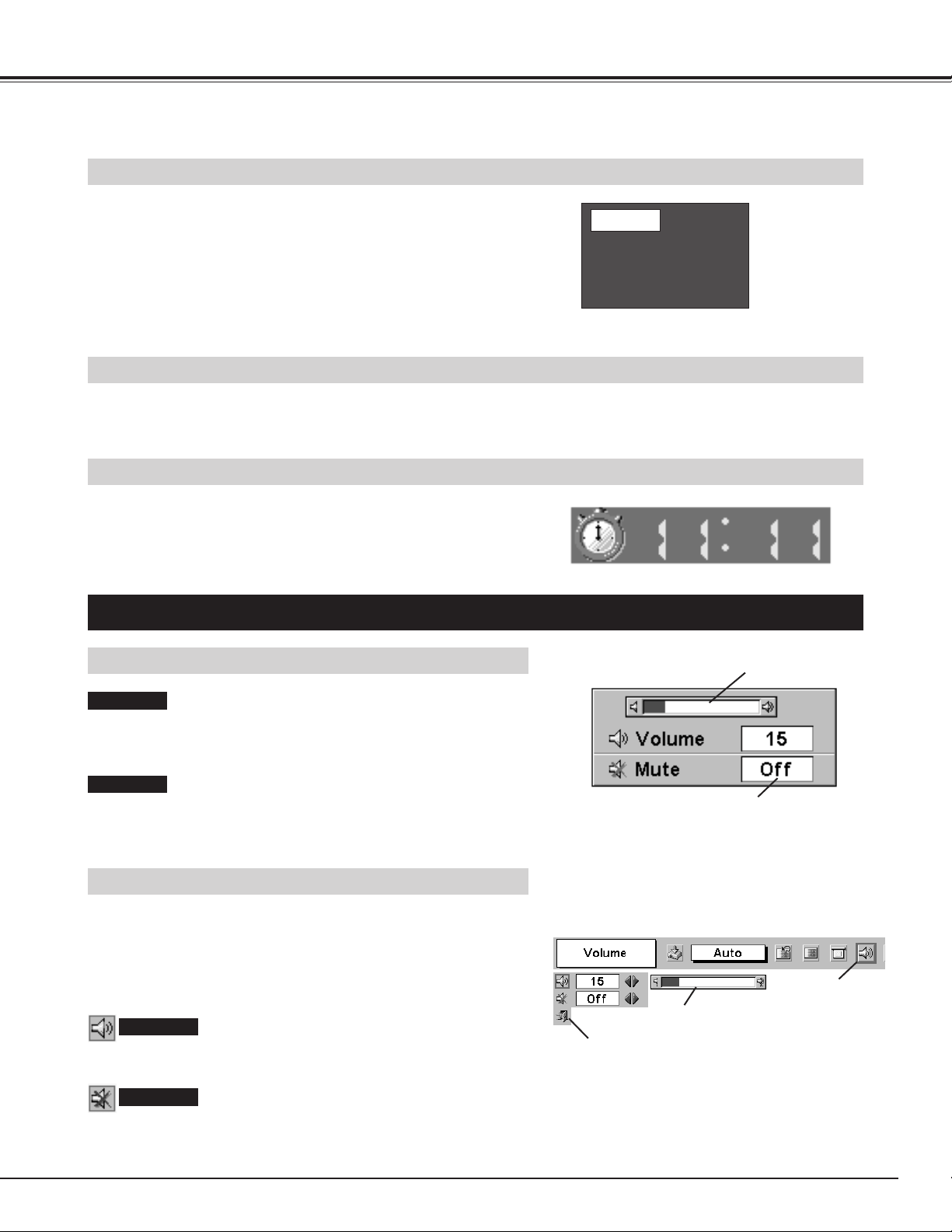

SOUND ADJUSTMENT 21
TRADEMARKS
● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
● IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
● Windows and PowerPoint are registered trademarks of Microsoft Corporation.
● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
6
FEATURES AND DESIGN
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD)
technology.
◆ Compatibility
This projector widely accepts various video and
computer input signals including;
● Computers
IBM-compatible or Macintosh computer up to 1280
x 1024 resolution.
● 6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-
N color system can be connected.
● Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
● S-Video
S-Video signal, such as a S-VHS VCR output
signal, can be connected.
◆ High Resolution Image
This projector provides 1024 x 768 dots resolution for
computer input and 800 horizontal TV lines. Resolution
from a computer between XGA (1024 x 768) and SXGA
(1280 x 1024) is compressed into 1024 x 768 dots. This
projector cannot display image of over 1280 x 1024 dots.
When resolution of your computer is over than 1280 x
1024, reset a computer output for lower resolution.
◆ Multi-Scan System
This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for troublesome manual adjustment of frequency
and other settings.
◆ Vertical and Horizontal Keystone Correction
The distorted image projected on the screen can be
easily corrected not only vertically but also horizontally.
◆ Multilanguage Menu Display
Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Chinese, Korean or Japanese.
◆ One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.
◆ Digital Zoom (for Computer)
Digital Zoom function adjusts the image size to approx.
1/4 ~ 49 times of original image size, allowing you to
focus on crucial information at a presentation.
◆ Compact Design
This projector is extremely compact in size and weight.
It is designed to carry and work anywhere you wish to
use.
◆ Power Management
Power Management function is provided to reduce power
consumption while a projector is not in use.
This Power Management function operates to turn
Projection Lamp off when a projector detects signal
interruption and any button is not pressed over 5
minutes. Projection Lamp is automatically turned on
again when a projector detects signal or any operation
button is pressed.
This projector is shipped with this function ON.
◆ Wireless Mouse
Remote Control Unit supplied with this projector has
Wireless Mouse function for a connected computer. This
function enables you to operate both projector and
computer with Remote Control Unit only.
◆ DVl-I Terminal
This projector is equipped with DVI 29-pin terminal for
connecting DVI output from a computer.
◆ Laser Pointer Function
Remote Control Unit supplied with this projector includes
Laser Pointer function. This function helps you to make
a smart presentation on a projected screen.
◆ Media Card Imager (Optional)
Optional Media Card Imager is available for this
projector. For the Media Card Imager, contact the dealer
where you purchased this projector.
◆ Turbo Bright System
Turbo Bright System switches picture brightness from
normal setting to brighter mode, and it enables you to
select better brightness for projected image.
◆ Wireless Imager (Optional)
This projector can be operated through Wireless LAN by
attaching Wireless imager that is optionally supplied. For
the Wireless Imager, contact the dealer where you
purchased the projector.
◆ Wide Zoom Lens
This projector is equipped with Wide Zoom Lens which is
1.5 times the zoom ratio, and it allows you to enjoy 100"
screen size in range of 9.2' (2.8m) to 13.8' (4m).
7
PREPARATION
NAME OF EACH PART OF PROJECTOR
BOTTOM
BACK
HOT AIR EXHAUSTED !
Air blown from Exhaust Vents is hot.
When using or installing projector, the
following precautions should be taken.
● Do not put any flammable object near
these vents.
● Keep front grills at least 3’(1m) away
from any object, especially heat-
sensitive objects.
● Do not touch this area, especially screw
and metallic part. This area will become
hot while a projector is used.
This projector detects internal
temperature and automatically controls
operating power of Cooling Fans.
FRONT
This projector is equipped with Cooling
Fans for protection from overheating.
Pay attention to the following to ensure
proper ventilation and avoid a possible
risk of fire and malfunction.
● Do not cover vent slots.
● Keep back and bottom clear of any
object. Obstructions may block
cooling air.
PROJECTION LENS
LENS COVER
EXHAUST VENTS
INFRARED
REMOTE RECEIVER
CARRY HANDLE
SPEAKER
INFRARED
REMOTE RECEIVER
POWER CORD CONNECTOR
TERMINALS
AND CONNECTORS
TOP CONTROLS
AND INDICATORS
LAMP COVER
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
AIR FILTER
AIR INTAKE VENTS
(Back and Bottom)
SETTING-UP PROJECTOR
8
PREPARATION
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce risk of electrical
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power supply being in use.
Connect a projector with peripheral equipment before turning the
projector on. (Refer to pages 11 ~ 13 for connection.)
CAUTION
For safety, unplug AC Power Cord when an appliance is not
used.
When this projector is connected to the outlet with AC Power
Cord, an appliance is in Stand-by Mode and consumes a little
electric power.
CONNECTING AC POWER CORD
Connect AC Power Cord (supplied) to a projector.
The AC outlet must be near this equipment and
must be easily accessible.
To the POWER CORD
CONNECTOR on the
projector.
Projector side AC Outlet side
Ground
NOTE ON THE POWER CORD
The AC Power Cord must meet the requirement of the country where you use the projector.
Confirm the AC plug type with the chart below. The proper AC power cord must be used.
If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.
To the AC Outlet.
(120 V AC)
For Continental Europe
For the U.S.A. and Canada
To the AC Outlet.
(200 - 240 V AC)
9
PREPARATION
POSITIONING PROJECTOR
● This projector is designed to project on a flat projection surface.
● The projector can be focused from 3.6 ’(1.1m) ~ 27.6’(8.4m).
● Refer to the figure below to adjust a screen size.
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by rotating
Adjustable Feet. Projection angle can be adjusted to about 16
degrees.
Lift the front of a projector and pull Feet Lock Latches on
both sides of the projector.
1
ADJUSTABLE FEET
FEET LOCK
LATCHES
41”
100”
150”
200”
300”
200”
133”
100”
67”
28”
27.6’ (8.4m)
18.4’ (5.6m)
13.8’ (4.2m)
9.2’ (2.8m)
3.6’ (1.1m)
Release Feet Lock Latches to lock Adjustable Feet and
rotate Adjustable Feet to fine tune position and tilt.
2
To retract Adjustable Feet, lift the front of the projector and
pull and undo Feet Lock Latches.
Keystone distortion of a projected image can be adjusted by
Menu Operation. (Refer to P20 and 35.)
3
ROOM LIGHT
The brightness in a room has a great influence on
picture quality. It is recommended to limit
ambient lighting in order to provide the best
image.
Max. Zoom
Min. Zoom
CAUTION
Avoid positioning a projector with the angle of more than 20
degrees. Projection Lamp may malfunction.
Screen Size
(W x H) mm
Zoom (min)
41”
Zoom (max)
833 x 624
5.6' (1.7m)
3.6' (1.1m)
100”
2032 x 1524
13.8' (4.2m)
9.2' (2.8m)
150”
3048 x 2286
20.7' (6.3m)
13.8' (4.2m)
200”
4064 x 3048
27.6' (8.4m)
18.4' (5.6m)
300”
6096 x 4572
–––––
27.6' (8.4m)
28"
569 x 427
3.6' (1.1m)
–––––
H1
H1 : H2 = 9 : 1
H2
10
PREPARATION
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
● Do not drop or bump a projector, otherwise damages or malfunctions may result.
● When carrying a projector, use a suitable carrying case.
● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause
damage to the projector. To transport a projector through a courier or transport service, consult your dealer for best
way.
MOVING PROJECTOR
CAUTION
Carrying Bag (supplied) is intended for protection from dust and
scratches on the surface of a cabinet, and it is not designed to
protect an appliance from external forces. Do not transport a
projector through a courier or transport services with this bag. The
projector can be damaged. When handling a projector, do not
drop, bump, subject it to strong forces or put other things on the
cabinet.
Use Carry Handle when moving a projector.
When moving a projector, replace Lens Cover and retract
Adjustable Feet to prevent damage to the lens and cabinet.
When a projector is not in use for an extended period, put it into
the case (carrying bag) supplied with the projector.
MOUNTING LENS COVER
When moving this projector or when it is not used for an extended
period, replace Lens Cover.
Before replacing Lens Cover, be sure to turn the projector off and
disconnect AC Power cord from an AC outlet.
Secure Strap for Lens Cover through a hole of Lens Cover.
1
2
Turn the projector upside down and secure Strap for Lens
Cover to a hole on the bottom of projector with a screw.
LENS COVER
STRAP FOR LENS COVER
Secure it to the hole with a screw.
COMPUTER
AUDIO IN
S – VIDEO IN
AUDIO
IN
VIDEO IN
AUDIO
OUT
RGB IN-1
RESET
CONTROL PORT
Y Pb/Cb Pr/Cr
R L
R L
DVI - I
MCI / WI
RGB IN-2
11
CONNECTING PROJECTOR
TERMINALS OF PROJECTOR
When controlling the computer
with Remote Control Unit of
this projector, connect the
mouse port of your personal
computer to this connector.
(Refer to P12.)
Connect the S-VIDEO
output from video
equipment to this
jack. (Refer to P13.)
Connect the audio output
from video equipment to
these jacks.
(Refer to P13.)
● When the audio output
is monaural, connect it
to L (mono) jack.
CONTROL PORT CONNECTOR
AUDIO INPUT JACKS
VIDEO INPUT JACKS
S-VIDEO INPUT JACK
Connect the composite video
output from video equipment
to Y jack or connect the
component video outputs to
Y, Pb/Cb and Pr/Cr jacks.
(Refer to P13.)
This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on
pages 11 to 13 and connect properly.
Connect an external
audio amplifier to these
jacks.
(Refer to P12, 13.)
AUDIO OUTPUT JACKS
This projector uses a micro
processor to control this unit,
and occasionally, this micro
processor may malfunction
and need to be reset. This
can be done by pressing
RESET button with a pen,
which will shut down and
restart the unit. Do not use
RESET function excessively.
RESET BUTTON
RGB INPUT 2 (DIGITAL/ANALOG)
Media Card Imager / Wireless Imager
TERMINAL
Connect a computer
output to this jack.
(Refer to P12.)
RGB INPUT 1
(ANALOG) TERMINAL
Connect computer output (Digital /
Analog DVI-I type), Media Card
Imager*, or Wireless Imager* to this
terminal.
*optional accessories
✽ Do not press this button. This button
is used for our optional accessories.
Connect the audio output
(stereo) from computer to
this jack. (Refer to P12.)
COMPUTER AUDIO
INPUT JACK
When controlling the computer
with Remote Control Unit of this
projector, connect USB port of
your personal computer to this
connector. (Refer to P12.)
USB CONNECTOR (Series B)
12
CONNECTING PROJECTOR
CONNECTING TO COMPUTER
COMPUTER
AUDIO IN
S – VIDEO IN
AUDIO
IN
VIDEO IN
AUDIO
OUT
RGB IN-1
RESET
CONTROL PORT
Y Pb/Cb Pr/Cr
R L
R L
DVI - I
MCI / WI
RGB IN-2
ON
1
DIP
ON
OFF
2 3 4 5 6
13" MODE (640 x 480)
16" MODE (832 x 624)
19" MODE (1024 x 768)
OFFON ON
ON ON
ON ON
OFF OFF OFF
OFFOFF OFF OFF
OFF OFF OFF OFF
123456
OFF OFFON ONON ON21" MODE (1152 x 870)
IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)
VGA Cable
Monitor Output
Desktop type Laptop type
Audio Speaker
(stereo)
Audio Amplifier
Control Cable
for Serial Port ✽
Audio Cable
(stereo)
✽
Terminal
Serial port PS/2 portAudio Output
Audio Input
CONTROL PORT
AUDIO OUT
COMPUTER AUDIO IN
DVI-I RGB IN-2
Use one of these Control
Cables corresponding with
the terminal of your
computer.
ADB port
Cables used for connection (✽ = Cable or adapter is not supplied with this projector.)
Control Cable
for PS/2 Port
Control Cable
for ADB Port ✽
Audio
Cable
✽
(stereo)
NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
AC outlet. Turn the projector and
peripheral equipment on before the
computer is switched on.
USB port
MAC Adapter ✽
Set slide switches
according to the
chart below.
• VGA Cable (HDB 15 pin)
• Control Cable for PS/2 Port
• DVI-Digital Cable (for Single Link T.M.D.S.)
✽
• Control Cable for Serial Port ✽, or ADB Port ✽
• USB Cable ✽
• MAC Adapter (When connecting to Macintosh computer) ✽
• DVI/VGA Adapter
• Audio Cables (RCA x 2 and Mini Plug (stereo) x 1)
✽
External Audio Equipment
Terminals
of the Projector
Terminal Terminal
VGA
Cable
✽
Monitor Output
USB
RGB IN-1
Set switches as shown in the table
below depending on RESOLU-
TION MODE that you want to use
before you turn on projector and
computer.
◆ MAC ADAPTER (Not supplied)
USB
Cable
✽
DVI-I RGB IN-2
DVI Cable ✽
DVI/VGA
Adapter
13
CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
COMPUTER
AUDIO IN
S – VIDEO IN
AUDIO
IN
VIDEO IN
AUDIO
OUT
RGB IN-1
RESET
CONTROL PORT
Y Pb/Cb Pr/Cr
R L
R L
DVI - I
MCI / WI
RGB IN-2
Video Source (example)
Video Cassette Recorder Video Disc Player
Video Cable
(RCA x 1) ✽
S-VIDEO
Cable ✽
Audio Amplifier
Audio Speaker
(stereo)
Audio Cable
(Stereo) ✽
Terminals
of the Projector
Use any of VIDEO jack, S-VIDEO
jack, or Y-Pb/Cb-Pr/Cr jacks.
• When both VIDEO jack and S-
VIDEO jack are connected, S-
VIDEO jack has priority over
VIDEO jack.
• When both Y-Pb/Cb-Pr/Cr jacks
and S-VIDEO jack are connected,
Y-Pb/Cb-Pr/Cr jacks has priority
over S-VIDEO jack.
S-VIDEO Output
Audio Input
Cables used for connection (✽ = Cable is not supplied with this projector.)
• Video Cable (RCA x 1 or RCA x 3)
✽
• S-VIDEO Cable ✽
• Audio Cable (RCA x 2) ✽
NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
AC outlet.
Audio Output
(R, L)
Audio Cable
(RCA x 2) ✽
External Audio Equipment
AUDIO IN
S-VIDEO IN
Y - Pb/Cb - Pr/Cr
Y
AUDIO OUT
Component video output equipment.
(such as DVD player or high-definition TV source.)
Composite
Video Output
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Video Cable
(RCA x 3) ✽
14
BEFORE OPERATION
VOLUME
POWER
FOCUS
ZOOM
D.ZOOM
MENU
MUTE
LASER
NO SHOW
FREEZE
AUTO PC ADJ.
P-TIMER
INPUT
BRIGHT
KEYSTONE
OPERATION OF REMOTE CONTROL
ON
ALL OFF
ALL-OFF SWITCH
Left Side
When using Remote Control Unit,
turn this switch to “ON.” And turn it
to “ALL OFF” when it is not used.
This Remote Control Unit emits a laser beam as a laser pointer function from Laser Light Window. When LASER button is
pressed, the laser light goes on. And when LASER button is being pressed for more than 1 minute or LASER button is
released, light goes off. LASER POINTER INDICATOR lights RED and the laser is emitted with RED light to indicate that the
laser beam is being emitted.
The laser emitted is a class II laser; therefore, do not look into Laser Light Window or shine the laser beam on yourself or
other people. The three marks below are the caution labels for the laser beam.
Laser Light Window
These caution labels are put on the remote control unit.
LASER POINTER FUNCTION
Used to select input source.
(P22, 30)
Used to execute the item
selected, or to expand or
compress the image in
DIGITAL ZOOM +/– mode.
(P29)
It is also used as a PC
mouse in Wireless Mouse
Operation. (P39)
POWER ON-OFF BUTTON
Used to turn projector on or
off. (P19)
MENU BUTTON
Used to select MENU
operation. (P17, 18)
INPUT BUTTON
LASER BUTTON
Used to operate Laser Pointer
Function. Laser beam is
emitted while pressing this
button within 1 minute.
When using this Laser Pointer
for more than 1 minute, release
LASER button and press it
again.
Used to move a pointer on
ON-SCREEN MENU, adjust
each item, or pan image in
DIGITAL ZOOM +/– mode.
(P29)
It is also used as a PC mouse
in Wireless Mouse Operation.
(P39)
✽ When pressing the center of this
button, it works as SET button.
POINT BUTTON
Used as a PC mouse in
Wireless Mouse Operation.
(P39)
RIGHT CLICK BUTTON
Used to operate P-TIMER
function. (P21)
Lights red while laser beam
is emitted from Laser Light
Window.
LASER POINTER INDICATOR
P-TIMER BUTTON
LASER POINTER INDICATOR
SET BUTTON
CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may
result hazardous radiation exposure.
15
BEFORE OPERATION
To insure safe operation, please observe the following precautions :
● Use (2) AA, UM3 or R06 type alkaline batteries.
● Replace two batteries at the same time.
● Do not use a new battery with an used battery.
● Avoid contact with water or liquid.
● Do not expose Remote Control Unit to moisture, or heat.
● Do not drop Remote Control Unit.
● If a battery has leaked on Remote Control Unit, carefully wipe the case clean and load new batteries.
● Danger of explosion if battery is incorrectly replaced.
● Dispose of used batteries according to battery manufacturer's instructions and local rules.
Press the lid down-
ward and slide it.
Remove the battery
compartment lid.
Slide the batteries into
the compartment.
Replace the compartment
lid.
Two AA size batteries
For correct polarity (+
and –), be sure that the
battery terminals are in
contact with the pins in
the compartment.
REMOTE CONTROL BATTERIES INSTALLATION
1
2
3
Operating Range
Point Remote Control Unit toward
the projector (Receiver Window)
whenever pressing any button.
Maximum operating range for
Remote Control Unit is about 16.4’
(5m) and 60° in front and rear of the
projector.
16.4’
(5 m)
60°
16.4’
(5 m)
Used to adjust zoom.
(P20)
VOLUME
POWER
FOCUS
ZOOM
D.ZOOM
MENU
MUTE
LASER
NO SHOW
FREEZE
AUTO PC ADJ.
P-TIMER
INPUT
BRIGHT
KEYSTONE
MUTE BUTTON
Used to mute sound.(P21)
ZOOM BUTTON
FOCUS BUTTON
Used to adjust focus.
(P20)
NO SHOW BUTTON
Used to turn the picture
into black image. (P21)
AUTO PC ADJ. BUTTON
Use to operate AUTO PC
Adjustment function. (P24)
VOLUME BUTTON
Used to adjust volume.
(P21)
D.ZOOM BUTTON
Used to select DIGITAL
ZOOM +/– mode and
resize image. (P29)
KEYSTONE BUTTON
Used to correct keystone
distortion. (P20, 35)
FREEZE BUTTON
Used to freeze the picture.
(P21)
IMAGE BUTTON
Used to select image
level. (P27, 32)
60°
Used to enhance picture
brightness. (P20)
BRIGHT BUTTON
MENU
SET
FOCUSZOOM
INPUT
KEY
STONE
POWER
BRIGHT
Vol +Vol –
READY
LAMP
REPLACE
LAMP
WARNING
TEMP.
16
BEFORE OPERATION
TOP CONTROLS AND INDICATORS
Used to open or close ON-
SCREEN MENU operation.
(P17, 18)
MENU BUTTON
KEYSTONE BUTTON
READY INDICATOR
SET BUTTON
POWER ON–OFF BUTTON
INPUT BUTTON
WARNING TEMP. INDICATOR
LAMP INDICATOR
POINT (VOLUME + / – ) BUTTONS
LAMP REPLACE INDICATOR
Used to correct keystone
distortion. (P20, 35)
Lights green when the
projector is ready to be
turned on, and flashes
green while in Power
Management mode. (P36)
Becomes dim when the
projector is turned on. And
bright when the projector is
in stand-by mode.
Turns to yellow when the
life of Projection Lamp
draws to an end. (P37)
Flashes red while internal
projector temperature is too
high. (P40)
Used to select input source.
(P22, 30)
Used to select an item or adjust value in ON-
SCREEN MENU. They are also used to pan
the image in DIGITAL ZOOM
+/– mode. (P29)
POINT LEFT/RIGHT buttons are also used as
VOLUME +/– buttons.
Used to execute the item
selected. It is also used to
expand / compress the
image in DIGITAL ZOOM
mode. (P29)
Used to turn a projector on
or off. (P19)
Used to adjust zoom.
(P20)
FOCUS BUTTON
Used to adjust focus. (P20)
ZOOM BUTTON
This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.
Used to enhance picture
brightness. (P20)
BRIGHT BUTTON
17
BEFORE OPERATION
HOW TO OPERATE ON-SCREEN MENU
FLOW OF ON-SCREEN MENU OPERATION
Display ON-SCREEN MENU
Press MENU button to display ON-SCREEN MENU (MENU
BAR). A red frame is POINTER.
Move POINTER (red frame) to MENU ICON that you want to
select by pressing POINT RIGHT / LEFT buttons.
Adjust ITEM DATA by pressing POINT RIGHT / LEFT
buttons.
Refer to the following pages for details of respective
adjustments.
Press POINT DOWN button and move POINTER (red frame
or red arrow) to ITEM that you want to adjust, and then press
SET button to show ITEM DATA.
Select Menu to be adjusted
Control or adjust item through ON-SCREEN MENU
1
2
4
3
You can control and adjust this projector through ON-SCREEN
MENU. Refer to the following pages to operate each adjustment
on ON-SCREEN MENU.
2 MOVING POINTER
3 SELECT ITEM
Move the pointer (✽ see below) or adjust the value of item by
pressing POINT button(s) on Top Control or on Remote Control
Unit.
Select an item or set the selected function by pressing SET button.
OPERATING ON-SCREEN MENU
✽ Pointer is the icon on ON-SCREEN MENU to select the item.
See the section "FLOW OF ON-SCREEN MENU OPERATION"
below.
MENU
SET
FOCUSZOOM
KEY
STONE
Vol +Vol –
Used to select the item.
SET BUTTON
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
POINT BUTTONS
TOP CONTROL
MENU BAR
POINTER
(red frame)
MENU ICON
ITEM DATA
Press POINT LEFT/RIGHT
buttons to adjust value or
set function.
POINTER (red frame)
Press POINT DOWN button to
move POINTER.
1 DISPLAY MENU
Press MENU button to display ON-SCREEN MENU.
ITEM
Used to select the item.
SET BUTTON
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
POINT BUTTON
REMOTE CONTROL UNIT
SET
BUTTON
18
BEFORE OPERATION
MENU BAR
PC SYSTEM MENU
Used to select
computer system.
(Refer to P22, 23)
IMAGE ADJUST MENU
Used to adjust
computer image.
[Contrast / Brightness
/ White Balance
(R/G/B) / Gamma]
(Refer to P28)
SETTING MENU
Used to change
settings of projector
or reset Lamp
Replace Counter.
(Refer to P35, 36)
SOUND MENU
Used to adjust
volume or mute
sound.
(Refer to P21)
IMAGE SELECT MENU
Used to select image
level among ;
Standard, High
contrast and Custom.
(Refer to P27)
FOR PC SOURCE
Press MENU BUTTON while connecting to PC input source.
AV SYSTEM MENU
Used to select
system of a selected
video source.
(Refer to P31)
IMAGE ADJUST MENU
Used to adjust picture image.
[Contrast / Brightness / Color /
Tint / White balance (R/G/B) /
Sharpness / Gamma]
(Refer to P33, 34)
FOR VIDEO SOURCE
Press MENU BUTTON while connecting to VIDEO input source.
Same function as
Menu for PC source.
INPUT MENU
Used to select
input source
either Video or
Computer.
(Refer to P30)
PC ADJUST MENU
Used to adjust
parameters to
match with input
signal format.
(Refer to P24-26)
IMAGE SELECT MENU
Used to select image
level among
Standard, Cinema
and Custom.
(Refer to P32)
SCREEN MENU
Used to set size of
image to Normal
or Wide.
(Refer to P34)
GUIDE WINDOW
Shows a selected
item of ON-
SCREEN MENU.
Same function as
Menu for PC source.
INPUT MENU
Used to select
input source either
Computer or
Video.
(Refer to P22)
SCREEN MENU
Used to adjust size
of image. [Normal
/ True / Wide /
Digital zoom +/–]
(Refer to P29)
19
BASIC OPERATION
TURNING ON PROJECTOR
Connect the projector's AC Power Cord into an AC outlet. LAMP
Indicator lights red, and READY Indicator lights green.
Press POWER ON-OFF button on Top Control or on Remote
Control Unit to ON. LAMP Indicator dims, and Cooling Fans
start to operate. Preparation Display appears on a screen and
the count-down starts. The signal from PC or Video source
appears after 30 seconds.
2
3
TURNING OFF PROJECTOR
Press POWER ON-OFF button on Top Control or on Remote
Control Unit, and a message "Power off?" appears on a screen.
Press POWER ON-OFF button again to turn off the projector.
LAMP Indicator lights bright and READY Indicator turns off.
After the projector is turned off, Cooling Fans operate (for 90
seconds).
1
2
TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN
PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE
TURNING IT OFF.
DO NOT DISCONNECT AC POWER CORD BEFORE
READY INDICATOR LIGHTS GREEN.
TURNING ON / OFF PROJECTOR
When WARNING TEMP. Indicator flashes red, the projector is automatically turned off. Wait at least 5 minutes before
turning on the projector again.
When WARNING TEMP. Indicator continues to flash, follow the procedures below:
1. Press POWER ON-OFF button to turn the projector off and disconnect AC Power Cord from an AC outlet.
2. Check Air Filters for dust accumulation.
3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 40.)
4. Turn the projector on again.
If WARNING TEMP. Indicator should still continue to flash, contact the sales dealer where you purchased this projector or
service center.
1
Complete peripheral connections (with Computer, VCR, etc.)
before turning on projector. (Refer to "CONNECTING
PROJECTOR" on page 11~13 for connecting the equipment.)
3
When the projector has cooled down, READY Indicator lights
green again.
30
Preparation Display disappears after 30 seconds.
Power off?
Message disappears after 4 seconds.
When “Power management” function is ON, the projector detects signal interruption and turns off Projection Lamp
automatically. Refer to “Power management” on page 36.
NOTE : When “On start” function is ON, this projector is turned
on automatically by connecting AC Power Cord to an
AC outlet. (Refer to pages 35, 36.)
NOTE : Projector cannot be turned on during cooling period with
READY Indicator off. You can turn it on again after READY
Indicator lights green.
note on operation
20
KEYSTONE ADJUSTMENT
1
Press KEYSTONE button on Top Control or on Remote Control
Unit, or select Keystone on SETTING menu. (Refer to P35.)
Keystone dialog box appears.
2
Correct keystone distortion by pressing POINT
UP/DOWN/LEFT/RIGHT button(s). Press POINT UP button to
reduce the upper part of the image, and press POINT DOWN
button to reduce the lower part. Press POINT LEFT button to
reduce the left part, and press POINT RIGHT button to reduce
the right part.
If a projected picture has keystone distortion, correct image with KEYSTONE adjustment.
BASIC OPERATION
ADJUSTING SCREEN
Message disappears after 4 seconds.
Message disappears after 4 seconds.
Zoom
Focus
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
1
Press ZOOM button on Top Control or ZOOM ▲/▼ button on
Remote Control Unit. The message “Zoom” is displayed.
2
Press ZOOM ▲ button or POINT UP button to make image
larger, and press ZOOM ▼ button or POINT DOWN button to
make image smaller.
1
Press FOCUS button on Top Control or FOCUS ▲/▼ button on
Remote Control Unit. The message “Focus” is displayed.
2
Adjust focus of image by pressing FOCUS ▲/▼ button or
POINT UP/DOWN button(s) .
Turbo Bright System enhances picture brightness. When BRIGHT
button is pressed to on, the message “Bright on” is displayed and
BRIGHT button lights orange. To return to original picture brightness,
press BRIGHT button again.
✽ When Turbo Bright System is set to on, the color of image may
change slightly.
TURBO BRIGHT FUNCTION
Message disappears after 4 seconds.
Bright on
Reduce the upper width
with POINT UP button.
Reduce the lower width
with POINT DOWN button.
Reduce the left part with
POINT LEFT button.
Reduce the right part with
POINT RIGHT button.
• Arrows are blue in no correction.
• Arrow(s) of direction being corrected turn(s)
light blue.
• Arrow(s) disappear(s) at the maximum
correction.
21
BASIC OPERATION
Press FREEZE button on Remote Control Unit to freeze the picture on-screen. To cancel FREEZE function, press FREEZE
button again or press any other button.
Press NO SHOW button on Remote Control Unit to black out the
image. To restore to normal, press NO SHOW button again or press
any other button.
NO SHOW FUNCTION
PICTURE FREEZE FUNCTION
Message disappears after 4 seconds.
No show
Press P-TIMER button on Remote Control Unit. The timer display “00
: 00” appears and the timer starts to count time (00 : 00 ~ 59 : 59).
To stop P-TIMER display, press P-TIMER button. And then, press P-
TIMER button again to cancel P-TIMER function.
P-TIMER FUNCTION
1
2
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
SOUND Menu icon.
Volume
Press VOLUME (+/–) button(s) on Top Control or on Remote Control
Unit to adjust volume. Volume dialog box appears. (+) button to
increase volume, and (–) button to decrease volume.
Mute
Press MUTE button on Remote Control Unit to cut off sound. To
restore sound to its previous level, press MUTE button again or press
Volume (+/–) button(s).
Press POINT RIGHT button to increase volume, and press POINT
LEFT button to decrease volume.
Press POINT LEFT/RIGHT button to cut off sound. Dialog box display
is changed to “On” and sound is cut off. To restore sound to its
previous level, press POINT LEFT/RIGHT button again.
Press POINT DOWN button to move a red frame pointer to the
item that you want to select, and then press SET button.
Indicates approximate level of
volume.
Close SOUND Menu.
SOUND ADJUSTMENT
DIRECT OPERATION
MENU OPERATION
Volume
Mute
Indicates approximate
level of volume.
Press MUTE button to set
Mute function On or Off.
Dialog box disappears after 4 seconds.
SOUND MENU
SOUND Menu icon
22
COMPUTER INPUT
SELECTING INPUT SOURCE
MENU OPERATION
DIRECT OPERATION
Choose Computer by pressing INPUT button on Top Control or on
Remote Control Unit.
If projector cannot reproduce proper image, select correct input source
through MENU OPERATION (see below).
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
Press POINT DOWN button to move a red arrow pointer to
either Computer 1 or Computer 2 and then press SET button.
Source Select Menu will appear when you select Computer 2.
Move a pointer to either RGB (Digital) or RGB (Analog) and then
press SET button.
1
2
INPUT button
Computer 1
Video
Move the pointer (red
arrow) to Computer and
press SET button.
Move the pointer to RGB
(Digital) or RGB (Analog)
and press SET button.
Source Select Menu
INPUT MENU
INPUT Menu icon
SELECTING COMPUTER SYSTEM
This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA, or SXGA (refer to
“COMPATIBLE COMPUTER SPECIFICATIONS” on page 23). When selecting Computer, this projector automatically tunes
to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)
Note : Projector may display one of the following messages.
When the projector cannot recognize the connected
signal as PC system provided in this projector, Auto PC
Adjustment function operates to adjust the projector and
the message “Auto” is displayed on SYSTEM Menu icon.
(Refer to P24.) When image is not provided properly,
manual adjustment is required. (Refer to P25 and 26.)
There is no signal input from computer. Make sure the
connection of your computer and projector is set
correctly.
(Refer to TROUBLESHOOTING on page 41.)
Auto
––––
SYSTEM Menu icon
Displays system being
selected.
PC SYSTEM MENU
SELECT COMPUTER SYSTEM MANUALLY
SYSTEM Menu icon
Displays system being selected.
The systems on this dialog box
can be selected.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to PC
SYSTEM Menu icon.
Press POINT DOWN button to move a red arrow pointer to the
system that you want to set, and then press
SET button.
1
2
PC SYSTEM MENU
Custom Mode (1~5) set in PC
ADJUST Menu. (P25, 26)
This projector automatically selects PC system among those provided
in this projector and PC system can be also selected manually.
When the input source is digital, select RGB
(Digital).
RGB (Digital)
When the input source is analog, select RGB
(Analog).
RGB (Analog)
Computer
Computer 2
23
COMPUTER INPUT
COMPATIBLE COMPUTER SPECIFICATIONS
NOTE : Specifications are subject to change without notice.
Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 140
MHz of Dot Clock.
When a input signal is digital from DVI terminal, refer to the chart below.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
D-VGA
640 x 480 31.469 59.940
D-SVGA 800 x 600 37.879 60.317
D-XGA 1024 x 768 48.363 60.004
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
D-SXGA 1
1280 x 1024
D-SXGA 2
1280 x 1024
D-SXGA 3
1280 x 1024
63.981 60.020
60.276 58.069
31.650 29.800
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
VGA 1 640 x 480 31.47 59.88
VGA 2 720 x 400 31.47 70.09
VGA 3 640 x 400 31.47 70.09
VGA 4 640 x 480 37.86 74.38
VGA 5 640 x 480 37.86 72.81
VGA 6 640 x 480 37.50 75.00
MAC LC13
640 x 480 34.97 66.60
MAC 13 640 x 480 35.00 66.67
MAC 16 832 x 624 49.72 74.55
SVGA 1 800 x 600 35.156 56.25
SVGA 2 800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600 53.674 85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31
SVGA 11 800 x 600 38.00 60.51
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
XGA 8 1024 x 768
XGA 9
1024 x 768
63.48 79.35
36.00
87.17
(Interlace)
XGA 1 1024 x 768
XGA 2 1024 x 768
XGA 3 1024 x 768
XGA 4 1024 x 768
48.36 60.00
68.677 84.997
XGA 6 1024 x 768
60.023 75.03
XGA 7 1024 x 768
56.476 70.07
48.50 60.02
44.00 54.58
XGA 5 1024 x 768 60.31 74.92
VGA 7 640 x 480 43.269 85.00
RGB
––––––––
15.734
60.00
(Interlace)
RGB
––––––––
15.625
50.00
(Interlace)
SVGA 10 800 x 600 32.70 51.09
XGA 10 1024 x 768
62.04 77.07
MAC 19 1024 x 768 60.24 75.08
MAC 21
1152 x 870
68.68 75.06
MAC 1280 x 960 75.00 75.08
MAC 1280 x 1024 80.00 75.08
XGA 11 1024 x 768
XGA 12 1024 x 768
XGA 13 1024 x 768
XGA 14 1024 x 768
61.00 75.70
XGA 15 1024 x 768
35.522
86.96
(Interlace)
46.90 58.20
47.00 58.30
58.03 72.00
SXGA 1 1152 x 864
SXGA 2 1280 x 1024
SXGA 3 1280 x 1024
SXGA 4 1280 x 1024
64.20 70.40
SXGA 5 1280 x 1024
62.50 58.60
SXGA 6 1280 x 1024
63.90 60.00
SXGA 7 1280 x 1024
63.34 59.98
SXGA 8 1280 x 1024
63.74 60.01
SXGA 11 1152 x 900
71.69 67.19
SXGA 12 1152 x 900
81.13 76.107
SXGA 13 1280 x 1024
63.98 60.02
SXGA 14 1280 x 1024
61.20 65.20
71.40 75.60
50.00
86.00
(Interlace)
720p (HDTV)
––––––––
50.00
94.00
(Interlace)
45.00 60.00
SXGA 9 1280 x 1024
SXGA 10 1280 x 960
79.976 75.025
60.00 60.00
SXGA 15 1280 x 1024
SXGA 16 1280 x 1024
SXGA 17 1152 x 900
SXGA 18 1280 x 1024
63.37 60.01
76.97 72.00
61.85 66.00
46.43
86.70
(Interlace)
SXGA 19 1280 x 1024 63.79 60.18
1080i 60(HDTV)
––––––––
33.75
60.00
(Interlace)
1035i (HDTV)
––––––––
33.75
60.00
(Interlace)
1080i 50(HDTV)
––––––––
28.125
50.00
(Interlace)
24
COMPUTER INPUT
PC ADJUSTMENT
AUTO PC ADJUSTMENT
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your
computer. Auto PC Adjustment function can be operated as follows.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.
1
2
Press POINT DOWN button to move a red frame pointer to
AUTO PC Adj. icon and then press SET button twice.
This Auto PC Adjustment can be also executed by pressing
AUTO PC ADJ. button on Remote Control Unit.
Move a red frame pointer to AUTO PC Adj.
icon and press SET button.
PC ADJUST MENU
Auto PC Adj.
PC ADJUST Menu icon
Store adjustment parameters.
Adjustment parameters from Auto PC Adjustment can be memorized
in this projector. Once parameters are memorized, setting can be
done just by selecting Mode in PC SYSTEM Menu (P22). Refer to
step 3 of MANUAL PC ADJUSTMENT section (P26).
NOTE
● Fine sync, Total dots and Picture Position of some computers
cannot be fully adjusted with this Auto PC Adjustment function.
When the image is not provided properly through this function,
manual adjustments are required. (Refer to page 25, 26.)
● Auto PC Adjustment function cannot be operated when the input
signal is digital, or “RGB,” “720p (HDTV),” “1035i (HDTV)” or “1080i
(HDTV)” is selected on PC SYSTEM Menu (P22).
25
COMPUTER INPUT
MANUAL PC ADJUSTMENT
This projector can automatically tune to the display signals from most personal computers currently distributed. However,
some computers employ special signal formats which are different from the standard ones and may not be tuned by Multi-
Scan system of this projector. If this happens, the projector cannot reproduce a proper image and the image may be
recognized as a flickering picture, a non-synchronized picture, a non-centered picture, or a skewed picture.
This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special
signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This
enables you to recall the setting for a specific computer whenever you use it.
Note : This PC ADJUST Menu cannot be operated when the input signal is digital or “RGB” is selected on PC SYSTEM
MENU (P22).
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.
1
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SET button.
Adjustment dialog box will appear. Press POINT LEFT/RIGHT
button to adjust value.
Move the red frame icon to the item and
press SET button.
PC ADJUST MENU
PC ADJUST Menu icon
Adjusts an image as necessary to eliminate flicker from the display.
Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)
Fine sync
The number of total dots in one horizontal period. Press POINT
LEFT/RIGHT button(s) and adjust number to match your PC image.
Total dots
Adjusts horizontal picture position. Press POINT LEFT/RIGHT
button(s) to adjust the position.
Horizontal
Adjusts vertical picture position. Press POINT LEFT/RIGHT
button(s) to adjust the position.
Vertical
Press SET button to show the information of computer selected.
Current mode
Adjusts clamp level. When the image has a dark bar(s), try this
adjustment.
Clamp
Press SET button at this icon to adjust
“Clamp,” “Display area (H/V)” or set
“Full screen.”
Press POINT LEFT/RIGHT
button to adjust the value.
Shows status
(Stored / Free) of the
selected Mode.
Selected Mode
Press SET button at Current
mode icon to show the
information of computer
connected.
Current mode
26
COMPUTER INPUT
NOTE : Fine sync, Total dots, Display area (H/V) and Full screen
cannot be adjusted when “1035i (HDTV)” or “1080i (HDTV)”
is selected on PC SYSTEM Menu (P22).
Selects area displayed with this projector. Select the resolution at
Display area dialog box.
Display area
Adjustment of horizontal area displayed with this projector. Press
POINT LEFT/RIGHT button(s) to decrease/increase value and then
press SET button.
Display area H
Adjustment of vertical area displayed with this projector. Press
POINT LEFT/RIGHT button(s) to decrease/increase value and then
press SET button.
Display area V
Press POINT LEFT/RIGHT button(s) to switch Full screen function to
“On” or “Off.” Set “On” to resize the image with 4 x 3 aspect ratio to
fit the screen.
Full screen
Reset
Store
Closes PC ADJUST MENU.
Quit
Other icons operate as follows.
3
To store adjustment parameters, move a red frame pointer to
Store icon and then press SET button. Move a red arrow pointer
to any of Mode 1 to 5 that you want to store to and then press
SET button.
Reset all adjust parameters on adjustment dialog box to previous
figure.
Mode free
Vacant Mode Shows values of “Total dots,”
“Horizontal,” “Vertical,” “Display
area H,” and “Display area V.”
Store icon
Mode free icon
Close this dialog box.
To store adjustment data.
To clear adjustment data.
To clear adjustment parameters previously set, move a red
frame pointer to Mode free icon and then SET button. Move a
red arrow pointer to the Mode that you want to clear and then
press SET button.
Display area
Press POINT LEFT
/RIGHT button(s) to adjust
value and then press SET
button.
Press SET button at Display area
icon and Display area dialog box
appears.
This Mode has parameters being stored.
27
COMPUTER INPUT
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT (MENU)
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.
1
2
Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SET button.
Move the red frame pointer to the
level and press SET button.
The level being selected.
IMAGE SELECT MENU
Normal picture adjustment preset on this projector.
Standard
Picture adjustment improved in reproduction of halftones. This
adjustment is suitable for providing better image in brighter place.
High contrast
User preset picture adjustment in IMAGE ADJUST Menu (P28).
Custom
IMAGE SELECT
Menu icon
IMAGE LEVEL SELECT (DIRECT)
Select image level among Standard, High contrast, and Custom by
pressing IMAGE button on Remote Control Unit.
IMAGE button
Standard
High contrast
Custom
Normal picture adjustment preset on this projector.
Picture adjustment improved in reproduction of halftones. This
adjustment is suitable for providing better image in brighter place.
User preset picture adjustment in IMAGE ADJUST Menu (P28).
Standard
High contrast
Custom
28
COMPUTER INPUT
Press POINT LEFT/RIGHT buttons
to adjust value.
Reset all adjustment to previous figure.
Reset
Store
Closes IMAGE MENU.
Quit
Other icons operate as follows.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
IMAGE ADJUST Menu icon.
1
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust. and then press SET button. The
level of each item is displayed. Adjust each level by pressing
POINT LEFT/RIGHT button(s).
Move the red frame pointer to
the item to be selected and
then press SET button.
IMAGE ADJUST MENU
IMAGE LEVEL ADJUSTMENT
Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)
Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)
Contrast
Brightness
Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)
Gamma
3
To store manually preset image level, move a red frame pointer
to Store icon and press SET button. The message “OK?” will
appear. Select [Yes] to store manual adjustment.
To set this manual adjustment, select Custom by pressing
IMAGE button or through IMAGE SELECT MENU (refer to P27).
Store icon
Press SET button at this icon to
store the adjustment.
IMAGE ADJUST
Menu icon
Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Red)
Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Green)
Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Blue)
Selected Image level
“OK?” message
Move the red arrow
pointer to [Yes] and
then press SET button.
29
COMPUTER INPUT
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display the desirable image size.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.
When Digital zoom + is selected, ON-SCREEN MENU disappears
and the message “D. Zoom +” is displayed. Press SET button to
expand image size. And press POINT UP/DOWN/LEFT/RIGHT
button(s) to pan the image. Panning function can work only when
the image is larger than screen size.
A projected image can be also expanded by pressing D.ZOOM ▲
button on Remote Control Unit.
1
To cancel Digital Zoom +/– mode, press any button except D.ZOOM
▲/▼, SET, POINT and LASER buttons.
Move a red frame pointer to the
function and press SET button.
Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SET button.
2
Wide
Digital zoom +
NOTE
● This SCREEN Menu cannot be operated when
“1035i (HDTV)” or “1080i (HDTV)” is selected on
PC SYSTEM Menu (P22).
● Wide cannot be selected when “720p (HDTV)” is
selected on PC SYSTEM Menu (P22).
● True and Digital zoom +/– cannot be selected
when “RGB” is selected on PC SYSTEM Menu
(P22).
● This projector cannot display any resolution higher
than 1280 X 1024. If your computer’s screen
resolution is higher than 1280 X 1024, reset the
resolution to the lower before connecting projector.
● The image data in other than XGA (1024 x 768) is
modified to fit the screen size in initial mode.
● Panning function may not operate properly if the
computer system prepared on PC ADJUST Menu
is used.
Provides image to fit screen size.
Normal
True
SCREEN MENU
SCREEN Menu icon
When Digital zoom – is selected, ON-SCREEN MENU disappears
and the message “D. Zoom –” is displayed. Press SET button to
compress image size.
A projected image can be also compressed by pressing D.ZOOM ▼
button on Remote Control Unit.
Digital Zoom –
Provides image in its original size. When the original image size is
larger than screen size (1024 x 768), this projector enters “Digital
zoom +” mode automatically.
Provides image to fit wide video aspect ratio (16 : 9) by expanding
image width uniformly. This function can be used for providing a
squeezed video signal at 16 : 9.
30
VIDEO INPUT
SELECTING INPUT SOURCE
MENU OPERATION
DIRECT OPERATION
Choose Video by pressing INPUT button on Top Control or on Remote
Control Unit.
If projector cannot reproduce proper video source, select correct input
source through MENU OPERATION (see below).
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.
Press POINT DOWN button to move a red arrow pointer to
Video and then press SET button. Source Select Menu will
appear.
1
2
Move the pointer to Video
and press SET button.
Move the pointer to the source and press SET button.
Source Select Menu (VIDEO)
INPUT MENU
INPUT button
Video
Computer 1
Move a pointer to the source that you want to select and then
press SET button.
3
Projector automatically detects incoming Video signal,
and adjusts itself to optimize its performance.
• When both Y jack and S-VIDEO jack are connected, S-
VIDEO jack has priority over Y jack.
• When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are
connected, Y-Pb/Cb-Pr/Cr jacks have priority over S-
VIDEO jack.
Auto
When video input signal is connected to Y jack, select
Video.
Video
When video input signal is connected to S-VIDEO jack,
select S-Video.
S-Video
When video input signal is connected to Y-Pb/Cb-
Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
Y,Pb/Cb,Pr/Cr
VIDEO
Computer 2
31
VIDEO INPUT
AV SYSTEM MENU (VIDEO OR S-VIDEO)
AV SYSTEM MENU (COMPONENT VIDEO)
SELECTING VIDEO SYSTEM
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to AV
SYSTEM Menu icon.
Press POINT DOWN button to move a red arrow pointer to the
system that you want to select and then press SET button.
1
2
If projector cannot reproduce proper video image, it is necessary to
select a specific broadcast signal format among PAL, SECAM, NTSC,
NTSC 4.43, PAL-M, and PAL-N.
Move the pointer to the
system and press SET
button.
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N
Projector automatically detects incoming Video signal, and adjusts
itself to optimize its performance.
If projector cannot reproduce proper video image, it is necessary to
select a specific component video signal format among 480i, 575i,
480p, 575p, 720p, 1035i and 1080i.
Auto
COMPONENT VIDEO SIGNAL FORMAT
VIDEO (Y) JACK OR S-VIDEO JACK
Y, Pb/Cb, Pr/Cr JACKS
Projector automatically detects incoming Video system, and adjusts
itself to optimize its performance.
When Video System is PAL-M or PAL-N, select system manually.
Auto
AV SYSTEM Menu icon
This box indicates the system
being selected.
Move the pointer to the
system and press SET
button.
AV SYSTEM Menu icon
This box indicates the system
being selected.
32
VIDEO INPUT
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT (MENU)
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.
1
2
Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SET button.
Move the red frame pointer to the
level and press SET button.
The level being selected.
IMAGE SELECT MENU
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
User preset picture adjustment in IMAGE ADJUST Menu (P33, 34).
Custom
IMAGE SELECT
Menu icon
IMAGE LEVEL SELECT (DIRECT)
Select image level among Standard, Cinema, and Custom by pressing
IMAGE button on Remote Control Unit.
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
User preset picture adjustment in IMAGE ADJUST Menu (P33, 34).
Custom
IMAGE button
Standard
Cinema
Custom
33
VIDEO INPUT
Press POINT LEFT/RIGHT buttons
to adjust value.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
IMAGE ADJUST Menu icon.
1
2
Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SET button. The
level of each item is displayed. Adjust each level by pressing
POINT LEFT/RIGHT button(s).
Move the red frame pointer to
the item to be selected and
then press SET button.
IMAGE ADJUST MENU
IMAGE LEVEL ADJUSTMENT
Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)
Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)
Contrast
Brightness
Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)
Gamma
Press SET button at this icon to dis-
play other items.
IMAGE ADJUST
Menu icon
Press POINT LEFT/RIGHT buttons
to adjust value.
Press POINT LEFT button to lighten color, and POINT RIGHT button
to deeper color. (From 0 to 63.)
Press POINT LEFT button or POINT RIGHT button to obtain proper
color. (From 0 to 63.)
Color
Tint
Press POINT LEFT button to soften the image, and POINT RIGHT
button to sharpen the image. (From 0 to 31.)
Sharpness
Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Red)
Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Green)
Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)
White balance (Blue)
NOTE : Tint cannot be adjusted when the video system is PAL,
SECAM, PAL-M or PAL-N.
Press SET button at this icon to
store the value.
Press SET button at this icon to dis-
play previous items.
34
VIDEO INPUT
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display the desirable image size.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.
Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SET button.
1
2
NOTE : SCREEN Menu cannot be operated when
“720p,” “1035i,” or “1080i” is selected on AV
SYSTEM Menu (P30).
Move the red frame to the function and
press SET button.
SCREEN MENU
SCREEN Menu icon
Provides image at a wide screen ratio of 16 : 9.
Wide
Provides image at a normal video aspect ratio of 4 : 3.
Normal
3
To store manually preset image level, move a red frame pointer
to Store icon and press SET button. The message “OK?” will
appear. Select [Yes] to store manual adjustment.
To set this manual adjustment, select Custom by pressing
IMAGE button or through IMAGE SELECT MENU (refer to P32).
Store icon
Reset all adjustment to previous figure.
Reset
Store
Closes IMAGE MENU.
Quit
Other icons operate as follows.
“OK?” message
Move the red arrow
pointer to [Yes] and
then press SET button.
35
SETTING
Ceiling
When this function is “On,” the picture is top / bottom and left / right
reversed. This function is used to project the image from a ceiling
mounted projector.
Rear
When this function is “On,” the picture is left / right reversed. This
function is used to project the image to a rear projection screen.
Ceiling function
Rear function
Keystone
When the image is distorted, select Keystone. ON-SCREEN MENU
disappears and Keystone dialog box is displayed. Correct keystone
distortion by pressing POINT UP/DOWN button(s). Refer to
KEYSTONE ADJUSTMENT on page 20.
SETTING MENU
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SETTING icon.
1
2
Language
Language used in ON-SCREEN MENU is selectable among English,
German, French, Italian, Spanish, Portuguese, Dutch, Swedish,
Chinese, Korean, and Japanese.
Display
This function decides whether to display On-Screen Displays.
On ··· shows all the On-Screen Displays.
Off ···· sets On-Screen Displays disappeared except;
● ON-SCREEN MENU
● “Power off?” message
● P-TIMER
● “No signal” message
● “Wait a moment!" message
Set the red frame
pointer to the item and
press SET button.
Press POINT DOWN button to move a red frame pointer to the
item that you want to set and then press
SET button. Setting
dialog box appears.
Blue back
When this function is “On,” the projector produces a blue image while
input signal is not detected.
Logo
When this function is “On,” the projector displays our logo when
starting up.
When pressing SET button
at Language, Language
Menu appears.
Move the pointer to the item
and then press POINT
LEFT/RIGHT button(s).
SETTING MENU
SETTING Menu icon
36
SETTING
This function turns Projection Lamp off when this projector detects
signal interruption and is not used for a certain period in order to
reduce power consumption and maintain the Lamp-life. (This
projector is shipped with this function ON.)
Power Management function operates to turn Projection Lamp off
when the input signal is interrupted and any button is not pressed
over 5 minutes. This function operates as follows;
1. When any input signal is interrupted, “No signal” and the
counting down display appears (for 5 minutes).
2. After counting down for 5 minutes, Projection Lamp and
READY Indicator are turned off. (Cooling Fans keep running.)
3. READY Indicator starts to flash after cooling down Projection
Lamp about for 90 seconds (Power Management mode).
In this Power Management mode, Projection Lamp is
automatically turned on when the input signal is connected or
projector is operated with any button on Top Control or on
Remote Control Unit again.
Power management
This function is used to reset Lamp Replace Counter. When
replacing Projection Lamp, reset Lamp Replace Counter by using
this function. Refer to page 38 for operation.
Lamp counter reset
Remote control
This projector has two different remote control codes; the factory-set
normal code (Code 1) and the secondary code (Code 2). This
switching function prevents remote control operation mixture (jam)
when operating several projectors or video equipment together.
When operating projector in “Code 2,” both projector and Remote
Control Unit must be switched to “Code 2.”
To change the code of the Projector;
Set Remote control in the SETTING MENU to “Code 2.”
To change the code of the Remote Control Unit;
Press both MENU and IMAGE buttons on Remote Control Unit
together for over 10 seconds.
After changing the code, make sure Remote Control Unit operates
properly.
To return to the normal code (Code 1), operate both the projector
and Remote Control Unit in the ways above again.
NOTE : When batteries of Remote Control Unit are replaced or ALL-
OFF switch is turned to “ALL-OFF,” the remote control code
automatically returns to the normal code (Code 1).
On start
When this function is “On,” the projector is automatically turned on
just by connecting AC Power cord to a wall outlet.
Note ; Be sure to turn the projector off properly (refer to the section
“TURNING OFF PROJECTOR” on P19). If the projector is
turned off in the wrong steps, On Start function does not
operate properly.
Move the pointer to the item and
then press POINT LEFT/RIGHT
button(s).
Press SET button at this icon to dis-
play other items.
Press SET button at this icon to dis-
play previous items.
Time left until Lamp off.
37
APPENDIX
LAMP REPLACEMENT
LAMP REPLACE
When the life of the Projection Lamp of this projector draws to an end,
the LAMP REPLACE indicator lights yellow. If this indicator lights
yellow, replace the projection lamp with a new one promptly.
Follow these steps to replace the lamp assembly.
LAMP
ASSEMBLY
HANDLE
LAMP COVER
ORDER REPLACEMENT LAMP
Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the
following information to the dealer.
● Model No. of your projector : LV-7355 / LV-7350
● Replacement Lamp Type No. : LV-LP11
(Service Parts No. 610 293 2751)
For continued safety, replace with a lamp assembly of
the same type.
Do not drop a lamp assembly or touch a glass bulb! The
glass can shatter and may cause injury.
Allow a projector to cool, for at least 45 minutes before
you open Lamp Cover. The inside of a projector can
become very hot.
U
S
Y
N
E
LAMP
REPLACE
LAMP
WARNING
TEMP.
This indicator lights yellow
when the life of the projection
lamp draws to an end.
Replace the Projection Lamp
with a new one promptly.
TOP CONTROL
CAUTION
SCREW
SCREW
Turn off the projector and disconnect the AC plug. Allow the
projector to cool for at least 45 minutes.
Loosen 3 screws with a screwdriver and pull out Lamp Assembly
by grasping Handle.
1
3
Replace Lamp Assembly with a new one and tighten 3 screws
back into position. Make sure that Lamp Assembly is set
properly. Replace Lamp Cover and tighten the screw.
4
To remove Lamp Cover, remove the screw with a screwdriver.
2
Connect AC Power Cord to the projector and turn on the
projector.
6
Reset the Lamp Replace Counter.
Refer to “LAMP REPLACE COUNTER” on the next page .
5
38
APPENDIX
LAMP REPLACE COUNTER
Be sure to reset the Lamp Replace Counter after the Lamp Assembly is replaced. When the Lamp Replace Counter is reset,
the LAMP REPLACE Indicator stops lighting.
NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.
Turn projector on, press MENU button and ON-SCREEN
MENU will appear. Press POINT LEFT/RIGHT button(s) to
move a red frame pointer to SETTING Menu icon (refer to
page 35, 36).
Press POINT DOWN button to move a red frame pointer to
“Lamp counter reset” and then press
SET button. The
message "Lamp replace counter reset?" is displayed. Move
the pointer to [Yes] and then press SET button.
1
2
Another confirmation dialog box appears and select [Yes] to
reset Lamp Replace Counter.
3
This projector uses a high-pressure lamp which must be handled carefully and properly. Improper
handling may result in accidents, injury, or create a fire hazard.
● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no
guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a
shorter period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR
lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.
( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous
use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.
● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its
lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in
which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an
authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check
carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out
from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one
should check the inside of the projector except those who are authorized trained technicians and who are
familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who
are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.
LAMP HANDLING PRECAUTIONS
Move the pointer to Lamp counter reset and then press
SET button. The message “Lamp replace counter
reset?” is displayed.
39
APPENDIX
OPERATING WIRELESS MOUSE
INSTALLATION
Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most Personal
Computers. POINT buttons and two CLICK buttons are used for wireless mouse operation.
This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When ON-
SCREEN MENU or any message / dialog box is displayed on the screen instead of PC mouse pointer, this Wireless Mouse
function cannot be used.
Connect the mouse port (or USB port) of your computer to
Control Port (or USB connector) of this projector with Control
Cable (or USB cable). (Refer to page 11, 12 for connection.)
Turn the projector on first, and then turn on your computer.
When the computer is switched on first, Wireless Mouse may not
work properly.
1
2
To use Remote Control Unit as Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied) is
required. Make sure that the mouse driver is properly installed in your computer and that the mouse port (or USB port) of
your computer is activated.
OPERATING WIRELESS MOUSE
When controlling a PC mouse pointer, operate Wireless Mouse with POINT button, SET button, and RIGHT CLICK button on
Remote Control Unit.
Used to move PC mouse pointer. The pointer is moved
corresponding with the direction you are pressing.
POINT button
This button has the same function as the left button in a PC mouse.
SET (LEFT CLICK) button
This button has the same function as the right button in a PC mouse.
This button is not available for controlling this projector.
RIGHT CLICK button
Note : When your computer has no mouse
port, connect Serial Port of your
computer to Control Port of the
projector with Control Cable for Serial
Port (not supplied).
POINT button (Move the pointer)
SET button
(left button of the
mouse)
RIGHT CLICK button
(right button of the mouse)
40
APPENDIX
CLEANING PROJECTION LENS
Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.
Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.
When the projector is not in use, replace Lens Cover.
1
3
Lightly wipe a cleaning cloth over Projection Lens.
2
Follow these steps to clean Projection Lens:
MAINTENANCE
WARNING TEMP. INDICATOR
WARNING TEMP. Indicator flashes red when an internal temperature of the projector exceeds the normal temperature. This
Indicator stops flashing when the temperature of the projector returns to normal.
When WARNING TEMP. Indicator continues to flash, check the items listed below.
Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots
are not obstructed.
AIR FILTER CARE AND CLEANING
Air Filter may be clogged with dust particles. Clean Air Filter by following the section AIR FILTER CARE AND
CLEANING below.
1
2
If WARNING TEMP. Indicator remains on after performing the above checks, Cooling Fans or the Internal Circuits may
be malfunctioning. Contact service personnel from an authorized dealer or a service station.
3
AIR FILTER
Pull up and remove.
Turn off the projector, and disconnect AC power cord from the
AC outlet.
Turn the projector upside down and remove Air Filter by pulling
the latches upward.
1
2
Removable Air Filter prevents dust from accumulating on the surface of Projection Lens and Projection Mirror. Should Air
Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up
and adversely affect the life of the projector. Clean Air Filter following the steps below:
Clean Air Filter with a brush or wash out dust and particles.
3
Replace Air Filter properly. Make sure that Air Filter is fully
inserted.
4
CAUTION
Do not operate the projector with Air Filter removed. Dust
may accumulate on LCD Panel and Projection Mirror, and
may degrade picture quality.
Do not put small parts into Air Intake Vents. It may result in
malfunction of the projector.
RECOMMENDATION
We recommend avoiding dusty/smoky environment when operating a projector. Usage in these environments may
cause poor image quality.
When using under dusty or smoky conditions, dust may accumulate on the lens, liquid crystal panels, or optical elements
inside the projector. This condition may degrade the quality of a projected image.
When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.
41
APPENDIX
TROUBLESHOOTING
Before calling your dealer or service center for assistance, check the matters below once again.
1. Make sure you have connected a projector to your computer or video equipment as described in the section
"CONNECTING THE PROJECTOR" on pages 11 ~ 13.
2. Check cable connection. Verify that all computer, video, and power cord are properly connected.
3. Verify that all power is switched on.
4. If the projector still does not produce an image, re-start your computer.
5. If an image still does not appear, unplug the projector from your computer and check your computer monitor's display.
The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, be
sure to turn the computer and monitor off before you power up the projector. Power the equipment back on in order of :
Projector and computer.)
6. If the problem still exists, check the following chart.
No power.
● Plug a projector into your AC outlet.
● Make sure READY Indicator lights.
● Wait 90 seconds after a projector is turned OFF when turning a projector back on.
NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as
follows:
1. LAMP indicator lights bright and READY indicator turns off.
2. After 90 seconds, READY indicator lights green again and a projector may be
turned on by pressing Power ON-OFF button.
● Check WARNING TEMP. indicator. If this indicator flashes red, a projector cannot be
turned on.
(See "TURNING ON/OFF PROJECTOR" section on page 19.)
● Check Projection Lamp. (Refer to page 39.)
Image is out of
focus.
● Adjust focus of a projector.
● Make sure a projection screen is at least 3.6’ (1.1m) from the projector.
● Check Projection Lens to see if it needs cleaning.
NOTE : Moving a projector from a cool temperature location to a warm temperature location
may result in moisture condensation on Projection Lens. In such an event, leave
the projector OFF and wait until condensation disappears.
Picture is Left/Right
reversed.
● Check Ceiling / Rear feature. (See “SETTING” section on page 35.)
Problem: Try these Solutions
Picture is
Top/Bottom
reversed.
● Check Ceiling feature. (See “SETTING” section on page 35.)
Some displays are
not seen during the
Operation.
● Check Display feature.(See “SETTING” section on page 35.)
No image.
● Check connection between your computer or video equipment and a projector.
● Check NO SHOW function. (Refer to P21.)
● When turning a projector on, it takes about 30 seconds to display an image.
● Check the system that you select is corresponding with your computer or video
equipment.
● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).
No sound.
● Check audio cable connection from audio input source.
● Adjust the audio source.
● Press VOLUME (+) button.
● Press MUTE button.
42
This symbol on the nameplate means the product is Listed by Underwriters
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards
against risk of fire, casualty and electrical hazards.
APPENDIX
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If the problem still persists
after following all operating instructions,
contact the sales dealer where you purchased the
projector or the service center.
Give the model number and explain the difficulty. We will advise you how to obtain service.
Remote Control Unit
does not work.
● Check the batteries.
● Check ALL-OFF switch on Remote Control Unit is set to “ON.”.
● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.
● Make sure you are not too far from a projector when using Remote Control Unit.
Maximum operating range is 16.4’ (5m).
● Make sure the code of Remote Control Unit is set to conform to projector.
(See “SETTING” section on page 35, 36.)
Problem: Try these Solution
Wireless Mouse
function does not
work.
● Check cable connection between a projector and your computer.
● Check the mouse setting on your computer.
● Turn a projector on before turning on a computer.
The CE Mark is a Directive conformity mark of the European Community. (EC)
43
APPENDIX
TECHNICAL SPECIFICATIONS
0.9" TFT Active Matrix type, 3 panels
Multi-media Projector
9.48 lbs (4.3 kg)
13.05" x 3.52” x 9.61" (331.5mm x 89.5mm x 244.1mm) (not including Adjustable Feet)
1024 x 768 dots
2,359,296 (1024 x 768 x 3 panels)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz
Adjustable from 28” to 300”
800 TV lines
1 speaker, 1.18" x 1.57" (30mm x 40mm)
41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)
14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)
Owner’s Manual
AC Power Cord
Remote Control Unit and Batteries
VGA Cable
Control Cable for PS/2 port
DVI/VGA Adapter
Carrying Bag
Lens Cover and Strap for Lens Cover
Projector Type
Net Weight
Dimensions
(W x H x D)
Panel Resolution
Number of Pixels
Color System
Scanning Frequency
Projection Image size
(Diagonal)
Horizontal Resolution
Built-in Speakers
Operating Temperature
Storage Temperature
Accessories
LCD Panel System
● The specifications are subject to change without notice.
F 1.7 ~ 2.44 lens with f 25.7 mm ~ 37.9 mm with motor zoom and focus
3.6’ ~ 27.6’ (1.1 m ~ 8.4 m)
200 W
RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)
Projection Lens
Throw Distance
Projection Lamp
Video Input Jacks
RCA Type x 2
Audio Input Jacks
(VGA) HDB 15 Terminal x 1 and DVI-I Terminal (Digital/Analog)x 1
Mini Jack (stereo) x 1
Mini DIN 8 pin x 1
RCA Type x 2
1.0 W RMS
RGB Input Terminals
Computer Audio Input Jack
Control Port Connector
Audio Output Jacks
Internal Audio Amp
0˚ to 16˚
Feet Adjustment
Power Source : AA, UM3 or R06 Type x 2
Operating Range : 16.4’ (5m) / ±30˚
Dimensions : 2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)
Net Weight : 0.36 lbs (165 g) (including batteries)
Laser Pointer : Class II Laser
(Max. Output : 1mW / Wave length : 650±20nm)
Remote Control Unit
480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
High Definition TV Signal
USB Series B receptacle x 1
USB Connector
AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)
AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz (Continental Europe)
Voltage and
Power Consumption
● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a
tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.
44
APPENDIX
CONFIGURATIONS OF TERMINALS
RGB INPUT 1 TERMINAL (ANALOG)
Terminal : HDB15-PIN
5
1
2
34
10
9 678
15
14
13
11
12
Red Input
Ground (Horiz.sync.)
Green Input
Sense 2
Blue Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
+5V Power
Horiz. sync.
Ground (Vert.sync.)
DDC Data
Sense 0
Vert. sync.
DDC Clock
9
13
10
12
11
14
15
Pin Configuration
Terminal :
DVI-I TERMINAL
1
9
17
2
10
18
3
11
19
4
12
20
5
13
21
6
14
22
7
15
23
8
16
24
C1
C2
C3
C5
C4
T.M.D.S. Data2–
W-LAN
T.M.D.S. Data2+
+3.3V MCI
T.M.D.S. Data2/4 Shield
DDC Clock
DDC Data
Analog Vert. sync
1
5
2
4
3
6
7
8
Pin Configuration
T.M.D.S. Data1–
Card In
T.M.D.S. Data1+
+5V MCI
T.M.D.S. Data1/3 Shield
+5V Power
Ground (for +5V)
Hot Plug Detect
9
13
10
12
11
14
15
16
T.M.D.S. Data0–
Viewer TXD
T.M.D.S. Data0+
Viewer RXD
T.M.D.S. Data0/5 Shield
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock–
17
21
18
20
19
22
23
24
Analog Red Input
Analog Ground (R/G/B)
Analog Green Input
Analog Horiz. sync
Analog Blue Input
C1
C5
C2
C4
C3
RGB INPUT 2 TERMINAL (DIGITAL / ANALOG)
45
APPENDIX
Terminal : Mini DIN 8-PIN
1
2
3
4
5
8 7 6
Pin Configuration
CONTROL PORT CONNECTOR
-----
CLK
DATA
GND
-----
-----
GND
-----
R X D
-----
-----
GND
RTS / CTS
T X D
GND
GND
-----
ADB
-----
GND
-----
-----
-----
GND
PS/2 Serial
ADB
1
2
3
4
5
6
7
8
Vcc
- Data
+ Data
Ground
1
2
3
4
USB CONNECTOR (Series B)
Pin Configuration
2
34
1
OPTIONAL PARTS
The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.
● Control Cable (Serial Port) Type No. : LV-CA26
● Control Cable (ADB Port) Type No. : LV-CA27
● MAC Adapter Type No. : LV-AD02
● Media Card Imager Kit Type No. : LV-MC01
● Wireless Imager Kit Type No. : LV-WI01
Available models are different in each country. Contact the
dealer for details.
When using Wireless Imager, set the following model name to
PJ Controller.
Model Name : 09-1-2
46
47
1AA6P1P3548-- (MH8P)
©CANON INC. 2002
YT1-1331-000
CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON U.S.A., INC.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
CANON CANADA, INC.
6390 Dixie Road Mississauga, Ontario L5T 1P7 Canada
CANON LATIN AMERICA, INC.
703 Waterford Way Suite 400 Miami, Florida 33126 U.S.A.
CANON EUROPA N.V.
P.O.Box 2262, 1180 EG Amstelveen, The Netherlands
CANON COMMUNICATION & IMAGE FRANCE S.A.
102, Avenue du General de Gaulle, 92250 La Garenne Colombes, France
CANON (UK) LTD.
Woodhatch, Reigate, Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A 10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Palazzo L, Strada 6, 20089 Milanofiori-Rozzano (MI), Italy
CANON (Schweiz) A.G.
Industriestrasse 12, 8305 Dietlikon, Switzerland
CANON BENELUX N.V.
Neptunusstraat 1, 2132 JA Hoofddorp, The Netherlands
CANON BENELUX N.V./S.A.
Bessenveldstraat 7, 1831 Diegem (Machelen), Belgium
CANON GmbH
Zetschegasse 11, A-1232 Wien, Austria
CANON ESPANA S.A.
C/Joaquin Costa 41, 28002 Madrid, Spain
CANON SVENSKA AB
Stensätravägen 13, S-127 88 Skarholmen 2, Sweden
CANON NORGE A/S
Hallagerbakken 110, P. O. Box 2-33, Holmlia 1201 Oslo 12, Norway
CANON OY
Kornetintie 3, 00381 Helsinki, Finland
CANON HONGKONG CO., LTD.
9/F, The Hong Kong Club Building, 3A Chater Road, Central, Hong Kong
CANON SINGPORE PTE. LTD.
79 Anson Road #09-01/06, Singapore 079906
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney, N.S.W.2113, Australia
CANON NEW ZEALAND LTD.
Suite 4, 2nd Floor, Asda Plaza, Fred Thomas Drive, P.O.Box 33-336, Takapuna, Auckland, New Zealand
