E
English
Multimedia Projector
Owner’s Manual
LV-5200
2
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before operating this projector, read this manual thoroughly to operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintain it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “TROUBLESHOOTING” section in the end at this manual. If the problem still persists, contact the
sales dealer where you purchased the projector or the service center.
TO THE OWNER
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
● This projector produces an intensive light from the projection lens. Do not look directly into the lens; it may
damage your eyes. Be especially careful that children do not look directly into the beam.
● This projector should be set in the way indicated. If not, it may result in fire hazard.
● Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly enclosed,
the minimum distances must be maintained. Do not cover the
ventilation slot on the projector. Heat build-up can reduce the
service life of your projector, and can also be dangerous.
● Do not put any flammable objects or spray cans near the projector, hot air is exhausted from the ventilation
holes.

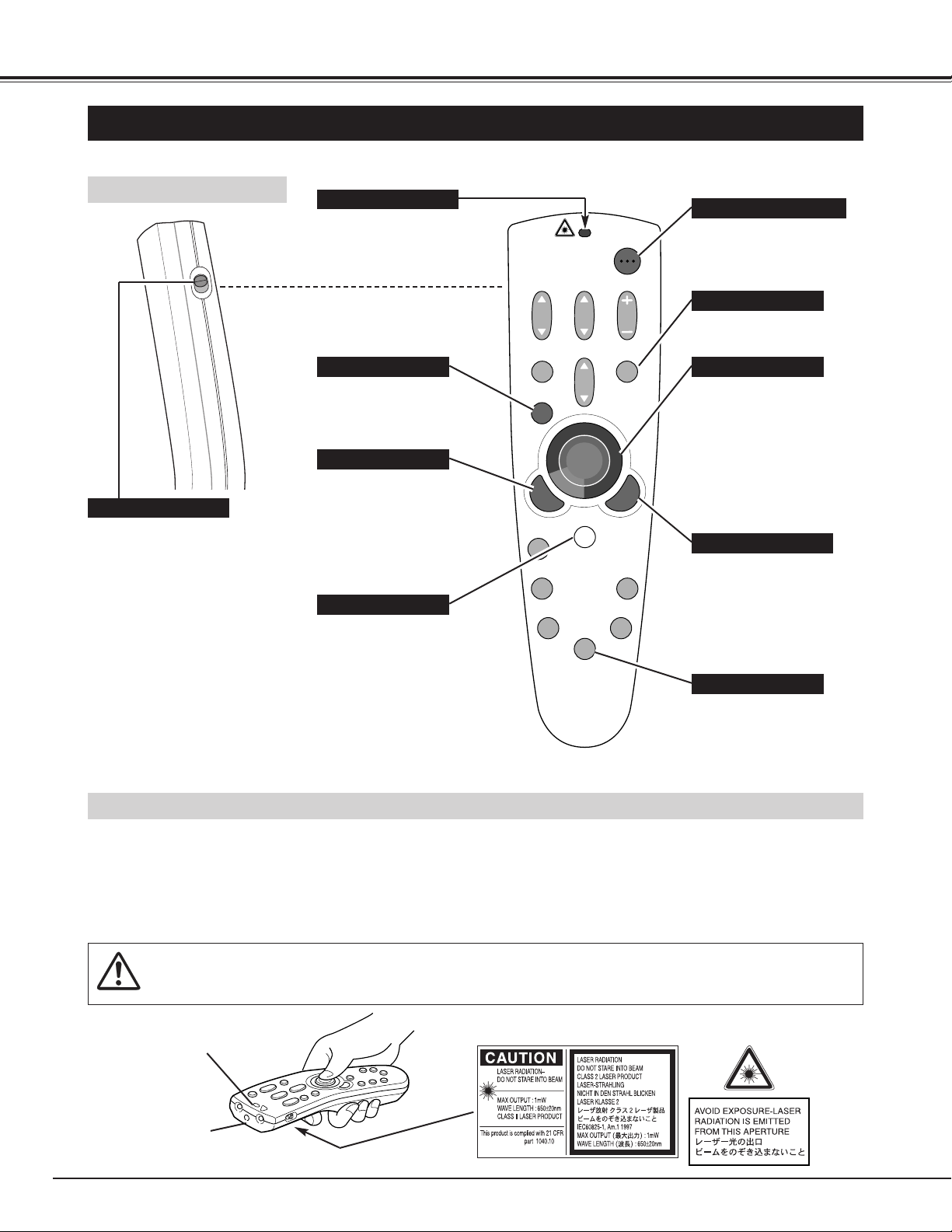

● The Remote Control Unit, supplied with this projector, emits a laser beam as the laser pointer function from the
Laser Light Window while pressing the LASER button (for 1 minute / LASER POINTER INDICATOR lights red
to indicate laser emission). To reduce the risk of injury, do not look into the Laser Light Window nor shine the
laser beam on yourself or other people.
● If the projector is not to be used for an extended period of time, unplug the projector from the AC outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
20cm
50cm 50cm
50cm
SIDE and TOP REAR
3
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in fire or electric shock. Never
spill liquid of any kind on the projector.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Voor de klanten in Nederland
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
4
COMPLIANCES
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that
the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you
be unable to insert the plug into the outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC POWER CORD REQUIREMENT
Federal Communication Commission Notice
Multimedia Projector, Model : LV-5200U, LV-5200E
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
For use in Germany
This product is intended for use in residential, commercial and light industry environment.
Canadian Radio Interference Regulations
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
5
TABLE OF CONTENTS
FEATURES AND DESIGN 6
BEFORE OPERATION 14
COMPUTER INPUT (RGB Scart 21-Pin Video Input) 22
VIDEO INPUT 31
SETTING 36
APPENDIX 38
PREPARATION 7

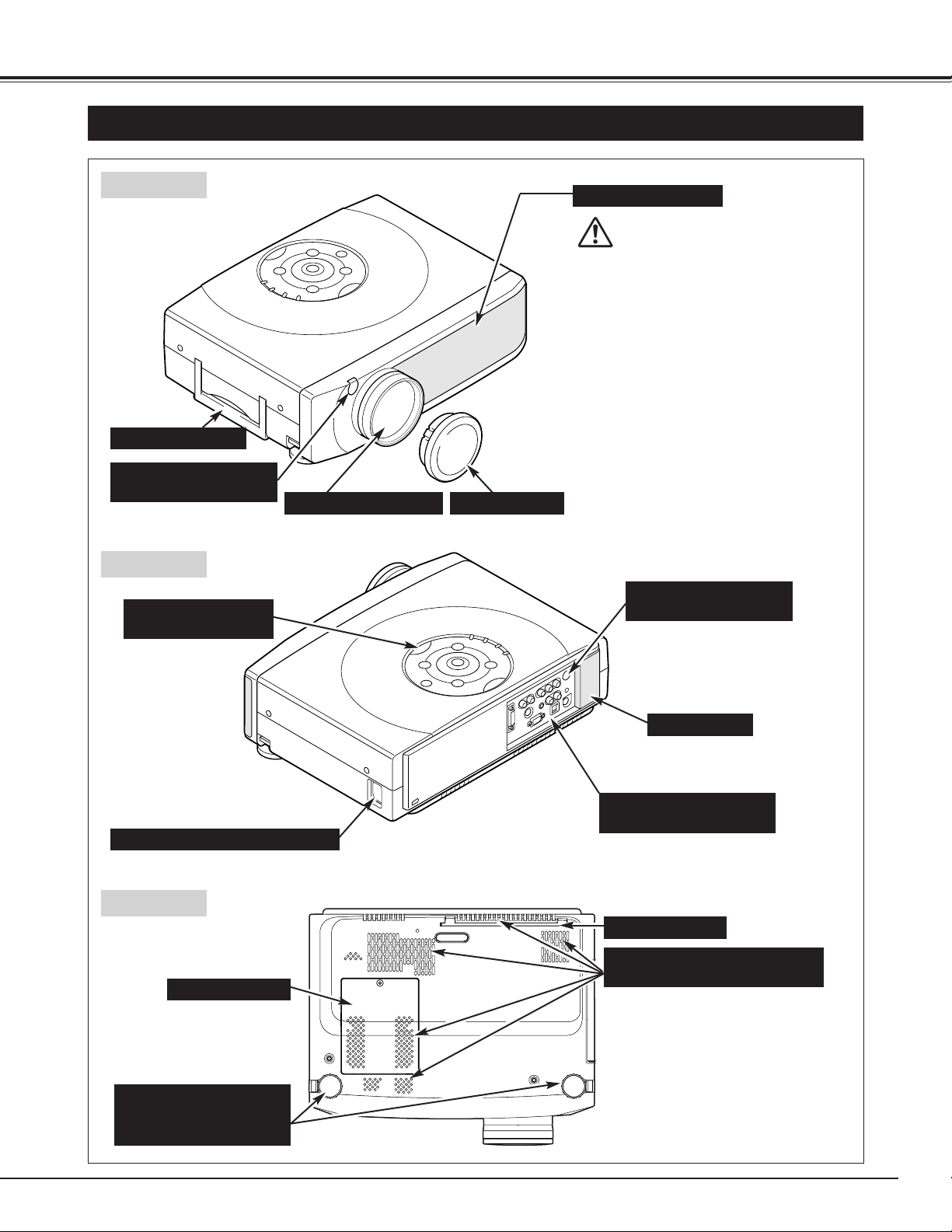

NOMENCHTOR 7
SETTING-UP THE PROJECTOR 8

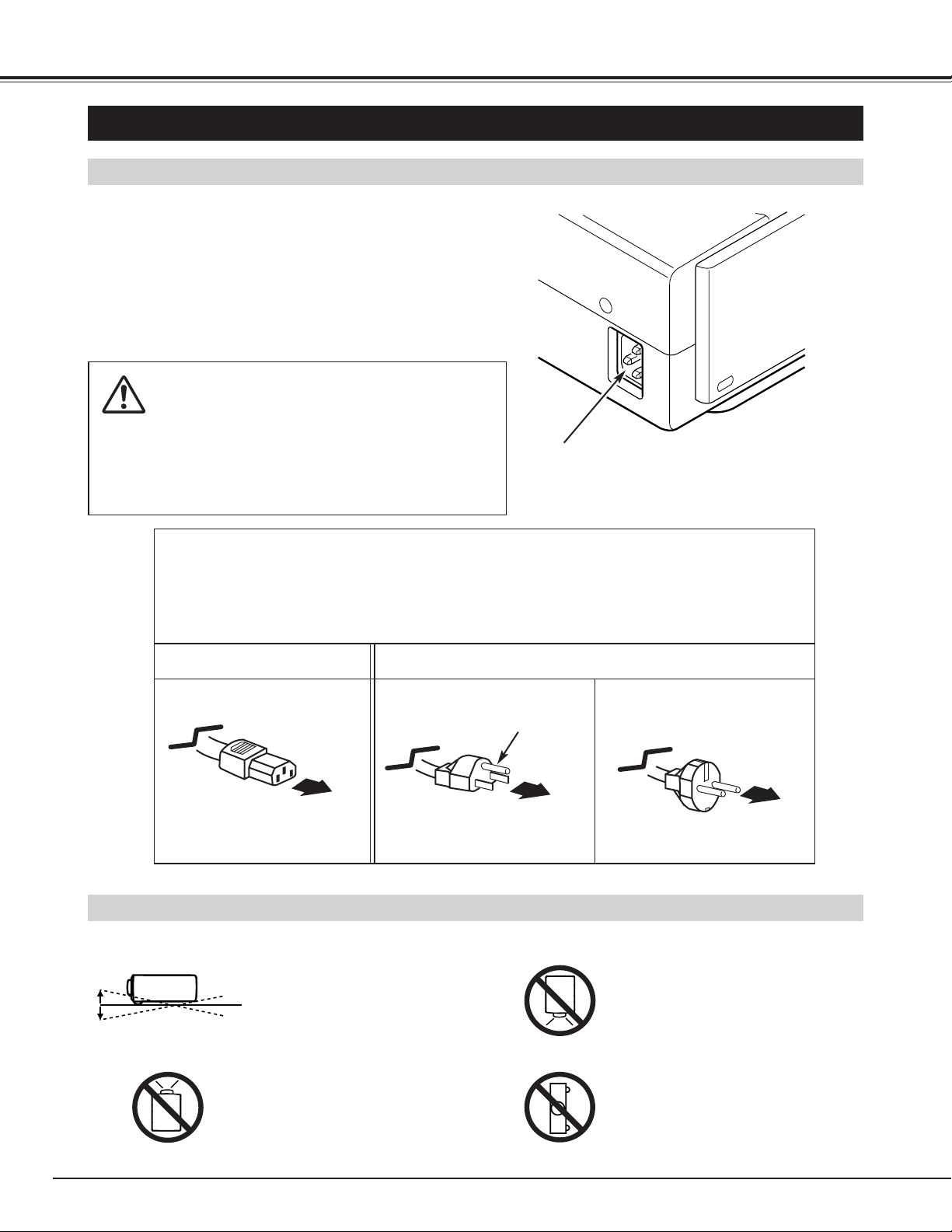

CONNECTING AC POWER CORD 8
INSTALLING THE PROJECTOR IN PROPER POSITION 8

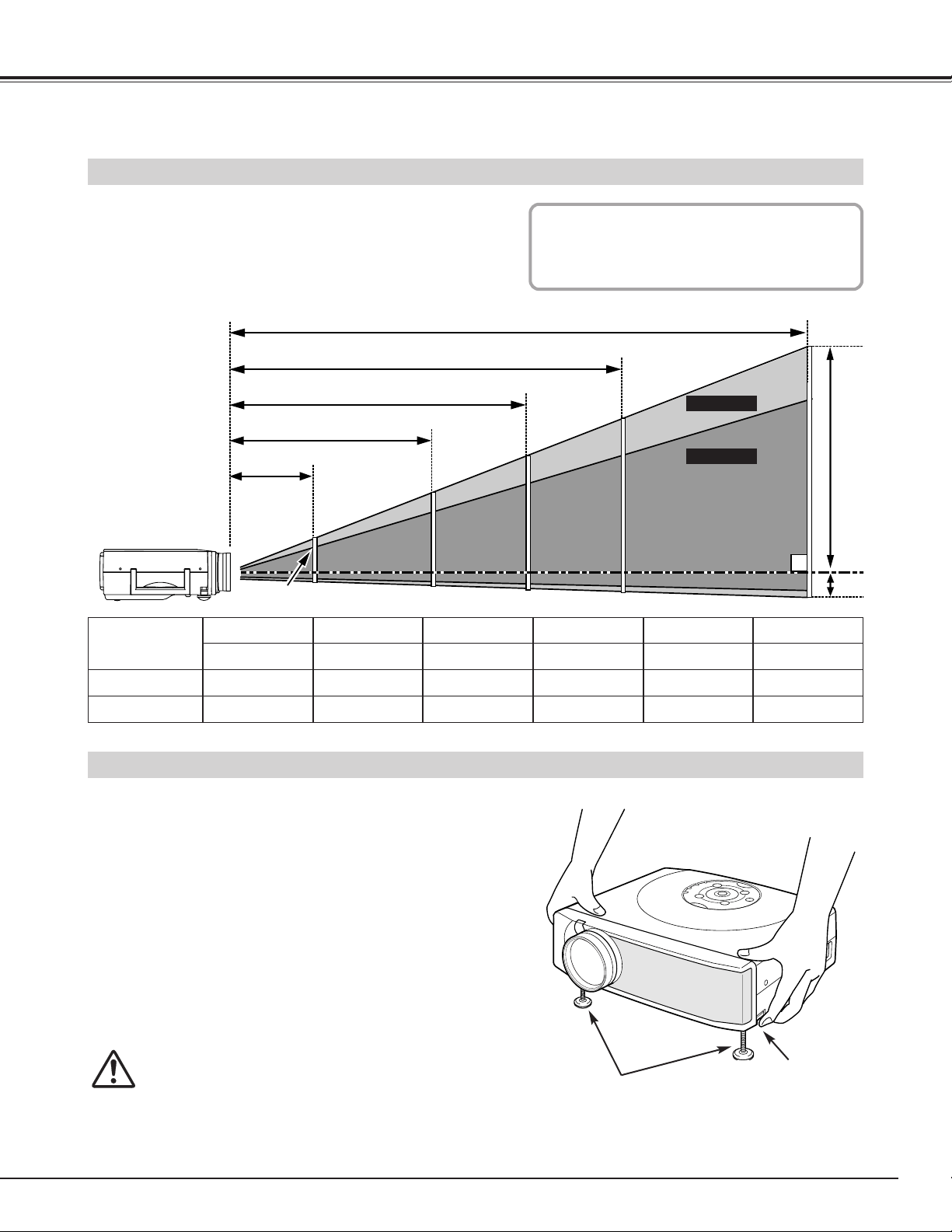

POSITIONING THE PROJECTOR 9
ADJUSTABLE FEET 9

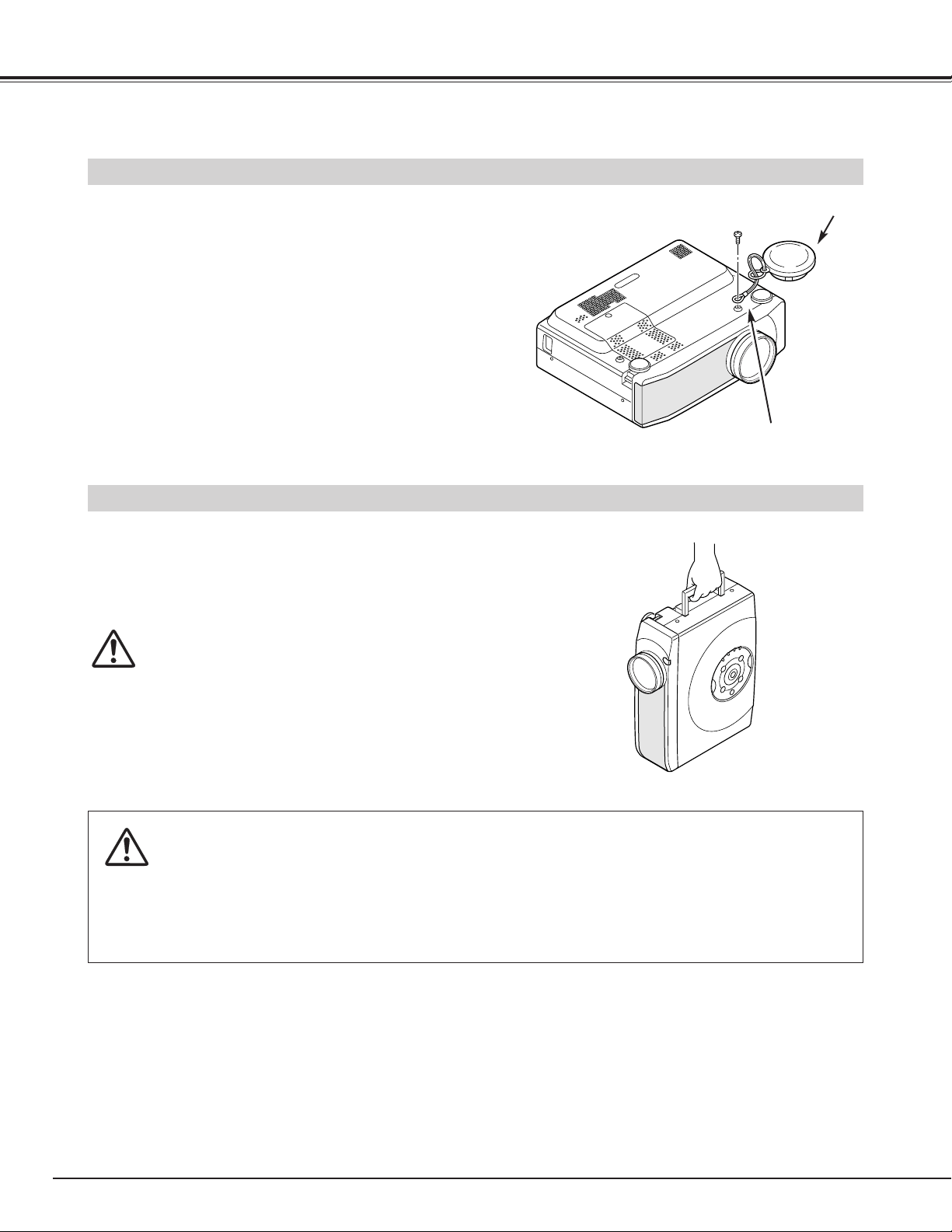

MOUNTING THE LENS COVER 10
MOVING THE PROJECTOR 10
CONNECTING THE PROJECTOR 11
TERMINALS OF THE PROJECTOR 11

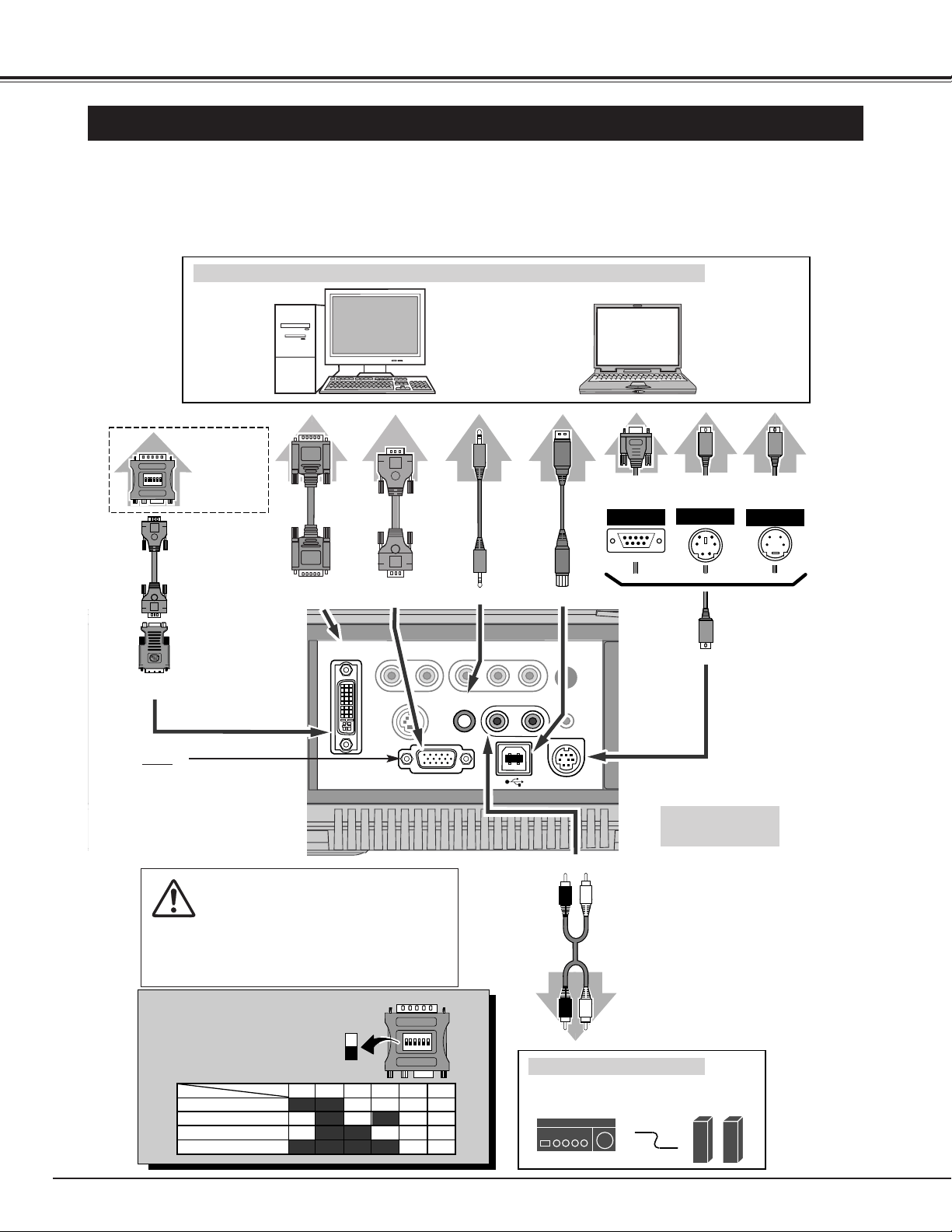

CONNECTING TO COMPUTER 12
CONNECTING TO VIDEO EQUIPMENT 13
OPERATION OF THE REMOTE CONTROL UNIT
14
LASER POINTER FUNCTION 14
REMOTE CONTROL UNIT BATTERIES INSTALLATION 15
TOP CONTROLS AND INDICATORS 16

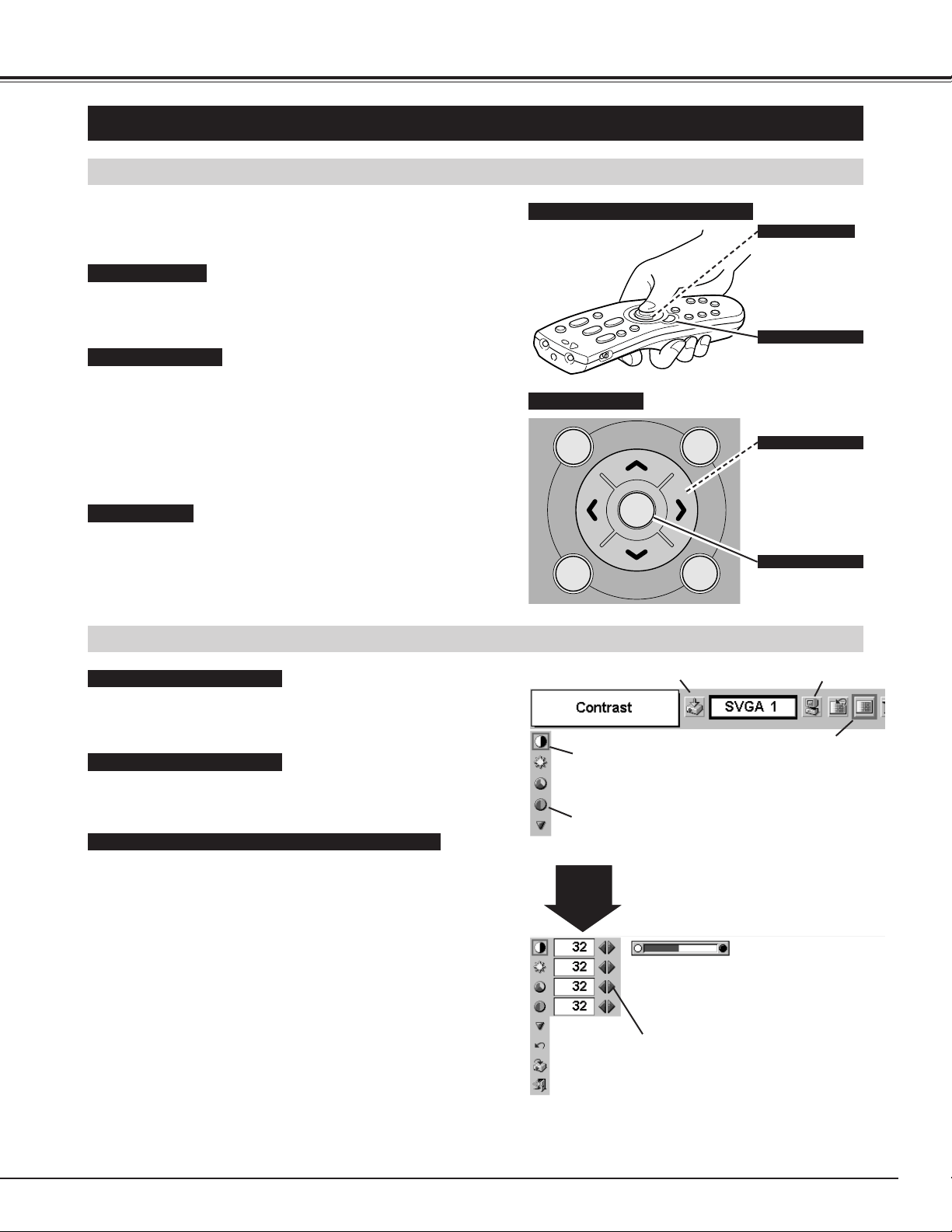

OPERATING THE ON-SCREEN MENU 17
HOW TO OPERATE THE ON-SCREEN MENU 17
FLOW OF ON-SCREEN MENU OPERATION 17

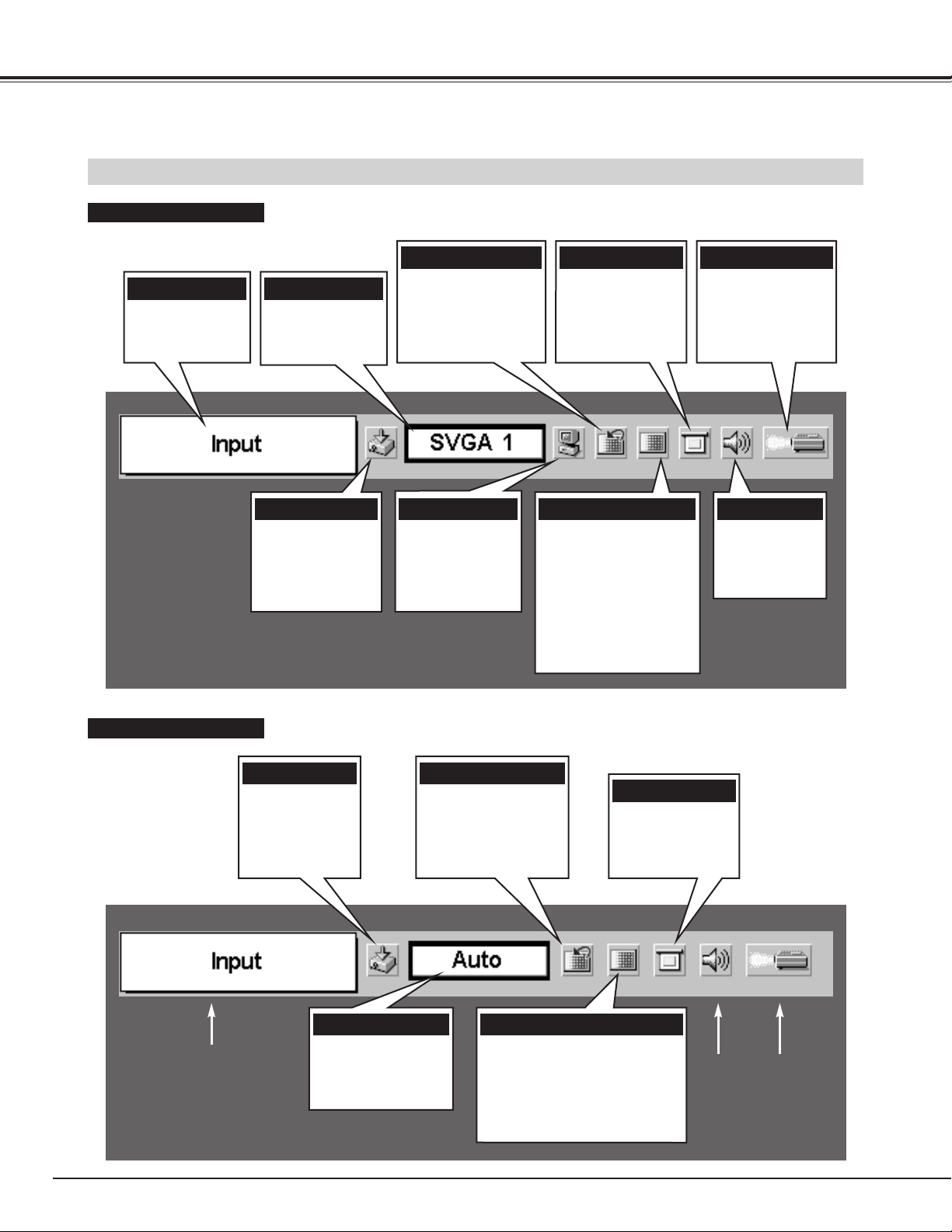

MENU BAR 18
SELECTING THE INPUT SOURCE 22

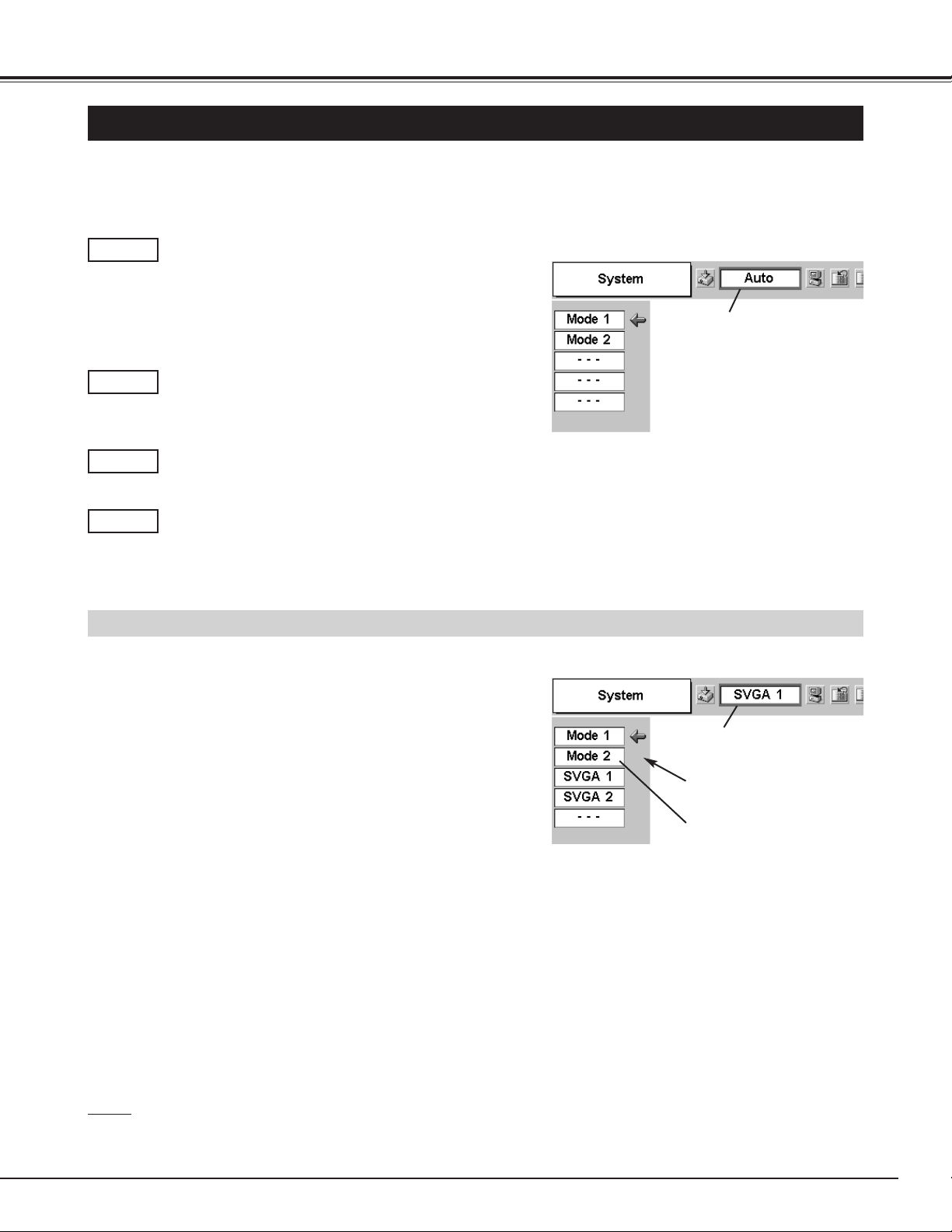

SELECTING THE COMPUTER SYSTEM 23
COMPATIBLE COMPUTER SPECIFICATIONS 24
PC ADJUSTMENT 25
AUTO PC ADJUSTMENT 25

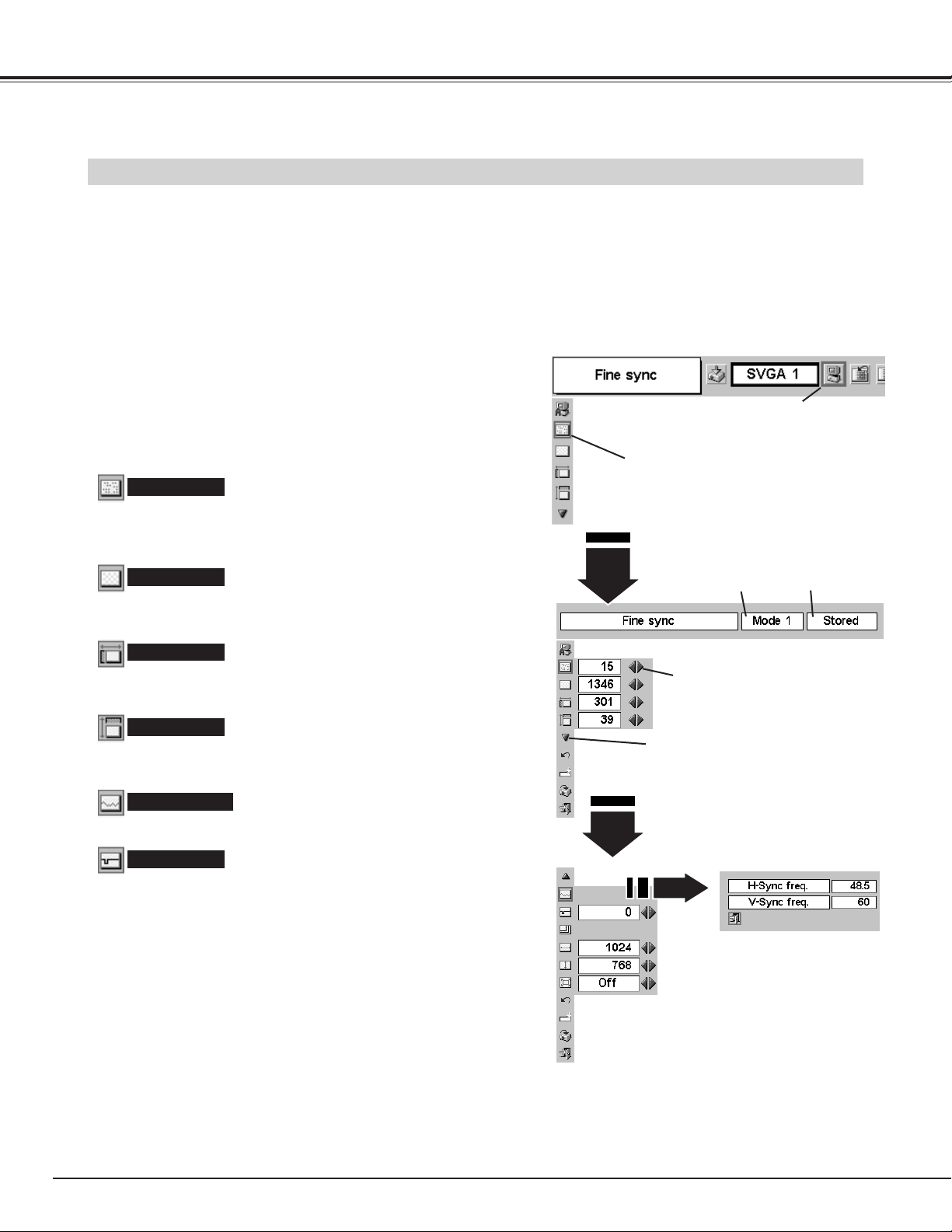

MANUAL PC ADJUSTMENT 26
PICTURE IMAGE ADJUSTMENT 28
IMAGE LEVEL SELECT 28
IMAGE LEVEL ADJUSTMENT 29
PICTURE SCREEN ADJUSTMENT 30
SELECTING THE INPUT SOURCE 31
SELECTING THE VIDEO SYSTEM 32
PICTURE IMAGE ADJUSTMENT 33
IMAGE LEVEL SELECT 33
IMAGE LEVEL ADJUSTMENT 34
PICTURE SCREEN ADJUSTMENT 35

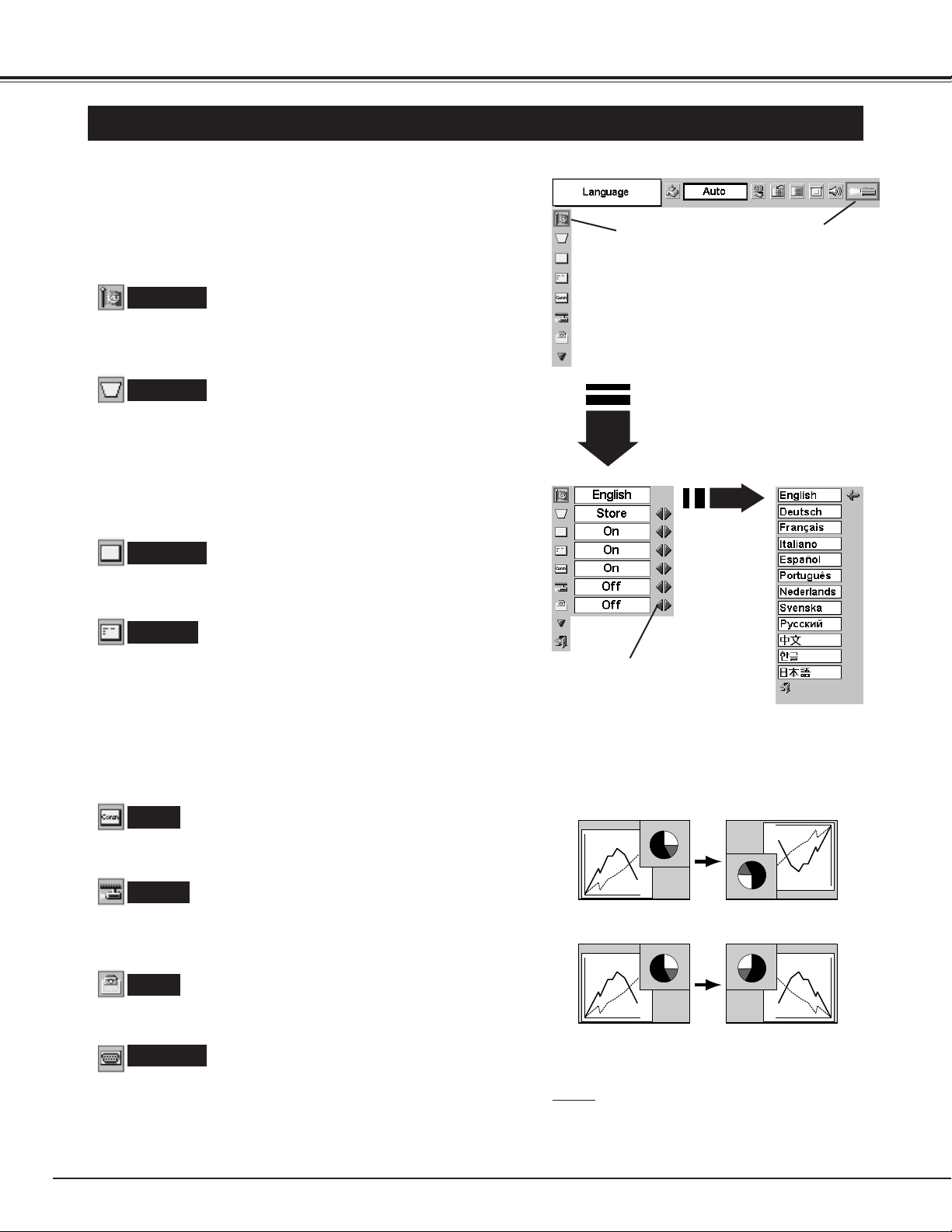

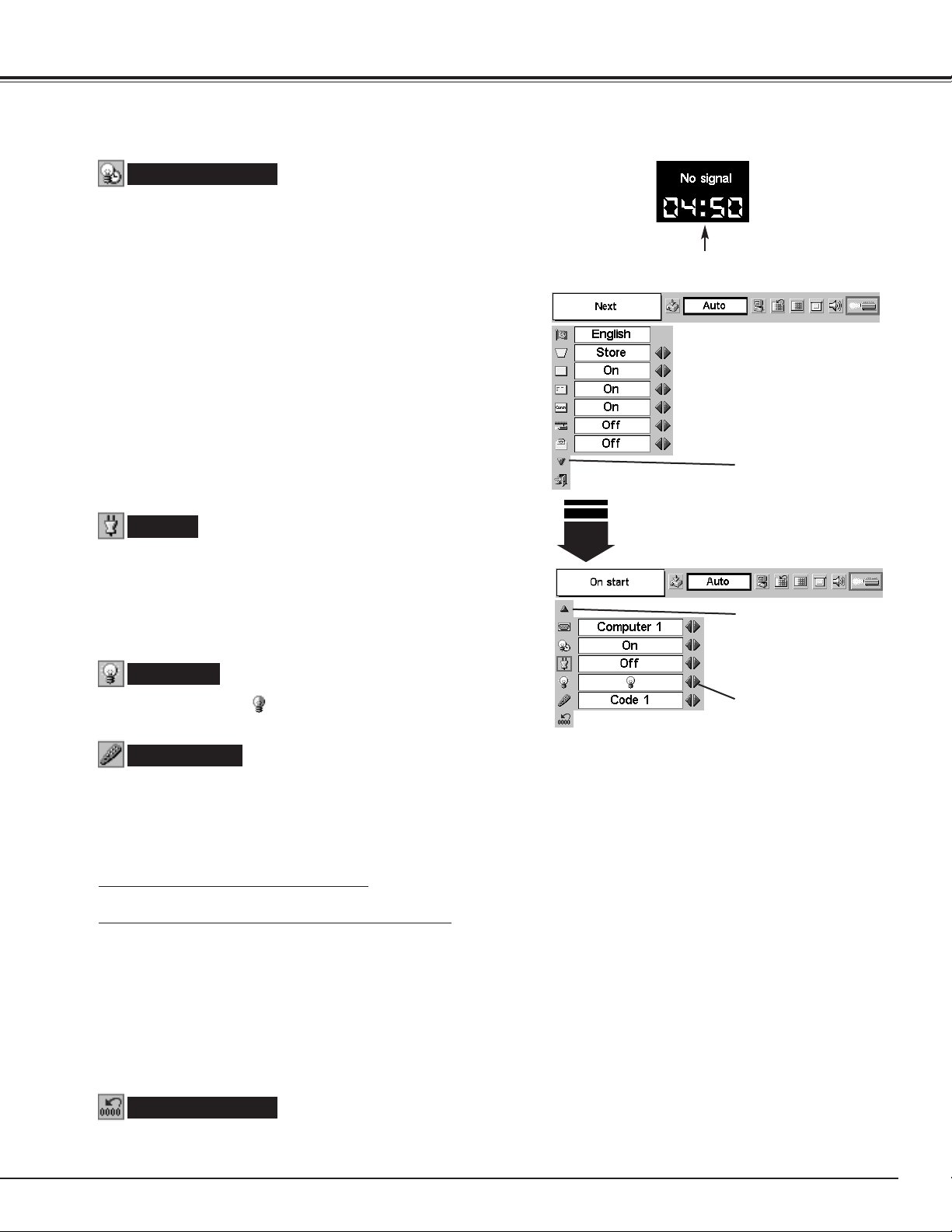

SETTING MENU 36

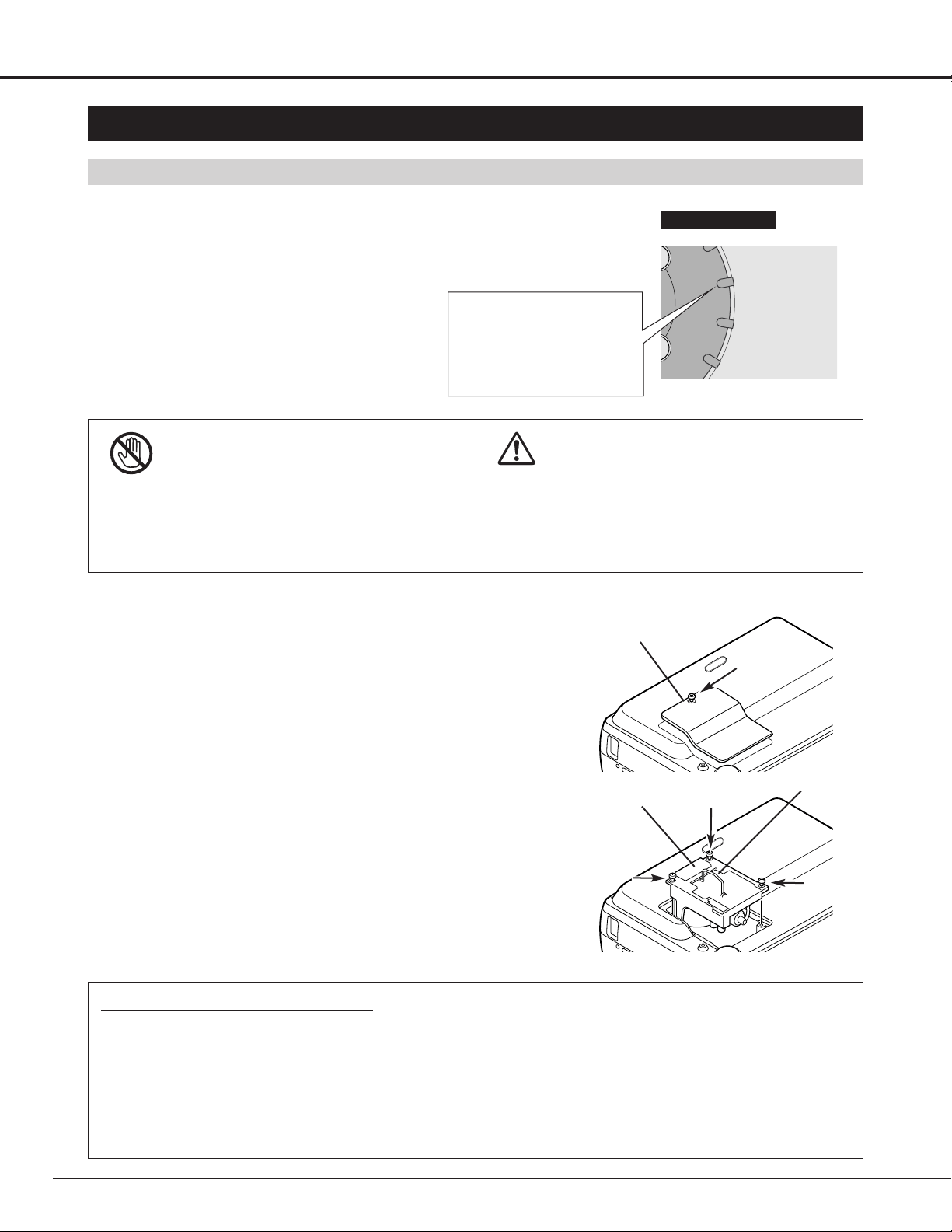

LAMP REPLACEMENT 38
LAMP REPLACE 38
LAMP REPLACE COUNTER 39
OPERATING WIRELESS MOUSE 40
INSTALLATION 40
OPERATING WIRELESS MOUSE 40
MAINTENANCE 41
WARNING TEMP. INDICATOR 41
AIR FILTER CARE AND CLEANING 41
CLEANING PROJECTION LENS 41
TROUBLESHOOTING 42

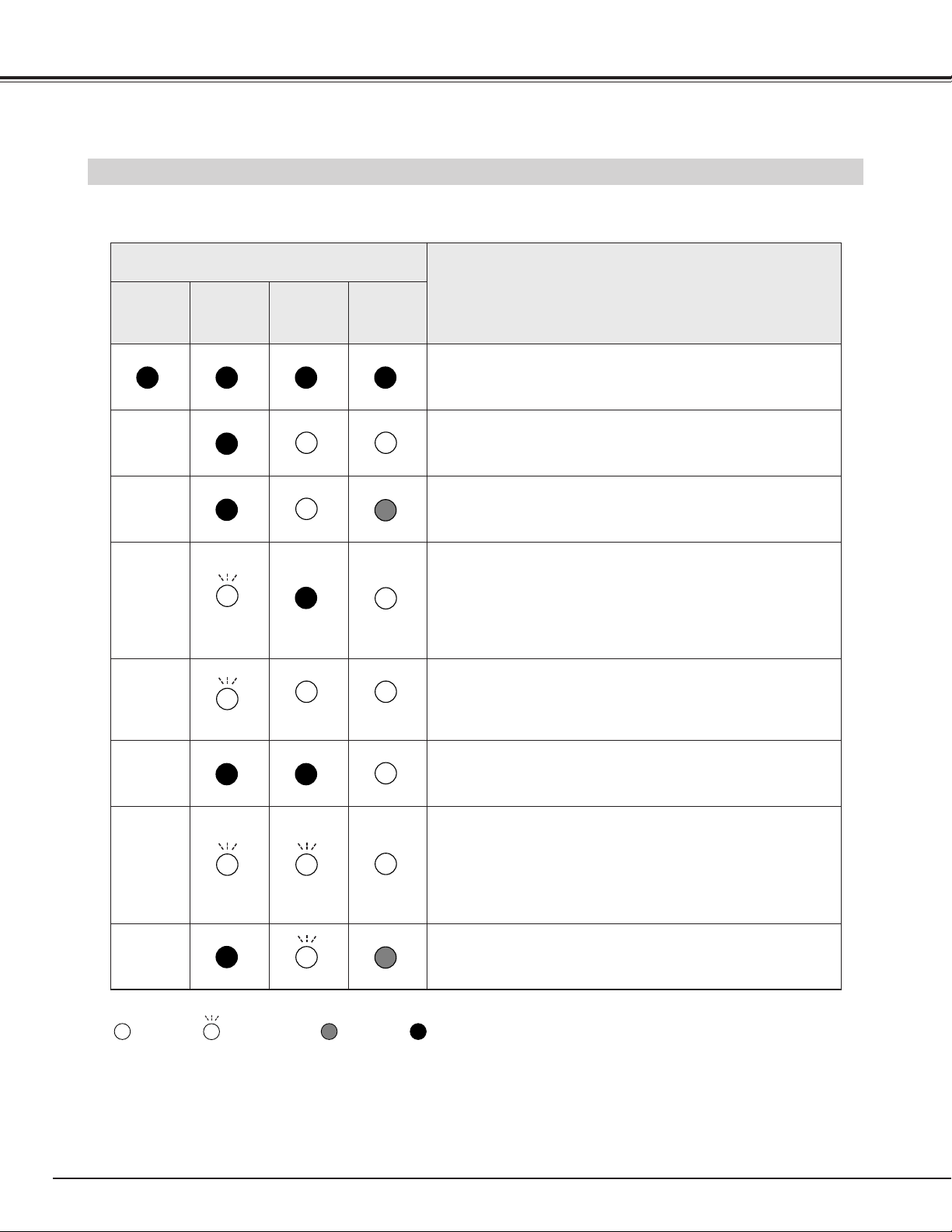

INDICATORS AND PROJECTOR CONDITION 44
TECHNICAL SPECIFICATIONS 45
CONFIGURATIONS OF TERMINALS 46
OPTIONAL PARTS 47
BASIC OPERATION 19
TURNING ON / OFF THE PROJECTOR 19
TURNING ON THE PROJECTOR 19
TURNING OFF THE PROJECTOR 19
ADJUSTING THE SCREEN 20
ZOOM ADJUSTMENT 20
FOCUS ADJUSTMENT 20
KEYSTONE ADJUSTMENT 20
PICTURE FREEZE FUNCTION 20

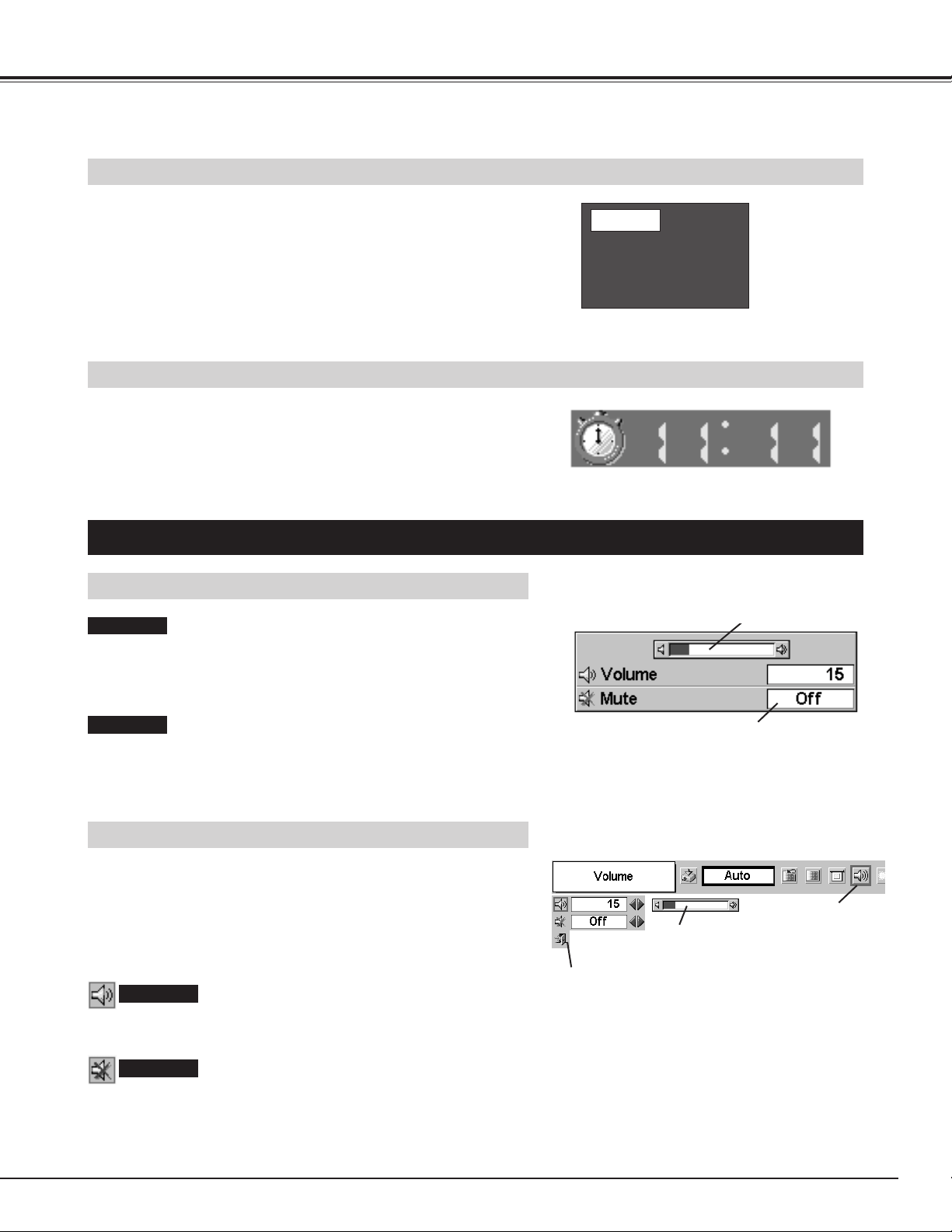

NO SHOW FUNCTION 21
P-TIMER FUNCTION 21
SOUND ADJUSTMENT 21
TRADEMARKS
● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
● IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
● Windows and PowerPoint are registered trademarks of Microsoft Corporation.
● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
6
FEATURES AND DESIGN
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. It
utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
◆ Compatibility
This projector accepts a wide range of video and
computer input signals including;
● Computers
IBM-compatible or Macintosh computer up to 1024
x 768 resolution.
● 6 Color TV Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-
N color system can be connected.
● Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
● S-Video
S-Video signal, such as a S-VHS VCR or
camcorder, can be connected.
◆ High Resolution Image
This projector provides 800 x 600 dots resolution for
computer input and 500 horizontal TV lines. Resolution
from a computer between SVGA (800 x 600) and XGA
(1024 x 768) is compressed into 800 x 600 dots. This
projector cannot display image of over 1024 x 768 dots.
When the resolution of your computer is higher than
1024 x 768, reset it to a lower resolution.
◆ Multi-Scan System
This projector has the Multi-Scan System to conform to
almost all computer output signals quickly. Making
manual adjustment of frequency and other settings is
unnecessary.
◆ Keystone Correction
Positioning height of the projector may result in distorted
image being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.
◆ Multilanguage Menu Display
Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Russian, Chinese, Korean or Japanese.
◆ One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment.
◆ Digital Zoom (for Computer)
The Digital Zoom function expands (to approx. 16 times
of screen size in SVGA) or compresses the image size,
allowing you to focus on crucial information at a
presentation.
◆ Compact Design
This projector is extremely compact in size and weight.
It is designed to be carried and work anywhere.
◆ Power Management
The Power Management function reduces the power
consumption while the projector is not in use.
This Power Management function operates to turn the
Projection Lamp off when a signal has not been received
or a button is not pressed over 5 minutes. The
Projection Lamp is automatically turned on again when
the projector detects a signal or a button is pressed.
This projector is shipped with this function ON.
◆ Wireless Mouse
The Remote Control Unit supplied with this projector has
the Wireless Mouse function for a connected computer.
This function enables you to operate both the projector
and the computer with the Remote Control Unit only.
◆ Laser Pointer Function
The Remote Control Unit supplied with this projector
includes the Laser Pointer function. This function helps
you to make a smart presentation on a projected screen.
◆ Wide Zoom Lens
This projector is equipped with a Wide Zoom Lens with a
1.5 times optical zoom, and provides a 100” screen size
at a range of 10.4’ (3.2m) to 15.6’ (4.8m).
◆ Digital Visual Interface
This projector is equipped with DVI 29-pin terminal for
connecting DVI output from a computer.
◆ Switchable Interface Terminal
This projector provides a switchable Interface terminal.
You can use the terminal as computer input or monitor
output conveniently. (Refer to page 36.)
◆ Lamp Mode
The Lamp Mode function can be switched into the silent
mode and reduce the brightness and set into the lower
power consumption.
7
PREPARATION
NOMENCHTOR
BOTTOM
BACK
HOT AIR EXHAUSTED !
Air blown from Exhaust Vents is hot.
When using or installing the projector,
the following precautions should be
taken.
● Do not put any flammable object near
these vents.
● Keep front grills at least 3’(1m) away
from any object, especially heat-
sensitive objects.
● Do not touch this area, especially
screws and metallic parts. This area
becomes hot while the projector is used.
This projector detects internal
temperature and automatically controls
operating power of Cooling Fans.
FRONT
This projector is equipped with the
Cooling Fans for protection from
overheating. Pay attention to the
following to ensure proper ventilation
and avoid the risk of fire and
malfunction.
● Do not cover the vent slots.
● Keep the back and the bottom clear
of any object. Obstructions may
block cooling air.
PROJECTION LENS LENS COVER
EXHAUST VENTS
INFRARED
REMOTE RECEIVER
CARRY HANDLE
SPEAKER
INFRARED
REMOTE RECEIVER
POWER CORD CONNECTOR
TERMINALS
AND CONNECTORS
TOP CONTROLS
AND INDICATORS
LAMP COVER
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
AIR FILTER
AIR INTAKE VENTS
(Back and Bottom)
SETTING-UP THE PROJECTOR
8
PREPARATION
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects the correct input
voltage. It is designed to work with single-phase power systems
having a grounded neutral conductor. To reduce the risk of electric
shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of the type of power supply being supplied.
Connect the projector with all peripheral equipment before turning
the projector on. (Refer to pages 11 ~ 13 for connection.)
CAUTION
For safety, unplug the AC Power Cord when the projector is not
in use.
When this projector is connected to the AC outlet with the AC
Power Cord, it is in Stand-by Mode and consumes a little elec-
tric power.
CONNECTING AC POWER CORD
Connect the AC Power Cord (supplied) to the
projector.
The AC outlet must be near this equipment and
must be easily accessible.
To the POWER CORD
CONNECTOR on the
projector.
Projector side AC Outlet side
Ground
NOTE ON THE POWER CORD
The AC Power Cord must meet the requirements of the country where you use the projector.
Confirm the AC plug type with the chart below. The proper AC power cord must be used.
If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.
To the AC Outlet.
(120 V AC)
For Continental Europe
For the U.S.A. and Canada
To the AC Outlet.
(200 - 240 V AC)
INSTALLING THE PROJECTOR IN PROPER POSITION
Install the projector properly. Improper installation may reduce the lamp lifetime and cause fire hazard.
20˚
20˚
Do not tilt the projector more than
20 degrees above and below.
Do not point the projector up to
project an image.
Do not point the projector down to
project an image.
Do not put the projector on either
side to project an image.
NO DOWNWARD
NO SIDEWAYSNO UPWARD
9
PREPARATION
POSITIONING THE PROJECTOR
● This projector is designed to project on a flat projection surface.
● The projector can be focused from 3.6’(1.1m) ~ 31.8’(9.7m).
● Refer to the figure below to adjust a screen size.
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by rotating the
Adjustable Feet. Projection angle can be adjusted to approx. 16
degrees.
Lift the front of the projector and pull the Feet Lock Latches
on both sides of the projector.
1
ADJUSTABLE FEET
FEET LOCK
LATCHES
36”
100”
150”
100”
67”
200”
134”
300”
202”
24”
31.8’ (9.7m)
21.1’ (6.4m)
15.6’ (4.8m)
10.4’ (3.2m)
3.6’ (1.1m)
Release the Feet Lock Latches to lock the Adjustable Feet
and rotate the Adjustable Feet to fine tune the position and
the tilt.
2
To retract the Adjustable Feet, lift the front of the projector
and pull the Feet Lock Latches and push to feet upward.
Keystone distortion of a projected image can be adjusted by
Menu Operation. (Refer to P20 and 36.)
3
ROOM LIGHT
The brightness of a room has a great impact on
picture quality. It is recommended to limit
ambient lighting to provide the best image.
Max. Zoom
Min. Zoom
CAUTION
Avoid positioning the projector with the angle of more than 20
degrees. The Projection Lamp may malfunction. Refer to page 8.
Screen Size
(W x H) mm
Zoom (min)
36”
Zoom (max)
728 x 546
5.4
’
(1.7m)
3.6
’
(1.1m)
100”
2032 x 1524
15.6
’
(4.8m)
10.4
’
(3.2m)
150”
3048 x 2286
23.5
’
(7.2m)
15.6
’
(4.8m)
200”
4064 x 3048
31.4
’
(9.6m)
21.1
’
(6.4m)
300”
6096 x 4572
–––––
31.8
’
(9.7m)
24”
490 x 367
3.6
’
(1.1m)
–––––
H1
H1 : H2 = 9 : 1
H2
10
PREPARATION
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
● Do not drop or bump the projector, otherwise damage or malfunction may result.
● When carrying the projector, use a suitable carrying case.
● Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause
damage to the projector. To transport the projector through a courier or transport service, consult your dealer.
MOVING THE PROJECTOR
CAUTION
Carrying Bag (supplied) is intended for protection from dust and
scratches on the surface of a cabinet, and it is not designed to
protect the projector from external forces. Do not transport the
projector through a courier or transport services with this bag.
The projector can be damaged. When handling the projector, do
not drop, bump, subject it to strong forces or put other things on the
cabinet.
Use Carry Handle when moving the projector.
When moving the projector, attach the Lens Cover and retract the
Adjustable Feet to prevent damage to the lens and cabinet.
When the projector is not in use for an extended period of time,
put it into the case (carrying bag) supplied with the projector.
MOUNTING THE LENS COVER
When transporting the projector or when it is not in use for an
extended period of time, attach the Lens Cover.
Before attaching the Lens Cover, be sure to turn the projector off
and disconnect the AC Power cord from the AC outlet.
Secure the Strap for the Lens Cover through the hole.
1
2
Turn the projector upside down and secure the Strap for the
Lens Cover to the bottom of the projector with a screw.
LENS COVER
STRAP FOR LENS COVER
Secure to the hole with a screw.
COMPUTER
AUDIO IN
S – VIDEO IN
AUDIO
IN
VIDEO IN
AUDIO
OUT
RGB IN-1 / OUT
RESET
CONTROL PORT
Y Pb/Cb Pr/Cr
R L
R L
DVI - I
RGB IN-2
11
CONNECTING THE PROJECTOR
TERMINALS OF THE PROJECTOR
When controlling your
computer with the Remote
Control Unit of this projector,
connect the mouse port of
your computer to this
connector. (Refer to P12.)
Connect the S-VIDEO
output from your
video equipment to
this jack.
(Refer to P13.)
CONTROL PORT CONNECTOR
AUDIO INPUT JACKS
VIDEO INPUT JACKS
S-VIDEO INPUT JACK
This projector has input and output terminals on its back for connecting computer and video equipment. Refer to figures on
pages 11 to 13 for these connections.
Connect an external
audio amplifier to these
jacks.
(Refer to P12, 13.)
AUDIO OUTPUT JACKS
The projector uses a micro
processor for control, and
occasionally, need to be reset.
This can be done by pressing
the RESET button with a pen,
which will shut down and
restart the unit. Do not
use the RESET function
excessively.
RESET BUTTON
This terminal is switchable and
can be used as computer
input or monitor output. Set
the terminal up as either
Computer input or Monitor
output properly before using
this terminal.
(Refer to P12, 36.)
Note:This terminal outputs
analog signal from DVI-I
RGB IN 2 terminal only.
RGB INPUT 1 / OUT TERMINAL
(ANALOG)
Connect the audio output
(stereo) from your
computer to this jack.
(Refer to P12.)
COMPUTER AUDIO
INPUT JACK
When controlling your
computer with the Remote
Control Unit of this projector,
connect the USB port of your
computer to this connector.
(Refer to P12.)
USB CONNECTOR (Series B)
Connect the audio
output from your video
equipment to these jacks.
(Refer to P13.)
● When the audio output
is monaural, connect it
to L (mono) jack.
RGB INPUT 2 TERMINAL
(DIGITAL/ANALOG)
Connect computer output
(Digital / Analog DVI-I
type) to this terminal.
(Refer to P12.)
Connect the composite video
output from your video
equipment to VIDEO/Y jack
or connect the component
video outputs to VIDEO/Y,
Pb/Cb and Pr/Cr jacks.
(Refer to P13.)
12
CONNECTING THE PROJECTOR
CONNECTING TO COMPUTER
COMPUTER
AUDIO IN
S – VIDEO IN
AUDIO
IN
VIDEO IN
AUDIO
OUT
RGB IN-1 / OUT
RESET
CONTROL PORT
Y Pb/Cb Pr/Cr
R L
R L
DVI - I
RGB IN-2
ON
1
DIP
ON
OFF
2 3 4 5 6
13" MODE (640 x 480)
16" MODE (832 x 624)
19" MODE (1024 x 768)
OFFON ON
ON ON
ON ON
OFF OFF OFF
OFFOFF OFF OFF
OFF OFF OFF OFF
123456
OFF OFFON ONON ON21" MODE (1152 x 870)
IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)
VGA Cable
Monitor Output
Desktop type Laptop type
Audio Speaker
(stereo)
Audio Amplifier
Control Cable
for Serial Port ✽
Audio Cable
(stereo)
✽
Terminal
Serial port PS/2 portAudio Output
Audio Input
CONTROL PORT
AUDIO OUT
COMPUTER AUDIO IN
DVI-I RGB IN-2
Use one of these Control
Cables corresponding with
the terminal of your
computer.
ADB port
Cables used for connection (✽ = Cable or adapter is not supplied with this projector.)
Control Cable
for PS/2 Port
Control Cable
for ADB Port ✽
Audio
Cable
✽
(stereo)
NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
the AC outlet. Turn the projector and all
peripheral equipment on before the
computer is switched on.
USB port
MAC Adapter ✽
Set slide switches
according to the
chart below.
• VGA Cable (HDB 15 pin)
• Control Cable for PS/2 Port
• DVI-Digital Cable (for Single Link T.M.D.S.)
✽
• Control Cable for Serial Port ✽, or ADB Port ✽
• USB Cable ✽
• MAC Adapter (When connecting to Macintosh computer) ✽
• DVI/VGA Adapter
• Audio Cables (RCA x 2 and Mini Plug (stereo) x 1)
✽
External Audio Equipment
Terminals
of the Projector
Terminal Terminal
VGA
Cable
✽
Monitor Output
or
Monitor Input
USB
RGB IN-1 / OUT
Set switches as shown in the table
below depending on RESOLU-
TION MODE that you want to use
before you turn on projector and
computer.
◆ MAC ADAPTER (Not supplied)
USB
Cable
✽
DVI-I RGB IN-2
DVI Cable ✽
DVI/VGA
Adapter
NOTE
This terminal is switchable. Set
the terminal up as either
Computer input or Monitor out-
put before using this terminal.
(See page 36)
Monitor Output
13
CONNECTING THE PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
COMPUTER IN 1
DVI - I
MONITOR OUT
S – VIDEO
COMPUTER IN 2 /
(MONO)
R – AUDIO IN – L
VIDEO
Y – Pb / Cb – Pr / Cr
AUDIO IN
COMPUTER
R – – L
AUDIO OUT
USB
CONTROL PORT
RESET
COMPUTER
AUDIO IN
S – VIDEO IN
AUDIO
IN
VIDEO IN
AUDIO
OUT
RGB IN-1 / OUT
RESET
CONTROL PORT
Y Pb/Cb Pr/Cr
R L
R L
DVI - I
RGB IN-2
Video Source (example)
Video Cassette Recorder Video Disc Player
Video Cable
(RCA x 1) ✽
S-VIDEO
Cable ✽
Audio Amplifier
Audio Speaker
(stereo)
Audio Cable
(Stereo)
✽
Terminals
of the Projector
Use any of VIDEO/Y jack, S-VIDEO
jack, or VIDEO/Y-Pb/Cb-Pr/Cr jacks.
• When both VIDEO/Y jack and S-
VIDEO jack are connected, S-
VIDEO jack has priority over
VIDEO/Y jack.
• When both VIDEO/Y-Pb/Cb-Pr/Cr
jacks and S-VIDEO jack are
connected, VIDEO/Y-Pb/Cb-Pr/Cr
jacks has priority over S-VIDEO
jack.
S-VIDEO Output
Audio Input
NOTE :
When connecting the cable, the power
cords of both the projector and the external
equipment should be disconnected from
the AC outlet.
Audio Output
(R, L)
Audio Cable
(RCA x 2) ✽
External Audio Equipment
AUDIO INS-VIDEO IN
VIDEO/Y - Pb/Cb - Pr/Cr
VIDEO/Y IN
AUDIO OUT
Component video output equipment.
(such as DVD player or high-definition TV source.)
Composite
Video Output
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Video Cable
(RCA x 3) ✽
Scart-VGA
Cable ✽
RGB Scart
21-pin Output
NOTE
It is necessary to select
COMPUTER 1 in the
SETTING Menu when
this terminal is used as
RGB Scart 21-Pin Video
Input.
(See page 22, 36.)
RGB-IN 1 / OUT
• Video Cable (RCA x 1 or RCA x 3) ✽
• S-VIDEO Cable ✽
• Audio Cable (RCA x 2) ✽
• Scart-VGA Cable ✽
Cables used for connection (✽ = Cable is not supplied with this projector.)
14
BEFORE OPERATION
VOLUME
POWER
FOCUS
ZOOM
D.ZOOM
MENU
MUTE
LASER
NO SHOW
FREEZE
AUTO PC ADJ.
P-TIMER
INPUT
KEYSTONE
OPERATION OF THE REMOTE CONTROL UNIT
ON
ALL OFF
ALL-OFF SWITCH
Left Side
When using the Remote Control
Unit, turn this switch to “ON.” Turn
it to “ALL OFF” when not in use.
This Remote Control Unit emits a laser beam as the laser pointer function from the Laser Light Window. When the LASER
button is pressed, the laser light goes on. And when the LASER button is being pressed for more than 1 minute or the
LASER button is released, the light goes off. The LASER POINTER INDICATOR lights red and the laser is emitted with red
light to indicate that the laser beam is being emitted.
The laser emitted is a class II laser; do not look into the Laser Light Window nor shine the laser beam on yourself or other
people. The caution labels for the laser beam are shown below.
Laser Light Window
These caution labels are put on the remote control unit.
LASER POINTER FUNCTION
Used to select input source.
(P22, 31)
Used to execute the item
selected, or to expand/
compress the image in
DIGITAL ZOOM +/– mode.
(P30)
It is also used as a PC
mouse in Wireless Mouse
Operation. (P40)
POWER ON-OFF BUTTON
Used to turn projector on or
off. (P19)
MENU BUTTON
Used to open or close
ON-SCREEN MENU
operation. (P17, 18)
INPUT BUTTON
LASER BUTTON
Used to operate Laser Pointer
Function. Laser beam is
emitted while pressing this
button within 1 minute.
When using this Laser Pointer
for more than 1 minute, release
LASER button and press it
again.
Used to select an item or
adjust value in ON-SCREEN
MENU. They are also used to
pan the image in DIGITAL
ZOOM +/– mode. (P30)
It is also used as a PC mouse
in Wireless Mouse Operation.
(P40)
✽ When pressing the center of this
button, it works as SET button.
POINT BUTTON
Used as a PC mouse in
Wireless Mouse Operation.
(P40)
RIGHT CLICK BUTTON
Used to operate P-TIMER
function. (P21)
Lights red while laser beam
is emitted from Laser Light
Window.
LASER POINTER INDICATOR
P-TIMER BUTTON
LASER POINTER INDICATOR
SET BUTTON
CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
15
BEFORE OPERATION
To insure safe operation, please observe the following precautions :
● Use (2) AA, UM3 or R06 type alkaline batteries.
● Replace both batteries at the same time.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid.
● Do not expose the Remote Control Unit to moisture, or heat.
● Do not drop the Remote Control Unit.
● If a battery has leaked on the Remote Control Unit, carefully wipe the case clean and install new batteries.
● Danger of explosion if battery is incorrectly replaced.
● Dispose of used batteries according to battery manufacturer's instructions and local rules.
Press the lid down-
ward and slide it.
Remove the battery
compartment lid.
Slide the batteries into
the compartment.
Replace the compartment
lid.
Two AA size batteries
For correct polarity (+
and –), be sure that the
battery terminals are in
contact with the pins in
the compartment.
REMOTE CONTROL UNIT BATTERIES INSTALLATION
1
2
3
Operating Range
Point the Remote Control Unit
toward the projector (Receiver
Window) whenever pressing any
button. Maximum operating range
for the Remote Control Unit is about
16.4’ (5m) and 60° in front and rear
of the projector.
16.4’
(5 m)
60°
16.4’
(5 m)
Used to adjust zoom.
(P20)
VOLUME
POWER
FOCUS
ZOOM
D.ZOOM
MENU
MUTE
LASER
NO SHOW
FREEZE
AUTO PC ADJ.
P-TIMER
INPUT
KEYSTONE
MUTE BUTTON
Used to mute sound.(P21)
ZOOM BUTTON
FOCUS BUTTON
Used to adjust focus.
(P20)
NO SHOW BUTTON
Used to turn the picture
into black image. (P21)
AUTO PC ADJ. BUTTON
Use to operate AUTO PC
Adjustment function. (P25)
VOLUME BUTTON
Used to adjust volume.
(P21)
D.ZOOM BUTTON
Used to select DIGITAL
ZOOM +/– mode and
resize image. (P30)
KEYSTONE BUTTON
Used to correct keystone
distortion. (P20, 36)
FREEZE BUTTON
Used to freeze the picture.
(P20)
IMAGE BUTTON
Used to select image
level. (P28, 33)
60°
MENU
SET
FOCUSZOOM
INPUT
KEY
STONE
POWER
Vol +Vol –
READY
LAMP
REPLACE
LAMP
WARNING
TEMP.
16
BEFORE OPERATION
TOP CONTROLS AND INDICATORS
Used to open or close ON-
SCREEN MENU operation.
(P17, 18)
MENU BUTTON
KEYSTONE BUTTON
READY INDICATOR
SET BUTTON
POWER ON–OFF BUTTON
INPUT BUTTON
WARNING TEMP. INDICATOR
LAMP INDICATOR
POINT (VOLUME + / – ) BUTTONS
LAMP REPLACE INDICATOR
Used to correct keystone
distortion. (P20, 36)
Lights green when the
projector is ready to be
turned on, and flashes
green while in Power
Management mode. (P37)
Becomes dim when the
projector is turned on. And
bright when the projector is
in stand-by mode.
Turns yellow when the life
of Projection Lamp draws
to an end. (P38)
Flashes red while internal
projector temperature is too
high. (P41)
Used to select input source.
(P22, 31)
Used to select an item or adjust value in ON-
SCREEN MENU. They are also used to pan
the image in DIGITAL ZOOM
+/– mode. (P30)
POINT LEFT/RIGHT buttons are also used as
VOLUME +/– buttons.
Used to execute the item
selected, or to expand/
compress the image in
DIGITAL ZOOM +/– mode.
(P30)
Used to turn projector on or
off. (P19)
Used to adjust zoom.
(P20)
FOCUS BUTTON
Used to adjust focus. (P20)
ZOOM BUTTON
Used to select image
level. (P28, 33)
IMAGE BUTTON
17
BEFORE OPERATION
HOW TO OPERATE THE ON-SCREEN MENU
FLOW OF ON-SCREEN MENU OPERATION
Display ON-SCREEN MENU
Press the MENU button to display the ON-SCREEN MENU
(MENU BAR). The red frame is the POINTER.
Move the POINTER (red frame) to the MENU ICON that you
want to select by pressing the POINT RIGHT / LEFT buttons.
Adjust the ITEM by pressing the POINT RIGHT / LEFT
buttons.
Refer to the following pages for details of respective
adjustments.
Press the POINT DOWN button and move the POINTER (red
frame or red arrow) to the ITEM that you want to adjust, and
then press the SET button to show the ITEM.
Select Menu to be adjusted
Control or adjust item through ON-SCREEN MENU
1
2
4
3
You can control and adjust this projector through the ON-SCREEN
MENU. Refer to the following pages to operate each adjustment
on the ON-SCREEN MENU.
MOVING POINTER
SELECT ITEM
Move the pointer (✽ see below) or adjust the value of item by
pressing the POINT button(s) on the Top Control or on the
Remote Control Unit.
Select the item or set the selected function by pressing the
SET button.
OPERATING THE ON-SCREEN MENU
✽ Pointer is the icon on the ON-SCREEN MENU to select
the item. See the section “FLOW OF ON-SCREEN
MENU OPERATION” below.
MENU
SET
FOCUSZOOM
KEY
STONE
Vol +Vol –
Used to select the item.
SET BUTTON
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
POINT BUTTONS
TOP CONTROL
MENU BAR
POINTER
(red frame)
MENU ICON
ITEM
Press the POINT LEFT/RIGHT
buttons to adjust the value or
set the function.
POINTER (red frame)
Press the POINT DOWN but-
ton to move the POINTER.
DISPLAY MENU
Press the MENU button to display the ON-SCREEN MENU.
ITEM
Used to select the item.
SET BUTTON
Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.
POINT BUTTON
REMOTE CONTROL UNIT
SET
BUTTON
1
2
3
18
BEFORE OPERATION
MENU BAR
PC SYSTEM MENU
Used to select
computer system.
(Refer to P22-24)
IMAGE ADJUST MENU
Used to adjust computer
image.
[Contrast / Brightness /
Color / Tint /
White
balance (R/G/B) /
Sharpness /
Gamma /
Auto grayscale / Auto
fleshtone]
(Refer to P29, 30)
SETTING MENU
Used to change
settings of projector
or reset Lamp
Replace Counter.
(Refer to P36, 37)
SOUND MENU
Used to adjust
volume or mute
sound.
(Refer to P21)
IMAGE SELECT MENU
Used to select image
level among ;
Standard, High
contrast and Custom.
(Refer to P28)
FOR PC SOURCE
Press the MENU BUTTON while connected to the PC input source.
AV SYSTEM MENU
Used to select
system of a selected
video source.
(Refer to P32)
IMAGE ADJUST MENU
Used to adjust picture image.
[Contrast / Brightness / Color /
Tint / White balance (R/G/B) /
Sharpness / Gamma / Auto
grayscale / Auto fleshtone]
(Refer to P34, 35)
FOR VIDEO SOURCE
Press the MENU BUTTON while connected to the VIDEO input source.
Same function as
Menu for PC source.
INPUT MENU
Used to select
input source
either Video or
Computer.
(Refer to P31)
PC ADJUST MENU
Used to adjust
parameters to
match with input
signal format.
(Refer to P25-27)
IMAGE SELECT MENU
Used to select image
level among
Standard, Cinema
and Custom.
(Refer to P33)
SCREEN MENU
Used to set size of
image to Normal
or Wide.
(Refer to P35)
GUIDE WINDOW
Shows a selected
item of ON-
SCREEN MENU.
Same function as
Menu for PC source.
INPUT MENU
Used to select
input source either
Computer or
Video.
(Refer to P22)
SCREEN MENU
Used to adjust size
of image. [Normal
/ True / Wide /
Digital zoom +/–]
(Refer to P30)
19
BASIC OPERATION
TURNING ON THE PROJECTOR
TURNING OFF THE PROJECTOR
Press the POWER ON-OFF button on the Top Control or on the
Remote Control Unit, and the message “Power off?” appears on
a screen.
Press the POWER ON-OFF button again to turn off the
projector. The LAMP Indicator lights bright and the READY
Indicator turns off. After the projector is turned off, the Cooling
Fans operate (for 90 seconds).
1
2
TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN
PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE
TURNING IT OFF.
DO NOT DISCONNECT AC POWER CORD BEFORE
READY INDICATOR LIGHTS GREEN.
TURNING ON / OFF THE PROJECTOR
When the WARNING TEMP. Indicator flashes red, the projector is automatically turned off. Turn the projector on with the
POWER ON-OFF button after the READY indicator lights green.
When the WARNING TEMP. Indicator continues to flash, refer to the section “MAINTENANCE” on page 41 and proper
maintenance should be taken.
3
When the projector has cooled down, the READY Indicator lights
green again.
Power off?
Message disappears after 4 seconds.
When the Power management function is ON, the projector detects signal interruption and turns off the Projection Lamp
automatically. Refer to the menu item “Power management” on page 37.
NOTE : The projector cannot be turned on during cooling period with
the READY Indicator off. You can turn it on again after the
READY Indicator lights green.
note on operation
Connect the AC Power Cord into an AC outlet. The LAMP
Indicator lights red, and the READY Indicator lights green.
Press the POWER ON-OFF button on the Top Control or on the
Remote Control Unit to ON. The LAMP Indicator dims, and the
Cooling Fans start to operate. The Preparation Display appears
on the screen and the count-down starts.
2
3
1
Complete all peripheral connections (with Computer, VCR, etc.)
before turning on the projector. (Refer to the “CONNECTING
THE PROJECTOR” on page 11~13.)
26
The Preparation Display disappears after 30 seconds.
NOTE : When the On start function is ON, this projector is turned on
automatically by connecting the AC Power Cord to an AC
outlet. (Refer to the menu item “On start” on page 37.)
4
The image level that was selected last and the Lamp mode
status appear for 4 seconds, and the signal from PC or Video
source appears.
*Refer to page 37 for the Lamp mode.
Lamp mode
20
Press the FREEZE button on the Remote Control Unit to freeze the picture on-screen. To cancel the FREEZE function,
press the FREEZE button again or press any other button.
PICTURE FREEZE FUNCTION
KEYSTONE ADJUSTMENT
BASIC OPERATION
ADJUSTING THE SCREEN
Message disappears after 4 seconds.
Message disappears after 4 seconds.
Zoom
Focus
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
1
Press the ZOOM button on the Top Control or the ZOOM ▲/▼
button on the Remote Control Unit. The message “Zoom” is
displayed.
2
Press the ZOOM ▲ button or the POINT UP button to make the
image larger, and press the ZOOM ▼ button or the POINT
DOWN button to make the image smaller.
1
Press the FOCUS button on the Top Control or the FOCUS ▲/▼
button on the Remote Control Unit. The message “Focus” is
displayed.
2
Adjust the focus of the image by pressing the FOCUS ▲/▼
button or the POINT UP/DOWN button(s) .
1
Press the KEYSTONE button on the Remote Control Unit or
select Keystone on the SETTING menu. (Refer to page 36.)
The keystone dialog box appears.
2
Correct keystone distortion by pressing the POINT UP/DOWN
button(s) on the Top Control or on the Remote Control Unit.
Press the POINT UP button to reduce the upper part of the
image, and press the POINT DOWN button to reduce the lower
part.
If the projected picture has keystone distortion, correct the image with KEYSTONE adjustment.
• The arrows are blue in no correction.
• The arrow of direction being corrected turns light
blue.
• The arrow disappears at the maximum correction.
• If you press the KEYSTONE button on the Remote
Control Unit once more while the keystone dialog
box is being displayed, the keystone adjustment will
be set into no correction.
Reduce the upper width
with the POINT UP button.
Reduce the lower width with
the POINT DOWN button.
21
BASIC OPERATION
Press the NO SHOW button on the Remote Control Unit to black out
the image. To restore to normal, press the NO SHOW button again or
press any other button.
NO SHOW FUNCTION
Message disappears after 4 seconds.
No show
Press the P-TIMER button on the Remote Control Unit. The timer
display “00 : 00” appears and the timer starts to count time (00 : 00 ~
59 : 59).
To stop the P-TIMER display, press the P-TIMER button. Press the P-
TIMER button again to cancel the P-TIMER function.
P-TIMER FUNCTION
1
2
Volume
Press the VOLUME (+/–) button(s) on the Top Control or on the
Remote Control Unit to adjust the volume. The volume dialog box
appears. The VOLUME (+) button to increase the volume, and the
VOLUME (–) button to decrease the volume.
Mute
Press the MUTE button on the Remote Control Unit to cut off the
sound. To restore the sound to its previous level, press the MUTE
button again or press the VOLUME (+/–) button(s).
Press the POINT RIGHT button to increase the volume, and press the
POINT LEFT button to decrease the volume.
Press the POINT LEFT/RIGHT button to cut off the sound. The dialog
box display is changed to “On” and the sound is cut off. To restore
the sound to its previous level, press the POINT LEFT/RIGHT button
again.
Press the POINT DOWN button to move the red frame pointer to
the item that you want to select, and then press the SET button.
Indicates approximate level of the
volume.
Close the SOUND Menu.
SOUND ADJUSTMENT
DIRECT OPERATION
MENU OPERATION
Volume
Mute
Dialog box disappears after 4 seconds.
SOUND MENU
SOUND Menu icon
Press the MUTE button to set
the Mute function On or Off.
Indicates approximate
level of volume.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT buttons to move the red
frame pointer to the SOUND Menu icon.
22
COMPUTER INPUT
(RGB Scart 21-Pin Video Input)
SELECTING THE INPUT SOURCE
MENU OPERATION
DIRECT OPERATION
Choose either Computer 1 or Computer 2 by pressing the INPUT
button on the Top Control or on the Remote Control Unit.
If the projector cannot reproduce a proper image, select the correct
input source through the “MENU OPERATION” (see below).
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button to move the red
frame pointer to the INPUT Menu icon.
1
Move the pointer either
Computer 1 or Computer
2 and press the SET
button.
Computer 1
Move the pointer to RGB
or RGB (Scart) and
press the SET button.
Source Select Menu
INPUT MENU
INPUT Menu icon
Press the POINT DOWN button to move the red arrow pointer to
either Computer 1 or Computer 2 (Computer 1 is not displayed
when MONITOR OUT is selected in the SETTING Menu.), and
then press the SET button. The Source Select Menu will
appear.
2
Move the pointer to the correct input source and then press the
SET button.
3
When the digital signal is connected to DVI
terminal, select RGB (Digital).
RGB (Digital)
When the analog signal is connected to DVI
terminal, select RGB (Analog).
RGB (Analog)
Computer 2
Move the pointer to RGB
(Digital) or RGB
(Analog) and press the
SET button.
Source Select Menu
Computer 1
Video
Computer 2
When the input source is coming from a computer
through RGB IN 1 / OUT terminal, select RGB.
RGB
When the input source is coming from a DVD player
through RGB IN 1 / OUT terminal, select RGB
(Scart).
RGB (Scart)
INPUT button
Computer 1 is not displayed when RGB IN 1/ OUT
terminal is used as MONITOR OUT.
✽
✽
Computer 1 is not displayed when RGB IN 1/ OUT
terminal is used as MONITOR OUT.
✽
NOTE
● Computer 1 can be selected when RGB IN 1 / OUT terminal is set
as COMPUTER 1 at the menu item “Terminal” in the SETTING
Menu. (Refer to page 36.)
23
COMPUTER INPUT
SELECTING THE COMPUTER SYSTEM
This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA, or SXGA (refer to the
“COMPATIBLE COMPUTER SPECIFICATIONS” on page 24). When selecting Computer, this projector automatically tunes
to the incoming signal and projects a proper image without any special setting. (Some computers need to be set manually.)
The projector displays one of the Auto, - - -, Mode 1/2/3/4/5, or the system provided in the projector.
When the projector cannot recognize the connected
signal, the Auto PC Adjustment function adjusts the
projector, and the message “Auto” is displayed on the
SYSTEM Menu icon. (Refer to page 25.) When the
image is not provided properly, adjust the parameters
manually. (Refer to page 26, 27.)
There is no signal input from the connected computer.
Make sure the connection between the computer and the
projector is set correctly.
(Refer to the “TROUBLESHOOTING” on page 42.)
Auto
– – –
The SYSTEM Menu icon
displays the system being
selected.
PC SYSTEM MENU
SELECT COMPUTER SYSTEM MANUALLY
SYSTEM Menu icon
Displays the system being
selected.
The systems on this dialog box
can be selected.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT buttons to move the red
frame pointer to the PC SYSTEM Menu icon.
Press the POINT DOWN button to move the red arrow pointer to
the system that you want to set, and then press the
SET button.
1
2
PC SYSTEM MENU
Custom Mode (1~5) set in the
PC ADJUST Menu. (P26, 27)
This projector automatically selects the PC system among those
provided in this projector and the PC system can also be selected
manually.
User preset adjustment in the “MANUAL PC
ADJUSTMENT.” Adjustment data can be stored in the
Mode 1 - 5.
Mode 1
Computer systems provided in the projector. The
projector chooses a proper system and displays it.
SVGA 1
*Mode 1 and SVGA 1 are examples.
NOTE
● The PC SYSTEM Menu cannot be selected when the input signal is
digital.
24
COMPUTER INPUT
COMPATIBLE COMPUTER SPECIFICATIONS
This projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 100 MHz of
Dot Clock.
NOTE : The projector may not project a proper image for D-SXGA 2 and D-SXGA 3 depending on some computers.
Specifications are subject to change without notice.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
VGA 1 640 x 480 31.47 59.88
VGA 2 720 x 400 31.47 70.09
VGA 3 640 x 400 31.47 70.09
VGA 4 640 x 480 37.86 74.38
VGA 5 640 x 480 37.86 72.81
VGA 6 640 x 480 37.50 75.00
MAC LC13
640 x 480 34.97 66.60
MAC 13 640 x 480 35.00 66.67
MAC 16 832 x 624 49.72 74.55
SVGA 1 800 x 600 35.156 56.25
SVGA 2 800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600 53.674 85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31
SVGA 11 800 x 600 38.00 60.51
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
XGA 8 1024 x 768
XGA 9
1024 x 768
63.48 79.35
36.00
87.17
(Interlace)
XGA 1 1024 x 768
XGA 2 1024 x 768
XGA 3 1024 x 768
XGA 4 1024 x 768
48.36 60.00
68.677 84.997
XGA 6 1024 x 768
60.023 75.03
XGA 7 1024 x 768
56.476 70.07
48.50 60.02
44.00 54.58
XGA 5 1024 x 768 60.31 74.92
VGA 7 640 x 480 43.269 85.00
RGB
––––––––
15.734
60.00
(Interlace)
RGB
––––––––
15.625
50.00
(Interlace)
SVGA 10 800 x 600 32.70 51.09
XGA 10 1024 x 768
62.04 77.07
MAC 19 1024 x 768 60.24 75.08
MAC 21
1152 x 870
68.68 75.06
XGA 11 1024 x 768
XGA 12 1024 x 768
XGA 13 1024 x 768
XGA 14 1024 x 768
61.00 75.70
XGA 15 1024 x 768
35.522
86.96
(Interlace)
46.90 58.20
47.00 58.30
58.03 72.00
SXGA 1 1152 x 864 64.20 70.40
SXGA 11 1152 x 900
SXGA 13 1280 x 1024
SXGA 14 1280 x 1024
61.20 65.20
50.00
86.00
(Interlace)
720p (HDTV)
––––––––
50.00
94.00
(Interlace)
45.00 60.00
SXGA 17 1152 x 900
SXGA 18 1280 x 1024
61.85 66.00
46.43
86.70
(Interlace)
1035i (HDTV)
––––––––
33.75
60.00
(Interlace)
1080i 60(HDTV)
––––––––
33.75
60.00
(Interlace)
1080i 50(HDTV)
––––––––
28.125
50.00
(Interlace)
480p (HDTV)
––––––––
31.47 59.88
575p (HDTV)
––––––––
31.25
50.00
When an input signal is digital from DVI terminal, refer to the chart below.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
640 x 480 31.47 59.94
60.276 58.069
31.65 29.80
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
D-SXGA 2
D-SXGA 3
1280 x 1024
1280 x 1024
D-SVGA 800 x 600 37.879 60.32
D-XGA 1024 x 768 43.363 60.00
D-VGA
25
COMPUTER INPUT
PC ADJUSTMENT
AUTO PC ADJUSTMENT
The Auto PC Adjustment function automatically adjusts Fine sync, Total dots, Horizontal and Vertical picture position to
conform to your computer. The Auto PC Adjustment function can be operated as follows.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button to move the red
frame pointer to the PC ADJUST Menu icon.
1
2
Press the POINT DOWN button to move the red frame pointer to
the AUTO PC Adj. icon and then press the SET button twice.
This Auto PC Adjustment can also be executed by pressing the
AUTO PC ADJ. button on the Remote Control Unit.
Move the pointer to the AUTO PC Adj. icon
and press the SET button.
PC ADJUST MENU
Auto PC Adj.
Store adjustment parameters.
Adjustment parameters from Auto PC Adjustment can be memorized
in this projector. Once parameters are memorized, setting can be
done just by selecting Mode in the PC SYSTEM Menu (P23). Refer to
step 3 of the “MANUAL PC ADJUSTMENT” section (P27).
NOTE
● The PC ADJUST Menu cannot be operated when the input signal is
digital or RGB is selected in the PC SYSTEM Menu (P23).
● Fine sync, Total dots, Horizontal, and Vertical of some computers
cannot be fully adjusted with this Auto PC Adjustment function.
When the image is not provided properly through this function,
manual adjustments are required. (Refer to page 26, 27.)
● The Auto PC Adjustment function cannot be operated when “720p
(HDTV),” “1035i (HDTV),” or “1080i (HDTV)” is selected in the PC
SYSTEM Menu (P23).
PC ADJUST Menu icon
26
COMPUTER INPUT
MANUAL PC ADJUSTMENT
This projector can automatically tune to the display signals of most personal computers. However, some computers employ
special signal formats which are different from the standard ones and may not be tuned by the Multi-Scan system of this
projector. If this happens, the projector cannot reproduce a proper image and the image may be displayed as a flickering
picture, a non-synchronized picture, a non-centered picture, or a skewed picture.
This projector has Manual PC Adjustment to enable you to precisely adjust several parameters to match those special signal
formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables
you to recall the setting for a specific computer whenever you use it.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button to move the red
frame pointer to the PC ADJUST Menu icon.
1
2
Press the POINT DOWN button to move the red frame pointer to
the item that you want to adjust and then press the SET button.
The adjustment dialog box will appear. Press the POINT
LEFT/RIGHT button to adjust the value.
Move the pointer to the item and press the
SET button.
PC ADJUST MENU
PC ADJUST Menu icon
Adjusts an image as necessary to eliminate flicker from the display.
Press the POINT LEFT/RIGHT button to adjust the value.(From 0 to
31.)
Fine sync
The number of total horizontal dots in your picture. Press the POINT
LEFT/RIGHT button(s) and adjust number to match your PC image.
Total dots
Adjusts the horizontal picture position. Press the POINT
LEFT/RIGHT button(s) to adjust the position.
Horizontal
Adjusts the vertical picture position. Press the POINT LEFT/RIGHT
button(s) to adjust the position.
Vertical
Press the SET button to show the information of your computer.
Current mode
Adjusts the clamp level. When the image has a dark bar(s), try this
adjustment.
Clamp
Press the SET button at this icon to
adjust “Clamp,” “Display area (H/V)” or
set “Full screen.”
Press the POINT LEFT/RIGHT
button to adjust the value.
Shows status
(Stored / Free) of the
selected Mode.
Selected Mode
Press the SET button at the
Current mode icon to show
the information of your
computer.
Current mode
27
COMPUTER INPUT
NOTE
● Fine sync, Total dots, Display area (H/V) and Full screen cannot be
adjusted when “1035i (HDTV)” or “1080i (HDTV)” is selected on PC
SYSTEM Menu (P23).
Selects the area displayed with this projector. Select the resolution
at the display area dialog box.
Display area
Adjustment of the horizontal area displayed with this projector. Press
the POINT LEFT/RIGHT button(s) to decrease/increase the value.
Display area H
Adjustment of the vertical area displayed with this projector. Press
the POINT LEFT/RIGHT button(s) to decrease/increase the value.
Display area V
Press the POINT LEFT/RIGHT button(s) to turn the Full screen
function “On” or “Off.” Set “On” to resize the image with 4 x 3 aspect
ratio to fit the screen.
Full screen
Reset
Store
Closes the PC ADJUST Menu.
Quit
Other icons operate as follows.
3
To store the adjustment parameters, move the red frame pointer
to the Store icon and then press the SET button. Move the red
arrow pointer to any of Mode 1 to 5 that you want to store and
then press the SET button.
Reset all adjustment parameters on the adjustment dialog box to
the previous figure.
Mode free
Vacant Mode Shows the values of “Total dots,”
“Horizontal,” “Vertical,” “Display
area H,” and “Display area V.”
Close this dialog box.
To store the adjustment data.
To clear the adjustment data.
To clear the adjustment parameters previously set, move the red
frame pointer to the Mode free icon and then the SET button.
Move the red arrow pointer to the Mode that you want to clear
and then press the SET button.
Display area
Press the POINT LEFT
/RIGHT button(s) to
adjust the value.
Press the SET button at the
Display area icon and the
display area dialog box appears.
This Mode has parameters being stored.
NOTE : Full screen cannot be selected after Display area, Display
area H, and Display area V are adjusted.
28
COMPUTER INPUT
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT (MENU)
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button to move the red
frame pointer to the IMAGE SELECT Menu icon.
1
2
Press the POINT DOWN button to move the red frame pointer to
the level that you want to set and then press the SET button.
Move the pointer to the level and
press the SET button.
The level being selected.
IMAGE SELECT MENU
Normal picture adjustment preset on this projector.
Standard
Picture adjustment improved in reproduction of the halftones. This
adjustment is suitable for providing a better image in a brighter place.
High contrast
User preset picture adjustment in the IMAGE ADJUST Menu (P29,
30).
Custom
IMAGE SELECT
Menu icon
IMAGE LEVEL SELECT (DIRECT)
Select the image level among Standard, High contrast, and Custom by
pressing the IMAGE button on the Remote Control Unit.
IMAGE button
Standard
High contrast
Custom
Normal picture adjustment preset on this projector.
Picture adjustment improved in reproduction of the halftones. This
adjustment is suitable for providing a better image in a brighter place.
User preset picture adjustment in the IMAGE ADJUST Menu (P29,
30).
Standard
High contrast
Custom
29
COMPUTER INPUT
Press the POINT LEFT/RIGHT but-
tons to adjust the value.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT buttons to move the red
frame pointer to the IMAGE ADJUST Menu icon.
1
2
Press the POINT DOWN button to move the red frame pointer to
the item that you want to adjust, and then press the SET button.
The level of each item is displayed. Adjust each level by
pressing the POINT LEFT/RIGHT button(s).
Move the pointer to the item
to be selected and then press
the SET button.
IMAGE ADJUST MENU
IMAGE LEVEL ADJUSTMENT
Store icon
Press the SET button at this icon to
store the adjustment.
IMAGE ADJUST
Menu icon
Selected Image level
Press the POINT LEFT button to decrease the contrast, and the
POINT RIGHT button to increase the contrast. (From 0 to 63.)
Press the POINT LEFT button to adjust the image darker, and the
POINT RIGHT button to adjust the image brighter. (From 0 to 63.)
Contrast
Brightness
Press the POINT LEFT button or the POINT RIGHT button to obtain
a better balance of the contrast. (From 0 to 15.)
Gamma
Press the POINT LEFT button to lighten the color, and the POINT
RIGHT button to darken the color. (From 0 to 63.)
Press the POINT LEFT button or the POINT RIGHT button to obtain
a proper color. (From 0 to 63.)
Color
Tint
Press the POINT LEFT button to soften the image, and the POINT
RIGHT button to sharpen the image. (From 0 to 15.)
Sharpness
Press the POINT LEFT button to lighten the red tone and the POINT
RIGHT button to darken the tone. (From 0 to 63.)
White balance (Red)
Press the POINT LEFT button to lighten the green tone and the
POINT RIGHT button to darken the tone. (From 0 to 63.)
White balance (Green)
Press the POINT LEFT button to lighten the blue tone and the
POINT RIGHT button to darken the tone. (From 0 to 63.)
White balance (Blue)
When this function is “ON,” it produces a more vivid image according
to the image condition.
Auto fleshtone
When this function is “ON,” it automatically enhances the contrast of
the bright and dark part of image.
Auto grayscale
NOTE
● Auto grayscale cannot be operated when the
input signal is digital.
30
COMPUTER INPUT
PICTURE SCREEN ADJUSTMENT
This projector has the picture screen resize function, which enables you to display the desirable image size.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button(s) to move the
red frame pointer to the SCREEN Menu icon.
When Digital zoom + is selected, the ON-SCREEN MENU
disappears and the message “D. Zoom +” is displayed. Press the
SET button to expand the image size. And press the POINT
UP/DOWN/LEFT/RIGHT button(s) to pan the image. The Panning
function can work only when the image is larger than the screen size.
A projected image can also be expanded by pressing the D.ZOOM ▲
button on the Remote Control Unit.
1
To cancel Digital zoom +/– mode, press any button except D.ZOOM
▲/▼, SET, POINT and LASER buttons.
Move the pointer to the function
and press the SET button.
Press the POINT DOWN button and move the red frame pointer
to the function that you want to select and then press the SET
button.
2
Wide
Digital zoom +
NOTE
● This SCREEN Menu cannot be operated when
“1035i (HDTV)” or “1080i (HDTV)” is selected on
the PC SYSTEM Menu (P23).
● Wide cannot be selected when “720p (HDTV)” is
selected on the PC SYSTEM Menu (P23).
● True and Digital zoom +/– cannot be selected
when “RGB” is selected on the PC SYSTEM Menu
(P23).
● This projector cannot display any resolution higher
than 1024 x 768. If your computer’s screen
resolution is higher than 1024 x 768, lower the
resolution before connecting the projector.
● The image data in other than SVGA (800 x 600) is
modified to fit the screen size.
● The Panning function may not operate properly if
the computer system set on the PC ADJUST Menu
is used.
Provides the image to fit the screen size.
Normal
True
SCREEN MENU
SCREEN Menu icon
When Digital zoom – is selected, the ON-SCREEN MENU
disappears and the message “D. Zoom –” is displayed. Press the
SET button to compress the image size.
A projected image can also be compressed by pressing the D.ZOOM
▼ button on the Remote Control Unit.
Digital zoom –
Provides the image in its original size. When the original image size
is larger than the screen size (800 x 600), this projector enters
“Digital zoom +” mode automatically.
Provides the image to fit a wide video aspect ratio (16 : 9) by
expanding the image width uniformly. This function can be used for
providing a squeezed video signal at 16 : 9.
Reset all adjustments to the previous figure.
Reset
Store
Closes the IMAGE Menu.
Quit
Other icons operate as follows.
3
To store the manual image level, move the red frame pointer to
the Store icon and press the SET button. The message “OK?”
will appear. Select [Yes] to store manual adjustment.
To set this manual adjustment, select Custom by pressing the
IMAGE button or through the
IMAGE SELECT Menu (refer to P28).
“OK?” message
Move the pointer to
[Yes] and then press
the SET button.
31
VIDEO INPUT
SELECTING THE INPUT SOURCE
MENU OPERATION
DIRECT OPERATION
Choose Video by pressing the INPUT button on the Top Control or on
the Remote Control Unit.
If the projector cannot reproduce a proper video source, select correct
input source through the “MENU OPERATION” (see below).
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button to move the red
frame pointer to the INPUT Menu icon.
Press the POINT DOWN button to move the red arrow pointer to
Video and then press the SET button. The Source Select Menu
will appear.
1
2
Move the pointer to
Video and press the
SET button.
VIDEO
Move the pointer to the source and press the SET
button.
Source Select Menu (VIDEO)
INPUT MENU
Move the pointer to the source that you want to select and then
press the SET button.
3
When selecting Auto, the projector automatically detects
the incoming video signal, and adjusts itself to optimize
its performance. The projector selects the connection in
the following order:
1st Y-Pb/Cb-Pr/Cr
2nd S-VIDEO
3rd VIDEO
Y-Pb/Cb-Pr/Cr has priority over S-VIDEO. S-VIDEO has
priority over VIDEO.
Auto
When the video input signal is connected to VIDEO/Y
jack, select Video.
Video
When the video input signal is connected to S-VIDEO
jack, select S-Video.
S-Video
When the video input signal is connected to
VIDEO/Y-Pb/Cb-Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
Y,Pb/Cb,Pr/Cr
INPUT button
Computer 1
Video
Computer 2
✽
✽
Computer 1 is not displayed when RGB IN 1/ OUT
terminal is used as MONITOR OUT.
✽
RGB Scart Input
To select RGB Scart 21-Pin video input through RGB IN 1 / OUT
terminal, see the “COMPUTER INPUT (RGB Scart 21-Pin Video
Input)” on page 22.
Computer 1 is not displayed when RGB IN 1/ OUT
terminal is used as MONITOR OUT.
32
VIDEO INPUT
AV SYSTEM MENU (VIDEO OR S-VIDEO)
AV SYSTEM MENU (COMPONENT VIDEO)
SELECTING THE VIDEO SYSTEM
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT buttons to move the red
frame pointer to the AV SYSTEM Menu icon.
Press the POINT DOWN button to move the red arrow pointer to
the system that you want to select and then press the SET
button.
1
2
If the projector cannot reproduce a proper video image, it is necessary
to select a specific broadcast signal format among PAL, SECAM,
NTSC, NTSC 4.43, PAL-M, and PAL-N.
Move the pointer to the
system and press the
SET button.
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N
The projector automatically detects the incoming video signal, and
adjusts itself to optimize its performance.
If the projector cannot reproduce a proper video image, it is necessary
to select a specific component video signal format among 480i, 575i,
480p, 575p, 720p, 1035i and 1080i.
Auto
COMPONENT VIDEO SIGNAL FORMAT
VIDEO/Y JACK OR S-VIDEO JACK
VIDEO/Y, Pb/Cb, Pr/Cr JACKS
The projector automatically detects the incoming video system, and
adjusts itself to optimize its performance.
When the video system is PAL-M or PAL-N, select system manually.
Auto
AV SYSTEM Menu icon
This box indicates the system
being selected.
Move the pointer to the
system and press the
SET button.
AV SYSTEM Menu icon
This box indicates the system
being selected.
33
VIDEO INPUT
PICTURE IMAGE ADJUSTMENT
IMAGE LEVEL SELECT (MENU)
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button to move the red
frame pointer to the IMAGE SELECT Menu icon.
1
2
Press the POINT DOWN button to move the red frame pointer to
the level that you want to set and then press the SET button.
Move the pointer to the level and
press the SET button.
The level being selected.
IMAGE SELECT MENU
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
User preset picture adjustment in the IMAGE ADJUST Menu (P34,
35).
Custom
IMAGE SELECT
Menu icon
IMAGE LEVEL SELECT (DIRECT)
Select the image level among Standard, Cinema, and Custom by
pressing the IMAGE button on the Remote Control Unit.
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
User preset picture adjustment in the IMAGE ADJUST Menu (P34,
35).
Custom
IMAGE button
Standard
Cinema
Custom
34
VIDEO INPUT
Press the POINT LEFT/RIGHT but-
tons to adjust the value.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button(s) to move the
red frame pointer to the IMAGE ADJUST Menu icon.
1
2
Press the POINT DOWN button to move the red frame pointer to
the item that you want to adjust and then press the SET button.
The level of each item is displayed. Adjust each level by
pressing the POINT LEFT/RIGHT button(s).
Move the pointer to the item
to be selected and then press
the SET button.
IMAGE ADJUST MENU
IMAGE LEVEL ADJUSTMENT
Press the POINT LEFT button to decrease the contrast, and the
POINT RIGHT button to increase the contrast. (From 0 to 63.)
Press the POINT LEFT button to adjust the image darker, and the
POINT RIGHT button to adjust the image brighter. (From 0 to 63.)
Contrast
Brightness
Press the POINT LEFT button or the POINT RIGHT button to obtain
a better balance of the contrast. (From 0 to 15.)
Gamma
Press the SET button at this icon to
display other items.
IMAGE ADJUST
Menu icon
Press the POINT LEFT/RIGHT but-
tons to adjust the value.
Press the POINT LEFT button to lighten the color, and the POINT
RIGHT button to darken the color. (From 0 to 63.)
Press the POINT LEFT button or the POINT RIGHT button to obtain
a proper color. (From 0 to 63.)
Color
Tint
Press the POINT LEFT button to soften the image, and the POINT
RIGHT button to sharpen the image. (From 0 to 15.)
Sharpness
Press the POINT LEFT button to lighten the red tone and the POINT
RIGHT button to darken the tone. (From 0 to 63.)
White balance (Red)
Press the POINT LEFT button to lighten the green tone and the
POINT RIGHT button to darken the tone. (From 0 to 63.)
White balance (Green)
Press the POINT LEFT button to lighten the blue tone and the
POINT RIGHT button to darken the tone. (From 0 to 63.)
White balance (Blue)
NOTE
● Tint cannot be adjusted when the video system is
PAL, SECAM, PAL-M or PAL-N.
Press the SET button at this icon to
store the value.
Press the SET button at this icon to
display the previous items.
When this function is “ON,” it produces a more vivid image according
to the image condition.
Auto fleshtone
When this function is “ON,” it automatically enhances the contrast of
the bright and dark part of image.
Auto grayscale
35
VIDEO INPUT
PICTURE SCREEN ADJUSTMENT
This projector has the picture screen resize function, which enables you to display the desirable image size.
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button(s) to move the
red frame pointer to the SCREEN Menu icon.
Press the POINT DOWN button and move the red frame pointer
to the function that you want to select and then press the SET
button.
1
2
NOTE
● The SCREEN Menu cannot be operated when “720p,” “1035i,” or
“1080i” is selected on the AV SYSTEM Menu (P32).
Move the pointer to the function and
press the SET button.
SCREEN MENU
SCREEN Menu icon
Provides the image at a wide screen ratio of 16 : 9.
Wide
Provides the image at a normal video aspect ratio of 4 : 3.
Normal
3
To store the manual image level, move the red frame pointer to
the Store icon and press the SET button. The message “OK?”
will appear. Select [Yes] to store manual adjustment.
To set this manual adjustment, select Custom by pressing the
IMAGE button or through the IMAGE SELECT Menu (refer to
P33).
Store icon
Reset all adjustments to the previous figure.
Reset
Store
Closes the IMAGE Menu.
Quit
Other icons operate as follows.
“OK?” message
Move the pointer to
[Yes] and then press
the SET button.
36
SETTING
Ceiling
When this function is “On,” the picture is top / bottom and left / right
reversed. This function is used to project the image from a ceiling
mounted projector.
Rear
When this function is “On,” the picture is left / right reversed. This
function is used to project the image to a rear projection screen.
Ceiling function
Rear function
Keystone
This function corrects the distorted image. Select either Store or
Reset, and then press the SET button. The keystone dialog box
appears. (Refer to page 20.)
Store ···· stores the keystone adjustment data when the AC
Power Cord is disconnected.
Reset ···· resets the keystone adjustment data when the AC
Power Cord is disconnected.
SETTING MENU
Press the MENU button and the ON-SCREEN MENU will
appear. Press the POINT LEFT/RIGHT button(s) to move the
red frame pointer to the SETTING icon.
1
2
Language
The language used in the ON-SCREEN MENU is available in
English, German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Russian, Chinese, Korean, and Japanese.
Display
This function decides whether to display the On-Screen Displays.
On ··· shows all the On-Screen Displays.
Off ···· sets the On-Screen Displays disappeared except;
● ON-SCREEN MENU
● “Power off?” message
● P-TIMER
● “No signal” message
● “Wait a moment!” message
Set the pointer to the
item and press the
SET button.
Press the POINT DOWN button to move the red frame pointer to
the item that you want to set and then press the
SET button.
The setting dialog box appears.
Blue back
When this function is “On,” the projector produces a blue image while
the input signal is not detected.
Logo
When this function is “On,” the projector displays our logo when
starting up.
When pressing the SET
button at Language, the
Language Menu appears.
Move the pointer to the item
and then press the POINT
LEFT/RIGHT button(s).
SETTING MENU
SETTING Menu icon
Terminal
RGB IN 1 / OUT terminal on the back of the projector can be used as
computer input or monitor output by switching with the POINT
LEFT/RIGHT button. (See the right Note.)
To use the terminal as computer input, select Computer 1.
To use the terminal as monitor out, select Monitor out.
NOTE
● This Terminal item cannot be selected when the
input source is selected as “Computer 1” in the
“SELECTING THE INPUT SOURCE” (P22).
37
SETTING
This function turns the Projection Lamp off when this projector
detects a signal interruption and is not used for a certain period in
order to reduce the power consumption and maintain the Lamp-life.
(This projector is shipped with this function ON.)
The Power Management function operates to turn the Projection
Lamp off when the input signal is interrupted and any button is not
pressed over 5 minutes. This function operates as follows;
1. When any input signal is interrupted, “No signal” and the count
down display appears (for 5 minutes).
2. After counting down for 5 minutes, the Projection Lamp and the
READY Indicator are turned off. (Cooling Fans keep running.)
3. The READY Indicator starts to flash after cooling down the
Projection Lamp about for 90 seconds (Power Management
mode).
In this Power Management mode, the Projection Lamp is
automatically turned on when the input signal is connected or
the projector is operated with any button on the Top Control or
on the Remote Control Unit again.
Power management
This function is used to reset the Lamp Replace Counter. When
replacing the Projection Lamp, reset the Lamp Replace Counter by
using this function. Refer to page 39 for operation.
Lamp counter reset
Remote control
This projector has two different remote control codes; the factory-set
normal code (Code 1) and the secondary code (Code 2). This
switching function prevents remote control interference when
operating several projectors or video equipment together.
When operating the projector in “Code 2,” both the projector and the
Remote Control Unit must be switched to “Code 2.”
To change the code of the Projector;
Set the Remote control in the SETTING Menu to “Code 2.”
To change the code of the Remote Control Unit;
Press both the MENU and the IMAGE buttons on the Remote
Control Unit together for over 10 seconds.
After changing the code, make sure the Remote Control Unit
operates properly.
To return to the normal code (Code 1), repeat the steps above.
NOTE : When the batteries of the Remote Control Unit are replaced
or ALL-OFF switch is turned to “ALL-OFF,” the remote
control code automatically returns to the normal code (Code
1).
On start
When this function is “On,” the projector is automatically turned on
just by connecting the AC Power Cord to an AC outlet.
NOTE : Be sure to turn the projector off properly (refer to the section
“TURNING OFF THE PROJECTOR” on P19). If the
projector is turned off in the wrong steps, the On Start
function does not operate properly.
Move the pointer to the
item and then press the
POINT LEFT/RIGHT
button(s).
Press the SET button at
this icon to display other
items.
Press the SET button at
this icon to display the
previous items.
Time left until Lamp off.
Lamp mode
When selecting the “”(Silent), the projector reduces the
brightness and sets into the low power consumption mode.
38
APPENDIX
LAMP REPLACEMENT
LAMP REPLACE
When the life of the Projection Lamp of this projector draws to an end,
the LAMP REPLACE indicator lights yellow. If this indicator lights
yellow, replace the Projection Lamp with a new one promptly.
Follow these steps to replace the lamp assembly.
LAMP
ASSEMBLY
HANDLE
LAMP COVER
ORDER REPLACEMENT LAMP
The Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the
following information to the dealer.
● Model No. of your projector : LV-5200
● Replacement Lamp Type No. : LV-LP16
(610 303 5826)
For continued safety, replace with a lamp assembly of
the same type.
Do not drop the lamp assembly or touch the glass bulb!
The glass can shatter and may cause injury.
Allow the projector to cool, for at least 45 minutes before
you open the Lamp Cover. The inside of the projector
can become very hot.
U
S
Y
N
E
LAMP
REPLACE
LAMP
WARNING
TEMP.
This indicator lights yellow
when the life of the Projection
Lamp draws to an end.
Replace the Projection Lamp
with a new one promptly.
TOP CONTROL
CAUTION
SCREW
SCREW
Turn off the projector and disconnect the AC plug. Allow the
projector to cool for at least 45 minutes.
Loosen 3 screws with a screwdriver and pull out the Lamp
Assembly by grasping the Handle.
1
3
Replace the Lamp Assembly with a new one and tighten 3
screws back into position. Make sure the Lamp Assembly is set
properly. Replace The Lamp Cover and tighten the screw.
4
To remove the Lamp Cover, remove the screw with a
screwdriver.
2
Connect the AC Power Cord to the projector and turn on the
projector.
6
Reset the Lamp Replace Counter.
Refer to the “LAMP REPLACE COUNTER” on the next page .
5
39
APPENDIX
LAMP REPLACE COUNTER
Be sure to reset the Lamp Replace Counter after the Lamp Assembly is replaced. When the Lamp Replace Counter is reset,
the LAMP REPLACE Indicator stops lighting.
NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.
Turn the projector on, press the MENU button and the ON-
SCREEN MENU will appear. Press the POINT LEFT/RIGHT
button(s) to move the red frame pointer to the SETTING
Menu icon (refer to page 36, 37).
Press the POINT DOWN button to move the red frame
pointer to “Lamp counter reset” and then press the
SET
button. The message
“
Lamp replace counter reset?
”
is
displayed. Move the red arrow pointer to [Yes] and then
press the SET button.
1
2
Another confirmation dialog box appears and select [Yes] to
reset the Lamp Replace Counter.
3
This projector uses a high-pressure lamp which must be handled carefully and properly. Improper
handling may result in accidents, injury, or create fire hazard.
● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no
guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a
shorter period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR
lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.
( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous
use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.
● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its
lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in
which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an
authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check
carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out
from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one
should check the inside of the projector except those who are authorized trained technicians and who are
familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who
are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.
LAMP HANDLING PRECAUTIONS
Move the pointer to the Lamp counter reset icon and
then press the SET button. The message “Lamp
replace counter reset?” is displayed.
40
APPENDIX
OPERATING WIRELESS MOUSE
INSTALLATION
The Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most Personal
Computers. The POINT buttons and two CLICK buttons are used for wireless mouse operation.
This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When the ON-
SCREEN MENU or any message / dialog box is displayed on the screen instead of PC mouse pointer, this Wireless Mouse
function cannot be used.
Connect the mouse port (or USB port) of your computer to
Control Port (or USB connector) of this projector with the Control
Cable (or USB cable). (Refer to page 11, 12 for connection.)
Turn the projector on first, and then turn on your computer.
When the computer is switched on first, Wireless Mouse may not
work properly.
1
2
To use the Remote Control Unit as Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied)
is required. Make sure that the mouse driver is properly installed in your computer and that the mouse port (or USB port) of
your computer is activated.
OPERATING WIRELESS MOUSE
When controlling a PC mouse pointer, operate Wireless Mouse with the POINT button, SET button, and RIGHT CLICK
button on the Remote Control Unit.
Used to move PC mouse pointer. The pointer is moved
corresponding with the direction you are pressing.
POINT button
This button has the same function as the left button in a PC mouse.
SET (LEFT CLICK) button
This button has the same function as the right button in a PC mouse.
This button is not available for controlling this projector.
RIGHT CLICK button
POINT button (Move the pointer)
SET button
(left button of the
mouse)
RIGHT CLICK button
(right button of the mouse)
Note : When your computer has no mouse
port, connect the Serial Port of your
computer to the Control Port of the
projector with the Control Cable for the
Serial Port (not supplied).
41
APPENDIX
CLEANING PROJECTION LENS
Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.
Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.
When the projector is not in use, attach the Lens Cover.
1
3
Lightly wipe a cleaning cloth over the Projection Lens.
2
Follow these steps to clean the Projection Lens:
MAINTENANCE
WARNING TEMP. INDICATOR
The WARNING TEMP. Indicator flashes red when an internal temperature of the projector exceeds the normal temperature.
When the WARNING TEMP. Indicator continues to flash, check the items listed below.
The Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that the Ventilation
Slots are not obstructed.
AIR FILTER CARE AND CLEANING
The Air Filter may be clogged with dust particles. Clean the Air Filter by following the section “AIR FILTER CARE AND
CLEANING” below.
1
2
If the WARNING TEMP. Indicator remains on after performing the above checks, the Cooling Fans or the Internal
Circuits may be malfunctioning. Contact service personnel from an authorized dealer or a service station.
3
AIR FILTER
Pull up and remove.
Turn off the projector, and disconnect the AC Power Cord from
the AC outlet.
Turn the projector upside down and remove the Air Filter by
pulling the latches upward.
1
2
The Removable Air Filter prevents dust from accumulating on the surface of the Projection Lens and the Projection Mirror.
Should Air Filter become clogged with dust particles, it will reduce the Cooling Fans’ effectiveness and may result in internal
heat build up and adversely affect the life of the projector. Clean the Air Filter following the steps below:
Clean the Air Filter with a brush or wash out dust and particles.
3
Replace the Air Filter properly. Make sure the Air Filter is fully
inserted.
4
CAUTION
Do not operate the projector with the Air Filter removed.
Dust may accumulate on the LCD Panel and the Projection
Mirror, and may degrade the picture quality.
Do not put small parts into the Air Intake Vents. It may
result in malfunction of the projector.
RECOMMENDATION
We recommend avoiding dusty/smoky environment when operating the projector. Operating in these environments
may cause poor image quality.
When using under dusty or smoky conditions, dust may accumulate on the lens, liquid crystal panels, or optical elements
inside the projector. This condition may degrade the quality of a projected image.
When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.
42
APPENDIX
TROUBLESHOOTING
Before calling your dealer or service center for assistance, check the following:
● Make sure you have connected the projector to peripheral equipment as described properly in the section “CONNECTING
THE PROJECTOR” on pages 11 ~ 13.
● Verify that all computer, video and power cord are properly connected and turn the equipment on.
● When you are operating the projector with a computer and it does not produce an image, restart the computer.
● Select the other input source.
No power.
● Plug the projector into an AC outlet.
● Make sure the READY Indicator lights.
● Wait 90 seconds after the projector is turned OFF before turning the projector back on.
NOTE : After pressing the Power ON-OFF button to OFF, make sure the projector works as
follows:
1. The LAMP indicator lights bright and the READY indicator turns off.
2. After 90 seconds, the READY indicator lights green again and the projector can
be turned on by pressing the Power ON-OFF button.
● Check the WARNING TEMP. indicator. If this indicator flashes red, the projector cannot
be turned on.
(See the “TURNING ON/OFF THE PROJECTOR” section on page 19.)
● Check the Projection Lamp. (Refer to page 38.)
Image is out of
focus.
● Adjust the focus of the projector.
● Make sure a projection screen is at least 3.6’ (1.1m) from the projector.
● Check the Projection Lens to see if it needs cleaning.
NOTE : Moving the projector from a cool temperature location to a warm temperature
location may result in moisture condensation on the Projection Lens. In such an
event, leave the projector OFF and wait until condensation disappears.
Picture is Left/Right
reversed.
● Check Ceiling / Rear feature. (See the “SETTING” section on page 36.)
Problem: Try these Solutions
Picture is
Top/Bottom
reversed.
● Check Ceiling feature. (See the “SETTING” section on page 36.)
Some displays are
not seen during the
Operation.
● Check Display feature.(See the “SETTING” section on page 36.)
No image.
● Check the connection between your computer or video equipment and the projector.
● Check the NO SHOW function. (Refer to P21.)
● When turning the projector on, it takes about 30 seconds to display an image.
● Check the system that you select is corresponding with your computer or video
equipment.
● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).
No sound.
● Check the audio cable connection from the audio input source.
● Adjust the audio source.
● Press the VOLUME (+) button.
● Press the MUTE button.
Computer 1 cannot
be selected.
● Check RGB IN 1 / OUT terminal is set as COMPUTER 1. (See the “SETTING” section
on page 36.)
43
This symbol on the nameplate means the product is Listed by Underwriters
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards
against risk of fire, casualty and electrical hazards.
APPENDIX
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If the problem still persists
after following all operating instructions,
contact the sales dealer where you purchased the
projector or the service center.
Give the model number and explain the problem in detail. We will advise you how to obtain
service.
Remote Control Unit
does not work.
● Check the batteries.
● Check ALL-OFF switch on the Remote Control Unit is set to “ON.”
● Make sure nothing is between the Infrared Remote Receiver and the Remote Control
Unit.
● Make sure you are not too far from the projector when using the Remote Control Unit.
Maximum operating range is 16.4’ (5m).
● Make sure the code of the Remote Control Unit is set to conform to the projector.
(See the “SETTING” section on page 37.)
Problem: Try these Solutions
Wireless Mouse
function does not
work.
● Check the cable connection between the projector and your computer.
● Check the mouse setting on your computer.
● Turn the projector on before turning on your computer.
The CE Mark is a Directive conformity mark of the European Community. (EC)
44
INDICATORS AND PROJECTOR CONDITION
Check the Indicators for the projector condition.
• • • on • • • dim • • • off• • • flashing
✽ When the life of the Projection Lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow,
replace the Projection Lamp with a new one promptly. Reset the Lamp Replace Counter after replacement of the lamp.
APPENDIX
The projector is OFF. (The AC Power Cord is unplugged.)
The projector is READY to be turned on with the POWER
ON-OFF button.
The projector is being cooled down. It cannot be turned on until
the READY indicator lights green.
Projector Condition
The projector is operating normally.
LAMP
REPLACE
yellow
Indicators
READY
green
LAMP
red
WARNING
TEMP.
red
The projector is in the Power management mode.
✽
The temperature inside the projector is abnormally high. The
projector cannot be turned on. When the projector is cooled
down enough and the temperature returns to normal, the
READY indicator lights green and the projector can be turned
on. (The WARNING TEMP. indicator keeps flashing.) Check
and clean the Air Filter.
The projector is cooled down enough and the temperature
returns to normal. When turning on the projector, the WARN-
ING TEMP. indicator stops flashing. Check and clean the Air
Filter.
The projector detects an abnormal condition and cannot be
turned on. Unplug the AC Power Cord and plug it again to turn
on the projector. If the projector is turned off again, disconnect
the AC Power Cord and contact the dealer or the service cen-
ter for service and checkup. Do not leave the projector on. It
may cause electric shock or fire hazard.
✽
✽
✽
✽
✽
✽
45
APPENDIX
TECHNICAL SPECIFICATIONS
● The specifications are subject to change without notice.
● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a
tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.
0.8
”
TFT Active Matrix type, 3 panels
Multi-media Projector
9.48 lbs (4.3 kg)
13.05” x 3.52” x 9.61” (331.5mm x 89.5mm x 244.1mm) (not including Adjustable Feet)
800 x 600 dots
1,440,000 (800 x 600 x 3 panels)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz
Adjustable from 24” to 300”
500 TV lines (S-Video)
F 1.7 ~ 2.44 lens with f 25.7 mm ~ 37.9 mm with motor zoom and focus
3.6’ ~ 31.8’ (1.1 m ~ 9.7 m)
180 W
RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)
RCA Type x 2
DVI-I Terminal (Digital/Analog)x 1
480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
(VGA) HDB 15 Terminal(Analog) x 1 (This terminal is switchable.)
1 speaker, 1.18” x 1.57” (30mm x 40mm)
41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)
14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)
Owner’s Manual
AC Power Cord
Remote Control Unit and Batteries
VGA Cable
Control Cable for PS/2 port
DVI/VGA Adapter
Carrying Bag
Lens Cover and Strap for Lens Cover
Mini Jack (stereo) x 1
Mini DIN 8 pin x 1
RCA Type x 2
1.0 W RMS
0˚ to 15.6˚
Power Source : AA, UM3 or R06 Type x 2
Operating Range : 16.4’ (5m) / ±30˚
Dimensions : 2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)
Net Weight : 0.36 lbs (165 g) (including batteries)
Laser Pointer : Class II Laser
(Max. Output : 1mW / Wave length : 650±20nm)
USB Series B receptacle x 1
AC 100 ~ 120 V (3.0 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)
AC 200 ~ 240 V (1.5 A Max. Ampere), 50 / 60 Hz (Continental Europe)
Projector Type
Net Weight
Dimensions
(W x H x D)
Panel Resolution
Number of Pixels
Color System
Scanning Frequency
Projection Image size
(Diagonal)
Horizontal Resolution
LCD Panel System
Projection Lens
Throw Distance
Projection Lamp
Video Input Jacks
Audio Input Jacks
RGB Input Terminal
High Definition TV Signal
RGB Input / Output Terminal
Built-in Speakers
Operating Temperature
Storage Temperature
Computer Audio Input Jack
Control Port Connector
Audio Output Jacks
Internal Audio Amp
Feet Adjustment
Remote Control Unit
USB Connector
Voltage and
Power Consumption
Accessories
46
APPENDIX
CONFIGURATIONS OF TERMINALS
RGB INPUT 1 / OUT TERMINAL (ANALOG)
Terminal : HDB15-PIN
5
1
2
34
10
9 678
15
14
13
11
12
Red Input
Ground (Horiz.sync.)
Green Input
Sense 2
Blue Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
+5V Power
Horiz. sync.
Ground (Vert.sync.)
DDC Data
Sense 0
Vert. sync.
DDC Clock
9
13
10
12
11
14
15
Pin Configuration
Terminal :
DVI-I TERMINAL
1
9
17
2
10
18
3
11
19
4
12
20
5
13
21
6
14
22
7
15
23
8
16
24
C1
C2
C3
C5
C4
Pin Configuration
Analog Red Input
Analog Ground (R/G/B)
Analog Green Input
Analog Horiz. sync
Analog Blue Input
C1
C5
C2
C4
C3
RGB INPUT 2 TERMINAL (DIGITAL / ANALOG)
T.M.D.S. Data2–
No Connect
T.M.D.S. Data2+
No Connect
T.M.D.S. Data2 Shield
DDC Clock
DDC Data
Analog Vert. sync
1
5
2
4
3
6
7
8
T.M.D.S. Data1–
No Connect
T.M.D.S. Data1+
No Connect
T.M.D.S. Data1 Shield
+5V Power
Ground (for +5V)
Hot Plug Detect
9
13
10
12
11
14
15
16
T.M.D.S. Data0–
No Connect
T.M.D.S. Data0+
No Connect
T.M.D.S. Data0 Shield
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock–
17
21
18
20
19
22
23
24
47
APPENDIX
Terminal : Mini DIN 8-PIN
1
2
3
4
5
8 7 6
Pin Configuration
CONTROL PORT CONNECTOR
-----
CLK
DATA
GND
-----
-----
GND
-----
R X D
-----
-----
GND
RTS / CTS
T X D
GND
GND
-----
ADB
-----
GND
-----
-----
-----
GND
PS/2 Serial
ADB
1
2
3
4
5
6
7
8
Vcc
- Data
+ Data
Ground
1
2
3
4
USB CONNECTOR (Series B)
Pin Configuration
2
34
1
OPTIONAL PARTS
The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.
● Control Cable (Serial Port) Type No. : LV-CA26
● Control Cable (ADB Port) Type No. : LV-CA27
● MAC Adapter Type No. : LV-AD02
● SCART-VGA Cable Type No. : LV-CA31
(This cable is used for RGB Scart
21-Pin output of video equipment.)
