Stick Vacuum Cleaner
A10 SERIES
Instruction Manual
CONTENTS
1. Important Safety Instructions

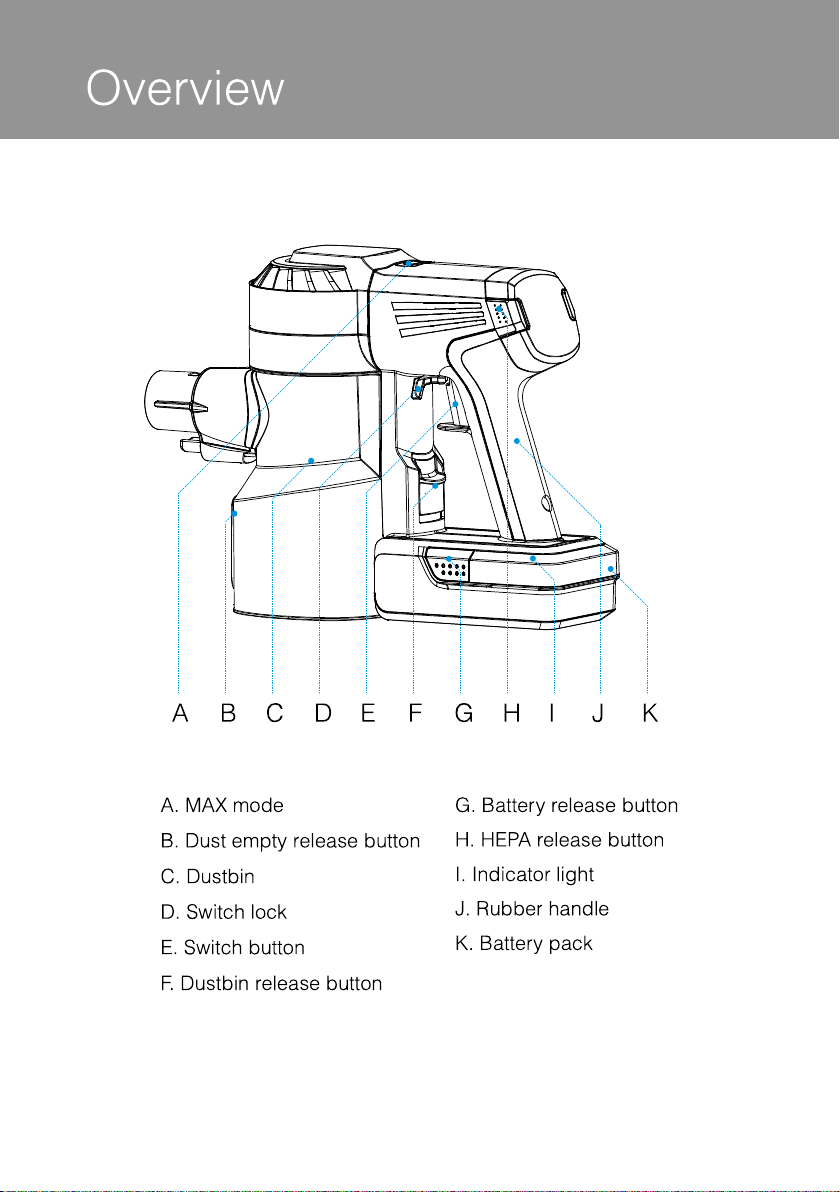

2. Overview
3. Product Components
4. Accessory Instructions

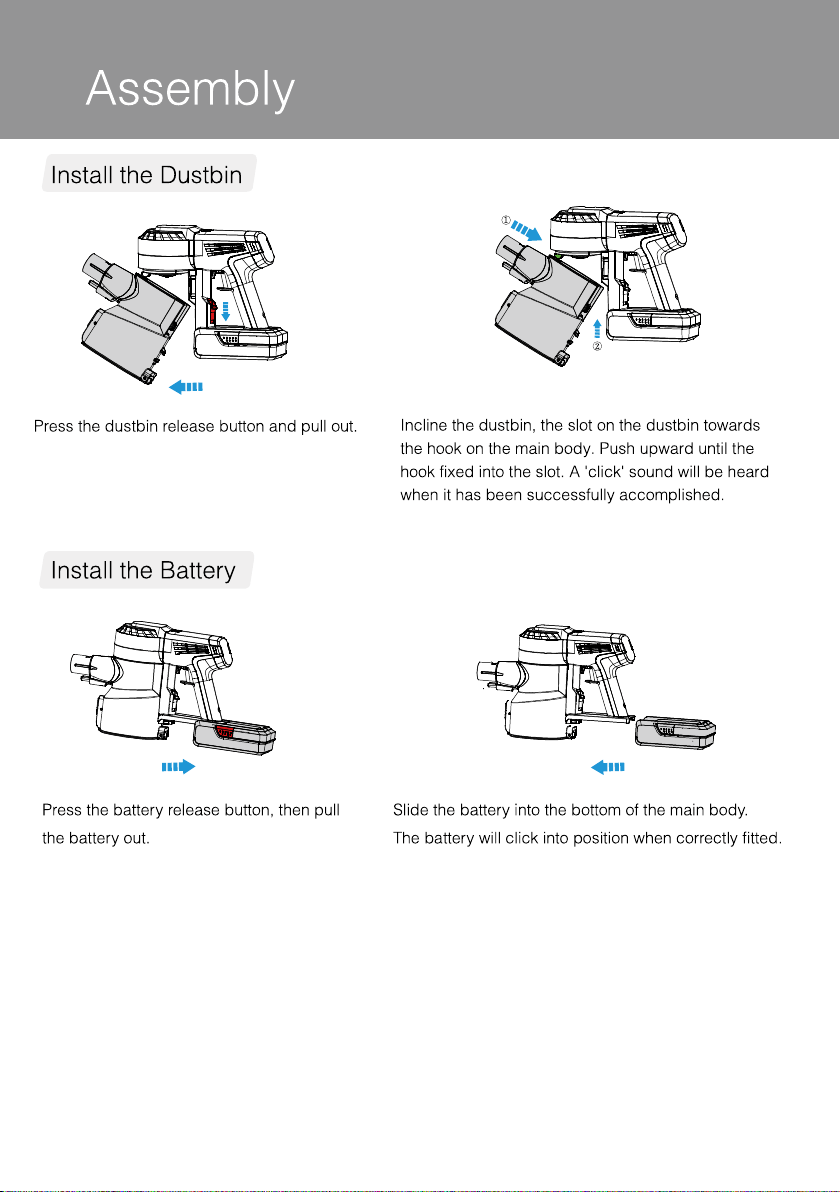

5. Assembly
6. Product Operation
7. Daily Maintenance
9. Trouble Shooting
10. Warranty
01
03
04
05
07
09
12
15

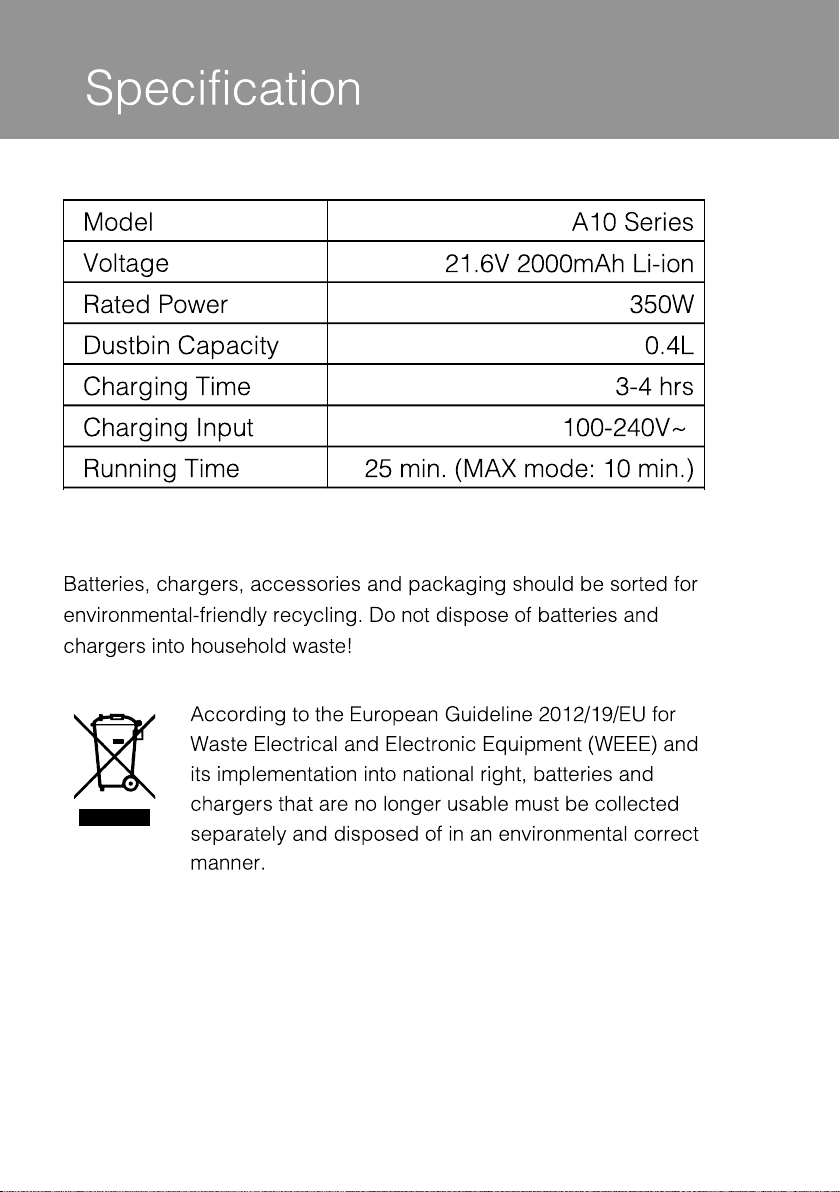

8. Specification
14
16
SAVE THESE INSTRUCTIONS
Household use only.
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE), Failure to
follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING–To reduce the risk of fire, electric shock, or injury:
1. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision
2. The appliance is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction Children being supervised not to play with the
appliance the appliance is only to be used with the unit provided.
3. Do not use outdoors or on wet surfaces.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children, pets or plants.
5. Use only as described in this manual. Use only manufacturer’s recommended attachments.
6. Do not use with damaged cord or plug. If appliance has been dropped, damaged, left
outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not put any object into openings. Do not use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air flow.
9. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in
areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
1
13. Do not use without filter.
14. Prevent unintentional starting. Ensure the switch is in the off position before connecting
to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger
on the switch or energizing appliance that have the switch on invites accidents.
15. Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing appliance. Such preventive safety measures reduce the risk of starting
the appliance accidentally.
16. For the purposes of recharging the battery, only use the detachable supply unit provided
with this appliance. A charger that is suitable for one type of battery pack may create a risk of
17. Use appliances only with specifically designated TINECO battery packs. Use of any other
fire when used with another battery pack.
battery packs may create a risk of injury and fire.
18. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a fire.
19. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
20. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
21. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to
fire or temperature above 266°F ( 130°C ) may cause explosion.
22. Follow all charging instructions and do not charge the battery pack or appliance outside
of the temperature range specified in the instructions. Charging improperly or at temperatures
outside of the specified range may damage the battery and increase the risk of fire.
23. Have servicing performed by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the product is maintained.
24. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to
repair the appliance or the battery pack except as indicated in the instructions for use and care.
25. Always turn off this appliance before connecting or disconnecting motorized nozzle.
26. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use
the battery in a dry indoor area where the temperature is higher than 39.2°F ( 4°C ) but lower
than 104°F ( 40°C ). The charger is for indoor use only.
2
3
*Actual accessories may vary from shown or change without notice.
Available accessories may vary by market.
4
Note:
• Test an inconspicuous area of a sensitive surface before using an accessory on it.
• All accessories can be directly connected to the main body or to the tube.
5
6
Optional accessories (please purchase separately)
* Note: You can purchase additional accessories from TINECO.
7
Warning:
•
•
8
9
MAX
MAX
Note:
• Before the first use, please charge the appliance (see "Charging the battery") for 3-4 hours in an
area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C), and the above
charging time based on the condition that the battery is cooled.
• Select the accessories according to needs (see "Accessory Instructions").
10
Tips:
• Charge the battery only with the adaptor provided by TINECO.
• When you won't use the battery for a long time, please store in a cool dry place. In this situation,
please charge the battery every 3 months, and insure that the battery has been at least half charged
(2 blue lights of battery glow on regular mode).
• If you need an additional battery, please purchase from TINECO.
11
MAX
Note:

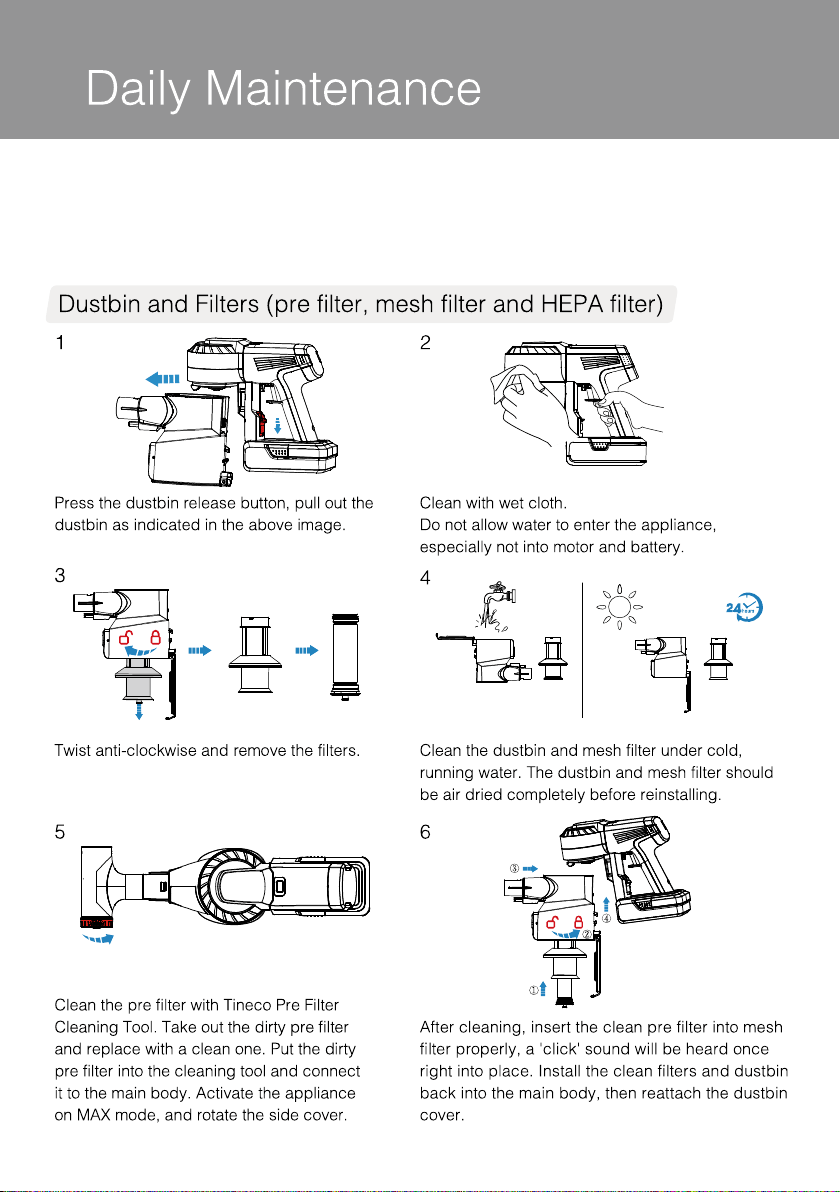

• Clean the dustbin and filters every time after use.
• When pink light blinking, clean the pre-filter thoroughly with cleaning tool. To maintain better
performance, wash the pre-filter once a month and dry up, replace it after 6 months of use.
Also, please wash the HEPA every 3 months and dry up, replace it after 1 year of use.
12
13
14
Disposal
Only for EC countries:
Subject to change without notice.
15
Note:
support@tineco.com www.tineco.com
16
The 2-Year Limited Warranty
WHAT IS COVERED?
•
•
•
WHAT IS NOT COVERED?
•
•
•
•
•
•
•
•
•
•
WARRANTY LIMITATIONS
•
•
•
•
WARRANTY SERVICE
Register:
How to Claim:
Call our Customer Service:
1-855-292-8864
Or email our Customer Service:
support@tineco.com
Visit TINECO Website:
www.tineco.com
17
