OWNER'S MANUAL
VÄLKOMMEN!
We trust that you will enjoy many years of safe driving in your Volvo, an
automobile designed with your safety and comfort in mind. To help get
the most from your Volvo, we urge you to familiarize yourself with the
instructions and maintenance information in this owner’s manual. The
owner’s manual can also be found in a mobile app (Volvo manual) and
on Volvo Car’s support site at support.volvocars.com.
We also urge you and your passengers to wear seat belts at all times in
this (or any other) vehicle. And, of course, please do not operate a vehi-
cle if you may be affected by alcohol, medication or any impairment that
could hinder your ability to drive.
Your Volvo is designed to meet all applicable federal safety and emis-
sion standards. If you have any questions regarding your vehicle, please
contact your Volvo retailer or see the article "Contacting Volvo" for infor-
mation on getting in touch with Volvo in the United States and Canada.
2
INTRODUCTION
Contacting Volvo
14
Volvo On Call Roadside Assistance
14

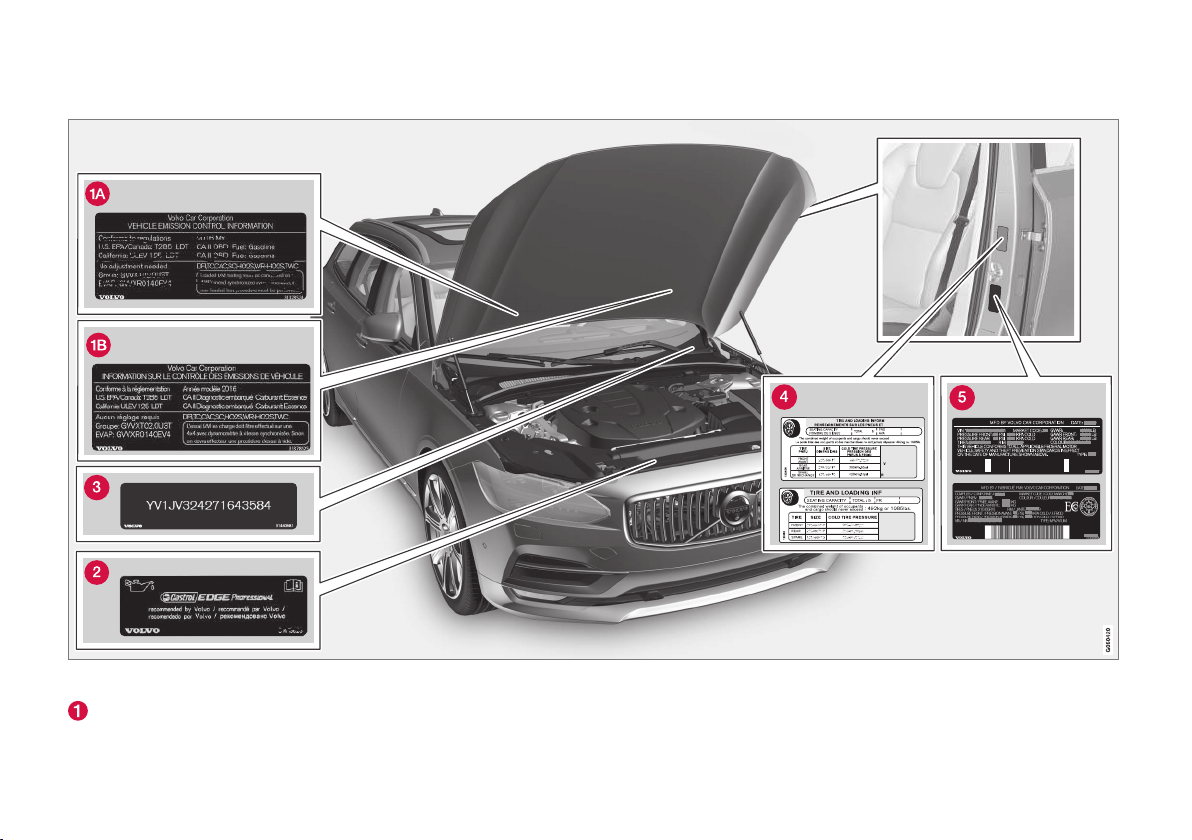

Additional information about your vehicle
14
Volvo and the environment
15
Owner's manual and the environment
16
IntelliSafe—driver support
16
Sensus
17
Owner's manual in mobile devices
20
Options, accessories and the On-
board Diagnostic (OBDII) socket
21
Finding owner's information
23
Driver distraction
24
Volvo Structural Parts Statement
25
Crash event data
26
Volvo ID
27

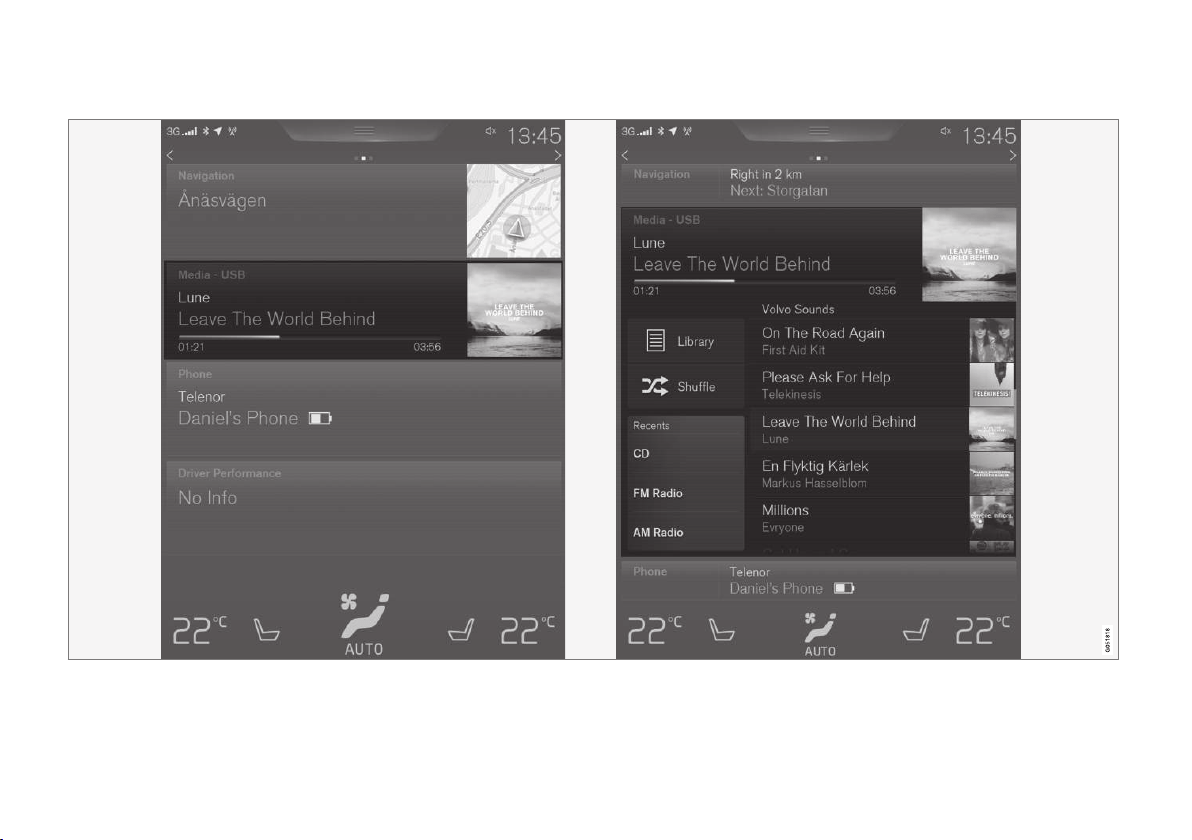

Center display overview
28
Changing center display settings
30
Using the center display keyboard
31
Function view buttons
36
Navigating in the center display's views
38
Symbols in the center display status bar
43
Changing settings in different types
of apps
43
Using the center display
44
Using the owner's manual
48
On-board digital owner's manual
50
Navigating in the digital owner's manual
51
Glass
53
Technician certification
53
SAFETY
General safety information
56
Occupant safety
56
Reporting safety defects
57
Recall information
58
Safety during pregnancy
58
Whiplash protection system
59
Seat belts
60
Seat belt pretensioners
61
Buckling and unbuckling seat belts
62
Door and seat belt reminders
64
Airbag system
65
Driver/passenger side airbags
65
Occupant weight sensor
68
Side impact airbags
72
Inflatable curtains
73
Safety mode
73
Starting or moving a vehicle in safety
mode
74
Child safety
75
Child restraints
77
Infant seats
78
Convertible seats
80
Booster cushions
83
ISOFIX/LATCH lower anchors
84
Lower child seat attachment points
85
TABLE OF CONTENTS
3
Top tether anchors
86
Integrated booster cushion*
87
Raising the integrated booster cushion*
89
Stowing the integrated booster cushion*
91
INSTRUMENTS AND CONTROLS
Instruments and controls
94
Trip computer
95
Displaying trip computer information
96
Displaying trip statistics
97
HomeLink
®
Wireless Control System*
98
Programming the HomeLink
®
Wire-
less Control System*
99
Adjusting the power door mirrors
102
Laminated panoramic roof*
103
Operating the laminated panoramic roof*
104
Power windows
107
Operating the power windows
107
Rearview mirror
108
Using sun curtains*
109
Settings view
109
Categories in Settings view
110
Changing system settings in Set-
tings view
112
Changing settings in apps
113
Resetting the settings view
113
Resetting user data when the vehicle
changes owners
114
Ambient temperature sensor
114
Clock
115
Head-up display (HUD)*
116
Voice control
119
Using voice commands
119
Voice control for cell phones
120
Voice control for radio and media
121
Climate system voice commands
122
Navigation system voice commands
123
Voice control settings
124
Instrument panel
124
Instrument panel settings
126
Indicator symbols in the instrument panel
127
Instrument panel licenses
130
Warning symbols in the instrument panel
135
Compass
136
Calibrating the compass
137
Lighting panel and controls
138
Parking lights
140
Daytime Running Lights (DRL)
140
Low beam headlights
141
High and low beam headlights
142
Active Bending Lights*
143
Front fog lights*
144
Rear fog lights (certain models only)
145
Brake lights
146
Hazard warning flashers
146
4
Using turn signals
146
Passenger compartment lighting
147
Home safe lighting
150
Approach lighting
150
Messages in the instrument panel
and center display
150
Handling messages in the instru-
ment panel and center display
152
Handling messages stored from the
instrument panel and center display
154
Instrument panel App menu
155
Using the instrument panel App menu
156
Using the windshield wipers
157
Activating/deactivating the rain sensor
157
Windshield and headlight washers
158
Tailgate window wiper and washer
159
Steering wheel
160
Adjusting the steering wheel
161
Seats
162
Manually operated front seats
162
Power front seats*
163
Adjusting power front seats*
163
Adjusting the passenger's seat from
the driver's seat*
164
Using the power seat memory function*
164

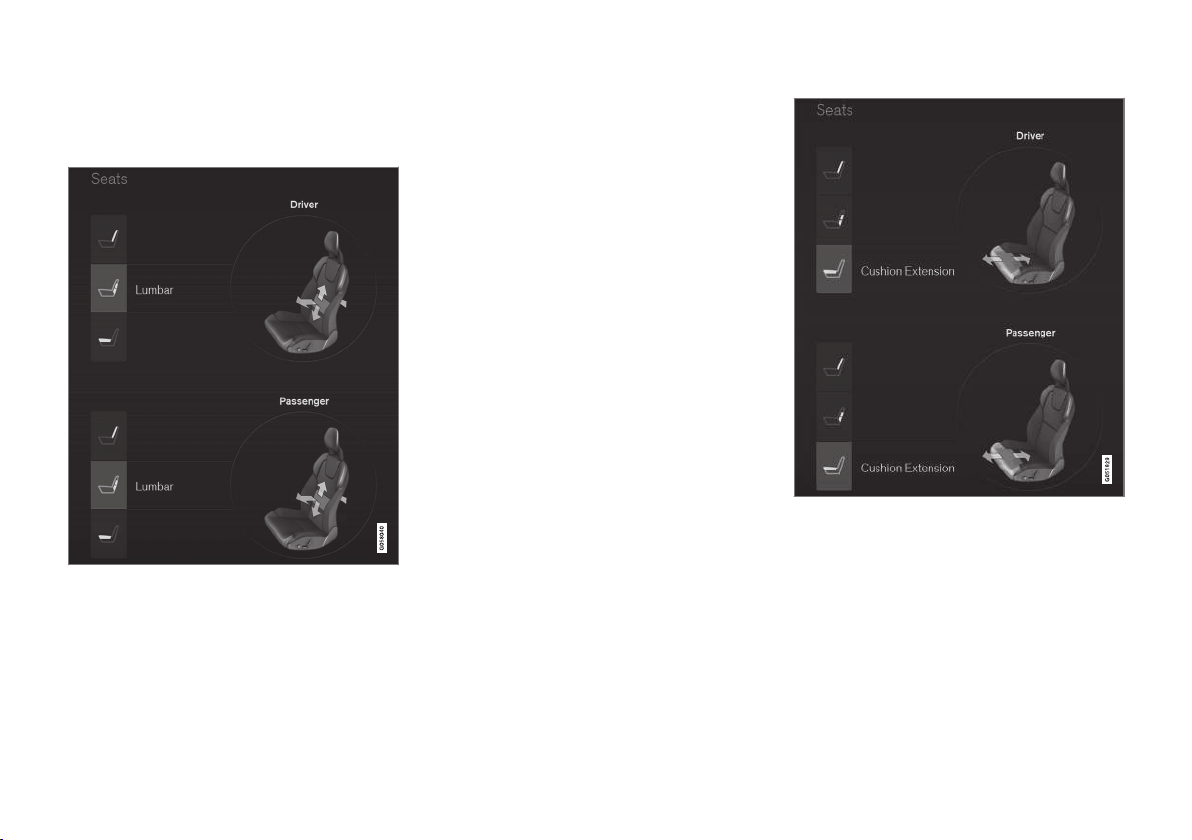

Multifunctional front seats*
165
Adjusting function settings in the
multifunctional front seats*
166
Rear seats
169
Adjusting the second row head restraints
169
Folding down the rear seat backrests
171
Driver profiles
172
Selecting a driver profile
173
Editing a driver profile
174
Linking a remote key to a driver profile
174
Importing/exporting a driver profile
from/to a USB flash drive
175
CLIMATE
Climate control system
178
Perceived temperature
178
Climate system sensors
179
Air quality
179
Clean Zone Interior Package (CZIP)*
180
Interior Air Quality System (IAQS)*
181
Passenger compartment air filter
181
Automatic climate control
182
Climate system controls
182
Climate system controls in the center
display
183
Rear climate system controls on the
tunnel console*
185
Setting the blower speed
185

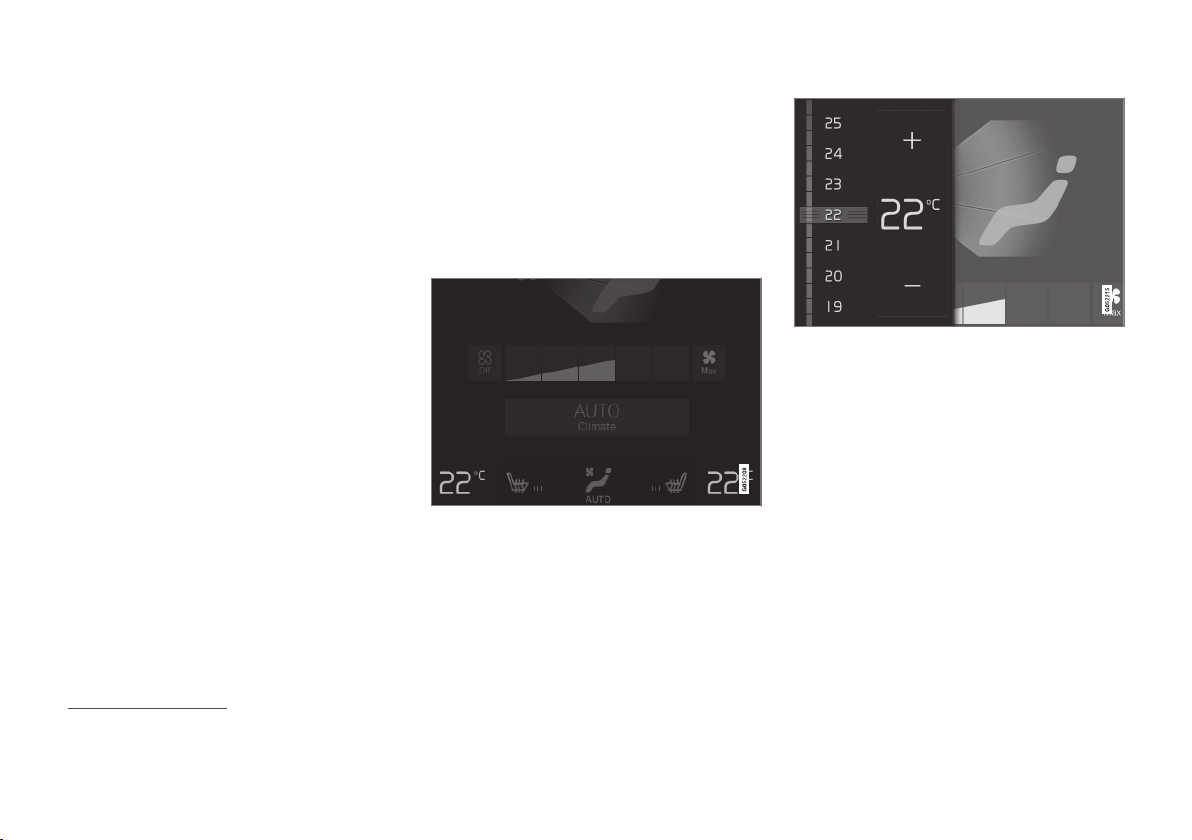

Setting the temperature
187
Turning recirculation on and off
189
Defrosting windows and mirrors
190
Turning steering wheel heating* on
and off
192
Air conditioning
193
Turning seat heating* on and off
194
Turning front seat ventilation* on and off
195
Air distribution
196
Opening/closing/directing air vents
197
Adjusting air distribution
198
5
Air distribution table
199
LOADING AND STORAGE
Cargo space
202
Ski hatch
202
Loading
202
Passenger compartment storage spaces
204
Using the glove compartment
205
Tunnel console
207
Grocery bag holder
207
Cargo net
208
Steel cargo grid*
210
Load anchoring eyelets
211
Cargo compartment cover*
212
Sun visors
214
Electrical sockets
215
LOCKS AND ALARM
Locks and remote keys
220
Immobilizer
220
Changing the remote key's battery
221
Remote key
223
Remote key's range
225
Red Key*
226
Detachable key blade
227
Foot movement tailgate operation*
228
Locking/unlocking from outside the
vehicle
229
Locking/unlocking from inside the
vehicle
231
Antenna locations for the start and
lock system
232
Locking and unlocking confirmation
233
Locking/unlocking the tailgate
234
Power tailgate*
236
Private (valet) locking
238
Locking/unlocking with the detacha-
ble key blade
239
Automatically arming/disarming the
alarm
240
Alarm
241
Deactivating the alarm without a
functioning remote key
242
Child safety locks
242
6
Start and lock system type designations
244
DRIVER SUPPORT
Driver support systems
246
Adjustable steering force*
246
Electronic Stability Control (ESC)
247
Electronic Stability Control (ESC)
sport mode
248
Electronic Stability Control (ESC)
symbols and messages
249
Roll stability control (RSC)
251
Speed limiter (SL)*
251
Starting and activating the Speed
Limiter (SL)*
252
Changing a Speed Limiter (SL)*
maximum speed
253
Automatic Speed Limiter (ASL)*
253
Activating/deactivating the
Automatic Speed Limiter (ASL)*
255
Changing tolerance for the
Automatic Speed Limiter
255
Deactivating/reactivating the Speed
Limiter*
256
Turning the Speed Limiter* off
257
Cruise Control (CC)
258
Starting and activating Cruise Control
258
Changing Cruise Control speed
259
Deactivating/resuming Cruise
Control (CC)
260
Turning Cruise Control off
261
Switching between Cruise Control
and Adaptive Cruise Control*
262
Distance Alert*
263
Using Distance Alert*
264
Distance Alert* limitations
264
Adaptive Cruise Control (ACC)*
265
Starting and activating Adaptive
Cruise Control (ACC)*
268
Deactivating/resuming Adaptive
Cruise Control (ACC)
269
Changing Adaptive Cruise Control
(ACC) speed
271
Setting an Adaptive Cruise Control
time interval
271
Passing Assistance with Adaptive
Cruise Control or Pilot Assist
272
Changing target vehicles and auto-
matic braking with Adaptive Cruise
Control (ACC)
273
Adaptive Cruise Control (ACC) -
troubleshooting
275
Adaptive Cruise Control (ACC) - limi-
tations
276
Adaptive Cruise Control (ACC) sym-
bols and messages
277
Pilot Assist*
279
Starting and activating Pilot Assist
282
Changing Pilot Assist speed
284
7
Setting a Pilot Assist time interval
285
Deactivating/resuming Pilot Assist
286
Changing target vehicles and auto-
matic braking with Pilot Assist
288
Pilot Assist limitations
289
Pilot Assist symbols and messages
291
Driver support system radar sensor
292
Radar sensor limitations
293
Radar sensor - type approval
296
Driver support system camera
296
Camera limitations
297
City Safety™
300
City Safety warning level settings
302
Detecting obstructions with City Safety
303
City Safety in crossing traffic
305
City Safety when evasive action is
not possible
306
City Safety™ troubleshooting
306
City Safety limitations
308
City Safety symbols and messages
311
Rear Collision Warning (RCW)
312
Blind Spot Information (BLIS)*
313
Blind Spot Information (BLIS)* On/Off
314
Blind Spot Information (BLIS)* limitations
315
Cross Traffic Alert (CTA)*
315
Activating/deactivating Cross Traffic
Alert (CTA)*
316
Cross Traffic Alert (CTA)* limitations
317
Blind Spot Information (BLIS)* with
Cross Traffic Alert (CTA)* symbols
and messages
319
Road Sign Information (RSI)*
320
Road Sign Information (RSI)* operation
320
Road Sign Information (RSI)* limitations
322
Driver Alert Control (DAC)
322
Using Driver Alert Control (DAC)
323
Driver Alert Control limitations
324
Driving lane assistance
324
Activating/deactivating Lane
Keeping Aid (LKA)
326
Driving lane assistance symbols and
messages
327
Run-off Mitigation
329
Run-off Mitigation* symbols and
messages
331
Park Assist*
332
Activating/deactivating Park Assist
333
Park Assist limitations
334
Park assist symbols and messages
335
Park Assist Camera (PAC)*
336
Park Assist Camera (PAC)* trajectory
lines and fields
338
Starting the Park Assist Camera (PAC)*
340
Park Assist Camera* (PAC) limitations
341
Park Assist Pilot (PAP)*
342
Using Park Assist Pilot (PAP)*
343
Park Assist Pilot (PAP)* limitations
346
Park Assist Pilot (PAP)* symbols and
messages
348
8
STARTING AND DRIVING
Starting and driving
350
Brakes
350
Brake functions
352
Auto-hold brake function
352
Brake assist system
353
Braking effect after a collision
353
Emergency brake lights
354
Hill Start Assist
354
Parking brake
354
Using the parking brake
355
Parking brake malfunctions
357
Before a long distance trip
357
Driving economically
358
Driving through standing water
359
Overheating the engine and transmission
360
Winter driving
361
Towing eyelet
361
Towing recommendations
363
Fuel
365
Octane rating
366
Opening/closing the fuel filler door
367
Emission controls
368
Jump starting
368
Driving with a trailer
370
Detachable trailer hitch*
372
Trailer Stability Assist (TSA)
373
Ignition modes
374
Battery drain
376
Starting the engine
376
Turning the engine off
378
Drive modes*
378
ECO drive mode
381
Start/Stop
383
Using the Start/Stop function
383
Conditions for Start/Stop
385
Automatic transmission
386
Shiftlock
387
Gear shift indicator
388
Gear selector positions
388
Steering wheel paddles*
390
All Wheel Drive (AWD)
391
Leveling control* and suspension
392
INFOTAINMENT
The infotainment system
394
Apps (applications)
394
Sound settings
395
Radio
396
Radio settings
396
RBDS radio
397
Changing and searching for radio
stations
397
HD Radio™reception
398
Switching HD Radio on and off
400
HD Radio sub-channels
400
HD Radio limitations
401
SiriusXM
®
Satellite radio*
402
Using SiriusXM
®
Satellite radio*
403
SiriusXM
®
Satellite radio* settings
404
SiriusXM Travel Link*
405
SiriusXM Travel Link - Weather
407
SiriusXM Travel Link - Alerts
408
SiriusXM Travel Link - Fuel
409
SiriusXM Travel Link - Sports
410
Phone
411
Pairing a cell phone
412
Connecting/disconnecting a cell phone
413
Handling phone calls
414
9
Managing the phone book
415
Handling text messages
416
Phone settings
417
Text message settings
418
Connecting a Bluetooth
®
device
418
Connecting a device via the
AUX/USB socket
418
Media player
419
Apple CarPlay
420
Apple CarPlay settings
421
Android auto*
422
Android Auto* settings
423
CD (media) player*
424
Playing media
424
Media searches
426
Playing media through the
AUX/USB sockets
427
Streaming media through a Blue-
tooth connection
427
Media sound settings
428
Gracenote
428
Video
429
Media player technical data
429
Internet connected vehicle
431
Connecting to the Internet
431
Bluetooth settings
433
Downloading, updating and uninstal-
ling apps
433
Internet connection troubleshooting
434
Tethering (Wi-Fi sharing)
435
Deleting Wi-Fi networks
436
Wi-Fi technology and security
436
Vehicle modem settings
436
Infotainment system license information
437
Terms, conditions and confidentiality
441
WHEELS AND TIRES
Tires
444
Tire sidewall designations
446
Wheel (rim) designations
447
Tire terminology
448
Tire direction of rotation
449
Tread wear indicator
449
Loading specifications
450
Uniform Tire Quality Grading
451
Snow tires and chains
451
Checking tire inflation pressure
452
Changing tires
454
Tools
454
Jack
454
Spare tire
455
Wheel bolts
456
Removing a wheel
457
Installing a wheel
458
Tire Pressure Monitoring System (TPMS)
459
Checking tire inflation pressure
460
Reinflating tires equipped with the
Tire Pressure Monitoring System (TPMS)
461
Calibrating the Tire Pressure
Monitoring System (TPMS)
462
Tire sealing system
463
Using the tire sealing system
465
10
Inflating a tire with the tire sealing
system compressor
469
MAINTENANCE AND SERVICING
Volvo's service program
472
System updates
474
Remote updates
475
Vehicle status
475
Booking service and repairs
476
Wi-Fi connection to a workshop
478
Climate system service
479
Start battery
480
Support battery
482
Battery symbols
483
Fuses
484
Replacing fuses
485

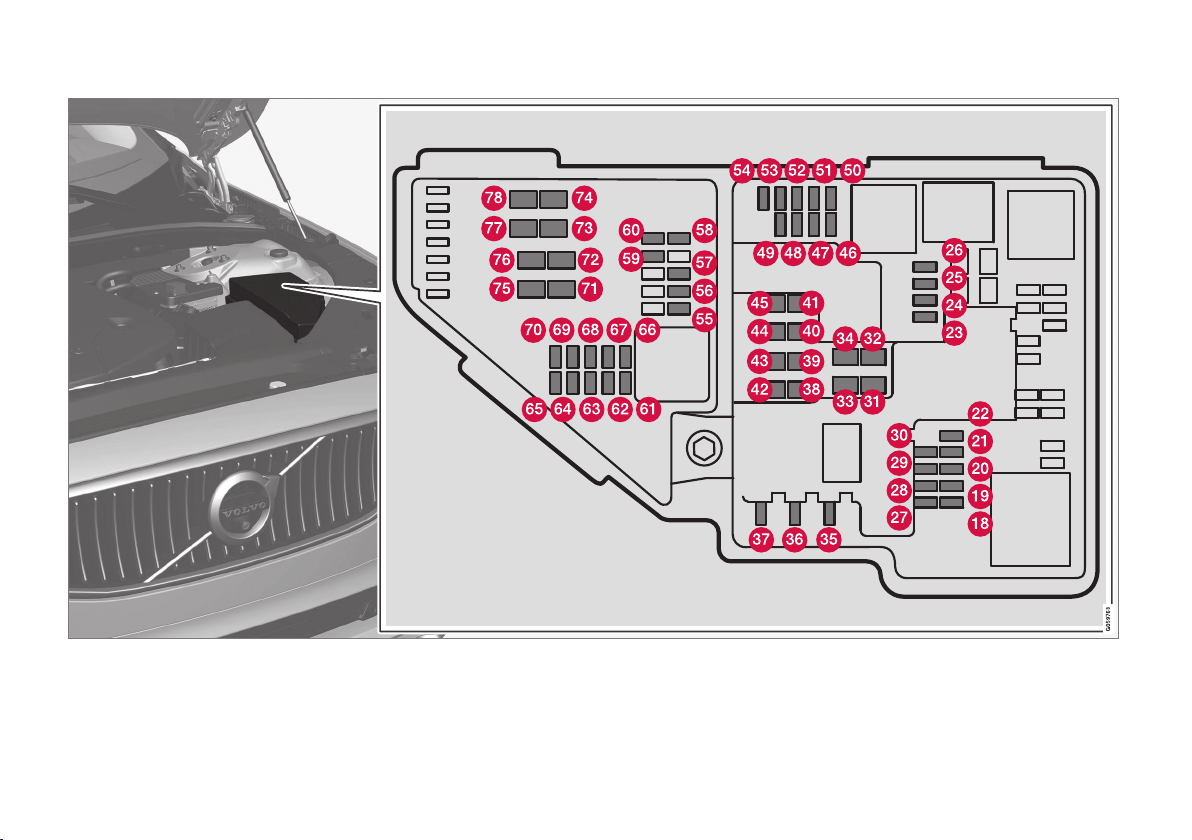

Fuses in the engine compartment
486
Fuses in the passenger compartment
490
Fuses in the cargo compartment
494
Replacing bulbs
497
Replacing low beam headlight bulbs
499
Replacing High Beam headlight bulbs
500
Replacing front turn signal bulbs
500
Replacing front parking light bulbs
501
Replacing backup lights
502
Replacing the rear fog light
502
Bulb specifications
503
Hoisting the vehicle
504
Opening and closing the hood
506
Engine compartment overview
507
Engine oil
508
Checking and refilling engine oil
509
Windshield wipers in the service position
510
Replacing wiper blades
511
Refilling coolant
512
Refilling the windshield washer fluid
reservoir
513
Cleaning the exterior
514
Cleaning the interior
517
Cleaning the center display
519
Corrosion protection
519
Paint damage
520
Touching up paint damage
521
Polishing and waxing
521
11
SPECIFICATIONS
Label information
524
Dimensions
527
Weights
529
Air conditioning refrigerant
531
Brake fluid specification and volume
531
Coolant specifications
532
Engine specifications
533
Engine oil specifications and volume
535
Fuel tank volume
535
Tire inflation pressure table
536
Transmission fluid specification and
volume
537
INDEX
Index 539
INTRODUCTION
INTRODUCTION
14
Contacting Volvo
Use the following contact information if you
would like to get in touch with Volvo in the Uni-
ted States or Canada.
In the USA:
Volvo Car USA, LLC
Customer Care Center
1 Volvo Drive,
P.O. Box 914
Rockleigh, New Jersey 07647
1-800-458-1552
www.volvocars.com/us
In Canada:
Volvo Cars of Canada
National Customer Service
9130 Leslie Street, Suite 101
Richmond Hill, Ontario L4B 0B9
1-800-663-8255
www.volvocars.com/ca
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance.
Additional information, features, and benefits of
this program are described in a separate informa-
tion package in your glove compartment.
If you require assistance, dial:
In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)
In Canada 1-800-263-0475
NOTE
Some vehicles may be equipped with
Volvo On Call with Sensus Connect, which
will allow access to the call center and addi-
tional features directly from the vehicle. This
is in addition to the Volvo On Call Roadside
Assistance program mentioned above.
Volvo On Call with Sensus Connect will be
a customer pay subscription offer after an ini-
tial complimentary trial period.
Additional information about your
vehicle
Volvo Cars' website and support site provide
additional information about your vehicle.
Support on the Internet
Go to support.volvocars.com or use the QR code
below to visit the site, which is available in most
markets.
QR code to the support site
The information on the support site is searchable
and is grouped into different categories. It
includes support for e.g., Internet-based services
and functions, Volvo On Call, the navigation sys-
tem and apps. Video and step-by-step instruc-
tions explain various procedures such as how to
connect the vehicle to the Internet via a cell
phone.
Downloadable information
Maps
Sensus Navigation system maps can be down-
loaded from the support site.
INTRODUCTION
15
Mobile apps
Beginning with model year 2014, the owner's
manual is available in the form of an app for cer-
tain Volvo models. The Volvo On Call app can
also be found here.
Owner's manuals for earlier model Volvos
Owner's manuals for earlier model Volvos are
available in PDF format. Quick Guides and sup-
plements can also be found on the support site.
Select a model and a model year and download
the desired information.
Contact
Contact information for customer support and the
nearest Volvo retailer are available on the site.
Related information
•
Using the owner's manual (p. 48)
•
On-board digital owner's manual (p. 50)
•
Volvo ID (p. 27)
Volvo and the environment
Volvo is committed to the well-being of its cus-
tomers. As a natural part of this commitment, we
care about the environment in which we all live.
Concern for the environment means an everyday
involvement in reducing our environmental
impact.
Volvo's environmental activities are based on a
holistic view, which means we consider the over-
all environmental impact of a product throughout
its complete life cycle. In this context, design, pro-
duction, product use, and recycling are all impor-
tant considerations. In production, Volvo has
partly or completely phased out several chemicals
including CFCs, lead chromates, asbestos, and
cadmium; and reduced the number of chemicals
used in our plants 50% since 1991.
Volvo was the first in the world to introduce into
production a three-way catalytic converter with a
Lambda sond, now called the heated oxygen sen-
sor, in 1976. The current version of this highly
efficient system reduces emissions of harmful
substances (CO, HC, NOx) from the exhaust pipe
by approximately 95 – 99% and the search to
eliminate the remaining emissions continues.
Volvo is the only automobile manufacturer to
offer CFC-free retrofit kits for the air conditioning
system of all models as far back as the 1975
model 240. Advanced electronic engine controls
and cleaner fuels are bringing us closer to our
goal. In addition to continuous environmental
refinement of conventional gasoline-powered
internal combustion engines, Volvo is actively
looking at advanced technology alternative-fuel
vehicles.
When you drive a Volvo, you become our partner
in the work to lessen the car's impact on the
environment. To reduce your vehicle's environ-
mental impact, you can:
•
Maintain proper air pressure in your tires.
Tests have shown decreased fuel economy
with improperly inflated tires.
•
Follow the recommended maintenance
schedule in your Warranty and Service
Records Information booklet.
•
Drive at a constant speed whenever possible.
•
See a trained and qualified Volvo service
technician as soon as possible for inspection
if the check engine (malfunction indicator)
light illuminates, or stays on after the vehicle
has started.
•
Properly dispose of any vehicle-related waste
such as used motor oil, used batteries, brake
pads, etc.
•
When cleaning your vehicle, please use gen-
uine Volvo car care products. All Volvo car
care products are formulated to be environ-
mentally friendly.
Related information
•
Driving economically (p. 358)
INTRODUCTION
* Option/accessory.
16
Owner's manual and the
environment
The wood pulp in Volvo's printed owner's infor-
mation comes from FSC
®
(Forest Stewardship
Council
®
) certified forests and other responsible
sources.
FSC
®
The symbol above indicates that the wood pulp is
FSC
®
certified.
Related information
•
Volvo and the environment (p. 15)
IntelliSafe—driver support
IntelliSafe is Volvo's philosophy regarding vehi-
cle safety. It encompasses a number of systems,
both standard and optional, that are designed to
help make driving and traveling in a Volvo safer.
Support
Systems that help make driving safer are an inte-
gral part of IntelliSafe. These include optional
features such as Adaptive Cruise Control* that
helps maintain a set distance to a vehicle ahead,
Park Assist Pilot*, which assists in parking the
vehicle, Cross Traffic Alert*, Blind Spot
Information*, etc.
Accident prevention
Systems such as City Safety are designed to
automatically apply the brakes in situations in
which the driver does not have time to react.
Lane Keeping Aid* alerts the driver if the vehicle
inadvertently crosses a lane's/road's side marker
line.
Protection
The vehicle is equipped with e.g., seat belt pre-
tensioners that pull the seat belts taut in critical
situations when there is a collision risk and
numerous airbags designed to help provide cush-
ioning if certain types of collisions should occur.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Park Assist Pilot (PAP)* (p. 342)
•
High and low beam headlights (p. 142)
•
Cross Traffic Alert (CTA)* (p. 315)
•
Blind Spot Information (BLIS)* (p. 313)
•
City Safety™ (p. 300)
•
Driving lane assistance (p. 324)
•
Airbag system (p. 65)
•
Roll stability control (RSC) (p. 251)
•
Seat belts (p. 60)
•
General safety information (p. 56)
INTRODUCTION
}}
17
Sensus
Sensus is the core of your personal Volvo experi-
ence and provides information, entertainment
and features that make owning your vehicle eas-
ier.
This is Sensus
Sensus provides an intelligent interface and
Internet-connected service with an intuitive navi-
gation structure that offers access to relevant
information when it is needed, with minimal dis-
tractions.
Sensus also includes all of your vehicle's solu-
tions relating to entertainment, connecting to the
Internet, navigation and the user interface
between the driver and the vehicle. Sensus
makes communication between you, the vehicle
and the digital world around you possible.
||
INTRODUCTION
* Option/accessory.
18

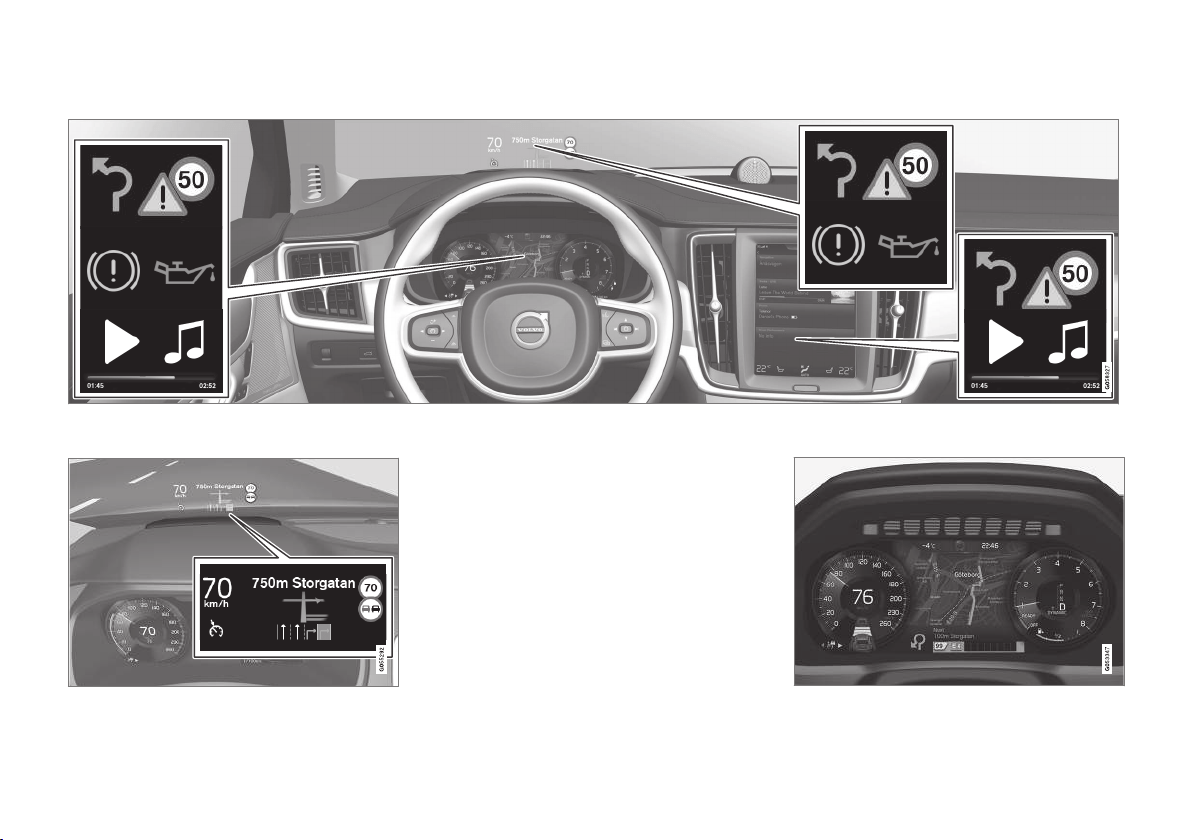

Information when it's needed, where it's needed
G000000
Information is presented in different displays depending on how it should be prioritized (generic illustration)
Head-up-display*
The head up-display presents types of informa-
tion that the driver should be aware of immedi-
ately, such as traffic warnings, speed information
and navigation. Road sign information and incom-
ing phone calls are also displayed here. The
head-up display is controlled from the right-side
steering wheel keypad and the center display.
Instrument panel
12" instrument panel
INTRODUCTION
* Option/accessory.
19
8" instrument panel

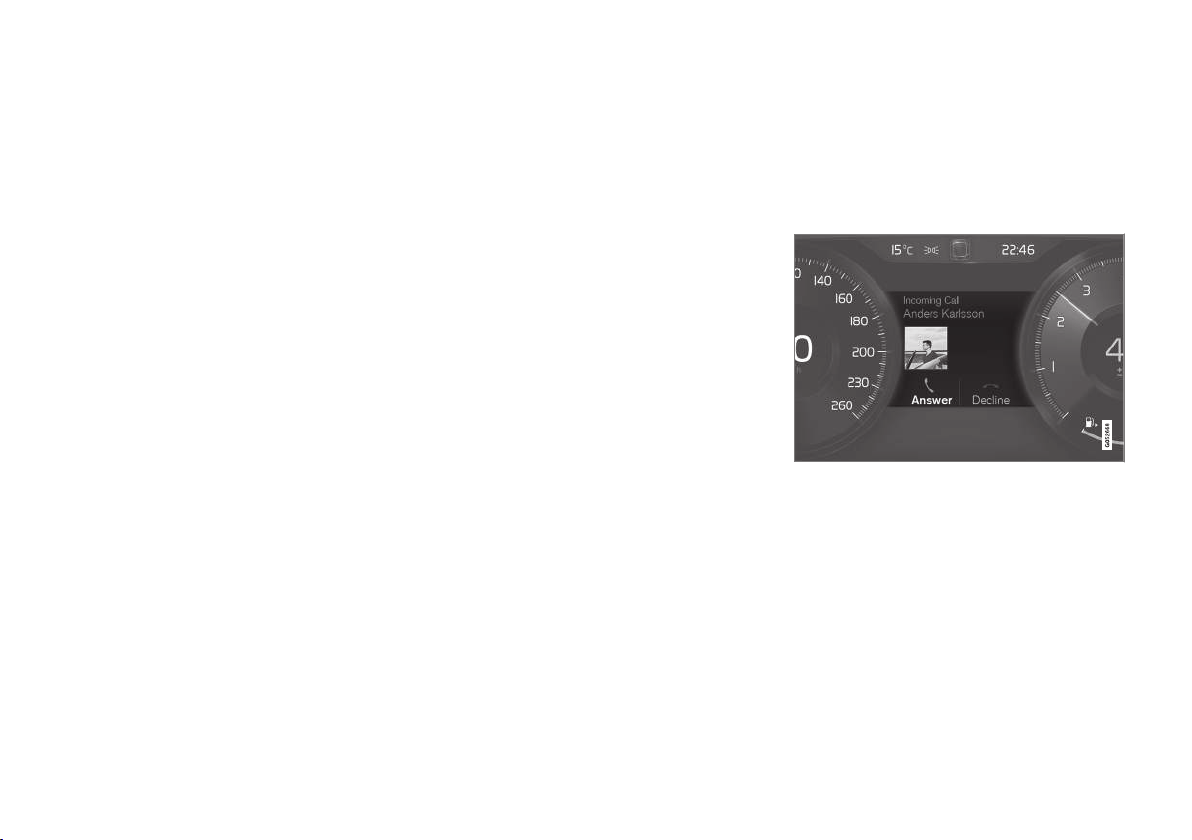

The instrument panel displays information such
as speed, an incoming phone call or the track
that is currently playing. It is controlled using both
steering wheel keypads.
Center display
Many of the vehicle's main functions are con-
trolled from the center display, a touchscreen that
reacts to taps or other gestures. The number of
physical buttons is thereby minimized. The screen
can be operated with or without gloves.
The center display is used to control e.g., the cli-
mate and infotainment systems and to adjust the
power seats*. The information shown here can be
dealt with by the driver or the front seat passen-
ger.
Voice control system
The voice control system ena-
bles the driver to operate cer-
tain vehicle functions without
removing his/her hands from
the steering wheel and it
understands natural speech.
Use voice commands to e.g.,
play a track on the infotainment system, make a
phone call, raise the passenger compartment
temperature or to read a text message.
For additional information about all of the func-
tions/system, see the respective articles in the
on-board owner's manual or the printed supple-
ment.
Related information
•
Using the center display (p. 44)
•
Center display overview (p. 28)
•
Navigating in the center display's views
(p. 38)
•
Head-up display (HUD)* (p. 116)
•
Instrument panel (p. 124)
•
Voice control (p. 119)
INTRODUCTION
20
Owner's manual in mobile devices
Owner's information mobile app
1
can be down-
loaded from the App Store and Google Play and
is adapted for both cell phones and tablets.
These apps also contain videos and interior/
exterior hotspot views of the vehicle that you can
click on for additional information.
This QR code will take you
directly to the app or you can
search for "Volvo manual" in
the App Store or Google Play.
The app contains videos and exterior/interior
views of the vehicle with certain components/
functions highlighted in hotspots, which lead
directly to related information. It is easy to navi-
gate between the various categories and articles
and the contents are searchable.
The mobile app is available at the App Store and Google
Play
Related information
•
Using the owner's manual (p. 48)
•
Additional information about your vehicle
(p. 14)
1
Certain models and mobile devices
INTRODUCTION
}}
21
Options, accessories and the On-
board Diagnostic (OBDII) socket
We strongly recommend that Volvo owners
install only genuine, Volvo-approved accesso-
ries, and that accessory installations be per-
formed only by a trained and qualified Volvo
service technician.
Optional or accessory equipment described in
this manual is indicated by an asterisk.
Optional or accessory equipment may not be
available in all countries or markets. Please note
that some vehicles may be equipped differently,
depending on special legal requirements.
Contact your Volvo retailer for additional informa-
tion.
NOTE
•
Do not export your Volvo to another
country before investigating that coun-
try's applicable safety and exhaust emis-
sion requirements. In some cases it may
be difficult or impossible to comply with
these requirements. Modifications to the
emission control system(s) may render
your Volvo not certifiable for legal opera-
tion in the U.S., Canada and other coun-
tries.
•
All information, illustrations and specifica-
tions contained in this manual are based
on the latest product information availa-
ble at the time of publication. Please note
that some vehicles may be equipped dif-
ferently, depending on market-specific
adaptations or special legal requirements.
Optional equipment described in this
manual may not be available in all mar-
kets.
•
Some of the illustrations shown are
generic and are intended as examples
only, and may not depict the exact model
for which this owner's information is
intended.
•
Volvo reserves the right to make model
and product changes at any time, or to
change specifications or design without
notice and without incurring obligation.
WARNING
If your vehicle is involved in an accident,
unseen damage may affect its drivability and
safety.
WARNING
CALIFORNIA proposition 65
Engine exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the state of California to
cause cancer, and birth defects or other
reproductive harm. In addition, certain fluids
contained in vehicles and certain products of
component wear contain or emit chemicals
known to the State of California to cause can-
cer, and birth defects or other reproductive
harm.
WARNING
Certain components of this vehicle such as air
bag modules, seat belt pretensioners, adap-
tive steering columns, and button cell batter-
ies may contain Perchlorate material. Special
handling may apply for service or vehicle end
of life disposal.
See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
•
Genuine Volvo accessories are tested to
ensure compatibility with the performance,
safety, and emission systems in your vehicle.
||
INTRODUCTION
22
Additionally, a trained and qualified Volvo
service technician knows where accessories
may and may not be safely installed in your
Volvo. In all cases, please consult a trained
and qualified Volvo service technician before
installing any accessory in or on your vehicle.
•
Accessories that have not been approved by
Volvo may or may not be specifically tested
for compatibility with your vehicle. Addition-
ally, an inexperienced installer may not be
familiar with some of your car's systems.
•
Any of your car's performance and safety
systems could be adversely affected if you
install accessories that Volvo has not tested,
or if you allow accessories to be installed by
someone unfamiliar with your vehicle.
•
Damage caused by unapproved or improperly
installed accessories may not be covered by
your new vehicle warranty. See your Warranty
and Service Records Information booklet for
more warranty information. Volvo assumes no
responsibility for death, injury, or expenses
that may result from the installation of non-
genuine accessories.
Connecting equipment to the On-board
Diagnostic (OBDII) socket
WARNING
Volvo Cars takes no responsibility for the con-
sequences of connecting non-authorized
equipment to the On-board Diagnostic
(OBDII) socket. This socket should only be
used by a trained and qualified Volvo service
technician.
The diagnostic socket OBDII under the dashboard on
the driver's side
Type approval
USA
FCC ID: 2AGKKACUII-06
This device complies with Part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
WARNING
Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.
Canada
IC: 20839-ACUII06
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
INTRODUCTION
}}
23
Finding owner's information
Owner's information is available in several differ-
ent formats in both digital and printed form. The
owner's manual is available on the vehicle's cen-
ter display, as a mobile app and on Volvo's sup-
port website.
There is also a Quick Guide in the glove com-
partment as well as a printed supplement to the
owner's manual containing information about
e.g., fuses, specifications, etc. A complete prin-
ted owner's manual can also be ordered.
The vehicle's center display
In the center display, pull down
Top view and tap
Owner's
manual. This gives you access
to visual navigation with exterior
and interior images of the vehi-
cle. The information is searcha-
ble and is divided into catego-
ries.
Mobile app
In App Store or Google Play,
search for "Volvo Manual."
Download the app to a smart-
phone or tablet and select a
vehicle model. The app con-
tains instructive videos and
offers visual navigation, includ-
ing interior and exterior images of the vehicle.
Navigation between the various articles in the
owner's manual is designed to provide easy
access to the information and the information is
searchable.
Volvo Cars' support site
Go to support.volvocars.com
and select your country.
Owner's manuals are available
here online and in PDF format.
Volvo Car's support site also
contains instructional videos
and additional information
about your vehicle and owning a Volvo.
Printed owner's information
The glove compartment con-
tains a printed supplement to
the owner’s manual containing
information about fuses and
specifications as well as a sum-
mary of other important and
practical information.
A printed Quick Guide can also be found in the
glove compartment containing useful information
about the most commonly used features and
functions in your vehicle.
Other printed owner's information may also be
found in the vehicle, depending on options
and/or accessories that the vehicle is equipped
with.
A complete printed version of the owner's infor-
mation (or a new owner's manual supplement)
can be ordered through a Volvo retailer.
NOTE
If the content of the digital information in the
center display and the printed information dif-
fer, the printed information always has prece-
dence.
||
INTRODUCTION
24
WARNING
The driver is always responsible for operating
the vehicle in a safe manner and adhering to
current laws and traffic regulations.
It is also important that the vehicle be oper-
ated, maintained and serviced according to
Volvo's recommendations/instructions in the
owner's manual.
Changing the language used in the
vehicle's center display
Changing languages in the center display could
mean that some of the owner's information provi-
ded may not comply with national or local stat-
utes and regulations. Changing to a language
that you do not understand may also make it diffi-
cult to change back to the original language.
Related information
•
Owner's manual in mobile devices (p. 20)
•
Navigating in the digital owner's manual
(p. 51)
•
On-board digital owner's manual (p. 50)
•
Navigating in the digital owner's manual
(p. 51)
•
Using the owner's manual (p. 48)
•
Additional information about your vehicle
(p. 14)
Driver distraction
Please keep the following warnings in mind
when operating/servicing your vehicle.
A driver has a responsibility to do everything pos-
sible to ensure his or her own safety and the
safety of passengers in the vehicle and others
sharing the roadway. Avoiding distractions is part
of that responsibility.
Driver distraction results from driver activities that
are not directly related to controlling the vehicle
in the driving environment. Your new Volvo is, or
can be, equipped with many feature-rich enter-
tainment and communication systems. These
include hands-free cellular telephones, navigation
systems, and multipurpose audio systems. You
may also own other portable electronic devices
for your own convenience. When used properly
and safely, they enrich the driving experience.
Improperly used, any of these could cause a dis-
traction.
For all of these systems, we want to provide the
following warning that reflects the strong Volvo
concern for your safety. Never use these devices
or any feature of your vehicle in a way that dis-
tracts you from the task of driving safely. Distrac-
tion can lead to a serious accident. In addition to
this general warning, we offer the following guid-
ance regarding specific newer features that may
be found in your vehicle:
WARNING
•
Never use a hand-held cellular telephone
while driving. Some jurisdictions prohibit
cellular telephone use by a driver while
the vehicle is moving.
•
If your vehicle is equipped with a naviga-
tion system, set and make changes to
your travel itinerary only with the vehicle
parked.
•
Never program your audio system while
the vehicle is moving. Program radio pre-
sets with the vehicle parked, and use your
programmed presets to make radio use
quicker and simpler.
•
Never use portable computers or per-
sonal digital assistants while the vehicle
is moving.
Accessory installation
•
We strongly recommend that Volvo owners
install only genuine, Volvo-approved acces-
sories, and that accessory installations be
performed only by a trained and qualified
Volvo service technician.
•
Genuine Volvo accessories are tested to
ensure compatibility with the performance,
safety, and emission systems in your vehicle.
Additionally, a trained and qualified Volvo
service technician knows where accessories
may and may not be safely installed in your
Volvo. In all cases, please consult a trained
INTRODUCTION
}}
25
and qualified Volvo service technician before
installing any accessory in or on your vehicle.
•
Accessories that have not been approved by
Volvo may or may not be specifically tested
for compatibility with your vehicle. Addition-
ally, an inexperienced installer may not be
familiar with some of your car's systems.
•
Any of your car's performance and safety
systems could be adversely affected if you
install accessories that Volvo has not tested,
or if you allow accessories to be installed by
someone unfamiliar with your vehicle.
•
Damage caused by unapproved or improperly
installed accessories may not be covered by
your new vehicle warranty. See your Warranty
and Service Records Information booklet for
more warranty information. Volvo assumes no
responsibility for death, injury, or expenses
that may result from the installation of non-
genuine accessories.
WARNING
The driver is always responsible for operating
the vehicle in a safe manner and for comply-
ing with current statutes and regulations.
It is also essential to maintain and service the
vehicle according to Volvo's recommendations
as stated in the owner's information and the
service and warranty booklet.
If the on-board information differs from the
printed owner's manual, the printed informa-
tion always takes precedence.
Related information
•
Volvo Structural Parts Statement (p. 25)
Volvo Structural Parts Statement
Volvo has always been and continues to be a
leader in automotive safety.
Volvo engineers and manufactures vehicles
designed to help protect vehicle occupants in the
event of a collision.
Volvos are designed to absorb the impact of a
collision. This energy absorption system including,
but not limited to, structural components such as
bumper reinforcement bars, bumper energy
absorbers, frames, rails, fender aprons, A-pillars,
B-pillars and body panels must work together to
maintain cabin integrity and protect the vehicle
occupants.
The supplemental restraint system including but
not limited to air bags, side curtain air bags, and
deployment sensors work together with the
above components to provide proper timing for
air bag deployment.
Due to the above, Volvo Car USA does not sup-
port the use of aftermarket, alternative or any-
thing other than original Volvo parts for collision
repair.
Volvo Car USA also recommends using Volvo-
approved replacement glass. The use of after-
market glass, particularly a windshield, can have
an adverse effect on collision avoidance and
advanced lighting systems.
In addition Volvo does not support the use or re-
use of structural components from an existing
||
INTRODUCTION
26
vehicle that has been previously damaged.
Although these parts may appear equivalent, it is
difficult to tell if the parts have been previously
replaced with non-OE parts or if the part has
been damaged as a result of a prior collision. The
quality of these used parts may also have been
affected due to environmental exposure.
Related information
•
Crash event data (p. 26)
•
Contacting Volvo (p. 14)
Crash event data
This vehicle is equipped with an event data
recorder (EDR). The main purpose of an EDR is
to record, in certain crash or near crash-like sit-
uations, such as an air bag deployment or hitting
a road obstacle, data that will assist in under-
standing how a vehicle's systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The
EDR in this vehicle is designed to record such
data as:
•
How various systems in your vehicle were
operating;
•
Whether or not the driver and passenger
safety belts were buckled/fastened;
•
How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
•
How fast the vehicle was traveling.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur.
EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are
recorded by the EDR under normal driving condi-
tions and the EDR never registers who is driving
the vehicle or the location of a crash or a near
crash-like situation. However, other parties, such
as law enforcement, could combine the EDR data
with the type of personally identifying data rou-
tinely acquired during a crash investigation. To
read data recorded by an EDR, special equipment
is required, and access to the vehicle or the EDR
is needed.
Furthermore, your vehicle is equipped with a
number of computers whose task is to continu-
ously control and monitor the vehicle’s operation.
They can also register some of this information
during normal driving conditions, most importantly
if they detect a fault relating to the vehicle’s oper-
ation and functionality or upon activation of the
vehicle’s active safety systems (e.g. City Safety
and the auto-brake function). Some of the regis-
tered information is required by technicians when
carrying out service and maintenance to enable
them to diagnose and rectify any faults that have
occurred in the vehicle and to enable Volvo to ful-
fill legal and other regulatory requirements. Infor-
mation thus registered in the vehicle is registered
in the vehicle’s computers until the vehicle is
serviced or repaired. In addition to the above, the
registered information may – on an aggregated
basis – be used for research and product devel-
opment purposes in order to continuously
improve the safety and quality of Volvo vehicles.
For additional information, contact:
In the United States
Volvo Car USA, LLC
Customer Care Center
1 Volvo Drive, P.O. box 914
INTRODUCTION
27
Rockleigh, New Jersey 07647
1-800-458-1552
www.volvocars.com/us
In Canada
Volvo Cars of Canada
National Customer Service
9130 Leslie Street
Richmond Hill, Ontario L4B 0B9
1-800-663-8255
www.volvocars.com/ca
Volvo ID
A Volvo ID can be used to access a number of
on-line services
2
Creating a Volvo ID
A Volvo ID can be created in two ways:
Using the Volvo ID app
1. If you have not already done so, download
the Volvo ID app from the
Download
Center.
2. Start the app and register a personal email
address.
3. Follow the instructions that will be sent auto-
matically to this email address.
> A Volvo ID has now been created and has
been automatically registered to the vehi-
cle. The Volvo ID services available can
now be used.
Using the Volvo On Call app
1. Download the latest version of the Volvo On
Call app to your cell phone from e.g., the App
Store, Windows Phone or Google Play.
2. Start the app and create a Volvo ID on the
start page.
3. Register a personal email address and then
follow the instructions that will be sent auto-
matically to this address.
Registering your Volvo ID to the vehicle
If your Volvo ID was created using the Volvo On
Call mobile app, the ID has to be registered to
the vehicle:
1. With the vehicle connected to the Internet,
download the Volvo ID app from the
Download Center in the center display's
App view. See also the article "Downloading,
updating and uninstalling apps."
2. Start the app and enter your Volvo ID.
3. Follow the instructions that will be sent auto-
matically to the email address linked to your
Volvo ID.
> Your Volvo ID is now registered to the
vehicle and the Volvo ID services available
can be used.
Advantages of having a Volvo ID
•
Only one user name and password are
required to access online services.
•
If you change a user name or password for
one of the online service (e.g., Volvo On Call),
it/they will also be automatically changed for
the other services.
Related information
•
Downloading, updating and uninstalling apps
(p. 433)
•
Connecting to the Internet (p. 431)
2
These services vary and may be subject to change. Consult your Volvo retailer.
INTRODUCTION
28
Center display overview
Many of the vehicle's functions are controlled
from the center display.
Three of the center display's basic views. Swipe to the right/left to access the Function/App view (generic illustration)
INTRODUCTION
* Option/accessory.
29
Function view: vehicle functions can be acti-
vated/deactivated by tapping. Certain func-
tions are called "trigger functions", which
open settings windows, e.g.,
Camera and
parking functions. Settings for the head-up
display* are also started from Function view
but the actual interaction is controlled from
the steering wheel keypad buttons and the
instrument panel.
Home view: the initial view shown when the
center display is started.
App (Application) view: shows apps that have
been downloaded (third-party apps) as well
as ones for integrated functions such as
FM
radio
. Tap an icon to open the app.
Status bar: vehicle activities are shown at the
top of the screen. Network/connection infor-
mation is shown on the left side of the bar.
Media-related information, the clock and
information about background activities are
shown to the right.
Top view: pull down the tab to open Top view.
From here, you can access
Settings,
Owner's manual and stored messages.
Navigation: leads to map navigation. Tap the
sub-view to expand it.
Media: the most recently used media-related
apps. Tap the sub-view to expand it.
Phone: used to access phone-related func-
tions. Tap the sub-view to expand it.
The extra sub-view: the most recently used
apps/vehicle functions that do not belong in
any of the other sub-views are listed here.
Tap the sub-view to expand it.
Climate bar: information and direct access to
settings such as temperature, seat heating*
and blower speed. Tap the symbol at the
center of the Climate bar to open Climate
view for additional settings.
Related information
•
Using the center display (p. 44)
•
Function view buttons (p. 36)
•
Symbols in the center display status bar
(p. 43)
•
Settings view (p. 109)
•
Media player (p. 419)
•
Phone (p. 411)
•
Climate system controls in the center display
(p. 183)
•
Cleaning the center display (p. 519)
INTRODUCTION
30
Changing center display settings
The center display activates automatically when
the driver's door is opened. Settings can be
made for e.g., sounds, background and themes.
Turning off or changing the volume of
center display sounds
System sounds in the center display can be
turned off or their volume can be changed:
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Sound System Volumes.
3.
Pull the control under
Screen Touch to the
desired level to change volume or turn off
the sound for tapping the screen or Keypad
Touch.
Changing the screen's appearance
(theme)
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Displays Themes.
3.
Select a theme, e.g.,
Minimalistic or
Chrome Rings.
In addition, the settings: Normal and Bright can
also be selected. For
Normal, the screen's back-
ground is dark and the text is light. This is the
default setting. If Bright is selected, the back-
ground will be light and the text will be dark,
which can increase readability in strong ambient
lighting.
These alternatives are always available and do
not shift automatically according to changes in
ambient lighting.
Related information
•
Using the center display (p. 44)
•
Sensus (p. 17)
•
Settings view (p. 109)
•
Cleaning the center display (p. 519)
INTRODUCTION
}}
31
Using the center display keyboard
A keyboard can be used on the center display to
enter characters and search for e.g., destina-
tions using the navigation system, adding con-
tacts in phone book, etc. It is also possible to
use handwriting on the screen.
Entering text using the keyboard
The keyboard will only appear at the bottom of
the center display in situations when it is possible
to write on the screen.
||
INTRODUCTION
32
Keyboard function buttons (the appearance may vary depending on language settings, context, etc.)
Field for possible search hits. The word
changes as new letters are added. Scroll in
the list using the left/right arrows. Tap a
word to select it. The keyboard may not sup-
port all language selections, in which case
this line on the screen will not be displayed.
The characters that can be entered are lan-
guage-dependent (see point 7). Tap a char-
acter to enter it.
INTRODUCTION
}}
33
Several buttons (depending on the context
for which the keyboard is being used) will be
displayed here. In certain cases, it can be
used to enter @, .com or to start a new line.
Press to hide the keyboard. In cases where
this is not possible, the button will not be dis-
played.
Tap once to enter one uppercase letter.
Double-tap for Caps lock (tap again to
return to lowercase letters). Letters entered
after the !, . and ? characters will automati-
cally be uppercase. The first letter in the text
field or in text fields intended for names,
addresses or company names will also auto-
matically be uppercase. The first letter in text
fields intended for passwords, web
addresses or email addresses will automati-
cally be lowercase unless upper case is
chosen.
Press to display the numbers that can be
entered. When numbers are displayed, tap
to resume entering text or to
enter special characters.
Tap to change the keyboard language (in this
example, UK English is the selected lan-
guage). The characters available will change
according to the selected language (2). This
button will only be displayed if several key-
board languages have been selected (see
the section "Changing keyboard languages"
below). Tap to display a list of possible lan-
guages and tap a language to use it.
Tap to enter blank spaces.
Tap to erase one character at a time.
Tap to enable handwriting. See the section
"Handwritten text" below.
Entering text and performing searches using the
keyboard are done somewhat differently in the
navigation system. See the section "Filtering des-
tination search results" below.
Tap the button above the keyboard to confirm the
text that has been entered (not shown in the
illustration). This button's appearance differs
depending on the context.
Changing keyboard languages
In order to change keyboard languages, they
must first be selected under
Settings.
The keyboard language can be changed without
changing the language used for the other sys-
tems/menus in the vehicle.
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Keyboard Layouts.
3. Select and one or more of the languages in
the list.
> The makes it possible to change the key-
board layout and characters available
depending on the language(s) selected.
When more than one language
has been selected, this button
(7)
3
will appear on the key-
board.
To shift between keyboard languages:
1. Press and hold the button (7).
> A list will be displayed.
2. Tap the desired language. If more than four
languages have been selected in
Settings,
scroll in the list.
> The keyboard layout and characters avail-
able will change to the selected language.
3
In the example illustration, the button shows "UK".
||
INTRODUCTION
34
Special characters
To enter language-specific characters such as é
or è (if available):
1. Press and hold a character key.
> A box with available characters will open.
2. Tap the desired character. If none of the spe-
cial characters is selected, the key's initial
character will be entered.
Handwritten text
Tap button (10), see the overview illustration
above, to enter the handwriting mode.
Area for entering characters.
Text box where the characters entered in
area (1) appear.
Suggested characters. Scroll in the list if
necessary.
Blank spaces.
Tap to erase one character at a time.
Tap to return to the standard keyboard.
Press to hide the keyboard. In cases where
this is not possible, the button will not be dis-
played.
Tap to change the keyboard language.
Entering characters
1. Enter a handwritten character (1) using a fin-
gertip or by holding e.g., a pen near the
screen.
> Several character suggestions will appear
(3). The most likely character will be at the
top of the list.
CAUTION
Do not touch the screen with sharp objects
because this could cause scratches.
2. Continue entering characters.
> If no other choice is made, the character
at the top of the list will be used. Tap one
of the other characters in the list to use it
instead.
INTRODUCTION
35
Erasing/changing handwritten characters
Erase a character by swiping over the handwriting area
(1)
Characters can be erased/changed in several
ways:
•
Tap the desired character in the list (3).
•
Tap button (5) to erase the character and
start again.
•
Sweep horizontally from right to left over the
handwriting area (1). Erase several charac-
ters by swiping over the area several times.
•
Tap the "x" in the text box (2) to delete all
characters.
New lines
Create a new line by drawing above the characters as
shown in the illustration
Related information
•
Using the center display (p. 44)
•
Center display overview (p. 28)
•
Navigating in the center display's views
(p. 38)
INTRODUCTION
36
Function view buttons
The Function view, which is one of the center
display's basic views, contains all of the vehicle's
on-screen function buttons. From the Home
view, swipe from left to right on the screen to
come to the Function view.
Different types of buttons
There are three different types of vehicle function
buttons as listed in the following table.
Type of button Functions Vehicle function affected
Function buttons Have On/Off modes.
An LED indicator light to the left of the button's icon will illuminate when a function is
active. Press the button to turn the function on or off.
Most of the buttons in the function view are
function buttons.
Start buttons Do not have On/Off modes.
Pressing a start button opens a function's window, e.g., a window for adjusting the
driver's seat.
•
Camera.
•
Headrest fold.
•
Functions for folding down a seat.
•
Head-up display adjustments.
Parking buttons Have On/Off and scanning modes.
Similar to function buttons but have an additional parking scanning mode.
•
Park In.
•
Park Out.
Button modes
A function is activated (on) when the LED indicator is
green
A function is deactivated (off) when the LED indicator is
off
When a function or parking button's LED indica-
tor is green, the function is activated. When a
function is initially activated, an additional text will
be displayed (certain functions only) in the button
for approx. 5 seconds, after which the button will
be displayed with the LED indicator illuminated.
Press the button briefly to deactivate the func-
tion.
INTRODUCTION
38
Navigating in the center display's
views
There are 5 different basic views in the center
display: Home view, Top view, Climate view, App
view and Function view. The display is activated
automatically when the driver's door is opened.
Home view
Home view is displayed when the screen is acti-
vated. It consists of four sub-views:
Navigation,
Media, Phone and an extra sub-view. The extra
sub-view contains the most recently used app/
vehicle function that is not related to the other
three sub-views. For example, if the most recently
used app/vehicle function is a music app, the
Media sub-view will be displayed.
The sub-views display brief information about the
respective apps.
The first time the vehicle is started, some of the
Home view's sub-views will not contain any infor-
mation.
NOTE
•
In Home view's standard mode (reached
by pressing the Home button briefly), an
animation explaining how to access the
different views will be shown on the
screen.
•
Some functions may be disabled when
the vehicle is moving.
INTRODUCTION
}}
39
Expanding/minimizing a sub-view
The Media sub-view shown minimized (left) and expanded (right)
•
To expand a sub-view, tap the screen any-
where in the sub-view to access the respec-
||
INTRODUCTION
40
tive app's basic functions. When a sub-view
is expanded, the Home view's fourth sub-
view will temporarily not be displayed.
•
To minimize a sub-view, tap anywhere on the
screen.
Opening/closing a sub-view in full-screen
mode
The extra sub-view and the Navigation sub-view
can be opened in full-screen mode to show addi-
tional information and possible settings.
In expanded mode, open the
app in full-screen mode by tap-
ping the symbol.
Tap on the symbol or the Home
button below the screen to
return to the expanded view.
It is always possible to return to Home view by
pressing the Home button. Press the Home but-
ton twice to return to Home view's standard view
from full-screen.
Home button for the center display
Status bar
Current vehicle activities are shown in the status
bar at the top of the screen. Network and con-
nection information is shown to the left. Brief
information about currently running apps and the
clock are shown to the right.
Top view
The top view has a tab at the center of the status
bar. Pull down (expand) the Top view by swiping
the tab downward.
Top view when expanded
Top view provides access to:
•
Settings
•
Owner's manual
•
Profile
•
The vehicle's stored messages
To leave (minimize) Top view, tap the screen out-
side of this view or tap at the bottom of Top view
and swipe upward. The views behind will become
visible again. Top view is not available when the
ignition is being started/switched off or when a
message is displayed on the screen.
INTRODUCTION
}}
41
Going to Top view from an app
To pull down Top view when an app is running
(e.g., FM radio):
•
Tap
FM Radio Settings to display these
settings.
•
Tap
Owner's manual to open an article
related to the specific app.
This applies only to your vehicle's factory-
installed apps. This is not possible for third-
party apps that have been downloaded.
Climate view
The climate bar, where the most common climate
system settings can be made, is located at the
bottom of the screen and is always visible.
Tap the symbol at the center of the cli-
mate bar to open Climate view for
access to additional climate system
settings.
Tap the symbol to close Climate view
and return to a previous view.
App view
App view (generic illustration)
Swipe the screen from right to left to access App
view from Home view. This displays factory-instal-
led apps such as
FM as well as any apps that
have been downloaded. Brief information will be
displayed for certain apps, for example missed
phone calls, etc.
Tap an app to open it.
When applicable, swipe downward to scroll in the
list of apps (depending on the number of apps
currently running).
To move an app, press and hold it. It will become
slightly bigger and transparent and can then be
dragged to the desired position and released.
Return to Home view by swiping the screen from
left to right or by pressing the Home button.
Function view
Function view (generic illustration)
||
INTRODUCTION
42
Swipe the screen from left to right to access
Function view from Home view. From Function
view, you can activate/deactivate various vehicle
functions such as
Drive Modes, Speed limit
adaptation and Park Assist.
When applicable, swipe upward to scroll in the list
of functions (depending on the number of func-
tions).
Activate/deactivate a function by tapping its but-
ton. Certain functions will open in their own win-
dows.
To move a function button, press and hold it. It
will become slightly smaller and transparent and
can then be dragged to the desired position and
released.
Related information
•
Using the center display (p. 44)
•
Center display overview (p. 28)
•
Function view buttons (p. 36)
•
Symbols in the center display status bar
(p. 43)
•
Changing settings in different types of apps
(p. 43)
•
Climate system controls (p. 182)
INTRODUCTION
43
Symbols in the center display status
bar
The following table provides an overview of the
symbols used in the center display's status bar.
The status bar shows current vehicle activities
and in certain cases, also their status. Due to lim-
ited space in the status bar, not all symbols will
be displayed at all times.
Symbol Meaning
Roaming activated.
Cell phone network signal strength.
Bluetooth device connected.
Bluetooth activated but no device
connected.
Connected to a Wi-Fi network.
Tethering activated. (Wi-Fi hotspot).
Vehicle modem activated.
Remote diagnostics active.
Action in progress.
Symbol Meaning
Preconditioning
A
in progress.
Audio source being played.
Audio source paused.
Phone call in progress.
Audio source muted.
News broadcasts from current radio
station
B
.
Traffic information being received
B
.
Clock.
A
Hybrid models only.
B
Not available in all markets.
Related information
•
Navigating in the center display's views
(p. 38)
•
Indicator symbols in the instrument panel
(p. 127)
•
Warning symbols in the instrument panel
(p. 135)
•
Messages in the instrument panel and center
display (p. 150)
Changing settings in different types
of apps
App view, which is one of the center display's
basic views, contains all of the vehicle's apps
(applications/programs). Access this view by
swiping the screen from right to left.
Basic apps
A number of apps are standard and are part of
Volvo Sensus, such as
FM Radio, USB and CD.
To change settings in a basic app:
1.
Open the app, for example
Phone, either on
the home screen or full-screen from App
view.
2. Pull down Top view.
3.
Tap
Phone settings.
4. Change the desired settings and confirm.
5. Press the Home button, tap the screen out-
side of Top view or pull Top view up.
Third-party apps
Third party apps have to be selected and down-
loaded. In these apps, setting are made from
within the app, not from Top view.
INTRODUCTION
44
Using the center display
Many of the vehicle's functions can be con-
trolled and settings can be made from the
screen in the center console, referred to in this
owner's information as the center display, which
is a touchscreen.
Using the center display's touchscreen
functionality
Two people can interact with the screen at the
same time, e.g., to adjust the temperature for the
driver and passenger sides.
The screen reacts differently depending on
whether the user taps, drags or swipes on the
screen. This makes it possible to move between
views, mark objects, scroll in lists and move apps
by touching the screen in various ways. The fol-
lowing table lists the gestures that can be used
on the screen:
An infrared film on the screen enables it to react
if a finger is directly in front of the screen (but
not actually touching it). This makes it possible to
use the screen while wearing gloves.
CAUTION
Do not touch the screen with sharp objects
because this could cause scratches.
Procedure Gesture Result
Tap once. Marks an object, confirms a selection or activates a function.
Double-tap. Zooms in on an object such as a map.
Press and hold. "Grabs" an object so that it can be dragged. Press and hold on the screen and drag the object to the desired
position.
Tap with two fingers. Zooms out from an object such as a map.
INTRODUCTION
}}
45
Procedure Gesture Result
Drag Moves between screen views, scrolls in a list, text or a view. Press and hold to drag apps or objects in a list.
Swipe Moves between screen views, scrolls in a list, text or a view
Stretch Zooms in.
Pinch Zooms out.
||
INTRODUCTION
46
Turning off and reactivating the center
display
Home button for the center display
When the center display is turned off, the screen
goes dark to avoid disturbing the driver. However,
the climate bar remains visible and apps or other
functions connected to the display remain active.
1. Press and hold the Home button below the
screen.
> The screen will go dark. However, the cli-
mate bar remains visible and apps or
other functions connected to the display
remain active. The screen can also be
cleaned while it is turned off.
2. Reactivate by pressing the Home button
briefly.
> The view that was displayed when the
screen was turned off will be displayed
again.
NOTE
•
The display cannot be turned off while a
message requiring action is on the
screen.
•
The display turns off automatically when
the ignition is switched off and the driv-
er's door is opened.
Returning to Home view
1. Press the Home button briefly.
> The most recent Home view mode will be
displayed.
2. Press again briefly.
> All of the Home view's sub-views will
return to standard mode.
NOTE
From Home view's standard mode, press the
Home button to start animated on-screen
instructions describing how to display the var-
ious views.
Moving apps and vehicle function
buttons
Apps and function buttons can be moved and
organized in their respective views.
1. Press and hold an app/button.
> The app/button will change size and
become transparent. It can then be
moved.
2. Drag the app/button to an available position
in the view.
A maximum of 48 lines can be utilized for placing
apps/buttons. To move an app/button outside of
the visible view, drag it to the bottom of the view.
A new line will then be added where the app/
button can be placed (this line may not be visi-
ble). Swipe the screen to scroll up or down in the
view to display information that may be outside of
the view.
Scrolling in lists, articles or views
A scroll indicator on the screen shows that it is
possible to scroll up or down in the view. Press
the indicator and move it up or down or swipe up
or down anywhere in the view.
INTRODUCTION
47
The scroll indicator on the right side of the center dis-
play
Using center display controls
Temperature control
4
Digital controls are available for many of the vehi-
cle's functions. For example, to set the tempera-
ture:
•
Drag the control to the desired temperature
•
Tap
+/− to raise or lower the temperature
incrementally, or
•
Tap the desired temperature on the control
Related information
•
Navigating in the center display's views
(p. 38)
•
Settings view (p. 109)
•
Sensus (p. 17)
•
Downloading, updating and uninstalling apps
(p. 433)
•
Using the center display keyboard (p. 31)
4
Generic illustration. The temperature in your vehicle may be set to degrees Fahrenheit.
INTRODUCTION
48
Using the owner's manual
Reading your owner's manual is a good way of
familiarizing yourself with the features and sys-
tems in your vehicle.
On-board owner's manual
Reading the owner's manual is a good way to
become familiar with your vehicle and to learn to
utilize the features and functions that it offers.
Pay particular attention to the warnings provided.
Volvo reserves the right to make model changes
at any time, or to change specifications or design
without notice and without incurring obligation.
© Volvo Car Corporation
Printed owner's information
We advise keeping printed owner's information in
the vehicle for quick access to necessary infor-
mation and how to contact Volvo if help is
required.
Illustrations
Some of the illustrations used in your owner's
information may be generic and will give a gen-
eral view of a certain feature or function. For
example, some illustrations describing climate
system functions may display a temperature in
degrees Celsius but the same information applies
to Fahrenheit.
Options and accessories
Optional or accessory equipment described in
this manual is indicated by an asterisk.
Optional or accessory equipment may not be
available in all countries or markets. Please note
that some vehicles may be equipped differently,
depending on special legal requirements.
Contact your Volvo retailer for additional informa-
tion.
Footnotes
Certain pages of this manual contain information
in the form of footnotes at the bottom of the
page. This information supplements the text that
the footnote number refers to (a letter is used if
the footnote refers to text in a table).
Messages
There are several displays in the vehicle that
show messages generated by various systems
and functions in the vehicle. The appearance of
these texts differs slightly from normal texts (for
example:
Phone, Accept).
Decals
There are various types of decals in the vehicle
whose purpose is to provide important informa-
tion in a clear and concise way. The importance
of these decals is explained as follows, in
descending order of importance.
Risk of injury
Black ISO symbols on a yellow warning back-
ground, white text/image on a black background.
Decals of this type are used to indicate potential
danger. Ignoring a warning of this type could
result in serious injury or death.
INTRODUCTION
}}
49
Risk of damage to the vehicle
White ISO symbols and white text/image on a
black or blue warning background and space for
a message. If the information on decals of this
type is ignored, damage to the vehicle could
result.
Information
White ISO symbols and white text/image on a
black background. These decals provide general
information.
NOTE
The decals shown in the Owner’s Manual are
examples only and are not intended to be
reproductions of the decals actually used in
the vehicle. The purpose is to give an indica-
tion of how they look and their approximate
location in the vehicle. The applicable infor-
mation for your particular vehicle can be
found on the respective decals in the vehicle.
Types of lists
Procedures
Procedures (step-by-step instructions), or actions
that must be carried out in a certain order, are
arranged in numbered lists in this manual.
If there is a series of illustrations associated
with step-by-step instructions, each step in
the procedure is numbered in the same way
as the corresponding illustration.
Lists in which letters are used can be found
with series of illustrations in cases where the
order in which the instructions are carried out
is not important.
Arrows with or without numbers are used to
indicate the direction of a movement.
Arrows containing letters are used to indi-
cate movement.
If there are no illustrations associated with a
step-by-step list, the steps in the procedure are
indicated by ordinary numbers.
Position lists
Red circles containing a number are used in
general overview illustrations in which certain
components are pointed out. The corres-
ponding number is also used in the position
list's description of the various components.
Bullet lists
Bullets are used to differentiate a number of
components/functions/points of information that
can be listed in random order.
For example:
•
Coolant
•
Engine oil
Illustrations
Some of the illustrations and images shown in
the owner's manual are generic and may differ
slightly from the equipment in your vehicle
depending the level of instrumentation or market.
Related information
Related information offers references to articles
containing information associated with the infor-
mation that you are currently reading.
||
INTRODUCTION
50
Continues on next page
} }This symbol can be found at the lower right
corner to indicate that the current topic continues
on the following page.
Continuation from previous page
|| This symbol can be found at the upper left
corner to indicate that the current topic is a con-
tinuation from the previous page.
Related information
•
On-board digital owner's manual (p. 50)
•
Owner's manual in mobile devices (p. 20)
•
Additional information about your vehicle
(p. 14)
On-board digital owner's manual
When printed owner's information refers to digi-
tal owner's information, this is the on-board infor-
mation available in the vehicle's center display.
The digital on-board owner's manual is accessed from
the center display's Top view
There are a number of ways to find information in
the digital owner's manual, which can be
accessed from the manual's top menu by tapping
.
NOTE
The on-board owner's information cannot be
accessed while the vehicle is moving.
Symbols and their descriptions
Takes you to the owner's
information start page.
All articles sorted by cate-
gory. An article may be lis-
ted in several categories.
A selection of useful arti-
cles about the most com-
monly used functions in the
vehicle.
INTRODUCTION
}}
51
Symbols and their descriptions
Exterior/interior views of
the vehicle in which certain
areas/components are
highlighted as hotspots.
Tap a hotspot to come to a
relevant article.
This offers access to a list
of articles that have been
saved as favorites. Tap an
article to read it in its
entirety.
Symbols and their descriptions
Leads to short instructional
videos for various vehicle
functions.
This offers information
about the current version of
the owner's information in
your vehicle and other use-
ful information.
Related information
•
Navigating in the digital owner's manual
(p. 51)
Navigating in the digital owner's
manual
The digital on-board owner's manual is
accessed from the center display. The contents
are searchable and it is easy to navigate among
the various sections.
The digital on-board owner's manual is accessed from
the center display's Top view
Opening the digital owner's information
–
To open the digital owner's information, pull
down the center display's Top view and tap
Owner's manual.
There are several ways of finding information.
To access the owner's manual's menu, tap
in the upper bar.
||
INTRODUCTION
52
Searching using categories
The articles in the owner's
manual are structured in main
and sub-categories. The same
article may appear in several
pertinent categories in order to
make them easier to find.
1.
Tap
followed by Categories.
> The main categories will be listed.
2.
Tap a main category (
).
>
A list of sub-categories and (
) and arti-
cles (
) will be displayed.
3. Tap an article to open it. Tap the left arrow to
go back or
to begin a new search.
Interior and exterior hotspots
Exterior and interior views of
the vehicle where certain com-
ponents are pointed out are
called hotspots.
1.
Tap
followed by Exterior/Interior.
> Exterior/interior views will be displayed
with hotspots, which lead to relevant arti-
cles. Swipe the screen horizontally to
scroll among the views.
2. Tap a hotspot.
> The title of a relevant article will be dis-
played.
3. Tap the title to open the article. Tap the left
arrow to go back or to begin a new
search.
Quick Guide.
The heading Quick Guide in
the owner's manual's menu
leads to a selection of articles
that may be helpful in familiariz-
ing you with your vehicle's most
common features and func-
tions. These articles can also
be found through categories but have been gath-
ered here for quick access. Tap an article to read
it in its entirety.
Favorites
This is a list of articles that
have been saved as favorites.
Tap an article to read it in its
entirety.
Saving/deleting favorites
Save an article as a favorite by tapping the star
(
) at the upper right when an article is open.
The star symbol will be filled in (
) when its arti-
cle has been saved as a favorite.
To delete a favorite, tap its star again.
Video
Tap for short instructional vid-
eos for various vehicle func-
tions.
Information
Tap the symbol for information
about the current version of the
owner's information in your
vehicle and other useful infor-
mation.
Start page
Tap the symbol to come to the
owner's information start page.
INTRODUCTION
* Option/accessory.
53
Using the search function
1.
Tap the magnifying glass icon (
) in the
owner's manual's upper menu. A keyboard
will appear at the bottom of the screen.
2. Enter a word, e.g., "seat belt."
> Suggested articles will be displayed as
more characters are entered.
3. Confirm by tapping the article. To leave
search mode tap the up-arrow next to the
search box.
Related information
•
On-board digital owner's manual (p. 50)
•
Using the center display keyboard (p. 31)
Glass
Laminated glass
The windshield and panoramic roof* are made of
laminated glass, which is reinforced to help pre-
vent break-ins and to provide additional sound-
proofing. Laminated glass is optional for the
other side windows.
Laminated glass symbol
5
Related information
•
Laminated panoramic roof* (p. 103)
•
Power windows (p. 107)
•
Defrosting windows and mirrors (p. 190)
•
Using sun curtains* (p. 109)
•
Rearview mirror (p. 108)
•
Power windows (p. 107)
•
Head-up display (HUD)* (p. 116)
•
Activating/deactivating the rain sensor
(p. 157)
•
Windshield and headlight washers (p. 158)
•
Tailgate window wiper and washer (p. 159)
Technician certification
In addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.).
Certified technicians have demonstrated a high
degree of competence in specific areas. Besides
passing exams, each technician must also have
worked in the field for two or more years before a
certificate is issued. These professional techni-
cians are best able to analyze vehicle problems
and perform the necessary maintenance proce-
dures to keep your Volvo at peak operating con-
dition.
5
This symbol is not shown on the windshield or panoramic roof.
SAFETY
SAFETY
56
General safety information
The vehicle is equipped with a number of safety
systems for the driver and passengers.
In the event of an accident, there are a number of
sensors in the vehicle that react and trigger
safety systems such as Roll Stability Control, air-
bags, seat belt pretensioners, etc., depending on
the severity of the collision. There are also
mechanical systems such as the Whiplash
Protection System.
Warning symbol in the instrument panel
The warning symbol in the instrument
panel illuminates when the ignition is in
mode II or higher. It will go out after
approx. 6 seconds if no faults are
detected in the airbag system.
WARNING
•
If the SRS warning light stays on after the
engine has started or if it illuminates
while you are driving, have the vehicle
inspected by a trained and qualified Volvo
service technician as soon as possible.
•
Never try to repair any component or part
of the SRS yourself. Any interference in
the system could cause malfunction and
serious injury. All work on these systems
should be performed by a trained and
qualified Volvo service technician.
If the dedicated warning symbol is not
functioning, the general warning sym-
bol will illuminate instead and the same
message will be displayed in the instru-
ment panel.
Related information
•
Safety during pregnancy (p. 58)
•
Seat belts (p. 60)
•
Airbag system (p. 65)
•
Safety mode (p. 73)
•
Whiplash protection system (p. 59)
•
Child safety (p. 75)
Occupant safety
Safety is Volvo's cornerstone.
Volvo's concern for safety
Our concern for safety dates back to 1927 when
the first Volvo rolled off the production line.
Three-point seat belts (a Volvo invention), safety
cages, and energy-absorbing impact zones were
designed into Volvo vehicles long before it was
fashionable or required by government regulation.
We will not compromise our commitment to
safety. We continue to seek out new safety fea-
tures and to refine those already in our vehicles.
You can help. We would appreciate hearing your
suggestions about improving automobile safety.
We also want to know if you ever have a safety
concern with your vehicle. Call us in the U.S. at:
1-800-458-1552 or in Canada at:
1-800-663-8255.
SAFETY
}}
57
Occupant safety reminders
How safely you drive doesn't depend on how old
you are but rather on:
•
How well you see.
•
Your ability to concentrate.
•
How quickly you make decisions under
stress to avoid an accident.
The following suggestions are intended to help
you cope with the ever changing traffic environ-
ment.
•
Never drink and drive.
•
If you are taking any medication, consult your
physician about its potential effects on your
driving abilities.
•
Take a driver-retraining course.
•
Have your eyes checked regularly.
•
Keep your windshield and headlights clean.
•
Replace wiper blades when they start to
leave streaks.
•
Take into account the traffic, road, and
weather conditions, particularly with regard to
stopping distance.
•
Never send text messages while driving.
•
Refrain from using or minimize the use of a
cell phone while driving.
Related information
•
Recall information (p. 58)
•
Reporting safety defects (p. 57)
Reporting safety defects
The following information will help you report any
perceived safety-related defects in your vehicle.
Reporting safety defects in the U.S.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
(NHTSA) in addition to notifying Volvo
Car USA, LLC. If NHTSA receives simi-
lar complaints, it may open an investi-
gation, and if it finds that a safety
defect exists in a group of vehicles, it
may order a recall and remedy cam-
paign. However, NHTSA cannot
become involved in individual problems
between you, your retailer, or Volvo Car
USA, LLC. To contact NHTSA, you may
either call the Auto Safety Hotline toll-
free at
1-888-327-4236
(TTY: 1-800-424-9153) or write to:
NHTSA, U.S. Department of Transpor-
tation, Washington D.C. 20590.
You can also obtain other information
about motor vehicle safety from http://
www.safercar.gov, where you can also
enter your vehicle's VIN (Vehicle Identi-
fication Number) to see if it has any
open recalls.
Volvo strongly recommends that if your
vehicle is covered under a service cam-
paign, safety or emission recall or simi-
lar action, it should be completed as
soon as possible. Please check with
your local retailer or Volvo Car USA,
LLC if your vehicle is covered under
these conditions.
NHTSA can be reached at:
Internet:
http://www.nhtsa.gov
Telephone:
1-888-DASH-2-DOT
(1-888-327-4236).
Reporting safety defects in Canada
If you believe your vehicle has a defect that could
cause a crash or could cause injury or death, you
should immediately inform Transport Canada in
addition to notifying Volvo Cars of Canada Corp.
||
SAFETY
58
Transport Canada can be contacted at:
1-800-333-0510
Teletypewriter (TTY): 613 990-4500
Fax: 1-819-994-3372
Mailing Address: Transport Canada - Road
Safety, 80 rue Noël, Gatineau, (Quebec) J8Z 0A1
Related information
•
Recall information (p. 58)
•
Occupant safety (p. 56)
Recall information
On our website, select the "Own" tab on the
upper left side of the screen and click the head-
ing "Recall Information" on the right side of the
screen. Enter your Vehicle Identification Number
(VIN) for your vehicle (found at the base of the
windshield). If your vehicle has any open Recalls,
they will be displayed on this page.
You can also enter the Vehicle Identification
Number in the search field on the National
Highway Traffic Safety Administration's (NHTSA)
website at: www.nhtsa.gov.
Volvo customers in Canada
For any questions regarding open recalls for your
vehicle, please contact your authorized Volvo
retailer. If your retailer is unable to answer your
questions, please contact Volvo Customer Rela-
tions at 905 695-9626, Monday through Friday,
8:30 A.M. to 5:00 P.M. EST or by e-mail at
[email protected]. You may also write us at:
Volvo Cars of Canada
National Customer Service
9130 Leslie Street, Suite 101
Richmond Hill, Ontario L4B 0B9
www.tc.gc.ca
Related information
•
Occupant safety (p. 56)
•
Reporting safety defects (p. 57)
Safety during pregnancy
The seat belt should always be worn during
pregnancy. However, it is crucial that it be worn
correctly.
The diagonal section should wrap over the shoul-
der then be routed between the breasts and to
the side of the belly. The lap section should lay
flat over the thighs and as low as possible under
the belly. It must never be allowed to ride upward.
Remove all slack from the belt and ensure that it
fits close to the body without any twists.
As a pregnancy progresses, pregnant drivers
should adjust their seats and steering wheel such
that they can easily maintain control of the vehi-
cle as they drive (which means they must be able
to easily operate the foot pedals and steering
wheel). Within this context, they should strive to
position the seat with as large a distance as pos-
sible between their belly and the steering wheel.
SAFETY
}}
* Option/accessory.
59
Related information
•
Buckling and unbuckling seat belts (p. 62)
•
Adjusting power front seats* (p. 163)
•
Manually operated front seats (p. 162)
Whiplash protection system
The Whiplash protection system (WHIPS) con-
sists of specially designed hinges and brackets
on the front seat backrests designed to help
absorb some of the energy generated in a colli-
sion from the rear (when the vehicle is rear-
ended).
Function
In the event of certain rear-end collisions, the
hinges and brackets of the front seat backrests
are designed to change position slightly to allow
the backrest/head restraint to help support the
occupant's head before moving slightly rearward.
This movement helps absorb some of the forces
that could result in whiplash.
WARNING
•
The WHIPS system is designed to sup-
plement the other safety systems in your
vehicle. For this system to function prop-
erly, the three-point seat belt must be
worn. Please be aware that no system
can prevent all possible injuries that may
occur in an accident.
•
The WHIPS system is designed to func-
tion in certain collisions from the rear,
depending on the crash severity, angle
and speed.
WARNING
•
Occupants in the front seats must never
sit out of position. The occupant's back
must be as upright as comfort allows and
be against the seat back with the seat
belt properly fastened.
•
If your vehicle has been involved in a rear-
end collision, the front seat backrests
must be inspected by a trained and quali-
fied Volvo service technician, even if the
seats appear to be undamaged. Certain
components in the WHIPS system may
need to be replaced.
•
Do not attempt to service any component
in the WHIPS system yourself.
WARNING
•
Boxes, suitcases, etc. wedged behind the
front seats could impede the function of
the Whiplash Protection System.
•
If the rear seat backrests are folded
down, cargo must be secured to prevent
it from sliding forward against the front
seat backrests in the event of a collision
from the rear. This could interfere with
the action of the Whiplash Protection
System.
||
SAFETY
* Option/accessory.
60
Do not place any objects behind the front seats that
could impede the WHIPS function
WARNING
Any contact between the front seat backrests
and the folded rear seat or a rear-facing child
seat could impede the function of the WHIPS
system. If the rear seat is folded down, the
occupied front seats must be adjusted for-
ward so that they do not touch the folded rear
seat.
Related information
•
General safety information (p. 56)
•
Rear Collision Warning (RCW) (p. 312)
•
Manually operated front seats (p. 162)
•
Power front seats* (p. 163)
Seat belts
Seat belts should always be worn by all occu-
pants of your vehicle. Children should be prop-
erly restrained, using an infant, car, or booster
seat determined by age, weight and height.
Most states and provinces make it mandatory for
occupants of a vehicle to use seat belts.
Reversible seat belt pretensioners
Reversible seat belt pretensioners is a system in
the front seats that pulls the seat belts slightly
taut prior to a collision. This function helps posi-
tion the front seat occupants to help improve the
effects of other safety systems, e.g., the airbag
system.
Seat belt maintenance
Check periodically that the seat belts are in good
condition. Use water and a mild detergent for
cleaning. Check seat belt mechanism function as
follows: attach the seat belt and pull rapidly on
the strap.
WARNING
•
Never repair the belt yourself; have this
work done by a trained and qualified
Volvo service technician only.
•
Any device used to induce slack into the
shoulder belt portion of the three-point
belt system will have a detrimental effect
on the amount of protection available to
you in the event of a collision.
•
The seat back should not be tilted too far
back. The shoulder belt must be taut in
order to function properly.
•
Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children who have outgrown these
devices sit in the rear seat with the seat
belt properly fastened.
Related information
•
Buckling and unbuckling seat belts (p. 62)
•
Door and seat belt reminders (p. 64)
•
Seat belt pretensioners (p. 61)
SAFETY
61
Seat belt pretensioners
The vehicle's seat belts are equipped with stand-
ard and electric pretensioners that can help pull
the seat belts taut in a critical situation or a colli-
sion. Some or all of the pretensioners will be
triggered in certain types of collisions, depend-
ing on the direction and severity of the impact.
Reversible seat belt pretensioners
Reversible seat belt pretensioners is a system in
the front seats that pulls the seat belts slightly
taut prior to a collision. This function helps posi-
tion the front seat occupants to help improve the
effects of other safety systems, e.g., the airbag
system.
Seat belt pretensioners in collisions
The seat belts are equipped with standard pre-
tensioners that are triggered according to the
severity of a collision.
Seat belt pretensioners in critical
situations
In addition to the standard pretensioners, the
seat belts in the front seats are also equipped
with electric pretensioners.
The pretensioners interact and can be triggered
along with the City Safety and Rear Collision
Warning systems. In critical situations such as
sudden braking, evasive maneuvers, etc., the seat
belt can be pulled taut by the pretensioner's
electric motor.
The electric pretensioner positions the occupant
in the seat to help reduce the risk of striking the
interior of the passenger compartment and
improves the effect of other safety systems such
as the airbags.
Resetting the electric pretensioners
When a critical situation has passed, the seat belt
and the electric pretensioner are reset automati-
cally.
If the seat belt should remain taut:
1. Stop the vehicle safely.
2. Unbuckle the seat belt and rebuckle it.
> The seat belt and the electric preten-
sioner will be reset.
WARNING
•
Never repair the belt yourself; have this
work done by a trained and qualified
Volvo service technician only.
•
Any device used to induce slack into the
shoulder belt portion of the three-point
belt system will have a detrimental effect
on the amount of protection available to
you in the event of a collision.
•
The seat back should not be tilted too far
back. The shoulder belt must be taut in
order to function properly.
•
Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children who have outgrown these
devices sit in the rear seat with the seat
belt properly fastened.
Related information
•
Seat belts (p. 60)
•
Door and seat belt reminders (p. 64)
•
Buckling and unbuckling seat belts (p. 62)
SAFETY
62
Buckling and unbuckling seat belts
Seat belts should be used by all occupants in
the vehicle when it is in motion.
Buckling a seat belt
1. Pull the belt out slowly. It should not be twis-
ted or turned.
NOTE
Each seat belt is equipped with a seat belt
retractor that will lock up in the following sit-
uations:
•
if the belt is pulled out rapidly
•
during braking and acceleration
•
if the vehicle is leaning excessively
•
when driving in turns
•
if the Automatic Locking Retractor/Emer-
gency Locking Retractor (ALR/ELR) is
activated (each seat belt (except for the
driver's belt) is equipped with the
ALR/ELR function, which is designed to
help keep the seat belt taut. ALR/ELR
activates if the seat belt is pulled out as far
as possible. If this is done, a sound from
the seat belt retractor will be audible,
which is normal, and the seat belt will be
pulled taut and locked in place. This func-
tion is automatically disabled when the
seat belt is unbuckled and fully retracted).
2. Insert the latch plate into the receptacle. The
seat belt retractor is normally "unlocked" and
you can move freely, provided that the shoul-
der belt is not pulled out too far.
> A distinct click will be audible.
WARNING
The seat belt latch plate should only be
inserted into its intended receptacle. Inserting
it into one of the other receptacles may pre-
vent it from functioning properly.
3. The height of the seat belts in the front seats
can be adjusted. The height of the shoulder
section of the seat belt must be correctly
adjusted.
Press the button and move the upper seat
belt anchor up or down.
Position it as high as possible so that the
shoulder section of the belt is across the seat
occupant's collarbone and not across the
throat.
SAFETY
63
The seat belt should be positioned over the shoulder
(not over the arm)
4. Tighten the lap section of the seat belt by
pulling the diagonal section upward toward
the shoulder.
The lap section of the belt must be positioned low on the
hips (not pressing against the abdomen)
Make sure that the shoulder belt is rolled up
into its retractor and that the shoulder and
lap belts are taut.
WARNING
Never use a seat belt for more than one
occupant. Never wear the shoulder portion of
the belt under the arm, behind the back or
otherwise out of position. Such use could
cause injury in the event of an accident. As
seat belts lose much of their strength when
exposed to violent stretching, they should be
replaced after any collision, even if they
appear to be undamaged.
Unbuckling the seat belt
To remove the seat belt, press the red section on
the seat belt receptacle. Before exiting the vehi-
cle, check that the seat belt retracts fully after
being unbuckled. If necessary, guide the belt
back into the retractor slot.
Related information
•
Door and seat belt reminders (p. 64)
•
Seat belts (p. 60)
SAFETY
64
Door and seat belt reminders
The door and seat belt reminders are intended
to alert all occupants of the vehicle that their
seat belts should be buckled before the vehicle
begins to move or if a door, the hood, tailgate or
fuel filler door have not been closed properly.
Graphics in the instrument panel
Warning colors for doors/tailgate vary depending on the
vehicle's speed (generic illustration)
The instrument panel graphic shows the seats
where seat belts are not buckled.
The same graphic also indicates if a door, the
hood, tailgate or fuel filler door is/are open.
This graphic disappears automatically after
approx. 30 seconds or if the if the O button on
the steering wheel keypad is pressed.
Seat belt reminder
Seat belt reminder light in ceiling console
The seat belt reminder consists of an
audible signal, an indicator light near
the rearview mirror and a symbol in the
instrument panel that alert all occu-
pants of the vehicle to buckle their seat belts.
The audible signal is speed-dependent and will
sound for several seconds.
If the driver's or a passenger's seat belt is not
buckled, this will be indicated in the instrument
panel.
Child seats are not included in the seat belt
reminder system.
Front seats
An audible signal and an indicator light will
remind the driver and front seat passenger to
buckle their seat belts.
Rear seats
The rear seat belt reminder has two functions.
•
It indicates which seat belts are buckled in
the rear seats. This will also be displayed in
an instrument panel graphic.
•
It also provides audio and visual reminders if
a rear seat belt is unbuckled while the vehi-
cle is in motion. The reminders will disappear
when the seat belt has been buckled again
or can be erased by pressing the O button
on the steering wheel keypad.
Door/hood/tailgate/fuel filler door
reminder
If a door, the hood, tailgate or fuel filler door
is/are not properly closed, this will be indicated in
a graphic in the instrument panel. Stop the vehi-
cle safely and close the source of the reminder.
If the vehicle is moving at a speed
under approx.6 mph (10 km/h), the
information symbol will illuminate in the
instrument panel.
At speeds above approx. 6 mph
(10 km/h), the warning symbol will illu-
minate in the instrument panel.
Related information
•
Seat belts (p. 60)
•
Buckling and unbuckling seat belts (p. 62)
•
Seat belt pretensioners (p. 61)
SAFETY
}}
65
Airbag system
As an enhancement to the three-point seat belts,
your vehicle is equipped with an airbag system.
WARNING
•
If the airbag warning light stays on after
the engine has started or if it illuminates
while you are driving, have the vehicle
inspected by a trained and qualified Volvo
service technician as soon as possible.
•
Never try to repair any component or part
of the airbag systems yourself. Any inter-
ference in the system could cause mal-
function and serious injury. All work on
these systems should be performed by a
trained and qualified Volvo service techni-
cian.
WARNING
If your vehicle has become flood-damaged in
any way (e.g., soaked carpeting/standing
water on the floor of the vehicle), do not
attempt to start the vehicle. This may cause
airbag deployment which could result in seri-
ous injury. Have the vehicle towed to a trained
and qualified Volvo service technician for
repairs.
Before attempting to tow the vehicle:
1. Switch off the ignition for at least
10 minutes and disconnect the battery.
2. Follow the instructions for manually over-
riding the shiftlock system.
Deployed airbags
WARNING
If any of the airbags have deployed:
•
Do not attempt to drive the vehicle. Have
it towed to a qualified repair facility.
•
If necessary seek medical attentIon.
Driver/passenger side airbags
The front airbags supplement the three-point
seat belts. For these airbags to provide the pro-
tection intended, seat belts must be worn at all
times.
Driver and passenger side front airbags
The front airbag system
The front airbag system includes gas generators
surrounded by the airbags, and deceleration sen-
sors that activate the gas generators, causing the
airbags to be inflated with nitrogen gas.
As the movement of the seats' occupants com-
presses the airbags, some of the gas is expelled
at a controlled rate to provide better cushioning.
Both seat belt pretensioners also deploy, mini-
mizing seat belt slack. The entire process, includ-
ing inflation and deflation of the airbags, takes
approximately one fifth of a second.
||
SAFETY
66
The location of the front airbags is indicated by
SRS AIRBAG embossed on the steering wheel
pad and above the glove compartment, and by
decals on both sun visors and on the front and
far right side of the dash.
The driver's side front airbag is folded and
located in the steering wheel hub.
The knee airbag is folded on the underside of
the dashboard on the driver's side. The text
AIRBAG is embossed on the panel.
The passenger's side front airbag is folded
behind a panel located above the glove compart-
ment.
WARNING
•
The airbags in the vehicle are designed to
be a SUPPLEMENT to–not a replace-
ment for–the three-point seat belts. For
maximum protection, wear seat belts at all
times. Be aware that no system can pre-
vent all possible injuries that may occur in
an accident.
•
Never drive with your hands on the steer-
ing wheel pad/airbag housing.
•
The front airbags are designed to help
prevent serious injury. Deployment occurs
very quickly and with considerable force.
During normal deployment and depend-
ing on variables such as seating position,
one may experience abrasions, bruises,
swellings, or other injuries as a result
from deployment of one or both of the
airbags.
•
When installing any accessory equipment,
make sure that the front airbag system is
not damaged. Any interference in the sys-
tem could cause malfunction.
Front airbag deployment
•
The front airbags are designed to deploy dur-
ing certain frontal or front-angular collisions,
impacts, or decelerations, depending on the
crash severity, angle, speed and object
impacted. The airbags may also deploy in
certain non-frontal collisions where rapid
deceleration occurs.
•
The airbag system sensors, which trigger the
front airbags, are designed to react to both
the impact of the collision and the inertial
forces generated by it, and to determine if
the intensity of the collision is sufficient for
the seat belt pretensioners and/or airbags to
be deployed.
However, not all frontal collisions activate the
front airbags.
•
If the collision involves a nonrigid object (e.g.,
a snow drift or bush), or a rigid, fixed object
at a low speed, the front airbags will not nec-
essarily deploy.
•
Front airbags do not normally deploy in a
side impact collision, in a collision from the
rear or in a rollover situation.
•
The amount of damage to the bodywork
does not reliably indicate if the airbags
should have deployed or not.
SAFETY
}}
67
NOTE
•
Deployment of front airbags occurs only
one time during an accident. In a collision
where deployment occurs, the airbags
and seat belt pretensioners activate.
Some noise occurs and a small amount
of powder is released. The release of the
powder may appear as smoke-like matter.
This is a normal characteristic and does
not indicate fire.
•
Volvo's front airbags use special sensors
that are integrated with the front seat
buckles. The point at which the airbag
deploys is determined by whether or not
the seat belt is being used, as well as the
severity of the collision.
•
Collisions can occur where only one of
the airbags deploys. If the impact is less
severe, but severe enough to present a
clear injury risk, the airbags are triggered
at partial capacity. If the impact is more
severe, the airbags are triggered at full
capacity.
WARNING
•
Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that occupants under 4 feet 7 inches
(140 cm) in height who have outgrown
these devices sit in the rear seat with the
seat belt fastened. See also the Occu-
pant Weight Sensor information,.
•
Never drive with the airbags deployed.
The fact that they hang out can impair the
steering of your vehicle. Other safety sys-
tems can also be damaged.
•
The smoke and dust formed when the
airbags are deployed can cause skin and
eye irritation in the event of prolonged
exposure.
Should you have questions about any component
in the SRS system, please contact a trained and
qualified Volvo service technician or Volvo cus-
tomer support:
In the USA
Volvo Car USA, LLC
Customer Care Center
1 Volvo Drive
P.O. Box 914
Rockleigh, New Jersey 07647
1-800-458-1552
www.volvocars.com/us
In Canada
Volvo Cars of Canada Corp.
National Customer Service
9130 Leslie Street, Suite 101
Richmond Hill, Ontario L4B 0B9
1-800-663-8255
www.volvocars.com/ca
Airbag decals
Airbag decal on the outside of both sun visors
||
SAFETY
68
Passenger's side airbag decal
WARNING
•
Children must never be allowed in the
front passenger's seat.
•
Occupants in the front passenger's seat
must never sit on the edge of the seat, sit
leaning toward the instrument panel or
otherwise sit out of position.
•
The occupant's back must be as upright
as comfort allows and be against the seat
back with the seat belt properly fastened.
•
Feet must be on the floor, e.g., not on the
dash, seat or out of the window.
WARNING
•
No objects or accessory equipment, e.g.
dashboard covers, may be placed on,
attached to, or installed near the air bag
hatch (the area above the glove compart-
ment) or the area affected by airbag
deployment.
•
There should be no loose articles, such
as coffee cups on the floor, seat, or dash-
board area.
•
Never try to open the airbag cover on the
steering wheel or the passenger's side
dashboard. This should only be done by a
trained and qualified Volvo service techni-
cian.
•
Failure to follow these instructions can
result in injury to the vehicle occupants.
Related information
•
Seat belts (p. 60)
•
Occupant weight sensor (p. 68)
Occupant weight sensor
The Occupant Weight Sensor (OWS) is
designed to meet the regulatory requirements of
Federal Motor Vehicle Safety Standard (FMVSS)
208 and is designed to disable (will not inflate)
the passenger's side front airbag under certain
conditions.
Occupant Weight Sensor (OWS) indicator light
Disabling the passenger's side front
airbag
Volvo recommends that ALL occupants (adults
and children) shorter than 4 feet 7 inches
(140 cm) be seated in the back seat of any vehi-
cle with a front passenger side airbag and be
properly restrained for their size and weight.
The OWS works with sensors that are part of the
front passenger's seat and seat belt. The sensors
are designed to detect the presence of a properly
SAFETY
}}
69
seated occupant and determine if the passeng-
er's side front airbag should be enabled (may
inflate) or disabled (will not inflate).
The OWS will disable (will not inflate) the pas-
senger's side front airbag when:
•
the front passenger's seat is unoccupied, or
has small/medium objects in the front seat,
•
the system determines that an infant is pres-
ent in a rear-facing infant seat that is instal-
led according to the manufacturer's instruc-
tions,
•
the system determines that a small child is
present in a forward-facing child restraint
that is installed according to the manufactur-
er's instructions,
•
the system determines that a small child is
present in a booster seat,
•
a front passenger takes his/her weight off of
the seat for a period of time,
•
a child or a small person occupies the front
passenger's seat.
The OWS uses a PASSENGER AIRBAG OFF
indicator lamp which will illuminate and stay on to
remind you that the passenger's side front airbag
is disabled. The PASSENGER AIRBAG OFF indi-
cator lamp is located in the overhead console,
near the base of the rearview mirror.
NOTE
When the ignition is switched on, the OWS
indicator light will illuminate for several sec-
onds while the system performs a self-diag-
nostic test.
However, if a fault is detected in the system:
•
The OWS indicator light will stay on
•
The SRS warning light will come on and stay
on and a text message will be displayed.
WARNING
If a fault in the system is detected and indi-
cated as described, be aware that the pas-
senger's side front airbag will not deploy in
the event of a collision. In this case, the SRS
system and Occupant Weight Sensor should
be inspected by a trained and qualified Volvo
service technician as soon as possible.
WARNING
•
Never try to open, remove, or repair any
components in the OWS system. This
could result in system malfunction. Main-
tenance or repairs should only be carried
out by an a trained and qualified Volvo
service technician.
•
The front passenger's seat should not be
modified in any way. This could reduce
pressure on the seat cushion, which
might interfere with the OWS system's
function.
||
SAFETY
70
Passenger's
seat occu-
pancy status
OWS indi-
cator light
status
Passenger's
side front air-
bag status
Seat unoccu-
pied
OWS indi-
cator light
lights up.
Passenger's
side front air-
bag disabled
Seat occu-
pied by low
weight occu-
pant/object
A
OWS indi-
cator light
lights up
Passenger's
side front air-
bag disabled
Seat occu-
pied by heavy
occupant/
object
OWS indi-
cator light is
not lit
Passenger's
side front air-
bag enabled
A
Volvo recommends that children always be properly restrained
in appropriate child restraints in the rear seats. Do not assume
that the passenger's side front airbag is disabled unless the
PASSENGER AIRBAG OFF indicator lamp is lit. Make sure the
child restraint is properly installed. If there is any doubt as to the
status of the passenger's side front airbag, move the child
restraint to the rear seat.
The OWS is designed to enable (may inflate) the
passenger's side front airbag in the event of a
collision anytime the system senses that a per-
son of adult size is sitting properly in the front
passenger's seat. The PASSENGER AIRBAG
OFF indicator lamp will be off and remain off.
If a person of adult size is sitting in the front pas-
senger's seat, but the PASSENGER AIRBAG
OFF indicator lamp is on, it is possible that the
person isn't sitting properly in the seat. If this
happens:
•
Turn the vehicle off and ask the person to
place the seatback in an upright position.
•
Have the person sit upright in the seat, cen-
tered on the seat cushion, with the person's
legs comfortably extended.
•
Restart the vehicle and have the person
remain in this position for about two minutes.
This will allow the system to detect that per-
son and enable the passenger's frontal air-
bag.
•
If the PASSENGER AIRBAG OFF indicator
lamp remains on even after this, the person
should be advised to ride in the rear seat.
This condition reflects limitations of the OWS
classification capability. It does not indicate OWS
malfunction.
Modifications
If you are considering modifying your vehicle in
any way to accommodate a disability, for example
by altering or adapting the driver's or front pas-
senger's seat(s) and/or airbag systems, please
contact Volvo at:
In the USA
Volvo Car USA, LLC
Customer Care Center
1 Volvo Drive
P.O. Box 914
Rockleigh, New Jersey 07647
1-800-458-1552
In Canada
Volvo Cars of Canada Corp.
National Customer Service
9130 Leslie Street, Suite 101
Richmond Hill, Ontario L4B 0B9
1-800-663-8255
SAFETY
71
WARNING
•
No objects that add to the total weight on
the seat should be placed on the front
passenger's seat. If a child is seated in
the front passenger's seat with any addi-
tional weight, this extra weight could
cause the OWS system to enable the air-
bag, which might cause it to deploy in the
event of a collision, thereby injuring the
child.
•
The seat belt should never be wrapped
around an object on the front passeng-
er's seat. This could interfere with the
OWS system's function.
•
The front passenger's seat belt should
never be used in a way that exerts more
pressure on the passenger than normal.
This could increase the pressure exerted
on the weight sensor by a child, and
could result in the airbag being enabled,
which might cause it to deploy in the
event of a collision, thereby injuring the
child.
WARNING
•
Keep the following points in mind with
respect to the OWS system. Failure to
follow these instructions could adversely
affect the system's function and result in
serious injury to the occupant of the front
passenger's seat:
•
The full weight of the front seat passen-
ger should always be on the seat cushion.
The passenger should never lift him/
herself off the seat cushion using the
armrest in the door or the center console,
by pressing the feet on the floor, by sit-
ting on the edge of the seat cushion, or
by pressing against the backrest in a way
that reduces pressure on the seat cush-
ion. This could cause OWS to disable the
front, passenger's side airbag.
WARNING
•
Do not place any type of object on the
front passenger's seat in such a way that
jamming, pressing, or squeezing occurs
between the object and the front seat,
other than as a direct result of the correct
use of the Automatic Locking Retractor/
Emergency Locking Retractor (ALR/ELR)
seat belt.
•
No objects should be placed under the
front passenger's seat. This could inter-
fere with the OWS system's function.
Related information
•
Airbag system (p. 65)
SAFETY
72
Side impact airbags
As an enhancement to the structural side impact
protection built into your vehicle, it is also equip-
ped with Side Impact Protection System (SIPS)
airbags.
The SIPS airbag system is designed to help
increase occupant protection in the event of cer-
tain side impact collisions. The SIPS airbags are
designed to deploy only during certain side-
impact collisions, depending on the crash
severity, angle, speed and point of impact.
NOTE
SIPS airbag deployment (one airbag) occurs
only on the side of the vehicle affected by the
impact. The airbags are not designed to
deploy in all side impact situations.
Components in the SIPS airbag system
This SIPS airbag system consists of a gas gener-
ator, the side airbag modules built into the out-
board sides of both front seat backrests, and
electronic sensors/wiring.
WARNING
•
The SIPS airbag system is a supplement
to the structural Side Impact Protection
System and the three-point seat belt sys-
tem. It is not designed to deploy during
collisions from the front or rear of the
vehicle or in rollover situations.
•
The use of seat covers on the front seats
may impede SIPS airbag deployment.
•
No objects, accessory equipment or stick-
ers may be placed on, attached to or
installed near the SIPS airbag system or
in the area affected by SIPS airbag
deployment.
•
Never try to open or repair any compo-
nents of the SIPS airbag system. This
should be done only by a trained and
qualified Volvo service technician.
•
In order for the SIPS airbag to provide its
best protection, both front seat occupants
should sit in an upright position with the
seat belt properly fastened.
•
Failure to follow these instructions can
result in injury to the occupants of the
vehicle in the event of an accident.
Related information
•
Airbag system (p. 65)
•
Seat belts (p. 60)
SAFETY
}}
73
Inflatable curtains
The inflatable curtain is designed to help protect
the heads of the occupants of the front seats
and the occupant of the outboard rear seating
positions in certain side impact collisions.
This system consists of inflatable curtains located
along the sides of the roof liners, stretching from
the center of both front side windows to the rear
edge of the rear side door windows.
In certain side impacts, both the Inflatable Cur-
tain (IC) and the side Impact Airbag System
(SIPS airbag) will deploy. The IC and the SIPS
airbag deploy simultaneously.
WARNING
•
Never try to open or repair any compo-
nents of the IC system. This should be
done only by a trained and qualified Volvo
service technician.
•
Never hang heavy items from the ceiling
handles. This could impede deployment
of the Inflatable Curtain.
•
The cargo area and rear seat should not
be loaded to a level higher than 4 in.
(10 cm) below the upper edge of the rear
side windows. Objects placed higher than
this level could impede the function of
the Inflatable Curtain.
•
In order for the IC to provide its best pro-
tection, both front seat occupants and
both outboard rear seat occupants should
sit in an upright position with the seat belt
properly fastened; adults using the seat
belt and children using the proper child
restraint system.
Related information
•
Airbag system (p. 65)
•
Side impact airbags (p. 72)
•
Child safety (p. 75)
•
Seat belts (p. 60)
Safety mode
As a safety precaution after a collision, the func-
tionality of some of the vehicle's systems may be
reduced.
If the vehicle has been involved in a collision, the
text
Safety mode may appear in the information
display.
NOTE
This text can only be shown if the display is
undamaged and the vehicle's electrical sys-
tem is intact.
Safety mode is a feature that is triggered if one
or more of the safety systems such as the front/
side airbags inflatable curtain, etc., or one or
more of the seat belt pretensioners has deployed.
The collision may have damaged an important
function in the vehicle, such as the fuel lines,
sensors for one of the safety systems, the brake
system, etc.
||
SAFETY
74
WARNING
•
Never attempt to repair the vehicle your-
self or to reset the electrical system after
the vehicle has displayed
Safety mode.
This could result in injury or improper sys-
tem function.
•
Restoring the vehicle to normal operating
status should only be done by a trained
and qualified Volvo service technician.
•
After
Safety mode has been displayed, if
you detect the odor of fuel vapor, or see
any signs of fuel leakage, do not attempt
to start the vehicle. Leave the vehicle
immediately.
Related information
•
Starting or moving a vehicle in safety mode
(p. 74)
•
General safety information (p. 56)
Starting or moving a vehicle in
safety mode
If
Safety mode has been set, it may be possible
to start and move the vehicle, for example, if it is
blocking traffic.
Starting the vehicle in safety mode
1. Check the vehicle for damage, particularly for
fuel leakage or the smell of gasoline fumes.
If the damage to the vehicle is minor and
there is no fuel leakage/fumes, you may
attempt to start the engine and move the
vehicle.
WARNING
If you smell gasoline fumes or detect fuel
leakage while
Safety mode See Owner's
manual is displayed in the instrument panel,
do not attempt to start the vehicle. Leave
the vehicle immediately.
2.
Turn the start knob to STOP and release it.
3. Try to start the vehicle.
>
Vehicle start System check, wait will
be displayed in the instrument panel while
the vehicle's electrical system attempts to
reset to normal mode.
WARNING
If the message Safety mode See Owner's
manual is still displayed, the vehicle should
not be driven and must be towed. Concealed
faults may make the vehicle difficult to control.
Moving the vehicle after safety mode
has been set
If the message Normal mode The vehicle is
now in normal mode is displayed, the vehicle
may be moved carefully from its present position
if, for example, it is blocking traffic.
It should, however, not be moved farther than
is absolutely necessary.
WARNING
After Safety mode has been set, the vehicle
should not be driven or towed (pulled on the
ground by another vehicle). It must be trans-
ported on a flatbed tow truck to a trained and
qualified Volvo service technician for inspec-
tion/repairs.
Related information
•
Safety mode (p. 73)
•
Towing recommendations (p. 363)
SAFETY
}}
75
Child safety
Children should always be seated safely when
traveling in the vehicle.
General information
Volvo recommends the proper use of restraint
systems for all occupants including children.
Remember that, regardless of age and size, a
child should always be properly restrained in a
vehicle.
Your vehicle is also equipped with ISOFIX/
LATCH attachments, which make it more conven-
ient to install child seats.
Some restraint systems for children are designed
to be secured in the vehicle by lap belts or the
lap portion of a lap-shoulder belt. Such child
restraint systems can help protect children in
vehicles in the event of an accident only if they
are used properly. However, children could be
endangered in a crash if the child restraints are
not properly secured in the vehicle. Failure to fol-
low the installation instructions for your child
restraint can result in your child striking the vehi-
cle's interior in a sudden stop.
Holding a child in your arms is NOT a suitable
substitute for a child restraint system. In an acci-
dent, a child held in a person's arms can be
crushed between the vehicle's interior and an
unrestrained person. The child could also be
injured by striking the interior, or by being ejected
from the vehicle during a sudden maneuver or
impact. The same can also happen if the infant or
child rides unrestrained on the seat. Other occu-
pants should also be properly restrained to help
reduce the chance of injuring or increasing the
injury of a child.
All states and provinces have legislation govern-
ing how and where children should be carried in
a vehicle. Find out the regulations existing in your
state or province. Recent accident statistics have
shown that children are safer in rear seating
positions than front seating positions when prop-
erly restrained. A child restraint system can help
protect a child in a vehicle. Here's what to look
for when selecting a child restraint system:
It should have a label certifying that it meets
applicable Federal Motor Vehicle Safety Stand-
ards (FMVSS 213) – or in Canada, CMVSS 213.
Make sure the child restraint system is approved
for the child's height, weight and development –
the label required by the standard or regulation,
or instructions for infant restraints, typically pro-
vide this information.
In using any child restraint system, we urge you
to carefully look over the instructions that are
provided with the restraint. Be sure you under-
stand them and can use the device properly and
safely in this vehicle. A misused child restraint
system can result in increased injuries for both
the infant or child and other occupants in the
vehicle.
When a child has outgrown the child safety seat,
you should use the rear seat with the standard
seat belt fastened. The best way to help protect
the child here is to place the child on a cushion
so that the seat belt is properly located on the
hips. Legislation in your state or province may
mandate the use of a child seat or cushion in
combination with the seat belt, depending on the
child's age and/or size. Please check local regu-
lations.
A specially designed and tested booster cushion
and backrest can be obtained from your Volvo
retailer. See also the article "Integrated booster
cushion."
||
SAFETY
* Option/accessory.
76
WARNING
•
Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children under 4 feet 7 inches
(140 cm) in height who have outgrown
these devices sit in the rear seat with the
seat belt fastened.
•
On hot days, the temperature in the vehi-
cle interior can rise very quickly. Exposure
to these high temperatures for even a
short period of time can cause heat-rela-
ted injury or death. Small children are par-
ticularly at risk. Never leave children unat-
tended in a vehicle.
Child seats should always be registered.
Volvo's recommendations
Why does Volvo believe that no child should sit in
the front seat of a car? It's quite simple really. A
front airbag is a very powerful device designed,
by law, to help protect an adult.
Because of the size of the airbag and its speed
of inflation, a child should never be placed in the
front seat, even if he or she is properly belted or
strapped into a child safety seat. Volvo has been
an innovator in safety for over seventy-five years,
and we'll continue to do our part. But we need
your help. Please remember to put your children
in the back seat, and buckle them up.
WARNING
A child restraint should never be reused if:
•
The vehicle has been involved in a colli-
sion, no matter how minor
•
Its history is unknown
•
It is older than the manufacturer's expira-
tion date
Volvo has some very specific
recommendations
•
Always wear your seat belt.
•
Airbags are a SUPPLEMENTAL safety
device which, when used with a three-point
seat belt can help reduce serious injuries
during certain types of accidents. Volvo rec-
ommends that you do not disconnect the air-
bag system in your vehicle.
•
Volvo strongly recommends that everyone in
the vehicle be properly restrained.
•
Volvo recommends that ALL occupants
(adults and children) shorter than 4 feet
7 inches (140 cm) be seated in the back
seat of any vehicle with a front passenger
side airbag.
•
Drive safely!
Related information
•
Integrated booster cushion* (p. 87)
•
Booster cushions (p. 83)
•
Convertible seats (p. 80)
•
Infant seats (p. 78)
•
ISOFIX/LATCH lower anchors (p. 84)
•
Top tether anchors (p. 86)
SAFETY
}}
77
Child restraints
Suitable child restraints should always be used
when children travel in the vehicle.
Child restraint systems
Infant seat
There are three main types of child restraint sys-
tems: infant seats, convertible seats and booster
cushions. They are classified according to the
child's age and size.
The child restraint should be secured using a
three-point seat belt, ISOFIX/LATCH anchors or
top tether anchors.
Convertible seat
WARNING
A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated (on vehicles equipped with
Occupant Weight Sensor). If the severity of an
accident were to cause the airbag to inflate,
this could lead to serious injury or death to a
child seated in this position.
Booster cushion
WARNING
Always refer to the child restraint manufactur-
er's instructions for detailed information on
securing the restraint.
||
SAFETY
78
WARNING
•
When not in use, keep the child restraint
system secured or remove it from the
passenger compartment to help prevent it
from injuring passengers in the event of a
sudden stop or collision.
•
A small child's head represents a consid-
erable part of its total weight and its neck
is still very weak. Volvo recommends that
children up to age 4 travel, properly
restrained, facing rearward. In addition,
Volvo recommends that children should
ride rearward facing, properly restrained,
as long as possible.
Automatic Locking Retractor/
Emergency Locking Retractor (ALR/
ELR)
To make child seat installation easier, each seat
belt (except for the driver's belt) is equipped with
a locking mechanism to help keep the seat belt
taut.
When attaching the seat belt to a child seat:
1. Attach the seat belt to the child seat accord-
ing to the child seat manufacturer's instruc-
tions.
2. Pull the seat belt out as far as possible.
3. Insert the seat belt latch plate into the buckle
(lock) in the usual way.
4. Release the seat belt and pull it taut around
the child seat.
A sound from the seat belt retractor will be audi-
ble at this time and is normal. The belt will now
be locked in place. This function is automatically
disabled when the seat belt is unlocked and the
belt is fully retracted.
WARNING
Do not use child safety seats or child booster
cushions/backrests in the front passenger's
seat. We also recommend that children who
have outgrown these devices sit in the rear
seat with the seat belt properly fastened.
Child restraint registration and recalls
Child restraints could be recalled for safety rea-
sons. You must register your child restraint to be
reached in a recall. To stay informed about child
safety seat recalls, be sure to fill out and return
the registration card that comes with new child
restraints.
Child restraint recall information is readily availa-
ble in both the U.S. and Canada. For recall infor-
mation in the U.S., call the U.S. Government's
Auto Safety Hotline at 1-800-424-9393 or go to
http://www-odi.nhtsa.dot.gov/cars/problems/
recalls/register/childseat/index.cfm. In Canada,
visit Transport Canada's Child Safety website at
http://www.tc.gc.ca/roadsafety/childsafety/
menu.htm.
Infant seats
Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.
Securing an infant seat with a seat belt
Do not place the infant seat in the front passenger's
seat
1. Place the infant seat in the rear seat of the
vehicle.
2. Attach the seat belt to the infant seat
according to the manufacturer's instructions.
SAFETY
}}
79
Positioning the seat belt through the infant seat
WARNING
•
An infant seat must be in the rear-facing
position only.
•
The infant seat should not be positioned
behind the driver's seat unless there is
adequate space for safe installation.
WARNING
A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated (on vehicles equipped with
Occupant Weight Sensor). If the severity of an
accident were to cause the airbag to inflate,
this could lead to serious injury or death to a
child seated in this position.
3.
Fasten the seat belt
Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
Pull out the shoulder section of the seat belt
4. Pull the shoulder section of the seat belt out
as far as possible to activate the belt's auto-
matic locking function.
||
SAFETY
80
NOTE
The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.
5. Press the infant seat firmly in place, let the
seat belt retract and pull it taut. A sound from
the seat belt retractor's automatic locking
function will be audible at this time and is
normal. The seat belt should now be locked
in place.
Ensure that the seat is securely in place
6. Push and pull the infant seat along the seat
belt path to ensure that it is held securely in
place by the seat belt.
WARNING
It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.
The infant seat can be removed by unbuckling
the seat belt and letting it retract completely.
Related information
•
ISOFIX/LATCH lower anchors (p. 84)
•
Top tether anchors (p. 86)
•
Convertible seats (p. 80)
•
Buckling and unbuckling seat belts (p. 62)
•
Child safety (p. 75)
Convertible seats
Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.
Securing a convertible seat with a seat
belt
Do not place the convertible seat in the front passeng-
er's seat
Convertible seats can be used in either a forward
or rearward-facing position, depending on the
age and size of the child.
SAFETY
}}
81
Route the seat belt through the convertible seat
WARNING
Always use a convertible seat that is suitable
for the child's age and size. See the converti-
ble seat manufacturer's recommendations.
1. Place the convertible seat in the rear seat of
the vehicle.
WARNING
•
A small child's head represents a consider-
able part of its total weight and its neck is
still very weak. Volvo recommends that
children up to age 4 travel, properly
restrained, facing rearward. In addition,
Volvo recommends that children should
ride rearward facing, properly restrained, as
long as possible.
•
Convertible child seats should be installed
in the rear seat only.
•
A rear-facing convertible seat should not
be positioned behind the driver's seat
unless there is adequate space for safe
installation.
2. Attach the seat belt to the convertible seat
according to the manufacturer's instructions.
Fasten the seat belt
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
4. Pull the shoulder section of the seat belt out
as far as possible to activate the belt's auto-
matic locking function.
||
SAFETY
82
NOTE
The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.
5. Press the convertible seat firmly in place, let
the seat belt retract and pull it taut. A sound
from the seat belt retractor's automatic lock-
ing function will be audible at this time and is
normal. The seat belt should now be locked
in place.
Pull out the shoulder section of the seat belt
6. Push and pull the convertible seat along the
seat belt path to ensure that it is held
securely in place by the seat belt.
WARNING
It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.
The convertible seat can be removed by unbuck-
ling the seat belt and letting it retract completely.
Ensure that the seat is securely in place
WARNING
A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated. If the severity of an accident
were to cause the airbag to inflate, this could
lead to serious injury or death to a child
seated in this position.
Related information
•
ISOFIX/LATCH lower anchors (p. 84)
•
Top tether anchors (p. 86)
•
Booster cushions (p. 83)
•
Buckling and unbuckling seat belts (p. 62)
•
Child safety (p. 75)
SAFETY
* Option/accessory.
83
Booster cushions
Securing a booster cushion
Position the child correctly on the booster cushion
Booster cushions are recommended for children
who have outgrown convertible seats.
1. Place the booster cushion in the rear seat of
the vehicle.
2. With the child properly seated on the booster
cushion, attach the seat belt to or around the
cushion according to the manufacturer's
instructions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
Positioning the seat belt
4. Ensure that the seat belt is pulled taut and
fits snugly around the child.
WARNING
•
The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.
•
The shoulder section of the three-point
seat belt should be positioned across the
chest and shoulder.
•
The shoulder belt must never be placed
behind the child's back or under the arm.
Related information
•
ISOFIX/LATCH lower anchors (p. 84)
•
Top tether anchors (p. 86)
•
Child safety (p. 75)
•
Buckling and unbuckling seat belts (p. 62)
•
Integrated booster cushion* (p. 87)
SAFETY
84
ISOFIX/LATCH lower anchors
Lower anchors for ISOFIX/LATCH-equipped
child seats are located in the rear, outboard
seats, hidden below the backrest cushions.
Using the ISOFIX/LATCH lower child
seat anchors
Location of the ISOFIX/LATCH anchors
Symbols on the seat back upholstery mark the
ISOFIX/LATCH anchor positions as shown. To
access the anchors, kneel on the seat cushion
and locate the anchors by feel. Always follow your
child seat manufacturer's installation instructions,
and use both ISOFIX/LATCH lower anchors and
top tethers whenever possible.
To access the anchors
1. Put the child restraint in position.
2. Kneel on the child restraint to press down
the seat cushion and locate the anchors by
feel.
3. Fasten the attachment on the child
restraint's lower straps to the ISOFIX/
LATCH/LATCH lower anchors.
4. Firmly tension the lower child seat straps
according to the manufacturer's instructions.
WARNING
Volvo's ISOFIX/LATCH anchors conform to
FMVSS/CMVSS standards. Always refer to
the child restraint system's manual for weight
and size ratings.
NOTE
•
The rear seat's center position is not
equipped with ISOFIX/LATCH lower
anchors. When installing a child restraint
in this position, attach the restraint's top
tether strap (if it is so equipped) to the
top tether anchorage point and secure
the restraint with the vehicle's center seat
belt.
•
Always follow your child seat manufactur-
er's installation instructions, and use both
ISOFIX/LATCH lower anchors and top
tethers whenever possible.
Fasten the attachment correctly to the ISOFIX/LATCH
lower anchors
WARNING
•
Be sure to fasten the attachment cor-
rectly to the anchor (see the illustration).
If the attachment is not correctly fas-
tened, the child restraint may not be
properly secured in the event of a colli-
sion.
•
The ISOFIX/LATCH lower child restraint
anchors are only intended for use with
child seats positioned in the outboard
seating positions. These anchors are not
certified for use with any child restraint
that is positioned in the center seating
position. When securing a child restraint
in the center seating position, use only
the vehicle's center seat belt.
SAFETY
}}
85
Related information
•
Top tether anchors (p. 86)
Lower child seat attachment points
1
The vehicle is equipped with lower attachment
points for child seats in the rear seat.
The lower attachment points are intended for use
with rear-facing child restraints.
Always follow the child restraint manufacturer's
installation instructions when attaching a child
restraint to these attachment points.
Location
Attachment points in the front seat
Attachment points in the rear seats
The attachment points in the rear seat are in the
rear section of the front seat's floor rails.
WARNING
A child seat should never be used in the front
passenger seat of any vehicle with a front
passenger airbag – not even if the "Passen-
ger airbag off" symbol near the rear-view mir-
ror is illuminated (on vehicles equipped with
Occupant Weight Sensor). If the severity of an
accident were to cause the airbag to inflate,
this could lead to serious injury or death to a
child seated in this position.
1
Not available in all markets
||
SAFETY
86
Related information
•
Child restraints (p. 77)
•
ISOFIX/LATCH lower anchors (p. 84)
•
Occupant weight sensor (p. 68)
Top tether anchors
Your Volvo is equipped with child restraint top
tether anchorages for all three seating positions
in the rear seat. They are located on the rear
side of the backrests.
Child restraint anchorages
Top tether anchors and symbols on the rear side of the
rear seat backrests.
Securing a child seat
1. Place the child restraint on the rear seat.
2. Route the top tether strap under the head
restraint and attach it to the anchor.
3. Attach lower tether straps to the lower ISO-
FIX/LATCH anchors. If the child restraint is
not equipped with lower tether straps, or the
restraint is used in the center seating posi-
tion, follow instructions for securing a child
restraint using the Automatic Locking
Retractor seat belt.
–
Firmly tension all straps.
Refer also to the child seat manufacturer's
instructions for information on securing the child
seat.
NOTE
On models equipped with the optional cargo
area cover, this cover should be removed
before a child seat is attached to the child
restraint anchors.
WARNING
•
Always refer to the recommendations
made by the child restraint manufacturer.
•
Volvo recommends that the top tether
anchors be used when installing a for-
ward-facing child restraint.
•
Never route a top tether strap over the
top of the head restraint. The strap
should be routed beneath the head
restraint.
SAFETY
}}
* Option/accessory.
87
•
Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts or harnesses. The ancho-
rages are not able to withstand excessive
forces on them in the event of collision if
full harness seat belts or adult seat belts
are installed to them. An adult who uses a
belt anchored in a child restraint anchor-
age runs a great risk of suffering severe
injuries should a collision occur.
•
Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.
Related information
•
Child safety (p. 75)
•
Child restraints (p. 77)
Integrated booster cushion*
Volvo's optional integrated booster cushions are
located in the rear seat's outer positions and are
designed to raise the child higher so that the
shoulder strap crosses over the child's collar-
bone, not over the neck.
Integrated booster cushion
2
These booster cushions have been specially
designed to help safeguard children in the rear
seat. They should be stowed (folded down into
the seat cushion) when not in use. When using
an integrated booster cushion, the child must be
secured with the vehicle's three-point seat belt.
If using a booster cushion does not result in
proper positioning of the shoulder strap, then the
child should be placed in a properly secured child
restraint. The shoulder belt must never be placed
behind the child's back or under the arm.
Correct seating position: the shoulder belt is across the
collarbone
2
Canada only: This cushion may be referred to as a built-in booster cushion.
||
SAFETY
* Option/accessory.
88
WARNING
DEATH or SERIOUS INJURY can
occur
•
Follow all instructions on this
child restraint and in the vehicle’s
owner’s manual.
•
Make sure the booster cushion is
securely locked before the child
is seated.
•
Use this booster cushion only with chil-
dren whose height and weight are within
the permitted limits shown in the table.
•
Use only the vehicle’s lap and shoulder
belt system when restraining the child in
this booster seat.
•
In the event of a collision while the inte-
grated booster cushion was occupied, the
entire booster cushion and seat belt must
be replaced. The booster cushion should
also be replaced if it is badly worn or
damaged in any way. This work should be
performed by a trained and qualified
Volvo service technician only.
Before driving, check that:
•
The integrated two-stage booster cushion is
set in the correct position according to the
child's height and weight
•
That the seat belt is properly positioned and
is taut.
•
The shoulder section of the seat belt is
across the child's collarbone, not over the
neck.
•
The lap section of the seat belt is across the
child's hips and not the abdomen.
•
The head restraint is set to same height as
the child’s head so that, if possible, the entire
back of the child's head is covered.
US models
Stage 1 Stage 2
Weight 50 – 80 lbs
22 – 36 kg
33 – 55 lbs
15 – 25 kg
Height 45 – 55 in.
115 – 140 cm
37 – 47 in.
95 – 120 cm
Canadian models
Stage 1 Stage 2
Weight 22 – 36 kg
50 – 80 lbs
18 – 25 kg
40 – 55 lbs
Height 115 – 140 cm
45 – 55 in.
102 – 120 cm
40 – 47 in.
18 kg (40 lbs) is the minimum weight require-
ment for a child using booster seats according to
the Canadian regulation CMVSS 213.4.
Related information
•
Seat belts (p. 60)
•
Child safety (p. 75)
•
Raising the integrated booster cushion*
(p. 89)
•
Stowing the integrated booster cushion*
(p. 91)
SAFETY
}}
* Option/accessory.
89
Raising the integrated booster
cushion*
The integrated booster cushions in the rear
seat's outboard positions must be correctly
raised before use.
An Integrated booster cushion in the rear seat
can be folded up to two positions, depending on
the child's height and weight.
Lower position:
Pull the handle forward and upward to
release the booster cushion.
Press the booster cushion rearward to lock it
in position.
Upper position (assuming the booster cushion is
already in the lower position):
Press the button to release the booster
cushion.
||
SAFETY
* Option/accessory.
90
Lift the front edge of the booster cushion
and press it rearward toward the backrest to
lock it in position.
WARNING
DEATH or SERIOUS INJURY can
occur
•
Follow all instructions on this
child restraint and in the vehicle’s
owner’s manual.
•
Make sure the booster cushion is
securely locked before the child
is seated.
•
Use this booster cushion only with chil-
dren whose height and weight are within
the permitted limits shown in the table.
•
Use only the vehicle’s lap and shoulder
belt system when restraining the child in
this booster seat.
•
In the event of a collision while the inte-
grated booster cushion was occupied, the
entire booster cushion and seat belt must
be replaced. The booster cushion should
also be replaced if it is badly worn or
damaged in any way. This work should be
performed by a trained and qualified
Volvo service technician only.
NOTE
The integrated booster cushion cannot be
moved directly from the upper position to the
lower one. It must first be folded down com-
pletely (to the stowed position) and then
raised to the lower position.
Related information
•
Integrated booster cushion* (p. 87)
•
Stowing the integrated booster cushion*
(p. 91)
SAFETY
}}
* Option/accessory.
91
Stowing the integrated booster
cushion*
The integrated booster cushions in the rear
seat's outboard positions should be stowed
(folded down) when not in use.
Pull the handle forward to release the
booster cushion.
Press down on the center of the booster
cushion to return it to the stowed position.
NOTE
The integrated booster cushion cannot be
moved directly from the upper position to the
lower one. It must first be folded down com-
pletely (to the stowed position) and then
raised to the lower position.
NOTE
The booster cushion must be in the stowed
position before the rear seat backrests are
folded down.
CAUTION
Be sure there are no loose objects under the
booster cushion before it is stowed.
WARNING
DEATH or SERIOUS INJURY can
occur
•
Follow all instructions on this
child restraint and in the vehicle’s
owner’s manual.
•
Make sure the booster cushion is
securely locked before the child
is seated.
•
Use this booster cushion only with chil-
dren whose height and weight are within
the permitted limits shown in the table.
•
Use only the vehicle’s lap and shoulder
belt system when restraining the child in
this booster seat.
•
In the event of a collision while the inte-
grated booster cushion was occupied, the
entire booster cushion and seat belt must
be replaced. The booster cushion should
also be replaced if it is badly worn or
damaged in any way. This work should be
performed by a trained and qualified
Volvo service technician only.
INSTRUMENTS AND CONTROLS
INSTRUMENTS AND CONTROLS
* Option/accessory.
94
Instruments and controls
This overview shows the location of the primary
displays, and controls/buttons/switches.
Display/function/control
Parking lights, daytime running lights, low
beams, high beams, turn signals, front
fog lights/corner illumination*, trip com-
puter reset
Transmission manual shifting paddle*
Head-up-display*
Instrument panel
Wipers/washers, rain sensor*
Right-side steering wheel keypad
Display/function/control
Steering wheel adjustment
Horn
Left-side steering wheel keypad
Hood open
Display lighting, tailgate unlock, tailgate
open/close*
Display/function/control
Front reading lights and courtesy lighting
Laminated panoramic roof*
Display/function/control
Ceiling console display
Manual rearview mirror auto-dim (certain
markets only)
Display/function/control
Center display
Hazard warning flashers, max. defroster/
heated windshield*, media player, glove
compartment open
Gear selector
Start knob
Drive modes*
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
95
Display/function/control
Parking brake
Auto-hold brakes
Display/function/control
Memory control for:
•
power seats*
•
door mirrors
•
head-up display*
Door open, door/tailgate lock/unlock
Power windows, power door mirrors
Controls for power front seat*
Trip computer
The trip computer registers and calculates infor-
mation such as distance driven, fuel consump-
tion and average speed. This information is dis-
played in the instrument panel.
To help promote fuel efficient driving, the trip
computer provides readings for current and aver-
age fuel consumption.
The trip computer includes the following
gauges:
•
Trip odometers
•
Odometer
•
Current fuel consumption
•
Distance to empty
•
Tourist (alternative speedometer)
12" instrument panel
8" instrument panel
Trip odometer
There are two trip odometers: TM and TA. During
a drive, the trip odometer registers:
•
Mileage
•
Driving time
•
Average speed
•
Average fuel consumption
The values displayed are those since the last
time the trip odometer was reset.
Odometer
The odometer registers the vehicle's total mile-
age and cannot be reset.
Current fuel consumption
This gauge shows the current fuel consumption.
This reading is updated once a second.
||
INSTRUMENTS AND CONTROLS
96
Distance to empty
This function shows the approximate distance
that can be driven on the fuel remaining in the
tank.
The calculation is based on average fuel con-
sumption during the last 20 miles (30 km) of
driving and the amount of fuel remaining in the
tank.
When the gauge displays "----", there is very little
useable fuel remaining in the tank; refuel as soon
as possible.
The accuracy of this figure may vary if your driv-
ing style changes. An economical driving style will
generally increase this distance.
Tourist (alternative speedometer)
This is an alternative digital speedometer can be
used when driving in areas in which the speed
limit is listed in a different unit of measure. If the
speedometer is in mph, this gauge will show the
vehicle's speed in km/h and vice versa.
Related information
•
Displaying trip computer information (p. 96)
•
Displaying trip statistics (p. 97)
Displaying trip computer
information
The trip computer registers and calculates infor-
mation such as distance driven, fuel consump-
tion and average speed. This information is dis-
played in the instrument panel.
Use the right-side steering wheel keypad to navigate in
the trip computer (generic illustration)
Open/close the app menu
Left/right arrow keys
Up/down arrow keys
Confirm
1. Press (1) to open the app menu in the
instrument panel.
The app menu cannot be opened if there is
an a message in the instrument panel that
has not been confirmed. Press (4) to confirm.
2. The top four lines show readings from trip
odometer TM. The following four lines show
readings from trip odometer TA. Scroll up/
down in the list using (3).
3. Scroll to the selection buttons in the lines
below TA and select the trip odometer to be
displayed.
•
Current fuel consumption
•
Distance to empty
•
Odometer
•
Trip odometers TM, TA or none
•
Tourist (alternative speedometer).
Select or deselect an alternative using the
center button (4). The change will be made
immediately.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
97
Resetting a trip odometer
Reset trip odometer TM by pressing and holding
the RESET button the left-side steering wheel
lever. Trip odometer TA resets automatically if the
ignition is switched off for more than 4 hours.
Changing the unit of measure
Change the units of measure for driven distance
and fuel consumption in the center display's Top
view by selecting
Settings System Units
and marking the desired unit.
NOTE
Changing these units of measure will also
change the ones used in the Volvo navigation
system*.
Related information
•
Displaying trip statistics (p. 97)
•
Trip computer (p. 95)
Displaying trip statistics
Trip computer statistics can be displayed graphi-
cally in the center display.
Open the Driver performance
app in the app menu to display
trip statistics.
Each bar in the graph repre-
sents a driving distance of
1 mile, 10 miles or 100 miles
1
depending on the current scale; bars are added
from the right and the bar at the far right shows
the value for the current trip.
Average fuel consumption is calculated from the
most recent time at which the current trip odom-
eter was reset.
Trip statistic settings
Select Preferences to:
•
change the graph's scale
•
Reset data after each trip (this occurs if the
vehicle remains parked for more than 4
hours)
•
Reset data for the current trip
1
This can also be displayed in kilometers.
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
98
The illustration is generic; the layout may vary depending
on the model or due to software updates
Changing the unit of measure
Change the units of measure for driven distance
and fuel consumption in the center display's Top
view.
1.
Tap
Settings in Top view.
2.
Tap
System Units.
3.
Under
Units, select: Metric, Imperial or US.
Related information
•
Trip computer (p. 95)
•
Displaying trip computer information (p. 96)
HomeLink
®
Wireless Control
System*
HomeLink
®
can be used to open garage doors,
gates, etc.
Button 1
Button 2
Button 3
Indicator light
The HomeLink
®2
Wireless Control System pro-
vides a convenient way to replace up to three
hand-held radio-frequency (RF) transmitters used
to activate devices such as gate operators,
garage door openers, entry door locks, security
systems, even home lighting. Additional informa-
tion can be found on the Internet at,
www.homelink.com/www.youtube.com/
HomeLinkGentex or by phoning the hotline at 1–
800–355–3515.
WARNING
•
If you use HomeLink
®
to open a garage
door or gate, be sure no one is near the
gate or door while it is in motion.
•
When programming a garage door
opener, it is advised to park outside of the
garage.
•
Do not use HomeLink
®
with any garage
door opener that lacks safety stop and
reverse features as required by U.S. fed-
eral safety standards (this includes any
garage door opener model manufactured
before April 1, 1982). A garage door that
cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards. For
more information, contact HomeLink at:
www.homelink.com.
Retain the original transmitter of the RF device
you are programming for use in other vehicles as
well as for future HomeLink programming. It is
also suggested that upon the sale of the vehicle,
the programmed HomeLink buttons be erased
2
HomeLink and the HomeLink house are registered trademarks of Gentex Corporation.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
99
for security purposes. See the article "Program-
ming HomeLink."
Related information
•
Programming the HomeLink
®
Wireless Con-
trol System* (p. 99)
Programming the HomeLink
®
Wireless Control System*
NOTE
Some vehicles may require the ignition to be
switched on or be in the “accessories” posi-
tion for programming and/or operation of
HomeLink. It is also recommended that a new
battery be placed in the hand-held transmitter
of the device being programmed to Home-
Link for quicker training and accurate trans-
mission of the radio-frequency signal. The
HomeLink buttons must be reset first. When
this has been completed, Homelink is in
learning mode so that you can perform pro-
gramming.
To program HomeLink
®
1.
Press the HomeLink
®
button to be pro-
grammed. The HomeLink
®
indicator will
begin flashing yellow once a second. You do
not need to continue holding the button.
2. Point the hand-held transmitter toward the
HomeLink
®
button to be programmed and
hold it approx. 6–12 inches (15–30 cm)
away from the HomeLink
®
button. Do not
obstruct the HomeLink
®
indicator light.
3. Press and hold the button on the original
remote control that is to be programmed on
HomeLink
®
and observe the HomeLink
®
indicator light. Hold the button until the indi-
cator light has changed from flashing yellow
once a second to either flashing green 10
times a second or by glowing steadily green.
When the HomeLink
®
indicator light flashes
or glows steadily green, the button on the
original remote control can be released.
Note: for certain remote controls, the
instructions listed under "Gate operators/
Canadian programming" at the end of this
article should be used instead of step 3.
||
INSTRUMENTS AND CONTROLS
100
4.
Press the programmed HomeLink
®
button
and check the indicator light.
Indicator light glows steadily green: pro-
gramming has been completed. The garage
door, gate, etc., should now be activated
when the programmed button is pressed.
Indicator light flashes 10 times a second:
press the HomeLink
®
button that is being
programmed. Hold it for 2 seconds and
release it. Repeat the “press/hold/release”
sequence a second time, and, depending on
the brand of the garage door opener, repeat
this sequence a third time to complete the
programming process. Programming should
now be completed and the garage door,
gate, etc., should now be activated when the
programmed button is pressed.
If the garage door, etc. still does not
react: continue with steps 6-8 to complete
programming.
5. Locate the "training" button on the garage
door opener, etc. The designation and color
of the button may vary, depending on the
manufacturer. It is usually located near the
antenna attachment on the device.
6. Press the device's "training" button. When
this has been done, step 8 must be comple-
ted within 30 seconds.
7.
Press and hold the HomeLink
®
button being
programmed for 2 seconds and release it.
Repeat the “press/hold/release” sequence a
second time, and, depending on the brand of
the garage door opener, repeat this
sequence a third time to complete the pro-
gramming process. Programming should now
be completed and the garage door, gate, etc.,
should now be activated when the pro-
grammed button is pressed.
Gate Operator/Canadian Programming
Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink to pick up the signal dur-
ing programming. Similar to this Canadian law,
some U.S. gate operators are designed to “time-
out” in the same manner.
If you live in Canada or you are having difficulties
programming a gate operator or garage door
opener by using the “Programming” procedures,
replace “Programming HomeLink” step 3
with the following:
•
Continue to press and hold the HomeLink
button while you press and release - every
two seconds (“cycle”) your hand-held trans-
mitter until the HomeLink indicator light
changes from a slow to a rapidly blinking
light. Now you may release both the Home-
Link and hand-held transmitter buttons.
Proceed with “Programming” step 4 to complete.
Using HomeLink
®
When programming has been completed,
HomeLink
®
can be used instead of the original
remote controls.
To operate, press and hold the programmed
HomeLink
®
button until the trained device begins
to operate
3
(this may take several seconds). The
3
Do not hold the button for more than 20 seconds as this will clear the programming of the button.
INSTRUMENTS AND CONTROLS
* Option/accessory.
101
indicator light will glow steadily or flash when the
button has been pressed. Activation will now
occur for the trained device (i.e., garage door
opener, gate operator, security system, entry door
lock, home/office lighting, etc.).
NOTE
If the ignition is switched off, HomeLink will
function for 30 minutes after the driver's door
has been opened.
For convenience, the hand-held transmitter of the
device may also be used at any time.
In the event that there are still programming diffi-
culties or questions, contact HomeLink at:
www.HomeLink.com, www.youtube.com/
HomeLinkGentex or by phoning the hotline at 1–
800–355–3515.
Resetting HomeLink
®
buttons
Use the following procedure to reset (erase pro-
gramming) from the three HomeLink
®
buttons
(individual buttons cannot be reset but can be
“reprogrammed” as outlined in the following sec-
tion):
1.
Press and hold HomeLink
®
buttons 1 and 3
for approx. 10 seconds until the indicator
light begins to flash green.
2. Release both buttons.
>
HomeLink
®
is now in the training (or
learning) mode and can be programmed
at any time beginning with “To program
HomeLink
®
" above.
Reprogramming a single HomeLink
®
button
To reprogram an individual HomeLink
®
button:
1.
Press and hold the desired HomeLink
®
but-
ton. DO NOT release the button.
2. The yellow indicator light will begin to flash
after 20 seconds. Without releasing the
HomeLink button, proceed with “To program
HomeLink
®
" step 1 above.
For questions or comments, contact HomeLink
at: www.HomeLink.com, www.youtube.com/
HomeLinkGentex or by phoning the hotline at 1–
800–355–3515.
FCC (USA) and IC (Canada)
This device complies with FCC rules part 15 and
Industry Canada RSS-210. Operation is subject
to the following two conditions: (1) This device
may not cause harmful interference, and (2) This
device must accept any interference that may be
received including interference that may cause
undesired operation. WARNING: The transmitter
has been tested and complies with FCC and IC
rules. Changes or modifications not expressly
approved by the party are prohibited.
NOTE
The transmitter has been tested and complies
with FCC and IC rules. Changes or modifica-
tions not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the device.
4
Related information
•
HomeLink
®
Wireless Control System* (p. 98)
4
The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met.
INSTRUMENTS AND CONTROLS
* Option/accessory.
102
Adjusting the power door mirrors
The control on the driver's door is used to adjust
the position of the door mirrors.
Door mirror controls
Adjusting
1.
Press the L button for the left door mirror or
the R button for the right door mirror. The
light in the button comes on.
2. Adjust the position with the joystick in the
center.
3.
Press the L or R button again. The light
should no longer be on.
WARNING
Objects seen in the mirrors may appear fur-
ther away than they actually are.
Storing the position*
The mirror positions are stored in the key mem-
ory* when the vehicle has been locked with the
remote key. When the vehicle is unlocked with
the same remote key, the mirrors and the driver's
seat adopt the stored positions when the driver's
door is opened. The mirrors' position can also be
stored in the power seat's* memory.
Tilting the door mirrors when parking
5
The door mirrors can be tilted down to help give
the driver a better view along the sides of the
vehicle, for example when parallel parking.
–
To activate this function, select reverse gear
and press the L or R mirror control button to
tilt the mirror down.
The door mirror will reset to its normal position:
•
after 10 seconds when reverse is disen-
gaged
•
immediately if you press the corresponding L
or R button again.
NOTE
Only one mirror can be tilted down at a time.
Automatically tilting the door mirrors
when parking
5
This function can be activated/deactivated in the
center display.
1.
Tap
Settings in Top view.
2.
Tap
My Car Mirrors.
3.
Under
Tilt Mirror In Reverse, select Off,
Driver, Passenger or Both to activate/
deactivate and select which mirror to tilt.
Folding mirrors*
When parking in a limited space, the mirrors can
be folded in:
1.
Press the L and R buttons at the same time
(the ignition must be in at least mode I).
2. Release the buttons after approx. 1 second.
The mirrors will stop automatically when they
are completely folded in.
Fold out the mirrors by pressing the L and R at
the same time. The mirrors will stop automatically
when they return to their original positions.
Automatic folding when the vehicle is
locked
5
The mirrors can be folded in/out automatically
when the vehicle is locked/unlocked.
This function can be activated/deactivated in the
center display.
5
Only on models equipped with a power driver's seat.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
103
1.
Tap
Settings in Top view.
2.
Tap
My Car Mirrors.
3.
Select
Fold Mirrors When Locking to acti-
vate/deactivate.
Resetting the mirrors' position
A mirror that has been moved manually (e.g.,
bumped into in a parking lot, etc.) has to be
returned to its normal position electrically before
automatic folding will function correctly.
1.
Fold in the mirrors with the L and R buttons.
2.
Fold out the mirrors with the L and R buttons.
The mirrors have now been reset to their original
positions.
Auto-dim*
Settings can be made for the auto-dim function
in the rearview and door mirrors.
The auto-dim function is always active while the
vehicle is being driven except when the reverse
gear has been selected. The level of sensitivity
for this function can be set to three levels, which
affect the rearview mirror and door mirrors.
NOTE
When the level of sensitivity is changed, this
change will not be noticeable immediately but
will take effect after a short period of time.
The level of sensitivity is set from the center dis-
play:
1.
Tap
Settings in Top view.
2.
Tap
My Car Mirrors.
3.
Under
Auto Dim Mirrors, select Normal,
Dark or Light.
Related information
•
Using the power seat memory function*
(p. 164)
•
Rearview mirror (p. 108)
Laminated panoramic roof*
The laminated panoramic roof is divided into two
sections and only the front section can be
opened; it can be slid horizontally to the open or
closed positions or its rear edge can be raised
and lowered to allow ventilation.
The laminated panoramic roof also has a sun
shade made of perforated fabric that is located
below the sections of glass. This shade can be
opened or closed, for example when driving in
bright sunlight.
The laminated panoramic roof also has a wind
blocker that folds up when the roof is open.
CAUTION
The optional panoramic roof should not be
opened while load carriers are installed on
the vehicle.
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
104
The laminated panoramic roof and the sun shade
are operated using the controls in the ceiling
console, near the rear-view mirror. The controls
are activated when the vehicle's ignition is in
mode I or II.
CAUTION
•
Remove ice and snow before opening the
laminated panoramic roof.
•
Do not operate the laminated panoramic
roof if it is frozen closed.
•
Never place heavy objects on the lamina-
ted panoramic roof.
Wind blocker
The laminated panoramic roof is equipped with a
wind blocker that folds up when the roof is open.
Related information
•
Operating the laminated panoramic roof*
(p. 104)
Operating the laminated panoramic
roof*
When opened automatically, the sun shade and
roof open first to the "comfort" position that
helps reduce wind noise and then open com-
pletely.
In the tilt (ventilation) position, the rear edge of
the front section of the roof is raised.
Operation
WARNING
•
During manual closing, if the laminated
panoramic roof is obstructed, immediately
open it again.
•
Never open or close the laminated panor-
amic roof if it is obstructed in any way.
•
Never allow a child to operate the lamina-
ted panoramic roof.
•
Never leave a child alone in a vehicle.
•
When leaving the vehicle, ensure that the
ignition is in mode 0. Never leave a
remote key in the vehicle.
•
Never extend any object or body part
though the open laminated panoramic
roof, even if the vehicle's ignition is com-
pletely switched off.
INSTRUMENTS AND CONTROLS
}}
105
CAUTION
The optional panoramic roof should not be
opened while load carriers are installed on
the vehicle.
Manual open (arrow points toward the rear of
the vehicle)
Auto open
Manual close
Auto close
The laminated panoramic roof and sun shade can
be operated when the ignition is in at least
mode I.
Manual operation
1.
Opening the sun shade: Pull the control
back to the first stop (the manual open posi-
tion) and hold it until the sun shade has
opened to the position of your choice.
2.
Opening the laminated panoramic roof:
Pulling the control back to the first stop (the
manual open position) and holding it a sec-
ond time will open the laminated panoramic
roof to the "comfort" position that helps
reduce wind noise while driving. Pull the con-
trol a third time to open the roof completely.
Perform this procedure in reverse order to close
the laminated panoramic roof and/or sun shade.
Movement of the laminated panoramic roof will
stop if the control is released while it is in the
manual open position.
NOTE
For manual opening, the sun shade must first
be fully open before it will be possible to open
the laminated panoramic roof. When closing,
the laminated panoramic roof must be fully
closed before the sun shade can be closed.
Automatic operation
1.
Opening the sun shade: Pull the control as
far back as possible (to the auto open posi-
tion) and release it.
2.
Opening the laminated panoramic roof:
Pull the control as far back as possible a
second time (to the auto open position) and
release it to open the laminated panoramic
roof to the "comfort" position that helps
reduce wind noise while driving. Pull the con-
trol a third time (to the auto open position)
and release it to open the roof completely.
Perform this procedure in reverse order to close
the laminated panoramic roof/sun shade. The
roof will not stop at the "comfort" position if it is
closed from the fully open position.
The laminated panoramic roof will stop when it
reaches the "comfort" position, the fully open
position or the closed position. Movement will
also stop if the control is moved in the opposite
direction to the movement of the roof.
The roof will not stop at the "comfort" position if
it is closed from the fully open position.
||
INSTRUMENTS AND CONTROLS
106
Quick open/close
The laminated panoramic roof and the sun shade
can be opened/closed at the same time:
•
Open: pull the control back (to the auto
open position) twice in quick succession and
release it.
•
Close: push the control forward (to the auto
close position) twice in quick succession and
release it.
The laminated panoramic roof will stop when it
reaches the "comfort" position or the closed
position. Movement will also stop if the control is
moved in the opposite direction to the movement
of the roof.
The roof will not stop at the "comfort" position if
it is closed from the fully open position. The sun
shade never stops when the roof reaches the
"comfort" position.
Tilt (ventilation) position
Tilt position, raised at the rear edge
Open (raise the rear edge of the front glass
section) by pressing the rear edge of the
control upward.
Close by pulling the rear edge of the control
downward/forward and holding it until the
laminated panoramic roof has closed com-
pletely.
If the sun shade is completely closed, it will open
approximately 2 inches (5 cm) when the lamina-
ted panoramic roof is opened to the tilt position.
Automatically closing the sun shade
6
When the vehicle is parked in sunny/warm
weather, the sun shade can be closed automati-
cally 15 minutes after the vehicle has been
locked to help keep the temperature in the pas-
senger compartment down and to protect the
upholstery from the sun.
This function is deactivated by default and can be
activated/deactivated:
1.
Tap
Settings in the center display's Top
view.
2.
Tap My Car Locking.
Select Auto Close Sun Curtain to acti-
vate/deactivate.
Closing using an outside door handle
7
To close the panoramic roof when locking the
vehicle, hold the pressure sensitive surface on
the outside of a door handle until the panoramic
roof has closed completely. The panoramic roof
will stop if the button is released before it is fully
closed. (This also applies to the windows).
Pinch protection (auto-stop)
The laminated panoramic roof has a pinch pro-
tection feature that is triggered if the glass sec-
tion of the roof and/or the sun shade is blocked
in any way when being closed. In this case, the
laminated panoramic roof and/or sun shade will
stop and reverse automatically approximately 2 in.
(5 cm) from the point at which it was blocked (or
will open fully to the tilt position).
6
Not available in all markets
7
Vehicles with the optional keyless Passive Entry system only.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
107
The pinch protection feature also functions when
the laminated panoramic roof and/or sun shade
is being opened.
WARNING
If the pinch protection (auto-stop) feature has
been triggered, the laminated panoramic roof
and/or sun shade can still be operated once
more within 10 seconds without pinch pro-
tection. Pinch protection can be overridden if
the closing procedure has been interrupted
(e.g., due to ice around the laminated panor-
amic roof) by pressing and holding the control
forward/downward until the laminated panor-
amic roof and/or sun shade is closed.
Power windows
All power windows can be operated using the
control panel in the driver's door. The control
panels in the other doors only operate the win-
dow in the respective doors.
Driver's door control panel
Switch for power child safety locks* and dis-
engaging rear power window buttons
Rear window controls
Front window controls
Related information
•
Operating the power windows (p. 107)
•
Child safety locks (p. 242)
Operating the power windows
WARNING
•
Always put the ignition in mode 0 and
remove the ignition key from the vehicle
when the vehicle is unattended
•
Never leave children unattended in the
vehicle.
•
Make sure that the windows are com-
pletely unobstructed before they are
operated.
Operating
Operating the power windows
Manual up/down
Auto up/down.
||
INSTRUMENTS AND CONTROLS
108
For the power windows to function, the ignition
must be in at least mode I. When the vehicle has
been running, the power windows can be oper-
ated for several minutes after the ignition has
been switched off, or until a door has been
opened.
NOTE
•
Movement of the windows will stop if they
are obstructed in any way. If this happens
twice in succession, the automatic func-
tion will not work for several minutes and
the window can be closed by holding the
button up.
•
To reduce buffeting wind noise if the rear
windows are opened, also open the front
windows slightly.
Manual up/down
–
Move one of the controls up/down slightly.
> The power windows move up/down as
long as the control is held in position.
Auto up/down
–
Move one of the controls up/down as far as
possible and release it.
> The window will open or close completely.
Resetting
If the battery has been disconnected, the auto
open function must be reset so that it will work
properly
1. Gently raise the front section of the button to
close the window and hold it for one second.
2. Release the button briefly.
3. Raise the front section of the button again
for one second.
Related information
•
Child safety locks (p. 242)
Rearview mirror
The interior rearview mirror has an auto-dim
function that helps reduce glare from following
vehicle's headlights.
Auto-dim function
The auto-dim function is controlled by two sen-
sors: one pointing forward (located on the for-
ward-facing side of the mirror, which monitors the
amount of ambient light) and one pointing rear-
ward (located on the side of the mirror facing the
driver at the upper edge, which senses the
strength of following vehicles' headlights), and
work together to help eliminate glare.
NOTE
Obstructing the forward sensor with e.g.,
parking stickers, transponders, etc., or the rear
sensor by loading the cargo area or the rear
seat in such a way that light is prevented from
reaching the sensor will reduce the auto-dim
function in the interior rearview mirror and
optional auto-dim function in the door mirrors.
The auto-dim function is always active while the
vehicle is being driven except when the reverse
gear has been selected. The level of sensitivity
for this function can be set to three levels, which
affect the rearview mirror and door mirrors.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
109
NOTE
When the level of sensitivity is changed, this
change will not be noticeable immediately but
will take effect after a short period of time.
The level of sensitivity is set from the center dis-
play:
1.
Tap
Settings in Top view.
2.
Tap
My Car Mirrors.
3.
Under
Auto Dim Mirrors, select Normal,
Dark or Light.
Related information
•
Adjusting the power door mirrors (p. 102)
Using sun curtains*
Both rear doors have integrated sun curtains.
Rear doors
Hook and locking mechanism
–
Pull up the sun curtain and hook it to the
upper section of the door frame.
The window can be opened/closed when the sun
curtain is being used.
Related information
•
Power windows (p. 107)
•
Ignition modes (p. 374)
Settings view
The center display's Settings view is used to
make many of the vehicle's function settings and
to display vehicle-related information.
Opening Settings view
Top view with the Settings button
1. Pull down the tab on the upper edge of the
center display to open Top view.
2.
Tap
Settings.
3. Tap one of the categories displayed and nav-
igate to sub-categories and settings by tap-
ping again.
4.
Tap
Back to go back in Settings view.
Tap
Close to close Settings view.
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
110
Changing a setting
A sub-category in Settings view with various possible
settings
1. Tap the category/sub-category to navigate to
the desired setting.
2. Change the setting(s).
> The changes are saved immediately.
Types of settings
Type of
setting
Description
Trigger
function
Starts an app or a separate view
for more advanced settings. Tap
the text to e.g., connect a
Bluetooth device.
Radio
button
Select one of the possible set-
tings by tapping the desired radio
button to e.g., change the system
language.
Type of
setting
Description
Multi-
selection
button
Select a level for a particular set-
ting by pressing the desired part
of the button e.g., to set the
desired level for City Safety.
Check
box
Tap to activate/deactivate a func-
tion e.g., to select automatic start
for steering wheel heating.
Slider Select a level for a function by
pressing and dragging the slider
control e.g., to set a volume level.
Informa-
tion dis-
play
This is not an actual setting but
displays information such as the
vehicle's VIN number.
Related information
•
Center display overview (p. 28)
•
Navigating in the center display's views
(p. 38)
•
Using the center display (p. 44)
•
Changing system settings in Settings view
(p. 112)
•
Categories in Settings view (p. 110)
Categories in Settings view
Settings view consists of a number of main cate-
gories and sub-categories that contain settings
and information for many of the vehicle's fea-
tures and functions.
The main categories in Settings view are: My
Car, Sound, Navigation, Media,
Communication, Climate and System.
Each main category, in turn, contains several sub-
categories with possible settings. The table
shows the first level of sub-categories. The possi-
ble settings for a function or area are described
in greater detail in their respective articles in the
owner's manual. For system settings not descri-
bed in the respective articles, see "Changing sys-
tem settings in Settings view."
My Car
Sub-categories Type of setting
Displays
Personal
IntelliSafe
Combination
Park Assist
Global
Drive Mode/Individual
Drive Mode
*
Combination
Lights
Combination
Mirrors
Personal
Locking
Combination
INSTRUMENTS AND CONTROLS
* Option/accessory.
111
Sub-categories Type of setting
Electric Parking Brake
Combination
Seats
Combination
Wipers
Combination
Suspension
Global
Sound
Sub-categories Type of setting
Sound Experience*
Personal
Tone
Personal
Balance
Personal
System Volumes
Combination
Navigation
Sub-categories Type of setting
Map
Personal
Route
Personal
Traffic
Personal
Guidance
Personal
System
Personal
Media
Sub-categories Type of setting
AM/FM Radio
A
Personal
SiriusXM
Personal
Gracenote®
Personal
Video
Personal
A
AM radio is not available in hybrid models.
Communication
Sub-categories Type of setting
Phone
–
Text Messages
–
Bluetooth
–
Wi-Fi
Global
Vehicle Wi-Fi Hotspot
Global
Vehicle Modem Internet
Global
Volvo On Call
–
Volvo Service Networks
Global
Climate
The main category Climate has no sub-catego-
ries.
System
Sub-categories Type of setting
Driver Profile
Personal
Date & Time
–
Language
Personal
Keyboard Layouts
Global
Voice Control
Personal
Units
Personal
Storage
–
Software Updates
–
Global Reset
–
Services
–
Related information
•
Settings view (p. 109)
•
Changing system settings in Settings view
(p. 112)
INSTRUMENTS AND CONTROLS
* Option/accessory.
112
Changing system settings in
Settings view
Settings view's main category
System contains
general settings and information, such as lan-
guage, units of measure, etc.
The system settings under Driver Profile, Date
& Time, Keyboard Layouts, Voice Control,
Software Updates, Factory reset and
Services are described in their respective arti-
cles in the owner's manual.
Changing system languages
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Language.
3. Select a new system language. Languages
that can be used for voice commands are
indicated by a voice control symbol.
> This change affects the language used in
the instrument panel, center display and
the head-up display*.
Changing units of measure
Changing length and volume units
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Units Units.
3. Select one of the following measurement
standards:
•
Metric: kilometers, liters and degrees Cel-
sius.
•
Imperial: miles, gallons and degrees Cel-
sius.
•
US: miles, gallons and degrees Fahren-
heit.
> This change affects the units of measure
used in the instrument panel, center dis-
play and the head-up display*
Changing tire inflation pressure units
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Units Tire Pressure.
3. Select a unit of measure for tire pressure.
> This changes the tire inflation pressure
units used in the
Car status app in the
center display.
Viewing storage information
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Storage.
> Storage information for the vehicle's hard
drive will be displayed, including total
capacity, available capacity and the
amount of storage space used by the
apps that have been installed.
Viewing the VIN (Vehicle Identification
Number)
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Vehicle Identification
Number
.
> The vehicle's VIN will be displayed.
INSTRUMENTS AND CONTROLS
}}
113
Changing settings in apps
App view, which is one of the center display's
basic views, contains all of the apps installed in
the vehicle. From Home view, navigate to App
view by swiping the screen from right to left.
Apps for integrated (basic) functions
Certain apps in your vehicle are factory-installed,
such as
FM, USB and CD and are part of Sen-
sus. Settings in these apps can be changed in
the center display's Top view.
Changing settings for a basic app
1.
Tap one of the basic apps, for example
FM
radio.
2. Pull down Top view.
3.
Tap
FM Radio Settings.
4. Change the desired settings and confirm.
5. Press the Home button below the center dis-
play or tap the screen outside of Top view or
pull up Top view to return to your original
view. See also the article "Categories in Set-
tings view."
Third party apps
Third party apps have to be downloaded e.g.,
Volvo ID. Settings for these apps are made in
the apps themselves, not in Top view.
Related information
•
Settings view (p. 109)
•
Navigating in the center display's views
(p. 38)
•
Categories in Settings view (p. 110)
Resetting the settings view
All of the changes made under Settings view
can be reset to their default values at the same
time.
Types of reset
There are three ways to reset the settings in Set-
tings view under
Global Reset:
•
Factory Reset: erases all data and media
and resets to the settings used when the
vehicle left the factory.
•
Reset Vehicle Settings: resets all global
settings to standard ones.
•
Reset Personal Settings: erases all per-
sonal data and resets to standard settings.
Resetting
NOTE
Global Reset is only possible when the vehi-
cle is stationary.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
System Global Reset.
> A pop-up menu will appear.
||
INSTRUMENTS AND CONTROLS
114
3.
Tap
OK to confirm your choice.
For Reset Personal Settings, tap Reset
for the active profile or Reset for all
profiles for confirmation.
> The selected settings will be reset.
Related information
•
Settings view (p. 109)
•
Resetting user data when the vehicle
changes owners (p. 114)
•
Changing system settings in Settings view
(p. 112)
Resetting user data when the
vehicle changes owners
When the vehicle changes owners, all user set-
tings should be reset to the factory defaults.
When the vehicle changes owners, it is essential
to reset all user data and system settings to their
factory defaults, including Volvo On Call.
Related information
•
Resetting the settings view (p. 113)
•
Volvo ID (p. 27)
Ambient temperature sensor
The ambient temperature sensor displays the
temperature outside the vehicle in the instrument
panel.
Location of the ambient temperature sensor in 12"
(upper) and 8" (lower) instrument panels (temperature
shown here in degrees Celsius)
NOTE
When the ambient temperature is between
23° and 36 °F (–5° and +2 °C), a snowflake
symbol will be displayed next to the tempera-
ture. This symbol serves as a warning for pos-
sible slippery road surfaces. Please note that
this symbol does not indicate a fault with your
vehicle.
At low speeds or when the vehicle is not mov-
ing, the temperature readings may be slightly
higher than the actual ambient temperature.
INSTRUMENTS AND CONTROLS
115
Settings
Changing measurement standard in the center
display:
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Units.
3.
Select measurement standard,
Metric,
Imperial or US.
Related information
•
Instrument panel (p. 124)
•
Climate system sensors (p. 179)
Clock
The clock is displayed in the instrument panel
and in the center display.
Location of the clock in the instrument panel in 12"
(upper) and 8" (lower) instrument panels
Certain messages and other information in the
instrument panel may temporarily obscure the
clock.
In the center display, the clock is located at the
upper right of the status bar.
Settings for date and time
Select Settings System Date & Time in
the center display's Top view to change the for-
mat for displaying date or time.
Set the date and time by tapping the up or down
arrows on the center display.
Automatic time
The function Automatic Time is also available,
which adjusts the time zone automatically,
depending on the vehicle's location. If Automatic
Time has not been selected, set the date and
time manually by tapping the up or down arrows
on the center display.
Daylight savings time
In certain countries, an automatic change to day-
light savings time can be selected by activating
Auto. If the automatic change is not available,
change to daylight savings time by selecting On
or Off.
Related information
•
Instrument panel (p. 124)
•
Center display overview (p. 28)
•
Using the center display (p. 44)
INSTRUMENTS AND CONTROLS
* Option/accessory.
116
Head-up display (HUD)*
The head-up display provides information such
as speed, cruise control functions, navigation,
traffic sign information, incoming phone calls,
etc. at the base of the windshield in the driver's
field of vision.
Incoming phone call
The HUD supplements the instrument panel and
projects information on the lower section of the
windshield. The projected information can only be
seen from the driver's seat.
CAUTION
The HUD's projection unit is located in the
dashboard. Avoid scratching or placing
objects on the unit's glass surface.
Example of information in the head-up display. The infor-
mation shown is generic and may vary slightly from mar-
ket to market or in terms of units of measure
Speed
Cruise control
Navigation
Road signs
Symbols such as the following ones may appear
temporarily in the HUD.
If the warning symbol appears, read the
warning text in the instrument panel.
If the information symbol appears, read
the warning text in the instrument
panel.
NOTE
If the City Safety is activated, the information
in the HUD will be replaced by a City Safety-
related graphic. This graphic will illuminate
even if the HUD is turned off.
A graphic for the City Safety flashes to attract the driv-
er's attention
INSTRUMENTS AND CONTROLS
}}
117
NOTE
The driver's ability to see information in the
HUD may be impeded by:
•
the use of polarizing sunglasses
•
the use of an aftermarket or non-Volvo
replacement windshield
•
not sitting in the center of the driver's
seat
•
objects on the HUD projector glass on
the dashboard
•
certain ambient lighting conditions
•
certain types of vision problems, which
may also result in headaches or eye
strain.
•
Activating/deactivating and settings for
HUD are only possible when an image is
projected on the windshield. The engine
must be running.
Activating/deactivating HUD
HUD can be activated in two ways in the center
display:
Via Function view
Tap the Head-up display but-
ton.
Via settings
1.
Tap
Settings in Top view.
2.
Tap
My Car Displays.
3.
Select/deselect
Head-Up Display.
This selection can be stored as a personal set-
ting in a driver profile.
Selecting display alternatives
1.
Tap
Settings in Top view.
2.
Tap
My Car Displays Head-Up
Display Options
.
Tap Go to the center display's Settings view
and select
Driver Display & Head-up
Display
.
3.
Select :
Show Navigation In Head-Up
Display, Road Sign Information In Head-
Up Display, Show Driver Support In
Head-Up Display or Show Phone In
Head-Up Display.
This selection can be stored as a personal set-
ting in a driver profile.
Adjusting HUD brightness and height
position
1.
Tap
Head-up display adjustments in the
center display's Function view.
2. Use the right-side steering wheel keypad to
adjust the HUD's brightness and height posi-
tion on the windshield in the driver's field of
vision.
Reduce brightness
Increase brightness
Higher position
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
118
Lower position
Confirm
Adapting brightness
The brightness of the graphics displayed in the
HUD are also automatically adjusted according to
ambient lighting conditions. HUD brightness is
also affected by adjustments to the brightness of
the other displays in the vehicle.
Power front seat* memory function
The position of the HUD can be stored in the
power seat's memory function.
Replacing the windshield
Vehicles with a head-up display have a special
type of windshield meeting the requirements for
displaying projected information.
If the windshield has to be replaced, contact a
trained and qualified Volvo service technician or
authorized workshop. The correct type of replace-
ment windshield must be used for a head-up dis-
play.
Calibrating the horizontal position
If the windshield has been replaced, it may be
necessary to calibrate the HUD's horizontal posi-
tion. This means that the projected image will
have to be rotated clockwise or counterclockwise.
To do so:
1. Pull down the center display's Top view and
tap
Settings.
2.
Select
My Car Displays Head-Up
Display Calibration
.
3. Use the buttons on the right-side steering
wheel keypad to calibrate the horizontal posi-
tion.
Rotate counterclockwise
Rotate clockwise
Confirm
Cleaning
Wipe the glass covering the HUD projection unit
carefully with a clean and dry (or very slightly
damp if necessary) microfiber cloth.
Never use strong stain removers. For difficult
cleaning conditions, a special cleaning agent can
be purchased at a Volvo retailer.
Related information
•
Center display overview (p. 28)
•
Navigating in the center display's views
(p. 38)
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
119
Voice control
Voice commands make it possible for the driver
to voice-control certain functions in the media
player, a Bluetooth-connected cell phone, cli-
mate system and the Volvo navigation system*.
Voice control offers convenience and enables the
driver to keep his/her hands on the steering
wheel and concentrate on driving and the traffic
situation around the vehicle.
WARNING
As the driver, you have full responsibility for
operating the vehicle safely and adhering to
all applicable traffic regulations.
Input to the system is in dialog form and compri-
ses commands from the driver and a verbal
response from the system.
The voice control system uses the same micro-
phone as the Bluetooth hands-free system and
system responses come via the infotainment sys-
tem's speakers.
In certain cases, text messages are also provided
in the instrument panel.
The functions are controlled using the right-side
steering wheel keypad and settings are made
from the center console.
System updates
The voice control system is being constantly
improved and updates should be downloaded for
optimal functionality. See the support site
support.volvocars.com.
Related information
•
Using voice commands (p. 119)
•
Voice control settings (p. 124)
•
Voice control for radio and media (p. 121)
•
Voice control for cell phones (p. 120)
•
System updates (p. 474)
•
Navigation system voice commands (p. 123)
•
Climate system voice commands (p. 122)
Using voice commands
The following is an introduction for using voice
commands.
Press the button on the right-
side steering wheel keypad to
activate the system and initiate
a voice command dialog.
Keep the following points in mind when using
voice commands:
•
When giving a command, speak at your usual
speed and in a normal tone of voice after
the tone.
•
Avoid speaking while the system is respond-
ing. Commands cannot be processed during
a response.
•
Avoid background noises in the cabin when
using the system by closing the vehicle's
doors, windows and panoramic roof* when
giving voice commands.
Voice command dialogs can be cancelled by:
•
Saying "Cancel".
•
By pressing and holding the
button on
the right-side steering wheel keypad.
To speed up a command dialog or to skip system
responses, press the
button on the right-
side steering wheel keypad when the system is
responding and give your next command.
||
INSTRUMENTS AND CONTROLS
120
Voice command examples
Press , say "Call"-"[First-name]"-"[Last-
name]"-"[number category]" to call a contact
in your phonebook if the person has more than
one phone number listed (i.e., home, mobile, work,
etc.).
For example, press
and say
"Call"-"Robin"-"Smith"-"mobile".
Commands/phrases
The following commands can always be used:
•
Repeat: the system will repeat the most
recent voice instruction.
•
Cancel: cancel the dialog.
•
Help: Initiates a help dialog. The system will
provide several alternative commands that
can be used in a given situation.
The commands for specific situations are descri-
bed in the respective articles such as "Cell phone
commands", etc.
Numbers
Numbers can be spoken in different ways
depending on the context and function being
used:
•
Phone numbers and zip codes should be
spoken individually, number by number, e.g.,
five five five one two three four (5551234).
•
Addresses (house numbers) can be spo-
ken individually or as a group, e.g., two two or
twenty-two (22). It is also possible to say a
sequence of numbers, e.g., twenty-two
twenty-two (22 22) and "double" or "triple"
can also be used, e.g., double zero (00) or tri-
ple zero (000). Numbers in the range
0-2300 can be used.
•
Frequencies can be spoken ninety-eight
point eight (98.8), one hundred four point
two (104.2) or hundred four point two
(104.2).
Related information
•
Voice control (p. 119)
Voice control for cell phones
Voice commands can be used to control many
of the most common functions in a Bluetooth
®
-
connected cell phone.
To specify a phone book contact, the voice com-
mand has to include the contact's information
that is in the phone book. For example, if a con-
tact such as
John Smith has several phone
numbers, a number category such as home or
mobile can be specified. To call, say: "Call John
Smith mobile".
To use the voice control system, press the
on the right-side steering wheel keypad and say
one of the following commands after the tone:
•
"
Call [contact]": call a contact from your
phone book.
•
"
Call [phone number]": call a phone num-
ber.
•
"
Recent calls": displays the list of recent
calls.
•
"
Read message": reads a message aloud.
If there are several messages, select the one
to be read.
•
"
Message to [contact]": an empty mes-
sage to the selected contact will open and is
ready for dictation to begin.
INSTRUMENTS AND CONTROLS
* Option/accessory.
121
Related information
•
Voice control (p. 119)
•
Using voice commands (p. 119)
•
Voice control settings (p. 124)
Voice control for radio and media
The following voice commands can be used for
the radio or an external media player.
To use the voice control system, press the
on the right-side steering wheel keypad and say
one of the following commands after the tone:
•
"
Media": initiates a dialog and displays pos-
sible commands.
•
"
Play [artist]": plays music by the selected
artist.
•
"
Play [song title]": plays the selected song.
•
"
Play [song title] from [album]": plays the
selected song from the selected album.
•
"
Play [radio station]": starts the selected
radio station.
•
"
Tune to [frequency]": tunes to the
selected frequency on the current waveband.
If no waveband has been selected, FM is the
default.
•
"
Tune to [frequency] [waveband]": tunes
to the selected station on the selected wave-
band.
•
"
Radio": starts FM radio.
•
"
Radio FM": starts FM radio.
•
"
Radio AM": starts AM radio.
•
"
SiriusXM": starts SiriusXM radio*
•
"
CD": starts playback from a CD.
•
"
USB": starts playback from a USB flash
drive.
•
"
iPod": starts playback from an iPod.
•
"
Bluetooth": starts playback from a Blue-
tooth-connected device.
•
"
Similar music": starts playback from a
USB flash drive with music similar to the type
currently playing.
Related information
•
Voice control (p. 119)
•
Using voice commands (p. 119)
•
Voice control settings (p. 124)
INSTRUMENTS AND CONTROLS
* Option/accessory.
122
Climate system voice commands
Voice commands can be used to control the cli-
mate system to e.g., change the temperature,
activate seat heating* or change blower (fan)
speed.
To use the voice control system, press the
on the right-side steering wheel keypad and say
one of the following commands after the tone:
•
"
Climate": starts a command dialog and
provides examples of commands that can be
used.
•
"
Set temperature to X degrees": sets the
desired temperature.
•
"
Raise temperature"/"Lower
temperature": raises/lowers the tempera-
ture.
•
"
Sync temperature": synchronizes the tem-
perature in all of the vehicle's climate zones
with the one set for the driver's side.
•
"
Air on feet"/"Air on body": opens the
desired air vent.
•
"
Air on feet off"/"Air on body off": closes
the desired air vent.
•
"
Set fan to max"/"Turn off fan": changes
the blower speed to
Max/Off.
•
"
Raise fan speed"/"Lower fan speed":
raises/lowers the blower speed.
•
"
Turn on auto": activates automatic climate
control.
•
"
Air condition on"/"Air condition off":
activates/deactivates the air conditioning.
•
"
Recirculation on"/"Recirculation off":
activates/deactivates recirculation.
•
"
Turn on defroster "/"Turn off defroster":
activates/deactivates window and door mirror
defrosting.
•
"
Turn on max defroster"/"Turn off max
defroster": activates/deactivates max
defroster.
•
"
Turn on electric defroster"/"Turn off
electric defroster
": activates/deactivates
the electrically heated windshield*.
•
"
Turn on rear defroster"/"Turn off rear
defroster": activates/deactivates the electri-
cally heated rear window and door mirrors.
•
"
Turn steering wheel heat on"/"Turn
steering wheel heat off": activates/deacti-
vates the electrically heated steering wheel*.
•
"
Raise steering wheel heat"/"Lower
steering wheel heat": raises/lowers the
heating level for the electrically heated steer-
ing wheel*.
•
"
Turn on seat heat"/"Turn off seat heat":
activates/deactivates the electrically heated
seats*.
•
"
Raise seat heat"/"Lower seat heat": rai-
ses/lowers the heating level for the electri-
cally heated seats*.
•
"
Turn on seat ventilation"/"Turn off seat
ventilation": activates/deactivates seat ven-
tilation*.
•
"
Raise seat ventilation"/"Lower seat
ventilation": raises/lowers the level for seat
ventilation*.
Related information
•
Climate system controls (p. 182)
•
Voice control (p. 119)
•
Using voice commands (p. 119)
INSTRUMENTS AND CONTROLS
123
Navigation system voice commands
Many of the navigation system's functions can
be activated using voice commands.
The procedure for using voice control is descri-
bed in greater detail in the articles "Voice con-
trol," "Using voice control" and "Voice control
settings."
Voice commands
The following list contains examples of com-
mands that are unique to navigation system.
To use the voice control system, press the
on the right-side steering wheel keypad and say
one of the following commands after the tone:
•
"
Navigation": Starts a navigation voice com-
mand dialog and displays available com-
mands.
•
"
Take me home": Guidance will be given to
the location set as Home.
•
"
Go to [City]": Enter a city as a destination,
e.g., "Go to New York."
•
"
Go to [Address]": Enter an address as a
destination, e.g., Go to 125 43 St., New
York."
•
"
Go to Intersection": Starts a dialog where
two street names are entered. The destina-
tion will then be the intersection of the two
streets.
•
"
Go to [Zip code]": Enter a zip code as a
destination, e.g., "Go to 07405."
•
"
Go to [Name]": Enter a name from a list of
contacts e.g., "Go to John Smith."
•
"
Search [POI category] in [City]": The list
of results will be sorted around the center of
the selected city/town, e.g., Search restau-
rants in Butler.
•
Search [POI category]": For example,
Search Yankee Stadium.
•
"
Change country/Change state":
Changes the country/state in which a search
is conducted.
•
"
Show favorites": Shows a list of Favorites
in the center display's Top view.
•
"
Clear itinerary": Deletes all intermediate
destinations in an itinerary.
•
"
Repeat voice guidance": Repeats the
most recent guidance instruction.
•
"
Pause guidance": Pauses guidance on
the map.
•
"
Resume guidance": Resumes guidance
on the map.
•
"
Turn off voice guidance": Turns voice
navigation guidance off.
•
"
Turn on voice guidance": Turns voice
navigation guidance on.
Related information
•
Voice control (p. 119)
•
Using voice commands (p. 119)
•
Voice control settings (p. 124)
INSTRUMENTS AND CONTROLS
* Option/accessory.
124
Voice control settings
There are a number of settings that can be made
for the voice control system.
Open the center display's Top view and tap
Settings System Voice Control and
select settings.
•
Repeat Mode
•
Gender
•
Speech Rate
Sound settings
Open Top view and tap Settings Sound
System Volumes Voice Control.
Changing languages
The voice control system only understands the
languages marked by the
symbol in the list
of possible system languages.
Changing the language for this system also
affects menus, messages and help texts.
Open Top view and tap
Settings System
Language.
Related information
•
Voice control (p. 119)
•
Using voice commands (p. 119)
•
Navigation system voice commands (p. 123)
Instrument panel
The instrument panel displays vehicle- and driv-
ing-related information.
The gauges, indicators, symbols and functions
displayed in the instrument panel depend on the
equipment/systems installed in the vehicle and
which functions are currently activated.
The instrument panel is available in two versions:
12" and 8".
Some of the functions listed below are optional.
WARNING
•
If the instrument panel is not functioning
properly, information about e.g., brakes,
airbags or other safety-related messages
cannot be displayed and the driver cannot
be alerted to possible problems.
•
If the instrument panel turns off, does not
activate when the ignition is switched on
or is completely/partially not possible to
read, do not drive the vehicle. Contact a
trained and qualified Volvo service techni-
cian.
12" Instrument panel
Left side
•
Speedometer
•
Trip odometer
•
Odometer
•
Cruise control/speed limiter information
•
Road sign information*
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
125
Center
•
Indicator and warning symbols
•
Ambient temperature sensor
•
Clock
•
Messages (and in certain cases also graph-
ics)
•
Door and seat belt status
•
Media player
•
Navigation system map
•
Cell phone
•
Voice control
Right side
•
Tachometer (depending on current driving
mode)
•
ECO gauge (depending on current driving
mode)
•
Gear indicator
•
Current driving mode
•
Fuel gauge
•
Start/Stop function's status
•
Driving distance to empty tank
•
Current fuel consumption
•
App menu (activated using the right-side
steering wheel keypad)
8" instrument panel
Left side
•
Fuel gauge
•
Current driving mode
•
Gear indicator
•
Tachometer (depending on current driving
mode)
•
ECO gauge (depending on current driving
mode)
•
Distance to empty tank
•
Ambient temperature sensor
•
Indicator and warning symbols
Center
•
Speedometer
•
Road sign information*
•
Cruise control/speed limiter information
•
Door and seat belt status
•
Start/Stop function's status
Right side
•
Media player
•
Cell phone
•
Navigation system map
•
Clock
•
App menu (activated using the right-side
steering wheel keypad)
•
Current fuel consumption
•
Odometer
•
Trip odometer
•
Indicator and warning symbols
•
Voice control
•
Coolant temperature gauge
||
INSTRUMENTS AND CONTROLS
126
Position for variable symbols
Sample indicator symbol in the 12" instrument panel
Different symbols for various types of messages
will be displayed in the center of the instrument
panel. This may consist of an indicator or warning
symbol or may be a series of graphics in this
position which then convert to a larger graphic.
Activating the instrument panel
The instrument panel is activated as soon as a
door is opened (i.e., ignition mode 0). After a
short period, the panel will go out if it is not used.
To reactivate it, do one of the following:
•
Press the brake pedal
•
Turn the start knob to START and release it
(without pressing the brake pedal). This acti-
vates ignition mode I
•
Open one of the doors
Related information
•
Instrument panel App menu (p. 155)
•
Warning symbols in the instrument panel
(p. 135)
•
Indicator symbols in the instrument panel
(p. 127)
•
Instrument panel licenses (p. 130)
Instrument panel settings
Instrument panel settings can be made from its
app menu and under
Settings in the center dis-
play.
App menu settings
Settings can be made in the instrument panel's
app menu to determine the information to be dis-
played from:
•
the trip computer
•
the media player
•
a cell phone
•
the navigation system.
The instrument panel's app menu is opened and
settings are made using the right-side keypad on
the steering wheel.
INSTRUMENTS AND CONTROLS
}}
127
Making settings from the center display
Selecting types of information
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Displays Driver Display
Center Area
.
3. Select the information to be displayed in the
background:
•
Show no information in the
background
•
Show information for current playing
media
•
Show navigation even if no route is
set
8
.
Information is displayed at the center of the
12" instrument panel and in a field at the
upper right of the 8" version.
Selecting themes
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Displays Themes
3. Select a theme (appearance) for the instru-
ment panel:
•
Glass
•
Minimalistic
•
Performance
•
Chrome Rings.
Selecting a language
1.
Tap
Settings in the center display's Top
view.
2.
To select a language, tap
System
Choose system language.
> Changing languages affects all of the
vehicle's displays. Changing to a language
that you do not understand may make it
difficult to change back to the original lan-
guage.
Related information
•
Instrument panel App menu (p. 155)
•
Instrument panel (p. 124)
•
Settings view (p. 109)
Indicator symbols in the instrument
panel
The indicator symbols alert the driver when cer-
tain functions are activated, that a system is
actively working or that a fault may have occur-
red in a system or function.
Symbol Explanation
Information, see the text mes-
sage in the instrument panel
The information symbol illuminates
in combination with a text mes-
sage if one of the vehicle's sys-
tems requires the driver's atten-
tion. The information symbol can
also illuminate in combination with
other symbols.
A
B
Brake system
8
The 8" instrument panel only shows guidance instructions. The map is only shown on the 12" instrument panel. See the navigation manual for additional information.
||
INSTRUMENTS AND CONTROLS
128
Symbol Explanation
A
B
ABS brake system
This symbol indicates a possible
fault in the ABS braking function.
The vehicle's normal brakes will
still function but without ABS
brake modulation.
A
B
Parking brake/Auto-brake
This function keeps the vehicle at
a standstill after it has stopped.
The symbol is on when the func-
tion is activated and the brakes or
parking brake are being used.
Tire pressure system
The symbol illuminates to indicate
low tire pressure or a fault in the
tire pressure system.
Malfunction indicator light
(check engine light)
This symbol will illuminate if there
is a fault in the emissions control
system. If this happens, please
have your vehicle checked by a
trained and qualified Volvo service
technician as soon as possible.
Symbol Explanation
Left/right turn signals
Both turn signal indicators will
flash when the hazard warning
flashers are being used.
Forward lights
Active Bending Lights (ABL)
This symbol will illuminate if there
is a fault in the ABL system or if
any other fault is detected in the
headlight system.
Automatic/active high beams
on
The symbol will be blue when the
automatic high beams are on.
Automatic/active high beams
offThe symbol will be white when
the automatic high beams are off.
High beam indicator
The symbol will illuminate when
the high beams are on or when
high beam flash is being used.
Symbol Explanation
Automatic/active high beams
on
The symbol will be blue when the
automatic high beams are on. The
parking lights will also be on.
Automatic/active high beams
off
The symbol will be white when the
automatic high beams are off. The
parking lights will be on.
High beams on
The high beams and parking lights
will be on.
Front fog lights
The symbol illuminates when the
front fog lights are on.
Not in use
Rain sensor
The symbol illuminates when the
rain sensor is on.
INSTRUMENTS AND CONTROLS
129
Symbol Explanation
Not in use
Stability system
This symbol flashes when the sta-
bility system is actively working to
stabilize the vehicle. If the symbol
glows steadily, there is a fault in
the system.
Stability system, sport mode
This symbol illuminates when
Sport mode is activated. Sport
mode offers more active driving
characteristics by monitoring
movement of the accelerator
pedal, steering wheel and corner-
ing by allowing more lateral move-
ment of the rear wheels before
the stability system is activated.
Symbol Explanation
Lane keeping aid
White symbol: lane keeping aid on
and marker lines detected.
Gray symbol: lane keeping aid on
and no marker lines detected.
Yellow symbol: lane keeping aid
active
Lane keeping aid and rain sen-
sor
White symbol: lane keeping aid on
and marker lines detected. Rain
sensor on.
Gray symbol: lane keeping aid on
and no marker lines detected.
Rain sensor on.
A
US models
B
Canadian models
Door/hood/tailgate/fuel filler door
reminder
If a door or the hood/tailgate/fuel filler door are
not closed properly, the information or warning
symbol will illuminate and a graphic will be dis-
played in instrument panel. Stop the vehicle in a
safe place as soon as possible and close the
door, etc.
Related information
•
Instrument panel (p. 124)
•
Warning symbols in the instrument panel
(p. 135)
•
Door and seat belt reminders (p. 64)
INSTRUMENTS AND CONTROLS
130
Instrument panel licenses
BSD 4-clause "Original" or "Old"
License
Copyright ©) 1982, 1986, 1990, 1991, 1993
The Regents of the University of California. All
rights reserved.
Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain
the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must
reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.
3. All advertising materials mentioning features
or use of this software must display the
following acknowledgment: This product
includes software developed by the
University of California, Berkeley and its
contributors.
4. Neither the name of the University nor the
names of its contributors may be used to
endorse or promote products derived from
this software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
REGENTS AND CONTRIBUTORS ``AS IS'' AND
ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
BSD 3-clause "New" or "Revised"
License
Copyright (c) 2011-2014, Yann Collet.
Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain
the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must
reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.
3. Neither the name of the organisation nor the
names of its contributors may be used to
endorse or promote products derive from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE COPYRIGHT HOLDER
OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
INSTRUMENTS AND CONTROLS
}}
131
BSD 2-clause “Simplified” license
Copyright ©) <YEAR>, <OWNER> All rights
reserved.
Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain
the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must
reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE COPYRIGHT OWNER
OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
The views and conclusions contained in the
software and documentation are those of the
authors and should not be interpreted as
representing official policies, either expressed or
implied, of the FreeBSD Project.
FreeType Project License
1. 1 Copyright 1996-1999 by David Turner,
Robert Wilhelm, and Werner Lemberg
Introduction The FreeType Project is
distributed in several archive packages; some
of them may contain, in addition to the
FreeType font engine, various tools and
contributions which rely on, or relate to, the
FreeType Project. This license applies to all
files found in such packages, and which do
not fall under their own explicit license. The
license affects thus the FreeType font
engine, the test programs, documentation
and makefiles, at the very least. This license
was inspired by the BSD, Artistic, and IJG
(Independent JPEG Group) licenses, which
all encourage inclusion and use of free
software in commercial and freeware
products alike. As a consequence, its main
points are that: o We don't promise that this
software works. However, we are be
interested in any kind of bug reports. (`as is'
distribution) o You can use this software for
whatever you want, in parts or full form,
without having to pay us. (`royalty-free'
usage) o You may not pretend that you wrote
this software. If you use it, or only parts of it,
in a program, you must acknowledge
somewhere in your documentation that
you've used the FreeType code. (`credits')
We specifically permit and encourage the
inclusion of this software, with or without
modifications, in commercial products,
provided that all warranty or liability claims
are assumed by the product vendor. Legal
Terms 0. Definitions Throughout this license,
the terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files
originally distributed by the authors (David
Turner, Robert Wilhelm, and Werner
Lemberg) as the `FreeType project', be they
named as alpha, beta or final release. `You'
refers to the licensee, or person using the
project, where `using' is a generic term
including compiling the project's source code
as well as linking it to form a `program' or
`executable'. This program is referred to as `a
program using the FreeType engine'. This
license applies to all files distributed in the
original FreeType archive, including all source
code, binaries and documentation, unless
otherwise stated in the file in its original,
unmodified form as distributed in the original
archive. If you are unsure whether or not a
particular file is covered by this license, you
||
INSTRUMENTS AND CONTROLS
132
must contact us to verify this. The FreeType
project is copyright (C) 1996-1999 by David
Turner, Robert Wilhelm, and Werner
Lemberg. All rights reserved except as
specified below. 1. No Warranty THE
FREETYPE ARCHIVE IS PROVIDED `AS IS'
WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL ANY OF THE
AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY DAMAGES CAUSED BY
THE USE OR THE INABILITY TO USE, OF
THE FREETYPE PROJECT. As you have not
signed this license, you are not required to
accept it. However, as the FreeType project
is copyrighted material, only this license, or
another one contracted with the authors,
grants you the right to use, distribute, and
modify it. Therefore, by using, distributing, or
modifying the FreeType project, you indicate
that you understand and accept all the terms
of this license.
2. Redistribution Redistribution and use in
source and binary forms, with or without
modification, are permitted provided that the
following conditions are met: o Redistribution
of source code must retain this license file
(`licence.txt') unaltered; any additions,
deletions or changes to the original files
must be clearly indicated in accompanying
documentation. The copyright notices of the
unaltered, original files must be preserved in
all copies of source files. o Redistribution in
binary form must provide a disclaimer that
states that the software is based in part of
the work of the FreeType Team, in the
distribution documentation. We also
encourage you to put an URL to the
FreeType web page in your documentation,
though this isn't mandatory. These conditions
apply to any software derived from or based
on the FreeType code, not just the
unmodified files. If you use our work, you
must acknowledge us. However, no fee need
be paid to us.
3. Advertising The names of FreeType's authors
and contributors may not be used to endorse
or promote products derived from this
software without specific prior written
permission. We suggest, but do not require,
that you use one or more of the following
phrases to refer to this software in your
documentation or advertising materials:
`FreeType Project', `FreeType Engine',
`FreeType library', or `FreeType Distribution'.
4. Contacts There are two mailing lists related
to FreeType: o [email protected]
Discusses general use and applications of
FreeType, as well as future and wanted
additions to the library and distribution. If you
are looking for support, start in this list if you
haven't found anything to help you in the
documentation. o [email protected]
Discusses bugs, as well as engine internals,
design issues, specific licenses, porting, etc.
o http://www.freetype.org Holds the current
FreeType web page, which will allow you to
download our latest development version and
read online documentation. You can also
contact us individually at: David Turner
<[email protected]> Robert Wilhelm
<[email protected]> Werner
Libpng License
This copy of the libpng notices is provided for
your convenience. In case of any discrepancy
between this copy and the notices in the file
png.h that is included in the libpng distribution,
the latter shall prevail.
INSTRUMENTS AND CONTROLS
}}
133
COPYRIGHT NOTICE, DISCLAIMER, and
LICENSE:
If you modify libpng you may insert additional
notices immediately following this sentence.
libpng versions 1.0.7, July 1, 2000, through
1.0.13, April 15, 2002, are Copyright (c)
2000-2002 Glenn Randers-Pehrson and are
distributed according to the same disclaimer and
license as libpng-1.0.6 with the following
individuals added to the list of Contributing
Authors
Simon-Pierre Cadieux
Eric S. Raymond
Gilles Vollant
and with the following additions to the disclaimer:
There is no warranty against interference with
your enjoyment of the library or against
infringement. There is no warranty that our efforts
or the library will fulfill any of your particular
purposes or needs. This library is provided with all
faults, and the entire risk of satisfactory quality,
performance, accuracy, and effort is with the user.
libpng versions 0.97, January 1998, through
1.0.6, March 20, 2000, are Copyright (c) 1998,
1999 Glenn Randers-Pehrson, and are
distributed according to the same disclaimer and
license as libpng-0.96, with the following
individuals added to the list of Contributing
Authors:
Tom Lane
Glenn Randers-Pehrson
Willem van Schaik
libpng versions 0.89, June 1996, through 0.96,
May 1997, are Copyright (c) 1996, 1997
Andreas Dilger Distributed according to the same
disclaimer and license as libpng-0.88, with the
following individuals added to the list of
Contributing Authors:
John Bowler
Kevin Bracey
Sam Bushell
Magnus Holmgren
Greg Roelofs
Tom Tanner
libpng versions 0.5, May 1995, through 0.88,
January 1996, are Copyright (c) 1995, 1996 Guy
Eric Schalnat, Group 42, Inc.
For the purposes of this copyright and license,
"Contributing Authors" is defined as the following
set of individuals:
Andreas Dilger
Dave Martindale
Guy Eric Schalnat
Paul Schmidt
Tim Wegner
The PNG Reference Library is supplied "AS IS".
The Contributing Authors and Group 42, Inc.
disclaim all warranties, expressed or implied,
including, without limitation, the warranties of
merchantability and of fitness for any purpose.
The Contributing Authors and Group 42, Inc.
assume no liability for direct, indirect, incidental,
special, exemplary, or consequential damages,
which may result from the use of the PNG
Reference Library, even if advised of the
possibility of such damage.
Permission is hereby granted to use, copy,
modify, and distribute this source code, or
portions hereof, for any purpose, without fee,
subject to the following restrictions:
1. The origin of this source code must not be
misrepresented.
2. Altered versions must be plainly marked as
such and must not be misrepresented as
being the original source.
3. This Copyright notice may not be removed or
altered from any source or altered source
distribution.
The Contributing Authors and Group 42, Inc.
specifically permit, without fee, and encourage
the use of this source code as a component to
supporting the PNG file format in commercial
products. If you use this source code in a product,
acknowledgment is not required but would be
appreciated.
||
INSTRUMENTS AND CONTROLS
134
A "png_get_copyright" function is available, for
convenient use in "about" boxes and the like:
printf("%s",png_get_copyright(NULL));
Also, the PNG logo (in PNG format, of course) is
supplied in the files "pngbar.png" and
Libpng is OSI Certified Open Source Software.
OSI Certified Open Source is a certification mark
of the Open Source Initiative.
Glenn Randers-Pehrson [email protected]
April 15, 2002
MIT License
Copyright (c) <year> <copyright holders>
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the "Software"),
to deal in the Software without restriction,
including without limitation the rights to use,
copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is
furnished to do so, subject to the following
conditions:
The above copyright notice and this permission
notice shall be included in all copies or
substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
THE AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR
OTHER LIABILITY, WHETHER IN AN ACTION
OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION
WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
zlib License
The zlib/libpng License Copyright (c) <year>
<copyright holders>
This software is provided 'as-is', without any
express or implied warranty. In no event will the
authors be held liable for any damages arising
from the use of this software.
Permission is granted to anyone to use this
software for any purpose, including commercial
applications, and to alter it and redistribute it
freely, subject to the following restrictions:
1. The origin of this software must not be
misrepresented; you must not claim that you
wrote the original software. If you use this
software in a product, an acknowledgment in
the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly
marked as such, and must not be
misrepresented as being the original
software.
3. This notice may not be removed or altered
from any source distribution.
SGI Free Software B License Version
2.0.
SGI FREE SOFTWARE LICENSE B (Version 2.0,
Sept. 18, 2008)
Copyright (C) [dates of first publication] Silicon
Graphics, Inc. All Rights Reserved. Permission is
hereby granted, free of charge, to any person
obtaining a copy of this software and associated
documentation files (the "Software"), to deal in
the Software without restriction, including without
limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies
of the Software, and to permit persons to whom
the Software is furnished to do so, subject to the
following conditions: The above copyright notice
including the dates of first publication and either
this permission notice or a reference to http://
oss.sgi.com/projects/FreeB/ shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
SILICON GRAPHICS, INC. BE LIABLE FOR ANY
INSTRUMENTS AND CONTROLS
}}
135
CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT
OF OR IN CONNECTION WITH THE SOFTWARE
OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
Except as contained in this notice, the name of
Silicon Graphics, Inc. shall not be used in
advertising or otherwise to promote the sale, use
or other dealings in this Software without prior
written authorization from Silicon Graphics, Inc.
Related information
•
Instrument panel (p. 124)
Warning symbols in the instrument
panel
The warning symbols alert the driver that an
important function is activated or that a serious
fault has occurred.
Symbol Meaning
Warning
The red warning symbol alerts the
driver that an important function is
activated or that a serious fault
has occurred that may affect the
vehicle's drivability. The warning
symbol can also illuminate in com-
bination with other symbols.
Seat belt reminder
This symbol will flash for approxi-
mately 6 seconds if the driver or
front seat passenger has not fas-
tened his or her seat belt or if any-
one in the rear seat has unbuck-
led a seat belt.
Symbol Meaning
Airbags
If this light remains on after the
vehicle has been started or comes
on while the vehicle is being
driven, a fault has been detected
in one of the vehicle's safety sys-
tems. See the message in the
instrument panel. Have the sys-
tem(s) inspected by a trained and
qualified Volvo service technician
as soon as possible.
A
B
Brake system
If this symbol illuminates, the
brake fluid level may be too low.
Stop the vehicle in a safe place
and check the level in the brake
fluid reservoir. See also the warn-
ing following this table.
A
B
Parking brake
This symbol flashes while the
parking brake is being applied and
then glows steadily when the
parking brake has been set.
If the symbol flashes in any other
situation, this indicates a fault. See
the text message in the instru-
ment panel.
||
INSTRUMENTS AND CONTROLS
136
Symbol Meaning
Oil pressure
If the symbol illuminates during
driving, stop the vehicle, the
engine oil level is too low. Stop the
engine immediately and check the
engine oil level. Add oil if neces-
sary. If the oil level is normal and
the symbol remains illuminated,
have the vehicle towed to the
nearest authorized Volvo work-
shop or trained and qualified Volvo
service technician.
Generator not charging
This symbol illuminates during
driving if a fault has occurred in
the electrical system. Contact an
authorized Volvo workshop or
trained and qualified Volvo service
technician.
A
US models
B
Canadian models
WARNING
•
If the fluid level is below the MIN mark in
the brake fluid reservoir or if a warning
message is displayed in the text window:
DO NOT DRIVE. Have the vehicle towed
to a trained and qualified Volvo service
technician and have the brake system
inspected.
•
If the BRAKE and ABS symbols illumi-
nate at the same time, there is a risk of
reduced vehicle stability.
Door/hood/tailgate/fuel filler door
reminder
It a door, tailgate, the hood or the fuel filler door
are not closed properly, the information or warn-
ing symbol will illuminate and a graphic will be
displayed in the instrument panel.
Related information
•
Instrument panel (p. 124)
•
Indicator symbols in the instrument panel
(p. 127)
Compass
The rear-view mirror has an integrated compass
that shows the direction in which the vehicle is
traveling.
Rearview mirror with compass
Eight different directions are shown with the
abbreviations:
N (north) NE (northeast) E (east),
SE (southeast) S (south), SW (southwest) W
(west) NW (northwest)
Switching the compass on/off
The compass is displayed automatically when the
vehicle is started.
To switch the compass on/off:
–
Use a pen, paperclip or similar object and
press in the button on the underside of the
mirror.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
137
Related information
•
Calibrating the compass (p. 137)
•
Ignition modes (p. 374)
Calibrating the compass
North America is divided into 15 magnetic zones
and the compass will need to be calibrated if the
vehicle is driven from one zone to another.
To calibrate the compass:
1. Stop the vehicle in a large open area, safely
out of traffic and away from steel structures
and high-tension electrical wires.
2. Start the vehicle.
NOTE
•
For best calibration results, switch off all
electrical equipment in the vehicle (climate
system, windshield wipers, audio system,
etc.) and make sure that all doors are
closed.
•
Calibration may not succeed or be incor-
rect if the vehicle's electrical equipment is
not switched off.
3. Using a pen, paperclip or similar object, press
and hold the button on the underside of mir-
ror for approx. 3 seconds until the number of
the current magnetic zone is displayed.
15
14
13
12
11
9
8
7
6
5
4
3
2
1
10
Magnetic zones
4. Press the button on the underside of mirror
repeatedly until the desired magnetic zone
(
1–15) is displayed (see the map of mag-
netic zones).
5.
Wait until
C is again displayed in the mirror
or hold the button on the underside of mirror
for approx. 6 seconds until C is displayed in
the mirror.
6. Drive slowly in a circle at a speed of no more
than 6 mph (10 km/h) until a direction is dis-
played. This indicates that calibration is com-
plete. Drive around in a circle an additional
two times to fine-tune the calibration.
7.
Vehicles with an electrically heated wind-
shield:* if
C is displayed when the heating
function is activated, perform step 6 with the
heating function on.
||
INSTRUMENTS AND CONTROLS
138
8. Repeat the calibration procedure if neces-
sary.
Related information
•
Defrosting windows and mirrors (p. 190)
•
Compass (p. 136)
Lighting panel and controls
The lighting ring on the left-side steering wheel
lever can be used to activate the vehicle's exte-
rior lighting.
Instrument lighting brightness can be adjusted
using the thumb wheel on the lighting panel.
Lighting ring on the left-side steering
wheel lever
Lighting
ring posi-
tion
Result
With the ignition in mode II or if
the engine is running:
•
In the US: the Daytime Run-
ning Lights (DRL) will be off
•
In Canada: the Daytime Run-
ning Lights will be on
•
High beam flash can be used
With the ignition in mode II or if
the engine is running:
A
•
Parking lights will be on
•
In the US: the Daytime Run-
ning Lights will be off
•
In Canada: the Daytime Run-
ning Lights will be on
•
High beam flash can be used
With the ignition in mode II or if
the engine is running:
•
The Daytime Running Lights
will be off
•
The low beam headlights will
be on
•
High Beams/High Beam
flash can be used
INSTRUMENTS AND CONTROLS
139
Lighting
ring posi-
tion
Result
With the ignition in mode II or if
the engine is running:
•
The Daytime Running Lights
will be on in daylight condi-
tions
B
•
The low beam headlights will
automatically switch on in
dark conditions
•
Tunnel detection will be acti-
vated
•
Active High Beams (AHB)
can be activated
•
High beam flash can be used
•
Continuous high beams can
be used in dark conditions
Active High Beams On/Off
A
The parking lights will be on in this position, even if the ignition
is switched off. In dark conditions, the rear parking lights illumi-
nate automatically when the tailgate is open, regardless of the
ring's position or ignition mode.
B
US models only: The use of Daytime Running Lights can be
activated/deactivated in the center display's Settings menu.
NOTE
Volvo recommends the use of Daytime Run-
ning Lights in the United States. The use of
these lights is mandatory in Canada.
Volvo recommends using the position
whenever possible.
WARNING
•
Daytime Running Lights are a driving aid
designed to help make the vehicle visible
to other roads users.
•
The driver is always responsible for
adapting the use of Daytime Running
Lights/headlights according to ambient
lighting and weather conditions.
Lighting panel
Instrument lighting
Thumb wheel (to the left) for adjusting display bright-
ness
Illumination of the display and instrument lights
will vary, depending on ignition mode.
The display lighting is automatically subdued in
darkness and the sensitivity is set with the thumb
wheel.
Related information
•
Daytime Running Lights (DRL) (p. 140)
•
High and low beam headlights (p. 142)
•
Ignition modes (p. 374)
INSTRUMENTS AND CONTROLS
140
Parking lights
Turn the parking lights on by turning the lighting
ring on the left-side steering wheel lever.
Lighting ring in the parking light position
Turn the lighting ring to the position (the
license plate lighting comes on at the same
time).
Canadian models: If the ignition is in position II
or the engine is running, the daytime running
lights will illuminate instead of the front parking
lights.
With the lighting ring in this position, the parking
lights will remain on even when the ignition is
switched off.
In dark conditions, the rear parking lights also
illuminate when the tailgate is opened to alert
anyone traveling behind your vehicle. This hap-
pens regardless of the position that the lighting
ring is in or which mode the ignition is in.
Related information
•
Lighting panel and controls (p. 138)
Daytime Running Lights (DRL)
The car monitors ambient lighting conditions.
With the ring on the left-side steering wheel
lever in the
position and the ignition in
mode II (or the engine running), the lights toggle
automatically between DRL and low beam head-
lights.
Ring in the AUTO position.
NOTE
Volvo recommends the use of Daytime Run-
ning Lights in the United States. The use of
these lights is mandatory in Canada.
With the lighting ring in the 0 position:
•
In the US: DRL will be off
•
In Canada: DRL will be on
INSTRUMENTS AND CONTROLS
141
With the lighting ring in the
9
position
and the ignition in mode II or if the engine is
running:
•
In the US: DRL will be off
•
In Canada: DRL will be on
With the lighting ring in the
position:
•
DRL will be on (the low beam headlights will
automatically switch on in dark conditions)
US models only: DRL can be deactivated in the
center display's Settings view.
With
selected, a tunnel detection function
activates the low beams when the vehicle enters
a tunnel.
With the lighting ring in the
position:
•
DRL will be off and the low beam headlights
will be on
Low beam headlights
The low beam headlights can be activated in
several ways.
Lighting ring
In dark conditions, the low beams will be acti-
vated automatically when the engine is started or
the ignition is in mode II and the lighting ring is
turned to the
position.
With the lighting ring in the
position, the
low beams will also be activated if:
•
the front fog lights are activated
•
both the front and rear fog lights are acti-
vated
If the lighting ring is turned to
, the low
beams will be activated automatically when the
engine is started or the ignition is in mode II,
regardless of the ambient lighting conditions.
Related information
•
Daytime Running Lights (DRL) (p. 140)
•
Ignition modes (p. 374)
9
The parking lights will be on in this position, even if the ignition is switched off.
INSTRUMENTS AND CONTROLS
142
High and low beam headlights
If the ignition is in mode II or when the engine is
started, the low beams are activated automati-
cally if the lighting ring is in position
. In
dark conditions, the low beams will also be on if
the lighting ring is in the
position.
Lighting ring
High beam flash
Continuous high beams
High beam flash
Pull the lever slightly toward the steering wheel.
The high beams illuminate until the lever is
released.
Continuous high beams
Continuous high beams are available if the light-
ing ring is turned to
10
or
. Toggle to
high beams by moving the lever forward. Return
to low beams by moving the lever toward the
steering wheel.
The
symbol will illuminate in the instrument
panel when the high beams are on.
Active high beams
The active high beam system uses a camera at
the upper edge of the windshield to detect the
headlights of oncoming vehicles or the taillights
of a vehicle directly ahead. When this happens,
the headlights will automatically switch from high
beams to low beams.
When the camera no longer detects an
approaching vehicle or one that is ahead, your
headlights will switch back to high beams.
Vehicles with halogen headlights
11
When the camera no longer detects the head-
lights of an approaching vehicle or the taillights
of a vehicle ahead, your headlights will switch
back to high beams after several seconds.
Operation
Activate/deactivate this function by turning the
lighting ring past the
position to .
When released, the ring will automatically return
to the
position.
If the active high beam function has not been
activated, switching between high and low beams
must be done manually.
A white symbol (
) in the instrument panel
indicates that the function has been activated.
When the high beams are on, the symbol will
change to blue.
NOTE
•
Keep the windshield in front of the cam-
era free of ice, snow, dirt, etc.
•
Do not mount or in any way attach any-
thing on the windshield that could
obstruct the camera.
If a message is displayed in the instru-
ment panel saying that active high
beams are temporarily unavailable,
switching between high and low beams
will have to be done manually. However, the light
switch can remain in the
position. The
same applies if a message saying that the wind-
shield sensors are blocked and the symbol above
are displayed. The
symbol will go out if this
happens.
10
When the low beams are on.
11
Halogen headlights are not available on all models.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
143
Active high beams may be temporarily unavailable
(e.g., in heavy fog or rain). When the system
becomes active again or if the sensors in the
windshield are no longer obscured, the messages
will disappear and the
symbol will illumi-
nate.
WARNING
•
Automatic high beams are a driving aid
designed to help provide the best possi-
ble headlight illumination in good driving
conditions.
•
The use of aftermarket or non-Volvo
glass can have an adverse effect on the
automatic high beam function.
•
The driver is always responsible for man-
ually toggling between high and low
beams when this is required by traffic or
weather conditions.
CAUTION
In the following situations, it may be neces-
sary to switch between high and low beams
manually:
•
In heavy fog or rain
•
In blowing snow or slush
•
In bright moonlight
•
In freezing rain
•
In areas with dim street lighting
•
When oncoming vehicles have dim front
lighting
•
If there are pedestrians on or near the
road
•
If there are reflective objects, such as
signs, near the road
•
When oncoming vehicles' lights are
obscured by e.g., fences, bushes, etc.
•
When there are vehicles on connecting
roads
•
At the top of hills or in dips in the road
•
In sharp curves
Related information
•
City Safety™ troubleshooting (p. 306)
•
Lighting panel and controls (p. 138)
Active Bending Lights*
Active Bending Lights (ABL) are designed to
help light up a curve according to movements of
the steering wheel.
Headlight pattern with the Active Bending Light function
deactivated (left) and activated (right)
ABL is activated automatically
12
when the engine
is started and the low beam headlights are on.
ABL can be deactivated in the center display.
If a fault is detected in the system, the
symbol in the instrument panel will illuminate. A
text message will be displayed and an additional
symbol will also illuminate.
12
The factory default setting is on.
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
144
NOTE
This function is only active in twilight or dark
conditions, and only when the vehicle is in
motion.
Deactivating/activating the function
ABL can be deactivated/activated in two ways in
the center display:
Via Function view
Tap the Active Bending
Lights button.
Via settings
1.
Tap
Settings in Top view.
2.
Tap
My Car Lights Exterior Lights.
3.
Deselect/select
Active Bending Lights.
Related information
•
Settings view (p. 109)
Front fog lights*
Front fog light button
The front fog lights can be used in combination
with the low beam headlights.
All fog lights also illuminate when the vehicle is
backing up.
Press the button to turn the fog lights on/off. The
indicator symbol
in the instrument panel
illuminates when the front fog lights are on.
NOTE
The front fog lights cannot be used if the
continuous high beam headlights are on. If
the front fog lights are already on when the
continuous high beams are switched on, the
front fog lights will switch off.
However, using the high beam flash function
will not affect the front fog lights.
Corner illumination
The front fog lights include corner illumination,
which temporarily provides extra light to the front
left or right of the vehicle (depending on which
way the vehicle is turned) when making a sharp
turn at low speeds (for example, when turning
into a parking space) or when the turn signals are
used.
This function is activated in darkness or in poor
daylight conditions when the lighting ring on the
left-side steering wheel lever is in the
or
positions when the vehicle's speed is
under approx. 20 mph (30 km/h).
When the vehicle is backing up, corner illumina-
tion also switches on to supplement the backup
light.
Corner illumination is activated by default and
can be deactivated/reactivated in the center dis-
play.
INSTRUMENTS AND CONTROLS
145
Related information
•
Low beam headlights (p. 141)
•
Lighting panel and controls (p. 138)
Rear fog lights (certain models
only)
13
The rear fog light(s) are considerably brighter
than the normal taillight and should be used only
when conditions such as fog, rain, snow, smoke
or dust reduce visibility for other vehicles to less
than approx. 500 ft. (150 meters).
Rear fog light button
NOTE
Rear fog lights are not available on all models
or in all markets.
The rear fog light can only be used when:
•
the ignition is in mode II or if the engine is
running and the lighting ring is in the
or position
•
the lighting ring is in the
position and
the front fog lights are on
Press the button to turn the rear fog light on/off.
The rear fog light indicator symbol
in the
instrument panel illuminates when the rear fog
light is switched on.
The rear fog light switches off automatically
when:
The rear fog light turns off automatically when:
•
the start knob is turned to STOP or when
the lighting ring is turned to the
posi-
tion
•
the lighting ring is in the
position and
the front fog lights are turned off
Related information
•
Lighting panel and controls (p. 138)
•
Replacing the rear fog light (p. 502)
13
Some models are equipped with one rear fog light only, on the driver's side of the vehicle.
INSTRUMENTS AND CONTROLS
* Option/accessory.
146
Brake lights
The brake lights illuminate automatically when
the brakes are applied.
In addition to illuminating when the brake pedal is
depressed, the brake lights also illuminate when
one of the driver support systems (e.g., adaptive
cruise control, City Safety or collision warning)
slow the vehicle.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
City Safety™ (p. 300)
•
Emergency brake lights (p. 354)
Hazard warning flashers
The hazard warning flashers should be used to
indicate that the vehicle has become a traffic
hazard.
Hazard warning flasher button
Press the button to activate the flashers. Press
the button again to turn off the flashers.
Regulations regarding the use of the hazard
warning flashers may vary, depending on where
you live.
Related information
•
Using turn signals (p. 146)
Using turn signals
The turn signals are controlled using the left
steering wheel lever. The turn signals flash three
times or continuously, depending on how far up
or down the lever is moved.
Turn signals
Short flashing sequence
The driver can automatically flash the turn
signals 3 times by moving the left steering
wheel lever up or down to the first position
and releasing it. This function can be acti-
vated/deactivated in the center display.
INSTRUMENTS AND CONTROLS
}}
147
NOTE
•
This automatic flashing sequence can be
interrupted by immediately moving the
lever in the opposite direction.
•
If the turn signal indicator flashes faster
than normal, see the message in the
instrument panel.
Continuous flashing sequence
Move the lever as far up or down as possible
to start the turn signals.
The turn signals will be cancelled automatically
by the movement of the steering wheel, or the
lever can be returned to its initial position by
hand.
Related information
•
Lighting panel and controls (p. 138)
•
Hazard warning flashers (p. 146)
•
Settings view (p. 109)
Passenger compartment lighting
The passenger compartment lighting is con-
trolled using the buttons in the ceiling above the
front and rear seats.
All passenger compartment lighting can be
turned on and off manually within 30 minutes
after:
•
the vehicle is unlocked but the engine has
not been started
•
the engine is switched off and the ignition is
in mode 0.
Front interior lighting
Controls in the ceiling console for front reading lights
and courtesy lighting
Driver's side reading light
Courtesy lighting
Courtesy lighting (AUTO) switch
Passenger's side reading light
Front reading lights
Turn the reading lights on or off by pressing the
respective buttons briefly. Adjust the brightness
by pressing and holding the button.
Courtesy lighting
Turn the footwell and overhead courtesy lighting
on or off by pressing the button briefly.
Courtesy lighting switch
Activate the automatic function by briefly press-
ing the AUTO button in the ceiling console. The
indicator light in the button will illuminate. With
AUTO activated, the courtesy lighting will switch
on and off as follows:
The courtesy lighting:
•
comes on when the vehicle is unlocked and
when the ignition is switched off
•
goes off when the engine is started and
when the vehicle is locked
•
comes on or goes off when one of the side
doors is opened or closed
•
remains on for 2 minutes if a side door is left
open
The courtesy lighting switches off when:
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
148
Rear interior lighting
Rear reading lights
The rear interior lighting/reading lights are
located in the ceiling.
Rear reading lights:
14
Rear reading light: models with a laminated panoramic
roof*
The rear reading lights are turned on or off by
briefly pressing the button in the ceiling console.
Adjust the brightness by pressing and holding
the button.
Glove compartment lighting
The glove compartment lighting comes on or
goes off when the glove compartment is opened
or closed.
Vanity mirror lighting
The vanity mirror lighting comes on or goes off
when the cover over the mirror is opened or
closed.
Ground lighting
The ground lighting comes on or goes off when a
door is opened or closed.
Doorsill lighting
The doorsill lighting comes on or goes off when a
door is opened or closed.
Cargo area lighting
The cargo area lighting comes on or goes off
when the tailgate is opened or closed.
Ambience lighting
1. In the center display's Top view, select
Settings My Car Lights Ambient
Lighting
2. Choose among the following settings:
•
Under
Ambient Light Intensity, choose:
Off, Low or High.
•
Ambient Light Level: Reduced or Full.
14
In models with a laminated panoramic roof* there are lights on each side of the roof
INSTRUMENTS AND CONTROLS
* Option/accessory.
149
The ambience lighting can also be fine-tuned using the
thumb wheel (on the dashboard to the left of the steer-
ing wheel)
Mood lighting*
When the overhead courtesy lighting has gone
out and the engine is running, several LEDs
located near the roof console illuminate to pro-
vide faint lighting to help e.g., see objects in stor-
age compartments. This lighting goes out just
after the overhead courtesy lighting when the
vehicle is locked.
The following settings can be made for the mood
lighting in the center display:
Brightness
1. In the center display's Top view, select
Settings My Car Lights Interior
Mood Lighting
.
2.
Press
Interior Mood Light Intensity and
choose Off, Low or High.
Change the color of the light
1. In the center display's Top view, select
Settings My Car Lights Interior
Mood Lighting
.
2.
Choose
By Temperature, By Theme or
Theme Colors.
The intensity of the mood lighting can also be fine-tuned
using the thumb wheel (on the dashboard to the left of
the steering wheel)
Lighting in the door storage
compartments
This lighting is illuminated when the engine is
running. Adjust brightness with the thumb wheel
on the lighting panel.
Lighting in the front tunnel console cup
holders
This lighting is switched on or off when the vehi-
cle is unlocked or locked. Adjust brightness with
the thumb wheel on the lighting panel.
Related information
•
Lighting panel and controls (p. 138)
•
Ignition modes (p. 374)
•
Settings view (p. 109)
INSTRUMENTS AND CONTROLS
* Option/accessory.
150
Home safe lighting
The home safe lighting function illuminates the
area in front of the vehicle in dark conditions.
This function turns on the headlights, parking
lights, outer door handle lights* and license plate
lights for a set amount of time.
The length of time that these lights remain illumi-
nated can be set in the center display. The
default setting is 30 seconds.
To activate home safe lighting:
1.
Switch off the ignition (mode 0).
2. Push the turn signal lever as far as possible
towards the dashboard and release it.
3. Exit the vehicle and lock the doors.
Related information
•
Using the center display (p. 44)
•
Settings view (p. 109)
•
Ignition modes (p. 374)
Approach lighting
Approach lighting (the parking lights, outer door
handle lights*, license plate lighting, courtesy
lighting and footwell lighting) can be activated to
provide light as you walk toward the vehicle.
To use this feature, deselect/select Welcome
Light in the center display's menu system.
If this function has been selected in the menu, it
is activated by pressing the unlock button on
the remote key as you approach the vehicle.
If a door is opened while the function is activated,
the lighting in the outer door handle* and cour-
tesy lighting will remain illuminated for a some-
what longer period of time.
Related information
•
Settings view (p. 109)
•
Home safe lighting (p. 150)
•
Remote key (p. 223)
Messages in the instrument panel
and center display
Information and warning messages are dis-
played in the instrument panel and center dis-
play.
Instrument panel
Message in the instrument panel (12" version)
INSTRUMENTS AND CONTROLS
}}
151
Message in the instrument panel (8" version)
High-priority messages are displayed in the
instrument panel.
Messages may appear in different parts of the
instrument panel depending on their context. The
message will time out after a short period of time
or disappear when it has been confirmed or if
action has been taken. Messages that need to be
stored will be saved under
My car messages in
the center display's Top view.
The message may be displayed along with graph-
ics, symbols or buttons for e.g., confirming the
message or accepting a request.
Service messages
The following table lists a selection of important
service messages and the action that should be
taken.
Message Action
Stop safely
A
Stop and switch off the
engine. There is a risk of
serious damage to the vehi-
cle
B
.
Turn off
engine
A
Stop and switch off the
engine. There is a risk of
serious damage to the vehi-
cle
B
.
Service
urgent Drive
to workshop
A
Contact a workshop
B
to have
the vehicle inspected imme-
diately.
Service
required
A
Contact a workshop
B
to have
the vehicle inspected as
soon as possible.
Book time for
maintenance
Time for
maintenance
Time for the next scheduled
service. Contact a work-
shop
B
.
Message Action
Maintenance
overdue
Time for the next scheduled
service. Contact a work-
shop
B
. If the service sched-
ule is not followed, this may
void all or part of the vehi-
cle's warranty and result in
damage to vehicle compo-
nents.
Temporarily
off
A
A function has been tempo-
rarily deactivated and will be
reactivated automatically
while driving or after the
engine is restarted.
A
Part of the message is context-dependent.
B
Contact a Volvo retailer or a trained and qualified Volvo service
technician.
||
INSTRUMENTS AND CONTROLS
152
Center display
Message in the center display's status bar
Messages with lower priority for the driver are
shown in the center display.
Most of the messages are shown in the center
display's status bar. The message times out after
a short period of time or disappears if it has been
confirmed or if action has been taken. Messages
that need to be stored are saved under
My car
messages in Top view.
Some messages in the center display contain
one or more buttons for e.g., confirming the mes-
sage or accepting a request.
Messages' form can vary and they may be dis-
played with graphics, symbols or buttons for e.g.,
confirming a message or accepting a request.
Pop-up messages
Messages are sometimes displayed in pop-up
windows. Messages of this type have higher pri-
ority than ones in the status bar and must be
confirmed or action must be taken before they
disappear. Messages that need to be stored are
saved under
My car messages in Top view.
Related information
•
Instrument panel (p. 124)
•
Center display overview (p. 28)
Handling messages in the
instrument panel and center display
Messages in the instrument panel and center
display are handled using the controls on the
right-side steering wheel keypad and in the cen-
ter display's various views.
Instrument panel
Message in the instrument panel (8" version) and the
right-side steering wheel keypad
INSTRUMENTS AND CONTROLS
153
Message in the instrument panel (12" version) and the
right-side steering wheel keypad
Left/right arrow keys
Confirm
Some messages in the instrument panel contain
one or more buttons for e.g., confirming a mes-
sage or accepting a proposal.
Handling new messages
For messages with buttons:
1. Navigate among the buttons available by
pressing the left/right arrow keys (1).
2. Confirm a choice by pressing (2).
> The message will disappear from the
instrument panel.
For messages without buttons:
–
Close the message by pressing (2) or let the
message time-out after a short period.
> The message will disappear from the
instrument panel.
If a message needs to be saved, it will be stored
in the
Car status app, which can be opened in
the center display's App view. Car message
stored in Car Status application will be dis-
played at this time in the center display.
Center display
Message in the center display
Some buttons in the center display have a button
(or several buttons in a pop-up) to make it possi-
ble to e.g., activate/deactivate a function related
to the message.
Handling new messages
For messages with buttons:
–
Tap the button to carry out the action or let
the message time-out after a short period.
> The message will disappear from the cen-
ter display's status bar.
For messages without buttons:
–
Close the message by tapping it or let the
message time-out after a short period.
> The message will disappear from the cen-
ter display's status bar.
If a message needs to be saved, it will be stored
in the center display's Top view.
Related information
•
Messages in the instrument panel and center
display (p. 150)
•
Using the instrument panel App menu
(p. 156)
INSTRUMENTS AND CONTROLS
154
Handling messages stored from the
instrument panel and center display
Messages saved from the instrument
panel
Saved messages and possible selections in the Car
status app
Messages that have been dis-
played in the instrument panel
and need to be saved are
stored in the
Car status app,
which can be opened in the
center display's App view. Car
message stored in Car
Status application will be displayed at this time
in the center display.
Reading saved messages
Reading a saved message immediately:
–
Tap the button to the right of the message
Car message stored in Car Status
application in the center display.
> The saved message will be displayed in
the
Car status app.
Reading a saved message at a later time:
1.
Open the
Car status app in the center dis-
play's App view.
> The app will open in Home view's lowest
sub-view.
2.
Select the
Messages tab in the app.
> A list of saved messages will be displayed.
3. Tap the arrow to the right to expand/mini-
mize the message.
> More information about the message will
appear in the list and the image to the left
in the app will show information about the
message in graphic form.
Handling a saved message
In expanded form, some messages have two but-
tons for booking service or reading the owner's
manual.
Booking service:
–
With the message in expanded form, tap
Request appoint./Call to make
Appointment
15
to book a service/repair
appointment.
>
Request appoint.: the Appointments
tab will open in the app and create a
request for a service/repair appointment.
Call to make Appointment: the phone
app will start and initiate a call to your pre-
ferred retailer to make a service/repair
appointment.
Reading the owner's manual:
–
With the message in expanded form, tap
Owner's manual to read the section of the
owner's manual related to the message.
> The owner's manual will open in the cen-
ter display and provide information related
to the message.
Messages stored in the app will be erased auto-
matically each time the engine is started.
15
Certain markets only.
INSTRUMENTS AND CONTROLS
}}
155
Messages saved from the center
display
Saved messages and possible selections in Top view
Messages that have been shown in the center
display and need to be saved are stored in the
center display's Top view.
Reading a saved message
1. Open the center display's Top view.
> A list of saved messages will be displayed.
The ones with an arrow to the right can
be expanded.
2. Tap the arrow to the right to expand/mini-
mize the message.
Handling a saved message
Some messages have a button to e.g., activate/
deactivate a function related to the message.
–
Tap the button to carry out the action.
Messages saved in Top view are erased automat-
ically when the engine is switched off.
Related information
•
Handling messages in the instrument panel
and center display (p. 152)
Instrument panel App menu
The App (application) menu in the instrument
panel provides quick access to commonly used
functions in certain apps.
In some cases, the App menu can be used instead of
the center display
The App menu is displayed in the instrument
panel and is controlled using the right-side steer-
ing wheel keypad. This menu makes it possible to
toggle between apps or functions in apps without
removing your hands from the steering wheel.
App menu functions
The following apps and their functions can be
controlled from the App menu:
||
INSTRUMENTS AND CONTROLS
156
App Functions
Trip com-
puter
Select a trip odometer, make
instrument panel display set-
tings, etc.
Media
player
Select the active source for the
media player.
Phone Call a contact from the call list.
Navigation Pause guidance, start guidance
to a recently set destination, etc.
Related information
•
Instrument panel (p. 124)
•
Center display overview (p. 28)
•
Using the instrument panel App menu
(p. 156)
Using the instrument panel App
menu
The App (application) menu in the instrument
panel is controlled using the right-side steering
wheel keypad.
App menu and right-side steering wheel keypad
App menu
Left/right
Up/down
Confirm
Opening/closing the App menu
–
Press the App menu (1).
The App menu cannot be opened if there are
unread/unconfirmed messages in the instru-
ment panel. The message must be confirmed
before the App menu can be opened.
> The App menu opens/closes.
The App menu closes automatically after a period
of inactivity or after certain selections are made.
Navigating and making selections in the
App menu
1. Navigate between the various apps by press-
ing left or right (3).
> Functions for the preceding/next app will
be displayed in the App menu.
2. Scroll through the current app's selections
using up or down (4).
3. Confirm or select a function by pressing (2).
> The function will be activated and in cer-
tain cases, the App menu will close.
Related information
•
Instrument panel App menu (p. 155)
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
157
Using the windshield wipers
Before using the wipers, ice and snow should
be removed from the windshield. Be sure the
wiper blades are not frozen in place.
Right-side steering wheel lever
Thumb wheel to set rain sensor* sensitivity/
interval wiper speed
Single sweep
Move the lever down and release it for a
single sweep.
Wipers off
Move the lever to position 0 to turn off
the windshield wipers.
Interval wipers
Set the wiper interval speed by moving
the thumb wheel upward or downward.
Continuous wipers
Move the lever upward for the wipers to
operate at normal speed.
NOTE
Before using the wipers, be sure that the
wiper blades are not frozen onto the wind-
shield and that any ice or snow on the wind-
shield has been removed.
Move the lever upward to the next posi-
tion for maximum wiper speed.
Related information
•
Tailgate window wiper and washer (p. 159)
•
Activating/deactivating the rain sensor
(p. 157)
•
Windshield and headlight washers (p. 158)
Activating/deactivating the rain
sensor
The rain sensor monitors the amount of water on
the windshield and automatically regulates wiper
speed.
Right-side steering wheel lever
Rain sensor button
Thumb wheel for adjusting sensitivity/interval
wiper speed
When the rain sensor is activated, the
symbol will illuminate in the instrument panel.
Activating the rain sensor
When activating the rain sensor, the engine must
be running or the ignition must be in mode I or II.
The windshield wiper lever must also be in posi-
tion 0 or in the single sweep position.
||
INSTRUMENTS AND CONTROLS
158
Activate the rain sensor by pressing the
button. The wipers will make one sweep.
If the lever is pressed down, the wipers will make
additional sweeps across the windshield.
Move the thumb wheel upward for increased sen-
sitivity or downward for decreased sensitivity. The
wipers will make one extra sweep if the thumb
wheel is moved upward.
Deactivating the rain sensor
Deactivate the rain sensor by pressing the
button or by moving the lever upward to another
wiper position.
The rain sensor is automatically deactivated in
ignition mode 0.
The rain sensor is also automatically deactivated
when the wipers blades are put in the service
position and will reactivate when the wipers have
been returned to the normal operating position.
CAUTION
Deactivate the rain sensor when washing the
vehicle in an automatic car wash if the engine
is running or if the ignition is left in mode I or
II. The symbol in the instrument panel will go
out. If the rain sensor is not deactivated, the
wipers may start inadvertently in the car wash
and could be damaged.
Activating/deactivating the memory
function
The rain sensor's memory function can be set to
activate the rain sensor each time the engine is
started:
1.
In the center display, select
Settings My
Car
Wipers
2.
Activate by selecting the
Rain Sensor
Memory box.
Deactivate by deselecting the
Rain Sensor
Memory box.
Related information
•
Using the windshield wipers (p. 157)
•
Windshield wipers in the service position
(p. 510)
•
Tailgate window wiper and washer (p. 159)
Windshield and headlight washers
Use the windshield/headlight washers to help
improve visibility.
Starting the windshield and headlight
washers
Washing function
–
Move the right-side steering wheel lever
toward the wheel to start the windshield and
headlight washers.
> After the lever is released the wipers
make several extra sweeps.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
159
CAUTION
•
Use ample washer fluid when washing
the windshield. The windshield should be
thoroughly wet when the wipers are in
operation.
•
Avoid using the washers if the fluid reser-
voir is frozen or empty to help avoid dam-
age to the pump.
When the washing system is used, the length of
time that the windshield washers operate
depends on the ambient temperature. In cold
weather, the amount of washer fluid used will
also be increased automatically to help improve
cleaning.
Heated washer nozzles*
The washer nozzles are heated automatically in
cold weather to help prevent the washer fluid
from freezing.
High-pressure headlight washing*
High-pressure headlight washing consumes a
large quantity of washer fluid. To save fluid, the
headlights are washed once for every five times
the windshield is washed.
Reduced washing
When approx. 1 US quart (1 liter) of washer fluid
remains in the reservoir, the headlights will no
longer be washed to conserve fluid.
A text message and the
symbol will be dis-
played in the instrument panel to remind the
driver to fill the washer fluid reservoir.
Related information
•
Refilling the windshield washer fluid reservoir
(p. 513)
•
Using the windshield wipers (p. 157)
•
Tailgate window wiper and washer (p. 159)
Tailgate window wiper and washer
Start the tailgate window wiper/washer with con-
trols on the right-side steering wheel lever.
NOTE
The rear wiper is equipped with a cut-off
function, which means that it will not operate
if its electric motor overheats. The wiper will
function again after a cool-down period
(30 seconds or longer, depending on the heat
of the motor and ambient temperature condi-
tions).
Using the tailgate wiper/washer
Press for tailgate interval wiper
Press for tailgate continuous wiper
–
Move the lever forward to wash/wipe the tail-
gate window.
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
160
Tailgate wiper and reverse gear
1.
In the center display, select
Settings My
Car
Wipers.
2. Activate/deactivate by selecting/deselecting
the
Auto Rear Wiper box.
If the windshield wipers are on and the transmis-
sion is put into reverse gear, the tailgate wiper
will start. This function is deactivated when a dif-
ferent gear is selected.
Related information
•
Using the windshield wipers (p. 157)
•
Windshield and headlight washers (p. 158)
•
Refilling the windshield washer fluid reservoir
(p. 513)
•
Activating/deactivating the rain sensor
(p. 157)
Steering wheel
The steering wheel has controls for the horn,
certain optional driver support systems, menus/
messages and paddles for manually shifting
gears*.
Steering wheel keypads and paddles*
Driver support system controls
16
Paddles for manually shifting gears*
Keypad for voice controls, adjusting the
head-up display*accessing menus and mes-
sages, and handling phone calls
Horn
The horn is located in the steering wheel hub.
Related information
•
Adjusting the steering wheel (p. 161)
•
Turning steering wheel heating* on and off
(p. 192)
•
Cruise Control (CC) (p. 258)
•
Speed limiter (SL)* (p. 251)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Distance Alert* (p. 263)
•
Pilot Assist* (p. 279)
•
Steering wheel paddles* (p. 390)
•
Voice control (p. 119)
•
Head-up display (HUD)* (p. 116)
16
Cruise control*, Speed limiter *, Adaptive cruise control*, Distance alert* and Pilot Assist*.
INSTRUMENTS AND CONTROLS
* Option/accessory.
161
•
Using the instrument panel App menu
(p. 156)
•
Phone (p. 411)
Adjusting the steering wheel
The steering wheel can be adjusted to various
positions.
WARNING
Never adjust the steering wheel while driving.
The steering wheel's height and reach can be adjusted
Adjusting the steering wheel
To adjust the steering wheel:
1. Push the lever downward/forward to release
the steering wheel.
2. Adjust the steering wheel to a suitable posi-
tion.
3. Pull back the lever to lock the steering wheel
in place. If the lever is difficult to pull into
place, press the steering wheel lightly at the
same time as you pull the lever.
Related information
•
Steering wheel (p. 160)
•
Adjustable steering force* (p. 246)
INSTRUMENTS AND CONTROLS
* Option/accessory.
162
Seats
The front seats can be adjusted electronically* or
manually. The rear seats are adjusted primarily
manually.
The adjustment settings for the power front
seats*, door mirrors and the head-up display can
be stored in memory buttons.
Using the multi-function control*, comfort in the
front seats can be further enhance by e.g., adjust-
ing the lumbar support or extending the length of
the front seat cushion.
The rear seats are split and can be folded down
separately.
Related information
•
Adjusting power front seats* (p. 163)
•
Adjusting function settings in the multifunc-
tional front seats* (p. 166)
•
Manually operated front seats (p. 162)
•
Using the power seat memory function*
(p. 164)
•
Folding down the rear seat backrests
(p. 171)
Manually operated front seats
The front seats can be adjusted in a number of
ways to help provide the most comfortable seat-
ing position.
Raise/lower the front edge of seat cushion
by pumping up/down
Change the length of the seat cushion by
pulling up the lever and moving the cushion
forward/rearward with your hand
Move the seat forward/rearward by pulling
the bar upward and moving the seat.
Change lumbar support by pressing the but-
ton*
Raise/lower the seat by moving the control
up/down
Change backrest tilt by turning the wheel
WARNING
•
Do not adjust the seat while driving. The
seat should be adjusted so that the brake
pedal can be depressed fully. In addition,
position the seat as far rearward as com-
fort and control allow.
•
Check that the seat is securely locked
into position after adjusting.
Related information
•
Turning seat heating* on and off (p. 194)
•
Power front seats* (p. 163)
•
Multifunctional front seats* (p. 165)
•
Seat belts (p. 60)
INSTRUMENTS AND CONTROLS
* Option/accessory.
163
Power front seats*
The power front seats offer a number of adjust-
ment possibilities to help maximize comfort and
ergonomics.
The power seats have an overload protector that
activates if a seat is blocked by any object. If this
occurs, put the ignition in mode I or 0 and wait
for a short period before operating the seat
again.
The power seat(s) can be adjusted for a short
period after unlocking the door with the remote
key without switching the ignition on. Seat adjust-
ment can always be made when the engine is
running.
Related information
•
Multifunctional front seats* (p. 165)
•
Adjusting power front seats* (p. 163)
•
Using the power seat memory function*
(p. 164)
•
Manually operated front seats (p. 162)
•
Turning seat heating* on and off (p. 194)
•
Turning front seat ventilation* on and off
(p. 195)
Adjusting power front seats*
The power front seat(s) can be adjusted to many
positions to help improve comfort and ergonom-
ics.
Adjust lumbar support by pressing the con-
trol up/down/forward/rearward
Raise/lower the front edge of the seat cush-
ion by moving the control up/down
Raise/lower the seat by moving the control
up/down
Move the seat forward/rearward by moving
the control forward/rearward
Change backrest tilt by moving the control
forward/rearward
Only one of the power seat's controls can be
used at the same time.
The front seat backrests can be folded down
completely.
Related information
•
Power front seats* (p. 163)
•
Using the power seat memory function*
(p. 164)
•
Multifunctional front seats* (p. 165)
•
Seat belts (p. 60)
INSTRUMENTS AND CONTROLS
* Option/accessory.
164
Adjusting the passenger's seat from
the driver's seat*
Using the controls on the side of the driver's
seat, the driver can adjust the position of the
front passenger's seat.
Activating the function in the center
display
From the center display, the function can be acti-
vated in two ways.
After activating the function, adjust the passeng-
er's seat within 10 seconds. If no adjustments
are made in that time span, the function deacti-
vates automatically.
Activating from Function view
1. Go to the center display's Function view.
2.
Activate the function by tapping
Adjust
passenger seat.
Activating from Settings
–
In the center display, select Settings My
Car
Seats Adjust Passenger Seat
From Driver Position
.
Power seat controls
Move the passenger's seat forward/rearward
by moving the control forward/rearward.
Change the passenger seat's backrest tilt by
moving the control forward/rearward.
Related information
•
Power front seats* (p. 163)
•
Adjusting power front seats* (p. 163)
•
Seat belts (p. 60)
Using the power seat memory
function*
The memory function can be used to store the
settings (positions) of the power front seats*,
door mirrors and the head-up display*.
Two different settings can be stored using this
function. Memory controls are found on one or
both of the front doors*.
M (memory) button
Button for storing a position
Button for storing a position
Storing a position
1. Adjust the seat, door mirrors and head-up
display to the desired positions.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
165
2.
Press and release the M button. The indica-
tor light in the button will illuminate.
3.
Press button 1 or 2 within 3 seconds to
store the current position of the seat/
mirrors/head-up display in the selected but-
ton.
> When the position has been stored in the
selected button, an audible signal will
sound and the indicator light in the M but-
ton will go out.
If none of the buttons (1 or 2) are pressed within
3 seconds, the indicator light in the M button will
go out and the position will not be stored.
The seat/mirrors/head-up display must be
moved before new settings can be stored.
Using a stored position
A stored position can be used when one of the
front doors is opened or closed:
Front door open
–
Press one of the bottons (1 or 2) briefly. The
seat, door mirrors and head-up display will
move to the positions stored in that button.
Front door closed
–
Press and hold one of the buttons (1 or 2)
until the seat, door mirrors and head-up dis-
play have moved to the positions stored in
that button.
The seat, door mirrors and head-up display will
stop automatically if the button is released before
the they have reached the stored positions.
WARNING
•
Because the driver's seat can be adjusted
with the ignition off, children should never
be left unattended in the vehicle.
•
Movement of the seat can be STOPPED
at any time by pressing any button on the
power seat control panel.
•
Do not adjust the seat while driving. The
seat should be adjusted so that the brake
pedal can be depressed fully. In addition,
position the seat as far rearward as com-
fort and control allow.
•
The seat rails on the floor must not be
obstructed in any way when the seat is in
motion.
Related information
•
Adjusting power front seats* (p. 163)
•
Power front seats* (p. 163)
Multifunctional front seats*
In addition to the adjustment settings offered by
the power seat controls, the multifunction control
provides additional possibilities for convenience
and comfort.
Multifunction control on the side of the seat
The multifunction control can be used to adjust
lumbar support*, the backrest's side bolsters*, the
length of the seat cushion and the massage
function*. The adjustment settings made with the
control are shown in the center display* and cer-
tain settings can be made directly from the cen-
ter display.
Center display
The adjustment settings for the driver and pas-
senger seats made using the multifunction con-
trol are shown in the center display. If only one
seat is adjusted, the settings are shown in the
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
166
center of the display. If both seats are adjusted,
the settings for the driver seat are shown on the
upper half of the screen and the ones made for
the passenger seat are on the lower half.
Press the Home button on the center console to
exit the seat adjustment setting view.
Related information
•
Power front seats* (p. 163)
•
Adjusting function settings in the multifunc-
tional front seats* (p. 166)
•
Turning seat heating* on and off (p. 194)
Adjusting function settings in the
multifunctional front seats*
The multifunction controls on the side of the seat
as well as the center display can be used to
make seat adjustments. The adjustment settings
are shown in the center display*.
Multifunction control on the side of the seat
Turn the control up or down to activate.
Front seat massage settings*
The front seat backrests have a massage func-
tion. Air-filled cushions provide the massaging
action and a number of settings are available.
The massage function can only be used when
the engine is running.
Massage view in the center display
1. Activate the multifunction control by turning
it up or down. Seat settings will be displayed
in the center display.
2.
Tap
Massage in the seat settings view.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
167
3. Select massage settings by tapping the cen-
ter display or by moving the cursor up/down
using the multifunction control's upper/lower
buttons. Change a setting in the selected
function by tapping the arrows on the center
display or by using the multifunction control's
front/rear buttons.
Massage settings
The following massage settings are available:
•
On/Off.
•
Program 1-5: There are 5 preset massage
programs. Select Swell, Tread, Advanced,
Lumbar or Shoulder.
•
Intensity: Select Low, Normal or High.
•
Speed: Select Slow, Normal or Fast.
Restarting the massage function
Massage restart button in the center display
The massage function switches off automatically
after 20 minutes and must be restarted manually
for continued use.
Tap Restart in the center display to restart the
selected massage program.
Adjusting the side bolsters in the front
seats*
The side bolsters in the front seat backrests can
be inflated/deflated to adjust the amount of sup-
port provided.
Side bolster view in the center display
1. Activate the multifunction control on the side
of the seat by moving it up/down. The seat
settings view will appear in the center dis-
play.
2.
Select
Side bolsters in the seat settings
view.
•
Tap the front button to increase bolster
support.
•
Tap the rear button to decrease bolster
support.
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
168
Adjusting front seat lumbar support*
Lumbar support can be adjusted up/down/front/
rear.
Lumbar support view in the center display
1. Activate the multifunction control on the side
of the seat by moving it up/down. The seat
settings view will appear in the center dis-
play.
2.
Select
Lumbar in the seat settings view.
•
Tap the button up/down to move lumbar
support up/down.
•
Tap the front button to make lumbar sup-
port firmer.
•
Tap the rear button to make lumbar sup-
port softer.
Extending the seat cushion
The seat cushion can be extended/retracted
using the multifunction control.
Seat cushion extension view in the center display
1. Activate the multifunction control on the side
of the seat by moving it up/down. The seat
settings view will appear in the center dis-
play.
2.
Select
Cushion extension in the seat set-
tings view.
•
Tap the front button to extend the cush-
ion.
•
Tap the rear button to retract the cushion.
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
169
Related information
•
Multifunctional front seats* (p. 165)
Rear seats
The rear seat has three seating positions and the
backrests can be folded down separately. This
feature may be optional on certain models.
Related information
•
Adjusting the second row head restraints
(p. 169)
•
Folding down the rear seat backrests
(p. 171)
•
Turning seat heating* on and off (p. 194)
Adjusting the second row head
restraints
The center head restraint in the second row of
seats can be adjusted to suit the height of the
seat's occupant. The outboard head restraints
can be folded down* for a better rear view.
Adjusting the center head restraint
The center head restraint should be adjusted up
or down according to the passenger's height. The
restraint should be carefully adjusted to support
the occupant's head.
The center rear seat head restraint should only
be in its lowest position when this seat is NOT
occupied. When the center seat is occupied, the
head restraint must be correctly adjusted to the
passenger’s height so that, if possible, the whole
of the back of the head is covered.
||
INSTRUMENTS AND CONTROLS
* Option/accessory.
170
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat is
NOT occupied. When the center seat is occu-
pied, the head restraint must be correctly
adjusted to the passenger’s height so that, if
possible, the entire back of the head is cov-
ered.
Center head restraint button
To lower the head restraint, press and hold the
button (see the illustration) and push the head
restraint down carefully.
Electrically folding down the rear seat’s
outboard head restraints*
The outboard head restraints can be folded down
in two ways from the center display.
From Function view
1. Go to the center display's Function view.
2.
Tap the
Headrest fold button.
Via settings
The ignition has to be in at least mode II.
1. In the center display's Top view, tap
Settings.
2.
Tap
My Car Seats
3.
Select
Fold Headrest On Second Row
Seats to fold down the outboard head
restraints.
The head restraints must be returned to the
upright position manually until they click into
position.
WARNING
For safety reasons, no one should be allowed
to sit in the outboard rear seat positions if the
head restraints are folded down. If these posi-
tions are occupied, the head restraints should
be in the upright (fixed) position.
The head restraint must be locked in the
upright position after it has been folded up.
Related information
•
Folding down the rear seat backrests
(p. 171)
•
Center display overview (p. 28)
INSTRUMENTS AND CONTROLS
}}
* Option/accessory.
171
Folding down the rear seat
backrests
The rear seat backrests are divided into two sec-
tions that can be folded down together or sepa-
rately.
CAUTION
To help avoid damage to the upholstery, there
should be no objects on the rear seat and the
seat belt should not be buckled when the
backrest is folded down.
CAUTION
•
The integrated booster cushions* should
be folded down (in the stowed position)
before the backrest(s) are folded down
•
The center armrest* should be folded up
into the rear seat backrest before that
section of the backrest is folded down
•
It may be necessary to move the front
seats forward before the rear seat back-
rests can be folded down
WARNING
•
When one or more sections of the back-
rest is returned to the upright position,
check that it is properly locked in place by
pushing and pulling it.
•
Return the outboard head restraints to
the upright position.
•
Long loads should always be securely
anchored to help avoid injury in the event
of a sudden stop.
•
Always turn the engine off and apply the
parking brake when loading/unloading
the vehicle.
•
Place the transmission in the Park (P)
position to help prevent inadvertent
movement of the gear selector.
Folding down a section of the backrest
Folding down electrically*
17
•
On models equipped with the electric fold-
down function, the buttons used are located
in the cargo area.
•
Before the electric fold-down function can
be used, the vehicle must be stationary and
the tailgate must be open.
WARNING
Before using the electric fold-down function,
be sure that no one is sitting in or is near the
rear seat, that there are no objects on the rear
seat and that the backrest is not obstructed in
any way.
17
The backrests can also be folded down manually.
||
INSTRUMENTS AND CONTROLS
172
1. If necessary, manually press down the center
position's head restraint.
2. Press and hold one of the buttons marked
(L)eft or (R)ight to fold down the respective
sections of the backrest.
3. The backrest will fold down automatically.
The head restraint will fold down automati-
cally.
Folding down manually
1. If necessary, press down the center posi-
tion's head restraint.
2. Pull up the handle on the upper outboard
edge of the backrest to be folded down.
3. The backrest lock will release and the back-
rest can then be folded down. The head
restraint will fold down automatically.
Returning a backrest to the upright
position
The backrests always have to be returned to the
upright position manually.
1. Fold the backrest up.
2. Press the backrest into place until it locks in
the upright position.
3. Manually return the head restraint to the
upright position.
4. If necessary, adjust the height of the center
position's head restraint.
Related information
•
Rear seats (p. 169)
•
Adjusting the second row head restraints
(p. 169)
Driver profiles
Many of the vehicle's settings can be adapted to
the driver's personal preferences and saved in
one or more driver profiles.
The personal settings made are automatically
saved in the active driver profile. Each remote key
is linked to a driver profile and when this key is
used, the vehicle's settings are adapted accord-
ing to the specific ones saved in that profile.
Which settings are saved in driver
profiles?
The settings that can be changed in the vehicle
are either personal or global.
Changes made to personal settings are saved
automatically in the active (current) driver profile,
assuming that this profile is not locked. See the
article "Editing a driver profile" for additional
information.
Changes to global settings are not saved in a
specific driver profile but instead affect all driver
profiles.
INSTRUMENTS AND CONTROLS
173
Global settings
Global settings and parameters remain the same
regardless of which driver profile is currently
active.
Keyboard layout is an example of a global setting.
If driver profile X is used to add additional key-
board languages, these languages will also be
available even if driver profile Y is used. This type
of global change is not specific to a single driver
profile.
Personal settings
If driver profile X has been used to e.g., set the
brightness for the center display, driver profile Y
will not be affected by this setting since it is spe-
cific (personal) to driver profile X.
See also the article "Categories in Settings view"
for an overview of global and personal settings.
Related information
•
Editing a driver profile (p. 174)
•
Categories in Settings view (p. 110)
Selecting a driver profile
The most recently selected driver profile will be
used automatically the next time the vehicle is
started. However, a different driver profile can be
selected after the vehicle has started.
When the vehicle is started, the most recently
selected driver profile will be shown at the top of
the center display. There are two alternatives for
changing to another driver profile.
Alternative1:
1. Tap the name of the drive profile shown at
the top of the center display when the vehi-
cle has been started.
> A list of driver profiles that can be
selected will be displayed.
2. Select the desired profile.
3.
Tap
Confirm.
> The new driver profile has now been
selected and the system will load the set-
tings stored in that profile.
Alternative 2:
1. Pull down the center display's Top view.
2.
Tap
Profile.
> A list of driver profiles that can be
selected will be displayed.
3. Select the desired profile.
4.
Tap
Confirm.
> The new driver profile has now been
selected and the system will load the set-
tings stored in that profile.
Related information
•
Driver profiles (p. 172)
•
Editing a driver profile (p. 174)
•
Linking a remote key to a driver profile
(p. 174)
INSTRUMENTS AND CONTROLS
174
Editing a driver profile
The names of the driver profiles created for the
vehicle can be changed.
All types of changes in driver profiles are made
from the center display's Top view:
Settings
System Driver Profile.
Changing a profile's name
Changing a driver profile's name is done from the
Driver Profile window:
1.
Tap
Edit Profile.
> A menu will open in which the profile can
be edited.
2.
Tap the
Profile Name box.
> A keyboard will be displayed and can be
used to change the name. Tap to
close the keyboard.
3.
Save the changes by tapping
Back/Close.
> The name has now been changed.
Resetting driver profile changes
Settings that have been changed and saved in
one or more driver profiles can be reset.
NOTE
Global Reset is only possible when the vehi-
cle is stationary.
1.
Tap
Settings in the center display's Top
view.
2.
Select
System Global Reset Reset
Personal Settings
.
3.
Select one of the following:
Reset for the
active profile, Reset for all profiles or
Cancel.
Related information
•
Driver profiles (p. 172)
•
Resetting the settings view (p. 113)
•
Using the center display keyboard (p. 31)
•
Using the center display (p. 44)
•
Selecting a driver profile (p. 173)
Linking a remote key to a driver
profile
A remote key can be linked to a driver profile,
which means that all of the settings stored in the
driver profile will apply each time that particular
remote key is used with the vehicle.
A remote key is not initially linked to a specific
driver profile. When the key is used to unlock the
vehicle/start the engine for the first time, the
Guest profile will be used.
A driver profile can be selected manually each
time the vehicle is unlocked/started without a
remote key being linked to that profile. When the
vehicle is started, the most recently selected
driver profile will be activated. If the key has previ-
ously been linked to a driver profile, it is not nec-
essary to manually select a profile when that par-
ticular key is used.
Linking a remote key to a driver profile
for the first time
Select a profile to link to the remote key (if that
profile is not already active).
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
System Driver Profile.
3. Tap the profile to be linked to the remote
key. The
Guest profile cannot be linked to a
remote key.
INSTRUMENTS AND CONTROLS
}}
175
4. Open Top view in the center display and tap
Settings System Driver Profile
Edit Profile.
5.
Select
Connect key to link the selected pro-
file to the remote key currently being used. A
profile can only be linked to the remote key
that is currently being used. If there are sev-
eral keys in the vehicle at the same time,
More than one key is found, put the key
you want to connect on backup reader
will be displayed.
Location of the backup reader in the tunnel console
>
When
Profile connected to key is dis-
played, the remote key and the selected
driver profile have been linked.
6.
Tap
OK to confirm.
> The key currently in use will remain linked
to the selected driver profile as long as
the
Connect key box is not deselected.
Related information
•
Driver profiles (p. 172)
•
Editing a driver profile (p. 174)
•
Remote key (p. 223)
Importing/exporting a driver profile
from/to a USB flash drive
The personal settings stored in a driver profile
can be imported or exported to another vehicle
using a USB flash drive.
The following steps describe the procedure for
importing or exporting personal settings saved in
a driver profile to a USB flash drive:
1.
Tap
Settings in the center display's Top
view.
2.
Tap
System Driver Profile.
3. Insert a flash drive in the USB socket in the
tunnel console.
USB socket in the tunnel console
||
INSTRUMENTS AND CONTROLS
176
4.
Select
Import Profile From USB/Export
Profile To USB.
NOTE
•
The
Guest profile cannot be imported or
exported
•
Several profiles can be exported to USB
but only one profile can be imported.
When a profile is imported, it overwrites
the one currently being used in the vehicle.
5. Select the profile(s) to be imported/exported.
6.
Select
OK.
If an export does not succeed, this may be due
to:
•
USB flash drive is full.
•
USB flash drive was not inserted correctly or
was removed before the export was comple-
ted.
If an import does not succeed, this may be due
to:
•
USB flash drive was not inserted correctly or
was removed before the import was comple-
ted.
•
No driver profile had been stored on the USB
flash drive.
•
The driver profile file on the USB flash drive
is damaged.
Related information
•
Driver profiles (p. 172)
CLIMATE
CLIMATE
* Option/accessory.
178
Climate control system
The vehicle is equipped with Electronic Climate
Control (ECC) that cools, heats, dehumidifies
and filters the air in the passenger compartment.
2-zone climate system
2-zone system climate zones
The 2-zone climate system makes it possible to
set the left- and right-side temperatures sepa-
rately.
All climate system settings are made from the
center display and the buttons in the center con-
sole.
4-zone climate system*
4-zone system climate zones
The 4-zone climate system makes it possible to
set the left- and right-side temperatures sepa-
rately for the front and rears seats.
All climate system settings are made from the
center display and the buttons in the center con-
sole. Settings for the rear seats can also be
made from the climate system panel on the rear
side of the tunnel console.
Related information
•
Climate system sensors (p. 179)
•
Perceived temperature (p. 178)
•
Climate system controls (p. 182)
•
Air quality (p. 179)
•
Air distribution (p. 196)
•
Air conditioning refrigerant (p. 531)
Perceived temperature
The climate system regulates passenger com-
partment temperature based on the perceived
temperature, not on the actual one.
The selected passenger compartment tempera-
ture is based on a physical perception relating to
the current ambient temperature, air flow, humid-
ity, sunlight in the passenger compartment, etc.
The system's sunlight sensor monitors the side of
the car where sunlight is entering the passenger
compartment. This means that the actual tem-
perature may differ between the right and left
sides of the compartment, even if the tempera-
ture setting is the same for both sides.
Related information
•
Climate system sensors (p. 179)
•
Climate control system (p. 178)
CLIMATE
}}
* Option/accessory.
179
Climate system sensors
The climate system's sensors help regulate the
passenger compartment temperature, humidity
level, etc.
Location of the sensors
Humidity sensor: in the rearview mirror con-
sole.
Ambient temperature sensor: in the pas-
senger's side door mirror.
Passenger compartment temperature sen-
sor: near the center console buttons.
Sunlight sensor: on the upper side of the
dashboard.
NOTE
Do not cover or block the sensors with cloth-
ing or other objects.
On models equipped with the optional Interior Air
Quality System, there is also an air quality sensor
located at the climate system's air intake.
Related information
•
Climate control system (p. 178)
•
Perceived temperature (p. 178)
•
Interior Air Quality System (IAQS)* (p. 181)
Air quality
The materials used in the passenger compart-
ment have been selected and designed to be
pleasant and comfortable, even for people with
asthma or other types of allergies.
Materials in the passenger
compartment
The materials used have been developed to help
minimize the amount of dust and make the cabin
easier to keep clean.
All floor mats (including the cargo compartment)
can be easily removed for cleaning.
Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and fol-
low the instructions included with the product.
Air filtering systems
In addition to the passenger compartment filter,
the Clean Zone Interior Package* and the Interior
Air Quality System* contribute to a cleaner pas-
senger compartment environment.
Clean Zone*
The Clean Zone function monitors the conditions
that affect good passenger compartment air
quality.
||
CLIMATE
* Option/accessory.
180
The indicator is shown in center display's Cli-
mate view.
The indicator is shown in the climate bar
when the Climate view is not open.
If the air quality conditions are not met, the text
Clean Zone will be white. When the conditions
are met, the text will change to blue.
The conditions monitored are:
•
All side windows, doors, tailgate and panor-
amic roof* are closed
•
The Interior Air Quality System* is activated
•
The air conditioning is activated
•
Recirculation is deactivated
NOTE
Please be aware that the Clean Zone function
does not indicate that the air quality in the
passenger is good, only that the conditions
for good air quality have been met.
Related information
•
Passenger compartment air filter (p. 181)
•
Interior Air Quality System (IAQS)* (p. 181)
•
Clean Zone Interior Package (CZIP)*
(p. 180)
•
Cleaning the interior (p. 517)
•
Climate system controls in the center display
(p. 183)
Clean Zone Interior Package
(CZIP)*
The Clean Zone Interior Package includes a
number of features that help further reduce aller-
genic substances in the passenger compart-
ment.
CZIP includes the following:
•
An enhanced blower function that starts the
blower when the vehicle is unlocked with the
remote key to fill the passenger compart-
ment with fresh air. This function starts auto-
matically when required and shuts off auto-
matically after a short period or if one the
doors is opened. The time for which the
blower operates decreases gradually due to
reduced need until the vehicle is four years
old.
•
The Interior Air Quality System (IAQS).
Related information
•
Air quality (p. 179)
•
Interior Air Quality System (IAQS)* (p. 181)
CLIMATE
* Option/accessory.
181
Interior Air Quality System (IAQS)*
The Interior Air Quality System uses a multifilter
and an air quality sensor to remove gases, parti-
cles and other contaminants from the air enter-
ing the passenger compartment.
The IAQS air quality sensor monitors increased
levels of contaminants in the outside air and if
contaminants are detected, the air intake closes
and the air inside the passenger compartment is
recirculated, i.e., no outside air enters the vehicle.
The filter also cleans recirculated passenger
compartment air.
NOTE
•
The air quality sensor should always be
engaged in order to obtain the best air in
the passenger compartment.
•
Recirculation is limited in cold weather to
avoid fogging.
•
If the insides of the windows start fog-
ging, disengage the air quality sensor.
Use the defroster function to increase
airflow to the front, side, and rear win-
dows.
Activating/deactivating IAQS
To change the setting for IAQS activation/deacti-
vation:
1. In the center display's Settings view, go to
Climate.
2. Activate/deactivate IAQS by selecting/dese-
lecting the
Air Quality Sensor box.
Related information
•
Air quality (p. 179)
•
Passenger compartment air filter (p. 181)
•
Clean Zone Interior Package (CZIP)*
(p. 180)
•
Turning recirculation on and off (p. 189)
Passenger compartment air filter
All air entering the passenger compartment
through the climate system air intake is filtered.
Filter replacement
The filter must be replaced according to the serv-
ice schedule for your vehicle. When driving in e.g.,
dusty or industrial areas, the filer may need to be
replaced more often. Consult your Volvo retailer.
Related information
•
Air quality (p. 179)
•
Clean Zone Interior Package (CZIP)*
(p. 180)
•
Interior Air Quality System (IAQS)* (p. 181)
•
Volvo's service program (p. 472)
CLIMATE
* Option/accessory.
182
Automatic climate control
The Auto feature automatically controls a num-
ber of climate system functions.
The Auto climate button in Climate view
1. Go to the center display's Climate view.
2.
Tap or press and hold
AUTO.
> Auto mode is activated (button lights up)/
deactivated (button is off). Auto mode
automatically controls air recirculation, air
conditioning, and air distribution.
Blower speed and temperature change
depending on how long the button is
pressed.
•
Tap: return to previous settings.
•
Press and hold: change to default set-
tings (level
3 and 72 °F (22 °C)/(level
2 in the rear seats
1
).
Related information
•
Climate system controls in the center display
(p. 183)
Climate system controls
Climate system functions are controlled using
buttons on the center console, the center dis-
play and the climate system panel on the rear
side of the tunnel console*.
Overview of climate system controls
Climate system controls in the center display
Defroster buttons on the center console
Climate system panel on the rear side of the
tunnel console*
Related information
•
Climate system controls in the center display
(p. 183)
•
Climate control system (p. 178)
1
Models with the 4-zone climate system*
CLIMATE
}}
* Option/accessory.
183
•
Rear climate system controls on the tunnel
console* (p. 185)
•
Defrosting windows and mirrors (p. 190)
•
Climate system voice commands (p. 122)
•
Air quality (p. 179)
Climate system controls in the
center display
All climate system functions can be controlled
from the center display's climate bar and Cli-
mate view.
Climate bar
The most common climate system functions can
be controlled from the climate bar.
Temperature control for the driver and pas-
senger sides.
Control for heated* and ventilated* driver/
passenger seats and heated steering wheel*.
Button for opening Climate view. The graphic
in the button shows the activated climate
system settings.
Climate view
Tap the center button on the climate bar to
access Climate view, which is divided into the fol-
lowing tabs:
Main climate, Rear climate* and
Parking climate *Toggle between the tabs by
swiping the screen to the left/right or by tapping
the respective headings.
||
CLIMATE
* Option/accessory.
184
Main climate settings
In addition to the climate bar's functions, other
primary climate system functions can also be
controlled from the
Main climate tab.
Max, Electric, Rear: controls for defrosting
windows and door mirrors.
AC: air conditioning controls.
Recirc: recirculation controls.
Air distribution controls.
Blower control for the front seats (also for
the rear seat on models with a 2-zone cli-
mate system).
AUTO: climate system Auto mode.
Rear climate*
All of the climate system functions for the rear
seat can be controlled from the
Rear climate
tab.
Blower control and climate system functions
for the rear seats
Rear seat temperature control.
Rear seat heating control*.
Parking climate
2
All of the parking climate functions can be con-
trolled from the
Parking climate tab.
2
Plug-in hybrid models only.
CLIMATE
}}
* Option/accessory.
185
Related information
•
Climate system controls (p. 182)
•
Defrosting windows and mirrors (p. 190)
•
Air conditioning (p. 193)
•
Adjusting air distribution (p. 198)
•
Setting the temperature (p. 187)
•
Setting the blower speed (p. 185)
•
Automatic climate control (p. 182)
•
Turning steering wheel heating* on and off
(p. 192)
•
Turning seat heating* on and off (p. 194)
Rear climate system controls on the
tunnel console*
The rear seat climate system functions are con-
trolled from the rear side of the tunnel console.
Rear seat heating*
Rear seat blower speed
Rear seat temperature control
If the vehicle is not equipped with a climate panel
on the rear side of the tunnel console but also
has heated rear seats*, there will be buttons on
the panel for this function.
Related information
•
Climate system controls (p. 182)
•
Turning seat heating* on and off (p. 194)
•
Setting the blower speed (p. 185)
•
Setting the temperature (p. 187)
Setting the blower speed
The blower can be set to five different automatic
speeds plus
Off and Max. In models with the 4-
zone climate system*, blower speed can be set
separately for the front and rear seats.
||
CLIMATE
* Option/accessory.
186
Setting blower speed for the front
seats
3
Blower control buttons in Climate view
1. Go to the center display's Climate view.
2.
Tap the desired blower speed:
Off, 1–5 or
Max.
> The blower speed will change and the
button for the selected speed will light up.
NOTE
If the blower is turned off completely, the air
conditioning is disengaged, which may result
in fogging on the windows.
Setting the rear seat blower speed*
From the front seat
Blower control buttons in the Rear climate tab in Cli-
mate view
1. Open the center display's Climate view.
2.
Select the
Rear climate tab.
3.
Tap the desired blower speed:
1–5.
The blower speed for the rear seat can be
turned off by tapping
2nd row climate.
> The blower speed will change and the
button for the selected speed will light up.
From the rear seat
Blower controls on the climate panel on the rear side of
the tunnel console
–
Tap the desired blower level: Off or 1–5 on
the tunnel console climate panel.
> The blower speed will change and the
button for the selected speed will light up.
NOTE
•
Blower speed for the rear seat cannot be
set if the front seat blower setting is
Off.
•
The climate system will adapt air flow
within each set blower speed, which
means that the blower speed may vary
slightly.
3
The same setting applies to the rear seats in models with the 2-zone climate system.
CLIMATE
}}
* Option/accessory.
187
Related information
•
Climate system controls in the center display
(p. 183)
•
Rear climate system controls on the tunnel
console* (p. 185)
Setting the temperature
4
The temperature can be set separately for the
left and right sides of the passenger compart-
ment. In models with the 4-zone climate system*,
it can also be set for the front and rear seats
separately.
Setting the temperature for the front
seats
5
Temperature buttons in the climate bar
1. Tap the right or left side temperature button
in the center display's climate bar to open
the control.
Temperature control
2. Set a temperature by:
•
dragging the control to the desired tem-
perature or
•
tapping
+/− to raise/lower the tempera-
ture.
> The temperature will change and the new
temperature will be shown in the button.
4
Shown here in Celsius but also applies to Fahrenheit
5
The same setting applies to the rear seats in models with the 2-zone climate system.
||
CLIMATE
* Option/accessory.
188
Synchronizing the temperature
Synchronization button on the driver's side temperature
control
1. Tap the driver's side temperature button to
open the control.
2.
Tap
Synchronize temperature .
> The temperature for all of the vehicle's cli-
mate zones will be synchronized with the
one set for the driver's side and the syn-
chronization symbol will be displayed in
the temperature button.
Synchronization can be stopped by tapping
Synchronize temperature again or by chang-
ing the temperature for the passenger's side or
the rear seat*.
Setting the rear seat temperature*
From the front seat
Temperature buttons in the Rear climate group in Cli-
mate view
1. Open the center display's Climate view.
2.
Select the
Rear climate tab.
3. Tap the left or right side temperature buttons
to open the control.
Temperature control
4. Set the temperature by:
•
dragging the control to the desired tem-
perature or
•
tapping
+/− to raise/lower the tempera-
ture.
> The temperature will change and the new
temperature will be shown in the button.
CLIMATE
}}
* Option/accessory.
189
From the rear seat
Temperature controls on the climate panel on the rear
side of the tunnel console
–
Tap the left or right side's </>buttons on cli-
mate panel to lower/raise the temperature.
> The temperature will change and the cli-
mate panel screen will show the new tem-
perature.
NOTE
Heating or cooling cannot be speeded up by
selecting a higher/lower temperature than
the actual temperature required.
Related information
•
Climate system controls (p. 182)
•
Climate system controls in the center display
(p. 183)
•
Rear climate system controls on the tunnel
console* (p. 185)
•
Perceived temperature (p. 178)
Turning recirculation on and off
Recirculation can be used to shut out exhaust
fumes, smoke, etc., from the passenger com-
partment.
Recirculation button in Climate view
1. Open Climate view in the center display.
2.
Press
Recirc.
> Recirculation is activated (button lights
up)/deactivated (button is off)
NOTE
•
If recirculation is on for too long, there is
a risk of condensation forming on the
insides of the windows, especially in win-
ter.
•
Recirculation cannot be deactivated if
max. defroster is being used.
||
CLIMATE
* Option/accessory.
190
Activating/deactivating the recirculation
timer
With the timer activated, recirculation will switch
off automatically after 20 minutes.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Climate.
3. Activate/deactivate the timer by selecting/
deselecting the box for
Recirculation
Timer.
Related information
•
Climate system controls in the center display
(p. 183)
Defrosting windows and mirrors
The max. defroster, heated windshield* and
heated rear window/door mirror functions are
used to remove ice or condensation.
Using the buttons in the center console
The buttons in the center console offer quick
access to the defroster functions.
On models with the optional heated windshield,
the max. defroster function can only be activated
separately from the Climate view in the center
display.
Center console buttons
Button for the heated windshield* and max.
defroster.
Button for the heated rear window and door
mirrors.
Models without a heated windshield.
–
Press button (1).
> Max. defroster is activated (button indica-
tor light on)/deactivated (button indicator
light off).
Models with a heated windshield*.
–
Press button (1) repeatedly to access the
function's three levels:
•
Activate windshield heating
•
Activate windshield heating and max.
defroster
•
Deactivated
> The windshield heating is activated (but-
ton indicator light on)/deactivated (button
indicator light off).
NOTE
Max. defroster starts after a slight delay to
avoid a brief increase in blower speed if the
heated windshield function has been deacti-
vated by pressing the button twice in quick
succession.
Heated rear window and door mirrors
–
Press button (2).
> Heating for the rear window/door mirrors
is activated (button indicator light on)/
deactivated (button indicator light off).
CLIMATE
}}
* Option/accessory.
191
From the center display's Climate view
Activate/deactivate max. defroster
Max. defroster button in Climate view
1. Open Climate view in the center display.
2.
Tap
Max.
> Max. defroster is activated (button lights
up)/deactivated (button is off).
Max. defroster overrides automatic climate
control and recirculation, and activates the
air conditioning, changes blower speed to
5
6
and the temperature to
HI
6
.
When max. defroster is deactivated, the
climate system returns to the previous
settings.
Activating/deactivating windshield heating*
Windshield heating button in Climate view
1. Open Climate view in the center display.
2.
Tap
Electric.
> Windshield heating is activated (button
lights up)/deactivated (button is off).
If windshield heating is activated while the Start/
Stop function has turned off the engine, the
engine will restart.
NOTE
•
Triangular areas at the far sides of the
windshield are not heated electrically and
will take slightly longer to defrost/de-ice.
•
The heated windshield may affect the
performance/range of e.g., transponders
used to automatically pay highway tolls or
other communication equipment.
Activating/deactivating rear window and
door mirror heating
Rear window/door mirror heating button in Climate view
1. Open Climate view in the center display.
2.
Tap
Rear.
> Rear window/door mirror heating is acti-
vated (button lights up)/deactivated (but-
ton is off).
6
In models with the 4-zone climate system*, front seats only.
||
CLIMATE
* Option/accessory.
192
Automatically activating/deactivating
the window heating function when the
engine is started
The rear window/door mirror/windshield heating*
can be set to start automatically when the engine
is started. The heating function switches off auto-
matically when the glass surfaces are sufficiently
warm and the condensation/ice has disappeared.
1.
Tap
Settings in the center display's Top
view and select Climate.
2. Activate/deactivate the respective defroster
functions when the engine is started by
selecting/deselecting the boxes for
Auto
Electric Front Defroster and Auto Electric
Rear Defroster.
The heating function will switch off automatically
when the window/mirror is sufficiently warm and
the ice/condensation has disappeared.
Related information
•
Climate system controls (p. 182)
•
Climate system controls in the center display
(p. 183)
•
Defrosting windows and mirrors (p. 190)
•
Air conditioning (p. 193)
•
Turning recirculation on and off (p. 189)
•
Adjusting air distribution (p. 198)
•
Setting the blower speed (p. 185)
•
Automatic climate control (p. 182)
•
Turning front seat ventilation* on and off
(p. 195)
•
Turning steering wheel heating* on and off
(p. 192)
Turning steering wheel heating* on
and off
The steering wheel can be heated electrically for
added comfort in cold weather.
Activating/deactivating steering wheel
heating
Buttons for heated steering wheel and seats in the cli-
mate bar
1. Tap the driver side steering wheel and seat
button in the center display's climate bar to
open the steering wheel and seat heating
controls.
If the vehicle is not equipped with the
optional heated or ventilated seats, the but-
ton for steering wheel heating will be directly
accessible in the climate bar.
CLIMATE
* Option/accessory.
193
2. Tap the steering wheel heating button
repeatedly to select one of four levels:
Off,
High, Middle or Low.
> The level changes and is displayed in the
button.
Automatic steering wheel heating
The automatic function starts heating the steer-
ing wheel automatically when the engine is
started if the temperature is sufficiently cold. This
feature can be activated/deactivated.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Climate.
3.
Under
Auto Steering Wheel Heating
Level, select Off, Low, Middle or High to
activate/deactivate the automatic function.
Related information
•
Climate system controls (p. 182)
•
Climate system controls in the center display
(p. 183)
•
Steering wheel (p. 160)
Air conditioning
The air conditioning cools and dehumidifies the
air in the passenger compartment.
Activating/deactivating the main air
conditioning unit
Air conditioning button in Climate view
1. Open Climate view in the center display.
2.
Tap
AC.
> The air conditioning is activated (button
lights up)/deactivated (button is off).
When the air conditioning is activated, it will be
switched on and off automatically by the climate
system as necessary.
NOTE
•
For the air conditioning to function opti-
mally, close the side windows and lamina-
ted panoramic roof*
•
The air conditioning cannot be activated
if the blower is set to
Off
Related information
•
Climate system controls in the center display
(p. 183)
CLIMATE
* Option/accessory.
194
Turning seat heating* on and off
The seats can be heated for added comfort in
cold weather.
Activating/deactivating front seat
heating
Steering wheel and seat buttons in the climate bar
1. Tap the left or right side steering wheel and
seat button in the center display's climate
bar to open the steering wheel and seat
heating controls.
If the vehicle is not equipped with the
optional heated steering wheel or ventilated
seats, the button for seat heating will be
directly accessible in the climate bar.
2. Tap the seat heating button repeatedly to
select one of four levels:
Off, High, Middle
or Low.
> The level changes and is displayed in the
button.
Activating/deactivating rear seat
heating
From the front seat*
Temperature buttons for Rear climate in Climate view
1. Open Climate view in the center display and
tap
Rear climate.
2. Tap the button repeatedly to select one of
the following seat heating levels:
Off, Low,
Middle or High.
> The level will change and will be displayed
in the button.
From the rear seat
With the 2-zone climate system
Seat heating buttons on the climate panel on the rear
side of the tunnel console
–
Press repeatedly on the left or right side but-
tons on the climate panel on the rear side of
the tunnel console to select one of four lev-
els:
Off, High, Middle or Low.
> The level changes and the indicator lights
in the button display the level.
With the 4-zone climate system*
CLIMATE
}}
* Option/accessory.
195
Seat heating indicator and control on the climate panel
on the rear side of the tunnel console
–
Tap repeatedly on the left or right side seat
heating buttons on the climate panel on the
rear side of the tunnel console to select one
of four levels:
Off, High, Middle or Low.
> The level changes and is displayed on the
screen in the climate panel.
Automatically activating/deactivating
the seat heating function when the
engine is started
The seat heating* can be set to start automati-
cally when the engine is started.
The automatic function starts heating the seats
when the ambient temperature is sufficiently cold.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Climate.
3.
Under
Auto Driver Seat Heating Level and
Auto Passenger Seat Heating Level,
select Off, Low, Middle or High to activate/
deactivate the automatic function and select
a level for the driver's and passenger's seats.
Related information
•
Climate system controls (p. 182)
•
Climate system controls in the center display
(p. 183)
•
Rear climate system controls on the tunnel
console* (p. 185)
Turning front seat ventilation* on
and off
Seat ventilation can be used e.g., to help remove
dampness from the seat occupant's clothing.
The ventilation system consists of fans in the
seats and backrests that draw air through the
seat upholstery. The cooling effect increases as
the air in the passenger compartment becomes
cooler. This feature can be activated when the
engine is running and it monitors the seat's tem-
perature, sunlight in the passenger compartment
and the ambient temperature.
||
CLIMATE
* Option/accessory.
196
Activating/deactivating front seat
ventilation
Steering wheel and seat buttons in the climate bar
1. Tap the left or right side steering wheel and
seat button in the center display's climate
bar to open the steering wheel and seat con-
trols.
If the vehicle is not equipped with the
optional heated steering wheel/seats, the
button for seat ventilation will be directly
accessible in the climate bar.
2. Tap the seat ventilation button repeatedly to
select one of four levels:
Off, High, Middle
or Low.
> The level changes and is displayed in the
button.
NOTE
Seat ventilation cannot be started if the tem-
perature in the passenger compartment is too
low.
For use over extended periods, the setting
Low is recommended.
Related information
•
Climate system controls (p. 182)
•
Climate system controls in the center display
(p. 183)
Air distribution
The incoming air is distributed through a number
of different vents in the passenger compartment.
Air distribution overview
Air distribution with a 4-zone climate system
Automatic and manual air distribution
When the auto-climate feature is being used, air
distribution is regulated automatically. However,
air distribution can also be adjusted manually.
Adjustable air vents
There are 6 or 8* adjustable air vents in the pas-
senger compartment.
CLIMATE
}}
* Option/accessory.
197
Location of the air vents
2-zone system: four vents on the dashboard
and one on each of the pillars between the
front and rear doors.
4-zone system*: two additional vents on the
rear side of the tunnel console.
Related information
•
Climate control system (p. 178)
•
Adjusting air distribution (p. 198)
•
Opening/closing/directing air vents (p. 197)
•
Air distribution table (p. 199)
•
Automatic climate control (p. 182)
Opening/closing/directing air vents
Some of the passenger compartment air vents
can be open/closed/directed individually.
Direct the dashboard and door pillar outer air
vents toward the side windows to demist/defrost.
Direct the vents into the passenger compartment
to help maintain a comfortable temperature in
warm weather.
Opening/closing air vents
Air vent thumb wheel
7
–
Turn the thumb wheel to open/close the air
flow from the vent.
The more of the white lines on the thumb
wheel that are visible, the greater the air flow.
Rear seat air vents
Air vent thumb wheel
7
.
–
Turn the thumb wheel to open/close the air
flow from the vent.
The more of the white lines on the thumb
wheel that are visible, the greater the air flow.
7
The illustration is generic; the air vent's design varies, depending on its location.
||
CLIMATE
198
Directing air flow
Air flow control
7
–
Move the control from side to side or up/
down to direct the flow of air from the vent.
Related information
•
Air distribution (p. 196)
•
Adjusting air distribution (p. 198)
•
Air distribution table (p. 199)
Adjusting air distribution
Air distribution can be adjusted manually.
Air distribution buttons in Climate view
Defrost the windshield
Air vents in the dashboard and center con-
sole
Floor air vents
1. Go to Climate view in the center display.
2. Tap one or more of the air distribution but-
tons to open/close the corresponding air
flow.
> Air distribution changes and the buttons
light up or go out.
Related information
•
Air distribution (p. 196)
•
Opening/closing/directing air vents (p. 197)
•
Air distribution table (p. 199)
•
Climate system controls in the center display
(p. 183)
7
The illustration is generic; the air vent's design varies, depending on its location.
CLIMATE
}}
199
Air distribution table
Air distribution can be adjusted manually.
Air distribution Use
If all air distribution buttons are deselected in manual mode, the climate system
will revert to automatic mode.
Main air flow from the defroster vents, some flow from the other vents. To remove ice and condensation (with moderate
blower speed).
Main air flow from the dashboard vents, some flow from the other vents. For best comfort in hot weather.
Main air flow from the floor vents, some flow from the other vents. For heating/cooling near the floor.
||
CLIMATE
200
Air distribution Use
Main air flow from the defroster and dashboard vents, some flow from the other
vents.
For best comfort in hot and dry weather.
Main air flow from the defroster and floor vents, some flow from the other vents. For best comfort and defrosting in cold or humid con-
ditions.
Main air flow from the dashboard and floor vents, some flow from the other
vents.
For good comfort in sunny, cool weather.
For cooling or heat to the floor.
Main air flow from the defroster, dashboard and floor vents. For cooler air toward the floor in warm weather or
warmer air upward in cold weather.
Related information
•
Air distribution (p. 196)
•
Opening/closing/directing air vents (p. 197)
•
Climate system controls in the center display
(p. 183)
•
Adjusting air distribution (p. 198)
LOADING AND STORAGE
LOADING AND STORAGE
* Option/accessory.
202
Cargo space
The vehicle has flexible cargo capacity that
makes it possible to load and secure large
objects.
By folding down the rear seat backrests, the
cargo capacity of the vehicle increases consider-
ably. Use the load anchoring eyelets or the gro-
cery bag holder to secure objects and the cargo
compartment cover to help conceal the load.
The jack*, tire sealing system and tools can be
found under the cargo compartment's floor.
Related information
•
Loading (p. 202)
•
Cargo compartment cover* (p. 212)
•
Cargo net (p. 208)
•
Grocery bag holder (p. 207)
•
Load anchoring eyelets (p. 211)
•
Steel cargo grid* (p. 210)
•
Ski hatch (p. 202)
•
Folding down the rear seat backrests
(p. 171)
Ski hatch
The hatch in the center section of the rear seat
backrest can be opened without folding the
backrest down to transport long objects such as
skis, etc.
1. From the cargo area, grasp the ski hatch's
handle and pull it down.
2. Fold down the rear seat's center armrest.
If the vehicle is equipped with the private locking
function*, the ski hatch must be closed.
Related information
•
Loading (p. 202)
•
Load anchoring eyelets (p. 211)
•
Private (valet) locking (p. 238)
Loading
The load carrying capacity of your vehicle is
determined by factors such as the number of
passengers, the amount of cargo, the weight of
any accessories that may be installed, etc.
Loading recommendations
•
Load objects in the cargo compartment
against the backrest whenever possible.
•
If the backrests of the second row seats are
folded down, they should not be in contact
with the front seat backrests. This could
impede the function of the Whiplash
Protection System (WHIPS).
•
Unstable loads can be secured to the load
anchoring eyelets with straps or web lash-
ings to help keep them from shifting.
•
Stop the engine and apply the parking brake
when loading or unloading long objects. The
gear selector can be knocked out of position
by long loads, which could set the vehicle in
motion.
LOADING AND STORAGE
}}
203
WARNING
•
Stop the engine, put the gear selector in
P, and apply the parking brake when
loading or unloading long objects.
•
The vehicle's driving characteristics may
change depending on the weight and dis-
tribution of the load.
•
A 44-pound (20 kg) object produces a
force of 2,200 pounds (1,000 kg) in a
head-on collision at 30 mph (50 km/h).
•
The cargo area and rear seat should not
be loaded to a level higher than 2 in.
(5 cm) below the upper edge of the rear
side windows. Objects placed higher than
this level could impede the function of
the Inflatable Curtain.
WARNING
•
Cover sharp edges on long loads to help
prevent injury to occupants. Secure the
load to help prevent shifting during sud-
den stops.
•
Always secure large and heavy objects
with a seat belt or cargo retaining straps.
•
Always secure the load to help prevent it
from moving in the event of sudden stops.
•
Switch off the engine, apply the parking
brake and put the gear selector in P
when loading and unloading the vehicle.
Extra loading space
The rear seat backrests can be folded down to
added cargo space or for transporting long
objects.
The hatch in the center section of the rear seat
backrest can be opened without folding the
backrest down to transport long objects such as
skis, etc.
WARNING
•
Boxes, suitcases, etc. wedged behind the
front seats could impede the function of
the Whiplash Protection System.
•
If the rear seat backrests are folded
down, cargo must be secured to prevent
it from sliding forward against the front
seat backrests in the event of a collision
from the rear. This could interfere with
the action of the Whiplash Protection
System.
WARNING
•
Cover sharp edges on long loads to help
prevent injury to occupants. Secure the
load to help prevent shifting during sud-
den stops.
•
Always secure large and heavy objects
with a seat belt or cargo retaining straps.
•
Always secure the load to help prevent it
from moving in the event of sudden stops.
•
Switch off the engine, apply the parking
brake and put the gear selector in P
when loading and unloading the vehicle.
Roof loads
Load carriers are available as Volvo accessories.
Observe the following points when in use:
•
To avoid damaging your vehicle and to
achieve maximum safety when driving, we
recommend using the load carriers that Volvo
has developed especially for your vehicle.
•
Volvo-approved removable roof racks are
designed to carry the maximum allowable
roof load for this vehicle (see the article
"Weights" for specific information).
•
Never exceed the rack manufacturer's weigh
limits.
•
Avoid single-point loads. Distribute loads
evenly.
||
LOADING AND STORAGE
* Option/accessory.
204
•
Place heavier cargo at the bottom of the
load.
•
Secure the cargo correctly with appropriate
tie-down equipment.
•
Check periodically that the load carriers and
load are properly secured.
•
Remember that the vehicle's center of gravity
and handling change when you carry a load
on the roof.
•
The vehicle's wind resistance and fuel con-
sumption will increase with the size of the
load.
•
Drive smoothly. Avoid rapid starts, fast cor-
nering and hard braking.
CAUTION
The optional panoramic roof should not be
opened while load carriers are installed on
the vehicle.
See the article "Weights" for information about
the maximum permissible load that can be trans-
ported on the roof.
Related information
•
Weights (p. 529)
•
Cargo net (p. 208)
•
Cargo compartment cover* (p. 212)
•
Steel cargo grid* (p. 210)
•
Load anchoring eyelets (p. 211)
•
Whiplash protection system (p. 59)
•
Locking/unlocking the tailgate (p. 234)
Passenger compartment storage
spaces
The following is an overview of the passenger
compartment and its storage spaces.
Front seats
Storage spaces in the door panel, near the steering
wheel, the glove compartment and the sun visors
LOADING AND STORAGE
}}
205
Storage spaces, cup holders and 12-volt
socket/AUX/USB sockets in the tunnel console in the
tunnel console and net pocket
Rear seats
Storage compartments in the door panels, cup holders
in the center seat's backrest, storage pockets on the
rear side of the front seat backrest, and 12-volt socket
on the rear side of the tunnel console
Related information
•
Tunnel console (p. 207)
•
Using the glove compartment (p. 205)
•
Electrical sockets (p. 215)
•
Sun visors (p. 214)
Using the glove compartment
The glove compartment provides storage space
for small items.
The owner's manual and maps can be kept here.
There are also holders for pens on the inside of
the glove compartment door.
||
LOADING AND STORAGE
* Option/accessory.
206
Locking/unlocking the glove
compartment*
Storage compartment for the key
The glove compartment and tailgate can be
locked when e.g., the vehicle is in a workshop for
service, etc. See also the article "Private locking"
for additional information.
To lock the glove compartment:
Insert the key into the lock.
Turn the key 90 degrees clockwise.
Remove the key from the lock.
–
Unlock the glove compartment in the reverse
order.
Using the glove compartment as a
cooler*
The glove compartment can be used to cool
drinks or food and the cooling feature functions
when the climate system is active (i.e., when the
ignition is in mode II or when the engine is run-
ning).
Cooling activated
Cooling deactivated
–
Activate/deactivate cooling by moving the
control as far as possible toward the passen-
ger compartment/glove compartment.
Related information
•
Passenger compartment storage spaces
(p. 204)
•
Private (valet) locking (p. 238)
LOADING AND STORAGE
}}
* Option/accessory.
207
Tunnel console
The tunnel console, located between the front
seats, contains a 12-volt electrical socket, cup
holders and storage spaces, etc.
Storage space*. Press the handle to open
the cover.
Storage space with cup holders for the driver
and passenger and a 12-volt socket
Storage space and USB/AUX sockets under
the armrest
Climate control panel for the rear seats* or
storage space
NOTE
One of the alarm sensors, which is sensitive
to metallic objects, is located under the tunnel
console cup holders. Avoid leaving coins,
keys, etc., in the cup holders because they
may inadvertently trigger the alarm.
Related information
•
Passenger compartment storage spaces
(p. 204)
•
Electrical sockets (p. 215)
•
Alarm (p. 241)
•
Rear climate system controls on the tunnel
console* (p. 185)
Grocery bag holder
The grocery bag holders (hooks) and elastic
strap help keep shopping bags in place.
Under the cargo compartment floor
There are two grocery bag holders and an elastic
strap
1
in the hatch that is part of the cargo area
floor. The strap can be attached in four positions.
Open the hatch to access the grocery bag hold-
ers and attach the elastic strap. Grocery bags
with handles can also be hung on the hooks.
1
Can be replaced by ordering a new one from a Volvo retailer.
||
LOADING AND STORAGE
* Option/accessory.
208
On the sides of the cargo compartment
There is a hook on each side of the cargo com-
partment.
CAUTION
The grocery bag holders (hooks) are only
intended to hold weights less than approx.
11 lbs (5 kg).
Related information
•
Cargo net (p. 208)
•
Steel cargo grid* (p. 210)
•
Cargo compartment cover* (p. 212)
Cargo net
The cargo net helps protect passengers from
objects in the cargo compartment in the event of
a sudden stop or hard braking.
The cargo net is attached at four points.
The cargo net can be mounted in two positions:
•
Rear mounting: behind the rear seat back-
rests.
•
Front mounting: behind the front seats' back-
rests.
WARNING
•
Objects in the cargo compartment should
always be securely anchored.
•
All of the net's attachment points must be
securely in place when the net is used.
•
A damaged net must never be used.
Attaching
Rear mounting
Rear mounting
1. Fold down the rear seat backrests to make
mounting the net easier.
2. Guide the ends of the net's cassette over the
load anchoring eyelets in the recesses in the
side panels. Press the cassette's ends into
place on each side. Check that the cassette
is securely in place.
3. Pull up the net using its strap.
4. Insert one of the net's upper attachments
into one of the rear ceiling brackets and
press it as far forward into the bracket as
possible.
5. Press the other attachment into the rear ceil-
ing bracket on the opposite side and press it
as far forward into the bracket as possible.
LOADING AND STORAGE
* Option/accessory.
209
Front mounting
Front mounting
1. Fold down the rear seat backrests.
2. Align the cassette’s mounting rail above the
mounting brackets on the backrest.
3. Slide the cassette onto the mounting brack-
ets.
4. Pull up the net using its strap.
5. Insert one of the net's upper attachments
into one of the front ceiling brackets and
press it as far forward into the bracket as
possible.
6. Press the other attachment into the front
ceiling bracket on the opposite side and
press it as far forward into the bracket as
possible.
CAUTION
Pressure from the front seats against the
cargo net could damage the net and/or its
brackets.
Removing and storing
1. Release the net from the ceiling brackets by
pressing its ends rearward. Let the net
retract into the cassette.
2.
If the net is mounted in the rear position:
Press the buttons on the respective sides of
the cassette to release the ends from the
load anchors. Lift out the net.
If the net is mounted in the front position:
Slide the cassette off of the mounting brack-
ets and lift it out.
Related information
•
Cargo compartment cover* (p. 212)
•
Load anchoring eyelets (p. 211)
•
Steel cargo grid* (p. 210)
•
Loading (p. 202)
LOADING AND STORAGE
* Option/accessory.
210
Steel cargo grid*
Your vehicle can be equipped with a steel grid
that helps prevent objects in the cargo compart-
ment from moving forward into the passenger
area.
The steel grid is made up of the grid itself and
two separate mounting brackets.
WARNING
•
No one should ever be allowed to remain
in the cargo compartment when the vehi-
cle is moving.
•
The steel grid may only be used in the
rear position described in this article. The
ceiling attachment points above the front
seats are not intended to anchor the
steel grid.
•
After being mounted, be sure that the
steel grid is securely anchored in place.
Mounting
Before installing the steel grid, the existing plas-
tic ceiling mounting consoles must be replaced
by steel ones. This should preferably be done by
a trained and qualified Volvo service technician.
1. Fold down the rear seat backrests.
2. Be sure that the steel grid is turned in the
right direction and that the handles are in the
installation position pointing up. Lift the grid
into the vehicle through one of the rear
doors. This is easier to if two people can hold
the grid in the correct position.
3. Place the grid's attachment points in the
ceiling mounting consoles and fold up the
grid toward the roof liner without moving the
handle.
LOADING AND STORAGE
* Option/accessory.
211
4. Pull the handles outward to leave the instal-
lation position and turn the handles a quarter
turn rearward to lock the steel grid in place.
The handles should point rearward when
they are in the locked position.
> Check that the grid is securely in place
and fold it down toward the rear seat
backrests.
Removing
Perform the steps above in reverse order.
Related information
•
Cargo net (p. 208)
•
Cargo compartment cover* (p. 212)
•
Load anchoring eyelets (p. 211)
•
Loading (p. 202)
Load anchoring eyelets
The eyelets in the cargo compartment can be
folded out to secure objects with straps, a net,
etc.
Load anchoring eyelets
WARNING
•
Cover sharp edges on long loads to help
prevent injury to occupants. Secure the
load to help prevent shifting during sud-
den stops.
•
Always secure large and heavy objects
with a seat belt or cargo retaining straps.
•
Always secure the load to help prevent it
from moving in the event of sudden stops.
•
Switch off the engine, apply the parking
brake and put the gear selector in P
when loading and unloading the vehicle.
Related information
•
Loading (p. 202)
•
Grocery bag holder (p. 207)
•
Cargo net (p. 208)
•
Steel cargo grid* (p. 210)
•
Cargo compartment cover* (p. 212)
LOADING AND STORAGE
* Option/accessory.
212
Cargo compartment cover*
The cover can be used to conceal objects in the
cargo compartment.
Installing the cover
With the cover retracted, press the end piece
on one side of the cargo area cover into the
retaining bracket in the side panel of the
cargo area.
Do the same on the opposite side.
Press both sides of the cover, one at a time,
until they click into place.
> The red mark will no longer be visible.
Check that both ends of the cover are
securely locked in place.
4. Fold out the cover's front flap to eliminate a
gap between the cover and the rear seat
backrest.
If the cargo net* is used at the same time as the
cargo compartment cover, the net has to be put
in place first.
Using the cover
The cover can be used in two positions: fully
open to completely cover the cargo compartment
or partially retracted to make it easier to reach
farther into the cargo compartment.
Fully open
1. Grasp the handle and pull out the cover
above the side panels in the cargo compart-
ment as far as possible.
2. With the cover completely open, press the
attaching pins on the rear corners of the
cover into the grooves in the side panels and
release the cover slightly while pressing the
handle lightly downward to hook the pins into
the grooves.
> The cover will remain in the fully open
position.
LOADING AND STORAGE
* Option/accessory.
213
Partially retracted (loading) position
From the fully open position:
–
Move the handle to release the attaching
pins from the hooks.
> The cover will open until it reaches the
partially retracted position.
In vehicles equipped with the automatic cargo
compartment cover*, if the cover is fully open, it
will move automatically to the partially retracted
position whenever the tailgate is opened and will
return to the fully open position when the tailgate
is closed.
To fully open the cover from the partially open
position:
1. Grasp the handle and pull the cover out to
the fully open position.
2. Release the handle so that the pins engage
in the hooks.
> The cover will remain in the fully open
position.
In models equipped with the electrically operated
cargo compartment cover*, the cover will retract
from the fully open position to the loading posi-
tion each time the tailgate is opened and return
to the fully open position when the tailgate is
closed. If the cover is obstructed while moving, it
is designed to return to the loading position auto-
matically.
CAUTION
•
Avoid placing any objects on the cover
when it is open.
•
The electrically operated cover may not
be able to move automatically at low pas-
senger compartment temperatures.
•
If there are large objects in the cargo
compartment, put the electrically oper-
ated cover in the fully retracted position
so that it does not come into contact with
the object(s) while moving.
WARNING
Keep fingers, hands, etc. clear of the electri-
cally operated cargo area cover while it is
moving.
Retracting the cover
From the fully open position:
–
Lift the cover's handle and pull it rearward
slightly to release the attaching pins from
their grooves. Allow the cover to retract.
From the partially retracted position:
–
Grasp the handle and lift it slightly to release
the attaching pins from their grooves. Pull
the cover to the fully open position.
> Allow the cover to retract completely.
Removing the cover
1. With the cover retracted, press the button on
one of the cover's ends and lift out that end.
2. Carefully lift the cover up/out.
> The other end will release automatically.
Lift the cover out of the cargo compart-
ment.
Related information
•
Cargo net (p. 208)
•
Steel cargo grid* (p. 210)
•
Loading (p. 202)
•
Load anchoring eyelets (p. 211)
LOADING AND STORAGE
214
Sun visors
There are vanity mirrors with card holders on the
upper sides of the sun visors.
Lighted vanity mirror and card holder
The vanity mirror lighting comes on when the mir-
ror is opened.
The vanity mirror's frame has a holder for e.g., a
card or ticket.
Related information
•
Passenger compartment storage spaces
(p. 204)
LOADING AND STORAGE
}}}}
* Option/accessory.
215
Electrical sockets
There are two 12-volt sockets in the tunnel con-
sole, a 120-volt socket on the rear side of the
tunnel console, and one 12-volt socket in the
cargo area*.
120-volt socket in the tunnel console
2
120-volt socket in the tunnel console for the rear seats
This socket is intended for 120-volt devices such
as laptops, chargers, etc.
The max. current provided is 150W.
Using the sockets
1. Slide down the cover over the socket and
plug in the device.
> The socket's indicator light will indicate its
status. The socket can only provide elec-
trical current when the light is green.
2. Disconnect the device by pulling its plug, not
its cord.
Pull up the cover over the socket when it is not in
use.
CAUTION
•
Do not connect devices with large or
heavy plugs that could come loose while
driving.
•
Do not use devices that can cause inter-
ference with the vehicle's radio receiver
or electrical system.
WARNING
•
Be sure to place any devices connected
to the socket safely so that they do not
become projectiles in the event of a sud-
den stop and injure the occupants of the
vehicle.
•
Be aware that connected devices may
generate heat and become very hot.
•
Only connect devices that function cor-
rectly and are free from defects. These
devices should be intended for use in a
120-volt, 60Hz socket with a plug
intended for the socket in the vehicle and
be UL-approved (or the equivalent
thereof).
•
Never let the device, its plug or the
socket itself come in contact with fluids
of any kind. Never touch or use the
socket if it appears to be damaged or
wet.
•
Never connect multiple plugs, adapters or
extension cords to the socket. This could
override the socket's safety functions.
•
Never let children play or tamper with the
socket, or attempt to insert any objects
into it. Never leave children unattended in
the vehicle when the socket is active.
•
Never try to modify or repair the 120-volt
socket. This should only be done by a
2
Certain models only.
||
LOADING AND STORAGE
216
trained and qualified Volvo service techni-
cian.
Failure to follow the points above could result
in electrical shock and/or serious injury.
Status indication
An LED (Light Emitting Diode) on the socket
indicates its status:
Status indicator light Socket status Action
Steady green light The socket is providing current to a connected device. None.
Flashing orange light The socket's voltage converter is too hot (the connected device draws too much
current, etc. or the temperature in the passenger compartment is very high).
Unplug the device, let the converter cool down
and plug in the device again.
The connected device draws too much current (constantly or currently) or is not
functioning properly.
None. The device should not be plugged into the
socket.
Indicator light off The socket has not detected a plugged in device. Be sure the device is correctly plugged into the
socket.
The socket is not active.
Put the vehicle's ignition in at least mode I.
The socket has been active but has been deactivated. Start the engine and/or charge the start battery.
If a problem persists, have the socket checked by
a trained and qualified Volvo service technician.
LOADING AND STORAGE
217
12-volt socket in the tunnel console
12-volt socket in the tunnel console for the front seats
12-volt socket in the tunnel console for the rear seats
The electrical sockets can be used for 12-volt
devices such as monitors, MP3 players and cell
phones. For the sockets to provide electrical cur-
rent, the ignition must be in at least mode I.
WARNING
Always keep the sockets covered when not in
use.
CAUTION
Max. current provided is 10 A (120 W) if one
socket is used at a time. If both of the sock-
ets in the tunnel console are used at the
same time, the max. current provided per
socket is 7.5 A (90 W)
If a tire sealing system's compressor is being
used, no other device should be connected to
any of the other sockets while the compres-
sor is operating.
12-volt socket in the cargo area
12-volt socket in the cargo area
Fold down the cover to access the socket. Max.
current provided is 10 A (120 W).
NOTE
The 12-volt socket in the cargo area provides
electrical current even when the ignition is
switched off. Using the socket while the
engine is not running will drain the battery.
Related information
•
Passenger compartment storage spaces
(p. 204)
•
Ignition modes (p. 374)
LOCKS AND ALARM
LOCKS AND ALARM
* Option/accessory.
220
Locks and remote keys
The vehicle can be locked and unlocked in vari-
ous ways and there are several types of remote
keys that can be used.
Locking/unlocking/opening/closing
The vehicle can be locked/unlocked from the
passenger compartment, using the buttons on
the remote key or by using the optional Passive
Entry system where it is only necessary to have a
key in your possession to lock or unlock the
doors.
On models equipped with a power tailgate*, it can
also be opened/closed by moving your foot
under a sensor* beneath the rear bumper.
If for any reason a remote key does not function
properly, it may be necessary to replace its bat-
teries but the vehicle can always be locked or
unlocked manually using the remote key's
detachable key blade.
Remote key
The remote key does not have to be physically
handled in order to start the engine because the
vehicle is equipped with the standard Passive
Start system (the key only needs to be in the
front part of the passenger compartment). If the
vehicle is equipped with the optional Passive
Entry system that enables keyless entry and start,
the key can be anywhere in the vehicle when the
engine is started.
Models with Passive Entry* also have an extra,
smaller key without buttons called a Key Tag.
Additional keys can be ordered from a Volvo
retailer.
Related information
•
Immobilizer (p. 220)
•
Alarm (p. 241)
•
Child safety locks (p. 242)
•
Remote key (p. 223)
•
Foot movement tailgate operation* (p. 228)
•
Locking/unlocking from inside the vehicle
(p. 231)
•
Locking/unlocking from outside the vehicle
(p. 229)
•
Locking/unlocking the tailgate (p. 234)
•
Starting the engine (p. 376)
Immobilizer
The immobilizer is a start inhibitor that helps pre-
vent unauthorized persons from starting the
engine.
Each of the keys supplied with your vehicle con-
tains a unique coded transponder. The vehicle
code in the key is transmitted to the vehicle's
ignition system where it is compared to the code
stored in the start inhibitor module.
The following message (which may appear in the
instrument panel) is related to the immobilizer:
Symbol Message Explanation
Vehicle key
not found
See
Owner's
manual
Remote key not
recognized during
start. Place the
remote key on the
key symbol in the
tunnel console cup
holder and try to
start the vehicle
again.
Related information
•
Remote key's range (p. 225)
•
Remote key (p. 223)
LOCKS AND ALARM
}}
221
Changing the remote key's battery
The remote key can be opened if the battery
needs to be replaced.
The battery should be replaced if:
The information symbol illuminates and
Vehicle key bat. low See Owner's
manual is displayed in the instrument
panel.
and/or
if the locks do not react after several attempts to
unlock or lock the vehicle with the remote key
within approx. 65 feet (20 meters) of the vehicle.
NOTE
If the locks do not react, move closer to the
vehicle and try to unlock it again.
The battery in the smaller extra key without but-
tons (Key Tag) provided with models with the
optional Passive Entry system cannot be
replaced. A new Key Tag can be ordered from a
Volvo retailer.
NOTE
A Key Tag with a depleted battery should be
returned to an authorized Volvo retailer. The
key should also be erased from the vehicle's
electrical system because it could still be
used to start the vehicle from the back-up
start system.
Replacing the battery
Hold the remote key with the front side
(with the Volvo symbol) facing up and move
the button on the key ring section of the key
to the right. Slide the front cover slightly
upward.
The cover will loosen and can be
removed from the key.
Move the button to the side and slide
rear cover slightly upward.
The cover will loosen and can be
removed from the key.
Use e.g., a screwdriver to turn the battery
cover counterclockwise so that the markers
align toward OPEN.
Remove the cover carefully by pressing
e.g., a finger nail into the indentation.
Pry the cover up.
||
LOCKS AND ALARM
222
The battery's positive (+) side is up. Pry
out the battery as shown in the illustration.
CAUTION
When handling batteries, avoid touching their
contact surfaces as this could result in poor
battery function in the remote key.
Insert a new battery
1
with the positive (+)
side up. Put the battery cover back in place
by:
Placing the battery's edge downward in
the holder. Slide the battery forward so that it
is held in place by the two plastic catches.
Pressing the battery downward so that it
is also held in place by the two upper
catches under the upper black holder.
NOTE
Volvo recommends that the batteries used in
the remote control meet the UN Manual of
Test and Criteria, Part III, sub-section 38.3.
Batteries installed in the key from the factory
and batteries exchanged by an authorized
Volvo workshop fulfill the above criteria.
Old batteries should be disposed of properly
at a recycling center or at your Volvo retailer.
Put the battery cover in place and turn it
clockwise until the marker points to CLOSE.
1
Use a CR2032, 3 V battery.
LOCKS AND ALARM
}}
223
Put the rear cover in position and press
down until it clicks into place.
Slide the cover into place as indicated by
arrow 2 in the illustration.
> Another click indicates that it is correctly
in position and closed.
Press the front cover (with the Volvo
logo) until it clicks into place.
Slide the cover into position as indicated
by arrow 2 in the illustration.
> Another click indicates that it is correctly
in position and closed.
Related information
•
Remote key (p. 223)
Remote key
The remote key is used to lock/unlock the vehi-
cle and must be in the passenger compartment
in order to start the engine.
The standard remote key (left) and the Key Tag (right)
In models with the standard Passive Start system,
the remote key only needs to be in the front sec-
tion of the passenger compartment or in the tun-
nel console cup holders in order to start the
engine.
The keyless Passive Entry system for locking/
unlocking the vehicle is available as an option.
This system has a range of approximately 5 feet
(1.5 meters) from the sides of the vehicle or
approximately 3 feet (1 meter) from the tailgate.
With this system, a remote key can be anywhere
in the vehicle.
||
LOCKS AND ALARM
* Option/accessory.
224
Each of the remote keys provided with the vehicle
can be linked to a driver profile containing unique
personal settings that will be applied when that
particular key is used. See also the article "Driver
profile" for additional information.
NOTE
Avoid placing the remote key closer than
approx. (4-6 in.) (10-15 cm) to any metallic
objects or electronic devices such as cell
phones, tablets, laptops or chargers.
If interference persists, unlock the vehicle with
the detachable key blade and place the remote
key in the backup key reader in the tunnel con-
sole cup holder to disarm the alarm.
WARNING
Always remove the remote key from the pas-
senger compartment when leaving the vehicle
and ensure that the ignition in mode 0, espe-
cially if there are children in the vehicle.
Key Tag
In addition to the two remote keys provided, a
smaller third key, called a Key Tag, is also provi-
ded for vehicles equipped with the optional
Passive Entry system.
This key functions in the same way as a standard
remote key but does not have a detachable key
blade and its battery cannot be replaced; a new
Key Tag has to be ordered.
Ordering new keys
Two remote keys are provided with the vehicle (a
Key Tag
2
is also included for vehicles equipped
with the optional Passive Entry system). Addi-
tional keys (a total of 12) can be ordered and
used with the vehicle.
The remote key's buttons
The remote key has four buttons: one on the left side
and three on the right side
Lock: Press to lock the doors/tailgate and
arm the alarm.
Unlock: Press to unlock the doors/tailgate
and disarm the alarm. This setting can be
changed in the center display's Settings
menu.
Tailgate: Press to unlock the tailgate only
(and disarm the alarm for the tailgate). On
vehicles equipped with the power tailgate*,
press and hold to open the tailgate. Press
and hold to close an open tailgate (an audi-
ble warning signal will sound).
Panic alarm: Press to attract attention dur-
ing emergency situations. To activate, press
and hold this button for at least 3 seconds or
press it twice within 3 seconds to activate
the turn signals and horn. To deactivate,
wait approximately 5 seconds and press the
button again (the panic alarm will also deac-
tivate automatically after several minutes).
Interference
Metallic objects or electromagnetic fields may
interfere with the remote key's function. Avoid
placing the remote key within 4-6 in. (10-15 cm)
of a cell phone or a metallic object.
If interference persists, use the remote key's
detachable key blade to unlock the vehicle and
place the remote key in the backup key reader in
the tunnel console cup holder.
Loss of a remote key
If a remote key is lost, the others should be taken
with the vehicle to a Volvo retailer. As an anti-
2
The Key Tag is also referred to as a Sport key. This key is designed to be waterproof to a depth of approximately 30 ft (10 meters) for up to 60 minutes, making it suitable for use in activities in and around water.
LOCKS AND ALARM
225
theft measure, the code of the lost remote key
must be erased from the system. The number of
registered keys for the vehicle can be found in
the center display's Top view.
NOTE
Additional or duplicate remote control keys
can be obtained from any authorized Volvo
retailer.
You can also obtain additional or duplicate
remote control keys from certain independent
repair facilities and locksmiths that are quali-
fied to make remote control keys. Each key
must be programmed to work with your vehi-
cle.
A list of independent repair facilities and/or
locksmiths known to Volvo that can cut and
code replacement keys can be found:
•
on the Volvo website,
www.volvocars.com/us
•
by calling Volvo Customer Care at
1-800-458-1552.
Related information
•
Remote key's range (p. 225)
•
Detachable key blade (p. 227)
•
Changing the remote key's battery (p. 221)
•
Driver profiles (p. 172)
Remote key's range
In order to function correctly, the remote key
must be within a certain distance of the vehicle.
Manual use
The remote key's functions, such as locking and
unlocking the vehicle, which are activated by
pressing the
or buttons, have a range of
approx. 65 feet (20 meters) from the vehicle.
Buildings or other obstacles may interfere with
the function of the remote key. The vehicle can
also be locked or unlocked with the key blade.
If the vehicle's locks do not react, move closer
and try again.
Keyless use
3
The shaded areas illustrate the range of the Passive
Entry system's antennas
For keyless entry into the vehicle, the remote key
must be within approximately 5 feet (1.5 meters)
of the sides of the vehicle or approximately 3 feet
(1 meter) of the tailgate as shown in the illustra-
tion.
The remote key may not function properly due to
ambient radio waves, buildings or topographical
obstructions, etc. The vehicle can always be
locked/unlocked with the detachable key blade.
If the remote key is removed from the
vehicle
If all of the remote keys are removed from the
vehicle while the engine is running,
Vehicle key
not found Removed from vehicle will be dis-
played in the instrument panel and an audible
signal will sound when all of the doors have been
closed. The message will be erased when a
remote key has been returned to the vehicle and
the O button on the right-side steering wheel
keypad has been pressed or when all of the
doors have been closed again.
Related information
•
Remote key (p. 223)
•
Antenna locations for the start and lock sys-
tem (p. 232)
3
Models equipped with the optional Passive Entry only.
LOCKS AND ALARM
* Option/accessory.
226
Red Key*
The Red Key (also referred to as a restricted
key) makes it possible to limit several of the vehi-
cle's functions to help ensure that it is operated
safely, for instance if the vehicle is used by a
young driver.
A Red Key makes it possible to limit the vehicle's
maximum speed, add speed reminders and limit
the audio system's volume. Several of the vehi-
cle's safety systems will also always be active.
Otherwise, this key functions in the same way as
a standard remote key.
One or more Red Keys can be ordered from a
Volvo retailer after the vehicle has been pur-
chased. A total of 11 keys can be programmed
and used for the same vehicle, one of which has
to be a standard remote key.
Settings for the Red Key can be made by a
standard remote key user from the center dis-
play's Top view under:
Settings System
Driver Profile Red key.
Several of the vehicle's safety function cannot be
turned off by a Red Key user.
The restrictions are designed to help reduce the
risk of an accident and they cannot be changed
by a Red Key user. These settings cannot be
changed by the Red Key's user.
Possible settings
The following settings can be made for a Red
Key:
Speed Limiter* (On/Off)
•
Setting interval: 30-160 mph (50-250 km/h)
•
Default setting: 75 mph (120 km/h)
•
Increments: 1 mph (1 km/h)
This symbol will appear in the instru-
ment panel and the message
Red
keySpeed limitation cannot be
exceeded will be displayed.
See the article "Speed limiter" for additional
information.
Speed reminder (On/Off):
•
Setting interval: 0-155 mph (0-250 km/h
•
Default settings: 30, 45 and 55 mph (50, 70
and 90 km/h.)
•
Increments: 1 mph (1 km/h)
•
Max. number of reminders: 6
Reduced max. volume (on/off)
•
Default setting: On
Adaptive cruise control * (On/Off)
•
Initial setting: On at the longest interval
•
See the article "Adaptive cruise control" for
additional information
Safety functions
The following safety functions will always be
active for a Red Key user:
•
Blind Spot Information (BLIS)*
•
Lane Keeping Aid (LKA)*
•
Distance Alert*
•
City Safety*
•
Driver Alert Control (DAC)*
•
Road Sign Information (RSI)*
Related information
•
Remote key (p. 223)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Speed limiter (SL)* (p. 251)
•
Blind Spot Information (BLIS)* (p. 313)
•
Driving lane assistance (p. 324)
•
Distance Alert* (p. 263)
•
City Safety™ (p. 300)
•
Driver Alert Control (DAC) (p. 322)
•
Road Sign Information (RSI)* (p. 320)
LOCKS AND ALARM
227
Detachable key blade
Your vehicle's remote key contains a detachable
key blade that can be used to unlock the driver's
door, etc.
A Volvo retailer can provide you with the key
blade's unique code.
Using the detachable key blade
The remote key's detachable key blade can be
used to:
•
Unlock the driver's door if the central locking
system cannot be activated using the remote
key
•
Lock all doors
•
Activate/deactivate the mechanical child
safety locks in the rear doors
The Key Tag
4
does not have a detachable key
blade.
Detaching the key blade
Hold the remote key with the front side
(with the Volvo symbol) facing up and move
the button on the key ring section of the key
to the right. Slide the front cover slightly
upward.
The cover will loosen and can be
removed from the key.
Remove the key blade by pulling it up.
After use, press the key blade back into its
position in the key.
Press the front cover (with the Volvo
logo) until it clicks into place.
Slide the cover into position as indicated
by arrow 2 in the illustration.
> An additional click indicates that the cover
is correctly in place.
Related information
•
Locking/unlocking with the detachable key
blade (p. 239)
•
Child safety locks (p. 242)
4
Models with the optional Passive Entry system only.
LOCKS AND ALARM
* Option/accessory.
228
Foot movement tailgate operation*
The foot movement sensor* simplifies opening or
closing the tailgate if your hands are full.
5
The foot movement sensor is located to the left of cen-
ter under the rear bumper
6
NOTE
One of the remote keys must be in your pos-
session or within range when you are behind
the vehicle in order to activate the foot move-
ment sensor, even if the tailgate is already
unlocked. This is done to help prevent the
sensor from inadvertently opening the tail-
gate, for example, in a car wash.
Be sure that the key is not within range when
the vehicle is in an automatic carwash.
Operation
Kicking motion under the sensor's activation area
Opening/closing
–
With the remote key within range, move your
foot slowly forward in a kicking motion below
the left section of the rear bumper without
touching the bumper and take a step back.
> A brief audible signal will sound when the
tailgate begins to open/close.
The tailgate can be closed (or closed and locked)
by pressing the or buttons on the lower
edge of the tailgate
7
.
It can also be operated manually or by pressing
the button on the lighting panel in the passenger
compartment or on the remote key.
If several attempts have been made to open/
close the tailgate using the foot sensor without a
remote key within range, the function will time
out and will not be available for a short period.
NOTE
Foot operation may not be possible or func-
tion normally if the sensor is obstructed by
snow, ice, dirt, etc.
5
Models equipped with the optional power tailgate only.
6
If the vehicle is equipped with a skid plate/diffuser*, the sensor is located under the left corner of the bumper.
7
Vehicles equipped with the optional Passive Entry system only.
LOCKS AND ALARM
}}
* Option/accessory.
229
Interrupting opening/closing
–
Move your foot slowly forward in a kicking
motion while the tailgate is opening/closing
to stop its movement.
No remote keys need to be within range in order
to interrupt movement of the tailgate.
Vehicles equipped with a skid plate/
diffuser*
If the vehicle is equipped with a skid plate/
diffuser*, the sensor is located under the left cor-
ner of the rear bumper.
Sensor location on vehicles equipped with a skid plate/
diffuser*
To open/close the tailgate, make the kicking
motion from the side of the rear bumper.
Kicking motion under the sensor's activation area
Related information
•
Power tailgate* (p. 236)
•
Locking/unlocking the tailgate (p. 234)
•
Remote key's range (p. 225)
Locking/unlocking from outside the
vehicle
The buttons on the remote key can be used to
lock or unlock all doors and the tailgate at the
same time. This can also be done without press-
ing the remote key buttons on models equipped
with the optional keyless Passive Entry system.
The power tailgate* can also be opened/closed
by moving your foot under a sensor beneath the
rear bumper.
Locking and unlocking
The lock/unlock settings can be changed in the
center display's Top view.
Go to:
Settings My Car Remote Unlock
and select Unlock All Doors or Driver Door
Only.
In order to lock the vehicle, the driver's door must
be closed. If the tailgate or any of the other doors
are open, they will be locked and the alarm will be
armed when they are closed.
NOTE
Be sure the remote key is outside of the vehi-
cle before the other doors/tailgate are closed
to help avoid locking the remote inside the
vehicle.
The settings made for the Remote Unlock func-
tion also affect the central locking system when a
||
LOCKS AND ALARM
* Option/accessory.
230
door is opened from inside the vehicle using a
door handle. See also the article "Locking/
unlocking from inside the vehicle" for additional
information.
If the locks repeatedly do not react when the
unlock button is pressed, begin by moving closer
to the vehicle. However, it may be necessary to
replace the battery in the remote. In this case, the
driver's door can be unlocked with the detacha-
ble key blade. See also the article "Detachable
key blade" for additional information.
Keyless Passive Entry*
If the vehicle is equipped with this system, it is
only necessary to have a remote key in your pos-
session to operate the central locking system.
Models with Passive Entry have an indentation on
the outside of the handle for locking the vehicle
and a pressure sensitive surface on the inside of
the handle for unlocking.
The tailgate has a rubberized button used only
for unlocking.
Outer indentation for locking, the pressure sensitive sur-
face on the inside of the handle is for unlocking
Pressure sensitive indentation for locking
Pressure sensitive surface for unlocking
Rubberized button on the tailgate used only for unlock-
ing
Locking
All of the doors have to be closed before the
vehicle can be locked but the tailgate can be
open.
Lock the doors and tailgate by pressing the pres-
sure sensitive indentation on the outside of any
of the door handles. The lock indicator light on
the dashboard will begin to flash to show that the
vehicle is locked and the alarm has been armed.
NOTE
Only one of a door handle's lock/unlock sur-
faces should be pressed at a time. If both
areas are pressed simultaneously, the desired
locking/unlocking action may not occur or
may be delayed.
To close windows or the panoramic roof* when
locking the vehicle, hold the pressure sensitive
surface on the outside of a door handle until the
window(s)/panoramic roof have closed com-
pletely. The windows/panoramic roof will stop if
the button is released before they are fully
closed.
LOCKS AND ALARM
}}
* Option/accessory.
231
Unlocking
Pull a door handle to unlock and open the door
or press the rubberized button under the tailgate
opening control. The lock indicator light on the
dashboard will go out to show that the vehicle is
unlocked and the alarm has been disarmed.
The lock/unlock settings can be changed in the
center display's Top view:
Go to:
Settings My Car Keyless Unlock
and select All Doors or Single Door.
Automatic relocking
If no door or the tailgate is opened within two
minutes after being unlocked, the vehicle will
automatically relock.
Remote door unlock
The vehicle can be unlocked using the Volvo On
Call app.
Related information
•
Remote key (p. 223)
•
Remote key's range (p. 225)
•
Detachable key blade (p. 227)
•
Alarm (p. 241)
•
Locking/unlocking from inside the vehicle
(p. 231)
•
Foot movement tailgate operation* (p. 228)
•
Locking/unlocking the tailgate (p. 234)
Locking/unlocking from inside the
vehicle
The lock buttons on either of the front doors can
be used to lock or unlock all doors and the tail-
gate at the same time. The rear doors can be
locked using their respective lock buttons*.
The central locking system
Central locking/unlocking buttons and indicator lights
on the front doors
–
Press the button to lock the vehicle.
Press
to unlock.
Unlocking
•
Press the
button to unlock all doors and
the tailgate.
•
Pull the door opening handle on either of the
front doors. This will unlock the vehicle com-
pletely
8
and the door will open.
Locking
–
Press the button on either of the front
doors to lock the vehicle (both front doors
must be closed).
Lock buttons on the rear doors*
Lock button and indicator light in a rear door
The lock buttons in the rear doors lock/unlock
each door respectively.
8
The unlock setting "
All Doors" must be selected. If the setting "Driver door, then all" has been selected, only that door will unlock and open.
||
LOCKS AND ALARM
232
To unlock a rear door:
–
To open one of the rear doors individually,
pull its handle to unlock and open the door
9
.
Automatic locking
All of the doors/tailgate will lock automatically
when the vehicle begins to move.
Related information
•
Locking/unlocking from outside the vehicle
(p. 229)
•
Locking and unlocking confirmation (p. 233)
•
Child safety locks (p. 242)
Antenna locations for the start and
lock system
The vehicle is equipped with a keyless
10
start
and lock system that requires a number of anten-
nas located at various points in the vehicle.
Location of the antennas
Under the cup holders in the front section of
the tunnel console
In the upper front section of the driver side
rear door
10
In the upper front section of the passenger
side rear door
10
In the cargo compartment
WARNING
People with implanted pacemakers should not
allow the pacemaker to come closer than
9 inches (22 cm) to any of the Passive Entry
system's antennas. This is to help prevent
interference between the pacemaker and the
Passive Entry system.
Related information
•
Remote key (p. 223)
•
Remote key's range (p. 225)
9
Assuming that the child safety locks are not activated.
10
Vehicles with the optional Passive Entry system only.
LOCKS AND ALARM
}}
233
Locking and unlocking confirmation
The turn signals can be used to indicate that the
vehicle has been locked/unlocked with the
remote key. These settings can also be changed
in the center display's Top view by going to:
Settings My Car Locking Locking and
Unlocking Feedback.
Exterior confirmation
•
Locking: the turn signals flash once and the
door mirrors will fold in (retract)
11
•
Unlocking: the turn signals flash twice and
the door mirrors will fold out
11
When the vehicle is locked, confirmation will only
be given if all doors/tailgate and the hood are
closed.
If the vehicle is locked while only the driver's door
is closed
12
, all doors/tailgate will lock but confir-
mation will only be given when all doors/tailgate/
hood are closed.
Interior confirmation
Lock and alarm indicator light on the dashboard
A long flash indicates the vehicle is locked. While
the vehicle is locked, the indicator will flash
briefly.
LEDs in the lock buttons on the doors illuminate
when the doors are locked.
Indicators in the interior lock buttons
Lock buttons in the front doors
Front door lock button and indicator light
Indicator lights on: all doors are locked.
If a door is opened, the lights in both doors will
go out.
11
Models with electrically retractable door mirrors only.
12
This does not apply to vehicles equipped with the optional keyless Passive Entry system.
||
LOCKS AND ALARM
234
In all doors
Rear door lock button and indicator light
Indicator light in the respective door on: that door
is locked. If a door is opened, the light in that
door will out but the other indicator lights will
remain on.
Confirmation alternatives
Various alternatives for locking/unlocking confir-
mation can be selected in the center display.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Locking.
3.
Change the settings under
Locking and
Unlocking Feedback
.
Related information
•
Locking/unlocking from outside the vehicle
(p. 229)
•
Home safe lighting (p. 150)
•
Adjusting the power door mirrors (p. 102)
Locking/unlocking the tailgate
The tailgate can be locked/unlocked in different
ways, depending on whether the vehicle is
equipped with the optional keyless Passive Entry
system.
Unlocking with the remote key
Remote key tailgate button
1.
Press the
button on the remote key.
> The tailgate will be unlocked but remain
closed. The alarm indicator on the dash-
board will go out to indicate that the tail-
gate alarm is no longer armed. The other
doors will remain locked and the alarm will
remain armed for them.
2. Open the tailgate.
> If the tailgate is not opened within two
minutes, it will relock and the alarm will
rearm.
LOCKS AND ALARM
* Option/accessory.
235
Keyless unlocking*
Rubberized pressure plate
Opening the tailgate:
1. With the remote key in your possession,
unlock the tailgate by pressing lightly on the
rubberized pressure plate under the outer
tailgate handle. If the remote key is not
detected, the tailgate cannot be unlocked/
opened. Three audible signals will sound.
2. Lift the handle to open the tailgate fully.
CAUTION
•
When pressing the rubberized pressure
plate, only light pressure is necessary to
release the tailgate's electronic locking
mechanism.
•
When opening the tailgate, pull it up
using the handle. Too much pressure on
the rubberized pressure plate can dam-
age its electrical connections.
WARNING
Avoid driving with the tailgate open if at all
possible. Doing so could allow exhaust gases
to enter the passenger compartment.
Unlocking the tailgate from inside the
vehicle
Tailgate unlock button
To unlock the tailgate:
–
Press the button on the lighting panel.
> The tailgate will unlock and can be
opened within two minutes (if the vehicle
has been locked from the inside).
Locking with the remote key
–
Press the button on the remote key.
> The alarm indicator on the dashboard will
begin to flash to show that the alarm has
been armed.
Related information
•
Remote key (p. 223)
•
Power tailgate* (p. 236)
•
Foot movement tailgate operation* (p. 228)
•
Remote key's range (p. 225)
LOCKS AND ALARM
* Option/accessory.
236
Power tailgate*
The optional power tailgate can be opened/
closed in several ways.
The power tailgate can be opened/closed using
the
button on the lighting panel in the pas-
senger compartment, the
on the remote key,
by moving your foot under a sensor under the
rear bumper* or manually.
WARNING
When operating the tailgate manually, do not
use force to open or close it. This could result
in injury.
Buttons in the lower edge of the tailgate
Button on the lighting panel in the passenger compart-
ment
Opening the tailgate
The power tailgate can be opened electrically by:
•
Pressing and holding the
button on the
lighting panel until the tailgate begins to
open.
•
Pressing and holding the
button on the
remote key until the tailgate begins to open.
•
Pressing lightly on the rubber-covered button
under the tailgate's outside handle.
•
Moving your foot under a sensor under the
rear bumper*.
Closing the tailgate
The tailgate can be closed by moving your foot
under a sensor beneath the rear bumper*, by
pressing the button on the lighting panel, with
the remote key or by pressing the button on the
lower edge of the tailgate*
13
To close the tailgate
14
:
–
Press the button on the lighting panel
or on the
button on the remote key.
> The tailgate will close automatically and
audible signal will sound. This will not
lock the tailgate.
Buttons on the lower edge of the tailgate
13
Models equipped with the optional Passive Entry system have a button to close the tailgate and a button to close and lock the tailgate.
14
See also the article "Foot movement tailgate opening/closing."
LOCKS AND ALARM
}}
* Option/accessory.
237
–
Press the button
13
on the lower edge of
the tailgate.
> The tailgate will close automatically but
will not be locked.
–
Press the button
13
on the lower edge of
the tailgate.
> The tailgate will close automatically. The
tailgate and doors will also be locked and
the alarm will be armed.
If the remote key is not close enough to the tail-
gate, automatic locking/unlocking/opening/clos-
ing will not be possible. Three short audible sig-
nals will sound.
Interrupting opening/closing
–
This can be done in five ways:
•
Press the button on the lighting panel
•
Press the button on the remote key
•
Press either of the buttons on the lower
edge of the tailgate
•
Press lightly on the rubber-covered button
under the tailgate's outside handle
•
Move your foot under a sensor beneath
the rear bumper*
> The tailgate will stop moving
Programming the tailgate's maximum
opening angle
The tailgate's maximum opening angle can be
programmed, for example, if the tailgate has to be
opened in a garage with a low ceiling.
Programming the opening angle:
–
Open the tailgate manually to the desired
angle and press and hold the closing button
on the tailgate's lower edge for at least 3
seconds. Release the tailgate.
> Two audible signals will sound to indicate
that the selected opening angle has been
stored.
Erasing tailgate programming
–
Open the tailgate manually to its highest
position and press and hold the closing but-
ton on the tailgate's lower edge for at least 3
seconds. Release the tailgate.
> Two audible signals will sound to indicate
that the programmed opening angle has
been erased.
NOTE
If the tailgate has been opened and closed
continuously too long, the automatic function
will be deactivated to avoid overloading the
electrical system. The automatic function can
be used again after approximately 2 minutes.
If the vehicle's battery has been discharged or
disconnected, or if the tailgate has been open
for more than 24 hours, the tailgate must be
opened and closed once manually to reset
the system.
Pinch protection
If the tailgate is obstructed when being opened/
closed, a pinch protection mechanism is acti-
vated.
•
While opening: the tailgate will stop moving
and an audible signal will sound.
•
While closing: the tailgate will stop and
return to the currently programmed maximum
opening position. An audible signal will
sound.
WARNING
Pay attention to the risk of injury when open-
ing/ closing the tailgate. Before opening/
closing: Make sure that no one is in the path
of the tailgate as an injury could occur.
13
Models equipped with the optional Passive Entry system have a button to close the tailgate and a button to close and lock the tailgate.
||
LOCKS AND ALARM
* Option/accessory.
238
Preloaded springs
Preloaded springs for the power tailgate
WARNING
Never touch or attempt to access the preloa-
ded springs for the power tailgate. Doing so
could result in serious injury.
Related information
•
Remote key's range (p. 225)
•
Locking/unlocking from outside the vehicle
(p. 229)
•
Foot movement tailgate operation* (p. 228)
Private (valet) locking
The glove compartment, rear seat backrests and
tailgate can be locked when e.g., the vehicle is
in a workshop for service, etc.
Activating private locking/setting a
security code
The ignition has to be in at least mode I in order
to activate private locking.
1. Private locking can be activated from the
center display's Function view or under Set-
tings in Top view:
•
In Function view, tap
Private Locking.
•
In Top view, tap
Settings and then tap
My Car Locking. Tap the Private
Locking box.
> A pop-up window will appear.
NOTE
•
A security code has to be selected the first
time this function is used. This code is
used to deactivate any previously used PIN
codes. Keep this code in a safe place.
•
If private locking is activated and the vehi-
cle is unlocked using Volvo On Call or the
Volvo On Call mobile app, it will be auto-
matically deactivated.
2. Enter the code to be used to unlock the tail-
gate after it has been locked and tap
Confirm.
> The tailgate will lock. Confirmation is pro-
vided by a green indicator light in the but-
ton in Function view and an X in the pri-
vate locking box under Top view's Set-
tings.
3. The glove compartment is locked using the
key provided.
NOTE
•
The key blade in the remote key cannot
be used to lock/unlock the glove com-
partment. This can only be done with the
separate key provided.
•
The key used to lock/unlock the glove
compartment is longer than the lock cyl-
inder. Only half of the key can be inserted
into the cylinder.
LOCKS AND ALARM
}}
239
Deactivating private locking
1. This function can be deactivated from the
center display's Function view or under Set-
tings in Top view:
•
In Function view, tap
Private Locking.
•
In Top view, tap
Settings and then tap
My Car Locking. Tap (deselect) the
Private Locking box.
> A pop-up window will appear.
2. Enter the code used for locking and tap
Confirm.
> The tailgate will unlock. Confirmation is
provided when the green indicator light in
the button in Function view goes out and
the X in the private locking box under Top
view's Settings disappears.
3. The glove compartment is unlocked using
the key provided.
Related information
•
Locking/unlocking the tailgate (p. 234)
•
Using the glove compartment (p. 205)
•
Navigating in the center display's views
(p. 38)
Locking/unlocking with the
detachable key blade
The detachable key blade can be used to e.g.,
unlock the driver's door from the outside if, for
example, the remote key's battery is weak.
Unlocking
Pull out the driver's door handle as far as
possible to access the lock cylinder.
Remove the key blade from the remote key
and insert it into the lock cylinder.
Turn it clockwise 45 degrees so that the key
blade points straight rearward.
Turn the key blade back 45 degrees to its
original position. Remove the key blade from
the lock cylinder and release the door han-
dle.
5. Pull the door handle again to open the door.
> This will trigger the alarm.
Lock the door in the same way, but turn the key
in step 3 counterclockwise.
Turning off the alarm
Backup key reader under the tunnel console cup hold-
ers
To turn off the alarm:
1. Place the remote key in the cup holder (on
the key symbol) in the tunnel console (see
the illustration).
2.
Turn the start knob to START and release it.
> The start knob will return to its original
position and the alarm will be turned off.
Locking
If necessary, the vehicle can be locked by insert-
ing the detachable key blade into the lock cylin-
der in the driver's door.
Each of the other doors has a lock mechanism
that must be pressed in using the key blade so
that the door cannot be opened from the outside.
The doors can still be opened from the inside.
||
LOCKS AND ALARM
240
Manually locking a door (this is not the child safety lock)
–
Remove the detachable key blade from the
remote key. Insert it into the opening for the
lock mechanism and press it in as far as pos-
sible.
The door can be opened from inside and the
outside.
The door cannot be opened from the outside.
To override the locking function, open the
door from the inside.
The doors can also be unlocked by pressing the
unlock button on the remote key or by pressing
the unlock button on the driver's door panel.
NOTE
If the child safety locks are activated for the
rear doors and the mechanical locking mech-
anism has also been activated with the key
blade, it will not be possible to open these
doors from the inside or the outside.
To unlock, use the central unlocking button
on either of the front doors or the unlock but-
ton on the remote key.
Related information
•
Detachable key blade (p. 227)
Automatically arming/disarming the
alarm
Automatically arming the alarm helps prevent
inadvertently leaving the vehicle without alarm
protection.
If the vehicle has been unlocked with the remote
key (and the alarm has been disarmed) but no
door or the tailgate has been opened within
2 minutes, the vehicle will automatically relock
and the alarm will re-arm.
In certain markets, the alarm will be re-armed
automatically after a slight delay after the driver's
door has been opened and closed without being
locked.
Related information
•
Alarm (p. 241)
•
Deactivating the alarm without a functioning
remote key (p. 242)
LOCKS AND ALARM
}}
* Option/accessory.
241
Alarm
The alarm system provides a warning if an
attempt is made to break into the vehicle.
The following conditions will trigger the alarm:
•
a door/hood/tailgate are opened
•
the battery is disconnected
•
the alarm siren is disconnected
If a problem is detected in the alarm
system, this symbol and
Alarm
system failure Service required will
be displayed in the instrument panel.
Do not attempt to repair any of the components
in the alarm system yourself; this could affect the
insurance policy on the vehicle. Contact a trained
and qualified Volvo service technician.
NOTE
One of the alarm sensors, which is sensitive
to metallic objects, is located under the tunnel
console cup holders. Avoid leaving coins,
keys, etc., in the cup holders because they
may inadvertently trigger the alarm.
Arming the alarm
–
Lock the vehicle by pressing the remote
key's lock button. On models with the
optional Passive Entry system, the vehicle
can also be locked by pressing the outer
indentation for locking on one of the door
handles or by pressing the tailgate's rubber-
ized pressure plate.
If the vehicle is equipped with a power tail-
gate*, the button on the lower edge of the
tailgate can also be used to lock the vehicle
and arm the alarm.
Disarming the alarm
The alarm can be disarmed by:
•
Unlock the vehicle by pressing the remote
key's unlock button
•
Pressing the pressure-sensitive area on the
inside of one of the door handles on models
with the optional Passive Entry system.
•
Pressing the tailgate's rubberized pressure
plate on models with the optional Passive
Entry system.
Turning off a triggered (sounding)
alarm
–
Press the remote key's unlock button or put
the ignition in mode I by turning the start
knob to START and releasing it.
Alarm signals
The following occurs if the alarm has been trig-
gered:
•
A siren will sound for 30 seconds or until the
alarm is turned off
•
All turn signals flash for 5 minutes or until
the alarm is turned off
If the door that triggered the alarm is left open,
the alarm cycle will be repeated 10 times.
Alarm indicator
A red indicator light on the upper side of the
dashboard shows the alarm's status:
•
Indicator off: the alarm is disarmed
•
Indicator flashes once every two seconds:
the alarm is armed
•
Indicator flashes quickly after the alarm has
been disarmed (max. 30 seconds) or until
||
LOCKS AND ALARM
* Option/accessory.
242
the ignition has been put in mode I (turn the
start knob to START and release it): the
alarm has been triggered
Related information
•
Automatically arming/disarming the alarm
(p. 240)
•
Deactivating the alarm without a functioning
remote key (p. 242)
Deactivating the alarm without a
functioning remote key
If the remote key is not functioning properly, the
alarm can be turned off and the vehicle can be
started as follows:
1. Unlock and open the driver's door with the
detachable key blade.
> This will trigger the alarm.
Location of the back-up key reader in the cup holder
2. Place the remote key on the back-up key
reader in the tunnel console's cup holder.
3.
Turn the start knob to START and release it.
> The alarm will turn off.
Related information
•
Alarm (p. 241)
•
Detachable key blade (p. 227)
•
Starting the engine (p. 376)
•
Automatically arming/disarming the alarm
(p. 240)
Child safety locks
Child safety locks help prevent children from
inadvertently opening one of the rear doors from
inside the vehicle.
Electronic* activation/deactivation
The electronic child safety locks can be acti-
vated/deactivated as long as the ignition is not
completely switched off and this can be done for
up to two minutes after the engine has been
switched off if no door has been opened.
To activate:
Child safety lock button on the driver door control panel
1. Switch on the ignition or start the engine.
LOCKS AND ALARM
243
2. Press the button on the driver's door control
panel.
>
Rear child lock Activated will be dis-
played in the instrument panel and the
indicator light in the button will illuminate
to show that the child safety locking func-
tion is activated.
While the child safety locks are activated:
•
the rear door windows can only be opened
from the driver door control panel
•
the rear doors cannot be opened from the
inside
To deactivate:
–
Press the button in the driver door control
panel.
>
Rear child lock Deactivated will be dis-
played in the instrument panel and the
indicator light in the button will go out to
show that the child safety locking function
is deactivated.
When the ignition is switched off, the current set-
ting for the child safety locks will be stored. If the
locks were activated at that time, they will con-
tinue to be activated when the ignition is
switched on again.
Symbol Message Explanation
Rear child
lockActivated
The rear-door
child safety
locks are acti-
vated.
Rear child
lockDeacti-
vated
The rear-door
child safety
locks are deacti-
vated.
Manual activation/deactivation
Manual child safety locks in the rear doors
–
Use the detachable key blade in the remote
key to adjust these controls.
The rear doors can only be opened from the
outside.
The rear doors can be opened from the
inside or the outside.
NOTE
•
Each control on the respective doors
control that door only, not both doors.
•
There are no manual child safety locks on
models equipped with the electronic
option.
Related information
•
Detachable key blade (p. 227)
•
Ignition modes (p. 374)
LOCKS AND ALARM
* Option/accessory.
244
Start and lock system type
designations
The following information contains type designa-
tions for the start and lock system.
Alarm system
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCC
rules. Operation is subject to the following condi-
tions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Canada IC: 4405A-DA 5823(3)
This device is subject to the following conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
Remote keys (Passive entry/Passive
start*)
USA
Volvo Standard Key FCC ID: YGOHUF8423
Volvo Tag ID FCC ID: YGOHUF8432
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modification not expressly
approved by the party responsible for compliance
could void the user’s authority to operate this
equipment.
Canada
Volvo Standard Key IC: 4008C-HUF8423
Volvo Tag ID IC: 4008C-HUF8432
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that may
cause undesired operation.
Immobilizer and Passive entry/Passive
start* systems
USA–FCC ID: LTQVO3134
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modification not expressly
approved by the party responsible for compliance
could void the user’s authority to operate this
equipment.
Canada–IC:3659A-VO3134
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that may
cause undesired operation.
Related information
•
Alarm (p. 241)
•
Remote key (p. 223)
DRIVER SUPPORT
DRIVER SUPPORT
* Option/accessory.
246
Driver support systems
The vehicle is equipped with a number of driver
support systems that help provide the driver with
active/passive support.
Some of these systems are standard while others
are optional and they are designed to e.g., help
the driver maintain a set speed or a set distance
to a vehicle ahead, or warn the driver of a poten-
tial collision situation and in certain cases apply
the brakes if necessary. Certain optional systems
can also assist in various parking situations.
Related information
•
Adjustable steering force* (p. 246)
•
Electronic Stability Control (ESC) (p. 247)
•
Roll stability control (RSC) (p. 251)
•
Speed limiter (SL)* (p. 251)
•
Distance Alert* (p. 263)
•
Cruise Control (CC) (p. 258)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Pilot Assist* (p. 279)
•
Driver support system radar sensor (p. 292)
•
Driver support system camera (p. 296)
•
City Safety™ (p. 300)
•
Blind Spot Information (BLIS)* (p. 313)
•
Cross Traffic Alert (CTA)* (p. 315)
•
Road Sign Information (RSI)* (p. 320)
•
Driver Alert Control (DAC) (p. 322)
•
Driving lane assistance (p. 324)
•
Run-off Mitigation (p. 329)
•
Park Assist* (p. 332)
•
Park Assist Camera (PAC)* (p. 336)
•
Park Assist Pilot (PAP)* (p. 342)
Adjustable steering force*
Steering force increases with the speed of the
vehicle to give the driver an enhanced sense of
control and stability. At low speed the vehicle is
easier to steer in order to facilitate parking, etc.
Changing the steering force level
To change the level of steering force, see the
information under the heading "individual" in arti-
cle "Drive modes" for additional information.
On models not equipped with the drive mode
control in the center console, the selection is
made in the center display's Top view under:
Settings My Car Drive Modes
Steering force
NOTE
•
This steering force level menu function
cannot be accessed when the vehicle is
in motion.
•
In certain situations, the power steering
function may become too hot and must
be temporarily cooled. During cooling,
power steering effect will be reduced and
more force may be necessary to turn the
steering wheel and a message will be
displayed in the instrument panel.
DRIVER SUPPORT
}}
* Option/accessory.
247
Related information
•
Driver support systems (p. 246)
•
Drive modes* (p. 378)
Electronic Stability Control (ESC)
Electronic Stability Control (ESC) helps reduce
wheel spin, counteract skidding and to generally
help improve directional stability.
A pulsating sound will be audi-
ble when the system is actively
operating and is normal. Accel-
eration may also be slightly
slower than normal.
WARNING
ESC is a supplementary aid and cannot deal
with all situations or road conditions.
The driver is always responsible for operating
the vehicle in a safe manner in accordance
with current traffic regulations.
ESC consists of the following functions:
•
Traction control
•
Spin control
•
Active Yaw Control
•
Engine Drag Control
•
Trailer Stability Assist
Traction control
This function is designed to help reduce wheel
spin by transferring power from a drive wheel that
begins to lose traction to the wheel on the oppo-
site side of the vehicle (on the same axle).
Spin control
This function is designed to help prevent the
drive wheels from spinning while the vehicle is
accelerating.
Active Yaw Control
At low speeds, this function helps maintain direc-
tional stability by braking one or more of the
wheels if the vehicle shows a tendency to skid or
slide laterally.
Engine Drag Control EDC
EDC helps keep the engine running if the wheels
show a tendency to lock, e.g., when shifting down
in the manual shifting mode or while using the
engine's braking function on a slippery surface. If
the wheels were to lock, the vehicle would
become more difficult to steer.
Trailer Stability Assist*
1
TSA helps stabilize a vehicle that is towing a
trailer when the vehicle and trailer have begun to
sway.
This system is automatically deactivated if the
driver selects Sport mode.
1
This function is included if the vehicle is equipped with a Volvo original trailer hitch.
||
DRIVER SUPPORT
* Option/accessory.
248
Related information
•
Detachable trailer hitch* (p. 372)
•
Driving with a trailer (p. 370)
•
Trailer Stability Assist (TSA) (p. 373)
•
Electronic Stability Control (ESC) sport mode
(p. 248)
•
Electronic Stability Control (ESC) symbols
and messages (p. 249)
Electronic Stability Control (ESC)
sport mode
ESC is always activated and cannot be switched
off.
However, the driver can select Sport mode,
which offers more active driving characteristics.
In Sport mode, the engine management system
monitors movement of the accelerator pedal and
steering wheel for sportier driving and allows
more lateral movement of the rear wheels before
ESC is triggered.
Under certain circumstances, such as when driv-
ing with snow chains, or driving in deep snow or
loose sand, it may be advisable to temporarily use
Sport mode for maximum tractive force.
If the driver releases pressure on the accelerator
pedal, ETC will also activate to help stabilize the
vehicle.
Activating/deactivating Sport mode
In the center display's Function
view, tap
ESC Sport Mode.
The green indicator light in the
button will illuminate to show
that the function has been acti-
vated or gray when the function
is deactivated.
When Sport mode is activated, this
symbol will illuminate in the instrument
panel. It will remain on until the driver
deactivates the function. ETC will also
return to normal mode when the engine is restar-
ted.
Related information
•
Electronic Stability Control (ESC) (p. 247)
DRIVER SUPPORT
}}
249
Electronic Stability Control (ESC)
symbols and messages
Symbol Message Description
Steady glow for 2 seconds
when the engine is started.
The system is performing a self-diagnostic test.
Flashing symbol. ESC is actively functioning to help counteract wheel spin and/or a skid.
Steady glow.
Sport mode has been activated.
Please note that ESC is not deactivated at this time but its functionality is reduced.
ESC
Temporarily off
See the message in the instrument panel.
||
DRIVER SUPPORT
250
Symbol Message Description
ESC Temporarily off
The ESC system function has been temporarily reduced due to high brake disc temperature. The function reac-
tivates automatically when the brakes have cooled.
ESC Service required
The ESC system is not functioning properly.
•
Stop the vehicle in a safe place, turn off the engine and restart it.
•
If the message is still displayed when the engine has restarted, drive to an authorized Volvo workshop to
have the system inspected.
WARNING
The stability system is intended to help
improve driving safety. It supplements, but can
never replace, the driver's judgment and
responsibility when operating the vehicle.
Speed and driving style should always be
adapted to traffic and road conditions.
Related information
•
Electronic Stability Control (ESC) (p. 247)
DRIVER SUPPORT
}}
* Option/accessory.
251
Roll stability control (RSC)
Volvo's Roll Stability Control (RSC) is a stability
system designed to help minimize the risk of a
rollover in emergency maneuvers or if a skid
should occur.
RSC registers the amount of change in the lat-
eral angle at which the vehicle is leaning. Using
this information, RSC calculates the likelihood of
a rollover. If there is an imminent risk of a rollover,
the stability system is activated, power to the
engine is cut and the brakes are applied to one
or more of the wheels until the vehicle regains
stability.
WARNING
The vehicle’s stability systems, including RSC,
do not replace the driver’s responsibility for
operating the vehicle in a safe manner. Speed
and driving style should always be adapted to
the current road, traffic and weather condi-
tions. Posted speed limits should always be
respected.
Related information
•
Electronic Stability Control (ESC) (p. 247)
•
General safety information (p. 56)
Speed limiter (SL)*
The Speed Limiter (SL) is a feature that helps
prevent the driver from exceeding a preset maxi-
mum speed.
Overview
Function buttons and symbols (generic illustration)
SL switches from standby mode to
active mode and the set maximum speed will
be used
Increases the set maximum speed
From standby mode, press to put SL
in active mode and set the current speed as
the maximum or from active mode, press to
put SL in standby mode (the set maximum
speed can be exceeded)
— Decreases the set maximum speed
Set maximum speed indicator
The vehicle's current speed
The set maximum speed
WARNING
•
The Speed Limiter cannot cover all driv-
ing situations and traffic, weather and
road conditions.
•
The vehicle must always be driven
according to current traffic/road condi-
tions.
•
The driver must take action if SL does not
maintain the set maximum speed.
•
The driver is always responsible for oper-
ating the vehicle in a safe manner and
observing posted speed limits.
Limitations
On steep downslopes, the Speed limiter's braking
capacity may not be sufficient and the set maxi-
mum speed may be exceeded. If this happens,
Speed limit exceeded will be displayed in the
instrument panel to alert the driver.
This message will appear if the set maximum
speed is exceeded by more than approx. 2 mph
(3 km/h).
||
DRIVER SUPPORT
* Option/accessory.
252
Related information
•
Starting and activating the Speed Limiter
(SL)* (p. 252)
•
Deactivating/reactivating the Speed Limiter*
(p. 256)
•
Changing a Speed Limiter (SL)* maximum
speed (p. 253)
•
Automatic Speed Limiter (ASL)* (p. 253)
•
Activating/deactivating the Automatic Speed
Limiter (ASL)* (p. 255)
•
Changing tolerance for the Automatic Speed
Limiter (p. 255)
•
Turning the Speed Limiter* off (p. 257)
Starting and activating the Speed
Limiter (SL)*
The Speed Limiter (SL) is a feature that has to
be selected and activated in order to set a maxi-
mum speed.
Selecting SL (putting it in standby
mode)
Function buttons and symbols
–
Press ◀ (1) or ▶ (3) to scroll to the Speed
Limiter (
) function.
> The symbol (4) will be displayed in the
instrument panel. This indicates that SL
has been selected and is in standby
mode (no maximum speed has been set).
Activating SL (putting it in active mode
and setting a maximum speed)
The engine must be running before SL can be
put in active mode. The lowest maximum speed
that can be set is 20 mph (30 km/h).
–
With SL in standby mode (the will
be displayed), press the
button (2).
> This puts SL in active mode and sets the
vehicle's current speed as the maximum
speed.
Related information
•
Speed limiter (SL)* (p. 251)
•
Deactivating/reactivating the Speed Limiter*
(p. 256)
•
Changing a Speed Limiter (SL)* maximum
speed (p. 253)
•
Automatic Speed Limiter (ASL)* (p. 253)
•
Activating/deactivating the Automatic Speed
Limiter (ASL)* (p. 255)
•
Changing tolerance for the Automatic Speed
Limiter (p. 255)
•
Turning the Speed Limiter* off (p. 257)
DRIVER SUPPORT
}}
* Option/accessory.
253
Changing a Speed Limiter (SL)*
maximum speed
Function buttons and symbols
–
Change a set maximum speed by pressing
the
(1) or — (3) buttons briefly or by
pressing and holding them:
•
Press briefly: changes the maximum
speed in +/– 5 mph (+/– 5 km/h) incre-
ments. Each press changes the maximum
speed by +/– 5 mph (+/– 5 km/h).
•
Press and hold: changes the maximum
speed +/– 1 mph (+/– 1 km/h) at a time.
Release the button when the indicator (4)
has moved to the desired maximum
speed.
Limitations
When driving down steep hills, the Speed
Limiter's braking effect may not be adequate and
the set maximum speed may be exceeded. The
message
Speed limit exceeded will appear in
the instrument panel to alert the driver.
NOTE
This message will appear if the maximum
speed is exceeded by more than approx.
2 mph (3 km/h).
Related information
•
Speed limiter (SL)* (p. 251)
Automatic Speed Limiter (ASL)*
Automatic Speed Limiter (ASL) helps the driver
adapt the vehicle's maximum speed to the pos-
ted speed limits.
The Speed Limiter (SL) function can be switched
to Automatic Speed Limiter.
Where applicable, ASL uses speed information
from the Road Sign Information* system to auto-
matically adapt the vehicle's maximum speed.
WARNING
•
ASL is a supplemental aid to the driver
and does not function in all driving situa-
tions or in all traffic, weather or road con-
ditions. It can never replace the driver’s
attention to traffic conditions or his/her
responsibility for operating the vehicle in
a safe manner.
•
Even if the driver clearly sees a speed
limit sign, the speed information from
Road Sign Information to ASL may not be
correct. The driver must adapt the vehi-
cle's speed accordingly.
See also the article "Road Sign Information
limitations".
||
DRIVER SUPPORT
* Option/accessory.
254
Is SL or ASL active?
Symbols in the instrument panel indicate which
function is active:
Symbol SL ASL
A
✓ ✓
Sign symbol
B
next to "70": ASL is acti-
vated.
✓
A
WHITE symbol: the function is active, GRAY symbol: the func-
tion is in standby mode.
B
See the section "ASL symbol" below for an explanation of the
symbol's different colors.
The ASL symbol
A road sign symbol (next to the stored
speed in the center of the speedome-
ter) can be displayed in three different
colors as explained in the following
table:
Road sign
symbol's color
Explanation
Green/yellow ASL is active
Gray ASL is in standby mode
Amber/orange ASL is temporarily in standby
mode (e.g., because a speed
limit sign could not be read)
ASL limitations
•
ASL utilizes the speed limit information provi-
ded by the Road Sign Information* system
(RSI), not from the speed limit signs that the
vehicle passes.
•
If RSI cannot provide ASL with speed-related
information, ASL will go into standby mode
and switch to SL. The driver will have to react
and adapt the vehicle's speed.
•
ASL will reactivate when RSI is once again
able to read a speed limit sign.
See also the article "Road Sign Information limi-
tations".
Related information
•
Speed limiter (SL)* (p. 251)
•
Activating/deactivating the Automatic Speed
Limiter (ASL)* (p. 255)
•
Changing tolerance for the Automatic Speed
Limiter (p. 255)
•
Starting and activating the Speed Limiter
(SL)* (p. 252)
•
Deactivating/reactivating the Speed Limiter*
(p. 256)
•
Road Sign Information (RSI)* (p. 320)
•
Road Sign Information (RSI)* limitations
(p. 322)
DRIVER SUPPORT
}}
* Option/accessory.
255
Activating/deactivating the
Automatic Speed Limiter (ASL)*
The function Automatic Speed Limiter (ASL) is a
supplement to the Speed Limiter (SL) and can
be activated/deactivated.
ASL is activated/deactivated in
the center display's Function
view.
Activating ASL
With SL activated:
1.
Tap the
Speed Sign Assist button in the
center display's Function view.
> ASL will go into standby mode and a
green indicator light in the button will illu-
minate. A road sign symbol will be dis-
played in center of the speedometer.
2.
Press the
button on the left-side steer-
ing wheel keypad.
> ASL will be activated with the vehicle's
current speed.
Deactivating ASL
–
Tap the Speed Sign Assist button in the
center display's Function view.
> ASL will be deactivated, the indicator will
be GRAY and the Speed limiter (SL) will
be activated.
WARNING
After switching from ASL to SL, the vehicle
will no longer adapt speed to posted speed
limits. It will only limit the vehicle's maximum
speed.
Related information
•
Speed limiter (SL)* (p. 251)
•
Automatic Speed Limiter (ASL)* (p. 253)
Changing tolerance for the
Automatic Speed Limiter
Automatic Speed Limiter can be set to different
tolerance levels.
Posted speed limit tolerance
ASL can be set to allow the vehicle to drive
above or below the posted speed limit. For exam-
ple, if the current posted speed limit is 43 mph
(70 km/h), the driver can opt to allow the vehicle
to drive at a speed of 47 mph (75 km/h).
||
DRIVER SUPPORT
* Option/accessory.
256
Function buttons and symbols (generic illustration)
–
Press the button (1) until 43 mph
(70 km/h) has changed to 47 mph
(75 km/h) in the center of the speedometer
(4).
> The vehicle will then use the selected tol-
erance +4 mph (+5 km/h) until the vehi-
cle passes a sign with a lower or higher
speed limit. The vehicle will then adjust to
the new maximum speed and the set tol-
erance will be deleted from the system's
memory.
If the Road Sign Information* system is
activated, the posted speed limit will be
indicated by a RED marker on the spee-
dometer's speed scale.
The set tolerance can be adjusted in the
same way as the Speed Limiter's set
maximum speed.
NOTE
The greatest tolerance that can be set is +/–
5 mph (10 km/h).
Related information
•
Automatic Speed Limiter (ASL)* (p. 253)
•
Activating/deactivating the Automatic Speed
Limiter (ASL)* (p. 255)
•
Road Sign Information (RSI)* (p. 320)
•
Changing a Speed Limiter (SL)* maximum
speed (p. 253)
Deactivating/reactivating the Speed
Limiter*
The Speed Limiter (SL) can be temporarily deac-
tivated and put in standby mode.
Deactivating and putting SL in standby
mode
To temporarily put the Speed Limiter in standby
mode:
Function buttons and symbols
–
Press the button (2).
> The symbols in the instrument panel will
change colors from WHITE to GRAY.
This indicates that SL is temporarily in
standby mode and will not limit the vehi-
cle's maximum speed.
DRIVER SUPPORT
* Option/accessory.
257
Reactivating SL from standby mode
To reactivate SL after it has temporarily been put
in standby mode:
–
Press the button (1).
> The maximum speed marker (4) and sym-
bols will change colors to WHITE and the
vehicle's maximum speed will be limited to
the previously set maximum speed.
or
–
Press the button (2).
> The symbols will change colors from
GRAY to WHITE and the vehicle's current
speed will be set as the maximum speed.
Increasing the speed with the
accelerator pedal
The set maximum speed can be temporarily
exceeded using the accelerator pedal without
putting SL in standby mode, for instance when
quick acceleration is required.
1. Press the accelerator pedal as far down as
possible and release it when the vehicle has
reached the desired speed.
> SL remains activated (the symbols in the
instrument panel will remain WHITE).
2. Release the accelerator pedal when the tem-
porary acceleration is completed.
> The vehicle will slow down and its speed
will remain under the set maximum speed.
Related information
•
Speed limiter (SL)* (p. 251)
•
Starting and activating the Speed Limiter
(SL)* (p. 252)
Turning the Speed Limiter* off
The Speed Limiter (SL) can be turned off.
Function buttons and symbols
1.
Press the
button (2).
> SL will go into standby mode.
2.
Press the ◀ (1) or ▶ (3) buttons to select
another function.
> The SL symbol (4) in the instrument panel
will go out and the set maximum speed
will be erased from the system's memory.
3.
Press the
button (2) again.
> The newly selected function will be acti-
vated.
Related information
•
Speed limiter (SL)* (p. 251)
•
Starting and activating the Speed Limiter
(SL)* (p. 252)
DRIVER SUPPORT
* Option/accessory.
258
Cruise Control (CC)
Cruise Control (CC) is designed to assist the
driver by maintaining a set speed. It is primarily
intended for use on long straight roads in steady
traffic, such as on highways and other main
roads in smoothly flowing traffic.
Overview
Function buttons and symbols (generic illustration)
Increases the set speed or CC switches
from standby mode to active mode
The set speed will be resumed
Press to put CC in active mode and set
the current speed or from active mode, press
to put CC in standby mode
— Decreases the set speed
Set speed indicator
The vehicle's current speed
The set speed
In models equipped with the optional Adaptive
Cruise Control (ACC), the driver can toggle
between CC and ACC – see the article "Switch-
ing between Cruise Control and Adaptive Cruise
Control".
WARNING
•
The vehicle must always be driven
according to current traffic/road condi-
tions. The driver must take action if CC
does not maintain a suitable speed
and/or distance to other vehicles.
•
The driver is always responsible for oper-
ating the vehicle in a safe manner.
Related information
•
Starting and activating Cruise Control
(p. 258)
•
Changing Cruise Control speed (p. 259)
•
Deactivating/resuming Cruise Control (CC)
(p. 260)
•
Turning Cruise Control off (p. 261)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Switching between Cruise Control and
Adaptive Cruise Control* (p. 262)
Starting and activating Cruise
Control
Cruise Control (CC) must be selected and acti-
vated before it can regulate the vehicle's speed.
Selecting CC (putting it in standby
mode)
Function buttons and symbols
–
Press ◀ (1) or ▶ (3) to scroll to the CC
(
) function.
> The symbol (4) will be displayed in the
instrument panel. This indicates that CC
has been selected and can then be acti-
vated to maintain a set speed.
DRIVER SUPPORT
* Option/accessory.
259
NOTE
Before CC can be activated, the vehicle's
speed must be at least 20 mph (30 km/h).
This is also the lowest speed that can be set.
Activating CC (putting it in active mode
and setting a speed)
–
With the symbol displayed (CC is in
standby mode), press the
button (2) on
the left-side steering wheel keypad.
> This puts CC in active mode and will
maintain the vehicle's current speed.
Related information
•
Cruise Control (CC) (p. 258)
•
Switching between Cruise Control and
Adaptive Cruise Control* (p. 262)
•
Deactivating/resuming Cruise Control (CC)
(p. 260)
•
Turning Cruise Control off (p. 261)
Changing Cruise Control speed
Changing a set speed
Function buttons and symbols (generic illustration)
–
Change a set speed by pressing the (1)
or — (3) buttons briefly or by pressing and
holding them:
•
Press briefly: changes speed in
+/– 5 mph (+/– 5 km/h) increments.
Each press changes the vehicle's speed
by +/– 5 mph (+/– 5 km/h).
•
Press and hold: changes the speed
+/– 1 mph (+/– 1 km/h) at a time.
Release the button when the set speed
indicator (4)/(6) has moved to the desired
speed.
If speed is increased by pressing the accelerator
pedal before the
button is pressed, the vehi-
cle's speed when the button is pressed will
become the set speed assuming that the accel-
erator pedal is still depressed when the button is
pressed.
A temporary increase in speed, such as when
passing another vehicle, does not affect the CC
set speed. The vehicle will return to the set speed
when the accelerator pedal is released. Always
observe posted speed limits.
Engine braking instead of applying the
brakes
CC regulates speed by applying the brakes
lightly. To avoid a loss of speed when driving
down hills, use the engine braking function
instead of letting the CC apply the brakes. In this
situation, the driver can temporarily deactivate the
CC braking function.
To do so:
–
Press the accelerator pedal approx. halfway
down and release it.
> CC will automatically deactivate the auto-
matic brake function and will then only
use the engine braking function.
Related information
•
Cruise Control (CC) (p. 258)
DRIVER SUPPORT
260
Deactivating/resuming Cruise
Control (CC)
Cruise Control (CC) can be temporarily deacti-
vated and put in standby mode.
Deactivating and putting CC in standby
mode
To temporarily deactivate and put Cruise Control
in standby mode:
Function buttons and symbols (generic illustration)
–
Press the button (2).
> The set speed marker (4) and symbols will
change colors from WHITE to GRAY.
This indicates that CC is temporarily in
standby mode and will not maintain a set
speed.
Standby mode due to action by the driver
CC is temporarily deactivated and put in standby
mode if:
•
the brakes are applied
•
The gear selector is moved to N
•
the vehicle is driven faster than the set
speed for more than 1 minute.
In these cases, the driver will have to regulate the
vehicle's speed.
A temporary increase in speed, such as when
passing another vehicle, does not affect the CC
set speed. The vehicle will return to the set speed
when the accelerator pedal is released.
Automatic standby mode
CC switches automatically to standby mode if:
•
the wheels lose traction
•
engine speed (rpm) is too high/low
•
brake temperature is too high
•
the vehicle's speed goes below approx.
20 mph (30 km/h)
In these cases, the driver will have to regulate the
vehicle's speed.
Reactivating CC from standby mode
To reactivate CC after it has temporarily been put
in standby mode:
–
Press the button (1).
> The set speed marker (4) will change
color from GRAY to WHITE. The vehicle
will then return to the most recently set
speed.
WARNING
There may be a significant increase in speed
after the
button has been pressed.
or
DRIVER SUPPORT
* Option/accessory.
261
–
Press the button (2).
> The set speed marker (4) and symbols will
change colors from GRAY to WHITE. CC
will then set and maintain the vehicle's
current speed.
Related information
•
Cruise Control (CC) (p. 258)
•
Starting and activating Cruise Control
(p. 258)
Turning Cruise Control off
Cruise Control (CC) can be deactivated (turned
off).
Function buttons and symbols
1.
Press the
button (2) on the left-side
steering wheel keypad.
> This puts CC in standby mode.
2.
Press the ◀ or ▶ button to switch to another
function.
> The Cruise Control symbol in the instru-
ment panel
will go out.
3.
Press the
button (2) again.
> Another function will be activated and the
set speed in the CC system's memory will
be erased.
In models equipped with the optional Adaptive
Cruise Control (ACC), the driver can toggle
between CC and ACC – see the article "Switch-
ing between Cruise Control and Adaptive Cruise
Control".
Related information
•
Cruise Control (CC) (p. 258)
•
Starting and activating Cruise Control
(p. 258)
•
Switching between Cruise Control and
Adaptive Cruise Control* (p. 262)
DRIVER SUPPORT
* Option/accessory.
262
Switching between Cruise Control
and Adaptive Cruise Control*
In models equipped with the optional ACC, the
driver can toggle between CC and ACC.
A symbol in the instrument panel will indicate
which system is currently being used:
CC
Cruise Control
ACC
Adaptive Cruise Control
A A
A
If the symbol is WHITE, the function is active. If the symbol is
GRAY, the function is in standby mode.
Switching from ACC to CC
To switch from ACC to CC:
1.
Put ACC in standby mode with the
but-
ton on the left-side steering wheel keypad.
2. From the center display's Function view, tap
the
Cruise control button. The button's indi-
cator will change from GRAY to GREEN.
> The symbol in the instrument panel will
change from
(ACC) to
(CC) and CC is in standby mode (ready
for use but not currently maintaining a set
speed).
3.
Press the
button on the left-side steer-
ing wheel keypad.
> CC goes into active mode and sets the
vehicle's current speed.
WARNING
Switching from ACC to CC means that:
•
Your vehicle will no longer automatically
maintain a set distance to a vehicle
ahead.
•
Only the set speed will be maintained and
the driver will have to apply the brakes
when needed.
If CC was activated when the engine was turned
off, ACC will be selected and go into standby
mode when the engine is restarted.
Switching from CC to ACC
To switch from CC to ACC:
1.
Put CC in standby mode with the
button
on the left-side steering wheel keypad.
2. In the center display's Function view, tap the
Adaptive Cruise Control button. The but-
ton's indicator will change from GREEN to
GRAY.
> The symbol in the instrument panel will
change from
(CC) to
(ACC) and ACC is in standby mode (ready
for use but not currently maintaining a set
speed/time interval).
3.
Press the
button on the left-side steer-
ing wheel keypad.
> ACC goes into active mode and sets the
vehicle's current speed and the selected
time interval to the vehicle ahead.
Related information
•
Cruise Control (CC) (p. 258)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Center display overview (p. 28)
DRIVER SUPPORT
* Option/accessory.
263
Distance Alert*
Distance Alert is a function that alerts the driver
if the time interval to the vehicle ahead is too
short.
Distance Alert is active at speeds above approxi-
mately 20 mph (30 km/h) and only reacts to a
vehicle ahead that is driving in the same direc-
tion. No information is provided for vehicles driv-
ing toward you, moving very slowly, or at a stand-
still.
NOTE
Distance Alert only monitors distance to the
vehicle ahead while Adaptive Cruise Control is
in standby mode or off.
WARNING
Distance Alert only indicates the distance to
the vehicle ahead. It does not affect the
speed of your vehicle.
Head-up-display*
Distance Alert symbol in the windshield (generic illustra-
tion)
In vehicle is equipped with the head-up display*,
the symbol in the windshield will only appear if
the distance to the vehicle ahead is shorter than
the preset value. However, the
Show Driver
Support In Head-Up Display function has to
be activated in the Settings menu. See the article
"Head-up display" for additional information.
NOTE
Strong sunlight, reflections, extreme light con-
trasts, the use of sunglasses, or if the driver is
not looking straight ahead may make the vis-
ual warning signal in the windshield difficult to
see.
Related information
•
Distance Alert* limitations (p. 264)
•
Using Distance Alert* (p. 264)
•
Head-up display (HUD)* (p. 116)
•
Adaptive Cruise Control (ACC)* (p. 265)
DRIVER SUPPORT
* Option/accessory.
264
Using Distance Alert*
Distance Alert is used as follows:
Operation
Pull down the center display's
Top view and select
Settings
followed by Distance alert.
Tap to turn the function On or
Off.
Setting a time interval
Controls for setting a time interval
Reduce the time interval
Increase the time interval
Distance/time indicator
–
Press button (1) or (2) on the left-side steer-
ing wheel keypad to reduce or increase the
time interval to the vehicle ahead.
> The indicator (3) shows the current time
interval.
Different time intervals to the
vehicle ahead can be selected
and are shown in the instru-
ment panel as 1–5 horizontal
bars. The greater the number of
bars, the longer the time inter-
val.
One bar between the vehicles represents a time
interval of approximately 1 second; 5 bars is
approximately 3 seconds.
The same symbol appears if Adaptive Cruise
Control is activated.
NOTE
•
The greater the vehicles' speed, the
greater the distance between them for a
set time interval.
•
The set time interval is also used by
Adaptive Cruise Control*.
•
Only use time intervals permitted by local
traffic regulations.
Related information
•
Distance Alert* (p. 263)
Distance Alert* limitations
Distance Alert uses the same radar sensor as
Adaptive Cruise Control* and has several limita-
tions.
WARNING
•
The radar sensor has a limited field of
vision. In some situations it may detect a
vehicle later than expected or not detect
other vehicles at all.
•
The radar sensor cannot cover all driving
situations and traffic, weather and road
conditions.
•
The driver is responsible for maintaining a
safe distance and speed and must inter-
vene if the various driver support systems
do not maintain a suitable speed or suita-
ble distance to the vehicle ahead.
•
Maintenance of radar sensor components
may only be performed by a trained and
qualified Volvo technician.
•
Strong sunlight, reflections from the road
surface, strong lighting contrasts or using
sunglasses may make the warning light in
the windshield difficult to see.
DRIVER SUPPORT
}}
* Option/accessory.
265
WARNING
•
Poor weather or winding roads can affect
the radar sensor's capacity to detect vehi-
cles ahead.
•
A vehicle's size (e.g., a motorcycle) can
also affect the radar sensor's capacity to
detect another vehicle. This may result in
the warning light illuminating at a shorter
distance than the one that has been set
or not illuminating at all.
•
High speeds may also result in the warn-
ing light illuminating at a shorter distance
than the one that has been set due to
limitations in the radar sensor's range.
For additional information, see also the article
"Radar sensor limitations."
Related information
•
Radar sensor limitations (p. 293)
•
Distance Alert* (p. 263)
Adaptive Cruise Control (ACC)*
ACC is an optional system designed to assist
the driver by maintaining a set speed or a set
time interval to the vehicle ahead.
ACC helps provide more relaxed driving on long
trips on highways or other major roads in a rela-
tively even flow of traffic.
The camera and radar sensor monitor the distance to
the vehicle ahead (generic illustration - certain details
may vary from model to model)
The driver sets that desired speed and time inter-
val to the vehicle ahead. When the camera and
radar sensor detects a slower moving vehicle
ahead, your vehicle's speed is automatically
adapted. When there are no longer slower mov-
ing vehicles ahead, your vehicle will accelerate to
resume the set speed.
ACC is designed to follow a vehicle ahead in the
same lane and maintain a time interval to that
vehicle set by the driver. If the radar sensor does
not detect a vehicle ahead, ACC will instead
maintain the speed set by the driver.
ACC is designed to smoothly regulate speed.
However, the driver must apply the brakes in sit-
uations that require immediate braking such as
when there are great differences in speed
between vehicles, or if the vehicle ahead brakes
suddenly. Due to limitations in the radar sensor,
braking may occur unexpectedly or not at all.
Adaptive Cruise Control can follow another vehi-
cle from a standstill up to 125 mph (200 km/h).
Always observe posted speed limits.
The driver can also toggle between ACC and
Cruise Control (CC) – see the article "Switching
between Cruise Control and Adaptive Cruise
Control".
||
DRIVER SUPPORT
266
WARNING
•
It is advisable to read through all of the
related articles pertaining to ACC (see
the list at the end of this article).
•
Adaptive Cruise Control cannot cover all
driving situations and traffic, weather and
road conditions.
•
This system is designed to be a supple-
mentary driving aid. It is not, however,
intended to replace the driver's attention
and judgement. The driver is responsible
for maintaining a safe distance and speed
and must intervene if Adaptive Cruise
Control does not maintain a suitable
speed or suitable distance to the vehicle
ahead.
•
Maintenance of ACC components may
only be performed by a trained and quali-
fied Volvo technician.
Overview
The distance to the vehicle ahead (in the same
lane) is monitored by a radar sensor. Your vehi-
cle's speed is regulated by accelerating and
braking. The brakes may emit a sound when they
are being modulated by the adaptive cruise con-
trol system. This is normal.
WARNING
•
Adaptive Cruise Control is not a collision
avoidance system. The driver is always
responsible for applying the brakes if the
system does not detect another vehicle.
•
Adaptive Cruise Control does not react to
people or animals, or small vehicles such
as bicycles and motorcycles. It also does
not react to slow moving, parked or
approaching vehicles, or stationary
objects.
•
Do not use Adaptive Cruise Control in
demanding driving conditions such as city
driving or other heavy traffic situations, in
slippery conditions, when there is a great
deal of water or slush on the road, during
heavy rain or snow, in poor visibility, on
winding roads or on highway on- or off-
ramps.
Controls
Function buttons and symbols (generic illustration)
Increases the set speed or puts ACC back
into active mode (previous settings will be
resumed)
Puts ACC in active mode and stores the cur-
rent speed or puts ACC in standby mode
Reduces the set speed
Increases the time interval/distance to the
vehicle ahead
Reduces the time interval/distance to the
vehicle ahead
Target vehicle indicator: ACC has detected
and is following a target vehicle using the set
time interval
Distance/time indicator
DRIVER SUPPORT
}}
* Option/accessory.
267
Instrument panel
Speed indicators
Set speed
Speed of the vehicle ahead
The current speed of your vehicle
See the article "Adaptive cruise control symbols
and messages" for examples of different combi-
nations of symbols, depending on the traffic sit-
uation.
Collision warning
Audible/visual warning signals
Audible warning signal
Visual warning symbol
Monitoring distance with the camera and
radar sensor
Adaptive Cruise Control can exert brake force
that is equivalent to approximately 40% of the
vehicle's total braking capacity.
In situations requiring more brake force than
ACC can provide and if the driver does not apply
the brakes, an audible signal from the City Safety
system will sound and warning light will illuminate
in the windshield to alert the driver to react.
WARNING
Adaptive Cruise Control only warns of vehicles
detected by the radar sensor. In some cases
there may be no warning or the warning may
be delayed. The driver should always apply the
brakes when necessary.
Head-up-display*
A flashing light alerts the driver
A flashing icon will appear in the head-up display
to alert the driver of a collision risk.
NOTE
Strong sunlight, reflections, extreme light con-
trasts, the use of sunglasses, or if the driver is
not looking straight ahead may make the vis-
ual warning signal in the windshield difficult to
see.
||
DRIVER SUPPORT
* Option/accessory.
268
Related information
•
Starting and activating Adaptive Cruise
Control (ACC)* (p. 268)
•
Changing Adaptive Cruise Control (ACC)
speed (p. 271)
•
Setting an Adaptive Cruise Control time
interval (p. 271)
•
Changing target vehicles and automatic
braking with Adaptive Cruise Control (ACC)
(p. 273)
•
Switching between Cruise Control and
Adaptive Cruise Control* (p. 262)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Deactivating/resuming Adaptive Cruise
Control (ACC) (p. 269)
•
Adaptive Cruise Control (ACC) - trouble-
shooting (p. 275)
•
Adaptive Cruise Control (ACC) symbols and
messages (p. 277)
•
Pilot Assist* (p. 279)
•
Distance Alert* (p. 263)
•
Head-up display (HUD)* (p. 116)
•
Radar sensor limitations (p. 293)
Starting and activating Adaptive
Cruise Control (ACC)*
ACC must first be put in active mode before it
can be started in order to regulate speed or a
set time interval to the vehicle ahead.
Starting ACC (putting it in standby
mode)
Function buttons and symbols
–
Press ◀ (2) or ▶ (3) to scroll to the ACC
(
) function. The symbol (4) will be dis-
played in the instrument panel.
> The symbol indicates that ACC has been
started and is in standby mode. In
standby mode, the vehicle will not main-
tain a set speed or a time interval to the
vehicle ahead.
Activating ACC (putting it in active
mode and setting a speed)
Before ACC can be put in active mode:
•
The driver's seat belt must be buckled and
the driver's door must be closed.
•
There must be a vehicle ahead (a target vehi-
cle) within a reasonable distance or your
vehicle's current speed must be at least
9 mph (15 km/h).
–
With the symbol displayed (ACC is in
standby mode), press the
button (1) on
the left-side steering wheel keypad.
> This puts ACC in active mode and sets
the vehicle's current speed, which is indi-
cated by digits in the center of the speed-
ometer.
DRIVER SUPPORT
}}
* Option/accessory.
269
The time interval to the vehi-
cle ahead will only be shown
when two vehicles are dis-
played.
A speed interval will also be
indicated:
•
The higher speed is the one set in ACC
•
The lower one is the speed of the vehicle
ahead (the target vehicle).
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Setting an Adaptive Cruise Control time
interval (p. 271)
•
Deactivating/resuming Adaptive Cruise
Control (ACC) (p. 269)
Deactivating/resuming Adaptive
Cruise Control (ACC)
ACC can be put temporarily in standby mode
and then reactivated.
Function buttons and symbols
To temporarily deactivate and put Adaptive Cruise
Control in standby mode:
–
Press the button (2).
>
The
symbol in the instrument panel
will change colors from WHITE to GRAY
and the set speed in the center of the
speedometer will change from BEIGE to
GRAY.
WARNING
When ACC is in standby mode, the driver has
to control the vehicle's speed and distance to
a vehicle ahead.
When ACC is in standby mode, the driver will
be alerted if the distance to the vehicle ahead
is too short by the Distance Alert function.
See the article "Distance Alert" for additional
information.
Standby mode due to action by the driver
ACC is temporarily deactivated and put in
standby mode if:
•
the brakes are applied
•
The gear selector is moved to N
•
the vehicle is driven faster than the set
speed for more than 1 minute.
In these cases, the driver will have to regulate the
vehicle's speed.
A temporary increase in speed, such as when
passing another vehicle, does not affect the ACC
set speed. The vehicle will return to the set speed
when the accelerator pedal is released.
||
DRIVER SUPPORT
* Option/accessory.
270
Automatic standby mode
ACC interacts with other systems, such as
Electronic Stability Control. If any of these other
systems are not functioning properly, ACC will
turn off automatically.
WARNING
If this happens, the driver will be alerted by an
audible signal and a message in the instru-
ment panel. The driver will have to adapt the
vehicle's speed, apply the brakes when nec-
essary and keep a safe distance to the vehicle
ahead.
ACC switches automatically to standby mode if:
•
the vehicle's speed goes below approx.
3 mph (5 km/h) and ACC cannot determine
if the vehicle ahead is stationary or is an
object such as a speed bump, etc
•
the vehicle's speed goes below approx.
3 mph (5 km/h) and the vehicle ahead
changes lanes or turns so that ACC no
longer has a target vehicle to follow
•
the driver opens the door
•
the driver unbuckles the seat belt
•
the engine speed (rpm) is too high/low
•
the wheels lose traction
•
the brake temperature is too high
•
the parking brake is applied
•
the stability system's
ESC Sport Mode is
activated
•
the
Off Road drive mode is selected
•
The radar sensor is covered by e.g., wet snow
or if heavy rain interferes with radar waves
Reactivating ACC from standby mode
Generic illustration
To reactivate ACC after it has temporarily been
put in standby mode:
–
Press the button (1).
>
The vehicle will then return to the most
recently set speed.
WARNING
There may be a significant increase in speed
after the button has been pressed.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Starting and activating Adaptive Cruise
Control (ACC)* (p. 268)
•
Setting an Adaptive Cruise Control time
interval (p. 271)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Adaptive Cruise Control (ACC) symbols and
messages (p. 277)
•
Distance Alert* (p. 263)
DRIVER SUPPORT
}}
* Option/accessory.
271
Changing Adaptive Cruise Control
(ACC) speed
ACC makes it possible to set various speeds.
Changing a set speed
Function buttons and symbols
–
Change a set speed by pressing the (1)
or — (3) buttons briefly or by pressing and
holding them:
•
Press briefly: changes speed in
+/– 5 mph (+/– 5 km/h) increments.
Each press changes the vehicle's speed
by +/– 5 mph (+/– 5 km/h).
•
Press and hold: changes the speed
+/– 1 mph (+/– 1 km/h) at a time.
Release the button when the set speed
indicator (4) has moved to the desired
speed.
If speed is increased by pressing the accelerator
pedal before the
button is pressed, the vehi-
cle's speed when the button is pressed will
become the set speed assuming that the accel-
erator pedal is still depressed when the button is
pressed.
A temporary increase in speed, such as when
passing another vehicle, does not affect the ACC
set speed. The vehicle will return to the set speed
when the accelerator pedal is released.
The Adaptive Cruise Control can follow another
vehicle from a standstill up to 125 mph
(200 km/h). Always observe posted speed limits.
The lowest speed that can be set for ACC is
20 mph (30 km/h). However, ACC can monitor
and react to the speed of the vehicle ahead down
to a standstill.
The highest speed that can be set/stored is
approx. 125 mph (200 km/h). Always observe
posted speed limits.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
Setting an Adaptive Cruise Control
time interval
ACC makes it possible to set various time inter-
vals to the vehicle ahead.
Different time intervals to the
vehicle ahead can be selected
and are shown in the instru-
ment panel as 1–5 horizontal
bars. The greater the number of
bars, the longer the time inter-
val. One bar between the vehi-
cles represents a time interval of approximately
1 second; 5 bars is approximately 3 seconds.
The same symbol appears if Distance Alert is
activated.
•
If the symbol shows two vehicle's, ACC is
actively following the vehicle ahead (a target
vehicle).
•
If only one vehicle is displayed, ACC is not
actively following another vehicle.
||
DRIVER SUPPORT
* Option/accessory.
272
Changing a time interval
Controls for setting a time interval
Reduce the time interval
Increase the time interval
Distance/time indicator
–
Press buttons (1) or (2) to reduce or
increase the time interval.
> The distance/time indicator (3) shows the
current time interval.
In order to follow the vehicle ahead as smoothly
as possible, ACC allows the time interval to vary
considerably in certain situations. At low speeds,
when the distance to the vehicle ahead is short,
ACC increases the time interval slightly.
•
If ACC does not seem to react when it is put
in active mode, this may be because the set
time interval to the vehicle ahead does not
allow an increase in speed.
•
The higher the speed, the greater the dis-
tance to the vehicle ahead for a given time
interval.
•
Only use time intervals permitted by local
traffic regulations.
WARNING
•
Only use a time interval that is suitable in
current traffic conditions.
•
A short time interval gives the driver lim-
ited reaction time if an unexpected situa-
tion occurs in traffic.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Starting and activating Adaptive Cruise
Control (ACC)* (p. 268)
•
Deactivating/resuming Adaptive Cruise
Control (ACC) (p. 269)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Adaptive Cruise Control (ACC) symbols and
messages (p. 277)
•
Distance Alert* (p. 263)
Passing Assistance with Adaptive
Cruise Control or Pilot Assist
ACC or Pilot Assist can assist the driver when
passing other vehicles.
How passing assistance works
When ACC or Pilot Assist is following another
vehicle and the driver indicates that he/she is
about to pass that vehicle by using the left turn
signal, ACC or Pilot Assist will begin accelerating
toward the vehicle ahead before your vehicle has
moved into the passing lane.
The function will then delay a speed reduction to
avoid early braking as your vehicle approaches
the slower-moving vehicle.
The function is active until your vehicle has
passed the other vehicle.
WARNING
Be aware that this function may be activated
in situations other than when passing a vehi-
cle, such as if the turn signal is used to indi-
cate a lane change or to indicate a turn. The
vehicle will accelerate briefly.
DRIVER SUPPORT
}}
* Option/accessory.
273
Using passing assistance
To activate passing assistance:
•
Your vehicle (ACC or Pilot Assist) must be
following another vehicle (the target vehicle).
•
Current speed must be at least approx.
45 mph (70 km/h ).
•
The speed set for ACC or Pilot Assist must
be high enough to safely pass the vehicle
ahead.
Starting passing assistance
To start a passing assistance sequence:
•
Activate the left turn signal.
Passing assistance limitations
WARNING
The driver should be prepared for sudden
changes when passing assistance is used. In
certain cases, there may be undesired accel-
eration.
Certain situations should be avoided, such as:
•
If the vehicle is approaching an exit to the
left or a left turn.
•
If the vehicle ahead slows down before
your vehicle has moved into the passing
lane.
•
Traffic in the passing lane slows down.
Passing assistance in these situations can be
deactivated by putting ACC or Pilot Assist in
standby mode.
Related information
•
Pilot Assist* (p. 279)
•
Adaptive Cruise Control (ACC)* (p. 265)
Changing target vehicles and
automatic braking with Adaptive
Cruise Control (ACC)
At certain speeds, Adaptive Cruise Control can
change target vehicles and automatically apply
the brakes.
Changing target vehicles
If the target vehicle turns suddenly, there may be a sta-
tionary vehicle ahead
When ACC is actively following another vehicle at
speeds under 20 mph (30 km/h) and changes
targets from a moving vehicle to a stationary one,
the system will brake for the stationary vehicle.
||
DRIVER SUPPORT
* Option/accessory.
274
WARNING
At speeds above 20 mph (30 km/h), if ACC
changes targets from a moving vehicle to a
stationary one, the system will not react to the
stationary vehicle and will accelerate to the
previously set speed.
The driver must actively apply the brakes to
slow/stop the vehicle.
Automatic standby mode when changing
targets
ACC disengages and goes into standby mode if:
•
your vehicle's speed goes below approx.
3 mph (5 km/h) and ACC cannot determine
if the target object is a stationary vehicle or
some other type of object such as a speed
bump, etc
•
the vehicle's speed goes below approx.
3 mph (5 km/h) and the vehicle ahead
changes lanes or turns so that ACC no
longer has a target vehicle to follow.
Auto-hold brake function
In slow-moving, stop-and-go traffic or when stop-
ped at a traffic light, driving will resume automati-
cally if the vehicle is not stopped for more than
approx. 3 seconds. If it takes more than
3 seconds for the vehicle ahead to begin moving
again, ACC will go into standby mode and the
auto-hold brake function will activate.
–
The driver will then have to reactivate ACC in
one of the following ways:
•
Press the
button on the left-side
steering wheel keypad.
•
Press the accelerator pedal.
> ACC will resume following the vehicle
ahead (target vehicle) if it begins to move
within approx. 6 seconds.
NOTE
ACC can keep the vehicle at a standstill for
up to 5 minutes, after which the parking brake
will be set and ACC will go into standby
mode.
The parking brake has to be released before
ACC can be reactivated.
Deactivation of the auto-hold brake function
In certain situations, auto-hold will be deactivated
when the vehicle is at a standstill and ACC will go
into standby mode.
This means that the brakes will be released and
the vehicle can begin to roll.
The driver must actively apply the brakes to keep
the vehicle at a standstill.
This can occur in the following situations:
•
the driver presses the brake pedal
•
the parking brake is set
•
the gear selector is moved to the P, N or R
positions
•
the driver puts ACC in standby mode.
Automatically setting the parking brake
In certain situations, the parking brake is set
automatically to help keep the vehicle at a stand-
still.
This occurs if ACC keeps the vehicle at a stand-
still with the brakes and:
•
the driver unbuckles the seat belt or opens
the door
•
ACC has kept the vehicle at a standstill for
more than approx. 5 minutes
•
the brakes overheat
•
the engine is turned off.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Auto-hold brake function (p. 352)
•
Parking brake (p. 354)
DRIVER SUPPORT
* Option/accessory.
275
Adaptive Cruise Control (ACC) -
troubleshooting
If this symbol is displayed in the instru-
ment panel and the message
Windscreen sensor Sensor
blocked, see Owner's manual
appears, the ACC radar sensor is blocked and
cannot detect vehicles ahead.
This message also indicates that the following
systems may have reduced functionality:
•
Distance Alert
•
City Safety
•
Driver Alert Control
•
Pilot Assist
•
Lane Keeping Aid (LKA)
•
Road Sign Information (RSI)
The following table lists possible causes for this message being displayed and suitable actions:
Cause Action
The windshield in front of the radar is dirty or covered with snow/ice. Clean/clear the windshield in front of the radar.
Heavy rain or snow is interfering with the radar signals. No action possible. Heavy precipitation may affect the function of the radar.
Swirling water or snow from the surface of the road may interfere with the
radar signals.
No action possible. A very wet or snow-covered road surface may affect the
function of the radar.
The windshield in front of the radar is clean but the message remains in the
display.
Wait a short time. It may take several minutes for the radar to detect that it is
no longer obstructed.
A text message can be erased by briefly pressing
the O button on the right-side steering wheel
keypad. If the message recurs, contact a trained
and authorized Volvo service technician or
retailer.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
DRIVER SUPPORT
* Option/accessory.
276
Adaptive Cruise Control (ACC) -
limitations
Adaptive Cruise Control (ACC) functionality may
be limited in certain situations.
Steep roads and/or heavy loads
Adaptive Cruise Control is primarily intended for
use on relatively level roads. The function may not
be able to maintain the correct time interval to
the vehicle ahead when driving down steep hills.
The driver should be attentive and prepared to
apply the brakes in these situations.
Do not use Adaptive Cruise Control when the
vehicle is transporting a heavy load or if it is tow-
ing a trailer.
Additional information
•
The
Off Road drive mode cannot be
selected if Adaptive Cruise Control is acti-
vated.
•
Adaptive Cruise Control uses the vehicle's
camera and radar sensor, which have certain
general limitations. See the articles "Camera
limitations" and "Radar sensor limitations"
for additional information.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Radar sensor limitations (p. 293)
•
Camera limitations (p. 297)
DRIVER SUPPORT
}}
* Option/accessory.
277
Adaptive Cruise Control (ACC)
symbols and messages
A number of ACC symbols and/or messages
may appear in the instrument panel or the head-
up display*.
Several examples
2
are provided here.
This illustration
3
shows that ACC is set at a
speed of 68 mph (110/km/h) and that there is
no vehicle ahead to follow.
This illustration
3
shows that ACC is set at a
speed of 68 mph (110/km/h) and is following
another vehicle traveling at the same speed.
The following table lists several ACC-related symbols and messages.
Symbol Message Explanation
WHITE symbol ACC is in active mode and maintaining the set speed.
GRAY symbol and Unavailable
ACC is in standby mode.
2
In the following illustrations, the optional RSI (Road Sign Information) function is indicating that the posted speed limit is 80 mph (130 km/h).
3
The illustration is generic. 110 km/h is approx. 68 mph.
||
DRIVER SUPPORT
* Option/accessory.
278
Symbol Message Explanation
Adaptive cruise
Service required
The system is not functioning properly. Contact a trained and qualified Volvo Service tech-
nician.
Windscreen sensor Sensor blocked, see
Owner's manual
Clean the windshield in front of the camera/radar sensor.
A text message can be erased by briefly pressing
the O button on the right-side steering wheel
keypad. If the message recurs, contact a trained
and authorized Volvo service technician or
retailer.
Related information
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Road Sign Information (RSI)* (p. 320)
DRIVER SUPPORT
}}
* Option/accessory.
279
Pilot Assist*
The Pilot Assist feature helps keep the vehicle in
its current traffic lane by providing steering
assistance and maintaining an even speed and a
set time interval to the vehicle ahead.
Function
Pilot Assist helps provide more relaxed driving on
long trips on highways or other major roads in an
even flow of traffic.
Function overview (generic illustration)
Windshield module containing the camera/
radar sensor
Monitoring distance
Monitoring side marker lines
The driver sets the desired time interval to the
vehicle ahead. Pilot Assist monitors that vehicle
and the traffic lane's side market lines using the
camera and radar sensor mounted in the upper,
center section of the windshield. It helps maintain
the set time interval by automatically adjusting
speed and by providing steering assistance to
help keep your vehicle in the lane.
Pilot Assist's steering assistance is based on
monitoring the direction of the vehicle ahead and
the traffic lane's side marker lines. The driver can
always override Pilot Assist and steer the vehicle
to e.g., change lanes, etc.
If the camera and radar sensor cannot detect the
lane's side marker lines, Pilot Assist will tempo-
rarily switch off the steering assistance until the
lane's side marker lines become visible again and
can be detected. However, the function's speed
and distance monitoring will continue to be acti-
vated.
WARNING
Pilot Assist's steering assistance may switch
on or off without warning.
The color of the steering wheel
symbol indicates the current
status of the steering assis-
tance function:
GREEN: steering assistance is
active
GRAY (as in the illustration): steering assistance
is deactivated
WARNING
•
Pilot Assist is designed to be a supple-
mentary driving aid and cannot cover all
driving situations, traffic, weather and/or
road conditions.
•
The driver should be familiar with all of
the information in this article regarding
Pilot Assist, including its limitations.
•
Pilot Assist is not intended to replace the
driver's attention and judgement.
•
Pilot Assist must only be used where
there are clearly visible traffic lane side
marker lines on both sides of the current
traffic lane. In other circumstances there
is an increased risk of collision with sur-
rounding obstacles that are not detected
by the system.
•
The driver is always responsible for steer-
ing the vehicle and maintaining a suitable
speed and distance to the vehicle ahead
and must intervene if necessary, even if
Pilot Assist is being used.
Pilot Assist attempts to regulate speed smoothly
but in situations calling for fast braking, the driver
must apply the brakes. This applies to situations
where there are considerable differences in
speed or if the vehicle ahead brakes suddenly.
Due to the limitations of the camera and radar
||
DRIVER SUPPORT
280
sensor, the system may apply the brakes in your
vehicle suddenly or not at all.
Pilot Assist is designed to follow a vehicle ahead
in the same traffic lane at a preset time interval
set by the driver. If the radar sensor does not
detect a vehicle ahead, the vehicle will instead
maintain the speed set by the driver. This will also
be the case if a vehicle ahead accelerates and
exceeds the set speed.
•
Pilot Assist can follow another vehicle from a
standstill up to a speed of approx. 125 mph
(200 km/h)
•
Pilot Assist can provide steering assistance
from very low speeds up to approx. 87 mph
(140 km/h).
Never exceed posted speed limits.
WARNING
•
Pilot Assist is not a collision avoidance
system. The driver must react if the sys-
tem does not detect another vehicle.
•
Pilot Assist does not react to people, ani-
mals, stationary objects, small vehicles
(such as bicycles and motorcycles), low
trailers and slow moving, parked or
approaching vehicles.
•
Do not use Pilot Assist in demanding
driving conditions such as city driving or
other heavy traffic situations, in areas with
intersections, in slippery conditions, when
there is a great deal of water or slush on
the road, during heavy rain or snow, in
poor visibility, on winding roads, on high-
way on- or off-ramps or if the vehicle is
towing a trailer, boat, etc.
NOTE
•
Pilot Assist maintenance should only be
carried out by a trained and qualified
Volvo service technician.
•
Pilot Assist regulates your vehicle's
speed using the accelerator pedal and
the brakes. Please be aware that there
may be a faint sound from the brakes
when the system is using them.
Pilot Assist overview
Controls
Function buttons and symbols (generic illustration)
Increase set speed or resume Pilot Assist set
speed and distance (time interval) to the
vehicle ahead
Press to activate Pilot Assist or put it in
standby mode
Change from Pilot Assist to Adaptive Cruise
Control
Reduce set speed
Increase the distance (time interval) to the
vehicle ahead
Change from Adaptive Cruise Control to Pilot
Assist
Reduce the distance (time interval) to the
vehicle ahead
DRIVER SUPPORT
}}
281
Function symbol
Distance and target vehicle symbol
Steering assistance symbol
Instrument panel
Speed indication (generic illustration)
Set speed
Speed of the vehicle ahead
Your vehicle's current speed.
See also the article "Pilot assist symbols and
messages" for additional information.
Collision warning
Audible/visual warning signals
Audible warning signal
Visual warning signal
Monitoring distance with the camera and
radar sensor
Pilot Assist can exert brake force that is equiva-
lent to approximately 40% of the vehicle's total
braking capacity.
In situations requiring more brake force than Pilot
Assist can provide and if the driver does not
apply the brakes, an audible signal and warning
light will illuminate in the windshield to alert the
driver to react.
WARNING
Pilot Assist only provides warnings for vehi-
cles that its radar sensor and camera have
detected. For this reason, a warning may be
given later than expected or not at all. The
driver should never wait for a warning before
applying the brakes.
||
DRIVER SUPPORT
* Option/accessory.
282
Head-up-display*
A flashing symbol alerts the driver
If the vehicle is equipped with a head-up display,
a flashing symbol in the windshield will alert the
driver.
NOTE
Strong sunlight, reflections, extreme light con-
trasts, the use of sunglasses, or if the driver is
not looking straight ahead may make the vis-
ual warning signal in the windshield difficult to
see.
Related information
•
Starting and activating Pilot Assist (p. 282)
•
Changing Pilot Assist speed (p. 284)
•
Setting a Pilot Assist time interval (p. 285)
•
Changing target vehicles and automatic
braking with Pilot Assist (p. 288)
•
Deactivating/resuming Pilot Assist (p. 286)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist limitations (p. 289)
•
Pilot Assist symbols and messages (p. 291)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Distance Alert* (p. 263)
•
Head-up display (HUD)* (p. 116)
•
Radar sensor limitations (p. 293)
•
Camera limitations (p. 297)
Starting and activating Pilot Assist
Pilot Assist has to be started and then activated
before it can provide steering assistance and
regulate speed and the distance to the vehicle
ahead.
Function buttons and symbols
DRIVER SUPPORT
}}}}
283
Prerequisites
The prerequisites for activating Pilot Assist are:
•
The driver's seat belt must be buckled and
the driver's door must be closed.
•
There must be a vehicle ahead (a target vehi-
cle) within a reasonable distance or your
vehicle's current speed must be at least
9 mph (15 km/h).
With ACC in standby mode:
1.
Tap ▶ (6).
>
The symbol
will change to Pilot
Assist in standby mode (8).
2.
Press the
button (2) on the left-side
steering wheel keypad.
> Pilot Assist will go into active mode and
the current speed will be stored and dis-
played in the center of the speedometer.
or
If Adaptive Cruise Control has been started:
–
Tap ▶ (6).
> Pilot Assist will start.
Pilot Assist's steering assis-
tance is only active when the
steering wheel symbol (2)
changes from GRAY to
GREEN.
And Pilot Assist will only regulate the time inter-
val to the vehicle ahead when a vehicle symbol
(1) is displayed above the steering wheel.
At the same time, a speed
interval will be marked.
The higher speed is the one
stored by the driver and the
lower one is the speed of the
vehicle ahead (target vehicle).
WARNING
Pilot Assist is not a collision avoidance sys-
tem. The driver is always responsible for
steering or applying the brakes if the system
does not detect another vehicle.
Do not use Pilot Assist in demanding driving
conditions such as city driving or other heavy
traffic situations, in slippery conditions, when
there is a great deal of water or slush on the
road, during heavy rain or snow, in poor visibil-
ity, on winding roads or on highway on- or off-
ramps.
In certain situations, it may be difficult for Pilot
Assist to assist the driver correctly or to deac-
tivate automatically. In such cases, it is advisa-
ble not to use Pilot Assist. Examples of such
situations may be:
•
the lane's side market lines are missing,
badly faded or cross each other.
•
the division of lanes is not clear, e.g.,
when a line divides or merges with
another, at exits or if there are many road
signs/markers.
•
there are edges or other lines on or near
the lane, e.g., curbs, cracks, repaired
areas, sharp shadows, etc.
•
the lane is narrow or winding.
||
DRIVER SUPPORT
* Option/accessory.
284
•
the lane is at the top of a hill, on an
uneven road surface or over a bump.
•
bad weather conditions (rain, snow, fog,
slush, poor visibility, backlighting, etc).
The driver should also be aware that Pilot
Assist has the following limitations:
•
High curbs, barriers and temporary obsta-
cles (cones, barriers etc) may not be
detected or could be detected incorrectly
as side marker lines, which may create a
risk of collision. The driver must ensure a
safe distance to these obstacles.
•
The camera or radar sensor may not be
able to detect objects if there are pot-
holes or if there are stationary objects
partially or completely blocking the road.
•
Pilot Assist does not "see" pedestrians,
animals, etc.
•
Pilot Assist's steering capacity is limited
and may not always be able to help the
driver keep the vehicle in the lane.
Hands on the steering wheel
Pilot Assist only functions when the driver's
hands are on the steering wheel, which is con-
tinuously monitored by the system. If this is not
the case, the driver will be alerted by a text mes-
sage in the instrument panel. If the driver's hands
are not returned to the steering wheel, an audible
signal will sound.
If the driver does not return his/her hands to the
steering wheel after the audible signal, Pilot
Assist will go into standby mode and must be
reactivated by pressing
.
Related information
•
Pilot Assist* (p. 279)
•
Changing Pilot Assist speed (p. 284)
•
Setting a Pilot Assist time interval (p. 285)
•
Changing target vehicles and automatic
braking with Pilot Assist (p. 288)
•
Deactivating/resuming Pilot Assist (p. 286)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist limitations (p. 289)
•
Pilot Assist symbols and messages (p. 291)
Changing Pilot Assist speed
Different speeds can be set for Pilot Assist.
Function buttons and symbols
–
Change a set speed by pressing the (1)
or — (3) buttons briefly or by pressing and
holding them:
•
Press briefly: changes speed in
+/– 5 mph (+/– 5 km/h) increments.
Each press changes the vehicle's speed
by +/– 5 mph (+/– 5 km/h).
•
Press and hold: changes the speed
+/– 1 mph (+/– 1 km/h) at a time.
Release the button when the set speed
indicator (4) has moved to the desired
speed.
If speed is increased by pressing the accelerator
pedal before the
button is pressed, the vehi-
cle's speed when the button is pressed will
DRIVER SUPPORT
}}
* Option/accessory.
285
become the set speed assuming that the accel-
erator pedal is still depressed when the button is
pressed.
A temporary increase in speed, such as when
passing another vehicle, does not affect the
speed set for Pilot Assist. The vehicle will return
to the set speed when the accelerator pedal is
released.
Pilot Assist can follow another vehicle from a
standstill up to a speed of approx. 125 mph
(200 km/h). Always observe posted speed limits.
The lowest speed that can be set/stored for Pilot
Assist is 20 mph (30 km/h). However, Pilot
Assist can monitor and react to the speed of the
vehicle ahead down to a standstill.
The highest speed that can be set/stored is
approx. 125 mph (200 km/h). Always observe
posted speed limits.
Related information
•
Pilot Assist* (p. 279)
•
Starting and activating Pilot Assist (p. 282)
•
Setting a Pilot Assist time interval (p. 285)
•
Changing target vehicles and automatic
braking with Pilot Assist (p. 288)
•
Deactivating/resuming Pilot Assist (p. 286)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist limitations (p. 289)
•
Pilot Assist symbols and messages (p. 291)
Setting a Pilot Assist time interval
Different time intervals to the vehicle ahead can
be selected and are shown in the instrument
panel as 1–5 horizontal bars.
Changing the time interval
The greater the number of bars,
the longer the time interval.
One bar between the vehicles
represents a time interval of
approximately 1 second; 5 bars
is approximately 3 seconds.
NOTE
When the graphic in the instrument panel
shows a vehicle and a steering wheel, Pilot
Assist is following a vehicle ahead using the
set time interval.
If only a steering wheel is displayed, there is
no vehicle ahead within a reasonable dis-
tance.
||
DRIVER SUPPORT
* Option/accessory.
286
Time interval controls
Press to reduce the time interval to the vehi-
cle ahead
Press to increase the time interval to the
vehicle ahead
Distance indicator
In order to follow the vehicle ahead as smoothly
as possible, Pilot Assist allows the time interval to
vary considerably in certain situations. At low
speeds, when the distance to the vehicle ahead
is short, Pilot Assist increases the time interval
slightly.
•
If Pilot Assist does not seem to react when it
is put in active mode, this may be because
the set time interval to the vehicle ahead
does not allow an increase in speed.
•
The higher the speed, the greater the dis-
tance to the vehicle ahead for a given time
interval.
WARNING
•
Only use a time interval that is suitable in
current traffic conditions.
•
A short time interval gives the driver lim-
ited reaction time if an unexpected situa-
tion occurs in traffic.
Related information
•
Pilot Assist* (p. 279)
•
Starting and activating Pilot Assist (p. 282)
•
Changing Pilot Assist speed (p. 284)
•
Changing target vehicles and automatic
braking with Pilot Assist (p. 288)
•
Deactivating/resuming Pilot Assist (p. 286)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist limitations (p. 289)
•
Pilot Assist symbols and messages (p. 291)
Deactivating/resuming Pilot Assist
Pilot Assist can be temporarily deactivated, put
in standby mode and then reactivated.
Deactivating and putting Pilot Assist in
standby mode
Function buttons and symbols (generic illustration)
–
Press the button (2).
> Pilot Assist will go into standby mode (8).
The symbol in the instrument panel
will change colors from WHITE to GRAY
and the set speed in the center of the
speedometer will change from BEIGE to
GRAY.
or
–
Press the ◀ button (3).
> Pilot Assist will be turned off and shift to
Adaptive Cruise Control in active mode.
DRIVER SUPPORT
}}
* Option/accessory.
287
In standby mode, the driver will have to regulate
the vehicle's speed and the distance to the vehi-
cle ahead.
When Pilot Assist is in standby mode and your
vehicle comes too close to another vehicle, the
driver will be alerted by the Distance Alert func-
tion.
Standby mode due to action by the driver
Pilot Assist is temporarily deactivated and put in
standby mode if:
•
the brakes are applied
•
The gear selector is moved to N
•
the turn signals are used for more than
1 minute
•
the vehicle is driven faster than the set
speed for more than 1 minute.
A temporary increase in speed, such as when
passing another vehicle, does not affect the Pilot
Assist set speed. The vehicle will return to the set
speed when the accelerator pedal is released.
When the turn signals are used, Pilot Assist's
steering function will be temporarily deactivated.
When this is no longer the case, the steering
function will reactivate if the traffic lane's side
marker lines can still be detected.
Automatic standby mode
Pilot Assist interacts with other systems, such as
Electronic Stability Control. If any of these other
systems are not functioning properly, Pilot Assist
will automatically be deactivated.
WARNING
If this happens, the driver will be alerted by an
audible signal and a message in the instru-
ment panel. The driver will have to adapt the
vehicle's speed, apply the brakes when nec-
essary and keep a safe distance to the vehicle
ahead.
Pilot Assist switches automatically to standby
mode if:
•
the vehicle's speed is below approx. 3 mph
(5 km/h) and Pilot Assist cannot determine if
a vehicle ahead is a stationary vehicle or an
object.
•
the vehicle's speed is below approx. 3 mph
(5 km/h) and the vehicle ahead turns so that
Pilot Assist no longer has a vehicle to follow
(target vehicle).
•
the driver's hands are not on the steering
wheel
•
the driver's door is opened
•
the driver unbuckles the seat belt
•
engine speed (rpm) is too high/low
•
the wheels lose traction
•
brake temperature is too high
•
the parking brake is set
•
The camera lens/radar sensor is covered by
e.g., snow or if heavy rain interferes with
radar waves
Reactivating Pilot Assist from standby
mode
Generic illustration
–
Press the button (1).
> The most recently set speed will be used.
WARNING
There may be a significant increase in speed
after the
button has been pressed.
Related information
•
Pilot Assist* (p. 279)
•
Starting and activating Pilot Assist (p. 282)
•
Changing Pilot Assist speed (p. 284)
DRIVER SUPPORT
* Option/accessory.
288
•
Setting a Pilot Assist time interval (p. 285)
•
Changing target vehicles and automatic
braking with Pilot Assist (p. 288)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist limitations (p. 289)
•
Pilot Assist symbols and messages (p. 291)
•
Distance Alert* (p. 263)
Changing target vehicles and
automatic braking with Pilot Assist
At certain speeds, Pilot Assist can change target
vehicles and automatically apply the brakes.
Changing target vehicles
If the target vehicle turns suddenly, there may be a sta-
tionary vehicle ahead
When Pilot Assist is actively following another
vehicle at speeds under 20 mph (30 km/h) and
changes targets from a moving vehicle to a sta-
tionary one, the system will brake for the station-
ary vehicle.
WARNING
If Pilot Assist changes targets from a moving
vehicle to a stationary one at speeds above
20 mph (30 km/h), the system will not react
to the stationary vehicle and will accelerate to
the previously set speed.
The driver must actively apply the brakes to
slow/stop the vehicle.
Automatic standby mode when changing
targets
Pilot Assist disengages and goes into standby
mode if:
•
your vehicle's speed goes below approx.
3 mph (5 km/h) and Pilot Assist cannot
determine if the target object is a stationary
vehicle or some other type of object such as
a speed bump, etc
•
the vehicle's speed goes below approx.
3 mph (5 km/h) and the vehicle ahead
changes lanes or turns so that Pilot Assist
no longer has a target vehicle to follow
Auto-hold brake function
In slow-moving, stop-and-go traffic or when stop-
ped at a traffic light, driving will resume automati-
cally if the vehicle is not stopped for more than
approx. 3 seconds. If it takes more than
3 seconds for the vehicle ahead to begin moving
again, Pilot Assist will go into standby mode and
the auto-hold brake function will activate.
DRIVER SUPPORT
}}
* Option/accessory.
289
–
The driver will then have to reactivate Pilot
Assist in one of the following ways:
•
Press the
button on the left-side
steering wheel keypad
•
Press the accelerator pedal
> Pilot Assist will resume following the vehi-
cle ahead (target vehicle) if it begins to
move within approx. 6 seconds.
NOTE
Pilot Assist can keep the vehicle at a stand-
still for up to 5 minutes, after which the park-
ing brake will be set and Pilot Assist will go
into standby mode.
The parking brake has to be released before
Pilot Assist can be reactivated.
Deactivation of the auto-hold brake function
In certain situations, auto-hold will be deactivated
when the vehicle is at a standstill and Pilot Assist
will go into standby mode.
This means that the brakes will be released and
the vehicle can begin to roll.
The driver must actively apply the brakes to keep
the vehicle at a standstill.
This can occur in the following situations:
•
the driver presses the brake pedal
•
the parking brake is set
•
the gear selector is moved to the P, N or R
positions
•
the driver puts Pilot Assist in standby mode
Automatically setting the parking brake
In certain situations, the parking brake is set
automatically to help keep the vehicle at a stand-
still.
This occurs if Pilot Assist keeps the vehicle at a
standstill with the brakes and:
•
the driver unbuckles the seat belt or opens
the door
•
Pilot Assist has kept the vehicle at a stand-
still for more than approx. 5 minutes
•
the engine is turned off
•
the brakes overheat
Related information
•
Pilot Assist* (p. 279)
•
Starting and activating Pilot Assist (p. 282)
•
Changing Pilot Assist speed (p. 284)
•
Setting a Pilot Assist time interval (p. 285)
•
Deactivating/resuming Pilot Assist (p. 286)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist limitations (p. 289)
•
Pilot Assist symbols and messages (p. 291)
Pilot Assist limitations
Pilot Assist functionality may be limited in certain
situations.
Pilot Assist is designed to help the driver in a
number of situations. However, the driver always
has the primary responsibility for maintaining a
safe distance to other vehicles and for keeping
the vehicle in its proper traffic lane.
||
DRIVER SUPPORT
* Option/accessory.
290
WARNING
Pilot Assist is not a collision avoidance sys-
tem. The driver is always responsible for
steering or applying the brakes if the system
does not detect another vehicle.
Do not use Pilot Assist in demanding driving
conditions such as city driving or other heavy
traffic situations, in slippery conditions, when
there is a great deal of water or slush on the
road, during heavy rain or snow, in poor visibil-
ity, on winding roads or on highway on- or off-
ramps.
In certain situations, it may be difficult for Pilot
Assist to assist the driver correctly or to deac-
tivate automatically. In such cases, it is advisa-
ble not to use Pilot Assist. Examples of such
situations may be:
•
the lane's side market lines are missing,
badly faded or cross each other.
•
the division of lanes is not clear, e.g.,
when a line divides or merges with
another, at exits or if there are many road
signs/markers.
•
there are edges or other lines on or near
the lane, e.g., curbs, cracks, repaired
areas, sharp shadows, etc.
•
the lane is narrow or winding.
•
the lane is at the top of a hill, on an
uneven road surface or over a bump.
•
bad weather conditions (rain, snow, fog,
slush, poor visibility, backlighting, etc).
The driver should also be aware that Pilot
Assist has the following limitations:
•
High curbs, barriers and temporary obsta-
cles (cones, barriers etc) may not be
detected or could be detected incorrectly
as side marker lines, which may create a
risk of collision. The driver must ensure a
safe distance to these obstacles.
•
The camera or radar sensor may not be
able to detect objects if there are pot-
holes or if there are stationary objects
partially or completely blocking the road.
•
Pilot Assist does not "see" pedestrians,
animals, etc.
•
Pilot Assist's steering capacity is limited
and may not always be able to help the
driver keep the vehicle in the lane.
The driver can always take action to override Pilot
Assist.
Steep roads and/or heavy loads
Pilot Assist is primarily intended for use on rela-
tively level roads. The function may not be able to
maintain the correct time interval to the vehicle
ahead on when driving down steep hills. The
driver should be attentive and prepared to apply
the brakes in these situations.
Do not use Pilot Assist when the vehicle is trans-
porting a heavy load or if it is towing a trailer.
Additional information
•
The
Off Road drive mode cannot be
selected if Pilot Assist is activated.
•
Pilot Assist uses the vehicle's camera and
radar sensor, which have certain general limi-
tations. See the articles "Camera limitations"
and "Radar sensor limitations" for additional
information.
Related information
•
Pilot Assist* (p. 279)
•
Starting and activating Pilot Assist (p. 282)
•
Changing Pilot Assist speed (p. 284)
•
Setting a Pilot Assist time interval (p. 285)
•
Changing target vehicles and automatic
braking with Pilot Assist (p. 288)
•
Deactivating/resuming Pilot Assist (p. 286)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist symbols and messages (p. 291)
•
Radar sensor limitations (p. 293)
•
Camera limitations (p. 297)
DRIVER SUPPORT
}}
* Option/accessory.
291
Pilot Assist symbols and messages
A number of Pilot Assist symbols and/or mes-
sages may appear in the instrument panel or the
head-up display*.
Several examples
4
are provided here.
In this illustration, Pilot Assist is set at 65 mph
(110 km/h) and there is no target vehicle ahead.
In this example, Pilot Assist will not provide steer-
ing assistance because it cannot detect the traf-
fic lane's side marker lines.
In this illustration, Pilot Assist is set at 65 mph
(110 km/h) and there is a target vehicle ahead
that is traveling at the same speed.
In this example, Pilot Assist will not provide steer-
ing assistance because it cannot detect the traf-
fic lane's side marker lines.
In this illustration, Pilot Assist is set at 65 mph
(110 km/h) and there is a target vehicle ahead
that is traveling at the same speed.
In this example, Pilot Assist also provides steer-
ing assistance because it is able to detect the
traffic lane's side marker lines.
4
In the following illustrations, the optional RSI (Road Sign Information) function is indicating that the posted speed limit is 80 mph (130 km/h).
||
DRIVER SUPPORT
* Option/accessory.
292
In this illustration, Pilot Assist is set at 65 mph
(110 km/h) and there is no target vehicle ahead.
In this example, Pilot Assist also provides steer-
ing assistance because it is able to detect the
traffic lane's side marker lines.
Related information
•
Pilot Assist* (p. 279)
•
Starting and activating Pilot Assist (p. 282)
•
Changing Pilot Assist speed (p. 284)
•
Setting a Pilot Assist time interval (p. 285)
•
Changing target vehicles and automatic
braking with Pilot Assist (p. 288)
•
Deactivating/resuming Pilot Assist (p. 286)
•
Passing Assistance with Adaptive Cruise
Control or Pilot Assist (p. 272)
•
Pilot Assist limitations (p. 289)
Driver support system radar sensor
The radar sensor is used by a number of driver
support systems to e.g., help detect other vehi-
cles.
Radar sensor location
The radar sensor is used by the following func-
tions:
•
Distance Alert*
•
Adaptive Cruise Control*
•
Pilot Assist*
•
City Safety
Any modifications to the radar sensor may make
its use illegal.
Related information
•
Radar sensor limitations (p. 293)
•
Radar sensor - type approval (p. 296)
•
Distance Alert* (p. 263)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
City Safety™ (p. 300)
•
Pilot Assist* (p. 279)
DRIVER SUPPORT
}}
293
Radar sensor limitations
The radar sensor used by several of the driver
support systems has certain limitations, which
also affect the systems using it.
Obstructions
The marked area must not be obstructed in any way.
This area of the windshield should always be kept clean
The radar sensor is located at the upper, center
section of the windshield along with the camera.
WARNING
Never place any objects, decals, electronic toll
devices, window tinting films etc., on the wind-
shield in front of or around the camera/radar
sensor. This could reduce or block these com-
ponents' functions, and could cause one or
more of the systems that utilize them to stop
functioning.
This can also result in certain functions being
reduced or disabled, or they may respond
incorrectly.
If this symbol and the message
Windscreen Sensors blocked
appear in the instrument panel, this
indicates that the camera and/or radar
sensor cannot detect other vehicles ahead.
The following table shows some of the situations
that can cause the message to be displayed and
suggested actions.
Cause Action
The area of the windshield in front of the camera/radar sensor is dirty or covered by ice
or snow.
Clean the windshield or remove the ice/ snow.
Thick fog or heavy rain/snow reduces the camera/radar sensor's range of visibility. No action. The driver should be extra alert in conditions of this
type.
Water or snow on the surface of the road swirl up and block radar signals or the camera's
view.
No action. The driver should be extra alert in conditions of this
type.
There is dirt between the inside of the windshield and the camera/radar sensor. Have the area of the windshield cleaned by a trained and quali-
fied Volvo service technician.
||
DRIVER SUPPORT
294
Vehicle's speed
The radar sensor's capacity to detect vehicles
ahead is impeded:
•
if the speed of the vehicle ahead differs
greatly from your vehicle's speed.
Limited field of vision
The radar sensor has a limited field of vision. In
some situations it may detect a vehicle later than
expected or not detect other vehicles at all.
Radar sensor's field of vision
In certain situations, the radar sensor cannot
detect vehicles at close quarters, for example
a vehicle that suddenly enters the lane
between your vehicle and the target vehicle.
Small vehicles, such as motorcycles, or vehi-
cles not driving in the center of the lane may
remain undetected.
In curves, the radar sensor may detect the
wrong vehicle or lose sight of the target vehi-
cle.
Low trailer in the radar shadow (generic illustration)
Low trailers may also be difficult to detect or may
not be detected at all. The driver should be extra
alert in situations of this type.
High temperatures
If the temperature in the passenger compartment
is very high, the camera and radar sensor may be
temporarily turned off for approx. 15 minutes
after the engine has been started to protect their
electronic components. When the temperature
has cooled sufficiently, the camera and radar
sensor will restart automatically.
Damaged windshield
DRIVER SUPPORT
* Option/accessory.
295
CAUTION
•
Service and maintenance on City Safety
may only be carried out by a trained and
qualified Volvo service technician.
•
If a crack, scratch or stone chip should
occur in the section of the windshield in
front the camera/radar sensor, contact a
trained and qualified Volvo service techni-
cian to repair or replace the windshield.
Failing to do so may result in reduced
City Safety functionality.
•
This can also result in certain functions
being reduced or disabled, or they may
respond incorrectly.
To help avoid the risk of incorrect, reduced or
disabled functionality for driver support sys-
tems using the camera or radar sensors:
•
Volvo recommends that cracks, scratches
or stone chips on the windshield in front
of the camera/radar sensor should not
be repaired; in such cases, the entire
windshield should be replaced.
•
Before the windshield is replaced, con-
tact a Volvo retailer to ensure that the
correct windshield is ordered and instal-
led. If the wrong type of windshield is
used, this may cause City Safety to func-
tion improperly or not at all.
•
Volvo recommends the use of only Genu-
ine Volvo Replacement Windshields.
•
When replacing windshield wipers, use
the same type or ones approved by Volvo.
After the windshield has been replaced, the
camera/radar sensor will have to be recalibra-
ted by a trained and qualified Volvo service
technician to help ensure proper function of
all of the vehicle's camera-/radar-based sys-
tems.
Maintenance
In order for camera and radar sensor to function
properly, the area of the windshield must be kept
free of dirt, ice, snow, etc. and should be washed
regularly with a suitable car washing detergent.
NOTE
Dirt, ice and/or snow covering the camera
and radar sensors reduce functionality and
may disable the vehicle's camera-/radar-
based systems.
This can also result in certain functions being
reduced or disabled, or they may respond
incorrectly.
Related information
•
Driver support system radar sensor (p. 292)
•
Camera limitations (p. 297)
•
Pilot Assist limitations (p. 289)
•
City Safety limitations (p. 308)
•
City Safety limitations (p. 308)
•
Road Sign Information (RSI)* limitations
(p. 322)
•
Park Assist Pilot (PAP)* limitations (p. 346)
DRIVER SUPPORT
* Option/accessory.
296
Radar sensor - type approval
USA & Canada:
FCC ID: L2C0054TR IC: 3432A-0054TR FCC
ID: L2C0055TR IC: 3432A-0055TR
This device complies with Part 15 of the FCC
Rules and with Industry Canada license-exempt
RSS standard(s). Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
WARNING
Changes or modifications not expressively
approved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.
The term “IC:” before the radio certification num-
ber only signifies that Industry Canada technical
specifications were met.
Related information
•
Driver support system radar sensor (p. 292)
Driver support system camera
The camera is used by a number of driver sup-
port systems to e.g., detect a driving lane's side
marker lines or traffic signs.
Camera location
The camera is used by the following driver sup-
port systems:
•
Adaptive Cruise Control (ACC)*
•
Driving lane assistance*
•
Driver Alert Control*
•
Pilot Assist*
•
City Safety
•
Run-off Mitigation
•
Road sign information*
•
Active high beams*
Related information
•
Camera limitations (p. 297)
•
Adaptive Cruise Control (ACC)* (p. 265)
•
Driving lane assistance (p. 324)
•
Driver Alert Control (DAC) (p. 322)
•
Pilot Assist* (p. 279)
•
City Safety™ (p. 300)
•
Run-off Mitigation (p. 329)
•
Road Sign Information (RSI)* (p. 320)
•
High and low beam headlights (p. 142)
DRIVER SUPPORT
}}
297
Camera limitations
The camera used by several of the driver support
systems has certain limitations, which also affect
the systems using it.
Reduced visibility
WARNING
•
The camera has the same limitations as
the human eye. In other words, its “vision
is impaired” by adverse weather condi-
tions such as heavy snowfall, dense fog,
etc. These conditions may reduce the
function of systems that depend on the
camera or cause these systems to tem-
porarily stop functioning.
•
Strong sunlight, reflections from the road
surface, ice or snow covering the road, a
dirty road surface, or unclear lane marker
lines may drastically reduce the camera’s
capacity to detect the side of a lane, a
pedestrian, a cyclist, a large animal or
another vehicle.
Obstructions
The marked area must not be obstructed in any way.
This area of the windshield should always be kept clean
The camera is located at the upper, center sec-
tion of the windshield along with the radar sen-
sor.
WARNING
Never place any objects, decals, electronic toll
devices, window tinting films etc., on the wind-
shield in front of or around the camera/radar
sensor. This could reduce or block these com-
ponents' functions, and could cause one or
more of the systems that utilize them to stop
functioning.
This can also result in certain functions being
reduced or disabled, or they may respond
incorrectly.
If this symbol and the message
Windscreen Sensors blocked
appear in the instrument panel, this
indicates that the camera and/or radar
sensor cannot detect other vehicles ahead.
The following table shows some of the situations
that can cause the message to be displayed and
suggested actions.
Cause Action
The area of the windshield in front of the camera/radar sensor is dirty or covered
by ice or snow.
Clean the windshield or remove the ice/ snow.
Thick fog or heavy rain/snow reduces the camera/radar sensor's range of visibility. No action. The driver should be extra alert in conditions of this type.
||
DRIVER SUPPORT
298
Cause Action
Water or snow on the surface of the road swirl up and block radar signals or the
camera's view.
No action. The driver should be extra alert in conditions of this type.
There is dirt between the inside of the windshield and the camera/radar sensor. Have the area of the windshield cleaned by a trained and qualified
Volvo service technician.
Strong backlighting No action required. The came will reset automatically when lighting
conditions improve.
High temperatures
If the temperature in the passenger compartment
is very high, the camera and radar sensor may be
temporarily turned off for approx. 15 minutes
after the engine has been started to protect their
electronic components. When the temperature
has cooled sufficiently, the camera and radar
sensor will restart automatically.
Damaged windshield
CAUTION
•
Service and maintenance on City Safety
may only be carried out by a trained and
qualified Volvo service technician.
•
If a crack, scratch or stone chip should
occur in the section of the windshield in
front the camera/radar sensor, contact a
trained and qualified Volvo service techni-
cian to repair or replace the windshield.
Failing to do so may result in reduced
City Safety functionality.
•
This can also result in certain functions
being reduced or disabled, or they may
respond incorrectly.
To help avoid the risk of incorrect, reduced or
disabled functionality for driver support sys-
tems using the camera or radar sensors:
•
Volvo recommends that cracks, scratches
or stone chips on the windshield in front
of the camera/radar sensor should not
be repaired; in such cases, the entire
windshield should be replaced.
•
Before the windshield is replaced, con-
tact a Volvo retailer to ensure that the
correct windshield is ordered and instal-
led. If the wrong type of windshield is
used, this may cause City Safety to func-
tion improperly or not at all.
•
Volvo recommends the use of only Genu-
ine Volvo Replacement Windshields.
•
When replacing windshield wipers, use
the same type or ones approved by Volvo.
After the windshield has been replaced, the
camera/radar sensor will have to be recalibra-
ted by a trained and qualified Volvo service
technician to help ensure proper function of
all of the vehicle's camera-/radar-based sys-
tems.
DRIVER SUPPORT
* Option/accessory.
299
Maintenance
In order for camera and radar sensor to function
properly, the area of the windshield must be kept
free of dirt, ice, snow, etc. and should be washed
regularly with a suitable car washing detergent.
NOTE
Dirt, ice and/or snow covering the camera
and radar sensors reduce functionality and
may disable the vehicle's camera-/radar-
based systems.
This can also result in certain functions being
reduced or disabled, or they may respond
incorrectly.
Related information
•
Driver support system camera (p. 296)
•
Radar sensor limitations (p. 293)
•
Driving lane assistance (p. 324)
•
Driver Alert Control limitations (p. 324)
•
Pilot Assist limitations (p. 289)
•
City Safety limitations (p. 308)
•
Road Sign Information (RSI)* limitations
(p. 322)
•
Park Assist Pilot (PAP)* limitations (p. 346)
DRIVER SUPPORT
300
City Safety™
City Safety™ is a support system designed to
help alert the driver to pedestrians, cyclists, large
animals and vehicles that may appear suddenly
in front of your vehicle by providing visual, audi-
ble and haptic alerts. The vehicle will brake auto-
matically if the driver is unable to react quickly
enough.
City Safety introduction
Location of the camera and radar sensor (generic illus-
tration)
City Safety can help prevent a collision or lower
the vehicle's speed at the point of impact.
WARNING
•
City Safety™ is a supplemental aid to the
driver. It can never replace the driver’s
attention to traffic conditions or his/her
responsibility for operating the vehicle in
a safe manner.
•
City Safety™ does not function in all driv-
ing situations or in all traffic, weather or
road conditions.
The City Safety function can help the driver avoid
a collision when e.g., there is a sudden change in
the traffic ahead if the driver's does not take
action.
The function assists the driver by applying the
brakes automatically if there is an imminent risk
of a collision and the driver does not react in
time.
City Safety triggers brief, forceful braking in an
attempt to stop your vehicle immediately behind
the vehicle or object ahead. This braking may be
perceived as being very sudden.
City Safety activates in situations where the driver
has not applied the brakes in time, which means
that the system cannot help the driver in all situa-
tions.
City Safety is designed to intervene as late as
possible to help avoid unnecessary activation.
Normally, the occupants of the vehicle will not be
aware of City Safety except when the system
intervenes when a collision is imminent.
City Safety parameters
City Safety can help avoid a collision with a vehi-
cle or cyclist ahead by reducing your vehicle's
speed by up to 30 mph (50 km/h).
In the case of pedestrians, City Safety can
reduce speed by up to 28 mph (45 km/h).
If the difference in speed is greater than
30 mph (50 km/h) or 28 mph (45 km/h) respec-
tively, City Safety's auto-brake function cannot
prevent a collision but it can help mitigate the
effects of the collision.
If there is a risk of colliding with a large animal,
City Safety can reduce the vehicle's speed by up
to 9 mph (15 km/h). The braking function for
large animals is primarily intended to mitigate the
force of a collision at higher speeds. Braking is
most effective at speeds above 43 mph
(70 km/h) and less effective at lower speeds.
DRIVER SUPPORT
}}
301
WARNING
Warnings will only be provided if there is an
imminent risk of a collision taking place. The
driver should be aware of the system's limita-
tions before operating the vehicle.
Warnings and automatic braking for pedes-
trians and cyclists are deactivated at speeds
above approx. 43 mph (70 km/h).
City Safety's auto-brake function can help
prevent a collision or reduce the speed at
which a collision occurs. However, the driver
should always apply the brakes, even if auto-
brake is operating.
The driver is always responsible for maintain-
ing the correct speed and distance in relation
to the vehicle ahead. Never wait for a collision
warning or for City Safety to intervene.
City Safety does not activate the auto-brake
function during fast acceleration.
City Safety maintenance may only be carried
out by a trained and qualified Volvo service
technician.
Function overview
Audible collision warning
Collision warning symbol
Distance monitoring by a camera and radar
sensor
When triggered, City Safety carries out three
steps in the following order:
1.
Collision warning
2.
Brake assistance
3.
Auto-brake
1: Collision warning
The driver is first alerted to the risk of an immi-
nent collision.
City Safety can detect pedestrians, cyclists or
vehicles that are stationary, are moving in the
same direction as your vehicle or are in your vehi-
cle's path.
City Safety can also detect pedestrians, large ani-
mals or cyclists that are crossing in front of your
vehicle.
If there is a risk of a collision with a pedestrian,
cyclist, large animal or a vehicle, as well as vehi-
cles described in the article "City Safety in cross-
ing traffic," the driver will be alerted by a flashing
red warning signal, an audible signal and a haptic
warning in the form of pulsations in the brake
pedal. At lower speeds, during hard braking or if
the accelerator pedal is pressed, the haptic warn-
ing will not be given.
2: Brake assistance
If the risk of a collision increases, brake support
will be activated.
This function increases pressure on the brake
pedal if the driver does not apply enough pres-
sure to the pedal.
3: Auto-brake
The brakes will be applied automatically.
If the driver has not taken action at this stage and
a collision is imminent, auto-braking will be trig-
gered. Full braking effect will be used to avoid
the collision if possible or to make the speed at
the point of impact as low as possible.
In certain situations, auto-braking may begin with
limited effect before full braking is used.
||
DRIVER SUPPORT
302
If City Safety has prevented a collision, the vehi-
cle will be kept at a standstill until the driver
takes action. If the vehicle has slowed to avoid
colliding with the vehicle ahead, your speed will
be reduced to that vehicle's speed.
When auto-brake is triggered, the seat belt pre-
tensioners may also be activated, see the article
"Seat belts" for additional information.
Auto-braking can be cancelled if the driver
presses hard on the accelerator pedal.
When City Safety applies the brakes, the brake
lights will illuminate.
When City Safety is triggered and applies the
brakes, a text message will be displayed in the
instrument panel.
Related information
•
City Safety™ troubleshooting (p. 306)
•
City Safety in crossing traffic (p. 305)
•
City Safety limitations (p. 308)
•
City Safety symbols and messages (p. 311)
•
Detecting obstructions with City Safety
(p. 303)
•
Rear Collision Warning (RCW) (p. 312)
•
City Safety warning level settings (p. 302)
•
City Safety in crossing traffic (p. 305)
•
Seat belts (p. 60)
•
City Safety when evasive action is not possi-
ble (p. 306)
City Safety warning level settings
City Safety is always activated but the function's
warning distance can be adjusted.
NOTE
City Safety cannot be turned off and activates
automatically each time the engine is started.
Setting a warning level (distance)
The distance set for warnings determines the
system's responsiveness and sets the distance at
which visual, audible and tangible (haptic) warn-
ings will be triggered.
To do so:
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car IntelliSafe City Safety.
3.
Choose among
Earlier, Normal or Later.
Begin by choosing Earlier. If too many warnings
are given, change to Normal.
If the driver feels that warnings are given too
often, the warning level can be lowered. This
means that warnings will be provided later, result-
ing in fewer warnings being given.
The setting
Later should only used in exceptional
circumstances, e.g., for a more dynamic driving
style.
WARNING
•
No automatic system can be guaranteed
to function 100% correctly in all situa-
tions. For that reason, never test City
Safety by driving toward a person or
object. This could result in serious injury
or death.
•
Even if the setting
Earlier has been
selected, warnings may be perceived as
being given late, e.g., if the difference in
speed is great or if the vehicle ahead
brakes suddenly.
•
City Safety can provide a warning for a
potential collision but it can never shorten
the driver's reaction time.
•
To help make City Safety as effective as
possible, always using the setting
Earlier
is recommended.
NOTE
•
Due to local traffic regulations in certain
markets, Rear Collision Warning (RCW)
will not activate the rear turn signals.
That part of the function will be deacti-
vated.
•
The use of the rear turn signals will also
be deactivated if the City Safety warning
level is set at
Later. See also the section
DRIVER SUPPORT
}}
303
"Setting a warning level (distance)" in the
article "City Safety settings."
•
If RCW detects a vehicle approaching
from behind, the seat belt pretensioners
and Whiplash Protection System will be
activated.
Related information
•
City Safety limitations (p. 308)
•
City Safety™ (p. 300)
•
Rear Collision Warning (RCW) (p. 312)
Detecting obstructions with City
Safety
City Safety can detect vehicles, cyclists, large
animals and pedestrians.
Vehicles
City Safety detects most types of vehicles that
are either stationary, moving in the same direc-
tion as your vehicle or those described in the arti-
cle "City Safety in crossing traffic."
In order for City Safety to detect a vehicle in
darkness, its headlights and taillights must be on
and clearly visible.
Cyclists
Optimal example of what the system considers to be a
cyclist: clear body/bike contours
To help function optimally, City Safety's function
for cyclist detection needs clear information
about the bike itself and the rider's head, arms,
shoulders, legs, the upper and lower parts of the
body and a cyclist's normal pattern of movement.
•
If major parts of the cyclist's body are not
visible to the camera, the system cannot
detect the cyclist.
•
The cyclist must be an adult riding a bike
intended for an adult.
WARNING
City Safety is designed to be a supplementary
driving aid and cannot detect all cyclists in all
situations, such as:
•
a partially obscured cyclist.
•
a cyclist whose clothing prevents a clear
view of the person's body contours.
•
a cyclist transporting a large object.
The driver is always responsible for operating
the vehicle in a safe manner.
||
DRIVER SUPPORT
304
Pedestrians
Optimal example of what the system considers to be a
pedestrian: clear body contours
To help function optimally, City Safety's function
for pedestrian detection needs clear information
about the person's head, arms, shoulders, legs,
the upper and lower parts of the body and a per-
son's normal pattern of movement.
In order to detect a pedestrian, there must be a
contrast to the background. If there is little con-
trast, the person may be detected late or not at
all, which may result in a late or no reaction from
the system.
•
If major parts of the pedestrian's body are
not visible to the camera, he/she may not be
detected.
•
In order to detect a pedestrian, the system
must have a full view of the person's entire
body and the person must be at least 32 in.
(80 cm) tall.
•
City Safety can also help detect pedestrians
in dark conditions if they are in the path of
the vehicle's headlights.
WARNING
City Safety is designed to be a supplementary
driving aid.
It cannot detect pedestrians:
•
who are partially obscured, wearing cloth-
ing that prevents a clear view of the per-
son's body contours or who are not at
least 32 in. (80 cm) tall.
•
who have limited contrast to their immedi-
ate background. A warning or braking
may be delayed or not come at all.
•
carrying a large object.
The driver is always responsible for operating
the vehicle in a safe manner.
Large animals
Examples of what City Safety considers to be large ani-
mals: stationary or moving slowly with clear body con-
tours
To function optimally, the system feature for
detecting large animals (moose, horses, etc.)
must receive as clear information about body
contours as possible. This entails being able to
detect the animal straight from the side and
assumes that the animal has a normal pattern of
movement.
If parts of the animal's body are hidden from the
camera, the system cannot detect this animal.
City Safety can also help detect large animals in
dark conditions if they are in the path of the vehi-
cle's headlights.
DRIVER SUPPORT
305
WARNING
City Safety is designed to be a supplementary
driving aid.
It cannot detect large animals in all situations
such as:
•
large animals that are partially obscured
•
large animals straight from the front or
rear
•
large animals that are running or moving
quickly
•
large animals that have limited contrast to
their immediate background. A warning or
braking may be delayed or not come at
all.
•
smaller animals such as dogs or cats
The driver is always responsible for operating
the vehicle in a safe manner.
Related information
•
City Safety™ (p. 300)
•
City Safety limitations (p. 308)
•
City Safety in crossing traffic (p. 305)
City Safety in crossing traffic
City Safety can help the driver when turning in
the path of an oncoming vehicle in an intersec-
tion.
Turning at an intersection
1. The area in which City Safety can detect an oncoming
vehicle
In order for City Safety to detect an approaching
vehicle in situations where there is a risk of a col-
lision, that vehicle must be within City Safety's
range (the red area in the illustration).
The following criteria must also be met:
•
your vehicle's speed must be at least 3 mph
(4 km/h)
•
the approaching vehicle's headlights must be
on
•
your vehicle must be making a left turn
WARNING
•
City Safety is a supplementary driving aid
and does not function in all driving situa-
tions or in all traffic, weather or road con-
ditions.
•
Warnings and braking for an approaching
vehicle will usually come at a very late
stage.
•
The driver is responsible for maintaining a
safe distance and speed. Never wait for a
warning or for City Safety to take action.
Limitations in crossing traffic
In certain situations, it may be very difficult for
City Safety to help the driver avoid a collision with
an approaching vehicle in crossing traffic, for
example:
•
on slippery roads when Electronic Stability
Control is active
•
if the approaching vehicle is detected at a
late stage
•
If the approaching vehicle is partially
obscured by another vehicle
•
if the approaching vehicle moves erratically
(e.g., sudden lane changes at a late stage)
Related information
•
City Safety™ (p. 300)
•
City Safety limitations (p. 308)
DRIVER SUPPORT
306
City Safety when evasive action is
not possible
City Safety can help the driver by automatically
braking the vehicle sooner if it is not possible to
steer out of a potential collision situation.
City Safety assists the driver by continuously try-
ing to determine possible "escape routes" to the
sides if a slow-moving or stationary vehicle ahead
is detected at a late stage.
Your vehicle (1) cannot "see" any way of veering to
avoid the vehicle ahead (2) and will attempt to auto-
brake sooner
Your vehicle
Slow moving/stationary vehicle
City Safety will not trigger the auto-brake func-
tion as long as the driver has a chance to avoid a
collision by steering the vehicle.
However, if City Safety determines that an eva-
sive steering maneuver is not possible due to a
lack of space in the adjacent traffic lanes, the
function will attempt to assist the driver by auto-
matically applying the brakes considerably
sooner.
WARNING
City Safety's capacity to assess certain traffic
situations is a supplemental aid to the driver
and does not function in all driving/traffic sit-
uations or weather/road conditions. It can
never replace the driver’s attention to traffic
conditions or his/her responsibility for operat-
ing the vehicle in a safe manner.
Related information
•
City Safety limitations (p. 308)
•
City Safety™ (p. 300)
City Safety™ troubleshooting
Messages pertaining to any possible problems
with City Safety will be displayed in the instru-
ment panel.
Troubleshooting and remedial action
Location of the camera and the radar sensor
If a message is displayed in the instrument panel
saying that the camera/radar sensor is blocked,
City Safety cannot detect vehicles, cyclists or
pedestrians ahead of you, which means that the
system is not functioning properly.
However, this message will not be displayed in all
situations in which the camera/radar sensor is
obstructed. For this reason, the driver must
ensure that the area of the windshield in front of
the camera/radar sensor is always kept clean.
DRIVER SUPPORT
}}
* Option/accessory.
307
The following table shows some of the situations
that can cause the message to be displayed and
suggested actions.
Cause Action
The area of the wind-
shield in front of the
camera/radar sensor is
dirty or covered by ice or
snow.
Clean the wind-
shield or remove
the ice/ snow.
Thick fog or heavy rain/
snow blocks reduces the
camera/radar sensor's
range of visibility.
No action. The
driver should be
extra alert in condi-
tions of this type.
There is dirt between
the inside of the wind-
shield and the camera/
radar sensor.
Have the area of
the windshield
cleaned by a
trained and quali-
fied Volvo service
technician.
CAUTION
•
Service and maintenance on City Safety
may only be carried out by a trained and
qualified Volvo service technician.
•
If a crack, scratch or stone chip should
occur in the section of the windshield in
front the camera/radar sensor, contact a
trained and qualified Volvo service techni-
cian to repair or replace the windshield.
Failing to do so may result in reduced
City Safety functionality.
•
This can also result in certain functions
being reduced or disabled, or they may
respond incorrectly.
To help avoid the risk of incorrect, reduced or
disabled functionality for driver support sys-
tems using the camera or radar sensors:
•
Volvo recommends that cracks, scratches
or stone chips on the windshield in front
of the camera/radar sensor should not
be repaired; in such cases, the entire
windshield should be replaced.
•
Before the windshield is replaced, con-
tact a Volvo retailer to ensure that the
correct windshield is ordered and instal-
led. If the wrong type of windshield is
used, this may cause City Safety to func-
tion improperly or not at all.
•
Volvo recommends the use of only Genu-
ine Volvo Replacement Windshields.
•
When replacing windshield wipers, use
the same type or ones approved by Volvo.
After the windshield has been replaced, the
camera/radar sensor will have to be recalibra-
ted by a trained and qualified Volvo service
technician to help ensure proper function of
all of the vehicle's camera-/radar-based sys-
tems.
Maintenance
In order for City Safety to function properly, the
area of the windshield must be kept free of dirt,
ice, snow, etc.
Other vehicle functions
If a message is displayed in the instrument panel,
this means that the other systems using the cam-
era/radar sensor (see the list below) will not have
full functionality or may not function at all.
The camera and radar sensor is used by the fol-
lowing functions:
•
Distance Alert*
•
Driver Alert Control*
•
Adaptive Cruise Control*
•
Pilot Assist*
•
Run-off Mitigation
•
Road Sign Information*
•
Active High Beams*
•
Lane Keeping Aid*
||
DRIVER SUPPORT
308
Do not mount or in any way attach anything on
the windshield that could obstruct the camera/
radar sensor.
WARNING
•
The camera has the same type of limita-
tions as the human eye, i.e., it cannot see
as well in heavy snowfall or rain, thick fog
or in heavy blowing dust or snow. In such
conditions, systems depending on the
camera may experience greatly reduced
functionality or may be temporarily deacti-
vated.
•
Never place any objects, decals, etc., on
the windshield in front of the camera. This
could reduce or block the camera’s func-
tion, and could cause one or more of the
systems that utilize the camera to stop
functioning.
•
Strong sunlight, reflections from the road
surface, ice or snow covering the road, a
dirty road surface, or unclear lane marker
lines may drastically reduce the camera’s
capacity to detect the side of a lane, a
pedestrian, a cyclist or another vehicle.
Radar sensor for other functions
City Safety uses the same radar sensor as
Adaptive Cruise Control. See the article "Radar
sensor limitations" for detailed information.
Related information
•
Radar sensor limitations (p. 293)
•
Camera limitations (p. 297)
•
City Safety limitations (p. 308)
City Safety limitations
City Safety™ may have limited or reduced func-
tionality in certain situations.
The function has several limitations that the driver
should be familiar with:
Low objects
Hanging objects, such as flags for overhanging
loads or accessories such as auxiliary lights or
front protective grids that extend beyond the
height of the hood may limit City Safety's func-
tion.
Slippery driving conditions
The extended braking distance on slippery roads
may reduce City Safety's capacity to help avoid a
collision. In situations of this type, the ABS
brakes and Electronic Stability Control will help
provide braking power and stability.
Backlighting
Strong sunlight, reflections, extreme light con-
trasts, the use of sunglasses, or if the driver is not
looking straight ahead may make the visual warn-
ing signal in the windshield difficult to see.
Heat
If the temperature in the passenger compartment
is very high due to e.g., strong sunlight, the visual
warning signal may be temporarily disabled.
DRIVER SUPPORT
}}
309
Camera and radar sensor's field of vision
The camera and radar sensor have limited fields
of vision. In some situations they may detect a
vehicle, large animal, pedestrian or cyclist later
than expected or not detect them at all.
Other vehicles that are dirty may be detected
later than others and in dark conditions, motorcy-
cles may be detected late or not at all.
If a text message is displayed in the instrument
panel indicates that the camera or radar sensor
are blocked, it may be difficult for City Safety to
detect a vehicle, pedestrian or cyclist and the
system's functionality may be reduced.
WARNING
Text messages may not be displayed in all sit-
uations in which the camera and/or radar
sensor are blocked. It is therefore essential to
keep the windshield in front the camera/radar
sensor clean and free from snow, ice, etc.
Camera and radar sensor components should
only be serviced or replaced by a trained and
qualified Volvo service technician.
Action by the driver
Backing up
City Safety is temporarily deactivated while the
vehicle is backing up.
Low speed
City Safety is not activated at very low speeds
(under approx. 3 mph (4 km/h). This means that
the system will not be triggered if your vehicle
approaches a vehicle ahead at very low speed,
such as when parking.
Active driver
Action by the driver always has priority. For this
reason, City Safety may not react or react later
than expected in situations in which the driver is
actively operating the vehicle, even if a collision is
imminent. This is also done to help eliminate
excessive warnings.
Other limitations
City Safety uses the vehicle's camera and radar
sensor, which have certain general limitations.
See the articles "Camera limitations" and "Radar
sensor limitations" for additional information.
WARNING
•
Warnings and braking may be delayed or
not occur at all if traffic, weather or other
conditions prevent the camera and/or
radar sensor from detecting pedestrians,
cyclists, large animals or other vehicles
correctly.
•
Other vehicles can only be detected in
darkness if their headlights and taillights
are clearly visible.
•
The sensors have a limited range for
pedestrians and cyclists. The system
functions best at relative speeds up to
30 mph (50 km/h). For stationary or
slow-moving vehicles, the system func-
tions best at speeds up to approx.
43 mph (70 km/h).
•
If there is a risk of colliding with a large
animal, City Safety can reduce the vehi-
cle's speed by up to 9 mph (15 km/h).
Warnings and braking are most effective
at speeds above 43 mph (70 km/h) and
less effective at lower speeds.
||
DRIVER SUPPORT
310
WARNING
•
Warnings for stationary or slow-moving
vehicles and large animals may be impe-
ded by darkness or poor visibility.
•
Warnings and braking for pedestrians and
cyclists will not be provided at speeds
above approx. 43 mph (70 km/h).
•
Do not place, attach or mount any objects
on the inside or outside of the windshield
near or over the sensor. This could affect
the camera-based functions.
•
Objects, snow, ice or dirt in the camera's
field of vision may result in certain func-
tions being reduced or disabled, or they
may respond incorrectly.
Related information
•
City Safety™ (p. 300)
•
Adaptive Cruise Control (ACC) - trouble-
shooting (p. 275)
•
City Safety™ troubleshooting (p. 306)
•
Camera limitations (p. 297)
•
Radar sensor limitations (p. 293)
DRIVER SUPPORT
311
City Safety symbols and messages
A number of City Safety-related messages may
be displayed in the instrument panel.
Several examples are provided in the following table:
Message Explanation
City Safety
Automatic intervention
When City Safety is braking or has applied the brakes, one of more symbols may illuminate in the instrument
panel and a text message will be displayed.
City Safety
Reduced functionality Service required
The system is not functioning properly. Contact a trained and authorized Volvo service technician.
A text message can be erased by briefly pressing
the O button on the right-side steering wheel
keypad. If the message recurs, contact a trained
and authorized Volvo service technician or
retailer.
Related information
•
City Safety™ (p. 300)
DRIVER SUPPORT
312
Rear Collision Warning (RCW)
The
Rear Collision Warning with braking at
standstill (RCW) function can help the driver
avoid rear-end collisions.
RCW is activated automatically each time the
engine is started.
RCW can warn the driver of a vehicle approach-
ing yours from behind by rapidly flashing your
turn signals.
RCW is only activated when a vehicle is rapidly
approaching your vehicle from behind.
At speeds below 20 mph (30 km/h), if RCW
determines that your vehicle is at risk of a rear-
end collision, the front seat belt pretensioners
and the Whiplash Protection System are acti-
vated.
Just prior to the collision, the brakes are also
applied to help reduce your vehicle's forward
movement if and when the collision occurs. How-
ever, this can only happen if your vehicle is sta-
tionary.
The brakes will be released immediately if the
accelerator pedal is pressed.
NOTE
•
Due to local traffic regulations in certain
markets, Rear Collision Warning (RCW)
will not activate the rear turn signals.
That part of the function will be deacti-
vated.
•
The use of the rear turn signals will also
be deactivated if the City Safety warning
level is set at
Later. See also the section
"Setting a warning level (distance)" in the
article "City Safety settings."
•
If RCW detects a vehicle approaching
from behind, the seat belt pretensioners
and Whiplash Protection System will be
activated.
Limitations
In some circumstances, it may be difficult for
RCW to help the driver if there is a risk of a colli-
sion, such as:
•
If the vehicle approaching from the rear is
detected at a late stage
•
If the vehicle approaching from the rear
changes lanes at a late stage
•
If the vehicle approaching from the rear is
moving at a speed above approx. 50 mph
(80 km/h)
Related information
•
City Safety™ (p. 300)
•
Whiplash protection system (p. 59)
•
Seat belts (p. 60)
•
City Safety warning level settings (p. 302)
DRIVER SUPPORT
}}
* Option/accessory.
313
Blind Spot Information (BLIS)*
Blind Spot Information is a system designed to
alert the driver to the presence of other vehicles
moving in the same direction as your vehicle on
roads with several lanes.
Blind Spot Information is a driving aid intended
to:
•
detect other vehicles in your door mirrors'
"blind area"
•
detect vehicles that are about to pass your
vehicle or are approaching your vehicle
quickly from behind in the left and/or right
lanes
WARNING
•
Blind Spot Information is an information
system, NOT a warning or safety system
and does not function in all situations.
•
Blind Spot Information does not eliminate
the need for you to visually confirm the
conditions around you, and the need for
you to turn your head and shoulders to
make sure that you can safely change
lanes or back up.
•
As the driver, you have full responsibility
for changing lanes/backing up in a safe
manner.
Overview
Blind Spot Information indicators
Indicator light
BLIS button in the center display's Function
view to activate/deactivate the function
The indicator light illuminates on the side of the
vehicle where the system has detected another
vehicle. If your vehicle is passed on both sides at
the same time, both lights will illuminate.
Principle for Blind Spot Information: Zone 1. Blind area,
Zone 2. Area for approaching/passing vehicles
Blind Spot Information functions when your vehi-
cle is moving at speeds above approx. 6 mph
(10 km/h).
Blind Spot Information is designed to react to:
•
vehicles that are passing your vehicle
•
other vehicles that are rapidly approaching
your vehicle
When Blind Spot Information detects a vehicle in
zone 1 or a fast-approaching vehicle in zone 2,
the indicator light in the respective door mirror
will glow steadily.
If the driver then uses the turn signal on the side
on which the warning is given, the indicator light
will begin flashing and become brighter.
||
DRIVER SUPPORT
* Option/accessory.
314
WARNING
•
Blind Spot Information does not function
in sharp curves.
•
Blind Spot Information does not function
when your vehicle is backing up.
Related information
•
Blind Spot Information (BLIS)* On/Off
(p. 314)
•
Blind Spot Information (BLIS)* limitations
(p. 315)
•
Cross Traffic Alert (CTA)* (p. 315)
Blind Spot Information (BLIS)*
On/Off
The Blind Spot Information function can be acti-
vated/deactivated.
Blind Spot Information indicators
Indicator light
Blind Spot Information symbol
Blind Spot Information can be activated/deacti-
vated in the center display's Function view.
–
In Function view, tap BLIS.
> When Blind Spot Information is activated/
deactivated, the indicator light in the but-
ton will be green/gray.
If BLIS is activated when the engine is started,
the indicator lights in the door mirrors will flash
once.
If BLIS is deactivated when the engine is
switched off, it will remain off the next time the
engine is started and the indicator lights in the
door mirrors will not illuminate.
Related information
•
Blind Spot Information (BLIS)* (p. 313)
DRIVER SUPPORT
}}
* Option/accessory.
315
Blind Spot Information (BLIS)*
limitations
Blind Spot Information functionality may be
reduced in certain situations.
•
Dirt, ice and snow on the sensors may
reduce functionality and prevent the system
from providing warnings.
•
Do not attach any objects, tape, decals, etc.,
on the surface of the sensors.
•
BLIS is deactivated if a trailer is attached to
the vehicle's electrical system.
Maintenance
The BLIS/CTA
5
sensors are located on the
inside of the rear fenders/bumper.
Keep the highlighted area clean (on both sides of the
vehicle) - generic illustration
For the system to function optimally, the area
over and around the sensors must be kept clean.
CAUTION
Repairs to the BLIS/CTA systems and/or
repainting the rear bumper should only be
done by a trained and qualified Volvo service
technician.
Related information
•
Blind Spot Information (BLIS)* On/Off
(p. 314)
•
Blind Spot Information (BLIS)* (p. 313)
•
Cross Traffic Alert (CTA)* (p. 315)
Cross Traffic Alert (CTA)*
Cross Traffic Alert (CTA) is a supplementary part
of Blind Spot Information and is intended to
detect vehicles crossing behind your vehicle
while you are backing up.
When does Cross Traffic Alert function
Principle for CTA
CTA supplements BLIS by warning the driver of
crossing traffic behind your vehicle, for example,
when backing out of a parking space.
It is primarily designed to detect another vehicle
but in certain cases may also detect pedestrians
or smaller objects such as bicycles.
CTA is only activated when the vehicle is rolling
rearward or when the gear selector is put in
reverse.
5
Cross Traffic Alert*
||
DRIVER SUPPORT
* Option/accessory.
316
If CTA detects that something is approaching
your vehicle from the side:
•
An audible signal indicates will sound from
either the left or right infotainment system
speakers, depending on which the side of
your vehicle the approaching vehicle/ object
has been detected.
•
An icon illuminates in the Park Assist* sys-
tem's graphic in the instrument panel.
•
An icon is also shown in the Park Assist
Camera's* Top view.
Illuminated CTA icon in the Park Assist system's graphic
Related information
•
Activating/deactivating Cross Traffic Alert
(CTA)* (p. 316)
•
Blind Spot Information (BLIS)* with Cross
Traffic Alert (CTA)* symbols and messages
(p. 319)
•
Cross Traffic Alert (CTA)* limitations (p. 317)
Activating/deactivating Cross Traffic
Alert (CTA)*
Cross Traffic Alert (CTA) can be activated/deac-
tivated separately from Blind Spot Information
(BLIS).
CTA is activated/deactivated in
the center display's Function
view.
–
Tap Cross Traffic Alert in Function view.
> CTA activates/deactivates.
•
Green indicator light: CTA is activated
•
Grey indicator light: CTA is deactivated
CTA is activated when the engine is started.
DRIVER SUPPORT
}}
* Option/accessory.
317
WARNING
•
BLIS and CTA are information systems,
NOT warning or safety systems and do
not function in all situations.
•
BLIS and CTA do not eliminate the need
for you to visually confirm the conditions
around you, and the need for you to turn
your head and shoulders to make sure
that you can safely change lanes or back
up.
•
As the driver, you have full responsibility
for changing lanes/backing up in a safe
manner.
Related information
•
Cross Traffic Alert (CTA)* (p. 315)
•
Blind Spot Information (BLIS)* On/Off
(p. 314)
Cross Traffic Alert (CTA)* limitations
CTA functionality may be reduced in certain sit-
uations.
Limitations
CTA has limitations in certain situations, for
example, the CTA sensors cannot "see" through
other parked vehicles or obstructions.
The following are several examples where CTA's
"field of vision" may initially be limited and
approaching vehicles cannot be detected until
they are too close:
The vehicle is pulled far into a parking space
In angled parking spaces, CTA may be "blind" on one
side
CTA's blind area
CTA's "field of vision"
However, as you back your vehicle out of a park-
ing space, CTA's "field of vision" expands.
Examples of other limitations include:
•
Dirt, ice or snow obstructing the sensors may
reduce the system's function or make it
impossible to detect other vehicles or
objects.
•
CTA is deactivated if a trailer's wiring is con-
nected to the vehicle's electrical system.
Maintenance
The CTA sensors are located on the inside of the
rear fenders/bumper.
||
DRIVER SUPPORT
* Option/accessory.
318
Keep the highlighted area clean (on both sides of the
vehicle) - generic illustration
For the system to function optimally, the area
over and around the sensors must be kept clean.
Do not attach any objects, tape, decals, etc., on
the surface of the sensors.
CAUTION
Repairs to the BLIS/CTA systems and/or
repainting the rear bumper should only be
done by a trained and qualified Volvo service
technician.
Related information
•
Cross Traffic Alert (CTA)* (p. 315)
•
Activating/deactivating Cross Traffic Alert
(CTA)* (p. 316)
•
Blind Spot Information (BLIS)* with Cross
Traffic Alert (CTA)* symbols and messages
(p. 319)
•
Blind Spot Information (BLIS)* limitations
(p. 315)
DRIVER SUPPORT
* Option/accessory.
319
Blind Spot Information (BLIS)* with
Cross Traffic Alert (CTA)* symbols
and messages
In situations where Blind Spot Information
and/or Cross Traffic Alert are not functioning
properly or if the function is interrupted, a sym-
bol and a text message may be displayed in the
instrument panel. Follow the instructions provi-
ded.
The following table lists several symbols and messages:
Message Explanation
Blind spot sensor
Service required
The system is not functioning properly. Contact a trained and qualified Volvo service technician
Blind spot system off
Trailer attached
BLIS and CTA have been deactivated because a trailer has been connected to teh vehicle's electrical system.
A text message can be erased by briefly pressing
the O button on the right-side steering wheel
keypad. If the message recurs, contact a trained
and authorized Volvo service technician or
retailer.
Related information
•
Cross Traffic Alert (CTA)* (p. 315)
•
Blind Spot Information (BLIS)* (p. 313)
DRIVER SUPPORT
* Option/accessory.
320
Road Sign Information (RSI)*
RSI is a feature that helps the driver see road
signs showing the posted speed limit.
Examples of readable road signs
If the vehicle passes a sign showing the speed
limit, this will be displayed in the instrument panel
and the head-up display*.
NOTE
If the vehicle is equipped with the Sensus
Navigation system, speed-related information
is provided by this system in the following
instances:
•
In cases where the speed limit is given
indirectly (e.g., when driving on highways
or other major roads).
•
If a previously read speed limit sign is no
longer considered valid and no new sign
has been passed.
If a third-party navigation system is being
used, RSI has no support for speed-related
information.
WARNING
RSI does not function in all situations and is
only intended to provide supplementary infor-
mation.
The driver is always responsible for operating
the vehicle safely.
Related information
•
Road Sign Information (RSI)* operation
(p. 320)
•
Road Sign Information (RSI)* limitations
(p. 322)
•
Speed limiter (SL)* (p. 251)
•
Head-up display (HUD)* (p. 116)
Road Sign Information (RSI)*
operation
Speed limit information
Speed limit information
When RSI registers a road sign showing the
speed limit, this sign is displayed as a symbol on
the instrument panel.
Settings
RSI settings can be made in the center display's
Top view.
Go to:
Settings My Car IntelliSafe
Road Sign Information.
DRIVER SUPPORT
* Option/accessory.
321
Activating/deactivating RSI
RSI can be activated/deacti-
vated in the center display's
function view.
–
Tap the Road Sign Information button in
Function view.
> When RSI is activated, the indicator light
in the button will be green. The indicator
light will be gray when the function is
deactivated.
Activating/deactivating the speed warning
function
The driver can be alerted if the current speed
limit is being exceeded (the symbol for the cur-
rent speed limit will begin to flash). This function
can be activated or deactivated and the limit for a
warning can be set.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car IntelliSafe Road Sign
Information
.
3.
Tap
Speed Limit Warning to activate/deac-
tivate this function.
> If the function is activated, a speed selec-
tor will be displayed.
4. Select the limit at which the speed warning is
to be given by pressing the up/down arrows.
Please be aware that the set warning limit
will not be used when a speed camera sym-
bol is displayed in the instrument panel.
Activating/deactivating the audible alert
The audible alert can be activated/deactivated
and the limit for a warning can be set.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car IntelliSafe Road Sign
Information
.
3.
Tap
Audio Warning to activate/deactivate
this function.
Speed camera alert
Speed camera warning in the instrument panel (generic
illustration)
If the Sensus navigation system
in your vehicle is being used,
the driver can be alerted if the
vehicle is exceeding a detected
speed limit and is approaching
a speed camera.
Related information
•
Road Sign Information (RSI)* (p. 320)
•
Road Sign Information (RSI)* limitations
(p. 322)
DRIVER SUPPORT
* Option/accessory.
322
Road Sign Information (RSI)*
limitations
The RSI function may be limited in certain situa-
tions.
RSI may have difficulty reading signs that are:
•
Faded
•
Located in a curve
•
Twisted or damaged
•
Positioned high above the road
•
Obstructed (by bushes, etc.)
•
Partially covered by snow, ice, etc.
•
If the digital maps used by the Sensus
Navigation system* are not up-to-date or do
not contain speed information
6
.
The camera used by RSI has certain limitations.
See the article "Camera limitations" for additional
information.
NOTE
RSI may perceive certain types of bicycle
holders (with wiring attached to the trailer
electrical socket) as a trailer, which may result
in faulty speed limit information to the driver.
Related information
•
Road Sign Information (RSI)* (p. 320)
•
Road Sign Information (RSI)* operation
(p. 320)
•
Camera limitations (p. 297)
Driver Alert Control (DAC)
DAC is intended to alert the driver if his/her driv-
ing becomes erratic due to e.g., distraction or
fatigue.
DAC is designed to help detect a slowly chang-
ing driving pattern. It is primarily intended to be
used on main roads and is not meant for use in
city traffic.
The function activates initially when the vehicle's
speed first exceeds 40 mph (65 km/h) and
remains active as long the speed remains above
approx. 37 mph (60 km/h)
A camera monitors the traffic lane's side marker
lines and compares the direction of the road with
the driver’s movements of the steering wheel.
6
Speed information is not available in all markets.
DRIVER SUPPORT
323
If the driving pattern becomes
noticeably erratic, the driver will
be alerted by an audible signal
and
Driver Alert Time for a
break will appear in the instru-
ment panel along with a sym-
bol.
The warning will be repeated if the driving pattern
does not change.
WARNING
•
DAC is not intended to extend the dura-
tion of driving. Always plan breaks at reg-
ular intervals to help remain alert.
•
A warning from DAC should not be
ignored. A driver may not be aware of
how fatigued he/she has become.
•
In certain cases, fatigue may not affect
the driver’s behavior. In situations of this
type, no warning will be provided. There-
fore, it is important to take breaks at reg-
ular intervals, regardless of whether or
not DAC has given a warning.
Related information
•
Using Driver Alert Control (DAC) (p. 323)
•
Driver Alert Control limitations (p. 324)
Using Driver Alert Control (DAC)
DAC settings are made in the center display's
menu system.
Activating/deactivating Driver Alert
Control
1.
Tap
Settings in the center display's Top
view.
2.
Tap My Car IntelliSafe Driver Alert
Control
.
3.
Select
Alertness Warning to activate/deac-
tivate DAC.
Activating/deactivating guidance to a
rest area
With this feature activated, DAC will propose a
nearby rest area if a warning has been given.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car IntelliSafe Driver Alert
Control
.
3.
Select
Rest Stop Guidance to activate/
deactivate guidance to a rest area.
Related information
•
Driver Alert Control (DAC) (p. 322)
DRIVER SUPPORT
* Option/accessory.
324
Driver Alert Control limitations
Driver Alert Control (DAC) may have limited or
reduced functionality in certain situations.
WARNING
A driving pattern may not change despite
driver fatigue, e.g., if a function such as Pilot
Assist is being used, which means that DAC
will not provide a warning. It is always very
important to stop and take a break at the first
sign of driver fatigue, even if the system has
not provided a warning.
In certain situations, DAC may provide warnings
even if the driver’s driving pattern has not
become erratic:
•
in strong crosswinds
•
on grooved road surfaces.
NOTE
DAC uses the vehicle's camera, which has
certain general limitations. See the article
"Camera limitations" for additional informa-
tion.
Related information
•
Driver Alert Control (DAC) (p. 322)
•
Using Driver Alert Control (DAC) (p. 323)
•
Camera limitations (p. 297)
•
Pilot Assist* (p. 279)
Driving lane assistance
The
Lane Assistance functions are designed to
help reduce the risk of accidents in situations
where the vehicle unintentionally leaves its lane
on highways or other major roads.
Driving lane assistance system
Lane Keeping Aid (LKA) actively steers the vehi-
cle to help keep it in its traffic lane and/or alerts
the driver using an audible signal or through
vibrations in the steering wheel.
The driving lane assistance system is active at
speeds between approx. 40-125 mph
(65-200 km/h) on roads with clearly visible traf-
fic lane marker lines. Always observe posted
speed limits.
On narrow roads, the system may not function
and will go into standby mode. It will return to
active mode if the road becomes sufficiently
wide.
A camera monitors the road/traffic lane's marker lines.
Driving lane assistance attempts to steer the vehicle
back into its lane.
DRIVER SUPPORT
}}
325
Driving lane assistance provides vibrations in the steer-
ing wheel
7
.
Depending on the settings used, Lane Keeping
Aid functions in different ways:
•
Assistance type
Steering
8
is activated: when
the vehicle approaches a traffic lane marker
line, LKA will provide active steering assis-
tance to help steer it back into the lane.
•
Assistance type
Warning
8
is activated: if the
vehicle is moving out of its traffic lane, an
audible signal and/or vibrations in the steer-
ing wheel will be provided.
NOTE
If the turn signal is used, Lane Keeping Aid
will not provide an alert or steering assis-
tance.
WARNING
Lane Keeping Aid is only intended to assist
the driver and does not function in all driving,
weather, traffic or road conditions.
As the driver, you have full responsibility for
operating the vehicle in a safe manner.
Steering assistance
In order for LKA's steering assistance to function,
the driver's hands must be on the steering wheel,
which the system monitors continuously.
If the driver's hands are not on
the steering wheel, this symbol
will illuminate in the instrument
panel and the following mes-
sage will be displayed:
•
Lane Keeping Aid – Apply steering
If the driver does not begin to steer the vehicle,
the symbol will illuminate again, an audible signal
will sound and the following message will be dis-
played:
•
Lane Keeping Aid – Standby until
steering applied
If the driver still does not begin to steer the vehi-
cle, LKA will go into standby mode. The function
will not become available again until the driver
actively steers the vehicle
Traffic lane assistance does not react
The traffic lane assistance system does not intervene in
sharp curves
In certain cases, such as during active driving or if
the turn signal is used, the traffic lane system will
not react if the vehicle crosses a lane marker
line.
7
The level of vibrations varies; the farther the vehicle is over a lane marker line, the greater the number of vibrations:
8
See "Type of assistance" in the article "Activating/deactivating Lane Keeping Aid".
||
DRIVER SUPPORT
326
Limitations
In certain demanding driving situations, the driv-
ing lane assistance functions may not be able to
assist the driver. In these situations, it may be
advisable to turn the function off.
Examples of such situations:
•
road construction
•
winter driving conditions
•
poor road surfaces
•
a very active driving style
•
bad weather with reduced visibility
•
edges or lines other than the lane's marker
lines
•
roads with indistinct or no lane marker lines
The driving lane assistance function use the vehi-
cle's camera, which has general limitations. See
the article "Camera limitations."
Related information
•
Activating/deactivating Lane Keeping Aid
(LKA) (p. 326)
•
Camera limitations (p. 297)
•
Run-off Mitigation (p. 329)
Activating/deactivating Lane
Keeping Aid (LKA)
LKA can be activated/deactivated.
Activating/deactivating
The function can be activated/deactivated in the
center display's Function view.
–
Tap Lane Keeping Aid.
> LKA is activated (GREEN indicator light in
the button), or is deactivated (GRAY indi-
cator light in the button).
Type of warning
Choose the type of warning that the driver will
receive if the vehicle starts to leave its driving
lane.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car IntelliSafe Lane
Assistance
.
3.
Under
Lane Keeping Aid Warning
Feedback, select:
•
Sound: an audible warning signal will be
provided
•
Vibrations: the driver will be warned by
vibrations in the steering wheel
Type of assistance
Select the type of assistance LKA should provide:
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car IntelliSafe Lane
Assistance
.
3.
Under
Lane Keeping Aid Assistance
Mode, select:
•
Steering: the system will provide steering
assistance but no warning.
•
Both: the system will provide steering
assistance and warning
•
Warning: the system will provide warning
but no steering assistance
Related information
•
Driving lane assistance (p. 324)
•
Driving lane assistance symbols and mes-
sages (p. 327)
DRIVER SUPPORT
}}
327
Driving lane assistance symbols
and messages
A number of symbols and messages relating to
Lane Keeping Aid (LKA) may appear in the
instrument panel.
Symbols in the instrument panel
The driving lane assistance
systems use a symbol in the
instrument panel in different
situations.
Several examples of the symbol's appearance will
be given here:
Available
When the driving lane assistance systems are available,
the marker lines in the symbol will be white.
LKA are monitoring the driving lane's marker
line(s).
Not available
When the driving lane assistance systems are not avail-
able, the marker lines in the symbol will be gray
This is because LKA cannot monitor (detect) the
driving lane's marker line(s) or the vehicle's
speed is too low or the road is too narrow.
Steering/warning indicator
Steering/warning: the side marker lines in the symbol
will be colored
LKA indicates that the system is warning and/or
attempting to steer the vehicle back into its lane.
||
DRIVER SUPPORT
328
Symbols and messages
The following table lists several LKA-related symbols and messages.
Symbol Message Explanation
Driver support system
Reduced functionality Service required
The system is not functioning properly. Contact a trained and qualified Volvo service techni-
cian.
Windscreen sensor
Sensor blocked, see Owner's manual
The camera's functionality is limited.
Lane Keeping Aid
Apply steering
LKA's steering assistance does not function if the driver's hands are not on the steering
wheel. Steer the vehicle actively.
Lane Keeping Aid
Standby until steering applied
LKA's steering assistance is in standby mode until the driver actively steers the vehicle.
A text message can be erased by briefly pressing
the O button on the right-side steering wheel
keypad. If the message recurs, contact a trained
and authorized Volvo service technician or
retailer.
Related information
•
Driving lane assistance (p. 324)
•
Activating/deactivating Lane Keeping Aid
(LKA) (p. 326)
DRIVER SUPPORT
}}
329
Run-off Mitigation
Run-off Mitigation is designed to assist the
driver by helping return the vehicle to its traffic
lane if it is about to go off the road.
Run-off Mitigation is active at speeds between
40–87 mph (65–140 km/h)
9
on roads with
clearly marked edges or side marker lines.
Run-off Mitigation uses a camera to monitor the
edges of a road and its side marker lines. If the
vehicle is about to cross the edge of the road or
side marker line, Run-off Mitigation will attempt
to actively steer the vehicle back onto the road. If
the attempt to steer the vehicle is not sufficient,
the brakes will also be applied.
Run-off Mitigation does not provide steering or
braking assistance if a turn signal is being used.
If the function detects that the vehicle is being
driven actively, Run-off Mitigation activation may
be delayed for a short time.
The function has two activation levels:
•
Steering assistance only
•
Steering assistance and braking
Run-off Mitigation with steering assistance
only
Run-off Mitigation provides steering assistance
Run-off Mitigation with steering assistance
and braking
Run-off Mitigation provides steering assistance and
braking
Braking is triggered in situations where steering
assistance may not be sufficient. Braking effect is
modulated automatically depending on the situa-
tion when the vehicle begins to run off the road.
Settings
Run-off Mitigation can be activated/deactivated
by pulling down the center display's Top view and
navigating to:
Settings My Car IntelliSafe Lane
Assistance
To activate Run-off Mitigation:
•
Select (tap) the box for
Run-off Mitigation,
Assistance in case of road departure.
9
Always observe posted speed limits.
||
DRIVER SUPPORT
* Option/accessory.
330
The setting selected when the engine was
switched off will be used the next time the
engine is started.
Limitations
In certain situations, it may be difficult for Run-off
Mitigation to assist the driver. In such cases, it is
advisable to deactivate the function.
Examples of these situations include:
•
road construction
•
winter driving conditions
•
poor road surfaces
•
narrow roads
•
a very active driving style
•
bad weather with reduced visibility
•
edges or lines other than the lane's marker
lines
•
roads with indistinct or no lane marker lines
The Run-off Mitigation function use the vehicle's
camera, which has general limitations. See the
article "Camera limitations".
WARNING
•
Run-off Mitigation is only intended to
assist the driver and does not function in
all driving, weather, traffic or road condi-
tions.
•
This function cannot detect barriers, rails
or similar obstructions at the side of a
road or traffic lane.
•
As the driver, you have full responsibility
for operating the vehicle in a safe man-
ner.
Related information
•
Run-off Mitigation* symbols and messages
(p. 331)
•
Driving lane assistance (p. 324)
•
Camera limitations (p. 297)
DRIVER SUPPORT
* Option/accessory.
331
Run-off Mitigation* symbols and
messages
A number of symbols and messages relating to
Run-off Mitigation may appear in the instrument
panel.
The following table provides several examples:
Symbol Message Explanation
Run-off Mitigation
Automatic intervention
This message indicates that Run-off Mitigation has been activated.
Driver support system
Reduced functionality Service required
The system is not functioning properly. Contact a trained and qualified Volvo service techni-
cian.
Windscreen sensor
Sensor blocked, see Owner's manual
The camera's functionality is limited.
Related information
•
Run-off Mitigation (p. 329)
DRIVER SUPPORT
* Option/accessory.
332
Park Assist*
The Park Assist system is designed to assist you
when driving into parking spaces, garages, etc.
An audible signal and symbols in the instrument
panel and center display indicate the distance to
the object.
Display view showing object zones and sensor sectors
The center display shows an overview of the vehi-
cle in relation to objects that have been detected.
The highlighted sector shows which of the sen-
sors has detected the object. The closer the
highlighted sector is to the vehicle symbol, the
closer the actual object is to your vehicle.
The Park Assist system uses an intermittent tone
that pulses faster as you come closer to an
object. Sound from the infotainment system will
be temporarily turned down.
The audible signals for objects in front of and to
the sides are active while the vehicle is moving
and will stop after the vehicle has been stopped
for approx. 2 seconds. The audible signals for
objects behind the vehicle are active even when
the vehicle has stopped moving.
The audible signal becomes constant when you
are within approximately 1 ft (30 cm) of an object
and the highlighted sensor field is filled in.
While an audible signal is being given, its volume
level can be raised/lowered using the >II control
in the center console or can be adjusted in the
center displays Top view under
Settings.
NOTE
Audible alerts will only be provided for objects
that are directly in the vehicle's path.
WARNING
Park Assist is an information system, NOT a
safety system. This system is designed to be
a supplementary aid when parking the vehicle.
It is not, however, intended to replace the driv-
er's attention and judgement.
Rear park assist
The system's rear sensors are activated automat-
ically when the engine is started and are active if
the vehicle rolls rearward with the gear selector
in N or if R has been selected.
The distance monitored behind the vehicle is
approximately 5 ft (1.5 m). The audible signal
comes from the rear speakers.
The rear sensors will be deactivated automatically
when towing a trailer if Volvo genuine trailer wir-
ing is used. If a non-Volvo trailer hitch is being
used, it may be necessary to switch off the sys-
tem manually.
DRIVER SUPPORT
* Option/accessory.
333
Side park assist
The system's side sensors are activated automat-
ically when the engine is started and are active at
speeds below approximately 6 mph (10 km/h).
The distance monitored along the sides of the
vehicle is approximately 1 ft (30 cm). The audible
signal comes from the side speakers.
Front park assist
The system's front sensors are activated auto-
matically when the engine is started and are
active at speeds below approximately 6 mph
(10 km/h).
The distance monitored in front of the vehicle is
approximately 2.5 ft (80 cm). The audible signal
comes from the front speakers.
Front Park Assist is deactivated if the parking
brake is applied or if the gear selector is put in P.
When installing auxiliary headlights, be sure that
they do not obstruct the front sensors. Otherwise,
these lights could trigger a Park Assist warning.
Related information
•
Activating/deactivating Park Assist (p. 333)
•
Park Assist limitations (p. 334)
•
Park assist symbols and messages (p. 335)
Activating/deactivating Park Assist
The Park Assist system can be turned on or off.
On/Off
Park Assist's front and side sensors are activated
automatically when the engine is started. The
rear sensors activate if the vehicle rolls rearward
in N or if R is selected.
This function can be activated/
deactivated in the center dis-
play's Function view.
–
Tap the Park Assist button.
> Green indicator: the function is active.
Gray indicator: the function is deactivated.
Related information
•
Park Assist* (p. 332)
•
Park Assist limitations (p. 334)
•
Park assist symbols and messages (p. 335)
DRIVER SUPPORT
* Option/accessory.
334
Park Assist limitations
The Park Assist system has certain limitations.
NOTE
A trailer hitch whose wiring is integrated with
the vehicle's electrical system will be taken
into account when measuring the available
space behind the vehicle.
NOTE
•
The system will not detect high objects,
such as a loading dock, etc.
•
Certain materials or fabrics may not be
detected by the sensors. Objects made of
these materials or people wearing cloth-
ing made of these fabrics may not be
detected.
•
Children or animals near the vehicle may
not always be detected.
•
Objects such as chains, thin shiny poles
or low objects may temporarily not be
detected by the system. This may result
in the pulsing tone unexpectedly stopping
instead of changing to a constant tone as
the vehicle approaches the object. In
such cases, use caution when backing up
or stop the vehicle to help avoid damage.
•
In certain circumstances, the park assist
system may give unexpected warning sig-
nals that can be caused by external
sound sources that use the same ultra-
sound frequencies as the system. This
may include such things as the horns of
other vehicles, wet tires on asphalt, pneu-
matic brakes, motorcycle exhaust pipes,
other vehicles with similar ultrasound sys-
tems, etc. This does not indicate a fault in
the system.
Cleaning the sensors
Location of the Park Assist sensors
The sensors must be cleaned regularly to ensure
that they work properly. Clean them with water
and a suitable car washing detergent.
NOTE
If the sensors are obstructed by e.g., dirt,
snow, or ice, this could result in false warning
signals from the park assist system or the
system may not function at all.
Related information
•
Park Assist* (p. 332)
•
Activating/deactivating Park Assist (p. 333)
•
Park assist symbols and messages (p. 335)
DRIVER SUPPORT
* Option/accessory.
335
Park assist symbols and messages
A number of messages relating to Park Assist
will appear in the instrument panel.
The following table provides some examples.
Message Explanation
Park Assist System
Unavailable Service required
The system is not functioning properly. Contact a trained and qualified Volvo service technician.
Park Assist System
Sensors blocked, cleaning needed
One or more of the system's sensors are blocked. Check and clean the sensors as soon as possible.
A text message can be erased by briefly pressing
the O button on the right-side steering wheel
keypad. If the message recurs, contact a trained
and authorized Volvo service technician or
retailer.
Related information
•
Park Assist limitations (p. 334)
•
Park Assist* (p. 332)
•
Activating/deactivating Park Assist (p. 333)
DRIVER SUPPORT
* Option/accessory.
336
Park Assist Camera (PAC)*
The Park Assist Camera system is designed to
provide the driver with a view of the area around
the vehicle in the form of a camera image and
graphics in the center display.
PAC is a supplementary parking aid that can be
activated automatically when the gear selector is
in R or by tapping a button in the center display,
depending on the selected settings. See also the
article "Starting the Park Assist Camera."
Lines: Guiding lines On/Off
Towbar: Guiding lines for a trailer hitch*
10
On/Off
PAS: Park Assist On/Off
CTA: Cross Traffic Alert* On/Off
Zoom: Zoom in/out
11
NOTE
A trailer hitch whose wiring is integrated with
the vehicle's electrical system will be taken
into account when measuring the available
space behind the vehicle.
WARNING
•
PAC is designed to be a supplementary
aid when parking the vehicle. It is not,
however, intended to replace the driver’s
attention and judgment.
•
The camera has blind spots where it can-
not detect objects or people around or
near the vehicle.
•
Pay particular attention to people or ani-
mals that are close to the vehicle.
•
Objects seen on the screen may be
closer than they appear to be.
Camera views
This function can show a 360° panoramic view as
well as separate views for the four respective
cameras: front, rear, left, right. The currently
selected camera will be displayed at the top of
the view.
Panorama (360°) view
Location of the cameras and their fields of vision
All four sides of the vehicle are shown in the cen-
ter display to help the driver monitor objects
close-by when maneuvering at low speeds.
Each camera view can be displayed separately:
•
Tap the center display in the desired "field of
vision," e.g., behind the rear camera, etc.
The camera view selected (front/left/right/rear)
will be indicated at the top of the graphic.
The cameras can be activated automatically or
manually, see the article "Park Assist Camera
settings."
10
Not available in all markets.
11
Guiding lines will not be displayed while zooming in.
DRIVER SUPPORT
}}
* Option/accessory.
337
Backing up
Location of the rear Park Assist Camera (generic illus-
tration)
The rear camera shows a wide area behind the
vehicle and on certain models, part of the bumper
and the trailer hitch (if installed) will be visible.
Some objects on the screen may appear to “lean”
slightly, which is normal.
WARNING
People/objects/obstructions displayed on the
center console screen may be closer to the
vehicle than they appear.
Front camera
Location of the front Park Assist Camera (generic illus-
tration)
The front camera is located behind the grill and
can be useful when driving off in areas with lim-
ited visibility (hedges, bushes, etc). It is active at
speeds up to approx. 16 mph (25 km/h) and is
automatically turned off when the vehicle
exceeds this speed.
However, if the vehicle's speed does not exceed
30 mph (50 km/h) and its speed goes under
14 mph (22 km/h) within 60 seconds after the
camera has been switched off, the front camera
will reactivate.
NOTE
The front camera will only reactivate automati-
cally if
Auto Camera Reverse Activation
has been selected in Settings My Car
Park Assist.
Side camera
The side cameras are located in the respective
door mirrors and show views along the sides of
the vehicle.
Related information
•
Park Assist Camera (PAC)* trajectory lines
and fields (p. 338)
•
Park Assist Camera* (PAC) limitations
(p. 341)
•
Starting the Park Assist Camera (PAC)*
(p. 340)
DRIVER SUPPORT
* Option/accessory.
338
•
Park Assist* (p. 332)
•
Cross Traffic Alert (CTA)* (p. 315)
•
Park Assist Pilot (PAP)* (p. 342)
Park Assist Camera (PAC)*
trajectory lines and fields
The Park Assist Camera system uses trajectory
lines and fields to indicate the vehicle's position
in relation to its immediate surroundings.
Trajectory lines
Sample guidelines
The trajectory lines are intended to show the
position of the vehicle's outermost dimensions
based on the current position of the steering
wheel to help simplify parallel parking, backing
into tight spaces or when attaching a trailer.
The lines on the screen are projected as if they
were a path on the ground around the vehicle
and are directly affected by the way in which the
steering wheel is turned. This enables the driver
to see path the vehicle will take, even if he/she
turns the steering wheel.
These lines also indicate the outermost limits that
any object (door mirrors, corners of the body, a
trailer hitch, etc.) extends out from the vehicle,
even when it turns.
NOTE
When backing up with a trailer, the trajectory
lines show the path that the vehicle will take,
not the trailer.
Trajectory lines will not be displayed while
zooming in.
WARNING
Keep in mind that when the rear camera has
been selected, the image on the screen only
shows the area behind the vehicle. The driver
must always watch for people, animals, other
vehicles, etc., near the sides or the front of the
vehicle when turning while backing up.
The opposite is true when the front camera is
selected.
Please note that the trajectory lines show the
shortest path. Be sure that the vehicle’s sides
do not come into contact with or scrape
against any obstacle/obstruction when the
steering wheel is turned while driving forward
or that the front of the vehicle does not come
into contact with or scrape against any obsta-
cle/obstruction when backing up.
DRIVER SUPPORT
}}
* Option/accessory.
339
Models with the 360° panorama camera
system and Park Assist sensors*
Location of the cameras and their fields of vision
(generic illustration)
On models with the 360° panorama camera sys-
tem, trajectory lines will be shown behind, in front
of or to the sides of the vehicle, depending on its
direction.
•
When driving forward: front lines
•
When backing up: side/rear lines
When the front or rear camera is selected, trajec-
tory lines will be shown regardless of the vehi-
cle's direction.
If a side camera is selected, trajectory lines will
only be shown if the vehicle is backing up.
Trajectory lines for a trailer hitch (towbar)
Towbar: activate trajectory lines for a trailer
hitch
Zoom: zoom in/out
The camera can help make hitching a trailer eas-
ier by showing the "line" that the trailer hitch will
take toward the trailer.
1.
Tap
Towbar (1).
> The trajectory lines will be displayed and
the trajectory lines for the vehicle will dis-
appear.
2.
Tap
Zoom (2) for a close-up view.
> The camera will zoom in.
Trajectory lines for the trailer hitch and the vehi-
cle cannot be shown at the same time.
Front and rear sensor fields
If the vehicle is also equipped with the optional
Park Assist system, this information will be dis-
played on the screen as colored field showing
the distance to obstacles that have been
detected.
Front and rear sensors
The screen can display colored sensor fields on the car
symbol at the right
The front and rear fields change colors (yellow-
orange-red) as the vehicle moves closer to an
object.
Front/rear field col-
ors
Distance to the object
Yellow 2.0–4.9 ft (0.6–1.5 m )
Orange 1.3–2.0 ft (0.4–0.6 m)
Red 0–1.3 ft (0–0.4 m)
||
DRIVER SUPPORT
* Option/accessory.
340
Side sensors
The side fields will only be shown in orange.
Side field color Distance to the object
Orange 0–1.0 ft (0–0.3 m)
Related information
•
Park Assist Camera (PAC)* (p. 336)
•
Starting the Park Assist Camera (PAC)*
(p. 340)
Starting the Park Assist Camera
(PAC)*
PAC starts automatically when the gear selector
is moved to R or can be started manually from
the center display.
Starting the camera
PAC can be started manually in
the center display's Function
view if it is turned off.
–
Tap the Camera button.
> The camera will start.
Starting the camera in different
situations
When the button is tapped, the vehicle's speed
and direction determine if the camera starts in
top view or front view:
•
Top view: if the vehicle is stationary or is
moving forward at speeds up to 9 mph
(15 km/h)
•
Top view: if the vehicle is stationary or is
reversing, regardless of speed
•
Front view: if the vehicle is moving forward at
speeds between 9–14 mph (15–22 km/h)
Activating/deactivating automatic start
of PAC
PAC can be started automatically when reverse
gear is selected.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Park Assist.
3.
Select
Auto Camera Reverse Activation
to activate/deactivate automatic start.
Automatically deactivating the camera
Front view switches off at a speed of approx. 16
mph (25 km/h) to help avoid distracting the
driver. If the setting
Auto Camera Reverse
Activation has been selected, the camera's front
view will reactivate if the vehicle's speed drops
below 14 mph (22 km/h) within 60 seconds. If
the vehicle's speed has exceeded 31 mph (50
km/h), front view will not automatically reactivate.
Other camera views switch off at 9 mph (15
km/h) and will not reactivate automatically.
Selecting the camera's basic view when
reversing
With Auto Camera Reverse Activation
selected, the driver can also choose the camera
view to be used when reversing: the rear view or
360° view*.
1.
Tap
Settings in the center display's Top
view.
DRIVER SUPPORT
}}
* Option/accessory.
341
2.
Tap
My Car Park Assist.
3.
Select
Rear View Instead of 360° to set
the rear view as default.
Related information
•
Park Assist Camera (PAC)* trajectory lines
and fields (p. 338)
•
Park Assist Camera* (PAC) limitations
(p. 341)
•
Ignition modes (p. 374)
Park Assist Camera* (PAC)
limitations
The Park Assist Camera system has certain limi-
tations that the driver should be aware of.
NOTE
Bicycle carriers or other accessories mounted
on the tailgate may obstruct the camera's
field of vision.
Blind sectors
Even if a fairly small section of the screen image
appears to be obstructed, this may mean that a
relatively large area is hidden and objects there
may not be detected until they are very near the
vehicle.
The "blind" sectors between the cameras' fields of vision
With 360° view selected, objects/obstacles may
not be detected at the edges of the individual
cameras' fields of vision.
Defective camera
If a camera sector is dark and
contains this symbol, this indi-
cates that the camera is not
functioning properly (see the
following illustration).
In this example, the driver's side camera is not function-
ing
||
DRIVER SUPPORT
* Option/accessory.
342
Dark camera sectors
A dark camera sector may also be displayed in
the following situations but without the defective
camera symbol. A sector may be dark because:
•
the door mirror is folded in
•
the door is open
•
the tailgate is open
Ambient lighting
The camera images are adjusted automatically to
the ambient light, which means the image may
vary slightly in terms of light and quality. Poor
ambient lighting may reduce the quality of the
image.
Maintenance
•
Keep the camera's lens free of dirt, ice and
snow. This is particularly important in poor
ambient lighting conditions.
•
Remove dirt, ice and snow carefully to avoid
scratching the lenses.
•
Clean the lens regularly with warm water and
a suitable car washing detergent.
Related information
•
Park Assist Camera (PAC)* (p. 336)
Park Assist Pilot (PAP)*
Park Assist Pilot (PAP) helps the driver drive into
parallel or perpendicular parking spaces and
leave parallel parking spaces.
Park Assist Pilot provides assistance when park-
ing by measuring the parking space and turning
the steering wheel to guide the vehicle into the
space.
Information about the actions required by the
driver is provided in the center display in the form
of symbols, images and text.
NOTE
While PAP is active, the driver's task is to:
•
carefully monitor the area around the
vehicle
•
follow the instructions provided in the
center display
•
select a gear (D or R) when prompted
•
regulate the vehicle's speed
•
apply the brakes when necessary and
stop the vehicle
Types of parking
Parallel parking
Procedure for parallel parking
PAP helps park the vehicle as follows:
1. The system searches for and measures a
possible parking space. While this is being
done, the vehicle's speed may not exceed
approx. 20 mph ( 30 km/h). When backing
into a space, the speed may not exceed
approx. 4 mph ( 7 km/h).
2. The vehicle is steered while it is backing into
the parking space. The driver controls the
vehicle's speed.
3. The vehicle's position in the parking space is
adjusted by prompting the driver to move for-
ward and rearward while the system steers.
DRIVER SUPPORT
}}
* Option/accessory.
343
Perpendicular parking
Procedure for perpendicular parking
PAP helps park the vehicle as follows:
1. The system searches for and measures a
possible parking space. While this is being
done, the vehicle's speed may not exceed
approx. 4 mph ( 7 km/h).
2. The vehicle is steered while it is backing into
the parking space and its position in the
space is adjusted by prompting the driver to
select D or R while the system steers. The
driver has to control the vehicle's speed.
NOTE
PAP's Park out function cannot be used to
help a vehicle leave a parking space if the
Perpendicular parking function was used
to park the vehicle.
WARNING
•
PAP does not function in all situations
and is only intended to assist the driver
during parallel or perpendicular parking.
•
As the driver, you have full responsibility
for parking the vehicle in a safe manner.
Related information
•
Using Park Assist Pilot (PAP)* (p. 343)
•
Park Assist Pilot (PAP)* limitations (p. 346)
•
Park Assist Pilot (PAP)* symbols and mes-
sages (p. 348)
Using Park Assist Pilot (PAP)*
Park Assist Pilot (PAP) gives the driver instruc-
tions during the parking procedure. The function
can also assist when leaving a parking space.
NOTE
While PAP is active, the driver's task is to:
•
carefully monitor the area around the
vehicle
•
follow the instructions provided in the
center display
•
select a gear (D or R) when prompted
•
regulate the vehicle's speed
•
apply the brakes when necessary and
stop the vehicle
Symbols, images and text in the center display
indicate when the various steps in the parking
procedure will be carried out.
PAP can be activated if the following conditions
are met after the engine has started:
•
The vehicle may not be towing a trailer.
•
The vehicle's speed must be below approx.
20 mph (30 km/h).
•
The distance between the vehicle and a
parking space must be between 1.6-5.0 ft
(0.5-1.5 m)
||
DRIVER SUPPORT
344
NOTE
If a trailer hitch is configured in the vehicle's
electrical system, PAP will take the trailer
hitch into consideration when determining the
necessary size of a parking space.
Parking
Procedure for parking:
1. The system searches for and measures a
possible parking space.
2. The vehicle is steered while it is backing into
the parking space.
3. The vehicle's position is adjusted in the park-
ing space by moving forward and rearward.
1: Searching and measuring
Parallel parking
Perpendicular parking
PAP searches for a potential parking space and
measures it to see if there is sufficient space for
your vehicle. To start this procedure:
1. Tap the Park In button in
the center display's Function
view.
If necessary, slow down to:
•
a speed below 20 mph (30 km/h) for parallel
parking
•
approx. 12 mph ( 20 km/h) for perpendicular
parking.
2. Keep an eye on the display and be prepared
to stop the vehicle when you are instructed
by PAP to do so.
3.
Select
Parallel parking or Perpendicular
parking and put the transmission in reverse.
4. Keep an eye on the display and be prepared
to stop the vehicle when you are instructed
by PAP to do so.
5. Stop the vehicle when instructed to do so.
NOTE
PAP normally searches for available parking
spaces along the curb on the right (passeng-
er's) side of the vehicle. However, it can also
assist in finding and parking in spaces on the
driver's side. To do so:
•
Activate the left turn signal. PAP will then
search for a parking space on the left
side of the vehicle.
DRIVER SUPPORT
}}
345
2: Backing into the parking space
Parallel parking
Perpendicular parking
When the vehicle is backing up, PAP will steer it
into the parking space. Do as follows:
1. Check that the area behind the vehicle is
clear and put the gear selector in R.
2. Back up slowly without moving the steering
wheel. The vehicle's speed must be below
approximately 4 mph (7 km/h).
3. Keep an eye on the instrument panel and be
prepared to stop the vehicle when you are
instructed by PAP to do so.
NOTE
•
Release the wheel while PAP is steering
the vehicle.
•
The steering wheel must be able to turn
freely.
•
For PAP to function optimally, wait until
the steering wheel is no longer turning
before beginning the next phase of the
parking procedure.
3: Adjusting the vehicle's position
Parallel
Perpendicular
After the vehicle has backed into the parking
space, its position in the space has to be
||
DRIVER SUPPORT
* Option/accessory.
346
adjusted by driving slightly forward and backing
up.
1.
Put the gear selector in D, wait until the
steering wheel has turned and drive forward
slowly.
2. Stop the vehicle when you are instructed by
PAP to do so.
3.
Put the gear selector in R, back up slowly
and stop when you are instructed by PAP to
do so.
When the parking procedure is finished (this will
be indicated by a text message and a graphic
image), PAP switches off automatically. If neces-
sary, the driver may need to make minor adjust-
ments to ensure that the vehicle is parked cor-
rectly.
CAUTION
The warning distance is shorter when PAP is
using the sensors than when Park Assist is
using them.
Leaving a parking space
This function can only be used
for a vehicle that has been par-
allel parked and is activated in
the center display's Function
view.
1. Tap the Park out button in the center display's
Function view.
2. Use the turn signal to indicate the direction in
which the vehicle should leave the parking space.
3. Follow the instructions provided in the center
display. The procedure is the same as when park-
ing the vehicle.
The steering wheel may turn back slightly when
the function is completed and the driver may
have to turn the back before leaving the parking
space.
If PAP determines that the driver can leave the
parking space without assistance, the function
will deactivate before the vehicle is completely
out of the space.
Related information
•
Park Assist Pilot (PAP)* (p. 342)
•
Park Assist Pilot (PAP)* limitations (p. 346)
•
Park Assist Pilot (PAP)* symbols and mes-
sages (p. 348)
Park Assist Pilot (PAP)* limitations
The PAP function may be limited in certain situa-
tions.
The PAP parking sequence is cancelled
A parking sequence will be cancelled:
•
if the vehicle is driven too fast: above approx.
4 mph (7 km/h)
•
if the driver taps
Cancel in the center display
•
if the driver moves the steering wheel with
sufficient force.
•
if the anti-lock brakes or Electronic Stability
Control are activated (e.g., if a wheel begins
to spin or lose traction)
In such cases, a text message will explain why
the parking sequence was cancelled.
NOTE
•
PAP will not function correctly if its sen-
sors are obstructed by dirt, snow, etc.
•
In certain situations, PAP may not be able
to measure a parking space. This could
be due to external sources of sound (e.g.,
a vehicle's horn, tires on wet asphalt,
pneumatic brakes, noise from a motorcy-
cle's exhaust, etc.) emitting ultrasound
using approximately the same frequen-
cies as PAP.
DRIVER SUPPORT
* Option/accessory.
347
Points to keep in mind
PAP is a parking aid only and the driver should
always be prepared to take control and cancel a
parking sequence. This can be due to one or
more of the following factors:
•
PAP's function is based on the way that the
vehicles are parked behind and in front of
your parking space. If they are, for example,
parked too close to the curb, there is a risk
that your vehicle's tires or wheel rims could
be damaged by the curb during the parking
procedure.
•
PAP is intended to provide parking assis-
tance on straight streets, not sections of
street with curved or irregular curbs. Be sure
that your vehicle is parallel to the curb when
PAP measures the parking space.
•
PAP may not be able to provide parking
assistance on narrow streets due to lack of
space to maneuver the vehicle. In situations
like this, it may help to drive between
1.5-5.0 ft (0.5-1.5 m) from the side of the
road where the parking space is located.
•
Use only approved tires with the correct infla-
tion pressure because this affects PAP's
capacity to provide parking assistance.
Changing to a different approved tire size
may affect PAP's parameters. Consult a
trained and qualified Volvo service technician.
•
Heavy rain or snow may inhibit PAP's
capacity to correctly measure a parking
space.
•
Do not use PAP when using snow chains
and/or a temporary spare tire.
•
Do not use PAP if there are any objects pro-
truding from the vehicle.
WARNING
•
The front end of your vehicle may turn out
toward oncoming traffic during the park-
ing procedure.
•
Objects located above the parking sen-
sors' field of vision are not included when
PAP measures a parking space. For this
reason, PAP may turn into the parking
space too soon. Avoid parking spaces of
this type.
•
The driver is always responsible for deter-
mining if PAP has selected a suitable
parking space.
Maintenance
Location of the PAP sensors
In order for PAP to function correctly, these sen-
sors must be cleaned regularly with water and a
suitable car washing detergent.
Related information
•
Park Assist Pilot (PAP)* (p. 342)
•
Park Assist Pilot (PAP)* limitations (p. 346)
•
Park Assist Pilot (PAP)* symbols and mes-
sages (p. 348)
DRIVER SUPPORT
* Option/accessory.
348
Park Assist Pilot (PAP)* symbols
and messages
Park Assist Pilot uses graphics and text mes-
sages to indicate if there is a problem with the
system.
Various PAP-related combinations of graphics
and text messages are displayed in the instru-
ment panel and sometimes also include suitable
actions.
The following table provides some examples.
Message Explanation
Park Assist System
Unavailable Service required
The system is not functioning properly. Contact a trained and qualified Volvo service technician.
Park Assist System
Sensors blocked, cleaning needed
One or more of the system's sensors are blocked. Check and clean the sensors as soon as possible.
A text message can be erased by briefly pressing
the O button in the center of the right-side steer-
ing wheel keypad.
Contact a Volvo retailer or a trained and qualified
Volvo service technician If a message indicating
that PAP is not functioning properly remains dis-
played or recurs.
Related information
•
Park Assist Pilot (PAP)* (p. 342)
•
Using Park Assist Pilot (PAP)* (p. 343)
•
Park Assist Pilot (PAP)* limitations (p. 346)
STARTING AND DRIVING
STARTING AND DRIVING
* Option/accessory.
350
Starting and driving
The vehicle is equipped with features that sup-
plement its basic functions, such as shifting
gears with steering wheel paddles* and the fuel-
conserving start/stop function.
The vehicle is equipped with an automatic trans-
mission that also makes it possible to shift gears
manually.
Certain functions can also be used when the
engine is not running, depending on the ignition
mode being used.
Related information
•
Starting the engine (p. 376)
•
Ignition modes (p. 374)
•
Automatic transmission (p. 386)
•
Opening/closing the fuel filler door (p. 367)
•
Start/Stop (p. 383)
•
Parking brake (p. 354)
Brakes
The brake system is a hydraulic system consist-
ing of two separate brake circuits. If a problem
should occur in one of these circuits, it is still
possible to stop the vehicle with the other brake
circuit.
Brake system
If one of the brake circuits is not functioning,
more pressure will be needed on the brake pedal
(and the pedal will go down farther) for normal
braking effect.
If the brake pedal must be depressed farther
than normal and requires greater foot pressure,
the stopping distance will be longer.
Pressure on the brake pedal is enhanced by the
power braking function.
The power brakes only function when the engine
is running.
If the power brakes are not working, considerably
higher pressure will be required on the brake
pedal to compensate for the lack of power assis-
tance. This can happen for example when towing
your vehicle or if the engine is switched off when
the vehicle is rolling. The brake pedal feels stiffer
than usual.
When the Hill Start Assist function is being used,
it will take slightly longer for the brake pedal to
return to its normal position if the vehicle is
parked on an incline or uneven surface.
When driving in very hilly areas or if the vehicle is
carrying a heavy load, manual gear shifting can
be used for engine braking to augment the
brakes.
Hill Descent Control can also be used
on steep downgrades to increase the engine
braking effect at low speeds.
Anti-lock Braking System ABS
The ABS system helps to improve vehicle control
(stopping and steering) during severe braking
conditions by limiting brake lockup.
When ABS is operating, there may be some
vibration in the brake pedal, which is normal.
The system performs a brief self-diagnostic test
when the engine has been started and driver
releases the brake pedal. Another automatic test
may be performed when the vehicle first reaches
a speed of approximately 6 mph (10 km/h). The
brake pedal will pulsate several times and a
sound may be audible from the ABS control
module, which is normal.
Cleaning the brake discs
Coatings of dirt and water on the brake discs
may result in delayed brake function. This delay is
minimized by cleaning the brake linings.
Cleaning the brake pads is advisable in wet
weather, prior to long-term parking, and after the
vehicle has been washed. Do this by braking gen-
tly for a short period while the vehicle is moving.
STARTING AND DRIVING
}}
* Option/accessory.
351
Driving on wet or salted roads
Prolonged driving on wet or salted roads can
affect brake function and increase stopping dis-
tance. Be sure to keep a safe distance to the
vehicle ahead when driving under these condi-
tions.
Brake pad inspection
On vehicles equipped with a jack*, the condition
of the brake pads can be checked by raising the
vehicle and performing a visual inspection of the
brake pads.
WARNING
•
If the vehicle has been driven immediately
prior to a brake pad inspection, the wheel
hub, brake components, etc., will be very
hot. Allow time for these components to
cool before carrying out the inspection.
•
Apply the parking brake and put the gear
selector in the Park (P) position.
•
Block the wheels standing on the ground,
use rigid wooden blocks or large stones.
WARNING
•
Use the jack intended for the vehicle
when changing a tire. For any other job,
use stands to support the vehicle.
•
The jack should be kept well-greased and
clean, and should not be damaged.
•
Be sure the jack is on a firm, level, non-
slippery surface.
•
No objects should be placed between the
base of jack and the ground, or between
the jack and the attachment bar on the
vehicle.
•
The jack must correctly engage the jack
attachment.
•
Never allow any part of your body to be
extended under a vehicle supported by a
jack.
Instrument panel symbols
Symbol Explanation
A
B
Check the brake fluid level. If the
level is low, top up and have the
system inspected to determine the
cause of the loss of fluid.
A
B
Steady glow for 2 seconds when
the engine is started: automatic
function control.
Steady glow for more than
2 seconds: there is a fault in the
ABS system. The normal brake
system will still function but with-
out ABS brake modulation.
A
US models
B
Canadian models
||
STARTING AND DRIVING
352
WARNING
If both symbols illuminate at the same time
and the brake level is below the MIN mark in
the reservoir or if a brake system-related mes-
sage is shown in the instrument panel: DO
NOT DRIVE. Have the vehicle towed to a
trained and qualified Volvo service technician
and have the brake system inspected.
If both symbols illuminate at the same time
and the brake level is normal (not below the
MIN mark in the reservoir) or if a brake sys-
tem-related message is shown in the instru-
ment panel: drive the vehicle carefully to an
authorized Volvo workshop and have the
brake system inspected by a trained and
qualified Volvo service technician.
Related information
•
Brake functions (p. 352)
•
Brake assist system (p. 353)
•
Emergency brake lights (p. 354)
Brake functions
The vehicle's standard braking features are aug-
mented by a number of auxiliary help functions.
In addition to the wheel brakes and the parking
brake, the vehicle is equipped with several auto-
matic brake assist functions. These systems help
the driver by e.g., keeping the vehicle stationary
when the brake pedal is not depressed (at a traf-
fic light or intersection), when starting up a hill or
when driving down a hill.
These systems include:
•
Auto-hold brakes
•
Hill Start Assist
•
Braking assist after a collision
Related information
•
Brakes (p. 350)
•
Parking brake (p. 354)
•
Auto-hold brake function (p. 352)
Auto-hold brake function
With the Auto-hold brake function, the driver can
release the brake pedal and the brakes will
remain applied, for example, when the vehicle
has stopped at a traffic light or intersection.
When the vehicle is no longer moving forward,
Auto-hold applies the brakes automatically, either
using the normal brakes or the parking brake.
The brakes will be released when the accelerator
pedal is depressed.
If the driver's door is opened or the engine is
turned off, the parking brake will be applied auto-
matically.
Auto-hold is deactivated when the transmission is
in neutral or if the driver's door is open and the
seat belt is unbuckled.
Auto-hold control
Auto-hold control and indicator light
STARTING AND DRIVING
353
Turn Auto-hold on or off by pressing the control
in the tunnel console. The indicator light illumi-
nates when the function is on.
When Auto-hold is off, Hill Start Assist (HSA) will
be activated to help prevent the vehicle from roll-
ing backwards when starting up a hill.
Instrument panel symbol
Symbol Explanation
The symbol in the instrument
panel illuminates when this func-
tion is using the normal brakes to
keep the vehicle stationary.
A
B
This symbol in the instrument
panel illuminates when Auto-hold
is using the parking brake to keep
the vehicle stationary
A
US models
B
Canadian models
Related information
•
Hill Start Assist (p. 354)
•
Brake functions (p. 352)
Brake assist system
The Brake Assist System (BAS) increases brak-
ing force, thereby helping reduce braking dis-
tance.
The system monitors the driver's braking habits
and increases braking force when necessary.
Brake force can be increased up to the point at
which the ABS system is activated. The function
is deactivated when pressure on the brake pedal
decreases.
Related information
•
Brakes (p. 350)
Braking effect after a collision
In certain types of collisions, the vehicle's brakes
are applied to help prevent or mitigate a secon-
dary collision.
Maintaining control of the vehicle after a collision
may be difficult. To help avoid or mitigate the
effect of a secondary collision, the brakes are
applied automatically to help bring the vehicle to
a stop.
The brake lights and hazard warning flashers will
be activated and the flashers will remain on after
the vehicle has come to a standstill. The parking
brake will then be applied automatically.
In a situation where stopping the vehicle may not
be desirable, the driver can override this system
by pressing the accelerator pedal.
This feature can only function if the brake system
is intact after the collision.
Related information
•
Brake functions (p. 352)
•
Airbag system (p. 65)
•
Rear Collision Warning (RCW) (p. 312)
STARTING AND DRIVING
354
Emergency brake lights
The emergency brake lights activate in the event
of hard braking/rapid deceleration at most nor-
mal driving speeds or if the ABS system is acti-
vated. This function causes an additional taillight
on each side of the vehicle to illuminate to help
alert vehicles traveling behind.
Once the emergency brake lights have been acti-
vated, if the driver releases the brake pedal, the
brake lights will return to their normal function.
Related information
•
Brakes (p. 350)
•
Hazard warning flashers (p. 146)
•
Brake lights (p. 146)
Hill Start Assist
Hill Start Assist (HSA) helps prevent the vehicle
from rolling backwards when starting up a hill. If
you are backing up a hill, HSA helps prevent the
vehicle from rolling forward.
HSA makes it easier to start or back up on a hill
by retaining pressure on the brake pedal for sev-
eral seconds after the pedal has been released in
order to keep the vehicle at a standstill.
The brakes will be released after several seconds
or when the driver presses the accelerator pedal.
HSA is available even if the Auto-hold braking
function is turned off.
Related information
•
Brake functions (p. 352)
•
Auto-hold brake function (p. 352)
Parking brake
The electric parking brake helps to keep the
vehicle stationary when it is parked.
Parking brake control in the tunnel console between the
front seats
NOTE
•
A faint sound from the parking brake's
electric motor can be heard when the
parking brake is being applied. This
sound can also be heard during the auto-
matic function check of the parking
brake.
•
The brake pedal will move slightly when
the electric parking brake is applied or
released.
If the vehicle is not moving when the parking
brake is applied, only the rear wheels are affec-
STARTING AND DRIVING
}}
355
ted. If it is applied while the vehicle is moving, the
normal brakes are used on all four wheels. The
brakes will only be applied on the rear wheels
once the vehicle has stopped.
Related information
•
Brake functions (p. 352)
•
Using the parking brake (p. 355)
•
Parking brake malfunctions (p. 357)
Using the parking brake
The electric parking brake helps to keep the
vehicle stationary when it is parked.
Applying the parking brake
1.
Put the gear selector in P.
2. Press firmly on the brake pedal.
3. Pull up the control.
> The symbol in the instrument panel will
illuminate when the parking brake has
been fully applied.
4. Release the brake pedal and ensure that the
vehicle is stationary.
Symbol in the instrument panel
Symbol Explanation
A
B
The symbol flashes while the park-
ing brake is being applied.
If the symbol flashes at any other
time, this indicates a fault. See the
message in the instrument panel.
A
US models
B
Canadian models
Automatic function
The parking brake is applied automatically:
•
If the Auto Hold function is activated and the
vehicle has been stationary for approx.
5 minutes.
•
If the gear selector is moved to P on a steep
hill.
•
When the engine is turned off (this function
can be selected, see "Parking brake set-
tings" below).
Emergency braking
In an emergency, the parking brake can be
applied when the vehicle is moving by pressing
and holding up the control. Braking will be inter-
rupted when the control is released.
An audible signal will sound during this proce-
dure if the vehicle is moving at higher speeds.
||
STARTING AND DRIVING
356
Releasing the parking brake
Releasing manually
1. Press firmly on the brake pedal.
2. Press the control.
> This releases the parking brake and the
symbol in the instrument panel will go out.
Releasing automatically
1. The driver must fasten his/her seat belt.
2. Start the engine.
3. Press firmly on the brake pedal.
4.
Move the gear selector to D or R and press
the accelerator pedal.
> This releases the parking brake and the
symbol in the instrument panel will go out.
NOTE
•
For safety reasons, the parking brake is
only released automatically if the engine
is running and the driver is wearing a seat
belt.
•
The electric parking brake will be
released immediately when the accelera-
tor pedal is pressed and the gear selector
is in position D or R.
Parking on a hill
Put the gear selector in P.
•
If the vehicle is pointing uphill, turn the front
wheels so that they point away from the curb.
•
If the vehicle is pointing downhill, turn the
front wheels so that they point toward the
curb.
The parking brake should also be applied.
WARNING
Always apply the parking brake when parking
on hills or uneven surfaces.
Heavy load uphill
A heavy load, such as a trailer, can cause the
vehicle to roll backward when the parking brake
is released automatically on a steep incline. To
help avoid this:
1. Keep the electric parking brake control
pushed in.
2. While pressing the accelerator pedal to pull
away, release the parking brake control only
after the vehicle begins to move.
Parking brake settings
Automatically setting the parking brake can be
turned on or off in the center display's Top view.
1.
Tap
Settings in Top view.
2.
Tap
My Car Electric Parking Brake and
deselect
Auto Activate Parking Brake.
Related information
•
Parking brake (p. 354)
•
Parking brake malfunctions (p. 357)
•
Auto-hold brake function (p. 352)
STARTING AND DRIVING
}}
357
Parking brake malfunctions
If it has not been possible to apply or release the
parking brake after several attempts, consult a
trained and authorized Volvo service technician
or retailer.
An audible signal will sound if the parking brake
is applied when the vehicle is being driven. If the
vehicle must be parked while the parking brake is
not functioning properly:
•
Put the gear selector in P.
•
If the vehicle is pointing uphill, turn the front
wheels so that they point away from the curb.
•
If the vehicle is pointing downhill, turn the
front wheels so that they point toward the
curb.
•
Put the gear selector in P.
Low battery charge level
If the battery is discharged, the parking brake
cannot be operated. Connect an auxiliary battery
to the vehicle.
Replacing brake pads
The rear brake pads have to be replaced by a
trained and authorized Volvo service technician
due to the design of the electric parking brake.
Symbols in the instrument panel
Symbol Explanation
A
B
If the symbol flashes, a parking
brake fault has been detected.
See the message in the instru-
ment panel.
A
B
Fault in the brake system.
A
US models
B
Canadian models
Related information
•
Using the parking brake (p. 355)
•
Using the parking brake (p. 355)
•
Brake functions (p. 352)
•
Jump starting (p. 368)
Before a long distance trip
It is always worthwhile to have your vehicle
checked by a trained and qualified Volvo service
technician before driving long distances. Your
retailer will also be able to supply you with bulbs,
fuses, spark plugs and wiper blades for your use
in the event that problems occur.
As a minimum, the following items should be
checked before any long trip:
•
Check that engine runs smoothly and that
fuel consumption and the oil level are normal.
•
Check for fuel, oil, and fluid leakage.
•
Check condition of drive belts.
•
Check state of the battery's charge.
•
Examine tires carefully (including the spare
tire where applicable), and replace those that
are worn. Also, check tire inflation pressure.
•
The brakes, front wheel alignment, and steer-
ing gear should be checked by a trained and
qualified Volvo service technician only.
•
Check all lights, including high beams.
•
Reflective warning triangles are legally
required in some states/provinces.
•
Have a word with a trained and qualified
Volvo service technician if you intend to drive
STARTING AND DRIVING
358
in countries where it may be difficult to
obtain the correct fuel.
•
Consider your destination. If you will be driv-
ing through an area where snow or ice are
likely to occur, consider using snow tires.
Driving economically
Better driving economy can be obtained by
thinking ahead, avoiding rapid starts and stops
and adjusting the speed of your vehicle to imme-
diate traffic conditions.
Economical driving conserves natural
resources
Observe the following rules:
•
Bring the engine to normal operating tem-
perature as soon as possible by driving with
a light foot on the accelerator pedal for the
first few minutes of operation. A cold engine
uses more fuel and is subject to increased
wear.
•
Whenever possible, avoid using the vehicle
for driving short distances. This does not
allow the engine to reach normal operating
temperature.
•
Drive carefully and avoid rapid acceleration
and hard braking.
•
Use the transmission's Drive (D) position as
often as possible and avoid using kick-down.
•
Using the engine's Eco function can help
improve fuel economy.
•
Do not exceed posted speed limits.
•
Avoid carrying unnecessary items (extra load)
in the vehicle.
•
Maintain correct tire pressure. Check tire
pressure regularly (when the tires are cold).
•
Use tires recommended by Volvo for your
vehicle.
•
Remove snow tires when threat of snow or
ice has ended.
•
Note that roof racks, ski racks, etc, increase
air resistance and also fuel consumption.
•
At highway driving speeds, fuel consumption
will be lower with the air conditioning on and
the windows closed than with the air condi-
tioning off and the windows open.
•
Using the onboard trip computer's fuel con-
sumption modes can help you learn how to
drive more economically.
Other factors that decrease gas mileage are:
•
Dirty air cleaner
•
Dirty engine oil and clogged oil filter
•
Dragging brakes
•
Incorrect front end alignment
Some of the above mentioned items and others
are checked at the standard maintenance inter-
vals.
Handling and roadholding
•
Vehicle load, tire design and inflation pres-
sure all affect vehicle handling. Therefore,
check that the tires are inflated to the rec-
ommended pressure according to the vehicle
load. Loads should be distributed so that
STARTING AND DRIVING
}}
359
capacity weight or maximum permissible axle
loads are not exceeded.
•
At the specified curb weight your vehicle has
a tendency to understeer, which means that
the steering wheel has to be turned more
than might seem appropriate for the curva-
ture of a bend. This ensures good stability
and reduces the risk of rear wheel skid.
Remember that these properties can alter
with the vehicle load. The heavier the load in
the cargo compartment, the less the ten-
dency to understeer.
Related information
•
ECO drive mode (p. 381)
•
Tire inflation pressure table (p. 536)
•
Volvo and the environment (p. 15)
Driving through standing water
The vehicle should be driven with extreme cau-
tion if it is necessary to drive through standing
water.
The vehicle can be driven through water up to a
depth of approximately 9 in. (25 cm) at walking
speed. Be particularly careful when driving
through flowing water.
•
Take particular care when driving through
flowing water.
•
After driving through water, apply the brakes
and check that they are functioning correctly.
•
Clean the electrical connections for trailer
wiring after driving in mud or water.
•
When driving through water, maintain low
speed and do not stop in the water.
•
Avoid driving through salt water if at all pos-
sible to help avoid the risk of corrosion.
CAUTION
•
Engine damage will occur if water is
drawn into the air cleaner.
•
Damage to any components, the engine,
transmission, turbo-charger, differential or
its internal components caused by flood-
ing, vapor lock or insufficient oil is not
covered under warranty.
•
Do not allow the vehicle to stand in water
up to the door sills longer than absolutely
necessary. This could result in electrical
malfunctions.
•
If the engine has been stopped while the
vehicle is in water, do not attempt to
restart it. Have the vehicle towed out of
the water.
WARNING
•
Avoid driving through standing or rushing
water. Doing so can be dangerous and it
may also be difficult to determine the
actual depth of the water.
•
If water cannot be avoided, after driving
through the water, press lightly on the
brake pedal to ensure that the brakes are
functioning normally. Water or mud can
make the brake linings slippery, resulting
in delayed braking effect.
||
STARTING AND DRIVING
360
Related information
•
Towing recommendations (p. 363)
Overheating the engine and
transmission
In demanding driving conditions, such as when
transporting heavy loads, driving in mountainous
areas or in very hot weather there is a risk of
overheating the engine or transmission.
•
The engine's output may be slightly limited if
there is a risk of overheating.
•
Remove e.g., auxiliary lights mounted in front
of the grille in hot weather.
•
If the temperature of the engine coolant
becomes too high, the warning symbol will
illuminate and the message
Engine
temperature/Stop safely will be displayed.
Stop the vehicle as soon as possible in a
safe place and let the engine idle for several
minutes.
•
If the message
Engine temperature/High
temperature Turn off engine or Engine
coolant/Stop safely is displayed, stop
safely and turn off the engine.
•
If the transmission begins to overheat, an
alternative gear shifting program will be
selected. An integrated protective function
will also by activated, the warning symbol will
illuminate and the message
Transmission
warmHigh temperature Reduce speed
or Transmission warmStop safely, wait
for cooling will be displayed in the instru-
ment panel.
•
The air conditioning may be switched off
temporarily.
•
After a prolonged period of driving, do not
turn off the engine immediately after stop-
ping.
•
The engine cooling fan commonly continues
to run for several minutes after the engine
has been turned off.
WARNING
The cooling fan (located at the front of the
engine compartment, behind the radiator) may
start or continue to operate (for up to
6 minutes) after the engine has been
switched off.
Related information
•
Driving with a trailer (p. 370)
•
Before a long distance trip (p. 357)
STARTING AND DRIVING
}}
361
Winter driving
Check your vehicle before the approach of cold
weather.
The following advice is worth noting:
•
Make sure that the engine coolant contains
50 percent antifreeze. Any other mixture will
reduce freeze protection. This gives protec-
tion against freezing down to –31 °F
(–35 °C). The use of "recycled" antifreeze is
not approved by Volvo. Different types of
antifreeze must not be mixed.
•
Volvo recommends using only genuine Volvo
antifreeze in your vehicle's radiator.
•
Try to keep the fuel tank well filled – this
helps prevent the formation of condensation
in the tank. In addition, in extremely cold
weather conditions it is worthwhile to add
fuel line de-icer before refueling.
•
The viscosity of the engine oil is important.
Oil with low viscosity (thinner oil) improves
cold-weather starting as well as decreasing
fuel consumption while the engine is warm-
ing up. Full synthetic 0W-30 oil is recom-
mended for driving in areas with sustained
low temperatures.
•
The load placed on the battery is greater dur-
ing the winter since the windshield wipers,
lighting, etc., are used more often. Moreover,
the capacity of the battery decreases as the
temperature drops. In very cold weather, a
poorly charged battery can freeze and be
damaged. It is therefore advisable to check
the state of charge more frequently and
spray an anti-rust oil on the battery posts.
•
Volvo recommends the use of snow tires on
all four wheels for winter driving.
•
To prevent the washer fluid reservoir from
freezing, add washer solvents containing
antifreeze. This is important since dirt is often
splashed on the windshield during winter
driving, requiring the frequent use of the
washers and wipers. Volvo Washer Solvent
should be diluted as follows: Down to 14 °F
(–10 °C): 1 part washer solvent and 4 parts
water Down to 5 °F (–15 °C): 1 part washer
solvent and 3 parts water Down to 0 °F
(–18 °C): 1 part washer solvent and 2 parts
water Down to –18 °F (–28 °C): 1 part
washer solvent and 1 part water.
•
Use Volvo Teflon Lock Spray in the locks.
•
Avoid using de-icing sprays as they can
cause damage to the locks.
Related information
•
Snow tires and chains (p. 451)
Towing eyelet
When used, the towing eyelet should always be
securely attached in the openings on the right
side of the front and rear bumpers. There are
covers over these attachment points.
Using the towing eyelet
Take out the towing eyelet, which is stored
under the floor in the cargo compartment.
||
STARTING AND DRIVING
362
Front bumper: Remove the cover.
> The cover turns along its center line and
then be removed.
Rear bumper: Remove the cover by pressing
the mark with a finger and folding out the
opposite side with a coin, etc.
> The cover turns along its center line and
then be removed.
4. Screw the towing eyelet into place, first by
hand and then using the tire iron, etc. until it
has been screwed into place as far as pos-
sible.
After use, the eyelet should be removed and
returned to its storage location.
Reinsert the cover into the bumper.
CAUTION
In certain conditions, the towing eyelet
may be used to pull the vehicle onto a
flatbed tow truck.
•
The vehicle's position and ground clear-
ance determine if it can be pulled up onto
a flatbed tow truck using the towing eye-
let.
•
If the angle of the tow truck’s ramp is too
steep or the ground clearance under the
vehicle is insufficient, damage could
occur by attempting to pull the vehicle
using the towing eyelet.
•
If necessary, lift the vehicle using the tow
truck’s lifting device.
WARNING
No person or object should be behind the tow
truck while the vehicle is being pulled up onto
the flatbed.
Related information
•
Towing recommendations (p. 363)
STARTING AND DRIVING
}}
363
Towing recommendations
Always check with state and local authorities
before attempting to tow another vehicle
because this type of towing is subject to regula-
tions regarding maximum towing speed, length
and type of towing device, lighting, etc.
Towing your vehicle behind another
vehicle
1. After securely attaching the towing line to
both vehicles, put the gear selector in posi-
tion N and release the parking brake.
2.
Put the ignition in mode II by turning the
start knob to START (without depressing
the brake pedal) and hold it in this position
for approx. 4 seconds. Release the knob.
3.
Put the gear selector in position N and
release the parking brake.
4. The towing vehicle can now begin driving.
5. Keep the tow rope taut when the towing
vehicle slows down by applying light pressure
on the brake pedal. This will help prevent jar-
ring movements of the vehicle being towed.
6. Be prepared to apply the brakes to stop the
vehicle being towed.
CAUTION
General towing precautions:
•
If the vehicle's battery is dead, an auxiliary
battery will be necessary to provide cur-
rent for releasing the electric parking
brake and to move the gear selector from
the P position to N. If this is not possible,
use the shiftlock override procedure to
manually release the gear selector from P
and move it to N.
•
Maximum speed: 50 mph (80 km/h). Do
not exceed the maximum allowable tow-
ing speed.
•
Maximum distance with front wheels on
ground: 50 miles (80 km).
•
The vehicle should only be towed in the
forward direction.
WARNING
•
When the vehicle is being towed, the igni-
tion should be in mode II (in mode I, all of
the vehicle's airbags are deactivated).
•
The remote key must remain inside the
vehicle.
•
The power brakes and power steering will
not function when the engine is not run-
ning. Approximately 5 times more pres-
sure will be required on the brake pedal
and the steering wheel will be considera-
bly harder to turn.
•
The towing eyelets must not be used for
pulling the vehicle out of a ditch or for
any similar purpose involving severe
strain.
||
STARTING AND DRIVING
* Option/accessory.
364
Tow trucks
CAUTION
In certain conditions, the towing eyelet
may be used to pull the vehicle onto a
flatbed tow truck.
•
The vehicle's position and ground clear-
ance determine if it can be pulled up onto
a flatbed tow truck using the towing eye-
let.
•
If the angle of the tow truck’s ramp is too
steep or the ground clearance under the
vehicle is insufficient, damage could
occur by attempting to pull the vehicle
using the towing eyelet.
•
If necessary, lift the vehicle using the tow
truck’s lifting device.
WARNING
No person or object should be behind the tow
truck while the vehicle is being pulled up onto
the flatbed.
Vehicle with pneumatic suspension*
If the vehicle is equipped with the optional pneu-
matic suspension, this feature must be deacti-
vated before the vehicle is lifted onto a tow truck.
To do so:
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Suspension .
3.
Select
Deactivate Suspension & Leveling
Control.
CAUTION
The towing eyelet is only intended for use if
the vehicle is on a road, not if it is off the road
surface or stuck in mud, snow, etc. In these
cases, contact professional towing help.
Jump starting
Do not attempt to start the engine by towing the
vehicle. This could result in damage to the three-
way catalytic converter. Use a 12-volt auxiliary
battery or one in another vehicle.
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the state of California to cause
cancer and reproductive harm. Wash hands
after handling.
CAUTION
Connect the jumper cables carefully to avoid
short circuits with other components in the
engine compartment.
WARNING
•
Do not connect the jumper cable to any
part of the fuel system or to any moving
parts. Avoid touching hot manifolds.
•
Batteries generate hydrogen gas, which
is flammable and explosive.
•
Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces. If contact
occurs, flush the affected area immedi-
ately with water. Obtain medical help
immediately if eyes are affected.
•
Never expose the battery to open flame
or electric spark.
•
Do not smoke near the battery.
•
Failure to follow the instructions for jump
starting can lead to injury.
Related information
•
Towing eyelet (p. 361)
•
Jump starting (p. 368)
•
Parking brake (p. 354)
•
Ignition modes (p. 374)
STARTING AND DRIVING
365
Fuel
Volvo recommends the use of detergent gaso-
line to control engine deposits.
Deposit control gasoline (detergent
additives)
Detergent gasoline is effective in keeping injec-
tors and intake valves clean. Consistent use of
deposit control gasolines will help ensure good
drivability and fuel economy. If you are not sure
whether the gasoline contains deposit control
additives, check with the service station operator.
NOTE
Volvo does not recommend the use of exter-
nal fuel injector cleaning systems.
Unleaded fuel
Each Volvo has a three-way catalytic converter
and must use only unleaded gasoline. U.S. and
Canadian regulations require that pumps deliver-
ing unleaded gasoline be labeled "UNLEADED".
Only these pumps have nozzles which fit your
vehicle's filler inlet. It is unlawful to dispense lea-
ded fuel into a vehicle labeled "unleaded gaso-
line only". Leaded gasoline damages the three-
way catalytic converter and the heated oxygen
sensor system. Repeated use of leaded gasoline
will lessen the effectiveness of the emission con-
trol system and could result in loss of emission
warranty coverage. State and local vehicle
inspection programs will make detection of mis-
fueling easier, possibly resulting in emission test
failure for misfueled vehicles.
NOTE
Some U.S. and Canadian gasolines contain an
octane enhancing additive called methyl-
cyclopentadienyl manganese tricarbonyl
(MMT). If such fuels are used, your Emission
Control System performance may be affected,
and the Check Engine Light (malfunction
indicator light) located on your instrument
panel may light. If this occurs, please return
your vehicle to a trained and qualified Volvo
service technician for service.
Gasoline containing alcohol and ethers,
"Oxygenated fuels"
Some fuel suppliers sell gasoline containing
"oxygenates" which are usually alcohols or
ethers. In some areas, state or local laws require
that the service pump be marked indicating use
of alcohols or ethers. However, there are areas in
which the pumps are unmarked. If you are not
sure whether there is alcohol or ethers in the
gasoline you buy, check with the service station
operator. To meet seasonal air quality standards,
some areas require the use of "oxygenated" fuel.
Volvo allows the use of the following "oxygen-
ated" fuels; however, the octane ratings listed
must still be met.
Alcohol – Ethanol
Fuels containing up to 10% ethanol by volume
may be used. Ethanol may also be referred to as
Ethyl alcohol, or "Gasohol".
Ethers – MTBE: Fuels containing up to
15% MTBE may be used.
Methanol
Do not use gasolines containing methanol
(methyl alcohol, wood alcohol). This practice can
result in vehicle performance deterioration and
can damage critical parts in the fuel system. Such
damage may not be covered under the New
Vehicle Limited Warranty.
Related information
•
Octane rating (p. 366)
•
Opening/closing the fuel filler door (p. 367)
STARTING AND DRIVING
366
Octane rating
Volvo requires premium fuel (91 octane or
above) for best performance.
Minimum octane
Sample fuel pump octane label
TOP TIER Detergent Gasoline
Volvo endorses the use of “TOP TIER Detergent
Gasoline” where available to help maintain engine
performance and reliability. TOP TIER Detergent
Gasoline meets a new standard jointly estab-
lished by leading automotive manufactures to
meet the needs of today’s advanced engines.
Qualifying gasoline retailers (stations) will, in
most cases, identify their gasoline as having met
the “TOP TIER Detergent Gasoline” standards.
NOTE
Information about TOP TIER Detergent Gaso-
line is available at www.toptiergas.com.
NOTE
When switching to higher octane fuel or
changing gasoline brands, it may be neces-
sary to fill the tank more than once before a
difference in engine operation is noticeable.
Fuel Formulations
Do not use gasoline that contains lead as a
knock inhibitor, and do not use lead additives.
Besides damaging the exhaust emission control
systems on your vehicle, lead has been strongly
linked to certain forms of cancer.
Many fuels contain benzene as a solvent.
Unburned benzene has been strongly linked to
certain forms of cancer. If you live in an area
where you must fill your own gas tank, take pre-
cautions. These may include:
•
standing upwind away from the filler nozzle
while refueling
•
refueling only at gas stations with vapor
recovery systems that fully seal the mouth of
the filler neck during refueling
•
wearing neoprene gloves while handling a
fuel filler nozzle.
Use of Additives
With the exception of gas line antifreeze during
winter months, do not add solvents, thickeners, or
other store-bought additives to your vehicle's
fuel, cooling, or lubricating systems. Overuse may
damage your engine, and some of these additives
contain organically volatile chemicals. Do not
needlessly expose yourself to these chemicals.
WARNING
Never carry a cell phone that is switched on
while refueling your vehicle. If the phone rings,
this may cause a spark that could ignite gaso-
line fumes, resulting in fire and injury.
WARNING
Carbon monoxide is a poisonous, colorless,
and odorless gas. It is present in all exhaust
gases. If you ever smell exhaust fumes inside
the vehicle, make sure the passenger com-
partment is ventilated, and immediately return
the vehicle to a trained and qualified Volvo
service technician for correction.
Related information
•
Fuel (p. 365)
STARTING AND DRIVING
367
Opening/closing the fuel filler door
The fuel tank has a filling system that does not
have a cover.
Opening/closing the fuel filler door
The vehicle must be unlocked before the fuel
filler door can be opened.
An arrow next to the fuel pump
symbol in the instrument panel
indicates the side of the vehicle
where the fuel filler door is
located.
1. Open the fuel filler door by pressing lightly
on its rear edge.
2. After refueling, close the fuel filler door by
pressing lightly.
Refueling from a service station pump
To refuel:
1. Open the fuel filler door. Do not refuel with
the engine running
1
2. Insert the pump's nozzle into the fuel filler
pipe's opening as far as possible (see the
illustration).
3. Avoid overfilling the fuel tank. Do not press
the handle on the filler nozzle after it has
stopped pumping. Too much fuel in the tank
in hot weather conditions can cause the fuel
to overflow. Overfilling could also cause dam-
age to the emission control systems.
CAUTION
Avoid spilling gasoline during refueling. In
addition to causing damage to the environ-
ment, gasolines containing alcohol can cause
damage to painted surfaces, which may not
be covered under the New Vehicle Limited
Warranty.
Related information
•
Fuel (p. 365)
•
Octane rating (p. 366)
1
If the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's performance will not be affected.
STARTING AND DRIVING
368
Emission controls
Three-way catalytic converter
•
Keep your engine properly tuned. Certain
engine malfunctions, particularly involving the
electrical, fuel or distributor ignition systems,
may cause unusually high three-way catalytic
converter temperatures. Do not continue to
operate your vehicle if you detect engine
misfire, noticeable loss of power or other
unusual operating conditions, such as engine
overheating or backfiring. A properly tuned
engine will help avoid malfunctions that
could damage the three-way catalytic con-
verter.
•
Do not park your vehicle over combustible
materials, such as grass or leaves, which can
come into contact with the hot exhaust sys-
tem and cause such materials to ignite under
certain wind and weather conditions.
•
Excessive starter cranking (in excess of one
minute), or an intermittently firing or flooded
engine can cause three-way catalytic con-
verter or exhaust system overheating.
•
Remember that tampering or unauthorized
modifications to the engine, the Engine Con-
trol Module, or the vehicle may be illegal and
can cause three-way catalytic converter or
exhaust system overheating. This includes:
altering fuel injection settings or compo-
nents, altering emission system components
or location or removing components, and/or
repeated use of leaded fuel.
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.
Heated oxygen sensors
The heated oxygen sensors monitor the oxygen
content of the exhaust gases. Readings are fed
into a control module that continuously monitors
engine functions and controls fuel injection. The
ratio of fuel to air into the engine is continuously
adjusted for efficient combustion to help reduce
harmful emissions.
Related information
•
Octane rating (p. 366)
Jump starting
Follow the instructions provided here to jump
start your vehicle or to jump start another vehi-
cle.
Jumper cable connecting points
If the 12-volt auxiliary battery to be used is in
another vehicle, check that the vehicles are not
touching to prevent premature completion of a
circuit. Be sure to follow jump starting instruc-
tions provided for the other vehicle.
1. Switch off the ignition in your vehicle (set the
ignition to mode 0).
STARTING AND DRIVING
369
2.
If the 12-volt auxiliary battery to be used is
in another vehicle, switch off that vehicle's
ignition while the jumper cables are being
attached. Be sure to follow jump starting
instructions provided for the other vehicle.
CAUTION
Connect the jumper cables carefully to avoid
short circuits with other components in the
engine compartment.
3. Connect one of the red jumper cable's
clamps to the auxiliary battery's positive (+)
terminal (1)
4. Fold back the cover over the positive (+)
jump start terminal on your vehicle's battery
(2).
5. Connect the red jumper cable's other clamp
to your vehicle's positive (+) jump start termi-
nal (2).
6. Connect one of the black jumper cable's
clamps to the auxiliary battery's negative (–)
terminal (3).
7. Connect the black jumper cable's other
clamp to your vehicle's negative ground point
(4).
8. Check that the jumper cables are securely
attached.
9. Start the engine in the assisting vehicle and
run it at approx. 1,500 rpm.
10. Start the engine in the vehicle with dead bat-
tery.
11. After the engine has started, carefully
remove the negative (–) terminal jumper
cable (black). Then remove the positive (+)
terminal jumper cable (red).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the state of California to cause
cancer and reproductive harm. Wash hands
after handling.
WARNING
•
Do not connect the jumper cable to any
part of the fuel system or to any moving
parts. Avoid touching hot manifolds.
•
Batteries generate hydrogen gas, which
is flammable and explosive.
•
Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces. If contact
occurs, flush the affected area immedi-
ately with water. Obtain medical help
immediately if eyes are affected.
•
Never expose the battery to open flame
or electric spark.
•
Do not smoke near the battery.
•
Failure to follow the instructions for jump
starting can lead to injury.
Related information
•
Ignition modes (p. 374)
•
Starting the engine (p. 376)
•
Turning the engine off (p. 378)
•
Start battery (p. 480)
•
Opening and closing the hood (p. 506)
STARTING AND DRIVING
370
Driving with a trailer
When towing a trailer, always observe the legal
requirements of the state/province.
•
All Volvo models are equipped with energy-
absorbing shock-mounted bumpers. Trailer
hitch installation should not interfere with the
proper operation of this bumper system.
Trailer towing does not normally present any par-
ticular problems, but take into consideration:
•
Increase tire pressure to recommended full
pressure.
•
When your vehicle is new, avoid towing heavy
trailers during the first 620 miles (1,000 km).
•
Maximum speed when towing a trailer:
50 mph (80 km/h).
•
Engine and transmission are subject to
increased loads. Therefore, engine coolant
temperature should be closely watched when
driving in hot climates or hilly terrain. Use a
lower gear and turn off the air conditioner if
the temperature gauge needle enters the red
range.
•
If the automatic transmission begins to over-
heat, a message will be displayed in the text
window.
•
Avoid overload and other abusive operation.
•
Hauling a trailer affects handling, durability,
and economy.
•
It is necessary to balance trailer brakes with
the towing vehicle brakes to provide a safe
stop (check and observe state/local regula-
tions).
•
Do not connect the trailer's brake system
directly to the vehicle's brake system.
•
More frequent vehicle maintenance is
required.
•
Remove the ball holder when the hitch is not
being used.
NOTE
•
When parking the vehicle with a trailer on
a hill, apply the parking brake before put-
ting the gear selector in P. Always follow
the trailer manufacturer's recommenda-
tions for wheel chocking.
•
When starting on a hill, put the gear
selector in D before releasing the parking
brake.
•
If you use the manual (Geartronic) shift
positions while towing a trailer, make sure
the gear you select does not put too
much strain on the engine (using too
high a gear).
•
The drawbar assembly/trailer hitch may
be rated for trailers heavier than the vehi-
cle is designed to tow. Please adhere to
Volvo's recommended trailer weights.
•
Avoid driving with a trailer on inclines of
more than 15%.
STARTING AND DRIVING
}}
371
CAUTION
The maximum trailer weights listed are only
applicable for altitudes up to 3,280 ft
(1000 m) above sea level. With increasing
altitude the engine power and therefore the
car's climbing ability are impaired because of
the reduced air density, so the maximum
trailer weight has to be reduced accordingly.
The weight of the vehicle and trailer must be
reduced by 10% for every further 3,280 ft
(1,000 m) (or part thereof). When towing
5,000 lbs (2,250 kg) hill inclination is restric-
ted to 14%.
WARNING
•
Bumper-attached trailer hitches must not
be used on Volvos, nor should safety
chains be attached to the bumper.
•
Trailer hitches attaching to the vehicle
rear axle must not be used.
•
Never connect a trailer's hydraulic brake
system directly to the vehicle brake sys-
tem, nor a trailer's lighting system directly
to the vehicle lighting system. Consult
your nearest authorized Volvo retailer for
correct installation.
•
When towing a trailer, the trailer's safety
chains or wire must be correctly fastened
to the attachment points provided in the
trailer hitch on the vehicle. The safety
chain or wire must never be fastened to
or wound around the towing ball.
Trailer turn signals and brake lights
If one (or more) of the bulbs on a trailer is defec-
tive, a symbol and a message will be displayed in
the instrument panel.
The other lights on the trailer must be checked
manually by the driver before the vehicle is driven.
See the subsection "Manual check" in the follow-
ing section "Trailer lamp check".
Symbol Message
•
Trailer turn indicator Right
turn indicator malfunction
•
Trailer turn indicator Left
turn indicator malfunction
•
Trailer brake light Malfunc-
tion
If one of the trailer's turn signal bulbs is defective,
the turn signal symbol in the instrument panel for
the respective sides of the vehicle will also flash
faster than normal.
||
STARTING AND DRIVING
* Option/accessory.
372
Trailer lamp check*
Automatic check
When the trailer has been connected to the vehi-
cle's electrical system, its lamps can be checked
by automatically activating them. This helps the
driver to ensure that the trailer's lamps are func-
tioning correctly before starting to drive.
In order to perform this check, the engine must
not be running.
1. When a trailer is connected to a trailer hitch
or towbar,
Automatic Trailer Lamp Check
will appear in the instrument panel.
2.
Confirm this message by pressing the O but-
ton on the right-side steering wheel keypad.
> The lamp check will begin.
3. Leave the vehicle to perform the trailer lamp
check.
> All of the trailer's lamps will begin to flash
and then each lamp will illuminate one at
a time.
4. Visually check that all of the trailer's lamps
are functioning correctly.
5. After a short time, all of the trailer's lamps
will begin to flash again.
> The lamp check is completed.
Disabling the automatic check
The automatic lamp check function can be disa-
bled in the center display.
1.
Tap
Settings in Top view.
2.
Tap
My Car Lights.
3.
Deselect
Automatic Trailer Lamp Check.
Manual check
If the automatic lamp check has been disabled,
the function can be started manually.
1.
Tap
Settings in Top view.
2.
Tap
My Car Lights.
3.
Select
Manual Trailer Lamp Check.
> The lamp check will begin. Leave the vehi-
cle to perform the trailer lamp check as
described in the section "Automatic
check" above.
Self-leveling suspension*
The self-leveling system attempts to keep the
vehicle at a constant level, regardless of the load
(up to the max. permissible load). When the
engine is not running, the rear of the vehicle
sinks down slightly, which is normal.
Related information
•
Detachable trailer hitch* (p. 372)
•
Trailer Stability Assist (TSA) (p. 373)
•
Weights (p. 529)
Detachable trailer hitch*
Volvo recommends the use of Volvo trailer
hitches that are specially designed for the vehi-
cle.
Ball holder
Cotter pin
Hitch assembly
Locking bolt
Safety wire attachment bracket
Installing the ball holder
1. If necessary, remove the cotter pin from the
locking bolt and slide the locking bolt out of
the hitch assembly.
2. Slide the ball holder into the hitch assembly.
STARTING AND DRIVING
}}
373
3. Align the hole in the ball holder with the one
in the hitch assembly.
4. Slide the locking bolt through the hitch
assembly/ball holder.
5. Insert the cotter pin in the hole at the end of
the locking bolt.
WARNING
•
Be sure the towbar is securely locked in
position before attaching anything to it.
•
Always attach the trailer's safety wire
securely to the towbar's safety wire
attachment bracket.
Removing the ball holder
1. Remove the cotter pin from the locking bolt
and slide the locking bolt out of the ball
holder/hitch assembly.
2. Pull the ball holder out of the hitch assembly.
NOTE
A cover for the hitch assembly is also
included in the kit.
Stowing the ball holder
WARNING
When not in use, the detachable trailer hitch
should always be properly stowed under the
cargo compartment floor.
Related information
•
Driving with a trailer (p. 370)
•
Trailer Stability Assist (TSA) (p. 373)
Trailer Stability Assist (TSA)
Trailer Stability Assist is a system designed to
help stabilize a vehicle that is towing a trailer
when the vehicle and trailer have begun to sway
and is part of the Electronic Stability Control sys-
tem.
Function
A vehicle towing a trailer may begin to sway for
various reasons. Normally this only occurs at high
speeds but, for example, if the trailer is overloa-
ded or if the load is unevenly distributed in the
trailer, there is risk of swaying.
Swaying may be caused by factors such as:
•
The vehicle and trailer are hit by a sudden,
strong crosswind
•
The vehicle and trailer are traveling on an
uneven road surface or drive over a bump
•
Sudden movements of the steering wheel
Facts about TSA
•
The stability system symbol in the instrument
panel will flash when TSA is working
•
If the driver switches off the stability system's
Spin Control function, TSA will also be
switched off (but will be on again the next
time the engine is started)
•
TSA may not intervene when the vehicle and
trailer begin to sway if the driver tries to com-
pensate for the swaying motion by moving
the steering wheel rapidly
||
STARTING AND DRIVING
* Option/accessory.
374
How TSA works
Once swaying has begun, it can be very difficult
to stop, which makes it difficult to control the
vehicle and trailer.
The TSA system continuously monitors the vehi-
cle's movements, particularly lateral movement. If
the system detects a tendency to sway, the
brakes are applied individually on the front
wheels, which has a stabilizing effect on the vehi-
cle and trailer. This is often enough to enable the
driver to regain control of the vehicle.
If this is not adequate to stop the swaying motion,
the brakes are applied to all of the wheels on the
vehicle and on the trailer if it is equipped with
brakes, and engine power is temporarily reduced.
As the swaying motion begins to decrease and
the vehicle-trailer have once again become sta-
ble, TSA will now stop regulating the brakes/
engine power and the driver regains control of
the vehicle.
TSA is deactivated if the driver deactivates
ESC
in the center display's menu system.
When the ESC symbol in the
instrument panel flashes, TSA
is active.
Related information
•
Detachable trailer hitch* (p. 372)
•
Driving with a trailer (p. 370)
•
Electronic Stability Control (ESC) (p. 247)
Ignition modes
The vehicle's ignition can be put in various
modes (levels) to make different functions availa-
ble.
The vehicle's ignition has 3 modes: 0, I, and II
that can be used to operate various functions
without starting the engine. The following table
shows examples of which functions are available
in the respective modes.
STARTING AND DRIVING
* Option/accessory.
375
Mode Functions available
0
•
The odometer, clock and tem-
perature gauge are illuminated
•
Power seats* can be adjusted
•
The power windows can be oper-
ated
•
The 12-volt socket in the cargo
compartment can be used
•
The center display is activated
and can be used
•
The infotainment system can be
used for a limited time
In this mode, certain functions can
only be used for a limited time to help
minimize battery drain
I
•
The laminated panoramic roof*,
power seats*/windows,12-volt
sockets in the passenger com-
partment, Bluetooth, navigation
system*, climate system blower,
windshield wipers can be oper-
ated
•
The infotainment system will start
(if it was started when the ignition
was switched off)
Mode Functions available
II
•
The headlights illuminate
•
Warning/indicator lights illumi-
nate for 5 seconds
•
A number of other functions will
also be activated. However, the
heated seats* and heated rear
window functions can only be
activated when the engine is run-
ning.
This mode should only be used for
very short periods to help avoid
draining the battery.
Selecting an ignition mode
Start knob in the tunnel console (generic illustration)
•
Ignition mode 0: unlock the vehicle and
keep the remote key in the passenger's com-
partment.
NOTE
To access ignition modes I or II without star-
ting the engine, the brake pedal must not be
depressed when these modes are selected.
•
Ignition mode I: Turn the start knob to
START and release it. The knob will return
automatically to its original position.
•
Ignition mode II: Turn the start knob to
START and hold it there for approx.
4 seconds. Release the knob.
•
Returning to ignition mode 0: To return to
mode 0 from mode II or I, turn the start knob
to STOP and release it.
Related information
•
Starting the engine (p. 376)
•
Turning the engine off (p. 378)
STARTING AND DRIVING
376
Battery drain
Your vehicle's electrical functions drain the bat-
tery to varying extents.
Avoid using ignition mode II as much as posssi-
ble, or electrical functions that require a great
deal of electrical current when the engine is not
running.
Using ignition mode I whenever possible con-
sumes less electrical current.
Functions that require a great deal of electrical
current include:
•
the climate system blower
•
headlights
•
wipers
•
infotainment system (especially at high vol-
ume).
If the battery's charge level is low, a text message
will appear in the instrument panel. The vehicle's
energy-saving function will then turn off or
reduce certain functions that are currently con-
suming electrical current.
If the battery needs to be recharged, start the
engine and let it idle for at least 15 minutes or
drive the vehicle (driving charges the battery
faster than letting the engine idle).
Related information
•
Ignition modes (p. 374)
Starting the engine
The engine can be started using the start knob
on the tunnel console if there is a remote key in
the passenger compartment.
Start knob in the tunnel console between the front seats
(generic illustration)
WARNING
Before starting the engine:
•
Fasten the seat belt.
•
Check that the seat, steering wheel and
mirrors are adjusted properly.
•
Make sure the brake pedal can be
depressed completely. Adjust the seat if
necessary.
To start the engine.
1. A remote key must be in the passenger com-
partment. On models with the standard
Passive Start, the key has to be in the front
section of the passenger compartment. If the
vehicle is equipped the optional Passive
Entry system (keyless locking/unlocking) the
key can be anywhere in the vehicle.
2.
Press firmly on the brake pedal
2
.
3.
Turn the start knob toward START and
release it to start the engine.
> The starter motor will crank until the
engine starts or its overheating protection
is triggered.
2
If the vehicle is moving, it is only necessary to turn the start knob toward START to start the engine.
STARTING AND DRIVING
}}
377
WARNING
•
Never use more than one floor mat at a
time on the driver's floor. Before driving,
remove the original mat from the driver's
seat floor before using any other type of
floor mat. Any mat used in this position
should be securely and properly anchored
in the attaching pins. An extra mat on the
driver's floor can cause the accelerator
and/or brake pedal to catch. Check that
the movement of these pedals is not
impeded.
•
Volvo's floor mats are specially manufac-
tured for your car. They must be firmly
secured in the clips on the floor so that
they cannot slide and become trapped
under the pedals on the driver's side.
Back-up reader in the tunnel console
If Vehicle key not found is displayed in the
instrument panel, place the remote key in the
back-up reader in the tunnel console (see the
illustration) and try again to start the engine.
NOTE
When the remote key is in the back-up
reader, be sure there are no other metallic
objects (e.g., other keys, coins, cell phones) in
the cup holder. This could affect the back-up
reader's function.
CAUTION
If the engine does not start after the third try,
wait for approximately 3 minutes before trying
to start it again to give the battery time to
recover its starting capacity.
WARNING
•
Always remove the remote key from the
passenger compartment when leaving the
vehicle and ensure that the ignition in
mode 0.
•
On vehicles with the optional Passive
Entry, never remove the remote key from
the vehicle while it is being driven or
towed.
•
Always place the gear selector in Park
and apply the parking brake before leav-
ing the vehicle. Never leave the vehicle
unattended with the engine running.
•
Always open garage doors fully before
starting the engine inside a garage to
ensure adequate ventilation. The exhaust
gases contain carbon monoxide, which is
invisible and odorless but very poisonous.
NOTE
After a cold start, idle speed may be noticea-
bly higher than normal for a short period. This
is done to help bring components in the
emission control system to their normal oper-
ating temperature as quickly as possible,
which enables them to control emissions and
help reduce the vehicle's impact on the envi-
ronment.
||
STARTING AND DRIVING
* Option/accessory.
378
CAUTION
•
When starting in cold weather, the auto-
matic transmission may shift up at slightly
higher engine speeds than normal until
the automatic transmission fluid reaches
normal operating temperature.
•
Do not race a cold engine immediately
after starting. Oil flow may not reach
some lubrication points fast enough to
prevent engine damage.
•
The engine should be idling when you
move the gear selector. Never accelerate
until after you feel the transmission
engage. Accelerating immediately after
selecting a gear will cause harsh engage-
ment and premature transmission wear.
•
Selecting P or N when idling at a stand-
still for prolonged periods of time will help
prevent overheating of the automatic
transmission fluid.
Related information
•
Ignition modes (p. 374)
•
Turning the engine off (p. 378)
•
Changing the remote key's battery (p. 221)
•
Jump starting (p. 368)
Turning the engine off
The engine can be turned off using the start
knob on the tunnel console.
Start knob in the tunnel console between the front seats
To turn off the engine:
–
Turn the start knob toward STOP and
release it to switch the engine off.
If the gear selector is in P or if the vehicle is mov-
ing:
–
Hold the knob in the STOP position until the
engine stops.
Related information
•
Starting the engine (p. 376)
•
Ignition modes (p. 374)
Drive modes*
Selecting a drive mode affects the vehicle's driv-
ing characteristics to help make driving more
enjoyable or easier in certain types of situations.
The following systems are adapted to help pro-
vide the best vehicle performance in the respec-
tive drive modes:
•
Steering
•
Engine/transmission/All Wheel Drive*
•
Brakes
•
Suspension control
•
Instrument panel
•
Start/Stop
•
Climate system settings
Select the drive mode best suited to the current
driving conditions.
Please be aware that not all modes can be
selected in all driving situations. The selected
mode will be displayed in the instrument panel.
STARTING AND DRIVING
}}
379
Selecting a drive mode
1.
Press the DRIVE MODE control in the tun-
nel console.
> A pop-up menu will open in the center
display.
2. Roll the control upward or downward to scroll
to the desired drive mode.
3. Press the control again to select it. A drive
mode can also be selected by tapping its
button on the center display.
> The selected drive mode will be displayed
in the instrument panel.
When a drive mode cannot be selected, one of
the following messages may be displayed:
•
Not possible to select due to gear in
manual
•
Not possible to select due to low battery
•
Not possible to select due to low
temperature
•
Not possible to select due to limitations
•
Not possible to select due to high
speed.
Available drive modes
COMFORT
This is the default mode.
When the engine is started, COMFORT drive
mode will be selected and the Start/Stop func-
tion will be activated. This setting offers driving
comfort, light steering and relatively soft suspen-
sion.
ECO
ECO drive mode is designed to help promote
fuel-efficient driving.
In this mode, Start/Stop is activated and certain
climate system functions will be reduced.
There is an ECO gauge in the instrument panel
to indicate the current level of fuel-efficiency. See
also the article "ECO drive mode."
DYNAMIC
Dynamic drive mode is designed to provide
sportier driving characteristics. Gear shifting will
be faster and more distinct and will occur at
higher rpm.
Steering response will be more immediate and
the suspension will be stiffer
3
to help reduce
body roll when cornering.
Start/Stop will be
deactivated.
3
Models equipped with Four-C only.
||
STARTING AND DRIVING
* Option/accessory.
380
INDIVIDUAL
This setting allows you to adapt a drive mode to
your personal preferences.
Select one of the other drive modes as a basis
and change the settings to provide the driving
characteristics that you prefer. These settings will
be stored in a driver profile.
INDIVIDUAL is only available if it has been acti-
vated in the center display.
Settings view
4
for INDIVIDUAL drive mode
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Individual Drive Mode and
tap
Individual Drive Mode.
3.
Under
Preset, select: Eco, Comfort or
Dynamic.
The following settings can be modified:
•
Driver Display
•
Steering force
•
Powertrain Characteristics
•
Brake Characteristics
•
Suspension Control
•
ECO Climate
•
Start/Stop.
Related information
•
Adjustable steering force* (p. 246)
•
Loading (p. 202)
•
Driver profiles (p. 172)
•
Start/Stop (p. 383)
•
ECO drive mode (p. 381)
•
All Wheel Drive (AWD) (p. 391)
4
Generic illustration.
STARTING AND DRIVING
}}
* Option/accessory.
381
ECO drive mode
The Eco drive mode is a function designed to
give the driver the opportunity to drive more eco-
nomically and to help reduce fuel consumption.
When this mode is activated, the following cha-
racteristics are modified:
•
The automatic transmission's shifting points
•
The engine management system and accel-
erator pedal response
•
Eco Coast functionality is activated: engine
braking is disabled at speeds between
approx. 40 and 87 mph(65 and 140 km/h)
•
Climate system settings: certain functions
will be temporarily reduced or deactivated
•
Information is shown in an ECO gauge in the
instrument panel to help promote more eco-
nomical driving
NOTE
When Eco is activated, several climate system
parameters are changed and the function of
certain current-consuming systems will be
reduced.
Some of these functions can be restarted
manually but full functionality will not be
restored until Eco is deactivated.
Selecting ECO mode
When the engine is switched off, ECO mode is
deactivated and must be reactivated each time
the engine is started.
ECO will appear in the
instrument panel when the function is activated.
Via Function view
Tap the button in the center
display's Function view. An indi-
cator light in the button shows
that the function is activated.
With the drive mode control*
1.
Press the DRIVE MODE control.
> A pop-up menu will open in the center
display.
2. Roll the control upward or downward to scroll
to the desired drive mode and
3. Press the control again to select it. A drive
mode can also be selected by tapping its
button on the center display.
Eco Coast
Eco Coast essentially deactivates engine braking,
allowing the vehicle to roll freely.
When the driver releases the accelerator pedal,
the transmission is automatically disengaged
from the engine to allow the vehicle to roll as far
as possible, which helps reduce fuel consump-
tion.
This feature is primarily intended to be used in
driving situations where the vehicle can roll freely,
such as down gentle hills or when a decrease in
speed is expected, such as when approaching an
intersection or a traffic light.
Eco Coast enables proactive driving with as little
braking as possible.
Depending on the driving situation, Eco and Eco
Coast can be used in different ways to help
reduce fuel consumption:
•
With Eco activated: this enables Eco Coast,
which allows the vehicle to roll freely for as
far as possible when the driver releases the
accelerator pedal (e.g., when approaching a
traffic light or intersection).
or
•
With Eco deactivated: engine braking can
be used when the vehicle will only roll for
||
STARTING AND DRIVING
* Option/accessory.
382
a short distance (in heavy traffic, etc.) or
when driving down hills.
To help keep fuel consumption as low as possi-
ble, Eco Coast should not be used in traffic situa-
tions where the brakes have to be used fre-
quently.
Activating Eco Coast
Eco Coast is activated when the accelerator
pedal is released completely if:
•
Eco is activated
•
The gear selector is in D
•
The vehicle's speed is between approxi-
mately 40 and 87 mph(65 and 140 km/h)
Always observe posted speed limits
•
The gradient of a down-slope is less than
approximately 6%
COASTING will appear in the instrument panel
when Eco Coast is being used.
Limitations
Eco Coast is not available if:
•
The engine and/or transmission have not
reached their normal operating temperature
•
Cruise control is activated
•
The gear selector is moved from D to "+/-"
for manual shifting
•
The vehicle's speed is not within the
40 and 87 mph(65 and 140 km/h) range
•
The gradient of a down-slope is more than
approximately 6%
•
The steering wheel paddles* are used for
manual shifting
Deactivating and turning off Eco Coast
In certain situations, it may be advisable to switch
off the Eco Coast function, such as:
•
When driving down steep hills, in order to uti-
lize engine braking
•
Prior to passing another vehicle, in order to
do so as safely as possible
Deactivating Eco Coast (and reactivating engine
braking) can be done in the following ways:
•
Move the gear selector to the manual "+/–"
position
•
Change gears using the steering wheel pad-
dles*
•
Press the brake or accelerator pedal
Turn the function off by changing drive modes* or
by turning ECO off in the center display's Func-
tion view.
The vehicle will roll for short distances even if
Eco Coast is turned off to help conserve fuel.
However, for the best fuel economy, the function
should be used as much as possible.
ECO gauge in the instrument panel
Eco gauge 12" instrument panel
Eco gauge 8 instrument panel
The ECO gauge in the instrument panel helps
improve driving economy.
STARTING AND DRIVING
}}
* Option/accessory.
383
•
A low reading in the green area indicates
economical driving.
•
A higher reading indicates higher fuel con-
sumption.
The ECO gauge also has an indicator showing
how a "reference" driver would drive in the same
situation. This is indicated by a diamond in the
gauge.
Eco climate
In the Eco drive mode, eco climate is automati-
cally activated in the passenger compartment to
help minimize energy consumption.
To restart the climate system functions that may
have been reduced, press the
AUTO or defroster
buttons.
In order to return to full functionality for all of the
systems that may have been reduced to help
improve economical driving, select another drive
mode or adapt the climate system functions
using the Individual mode to full functionality.
Related information
•
Driving economically (p. 358)
•
Drive modes* (p. 378)
•
Start/Stop (p. 383)
Start/Stop
Start/Stop is a function that temporarily switches
off the engine when the vehicle is not moving,
for instance in heavy traffic or at a traffic light, to
help reduce fuel consumption. The engine starts
again automatically when the brake pedal is
released.
Start/Stop is one of several fuel-conserving fea-
tures that also help reduce emissions.
This feature helps make it possible to drive more
economically by allowing the engine to auto-stop
in certain situations.
Related information
•
Conditions for Start/Stop (p. 385)
•
Using the Start/Stop function (p. 383)
•
ECO drive mode (p. 381)
Using the Start/Stop function
Start/Stop is a function that temporarily switches
off the engine when the vehicle is not moving,
for instance in heavy traffic or at a traffic light, to
help reduce fuel consumption. The engine starts
again automatically when the brake pedal is
released.
Start/Stop is available when the engine has been
started. The instrument panel will indicate if the
function is available/unavailable/active.
All of the vehicle's normal systems such as light-
ing, infotainment, etc., function normally when the
engine has auto-stopped. However, certain func-
tions, such as climate system blower speed or
very high infotainment system volume, will be
temporarily reduced.
Auto-stop
The following conditions must be met for the
engine to auto-stop:
•
Stop the vehicle by applying the brakes and
keep the brake pedal depressed. The engine
will auto-stop. If the COMFORT
5
or ECO driv-
ing modes are activated, the engine can
auto-stop before the vehicle has come to a
standstill.
If the
Adaptive cruise or Pilot Assist functions
are activated, the engine will auto-stop after
5
The default driving mode.
||
STARTING AND DRIVING
384
approx. 3 seconds. See also the article "Condi-
tions for Start/Stop."
Auto-start
The following conditions must be met for the
engine to auto-start:
•
Release the brake pedal; the engine will
automatically restart. When starting on an
uphill incline, the Hill Start Assist (HSA)
function will be activated to help prevent the
vehicle from rolling backward.
•
When the brake system's Auto Hold function
is activated, the engine will not auto-start
until the accelerator pedal is pressed.
•
When
Adaptive cruise or Pilot Assist are
activated, the engine will auto-start when the
accelerator pedal is pressed or if the
button is pressed on the left-side steering
wheel keypad.
•
Keep the brake pedal depressed but press
the accelerator pedal. The engine will auto-
start.
•
On a downhill incline, release the brake pedal
so that the vehicle begins to roll. The engine
will auto-start after a slight increase in speed.
Symbols in the instrument panel
12" instrument panel
•
READY will be displayed in the tachometer
when Start/Stop is available.
•
An indicator in the tachometer will point
toward
READY when Start/Stop is active
and the engine has auto-stopped.
•
READY will be grayed-out when Start/Stop
is not available.
•
No text will be displayed when Start/Stop is
turned off.
Instrument panel when Start/Stop is active and the
engine has auto-stopped
8" instrument panel
The symbol is displayed at the bottom of the
speedometer.
Symbol Explanation
White symbol: the function is avail-
able.
Beige symbol: the function is active
and the engine has auto-stopped.
The function is not available
because the conditions have not
been met.
- No symbol displayed - the function
is turned off.
Turning Start/Stop off
In certain situations (e.g., heavy stop-and-go traf-
fic), it may be advisable to temporarily turn this
function off. To do so:
Tap the Start/Stop button in
the center display's Function
view. The green indicator light
in the button will go out. Start/
Stop will remain off until the
button is tapped again, the driv-
ing mode is changed
COMFORT or ECO, or until the engine is restar-
ted.
STARTING AND DRIVING
}}
* Option/accessory.
385
Related information
•
Conditions for Start/Stop (p. 385)
•
Start/Stop (p. 383)
Conditions for Start/Stop
Certain conditions must be met for the Start/
Stop feature to function. If a condition is not met,
this will be indicated in the instrument panel.
The engine does not auto-stop
In certain situations or conditions, the engine
may not auto-stop when the vehicle comes to a
standstill, such as when:
•
the vehicle has not reached a speed of
approx. 8 mph (12 km/h) after starting.
•
after several auto-stops, the speed must
again exceed approx. 8 mph (12 km/h)
before the next auto-stop.
•
the driver's seat belt is unbuckled.
•
the main battery's charge is below the mini-
mum level.
•
the engine has not reached its normal oper-
ating temperature.
•
the ambient temperature is below approx.
23°F (-5°C) or above approx. 85°F (30°C).
•
the windshield's heating function* is acti-
vated.
•
the climate system cannot keep the desired
settings in the passenger compartment.
•
the vehicle is backing up.
•
the main battery's temperature is above or
below the permitted limits.
•
the driver is turning the steering wheel hard.
•
the road's incline is very steep.
•
the hood is opened.
•
the transmission has not reached its normal
operating temperature.
•
driving at high altitude and the engine has
not reached its normal operating tempera-
ture.
•
the gear selector is in the manual shifting
position.
•
the ABS brakes have activated.
•
hard braking (even if the ABS brakes have
not activated).
•
many starts during a short time period have
triggered the starter motor's overheating pro-
tection.
•
a trailer's electrical system is connected to
the vehicle's electrical system.
The engine does not auto-start
In certain situations or conditions, the engine
may not auto-start after an auto-stop, such as:
•
if the driver is not wearing a seat belt
•
the gear selector is in the P position and the
driver's door is open. The engine must be
started normally.
The engine auto-starts while the brake
pedal is depressed
In the following situations, the engine will auto-
start even though the brake pedal is depressed:
||
STARTING AND DRIVING
386
•
condensation forms on the inside of the win-
dows.
•
the climate system cannot keep the desired
settings in the passenger compartment.
•
electrical current consumption is temporarily
high or the main battery's charge is below
the minimum level.
•
the brake pedal is pumped repeatedly.
•
the hood is opened.
•
the vehicle begins to move or increases
speed slightly (if the engine auto-stopped
before the vehicle was at a standstill).
•
the driver's seat belt is unbuckled while the
gear selector is in the D or N positions.
•
the gear selector is moved from D to R or ±.
•
the driver's door is opened with the gear
selector in D: an audible signal and a text
message will inform the driver that the igni-
tion is on.
WARNING
Do not open the hood if the engine has auto-
stopped. The engine could suddenly auto-
start.
Before opening the hood:
•
Switch off the ignition by turning the start
knob in the tunnel console toward STOP.
•
Be aware that if the engine has been run-
ning, components in the engine compart-
ment will be very hot.
Related information
•
Using the Start/Stop function (p. 383)
Automatic transmission
The automatic transmission has 8 forward gears
and shifts up or down based on the level of
acceleration, speed and engine speed (meas-
ured in revolutions per minute - rpm). Manual
shifting is also possible. The gear indicator in the
instrument panel shows the gear currently being
used or gear shift mode.
CAUTION
The transmission’s temperature is monitored
to help prevent damage to the transmission
or other drivetrain components. If there is a
risk of overheating, the warning symbol on the
instrument panel will illuminate and a text
message will be displayed. Follow the instruc-
tions provided there.
Symbols in the instrument panel
If a problem should occur with the transmission, a
symbol and a message will be displayed in the
instrument panel.
Symbol Explanation
Transmission-related information.
Follow the instructions provided.
Hot or overheated transmission.
Follow the instructions provided.
STARTING AND DRIVING
}}
* Option/accessory.
387
Related information
•
Gear selector positions (p. 388)
•
Gear shift indicator (p. 388)
•
Shiftlock (p. 387)
•
Steering wheel paddles* (p. 390)
•
All Wheel Drive (AWD) (p. 391)
Shiftlock
The automatic transmission's shiftlock feature
helps prevent inadvertently moving the gear
selector between different positions.
There are two different types of shiftlock:
mechanical and automatic.
Mechanical shiftlock
The gear selector can be moved back and forth
freely between N and D. There is a mechanical
shiftlock for the other positions.
To move the gear selector to between P, R, N
and D, press the button on the front of the gear
selector (see the illustration).
Automatic shiftlock
From Park – P
In order to move the gear selector from the P
position, the brake pedal must be depressed and
the ignition must be in mode II.
From neutral – N
If the gear selector is in N and the vehicle has
been stationary for more than 3 seconds (regard-
less of whether or not the engine is running), the
shiftlock feature will lock the gear selector in this
position.
In order to move the gear selector from the N
position, the brake pedal must be depressed and
the ignition must be in mode II.
Shiftlock override
If the vehicle cannot be driven (e.g., due to a dis-
charged battery), the shiftlock feature has to be
overridden in order to move the gear selector
||
STARTING AND DRIVING
* Option/accessory.
388
from the P or D positions into N so that the vehi-
cle can be moved. To do so:
Lift away the rubber mat on the bottom of
the storage compartment in front of the gear
selector to expose the small hole for overrid-
ing the shiftlock feature.
Press a small screwdriver or similar item into
the hole and hold it down.
Press the button on the front side of the
gear selector and move the selector to the N
position. Release the button and remove the
screwdriver from the hole.
4. Put the rubber mat back into place.
Related information
•
Gear selector positions (p. 388)
•
Automatic transmission (p. 386)
Gear shift indicator
The gear shift indicator in the instrument panel
shows the current gear (in manual shifting
mode) and will prompt the driver to shift up or
down to help get the best possible fuel econ-
omy.
The gear shift indicator shows the current gear in
the instrument panel and uses an upward arrow
to recommend shifting to a higher gear.
Gear shift indicator (generic illustration)
Related information
•
Gear selector positions (p. 388)
•
Steering wheel paddles* (p. 390)
Gear selector positions
The automatic transmission has 8 forward gears
and also offers manual shifting.
Gear selector positions
The following gear selector positions are shown
in the instrument panel:
P, R, N, D or M.
For manual shifting, the gear indicator in the
instrument panel shows the gear currently being
used.
STARTING AND DRIVING
}}
389
Park – P
Select P when the vehicle is parked or when the
starting the engine. The vehicle must be station-
ary when P is selected.
The ignition must be in mode II and the brake
pedal must be depressed before the gear selec-
tor can be moved from P.
In position P, the transmission is mechanically
locked. Always apply the parking brake when the
vehicle is parked.
NOTE
The gear selector must be in the P position
before the vehicle can be locked and the
alarm set.
WARNING
Always apply the parking brake when the
vehicle is parked, particularly when parking on
a hill. The transmission's P mode may not be
able to keep the vehicle stationary if it is
parked on an incline.
Reverse – R
The vehicle must be stationary before R can be
selected.
Neutral – N
No gear is selected and the engine can be
started. Always apply the parking brake if the
vehicle is not moving and the gear selector is in
the N position.
The ignition must be in mode II and the brake
pedal must be depressed before the gear selec-
tor can be moved from N.
Drive – D
D is the normal driving position and gear shifting
is fully automatic. The vehicle must be stationary
when the gear selector is moved from R to D.
Manual shifting – M (shown on the
instrument panel)
Manual shifting can be selected at any time and
engine braking will occur when the accelerator
pedal is released.
To select, move the gear selector from D to the
side toward "±". The current gear (1 - 8) will be
shown in the instrument panel.
•
Press the gear selector forward toward "+"
(plus) and release it to shift up one gear.
•
Pull the gear selector rearward toward "–"
(minus) and release it to shift down one gear.
Manual shift indicator in the instrument panel
6
.
For smooth shifting and engine performance, the
transmission will shift down automatically if the
vehicle's speed becomes too low for the selected
gear.
Move the gear selector to the side toward D at
any time to resume automatic gear shifting.
Safety function
To help avoid excessive rpm that might cause
engine damage, the transmission control module
has a down-shift protection feature that in some
situations may prevent a down-shift or kickdown.
During kickdown, the transmission may shift
down one or more gears, depending on the
engine's rpm and will shift up again when max.
rpm is reached for a specific gear.
6
Generic illustration.
||
STARTING AND DRIVING
* Option/accessory.
390
Related information
•
Steering wheel paddles* (p. 390)
•
Shiftlock (p. 387)
•
Gear shift indicator (p. 388)
Steering wheel paddles*
In addition to the manual gearshift function using
the gear selector, the paddles make it possible
to manually shift gears from the steering wheel.
Activating the paddles
In order to shift gears with the paddles, they have
to first be activated. To do so:
–
Pull either paddle toward the steering wheel
and release it.
> A number in the instrument panel will indi-
cate the current gear being used.
Instrument panel when the paddles are activated
Manually shifting gears
In shift mode M, the paddles are automatically
activated.
Instrument panel when using the paddles in manual
mode
Shifting
To shift one gear:
–
Pull either paddle toward the steering wheel
and release it.
STARTING AND DRIVING
* Option/accessory.
391
"–": Shift down one gear.
"+": Shift up one gear.
A gear shift will take place each time a paddle is
pulled if the engine speed (rpm) is within the per-
missible range for the selected gear.
The gear number shown in the instrument panel
will change after each gear shift.
Deactivating the paddles
Manual deactivation in modes D and M
–
Pull the right (+) paddle toward the steering
wheel and hold it until the number of the cur-
rent gear is no longer displayed in the instru-
ment panel.
> The transmission will revert to automatic
gear shifting in the D mode.
Automatic deactivation
In shift mode D, if the paddles are not used for a
period of time, they will deactivate automatically.
The number of the current gear will no longer be
displayed.
The paddles will remain active if engine braking is
currently being used.
In mode M, the paddles will not deactivate auto-
matically.
Related information
•
Gear selector positions (p. 388)
•
Gear shift indicator (p. 388)
All Wheel Drive (AWD)
7
Your Volvo can be equipped with All Wheel
Drive, which means that power is distributed
automatically between the front and rear wheels.
Under normal driving conditions, most of the
engine's power is directed to the front wheels.
However, if there is any tendency for the front
wheels to spin, an electronically controlled cou-
pling distributes power to the wheels that have
the best traction.
AWD reacts differently, depending on the drive
mode* selected.
Related information
•
Drive modes* (p. 378)
7
Standard equipment on certain models.
STARTING AND DRIVING
* Option/accessory.
392
Leveling control* and suspension
Self-leveling and suspension functions are con-
trolled automatically.
Self-leveling control
This function keeps the rear section of the vehi-
cle level regardless of the load being transported
and also remains active for a certain period after
the vehicle has been parked.
Active chassis (Four-C)
This function regulates the characteristics of the
shock absorbers according to the selected drive
mode and the vehicle's speed. The default set-
ting is for optimal comfort and is regulated con-
tinuously depending on factors such as road sur-
face, acceleration, braking and cornering.
Suspension settings
Deactivating suspension and leveling control
In certain situations, this function has to be
turned off, for example when lifting the vehicle on
a jack to help avoid problems created by the dif-
ference in levels in the pneumatic suspension
when the vehicle is raised.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Suspension .
3.
Select
Deactivate Suspension & Leveling
Control.
Changing the suspension control level
8
Models equipped with the Four-C active chassis
system but without the drive mode control*, sus-
pension control is adjusted from the center dis-
play.
1.
Tap
Settings in Top view.
2.
Tap
My Car Drive Mode Suspension
Control
and select the desired level.
Transport
When transporting the vehicle on a ferry, train or
a tow truck, it may only be secured (lashed)
around the tires, not using any other chassis
components. Changes in the pneumatic suspen-
sion may occur during transport that could nega-
tively affect the lashing and result in damage.
Related information
•
Drive modes* (p. 378)
•
Driving with a trailer (p. 370)
•
Loading (p. 202)
8
Depending on the equipment installed in the vehicle'
INFOTAINMENT
INFOTAINMENT
394
The infotainment system
The infotainment system consists of a radio,
media player and has the capacity to communi-
cate with a Bluetooth-connected cell phone. It is
also possible to connect to the Internet to e.g.,
stream audio content via apps.
The system's functions can be controlled from
the right-side steering wheel keypad, the center
display or by using voice commands.
Infotainment overview
Infotainment system overview
System updates
The infotainment system is constantly being
developed and improved. For optimal functional-
ity, updates can be downloaded when the vehicle
is connected to the Internet. See the article "Sys-
tem updates" and the support site
support.volvocars.com.
Related information
•
Media player (p. 419)
•
Radio (p. 396)
•
Phone (p. 411)
•
Internet connected vehicle (p. 431)
•
Apps (applications) (p. 394)
•
Ignition modes (p. 374)
•
Symbols in the center display status bar
(p. 43)
•
Voice control (p. 119)
•
Infotainment system license information
(p. 437)
•
System updates (p. 474)
Apps (applications)
Apps (applications) are programs used to con-
trol some of the vehicle's features and functions.
The center display's App view (generic illustration)
Several basic apps are always available and oth-
ers can be downloaded. Downloadable apps
include navigation services, web radio, streaming
music services, retailer contact and software
downloads.
INFOTAINMENT
395
Some apps are only available if the vehicle is
connected to the Internet.
–
In the center display's App view, tap an app
to start it.
Related information
•
Internet connected vehicle (p. 431)
•
Downloading, updating and uninstalling apps
(p. 433)
•
Changing settings in different types of apps
(p. 43)
Sound settings
The infotainment system is precalibrated for opti-
mal sound reproduction but these settings can
be changed to suit your personal preferences.
The system's volume is normally adjusted using
the right-side steering wheel keypad or the vol-
ume control below the center display.
Optimal sound reproduction settings
The audio system is precalibrated for optimal
sound reproduction using digital signal process-
ing. This calibration takes into account the speak-
ers, amplifier, cabin acoustics, listener position,
etc., for each combination of vehicle and infotain-
ment system.
Dynamic calibration is also available, which moni-
tors the setting of the volume control, radio
reception and the vehicle's speed.
Specific sound settings are described in the
respective articles/sections of this owner's infor-
mation.
To change a setting, pull down the center dis-
play's Top view and tap
Settings Sound.
Active noise suppression
1
The vehicle can be equipped with an active noise
suppression function that reduces engine noise
in the passenger compartment by utilizing the
infotainment system. The microphone(s) in the
ceiling liner react to engine noise and the info-
tainment system produces signals (white noise)
to counteract this.
Microphone in the ceiling liner. The number and position
vary, depending on the vehicle
NOTE
Avoid covering or obstructing the noise sup-
pression speakers because doing so could
result in a rumbling noise.
Related information
•
Media sound settings (p. 428)
•
Voice control settings (p. 124)
•
Phone settings (p. 417)
1
Certain models only.
INFOTAINMENT
* Option/accessory.
396
Radio
Your vehicle's radio offers AM and FM with HD
Radio ™ Technology and SiriusXM
®
Satellite
radio*.
The radio can be controlled
using the right-side steering
wheel keypad, the center dis-
play or by using voice com-
mands.
Related information
•
Changing and searching for radio stations
(p. 397)
•
Radio settings (p. 396)
•
SiriusXM
®
Satellite radio* (p. 402)
•
HD Radio™reception (p. 398)
•
Changing and searching for radio stations
(p. 397)
Radio settings
The following information lists the settings that
can be made for the various wavebands.
Pull down the center display's Top view and
select
Settings Media for the desired wave-
band. Tap to activate/deactivate.
AM/FM
•
Show Radio Text: displays information
about program content, artists, etc.
•
Freeze Program Service Name: select to
stop excessive scrolling to freeze after
20 seconds.
•
AM HD Radio: Enables HD Radio ™
Technology for AM audio quality comparable
to analogue FM.
•
FM HD Radio: - Enables HD Radio ™
Technology for audio comparable to CD
quality. See the article "HD Radio" for
detailed information.
SiriusXM® Satellite radio
With SiriusXM® Satellite radio activated, pull
down the center display's Top view and tap
SiriusXM Settings to display a list of available
alternatives. See the article "SiriusXM Satellite
radio settings" for detailed information.
Related information
•
SiriusXM
®
Satellite radio* settings (p. 404)
•
SiriusXM
®
Satellite radio* (p. 402)
•
Radio (p. 396)
•
HD Radio™reception (p. 398)
INFOTAINMENT
}}
397
RBDS radio
RBDS radio
RBDS (Radio Data Broadcast System) enables
certain functionality
2
, such as:
•
Searches for program types or new broad-
casts
•
Text information about currently broadcast
programs
For example, if news is broadcast, the currently
playing sound source will be interrupted so that
the news can be heard. The infotainment system
will return to the previous sound source when the
news broadcast has been completed.
To cancel the announcement, press the
but-
ton on the right-side steering wheel keypad or
tap
Cancel on the center display. This function
can be activated/deactivated in the center dis-
play's Settings menu.
Related information
•
Radio (p. 396)
•
Radio settings (p. 396)
Changing and searching for radio
stations
The radio automatically compiles a list of the
strongest stations that it is currently receiving.
Turning the radio on
1. Open an app (e.g., FM) from the center dis-
play's App view.
2. Select a station.
Changing a list in a waveband
1.
Tap
Library.
2.
Sect from
Stations, Favorites or Genres.
3. Tap the desired station in the list.
Favorites: only plays stations from the list of
favorites (see "Favorites" below).
Genres: only plays stations broadcasting the
selected genre or program type, e.g., pop, classi-
cal, etc.
Changing stations in a selected list
–
Tap < > under the center display or on the
right-side steering wheel keypad.
> Move step-by-step through the selected
list.
The center display can also be used to change
stations.
Favorites
If a favorite station from a list is currently availa-
ble, the radio will automatically tune to that sta-
tion.
See "Changing a list in a waveband" above for
information about selecting favorites on a wave-
band. See "Radio favorites" below for information
about selecting a station among all of your favor-
ites.
–
Tap to add or remove a station for the
waveband's list of favorites or Radio favorites.
Radio favorites
Radio favorites shows all of the
favorite stations that have been
saved for e.g., AM, FM.
1.
Open the
Radio favorites app in App view.
2. Tap the desired station to listen.
When a station is removed, it will also be
removed from the respective waveband's list of
favorites.
2
Certain stations only.
||
INFOTAINMENT
* Option/accessory.
398
Changing wavebands
3
–
Tap an app, e.g., FM in App view or open the
app menu from the right-side steering wheel
keypad to select.
Searching for a radio station
Searching is done differently, depending on the
waveband selected.
•
AM: stations and frequencies.
•
FM: stations, genres and frequencies.
•
SiriusXM®: program types, genres, stations.
1.
Tap
Library.
2.
Tap
.
> The search view with a keyboard will open.
3. Enter a search word(s).
> The search will start and change as char-
acters are entered and the search results
will be categorized.
Searching for a station manually
Searching manually makes it possible to find and
tune to stations that are not on the automatically
compiled list of the strongest stations in the area.
–
Tap Manual tuning, drag the control or tap
< > to go to the desired frequency.
Related information
•
SiriusXM
®
Satellite radio* (p. 402)
•
HD Radio™reception (p. 398)
HD Radio™reception
HD Radio is a brand name registered by the
iBiquity digital corporation
4
. They are the devel-
oper of a broadcasting technology called IBOC
or In Band On Channel, which refers to the
method of transmitting a digital radio broadcast
signal centered on the same frequency as the
AM or FM station's present frequency.
Introduction
Display when the radio is receiving an HD Radio broad-
cast (generic illustration)
NOTE
HD Radio volume may fade in and out at
times due to coverage limitations.
3
The AM waveband is not available in hybrid models.
4
HD Radio (TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corp.
INFOTAINMENT
* Option/accessory.
399
The IBOC system is referred to as a "hybrid"
since it is both analogue and digital. During
hybrid operation, receivers still continue to
receive the analogue (non-digital) signal. HD
Radio receivers incorporate both modes of
reception, where the receiver will automatically
switch to the analogue signal if the digital signal
cannot be decoded or is lost by the receiver.
When you have tuned to an HD Radio station, the
symbol will appear in the infotainment sys-
tem display. The symbol will be displayed in dif-
ferent colors:
•
Grayed-out symbol: NoHD Radio broadcast
reception
•
White symbol: the radio is actively receiving
an HD broadcast
•
Orange symbol: the radio is receiving an
HD broadcast with digital sound
More information about HD Radio and IBOC can
be found on Ibiquity's website, www.hdradio.com
and www.ibiquity.com.
Artist Experience™
A radio station's logo and album art can be dis-
played. If a station opts to provide this informa-
tion, it is broadcast once every 12 minutes, which
means that there may be a delay before the
logo/album art appear on the screen. The radio
can store 100 station logos so the next time the
radio is tuned to the same station, the logo will
be displayed immediately. Album art is synched
with the artist that you are currently listening to.
iTunes tagging
This feature is common to both HD Radio and
SiriusXM
®
Satellite radio*. See the section
"iTunes tagging" in the article "SiriusXM satellite
radio settings" for more detailed information.
Ball game mode
This feature means that a main FM station (HD1)
will broadcast live events, where the content of
the programming is more important than sound
quality, in analog mode only to help prevent the
delay between analog and digital broadcasting.
The HD Radio symbol will be white during live
broadcasts and "Live" will be displayed next to
the symbol.
Benefits of digital broadcasting
•
Better sound (FM sounds near CD quality
and AM as analogue FM).
•
Some FM frequencies offer a greater num-
ber of listening choices through “multicast-
ing” (consisting of a frequency's main chan-
nel and any sub-channels that may also be
available on that particular frequency.)
•
When receiving a digital signal there is no
multipath disturbance or hisses/pops/crack-
ling due to outside influences.
How HD Radio ™ Technology
broadcasting works
HD Radio works similarly to conventional radio
and broadcasts of this type are available in many
areas of the United States. However, there are a
few key differences:
•
Instead of transmitting one analogue signal,
stations send out a bundled signal – both
analogue and digital.
•
An HD Radio receiver can receive both digi-
tal and analogue broadcasts. Depending on
the terrain and location of the vehicle (which
will influence the signal strength), the
receiver will determine which signal to
receive.
Related information
•
Switching HD Radio on and off (p. 400)
•
HD Radio sub-channels (p. 400)
•
HD Radio limitations (p. 401)
•
Radio (p. 396)
•
Changing and searching for radio stations
(p. 397)
INFOTAINMENT
* Option/accessory.
400
Switching HD Radio on and off
The factory setting for HD Radio is off.
Switching HD on or off
When listening to an HD Radio station and driv-
ing through areas with weak HD signals (fringe
areas), you may experience that the radio repeat-
edly switches between analogue/digital and digi-
tal/analogue reception. If this happens, it may be
desirable to switch HD off.
To do so:
1. Be sure the infotainment system is switched
on and in AM or FM mode.
2. To access the settings menu from the center
display's Home view, pull down Top view and
tap
AM/FM Radio.
Go to Adjust settings for media.
3.
Tap the
AM HD Radio or FM HD Radio box
to select/deselect this function.
This will disable the radio's capability to receive
digital broadcasts but it will continue to function
as a conventional (analogue) AM/FM receiver.
Please note that when HD is switched off, it will
not be possible to tune to sub-channels (see the
article "HD Radio subchannels" for a more
detailed explanation of sub-channels).
Please note that this will only switch HD Radio
on or off (selecting or deselecting the function)
only affects the selected waveband.
Related information
•
HD Radio™reception (p. 398)
•
HD Radio sub-channels (p. 400)
•
SiriusXM
®
Satellite radio* settings (p. 404)
HD Radio sub-channels
In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.
Sub-channels
Example of an HD Radio station with sub-channels
If any sub-channels are available, they will listed
below the main channel on the screen. In this
example, "WRIF-FM HD2" is a sub-channel.
INFOTAINMENT
401
Selecting sub-channels
To listen to a station's sub-channel(s), tap the
station on the screen or press the forward/back
arrow keys on the right-side steering wheel key-
pad or below the screen.
Sub-channels can also be stored as favorites, see
the article "Changing and searching for radio sta-
tions".
If you tap a sub-channel favorite, it may take up
to 6 seconds before the channel becomes audi-
ble. If you tap a station while you are out of digital
range of the transmitter,
No reception will be
displayed.
Related information
•
HD Radio™reception (p. 398)
•
Switching HD Radio on and off (p. 400)
•
Changing and searching for radio stations
(p. 397)
HD Radio limitations
Limitations
•
Main channel vs. sub-channels (FM only):
The main channel is the only channel that
can receive in hybrid mode (both digital and
analogue). If a frequency has sub-channels,
they are broadcast in digital mode only. The
main FM channel will be displayed as, for
example, "WRIF-FM HD1". The sub-FM
channels will be displayed as"WRIF-FM
HD2", "WRIF-FM HD3", etc.
•
Reception coverage area: Due to current
IBOC transmitter power limitations, the
reception coverage area in digital mode is
somewhat more limited than the station's
analogue coverage area. Please be aware
that as with any radio broadcast technology,
terrain, time of day, foliage level and building
location can have positive or negative effects
on radio reception.
•
Analogue to digital/digital to analogue
blending: Analogue to digital blending will
occur as the signal strength reaches a preset
threshold in the receiver. This will be noticea-
ble in fringe areas (areas with weak recep-
tion) and is normal.
NOTE
There may be a noticeable difference in
sound quality when a change from analogue
to digital or digital to analogue occurs, such
as:
•
Volume increase or decrease
•
Equalizer settings, i.e., Bass/ Midrange/
Treble cut or boost
•
Time alignment (Digital program material
in extreme cases can be as much as 8
seconds behind the analogue). This will
noticeable as a "stuttering" effect.
The above items are dependant on the
broadcaster's equipment settings and do
not indicate a fault in the vehicle's radio
receiver or antenna systems.
Related information
•
HD Radio sub-channels (p. 400)
•
HD Radio™reception (p. 398)
INFOTAINMENT
* Option/accessory.
402
SiriusXM
®
Satellite radio*
The SiriusXM
®
Satellite system broadcasts from
of a number of high elevation satellites in geo-
synchronous orbit.
Listening to satellite radio
The digital signals from the satellites are line-of-
sight, which means that physical obstructions
such as bridges, tunnels, etc, may temporarily
interfere with signal reception.
Avoid any obstructions, such as metallic objects
transported on roof racks or in a ski box, or other
antennas that may impede signals from the
SiriusXM
®
satellites.
Selecting SiriusXM
®
Satellite radio
mode
1. From the center display's Home view, swipe
from right to left to come to App view.
2.
Tap the SiriusXM
®
Satellite radio icon.
Home view with SiriusXM
®
Satellite radio activated
If there is no subscription activated, tap channel
1, where you will be prompted on the screen to
phone SiriusXM
®
.
If a cell phone is paired and connected to the
vehicle, you can also subscribe by:
1. From Home view, pull down the Settings
menu.
2.
Open the settings menu for SiriusXM
®
Satel-
lite radio.
3.
Tap
Unsubscribed Services
4.
Tap the phone number to call SiriusXM
®
,
who will activate the subscription of your
choice. This may take several minutes.
When the subscription has been activated, tap
the SiriusXM
®
Satellite radio icon to start the
function and display the channel list included in
your subscription.
Related information
•
Using SiriusXM
®
Satellite radio* (p. 403)
•
SiriusXM Travel Link* (p. 405)
INFOTAINMENT
}}
* Option/accessory.
403
Using SiriusXM
®
Satellite radio*
SiriusXM
®
Satellite radio offers several features
for finding and listening to music, news, sporting
events, etc. being broadcast on satellite radio
stations.
SiriusXM
®
Satellite radio functions
With SiriusXM
®
Satellite radio activated, tap
Library to display a screen offering the following
functions:
•
Search (the magnifying glass icon)
•
Channels
•
Favorites
•
Categories
If you have used this view previously, you will be
returned to the most recently used one.
Search
Tap the magnifying glass to display a screen
where you can enter text using the center dis-
play's keyboard or by writing in the free-text field
to search for e.g., a station number, an artist,
song title, etc.
Channels
Tap to display a complete list of the channels
included in your subscription. Tap a channel
name to listen. If a subscription to a channel has
expired, its name will be grayed-out on the
screen.
For quick access to a channel that you often lis-
ten to, tap the star to the right of the channel's
name to add it to the list of favorites.
Favorites
Tap to display the channels that you have added
to this list. Tap a channel name to listen.
Categories/Genres
Tap to display the categories available. Tap a cat-
egory or genre name to display the channels that
it contains and then tap a channel to listen.
If an alert has been set (see the section "Alerts"
below) and an alert is active for an artist, song or
team, virtual categories will also be temporary
created and displayed. The channels currently
broadcasting the song, artist or broadcasting a
program with the selected team will be listed in a
virtual category.
EPG (Electronic Program Guide)
On the center display's Home screen, tap EPG
for information about e.g., when a program is
being broadcast and its name, description, artist,
etc. If no information is currently available,
No
information will be displayed.
Alerts
If this feature has been selected under SiriusXM
Settings, the Alerts button will be displayed on
the Home screen.
To add e.g., an artist's name, song title or a sports
team to the list of alerts:
1. Tune to any channel that is broadcasting a
song, game, etc., of your choice.
2.
Press the
Alerts button.
3. A pop-up window will be displayed showing a
list of alerts (nothing will be displayed if the
selected channel does not support the alert
function).
4. Select one of the alternatives in list (only one
can be selected at a time).
5. The song/artist/team will now be added to
the list of alerts. Favorite sports teams can
also be added to the list using the "Game
Alert" setting as described in the article "Sir-
iusXM satellite radio settings."
> When your choice is being broadcast on a
channel, you will be informed by a pop-up.
||
INFOTAINMENT
* Option/accessory.
404
iTunes tagging
From the center display's Top view, tapSiriusXM
Settings. Tap theiTunes Tagging menu. Tap
the iTunes Tagging box to activate/deactivate
this function and tap Close to return to Home
view. Tap List Of Tags to display a list of all tag-
ged songs.
If the function is activated, the
iTunes tag button
will be displayed in Home view. If a song is played
that you would like to buy in the iTunes store, tap
this button while the song is playing to tag it. If a
song with
iTunes Tagging information is availa-
ble, the button will be selectable. Tap the button
to tag the song. If you would like to buy a tagged
song via iTunes, Tap the iTunes tag button.
To buy a song in iTunes, begin by connecting an
iPhone/iPod/iPad to the USB socket in the tun-
nel console. The iTunes tagging list will automati-
cally be transferred to the device and removed
from the list in the vehicle. If the device is con-
nected when a song is tagged, the data will auto-
matically be saved in the device. To purchase the
song, consult the iTunes support page.
Related information
•
SiriusXM
®
Satellite radio* (p. 402)
•
Using the center display keyboard (p. 31)
•
SiriusXM
®
Satellite radio* settings (p. 404)
•
Connecting a device via the AUX/USB
socket (p. 418)
SiriusXM
®
Satellite radio* settings
There are numerous settings that can be made
to enhance your SiriusXM
®
Satellite radio listen-
ing experience.
Settings
To access the settings menu from the center dis-
play's Home view, pull down Top view and tap
SiriusXM Settings. The following alternatives
will be displayed:
Traffic Jump
Tap to display a list of cities from which you can
choose to get traffic/weather information (or
Traffic jump off to deactivate the feature). Tap
to select a city (
JUMP will be displayed on the
Home screen next to Library). Tap Back to
return to the list of settings or Close to return to
the Home screen.
From the Home screen, tap
JUMP to activate the
function. When traffic/weather information is
available from the selected city, the radio will
automatically tune to the channel providing the
information. When the information/announce-
ment is finished, the radio will automatically
return to the channel that you were previously lis-
tening to.
During an announcement, tap
JUMP to interrupt
the message and return to the station that you
were currently listening to.
Alert notifications
Tap the box to activate/deactivate. When acti-
vated, you will be notified if a song, artist, etc. that
you have selected is playing. You will be asked if
you want to listen.
Alert notifications sound
Opt to receive an audible alert when one of your
selected choices is being played.
iTunes tagging
Tap to display a menu with the options: iTunes
Tagging and List Of Tags. With this feature
activated, songs can be tagged for later purchase
from the iTunes store.
INFOTAINMENT
}}
* Option/accessory.
405
Game Alerts
Tap to display a list of sports.
Tap a sport to display a list of teams and tap a
box on the right side of the screen to select a
team as a favorite. An alert will then be provided
when information about the team is being broad-
cast.
Tap Confirm below the list to return to the list of
sports.
Tap
Back to return to the list of settings or
Close to return to the main screen.
Unsubscribed services
If you have a SiriusXM
®
Satellite radio subscrip-
tion, any channels not included in the subscrip-
tion will be listed here. Call SiriusXM™ to sub-
scribe. The phone number will be shown on the
screen. If a cell phone is paired and connected to
the vehicle, tap the phone number to make the
call.
Skipped stations
Tap to display a list of channels that you would
like to skip (hide). Hide channels from the chan-
nel list by tapping the boxes to the right of the
screen. Skipped (hidden) channels will not be
shown in the channel list. However, a channel
previously selected as a favorite will still be dis-
played in the list of favorites, even it has been
added to the skip list.
Skipped categories
Tap to display a list of categories. Tap a category
to skip (hide) it. It will not be displayed in the list
of categories.
Related information
•
Using SiriusXM
®
Satellite radio* (p. 403)
•
SiriusXM
®
Satellite radio* (p. 402)
SiriusXM Travel Link*
SiriusXM Travel Link is a feature offered by
SiriusXM
®
Satellite radio* that can provide infor-
mation about e.g., weather forecasts, weather
alerts, service stations, sports, etc. in the vicinity
of the vehicle.
Starting SiriusXM Travel Link
NOTE
SiriusXM Travel Link services are only availa-
ble in vehicles equipped with the Sensus
Navigation system.
From the center display’s App view, tap SiriusXM
Travel Link to activate the feature. A disclaimer
text will be displayed. Tap OK to display a list of
SiriusXM Travel Link services:
•
Alerts
•
Fuel
•
Sports
•
Weather
•
Favorites
In order to use one or more of these services, the
user has to subscribe to the ones desired.
To subscribe to a SiriusXM Travel Link service:
1. Open the center display's Top view.
2.
Tap
SiriusXM Travel Link .
||
INFOTAINMENT
* Option/accessory.
406
3.
Tap
Subscription Status.
> To subscribe, call the phone number listed
on the screen.
Any services not subscribed will be grayed out
and contain the text
Service not subscribed.
When the services have been activated (subscri-
bed), tap the one of your choice to start it.
The following applies for all of the SiriusXM
Travel Link services:
•
Pressing the Back button will take you back
to the previous screen
•
Pressing the Close button will take you to
the SiriusXM Travel Link home screen.
NOTE
If the Close button is used to return to
SiriusXM Travel Link home screen, the follow-
ing applies (the
Weather service is used here
as an example):
•
If you have already used the
Weather
function, tapping Weather again in the
SiriusXM Travel Link home screen
before using any other SiriusXM
Travel Link service will return you to the
point where you left the
Weather service
•
If another SiriusXM Travel Link service is
used (e.g., Fuel, Sports, etc.) before you
return to the
Weather service, you will be
returned to the default Weather view (in
this case, Local)
The same principle applies to all of the
SiriusXM Travel Link services.
Favorites
Many SiriusXM Travel Link selections can be
saved for easy access as favorites by tapping the
"star" icon next to the selection where applicable.
To display a list of your favorites, tap the Favorite
application in the SiriusXM Travel Link home
screen.
Related information
•
SiriusXM
®
Satellite radio* (p. 402)
•
Center display overview (p. 28)
•
Navigating in the center display's views
(p. 38)
•
SiriusXM Travel Link - Weather (p. 407)
•
SiriusXM Travel Link - Sports (p. 410)
•
SiriusXM Travel Link - Alerts (p. 408)
•
SiriusXM Travel Link - Fuel (p. 409)
INFOTAINMENT
}}
407
SiriusXM Travel Link - Weather
This SiriusXM Travel Link service provides
weather-related information near the vehicle, at a
local ski resort, etc.
From the SiriusXM Travel Link home screen, to
display weather-related information:
–
Tap the Weather button to display this
screen.
At the top of the screen, the following categories
will be displayed:
•
Search (the magnifying glass icon)
•
Local
•
Ski condition
•
Areas
•
Favorites
Tap the category of your choice.
Search
Tap the magnifying glass icon. If the function is
supported in the current context, a keyboard will
appear on the screen. Enter the text of your
choice and tap
Search for detailed information
from the SiriusXM Travel Link database.
Local
5
Information from the closest weather station will
be displayed and the following alternatives are
available:
•
Map view
•
Today
•
5 days
Map view
Tap the map to display it full-screen. Tap Back to
return to the original map view.
Tap
Map options to display the following alter-
natives.
•
Weather radar
•
Storm attributes
•
Surface features
•
Tropical storm tracks
•
Winds
Tap the respective boxes to the right of the alter-
natives to select/deselect. Tap
Done to confirm
and return to the previous screen or Cancel.
Today
Tap to see the current temperature, or the tem-
perature in 3/6 hours.
Tap
Back to return to the Local screen or Close
to return to the SiriusXM Travel Link home
screen.
5 days
Tap to see weather information for the coming 5
days.
Tap Back to return to the Local screen or Close
to return to the SiriusXM Travel Link home
screen.
Ski location
Tap to display a list of ski areas in the vicinity of
the vehicle. Tap a name in the list for information
such as if the ski area is open/closed, tempera-
ture, wind conditions, snow conditions, the num-
ber of lifts that are in operation, etc.
•
Weather locations
•
Ski locations
Tap Map view to display a map and a weather
legend.
Tap
Map options to display the following alter-
natives.
•
Weather radar
•
Storm attributes
•
Surface features
•
Tropical storm tracks
•
Winds
Tap the respective boxes to the right of the alter-
natives to select/deselect. Tap
Done to confirm
and return to the previous screen or Cancel.
5
This is the weather default unless another alternative has been selected.
||
INFOTAINMENT
* Option/accessory.
408
Areas
Tap Areas to display a list of areas/locations in
states from the SiriusXM Travel Link database.
Scroll to a state and tap to display:
•
Weather locations: tap arrow to the right to
display a list of towns. Scroll to desired town
and tap for detailed weather information. You
can choose Map view, today, 5 days or Favor-
ites (star)
•
Ski locations: tap arrow at right to display
local ski areas. Tap an area for detailed info.
See also "Ski locations" above.
For information about storing a location, state,
town, etc. as a favorite, see the heading "Favor-
ites" in the article "SiriusXM Travel Link."
Related information
•
SiriusXM Travel Link* (p. 405)
•
SiriusXM Travel Link - Alerts (p. 408)
SiriusXM Travel Link - Alerts
This SiriusXM Travel Link service provides alerts
for potential weather problems or other emer-
gency situations in the vicinity of the vehicle.
From the SiriusXM Travel Link home screen, to
display alerts:
–
Tap the Alerts button to display the this
screen.
•
If any alerts are currently available, a notifica-
tion will appear at the top of the screen. They
can also be listed from the
Settings menu in
the center display's Top view.
•
If no alerts are available,
No active alerts
will be displayed.
Types of alerts
To select the types of alerts to be displayed:
1.
From the
Alerts screen, tap the Select
alerts button at the bottom of the screen.
2. This displays the types of alerts that can be
displayed. Tap the box to the right of each
type of alert to select/deselect it.
3.
Tap
Done when you have made your selec-
tions to return to the Alerts screen.
Information about an alert
If any alerts have been displayed on the screen,
tap one for more detailed information (i.e., the
location of the weather problem on a map and a
description of the situation).
If a phone number is available in an alert, a
Call
button will be displayed. Tap this button for addi-
tional information.
Related information
•
SiriusXM Travel Link* (p. 405)
•
SiriusXM Travel Link - Weather (p. 407)
INFOTAINMENT
}}
409
SiriusXM Travel Link - Fuel
This SiriusXM Travel Link service provides infor-
mation and guidance to service stations near the
vehicle providing the type of fuel that you prefer/
require for your vehicle.
From the SiriusXM Travel Link home screen, to
display fuel information:
–
Tap the Fuel button to display main fuel
screen.
The following
Fuel categories will be listed:
•
Search (the magnifying glass icon)
•
Nearby
•
Recommended
•
Favorites
•
Brands
Tap one of the alternatives to display its screen.
NOTE
In each of the Fuel categories listed, tapping
the Select fuel type button near the bottom
of the screen opens a sub-view where you
can specify the type of fuel preferred/
required (regular, premium, diesel, 120V, etc.).
Tap
Done to return to the previous screen.
Search
Tap the magnifying glass icon. If the function is
supported in the current context, a keyboard will
appear on the screen. Enter the text of your
choice and tap
Search for detailed information if
available.
Nearby
Tap for a list of service stations in the vicinity of
the vehicle, with the nearest station at the top of
the list.
The following information will be provided where
available:
•
For vehicles using gasoline, the price infor-
mation for regular gasoline (unless another
grade/type of fuel has been selected in
Select fuel type)
•
For electric vehicles/hybrids, information
about charging stations, showing the total
number of charging ports and the number of
ports currently not in use
•
the distance to the station
•
a star icon to set the service station as a
favorite
Tap the name of a service station to display more
detailed information.
For guidance to the service station, tap the
Start
navigation or Add as waypoint buttons. See
the Sensus Navigation supplement for additional
information about using the navigation system.
Recommended
Tap for a list of service stations near the vehicle,
displayed according to the price of regular gaso-
line (unless another grade/type of fuel has been
selected in
Select fuel type) or of stations
offering the greatest number of available charg-
ing ports for electric vehicles/hybrids. The station
offering the lowest price/most available charging
ports will be displayed at the top of the list. Tap
the name of a service station to display more
detailed information.
Favorites
Tap for a list of service stations that have been
stored as favorites. See also the heading
Favorites in the article "SiriusXM Travel Link" for
information explaining how to create favorites.
Tap the name of a service station to display more
detailed information.
In addition to the
Select fuel type button at the
bottom of the screen, tap the Edit button to
delete individual stations from the list or tap
Delete all to clear the list. Tap Done to return to
the previous screen.
Brands
1.
Tap
Brands to display a list of service sta-
tion brands in the area.
2. Tap a brand to display a list of service sta-
tions affiliated with that brand (e.g., BP,
Exxon, etc.).
3. Tap the name of a service station to display
detailed information.
In addition to the
Select fuel type button at the
bottom of the screen, tap the Sort button to
||
INFOTAINMENT
* Option/accessory.
410
arrange the list according to
Nearest or
Recommended. Tap Done to return to the pre-
vious screen.
Related information
•
SiriusXM Travel Link* (p. 405)
•
Octane rating (p. 366)
•
Opening/closing the fuel filler door (p. 367)
•
Fuel (p. 365)
SiriusXM Travel Link - Sports
This SiriusXM Travel Link service provides infor-
mation sporting events, tournaments, teams, lea-
gues, etc.
From the SiriusXM Travel Link home screen, to
display sports information:
–
Tap the Sports button to display the main
sports screen.
A number of
Sports categories will be listed
(Football, Baseball, Basketball, etc.)
Tap a sport to select a league in that sport (NFL,
MLB, etc.) or a sport organization (PGA, LPGA,
etc.).
The following is an example of the result of
tapping Baseball:
1. MLB (Major League Baseball) will be dis-
played.
2. Tap MLB to display the two leagues in Major
League Baseball (American League or
National League).
3. Tap one of the league names to display the
divisions in the league.
4. Tap one of the divisions to display:
•
In progress: play-by-play information
about a match/game/tournament cur-
rently in progress. Continue tapping to
display. In the detailed view, you can also
select a radio station that is currently
broadcasting an ongoing sporting event
•
Headlines for MLB: Tap to display brief
headline information
•
Scheduled: schedules for coming
matches, games, etc.
•
Scores: match/game results
The same principle applies to all sports.
Related information
•
Using SiriusXM
®
Satellite radio* (p. 403)
INFOTAINMENT
411
Phone
A Bluetooth-enabled cell phone can be paired
and connected to the vehicle's integrated hands-
free system.
The infotainment system offers hands-free func-
tionality for remote-controlling a number of a cell
phone's features. The phone's integrated controls
can also be used, even when it is connected to
the vehicle.
When the phone has been paired and connected
to the infotainment system, it can be used to
make or receive calls, send or receive text mes-
sages, to stream music, etc., or as an Internet
connection.
The phone is controlled from
the center display but the App
menu (accessed using the
right-side steering wheel key-
pad) and voice commands can
also be used to control certain
functions.
Overview
Microphone
Cell phone
Center display
Keypad for controlling phone functions
shown in the center display and voice com-
mands
Instrument panel
Related information
•
Connecting/disconnecting a cell phone
(p. 413)
•
Handling phone calls (p. 414)
•
Handling text messages (p. 416)
•
Pairing a cell phone (p. 412)
•
Phone settings (p. 417)
•
Text message settings (p. 418)
INFOTAINMENT
412
Pairing a cell phone
A Bluetooth
®
-enabled cell phone or other device
can be paired and wirelessly connected to the
infotainment system.
When a cell phone or other device is connected,
audio can be streamed to the infotainment sys-
tem. Toggle between the devices by pressing the
TEL and MEDIA buttons to access the respective
sources' functions.
Before a Bluetooth device can be used with
the infotainment system, it has to be paired
("registered").
This procedure only needs to be done once for
each device (a maximum of 20 Bluetooth devices
can be paired to the system). Once a device has
been paired and its Bluetooth function is acti-
vated, it can then be selected for use (wirelessly
connected) to the vehicle's infotainment system.
Two Bluetooth devices can be connected at the
same time. However, if two cell phones are con-
nected, only the most recently connected one
can be used as a phone. The other one can be
used to e.g., to stream audio or video. To change
what the phone will be used for, see the article
"Bluetooth settings."
A paired and connected cell phone can also be
used to connect the vehicle to the Internet. To do
so, its tethering/personal hotspot function must
be activated.
There are two ways of pairing a Bluetooth device
to the infotainment system:
•
Searching for the phone (or other device)
from the vehicle
•
Searching for the vehicle from the phone (or
other device)
The following instructions assume that a cell
phone is to be paired to the infotainment system
but the procedure is the same for any Bluetooth
device.
Alternative 1: searching for the phone
from the vehicle
1. Make the phone discoverable/visible using
its Bluetooth function. Refer to the phone's
user guide if necessary.
2.
Open the Phone view on the center display.
>
•
If no phones have been paired to the
vehicle, tap
Add phone.
•
If a list of phones is displayed, tap
Change and tap Add phone in
the pop-up window.
3. Tap the name of the phone to be connected.
4. Check that the code displayed in the vehicle
is the same as the one in the phone. Confirm
in both places.
5. For the phone selected, accept or cancel the
alternatives for the phone book (list of con-
tacts), text messages, etc. Full functionality
may not be available in all cell phones.
6. To connect the vehicle to the Internet via the
phone's Bluetooth function, activate the
phone's function for tethering/personal hot-
spot, etc.
Alternative 2: searching for the vehicle
from the phone
1. Open the center display's Phone view.
•
If no phones have been paired to the vehi-
cle, tap
Add phone Make vehicle
discoverable
.
•
If a phone has previously been paired to
the vehicle, tap
Change and tap Add
phone
Make vehicle discoverable in
the pop-up window.
2. Activate the phone's Bluetooth function.
3. Search in the phone for Bluetooth devices.
> A list of Bluetooth devices will be dis-
played.
4. Select the vehicle's name in the list.
5. Check that the code displayed in the phone
is the same as the one in the vehicle. Con-
firm in both places.
INFOTAINMENT
}}
413
6. For the phone selected, accept or cancel the
alternatives for the phone book (list of con-
tacts), text messages, etc. Full functionality
may not be available in all cell phones.
7. To connect the vehicle to the Internet via the
phone's Bluetooth function, activate the
phone's function for tethering/personal hot-
spot, etc.
NOTE
If your cell phone's operating system is upda-
ted, this may break the connection between
the phone and the vehicle. If this happens,
delete the phone from the list of paired
phones and repeat the pairing procedure
described in this article.
Compatible cell phones
Many of the cell phones available today have
Bluetooth functionality but not all of them are
fully compatible with the vehicle. Go to
www.volvocars.com for a list of compatible
phones or contact your Volvo retailer.
Related information
•
Connecting/disconnecting a cell phone
(p. 413)
•
Handling phone calls (p. 414)
•
Handling text messages (p. 416)
•
Phone settings (p. 417)
•
Bluetooth settings (p. 433)
Connecting/disconnecting a cell
phone
Once a cell phone or other Bluetooth device has
been paired to the infotainment system, it can be
connected, disconnected or removed from the
list of available devices.
Connecting automatically
Only the 2 most recently connected cell phones
can be connected automatically.
1. Before switching on the vehicle's ignition, be
sure that the phone's Bluetooth function is
activated.
To connect to the Internet, the phone's per-
sonal hotspot (tethering) function must also
be activated.
2. Switch on the ignition.
> The phone will be connected to the sys-
tem and can be used wirelessly.
Connecting manually
1. Be sure that the phone's Bluetooth and per-
sonal hotspot (tethering) functions are acti-
vated.
2. In the center display, open Phone view and
tap
Change phone.
> A list of available Bluetooth devices (ones
that have already been paired to the info-
tainment system) will be displayed.
3. Tap the name of the phone or other device
to be connected.
> The phone (or other device) will be con-
nected.
Disconnecting a phone
–
Deactivate the phone's Bluetooth function.
If a phone is carried out of range of the vehicle, it
will automatically be disconnected.
If a call in progress when this is done, the call will
be transferred from the vehicle's speakers/micro-
phone to the cell phone.
Changing phones
1. In the center display, open Phone view.
2.
Tap
Change .
> A list of available Bluetooth devices (ones
that have already been paired to the info-
tainment system) will be displayed.
3. Tap the name of the phone (or other device)
to be connected.
Removing a phone (or other device)
from the list
1. In the center display, open Phone view.
2.
Tap
Settings Communication
Bluetooth.
> A list of available Bluetooth devices (ones
that have already been paired to the info-
tainment system) will be displayed.
||
INFOTAINMENT
414
3. Tap the name of the phone to be deleted
from the list.
4.
Tap
Remove device and confirm.
> The phone or other device is no longer
paired to the vehicle. Before this device
can be used again, the pairing procedure
will have to be repeated.
Related information
•
Pairing a cell phone (p. 412)
Handling phone calls
Calls can be made to one or more parties.
Generic illustration
Making calls
1. In the center display, open Phone sub-view.
2. Initiate a call from: recently made calls, the
phone book (list of contacts) or enter a num-
ber. Search for or scroll to a contact in the
phone book. Tap
in the phone book to
add a contact to your list of
Favorites.
3.
Tap
Call or .
4.
Tap
End call to end a phone call.
Calls can also be made from the list of recent
calls using the App menu, which can be opened
using the right-side steering wheel keypad's
symbol.
Making multiple calls
While a call is in progress:
1.
Tap
Add call.
2. Select from the list of recent calls or from
the phone book.
3.
Tap a line in the list of recent calls or
to
call a contact in the phone book.
4.
Tap
Swap call to toggle between calls.
5.
Tap
End call to end a phone call.
Group (conference) calls
While multiple calls are in progress:
1.
Tap
Join calls to merge ongoing calls.
2.
Tap
End call to end a phone call.
INFOTAINMENT
}}
415
Incoming calls
Information about incoming calls is displayed in
the instrument panel and the center display. Han-
dle the calls using the right-side steering wheel
keypad or the center display.
1.
Tap
Answer/Reject.
2.
Tap
End call to end a phone call.
Incoming calls while another call is in
progress
1.
Tap
Answer/Reject.
2.
Tap
End call to end a phone call.
Privacy
While a call is in progress:
–
Tap Privacy.
> The vehicle's integrated microphone will
be turned off.
•
Switch to mobile phone: the hands-free
function will be disconnected and the call will
continue in the cell phone.
•
Driver focused: the microphone in the ceil-
ing liner on the passenger's side will be
muted and the call will continue using vehi-
cle's the hands-free function on the driver's
side.
Related information
•
Phone (p. 411)
•
Voice control for cell phones (p. 120)
•
Using the center display (p. 44)
•
Using the center display keyboard (p. 31)
•
Phone settings (p. 417)
Managing the phone book
The following is information about keeping track
of contacts in your Bluetooth-connected cell
phone's phone book.
||
INFOTAINMENT
416
Favorites: tap to add or remove a con-
tact from the list of favorites.
Search contacts: tap to search for a
phone number or a name in the phone book
(list of contacts).
To make navigating in the list easier, a quick-
select function provides names that match
the letters as they entered.
The vehicle can store up to 3,000 contacts from
a Bluetooth-connected cell phone. Only contacts
from the currently connected phone are accessi-
ble.
Sorting
The phone book is sorted in alphabetical order
and you can choose to sort by first or last names
(see the article "Phone settings" for additional
information). Any special characters in the list of
contacts in the phone book will be listed
under ”#”.
Related information
•
Phone (p. 411)
•
Voice control for cell phones (p. 120)
•
Phone settings (p. 417)
•
Changing settings in apps (p. 113)
•
Using the center display keyboard (p. 31)
Handling text messages
Text messages can be received and sent from a
connected cell phone.
Text message functionality has to be activated in
certain cell phones and not all phones offer full
compatibility/functionality. Go to
support.volvocars.com for additional information.
Reading text messages in the center
display
INFOTAINMENT
* Option/accessory.
417
1.
From App view, tap
Messages to open.
2. Tap the name of the contact who sent the
message.
3.
Tap
Read out to have the message read
aloud or tap the message to be displayed.
Reading new text messages in the
instrument panel
Text messages are only displayed in the instru-
ment panel if this has been selected. See the
article "Text message settings" for more informa-
tion.
–
To have the message read aloud, select
Read out using the keypad in the steering
wheel.
Sending text messages
1.
From App view, tap
Messages to open.
2.
•
To reply to a message: tap the name of
the contact who sent the message and
then tap
Answer.
•
To create a new message: tap
Create
new
+. Select the contact who will
receive the message or enter a phone
number.
3.
Write or dictate (
) the message.
4.
Tap
Send.
Message notification
See the article "Text message settings" for a list
of possible settings.
Related information
•
Text message settings (p. 418)
Phone settings
The following settings can be made for a paired
and connected cell phone.
Cell phones
–
Pull down the center display's Top view and
tap
Settings Communication Phone
and choose among the following settings:
•
Ringtones: select a ring tone (tones from
the cell phone or the vehicle can be
used). Not all cell phones are fully com-
patible and it may not be possible to use
their ring tones in the vehicle. Go to
www.volvocars.com for additional informa-
tion.
•
Sort order for contacts: select sort cri-
teria for the phone book (list of contacts).
To show call notifications in the head-up dis-
play*, see the article "Head-up display."
Related information
•
Text message settings (p. 418)
•
Bluetooth settings (p. 433)
•
Phone (p. 411)
•
Handling phone calls (p. 414)
•
Head-up display (HUD)* (p. 116)
INFOTAINMENT
418
Text message settings
The following settings can be made for text mes-
sages received through a paired and connected
cell phone.
Text message settings
–
Pull down the center display's Top view and
tap
Settings Communication Text
Messages
and choose among the following
settings:
•
Notification in center display: shows
text messages in the center display's sta-
tus bar.
•
Notification in driver display: shows
text messages in the instrument panel.
With this alternative active, incoming mes-
sages can be handled from the right-side
steering wheel keypad.
•
Text message tone: select an audible
signal for incoming text messages.
Related information
•
Connecting/disconnecting a cell phone
(p. 413)
•
Pairing a cell phone (p. 412)
•
Handling text messages (p. 416)
Connecting a Bluetooth
®
device
Bluetooth
®
-enabled devices can be paired and
connected to the infotainment system to stream
media and in some cases connect to the Inter-
net.
Many cell phones and other devices currently on
the market offer wireless Bluetooth
®
technology.
Consult your Volvo retailer or go to
support.volvocars.com for any questions regar-
ding a device's compatibility with the vehicle's
infotainment system.
The procedure for pairing and connecting a
Bluetooth
®
-enabled device is the same as for a
cell phone. See the articles "Pairing a cell phone"
and "Connecting/disconnecting a cell phone" for
details.
Related information
•
Pairing a cell phone (p. 412)
•
Connecting/disconnecting a cell phone
(p. 413)
Connecting a device via the
AUX/USB socket
External audio sources such as an iPod
®
or mp3
player can be connected to the infotainment sys-
tem via the AUX and USB sockets in the tunnel
console.
Route the cable out under the front edge to help
avoid pinching it when the cover is closed.
If there are two USB sockets, the one with a
white frame should be used to connect an
iPhone to Apple CarPlay.
AUX/USB sockets in the tunnel console
Related information
•
Apple CarPlay (p. 420)
•
Playing media (p. 424)
•
Media player technical data (p. 429)
•
Media player (p. 419)
INFOTAINMENT
* Option/accessory.
419
Media player
The media player can play audio from a CD*,
from external media devices connected to the
USB/AUX sockets or it can stream audio from
an external device connected to the infotainment
system through a Bluetooth connection.
Video can also be viewed from devices con-
nected to the USB socket.
If the vehicle is connected to the Internet, it may
also be possible to listen to web radio, audio
books and to use various music services through
apps.
The media player is controlled
from the center display but cer-
tain functions can also be con-
trolled from the right-side
steering wheel keypad or by
using voice commands.
Related information
•
Playing media (p. 424)
•
Voice control for radio and media (p. 121)
•
Radio (p. 396)
•
Apps (applications) (p. 394)
•
CD (media) player* (p. 424)
•
Playing media through the AUX/USB sock-
ets (p. 427)
INFOTAINMENT
* Option/accessory.
420
Apple CarPlay
Apple CarPlay helps make it possible to listen to
music, make phone calls, get directions to a
destination, send/receive text messages and use
Siri while focusing on driving. Apple CarPlay
functions with certain Apple devices.
If the vehicle is not already equipped with
Apple CarPlay, it can be retro-fitted. Contact a
Volvo retailer.
Information about the apps supported and com-
patible cell phones is available from Apple at:
www.apple.com/ios/carplay/.
NOTE
•
Using apps that are not compatible with
Apple CarPlay may sometimes result in a
broken connection between an iPhone
and the vehicle.
•
Please be aware that Volvo has no con-
trol over the content of the Apple CarPlay
app.
•
Apple CarPlay can only be used if
Bluetooth is disabled. Therefore, a cell
phone or a media player connected via
Bluetooth will not be accessible while
Apple CarPlay is active.
•
To connect the vehicle to the Internet
while Apple CarPlay is active, use Wi-Fi
or the vehicle's integrated modem.
If navigation guidance is being provided by
Apple CarPlay, this will only be shown on the
center display (not on the head-up display* or the
instrument panel).
The Apple CarPlay apps can be controlled from
the center display or voice-controlled using Siri
(the same as for a cell phone). Certain functions
can also be controlled from the right-side steer-
ing wheel keypad. Press and hold the
button
to activate Siri. If Siri cuts off too soon, press and
hold the
button.
By using Apple CarPlay you acknowledge
the following: Apple CarPlay is a service
provided by Apple Inc. under its terms and
conditions. Volvo Cars is thus not
responsible for Apple CarPlay or its
features/applications. When using Apple
CarPlay, certain information from your car
(including its position) is transferred to your
iPhone. In relation to Volvo Cars, you are
fully responsible for your and any others
person’s use of Apple CarPlay.
Starting Apple CarPlay
Voice control using Siri must be activated in the
currently connected cell phone before using
Apple CarPlay.
From an iPhone that is connected for the
first time
1. Connect the iPhone to the USB socket in
the tunnel console. If there are two USB
sockets, connect to the one with the white
frame.
2. Read the information in the pop-up window
that appears and tap
OK.
3. Tap Apple CarPlay in the center display's
App view.
4.
Read the conditions and tap
Accept to con-
nect.
> The Apple CarPlay sub-view will open and
compatible apps will be displayed.
5. Tap the desired app.
> The app will start.
INFOTAINMENT
}}
421
From a previously connected iPhone
1. Connect the iPhone to the USB socket in
the tunnel console. If there are two USB
sockets, connect to the one with the white
frame.
>
If the automatic start setting has been
activated, the Apple CarPlay sub-view will
open and compatible apps will be dis-
played.
2.
If the automatic start setting has not been
activated, open the
Apple CarPlay app from
the center display's App view.
> The Apple CarPlay sub-view will open and
compatible apps will be displayed.
3. Tap the desired app.
> The app will start.
Apple CarPlay will run in the background if
another app is started in the same sub-view. To
return to Apple CarPlay, tap the Apple CarPlay
icon in App view.
Toggling between Apple CarPlay and
iPod
Apple CarPlay to iPod
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Communication Apple CarPlay.
3. Deselect the Apple device's box that will no
longer start Apple CarPlay when it is con-
nected.
4. Disconnect and reconnect the Apple device
to the USB socket.
5.
Open the
iPod app from App view.
iPod to Apple CarPlay
1.
Tap
Apple CarPlay in the center display's
App view.
2. Read the conditions in the pop-up window
that appears and tap OK.
3. Disconnect and reconnect the Apple device
to the USB socket.
> The Apple CarPlay sub-view will open.
Related information
•
Media player (p. 419)
•
Playing media (p. 424)
•
Connecting a device via the AUX/USB
socket (p. 418)
•
Apple CarPlay settings (p. 421)
Apple CarPlay settings
This article explains settings for a cell phone
connected through Apple CarPlay.
Automatic start
1.
Tap
Settings in the center display's Top
view.
2.
Tap Communication Apple CarPlay and
select the following settings:
•
Select the Apple CarPlay box for auto-
matic start when the device's USB cable
is connected.
•
Deselect the Apple CarPlay box to disa-
ble automatic start when the device's
USB cable is connected.
A maximum of 20 Apple devices can be stored in
the list. When the list is full, the first (oldest)
device stored will be deleted.
To erase the entire list, a factory reset has to be
performed. See the article "Resetting the set-
tings view."
System volume levels
1.
Tap
Settings in the center display's Top
view.
||
INFOTAINMENT
* Option/accessory.
422
2.
Tap
Sound System Volumes and select
the following settings:
•
Voice Control
•
Navigation
•
Ringtone
Related information
•
Apple CarPlay (p. 420)
•
Resetting the settings view (p. 113)
Android auto*
Android Auto makes it possible to get voice
guidance from the navigation system, listen to
music, make calls and to use apps from an
Android device, all through a interface integrated
into the center display. Android Auto can also be
controlled using the buttons on the right-side
steering wheel keypad or by giving voice com-
mands while focusing on driving. Android Auto
is started from the center display's App view.
After Android Auto has been started once, it will
then start automatically the next time the device
is connected. The automatic start feature can be
deactivated in Settings. Android Auto functions
with selected Android devices.
Information about the apps that are supported
and the cell phones that are compatible can be
found at: www.android.com/auto/.
NOTE
•
Please be aware that Volvo has no con-
trol over the content of the Android Auto
app.
•
If a cell phone or a media player is con-
nected via Bluetooth, it will not be acces-
sible while Android Auto is active
because Bluetooth will be disabled. To
connect the vehicle to the Internet, use
Wi-Fi or the vehicle's integrated modem.
If navigation guidance is being provided by
Android Auto, this will only be shown on the cen-
ter display (not on the head-up display* or the
instrument panel).
The Android Auto apps can be controlled from
the center display or voice-controlled (the same
as for a cell phone). Certain functions can also be
controlled from the right-side steering wheel key-
pad. Press and hold the
button to activate
voice control. Press briefly to deactivate.
By using Android Auto, you acknowledge
the following: Android Auto is a service
provided by Google Inc. under its terms and
conditions. Volvo Cars is not responsible for
Android Auto or its features or applications.
When you use Android Auto, your car
transfers certain information (including its
location) to your connected Android phone.
INFOTAINMENT
}}
* Option/accessory.
423
You are fully responsible for your and any
other person’s use of Android Auto.
Starting Android Auto
Connecting an Android device for the first
time
1. Connect the Android device to the USB
socket in the tunnel console. If there are two
USB sockets, connect to the one with the
white frame.
2. Read the information in the pop-up window
that appears and tap
OK.
3.
Tap
Android Auto in the center display's
App view.
4.
Read the conditions and tap
Accept to con-
nect.
> The Android Auto sub-view will open and
compatible apps will be displayed.
5. Tap the desired app.
> The app will start.
From a previously connected Android device
1. Connect the phone to the USB socket in the
tunnel console. If there are two USB sockets,
connect to the one with the white frame.
>
If the automatic start setting has been
activated, the Android Auto sub-view will
open and compatible apps will be dis-
played.
2.
If the automatic start setting has not been
activated, open the
Android Auto app from
the center display's App view.
> The Android Auto sub-view will open and
compatible apps will be displayed.
3. Tap the desired app.
> The app will start.
Android Auto will run in the background if
another app is started in the same sub-view. To
return to Android Auto, tap the Android Auto icon
in App view.
Related information
•
Media player (p. 419)
•
Playing media (p. 424)
•
Connecting a device via the AUX/USB
socket (p. 418)
•
Connecting to the Internet (p. 431)
•
Android Auto* settings (p. 423)
Android Auto* settings
The following settings can be made for
Android Auto.
Automatic start
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Communication Android Auto and
select the following settings:
•
Select the Android Auto box for automatic
start when the device's USB cable is con-
nected.
•
Deselect the Android Auto box to disable
automatic start when the device's USB
cable is connected.
A maximum of 20 Android devices can be stored
in the list. When the list is full, the first (oldest)
device stored will be deleted.
To erase the entire list, a factory reset has to be
performed. See the article "Resetting the set-
tings view."
System volume levels
1.
Tap
Settings in the center display's Top
view.
||
INFOTAINMENT
* Option/accessory.
424
2.
Tap
Sound System Volumes and select
the following settings:
•
Voice Control
•
Navigation
•
Ringtone
Related information
•
Android auto* (p. 422)
•
Resetting the settings view (p. 113)
CD (media) player*
The CD (media) player can play commercially
purchased discs as well as ones that you have
burned yourself. See the article "Media player
technical data" for information about compatible
file formats.
Location of the CD player in the tunnel console
Disc slot
Eject button
Related information
•
Media player technical data (p. 429)
Playing media
The media player can controlled from the right-
side steering wheel keypad, the center display or
by using voice commands.
The radio is also controlled from the media
player. See the articles relating to the radio.
Starting a media source
Generic illustration
INFOTAINMENT
}}
425
CD
1. Insert a CD.
2.
Open the
CD app in the center display's App
view.
3. Select a track.
> Playback will begin.
USB flash drive
1. Insert the flash drive in the USB socket.
2.
Open the
USB app in the center display's
App view.
3. Select a track.
> Playback will begin.
Mp3 player and iPod
®
NOTE
Use the iPod app ( not the USB app) to start
playback.
When an iPod is the media source, the info-
tainment system will use a menu structure
similar to the iPod's own menu structure.
1. Connect the device.
2. Start playback in the connected device.
3.
Open the
iPod, USB, AUX) app in the cen-
ter display's App view.
> Playback will begin.
Bluetooth-connected device
1. Connect the device.
2. Activate Bluetooth in the device.
3. Start playback from the connected device.
4.
Open the
Bluetooth app in the center dis-
play's App view.
> Playback will begin.
Internet media
1. Connect the vehicle to the Internet.
2. Open the app in the center display's App
view.
> Playback will begin.
Video
1. Connect the device.
2.
Open the
USB app in the center display's
App view.
3. Tap the title of the video content to be
played.
> Playback will begin.
Apple CarPlay
Apple CarPlay is described in a separate article.
Controlling and changing media
The media player can be con-
trolled using voice commands,
the right-side steering wheel
keypad or the center display.
Volume: use the buttons on the right-side
steering wheel keypad or turn the control under
the center display to raise or lower the volume.
||
INFOTAINMENT
* Option/accessory.
426
Play/pause: tap the track's image, press the
symbol on the keypad or press the button under
the center display.
Change tracks: tap the desired track on the cen-
ter display, press the
buttons under the
center display or on the right-side steering wheel
keypad.
Fast forward/reverse, move within a track: press
the time axis on the center display and drag from
side to side, press and hold the
buttons
under the center display or on the right-side
steering wheel keypad.
Change media source: Tap a media source under
Recents, tap the desired app in the center dis-
play's App view or use the
button on the
right-side steering wheel keypad.
Library: tap to play a track from the library.
Shuffle: tap to play tracks in random order.
Similar: tap to use Gracenote to search for simi-
lar music on the USB device and create a playlist
based on the results. The playlist can contain up
to 50 tracks.
Change device: tap to toggle between USB
devices if more than one is connected.
Video settings
The following can be adjusted with the video
player in full screen or by opening the center dis-
play's Top view and tapping
Settings Video:
Primary Audio Default Language, Subtitle
and Primary Subtitle Default Language.
Play DivX
®
This DivX device must be registered in order to
play purchased DivX Video-on-Demand (VOD)
movies.
1. Open the center display's Top view and tap
Settings Video DivX® VOD to get a
registration code.
2. Go to vod.divx.com for additional information
and to complete the registration process.
Related information
•
CD (media) player* (p. 424)
•
Media player (p. 419)
•
Voice control for radio and media (p. 121)
•
Apps (applications) (p. 394)
•
Connecting a Bluetooth
®
device (p. 418)
•
Connecting a device via the AUX/USB
socket (p. 418)
•
Gracenote (p. 428)
•
Connecting to the Internet (p. 431)
•
Media searches (p. 426)
•
Video (p. 429)
•
Apple CarPlay (p. 420)
Media searches
Searches can be made for information such as
artists, composers, song titles, albums, video,
audio books, playlists and podcasts (digital
media on the Internet).
1.
Tap
.
> The center display's Search view opens
and the keyboard will be displayed.
2. Enter a search word/phrase.
INFOTAINMENT
427
3.
Tap
Search.
> The infotainment system will search
through all connected devices and any
results will be displayed by category.
Swipe the screen horizontally to display each cat-
egory separately.
Related information
•
Media player (p. 419)
•
Playing media (p. 424)
•
Using the center display keyboard (p. 31)
Playing media through the
AUX/USB sockets
An external media device, such as an iPod or an
mp-3 player can be connected to the infotain-
ment system.
A device with rechargeable batteries can be
recharged when it is connected to the USB
socket (if the ignition is on or the engine is run-
ning).
To simplify the use of a USB flash drive, it is
advisable to only store files with compatible file
formats on it. It will take considerably longer for
the system to index the files on the drive if it con-
tains anything other than compatible files.
In addition to audio, the vehicle's media player
also supports video playback when the external
device is connected to the USB socket.
Certain mp-3 players have proprietary file formats
that are not supported by the infotainment sys-
tem.
Related information
•
Connecting a device via the AUX/USB
socket (p. 418)
Streaming media through a
Bluetooth connection
The media player is equipped with Bluetooth
®
for streaming audio files from external
Bluetooth
®
-enabled devices.
Related information
•
Connecting a Bluetooth
®
device (p. 418)
•
Playing media (p. 424)
•
Voice control for radio and media (p. 121)
•
Media player (p. 419)
•
Ignition modes (p. 374)
•
Media player technical data (p. 429)
INFOTAINMENT
* Option/accessory.
428
Media sound settings
Sound settings for the media player can be per-
sonalized.
Concert hall sound setting
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Sound and select among the following:
•
Sound Experience*: this feature offers sev-
eral ways of adapting media sound settings
to replicate e.g., a concert hall or a recording
studio. These settings override any of the
ones below that may have been adjusted.
•
Tone: personal settings for bass, treble,
equalizer, etc.
•
Balance: adjust the front/rear and left/right
sound settings in the passenger compart-
ment.
System volumes for media
Open the center display's Top view and tap
Settings Sound System Volumes:
•
AUX: an external device (e.g., an mp3 player,
an iPod, etc.) connected to the AUX socket
may have a different volume level than the
one set for the infotainment system (e.g., for
the radio). This setting enables you to adjust
the AUX socket's volume. Please note that if
this volume is set too high, sound quality may
be affected.
•
Speed and Volume Compensation: the
infotainment system will compensate for dis-
rupting noises in the passenger compart-
ment by increasing media volume in relation
to the vehicle's speed. This can be set to one
of several different levels.
Related information
•
Playing media (p. 424)
•
Sound settings (p. 395)
Gracenote
Gracenote identifies artists, albums, tracks and
any associated images that can be displayed
during playback.
Gracenote MusicID
®
is a standard for music rec-
ognition.
Activating/deactivating Gracenote
When activated, Gracenote data will replace origi-
nal data.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Media Gracenote®.
3. Activate/deactivate Gracenote by tapping the
Gracenote® box.
4. Select among the following Gracenote alter-
natives:
•
Gracenote® Online Look Up: Gracenote
will search through its online database for
information about the currently playing
media.
•
Gracenote® Multiple Results: select how
Gracenote data is to be displayed if there are
several search results.
1: the file's original data will be used.
2: Gracenote data will be used.
3: Gracenote or original data can be
selected.
INFOTAINMENT
}}
429
•
None: no results will be shown.
Updating Gracenote
Gracenote's contents are updated continuously.
For optimal functionality, always use the latest
version. See support.volvocars.com for informa-
tion and downloads.
Related information
•
Infotainment system license information
(p. 437)
•
Playing media (p. 424)
Video
The media player can play video from USB-con-
nected devices.
No video will be available when the vehicle is
moving. Video will resume playing when the vehi-
cle is stationary.
See the article "Media player technical data" for a
list of video formats supported by the media
player.
Related information
•
Playing media (p. 424)
•
Media player (p. 419)
•
Media player technical data (p. 429)
Media player technical data
The following tables list compatible file formats
and other technical specifications for the media
player.
Audio files
For-
mat
File extension Codec
MP3 .mp3 MPEG1 Layer III,
MPEG2 Layer III,
MP3 Pro (mp3
compatible),
MP3 HD (mp3
compatible)
AAC .m4a, .m4b, .aac AAC LC (MPEG-4
part III Audio),
HE-AAC (aacPlus
v1/v2)
WMA .wma WMA8/9,
WMA9/10 Pro
WAV .wav LPCM
FLAC .flac FLAC
Video files
Format File extension
MP4 .mp4, .m4v
MPEG-PS .mpg, .mp2, .mpeg, .m1v
||
INFOTAINMENT
* Option/accessory.
430
Format File extension
AVI .avi
AVI (DivX) .avi, .divx
ASF .asf, .wmv
MKV .mkv
Subtitles
Format File extension
SubViewer .sub
SubRip .srt
SSA .ssa
DivX
®
DivX Certified devices have been tested for high
quality DivX (.divx, .avi) video playback. When you
see the DivX logo, you have the freedom to play
your favorite DivX movies.
Profile DivX Home Theater
Video codec DivX, MPEG-4
Resolution 720x576
Audio speed
(bit rate)
4.8Mbps
Frame per sec-
ond
30 fps
File extension .divx, .avi
Max. file size 4 GB
Audio codec MP3, AC3
Subtitles XSUB
Special func-
tions
Multiple subtitles, multiple
audio, resume play
Reference Meets all requirements of
the DivX
®
Home Theater
profile. Visit divx.com for
more information and soft-
ware tools to convert your
files into DivX
®
Home
Theater. video.
Storing information on a USB device
In order for the system to read data stored on a
USB device, the following specifications must be
met. Any folder structures will not be shown in
the center display during playback.
Max. number
Files 15,000
Folders 1,000
Folder levels 8
Playlists 100
Max. number
Tracks in a playlist 1,000
Subfolders No limit
USB socket
•
Type A socket
•
Version 2.0
•
Voltage 5 V
•
Max. current 2.1 A
Related information
•
CD (media) player* (p. 424)
INFOTAINMENT
}}
431
Internet connected vehicle
Connecting to the Internet makes it possible to
e.g., use certain navigation services, listen to
web radio, stream music using apps, contact a
retailer and download software.
The vehicle can connect to the Internet using
Bluetooth, Wi-Fi or via the integrated modem.
When connected, it is possible to share (tether) a
Wi-Fi-hotspot to allow other devices to use the
connection
6
.
Connection status is shown in the center dis-
play's status bar.
Related information
•
Connecting to the Internet (p. 431)
•
Apps (applications) (p. 394)
•
Booking service and repairs (p. 476)
•
System updates (p. 474)
•
Volvo ID (p. 27)
•
Symbols in the center display status bar
(p. 43)
•
Tethering (Wi-Fi sharing) (p. 435)
Connecting to the Internet
Connect the vehicle to the Internet using
Bluetooth, Wi-Fi or via the vehicle's integrated
modem.
The cell phone and the network service provider
must support Internet sharing (tethering) and the
subscription must included data transfer.
See the terms and confidentiality information at
support.volvocars.com before connecting to the
Internet.
NOTE
When using Apple CarPlay or Android Auto,
an Internet connection can only be estab-
lished by using Wi-Fi or the vehicle's inte-
grated modem.
Connect using Bluetooth
See the article "Pairing a cell phone."
Connect using Wi-Fi
6
This does not apply to Wi-Fi connections.
||
INFOTAINMENT
432
1. Activate tethering/personal hotspot in the
cell phone.
2.
Tap
Settings in the center display's Top
view.
3.
Tap
Communication Wi-Fi.
4. Tap Wi-Fi to activate/deactivate.
5. Tap the name of the network to be used.
6. Enter the network password.
7. If a different connection was used previously,
confirm the connection change.
> The vehicle will connect to the network.
Please be aware that certain cell phones disable
tethering when the connection to the vehicle has
been broken, e.g., when the phone has been
removed from the vehicle. In such cases, the
phone's tethering function will have to be reacti-
vated the next time the phone is used to connect
to the Internet.
When a phone is connected to the vehicle, it is
saved for future use. When a max. number of 50
have been saved, the first one connected will be
deleted. To show the list of saved networks or to
manually delete a network, tap
Settings Wi-Fi
Saved networks.
See the article "Wi-Fi technology and security"
for network connection requirements.
Connect using the vehicle's integrated
modem
When the vehicle is connected using the modem,
Volvo On Call services will use the connection.
1. Insert a personal SIM card in the holder.
2.
Tap
Settings in the center display's Top
view.
3.
Tap
Communication Vehicle Modem
Internet
.
4.
Tap
Vehicle modem Internet to activate/
deactivate.
5. If a different connection was used previously,
confirm the connection change.
6. Enter the SIM card's PIN code.
> The vehicle will connect to the network.
Related information
•
Pairing a cell phone (p. 412)
•
Connecting/disconnecting a cell phone
(p. 413)
•
Connecting a device via the AUX/USB
socket (p. 418)
•
Wi-Fi technology and security (p. 436)
•
Apple CarPlay (p. 420)
INFOTAINMENT
}}
433
Bluetooth settings
The following settings apply to a Bluetooth-con-
nected cell phone or other device.
Bluetooth
1.
Tap
Settings in the center display's Top
view.
2.
Tap Communication Bluetooth and
select among the following settings:
•
Previously paired devices: lists the
devices that are paired and connected to
the vehicle.
•
Internet connection: select to connect
to the Internet using the device's
Bluetooth connection.
•
Add device: begin the procedure to pair
a new device.
•
Remove device: remove a paired device.
•
Allowed services for this device: select
what the device will be used for: make
calls, send/receive messages, stream
media, Internet connection.
Bluetooth compliance
United States
FCC CAUTION
Changes or modifications not expressly approved
by the party responsible for compliance could
void the user's authority to operate the equip-
ment. This transmitter must not be co-located or
operated in conjunction with any other antenna
or transmitter.
Canada
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
Related information
•
Internet connected vehicle (p. 431)
•
Pairing a cell phone (p. 412)
•
Phone (p. 411)
•
Media player (p. 419)
•
Connecting/disconnecting a cell phone
(p. 413)
Downloading, updating and
uninstalling apps
When the vehicle is connected to the Internet,
apps can be added (downloaded), kept up-to-
date or deleted.
NOTE
Downloading data may affect other services
that transfer data such as web radio, stream-
ing music, etc. If this occurs, a download in
progress can be cancelled or the other serv-
ice can be temporarily turned off.
Apps are managed via the
Download Center in the cen-
ter display's App view.
To download, update or delete
apps, the vehicle must be con-
nected to the Internet.
Downloading an app
1.
Open the
Download Center app.
2.
Select
New apps to open a list of apps that
are available but which are not installed in
the vehicle. Tap anywhere in a line for an app
to expand the list for additional information.
||
INFOTAINMENT
434
3.
Select
Install to start downloading the app. It
will remain in the list and a new download
can be initiated if necessary.
> Download status will be indicated while it
is in progress.
A message will be displayed if a download
cannot be started immediately. The app
will remain in the list and a new download
can be initiated if necessary.
Cancelling (aborting) a download
–
Tap Abort to cancel a download that is cur-
rently underway.
Only a download can be cancelled. If the installa-
tion phase has begun, it cannot be interrupted.
Updating apps
If an app is being used while an update is in pro-
gress, it will be restarted to complete the update.
Update (install) all
1.
Open the
Download Center app.
2.
Select
Install all.
> The update will begin.
Updating certain apps
1.
Open the
Download Center app.
2.
Select
Application updates to open a list
of available updates.
3.
Find the desired app and select
Install.
> The update will begin.
Uninstalling an app
An app being used must be closed before it can
be uninstalled.
1.
Open the
Download Center app.
2.
Select
Application updates to open a list
of apps that have been installed.
3.
Find the desired app and select
Uninstall to
begin uninstalling the app.
> When the app has been uninstalled, it will
be removed from the list.
Related information
•
Internet connected vehicle (p. 431)
•
Media player (p. 419)
•
System updates (p. 474)
Internet connection troubleshooting
The following are factors that may affect the
vehicle's Internet connection.
The amount of data being transmitted depends
on the services or apps that are currently in use.
For example, streaming audio requires a great
deal of data to be transmitted, which requires a
good connection and a strong signal.
Cell phone to the vehicle
Connection speed may vary depending on the
location of the cell phone in the vehicle. Move the
phone closer to the center display to increase
signal strength. Be sure that there are no
obstructing/screening objects between the
phone and the screen.
Cell phone to the network operator
The speed of the mobile network may vary
depending on coverage/reception in the vehicle's
location. Reception is generally poorer in tunnels,
in mountainous areas, in deep valleys or indoors.
Connection speed may also depend on the type
of subscription that you have with the service
provider.
Contact your service provider in the event of data
transmission problems.
Restarting the phone
If you experience problems making a connection,
it may to help to restart the phone.
INFOTAINMENT
435
Related information
•
Internet connected vehicle (p. 431)
•
Connecting to the Internet (p. 431)
Tethering (Wi-Fi sharing)
When the vehicle is connected to the Internet,
this connection can be shared (tethered) with
other devices
7
.
The network service provider (the SIM card) must
support tethering.
1. Open the center display's Top view.
2.
Tap
Settings Communication
Vehicle Wi-Fi Hotspot.
3.
Tap
Network name and assign a name to
the hotspot.
4.
Tap
Password and create a password to be
used by devices trying to connect (tether) to
the hotspot.
5.
Tap
Frequency band and select a fre-
quency that the hotspot will use to transmit
data. This may not be possible in all markets.
6.
Activate/deactivate by tapping the
Vehicle
Wi-Fi Hotspot box.
7. If another connection has been used previ-
ously, confirm the change of connections.
> It is now possible for external devices to
connect to the vehicle's Wi-Fi hotspot.
Connection status will be indicated in a symbol in
the center display's status bar.
Tap
Connected devices to see a list of con-
nected devices.
Related information
•
Internet connected vehicle (p. 431)
•
Wi-Fi technology and security (p. 436)
•
Symbols in the center display status bar
(p. 43)
•
Internet connection troubleshooting (p. 434)
7
Does not apply for a Wi-Fi connection.
INFOTAINMENT
436
Deleting Wi-Fi networks
Networks that are not used can be deleted.
1.
Tap
Settings in the center display's Top
view.
2.
Tap Wi-Fi Saved networks.
3.
Tap
Forget to remove the network.
4. Confirm the selection.
> The vehicle will no longer connect to the
deleted network.
Deleting all networks
All networks can be deleted at the same time by
returning (resetting) to factory settings.
If this is done, all user data and settings will be
reset to their default settings.
Related information
•
Internet connected vehicle (p. 431)
•
Connecting to the Internet (p. 431)
Wi-Fi technology and security
The following are types of networks can be con-
nect to.
It is possible to connect to the following types of
networks:
•
Frequency: 2.4 or 5 GHz
8
.
•
Standards: 802.11 a/b/g/n.
•
Security type: WPA2-AES-CCMP.
The vehicle's Wi-Fi system is designed to man-
age Wi-Fi devices in the vehicle.
If several devices are using a frequency at the
same time, this may result in poorer performance.
Related information
•
Internet connected vehicle (p. 431)
•
Connecting to the Internet (p. 431)
•
Tethering (Wi-Fi sharing) (p. 435)
•
Internet connection troubleshooting (p. 434)
Vehicle modem settings
The vehicle is equipped with a modem that can
be used to connect the vehicle to the Internet. It
is also possible to share (tether) this connection
via Wi-Fi.
1.
Tap
Settings in the center display's Top
view.
2.
Tap
Communication Vehicle Modem
Internet
and choose among the following
settings:
•
Vehicle modem Internet: select to use the
vehicle's modem to connect to the Internet.
•
Data usage: %s: Tap Reset to restart
(reset) the counter for the amount of data
sent/received.
•
Network
Select carrier
: select a service provider
automatically or manually.
Data roaming: select to allow the vehicle to
connect to another network if the standard
network is not available (e.g., if you are driv-
ing in another country). This could entail
additional charges, consult your service pro-
vider.
•
SIM card PIN
8
Selecting a frequency is not possible in all markets.
INFOTAINMENT
}}
437
Change PIN: enter max. 4 digits.
Disable PIN: Allow access to the SIM card
without requiring a PIN code.
•
Send request code: this is used to down-
load the balance remaining on a SIM card.
This is specific to your service provider.
Related information
•
Internet connected vehicle (p. 431)
•
Connecting to the Internet (p. 431)
Infotainment system license
information
The following license information pertains to Vol-
vo's agreements with certain manufacturers/
developers.
Bowers & Wilkins
Bowers & Wilkins and B&W are trademarks of
the B&W Group Ltd. Nautilus is a trademark of
B&W Group Ltd. Kevlar is a registered trademark
of DuPont.
Dirac Live
Dirac Live technology has been used in the
development and tuning of the sound in order to
ensure a world-class sound experience. Dirac
Live and the D-symbol are registered trademarks
of Dirac Research AB.
DivX
®
DivX
®
, DivX Certified
®
and associated logos are
trademarks of DivX, LLC and are used under
license.
About DIVX VIDEO:This DivX Certified
®
device
can play DivX
®
Home Theater video files up to
576p (including .avi, .divx). Download free soft-
ware at www.divx.com to create, play and stream
digital video.
About DIVX VIDEO-ON-DEMAND: This DivX
Certified
®
device must be registered in order to
play purchased DivX Video-on-Demand (VOD)
movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu.
||
INFOTAINMENT
438
Go to vod.divx.com for more information on how
to complete your registration.
Patent number
Covered by one or more of the following U.S. pat-
ents: 7,295,673; 7,460,668; 7,515,710;
8,656,183; 8,731,369; RE45,052."
Gracenote
®
Gracenote, Gracenote logo and logotype,
"Powered by Gracenote" and Gracenote MusicID
are either registered trademarks or trademarks of
Gracenote, Inc in the United States and/or other
countries.
Gracenote
®
End User License Agreement
This application or device contains software from
Gracenote, Inc. of Emeryville, California (“Grace-
note”). The software from Gracenote (the “Grace-
note Software”) enables this application to per-
form disc and/or file identification and obtain
music-related information, including name, artist,
track, and title information (“Gracenote Data”)
from online servers or embedded databases (col-
lectively, “Gracenote Servers”) and to perform
other functions. You may use Gracenote Data
only by means of the intended End-User func-
tions of this application or device.
You agree that you will use Gracenote Data, the
Gracenote Software, and Gracenote Servers for
your own personal non-commercial use only. You
agree not to assign, copy, transfer or transmit the
Gracenote Software or any Gracenote Data to
any third party. YOU AGREE NOT TO USE OR
EXPLOIT GRACENOTE DATA, THE GRACE-
NOTE SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to use
the Gracenote Data, the Gracenote Software, and
Gracenote Servers will terminate if you violate
these restrictions. If your license terminates, you
agree to cease any and all use of the Gracenote
Data, the Gracenote Software, and Gracenote
Servers. Gracenote reserves all rights in Grace-
note Data, the Gracenote Software, and the
Gracenote Servers, including all ownership rights.
Under no circumstances will Gracenote become
liable for any payment to you for any information
that you provide. You agree that Gracenote, Inc.
may enforce its rights under this Agreement
against you directly in its own name.
The Gracenote service uses a unique identifier to
track queries for statistical purposes. The pur-
pose of a randomly assigned numeric identifier is
to allow the Gracenote service to count queries
without knowing anything about who you are. For
more information, see the web page for the
Gracenote Privacy Policy for the Gracenote serv-
ice.
The Gracenote Software and each item of Grace-
note Data are licensed to you “AS IS.” Gracenote
makes no representations or warranties, express
or implied, regarding the accuracy of any Grace-
note Data from in the Gracenote Servers. Grace-
note reserves the right to delete data from the
Gracenote Servers or to change data categories
for any cause that Gracenote deems sufficient.
No warranty is made that the Gracenote Software
or Gracenote Servers are error-free or that func-
tioning of Gracenote Software or Gracenote
Servers will be uninterrupted. Gracenote is not
obligated to provide you with new enhanced or
additional data types or categories that Grace-
note may provide in the future and is free to dis-
continue its services at any time.
GRACENOTE DISCLAIMS ALL WARRANTIES
EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED WARRANTIES OF MER-
CHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, TITLE, AND NON-INFRINGEMENT.
GRACENOTE DOES NOT WARRANT THE
RESULTS THAT WILL BE OBTAINED BY YOUR
USE OF THE GRACENOTE SOFTWARE OR
ANY GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY CONSE-
QUENTIAL OR INCIDENTAL DAMAGES OR
FOR ANY LOST PROFITS OR LOST REVENUES.
INFOTAINMENT
}}
439
© Gracenote, Inc. 2009
Sensus software
This software uses parts of sources from clib2
and Prex Embedded Real-time OS - Source
(Copyright ©) 1982, 1986, 1991, 1993, 1994),
and Quercus Robusta (Copyright ©) 1990,
1993), The Regents of the University of
California. All or some portions are derived from
material licensed to the University of California by
American Telephone and Telegraph Co. or Unix
System Laboratories, Inc. and are reproduced
herein with the permission of UNIX System
Laboratories, Inc. Redistribution and use in
source and binary forms, with or without
modification, are permitted provided that the
following conditions are met: Redistributions of
source code must retain the above copyright
notice, this list of conditions and the following
disclaimer. Redistributions in binary form must
reproduce the above copyright notice, this list of
conditions and the following disclaimer in the
documentation and/or other materials provided
with the distribution. Neither the name of the
<ORGANIZATION> nor the names of its
contributors may be used to endorse or promote
products derived from this software without
specific prior written permission. THIS
SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
COPYRIGHT OWNER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This software is based in part on the work of the
Independent JPEG Group.
This software uses parts of sources from
"libtess". The Original Code is: OpenGL Sample
Implementation, Version 1.2.1, released January
26, 2000, developed by Silicon Graphics, Inc. The
Original Code is Copyright ©) 1991-2000 Silicon
Graphics, Inc. Copyright in any portions created
by third parties is as indicated elsewhere herein.
All Rights Reserved. Copyright ©) [1991-2000]
Silicon Graphics, Inc. All Rights Reserved.
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the "Software"),
to deal in the Software without restriction,
including without limitation the rights to use,
copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is
furnished to do so, subject to the following
conditions: The above copyright notice including
the dates of first publication and either this
permission notice or a reference to http://
oss.sgi.com/projects/FreeB/ shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
SILICON GRAPHICS, INC. BE LIABLE FOR ANY
CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT
OF OR IN CONNECTION WITH THE SOFTWARE
OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE. Except as contained in this notice,
the name of Silicon Graphics, Inc. shall not be
used in advertising or otherwise to promote the
sale, use or other dealings in this Software
without prior written authorization from Silicon
Graphics, Inc.
This software is based in parts on the work of the
FreeType Team.
||
INFOTAINMENT
440
This software uses parts of SSLeay Library:
Copyright ©) 1995-1998 Eric Young
([email protected]). All rights reserved
Linux software
This product contains software licensed under
GNU General Public License (GPL) or GNU
Lesser General Public License (LGPL), etc.
You have the right of acquisition, modification,
and distribution of the source code of the GPL/
LGPL software.
You may download Source Code from the
following website at no charge: http://
www.embedded-carmultimedia.jp/linux/oss/
download/TVM_8351_013
The website provides the Source Code "As Is"
and without warranty of any kind.
By downloading Source Code, you expressly
assume all risk and liability associated with
downloading and using the Source Code and
complying with the user agreements that
accompany each Source Code.
Please note that we cannot respond to any
inquiries regarding the source code.
camellia:1.2.0
Copyright ©) 2006, 2007
NTT (Nippon Telegraph and Telephone
Corporation). All rights reserved.
Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain
the above copyright notice, this list of
conditions and the following disclaimer as
the first lines of this file unmodified.
2. Redistributions in binary form must
reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.
THIS SOFTWARE IS PROVIDED BY NTT ``AS
IS'' AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL NTT BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Unicode: 5.1.0
COPYRIGHT AND PERMISSION NOTICE
Copyright c 1991-2013 Unicode, Inc. All rights
reserved. Distributed under the Terms of Use in
http://www.unicode.org/copyright.html.
Permission is hereby granted, free of charge, to
any person obtaining a copy of the Unicode data
files and any associated documentation (the
"Data Files") or Unicode software and any
associated documentation (the "Software") to
deal in the Data Files or Software without
restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute,
and/or sell copies of the Data Files or Software,
and to permit persons to whom the Data Files or
Software are furnished to do so, provided that (a)
the above copyright notice(s) and this permission
notice appear with all copies of the Data Files or
Software, (b) both the above copyright notice(s)
and this permission notice appear in associated
documentation, and ©) there is clear notice in
each modified Data File or in the Software as
well as in the documentation associated with the
Data File(s) or Software that the data or software
has been modified.
THE DATA FILES AND SOFTWARE ARE
PROVIDED "AS IS", WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
INFOTAINMENT
441
NONINFRINGEMENT OF THIRD PARTY
RIGHTS. IN NO EVENT SHALL THE
COPYRIGHT HOLDER OR HOLDERS
INCLUDED IN THIS NOTICE BE LIABLE FOR
ANY CLAIM, OR ANY SPECIAL INDIRECT OR
CONSEQUENTIAL DAMAGES, OR ANY
DAMAGES WHATSOEVER RESULTING FROM
LOSS OF USE, DATA OR PROFITS, WHETHER
IN AN ACTION OF CONTRACT, NEGLIGENCE
OR OTHER TORTIOUS ACTION, ARISING OUT
OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THE DATA FILES OR
SOFTWARE.
Except as contained in this notice, the name of a
copyright holder shall not be used in advertising
or otherwise to promote the sale, use or other
dealings in these Data Files or Software without
prior written authorization of the copyright holder.
Bluetooth
®
declaration of conformity
United States
FCC CAUTION
Changes or modifications not expressly approved
by the party responsible for compliance could
void the user's authority to operate the equip-
ment. This transmitter must not be co-located or
operated in conjunction with any other antenna
or transmitter.
Canada
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation
of the device.
Terms, conditions and
confidentiality
See terms and conditions for services and cus-
tomer privacy policy at support.volvocars.com.
Terms & Conditions for Services
Volvo offers the best possible services to make
owning and operating a Volvo safe, convenient,
comfortable and enjoyable. Volvo offers a wide
array of services, ranging from emergency assis-
tance to navigation and infotainment.
Customer privacy policy
This policy applies to the way in which customer-
related and personal information are handled. Its
purpose is to provide our present, previous and
future customers a general understanding of:
•
The circumstances under which we gather
and process your personal information.
•
The types of personal information gathered.
•
The reasons for gathering your personal
information.
•
How we deal with your personal information.
This policy can be read in its entirety at
support.volvocars.com.
WHEELS AND TIRES
WHEELS AND TIRES
444
Tires
Your vehicle is equipped with tires according to
the vehicle's tire information placard on the B-
pillar (the structural member at the side of the
vehicle, at the rear of the driver's door opening).
CAUTION
Some Volvo models are equipped with an
Ultra High Performance tire and wheel com-
bination designed to provide maximum dry
pavement performance with consideration for
hydroplaning resistance. They may be more
susceptible to road hazard damage and,
depending on driving conditions, may achieve
a tread life of less than 20,000 miles (30,000
km). Even if this vehicle is equipped with Vol-
vo’s advanced AWD or stability system, these
tires are not designed for winter driving, and
should be replaced with winter tires when
weather conditions dictate.
The tires have good road holding characteristics
and offer good handling on dry and wet surfaces.
It should be noted however that the tires have
been developed to give these features on snow/
ice-free surfaces.
Most models are equipped with "all-season" tires,
which provide a somewhat higher degree of road
holding on slippery surfaces than tires without
the "all-season" rating. However, for optimum
road holding on icy or snow-covered roads, we
recommend suitable winter tires on all four
wheels.
When replacing tires, be sure that the new tires
are the same size designation, type (radial) and
preferably from the same manufacturer, on all
four wheels. Otherwise there is a risk of altering
the car's roadholding and handling characteris-
tics.
Recommended tires
Your vehicle is factory-equipped with Volvo origi-
nal tires that are marked VOL
1
on the sidewall.
These tires have been carefully adapted to your
vehicle. When replacing tires, it is important that
the new ones also have the VOL designation in
order to help maintain the vehicle's driving and
handling characteristics.
New tires
Remember that tires are perishable goods. As of
2000, the manufacturing week and year (Depart-
ment of Transportation (DOT) stamp) will be indi-
cated with 4 digits (e.g., 0715 means that the tire
illustrated was manufactured during week 7 of
2015).
Tire age
Tires degrade over time, even when they are not
being used. It is recommended that tires gener-
ally be replaced after 6 years of normal service.
Heat caused by hot climates, frequent high load-
ing conditions or Ultra Violet (U.V.) exposure can
accelerate the aging process. The temporary
spare
2
should also be replaced at 6-year inter-
vals, even if it has never been used. A tire's age
can be determined by the DOT stamp on the
1
There may be certain exceptions depending on the tire's dimensions.
2
Not available in all models.
WHEELS AND TIRES
445
sidewall (see the illustration). A tire with e.g., visi-
ble cracks or discoloration should be replaced
immediately.
Tire economy
•
Maintain correct tire pressure.
•
Avoid fast starts, hard braking and tire
screeching.
•
Tire wear increases with speed.
•
Correct front wheel alignment is very impor-
tant.
•
Unbalanced wheels impair tire economy and
driving comfort.
•
Tires must maintain the same direction of
rotation throughout their lifetime.
•
When replacing tires, the tires with the most
tread should be mounted on the rear wheels
to reduce the chance of oversteer during
hard braking.
•
Hitting curbs or potholes can damage the
tires and/or wheels permanently.
Tire rotation
Your vehicle has no required tire rotation. Tire
wear is affected by a number of factors such as
tire inflation, ambient temperature, driving style,
etc.
NOTE
•
If the tires are rotated, they should only
be moved from front to rear or vice versa.
They should never be rotated left to
right/right to left.
•
Ideally, tire rotation should be done the
first time after approximately 3,000 miles
(5,000 km) and thereafter at 6,000-mile
(10,000-km) intervals. Some customers
find that tire rotation may help to get
extra mileage from tire life.
•
Tire rotation should only be performed if
front/rear tire wear is fairly even and
tread height is above 1/16" (1.6 mm).
Storing wheels and tires
When storing complete wheels (tires mounted on
rims), they should be suspended off the floor or
placed on their sides on the floor.
Tires not mounted on rims should be stored on
their sides or standing upright, but should not be
suspended.
CAUTION
Tires should preferably be stored in a cool,
dry, dark place, and should never be stored in
close proximity to solvents, gasoline, oils, etc.
WARNING
•
The wheel and tire sizes for your Volvo
are specified to meet stringent stability
and handling requirements. Unapproved
wheel/tire size combinations can nega-
tively affect your vehicle's stability and
handling.
•
Any damage caused by installation of
unapproved wheel/tire size combinations
will not be covered by your new vehicle
warranty. Volvo assumes no responsibility
for death, injury, or expenses that may
result from such installations.
Related information
•
Checking tire inflation pressure (p. 452)
•
Tread wear indicator (p. 449)
WHEELS AND TIRES
446
Tire sidewall designations
The following information can be found on a
tire's sidewall.
Federal law mandates that tire manufacturers
place standardized information on the sidewall of
all tires (see the illustration).
The vehicle has been certified with certain combi-
nations of wheels and tires.
The following information is listed on the tire
sidewall:
The tire designation:
NOTE
Please be aware that the following tire desig-
nation is an example only and that this par-
ticular tire may not be available on your vehi-
cle.
1.
215: the width of the tire (in millimeters)
from sidewall edge to sidewall edge. The
larger the number, the wider the tire.
2.
65: The ratio of the tire's height to its width
in percent.
3.
R: Radial tire (the designation RF and the
symbol indicate that the vehicle is
equipped with optional self-supporting run
flat tires
3
.
4.
15: The diameter of the wheel rim (in
inches).
5.
95: The tire's load index. In this example, a
load index of 95 equals a maximum load of
1521 lbs (690 kg).
6.
H: The tire's speed rating, or the maximum
speed at which the tire is designed to be
driven for extended periods of time, carrying
a permissible load for the vehicle, and with
correct inflation pressure. For example, H
indicates a speed rating of 130 mph
(210 km/h).
NOTE
The tire's load index and speed rating may
not appear on the sidewall because they are
not required by law.
7.
M+S or M/S = Mud and Snow, AT = All Ter-
rain, AS = All Season
8.
U.S. DOT Tire Identification Number
(TIN): This begins with the letters "DOT" and
indicates that the tire meets all federal
standards. The next two numbers or letters
are the plant code where it was manufac-
tured, the next two are the tire size code and
the last four numbers represent the week
and year the tire was built. For example,
1510 means that the tire was manufactured
during week 15 of 2010. The numbers in
between are marketing codes used at the
manufacturer's discretion. This information
helps a tire manufacturer identify a tire for
safety recall purposes.
9.
Tire Ply Composition and Material Used:
Indicates the number of plies indicates or the
number of layers of rubber-coated fabric in
the tire tread and sidewall. Tire manufactur-
ers also must indicate the ply materials in the
tire and the sidewall, which include steel,
nylon, polyester, and others.
3
Self-supporting run flat tires may not be available on all models
WHEELS AND TIRES
447
10.
Maximum Load: Indicates the maximum
load in pounds and kilograms that can be
carried by the tire. Refer to the vehicle's tire
information placard located on the B-Pillar
for the correct tire pressure for your vehicle.
11.
Treadwear, Traction, and Temperature
grades.
12.
Maximum permissible inflation pressure:
the greatest amount of air pressure that
should ever be put in the tire. This limit is set
by the tire manufacturer.
Speed Symbol
A tire's Speed Symbol (SS) indicates the maxi-
mum speed for which the tire has been certified
and should be at least equivalent to the vehicle's
top speed.
Winter tires, with our without studs, are excep-
tions and may use a lower SS. When winter tires
are installed, the vehicle may not be driven faster
than the tires' SS.
The vehicle's speed should always be determined
by the posted speed limit and traffic and road
conditions, not the tire's SS.
The following table indicates the maximum per-
missible speed for each SS.
Speed Symbol
M 81 mph (130 km/h)
Q 100 mph (160 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
W 168 mph (270 km/h)
Y 186 mph (300 km/h)
WARNING
•
The wheel and tire sizes for your Volvo
are specified to meet stringent stability
and handling requirements. Unapproved
wheel/tire size combinations can nega-
tively affect your vehicle's stability and
handling.
•
Any damage caused by installation of
unapproved wheel/tire size combinations
will not be covered by your new vehicle
warranty. Volvo assumes no responsibility
for death, injury, or expenses that may
result from such installations.
Wheel (rim) designations
Wheel and rim dimensions are shown in the fol-
lowing table.
The vehicle has been certified with certain combi-
nations of wheels and tires.
The following table shows an example of wheel
dimensions: 8x18x42. This particular wheel may
not be available on your vehicle.
8 Wheel width in inches
18 Wheel diameter in inches
42 Offset in mm (distance from the center of
the wheel to the wheel's contact surface
on the hub)
Related information
•
Tire sidewall designations (p. 446)
WHEELS AND TIRES
448
Tire terminology
The following is a glossary of tire-related terms.
The tire suppliers may have additional markings,
notes or warnings such as standard load, radial
tubeless, etc.
•
Tire information placard: A placard show-
ing the OE (Original Equipment) tire sizes,
recommended inflation pressure, and the
maximum weight the vehicle can carry.
•
Tire Identification Number (TIN): A number
on the sidewall of each tire providing infor-
mation about the tire brand and manufactur-
ing plant, tire size and date of manufacturer.
•
Inflation pressure: A measure of the
amount of air in a tire.
•
Standard load: A class of P-metric or Metric
tires designed to carry a maximum load at
35 psi [37 psi (2.5 bar) for Metric tires].
Increasing the inflation pressure beyond this
pressure will not increase the tires load car-
rying capability.
•
Extra load: A class of P-metric or Metric
tires designed to carry a heavier maximum
load at 41 psi [43 psi (2.9 bar) for Metric
tires]. Increasing the inflation pressure
beyond this pressure will not increase the
tire's load carrying capability.
•
kPa: Kilopascal, a metric unit of air pressure.
•
PSI: Pounds per square inch, a standard unit
of air pressure.
•
B-pillar: The structural member at the side
of the vehicle behind the front door.
•
Bead area of the tire: Area of the tire next
to the rim.
•
Sidewall of the tire: Area between the bead
area and the tread.
•
Tread area of the tire: Area of the perime-
ter of the tire that contacts the road when
mounted on the vehicle.
•
Rim: The metal support (wheel) for a tire or a
tire and tube assembly upon which the tire
beads are seated.
•
Maximum load rating: a figure indicating
the maximum load in pounds and kilograms
that can be carried by the tire. This rating is
established by the tire manufacturer.
•
Maximum permissible inflation pressure:
the greatest amount of air pressure that
should ever be put in the tire. This limit is set
by the tire manufacturer.
•
Recommended tire inflation pressure:
inflation pressure, established by Volvo,
which is based on the type of tires that are
mounted on a vehicle at the factory. This
information can be found on the tire inflation
placard(s) located on the driver's side B-pillar
and in the tire inflation table in this chapter.
•
Cold tires: The tires are considered to be
cold when they have the same temperature
as the surrounding (ambient) air. This tem-
perature is normally reached after the vehicle
has been parked for at least 3 hours.
WHEELS AND TIRES
449
Tire direction of rotation
Incorrectly mounted tires impair the car's braking
properties and ability to force aside rain, snow
and slush.
The arrows shows the direction of rotation of the tire
•
The tires with the most tread should always
be on the rear axle (to help reduce the risk of
skidding).
•
When switching between summer and winter
tires, mark the tires to indicate where they
were mounted on the car, e.g., LF = left front,
RR = right rear
•
Tires with tread designed to roll in only one
direction are marked with an arrow on the
sidewall.
•
Contact a trained and qualified Volvo service
technician if you are unsure about the tread
depth.
Related information
•
Tires (p. 444)
Tread wear indicator
The tires have wear indicator strips running
across or parallel to the tread.
The letters TWI are printed on the side of the tire.
When approximately 1/16" (1.6 mm) is left on
the tread, these strips become visible and indi-
cate that the tire should be replaced. Tires with
less than 1/16" (1.6 mm) tread offer very poor
traction.
When replacing worn tires, it is recommended
that the tire be identical in type (radial) and size
as the one being replaced. Using a tire of the
same make (manufacturer) will help prevent
alteration of the driving characteristics of the
vehicle.
Related information
•
Tire direction of rotation (p. 449)
•
Checking tire inflation pressure (p. 452)
WHEELS AND TIRES
450
Loading specifications
Properly loading your vehicle will provide maxi-
mum return of vehicle design performance.
Weight designations
Before loading your vehicle, familiarize yourself
with the following terms for determining your
vehicle's weight ratings, with or without a trailer,
from the vehicle's Federal/Canadian Motor Vehi-
cle Safety Standards (FMVSS/CMVSS) label, and
the vehicle's tire information placard:
Curb weight
The weight of the vehicle including a full tank of
fuel and all standard equipment. It does not
include passengers, cargo, or optional equipment.
Capacity weight
All weight added to the curb weight, including
cargo and optional equipment. When towing,
trailer hitch tongue load is also part of cargo
weight.
Permissible axle weight
The maximum allowable weight that can be car-
ried by a single axle (front or rear). These num-
bers are shown on the Federal/Canadian Motor
Vehicle Safety Standards (FMVSS/CMVSS) label.
The total load on each axle must never exceed its
maximum permissible weight.
Gross vehicle weight (GVW)
The vehicle's curb weight + cargo + passengers.
Steps for Determining Correct Load
Limit
1. Locate the statement "the combined weight
of occupants and cargo should never exceed
XXX kg or XXX lbs." on your vehicle's plac-
ard.
2. Determine the combined weight of the driver
and passengers that will be riding in your
vehicle.
3. Subtract the combined weight of the driver
and passengers from XXX kg or XXX lbs.
4. The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the "XXX" amount equals
1400 lbs. and there will be five 150 lb. pas-
sengers in your vehicle, the amount of availa-
ble cargo and luggage load capacity is
650 lbs. (1400 – 750 (5 × 150) = 650 lbs.)
5. Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in Step 4.
6. If your vehicle will be towing a trailer, load
from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and lug-
gage load capacity of your vehicle.
WARNING
•
Exceeding the permissible axle weight,
gross vehicle weight, or any other weight
rating limits can cause tire overheating
resulting in permanent deformation or
catastrophic failure.
•
Do not use replacement tires with lower
load carrying capacities than the tires that
were original equipment on the vehicle
because this will lower the vehicle's GVW
rating. Use only tires with the correct load
carrying capacity. Consult your Volvo
retailer for information.
Related information
•
Label information (p. 524)
•
Weights (p. 529)
WHEELS AND TIRES
}}
451
Uniform Tire Quality Grading
ALL PASSENGER VEHICLE TIRES MUST
CONFORM TO FEDERAL SAFETY REQUIRE-
MENTS IN ADDITION TO THESE GRADES.
Quality grades can be found, where applica-
ble, on the tire sidewall between the tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one half (1 ½) times as
well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and many depart significantly from the norm due
to variation in driving habits, maintenance practi-
ces and differences in road characteristics and
climate.
TRACTION
The traction grades, from highest to lowest, are
AA, A, B, and C, as measured under controlled
conditions on specified government test surfaces
of asphalt and concrete. A tire marked C may
have poor traction performance. The traction
grade assigned to this tire is based on braking
(straight-ahead) traction tests and is not a meas-
ure of cornering (turning) traction.
WARNING
The traction grade assigned to this tire is
based on braking (straight-ahead) traction
tests and is not a measure of cornering (turn-
ing) traction.
TEMPERATURE
The temperature grades are A (the highest), B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a minimum level of
performance that all passenger vehicle tires must
meet under the Federal Motor Safety Standard
No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, under-infla-
tion, or excessive loading, either separately or
in combination, can cause heat buildup and
tire failure.
Snow tires and chains
The use of snow chains and/or winter tires can
help improve traction in winter driving conditions.
Snow chains can be used on your Volvo with the
following restrictions:
•
Snow chains should be installed on front
wheels only. Use only Volvo approved snow
chains.
•
If accessory, aftermarket or "custom" tires
and wheels are installed and are of a size dif-
ferent than the original tires and wheels,
chains in some cases CANNOT be used.
Sufficient clearances between chains and
brakes, suspension and body components
must be maintained.
•
Some strap-on type chains will interfere with
brake components and therefore CANNOT
be used.
•
All Wheel Drive models: Snow chains
should only be installed on the front wheels.
•
Certain size tires may not allow the assembly
of snow chains/traction devices.
Consult your Volvo retailer for additional snow
chain information.
WHEELS AND TIRES
452
CAUTION
•
Snow chains should not be used on
wheels larger than 18".
•
Always follow the chain manufacturer's
installation instructions carefully. Install
chains as tightly as possible and
retighten periodically.
•
Check local regulations regarding the use
of snow chains before installing.
•
Use single-sided snow chains only.
•
Never exceed the chain manufacturer's
specified maximum speed limit. (Under
no circumstances should you exceed
31 mph (50 km/h).
•
Avoid bumps, holes or sharp turns when
driving with snow chains.
•
The handling of the vehicle can be
adversely affected when driving with
chains. Avoid fast or sharp turns as well
as locked wheel braking.
Checking tire inflation pressure
Correct tire inflation pressure helps improve driv-
ing stability, save fuel and increase the service
life of the tires.
WARNING
•
Under-inflation is the most common
cause of tire failure and may result in
severe tire cracking, tread separation, or
"blow-out," with unexpected loss of vehi-
cle control and increased risk of injury.
•
Under-inflated tires reduce the load car-
rying capacity of your vehicle.
Cold tires
Inflation pressure should be checked when the
tires are cold.
The tires are considered to be cold when
they have the same temperature as the sur-
rounding (ambient) air.
This temperature is normally reached after the
vehicle has been parked for at least 3 hours.
After driving a distance of approximately 1 mile
(1.6 km), the tires are considered to be hot. If you
have to drive farther than this distance to pump
your tire(s), check and record the tire pressure
first and add the appropriate air pressure when
you get to the pump.
When weather temperature changes occur, tire
inflation pressures also change. A 10-degree
temperature drop causes a corresponding drop
of 1 psi (7 kPa) in inflation pressure. Check your
tire pressures frequently and adjust them to the
proper pressure, which can be found on the vehi-
cle's tire information placard or certification label.
If checking tire pressure when the tire is hot,
never "bleed" or reduce air pressure. The tires
are hot from driving and it is normal for pressures
to increase above recommended cold pressures.
A hot tire at or below recommended cold inflation
pressure could be significantly under-inflated.
Recommended inflation pressures
Tire inflation placard
A tire inflation pressure placard is located on the
driver's side B-pillar (the structural member at the
side of the vehicle, at the rear of the driver's door
opening). This placard indicates the designation
WHEELS AND TIRES
453
of the factory-mounted tires on your vehicle, as
well as load limits and inflation pressure.
NOTE
•
The placard shown indicates inflation
pressure for the tires installed on the
vehicle at the factory only.
•
A certain amount of air seepage from the
tires occurs naturally and tire pressure
fluctuates with seasonal changes in tem-
perature. Always check tire pressure reg-
ularly.
•
Use a tire gauge to check the tire inflation
pressure, including the spare
4
, at least once
a month and before long trips. You are
strongly urged to buy a reliable tire pressure
gauge, as automatic service station gauges
may be inaccurate.
•
Use the recommended cold inflation pres-
sure for optimum tire performance and wear.
•
Under-inflation or over-inflation may cause
uneven treadwear patterns.
Checking tire pressure
1. Remove the cap from the valve on one tire,
then firmly press the tire gauge onto the
valve.
2. Add air to reach the recommended air pres-
sure.
3. Replace the valve cap.
CAUTION
•
After inflating the tires, always reinstall the
valve cap to help avoid damage to the
valve from dirt, gravel, etc.
•
Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.
4. Visually inspect the tires to make sure there
are no nails or other objects embedded that
could puncture the tire and cause an air leak.
5. Check the sidewalls to make sure there are
no gouges, cuts, bulges or other irregulari-
ties.
6. Repeat this procedure for each tire, including
the spare.
NOTE
•
If you overfill the tire, release air by push-
ing on the metal stem in the center of the
valve. Then recheck the pressure with
your tire gauge.
•
Some spare tires require higher inflation
pressure than the other tires. Consult the
tire inflation pressure table or the inflation
pressure placard.
4
Not available in all models.
WHEELS AND TIRES
* Option/accessory.
454
Changing tires
When changing wheels to another dimension,
always follow Volvo's instructions.
When changing to tires of another
dimension
If you mount tires with a dimension other than
the factory-installed tires, contact an authorized
Volvo retailer to update the vehicle's software.
This may also be necessary when changing from
summer to winter tires, or vice versa.
Related information
•
Snow tires and chains (p. 451)
•
Spare tire (p. 455)
•
Installing a wheel (p. 458)
•
Removing a wheel (p. 457)
Tools
Tools for e.g., changing wheels, etc., are located
under the cargo compartment floor.
Generic illustration - the appearance and location of the
foam block may vary from model to model
The foam block under the cargo compartment
floor contains the towing eyelet, the tool for
removing plastic wheel bolt covers, the jack* and
the lug wrench*. There is also a storage space for
the tool used to remove locking wheel bolts.
Related information
•
Jack (p. 454)
•
Changing tires (p. 454)
Jack
The jack is used to raise the vehicle, for example
when mounting winter wheels, etc.
WARNING
•
The jack must correctly engage the jack
attachment.
•
Be sure the jack is on a firm, level, non-
slippery surface.
•
Never allow any part of your body to be
extended under a vehicle supported by a
jack.
•
Use the jack intended for the vehicle
when changing a tire. For any other job,
use stands to support the vehicle.
•
Apply the parking brake and put the gear
selector in the Park (P) position.
•
Block the wheels standing on the ground,
use rigid wooden blocks or large stones.
•
The jack should be kept well-greased and
clean, and should not be damaged.
•
No objects should be placed between the
base of jack and the ground, or between
the jack and the attachment bar on the
vehicle.
WHEELS AND TIRES
}}
* Option/accessory.
455
CAUTION
•
When not in use, the jack* should be kept
in its storage compartment under the
cargo compartment floor.
•
The jack provided with your vehicle is
intended to be used only in temporary sit-
uations such as changing wheels in the
event of a flat tire. Only the jack that
came with your particular model should
be used to lift the vehicle. If the vehicle
needs to be lifted more frequently or for a
prolonged period, using a garage jack or
hoist is recommended. Always follow this
device’s instructions for use.
Models with leveling control*
If the vehicle is equipped with the optional pneu-
matic suspension, this feature must be turned off
before raising the vehicle with the jack.
To do so, go to
Settings Vehicle
Deactivate Suspension & Leveling Control in
the center display's Top view.
Spare tire
5
The spare tire in your vehicle is called a
"Temporary Spare".
NOTE
•
The vehicle should never be driven
faster than 50 mph (80 km/h) when
the spare tire is being used.
•
The spare tire is only intended for tempo-
rary use. Replace it with a normal wheel
as soon as possible.
•
The vehicle's handling may be altered by
the use of the spare tire and ground
clearance will be reduced. Do not wash
the vehicle in an automatic car wash if
the Temporary Spare is being used.
•
Recommended tire pressure (see the
placard on the B-pillar) should be main-
tained irrespective of which position on
the vehicle the temporary spare tire is
used on.
•
In the event of damage to this tire, a new
one can be purchased from your Volvo
retailer.
WARNING
Current legislation prohibits the use of the
"Temporary Spare" tire other than as a tem-
porary replacement for a punctured tire. It
must be replaced as soon as possible by a
standard tire. Road holding and handling may
be affected with the "Temporary Spare" in
use. Do not exceed 50 mph (80 km/h).
CAUTION
The vehicle must not be driven with wheels of
different dimensions or with a spare tire other
than the one that came with the vehicle. The
use of different size wheels can seriously
damage your car's transmission.
CAUTION
The vehicle must never be driven with more
than one temporary spare wheel.
The spare tire is located under the floor of the
cargo compartment. A retaining bolt holds the
spare tire and foam block containing tools in
place.
5
Not available on all models.
||
WHEELS AND TIRES
* Option/accessory.
456
Accessing the spare tire
1. Lift the rear edge of the cargo compartment
floor.
2. Unscrew the retaining bolt.
3. Lift out the foam block holding the tools.
4. Lift out the spare tire.
Stowing a flat tire
1. Take out the package containing a wheel
bag from the foam block and put the wheel
in the bag.
2. Return the tools to the foam block and put
the foam block bag in the vehicle.
3. Tighten the foam block's retaining bolt and
lower the cargo area floor.
4. Place the bag containing the wheel in the
cargo compartment.
Related information
•
Changing tires (p. 454)
•
Removing a wheel (p. 457)
•
Wheel bolts (p. 456)
•
Checking tire inflation pressure (p. 452)
Wheel bolts
The wheel bolts hold the wheel in place.
CAUTION
Wheel bolts should be tightened to 103 ft.
lbs. (140 Nm). Over-tightening could damage
the threads.
Only use wheels/rims that have been tested and
approved by Volvo and are included in Volvo's
product range.
Use a torque wrench to check that the wheel
bolts are tightened correctly.
Never lubricate the wheel bolts' threads.
Locking wheel bolts*
A tool for removing locking wheel bolts can be
found in the foam block under the cargo com-
partment floor.
Related information
•
Changing tires (p. 454)
•
Installing a wheel (p. 458)
WHEELS AND TIRES
}}
* Option/accessory.
457
Removing a wheel
Wheel changes should always be carried out
correctly.
1. Turn on the hazard warning flashers if the
wheel change has to be done near passing
traffic.
2. Apply the parking brake and put the gear
selector in P.
CAUTION
Models with suspension and level con-
trol*:
Turn this function off before raising the vehi-
cle.
To do so, go to
Settings Vehicle
Deactivate Suspension & Leveling Control
in the center display's Top view.
WARNING
•
The jack must correctly engage the jack
attachment.
•
Be sure the jack is on a firm, level, non-
slippery surface.
•
Never allow any part of your body to be
extended under a vehicle supported by a
jack.
•
Use the jack intended for the vehicle when
changing a tire. For any other job, use
stands to support the vehicle.
•
Apply the parking brake and put the gear
selector in the Park (P) position.
•
Block the wheels standing on the ground,
use rigid wooden blocks or large stones.
•
The jack should be kept well-greased and
clean, and should not be damaged.
•
No objects should be placed between the
base of jack and the ground, or between
the jack and the attachment bar on the
vehicle.
NOTE
The jack provided with your vehicle is
intended to be used only in temporary situa-
tions such as changing wheels in the event of
a flat tire. Only the jack that came with your
particular model should be used to lift the
vehicle. If the vehicle needs to be lifted more
frequently or for a prolonged period, using a
garage jack or hoist is recommended. Always
follow this device’s instructions for use.
3.
Take out the jack*, lug wrench*, the tool for
removing the plastic covers on the wheel
bolts and the towing eyelet stowed under the
floor of the cargo compartment.
Tool for removing the plastic covers on the wheel bolts
Remove the plastic covers on the wheel bolts.
4. Block the wheels that are on the ground with
wooden blocks or large stones.
||
WHEELS AND TIRES
458
5.
Lug wrench and towing eyelet
Screw the towing eyelet into the lug wrench
as shown in the illustration.
CAUTION
The towing eyelet must be screwed into the
lug wrench as far as possible.
6. With the vehicle still on the ground, use the
lug wrench/towing eyelet to loosen the
wheel bolts ½ – 1 turn by exerting downward
(counterclockwise) pressure.
7. When hoisting the vehicle, it is essential that
the jack (or garage lift arms) are positioned
correctly on the underside of the vehicle.
There are two jack attachment points on
each side of the vehicle and there is a groove
in the plastic cover at each attachment point.
Position the jack under the attachment point
to be used on a level, firm, non-slippery sur-
face and crank it up until it is correctly
aligned and seated in the attachment point.
The pin on the jack's head must be posi-
tioned in the hole in the attachment point.
8. Raise the vehicle until the wheel to be
changed is lifted off the ground. Remove the
wheel bolts.
Related information
•
Wheel bolts (p. 456)
•
Installing a wheel (p. 458)
•
Jack (p. 454)
Installing a wheel
It is important to install wheels properly.
1. Clean the contact surfaces on the wheel and
hub.
2. Lift the wheel and place it on the hub.
3. Install the wheel bolts and tighten hand-tight.
Using the lug wrench, tighten crosswise until
all bolts are snug.
4. Lower the vehicle to the ground and alter-
nately tighten the bolts crosswise to
103 ft. lbs. (140 Nm).
5. Press the plastic covers onto the wheel bolts.
WHEELS AND TIRES
}}
459
CAUTION
•
After inflating the tires, always reinstall
the valve cap to help avoid damage to the
valve from dirt, gravel, etc.
•
Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.
Related information
•
Wheel bolts (p. 456)
•
Jack (p. 454)
Tire Pressure Monitoring System
(TPMS)
TPMS provides a warning if inflation pressure in
one or more tires is too low. It also uses a sym-
bol (called a telltale) that will flash for
60 seconds and then glow steadily if there is a
system malfunction.
TPMS uses the rotational speed of the tires in
combination with signal analysis of the ABS sen-
sor signals to determine if they are properly infla-
ted. When a tire is under-inflated, its diameter
(and consequently also its rotational speed)
changes. By comparing the individual tires with
each other it is possible to determine if one or
more tires are under inflated. If inflation pressure
is too low, an indicator symbol will illuminate in
the instrument panel and a text message will be
displayed.
Symbol Explanation
The symbol illuminates to indicate
low tire inflation pressure.
If a malfunction occurs in the sys-
tem, the tire pressure warning sym-
bol will flash for approximately
1 minute and then remain illumi-
nated.
Each tire, including the spare (if provided), should
be checked monthly when cold and inflated to
the inflation pressure recommended by the vehi-
cle manufacturer on the vehicle placard or tire
inflation pressure label. (If your vehicle has tires
of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you
should determine the proper tire inflation pres-
sure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when the
low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible,
and inflate them to the proper pressure.
Driving on a significantly under-inflated tire cau-
ses the tire to overheat and can lead to tire fail-
ure. Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle's
handling and stopping ability. Please note that
the TPMS is not a substitute for proper tire main-
tenance, and it is the driver's responsibility to
maintain correct tire pressure, even if under-infla-
tion has not reached the level to trigger illumina-
tion of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS mal-
function indicator is combined with the low tire
pressure telltale.
||
WHEELS AND TIRES
460
When the system detects a malfunction, the tell-
tale will flash for approximately one minute and
then remain continuously illuminated. This
sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When
the malfunction indicator is illuminated, the sys-
tem may not be able to detect or signal low tire
pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS to con-
tinue to function properly.
Messages in the instrument panel
When the TPMS symbol illuminates, the following
text messages may also be displayed:
•
Tire pressure low
•
Tire pressure system Temporarily
unavailable
•
Tire pressure system Service required
If TPMS cannot determine which tire(s) have low
inflation pressure:
•
All four tires will be shown as affected in the
center display
After changing wheels, always calibrate the sys-
tem to avoid false warnings.
TPMS does not replace the need for regular tire
inspection and maintenance.
NOTE
If you change to tires with a different dimen-
sion than the factory-installed ones, the
TPMS system must be calibrated for these
tires.
TPMS cannot be turned off.
WARNING
Incorrect inflation pressure could lead to tire
failure, resulting in a loss of control of the
vehicle.
Related information
•
Checking tire inflation pressure (p. 460)
•
Reinflating tires equipped with the Tire
Pressure Monitoring System (TPMS)
(p. 461)
•
Ignition modes (p. 374)
Checking tire inflation pressure
The Tire Pressure Monitoring System (TPMS)
makes it possible to view the current inflation
pressure status of all four tires.
Checking inflation pressure
Open the Car status app in
the center display's Application
view. Tap Status to see the
current inflation pressure sta-
tus of all four tires.
The on-screen graphic displays the inflation pres-
sure status.
Status view. The illustration is generic and may vary from
model to model or after a software update
Color indications:
Green: tire pressure is above the threshold for a
low inflation pressure warning.
WHEELS AND TIRES
}}
461
Yellow: low tire pressure.
•
One yellow wheel: the tire indicated is under-
inflated.
•
All wheels yellow: two or more tires are
under-inflated.
Stop safely and check/reinflate the tire(s) as
soon as possible. Calibrate TPMS after reinflating
the tire(s).
All wheels gray:
•
Calibration is underway
•
Inflation pressure status is not known
It might be necessary to drive at a speed of at
least 20 mph (30 km/h) for several minutes for
the system to become operational.
All wheels gray combined with the message
Tire pressure system Temporarily
unavailable and the TPMS symbol in the
instrument panel (
) remains illuminated
after flashing for 1 minute: the system is tem-
porarily unavailable. It should become operational
again shortly.
All wheels gray combined with the message
Tire pressure system Service required and
the TPMS symbol in the instrument panel
(
) remains illuminated after flashing for
1 minute: the system is not functioning correctly.
Have it checked by a trained and qualified Volvo
service technician.
Related information
•
Calibrating the Tire Pressure Monitoring
System (TPMS) (p. 462)
•
Reinflating tires equipped with the Tire
Pressure Monitoring System (TPMS)
(p. 461)
•
Tire Pressure Monitoring System (TPMS)
(p. 459)
Reinflating tires equipped with the
Tire Pressure Monitoring System
(TPMS)
When low tire pressure has been detected, a
message will be displayed in the instrument
panel and the Tire Pressure Monitoring System
symbol will illuminate.
Symbol Explanation
When the TPMS symbol illuminates
and a message is displayed, check,
reinflate the tire(s) and calibrate
TPMS.
1. Use a tire pressure gauge to check the infla-
tion pressure of all four tires.
2. Re-inflate the tire(s) to the correct pressure.
Consult the tire pressure decal located on
the driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening) or the inflation
pressure table in your printed owner's man-
ual supplement.
3. Calibrate the Tire Pressure Monitoring
System, see the article "Calibrating the Tire
Pressure Monitoring System".
||
WHEELS AND TIRES
462
4. In some cases, it may be necessary to drive
the vehicle for several minutes at a speed of
at least 20 mph (30 km/h) to erase the
TPMS telltale warning and the text message.
Please be aware that the TPMS telltale
warning will not go out until the low tire pres-
sure has been corrected and calibration has
been carried out.
NOTE
To help avoid incorrect tire inflation pressure,
if possible only inflate the tires when they are
cold. The tires are considered to be cold
when they have the same temperature as the
surrounding (ambient) air. This temperature is
normally reached after the vehicle has been
parked for at least 3 hours. After driving a dis-
tance of approximately 1 mile (1.6 km), the
tires are considered to be warm.
CAUTION
When inflating tires, press the pump's mouth-
piece straight onto the valve to help avoid
bending or otherwise damaging the valve.
CAUTION
•
After inflating the tires, always reinstall
the valve cap to help avoid damage to the
valve from dirt, gravel, etc.
•
Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.
WARNING
•
Incorrect inflation pressure could lead to
tire failure, resulting in a loss of control of
the vehicle.
•
Tire monitoring systems cannot indicate
sudden tire damage caused by external
factors (e.g., a blowout) in advance.
Related information
•
Tire Pressure Monitoring System (TPMS)
(p. 459)
•
Checking tire inflation pressure (p. 460)
•
Calibrating the Tire Pressure Monitoring
System (TPMS) (p. 462)
Calibrating the Tire Pressure
Monitoring System (TPMS)
In order for the Tire Pressure Monitoring System
to work properly, tire pressure reference values
must be set correctly. This must be done each
time wheels are changed or tire pressures are
modified.
Calibrating TPMS
To calibrate the system:
1. Switch off the engine.
2. Re-inflate the tire(s) to the correct pressure.
Consult the tire pressure decal located on
the driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening) or the inflation
pressure table in your printed owner's man-
ual supplement.
3. Start the engine.
4.
Open the
Car status app in the center dis-
play's App view.
5.
Tap
Status to access Tire Pressure
Monitoring System.
WHEELS AND TIRES
}}
463
6. Tap the calibration button.
7.
Tap
OK after the tire pressure in all four tires
has been checked and adjusted.
8. Drive the vehicle.
> The calibration process will be completed
while driving and will be interrupted if the
vehicle is parked and the engine is
switched off. Calibration continues auto-
matically when driving resumes.
When enough data has been collected to detect
a low tire pressure situation, the tires' color in the
center display will change to green. The system
will not give any text confirmation when calibra-
tion is finished although it will state if calibration
fails. When driving with heavy loads or at sus-
tained highway speeds, the tire pressure should
be adjusted to the recommended inflation pres-
sures.
After adjusting inflation pressure, repeat steps
1-8.
NOTE
Always remember to calibrate the Tire Pres-
sure Monitoring System when the wheels
have been changed or the tire inflation pres-
sure has been corrected according to the tire
pressure decal or tire inflation pressure table.
If correct reference values have not been set,
the system cannot issue low tire pressure
alerts correctly.
The vehicle must be parked with the engine
running to access the calibration button and
to start the calibration process.
WARNING
The exhaust gases contain carbon monoxide,
which is invisible and odorless but very poi-
sonous. For this reason, always perform the
calibration procedure outdoors or in a work-
shop with exhaust gas evacuation equipment.
Related information
•
Tire Pressure Monitoring System (TPMS)
(p. 459)
Tire sealing system
6
Certain models are equipped with a tire sealing
system that enables you to temporarily seal a
hole in the tread surface and re-inflate a flat tire,
or to adjust a tire’s inflation pressure.
Models equipped with a spare tire do not have
the tire sealing system.
Location
The tire sealing system is located under the floor
of the cargo compartment.
Location of the tire sealing system. Generic illustration -
the appearance and location of the foam block may vary
from model to model
Introduction
The tire sealing system consists of an air com-
pressor, a container for the sealing compound,
6
Certain models only.
||
WHEELS AND TIRES
* Option/accessory.
464
wiring to connect the system to the vehicle’s
electrical system via one of the 12-volt sockets,
and a hose used to connect the system to the
tire’s inflation valve.
NOTE
The tire sealing system's compressor has
been tested and approved by Volvo.
The 12-volt sockets are located in the front tun-
nel console, on the rear side of the center con-
sole in the rear seat and in the cargo area*.
Accessing the tire sealing system
The tire sealing system is stowed under the floor
of the cargo area. To access it:
1. Lift the floor hatch in the cargo area.
2. Lift out the tire sealing system.
NOTE
•
The tire sealing system is only intended
to seal holes on the tire’s tread area, not
the sidewall.
•
Tires with large holes or tears cannot be
repaired with the tire sealing system.
•
After use, stow the tire sealing system
properly to help prevent rattling.
WARNING
•
After using the tire sealing system, the
vehicle should not be driven farther than
approximately 120 miles (200 km).
•
Have the tire inspected by a trained and
qualified Volvo service technician as soon
as possible to determine if it can be per-
manently repaired or must be replaced.
•
The vehicle should not be driven faster
than 50 mph (80 km/h) while using a tire
that has been temporarily repaired with
the tire sealing system.
•
After using the tire sealing system, drive
carefully and avoid abrupt steering
maneuvers and sudden stops.
Sealing compound container
The sealing compound container must be
replaced if the tire sealing system has been used
to repair a tire or if the container’s expiration date
has passed (see the date on decal).
NOTE
•
After use, the sealing compound bottle,
the hose, and certain other system com-
ponents must be replaced. Please con-
sult your Volvo retailer for replacement
parts.
•
If the sealing compound bottle’s expira-
tion date has passed, please take it to a
Volvo retailer or a recycling station that
can properly dispose of harmful sub-
stances.
WHEELS AND TIRES
}}
465
WARNING
Please keep the following points in mind
when using the tire sealing system:
•
The sealing compound bottle (no. 8 in the
illustration) contains 1) rubber latex, natu-
ral and 2) ethanediol. These substances
are harmful if swallowed.
•
The contents of this bottle may cause
allergic skin reactions or otherwise be
potentially harmful to the respiratory tract,
the skin, the central nervous system, and
the eyes.
Precautions:
•
Keep out of reach of children.
•
Do not ingest the contents.
•
Avoid prolonged or repeated contact with
the skin.
•
Wash thoroughly after handling.
First aid:
•
Skin: Wash affected areas of skin with
soap and water. Get medical attention if
symptoms occur.
•
Eyes: Flush with plenty of water for least
15 minutes, occasionally lifting the upper
and lower eyelids. Get medical attention if
symptoms occur.
•
Inhalation: Move the exposed person to
fresh air. If irritation persists, get medical
attention.
•
Ingestion: Do NOT induce vomiting
unless directed to do so by medical per-
sonnel. Get medical attention.
•
Disposal: Dispose of this material and its
container to a hazardous or special waste
collection point.
Related information
•
Inflating a tire with the tire sealing system
compressor (p. 469)
•
Using the tire sealing system (p. 465)
Using the tire sealing system
Overview
Electrical wire
Hose
Air release valve
Protective hose cover
Speed limit sticker (on the rear side of the
compressor)
Bottle holder (orange cover)
Air pressure gauge
Bottle with sealing compound
On/Off switch
||
WHEELS AND TIRES
466
Connecting
1. Activate the vehicle's hazard warning flashers
if the tire sealing system is to be used in an
area with traffic.
If the flat tire was caused by a nail, etc., do
not remove it from the tire. It will help to seal
the hole.
2. Peel off the speed limit sticker and affix it to
the windshield so that it is clearly visible to
the driver. The vehicle should not be driven
faster than 50 mph (80 km/h) while using a
tire that has been temporarily repaired with
the tire sealing system.
3.
Ensure that the on/off switch is in position 0
and take out the electrical wire and hose.
NOTE
Do not break the seal on the bottle. This
occurs automatically when the bottle is
screwed into the holder.
WARNING
Contact with the sealing compound may
cause skin irritation. If contact occurs, wash
the affected area immediately with soap and
water.
4. Unscrew the orange cover over the bottle
holder on the compressor and unscrew the
cap on the bottle of sealing compound.
5. Screw the bottle into the bottle holder as far
as possible.
WARNING
The bottle is equipped with a catch to keep it
securely in place and help prevent sealing
compound leakage. Once in place, the bottle
cannot be unscrewed. This must be done by a
trained and qualified Volvo service technician.
6. Be sure the air release valve on the com-
pressor's hose is completely closed. Remove
the valve cap from the tire’s inflation valve
and screw the tire sealing system’s hose
connector onto the valve as tightly as possi-
ble by hand.
7. Connect the electrical wire to the nearest
12-volt socket in the vehicle.
NOTE
Be sure that none of the other 12-volt sock-
ets is being used while the compressor is in
operation.
WHEELS AND TIRES
}}}}
467
8. Start the tire sealing system’s compressor by
pressing the on/off switch to position I.
WARNING
•
Never stand next to the tire being inflated
when the compressor is in operation.
•
If cracks, bubbles, etc. form on the tire,
switch off the compressor immediately.
•
If there is visible damage to the sidewall or
the rim, the tire cannot be repaired. The
vehicle should not be driven if this occurs.
Contact a towing service or Volvo On Call
Roadside Assistance if applicable.
NOTE
The air pressure gauge will temporarily show
an increase in pressure to approximately
88 psi (6 bar) while the sealing compound is
being pumped into the tire. The pressure
should return to a normal level after approxi-
mately 30 seconds.
9. Pump the tire for 7 minutes.
CAUTION
The compressor should not be used for more
than 10 minutes at a time to avoid overheat-
ing.
10. Switch off the compressor and check the
inflation pressure on the air pressure gauge.
Inflation pressure should be between
22—51 psi (1.8—3.5 bar). Use the air
release valve to release some air from the
tire if necessary.
WARNING
If the pressure remains below 22 psi (1.8 bar)
after approximately seven minutes, turn off
the compressor. In this case, the hole is too
large to be sealed and the vehicle should not
be driven.
11. Switch off the compressor and disconnect
the electrical wire from the 12-volt socket.
12. Unscrew the hose from the tire's inflation
valve and put the cover on the hose back into
place to help prevent seepage of residual
sealing compound from the hose.
13. Reinstall the valve cap.
CAUTION
•
After inflating the tires, always reinstall the
valve cap to help avoid damage to the
valve from dirt, gravel, etc.
•
Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.
14. Immediately drive the vehicle for approxi-
mately 2 miles (3 km) at a maximum speed
of 50 mph (80 km/h) to distribute the seal-
ing compound in the tire. During the tire's
first revolution, some sealing compound may
spray out of the puncture hole.
WARNING
No one should stand closer to the vehicle
than approx. 7 ft (2 m) when it drives away to
help avoid being sprayed with sealing com-
pound.
CAUTION
If your vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS), the use of
the sealing compound may lead to incorrect
tire pressure readings or in rare cases, dam-
age to the tire pressure sensor. Use the tire
sealing system to check and adjust the dam-
aged tire's inflation pressure.
NOTE
•
Safely stow the tire sealing system in a
convenient place as it will soon be used
again to check the tire’s inflation pressure.
•
The empty bottle of sealing compound
cannot be removed from the bottle holder.
Consult a trained and qualified Volvo serv-
||
WHEELS AND TIRES
468
ice technician to have the bottle removed
and properly disposed of.
WARNING
If heavy vibrations, unsteady steering behavior,
or noises should occur while driving, reduce
speed and park the vehicle in a safe place.
Recheck the tire for bumps, cracks, or other
visible damage, and recheck its inflation pres-
sure. If the pressure is below 19 psi (1.3 bar),
do not continue driving. Have the vehicle
towed to a trained and qualified Volvo service
technician.
15.
Rechecking the pressure
Reconnect the tire sealing system's hose to
the tire's inflation valve.
16. Without starting the compressor, check the
inflation pressure on the air pressure gauge.
•
If the pressure is under 19 psi (1.3 bar),
the puncture has not been sealed suffi-
ciently and the vehicle should not be
driven. Have the vehicle towed to a trained
and qualified Volvo service technician.
•
If the pressure is more than 19 psi
(1.3 bar), connect the electrical wire to a
12-volt socket, start the compressor and
inflate the tire to the correct pressure
(see the tire pressure decal on the on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear
of the driver's door opening). Use the air
release valve to release some air from the
tire if necessary.
17. Switch off the compressor and disconnect
the electrical wire from the 12-volt socket.
Unscrew the hose from the tire’s inflation
valve and reinstall the valve cap.
Do not attempt to remove the sealing com-
pound bottle from the tire sealing system. It
cannot be turned counterclockwise.
18. Fold the hose into the sealing system box
and return the components to the cargo
compartment.
CAUTION
•
After inflating the tires, always reinstall
the valve cap to help avoid damage to the
valve from dirt, gravel, etc.
•
Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.
NOTE
•
After use, the sealing compound bottle,
the hose, and certain other system com-
ponents must be replaced. Please con-
sult your Volvo retailer for replacement
parts.
•
If the sealing compound bottle’s expira-
tion date has passed, please take it to a
Volvo retailer or a recycling station that
can properly dispose of harmful sub-
stances.
WARNING
Always check tire inflation pressure regularly.
Volvo recommends driving to an authorized Volvo
workshop to have the damaged tire repaired/
replaced. Inform the workshop that the tire con-
tains sealing compound.
WHEELS AND TIRES
}}
469
WARNING
•
After using the tire sealing system, the
vehicle should not be driven farther than
approximately 120 miles (200 km).
•
Have the tire inspected by a trained and
qualified Volvo service technician as soon
as possible to determine if it can be per-
manently repaired or must be replaced.
•
The vehicle should not be driven faster
than 50 mph (80 km/h) while using a tire
that has been temporarily repaired with
the tire sealing system.
•
After using the tire sealing system, drive
carefully and avoid abrupt steering
maneuvers and sudden stops.
Related information
•
Tire sealing system (p. 463)
•
Checking tire inflation pressure (p. 452)
Inflating a tire with the tire sealing
system compressor
The compressor can be used to inflate a tire.
1. The compressor should be switched off.
Ensure that the on/off switch is in position 0.
Take out the electrical wire and hose.
2. Be sure the air release valve on the com-
pressor's hose is completely closed. Remove
the valve cap from the tire’s inflation valve
and screw the hose connector onto the valve
as tightly as possible by hand.
3. Connect the electrical wire to the nearest
12-volt socket in the vehicle and start the
engine.
WARNING
•
The vehicle’s engine should be running
when the tire sealing system is used to
avoid battery drain. Therefore, be sure the
vehicle is parked in a well ventilated place,
or outdoors, before using the system. The
parking brake should be securely applied
and the gear selector should be in the P
(park) position.
•
Children should never be left unattended
in the vehicle when the engine is running.
4. Start the compressor by pressing the on/off
switch to position I.
CAUTION
The compressor should not be used for more
than 10 minutes at a time to avoid overheat-
ing.
5. Inflate the tire to the correct pressure (see
the tire pressure decal on the on the driver's
side B-pillar (the structural member at the
side of the vehicle, at the rear of the driver's
door opening). Use the air release valve to
release some air from the tire if necessary.
||
WHEELS AND TIRES
470
6. Turn off the compressor (press the on/off
switch to position 0) when the correct infla-
tion pressure has been reached.
CAUTION
•
After inflating the tires, always reinstall the
valve cap to help avoid damage to the
valve from dirt, gravel, etc.
•
Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.
7. Disconnect the electrical wire from the 12-
volt socket.
Related information
•
Checking tire inflation pressure (p. 452)
•
Tire sealing system (p. 463)
MAINTENANCE AND SERVICING
MAINTENANCE AND SERVICING
472
Volvo's service program
Periodic maintenance and service performed at
the intervals specified in your Warranty and
Service Records Information booklet will help
keep your vehicle running well.
Introduction
The maintenance services contain several checks
that require special instruments and tools and
therefore must be performed by a qualified tech-
nician. To keep your Volvo in top condition, spec-
ify time-tested and proven Genuine Volvo Parts
and Accessories.
The Federal Clean Air Act – U.S.
The Federal Clean Air Act requires vehicle manu-
facturers to furnish written instructions to the ulti-
mate purchaser to assure the proper servicing
and function of the components that control
emissions. These services, which are listed in the
"Warranty and Service Records Information"
booklet, are not covered by the warranty. You will
be required to pay for labor and material used.
Maintenance
Your Volvo passed several major inspections
before it was delivered to you, in accordance with
Volvo specifications. The maintenance proce-
dures outlined in the Warranty and Service
Records Information booklet, many of which will
positively affect your vehicle's emissions, should
be performed as indicated. It is recommended
that receipts for vehicle emission maintenance be
retained in case questions arise concerning
maintenance. Inspection and maintenance should
also be performed anytime a malfunction is
observed or suspected.
Applicable warranties – U.S./Canada
In accordance with applicable U.S. and Canadian
regulations, the following list of warranties is pro-
vided.
•
New Vehicle Limited Warranty
•
Parts and Accessories Limited Warranty
•
Corrosion Protection Limited Warranty
•
Seat Belt and Supplemental Restraint Sys-
tems Limited Warranty
•
Emission Design and Defect Warranty
•
Emission Performance Warranty
These are the federal warranties; other warran-
ties are provided as required by state/provincial
law. Refer to your separate Warranty and Service
Records Information booklet for detailed informa-
tion concerning each of the warranties.
Periodic maintenance helps minimize
emissions
NOTE
•
Refer to your Warranty and Service
Records Information booklet for a com-
prehensive service and maintenance
schedule up to 150,000 miles (240,000
km). This program contains inspections
and services necessary for the proper
function of your vehicle and includes
components that affect vehicle emis-
sions.
•
The Warranty and Service Records Infor-
mation booklet also contains detailed
information concerning the warranties
that apply to your vehicle.
On-board Diagnostic System
OBD II is part of your vehicle's computerized
engine management system. It stores diagnostic
information about your vehicle's emission con-
trols. It can light the Check Engine light (MIL) if it
detects an emission control "fault." A "fault" is a
component or system that is not performing
within an expected range. A fault may be perma-
nent or temporary. OBD II will store a message
about any fault.
MAINTENANCE AND SERVICING
}}
473
Emission inspection readiness
How do states use OBD II for emission
inspections?
Many states connect a computer directly to a
vehicle's OBD II system. The inspector can then
read "faults." In some states, this type of inspec-
tion has replaced the tailpipe emission test.
How can my vehicle fail OBD II emission
inspection?
Your vehicle can fail OBD II emission inspection
for any of the following reasons.
•
If your Check Engine (MIL) light is lit, your
vehicle may fail inspection.
•
If your vehicle's Check Engine light was lit,
but went out without any action on your part,
OBD II will still have a recorded fault. Your
vehicle may pass or fail, depending on the
inspection practices in your area.
•
If you had recent service that required dis-
connecting the battery, OBD II diagnostic
information may be incomplete and "not
ready" for inspection. A vehicle that is not
ready may fail inspection.
How can I prepare for my next OBD II
emission inspection?
•
If your Check Engine (MIL) light is lit – or was
lit but went out without service, have your
vehicle diagnosed and, if necessary, serviced
by a qualified Volvo technician.
•
If you recently had service for a lit Check
Engine light, or if you had service that
required disconnecting the battery, a period
of driving is necessary to bring the OBD II
system to "ready" for inspection. Two half-
hour trips of mixed stop-and-go/highway
driving are typically needed to allow OBD II to
reach readiness. Your Volvo retailer can pro-
vide you with more information on planning a
trip.
•
Maintain your vehicle in accordance with your
vehicle's maintenance schedule.
Owner maintenance
Periodic maintenance requirements and intervals
are described in your vehicle's Warranty and
Service Records Information booklet.
The following points can be carried out between
the normally scheduled maintenance services.
Each time the car is refueled:
•
Check the engine oil level.
•
Clean the windshield, windshield wipers,
headlights, and taillights.
Monthly:
•
Check cold tire pressure in all tires. Inspect
the tires for wear.
•
Check that engine coolant and other fluid
levels are between the indicated "min" and
"max" markings.
•
Clean interior glass surfaces with a glass
cleaner and soft paper towels.
•
Wipe driver information displays with a soft
cloth.
•
Visually inspect battery terminals for corro-
sion. Corrosion may indicate a loose terminal
connector, or a battery near the end of its
useful service life. Consult your Volvo retailer
for additional information.
As needed:
Wash the car, including the undercarriage, to
reduce wear that can be caused by a buildup of
dirt, and corrosion that can be caused by salt res-
idues.
Clean leaves and twigs from air intake vents at
the base of the windshield, and from other places
where they may collect.
NOTE
Complete service information for qualified
technicians is available online for purchase or
subscription at www.volvotechinfo.com.
||
MAINTENANCE AND SERVICING
474
Related information
•
Climate system service (p. 479)
System updates
Updates are available for infotainment-related
services and Internet connections. If system soft-
ware updates are available, they can be to be
downloaded all at once or separately.
System (software) updates are
handled through the
Download Center app in the
center display's App view. Tap
once to start a download app in
Home view's lower sub-view. If
no search for updates has
been performed since the last time the infotain-
ment system was started, a search will be initi-
ated.
No search will begin if a software download is
underway.
An icon in the
System updates button indicates
the number of updates that are currently availa-
ble. Tap the button to display a list of updates
that can be installed in the vehicle.
For additional information and answers to com-
monly asked questions pertaining to the function
and downloading system updates, go to sup-
port.volvocars.com.
Background searches for software updates
is activated by default when the vehicle is
delivered from the factory.
NOTE
Downloading data may affect other system
features that share the Internet connection. A
download can be cancelled at any time or the
other features can be temporarily turned off
while the software download is underway.
NOTE
An update may be interrupted when the igni-
tion is switched off.
However, an update does not have to be
completed when the ignition is switched off; it
will resume automatically when the ignition is
switched on again.
Updating all system software
–
Select Install all at the bottom of the list.
To avoid displaying a list, select Install all by the
System updates button.
Updating individual programs
–
Select Install to choose the software to be
downloaded.
Cancelling a download
–
Tap the activity indicator that replaced the
Install button on the screen when the down-
load began.
MAINTENANCE AND SERVICING
475
Keep in mind that a download can be cancelled
but an installation that has already begun cannot
be interrupted.
Allowing background searches or
software updates
This function can be deactivated from the center
display:
1. Go to the Settings in the center display's Top
view and select
Download Center.
2.
Tap
System Download Center.
3.
Tap to deselect
Auto Software Update.
If an update is available, New software updates
available will appear in the center display's sta-
tus bar. Tap the message to start a download app
in Home view's lower sub-view. As soon as the
download app has started, an icon in the
System
updates button will indicate the number of
downloads available.
Related information
•
Center display overview (p. 28)
•
Navigating in the center display's views
(p. 38)
Remote updates
With the vehicle connected to the Internet,
updates for a number of the vehicle's systems
can be downloaded from the center display.
The Download Center app is
started from the center dis-
play's App view and makes it
possible to:
•
search for and update system software
•
update the Sensus Navigation maps
•
download, update and uninstall apps
Related information
•
Downloading, updating and uninstalling apps
(p. 433)
•
System updates (p. 474)
Vehicle status
The vehicle's general status can be displayed in
the center display along with the possibility to
book service
1
The Car status app is started
in the center display's App view
and has three tabs:
•
Messages: stored messages
•
Status: tire pressure and engine oil level
•
Appointments: booking service or repairs
1
Related information
•
Using the center display (p. 44)
•
Booking service and repairs (p. 476)
•
Checking and refilling engine oil (p. 509)
1
Certain markets only.
MAINTENANCE AND SERVICING
476
Booking service and repairs
Connected Service Booking (CSB) makes it
possible to use the vehicle's Internet connection
to set up a time for service, maintenance and/or
repairs.
The information is handled through the Car
status app, which can be opened from the cen-
ter display's App view.
Information about your vehicle is sent to your
retailer and you can book your workshop appoint-
ment directly in your retailer's workshop planning
system using the Volvo On-Line Service Schedu-
ler with your smart phone. The system will also
send a reminder as the appointment approaches
and the Sensus Navigation system will provide
directions to the workshop if necessary.
This feature makes it convenient to book a work-
shop appointment directly from your vehicle.
Vehicle-related information is sent to your
retailer, who prepares your visit to the workshop.
After you have requested a workshop appoint-
ment, your retailer will send you an email includ-
ing a link enabling you to connect directly to your
retailer's booking system, where you can book
the appointment at a convenient time. Information
about your retailer is also available in the vehicle
so that you can contact the retailer/workshop at
any time using the
Call my retailer menu option.
NOTE
My Volvo can be found by going to www.vol-
vocars.com and selecting the United States or
Canada.
Before the service can be used
Volvo ID
•
The owner (primary driver) must create or
have a Volvo ID (see the article "Volvo ID").
•
You must enter your Volvo ID (your email
address) in the vehicle as explained in the
article "Volvo ID". If you have already regis-
tered a Volvo ID, use the same email address
that you used to create the Volvo ID.
Changing a Volvo ID email address
If you would like to register a different email
address, open the Volvo ID app in the center dis-
play's App view and tap
Change Volvo ID. Fol-
low the instructions provided. See also the article
"Volvo ID" for additional information.
Selecting a Volvo retailer on the My Volvo
website
By default, the retailer where you purchased your
vehicle will be your preferred retailer/Volvo
authorized workshop who will perform service
and repairs on your vehicle. To change the pre-
ferred retailer, go to your personalized My Volvo
website.
Prerequisites for booking service from the
vehicle
In order to request an appointment from the vehi-
cle:
•
The engine must be running
•
The vehicle must be connected to the Inter-
net (see the article "Internet connected vehi-
cle")
Using the service
When it is time for service or in certain cases if
repairs are necessary, a message will appear in
the instrument panel and in the center display.
This message is triggered by:
•
the amount of time that has elapsed since
the last service
•
the number of hours the engine has run
since the last service
•
mileage since the last service.
•
Specific alerts or fault codes in the vehicle
Booking service or repairs
Submit a booking request whenever you need a
workshop appointment or when a message
regarding the need for service or repairs has
been displayed in the instrument panel and in the
center display. This can be done directly from the
vehicle as follows or alternatively by using the My
Volvo personal website booking tab.
MAINTENANCE AND SERVICING
}}
477
Sending an appointment request
1.
Open the
Car status app in the center dis-
play's App view.
2.
Tap
Appointments.
3.
Under
Appointments, tap Request
appoint..
4.
Check that your
Volvo ID is correct.
5. Check that the correct preferred retailer is
listed. If you prefer, simply tap the button to
initiate a call to the retailer.
6.
Tap
Send appointment request. Your
request and vehicle data will be sent to your
retailer through the vehicle's Internet con-
nection.
> Volvo will send a booking invitation to your
email address with a link to your preferred
workshop's On-Line Service Scheduler.
7. Open the email and click the link to book
your workshop appointment at a convenient
time with your preferred service advisor. Add
any additional preferences and free text to
your booking.
8. When you have submitted your workshop
booking, your appointment will be confirmed
online directly by email. The booking informa-
tion will also appear in the
Car status app in
the center display after a period of time as
well as in your My Volvo personal website,
where you can make changes to your
appointment at any time.
9. Several days prior to your appointment, you
will receive a reminder via email from your
retailer. A notification will also appear on the
center display one day prior to the appoint-
ment. You can set the interval for other
reminders (e.g., two days, three days) at your
My Volvo personal website.
10. On the day of your appointment, a reminder
will appear again on the center display and
the retailer's address can be set in your navi-
gation system if you require directions to the
workshop.
Sending vehicle-related information
Information about the vehicle can be sent at any
time using its Internet connection.
Using this function does not send a workshop
appointment request to your retailer; only
vehicle data will be transmitted to Volvo. This
vehicle data can be accessed by any retailer if
you call the retailer and provide your Vehicle
Identification Number (VIN).
1.
Open the
Car status app in the center dis-
play's App view.
2.
Tap
Appointments.
3.
Under
Appointments, tap Send vehicle
data.
> A message confirming that vehicle infor-
mation has been sent via the Internet
connection will appear on the center dis-
play. Transmission of the vehicle informa-
tion can be cancelled at any time by tap-
ping the X in the activity indicator.
||
MAINTENANCE AND SERVICING
478
Viewing workshop information
1.
Open the
Car status app in the center dis-
play's App view.
2.
Tap
Appointments.
3.
Under
Appointments, tap Workshop
information.
> A window with retailer information will
appear.
4. If you prefer, call the retailer, or select an
address or GPS coordinates to activate the
navigation system.
Appointments and vehicle information
When you make an appointment or send vehicle
information from your vehicle, this information will
be sent using the Internet connection
2
. Informa-
tion about the vehicle includes:
•
service requirements
•
time since service was last performed
•
function status
•
fluid levels
•
mileage (odometer reading)
•
VIN (Vehicle Identification Number)
•
The vehicle's software version
•
Diagnostic information
Related information
•
Internet connected vehicle (p. 431)
•
Volvo ID (p. 27)
Wi-Fi connection to a workshop
The time a vehicle is in a workshop for service or
repairs can be reduced by transmitting trouble-
shooting information as soon as the car reaches
the workshop.
This is done most conveniently by selecting
Automatically connect when I arrive in the
center display's Settings menu.
Each time the vehicle slows down to a sufficiently
low speed, it begins searching for a Wi-Fi net-
work. If an authorized Volvo network (at a retailer
or workshop) is found, a message will be dis-
played or a pop-up window will open in the cen-
ter display (this applies to manual connections,
see the section "Manually connecting to a work-
shop" below).
2
There will be a slight charge for sending this information via the vehicle's Internet connection, depending on your service plan.
MAINTENANCE AND SERVICING
479
Automatically connecting to a
workshop
Without driver confirmation
This is the most convenient way to transmit trou-
ble-shooting data. The driver does not need to
confirm that the vehicle will establish a connec-
tion.
If the vehicle stops at a workshop and the engine
is switched off using the start knob, a message
will appear above the status bar in the center dis-
play. The vehicle will be automatically connected
when the driver's door is opened if the driver
does not tap the
Cancel button in the message.
To help prevent the driver from being disturbed
by unwanted requests to connect (e.g., if the
vehicle is often parked near a workshop with an
authorized Volvo network), the vehicle will switch
to manual connection if the driver cancels a con-
nection request twice within 5 days.
With driver confirmation
With this alternative, the driver must confirm a
connection.
If the vehicle stops at a workshop and the engine
is switched off using the start knob, a pop-up
window will open in the center display. The vehi-
cle will be automatically connected when the driv-
er's door is opened if the driver taps
Connect in
the pop-up window. If the driver does nothing or
taps the pop-up window's Abort button, no
attempt will be made to establish a connection.
NOTE
To help prevent the driver from being distur-
bed by unwanted requests to connect (e.g., if
the vehicle is often parked near a workshop
with an authorized Volvo network), the vehicle
will switch to manual connection if the driver
cancels a connection request twice within
5 days.
Manually connecting to a workshop
Manual connections are handled by the service
technician.
Changing the way a connection is made
The type of connection (manual or automatic)
can be changed in the center display's Settings
menu.
1. Pull down the center display's Top view and
tap
Settings.
2.
Tap
Communication Volvo Service
Networks
.
3.
Select
Automatically connect when I
arrive, Ask before connecting or Never
connect and never ask (manual connec-
tions).
Related information
•
Internet connected vehicle (p. 431)
•
Settings view (p. 109)
Climate system service
Service and repairs on the air conditioning sys-
tem should only be done by a trained and quali-
fied Volvo service technician.
Troubleshooting and repairs
The air conditioning system contains a floures-
cent tracer substance. Ultraviolet light is used to
search for leaks in the system.
Refrigerant R134a
WARNING
The air conditioning system contains the
refrigerant R134a under pressure. Service
and repairs on the system should only be
done by a trained and qualified Volvo service
technician.
Related information
•
Climate control system (p. 178)
MAINTENANCE AND SERVICING
480
Start battery
The vehicle's electrical system is single pole and
uses the body and engine block as conductors.
The start (main) battery is used to power the
starter motor and other electrical components
and systems.
The start battery should only be replaced by a
trained and qualified Volvo service technician.
The vehicle has an alternating current generator.
The start battery is an Absorbed Glass Mat
(AGM) 12-volt battery that is dimensioned for
use in vehicles to support electrical systems and
functions and regenerative charging.
The service life of a battery is affected by factors
such as driving conditions/style, the number of
starts, climate, etc. Extreme cold may also further
decrease the battery’s starting capacity.
•
Never disconnect the start battery while the
engine is running.
•
Check that the start battery is correctly con-
nected and that the clamps on its terminals
are properly tightened.
WARNING
•
Never expose the battery to open flame
or electric spark.
•
Do not smoke near the battery.
•
Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces. If contact
occurs, flush the affected area immedi-
ately with water. Obtain medical help
immediately if eyes are affected.
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the state of California to cause
cancer and reproductive harm. Wash hands
after handling.
If the start battery is being charged, the support
battery will also be charged.
If an external auxiliary battery is used to start the
vehicle, use the connection points in the
engine compartment. The start battery's termi-
nals should never be used. See the following
illustration for the location of the connection
points.
Positive connection point
Negative connection point
Only modern battery chargers with controlled
charging current should be used to charge the
start and support batteries. Quick charge func-
tions should not be used and could damage the
battery.
MAINTENANCE AND SERVICING
}}
481
CAUTION
•
The infotainment system's energy-saving
feature may not function correctly or at
all, and/or a message may be displayed if
a battery charger or jumper cables are
not connected properly.
•
The negative terminal on the battery must
never be used to connect a jumper cable
or a battery charger. Only the ground
point on the chassis may be used.
NOTE
•
The service life of the start battery is
shortened if it becomes discharged
repeatedly.
•
The service life of the start battery is
affected by factors such as driving condi-
tions and climate. Extreme cold may also
further decrease the battery's start
capacity.
•
Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven
for an extended period of time or if the
vehicle is usually only driven short dis-
tances.
•
Driving for at least 15 minutes a week or
connecting the battery to a charger with
automatic maintenance charging will help
keep it in good operating condition.
•
Keeping the start battery fully charged
will help maximize its service life.
The start battery is located in the cargo compartment
The following table provides start battery specifi-
cations.
Battery
H7 AGM
Current (V) 12
Cold start capacity
(Cold Cranking
Amperes - CCA)
(A)
800
Dimensions,
L×W×H in. (mm)
12.4×6.9×7.5
(315×175×190)
Capacity (Ah) 80
||
MAINTENANCE AND SERVICING
482
WARNING
In certain models, the battery is held in place
by a strap. Ensure that this strap is always
securely fastened and pulled taut.
•
When replacing the start battery or support
battery an Absorbed Glass Mat (AGM) must
be used.
•
When replacing the start battery, a new bat-
tery with the same specifications and dimen-
sions must be used. The battery should only
be replaced by a trained and qualified Volvo
service technician.
Related information
•
Jump starting (p. 368)
•
Support battery (p. 482)
•
Battery symbols (p. 483)
Support battery
Vehicles equipped with Start/Stop are equipped
with two 12-volt batteries.
In addition to a heavy-duty start battery, models
with Start/Stop also have a support battery that
provides extra current during the Start/Stop
function's start sequence.
The support battery is located in a box next to the spring
strut in the engine compartment
The following table shows the specifications for
the support battery:
Current (V) 12
Cold start capacity (Cold
Cranking Amperes -
CCA) (A)
170
Dimensions, L×W×H in.
(mm)
5.9×3.5×5.1
(150×90×130)
Capacity (Ah) 10
•
When replacing the start battery or support
battery in a vehicle with Start/Stop, an
Absorbed Glass Mat (AGM) must be used.
•
The greater the current consumption in the
vehicle, the more the generator has to oper-
ate and the battery is charged. This increases
fuel consumption.
•
When the start battery's charge is below the
minimum permitted level, the Start/Stop
function will be disabled.
When the Start/Stop function is temporarily disa-
bled due to high current consumption:
•
The engine will auto-start, even if the brake
pedal is depressed.
The support battery does not normally required
more service than the start battery. If questions
arise, consult a Volvo retailer or trained and quali-
fied Volvo service technician.
MAINTENANCE AND SERVICING
}}
483
CAUTION
When connecting an external start battery or
a battery charger, the Start/Stop function may
be temporarily disabled if the negative termi-
nal on the vehicle's start battery is used to
connect an external start battery or a battery
charger. Only the negative connection point
in the engine compartment may be used as a
ground point.
NOTE
If the start battery is completely discharged
and the vehicle has no normal electrical func-
tions, and the engine is then started using an
auxiliary battery or battery charger, the
Start/Stop function will be activated. The
engine can then be auto-stopped but may not
auto-start again due to an insufficient charge
level in the start battery.
To help ensure auto-start, the start battery
should be charged first. At a temperature of
approx. 60 °F (15 °C), the battery should be
charged for at least 1 hour, preferably using
an external battery charger. At lower tempera-
tures, the battery should be charged for
3–4 hours.
If a charger is not available, it is advisable to
disable the Start/Stop function until the bat-
tery is sufficiently recharged.
Related information
•
Start battery (p. 480)
•
Start/Stop (p. 383)
•
Battery symbols (p. 483)
Battery symbols
There are information and warning symbols on
the battery.
Wear protective goggles.
See the owner's manual for
additional information.
Keep batteries away from
children.
Batteries contain corrosive
acid.
||
MAINTENANCE AND SERVICING
484
Avoid smoking, open
flames, and/or sparks.
Risk of explosion
Recycle properly
NOTE
A used battery should be disposed of in an
environmentally responsible manner. Consult
your Volvo retailer or take the battery to a
recycling station.
Related information
•
Start battery (p. 480)
Fuses
The fuses help protect the vehicle's electrical
components from overloading or short circuits.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the lists of
fuses. Doing so could seriously damage or
overload the vehicle's electrical system.
If an electrical component fails to function, this
may be due to a blown fuse. If the same fuse
blows repeatedly, this indicates a problem with
the component, which should be inspected by a
trained and qualified Volvo service technician.
Location of the fuseboxes
Engine compartment
Under the glove compartment
Cargo compartment
Related information
•
Replacing fuses (p. 485)
•
Fuses in the cargo compartment (p. 494)
•
Fuses in the engine compartment (p. 486)
•
Fuses in the passenger compartment
(p. 490)
MAINTENANCE AND SERVICING
485
Replacing fuses
The fuses help protect the vehicle's electrical
components from overloading or short circuits.
Fuse replacement
1. See the list of fuse boxes for their locations.
2. Pull the fuse straight out and examine it from
the side to see if the curved metal wire in the
fuse is intact.
3. If the wire is broken, insert a new fuse of the
same color and amperage (written on the
fuse).
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the following
pages. Doing so could seriously damage or
overload the vehicle's electrical system.
Related information
•
Fuses (p. 484)
•
Fuses in the cargo compartment (p. 494)
•
Fuses in the engine compartment (p. 486)
•
Fuses in the passenger compartment
(p. 490)
MAINTENANCE AND SERVICING
486
Fuses in the engine compartment
The fuses in the engine compartment help pro-
tect electrical components such as engine and
brake functions.
MAINTENANCE AND SERVICING
}}
487
There is a fuse removal tool on the inside of the
fuse box cover. There are also positions in the
fuse box for several extra fuses.
Positions
There is a decal on the inside of the cover with a
list of fuses.
||
MAINTENANCE AND SERVICING
* Option/accessory.
488
•
Fuses 18–30, 35–37, 46–54 and 55–70
are called "Micro".
•
Fuses 31–34, 38–45 and 71–78 are called
"MCase" and should only be replaced by a
trained and qualified Volvo service technician.
Function A
– –
– –
– –
– –
– –
Front USB socket*
5
12-volt socket in the front tun-
nel console
15
12-volt socket on the rear side
of the tunnel console
15
12-volt socket in the cargo com-
partment
15
– –
– –
Function A
Heated windshield*, driver side
Shunt
Heated windshield*, driver side
40
Headlight washers*
25
Windshield washer 25
– –
Horn 20
Alarm siren 5
Brake system control module
(valves, parking brake)
40
Windshield wipers 30
Tailgate window washer 25
Heated windshield*, passenger
side
40
– –
Brake system control module
(ABS pump)
40
– –
Heated windshield*, passenger
side
Shunt
Function A
Feed when ignition is switched
on to: engine control module,
transmission components, elec-
trical power steering, central
electrical module;
Brake system control module
5
– –
Passenger side headlight 7.5
– –
– –
Battery connection control mod-
ule
5
Air bags; Occupant Weight Sen-
sor (OWS)
5
Driver side headlight 7.5
Accelerator pedal sensor 5
Transmission control module 15
Engine control module 5
– –
– –
MAINTENANCE AND SERVICING
489
Function A
– –
– –
Engine control module; actuator;
Turbocharger valve
20
Solenoids; Valves; Engine cool-
ing system thermostat
10
Vacuum regulators; Valve 7.5
Spoiler shutter control module;
Radiator shutter control module;
Fuel leakage detection
5
– –
Heated oxygen sensors (front
and rear)
15
Oil pump solenoid; A/C mag-
netic coupling; heated oxygen
sensor (center)
15
– –
Engine control module 20
Ignition coil; Spark plugs 15
– –
– –
Function A
– –
– –
– –
– –
Starter motor Shunt
Starter motor 40
Related information
•
Fuses (p. 484)
•
Replacing fuses (p. 485)
MAINTENANCE AND SERVICING
490
Fuses in the passenger
compartment
The fuses in the passenger compartment
(located under the glove compartment) help pro-
tect electrical components such as the 120-volt
socket, displays and door modules.
There is a fuse removal tool on the inside of the
fuse box covers. There are also positions in the
fuse box for several extra fuses.
MAINTENANCE AND SERVICING
}}
491
||
MAINTENANCE AND SERVICING
* Option/accessory.
492
Positions
•
Fuses 1, 3–21, 23–36, 39–53 and 55–59
are called "Micro".
•
Fuses 2, 22, 37–38 and 54 are called
"MCase" and should only be replaced by a
trained and qualified Volvo service technician.
Function A
– –
120-volt socket on the rear side of
the tunnel console*
30
– –
Alarm system movement sensor
A
5
Media player 5
Instrument panel 5
Center console buttons 5
Sun sensor 5
– –
– –
Steering wheel module 5
Module for start knob and parking
brake
5
Function A
Heated steering wheel* module
15
– –
– –
– –
– –
Climate system control module 10
– –
On-board diagnostics (OBDII) 10
Center display 5
Climate system blower module
(front)
40
– –
Instrument lighting; Courtesy light-
ing; Rearview mirror auto-dim func-
tion; Rain and light sensor; Rear
tunnel console keypad*; Power
front seats*; Rear door control pan-
els
7.5
Control module for driver support
functions
5
Function A
Panorama roof and sun shade*
20
Head-up display*
5
Courtesy lighting 5
– –
Ceiling console display (seat belt
reminder, front passenger side air-
bag indicator)
5
– –
Humidity sensor 5
Rear passenger-side door module 20
Fuses in the cargo compartment 10
Internet connection control module;
Volvo On Call control module
5
Rear driver-side door module 20
Infotainment control module
(amplifier)
40
– –
Multi-band antenna module 5
Front seat massage function 5
MAINTENANCE AND SERVICING
* Option/accessory.
493
Function A
– –
Tailgate window wiper 15
Fuel pump control module 15
– –
– –
Driver side front seat heating*
15
Passenger side front seat heating*
15
Coolant pump 10
– –
Front driver-side front door module 20
Active chassis control module*
20
– –
Sensus control module 10
– –
– –
Front passenger-side front door
module
20
Function A
– –
– –
Circuit breaker for fuses 53 and 58 15
A
Certain markets only.
Related information
•
Fuses (p. 484)
•
Replacing fuses (p. 485)
•
Fuses in the engine compartment (p. 486)
•
Fuses in the cargo compartment (p. 494)
MAINTENANCE AND SERVICING
* Option/accessory.
494
Fuses in the cargo compartment
The fuses in the cargo compartment help pro-
tect electrical components such as power
seats*, airbags and seat belt tensioners.
MAINTENANCE AND SERVICING
}}
495
There is a fuse removal tool on the inside of the
fuse box cover. There are also positions in the
fuse box for several extra fuses.
||
MAINTENANCE AND SERVICING
* Option/accessory.
496
Positions
•
Fuses 13–17 and 21–36 are called "Micro".
•
Fuses 1–12, 18–20 and 37 are called
"MCase" and should only be replaced by a
trained and qualified Volvo service technician.
Function A
Heated rear window 30
– –
Pneumatic suspension* compressor
40
Lock motor for rear seat backrest,
passenger's side
15
– –
Lock motor for rear seat backrest,
driver's side
15
– –
– –
Power tailgate*
25
Power front seat (passenger side)*
module
20
Trailer hitch* control module
40
Seat belt tensioner module (pas-
senger side)
40
Function A
Internal relay windings 5
– –
Foot movement detection module
for opening the power tailgate*
5
– –
– –
Trailer hitch* control module
25
Power front seat (driver seat* mod-
ule
20
Seat belt tensioner module (driver
side)
40
Parking camera*
5
– –
– –
– –
– –
Airbag and seat belt tensioner
modules
5
– –
Function A
Heated rear seat (driver side)*
15
– –
Blind Spot Information (BLIS)*
5
– –
Seat belt tensioner modules 5
Emission system actuator 5
– –
All Wheel Drive control module*
15
Heated rear seat (passenger side)*
15
– –
Related information
•
Replacing fuses (p. 485)
•
Fuses (p. 484)
•
Fuses in the passenger compartment
(p. 490)
•
Fuses in the engine compartment (p. 486)
MAINTENANCE AND SERVICING
}}
497
Replacing bulbs
The halogen headlight and backup light bulbs
3
can be replaced by the owner.
Before the halogen headlight bulbs can be
replaced, that plastic covering over the headlight
housing has to be removed and the housing has
to be lifted out of the vehicle.
NOTE
Halogen headlights are not available on all
models or in all markets.
Consult your Volvo retailer if you are uncertain
about the type of headlights in your vehicle.
The turn signal, high/low beam, Daytime Running
Light and parking light bulbs will be accessible
when the plastic covering has been removed.
–
Release the pins in the plastic covering's
four clips by pressing them down with a
screwdriver or similar object and remove the
covering.
NOTE
The pins in the clips have to be pressed back
completely before the clips are placed in the
plastic covering.
When the covering is put back in place, the
pins must be pressed so that their upper sur-
face is flush with the surface of the clip.
NOTE
•
For information regarding any bulbs not
mentioned in this section, please contact
your Volvo retailer or a trained and
authorized Volvo service technician.
•
Always switch off the ignition before star-
ting to replace a bulb.
•
If an error message remains in the dis-
play after a faulty bulb has been replaced,
contact an authorized Volvo workshop.
•
Condensation may form temporarily on
the inside of the lenses of exterior lights
such as headlights, fog lights, or taillights.
This is normal and the lights are
designed to withstand moisture. Normally,
condensation will dissipate after the
lights have been on for a short time.
•
The optional Active Bending Light bulbs
contain trace amounts of mercury. These
bulbs should always be disposed of by a
trained and qualified Volvo service techni-
cian.
3
Halogen bulbs are not available on all models.
||
MAINTENANCE AND SERVICING
* Option/accessory.
498
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which will damage it.
WARNING
•
The ignition should be switched off com-
pletely (be in ignition mode 0) when
replacing bulbs.
•
If the engine has been running just prior
to replacing bulbs in the headlight hous-
ing, please keep in mind that components
in the engine compartment will be hot.
Front bulbs (vehicles with halogen
headlights)
Low beam
High beam
Parking light/Daytime Running Light
Turn signal
Fog light with corner illumination (LED)*
Taillight bulbs
Side marker light (LED)
Taillight (LED)
Fog light
4
Backup light
Turn signal
5
Brake light (LED)
High-mounted brake light (LED)
Related information
•
Bulb specifications (p. 503)
•
Replacing front parking light bulbs (p. 501)
•
Replacing front turn signal bulbs (p. 500)
4
Not available in all markets.
5
Must be replaced by a trained and qualified Volvo service technician.
MAINTENANCE AND SERVICING
499
•
Replacing High Beam headlight bulbs
(p. 500)
•
Replacing low beam headlight bulbs (p. 499)
•
Replacing backup lights (p. 502)
•
Ignition modes (p. 374)
Replacing low beam headlight bulbs
On models with halogen headlights, the low
beam headlight bulb can be replaced by the
owner.
Before the bulb can be replaced, the plastic cov-
ering over the headlight housing has to be
removed, see the article "Replacing bulbs."
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which will damage it.
Driver's side bulb housing shown
1. Remove the low beam round rubber cover
from the headlight housing.
2. Remove the connector from the bulb.
3. Remove the bulb by pressing it slightly
upward and then pulling it out.
4. Insert the bulb in the socket. The bulb's guid-
ing pin should point straight up.
5. Press the connector into place.
6. Put the rubber cover back into place.
Related information
•
Replacing bulbs (p. 497)
•
Bulb specifications (p. 503)
MAINTENANCE AND SERVICING
500
Replacing High Beam headlight
bulbs
On models with halogen headlights, the High
Beam headlight bulb can be replaced by the
owner.
Before the bulb can be accessed, the headlight
housing's cover must be removed, see the article
"Replacing bulbs."
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which will damage it.
Driver's side bulb housing shown
1. Remove the high beam round rubber cover
from the headlight housing.
2. Remove the bulb by turning the bulb holder
upward and then pulling it straight out.
3. Carefully pry the plastic sleeve by the con-
nector's locking lug to release it.
4. Remove the connector from the bulb.
5. Replace the bulb.
6. Position the bulb in the socket and turn it
downward.
7. Put the rubber cover back into place.
Related information
•
Bulb specifications (p. 503)
•
Replacing bulbs (p. 497)
Replacing front turn signal bulbs
On models with halogen headlights, the front
turn signal bulb can be replaced by the owner.
Before the bulb can be accessed, the headlight
housing's cover must be removed, see the article
"Replacing bulbs."
Driver's side headlight housing shown
1. Remove the rubber cover over the turn signal
bulb.
2. Press the retaining catches together and pull
the bulb holder straight out.
3. The bulb holder and bulb must be replaced
as one unit.
4. Press the new bulb holder into the socket.
5. Put the rubber cover back in place.
MAINTENANCE AND SERVICING
501
Related information
•
Replacing bulbs (p. 497)
•
Bulb specifications (p. 503)
Replacing front parking light bulbs
On models with halogen headlights, the front
parking light bulb can be replaced by the owner.
Before the bulb can be accessed, the headlight
housing's cover must be removed, see the article
"Replacing bulbs."
Remove the high beam bulb first by turning the
bulb holder upward and then pulling it straight
out. This makes it easier to access the parking
light bulb.
Driver's side bulb housing shown
1. Remove the rubber cover over the parking
light bulb.
2. Pull the bulb holder straight out.
3. Remove the bulb by pulling it straight out.
4. Insert a new bulb.
5. Insert the bulb holder in the socket and
press it into place.
6. If the high beam bulb was removed, insert
the bulb in the socket and turn downward.
7. Put the rubber cover back into position.
Related information
•
Replacing bulbs (p. 497)
•
Bulb specifications (p. 503)
MAINTENANCE AND SERVICING
502
Replacing backup lights
The backup light bulb is behind the panel in the
tailgate.
1. Remove the panel on the inside of the tail-
gate by turning both clips counterclockwise a
quarter turn. Remove the panel.
Driver's side bulb housing shown
2. Remove the bulb holder by turning it coun-
terclockwise and pulling it out.
3. Remove the defective bulb by pressing it in
and turning it counterclockwise.
4. Insert a new bulb by pressing it in and turn-
ing it clockwise.
5. Insert the bulb holder by turning it clockwise.
6. Put the panel back in place and turn both
clips a quarter turn clockwise.
Related information
•
Replacing bulbs (p. 497)
•
Bulb specifications (p. 503)
Replacing the rear fog light
The rear fog light bulb is located behind the
panel on the inside of the tailgate on the driver's
side of the vehicle.
NOTE
Rear fog lights are not available on all models
or in all markets.
1. Remove the panel on the inside of the tail-
gate by turning both knobs counterclockwise
a quarter turn. Remove the panel.
MAINTENANCE AND SERVICING
503
2. Remove the bulb holder by turning it a quar-
ter turn counterclockwise and pulling it out.
3. Remove the defective bulb by pressing it in
and turning it counterclockwise.
4. Insert a new bulb by pressing it in and turn-
ing it clockwise.
5. Wipe the new bulb with a clean cloth to
remove any grease, etc.
6. Insert the bulb holder by turning it a quarter
turn clockwise.
7. Put the panel back in place and turn both
knobs a quarter turn clockwise.
Related information
•
Bulb specifications (p. 503)
Bulb specifications
The following specifications apply to models
equipped with halogen
6
headlights, a backup
light and rear fog lights. If other bulbs need to
be replaced, contact a trained and qualified
Volvo service technician.
Function
[W]
A
Type
Low beam 55 H11
High Beam 65 H9
Front turn signal 24 PY24W
Daytime running light/
parking light
21/5 W21/5W
Backup light 21 H21W LL
Rear fog light
B
21 H21W LL
A
Watt
B
Rear fog lights are not available on all models or in all markets.
Related information
•
Replacing bulbs (p. 497)
6
Halogen headlights are not available in all models.
MAINTENANCE AND SERVICING
* Option/accessory.
504
Hoisting the vehicle
When the vehicle is hoisted, the jack or garage
lift must be positioned correctly under the vehi-
cle.
For vehicles equipped with leveling control*, if it is
also equipped with the optional pneumatic sus-
pension, this must be deactivated before the
vehicle is hoisted. This is done from the center
display:
1.
Tap
Settings in Top view.
2.
Tap
My Car Suspension .
3.
Select
Deactivate Suspension & Leveling
Control.
MAINTENANCE AND SERVICING
505
Location of the jack attachment points (triangles)/lifting points (red areas)
NOTE
The jack provided with your vehicle is
intended to be used only in temporary situa-
tions such as changing wheels in the event of
a flat tire. Only the jack that came with your
particular model should be used to lift the
vehicle. If the vehicle needs to be lifted more
frequently or for a prolonged period, using a
garage jack or hoist is recommended. Always
follow this device’s instructions for use.
WARNING
•
Ensure that the jack is positioned so that
the vehicle cannot slide off it.
•
Always use axle stands or similar struc-
tures.
Related information
•
Removing a wheel (p. 457)
•
Installing a wheel (p. 458)
•
Jack (p. 454)
MAINTENANCE AND SERVICING
506
Opening and closing the hood
The hood is opened by releasing it from the pas-
senger compartment and then by using the han-
dle under the front edge of the hood.
Opening
With the hood completely closed, pull the
control (located to the left of the brake
pedal).
Turn the handle under the front edge of the
hood counterclockwise to release it from the
lock and lift.
Warning–hood not closed
When the hood lock has been com-
pletely released, this symbol and a
graphic will illuminate in the instrument
panel and an audible signal will be
given. If the vehicle begins to roll, the audible sig-
nal will be repeated several times.
For additional information about this symbol, see
also the article "Door and seat belt reminders."
NOTE
If the warning symbol remains on or if the
audible signal is given even if the hood is
completely closed and locked, consult a
trained and qualified Volvo service technician.
Closing
1. Press down the hood until it begins to close
due to its own weight.
2. When the handle under the front edge of the
hood is in the lock, press down on the hood
to close it completely.
WARNING
•
Be sure the hood is completely unob-
structed while it is being closed.
•
Check that the hood locks properly when
closed. It must audibly lock on both sides.
•
Never drive if the hood is not completely
closed and locked.
•
While driving, if there are any indications
that the hood is not locked in the closed
position, stop safely as soon as possible
and close it completely.
MAINTENANCE AND SERVICING
}}
507
Hood completely closed
Related information
•
Engine compartment overview (p. 507)
•
Door and seat belt reminders (p. 64)
Engine compartment overview
The engine compartment overview shows some
maintenance points.
The layout of the engine compartment may differ slightly
from model to model
Coolant expansion tank
Brake fluid reservoir
Washer fluid reservoir
Relay/fuse box
Air cleaner
Engine oil filler cap
WARNING
•
The cooling fan (located at the front of
the engine compartment, behind the radi-
ator) may start or continue to operate (for
up to 6 minutes) after the engine has
been switched off.
•
Engine cleaning should only be done by a
workshop. If engine cleaning agents are
used when the engine has been running,
there may a fire risk.
•
Before performing any operations in the
engine compartment, the ignition should
always be completely switched off (in
mode 0) and there should be no remote
keys in the passenger compartment. The
gear selector should be in the P (park)
position. If the engine has been running,
wait until it has cooled before touching
any components in the engine compart-
ment.
•
The distributor ignition system operates
at very high voltages. Special safety pre-
cautions must be followed to prevent
injury. Always turn the ignition off when
replacing distributor ignition components
e.g. plugs, coil, etc.
•
Do not touch any part of the distributor
ignition system while the engine is run-
ning. This may result in unintended move-
ments and body injury.
||
MAINTENANCE AND SERVICING
508
Related information
•
Ignition modes (p. 374)
•
Opening and closing the hood (p. 506)
•
Refilling the windshield washer fluid reservoir
(p. 513)
Engine oil
The correct oil must be used for the stated oil
change (service) intervals for the warranty to
apply.
Volvo recommends:
CAUTION
•
Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.
•
Oil that is lower than the specified quality
can damage the engine.
•
Volvo does not recommend the use of oil
additives.
•
Always add oil of the same type and vis-
cosity as already used.
•
Oil changes should be carried out by a
trained and qualified Volvo service techni-
cian.
•
Using oil of higher than the specified
quality is permitted and may be neces-
sary for demanding driving.
Also, refer to the Warranty and Service Records
information booklet for information on oil change
intervals and oil specifications.
Related information
•
Checking and refilling engine oil (p. 509)
•
Engine oil specifications and volume
(p. 535)
MAINTENANCE AND SERVICING
509
Checking and refilling engine oil
The oil level is checked electronically.
Oil filler cap
7
It may be necessary to top up engine oil between
regularly scheduled services.
No action is necessary until a message is dis-
played in the instrument panel.
WARNING
If this symbol and Engine oil level
Service required are displayed,
have the vehicle checked by a
trained and qualified Volvo service
technician. The oil level may be too high.
Do not allow oil to spill onto or come into con-
tact with hot exhaust pipe surfaces.
CAUTION
If this symbol and Engine oil level
low Add "....." (an amount of oil) are
displayed, add the amount of oil
indicated.
Checking the oil level
The oil level can be checked in
the center display when the
engine is not running.
From the center display's
Home view, swipe the screen
from right to left to open App
view. Tap
Car status and then tap Status to
show the oil level.
Oil level graphic in the center display
The oil level should be checked at regular inter-
vals, particularly during the period up to the first
scheduled maintenance service.
If the oil level sensor indicates that the level is
too low, using the correct oil, top up with the
amount of oil indicated as soon as possible.
NOTE
•
The system cannot detect changes in the
oil level immediately. The vehicle must be
driven approximately 20 miles (30 km) or
have been parked on level ground with
the engine off for 5 minutes before the
oil level reading will be correct.
•
If the necessary conditions are not met
for checking the oil level electronically
(time interval after the engine was
switched off, if the vehicle is parked on
an incline, etc.),
No values available will
be displayed. This does not indicate a
problem with the oil level sensor.
Related information
•
Engine oil (p. 508)
•
Ignition modes (p. 374)
•
Engine oil specifications and volume
(p. 535)
7
Models with an electronic oil level sensor do not have a dipstick.
MAINTENANCE AND SERVICING
510
Windshield wipers in the service
position
The windshield wiper blades must be in the verti-
cal (service) position for replacement, washing
or to lift them away from the windshield when
e.g., removing ice or snow.
Wipers in the service position
CAUTION
Be sure the wiper blades are not frozen in
position before attempting to move them to
the service position.
Putting the windshield wipers in the
service position
The service position can be activated while the
vehicle is stationary and the wipers are not acti-
vated.
The service position can be activated in two ways
from the center display:
Via Function view
–
From Function view, tap the Wiper Service
Position button. The indicator light in the
button will illuminate when the service posi-
tion is activated.
> The windshield wipers will move to the
vertical position.
Via Settings
1.
Tap
Settings in the center display's Top
view.
2.
Tap
My Car Wipers
3.
Tap the
Wiper Service Position box.
> The windshield wipers will move to the
vertical position.
Deactivating service position
The service position can be deactivated in two
ways from the center display:
Via Function view
–
From Function view, tap the Wiper Service
Position button. The indicator light in the
button will go out when the service position
is deactivated.
Via Settings
1.
Tap
Settings in the center display's Top
view.
2.
My Car Wipers
3.
Tap the
Wiper Service Position to deselect
the box.
The wipers will also leave the service position if:
•
The wipers are activated.
•
The windshield washers are activated.
•
The rain sensor is activated.
CAUTION
If the wiper arms have been folded out from
the windshield while in the service position,
fold them back against the windshield before
returning the wipers to the normal position to
help avoid scratching the paint on the hood.
MAINTENANCE AND SERVICING
}}
511
Related information
•
Replacing wiper blades (p. 511)
•
Using the windshield wipers (p. 157)
Replacing wiper blades
The wiper blades should be replaced regularly
for best effect.
The windshield wiper blades must be in the verti-
cal (service) position for replacement, washing
or to lift them away from the windshield when
e.g., removing ice or snow.
Replacing the windshield wiper blades
With the wipers in the service position, fold
out the wiper arm from the windshield. Press
the button on the wiper blade attachment
and pull the wiper blade straight out, parallel
with the wiper arm.
Slide in the new wiper blade until it clicks
into place.
Check that the blade is securely in place.
4. Press the wipers back against the wind-
shield.
||
MAINTENANCE AND SERVICING
512
The windshield wiper blades are different lengths
NOTE
The windshield wiper blades are different
lengths. The blade on the driver’s side is
longer than the one on the passenger side.
Cleaning
Keeping the windshield/rear window and wiper
blades clean helps improve visibility and prolongs
the service life of the wiper blades. Clean the
wiper blades with a stiff-bristle brush and luke-
warm soap solution or car washing detergent.
Replacing the tailgate wiper blade
1. Fold the wiper arm outward.
2. Grasp the inner section of wiper blade (at the
arrow).
3. Use one end of the wiper blade as a lever to
help release it from the wiper arm.
4. Press the new wiper blade until it clicks into
place and check that it seats securely.
5. Fold the wiper arm back toward the tailgate
window.
Related information
•
Windshield wipers in the service position
(p. 510)
•
Refilling the windshield washer fluid reservoir
(p. 513)
Refilling coolant
Coolant helps keep the gasoline engine at the
proper operating temperature. The heat transfer-
red from the engine to the coolant can be used
to warm the passenger compartment.
When refilling coolant, follow the instructions on
the package and use the recommended amount
of coolant. Never fill the cooling system with
water only; this could lead to freezing, corrosion
and engine damage.
WARNING
If the engine has been running, the coolant
will be very hot. Allow the engine to cool
before opening the coolant expansion tank. If
this is not possible, open the cap very slowly
to allow pressure to dissipate.
Coolant expansion tank
MAINTENANCE AND SERVICING
}}
* Option/accessory.
513
Unscrew the cover in the bulkhead.
Unscrew the expansion tank cap and add
coolant. The level should not exceed the yel-
low MAX marker in the tank.
Put the other components back in place in the
reverse order.
CAUTION
•
High levels of chlorine, chlorides and
other salts may cause corrosion in the
cooling system.
•
Only use coolants with corrosion protec-
tion recommended by Volvo.
•
The ratio of coolant to water is 50/50.
•
Mix the coolant with tap water of drinka-
ble quality.
•
If maintenance is performed on the cool-
ing system or if the coolant is replaced,
flush the cooling system with clean water
before adding new a new coolant/water
mixture.
•
The engine may only be operated with a
properly filled cooling system. Otherwise,
high temperatures and cracks in the cyl-
inders may occur.
Related information
•
Coolant specifications (p. 532)
Refilling the windshield washer fluid
reservoir
Washer fluid helps keep the windshield and
headlights clean.
The windshield and headlight washers* share a
common reservoir. Open the blue cap to refill
washer fluid (see the illustration for the location
of the reservoir).
During cold weather, the reservoir should be filled
with windshield washer solvent containing anti-
freeze. Use Volvo Original Washer Fluid or the
equivalent with a recommended pH value
between 6 and 8 in a 1:1 solution.
When there is approx. 1 qt (1 liter) of washer
fluid remaining in the reservoir, a text message
and the
symbol will be displayed in the
instrument panel.
||
MAINTENANCE AND SERVICING
514
Volume:
•
Models with headlight washers: 5.8 qts
(5.5 liters).
•
Models without headlight washers: 3.7 qts
(3.5 liter).
Related information
•
Opening and closing the hood (p. 506)
•
Engine compartment overview (p. 507)
Cleaning the exterior
The vehicle should be washed at regular inter-
vals since dirt, dust, insects and tar spots
adhere to the paint and may cause damage. To
help prevent corrosion, it is particularly important
to wash the car frequently in the wintertime.
Hand washing
The following points should be kept in mind when
washing and cleaning the vehicle:
CAUTION
Avoid using car washing detergents with a pH
value lower than 3.5 or higher than 11.5.
Doing so could result in discoloring of ano-
dized aluminum surfaces on e.g., roof rails or
the frames around the side windows.
•
Avoid washing your vehicle in direct sunlight.
Doing so may cause detergents and wax to
dry out and become abrasive. To avoid
scratching, use lukewarm water to soften the
dirt before you wash with a soft sponge, and
plenty of sudsy water.
•
Bird droppings: Remove from paintwork as
soon as possible. Otherwise the finish may
be permanently damaged.
•
A car washing detergent can be used to
facilitate the softening of dirt and oil.
•
Dry the vehicle with a clean chamois and
remember to clean the drain holes in the
doors and rocker panels.
•
Tar spots can be removed with tar remover
after the vehicle has been washed.
•
A stiff-bristle brush and lukewarm soapy
water can be used to clean the wiper blades.
Frequent cleaning of the windshield and
wiper blades improves visibility considerably
and also helps prolong the service life of the
wiper blades.
•
Wash off the dirt from the underside (wheel
housings, fenders, etc).
•
In areas of high industrial fallout, more fre-
quent washing is recommended.
MAINTENANCE AND SERVICING
}}
515
CAUTION
•
During high pressure washing, the spray
mouthpiece must never be closer to the
vehicle than 13" (30 cm). Do not spray
into the locks.
•
Dirt, snow, etc., on the headlights can
reduce lighting capacity considerably.
Clean the headlights regularly, for exam-
ple when refueling.
Special laminated panoramic roof cau-
tions:
•
Always close the laminated panoramic
roof and sun shade before washing your
vehicle.
•
Never use abrasive cleaning agents on
the laminated panoramic roof.
•
Never use wax on the rubber seals
around the laminated panoramic roof.
NOTE
When washing the vehicle, remember to
remove dirt from the drain holes in the doors
and sills.
Automatic car washes
•
We do NOT recommend washing your vehi-
cle in an automatic wash during the first few
months (because the paint will not have
hardened sufficiently).
•
An automatic wash is a simple and quick way
to clean your vehicle, but it is worth remem-
bering that it may not be as thorough as
when you yourself go over the vehicle with
sponge and water. Keeping the underbody
clean is most important, especially in the win-
ter. Some automatic washers do not have
facilities for washing the underbody.
NOTE
Condensation may form temporarily on the
inside of the lenses of exterior lights such as
headlights or taillights. This is normal and the
lights are designed to withstand moisture.
Normally, condensation will dissipate after the
lights have been on for a short time.
CAUTION
When using an automatic car wash in which
the vehicle has to be able to roll freely, the
auto-hold brake function must be deactivated.
If this is not done, the brakes will automati-
cally be applied when the vehicle is stationary.
To deactivate this function:
1. Drive the vehicle into the car wash
2. Turn off the auto-hold function using the
control on the center console
3. Turn off the parking brake's automatic
function in the center display's Top view
(tap
Settings, tap My Car Electric
Parking Brake and deselect Auto
Activate Parking Brake)
4.
Put the gear selector in N
5. Switch off the ignition by turning the start
knob to STOP and holding it in this posi-
tion for at least 4 seconds
The vehicle will then be able to roll freely.
||
MAINTENANCE AND SERVICING
* Option/accessory.
516
CAUTION
•
Before driving into an automatic car
wash, turn off the optional rain sensor to
avoid damaging the windshield wipers.
•
Make sure that side view mirrors, auxiliary
lamps, etc, are secure, and that any
antenna(s) are retracted or removed. Oth-
erwise there is risk of the machine dis-
lodging them.
•
Chromed wheels: Clean chrome-plated
wheels using the same detergents used
for the body of the vehicle. Aggressive
wheel-cleaning agents can permanently
stain chrome-plated wheels.
WARNING
•
When the vehicle is driven immediately
after being washed, apply the brakes,
including the parking brake, several times
in order to remove any moisture from the
brake linings.
•
Engine cleaning agents should not be
used when the engine is warm. This con-
stitutes a fire risk.
Exterior components
Volvo recommends the use of special cleaning
products, available at your Volvo retailer, for
cleaning colored plastic, rubber, or ornamental
components such as chromed strips on the exte-
rior of your vehicle. The instructions for using
these products should be followed carefully. Sol-
vents or stain removers should not be used.
The frames around the side windows, roof rails
and door frames near the windows* are made of
anodized aluminum and should only be washed
with a cleaning product with a pH value between
3.5 till 11.5.
Components that should be washed with a cleaning
product with a pH value between 3.5 till 11.5 (generic
illustration)
CAUTION
•
Avoid waxing or polishing plastic or rub-
ber components
•
Polishing chromed strips can wear away
or damage the surface
•
Polishes containing abrasive substances
should not be used
Related information
•
Paint damage (p. 520)
•
Corrosion protection (p. 519)
•
Polishing and waxing (p. 521)
•
Windshield wipers in the service position
(p. 510)
MAINTENANCE AND SERVICING
}}
* Option/accessory.
517
Cleaning the interior
Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and fol-
low the instructions included with the car care
product.
CAUTION
•
Under no circumstances should gasoline,
naphtha or similar cleaning agents be
used on the plastic or the leather since
these can cause damage.
•
Take extra care when removing stains
such as ink or lipstick since the coloring
can spread.
•
Use solvents sparingly. Too much solvent
can damage the seat padding.
•
Start from the outside of the stain and
work toward the center.
•
Sharp objects (e.g. pencils or pens in a
pocket) or Velcro fasteners on clothing
may damage the textile upholstery.
•
Clothing that is not colorfast, such as
new jeans or suede garments, may stain
the upholstery.
Fabric upholstery and ceiling liner
Clean with soapy water or a detergent. For more
difficult spots caused by oil, ice cream, shoe pol-
ish, grease, etc., use a clothing/fabric stain
remover. Consult your Volvo retailer.
Leather* care
Volvo's leather upholstery is manufactured with a
protectant to repel soiling. Over time, sunlight,
grease and dirt can break down the protection.
Staining, cracking, scuffing, and fading can result.
Volvo offers an easy-to-use, non-greasy leather
care kit formulated to clean and beautify your
vehicle's leather, and to renew the protective
qualities of its finish. The cleaner removes dirt
and oil buildup. The light cream protectant
restores a barrier against soil and sunlight.
Volvo also offers a special leather softener that
should be applied after the cleaner and protec-
tant. It leaves leather soft and smooth, and
reduces friction between leather and other fin-
ishes in the vehicle.
Volvo recommends cleaning, protecting and con-
ditioning your vehicle's leather two to four times a
year. Ask your Volvo retailer about Leather Care
Kit 951 0251 and Leather Softener 943 7429.
Cleaning leather upholstery
1. Pour leather cleaner on a damp sponge and
squeeze it until the cleaner foams.
2. Apply the foam to the stain by moving the
sponge with circular movements.
3. Dampen the stain thoroughly with the
sponge. Let the sponge absorb the stain, do
not rub.
4. Dry the stain with soft paper towels or a
towel, and allow the leather to dry completely.
Protecting leather upholstery
1. Put a small amount of protectant cream on a
cloth and apply a thin coating of cream to the
upholstery with light circular movements.
2. Allow the leather to dry for 20 minutes.
This will help the leather resist staining and pro-
tect against sunlight's harmful UV rays.
Cleaning a leather-covered steering
wheel
•
Remove soil, dust, etc., with a damp sponge
and a neutral soap solution.
•
Leather should be allowed to breath. Never
cover the steering wheel with a plastic pro-
tector.
•
Volvo recommends cleaning, protecting and
conditioning the steering wheel with Volvo's
Leather Care Kit 951 0251 and Leather
Softener 943 7429.
If there are stains on the steering wheel:
Type 1 (ink, wine, coffee, milk, sweat or blood)
–
Use a soft cloth or sponge. Wipe the wheel
with a solution with 5% ammonia. For blood
stains, mix approx. 1 cup (2 dl) of water and
one ounce (25g) of salt and wipe the stain.
Type 2 (fat, oil, sauces, or chocolate)
1. Same procedure as for type I stains.
||
MAINTENANCE AND SERVICING
* Option/accessory.
518
2. Finish by rubbing the wheel with absorbent
paper or a towel.
Type 3 (dry soil or dust)
1. Remove the soil/dust with a soft brush.
2. Same procedure as for type I stains.
CAUTION
Sharp objects, such as rings, could damage
the leather on the steering wheel.
Leather panels*
Leather should be allowed to breath. Never cover
the upper side of the dashboard or door panels
with a plastic protector. Ask your Volvo retailer
about Leather Care Kit 951 0251 and Leather
Softener 943 7429.
Spots on interior plastic, metal, or wood
surfaces
Cleaning interior plastic components should be
done with a moist microfiber cloth. Consult your
Volvo retailer.
CAUTION
•
Do not use cleaning agents with high
alcohol content such as washer fluid to
clean instrument panel glass.
•
Never spray cleaning agents or water
directly onto components with electrical
buttons or controls. Clean components of
this type by applying the cleaning agent/
water sparingly to a cloth and wiping the
components so that no liquid penetrates
into these components.
Cleaning the seat belts
Clean only with lukewarm water and a mild soap
solution.
Cleaning floor mats
The floor mats should be vacuumed or brushed
clean regularly, especially during winter when
they should be taken out for drying. Spots on tex-
tile mats can be removed with a mild detergent.
For best protection in winter, Volvo recommends
the use of Volvo rubber floor mats. Consult your
Volvo retailer.
WARNING
•
Never use more than one floor mat at a
time on the driver's floor. Before driving,
remove the original mat from the driver's
seat floor before using any other type of
floor mat. Any mat used in this position
should be securely and properly anchored
in the attaching pins. An extra mat on the
driver's floor can cause the accelerator
and/or brake pedal to catch. Check that
the movement of these pedals is not
impeded.
•
Volvo's floor mats are specially manufac-
tured for your car. They must be firmly
secured in the clips on the floor so that
they cannot slide and become trapped
under the pedals on the driver's side.
Related information
•
Cleaning the center display (p. 519)
MAINTENANCE AND SERVICING
519
Cleaning the center display
Marks, stains, etc., on the center display may
affect its performance and readability. Clean it
regularly with a microfiber cloth.
Center display's Home button
To clean the center display:
1. Turn off the display by pressing and holding
the Home button.
2. Wipe the screen clean with the microfiber
cloth provided or use a similar one, using a
small, circular motion. If necessary, moisten
the cloth slightly.
3. Reactivate the display by pressing the Home
button briefly.
CAUTION
•
The microfiber cloth used should be free
of sand, dirt or anything abrasive that
might scratch the screen.
•
Do not use rough cloths, paper towels or
tissues that could scratch the screen.
•
When cleaning the center display, apply
only light pressure on the screen. Press-
ing too hard could cause damage.
•
Do not spray any liquid or corrosive
chemicals directly on the screen. Do not
use window cleaning liquid, cleaning
agents (particularly ones containing abra-
sives), sprays, solvents, alcohol or ammo-
nia to clean the screen.
Related information
•
Cleaning the interior (p. 517)
•
Center display overview (p. 28)
Corrosion protection
Your vehicle is constructed with effective protec-
tion against corrosion.
Inspection and maintenance
The corrosion protection does not normally
require maintenance but keeping the vehicle
clean helps prevent the onset of corrosion. The
use of strong alkaline or acidic cleaning fluids
should always be avoided on shiny body compo-
nents. Any stone chips in the paint should be
touched up as soon as possible.
Related information
•
Paint damage (p. 520)
•
Touching up paint damage (p. 521)
MAINTENANCE AND SERVICING
520
Paint damage
Paint damage requires immediate attention to
avoid rusting. Make it a habit to check the finish
regularly, for instance washing the vehicle.
Touch-up if necessary.
Paint repairs require special equipment and skill.
Contact your Volvo retailer for any extensive dam-
age.
Minor scratches can be repaired by using Volvo
touch-up paint.
Color code
Sample color code (1): US models
Sample color code (1): Canadian models
Make sure you have the right color. See also the
article "Label information" for the location of this
label.
Minor stone chips and scratches
Material:
•
Primer – can
•
Paint – touch-up pen
•
Brush
•
Masking tape
•
Emery cloth
If the stone chip has not gone down to the bare
metal and an undamaged color coat remains, you
can add paint immediately after removing dirt.
NOTE
When touching up the vehicle, it should be
clean and dry. The surface temperature
should be above 60 °F (15 °C).
Related information
•
Label information (p. 524)
•
Touching up paint damage (p. 521)
MAINTENANCE AND SERVICING
}}
521
Touching up paint damage
Stone chips or other minor paint damage can be
repaired by the vehicle's owner.
Repairing stone chips
1. Place a strip of masking tape over the dam-
aged surface. Pull the tape off so that any
loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with a
small brush.
3. When the primer surface is dry, the paint can
be applied using a brush. Mix the paint thor-
oughly; apply several thin paint coats and let
dry after each application.
4. If there is a longer scratch, you may want to
protect surrounding paint by masking it off
5. After a few days, polish the touched-up
areas. Use a soft rag and a small amount of
polish.
Related information
•
Paint damage (p. 520)
•
Cleaning the exterior (p. 514)
Polishing and waxing
Normally, polishing is not required during the
first year after delivery, however, waxing may be
beneficial.
•
Before applying polish or wax the vehicle
must be washed and dried. Tar spots can be
removed with kerosene or tar remover. Diffi-
cult spots may require a fine rubbing com-
pound.
•
After polishing use liquid or paste wax.
•
Several commercially available products con-
tain both polish and wax.
•
Waxing alone does not substitute for polish-
ing a dull surface.
•
A wide range of polymer-based waxes can
be purchased today. These waxes are easy to
use and produce a long-lasting, high-gloss
finish that protects the bodywork against oxi-
dation, road dirt and fading.
•
Do not polish or wax your vehicle in direct
sunlight (the surface of the vehicle should
not be warmer than 113 °F (45 °C).
||
MAINTENANCE AND SERVICING
522
CAUTION
Volvo does not recommend the use of long-
life or durable paint protection coatings, some
of which may claim to prevent pitting, fading,
oxidation, etc. These coatings have not been
tested by Volvo for compatibility with your
vehicle's clear coat. Some of them may cause
the clear coat to soften, crack, or cloud. Dam-
age caused by application of paint protection
coatings may not be covered under your vehi-
cle's paint warranty.
Do not use metal polishing agents on ano-
dized aluminum surfaces. Doing so could
result in discoloring and damage the surface
finish.
Related information
•
Paint damage (p. 520)
•
Touching up paint damage (p. 521)
SPECIFICATIONS
SPECIFICATIONS
524
Label information
The labels in your vehicle provide information
such as the chassis number, paint code, tire
inflation pressure, etc.
SPECIFICATIONS
}}
525
Location of labels
List of labels
Vehicle Emission Control Information. (A)
US models, (B) Canadian models. Your Volvo
is designed to meet all applicable emission
standards, as evidenced by the certification
label on the underside of the hood. For fur-
ther information regarding these regulations,
please consult your Volvo retailer.
||
SPECIFICATIONS
526
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of
the dashboard. The Vehicle Identification
Number (VIN) should always be quoted in all
correspondence concerning your vehicle with
the retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires
that were on the vehicle when it left the fac-
tory.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Minis-
try of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced by
the certification label on the driver's side B-
pillar (the structural member at the side of
the vehicle, at the rear of the driver's door
opening). This label also includes codes for
paint color, etc. For further information regar-
ding these regulations, please consult your
Volvo retailer. U.S. models have the upper
decal; Canadian models have the lower one.
SPECIFICATIONS
}}
527
Dimensions
The following table lists your vehicle's most
important dimensions.
||
SPECIFICATIONS
528
Dimension In.
(mm)
A Ground clearance (curb
weight + 2 people)
A
5.6 (142)
B Wheelbase 115.8 (2941)
C Length 194.3 (4936)
D Load length, floor, seat-
back down
78.3 (1988)
E Load length, floor 45.4 (1153)
F Height 58.1 (1475)
G Load height 27.7 (704)
H Track, front
64.1 (1628)
B
63.7 (1618)
C
63.7 (1617)
D
I Track, rear
64.1 (1629)
B
63.7 (1619)
C
63.7 (1618)
D
J Load width, floor 44.5 (1130)
K Width
74.0 (1879)
E
74.4 (1890)
F
Dimension In.
(mm)
L Width incl. door mirrors
(folded out)
79.5 (2019)
M Width incl. door mirrors
(folded in)
74.6 (1895)
A
Varies slightly depending on tire size, chassis options, etc.
B
18" wheels
C
19" wheels
D
20" wheels
E
Body width
F
Door molding
Related information
•
Weights (p. 529)
SPECIFICATIONS
}}
529
Weights
The following table lists important weight data
for your vehicle.
Category USA Canada
Gross vehicle weight
4-cyl. AWD (All Wheel Drive) - 2,400 kg
Capacity weight
4-cyl. AWD. - 430 kg
Permissible axle weights, front
4-cyl. AWD - 1,200 kg
Permissible axle weights, rear
4-cyl. AWD - 1,250 kg
Curb weight
4-cyl. AWD - 1860-1900 kg
Max. roof load
- 100 kg
||
SPECIFICATIONS
530
Category USA Canada
Max. trailer weights
- Without brakes: 750 kg
With brakes (AWD): 900 kg
With brakes (AWD Towing Pack): 1,580 kg
Max. tongue weight
- AWD: 90 kg
AWD Towing Pack: 150 kg
CAUTION
•
When loading the vehicle, the maximum
gross vehicle weight and permissible axle
weights may not be exceeded.
•
The maximum trailer weights listed are
only applicable for altitudes up to 3280 ft
(1,000 m) above sea level. With increas-
ing altitude the engine power and there-
fore the car's climbing ability are impaired
because of the reduced air density, so
the maximum trailer weight has to be
reduced accordingly. The weight of the
car and trailer must be reduced by 10%
for every further 3280 ft (1,000 m) (or
part thereof).
SPECIFICATIONS
531
Air conditioning refrigerant
The air conditioning system in your car contains
a CFC-free refrigerant.
A/C decal
R134a decal
Refrigerant
Weight Type
1.54 lbs (700 g) R134a
WARNING
The air conditioning system contains R134a
refrigerant under pressure. Service and
repairs may only be carried out by a trained
and qualified Volvo service technician.
Compressor oil
Volume Type
2.0 fl. oz. (60 ml) PAG SP-A2
Evaporator
The A/C system' s evaporator may never be
repaired or replaced with a previously used evap-
orator. A new evaporator must be certified and
marked according to SAE J2842.
Related information
•
Climate system service (p. 479)
Brake fluid specification and volume
Brake fluid transfers braking force when the
brake pedal is depressed to the master cylinder
and to the slave cylinders on each wheel.
Topping up or replacing brake fluid should only
be done by a trained and qualified Volvo service
technician.
Specification: Volvo Original Dot 4 class 6 or
equivalent
Related information
•
Engine compartment overview (p. 507)
SPECIFICATIONS
532
Coolant specifications
Coolant specifications.
Specification: Coolant with corrosion inhibitor
mixed with water (50/50 mix), see packaging.
Consult a Volvo retailer if you are uncertain.
Different types of coolant should not be mixed to
help avoid health risks.
SPECIFICATIONS
}}
533
Engine specifications
The following table provides technical data for
the respective engines. Engine specifications for
Special Edition vehicles may vary.
Not all engines listed here are available in all
markets.
Specification T6 AWD
Engine designation B4204T27
Output (kW/rps) 235/95
Output (hp/rpm) 316/5700
Torque (Nm/rps) 400/37–90
Torque (ft. lbs./rpm) 295/2,200–5,400
No. of cylinders 4
Specification T6
Engine designation B4204T23
Output (kW/rps) 187/92
Output (hp/rpm) 250/5,500
Torque (Nm/rps) 350/25–80
Torque (ft. lbs./rpm) 258/1,500-4,800
No. of cylinders 4
SPECIFICATIONS
535
Engine oil specifications and
volume
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils
may not offer the same fuel economy, engine
performance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor-
mation booklet for information on oil change
intervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn-
thetic oil.
Oil additives must not be used.
Oil viscosity
Incorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide good
fuel economy and engine protection. See the vis-
cosity chart.
Viscosity chart
Extreme engine operation
Volvo oil VCC RBS0-2AE/SAE 0W20 is recom-
mended for extreme driving conditions.
Oil volume
The oil volume for the engine is:
6.2 US qts (5.9 liters).
Related information
•
Checking and refilling engine oil (p. 509)
Fuel tank volume
The fuel tank's volume is shown below.
The fuel tank's refillable volume is approx:
•
Front Wheel Drive: 14.5 US gallons (55 lit-
ers)
•
All Wheel Drive: 15.9 US gallons (60 liters)
Related information
•
Octane rating (p. 366)
•
Opening/closing the fuel filler door (p. 367)
SPECIFICATIONS
536
Tire inflation pressure table
The following tire pressures are recommended
by Volvo for your vehicle. Refer to the tire infla-
tion placard for information specific to the tires
installed on your vehicle at the factory.
Tire sizes: V90 Cold tire pressure for up to five persons
Front
psi (kPa)
Rear
psi (kPa)
255/35 R20 39 (270) 39 (270)
245/45 R18
255/40 R19
36 (250) 36 (250)
Temporary spare tire
T125/80 R18
60 (420) 60 (420)
Related information
•
Checking tire inflation pressure (p. 452)
SPECIFICATIONS
537
Transmission fluid specification and
volume
Under normal driving conditions the transmission
fluid does not need to be changed during its
service life. However, it may be necessary under
adverse driving conditions.
Transmission: TG-81SC
Specification: Transmission fluid AW-1
INDEX
539
A
A/C (air conditioning) 193
Accessory installation warning 21, 24
Active high beams 142
Active yaw control 247
Adaptive brake lights 354
Adaptive cruise control 265, 268, 269,
271, 272, 273, 277
passing assistance 272
pilot assist 291
Adaptive Cruise Control
fault tracing 275
limitations 276
Airbags
disconnecting the front passenger’s
side 68
front 65
inflatable curtain 73
side impact 72
Air conditioning 193
Air distribution 196, 198
Air distribution table 199
Air filter 181
Air quality 179
Air quality sensor 179
Air vents 196, 197
Alarm 241
automatically arming/disarming 240
Deactivating 242
All Wheel Drive 391
Ambient temperature sensor 114
Android Auto 422
settings 423
Antennas
passive entry system 232
Anti-freeze 361
Apple CarPlay 420, 421
Applications (apps) 394
App menu 155
Approach lighting 150
Apps
changing settings 43, 113
Apps (applications) 433
Audio system 394
HD digital radio 398, 400, 401
SiriusXM
®
Satellite radio 402, 403, 404
sound settings 395, 428
voice control 119
Auto-hold brakes 352
Automatic locking retractor 77
Automatic transmission
Eco (driving function) 381
gear shift indicator 388
general description 386, 388
oil 537
shifting with steering wheel paddles 390
shiftlock override 387
Axle weight 450
B
Backup lights
changing bulbs 502
Battery
avoiding drain 376
remote key, replacing 221
support battery 482
warning symbols 483
Battery – replacing 480
Blind Spot Information 313, 314, 315
Bluetooth
connecting devices 413
Bluetooth
®
hands-free 412
media 418, 427
microphone 414
streaming audio 427
INDEX
INDEX
540
Bluetooth cell phone connection 414
Booster cushion, integrated 87, 89, 91
Booster cushions 83
Brake assist system 353
Brake lights 146, 354
Brakes
auto-hold 352
Brake system
Brake pad inspection 351
fluid 531
general information 350, 352, 353
Bulbs 501
replacing 497
specifications 503
C
Camera
driver support systems 296
limitations 297
Camera, Park Assist 336, 338, 340, 341
Capacity weight 450, 529
Cargo area, steel grid 210
Cargo area cover 212
Cargo compartment
fuses 494
raising/lowering the level 202
Cargo net 208
Cargo space 202
Car wash 514
Catalytic converter 368
CD, USB, iPod, AUX, Bluetooth, Recents,
Library, Shuffle, Similar, Change device, Pri-
mary Audio Default Language, Subtitle, Pri-
mary Subtitle Default Language, Video,
DivX® VOD 424
CD player 424
Cell phone
hands-free 411
Pairing 412
Cell phone voice control 120
Center display
changing settings 30
cleaning 519
keyboard 31
navigating in 38
overview 28
screen in the center console 44
symbols in the status bar 43
Chains 451
Changing a wheel 454
Child restraints
recalls and registration 77
Child restraint systems 77
booster cushions 83
convertible seats 80
infant seats 78
ISOFIX/LATCH anchors 84
top tether anchors 86
Child safety 75
booster cushions 83
child restraint systems 77, 85
convertible seats 80
infant seats 78
Child safety locks 242
Child seats
lower attachment points 85
City safety 300, 308
City Safety
crossing traffic 305
detecting objects 303
limitations 308
rear collision warning 312
symbols and messages 311
troubleshooting 306
City Safety, On/Off 302
City Safety™
Multi Target 306
INDEX
541
Cleaning
exterior 514
interior 517
Clean Zone Interior Package 180
Climate system 182
air distribution 196, 198, 199
air filter 181
air vents 197
auto mode 182
blower 185
center display controls 183
Electronic Climate Control 182
introduction 178, 182
passenger compartment filter 180
rear controls 182, 185
recirculation 189
refrigerant 531
service 479
setting the temperature 187
voice commands 122
Clock 115
Cold weather driving 361
Collision warning system 301
Compass in rearview mirror 136
calibrate 137
Connected service booking 476
Convertible seats 80
Coolant 532
refilling 512
Corrosion protection 519
Courtesy lighting 147
Crash event data 26
Crash mode 73, 74
Cross Traffic Alert 315, 316, 317, 319
Cruise control 258, 259, 260, 261, 262
adaptive 262, 265, 268, 269, 271,
272, 273, 275, 276, 277, 284
Curb weight 450, 529
Curtain
sun 109
D
Daytime running lights 138, 140
Defroster
rear window and mirrors 190
Detachable key blade 227, 239
Digital owner's manual 50, 51
Dimensions 527
Disconnecting the front passenger’s airbag 68
Display
head-up 116
Distance Alert 263, 264
Dome lighting 147
Door mirrors 102
defroster 190
Drive mode 378
Driver alert 322, 323, 324
Lane Keeping Aid 324, 327
Driver distraction warning 21, 24
Driver profile 172, 175
editing 174
selecting 173
Driver support systems 246
Driving economically 358
Driving in cold weather 361
Driving through water 359
E
Eco (driving function) 381
Eco coast 381
Economical driving 358
Electrical sockets 215
Electric parking brake 354, 355, 357
Electronic Climate Control (ECC) 182
Electronic stability control 247
INDEX
542
Emergency brake
parking brake 354, 355, 357
Emergency brake lights 354
Emergency locking retractor 77
Emergency starting 368
Emergency towing 363
Emission inspection readiness 472
Engine
overheating 360
Start/Stop 383, 385
starting 376
turning off 378
Engine compartment
fuses 486
Engine compartment overview 507
Engine oil 535
checking 508, 509
Engine specifications 533
Environment 15
Eyelet
towing 361
Eyelets for anchoring loads 211
F
Federal Clean Air Act 472
Flat tires
repairing with tire sealing system 463,
465, 469
Floor mats
placing correctly 376
Fluid specifications 531, 532, 537
Fog lights
front 144
rear 145, 502
Front airbags 65
disconnecting passenger’s side airbag 68
Front fog lights 144
Front park assist 332, 333, 334, 335
Front seats
heated 194
multifunctional 165, 166
power 163, 164
Front seats, manual adjustment 162
Fuel
Travel Link service 409
Fuel filler door, opening 367
Fuel requirements 365, 366
Function view 36
Fuses 484
cargo compartment 494
engine compartment 486
passenger compartment 490
Fuses, replacing 485, 486, 490, 494
G
Garage door opener
HomeLink
®
Wireless Control Sys-
tem 98, 99
Gasoline requirements 365, 366
Glossary of tire terminology 448
Glove compartment 205
Grocery bag holder 207
Gross vehicle weight 450
Gross vehicle weight (GVW) 529
H
Hand brake (parking brake) 354, 355, 357
Hazard warning flashers 146
HD digital radio 398, 400, 401
INDEX
543
Headlights
Active Bending Lights 143
active high beams 142
daytime running lights 138, 140
high/low beams 142
high beam flash 142
Headlight washers 158
Head restraint - center, rear 169
Head restraints, rear seat 169
Head-up display 116
Heated front seats 194
Heated oxygen sensors 368
Heated steering wheel 192
High beam bulb, replacing 500
High beams 142
active 142
Hill Start Assist (HSA) 354
Hoisting the vehicle 504
HomeLink
®
Wireless Control System 98, 99
Home safe lighting 150
Hood, opening/closing 506
Horn, Keypad, Paddles, Signal 160
I
ID, Volvo 27
Ignition modes 374
Immobilizer (start inhibitor) 220
Indicator lights 135
Infant seats 78
Inflatable Curtain 73
Inflation pressure 452
Inflation pressure table 536
Information lights 135
Infotainment 441
Infotainment (Infotainment system) 394
Infotainment system 398, 400, 401
CD player 424
cell phone 411
general sound settings 395
Gracenote 428
introduction 394
media player 418, 424
media player sound settings 428
media search 426
radio 396
searching for radio stations 397
sound settings 395, 428
type approval 437
video 429
voice control 119
Inspection readiness 472
Instrument lighting 139
Instrument overview 94
Instrument panel 124
settings 126
Intellisafe 16
Interior Air Quality System 181
Interior lighting 147
Internet connection 431
applications (apps) 394
bluetooth settings 433
booking service 476
establishing a connection 431
troubleshooting 434
ISOFIX/LATCH anchors 84
J
Jack 454
location of 454, 457
Jump starting 364, 368
INDEX
544
K
Key
remote 174, 223
Key blade 227, 239
Keys 226
L
Labels
list of 525
location of 525
Laminated panoramic roof 103, 104
Lane Keeping Aid 324, 327
settings 326
LATCH anchors 84
Leather care 517
Lighting panel 138
Load anchoring eyelets 211
Loading the vehicle 202, 450
Locking 229, 231
Locks and alarm 220
Low beam bulb, replacing 499
Low beams 141, 142
M
Maintenance 472
hoisting the vehicle 504
performed by the owner 472
Malfunction indicator light 127
Manual front seat adjustment 162
Media player 418, 419
compatible file formats 429
Media player (infotainment system) 424
Menus
instrument panel 150, 152, 154, 156
Mirrors
defroster 190
power door 102
retractable 102
Mirrors, rearview mirror 108
Modem 436
Motor oil
checking 508, 509
MP3 files 429
Multifunctional front seats 165, 166
MY CAR 109, 110
N
Navigation system
voice commands 123
Net
cargo 208
O
Occupant safety 56
Occupant weight sensor 68
Octane recommendations 366
Odometer 95
Oil
checking 508, 509
Oil quality 535
On-board diagnostics 472
On-board Diagnostic socket 21
On Call Roadside Assistance 14
Opening the hood 506
Option/accessory 48
Options 21
Outside temperature sensor 114
Overhead courtesy lighting 147
Overheating, engine 360
INDEX
545
Owner's information
mobile applications 20
Owner's manual 16
Ownership, changing 114
Oxygen sensors, heated 368
P
Paint, touching up 520, 521
Park assist 332, 333, 334, 335
Park Assist Camera 336, 338, 340, 341
settings 336, 340
Park Assist Pilot 342, 343, 346, 348
Parking brake
electric, applying/releasing 355, 357
Parking light bulb, replacing 501
Passenger compartment
fuses 490
Passive Entry system
location of antennas 232
Permissible axle weight 529
Phone
phone book 415
receiving calls 414
text messages 416, 418
Pilot Assist 272, 279, 282, 285, 286,
288, 289
Polishing 521
Power front seat
memory function 164
Power mirrors 102
defroster 190
Power steering
adjustable 246
Power tailgate 236
Power windows 107
Pregnancy, using seat belts during 58
PROPOSITION 65 WARNING 368
R
Radar
driver support systems 292, 296
Radar sensor
limitations 293
Radio
RBDS 397
settings 396
SiriusXM
®
Satellite radio 402, 403, 404
Radio functions
HD digital radio 398, 400, 401
Rain sensor 157
Rear Collision Warning 312
Rear fog lights 145, 502
Rear park assist 332, 333, 334, 335
Rear seat
backrest 171
Rear seat head restraints 169
Rear seats 169
center head restraint 169
Rearview mirror
compass 136, 137
Rear window defroster 190
Recalls 58
Recalls, child restraints 77
Recirculation (climate system) 189
Refrigerant (A/C system) 531
Refueling 365, 366
fuel filler door 367
Registering child restraints 77
Remote key 223, 226, 233
immobilizer 220
linking to a driver profile 174
range 225
replacing the battery 221
restricted (red) key 226
Remote updates 475
INDEX
546
Replacing bulbs 497
Replacing fuses 485, 486, 490, 494
Reporting safety defects 57
Roadside Assistance 14
Road sign information (RSI) 320, 322
Rollover Protection System (ROPS) 251
Roll Stability Control (RSC) 251
Run-off mitigation 329, 331
S
Safety, occupant 56
Safety defects, reporting 57
Safety locks, child 242
Safety mode 73
Seat
adjusting the passenger's seat from the
driver's seat 164
Seat belt
reminder 64
Seat belts
Automatic locking retractor/Emergency
locking retractor 77
buckling 62
pretensioners 60, 61
reminder 64
securing child restraint systems 78, 80, 83
unbuckling 62
use during pregnancy 58
using 60
Seats
rear 169
Sensus 17
Service
connected service booking 476
Settings view
categories 110
resetting 113
system settings 112
Shiftlock
override 387
Side door mirrors 102
Side impact airbags 72
Sirius Satellite radio
Travel link 405
SiriusXM
®
Satellite radio
traffic information 402, 403, 404
Ski hatch
center backrest 202
Snow chains 451
Snow tires 451
Sound settings
media 428
ringtones 417
Sound settings, audio system 395, 428
Specifications
bulbs 503
Speed camera alert 320
Speed limiter 251, 253, 257
automatic 253, 255
deactivating/reactivating 256
starting/activating 252
Spin control 247
Stability system 247
sport mode 248
Start/Stop (engine function) 383, 385
Start and lock system
type designations 244
Starting and driving 350
Starting the engine 376
Starting the vehicle
after a crash (crash mode) 73, 74
Start inhibitor (immobilizer) 220
Steel grid in cargo area 210
Steering wheel 160
adjusting 161
heated 192
INDEX
547
horn 160
keypad 160
Steering wheel paddles 160
Stone chips, touching up 520, 521
Storage compartments 204
Studded tires 451
Sunroof
laminated panoramic roof 103, 104
Sun shade 107, 109
Sun visor 214
Suspension 392
System updates 474
T
Tailgate
locking/unlocking 234
locking/unlocking (private locking) 238
operating with the foot movement sen-
sor 228
power operated 236
wiper/washer 159
Tailgate wipers 511
Technician certification 53
Temperature
perceived 178
Temperature sensor
ambient 114
Temporary spare tire 455
Tethering
wi-fi sharing 435
Three-way catalytic converter 368
Tire inflation pressure 536
Tire Pressure Monitoring System 459, 461
calibrating 462
Tire Pressure Monitoring System (TPMS) 462
Tires 444, 454
changing 454
changing from summer to winter 449
glossary of terms 448
improving economy 444
inflation pressure 452
inflation pressure table 536
installing (mounting) a wheel on the
vehicle 458
rotation 445
snow 451
spare 455
specifications 446
storing 445
studded 451
tire pressure monitoring system 459, 461
tire sealing system 463, 465, 469
tread wear indicator 449
uniform tire quality grading 451
wheel bolts 456
Tire sealing system 463, 465, 469
Top tether anchors (child restraint sys-
tems) 86
Touching up paint 520, 521
Towbar 372
Towing a trailer 370, 373
trailer hitch 372
Towing eyelet 361
Towing the vehicle 363
Traction control 247
Trailer hitch 372
Trailer towing 370, 373
trailer hitch 372
Transmission
gear shift indicator 388
general description 386, 388
Hill Start Assist 354
oil 537
shifting with steering wheel paddles 390
shiftlock override 387
Travel Link 405
Alerts 408
Fuel 409
Sports 410
weather 407
INDEX
548
Tread wear indicator 449
Trip computer 95, 96, 97
reset 96
Trip odometers 95
Trips, long distance 357
Trip statistics 97
Turn signals 146
changing bulbs 500
U
Uniform Tire Quality Grading 451
Unlocking the tailgate 234
Unlocking the vehicle 229, 231
USB/AUX connection 418, 427
User profile 172
V
Vehicle Event Data 26
Vehicle information 14
Vehicle loading 202, 450
Vehicle maintenance 472
performed by the owner 472
Vehicle status 475
Vehicle weights 529
Voice control
cell phones 120
giving commands 119
introduction 119
multimedia devices 121
radio 121
settings 124
Volvo and the environment 15
Volvo ID 27
Volvo maintenance 472
Volvo On Call Roadside Assistance 14
Volvo programs 14
W
Warning flashers, hazard 146
Warning lights 135
Warning system, collision 301
Warranties 472
Washer fluid 513
Washers
headlight 158
windshield 157
Water, driving through 359
Waxing 521
Weights
trailer 370
Wheels
changing 454, 457
storing 445
Whiplash Protection System 59
Wi-Fi 435, 436
Windows
laminated glass 53
power 107
sun shade 107
Windshield
rain sensor 157
washers 158
wipers/washers 157
Windshield washer fluid reservoir 513
Windshield wiper blades 511
Windshield wipers
service position 510
Wiper blades
replacing 510, 511
replacing tailgate wiper 511
WMA files 429
Workshop
Wi-Fi connection 478
TP 22358 (English - USA & Canada), AT 1646, MY17, Printed in Sweden, Göteborg 2016, Copyright © 2000-2016 Volvo Car Corporation
