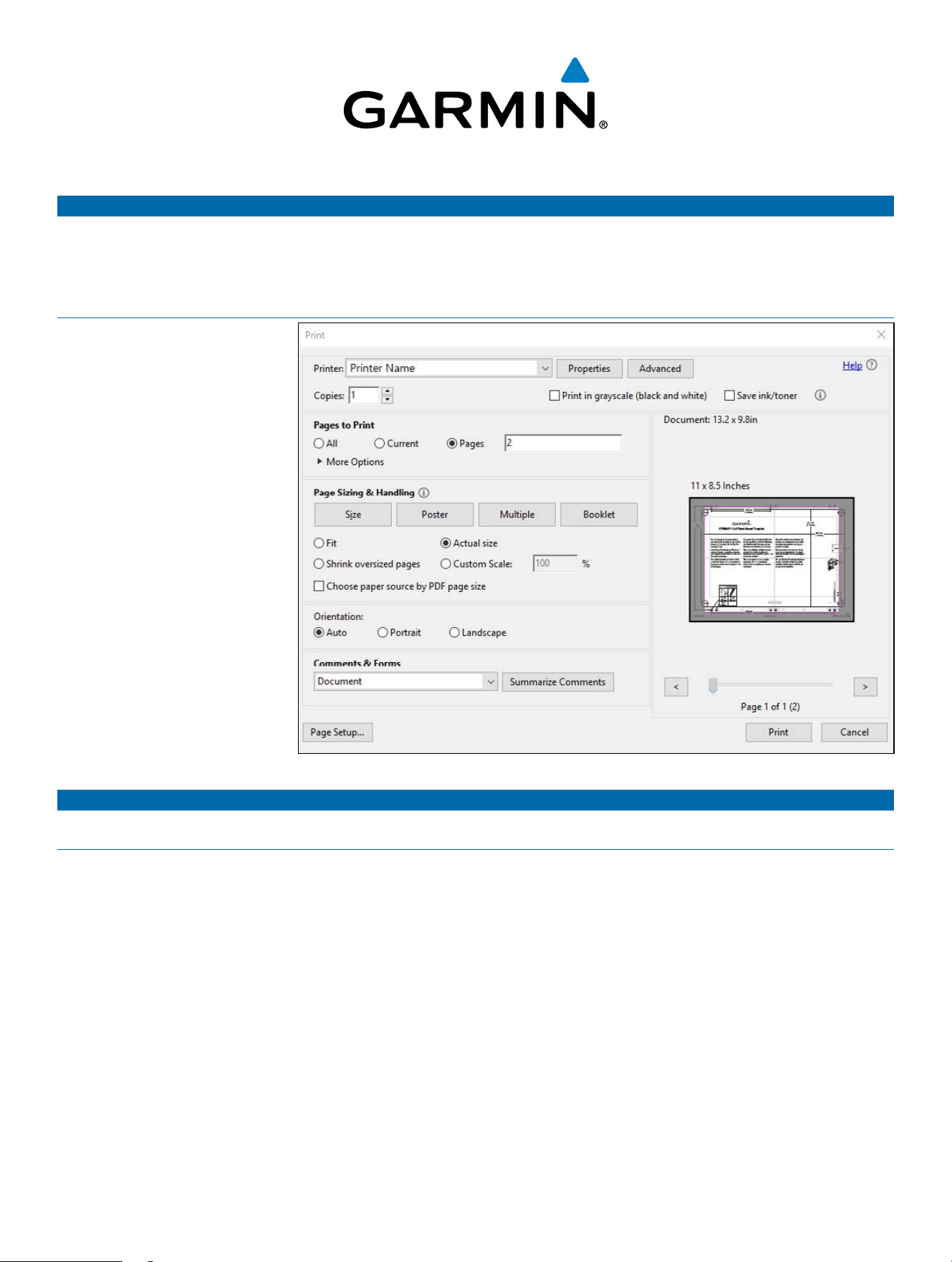

Printing a Mounting Template
NOTICE
It is not recommended that you print a mounting template on your own. Use the template that came in the product box.
If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates,
you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions,
may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your
boat.
NOTE: The options and locations
of the options differ between Adobe
Acrobat versions and other PDF
viewing/printing applications. Be
sure the scaling is 100% before
printing.
1
Select File > Print.
2
Enter 2
in Pages to Print ➊➊.
3
Select Actual Size ➋➋ for Page
Sizing & Handling.
4
Verify that the paper size is larger
than the template ➌➌.
In this example, the paper is not
larger than the template.
5
If the paper size is not large
enough, select Properties
➍➍
and select a Paper Size that is
larger than the template.
6
After printing the template, use
a ruler to measure at least one
dimension line to ensure the
template printed to 100% scale.
NOTICE
Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow
these instructions.
➋➋
➌➌
➍➍
➊➊
6.6 mm
(1/4 in.)
288 mm
(11 5/16 in.)
446 mm
(17 9/16 in.)
190-03007-07_0AJuly 2023 Printed in Taiwan© 2023 Garmin Ltd. or its subsidiaries
3.6 mm (9/64 in.) for nut plate
3,6 mm (9/64 po) pour la platine
3,6 mm (9/64 poll.) per piastrina lettata
3,6 mm (9/64 Zoll) für Annietmutter
3,6 mm (9/64 in) para placa de tuerca
3,6 mm (9/64 pol) para placa de reten-
ção
3,6 mm (9/64 tommer) til møtrikskive
3,6 mm (9/64 tomme) for mutterplate
3,6 mm (9/64 tum) om det nns en mut-
terplatta
3.2 mm (1/8 in.) pilot hole for wood screws
7.2 mm (9/32 in.) for nut plate
Tap to M4 if no nut plate
Trou d’implantation de 3,2 mm (1/8 po) pour vis à bois
7,2 mm (9/32 po) pour la platine
Agrandir le trou au diamètre M4 si vous n’avez pas de
platine
Foro di riferimento da 3,2 mm (1/8 poll.) per viti in legno
7,2 mm (9/32 poll.) per piastrina lettata
Utilizzare M4 in assenza di piastrina lettata
3,2-mm-Vorbohrung (1/8 Zoll) für Holzschrauben
7,2 mm (9/32 Zoll) für Annietmutter
Auf M4-Größe vernieten, falls keine Annietmutter ver-
wendet wird
Oricio guía de 3,2 mm (1/8 in) para tornillos para
madera
7,2 mm (9/32 in) para placa de tuerca
Roscar a M4 si no hay placa de tuerca
Orifício-piloto de 3,2 mm (1/8 pol) para parafusos de
madeira
7,2 mm (9/32 pol) para placa de retenção
Rosqueie ao M4 caso nenhuma placa de retenção seja
encontrada
3,2 mm (1/8 tommer) forboringshul til træskruer
7,2 mm (9/32 tommer) til møtrikskive
Tilpas til M4, hvis der ikke er nogen møtrikskive
3,2 mm (1/8 tomme) styrehull for treskruer
7,2 mm (9/32 tomme) for mutterplate
Trykk videre til M4 hvis mutterplate mangler
3,2 mm (1/8 tum) rikthål för träskruvar
7,2 mm (9/32 tum) om det nns en mutterplatta
Tryck på M4 om det inte nns någon mutterplatta
CUT ALONG THE INSIDE OF THE LINE
DECOUPER A L’INTERIEUR DE LA LIGNE
TAGLIARE LUNGO L’INTERNO DELLA LINEA
AN DER INNENSEITE DER LINIE SCHNEIDEN
CORTA A LO LARGO DE LA PARTE INTERIOR DE LA LÍNEA
CORTE AO LONGO DA PARTE INTERNA DA LINHA
SKÆR LANGS INDERSIDEN AF LINJEN
SKJÆR LANGS INNSIDEN AV LINJEN
SKÄR LÄNGS MED INSIDAN AV LINJEN

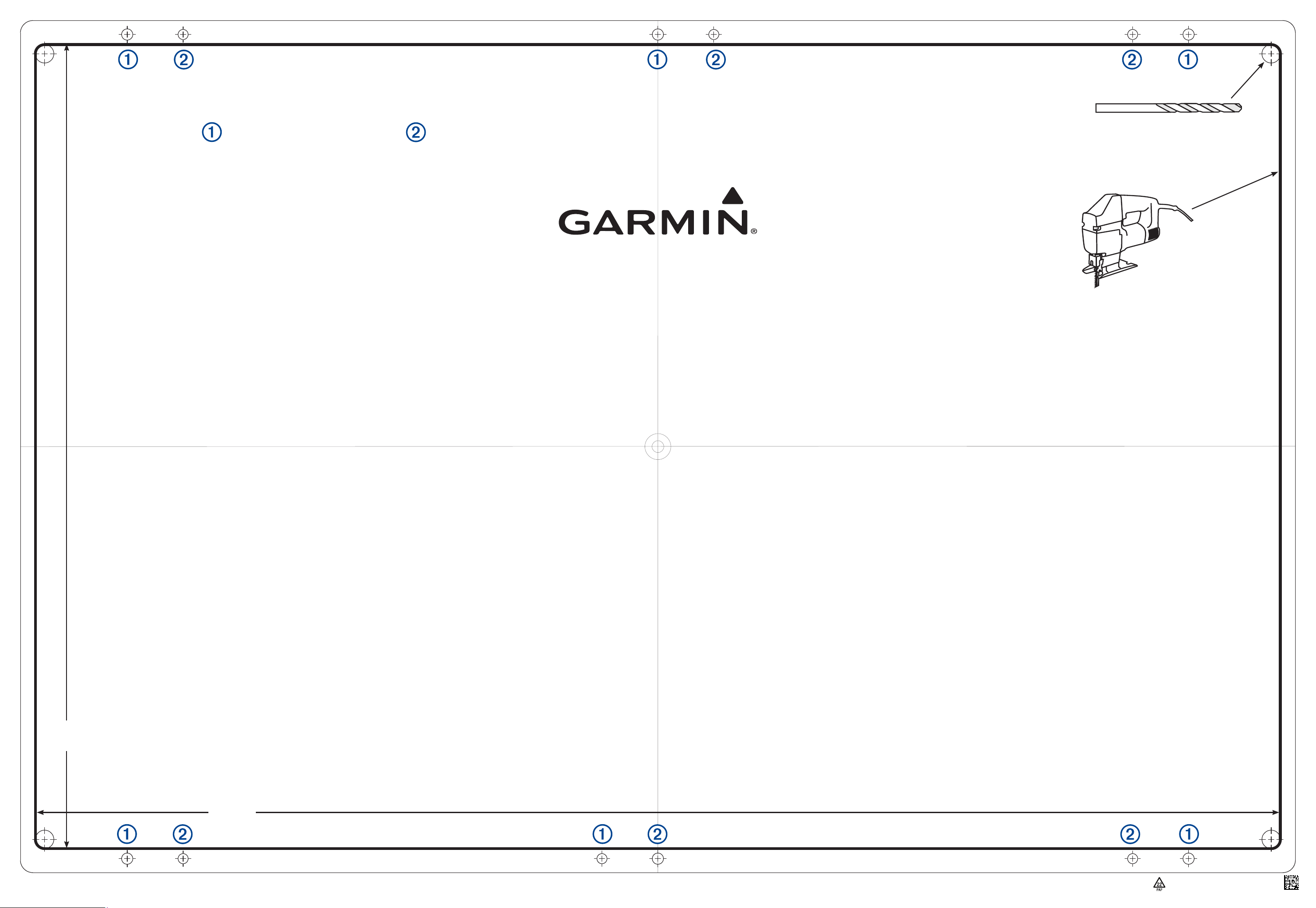

GPSMAP
®
9x19 Series
Flush Mount Template
