OWNER’S MANUAL
FRENCH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LPXS30886D
www.lg.com
ENGLISH
Copyright © 2015 - 2017 LG Electronics Inc. All Rights Reserved.
2
TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 IMPORTANT SAFETY
INSTRUCTIONS
7 COMPONENTS
7 Refrigerator Exterior
8 Refrigerator Interior
9 INSTALLATION
9 Installation Overview
10 Specifications
11 Unpacking the Refrigerator
11 Choosing the Proper Location
11 - Flooring
12 - Ambient Temperature
12 - Measuring the Clearances
12 Removing/Assembling the Doors
17 Connecting the Water Line
17 - Before You Begin
18 - Water Pressure
18 - What You Will Need
19 - Water Line Installation Instructions
20 Turning On the Power
21 Leveling
21 Door Alignment
21 - Refrigerator Door Alignment
22 - Freezer Door Alignment
23 HOW TO USE
23 Before Use
24 Control Panel
24 - Control Panel Features
32 In-Door Ice Bin
32 - Detaching the In-Door Ice Bin
32 - Assembling the In-Door Ice Bin
33 Automatic Icemaker
35 Ice and Water Dispenser
36 Storing Food
36 - Food Preservation Location
37 - Food Storage Tips
37 - Storing Frozen Food
38 Adjusting the Refrigerator Shelves
38 - Detaching the Shelf
38 - Assembling the Shelf
39 - Using the Folding Shelf
39 - When Closing the Door
40 Big Fresh Zone
40 - Removing the Big Fresh Zone drawer
40 - Assembling the Big Fresh Zone drawer
41 Removing/Assembling the Fresh Zone
Compartment
42 EasyReach™
42 Dairy Corner
42 Door-In-Door
43 - Removing the Door-In-Door Compartment
44 EasyLift Bin
44 Freezer Drawer
44 - Removing the Freezer Drawer
45 - Assembling the Freezer Drawer
45 Refrigerator/Freezer Door Bins
46 MAINTENANCE
46 Cleaning
47 Replacing the Fresh Air Filter
48 Replacing the Water Filter
51 SMART DIAGNOSIS™
51 Using Smart Diagnosis™
52 TROUBLESHOOTING
62 WARRANTY
3
PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer door remains open. If a
refrigerator door or freezer door is left open for more than 60 seconds, a
warning alarm sounds at 30 second intervals until it is closed.
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period.
AUTO CLOSING HINGE
The refrigerator doors close automatically with a slight push. (The door only
closes automatically when it is open at an angle less than 30°.)
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water.
The ice dispenser dispenses cubed and crushed ice.
4
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always
read and obey
all safety messages.
WARNING
You can be killed or seriously injured if you do not follow instructions.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
WARNING
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following:
Power
NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it
y
straight out from the outlet.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
y
similarly qualified person in order to avoid a hazard. Do not use a cord that shows cracks or abrasion
damage along its length or at either the plug or connector end.
Do not use an uncertified power outlet.
y
Unplug the power plug immediately in the event of a blackout or thunderstorm.
y
Plug in the power plug with the power cord facing downward.
y
Installation
Contact an authorized service center before you install or relocate the refrigerator.
y
When moving your refrigerator away from the wall, be careful not to roll over or damage the power
y
cord.
Prior to use, ensure that you are connecting this product to a dedicated, grounded electrical outlet
y
rated for use with this product (115V, 60Hz, AC only). It is the user’s responsibility to replace a
standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not install the refrigerator where there may be a danger of the unit falling.
y
Use
DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the refrigerator.
y
They could damage the refrigerator and seriously injure themselves.
Do not hang on to or place heavy objects on the refrigerator’s dispenser.
y
Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
y
Do not put live animals inside the refrigerator.
y
Do not allow children to climb into the product when it is in use.
y
In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service
y
center before resuming use. Do not touch or disassemble the electrical outlet of the refrigerator.
In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure adequate
y
ventilation and contact an authorized service center.
Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the refrigerator or
y
store them inside the refrigerator. Do not place the refrigerator in the vicinity of flammable gas.
Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal
y
injury if items are removed with excessive force.
Do not open the door of the appliance with the door in door open, or do not open the door in door while the
y
door of the appliance is open. The door in door may be struck by the edge of the appliance and damaged.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:
5
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
This product is not to be used for special purposes such as the storage of medicine or test materials
y
or for use on ships, etc.
Unplug the power plug before cleaning or repairing the refrigerator.
y
When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.
y
Do not modify or extend the power cord.
y
Do not use a dryer to dry the interior. Do not light a candle to remove interior odors.
y
For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit
y
checked by a qualified electrician to make sure the outlet is properly grounded.
Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the
y
user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
y
Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
y
Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke
y
coming from the appliance.
Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
y
Do not disassemble or modify the refrigerator.
y
Do not put hands, feet, or metal objects below or behind the refrigerator.
y
Do not operate the refrigerator or touch the power cord with wet hands.
y
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
y
mechanism or with the heating element that releases the cubes. Do not place fingers or hands on the
automatic ice-making mechanism while the refrigerator is plugged in.
When dispensing ice from the dispenser, do not use crystal ceramics.
y
Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your
y
refrigerator is in operation.
Do not put glass containers, glass bottles or soda in the freezer.
y
This appliance is not intended for use by persons (including children) with reduced physical, sensory
y
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health
y
issue.
If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper
y
disposal by a qualified servicer. If you release CFC coolant, you may be fined or imprisoned in
accordance with the relevant environmental law.
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When
y
disposing of the refrigerator, remove the packing materials from the door or take off the doors but
leave the shelves in place so that children may not easily climb inside.
If connected to a circuit protected by fuses, use time delay fuse.
y
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.
Wash hands after handling.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following:
6
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
CAUTION
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that were
y
taped to the front of the refrigerator.
Be careful when you unpack and install the refrigerator. Immediately dispose of plastic and other
y
packing materials out of reach of children.
The appliance must be positioned for easy access to a power source.
y
Use
Close the door carefully when children are around.
y
Keep fingers out of pinch point areas; clearances between the doors and cabinets are
y
necessarily small. Be careful closing doors when children are nearby.
If you store food improperly, be aware that it may fall and cause injury.
y
Do not use aerosols near the refrigerator.
y
Do not store articles on the top of the appliance.
y
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
y
Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact
y
areas regularly.
Do not store, disassemble or repair the refrigerator by yourself.
y
Remove any dust or foreign matter from the power plug pins.
y
Do not use a wet or damp cloth when cleaning the plug.
y
If the refrigerator is disconnected from the power supply, you should wait for at least five
y
minutes before plugging it back in.
If you notice a chemical or burning plastic smell or see smoke, unplug the refrigerator
y
immediately and contact your LG Electronics Service Center.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following:
SAVE THESE INSTRUCTIONS
7
COMPONENTS
ENGLISH
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
*The appearance and specifications of the actual product may differ depending on the model.
Refrigerator Exterior
LED Display
Displays the refrigerator and
freezer’s target temperature,
the water filter condition and the
dispenser status.
Door in Door
Release Button
Refrigerator
Preserves food.
Freezer
Preserves frozen food.
Control Panel
Sets the refrigerator and freezer
temperatures, the water filter
condition and the dispenser mode.
Filtered Water and
Ice Dispenser
Dispenses purified water and ice.
8
COMPONENTS
ENGLISH

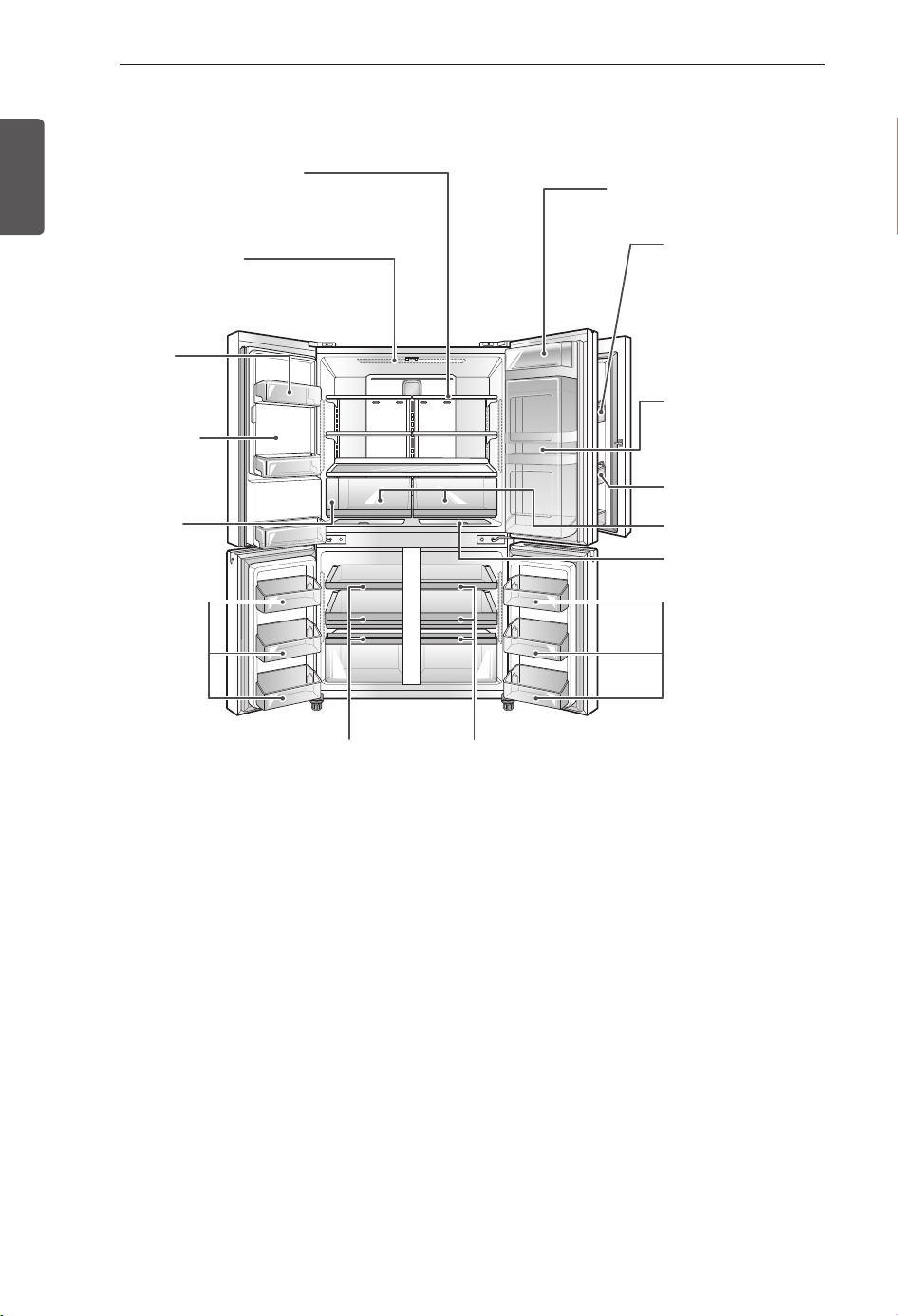

Refrigerator Interior
LED Interior Lamp
The interior lamps light up the
inside of the refrigerator.
Adjustable Refrigerator Shelf
The shelves in your refrigerator are adjustable
to meet your individual storage needs.
Dairy Corner
Used to preserve dairy products.
Refrigerator
Bin
Freezer Bin
Big Fresh Zone
Freezer Bin
EasyReach™
You can store small items,
or defrost an item.
Freezer
Drawer
Freezer
Drawer
Indoor Ice Bin
Ice cubes are
automatically
produced.
Door-In-Door Case
A convenient storage area
for frequently-used items
that require easy access
Cheese & Butter Bin
Cheese & butter and
Condiment bins, that
are specially designed
for these items, making
spreading butter and
slicing cheese easier.
Condiment Bin
Water Filter
9
INSTALLATION
ENGLISH
INSTALLATION
Installation Overview
Please read the following installation instructions first after purchasing this product or transporting
it to another location.
NOTE
Connect to potable water supply only.
1 Unpacking your
refrigerator
4 Connecting the
water supply and
water line
2 Choosing the proper
location
5 Leveling and Door
Alignment
3 Disassembling/Assembling
10
INSTALLATION
ENGLISH
Specifications
The appearance and specifications listed in this manual may vary due to constant product
improvements.
Bottom-freezer refrigerator model LPXS30886D
Description French door refrigerator
Electrical requirements 115 VAC @ 60 Hz
Min. / Max. Water pressure
20 – 120 psi (138 – 827 kPa)
Dimensions
35 3/4" (W) X 36 1/4" (D) X 70 1/4" (H), 48 1/8" (D w/ door open)
908 mm (W) X 921 mm (D) X 1782 mm (H), 1221 mm (D w/ door open)
Net weight 381 lb. (173 kg)
11
INSTALLATION
ENGLISH
Choosing the Proper Location
Select a place where a water supply can
y
be easily connected for the automatic
icemaker.
Unpacking the Refrigerator
WARNING
Use two or more people to move and
y
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
y
the refrigerator for cleaning or service,
be sure to protect the floor. Always pull
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors,
y
such as gasoline, away from the
refrigerator. Failure to do so can result in
fire, explosion, or death.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.
The refrigerator should always be plugged
y
into its own individual properly grounded
electrical outlet rated for 115 Volts, 60 Hz,
AC only, and fused at 15 or 20 amperes.
This provides the best performance
and also prevents overloading house
wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
WARNING
To reduce the risk of electric shock, do not
install the refrigerator in a wet or damp
area.
NOTE
The water pressure must be 20~120
psi or 138~827 kPa or 1.4~8.4 kgf/cm²
on models without a water filter and
40~120 psi or 276~827 kPa or 2.8~8.4
kgf/cm² on models with a water filter.
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
floor. If required, adjust the leveling legs to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to
the right to lower it. (See Leveling and Door
AlIgnment.)
NOTE
Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure
is not recommended.
12
INSTALLATION
ENGLISH
Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely affected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 inches (61 cm) in front of the
refrigerator to open the doors, and at least
2 inches (5.08 cm) between the back of the
refrigerator and the wall.
Removing/Assembling the Doors
2” (5.08 cm)
24” (61 cm)
Removing the Left Refrigerator Door
1
The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown in
.
NOTE
Detachment of the water supply line is
applicable only when detaching the left
refrigerator door.
Collet
2
Remove the screw from the hinge cover
at the top of the refrigerator. Lift the hook
(not visible), located at the bottom of the
front side of the cover
with a flat-head
screwdriver.
13
INSTALLATION
ENGLISH

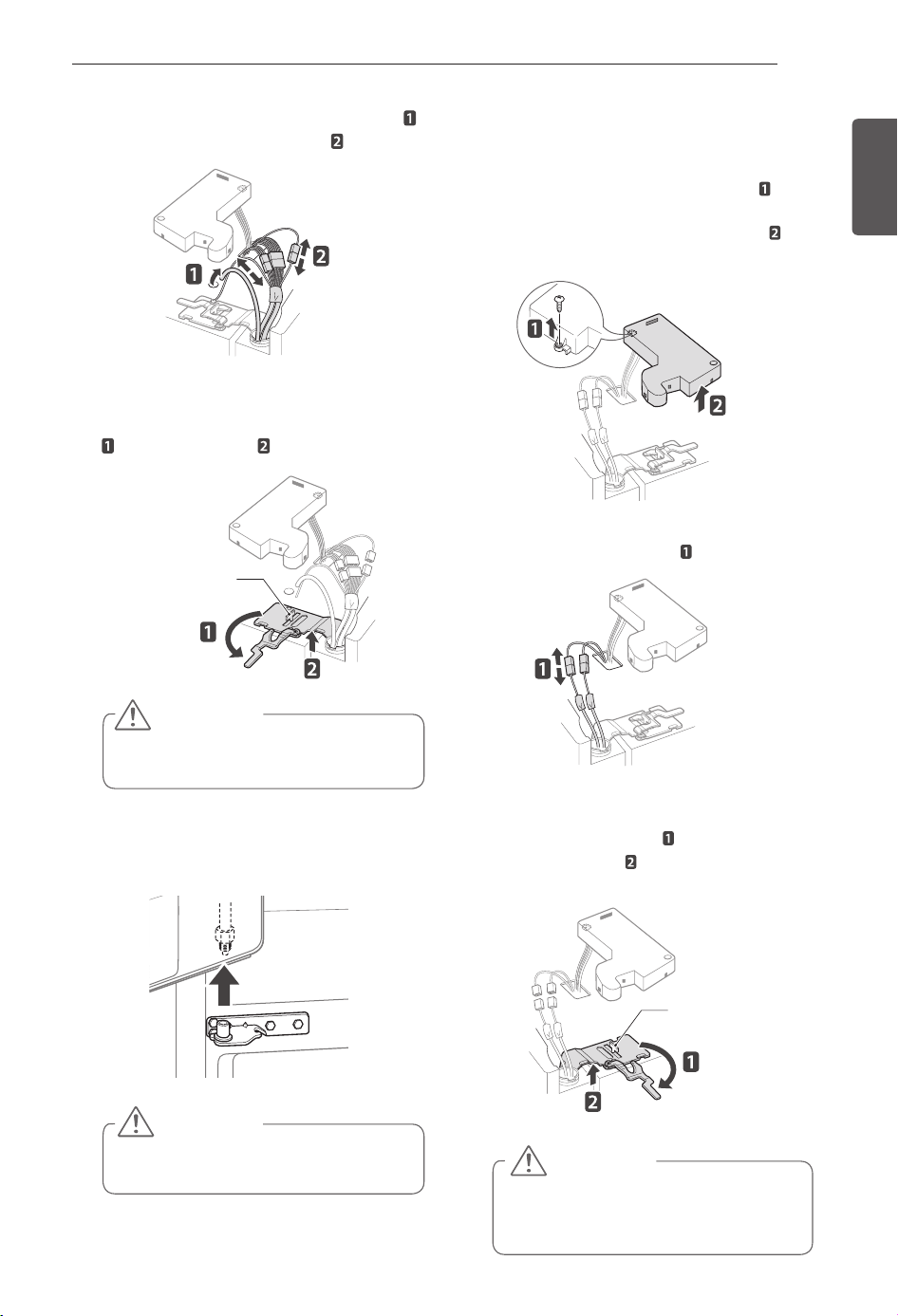

3
Remove the cover and pull out the tube .
Disconnect all wire harnesses
.
4
Rotate the hinge lever counterclockwise
. Lift the top hinge free of the hinge
lever latch.
CAUTION
When lifting the hinge free of the latch, be
careful that the door does not fall forward.
Hinge Lever Latch
5
Lift the door from the middle hinge pin and
remove the door.
CAUTION
Place the door, inside facing up, on a
non-scratching surface.
Removing the Right Refrigerator
Door
1
Remove the top hinge cover screw .
Lift the hook (not visible), located at the
bottom of the front side of the cover
,
with a flat-head screwdriver.
2
Detach the wire harness .
CAUTION
When lifting the hinge free of the hinge
lever latch, be careful that the door
does not fall forward.
Hinge Lever Latch
3
Rotate the hinge lever clockwise.
Lift the top hinge
free of the hinge
lever latch.
14
INSTALLATION
ENGLISH
4
Lift the door from the middle hinge pin and
remove the door.
CAUTION
Place the door, inside facing up, on a
non-scratching surface.
3
Remove the door by raising it from the
lower hinge.
3
Tighten the inner hinge bolt.
Removing the Freezer Doors
1
Remove the inner hinge bolt.
2
Twist the hinge to raise the pivoting end
so that the door can be lifted off.
Assembling the Freezer Doors
1
Lower the door onto the lower hinge pin.
2
Position the middle hinge pin in place to
hold the door and insert the inner hinge
bolt.
Lower hinge
Lower hinge
15
INSTALLATION
ENGLISH
Install the right-side door first.
1
Make sure that the plastic sleeve is
inserted in the bottom of the door. Lower
the door onto the middle hinge pin as
shown in the figure.
2
Fit the hinge over the hinge lever latch
and slot it into place. Rotate the lever
counterclockwise to secure the hinge.
Assembling the Right Refrigerator Door
Hinge Lever Latch
4
Make sure that the door-switch located
inside the cover is tightly connected.
Position the cover in its place. Insert and
tighten the cover screw
.
3
Connect the wire harness .
16
INSTALLATION
ENGLISH
Install the left refrigerator door after the right
door is installed.
1
Make sure that the plastic sleeve is
inserted in the bottom of the door. Install
the refrigerator door onto the middle hinge.
2
Fit the hinge over the hinge lever latch
and slot it into place. Rotate the lever
clockwise
and fasten the hinge.
Assembling the Left Refrigerator
Door
3
Connect all the wire harnesses.
Hinge Lever Latch
4
Push the water supply tube into the hole
on the top case and pull it through the
backplate.
5
Hold the water supply connection and
gently push in the collet to connect the
water supply line as shown in
. Insert
the tube at least
5
/
8
inch (15 mm) into the
connector.
6
Make sure that the door-switch located
inside the cover is tightly connected. Place
the cover
in its position and tighten the
cover screw .
Collet
17
INSTALLATION
ENGLISH
NOTE

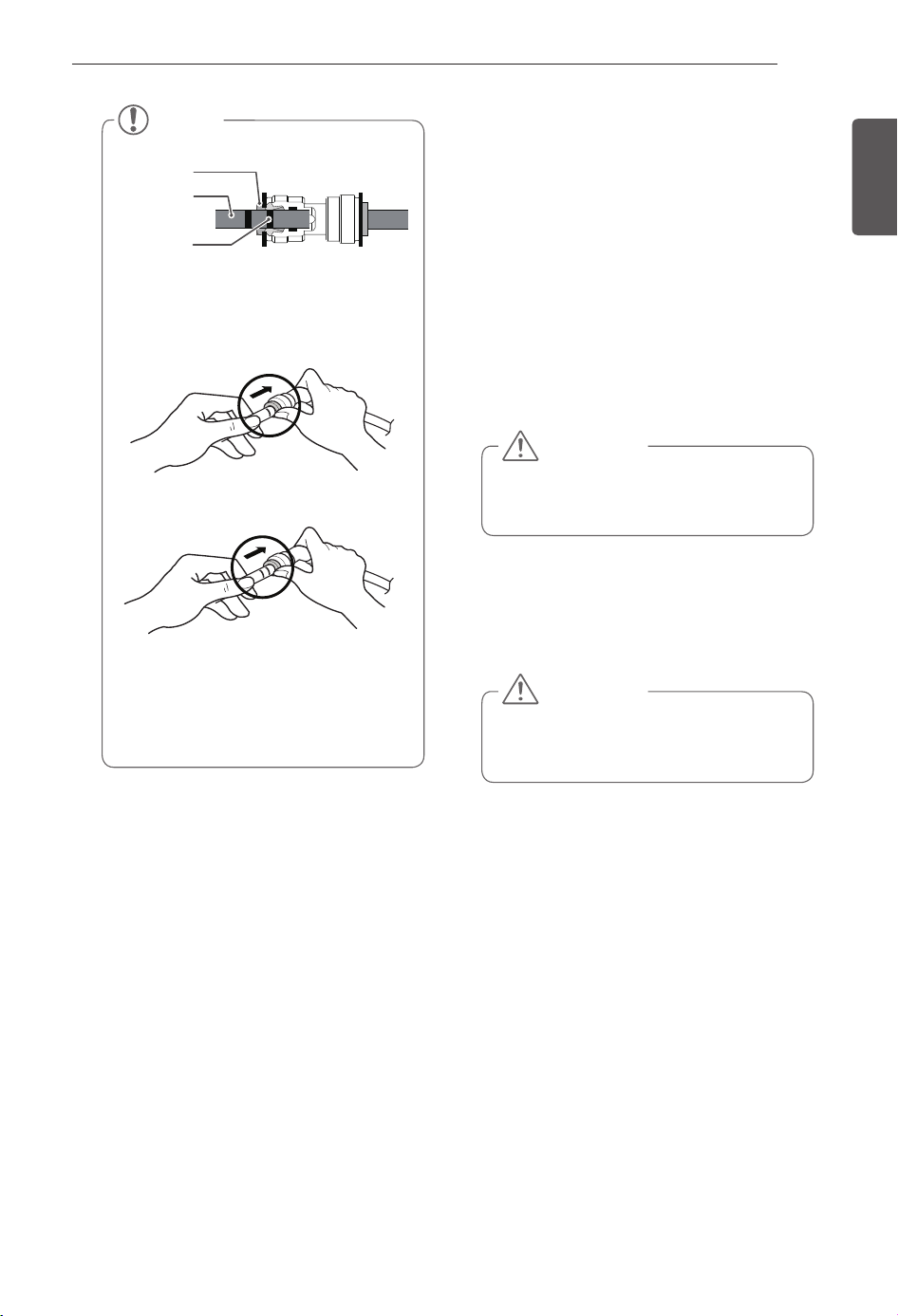

1) Gently insert the tube until only one
line shows on the tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the
tube is tightly fastened.
Collet
Tube
Insert Line
Connecting the Water Line
Before You Begin
This water line installation is not covered by the
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
Water hammer (water banging in the pipes) in
house plumbing can cause damage to refrigerator
parts and can lead to water leakage or flooding.
Call a qualified plumber to correct water hammer
before installing the water supply line to the
refrigerator.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF (O) position.
CAUTION
Do not install the icemaker tubing in
areas where temperatures fall below
freezing.
CAUTION
To prevent burns and product damage,
only connect the refrigerator water line to
a cold water supply.
18
INSTALLATION
ENGLISH
CAUTION
Wear eye protection during installation
to prevent injury.
Water Pressure
The water pressure must be 20~120 psi or
138~827 kPa or 1.4~8.4 kgf/cm² on models
without a water filter and 40~120 psi or 276~827
kPa or 2.8~8.4 kgf/cm² on models with a water
filter.
If a reverse osmosis water filtration system is
connected to your cold water supply, this water
line installation is not covered by the refrigerator
warranty. Follow the instructions carefully to
minimize the risk of expensive water damage.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs
to be a minimum of 40 to 60 psi (276~414 kPa or
2.8~4.2 kgf/cm², less than 2.0~3.0 sec. to fill a
cup of 7 oz or 198 cc capacity).
If the water pressure from the reverse osmosis
system is less than 20 psi or 138 kPa or 1.4 kgf/
cm² (takes more than 4.0 sec to fill a cup of 7 oz
or 198 cc capacity):
Check to see if the sediment filter in
y
the reverse osmosis system is blocked.
Replace the filter if necessary.
Allow the storage tank on the reverse
y
osmosis system to refill after heavy
usage.
If the issue concerning water pressure
y
from reverse osmosis remains, call a
licensed, qualified plumber.
All installations must be in accordance
y
with local plumbing code requirements.
What You Will Need
Copper Tubing,
y
¼ in. outer diameter, to
connect the refrigerator to the water
supply. Be sure both ends of the tubing
are cut square.
To determine how
y
much tubing you need:
measure the distance
from the water valve on the back of
the refrigerator to the water supply
pipe. Then, add 8 feet (2.4 m). Be sure
there is sufficient extra tubing (about 8
feet [2.4 m] coiled into 3 turns of about
10 in. [25 cm] diameter) to allow the
refrigerator to move out from the wall
after installation.
Power drill.
y
½ in. or adjustable
y
wrench.
Flat blade and Phillips
y
head screwdrivers.
Two ¼ in. outer
y
diameter compression
nuts and 2 ferrules (sleeves)
to connect the
copper tubing to the shutoff valve and
the refrigerator water valve.
NOTE
A self piercing saddle type water valve
should not be used.
If your existing copper water line has a
y
flared fitting at the end, you will need
an adapter (available at plumbing supply
stores) to connect the water line to the
refrigerator OR you
can cut off the flared
fitting with a tube
cutter and then use a
compression fitting.
Shutoff valve
y
to connect to the cold
water line. The shutoff valve should
have a water inlet with a minimum
inside diameter of 5/32 in. at the point of
connection to the COLD WATER LINE.
Saddle-type shutoff valves are included
in many water
supply kits. Before
purchasing, make
sure a saddle-type
valve complies with
your local plumbing codes.
19
INSTALLATION
ENGLISH
NOTE
The hookup line cannot be white, plastic
tubing. Licensed plumbers must use
only copper tubing (NDA tubing #49595
or #49599) or Cross Link Polyethylene
(PEX) tubing.

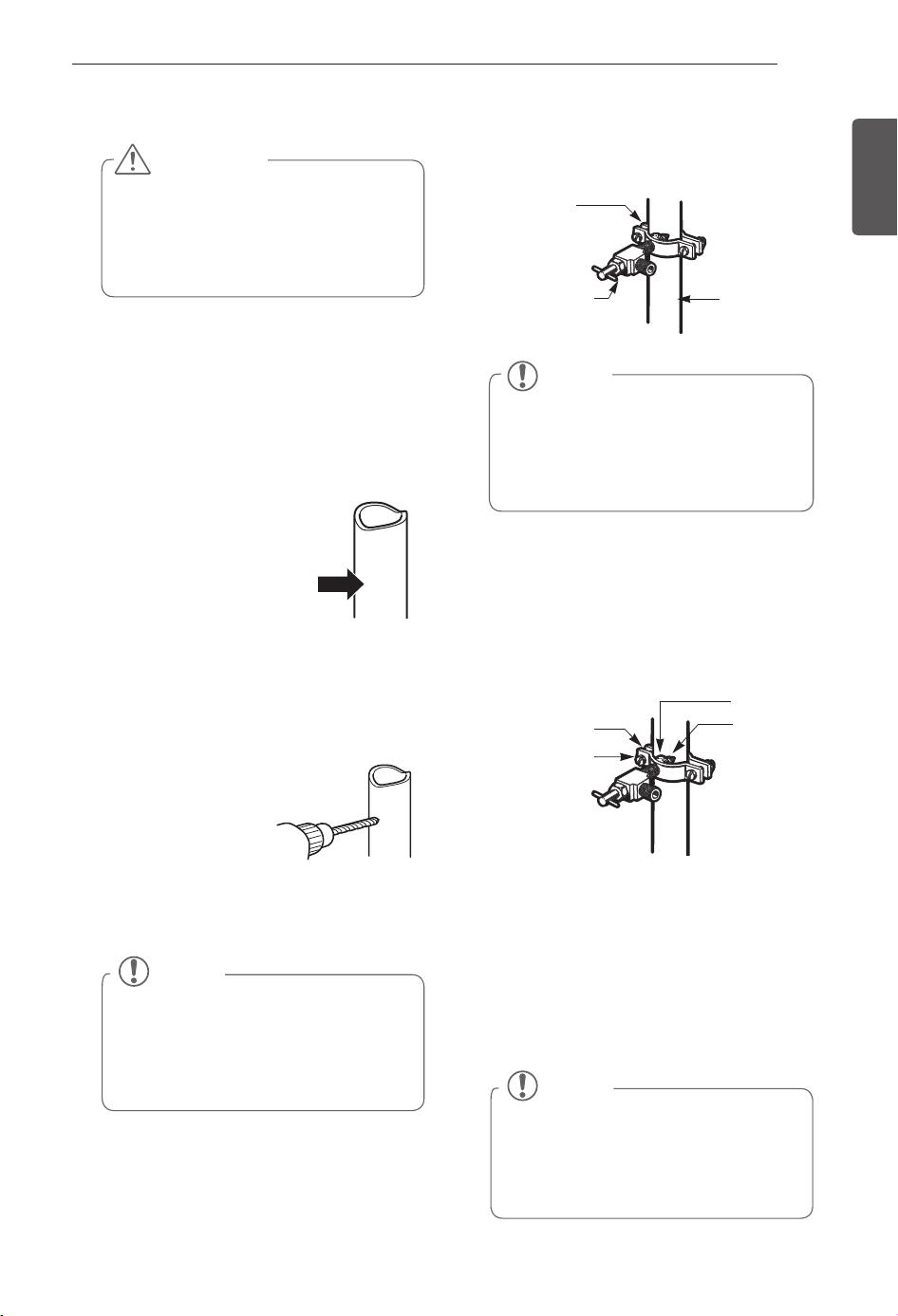

Water Line Installation Instructions
Install the shutoff valve on the nearest
frequently used drinking water line.
1
SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the
pressure on the line.
2
CHOOSE THE VALVE LOCATION
Choose a location for
the valve that is easily
accessible. It is best to
connect into the side of a
vertical water pipe. When
it is necessary to connect
into a horizontal water
pipe, make the connection to the top or
side, rather than at the bottom, to avoid
drawing off any sediment from the water
pipe.
3
DRILL THE HOLE FOR THE VALVE
Drill a ¼ in. hole in
the water pipe using
a sharp bit. Remove
any burrs resulting
from drilling the hole
in the pipe. Be careful
not to allow water
to drain into the drill. Failure to drill a ¼ in.
hole may result in reduced ice production
or smaller cubes.
WARNING
When using any electrical device (such as
a power drill) during installation, be sure
the device is battery powered, double
insulated or grounded in a manner that will
prevent the hazard of electric shock.
4
FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water
pipe with the pipe clamp.
Pipe Clamp
Saddle-Type
Shutoff Valve
Vertical Cold
Water Pipe
NOTE
Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and their use is
not permitted in Massachusetts. Consult
with your licensed plumber.
5
TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE:
Do not overtighten the clamp or
you may crush the tubing.
6
ROUTE THE TUBING
Route the tubing between the cold water
line and the refrigerator.
Route the tubing through a hole drilled in
the wall or floor (behind the refrigerator or
adjacent base cabinet) as close to the wall
as possible.
Pipe Clamp
Clamp Screw
Washer
Inlet End
NOTE
Be sure there is sufficient extra tubing
(about 8 feet coiled into 3 turns of
about 10 in. diameter) to allow the
refrigerator to move out from the wall
after installation.
20
INSTALLATION
ENGLISH

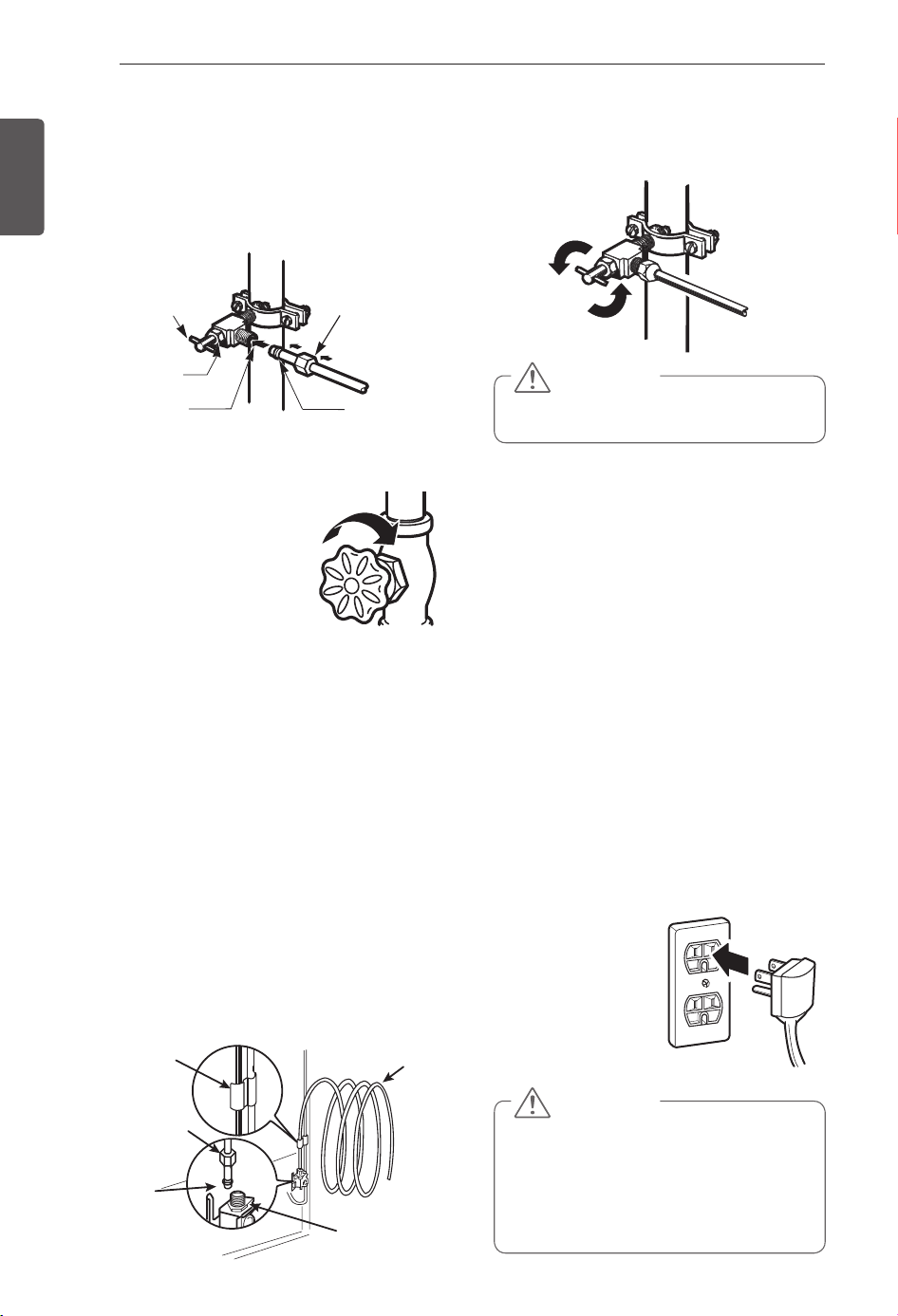

7
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule
(sleeve) for the copper tubing onto the
end of the tubing and connect it to the
shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the
compression nut securely.
8
FLUSH OUT THE TUBING
Turn the main water
supply on and flush out
the tubing until the water
is clear.
Shut the water off at the
water valve after about
one quart of water has
been flushed through the tubing.
9
CONNECT THE TUBING TO THE
REFRIGERATOR
NOTE:
Before making the connection
to the refrigerator, be sure that the
refrigerator power cord is not plugged into
the wall outlet.
a. Remove the plastic flexible cap from the
water valve.
b. Place the compression nut and ferrule
(sleeve) onto the end of the tubing as
shown.
c. Insert the end of the copper tubing into
the connection as far as possible. While
holding the tubing, tighten the fitting.
Tubing Clamp
¼ in. Tubing
¼ in.
Compression
Nut
Refrigerator
Connection
Ferrule
(sleeve)
Saddle-Type
Shutoff Valve
Packing Nut
Outlet Valve
Compression
Nut
Ferrule (sleeve)
10
TURN THE WATER ON AT THE SHUTOFF
VALVE
Tighten any connections that leak.
11
PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it
does not vibrate against the back of the
refrigerator or against the wall. Push the
refrigerator back to the wall.
12
START THE ICEMAKER
Turn the icemaker ON at the control panel.
The icemaker will not begin to operate
until it reaches its operating temperature
of 15°F (–9°C) or below. It will then begin
operation automatically if the icemaker has
been turned ON.
Turning On The Power
Plug in the refrigerator.
CAUTION
Check to see if leaks occur at the water
line connections.
CAUTION
Connect to a rated power outlet.
y
Have a certified electrician check
y
the wall outlet and wiring for proper
grounding.
Do not damage or cut off the ground
y
terminal of the power plug.
21
INSTALLATION
ENGLISH
Door Alignment
Leveling the doors may not be possible when
the floor is not level, or is of weak or poor
construction. The refrigerator is heavy and
should be installed on a rigid and solid surface.
Some wood flooring may cause leveling
difficulties if it flexes excessively.
Refrigerator Door Alignment
If the left side door is lower, lift the left
y
side door, and turn the hinge bolt using
the spanner as in the drawing. (for upper
refrigerator doors, use spanner
1
.)
If the right side door is lower, lift the right
y
side door, and use a pair of long nose pliers
(not supplied) to additionally insert a snap
ring
3
as shown in the drawing, until the
heights are even.
Refrigerator
left hand door
Height difference
Refrigerator
right hand door
Leveling
After installing, plug the refrigerator’s power
cord into a 3-prong grounded outlet and push
the refrigerator into the final position.
Your refrigerator has two front leveling legs—
one on the right and one on the left. Adjust the
legs to alter the tilt from front-to-back or side-
to-side. If your refrigerator seems unsteady, or
you want the doors to close more easily, adjust
the refrigerator’s tilt using the instructions
below:
1
Turn the leveling leg to the left to raise
that side of the refrigerator or to the right
to lower it. It may take several turns of the
leveling leg to adjust the tilt of the
refrigerator.
2
Open both doors again and check to make
sure that they close easily. If the doors do
not close easily, tilt the refrigerator slightly
more to the rear by turning both leveling
legs to the left. It may take several more
turns, and you should turn both leveling
legs the same amount.
NOTE
A flare nut wrench works best, but an
open-end wrench will suffice.
Do not over-tighten.
22
INSTALLATION
ENGLISH
Freezer Door Alignment
Method 1 is recommended.
y
For freezer doors, use spanner
y
2
.
1
(Method 1)
Open the door, and adjust the height by
tightening the nut above the foot with the
spanner
2
.
2
(
Method 2, only allows a maximum of 3mm
of adjustment)
(1) Use the wider side of the number
2
spanner to unscrew the locking nut.
(2) Use the narrower side of the spanner to
turn the adjustment hinge pin (
)
clockwise or ( ) counterclockwise,
and adjust the gap difference between the
refrigerator and the freezer door.
(3) After the door heights are adjusted,
completely tighten the locking nut by
turning it (
) counterclockwise.
CAUTION
Do not adjust the hinge pin height level
too much. The hinge pin can fall out.
(Range of height adjustment : Max. 3mm)
Height difference
Locking nut
Adjustment
hinge pin
Lower door
Raise door
Unscrew nut
Tighten nut
Spanner
Lower door
Raise door
23
HOW TO USE
ENGLISH
HOW TO USE
Before use
Clean the refrigerator.
Clean your refrigerator thoroughly and wipe off all dust that accumulated during
shipping.
NOTE
Remove adhesive residue by wiping it off with your thumb or dish detergent.
CAUTION
Do not scratch the refrigerator with a sharp object or use a detergent that
y
contains alcohol, a flammable liquid or an abrasive when removing any tape
or adhesive from the refrigerator,.
Do not peel off the model or serial number label or the technical information
y
on the rear surface of the refrigerator.
Connect the power supply.
Check if the power supply is connected before use.
Read
Turning on the Power
, page 20.
CAUTION
Running the automatic icemaker before connecting it to the water
supply may cause the refrigerator to malfunction.
Turn off the icemaker if the refrigerator is not yet connected to the
water supply.
Turn off the automatic icemaker and then plug the power plug of the refrigerator
into the grounded electrical outlet.
* This is applicable only to certain models.
CAUTION
Putting food in the refrigerator before it has cooled could cause the
food to spoil, or a bad odor could linger inside the refrigerator.
Wait for the refrigerator to cool.
Allow your refrigerator to run for at least two to three hours before putting food in
it. Check the flow of cold air in the freezer compartment to ensure proper cooling.
The refrigerator makes a loud noise after initial operation.
This is normal. The volume will decrease as the temperature lowers.
Open refrigerator and freezer doors to ventilate the interior.
The inside of the refrigerator may smell like plastic at first. Remove any adhesive
tape from inside the refrigerator and open the refrigerator and the freezer doors for
ventilation.
24
HOW TO USE
ENGLISH
Control Panel
* Depending on the model, some of the following functions may not be available.
Control Panel Features
LED Display (Touch Button)
LCD Display
Display Panel Lighting
The background lamp is lighted for easy
viewing or turned off to save power in the
following conditions.
When power saving is in operation, the display
y
window is turned OFF except for the icemaker
ON/OFF button.
If a button is pressed when power saving is in
y
operation, the light comes on but the set status
of the button does not change. Press the
button again to operate.
Wiping the LCD display window with a dry
y
cloth during cleaning may cause black lines
to appear in the window. This is a normal
characteristic of the LCD screen and the lines
will disappear after a brief time.
lamp status condition
lighted turn on power (lighted 1 min.)
press button
touch LCD display window
open door (lighted 20 sec.)
power
saving (auto
off)
1 min. after power on
20 sec. after door open/close
no button operation for 20 sec.
after button pressed
25
HOW TO USE
ENGLISH
Refrigerator Temperature
Indicates the set target temperature of the
refrigerator compartment in Fahrenheit (°F) or
Celsius (°C).
The recommended refrigerator set temperature
for normal ambient conditions and loads is
37°F (3°C).
LED Touch Button LCD Touch Arrow
LED Touch Button LCD Touch Arrow
Freezer Temperature
Indicates the set target temperature of the
freezer compartment in Fahrenheit (°F) or
Celsius (°C).
The recommended freezer set temperature for
normal ambient conditions and loads is
0°F (-18°C).
NOTE
The displayed temperature is the target
temperature, and not the actual temperature
of the refrigerator. The actual refrigerator
temperature depends on the food inside the
refrigerator as well as ambient temperatures
and how often the doors are opened and
closed.
NOTE
To change the temperature mode from
°F to °C (or vice versa) press and hold
the Refrigerator and Freezer temperature
buttons simultaneously for five seconds. The
temperature indication on the display window
switches between Celsius and Fahrenheit.
Using the Touch Buttons
The touch buttons are capacitive switches.
y
They respond to and operate with the static
electricity in the human body or in any object
that approaches within a set distance, even if
they aren't touched.
Touch the button text on either side of the
y
glass display window to activate the display
window. Don't use too much force. Just
touching the button with your finger will
perform the operation.
If the display window is OFF, touching a button
y
turns on the display window. Touching a button
again performs the operation. If the display is
locked, touching a button blinks the lock/unlock
button. Unlock the display to use the button.
Wear gloves while cleaning the front panel. If
y
your skin contacts the buttons, they may be
operated.
The buttons may not operate if there is not
y
sufficient contact between the display and your
skin. Foreign objects on the button selection
display, cloth, or gloves may interfere with the
operation of the touch buttons.
Moisture on the surface of the display window
y
may reduce the sensitivity or accuracy of the
touch detection. Wipe any moisture off the
surface before using it.
26
HOW TO USE
ENGLISH

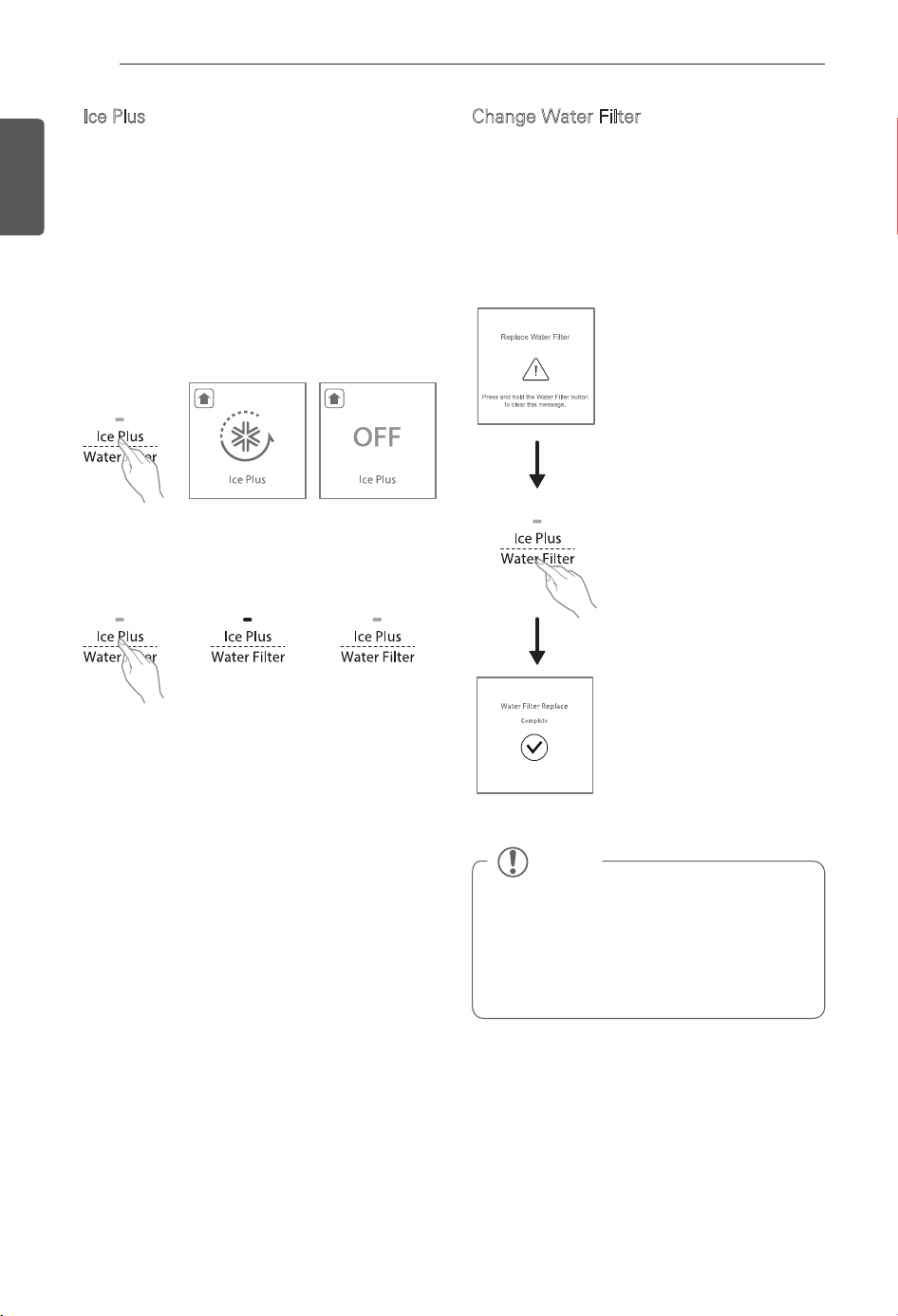

Ice Plus
This function increases both ice making and
freezing capabilities.
When you press the Ice Plus button, the
y
graphic will illuminate in the display and
will continue for 24 hours. The function will
automatically shut off after 24 hours.
You can stop this function manually by pressing
y
the button one more time.
Change Water Filter
Change the water filter when the water filter
indicator turns on. After changing the water
filter, press and hold the Change Filter button
for three seconds to turn the indicator light off.
Change the water filter approximately every six
months.
NOTE
If the water filter is not replaced, the water
filter indicator turns on every time the display is
turned on.
Turn the water filter indicator off by touching
the LCD or LED displays, or wait seven seconds
for the display to return to the main screen.
LCD Display
Change the water filter when
the water filter indicator turns
on.
LCD Display
Water filter replacement
complete.
LED Display
Press water filter button for
about three seconds.
Replace Water Filter
LCD Display
Ice Plus ON Ice Plus OFF
LED Display
Ice Plus ON Ice Plus OFF
27
HOW TO USE
ENGLISH
LCD Display
Door Alarm ON Door Alarm OFF

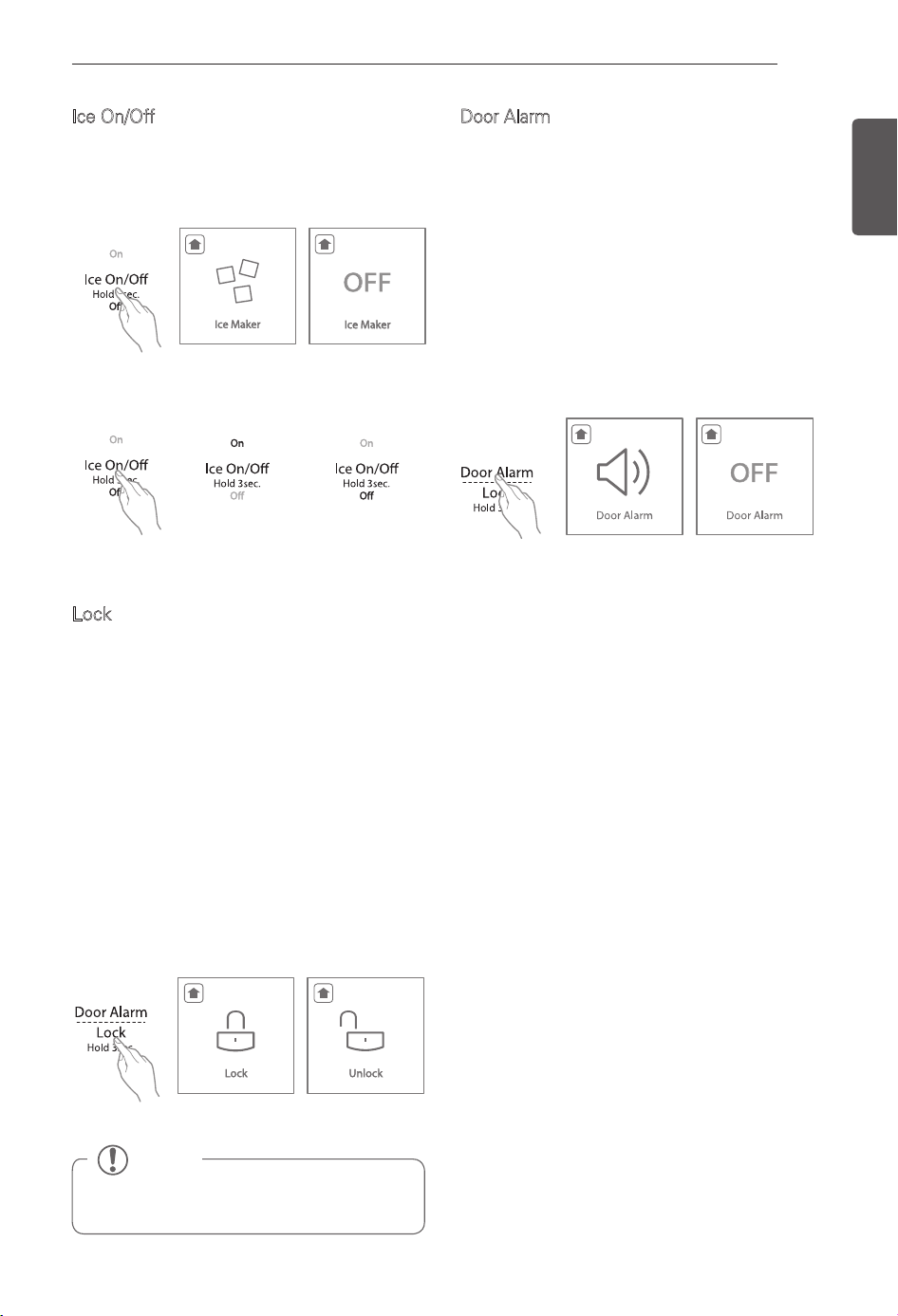

Ice On/Off
Press the Ice On/Off button for 3 seconds to turn
the icemaker On/Off.
Lock
The Lock function disables every other button
on the display.
When power is initially connected to the
y
refrigerator, the
Lock
function is off.
If you want to activate the
y
Lock
function to
lock other buttons, press and hold the
Lock
button for three seconds or more. The
Lock
icon will display and the
Lock
function is now
enabled.
To disable the
y
Lock
function, press and hold
the
Lock
button for approximately three
seconds.
NOTE
The Lock function will not stop the water or ice
dispensing function.
LCD Display
Icemaker ON Icemaker OFF
LED Display
Icemaker ON Icemaker OFF
LCD Display
Locked Unlocked
Door Alarm
When power is connected to the refrigerator,
y
the door alarm is initially set to ON. When you
press the Door Alarm button, the display will
change to OFF and the Door Alarm function will
deactivate.
When either the refrigerator or the freezer
y
door is left open for more than 60 seconds, the
alarm tone will sound to let you know that the
door is open.
When you close the door, the door alarm will
y
stop.
28
HOW TO USE
ENGLISH
Fresh Air Filter
The Fresh Air Filter helps remove odors from the
refrigerator. The Fresh Air Filter has two settings,
Auto and Power(PWR). In Auto mode, the Fresh
Air Filter will cycle on and off in increments of
ten minutes on and 110 minutes off. If set to the
Power(PWR) mode, the Fresh Air Filter will stay
on continuously for four hours, cycling on and off
in increments of ten minutes on and five minutes
off. After four hours, the Fresh Air Filter will
switch back to Auto mode.
Press the Fresh Air Filter button once for
y
Power(PWR) mode.
Press the Fresh Air Filter button again to
y
switch back to Auto mode.
LCD Display
Fresh air filter
Auto
Fresh air filter
Power
LED Display
Fresh air filter
Auto
Fresh air filter
Power
Change Fresh Air Filter
When the Change Filter icon turns on, the air
filter needs to be replaced. After replacing the
air filter, press and hold the Fresh Air Filter
button for three seconds to turn the icon light
off. Change the air filter approximately every
six months.
LCD Display
Fresh air filter indicator turns
on.
LCD Display
Fresh air filter replacement
complete.
LED Display
Press the fresh air filter button
for about three seconds.
Replace Fresh air filter
CAUTION
Display Mode (For Store Use Only)
The Display Mode disables all cooling in the
refrigerator and freezer sections to conserve
energy while on display in a retail store. When
activated OFF will display on the control panel
and the display will remain on for 20 seconds.
To deactivate / activate:
With either refrigerator door opened, press
and hold the Refrigerator and Ice Plus buttons
at the same time for five seconds. The control
panel will beep and the temperature settings
will display to confirm that Display Mode
is deactivated. Use the same procedure to
activate the Display Mode.
29
HOW TO USE
ENGLISH

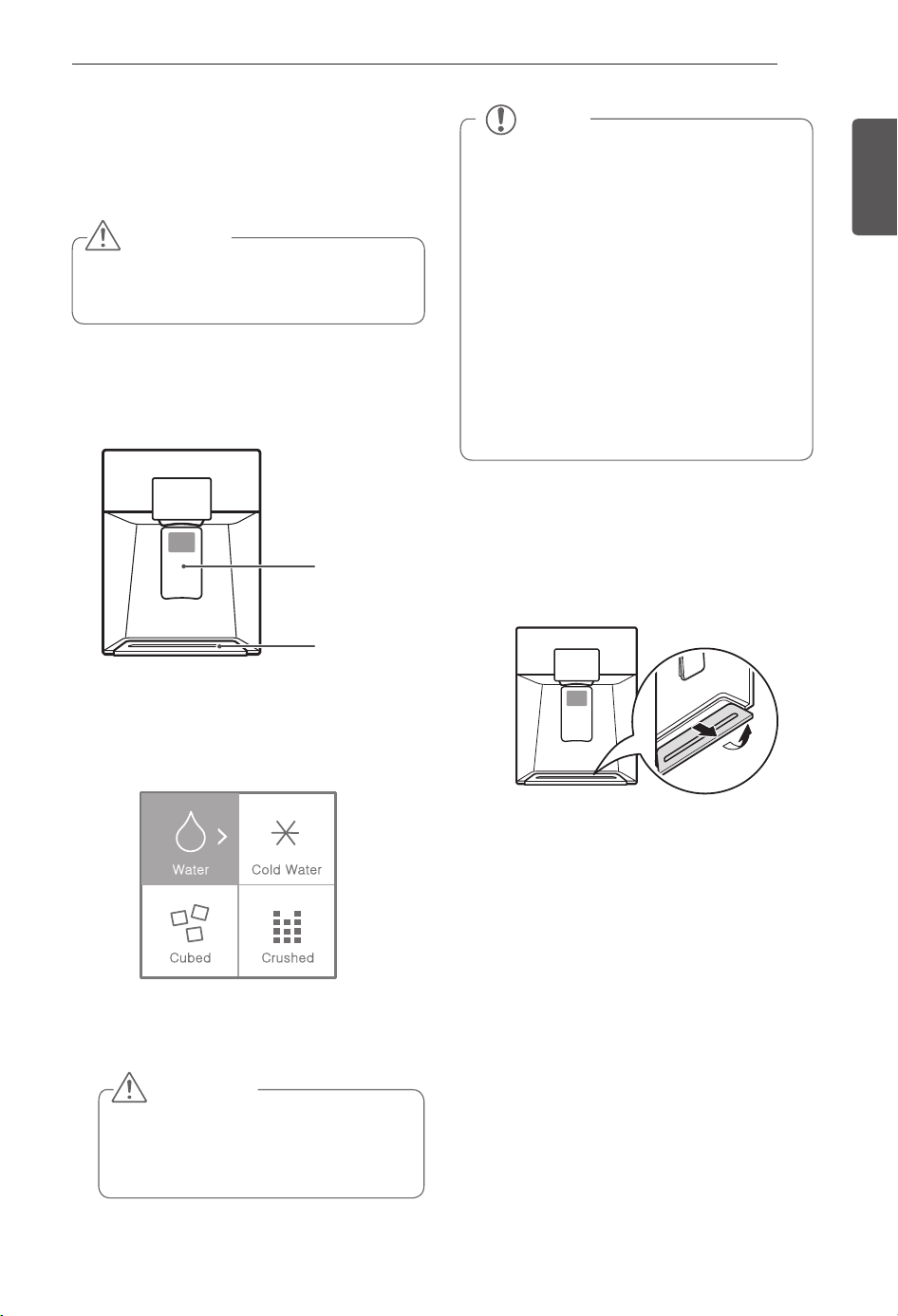

1. Water
Touch Water and press the lever to display the
water filling screen and dispense water.
If the cup or container is removed from
y
the lever, or the water dispenses for three
minutes, the water stops dispensing and the
display returns to the initial screen.
To dispense a set amount of water, touch Water
until you see the measured fill screen. On first
use, the screen defaults to cups. After use, the
screen defaults to the last unit used.
Display Window Dispenser Function
Touch the display window directly to operate the
ice and water dispenser.
The screen turns OFF after 20 seconds if
y
not touched.
Check the entire display window, touching
y
where needed to activate.
Pressing the dispenser lever when the
y
screen is OFF activates whatever dispensing
mode was last active. Removing the
container from the dispenser lever switches
the display to the initial screen.
After touching the display window, select
y
the desired mode (water, cold water, cubed
ice, crushed ice), and press the lever.
NOTE
Touching Stop while dispensing a set amount
stops the water dispensing and returns the
display to the previous screen.
The amount of water dispensed is not kept in
memory.
If the set amount is touched again, it
dispenses the full amount.
Press the lever
Release the lever
or after 3 minutes
operation
Touching Dispense Water on the measured
y
fill screen brings up the water filling screen
and immediately starts a set water dispense.
- Touching the left or right arrows on the
measured fill screen scrolls through set
amounts.
- Touching Stop while the water is dispensing
stops the water from dispensing and returns
the display to the previous screen. When the
set water dispense is completed, the display
returns to the initial screen.
Touch Dispense
Water
When water
dispense is
completed
Touch Stop
30
HOW TO USE
ENGLISH
Touching Other Units changes the units for
y
measured fill.
- Available amounts for each unit are in the table
below:
NOTE
Depending on the water pressure of the
house where the product is installed, the set
amounts dispensed may vary due to an error
in the water flow sensor. This is normal.
NOTE
Depending on the water pressure of the
house where the product is installed, the set
amounts dispensed may vary due to an error
in the water flow sensor. This is normal.
Touch Other Units
Touch Back icon
or select units
2. Cold Water
Touch Cold Water and press the lever to display
the water filling screen and dispense cold water.
If the cup or container is removed from the
y
lever, or the water dispenses for three minutes,
the water stops dispensing and the display
returns to the initial screen.
Press the lever
Release the lever
or after 3 minutes
operation
Step cup(s) mL oz
1
1/4 100 2
2
1/3 200 4
3
1/2 300 6
4
2/3 400 8
5
3/4 500 10
6
1 750 16
7
2 1000 24
8
4 1500 32
31
HOW TO USE
ENGLISH
3. Cubed
Touch Cubed and press the lever to display the
ice stacking screen and dispense ice cubes.
If the cup or container is removed from the
y
lever, or the ice dispenses for three minutes,
the ice stops dispensing and the display returns
to the initial screen.
If a lot of ice splatters, move the cup closer to
y
the outlet.
4. Crushed
Touch Crushed and press the lever to display the
ice stacking screen and dispense crushed ice.
If the cup or container is removed from the
y
lever, or the ice dispenses for three minutes,
the ice stops dispensing and the display returns
to the initial screen.
If a lot of ice splatters, move the cup closer to
y
the outlet.
NOTE
Opening the freezer door while water or
y
set water amounts are dispensing stops
the water from dispensing and returns the
display to the initial screen.
Opening the freezer door while cold water or
y
ice is dispensing stops the water or ice from
dispensing, but dispensing continues when
the door is closed.
Dispensing into very small or narrow-necked
y
cups or containers may result in water
splashing or blocking dispensing.
Use a container at least 2 3/4 in. (68 mm) in
y
diameter when dispensing water, cold water,
or ice.
Use a container at least 3 in. (80 mm) in
y
diameter when dispensing crushed ice, to
contain the sprayed ice chips.
Press the lever
Release the lever
or after 3 minutes
operation
Press the lever
Release the lever
or after 3 minutes
operation
32
HOW TO USE
ENGLISH
Ice-detecting
sensor
CAUTION
When handling the ice bin,
keep hands away from
the icemaker tray area to
avoid personal injury.
In-Door Ice Bin
* Depending on the model, some of the
following functions may not be available.
Detaching the In-Door Ice Bin
1
Gently pull the handle to open the ice
compartment.
2
To remove the in-door ice bin, grip the
front handle, slightly lift the lower part,
and slowly pull out the bin as shown.
Assembling the In-Door Ice Bin
1
Carefully insert the in-door ice bin while
slightly slanting it to avoid contact with the
icemaker.
2
Avoid touching the ice-detecting sensor
when replacing the ice bin. See the label
on the ice compartment door for details.
CAUTION
Keep hands and tools out of the ice
y
compartment door and dispenser chute.
Failure to do so may result in damage or
personal injury.
The icemaker will stop producing ice when
y
the in-door ice bin is full. If you need more
ice, empty the ice bin into the extra ice bin
in the freezer compartment. During use,
the ice can become uneven causing the
icemaker to misread the amount of ice
cubes and stop producing ice. Shaking the
ice bin to level the ice within it can reduce
this problem.
Storing cans or other items in the ice bin will
y
damage the icemaker.
Keep the ice compartment door closed
y
tightly. If the ice compartment door is not
closed tightly, the cold air in the ice bin will
freeze food in the refrigerator compartment.
This could also cause the icemaker to stop
producing ice.
If the icemaker is turned OFF for
y
an extended period of time, the ice
compartment will gradually warm up
to the temperature of the refrigerator
compartment. To prevent ice cubes from
melting and leaking from the dispenser,
ALWAYS empty the ice bin when the
icemaker is set to OFF for more than a few
hours.
33
HOW TO USE
ENGLISH
Automatic Icemaker
* Depending on the model, some of the
following functions may not be available.
Ice is made in the automatic icemaker and sent
to the dispenser. The icemaker will produce
50-80 cubes in a 24-hour period, depending
on freezer compartment temperature, room
temperature, number of door openings and
other operating conditions.
It takes about 12 to 24 hours for a newly
y
installed refrigerator to begin making ice. Wait
72 hours for full ice production to occur.
Ice making stops when the in-door ice bin
y
is full. When full, the in-door ice bin holds
approximately 6 to 8 (12-16 oz) glasses of ice.
Foreign substances or frost on the auto shutoff
y
(feeler arm) can interrupt ice production. Make
sure the feeler arm is clean at all times for
proper operation.
To increase ice production, use the Ice Plus
y
function. The function increases both ice
making and freezing capabilities.
Auto shutoff (feeler arm)
Icemaker
Turning the Automatic Icemaker
On or Off
To turn the automatic icemaker On/Off, press
and hold the Ice On/Off button on the control
panel for 3 seconds.
WARNING
Personal Injury Hazard
DO NOT place fingers or hands on the
automatic ice making mechanism while the
refrigerator is plugged in.
34
HOW TO USE
ENGLISH
Automatic Icemaker
(continued)
The first ice and water dispensed may
y
include particles or odor from the water
supply line or the water tank.
Throw away the first few batches of ice.
y
This is also necessary if the refrigerator has
not been used for a long time.
Never store beverage cans or other items in
y
the ice bin for the purpose of rapid cooling.
Doing so may damage the icemaker or the
containers may burst.
If discolored ice is dispensed, check the
y
water filter and water supply. If the problem
continues, contact a qualified service
center. Do not use the ice or water until the
problem is corrected.
Keep children away from the dispenser.
y
Children may play with or damage the
controls.
The ice passage may become blocked with
y
frost if only crushed ice is used. Remove the
frost that accumulates by removing the ice
bin and clearing the passage with a rubber
spatula. Dispensing cubed ice can also help
prevent frost buildup.
Never use thin crystal glass or crockery to
y
collect ice. Such containers may chip or
break resulting in glass fragments in the ice.
Dispense ice into a glass before filling it
y
with water or other beverages. Splashing
may occur if ice is dispensed into a glass
that already contains liquid.
Never use a glass that is exceptionally
y
narrow or deep. Ice may jam in the ice
passage and refrigerator performance may
be affected.
Keep the glass at a proper distance from
y
the ice outlet. A glass held too close to the
outlet may prevent ice from dispensing.
To avoid personal injury, keep hands out of
y
the ice door and passage.
Never remove the dispenser cover.
y
If ice or water dispenses unexpectedly, turn
y
off the water supply and contact a qualified
service center.
CAUTION
When You Should Turn the
Icemaker Off
When the water supply will be shut off
y
for several hours.
When the ice bin is removed for more
y
than one or two minutes.
When the refrigerator will not be used
y
for several days.
Normal Sounds You May Hear
The icemaker water valve will buzz as
y
the icemaker fills with water. If the Ice
on/off button is set to On, the icemaker
will buzz even if it has not yet been
hooked up to water. To stop the buzzing,
press the Ice on/off button to set it to
the Off position.
You will hear the sound of cubes
y
dropping into the bin and water running
in the pipes as the icemaker refills.
Preparing For Vacation
Set the Ice On/Off button to Off and shut off
the water supply to the refrigerator.
If the ambient temperature is expected to drop
below freezing, have a qualified technician
drain the water supply system to prevent
serious property damage due to flooding
caused by ruptured water lines or connections.
NOTE
The ice bin should be emptied when
the Ice On/Off button is set to the Off
mode.
NOTE
Keeping the icemaker on before the
water line is connected can damage the
icemaker.
NOTE
The ice bin should be emptied any time
the Ice On/Off button is turned Off.
35
HOW TO USE
ENGLISH
Ice and Water Dispenser
* Depending on the model, some of the
following functions may not be available.
CAUTION
Keep children away from the dispenser
to prevent them from playing with or
damaging the controls.
Dispenser
Stand
Using the Dispenser
To dispense water or ice, push the lever after
y
touching the desired icon on the LCD display.
NOTE
If discolored ice is dispensed, check
y
the water filter and water supply. If the
problem continues, contact a qualified
service center. Do not use the ice or
water until the problem is corrected.
The dispenser will not operate when
y
either of the refrigerator doors are open.
If dispensing water or ice into a container
y
with a small opening, place it as close to
the dispenser as possible.
Some dripping may occur after
y
dispensing. Hold your cup beneath
the dispenser for a few seconds after
dispensing to catch all of the drops.
CAUTION
Throw away the first few batches of ice
(about 24 cubes). This is also necessary
if the refrigerator has not been used for
a long time.
Cleaning the Dispenser Stand
1
Hold both ends and pull slightly.
2
Wipe out dirty areas with a clean cloth.
Ice and Water
lever
Locking the Dispenser
Press and hold the Lock button for three
seconds to lock the dispenser and all of the
control panel functions. Follow the same
instructions to unlock.
36
HOW TO USE
ENGLISH
NOTE
If you are leaving home for a short period of time, like a short vacation, the refrigerator should be left
y
on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the freezer.
If you are leaving the refrigerator turned off for an extended period of time, remove all food and unplug
y
the power cord. Clean the interior, and leave the door open to prevent fungi from growing in the
refrigerator.
CAUTION
Do not store food with high moisture content towards the top of the refrigerator. The moisture could
y
come in direct contact with the cold air and freeze.
Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food
y
packaging should be wiped down to prevent adjacent foods from being contaminated.
If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of
y
vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a
clean cloth or a paper towel.
If the refrigerator door or freezer drawer is opened too often, warm air may penetrate the refrigerator
y
and raise its temperature. It can also increase the cost to run the appliance.
Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or
y
personal injury if items are removed with excessive force.
The temperature inside the EasyReach™ is slightly lower than in the shelf or door bin area.
y
Storing Food
Food Preservation Location
Each compartment inside the refrigerator is designed to store different types of food.
Store your food in the optimal space to enjoy the freshest taste.
Adjustable refrigerator shelf
Adjustable shelves to meet your individual storage needs.
EasyReach™
You can store small
items, or put an item to
defrost.
Door-In-Door
Recommended types of
food to store in the Door-
In-Door section are butter,
margarine, cream cheese,
peanut butter, ketchup,
mustard, relish, etc.
Dairy Corner
Store dairy foods such as
butter, cheese, etc.
Big Fresh Zone
Preserve vegetables and
fruits.
Freezer Bin
Preserve small packaged
frozen food or frequently-
used foods.
Refrigerator Bin
Store beverages, water, etc.
Freezer Drawer (1)
Preserve small packaged
frozen food or frequently-
used foods.
Freezer Drawer(2)
Preserve frozen food for longer storage.
37
HOW TO USE
ENGLISH
Food Storage Tips
* The following tips may not be applicable
depending on the model.
Wrap or store food in the refrigerator in airtight
and moisture-proof material unless otherwise
noted. This prevents food odor and taste transfer
throughout the refrigerator. For dated products,
check date code to ensure freshness.
Food How to
Butter or
Margarine
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese
Store in the original wrapping
until you are ready to use it.
Once opened, rewrap tightly in
plastic wrap or aluminum foil.
Milk Wipe milk cartons. For coldest
milk, place containers on
interior shelf.
Eggs Store in original carton on
interior shelf, not on door shelf.
Fruit Do not wash or hull the fruit
until it is ready to be used. Sort
and keep fruit in its original
container, in a crisper, or store
in a completely closed paper
bag on a refrigerator shelf.
Leafy
Vegetables
Remove store wrapping and
trim or tear off bruised and
discolored areas. Wash in cold
water and drain. Place in plastic
bag or plastic container and
store in crisper.
Vegetables
with skins
(carrots,
peppers)
Place in plastic bags or plastic
container and store in crisper.
Fish Store fresh fish and shellfish
in the freezer section if they
are not being consumed the
same day of purchase. It is
recommended to consume
fresh fish and shellfish the
same day purchased.
Leftovers
Cover leftovers with plastic wrap
or aluminum foil, or store in
plastic containers with tight lids.
Storing Frozen Food
Freezing
Your freezer will not quick-freeze a large
quantity of food. Do not put more unfrozen
food into the freezer than will freeze within
24 hours (no more than 2 to 3 lbs. of food per
cubic foot of freezer space). Leave enough
space in the freezer for air to circulate around
packages. Be careful to leave enough room at
the front so the door can close tightly.
Storage times will vary according to the quality
and type of food, the type of packaging or wrap
used (how airtight and moisture-proof) and
the storage temperature. Ice crystals inside a
sealed package are normal. This simply means
that moisture in the food and air inside the
package have condensed, creating ice crystals.
NOTE
Check a freezer guide or a reliable cookbook
for further information about preparing food
for freezing or food storage times.
NOTE
Allow hot foods to cool at room temperature
for 30 minutes, then package and freeze.
Cooling hot foods before freezing saves
energy.
38
HOW TO USE
ENGLISH
Storing Frozen Food (continued)
Packaging
Successful freezing depends on correct
packaging. When you close and seal the
package, it must not allow air or moisture in or
out. If it does, you could have food odor and
taste transfer throughout the refrigerator and
could also dry out frozen food.
Packaging recommendations:
Rigid plastic containers with tight-fitting
y
lids
Straight-sided canning/freezing jars
y
Heavy-duty aluminum foil
y
Plastic-coated paper
y
Non-permeable plastic wraps
y
Specified freezer-grade self-sealing plastic
y
bags
Follow package or container instructions for
proper freezing methods.
Do not use
Bread wrappers
y
Non-polyethylene plastic containers
y
Containers without tight lids
y
Wax paper or wax-coated freezer wrap
y
Thin, semi-permeable wrap
y
Adjusting the Refrigerator
Shelves
The shelves in your refrigerator are adjustable
to meet your individual storage needs. Your
model may have either glass or wire shelves.
Adjusting the shelves to fit items of different
heights will make finding the exact item you
want easier. Doing so will also reduce the
amount of time the refrigerator door is open
which will save energy.
Detaching the Shelf
Tilt up the front of the shelf and lift it straight
up. Pull the shelf out.
Assembling the Shelf
Tilt the front of the shelf up and guide the rear
shelf hooks into the slots at the desired height.
Then, lower the front of the shelf so that the
hooks drop into the slots.
CAUTION
Make sure that shelves are level from
one side to the other. Failure to do so
may result in the shelf falling or food
spilling.
39
HOW TO USE
ENGLISH
Using the Folding Shelf
You can store taller items, such as containers
or bottles, by simply pushing the front half of
the shelf underneath the back half of the shelf.
Pull the front of the shelf firmly toward you to
return to a full shelf.
When Closing the Door
CAUTION
Do not clean glass shelves with
y
warm water while they are cold.
Shelves may break if exposed to
sudden temperature changes or
impact.
Glass shelves are heavy. Use special
y
care when removing them.
CAUTION
To reduce the risk of door scratches
y
and breaking the center door mullion,
make sure that the refrigerator door
mullion is always folded in.
The door alarm will sound every 30
y
seconds if the door remains open
longer than one minute. Ensure that
the folding mullion is folded in before
closing the left-hand door.
40
HOW TO USE
ENGLISH
CAUTION
Always empty the drawers before
y
removing them, and use both hands
when removing and assembling them.
Make sure that the refrigerator doors
y
are fully open before removing and
assembling the drawers.

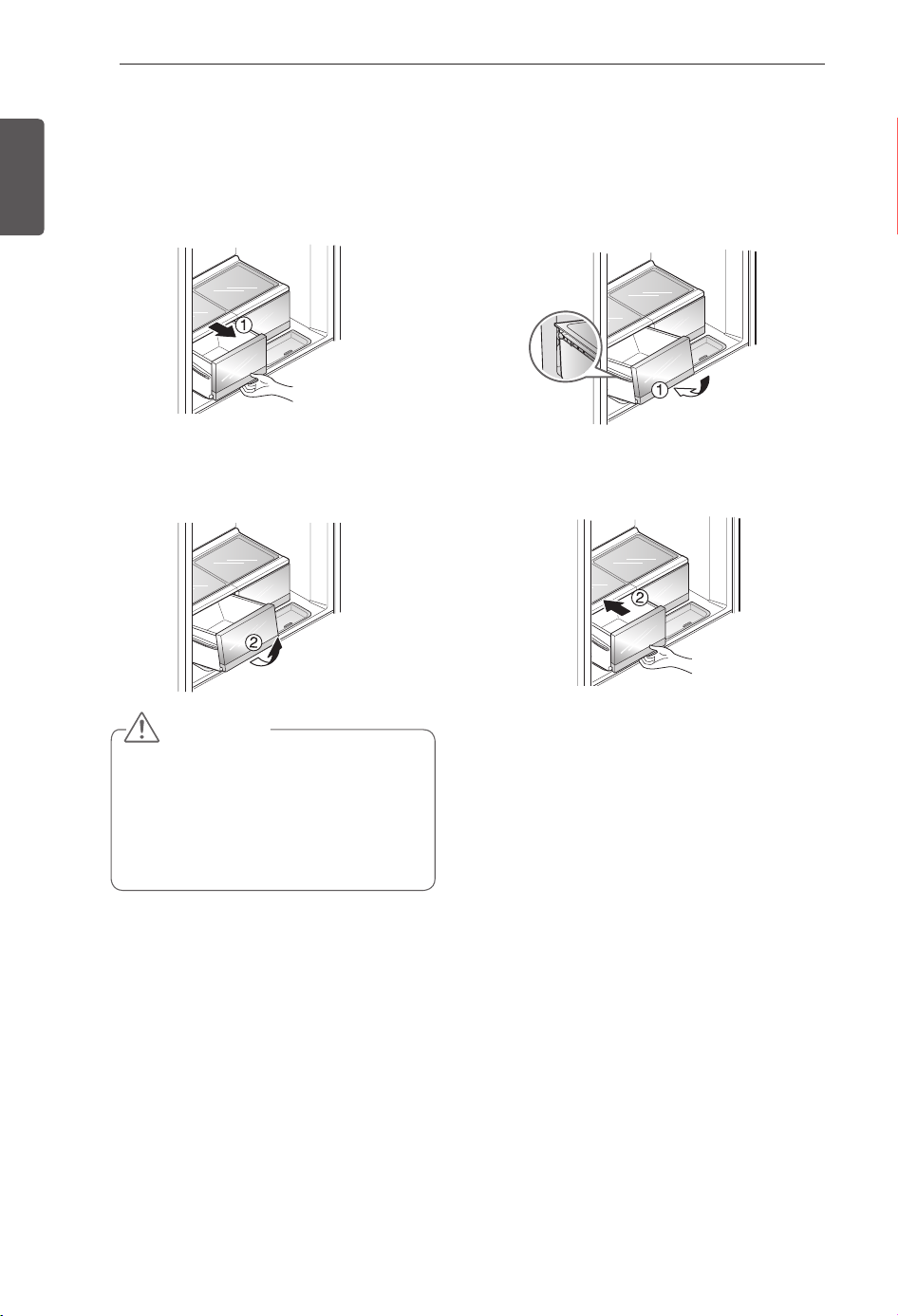

Big Fresh Zone
Removing the Big Fresh Zone Drawer
1
Pull the drawer out to full extension.
2
Lift the front of the drawer up to remove it
from its guides and pull straight out.
Assembling the Big Fresh Zone
Drawer
1
Slightly tilt up the front of the drawer and
insert the rollers on the sides into the
guides.
2
Gently push the drawer in while lowering it
into place.
41
HOW TO USE
ENGLISH
CAUTION
Remove items from on top of glass cover
y
before removing cover.
Take care when handling the glass cover.
y
There is still a risk of injury if the glass is
broken, even though it is tempered glass.
Take care when removing or assembling
y
the cover not to catch hands between the
cover and the drawers.
Removing/Assembling the
Fresh Zone Compartment
Removing the Fresh Zone
Compartment
1
Open both refrigerator doors completely
and empty and remove the Door-in-Door
case and bins. Empty contents from glass
cover and drawers.
2
Lift the front of one drawer to remove
it from its guides and pull straight out.
Repeat to remove the second drawer.
3
Support underneath the glass cover with
one hand while lifting the front of the
cover with the other hand. Push up from
underneath to release the cover from the
guides, then tilt the cover 45 degrees, and
pull it forward to remove it.
Assembling the Fresh Zone
Compartment
1
Hold the cover at a 45-degree angle and
insert it into the refrigerator.
2
Supporting the cover with one hand, bring
the cover to a horizontal position and lower
it onto the guides. Push the cover back
into place.
3
Tilt up the front of one drawer and insert
the rollers into the side guides. Lower the
drawer and push it in. Repeat with second
drawer.
42
HOW TO USE
ENGLISH
Door-In-Door
The Door-In-Door compartment allows for easy
access to commonly used beverages and food
items.
The inner Door-In-Door includes two door bins,
the Cheese & Butter and Condiment bins, that
are specially designed for these items.
Butter stored here will be easier to spread,
cheese will be easier to slice, and condiments
ready to use.
To access the Door-in-Door compartment,
press the door button on the right refrigerator
door until you hear a click sound.
The Door-in-Door compartment allows you
y
more room to store food.
With the increased storage space, you can
y
also organize drinks and snacks better.
CAUTION
Be careful when handling and storing
y
larger eggs. They can be broken if the
cover is not completely closed and the
drawer above is pushed in.
See illustration above to remove and
y
assemble the EasyReach for cleaning.
Store foods like tofu, celery or lettuce
y
which have high water content or freeze
easily on the interior shelves at the front.
Dairy Corner
You can store dairy products such as butter,
cheese etc.
NOTE
If you close the refrigerator door with the
Dairy Corner open, the refrigerator door
may not close properly and could damage
the bin lid. Make sure to close the Dairy
Corner completely after use.
Press until
you hear
the “Click”
sound
EasyReach™
The EasyReach™ compartments are slightly
cooler than the shelf or door bin areas, so they
are a convenient place to store dairy snacks or
other small items you want to keep especially
cold. They are also a handy place to defrost
meat.
Open and close by pulling the handle.
43
HOW TO USE
ENGLISH
CAUTION
Remove contents from the Door-in-Door
compartment before disassembly.
4
Remove the screws on both sides of the
Door-in-Door compartment.
5
Lift the lower door bin from the bottom to
remove it.
2
Hold the bottom of the Dairy Corner and
raise it up to remove it.
3
Move the EasyLift bin to the top of the
compartment, where the Dairy Corner was
removed.
1
To remove the Door-in-Door case, lift up
and pull out.
Removing the Door-In-Door
Compartment
To remove the door bins, hold both ends of the
bin and lift up the front part of the bin.
To assemble, reverse the removal
y
instructions.
44
HOW TO USE
ENGLISH
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2

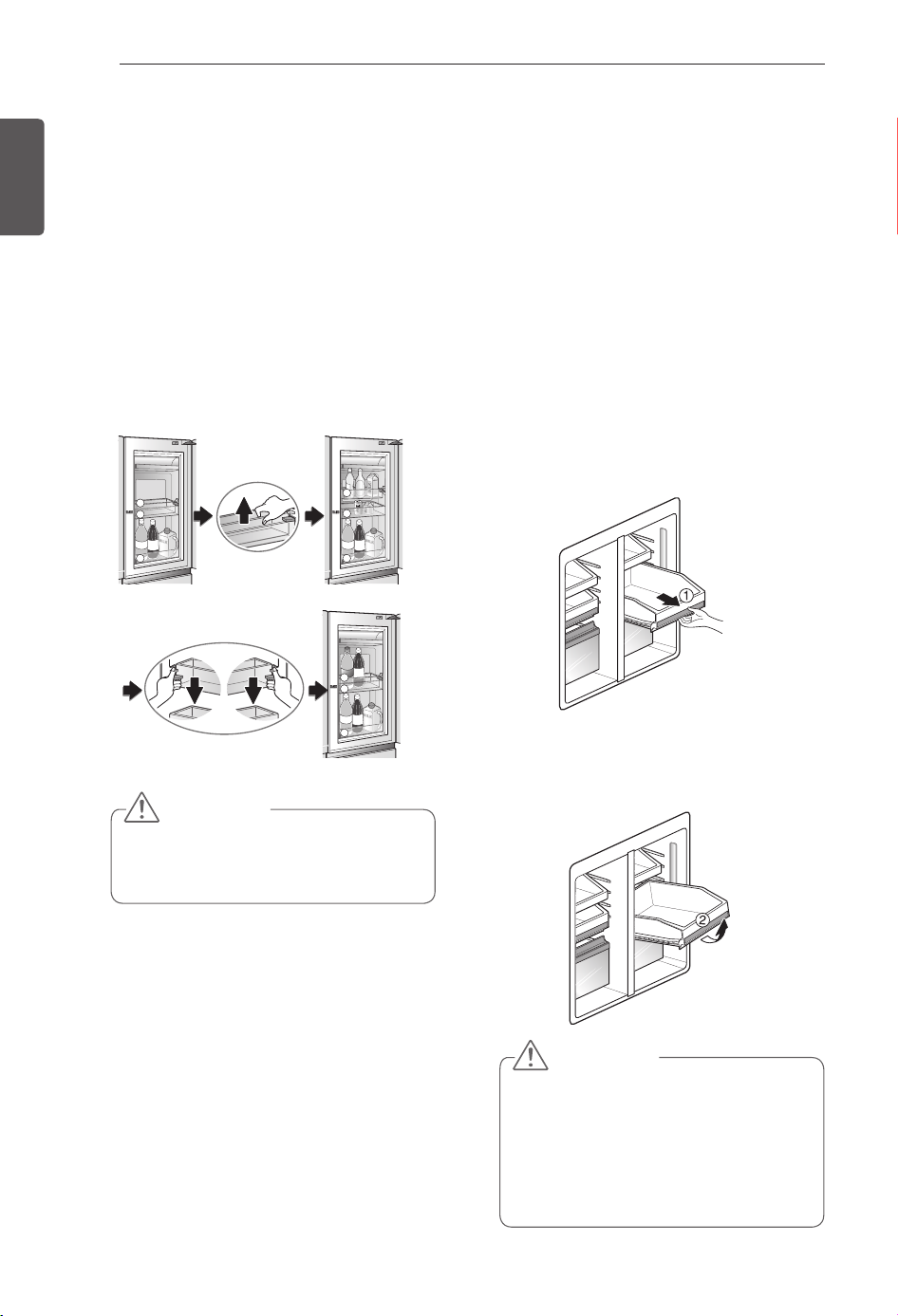

EasyLift Bin
Move the EasyLift bin up and down easily and
conveniently as necessary.
To move the EasyLift Bin up or down, remove
y
all items from the door bin first.
Place one hand on each side of the EasyLift Bin
y
and use your forefingers and thumbs to lift the
white release levers on both sides.
Move the door bin up or down.
y
Adjusting the EasyLift Bin allows taller food
y
items to be stored more conveniently.
CAUTION
Remove all food items from the door
y
bin before moving it up or down to avoid
damaging the bin or food containers.
CAUTION
The drawers are heavy. Always use two
y
hands when removing or assembling
the drawers to avoid product damage or
personal injury.
Always open the freezer doors completely
y
before removing or assembling the
drawers.
Freezer Drawer
Use the upper compartments to store
packaged frozen foods and frequently-used
foods.
Use the lower compartment for larger frozen
foods and items stored for longer periods.
The sliding freezer drawers allow easy
y
access and convenience of use.
Removing the Freezer Drawer
1
Pull out the Freezer drawer to full
extension (see below) and remove all of
the contents.
2
When the drawer is fully extended, lift up
the front and continue to pull it out (see
below).
45
HOW TO USE
ENGLISH
CAUTION
The drawers are heavy. Always use two
y
hands when removing or assembling
the drawers to avoid product damage or
personal injury.
Always open the freezer doors completely
y
before removing or assembling the
drawers.
Assembling the Freezer Drawer
1
Raise the front of the drawer slightly and
insert the rollers on the drawer's sides into
the guides in the freezer compartment.
2
Gently push the drawer in while lowering it
into place.
Refrigerator/Freezer Door Bins
You can store small packaged frozen food
in the freezer door bins, or small packaged
refrigerated food or beverages in the
refrigerator door bins, such as milk, water,
juice, beer, etc.
Do not store ice cream or foods intended for
long-term storage in the Freezer Door Bins.
To remove the door bins, hold the bin with
both hands and lift up to remove it.
To replace the door bin, align both sides of the
bin with the guides and push the bin down
until it snaps into place.
46
MAINTENANCE
ENGLISH
MAINTENANCE
Cleaning
Both the refrigerator and freezer sections defrost automatically; however, clean both
y
sections about once a month to prevent odors.
Wipe up spills immediately.
y
Always unplug the refrigerator before cleaning.
y
General Cleaning Tips
Unplug refrigerator or disconnect power.
y
Remove all removable parts, such as
y
shelves, crispers, etc.
Use a clean sponge or soft cloth and a
y
mild detergent in warm water. Do not
use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces
y
thoroughly.
Exterior
Waxing external painted metal surfaces helps
provide rust protection. Do not wax plastic
parts. Wax painted metal surfaces at least
twice a year using appliance wax (or auto paste
wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior,
use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use abrasive
or harsh cleaners. Dry thoroughly with a soft
cloth.
Inside Walls (allow freezer to warm
up so the cloth will not stick)
To help remove odors, you can wash the inside
of the refrigerator with a mixture of baking
soda and warm water. Mix 2 tablespoons of
baking soda to 1 quart of water (26 g soda
to 1 liter water) Be sure the baking soda is
completely dissolved so it does not scratch the
surfaces of the refrigerator.
Door Liners and Gaskets
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use cleaning
waxes, concentrated detergents, bleaches,
or cleaners containing petroleum on plastic
refrigerator parts.
Plastic Parts (covers and panels)
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use glass
cleaners, abrasive cleansers, or flammable
fluids. These can scratch or damage the
material.
Condenser Coils
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
CAUTION
Do not use a rough cloth or sponge
y
when cleaning the interior and exterior
of the refrigerator.
Do not place your hand on the bottom
y
surface of the refrigerator when
opening and closing.
WARNING
Use non-flammable cleaner. Failure to do
so can result in fire, explosion, or death.
47
MAINTENANCE
ENGLISH
2
Install a New Air Filter.
Place the new filter inside of the cover
with the side that says “Front” facing
outward. Turn the filter cover to the right
to attach it to the refrigerator wall.
After changing the filter, push and hold the
Air Filter button for three seconds to reset
the filter sensor.
Replacing the Fresh Air Filter
It is recommended that you replace the air filter:
Approximately every six months.
y
When the CHANGE FILTER light turns on.
y
1
Remove the Old Filter
Turn the filter cover to the left to detach
it from the refrigerator wall. The filter is
located on the inside of the filter cover.
Remove the filter from the cover and
replace it with a new filter.
48
MAINTENANCE
ENGLISH
Replacing the Water Filter
It is recommended that you replace the water
filter:
Approximately every six months.
y
When the water filter indicator turns on.
y
When the water dispenser output decreases.
y
When the ice cubes are smaller than normal.
y
1
Disassemble the filter cover.
The filter is mounted on the left side of the Big
Fresh Zone in the refrigerator
Remove the left side Fresh Zone drawer
y
Push then pull out the bottom side of the filter
y
cover to remove it.
2
Remove the old filter.
Turn the handle on the filter you wish to replace
to the left by 90 degrees (
1
). Pull forward on the
handle to remove the filter (
2
).
Some water may fall from the filter during
y
removal. Before removing the filter, place a
towel in front of the case to catch the water.
3
Install a new filter.
Remove the cap from the new filter. Hold the
filter handle vertically (straight up and down) and
insert the filter (
1
).
Insert the filter completely, then turn the handle
to the right 90 degrees (
2
).
After installing or replacing the filter, dispense
y
2 1/2 gallons (9.5 liters) each of water and cold
water (dispense for about 5 minutes each) to
remove the air and activated carbon before use.
(Activated carbon is not harmful to humans.)
NOTE
This refrigerator does not require a filter
bypass plug when the filter is not in place.
3
rd
Filter
2
nd
Filter
1
st
Filter
Dry towel
Before replacing the
filter, remove the cap
of the new filter.
49
MAINTENANCE
ENGLISH
Performance Data Sheet
Use Replacement Cartridge: ADQ73753310, ADQ73753311, ADQ73753312
The concentration of the indicated substances in water entering the system was reduced to a
concentration less than or equal to the permissible limit for water leaving the system as specified in
NSF/ANSI Standard 42 and Standard 53.
Capacity 300 Gallons(1,136 liters) Contaminant Reduction Determined by NSF testing.
System tested and certified by NSF International against NSF/ANSI Standard 42
and Standard 53 for the reduction of substances listed below.
Substance
Influent Challenge
Concentration
Average
Reduction
Reduction
requirement
Max Permissible Product
Water Concentration
Chlorine Taste and Odor 2 mg/L ± 10 % 97.5 % ≥ 50 % N/A
Nominal Particulate Class I
> 0.5µm to 1µm
At least 10,000 particles/ml 99.7 % ≥ 85 % N/A
2,4-D 0.21 mg/L ± 10 % 98.7 % N/A 0.07 mg/L
Atrazine 0.009 mg/L ± 10 % > 94.8 % N/A 0.003 mg/L
Cyst minimum 50,000 cysts/L > 99.99 % ≥ 99.95 % N/A
Mercury pH6.5 0.006 mg/L ± 10 % 96.6 % N/A 0.002 mg/L
Mercury pH8.5 0.006 mg/L ± 10 % 95.9 % N/A 0.002 mg/L
Asbestos
10
7
to 10
8
fibers/L; fibers greater
than 10µm in length
> 99 % 99 % N/A
Benzene 0.015 mg/L ± 10 % > 97.0 % N/A 0.005 mg/L
Lead pH6.5 0.15 mg/L ± 10 % 99.3 % N/A 0.01 mg/L
Lead pH8.5 0.15 mg/L ± 10 % > 99.3 % N/A 0.01 mg/L
P-Dichlorobenzene 0.225 mg/L ± 10 % > 99.8 % N/A 0.075 mg/L
Toxaphene 0.015 mg/L ± 10 % > 93.8 % N/A 0.0030 mg/L
Turbidity 11 ± 1 NTU 99.1 % N/A 0.5 NTU
Lindane 0.002 mg/L ± 10 % > 99.1 % N/A 0.0002 mg/L
Carbofuran 0.08 mg/L ± 10 % 98.7 % N/A 0.04 mg/L
Tetrachloroethylene 0.015 mg/L ± 10 % > 96.6 % N/A 0.0050 mg/L
O-Dichlorobenzene 1.8 mg/L ± 10 % > 99.9 % N/A 0.6000 mg/L
Ethylbenzene 2.1 mg/L ± 10 % > 99.9 % N/A 0.7000 mg/L
Chlorobenzene 2.0 mg/L ± 10 % > 99.9 % N/A 0.1000 mg/L
Endrin 0.006 mg/L ± 10 % > 96.7 % N/A 0.002 mg/L
50
MAINTENANCE
ENGLISH
It is essential that the manufacturer’s
recommended installation, maintenance and filter
replacement requirements be carried out for the
product to perform as advertised.
Replacement Cartridge: ADQ73753310,
ADQ73753311,
ADQ73753312
For estimated costs of replacement elements
please call 1-877-714-7486 or visit our website at
www.lge.com
Refer to the “warranty” section of the
Refrigerator Owner’s Manual for Limited Warranty
information.
Note that while the testing was performed under
standard laboratory conditions, actual performance
may vary.
Read, understand, and follow all safety Information contained in these instructions prior to installation and
use of this product. Retain these instructions for future reference.
NSF System Trade Name Code : ADQ737533
NSF Replacement Code : ADQ73753301, ADQ73753302,
ADQ73753303
Service Flow 0.5 gpm (1.9 lpm)
Water Supply
Community or private well
— Potable Water
Water Pressure 20 -120 psi (138 - 827 kPa)
Water Temperature 33-100°F (0.6 -37.8°C)
Capacity 300 Gallons(1,136 liters)
WARNING
To reduce the risk associated with the ingestion of contaminants:
Do not
y
use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system. Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
CAUTION
Please note that water could fall while replacing filter which could result property damage.
To reduce the risk associated with property damage due to water leakage:
Read and follow
y
Use Instructions before installation and use of this system.
Installation
y
must
comply with existing state or local plumbing codes.
Protect filter from freezing
y
Drain filter when room temperature drops below 33°F (0.6°C).
Do not
y
install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi,
you must install a pressure limiting valve. Contact a plumbing professional if you are uncertain how
to check your water pressure.
Do not
y
install where water hammer conditions may occur. If water hammer conditions exist you
must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to
check for this condition.
Do not
y
install on hot water supply lines. Install on cold water lines only. The maximum operating
water temperature of this filter system is 100°F (37.8°C).
Where a backflow prevention device is installed on a water system, a device for controlling pressure
y
due to thermal expansion must be installed.
The disposable filter cartridge
y
must
be replaced every six months, at the rated capacity or if a
noticeable reduction in flow rate occurs.
NSF is a trademark of NSF International. LG is a trademark of LG Corp. MCM Co..Ltd.
Application Guidelines / Water Supply Parameters
SAFETY INFORMATION
51
SMART DIAGNOSIS
ENGLISH
3
Hold the mouthpiece of your phone in front
of the speaker that
is located on the
right hinge of the
refrigerator door,
when instructed
to do so by the call
center.
4
Press and hold the Freezer button for three
seconds while continuing to hold your phone
to the speaker.
5
After you hear three beeps, release the
Freezer button.
6
Keep the phone in place until the tone
transmission has finished. This takes about
6 seconds, and the display will count down
the time. Once the countdown is over
and the tones have stopped, resume your
conversation with the specialist, who will then
be able to assist you in using the information
transmitted for analysis.
Should you experience any problems with your
refrigerator, it has the capability of transmitting
data via your telephone to the LG service
center. This allows you to speak directly to our
trained specialists. The specialist records the
data transmitted from your machine and uses
it to analyze the issue, providing a fast and
effective diagnosis.
If you experience problems with your
refrigerator, call 1-800-243-0000. Only use the
Smart Diagnosis™ feature when instructed
to do so by the LG call center agent. The
transmission sounds that you will hear are
normal and sound similar to a fax machine.
Smart Diagnosis™ cannot be activated unless
your refrigerator is connected to power. If
your refrigerator is unable to turn on, then
troubleshooting must be done without using
Smart Diagnosis™.
Using Smart Diagnosis™
First, call 1-800-243-0000. Only use the Smart
Diagnosis™ feature when instructed to do so
by the LG call center agent.
1
Lock the display. To lock the display,
press and hold the Lock button for three
seconds. (If the display has been locked
for over five minutes, you must deactivate
the lock and then reactivate it.)
2
Open the right refrigerator door.
SMART DIAGNOSIS
NOTE
For best results, do not move the phone
y
while the tones are being transmitted.
If the call center agent is not able to get
y
an accurate recording of the data, you
may be asked to try again.
NOTE
Call quality differences by region may
y
affect the function.
Use a land line rather than a cell phone
y
for better communication performance,
resulting in better service.
Bad call quality may result in poor data
y
transmission from your phone to the
machine, which could cause Smart
Diagnosis™ to malfunction.
52
TROUBLESHOOTING
ENGLISH
TROUBLESHOOTING
Review the Troubleshooting section before calling for service; doing so will save you both time
and money.
Problem Possible Causes Solutions
Refrigerator and
Freezer section
are not cooling.
The refrigerator control is set to
OFF (some models).
Turn the control ON. Refer to the Setting the
Controls section for proper temperature settings.
Refrigerator is in the defrost
cycle.
During the defrost cycle, the temperature of
each compartment may rise slightly. Wait 30
minutes and confirm the proper temperature
has been restored once the defrost cycle has
completed.
Refrigerator was recently
installed.
It may take up to 24 hours for each compartment
to reach the desired temperature.
Refrigerator was recently
relocated.
If the refrigerator was stored for a long period of
time or moved on its side, it is necessary for the
refrigerator to stand upright for 24 hours before
connecting it to power.
May be in Display mode. Refer to page 28 for Display mode instructions.
Cooling System
runs too much.
Refrigerator is replacing an
older model.
Modern refrigerators require more operating
time but use less energy due to more efficient
technology.
Refrigerator was recently
plugged in or power restored.
The refrigerator will take up to 24 hours to cool
completely.
Door opened often or a large
amount of food / hot food was
added.
Adding food and opening the door warms the
refrigerator, requiring the compressor to run
longer in order to cool the refrigerator back
down. In order to conserve energy, try to get
everything you need out of the refrigerator
at once, keep food organized so it is easy to
find, and close the door as soon as the food is
removed. (Refer to the Food Storage Guide.)
Doors are not closed
completely.
Firmly push the doors shut. If they will not shut all
the way, see the Doors will not close completely
or pop open section in Troubleshooting.
Refrigerator is installed in a hot
location.
The compressor will run longer under warm
conditions. At normal room temperatures (70°F)
expect your compressor to run about 40% to
80% of the time. Under warmer conditions,
expect it to run even more often. The refrigerator
should not be operated above 110°F.
Condenser / back cover is
clogged.
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area. Unplug the cord or switch off the breaker
before cleaning.
53
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Refrigerator or
Freezer section is
too warm.
Refrigerator was recently
installed.
It may take up to 24 hours for each compartment
to reach the desired temperature.
Air vents are blocked. Rearrange items to allow air to flow throughout
the compartment. Refer to the Airflow diagram in
the Using Your Refrigerator section.
Doors are opened often or for
long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To lessen
the effect, reduce the frequency and duration of
door openings.
Unit is installed in a hot location. The refrigerator should not be operated in
temperatures above 110°F.
A large amount of food or
hot food was added to either
compartment.
Adding food warms the compartment requiring
the cooling system to run. Allowing hot food to
cool to room temperature before putting it in the
refrigerator will reduce this effect.
Doors not closed correctly. See the Doors will not close correctly or pop
open section in Troubleshooting.
Temperature control is not set
correctly.
If the temperature is too warm, adjust the
control one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
Defrost cycle has recently
completed.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation
may form on the back wall. Wait 30 minutes
and confirm the proper temperature has been
restored once the defrost cycle has completed.
54
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Interior moisture
buildup.
Doors are opened often or for
long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To
lessen the effect, reduce the frequency and
duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in
the Troubleshooting section.
Weather is humid. Humid weather allows additional moisture
to enter the compartments when the doors
are opened leading to condensation or frost.
Maintaining a reasonable level of humidity in the
home will help to control the amount of moisture
that can enter the compartments.
Defrost cycle recently
completed.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation
may form on the back wall. Wait 30 minutes and
confirm that the proper temperature has been
restored once the defrost cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation
within each compartment. Wipe all containers
dry and store food in sealed packaging to prevent
condensation and frost.
Food is freezing
in the refrigerator
compartment.
Food with high water content
was placed near an air vent.
Rearrange items with high water content away
from air vents.
Refrigerator temperature control
is set incorrectly.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
Refrigerator is installed in a cold
location.
When the refrigerator is operated in temperatures
below 41°F (5°C), food can freeze in the
refrigerator compartment. The refrigerator should
not be operated in temperatures below 55°F (13°C).
Frost or ice
crystals form
on frozen food
(outside of
package).
Door is opened frequently or for
long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. Increased
moisture will lead to frost and condensation.
To lessen the effect, reduce the frequency and
duration of door openings.
Door is not closing properly. Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
Refrigerator or
Freezer section is
too cold.
Incorrect temperature control
settings.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
55
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Frost or ice
crystals on frozen
food (inside of
sealed package).
Condensation from food with a
high water content has frozen
inside of the food package.
This is normal for food items with a high water
content.
Food has been left in the freezer
for a long period of time.
Do not store food items with high water content
in the freezer for a long period of time.
Icemaker is not
making enough
ice.
Demand exceeds ice storage
capacity.
The icemaker will produce approximately 50–80
cubes in a 24 hour period.
House water supply is not
connected, valve is not turned
on fully, or valve is clogged.
Connect the refrigerator to a cold water supply
with adequate pressure and turn the water
shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
Water filter has been
exhausted.
It is recommended that you replace the water
filter:
Approximately every six months.•
When the water filter indicator turns on.•
When the water dispenser output decreases. •
When the ice cubes are smaller than normal.•
Low house water supply
pressure.
The water pressure must be 20~120 psi or
138~827 kPa or 1.4~8.4 kgf/cm² on models
without a water filter and 40~120 psi or 276~827
kPa or 2.8~8.4 kgf/cm² on models with a water
filter.
If the problem persists, it may be necessary to
contact a plumber.
Reverse Osmosis filtration
system is used.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to Water Pressure section.)
Tubing connecting refrigerator
to house supply valve is kinked.
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting
in reduced water flow. Straighten or repair the
water supply line and arrange it to prevent future
kinks.
56
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Icemaker is not
making enough
ice (continued).
Doors are opened often or for
long periods of time.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent
the unit from maintaining the set temperature.
Lowering the refrigerator temperature can help,
as well as not opening the doors as frequently.
Doors are not closed
completely.
If the doors are not properly closed, ice
production will be affected. See the Doors will
not close completely or pop open section in
Troubleshooting for more information.
The temperature setting for the
freezer is too warm.
The recommended temperature for the freezer
compartment for normal ice production is 0°F. If
the freezer temperature is warmer, ice production
will be affected.
Dispensing water
slowly.
Water filter has been exhausted. It is recommended that you replace the water
filter:
Approximately every six months.•
When the water filter indicator turns on.•
When the water dispenser output decreases. •
When the ice cubes are smaller than normal.•
Reverse osmosis filtration
system is used.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
If the problem persists, it may be necessary to
contact a plumber.
Low house water supply
pressure.
The water pressure must be 20~120 psi or
138~827 kPa or 1.4~8.4 kgf/cm² on models
without a water filter and 40~120 psi or 276~827
kPa or 2.8~8.4 kgf/cm² on models with a water
filter.
If the problem persists, it may be necessary to
contact a plumber.
57
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Not dispensing
ice.
Doors are not closed
completely.
Ice will not dispense if any of the refrigerator
doors are left open.
Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause
the cubes to stick together over time, which
will prevent them from properly dispensing.
Check the ice bin for ice cubes clumping/sticking
together. If they are, break up the ice cubes to
allow for proper operation.
The delivery chute is clogged
with frost or ice fragments.
Eliminate the frost or ice fragments by removing
the ice bin and clearing the chute with a plastic
utensil. Dispensing cubed ice can also help
prevent frost or ice fragment buildup.
The dispenser display is locked. Press and hold the Lock button for three seconds
to unlock the control panel and dispenser.
Ice bin is empty. It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice. Make sure that the
shutoff (arm/sensor) is not obstructed.
Once the ice supply in the bin has been
completely exhausted, it my take up to 90
minutes before additional ice is available, and
approximately 24 hours to completely refill the
bin.
Icemaker is not
making ice.
Refrigerator was recently
installed or icemaker recently
connected.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice.
Icemaker not turned on. Locate the Ice On/Off button on the display and
confirm that it is turned On.
The ice detecting sensor is
obstructed.
Foreign substances or frost on the ice-detecting
sensor can interrupt ice production. Make sure
that the sensor area is clean at all times for proper
operation.
The refrigerator is not connected
to a water supply or the supply
shutoff valve is not turned on.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
Icemaker shutoff (arm or
sensor) obstructed.
If your icemaker is equipped with an ice shutoff
arm, make sure that the arm moves freely. If
your icemaker is equipped with the electronic ice
shutoff sensor, make sure that there is a clear
path between the two sensors.
Reverse osmosis water filtration
system is connected to your
cold water supply.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to the Water Pressure section.)
58
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Not dispensing
water.
New installation or water line
recently connected.
Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped air
and contaminants from the system.
Do not dispense the entire 2.5 gallon amount
continuously. Depress and release the dispenser
pad for cycles of 30 seconds ON and 60 seconds
OFF.
The dispenser panel is locked. Press and hold the Lock button for three seconds
to unlock the control panel and dispenser.
The dispenser is not set for
water dispensing.
The dispenser can be set for ice or water. Make
certain that the control panel is set for the proper
operation. Press the Water button on the control
panel to dispense water.
Refrigerator or freezer doors are
not closed properly.
Water will not dispense if any of the refrigerator
doors are left open.
Water filter has been recently
removed or replaced.
After the water filter is replaced, dispense 2.5
gallons of water (flush for approximately 5
minutes) to remove trapped air and contaminants
from the system. Do not dispense the entire 2.5
gallon amount continuously. Depress and release
the dispenser pad for cycles of 30 seconds ON
and 60 seconds OFF.
Tubing connecting refrigerator
to house supply valve is kinked.
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting in
reduced water flow. Straighten or repair the water
supply line and arrange it to prevent future kinks.
The house water supply is not
connected, the valve is not
turned on fully, or the valve is
clogged.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
59
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Ice has bad taste
or odor.
Water supply contains minerals
such as sulfur.
A water filter may need to be installed to
eliminate taste and odor problems.
NOTE: In some cases, a filter may not help. It
may not be possible to remove all minerals / odor
/ taste in all water supplies.
Icemaker was recently installed. Discard the first few batches of ice to avoid
discolored or bad tasting ice.
Ice has been stored for too
long.
Ice that has been stored for too long will shrink,
become cloudy, and may develop a stale taste.
Throw away old ice and make a new supply.
The food has not been stored
properly in either compartment.
Rewrap the food. Odors may migrate to the ice if
food is not wrapped properly.
The interior of the refrigerator
needs to be cleaned.
See the Care and Cleaning section for more
information.
The ice storage bin needs to be
cleaned.
Empty and wash the bin (discard old cubes).
Make sure that the bin is completely dry before
reinstalling it.
Dispensing warm
water.
Refrigerator was recently
installed.
Allow 24 hours after installation for the water
storage tank to cool completely.
The water dispenser has been
used recently and the storage
tank was exhausted.
Depending on your specific model, the water
storage capacity will range from approximately 20
to 30 oz.
Dispenser has not been used
for several hours.
If the dispenser has not been used for several
hours, the first glass dispensed may be warm.
Discard the first 10 oz.
Refrigerator is connected to the
hot water supply.
Make sure that the refrigerator is connected to a
cold water pipe.
WARNING: Connecting the refrigerator to a
hot water line may damage the icemaker.
Water has bad
taste or odor.
Water supply contains minerals
such as sulfur.
A water filter may need to be installed to
eliminate taste and odor problems.
Water filter has been exhausted. It is recommended that you replace the water
filter:
Approximately every 6 months.•
When the water filter indicator turns on.•
When the water dispenser output decreases. •
When the ice cubes are smaller than normal.•
Refrigerator was recently
installed.
Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped
air and contaminants from the system. Do
not dispense the entire 2.5 gallon amount
continuously. Depress and release the dispenser
pad for cycles of 30 seconds ON and 60 seconds
OFF.
60
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Icemaker is
making too much
ice.
Icemaker shutoff (arm/sensor)
is obstructed.
Empty the ice bin. If your icemaker is equipped
with an ice shutoff arm, make sure that the arm
moves freely. If your icemaker is equipped with
the electronic ice shutoff sensor, make sure that
there is a clear path between the two sensors.
Reinstall the ice bin and wait 24 hours to confirm
proper operation.
Clicking The defrost control will click
when the automatic defrost
cycle begins and ends.
The thermostat control (or
refrigerator control on some
models) will also click when
cycling on and off.
Normal Operation
Rattling Rattling noises may come from
the flow of refrigerant, the
water line on the back of the
unit, or items stored on top of
or around the refrigerator.
Normal Operation
Refrigerator is not resting solidly
on the floor.
Floor is weak or uneven or leveling legs need to
be adjusted. See the Door Alignment section.
Refrigerator with linear
compressor was jarred while
running.
Normal Operation
Whooshing Evaporator fan motor is
circulating air through the
refrigerator and freezer
compartments.
Normal Operation
Air is being forced over the
condenser by the condenser
fan.
Normal Operation
Gurgling Refrigerant flowing through the
cooling system.
Normal Operation
Popping Contraction and expansion of
the inside walls due to changes
in temperature.
Normal Operation
Sizzling Water dripping on the defrost
heater during a defrost cycle.
Normal Operation
Vibrating If the side or back of the
refrigerator is touching a cabinet
or wall, some of the normal
vibrations may make an audible
sound.
To eliminate the noise, make sure that the sides
and back cannot vibrate against any wall or
cabinet.
Dripping Water running into the drain pan
during the defrost cycle.
Normal Operation
61
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Pulsating or
High-Pitched
Sound
Your refrigerator is designed
to run more efficiently to keep
your food items at the desired
temperature. The high efficiency
compressor may cause your
new refrigerator to run longer
than your old one, but it is still
more energy efficient than
previous models. While the
refrigerator is running, it is
normal to hear a pulsating or
high-pitched sound.
Normal Operation
Doors will not
close correctly or
pop open.
Food packages are blocking the
door open.
Rearrange food containers to clear the door and
door shelves.
Ice bin, crisper cover, pans,
shelves, door bins, or baskets
are out of position.
Push bins all the way in and put crisper cover,
pans, shelves and baskets into their correct
positions. See the Using Your Refrigerator section
for more information.
The doors were removed during
product installation and not
properly replaced.
Remove and replace the doors according to the
Removing and Replacing Refrigerator Handles
and Doors section.
Refrigerator is not leveled
properly.
See Door Alignment in the Refrigerator Installation
section to level refrigerator.
Doors are difficult
to open.
The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they
touch. Rub a thin coat of appliance polish or
kitchen wax on the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create
a vacuum. If the door is hard to open, wait one
minute to allow the air pressure to equalize, then
see if it opens more easily.
Refrigerator
wobbles or
seems unstable.
Leveling legs are not adjusted
properly.
Refer to the Leveling and Door Alignment section.
Floor is not level. It may be necessary to add shims under the
leveling legs or rollers to complete installation.
Lights do not
work.
LED interior lighting failure. The refrigerator compartment lamp is LED interior
lighting, and service should be performed by a
qualified technician.
Refrigerator has
an unusual odor.
The Air Filter may need to
be set to the MAX setting or
replaced.
Set the Air Filter to the MAX setting. If the odor
does not go away within 24 hours, the filter may
need to be replaced. See the Replacing the Air
Filter section for replacement instructions.
The interior of
the refrigerator
is covered with
dust or soot.
The refrigerator is located near a
fire source, such as a fireplace,
chimney or candle.
Make sure that the refrigerator is not located
near a fire source, such as a fireplace, chimney or
candle.
62
WARRANTY
ENGLISH
Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under
normal home use, during the warranty period set forth below, LG will at its option repair or replace
the product. This limited warranty is valid only to the original retail purchaser of the product and
applies only when purchased and used within the United States including U.S. Territories. Proof of
original retail purchase is required to obtain warranty service under this limited warranty.
Noises associated with normal operation and failure to follow instructions found in the use and
care and installation guides or operating the unit in an unsuitable environment will not be covered
under this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty
period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED
BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE.
NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY
OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
Some states do
not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This
warranty gives you specific legal rights and you may also have other rights that vary from state
to state.
WARRANTY (USA)
WARRANTY PERIOD
Refrigerator
Sealed System
(Condenser, Dryer, Connecting Tube and
Evaporator)
Linear Compressor
One (1) year from
the date of original
retail purchase
One (1) year from the
date of original retail
purchase
Seven (7) years from
the date of original
retail purchase
Ten (10) years from the
date of original retail
purchase
Parts and Labor
(internal/functional
parts only)
Parts and Labor Parts only (Consumer
will be charged for
labor)
Part only (Consumer will
be charged for labor)
63
WARRANTY
ENGLISH
For complete warranty details and customer assistance, please call or visit our website:
Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate option from the
menu, or visit our website at
http://www.lg.com
Or by mail: LG Customer Information Center:
P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC
Write your warranty information below: _______________________________________________
Product Registration Information: _____________________________________________________
Model: ____________________________________________________________________________
Serial Number: _____________________________________________________________________
Date of Purchase: __________________________________________________________________
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on operation
of the product; repair or replace fuses or correct wiring or plumbing, or correction of unauthorized
repairs/installation.
2. Failure of product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate
or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the
instructions outlined in the product owner’s manual.
5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of
God.
6. Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair
includes use of parts not approved or specified by LG.
7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the
intended purpose, or any water leakage where the unit was not properly installed.
8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial
or industrial use, or use of accessories, components, or consumable cleaning products that are not
approved by LG.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the finish of your product, unless such damage results from defects in materials or
workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).
10. Damage or missing items to any display, open box, discounted, or refurbished product.
11. Products with original serial numbers that have been removed, altered, or can not be readily
determined. Model and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your product is used in other than normal and usual household use (e.g. commercial
use, offices, and recreational facilities) or contrary to the instructions outlined in the product owner’s
manual.
15. Costs associated with removal of your product from your home for repairs.
16. The removal and reinstallation of the product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including LG’s owner’s and installation
manuals.
17. Shelves, door bins, drawers, handles, accessories, and other parts besides those that were originally
included with this particular model.
18. Service trips to your home to teach you how to use the product.
19. Replacement of the water filter cartridge due to water pressure that is outside the specified
operating range or due to excessive sediment in the water supply.
The cost of repair or replacement under these excluded circumstances shall be borne
by the consumer.
64
WARRANTY
ENGLISH
WARRANTY (Canada)
WARRANTY
: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship
under normal home use during the warranty period set forth below, LG Canada will at its option
repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid
only to the original retail purchaser of the product and applies only to a Product distributed in Canada
by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products
located and used within Canada.
Noises associated with normal operation and failure to follow instructions found in the use and care
and installation guides or operating the unit in an unsuitable environment will not be covered under
this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty
period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT
AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS
ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND
NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT
AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY
OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT
ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL
NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT
DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES
OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY
CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR
OMISSIONS, TORT, OR OTHERWISE.
This warranty gives you specific legal rights. You may
have other rights which may vary from province to province depending on applicable provincial
laws. Any term of this warranty that negates or varies any implied condition or warranty under
provincial law is severable where it conflicts with provincial law without affecting the remainder
of this warranty’s terms.
WARRANTY PERIOD:
(Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
Refrigerator/
Freezer
Sealed System
(Condenser, Dryer, Connecting Tube and
Evaporator)
Linear Compressor
One (1) year from
the date of original
retail purchase
One (1) year from
the date of original
retail purchase
Seven (7) years from
the date of original
retail purchase
Ten (10) years from the
date of original retail
purchase
Parts and Labor
(internal/functional
parts only)
Parts and Labor Parts only (Consumer
will be charged for
labor)
Part only (Consumer will
be charged for labor)
65
WARRANTY
ENGLISH
For complete warranty details and customer assistance, please call or visit our website:
Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the
menu, or visit our website at
http://www.lg.com
Write your warranty information below: _________________________________________________
Product Registration Information: _______________________________________________________
Model: ______________________________________________________________________________
Serial Number: _______________________________________________________________________
Date of Purchase: ____________________________________________________________________
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of
the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of
unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical
service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate
or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the
instructions outlined in the Product owner’s manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of
God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the
Product. Improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its
intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes,
commercial or industrial use, or use of accessories, components, or cleaning products that are not
approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the finish of your product, unless such damage results from defects in materials or
workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily
determined. Model and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without
limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined
in the Product owner’s manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including the Product owner’s and
installation manuals.
17. Shelves, door bins, drawers, handles, and accessories to the Product. Also excluded are parts
besides those that were originally included with the Product.
18. Service trips to your home to teach you how to use the product.
19. Replacement of the water filter cartridge due to water pressure that is outside the specified
operating range or due to excessive sediment in the water supply.
All costs associated with the above excluded circumstances
shall be borne by the consumer.
