BOTTOM FREEZER
REFRIGERATOR
User’s Guide
Please read this guide thoroughly before operating and
keep it handy for reference at all times.
P/No. MFL51765501
2
TABLE OF CONTENTS
English Version 2
Safety Instructions 3–8
Parts and Features 9
Refrigerator Installation 10–17
Unpacking Your Refrigerator 10
Installation 10
Base Cover 10
Removing and Replacing
Your Refrigerator Handles
and Doors 11–16
Leveling and Door Alignment 17
Using Your Refrigerator 18–25
Ensuring Proper Air Circulation 18
Multi-Flow 18
Setting the Controls 18
Adjusting Control Settings 19
Food Storage Guide 19
Storing Frozen Food 20
❿❿
Refrigerator section
Refrigerator Shelves 21
Wine Holder 21
Crisper Humidity Control 22
Removing Crisper 22
Glide ‘N’ Serve 22
Modular Door Bin 23
Dairy Bin 23
Utility Bin 23
❿❿
Freezer section
Tilting Door 23
Ice Bin 24
Ice Making 24
Durabase 25
Durabase Divider 25
Pull out Drawer 25
Care and Cleaning 26–27
General Cleaning Tips 26
Outside 26
Inside Walls 26
Door Liner and Gaskets 26
Plastic Parts 26
Condenser Coils 26
Light Bulb Replacement 26–27
Power Interruptions 27
When you go on vacation 27
When you move 27
Troubleshooting Guide 28–31
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard signal word
DANGER, WARNING, CAUTION. These words mean:
BASIC SAFETY PRECAUTIONS
SAFETY MESSAGES
You will be killed or seriously injured if you don’t follow instructions.
You can
be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may
result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
3
WARNING
CAUTION
DANGER
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators are still dangerous…even if they will
sit for just a few days. If you are getting rid of
your old refrigerator, please follow the
instructions at right to help prevent accidents.
BEFORE YOU THROW
AWAY YOUR OLD
REFRIGERATOR OR
FREEZER
• Take off the doors.
• Leave the shelves in place so
that children may not easily
climb inside.
ww
DANGER:
RISK OF CHILD ENTRAPMENT
CFC DISPOSAL
Your old refrigerator may have a cooling system
that used CFCs (chlorofluorocarbons). CFCs are
believed to harm stratospheric ozone.
If you are throwing away your old refrigerator,
make sure the CFC refrigerant is removed for
proper disposal by a qualified servicer. If you
intentionally release this CFC refrigerant, you can
be subject to fines and imprisonment under
provisions of environmental legislation.
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion damage along its length or at either the
plug or connector end.
• When moving your refrigerator away from the wall,
be careful not to roll over or damage the power
cord.
• Keep fingers out of pinch point areas; clearances
between the doors and cabinet are necessarily
small. Be careful closing doors when children are
in the area.
• This refrigerator must be properly installed in
accordance with the Attention Installer
Instructions that were taped to the front of the
refrigerator.
• Don’t touch the lamp, in case of light on the long
time, Because it can be very hot.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69
says:
…You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they
are still cold—below 4°C.
…Thawed ground meats, poultry or fish that have
any off-odor or off-color should not be refrozen
and should not be eaten. Thawed ice cream
should be discarded. If the odor or color of any
food is poor or questionable, get rid of it.
The food may be dangerous to eat.
Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits,
vegetables and prepared foods. The eating quality
of red meats is affected less than that of many
other foods. Use refrozen foods as soon as
possible to save as much of their quality as you
can.
4
ww
WARNING
SAVE THESE INSTRUCTIONS
ww
WARNING
The dedicated outlet should be used.
• Using several devices at
one outlet may cause fire.
• The electric leakage
breaker may damage food
and the dispenser may be
leaked.
Do not allow the power plug to face upward
or to be squeezed at the back of the
refrigerator.
Water may be flown into or
the plug may be damaged,
which causes fire or
electric shock.
1. When connecting the power
To reduce the risk of fire, electric shock, or injury to persons when using your product,
basic safety precautions should be followed, including the following.
Read all instructions before using this appliance.
Do not allow the power cord bent or pressed
by the heavy object to
be damaged.
It may damage the power
cord to cause fire or electric
shock.
Do not extend or modify the length of the
power plug.
It causes electric shock or fire
by the electric damage of the
power cord or others.
IMPORTANT SAFETY INSTRUCTIONS
5

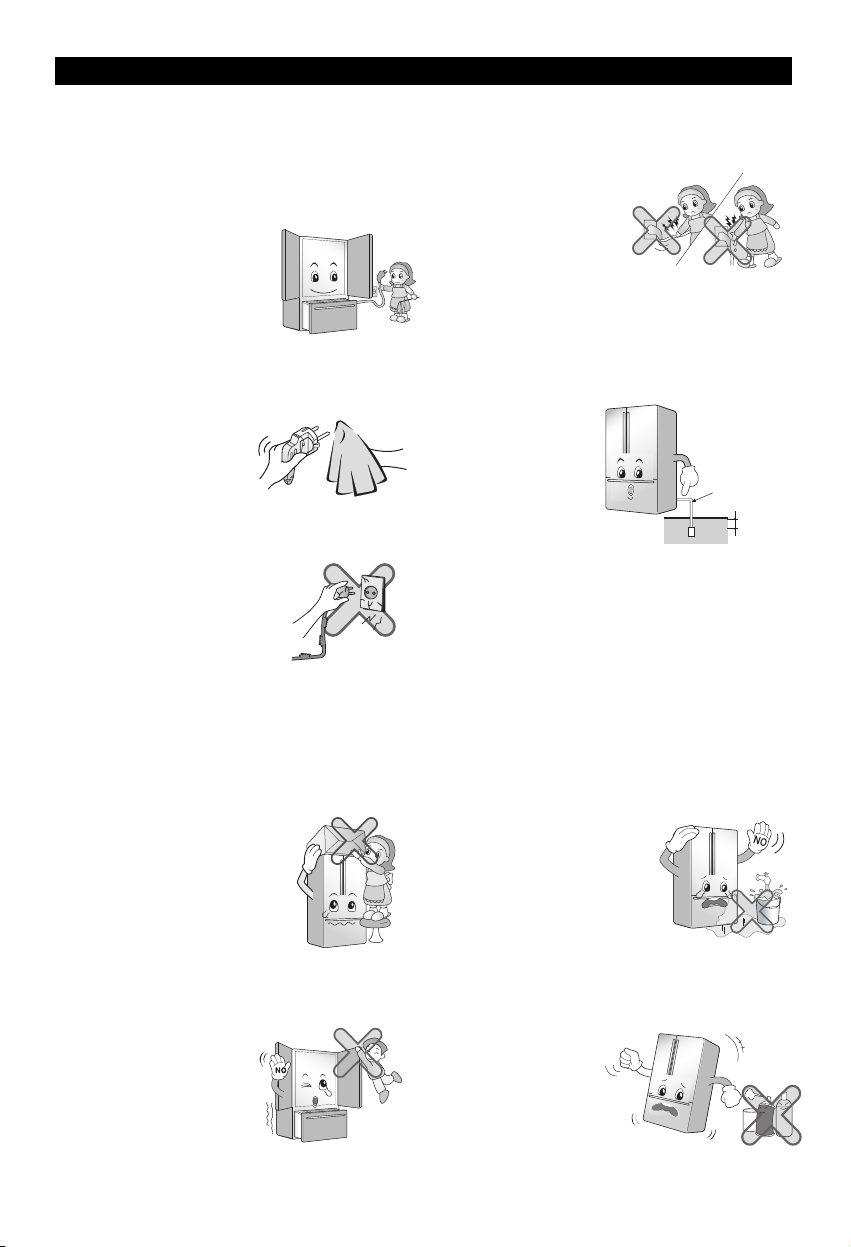

1. When connecting the power
Unplug the power plug when cleaning,
handling or replacing the interior lamp of the
refrigerator.
• It may cause electric shock or injury.
• When replacing the interior
lamp of the refrigerator, make
sure that the rubber ring for
preventing the electric spark
within the socket is not taken
off.
Do not pull out the cord or touch the power
plug with wet hands.
• It may cause electric
shock or injury.
Remove water or dust from the power plug
and insert it with the ends of the pins
securely connected.
Dust, water or unstable
connection may fire or
electric shock.
Make sure of grounding.
The incorrect grounding
may cause breakdown
and electric shock.
When the power cord or the power plug is
damaged or the holes of
the outlet are loosed, do
not use them.
It may cause electric shock or
short circuit to make fire.
Grounding
Conductor
Copper
flat
More than
75cm
Do not place the heavy object or the
dangerous object
(container with liquid) on
the refrigerator.
It may be dropped to cause injury,
fire or electric shock when
opening or closing the door.
Do not install the refrigerator in the wet
place or the place which
water or rain splashes.
Deterioration of insulation of
electric parts may cause
electric leakage.
2. When using the refrigerator
Do not cling to the door or the shelves of the
door or the home bar of the freezer or the
cool chamber.
It may make the refrigerator
fallen down or damage the
hands. Especially, do not
allow the children to do the
above.
Do not use or store inflammable materials
ether, benzene, alcohol, medicine, LP gas,
spray or cosmetics
near or in the
refrigerator.
It may cause explosion
or fire.
Benzene
Ether
Thinner
IMPORTANT SAFETY INSTRUCTIONS
6
Do not place the lit candle within the
refrigerator to deodorize.
It may cause explosion or fire.
Do not store the medicine or the academic
materials at the refrigerator.
When the material with the
strict temperature control is
stored, it may be
deteriorated or it may
make an unexpected
reaction to cause any risk.
Do not use the combustible spray near the
refrigerator.
It may cause fire.
The Academic
Medicine
The Medicine
Avoid the heating devices.
It may cause fire.
Do not place flower vase, cup, cosmetics,
medicine or any container
with water on the
refrigerator.
It may cause fire, electric shock
or injury by dropping down.
Use the submerged refrigerator after
checking it.
It may cause electric
shock or fire.
When gas is leaked, do not touch the
refrigerator or the outlet and ventilate the
room immediately.
• The explosion by spark may cause fire or burn.
• Because this refrigerator uses natural gas (isobutene,
R600a) as the environment-friendly refrigerant, even a
small amount (80~90g) is combustible. When the gas
is leaked by the severe damage during delivering,
installing or using the
refrigerator, any
spark may cause fire
or burn.
2. When using the refrigerator
IMPORTANT SAFETY INSTRUCTIONS
7

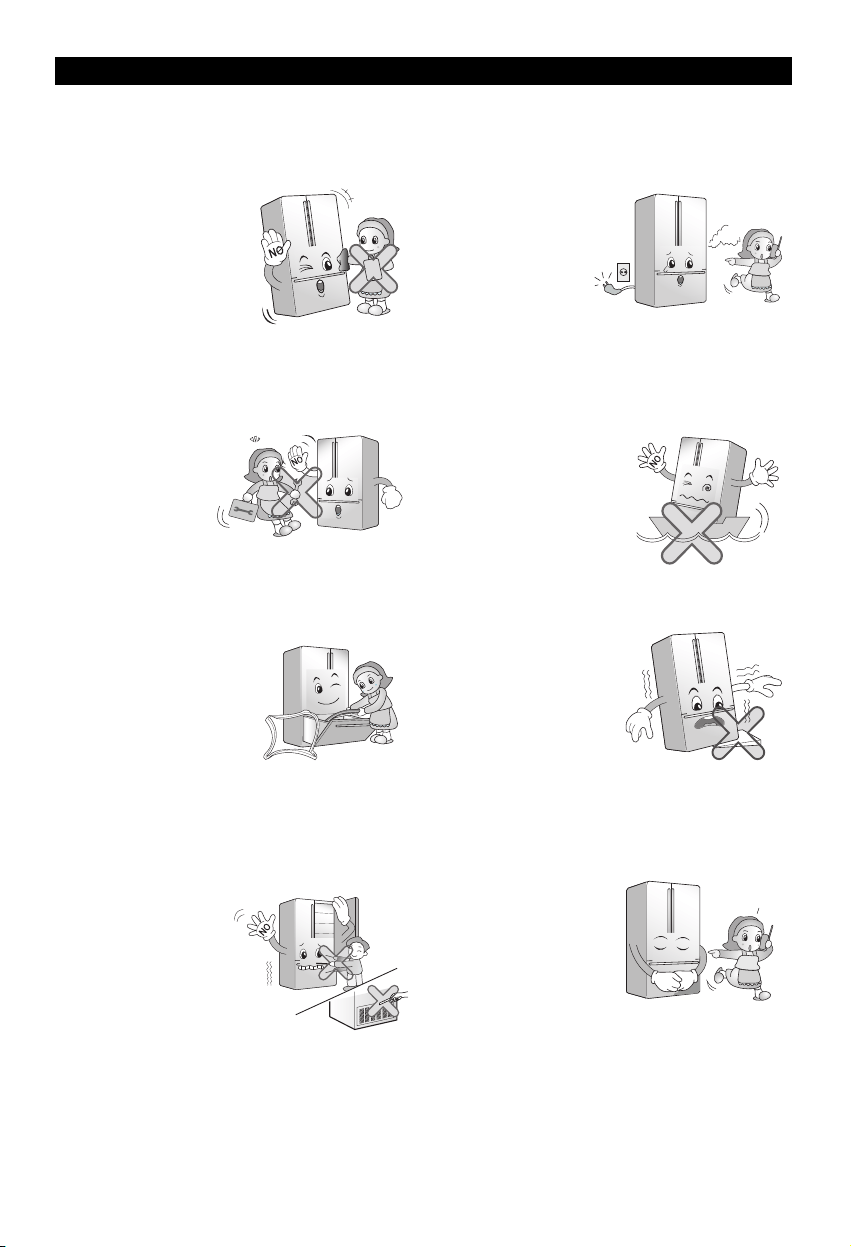

Do not spray water at the outside or the
inside of the refrigerator or do not clean it
with benzene or
thinner.
Deterioration of insulation of
electric parts may cause
electric shock or fire.
When any strange smell or smoke is
detected from the refrigerator, power plug
get rid of electric
outlet immediately
and contact to the
service center.
It may cause fire.
Thinner
Service
center
Do not allow any person except the qualified
engineer to disassemble, repair or alter the
refrigerator.
It may cause injury,
electric shock or fire.
Do not use the refrigerator for non-domestic
purpose (storing medicine or testing
material, using at the ship, etc.).
It may cause an unexpected
risk such as fire, electric
shock, deterioration of
stored material or chemical
reaction.
2. When using the refrigerator
When disposing the refrigerator, remove the
packing materials from
the door.
It may cause to lock out the
child.
Install the refrigerator on the solid and level
floor.
Installing it on the unstable
place may cause death by
falling down the
refrigerator when opening
or closing the door.
Do not insert the hands or the metal stick
into the exit of cool air, the cover, the bottom
of the refrigerator, the heatproof grill
(exhaust hole) at the
backside.
It may cause electric
shock or injury.
When you want to dispose the refrigerator,
contact to the local council.
When you want to dispose
the large living waste such
as electric home appliance
and furniture, you’d better
contact the local council.
Local council
ww
CAUTION
8
Violating this direction may cause injury or damage house or furniture. Always be careful, please.
Do not touch food or containers at the
freezer with wet hands.
It may cause frostbite.
Wait for 5 minutes or
longer when
reconnecting the plug.
It may cause the operation of
the freezer to fail.
After
5minutes
Pull out the power plug not by grasping
the cord but the plug
of its end.
It may cause electric shock
or short circuit to fire.
Do not put bottle in the freezer.
It may freeze the
contents to break the
bottle to cause injury.
Do not insert the hands into the bottom
of the refrigerator.
The iron plate of the
bottom may cause injury.
Do not install the refrigerator in the wet
place or the place
which water or rain
splashes.
Deterioration of insulation of
electric parts may cause
electric leakage.
Because opening or closing the door of
the refrigerator may cause injury to the
person around it, be careful, please.
Opening or closing the
door may cause feet or
hands to be caught in
the chink in door or the
child to be get hurt by
the corner.
Carry the refrigerator with the handle bar
at the bottom of the front and the top of
the rear.
Otherwise, your hands
may be slipped to
cause injury.
Do not put any living
animal in the
refrigerator.
PARTS AND FEATURES
Use this page to become more familiar with the parts and features.Page references are included for
your convenience.
NOTE: This guide covers several different models. The refrigerator you have purchased may
have some or all of the items listed below. The locations of the features shown below may not
match your model.
Digital Sensor Control
Modular Door Bins (p.23)
Shelves (p.21)
Crisper (p.22)
(Keeps fruits and vegetable fresh and crisper)
Glide ‘N’Serve (p.22)
Ice Tray(p.24)
Ice Bin (p.24)
Pull out Drawer (p.25)
Durabase (p.25)
Divider (p.25)
Dairy Bin (p.23)
Utility Bin (p.23)
Wine Holder (p.21)
9
A
B
C
D
E
F
G
H
I
K
J
L
M
L
M
A
B
C
D
E
F
G
K
B
H
I
J
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the TechSheet that is attached to back
wall of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator. For more information,
see the Important Safety Instructions section.
Refrigerator shelves are installed in the shipping
position.
Please reinstall shelves according to your
individual storage needs.
• To reduce the risk of electric shock, do not
install the refrigerator in a wet or damp area.
• Select a place where a water supply can be
easily connected for the automatic icemaker.
ww
CAUTION: Avoid placing the unit near heat
sources, direct sunlight or moisture.
INSTALLATION
• To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the refrigerator on a platform or
weakly supported structure.
1. To avoid vibration, the unit must be level. If
required, adjust the leveling screws to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling screws can be
turned easily by tipping the cabinet slightly. Turn
the leveling screws clockwise ( ) to raise the
unit, counterclockwise ( ) to lower it.
2. Install this appliance in an area where the
temperature is between 13°C and 43°C. If the
temperature around the appliance is too low or
high, cooling ability may be adversely affected.
3. Too small a distance from adjacent items may
result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 in. (61 cm) in front of the
refrigerator to open the doors.
NEXT
1. Clean your refrigerator thoroughly and wipe off
all dust accumulated during shipping.
2. Install accessories such as ice cube bin,
drawers, shelves, etc., in their proper places.
They are packed together to prevent possible
damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the flow of cold
air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
BASE COVER
To remove the base cover
1. Open the Freezer Drawer. (Drawer not shown
for clarity.)
2. Once drawer is open
there is sufficient
clearance to remove
screws on top of cover.
To replace base cover:
• Place cover into position and insert and tighten
screws.
REFRIGERATOR INSTALLATION
10
ww
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
ww
WARNING
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to
protect the floor. Always pull the refrigerator
straight out when moving it. Do not wiggle or
walk the refrigerator when trying to move it, as
floor damage could occur.
ww

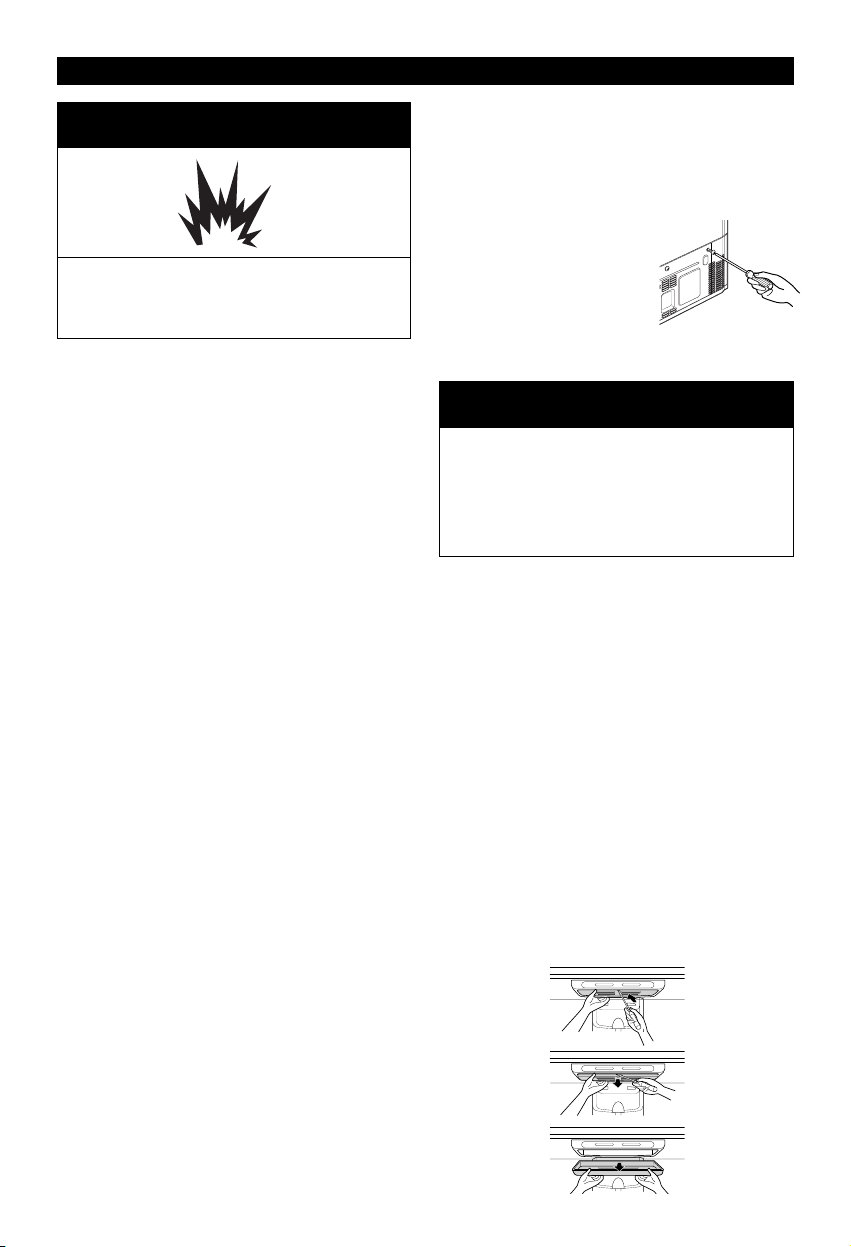

WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion
or fire.
2" (5 cm)
REFRIGERATOR INSTALLATION
HOW TO REMOVE DOOR HANDLES
To move refrigerator through a house door, it maybe necessary to remove refrigerator and freezer door
handles.
NOTE: Handle appearance may
vary from illustrations on this
page.
1. Removing Refrigerator Handle
• Loosen the set screws with the
3/32" Allen wrench and remove
the handle.
NOTE: If the handle mounting
fasteners need to be tightened
or removed, use a 1/4" Allen
wrench.
2. Removing Freezer Drawer
Handle
• Loosen the set screws located
on the lower side of the handle
with the 3/32" Allen wrench and
remove the handle.
NOTE: If the handle mounting
fasteners need to be tightened or
removed, use a 1/4" Allen
wrench.
11
Mounting
Fasteners
Set Screw
Allen
Wrench
REFRIGERATOR INSTALLATION

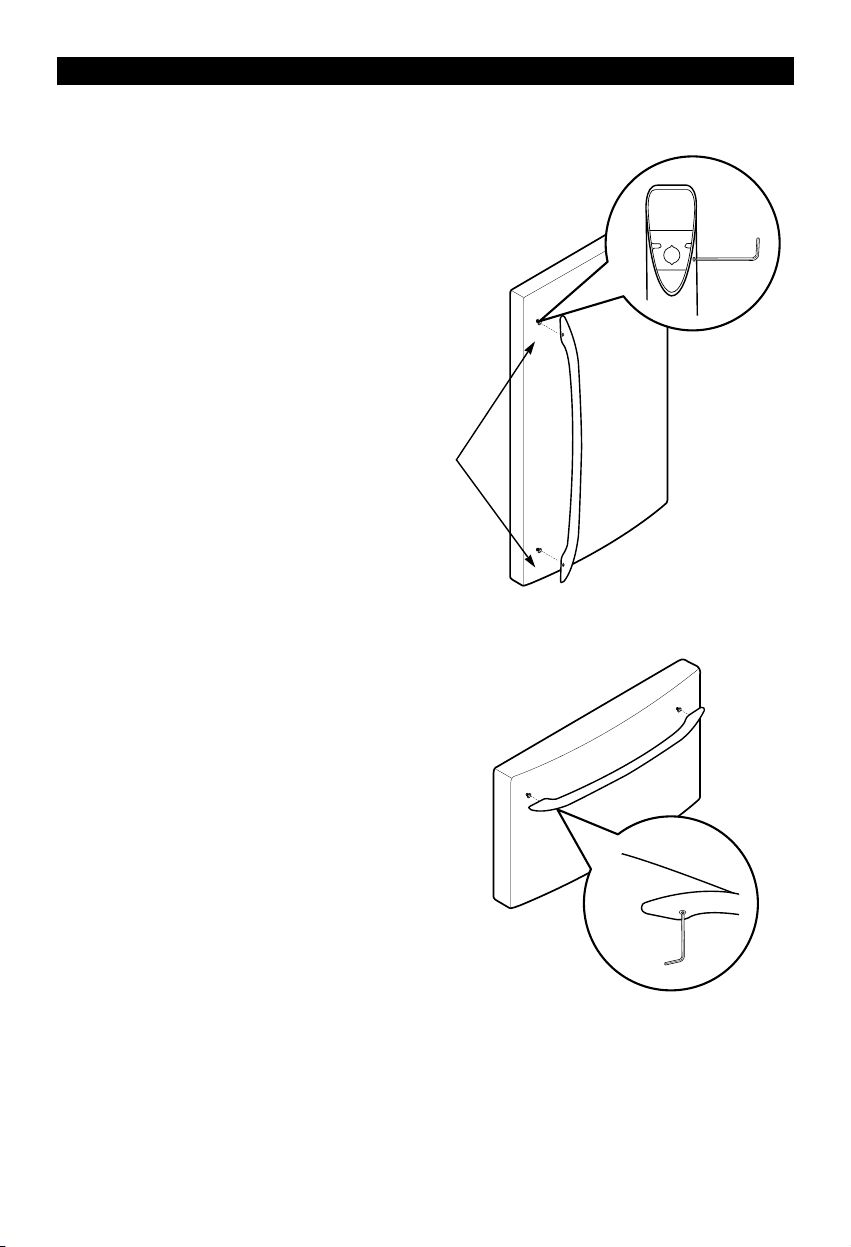

HOW TO REPLACE DOOR HANDLES
NOTE: Handle appearance may vary
from illustrations on this page.
1. Replacing Refrigerator Door
Handle
• Place the handle on the door by
adjusting handle footprints to fit
mounting fastners and tighten the
set screws with the 3/32" Allen
wrench.
NOTE: If the handle mounting
fasteners need to be tightened or
removed use a 1/4" Allen wrench.
2. Replacing Freezer Drawer Handle
• Place the handle on the door by
adjusting handle footprints to fit
mounting fastners and tighten the
set screws on the bottom of the
handle with a 3/32" Allen wrench.
NOTE: If the handle mounting
fasteners need to be tightened or
removed use a 1/4" Allen wrench.
12
Mounting
Fasteners
REFRIGERATOR INSTALLATION

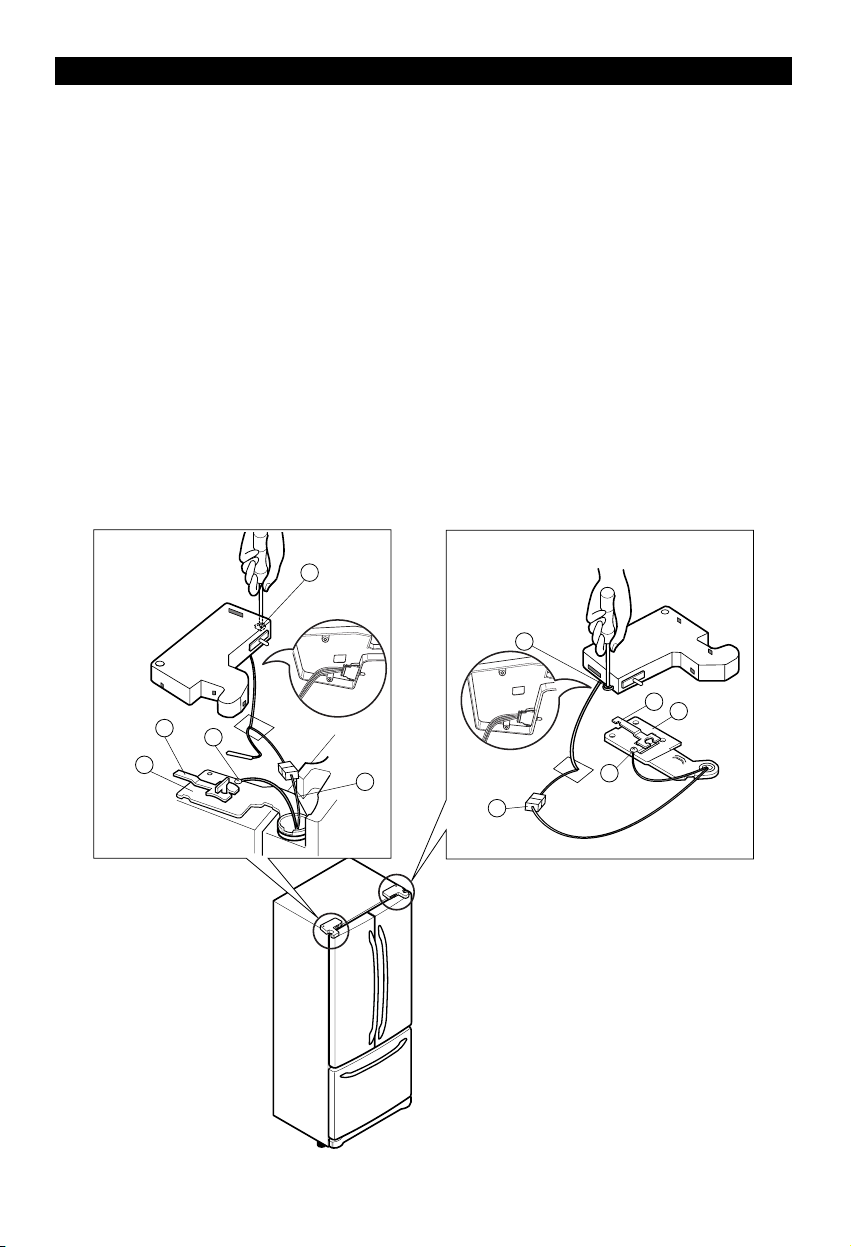

HOW TO REMOVE REFRIGERATOR DOOR
1. Removing Refrigerator Door
NOTE: Handle appearance may vary.
IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins
from doors.
❿ Left Door
• Loosen the cover screw (1).
• Disconnect wire harness (2).
• Remove the ground screw (3).
• Rotate the lever hinge (4) counter clockwise and lift off the top hinge (5).
• Raising it up enough to clear the middle hinge pins.
• Place the door on a non-scratching surface with the inside up.
❿ Right Door
• Remove the right door followed by the same way described above.
• Rotate the lever hinge (4) clockwise at this time, removing the top hinge (5).
ww
CAUTION: When removing top hinge, be careful that the door does not fall forward.
13
1
1
2
2
3
3
4
4
5
5
REFRIGERATOR INSTALLATION
2. Replacing Refrigerator Door
❿❿
Right Door
• Lower the door onto the middle
hinge pin (6).
• Make sure the door is aligned with
the cabinet.
• Replace the top hinge (5) by
rotating the lever hinge (4) counter
clockwise to secure it.
• Make sure the gasket on the door
is flush against the cabinet and is
not folded.
• Support the door on the handle
side while securing. And make sure
the door is straight and the gap
between the doors is even across
the front.
• Install the ground screw (3) and
connect the wire harness (2).
• Tighten the cover screw (1).
❿❿
Left Door
• Replace the left door followed by
the same way described above.
• When replacing the top hinge (5),
rotate the lever hinge (4) clockwise
at this time.
ww
CAUTION: Be careful of missing
the washer [part(7)]. Because it
can be easily taken off.
14
6
6
7
7

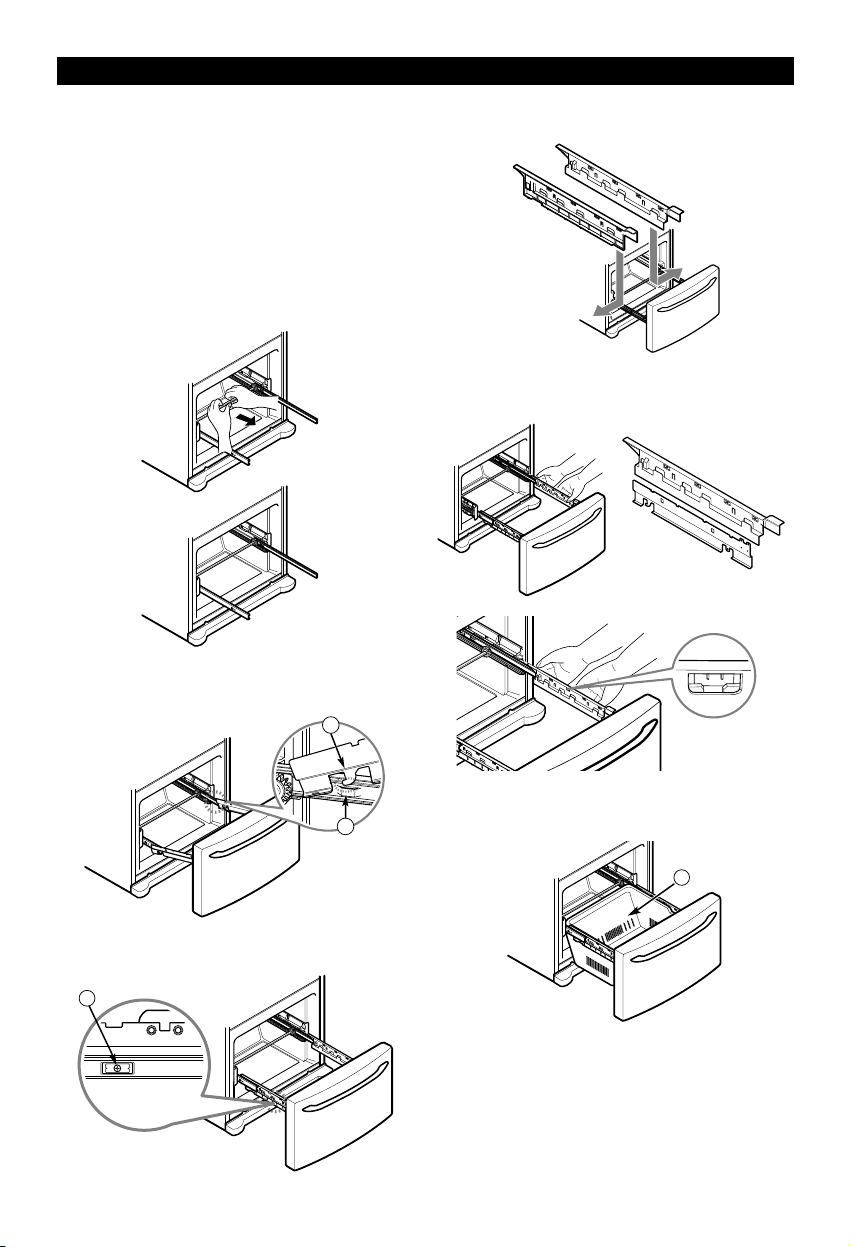

HOW TO REMOVE AND INSTALL
THE PULLOUT DRAWER
IMPORTANT: To avoid possible injury or product
or property damage, you will need two people to
perform the following instructions.
1. Removing Pullout Drawer
• Pull the drawer open to full extension. Remove the
lower basket (1) by lifting basket from rail system.
(If you tilt the door, it will be easier.)
• Press both hangers with your thumbs to lift it up.
• Separate the left and right rail cover.
• Remove the screws (2) of the rail on both sides.
• With both hands, hold both sides of the door
and pull it up to separate it from the rails.
• With both hands, hold the center bar and push it
in to let both rails fitted simultaneously.
ww
CAUTION: When you remove the drawer, do
not hold the handle. If it may come off and it
could cause personal injury.
ww
CAUTION: When laying the drawer down, be
careful not to damage the floor or hurt your
feet by the sharp edges on hinge side.
REFRIGERATOR INSTALLATION
1
2
15
REFRIGERATOR INSTALLATION
HOW TO REMOVE AND INSTALL
THE PULLOUT DRAWER
IMPORTANT: To avoid possible injury or product
or property damage, you will need two people to
perform the following instructions.
2. Installing Pullout Drawer
• With both hands, hold the center bar and push it
out to let both rails out to full extension
simultaneously.
• Hook door supports (1) into rail tabs (2).
• Lower door into final position and tighten the
screws (3).
• Make sure you have a right rail cover for each
side.
• Align the top holes of the rail cover with the top
holes of the door supports to assemble the rail
covers.
• With the drawer pulled out to full extension,
insert the lower basket (4) in the rail assembly.
ww
WARNING: To prevent accidental child and
pet entrapment or suffocation risk. DO NOT
allow them to play inside of drawer.
ww
WARNING: DO NOT step or sit down on
freezer door.
16
4
2
1
3
Right
Rail Cover
Left
Rail Cover
Assembly Hole
REFRIGERATOR INSTALLATION
LEVELING AND DOOR ALIGNMENT
Leveling
Your refrigerator has two front leveling screws—
one on the right and one on the left. If your
refrigerator seems unsteady or you want the
doors to close easier, adjust the refrigerator’s tilt
using the instructions below:
1. Plug the refrigerator’s power cord grounded
outlet. Move the refrigerator into its final
position.
2. Turn the leveling screw clockwise to raise that
side of the refrigerator or counterclockwise to
lower it. It may take several turns of the
leveling screw to adjust the tilt of the
refrigerator.
NOTE: Having someone push against the top
of the refrigerator takes some weight off the
leveling screws. This makes it easier to adjust
the screws.
3. Open both doors again and check to make
sure that they close easily. If not, tilt the
refrigerator slightly more to the rear by turning
both leveling screws clockwise. It may take
several more turns, and you should turn both
leveling screws the same amount.
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely
designed with two fresh food doors. Either door
can be opened or closed independently of one
another. You may have to exert slight pressure
on doors to get them to close completely.
Door Alignment
If the space between your doors is uneven, follow
the instructions below to align the doors:
1. With one hand, lift up the door you want to
raise at middle hinge.
2. With other hand, use pliers to insert snap ring
as shown.
3. Insert additional snap rings until the doors are
aligned. (Three snap rings are provided with
unit.)
17
USING YOUR REFRIGERATOR

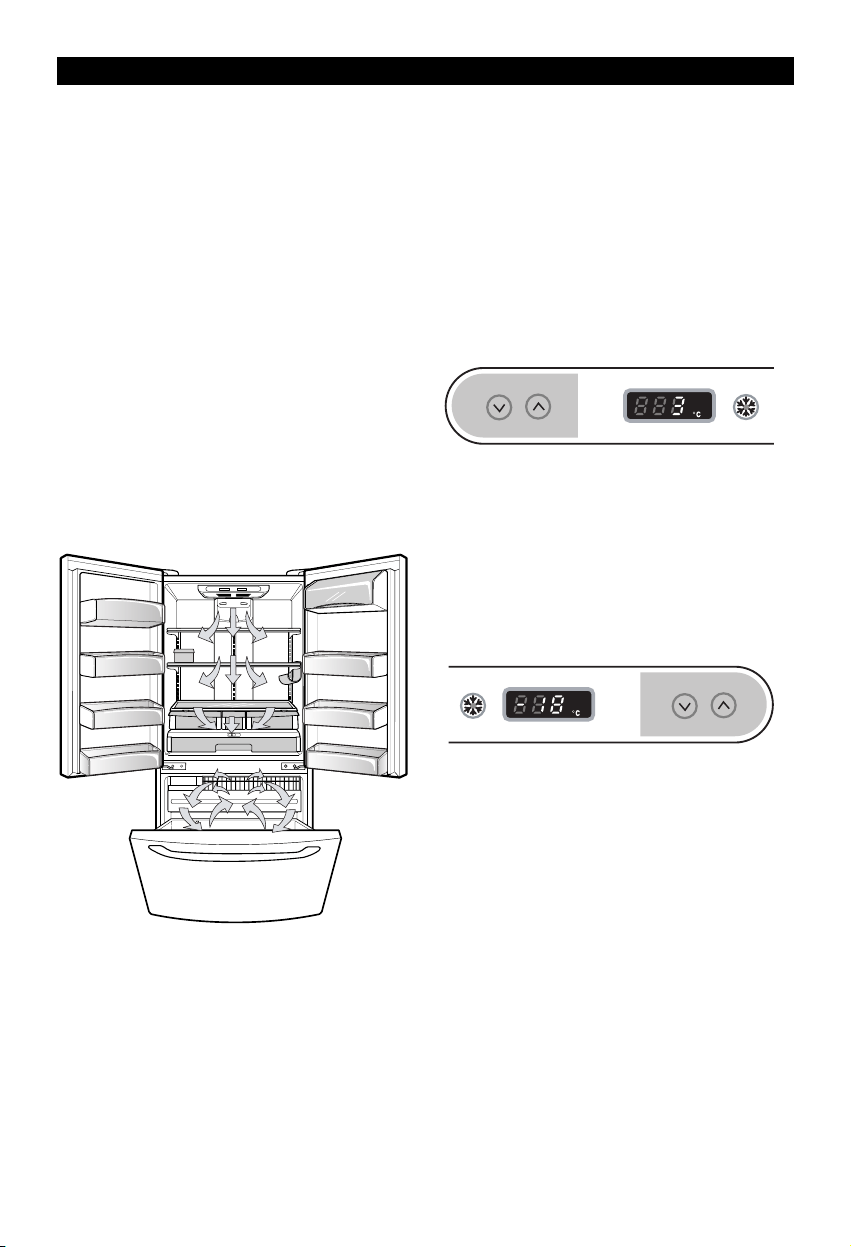

ENSURING PROPER AIR
CIRCULATION
In order to ensure proper temperatures, air must
flow between the refrigerator and freezer
sections. As shown in the illustration below, air
enters at top of freezer and circulates down.
From bottom of freezer, air is forced up to top of
refrigerator. Air enters refrigerator through top
vent, then circulates and exists at bottom, where
it returns to freezer.
MULTI-FLOW
• Multi-Flow means powerful and effective cooling
operation. This is especially noticeable when
new food is placed in the refrigerator
compartment.
• If water or foreign substances enter the cool air
vent while cleaning, efficiency will be lowered. In
addition, if gasket is damaged, efficiency may
be lowered because of escaping cool air.
Do not block any of cool air vents with food
packages. If the vents are blocked, airflow will be
interrupted and temperature and moisture
problems may occur.
IMPORTANT: Because air circulates between
both sections, any odors formed in one section
will transfer to the other. You must thoroughly
clean both sections to eliminate odors. To
prevent odor transfer and drying out of food, wrap
or cover foods tightly. (See the Food Storage
Guide section for details.)
SETTING THE CONTROLS
• Your refrigerator has two controls that let you
regulate the temperature in the freezer and
refrigerator compartments.
• Initially set the REFRIGERATOR CONTROL at
3°C and the FREEZER CONTROL at –18°C.
Leave it at this setting for 24 hours (one day) to
stabilize. Then adjust the compartment
temperature as desired.
• Refrigerator control: 0°C to 8°C
The lower the number setting, the colder the
refrigerator compartment will become.
• Freezer control: –21°C to –13°C
When the setting is at a lower number, the
freezer compartment becomes colder. But the
refrigerator compartment becomes warmer
because less cold air flows into the refrigerator.
• Express Freezing:
Press the Express Freezing key and the LED
will turn on. This function will remain activated
for 24 hours and intensify the cooling speed of
freezer and increase the amount of ice.
18
REFRIGERATOR TEMP
COLDER WARMER 3 °C IS RECOMMENDED
EXPRESS
FREEZING
-18 °C IS RECOMMENDED
FREEZER TEMP
COLDER WARMER
EXPRESS
FREEZING
USING YOUR REFRIGERATOR
19
CONDITION/
REASON:
■ REFRIGERATOR section
too warm
– Door opened often
– Large amount of food
added
– Room temperature very
warm
■ FREEZER section too
warm/ice not made fast
enough
– Door opened often
– Large amount of food
added
– Very cold room
temperature (can’t cycle
often enough)
– Heavy ice usage
– Air vents blocked by items
■ REFRIGERATOR section
too cold
– Controls not set correctly
for your conditions
■ FREEZER section too
cold
– Controls not set correctly
for your conditions
RECOMMENDED
ADJUSTMENT:
Set
REFRIGERATOR
control to next
lower number,
wait 24 hours,
then re-check
Set FREEZER
control to next
lower number,
wait 24 hours,
then re-check
Move items out of
airstream
Set
REFRIGERATOR
control to next
higher number,
wait 24 hours,
then re-check
Set FREEZER
control to next
higher number,
wait 24 hours,
then re-check
Items
Butter or
margarine
Cheese
Milk
Eggs
Fruit
Leafy
vegetables
Vegetables
with skins
(carrots,
peppers)
Fish
Leftovers
How to
❿ Keep opened butter in a
covered dish or closed
compartment. When storing an
extra supply, wrap in freezer
packaging and freeze.
❿ Store in the original wrapping
until you are ready to use it.
Once opened, rewrap tightly in
plastic wrap or aluminum foil.
❿ Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
❿ Store in original carton or
Utility Bin on interior shelf, not
on door shelf.
❿ Wash, let dry, and store in
refrigerator in plastic bags or
in the crisper. Do not wash or
hull berries until you are ready
to use them. Sort and keep
berries in their original
container in a crisper, or store
in a sloosely closed paper bag
on a refrigerator shelf.
❿ Remove store wrapping and
trim or tear off bruised and
discolored areas. Wash in cold
water and drain. Place in
plastic bag or plastic container
and store in crisper.
❿ Place in plastic bags or plastic
container and store in crisper.
❿ Use fresh fish and shellfish the
same day purchased.
❿ Cover leftovers with plastic
wrap or aluminum foil. Plastic
containers with tight lids can
also be used.
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely
before making final adjustments. It is best to wait
24 hours before doing this. The mid-settings
indicated in the previous section should be
correct for normal household refrigerator usage.
The controls are set correctly when milk or juice
is as cold as you like and when ice cream is firm.
The refrigerator control functions as the
thermostat for the entire appliance (refrigerator
and freezer sections). The higher the number
setting, the longer the compressor will run to
keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the
refrigerator or freezer, start by adjusting the
refrigerator. Then wait 24 hours before checking
the freezer temperature. If it is too warm or too
cold, then adjust the freezer control.
Use the settings listed in the chart below as a
guide. Always remember to wait at least 24
hours between adjustments.
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight
and moisture-proof material unless otherwise
noted. This prevents food odor and taste transfer
throughout the refrigerator. For dated products,
check date code to ensure freshness.
USING YOUR REFRIGERATOR
STORING FROZEN FOOD
NOTE: For further information about preparing
food for freezing or food storage times, check a
freezer guide or a reliable cookbook.
Packaging
Successful freezing depends on correct
packaging. When you close and seal the
package, it must not allow air or moisture in or
out. If it does, you could have food odor and taste
transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for
proper freezing methods.
Do not use:
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
ww
CAUTION: Do not keep beverage cans or
plastic food containers in the freezer
compartment. They may be break if it freezes.
Freezing
Your freezer will not quick-freeze any large
quantity of food. Do not put more unfrozen food
into the freezer than will freeze within 24 hours.
Leave enough space in the freezer for air to
circulate around packages. Be careful to leave
enough room at the front so the door can close
tightly.
Storage times will vary according to the quality
and type of food, the type of packaging or wrap
used (airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package
are normal. This simply means that moisture in
the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room
temperature for 30 minutes, then package and
freeze. Cooling hot foods before freezing saves
energy.
20
USING YOUR REFRIGERATOR
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to
meet your individual storage needs. Your model
may have glass or wire shelves.
Storing similar food items together in your
refrigerator and adjusting the shelves to fit
different heights of items will make finding the
exact item you want easier; it will also reduce the
amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with
warm water when they are cold. Shelves may
break if exposed to sudden temperature changes
or impact, such as bumping. For your protection,
glass shelves are made with tempered glass,
which will shatter into small pebble-sized pieces.
NOTE: Glass shelves are heavy. Use special
care when removing them to avoid dropping
them.
Adjusting Shelves
Remove shelves from the shipping position and
replace shelves in the position you want.
• To remove a shelf—Tilt up the front of the shelf
in the direction of (1) and lift it in the direction of
(2). Pull the shelf out.
• To reinstall a shelf—Tilt the front of the shelf
up and guide the shelf hooks into the slots at a
desired height. Then lower the front of the shelf
so that the hooks drop into the slots.
ww
CAUTION : Make sure that shelves are level
from one side to the other. Failure to do so
may result in the shelf falling or spilling food.
Sliding Out Shelves
You can slide glass shelves in and out of your
refrigerator as follows.
• To slide the shelf out, carefully pull front of
shelf toward you.
• To slide shelf in, push shelf in until it stops.
WINE HOLDER
Bottles can be stored laterally with this wine
holder. This can be attached to any shelf.
Wine holder adjustment
Wine holder can be separated by pulling it
straight out and installed by placing it at the end
of the shelf you want and pushing it inward.
21
USING YOUR REFRIGERATOR
CRISPER HUMIDITY CONTROL
You can control the amount of humidity in the
moisture-sealed crispers. Store vegetables or
fruits requiring more or less humidity in separate
crispers. Adjust the control to any setting
between HIGH and LOW.
• LOW lets moist air out of the crisper for best
storage of fruits.
• HIGH keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
ww
CAUTION : The glass shelf over the crisper is
not firmly secured. Be careful when tilting.

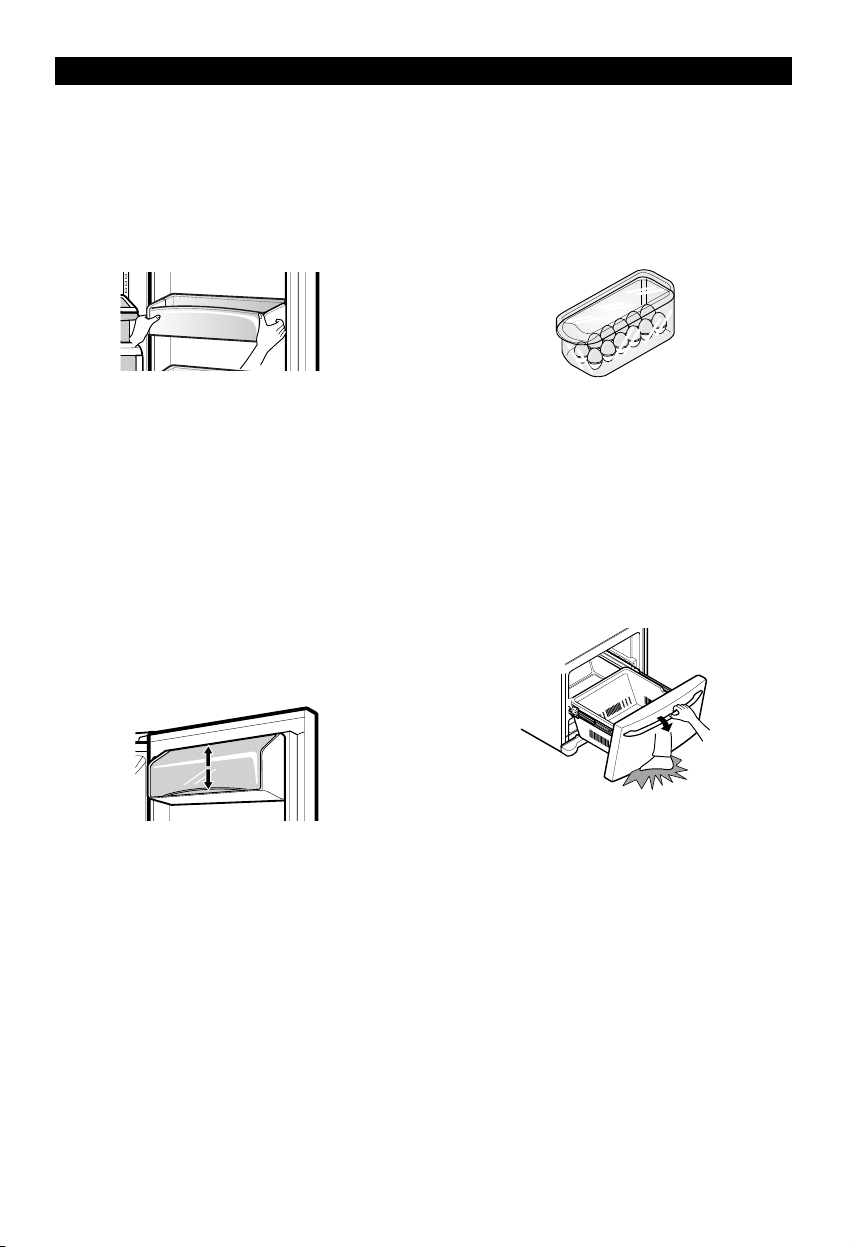

REMOVING CRISPER
1. To remove, pull the drawer out to full
extension.
2. Lift the front of the crisper up, then pull it
straight out.
3.
To install, slightly tilt up the front and insert the
drawer into the frame and push it back into place.
To remove the glass
1. Lift up the glass under the crisper cover.
2. Pull the glass up and out.
GLIDE‘N’SERVE
The Glide‘N’Serve provides storage space with a
variable temperature control that keeps the
compartment colder than refrigerator.
This drawer can be used for large party trays, deli
items, or beverages.
Controls
The control regulates the air temperature in the
drawer. Set control level to COLD (print on
surface) to provide normal refrigerator
temperature. Use the COLDER (print on surface)
setting for meats or other deli items.
NOTE: Cold air directed to the Glide‘N’Serve can
decrease refrigerator temperature. Refrigerator
control may need to be adjusted.
To replace Glide‘N’Serve
1. To remove, pull the drawer out to full
extension.
2. Lift the front of the drawer up, then pull it
straight out.
3. To install, slightly tilt up the front and insert the
drawer into the frame and push it back into
place.
22
1
USING YOUR REFRIGERATOR
MODULAR DOOR BIN
The door bins are removable for easy cleaning
and adjusting.
1. To remove the bin, simply lift the bin up and
pull straight out.
2. To replace the bin, slide it in above the desired
support button and push down until it stops.
ww
WARNING : Somebody can be hurt if door
bins are not firmly assembled.
ww
NOTE : DO NOT adjust a bin that is loaded
with food.
ww
CAUTION : DO NOT allow children to play
with baskets. Sharp corners on baskets could
cause injury.
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull
straight out.
2. To replace the dairy bin, slide it in above the
desired location and push down until it stops.
UTILITY BIN
Store the utility bin on interior shelf, not on door
shelf.
ww
CAUTION : Do not use the utility bin as an ice
storage bin in the freezer compartment. The
utility bin can easily break if it freezes.
FREEZER SECTION
TILTING DOOR
The tilting door provides easy access for stored
foods.
How to use:
Tilt the door down and pull it out.
ww
WARNING: Be careful when you open tilting
door so that you do not injure your foot!
23
USING YOUR REFRIGERATOR
ICE BIN
1. To separate the ice bin, pull out the drawer as
much as possible.
2. Gently lift and pull out the ice bin.
3. To install, pull out the drawer as much as
possible and set the ice bin in its correct
position, then push in the drawer.
ICE MAKING
When making Ice
1. To make ice cubes, fill the ice tray with water
and place it on the Ice cube box. Then insert
the ice cube box in the freezer compartment.
2. To remove ice cubes, hold the tray at its ends
and twist gently.
24
Ice Tray
Ice Bin
ICE BIN
DRAWER
USING YOUR REFRIGERATOR
DURABASE
1. To remove the Durabase, push it back to the
end as much as possible. Tilt up the front of
the Durabase and pull straight out.
2. To install, insert the Durabase in rail assembly.
ww
WARNING: When the guide of the freezer
drawer is removed, children may crawl inside.
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections.
1. To remove, pull divider staight up.
2. To install, hook top corners of divider over top
edge of durabase.
ww
WARNING: If the Durabase divider is
removed, there is enough open space for
children or pets to crawl inside. To prevent
accidental child and pet entrapment or
suffocation risk, DO NOT allow them to play
inside of drawer.
PULL OUT DRAWER
To separate the drawer, push the front left and
right hooks in direction to pull up and remove.
Then gently lift the gear part of rear left and right
side of the drawer and pull it out in direction.
To install, reposition the gear part of rear left and
right side of the drawer after pulling out both rails
as much as possible, and gently push down both
left and right side while checking the hook on the
front part.
25
1
2
2
3
1
Hook
CARE AND CLEANING
Both the refrigerator and freezer sections defrost
automatically. However,clean both sections about
once a month to prevent odors. Wipe up spills
immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild
detergent in warm water.Do not use abrasive or
harsh cleaners.
• Hand wash, rinse and dry all surfaces
thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps
provide rust protection. Do not wax plastic parts.
Wax painted metal surfaces at least twice a year
using appliance wax (or auto paste wax). Apply
wax with a clean, soft cloth.
For products with a stainless steel exterior, use a
clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh
cleaners. Dry thoroughly with a soft cloth.
INSIDE WALLS (allow freezer to
warm up so cloth won’t stick)
To help remove odors, you can wash the inside
of the refrigerator with a mixture of baking soda
and warm water. Mix 2 tablespoons baking soda
to 1 quart of water (26 g soda to 1 liter water.) Be
sure the baking soda is completely dissolved so
does it not scratch the surfaces of the
refrigerator.
ww
CAUTION: While cleaning the inside, do not
spray water.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated
detergents, bleaches, or cleaners containing
petroleum on plastic refrigerator parts.
PLASTIC PARTS (covers and panels)
Do not use window sprays, abrasive cleansers, or
flammable fluids. These can scratch or damage the
material.
CONDENSER COILS
Remove Back cover.
Use a vacuum cleaner with an
