Welch Allyn
®
Connex
®
ProBP™ 3400
digital blood pressure device
Instructions for use
Software version 1.04.XX
© 2021 Hillrom. All rights are reserved. To support the intended use of the product described in this publication, the
purchaser of the product is permitted to copy this publication, for internal distribution only, from the media provided
by Hillrom. No other use, reproduction, or distribution of this publication, or any part of it, is permitted without
written permission from Hillrom.
Hillrom assumes no responsibility for any injury to anyone, or for any illegal or improper use of the product, that may
result from failure to use this product in accordance with the instructions, cautions, warnings, or statement of
intended use published in this manual.
Welch Allyn, SureBP Technology, and Welch Allyn FlexiPort are registered trademarks of Welch Allyn. The Bluetooth®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Welch
Allyn is under license.
Software in this product is Copyright 2021 Welch Allyn or its vendors. All rights are reserved. The software is protected
by United States of America copyright laws and international treaty provisions applicable worldwide. Under such
laws, the licensee is entitled to use the copy of the software incorporated with this instrument as intended in the
operation of the product in which it is embedded. The software may not be copied, decompiled, reverse-engineered,
disassembled, or otherwise reduced to human-perceivable form. This is not a sale of the software or any copy of the
software; all right, title, and ownership of the software remain with Welch Allyn or its vendors.
For information about any Welch Allyn product, contact Hillrom Technical Support http://www.hillrom.com/en/
about-us/locations.html.
80028319 Ver. A Revision date: 2021-04
This manual applies to 901055 DIGITAL BLOOD PRESSURE
DEVICE
Welch Allyn, Inc.
4341 State Street Road
Skaneateles Falls, NY 13153 USA
hillrom.com
Welch Allyn, Inc. is a subsidiary of Hillrom Holdings, Inc.
PATENTS hillrom.com/patents
May be covered by one or more patents. See above Internet address.
The Hill-Rom companies are the proprietors of European, US, and other
patents and pending patent applications.
AND EU IMPORTER
Welch Allyn Limited
Navan Business Park, Dublin Road,
Navan, County Meath, C15 AW22
Ireland
Authorized Australian Sponsor
Welch Allyn Australia Pty. Ltd.
Unit 4.01, 2-4 Lyonpark Road
Macquarie Park, NSW 2113
Phone 1800 650 083
Contents
Initial device setup .................................................................................................................... 1
Introduction ................................................................................................................................. 3
Intended use ........................................................................................................................................................................... 3
Symbols ......................................................................................................................................... 5
General warnings and cautions ............................................................................................ 9
NIBP warnings and cautions ................................................................................................ 13
Contents checklist ................................................................................................................... 15
Controls and indicators ......................................................................................................... 17
Screen elements ....................................................................................................................... 19
Connections ............................................................................................................................... 21
Blood pressure hose and cuff .............................................................................................. 23
Blood pressure cuff selection .................................................................................................................................... 23
Power transformer .................................................................................................................. 25
Power transformer and wall plug ........................................................................................................................... 25
Charge the device ............................................................................................................................................................ 26
Setup ............................................................................................................................................ 27
Insert the battery ............................................................................................................................................................... 27
Assemble power cord and wall plug/line cord assembly ....................................................................... 28
Charge the ProBP 3400 .................................................................................................................................................. 28
Mount the device .............................................................................................................................................................. 29
Initial startup ........................................................................................................................................................................ 29
iii
Battery ........................................................................................................................................ 31
Startup ......................................................................................................................................... 33
Blood pressure procedure .................................................................................................... 35
Blood pressure measurement ................................................................................................................................... 35
Obtain blood pressure measurement .................................................................................................................. 36
Settings ....................................................................................................................................... 37
Settings matrix .................................................................................................................................................................... 37
Unit of measure .................................................................................................................................................................. 37
Pressure presets ................................................................................................................................................................. 38
Bluetooth wireless technology ................................................................................................................................. 38
Advanced settings ............................................................................................................................................................ 39
Data review ................................................................................................................................ 43
Review data .......................................................................................................................................................................... 43
Delete data ............................................................................................................................................................................ 43
Maintenance and service ...................................................................................................... 45
Inspection .............................................................................................................................................................................. 45
Calibrate the device ......................................................................................................................................................... 45
Change the battery .......................................................................................................................................................... 45
Clean the device ................................................................................................................................................................ 46
Specifications ............................................................................................................................ 49
Physical specifications .................................................................................................................................................... 49
Mechanical specifications ............................................................................................................................................ 49
Electrical specifications .................................................................................................................................................. 50
Environmental specifications .................................................................................................................................... 50
Product disposal ................................................................................................................................................................ 52
Standards and compliance .................................................................................................. 53
General safety compliance .......................................................................................................................................... 53
General radio compliance ........................................................................................................................................... 53
Guidance and manufacturer's declaration ..................................................................... 55
EMC compliance ................................................................................................................................................................ 55
Emissions and immunity information .................................................................................................................. 56
Warranty ..................................................................................................................................... 63
Troubleshooting ..................................................................................................................... 65
Inaccurate blood pressure readings ...................................................................................................................... 65
Cuff inflation and deflation with no blood pressure reading displayed ......................................... 66
No cuff inflation ................................................................................................................................................................ 67
Cuff pops off ......................................................................................................................................................................... 67
Cuff deflating too slowly ............................................................................................................................................... 67
Device does not turn on ............................................................................................................................................... 68
Bluetooth troubleshooting ......................................................................................................................................... 68
iv Contents Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Appendix .................................................................................................................................... 71
ProBP 3400 approved accessories .......................................................................................................................... 71
Configuration options .................................................................................................................................................... 73
Instructions for use Contents v
vi Contents Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Initial device setup
Before using ProBP 3400 digital blood pressure device (ProBP 3400) for the first time, you must
configure the device for use. See Setup for additional information.
1
2 Initial device setup Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Introduction
This Instructions for use manual is a comprehensive guide designed to help you understand the
capabilities and operation of the ProBP 3400 non-invasive blood pressure device. The information
in this manual includes all options available with the device. Read this manual thoroughly before
attempting to setup, configure, use, troubleshoot, or maintain the device.
Intended use
The ProBP 3400 automatically measures systolic and diastolic pressure (excluding neonates) and
pulse rate, as well as calculates Mean Arterial Pressure (MAP).
The device is intended to be used by clinicians and medically qualified personnel. It is available for
sale only upon the order of a physician or licensed health care provider.
This device is not intended for use on neonates, infants, or children under the age of 3 years. The
effectiveness of this device has not been established in pregnant, including pre-eclamptic, patients.
3
4 Introduction Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Symbols
For information on the origin of these symbols, see the Welch Allyn symbols glossary:
welchallyn.com/symbolsglossary
Documentation symbols
WARNING The warning statements in this manual identify conditions or practices that could
lead to illness, injury, or death.
CAUTION The caution statements in this manual identify conditions or practices that could
result in damage to the equipment or other property, or loss of data.
Follow instructions for use (IFU) -- mandatory action. A copy of the IFU is available on this
website. A printed copy of the IFU can be ordered from Welch Allyn for delivery within 7
calendar days.
Power symbols
(green indicator) External power present,
battery charged
Battery charging
(amber indicator) External power present,
battery is charging
Rechargeable battery
No external power present Battery charge level
Button symbols
Power on/standby Return to previous screen
5
Blood Pressure Start/Stop Select
Navigation (Up, Down, Left, Right)
Shipping, storing, and environment symbols
Fragile; handle with care Humidity limitation
Temperature limits
Lithium-ion battery
Recovery/Recyclable Separate collection of
Electrical and
Electronic Equipment.
Do not dispose as
unsorted municipal
waste.
This end up Keep dry
IPXØ Equipment is not protected against the ingress of
liquid
Global Trade Item
Number
Connectivity symbols
Bluetooth® wireless technology enabled USB connection
Devices are connected via Bluetooth wireless
technology
Bluetooth radio is disabled
or not paired
Miscellaneous symbols
Meets essential requirements of European Medical
Device Directive 93/42/EEC
Authorized Representative
in the European
Community.
6 Symbols Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Product Identifier Medical device
Wireless radio alert in Europe. European
Communities Class 1 radio equipment.
Australian
Communications and
Media Authority (ACMA)
Radio Compliance Mark
(RCM).
Intertek ETL listed Type BF applied parts
Class II equipment For Use by or on the order
of a licensed medical
professional.
Serial number Manufacturer
Reorder number Call for maintenance
Non-ionizing electromagnetic radiation Mass in kilograms (kg)
Instructions for use Symbols 7
8 Symbols Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
General warnings and cautions
WARNING The information in this instructions for use is a comprehensive guide
to the operation of ProBP 3400. For best results, read this instructions for use
thoroughly before using the device.
WARNING The device is designed for medical clinician use. Although this
instructions for use may illustrate medical spot-check techniques, only a trained
clinician who knows how to take and interpret a patient's vital signs should use
this device.
WARNING The device is intended for use only in environments with clinician
supervision.
WARNING The device is not intended for continuous monitoring. Do not leave
the device unattended while taking measurements on a patient.
WARNING The device is not intended for use during patient transport.
WARNING Fire and explosion hazard. Do not operate the device in the presence
of a flammable anesthetic mixture with air, oxygen, or nitrous oxide; in oxygen-
enriched environments; or in any other potentially explosive environment.
WARNING Use only Welch Allyn approved accessories. Use of unapproved
accessories with the device can affect patient and operator safety, and can reduce
product performance and accuracy. To ensure patient safety and optimal product
performance, use only accessories and supplies recommended for or supplied
with the device, and use according to the accessory manufacturer's instructions for
use.
WARNING Every three months, inspect the blood pressure cuff and other
accessories for fraying or other damage. Replace as necessary.
WARNING Inaccurate measurement risk. Do not use the device on patients who
are connected to heart/lung machines.
WARNING Electric shock hazard. Do not open the device or attempt repairs.
There are no user-serviceable parts inside ProBP 3400 other than battery
replacement. Only perform routine cleaning and maintenance procedures
specifically described in this instructions for use. Inspection and servicing of
internal parts shall only be performed by qualified service personnel.
9
WARNING The device complies with applicable domestic and international
standards for electromagnetic interference and should not present problems to
other equipment or be affected by other devices. As a precaution, avoid using the
device in close proximity to other equipment.
WARNING Welch Allyn is not responsible for the integrity of any mounting
installation. Welch Allyn recommends that customers contact their Biomedical
Engineering Department or maintenance service to ensure professional
installation for safety and reliability of any mounting accessory.
WARNING The device is not defibrillator proof.
WARNING The device may not function properly if dropped or damaged. Do not
use the device if you notice any signs of damage. Qualified service personnel must
check any device that is dropped or damaged for proper operation before putting
the device back into use.
WARNING Defective batteries can damage the device. If the battery shows any
signs of damage, leakage, or cracking, it must be replaced immediately, and only
with a battery recommended for or supplied with the device.
WARNING Improper disposal of batteries may create an explosion or
contamination hazard. Never dispose of batteries in refuse containers. Do not
dispose of the battery in fire. Always recycle batteries according to local
regulations.
WARNING Improper handling of the battery can lead to heat generation, smoke,
bursting, or fire.
WARNING Do not remove the label from the battery.
WARNING Do not disassemble, modify, or solder the battery.
WARNING Do not directly connect or short circuit the positive (+) and negative (-)
battery terminals.
WARNING To avoid short circuits, keep battery terminals away from metal
objects.
WARNING Do not expose the battery to temperatures higher than 80 °C/176 °F.
WARNING If the accuracy of any measurement is in question, check the patient's
vital sign(s) with an alternate method and then check to verify the device is
functioning properly.
WARNING For proper patient electrical isolation and battery charging, use only
the provided external power supply to charge the device.
WARNING Electric shock hazard. Use the USB connector only to connect to
devices complying with IEC 60601-1 or other IEC standards as appropriate to the
device. The user is responsible for verifying that the system complies with the
requirements of the system standard IEC 60601-1-1 if additional devices are
connected to the ProBP 3400.
10 General warnings and cautions Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
WARNING Electric shock hazard. Before cleaning the device, disconnect the
power cord from the power source and the device. Ensure that the power
transformer and wall plug assembly are dry before plugging into an outlet.
WARNING Electric Shock Hazard. If you clean the power transformer, take the
following precautions:
• Ensure the power transformer is unplugged from the outlet.
• Ensure that the cleaning cloth is not dripping or over saturated.
• Apply minimal pressure on the wipe or cloth when cleaning; avoid wiping the gap
or connection areas on the power transformer and wall plug.
• Ensure the power transformer, wall plug, and cord are dry before plugging into an
outlet.
WARNING Take care to prevent water or other fluid from entering any connectors
on the device, power transformer and wall plug. Should this occur, dry the
connectors with warm air. Check the accuracy of all operating functions.
CAUTION The device is not heat-resistant. Do not autoclave.
CAUTION Use the device within stated operating temperature ranges. The device
will not meet performance specifications if used outside these temperatures
ranges.
CAUTION Always unplug the external power source from the outlet before
moving the device to a new location.
Notice to users and/or patients in EU Any serious incident that has occurred in
relation to the device, should be reported to the manufacturer and the competent
authority of the Member State in which the user and/or patient is established.
Instructions for use General warnings and cautions 11
12 General warnings and cautions Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
NIBP warnings and cautions
WARNING ProBP 3400 is not intended to measure blood pressure on neonatal
patients. The AAMI SP10:2002 standard defines neonates as children 28 days or
less of age if born at term (37 weeks gestation or more); otherwise up to 44
gestational weeks.
WARNING This device is not intended for use on neonates, infants, or children
under the age of 3 years. The effectiveness of this device has not been established
in pregnant, including pre-eclamptic, patients.
WARNING To ensure pediatric blood pressure accuracy and safety, the Small
Child Reusable Cuff (REUSE-08) is the smallest cuff approved for use with young
children.
WARNING Do not compress the blood pressure hose or cuff. This may cause
system errors or patient safety risks to occur.
WARNING NIBP readings may be inaccurate for patients experiencing moderate
to severe arrhythmia.
WARNING Inaccurate measurement risk. Do not use the device on patients who
are experiencing convulsions or tremors.
WARNING Use only blood pressure cuffs and hoses listed as approved
accessories to ensure safe and accurate NIBP measurements.
WARNING Patient injury risk. When several blood pressure measurements are
taken on the same patient, regularly check the cuff site and extremity for possible
ischemia, purpura, and/or neuropathy.
WARNING Do not allow a blood pressure cuff to remain on the patient more than
3 minutes when inflated above 15 mmHg. Excessive cuff tightness may cause
venous congestion, peripheral nerve injury, discoloration of the limb, and patient
distress.
WARNING Inaccurate measurement risk. Do not place the cuff where it can
disturb proper circulation. Do not place the cuff on any area where circulation is
compromised or on any extremity used for intravenous infusions.
WARNING The blood pressure cuff must be properly positioned to ensure blood
pressure accuracy and patient safety. Wrapping the cuff too loosely (preventing
proper inflation) may result in inaccurate NIBP readings.
13
WARNING Patient injury risk. Never install Luer Lock connectors on Welch Allyn
blood pressure tubing. Using these connectors on blood pressure cuff tubing
creates the risk of mistakenly connecting this tubing to a patient's intravenous line
and introducing air into the patient's circulatory system.
WARNING NIBP measurements may be inaccurate in the presence of excessive
motion artifact. Minimize extremity and cuff motion during blood pressure
readings.
WARNING The position and physiologic condition of the subject can affect a
blood pressure reading.
WARNING If the blood pressure cuff is not at heart level, note the difference in
reading due to the hydrostatic effect. Add the value of .2 kPa (1.80 mmHg) to the
displayed reading for every 2.5 cm (inch) above heart level. Subtract the value of .2
kPa (1.80 mmHg) from the displayed reading for every 2.5 cm (inch) below heart
level.
WARNING Proper blood pressure cuff size and placement is essential to the
accuracy of the blood pressure determination. See Blood pressure cuff selection
for sizing information.
WARNING Continuous cuff pressure due to connection tubing kinking may result
in blood flow interference and harmful injury may occur to the patient.
WARNING Frequent measurements can cause injury to the patient due to blood
flow interference.
WARNING Do not place the cuff over a wound as this can cause further injury.
WARNING Blood flow interference may result if the application of the cuff and its
pressurization on any limb where intravascular access or therapy, or an arterio-
venous (A-V) shunt is present and could result in injury to the patient.
WARNING Avoid pressurizing a cuff on the arm side of a mastectomy.
WARNING Pressurization of the cuff may result in temporary loss of function of
simultaneous used monitoring equipment applied on the same limb as the cuff.
WARNING The automated sphygmomanometer needs to be checked to ensure
that its operation does not result in prolonged impairment of blood circulation of
the patient.
14 NIBP warnings and cautions Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Contents checklist
Unpack the ProBP 3400 and any applicable accessories and inspect for missing items. Retain the
shipping materials in the event of shipping damage or for return, if necessary, to Welch Allyn for
repair or warranty service. Report any signs of shipping damage to the carrier. Report any missing
or damaged items to the Welch Allyn Service Center near you.
All ProBP 3400 devices include the following components:
ProBP 3400 Device. This device automatically measures systolic and diastolic pressure (excluding
neonates) and pulse rate, as well as calculates Mean Arterial Pressure (MAP).
Instructions for Use CD. Read this Instructions for Use thoroughly before using the ProBP 3400.
Save this CD for reference.
Battery. Install the battery before using the device. See Battery for additional information.
Blood Pressure Cuff(s). See Blood pressure hose and cuff for additional information.
Blood Pressure Hose. Pressure hose, not made with natural rubber latex, with connectors to
attach various sizes of blood pressure cuffs to the Welch Allyn ProBP 3400 device.
USB Cable. Attaches to Power Transformer and device to provide power to the ProBP 3400 and
charge the internal battery.
Power Transformer and Wall Plug/Line Cord. Power transformer and wall plug (or line cord)
assembles and attaches to USB cable to provide power to the ProBP 3400 and charge the internal
battery.
Startup Guide. Use the Startup Guide to setup device for first-time use.
Warranty. Complete the ProBP 3400 warranty today at www.welchallyn.com/warranty.
15
16 Contents checklist Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Controls and indicators

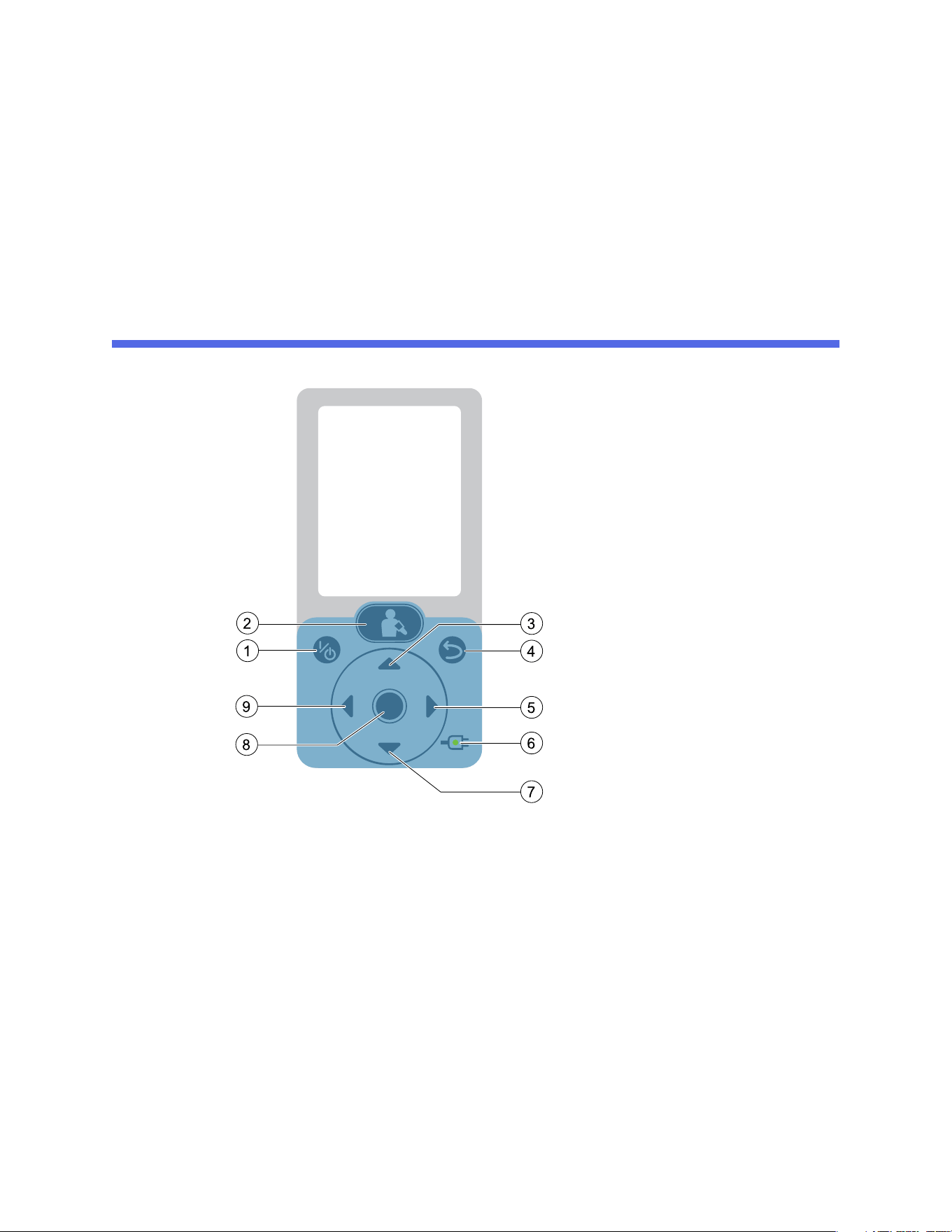

1. Power on/standby button: controls power to the device.
2. Blood Pressure Start/Stop button: initiates a new blood pressure cycle from the Home
screen. Pressing again aborts an active blood pressure measurement. This button returns user
to the Home screen from any other screen on the device.
3. Up navigation button: highlights the previous option in the Display window or increases
numeric values.
4. Return button: returns the user to the previous screen.
5. Right navigation button: highlights the Settings tab in the Display window or highlights
options to the right.
6. Charging LED: indicates when device is connected to external power and battery charging
state.
7. Down navigation button: highlights the next option in the Display window or decreases
numeric values.
8. Select button: selects list item that has been highlighted.
9. Left navigation button: highlights the Review tab in the Display window or highlights options
to the left.
17
18 Controls and indicators Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Screen elements

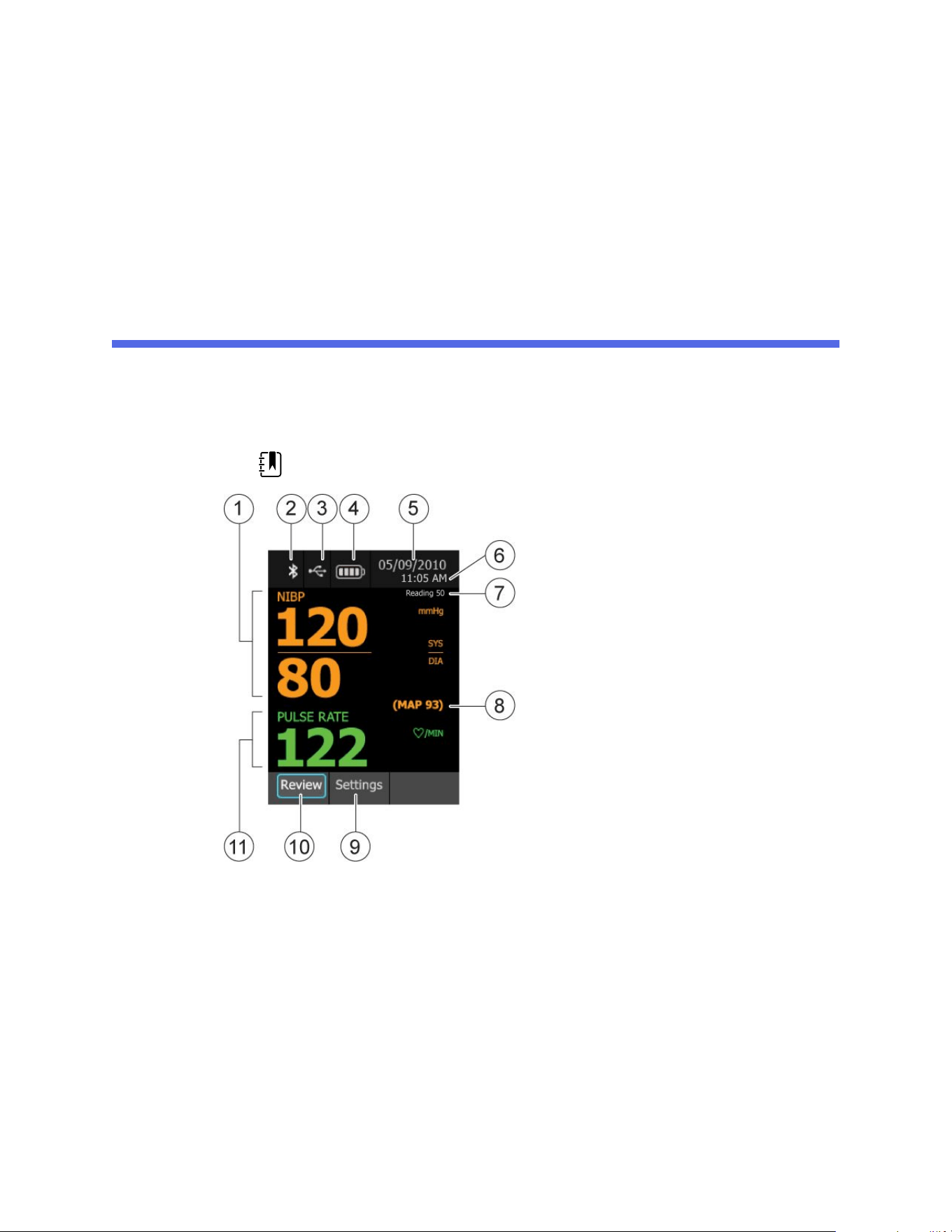

The display may indicate any of the following: systolic blood pressure (mmHg or kPa), diastolic
blood pressure (mmHg or kPa), MAP (mmHg or kPa), pulse rate (bpm), date, time, record number,
and battery charge level.
NOTE Your model may not contain all of these options.
1. NIBP display: shows systolic and diastolic values of NIBP readings.
2. Bluetooth radio status (if equipped): indicates status of Bluetooth radio.
3. USB: indicates USB is connected.
4. Battery level indicator: displays the battery charge level.
5. Date: shows the current date.
6. Clock: shows the current time.
7. Reading number identified: shows what reading the device is on. The ProBP 3400 device
retains up to 50 readings in memory.
8. MAP: shows the MAP value.
9. Settings: displays the Settings menu, when selected.
10. Review: displays the Review menu, when selected.
11. Pulse rate display: shows the pulse rate.
19
20 Screen elements Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device

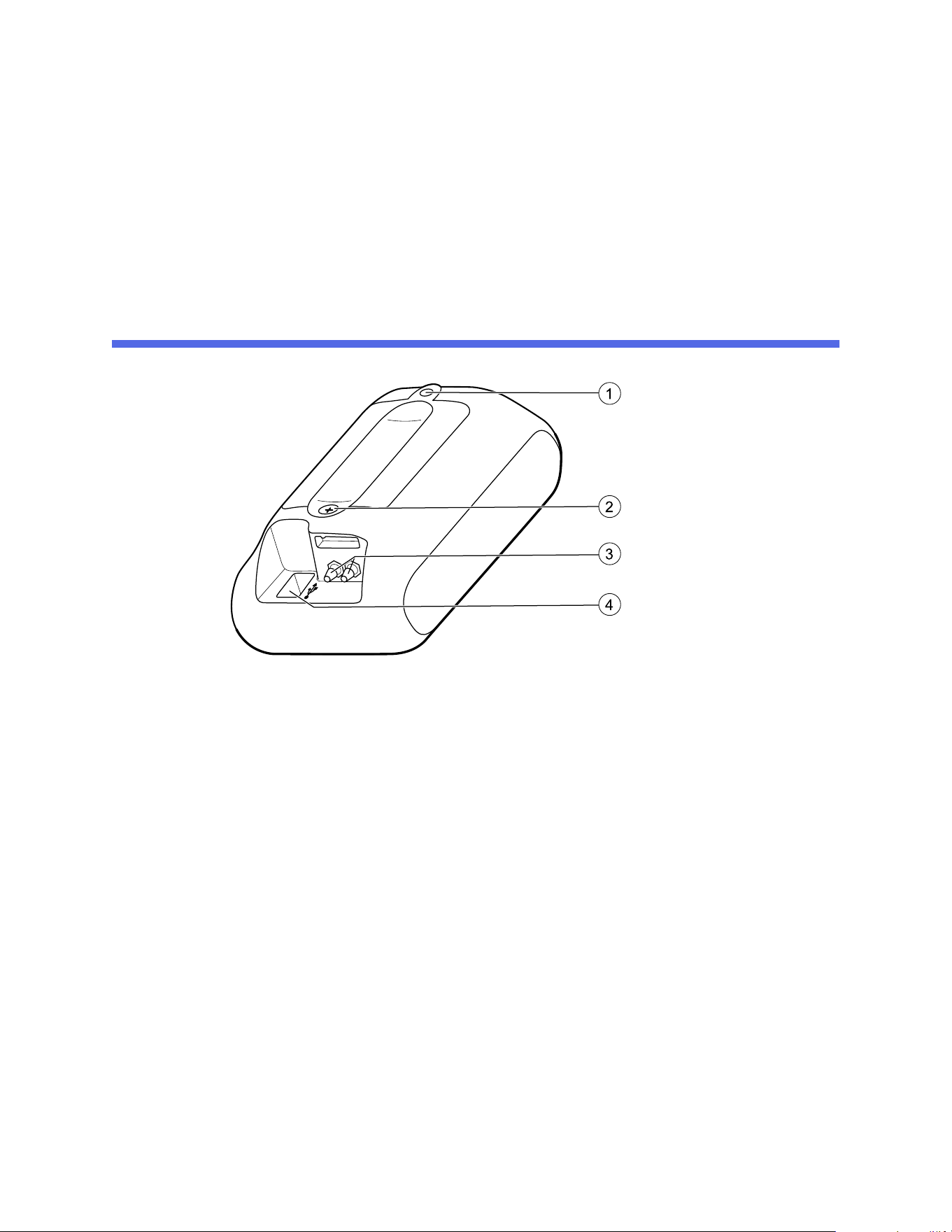

Connections
1. Mounting connection
2. Battery door screw
3. Blood pressure hose connection port
4. USB/external power cord connection port
21
22 Connections Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Blood pressure hose and cuff
Identify and have available the ProBP 3400, blood pressure cuff, and the blood pressure hose.
1. Inspect the blood pressure hose; notice that one end has a single, gray Welch Allyn FlexiPort
fitting and the other end is plain with two recessed holes.
2. Completely push the plain end of the blood pressure hose onto the two silver blood pressure
ports on the device. Make sure the hose is fully seated.
3. Snap the Welch Allyn FlexiPort connector onto the blood pressure cuff.
Blood pressure cuff selection
Careful sizing of the cuff is important for accurate blood pressure readings. If the cuff is too small or
too large, you may have false high or low readings, respectively. When there is an area of overlap
for using a smaller or larger cuff, use the larger size cuff.
The device uses oscillometric technology to determine blood pressure; therefore, if the cuff
extends to the antecubital fossa (bend in the elbow), you can still acquire an accurate blood
pressure reading.
Measure the arm circumference (midway between the elbow and shoulder) for the correct cuff
size.
Wrap the cuff around the patient’s upper arm and verify that the artery index marker falls within the
two divisions that identify the “range” on the cuff to indicate a proper fit.
The following table provides measurements for Welch Allyn blood pressure cuffs.
23
Cuff Size Reusable One-Piece
Cuff
(1 per pack)
Circumference (cm) Circumference (in)
Small child (size 8) Reuse-08 12.0 – 16.0 4.7 – 6.3
Child (size 9) Reuse-09 15.0 – 21.0 5.9 – 8.3
Small adult (size 10) Reuse-10 20.0 – 26.0 7.9 – 10.2
Adult (size 11) Reuse-11 25.0 – 34.0 9.8 – 13.4
Adult long (size 11L) Reuse-11L 25.0 – 34.0 9.8 – 13.4
Large adult (size 12) Reuse-12 32.0 – 43.0 12.6 – 16.9
Large adult long (size 12L) Reuse-12L 32.0 – 43.0 12.6 – 16.9
Thigh (size 13) Reuse-13 40.0 – 55.0 15.7 – 21.7
For ordering information, see the ProBP 3400 approved accessories in the Appendix.
24 Blood pressure hose and cuff Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Power transformer
Power transformer and wall plug
The power transformer and wall plug are packaged separately and must be
assembled prior to use. The instructions below are for using the power transformer
with the wall or desk mount configuration. If you have the mobile stand
configuration, refer to the assembly instructions that are included with the stand
for power transformer connection.

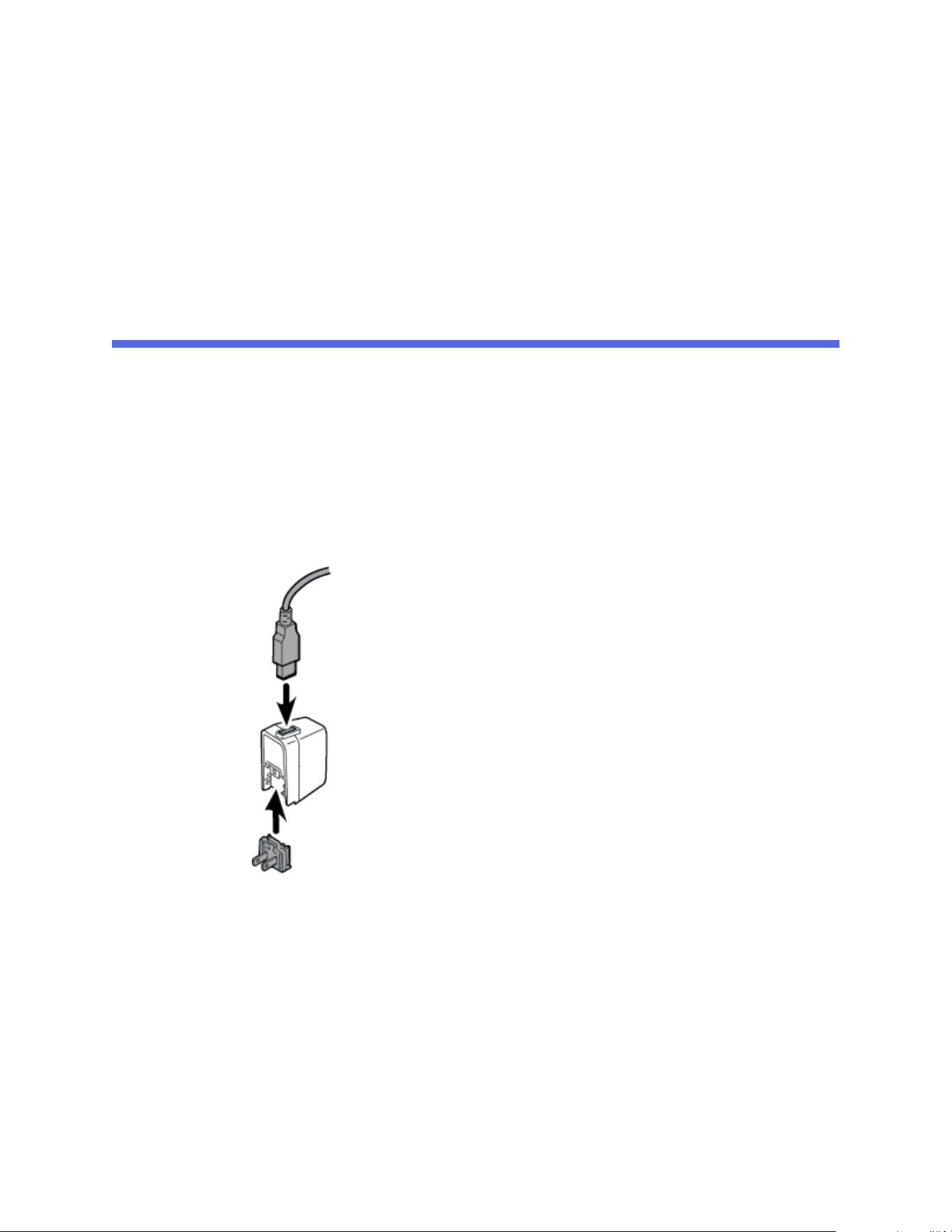

1. Align the wall plug with the casing located on the transformer.
2. Slide the wall plug onto the transformer until it is firmly seated.
3. Insert the USB connector.
4. Insert the other end of the USB into the device.
5. Plug the transformer into an AC outlet.
25
Charge the device
Charge the ProBP 3400 with the Welch Allyn-supplied power supply.
To charge the device:

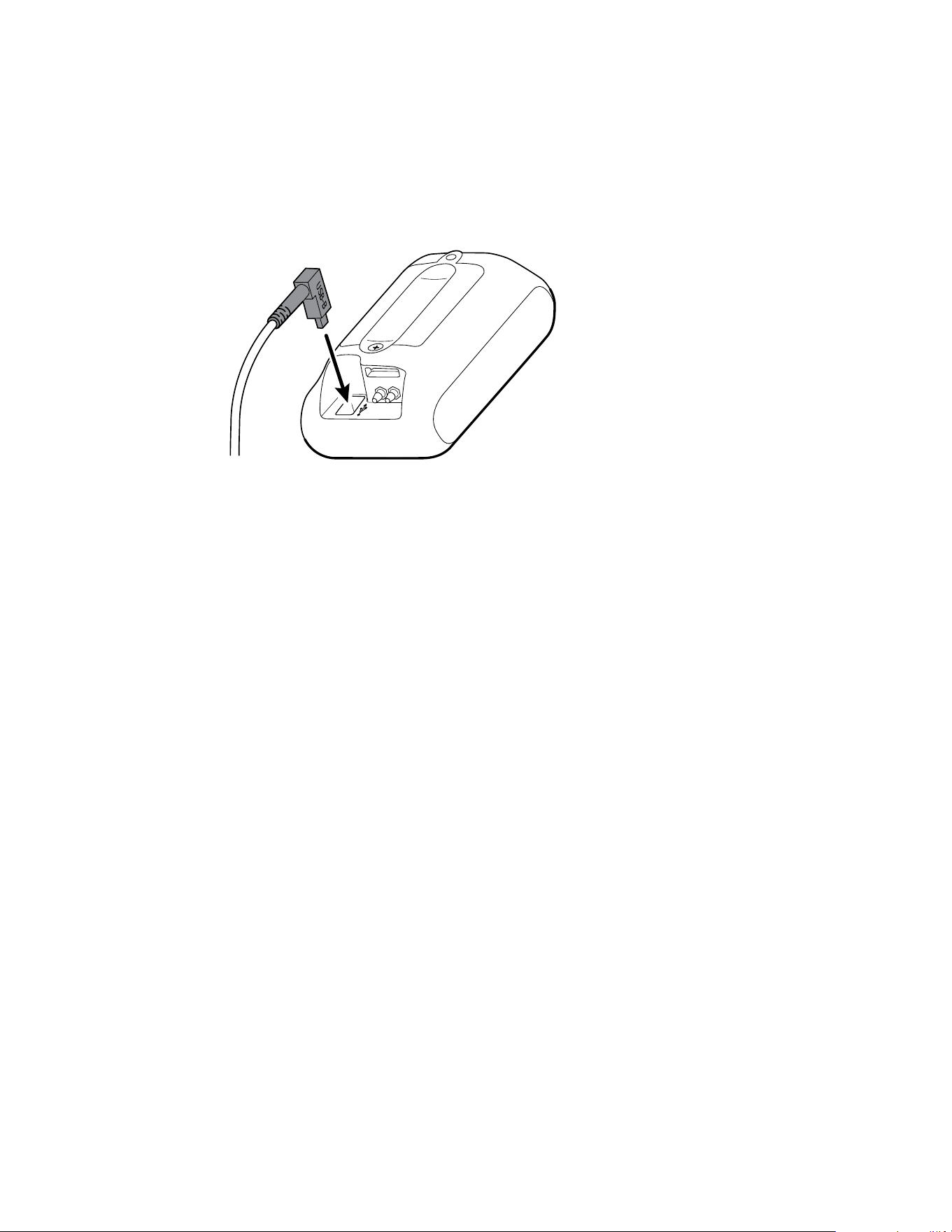

1. Insert the USB B connector into the USB/external power connection port on the back of the
device.
2. Insert the other end of the USB cord into the USB port on the power transformer.
3. Plug the power transformer into an AC outlet.
26 Power transformer Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Setup
Before first-time use of the ProBP 3400, complete the following steps:

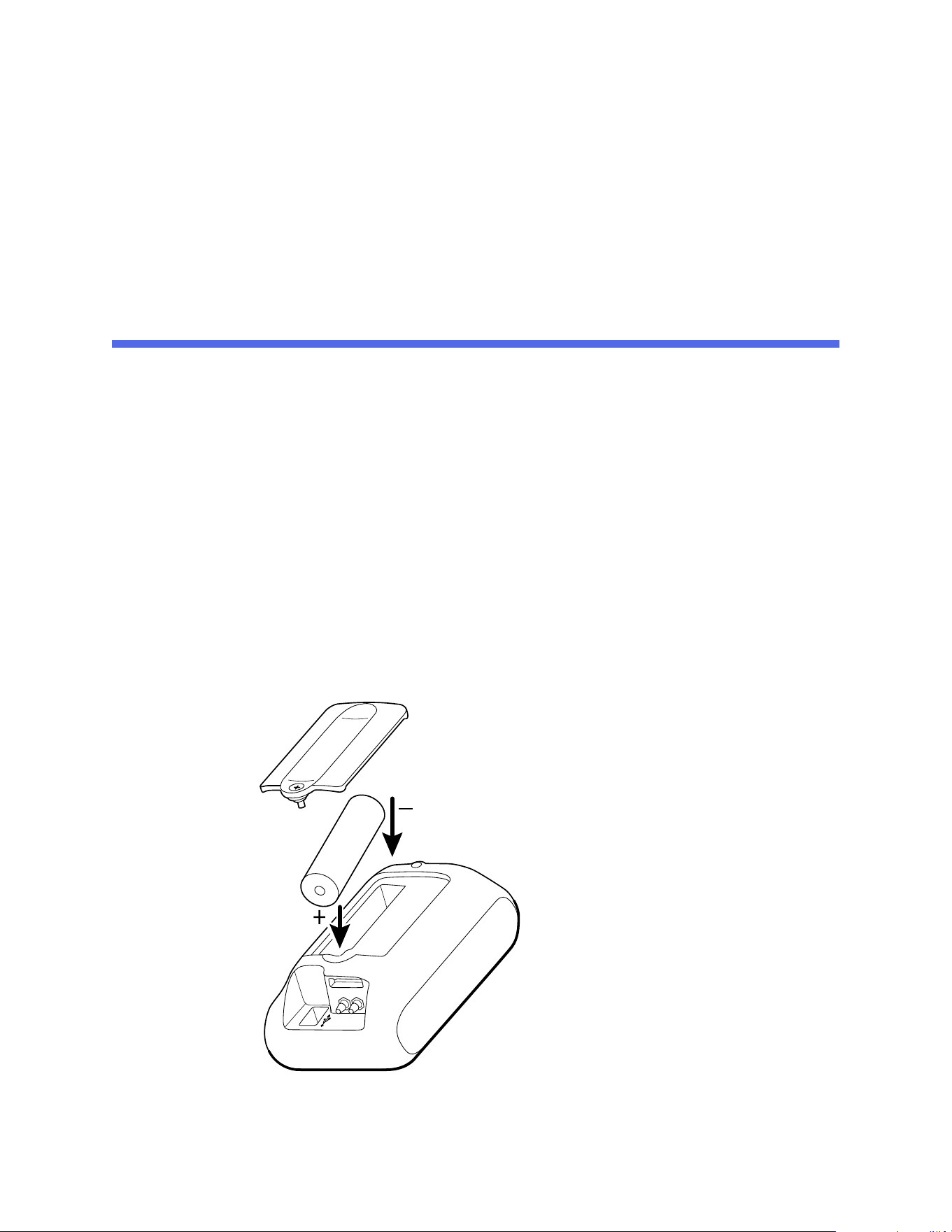

Insert the battery
The battery is shipped separately from the ProBP 3400 device. You must install and charge the
battery for six hours before the device can be used.
1. Remove the screw from the battery compartment door with a Phillips screwdriver.
2. Remove the battery compartment door.
3. Remove the battery from the shipping bag.
4. Using the polarized guidelines on the battery label, insert the battery, positive (+) side first, into
the battery compartment.
5. Replace the battery compartment door.
6. Secure the screw with the screwdriver.
27
Assemble power cord and wall plug/line cord assembly
1. Align the grooves on the casting of the power transformer with the two-prong wall plug, or for
the mobile stand configuration align the adapter with the power transformer casing and
connect the line cord assembly.
2. Slide the wall plug or adapter/line cord assembly onto the transformer until it is firmly seated.
Charge the ProBP 3400
To charge the device:
1. Insert the USB B connector into the USB/external power connection port on the back of the
device.
2. Insert the other end of the USB cord into the USB port on the power transformer, then plug the
transformer into the an AC outlet.
28 Setup Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Mount the device
For mounting instructions, see the accessory's directions for use.
For mounting options, see the ProBP 3400 approved accessories in the Appendix.
Initial startup
To complete initial configuration, you must turn on the device, and select an operating language,
date, and time.
1. Press the Power on/power off button. After device power up, the display window shows the
Language screen.
2. Use the Up and Down navigation buttons to highlight the correct option.
3. Press the Select button to choose a language. A confirmation window displays your language
selection.
Set date and date format
After you select a language, set the device Date and Date format:
1. The Date format field is highlighted. Press the Up navigation or Down navigation buttons to
access the correct format option.
2. Press the Select button to accept the date format as shown.
3. Press the Down navigation button to highlight the date.
4. Press the Select button. The first numeric field is highlighted for editing.
5. Use the Up navigation button to increase the number value; use the Down navigation
button to decrease the number value.
6. Press the Right navigation button to move to the next field.
7. Repeat steps 5 and 6 to edit additional numeric values.
8. Press the Right navigation button to highlight the OK button.
9. Press the Select button to accept the date as shown.
10. Press the Down navigation button to highlight the Next button.
11. Press the Select button to move to the Time and Time format screen.
Set time and time format
1. The Time format field is highlighted. Press the Up navigation or Down navigation buttons to
access the correct format option.
2. Press the Select button to accept the time format as shown.
3. Press the Down navigation button to highlight the time.
4. Press the Select button. The first numeric field is highlighted for editing.
5. Use the Up navigation button to increase the number value; use the Down navigation
button to decrease the number value.
6. Press the Right navigation button to move to the next field.
7. Repeat steps 5 and 6 to edit additional numeric values.
8. Press the Right navigation button to highlight the OK button.
Instructions for use Setup 29
9. Press the Select button to accept the entry.
10. Press the Down navigation button to highlight the Next button.
11. Press the Select button to complete the Setup process. The device will display the Home
screen.
30 Setup Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Battery
WARNING Defective batteries can damage the device. If the battery shows any
signs of damage, leakage, or cracking, it must be replaced immediately, and only
with a battery recommended for or supplied with the device.
WARNING Improper disposal of batteries may create an explosion or
contamination hazard. Never dispose of batteries in refuse containers. Do not
dispose of the battery in fire. Always recycle batteries according to local
regulations.
WARNING Improper handling of the battery can lead to heat generation, smoke,
bursting, or fire.
WARNING Do not remove the label from the battery.
WARNING Do not disassemble, modify, or solder the battery.
WARNING Do not directly connect or short circuit the positive (+) and negative (-)
battery terminals.
WARNING To avoid short circuits, keep battery terminals away from metal
objects.
WARNING Do not expose the battery to temperatures higher than 80 °C /176 °F.
WARNING Electric shock hazard. Do not open the device or attempt repairs.
There are no user-serviceable parts inside ProBP 3400 other than battery
replacement. Only perform routine cleaning and maintenance procedures
specifically described in this instructions for use. Inspection and servicing of
internal parts shall only be performed by qualified service personnel.
The ProBP 3400 device is powered by a lithium-ion rechargeable battery.
The battery is shipped separately from the ProBP 3400 device. You must install and charge the
battery for six hours before using the device.
To install the battery:
1. Remove the screw from the battery compartment door with a Phillips screwdriver.
2. Remove the battery compartment door.
3. Remove the battery from the shipping bag.
4. Using the polarized guidelines on the battery label, insert the battery, positive (+) side first, into
the battery compartment.
31
5. Replace the battery compartment door.
6. Secure the screw with the screwdriver.
The battery charges when the ProBP 3400 is connected to an external power source. While the
ProBP 3400 is charging, the symbol displays an amber indicator and the battery charging
indicator, , displays on the Home screen. The battery charging indicator is only visible when
the device is powered on. When the battery is charged, the symbol displays a green
indicator, and the battery level indicator is steady with all segments continuously shown on the
Home screen. An operator can use the device while the battery is charging; however, the battery
charges faster when the instrument is not in operation.
A dead battery may result if the ProBP 3400 is left uncharged or unused for a long period of a time.
If this occurs, charge the battery by connecting the ProBP 3400 to an external power source.
Charge the battery for at least six hours before disconnecting the device from the power supply.
If the ProBP 3400 will be unused for several months or longer, remove the battery prior to storing
the device.
32
Battery Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Startup
Press the Power on/power off button to turn the device on or off. Upon each power up, the
display lights up and the ProBP 3400 displays the model number. When the internal self-check
completes, the display shows the Home screen with all values blank, and the device is ready for
operation.
The ProBP 3400 powers off when not in use for 2 minutes, whether on battery power or plugged
into an external power supply.
If a system error is detected, the device displays a system fault message that contains a wrench icon
and a system fault code to assist service and engineers in diagnosing the problem.
User adjustable settings
The following default time-out settings are user adjustable by USB connecting the ProBP 3400 to a
PC running the Welch Allyn Service Tool (WAST).
• Display Blank Timeout while connected to external power
• Device Sleep Timeout while connect to external power
• Display Blank Timeout while running on battery power
• Device Sleep Timeout while running on battery power
The WAST software is available for free download at https://www.hillrom.com/en/services/welch-
allyn-service-tool/.
33
34 Startup Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Blood pressure procedure
Blood pressure measurement
WARNING Patient injury risk and inaccurate measurement risk. Do not place the
cuff where it can disturb proper circulation. Do not place the cuff on any area
where circulation is compromised or on any extremity used for intravenous
infusions.
WARNING Patient injury risk. The blood pressure cuff must be properly
positioned to ensure blood pressure accuracy and patient safety. Wrapping the
cuff too loosely (preventing proper inflation) may result in inaccurate NIBP
readings.
WARNING Patient injury risk. Do not allow a blood pressure cuff to remain on the
patient more than 3 minutes when inflated above 15 mmHg. Excessive cuff
tightness may cause venous congestion, peripheral nerve injury, discoloration of
the limb, and patient distress.
WARNING Patient injury risk. ProBP 3400 is not intended to measure blood
pressure on neonatal patients. The AAMI SP10:2002 standard defines neonates as
children 28 days or less of age if born at term (37 weeks gestation or more);
otherwise up to 44 gestational weeks.
WARNING Patient injury risk. This device is not intended for use on neonates,
infants, or children under the age of 3 years. The effectiveness of this device has
not been established in pregnant, including pre-eclamptic, patients.
The preferred blood pressure measurement site for adults and children is the upper arm. Keep the
patient’s arm relaxed and motion-free during measurement(s). The patient should be seated and
relaxed for 5 minutes prior to the blood pressure measurement. The patient should also be
comfortably seated, legs uncrossed, feet flat on the floor, back and arm supported. The middle of
the cuff should be at the level of the heart. The patient should not talk during the measurement.
35
Obtain blood pressure measurement
Patient position:
Recommended operator position:
1. Stand in front of the device within 1 meter.
2. Face the device with the monitor at an angle that allows you to easily view the screen.
To initiate blood pressure measurements:
1. Press the Power on/power off button to turn the device on.
2. Properly size the blood pressure cuff and position it around the patient's bare upper arm with
the artery index marker over the brachial artery. Leave room between the cuff and the arm for
no more than two fingers.
3. From the Home screen, press the Blood Pressure Start/Stop button.
The ProBP 3400 inflates the blood pressure cuff to the appropriate pressure and displays the
pressure as the blood pressure cuff is deflating.
If your device contains the SureBP feature (captures blood pressure on inflation): From the
Home screen, press the Blood Pressure Start/Stop button. The ProBP 3400 inflates the cuff to
the appropriate level, measuring the blood pressure as the cuff is inflating. The systolic display
shows the pressure in the cuff as the blood pressure determination is in process. If the device is
unable to determine a blood pressure while the cuff is inflating due to patient movement,
excessive noise, or an arrhythmia, the device will use the Step algorithm to inflate the cuff to a
higher pressure, then attempt to measure the blood pressure while deflating the cuff.
Pressing the Blood Pressure Start/Stop button at any time during a blood pressure determination
aborts the measurement and rapidly deflates the cuff.
When complete, the ProBP 3400 device displays systolic, diastolic, pulse rate measurements, and if
enabled, MAP calculation.
36 Blood pressure procedure Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Settings
1. From the Home screen, press the Right navigation button. Settings is highlighted.
2. Press the Select button. The Settings menu displays.
3. Use Up or Down navigation buttons to highlight the Unit of measure, Pressure preset,
Bluetoothradio, or Advanced menus.
NOTE The Bluetooth radio menu option is only visible for devices
that contain the Bluetooth licensed feature. The NIBP algorithm is
only visible for devices that contain the SureBP licensed feature.
Settings matrix
Settings > Unit of measure
Pressure presets
Bluetooth radio
Advanced > Cycle count
Data management
Date
Time
MAP
NIBP algorithm
Language
Unit of measure
To select a unit of measure:
1. From the Settings screen, use Up or Down navigation buttons to highlight Unit of measure.
2. Press the Select button. The Unit of measure menu displays.
3. Use Up or Down navigation buttons to highlight mmHg or kPa.
37
4. Press the Select button to select the unit of measure.
The default unit of measure is mmHg.
Pressure presets
To select a pressure preset:
1. From the Settings screen, use Up or Down navigation buttons to highlight Pressure presets.
2. Press the Select button. The Pressure presets menu displays.
3. Use Up or Down navigation buttons to highlight desired pressure.
4. Press the Select button to select the pressure.
The default inflation pressure is 160 mmHg or 21.3 kPa.
Bluetooth wireless technology
To wirelessly transfer data from the ProBP 3400 to another device with Bluetooth technology, you
must enable Bluetooth technology in both devices, then pair and connect the devices. Pairing will
create a unique wireless link between two Bluetooth wireless technology enabled devices.
The default setting for Bluetooth radio is Enable.
Enable Bluetooth radio and pair devices
When trying to pair the ProBP 3400 with a target device, keep the devices within
several meters or feet of each other.
To enable the Bluetooth radio and pair your Bluetooth wireless technology-enabled
devices:
1. From the Settings screen, use Up or Down navigation buttons to highlight Bluetooth radio.
2. Press the Select button.
3. Use the Up or Down navigation buttons to highlight Enable.
4. Press the Select button to confirm your selection.
5. Press the Down navigation button to highlight the Pair button.
6. Press the Select button to place the ProBP 3400 into Pairing mode.
7. Activate the Bluetooth feature on your target device and search for the ProBP 3400.
Consult your target device's user manual for device-specific instructions.
8. Select the ProBP 3400 from the list of devices found by your target device.
9. Enter the PIN (1234) to pair the ProBP 3400 to your target device.
The ProBP 3400 supports the Secure Simple Pairing feature, which allows the device to be
paired to a target device without requesting a PIN. This feature is available for target devices
that are compliant with Bluetooth version 2.1 or higher.
10. When pairing is complete, the ProBP 3400 will automatically connect to your target device and
will attempt to reconnect to your target device each time the ProBP 3400 is powered on.
When devices are connected, the symbol appears in the left corner of the ProBP 3400
screen.
38 Settings Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Connect the ProBP 3400 to a target device
When the ProBP 3400 is paired to a target device, it will attempt to automatically
reconnect each time you turn on the ProBP 3400. If the devices do not connect
within 60 seconds of turning on the ProBP 3400, the Bluetooth radio will shut down
to conserve battery power.
If the ProBP 3400 does not automatically reconnect,
1. Press the Power on/power off button to turn the device off.
2. Ensure that you are within several meters or feet of the target device.
3. Press the Power on/power off button to turn the device on.
Advanced settings
To view or modify advanced settings:
1. From the Settings screen, press the Up or Down navigation buttons to highlight the
Advanced menu.
2. Press the Select button. The Advanced menu displays.
3. Use Up or Down navigation buttons to highlight the Cycle count, Data management, Date,
Time, MAP or Language screens.
Cycle count
To view device cycle count:
1. From the Advanced screen, use Up or Down navigation buttons to highlight Cycle count.
2. Press the Select button. The total number or readings taken on the device displays.
3. Use the Down navigation button to highlight Close.
Data management
The ProBP 3400 is able to store up to 50 readings in its internal memory. The Data management
function allows you to manage how additional readings are stored.
1. From the Advanced screen, use Up or Down navigation buttons to highlight Data
management.
2. Press the Select button.
3. Use the Up or Down navigation buttons to highlight Auto overwrite or Ask overwrite.
If Auto overwrite is selected, the device will overwrite previous readings, starting with Reading
1, once internal memory is full. If Ask overwrite is selected, the user will have to confirm the
save of each additional reading once the memory is full.
4. Press the Select button to confirm your choice.
The default data management setting is Auto overwrite.
Instructions for use Settings 39
Select date
To modify the date shown on the Home screen:
1. From the Advanced screen, use Up or Down navigation buttons to highlight Date.
2. Press the Select button to edit the entry.
3. The Date format field is highlighted. Press the Up navigation or Down navigation buttons to
access the correct format option.
4. Press the Select button to accept the date format as shown.
5. Press the Down navigation button to highlight the date.
6. Press the Select button. The first numeric field is highlighted for editing.
7. Use the Up navigation button to increase the number value; use the Down navigation
button to decrease the number value.
8. Press the Right navigation button to move to the next field.
9. Repeat steps 7 and 8 to edit additional numeric values.
10. Press the Right navigation button to highlight the OK button.
11. Press the Select button to accept the entry.
Select time
To modify the time shown on the Home screen:
1. From the Advanced screen, use Up or Down navigation buttons to highlight Time.
2. Press the Select button to edit the entry.
3. The Time format field is highlighted. Press the Up navigation or Down navigation buttons to
access the correct format option.
4. Press the Select button to accept the time format as shown.
5. Press the Down navigation button to highlight the time.
6. Press the Select button. The first numeric field is highlighted for editing.
7. Use the Up navigation button to increase the number value; use the Down navigation
button to decrease the number value.
8. Press the Right navigation button to move to the next field.
9. Repeat steps 7 and 8 to edit additional numeric values.
10. Press the Right navigation button to highlight the OK button.
11. Press the Select button to accept the entry.
MAP
1. From the Advanced screen, use Up or Down navigation buttons to highlight MAP.
2. Press the Select button.
3. Use the Up or Down navigation button to highlight On or Off.
4. Press the Select button to confirm your choice.
The default MAP setting is On.
40 Settings Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Language
To change device language:
1. From the Advanced screen, use Up or Down navigation buttons to highlight Language.
2. Press the Select button. The Language screen displays.
3. Use the Up or Down navigation buttons to highlight the correct Language option.
4. Press the Select button to choose a language.
A popup confirmation screen will display your language selection.
The default language is English.
Instructions for use Settings 41
42 Settings Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Data review
Data is accessed through the Review menu. Data can be identified by number, date, time reading
was taken, diastolic/systolic parameters, MAP, and pulse rate data captured at the time of the
reading.
Review data
1. From the Home screen, press the Left navigation button. The Review menu option is
highlighted.
2. Press the Select button. Review menu displays.
3. Use Up or Down navigation buttons to review the desired reading.
Delete data
1. From the Home screen, press the Left navigation arrow. The Review menu option is
highlighted.
2. Press the Select button. Blood pressure, pulse rate, MAP data (if enabled), date, and time
displays.
3. Use Up or Down navigation buttons to highlight desired reading.
4. Press the Select button to delete selected reading. A popup confirmation screen will appear;
use Up or Down navigation buttons to highlight deletion of the selected reading, deletion of
all readings, or to exit the screen without saving changes.
5. Press the Select button to confirm deletion of selected or all readings or press the Blood
Pressure Start/Stop button to exit without saving your changes.
43
44 Data review Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Maintenance and service
Inspection
Routinely inspect the ProBP 3400 and accessories for wear, fraying, or other damage. Do not use if
you see signs of damage, if the device malfunctions, appears not to be working properly, or if you
notice a change in performance. Contact Hillrom's Technical Support department for assistance.
Calibrate the device
Welch Allyn recommends annual calibration of the ProBP 3400.
To calibrate the ProBP 3400,
• Use the Welch Allyn Service Tool. https://www.hillrom.com/en/services/welch-allyn-service-
tool/
• Send the device to a Hillrom service center near you. For service and product assistance, please
contact Hillrom Technical Support: hillrom.com/en-us/about-us/locations/
Change the battery
WARNING Defective batteries can damage the device. If the battery shows any
signs of damage, leakage, or cracking, it must be replaced immediately, and only
with a battery recommended for or supplied with the device.
WARNING Improper disposal of batteries may create an explosion or
contamination hazard. Never dispose of batteries in refuse containers. Do not
dispose of the battery in fire. Always recycle batteries according to local
regulations.
WARNING Improper handling of the battery can lead to heat generation, smoke,
bursting, or fire.
WARNING Do not remove the label from the battery.
WARNING Do not disassemble, modify, or solder the battery.
WARNING Do not directly connect or short circuit the positive (+) and negative (-)
battery terminals.
45
WARNING To avoid short circuits, keep battery terminals away from metal
objects.
WARNING Do not expose the battery to temperatures higher than 80 °C/176 °F.
WARNING Electric shock hazard. Do not open the device or attempt repairs.
There are no user-serviceable parts inside ProBP 3400 other than battery
replacement. Only perform routine cleaning and maintenance procedures
specifically described in this directions for use. Inspection and servicing of internal
parts shall only be performed by qualified service personnel.
The ProBP 3400 device is powered by a lithium-ion rechargeable battery.
To remove the battery:
1. Remove the screw from the battery compartment door with a Phillips screwdriver.
2. Remove the battery compartment door.
3. Remove the battery from the battery compartment.
4. Remove the new battery from the shipping bag.
5. Using the polarized guidelines on the battery label, insert the battery, positive (+) side first, into
the battery compartment.
6. Replace the battery compartment door.
7. Secure the screw with the screwdriver.
If the ProBP 3400 will be unused for a long period of time, remove the battery prior to storing the
device.
Clean the device
WARNING Electric shock hazard. Before cleaning the device, disconnect the
power cord from the power source and the device. Ensure that the power
transformer and wall plug assembly are dry before plugging into an outlet.
WARNING Take care to prevent water or other fluid from entering any connectors
on the device, power transformer and wall plug. Should this occur, dry the
connectors with warm air. Check the accuracy of all operating functions.
CAUTION The device is not heat-resistant. Do not autoclave.
The following agents are compatible with the device:
• 70 percent isopropyl alcohol
• 10 percent chlorine bleach/90 percent water solution
NOTE Clean the device on a routine basis, according to your facility's protocols
and standards or local regulations
70 percent isopropyl alcohol
Wipe the device with a clean cloth slightly dampened with 70 percent isopropyl alcohol.
46 Maintenance and service Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
10 percent chlorine bleach/90 percent water solution
1. Wipe the device with a clean cloth slightly dampened with a 10 percent bleach and 90 percent
water solution.
2. Rinse with a clean cloth slightly dampened with clean water.
3. Allow the device surface to dry for a minimum of 10 minutes before using the device.
Clean the accessories
Wipe the NIBP hose and any reusable cuffs with a damp cloth moistened in a mild detergent
solution.
The same cleaning agents used to clean the device can be used on the stand and mounting
accessories.
WARNING Electric Shock Hazard. If you clean the power transformer, take the
following precautions:
• Ensure the power transformer is unplugged from the outlet.
• Ensure that the cleaning cloth is not dripping or over saturated.
• Apply minimal pressure on the wipe or cloth when cleaning; avoid wiping the gap or
connection areas on the power transformer and wall plug.
• Ensure the power transformer, wall plug, and cord are dry before plugging into an
outlet.
Instructions for use Maintenance and service 47
48 Maintenance and service Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Specifications
Physical specifications
Performance
This section describe normal ranges for the ProBP 3400 device.
Blood Pressure Accuracy
Blood pressure accuracy meets or exceeds ANSI.AAMI SP10:2002 standards for noninvasive blood
pressure accuracy (±5 mmHg mean error, 8 mmHg standard deviation). Blood pressure accuracy is
validated for pressure measurement using the upper arm only.
Cuff pressure range 0 to 300 mmHg
Systolic range 60 to 250 mmHg
Diastolic range 30 to 160 mmHg
Mean Arterial Pressure (MAP) range
MAP is a calculated reading that yields an approximate
value.
40 to 190 mmHg
Pulse rate range 35 to 199 bpm
Pulse rate accuracy ±5.0%
Overpressure cutoff 300 mmHg
Mechanical specifications
Dimensions
Height: 15.0 cm (5.91 inches)
Width: 8.0 cm (3.15 inches)
Depth: 5.6 cm (2.20 inches)
Weight 450 g (0.99 lb)
Mounting
Custom mobile stand
Custom wall mount
49
Custom desk mount
Portability May be used as a handheld device
Electrical specifications
Power requirements:
Input: 100-240VAC, 0.18A, 50-60Hz
Output: 5VDC, 0.5A
Degree of protection: Type BF applied part
Safety classification: Class II
Internally powered: Propriety 3.6V lithium-ion battery
Protection against the ingress of water: IPXØ
Safety mode of operation: Continuous operation
Standards:
This device complies with the following standards:
EN/IEC 60601-1
EN/IEC 60601-1-2
EN/IEC 80601-2-30
This device was clinically investigated to the requirements of
ISO 81060-2:2013
IEC 62304
EN 1060-1:1996 Specification for non-invasive
sphygmomanometers - Part 1: General requirements
EN 1060-3:1997 Specification for non-invasive
sphygmomanometers - Part 3: Supplementary requirements for
electro-mechanical blood pressure measuring systems
FCC Subpart 15C
FCC ID #PI4411B, IC 1931B-BTM411
Environmental specifications
WARNING Fire and explosion hazard. Do not operate the device in the presence
of a flammable anesthetic mixture with air, oxygen, or nitrous oxide; in oxygen-
enriched environments; or in any other potentially explosive environment.
CAUTION Use the device within stated operating temperature ranges. The device
will not meet performance specifications if used outside these temperatures
ranges.
Operating temperature 10°C to 40° C (50° to 104° F)
Storage temperature -20°C to 50° C (-4° to 122° F)
50 Specifications Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Operating altitude -170 to 4877 m (-557 to 16,000 ft.)
Operating humidity 15 to 90%
Storage altitude -170 to 4877 m (-557 to 16,000 ft.)
Storage humidity 15 to 95% (noncondensing)
Instructions for use Specifications 51
Product disposal
Customers must adhere to all federal, state, regional, and/or local laws and regulations as pertains
to the safe disposal of medical devices and accessories. If in doubt, the user of the device shall first
contact Hillrom Technical Support for guidance on safe disposal protocols.
52 Specifications Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Standards and compliance
General safety compliance
The device complies with the following standards:
IEC 60601-1, IEC 60601-1-2, IEC 60601-1-6, IEC 62366, IEC 80601-2-30, ISO 81060-1, ISO 10993-1. The
device has been clinically investigated to the requirements of ISO 81060-2. Radio compliance is
maintained and includes FCC ID (P14411B) and IC (1931B-BTM411). Country-specific standards are
included in the applicable Declaration of Conformity.
General radio compliance
The Bluetooth Wireless Card must be used in strict accordance with the manufacturer’s instructions
as described in the user documentation that comes with the product.
This device complies with Part 15 of the FCC rules and with the rules of the Canadian ICES-003.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission (FCC)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. If not installed and used in accordance with the instructions, it may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try and correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the distance between the equipment and the receiver
53
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
The user may find the following booklet prepared by the Federal Communications Commission
helpful:
The Interference Handbook
This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Stock
No. 004-000-0034504.
Welch Allyn is not responsible for any radio or television interference caused by unauthorized
modification of the devices included with this Welch Allyn product, or the substitution or
attachment of connecting cables and equipment other than specified by Welch Allyn.
The correction of interference caused by such unauthorized modification, substitution, or
attachment will be the responsibility of the user.
Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of this device.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas
produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement
du dispositif.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada.
European Union
The Bluetooth radio contained within this equipment complies with the essential requirements of
the EU Radio Equipment Directive (2014/53/EU).
54 Standards and compliance Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Guidance and manufacturer's declaration
EMC compliance
Special precautions concerning electromagnetic compatibility (EMC) must be taken for all medical
electrical equipment. This device complies with IEC 60601-1-2:2014.
• All medical electrical equipment must be installed and put into service in accordance with the
EMC information provided in this Instructions for use.
• Portable and mobile RF communications equipment can affect the behavior of medical
electrical equipment.
The monitor complies with all applicable and required standards for electromagnetic interference.
• It does not normally affect nearby equipment and devices.
• It is not normally affected by nearby equipment and devices.
• It is not safe to operate the monitor in the presence of high-frequency surgical equipment.
• However, it is good practice to avoid using the monitor in extremely close proximity to other
equipment.
NOTE The ProBP 3400 has essential performance requirements associated with
blood pressure measurement. In the presence of EM disturbances, the device
might display an error code. Once the EM disturbances stop, the ProBP 3400 will
self-recover and perform as intended.
WARNING Avoid using the ProBP 3400 adjacent to or stacked with other
equipment or medical electrical systems because it could result in improper
operation. If such use is necessary, observe the ProBP 3400 and other equipment
to verify that they are operating normally.
WARNING Use only accessories recommended by Welch Allyn for use with the
ProBP 3400. Accessories not recommend by Welch Allyn might affect the EMC
emissions or immunity.
WARNING Maintain minimum separation distance between the ProBP 3400 and
portable RF communication equipment. ProBP 3400 performance might degrade
if you do not maintain a proper distance between equipment.
WARNING This device has not been tested for use in clinical environments near
high-frequency surgical equipment and magnetic resonance imaging. Do not use
this device in environments like these where electromagnetic disturbance is high.
55
Emissions and immunity information
Electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below. The customer or user of
the device should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1 The device uses RF energy only for its internal function.
Therefore, its RF emissions are very low and are not likely to cause
any interference in nearby electronic equipment.
RF emissions
CISPR 11
Class B
The device is suitable for use in all establishments other than
domestic establishments and those directly connected to the
public low-voltage power supply network that supplies buildings
used for domestic purposes, provided the following warning is
heeded:
WARNING This equipment/system is
intended for use by healthcare professionals
only. This equipment/ system may cause radio
interference or may disrupt the operation of
nearby equipment
a
. It may be necessary to
take mitigation measures, such as re-orienting
or relocating the device or shielding the
location.
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Complies
a
The device contains a 5-GHz orthogonal frequency-division multiplexing transmitter or a 2.4-GHz frequency
hopping spread-spectrum transmitter for the purpose of wireless communication. The radio is operated
according to the requirements of various agencies, including FCC 47 CFR 15.247 and RED Directive (2015/53/
EU). The transmitter is excluded from the EMC requirements of 60601-1-2, but should be considered when
addressing possible interference issues between this and other devices.
EIRP (Equivalent Isotropically Radiated Power): 0.4 dBm
ISM (Industrial, Scientific, and Medical) band: 2.4 – 2.485 GHz
56 Guidance and manufacturer's declaration Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The customer or the user
of the device should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment -
guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
±8 kV contact
± 15 kV air
± 8 kV
± 15 kV
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30%.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power
supply lines
±2 kV Mains power quality should be that of a
typical commercial or hospital
environment.
±1 kV for input/
output lines
±1 kV
Surge
IEC 61000-4-5
± 0.5 kV, ± 1 kV
Line-to-line
± 1 kV Mains power quality should be that of a
typical commercial or hospital
environment.
± 0.5 kV, ± 1 kV, ± 2
kV
Line-to-ground
± 2 kV
Voltage dips, short
interruptions and
voltage variations on
power supply input
lines
IEC 61000-4-11
0% U
T
; 0.5 cycle
At 0°, 45°, 90°,135°,
180°, 225°, 270° and
315°
0% U
T
; 0.5 cycle
Mains power quality should be that of a
typical commercial or hospital
environment. If the user of the monitor
requires continued operation during
power mains interruptions, it is
recommended that the monitor be be
powered from an uninterruptible power
supply or a battery.
0% U
T
; 1 cycle and
70% U
T
; 25/30 cycles
0% U
T
; 1 cycle and
70% U
T
; 25/30 cycles
0% U
T
; 300 cycle
Single phase: at 0°
0% U
T
; 300 cycle
Power frequency
(50/60 Hz) magnetic
field IEC 61000-4-8
30 A/m 30 A/m Power frequency magnetic fields should
be at levels characteristic of a typical
location in a typical commercial or hospital
environment.
Note U
T
is the AC mains voltage prior to application of the test level.
Instructions for use Guidance and manufacturer's declaration 57
Electromagnetic immunity
The monitor is intended for use in the electromagnetic environment specified below. The customer or the
user of the monitor should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment -
guidance
Portable and mobile RF communications
equipment should be used no closer to
any part of the monitor, including cables,
than the recommended separation
distance calculated from the equation
applicable to the frequency of the
transmitter.
Recommended separation distance
Conducted RF
IEC 61000-4-6
3 Vrms
150 kHz to 80 MHz
3 Vrms
6 Vrms in ISM and
amateur radio bands
between 150 kHz
and 80 MHz
6 Vrms
Radiated RF
IEC 61000-4-3
10 V/M 80 MHz to
2.7 GHz
10 V/M
80 MHz to 800 MHz
800 MHz to 2.7 GHz
whereP is the maximum output power
rating of the transmitter in watts (W) andd
is the recommended separation distance
in meters (m). Field strengths from fixed RF
transmitters, as determined by an
electromagnetic site survey
a
, should be
less than the compliance level in each
frequency range
b
. Interference may occur
in the vicinity of equipment marked with
the following symbol:
Note 1 At 80 MHz and 800 MHz, the higher frequency range applies.
Note 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects, and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast, and TV broadcast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic
site survey should be considered. If the measured field strength in the location in which the monitor is used
58 Guidance and manufacturer's declaration Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Electromagnetic immunity
exceeds the applicable RF compliance level above, the monitor should be observed to verify normal
operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting
or relocating the monitor.
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 10 V/m.
Instructions for use Guidance and manufacturer's declaration 59
Recommended separation distances between portable and mobile RF communications
equipment and the monitor
The monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or user of the monitor can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the monitor as recommended below, according to the maximum output power of the
communications equipment.
Separation distance according to frequency of transmitter (m)
Rated max. output
power of
transmitter (W)
150 kHz to 80 MHz
outside ISM bands
150 kHz to 80 MHz
in ISM bands
80 MHz to 800 MHz 800 MHz to 2.7
GHz
0.01 0.12 0.20 0.12 0.23
0.1 0.37 0.63 0.38 0.73
1 1.17 2.00 1.20 2.30
10 3.69 6.32 3.79 7.27
100 11.67 20.00 12.00 23.00
For transmitters rated at a maximum output power not listed above, the recommended separation distanced
in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is
the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
Note 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects, and people.
60 Guidance and manufacturer's declaration Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Test specifications for enclosure port immunity to RF wireless communications equipment
Test
frequency
(MHz)
Band
a
MHz
Service
a
Modulation
b
Maximum
power (W)
Distance (m) Immunity
test level (V/
m)
385 380 - 390 TETRA 400 Pulse
modulation
b
18 Hz
1.8 0.3 27
450 430 - 470 GMRS 460,
FRS 460
FM
c
±5 kHz
deviation
1 kHz sine
2 0.3 28
710 704 - 787 LTE band 13,
17
Pulse
modulation
b
217 Hz
0.2 0.3 9
745
780
810 800 - 960 GSM 800/900,
TETRA 800,
iDEN 820,
CDMA 850,
LTE Band 5
Pulse
modulation
b
18 Hz
2 0.3 28
870
930
1720 1700 - 1990 GSM 1800;
CDMA 1900;
GSM 1900;
DECT; LTE
Band 1, 3, 4,
25; UMTS
Pulse
modulation
b
217 Hz
2 0.3 28
1845
1970
2450 2400 - 2570 Bluetooth,
WLAN, 802.11
b/g/n, RFID
2450,
LTE Band 7
Pulse
modulation
b
217 Hz
2 0.3 28
5240 5100 - 5800 WLAN 802.11
a/n
Pulse
modulation
b
217 Hz
0.2 0.3 9
5500
5785
NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and
the monitor may be reduced to 1 m. The 1 m test distance is permitted by IEC 61000-4-3.
a
For some services, only the uplink frequencies are included.
b
The carrier shall be modulated using a 50 percent duty cycle square wave signal.
c
As an alternative to FM modulation, 50 percent pulse modulation at 18 Hz may be used because while it
does not represent actual modulation, it would be worst case.
Instructions for use Guidance and manufacturer's declaration 61
62 Guidance and manufacturer's declaration Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Warranty
Welch Allyn will warranty the ProBP 3400 device and battery to be free of defects in material and
workmanship and to perform in accordance with manufacturer specifications for the period of one
year from the date of purchase from Welch Allyn or its authorized distributors or agents.
The warranty period shall start on the date of purchase. The date of purchase is: 1) the invoiced ship
date if the device was purchased directly from Welch Allyn, 2) the date specified during product
registration, 3) the date of purchase of the product from a Welch Allyn authorized distributor as
documented from a receipt from said distributor.
This warranty does not cover damage caused by: 1) handling during shipping, 2) use or
maintenance contrary to labeled instructions, 3) alteration or repair by anyone not authorized by
Welch Allyn, and 4) accidents.
The product warranty is also subject to the following terms and limitations:
Accessories are not covered by the warranty. Refer to the Directions For Use provided with
individual accessories for warranty information.
Shipping cost to return a device to a Welch Allyn Service center is not included.
A service notification number must be obtained from Welch Allyn prior to returning any products
or accessories to Welch Allyn's designated service centers for repair. To obtain a service notification
number, contact Welch Allyn Technical Support.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. WELCH ALLYN'S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIR OR
REPLACEMENT OF PRODUCTS CONTAINING A DEFECT. WELCH ALLYN IS NOT RESPONSIBLE FOR
ANY INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM A PRODUCT DEFECT COVERED BY
THE WARRANTY.
63
64 Warranty Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Troubleshooting
Inaccurate blood pressure readings
Possible cause Corrective action and explanation
Incorrect cuff size
Use Welch Allyn approved cuffs only.
Measure patient’s arm circumference midway
between elbow and shoulder (see “Blood pressure
cuff selection” to select correct cuff size).
Patient’s arm position Ensure patient’s arm is at heart level.
Arm movement during blood pressure cycle
Keep arm still during blood pressure cycle.
Movement may cause inaccuracies from artifact.
Blood pressure taken over clothing Take blood pressure on a bare arm.
Arrhythmia
Check for regularity of heart rate (palpate pulse or
check device).
Moderate to severe heart rate irregularities may make
blood pressure difficult to measure accurately.
Change in blood pressure between auscultatory
reading and ProBP 3400 reading
Check blood pressure immediately before ProBP 3400
reading.
Blood pressure is dynamic and changing. It is normal
for blood pressure to fluctuate 5 to 10 mmHg.
Incorrect reference Use the correct Korotkoff sound to determine diastolic
blood pressure.
• Many listeners incorrectly equate diastolic blood
pressure with the disappearance of sound only
(phase 5). ProBP 3400 was developed using the
American Heart Association recommendations,
which state that phase 5 be used unless sound
continues to 0 mmHg, in which case the change
in the quality of sound (phase 4) is to be used.
Deflate cuff no faster than 3 mmHg per second.
• One of the major sources of error in auscultatory
blood pressure measurement is deflating the cuff
65
Possible cause Corrective action and explanation
too quickly. The American Heart Association
recommends deflation no faster than 3 mmHg
per second.
Only use a sphygmomanometer that is calibrated.
• An uncalibrated sphygmomanometer may result
in inaccurate blood pressure measurements.
Poor auscultatory sound recognition by observer Use high-quality stethoscope. Have a different
observer check patient’s blood pressure.
Cuff inflation and deflation with no blood pressure
reading displayed
Possible cause Corrective action and explanation
Leak in pneumatic system
Inflation too quick; check NIBP cuff and tubing
connections may display.
Cuff pressure limits exceeded. Powering down
may display.
NIBP air leak; check cuff and tubing connections
may display.
Unable to determine NIBP; check inflation
settings may display.
Ensure all cuff attachments are tight.
Carefully check for leaks in the blood pressure cuff,
tubing, and pressure hose attached to ProBP 3400.
Patient's measured blood pressure is outside the rated
specification limits of the device
Determined blood pressure is outside of the rated
range. Evaluate the patient using manual methods.
Arm movement during cycle
Unable to determine NIBP; check connections;
limit patient movement may display.
Keep arm still during blood pressure cycle.
Movement may cause inaccuracies from artifact, long
cycle times, and error message.
Cuff tubing or pressure hose movement artifact
Unable to determine NIBP; check connections and
tubing for kinks may display.
Do not contact cuff tubing or pressure hose during
blood pressure cycle.
Movement may cause inaccuracies from artifact.
User may have pressed the Blood Pressure Start/
Stop button
User cancelled NIBP reading will display. Press the
Blood Pressure Start/Stop button to initiate
blood pressure measurement.
66 Troubleshooting Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
No cuff inflation
Possible cause Corrective action and explanation
Connections between device and cuff loose Check all connections.
Device is being used in inclimate environment Ambient temperature is outside of operating
range. Retry measurement may display.
Operate the device within temperature range in the
Environmental specifications section.
Internal errors or messaging error occurred NIBP feature not functional. Call for service may
display.
Contact a Welch Allyn Service Center.
Cuff pops off
Possible cause Corrective action and explanation
Inappropriate cuff size See “Blood pressure cuff selection” to select correct
cuff size. If cuff continues to pop off, notify biomedical
department or Welch Allyn Technical Support.
Cuff not applied securely Smooth hook and loop securely before inflating cuff.
Cuff applied inside out Re-apply cuff. Verify that the Welch Allyn label is
facing away from arm.
Cuff deflating too slowly
Possible cause Corrective action and explanation
Patient movement
Have patient sit still.
Do not have arm tight against chest wall, as
respiration may affect speed and accuracy of blood
pressure measurement.
Arrhythmia
Check for regularity of heart rate (palpate pulse or
check device).
Moderate to severe heart rate irregularities may make
blood pressure difficult to measure accurately.
Small leak in pneumatic system Check cuff tubing and pressure hose for leaks.
Instructions for use Troubleshooting 67
Device does not turn on
Possible cause Corrective action and explanation
Low battery
Plug in the device. Check connections between the
ProBP 3400 and the transformer, then between the
transformer and wall receptacle.
Battery installed incorrectly
Using the polarized guidelines on the battery label,
insert the battery, positive (+) side first, into the
battery compartment.
Device not powering up Unplug the device from wall receptacle and check for
breaks in the cord. If connections are secure, check
electrical outlet for power. Charging indicator is on if
connections are good and the device is plugged into
a working outlet.
Plug the device into a known working electrical outlet.
The device may not power up if the battery is
completely discharged. Connect the device to an
external power source for at least 15 minutes before
attempting to power up again. If device powers up,
charge the battery for at least six hours before
disconnecting the device from the power supply.
Replace the battery.
Notify Biomedical department or Welch Allyn
Technical Support.
System error The device displays a system fault message that
contains a wrench icon and a system fault code
to assist service and engineers in diagnosing the
problem.
Bluetooth troubleshooting
ProBP 3400 and the target device will not pair
Possible cause Corrective action and explanation
Bluetooth radio is not enabled on the ProBP 3400
See Bluetooth wireless technology section for
instructions on enablingBluetooth functionality in the
device.
ProBP 3400 is not in Pairing mode
See Bluetooth wireless technology section for
instructions on enabling pairing in the device.
There is too much distance between ProBP 3400 and
the target device
Move the ProBP 3400 closer to the target device.
68 Troubleshooting Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Possible cause Corrective action and explanation
The wrong PIN was entered for a Bluetooth 2.0
connection
If a PIN is requested, enter 1234.
There is a problem with the target device Refer to operating system or computer hardware
manuals for further troubleshooting.
ProBP 3400 and the target device are not connected
Possible cause Corrective action and explanation
ProBP 3400 and the target device have not been
paired.
Follow instructions for pairing the ProBP 3400 to a
target device.
If pairing was attempted:
• Complete pairing process again
• See troubleshooting section for ProBP 3400 and
the target device will not pair.
There is too much distance between ProBP 3400 and
the target device
Move the ProBP 3400 closer to the target device.
The target device and/or software were not launched
in the correct order
The connection process was not completed in the
correct order.
1. Exit the application on the computer.
2. Power down, then power up ProBP 3400.
3. Relaunch the computer application.
There is a problem with the target device Refer to operating system or computer hardware
manuals for further troubleshooting.
ProBP 3400 and the target device lost connection
Possible cause Corrective action and explanation
Unexpected loss in Bluetooth communication
The ProBP 3400 powered down
1. Exit the target application.
2. Power down the ProBP 3400
3. Restart the ProBP 3400
4. Relaunch the target application.
There is too much distance between ProBP 3400 and
the target device
Move the ProBP 3400 closer to the target device.
There is a problem with the target device Refer to operating system or computer hardware
manuals for further troubleshooting.
Instructions for use Troubleshooting 69
70 Troubleshooting Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Appendix
ProBP 3400 approved accessories
Flexiport® cuffs (not made with natural rubber latex)
Part Number Model Description
Reuse-08 Reusable Cuff, reuse, SM CHILD, 2-tube
Reuse-09 Reusable Cuff, reuse, CHILD, 2-tube
Reuse-10 Reusable Cuff, reuse, SM AD, 2-tube
Reuse-11 Reusable Cuff, reuse, ADULT, 2-tube
Reuse-11L Reusable Cuff, reuse, AD LONG, 2-tube
Reuse-12 Reusable Cuff, reuse, LG AD, 2-tube
Reuse-12L Reusable Cuff, reuse, LG AD LONG, 2-tube
Reuse-13 Reusable Cuff, reuse, THIGH, 2-tube
Blood pressure accessories (not made with natural rubber latex)
Part Number Model Description
3400-30 ProBP 3400 Double tube blood pressure hose (5 ft)
3400-31 ProBP 3400 Double tube blood pressure hose (10 ft)
Mounting options
Part Number Description
4600-61-6W Mobile stand with basket and mounting kit for ProBP 3400
71
Part Number Description
4601-61 Wall mount with basket for ProBP 3400
4602-61 Desk mount for ProBP 3400
Accessories and replacement parts
Part Number Description
BATT11 Lithium Ion battery, 1 Cell
3400-925-6W ProBP 3400 USB cable, 2.44 m (8 ft)
3400-926-6W ProBP 3400 USB cable, 0.30 m (16 inches)
4600-100-6W Power supply mounting kit (for use with mobile stand)
3400-561 ProBP 3400 basket adapter with screw
3400-461 ProBP 3400 wall adapter with screw
PWCD-6WW-B Power cord assembly, for handheld, or desk or wall
mounted ProBP 3400, North America
PWCD-6WT-B Power cord assembly B, for mobile stand mounted ProBP
3400, North America
PWCD-6WW-2 Power cord assembly 2, for handheld, or desk or wall
mounted ProBP 3400, Europe
PWCD-6WT-2 Power cord assembly 2, for mobile stand mounted ProBP
3400, Europe
PWCD-6WW-4 Power cord assembly 4, for handheld, or desk or wall
mounted ProBP 3400, United Kingdom
PWCD-6WT-4 Power cord assembly 4, for mobile stand mounted ProBP
3400, United Kingdom
PWCD-6WW-6 Power cord assembly 6, for handheld, or desk or wall
mounted ProBP 3400, Australia/New Zealand —Orange
PWCD-6WT-6 Power cord assembly 6, for mobile stand mounted ProBP
3400, Australia/New Zealand —Orange
PWCD-6WW-C Power cord assembly C, for handheld, or desk or wall
mounted ProBP 3400, China
PWCD-6WT-C Power cord assembly C, for mobile stand mounted ProBP
3400, China
PWCD-6WW-7 Power cord assembly 7, for handheld, or desk or wall
mounted ProBP 3400, South Africa
PWCD-6WT-7 Power cord assembly 7, for mobile stand mounted ProBP
3400, South Africa
72 Appendix Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
Part Number Description
PWCD-6WT-J Power cord assembly N, for mobile stand mounted ProBP
3400, Japan
3400-100 Battery door
Service
Part Number Description
S1-3400 Comprehensive Partner Program, ProBP 3400, 1 year
S2-3400 Biomed Partner Program, ProBP 3400, 1 year
S4-3400 Preventive Partner Program, ProBP 3400, 1 year
Licensed features
Part Number Description
3400-SUREBP SureBP activation code
3400-BT Bluetooth activation code
Configuration options
Model Description
34XFHT-B* Includes Welch Allyn SureBP® technology, rechargeable lithium-ion battery, size 11
and size 12 FlexiPort® cuffs, handheld configuration
34XFWT-B* Includes Welch Allyn SureBP® technology, rechargeable lithium-ion battery, size 11
and size 12 FlexiPort® cuffs, wall mounted configuration
34XFST-B* Includes Welch Allyn SureBP® technology, rechargeable lithium-ion battery, size 11
and size 12 FlexiPort® cuffs, mobile stand mounted configuration
34XXHT-B* Includes rechargeable lithium-ion battery, size 11 and size 12 FlexiPort® cuffs,
handheld configuration
34XXWT-B* Includes rechargeable lithium-ion battery, size 11 and size 12 FlexiPort® cuffs, wall
mounted configuration
34XXST-B* Includes rechargeable lithium-ion battery, size 11 and size 12 FlexiPort® cuffs,
mobile stand mounted configuration
*Replace final digit in model number with regional code listed in the table below.
Instructions for use Appendix 73
Accessories and replacement parts
Code Region
6 Australia/New Zealand - Orange
C China
2 Europe
J Japan (mobile stand version only)
B North America
7 South Africa
4 United Kingdom
74 Appendix Welch Allyn® Connex® ProBP™ 3400 digital blood pressure device
