Instruction Manual and Installation Instructions
Washing machine
Top-loader C series
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WOE101S0SA/01:
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
5 Installing and connecting the appliance 4
3
9 Quick reference guide 10
3
* Familiarising yourself with your appliance 11
3
Y Display 13
3
/ Programme overview 15
3
0 Buttons 17
3
Z Laundry 19
3
1 Operating the appliance 20
3
H Sensors 23
3
D Cleaning and maintenance 24
3
3 What to do in the event of a fault 27
3
L Transporting the appliance 30
3
{ Technical specifications 31
3
4 After-sales service 32
3
5 Installing and connecting the appliance
4
Installing and connecting the appliance
4

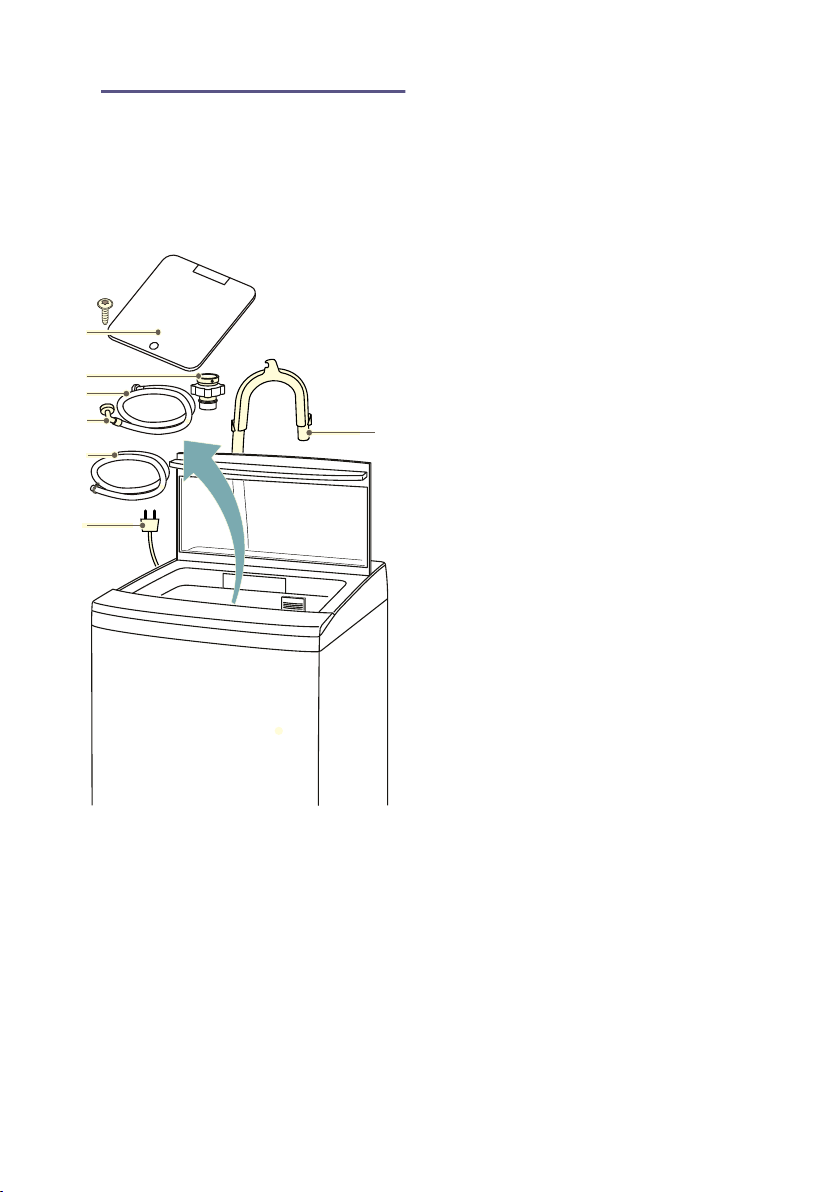

Included with the appliance:
4
1. Remove any packaging and protective covers completely from the appliance.
4
2. Remove the protective film from the control panel.
4
3. Remove the appliance from the base padding.
4
Note:
4
4. Open the cover on the appliance and take out all the accessories.
4
Caution!
4
Risk of material damage/damage to the appliance
4
Installing the appliance
4
: Warning
4
Risk of injury!
4

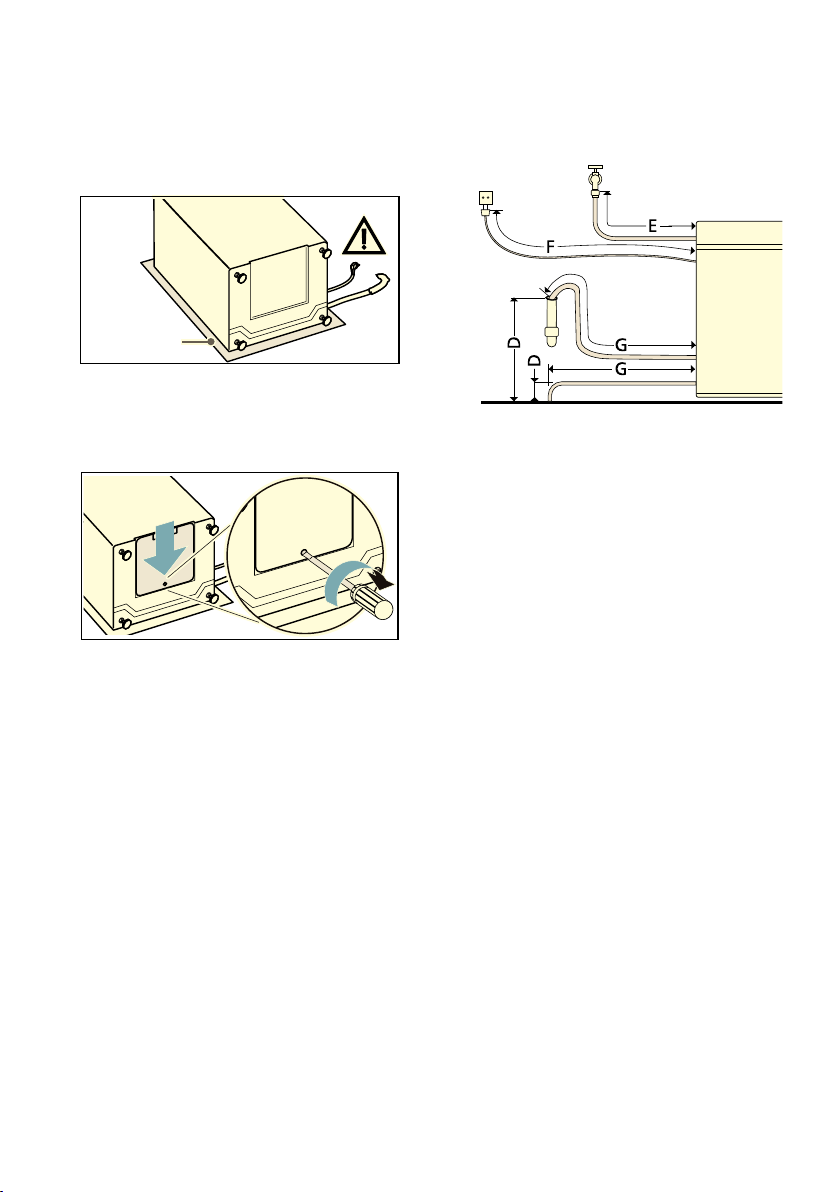

Installing the bottom plate
5
1. Lay the appliance down with its front panel resting on a piece of soft material.
5
2. Push the bottom plate onto the underside of the appliance and screw it in place.
5
Installation surface
5
Caution!
5
Risk of damage to the appliance
5
Note:
5
Hose and pipe lengths
5
Model with pump and a maximum load of 14 kg or more:
5
Model with pump and a maximum load below 14 kg:
5
Model without pump:
5
Connecting the appliance
6
Caution!
6
Risk of material damage/damage to the appliance
6
â If the water pressure is too high or too low, the appliance may not be able to operate properly, and this may also result in material damage or damage to the appliance.
6
â If the water hoses are altered or damaged, this may result in material damage or damage to the appliance.
6
â The use of hoses supplied by other brands to connect to the water supply may result in material damage or damage to the appliance.
6
Notes
6
Water supply hose
6
Notes
6

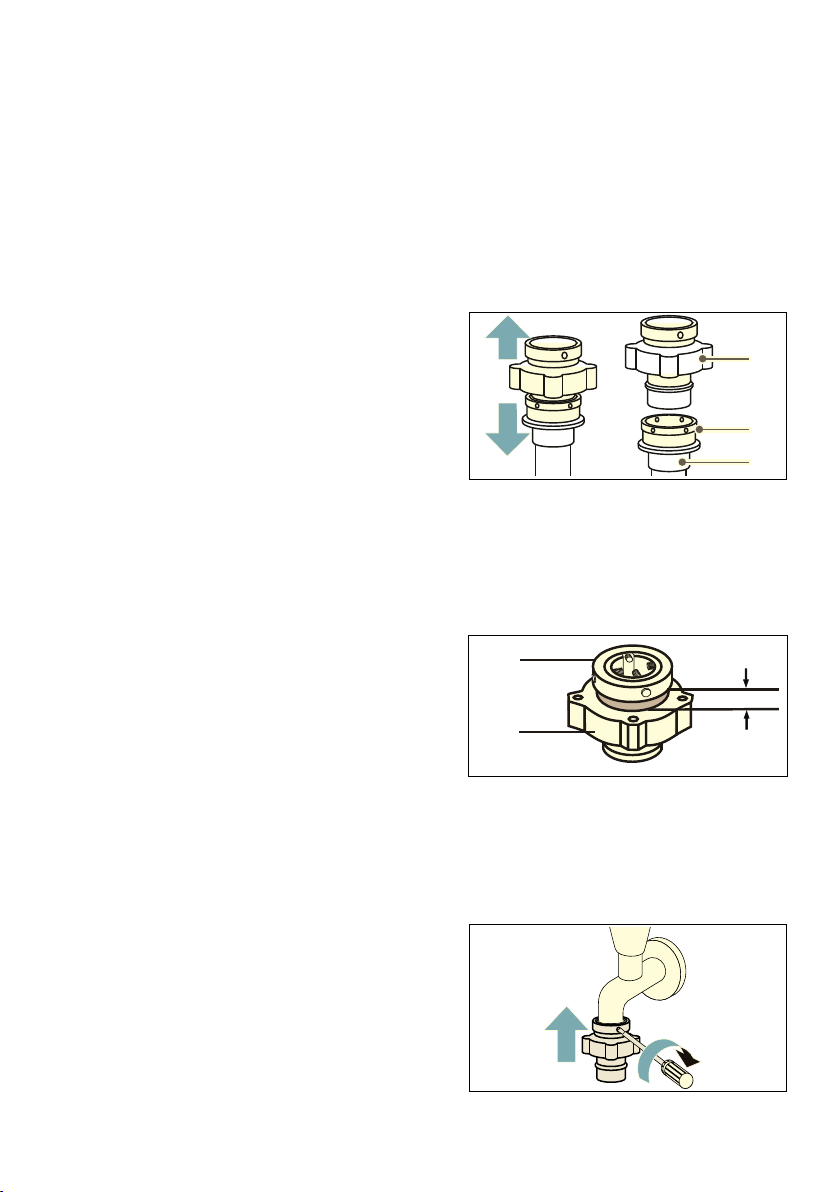

Connection to the universal tap adapter
6
Note:
6
1. Slide the sliding sleeve downwards from the snap connector (all balls must be exposed) and then disconnect the snap connector from the connection socket.
6
2. Turn part B of the connection socket until the clearance between part A and part B is at least 5 mm.
6
3. Unscrew all of the screws from part A.
6
4. Slide the connection socket over the tap opening and then screw the screws tightly back into part A.
6
Note:
7
5. Retighten part B.
7
6. Slide the sliding sleeve downwards from the snap connector (all balls must be exposed), insert the snap connector into the connection socket and slide it upwards.
7

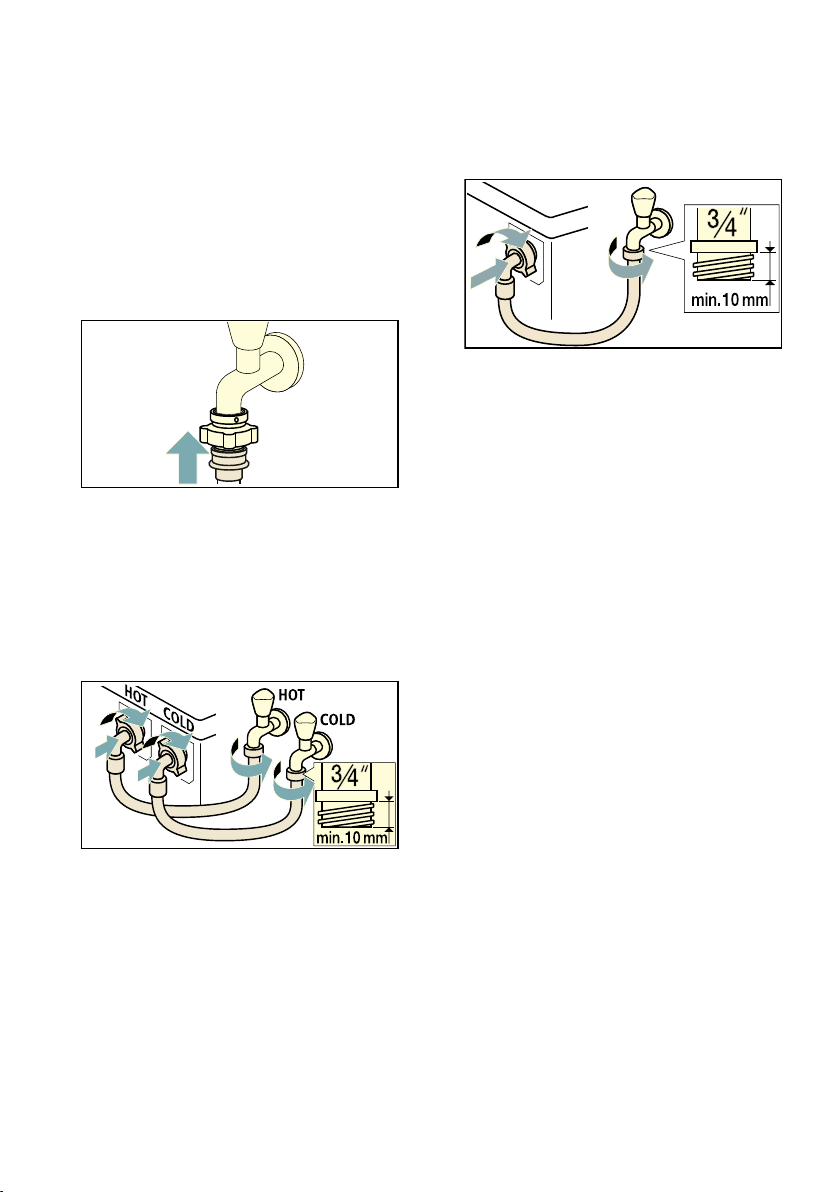

Model with hot water supply:
7
1. Connect the red-marked hot water supply hose to the hot water tap (¾"; max. 60 °C) and to the red valve on the appliance, and connect the blue- marked cold water supply hose to the cold water tap (¾") and to the blue valve on the appliance.
7
2. Carefully turn on the taps and check that there are no leaks.
7
Notes
7
Model without hot water supply:
7
1. Connect the water supply hose to the tap (¾") and to the valve on the appliance.
7
2. Carefully turn on the taps and check that there are no leaks.
7
Note:
7
Water drainage
7
Caution!
7
Water damage
7
Caution!
7
Damage to the appliance/laundry
7
â The wash basin outlet is not blocked,
7
â The end of the drain hose is not immersed in the drained water,
7
â The water drains away quickly enough.
7

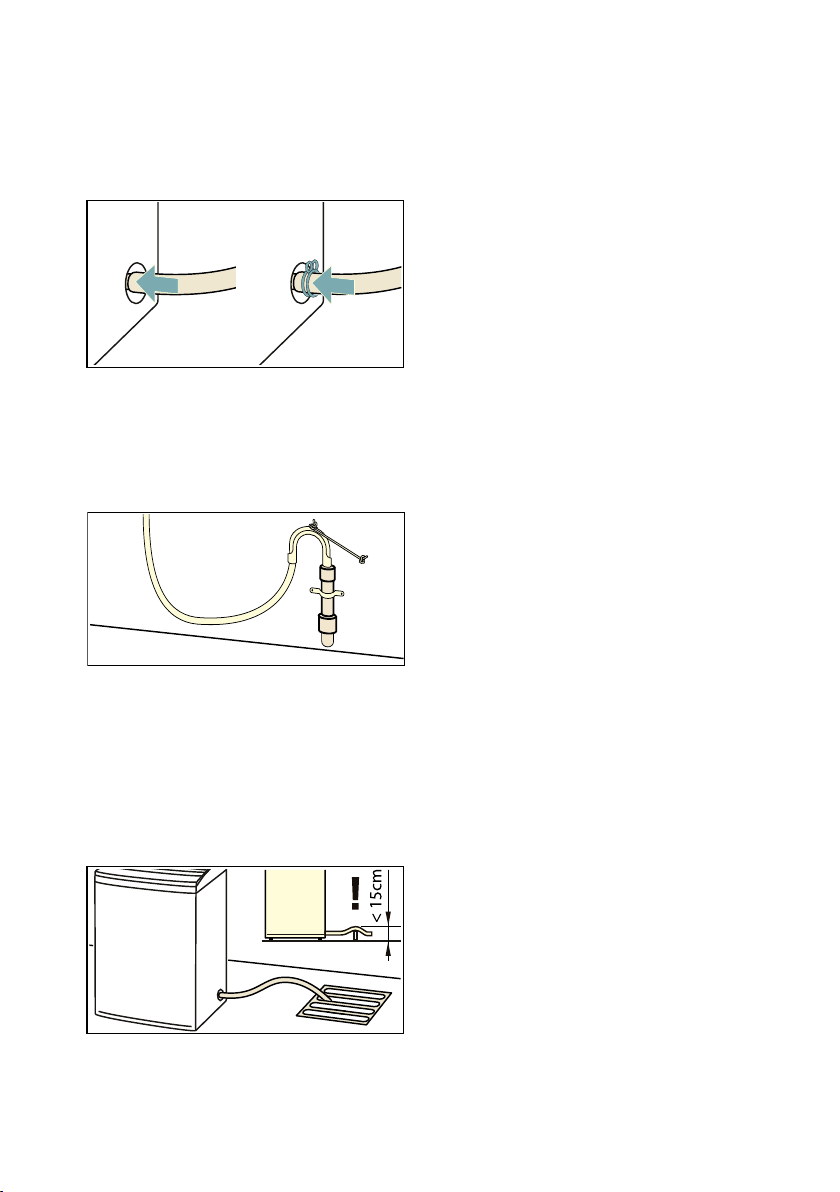

Connect the water drain hose as follows:
8
1. Use the spring clip to secure the water drain hose to the outlet on the appliance.
8
Note:
8
2. Second end of the water drain hose:
8
Note:
8
Notes
8
Electrical connection
8
: Warning
8
Risk of electric shock/fire/material damage/damage to the appliance!
8
1. Plug the appliance's mains plug into the designated socket.
9
2. Check that the mains plug is in securely.
9
Levelling the appliance
9
Note:
9
Before using the appliance for the first time
9
Run a program without laundry as follows:
9
1. Press # to switch on the appliance.
9
2. Set the Tub clean/Tub Clean program.
9
3. Open the appliance lid (but do not place any laundry inside).
9

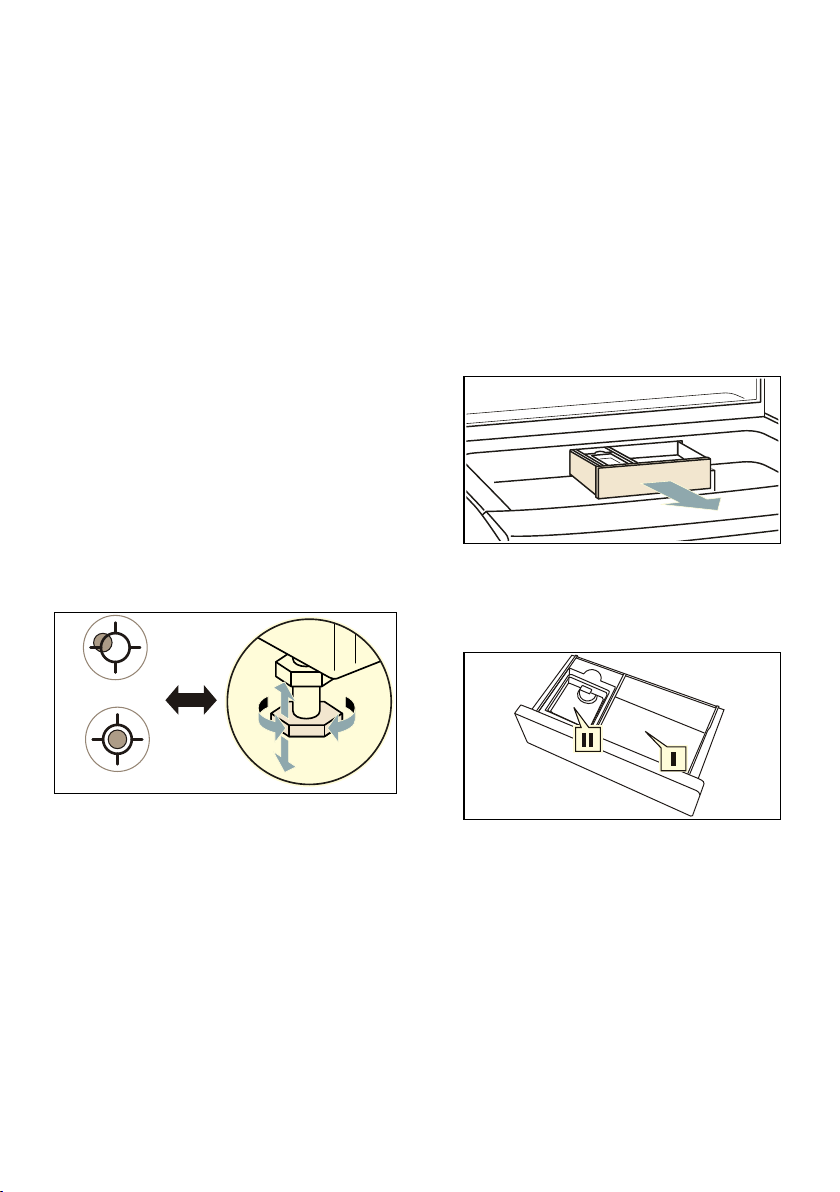

4. Pull out the detergent drawer.
9
5. Fill compartment I with washing power, or fill compartment II with liquid detergent.
9
6. Close the detergent drawer.
9
7. Press A.
9
8. Switch off the appliance at the end of the program.
9
9 Quick reference guide
10

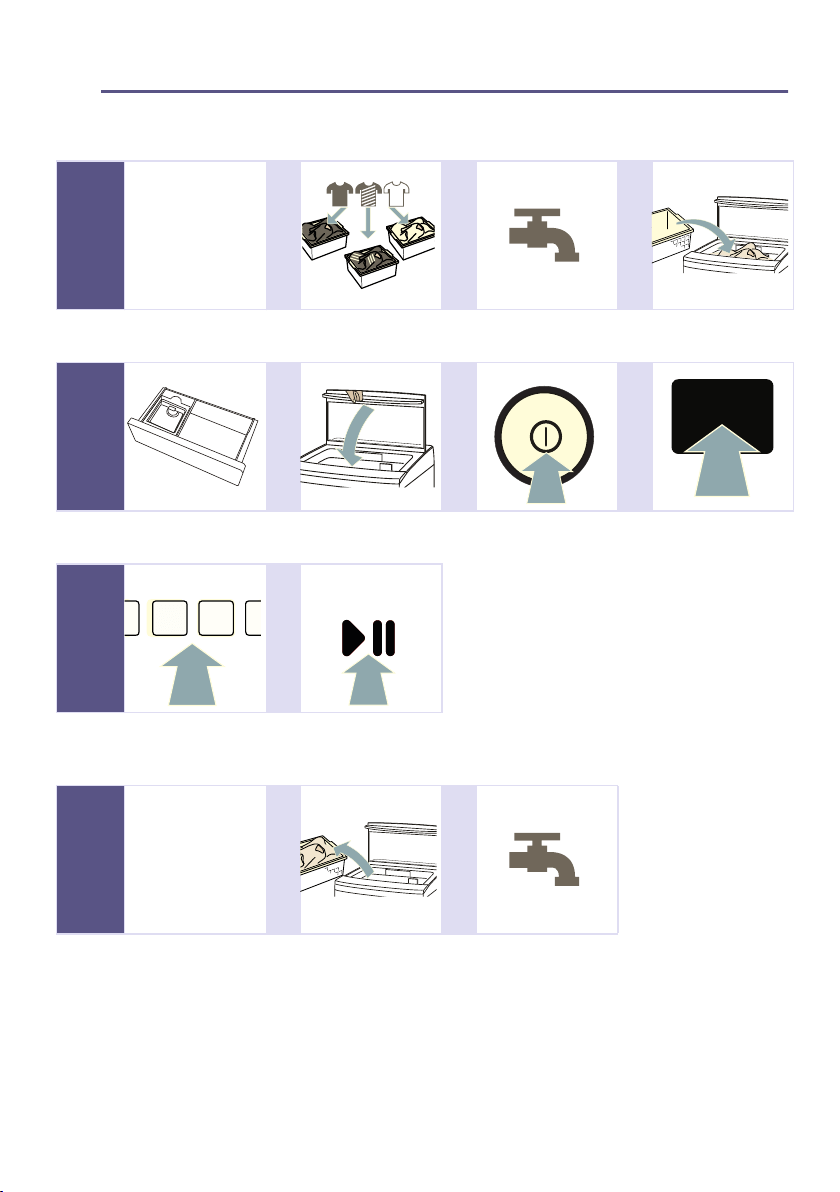

Quick reference guide
10
* Familiarising yourself with your appliance
11
Familiarising yourself with your appliance
11

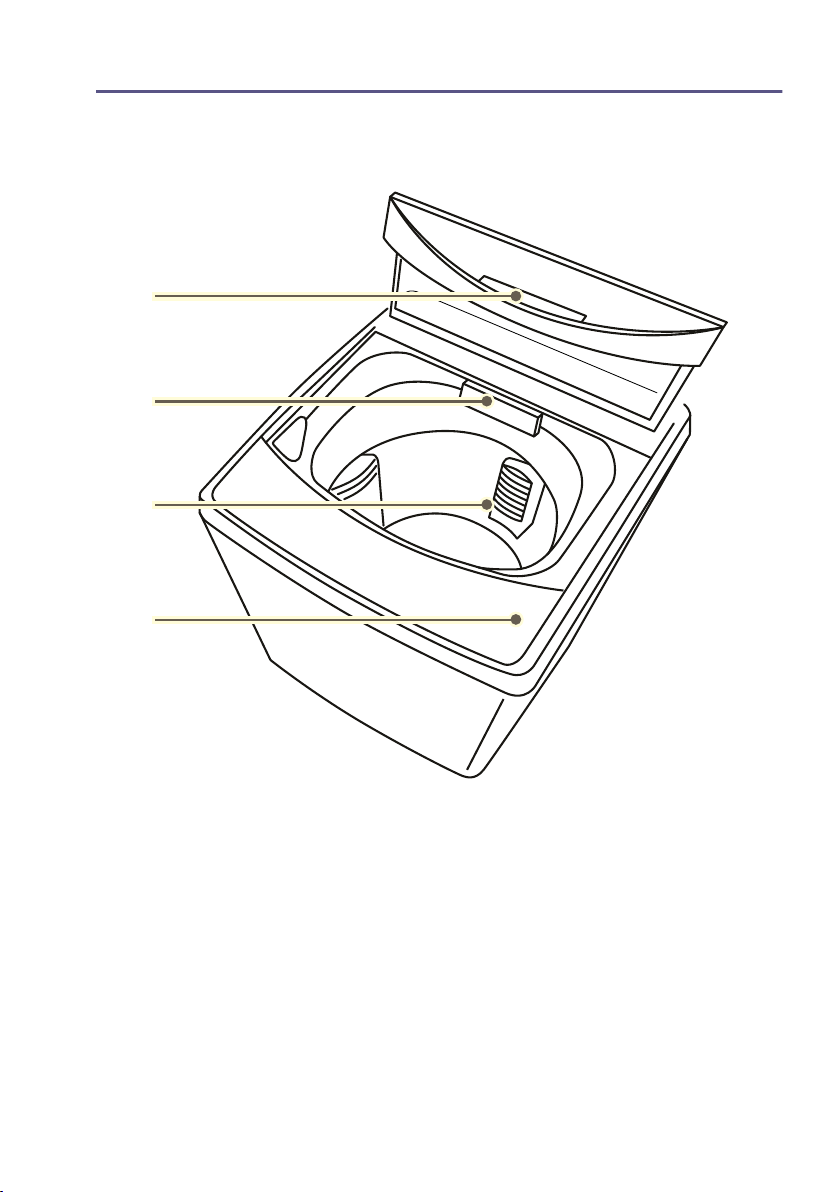

Appliance overview
11
Panel

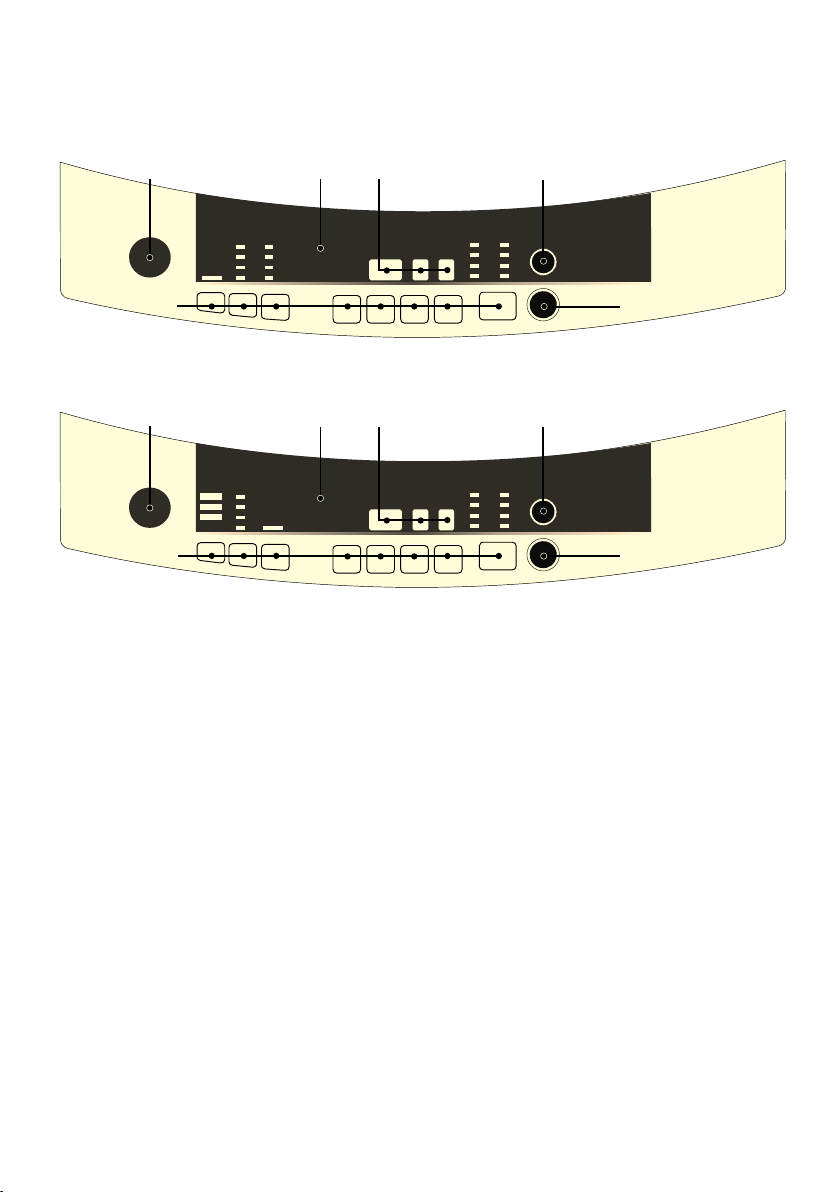

12
Model without a hot water supply hose:
12
Model with a hot water supply hose:
12
Y Display
13
Display
13
Number/code
13
Description
13
Information
13
Note:
13
1. Switch off the appliance.
14
2. Wait 5 seconds.
14
3. Switch the appliance on again.
14
1. Switch off the appliance.
14
2. Wait 5 seconds.
14
3. Switch the appliance on again.
14
/ Programme overview
15
Programme overview
15
Program/type of laundry/information
15
Load size
15
Note:
15
Note:
15
1. Switch on the appliance.
15
2. Set the Memory program.
15
3. Adjust the program settings if necessary or start the program.
15
Note:
15
Notes
16
Note:
16
1. Press # to switch on the appliance.
16
2. Press A.
16
Note:
16
1. Press # to switch on the appliance.
16
2. Press O Rinse.
16
3. Press A.
16
1. Press # to switch on the appliance.
16
2. Press 0 Spin.
16
3. Press A.
16
0 Buttons
17
Program setting
17
Function
17
Notes
17
Note:
17
Note:
17
Note:
18
Z Laundry
19
Laundry
19
Preparing the laundry
19
Caution!
19
Risk of damage to the drum and laundry
19
Note:
19
Sorting laundry
19
1 Operating the appliance
20
Operating the appliance
20

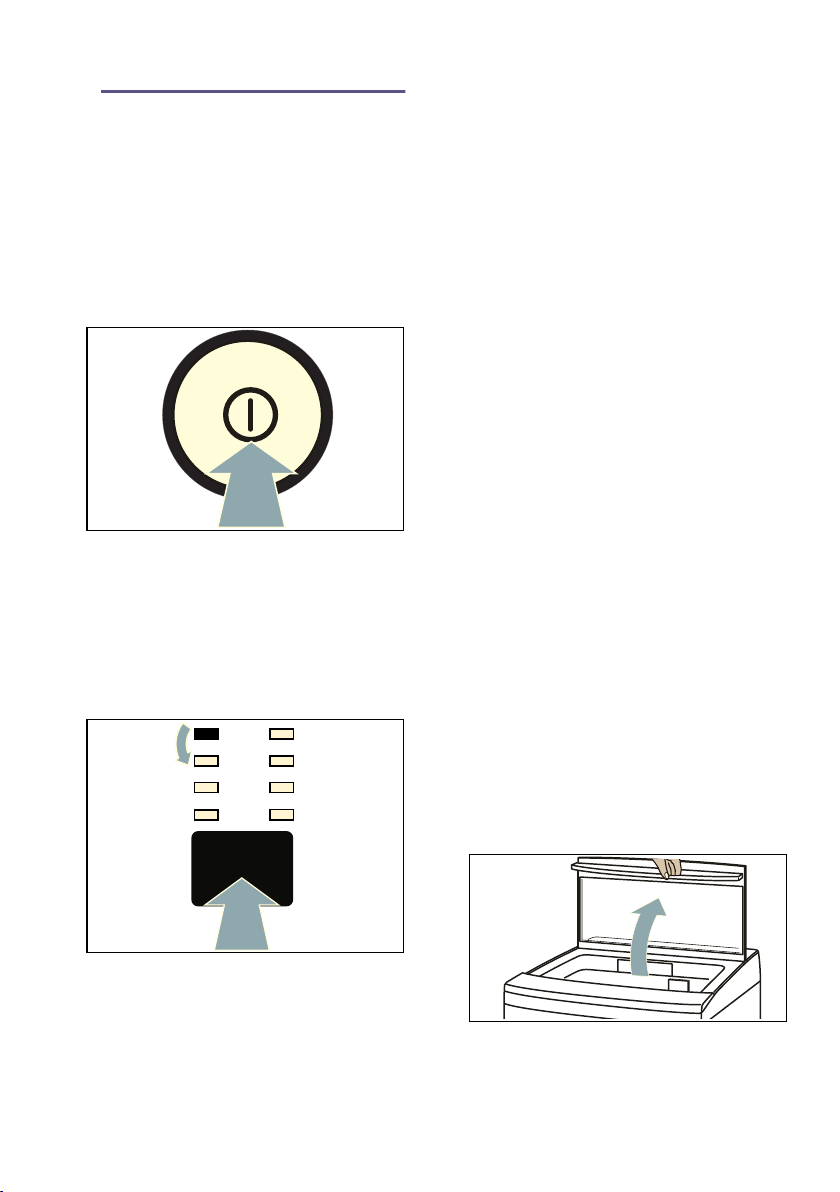

Switching on the appliance and setting a programme
20
Note:
20
1. Press # to switch on the appliance.
20
2. Press Program repeatedly to set the washing program you require.
20
Note:
20
3. Adjust the programme settings if required.
20
Programme settings
20
You can do the following to program settings:
20
Placing the laundry into the drum
20
Note:
20
1. Prepare and sort the laundry.
20
2. Open the lid.
20
3. Load the laundry unfolded into the drum.
21
4. Close the lid.
21
Caution!
21
Risk of material damage to the appliance or laundry.
21
Adding detergent and fabric care products
21
Caution!
21
Risk of material damage and damage to the appliance
21
Caution!
21
Risk of material damage and damage to the appliance
21
â Do not allow these products to come into contact with the surfaces of the appliance.
21
â Clean the appliance with nothing but water and a soft, damp cloth.
21
â Remove all detergent residue, spray residue or other residues immediately.
21

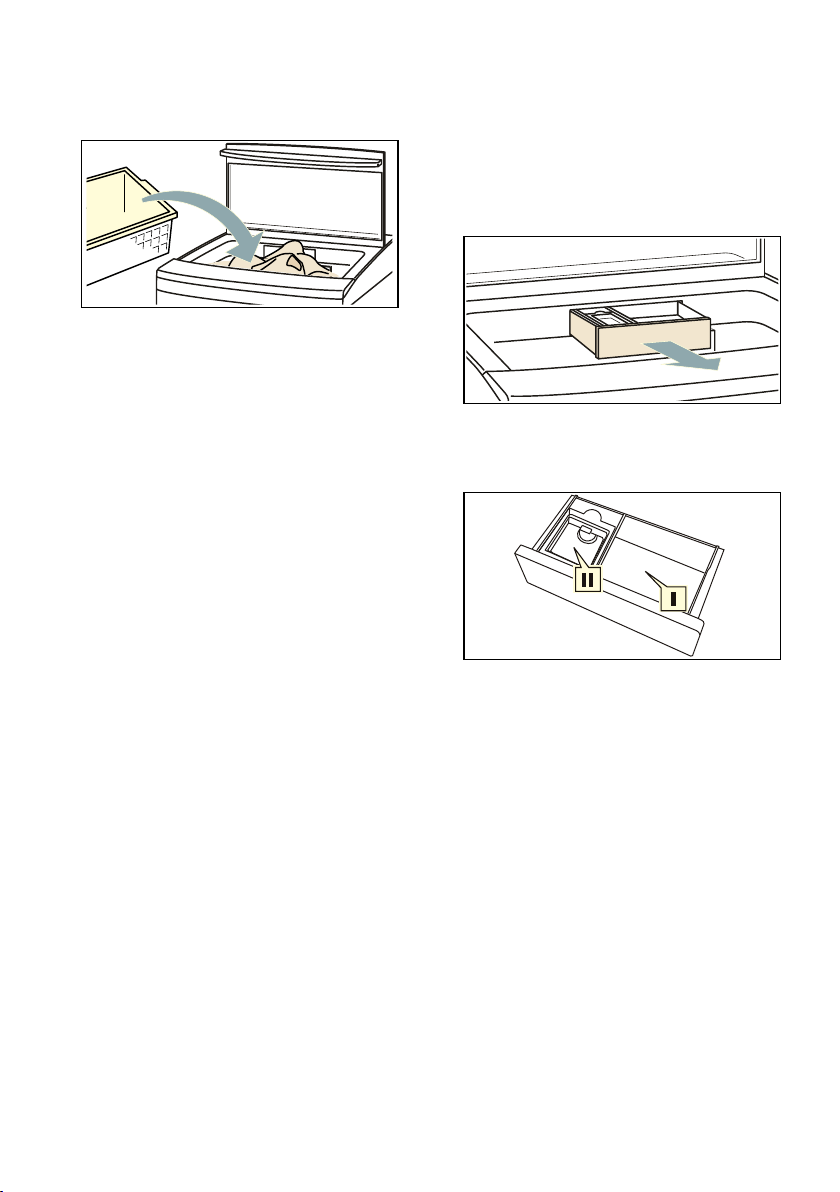

1. Pull out the detergent drawer.
21
2. Add detergent and/or laundry care products.
21
3. Push in the detergent drawer.
21
Notes
21
Starting a programme
22
Note:
22
Childproof lock
22
Notes
22
Pausing programmes and adding more laundry
22
1. Press A.
22
2. If you need to, you can add more laundry or remove laundry.
22
3. Press A to resume the program.
22
Notes
22
Cancelling the programme
22
1. Press # to switch off the appliance.
22
2. Press # to switch the appliance back on.
22
3. Open the lid and remove the laundry or start a new program.
22
Notes
22
Resuming the programme when the programme status is Rinse Stop
22
1. Press # to switch on the appliance.
22
2. Press 0 Spin to set the Spin program and to adjust the duration of the spin cycle.
22
3. Press A.
22
Programme end
23
Removing laundry and switching off the appliance
23
1. Remove the laundry.
23
2. Turn off the tap.
23
Notes
23
H Sensors
23
Sensors
23
Unbalanced load detection system
23
Note:
23
Continuous automatic load adjustment function
23
D Cleaning and maintenance
24
Cleaning and maintenance
24
Cleaning/Maintenance
24
: Warning
24
Risk of death!
24
: Warning
24
Risk of poisoning!
24
: Warning
24
Risk of electric shock/material damage/damage to the appliance!
24
: Warning
24
Risk of injury/material damage/ damage to the appliance!
24
Caution!
24
Material damage/damage to the appliance
24
Cleaning the drum
25
Note:
25
Descaling the appliance
25
Caution!
25
Risk of material damage/damage to the appliance
25
Cleaning the drain pump
25
Note:
25
1. Turn the pump cover on the back of the appliance anti-clockwise to remove it, and drain the washing water into a suitable container.
25
2. Clean the inside and the thread on the pump cover and pump housing.
25
Note:
25
3. Put the pump cover back in place and screw it back on fully.
25

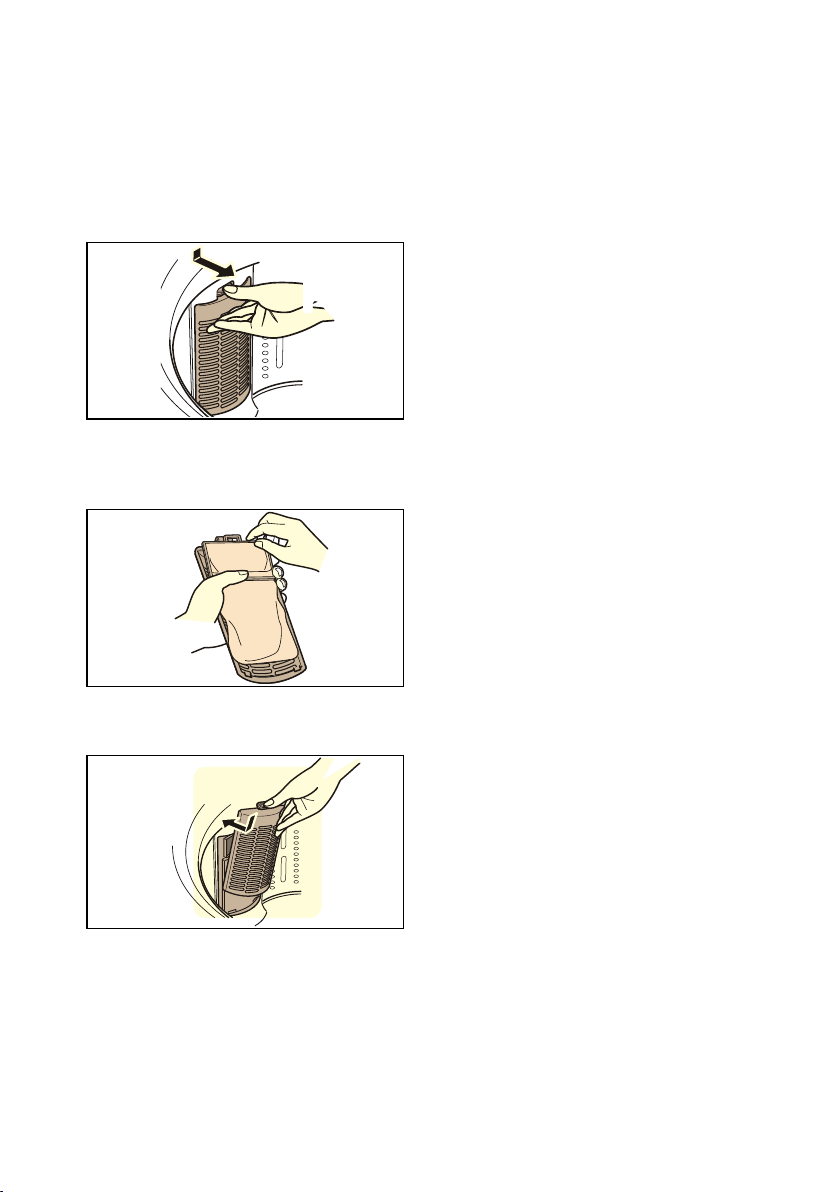

Cleaning the lint filter
26
1. Remove the filter from the holder.
26
2. Remove the net bag, clean it and put it back in.
26
3. Place the filter back into the holder.
26
3 What to do in the event of a fault
27
: Warning
27
Risk of injury!
27
Help with the appliance
27
Faults
27
Cause/remedy
27
Note:
27
Note:
27
Note:
28

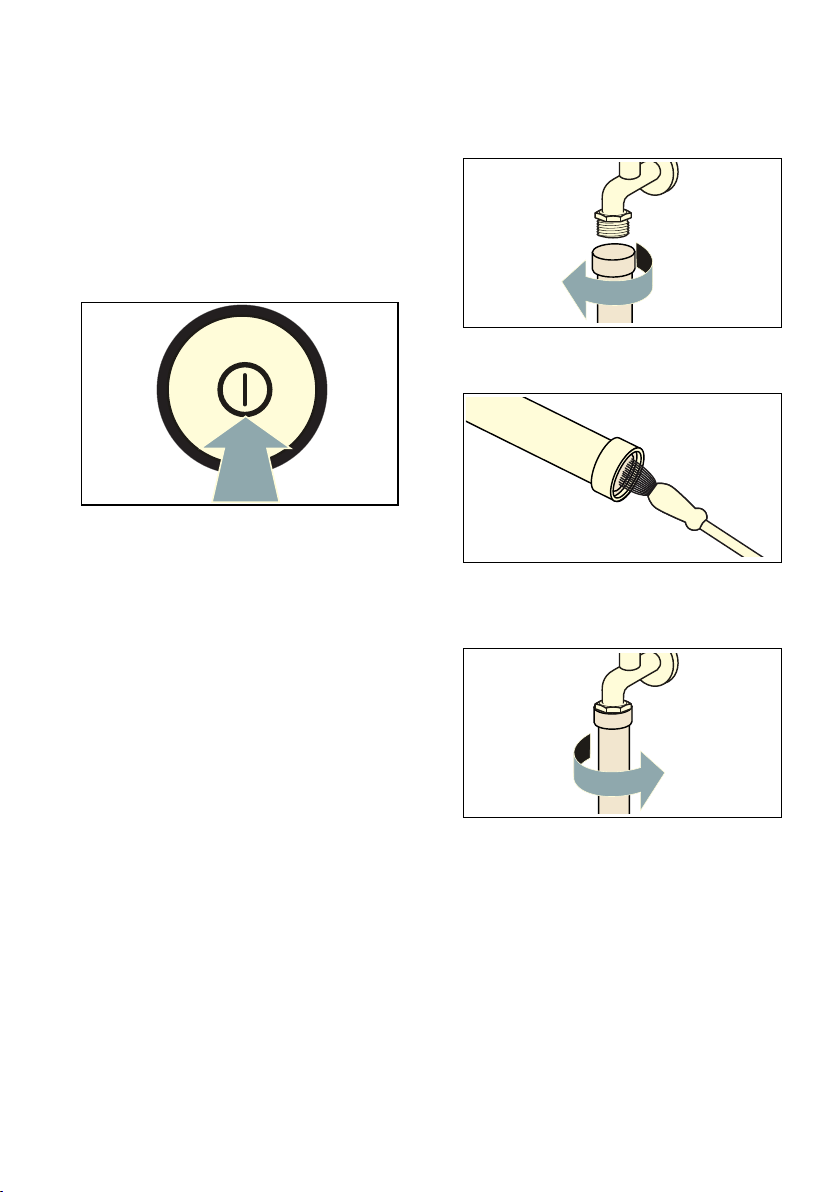

Filter in water supply blocked
29
Preparation:
29
1. Turn off the tap.
29
2. Set any programme (except Rinse/ Spin).
29
3. Press A.
29
4. Press # to switch off the appliance.
29
5. Disconnect the appliance's mains plug from the power supply.
29

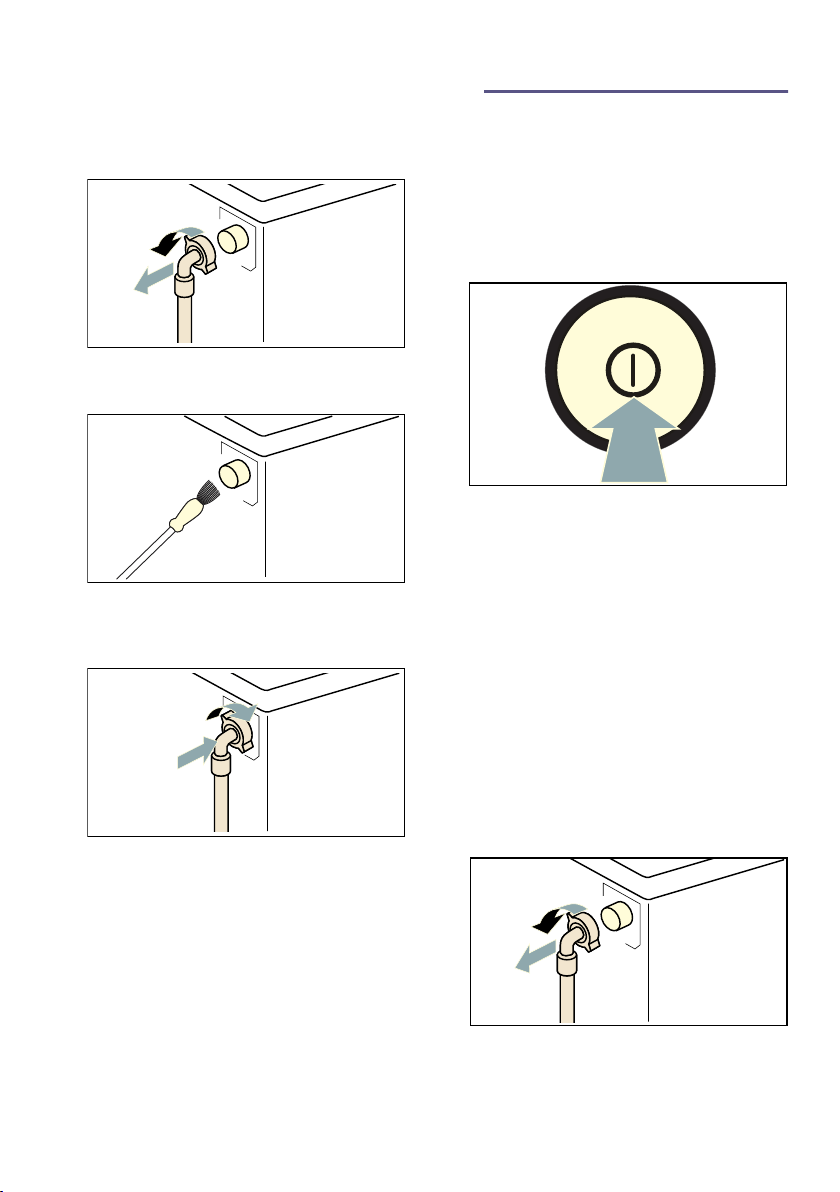

Clean the filter on the tap as follows:
29
1. Disconnect the hose from the water tap.
29
2. Clean the filter with a small brush.
29
3. Connect the hose and check for leaks.
29
Clean the filter on the back of the appliance:
30
1. Remove the hose from the rear of the appliance.
30
2. Clean the filter with a small brush.
30
3. Reconnect the hose at the rear of the appliance and check for leaks.
30
L Transporting the appliance
30
Transporting the appliance
30
1. Turn off the tap.
30
2. Press # to switch on the appliance.
30
3. Run the Spin program without any residual water or laundry. ~ Page 15
30
Note:
30
4. Disconnect the appliance's mains plug from the power supply.
30
5. For models with a drain pump, drain the remaining washing water. ~ Page 25
30
Note:
30
6. Remove the hoses.
30
Note:
30
{ Technical specifications
31
Technical specifications
31
Note:
31
Models:
31
Dimensions
31
(in mm)
31
Weight
31
(in kg)
31
Rated voltage
31
(in V)
31
Rated power
31
(in W)
31
Rated frequency
31
(in Hz)
31
Maximum load
31
(in kg)
31
4 After-sales service
32
After-sales service
32
File type: PDF
File name: woe101s0sa-01.pdf
File size: 1.96 MB
File Language: English
Pages: 36
Author: Bosch
Published: 2020-08-15
Updated: 2023-07-26
Download File
Specifications
Brand:
Bosch
Model: WOE101S0SA/01
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
NXX675CB1E/01
HSA420120/02
HEV100320/02
HDIP056U
HGG222120Z/10
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WUU28TH0
Bosch WTW85472EX
Bosch WTW844F3
Bosch WTW84473EX
Bosch WTR85T70EX
Bosch WTH85VX0
Bosch WOE135W0ZA/01
Bosch WOA104X0SG/01
Bosch HBA574BS0A
Bosch PKE611D17A
Bosch SHS863WD5N
Bosch PKN675DB1A
Bosch HDD80051UC/01
Bosch HMV5053U
Bosch WTG86400UC
Table of Contents
×
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
5 Installing and connecting the appliance 4
3
9 Quick reference guide 10
3
* Familiarising yourself with your appliance 11
3
Y Display 13
3
/ Programme overview 15
3
0 Buttons 17
3
Z Laundry 19
3
1 Operating the appliance 20
3
H Sensors 23
3
D Cleaning and maintenance 24
3
3 What to do in the event of a fault 27
3
L Transporting the appliance 30
3
{ Technical specifications 31
3
4 After-sales service 32
3
5 Installing and connecting the appliance
4
Installing and connecting the appliance
4
Included with the appliance:
4
1. Remove any packaging and protective covers completely from the appliance.
4
2. Remove the protective film from the control panel.
4
3. Remove the appliance from the base padding.
4
Note:
4
4. Open the cover on the appliance and take out all the accessories.
4
Caution!
4
Risk of material damage/damage to the appliance
4
Installing the appliance
4
: Warning
4
Risk of injury!
4
Installing the bottom plate
5
1. Lay the appliance down with its front panel resting on a piece of soft material.
5
2. Push the bottom plate onto the underside of the appliance and screw it in place.
5
Installation surface
5
Caution!
5
Risk of damage to the appliance
5
Note:
5
Hose and pipe lengths
5
Model with pump and a maximum load of 14 kg or more:
5
Model with pump and a maximum load below 14 kg:
5
Model without pump:
5
Connecting the appliance
6
Caution!
6
Risk of material damage/damage to the appliance
6
â If the water pressure is too high or too low, the appliance may not be able to operate properly, and this may also result in material damage or damage to the appliance.
6
â If the water hoses are altered or damaged, this may result in material damage or damage to the appliance.
6
â The use of hoses supplied by other brands to connect to the water supply may result in material damage or damage to the appliance.
6
Notes
6
Water supply hose
6
Notes
6
Connection to the universal tap adapter
6
Note:
6
1. Slide the sliding sleeve downwards from the snap connector (all balls must be exposed) and then disconnect the snap connector from the connection socket.
6
2. Turn part B of the connection socket until the clearance between part A and part B is at least 5 mm.
6
3. Unscrew all of the screws from part A.
6
4. Slide the connection socket over the tap opening and then screw the screws tightly back into part A.
6
Note:
7
5. Retighten part B.
7
6. Slide the sliding sleeve downwards from the snap connector (all balls must be exposed), insert the snap connector into the connection socket and slide it upwards.
7
Model with hot water supply:
7
1. Connect the red-marked hot water supply hose to the hot water tap (¾"; max. 60 °C) and to the red valve on the appliance, and connect the blue- marked cold water supply hose to the cold water tap (¾") and to the blue valve on the appliance.
7
2. Carefully turn on the taps and check that there are no leaks.
7
Notes
7
Model without hot water supply:
7
1. Connect the water supply hose to the tap (¾") and to the valve on the appliance.
7
2. Carefully turn on the taps and check that there are no leaks.
7
Note:
7
Water drainage
7
Caution!
7
Water damage
7
Caution!
7
Damage to the appliance/laundry
7
â The wash basin outlet is not blocked,
7
â The end of the drain hose is not immersed in the drained water,
7
â The water drains away quickly enough.
7
Connect the water drain hose as follows:
8
1. Use the spring clip to secure the water drain hose to the outlet on the appliance.
8
Note:
8
2. Second end of the water drain hose:
8
Note:
8
Notes
8
Electrical connection
8
: Warning
8
Risk of electric shock/fire/material damage/damage to the appliance!
8
1. Plug the appliance's mains plug into the designated socket.
9
2. Check that the mains plug is in securely.
9
Levelling the appliance
9
Note:
9
Before using the appliance for the first time
9
Run a program without laundry as follows:
9
1. Press # to switch on the appliance.
9
2. Set the Tub clean/Tub Clean program.
9
3. Open the appliance lid (but do not place any laundry inside).
9
4. Pull out the detergent drawer.
9
5. Fill compartment I with washing power, or fill compartment II with liquid detergent.
9
6. Close the detergent drawer.
9
7. Press A.
9
8. Switch off the appliance at the end of the program.
9
9 Quick reference guide
10
Quick reference guide
10
* Familiarising yourself with your appliance
11
Familiarising yourself with your appliance
11
Appliance overview
11
Panel
12
Model without a hot water supply hose:
12
Model with a hot water supply hose:
12
Y Display
13
Display
13
Number/code
13
Description
13
Information
13
Note:
13
1. Switch off the appliance.
14
2. Wait 5 seconds.
14
3. Switch the appliance on again.
14
1. Switch off the appliance.
14
2. Wait 5 seconds.
14
3. Switch the appliance on again.
14
/ Programme overview
15
Programme overview
15
Program/type of laundry/information
15
Load size
15
Note:
15
Note:
15
1. Switch on the appliance.
15
2. Set the Memory program.
15
3. Adjust the program settings if necessary or start the program.
15
Note:
15
Notes
16
Note:
16
1. Press # to switch on the appliance.
16
2. Press A.
16
Note:
16
1. Press # to switch on the appliance.
16
2. Press O Rinse.
16
3. Press A.
16
1. Press # to switch on the appliance.
16
2. Press 0 Spin.
16
3. Press A.
16
0 Buttons
17
Program setting
17
Function
17
Notes
17
Note:
17
Note:
17
Note:
18
Z Laundry
19
Laundry
19
Preparing the laundry
19
Caution!
19
Risk of damage to the drum and laundry
19
Note:
19
Sorting laundry
19
1 Operating the appliance
20
Operating the appliance
20
Switching on the appliance and setting a programme
20
Note:
20
1. Press # to switch on the appliance.
20
2. Press Program repeatedly to set the washing program you require.
20
Note:
20
3. Adjust the programme settings if required.
20
Programme settings
20
You can do the following to program settings:
20
Placing the laundry into the drum
20
Note:
20
1. Prepare and sort the laundry.
20
2. Open the lid.
20
3. Load the laundry unfolded into the drum.
21
4. Close the lid.
21
Caution!
21
Risk of material damage to the appliance or laundry.
21
Adding detergent and fabric care products
21
Caution!
21
Risk of material damage and damage to the appliance
21
Caution!
21
Risk of material damage and damage to the appliance
21
â Do not allow these products to come into contact with the surfaces of the appliance.
21
â Clean the appliance with nothing but water and a soft, damp cloth.
21
â Remove all detergent residue, spray residue or other residues immediately.
21
1. Pull out the detergent drawer.
21
2. Add detergent and/or laundry care products.
21
3. Push in the detergent drawer.
21
Notes
21
Starting a programme
22
Note:
22
Childproof lock
22
Notes
22
Pausing programmes and adding more laundry
22
1. Press A.
22
2. If you need to, you can add more laundry or remove laundry.
22
3. Press A to resume the program.
22
Notes
22
Cancelling the programme
22
1. Press # to switch off the appliance.
22
2. Press # to switch the appliance back on.
22
3. Open the lid and remove the laundry or start a new program.
22
Notes
22
Resuming the programme when the programme status is Rinse Stop
22
1. Press # to switch on the appliance.
22
2. Press 0 Spin to set the Spin program and to adjust the duration of the spin cycle.
22
3. Press A.
22
Programme end
23
Removing laundry and switching off the appliance
23
1. Remove the laundry.
23
2. Turn off the tap.
23
Notes
23
H Sensors
23
Sensors
23
Unbalanced load detection system
23
Note:
23
Continuous automatic load adjustment function
23
D Cleaning and maintenance
24
Cleaning and maintenance
24
Cleaning/Maintenance
24
: Warning
24
Risk of death!
24
: Warning
24
Risk of poisoning!
24
: Warning
24
Risk of electric shock/material damage/damage to the appliance!
24
: Warning
24
Risk of injury/material damage/ damage to the appliance!
24
Caution!
24
Material damage/damage to the appliance
24
Cleaning the drum
25
Note:
25
Descaling the appliance
25
Caution!
25
Risk of material damage/damage to the appliance
25
Cleaning the drain pump
25
Note:
25
1. Turn the pump cover on the back of the appliance anti-clockwise to remove it, and drain the washing water into a suitable container.
25
2. Clean the inside and the thread on the pump cover and pump housing.
25
Note:
25
3. Put the pump cover back in place and screw it back on fully.
25
Cleaning the lint filter
26
1. Remove the filter from the holder.
26
2. Remove the net bag, clean it and put it back in.
26
3. Place the filter back into the holder.
26
3 What to do in the event of a fault
27
: Warning
27
Risk of injury!
27
Help with the appliance
27
Faults
27
Cause/remedy
27
Note:
27
Note:
27
Note:
28
Filter in water supply blocked
29
Preparation:
29
1. Turn off the tap.
29
2. Set any programme (except Rinse/ Spin).
29
3. Press A.
29
4. Press # to switch off the appliance.
29
5. Disconnect the appliance's mains plug from the power supply.
29
Clean the filter on the tap as follows:
29
1. Disconnect the hose from the water tap.
29
2. Clean the filter with a small brush.
29
3. Connect the hose and check for leaks.
29
Clean the filter on the back of the appliance:
30
1. Remove the hose from the rear of the appliance.
30
2. Clean the filter with a small brush.
30
3. Reconnect the hose at the rear of the appliance and check for leaks.
30
L Transporting the appliance
30
Transporting the appliance
30
1. Turn off the tap.
30
2. Press # to switch on the appliance.
30
3. Run the Spin program without any residual water or laundry. ~ Page 15
30
Note:
30
4. Disconnect the appliance's mains plug from the power supply.
30
5. For models with a drain pump, drain the remaining washing water. ~ Page 25
30
Note:
30
6. Remove the hoses.
30
Note:
30
{ Technical specifications
31
Technical specifications
31
Note:
31
Models:
31
Dimensions
31
(in mm)
31
Weight
31
(in kg)
31
Rated voltage
31
(in V)
31
Rated power
31
(in W)
31
Rated frequency
31
(in Hz)
31
Maximum load
31
(in kg)
31
4 After-sales service
32
After-sales service
32
Search:
×
Search
