Your new washing machine
You have chosen a Bosch washing
machine.
Please take a few minutes to read and
become familiar with the advantages of
your washing machine.
To meet the high quality demands
required by Bosch, every washing
machine that leaves our factory is
carefully checked to ensure that it
functions correctly and is in perfect
condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washing machine.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .5
Electrical safety. . . . . . . . . . . . . . . . . . 5
Risk of injury . . . . . . . . . . . . . . . . . . . . 5
Safety for children. . . . . . . . . . . . . . . . 5
7 Environmental protection . . . . . .6
Packaging/used appliance . . . . . . . . . 6
Tips on economical use . . . . . . . . . . . 6
Y Main points in brief . . . . . . . . . . .7

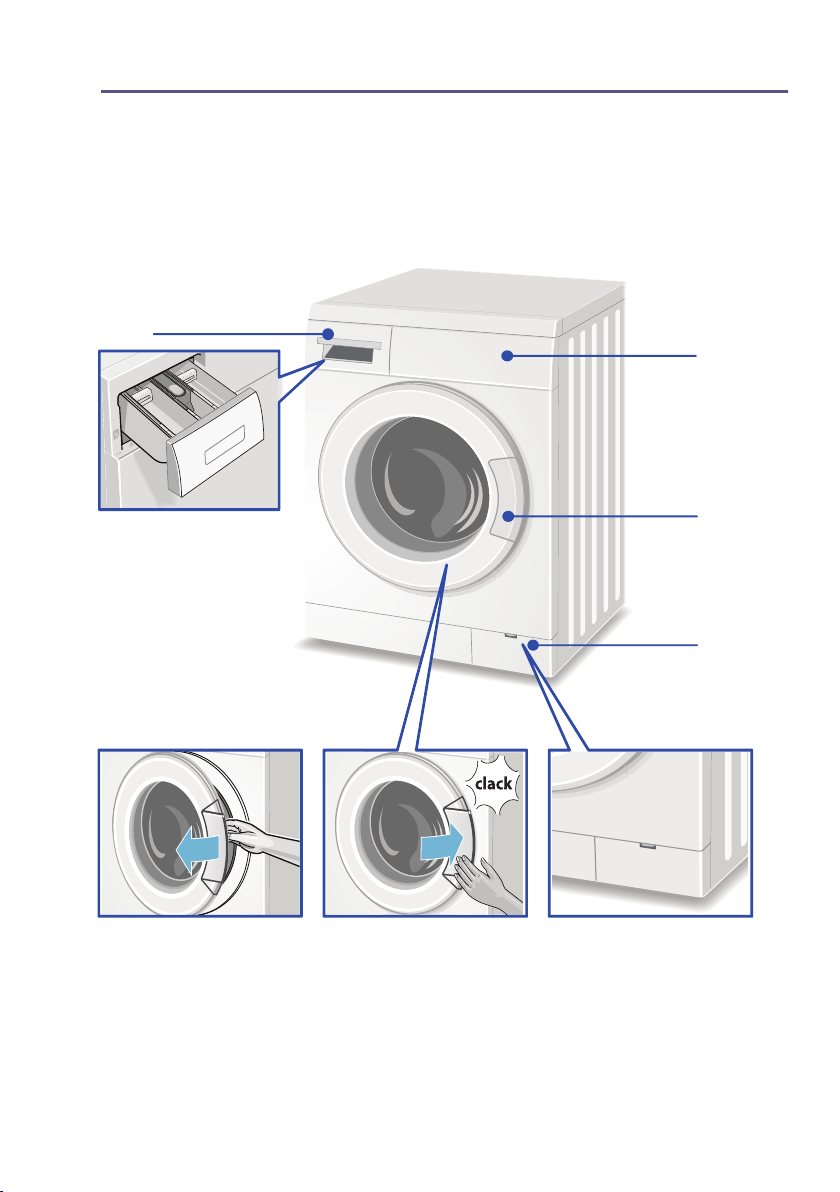

* Getting to know the appliance . 8
Washing machine . . . . . . . . . . . . . . . . 8

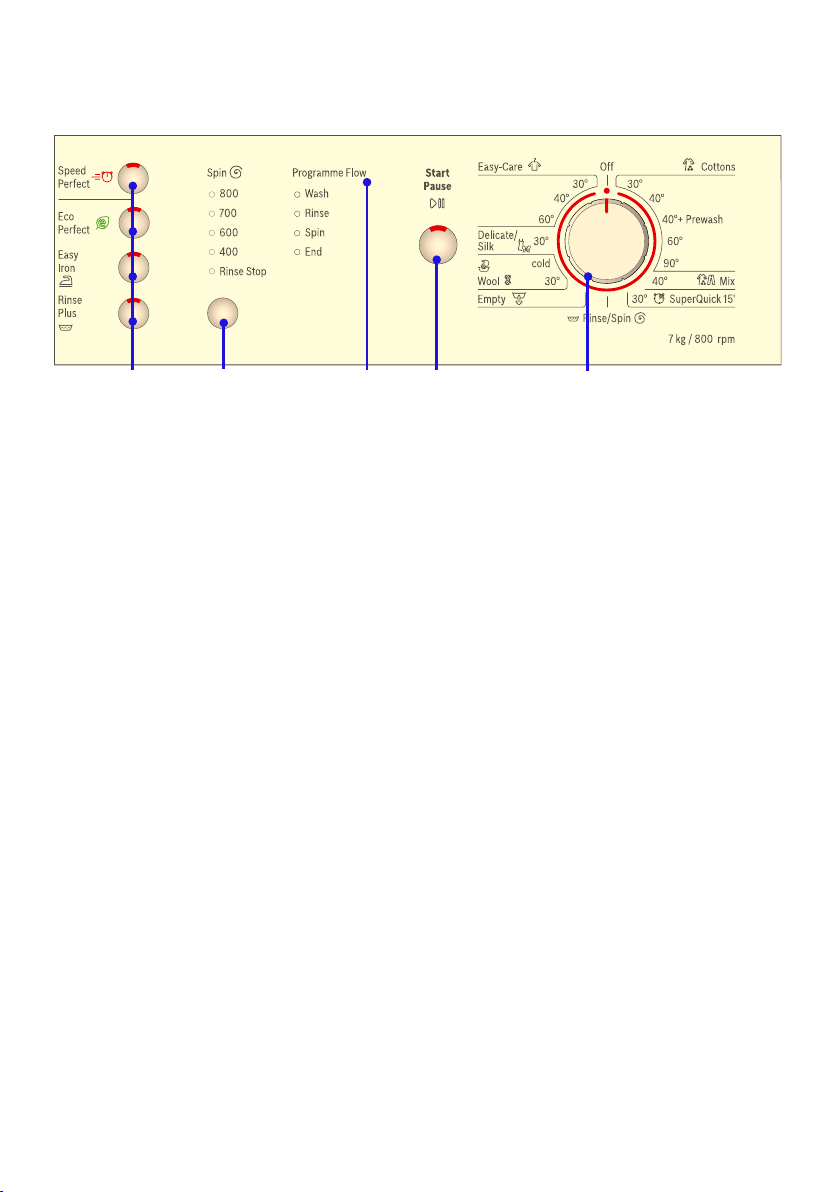

Control panel . . . . . . . . . . . . . . . . . . . 9
Z Laundry. . . . . . . . . . . . . . . . . . . .10
Sorting laundry . . . . . . . . . . . . . . . . . 10
Prepare the laundry . . . . . . . . . . . . . 10
C Detergent . . . . . . . . . . . . . . . . . .11
Correct selection of detergent . . . . . 11
Saving energy and detergent . . . . . . 11
/ Overview of programmes . . . . .12
Programmes on the programme
selector. . . . . . . . . . . . . . . . . . . . . . . 12
Starching . . . . . . . . . . . . . . . . . . . . . 13
Dyeing/bleaching . . . . . . . . . . . . . . . 13
Soaking . . . . . . . . . . . . . . . . . . . . . . 14
0 Programme default settings . . .14
0 Spin speed . . . . . . . . . . . . . . . . . 14
\ Additional programme settings14
G Speed* . . . . . . . . . . . . . . . . . . . 14
F Eco* . . . . . . . . . . . . . . . . . . . . . . . 14
p Easy-Iron . . . . . . . . . . . . . . . . . . . 14
O Rinse plus*. . . . . . . . . . . . . . . . . . 14
Z Water plus* . . . . . . . . . . . . . . . . . 14
1 Operating the appliance . . . . . . 15
Preparing the washing machine . . . .15
Select programme/switch on the
appliance. . . . . . . . . . . . . . . . . . . . . .15
Change the programme default
settings . . . . . . . . . . . . . . . . . . . . . . .15
Select additional programme
settings . . . . . . . . . . . . . . . . . . . . . . .15

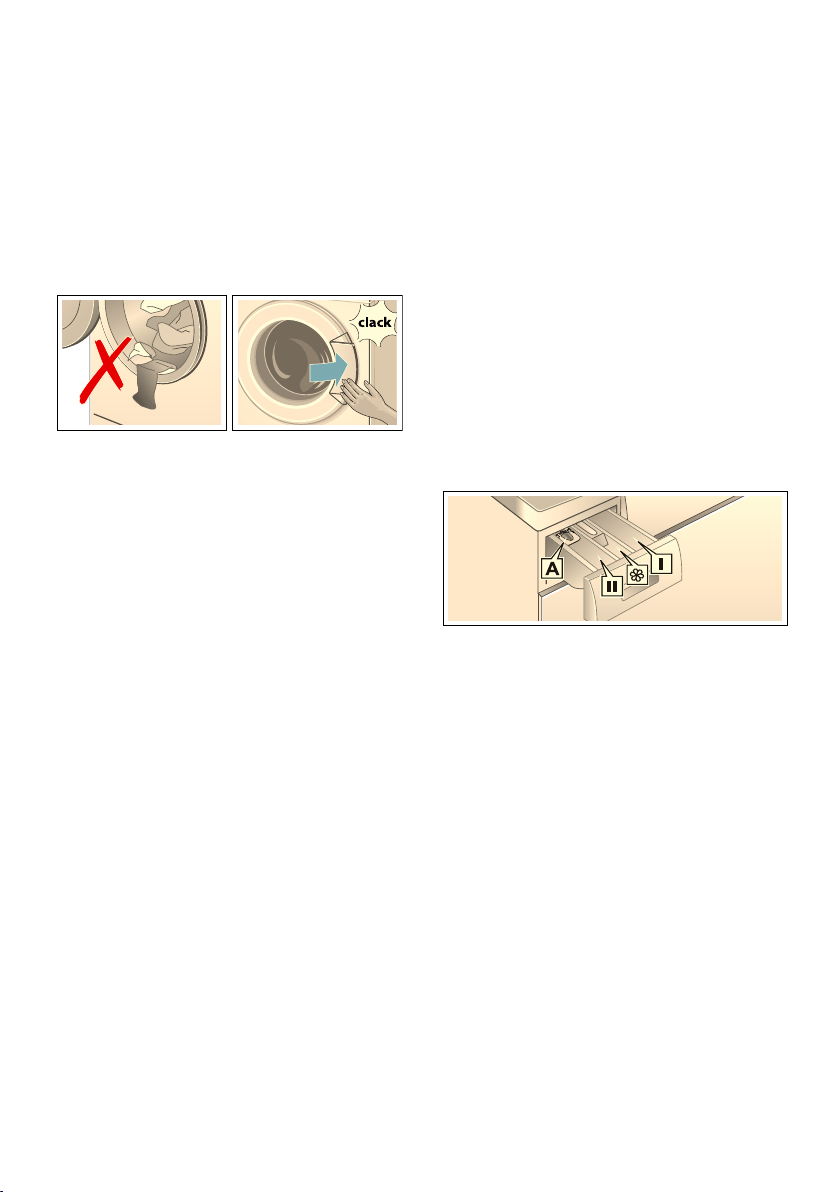

Placing laundry into the drum . . . . . .15
Measure and add detergent and
care products . . . . . . . . . . . . . . . . . .16
Start the programme . . . . . . . . . . . . .17
Adding laundry . . . . . . . . . . . . . . . . .17
Changing the programme . . . . . . . . .17
Cancel the programme . . . . . . . . . . .17
Programme end during rinse hold. . .17
Programme end . . . . . . . . . . . . . . . .18
Removing laundry/switching off the
appliance. . . . . . . . . . . . . . . . . . . . . .18
H Sensors . . . . . . . . . . . . . . . . . . . 18
Automatic load sensing. . . . . . . . . . .18
Unbalanced load detection system . .18
M Setting the signal . . . . . . . . . . . 19
2 Cleaning and maintenance. . . . 20
Machine housing/control panel . . . . .20
Drum . . . . . . . . . . . . . . . . . . . . . . . . .20
Descaling . . . . . . . . . . . . . . . . . . . . .20
Detergent drawer and housing . . . . .20

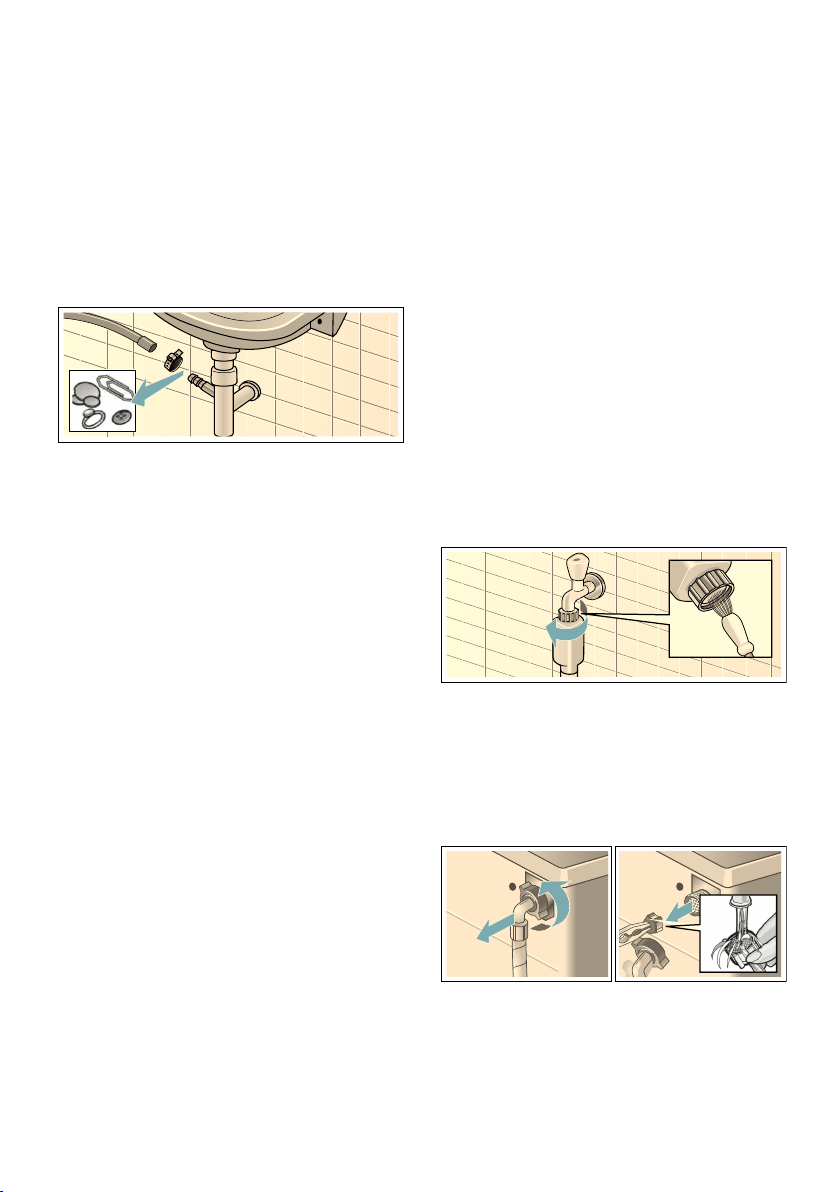

Detergent solution pump blocked . . .21
The drain hose at the siphon is
blocked . . . . . . . . . . . . . . . . . . . . . . .22
Filter in the water supply blocked . . .22
3 Faults and what to do
about them. . . . . . . . . . . . . . . . . 23
Emergency release . . . . . . . . . . . . . .23
Information about the indicator lights 24
Faults and what to do about them. . .24
en Intended use
4
4 After-sales service . . . . . . . . . . 26
[ Consumption rates . . . . . . . . . . 27
Energy and water consumption,
programme duration and residual
moisture for the main washing
programmes . . . . . . . . . . . . . . . . . . 27
J Technical data . . . . . . . . . . . . . . 28
5 Positioning and connecting. . . 28
Included with the appliance . . . . . . . 28
Safety instructions . . . . . . . . . . . . . . 29
Installation surface. . . . . . . . . . . . . . 29
Installation on a base or a wooden
joist floor . . . . . . . . . . . . . . . . . . . . . 29
Installing the appliance in
a kitchenette . . . . . . . . . . . . . . . . . . 30

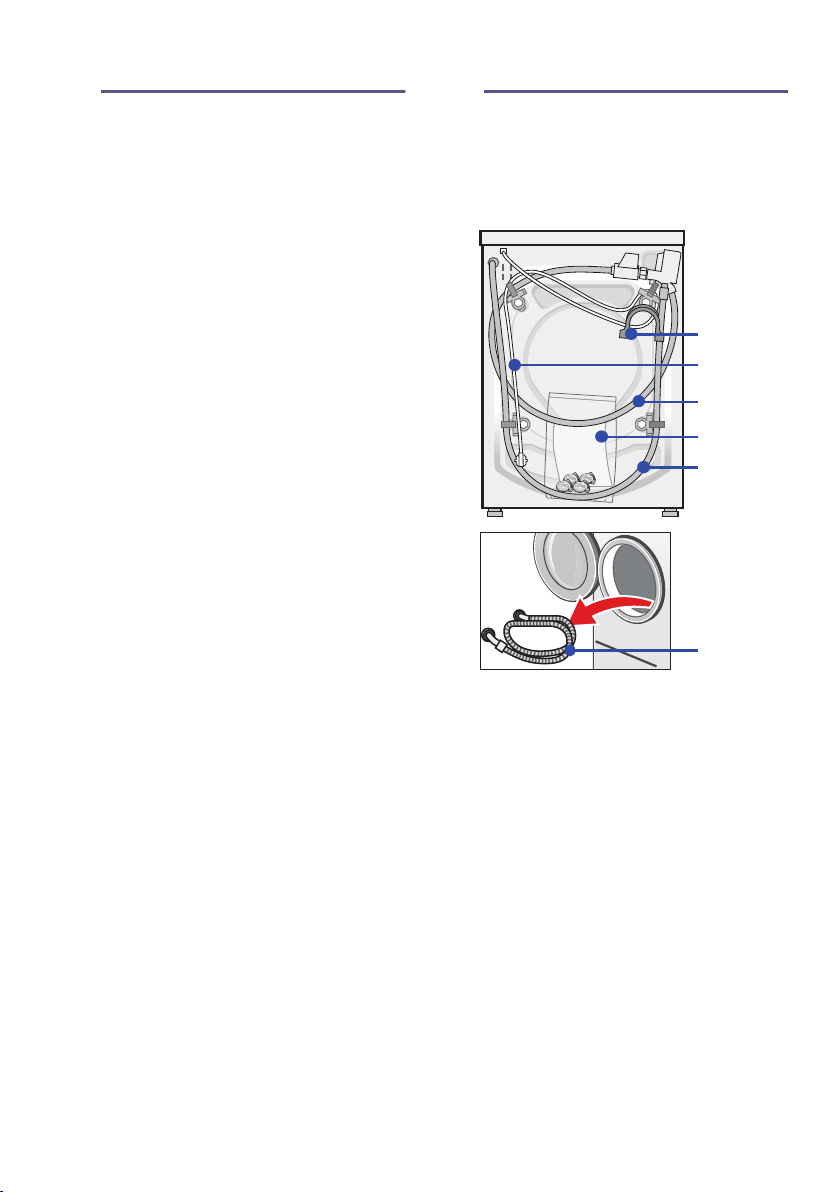

Removing the transport locks . . . . . 30

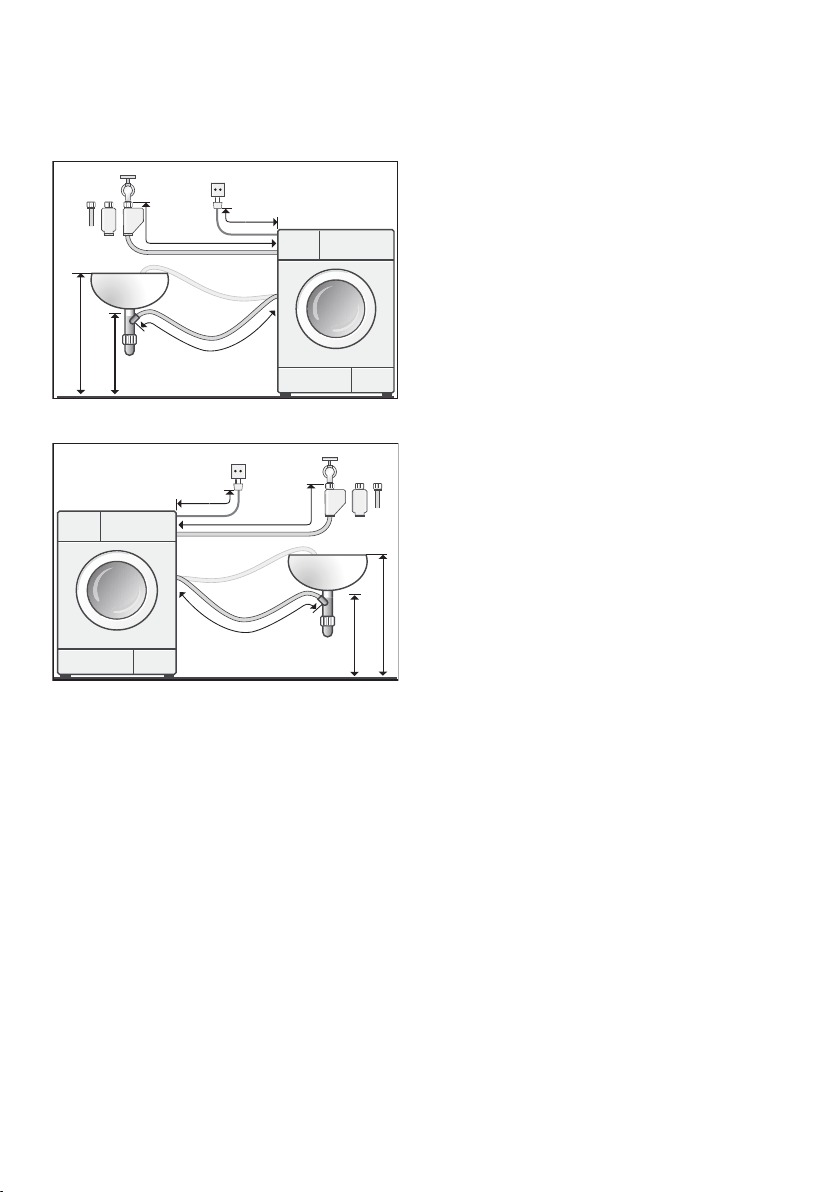

Hose and cable lengths. . . . . . . . . . 31
Water inlet . . . . . . . . . . . . . . . . . . . . 31
Water outlet . . . . . . . . . . . . . . . . . . . 32

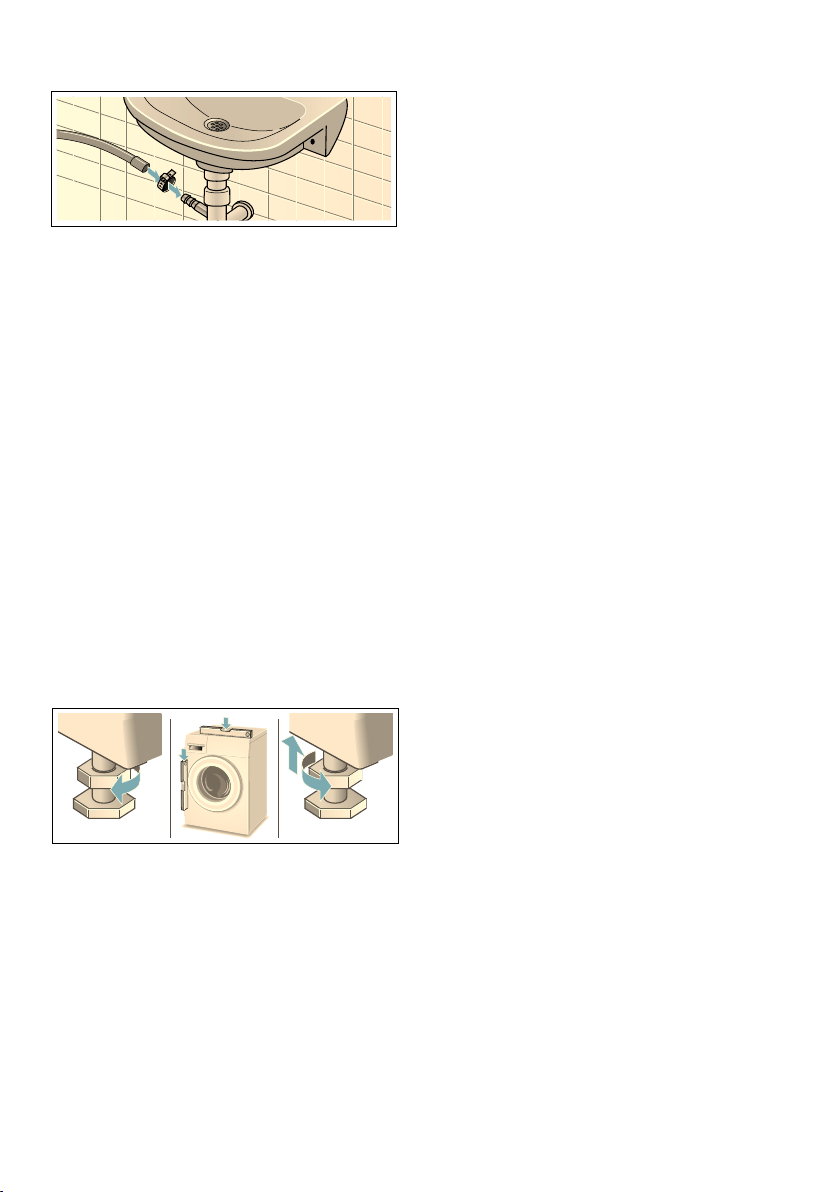

Levelling . . . . . . . . . . . . . . . . . . . . . 33
Electrical connection . . . . . . . . . . . . 33
Before washing for the first time . . . 34
Transportation . . . . . . . . . . . . . . . . . 34
8 Intended use
Intended use
■ For private domestic use only.
■ The washing machine is suitable for
washing machine-washable fabrics
and hand-washable wool in
detergent solution.
■ To be operated with cold mains
water and standard detergents and
care products which are suitable for
use in washing machines.
■ When measuring the amount of all
detergents/additives/care products
and cleaning agents, always check
the manufacturer's instructions.
■ The washing machine may be used
by children over the age of 8 years
old and by persons with reduced
physical, sensory or mental capacity
or by persons with a lack of
experience or knowledge if they are
supervised or have been instructed
by a responsible person.
Children must not carry out any
cleaning or maintenance work
without supervision.
■ Keep pets away from the washing
machine.
Read the Instruction Manual and
Installation Instructions and all other
information supplied with the washing
machine and use the machine
accordingly.
Retain the documents for subsequent
use.
Safety instructions en
5
( Safety instructions
Safety instructions
Electrical safety
:Warning
Risk of death!
There is a risk of electric shock
if you touch live components.
■ Never touch or hold the
mains plug with wet hands.
■ Only pull out the mains cable
by the plug and never by the
cable, as this could damage
it.
Risk of injury
:Warning
Risk of injury!
■ If the washing machine is
lifted by protruding
components (e.g. the
washing machine door), the
components may break off
and cause injuries.
Do not lift the washing
machine by protruding parts.
■ If you climb onto the washing
machine, the worktop may
break and cause injuries.
Do not climb onto the
washing machine.
■ If you lean/sit on the opened
washing machine door, the
washing machine may tip
over and cause injuries.
Do not lean on the washing
machine door when it is
open.
■ Reaching into the drum while
it is still rotating may cause
hand injuries.
Do not reach into the drum
while it is rotating.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.
Safety for children
:Warning
Risk of death!
If children play with the washing
machine, they may get into life-
threatening situations or injure
themselves.
■ Do not leave children
unattended near the washing
machine.
■ Do not let children play with
the washing machine.
:Warning
Risk of death!
Children may lock themselves
in appliances, putting their lives
at risk.
When appliances have reached
the end of their service life:
■ Pull out the mains plug.
en Environmental protection
6
■ Cut through the mains cable
and remove it, along with the
plug.
■ Destroy the lock on the
washing machine door.
:Warning
Risk of suffocation!
Children may become wrapped
in packaging/film or packing
parts if allowed to play with
them, or they may pull them
over their heads and suffocate.
Keep packaging, film and
packaging parts out of the
reach of children.
:Warning
Risk of poisoning!
Detergents and care products
may be poisonous if
consumed.
Keep detergents and care
products out of the reach of
children.
:Warning
Eye/skin irritation!
Detergents and care products
may cause irritation if they
come into contact with the eyes
or skin.
Keep detergents and care
products out of the reach of
children.
:Warning
Risk of injury!
When you wash at high
temperatures, the glass in the
washing machine door
becomes hot.
Do not let children touch the
hot washing machine door.
7 Environmental
protection
Environmental protection
Packaging/used appliance
)
Dispose of packaging in an
environmentally-responsible manner.
This appliance is labelled in accordance
with European Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste electrical
and electronic equipment - WEEE).
The guideline determines the framework
for the return and recycling of used
appliances as applicable throughout the
EU.
Tips on economical use
■ Always fill the appliance with the
maximum amount of laundry for
each programme.
Overview of programmes
~ Page 12
■ Wash normally soiled laundry
without a prewash.
■ If the laundry is subsequently dried
in a tumble dryer, select the spin
speed according to the tumble dryer
manufacturer's instructions.
■ The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the machine may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
Main points in brief en
7

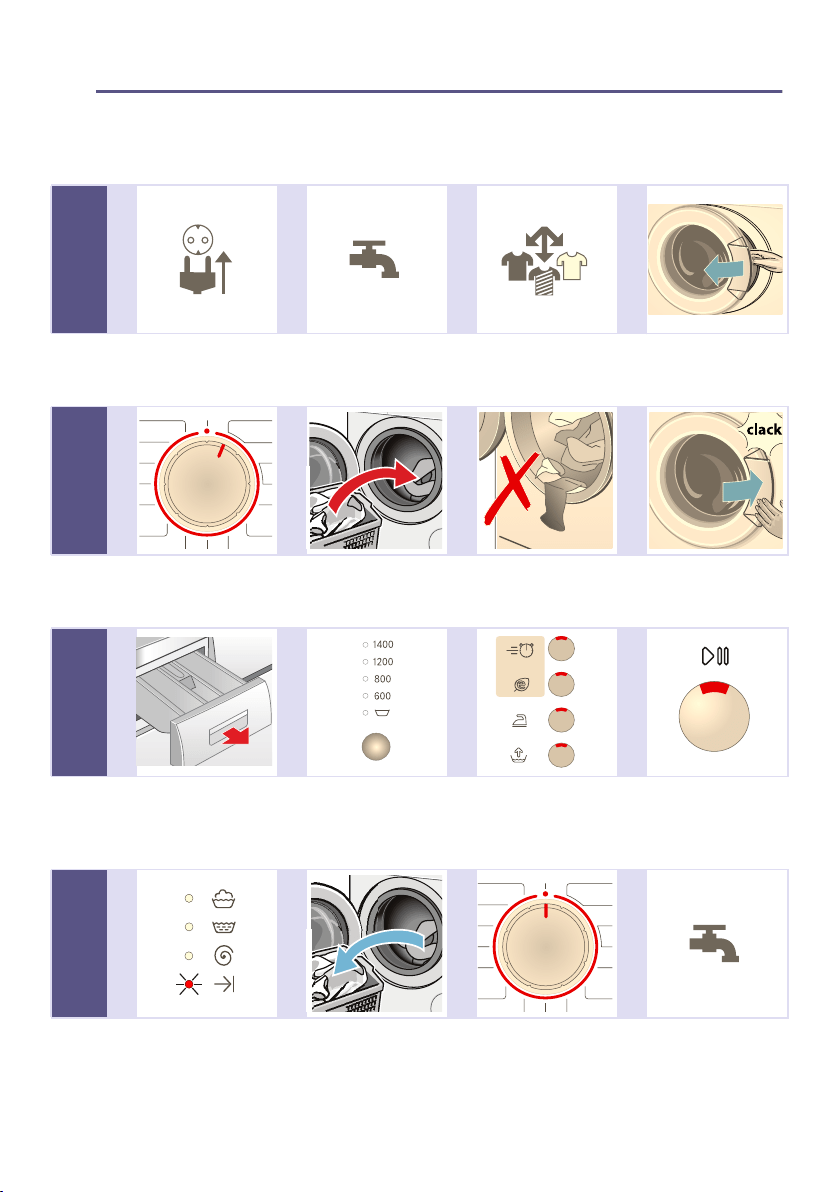

Y Main points in brief
Main points in brief
--------
--------
--------
--------
1 @ @ @
Connect the mains
plug.
Turn on the water
tap (for models
without Aqua-Stop).
Sort the laundry. Open the washing
machine door.
2 @ @ @ @
Select a
programme, e.g.
Cottons.
Load the laundry. Do not trap any
items of laundry.
Close the washing
machine door.
3 @ @ @ @
Add detergent. Change the
programme default
settings, if
necessary.
Select additional
settings, if
necessary.
Start the
programme.
4 @ @ @ @
Programme end. Open the washing
machine door and
remove the laundry.
Turn the programme
selector to Ú .
Turn off the water
tap (for models
without Aqua-Stop).
Getting to know the appliance en
9
Control panel
+
#
( G Speed*, F Eco*, p Easy Iron,
O Rinse Plus/ Z Aqua plus* additional
programme settings (* depending on the model)
8 Status indicators
Programme sequence indicators: N Wash,
O Rinse, 0 Spin, f Ready
Overview of all additional programme settings
~ Page 14
@ Start/Pause for starting, interrupting
(adding laundry) and cancelling a programme
0 Spin speed for changing the default
programme setting ~ Page 14
$ = Rinse stop
H Programme selector for selecting a
programme and for switching the machine on
and off
en Laundry
10
Z Laundry
Laundry
Sorting laundry
Sort your laundry according to the care
instructions and manufacturer's
information on the care labels,
depending on:
■ Type of fabric/fibre
■ Colour
Note: Laundry can discolour or not
be cleaned correctly. Wash white
and coloured laundry separately.
Wash new bright fabrics separately
the first time you wash them.
■ Soiling
Wash laundry with the same level of
soiling together.
You can find examples of levels of
soiling on ~ Page 11
– Light: Do not pre-wash, select
the Speed setting if necessary
– Normal
– Heavy: Load less laundry, select
a programme with pre-wash
– Stains: Remove/pretreat stains
while they are fresh. First, dab the
stain with soapy water/do not
rub. Then wash the items of
laundry with the appropriate
programme. Stubborn/dried-in
stains can sometimes only be
removed with several washes.
■ Symbols on the care labels
The numbers in the symbols indicate
the maximum washing temperature
which may be used.
– M: Suitable for a normal
washing process; e.g. Cottons
programme
– U : A gentle washing process is
required; e.g. Easy-Care
programme
– V : An especially gentle washing
process is required; e.g.
Delicate/Silk programme
– W : Suitable for washing by
hand; e.g. W / Wool programme
– Ž : Do not wash the laundry in
the machine.
Prepare the laundry
Caution!
Damage to the appliance/fabrics
Foreign objects (e.g. coins, paperclips,
needles, nails) may damage the laundry
or components in the washing machine.
You should therefore note the following
tips when preparing your laundry:
■ Empty any pockets.
■ Look out for metal items (paperclips,
etc.) and remove them.
■ Wash delicates in a laundry bag
(tights, underwired bras, etc.).
■ Close any zips, button up any cover
buttons.
■ Brush sand out of pockets and
collars.
■ Remove curtain fittings or place
curtains in a laundry bag.
Detergent en
11
C Detergent
Detergent
Correct selection of detergent
The care label is crucial for selecting
the correct detergent, temperature and
treatment of the laundry. ~ See also
www.sartex.ch
Visit www.cleanright.eu to find further
information on detergents, care
products and cleaning agents for
domestic use.
■ Standard detergent with optical
brighteners
Suitable for heat-resistant white
laundry made from linen or cotton
Programme: Cottons /
20 °C - max. 90 °C
■ Detergent for colours without
bleach or optical brighteners
Suitable for coloured laundry made
from linen or cotton
Programme: Cottons /
20 °C - max. 60 °C
■ Detergent for colours/delicates
without optical brighteners
Suitable for coloured laundry made
from easy-care fibres, synthetic
fibres
Programme: Easy-Care /
20 °C - max. 60 °C
■ Delicates
Suitable for delicate, fine fabrics, silk
or viscose
Programme: Delicates/Silk /
20 °C - max. 40 °C
■ Detergent for woollens
Suitable for woollen fabrics
Programme: Woollens /
20 °C - max. 40 °C
Saving energy and detergent
For light and normal soiling, you can
save energy (lower washing
temperature) and detergent.
Note: When measuring the amount of
all detergents/additives/care products
and cleaning agents, please always
check the manufacturer's instructions
and information. ~ Page 16
Saving Soiling/note
Reduced temper-
ature and deter-
gent quantity as
per the recom-
mended dosage
Light
No visible dirt or stains. Cloth-
ing has taken on some body
odour, e.g.:
■ Light summer/sports
clothing (worn for a few
hours)
■ T-shirts, shirts, blouses
(worn for up to one day)
■ Guest bed linen and hand
towels (used for one day)
Normal
Visible dirt or a few light
stains, e.g.:
■ T-shirts, shirts, blouses
(sweat soaked, worn a
few times)
■ Towels, bedding (used for
up to one week)
Temperature as
per the care label
and detergent
quantity as per
the recom-
mended dosage
for heavy soiling
Heavy
Dirt and/or stains clearly visi-
ble, e.g. tea towels, baby
items, work clothing
en Overview of programmes
12
/ Overview of programmes
Overview of programmes
Programmes on the programme selector
Programme/type of washing/instructions Settings
Name of the programme
Brief explanation of the programme and for which fabrics it is suita-
ble.
Max. load;
* Reduced load for the GSpeed
setting
Temperature that can be selected
Spin speed that can be selected;
** Max. spin speed, depending on
the model
Possible programme settings
i Cottons
Hard-wearing fabrics, heat-resistant fabrics made of cotton or linen
i Cottons 40 °C + Prewash : Programme with prewash, prewash
at 30 °C; divide detergent between compartments Iand II
Note: The G Speed setting is suitable as a short programme for
lightly soiled laundry.
Max. 7 kg/4* kg
30, 40, 60, 90 °C
$ ... 1400** rpm
F, G, p, O/Z
f Easy-Care
Synthetic or blended fabrics
Max. 3 kg
30, 40, 60 °C
$ ... 1200** rpm
F, G, p, O/Z
o Mix
Mixed load of cottons and synthetic fabrics
Notes
■ Different types of laundry can be washed together.
■ o Mix 40 °C with maximum spin speed is ideal as a short pro-
gramme.
Max. 3 kg
40 °C
$ ... 1200** rpm
F, G, p, O/Z
O Rinse/ 0 Spin
Laundry washed by hand, Rinse plus/Aqua plus button activated
Note: If you require spin only, deactivate the button
Max. 7 kg
-
$ ... 1200** rpm
p
Overview of programmes en
13
Starching
Note: Laundry must not be treated with
fabric softener.
Starching is possible in all wash
programmes if liquid starch is used.
Measure starch into compartment M in
accordance with the manufacturer's
instructions (clean first if necessary).
Dyeing/bleaching
Dye should only be used in normal
household quantities. Salt may damage
stainless steel. Always follow the dye
manufacturer's instructions.
Do not use the washing machine to
bleach clothes.
[ Empty
Drain the rinsing water after a programme using the $ setting (with-
out final spin) for gentle treatment of delicate laundry
Max. 7 kg
-
-
-
W / p Wool
Hand or machine-washable wool or rich-wool textiles. Especially gen-
tle wash programme to prevent shrinkage, longer programme
pauses (textiles rest in wash liquor)
Notes
■ Wool is of animal origin, e.g.: Angora, alpaca, llama, sheep.
■ For wool, use a detergent that is suitable for machine-washing.
Max. 2 kg
Cold, 30 °C
$ ... 800 rpm
-
“ Delicate/Silk
For delicate, washable fabrics, e.g. made of silk, satin, synthetic
fibres or blends (e.g. silk blouses, silk scarves)
Notes
■ For delicates or silk, use a detergent suitable for machine-wash-
ing .
■ No spin cycle between the rinse cycles
Max. 2 kg
30 °C
$ ... 800 rpm
F, G, p, O/Z
… SuperQuick 15'
Extra-short programme of approx. 15 minutes, suitable for small
items of lightly soiled laundry
Max. 2 kg
30 °C
$ ... 1200** rpm
-
Programme/type of washing/instructions Settings
en Programme default settings
14
Soaking
1. Pour soaking agent/detergent into
compartment II in accordance with
the manufacturer’s instructions.
2. Turn the programme selector to
Cottons 30 °C programme.
3. Select Start/Pause.
4. After approx. 10 minutes select
Start/Pause.
5. After the required soaking time
reselect Start/Pause if the
programme is to be continued, or
change the programme.
Notes
■ Load laundry of the same colour.
■ No additional detergent is required;
the soaking solution is used for
washing.
0 Programme default
settings
Programme default settings
The spin speed for all programmes is
preset at the factory.
You can change the default settings as
follows.
0 Spin speed
The spin speed for all programmes is
preset at the factory.
You can change the default settings as
follows.
Before and while the selected
programme is running, the spin speed
or Rinse stop (without final spin,
laundry soaks in the last rinsing water)
can be set. The effects depend on the
programme progress.
The maximum selectable spin speed
depends on the model and the set
programme.
\ Additional programme
settings
Additional programme settings
G Speed*
For washing in a shorter time with a
washing result comparable to that of the
standard programme.
Note: Do not exceed the maximum
load.
Overview of programmes ~ Page 12
F Eco*
For saving energy with a washing result
comparable to that of the standard
programme.
Note: The washing temperature is
lower than the selected temperature.
For special hygiene requirements, we
recommend selecting a higher
temperature or the G Speed option.
p Easy-Iron
Special spin sequence with subsequent
fluffing. Gentle final spin – residual
moisture in the laundry slightly
increased.
O Rinse plus*
Extra rinse. For areas with very soft
water or to further improve the rinsing
result.
Z Water plus*
Increased water level and additional
rinse cycle, extended washing time. For
areas with very soft water or to further
improve the rinsing result.
(* depending on model)
Operating the appliance en
15
1 Operating the
appliance
Operating the appliance
Preparing the washing
machine
Note: The washing machine must be
correctly installed and connected
(from ~ Page 28).
1. Connect the mains plug.
2. Turn on the water tap.
3. Open the washing machine door.
4. Check that the drum is completely
drained. Drain if necessary.
Select programme/switch on
the appliance
Use the programme selector to select
the required programme. Can be
rotated in both directions.
The machine is switched on.
Change the programme
default settings
You can use the default settings or
change them.
To do this, repeatedly press the
corresponding button until the required
setting is displayed.
Note: All buttons are sensitive and only
need to be touched lightly. If the buttons
are held for longer, the appliance
automatically runs through the setting
options.
The settings are activated without
needing to be confirmed.
They are not saved when the appliance
is switched off.
Programme default settings
~ Page 14
Overview of programmes from
~ Page 12
Select additional programme
settings
By selecting additional settings, you can
better adapt the washing process to
your items of laundry.
The settings can be selected or
deselected depending on the
programme progress.
The indicator lamp for the button lights
up if a setting is active.
The settings are not saved when the
appliance is switched off.
Additional settings ~ Page 14
Overview of programmes from
~ Page 12
Placing laundry into the drum
:Warning
Risk of death!
Items of laundry pretreated with
cleaning agents that contain solvents,
e.g. stain remover/cleaning solvent,
may cause an explosion after being
loaded into the washing machine.
Hand-rinse these items of laundry
thoroughly beforehand.
Notes
■ Mix items of washing of varying
sizes. Laundry items of different
sizes distribute themselves better
during the spin cycle. Individual
laundry items may cause an
unbalanced load.
en Operating the appliance
16
■ Observe the maximum specified
load. Overfilling adversely affects the
washing result and promotes
creasing.
1. Unfold presorted laundry items and
place them in the drum.
2. Make sure that no items of laundry
are trapped between the door and
the rubber seal, and close the door.
The indicator light for the Start/Pause
button flashes. It is possible to change
the settings.
Measure and add detergent
and care products
Caution!
Damage to the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain removers,
prewash sprays, etc.) may cause
damage if they come into contact with
the surfaces of the washing machine.
Do not allow these agents to come into
contact with the surfaces of the washing
machine. If necessary, immediately wipe
away spray residue and other residues/
droplets with a damp cloth.
Measuring
Measure the detergent and care
products according to:
■ Water hardness (ask your water
supply company)
■ The manufacturer's instructions on
the packaging
■ The amount of laundry
■ Soiling ~ Page 11
Filling
:Warning
Eye/skin irritation!
Detergent and care products may spray
out if the detergent drawer is opened
while the machine is in operation.
Open the drawer carefully.
Rinse eyes or skin thoroughly if they
come into contact with detergent/care
products.
If swallowed accidentally, seek medical
advice.
Note: Dilute viscous fabric softener and
fabric conditioner with water; this
prevents blockages.
Pour the detergent and care products
into the appropriate compartments:
1. Pull out the detergent drawer as far
as possible.
2. Add detergent and/or care products.
3. Close the detergent drawer.
Measuring aid A For liquid detergent
Compartment II Detergent for the main wash,
water softener, bleach, stain
remover
Compartment i Softener, starch.
Do not exceed the maximum
Compartment I Detergent for prewash
Operating the appliance en
17
Measuring aid* for liquid detergent
*Depending on the model
Position the measuring aid for
measuring the correct amount of liquid
detergent:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. Slide the measuring aid forwards,
fold it down and click it into place.
3. Reinsert the drawer.
Note: Do not use the measuring aid for
gel detergents and washing powder, or
for programmes with prewash or when
the "Finished in" time is selected.
For models without a measuring aid,
pour the liquid detergent into the
appropriate dispenser and place it in
the drum.
Start the programme
Select the Start/Pause button. The
indicator light lights up and the
programme starts.
Adding laundry
After starting the programme, you can
add or remove laundry as required.
To do this, press the Start/Pause
button.
Note: Do not leave the washing
machine door open for too long when
adding laundry as water from the
laundry may leak out.
For safety reasons, the washing
machine door remains locked when the
water level or temperature is high, or
while the drum is rotating, and it is not
possible to add laundry.
To continue the programme, press the
Start/Pause button. The programme
continues automatically.
Changing the programme
If you have started the wrong
programme by mistake, you can
change the programme as follows:
1. Select another programme.
2. Select Start/Pause. The new
programme starts from the
beginning.
Cancel the programme
For programmes at high temperature:
1. To cool the laundry, select Rinse/
Spin.
2. Select Start/Pause.
For programmes at low temperatures:
1. Select Start/Pause.
2. Select Rinse/Spin (deactivate the
Rinse plus/Aqua plus button) or
select Empty.
3. Select Start/Pause.
Programme end during rinse
hold
The Rinse Stop and O Rinse indicator
lights light up and the indicator lamp for
the Start/Pause button flashes.
To end the programme, set the
programme selector to "Empty" or
select a spin speed. Then select the
Start/Pause button.
en Sensors
18
Programme end
The f Ready indicator light lights up
and the indicator light for the Start/
Pause button flashes.
If the indicator light N Wash also
flashes, the washing machine has
detected too much foam during the
wash programme and automatically
switches on a rinse cycle to remove the
foam.
Note: Add less detergent to the next
washing cycle with the same load.
Removing laundry/switching
off the appliance
1. Open the washing machine door
and remove the laundry.
2. Turn the programme selector to Off.
Appliance is switched off.
3. Turn off the water tap.
Note: Not required for Aqua-Stop
models.
Notes
■ Do not leave any items of laundry in
the drum. They may shrink in the
next wash or discolour another item.
■ Remove any foreign objects from the
drum and the rubber seal – risk of
rusting.
■ Leave the washing machine door
and detergent drawer open so that
any residual water can dry away.
H Sensors
Sensors
Automatic load sensing
The automatic load sensing function
adapts the water consumption ideally to
each programme depending on the
type of fabric and the load.
Unbalanced load detection
system
The automatic unbalanced load
detection system detects imbalances
and ensures even distribution of the
laundry by repeatedly starting and
stopping drum spinning.
If the laundry is extremely unevenly
distributed, the speed is reduced or the
spin cycle is not performed for safety
reasons.
Note: Place large and small items of
laundry in the drum (from ~ Page 24).
Setting the signal en
19
M Setting the signal
Setting the signal
1. Activate setting mode for the signal volume
Set to Ú One step Select and hold + 1 step Release
2. Optional: Blind mode* ON-OFF
*Short signal – function off.
Long signal – function on.
ON-OFF Skip Set to Ú
3. Set the volume for the button signals and information signals (depending on the model)
One step Set the volume
(you may need to
select the func-
tion several
times)
One step Set the vol-
ume (you may
need to select
the function
several times)
Set to Ú
en Cleaning and maintenance
20
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Switch off the appliance and unplug the
mains plug.
:Warning
Risk of poisoning!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
Damage to the appliance
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
machine.
Do not use cleaning agents that contain
solvents.
Machine housing/control
panel
■ Wipe the housing and the control
panel with a soft, damp cloth.
■ Do not use any abrasive cloths,
scourers or cleaning agents
(stainless steel cleaners).
■ Remove the detergent residue
immediately.
■ Cleaning with a jet of water is
prohibited.
Drum
Wipe the inside of the rubber seal dry
with a cloth. Leave the washing machine
door open in order that the drum can
dry. Use chlorine-free cleaning agents
and not steel wool.
Descaling
Note: Make sure that there is no
laundry in the machine.
Descaling should not be necessary if
the detergent is measured out correctly.
However, if it is required, follow the
manufacturer's instructions for the
descaling agent. Suitable descalers can
be obtained via our website or from our
after-sales service.
Detergent drawer and housing
If the washing machine contains
detergent or fabric softener residues:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer from the housing.
2. To remove the insert, push the insert
up from below with your finger.
3. Clean the detergent dispenser tray
and insert with water and a brush,
and dry it. Also remove any
detergent or fabric softener residues
in the housing.
4. Fit the insert and lock it in place
(push the cylinder onto the guide
pin).
5. Push in the detergent drawer.
Note: Leave the detergent drawer open
so that any residual water can
evaporate.
Cleaning and maintenance en
21
Detergent solution pump
blocked
:Warning
Risk of scalding!
When you wash at high temperatures,
the detergent solution gets very hot. If
you come into contact with the hot
detergent solution, you may be scalded.
Allow the detergent solution to cool
down.
1. Turn off the water tap so that no
more water can flow in and has to be
drained via the detergent solution
pump.
2. Switch off the appliance. Pull out the
mains plug.
3. Open and remove the service flap.
4. For models with a drain hose:
Take the drain hose out of the
retainer.
Remove the sealing cap; allow the
detergent solution to flow out into a
suitable container.
Replace the sealing cap and place
the drain hose in the retainer.
5. For models without a drain hose:
Carefully unscrew the pump cover
until the detergent solution begins to
flow out.
When the service flap is half full,
close the pump cover and drain the
service flap.
Repeat the above steps until all the
detergent solution has completely
drained out.
6. Carefully unscrew the pump cover;
residual water may leak out.
Clean the interior, pump cover
thread and pump housing. The
impeller in the detergent solution
pump must be able to rotate.
Refit the pump cover and screw it on
tightly. The handle must be in a
vertical position.
7. Place the service flap back on, lock
it into place, and close it.
Note: To prevent unused detergent
from flowing straight into the drain
during the next wash: Pour 1 litre of
water into compartment II and start the
Empty programme.
en Cleaning and maintenance
22
The drain hose at the siphon
is blocked
1. Switch off the appliance. Pull out the
mains plug.
2. Loosen the hose clamp. Carefully
remove the drain hose, residual
water may leak out.
3. Clean the drain hose and siphon
connecting piece.
4. Reattach the drain hose and secure
the connection point using the hose
clamp.
Filter in the water supply
blocked
:Warning
Risk of electric shock!
Do not immerse the Aqua-Stop safety
valve in water (it contains an electric
valve).
First, reduce the water pressure in the
supply hose:
1. Turn off the tap.
2. Select any programme (except
Rinse/Spin/Empty).
3. Select Start/Pause. Allow the
programme to run for approximately
40 seconds.
4. Turn the programme selector to Off.
Pull out the mains plug.
5. Clean the filter on the tap:
Disconnect the hose from the tap.
Clean the filter with a small brush.
6. For standard and Aqua-Secure
models, clean the filter on the rear of
the appliance:
Remove the hose from the rear of
the appliance.
Use pliers to remove the filter and
then clean it.
7. Connect the hose and check for
leaks.
Faults and what to do about them. en
23
3 Faults and what to do
about them.
Faults and what to do about them.
Emergency release
E.g. in the event of a power cut
The programme will continue running
when the power supply has been
restored.
However, if the laundry has to be
removed, the washing machine door
can be opened as follows:
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot
detergent solution and laundry.
If possible, leave it to cool down.
:Warning
Risk of injury!
You may injure your hands if you reach
into the drum while it is rotating.
Do not reach into the drum while it is
rotating.
Wait until the drum has stopped
rotating.
Caution!
Water damage
Any escaping water may cause water
damage.
Do not open the washing machine door
if water can be seen through the glass.
1. Switch off the appliance. Pull out the
mains plug.
2. Drain off the detergent solution
~ Page 21
3. Use a tool to pull the emergency
release downwards and release it.
The washing machine door can then
be opened.
en Faults and what to do about them.
24
Information about the indicator lights
Faults and what to do about them.
Display* Cause/Remedy Display* Cause/Remedy
Close the washing machine door
properly; washing may be
trapped.
Motor fault. Call the after-sales
service.
Drain pump blocked; clean the
drain pump ~ Page 21
Drain hose/outlet pipe blocked;
clean drain hose on the siphon
~ Page 22
There is water in the base
trough*, the appliance is leaking.
Call the after-sales service.
Turn on the tap fully, supply hose
kinked/jammed: Clean the filter
~ Page 22, water pressure too
low.
* Depending on the model
Faults Cause/Remedy
Water is leaking from the
appliance.
■ Attach the drain hose correctly or replace it.
■ Tighten the screw joint on the supply hose.
The appliance is not filling
with water.
Detergent is not being dis-
pensed.
■ Start/Pause not selected?
■ Is the tap turned on?
■ Could the filter be clogged? Clean the filter.
■ Is the supply hose kinked or trapped?
The door cannot be
opened.
■ The safety function is activated. Wait for approx. 2 minutes.
■ $ (without final spin) selected?
■ Can be opened by emergency release only?
The programme does not
start.
■ Start/Pause selected?
■ Is the door closed?
The water is not draining. ■ $ (without final spin) selected?
■ Clean the drain pump.
■ Clean the outlet pipe and/or the drain hose.
Water is not visible in the
drum.
Not a fault – the water is below the visible area.
Faults and what to do about them. en
25
The spin result is not sat-
isfactory.
Laundry is wet/too damp.
■ Not a fault – unbalanced load detection system has stopped the spin cycle;
washing unevenly distributed.
Distribute small and large items of washing in the drum.
■ p Easy-Iron selected?
■ Is the selected speed too low?
The spin cycle runs sev-
eral times.
Not a fault – the unbalanced load detection system is adjusting an imbalance.
The programme is taking
longer than usual.
■ Not a fault – the unbalanced load detection system is adjusting an imbal-
ance by repeatedly distributing the laundry.
■ Not a fault; the foam detection system is active – a rinse cycle has been
switched on.
Residual water in the care
product dispenser.
■ Not a fault – the effect of the care product is not affected.
■ Clean the insert if necessary
Odours in the washing
machine.
Run the Cottons 90 °C programme without laundry. Use standard detergent
for this.
Wash indicator light
flashes. Foam may also
be leaking from the deter-
gent drawer.
Have you used too much detergent?
Mix one tablespoon of fabric softener with 1/2 litre of water and pour into com-
partment II (not for outdoor fabrics or those made with down).
Use less detergent in the next washing cycle.
Loud noises, vibrations
and machine "move-
ment" during the spin
cycle.
■ Are the appliance's feet fixed? Secure the appliance's feet.
■ Have the transport locks been removed? Remove the transport locks.
Noises during spin and
drain cycles.
Clean the drain pump
The indicator lights do not
work while the appliance
is running.
■ Has there been a power failure?
■ Have the fuses blown? Reset/replace the fuses.
■ If the fault occurs repeatedly, call the after-sales service.
There is detergent resi-
due on the laundry.
■ Some phosphate-free detergents contain water-insoluble residue.
■ Select Rinse/Spin or brush the laundry after washing.
If you cannot rectify a fault yourself (after switching the machine off and on again) or a repair is required:
■ Turn the programme selector to Off. The appliance is switched off.
■ Unplug the mains plug from the socket.
■ Turn off the tap and call the after-sales service.
Faults Cause/Remedy
en After-sales service
26
4 After-sales service
After-sales service
If you cannot rectify a fault yourself
(Faults and what to do about
them~ Page 24 ), please contact our
after-sales service. ~ Cover page
We will always find an appropriate
solution in order to avoid unnecessary
visits by engineers.
Please give the after-sales service the
product number (E-Nr.) and the
production number (FD) of the
appliance.
You can find this information
(*depending on the model):
On the inside of the washing machine
door*/in the opened service flap* and
on the rear of the appliance.
Trust the expertise of the
manufacturer.
Contact us for assistance. By doing so,
you will ensure that the repairs are
carried out by trained service personnel
using genuine spare parts.
Product number Production
number
(1U )'
Consumption rates en
27
[ Consumption rates
Consumption rates
Energy and water consumption, programme duration and
residual moisture for the main washing programmes
Programme Load Energy consumption* Water* Programme duration*
Cottons 30 °C 7 kg 0.31 kWh 72 litres 2 ¾ h
Cottons 40 °C 7 kg 0.85 kWh 72 litres 2 ¾ h
Cottons 60 °C 7 kg 1.21 kWh 72 litres 2 ¾ h
Cottons 90 °C 7 kg 2.01 kWh 77 litres 3 h
Easy-Care 40 °C 3 kg 0.64 kWh 56 litres 1 ¾ h
Mix 40 °C 3 kg 0.46 kWh 36 litres 1 ¼ h
Delicate/Silk 30 °C 2 kg 0.24 kWh 37 litres ¾ h
W /Wool 30 °C 2 kg 0.22 kWh 47 litres ¾ h
Programme Approximate information on the residual moisture**
WAE28 ... WAE24. .. WAE20 ... WAE16 ...
max 1400 U/min max 1200 U/min max 1000 U/min max 800 U/min
Cottons 53 % 58 % 68 % 80 %
Easy-Care 40 % 40 % 40 % 40 %
Delicate/Silk 30 % 30 % 30 % 30 %
Wool 45 % 45 % 45 % 45 %
* The values may deviate from the stated values depending on the following factors: water pressure and
hardness; water inlet temperature; ambient temperature; type, amount and soiling of laundry; type of
detergent used; fluctuations in the power supply and additional functions selected.
** Information on residual moisture based on programme-dependent spin speed limits and maximum loads.
en Technical data
28
J Technical data
Technical data
Dimensions:
850 x 600 x 590 mm
(height x width x depth)
Weight:
68 - 75 kg (depending on the model)
Mains connection:
Mains voltage 220-240 V, 50 Hz
Nominal current 10 A
Nominal power 2000-2300 W
Water pressure:
100 - 1000 kPa (1 - 10 bar)
Power consumption when switched
off:
0.20 W
Power consumption when ready for
use (left-on mode):
1.90 W
5 Positioning and
connecting
Positioning and connecting
Included with the appliance
( Elbow for securing the water drain hose*
0 Mains cable
8 Water supply hose on Aqua-Stop models
@ Bag*:
■ Installation and operating instructions
■ After-sales service location directory*
■ Warranty*
■ Cover caps for openings left after
removing the transport locks
■ Spanner*
H Water drain hose
P Water supply hose on standard/Aqua-
Secure models
* depending on the model
#
+
3
Positioning and connecting en
29
Notes
■ Check the machine for transport
damage. Never use a damaged
machine. If you have a complaint,
please contact the retailer from
whom you purchased the appliance,
or our after-sales service.
■ Moisture in the drum is due to the
final inspection.
In addition, a hose clamp (24-40 mm
diameter, available from specialist
dealers) is required to connect the
water drain hose to a siphon.
Useful tools
■ Spirit level for levelling
■ Spanner with:
– WAF 13 for loosening the
transport locks, and
– WAF 17 for aligning the
appliance feet
Safety instructions
:Warning
Risk of injury!
■ The washing machine is very heavy.
Be careful when lifting/transporting
the washing machine.
■ If the washing machine is lifted by
protruding components (e.g. the
washing machine door), the
components may break off and
cause injuries.
Do not lift the washing machine by
protruding parts.
■ If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may crack/burst.
Do not install the washing machine in
areas exposed to frost and/or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■ In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a specialist.
Installation surface
Note: The washing machine must be
stable so that it does not move around.
■ The surface on which it is installed
must be firm and level.
■ Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The washing machine may "wander"
and tip/topple from the base when
spinning.
Use holding brackets to secure the feet
of the appliance.
Order no. WMZ2200, WX975600,
Z7080X0
Note: On wooden joist floors, install the
washing machine:
■ In a corner, if possible,
■ On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
en Positioning and connecting
30
Installing the appliance in a
kitchenette
:Warning
Install the appliance (underneath the
worktop or fitted in a cabinet) before
connecting it to the power supply.
Notes
■ Recess width of 60 cm required.
■ Only install the washing machine
underneath a continuous worktop
that is securely connected to
adjacent cabinets.
:Warning
Risk of electric shock!
Instead of the appliance covering plate,
you must have a metal cover* fitted by
an expert.
* Order no. WMZ2420, WZ10190
Removing the transport locks
Caution!
Damage to the appliance
■ The machine is secured for
transportation using transport locks.
If the transport locks are not
removed, the drum, for example,
may become damaged when the
machine is operated.
Before using the appliance for the
first time, make sure that you
completely remove all four transport
locks. Keep the locks in a safe
place.
■ To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.
Note: Store the screw and sleeve
screwed together.
1. Take the hoses out of the holders.
2. Unscrew and remove all four
transport brace screws.
Remove the sleeves. To do this,
remove the mains cable from the
holders.
3. Fit the covers. Lock the covers firmly
in place by applying pressure to the
snap-in hooks.
Positioning and connecting en
31
Hose and cable lengths
■ Left-hand connection
■ Right-hand connection
Tip:
The following are available from
specialist dealers/the after-sales
service:
■ Extension for Aqua-Stop and cold
water supply hose (approx. 2.50 m).
Order no. WMZ2380, WZ10130,
Z7070X0
■ A longer supply hose (approx. 2.20
m) for standard model
Water inlet
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve in water (it contains an electric
valve).
Observe the following when connecting
the machine:
Notes
■ Only operate the washing machine
using cold mains water.
■ Do not connect the machine to the
mixer tap of an unpressurised hot-
water boiler.
■ Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■ Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■ Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may be
damaged.
Optimum water pressure in the supply
network
At least 100 kPa (1 bar)
Maximum 1000 kPa (10 bar)
When the tap is open, the water flow is
at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Connection
Connect the water supply hose to the
water tap (¾" = 26.4 mm) and to the
appliance (not necessary for Aqua-Stop
models as this is permanently installed):
aFP
aFP
PD[FP
PLQFP
aFP
PLQFP
PD[FP
aFP
aFP
aFP
en Positioning and connecting
32
■ Model: Standard
■ Model: Aqua-Secure
■ Model: Aqua-Stop
Note: Open the water tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
Water outlet
Caution!
Water damage
If the drain hose slips out of the wash
basin or the connection point during
draining due to high water pressure, any
escaping water may cause water
damage.
Secure the drain hose so that it cannot
slip out.
Notes
■ Do not kink the water drain hose or
put strain on it lengthways.
■ Height difference between the
installation surface and the drain:
Min. 60 cm, max. 100 cm
You can lay the water drain hose as
follows:
■ Drainage into a washbasin
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of
scalding if you come into contact
with hot detergent solution (e.g.
when draining hot detergent solution
into a washbasin).
Do not reach into the hot detergent
solution.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is
immersed in the drained water, water
may be sucked back into the
appliance and may damage the
appliance/fabrics.
Make sure that:
– The plug does not block drainage
from the washbasin.
– The end of the drain hose is not
immersed in the drained water.
– The water drains away quickly
enough.
■ Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24-40 mm (available
from specialist dealers).
Positioning and connecting en
33
Levelling
Level the appliance using a spirit level.
Incorrect levelling may result in intense
noise, vibrations and "wandering".
1. Loosen the lock nuts using a
spanner, by turning it in a clockwise
direction.
2. Check the levelling of the washing
machine with a spirit level, and
adjust it if necessary. Change the
height by turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
3. Tighten the lock nut against the
housing.
In doing so, hold the foot tight and
do not adjust its height.
The lock nuts on all four appliance
feet must be screwed tightly against
the housing.
Electrical connection
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
■ Never touch or hold the mains plug
with wet hands.
■ Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
■ Never unplug the mains plug during
operation.
Observe the following information and
ensure that:
Notes
■ The mains voltage and voltage
indicated on the washing machine
(rating plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■ The washing machine is only
connected to an alternating current
via a properly installed earthed
socket.
■ The mains plug fits the socket.
■ The cable cross-section is adequate.
■ The earthing system is properly
installed.
■ The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
■ No multiple plugs/couplings or
extension cables are used.
■ If an earth-leakage circuit breaker is
used, only a type which displays this
symbol z is used.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■ The mains plug can be accessed at
all times.
■ The mains cable is not bent,
squashed, modified, cut through, or
in contact with heat sources.
en Positioning and connecting
34
Before washing for the first
time
The washing machine was thoroughly
tested before leaving the factory. To
remove any water that may be left over
from the test, run the first wash cycle
without any laundry.
Notes
■ The washing machine must be
correctly installed and connected.
(from ~ Page 28).
■ Never use a damaged machine.
Inform the after-sales service.
1. Check the machine.
2. Remove the protective film from the
control panel.
3. Connect the mains plug.
4. Turn on the tap.
5. Close the door (do not load any
laundry).
6. Select the Cottons 90 °C
programme.
7. Open the detergent drawer.
8. Pour approximately 1 litre of water
into compartment II.
9. Pour standard detergent into
compartment II.
Note: To prevent foaming, only use
half of the amount of detergent
recommended by the detergent
manufacturer. Do not use detergents
designed for woollens or delicates.
10.Close the detergent drawer.
11.Select Start/Pause.
12.Switch off the appliance at the end of
the programme.
Your washing machine is now ready to
use.
Transportation
E.g. when moving house
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the
supply hose.
Maintenance – filter in the water
supply ~ Page 22
3. Drain the remaining detergent
solution.
Maintenance – detergent solution
pump blocked ~ Page 21
4. Disconnect the washing machine
from the mains.
5. Remove the hoses.
Installing the transport locks:
1. Remove the covers and keep them
in a safe place.
Use a screwdriver if necessary.
2. Insert all 4 sleeves.
Clip the mains cable securely in the
holders. Insert and tighten the
screws.
Before commissioning:
Notes
■ The transport locks must be
removed.
■ To prevent unused detergent from
flowing straight into the drain during
the next wash: Pour approx. 1 litre of
water into compartment II and start
the Empty programme.
6
Robert Bosch, Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
DEUTSCHLAND
*9001008880*
9001008880 (9407)
Aqua-Stop warranty
Only for appliances with Aqua-Stop
In addition to warranty claims against the vendor based on the purchase
agreement and to our appliance warranty, we will provide compensation under
the following conditions:
1. If water damage is caused due to a fault in our Aqua-Stop system, we will
compensate domestic customers for the damage caused.
2. The liability guarantee is valid for the service life of the appliance.
3. It is a prerequisite of all warranty claims that the appliance with Aqua-Stop
must have been installed and connected correctly in accordance with our
instructions; this also includes a correctly fitted Aqua-Stop extension
(genuine accessories).
Our warranty does not cover defective feed lines or fittings leading to the
Aqua-Stop connection at the tap.
4. Appliances with Aqua-Stop do not need to be supervised during operation,
nor secured afterwards by turning off the tap.
The tap only needs to be turned off if you are away from home for a long
period, e.g. for several weeks' holiday.
You can find the contact information for all countries in the attached after-sales
service directory.
7 Advice and repair order in the event of faults
GB 0844 892 8979 (Calls from a BT landline will be charged at up to 3
pence per minute. A call set-up fee of up 6 pence may apply.)
IE 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.)
