User Manual
Home Screen
The fishfinder home screen provides access to all of the features in the fishfinder. The features are dependant on the accessories you have connected to the fishfinder. You may not have all of the options and features discussed in this manual.
When viewing another screen, you can return to the home screen by holding . You can customize the layout of the screens.
Customizing the Home Screen
You can add items to and rearrange items on the Home screen.
- From the Home screen, select Customize Home.
- Select an option:
- To rearrange an item, select Rearrange, select the item to move, and select the new location.
- To add an item to the Home screen, select Add, and select the new item.
- To remove an item you have added to the Home screen, select Remove, and select the item.
Adding a New Layout to the Home Screen of the STRIKER 5 or 7
You can create a custom screen to suit your needs, which is added to your home screen.
- To customize the data shown on the screen, select Overlay Numbers.
- To turn on and off the compass tape data bar, select Compass Tape.
TIP:
- Select to save.
- Hold to clear data.
- Select or to change letter case.
Adding a Custom Layout to the Home Screen of the STRIKER 4
You can create a custom screen to suit your needs, which is added to your home screen.
TIP:
- Select to save.
- Select to change letter case.
- Hold to clear data.
Adding the Numbers Screen
Before you can customize the Numbers screen, you must add it to the home screen.
You can view numeric data on the home screen using the Numbers screen.
Select Customize Home > Add > Numbers.
Numbers
To customize the Numbers screen, select Numbers > .
Adding the Data Graphs Screen
Before you can customize the Data Graphs screen, you must add it to the home screen.
You can view graphical sonar data on the home screen using the Data Graphs screen.
From the home screen, select Customize Home > Add > Data Graphs.
Data Graphs
To customize the Data Graphs screen, select Data Graphs >
Temperature Graph Settings: Sets the amount of time and the range of depth that appear in the temperature graphs.
Sonar
The full screen page, the split frequency page, and the flasher page are visual representations of the area beneath your boat. You can customize these sonar views.
Full Screen Sonar

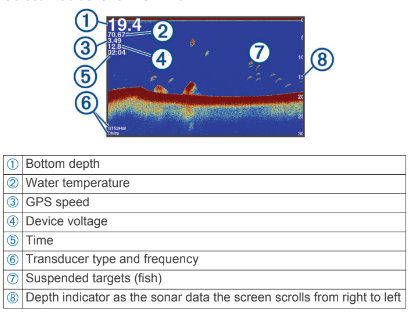

You can see a full-view graph of sonar readings from a transducer on the full screen. Select Traditional or DownVü.
DownVü Sonar View
NOTE: Not all models support DownVü sonar technology and transducers.
DownVü high-frequency sonar provides a clearer picture below the boat, providing a more detailed representation of structures the boat is passing over.
Traditional transducers emit a conical beam. The DownVü scanning sonar technology emits a narrow beam, similar to the shape of the beam in a copying machine. This beam provides a clearer, picture-like image of what is beneath the boat.
SideVü Sonar View
NOTE: Not all models support SideVü sonar and scanning transducers.
NOTE: To receive SideVü scanning sonar, you need a compatible transducer and fishfinder.

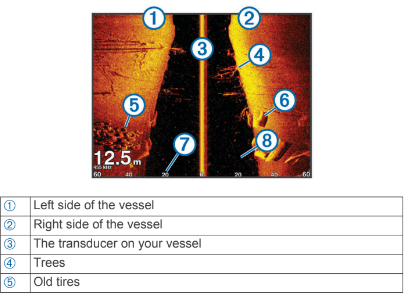

SideVü scanning sonar technology shows you a picture of what lies to the sides of the boat. You can use this as a search tool to find structures and fish.
Split-Screen Frequency
You can view two frequencies from the split frequency screen.
Flasher

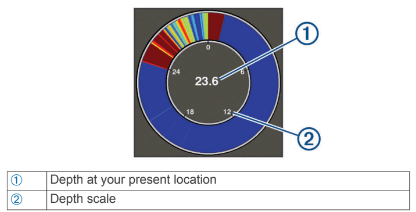

The flasher shows sonar information on a circular depth scale, indicating what is beneath your boat. It is organized as a ring that starts at the top and progresses clockwise. Depth is indicated by the scale inside the ring. Sonar information flashes on the ring when it is received at the depth indicated. The colors indicate different strengths of the sonar return.
Select Flasher.
Split-Zoom View

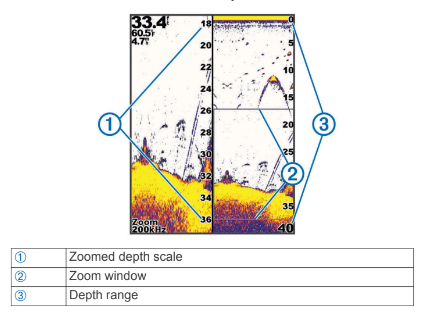

On the split-zoom page, you can see a full-view graph of sonar readings on the right side of the screen, and a magnified portion of that graph on the left side of the screen.
From a sonar screen, select > Split Zoom.
Selecting the Transducer Type
If you are not using the included transducer, you must set the transducer type to enable the sonar to function optimally. If you are using the included transducer, you do not need to complete these steps.
- Select Settings > My Vessel > Transducer Type.
- Select the type of transducer you are using.
Creating a Waypoint on the Sonar Screen Using Your Present Location
- From a sonar view, select .
- If necessary, edit the waypoint information.
Pausing the Sonar
Not all options are available on all models.
Select an option:
- From the Traditional or DownVü sonar screen, select or
- From the SideVü sonar screen, select or .
Creating a Waypoint on the Sonar Screen Using a Different Location
- From a sonar view, pause the sonar.
- Select a location.
- Select .
- If necessary, edit the waypoint information.
Overlay Number Settings
Sonar Gain and Noise Settings
You can adjust the amount of gain and noise on a sonar screen. The gain setting controls the sensitivity of the sonar receiver to compensate for water depth and water clarity. Increasing the gain shows more detail, and decreasing the gain reduces screen clutter.
NOTE: Setting the gain on one page applies the setting to all the pages.
Setting the Gain Manually
- From a sonar screen, select > Gain.
- Select or until you begin to see noise in the water portion of the screen.
- Select or to decrease the gain.
Setting the Gain Automatically
NOTE: To set the gain on the split-frequency screen, you must set each frequency separately.
- Select > Gain.
- Select Enable Auto Gain, if applicable.
- Select an option:
- To display higher-sensitivity, weaker sonar returns with more noise automatically, select Auto High.
- To display medium-sensitivity sonar returns with moderate noise automatically, select Auto Med.
- To display lower-sensitivity sonar returns with less noise automatically, select Auto Low.
Hiding Surface Noise
You can hide or display the sonar returns near the surface of the water. Hiding surface noise helps reduce screen clutter.
NOTE: Setting the surface noise to show or hide on one screen applies that setting to all screens.
This feature may not be available with all transducers.
From a sonar screen, select > Sonar Setup > Noise Reject > Surface Noise.
Interference
The Interference setting adjusts sonar sensitivity to reduce the effects of interference from nearby sources of noise.
When you adjust the interference setting from off 1 through low medium 2, and high 3, noise is gradually removed, but there is little effect on the strong target returns.
Use the lowest interference setting that achieves the desired improvement to remove interference from the screen. Correcting installation issues that cause noise is the best way to eliminate interference.
Setting the Interference
- From a sonar screen, select > Sonar Setup > Noise Reject > Interference.
- Select an option.
Adjusting the Range of the Depth Scale
You can adjust the range of the depth scale that appears on the right side of the screen. Automatic ranging keeps the bottom within the lower third of the sonar screen, and can be useful for tracking the bottom where there are slow or moderate terrain changes.
When the depth changes dramatically, like a drop off or cliff, manually adjusting the range allows a view of a specified depth range. The bottom is shown on the screen as long as the bottom is anywhere within the manual range established.
- From a sonar screen, select > Range.
- Select an option:
- To allow the device to adjust the range automatically based on the depth, select Auto.
- To increase or decrease the range manually, select or (Available only on the 5 in. and 7 in. models.)
- To increase or decrease the range manually, select or . (Available only on the 4 in. models.)
NOTE: From a sonar screen, select and to quickly manually adjust the range. (Available only on the 5 in. and in. models.)
Setting the range on one screen applies that setting to all screens.
Adjusting the Zoom
You can adjust the zoom manually by specifying the span and a fixed starting depth. For example, when the depth is 15 m and the starting depth is 5 m, the device displays a magnified area from 5 to 20 m deep.
You also can allow the device to adjust the zoom automatically by specifying a span. The device calculates the zoom area from the bottom of the water. For example, if you select a span of m, the device displays an magnified area from the bottom of the water to 10 m above the bottom.
- From a sonar screen, select > Zoom.
- Select an option:
- Select Bottom Lock to lock the screen to the water bottom.
- Select Manual to manually set the zoom.
- Select Auto to automatically set the zoom.
- Select Split Zoom to turn on the split-zoom view.
Locking the Screen to the Water Bottom
You can lock the screen to the water bottom. For example, if you select a span of 20 meters, the device shows an area from the water bottom to 20 meters above the bottom. The span appears on the right side.
- From a sonar view, select > Zoom > Bottom Lock.
- Select a span.
Setting the Bottom Search Limit
You can set a maximum depth at which the auto range feature searches for the bottom. A lower limit acquires data about the bottom faster than a higher limit.
- From a sonar screen, select > Sonar Setup > Bottom Search Limit.
- Select a range.
Sonar Frequencies
NOTE: The frequencies that are available depend on the transducer being used. Adjusting the frequency helps adapt the sonar for your particular goals and the present depth of the water.
Selecting Frequencies
NOTE: You cannot adjust the frequency for all sonar views and transducers.
You can indicate which frequencies appear on the sonar screen.
- From a sonar view, select > Frequency.
- Select a frequency suited to your needs and water depth.
For more information on frequencies, see Sonar Frequencies, page 4.
Creating a Frequency Preset
NOTE: Not available with all transducers.
You can create a preset to save a specific sonar frequency, which allows you to change frequencies quickly.
- From a sonar view, select > Frequency.
- Select Add.
- Enter a frequency.
Setting the Scroll Speed
You can set the rate at which the sonar image moves across the screen. A higher scroll speed shows more detail, especially while moving or trolling. A lower scroll speed displays sonar information on the screen longer. Setting the scroll speed on one sonar view applies to all the sonar views.
- From a sonar view, select > Sonar Setup > Scroll Speed.
- Select an option:
- To adjust the scroll speed automatically using speed-over- ground, select Auto.
The Auto setting selects a scroll rate to match the boat speed, so targets in the water are drawn with the correct aspect ratio and appear less distorted. When viewing
DownVü or SideVü sonar views, it is recommend to use the Auto setting.
- To use a very fast scroll speed, select Ultrascroll®
The Ultrascroll option quickly scrolls new sonar data, but with a reduced image quality. For most situations, the Fast option provides a good balance between a quickly scrolling image and targets that are less distorted.
Showing and Adjusting the Depth Line
You can show and adjust a horizontal line on a sonar screen. The depth of the line is indicated on the right side of the screen.
NOTE: Showing a depth line on one screen displays the depth line on all the screens.
- From a sonar screen, select > Sonar Setup > Depth Line.
- Select .
- To adjust the Depth Line, select or .
Configuring the Appearance of Suspended Targets
NOTE: Configuring the appearance of suspended targets on one screen applies that setting to all screens.
NOTE: This feature is not available on all sonar views.
- From a sonar screen, select > Sonar Setup > Appearance > Fish Symbols.
- Select an option.
Turning on the A-Scope
The a-scope is a vertical flasher along the right side of the full- screen sonar view. This feature expands the most recently received sonar data so that it is easier to see. It can also be helpful for detecting fish that are close to the bottom.
NOTE: This feature is not available on all sonar screens.
From the full screen page, select > Sonar Setup > Appearance > A-Scope.
Waypoints
Waypoints are locations you record and store in the device.
Marking Your Present Location as a Waypoint
From any screen, select .
Creating a Waypoint at a Different Location
- Select User Data > Waypoints > New Waypoint.
- Select an option:
- To create the waypoint by entering position coordinates, select Enter Coordinates, and enter the coordinates.
- To create the waypoint using the waypoint map, select Use Waypoint Map, select the location, and select .
- To create the waypoint using your present location, select Use Current Position, and enter the data.
The waypoint is saved automatically.
Editing a Saved Waypoint
- Select User Data > Waypoints.
- Select a waypoint.
- Select Edit Waypoint.
- Select an option:
- To add a name, select Name, and enter a name.
- To change the symbol, select Symbol.
- To change the depth, select Depth.
- To change the water temperature, select Water Temp..
- To change the comment, select Comment.
- To move the position of the waypoint, select Position.
Marking and Navigating to a Man Overboard Location
Navigating to a Waypoint
- Pan the waypoint map to find the waypoint.
- Place the center of the cursor on the center of the waypoint symbol. The waypoint name appears on the screen.
- Select the waypoint.
- Select Navigate Route > Go To.
Measuring Distance on the Waypoint Map
You can measure the distance between two locations.
- From the waypoint map, begin panning (Panning on the STRIKER 4, page 1).
- Select > Measure Distance.
The distance and other data appear on the screen.
Deleting a Waypoint or an MOB
- Select User Data > Waypoints.
- Select a waypoint or an MOB.
- Select Delete > OK.
Deleting All Waypoints
Select User Data > Manage Data > Clear User Data > Waypoints > All.
Routes
A route is a sequence of waypoints or locations that leads you to your final destination.
Creating and Navigating a Route Using the Waypoint Map
The starting point can be your present location or another location.
- Select User Data > Routes > New > Use Waypoint Map.
- Pan the waypoint map to select the starting location of the route.
- Follow the onscreen instructions to add a turns.
- Select > Navigate To.
- Select an option.
Editing a Saved Route
You can change the name of a route or change the turns the route contains.
- Select User Data > Routes.
- Select a route.
- Select Edit Route.
- Select an option:
- To change the name, select Name, and enter the name.
- To select a waypoint from the turn list, select Edit Turns > Use Turn List, and select a waypoint from the list.
- To select a turn using the chart, select Edit Turns > Use Waypoint Map, and select a location on the chart.
Viewing a List of Routes
Select User Data > Routes.
Browsing for and Navigating a Saved Route
Before you can browse a list of routes and navigate to one of them, you must create and save at least one route.
- To navigate the route from the starting point used when the route was created, select Forward.
- To navigate the route from the destination point used when the route was created, select Backward.
Deleting a Saved Route
- Select User Data > Routes.
- Select a route.
- Select Delete.
Deleting All Saved Routes
Select User Data > Manage Data > Clear User Data > Routes.
Track
A track is a recording of the current path of your boat. You can show your current track in waypoint map view.
Setting the Color of the Track
- Select User Data > Track > Track Options > Track Color.
- Select a track color.
Clearing the Track
Select User Data > Track > Clear Track > OK.
Managing the Track Log Memory During Recording
- Select User Data > Track > Track Options.
- Select Record Mode.
- Select an option:
- To record a track log until the track memory is full, select Fill.
- To continuously record a track log, replacing the oldest track data with new data, select Wrap.
Configuring the Recording Interval of the Track Log
You can indicate the frequency at which the track plot is recorded. Recording more frequent plots is more accurate but fills the track log faster. The resolution interval is recommended for the most efficient use of memory.
- Select User Data > Track > Track Options > Record Intervals > Interval.
- Select an option:
- To record the track based on a distance between points, select Distance > Change, and enter the distance.
- To record the track based on a time interval, select Time > Change, and enter the time interval.
- To record the track plot based on a variance from your course, select Resolution > Change, and enter the maximum error allowed from the true course before recording a track point.
Deleting All Saved Waypoints, Routes, and Tracks
Select User Data > Manage Data > Clear User Data > All > OK.
Device Configuration
System Settings
Waypoint Map Settings
Select Waypoint Map > .
Sonar Alarms
- sets the alarm to sound when fish of all sizes are detected.
- sets the alarm to sound only when medium or large fish are detected.
sets the alarm to sound only when large fish are detected.
System Alarms
Navigation Alarms
Navigation Settings
My Vessel Settings
NOTE: Some settings and options require additional hardware. Select Settings > My Vessel.
Transducer Type: Displays the type of transducer connected to the device (Selecting the Transducer Type, page 3).
Keel Offset: Offsets the surface reading for the depth of a keel, making it possible to measure depth from the bottom of the keel instead of from the transducer location (Setting the Keel Offset, page 8).
Temp. Offset: Compensates for the water temperature reading from a temperature-capable transducer (Setting the Water Temperature Offset, page 7).
Unit Settings
Select Settings > Units.
Setting the Water Temperature Offset
You can set the temperature offset to compensate for the temperature reading from a temperature-capable sensor.
- Measure the water temperature using the temperature- capable transducer that is connected to the device.
- Measure the water temperature using a different thermometer or temperature sensor that is known to be accurate.
- Subtract the water temperature measured in step 1 from the water temperature measured in step 2. This is the temperature offset. Enter this value in step 5 as a positive number if the sensor connected to the device measures the water temperature as being colder than it actually is. Enter this value in step 5 as a negative number if the sensor connected to the device measures the water temperature as being warmer than it actually is.
- Select Settings > My Vessel > Temp. Offset.
- Use the arrow keys to enter water temperature offset measured in step 3.
Setting the Keel Offset
You can enter a keel offset to compensate the surface reading for the depth of a keel, making it possible to measure water depth or depth below the keel instead of depth below the transducer. Enter a positive number to offset for a keel. You can enter a negative number to compensate for a large vessel that may draw several feet of water.
1. Complete an action, based on the location of the transducer:
- If the transducer is installed at the water line À, measure the distance from the transducer location to the keel of the boat. Enter this value in steps 3 and 4 as a positive number to display depth below keel.
- If the transducer is installed at the bottom of the keel Á, measure the distance from the transducer to the water line. Enter this value in steps 3 and 4 as a negative number to display water depth. Enter a 0 in this value to display depth below keel and depth below transducer.
Restoring the Factory Default Settings
NOTE: This deletes all settings information you have entered.
- Select > System > System Information > Factory Settings.
- Select an option.
Troubleshooting
My device does not turn on
- Push the power cable all the way into the back of the device.
Even if the cable seems to be connected, you should push firmly so that it is fully seated.
- Make sure the power source is generating power.
You can check this several ways. For example, you can check whether other devices powered by the source are functioning.
- Check the fuse in the power cable.
The fuse should be located in a holder that is part of the red wire of the power cable. Check that the proper size fuse is installed. Refer to the label on the cable or the installation instructions for the exact fuse size needed. Check the fuse to make sure there is still a connection inside of the fuse. You can test the fuse using a multimeter. If the fuse is good, the multimeter reads 0 ohm.
- Check to make sure the device is receiving at least 10 Vdc, but 12 Vdc is recommended.
To check the voltage, measure the female power and ground sockets of the power cable for DC voltage. If the voltage is less than 10 Vdc, the device will not turn on.
My sonar does not work
- Push the transducer cable all the way into the back of the device. Even if the cable seems to be connected, you should push firmly so that it is fully seated.
- Check to make sure the sonar transmission is turned on.
See other models: 010-01995-12 010-01789-12 010-02084-00 010-01995-14 010-01769-11
