imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
RB195AB
RB197AB
RB215AB
RB217AB
English
Refrigerator
user manual
DA68-01778B-00.indd 1 2010.3.20 11:41:52 AM
2_ Features
For easy future reference, write the model
and serial number down. You will find
your model number and serial number on
the left side of the refrigerator.
Model #
Serial #
Features of your new Refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung Refrigerator comes equipped with various innovative storage and energy-efficient features.
• Twin Cooling System
The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently.
Additionally, this separate air flow system prevents food odor of one compartment from seeping into
other compartments.
• Bigger & Wider Space
The wide shelf area provides enough space for larger items.
The wide freezer drawer also provides enough space for 2~3 turkeys.
• Secure Auto Close
The Secure Auto Close feature will automatically close a door that is slightly open.
• Digital Display and Temperature Control
• Door Alarm
A helpful beeper alerts you if a door is ajar.
• Easy Handle
Freezer door can be opened with less effort.
• Energy Star
This Energy star labeled product may save you money on your energy costs.
DA68-01778B-00.indd 2 2010.3.20 11:41:52 AM
Safety Information _3
SAFETY INFORMATION
Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that
you know how to safely and efficiently operate the features and functions that your new appliance
offers.
Because the following instructions cover RB195AB, 197AB, 215AB & 217AB, the characteristics
of your Refrigerator may differ slightly from the Refrigerator described in this manual. If you have
any questions, contact us at 1-800-SAMSUNG or find help and information online at www.
samsung.com.
What the icons and signs in this user manual mean :
WARNING
Hazards or unsafe practices that may result in severepersonalinjuryordeath.
CAUTION
Hazards or unsafe practices that may result in minorpersonalinjuryorproperty
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
refrigerator, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Notice
Thesewarningsignsareheretopreventinjurytoyouandothers.
Pleasefollowthemexplicitly.
Keepthismanualinasafeplaceforfuturereference.
SEVERE WARNING SIGNS
WARNING
❏ For Refrigerator Installation
Do not damage parts containing Refrigerant. If they are damaged, it may cause a fire or
explosion. Do not touch the refrigerator if it is damaged. Follow the items below and contact
the store where the refrigerator was purchased or a Samsung Appliance Service Center.
(Tel 1-800-SAMSUNG)
1. Open the windows and air the room. (Do not use a ventilating fan.)
2. Avoid using flammable or electric appliances.
Safety Information
DA68-01778B-00.indd 3 2010.3.20 11:41:52 AM
Safety Information
4_ Safety Information
Never use gas pipes, telephone lines or other potential lightning attractors as an electrical
ground.
• Improperuseofthegroundingplugcanresultinariskofelectricshock.Ifitisnecessarytousean
extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground plug
and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension
cord should be AC 115V~120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the
receptacle box is also fully grounded.
The Refrigerator must be safely grounded
• AlwaysmakesurethatyouhavegroundedtheRefrigeratorbeforeattemptingtoinvestigateorrepairany
part of the appliance. Power leakages can cause severe electric shock.
The appliance must have sufficient space around it. (Refer to page 10 for the best location.)
• Whenrefrigerantleaks,itispossibletocauseareorexplosion.
CAUTION SIGNS
CAUTION
The appliance must be positioned for easy access to power source.
The appliance must be placed on the level surface of hard material.
• Placingonanunlevelsurfacemaycauseittotipover,resultingininjuryorpropertydamage.
Do not use casters under the Refrigerator on a surface that is easily damaged.
• WhenmovingtheRefrigerator,spreadoutaprotectorsuchascardboardcartonundertheRefrigerator.
(Refer to page 10 for flooring.)
Do not install the Refrigerator in a damp place or place where it may come in contact with
water.
• Wetand/ordeterioratedinsulationoftheinternalelectricalpartsmaycauseelectricshockorre.
Do not place the refrigerator directly in sunlight.
SEVERE WARNING SIGNS
WARNING
- CONT’D
DA68-01778B-00.indd 4 2010.3.20 11:41:52 AM
Safety Information _5
Do not put undue stress on the power cord or place heavy articles on it.
•Placingheavyarticlesonthepowercordmaycreatetheriskofexplosionorre.
Do not handle the power plug with wet hands.
• Itmaycauseanelectricshock.
SEVERE WARNING SIGNS
WARNING
❏ Power Plug
Contact the retailer where you purchased the appliance for if you have a power plug problem.
Do not plug several appliances into the same power receptacle.
•Largeappliancesdrawalotofpower.Poweringmorethanoneapplianceormachinefromasinglepower
source could cause overheating and a fire.
Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.
•Adamagedpowerplugmayoverheatandcauseare.
Insert the power plug into the socket completely.
• Incompleteinsertingmaycausearebyelectricshockorheat.
Do not use the power plug if the plug or power cord is damaged.
• Itmaycauseareorelectricshock.
Do not damage power plug or cord, or push the Refrigerator backward.
• Bendingandbindingthepowercord,orpushingRefrigeratorbackwardmaycauseareorelectricshock
by wire damage.
Do not use the loose socket.
• Thereisariskofelectricshockorre.Havethepluglookedatbyalicensedelectrician.
Never unplug your Refrigerator by pulling on the power cord.
• Alwaysgripthepowercordrmlyandpullstraightoutfromtheoutlet.Yankingorpullingonthepower
cord may cause a short-circuit, fire and/or electric shock.
• Adamagedpowercordmustbereplacedbythemanufacturer,acertiedserviceagentorqualiedservice
personnel.
CAUTION SIGNS
CAUTION
Remove any dust or foreign matter from the power plug pins.
• Adirtypowerplugcanincreasetheriskofre.
Do not use a wet or damp cloth when cleaning the plug.
If the power cord is damaged, it must be replaced by the manufacturer, a certified service
agent or qualified service personnel.
Safety Information
DA68-01778B-00.indd 5 2010.3.20 11:41:53 AM
6_ safety information
Do not put a container filled with water without cap on the Refrigerator.
• Ifitspills,itmaycausereorelectricshock.
Do not store articles on the top of the appliance.
• Whenyouopenorclosethedoor,thearticlesmayfallandcausepersonalinjuryand/ordamageto
surrounding objects.
Do not store pharmaceutical products, scientific materials and temperature-sensitive
products in the refrigerator.
• ProductsthatrequireexacttemperaturecontrolsshouldnotbestoredintheRefrigerator.
Do not put your hands or legs/foot under the appliance.
• Anysharpedgesmaycausepersonalinjury.
Do not use any electric appliance inside the refrigerator.
• Incaseofrefrigerantleak,itmaycauseareandexplosion.
Do not touch the Refrigerator or power plug, and air the room with opening window if any
flammable gas (propane gas, city gas, etc.) leaks.
• Anexplosionmayoccurduetoaelectricalcontactsparkandcausereorinjury.
Safety Information
Do not disassemble or repair the Refrigerator by yourself.
• Youmayruntheriskofre,appliancemalfunctionsand/orpersonalinjury.Callyournearestservicecenter
for help from a qualified service technician.
Unplug the Refrigerator and stop the operation if there is any problem or failure.
Do not store volatile or flammable substances in the Refrigerator.
• Storingbenzene,thinner,alcohol,ether,LPgasandothersuchproductsmaycauseexplosions.
Do not use aerosols near the Refrigerator.
•AerosolsusedneartheRefrigeratormaycauseanexplosionorre.
SEVERE WARNING SIGNS
WARNING
❏ For Usage of Refrigerator
Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.
•Watercouldgetintotheinteriormachinepartsandcauseelectricshock.
DA68-01778B-00.indd 6 2010.3.20 11:41:53 AM
safety information _7
If you have a long vacation planned, empty the Refrigerator and turn it off.
• Wipeexcessmoisturefromtheinsideandleavethedoorsopentokeepodorandmoldfromdeveloping.
CAUTION SIGNS
CAUTION
If the Refrigerator will not be used for a long period of time (for example, over several
months), unplug the power from the wall.
• Overtime,deteriorationinthepowercordinsulationmaycausere.
Unplug the Refrigerator before changing the interior light.
• ChangingthelightwhiletheRefrigeratorispluggedinmaycauseelectricshock.
Do not put bottles or glass containers in the Freezer drawer.
• Whenthecontentsfreezeandthenexpand,theglassmaybreakandcausepersonalinjuryorleave
dangerous glass shards in the Freezer.
Do not overfill the Refrigerator with food and drinks.
• InanoverfullRefrigerator,heavy,fragile,bulkyorbreakableitemsmayfalloutandcausepersonalinjury
and/or damage to surrounding objects.
Do not allow children to climb, stand or hang on shelves and handles of the Refrigerator. They
could damage the Refrigerator and seriously injure themselves. Do not sit on the freezer door.
The door may break.Do not allow children to climb into the freezer basket.
If you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator
immediately and contact your Samsung Electronics Service Center.
After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer
compartment. Particularly when hands are damp or wet, skin may adhere to these extremely
cold surfaces.
• Skinmaysticktothesurfaceandyoumaygetfrostbite.
Do not touch the rails of freezer drawer. (RB217, RB197)
• Whenthedrawerismoving,angercanbecaughtbytherailandgetinjured.
If the Refrigerator is disconnected from the power supply, you should wait for at least five
minutes before plugging it back in.
Safety Information
SEVERE WARNING SIGNS
WARNING
- CONT’D
Unplug the Refrigerator when it is checked for problem.
DA68-01778B-00.indd 7 2010.3.20 11:41:53 AM
8_ safety information
Safety Information
SEVERE WARNING SIGNS
WARNING
❏ When Moving or Transporting the Refrigerator
Do not damage the refrigerant circuit around the refrigerator.
If it is damaged, the refrigerant may leak and cause a fire and explosion.
Do not touch the refrigerant if it is damaged, and follow the below items and contact the store
where you buy it or Samsung Appliance SVC Center (Tel : 1-800-SAMSUNG).
1. Open the windows and air the room. (Do not use the ventilating fan.)
2. Avoid to use the flammable or electric appliances as possible.
This appliance is not intended for use by small children or infirm persons without capable,
adult supervision. Small children should be supervised when using the appliance.
Children can get trapped inside Refrigerators.
Before you throw away your old Refrigerator or Freezer, make sure that you;
• Takeoffthedoors.
• Leaveallshelvesinplacessothatchildrenmaynoteasilyclimbinsideandshutthedoorwhiletheyare
inside.
Service warranty and Modification
• Anychangesormodicationsperformedbya3rdpartyonthisnishedapplianceisnotcoveredunder
Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party
modifications.
CAUTION SIGNS
CAUTION
- CONT’D
DA68-01778B-00.indd 8 2010.3.20 11:41:53 AM
Contents
Contents _9
SETTINGUPYOURREFRIGERATOR
10
10 Getting ready to install the refrigerator

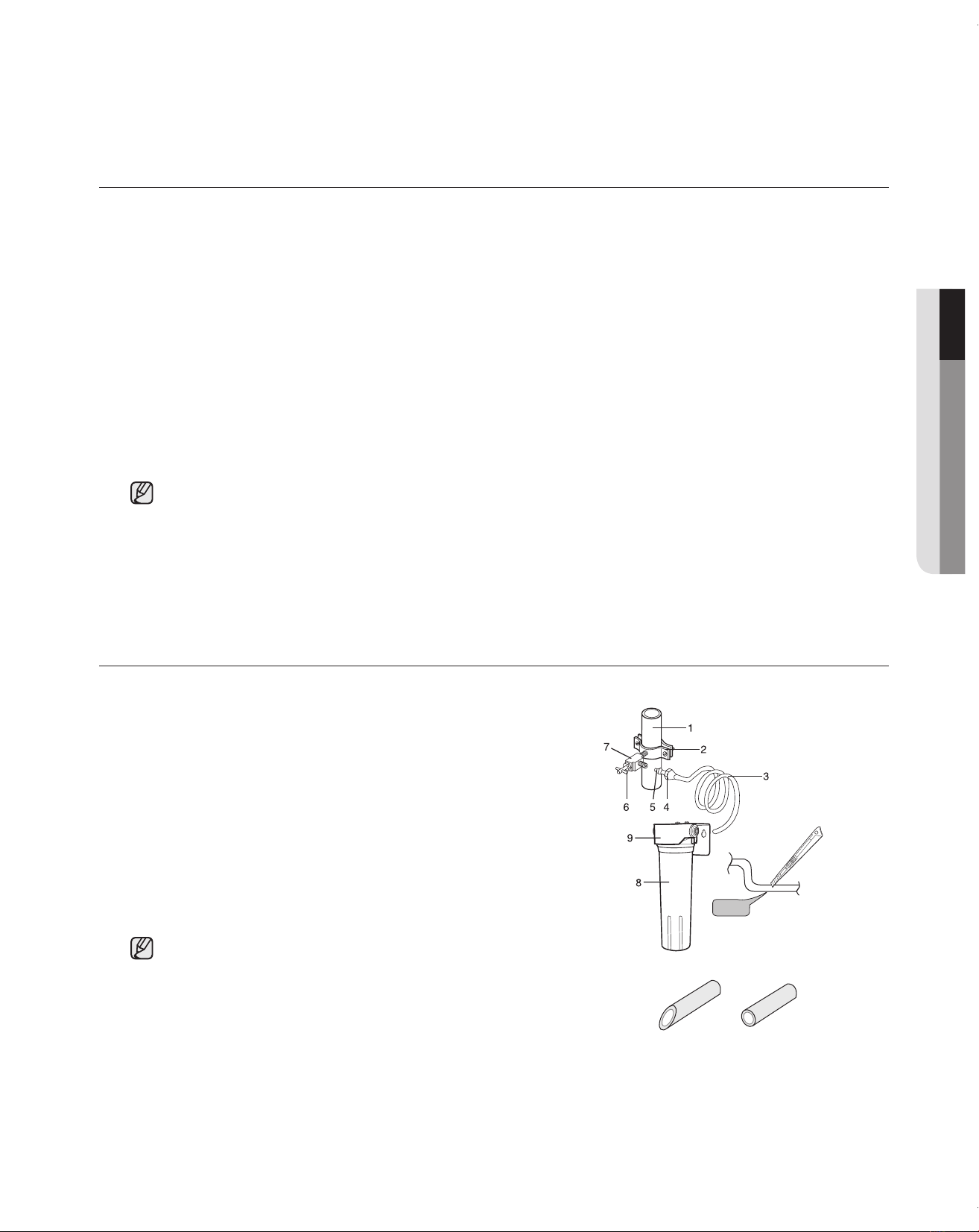

11 Installation of the water line
13 Setting up the refrigerator

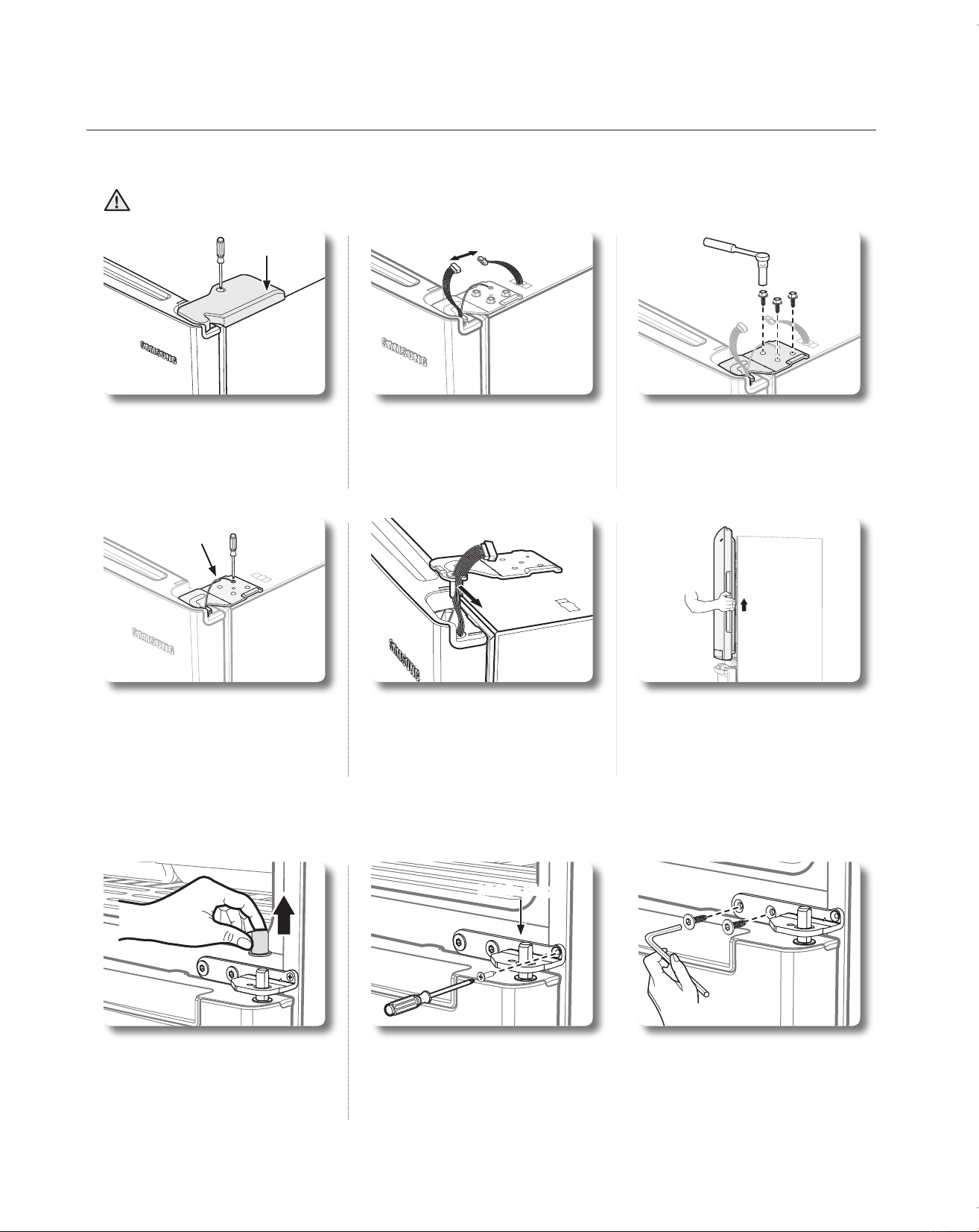

13 Removing the refrigerator doors
16 Levelingtherefrigerator
OPERATINGYOURSAMSUNG
REFRIGERATOR
17

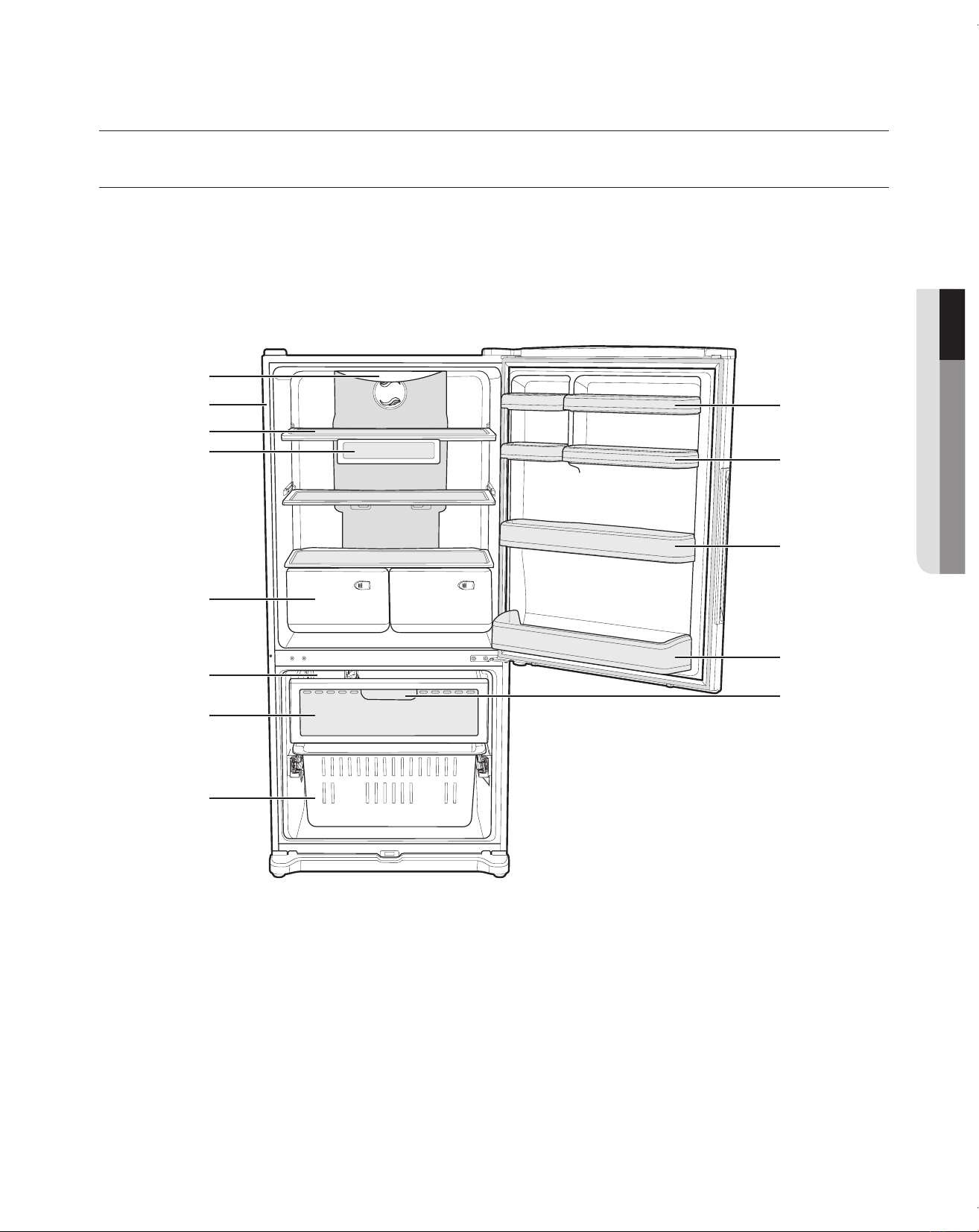

17 Parts and Features

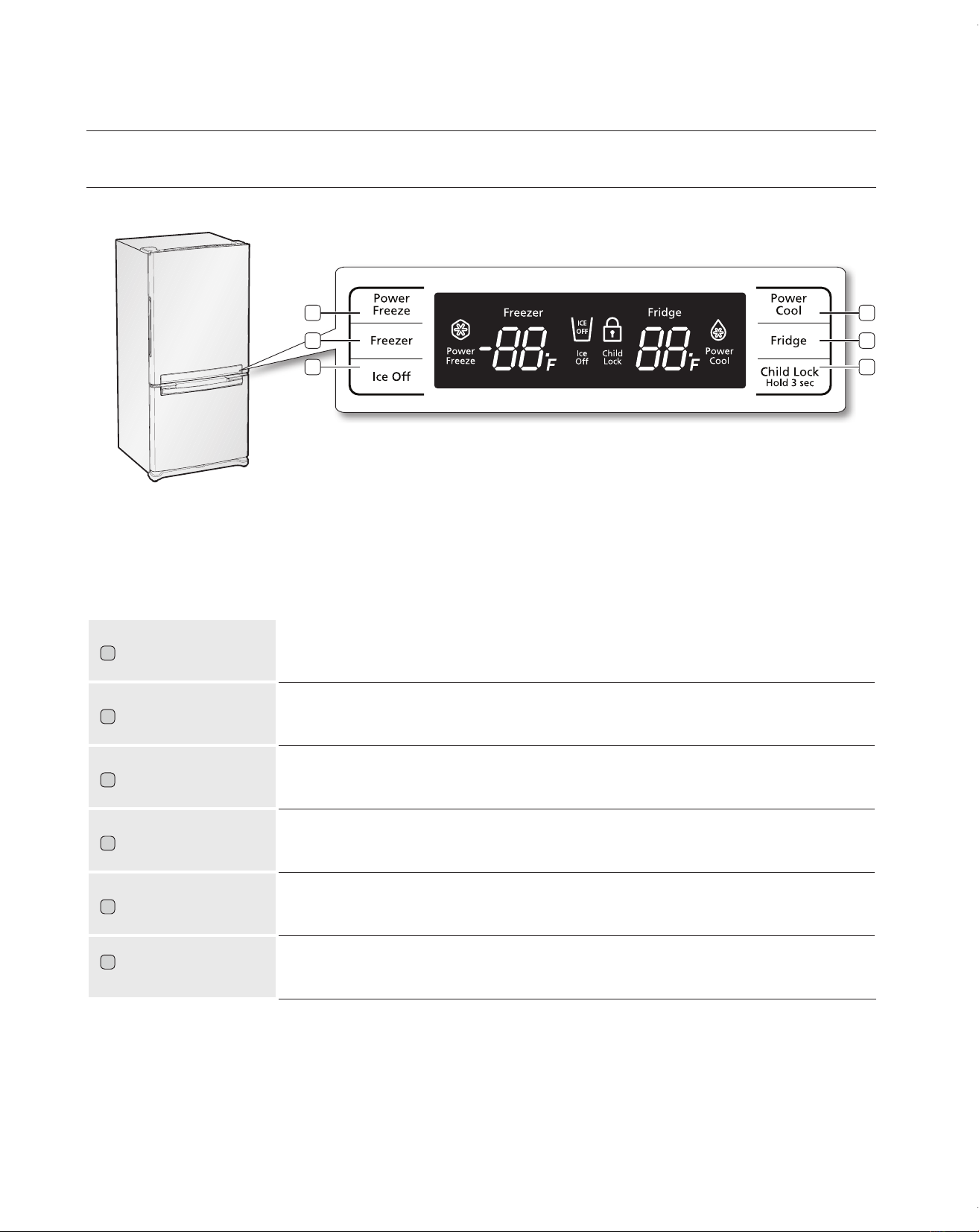

18 Using the control panel

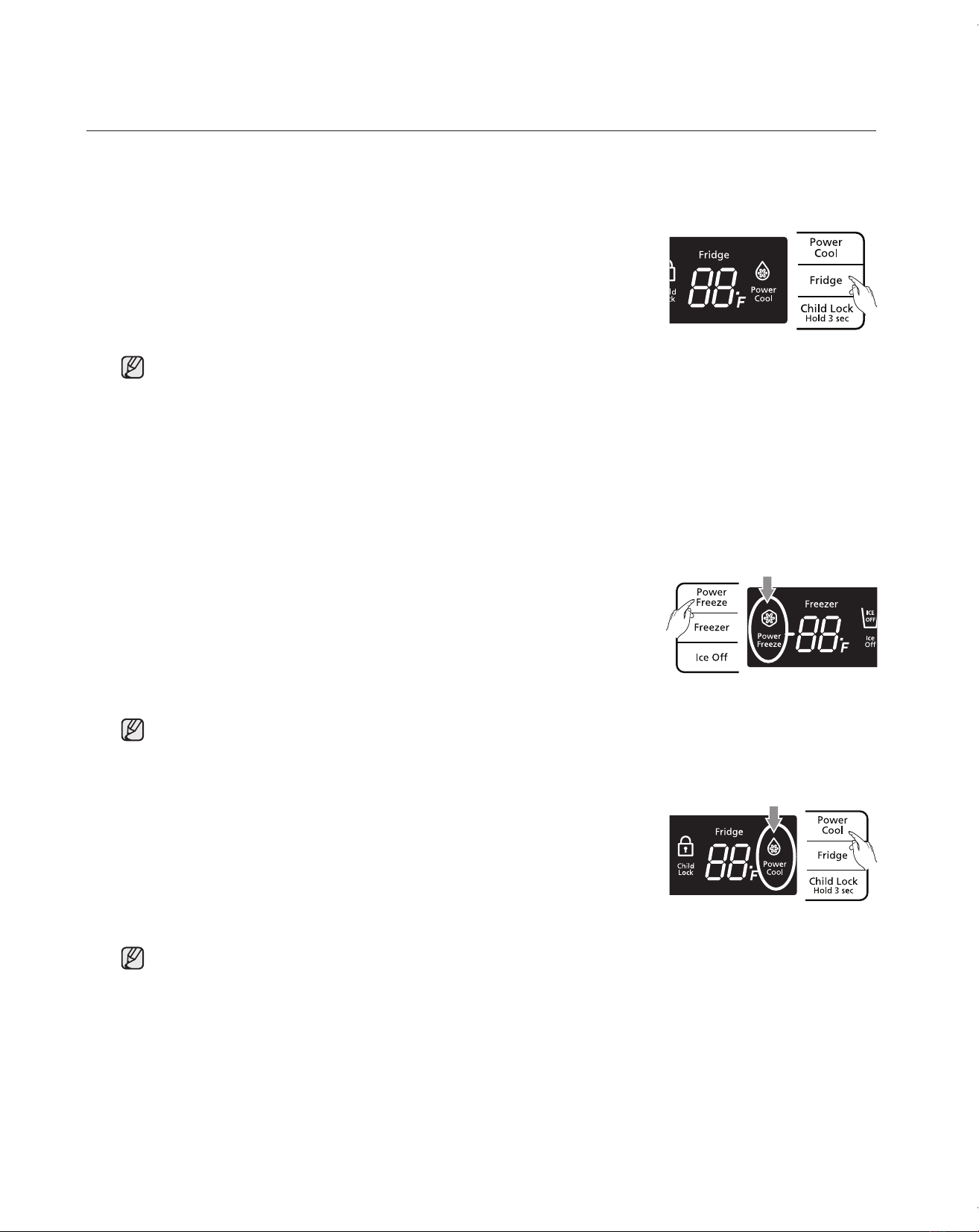

19 Controlling the temperature
22 Storing food in the refrigerator
22 Storing food in the freezer drawer
23 Removing and relocating the refrigerator
accessories
24 Removing the freezer accessories
25 Cleaning the refrigerator
26 Changing the interior lights
TROUBLESHOOTING
27
27 Troubleshooting
WARRANTY
28
28 Warranty
DA68-01778B-00.indd 9 2010.3.20 11:41:53 AM
Setting up your Refrigerator
10_ Setting Up
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung Refrigerator.
FLOORING
For proper installation, this refrigerator must be placed on a level
surface of hard material that is the same height as the rest of the
flooring. This surface should be strong enough to support a fully
loaded refrigerator, or approximately 223lbs(106kg). To protect
the finish of the flooring, cut a large section of the cardboard
carton and place under the refrigerator where you are working.
When moving the refrigerator, be sure to pull it straight out and
return it to position by pushing it straight in.
•Allowclearancetotheright,left,backandtopwheninstalling.Thiswillhelpreducepowerconsumption
and keep your energy bills lower.
•IfyouinstalltheRefrigeratorwhereisbelow50ºF(10ºC),itmaynotfunctioninoptimumlevel.
When moving your refrigerator
To prevent floor damage be sure the front leveling legs are
in the up position(above the floor).
Referto‘Levelingtherefrigerator’inthemanual
(on page 16)
ControlLeverScrewdriver(-)
CAUTION
Model
RB195AB
RB197AB
RB215AB
RB217AB
Capacity (cu.ft) 18.7 20.5
Width (inch) 32 1/4
Depth (inch)
with door 28 1/4 30 1/8
without door 24 3/4 26 3/4
Height (inch) 70
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of this Samsung Refrigerator. We hope you enjoy the state-of-art features and
efficiencies that this new appliance offers.
SelectingthebestlocationfortheRefrigerator
•Alocationwitheasyaccesstothewatersupply.
•Alocationwithoutdirectexposuretosunlight.
•Alocationwithlevel(ornearlylevel)ooring.
•AlocationwithenoughspacefortheRefrigeratordoorstoopeneasily.
•Allowsufcientspaceforaircirculationoftheinternalcoolingsystem.
If the Refrigerator does not have enough space, the internal cooling
system may not work properly.
DA68-01778B-00.indd 10 2010.3.20 11:41:55 AM
setting up _11
INSTALLATION OF THE WATER LINE
Before You Install the water line
•Thewaterlineinstallationisnotwarrantedbytherefrigeratormanufacturer.
So before you install the water line, read the whole steps for installing and follow these instructions
carefully to minimize the risk of expensive water damage.
•Bangingpipes(waterbanginginthepipes)inhouseplumbingcancausedamagetofridgepartsand
lead to water leakage or flooding. Call a qualified plumber to correct the problem before installing the
water supply line to the fridge.
•Topreventburnsandproductdamage,donothookupthewaterlinetothehotwaterline.
•Donotinstallthewaterlineinareaswheretemperaturesfallbelowfreezing.
•Whenusinganyelectricaldevice(suchasapowerdrill)duringinstallation,besurethedeviceis
insulated or wired in a manner to prevent electric shock.
•Allinstallationsmustbeinaaccordancewithlocalplumbingcoderequirements.
Connecting to water supply line
•ShutoffthemainwatersupplylineandturntheIcemakerto
the off position.
•Locatethenearestcolddrinkingwaterline.
•Followtheinstructionsinthewaterlterinstallationkit.
•AfterconnectingthewatersupplylinetotheCartridgeHolder
inlet and installing the Filter Cartridge (insert plastic line in
fully).
•TurnonwatersupplyandFlush3gallonsthroughlterbefore
use (flush approximately 6 minutes)
•WaterlineKitandwaterlterarenotcoveredbySamsung’sWarranty.Themanufacturer(ordealer,
installer) of them is responsible for any defects and all the loss caused by water filter & water line kit .
•Theltershouldbereplacedshouldbereplacedaccordingtomanufacturer(ordealer)’sinstruction.
•Toorderadditionalwaterlters,pleasecontactthemanufacturer(ordealer)ofthelter.
•Thewaterltermustbeinstalledoutsidetherefrigerator.
It is not provided with your new refrigerator. The filter cartridge
(8) and holder (9) kit can be purchased from the retailer where
you purchased this refrigerator.
•Donotusecopperline.
•Cutthetubing,makingsuretheendsaresquareandclean.
01 SETTING UP
90 degree
1. Cold Water line
2. Pipe Clamp.
3. Plastic line
4. Compression Nut
5. Compression Sleeve
6. Packing Nut
7. Shut Off Valve
8. Filter Cartridge
9. Cartridge Holder
Using the water filter (not provided)
Incorrect Correct
DA68-01778B-00.indd 11 2010.3.20 11:41:55 AM
12_ setting up
Connect the water line to the fridge
•Connecttheplasticlineonthebackofyourfridgetothecartridge
holder outlet (fully insert the plastic line to the cartridge holder
outlet).
•Insertplasticcliptothecartridgeholderinletandoutlet.
•Turnwateronandcheckforanyleakage.
•Youcanpurchasethenecessaryltercartridgeattheretailer
where you purchased this refrigerator. Make sure you buy the
SAMSUNG filter cartridge (Replacement cartridge No : DA29-
00015A) to ensure the best performance.
•Waterlinemustbeconnectedtodrinkablewateronly
•Acompressionttingandnutkitissuppliedwiththeunitanditisinsidethefridgedrawer.
•WhenpushingtheRefrigeratorback,makesureyoudon’trolloverthepowercordorwater
line(Icemaker supply line)
Setting up your Refrigerator
Cartridge
Holder
Clip
Filter
cartridge
Plastic line
(Provided)
Connecting to the water supply line
•ShutoffthemainwatersupplylineandturntheIcemakertothe
off position.
•Locatethenearestcoldwaterdrinkingline.
To use without the water filter
1. Cold Water line
2. Pipe Clamp.
3. Plastic line
4. Compression Nut
5. Compression Sleeve
6. Packing Nut.
7. Shut Off Valve
Connect the water line to the fridge
1) Slip the compression nut through the plastic tubing.
2) After inserting the compression nut into plastic tubing, tighten
the compression nut onto 1/4” compression fitting(Provided).
Do not overtighten the compression nut.
•UsingCopperTubing
- Slip the compression nut and ferrule on copper tubing as
shown.
•UsingPlasticTubing
- Insert the molded end(Bulb) of the plastic tubing into the
compression fitting.
Do not use without the molded end(Bulb) of the plastic tubing.
3) Tighten the compression nut onto the compression fitting.
4) Turn water on and check for any leakage.
•Youcanpurchasethenecessaryltercartridgeattheretailerwhereyoupurchasedthisrefrigerator.
Make sure you buy the SAMSUNG filter cartridge (Replacement cartridge No : DA29-00015A) to
ensure the best performance.
•Waterlinemustbeconnectedtodrinkablewateronly.
•WhenpushingtheRefrigeratorback,makesureyoudon’trolloverthepowercordorwaterline
(Icemaker supply line).
CAUTION
Householdwaterline
Compression Nut
(1/4”) (Purchased)
Compression
fitting (Provided)
Compression Nut
(1/4”) (Provided)
Bulb
Plastic Tubing
(Provided)
(Not supplied) (Not supplied)
Copper tubing or Plastic tubing
Refrigerator
Ferrule
(Purchased)
DA68-01778B-00.indd 12 2010.3.20 11:41:56 AM
Setting Up _13
REMOVING THE REFRIGERATOR DOORS
SETTING UP THE REFRIGERATOR
Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and
functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.
1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the
Refrigerator. Refer to installation instructions in this manual. (P8. Selecting the best location for the
Refrigerator)
2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.
3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly
chilled and the motor will run smoothly.
4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can
store food and drinks in the Refrigerator after the temperature is sufficiently cool.
01 SETTING UP
Compression fitting
(DA62-00305A)
Compression nut
(DA74-00070B)
Phillips Head Driver(+) Flat Head Driver(-) Socket Wrench
(10mm) (for bolts)
Hex Wrench (3/16inch)
(for Mid hinge)
Hex wrench (5/32 inch)
(for Mid hinge shaft)
RequiredTools(Notprovided)
Some installations require door/drawer removal to transport the Refrigerator to its final location.
Do not remove the door/drawer if it is not needed. Before removing the door/drawer make sure you read
following items.
Disconnect power to the Refrigerator before remove door or drawer.
WARNING
•Becarefulnottodropthedooranddoorscratchanddamagewhileremovingthedoor/drawer.
•Becarefulnottogetinjuredwhileremovingthedoor/drawer.
•Afterreattachingthedoor/drawer:
It is possible to have sweat by air leakage.
It is possible to have uneven door alignment.
It is possible to have more energy bills.
Check the accessories listed below.
DA68-01778B-00.indd 13 2010.3.20 11:41:56 AM
14_ Setting Up
4. Remove the screw that holds the
ground wire.
5. Separate Hinge from electric
wire and ground wire as shown
above.
6. Remove the fridge door by lifting
it upward.
Be careful not to drop and
scratch the fridge door.
1. Separate the Cap on the Middle
Hinge.
2. After removing one screw and two bolts, remove the Middle Hinge.
(Unscrew the screws with the screwdriver(+) and hex bolts with the
3/16inch hex wrench.)
Removal of the freezer door (SWING TYPE - RB215,RB195)
Middle Hinge
Setting up your Refrigerator
Removal of the fridge door
1. After removing the screw, remove
the upper Hinge Cover.
2. Disconnect electric wire on the
top of the refrigerator.
3. With the 10mm wrench,
remove the three bolts that
hold the hinge on the top of the
refrigerator.
Hinge Cover
Be careful not to drop and scratch the fridge door while removing the fridge door!
WARNING
ground wire
DA68-01778B-00.indd 14 2010.3.20 11:41:57 AM
Setting Up _15
1. Separate the Cap on the Middle
Hinge.
2. After removing one screw and two hex bolts, remove the Middle
Hinges. (Unscrew the two hex bolts with the 3/16inch hex wrench.)
Removal of the freezer door (DRAWER TYPE - RB217,RB197)
Middle Hinge
3. After opening the Freezer door,
remove the drawer box.
4. With the 10mm wrench, remove two bolts connecting the rail with the
door.
01 SETTING UP
3. Remove the Middle Hinge
connected to the Freezer.
4. Remove the Freezer door by
lifting it upward.
Be careful not to drop and
scratch the Freezer door
5. Remove the Cap on the Bottom
Hinge.
DA68-01778B-00.indd 15 2010.3.20 11:41:58 AM
16_ Setting Up
LEVELING THE REFRIGERATOR
After putting the doors back on the Refrigerator, make sure the Refrigerator is level so that you can make final
adjustments.
If the Refrigerator is not level, it will not be possible to get the doors perfectly even.
Also it is possible to sweat in the refrigerator and ask more energy bills.
For example, when the left side is lower than the right side, insert a flat-blade screwdriver into a notch on the left
control lever, and turn it clockwise or counter clockwise to level the door.
Turning it clockwise to raise the refrigerator and counterclockwise to lower it.
For the left side is higher, do it with right lever.
Setting up your Refrigerator
ControlLever
Screwdriver(-)
Whentheleftsideislower.
ControlLever
Screwdriver(-)
Whentheleftsideishigher.
5. Remove the Freezer door from
the rails.
Both control levers must be surely touching the floor to avoid the possible personal injury or property damage
because of tipping.
WARNING
Removal of the freezer door (DRAWER TYPE - RB217,RB197) - CONT’D
DA68-01778B-00.indd 16 2010.3.20 11:41:58 AM
Operating _17
02 OPERATING
Use this page to become more familiar with the parts and features of the Refrigerator.
FridgeLight
Fridge
Fridge Shelves
Moving Tray
(Locationisadjustable)
Vegetable & Fruit
Drawers
Multi-Purpose
Door Bin
Multi-Purpose
Door Bin
Bottle Bin
Bottle Bin
Pull Out Drawer
Freezer Drawer
Bin
Ice Maker
PARTS AND FEATURES
FreezerLight
Operating your SAMSUNG Refrigerator
DA68-01778B-00.indd 17 2010.3.20 11:41:59 AM
18_ Operating
(
1
)PowerFreezeButton
Press this button to freeze food quickly.
(Power Freeze will last 2 and a half hours.)
(
2
)FreezerButton
Freezer temperature set button.
PressthisbuttontosettheFreezertempbetween-2ºFand-14ºF.
(Atinitialpoweron,thedefaultsettingis-2ºF.)
(
3
)IceOffButton
When the IceOffButton is pressed, ice will not be produced.
Use this function only when it is needed.
(
4
)PowerCoolButton
Press this button to cool the food in the fridge quickly.
(PowerCoolwillshutoffwhen25ºFisreachedorafter2andahalfhours.
(
5
)FridgeButton
Fridge temperature set button.
PressthisbuttontosettheFridgetemperaturein2ºFintervalsbetween46ºFand34ºF.
(Atinitialpoweron,thedefaultsettingis38ºF.)
(
6
)ChildLockHold3sec
Button
When pressing this button for 3 sec., the display function is locked or unlocked.
(Keylockorunlock)
Operating your SAMSUNG Refrigerator
4
5
6
Temperature & Function select / control panel
USING THE CONTROL PANEL
1
2
3
DA68-01778B-00.indd 18 2010.3.20 11:42:0 AM
Operating _19
02 OPERATING
CONTROLLING THE TEMPERATURE
Settingthefreezertemperature
If you want to control the freezer temperature, follow as below.
Press the Freezer Button (Refer the picture)
-Thetemperaturecanbesetin2ºFintervalbetween-14ºFand8ºF.
- Each time the Freezer Button is pressed, the temperature setting will change as follows;
(-2ºF→-4ºF→-6ºF→-8ºF→-10ºF→-12ºF→-14ºF→8ºF→6ºF→4ºF→2ºF→0ºF→-2ºF)
Settingthefridgetemperature
If you want to control the fridge temperature, follow as below.
Press the Fridge Button (Refer the picture)
-Thetemperaturecanbesetin2ºFintervalbetween34ºFand46ºF.
- Each time the Fridge Button is pressed, the temperature setting will change as follows;
(38ºF→36ºF→34ºF→46ºF→44ºF→42ºF→40ºF→38ºF)
When selecting the temperature, the set temperature is displayed initially
for 5 seconds, then the actual temperature is displayed.
(There may be slight difference between the set temperature and
displayed actual temperature, but it will be corrected to the set
temperature automatically.)
- The Freezer temperature will change depending on the number of door openings, quantity of food,
ambient temperature, etc.
- Temperature of each shelve in the freezer may be different.
- The temperature display will blink when freezer temperature increases due to frequent door opening,
keeping warm food, etc.
(Blinking will stop when the refrigerator reaches normal temperature. If for some reason it does not stop
after a long period of time, contact a Samsung service center.)
DA68-01778B-00.indd 19 2010.3.20 11:42:0 AM
- The Fridge temperature will change depending on the number of door openings, quantity of food,
ambient temperature, etc.
- Temperature of each shelve or container in the fridge may be different.
- The temperature display will blink when fridge temperature is increases due to frequent door opening,
keeping warm food, etc.
(Blinking will stop when the refrigerator reaches normal temperature. If for some reason it does not stop
after a long period of time, contact a Samsung service center.)
- The Power Freeze function operates for 2 and a half hours regardless of the set temperature.
- The Power Cool function operates for 2 and a half hours regardless of the set temperature.
Ifyouwanttomakeicefaster(ControllingthePowerFreeze)
Press the PowerFreeze Button. (Refer the picture.)
- The power Freeze light on the display goes on (see the arrow mark)
and this function begins to operate regardless of the set freezer
temperature.
Press the PowerFreeze Button again to cancel this function.
- The light goes off and it operates at the set freezer temperature again.
IfyouwanttospeedupthecoolingintheFridge(PowerCool)
Press the PowerCool Button. (Refer the picture.)
- The Power cool light on the display goes on (see the arrow mark) and
this function begins to operate regardless of the set fridge temperature.
Press the PowerCool Button again to cancel this function.
- The light goes off andit operates at the set fridge temperature again.
When selecting the fridge temperature, the set temperature is displayed
initially for 5 seconds, then the actual temperature is displayed.
(There may be slight difference between the set temperature and
displayed actual temperature, but it will be corrected to the set
temperature automatically.)
20_ Operating
Operating your SAMSUNG Refrigerator
DA68-01778B-00.indd 20 2010.3.20 11:42:1 AM
Operating _21
02 OPERATING
The ice maker will produce 8 cubes per cycle - approximately
100~130 cubes in a 24-hour period, depending on freezer
compartment temperature, room temperature, number of door
openings and other use conditions.
Throw away the first few batches of ice to allow the water line to
clear.
Be sure nothing interferes with the sweep of the feeler arm.
When the bin fills to the level of the feeler arm, the icemaker will
stop producing ice.
After the icemaker has been turned on again, there will be a time
delay before the icemaker resumes operation.
It is normal for several cubes to be joined together.
If ice is not used frequently, old ice cubes will become cloudy,taste stale and shrink.
Soifyoudon’twanttomakeice,presstheIceOffbutton.
CoolingOff
mode
TestButton
CoolingOffMode(“OF&OF”codeonthedisplay)
This function is for store display refrigerators. It is not for customer use.
Test button
Ificedoesn’tcomeout,pullouttheicemakerandpresstheTestButtonlocatedonthelower
front side of ice maker. (Refer to the picture for the location.)
CAUTION
InCoolingOffMode,therefrigeratorworksbutdoesn’tmakecoolair.Tocancelthismode,press
the Power Freeze and Freezer buttons at the same time for 3 seconds until a “Ding-dong” sound
is heard and the unit will now cool.
CAUTION
DA68-01778B-00.indd 21 2010.3.20 11:42:1 AM
22_ Operating
STORING FOOD IN THE REFRIGERATOR
STORING FOOD IN THE FREEZER DRAWER
The Samsung Refrigerator has been designed to provide you with maximum space saving features and
functions. Here are some of the customized compartments we have created to keep your food fresher longer. In
order to further prevent odor from seeping into the ice compartment, stored food should be wrapped securely
and as airtight as possible.
Operating your SAMSUNG Refrigerator
Moving Tray
Can be used to store small dairy items like butter or margarine, yogurt
or cream cheese bricks
butter/cheese
Bottle Bin
Designed to handle large, bulky items such as gallons of milk or other
large bottles and containers.
Fridge Shelves
Designed to be crack-resistant, the shelves can be used to store all
types of food and drinks. Circular marks on the glass surface are a
normal phenomenon and can usually be wiped clean with a damp cloth.
Vegetable & Fruit
Drawers
Used for preserving the freshness of your stored vegetables and fruits.
This drawer has been specifically designed to control the level of
humiditywithinthecompartment.Keepvegetablesandfruitsseparate
when possible.
Do not place any large articles of food under the lamp in the Refrigerator. An air sensor is located
near the lamp and if the sensor is blocked, your Refrigerator may become too cold. Please place
Vegetable and Fruits in the Vegetable and Fruits Drawers to avoid freezing them. If the food in
your Refrigerator becomes frozen, please set the temperature higher.
Pull Out Drawer
Best used to store meats or dry foods. Stored food should be placed
in a container or wrapped securely using plastic wrap or other suitable
wrapping materials.
Freezer Drawer Bin
Can be used to store meat and dry foods.
Stored food should be placed in a container or wrapped securely using
plastic wrap or other suitable wrapping materials.
If you plan to go away for a long time, empty the Refrigerator and turn it off. Wipe the excess
moisture from the inside of the appliance and leave the doors open. This helps keep odor and
mold from developing.
Bottles should be stored tightly together so that they do not tip and fall out when the Refrigerator
door is opened.
DA68-01778B-00.indd 22 2010.3.20 11:42:5 AM
Operating _23
02 OPERATING
REMOVING AND RELOCATING THE FRIDGE ACCESSORIES
2. Fridge shelves
To remove - When pulling out the shelf, if it does not slide out
easily, lift it up slightly and pull out again.
To replace - When pushing in the shelf, if it does not slide in
easily, lift it up slightly and push in again.
1. Door Bins
To remove - Simply lift the bin up and pull straight out.
To replace - Slide it in above the desired location and push
down until it stops.
Dust removal method -Remove the guard and wash in water.
3. Vegetable & Fruit Drawers
To remove - Pull the drawer out to
full extension. Tilt up the
front of the drawer and
pull straight out.
(Refer to picture 1~3)
To replace - Insert the drawer into
the frame rails and push
back into place.
(Refer to picture 4)
Injury may occur if the door bins are not firmly inserted.
Do not allow children to play with bins. Sharp corners of the bins
may cause injury.
CAUTION
The Glass shelves are heavy.
Use special care when removing them.
CAUTION
The drawers need to be removed before the glass shelf above them can be lifted out.
Do not adjust a bin full of foods.
3
1 2
4
DA68-01778B-00.indd 23 2010.3.20 11:42:12 AM
24_ Operating
REMOVING THE FREEZER ACCESSORIES
2. Freezer Drawer Bin
To remove - Pull the drawer out fully. Tilt up the rear
of the bin and lift it out to remove.
To replace - Place the bin into the rail assembly.
1. Pull Out Drawer
To remove - Pull the drawer out to full extension.
Tilt up rear of drawer and lift straight out.
(Refer to picture 1 & 2)
Bin
Operating your SAMSUNG Refrigerator
1
2
3
Toreplace-Placethedrawerontotherailsbytiltingitup.Lower
the drawer into place until it is horizontal and slide the
drawer in.
(Refer to picture 3)
Open the freezer door fully and remove the drawer.
When replacing, place the drawer bin holder into
the hole of the rail
Drawer
DA68-01778B-00.indd 24 2010.3.20 11:42:16 AM
Operating _25
02 OPERATING

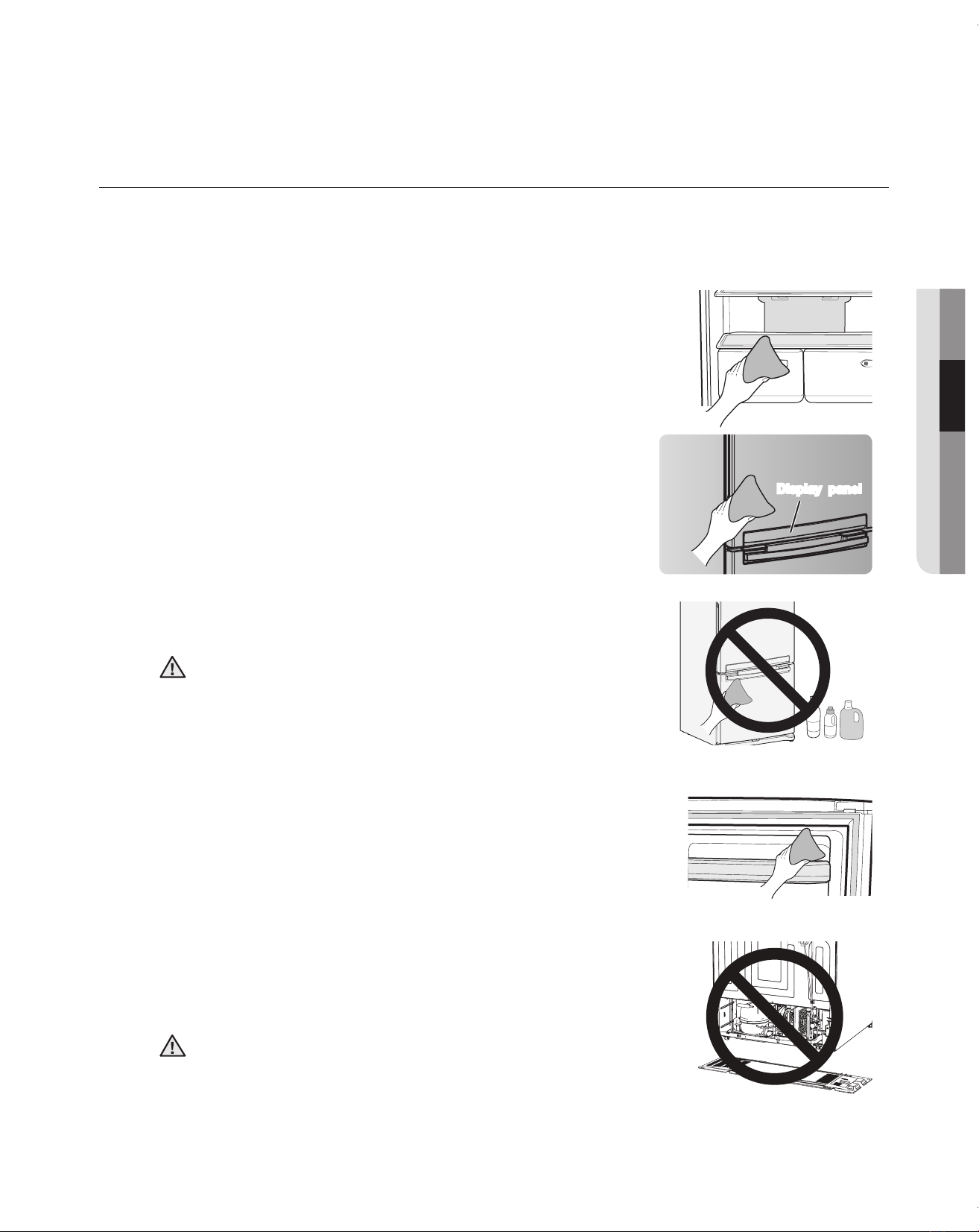

Cleaning the Interior
Clean the inside walls and accessories with a mild detergent
and then wipe dry with a soft cloth. You can remove the drawers
and shelves for a more thorough cleaning. Just make sure to dry
drawers and shelves before putting them back into place.
Do not use Benzene, Thinner, car detergent, or Clorox for cleaning.
They may damage the surface of the appliance and may cause fire.
Cleaning the Rubber door seals
If the rubber door seals are dirty, the doors may not close properly,
andtheRefrigeratorwillnotoperateefciently.Keepthedoorseals
free of grit or grime by cleaning the doors with a mild detergent and
damp cloth. Wipe dry with a clean, soft cloth.
Cleaning behind the Refrigerator
To keep cords and exposed parts free of dust and dirt accumulation,
vacuum behind the appliance once or twice a year.
Do not remove the back cover. Doing so may cause an electric shock.
CAUTION
CAUTION
Displaypanel
Thinner
Clorox
Benzene
CLEANING THE REFRIGERATOR
Caring for your Samsung Refrigerator prolongs the life of your appliance and helps
keep it odor and germ-free.
Cleaning the Exterior
Wipe the display panel with damp, clean, soft cloth. Do not spray
water directly on the surface of the Refrigerator.
The doors, handles and cabinet surfaces should be cleaned with a
mild detergent and then wiped dry with a soft cloth. To keep your
appliance looking its best, the exterior should be polished once or
twice a year.
DA68-01778B-00.indd 25 2010.3.20 11:42:19 AM
26_ Operating
CHANGING THE INTERIOR LIGHTS
Changing the Interior Light in the Refrigerator
1. Unplug the power cord from the outlet.
2. Pull the shield down while pushing it backwards to remove it.
3. The light bulb may be hot so be careful when touching the bulb.
4. Turn the bulb counterclockwise.
5. Assembly is the reverse order of disassembly.
Before changing any of interior lights, unplug the Refrigerator from the power supply. If you are unsure
about changing the lights after reading through these directions, contact a Samsung service center for
help.
Changing the Interior Light in the Freezer Drawer
1. Unplug the power cord from the outlet.
2. Pull drawer out to full extension.
3. Pull the shield down while pushing it backwards to
remove it.
4. The light bulb may be hot.
Be careful when touching the bulb.
5. Turn the bulb counterclockwise.
6. Assembly is the reverse order of disassembly.
Do not place your fingers inside the cover. The light bulb may be hot.
CAUTION
CAUTION
Operating your SAMSUNG Refrigerator
Shield
DA68-01778B-00.indd 26 2010.3.20 11:42:20 AM
03 TROUBLESHOOTING
Troubleshooting
PROBLEM SOLUTION
TheRefrigeratordoesnot
workatalloritdoesnotchill
sufciently.
•Checkthatthepowerplugisproperlyconnected.
•Isthetemperaturecontrolonthedisplaypanelsettothecorrecttemperature?
Try setting it to a lower temperature.
•IstheRefrigeratorindirectsunlightorlocatednearaheatsource?
•IsthebackoftheRefrigeratorsoclosetothewallthataircannotkeepcirculating?
(Refer to page 10 for the best location.)
Thefoodinthe
Refrigeratorisfrozen.
•Isthetemperaturecontrolonthedisplaysettothecorrecttemperature?
Try setting it to a warmer temperature.
•Isthetemperatureintheroomtoolow?
•DidyoustorethefoodtooclosetotheairventatthebackoftheRefrigerator?Movethe
food away from the air vent.
Youhearunusualnoiseor
sounds.
•CheckthattheRefrigeratorislevelandstable.
•IsthebackoftheRefrigeratortooclosetothewallandthereforekeepingairfrom
circulating?
•WasanythingdroppedbehindorundertheRefrigerator?
•A“ticking”soundisheardfrominsidetheRefrigerator.Itisnormalandoccursbecause
various accessories are contracting or expanding according to the temperature of the
Refrigerator interior.
Thefrontcornersand
verticalhingedsectionof
theappliancearehotand
condensationisoccurring.
•Someheatisnormalasanti-condensatorsareinstalledintheverticalhingedsectionof
the Refrigerator to prevent condensation.
•IstheRefrigeratordoorajar?Condensationcanoccurwhenyouleavethedooropenfor
a long time.
IceMakerisnotproducing
ice.
•Didyouwaitfor12hoursafterinstallationofthewatersupplylinebeforemakingice?
•Isthewaterlineconnectedandtheshut-offvalveopened?
•Didyoumanuallystoptheicemakingfunction?
•IstheFreezertemperaturetoowarm?TrysettingtheFreezertemperaturelower.
Youhearwaterbubblingin
theRefrigerator.
•Thisisnormal.ThebubblingcomesfromtheRefrigeratorcoolantliquidcirculating
through the Refrigerator.
Thereisabadsmellinthe
Refrigerator.
•Checkforspoiledfood.
•Foodswithstrongodors(forexample,sh)shouldbetightlycovered.
•CleanoutyourFreezerperiodicallyandthrowawayanyspoiledorsuspiciousfood.
Frostformsonthewallsof
theFreezer.
•Istheairventblocked?Removeanyobstructionssoaircancirculatefreely.
•Allowsufcientspacebetweenthefoodsstoredforefcientaircirculation.
•IstheFreezerdrawerclosedproperly?
Waterdispenserisnot
functioning.
(Waterdispensermodelsonly)
•Isthewaterlineconnectedandtheshut-offvalveopened?
•Hasthewatersupplylinetubingbeencrushedorkinked?
Make sure the tubing is free and clear of any obstruction.
•IsthewatertankfrozenbecausetheRefrigeratortemperatureistoolow?
Try selecting a warmer setting on the main display panel.
Troubleshooting _27
DA68-01778B-00.indd 27 2010.3.20 11:42:20 AM
Warranty
SAMSUNG REFRIGERATOR
LIMITEDWARRANTYTOORIGINALPURCHASER
This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung)
and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against
manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) year Parts and Labor on Refrigerator
Five (5) years Parts and Labor on sealed Refrigeration system only*
(*Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and
used in the United States. To receive warranty service, the purchaser must contact Samsung for problem
determination and service procedures. Warranty service can only be performed by a Samsung authorized
service center. The original dated bill of sale must be presented upon request as proof of purchase to Samsung
or Samsung authorized service center.
Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulated
herein, with new or reconditioned parts during the limited warranty period specified above. All replaced parts
and products become the property of Samsung and must be returned to Samsung. Replacement parts and
products assume the remaining original warranty, or ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to availability within the contiguous
United States. In-home service is not available in all areas. To receive in-home service, the product must be
unobstructed and accessible from floor level to service personnel. If during in-home service repair cannot be
completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable,
Samsung may elect, at our option, to provide for transportation of our choice to and from a Samsung authorized
service center. Otherwise, transportation to and from the Samsung authorized service center is the responsibility
of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,
noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage
which occurs in shipment; delivery and installation; applications and uses for which this product was not
intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire,
water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external plumbing and leaks, external wiring, circuit breakers,
fuses or connectors not supplied and authorized by Samsung, or which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow
operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in
the instruction book; loss of food due to spoilage; consumable items including filters and light bulbs.
28_ Warranty
DA68-01778B-00.indd 28 2010.3.20 11:42:20 AM
Warranty _29
04 WARRANTY
THEREARENOEXPRESSWARRANTIESOTHERTHANTHOSELISTEDANDDESCRIBEDABOVE,AND
NOWARRANTIESWHETHEREXPRESSORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,ANYIMPLIED
WARRANTIESOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE,SHALLAPPLY
AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY
OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT
SHALLBEBINDINGONSAMSUNG.SAMSUNGSHALLNOTBELIABLEFORLOSSOFREVENUEOR
PROFITS,FAILURETOREALIZESAVINGSOROTHERBENEFITS,ORANYOTHERSPECIAL,INCIDENTAL
ORCONSEQUENTIALDAMAGESCAUSEDBYTHEUSE,MISUSEORINABILITYTOUSETHISPRODUCT,
REGARDLESSOFTHELEGALTHEORYONWHICHTHECLAIMISBASED,ANDEVENIFSAMSUNG
HASBEENADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.NORSHALLRECOVERYOFANYKIND
AGAINSTSAMSUNGBEGREATERINAMOUNTTHANTHEPURCHASEPRICEOFTHEPRODUCTSOLDBY
SAMSUNGANDCAUSINGTHEALLEGEDDAMAGE.WITHOUTLIMITINGTHEFOREGOING,PURCHASER
ASSUMESALLRISKANDLIABILITYFORLOSS,DAMAGEORINJURYTOPURCHASERANDPURCHASER’S
PROPERTYANDTOOTHERSANDTHEIRPROPERTYARISINGOUTOFTHEUSE,MISUSEORINABILITYTO
USETHISPRODUCTSOLDBYSAMSUNGNOTCAUSEDDIRECTLYBYTHENEGLIGENCEOFSAMSUNG.
THISLIMITEDWARRANTYSHALLNOTEXTENDTOANYONEOTHERTHANTHEORIGINALPURCHASEROF
THISPRODUCT,ISNONTRANSFERABLEANDSTATESYOUREXCLUSIVEREMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights, which vary from state to state.
To obtain warranty service, please contact Samsung at:
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics America, Inc. 400 Valley Road Suite 201 Mt. Arlington, NJ 07956
1-800-SAMSUNG (1-800-726-7864) and www.samsung.com
DA68-01778B-00.indd 29 2010.3.20 11:42:20 AM
MEMO
DA68-01778B-00.indd 30 2010.3.20 11:42:20 AM
memo _31
MEMO
DA68-01778B-00.indd 31 2010.3.20 11:42:21 AM
QUESTIONSORCOMMENTS?
COUNTRY CALL ORVISITUSONLINEAT WRITE
U.S
800-SAMSUNG
(800-726-7864)
www.samsung.com
Samsung Electronics America, Inc. 400 Valley
Road Suite 201 Mt. Arlington, NJ 07956
CANADA
800-SAMSUNG
(800-726-7864)
www.samsung.com/ca
Samsung Electronics Canada Inc. Customer
Service, 55 Standish Court Mississauga, Ontario
L5R4B2Canada
Code No. DA68-01778B REV(0.0)
DA68-01778B-00.indd 32 2010.3.20 11:42:21 AM
