Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
328i
328i xDrive
335i
335i xDrive
M3
Owner's Manual for Vehicle
Congratulations, and thank you for choosing a BMW.
Thorough familiarity with your vehicle will provide you with
enhanced control and security when you drive it. We therefore
have this request:
Please take the time to read this Owner's Manual and familiarize
yourself with the information that we have compiled for you
before starting off in your new vehicle. It contains important data
and instructions intended to assist you in gaining maximum use
and satisfaction from your BMW's unique range of technical fea-
tures. The manual also contains information on maintenance
designed to enhance operating safety and contribute to main-
taining the value of your BMW throughout an extended service
life.
This manual is supplemented by a Service and Warranty Informa-
tion Booklet for US models or a Warranty and Service Guide
Booklet for Canadian models.
We wish you an enjoyable driving experience.
BMW Group
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
© 2009 Bayerische Motoren Werke
Aktiengesellschaft
Munich, Germany
Reprinting, including excerpts, only with the
written consent of BMW AG, Munich.
US English VIII/09
Printed on environmentally friendly paper,
bleached without chlorine, suitable for recycling.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
Contents
The fastest way to find information on a partic-
ular topic or item is by using the index, refer to
page 172.
Using this Owner's Manual
4 Notes
6 Reporting safety defects
At a glance
10 Cockpit
Controls
18 Opening and closing
35 Adjustments
46 Transporting children safely
49 Driving
64 Controls overview
72 Technology for driving comfort and
safety
83 Lamps
88 Climate
95 Practical interior accessories
Driving tips
110 Things to remember when driving
Mobility
118 Refueling
120 Wheels and tires
132 Under the hood
136 Maintenance
138 Care
142 Replacing components
149 Giving and receiving assistance
154 Indicator and warning lamps
Reference
168 Technical data
172 Everything from A to Z
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Notes
4
Notes
Using this Owner's Manual
We have tried to make all the information in this
Owner's Manual easy to find. The fastest way to
find specific topics is to refer to the detailed
index at the back of the manual. If you wish to
gain an initial overview of your vehicle, you will
find this in the first chapter.
Should you sell your BMW some day, please
remember to hand over the Owner's Manual as
well; it is an important component of your vehi-
cle.
Additional sources of information
Should you have any other questions, your
BMW center will be glad to advise you at any
time.
Information on BMW, e.g. on technical aspects,
can also be found on the Internet at
www.bmwusa.com.
Symbols used
Indicates precautions that must be fol-
lowed precisely in order to avoid the pos-
sibility of personal injury and serious damage to
the vehicle.<
Indicates information that will assist you
in gaining the optimum benefit from your
vehicle and enable you to care more effectively
for your vehicle.<
Refers to measures that can be taken to
help protect the environment.<
< Marks the end of a specific item of informa-
tion.
*
Indicates special equipment, country-spe-
cific equipment and optional accessories, as
well as equipment and functions not yet avail-
able at the time of printing.
Symbols on vehicle components
Indicates that you should consult the rel-
evant section of this Owner's Manual for
information on a particular part or assembly.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
5
The individual vehicle
When you ordered your BMW, you chose vari-
ous items of equipment. This Owner's Manual
describes the entire array of options and equip-
ment available with a specific BMW model.
Please bear in mind that the manual may con-
tain information on accessories and equipment
that you have not specified for your own vehicle.
Sections describing options and special equip-
ment are marked by asterisks
*
to assist you in
identifying possible differences between the
descriptions in this manual and your own vehi-
cle's equipment.
If equipment in your BMW is not described in
this Owner's Manual, please refer to the accom-
panying Supplementary Owner's Manuals.
Editorial notice
BMW pursues a policy of continuous, ongoing
development that is conceived to ensure that
our vehicles continue to embody the highest
quality and safety standards combined with
advanced, state-of-the-art technology. For this
reason, it is possible in exceptional cases that
features described in this Owner's Manual
could differ from those on your vehicle.
For your own safety
Maintenance and repair
Advanced technology, e.g. the use of
modern materials and powerful electron-
ics, requires specially adapted maintenance
and repair methods. You should therefore have
the corresponding work on your vehicle per-
formed only by your BMW center or at a work-
shop that works according to BMW repair pro-
cedures with correspondingly trained
personnel. If this work is not carried out prop-
erly, there is a danger of subsequent damage
and related safety hazards.<
Parts and accessories
For your own safety, use genuine parts
and accessories approved by BMW.
When you purchase accessories tested and
approved by BMW and Original BMW Parts, you
simultaneously acquire the assurance that they
have been thoroughly tested by BMW to ensure
optimum performance when installed on your
vehicle.
BMW warrants these parts to be free from
defects in material and workmanship.
BMW will not accept any liability for damage
resulting from installation of parts and accesso-
ries not approved by BMW.
BMW cannot test every product made by other
manufacturers to verify if it can be used on a
BMW safely and without risk to either the vehi-
cle, its operation, or its occupants.
Original BMW Parts, BMW Accessories and
other products approved by BMW, together
with professional advice on using these items,
are available from all BMW centers.
Installation and operation of accessories not
approved by BMW, such as alarms, radios,
amplifiers, radar detectors, wheels, suspension
components, brake dust shields, telephones,
including operation of any mobile phone from
within the vehicle without using an externally
mounted antenna, or transceiver equipment, for
instance, CBs, walkie-talkies, ham radio or sim-
ilar accessories, may cause extensive damage
to the vehicle, compromise its safety, interfere
with the vehicle's electrical system or affect the
validity of the BMW Limited Warranty. See your
BMW center for additional information.<
Maintenance, replacement, or repair of
the emission control devices and sys-
tems may be performed by any automotive
repair establishment or individual using any cer-
tified automotive part.<
California Proposition 65 warning
California law requires us to issue the following
warning:
Engine exhaust and a wide variety of
automobile components and parts,
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Notes
6
including components found in the interior fur-
nishings in a vehicle, contain or emit chemicals
known to the State of California to cause cancer
and birth defects and reproductive harm. In
addition, certain fluids contained in vehicles and
certain products of component wear contain or
emit chemicals known to the State of California
to cause cancer and birth defects or other
reproductive harm.
Battery posts, terminals and related accesso-
ries contain lead and lead compounds. Wash
your hands after handling.
Used engine oil contains chemicals that have
caused cancer in laboratory animals. Always
protect your skin by washing thoroughly with
soap and water.<
Service and warranty
We recommend that you read this publication
thoroughly.
Your BMW is covered by the following warran-
ties:
> New Vehicle Limited Warranty
> Rust Perforation Limited Warranty
> Federal Emissions System Defect Warranty
> Federal Emissions Performance Warranty
> California Emission Control System Limited
Warranty
Detailed information about these warranties is
listed in the Service and Warranty Information
Booklet for US models or in the Warranty and
Service Guide Booklet for Canadian models.
Your vehicle has been specifically adapted and
designed to meet the particular operating con-
ditions and homologation requirements in your
country and continental region in order to
deliver the full driving pleasure while the vehicle
is operated under those conditions. If you wish
to operate your vehicle in another country or
region, you may be required to adapt your vehi-
cle to meet different prevailing operating condi-
tions and homologation requirements. You
should also be aware of any applicable warranty
limitations or exclusions for such country or
region. In such case, please contact Customer
Relations for further information.
Reporting safety defects
For US customers
The following only applies to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause injury
or death, you should immediately inform the
National Highway Traffic Safety Administration,
NHTSA, in addition to notifying BMW of North
America, LLC, P.O. Box 1227, Westwood, New
Jersey 07675-1227, Telephone 1-800-831-
1117.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
7
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order
a recall and remedy campaign. However,
NHTSA cannot become involved in individual
problems between you, your center, or BMW of
North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Adminis-
trator, NHTSA, 400 Seventh Street, SW.,
Washington, DC 20590. You can also obtain
other information about motor vehicle safety
from http://www.safercar.gov
For Canadian customers
Canadian customers who wish to report a
safety-related defect to Transport Canada,
Defect Investigations and Recalls, may call
1-800-333-0510 toll-free from anywhere in
Canada or 1-613-993-9851 from the Ottawa
region and from other countries, or contact
Transport Canada by mail at: Transport Can-
ada, ASFAD, Place de Ville, Tower C,
330 Sparks Street, Ottawa, ON, K1A 0N5.
You can also obtain other information about
motor vehicle safety from http://www.tc.gc.ca
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG

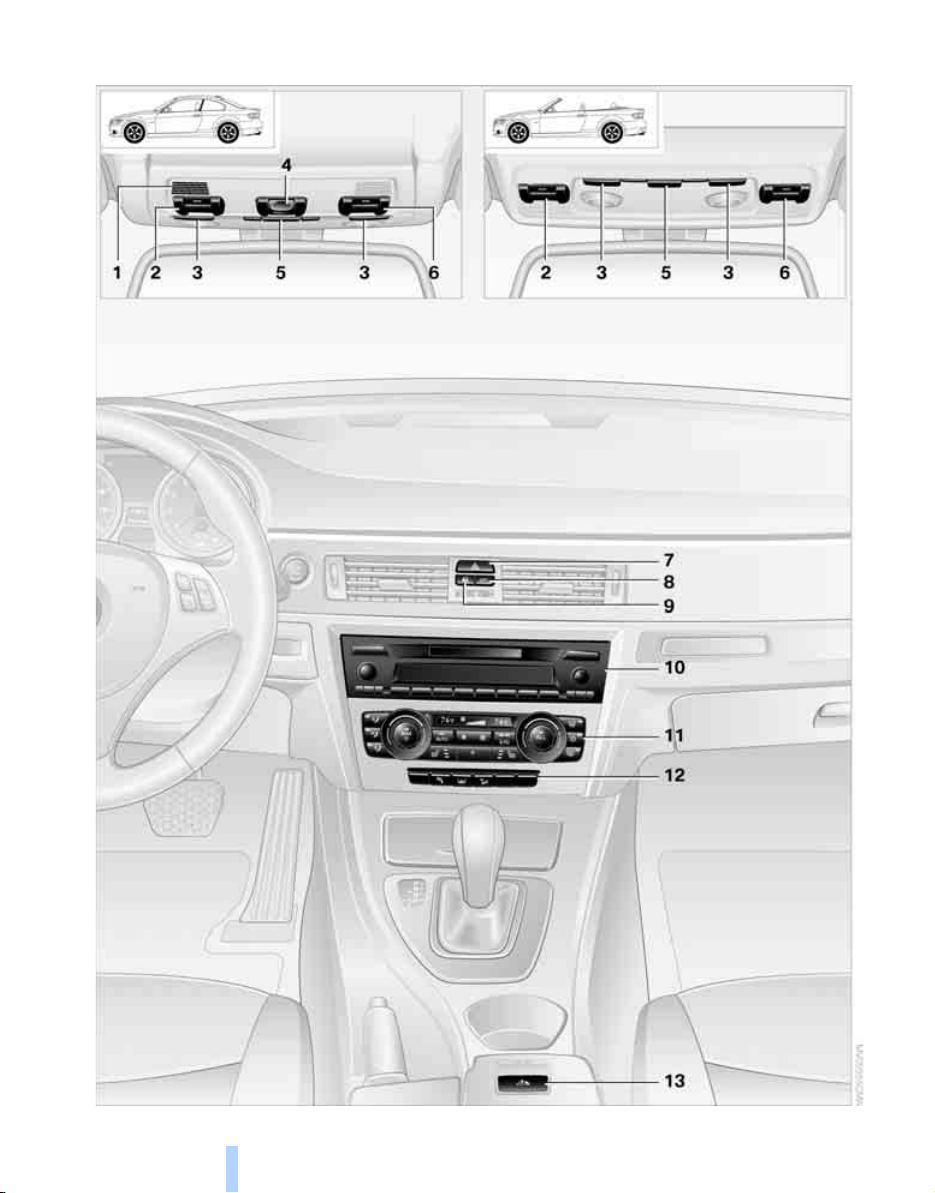

At a glance
This overview of buttons, switches and displays
is intended to familiarize you with your vehicle's
operating environment. The section will also
assist you in becoming acquainted with the
control concepts and options available for
operating the various systems.
At a glance
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Cockpit
10
Cockpit
Around the steering wheel: controls and displays
4 Folding exterior mirrors in and out
*
43
5 Adjusting exterior mirrors, automatic curb
monitor
*
43
1
Convertible: opening and closing
windows jointly 28
2
Convertible: opening and closing
rear windows 28
3
Opening and closing front
windows 28
6
Parking lamps 83
Low beams 83
Automatic headlamp control
*
83
Adaptive light control
*
85
High-beam assistant
*
85
7
Fog lamps 86
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
At a glanceControlsDriving tipsMobilityReference
11
9 Instrument cluster 12
12 Ignition lock 49
13 Buttons on the steering wheel
15 Horn, entire surface
16 Adjusting the steering wheel 44
18 Releasing the hood 132
19 Opening the trunk lid 24
8
Turn signals 53
High beams, headlamp flasher 85
High-beam assistant
*
85
Roadside parking lamps
*
85
Computer 65
Settings and information about the
vehicle 66
10
Windshield wipers 54
Rain sensor
*
55
11
Switching the ignition on/off and
starting/stopping the engine 49
Telephone
*
:
Accepting and ending a call; dial-
ing
*
the selected phone number;
redialing if no phone number is
selected
Volume
Changing the radio station
Interrupting a traffic bulletin
Selecting a music track
Scrolling through the redial list
Next entertainment source
Recirculated-air mode 92
14
Steering wheel heating
*
45
17
Cruise control
*
56
Active cruise control
*
57
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Cockpit
12
Instrument cluster
1 Speedometer
2 Indicator lamps for turn signals
3 Indicator and warning lamps 13
4 Displays for active cruise control
*
57
5 Tachometer 64
6 Engine oil temperature 65
7 Display for
> Clock 64
> Outside temperature 64
> Indicator and warning lamps 70
8 Display for
> Position of automatic transmission
*
51
> Computer 65
> Date of next scheduled service, and
remaining distance to be driven 68
> Odometer and trip odometer 64
> High-beam assistant
*
85
> Initializing the Flat Tire Monitor
*
75
> Resetting the Tire Pressure
Monitor
*
77
> Checking engine oil level
*
133
> Settings and information 66
> There is a Check Control
message 70
9 Fuel gauge 65
10 Resetting the trip odometer 64
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
At a glanceControlsDriving tipsMobilityReference
13
Indicator and warning lamps
The concept
Indicator and warning lamps can light up in a
variety of combinations and colors.
Several of the lamps are checked for proper
functioning and light up temporarily when the
engine is started or the ignition is switched on.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well
as notes on possible causes of malfunctions
and on how to respond, can be found starting
on page 154.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Cockpit
14
Around the center console: controls and displays
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
At a glanceControlsDriving tipsMobilityReference
15
1 Coupe: microphone for telephone
*
in
hands-free mode
Convertible: microphone on steering col-
umn
2 SOS: initiating an Emergency Request
call
*
149
3 Reading lamps 87
4 Coupe: glass roof, electric
*
29
5 Interior lamps 87
6 Passenger airbag status lamp
*
81
7 Hazard warning flashers
8 Dynamic Traction Control DTC 73
9 Central locking system 23
10 Radio, refer to separate Owner's Manual
11 Air conditioner or automatic climate con-
trol
*
Air distribution for air
conditioner 89
Air distribution to the
windshield
*
91
Air distribution to the upper body
area
*
91
Air distribution to the footwell
*
91
Automatic air distribution and flow
rate
*
92
Cooling function 93
Automatic recirculated-air control
AUC
*
and recirculated-air
mode 92
Recirculated-air mode 89
Maximum cooling
*
91
ALL program
*
93
Air volume 89, 92
Defrosting windows
*
93
Rear window defroster 90, 93
Heated seats
*
40
12
Park Distance Control PDC
*
72
Coupe:
Roller sun blind
*
98
Coupe:
Hill Descent Control HDC
*
74
13
Convertible:
Opening and closing retractable
hardtop 31
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Controls
This chapter is intended to provide you with
information for complete control of your vehicle.
All features and accessories that are useful for
driving and your safety, comfort and
convenience, are described here.
Controls
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
18
Opening and closing
Remote control
Each remote control contains a rechargeable
battery that is automatically recharged when it
is in the ignition lock while the car is being
driven. Use each remote control at least twice a
year for longer road trips in order to maintain the
batteries' charge status. In cars with Comfort
Access
*
, the remote control contains a
replaceable battery, refer to page 28.
The settings called up and implemented when
the car is unlocked depend on which remote
control is used to unlock the car, refer to Per-
sonal Profile, next column.
In addition, information about service require-
ments is stored in the remote control, refer to
Service data in the remote control, page 136.
Integrated key
Press button 1 to release the key.
The integrated key fits the following locks:
> Glove compartment, refer to page 98
> Driver's door, refer to page 22
New remote controls
Your BMW center can supply new remote con-
trols with integrated keys as additional units or
as replacements in the event of loss.
Personal Profile
The concept
You can set many of your BMW's functions to
suit your personal needs and preferences.
Without any action on your part, Personal Pro-
file ensures that most of these settings are
stored for the remote control currently in use.
When you unlock the car, the remote control
used for the purpose is recognized and the set-
tings stored for it are called up and imple-
mented.
This means that your personal settings will be
activated for you, even if in the meantime your
car was used by someone else with another
remote control and the corresponding settings.
The individual settings are stored for a maxi-
mum of four remote controls. They are stored
for two remote controls if Comfort Access
*
is in
use.
Personal Profile settings
For more information on specific settings, refer
to the specified pages.
> Response of the central locking system
when the car is unlocked, refer to page 19
> Automatic locking of the vehicle, refer to
page 23
> Automatic call-up
*
of the driver's seat posi-
tion, refer to page 40
> Triple turn signal activation, refer to
page 54
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
19
> Settings for the display in the instrument
cluster:
> 12h/24h format of the clock, refer to
page 67
> Date format, refer to page 67
> Units of measure, refer to page 67
> Light settings:
> Pathway lighting, refer to page 83
> Daytime running lights, refer to page 84
> High-beam assistant, refer to page 85
> Automatic climate control
*
: AUTO pro-
gram, cooling function and automatic recir-
culated-air control activated/deactivated,
temperature, air volume and distribution,
refer to page 91 ff
> Entertainment:
> Speed-dependent volume control, refer
to separate Owner's Manual
Central locking system
The concept
The central locking system functions when the
driver's door is closed.
The system simultaneously engages and
releases the locks on the following:
> Doors
> Trunk lid
> Fuel filler flap
> Convertible: glove compartment
Operating from outside
> Via the remote control
> Via the door lock
*
> In cars with Comfort Access
*
, via the han-
dles on the driver's and front passenger
doors
In addition, if the remote control is used, the
welcome lamps, interior lamps and the door's
courtesy lamps
*
are switched on or off. The
alarm system
*
is also armed or disarmed.
For further details of the alarm system,
refer to
page 25.
Operating from inside
By means of the button for central locking, refer
to page 23.
In the event of a sufficiently severe accident, the
central locking system unlocks automatically. In
addition, the hazard warning flashers and inte-
rior lamps come on.
Opening and closing:
Using the remote control
Persons or animals in a parked vehicle
could lock the doors from the inside. You
should therefore take the remote control with
you when you leave the vehicle so that the latter
can be opened from outside.<
Convertible: to operate the retractable
hardtop with the remote control, the
doors and trunk lid must be closed and the
cargo area partition must be folded down and
engaged on both sides. Refer also to page 32.<
Unlocking
Press the button.
The interior lamps, the courtesy lamps
*
and the
welcome lamps come on.
Setting unlocking characteristics
You can set whether only the driver's door or
the entire vehicle is to be unlocked when the
button is pressed for the first time.
For operating principle, refer to page 66.
1. Switch on the ignition, refer to page 49.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
20
bol appears in the display accompanied by
the word "SET".
3. Press button 2.
4. Lightly push button 1 in the turn indicator
lever down repeatedly until the symbol
appears in the display.
5. Press button 2.
6. Use button 1 to select:
>
Press the button once to unlock only
the driver's door and the fuel filler flap.
Press the button twice to unlock the
entire vehicle.
>
Press the button once to unlock the
entire vehicle.
7. Press button 2.
The setting is stored for the remote control
currently in use.
Coupe: Convenient opening
Hold the button down.
The windows and the glass roof
*
are opened.
Convertible: Convenient opening*
When you are close to the vehicle, the remote
control for Comfort Access can be used to open
the retractable hardtop.
Hold the button down.
The windows and the retractable hardtop are
opened if the doors are closed.
If you continue pressing the button, the win-
dows move up.
Watch during the opening process to
ensure that no one is injured. Releasing
the button interrupts the opening process.<
Locking
Press the button.
Convertible: Convenient closing*
When you are close to the vehicle, the remote
control for Comfort Access can be used to
close the retractable hardtop and the windows.
Hold the button down.
The retractable hardtop and the windows are
closed.
Watch during the closing process to
ensure that no one is injured. Releasing
the button interrupts the closing process.<
Switching on interior lamps
While the car is locked:
Press the button.
You can also use this function to locate your
vehicle in parking garages etc.
Unlocking the trunk lid
Press the button for approx. 1 second.
The trunk lid opens a short distance, regardless
of whether it was locked or unlocked.
The trunk lid swings back and up when
opened. Ensure that there is sufficient
clearance. To avoid locking yourself out by
accident, do not place the remote control in the
cargo area. A previously locked trunk lid is
locked again after closing.
Before and after each trip, check that the trunk
lid has not been inadvertently unlocked.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
21
Convertible: Convenient loading*
When you are close to the vehicle, the remote
control for Comfort Access can be used to par-
tially raise the open hardtop for more conve-
nient loading of the cargo area.
1. Briefly press the button and, within one
second, press again and hold until the
retractable hardtop stops in an intermediate
position. The trunk lid opens slightly.
2. Open the trunk lid, press the cargo area par-
tition upward and stow the cargo in the
cargo area.
3. Press down the cargo area partition until it
engages on both sides and close the trunk
lid.
4. Press the button for a longer period to
fold the retractable hardtop back in.
Confirmation signals
You can activate or deactivate the confirmation
signals.
For operating principle, refer to page 66.
1. Switch on the ignition, refer to page 49.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
3. Press button 2.
4. Lightly push button 1 in the turn indicator
lever down repeatedly until the desired
symbol appears in the display.
> Confirmation signal during unlocking
> Confirmation signal during locking
5. Press button 2.
6. Use button 1 to select:
>
The hazard warning flashers light up
during unlocking/locking.
>
An acoustic signal sounds during
unlocking/locking.
>
The hazard warning flashers light up and
an acoustic signal
*
sounds during
unlocking/locking.
>
The function is deactivated.
7. Press button 2.
The setting is stored.
Malfunctions
The remote control may malfunction due to
local radio waves. If this occurs, unlock and lock
the car at the door lock with the integrated key.
Coupe: in vehicles without an alarm system
*
or
Comfort Access
*
, only the driver's door can be
locked and unlocked with the integrated key via
the door lock.
Convertible: if hardtop movement via the
remote control is interrupted briefly, the move-
ment will be completed more quickly if you keep
the corresponding button pressed continu-
ously.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
22
If the car can no longer be locked with a remote
control, the battery in the remote control is dis-
charged. Use the remote control on an
extended trip to recharge the battery, refer to
page 18. The remote control for Comfort
Access
*
contains a battery that may have to be
changed, refer to page 28.
For US owners only
The transmitter and receiver units comply with
part 15 of the FCC/Federal Communications
Commission regulations. Operation is gov-
erned by the following:
FCC ID:
LX8766S
LX8766E
LX8CAS
Compliance statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
> This device must not cause harmful inter-
ference, and
> this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modifications or
changes to these devices could void the
user's authority to operate this equipment.<
Opening and closing:
Using the door lock
You can set the way in which the car is
unlocked, refer to page 19.
Coupe
In vehicles without an alarm system
*
or
Comfort Access
*
, only the driver's door
can be locked via the door lock.<
To lock all doors, the fuel filler flap and the trunk
lid at once:
1. With the doors closed, lock the vehicle
using the button for the central locking sys-
tem in the interior, refer to page 23.
2. Unlock and open the driver's or front pas-
senger door, refer to page 23.
3. Lock the vehicle.
> Lock the driver's door using the inte-
grated key in the door lock, or
> press down the lock button of the front
passenger door and close the door from
the outside.
Convenient operation
Coupe: if the vehicle is equipped with an alarm
system
*
or Comfort Access
*
, you can also
operate the windows and the glass roof
*
via the
door lock.
Convertible: you can operate the windows and
the retractable hardtop via the door lock.
Hold the key in the position for unlocking or
locking.
During each closing procedure, and when
opening the retractable hardtop, watch
the process and ensure that no one becomes
trapped. Releasing the key stops the opera-
tion.<
Manual operation
In the event of an electrical malfunction, you can
lock and unlock the driver's door by turning the
integrated key to the corresponding limit posi-
tions in the door lock.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
23
Opening and closing:
From inside
This button serves to unlock or lock doors and
the trunk lid, but does not activate the anti-theft
system. The fuel filler flap remains unlocked.
Automatic locking
You can also set the situations in which the car
locks:
For operating principle, refer to page 66.
1. Switch on the ignition, refer to page 49.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
3. Press button 2.
4. Lightly push button 1 in the turn indicator
lever down repeatedly until the symbol
appears in the display.
5. Press button 2.
6. Use button 1 to select:
>
The central locking system automati-
cally locks the vehicle after some time if
no door has been opened.
>
The central locking system automati-
cally locks the vehicle as soon as you
drive off.
>
The central locking system automati-
cally locks the vehicle after some time if
no door has been opened, or as soon as
you drive off.
>
The central locking system remains
unlocked.
7. Press button 2.
The setting is stored for the remote control
currently in use.
Unlocking and opening doors
> Either unlock the doors together using the
button for the central locking system and
then pull the door handle above the armrest
or
> pull on the door handle of each door twice:
the first time unlocks the door, the second
time opens it.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
24
Locking
> Use the central locking button to lock all of
the doors simultaneously, or
> press down the safety lock button of a door.
To prevent you from being locked out, the
open driver's door cannot be locked using
the lock button.
Persons or animals in a parked vehicle
could lock the doors from the inside. You
should therefore take the remote control with
you when you leave the vehicle so that the latter
can be opened from outside.<
Trunk lid
In order to avoid damage, make sure there
is sufficient clearance before opening the
trunk lid.<
Opening from inside
Press the button: the trunk lid opens unless it
has been locked.
Opening from outside
Press the button, see arrow, or the button on
the remote control for a longer period. The
trunk lid will open slightly. It can now be swung
upwards.
In the event of a malfunction, please con-
tact your BMW center or a workshop that
works according to BMW repair procedures
with correspondingly trained personnel.<
Coupe: locking or unlocking separately
The switch is located in the glove compartment.
1 Locking the trunk lid
2 Unlocking the trunk lid
Locking separately
Push the switch in the direction of arrow 1.
The trunk lid is locked and cannot be unlocked
using the central locking system.
If you give the remote control without the inte-
grated key to someone else while the glove
compartment is locked, the trunk lid cannot be
opened. This is an advantage when valet park-
ing, for example. Locking the glove compart-
ment, refer to page 98.
Unlocking separately
Push the switch in the direction of arrow 2.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
25
Emergency release
Pull the lever in the cargo area. The trunk lid is
unlocked.
Closing
The handle recesses on the interior trim of the
trunk lid make it easier to pull down.
Make sure that the closing path of the
trunk lid is clear; otherwise, injuries may
result.<
Coupe
Convertible
To close the trunk lid, press it down
lightly. The lid is closed automatically.<
Alarm system*
The concept
The vehicle alarm system responds:
> When a door, the hood or the trunk lid is
opened
> To movements inside the vehicle: Interior
motion sensor, refer to page 26
> When the car's inclination changes, for
instance if an attempt is made to jack it up
and steal the wheels or to raise it prior to
towing away
> When there has been an interruption of
power supply from the battery
The alarm system signals unauthorized entry
attempts for a short time by means of:
> An acoustic alarm
> Switching on the hazard warning flashers
> Flashing the high beams
Arming and disarming
When you lock or unlock the vehicle, either with
the remote control or at the door lock, the alarm
system is armed or disarmed at the same time.
You can open the trunk lid even when the alarm
system is armed, by pressing the button on
the remote control, refer to page 20. The lid is
locked and monitored again as soon as you
close it.
Panic mode*
You can trigger the alarm system if you find
yourself in a dangerous situation:
Press the button for at least three seconds.
To switch off the alarm: press any button.
Switching off an alarm
> Unlock the car with the remote control, refer
to page 19.
> Insert the remote control all the way into the
ignition lock.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
26
Indicator lamp displays
> The indicator lamp under the inside rear-
view mirror flashes continuously: the sys-
tem is armed.
> The indicator lamp flashes after locking:
doors, hood or trunk lid are not properly
closed. Even if you do not close the alerted
area, the system begins to monitor the
remaining areas, and the indicator lamp
flashes continuously after approx.
10 seconds. The interior motion sensor and
the tilt alarm sensor are not activated.
> The indicator lamp goes out after unlocking:
your vehicle has not been disturbed while
you were away.
> If the indicator lamp flashes after unlocking
until the remote control is inserted in the
ignition, but for no longer than approx.
5 minutes: your vehicle has been disturbed
while you were away.
Tilt alarm sensor
The tilt of the vehicle is monitored. The alarm
system reacts, e.g. to attempts to steal a wheel
or tow the vehicle.
Interior motion sensor
Coupe
In order for the interior motion sensor to func-
tion properly, the windows and glass roof must
be completely closed
*
.
Convertible
The interior of the car is monitored up to the
height of the seat cushions. Thus the alarm sys-
tem is activated together with the interior
motion sensor even if the hardtop is open. The
alarm can be triggered unintentionally by falling
objects such as leaves, refer to Avoiding unin-
tentional alarms.
Avoiding unintentional alarms
The tilt alarm sensor and interior motion sensor
may be switched off at the same time. This pre-
vents unintentional alarms, e.g. in the following
situations:
> In duplex garages
> During transport on car-carrying trains,
boats/ships or on a trailer
> When animals are to remain in the vehicle
Switching off tilt alarm sensor and
interior motion sensor
Press the button on the remote control
again as soon as the vehicle is locked.
The indicator lamp lights up briefly and then
flashes continuously. The tilt alarm sensor and
the interior motion sensor are switched off until
the next time the vehicle is unlocked and subse-
quently locked again.
Comfort Access*
Comfort Access enables you to enter your vehi-
cle without needing to hold the remote control
in your hand. All you need to do is wear the
remote control close to your body, e.g. in your
jacket pocket. The vehicle detects the corre-
sponding remote control within the immediate
vicinity or in the passenger compartment.
Comfort Access supports the following func-
tions:
> Unlocking/locking the vehicle
> Unlocking the trunk lid separately
> Engine starting
> Convenient closing
Functional requirement
> The vehicle or the trunk lid can only be
locked when the vehicle detects that the
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
27
remote control currently in use is outside of
the vehicle.
> The vehicle cannot be locked or unlocked
again until after approx. 2 seconds.
> The engine can only be started when the
vehicle detects that the remote control cur-
rently in use is inside the vehicle.
Comparison to the standard remote
control
In general, there is no difference between using
Comfort Access or pressing the buttons on the
remote control to carry out the functions men-
tioned above. You should therefore first famil-
iarize yourself with the instructions on opening
and closing starting on page 18.
Special features regarding the use of Comfort
Access are described below.
If you notice a brief delay while opening or
closing windows, the glass roof or retract-
able hardtop, the system is checking whether a
remote control is inside the vehicle. Please
repeat the opening or closing procedure, if nec-
essary.<
Unlocking
Grasp the handle on the driver's or front pas-
senger door completely, arrow 1. This corre-
sponds to pressing the button.
Locking
Touch the surface, arrow 2, with your finger for
approx. 1 second. This corresponds to pressing
the button.
To preserve the battery, please make
sure that the ignition and all electrical
consumers are switched off before locking the
vehicle.<
Coupe: Convenient closing
For Convenient closing, keep your finger on the
surface, arrow 2.
Convertible: window and convertible
top operation
With the ignition at radio readiness or beyond,
you can open and close the windows and the
convertible top when a remote control is
located inside the vehicle.
Unlocking the trunk lid separately
Press the button on the outside of the trunk lid.
This corresponds to pressing the button.
If the vehicle detects that a remote con-
trol has been accidentally left inside the
locked vehicle's cargo area after the trunk lid is
closed, the lid will reopen. The hazard warning
flashers flash and an acoustic signal
*
sounds.<
Switching on radio readiness
Radio readiness is switched on by pressing the
start/stop button, refer to page 49.
Do not depress the brake or the clutch;
otherwise, the engine will start.<
Starting the engine
You can start the engine or switch on the igni-
tion when a remote control is inside the vehicle.
It is not necessary to insert a remote control into
the ignition lock, refer to page 49.
Switching off the engine in cars with
automatic transmission
The engine can only be switched off when the
selector lever is in position P, refer to page 50.
To switch the engine off when the selector lever
is in position N, the remote control must be in
the ignition lock.
Malfunction
Comfort Access may malfunction due to local
radio waves. If this happens, open or close the
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
28
vehicle via the buttons on the remote control or
using the integrated key. To start the engine
afterward, insert the remote control into the
ignition lock.
Warning lamps
The warning lamp in the instrument
cluster lights up when you attempt to
start the engine: the engine cannot
be started. The remote control is not inside the
vehicle or is malfunctioning.
Take the remote control with you inside the
vehicle or have it checked. If necessary, insert
another remote control into the ignition lock.
The warning lamp in the instrument
cluster lights up while the engine is
running: the remote control is no
longer inside the vehicle. After the engine is
switched off, the engine can only be restarted
within approx. 10 seconds.
The indicator lamp in the instrument
cluster comes on: replace the battery
in the remote control.
Replacing the battery
The remote control for Comfort Access con-
tains a battery that will need to be replaced from
time to time.
1. Take the integrated key out of the remote
control, refer to page 18.
2. Remove the cover.
3. Insert the new battery with the plus side fac-
ing up.
4. Press the cover on to close.
Take the old battery to a battery collec-
tion point or to your BMW center.<
Windows
To prevent injuries, watch the windows
while closing them.
Take the remote control with you when you
leave the car; otherwise, children could operate
the electric windows and possibly injure them-
selves.<
Coupe: opening, closing
> Press the switch to the resistance point:
The window opens as long as you press the
switch.
> Press the switch beyond the resistance
point:
The window opens automatically. Press the
switch again to stop the opening move-
ment.
You can close the windows in the same manner
by pulling the switch.
Convertible: opening, closing
Individually
> Press the switch to the resistance point:
The window opens as long as you press the
switch.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
29
> Press the switch beyond the resistance
point:
The window opens automatically. Press the
switch again to stop the opening move-
ment.
You can close the windows in the same manner
by pulling the switch. The rear windows do not
close automatically.
Jointly
> Press the switch to the resistance point:
All windows open as long as you press the
switch.
> Press the switch beyond the resistance
point:
All windows open automatically. Press the
switch again to stop the opening move-
ment.
> Pull the switch:
All windows close as long as you pull the
switch.
After switching off the ignition
When the remote control is removed or the igni-
tion is switched off, you can still operate the
windows for approx. 1 minute as long as no
door is opened.
Convenient operation
For information on Convenient operation via the
remote control or the door lock, refer to page 19
or 22. For information on Convenient closing
with Comfort Access, refer to Locking on
page 20.
Pinch protection system
If the closing force exceeds a specific value as a
window closes, the closing action is interrupted
and the window reopens slightly.
Despite the pinch protection system
check and clear the window's travel path
prior to closing it; otherwise, the safety system
might fail to detect certain kinds of obstruc-
tions, such as thin objects, and the window
would continue closing.
Do not install any accessories that might inter-
fere with window movement. Otherwise, the
pinch protection system could be impaired.
Convertible: the rear windows are not equipped
with pinch protection. Therefore, watch them
closely when closing to avoid personal injury.<
Closing without pinch protection
If there is an external danger, or if ice on the win-
dows, etc., prevents you from closing the win-
dows normally, proceed as follows:
1. Pull the switch past the resistance point and
hold it there. Pinch protection is limited and
the window reopens slightly if the closing
force exceeds a certain value.
2. Pull the switch again past the resistance
point within approx. 4 seconds and hold it
there. The window closes without pinch
protection.
Coupe: glass roof*, electric
To prevent injuries, watch the glass roof
while closing it.
Take the remote control with you when you
leave the car; otherwise, children could operate
the roof and possibly injure themselves.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
30
Raising
Press the switch.
> The closed glass roof is raised and the slid-
ing visor opens slightly.
> The open glass roof automatically travels
into the raised position. The sliding visor
remains completely open.
Opening, closing
> Press the switch backwards to the resis-
tance point.
The glass roof and the sliding visor open
together as long as you hold the switch in
this position.
> Press the switch backwards past the resis-
tance point.
The glass roof and the sliding visor open
automatically. Briefly press the switch again
to stop the opening movement.
You can close the glass roof in a similar manner
by pressing the switch forwards. The sliding
visor remains open and can be closed by hand.
For information on Convenient operation via the
remote control or door lock, refer to page 19
or 22.
After switching off the ignition
When the remote control is removed or the igni-
tion is switched off, you can still operate the roof
for approx. 1 minute as long as no door has
been opened.
Pinch protection system
If the glass roof encounters an obstruction dur-
ing closing from approximately the middle of
the opening in the roof, or during closing from
the raised position, the closing movement is
interrupted and the glass roof is opened again
slightly.
Despite the pinch protection system
check and clear the roof's travel path prior
to closing it; otherwise, the safety system might
fail to detect certain kinds of obstructions, such
as very thin objects, and the roof would con-
tinue closing.<
Closing without pinch protection
If there is an external danger, press the switch
forward past the resistance point. The roof
closes without pinch protection.
Following interruptions in electrical
power supply
After a power failure, there is a possibility that
the glass roof can only be raised. The system
must be initialized. BMW recommends having
this work done by your BMW center.
Closing manually*
In the event of an electrical malfunction, you can
move the glass roof manually:
1. Unclip the front of the cover of the interior
lamps using the screwdriver from the
onboard vehicle tool kit, refer to page 142.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
31
2. Insert the screwdriver into the openings on
each side to press the clips.
3. Remove the control unit.
4. Unplug the motor. Considerably less effort
will be required for manual operation.
5. Insert the Allen wrench
*
supplied with the
onboard vehicle tool kit, refer to page 142,
into the opening provided. Move the glass
roof in the desired direction.
6. Reinstall the control unit and reattach the
lamp cover.
Convertible: retractable
hardtop
The retractable hardtop combines reliable
weather protection with simple and convenient
operation.
The following tips will enhance your driving
pleasure in your Convertible:
> It is advisable that you close the retractable
hardtop when you park the vehicle. Not only
does the closed hardtop protect the vehicle
interior against unanticipated weather dam-
age, it also offers theft protection. However,
even when the hardtop is closed, valuables
should only be stored in the locked cargo
area.
> Do not attach roof rack systems to the
retractable hardtop, and in particular do not
attach magnetic racks.
> Do not attach rack systems to the trunk lid,
and in particular do not attach magnetic
racks.
> When the retractable hardtop is operated,
the trunk lid swings back and up. Before
operating the retractable hardtop, ensure
that there is enough clearance, e.g. when
parked in front of a wall.
> If you open the hardtop while it is wet, e.g.
after driving in the rain, water may drip into
the cargo area. If necessary, remove items
from the cargo area beforehand to avoid
water stains or soiling.
Do not place any objects on the retract-
able hardtop or on the trunk lid; other-
wise, they could fall during movements of the
retractable hardtop and cause damage or injury.
Never move the retractable hardtop when the
rollover protection system is in the activated
position.
Driving when the hardtop is not fully opened or
closed may result in damage or injury.
Do not reach into the mechanism during the
opening or closing procedure. Keep children
away from the swiveling area of the retractable
hardtop.<
The retractable hardtop cannot be moved
at temperatures below +147/–106.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
32
The retractable hardtop can only be
opened and closed when the vehicle is
stationary. To avoid causing damage, do not
drive off until the hardtop has stopped mov-
ing.<
Before opening and closing
> Comply with the safety precautions
described above.
> Ensure that the cargo area partition is
folded down and engaged on both sides,
refer to page 102; otherwise, it will not be
possible to open the retractable hardtop.
> Do not place any objects next to or on the
cargo area partition and close the storage
compartment on the left side of the cargo
area.
> Do not exceed the maximum loading height
under the cargo area partition; refer to the
label in the cargo area showing a line indi-
cating the maximum height.
> Ensure that the trunk lid is closed.
> The vehicle should be parked on fairly level
ground. Excessive angle is indicated by a
lamp.
Opening and closing
When the vehicle is stationary and at radio
readiness or beyond, refer to page 49:
If possible, conserve the battery by only
operating the retractable hardtop when
the engine is running.
Before closing the retractable hardtop, remove
all foreign objects from the windshield frame as
these could prevent the hardtop from closing
properly.<
1 Push button: open the retractable hardtop.
Pull button: close the retractable hardtop.
2 LEDs
The side windows move down when the
switch for hardtop operation is pulled or
pushed.<
LEDs
> While the hardtop is being operated, the left
LED lights up green. It goes out as soon as
the top is fully opened or closed.
> If the right-hand LED flashes red when you
release the switch, the opening or closing
action has not yet finished.
> If the right LED lights up red when the
switch is pressed, the cargo area partition is
folded up, the trunk lid is not closed, the
vehicle is standing on a strong incline or
there is a malfunction. The retractable hard-
top cannot be moved.
Interruption
The automatic sequence of movements is
interrupted if the switch for hardtop operation is
released. The sequence can be continued in
the desired direction by pushing or pulling the
switch.
A hardtop that is not fully opened or
closed is a safety hazard.
Do not interrupt and resume the closing proce-
dure several times in close succession as this
could damage the mechanism.<
If the hardtop is not fully opened or
closed, the trunk lid cannot be opened
and the windows cannot be moved.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
33
Convenient operation with remote
control or via door lock
Refer to pages 20 and 22.
Wind deflector*
The wind deflector keeps air movements in the
passenger compartment to a minimum when
the hardtop is open and provides an even more
comfortable ride, particularly at high speeds.
Installation
The wind deflector is stored in a protective
cover in the cargo area. Brief instructions for
operation can be found on the protective cover.
1. Remove the wind deflector from the protec-
tive cover and unfold it, arrows 1.
2. Press together the top and bottom parts of
the wind deflector until the catch engages,
arrow 2.
3. Push the fastening pin, arrow 3, into the
opening provided on the right side of the
vehicle until it snaps into place. Remove the
protective caps beforehand, if necessary.
4. Push the fastening pin, arrow 4, into the
opening provided on the left side of the
vehicle until it snaps into place.
5. Turn the rotary handle in the direction of
arrow 5 as far as the first stop to insert the
right fastening pin into the holders.
6. Turn the rotary handle in the direction of
arrow 6 as far as the symbol to insert the
left fastening pin into the holders.
7. Fold up the top section of the wind deflec-
tor.
With the wind deflector installed: do not
recline the front-seat backrests too far if
the seat is to be slid all the way back, as this
would damage the wind deflector.<
Only turn the rotary handle within the
range between the two symbols; other-
wise, the cable system inside the wind deflector
could be damaged.<
Removing the wind deflector
Proceed in the reverse order as used for instal-
lation.
Protective caps are provided in the vehicle for
the holders of the wind deflector.
Folding
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Opening and closing
34
Slide the red release lever towards the middle of
the wind deflector and push the two halves
apart.
Loading function
Cargo can still be loaded on the rear seat of the
vehicle even if the wind deflector has been
installed.
1. Lower all windows.
2. Fold down the top section of the wind
deflector, arrow 1.
3. Turn the rotary handle to position ,
arrow 2.
Fold both sections of the wind deflector forward
and rest them against the front seats, arrow 3.
To protect the seat cushions or to use the bag
holders, you can fold the rear backrest down,
refer to page 102.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
35
Adjustments
Sitting safely
The ideal sitting position can make a vital con-
tribution to relaxed, fatigue-free driving. In con-
junction with the safety belts, the head
restraints and the airbags, the seated position
has a major influence on your safety in the event
of an accident. To ensure that the safety sys-
tems operate with optimal efficiency, we
strongly urge you to observe the instructions
contained in the following section.
For additional information on transporting chil-
dren safely, refer to page 46.
Airbags
Always maintain an adequate distance
between yourself and the airbags. Always
grip the steering wheel on the rim, with your
hands in the 3 o'clock and 9 o'clock positions,
to minimize the risk of injury to the hands or
arms in the event of the airbag being triggered
off.
No one and nothing should come between the
airbags and the seat occupant.
Do not use the cover of the front airbag on the
front passenger side as a storage area. Make
sure that the front passenger is sitting correctly,
e.g. not resting feet or legs on the dashboard;
otherwise, leg injuries can occur if the front air-
bag deploys.
Make sure that passengers keep their heads
away from the side airbag and do not lean
against the cover of the head airbag; otherwise,
serious injuries can result if the airbag
deploys.<
Even if you follow all the instructions, injuries
resulting from contact with airbags cannot be
fully excluded, depending on the circum-
stances. The ignition and inflation noise may
provoke a mild hearing loss in extremely sensi-
tive individuals. This effect is usually only tem-
porary.
For airbag locations and additional information
on airbags, refer to page 80.
Head restraint
A correctly adjusted head restraint reduces the
risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth-
erwise, there is an increased risk of injury in the
event of an accident.<
Head restraints, refer to page 37.
Safety belt
Before every drive, make sure that all occupants
wear their safety belts. Airbags complement the
safety belt as an additional safety device, but
they do not represent a substitute.
Your vehicle has four seats, each of which is
equipped with a safety belt.
Never allow more than one person to
wear a single safety belt. Never allow
infants or small children to ride in a passenger's
lap. Make sure that the belt in the lap area sits
low across the hips and does not press against
the abdomen.
The safety belt must not rest against the throat,
run across sharp edges, pass over hard or frag-
ile objects or be pinched. Fasten the safety belt
so that it sits as snugly as possible against the
lap and shoulder without being twisted. Other-
wise, the belt could slide over your hips and
injure your abdomen in the event of a frontal
collision.
Avoid wearing bulky clothing and regularly pull
the belt in the upper-body area taut; otherwise,
its restraining effect could be impaired.<
Safety belts, refer to page 42.
Seats
Note before adjusting
Never attempt to adjust your seat while
the vehicle is moving. The seat could
respond with unexpected movement, and the
ensuing loss of vehicle control could lead to an
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Adjustments
36
accident.
On the front passenger seat as well, do not
incline the backrest too far to the rear while the
vehicle is being driven; otherwise, there is a
danger in the event of an accident of sliding
under the safety belt, eliminating the protection
normally provided by the belt.<
Comply with the instructions on head restraint
height on page 37, and on damaged safety
belts on page 42.
Manual adjustment
Observe the adjustment instructions on
page 35 to ensure the best possible per-
sonal protection.<
Longitudinal direction
Pull lever 1 and slide the seat to the desired
position.
After releasing the lever, move the seat gently
forward or back to make sure it engages prop-
erly.
Height
Pull lever 2 and apply your weight to the seat or
lift it off, as necessary.
Backrest
Pull lever 3 and apply your weight to the back-
rest or lift it off, as necessary.
Tilt*
Pull the lever and apply your weight to the seat
or lift it off, as necessary.
Thigh support*
Pull the lever and move the thigh support for-
ward or back.
Electrical adjustment
Observe the adjustment instructions on
page 35 to ensure the best possible per-
sonal protection.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
37
1 Longitudinal direction
2 Height
3 Angle
4 Backrest
5 Convertible: head restraints
Coupe: the head restraints are adjusted manu-
ally, refer to Head restraints below.
Lumbar support*
You can also adjust the contour of the backrest
to obtain additional support in the lumbar
region.
The upper hips and spinal column receive sup-
plementary support to help you maintain a
relaxed, upright sitting position.
> Increase or decrease curvature: press the
switch at the front or rear, respectively.
> Shift curvature up or down: press the switch
at the top or bottom, respectively.
Backrest width*
You can change the width of the backrest to suit
your individual preferences by adjusting the lat-
eral-support pads.
Press the front or rear end of the switch.
Backrest width decreases or increases accord-
ingly.
Longitudinal adjustment from outside/
behind*
To move the front seats forward or backward
from outside or from one of the rear seats: with
the door open, press the front end 1 or rear end
2 of the switch.
Head restraints
Correctly adjusted head restraint
A correctly adjusted head restraint reduces the
risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth-
erwise, there is an increased risk of injury in the
event of an accident. Only remove a head
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Adjustments
38
restraint if no one will be sitting on the seat in
question. Reinstall the head restraint before
transporting anyone on that seat. Otherwise,
the passenger will be without protection from
the head restraint.<
Height
Adjust the head restraint so that its center is
approximately at ear level.
Distance
Adjust the distance so that the head restraint is
as close as possible to the back of the head.
Front active head restraints
In a rear collision of a sufficient strength, the
active head restraint reduces the distance to
the head.
Do not use seat or head restraint covers
that could impair the function of the active
head restraint. Otherwise, the protective func-
tion of the active head restraint will not be
ensured and its full potential in reducing the risk
of injury in the event of a rear collision may not
be realized.
In the event of malfunctions, deactivation or
triggering of the active head restraints, have the
testing, repair and removal executed only by a
BMW center or a workshop that works accord-
ing to repair procedures of BMW with corre-
spondingly trained personnel and that has the
required explosives licenses. Unprofessional
attempts to work on the system could lead to
failure in an emergency or to undesired airbag
activation, either of which could result in per-
sonal injury.<
For technical reasons, the head restraint
cannot be removed.<
Coupe: front seats
Height adjustment
> To raise: pull up.
> To lower: press the button, arrow 1, and
slide the head restraint down.
Convertible: front seats
Height adjustment
> To raise: press the button upward.
> To lower: press the button downward.
Adjusting the distance to the back of
the head
> Forward: pull up.
> Back: press the button and push the head
cushion toward the rear.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
39
Do not insert objects behind the head
cushion; otherwise, the head restraint
may not function properly.<
Coupe: rear seats
Height adjustment
> To raise: pull up.
> To lower: press the button, arrow 1, and
slide the head restraint down.
Removing
1. Pull up as far as it will go.
2. Press the button, arrow 1, tilt the rear seat
backrest slightly forward and pull the head
restraint all the way out.
Only remove the head restraints if no pas-
sengers will be sitting in the rear. Reinstall
head restraints before transporting passengers
in the rear.<
Entering the rear seats
Coupe: seat with manual longitudinal
adjustment
Easy entry
The easy entry feature includes a memory func-
tion for the longitudinal adjustment and back-
rest angle.
1. Pull the lever and swing the backrest for-
ward.
2. Push the seat forward.
Previous position
Push the seat backward and swing the backrest
back.
When pushing the seat into its rearmost
position, make sure that no one is injured
and that no objects are damaged.
Before driving off, engage both seats and back-
rests so that they are locked in place. Other-
wise, there is a risk of an accident due to unex-
pected movement.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Adjustments
40
Seat with electrical longitudinal
adjustment
Coupe
Convertible
Seat backrest warning lamp:
Comes on when a seat backrest is not
engaged.
Easy entry
The easy entry feature includes a memory func-
tion for the longitudinal adjustment and back-
rest angle.
1. Pull lever 1 and swing the backrest forward.
2. Press the front end 2 of the switch until the
seat has moved into the desired position.
Previous position
Press the rear end 3 of the switch until the seat
automatically stops in its previous position, and
fold the backrest back. If you release the switch
before the previous seat position is reached,
the seat will stop at its current position.
When sliding the seat backward, make
sure no one is injured and no objects are
damaged.
Before driving off, engage both seats and back-
rests so that they are locked in place. Other-
wise, there is a risk of an accident due to unex-
pected movement.<
Heated seats*
Depending on the vehicle's equipment, press
one of the buttons labeled 1 or 2 here.
Press the button once per temperature level.
Three LEDs indicate the highest temperature.
To switch off:
Press button longer.
If you continue driving within approx. the next
15 minutes, the seat heating is automatically
activated at the previously set temperature.
The temperature is lowered or the heating is
switched off entirely to save on battery power.
The LEDs stay lit.
Seat and mirror memory*
You can store and call up two different combi-
nations of driver's seat and exterior mirror posi-
tions.
Settings for the backrest width and lumbar sup-
port are not stored in memory.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
41
Storing
1. Switch on radio readiness or the ignition,
refer to page 49.
2. Adjust the seat and exterior mirrors to the
desired positions.
3. Press the button.
The LED in the button lights up.
4. Press the desired memory button 1 or 2: the
LED goes out.
The driver's seat and exterior mirror posi-
tions are stored for the remote control cur-
rently in use.
Call-up
Do not call up the memory while you are
driving; otherwise, unexpected seat
movement could result in an accident.<
Comfort function
1. Unlock and open the driver's door or switch
on radio readiness, refer to page 49.
2. Briefly press the desired memory button 1
or 2.
The adjusting procedure is halted immediately
when you touch a seat adjustment switch or
one of the memory buttons.
Safety feature
1. Close the driver's door and switch the igni-
tion on or off, refer to page 49.
2. Press the desired memory button 1 or 2
and keep it pressed until the adjustment
process has been completed.
If the button was pressed accidentally:
Press the button again; the LED goes out.
Call-up with the remote control
The driver's seat position last set is stored for
the remote control currently in use.
You can select whether or not the seat is reset
to that position automatically.
When this Personal Profile function is
used, first make sure that the footwell
behind the driver's seat is free of obstacles.
Failure to do so could cause injury to persons or
damage to objects as a result of a rearward
movement of the seat.<
The adjusting procedure is halted immediately
when you touch a seat adjustment switch or
one of the memory buttons.
Activating/deactivating automatic call-
up
For operating principle refer to page 66.
1. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
2. Press button 2.
3. Lightly push button 1 in the turn indicator
lever down repeatedly until the symbol
appears in the display.
4. Press button 2.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Adjustments
42
5. Use button 1 to select:
>
Call-up when the vehicle is unlocked.
>
Call-up when the driver's door is
opened.
>
Switch off automatic function.
6. Press button 2.
The setting is stored.
Safety belts
Observe the adjustment instructions on
page 35 to ensure the best possible per-
sonal protection.<
Before every drive, make sure that all occupants
wear their safety belts. Airbags complement the
safety belt as an additional safety device, but
they do not represent a substitute.
Closing
Make sure you hear the latch plate engage in
the belt buckle.
The upper belt anchor is suitable for adults of
any stature as long as the seat is adjusted prop-
erly, refer to page 35.
Opening
1. Grasp the belt firmly.
2. Press the red button in the buckle.
3. Guide the belt into its reel.
"Fasten safety belts" reminder for
driver's and front passenger seat
The indicator lamps light up and an
acoustic signal sounds. Check
whether the safety belt has been fas-
tened correctly.
The "Fasten safety belts" reminder is issued as
long as the driver's safety belt has not been fas-
tened. The "Fasten safety belts" reminder is
also activated at road speeds above approx.
5 mph or 8 km/h if the front passenger safety
belt is not fastened, if objects are placed on the
front passenger seat, or if driver or front pas-
senger unfasten their safety belts.
Damage to safety belts
If the safety belts are damaged or
stressed in an accident: have the belt sys-
tem, including any belt tensioners or child
restraint systems, replaced and the belt
anchors checked. Have this work done only by
your BMW center or at a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel. Otherwise, it is
not guaranteed that the safety devices will func-
tion properly.<
Coupe: belt hand-over
The concept
The belt hand-over makes it easier for you to
fasten your safety belt. When you close the
door and switch on radio readiness or the igni-
tion, the belt hand-over extends automatically
and presents the in a position that is convenient
for fastening it around you. After you have fas-
tened your safety belt, the belt hand-over
retracts to its original position.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
43
Even if you have not yet fastened your safety
belt, the belt hand-over will retract if you:
> Wait for more than approx. one minute
> Open the corresponding door
> Start driving.
Closing the respective door reactivates the belt
hand-over if the ignition or radio readiness is on.
Front passenger seat
The belt hand-over will extend only if the seat is
occupied and after the front passenger door is
closed.
Pinch protection system
If the belt hand-over encounters resistance on
moving in or out, it moves back slightly in the
opposite direction and stops in this position. To
reactivate the belt hand-over: open and close
the door or switch the ignition off and on.
Although there is a pinch protection sys-
tem, always check that the maneuvering
area of the belt hand-over is clear. Otherwise it
cannot be ensured that the system will stop
moving in certain extreme situations.<
Mirrors
Exterior mirrors
The front passenger's mirror is more con-
vex than the driver's mirror. The objects
seen in the mirror are closer than they appear.
Do not gauge your distance from traffic behind
you on the basis of what you see in the mirror;
otherwise, there is an increased risk of an acci-
dent.<
1 Adjustments
2 Switching to the other mirror or automatic
curb monitor
*
3 Folding mirrors in and out
*
The setting for the exterior mirrors is stored for
the remote control currently in use
*
. The stored
position is called up automatically when the
vehicle is unlocked.
Manual adjustment
The mirrors can also be adjusted manually:
press the edge of the glass.
Folding mirrors in and out*
At driving speeds up to approx. 12 mph/
20 km/h, you can fold the mirrors in and out by
pressing button 3. This can be beneficial in nar-
row streets, for example, or for moving mirrors
that were folded in by hand back out into their
correct positions. Mirrors that were folded in are
folded out automatically at a speed of approx.
25 mph/40 km/h.
Before entering an automatic car wash,
fold in the exterior mirrors manually or
with button 3 to prevent them from being dam-
aged, depending on the width of the vehicle.<
Automatic heating
Depending on the outside temperature, both
exterior mirrors are heated automatically when
the engine is running or the ignition is switched
on.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Adjustments
44
Passenger side mirror tilt function –
automatic curb monitor*
Activating
1. Push the switch to the position for the
driver's side mirror, arrow 1.
2. Engage reverse gear or move the selector
lever to position R.
The glass of the mirror on the passenger
side tilts slightly down. This allows the
driver to see the area immediately adjacent
to the vehicle, e.g. a curb, when backing into
a parking space.
Deactivating
Push the switch to the position for the passen-
ger side mirror, arrow 2.
Interior rearview mirror
Turn the knob to reduce glare from the head-
lamps of cars behind you when driving at night.
Interior and exterior mirrors, automatic
dimming feature*
The automatic dimming feature of the interior
and exterior mirrors
*
is controlled by two photo
cells in the interior rearview mirror. One photo
cell is in the mirror frame, see arrow; the other is
on the back of the mirror.
In order to ensure that the system functions
correctly, keep the photo cells clean, do not
cover the area between the interior rearview
mirror and windshield, and do not affix adhesive
labels or stickers of any kind to the windshield
directly in front of the mirror.
Steering wheel
Adjustments
Do not adjust the steering wheel position
while the car is in motion; otherwise, there
is a risk of an accident due to unexpected move-
ment.<
1. Fold the lever down.
2. Move the steering wheel to the preferred
height and angle to suit your seated posi-
tion.
3. Swing the lever back up.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
45
Do not use force to swing the lever
back up; otherwise, the mechanism
will be damaged.<
Steering wheel heating*
Press the button.
The LED in the button lights up when the steer-
ing wheel heating is switched on.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Transporting children safely
46
Transporting children safely
The right place for children
Do not leave children unattended in the
vehicle; otherwise, they could endanger
themselves and/or other persons by opening
the doors, for example.<
Children always in the rear
Accident research has shown that the safest
place for children is on the rear seat.
Children under the age of 13 or smaller
than 5 ft/150 cm may be transported only
in the rear in suitable child restraint systems
appropriate for their age, weight and size. Oth-
erwise, there is an increased risk of injury in the
event of an accident.<
Children 13 years of age or older must be buck-
led in with a safety belt as soon as there no
longer is any child restraint system that is
appropriate for their age, size and weight.
Exception for front passenger seat
Should it be necessary to use a child
restraint system on the front passenger
seat, the front and side airbags for the front pas-
senger must be deactivated. Otherwise, a child
traveling on that seat will face a significant risk
of injury if the airbags are triggered off, even
with a child restraint system.<
For more information on automatic deactivation
of the front passenger airbags refer to page 80.
Installing child restraint
systems
Observe the child restraint system manu-
facturer's instructions when selecting,
installing and using child restraint systems.
Otherwise, the protective effect may be dimin-
ished. <
Standard child restraint systems are designed
to be secured with a lap belt or with the lap-belt
section of a lap-and-shoulder belt. Incorrectly
or improperly installed child restraint systems
can increase the risk of injury to children.
Always follow the installation instructions for
the system with the greatest care.
On the front passenger seat
After installing a child restraint system on
the front passenger seat, make sure that
the front and side airbags for the front passen-
ger are deactivated; otherwise, there is an
increased risk of injury if the airbags deploy.<
Seat position
Before installing a child restraint system, move
the front passenger seat as far back and up as
possible to obtain the best possible position for
the belt. Do not change the seat position after
this.
Backrest width*
The backrest width of the front passenger
seat must be at its widest possible set-
ting. Do not change the setting after installing
the child seat. Otherwise, the child seat's stabil-
ity on the front passenger seat is limited.<
1. Adjust the backrest width to its widest set-
ting, refer to page 37.
2. Install the child seat.
Child seat security
The rear safety belts and the front passenger
safety belt can be prevented from being pulled
out in order to fasten child restraint systems.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
47
To lock the safety belt
1. Secure the child restraint system with the
belt.
2. Pull the belt strap all the way out.
3. Allow the belt strap to retract and pull it taut
against the child restraint system.
The safety belt is locked.
To unlock the safety belt
1. Open the belt buckle.
2. Remove the child restraint system.
3. Allow the safety belt strap to retract all the
way.
LATCH child restraint fixing
system
LATCH: Lower Anchors and Tethers for CHil-
dren.
To install and use the LATCH child
restraint system, follow the operating and
safety instructions provided by the manufac-
turer of the system; otherwise, the protective
function of the seat may be compromised.<
Mounts for the lower LATCH anchors
Before installing the child seat, pull the belt out
of the area for the child restraint fixing system.
Ensure that both lower LATCH anchors
are correctly engaged and that the child
restraint system is resting firmly against the
backrest; otherwise, the protective function of
the seat may be compromised.<
The anchor points for the lower LATCH
anchors are located behind the labeled protec-
tive caps.
Upper LATCH retaining strap
Convertible
For Canadian Customers Only.
The following statement is required by Trans-
port Canada.
This vehicle is not equipped with user-ready
tether anchorages. As such neither a child
restraint system, nor a booster cushion, requir-
ing the use of a tether strap can be properly
secured in the vehicle.
Coupe
Use the top tether anchors to secure child
restraint systems only; otherwise, the
anchors could be damaged.<
For child restraint systems with tether straps
there are two additional anchors, see arrows.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Transporting children safely
48
Placement of the tether strap
Coupe
Make sure the upper retaining strap does
not run over sharp edges and is not
twisted as it passes to the top anchor. Other-
wise, the strap will not properly secure the child
restraint system in the event of an accident.<
1 Direction of travel
2 Head restraint
3 Hook for upper retaining strap
4 Anchor
5 Rear window shelf
6 Seat backrest
7 Upper retaining strap of child restraint sys-
tem
If necessary, fold the anchors upward before
use.
1. Push the head restraint upward.
2. Guide the upper retaining strap between
the head restraint holders.
3. Use the hook to clip the retaining strap to
the anchor.
4. Push the head restraint into its lowermost
position.
5. Pull the retaining strap taut.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
49
Driving
Ignition lock
Insert the remote control into the
ignition lock
Insert the remote control all the way into the
ignition lock.
> Radio readiness is switched on.
Individual electrical consumers can operate.
Comfort Access*
If the car is equipped with Comfort Access, only
insert the remote control into the ignition lock
under special circumstances, refer to page 26.
Removing the remote control from the
ignition lock
Do not forcibly pull the remote control out
of the ignition lock as this may cause
damage.<
Before removing the remote control, push it all
the way in to release the locking mechanism.
> The ignition is switched off if it was on.
Automatic transmission
You cannot take out the remote control unless
the selector lever is in the P position: interlock.
Start/stop button
Pressing the start/stop button switches radio
readiness or the ignition on or off.
Manual transmission: the engine is
started when you press the start/stop
button and depress the clutch.
Automatic transmission: the engine is started
when you press the start/stop button and
depress the brake.<
Radio readiness
Individual electrical consumers can operate.
The time and the outside temperature are dis-
played in the instrument cluster.
Radio readiness is switched off automatically:
> When the remote control is removed from
the ignition lock
> In cars with Comfort Access
*
, by touching
the surface above the door lock, refer to
Locking on page 27
Ignition on
All electrical consumers can operate. The
odometer and trip odometer are displayed in
the instrument cluster.
When the engine is off, please switch off
the ignition and any unnecessary electri-
cal consumers in order to preserve the bat-
tery.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving
50
Radio readiness and ignition off
All indicator and warning lamps as well as dis-
plays in the instrument cluster go out.
Starting the engine
Do not run the engine in enclosed areas;
otherwise, the inhalation of toxic exhaust
gases can cause loss of consciousness and
death. The exhaust gases contain carbon mon-
oxide, an odorless and colorless, but highly
toxic gas. Never leave an unattended vehicle
with the engine running; otherwise, such a vehi-
cle represents a potential safety hazard.
Before leaving the car with the engine running,
place the transmission in neutral or move the
selector lever to position P and forcefully apply
the parking brake to prevent the car from mov-
ing.<
Avoid frequent starting in quick succes-
sion as well as repeated start attempts in
which the engine does not start. Otherwise, the
fuel is not burned or incompletely burned and
there is a danger of overheating and damaging
the catalytic converter.<
Do not wait for the engine to warm up while the
vehicle remains stationary. Start driving right
away, but at moderate engine speeds.
Manual transmission
Remote control in the ignition lock or, with
Comfort Access, inside the vehicle, refer to
page 26.
1. Depress the brake.
2. Depress the clutch and shift to neutral posi-
tion.
3. Press the start/stop button.
The starter operates automatically for a certain
time, and stops automatically as soon as the
engine has started.
Automatic transmission
Remote control in the ignition lock or, with
Comfort Access, inside the vehicle, refer to
page 26.
1. Depress the brake.
2. Move the selector lever to position P.
3. Press the start/stop button.
The starter operates automatically for a certain
time, and stops automatically as soon as the
engine has started.
Switching off the engine
Always take the remote control with you
when you leave the vehicle.
When parking, apply the parking brake force-
fully; otherwise, the vehicle could begin to roll.<
Manual transmission
1. With the car at a standstill, press the start/
stop button.
2. Shift into first gear or reverse.
3. Forcefully apply the parking brake.
4. Removing the remote control from the igni-
tion lock, refer to page 49.
Automatic transmission
1. With the car at a standstill, move the selec-
tor lever to position P.
2. Press the start/stop button.
3. Forcefully apply the parking brake.
4. Removing the remote control from the igni-
tion lock, refer to page 49.
Parking brake
The parking brake is primarily intended to pre-
vent the vehicle from rolling while parked; it
brakes the rear wheels.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
51
Indicator lamp
The indicator lamp is lit, and when you
drive off an acoustic signal sounds in
addition. The parking brake is still
applied.
Indicator lamp for Canadian models.
Applying
The lever locks in position automatically.
Releasing
Pull slightly upwards, press the button and
lower the lever.
In exceptional cases, if the parking brake
has to be used to slow or stop the car, do
not pull the lever up too hard. In doing so, con-
tinuously press the button of the parking brake
lever.
Otherwise, excessive force on the parking
brake can lock up the rear wheels and cause the
rear of the car to swerve.<
To prevent corrosion and one-sided brak-
ing action, occasionally apply the parking
brake lightly when the vehicle is slowly coming
to a stop if the traffic conditions are suitable.
The brake lamps do not light up when the park-
ing brake is applied.<
Manual transmission
When shifting into 5th or 6th gear, press
the gearshift lever to the right. Otherwise,
the engine could be damaged if you inadvert-
ently shift into 3rd or 4th gear.<
Reverse gear
Select this only when the vehicle is stationary.
When the gearshift lever is pressed to the left, a
slight resistance has to be overcome.
Automatic transmission with
Steptronic*
In addition to fully automatic operation, you can
also manually shift with the Steptronic, refer to
page 52.
Vehicle parking
To prevent the vehicle from rolling,
always select position P and apply the
parking brake before leaving the vehicle with
the engine running.<
Disengaging the remote control
In order to remove the remote control from the
ignition lock, you must first move the selector
lever to position P and switch off the engine:
interlock. Removing the remote control from
the ignition lock, refer to page 49.
Selector lever positions
P R N D M/S + –
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving
52
Displays in the instrument cluster
P R N D DS M1 to M6
The selector lever position is displayed, or the
current gear in the manual mode.
Changing selector lever positions
> With the ignition switched on or the engine
running, the selector lever can be moved
out of position P.
> Before moving the lever away from P or N
with the vehicle stationary, first depress the
brake; otherwise, the selector lever will
refuse to move: shiftlock.
To prevent the vehicle from creeping
after you select a driving position,
depress the brake until you are ready to
start.<
A lock prevents you from inadvertently engag-
ing selector lever positions R and P. To cancel
the lock, press the button on the front of the
selector lever, see arrow.
P Park
Select this only when the vehicle is stationary.
The rear wheels are locked.
R Reverse
Select this only when the vehicle is stationary.
N Neutral
You can select this in a car wash, for example.
The vehicle can roll.
D Drive, automatic position
Position for normal vehicle operation. All for-
ward gears are selected automatically.
Under normal operating conditions, fuel con-
sumption is lowest when you are driving in posi-
tion D.
Kickdown
Kickdown enables you to achieve maximum
performance.
Press the accelerator pedal beyond the full-
throttle resistance point.
Sport program and manual operation
M/S
Move selector lever from position D toward the
left into the M/S shifting slot:
The sport program is activated and DS is dis-
played on the instrument cluster. This position
is recommended for a performance-oriented
driving style.
To deactivate the sport program or manual
mode M/S, move the selector lever to the right
into position D.
Shifting gears via the selector lever
Move selector lever from position D toward the
left into the M/S shifting slot:
When you press the selector lever forwards or
backwards, the manual mode is activated and
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
53
Steptronic changes gear. M1 through M6 are
displayed on the instrument cluster.
Upshifts and downshifts are executed only
when they will result in a plausible combination
of engine and vehicle speed; thus, for example,
a downshift that would cause the engine to
overrev will not be executed by the system. The
gear selected is briefly displayed in the instru-
ment cluster, followed by the gear actually in
use.
Shifting gears via shift paddles* on the
steering wheel
The shift paddles allow you to shift gears
quickly since both hands can remain on the
steering wheel.
> When you use the shift paddles on the
steering wheel to shift gears in automatic
mode, the transmission switches to manual
mode.
> If you do not accelerate or shift gears using
the shift paddles for a certain amount of
time, the transmission switches back to
automatic mode.
If the selector lever is in the M/S gear
plane, manual mode remains active.<
> To shift up: pull one of the shift paddles.
> To shift down: press one of the shift pad-
dles.
Upshifts and downshifts are executed only
when they will result in a plausible combination
of engine and vehicle speed; thus, for example,
a downshift that would cause the engine to
overrev will not be executed by the system. The
gear selected is briefly displayed in the instru-
ment cluster, followed by the gear actually in
use.
Overriding selector lever lock
Should the selector lever refuse to move out of
position P even though the ignition is switched
on, the brake is depressed and the button on
the selector lever is pressed, the selector lever
lock can be overridden:
1. Unclip the sleeve of the selector lever.
2. Pull the sleeve up over the selector lever
until the sleeve is inside out.
3. Using the screwdriver from the onboard
vehicle tool kit, refer to page 142, press the
red lever while moving the selector lever to
the desired position.
Turn signals/
headlamp flasher
1 High beams
2 Headlamp flasher
3 Turn signals
Using turn signals
Press the lever beyond the resistance point.
To turn off manually, press the lever to the
resistance point.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving
54
Unusually rapid flashing of the indicator
lamp indicates that a turn signal indicator
has failed.<
Indicating a turn briefly
Press the lever as far as the resistance point for
as long as you wish to indicate a turn.
Triple turn signal activation
Press the lever as far as the resistance point.
The turn signals flash three times.
You can activate or deactivate this function.
1. Switch on the ignition, refer to page 49.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
3. Press button 2.
4. Lightly push button 1 in the turn indicator
lever down repeatedly until the symbol
appears in the display.
5. Press button 2.
6. Use button 1 to select:
>
Turn signals flash once.
>
Triple turn signal.
7. Press button 2.
The setting is stored for the remote control
currently in use.
Wiper system
1 Switching on wipers
2 Switching off wipers or brief wipe
3 Activating/deactivating intermittent wipe or
rain sensor
*
4 Cleaning windshield and headlamps
*
5 Setting speed for intermittent wipe, or sen-
sitivity of the rain sensor
Switching on wipers
Press the lever upward, arrow 1.
The lever automatically returns to its initial posi-
tion when released.
Normal wiper speed
Press once.
The system switches to operation in the inter-
mittent mode when the vehicle is stationary.
Fast wiper speed
Press twice or press beyond the resistance
point.
The system switches to normal speed when the
vehicle is stationary.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
55
Intermittent wipe or rain sensor*
If the car is not equipped with a rain sensor, the
intermittent-wipe time is a preset.
If the car is equipped with a rain sensor, the time
between wipes is controlled automatically and
depends on the intensity of the rainfall. The rain
sensor is mounted on the windshield, directly in
front of the interior rearview mirror.
Activating intermittent wipe or rain
sensor
Press the button, arrow 3. The LED in the but-
ton lights up.
Setting speed for intermittent wipe or
sensitivity of the rain sensor
Turn thumbwheel 5 up or down.
Deactivating intermittent wipe or rain
sensor
Press the button again, arrow 3.
The LED goes out.
Deactivate the rain sensor before enter-
ing an automatic car wash. Failure to do
so could result in damage caused by undesired
wiper activation.<
Cleaning windshield and headlamps*
Pull the lever, arrow 4.
Washer fluid is sprayed onto the windshield and
the wipers are operated for a short time.
When the vehicle lighting system is switched
on, the headlamps are cleaned at regular and
appropriate intervals.
Do not use the washers if there is any
danger that the fluid will freeze on the
windshield. If you do, your vision could be
obscured. Antifreeze should therefore be
added to the fluid, refer to Washer fluid.
Do not use the washers when the washer fluid
reservoir is empty; otherwise, you will damage
the washer pump.<
Windshield washer nozzles
The windshield washer nozzles are heated
automatically
*
while the engine is running or
the ignition is switched on.
Washer fluid
Washer fluid antifreeze is flammable.
Therefore, keep it away from ignition
sources and only store it in the closed original
container that is kept out of reach of children;
otherwise, there is a risk of personal injury.
Comply with the instructions on the con-
tainer.<
Washer fluid filler neck
Only refill washer fluid when the engine is
cool to avoid contact with hot engine
parts. Otherwise, fluid spills constitute a fire
hazard and a risk to personal safety.<
All washer nozzles are supplied with washer
fluid by the same reservoir.
Fill with water and, if required, with a washer
antifreeze, according to manufacturer's recom-
mendations.
Mix the water and antifreeze before filling
the washer fluid reservoir to make sure
the correct concentration is maintained.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving
56
Capacity
Approx. 6.3USquarts/6liters.
Cruise control*
The concept
Cruise control is available for use at speeds of
approx. 20 mph or 30 km/h. The car then stores
and maintains the speed that you specify using
the lever on the steering column. In order to
maintain the specified speed, the system
brakes the vehicle when the engine braking
effect is insufficient on downhill gradients.
Do not use cruise control when driving at
constant speed is prevented by adverse
conditions, e.g. winding roads, dense traffic or
poor road conditions due to, e.g., snow, rain, ice
or loose surfaces. Otherwise, you could lose
control of the vehicle and cause an accident as a
result.<
Manual transmission
You can shift gears while cruise control is acti-
vated. The system is deactivated when you
drive at very low engine speeds for an extended
period.
One lever for all functions
1 Storing and maintaining speed or accelerat-
ing
2 Storing and maintaining speed or deceler-
ating
3 Deactivating cruise control
4 Resuming a speed stored beforehand
Maintaining current speed
Tap the lever, arrow 1, or pull it briefly, arrow 2.
The car's current speed is stored and main-
tained. It is displayed on the speedometer and
briefly in the instrument cluster.
On uphill gradients, it may prove impossible to
maintain the set speed if current engine power
output is insufficient. If the engine braking
effect is insufficient on downhill slopes, the sys-
tem will brake the vehicle slightly.
Increasing desired speed
Repeatedly press the lever to the resistance
point or beyond, arrow 1, until the desired
speed is reached.
> Each time the lever is pressed to the resis-
tance point, the desired speed is increased
by approx. 1 mph or 1 km/h.
> Each time the lever is pressed beyond the
resistance point, the desired speed is
increased by up to 5 mph or 10 km/h.
The system stores and maintains the speed.
Accelerating using the lever
Accelerating slightly:
Press the lever to the resistance point, arrow 1,
until the desired speed is reached.
Accelerating significantly:
Press the lever beyond the resistance point,
arrow 1, until the desired speed is reached.
The vehicle accelerates without pressure on
the accelerator pedal. The system stores and
maintains the speed.
Decreasing speed
Repeatedly pull the lever to the resistance point
or beyond, arrow 2, until the desired speed is
displayed.
> Each time the lever is pulled to the resis-
tance point, the desired speed is decreased
by approx. 1 mph or 1 km/h.
> Each time the lever is pulled beyond the
resistance point, the desired speed is
reduced by up to 5 mph or 10 km/h until the
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
57
minimum speed of 20 mph or 30 km/h is
achieved.
The system stores and maintains the speed.
Deactivating cruise control
Tap the lever upwards or downwards, arrow 3.
The displays on the speedometer disappear.
In addition, the system is automatically deacti-
vated:
> When you brake the vehicle
> When you switch gears very slowly or shift
to neutral in cars with manual transmission
> When you select the automatic transmis-
sion's neutral position N
> When you activate DTC or deactivate DSC
> When DSC or ABS is intervening
Cruise control is not deactivated by depressing
the accelerator pedal. Once the accelerator
pedal is released, the stored speed is achieved
again and maintained.
Warning lamp
The warning lamp lights up when
cruise control is deactivated due to
control intervention by the DSC, for
example.
Resuming a speed stored beforehand
Press the button, arrow 4. The last stored
speed is resumed and maintained.
In the following instances, the stored speed is
deleted and can no longer be resumed:
> When driving stability control systems are
intervening
> In cars with manual transmission: when you
shift gears very slowly or shift to neutral
> In cars with automatic transmission: when
you engage selector lever position N
> When the ignition is switched off
Displays in the instrument cluster
1 Stored speed
2 Selected speed is displayed briefly
If --- mph or --- km/h temporarily appears
in the instrument cluster display, it is pos-
sible that the system prerequisites for operation
are currently not met.
Calling up Check Control messages, refer to
page 71.<
Malfunction
The warning lamp comes on when
the system has failed. More informa-
tion can be found beginning on
page 154.
Active cruise control*
The concept
With active cruise control, you can select a
desired speed which is not only automatically
maintained when driving on open roadways, but
also varied to maintain a selected distance set-
ting as slower traffic is encountered.
Active cruise control is a technological advance
over the familiar cruise control and is a welcome
relief from the constant adjustment of speed
that can accompany driving in traffic on high-
ways or other high-speed thoroughfares. Espe-
cially on longer trips, the system can reduce
fatigue and tension, while increasing your
enjoyment of driving. Please use it safely and
responsibly.
Within the limits of its capability, the system
automatically adapts the car's speed to that of a
slower vehicle in front of you. You can specify
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving
58
the distance to be maintained from the vehicle
in front in four stages. For safety reasons, the
distance is speed-dependent. Based on your
selected distance setting, the system automat-
ically decreases the throttle setting and lightly
applies the brakes if necessary. The vehicle
brake lamps will automatically illuminate to sig-
nal a following driver to take action. In addition,
it may be necessary for the vehicle or the driver
to downshift, depending on the kind of trans-
mission your vehicle is equipped with, to main-
tain the distance setting selected. If the vehicle
ahead speeds up or when the lane ahead
becomes clear, your vehicle will accelerate to
the speed you have selected by increasing the
throttle setting and shifting gears automatically
or by the driver as needed. Your selected speed
will be held when driving downhill, too.
Since this active cruise control system is a new
technology and operates differently from con-
ventional cruise control systems which you may
be accustomed to, you are strongly urged to
read all of the pages relating to this system
before use. Pay special attention to the System
limitations section beginning on page 61.
Braking sensation
> If you step on the brake pedal while the sys-
tem is braking, pedal sensation will be
slightly different from the usual.
> Possible noises during automatic braking
are normal.
Manual transmission
You can shift gears while cruise control is acti-
vated. The system is deactivated when you
drive at very low engine speeds for an extended
period.
Range of applications
The minimum desired speed is 20 mph or
30 km/h, the maximum desired speed is
110mph or 180km/h.
As with conventional cruise control sys-
tems, active cruise control in no way
diminishes or substitutes for the driver’s own
personal responsibility, alertness and aware-
ness in adjusting speed, braking or otherwise
controlling the vehicle. The driver should
decide when to use the system on the basis of
road, traffic, visibility, and weather conditions.
Active cruise control is intended for use on
highway-type roadways where traffic is moving
relatively smoothly. Do not use this system in
city driving; heavy traffic such as during rush
hour; on curvy, winding roads, slippery roads or
roads with sharp curves such as highway off-
ramps; during inclement weather such as snow,
strong rain or fog; or when entering inter-
changes, service/parking areas or toll booths.
It is also important to regulate your vehicle's
speed and distance setting within applicable
legal limits. Always be ready to take action or
apply the brakes if necessary, especially when
the system is actively following a vehicle in front
of you. Otherwise, driving situations could
result that pose the risk of accidents.<
One lever for all functions
1 Store and increase desired speed
2 Store and decrease desired speed
3 Deactivate system, refer to page 60
4 Resume stored desired speed and dis-
tance, refer to page 60
5 Select distance to vehicle driving ahead,
refer to page 59
Storing current speed
Briefly press the lever, arrow 1, or briefly pull it,
arrow 2, at a driving speed of more than approx.
20 mph or 30 km/h.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
59
The car's current speed is stored. It is displayed
on the speedometer and briefly in the instru-
ment cluster.
Increasing desired speed
Press or tap the lever to the resistance point or
beyond, arrow 1, until the desired speed is dis-
played.
> Each time the lever is tapped to the resis-
tance point, the desired speed is increased
by approx. 1 mph or 1 km/h.
> Each time the lever is tapped beyond the
resistance point, the desired speed is
increased by up to 5 mph or 10 km/h until
the maximum speed of 110 mph or
180 km/h is achieved.
The speed then displayed is stored and
achieved on a clear road.
Decreasing desired speed
Pull the lever, arrow 2, until the desired speed is
displayed.
The other functions work analogously to those
described under Increasing desired speed.
Selecting distance
> Press downward:
Increase distance.
> Press upward:
Decrease distance.
The selected distance is displayed in the instru-
ment cluster.
Use good judgment to select the appro-
priate following distance given road con-
ditions, traffic, applicable laws and driving rec-
ommendations for safe following distance.
Otherwise, an accident risk could result.<
Distance 1
Distance 2
Distance 3
Distance 4
This is always the preset dis-
tance when you use the system
for the first time after starting the
engine.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving
60
Deactivating cruise control
Press the lever upward or downward, arrow 3.
The displays on the speedometer disappear.
In addition, the system is automatically deacti-
vated:
> When you brake the vehicle
> When the speed is reduced to below
20 mph or 30 km/h due to a traffic situation
> When you switch gears very slowly or shift
to neutral in cars with manual transmission
> When you select the automatic transmis-
sion's neutral position N
> When you activate the Dynamic Traction
Control DTC
> When you deactivate the Dynamic Stability
Control DSC
> When DSC or ABS is intervening
> When the system does not recognize any
objects for a longer period of time, e.g. on
infrequently traveled roads without a shoul-
der or guard rails, or if the radar sensor is
covered with dirt, refer to page 61
> When you apply the parking brake
When the system is deactivated, you
must brake the vehicle yourself and/or
maneuver as necessary; otherwise, there is a
risk of accidents.<
Warning lamp
The warning lamp comes on when
active cruise control has been auto-
matically deactivated, for example
due to a driving speed below 20 mph or
30 km/h or a DSC intervention.
Resuming stored desired speed and
distance
Briefly press the button, arrow 4.
The stored speed and distance are regained
and maintained.
In the following instances, the stored speed is
deleted and can no longer be resumed:
> When driving stability control systems are
intervening
> In cars with manual transmission: when you
shift gears very slowly or shift to neutral
> In cars with automatic transmission: when
you engage selector lever position N
> When the ignition is switched off
Displays in the instrument cluster
1 Stored desired speed
2 Shows yellow: vehicle detected ahead
Flashes in red: system cannot maintain dis-
tance; driver must brake the vehicle
Flashes in yellow: driving stability control
systems are intervening; cruise control is
deactivated
3 Selected distance to vehicle ahead
The indicator lights up as soon as the sys-
tem is activated.
4 Selected desired speed is temporarily dis-
played
If --- mph or --- km/h temporarily appears
in the instrument cluster display, it is pos-
sible that the system prerequisites for operation
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
61
are currently not met. Calling up Check Control
messages, refer to page 71.<
Warning lamps
The indicator 2 flashes in red; a
signal sounds.
The system indicates that you
must brake and/or maneuver the
vehicle yourself. Active cruise con-
trol cannot automatically restore the distance to
the vehicle ahead.
This indicator does not release you from your
responsibility to adapt your desired speed and
driving style to prevailing driving conditions.
The indicator 2 flashes in yellow.
The prerequisites for operating
active cruise control are not met,
e.g. as a result of ABS or DSC
interventions. Active cruise control
is deactivated. You can reactivate the system, if
desired, by tapping or pulling the lever when
road and traffic conditions permit. It is not pos-
sible to resume a stored speed.
Radar sensor
The sensor's ability to detect vehicles ahead
may be restricted as a result of heavy rain, dirt,
snow or ice. If necessary, clean the radar sensor
located in the front bumper, see arrow. Be sure
to use particular care when removing any layers
of snow or ice from the sensor.
The system cannot be activated if the sensor is
incorrectly aligned.
For US owners only
The transmitter and receiver units comply with
part 15 of the FCC/Federal Communications
Commission regulations. Operation is gov-
erned by the following:
FCC ID:
NF3 ACC2SCU 003YK04001 0000
Compliance statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
> This device must not cause harmful inter-
ference, and
> this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modifications or
changes to these devices could void the
user’s authority to operate this equipment.<
Malfunction
The warning lamp comes on when
the system has failed. More informa-
tion can be found beginning on
page 154.
System limitations
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving
62
Always remember that the range and abil-
ity of the system does have physical limi-
tations. It will not apply the brakes or decelerate
your vehicle when there is a slow-moving vehi-
cle, stopped vehicle or stationary object ahead
of you, as for example, at a traffic light or a
parked vehicle. Also, the system does not react
to oncoming traffic, pedestrians or other types
of potential traffic such as a rider on horseback.
It is also possible that the system may not
detect smaller moving objects such as motor-
cycles or bicycles. Be especially alert when
encountering any of these situations as the sys-
tem will neither automatically brake, nor provide
a warning to you. Also, be aware that every
decrease in the distance setting allows your
vehicle to come closer to a vehicle in front of
you and requires a heightened amount of alert-
ness.<
Active cruise control is not and must not
be used as a collision avoidance/warning
system.<
If while your vehicle is actively following a vehi-
cle in front of you and the vehicle ahead speeds
up or the lane ahead becomes clear, then your
vehicle will accelerate to the speed you have
selected. Be aware that changing to a clear,
unobstructed lane will also result in your vehicle
accelerating.
Be certain to deactivate the system when
you pull into an exit lane for a highway off-
ramp.<
Also, vehicles traveling in a staggered manner
on a highway may cause a delay in the system's
reaction to a vehicle in front of you or may cause
the system to react to a vehicle actually in the
lane next to you. Always be ready to take action
or apply the brakes if necessary.
While active cruise control is capable of
braking your vehicle automatically when
you approach a slower vehicle ahead, it is
important to be aware that the ability of the sys-
tem to apply the brakes is also limited, e.g.
when you reduce your desired speed sharply.
The system cannot stop your vehicle. It uses
only a portion of braking system capacity and
does not utilize the full capacity of the vehicle
braking system. Therefore, the system cannot
decrease your speed for large differences in
speed between your vehicle and the vehicle
ahead. Examples: when you approach a vehicle
traveling at a much lower speed than your own
speed such as approaching a toll booth or when
a much slower vehicle cuts in front of you at
close range.<
Active cruise control can only decelerate the
vehicle to approx. 20 mph or 30 km/h.
Swerving vehicles
When a vehicle moves from an adjacent lane
into your lane, active cruise control will not rec-
ognize this vehicle until it is fully in your lane
ahead of your vehicle.
When a vehicle ahead suddenly swerves
into your lane, the system may not be able
to maintain the selected distance automatically.
This also applies to great differences in speed
between you and vehicles ahead, e.g. when
quickly approaching a truck. There is a risk of
collision. Once the system has established that
a vehicle is indeed in front of you, it will indicate
that you must brake and/or maneuver the vehi-
cle yourself. Take action yourself; otherwise,
there is a risk of an accident.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
63
Behavior in curves
Because of the limited range of the system, it is
possible that in curves or on the peaks and val-
leys of hilly roads, a vehicle ahead may be rec-
ognized late, or not at all. Therefore, it is up to
the driver to select a speed that is prudent in
view of the curves and terrain of the roadway.
In approaching a curve, it is possible that active
cruise control would react briefly to a vehicle in
the adjacent lane. In addition, the system can
sense if your vehicle is in a curve and may not
accelerate. If your vehicle decelerates in either
case, you can choose to overcome the deceler-
ation by briefly pressing the accelerator pedal.
Your responsibility
Your actions have priority at all times. When you
press the accelerator pedal while driving with
active cruise control, the automatic braking
function will be temporarily interrupted. Once
you release the accelerator pedal, the desired
speed or the selected distance to the vehicle
ahead is achieved again.
Do not leave your foot on the accelerator
pedal and make sure that no objects such
as floor mats are lying on the accelerator pedal.
Otherwise, the system may not be able to brake
the vehicle.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Controls overview
64
Controls overview
Odometer, outside
temperature display, clock
1 Knob in the instrument cluster
2 Outside temperature display and clock
3 Odometer and trip odometer
Knob in the instrument cluster
> To reset the trip odometer while the ignition
is switched on
> To display the time, outside temperature
and odometer briefly while the ignition is
switched off
Units of measure
To select the respective units of measure, miles
or km for the odometer as well as 7 or 6 for
the outside temperature, refer to page 67.
The setting is stored for the remote control cur-
rently in use.
Time, outside temperature display
Setting the time, refer to page 69.
Outside temperature warning
When the displayed temperature sinks to
approx. +377/+3 6, a signal sounds and a
warning lamp lights up. There is an increased
risk of black ice.
Black ice can also form at temperatures
above +377/+36. You should there-
fore drive carefully on bridges and shaded
roads, for example; otherwise, there is an
increased risk of an accident.<
Odometer and trip odometer
Resetting the trip odometer:
With the ignition switched on, press button 1 in
the instrument cluster.
When the vehicle is parked
If you still want to view the time, outside tem-
perature and odometer reading briefly after the
remote control has been taken out of the igni-
tion lock:
Press button 1 in the instrument cluster.
Tachometer
Never force the engine speed up into the red
warning field, see arrow. In this range, the fuel
supply is interrupted to protect the engine.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
65
Coolant temperature
A warning lamp will come on if the coolant, and
therefore the engine, becomes too hot.
Check coolant level, refer to page 135.
Engine oil temperature*
When the engine is at normal operating temper-
ature, the engine oil temperature is between
approx. 2107/1006 and approx. 3007/
1506.
If the engine oil temperature is too high, a warn-
ing lamp comes on in the instrument cluster.
Fuel gauge
Fuel tank capacity: approx. 16.1 gallons/
61 liters.
You can find information on refueling on
page 118.
If the tilt of the vehicle varies for a longer period,
when you are driving in mountainous areas, for
example, the indicator may fluctuate slightly.
Reserve
Once the fuel level has fallen to the reserve
zone of approx. 2.1 US gallons/8 liters, the indi-
cator lamp and the cruising range for the
remaining amount of fuel light up briefly. The
indicator lamp remains permanently on when
the remaining range is less than approx.
30 miles/50 km.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km; otherwise, engine functions are not
ensured and damage can occur.<
Computer
Displays in the instrument cluster
Calling up information
Press the button in the turn indicator lever.
The following items of information are dis-
played in the order listed:
> Cruising range
> Average speed
> Average fuel consumption
> Current fuel consumption
*
> No information
To set the corresponding units of measure,
refer to Formats and units of measure on
page 67.
Cruising range
Displays the estimated cruising range available
with the remaining fuel. The range is calculated
on the basis of the way the car has been driven
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Controls overview
66
over the last 18 miles/30 km and the amount of
fuel currently in the tank.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km; otherwise, engine functions are not
ensured and damage can occur.<
Average speed
Periods with the vehicle parked and the engine
switched off are not included in the calculations
of average speed.
To reset average speed: press the button in the
turn indicator lever for approx. 2 seconds.
Average fuel consumption
The average fuel consumption is calculated for
the time during which the engine is running.
To reset average fuel consumption: press the
button in the turn indicator lever for approx.
2seconds.
Current fuel consumption
Displays the current fuel consumption. This
allows you to see whether your current driving
style is conducive to fuel economy with mini-
mum exhaust emissions.
Settings and information
Operating principle
Certain settings and information can only be
called up when the ignition is switched on. A
number of settings cannot be made while driv-
ing.
1 Button for:
> Selecting display
> Setting values
2 Button for:
> Confirming selected display or set val-
ues
> Calling up computer information 65
3 When the lights are on: instrument lighting
brightness 87
4 Calling up Check Control 70
5 Checking engine oil level
*
133
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
67
6 Initializing the Flat Tire Monitor 75
Resetting the Tire Pressure Monitor 77
7 Setting the time 69
8 Setting the date 70
9 Viewing service requirement display 68
10 Setting formats and units of measure,
resetting to factory settings 67
11 Adjusting settings
> Confirmation signals when locking and
unlocking the vehicle 21
> Response during unlocking
procedure 19
> Automatic locking 23
> Pathway lighting 83
> Daytime running lights 84
> Triple turn signal activation 54
> Seat memory
*
41
Exiting displays
The outside temperature reading and the time
reappear when you press button 2 or if you
make no entries within approx. 15 seconds. If
required, complete the current setting first.
Formats and units of measure
You can set formats and units of measure.
1. Switch on the ignition, refer to page 49.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
3. Press button 2.
4. Use button 1 to select desired format or
desired unit of measure, e.g. for fuel con-
sumption.
> Fuel consumption: mpg, km/l,
l/100km
> Distance covered: mls, km
> Time: 12h, 24h format
> Date: day.month dd.mm,
month/day mm/dd
> Temperature: 7, 6
5. Press button 2.
6. Use button 1 to make the setting.
7. Press button 2.
The setting is stored for the remote control
currently in use.
Resetting to factory settings
You can reset the settings for formats and units
of measure to the factory settings.
1. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
2. Press button 2.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Controls overview
68
3. Use button 1 to select "RESET".
4. Press button 2 until is displayed.
The settings are reset.
The setting is stored for the remote control
currently in use.
Service requirements
The remaining driving distance and the date of
the next scheduled service are displayed briefly
immediately after you start the engine or switch
on the ignition.
The extent of service work required can
be read out from the remote control by
your BMW Service Advisor.<
For certain maintenance operations, you can
view the respective distance remaining or due
date individually in the instrument cluster.
1. Switch on the ignition, refer to page 49.
2. Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol appears in the display, accompa-
nied by the words "SERVICE-INFO".
3. Press button 2.
4. Use button 1 to scroll through the individual
service items.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
69
Possible displays
1 Button for selecting functions
2 Service requirements
3 Engine oil
4 Roadworthiness test
*
5 Front brake pads
6 Rear brake pads
7 Brake fluid
The sequence of displayed service items may
vary. The data for the next service appointment
is shown first.
Clock
Setting the time
To set the 12h/24h mode, refer to Formats and
units of measure on page 67.
1. Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol appears in the display, accompa-
nied by the time and the word "SET".
2. Press button 2.
3. Use button 1 to set the hours.
4. Press button 2 to confirm the entry.
5. Use button 1 to set the minutes.
6. Press button 2 to confirm the entry.
7. Press button 2.
The system accepts the new time.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Controls overview
70
Date
Setting the date
To set the dd/mm or mm/dd date format, refer
to Formats and units of measure on page 67.
1. Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol appears in the display, accompa-
nied by the date and the word "SET".
2. Press button 2.
3. Use button 1 to set the day of the month.
4. Press button 2 to confirm the entry.
5. Set the month and the year in the same way.
6. Press button 2.
The system stores the new date.
Check Control
The concept
The Check Control monitors vehicle functions
and alerts you to any malfunctions in the sys-
tems monitored. This type of Check Control
message includes indicator and warning lamps
in the instrument cluster and, in some cases, an
acoustic signal.
Indicator and warning lamps can light up in a
variety of combinations and colors.
Several of the lamps are checked for proper
functioning and light up temporarily when the
engine is started or the ignition is switched on.
indicates that Check Control messages have
been stored. These Check Control messages
can be viewed again later, refer to page 71.
What to do in case of a malfunction
The meaning of each lamp in the event of a mal-
function and tips on how to respond are listed
starting on page 154.
Hiding Check Control messages
Press the button on the turn indicator lever.
> Some Check Control messages are dis-
played continuously and remain visible until
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
71
the malfunction has been rectified. If several
malfunctions occur at once, the messages
are displayed consecutively.
These messages can be hidden for approx.
8 seconds. After this, they are displayed
again automatically.
> Other Check Control messages are hidden
automatically after approx. 20 seconds.
They are stored and can be displayed again
later.
Displaying stored Check Control
messages
1. Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol appears in the display, accompa-
nied by the words "CHECK CONTROL".
2. Press button 2.
"CHECK OK" appears if there are no Check
Control messages.
If a Check Control message has been
stored, the corresponding lamp comes on.
3. Push button 1 to check for other messages.
4. Press button 2.
The display again shows the outside tem-
perature and the time.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technology for driving comfort and safety
72
Technology for driving comfort and safety
Park Distance Control PDC*
The concept
The PDC assists you with maneuvering in tight
parking spaces. Acoustic signals warn you of
the presence of an object behind your vehicle.
To measure the distance, there are four ultra-
sonic sensors in either bumper.
An acoustic warning does not sound until an
object is closer than approx. 2 ft/60 cm to the
corner sensors, or closer than approx. 5 ft/
1.50 m to the center sensors.
PDC is a parking aid that can indicate
objects when they are approached
slowly, as is usually the case when parking.
Avoid approaching an object at high speed; oth-
erwise, physical circumstances may lead to the
system warning being issued too late.<
Switching on automatically
With the engine running or the ignition switched
on, the system is activated after approx. 1 sec-
ond when you engage reverse gear or move the
automatic transmission selector lever to
position R. Wait this short period before driving.
Switching off automatically
After approx. 55 yd/50 m of driving or above
approx. 20 mph/approx. 30 km/h, the system
switches off and the LED goes out.
Signal tones
When nearing an object, its position is indicated
correspondingly by an interval tone. As the dis-
tance between vehicle and object decreases,
the intervals between the tones become
shorter. If the distance to the nearest object
falls to below roughly 1 ft/30 cm, then a contin-
uous tone sounds.
An interval tone is interrupted after approx.
3seconds
> If you remain in front of an object that has
been detected by only one of the corner
sensors
> If you are driving parallel to a wall.
Malfunction
The indicator lamp in the instrument
cluster comes on. PDC is malfunc-
tioning. Have the system checked.
To avoid this problem, keep the sensors clean
and free of ice or snow in order to ensure that
they will continue to operate effectively. When
using a high-pressure cleaner, do not spray the
sensors for extended periods of time and only
from a distance of at least 1 ft/30 cm.
System limitations
Even with PDC, final responsibility for
estimating the distance between the
vehicle and any obstructions always remains
with the driver. Even when sensors are pro-
vided, there is a blind spot in which objects can
no longer be detected. The system is also sub-
ject to the physical limits that apply to all forms
of ultrasonic measurement, such as those
encountered with trailer towbars and hitches,
thin or wedge-shaped objects, etc. Low objects
that have already been displayed, e.g. curbs,
can disappear again from the detection area of
the sensors before or after a continuous tone
sounds. Higher, protruding objects, e.g. ledges,
cannot be detected. Therefore, always drive
cautiously; otherwise, there is a risk of personal
injury or property damage.
Loud sound sources outside or inside the car
can drown out the PDC signal. Therefore,
always drive cautiously; otherwise, there is a
risk of personal injury or property damage.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
73
Driving stability control
systems
Your BMW has a number of systems that help
to maintain the vehicle's stability even in
adverse driving conditions.
Antilock Brake System ABS
ABS prevents locking of the wheels during
braking. Safe steering response is maintained
even during full braking. Active safety is thus
increased.
The ABS is operational every time you start the
engine. Braking safely, refer to page 112.
Electronic brake-force distribution
EBV
The system controls the brake pressure in the
rear wheels to ensure stable braking behavior.
Dynamic Brake Control DBC
When you apply the brakes rapidly, this system
automatically produces the maximum braking
force boost and thus helps to achieve the short-
est possible braking distance during full brak-
ing. This system exploits all of the benefits pro-
vided by ABS.
Do not reduce the pressure on the brake for the
duration of the full braking application.
Dynamic Stability Control DSC
DSC prevents the driving wheels from losing
traction when you pull away from rest or accel-
erate. The system also recognizes unstable
driving conditions, for example if the rear of the
car is about to swerve or if momentum is acting
at an angle past the front wheels. In these
cases, DSC helps the vehicle maintain a safe
course within physical limits by reducing engine
output and through braking actions at the indi-
vidual wheels.
The laws of physics cannot be repealed,
even with DSC. An appropriate driving
style always remains the responsibility of the
driver. Therefore, do not reduce the additional
safety margin again by taking risks, as this could
result in an accident.<
Deactivating DSC
Press the button for at least 3 seconds; the indi-
cator lamps for DSC in the instrument cluster
light up. Dynamic Traction Control DTC and
DSC have been simultaneously deactivated.
Stabilizing and drive-output promoting actions
are no longer executed.
In the same way as with a differential interlock
*
,
even if DSC is deactivated, brake actions are
still performed to enhance drive output if the
drive wheels experience a significant loss of
traction.
To increase vehicle stability, activate DSC again
as soon as possible.
Activating DSC
Press the button again; the indicator lamps in
the instrument cluster go out.
For better control
If the indicator lamp flashes:
DSC is regulating the drive and brak-
ing forces.
If the indicator lamps are on:
DSC is deactivated.
Dynamic Traction Control DTC
DTC is a version of DSC in which the drive out-
put is optimized for particular road conditions,
e.g. unplowed snow-covered roads. The sys-
tem assures the maximal drive output, but with
reduced driving stability. It is therefore neces-
sary to drive with appropriate caution.
You may find it useful to briefly activate DTC
under the following special circumstances:
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technology for driving comfort and safety
74
> When driving uphill on snow-covered roads,
in slush or on unplowed, snow-covered
roads
> When rocking a stuck vehicle free or start-
ing off in deep snow or on loose ground
> When driving with snow chains
Activating DTC
Press the button; the indicator lamps for DTC in
the instrument cluster come on.
For better control
If the indicator lamp flashes:
DTC is regulating the drive and brak-
ing forces.
If the indicator lamps are on:
DTC has been activated.
Deactivating DTC
Press the button again; the DTC indicator
lamps in the instrument cluster go out.
xDrive*
xDrive is your BMW's four-wheel-drive system.
The combined efforts of xDrive and DSC help to
further optimize traction and driving dynamics.
The xDrive four-wheel-drive system distributes
driving power variably to the front and rear axles
depending on the driving situation and road
conditions.
Hill Descent Control HDC*
HDC is a downhill driving assistant that controls
your speed on steep downhill gradients and
makes it even easier to control your BMW's
handling under these conditions. The vehicle
then moves slightly faster than double walking
speed without the driver needing to intervene.
HDC can be activated as long as you are driving
under approx. 20 mph or 35 km/h. When driving
downhill at a speed of under approx. 20 mph or
35 km/h, the vehicle's speed is automatically
reduced to slightly more than double walking
speed and maintained.
Increasing or decreasing speed
By accelerating or braking you can change this
speed within a range from approx. 3 to 15 mph,
approx. 5 to 25 km/h.
You can specify a target speed within the same
range using the cruise control
*
lever on the
steering column.
1 To increase speed
2 To decrease speed
Activating HDC
Press the button; the LED lights up.
When the vehicle is being braked automatically,
the LED flashes.
Deactivating HDC
Press the button again; the LED goes out.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
75
HDC is automatically deactivated at speeds
greater than approx. 35 mph/60 km/h.
Using HDC
In cars with manual transmission:
Use HDC in lower gears and in reverse gear.
With automatic transmission:
You can use HDC in any drive position.
Displays in the instrument cluster*
1 Display for target speed
2 HDC display
Malfunction
The HDC display disappears during HDC oper-
ation, or does not appear:
HDC is temporarily unavailable due to exces-
sive brake temperature, or DSC has failed.
Drive-off assistant
The drive-off assistant enables you to drive off
smoothly on uphill gradients. It is not necessary
to use the parking brake for this.
1. Hold the car in place by depressing the
brake.
2. Release the brake and drive off without
delay.
The drive-off assistant holds the car in
place for approx. 2 seconds after the
brake is released. Drive off without delay after
releasing the brake. Otherwise, the drive-off
assistant will no longer hold the car in place
after approx. 2 seconds and the car will start to
roll backwards.<
Flat Tire Monitor FTM*
The concept
The Flat Tire Monitor detects pressure loss in a
tire by comparing the rotating speeds of the
individual tires while moving.
In the event of pressure loss, the rolling circum-
ference changes and, thus, the rotating speed
of the affected wheel. This change is detected
and is reported as a flat tire.
Functional requirement
In order to assure the reliable reporting of a flat
tire, the system must be initialized for the cor-
rect tire inflation pressure.
The system must be reinitialized each
time a tire inflation pressure has been cor-
rected or a wheel or tire has been changed.<
System limitations
The Flat Tire Monitor is unable to warn
the driver of sudden, severe tire damage
caused by external factors, nor can it identify
the gradual loss of pressure that will inevitably
occur in all four tires over a lengthy period of
time.<
In the following situations, the system could be
delayed or malfunction:
> System has not been initialized
> Driving on snowy or slippery road surface
> Performance-oriented style of driving: slip
in the drive wheels, high lateral acceleration
> Snow chains are attached
Initializing the system
The initialization is completed during driv-
ing, which can be interrupted at any time.
When driving resumes, the initialization is con-
tinued automatically.
Do not initialize the system while snow chains
are attached.<
For operating principle refer to page 66.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technology for driving comfort and safety
76
1. Start the engine immediately before pulling
away, but do not drive off yet.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the corre-
sponding symbol appears in the display
accompanied by the word "RESET".
3. Press button 2 to confirm your choice of the
Flat Tire Monitor.
4. Press button 2 for approx. 5 seconds, until
the reading shown below is displayed:
5. Start driving.
Initialization is completed while the car is on
the move, without any feedback.
Indication of a flat tire
The warning lamps come on in yellow
and red. In addition, an acoustic sig-
nal sounds. There is a flat tire or sub-
stantial loss of tire pressure.
1. Cautiously reduce speed to below 50 mph
or 80 km/h. Avoid sudden braking and
steering maneuvers. Do not exceed a speed
of 50 mph or 80 km/h.
If the car is not equipped with run-flat
tires, refer to page 130, the standard
equipment by design, do not continue driv-
ing. Otherwise, a severe accident could
result if you continue driving.<
2. At the next opportunity, check the air pres-
sure in all four tires.
If all four tires are inflated to the cor-
rect pressures, the Flat Tire Monitor
might not have been initialized. The system
must then be initialized.<
3. In the event of complete tire pressure loss,
0 psi/0 kPa, you can estimate the possible
distance for continued driving on the basis
of the following guidelines:
> With a light load:
1 to 2 persons without luggage:
Approx. 155 miles/250 km
> With a medium load:
2 persons, cargo area full, or 4 persons
without luggage:
Approx. 90 miles/150 km
> With a full load:
4 persons, cargo area full:
Approx. 30 miles/50 km
Drive cautiously and do not exceed a
speed of 50 mph or 80 km/h; otherwise,
there is a risk of an accident. In the event of
pressure loss, vehicle handling changes. This
includes reduced tracking stability in braking,
extended braking distance and altered natural
steering characteristics.
If unusual vibration or loud noises occur during
the journey, this may be an indication that the
damaged tire has finally failed. Reduce your
speed and pull over as soon as possible at a
suitable location. Otherwise, parts of the tire
could come loose, resulting in an accident. Do
not continue driving. Instead, contact your
BMW center.<
Tire Pressure Monitor TPM*
The concept
RDC monitors the tire inflation pressure in the
four mounted tires during a trip. The system
notifies you if there is a significant loss of pres-
sure in one or more tires.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
77
Functional requirement
In order to assure the reliable reporting of a flat
tire, the system must be reset while all tire infla-
tion pressures are correct.
Always use wheels with TPM electronics. Oth-
erwise, the system may malfunction.
Each time a tire inflation pressure has
been corrected or a wheel or tire has been
changed, reset the system.<
System limitations
TPM cannot warn you in advance of sud-
den severe tire damage caused by out-
side influences.<
The system does not work correctly if it has not
been reset; for example, a flat tire may be indi-
cated even though the tire inflation pressures
are correct.
The system is inactive and cannot indicate a flat
tire if a wheel without TPM electronics, such as
a compact spare wheel, has been mounted, or if
TPM is temporarily malfunctioning due to other
systems or devices using the same radio fre-
quency.
Resetting the system
Each time a tire inflation pressure has
been corrected or a wheel or tire has been
changed, reset the system.<
For operating principle refer to page 66.
1. Start the engine, but do not start driving.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the corre-
sponding symbol appears in the display
accompanied by the word "RESET".
3. Press button 2 to confirm your choice of the
Tire Pressure Monitor. The following dis-
play appears:
4. Press button 2 for approx. 5 seconds, until
the reading shown below is displayed:
5. Start driving.
After driving a few minutes, the set inflation
pressures in the tires are accepted as the
target values to be monitored. The system
reset is completed during your drive, and
can be interrupted at any time. When the
trip is resumed, the reset is continued auto-
matically. The indicator lamp goes out after
the system reset is completed.
Message for low tire inflation pressure
The warning lamps come on in yellow
and red. In addition, a signal sounds.
There is a flat tire or substantial loss
of tire pressure.
1. Cautiously reduce speed to below 50 mph/
80 km/h. Avoid sudden braking and steer-
ing maneuvers. Do not exceed a speed of
50 mph/80 km/h.
If the car is not equipped with run-flat
tires, refer to page 130, the standard
equipment by design, do not continue driv-
ing. Otherwise, a severe accident could
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technology for driving comfort and safety
78
result after a tire puncture if you continue
driving.<
2. In the event of complete pressure loss,
0 psi/0 kPa, you can estimate the possible
distance for continued driving on the basis
of the following guidelines:
> With a light load:
1 to 2 persons without luggage:
Approx. 155 miles/250 km
> With a medium load:
2 persons, cargo area full, or 4 persons
without luggage:
Approx. 95 miles/150 km
> With a full load:
4 persons, cargo area full:
Approx. 30 miles/50 km
Drive cautiously and do not exceed a
speed of 50 mph/80 km/h. In the event of
pressure loss, vehicle handling changes. This
includes reduced tracking stability in braking,
extended braking distance and altered natural
steering characteristics.
If unusual vibration or loud noises occur during
the journey, this may be an indication that the
damaged tire has finally failed. Reduce your
speed and pull over as soon as possible at a
suitable location. Otherwise, parts of the tire
could come loose, resulting in an accident. Do
not continue driving. Instead, contact your
BMW center.<
Malfunction
The small warning lamp flashes in
yellow and then lights up continu-
ously; the large warning lamp comes
on in yellow. No punctures can be
detected.
This type of message is shown in the following
situations:
> If there is a malfunction
Have the system checked.
> If a wheel without TPM electronics has
been mounted
> If TPM is temporarily malfunctioning due to
other systems or devices using the same
radio frequency.
Declaration according to NHTSA/
FMVSS 138
Tire Pressure Monitoring Systems
Each tire should be checked monthly when cold
and inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. If
your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire infla-
tion pressure label, you should determine the
proper tire inflation pressure for those tires. As
an added safety feature, your vehicle has been
equipped with a tire pressure monitoring sys-
tem, TPMS, that illuminates a low tire pressure
telltale when one or more of your tires are signif-
icantly underinflated. Accordingly, when the
low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible,
and inflate them to the proper pressure. Driving
on a significantly underinflated tire causes the
tire to overheat and can lead to tire failure.
Underinflation also reduces fuel efficiency and
tire tread life, and may affect the vehicle’s han-
dling and stopping ability. Please note that the
TPMS is not a substitute for proper tire mainte-
nance, and it is the driver’s responsibility to
maintain correct tire pressure, even if underin-
flation has not reached the level at which the
TPMS low tire pressure telltale illuminates.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the sys-
tem detects a malfunction, the telltale will flash
for approximately one minute and then remain
continuously lit. This sequence will continue
upon subsequent vehicle startups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
79
Active steering*
The concept
Active steering varies the turning angle of the
front wheels in relation to steering wheel move-
ments. It also varies the steering force required
to turn the wheels depending on the speed at
which you are driving.
When you are driving in the low road speed
range, e.g. in a town or when parking, the steer-
ing angle is increased, i.e. steering becomes
very direct and less effort is required to turn the
wheels. In the higher speed range, on the other
hand, the steering angle is reduced as the
speed increases. This improves the handling of
your BMW over the entire speed range.
In critical situations, the system can make tar-
geted corrections to the steering angle pro-
vided by the driver and thus stabilize the vehicle
before the driver intervenes. This stabilizing
intervention is simultaneously deactivated
when DSC is switched off, refer to page 73.
Malfunction
The warning lamps come on. Active
steering is malfunctioning or is tem-
porarily deactivated. At low speeds,
greater steering wheel movements
are required, whereas at higher speeds the
vehicle reacts more sensitively to steering
wheel movements. The stability-enhancing
feature may also be deactivated. Drive cau-
tiously and think well ahead.
Deactivation
Active steering is deactivated to perform an ini-
tialization. A message indicates that the feature
is deactivated. Initialization may take several
minutes.
If the message does not disappear during the
current trip, have the system checked.
Defect
If there is a defect, a corresponding message
appears. Have the system checked.
Servotronic*
The concept
The Servotronic varies the steering force
required to turn the wheels relative to the vehi-
cle speed.
At low speeds, the steering force is strongly
assisted, i.e. less force is needed for steering.
As the vehicle speed increases, the steering
assisting power is reduced.
Malfunction
Malfunctions are displayed via Check Control,
refer to page 70.
Brake Force Display
On the left: normal braking.
On the right: sharp braking.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technology for driving comfort and safety
80
Airbags
The following airbags are located under the
marked covers:
1 Front airbags
2 Coupe: head airbags
3 Side airbags in the seat backrests
4 Convertible: knee airbags
Protective action
Observe the adjustment instructions on
page 35 to ensure the best possible per-
sonal protection.<
The front airbags help protect the driver and
front passenger by responding to frontal
impacts in which safety belts alone cannot pro-
vide adequate restraint. When needed, the
head and side airbags help provide protection in
the event of side impact. The relevant side air-
bag supports the side upper body area. The
head air bag supports the head.
The airbags have been designed to not be trig-
gered in every collision situation, e.g. not in
minor accidents or rear-end collisions.
Do not apply adhesive materials to the
cover panels of the airbags, cover them or
modify them in any other way.
Keep the dashboard and windows on the front
passenger side clear, i.e. do not cover with
adhesive labels or coverings, and do not attach
holders such as for navigation instruments or
mobile phones.
Do not attach seat covers, cushions or other
objects not specifically approved for seats with
integral side airbags to the front seats. Do not
hang items of clothing such as coats or jackets
over the backrests. Do not attempt to remove
the airbag retention system from the vehicle. Do
not modify the individual components of the
system or its wiring in any way. This includes
the upholstered covers on the steering wheel,
instrument panel, seats and roof posts, as well
as the sides of the roof lining. Do not attempt to
remove or dismantle the steering wheel.
Do not touch the individual components imme-
diately after the system has been triggered,
because there is a danger of burns.
In the event of malfunctions, deactivation or
triggering of the airbag restraint system, have
the testing, repair, removal and disposal of air-
bag generators executed only by a BMW center
or a workshop that works according to repair
procedures of BMW with correspondingly
trained personnel and that has the required
explosives licenses. Unprofessional attempts to
work on the system could lead to failure in an
emergency or to undesired airbag activation,
either of which could result in personal injury.<
Warning notices and information about the air-
bags can also be found on the sun visors.
Automatic deactivation of the front
passenger airbags
An analysis of the impression in the front pas-
senger seat cushion determines whether and
how the seat is occupied. The front and side air-
bags for the front passenger are activated or
deactivated by the system accordingly.
The indicator lamp above the interior
rearview mirror shows the current status
of the front passenger airbags, deactivated or
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
81
activated, refer to Status of front passenger air-
bags below.<
Before transporting a child on the front
passenger seat, read the safety precau-
tions and handling instructions under Trans-
porting children safely, refer to page 46.
The front and side airbags can also be deacti-
vated by adolescents and adults sitting in cer-
tain positions; the indicator lamp for the front
passenger airbags comes on. In such cases, the
passenger should change his or her sitting
position so that the front passenger airbags are
activated and the indicator lamp goes out. If the
desired airbag status cannot be achieved by
changing the sitting position, transport the rele-
vant passenger on a rear seat. Do not attach
seat covers, seat cushion padding, ball mats or
other items to the front passenger seat unless
they are specifically recommended by BMW.
Do not place any items under the seat which
could press against the seat from below. Other-
wise, a correct analysis of the seat cushion is
not ensured.<
Status of front passenger airbags
The indicator lamp for the front passenger air-
bags shows the functional status of the front
passenger front and side airbags in accordance
with whether and how the front passenger seat
is occupied. The indicator lamp shows whether
the front passenger airbags are activated or
deactivated.
> The indicator lamp lights up when a child in
a specially designated child restraint sys-
tem is detected, as intended, on the seat.
The front and side airbags for the front pas-
senger are not activated.
Most child seats are detected by the
system, especially child seats
required by the NHTSA at the time of vehi-
cle production. After mounting a child seat,
ensure that the indicator lamp for the front
passenger airbag is lit. It indicates that the
child seat has been detected and that the
front passenger airbags are deactivated.<
> The indicator lamp does not come on as
long as a person of sufficient size and in a
correct sitting position is detected on the
seat.
The front and side airbags for the front pas-
senger are activated.
> The indicator lamp does not come on if the
seat is empty.
The front and side airbags for the front pas-
senger are not activated.
Operational readiness of airbag system
As of radio readiness, refer to page 49, the
warning lamp comes on briefly to indicate that
the entire airbag system and the belt tensioners
are operational.
Airbag system malfunction
> Warning lamp does not light up at radio
readiness or beyond.
> Warning lamp remains permanently on.
In the event of a fault in the airbag system,
have it checked without delay; otherwise,
there is the risk that the system will not function
as intended even if a sufficiently severe acci-
dent occurs.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technology for driving comfort and safety
82
Convertible: rollover
protection system
The rollover protection system is activated
automatically in the event of an accident, a crit-
ical driving situation, an extreme tilt in the car's
longitudinal axis or upon loss of ground contact.
The protection bars behind the rear head
restraints deploy within fractions of a second.
As a supplementary system to the reinforced
windshield frame, the rollover protection sys-
tem ensures that the necessary headroom is
maintained for all vehicle occupants.
Always keep the area of movement of the
rollover protection system clear.
In minor accidents, you are protected by the
fastened safety belt and, depending on acci-
dent severity, by the safety belt tensioner and
multi-phase airbag retention system.<
Resetting
If the rollover protection system was not
impacted after being automatically activated, it
can be reset by lowering the protection bars to
their original positions. This does not require
tools.
1. Push the locking lever to one side and hold
it there.
2. Push the protection bar halfway down from
above.
3. Release the locking lever.
4. Push the protection bar down until it snaps
into place.
5. Repeat the procedure for the other protec-
tion bar.
Have the rollover protection system checked
after an unexpected activation.
Never move the retractable hardtop when
the rollover protection system is in the
activated position.
Do not make any modifications to the individual
components of the rollover protection system
or its cabling.
Work on the rollover protection system should
only be performed by a BMW center.
Incorrectly performed work on the system may
lead to system failure or incorrect operation.
To check the system and ensure flawless long-
term operation, always observe the service
intervals, refer to page 68.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
83
Lamps
Parking lamps/low beams
0 Lamps off,
daytime running lights
1 Parking lamps and daytime running lights
2 Low-beam headlamps and welcome lamps
3 Automatic headlamp control
*
, daytime run-
ning lights, welcome lamps, high-beam
assistant
*
and adaptive light control
*
When you open the driver's door with the igni-
tion switched off, the exterior lighting is auto-
matically switched off if the light switch is in
position 0, 2 or 3.
Switch on the parking lamps if necessary,
switch position 1.
Parking lamps
In switch position 1, the front, rear and side
vehicle lighting is switched on. You can use the
parking lamps for parking.
The parking lamps will discharge the bat-
tery. Therefore, do not leave them on for
unduly long periods of time; otherwise, the bat-
tery might not have enough power to start the
engine. It is preferable to switch on the left-
hand or right-hand roadside parking lamps,
refer to page 85.<
Low beams
The low beams light up when the light switch is
in position 2 and the ignition is on.
Automatic headlamp control*
When the switch is in position 3, the low beams
are switched on and off automatically depend-
ing on ambient light conditions, e.g. in a tunnel,
in twilight, or if there is precipitation. The adap-
tive light control
*
is active. The LED next to the
symbol is illuminated when the low beams are
on. You can also activate the daytime running
lights, refer to page 84. In the situations
described above, the lamps then automatically
switch from daytime running lights to low
beams.
The headlamps may also come on when the
sun is sitting low on a blue sky.
The low beams remain switched on
regardless of the ambient lighting condi-
tions when you switch on the fog lamps.<
The automatic headlamp control cannot
serve as a substitute for your personal
judgment in determining when the lamps
should be switched on in response to ambient
lighting conditions. For example, the system
cannot detect fog or hazy weather. To avoid
safety risks, you should always switch on the
low-beam headlamps manually under these
conditions.<
Welcome lamps
If you leave the light switch in position 2 or 3
when you park the car, the parking lamps and
the interior lamps light up briefly when you
unlock the vehicle.
Pathway lighting
If you activate the headlamp flasher after
switching off the ignition with the lamps
switched off, the low beams come on and
remain on for a certain time.
Setting the duration or deactivating
For operating principle, refer to page 66.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Lamps
84
1. Switch on the ignition, refer to page 49.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
3. Press button 2.
4. Lightly push button 1 in the turn indicator
lever down repeatedly until the symbol
appears in the display.
5. Press button 2.
6. Use button 1 to select:
>
The function is deactivated.
> ...
Select the corresponding duration, e.g.
40 seconds.
7. Press button 2.
The setting is stored for the remote control
currently in use.
Daytime running lights
The daytime running lights light up in switch
position 0, 1 and 3. They are less powerful than
the low beams.
Activating/deactivating daytime
running lights
For operating principle, refer to page 66.
1. Switch on the ignition, refer to page 49.
2. Lightly push button 1 in the turn indicator
lever up or down repeatedly until the sym-
bol appears in the display accompanied by
the word "SET".
3. Press button 2.
4. Lightly push button 1 in the turn indicator
lever down repeatedly until the symbol
appears in the display.
5. Press button 2.
6. Use button 1 to select:
>
Daytime running lights activated.
>
Daytime running lights deactivated.
7. Press button 2.
The setting is stored for the remote control
currently in use.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
85
Adaptive light control*
The concept
Adaptive light control is a variable headlamp
control system that enables better illumination
of the road surface. Depending on the steering
angle and other parameters, the light from the
headlamp follows the course of the road.
In tight curves at speeds up to 40 mph/70 km/h,
e.g. on mountainous roads or when turning, an
additional, corner-illuminating lamp is switched
on that lights up the inside area of the curve.
Activating Adaptive Light Control
With the ignition switched on, turn the light
switch to position 3, refer to page 83.
The corner-illuminating lamp is switched on
automatically, depending on the steering wheel
angle or turn signal indicator.
Standstill function
*
: to avoid blinding oncoming
traffic, the adaptive light control directs light
towards the front passenger side when the
vehicle is at a standstill.
When you are reversing, only the corner-illumi-
nating lamps are active and switched on on
both sides.
Malfunction
The LED next to the symbol for automatic head-
lamp control flashes. Adaptive light control is
malfunctioning or has failed. Have the system
checked as soon as possible.
High beams/roadside parking
lamps
1 High beams
2 Headlamp flasher
3 Roadside parking lamps
*
Roadside parking lamps, left or right*
There is an additional option of switching on the
lamps on the side of the car facing the road
when parked.
Switching on
After parking the vehicle, press the lever up or
down beyond the pressure point for a longer
period, arrow 3.
The roadside parking lamps drain the bat-
tery. Therefore, do not leave them on for
unduly long periods of time; otherwise, the bat-
tery might not have enough power to start the
engine.<
Switching off
Press the lever in the opposite direction to the
pressure point, arrow 3.
High-beam assistant*
The concept
This system automatically switches the high
beams on and off. The procedure is controlled
by a sensor on the front of the interior rearview
mirror. The assistant ensures that the high
beams are switched on whenever the traffic sit-
uation allows. It handles this task for you and
gives you the benefit of the best possible view.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Lamps
86
You can intervene at any time and switch the
high beams on and off as usual.
Activating the system
1. Turn the light switch to position 3, refer to
page 83.
2. With the low beams switched on, briefly
push the turn indicator lever in the direction
of the high beam.
The indicator lamp in the instrument
cluster lights up when the high beams
are activated. The system automati-
cally switches from high beams to low beams
and vice versa in response to oncoming traffic,
traffic ahead of you, and adequate ambient
lighting, e.g. on city streets.
Switching the high beams on and off
manually
Whenever you wish, or when the situation
requires, you can intervene:
> If the high-beam assistant switches on the
high beams, but you would like to drive with
the low beams, simply switch off the high
beams using the turn indicator lever. This
deactivates the high-beam assistant.
To reactivate the system, briefly push the
turn indicator lever toward the high beams
again.
> If the high-beam assistant switches on the
low beams, but you would like to drive with
the high beams, switch on the high beams
as usual. This deactivates the system and
the high beams need to be switched off
manually, if necessary.
To reactivate the system, briefly push the
turn indicator lever toward the high beams
again.
> Use the headlamp flasher as usual with the
low beams switched on.
System limitations
The high-beam assistant cannot serve as
a substitute for the driver's personal judg-
ment of when to use the high beams. Therefore,
manually switch off the high beams in situations
where this is required to avoid a safety risk.<
The system is not fully functional in situations
such as the following, and driver intervention
may be necessary:
> In very unfavorable weather conditions,
such as fog or heavy precipitation
> In detecting poorly-lit road users, such as
pedestrians, cyclists, horseback riders and
wagons; when driving close to train or ship
traffic; and at animal crossings
> In tight curves, on hilltops or in depressions,
in cross traffic or half-obscured oncoming
traffic on highways
> In poorly lit towns and cities and in the pres-
ence of highly reflective signs
> At low speeds
> When the windshield in front of the interior
rearview mirror is fogged over, dirty or cov-
ered with stickers, etc.
> If the sensor is dirty. Clean the sensor on
the front of the interior rearview mirror using
a cloth moistened with a small amount of
glass cleaner.
Fog lamps
The parking lamps or low beams must
be switched on for the fog lamps to
operate. The green indicator lamp in
the instrument cluster lights up whenever the
fog lamps are on.
The fog lamps are switched off while you acti-
vate the headlamp flasher or switch on the high
beams.
If the automatic headlamp control is acti-
vated, the low beams will come on auto-
matically when you switch on the fog lamps.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
87
Instrument lighting
You can adjust the brightness of the instrument
lighting only when the parking lamps or the low
beams are switched on.
1. Push button 1 up or down repeatedly until
the appropriate symbol appears in the dis-
play, accompanied by the brightness set-
ting and scale the word "SET".
2. Press button 2.
3. Push button 1 up or down to select the
desired brightness level.
4. Press button 2.
The display again shows the outside tem-
perature and the time.
Interior lamps
The interior lamps, the footwell lamps
*
, entry
lamps
*
,
cargo area lamp and courtesy lamps
*
are controlled automatically.
The LEDs for the courtesy lamps
are set in the
door handles and illuminate the ground in front
of the doors.
To avoid draining the battery, all lamps
inside the car are switched off about
8 minutes after the ignition is switched off, refer
to Start/stop button on page 49.<
Switching interior lamps on/off
manually
Interior lamps, front and rear
*
:
To switch on and off, press the button.
To switch off the interior lamps, footwell
lamps
*
, entry lamps
*
and courtesy lamps
*
per-
manently, press the button for the front interior
lamps for about 3 seconds.
Reading lamps
There are reading lamps at the front and rear
*
,
next to the interior lamps. To switch on and off,
press the button.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Climate
88
Climate
Equipment versions
Depending on the equipment version, your car
has an air conditioner or an automatic climate
control system.
1 Air conditioner 89
2 Automatic climate control
*
91
Air vents
3 Airflow directed toward the windshield and
side windows
4 Air to the upper body area.
The thumbwheels smoothly open and close
the air supply. The levers alter the direction
of the airflow. For further details of draft-
free ventilation refer to page 93.
5 Air to the footwell
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
89
Air conditioner
1 Air distribution
2 Recirculated-air mode
3 Air volume
4 Cooling function
5 Temperature
6 Rear window defroster
Air distribution
Direct the flow of air to the win-
dows , to the upper body area
or to the footwell . Intermedi-
ate settings are possible.
Recirculated-air mode
If the air outside the car has an
unpleasant odor or contains pollut-
ants, shut off the supply to the
interior of the car temporarily. The
system then recirculates the air currently within
the vehicle.
You can also activate/deactivate the recircu-
lated-air mode by means of a button
*
on the
steering wheel, refer to page 11.
If condensation starts to form on the
inside window surfaces during operation
in the recirculated-air mode, you should switch
it off while also increasing the air volume as
required.
The recirculated-air mode should not be used
continuously for lengthy periods; otherwise, the
quality of the air inside the car will gradually
deteriorate.<
Air volume
Turn to adjust the air volume. The
higher the volume, the more effec-
tive the heating or cooling will be.
The air volume may be reduced or the blower
may be switched off entirely to save on battery
power.
Switching the system on/off
Set any desired air volume to switch on the air
conditioner.
Turn the air volume rotary switch to 0. The
blower and air conditioner are completely
switched off and the air supply is cut off.
The outside air supply is blocked when
the air conditioner is switched off. If the air
quality deteriorates or the window fogs over,
switch the system back on and increase the air
volume.<
Switching cooling function on/off
The cooling function cools and
dehumidifies the incoming air
before reheating it according to the
temperature setting. This function
is only available while the engine is running.
The cooling function helps prevent condensa-
tion on the windows or removes it quickly.
Depending on the weather, the windshield may
fog over briefly when the engine is started.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Climate
90
Rear window defroster
The defroster is switched off auto-
matically after a certain time.
Depending on your vehicle's
equipment, the upper wires serve
as an antenna and are not part of the rear win-
dow defroster.
Temperature
To increase the temperature, turn
the rotary switch clockwise
towards red.
For a lower temperature, turn the
rotary switch counterclockwise towards blue.
Defrosting windows and removing
condensation
1. Air distribution 1 in position .
2. Deactivate recirculated-air mode 2.
3. Air volume control 3 all the way to the right.
4. Switch on cooling function 4.
5. Temperature 5 to the right, red.
6. Switch on rear window defroster 6 to
defrost the rear window .
Ventilation
1 Use the thumbwheels to smoothly open
and close the air vents
2 Use the lever to change the direction of the
airflow
Ventilation for cooling
Adjust the vent outlets to direct the flow of cool
air in your direction, for instance if it has become
too hot in the car.
Draft-free ventilation
Adjust the vents to let the air flow past you.
Microfilter
The microfilter removes dust and pollen from
the incoming air. The microfilter is changed by
your BMW center during routine maintenance
work.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
91
Automatic climate control*
1 Seat heating
*
, left side 40
2 Air distribution, manual
3 Temperature, left side
4 Maximum cooling
5 AUTO program
6 Air volume, manual adjustment; AUTO
intensity
7 Automatic recirculated-air control AUC/
Recirculated-air mode
8 ALL program
9 Temperature, right side
10 Defrosting windows and removing conden-
sation
11 Switching cooling function on/off manually
12 Rear window defroster
13 Seat heating
*
, right side 40
14 Interior temperature sensor, please keep
clear
Comfortable interior climate
AUTO program 5 offers the ideal air distribution
and air volume for almost all conditions, refer to
AUTO program below. All you need to do is
select an interior temperature which is comfort-
able for you.
The following sections inform you in detail
about how to adjust the settings.
Most settings are stored for the remote control
currently in use, refer also to Personal Profile
settings on page 18.
Adjusting air distribution manually
The air distribution can be
switched on and off manually. The
air is directed to the windshield, to
the upper body area and to the
footwell.
The automatic air distribution can be switched
back on by pressing the AUTO button. The
cooling function is switched on automatically
and the manual air distribution setting is
cleared.
Temperature
Turn to set the desired tempera-
ture.
The automatic climate control
achieves this temperature as
quickly as possible regardless of the season,
using maximum cooling or heating power if nec-
essary, and then maintains it.
Avoid rapid switching between different tem-
perature settings. The automatic climate con-
trol will not have sufficient time to adjust the set
temperature.
Maximum heating power can be obtained with
the highest setting, regardless of the outside
temperature.
The system cools steadily in the lowest setting,
regardless of the outside temperature.
Maximum cooling
Press the button.
The system is set to the lowest
temperature, maximum air volume
and recirculated-air mode.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Climate
92
Air flows out of the vent outlets for the upper
body region. Open them for this purpose.
Air is cooled as quickly as possible:
> Above an outside temperature of approx.
32 7/0 6
> When the engine is running
AUTO program
Press the button.
Air volume, air distribution and
temperature are controlled auto-
matically.
Depending on the selected temperature, AUTO
intensity and outside influences, the air is
directed toward the windshield, the side win-
dows, the upper body and the footwell.
Pressing the AUTO button automatically
switches on the cooling function.
At the same time, a condensation sensor con-
trols the program so as to prevent window con-
densation as much as possible.
The program is switched off when the air distri-
bution is set manually or the button is pressed
again.
Intensity of the AUTO program
With the AUTO program switched on, auto-
matic control of the air volume and air distribu-
tion can be adjusted:
Press the left side of the button to
reduce the intensity. Press the
right side of the button to increase
it.
The selected intensity is shown on the display
of the automatic climate control.
Convertible program
The Convertible program is active when the
hardtop is open. In the Convertible program, the
automatic climate control is optimized for driv-
ing with the hardtop open. In addition, the air
volume is increased as vehicle speed increases.
The effectiveness of the Convertible pro-
gram can be enhanced considerably by
installing the wind deflector.<
Adjusting air volume manually
To be able to manually adjust the air volume,
switch off the AUTO program first.
Press the left side of the button to
reduce the air volume. Press the
right side of the button to increase
it.
The air volume may be reduced or the blower
may be switched off entirely to save on battery
power. The display remains the same.
Automatic recirculated-air control
AUC/Recirculated-air mode
You can respond to unpleasant odors or pollut-
ants in the immediate environment by tempo-
rarily suspending the supply of outside air. The
system then recirculates the air currently within
the vehicle.
Press the button repeatedly to
select an operating mode:
> LED off: outside air flows in continuously.
> Left-hand LED on, AUC mode: a sensor
detects pollutants in the outside air and
controls the shut-off automatically.
> Right-hand LED on, recirculated-air mode:
the supply of outside air is permanently
shut off. If the windows fog over, switch off
recirculated-air mode and increase the air
volume, if necessary. Make sure that air can
flow onto the windshield.
The recirculated-air mode should not be
used over an extended period of time;
otherwise, the air quality inside the car will dete-
riorate continuously.<
Via the button on the steering wheel
You can switch quickly between the recircu-
lated-air mode and the previous mode using a
button
on the steering wheel, refer to page 11.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
93
ALL program
Press the button.
The current temperature setting
on the driver's side is transferred to
the front passenger side.
If the temperature setting on the driver's side is
changed, the temperature on the front passen-
ger side is changed as well.
The program is switched off when the setting is
adjusted on the front passenger side or the but-
ton is pressed again.
Defrosting windows and removing
condensation
Press the button.
Quickly removes ice and conden-
sation from the windshield and
front side windows.
For this purpose, also switch on the cooling
function.
Switching cooling function on/off
The passenger compartment can only be
cooled while the engine is running.
Press the button.
The air is cooled and dehumidified
and – depending on the tempera-
ture setting – warmed again.
Depending on the weather, the windshield may
fog up briefly when the engine is started.
Pressing the AUTO button automatically
switches on the cooling function.
Rear window defroster
Press the button.
The defroster is switched off auto-
matically after a certain time.
Depending on your vehicle's equipment, the
upper wires serve as an antenna and are not
part of the rear window defroster.
Switching the system on/off
Switching off
With the blower at its lowest set-
ting, press the left side of the but-
ton to switch off the automatic cli-
mate control.
All displays are cleared except for the rear win-
dow defroster if it is switched on.
The outside air supply is blocked when
the automatic climate control is switched
off. If the air quality deteriorates or the window
fogs over, switch the system back on and
increase the air volume.<
Switching on
Press any button except the ALL or the rear
window defroster button to reactivate the auto-
matic climate control.
Ventilation
1 Use the thumbwheels to smoothly open
and close the air vents
2 Use the lever to change the direction of the
airflow
3 Thumbwheel for more or less cool air from
the vents for the upper body area
Ventilation for cooling
Adjust the vent outlets to direct the flow of cool
air in your direction, for instance if it has become
too hot in the car.
Draft-free ventilation
Set the vent outlets so that the air flows past
you and not straight at you.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Climate
94
Ventilation in the rear
1 Use the thumbwheel to adjust the tempera-
ture:
> Turn toward blue: colder
> Turn toward red: warmer
2 Use the thumbwheel to smoothly open and
close the air vents
3 Use the lever to change the direction of the
airflow
Microfilter/activated-charcoal filter
The microfilter traps dust and pollen in the
incoming air. The activated-charcoal filter pro-
vides additional protection by filtering gaseous
pollutants from the outside air. Your BMW cen-
ter replaces this combined filter during routine
maintenance.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
95
Practical interior accessories
Integrated universal remote
control*
The concept
The integrated universal remote control can
replace as many as three hand-held transmit-
ters for various remote-controlled devices,
such as garage doors and gates or lighting sys-
tems. The integrated universal remote control
registers and stores signals from the original
hand-held transmitters.
The signal of an original hand-held transmitter
can be programmed on one of the three mem-
ory buttons 1. After this, the programmed
memory button 1 will operate the system in
question. The LED 2 flashes to confirm trans-
mission of the signal.
Should you sell your vehicle one day, be sure to
delete the stored programs beforehand for your
safety, refer to page 96.
To prevent possible damage or injury,
before programming or using the inte-
grated universal remote control, always inspect
the immediate area to make certain that no peo-
ple, animals or objects are within the pivoting or
travel range of the device being operated. Com-
ply also with the safety instructions supplied
with the original hand-held transmitter.<
Checking compatibility
If this symbol appears on the package
or in the instructions supplied with the
original hand-held transmitter, you can
assume that the radio remote control device will
be compatible with the integrated universal
remote control.
For additional information, please contact your
BMW center or call: 1-800-355-3515.
You can also obtain information on the Internet
at:
www.bmwusa.com or
www.homelink.com.
HomeLink is a registered trademark of Johnson
Controls, Inc.<
Programming
1 Memory buttons
2 LED
Fixed-code hand-held transmitters
1. Switch on the ignition, refer to page 49.
2. When starting operation for the first time:
press the left and right memory buttons 1
for approx. 20 seconds until the LED 2
flashes rapidly. The three memory buttons
are cleared.
3. Hold the original hand-held transmitter at a
distance of approx. 4 to 12 in/10 to 30 cm
from the memory buttons 1.
The required distance between the
hand-held transmitter and the mem-
ory buttons 1 depends on the system of the
respective original hand-held transmitter
used.<
4. Simultaneously press the transmit key on
the original hand-held transmitter and the
desired memory button 1 on the integrated
universal remote control. The LED 2 flashes
slowly at first. As soon as the LED 2 flashes
rapidly, release both buttons. If the LED 2
does not flash rapidly after approx. 15 sec-
onds, alter the distance and repeat this
step.
5. To program other original hand-held trans-
mitters, repeat steps 3 and 4.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Practical interior accessories
96
The corresponding memory button 1 is now
programmed with the signal of the original
hand-held transmitter.
You can operate the device while the ignition is
switched on.
If the device fails to function even after
repeated programming, check whether
the original hand-held transmitter uses an alter-
nating-code system. To do so, either read the
instructions for the original hand-held transmit-
ter or hold down the programmed memory
button 1 of the integrated universal remote
control. If the LED 2 on the integrated universal
remote control flashes rapidly and then remains
lit for about two seconds, the original hand-held
transmitter uses an alternating-code system. If
it uses an alternating-code system, program
the memory buttons 1 as described under
Alternating-code hand-held transmitters.<
Alternating-code hand-held
transmitters
To program the integrated universal remote
control, consult the operating instructions for
the device to be set. You will find information
there on the possibilities for synchronization.
When programming hand-held transmitters
that employ an alternating code, please observe
the following supplementary instructions:
Programming will be easier with the aid of
a second person.<
1. Park your vehicle within the range of the
remote-controlled device.
2. Program the integrated universal remote
control as described above in the section
Fixed-code hand-held transmitters.
3. Locate the button on the receiver of the
device to be set, e.g. on the drive unit.
4. Press the button on the receiver of the
device to be set. After step 4, you have
approx. 30 seconds for step 5.
5. Press the programmed memory button 1 of
the integrated universal remote control
three times.
The corresponding memory button 1 is now
programmed with the signal of the original
hand-held transmitter.
If you have any questions, please contact
your BMW center.<
Deleting all stored programs
Press the left and right memory buttons 1 for
approx. 20 seconds until the LED 2 flashes rap-
idly: all stored programs are deleted.
Reassigning individual programs
1. Hold the original hand-held transmitter at a
distance of approx. 4 to 12 in/10 to 30 cm
from the memory buttons 1.
The required distance between the
hand-held transmitter and the mem-
ory buttons 1 depends on the system of the
respective original hand-held transmitter
used.<
2. Press the desired memory button 1 of the
integrated universal remote control.
3. If the LED 2 flashes slowly after approx.
20 seconds, press the transmit key of the
original hand-held transmitter. Release
both buttons as soon as the LED 2 flashes
rapidly. If the LED 2 does not flash rapidly
after approx. 15 seconds, alter the distance
and repeat this step.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
97
Digital compass*
1 Adjustment button
2 Display
The display shows you the main or secondary
compass direction in which you are driving.
Operating principle
You can call up various functions by pressing
the adjustment button with a pointed object
such as a pen or similar item. The following
adjustment options are displayed one after the
other, depending on how long you keep the
adjustment button pressed:
> Press briefly: switch display on/off
> 3 to 6 seconds: set compass zone
> 6 to 9 seconds: calibrate compass
> 9 to 12 seconds: set left-hand/right-hand
steering
> 12 to 15 seconds: set the language
Setting compass zones
Set the compass zone corresponding to your
vehicle's geographic location so that the com-
pass can function correctly; refer to the world
map with compass zones.
To set the compass zone, press the adjustment
button for approx. 3-4 seconds. The number of
the compass zone set is shown in the display.
To change the zone setting, briefly press the
adjustment button repeatedly until the display
shows the number of the compass zone corre-
sponding to your current location.
The compass is operational again after approx.
10 seconds.
Calibrating the digital compass
The digital compass must be calibrated in the
following situations:
> An incorrect compass direction is shown.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Practical interior accessories
98
> The compass direction shown does not
change although the direction of travel
does.
> Not all compass directions are shown.
Procedure
1. Make sure that no large metal objects or
overhead power lines are in the vicinity of
your vehicle and that you have enough
space to drive in a circle.
2. Set the currently valid compass zone.
3. Convertible: ensure that the retractable
hardtop is fully closed.
4. Press the adjustment button for approx.
6-7 seconds to call up C. Then drive in at
least one full circle at a speed of no more
than 4mph or 7km/h.
If calibration is successful, the display
changes from C to a compass direction.
5. Convertible: open the retractable hardtop
fully and repeat step 4.
Setting right-hand/left-hand steering
Your digital compass is factory-set to right-
hand or left-hand steering, in accordance with
your vehicle.
Set the language
You can set the language of the display:
Press the adjustment button for approx.
12-13 seconds. Briefly press the adjustment
button again to switch between English, "E",
and German, "O".
The setting is automatically saved after approx.
10 seconds.
Coupe:
Roller sun blind*
Tap the button in the center console to raise or
lower the roller sun blind.
Glove compartment
Opening
Pull the handle.
The light in the glove compartment comes on.
To prevent injury in the event of an acci-
dent while the vehicle is being driven,
close the glove compartment immediately after
use.<
Closing
Fold the cover up.
Locking
To lock the glove compartment, use the inte-
grated key of the remote control, refer to
page 18.
Convertible: when you lock the vehicle from the
outside, the glove compartment is locked as
well.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
99
Center armrest
Storage compartment
The center armrest between the front seats
contains either a compartment or the cover for
the snap-in adapter
*
, depending on the equip-
ment version.
Opening
Press the button, see arrow.
Settings*
Slide the center armrest on the driver's side into
the desired position.
Connection for external audio device
You can connect an external audio device such
as a CD or MP3 player and play audio tracks
over the car's loudspeaker system. You can set
the volume and tone by means of the car radio,
refer to the separate Owner's Manual for Radio.
Connecting
Lift up the center armrest.
AUX-IN port for audio playback:
TRS connector 1/8 in/3.5 mm
To play audio tracks over the car's loudspeaker
system, connect the headset or line-out port of
the external device to the connector.
Storage compartments inside
the vehicle
Depending on your vehicle's equipment, you
will find compartments beside the steering col-
umn
*
, in the front doors and in the center con-
sole
*
.
There are nets
*
on the front-seat backrests.
Storage compartments in the rear
console
Depending on your vehicle's equipment ver-
sion, the following storage compartments can
be found in the rear console:
> Storage tray
> Storage compartment with cover
> Cupholders
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Practical interior accessories
100
Coupe: clothes hooks
Press the upper edge to flip open.
Items of clothing hung from the hooks
must not obstruct the driver's view. Do
not hang heavy objects from the hooks; other-
wise, they could endanger the car's occupants,
e.g. in case of heavy braking or sudden swerv-
ing.<
Cupholders
Use lightweight and shatterproof contain-
ers and do not transport hot beverages;
otherwise, there is an increased risk of injury in
the event of the accident. Do not force contain-
ers that are too large into the cupholders; other-
wise, damage could result.<
Front
Opening
Briefly press the center of the cover.
Closing
Briefly press the cover in the center and push in
the cupholder.
Coupe: rear
There are two additional cupholders in the rear
center armrest.
Press the front of the armrest.
Convertible: rear
There are two additional cupholders in the rear
console.
Press the button to open.
Before folding down the rear seat back-
rest or using the transport bag, remove all
containers from the cupholder and close it. Do
not place objects into the cupholder and use
force to close it. Do not use the cupholder as a
grab handle.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
101
Ashtray*
Opening
Push the ridge on the cover.
Emptying
Lift out the insert.
Lighter
With the engine running or the ignition switched
on, press in the cigarette lighter.
The lighter can be pulled out as soon as it pops
back out.
Hold or touch the hot cigarette lighter by
the knob only. Holding or touching it in
other areas could result in burns.
When leaving the car, always remove the
remote control so that children cannot operate
the cigarette lighter and burn themselves.<
Connecting electrical
appliances
In your BMW, when the engine is running or the
ignition is switched on, you can use electrical
devices such as a hand lamp, car vacuum
cleaner, etc., up to approx. 200 watts at
12 volts, as long as one of the following sockets
is available. Avoid damaging the sockets by
attempting to insert plugs of unsuitable shape
or size.
Cigarette lighter socket*
To access the socket: take the cigarette lighter
out of the socket.
Socket* in the front passenger footwell
A socket is located under the glove compart-
ment on the left.
Socket in the center armrest
External audio device, refer to page 99.
Coupe: socket in the cargo area*
Open the cap.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Practical interior accessories
102
Coupe:
Through-loading system*
Opening
1. To release the rear seat backrest, pull the
corresponding lever in the cargo area.
2. The unlocked rear seat backrest moves for-
ward slightly. Fold the backrest forward by
the head restraint.
Closing
Return the rear seat backrest to its upright posi-
tion and engage it.
When returning the backrest to its seating
position, make sure that the seat's lock-
ing mechanism engages properly. Otherwise,
cargo could be thrown around in the event of
sharp braking or swerving and endanger the
occupants.<
The lashing eyes in the cargo area provide you
with a way to attach cargo area nets
*
or draw
straps for securing suitcases and luggage, refer
to page 114.
Convertible:
Cargo loading
Enlarging the cargo area
When the hardtop is closed you can enlarge the
cargo area:
To do so, push the cargo area partition upward.
Before opening the hardtop, push the cargo
area partition down until it engages on both
sides.
Before moving the hardtop, ensure that
there are no objects on or next to the
cargo area partition; otherwise, parts of the
hardtop may be damaged. Do not exceed the
maximum loading height; refer to the sticker in
the cargo area showing a line indicating the
maximum height. Do not use force to push
down the cargo area partition.<
The retractable hardtop can only be
opened if the cargo area partition is in its
lowermost position and engaged on both
sides.<
Folding down the rear seat backrest
Opening
You can fold down the rear seat backrest to
transport light objects in the rear without dam-
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
103
aging the seats. Depending on the vehicle
equipment, the mounting points for the cargo
area net
*
are found on the back of the seat
backrest. To unlock the rear seat backrest:
press the button on the driver's or the opposite
side.
Closing
Return the rear seat backrest to the upright
seating position and engage it.
When returning the backrest to its seating
position, make sure that the seat's lock-
ing mechanism engages properly. Otherwise,
cargo could be thrown around in the event of
sharp braking or swerving and endanger the
occupants.<
Bag holder*
When the rear seat backrest is folded down, you
will find two bag holders on the cargo area wall:
1. Fold open the holder by pressing the but-
ton.
2. Press the handles of the bag onto the
holder from above.
Only hang light shopping bags or other
suitable objects from the holders; other-
wise, braking maneuvers and swerving, for
example, may lead to a safety hazard due to
objects flying about the passenger compart-
ment. Only transport heavy luggage in the
cargo area if it has been appropriately
secured.<
For more information on loading the vehicle,
refer to page 112.
Storage compartment behind the rear
seat backrest
A storage compartment is located behind the
rear seat backrest. To access the storage com-
partment: remove the insert or fold down the
rear seat backrest.
When the rear seat backrest is folded
down or the insert has been removed,
only transport small light objects in the storage
compartment; otherwise, braking maneuvers
and swerving, for example, may lead to a safety
hazard due to objects flying about the passen-
ger compartment. Only transport heavy lug-
gage in the cargo area if it has been appropri-
ately secured.<
Storage compartments inside
the cargo area
Coupe
Depending on your vehicle's equipment, the
following storage spaces can be found in the
cargo area:
> Left storage compartment, e.g. for storing a
box of cleaning tissues or up to 12 CD jack-
ets, depending on vehicle equipment ver-
sion
> Net
*
for securing smaller objects, to be
attached to the fixtures on the floor panel
> Hooks for hanging up, e.g., shopping bags
or tote bags
> Rubber strap on the left trim panel for
securing small objects such as a folding
umbrella
> Net for small objects on the right trim panel
of the cargo area
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Practical interior accessories
104
Convertible
Depending on your vehicle's equipment, the
following storage spaces can be found in the
cargo area:
> Storage compartment on the left side of the
cargo area. To open turn handle by 90°
> Net
*
for securing smaller objects, to be
attached to the fixtures on the floor panel
> Rubber strap
*
for subdividing the cargo
area; can be hooked onto the lateral lashing
eyes
> Stowage compartment under the floor
panel
Folding up the floor panel
Do not exceed the maximum permissible
load of 55 lbs/25 kg for the storage com-
partment under the floor panel; otherwise, dam-
age could result.<
Coupe
Press the floor panel up and secure it with the
catch.
Convertible
To lift, grab hold of the floor panel at the open-
ing at the rear of the panel.
Lashing eyes
You will find lashing eyelets in the cargo area for
securing luggage items with nets or tensioning
straps, refer to page 114.
Coupe: ski bag*
The ski bag is designed for safe, clean transport
of up to 4 pairs of standard skis or up to
2snowboards.
With the ski bag you can stow skis with a length
of up to 6 ft 10 in/2.10 m. When skis of 6 ft 10 in/
2.10 m length are loaded, the overall capacity of
the ski bag is reduced due to its tapered design.
Loading
1. Fold down the center armrest.
2. Press the button, reach into the recess and
fold down the cover.
3. Open the Velcro fastener, spread the ski
bag between the front seats and insert the
skis or snowboards.
The zip fastener makes objects in the ski
bag easier to reach.
4. Clip the hooks of the ski bag retaining strap
into the eyelet.
Only place clean skis in the ski bag. Wrap sharp
edges to prevent damage.
Securing cargo
After loading, secure the ski bag and its con-
tents. Tighten the retaining strap on the ten-
sioning buckle for this purpose.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
105
Secure the ski bag in the manner
described; otherwise, it could endanger
the car's occupants, e.g. in case of heavy brak-
ing or sudden swerving.<
To store the ski bag, perform the steps
described for loading in reverse order.
Removing the ski bag
The ski bag can be completely removed, e.g. for
faster drying or to allow you to use other inserts.
1. Fold down the center panel in the rear seat
backrest.
2. Pull the handle, arrow 1.
3. Pull out the insert, arrow 2.
For more information on the various
inserts available, contact your BMW cen-
ter.<
Convertible: through-loading
opening with integrated
transport bag*
The transport bag is designed for safe, clean
transport of up to 4 pairs of standard skis or up
to 2 snowboards.
When the rear seat backrest is folded up, you
can remove the insert and use the transport bag
with the regular through-loading opening. To
transport larger objects, you can fold down the
rear seat backrest to create an expanded
through-loading opening.
With the transport bag you can stow skis with a
length of up to 6 ft 2 in/1.90 m. When skis of 6 ft
2 in/1.90 m length are loaded, the overall capac-
ity of the transport bag is reduced due to its
tapered design.
Loading
1. For loading using the regular through-load-
ing opening:
Press the button down and remove the
insert from the front.
For loading with the through-loading open-
ing expanded:
Fold down the rear seat backrest, refer to
page 102.
2. Front cover: press the two recesses
together and fold the cover down until it
engages.
3. In the cargo area: press the two recesses
together and fold down the cover.
4. Undo the Velcro fastener and spread out
the transport bag between the front seats.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Practical interior accessories
106
5. Insert the latch plate of the retaining strap
into the belt buckle under the transport bag.
6. Load the transport bag. The zipper eases
access to the stored items.
Only place clean skis in the transport bag. Wrap
sharp edges to prevent damage.
You can use the snaps to shorten the transport
bag if you do not need its full length.
Securing cargo
After loading, secure the transport bag and its
contents. Tighten the retaining strap on the
tensioning buckle for this purpose.
Secure the transport bag in the manner
described; otherwise, it could endanger
the car's occupants, e.g. in case of heavy brak-
ing or sudden swerving.<
To store the transport bag, perform the steps
described for loading in reverse order.
Removing the front cover
You can remove the front cover to use the full
height of the through-loading opening. With the
cover folded down, pull the handle, see arrow,
and remove the cover toward the front. To
replace, insert the cover at an angle from above
and let it snap it into place.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Driving tips
This section provides you with information
useful in dealing with specific driving and
operating conditions.
Driving tips
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Things to remember when driving
110
Things to remember when driving
Break-in period
Moving parts need breaking-in time to adjust to
each other. Please follow the instructions below
in order to achieve the optimal service life and
economy of operation for your vehicle.
Engine and differential
Always obey all official speed limits.
Up to 1,200 miles/2,000 km
Drive at varying engine and road speeds, but do
not exceed an engine speed of 4,500 rpm or a
road speed of 100 mph/160 km/h.
Avoid full-throttle operation and use of the
transmission's kickdown mode.
After driving 1,200 miles/2,000 km
Engine and vehicle speeds can be gradually
increased.
Tires
Due to technical factors associated with their
manufacture, tires do not achieve their full trac-
tion potential until after an initial break-in
period. Therefore, drive cautiously during the
first 200 miles/300 km.
Brake system
Brakes require an initial break-in period of
approx. 300 miles/500 km to achieve optimized
contact and wear patterns between brake pads
and rotors. Drive cautiously during this break-in
period.
Clutch
The function of the clutch reaches its optimal
level only after a distance driven of approx.
500 km. During this break-in period, engage the
clutch gently.
Following part replacement
The same break-in procedures should be
observed if any of the components mentioned
above have to be renewed in the course of the
vehicle's operating life.
Saving fuel
The fuel consumption of your vehicle depends
on several factors. You can lower fuel consump-
tion and the environmental impact by taking
certain measures, adjusting your driving style
and having the vehicle serviced regularly.
Remove any unneeded cargo
Additional weight increases fuel consumption.
Remove any mounted parts after you
have finished using them
Remove unneeded additional mirrors, the roof
rack and the rear luggage rack after use.
Mounted parts affect the vehicle's aerodynam-
ics and increase fuel consumption.
Close the windows and glass roof
An open glass roof or window causes higher air
resistance and thus increases fuel consump-
tion.
Check tire inflation pressure regularly
Check the tire inflation pressure at least twice a
month and before embarking on a long journey,
and correct it if necessary.
Low tire inflation pressure causes higher rolling
resistance and thus increases fuel consumption
and tire wear.
Set off immediately
Do not let the engine warm up while the car is
still standing, but set off immediately at moder-
ate engine speed. This is the fastest way for the
cold engine to reach its operating temperature.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
111
Drive defensively
Avoid unnecessary acceleration and braking
maneuvers. To do so, keep an adequate dis-
tance between you and the vehicle in front of
you. A defensive and smooth driving style
keeps fuel consumption down.
Avoid high engine speeds
Only use first gear when setting off. In second
and higher gears, accelerate without hesitation
or pauses. When accelerating, shift up before
reaching high engine speeds.
When you reach the desired speed, shift into
the highest applicable gear and drive with the
engine speed as low as possible and at a con-
stant speed.
As a rule: driving at low engine speeds lowers
fuel consumption and reduces wear.
Coasting
When approaching a red light, take your foot off
the accelerator and coast to a stop in the high-
est applicable gear.
On a downhill slope, take your foot off the accel-
erator and coast in a suitable gear.
The fuel supply is interrupted when coasting.
Switch off the engine during lengthy
stops
Switch off the engine when stopping for lengthy
periods, e.g. at traffic lights, railroad crossings
or in traffic congestions. You achieve fuel sav-
ings even if standing time is as short as approx.
4 seconds.
Switch off functions you do not need at
the moment
Functions such as the air conditioner, seat
heating or rear window defroster draw large
amounts of power and consume additional fuel.
Especially in city traffic and in stop and go driv-
ing they have a considerable impact. Therefore,
switch these functions off when they are not
really needed.
Have the vehicle serviced
Have the vehicle serviced regularly to achieve
good economy and a long vehicle life. BMW
recommends having the vehicle serviced at a
BMW center. Also note the BMW service sys-
tem, refer to page 136.
General driving notes
Close the trunk lid
Operate the vehicle only when the trunk
lid is closed. Otherwise, exhaust fumes
could enter the interior of the vehicle.<
If the vehicle must be driven with the trunk lid
open:
1. Close all windows and the glass roof.
2. Greatly increase the air volume of the air
conditioner or automatic climate control
system, refer to page 89 or 92.
Hot exhaust system
In all vehicles, extremely high tempera-
tures are generated in the exhaust sys-
tem. Do not remove the heat shields installed
adjacent to various sections of the exhaust sys-
tem, and never apply undercoating to them.
When driving, standing at idle and while park-
ing, take care to avoid possible contact
between the hot exhaust system and any highly
flammable materials such as hay, leaves, grass,
etc. Such contact could lead to a fire, with the
risk of serious personal injuries and property
damage. Do not touch hot exhaust tail pipes.
Otherwise, there is a risk of burns.<
Hydroplaning
When driving on wet or slushy roads,
reduce road speed. If you do not, a wedge
of water can form between tires and road sur-
face. This situation, known as hydroplaning,
means that the tire can completely lose contact
with the road surface, so that neither the car can
be steered nor the brake be properly applied.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Things to remember when driving
112
The risk of hydroplaning increases with declin-
ing tread depth on the tires, refer also to Mini-
mum tread depth on page 129.
Driving through water
Drive through water on the road only if it is
not deeper than 1 ft/30 cm, and then only
at walking speed at the most. Otherwise, the
vehicle's engine, the electrical systems and the
transmission may be damaged.<
Use the parking brake on inclines
On inclines, do not hold the vehicle for a
lengthy period using the clutch; use the
parking brake instead. Otherwise, greater
clutch wear will result.<
For more information about the drive-off assis-
tant, refer to page 75.
Braking safely
Your BMW is equipped with ABS as a standard
feature. Applying the brakes fully is the most
effective way of braking in situations in which
this is necessary. Since the vehicle maintains
steering responsiveness, you can still avoid
possible obstacles with a minimum of steering
effort.
Pulsation of the brake pedal, combined with
sounds from the hydraulic circuits, indicate that
ABS is in its active mode.
Driving in wet conditions
When roads are wet or there is heavy rain,
briefly exert gentle pressure on the brake pedal
every few miles. Monitor traffic conditions to
ensure that this maneuver does not endanger
other road users. The heat generated in this
process helps dry the pads and rotors to ensure
that full braking efficiency will then be available
when you need it.
Hills
To prevent overheating and the resulting
reduced efficiency of the brake system,
drive long or steep downhill gradients in the
gear in which the least braking is required. Even
light but consistent brake pressure can lead to
high temperatures, brake wear and possibly
even brake failure.<
You can increase the engine's braking effect by
shifting down, all the way to first gear if neces-
sary. This strategy helps you avoid placing
excessive loads on the brake system. Down-
shifting in manual mode of the automatic trans-
mission, refer to page 52.
Never drive with the clutch held down,
with the transmission in neutral or with
the engine switched off; otherwise, engine
braking action will not be present or there will be
no power assistance to the brakes or steering.
Never allow floor mats, carpets or any other
objects to protrude into the area around the
pedals; otherwise, pedal function could be
impaired.<
Corrosion on brake rotors
When the vehicle is driven only occasionally,
during extended periods when the vehicle is not
used at all, and in operating conditions where
brake applications are less frequent, there is an
increased tendency for corrosion to form on
rotors, while contaminants accumulate on the
brake pads. This occurs because the minimum
pressure which must be exerted by the pads
during brake applications to clean the rotors is
not reached.
Should corrosion form on the brake rotors, the
brakes will tend to respond with a pulsating
effect that even extended application will fail to
cure.
When the vehicle is parked
Condensation forms while the automatic cli-
mate control is in operation, and then exits
under the vehicle. Traces of condensed water
under the vehicle are therefore normal.
Cargo loading
To avoid loading the tires beyond their
approved carrying capacity, never over-
load the vehicle. Overloading can lead to over-
heating and increases the rate at which damage
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
113
develops inside the tires. This can ultimately
result in a sudden blowout.<
Make sure that no liquids are spilled or
leak from their containers in the cargo
area, as this could result in damage to the vehi-
cle.<
Determining loading limit
1. Locate the following statement on your
vehicle's placard
*
:
The combined weight of occupants
and cargo should never exceed
XXX kg or YYY lbs. Otherwise, overloading
can result in damage to the vehicle and
unstable driving conditions.<
2. Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.
3. Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY
pounds.
4. The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the YYY amount equals
1,400 lbs. and there will be five 150-lb. pas-
sengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is
650 lbs:
1,400 lbs. minus 750 lbs. = 650 lbs.
5. Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in step 4.
6. If your vehicle will be towing a trailer, part of
the load from your trailer will be transferred
to your vehicle. Consult the manual for
transporting a trailer to determine how this
may reduce the available cargo and luggage
load capacity of your vehicle.
Load
The permissible load is the total of the weight of
occupants and cargo/luggage. The greater the
weight of the occupants, the less cargo/lug-
gage can be transported.
Stowing cargo
> Position heavy objects as low and as far for-
ward as possible, ideally directly behind the
respective seat backrests.
> Cover sharp edges and corners.
> For very heavy cargo when the rear seat is
not occupied, secure each safety belt in the
opposite buckle.
Coupe
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Things to remember when driving
114
Convertible
Securing cargo
Coupe
Convertible
> Secure smaller and lighter items using
retaining straps, a cargo area net
*
or draw
straps
*
.
> Heavy-duty cargo straps
*
for securing
larger and heavier objects are available at
your BMW center. Four lashing eyes are
provided for attaching the cargo straps.
Two are located on the cargo area
sidewalls 1, two more are on the rear cargo
area panel 2.
Please comply with the information sup-
plied with the cargo straps.
Convertible: before opening the hardtop,
fold down the cargo area partition. Make
sure the cargo area is loaded correctly; other-
wise parts of the hardtop can be damaged, refer
to page 102.<
Always position and secure the cargo as
described above, so that it cannot endan-
ger the car's occupants, for example if sudden
braking or swerving is necessary.
Never exceed either the approved gross vehicle
weight or either of the approved axle loads, refer
to page 171, as excessive loads can pose a
safety hazard, and may also place you in viola-
tion of traffic safety laws.
Heavy or hard objects should not be carried
loose inside the car, since they could be thrown
around, for example as a result of heavy braking,
sudden swerves, etc., and endanger the occu-
pants.
Only attach the cargo straps using the lashing
eyes shown in the illustration. Do not secure
cargo with the anchors for tether straps, refer to
page 47; otherwise, these could be damaged.<
Coupe: roof-mounted
luggage rack*
A special rack system is available as an option
for your BMW. Comply with the directions given
in the installation instructions.
Mounting points
The mounting points are located in the roof.
Loading roof-mounted luggage rack
Because roof racks raise the vehicle's center of
gravity when loaded, they have a major effect on
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
115
vehicle handling and steering response.
You should therefore always remember not to
exceed the approved roof load capacity, the
approved gross vehicle weight or the axle loads
when loading the rack.
You can find the applicable data under Weights
on page 171.
The roof load must be distributed uniformly and
should not be too large in area. Heavy items
should always be placed at the bottom. Be sure
that adequate clearance is maintained for rais-
ing the glass roof, and that objects do not
project into the opening path of the trunk lid.
Fasten roof-mounted cargo correctly and
securely to prevent it from shifting or falling off
during the trip.
Drive smoothly. Avoid sudden acceleration and
braking maneuvers. Take corners gently.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Mobility
This section helps you maintain your car's
mobility by supplying important information
on vital topics including fuels and lubricants,
wheels and tires, service, maintenance and
roadside assistance.
Mobility
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Refueling
118
Refueling
Always switch off the engine before refu-
eling; otherwise, fuel cannot be added to
the tank and a message will be displayed.<
Take all precautionary measures and
observe all applicable regulations when
handling fuel. Do not carry any spare fuel con-
tainers in your vehicle. They can develop a leak
and cause an explosion or cause a fire in the
event of an accident.<
Fuel filler flap
Opening
1. Open the fuel filler flap. To do so, lightly
press the rear edge.
2. Turn the gas cap counterclockwise.
3. Place the gas cap in the bracket attached to
the fuel filler flap.
Closing
Fit the cap and turn it clockwise until you clearly
hear a click.
Do not pinch the band attached to the
cap; otherwise, the cap cannot be closed
properly and fuel vapors can escape.<
Manually releasing the fuel filler flap
In the event of a malfunction, you can release
the fuel filler flap manually:
Coupe
1. Remove the cover from the right-hand side-
wall of the cargo area.
2. Pull the knob with the fuel pump symbol.
The fuel filler flap is released.
Convertible
1. Loosen the right-hand cargo area trim panel
by turning the screws by 90°, see arrow.
2. Slightly lift the top section of the panel. It is
not necessary to remove the entire panel.
3. Pull the knob with the fuel pump symbol.
The fuel filler flap is released.
Observe the following when refueling
When handling fuels, follow the safety
instructions provided at filling stations;
otherwise, there is a risk of personal injury or
property damage.<
When refueling, insert the filler nozzle com-
pletely into the filler pipe. Avoid lifting the filler
nozzle while filling the tank, as that would lead
to
> Premature pump shutoff
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
119
> Reduced efficiency of the fuel-vapor recov-
ery system.
The fuel tank is full when the filler nozzle clicks
off the first time.
Fuel tank capacity
Approx. 16.1 US gallons/61 liters, including the
reserve capacity of 2.1 US gallons/8 liters.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km; otherwise, engine functions are not
ensured and damage can occur.<
Fuel specifications
Gasoline engine: required fuel
Do not refuel with leaded fuel; otherwise,
the catalytic converter will be damaged.
Do not fill the tank with E85, i.e. fuel containing
85Ξ ethanol, nor with FlexFuel. Otherwise, the
engine and fuel supply system will be dam-
aged.<
Super Premium Gasoline/AKI 91
This gasoline is highly recommended.
However, you may also use gasoline with less
AKI. The minimum AKI Rating is:
> 328i/xDrive: 87
> 335i/xDrive: 89.
If you use gasoline with this minimum AKI Rat-
ing, the engine may produce knocking sounds
when starting at high outside temperatures.
This has no effect on the engine life.
Do not use any gasoline below the speci-
fied minimum fuel grade. Otherwise, the
engine could be damaged.<
Use high-quality brands
Field experience has indicated significant dif-
ferences in fuel quality: volatility, composition,
additives, etc., among gasolines offered for sale
in the United States and Canada. Fuels contain-
ing up to and including 10Ξ ethanol or other
oxygenates with up to 2.8 Ξ oxygen by weight,
that is, 15Ξ MTBE or 3Ξ methanol plus an
equivalent amount of cosolvent, will not void the
applicable warranties with respect to defects in
materials or workmanship.
The use of poor-quality fuels may result in
drivability, starting and stalling problems
especially under certain environmental condi-
tions such as high ambient temperature and
high altitude.
Should you encounter drivability problems
which you suspect could be related to the fuel
you are using, we recommend that you respond
by switching to a recognized high-quality brand
such as gasoline that is advertised as Top Tier
Detergent Gasoline.
Failure to comply with these recommendations
may also result in unscheduled maintenance.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Wheels and tires
120
Wheels and tires
Tire inflation pressures
Information for your safety
It is not merely the tires' service life, but also
driving comfort and, to a great extent, driving
safety that depend on the condition of the tires
and the maintenance of the specified tire pres-
sure.
Check the tire inflation pressure regularly
and correct it, if necessary: at least twice a
month and before starting long trips. If you fail
to observe this precaution you may be driving
on tires with incorrect tire pressures, a condi-
tion that can not only compromise your vehi-
cle's driving stability, but also lead to tire dam-
age and the risk of an accident. Do not drive
with deflated, i.e. flat tires, except when using
run-flat tires. A flat tire will seriously impair your
vehicle's handling and braking response.
Attempts to drive on a flat tire can lead to loss of
control over the vehicle.<
Checking pressure
Only check tire inflation pressure when the
tires are cold. This means after a maximum of
1.25 miles/2 km driving or when the vehicle has
been parked for at least 2 hours. When tires are
warm, the tire inflation pressure is higher.
After correcting the tire inflation pressure,
reset the Tire Pressure Monitor, refer to
page 77, or reinitialize the Flat Tire Monitor,
refer to page 75.<
Inflation pressure specifications
The tables below provide all the correct inflation
pressures for the specified tire sizes at ambient
temperature.
The inflation pressures apply to the tire
sizes approved and tire brands recom-
mended by BMW; a list of these is available
from your BMW center.<
For correct identification of the right tire infla-
tion pressures, observe the following:
> Tire sizes for your vehicle
> Load conditions
> Maximum allowable driving speed
Tire inflation pressures for driving up to
100 mph or 160 km/h
For normal driving up to 100 mph or 160 km/h
and to achieve optimum driving comfort, adjust
pressures to the respective tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds up to a maximum of
100mph or 160km/h.
These tire inflation pressures can also be found
on the driver's side door post when the driver's
door is open.
The maximum permissible speed for
these tire pressures is 100 mph or
160 km/h. Do not exceed this speed; otherwise,
tire damage and accidents could occur.<
Tire inflation pressures for driving
above 100 mph or 160 km/h
In order to drive at maximum speeds in
excess of 100 mph or 160 km/h, adjust
pressures to the respective tire inflation pres-
sures listed on the following pages in the col-
umns for traveling speeds including those
exceeding 100 mph or 160 km/h. Otherwise,
tire damage and accidents could occur.<
Observe all national and local maximum speed
limits; otherwise, violations of the laws could
occur.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
121
Coupe: tire inflation pressures for the 328i
Tire size Pressure specifications in psi/kPa
Traveling speeds
up to a max. of
100 mph / 160 km/h
Traveling speeds
including those exceeding
100mph / 160km/h
All pressure specifications in
the table are indicated in psi/
kilopascal with cold tires. Cold
= ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
225/45 R 17 91 H M+S
225/45 R 17 91 V
32/220 38/260 32/220 35/240 36/250 44/300
225/45 R 17 94 V M+S XL 32/220 39/270 32/220 35/240 36/250 44/300
Front: 225/45 R 17 91 V 32/220 - 32/220 - 36/250 -
Rear: 255/40 R 17 94 V - 35/240 - 32/220 - 39/270
Front: 225/40 R 18 88 W 32/220 - 32/220 - 36/250 -
Rear: 255/35 R 18 90 W - 39/270 - 35/240 - 42/290
Front: 225/35 R 19 88 Y XL 36/250 - 32/220 - 36/250 -
Rear: 255/30 R 19 91 Y XL - 44/300 - 39/270 - 44/300
With Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
225/45 R 17 91 H M+S
32/220 38/260 32/220 35/240 36/250 44/300
225/45 R 17 91 V 32/220 38/260 32/220 35/240 42/290 49/340
225/45 R 17 94 V M+S XL 32/220 39/270 32/220 35/240 42/290 49/340
Front: 225/45 R 17 91 V 32/220 - 32/220 - 42/290 -
Rear: 255/40 R 17 94 V - 35/240 - 35/240 - 44/300
Front: 225/40 R 18 88 W 32/220 - 32/220 - 39/270 -
Rear: 255/35 R 18 90 W - 39/270 - 35/240 - 46/320
Front: 225/35 R 19 88 Y XL 36/250 - 33/230 - 39/270 -
Rear: 255/30 R 19 91 Y XL - 44/300 - 41/280 - 46/320
More details on the permissible load and weights can be found on page 171.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Wheels and tires
122
Coupe: tire inflation pressures for the 328xi
Tire size Pressure specifications in psi/kPa
Traveling speeds
up to a max. of
100mph / 160km/h
Traveling speeds
including those exceeding
100 mph / 160 km/h
All pressure specifications in the table
are indicated in psi / kilopascal with
cold tires. Cold = ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
225/45 R 17 91 H M+S
225/45 R 17 91 V
32/220 38/260 35/240 42/290
225/45 R 17 94 V M+S XL 32/220 39/270 36/250 44/300
Front: 225/45 R 17 91 V 32/220 - 33/230 -
Rear: 255/40 R 17 94 V - 33/230 - 39/270
Front: 225/40 R 18 88 W 33/230 - 36/250 -
Rear: 255/35 R 18 90 W - 38/260 - 42/290
Front: 225/35 R 19 88 Y XL 39/270 - 39/270 -
Rear: 255/30 R 19 91 Y XL - 44/300 - 44/300
With Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
225/45 R 17 91 H M+S
32/220 38/260 35/240 42/290
225/45 R 17 91 V 32/220 38/260 41/280 48/330
225/45 R 17 94 V M+S XL 32/220 39/270 41/280 48/330
Front: 225/45 R 17 91 V 32/220 - 41/280 -
Rear: 255/40 R 17 94 V - 33/230 - 42/290
Front: 225/40 R 18 88 W 33/230 - 39/270 -
Rear: 255/35 R 18 90 W - 38/260 - 46/320
Front: 225/35 R 19 88 Y XL 39/270 - 41/280 -
Rear: 255/30 R 19 91 Y XL - 44/300 - 46/320
More details on the permissible load and weights can be found on page 171.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
123
Coupe: tire inflation pressures for the 335i
Tire size Pressure specifications in psi/kPa
Traveling speeds
up to a max. of
100 mph / 160 km/h
Traveling speeds
including those exceeding
100mph / 160km/h
All pressure specifications in
the table are indicated in psi/
kilopascal with cold tires. Cold
= ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S 32/220 39/270 32/220 35/240 38/260 45/310
225/45 R 17 94 V M+S XL 33/230 41/280 32/220 35/240 38/260 45/310
Front: 225/45 R 17 91 V 32/220 - 32/220 - 38/260 -
Rear: 255/40 R 17 94 V - 35/240 - 32/220 - 41/280
Front: 225/40 R 18 88 W 32/220 - 32/220 - 38/260 -
Rear: 255/35 R 18 90 W - 39/270 - 35/240 - 45/310
Front: 225/40 R 18 88 Y 32/220 - 32/220 - 35/240 -
Rear: 255/35 R 18 90 Y - 39/270 - 32/220 - 41/280
Front: 225/35 R 19 88 Y XL 38/260 - 33/230 - 38/260 -
Rear: 255/30 R 19 91 Y XL - 45/310 - 41/280 - 45/310
With Sport Package:
225/45 R 17 91 H M+S 32/220 39/270 32/220 35/240 38/260 45/310
225/45 R 17 94 V M+S XL 33/230 41/280 33/230 36/250 42/290 49/340
Front: 225/45 R 17 91 V 32/220 - 32/220 - 38/260 -
Rear: 255/40 R 17 94 V - 35/240 - 35/240 - 44/300
Front: 225/40 R 18 88 W 32/220 - 35/240 - 41/280 -
Rear: 255/35 R 18 90 W - 39/270 - 38/260 - 48/330
Front: 225/40 R 18 88 Y 32/220 - 32/220 - 36/250 -
Rear: 255/35 R 18 90 Y - 39/270 - 35/240 - 44/300
Front: 225/35 R 19 88 Y XL 38/260 - 36/250 - 41/280 -
Rear: 255/30 R 19 91 Y XL - 45/310 - 44/300 - 48/330
More details on the permissible load and weights can be found on page 171.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Wheels and tires
124
Coupe: tire inflation pressures for the 335xi
Tire size Pressure specifications in psi/kPa
Traveling speeds
up to a max. of
100 mph / 160 km/h
Traveling speeds
including those exceeding
100mph / 160km/
All pressure specifications in the table
are indicated in psi / kilopascal with
cold tires. Cold = ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S 32/220 39/270 39/270 45/310
225/45 R 17 94 V M+S XL 33/230 41/280 39/270 45/310
Front: 225/45 R 17 91 V 32/220 - 39/270 -
Rear: 255/40 R 17 94 V - 35/240 - 39/270
Front: 225/40 R 18 88 W 35/240 - 38/260 -
Rear: 255/35 R 18 90 W - 39/270 - 42/290
Front: 225/40 R 18 88 Y 35/240 - 35/240 -
Rear: 255/35 R 18 90 Y - 39/270 - 39/270
Front: 225/35 R 19 88 Y XL 39/270 - 39/270 -
Rear: 255/30 R 19 91 Y XL - 45/310 - 45/310
With Sport Package:
225/45 R 17 91 H M+S 32/220 39/270 39/270 45/310
225/45 R 17 94 V M+S XL 33/230 41/280 42/290 49/340
Front: 225/45 R 17 91 V 32/220 - 39/270 -
Rear: 255/40 R 17 94 V - 35/240 - 44/300
Front: 225/40 R 18 88 W 35/240 - 42/290 -
Rear: 255/35 R 18 90 W - 39/270 - 48/330
Front: 225/40 R 18 88 Y 35/240 - 39/270 -
Rear: 255/35 R 18 90 Y - 39/270 - 42/290
Front: 225/35 R 19 88 Y XL 39/270 - 42/290 -
Rear: 255/30 R 19 91 Y XL - 45/310 - 48/330
More details on the permissible load and weights can be found on page 171.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
125
Convertible: tire inflation pressures for the 328i
Tire size Pressure specifications in psi/kPa
Traveling speeds
up to a max. of
100 mph / 160 km/h
Traveling speeds
including those exceeding
100mph / 160km/h
All pressure specifications in
the table are indicated in psi/
kilopascal with cold tires. Cold
= ambient temperature
Without Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
33/230 41/280 32/220 36/250 36/250 44/300
225/45 R 17 91 H M+S 33/230 41/280 33/230 39/270 39/270 46/320
225/45 R 17 91 W 33/230 41/280 32/220 36/250 36/250 44/300
225/45 R 17 94 V M+S XL 35/240 42/290 33/230 39/270 39/270 46/320
Front: 225/45 R 17 91 V 32/220 - 32/220 - 36/250 -
Rear: 255/40 R 17 94 V - 36/250 - 35/240 - 42/290
Front: 225/40 R 18 88 W 35/240 - 32/220 - 38/260 -
Rear: 255/35 R 18 90 W - 42/290 - 38/260 - 45/310
Front: 225/40 R 18 88 Y 35/240 - 32/220 - 35/240 -
Rear: 255/35 R 18 90 Y - 42/290 - 35/240 - 42/290
Front: 225/35 R 19 88 Y XL 39/270 - 36/250 - 39/270 -
Rear: 255/30 R 19 91 Y XL - 46/320 - 44/300 - 46/320
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Wheels and tires
126
With Sport Package:
205/55 R 16 91 H M+S
225/50 R 16 92 H M+S
33/230 41/280 32/220 36/250 36/250 44/300
225/45 R 17 91 H M+S
225/45 R 17 91 W
33/230 41/280 33/230 39/270 41/280 48/330
225/45 R 17 94 V M+S XL 35/240 42/290 35/240 42/290 42/290 49/340
Front: 225/45 R 17 91 V 32/220 - 33/230 - 41/280 -
Rear: 255/40 R 17 94 V - 36/250 - 38/260 - 45/310
Front: 225/40 R 18 88 W 35/240 - 35/240 - 42/290 -
Rear: 255/35 R 18 90 W - 42/290 - 42/290 - 49/340
Front: 225/40 R 18 88 Y 35/240 - 32/220 - 38/260 -
Rear: 255/35 R 18 90 Y - 42/290 - 38/260 - 45/310
Front: 225/35 R 19 88 Y XL 39/270 - 39/270 - 42/290 -
Rear: 255/30 R 19 91 Y XL - 46/320 - 46/320 - 49/340
More details on the permissible load and weights can be found on page 171.
Tire size Pressure specifications in psi/kPa
Traveling speeds
up to a max. of
100mph / 160km/h
Traveling speeds
including those exceeding
100 mph / 160 km/h
All pressure specifications in
the table are indicated in psi/
kilopascal with cold tires. Cold
= ambient temperature
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
127
Convertible: tire inflation pressures for the 335i
Tire size Pressure specifications in psi/kPa
Traveling speeds
up to a max. of
100 mph / 160 km/h
Traveling speeds
including those exceeding
100mph / 160km/h
All pressure specifications in
the table are indicated in psi/
kilopascal with cold tires. Cold
= ambient temperature
Without Sport Package:
225/45 R 17 91 H M+S 33/230 41/280 35/240 39/270 39/270 46/320
225/45 R 17 94 V M+S XL 35/240 42/290 35/240 39/270 39/270 46/320
Front: 225/45 R 17 91 V 32/220 - 32/220 - 36/250 -
Rear: 255/40 R 17 94 V - 36/250 - 35/240 - 42/290
Front: 225/40 R 18 88 W 35/240 - 32/220 - 38/260 -
Rear: 255/35 R 18 90 W - 42/290 - 38/260 - 45/310
Front: 225/40 R 18 88 Y 35/240 - 32/220 - 35/240 -
Rear: 255/35 R 18 90 Y - 42/290 - 35/240 - 42/290
Front: 225/35 R 19 88 Y XL 39/270 - 36/250 - 39/270 -
Rear: 255/30 R 19 91 Y XL - 46/320 - 44/300 - 46/320
With Sport Package:
225/45 R 17 91 H M+S 33/230 41/280 35/240 39/270 39/270 46/320
225/45 R 17 94 V M+S XL 35/240 42/290 38/260 44/300 42/290 49/340
Front: 225/45 R 17 91 V 32/220 - 33/230 - 41/280 -
Rear: 255/40 R 17 94 V - 36/250 - 38/260 - 45/310
Front: 225/40 R 18 88 W 35/240 - 38/260 - 42/290 -
Rear: 255/35 R 18 90 W - 42/290 - 42/290 - 49/340
Front: 225/40 R 18 88 Y 35/240 - 32/220 - 38/260 -
Rear: 255/35 R 18 90 Y - 42/290 - 38/260 - 45/310
Front: 225/35 R 19 88 Y XL 39/270 - 39/270 - 42/290 -
Rear: 255/30 R 19 91 Y XL - 46/320 - 46/320 - 49/340
More details on the permissible load and weights can be found on page 171.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Wheels and tires
128
Tire identification marks
Knowledge of the labeling on the side of the tire
makes it easier to identify and choose the right
tires.
Tire size
Speed code letter
Q = up to 100 mph or 160 km/h
T = up to 118 mph or 190 km/h
H = up to 131 mph or 210 km/h
V = up to 150 mph or 240 km/h
W = up to 167 mph or 270 km/h
Y = up to 186 mph or 300 km/h
Tire Identification Number
Tires with DOT codes meet the guidelines of
the US Department of Transportation.
DOT code:
Tire age
The manufacturing date of tires is contained in
the tire coding: DOT … 3209 means that the
tire was manufactured in week 32 of 2009.
BMW recommends that you replace all tires
after 6 years at most, even if some tires may last
for 10 years.
Uniform Tire Quality Grading
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Tread wear 200 Traction AA
Temperature A
DOT Quality Grades
Tread wear
Traction AA A B C
Temperature A B C
All passenger car tires must conform to
Federal Safety Requirements in addition
to these grades.<
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1γ) times as
well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, how-
ever, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characteris-
tics and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B, and C.
Those grades represent the tire's ability to stop
on wet pavement as measured under controlled
conditions on specified government test sur-
faces of asphalt and concrete. A tire marked C
may have poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cor-
nering, hydroplaning, or peak traction charac-
teristics.<
Temperature
The temperature grades are A, the highest, B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
e.g.
Nominal width in mm
Aspect ratio in Ξ
Radial belt construction
Rim diameter in inches
Load rating,
not on ZR tires
Speed code letter, in
front of the R on ZR tires
225/45 R
1
791 V
e.g.
Manufacturer's
code for tire make
Tire size and
tire design
Tire age
DOT xxxx xxx 3209
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
129
heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the
material of the tire to degenerate and reduce
tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to
a level of performance which all passenger car
tires must meet under the Federal Motor Vehi-
cle Safety Standard No. 109. Grades B and A
represent higher levels of performance on the
laboratory test wheel than the minimum
required by law.
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive speed,
underinflation, or excessive loading, either sep-
arately or in combination, can cause heat
buildup and possible tire failure.<
RSC – run-flat tires
You will recognize run-flat tires by a circular
symbol containing the letters RSC on the side
of the tire, refer to page 130.
M+S
Winter and all-season tires.
These have better winter properties than sum-
mer tires.
XL
Designation for specially reinforced tires.
Tire condition
Inspect your tires frequently for tread wear,
signs of damage and for foreign objects lodged
in the tread. Check the tread depth.
Minimum tread depth
The tread depth should not drop below 1/8 in/
3 mm, although, for example, European legisla-
tion only specifies a minimum tread depth of
1/16 in/1.6 mm. At tread depths below 1/8 in/
3 mm there is an increased risk of high-speed
hydroplaning, even when only small amounts of
water are present on the road surface.
When winter tires wear down past a tread depth
of 1/6 in/4 mm, they become perceptibly less
suitable for winter conditions. In the interest of
safety, new tires should be installed.
Wear indicators in the base of the tread groove
are distributed around the tire's circumference;
the letters TWI, for Tread Wear Indicator, on the
tire's sidewalls identify tires that incorporate
these wear indicators. Once the tire tread has
worn down to the wear indicators, the tire has
worn to a depth of 1/16 in/1.6 mm.
Wheel/tire damage
Please note that low-profile tires cause wheels,
tires and suspension parts to be more suscep-
tible to road hazard and consequential dam-
ages.
Unusual vibrations encountered during normal
vehicle operation can indicate tire failure or
some other vehicle defect. This can, for exam-
ple, be caused by driving over curbs. The same
applies to any other abnormal road behavior,
such as pulling severely to the right or left.
In these cases, reduce speed immedi-
ately and have wheels and tires thor-
oughly checked. To do so, drive carefully to the
nearest BMW center or tire shop that works
according to BMW repair procedures with cor-
respondingly trained personnel. If necessary,
have the vehicle towed there.
Otherwise, tire damage can pose a lethal hazard
to vehicle occupants and other road users.<
Tire age
For various reasons, such as the development
of brittleness, BMW recommends tire replace-
ment after no more than 6 years, regardless of
the actual wear of the tires.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Wheels and tires
130
The manufacturing date of tires is contained in
the tire coding:
DOT ... 3209 means that the tire was manufac-
tured in week 32 of 2009.
Run-flat tires
The symbol identifying run-flat tires is a circle
with the letters RSC on the sidewall.
Run-flat tires comprise a conditionally self-sup-
porting tire and a special rim. The reinforce-
ment in the sidewalls ensures that the tire can
continue to be used subject to certain restric-
tions, even if depressurized.
For information on continuing to drive with a flat
tire, refer to Indication of a flat tire, page 76.
New wheels and tires
Have new wheels and tires installed only
by your BMW center or tire shop that
works according to BMW repair procedures
with correspondingly trained personnel. If this
work is not carried out properly, there is a dan-
ger of subsequent damage and related safety
hazards. Make sure that the new wheels are bal-
anced.<
Retreaded tires
BMW recommends that you do not use
retreaded tires, since driving safety may
be impaired. The causes for this include poten-
tially different tire casing structures and often
wide variations in tire age, which can result in a
limited service life.<
Correct wheels and tires
When mounting new tires or changing over
from summer to winter tires and vice versa,
mount run-flat tires for your own safety. In the
event of a flat, no spare wheel is available. Your
BMW center will be glad to advise you.
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions, which could
lead to body contact and thus to severe acci-
dents. If non-approved wheels and tires are
used, BMW cannot evaluate their suitability,
and therefore cannot guarantee their driving
safety.<
You can inquire about the right wheel/tire com-
bination at your BMW center.
The correct combination of wheels and tires is
also necessary to ensure reliable operation of
various vehicle systems such as ABS, DSC or
FTM.
To maintain good handling and vehicle
response, use only tires of a single brand and
tread configuration. After a tire has been dam-
aged, mount the previous wheel and tire combi-
nation again as soon as possible.
Wheels with Tire Pressure Monitor
TPM electronics
When mounting new tires or changing over
from summer to winter tires, or vice versa, only
use wheels with TPM electronics; otherwise,
the Tire Pressure Monitor may not be able to
detect a puncture, refer to page 76. Your BMW
center will be glad to advise you.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
131
Recommended tire brands
Certain makes of tire are recommended by
BMW for each tire size. They are marked with a
clearly visible BMW designation on the sidewall
of the tire.
When properly used, these tires meet the high-
est standards in terms of safety and handling
characteristics.
Special characteristics of winter tires
BMW recommends winter tires for winter roads
or at temperatures below +45°F/+76.
Although all-season M+S tires provide better
winter traction than summer tires, they gener-
ally fail to provide the same levels of cold-
weather performance as winter tires.
Pay attention to speed
Always comply with the speed limit for the
winter tires mounted on your car; failure
to do so could result in tire damage and acci-
dents.<
If the car is capable of speeds higher than that
permitted for the winter tires, a label stating the
maximum permitted speed for the mounted
tires must be displayed in your field of view.
Specialist tire dealers and your BMW center
can supply these labels.
Storage
Always store wheels and tires in a cool, dry
place with as little exposure to light as possible.
Always protect tires against all contact with oil,
grease and fuels. Do not exceed the maximum
tire inflation pressure indicated on the sidewall
of the tire.
Swapping wheels between axles
BMW advises against swapping wheels
between the front and rear axles, even if all tires
have the same size, as this could impair driving
characteristics. If the tires are of mixed sizes,
swapping wheels between the axles is not per-
missible.
Snow chains*
Only certain fine-link snow chains have been
tested by BMW, classified as safe for use and
recommended. Consult your BMW center for
more information.
Snow chains must be mounted in pairs and on
the rear wheels only. Observe the manufac-
turer's instructions when mounting snow
chains. Do not exceed a speed of 30 mph or
50 km/h.
Do not initialize the Flat Tire Monitor if
snow chains are mounted; otherwise, the
instrument might issue an incorrect reading.
When driving with snow chains, you may find it
helpful to activate DTC temporarily, refer to
page 73.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Under the hood
132
Under the hood
Do not work on the car unless you pos-
sess the necessary technical knowledge.
If you are unfamiliar with the statutory guide-
lines, have any work on the vehicle performed
only by a BMW center or by a workshop that
work according to BMW repair procedures with
correspondingly trained personnel. If this work
is not carried out properly, there is a danger of
subsequent damage and related safety haz-
ards.<
Hood
Releasing
Pull the lever.
Opening
In order to avoid damage, make sure that
the wiper arms are against the windshield
before you open the hood. Do not open the
engine hood before the engine has cooled
down; otherwise, injuries may result.<
Press the release handle and open the hood.
Closing
Let the hood drop from a height of approx. 10 in/
25 cm. It must be clearly heard to engage.
Make sure that the closing path of the
hood is clear; otherwise, injuries may
result.
If you see any signs while driving your vehicle
that the hood is not completely closed, stop at
once and close it securely.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
133
Important parts of the engine compartment
1 Expansion tank for coolant, refer to
page 135
2 Washer fluid filler neck for headlamp clean-
ing system and window washer system,
refer to page 55
3 Jump-starting connection, refer to
page 150
4 Filler neck for engine oil, refer to Adding
engine oil
Engine oil
The engine oil consumption is dependent on
driving style and driving conditions.
Checking oil level
Your car is equipped with an electronic oil-level
monitor.
For a precise measurement and display of the
oil level, it is necessary that the engine be at
operating temperature, i.e. after uninterrupted
driving for at least approx. 6.5 miles/10 km. You
can have the oil level displayed while you are
driving, or while the vehicle is at a standstill on a
level surface and the engine is running.
You can have the oil level reading displayed in
the instrument cluster.
1. Push button 1 in the turn indicator lever up
or down repeatedly until the appropriate
symbol is shown in the display, accompa-
nied by the word "OIL".
2. Press button 2 in the turn indicator lever.
The oil level is checked and the reading dis-
played.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Under the hood
134
Possible displays
1 Oil level OK
2 Oil level is being checked.
This can take about 3 minutes if the car is at
a standstill on a level surface, or about
5 minutes while the car is on the move.
3 Oil level down to minimum:
Add engine oil as soon as possible, but no
more than 1 US quart/1 liter, refer also to
Adding engine oil on page 134.
4 Oil level is too high.
Too much oil will harm the engine.
Have the vehicle checked without
delay.<
5 The oil level sensor is defective.
Do not add engine oil. You can continue
your journey. Note the newly calculated dis-
tance remaining to the next oil service, refer
to page 68. Have the system checked as
soon as possible.
Adding engine oil
Do not add 1 US quart/1 liter of engine oil until
the following warning lamp lights up in the
instrument cluster, or until the oil level monitor
shows "+1qt" or "+1l".
Add oil within the next 125 miles/200 km;
otherwise, the engine could be dam-
aged.<
Keep oils, greases, etc. out of the reach of
children and comply with the relevant
warnings on the containers. Otherwise, health
hazards may result.<
Oil change
Have oil changed only at your BMW center or at
a workshop that works according to BMW
repair procedures with correspondingly trained
personnel.
Oil types
Do not use oil additives as this could
result in engine damage.<
Specified engine oils
Your service center can advise you on which
engine oils have been approved by the manu-
facturer of your vehicle.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
135
The engine oil quality is critical for the life of the
engine.
Only use approved High Performance oil.
Approved oils belong to the following viscosity
classes: SAE 0W-40, SAE 0W-30, SAE 5W-40
and SAE 5W-30.
Alternative oil types
If the approved engine oils are not available, up
to 1 US quart/1 liter of another oil with the fol-
lowing specification may be used:
API SM or higher
Coolant
Do not add coolant to the cooling system
when the engine is hot. Escaping coolant
can cause burns.<
Coolant consists of half water and half additive.
Not all commercially available additives are suit-
able for your BMW. Ask your BMW center for
suitable additives.
Only use suitable additives; otherwise,
engine damage may result. Because
additives are harmful to your health, it is impor-
tant to follow the instructions on the contain-
ers.<
Comply with the appropriate environ-
mental protection regulations when dis-
posing of coolant additives.<
Checking coolant level
1. Do not open the engine hood before the
engine has cooled down.
2. Turn the cap of the expansion tank a little
counterclockwise to allow any accumulated
pressure to escape, then continue turning
to open.
3. The coolant level is correct if it is between
the maximum and minimum marks in the
filler neck, refer also to the diagram next to
the filler neck.
4. If the coolant is low, slowly add coolant up to
the specified level; do not overfill.
5. Turn the cap until there is an audible click.
6. Have the reason for the coolant loss elimi-
nated as soon as possible.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Maintenance
136
Maintenance
BMW Maintenance System
The BMW Maintenance System supports the
preservation of the traffic and operating safety
of your BMW. The objective is to optimize
efforts with respect to minimal vehicle mainte-
nance costs.
If and when you come to sell your BMW, a com-
prehensive record of servicing will prove a sig-
nificant benefit.
Condition Based Service CBS
Sensors and special algorithms take the differ-
ent driving conditions of your BMW into
account. Condition Based Service uses this to
determine the current and future service
requirements. By letting you define a service
and maintenance regimen that reflects your
own individual requirements, the system builds
the basis for trouble-free driving.
In the instrument cluster, you can have the
remaining times or distances for selected main-
tenance tasks and any legally prescribed dates
displayed, refer to page 68:
> Engine oil
> Brake pads: separately for front and rear
> Brake fluid
> Vehicle check
> Legally mandated inspections depending
on local regulations
Service data in the remote control
Your vehicle continuously stores service-
requirement information in the remote control
while you are driving. Your BMW Service Advi-
sor can read out this data from the remote con-
trol unit, and propose an optimized mainte-
nance approach. Whenever you take your car in
for servicing you should therefore hand your
BMW Service Advisor the remote control unit
that you last used.
Make sure that the date in the instrument
cluster is always set correctly, refer to
page 70; otherwise, the effectiveness of Condi-
tion Based Service CBS is not assured.<
Service and Warranty Information
Booklet for US models and Warranty
and Service Guide Booklet for
Canadian models
Please consult your Service and Warranty Infor-
mation Booklet for US models and Warranty
and Service Guide Booklet for Canadian models
for additional information on service require-
ments.
BMW recommends that you have service
and repair operations performed at your
BMW center.
Take the time to ensure that these service pro-
cedures are confirmed by entries in your vehi-
cle's Service and Warranty Information Booklet
for US models and Warranty and Service Guide
Booklet for Canadian models. These entries
verify that your vehicle has received the speci-
fied regular maintenance.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
137
Socket for Onboard
Diagnosis OBD
On the driver's side is an OBD socket for check-
ing components relevant to the composition of
the vehicle's emissions.
Emissions
The warning lamp lights up:
The vehicle is producing higher emis-
sions. The trip can be continued. Have
the car checked as soon as possible.
Canadian models display this warning
lamp.
The lamp flashes under certain conditions. This
indicates excessive misfiring in the engine. If
this happens, you should reduce your speed
and visit your nearest BMW center as soon as
possible. Severe engine misfiring can quickly
lead to serious damage of emissions-related
components, especially the catalytic converter.
The warning lamp comes on if the gas
cap is not properly tightened and the
OBD system assumes that fuel vapor
is escaping. Make sure that the gas cap is cor-
rectly positioned and close it until it audibly
clicks.
Data recorders
Your vehicle may be equipped with one or sev-
eral measuring or diagnostic modules or a
device for recording or sending certain vehicle
data or information. In addition, if you have
signed a service contract for BMW Assist, cer-
tain vehicle data may be transmitted or
recorded in order to facilitate the corresponding
services.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Care
138
Care
Care products
Regular cleaning and care contributes signifi-
cantly to the value retention of your BMW.
BMW recommends cleaning and caring for your
vehicle with products that are approved by
BMW for this purpose.
Your BMW center will be happy to advise you on
the products and services available for cleaning
and caring for your BMW.
Original BMW Care Products have been
material tested, laboratory checked and
proven in the field, and offer optimal care and
protection for your vehicle.<
Do not use cleaners that contain alcohol
or solvents as these may result in dam-
age.<
Cleaning agents can contain substances
that are dangerous or hazardous to your
health. Therefore, follow the warning and safety
instructions on the packaging. When cleaning
inside the vehicle, always open the doors or
windows of the vehicle. In enclosed areas, pro-
vide for sufficient ventilation. Only use products
designed for cleaning vehicles.<
Exterior care
Washing the vehicle
Especially during the winter months,
ensure that the vehicle is washed more
frequently. Heavy soiling and road salt can lead
to vehicle damage.<
After washing the vehicle, apply the
brakes briefly to dry them; otherwise,
water can reduce braking efficiency over the
short term and the brake discs can corrode.<
Automatic car washes
Preference should be given to cloth car washes.
Do not use high-pressure car washes;
otherwise, water may drip into the vehicle
around the windows.<
Before driving into a car wash, ensure that it is
suitable for your BMW. Check the following:
> Dimensions of your vehicle, refer to
page 169.
> If necessary: fold in the exterior mirrors,
refer to page 43.
> Maximum permissible tire width.
Avoid car washes with guide rail heights
over 4 in/10 cm; otherwise, there is the
danger of damaging chassis parts.<
Preparations before driving into an automatic
car wash:
> Unscrew the rod antenna
*
.
> Deactivate the rain sensor
*
to prevent unin-
tentional wiping.
> Remove additional add-on parts, e.g. spoil-
ers or phone antennas, if they could be
damaged.
Automatic transmission
Before driving into an automatic car wash, per-
form the following steps to ensure that the vehi-
cle can roll:
1. Insert the remote control into the ignition
lock, even with Comfort Access.
2. Move the selector lever to position N.
3. Release the parking brake.
4. Switch off the engine.
5. Leave the remote control in the ignition lock
so that the vehicle can roll.
Steam jets/high-pressure washers
When using steam jets or high-pressure
washers, ensure that you maintain suffi-
cient clearance to the vehicle and do not exceed
a temperature of 1407/606.
Insufficient clearance or excessive pressure or
temperature can lead to component damage or
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
139
water penetration. Follow the operating instruc-
tions of the high-pressure washer.<
When using high-pressure washers, do
not spray against the sensors and cam-
eras, e.g. of the Park Distance Control or Rear
View Camera, for an extended period and main-
tain a distance of at least 1 ft/30 cm.<
Manual car wash
When washing the vehicle by hand, use large
quantities of water and car shampoo if neces-
sary. Clean the vehicle with a sponge or wash-
ing brush, applying light pressure only.
Before cleaning the windshield, deacti-
vate the rain sensor or switch off the igni-
tion to prevent unintentional activation of the
wipers.<
Observe local regulations pertaining to
washing vehicles by hand.<
Headlamps
Do not rub them dry and do not use abrasive or
corrosive cleaning agents.
Loosen dirt, e.g. insects, with shampoo or
insect remover and wash away with copious
quantities of water.
Thaw ice with a windshield deicer and do not
use an ice scraper.
Windows
Clean the inside and outside surfaces of the
windows and the mirrors with window cleaner.
Do not clean the mirrors with cleaners
containing quartz.<
Convertible: retractable hardtop
Proceed as you would in a normal car wash.
When you open a wet hardtop, water
drops may run into the cargo area. If nec-
essary, remove items from the cargo area
beforehand to avoid water stains or soiling.<
Paintwork care
Regular care contributes to value retention and
protects the paintwork against the long-term
effects of damaging substances.
Region-specific environmental influences can
damage the vehicle paintwork. Therefore, it is
important to adapt the frequency and scope of
car care accordingly.
Immediately remove aggressive materials such
as spilled fuel, oil, grease, brake fluid, tree sap or
bird droppings to prevent damage to the paint-
work.
Repairing paintwork damage
Immediately repair scratches or similar
damage, such as that caused by stones
hitting the vehicle, where necessary to prevent
rusting.<
BMW recommends having paintwork damage
repaired by a professional paint repair work-
shop according to BMW specifications using
original BMW paint materials.
Preservation
A preservation treatment is necessary when
water no longer beads off the clean paintwork
surface. Only use products for paintwork pres-
ervation that contain carnauba or synthetic
waxes.
Rubber seals
Treat only with water or rubber care products.
Do not use silicon-containing care prod-
ucts on rubber seals; otherwise, noise
and damage could occur.<
Chrome parts
Carefully clean vehicle parts such as the radia-
tor grill, door handles or window frames with
copious quantities of water and a shampoo
additive, especially when roads are treated with
deicing salt. For additional treatment, use a
chrome polish.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Care
140
Light-alloy wheels
For technical reasons, dust is generated during
braking that is deposited on the light-alloy
wheels. Remove the dust regularly using acid-
free rim cleaner.
Do not use aggressive, acidic, strongly
alkaline and abrasive cleaning agents or
steam jets over 1407/60 6; otherwise, dam-
age may occur.<
Outside sensors/cameras
Keep the sensors and cameras on the
outside of the vehicle, e.g. those for Park
Distance Control, clean and free of ice to ensure
that they remain fully functional.<
Interior care
Upholstery fabrics/cloth trims/
Alcantara fabrics
Vacuum regularly with a vacuum cleaner to
remove superficial dirt.
To remove severe spots such as stains from
beverages, use a soft sponge or lint-free
microfiber cloth and suitable interior cleaners.
Follow the instructions on the packaging.
Clean the upholstery down to the seams
using a sweeping motion. Avoid strong
rubbing.<
Opened Velcro fasteners on pants or
other articles of clothing can damage the
seat covers. Ensure that Velcro fasteners are
closed.<
Leather/leather trim
The leather used by BMW is a high quality
natural product. Slight irregularities in the
leather are a typical characteristic of natural
leather.<
Dust and road grit in the pores and folds of the
leather have an abrasive effect, leading to
increased wear and causing the leather surface
to become brittle prematurely. Therefore, fre-
quently clean the leather of dust using a cloth or
vacuum cleaner.
Clean light-colored leather more frequently as
dust and dirt are more noticeable.
Treat the leather at least once every two
months using a leather lotion as dirt and grease
will gradually attack the leather's protective
layer.
Carpets/cargo area
You can vacuum the carpets and floor mats or
clean them with interior cleaner if heavily soiled.
The floor mats can be removed for cleaning.
When replacing the mats, ensure that the seat
rails do not extend over the floor mats, as this
may damage the mats.
Lint on the floor mats occurs for technical rea-
sons and can be removed by vacuuming
repeatedly.
Interior plastic parts
> Imitation leather surfaces
> Lamp glasses
> Display pane of instrument cluster
> Matte parts
Clean with water and solvent-free plastic
cleaner if necessary.
Fine wood parts
Clean fine wood trim and fine wood parts with a
damp cloth. Wipe dry with a soft cloth.
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Do not clean chemically, as this may
destroy the webbing.<
Interior sensors/cameras
To clean interior sensors and cameras, use a
lint-free cloth moistened with glass cleaner.
Displays
To clean displays, e.g. of the radio or instrument
cluster, use a cleaning cloth for displays or a
soft, non-abrasive, lint-free cloth.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
141
Avoid applying excessive pressure when
cleaning the displays; otherwise, damage
may occur.<
Do not use chemical or abrasive house-
hold cleaning agents. Keep all types of
fluid away from the device. Otherwise, surfaces
or electrical components may be corroded or
damaged.<
CD/DVD drives
Do not use a cleaning CD, as it may dam-
age parts of the drive.<
Vehicle storage
If your vehicle is to be decommissioned for
longer than three months, your BMW center or
a workshop that operates according to BMW
specifications will be glad to advise you.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Replacing components
142
Replacing components
Onboard vehicle tool kit
Coupe
The onboard vehicle tool kit is stored in a com-
partment on the right-hand side of the cargo
area. Remove the cover.
Convertible
The onboard vehicle tool kit is stored in a pouch
under the cargo area floor panel.
Wiper blades
1. Fold out the wiper arm and hold it.
2. Press together the locking spring, arrows 1,
and fold out the wiper blade, arrow 2.
3. Take the wiper blade out of the catch mech-
anism, pulling the blade toward the front.
To avoid damage, make sure that the
wiper arms are against the windshield
before you open the engine compartment.<
Lamps and bulbs
Lamps and bulbs make an essential contribu-
tion to vehicle safety. They should, therefore,
be handled carefully. BMW recommends hav-
ing your BMW center perform any work that you
do not feel competent to perform yourself or
that is not described here.
Never touch the glass of new bulbs with
your bare fingers, as even minute
amounts of contamination will burn into the
bulb's surface and reduce its service life. Use a
clean tissue, cloth or something similar, or hold
the bulb by its base.<
You can obtain a selection of replacement bulbs
at your BMW center.
Only change bulbs while they are cool to
the touch; otherwise, you could suffer
burns.<
When working on electrical systems,
always begin by switching off the con-
sumer in question; otherwise, short-circuits
could result. To avoid possible injury or equip-
ment damage when replacing bulbs, observe
any instructions provided by the bulb manufac-
turer.<
For care of the headlamps, please follow the
instructions in the chapter entitled 'Care'.
If the routine for changing a particular
bulb is not described here, please contact
your BMW center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.<
Light-emitting diodes LED
Light-emitting diodes installed behind translu-
cent lenses serve as the light source for many of
the controls and displays in your vehicle. These
light-emitting diodes, which operate using a
concept similar to that applied in conventional
lasers, are officially designated as Class 1 light-
emitting diodes.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
143
Do not remove the covers or expose the
eyes directly to the unfiltered light source
for several hours; otherwise, this could cause
irritation of the retina.<
Xenon lamps
These bulbs have a very long service life and are
highly unlikely to fail. If a xenon lamp fails never-
theless, switch on the fog lamps and continue
the journey with great care, provided that local
legislation does not prohibit this.
Have any work on the xenon lamp system,
including bulb replacements, performed
only by a BMW center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel. Otherwise, if
such work is carried out improperly, the high
voltage in the system presents the danger of
fatal injuries.<
Access to the lamps
1. Switch off the lamps and take the remote
control out of the ignition lock.
2. Remove the upper cover from the head-
lamp. To do so, use a screwdriver to press
the catches towards the rear, see arrows,
and pull the cover forward and out.
Follow the same steps in reverse order to reat-
tach the cover.
Be careful when installing the cover; oth-
erwise, leaks could occur and cause dam-
age to the headlamp system.<
Access through the wheel well
For turn signals only:
1. Turn the wheel inwards.
2. Partially release the cover in the wheel well.
To do so, remove the corresponding
screws, see arrows.
3. Pull the cover back.
Parking lamps and roadside parking
lamps, daytime running lights
H8 bulb, 35 watts
1. Remove the cover, refer to Access to the
lamps.
2. Turn the bulb approx. 90°, see arrow, and
take it out.
3. Disconnect the plug, change the bulb and
reconnect the plug.
4. Insert the bulb and turn it until it stops.
5. Reattach the cover.
Corner-illuminating lamp*
H3 bulb, 55 watts
1. Switch off the lamps and take the remote
control out of the ignition lock.
2. Remove the cover, refer to Access to the
lamps.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Replacing components
144
3. Push the wire bracket out of the anchor
towards the right and fold it up.
4. Disconnect the plug, change the bulb and
reconnect the plug.
5. Insert the bulb.
6. Fold the wire bracket down and engage it.
7. Reattach the cover.
Turn signals, front
PY21W bulb, 21 watts
1. Release the cover in the wheel well, refer to
Access through the wheel well on
page 143.
2. Rotate turn signal bulb socket 1 to the left
and remove.
3. Apply gentle pressure to the bulb while
turning it to the left for removal and replace-
ment.
4. Insert turn signal bulb socket 1.
5. Reattach the cover in the wheel well.
Tail lamps
Coupe
> Turn signal:
PY21W bulb, 21 watts
> Brake lamp in the trunk lid:
H21W bulb, 21 watts
> Other lamps:
W16W bulb, 16 watts
The tail lamps are divided in two parts. One part
is in the trunk lid, the other is in the fender.
1 Turn signal
2 Roadside parking lamp/tail lamp, LED
3 Backup lamp
4 Brake lamp, consisting of two individual
bulbs
5 Brake Force Display lamp
6 Roadside parking lamp/tail lamp, LED
If one of the bulbs 2, 5 or 6 malfunctions, please
contact your BMW center or a workshop that
works according to BMW repair procedures
with correspondingly trained personnel.
Convertible
> Turn signal:
PY21W bulb, 21 watts
> Brake lamp in the trunk lid:
H21W bulb, 21 watts
The tail lamps are divided in two parts. One part
is in the trunk lid, the other is in the fender.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
145
1 Turn signal
2 Roadside parking lamp/tail lamp, LED
3 Backup lamp
4 Brake lamp, consisting of two individual
bulbs
5 Brake Force Display lamp
6 Roadside parking lamp/tail lamp, LED
If one of the bulbs 2 to 6 malfunctions, please
contact your BMW center or a workshop that
works according to BMW repair procedures
with correspondingly trained personnel.
Fender-mounted lamps
Coupe
1. Left-hand side: use a screwdriver to pry off
the cover in the cargo area and remove the
cover.
Right-hand side: remove the cover from the
right-hand side panel of the cargo area.
2. Loosen the bulb holder at the clip, see
arrow, and pull out.
3. Turn signal indicator: apply gentle pressure
to the bulb while turning it to the left for
removal and replacement.
Backup lamps and brake lamps: take out
the bulbs and change them.
4. Re-engage the bulb holder so that it audibly
clicks into place.
5. Reattach the cover in the cargo area.
Convertible
1. Turn the screws on the corresponding side,
see arrow, by 90° and remove the cover.
2. While applying light pressure, turn the bulb
holder of the turn signal bulb to the left.
3. Remove and replace the bulb.
4. Re-engage the bulb holder so that it audibly
clicks into place.
5. Reattach the cover in the cargo area.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Replacing components
146
Lamps in the trunk lid
Coupe
1. Pry out the plastic plugs in the trim of the
trunk lid using a screwdriver and remove the
trim.
2. Release the bulb holder, see arrow, and
remove.
3. Apply gentle pressure to the bulb while
turning it to the left for removal and replace-
ment.
4. Attach the bulb holder.
5. Reattach the trim of the trunk lid and the
holder for the warning triangle.
Convertible
1. Take the warning triangle out of its holder,
refer to page 150. Unscrew the holder using
the screwdriver from the onboard vehicle
tool kit.
2. Pry out the plastic plugs in the trim of the
trunk lid using a screwdriver and remove the
trim.
3. Release the bulb holder, see arrow, and
remove.
4. Apply gentle pressure to the bulb while
turning it to the left for removal and replace-
ment.
5. Attach the bulb holder.
6. Reattach the trim of the trunk lid and the
holder for the warning triangle.
License plate lamp, center brake lamp,
parking/tail lamp
These lamps use LED technology for operation.
In the event of a malfunction, please contact
your BMW center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.
Changing wheels
Your BMW is equipped with run-flat tires as
standard. This removes the need to change a
wheel immediately in the event of a puncture.
For information on continuing to drive with a
damaged tire, refer to Indication of a flat tire on
page 76.
The symbol identifying run-flat tires is a circle
with the letters RSC on the sidewall, refer to
Run-flat tires, page 130.
When mounting new tires or changing over
from summer to winter tires and vice versa,
mount run-flat tires for your own safety. In the
event of a flat, no spare wheel is available. Your
BMW center will be glad to advise you. Refer
also to New wheels and tires, page 130.
The tools for changing wheels are avail-
able as optional accessories from your
BMW center.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
147
Jack mounting points
The jacking points are at the positions shown in
the illustration.
Vehicle battery
Battery care
The battery is 100% maintenance-free, the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate. Your BMW center will be glad to advise in
all matters concerning the battery.
Replacing the battery
Only use vehicle batteries that have been
approved for your vehicle by the manu-
facturer; otherwise, the vehicle could be dam-
aged and systems or functions may not be fully
available.<
After a battery replacement, have the battery
registered on the vehicle by your service center
to ensure that all comfort functions are fully
available.
Charging the battery
Only charge the battery in the vehicle via the
terminals in the engine compartment with the
engine off. Connections, refer to Jump-starting
on page 150.
Disposal
Have old batteries disposed of by your
BMW center or bring them to a recycling
center. Maintain the battery in an upright posi-
tion for transport and storage. Always secure
the battery against tipping over during trans-
port.<
Power failure
After a temporary power loss, the functioning of
some equipment may be limited and require
reinitialization. Individual settings may likewise
have been lost and will have to be programmed:
> Time and date
These values must be updated, refer to
page 69.
> Radio
Stations must be stored again, refer to the
separate Owner's Manual for Radio.
> Glass roof
It may happen that the roof can only be
raised. The system must be initialized.
Please contact your BMW center.
> Seat and mirror memory
The positions must be stored again, refer to
page 40.
> Inside rearview mirror with digital compass
The system must be calibrated, refer to
page 97.
> Active steering
The system automatically initializes itself
briefly during a trip. The system is deacti-
vated during this time, refer to page 79.
> xDrive
The system automatically initializes itself
during a trip. Indicator lamps light up during
this time. If the lamps do not go out during
the current trip, have the system checked.
Fuses
Never attempt to repair a blown fuse and
do not replace a defective fuse with a sub-
stitute of another color or amperage rating; oth-
erwise, this could lead to a circuit overload, ulti-
mately resulting in a fire in the vehicle.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Replacing components
148
Open the cover in the glove compartment and
remove it.
Plastic tweezers are located on the distributor
box.
See the rear of the cover for information on fuse
assignment.
Spare fuses are available from your BMW cen-
ter.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
149
Giving and receiving assistance
Emergency Request*
Conditions for an Emergency Request:
> Full preparation package mobile phone: this
equipment makes it possible to send an
Emergency Request even if no mobile
phone is paired with the vehicle.
> BMW Assist is activated. Activating
BMW Assist, refer to separate Owner's
Manual.
> Radio readiness is on.
> The BMW Assist system is logged on to a
mobile phone network.
> The Emergency Request system is opera-
ble.
Once your service contract for BMW Assist
expires, the BMW Assist system can be deacti-
vated by a BMW center without you having to
visit a workshop. Once the BMW Assist system
has been deactivated, Emergency Requests
are not possible. The BMW Assist system can
be reactivated by a BMW center after a new
contract has been signed.
Sending an Emergency Request
1. Briefly press the cover flap to open.
2. Press the SOS button until the LED in the
button lights up.
As soon as the voice connection to the BMW
Assist Response Center has been established,
the LED flashes.
Once the BMW Assist Response Center has
received your Emergency Request, the
BMW Assist Response Center contacts you
and takes further steps to help you. Even if you
are unable to respond, the BMW Assist
Response Center will be able to initiate further
steps to assist you under certain conditions.
If the circumstances allow this, remain in the
vehicle until the connection has been estab-
lished. You will then be able to provide a
detailed description of the situation.
Data for determining the necessary rescue
measures are transmitted to the BMW Assist
Response Center, e.g. the current position of
your vehicle, if it can be determined.
If the LED is flashing but the BMW Assist
Response Center cannot be heard over the
hands-free system, it is possible that the
hands-free system is malfunctioning. You may
still be heard by the BMW Assist Response
Center, however.
Under certain conditions, an Emergency
Request is sent automatically immediately after
a severe accident. This Automatic Collision
Notification is not affected by the button being
pressed.
For technical reasons, the Emergency
Request service cannot be guaranteed
for the most unfavorable conditions.<
Roadside Assistance
The BMW Roadside Assistance is there to
assist you around the clock in the event of a
breakdown, including on weekends and public
holidays.
The phone numbers of Roadside Assistance in
your home country can be found in the Contact
brochure.
First aid pouch*
Some of the articles contained in the first aid
pouch have a limited service life. Therefore,
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Giving and receiving assistance
150
check the expiration dates of the contents reg-
ularly and replace any items in good time, if nec-
essary.
Coupe
The first aid pouch is located on the right-hand
side of the cargo area in a storage area.
Convertible
The first aid pouch is located in a compartment
under the front passenger seat.
To open: press the button and fold the cover
down.
To close: fold the cover back up and press it into
the catch.
Warning triangle*
Coupe
The warning triangle is located on the left-hand
side of the cargo area. Press the tab to take it
out.
Convertible
The warning triangle is located in a holder in the
trunk lid. Press the tabs to take it out.
Jump-starting
If the car's own battery is flat, your BMW's
engine can be started by connecting two
jumper cables to another vehicle's battery. You
can also use the same method to help start
another vehicle. Only use jumper cables with
fully-insulated clamp handles.
Do not touch any electrically live parts
when the engine is running, or a fatal acci-
dent may occur. Carefully adhere to the follow-
ing sequence, both to prevent damage to one or
both vehicles, and to guard against possible
personal injuries.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
151
Preparation
1. Check whether the battery of the other
vehicle has a voltage of 12 volts and
approximately the same capacitance in Ah.
This information can be found on the bat-
tery.
2. Switch off the engine of the assisting vehi-
cle.
3. Switch off any consumers in both vehicles.
There must not be any contact between
the bodies of the two vehicles; otherwise,
there is a danger of shorting.<
Connecting jumper cables
Connect the jumper cables in the correct
order, so that no sparks which could
cause injury occur.<
Your BMW has a jump-starting connection in
the engine compartment which acts as the bat-
tery's positive terminal, refer also to the Engine
compartment overview on page 133. The cap is
marked with +.
1. Pull the cap of the BMW jump-starting con-
nection up to remove.
2. Attach one terminal clamp of the plus/+
jumper cable to the positive terminal of the
battery or a starting-aid terminal of the vehi-
cle providing assistance.
3. Attach the second terminal clamp of the
plus/+ jumper cable to the positive terminal
of the battery or a starting-aid terminal of
the vehicle to be started.
4. Attach one terminal clamp of the minus/–
jumper cable to the negative terminal of the
battery or to an engine or body ground of
the assisting vehicle.
Your BMW has a special nut as body ground
or negative pole.
5. Attach the second terminal clamp of the
minus/– jumper cable to the negative termi-
nal of the battery or to the engine or body
ground of the vehicle to be started.
Starting the engine
1. Start the engine of the donor vehicle and
allow it to run for a few minutes at slightly
increased idle speed.
2. Start the engine on the other vehicle in the
usual way.
If the first start attempt is not successful,
wait a few minutes before another attempt
in order to allow the discharged battery to
recharge.
3. Let the engines run for a few minutes.
4. Disconnect the jumper cables by reversing
the above connecting sequence.
If necessary, have the battery checked and
recharged.
Never use spray fluids to start the
engine.<
Tow-starting, towing away
Observe the applicable laws and regula-
tions for tow-starting and towing vehi-
cles.<
Do not transport any passengers other
than the driver in a vehicle that is being
towed.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Giving and receiving assistance
152
Using a tow fitting
The screw-in tow fitting must always be carried
in the car. It can be screwed in at the front or
rear of the BMW.
Coupe: it is stored in the onboard vehicle tool kit
underneath the cover on the right-hand side of
the cargo area, refer to page 142.
Convertible: it is stored in the onboard vehicle
tool kit underneath the cargo area floor, refer to
page 142.
Use only the tow fitting provided with the
vehicle and screw it all the way in. Use the
tow fitting for towing on paved roads only. Avoid
lateral loading of the tow fitting, e.g. do not lift
the vehicle by the tow fitting. Otherwise, the
tow fitting and the vehicle could be damaged.<
Access to screw thread
Release the cover panel in the bumper:
Press on the upper part of the cover panel.
Front
Rear
Being towed
Make sure that the ignition is switched on,
refer to page 49; otherwise, the low-beam
headlamps, tail lamps, turn signal indicators and
windshield wipers may be unavailable.
Power steering assistance is not available when
the engine is not running. Thus, braking and
steering will require increased effort. Active
steering is not active and it will be necessary to
turn the steering wheel further.<
Manual transmission
Gearshift lever in neutral position.
Automatic transmission
Selector lever in position N.
Changing selector lever positions, refer to
page 52.
Do not exceed a towing speed of 45 mph
or 70 km/h and a towing distance of
90 miles/150 km; otherwise, the automatic
transmission may be damaged.<
Towing methods
Do not lift the vehicle by a tow fitting or
body and chassis parts; otherwise, dam-
age may result.<
With a tow bar
The towing vehicle must not be lighter
than the towed vehicle; otherwise, it may
be impossible to maintain control.<
The tow fittings used should be on the same
side on both vehicles. Should it prove impossi-
ble to avoid mounting the tow bar at an angle,
please observe the following:
> Clearance and maneuvering capability will
be sharply limited during cornering.
> The tow bar will generate lateral forces if it is
attached offset.
Attach the tow bar to the tow fittings only,
as attaching it to other parts of the vehicle
could result in damage.<
With a tow rope
When starting off in the towing vehicle, make
sure that the tow rope is taut.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
153
To avoid jerking and the associated
stresses on vehicle components when
towing, always use nylon ropes or nylon straps.
Attach the tow rope to the tow fittings only, as
attaching it to other parts of the vehicle could
result in damage.<
With a tow truck: vehicle without xDrive
Manual and automatic transmission:
Have the BMW transported with a tow truck
with a so-called lift bar, or on a flatbed.
Do not tow the vehicle with just the rear axle
raised as this may cause the steering to turn.
With a tow truck: vehicle with xDrive
Do not tow a BMW with xDrive with just
the front or rear axle raised; otherwise, the
wheels could lock up and the transfer case
could be damaged.<
Have the BMW transported on a flatbed surface
only.
Tow-starting
Avoid tow-starting the vehicle whenever possi-
ble; instead, jump-start the engine, refer to
page 150. Vehicles with a catalytic converter
should only be tow-started when the engine is
cold, vehicles with an automatic transmission
cannot be tow-started at all.
1. Switch on hazard warning flashers, comply
with local regulations.
2. Switch on the ignition, refer to page 49.
3. Shift into 3rd gear.
4. Have the vehicle tow-started with the clutch
depressed and slowly release the clutch.
After the engine starts, immediately
depress the clutch completely again.
5. Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6. Have the vehicle checked.
With xDrive: do not activate Hill Descent
Control HDC when the vehicle is being
tow-started, page 74.<
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Indicator and warning lamps
154
Indicator and warning lamps
Indicator and warning lamps can light up in a
variety of combinations and colors. See the
table for information on causes and how to
react. Note whether a lamp comes on alone or in
combination with another. Some lamps can
light up in different colors. Corresponding dis-
tinctions are made in the text.
1 2 Cause What to do
Turn signals
High beams/headlamp flasher
switched on
Fog lamps switched on
Fasten safety belts Fasten your safety belt, refer also to
page 42.
Indication in US models
Parking brake applied Release the parking brake.
Indication in Canadian models
Parking brake applied Release the parking brake.
Outside temperature warning Drive cautiously, refer also to page 64.
Lights up briefly:
Approx. 2.1 US gallons/8 liters of fuel
remain in the tank
Remains on:
Remaining operating range is no more
than 30 miles/50 km, refer to page 65
Engine refuses to start Depress the brake or clutch in order to
start the engine, refer to page 50.
Ignition switched on and driver's door
open
Switch off the ignition, refer to page 49,
or close the driver's door.
Parking lamps still on Switch off the parking lamps, refer to
page 83.
Roadside parking lamps still on Switch off the roadside parking lamps,
refer to page 85.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
155
Door open
Engine compartment lid open
Lights up in red:
Backrest of driver's seat or front pas-
senger seat not locked
Lock the backrest; otherwise, the safety
belt will not provide protection in the
event of an accident.
Lights up in yellow:
Seat backrest monitor malfunctioning Engage the seat backrest. Have it
checked by your nearest BMW center.
Lights up in red:
Roof activation system failure Roof cannot be moved. If the retract-
able hardtop does not lock, contact
your nearest BMW center.
Roof activation system malfunctioning Roof movement incomplete. Please
check if the roof is blocked, then press
or pull the switch again.
Lights up in yellow:
Roof drive overheated Roof activation temporarily limited to
closing only.
Cargo area partition not in lowermost
position
Press down the cargo area partition
until it engages on both sides.
Vehicle not level, roof activation not
possible
Move the vehicle to a level surface.
Rollover protection system malfunc-
tioning
Have the rollover protection system
checked by your nearest BMW center.
Trunk lid open
Gas cap is open Make sure that the gas cap is correctly
positioned and close it until it audibly
clicks. Do not jam the strap between the
gas cap and the vehicle.
Windshield washer fluid level too low Add washer fluid as soon as possible,
refer to page 55.
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Indicator and warning lamps
156
Lights up in red:
Service due Arrange a service appointment.
Check service requirements, refer to
page 68.
Lights up in yellow:
The engine will start the next time the
start/stop button is touched, possibly
without the brake or clutch being
depressed
Remote control malfunctioning or, in
cars with Comfort Access, not
detected
The engine cannot be started. Have the
remote control checked, if necessary.
Battery in remote control discharged Use the remote control for a longer jour-
ney or, in cars with Comfort Access,
replace the battery.
Belt tensioners and/or airbag system
failed
Have the system checked immediately.
Active steering defective You can continue your journey.
Steering characteristics are modified
and steering wheel could be off-center.
Steer carefully.
Have the system checked as soon as
possible.
Steering assistance failed Markedly different steering response.
You can continue your journey, but
moderate your speed and exercise due
caution.
Have the system checked as soon as
possible.
Lights up:
Emergency Request system has failed
or is malfunctioning
Have the system checked as soon as
possible.
Lights up in red:
Engine malfunction Stop the car and switch off the engine.
You cannot continue your journey. Con-
tact your BMW center.
Lights up in yellow:
Full engine power is no longer available You can continue your journey, but
moderate your speed and exercise due
caution. Have the engine checked as
soon as possible.
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
157
Indication in US models:
Warning lamp flashes:
Engine malfunction under high load.
High engine load will result in damage
to the catalytic converter
You can continue your journey, but
moderate your speed and exercise due
caution. Have the vehicle checked with-
out delay.
Warning lamp comes on:
Engine malfunction with adverse effect
on emissions
Have the car checked as soon as possi-
ble.
Indication in Canadian models:
Warning lamp flashes:
Engine malfunction under high load.
High engine load will result in damage
to the catalytic converter
You can continue your journey, but
moderate your speed and exercise due
caution. Have the vehicle checked with-
out delay.
Warning lamp comes on:
Engine malfunction with adverse effect
on emissions
Have the car checked as soon as possi-
ble.
Lights up in red:
Engine overheating Carefully bring the car to a stop, switch
off the engine and allow it to cool down.
Do not open the hood; otherwise, there
is a risk of injury from scalding. Contact
your BMW center.
Lights up in yellow:
Engine too hot Continue driving at more moderate
speed so that the engine can cool
down. Have the engine checked with-
out delay if the situation reoccurs.
Lights up in red:
Battery is no longer being charged.
Alternator malfunction
Switch off all unnecessary electrical
consumers. Have the power supply
system checked without delay.
Lights up in yellow:
Battery charge level very low, battery
aged or not securely connected
Have the battery checked as soon as
possible.
Indication in US models
Parking brake applied
Indication in Canadian models
Parking brake applied
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Indicator and warning lamps
158
Indication in US models
Lights up in red:
Brake fluid level too low Reduced braking effect, stop the car
carefully. Contact your BMW center.
Lights up in yellow:
Drive-off assistant has failed. The car
will not be held in place after the brake
is released
Have the system checked as soon as
possible.
Indication in Canadian models
Lights up in red:
Brake fluid level too low Reduced braking effect, stop the car
carefully. Contact your BMW center.
Lights up in yellow:
Drive-off assistant has failed. The car
will not be held in place after the brake
is released
Have the system checked as soon as
possible.
Indication in US models
Brake pads worn Have the condition of the brake pads
checked without delay.
Indication in Canadian models
Brake pads worn Have the condition of the brake pads
checked without delay.
Lights up in red: Have the system in question checked
without delay.
> Starter failed or The engine cannot be restarted.
> Ignition malfunctioning. Engine
restart only possible when brake is
depressed or
> Lighting system failed. Low beams/
tail lamps and brake lamps still
operational. All other lamps failed
Depress the brake to restart the engine.
Lights up in yellow:
> Control of the brake lamps failed or
> fuel supply malfunctioning
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system in question
checked without delay.
Flashing:
Dynamic Stability Control DSC or
Dynamic Traction Control DTC is con-
trolling drive and braking forces, refer
also to page 74
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
159
Dynamic Traction Control DTC acti-
vated, refer also to page 74
Dynamic Stability Control DSC and
Dynamic Traction Control DTC deacti-
vated, refer also to page 74
Driving stability limited during accelera-
tion and cornering.
Driving style must be readjusted.
Suspension control system failed, refer
also to page 73
Driving stability limited during accelera-
tion and cornering.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked as
soon as possible.
xDrive has failed, refer also to page 75 You can continue your journey. Drive
cautiously and think well ahead. Avoid
driving on rough tracks, full-throttle
operation and use of the transmission's
kickdown mode. Have the system
checked immediately.
xDrive and DSC have failed, refer also
to page 75
You can continue your journey. Drive
cautiously and think well ahead. Avoid
driving on rough tracks, full-throttle
operation and use of the transmission's
kickdown mode. Have the system
checked immediately.
Indication in US models
The driving stability control systems,
including ABS and the Tire Pressure
Monitor, have failed, refer also to
page 73
You can continue your journey.
Reduced braking and driving stability.
Drive at moderate speed, avoid sudden
braking if possible. Have the system
checked as soon as possible.
Indication
*
in Canadian models
The driving stability control systems,
including ABS and the Flat Tire Monitor
or Tire Pressure Monitor
*
, have failed,
refer also to page 73
You can continue your journey.
Reduced braking and driving stability.
Drive at moderate speed, avoid sudden
braking if possible. Have the system
checked as soon as possible.
Indication
*
in Canadian models
The driving stability control systems,
including ABS and the Flat Tire Monitor
or Tire Pressure Monitor
*
, have failed,
refer also to page 73
You can continue your journey.
Reduced braking and driving stability.
Drive at moderate speed, avoid sudden
braking if possible. Have the system
checked as soon as possible.
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Indicator and warning lamps
160
Indication in US models
The driving stability control systems,
including ABS, xDrive and the Flat Tire
Monitor, have failed
You can continue your journey.
Reduced braking and driving stability.
Drive at moderate speed, avoid sudden
braking if possible. Avoid driving on
rough tracks, full-throttle operation and
use of the transmission's kickdown
mode. Have the system checked imme-
diately.
Indication
*
in Canadian models
The driving stability control systems,
including ABS, xDrive and the Flat Tire
Monitor, have failed
You can continue your journey.
Reduced braking and driving stability.
Drive at moderate speed, avoid sudden
braking if possible. Avoid driving on
rough tracks, full-throttle operation and
use of the transmission's kickdown
mode. Have the system checked imme-
diately.
Indication
*
in Canadian models
The driving stability control systems,
including ABS, xDrive and the Flat Tire
Monitor, have failed
You can continue your journey.
Reduced braking and driving stability.
Drive at moderate speed, avoid sudden
braking if possible. Avoid driving on
rough tracks, full-throttle operation and
use of the transmission's kickdown
mode. Have the system checked imme-
diately.
Indication in US models
Vehicle electronics failed You cannot continue your journey. Con-
tact your BMW center.
Indication
*
in Canadian models
Vehicle electronics failed You cannot continue your journey. Con-
tact your BMW center.
Indication
*
in Canadian models
Vehicle electronics failed You cannot continue your journey. Con-
tact your BMW center.
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
161
Vehicles with Flat Tire Monitor
*
Light up in yellow and red:
> Tire is deflated Carefully bring the car to a stop. Comply
with the additional information starting
on page 75.
> Flat Tire Monitor not initialized Initialize Flat Tire Monitor, refer to
page 75.
Light up in yellow:
Flat Tire Monitor failed. Punctures are
not indicated
Have the system checked.
Vehicles with Tire Pressure Monitor
*
Light up in yellow and red:
There is a flat tire or substantial loss of
tire pressure
Carefully bring the car to a stop. Comply
with the additional information starting
on page 76.
Vehicles with Tire Pressure Monitor
*
Light up in yellow:
Tire Pressure Monitor not initialized Check the inflation pressure and reset
the system, refer to page 77
The small lamp flashes in yellow and
then lights up continuously; the larger
lamp comes on in yellow:
> Tire Pressure Monitor has failed.
Punctures are not indicated
Have the system checked.
> A wheel without TPM electronics
has been mounted
Have the system checked.
> Interference from systems or
devices that use the same radio fre-
quency. The system automatically
reactivates once it is outside of the
field of interference
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Indicator and warning lamps
162
Lights up in red:
> Transmission limp-home program
active with restricted range of
gears, possibly with reduced accel-
eration.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked
without delay.
Gears can be engaged without
depressing the brake
Always depress the brake to engage a
gear.
Lights up in yellow:
> Automatic selector lever locked:
Selector lever locked in position P
with engine running or ignition
switched on and brake depressed
Overriding selector lever lock, refer to
page 53.
> Brake signal malfunctioning: gear
can be engaged without depress-
ing the brake
To engage a gear while the vehicle is at
a standstill, always step on the brake.
Before leaving the vehicle, engage P
and switch off the engine.
Lights up in red:
Transmission overheating Bring the car to a stop and engage P.
Allow the transmission to cool down.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked if the
situation reoccurs.
Lights up in yellow:
Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate your
speed and exercise due caution.
P is not engaged. Vehicle not pre-
vented from rolling
Selector lever position P not engaged.
Ignition cannot be switched off
Engage selector lever position P when
you wish to switch off the ignition, refer
to page 49.
Pinch protection system of the power
windows malfunctioning
Have the system checked.
Pinch protection system of the electric
glass roof malfunctioning
Have the system checked.
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
163
Cruise control deactivated:
> Driving stability control systems are
active or
> parking brake is applied or
> the vehicle has not achieved a
speed of 20 mph or 30 km/h or
> engaged gear not suitable for the
speed being driven
Cruise control system failed You can continue your journey. Have
the system checked.
Active cruise control deactivated:
> Driving stability control systems are
active or
> parking brake is applied or
> the vehicle has not achieved a
speed of 20 mph or 30 km/h or
> engaged gear not suitable for the
speed being driven or
Keep a safe distance.
> Radar sensor dirty Clean the radar sensor, refer to
page 61.
Active cruise control failed Keep a safe distance.
Have the system checked.
Park Distance Control failed Have the system checked.
> High-beam assistant inactive Clean the sensor field on the front of the
interior rearview mirror, refer to
page 86.
> High-beam assistant malfunction-
ing
Have the system checked by your near-
est BMW center.
> Sensitivity of the high-beam assis-
tant has been changed
There is a risk that oncoming traffic may
be blinded. Have the system checked
by your nearest BMW center.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp failed Have the low beams checked as soon
as possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Indicator and warning lamps
164
Adaptive light control failed
Coolant level too low Add coolant immediately, refer to
page 135.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your jour-
ney. Contact your BMW center.
Engine oil level too low Add engine oil immediately; refer to
page 133 for more information.
Lights up in red:
Service appointment overdue Arrange a service appointment.
Check service requirements, refer to
page 68.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, refer to
page 68.
No service due Check service requirements, refer to
page 68.
Time and date no longer correct Set the time and date, refer to page 69.
1 2 Cause What to do
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference
This chapter contains technical data and an
index that will help you find information most
quickly.
Reference
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technical data
168
Technical data
Engine data
Coupe
Convertible
328i/xDrive 335i/xDrive
Displacement cu in/cmμ 182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 230 300
at engine speed rpm 6,500 5,800
Maximum torque lb ft/Nm 200/270 300/407
at engine speed rpm 2,750 1,400 - 5,000
328i 335i
Displacement cu in/cmμ 182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 230 300
at engine speed rpm 6,500 5,800
Maximum torque lb ft/Nm 200/270 300/407
at engine speed rpm 2,750 1,400 - 5,000
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
169
Dimensions
Coupe
All dimensions given in inches/mm.
Smallest turning circle dia.: 36.1 ft/11.0 m, with xDrive: 38.7 ft/11.8 m.
335i, 335i xDrive: height approx. 54.1 in/1,375 mm
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Technical data
170
Convertible
All dimensions given in inches/mm.
Smallest turning circle dia.: 36.1 ft/11.0 m.
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
171
Weights
Coupe
Convertible
Capacities
328i 328i
xDrive
335i 335i
xDrive
Approved gross weight
> with manual transmission lbs/kg 4,277/1,940 4,508/2,045 4,497/2,040 4,685/2,125
> with automatic
transmission
lbs/kg 4,343/1,970 4,552/2,065 4,508/2,045 4,696/2,130
Load lbs/kg 882/400 882/400 882/400 882/400
Approved front axle load lbs/kg 2,061/935 2,260/1,025 2,172/985 2,326/1,055
Approved rear axle load lbs/kg 2,293/1,040 2,326/1,055 2,348/1,065 2,381/1,080
Approved roof load capacity lbs/kg 165/75 165/75 165/75 165/75
Cargo area capacity cu ft/liters 15.5/440 15.5/440 15.2/430 15.2/430
328i 335i
Approved gross weight
> with manual transmission lbs/kg 4,674/2,120 4,839/2,195
> with automatic transmission lbs/kg 4,740/2,150 4,861/2,205
Load lbs/kg 838/380 838/380
Approved front axle load lbs/kg 2,105/955 2,227/1,010
Approved rear axle load lbs/kg 2,646/1,200 2,646/1,200
Approved roof load capacity lbs/kg - -
Cargo area capacity cu ft/liters 7.4 - 12.4/210 - 350 7.4 - 12.4/210 - 350
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page 119
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page 55
including headlamp washers US qt/liters approx. 6.3/6.0
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Everything from A to Z
172
Everything from A to Z
Index
A
ABS Antilock Brake
System 73
ACC, refer to Active cruise
control 57
Accident, refer to Sending an
Emergency Request 149
Activated-charcoal filter for
automatic climate control 94
Active cruise control 57
– indicator lamps 60
– malfunction 61
– selecting distance 59
– sensor 61
Active steering 79
Adaptive brake light
– Brake Force Display 79
Adaptive light control 85
Additives
– coolant 135
Adjusting temperature inside
the car, refer to Air
conditioner 89
Adjusting temperature inside
the car, refer to Automatic
climate control 91
Adjusting the thigh support 36
Airbags 80
– indicator/warning lamp 81
– sitting safely 35
Air conditioner 88
Air conditioning mode
– air conditioner 89
– automatic climate control 91
– ventilation 90, 93
Air distribution
– automatic 92
– individual 89
– manual 89
Airing, refer to
Ventilation 90, 93
Air outlets, refer to Air
vents 88
Air pressure, refer to Tire
inflation pressure 120
Air recirculation, refer to
Recirculated-air
mode 89, 92
Air supply
– air conditioner 89
– automatic climate control 91
– ventilation 90, 93
Air vents 88
Air volume 89, 92
AKI, refer to Fuel
specifications 119
Alarm system
25
– avoiding unintentional
alarms 26
– interior motion sensor 26
– switching off an alarm 25
– tilt alarm sensor 26
ALL program 93
All-season tires, refer to
Winter tires 131
All-wheel drive, refer to
xDrive 74
Ambient air, refer to
Recirculated-air
mode 89, 92
Antifreeze
– coolant 135
– washer fluid 55
Antilock Brake System
ABS 73
Anti-theft alarm system, refer
to Alarm system 25
Anti-theft system 19
Approved axle loads, refer to
Weights 171
Approved gross vehicle
weight, refer to Weights 171
Armrest, refer to Center
armrest 99
Ashtray 101
Assistance systems, refer to
Driving stability control
systems 73
AUC Automatic recirculated-
air control 92
Audio device, external 99
Automatic
– air distribution 92
– air volume 92
– cruise control 56, 57
– headlamp control 83
Automatic car washes 138
Automatic climate control 88
– automatic air distribution 92
Automatic curb monitor 44
Automatic high beams and
low beams, refer to High-
beam assistant 85
Automatic recirculated-air
control AUC 92
Automatic transmission with
Steptronic 51
– interlock 51, 52
– overriding selector lever
lock 53
– shiftlock, refer to Changing
selector lever position 52
– sport program 52
– towing 151
– tow-starting 151
AUTO program for automatic
climate control 92
AUX-IN
– port 99
Average fuel consumption 66
– setting the units 67
Average speed 66
Avoiding unintentional
alarms 26
Axle loads, refer to
Weights 171
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
173
B
Backrest contour, refer to
Lumbar support 37
Backrests, refer to Seat
adjustment 36
Backrest width adjustment 37
Back seats
– refer to Rear seats 39
Backup lamps
– replacing bulb 144, 145, 146
Bag holder 103
Band-aids, refer to First aid
pouch 149
Bar, refer to Towing
methods 152
Base plate for telephone or
mobile phone
– refer to Snap-in adapter in
the center armrest storage
compartment 99
Battery 147
– charging 147
– disposal 28, 147
– jump-starting 150
– remote control 18
– replacing 147
– temporary power failure 147
Battery renewal
– remote control 28
– remote control for vehicle 28
Being towed 152
Belt hand-over 42
– pinch protection system 43
Belts, refer to Safety belts 42
Belt tensioner, refer to Safety
belts 42
Beverage holders, refer to
Cupholders 100
Blinds, refer to Roller sun
blinds 98
Blower, refer to Air
volume 89, 92
Bluetooth, refer to separate
Owner's Manual
BMW
– car shampoo 140
BMW Homepage 4
BMW Maintenance
System 136
BMW webpage 4
Bottle holders, refer to
Cupholders 100
Brake Assist, refer to Dynamic
Brake Control DBC 73
Brake fluid, refer to Service
requirements 68
Brake Force Display 79
Brake lamps
– Brake Force Display 79
– replacing bulb 144, 145
, 146
Brake pads 110
– breaking in 110
Brake rotors 112
– brakes 110
– breaking in 110
Brakes
– ABS 73
– BMW Maintenance
System 136
– Brake Force Display 79
– breaking in 110
– parking brake 50
– service requirements 68
Brakes, refer to Braking
safely 112
Brake system 110
– BMW Maintenance
System 136
– breaking in 110
– disc brakes 112
Breakdown services, refer to
Roadside Assistance 149
Breaking in the clutch 110
Breaking in the differential,
refer to Engine and
differential 110
Break-in period 110
Bulb changing, refer to Lamps
and bulbs 142
Button for starting the engine,
refer to Start/stop button 49
Buttons on the steering
wheel 11
C
California Proposition 65
warning 5
Can holders, refer to
Cupholders 100
Capacities 171
Capacity of the cargo area 171
Car battery, refer to Vehicle
battery 147
Car care, refer to Care 138
Care 138
– automatic car washes 138
– care products 138
– carpets 140
– CD/DVD drives 141
– chrome parts 139
– displays 140
– exterior 138
– fine wood parts 140
– headlamps 139
– high-pressure washer 138
– interior 140
– leather 140
– light-alloy wheels 140
– paintwork 139
– plastic parts 140
– retractable hardtop 139
– rubber seals 139
– safety belts 140
– sensors and cameras 140
– upholstery and cloth
trim 140
– washing the car
manually 139
– windows 139
Cargo, securing 114
Cargo area
– capacity 171
– Comfort Access 27
– folding up the floor
panel 104
– lamp, refer to Interior
lamps 87
– opening from inside 24
– opening from outside 24
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Everything from A to Z
174
Cargo loading 112
– securing cargo 114
– stowing cargo 113
– vehicle 112
Car jack
– jacking points 147
Car key, refer to Integrated
key/remote control 18
Car phone
– installation location, refer to
Center armrest 99
– refer to separate Owner's
Manual
Car shampoo 140
Catalytic converter, refer to
Hot exhaust system 111
Center armrest 99
Center brake lamp
– replacing bulb 146
Center console, refer to
Around the center
console 14
Central locking
– from inside 23
– from outside 19
Central locking system 19
– Comfort Access 26
– hotel function 24
– setting unlocking
characteristics 19
Changes, technical, refer to
For your own safety 5
Changing bulbs, refer to
Lamps and bulbs 142
Changing wheels 146
Chassis number, refer to
Engine compartment 133
Check Control 70
Child restraint fixing system
LATCH 47
Child restraint systems 46
Child seats, refer to
Transporting children
safely 46
Chrome parts 140
Chrome polish 140
Cigarette lighter, refer to
Lighter 101
Cleaning headlamps 55
– washer fluid 55
Cleaning your BMW, refer to
Care 138
Clock 64
– 12h/24h format 67
– setting time 69
Closing
– from inside 23
– from outside 19
Clothes hooks 100
Cockpit 10
Cold start, refer to Starting the
engine 50
Combined instrument, refer to
Instrument cluster 12
Comfort Access 26
– replacing the battery 28
Comfort access, refer to
Comfort Access 26
Comfort area, refer to Around
the center console 14
Compartment for remote
control, refer to Ignition
lock 49
Compass 97
Computer 65
Condensation, refer to When
the vehicle is parked 112
Condition Based Service
CBS 136
Configuring settings, refer to
Personal Profile 18
Confirmation signals for
locking/unlocking the
vehicle 21
Connecting vacuum cleaner,
refer to Connecting
electrical appliances 101
Consumption, refer to
Average consumption 66
Consumption display
– average consumption 66
Controls and displays 10
Convenient loading in
Convertible 21
Convenient operation
– glass roof 20
– glass roof with Comfort
Access 27
– retractable hardtop 20
– windows 20
– windows with Comfort
Access 27
Convertible
– bag holder 103
– Convenient loading 21
– enlarging cargo area 102
– folding down rear
backrest 102
– retractable hardtop 31
– rollover protection
system 82
Coolant 135
– checking level 135
Coolant temperature 65
Cooling, maximum 91
Cooling fluid, refer to
Coolant 135
Cooling system, refer to
Coolant 135
Copyright 2
Corner-illuminating lamps
– replacing bulbs 143
Corner-illuminating lamps,
refer to Adaptive light
control 85
Cornering lamps, refer to
Adaptive light control 85
Correct tires
130
Courtesy lamps, refer to
Interior lamps 87
Cruise control 56
– active 57
– malfunction 57
Cruising range 65
Cupholders 100
Curb weight, refer to
Weights 171
D
Dashboard, refer to
Cockpit 10
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
175
Dashboard, refer to
Instrument cluster 12
Dashboard lighting, refer to
Instrument lighting 87
Data, technical 168
– capacities 171
– dimensions 169
– engine 168
– weights 171
Date
– setting 70
Daytime running lights 84
– replacing bulbs 143
DBC Dynamic Brake
Control 73
Deactivating front passenger
airbags 80
Deadlocking, refer to
Locking 20
Defect
– door lock 22
– fuel filler flap 118
– glass roof 30
Defogging windows 90
Defrost, windows 90
Defrosting windows and
removing condensation
– air conditioner 90
Defrosting windshield, refer to
Defrosting windows 90
Defrost position, refer to
Defrosting windows 90
Digital clock 64
Digital compass 97
Dimensions 169
Directional indicators, refer to
Turn signals 53
Displacement, refer to Engine
data 168
Display lighting, refer to
Instrument lighting 87
Displays, refer to Instrument
cluster 12
Displays and controls 10
Disposal
– coolant 135
– remote control battery 28
– vehicle battery 147
Distance control, refer to
Active cruise control 57
Distance remaining to service,
refer to Service
requirements 68
Distance warning, refer to
Park Distance Control
PDC 72
Door key, refer to Remote
control with integrated
key 18
Door lock 22
Doors, emergency
operation 22
DOT Quality Grades 128
Draft-free ventilation 90, 93
Drinks holders, refer to
Cupholders 100
Drive-off assistance, refer to
Dynamic Stability Control
DSC 73
Drive-off assistant 75
Driving lamps, refer to Parking
lamps/low beams 83
Driving notes 110
Driving off on hills, refer to
Drive-off assistant 75
Driving stability control
systems 73
Driving through water 112
Driving tips, refer to Driving
notes 110
Dry air, refer to Cooling
function 93
DSC Dynamic Stability
Control 73
DTC Dynamic Traction
Control 73
– indicator/warning lamp 73
Dynamic Brake Control
DBC 73
Dynamic Stability Control
DSC 73
– indicator/warning lamp 73
Dynamic Traction Control
DTC
– indicator/warning lamp 74
E
EBV Electronic brake-force
distribution 73
Electrical malfunction
– door lock 22
– driver's door 22
– fuel filler flap 118
– glass roof 30
Electric seat adjustment 36
Electric steering wheel lock
– with Comfort Access 27
Electronic brake-force
distribution EBV 73
Electronic oil level check 133
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC 73
Emergency actuation,
automatic transmission,
refer to Overriding selector
lever lock 53
Emergency operation
– fuel filler flap, manual
release 118
Emergency operation, refer to
Closing manually
– glass roof 30
Emergency operation, refer to
Manual operation
– door lock 22
Emergency release
– trunk lid from inside 25
Emergency Request 149
Emergency services, refer to
Roadside Assistance 149
Energy, saving
– saving fuel 110
Engine
– breaking in 110
– data 168
– overheated, refer to Coolant
temperature 65
– speed 168
– starting 50
– starting, Comfort Access 26
– switching off 50
Engine compartment 133
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Everything from A to Z
176
Engine coolant, refer to
Coolant 135
Engine oil
– adding 134
– alternative oil types 135
– BMW Maintenance
System 136
– capacity 171
– checking level 133
– intervals between changes,
refer to Service
requirements 68
Engine output, refer to Engine
data 168
Engine speed, refer to Engine
data 168
Engine starting, refer to
Starting the engine 50
Entry lamps, refer to Interior
lamps 87
Error messages, refer to
Check Control 70
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC 73
Event data recorders 137
Exhaust system, refer to Hot
exhaust system 111
Exterior mirrors 43
– adjusting 43
– automatic dimming
feature 44
– automatic heating 43
– folding in and out 43
External audio device 99
Eyes
– for tow-starting and towing
away 152
– for tying down loads 114
F
Failure messages, refer to
Check Control 70
Failure of an electrical
consumer 147
False alarm
– avoiding unintentional
alarm 26
– switching off an alarm 25
Fastening safety belts, refer to
Safety belts 42
Filter
– refer to Microfilter/activated-
charcoal filter for automatic
climate control 94
– refer to Microfilter for air
conditioner 90
First aid pouch 149
Fixture for remote control,
refer to Ignition lock 49
Flash when locking/
unlocking 21
Flat tire
– run-flat tires 130
– Tire Pressure Monitor
TPM 76
Flat Tire Monitor FTM 75
– indicating a flat tire 76
– indicator/warning lamp 76
– initializing the system 75
– snow chains 75, 131
– system limits 75
Flat tires, refer to Tire
condition 129
Fluid reservoir, refer to
Washer fluid reservoir 55
Fog lamps 86
– indicator lamp 86, 154
Folding up the floor panel 104
Footbrake, refer to Braking
safely 112
Footwell lamps, refer to
Interior lamps 87
For your own safety 5
Four-wheel drive, refer to
xDrive 74
Front airbags 80
FTM, refer to Flat Tire
Monitor 75
Fuel 119
– average consumption 66
– gauge 65
– high-quality brands 119
– quality 119
– specifications 119
– tank contents, refer to
Capacities 171
Fuel clock, refer to Fuel
gauge 65
Fuel display, refer to Fuel
gauge
65
Fuel filler flap 118
– releasing in the event of
electrical malfunction 118
Fuses 147
G
Garage door opener, refer to
Integrated universal remote
control 95
Gasoline
– refer to Average
consumption 66
Gasoline, refer to Required
fuel 119
Gasoline display, refer to Fuel
gauge 65
Gear indicator, automatic
transmission with
Steptronic 51
Gearshift lever
– automatic transmission with
Steptronic 52
– manual transmission 51
Gearshifts
– automatic transmission with
Steptronic 52
– manual transmission 51
General driving notes 111
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
177
Glass roof, electric 29
– closing after electrical
malfunction 30
– Convenient operation 20, 22
– initializing 30
– opening, closing 30
– operation with Comfort
Access 27
– pinch protection system 30
– power failure 30
– raising 30
– remote control 20
Glove compartment 98
Grills, refer to Air vents 88
Gross vehicle weight, refer to
Weights 171
H
Handbrake, refer to Parking
brake 50
Hands-free system 14
Hazard warning flashers 14
HDC Hill Descent Control 74
Head airbags 80
Headlamp control,
automatic 83
Headlamp flasher 53
– indicator lamp 11, 14, 154
Head restraints 37
– rear, removing 39
– sitting safely 35
Heated
– mirrors 43
– rear window 90, 93
– seats 40
– steering wheel 45
Heating 88
– mirrors 43
– rear window 90, 93
– seats 40
– steering wheel 45
Heating and ventilation, refer
to Climate 88
Heavy loads, refer to Stowing
cargo 113
Height, refer to
Dimensions 169
Height adjustment
– seats 36
– steering wheel 44
High-beam assistant 85
High beams 85
– headlamp flasher 85
– indicator lamp 154
High beams and low beams,
automatic, refer to High-
beam assistant 85
High-pressure
washer 138, 139
High water, refer to Driving
through water 112
Hill Descent Control HDC 74
Hills 112
Holders for cups 100
Homepage BMW 4
Hood 132
Hooks for shopping bags 103
Horn 10, 11
Hotel function, refer to
Locking or unlocking
separately 24
Hot exhaust system 111
Hydraulic brake assist, refer to
Dynamic Brake Control
DBC 73
Hydroplaning 111
I
Ice warning, refer to Outside
temperature
warning 64
Identification marks
– run-flat tires 130
– tire coding 128
Ignition 49
– switched off 50
– switched on 49
Ignition key, refer to Remote
control with integrated
key 18
Ignition key position 1, refer to
Radio readiness 49
Ignition key position 2, refer to
Ignition on 49
Ignition lock 49
Imprint 2
Indicator and warning
lamps 13
– Tire Pressure Monitor
TPM 77
Indicator and warning lamps,
overview 154
Individual air distribution 89
Inflation pressure, refer to Tire
inflation pressure 120
Inflation pressure monitoring,
refer to Tire Pressure
Monitor TPM 76
Initializing
– after power failure 147
– compass, refer to
Calibrating 97
– Flat Tire Monitor FTM 75
– glass roof 30
Installation location
– telephone 99
Instrument cluster 12
Instrument lighting 87
Instrument panel, refer to
Cockpit 10
Integrated key 18
Integrated universal remote
control 95
Interior lamps 87
– remote control 20
Interior motion sensor 26
Interior rearview mirror 44
– automatic dimming
feature 44
– compass 97
Interlock, refer to Disengaging
the remote control 51
Intermittent mode of the
wipers 54
J
Jacking points 147
Jumpering, refer to Jump-
starting 150
Jump-starting 150
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Everything from A to Z
178
K
Key, refer to Integrated key/
remote control 18
Keyless go, refer to Comfort
Access 26
Keyless opening and closing,
refer to Comfort Access 26
Key Memory, refer to Personal
Profile 18
Kickdown 52
– automatic transmission with
Steptronic 52
Knock control 119
L
Lamps
– automatic headlamp
control 83
– parking lamps/low beams 83
Lamps and bulbs, replacing
bulbs 142
Lap-and-shoulder belt, refer
to Safety belts 42
Lashing eyes, refer to
Securing cargo 114
LATCH child restraint fixing
system 47
Leather care 140
LED Light-emitting
diodes 142
Length, refer to
Dimensions 169
License plate lamp, replacing
bulb 146
Light
– high-beam assistant 85
Light-alloy wheels 140
Light-emitting diodes
LED 142
Lighter 101
– connecting electrical
appliances 101
Lighting
– instruments 87
– lamps and bulbs 142
– vehicle, refer to Lamps 83
Light switch 83
Load 113
Load securing equipment,
refer to Securing cargo 114
Lock buttons, doors, refer to
Locking 24
Locking
– adjusting confirmation
signal 21
– from inside 24
– from outside 20
– without remote control, refer
to Comfort Access 26
Locking and unlocking doors
– confirmation signals 21
– from inside 23
– from outside 19
Low beam control, refer to
High-beam assistant 85
Low-beam headlamps 83
– automatic 83
– indicator lamp, defective
bulb 163
Lower back support, refer to
Lumbar support 37
Luggage rack, refer to Roof-
mounted luggage rack 114
Lumbar support 37
M
M+S tires, refer to Winter
tires 131
Maintenance, refer to Service
Booklet
Maintenance system 136
Malfunction
– automatic transmission with
Steptronic 53
– tires 76
Malfunction warnings, refer to
Check Control 70
Manual air distribution 89
Manual car wash 139
Manual mode, automatic
transmission with
Steptronic 52
Manual operation
– door lock 22
– driver's door 22
– fuel filler flap 118
– glass roof 30
– transmission lock, automatic
transmission 53
Manual transmission 51
Master key, refer to Remote
control with integrated
key 18
Maximum cooling 91
Maximum speed
– with winter tires 131
Measurements, refer to
Dimensions 169
Memory, refer to Seat and
mirror memory 40
Microfilter
– BMW Maintenance
System 136
– for air conditioner 90
– for automatic climate
control 94
Microfilter/activated-charcoal
filter
– BMW Maintenance
System 136
Microphone
– telephone 14
Mirror dimming feature 44
Mirrors 43
– automatic curb monitor 44
– exterior mirrors 43
– heating 43
– interior rearview mirror 44
– memory, refer to Seat and
mirror memory 40
Mirrors, folding in before
entering a car wash 43
Mobile phone
– installation location, refer to
Center armrest 99
– refer to separate Owner's
Manual
Mobile phone, installation
location, refer to Center
armrest 99
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
179
Mobile phone, refer to the
separate Owner's Manual
Modifications, technical, refer
to For your own safety 5
Monitoring system for tire
pressures, refer to Flat Tire
Monitor 75
Multifunctional steering
wheel, refer to Buttons on
the steering wheel 11
Multifunction switch
– refer to Turn signals/
headlamp flasher 53
– refer to Wiper system 54
N
Neck support, refer to Head
restraints 37
Nets, refer to Storage
compartments 99
New tires 130
Number of cylinders, refer to
Engine data 168
Nylon rope, refer to Tow
rope 152
O
OBD socket, refer to Socket
for Onboard Diagnosis 137
Octane ratings, refer to Fuel
specifications 119
Odometer 64
Oil, refer to Engine oil 133
Oil consumption 133
Oil level 133
Old batteries, refer to
Disposal 147
Onboard vehicle tool kit 142
Opening and closing
– Comfort Access 26
– from inside 23
– from outside 19
– using the door lock 22
– via the remote control 19
Outlets
– refer to Ventilation 90, 93
Outlets, refer to Air vents 88
Output, refer to Engine
data 168
Outside-air mode
– automatic climate control 92
Outside temperature
display 64
– changing units of
measure 67
– in computer 67
Outside temperature
warning 64
Overheated engine, refer to
Coolant temperature 65
Overriding selector lever
lock 53
P
Paintwork care 139
Park assistant, refer to Park
Distance Control 72
Park Distance Control PDC 72
Parking
– vehicle 50
Parking aid, refer to Park
Distance Control PDC 72
Parking brake 50
– indicator lamp 51
Parking lamps 83
– replacing bulbs 143
Parking lamps/low beams 83
Passenger side mirror tilt
function 44
Pathway lighting 83
Personal Profile 18
Pinch protection system
– glass roof, electric 30
– windows 29
Placing a call, refer to
telephone owner's manual
Polish 140
Pollen
– refer to Microfilter/activated-
charcoal filter for automatic
climate control 94
– refer to Microfilter for air
conditioner 90
Power failure 147
Power windows 28
Power windows, refer to
Windows 28
Pressure, tires 120
Pressure monitoring, tires 75
– Flat Tire Monitor 75
Pressure monitoring of tires,
refer to Tire Pressure
Monitor TPM 76
Programmable buttons on the
steering wheel 11
Protection function, refer to
Pinch protection system
– glass roof, electric 30
– windows 29
Providing medical assistance,
refer to First aid pouch 149
Puncture
– Flat Tire Monitor 75
R
Radio
– refer to separate Owner's
Manual
Radio position, refer to Radio
readiness 49
Radio readiness 49
– switched off 50
– switched on 49
Radio-remote key, refer to
Remote control with
integrated key 18
Rain sensor 55
Reading lamps 87
Rear lamps, refer to Tail
lamps 144
Rear seats
– adjusting head restraints 39
– folding down backrests 102
Rear turn signals
– replacing bulb 144, 145
Rear ventilation 94
Rearview mirror, refer to
Mirrors 43
Rear window defroster 90, 93
Rear window roller blind, refer
to Roller sun blinds 98
Recirculated-air mode 89, 92
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Everything from A to Z
180
Recirculation of air, refer to
Recirculated-air
mode 89, 92
Reclining seat, refer to
Backrest 36
Refueling 118
Releasing
– hood 132
Remaining distance, refer to
Cruising range 65
Remote control 18
– battery renewal 28
– Comfort Access 26
– garage door opener 95
– malfunction 21, 27
– removing from the ignition
lock 49
– service data 136
– trunk lid 20
Replacement fuses, refer to
Fuses 147
Replacement remote
control 18
Replacing bulbs, refer to
Lamps and bulbs 142
Replacing tires 130
Replacing tires, refer to New
wheels and tires 130
Reporting safety defects 6
Reserve warning, refer to Fuel
gauge 65
Restraint systems
– for children 46
– refer to Safety belts 42
Retractable hardtop 31
– care, refer to Caring for your
vehicle brochure
– Convenient operation 20
– opening and closing 32
– remote control 20
Reverse gear
– automatic transmission with
Steptronic 52
– manual transmission 51
Roadside Assistance 149
Roadside parking lamps 85
– replacing bulbs 143
Roadworthiness test, refer to
Service requirements 68
Roller sun blinds 98
Rollover protection system,
Convertible 82
– resetting 82
Roof load capacity 171
Roof-mounted luggage
rack 114
Rope, refer to Tow-starting,
towing away 152
RSC Runflat System
Component, refer to Run-
flat tires 130
Runflat System Component
RSC, refer to Run-flat
tires 130
Run-flat tires 130
– continuing driving with a
damaged tire 76
– flat tire 76
– Flat Tire Monitor 76
– new tires 130
– replacing 130
– tire inflation pressure 120
– winter tires 131
S
Safety-belt height
adjustment 42
Safety belts 42
– belt hand-over 42
– damage 42
– indicator/warning lamp 42
– reminder 42
– sitting safely 35
Safety systems
– airbags 80
– Antilock Brake System
ABS 73
– brake system 73
– driving stability control
systems 73
– Dynamic Stability Control
DSC 73
– rollover protection system,
Convertible 82
– safety belts 42
Safety tires, refer to Run-flat
tires 130
Saving fuel 110
Screw thread for tow
fitting 152
Seat adjustment
– electric 36
– mechanical 36
Seat and mirror memory 40
Seat belt reminder, refer to
"Fasten safety belts"
reminder 42
Seat heating 40
Seats 35
– adjusting electrically 36
– adjusting the seats 36
– heating 40
– memory, refer to Seat and
mirror memory 40
– saving a setting, refer to Seat
and mirror memory 40
– sitting safely 35
Securing cargo 104, 106
Securing the vehicle
– from inside 23
– from outside 19
Selecting distance for active
cruise control 59
Selector lever
– automatic transmission with
Steptronic 52
Selector lever lock, refer to
Changing selector lever
positions, shiftlock 52
Selector lever positions
– automatic transmission with
Steptronic 52
Service, refer to Roadside
Assistance 149
Service car, refer to Roadside
Assistance 149
Service data in the remote
control 136
Service Interval Display, refer
to Condition Based Service
CBS 136
Service requirement display,
refer to Condition Based
Service CBS 136
Service requirements 68
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
181
Settings
– clock, 12h/24h format 67
Settings and information 66
Shifting gears
– automatic transmission with
Steptronic 52
– manual transmission 51
Shiftlock
– automatic transmission,
refer to Changing selector
lever positions 52
Side airbags 80
Side windows, refer to
Windows 28
Signal horn, refer to
Horn 10, 11
Sitting safely 35
– with airbags 35
– with head restraint 35
– with safety belts 35
Ski bag 104
Ski bag for Convertible, refer
to Through-loading opening
with integrated transport
bag 105
Sliding/tilt sunroof, refer to
Glass roof, electric 29
Slot for remote control 49
Smokers' package, refer to
Ashtray 101
Snap-in adapter, refer to
Center armrest storage
compartment 99
Socket, Onboard Diagnosis
OBD 137
Socket, refer to Connecting
electrical appliances 101
SOS, refer to Sending an
Emergency Request 149
Spare fuses 147
Speed
– run-flat tires 76
– with winter tires 131
Speedometer 12
Spray nozzles, refer to
Cleaning windshield and
headlamps 55
Stability control, refer to
Driving stability control
systems 73
Start/stop button 49
– starting the engine 50
– switching off the engine 50
Starting, refer to Starting the
engine 50
Starting assistance, refer to
Jump-starting 150
Starting difficulties
– jump-starting 150
Starting the engine
– start/stop button 49
Status of this Owner's Manual
at time of printing 5
Steam jet 138, 139
Steering wheel 44
– adjustment
44
– buttons on steering
wheel 11
– heating 45
– lock 49
– locking with Comfort
Access 27
Steering with variable ratio,
refer to Active steering 79
Steptronic, refer to Automatic
transmission with
Steptronic 51
Storage 141
Storage compartments 99
Storage nets 103
Storing seat positions, refer to
Seat and mirror memory 40
Storing tires 131
Stowage, refer to Storage
compartments 99
Summer tires, refer to Wheels
and tires 120
Surface ice, refer to Outside
temperature warning 64
Switches, refer to Cockpit 10
Switching off
– engine 50
Switching off the engine
– start/stop button 49
Switching the cooling function
on and off 93
Symbols 4
T
Tachometer 64
Tailgate, refer to Trunk lid 24
Tail lamp
– replacing bulb 146
Tail lamp, refer to Tail
lamps 144
Tail lamps 144
– replacing bulb 144, 145, 146
Tank contents, refer to
Capacities 171
Technical data 168
– dimensions 169
Technical modifications, refer
to For your own safety 5
Telephone
– installation location, refer to
Center armrest 99
– refer to separate Owner's
Manual
Temperature
– air conditioner 90
– automatic climate control 91
– coolant, refer to Coolant
temperature 65
Temperature display
– outside temperature 64
– outside temperature
warning 64
– setting the units 67
Tempomat, refer to Cruise
control 56
Tensioning straps, refer to
Securing cargo 114
The individual vehicle 5
Third brake lamp, refer to
Center brake lamp 146
Through-loading opening with
integrated transport
bag 105
Through-loading system 102
Tilt alarm sensor 26
Tilt function, passenger side
mirror 44
Tire inflation pressure 120
– loss 76
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Everything from A to Z
182
Tire pressure monitoring,
refer to Flat Tire Monitor 75
Tire Pressure Monitor
TPM 76
– resetting the system 77
– system limitations 77
– warning lamp 77
Tire puncture, refer to Flat Tire
Monitor 76
Tire Quality Grading 128
Tires
– age 128, 129
– air loss 77
– breaking in 110
– changing, refer to Changing
wheels 146
– condition 129
– damage 129
– inflation pressure 120
– labels 128
– minimum tread depth 129
– new wheels and tires 130
– pressure monitoring, refer to
Flat Tire Monitor 75
– pressure monitoring, refer to
Tire Pressure Monitor
TPM 76
– puncture 76
– replacing 130
– run-flat 130
– size 128
– storage 131
– tread depth 129
– wear indicators, refer to
Minimum tread depth 129
– wheel/tire combination, refer
to Correct wheels and
tires 130
– winter tires 131
Tools, refer to Onboard
vehicle tool kit 142
Top, refer to Retractable
hardtop 31
Torque, refer to Engine
data 168
Tow bar 152
Tow fitting 152
– screw thread 152
Tow fittings for tow-starting
and towing away 152
Towing 151
– car with automatic
transmission 151
– methods 152
Towing and tow-starting 151
Tow rope 152
Tow-starting 151, 153
TPM, refer to Tire Pressure
Monitor 76
Traction control, refer to
Dynamic Stability Control
DSC 73
Transmission
– automatic transmission with
Steptronic 51
– manual transmission 51
– overriding selector lever lock
for automatic transmission
with Steptronic 53
Transmission interlock
– refer to Changing selector
lever position 52
– refer to P Park 52
Transporting children
safely 46
Transport securing devices,
refer to Securing cargo 114
Tread depth, refer to Minimum
tire tread 129
Trip-distance counter, refer to
Trip odometer 64
Triple turn signal activation 54
Trip odometer 64
Trunk lid 24
– Comfort Access 27
– emergency release 25
– locking or unlocking
separately 24
– opening from inside 24
– opening from outside 24
– remote control 20
Turning circle, refer to
Dimensions 169
Turn signal indicators
– indicator/warning lamp 12
Turn signals 53
– replacing bulbs 144
– triple turn signal 54
Tying down loads, refer to
Cargo loading 114
U
Uniform Tire Quality Grading/
UTQR 128
Units of measure
– average consumption 67
– temperature 67
Universal garage door opener,
refer to Integrated universal
remote control 95
Universal mobile phone
preparation package, refer
to separate Owner's Manual
Universal remote control 95
Unlatching, refer to
Unlocking 26
Unlocking
– from inside 23
– from outside 19
– setting unlocking
characteristics 19
– trunk lid 27
– without remote control, refer
to Comfort Access 26
V
Vehicle
– battery 147
– breaking in 110
– cargo loading 112
– Identification Number, refer
to Engine compartment 133
– measurements, refer to
Dimensions 169
– parking 50
– weight 171
Vehicle jack 147
Vehicle storage 141
Ventilation 93
– air conditioner 90
– draft-free 90, 93
– in the rear 94
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Reference At a glanceControlsDriving tipsMobility
183
Ventilation, refer to Climate 88
Vents, refer to Air vents 88
Vents, refer to
Ventilation 90, 93
Volume
– fuel tank, refer to
Capacities 171
W
Warning and indicator
lamps 13
Warning and indicator lamps,
overview 154
Warning messages, refer to
Check Control 70
Warning triangle 150
Washer fluid 55
– content of the reservoir 56
Washer fluid reservoir 55
Waste tray, refer to
Ashtray 101
Water on roads, refer to
Driving through water 112
Water penetration 138, 139
Wear indicators in tires, refer
to Minimum tread depth 129
Weights 171
Welcome lamps 83
Wheel/tire combination, refer
to Correct wheels and
tires 130
Wheelbase, refer to
Dimensions 169
Wheels, new 130
Wheels and tires 120
Width, refer to
Dimensions 169
Wind deflector 33
Windows 28
– Convenient operation 20
– Convenient operation with
Comfort Access 27
– opening, closing 28
– pinch protection system 29
Windows, defrosting 90
Windshield
– cleaning 55
– defrosting and removing
condensation 90
Windshield wash 54
– filling capacity, reservoir 171
– nozzles 55
– reservoir for washer fluid 55
– washer fluid 55
Windshield wiper blades,
changing 142
Windshield wipers, refer to
Wiper system 54
Winter tires 131
– storage 131
Wiper blade replacement 142
Wiper system 54
Work in the engine
compartment 132
Wrench/screwdriver, refer to
Onboard vehicle tool kit 142
X
xDrive 74
Xenon lamps
– replacing bulb 143
Y
Your individual vehicle
– settings, refer to Personal
Profile 18
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
01 41 2 603 012 Ue Basis
*BL2603012004*
The Ultimate
Driving Machine
More about BMW
bmwusa.com
Online Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AGOnline Edition for Part no. 01 41 2 603 012 - © 08/09 BMW AG
