IMPORTANT
• For your assistance in reporting the loss or theft of your
Projector, please record the Model and Serial Numbers
located on the bottom of the projector and retain this
information.
• Before recycling the packaging, please ensure that you
have checked the contents of the carton thoroughly

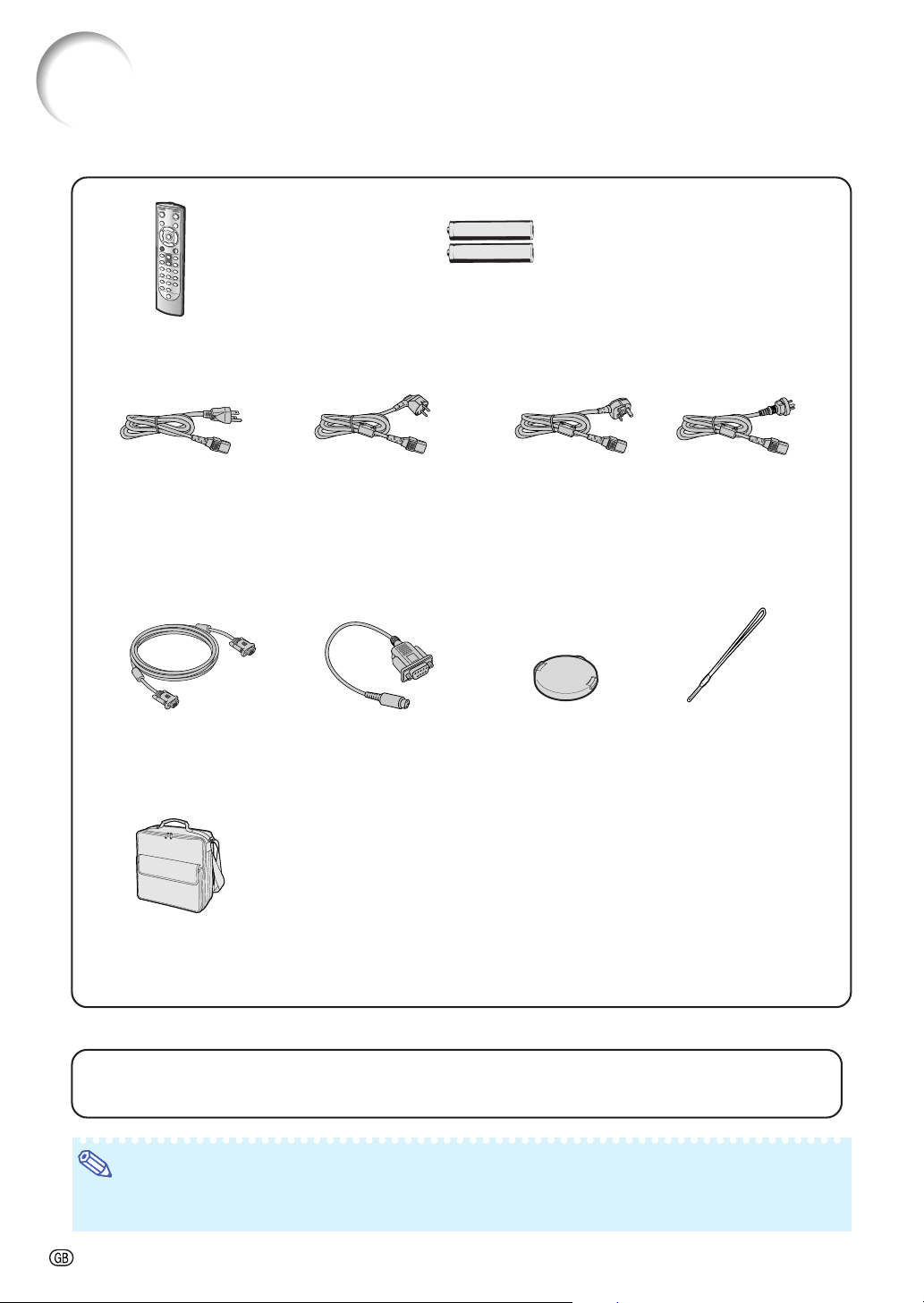

against the list of “Supplied accessories” on page 10.
Model No.:
Serial No.:
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should
the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked
or and of the same rating as
above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the
mains plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of
in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 10A socket outlet, as a serious
electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth / Blue : Neutral / Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by
the letter E or by the safety earth symbol
or coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch,
Portuguese, Chinese and Korean. Carefully read through the operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch,
Italienisch, Niederländisch, Portugiesisch, Chinesisch und Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor der
Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois,
espagnol, italien, néerlandais, portugais, chinois et coréen. Veuillez lire attentivement ces instructions avant de
faire fonctionner le projecteur.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska,
italienska, holländska, portugisiska, kinesiska och koreanska. Läs noga igenom bruksanvisningen innan
projektorn tas i bruk.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español,
italiano, holandés, portugués, chino y coreano. Lea cuidadosamente las instrucciones de operación antes de
utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano,
olandese, portoghese, cinese e coreano. Leggere attentamente le istruzioni per l’uso prima di usare il
proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans,
Nederlands, Portugees, Chinees en Koreaans. Lees de handleiding zorgvuldig door voor u de projector in
gebruik neemt.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano,
Holandês, Português, Chinês e Coreano. Leia cuidadosamente todas as instruções de operação antes de
operar o projetor.
-1
Introduction
Before using the projector, please read this operation manual carefully.
There are two important reasons for prompt warranty registration of your new SHARP Projector, using
the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING:
FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
Introduction
ENGLISH
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
See bottom of projector.
The enclosed computer cable must be used with the device. The cable is provided to ensure that the device
complies with FCC Class A verification.
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
-2
WARNING:
The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode.
During normal operation, when putting the projector into standby mode always use the STANDBY button on the
projector or on the remote control. Ensure the cooling fan has stopped before storing the projector in the storage
case.
DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD.
FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.
PRODUCT DISPOSAL
This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of
these materials may be regulated due to environmental considerations. For disposal or recycling information,
please contact your local authorities or, if you are located in the United States of America, the Electronic Industries
Alliance: www.eiae.org .
This SHARP projector uses an LCD (Liquid Crystal Display) panel. This very sophisticated panel contains 786,432
pixels (x RGB) TFT’s (Thin Film Transistors). As with any high technology electronic equipment such as large
screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must
conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture
screen. This will not affect the picture quality or the life expectancy of the unit.
• Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe
®
Reader
®
is a trademark of Adobe Systems Incorporated.
• Macintosh
®
is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• All other company or product names are trademarks or registered trademarks of their respective compa-
nies.
Caution Concerning Lamp Replacement
See “Replacing the Lamp” on page 60.
Authorized representative responsible for the European Union Community Market
SHARP ELECTRONICS (Europe) GmbH
Sonninstraße 3, D-20097 Hamburg
E.U. ONLY
-3
Introduction
-42
Picture Mode
Contrast
Bright
Red
Blue
CLR Temp
Reset
Signal Type
COMP.1
Standard
7500K
Auto
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0

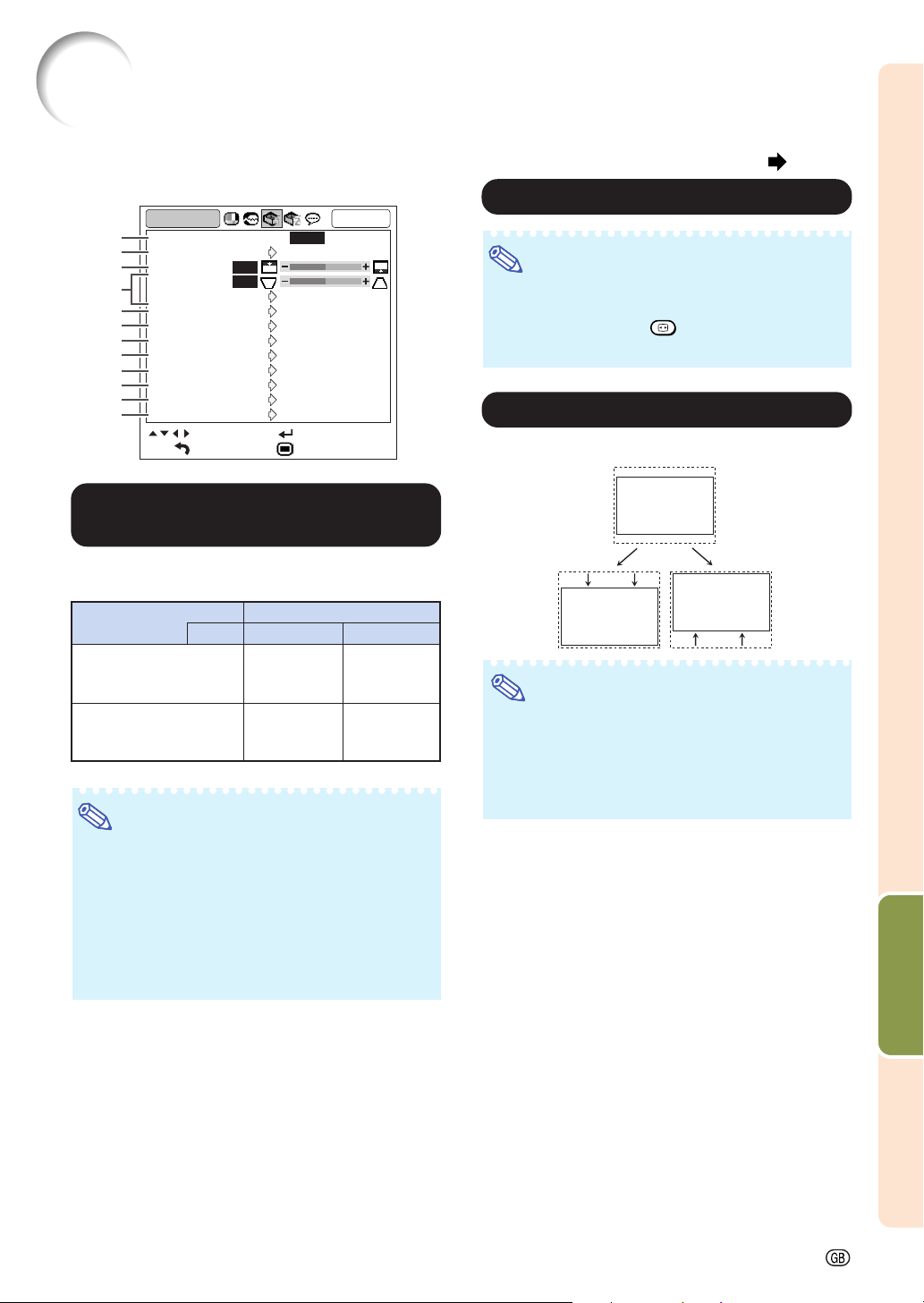

Using the Menu Screen
Menu Selections
Example: Adjusting “Bright”
• This operation can also be performed by using the buttons on the projector.
Menu icons
MENU button
MOUSE/Adjustment
buttons ('/"/\/|)
RETURN button
ENTER
button
Adjustment
buttons ('/"/\/|)
MENU button
ENTER button
RETURN button
Example: “Picture” screen menu for
COMPUTER/COMPONENT 1
(RGB) mode
1
Press MENU.
• The “Picture” menu screen for the se-
lected input mode is displayed.
2
Press
||
||
| or
\\
\\
\ to display the other
menu screens.
• The menu icon for the selected menu
screen is highlighted.
Note
• The “Fine Sync” menu is not available
for selecting VIDEO or S-VIDEO.
Menu icon Menu screen
Fine Sync
Options1
Options2
Language

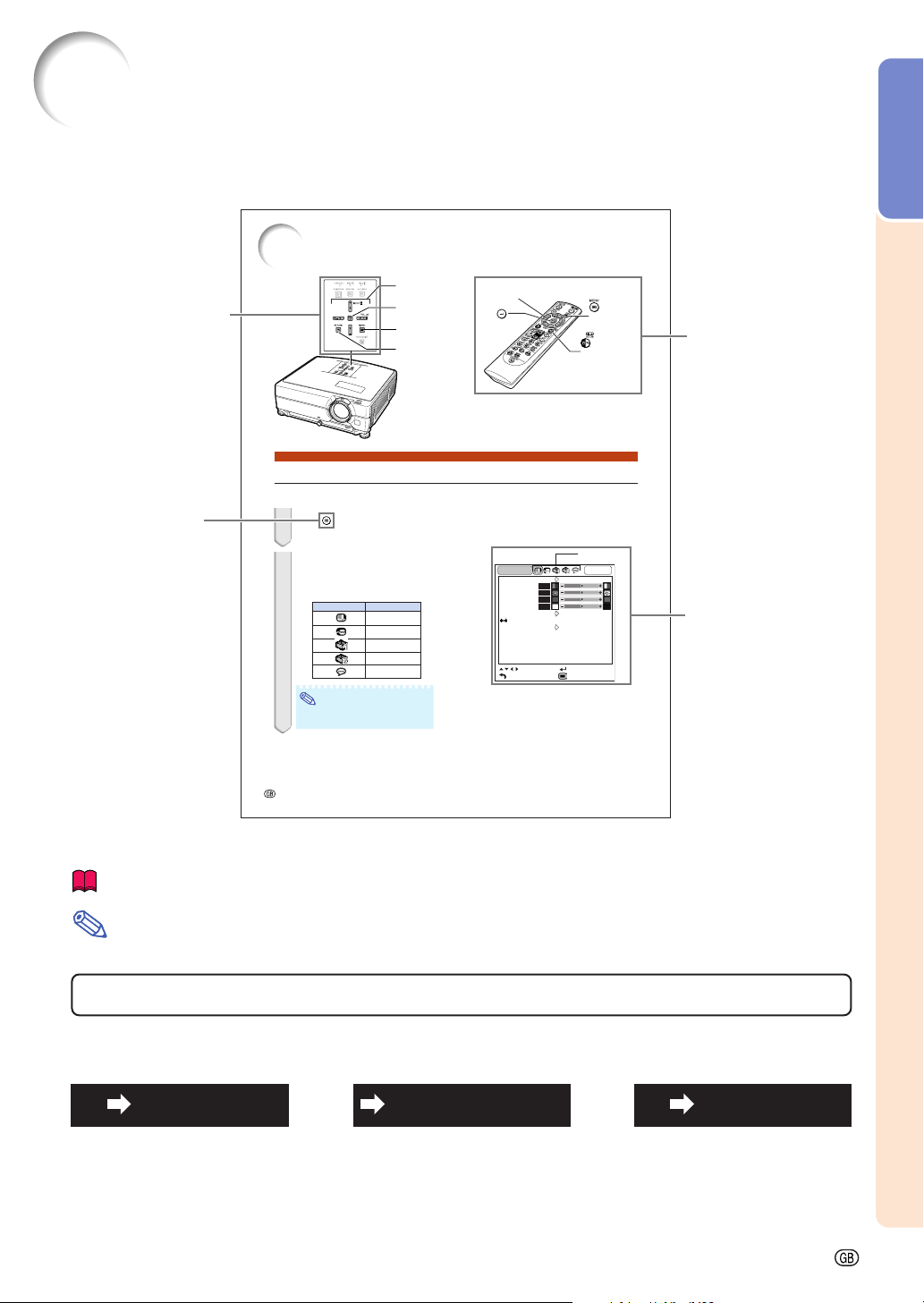

How to Read this Operation Manual
••
••
• In this operation manual, the illustrations and on-screen displays are simplified for explana-
tion. This may differ from the actual on-screen display.
Info
...........Indicates safeguards when using the projector.
For Future Reference
Maintenance Troubleshooting Index
Page 68
Pages 64 and 65
Page 55
On-screen display
Button used in
this step
Note
........Indicates additional information for setting up and operating the projector.
Buttons used in this
operation
Buttons used in this
operation
-4
Contents
Preparing
Switching the Eco/Quiet Mode ........................... 36
Selecting the Picture Mode ............................... 36
Resize Mode ...................................................... 37
Using the Remote Control as the Wireless
Computer Mouse ........................................ 39
Useful Features
Menu Items ................................................... 40
Using the Menu Screen ............................... 42
Menu Selections ................................................ 42
Picture Adjustment (“Picture” menu) ......... 44
Selecting the Picture Mode ............................... 44
Adjusting the Image .......................................... 44
Adjusting the Color Temperature ....................... 45
Selecting the Progressive Mode ........................ 45
Signal Type Setting ............................................ 45
Selecting the Dynamic Range ........................... 45
Setting the Video System................................... 45
Computer Image Adjustment
(“Fine Sync” menu) ................................ 46
Adjusting the Computer Image ......................... 46
Resolution Setting .............................................. 46
Auto Sync Adjustment ....................................... 46
Checking the Input Signal ................................. 46
Using the “Options1” Menu ......................... 47
Checking the Lamp Life Status ......................... 47
Setting the Resize Mode ................................... 47
Adjusting the Image Position ............................. 47
Keystone Correction .......................................... 48
Setting On-screen Display................................. 48
Selecting a Startup and Background Image
....... 48
Eco/Quiet Mode Setting .................................... 48
Auto Power Off Function .................................... 48
Setting the System Sound ................................. 49
Selecting the Menu Screen Position .................. 49
System Lock Function ....................................... 49
Keylock Function ............................................... 50
Direct Power On Function.................................. 50
Helpful Functions Set during Installation
(“Options2” menu) .................................. 51
Setting a Password ............................................ 51
If You Forget Your Password .............................. 51
Speaker Setting ................................................. 52
Audio Output Type Setting ................................ 52
Reversing/Inverting Projected Images .............. 52
Fan Mode Setting .............................................. 52
Monitor Output ................................................... 52
LAN/RS232C ..................................................... 52
Selecting the Transmission Speed (RS-232C)
....... 52
DHCP Client Setting .......................................... 53

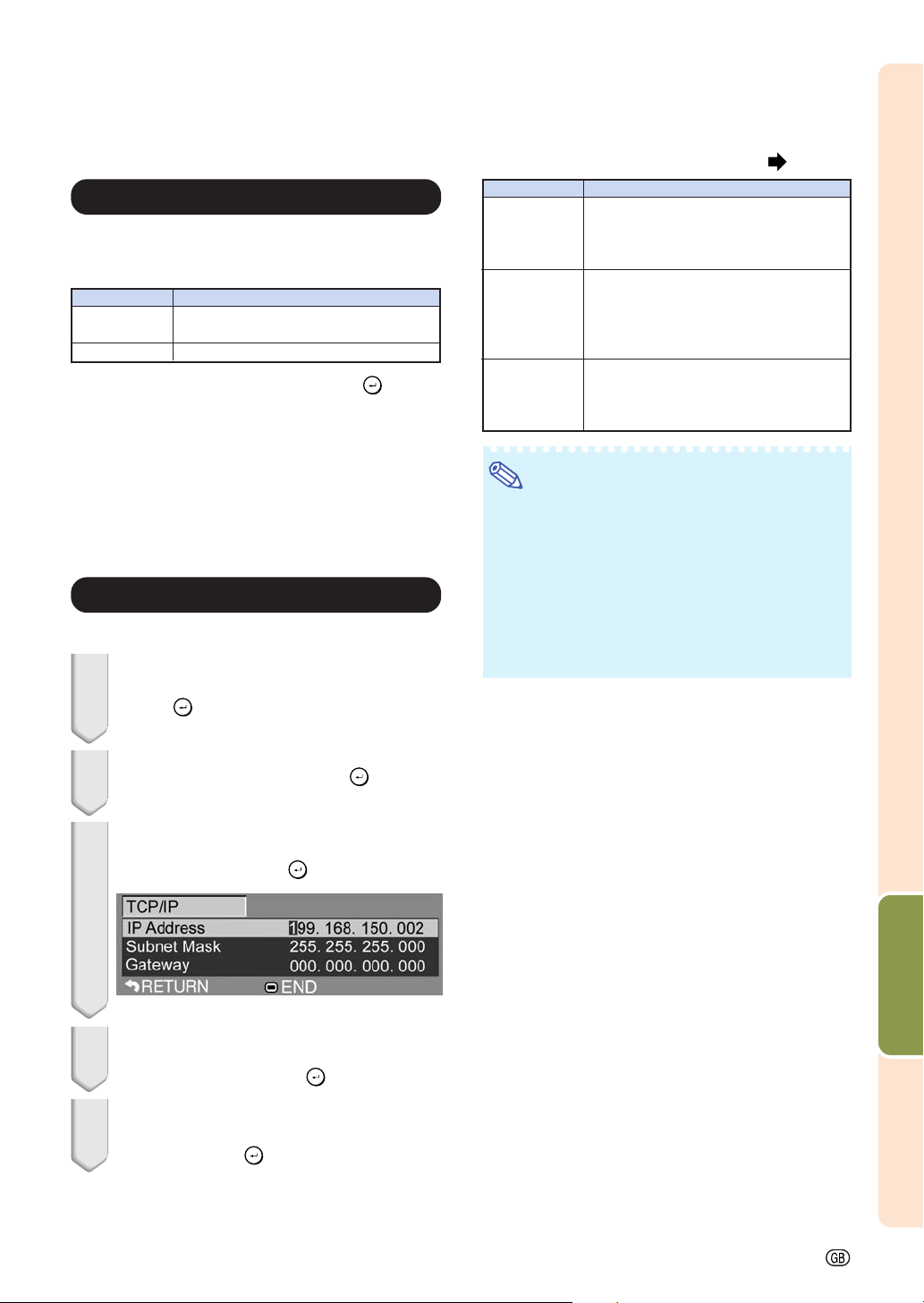

TCP/IP Setting ................................................... 53
Confirming the Network Information for the
Projector ...................................................... 54
Returning to the Default Settings ....................... 54
Selecting the On-screen Display Language ....... 54
Introduction
How to Read this Operation Manual ............. 3
Contents.......................................................... 4
How to Access the PDF Operation Manuals
... 6
IMPORTANT SAFEGUARDS .......................... 7
Accessories .................................................. 10
Part Names and Functions .......................... 12
Using the Remote Control ........................... 15
Usable Range .................................................... 15
Inserting the Batteries ....................................... 15
Quick Start
Quick Start .................................................... 16
Setup
Setting Up the Projector .............................. 18
Setting Up the Projector .................................... 18
Projection (PRJ) Mode ....................................... 19
Storing the Projector ................................... 20
How to Use the Storage Case ........................... 20
Connections
Samples of Cables for Connection ............. 21

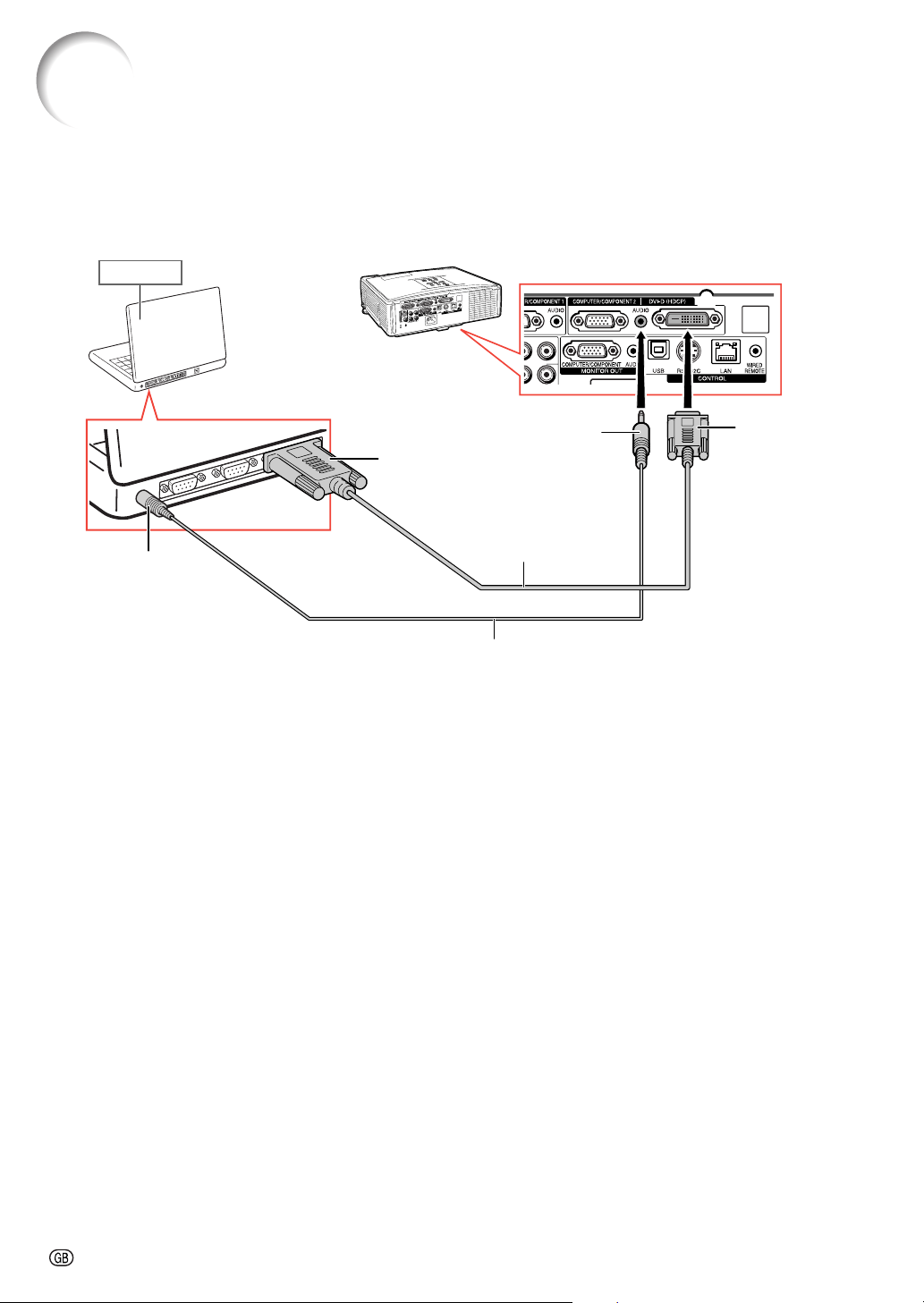

Connecting to a Computer .......................... 23
Connecting to Video Equipment ................. 25

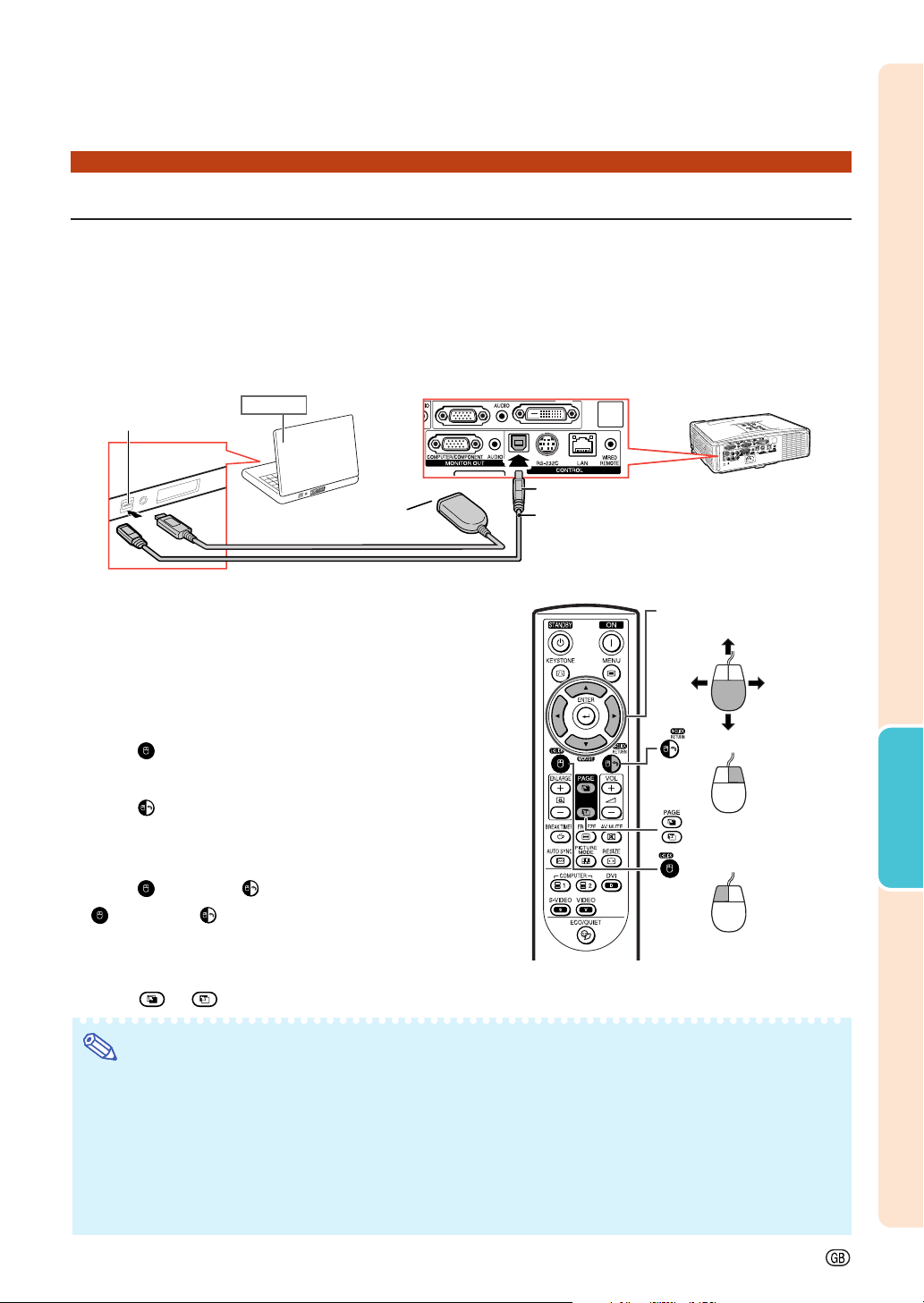

Controlling the Projector by a Computer ... 27
Connecting to a Monitor with RGB
Input Terminal ......................................... 28
Connecting to an Amplifier or Other
Audio Equipment .................................... 29
Basic Operation
Turning the Projector On/Off ....................... 30
Connecting the Power Cord .............................. 30
Turning the Projector On .................................... 30
Turning the Power Off (Putting the Projector into
Standby Mode)............................................ 30
Image Projection .......................................... 31

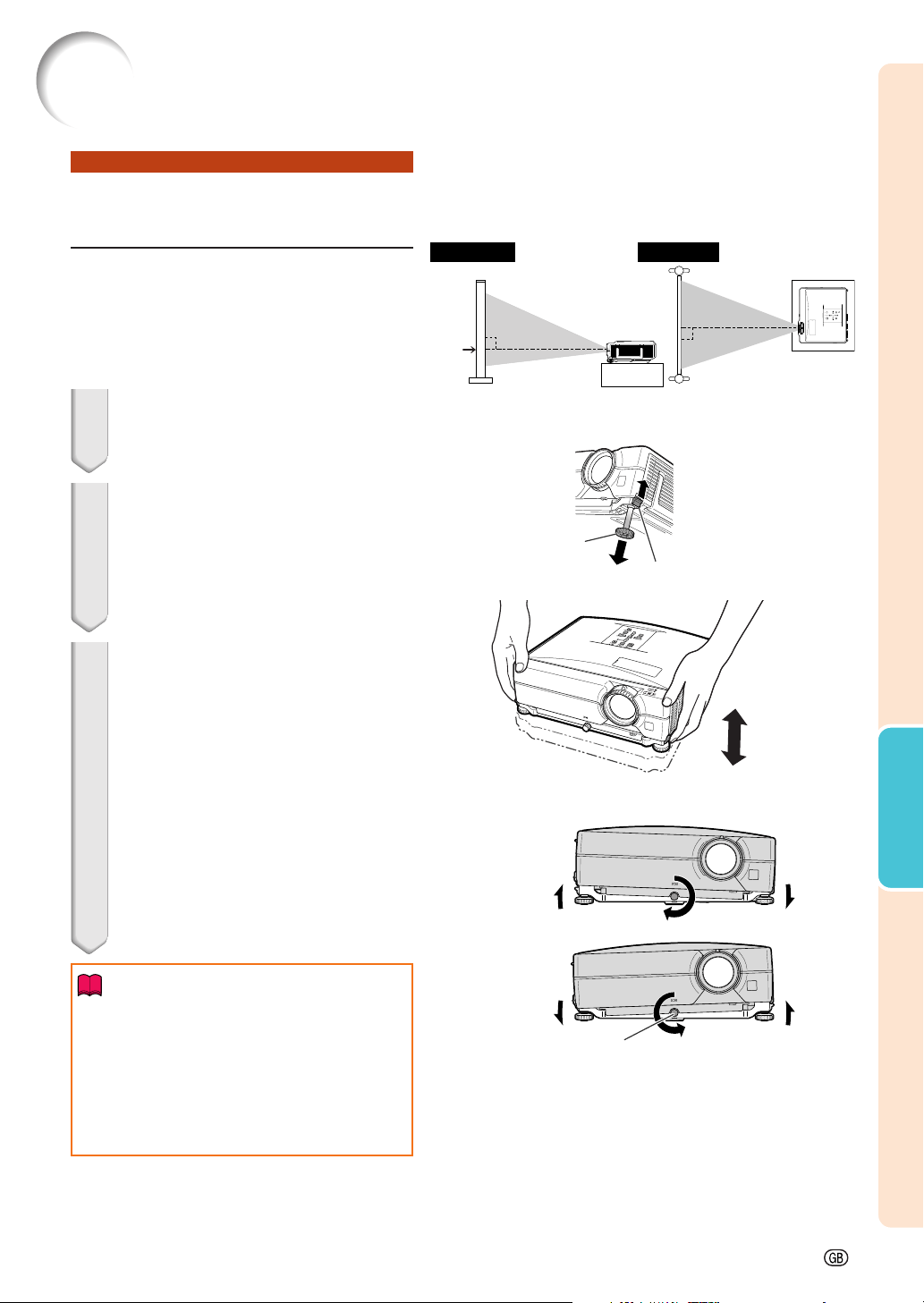

Using the Adjustment Feet ................................ 31
Correcting Trapezoidal Distortion ...................... 32
Adjusting the Lens ............................................. 33
Switching the INPUT Mode ............................... 34
Adjusting the Volume ......................................... 35
Displaying the Black Screen and Turning
Off the Sound Temporarily ........................... 35
Displaying an Enlarged Portion of an Image
....... 35
Freezing an Image............................................. 35
Displaying and Setting the Break Timer ............ 36
Using
-5
Introduction
Reference
Appendix
Maintenance ................................................. 55

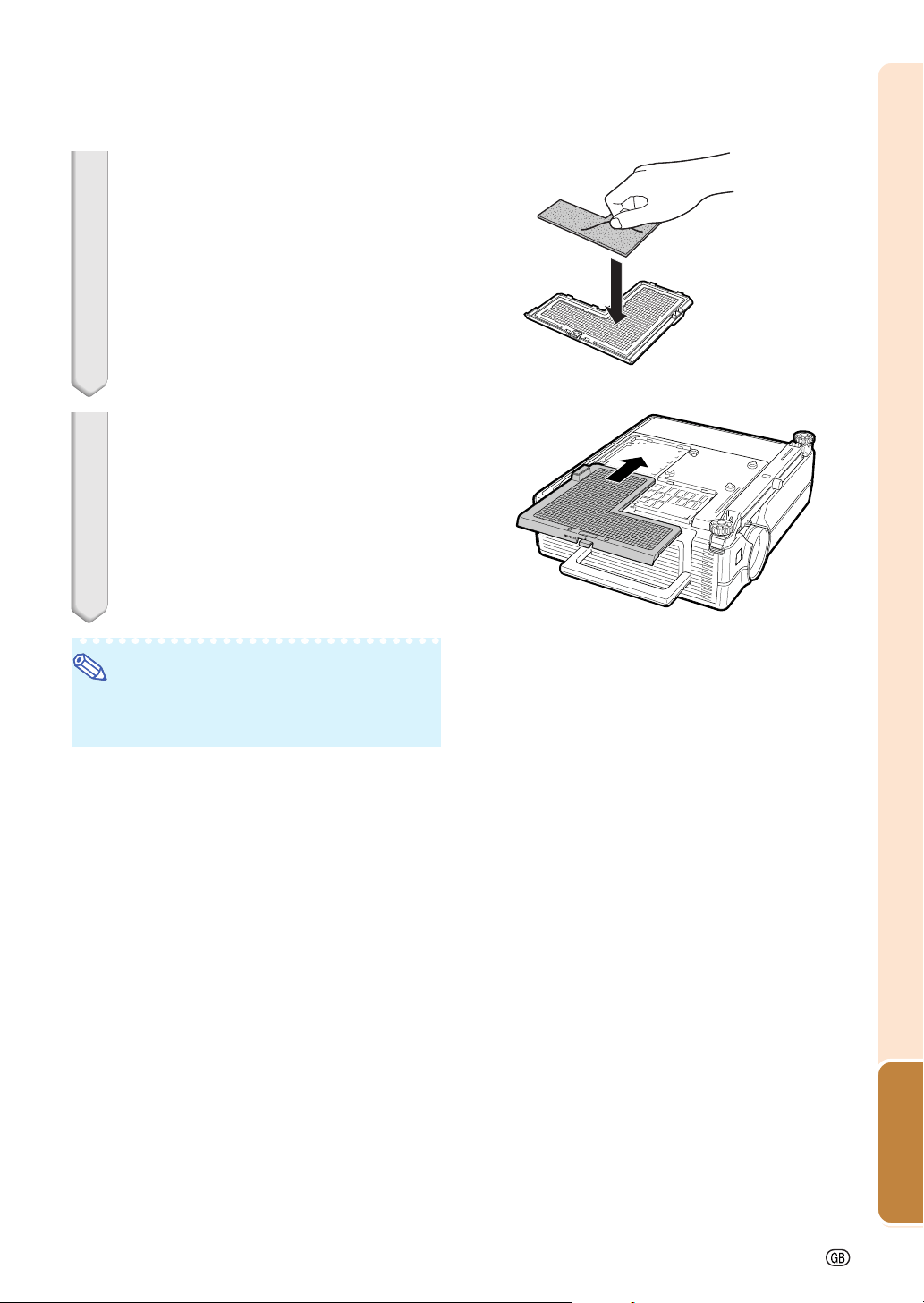

Replacing the Air Filter ................................ 56
Replacing the Air Filter ...................................... 56
Maintenance Indicators ............................... 58
Regarding the Lamp .................................... 60
Lamp ................................................................. 60
Caution Concerning the Lamp .......................... 60
Replacing the Lamp .......................................... 60
Removing and Installing the Lamp Unit ............ 61
Resetting the Lamp Timer ................................. 62
Computer Compatibility Chart .................... 63
Troubleshooting ........................................... 64
For SHARP Assistance ................................ 66
Specifications ............................................... 67
Index .............................................................. 68
SETUP MANUAL
Refer to the “SETUP MANUAL”
contained on the supplied CD-
ROM for details.
Setting up the Screen .................................... 2
Screen Size and Projection Distance ........... 3
Changing the Lens ......................................... 9
Connecting Pin Assignments ..................... 11
RS-232C Specifications and Commands ... 13
Setting up the Projector Network
Environment ............................................ 18
Controlling the Projector via LAN .............. 24
Setting up the Projector Using
RS-232C or Telnet ................................... 29
Resetting the Lamp Timer
of the Projector via LAN......................... 39
Troubleshooting ........................................... 41
Dimensions ................................................... 44
-6
PDF operation manuals in several languages are included in the CD-ROM, so that you can
work with the projector. To utilize these manuals, you need to install Adobe
®
Reader
®
on your
computer (Windows
®
or Macintosh
®
).
Please download Adobe
®
Reader
®
from the Internet (http://www.adobe.com).
Accessing the PDF Manuals
For Windows
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “C430_” pdf file to access
the projector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “C430_S” pdf file to access
the setup manual.
For Macintosh
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “C430_” pdf file to access
the projector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “C430_S” pdf file to access
the setup manual.
How to Access the PDF Operation Manuals
Info
• If the desired pdf file cannot be opened by double clicking the mouse, start Adobe
®
Reader
®
first, then
specify the desired file using the “File”, “Open” menu.
-7
Introduction
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for
future reference.
3. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
6. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended
by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the
manufacturer.
9. Transportation
A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the product and cart
combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization
This product is provided with one of the following types of
plugs. If the plug should fail to fit into the power outlet,
please contact your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a
grounding terminal.
This plug will only fit into a grounding type power
outlet.
IMPORTANT SAFEGUARDS
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
14. Lightning
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the product due to
lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to normal
operation.
e. If the product has been dropped or damaged in any
way.
f. When the product exhibits a distinct change in
performance, this indicates a need for service.
19. Replacement Parts
When replacement parts are required, ensure that the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
21
.
Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources such
as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
CAUTION: Please read all of these instructions before you operate this product and save these
instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered and manufactured to
assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR
FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic
rules for its installation, use and servicing.
-8
Ensure that you read the following safeguards when
setting up your projector.
Caution concerning the lamp unit
■ Potential hazard of glass par-
ticles if lamp ruptures. In case
of lamp rupture, contact your
nearest Sharp Authorized Pro-
jector Dealer or Service Cen-
ter for replacement.
See “Replacing the Lamp” on
page 60.
Caution concerning the setup of the pro-
jector
■ For minimal servicing and to maintain high
image quality, SHARP recommends that this
projector be installed in an area free from hu-
midity, dust and cigarette smoke. When the
projector is subjected to these environments,
the vents and lens must be cleaned more
often. As long as the projector is regularly
cleaned, use in these environments will not
reduce the overall operation life of the unit.
Internal cleaning should only be performed
by a Sharp Authorized Projector Dealer or
Service Center.
Do not set up the projector in places ex-
posed to direct sunlight or bright light.
■ Position the screen so that it is not in direct
sunlight or room light. Light falling directly on
the screen washes out the colors, making
viewing difficult. Close the curtains and dim
the lights when setting up the screen in a
sunny or bright room.
The projector may be safely tilted to a
maximum angle of 9 degrees.
■ Placement should be within ±9 degrees of
horizontal.
When using the projector in high-altitude
areas such as mountains (at altitudes of
approximately 1,500 meters (4,900 feet)
or more)
■ When you use the projector in high-altitude
areas with thin air, set “Fan Mode” to “High”.
Neglecting this can affect the longevity of the
optical system.
Warning about placing the projector in a
high position
■ When placing the projector in a high posi-
tion, make certain it is carefully secured to
avoid personal injury caused by the projec-
tor falling down.
Do not subject the projector to hard im-
pact and/or vibration.
■ Ta ke care with the lens so as not to hit or
damage the surface of the lens.
Rest your eyes occasionally.
■ Continuously watching the screen for long
hours will cause eye strain. Take regular
breaks to rest your eyes.
Avoid locations with extremes of tem-
perature.
■ The operating temperature of the projector
is from 41°F to 95°F (+5°C to +35°C).
■ The storage temperature of the projector is
from –4°F to 140°F (–20°C to +60°C).
Do not block the intake and exhaust
vents.
■ Allow at least 7
7
/8 inches (20 cm) of space
between the exhaust vent and the nearest
wall or obstruction.
■ Ensure that the intake vent and the exhaust
vent are not obstructed.
■ If the cooling fan becomes obstructed, a pro-
tection circuit will automatically put the pro-
jector into standby mode to prevent overheat
damage. This does not indicate a malfunc-
tion (see pages 58 and 59). Remove the pro-
jector power cord from the wall outlet and wait
at least 10 minutes. Place the projector where
the intake and exhaust vents are not blocked,
plug the power cord back in and turn on the
projector. This will return the projector to the
normal operating condition.
CAUTION
PRECAUCIÓN
PRÉCAUTION
IMPORTANT SAFEGUARDS
-9
Introduction
Caution regarding usage of the projector
■ When using the projector, take care not to sub-
ject it to hard impact and/or vibration, as this
can result in damage. Take extra care with the
lens. If you are not to use the projector for a
long time, make certain you unplug the power
cord from the wall outlet, and disconnect any
other cables connected to it.
■ Do not carry the projector by holding the lens.
■
When storing the projector, ensure you attach
the lens cap to the projector. (See page 12.)
■ Do not expose the storage case or projector
to direct sunlight or near heat sources. The
storage case or projector may change color
or become deformed.
Other connected equipment
■ When connecting a computer or other audio-
visual equipment to the projector, make the
connections AFTER unplugging the power
cord of the projector from the AC outlet and
turning off the equipment to be connected.
■ Please read the operation manuals of the pro-
jector and the equipment to be connected for
instructions on how to make the connections.
Using the projector in other countries
■ The power supply voltage and the shape of
the plug may vary depending on the region
or country you are using the projector in.
When using the projector overseas, make
sure you use an appropriate power cord for
the country you are in.
Temperature monitor function
■
If the projector starts to over-
heat due to setup problems
or blockage of the air vents,
“ ” and “ ” will illumi-
nate in the lower left corner of the picture. If the
temperature continues to rise, the lamp will turn
off, the temperature warning indicator on the
projector will blink, and after a 90-second cool-
ing-off period the projector will enter the standby
mode. Refer to “Maintenance Indicators” on
page 58 for details.
Info
• The cooling fan regulates the internal tem-
perature, and its performance is automati-
cally controlled. The sound of the fan may
change during projector operation due to
changes in the fan speed. This does not
indicate malfunction.
• Even if you unplug the power cord after
projector operation, the cooling fan con-
tinues to run for a while. When you place
the projector into the storage case, make
sure that the cooling fan has stopped.
-10
Accessories
Remote control
RRMCGA502WJSA
Two R-6 batteries
(“AA” size, UM/SUM-3, HP-7 or similar)
Power cord
*
For U.S., Canada, etc.
(6' (1.8 m))
QACCDA007WJPZ
For Europe, except U.K.
(6' (1.8 m))
QACCVA011WJPZ
*Use the power cord that corresponds to the wall outlet in your country.
■ 3 RCA to 15-pin D-sub cable (10' (3.0 m)) AN-C3CP2
■ Remote receiver AN-MR2
■ Lamp unit AN-C430LP
Note
• Some of the optional accessories may not be available depending on the region. Please check with your
nearest Sharp Authorized Projector Dealer or Service Center.
(1)
(2) (3)
(4)
DIN-D-sub RS-232C
adaptor
(5
57
/64" (15 cm))
QCNWGA015WJPZ
Lens cap (attached)
PCAPHA026WJSA
Supplied accessories
RGB cable
(10' (3.0 m))
QCNWGA045WJPZ
For U.K., Hong Kong
and Singapore
(6' (1.8 m))
QACCBA036WJPZ
For Australia, New
Zealand and Oceania
(6' (1.8 m))
QACCLA018WJPZ
Storage case
GCASNA020WJSA
Optional accessories
Lens cap strap
UBNDTA017WJZZ
• Operation manual (this manual (TINS-D048WJZZ) and CD-ROM (UDSKAA087WJZZ))
-11
Introduction
Optional lenses
■ Lens Projection distance for 100" screen size
Wide-zoom lens (× 1.5 – 1.9) AN-C12MZ 9'11" – 12'5" (3.0 m – 3.8 m)
Tele-zoom lens (× 2.2 – 2.8) AN-C18MZ 14'10" – 18'10" (4.5 m – 5.7 m)
Tele-zoom lens (× 3.3 – 5.1) AN-C27MZ 22' – 33'11" (6.7 m – 10.3 m)
Tele-zoom lens (× 5.2 – 7.2) AN-C41MZ 34'5" – 48'4" (10.5 m – 14.7 m)
The standard zoom lens is attached to the projector.
The optional lenses from Sharp are also available for specialized application. Please see
your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the
SETUP MANUAL on the supplied CD-ROM for details.) Also, be sure to have service person-
nel install the optional lenses.
Throw Distance
The graph below is for 100 inches (254 cm) screen with 4:3 normal mode.
Screen
10 20 30 5040 (ft)
3.0 6.0 9.1 15.212.2 (m)
Standard zoom lens
11'9"–14'1" (3.6 m–4.3 m)
Throw distance ratio 1:1.8–2.1
Tele-zoom lens (AN-C18MZ)
14'10"–18'10" (4.5 m–5.7 m)
Throw distance ratio 1:2.2–2.8
Tele-zoom lens (AN-C27MZ)
22'–33'11" (6.7 m–10.3 m)
Throw distance ratio 1:3.3–5.1
Tele-zoom lens (AN-C41MZ)
34'5"–48'4" (10.5 m–14.7 m)
Throw distance ratio 1:5.2–7.2
Wide-zoom lens (AN-C12MZ)
9'11"–12'5" (3.0 m–3.8 m)
Throw distance ratio 1:1.5–1.9
-12
42
MENU button
For displaying adjustment
and setting screens.
43
46
AUTO SYNC button
For automatically adjusting
images when connected to
a computer.
ENTER button
For setting items selected
or adjusted on the menu.
32
KEYSTONE button
For entering the Keystone
Correction mode.
30
STANDBY/ON button
For turning the power on and
putting the projector into
standby mode.
15
Remote control
sensor
42
Adjustment buttons
('/"/\/|)
For selecting and adjusting
on-screen items.
52
Speaker
33
Focus ring
For adjusting the focus.
33
Zoom knob
For enlarging/
reducing the picture.
Air filter/Intake vent
(on the bottom of the projector)
Push both sides of the lens cap to
attach or remove.
RETURN button
For returning to the previous
display.
34
INPUT buttons
For switching input mode.
35
Volume buttons
For adjusting the speaker
sound level.
58
Temperature warning
indicator
30·58
Lamp indicator
30·58
Power indicator
31
Height Adjustment
button
31
Height Adjustment
button
31
Tilt dial
31
Adjustment foot
Adjustment foot
ECO/QUIET button
For lowering the noise of the
cooling fan and extending the
lamp life.
36
43
55·56
31
Projector
Part Names and Functions
Numbers in refer to the main pages in this operation manual where the topic is explained.
Top View
Front View
Attaching the lens cap
After putting the lens cap strap on the lens
cap, pass the other end of the strap
through the hole on the front side of the
projector, next to the lens, as shown in
the illustration.
-13
Introduction
Projector (Rear View)
* Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
55
Intake vent
Carrying handle
15
Remote control
sensor
55
Exhaust vent
30
AC socket
Connect the supplied power cord.
* Kensington Security
Standard connector
LAN terminal
Terminal for controlling the
projector using a computer
via network.
28
RS-232C terminal
Terminal for controlling the
projector using a computer.
27
USB terminal
Terminal connecting with the USB terminal on the
computer for using the supplied remote control as the
computer mouse.
39
COMPUTER/COMPONENT 2 input terminal
Terminal for Computer RGB and Component signals.
23
·
25
24
·
25
23
·
25
23
·
25
DVI-D input terminal
Terminal for DVI Digital RGB and Digital Component
signals.
WIRED REMOTE terminal
For connecting the remote control
to the projector when the signals
from the remote control cannot
reach the remote control sensor.
14
AUDIO input terminal
Shared audio input terminal for COMPUTER/COMPONENT 2 and
DVI-D.
25
AUDIO output terminal
29
COMPUTER/COMPONENT 1
input terminal
Terminal for Computer RGB
and Component signals.
AUDIO input terminal
Audio input terminal for
COMPUTER/COMPONENT 1.
S-VIDEO input terminal
26
VIDEO input terminal
26
AUDIO input terminal
for Video
26
AUDIO input terminal
for S-video
26
28
MONITOR output terminal
Output terminal for Computer RGB and
Component signals.
Shared for COMPUTER/COMPONENT 1 and 2.
Terminals
Using the Carrying Handle
When transporting the projector, carry it by the carrying handle on the side.
• Always put on the lens cap to prevent damage to the lens when transporting the
projector.
• Do not lift or carry the projector by the lens or the lens cap as this may damage
the lens.
-14
Remote Control
30
STANDBY button
For putting the projector into
standby mode.
32
KEYSTONE button
For entering the Keystone
Correction mode.
35
FREEZE button
For freezing images.
35
ENLARGE (Enlarge/Reduce)
buttons
For enlarging/reducing part of the
image.
43
39
ENTER button
For setting items selected or
adjusted on the menu.
36
BREAK TIMER button
For displaying the break timer.
34
INPUT buttons
For switching to the respective
input modes.
46
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
39
PAGE Up/Down buttons
Same as the [Page Down] and
[Page Up] keys on a computer
keyboard, when with the USB
connection (using a USB cable or
the optional remote receiver).
RESIZE button
For switching the screen size
(NORMAL, BORDER, etc.).
37
PICTURE MODE button
For switching the picture mode.
36
Volume buttons
For adjusting the speaker sound
level.
35
AV MUTE button
For temporarily displaying the black
screen and turning off the sound.
35
MENU button
For displaying adjustment and
setting screens.
42
WIRED R/C JACK
For controlling the projector by connecting
the remote control to the projector.
ON button
For turning the power on.
30
L-CLICK button
For the Left click when with the
USB connection (using a USB
cable or the optional
remote receiver).
MOUSE/Adjustment buttons
('/"/\/|)
• For moving the computer cursor
when with the USB connection
(using a USB cable or the optional
remote receiver).
• For selecting and adjusting on-
screen items.
R-CLICK/RETURN button
• For the Right click when with the
USB connection (using a USB
cable or the optional remote receiver).
• For returning to the previous
display.
ECO/QUIET button
For lowering the noise of the cooling
fan and extending the lamp life.
36
39·42
39·43
Part Names and Functions
Using the Remote Control with a Signal Cable
When the signals from the remote control cannot be reached due to the positioning of the projector, use a
ø3.5 mm minijack cable to connect the remote control to the projector. Now you can control the projector
with the remote control.
Projector
(Rear view)
Remote control
To WIRED
R/C JACK
To WIRED
REMOTE terminal
ø3.5 mm minijack cable (commercially available or
available as Sharp service part QCNWGA038WJPZ)
Note
• The wireless remote function is not possible when the ø3.5 mm minijack cable is connected to the projector.
Should the wireless remote operation be required, the ø3.5 mm minijack cable should be disconnected
from the projector.
-15
Introduction
Using the Remote Control
Inserting the Batteries
1
Pull down the tab on the cover and
remove the cover towards the di-
rection of the arrow.
2 Insert the included batteries.
• Insert the batteries making sure the po-
larities correctly match the
and
marks inside the battery compartment.
3 Insert the lower tab of the cover
into the opening, and lower the
cover until it clicks in place.
Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.
Caution
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Insert the batteries making sure the polarities correctly match the
and
marks inside the battery compart-
ment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them
using a cloth.
• The batteries included with this projector may run down in a short period, depending on how they are kept. Be
sure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.
• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.
Usable Range
The remote control can be used to control
the projector within the ranges shown in the
illustration.
Note
• The signal from the remote control can be re-
flected off a screen for easy operation. How-
ever, the effective distance of the signal may
differ depending on the screen material.
When using the remote control:
• Take care not to drop, expose to moisture or
high temperature.
• The remote control may malfunction under a
fluorescent lamp. In this case, move the pro-
jector away from the fluorescent lamp.
Remote control sensor
Remote control
signal transmitters
Remote control
23' (7 m)
30°
30°
30°
Front View
Rear View
30°
30°
30°
Remote control sensor
23' (7 m)
Remote control
signal transmitters
Remote control
-16
Quick Start
7 STANDBY
button
3 ON button
6 COMPUTER 1
button
37 STANDBY/ON button
6 INPUT buttons
6 ENTER button
4 Height Adjustment buttons
5 Zoom knob
5 Focus ring
4 Tilt dial
Page 18
1. Place the projector facing a screen
Pages 23, 30
Page 30
On the remote controlOn the projector
This section shows the basic operation (projector connecting with the computer). For details, see the page
described below for each step.
Setup and Projection
In this section, connection of the projector and the computer is explained using one example.
2. Connect the projector to the computer and plug the power
cord into the AC socket of the projector
3. Remove the lens cap and turn the projector on
When connecting equipment other than the computer, see pages 25, 28 and 29.
-17
Quick Start
Pages 31, 32
4. Adjust the angle
5. Adjust the focus and the zoom
Page 33
7. Turn the Power off
Page 30
6. Select the INPUT mode
Page 34
••
••
•
This projector is equipped with an “Auto Keystone
Correction” function that automatically corrects
any trapezoidal distortion within the projected
image.
Bring the projected image into focus
••
••
• Bring the projected image into focus by
rotating the focus ring.
Adjust the projected image size
••
••
• Adjust the projected image size by moving the
zoom knob.
Select the “COMPUTER 1” using the INPUT buttons on the projector or the COMPUTER 1 button on the remote
control.
••
••
• When you press the INPUT buttons on the projector, the INPUT list appears.
Press
''
''
'
/
""
""
"
to select an item on the list, and press to switch to the selected INPUT mode.
••
••
• When using the remote control, press / /
/
/
to switch the INPUT mode.
On the remote
control
On the
projector
""
""
" INPUT list
Press the STANDBY button, then press that button again while the confirmation message is displayed, to put
the projector into standby mode.
••
••
• Even if you unplug the power cord from the AC outlet, the cooling fan continues to run for a while.
On the remote controlOn the projector
""
""
" On-screen Display
Adjust the projector angle
••
••
•
Adjust the projector angle using the Height
Adjustment buttons.
••
••
•
Rotate the Tilt dial to adjust the horizontal tilt of
the projector.
Height Adjustment
buttons
Tilt dial
Focus ring
Zoom knob
Zoom in
Zoom out
""
""
" On-screen Display (RGB)
COMPUTER 1
RGB
1024 × 768
1
INPUT
1
COMPUTER 1
2
COMPUTER 2
-18
Setting Up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat
and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See
page 32.)
Standard Setup (Front Projection)
■ Place the projector at the required distance from the screen according
to the desired picture size. (For details, refer to the “SETUP MANUAL” con-
tained on the supplied CD-ROM.)
Example of standard setup
Setting Up the Projector
Side View
H
Screen
L: Projection distance
Lens center
Base line:
Horizontal line passing through
the lens center
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceil-
ing-mount bracket for this installation. Before mounting
the projector, contact your nearest Sharp Authorized Pro-
jector Dealer or Service Center to obtain the recom-
mended ceiling-mount bracket (sold separately).
• For the U.S.A.: AN-XGCM55 ceiling-mount bracket, its
AN-EP101B extension tube and AN-JT200 universal
bracket, adaptor for non-level ceiling installation.
• For countries other than the U.S.A.: AN-60KT ceiling-
mount bracket, its AN-TK201 and AN-TK202 extension
tubes.
■ Invert the image by setting “Ceiling + Front” in “PRJ Mode”.
See page 52 for use of this function.
-19
Setup
Projection (PRJ) Mode
The projector can use any of the 4 projection modes, shown in the diagram below. Select the mode most appro-
priate for the projection setting in use. (You can set the PRJ mode in “Options2” menu. See page 52.)
■ Ta ble mounted, front projection ■ Ceiling mounted, front projection
[Menu item ➞ “Front”] [Menu item ➞ “Ceiling + Front”]
■ Ta ble mounted, rear projection ■ Ceiling mounted, rear projection
(with a translucent screen) (with a translucent screen)
[Menu item ➞ “Rear”] [Menu item ➞ “Ceiling + Rear”]
Indication of the Projection Image Size and Projection Distance
For details, refer to the “SETUP MANUAL” contained on the supplied CD-ROM.
Example: NORMAL Mode (4:3) for standard lens
500"
200"
100"
84"
60"
400"×300"
Projection Distance
160"
×
120"
80"
×
60"
67"
×
50"
48"
×
36"
58'7
"
–
70'4
"
(17.9 m – 21.4 m)
23'5
"–
28'1
"
(7.1 m
–
8.6 m)
11'9
"–
14'1
"
(3.6 m
–
4.3 m)
9'10
"–
11'10
"
(3.0 m
–
3.6 m)
7'0
"–
8'5
"
(2.1 m – 2.6 m)
Picture Size
-20
Storing the Projector
Lens cap
Fixing band
Info
How to Use the
Storage Case
When storing the projector, attach the lens
cap to the lens, and place it in the supplied
storage case.
1 Open the cover of the storage
case.
2 Place the projector into the stor-
age case.
• Ensure the projector has cooled down
sufficiently before placing it in the case.
• Ensure the lens cap is attached to the
lens for protection.
• Place the projector into the storage
case with the lens facing the
handle.
• Ensure the projector is held in place
by using the fixing band.
3 Close the cover of the storage
case.
4 Place the accessories in the front
pocket of the storage case.
Supplied accessories
(Remote control, etc.)
-21
Connections
Samples of Cables for Connection
•For more details of connection and cables, refer to the operation manual of the connecting equipment.
•You may need other cables or connectors not listed below.
Terminal on the
projector
COMPUTER/
COMPONENT 1, 2
DVI-D
AUDIO
(for COMPUTER/
COMPONENT 1, 2, DVI-D)
DVI-D
COMPUTER/
COMPONENT 1, 2
S-VIDEO
VIDEO
Equipment
Computer
Audio-visual
equipment
Terminal on
connected equipment
RGB
output
terminal
DVI digital
video
output
terminal
Audio
output
terminal
DVI digital
video
output
terminal
Component
video
output
terminal
Terminal
for using
the
dedicated
cable
S-video
output
terminal
Video
output
terminal
Cable
RGB cable (supplied)
DVI Digital cable (commercially available)
ø3.5 mm stereo or mono audio cable (commercially
available or available as Sharp service part
QCNWGA038WJPZ)
DVI Digital cable (commercially available)
3 RCA to 15-pin D-sub cable (optional: AN-C3CP2)
Connect with the cable adaptor, etc.
S-video cable (commercially available)
Video cable (commercially available)
Cable adaptor (commercially available)
3 RCA to 15-pin
D-sub cable
(optional: AN-C3CP2)
Dedicated cable
-22
Terminal on the
projector
AUDIO
(for COMPUTER/
COMPONENT 1, 2, DVI-D)
AUDIO
(for VIDEO, S-VIDEO)
MONITOR OUTPUT
AUDIO
(MONITOR OUT)
Equipment
Audio-visual
equipment
Monitor
Amplifier
Terminal on
connected equipment
Audio
output
terminal
Terminal
for using
the
dedicated
cable
Audio
output
terminal
Terminal
for using
the
dedicated
cable
RGB
input
terminal
Audio
input
terminal
Cable
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
Connect with the cable adaptor, etc.
RCA audio cable (commercially available)
Connect with the cable adaptor, etc.
RGB cable (supplied or commercially available)
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
Cable adaptor
(commercially available)
ø3.5 mm stereo minijack to RCA audio
cable (commercially available)
Dedicated cable
Cable adaptor
(commercially available)
RCA audio cable
(commercially available)
Dedicated cable
Samples of Cables for Connection
-23
Connections
Connecting to a Computer
Before connecting, ensure the power cord of the projector from the AC outlet is unplugged,
and that the devices to be connected are turned off. After making all connections, turn on the
projector and then the other devices. When connecting a computer, ensure that it is the last
device to be turned on after all the connections are made.
Ensure the operation manuals of the devices to be connected have been read before making connections.
When connecting with the RGB cable
(Connecting to COMPUTER/COMPONENT 1 or 2: The illustration shown below is for the former.)
To audio output terminal
To RGB output terminal
* ø3.5 mm stereo or mono audio cable
(commercially available or available as Sharp service part QCNWGA038WJPZ)
To COMPUTER/
COMPONENT 1
input terminal
Computer
To AUDIO input terminal
RGB cable
*
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.
Note
• See page 63 “Computer Compatibility Chart” for a list of computer signals compatible with the projector.
Use with computer signals other than those listed may cause some of the functions to not work.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest
Macintosh Dealer.
• Depending on the computer you are using, an image may not be projected unless the computer’s
external output port is switched on. (e.g. Press “Fn” and “F5” keys simultaneously when using a
SHARP notebook computer). Refer to the specific instructions in your computer’s operation manual to
enable your computer’s external output port.
RGB cable
Supplied
accessory
-24
When connecting with a DVI digital cable
The projector employs the DVI digital input terminal for direct input of Digital Video signals from a
computer.
*
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.
Computer
* ø3.5 mm stereo or mono audio cable
(commercially available or available as
Sharp service part QCNWGA038WJPZ)
To DVI-D input terminal
DVI Digital cable
(commercially available)
To DVI digital
output terminal
To audio output
terminal
To AUDIO input terminal
(for DVI-D)
Connecting to a Computer
-25
Connections
Connecting to Video Equipment
DVI Digital cable
(commercially available)
To audio output
terminals
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
To DVI output terminal
Video Equipment
To DVI-D input terminal
To AUDIO input terminal
(for COMPUTER/COMPONENT 2, DVI-D)
To audio output terminal
ø3.5 mm minijack to RCA
audio cable (commercially
available)
3 RCA (Component) to
15-pin D-sub cable
(optional: AN-C3CP2)
To component video output terminal
To COMPUTER/
COMPONENT 1 input terminal To AUDIO
input terminal
Video Equipment
The image quality is highest in order of the Component signal, the RGB signal, the S-video signal and the
Video signal. If your audio-visual equipment has a component output terminal or RGB output terminal, use the
COMPUTER/COMPONENT terminal 1 or 2 on the projector for video connection.
When connecting video equipment with a DVI output terminal
Note
• Select the input signal type of the video equipment. See page 45.
When connecting video equipment with component video output terminal
(Connecting to COMPUTER/COMPONENT 1 or 2: The illustration shown below is for the former.)
Note
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-
mercially available cable that fits in the projector terminal you want to connect.
-26
When connecting video equipment with S-video output terminal
When connecting video equipment with video output terminal
Note
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-
mercially available cable that fits in the projector terminal you want to connect.
RCA audio cable
(commercially available)
To audio output terminal
To S-video output terminal
S-video cable (commercially available)
To S-VIDEO input terminal
To AUDIO input terminal
Video Equipment
RCA audio cable
(commercially available)
To audio output terminal
To video output terminal
Composite video cable (commercially available)
To VIDEO input terminal
To AUDIO input terminal
Video Equipment
Connecting to Video Equipment
-27
Connections
Controlling the Projector by a Computer
When the RS-232C terminal on the projector is connected to a computer, the computer can be used to control
the projector and check the status of the projector. Refer to the “SETUP MANUAL” contained on the supplied
CD-ROM for “RS-232C Specifications and Commands”.
When connecting to a computer using an RS-232C serial control cable and a DIN-D-sub RS-232C adaptor
Note
• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
Info
• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may
damage your computer or projector.
• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This
may damage your computer.
Computer
To RS-232C terminal
To RS-232C terminal
RS-232C serial control cable (cross type, commercially available)
DIN-D-sub
RS-232C adaptor
DIN-D-sub
RS232C adaptor
Supplied
accessory
-28
To RGB input terminal
RGB cable (commercially available)
RGB cable
To RGB output
terminal
To COMPUTER/
COMPONENT 1
input terminal
To MONITOR OUT terminal
Monitor
Computer
When connecting to the LAN terminal using a LAN cable
Note
• When connecting to hub, use straight-through Category 5 (CAT.5) type cable (commercially available).
• When connecting to computer, use cross-over Category 5 (CAT.5) type cable (commercially available).
TX/RX LED (yellow)
Illuminates when transmitting/receiving data.
LINK LED (green)
Illuminates when linked.
To LAN terminal
LAN cable (Category 5 type, commercially available)
HUB
or
Computer
*To ensure safety, do not connect the
LAN terminal with any cables such
as a telephone line that may cause
excessive voltage.
RGB cable
Supplied
accessory
Connecting to a Monitor with RGB Input Terminal
You can display computer images on both the projector and a separate monitor using two sets of RGB cables.
Controlling the Projector by a Computer
-29
Connections
Amplifier
To AUDIO output terminal
(MONITOR OUT)
To audio input terminal
ø3.5 mm minijack to
RCA audio cable
(commercially available)
Audio signals input from equipment connected to each audio input terminal of the projector can be output to audio equipment.
Note
• Turn off the power of both the projector and audio equipment when connecting.
• When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off
the power of the amplifier and then turn off the power of the projector.
• By using external audio components, the volume can be amplified for better sound.
• For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 52.
Connecting to an Amplifier or Other Audio Equipment
-30
AC socket
To AC outlet
Turning the Projector On/Off
Info
• If “Direct Power On” is set to “Enable”, the projector
will be turned on automatically when you plug the
power cord into the AC outlet. (See page 50.)
• English is the factory preset language. If you want to
change the on-screen display to another language,
change the language according to the procedure on
page 54.
▼On-screen Display
Info
•
You can unplug the power cord even if the projector is
operating.
•
Even if you unplug the power cord from the projector, the
cooling fan continues to run for a while.
Connecting the Power Cord
Plug the supplied power cord into the AC
socket on the rear of the projector. Then plug
into the AC outlet.
Turning the Projector On
Before performing the steps in this section,
connect any equipment that you use with the
projector. (See pages 23-29.)
Remove the lens cap and press
STANDBY/ON on the projector or
ON on the remote control.
• The power indicator illuminates green.
• After the lamp indicator illuminates, the projec-
tor is ready to start operation.
• When System Lock is set, the keycode input
screen appears. Enter the right keycode to
start projection. See page 49 for details.
Note
• The lamp indicator illuminates or blinks, in-
dicating the status of the lamp.
Green: The lamp is on.
Blinking green: The lamp is warming up.
Red:
The lamp is shut down abnor-
mally or the lamp should be
replaced.
•
When switching on the projector, a slight flicker-
ing of the image may be experienced within the
first minute after the lamp has been illuminated.
This is normal operation as the lamp's control
circuitry is stabilizing the lamp output charac-
teristics. This does not indicate malfunction.
• If the projector is put into standby mode and
immediately turned on again, the lamp may
take some time to illuminate.
Turning the Power Off
(Put-
ting the Projector into Standby Mode)
1 Press STANDBY/ON on the
projector or
STANDBY on the
remote control, then press that
button again while the confirma-
tion message is displayed, to put
the projector into standby mode.
ON button
STANDBY
button
Lamp
indicator
Power indicator
STANDBY/ON button
Power cord
Supplied
accessory
-31
Basic Operation
Image Projection
Height Adjustment button
Side View
Lens
center
Top View
Using the Adjustment
Feet
The height of the projector can be adjusted
using the adjustment feet when the screen is
located higher than the projector, the screen
is inclined or when the installation site is
slightly inclined.
Install the projector so that it is as perpen-
dicular to the screen as possible.
1
Press the Height Adjustment but-
tons.
• The adjustment feet come out.
2
Lift the projector to adjust its
height and remove your hands
from the
Height Adjustment
but-
tons
.
• The projector is adjustable up to approxi-
mately 9 degrees.
3 Rotate the Tilt dial to finely ad-
just the horizontal tilt of the pro-
jector.
• The inclination is adjustable within ap-
proximately 2 degrees.
• When adjusting the height of the pro-
jector, trapezoidal distortion occurs.
When “Auto Keystone” of the “Options1”
menu is set to “On” (see page 48), key-
stone correction functions automatically
to correct trapezoidal distortion. When
you want to adjust the automatically cor-
rected image, use the manual keystone
correction. (See page 32.)
Info
• Do not press the Height Adjustment button
when the adjustment feet come out without
firmly holding the projector.
• Do not hold the lens when lifting or lower-
ing the projector.
• When lowering the projector, be careful not
to get your fingers caught in the area be-
tween the adjustment foot and the projector.
Adjustment foot
Tilt dial
-32
Image Projection
"On-screen Display (Keystone Correction mode)
KEYSTONE
button
MOUSE/Adjustment
buttons ('/"/\/|)
RETURN button
Compresses
lower side.
Compresses
upper side.
Note
• The Manual Keystone Correction can be ad-
justed up to an angle of approximately ±40
degrees and the screen can also be set up
to an angle of approximately ±40 degrees
(when the resize mode is set to “Normal”
(see page 47)).
Correcting Trapezoidal
Distortion
Auto Keystone Correction
When the image is projected either from the top
or from the bottom towards the screen at an angle,
the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion
is called Keystone Correction.
This projector is equipped with an “Auto Keystone
Correction” function that automatically corrects
any trapezoidal distortion within the projected im-
age. The correction is made automatically provided
the vertical incline or decline is within
±
12 degrees.
Note
• When not using the Auto Keystone Correc-
tion function, set “Auto Keystone” on the
“Options1” menu to “Off”.
Manual Keystone Correction
When you want to make fine adjustments after the
Auto Keystone Correction function has been activated,
or when you want to make corrections without using
the Auto Keystone Correction function, you can make
corrections manually using the following procedure.
1
Press
KEYSTONE on the remote
control to enter the Keystone Correc-
tion mode.
• You can also use KEYSTONE on the
projector.
2 Press ', | or ", \ on the re-
mote control to adjust the Key-
stone Correction.
• You can also adjust the Keystone Cor-
rection using the
''
''
',
||
||
| or
""
""
",
\\
\\
\ buttons
on the projector.
Note
• Press RETURN to return to the de-
fault setting.
•
Straight lines or the edges of images may
appear jagged while adjusting the image.
3 Press
KEYSTONE
.
• The on-screen display of the Keystone
Correction mode will disappear.
• You can also use
KEYSTONE on the
projector.
-33
Basic Operation
Adjusting the Lens
The image is focused and adjusted to the screen
size using the focus ring or zoom knob on the
projector.
1 The focus is adjusted by rotat-
ing the focus ring.
2 Zooming is adjusted by moving
the zoom knob.
Focus ring Zoom kno
b
Zoom in
Zoom out
-34
Image Projection
Switching the INPUT
Mode
Select the appropriate input mode for the con-
nected equipment.
On the remote control
Press , , , or on the
remote control to select the input mode.
On the projector
11
11
1 Press an INPUT (
''
''
'/
""
""
") button.
• The INPUT list appears.
22
22
2 Press
''
''
'/
""
""
" to select an item on
the list.
33
33
3 Press
ENTER.
Note
• When no signal is received, “NO SIGNAL”
will be displayed. When a signal that the
projector is not preset to receive is received,
“NOT REG.” will be displayed.
About the INPUT mode
"On-screen Display of INPUT Mode (Example)
Using RGB
Using Component
COMPUTER/
COMPONENT 1, 2
mode
VIDEO mode
S-VIDEO mode
COMPUTER 1
RGB
1024 × 768
1
COMPUTER 1
Component
720P/750P
1
VIDEO
V
S-VIDEO
S
Used for projecting images
from equipment that sends
RGB signals or Component
signals connected to the RGB
input terminal.
Used for projecting images
from equipment that sends DVI
Digital RGB and Digital Com-
ponent signals connected to
the DVI-D input terminal.
Used for projecting images
from equipment connected to
the S-VIDEO input terminal.
Used for projecting images
from equipment connected to
the VIDEO input terminal.
COMPUTER/
COMPONENT
1, 2
DVI-D
S-VIDEO
VIDEO
INPUT buttons
////
DVI-D mode
"On-screen Display of INPUT list
INPUT
1
COMPUTER 1
2
COMPUTER 2
DVI
S-VIDEO
VIDEO
ENTERSEL.
D
S
V
D. PC RGB
1024 × 768
DVI
D
-35
Basic Operation
Adjusting the Volume
Press
/
VOL on the projector or
/ VOL
on the remote control to adjust the volume.
Note
• Pressing or VOL will lower the volume.
Pressing
or
VOL will raise the volume.
Displaying the Black
Screen and Turning Off the
Sound Temporarily
Press
AV MUTE on the remote control to tem-
porarily display a black screen and turn off the
sound.
Note
• Pressing
AV MUTE again will turn the pro-
jected image and sound back on.
Displaying an Enlarged
Portion of an Image
Graphs, tables and other portions of projected
images can be enlarged. This is helpful when pro-
viding more detailed explanations.
1 Press ENLARGE on the remote
control.
• Enlarges the image.
• Pressing
or ENLARGE enlarges or
reduces the projected image.
Note
• You can change the location of the en-
larged image using ', ", \ and |.
2 Press
RETURN on the remote
control to cancel the operation.
• The magnification then returns to ×1.
Note
In the following cases, the image will re-
turn to the normal size (×1).
• When switching the INPUT mode.
• When
RETURN has been pressed.
• When the input signal is changed.
•
When the input signal resolution and refresh
rate (vertical frequency) change.
• When RESIZE has been pressed.
Freezing an Image
1
Press
FREEZE on the remote control.
• The projected image is frozen.
2 Press
FREEZE again to return to
the image from the currently con-
nected equipment.
"On-screen Display
RESIZE button
MOUSE/Adjustment
buttons ('/"/\/|)
RETURN
button
FREEZE
button
ENLARGE
(Enlarge/Reduce)
buttons
AV MUTE button
Volume buttons
"On-screen Display
×1 ×2 ×3 ×4 ×9 ×16 ×36 ×64
Press .
Press .
-36
Displaying and Setting the
Break Timer
This function allows you to show the remaining
time for break during meeting.
1 Press BREAK TIMER. The break
timer starts to count down from 5
minutes.
2 When “ ” is displayed, press
''
''
' ,
""
""
" ,
\\
\\
\ or
||
||
| to set the break timer.
• You can set anywhere between 1 and 60
minutes (in 1 minute units).
3 Press BREAK TIMER to cancel
the break timer.
MOUSE/Adjustment
buttons ('/"/\/|)
PICTURE MODE
button
BREAK TIMER
button
RETURN button
ECO/QUIET button
"On-screen Display
Switching the Eco/Quiet
Mode
Press ECO/QUIET on the remote control or ECO/
QUIET on the projector to switch the Eco/Quiet mode
between on and off.
• When the Eco/Quiet Mode is set to “On”, the sound
of the cooling fan will turn down, the power con-
sumption will decrease, and the lamp life will ex-
tend. (Projection brightness decreases 20%.)
Selecting the Picture Mode
You can select the suitable picture mode for the
projected image, such as movie or video game.
Press PICTURE MODE on the remote
control.
• When pressing PICTURE MODE, the picture
mode changes in order of:
Note
• “sRGB” is displayed only when RGB signal is
input.
• Press
RETURN to return to the “STANDARD”
mode while “Picture Mode” is displayed on the
screen.
STANDARD PRESENTATION MOVIE GAME sRGB
Brightness
80%
100%
On
Off
Power consumption
(When using AC 100V)
300 W
360 W
Lamp life
Approx.
3,000 hours
Approx.
2,000 hours
Image Projection
-37
Basic Operation
Resize Mode
This function allows you to modify or customize
the resize mode to enhance the input image. De-
pending on the input signal, you can choose a
desired image.
COMPUTER
STRETCH
For 4:3 screen For 16:9 screen
Input signal
Image type
NORMAL FULL BORDER
4:3 aspect ratio
5:4 aspect ratio
16:10 aspect ratio
16:9 aspect ratio
: Cutout area on which images cannot be projected
: Area where the signals are off screen
*The Image Shift function can be used for these images.
Computer
Resolution
lower than
XGA
XGA
Resolution
higher than
XGA
SXGA (1280 × 1024)
1280 × 720
Select “Normal”.
1280 × 768
1280 × 800
1360 × 768
1366 × 768
DOT BY DOT
**
**
*
*
4:3 aspect ratio
Other aspect ratios
SVGA (800 × 600)
XGA (1024 × 768)
SXGA (1280 × 960)
SXGA+ (1400 × 1050)
SXGA (1280 × 1024)
1280 × 720
1360 × 768
1366 × 768
1280 × 768
1280 × 800
1024 × 768
968 × 768
1024 × 576
1024 × 578
1024 × 576
1024 × 614
1024 × 640
1024 × 768
768 × 576
—
—
—
960 × 576
922 × 576
1024 × 576
—
—
—
1024 × 576
NORMAL
FULL BORDER STRETCH
RESIZE button
MOUSE/Adjustment
buttons ('/"/\/|)
DOT BY DOT
800 × 600
1024 × 768
1280 × 960
1400 × 1050
1280 × 1024
1280 × 720
1360 × 768
1366 × 768
1280 × 768
1280 × 800
-38
VIDEO
**
**
*
*
*
*
4:3 aspect ratio
Squeeze
Letter box
16:9 aspect ratio
16:9 aspect ratio
(4:3 aspect ratio in 16:9)
For 4:3 screen For 16:9 screen
Input signal
Image type NORMALDVD / Video
480I, 480P,
576I, 576P,
NTSC, PAL,
SECAM
720P, 1035I,
1080I
540P
Select “Normal”.
: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals
*The Image Shift function can be used for these images.
BORDER STRETCH
AREA ZOOM
V-STRETCH
Image Projection
-39
Basic Operation
Using the Remote Control as the Wireless Computer Mouse
When connecting the projector and the computer with a USB cable, you can use the remote control as the
computer mouse.
If the computer is placed too far away from the projector to be connected via the USB cable, the separately
sold remote receiver (AN-MR2) makes it possible to operate the projector with the remote control. For de-
tails, see the operation manual of the receiver.
Connecting with a USB cable
The mouse pointer can be operated in the
following way after it is connected.
■ When moving the cursor
Press MOUSE/Adjustment buttons ('/"/\/|).
■ When left-clicking
Press L-CLICK.
■ When right-clicking
Press R-CLICK.
■ When your computer supports only a
one-click mouse (such as Macintosh)
Press L-CLICK or R-CLICK.
L-CLICK and R-CLICK have common function.
Note
• This function only works with the Microsoft
®
Windows
®
OS and Mac OS
®
. However, this function does not
work with the following operation systems that do not support USB.
• Versions earlier than Windows
®
95
• Versions earlier than Windows
®
NT4.0
• Versions earlier than Mac OS
®
8.5
• You cannot use this function when displaying the menu screen.
• Confirm that the computer recognizes the USB connection.
• If “Resize” is displayed when signals having a higher resolution than XGA are being input and you have
set “Dot By Dot” as the screen size, you cannot operate the mouse function.
■ When using [Page Up] or [Page Down]
Same as the [Page Up] and [Page Down] keys on a computer keyboard.
Press
or PAGE.
To USB terminal
USB terminal
or
USB cable
(commercially available or available as Sharp service part
QCNWGA014WJPZ)
Point the remote control at
the
USB remote receiver
(AN-MR2, optional)
Computer
MOUSE/Adjustment
buttons ('/"/\/|)
R-CLICK button
L-CLICK button
PAGE Up/Down buttons
-40
Menu Items
The following shows the items that can be set in the projector.
Note
• “Fine Sync” menu is only displayed when the projector input is COMPUTER/COMPONENT 1, 2 or DVI-D.
“Picture” menu
“Fine Sync” menu
COMPUTER/COMPONENT 1, 2, DVI-D
(RGB signal)
Picture Mode
Contrast
Bright
Red
Blue
CLR Temp
Reset
Signal Type
COMP.1
Standard
7500K
Auto
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
COMPUTER/COMPONENT 1, 2, DVI-D
(Component signal), VIDEO, S-VIDEO
Picture Mode
Contrast
Bright
Color
Tint
Sharp
Red
Blue
CLR Temp
Progressive
Reset
Signal Type
COMP.1
Standard
7500K
3D Progressive
Component
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
0
0
0
Fine Sync
Clock
Phase
H-Pos
V-Pos
Reset
Resolution
Auto Sync
Signal Info
COMP.1
640 × 480
On
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
+30-30
+30-30
+30-30
+30-30
+30-30
+30-30
Signal Type
Tint
Color
Reset
Sharp
Bright
+30-30
Contrast
Red
Blue
Progressive
5500K
6500K
7500K
8500K
9300K
10500K
Main Menu
Sub Menu
CLR Temp
Page 44
Page 44
Page 44
Page 45
Page 45
Page 44
Page 45
Page 45
Picture Mode
Standard
Presentation
Movie
Game
sRGB
*1
*2
*2
*2
*3
*4
*1 Item when inputting RGB signal through COMPUTER/COMPONENT 1, 2 or DVI-D
*2 Items when inputting Component signal through COMPUTER/COMPONENT 1 or 2,
or when selecting VIDEO or S-VIDEO
*3 “Progressive” can be adjusted only when 480I or 576I signal is input.
*4 Item when selecting COMPUTER/COMPONENT 1, 2 or DVI-D
*5 Item when selecting DVI-D
*6 Item when selecting VIDEO or S-VIDEO
Auto
RGB
Component
2D Progressive
3D Progressive
Dynamic Range
*5
Standard
Enhanced
COMPUTER/
COMPONENT 1, 2
D.PC RGB
D.PC Comp.
D.Video RGB
D.Video Comp.
DVI-D
Auto
PAL
SECAM
NTSC4.43
NTSC3.58
PAL-M
PAL-N
PAL-60
Video System
Page 45
*6
On
Off
Fine Sync
+15-15
+30-30
+30-30
+30-30
Clock
Phase
H-Pos
V-Pos
Reset
Signal Info
Resolution
Main Menu
Auto Sync
Page 46
Page 46
Page 46
Page 46
Page 46
*8
*7 Item when inputting RGB signal through COMPUTER/COMPONENT 1 or 2
*8 Item when inputting RGB signal through COMPUTER/COMPONENT 1, 2 or DVI-D
*7
*7
*7
*7
*7
-41
Useful Features
“Options1” menu
“Language” menu
“Options2” menu
Options1
Lamp Timer (Life)
Resize
Image Shift
Keystone
Auto Keystone
OSD Display
Background
Eco/Quiet Mode
Auto Power Off
System Sound
Menu Position
System Lock
Direct Power On
h ( 100%)
VIDEO
Normal
On
On
Logo
On
On
On
Center
Disable
Disable
SEL./ADJ.
RETURN
ENTER
END
0
0
0
Language
COMP.1
SEL./ADJ.
RETURN
ENTER
END
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
Options2
Password
Speaker
Audio Out
PRJ Mode
Fan Mode
Monitor Out
LAN/RS232C
RS-232C
DHCP Client
TCP/IP
MAC Address
Projector
All Reset
COMP.1
Disable
On
FAO
Front
Normal
Enable
Enable
9600 bps
On
08:00:1F:B1:B7:74
MYPROJECTOR
SEL./ADJ.
RETURN
ENTER
END
On
Off
On
Off
On
Off
On
Off
On
Off
Lamp Timer (Life)
Options1
Main Menu Sub Menu
OSD Display
Background
Logo
Blue
None
Normal
Full
Dot By Dot
Border
Stretch
Eco/Quiet Mode
Auto Power Off
Center
Upper Right
Lower Right
Upper Left
Lower Left
Old Code
New Code
Reconfirm
Menu Position
Page 47
Page 48
Page 47
Resize
Page 47
Page 48
Page 48
System Sound
Page 49
Page 48
Page 49
Auto Keystone
Page 47
Page 48
Page 48
+96-96
Image Shift
+127-127
Keystone
Normal
Area Zoom
V-Stretch
Border
Stretch
COMPUTER VIDEO
System Lock
Pages 49 and 50
Enable
Disable
Direct Power On
Page 50
Main Menu
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
Language
Page 54
On
Off
IP Address
Subnet Mask
Gateway
On
Off
Normal
High
LAN/RS232C
Monitor Out
RS-232C
Options2
Enable
Disable
Front
Ceiling + Front
Rear
Ceiling + Rear
9600 bps
38400 bps
115200 bps
Enable
Disable
Main Menu Sub Menu
PRJ Mode
Page 51
Page 51
Page 52
FAO
VAO
Audio Out
Page 52
Page 52
TCP/IP
Page 53
DHCP Client
Page 53
Page 52
Page 52
Page 54
Password
Old Password
New Password
Reconfirm
Speaker
Page 52
Fan Mode
Page 52
All Reset
Page 54
MAC Address
Page 54
Projector
*2
*1
*2
*1 Adjustable only when DHCP Client
is set to “Off”
*2 Display only
-42
Picture Mode
Contrast
Bright
Red
Blue
CLR Temp
Reset
Signal Type
COMP.1
Standard
7500K
Auto
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
Using the Menu Screen
Menu Selections
Example: Adjusting “Bright”
• This operation can also be performed by using the buttons on the projector.
Menu icons
MENU button
MOUSE/Adjustment
buttons ('/"/\/|)
RETURN button
ENTER
button
Adjustment
buttons ('/"/\/|)
MENU button
ENTER button
RETURN button
Example: “Picture” screen menu for
COMPUTER/COMPONENT 1
(RGB) mode
1 Press MENU.
• The “Picture” menu screen for the se-
lected input mode is displayed.
2 Press
||
||
| or
\\
\\
\ to display the other
menu screens.
• The menu icon for the selected menu
screen is highlighted.
Note
• The “Fine Sync” menu is not available
for selecting VIDEO or S-VIDEO.
Menu icon Menu screen
Fine Sync
Options1
Options2
Language
-43
Useful Features
Picture Mode
Contrast
Bright
Red
Blue
CLR Temp
Reset
Signal Type
COMP.1
Standard
7500K
Auto
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
3 Press
''
''
' or
""
""
" to select the item
you want to adjust.
• The selected item is highlighted.
To adjust the pro-
jected image while
viewing it
Press ENTER.
• The selected single adjustment item
(e.g. “Bright”) appears instead of the
menu.
• When pressing
''
''
' or
""
""
", the following
item (“Red” after “Bright”) will be dis-
played.
Note
• Press RETURN to return to the
previous screen.
4 Press
\\
\\
\ or
||
||
| to adjust the item
selected.
• The adjustment is stored.
• For some menu items, press
||
||
| to dis-
play its submenu and press
''
''
' or
""
""
" to
select an adjustment item, and then
press
ENTER.
5 Press MENU.
• The menu screen will disappear.
Single
adjustment
items
Picture Mode
Contrast
Bright
Red
Blue
CLR Temp
Reset
Signal Type
COMP.1
Standard
7500K
Auto
SEL./ADJ.
RETURN
ENTER
END
0
15
0
0
Bright 0
-44
Picture Mode
Contrast
Bright
Red
Blue
CLR Temp
Reset
Signal Type
Dynamic Range
DVI
Standard
7500K
D. PC RGB
Standard
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
Menu operation
Page 42
1
2
3
4
5
11
11
1
Selecting the Picture Mode
This function allows you to select the picture
mode in accordance with brightness of the room
or content of the image to be projected.
In all picture modes, items on the “Picture” menu
can be adjusted and saved.
Picture Adjustment (“Picture” menu)
Note
• You can also press
PICTURE MODE on the
remote control to select the picture mode. (See
page 36.)
• “sRGB” is displayed only when RGB signal is
input.
• sRGB is an international standard of color re-
production regulated by the IEC (International
Electrotechnical Commission). As the fixed color
area has been decided by the IEC, the images
are displayed in a natural tint based on an origi-
nal image, when “sRGB” is selected.
For additional information about the sRGB func-
tion, visit “http://www.srgb.com/”.
You cannot set the items “Red”, “Blue”, “CLR
Temp”, when “sRGB” is selected.
• When “sRGB” is selected, the projected image may be-
come dark, but this does not indicate a malfunction.
Info
Description
For standard image
Brightens portions of image for more
enhanced presentations.
Gives natural tint to the projected
image.
Gives sharpness to the projected
image.
For high fidelity reproduction of images
from a computer.
Selectable items
Standard
Presentation
Movie
Game
sRGB
22
22
2
Adjusting the Image
Select a picture mode before adjusting the im-
age.
*1
“Color”, “Tint” and “Sharp” are not displayed when
inputting RGB signal through COMPUTER/COM-
PONENT 1, 2 or DVI-D.
*2
“Red” and “Blue” cannot be adjusted when “sRGB”
is selected.
Note
• “Sharp” can be adjusted when 480I, 480P, 540P,
576I, 576P, 720P, 1035I or 1080I signals are
detected.
• To reset all adjustment items, select “Reset” and
press
ENTER.
Selectable items
Press
\\
\\
\
Press
||
||
|
Contrast
Bright
Color
*1
Tint
*1
Sharp
*1
Red
*2
Blue
*2
For less contrast
For less brightness
For less color
intensity
For making skin
tones purplish
For less sharpness
For weaker red
For weaker blue
For more contrast
For more bright-
ness
For more color
intensity
For making skin
tones greenish
For more sharp-
ness
For stronger red
For stronger blue
Picture Mode
Contrast
Bright
Color
Tint
Sharp
Red
Blue
CLR Temp
Progressive
Reset
Video System
VIDEO
Standard
7500K
3D Progressive
Component
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
0
0
0
7
|
Example: “Picture” screen menu for
DVI-D mode
|
Example: “Picture” screen menu for
VIDEO mode
2
6
-45
Useful Features
Menu operation Page 42
Note
• The Video signal can only be set in VIDEO or
S-VIDEO mode.
• When “Video System” is set to “Auto”, you may
not receive a clear picture due to signal differ-
ences. Should this occur, switch to the video
system of the source signal.
* When reproducing NTSC signals in PAL video
equipment.
Selectable items
Auto
PAL
SECAM
*NTSC4.43
NTSC3.58
PAL-M
PAL-N
PAL -60
77
77
7
Setting the Video System
The video input system mode is factory preset
to “Auto”; however, a clear picture from the con-
nected audio-visual equipment may not be re-
ceived, depending on the Video signal difference.
In that case, switch the Video signal.
44
44
4
Signal Type Setting
This function allows you to select the input sig-
nal type RGB or Component for COMPUTER/
COMPONENT 1, 2 or DVI-D.
Description
Input signals are automatically recog-
nized as RGB or component.
Set when RGB signals are received.
Set when Component signals are
received.
Selectable items
Auto
RGB
Component
DVI-D
Description
Set when Digital PC RGB signals are
received from a computer.
Set when Digital PC Component
signals are received from a computer.
Set when Digital Video RGB signals are
received from video equipment.
Set when Digital Video Component
signals are received from video
equipment.
Selectable items
D. PC RGB
D. PC Comp.
D. Video RGB
D. Video Comp.
COMPUTER/COMPONENT 1, 2
Description
When the black levels of the image show
banding or appear faded, select the item
that results in the best picture quality. (In
most circumstances, “Standard” should
be selected.)
Selectable items
Standard
Enhanced
55
55
5
Selecting the Dynamic Range
An optimum picture may not be displayed if a
DVI-D-capable device’s output signal type and the
projector’s input signal type do not match. If this
should occur, switch “Dynamic Range”.
Note
• Values on “CLR Temp” are only for general stan-
dard purposes.
• “CLR Temp” cannot be set when “sRGB” is se-
lected.
Selectable items
5500K
6500K
7500K
8500K
9300K
10500K
Description
For lower color temperature for warmer,
reddish incandescent-like images.
For higher color temperature for cooler,
bluish, fluorescent-like images.
33
33
3
Adjusting the Color Temperature
Note
• The Dynamic Range can be selected only when
“DVI-D” input mode is selected.
66
66
6
Selecting the Progressive Mode
Note
• When the image is blurred or noisy, switch to
the optimal mode.
• When using progressive inputs, inputs are di-
rectly displayed so that “2D Progressive” and
“3D Progressive” cannot be selected.
Description
Useful to display fast-moving images such
as sports and action films.
Useful to display relatively slowmoving
images such as drama and documentary
more clearly.
Selectable items
2D
Progressive
3D
Progressive
-46
Fine Sync
Clock
Phase
H-Pos
V-Pos
Reset
Resolution
Auto Sync
Signal Info
COMP.1
640 × 480
On
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
Computer Image Adjustment (“Fine Sync” menu)
Menu operation
Page 42
1
2
3
11
11
1
Adjusting the Computer Image
If the optimum image cannot be obtained with Auto
Sync adjustment, use the Fine Sync function.
4
Note
• To reset all adjustment items, select “Reset” and
press
ENTER.
• The adjustable range of “V-Pos” (V-Position) may
vary depending on the screen resolution of the
computer.
Selectable items
Clock
Phase
H-Pos
V-Pos
Description
Adjusts vertical noise.
Adjusts horizontal noise (similar to
tracking on your VCR).
Centers the on-screen image by
moving it to the left or right.
Centers the on-screen image by
moving it up or down.
22
22
2
Resolution Setting
Ordinarily, the type of input signal is detected and the
correct resolution mode is automatically selected. How-
ever, for some signals, the optimal resolution mode in
“Resolution” on the “Fine Sync” menu may need to be
selected to match the computer display mode.
Note
• If your computer displays patterns which repeat
every other line (horizontal stripes), flickering
may occur which makes the image hard to see.
• See “Checking the Input Signal” on the right
column for information on the currently selected
input signal.
33
33
3
Auto Sync Adjustment
Used to automatically adjust a computer image.
Note
• Auto Sync adjustment is also performed by
pressing
AUTO SYNC on the projector or
AUTO SYNC on the remote control.
• The Auto Sync adjustment may take some time
to complete, depending on the image of the
computer connected to the projector.
Selectable items
On
Off
Description
Auto Sync adjustment will occur when
the projector is turned on or when the
input signals are switched, when
connected to a computer.
Auto Sync adjustment is not automati-
cally performed.
44
44
4
Checking the Input Signal
This function allows you to check the current in-
put signal information.
-47
Useful Features
Options1
Lamp Timer (Life)
Resize
Image Shift
Keystone
Auto Keystone
OSD Display
Background
Eco/Quiet Mode
Auto Power Off
System Sound
Menu Position
System Lock
Direct Power On
h ( 100%)
VIDEO
Normal
On
On
Logo
On
On
On
Center
Disable
Disable
SEL./ADJ.
RETURN
ENTER
END
0
0
0
Using the “Options1” Menu
Menu operation
Page 42
1
2
3
4
5
6
7
8
9
0
q
w
11
11
1
Checking the Lamp Life
Status
You can confirm the cumulative lamp usage time
and the remaining lamp life (percentage).
Lamp usage condition
“Life”
Operated exclusively
while “Eco/Quiet Mode”
is “On”.
Operated exclusively
while “Eco/Quiet Mode”
is “Off”.
Remaining lamp life
100% 5%
Approx. Approx.
3,000 hours 150 hours
Approx. Approx.
2,000 hours 100 hours
Note
• It is recommended that the lamp be changed
when the remaining lamp life becomes 5%.
• Remaining lamp life changes within the range
of the values shown depending on the frequency
at which “Eco/Quiet Mode” is switched to “On”
and “Off”. (See page 48.)
• The lamp life may vary depending on the us-
age condition.
22
22
2
Setting the Resize Mode
Note
• For details of the Resize mode, see pages 37
and 38.
• You can also press
RESIZE on the remote
control to set the resize mode. (See page 37.)
33
33
3
Adjusting the Image Position
You can move the projected image vertically.
Note
• This function only works in some RESIZE
modes. (See pages 37 and 38.)
• To reset this function, select “0”.
• When adjusting the image shift, “Keystone” is
set to “0” and “Auto Keystone” is set to “Off”.
||
||
| button
\ \
\ \
\ button
-48
Using the “Options1” Menu
Menu operation Page 42
44
44
4
Keystone Correction
When the image is projected either from the top or from
the bottom towards the screen at an angle, the image be-
comes distorted trapezoidally. The function for correct-
ing trapezoidal distortion is called Keystone Correction.
Auto Keystone Correction
Set “Auto Keystone” on the “Options1” screen menu
to “On”.
Manual Keystone Correction
Set “Auto Keystone” on the “Options1” screen menu to
“Off”, and select “Keystone”, then adjust with the slide bar.
Manual Correction
Note
•
The Keystone Correction can be adjusted up to an
angle of approximately ±12 degrees with the “Auto
Keystone” and up to an angle of approximately ±40
degrees with the manual “Keystone”.
(when “Resize” is set to “Normal”)
•
When the screen is slanting or the image is deterio-
rated, set “Auto Keystone” to “Off”.
•
When adjusting the keystone or when “Auto Keystone”
is set to “On”, “Image Shift” is auto matically set to “0”.
Note
• When “Eco/Quiet Mode” is set to “On”, the power
consumption will decrease and the lamp life will
extend. (Projection brightness decreases 20%.)
• You can also use ECO/QUIET button on the re-
mote control or on the projector to switch the Eco/
Quiet Mode. (See page 36.)
Selectable items
Logo
Blue
None
Description
SHARP default image
Blue screen
Black screen
Description
All On-screen Displays are displayed.
• INPUT mode/VOLUME/AV MUTE/
FREEZE/AUTO SYNC/ENLARGE/
“An invalid button has been pressed.”
are not displayed.
• “All buttons on Projector are locked.”
is displayed when STANDBY/ON is
pressed while the Keylock function is
active.
Selectable items
On
Off
55
55
5
Setting On-screen Display
This function allows you to turn the on-screen
messages on or off.
66
66
6
Selecting a Startup and
Background Image
77
77
7
Eco/Quiet Mode Setting
||
||
| button
\ \
\ \
\ button
Description
The projector automatically enters the
standby mode when no input signal is
detected for 15 minutes or longer.
The Auto Power Off function will be
disabled.
Selectable items
On
Off
88
88
8
Auto Power Off Function
Note
• When the Auto Power Off function is set to “On”,
5 minutes before the projector enters the
standby mode, the message “Enter STANDBY
mode in X min.” will appear on the screen to
indicate the remaining minutes.
Bright-
ness
80%
100%
Select-
able
items
On
Off
Fan
Sound
Low
Normal
Lamp life
Approx.
3,000
hours
Approx.
2,000
hours
Power
consumption
(When using
AC 110V)
300 W
360 W
-49
Useful Features
Menu operation Page 42
Description
A confirmation sound is made when the
projector turns on/off.
No confirmation sound is made.
Selectable items
On
Off
99
99
9
Setting the System Sound
Description
Displayed on the center of the image.
Displayed on the upper right of the image.
Displayed on the lower right of the image.
Displayed on the upper left of the image.
Displayed on the lower left of the image.
Selectable items
Center
Upper Right
Lower Right
Upper Left
Lower Left
00
00
0
Selecting the Menu
Screen Position
Select “Menu Position” on the “Options1” menu
and the desired position for the menu screen.
qq
qq
q
System Lock Function
This function prevents unauthorized use of the
projector. Once this function is activated, users
must enter the correct keycode each time the pro-
jector is turned on. We suggest you record the
keycode in a safe place where only authorized
users have access.
Info
• If you lose or forget your keycode, contact your
nearest Sharp Authorized Projector Dealer or Ser-
vice Center (see page 66). Even if the product war-
ranty is valid, the keycode reset will incur a charge.
Setting/Changing the keycode
1 Select “System Lock” on the “Op-
tions1” menu, then press
||
||
|.
• A message is displayed.
• Read this message, and press
ENTER.
• The screen for entering the keycode ap-
pears.
2 Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
• When setting the keycode for the first time,
press " on the projector for four times.
""
""
"On-screen Display
Note
• If you input a wrong keycode, the cursor returns
to the first point of the “Old Code”.
• The preset keycode is 4 " buttons on the projec-
tor. If this keycode is set, the keycode input screen
does not appear when turning the power on.
3 Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
Note
• You cannot use the following buttons for
keycode:
• STANDBY/ON button
• ON button
• STANDBY button
• ENTER button
• L-CLICK button
• R-CLICK/RETURN button
• MENU button
• ECO/QUIET button
• BREAK TIMER button
• System lock function recognizes each button
on the remote control or on the projector as
an individual button, even if they share the
same button name. If you used the buttons on
the projector in setting your keycode, the
keycode cannot be canceled with the remote
control.
4
Enter the same keycode in “Reconfirm”.
Note
To cancel the keycode that you have al-
ready set
• Press " on the projector for four times in steps
2 and 3 above.
-50
Menu operation Page 42
When System Lock is set
When System Lock is set, the keycode in-
put screen appears after the power is turned
on.
When it appears, enter the right keycode to
start projection. Failure to enter the keycode
will cause images not to be projected even
when signals are entered to the projector.
▼Input screen for keycode
Note
• If no keycode is entered, the image will not be
displayed, even if the projector receives the in-
put signal.
Using the “Options1” Menu
Info
• You can activate the keylock function only
when no on-screen display is shown.
Locking the Operation Buttons on
the Projector (Keylock Function)
Use this function to lock the operation but-
tons on the projector.
■ Locking the Operation Buttons
Hold down ENTER on the projector for about
5 seconds while the projector is being turned on.
▼On-screen Display
Keylock function ON
• The keylock function does not affect the opera-
tion with the remote control buttons.
• You cannot use the keylock function while the
projector is warming up.
■ Taking the Keylock Off
Hold down ENTER on the projector for about
5 seconds.
▼On-screen Display
Keylock function OFF
• When the projector is in standby mode, you can
release the keylock by holding down
ENTER
and STANDBY/ON on the projector simul-
taneously for about 5 seconds.
Description
The projector automatically turns on
when the power cord is plugged into the
AC outlet or the breaker switch is
turned on.
The projector is turned on manually
(see page 30), and does not turn on
automatically when the power cord is
plugged into the AC outlet or the
breaker switch is turned on.
Selectable items
Enable
Disable
ww
ww
w Direct Power On Function
-51
Useful Features
Helpful Functions Set during Installation (“Options2” menu)
Menu operation Page 42
11
11
1
Setting a Password
If you do not want others to change the setting
for the “Options2” menu, set a password.
1 Select “Password”, then press
||
||
|.
•
The screen for entering the password is displayed.
2 Press
''
''
' or
""
""
" to set the first digit in
“New Password” and then press
||
||
|.
3 Enter the remaining 3 digits and
press
ENTER.
4 Enter the same password in “Re-
confirm” and press
ENTER.
Note
• Once the password is set, you must enter the
password to change the “Options2” menu set-
tings.
Changing the Password
1 Select “Password”, then press
||
||
|.
•
The screen for entering the password appears.
2 Enter the password in “Old Pass-
word” using
''
''
',
""
""
",
||
||
| and
\\
\\
\, then
press
ENTER.
3 Enter the password in “New Pass-
word” using
''
''
',
""
""
",
||
||
| and
\\
\\
\, then
press
ENTER.
4 Enter the same password again in
“Reconfirm” using
''
''
',
""
""
",
||
||
| and
\\
\\
\,
then press
ENTER.
Note
• If you do not need the password protection for
the “Options2” menu settings anymore, press
ENTER without entering a new password in
steps 3 and 4.
• To cancel the password settings, press
RE-
TURN.
If You Forget Your Password
If you forget the password, perform the following
procedure to delete it, then set a new password.
On the projector, press:
Note
•
If ENTER is held down for more than 5 seconds,
the operation buttons on the projector will be locked.
(See page 50.)
•
You cannot use the buttons on the remote control to
delete the password.
Options2
Password
Speaker
Audio Out
PRJ Mode
Fan Mode
Monitor Out
LAN/RS232C
RS-232C
DHCP Client
TCP/IP
MAC Address
Projector
All Reset
COMP.1
Disable
On
FAO
Front
Normal
Enable
Enable
9600 bps
On
08:00:1F:B1:B7:74
MYPROJECTOR
SEL./ADJ.
RETURN
ENTER
END
.
1
2
3
4
5
6
7
8
9
0
q
w
-52
88
88
8
Selecting the Transmis-
sion Speed (RS-232C)
Make sure that both the projector and computer
are set for the same baud rate.
Description
Transmission speed is slow.
Tr ansmission speed is rapid.
Selectable items
9600 bps
38400 bps
115200 bps
Note
• Refer to the “SETUP MANUAL” contained on
the supplied CD-ROM for RS-232C Specifica-
tions and Command Settings.
• Refer to the computer’s operation manual for
instructions for setting the computer’s baud rate.
Helpful Functions Set during Installation (“Options2” menu)
Menu operation
Page 42
22
22
2
Speaker Setting
This function allows you to set the audio output
of the internal speaker to “On” or “Off” such as
when the projector is connected to an external
amplifier.
Selectable items
On
Off
Description
The audio signal is output from the internal
speaker.
The audio signal is not output from the
internal speaker.
33
33
3
Audio Output Type Setting
This function determines whether the audio level
output from the AUDIO output (MONITOR output)
terminal is fixed or variable by linking with VOL-
UME.
Info
• When “Audio Out” has been set to “VAO”, first make
sure to lower the volume of the projector before
turning the power on or off and when switching the
input.
Description
Audio output that does not vary in
strength with the volume level of the
source projector.
Audio output that varies in strength with
the volume level of the source projector.
Selectable items
FAO
(Fixed Audio
Output)
VAO
(Variable
Audio Output)
44
44
4
Reversing/Inverting Pro-
jected Images
This projector is equipped with a reverse/invert
image function that allows you to reverse or in-
vert the projected image for various applications.
Note
• This function is used for the reversed image and
ceiling-mount setups. (See page 19.)
55
55
5
Fan Mode Setting
This function changes the fan rotation speed.
Description
Suitable for normal environments.
Select this when using the projector at
altitudes of approximately 1,500 meters
(4,900 feet) or more.
Selectable items
Normal
High
When “Fan Mode” is set to “High”, the fan rotation
speeds up, and the fan noise becomes louder.
66
66
6
Monitor Output
77
77
7
LAN/RS232C
When set to “Enable”, the function is activated
and power is consumed even in the standby mode.
It is recommended that the function be set to “Dis-
able” when it is not connected. This reduces power
consumption when the projector is in the standby
mode.
Description
The function is activated even if the
projector is in standby mode.
The function is switched off when the
projector is in standby mode.
Selectable items
Enable
Disable
Note
• When you want to control the projector using
the LAN/RS232C function, select “Enable”.
Description
Normal image (Projected from the front
of the screen)
Inverted image (Projected from the
front of the screen with an inverted
projector)
Reversed image (Projected from the
rear of the screen or with a mirror)
Reversed and inverted image (Pro-
jected with a mirror)
Selectable items
Front
Ceiling + Front
Rear
Ceiling + Rear
-53
Useful Features
Menu operation Page 42
99
99
9
DHCP Client Setting
Connect the LAN cable before turning the pro-
jector on. If not, the DHCP Client function does
not work.
Select “On” for “DHCP Client”, then press
ENTER.
“Obtaining IP Address...” appears, then the menu
screen appears. Confirm the parameters of IP
Address, Subnet Mask and Gateway on the TCP/IP
screen.
If the DHCP server is not available, “Could not
obtain IP Address.” appears.
In this case, set the TCP/IP manually. (See the
item 0.)
Selectable items
On
Off
Description
Obtains configuration parameters for
TCP/IP network automatically.
Sets the TCP/IP manually.
00
00
0
TCP/IP Setting
Set the TCP/IP manually.
1 Select “Off” for “DHCP Client”, then
press
ENTER.
2 Select “TCP/IP”, then press ENTER.
3 Enter “IP Address” using
''
''
',
""
""
",
||
||
|
and \, then press
ENTER.
4 Enter “Subnet Mask” using
''
''
',
""
""
",
||
||
| and \, then press
ENTER.
5 Enter “Gateway” using
''
''
',
""
""
",
||
||
| and
\, then press
ENTER.
Selectable items
IP Address
Subnet Mask
Gateway
Description
Factory default setting:
192.168.150.002
Enter an IP address appropriate for the
network.
Factory default setting:
255.255.255.000
Set the subnet mask to the same as
that of the computer and equipment on
the network.
Factory default setting:
000. 000. 000. 000
* When not in use, set to:
“000. 000. 000. 000”.
Note
• Confirm the existing network’s segment (IP ad-
dress group) to avoid setting an IP address that
duplicates the IP addresses of other network
equipment or computers. If “192.168.150.002”
is not used in a network with an IP address of
“192.168.150.XXX”, you don’t have to change
the projector IP address.
• For details about each setting, consult your
network administrator.
-54
qq
qq
q
Confirming the Network
Information for the Projector
You can confirm the MAC address and projector
name.
ww
ww
w
Returning to the Default
Settings
This function allows you to initialize the settings
you have made in the projector.
Displayed items
MAC Address
Projector
Description
The MAC address of the projector is
displayed.
The projector name is displayed.
Note
• For information on how to change the projector
name, see “SETUP MANUAL” contained in the
supplied CD-ROM.
Note
The following items or menu cannot be initialized.
• “Fine Sync” menu
Resolution
• “Options1” menu
Lamp Timer (Life)
System Lock
• “Language” menu
Helpful Functions Set during Installation (“Options2” menu)
Menu operation Page 42
Selecting the On-screen
Display Language
The projector can switch the on-screen display
language among 11 languages.
Language
COMP.1
SEL./ADJ.
RETURN
ENTER
END
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
-55
Appendix
Cleaning the lens
■ Use a commercially available blower or lens clean-
ing paper (for glasses and camera lenses) for clean-
ing the lens. Do not use any liquid type cleaning
agents, as they may wear off the coating film on the
surface of the lens.
■ As the surface of the lens can easily get damaged,
be careful not to scrape or hit the lens.
Cleaning the exhaust and intake vents
■ Use a vacuum cleaner to clean dust from the ex-
haust vent and the intake vent.
Info
• If you want to clean the air vents during projec-
tor operation, ensure you press
STANDBY/
ON on the projector or STANDBY on the re-
mote control and put the projector into standby
mode. After the cooling fan has stopped, un-
plug the power cord from the AC socket and
clean the vents.
• The air filters should be cleaned every 100
hours of use. Clean the filters more often when
the projector is used in a dusty or smoky loca-
tion.
Cleaning the projector
■ Ensure the power cord is unplugged before cleaning
the projector.
■ The cabinet as well as the operation panel is made
of plastic. Avoid using benzene or thinner, as these
can damage the finish on the cabinet.
■ Do not use volatile agents such as insecticides on
the projector.
Do not attach rubber or plastic items to the projec-
tor for long periods.
The effects of some of the agents in the plastic may
cause damage to the quality or finish of the projector.
■ Wipe off dirt gently with a soft flannel cloth.
■ When the dirt is hard to remove, soak a cloth in a
mild detergent diluted with water, wring the cloth
well and then wipe the projector.
Strong cleaning detergents may discolor, warp or
damage the coating on the projector. Make sure to
test on a small, inconspicuous area on the projec-
tor before use.
Maintenance
Cleaning
Paper
Mild detergent
diluted with water
Mild detergent
Wax
Thinner
-56
Replacing the Air Filter
• This projector is equipped with air filters
to ensure the optimal operating condition
of the projector.
• Ask your nearest Sharp Authorized Pro-
jector Dealer or Service Center to ex-
change the filter (PFILDA022WJKZ) when
it is no longer possible to clean.
Replacing the Air Filter
1 Press STANDBY/ON on the pro-
jector or
STANDBY on the re-
mote control to put the projector
into the standby mode.
• Wait until the cooling fan stops.
2 Disconnect the power cord.
• Unplug the power cord from the AC socket.
3 Remove the filter cover.
• Turn over the projector. Pull down the car-
rying handle (1), grab the tab (2) and slide
open the filter cover (3).
4 Remove the air filter.
• Pick the air filter up with your fingers and lift
it out of the filter cover.
STANDBY button
AC socket
Tab
2
1
3
STANDBY/ON
button
-57
Appendix
5 Place a replacement air filter.
• Place the new air filter onto the filter cover.
6 Replace the filter cover.
• Slide the filter cover in the direction of the
arrow to close it.
Note
• Ensure the filter cover is securely installed. The
power will not turn on unless it is correctly in-
stalled.
-58
Power indicator
Lamp indicator
Temperature warning indicator
Maintenance Indicators
Maintenance Indicators
■ The warning lights on the projector indicate problems inside the projector.
■ If a problem occurs, either the temperature indicator or the lamp indicator will illuminate red, and
the projector will enter the standby mode. After the projector has entered the standby mode, follow
the procedures given below.
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the setting location,
“ ” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will
turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and
then the projector will enter the standby mode. After “
” appears, ensure you perform the measures
described on page 59.
About the lamp indicator
■ When the remaining lamp life becomes 5% or less, “ ” (yellow) and “Change The Lamp.” will be
displayed on the screen. When the percentage becomes 0%, it will change to “
” (red), the lamp will
automatically turn off and then the projector will automatically enter the standby mode. At this time,
the lamp indicator will illuminate in red.
■
If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.
-59
Appendix
Maintenance indicator
Problem
Cause Possible solution
Temperature
warning
indicator
Normal
Abnormal
Off
Red on
(Standby)
The internal
temperature is
abnormally high.
Abnormal
• Blocked air intake
• Relocate the projector to an area
with proper ventilation (see page
8).
• Cooling fan break-
down
• Internal circuit failure
• Clogged air intake
• Ta ke the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 66)
for repair.
• Clean the exhaust and intake
vents. (See page 55.)
Lamp
indicator
Red on
(Standby)
The lamp does
not illuminate.
• Burnt-out lamp
• Lamp circuit failure
• Carefully replace the lamp. (See
page 61.)
• Ta ke the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 66)
for repair.
• Please exercise care when
replacing the lamp.
• Securely install the lamp unit cover.
Red on
Time to change
the lamp.
• Remaining lamp life
becomes 5% or less.
Green on
Green blinks
when the lamp
is warming up
Info
• If the temperature warning indicator illuminates and the projector enters the standby mode, check whether
any of the ventilation holes are blocked (see page 8) and then try turning the power back on. Wait until the
projector has cooled down completely before plugging in the power cord and turning the power back on.
(At least 10 minutes.)
• If the power is turned off for a brief moment due to power outage or some other cause while using the
projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red
and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power
cord in the AC outlet and then turn the power on again.
• The cooling fan keeps the internal temperature of the projector constant and this function is controlled
automatically. The sound of the cooling fan may change during operation because the fan speed may
change and this is not a malfunction.
The lamp does
not illuminate.
• The lamp is shut
down abnormally.
• Disconnect the power cord from
the AC outlet, and then connect it
again.
Power
indicator
Green on/
Red on
Green blinks
(Cooling)
Red blinks
The power
indicator blinks
in red when the
projector is on.
• If the power indicator blinks even
when the covers are securely
installed, or if the cooling fan does
not run normally, then contact your
nearest Sharp Authorized
Projector Dealer or Service Center
(see page 66) for advice.
• The filter cover, lamp
unit cover or lens
housing cover is
open.
• Cooling fan break-
down
-60
Lamp
■ It is recommended that the lamp unit (optional: AN-C430LP) be replaced when the remaining lamp
life becomes 5% or less, or when you notice a significant deterioration in the picture and color
quality. The lamp life (percentage) can be checked with the on-screen display. See page 47.
■ Purchase a replacement lamp unit of type AN-C430LP from your place of purchase, nearest Sharp
Authorized Projector Dealer or Service Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service
of this projector under warranty, including lamp replacement, must be obtained through a Sharp Autho-
rized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer
or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information
www.lamprecycle.org or 1-800-BE-SHARP
Caution Concerning the Lamp
■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition
and the frequency of use. It is important to note that failure can often result in the bulb cracking.
■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In
case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to assure safe operation.
Replacing the Lamp
Caution
• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn
or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool
before removing the lamp unit.
■ Carefully change the lamp by following the instructions described in this section. *If you wish, you
may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.
* If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized
Projector Dealer or Service Center for repair.
Regarding the Lamp
U.S.A. ONLY
-61
Appendix
Securing screws
Optional
accessory
Lamp unit
AN-C430LP
Removing and Installing
the Lamp Unit
Warning!
• Do not remove the lamp unit from the pro-
jector right after use. The lamp and parts
around the lamp will be very hot and may
cause burn or injury.
Info
• Do not touch the glass surface of the lamp
unit or the inside of the projector.
• To avoid injury to yourself and damage to
the lamp, make sure you carefully follow
the steps below.
• Do not loosen other screws except for the
lamp unit cover and lamp unit.
1 Press STANDBY/ON on the
projector or
STANDBY on the
remote control to put the projec-
tor into standby mode.
• Wait until the cooling fan stops.
2 Disconnect the power cord.
• Unplug the power cord from the AC
socket.
• Leave the lamp until it has fully cooled
down (about 1 hour).
3 Remove the lamp unit cover.
• Loosen the user service screw (1) that
secures the lamp unit cover. Slide down
(2) and remove the lamp unit cover
(3).
4 Remove the lamp unit.
• Loosen the securing screws from the
lamp unit. Hold the lamp unit and pull it
in the direction of the arrow. At this time,
keep the lamp unit horizontal and do not
tilt it.
AC socket
1
3
2
User service screw
(for lamp unit cover)
STANDBY/ON
button
-62
5 Insert the new lamp unit.
• Press the lamp unit firmly into the lamp
unit compartment. Fasten the securing
screws.
6 Replace the lamp unit cover.
• Align the lamp unit cover and slide it to
close. Then tighten the user service
screw to secure the lamp unit cover.
Info
• If the lamp unit and lamp unit cover are not
correctly installed, the power will not turn
on, even if the power cord is connected to
the projector.
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
• Make sure to reset the lamp timer only
when replacing the lamp. If you reset the
lamp timer and continue to use the same
lamp, this may cause the lamp to become
damaged or explode.
• You can also reset the lamp timer via the
LAN.
(Refer to the SETUP MANUAL on the sup-
plied CD-ROM for details.)
1 Connect the power cord.
• Plug the power cord into the AC socket
of the projector.
2 Reset the lamp timer.
•
While simultaneously holding down ",
ENTER and MENU on the projector,
press
STANDBY/ON on the projector.
• “LAMP 0000H” is displayed, indicating
that the lamp timer is reset.
User service screw
(for lamp unit cover)
AC socket
" button
ENTER button
STANDBY/ON button
MENU button
Regarding the Lamp
-63
Appendix
Note
• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD)
mode. Should this occur, turn off the LCD display on the notebook computer and output the display data
in “CRT only” mode. Details on how to change display modes can be found in your notebook computer’s
operation manual.
• When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen.
• When projecting the RGB interlace signal using COMPUTER/COMPONENT 1, 2 or DVI-D with “Signal Type”
set to “Auto” or “RGB”, the image may not be projected as desired. In this case, use either Video or S-Video.
Computer Compatibility Chart
• Multiple signal support
Horizontal Frequency: 15–70 kHz
Vertical Frequency: 43–85 Hz
Pixel Clock: 12–108 MHz
Sync signal: Compatible with TTL level
DTV
Computer
27.0
31.5
37.9
27.0
31.5
37.9
26.2
31.5
34.7
37.9
37.5
43.3
31.4
35.1
37.9
46.6
48.1
46.9
53.7
35.5
40.3
48.4
56.5
60.0
68.7
55.0
66.2
67.5
64.0
64.0
47.8
62.6
47.7
47.8
34.9
49.7
60.2
68.7
60
70
85
60
70
85
50
60
70
72
75
85
50
56
60
70
72
75
85
43
50
60
70
75
85
60
70
75
60
60
60
75
60
60
67
75
75
75
Upscale
True
True
Intelligent Compression
Upscale
Intelligent Compression
640 × 400
720 × 400
640 × 480
800 × 600
1,024 × 768
1,152 × 864
1,280 × 1,024
1,400 × 1,050
1,280 × 768
1,280 × 800
1,360 × 768
1,366 × 768
640 × 480
832 × 624
1,024 × 768
1,152 × 870
MAC 13"
MAC 16"
MAC 19"
MAC 21"
PC
VGA
SVGA
XGA
SXGA
SXGA+
WXGA
VGA
SVGA
XGA
SXGA
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
Display
PC/MAC Resolution VESA Standard
Vertical Frequency
(Hz)
DVI
Support
Horizontal Frequency
(kHz)
✔
15.7
31.5
33.8
15.6
31.3
45.0
28.1
33.8
28.1
33.8
480
I
480P
540P
576
I
576P
720P
1035
I
1035I
1080I
1080I
60
60
60
50
50
60
50
60
50
60
Signal Vertical Frequency (Hz) DVI SupportHorizontal Frequency (kHz)
✔
✔
✔
✔
✔
✔
• Compatible with sync on green signal
• SXGA+ and SXGA compatible in intelligent com-
pression
• Intelligent Compression and Expansion System
resizing technology
The following is a list of modes that conform to VESA. However, this projector supports other signals
that are not VESA standards.
The table below lists signal codes that are compatible with the projector. When the images are distorted or
cannot be projected, adjust the output signal of your computer and so forth while referring to the table below.
-64
Troubleshooting
Check
• Projector power cord is not plugged into the wall outlet.
• Power to the external connected devices is off.
• The selected input mode is wrong.
• The AV MUTE function is working.
• Cables incorrectly connected to the rear panel of the projector.
• Remote control batteries have run out.
•
External output has not been set when connecting notebook computer.
• The filter cover, lamp unit cover or lamp housing cover is not
installed correctly.
• Cables incorrectly connected to the rear panel of the projector.
• “Bright” is set to minimum position.
• Image adjustments are incorrectly set.
(Video, S-Video Input only)
• Video input system is incorrectly set.
(COMPUTER/COMPONENT 1, 2, DVI-D only)
• Input signal type (RGB/Component) is incorrectly set.
• Adjust the focus.
• The projection distance exceeds the focus range.
• There is fog on the lens. If the projector is carried from a cold
room into a warm room, or if it is suddenly heated,
condensation may form on the surface of the lens and the
image will become blurred. Please set up the projector at least
one hour before it is to be used. If condensation should form,
remove the power cord from the wall outlet and wait for it to
clear.
(Computer Input only)
• Perform “Fine Sync” Adjustments. (“Clock” Adjustment)
• Perform “Fine Sync” Adjustments. (“Phase” Adjustment)
• Noise may appear depending on the computer.
• Cables incorrectly connected to the rear panel of the projector.
• Volume is set to minimum.
• If the picture is normal, the sound is due to cabinet shrinkage
caused by room temperature changes. This will not affect
operation or performance.
Problem
An unusual sound is
occasionally heard
from the cabinet.
Page
30
—
34
35
23-29
15
23
59
23-29
44
44
45
45
33
19
—
46
46
—
23-29
35
—
Sound is heard but no
picture appears.
Color is faded or poor.
Picture is blurred;
noise appears.
Picture appears but no
sound is heard.
No picture and no sound
or projector does not start.
-65
Appendix
CheckProblem Page
Maintenance
indicator illuminates or
blinks in red.
The projector cannot be
turned on or put into the
standby mode using the
STANDBY/ON button on
the projector.
Picture is green with
component input signals
(COMPUTER/
COMPONENT 1, 2, DVI-D)
.
Picture is pink (no green)
with RGB input signals
(COMPUTER/
COMPONENT 1, 2, DVI-D)
.
Picture is too bright and
whitish.
The black levels of the
image show banding or
appear faded when DVI-
D is selected.
The cooling fan
becomes noisy.
The lamp does not light
up even after the
projector turns on.
The lamp suddenly turns
off during projection.
The image sometimes
flickers.
The lamp takes a long
time to turn on.
Picture is dark.
The remote control
cannot be used.
• See “Maintenance Indicators”.
• The keylock is set.
If the keylock is set to ON, all the buttons are locked.
• Change the input signal type setting.
• Image adjustments are incorrectly set.
• Select the Dynamic Range setting (“Standard” or “Enhanced”)
that results in the best picture quality.
• When temperature inside the projector increases, the cooling
fan runs faster.
• The lamp indicator is illuminating in red.
Replace the lamp.
• Cables incorrectly connected to the projector or the connected
equipment works improperly.
• If this happens frequently, replace the lamp.
• The lamp will eventually need to be changed.
The lamp has reached the end of its life. Replace the lamp.
• Operate the remote control while pointing it at the projector’s
remote control sensor.
• The remote control may be too far away from the projector.
• If direct sunlight or a strong fluorescent light is shining on the
projector’s remote control sensor, place the projector where it
will not be affected by strong light.
• The batteries may be depleted or inserted incorrectly. Make
sure the batteries are inserted correctly or insert new ones.
58
50
45
44
45
—
58
23-29
60
60
15
15
This projector is equipped with a microprocessor. Its performance could be adversely affected by
incorrect operation or interference. If this should happen, unplug the projector and plug it in again
after more than 5 minutes.
-66
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, first refer to the
“Troubleshooting” section on pages 64 and 65. If this operation manual does not answer
your question, please contact the SHARP Service departments listed below.
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
http://www.sharplcd.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation Mexico
Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin American
Group
(305) 264-2277
www.servicio@sharpsec.com
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
08705 274277
http://www.sharp.co.uk/customersupport
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
http://www.sharp.fr
Spain Sharp Electronica Espana, S.A.
93 5819700
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
http://www.sharp.se
Austria Sharp Electronics (Europe) GMBH
Branch Office Austria
0043 1 727 19 123
http://www.sharp.at
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia
Pty. Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
(09) 634-2059, (09) 636-6972
http://www.sharp.net.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
http://www.sharpkorea.co.kr
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
-67
Appendix
Specifications
LCD Projector
XG-C430X/XG-C335X/XG-C330X
NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/
DTV480I/DTV480P/DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I
LCD panel × 3, RGB optical shutter method
Panel size: 0.8"
No. of dots: 786,432 dots (1,024 [H] × 768 [V])
1.2 × zoom lens, F1.7–1.9, f = 28.0–33.6 mm
275 W AC lamp
15-pin mini D-sub connector
Y: 1.0 Vp-p, sync negative, 75 Ω terminated
P
B
: 0.7 Vp-p, 75 Ω terminated
P
R
: 0.7 Vp-p, 75 Ω terminated
700 TV lines (DTV720P)
15-pin mini D-sub connector
RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated
HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative)
VERTICAL SYNC. SIGNAL: Same as above
DVI connector (24-pin), RGB (digital), 250 –1,000 mV, 50 Ω (Compatible with HDCP)
RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω
terminated
4-pin mini DIN connector
Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
ø3.5 mm minijack, RCA terminal
0.5 Vrms, more than 22 kΩ (stereo)
ø3.5 mm minijack
0.5 Vrms, less than 2.2 kΩ (stereo)
4-pin B-type USB female connector
9-pin mini DIN connector
8-pin RJ-45 modular connector
12–108 MHz
43–85 Hz
15–70 kHz
2.0 W (monaural)
3.6 cm round × 1
AC 100–240 V
3.6 A
50/60 Hz
360 W (Eco/Quiet Mode “Off”)/300 W (Eco/Quiet Mode “On”) with AC 100 V
345 W (Eco/Quiet Mode “Off”)/285 W (Eco/Quiet Mode “On”) with AC 240 V
6 W (AC 100 V) – 8 W (AC 240 V) (LAN/RS232C Disable)
1,350 BTU/hour (Eco/Quiet Mode “Off”)/1,125 BTU/hour (Eco/Quiet Mode “On”) with AC 100 V
1,295 BTU/hour (Eco/Quiet Mode “Off”)/1,070 BTU/hour (Eco/Quiet Mode “On”) with AC 240 V
41°F to 95°F (+5°C to +35°C)
–4°F to 140°F (–20°C to +60°C)
Plastic
38 kHz
12
27
/32" × 4" × 11
1
/64" (326 (W) × 101.5 (H) × 279.5 (D) mm) (main body only)
12
15
/16
" ×
4
63
/64"
× 11
1
/
2
" (328.5 (W) × 126.5 (H) × 292 (D) mm) (including adjustment foot
and projecting parts)
10.8 lbs. (4.9 kg)
Remote control, Power cord for U.S., Canada, etc., Power cord for Europe, except U.K.,
Power cord for U.K., Hong Kong and Singapore, Power cord for Australia, New Zealand and
Oceania, RGB cable
, DIN-D-Sub RS-232C adaptor, Storage case, Lens cap, Lens cap strap,
Projector manual and technical reference CD-ROM, Operation manual
Product type
Model
Video system
Display method
LCD panel
Lens
Projection lamp
Component input
(COMPUTER/COMPONENT 1, 2)/
output (MONITOR OUT) signal
Horizontal resolution
Computer RGB input
(COMPUTER/COMPONENT 1, 2)/
output (MONITOR OUT) signal
RGB digital input signal (DVI-D)
Video input signal
S-video input signal
Audio input signal
Audio output signal
USB terminal
RS-232C terminal
LAN terminal
Pixel clock
Ver tical frequency
Horizontal frequency
Audio output
Speaker system
Rated voltage
Input current
Rated frequency
Power consumption
Power consumption (standby)
Heat dissipation
Operating temperature
Storage temperature
Cabinet
I/R carrier frequency
Dimensions (approx.)
Weight (approx.)
Replacement parts
As a part of policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
-68
2D Progressive ......................................................... 45
3D Progressive ......................................................... 45
AC socket .................................................................. 30
Adjustment buttons ................................................... 42
All Reset ................................................................... 54
Area Zoom ................................................................ 38
Aspect ratio ......................................................... 37, 38
AUDIO input terminal .......................................... 23-26
Audio Output ............................................................. 52
AUDIO output terminal ............................................. 29
Auto Keystone ........................................................... 48
Auto Power Off .......................................................... 48
Auto Sync (Auto Sync adjustment) .......................... 46
AUTO SYNC button .................................................. 46
AV MUTE button ....................................................... 35
Background ............................................................... 48
Blue ........................................................................... 44
Border ....................................................................... 37
Bright ........................................................................ 44
Clock ......................................................................... 46
CLR Temp (Color Temperature) ............................... 45
Color ......................................................................... 44
COMPUTER/COMPONENT 1 input terminal .... 23, 25
COMPUTER/COMPONENT 2 input terminal .... 23, 25
Contrast .................................................................... 44
DHCP Client ............................................................. 53
DIN-D-sub RS-232C adaptor ................................... 27
Direct Power On ....................................................... 50
Dot By Dot ................................................................ 37
Dynamic Range ........................................................ 45
DVI-D input terminal ........................................... 24, 25
ECO/QUIET button ................................................... 36
Eco/Quiet Mode ........................................................ 48
ENLARGE buttons .................................................... 35
ENTER button........................................................... 43
Exhaust vent ....................................................... 13, 55
Fan Mode .................................................................. 52
Fine Sync ............................................................ 40, 46
FREEZE button......................................................... 35
Full ............................................................................ 37
Game ........................................................................ 44
Gateway .................................................................... 53
Height Adjustment button ......................................... 31
H-Pos ........................................................................ 46
Image Shift ................................................................ 47
INPUT buttons .......................................................... 34
Intake vent ..........................................................13, 55
IP Address ................................................................ 53
Kensington Security Standard connector ................. 13
Keycode .................................................................... 49
Keylock ...................................................................... 50
KEYSTONE button ................................................... 32
Keystone Correction ........................................... 32, 48
Lamp ......................................................................... 60
Lamp indicator .......................................................... 58
Lamp Timer (Life) ..................................................... 47
LAN terminal ............................................................. 28
Language (on-screen display language) ............ 41, 54
LAN/RS232C ............................................................ 52
L-CLICK button ......................................................... 39
Lens cap ................................................................... 12
Lens cap strap .......................................................... 10
Inde x
MAC Address............................................................ 54
MENU button ............................................................ 42
Menu Position ........................................................... 49
Monitor Output .......................................................... 52
MOUSE/Adjustment buttons ..............................39, 42
Movie ........................................................................ 44
Normal ...................................................................... 37
ON button ................................................................. 30
Optional accessories ................................................ 10
Options1 ............................................................. 41, 47
Options2 ............................................................. 41, 51
OSD Display ............................................................. 48
Password .................................................................. 51
PDF ............................................................................. 6
Phase ........................................................................ 46
Picture ................................................................. 40, 44
Picture Mode............................................................. 44
PICTURE MODE button ........................................... 36
Power cord ................................................................ 30
Power indicator ......................................................... 30
Presentation.............................................................. 44
PRJ mode ................................................................. 52
Progressive ............................................................... 45
Projector ................................................................... 54
R-CLICK/RETURN button .................................. 39, 43
Red ........................................................................... 44
Remote control ......................................................... 14
Remote control sensor ............................................. 15
Remote receiver ....................................................... 39
Replacing the lamp ................................................... 60
Reset ......................................................................... 44
Resize ....................................................................... 47
RESIZE button .......................................................... 37
Resolution ................................................................. 46
RGB cable ................................................................ 23
RS-232C ................................................................... 52
RS-232C terminal ..................................................... 27
Sharp ........................................................................ 44
Signal Info ................................................................. 46
Signal Type ............................................................... 45
Speaker..................................................................... 52
sRGB ........................................................................ 44
Standard ................................................................... 44
STANDBY button ...................................................... 30
Storage case............................................................. 20
Stretch ...................................................................... 37
Subnet Mask ............................................................. 53
Supplied accessories ............................................... 10
S-VIDEO input terminal ............................................ 26
System Lock ............................................................. 49
System Sound .......................................................... 49
TCP/IP ...................................................................... 53
Temperature warning indicator ................................. 58
Tilt dial ...................................................................... 31
Tint ............................................................................ 44
USB terminal ............................................................ 39
VIDEO input terminal ................................................ 26
Video System............................................................ 45
Volume buttons ......................................................... 35
V-Pos ......................................................................... 46
V-Stretch ................................................................... 38
WIRED REMOTE terminal ....................................... 14
SHARP CORPORATION
