Multimedia Projector

Owner’s Manual

LV-S2

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT

OPERATING AND MAINTENANCE INSTRUCTIONS IN THE

OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly to operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to

manage those features and maintain it in better condition for a considerable time.

Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other

accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try

the solutions in the “TROUBLESHOOTING” section in the end at this manual. If the problem still persists, contact the

sales dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as it could

possibly damage your eyes. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector.

Minimum clearance must be maintained. If the projector is to be

built into a compartment or similarly enclosed, the minimum

distances must be maintained. Do not cover the ventilation slot

on the projector. Heat build-up can reduce the service life of your

projector, and can also be dangerous.

● Do not put any flammable objects or spray cans near the projector, hot air is exhausted from the ventilation

holes.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

20cm

50cm 50cm

50cm

SIDE and TOP REAR

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before

the product is operated.

Read all of the instructions given here and retain them for later

use. Unplug this projector from AC power supply before

cleaning. Do not use liquid or aerosol cleaners. Use a damp

cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm,

or when it is left unattended and unused for long periods of

time, unplug it from the wall outlet. This will prevent damage

due to lightning and power line surges.

Do not expose this unit to rain or use near water... for

example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the

manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.

The projector may fall, causing serious injury to a child or

adult, and serious damage to the projector. Use only with a

cart or stand recommended by the manufacturer, or sold with

the projector. Wall or shelf mounting should follow the

manufacturer's instructions, and should use a mounting kit

approved by the manufacturers.

An appliance and cart combination should

be moved with care. Quick stops,

excessive force, and uneven surfaces

may cause the appliance and cart

combination to overturn.

Slots and openings in the back and bottom of the cabinet are

provided for ventilation, to insure reliable operation of the

equipment and to protect it from overheating.

The openings should never be covered with cloth or other

materials, and the bottom opening should not be blocked by

placing the projector on a bed, sofa, rug, or other similar

surface. This projector should never be placed near or over a

radiator or heat register.

This projector should not be placed in a built-in installation

such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through

cabinet slots as they may touch dangerous voltage points or

short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power

source indicated on the marking label. If you are not sure of

the type of power supplied, consult your authorized dealer or

local power company.

Do not overload wall outlets and extension cords as this can

result in fire or electric shock. Do not allow anything to rest on

the power cord. Do not locate this projector where the cord

may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or

removing covers may expose you to dangerous voltage or

other hazards. Refer all servicing to qualified service

personnel.

Unplug this projector from wall outlet and refer servicing to

qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as improper

adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to

restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service

technician has used replacement parts specified by the

manufacturer that have the same characteristics as the

original part. Unauthorized substitutions may result in fire,

electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask

the service technician to perform routine safety checks to

determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen

geleverd.

Wanneer deze leeg zijn,

moet u ze niet weggooien

maar inleveren als KCA.

COMPLIANCES

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters

Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that

the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you

be unable to insert the plug into the outlet, contact your electrician.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

Multimedia Projector, Model : LV-S2U, LV-S2E

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such

changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A., Inc.

One Canon Plaza, Lake Success, NY 11042, U.S.A.

Tel No. (516)328-5600

For use in Germany

This product is intended for use in residential, commercial and light industry environment.

Canadian Radio Interference Regulations

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

TABLE OF CONTENTS

FEATURES AND DESIGN 6

BEFORE OPERATION 14

COMPUTER INPUT 22

VIDEO INPUT 30

SETTING 35

APPENDIX 37

PREPARATION 7

NOMENCHTOR 7

SETTING-UP THE PROJECTOR 8

CONNECTING AC POWER CORD 8

POSITIONING THE PROJECTOR 9

ADJUSTABLE FEET 9

MOUNTING THE LENS COVER 10

MOVING THE PROJECTOR 10

CONNECTING THE PROJECTOR 11

TERMINALS OF THE PROJECTOR 11

CONNECTING TO A COMPUTER 12

CONNECTING VIDEO EQUIPMENT 13

OPERATION OF THE REMOTE CONTROL UNIT14

OPERATING RANGE 15

REMOTE CONTROL UNIT BATTERY INSTALLATION 15

TOP CONTROLS AND INDICATORS 16

OPERATING THE ON-SCREEN MENU 17

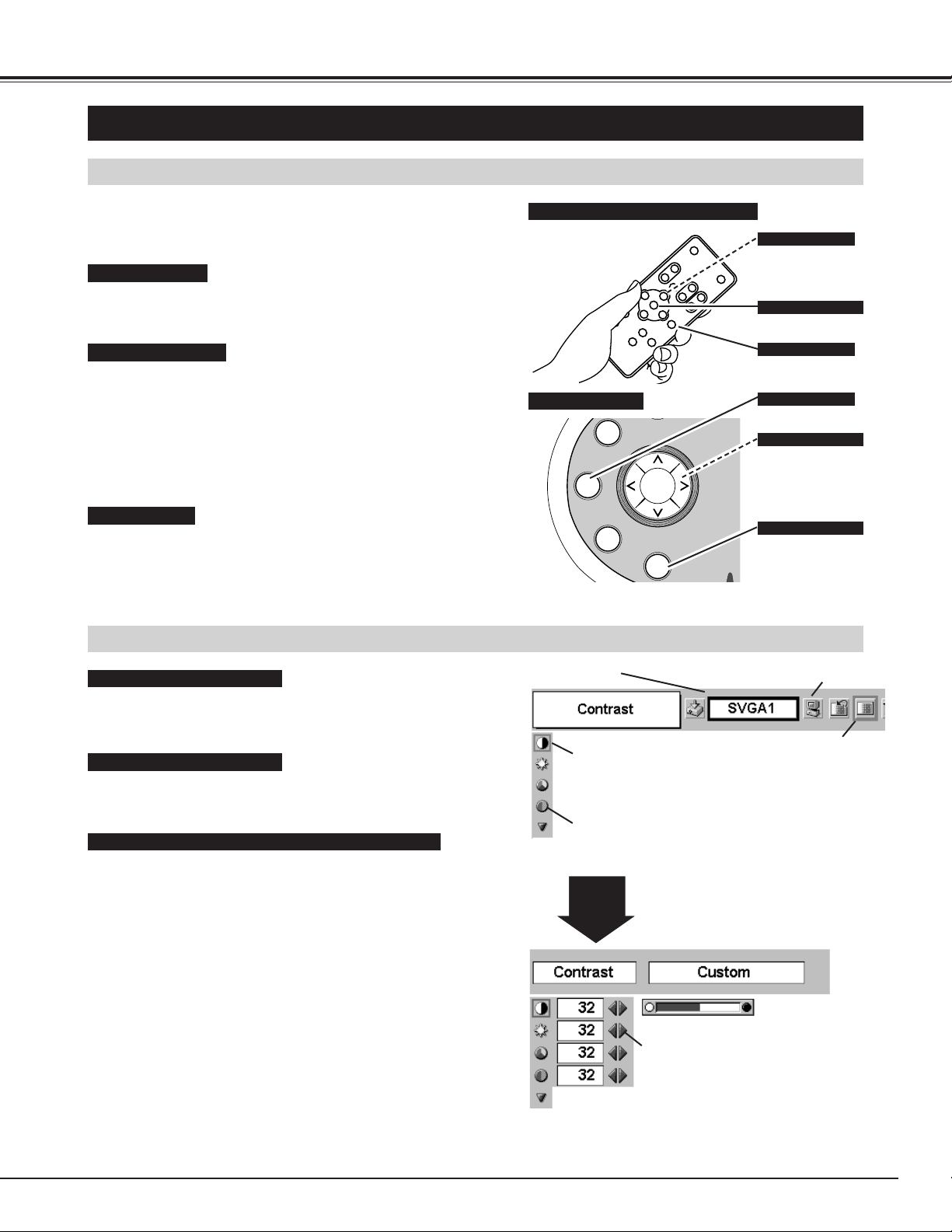

HOW TO OPERATE THE ON-SCREEN MENU 17

FLOW OF ON-SCREEN MENU OPERATION 17

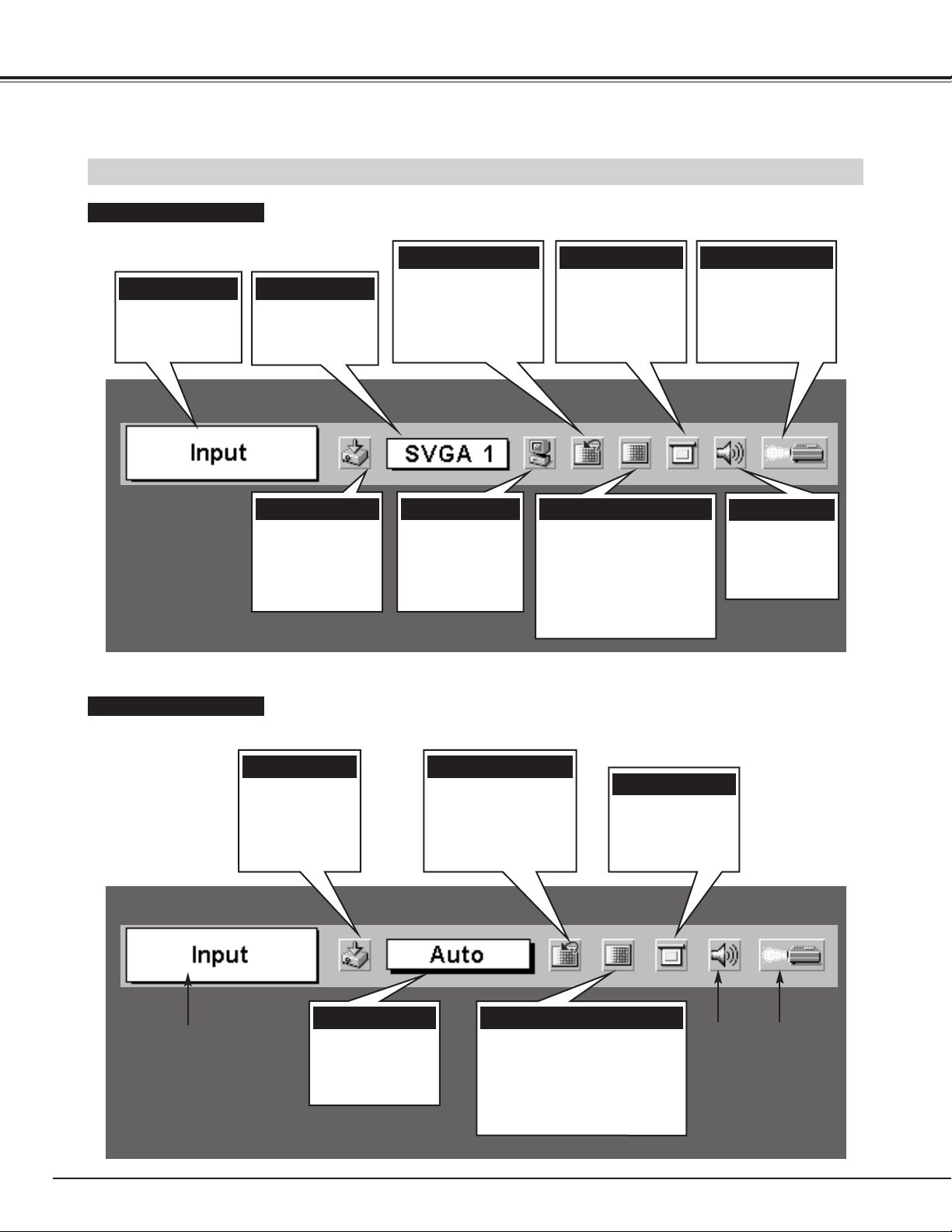

MENU BAR 18

SELECTING THE INPUT SOURCE 22

SELECTING THE COMPUTER SYSTEM 22

COMPATIBLE COMPUTER SPECIFICATIONS 23

PC ADJUSTMENT 24

AUTO PC ADJUSTMENT 24

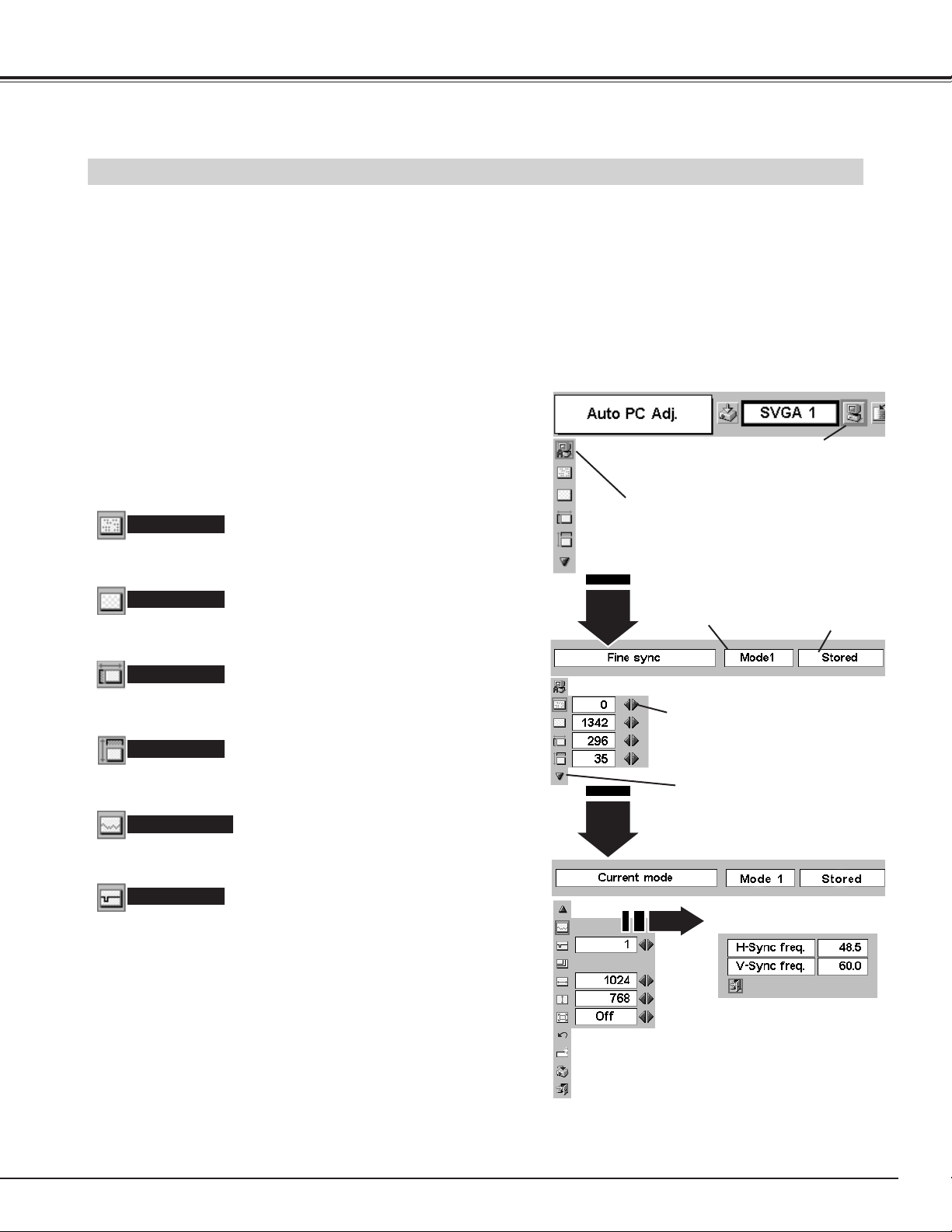

MANUAL PC ADJUSTMENT 25

PICTURE IMAGE ADJUSTMENT 27

IMAGE LEVEL SELECT 27

IMAGE LEVEL ADJUSTMENT 28

PICTURE SCREEN ADJUSTMENT 29

SELECTING THE INPUT SOURCE 30

SELECTING THE VIDEO SYSTEM 31

PICTURE IMAGE ADJUSTMENT 32

IMAGE LEVEL SELECT 32

IMAGE LEVEL ADJUSTMENT 33

PICTURE SCREEN ADJUSTMENT 34

SETTING MENU 35

LAMP REPLACEMENT 37

LAMP REPLACE 37

LAMP REPLACE COUNTER 38

MAINTENANCE 39

WARNING TEMP. INDICATOR 39

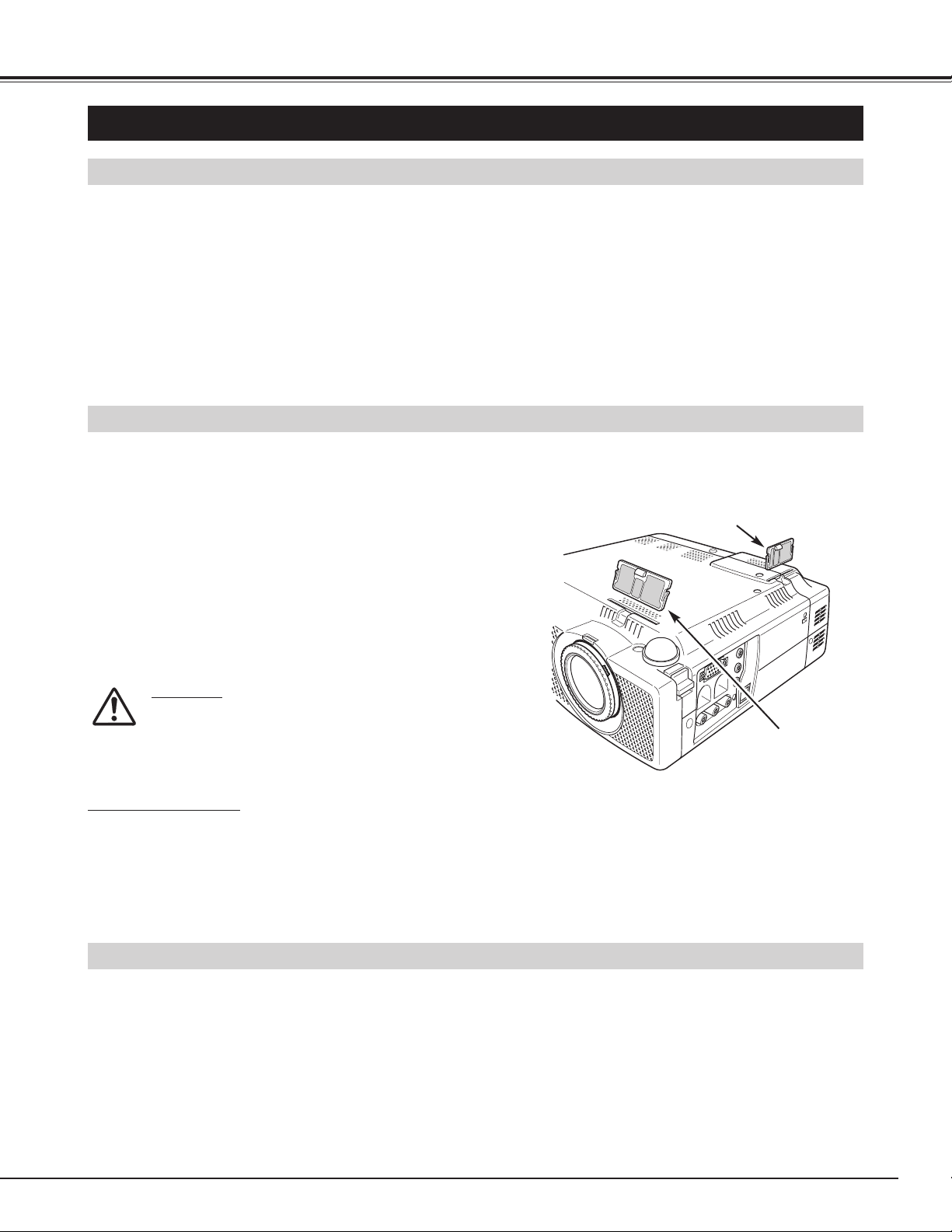

AIR FILTER CARE AND CLEANING 39

CLEANING PROJECTION LENS 39

TROUBLESHOOTING 40

TECHNICAL SPECIFICATIONS 42

OPTIONAL PARTS 42

CONFIGURATIONS OF TERMINALS 43

BASIC OPERATION 19

TURNING ON / OFF THE PROJECTOR 19

TURNING ON THE PROJECTOR 19

TURNING OFF THE PROJECTOR 19

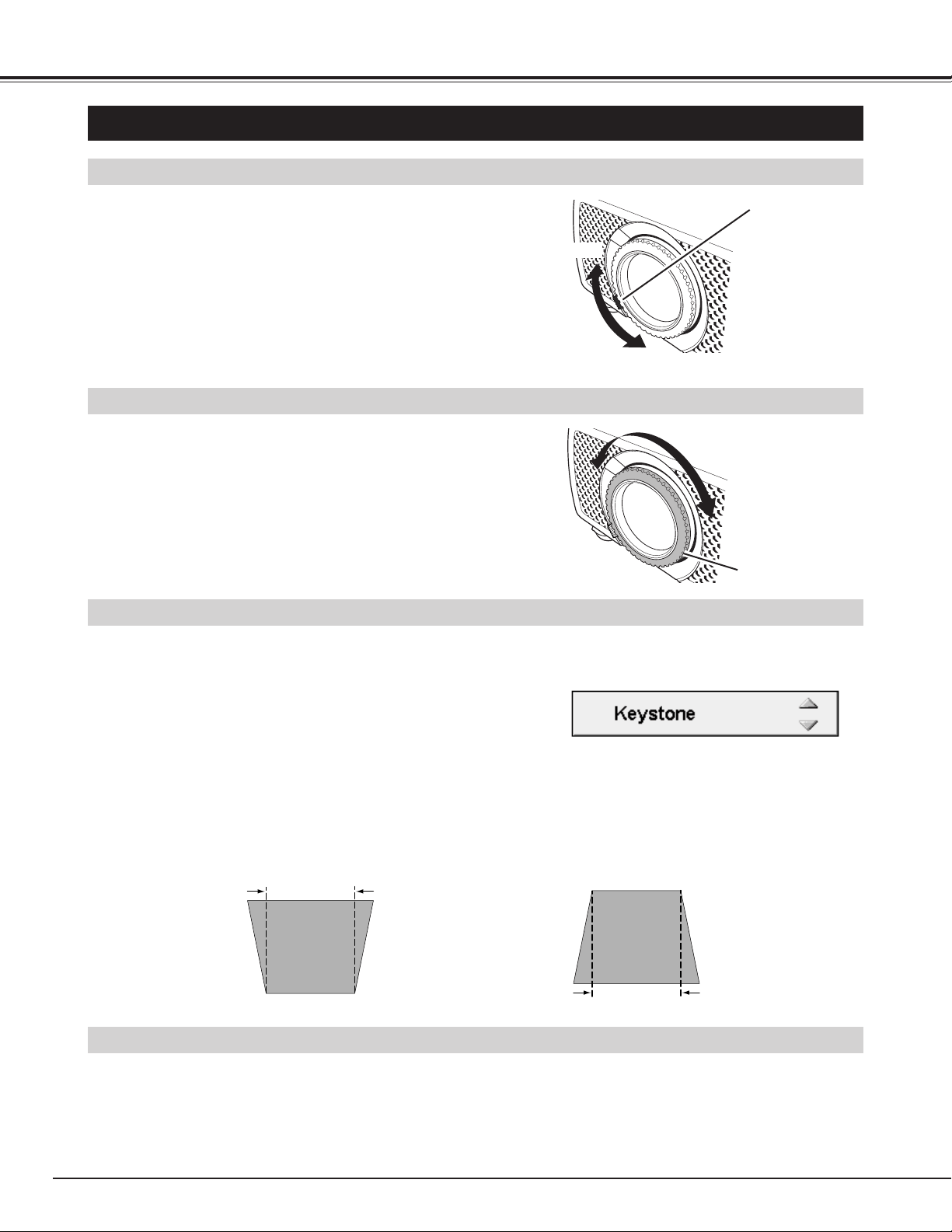

ADJUSTING THE SCREEN 20

ZOOM ADJUSTMENT 20

FOCUS ADJUSTMENT 20

KEYSTONE ADJUSTMENT 20

PICTURE FREEZE FUNCTION 20

NO SHOW FUNCTION 21

P-TIMER FUNCTION 21

SOUND ADJUSTMENT 21

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. It

utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector accepts a wide range of video and

computer input signals including;

● Computers

IBM-compatible or Macintosh computer up to 1280

x 1024 resolution.

● 6 Color TV Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-

N color system can be connected.

● Component Video

Component video signal, such as a DVD player

output high definition TV signals including 480i,

480p, 575i, 575p, 720p, 1035i or 1080i, can be

connected.

● S-Video

S-Video signal, such as a S-VHS VCR or

camcorder, can be connected.

◆ High Resolution Image

This projector provides 800 x 600 dots resolution for

computer input and 500 horizontal TV lines. Resolution

from a computer between SVGA (800 x 600) and XGA

(1024 x 768) is compressed into 800 x 600 dots. This

projector cannot display image of over 1280 x 1024 dots.

When resolution of your computer is higher than 1280 x

1024, reset a computer output for lower resolution.

◆ Multi-Scan System

This projector has a Multi-Scan System to conform to

recognition of almost all computer output signals allowing

quick. Making manual adjustment of frequency and

other settings unnecessary.

◆ Keystone Correction

Positioning height of a projector may result in distorted

image being displayed in a trapezoid shape. Keystone

Correction solves this problem by digitally altering

projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German,

French, Italian, Spanish, Portuguese, Dutch, Swedish,

Chinese, Korean or Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and the

best adjustment is automatically set by Auto PC

Adjustment.

◆ Digital Zoom (for Computer)

◆ Compact Design

This projector is extremely compact in size and weight.

It is designed to be carried and work anywhere.

◆ Power Management

Power Management function reduces power

consumption while the projector is not in use.

This Power Management function operates to turn the

Projection Lamp off when a signal has not been received

or a button is not pressed over 5 minutes. Projection

Lamp is automatically turned on again when a projector

detects a signal or a button is pressed.

This projector is shipped with this function ON.

A Digital Zoom function lets you enlarge a sect of the

image to 16 times, allowing you to focus on crucial

information at a presentation.

◆ Wide Zoom Lens

This projector is equipped with a Wide Zoom Lens with a

1.4 times optical zoom, and provides a 100" screen size

at a range of 9.2’ (2.8m) to 13.1’ (4m).

PREPARATION

NOMENCHTOR

BOTTOM

BACK

HOT AIR EXHAUSTED !

Air blown from Exhaust Vents is hot. When using or

installing the projector, the following precautions should be

taken.

● Do not put any flammable object near these vents.

● Keep front grills at least 3’(1m) away from any object,

especially heat-sensitive objects.

● Do not touch this area, especially screws and metallic parts.

This area becomes hot while the projector is used.

This projector detects internal temperature and

automatically controls operating power of Cooling Fans.

FRONT

This projector is equipped with Cooling

Fans for protection from overheating.

Pay attention to the following to ensure

proper ventilation and avoid a possible

risk of fire and malfunction.

● Do not cover vent slots.

● Keep back and bottom clear of any

object. Obstructions may block

cooling air.

PROJECTION LENS

LENS COVER

EXHAUST VENTS

INFRARED

REMOTE RECEIVER

SPEAKER

POWER CORD

CONNECTOR

TERMINALS

AND CONNECTORS

TOP CONTROLS

AND INDICATORS

LAMP COVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

AIR INTAKE VENTS

AND AIR FILTERS

AIR INTAKE VENTS

(Back and Bottom)

FOCUS RING

ZOOM LEVER

✽

NOTE ON THE POWER CORD

AC Power Cord must meet requirements of the country where the projector is used.

Confirm an AC plug type with the chart below and proper AC Power Cord must be used.

If the supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

To POWER CORD

CONNECTOR on your

projector.

Projector side AC Outlet side

Ground

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

To the AC Outlet.

(200 - 240 V AC)

SETTING-UP THE PROJECTOR

PREPARATION

This projector uses nominal input voltages of 100-120 V or 200-240

V AC. This projector automatically selects the correct input

voltage. It is designed to work with single-phase power systems

having a grounded neutral conductor. To reduce risk of electrical

shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure

of the type of power being supplied.

Connect a projector with all peripheral equipment before turning a

projector on. (Refer to pages 11 ~ 13 for connection.)

CAUTION

For safety, unplug AC Power Cord when the projector is not in

use.

When this projector is connected to the outlet with AC Power

Cord, it is in Stand-by Mode and consumes a little electric

power.

CONNECTING AC POWER CORD

Connect AC Power Cord (supplied) to a projector.

The AC outlet must be near this equipment and

must be easily accessible.

PREPARATION

POSITIONING THE PROJECTOR

● This projector is designed to project on a flat projection surface.

● The projector can be focused from 3.6’(1.1m) ~ 26.2’(8m).

● Refer to the figure below to adjust a screen size.

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating the

ADJUSTABLE FEET. Projection angle can be adjusted to approx.

10 degrees.

Lift the front of the projector and pull the FEET LOCK

LATCHES on both sides of a projector.

ADJUSTABLE FEET

FEET LOCK

LATCHES



39”

140”

200”

280”

200”

143”

100”

29”

100”

70”

Release the FEET LOCK LATCHES to lock the

ADJUSTABLE FEET and rotate the ADJUSTABLE FEET to

adjust position and tilt.

To retract the ADJUSTABLE FEET, lift the front of the

projector and pull the FEET LOCK LATCHES and push to

feet upward.

Keystone distortion of a projected image can be adjusted by

Menu Operation. (Refer to P20 and 35.)

ROOM LIGHT

The brightness of a room has a great impact on

picture quality. It is recommended to limit

ambient lighting to provide the best image.

Max. Zoom

Min. Zoom

CAUTION

Avoid positioning a projector with the angle of more than 20

degrees. Projection Lamp may malfunction.

Screen Size

(W x H) mm

Zoom (min)

50”

Zoom (max)

1016 x 762

6.6' (2.0m)

4.6

(1.4m)

100”

2032 x 1524

13.1' (4.0m)

9.2' (2.8m)

150”

3048 x 2286

19.7' (6.0m)

14.1' (4.3m)

200”

4064 x 3048

26.2' (8.0m)

18.7' (5.7m)

29”

589 x 442

3.6

(1.1m)

–––––

26.2’(8.0m)

18.7’(5.7m)

13.1’(4.0m)

3.6’(1.1m)

9.2’(2.8m)

✽ The projection maximum screen size is 200”.

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump a projector, otherwise damage or malfunction may result.

● When carrying a projector, use a suitable carrying case.

● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause

damage to the projector. To transport the projector through a courier or transport service, consult your dealer.

MOVING THE PROJECTOR

CAUTION

Carrying Bag (supplied) is intended for protection from dust and scratches on the surface of a cabinet, and it is not designed

to protect the projector from external forces. Do not transport a projector through a courier or transport services with this bag,

otherwise the projector can be damaged. When handling a projector, do not drop, bump, subject it to strong forces or put

other things on the cabinet.

When moving a projector, attach the Lens Cover and retract the Adjustable Feet to prevent damage to the lens and cabinet.

When the projector is not in use for an extended period, put it into the case (carrying bag) supplied with the projector.

MOUNTING THE LENS COVER

When transporting the projector or when it is not used for an

extended period of time, attach the Lens Cover.

Before attaching the Lens Cover, be sure to turn the projector off

and disconnect the AC Power cord from the AC outlet.

Secure the Strap for the Lens Cover through the hole.

Turn the projector upside down and secure the Strap for the

Lens Cover to the bottom of projector with a screw.

LENS COVER

STRAP FOR LENS COVER

Secure to the hole with a screw.

VIDEO IN

Y –– Pb / Cb –– Pr / Cr

RGB IN

RESET

COMPUTER

AUDIO IN

AV AUDIO IN

AUDIO OUT

S–VIDEO IN

CONTROL

CONNECTING THE PROJECTOR

TERMINALS OF THE PROJECTOR

Connect the S-VIDEO

output from your

video equipment to

this jack.

(Refer to P13.)

Connect the audio output

(stereo) from the

computer to this jack.

(Refer to P12.)

Connect the audio output

from your video

equipment to this jack.

(Refer to P13.)

COMPUTER AUDIO

INPUT JACK

AUDIO INPUT JACK

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect the composite video

output from your video

equipment to VIDEO/Y jack

or connect the component

video outputs to VIDEO/Y,

Pb/Cb and Pr/Cr jacks.

(Refer to P13.)

This projector has input and output terminals on its side for connecting computer and video equipment. Refer to figures on

pages 11 to 13 for these connections.

Connect an external

audio amplifier to this

jack.

(Refer to P12, 13.)

AUDIO OUTPUT JACK

The projector uses a micro

processor for control and

occasionally, need to be reset.

This can be done by pressing

the RESET button with a pen,

which will shut down and

restart the unit. Do not use

the RESET function

excessively.

RESET BUTTON

When controlling a computer

with the optional Wireless

Remote Control Unit, connect

the mouse port of the

computer to this connector.

The Remote Control Unit

supplied with the projector can

not control a computer.

Consult your dealer for details.

(Refer to P12.)

CONTROL PORT CONNECTOR

Connect the computer

output to this jack.

(Refer to P12.)

RGB INPUT

TERMINAL (ANALOG)

When controlling a computer

with the optional Wireless

Remote Control Unit, connect

the USB port of the computer to

this connector. The Remote

Control Unit supplied with the

projector can not control a

computer. Consult your dealer

for details. (Refer to P12.)

USB CONNECTOR (Series B)

CONNECTING THE PROJECTOR

VIDEO IN

RGB IN

RESET

COMPUTER

AUDIO IN

AV AUDIO IN

AUDIO OUT

S–VIDEO IN

CONTROL

Y –– Pb / Cb –– Pr / Cr

DIP

OFF

2 3 4 5 6

13" MODE (640 x 480)

16" MODE (832 x 624)

19" MODE (1024 x 768)

OFFON ON

ON ON

OFF OFF OFF

OFFOFF OFF OFF

OFF OFF OFF OFF

123456

OFF OFFON ONON ON21" MODE (1152 x 870)

CONNECTING TO A COMPUTER

IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

VGA Cable

Monitor Output

Desktop type Laptop type

Audio Speaker

(stereo)

Audio Amplifier

Control Cable

for Serial Port ✽

Audio Cable

(stereo)

✽

Terminal

Serial port PS/2 port

Audio Output

Audio Input

CONTROL PORT

AUDIO OUT

COMPUTER AUDIO IN

RGB IN

ADB port

Cables used for connection (✽ = Cable or adapter is not supplied with this projector.)

Control Cable

for PS/2 Port ✽

Control Cable

for ADB Port ✽

Audio

Cable

✽

(stereo)

NOTE :

When connecting the cable, the power

cords of both the projector and the external

equipment should be disconnected from

AC outlet. Turn the projector and

peripheral equipment on before the

computer is switched on.

USB port

MAC Adapter ✽

Set slide switches

according to the

chart below.

• VGA Cable (HDB 15 pin)

• Control Cable for PS/2 Port

✽, Serial Port ✽, or ADB Port ✽

• USB Cable ✽

• MAC Adapter (When connecting to Macintosh computer) ✽

• Audio Cable (Mini Plug (stereo) x 1) ✽

External Audio Equipment

Terminals

of the Projector

Terminal

USB

Set switches as shown in the table

below depending on RESOLUTION

MODE that you want to use before

you turn on projector and computer.

◆ MAC ADAPTER (Not supplied)

USB

Cable

✽

Use one of these Control Cables

or USB Cable corresponding

with the terminal of your

computer only when controlling

the computer with the optional

Wireless Remote Control Unit.

CONNECTING THE PROJECTOR

CONNECTING VIDEO EQUIPMENT

VIDEO IN

Y –– Pb / Cb –– Pr / Cr

RGB IN

RESET

COMPUTER

AUDIO IN

AV AUDIO IN

AUDIO OUT

S–VIDEO IN

CONTROL

Video Source (example)

Video Cassette Recorder Video Disc Player

Video Cable

(RCA x 1) ✽

S-VIDEO

Cable ✽

Audio Amplifier

Audio Speaker (stereo)

Audio Cable

(Stereo) ✽

Terminals

of the Projector

Use any of VIDEO jack Y-Pb/Cb-

Pr/Cr jacks or S-VIDEO jack.

• When both VIDEO jack and S-

VIDEO jack are connected, S-

VIDEO jack has priority over

VIDEO jack.

• When both Y-Pb/Cb-Pr/Cr jacks

and S-VIDEO jack are connected,

Y-Pb/Cb-Pr/Cr jacks has priority

over S-VIDEO jack.

S-VIDEO Output

Audio Input

Cables used for connection (✽ = Cable is not supplied with this projector.)

• Video Cable (RCA x 1 or RCA x 3)

✽

• S-VIDEO Cable ✽

• Audio Cable (Mini Plug (stereo) x 1) ✽

NOTE :

When connecting the cable, the power

cords of both the projector and the external

equipment should be disconnected from

AC outlet.

Audio Output

Audio Cable

(stereo) ✽

External Audio Equipment

AV AUDIO IN

S-VIDEO IN

Y - Pb/Cb - Cr/Pr

VIDEO

AUDIO OUT

Component video output equipment.

(such as DVD player or high-definition

TV source.)

Composite

Video Output

Component Video Output

(Y, Pb/Cb, Pr/Cr)

Video Cable

(RCA x 3) ✽

INPUT

POWER

MUTE

NO SHOW

AUTO

PC ADJ.


FREEZE P-TIMER

D ZOOM

KEY

STONE

–

VOL

SET

BEFORE OPERATION

Battery is installed in Remote

Control Unit.

Before operation, pull out and

remove a protect sheet from

Remote Control Unit. This sheet

protecting discharge of a battery.

FREEZE P-TIMER

BATTERY PROTECT SHEET

(transparent sheet)

Infrared signals transmitted from this point.

To insure safe operation, please observe the following

precautions :

● Do not bend, drop Remote Control Unit, or expose

Remote Control Unit to moisture or heat.

● For cleaning, use soft dry cloth. Do not apply

benzene, thinner, splay or any chemical material.

MUTE BUTTON

Used to mute sound.(P21)

AUTO PC ADJ. BUTTON

Use to operate Auto PC

Adjustment function. (P24)

VOLUME BUTTONS

Used to adjust volume.

(P21)

D.ZOOM BUTTONS

Used to select DIGITAL

ZOOM mode and resize the

image. (P29)

KEYSTONE BUTTONS

Used to correct the

keystone distortion.

(P20, 35)

FREEZE BUTTON

Used to freeze the picture.

(P20)

IMAGE BUTTON

Used to select image level.

(P27, 32)

OPERATION OF THE REMOTE CONTROL UNIT

Used to select input source.

(P22, 30)

POWER ON-OFF BUTTON

Used to turn the projector

on or off. (P19)

MENU BUTTON

Used to select MENU

operation. (P17, 18)

SET BUTTON

INPUT BUTTON

Used to execute the item

selected or to expand /

compress the image in

DIGITAL ZOOM mode.

(P29)

Used to move the pointer on

the MENU, to adjust the

item, or to pan the image in

DIGITAL ZOOM mode.

(P29)

POINT BUTTONS

Used to operate P-TIMER

function. (P21)

P-TIMER BUTTON

NO SHOW BUTTON

Used to turn the picture into

black image. (P21)

Pull and remove.

BEFORE OPERATION

Pull out Battery Holder.

Replace with new battery. Install

with battery (+),(–) marks properly.

Install battery and

Battery Holder into

Remote Control Unit.

BATTERY

LITHIUM BATTERY

CR2025 (3.0V)

(+) mark indicates

its (+) polarity.

Put Battery + mark

as shown direction.

BATTERY HOLDER

REMOTE CONTROL UNIT BATTERY INSTALLATION

To insure safe operation, please observe the following precautions :

● Use only specified battery. Improper battery may cause malfunction of Remote Control Unit.

● Be sure to install battery with correct polarity.

● Do not expose a battery to moisture or heat. Do not charge a battery.

● If a battery has leaked on the Remote Control Unit, carefully wipe the case clean and load a new battery.

● Keep a battery away from children to avoid swallowing it accidentally.

● Risk of explosion if battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions.

1 2 3

30°

Point Remote Control Unit toward projector (Receiver

Window) whenever pressing any button. Maximum

operating range for Remote Control Unit is about 16.4’ (5m)

and 60° in front of the projector.

16.4’

(5 m)

OPERATING RANGE

READY

LAMP

REPLACE

LAMP

WARNING

TEMP.

INPUT

POWER

SET

KEY

STONE

VOL VOL

– +

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

Used to open or close

MENU operation. (P17,

18)

MENU BUTTON

READY INDICATOR

SET BUTTON

POWER ON–OFF BUTTON

INPUT BUTTON

WARNING TEMP. INDICATOR

LAMP INDICATOR

POINT (VOLUME + / – ) BUTTONS

LAMP REPLACE INDICATOR

Lights green when the

projector is ready to be

turned on. And it

flashes green in Power

Management mode.

(P36)

Becomes dim when the

projector is turned on.

And bright when the

projector is in stand-by

mode.

Turns to yellow when

the life of the projection

lamp draws to an end.

(P37)

Flashes red when

internal projector

temperature is too

high. (P39)

Used to select input

source. (P22, 30)

Used to select an item or adjust

value in ON-SCREEN MENU. They

are also used to the image in

DIGITAL ZOOM

+/– mode. (P29)

POINT LEFT/RIGHT buttons are

also used as VOLUME +/– buttons.

Used to execute the

item selected. It is also

used to expand /

compress the image in

DIGITAL ZOOM mode.

(P29)

Used to turn the projector

on or off. (P19)

KEYSTONE BUTTON

Used to correct

keystone distortion.

(P20, 35)

BEFORE OPERATION

HOW TO OPERATE THE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

Press MENU button to display ON-SCREEN MENU (MENU

BAR). The red frame is the POINTER.

Move POINTER (red frame) to MENU ICON that you want to

select by pressing POINT RIGHT / LEFT buttons.

Adjust the ITEM DATA by pressing the POINT RIGHT / LEFT

buttons.

Refer to the following pages for details of respective

adjustments.

Press POINT DOWN button and move POINTER (red frame

or red arrow) to the ITEM that you want to adjust, and then

press the SET button to show the DATA.

Select Menu to be adjusted

Control or adjust item through ON-SCREEN MENU

You can control and adjust this projector through the ON-SCREEN

MENU. Refer to the following pages to operate each adjustment

on ON-SCREEN MENU.

MOVING POINTER

SELECT ITEM

Move the pointer (✽ see below) or adjust the value of item by

pressing POINT button(s) on Top Control or on Remote

Control Unit.

Select the item or set selected function by pressing SET

button.

OPERATING THE ON-SCREEN MENU

✽ Pointer is the icon on ON-SCREEN MENU to select the item.

See the figures on the section "FLOW OF ON-SCREEN MENU

OPERATION" below.

WARNI

TEMP.

INPUT

SET

KEY

STONE

VOL VOL

– +

Used to select the item.

SET BUTTON

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

MENU BAR

POINTER

(red frame)

MENU ICON

ITEM DATA

Press POINT LEFT/RIGHT

buttons to adjust value or

set function.

SET

BUTTON

POINTER (red frame)

Press POINT DOWN button to

move POINTER.

DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

ITEM

Used to select the item.

SET BUTTON

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

POINT BUTTON

REMOTE CONTROL UNIT

MENU BUTTON

BEFORE OPERATION

MENU BAR

PC SYSTEM MENU

Used to select

computer system.

(Refer to P22, 23)

IMAGE ADJUST MENU

Used to adjust computer

image. [Contrast /

Brightness

/ Color / Tint

White balance (R/G/B) /

Sharpness /

Gamma / Auto

grayscale / Auto fleshtone]

(Refer to P28)

SETTING MENU

Used to change

settings of projector

or reset Lamp

Replace Counter.

(Refer to P35, 36)

SOUND MENU

Used to adjust

volume or mute

sound.

(Refer to P21)

IMAGE SELECT MENU

FOR PC SOURCE

Press the MENU BUTTON while connected to the PC input source.

AV SYSTEM MENU

Used to select

system of selected

video source.

(Refer to P31)

IMAGE ADJUST MENU

Used to adjust picture image.

[Contrast / Brightness / Color /

Tint / White balance (R/G/B) /

Sharpness / Gamma

/ Auto

grayscale / Auto fleshtone

]

(Refer to P33, 34)

FOR VIDEO SOURCE

Press the MENU BUTTON while connecting to the VIDEO input source.

Same function as

Menu for PC source.

INPUT MENU

Used to select

input source

either Video or

Computer.

(Refer to P30)

PC ADJUST MENU

Used to adjust

parameters to

match with input

signal format.

(Refer to P24-26)

IMAGE SELECT MENU

SCREEN MENU

Used to set size of

image to Normal

or Wide.

(Refer to P34)

GUIDE WINDOW

Shows selected

item of ON-

SCREEN MENU.

Same function as

Menu for PC source.

INPUT MENU

Used to select

input source either

Computer or

Video.

(Refer to P22)

SCREEN MENU

Used to adjust size

of image. [Normal

/ True / Wide /

Digital zoom +/–]

(Refer to P29)

Used to select image

level among ;

Standard, High

contrast and Custom.

(Refer to P27)

Used to select image

level among

Standard, Cinema

and Custom.

(Refer to P32)

BASIC OPERATION

TURNING ON THE PROJECTOR

Connect the projector's AC Power Cord into an AC outlet. LAMP

Indicator lights red, and READY Indicator lights green.

Press POWER ON-OFF button on Top Control or on Remote

Control Unit to ON. LAMP Indicator dims, and Cooling Fans

start to operate. Preparation Display appears on a screen and

the count-down starts. The signal from PC or Video source

appears after 30 seconds. And then current image level is

displayed on screen for 4 seconds.

TURNING OFF THE PROJECTOR

Press POWER ON-OFF button on Top Control or on Remote

Control Unit, and a message "Power off?" appears on a screen.

Press POWER ON-OFF button again to turn off the projector.

LAMP Indicator lights bright and READY Indicator turns off.

After the projector is turned off, Cooling Fans operate (for 90

seconds).

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN

PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE

TURNING IT OFF.

DO NOT DISCONNECT AC POWER CORD BEFORE

READY INDICATOR LIGHTS GREEN.

TURNING ON / OFF THE PROJECTOR

When WARNING TEMP. Indicator flashes red, the projector is automatically turned off. Wait at least 5 minutes before

turning on the projector again.

When WARNING TEMP. Indicator continues to flash, follow the procedures below:

1. Press POWER ON-OFF button to turn the projector off and disconnect AC Power Cord from an AC outlet.

2. Check Air Filters for dust accumulation.

3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 39.)

4. Turn the projector on again.

If WARNING TEMP. Indicator continues to flash, contact your sales dealer or service center.

Complete peripheral connections (with Computer, VCR, etc.)

before turning on the projector. (Refer to "CONNECTING

PROJECTOR" on page 11~13 for connecting the equipment.)

When the projector has cooled down, READY Indicator lights

green again.

Preparation Display disappears after 30 seconds.

Power off?

Message disappears after 4 seconds.

When “Power management” function is ON, the projector detects signal interruption and turns off Projection Lamp

automatically. Refer to “Power management” on page 36.

NOTE : Projector cannot be turned on during cooling period with

READY Indicator off. You can turn it on again after READY

Indicator lights green.

note on operation

Current image level is displayed on screen for 4

seconds.

Press the FREEZE button on the Remote Control Unit to freeze the

picture on-screen. To cancel the FREEZE function, press the

FREEZE button again or press any other button.

PICTURE FREEZE FUNCTION

KEYSTONE ADJUSTMENT

Press KEYSTONE ▲/▼ button on Remote Control Unit or

KEYSTONE button on Top Control or select Keystone on

SETTING menu. (Refer to page 35.) Keystone dialog box

appears.

Correct keystone distortion by pressing KEYSTONE ▲/▼ button

or POINT UP/DOWN button(s). Press KEYSTONE ▲ button or

POINT UP button to reduce the upper part of image, and press

KEYSTONE ▼ button or POINT DOWN button to reduce the

lower part.

Reduce the upper width with KEYSTONE ▲ button

or POINT UP button.

Reduce the lower width with KEYSTONE ▼ button

or POINT DOWN button.

If a projected picture has keystone distortion, correct image with KEYSTONE adjustment.

BASIC OPERATION

ADJUSTING THE SCREEN

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Rotate the FOCUS RING to adjust the projected picture focus.

ZOOM LEVER

FOCUS RING

Move ZOOM LEVER upward to make the image larger. Move ZOOM

LEVER downward to make the image smaller.

WIDE

TELE

• Arrows are white in no correction.

• Arrow of direction being corrected turns blue.

• Arrow disappears at the maximum correction.

BASIC OPERATION

Press the NO SHOW button on the Remote Control Unit to black out

the image. To restore to normal, press the NO SHOW button again or

press any other button.

NO SHOW FUNCTION

Message disappears after 4 seconds.

No show

Press the P-TIMER button on the Remote Control Unit. The timer

display “00 : 00” appears on the screen and the timer starts to count

time (00 : 00 ~ 59 : 59).

To stop the P-TIMER display, press the P-TIMER button. Press the P-

TIMER button again to cancel the P-TIMER function.

P-TIMER FUNCTION

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT buttons to move the red

frame to SOUND Menu icon.

Volume

Press the VOLUME (+/–) button(s) on the Remote Control Unit or

POINT LEFT / RIGHT (VOL –/+) button on Top Control to adjust

volume. The volume dialog box appears on the screen for a few

seconds.

Use the VOLUME (+) or POINT RIGHT (VOL +) button to increase

volume, and VOLUME (–) or POINT LEFT (VOL –) button for

decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off the sound. To

restore sound to its previous level, press MUTE button again or press

Volume (+/–) or POINT LEFT / RIGHT (VOL –/+) button(s).

To increase the volume, press the POINT RIGHT (VOL +) button, and

press the POINT LEFT (VOL –) button for decreasing.

Press the POINT LEFT/RIGHT button(s) (VOL –/+) to cut off sound.

The dialog box display is changed to “On” and sound is cut off. To

restore sound to its previous level, press the POINT LEFT/RIGHT

(VOL –/+) button(s) again.

Press the POINT DOWN button to move the red frame to the

item that you want to select, and then press SET button.

Indicates roughly

level of volume.

Close SOUND Menu.

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

Volume

Mute

Indicates roughly level of

volume.

Press MUTE button to set

Mute function On or Off.

The display disappears after 4 seconds.

SOUND MENU

SOUND Menu icon

COMPUTER INPUT

SELECTING THE INPUT SOURCE

MENU OPERATION

DIRECT OPERATION

Choose Computer by pressing the INPUT button on Top Control or on

Remote Control Unit.

If the projector cannot reproduce a proper image, select correct input

source through the MENU OPERATION (see below).

Press the MENU button and the ON-SCREEN MENU will

appear. Press POINT LEFT/RIGHT button to move the red

frame to the INPUT Menu icon.

Press the POINT DOWN button to move the red arrow to

Computer and then press the SET button.

INPUT button

Computer

Video

Move the red arrow to

Computer and press the

SET button.

INPUT MENU

INPUT Menu icon

SELECTING THE COMPUTER SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to

“COMPATIBLE COMPUTER SPECIFICATION” on page 23). When selecting Computer, this projector automatically tunes

to incoming signal and projects proper image without any special setting. (Some computers need to be set manually.)

Note : Projector may display one of the following messages.

When the projector cannot recognize the connected

signal, the Auto PC Adjustment function adjusts the

projector and the message “Auto” is displayed on the

SYSTEM Menu icon. (Refer to P24.) When the image is

not displayed properly, manual adjustment is required.

(Refer to P25 and 26.)

There is no signal input from the computer. Make sure

the connection between the computer and the projector

are set correctly.

(Refer to TROUBLESHOOTING on page 40.)

Auto

––––

SYSTEM Menu icon

Displays system being

selected.

PC SYSTEM MENU

SELECT THE COMPUTER SYSTEM MANUALLY

SYSTEM Menu icon

Displays system being selected.

The systems on this dialog box

can be selected.

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT buttons to move the red

frame to PC SYSTEM Menu icon.

Press the POINT DOWN button to move the red arrow to the

system that you want to set, and then press the SET button

PC SYSTEM MENU

Custom Mode (1~5) set in PC

ADJUST Menu. (P25, 26)

This projector automatically selects the PC system among those

provided in this projector and PC system can be also selected

manually.

COMPUTER INPUT

COMPATIBLE COMPUTER SPECIFICATIONS

This projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 100 MHz of

Dot Clock.

NOTE : Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1 640 x 480 31.47 59.88

VGA 2 720 x 400 31.47 70.09

VGA 3 640 x 400 31.47 70.09

VGA 4 640 x 480 37.86 74.38

VGA 5 640 x 480 37.86 72.81

VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08

MAC 21

1152 x 870

68.68 75.06

SVGA 1 800 x 600 35.156 56.25

SVGA 2 800 x 600 37.88 60.32

SVGA 3 800 x 600 46.875 75.00

SVGA 4 800 x 600 53.674 85.06

SVGA 5 800 x 600 48.08 72.19

SVGA 6 800 x 600 37.90 61.03

SVGA 7 800 x 600 34.50 55.38

SVGA 8 800 x 600 38.00 60.51

SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 10 1024 x 768

XGA 11 1024 x 768

XGA 12 1024 x 768

XGA 13 1024 x 768

62.04 77.07

XGA 14 1024 x 768

61.00 75.70

XGA 15 1024 x 768

35.522

86.96

(Interlace)

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9

1024 x 768

58.03 72.00

SXGA 1 1152 x 864

63.48 79.35

36.00

87.17

(Interlace)

64.20 70.40

SXGA 11 1152 x 900

SXGA 13 1280 x 1024

SXGA 14 1280 x 1024

61.20 65.20

50.00

86.00

(Interlace)

720p (HDTV)

––––––––

50.00

94.00

(Interlace)

45.00 60.00

XGA 1 1024 x 768

XGA 2 1024 x 768

XGA 3 1024 x 768

XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.476 70.07

48.50 60.02

44.00 54.58

SXGA 17 1152 x 900

SXGA 18 1280 x 1024

61.85 66.00

46.43

86.70

(Interlace)

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

RGB

––––––––

15.734

(Interlace)

RGB

––––––––

15.625

(Interlace)

1080i60 (HDTV)

––––––––

33.75

60.00

(Interlace)

1035i (HDTV)

––––––––

33.75

60.00

(Interlace)

SVGA 10 800 x 600 32.70 51.09

1080i50 (HDTV)

––––––––

28.125

50.00

(Interlace)

COMPUTER INPUT

PC ADJUSTMENT

AUTO PC ADJUSTMENT

The Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to

your computer. Auto PC Adjustment function can be operated as follows.

Press the MENU button and the ON-SCREEN MENU will

appear. Press POINT LEFT/RIGHT button to move the red

frame to PC ADJUST Menu icon.

Press the POINT DOWN button to move the red frame to the

AUTO PC Adj. icon and then press the SET button twice.

This Auto PC Adjustment can be also executed by pressing the

AUTO PC ADJ. button on the Remote Control Unit.

Move the red frame to AUTO PC Adj. icon

and press SET button.

PC ADJUST MENU

Auto PC Adj.

PC ADJUST Menu icon

Store adjustment parameters.

Adjustment parameters from Auto PC Adjustment can be memorized

in this projector. Once parameters are memorized, setting can be

done just by selecting Mode in PC SYSTEM Menu (P22). Refer to

step 3 of MANUAL PC ADJUSTMENT section (P26).

NOTE

● Fine sync, Total dots and Picture Position of some computers can

not be fully adjusted with this Auto PC Adjustment function. When

the image is not provided properly through this function, manual

adjustments are required. (Refer to page 25, 26.)

● Auto PC Adjustment function cannot be operated when “RGB,”

“720p (HDTV),” “1035i (HDTV)” or “1080i (HDTV)” is selected on PC

SYSTEM Menu (P22).

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to the display signals of most personal computers. However, some computers employ

special signal formats which are different from the standard ones and may not be tuned by the Multi-Scan system of this

projector. If this happens, projector cannot reproduce a proper image and the image may be displayed as a flickering

picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has Manual PC Adjustment to enable you to precisely adjust several parameters to match those special signal

formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables

you to recall the setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when "RGB" is selected on PC SYSTEM Menu (P22).

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button to move the red

frame to PC ADJUST Menu icon.

Press the POINT DOWN button to move the red frame to the

item that you want to adjust and then press the SET button. The

Adjustment dialog box will appear. Press the POINT

LEFT/RIGHT button to adjust value.

Move the red frame to the item and press

the SET button.

PC ADJUST MENU

PC ADJUST Menu icon

Adjusts an image as necessary to eliminate flicker from the display.

Press the POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)

Fine sync

The number of total horizontal dots in your picture. Press the POINT

LEFT/RIGHT button(s) and adjust number to match your PC image.

Total dots

Adjusts the horizontal picture position. Press the POINT

LEFT/RIGHT button(s) to adjust the position.

Horizontal

Adjusts the vertical picture position. Press the POINT LEFT/RIGHT

button(s) to adjust the position.

Vertical

Press the SET button to show the information of the computer

selected.

Current mode

Adjusts the clamp level. When the image has a dark bar(s), try this

adjustment.

Clamp

Press the SET button at this icon

to adjust “Clamp,” “Display area

(H/V)” or set “Full screen.”

Press the POINT LEFT/RIGHT

button to adjust the value.

Shows status

(Stored / Free) of the

selected Mode.

Selected Mode

Press the SET button at the

Current mode icon to show

the information of the

computer connected.

Current mode

COMPUTER INPUT

NOTE : Display area (H/V) and Full screen cannot be adjusted when

“1035i (HDTV)” or “1080i (HDTV)” is selected on PC

SYSTEM Menu (P22).

Selects the area displayed with this projector. Select the resolution

at the Display area dialog box.

Display area

Adjustment of horizontal area displayed with this projector. Press the

POINT LEFT/RIGHT button(s) to decrease/increase value to match

the resolution of image.

Display area H

Adjustment of vertical area displayed with this projector. Press the

POINT LEFT/RIGHT button(s) to decrease/increase value to match

the resolution of image.

Display area V

Press the POINT LEFT/RIGHT button(s) to switch Full screen

function to “On” or “Off.” Set “On” to resize the image with 4 x 3

aspect ratio to fit the screen.

Full screen

Reset

Store

Closes PC ADJUST MENU.

Quit

Other icons operate as follows.

To store adjustment parameters, move the red frame to the

Store icon and then press the SET button. Move the red arrow

to any of Mode 1 to 5 that you want to store and then press the

SET button.

Reset all adjustment parameters on the adjustment dialog box to

the previous figure.

Mode free

Vacant Mode

Shows values of “Total dots,”

“Horizontal,” “Vertical,” “Display

area H,” and “Display area V.”

Close this dialog box.

To store the adjustment data.

To clear the adjustment data.

To clear the adjustment parameters previously set, move the red

frame to Mode free icon and then press the SET button. Move

the red arrow to the Mode that you want to clear and then press

the SET button.

Display area

Press SET button at Display

area icon and Display area

dialog box appears.

This Mode has parameters being stored.

COMPUTER INPUT

PICTURE IMAGE ADJUSTMENT

IMAGE LEVEL SELECT (MENU)

IMAGE LEVEL SELECT (DIRECT)

Select the image level among Standard, High contrast and Custom by

pressing the IMAGE button on the Remote Control Unit.

IMAGE button

Standard

High contrast

Custom

Normal picture adjustment preset on this projector.

Picture adjustment improved in reproduction of halftones. This

adjustment is suitable for providing better image in brighter place.

User preset picture adjustment in the IMAGE ADJUST Menu (P28,

29).

Standard

High contrast

Custom

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button to move the red

frame to the IMAGE SELECT Menu icon.

Press the POINT DOWN button to move the red frame to the

level that you want to set and then press the SET button.

Move the red frame to the level and

press the SET button.

The level being selected.

IMAGE SELECT MENU

Normal picture adjustment preset on this projector.

Standard

Picture adjustment improved in reproduction of halftones. This

adjustment is suitable for providing better image in brighter place.

High contrast

User preset picture adjustment in the IMAGE ADJUST Menu (P28,

29).

Custom

IMAGE SELECT

Menu icon

COMPUTER INPUT

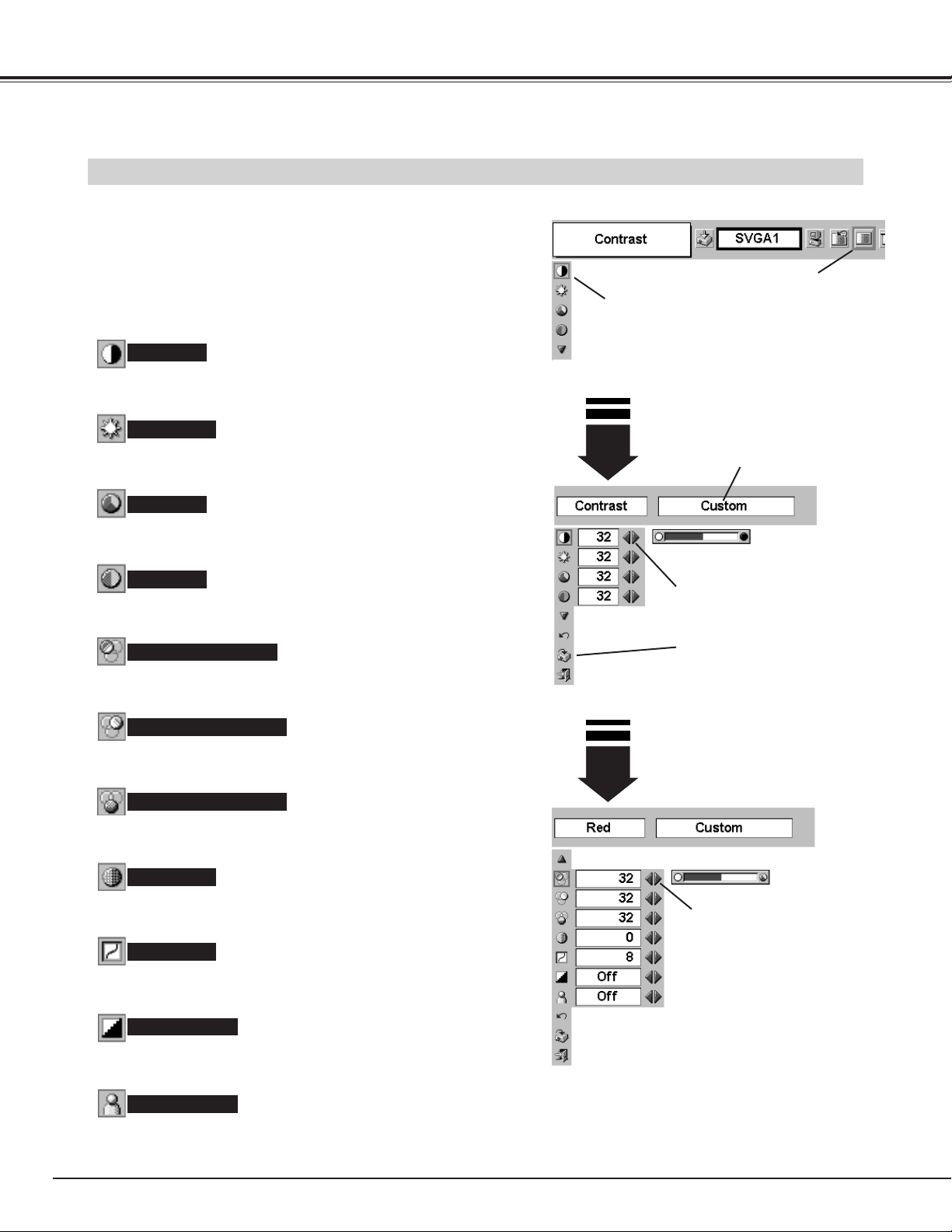

Press the POINT LEFT/RIGHT but-

tons to adjust value.

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT buttons to move the red

frame to the IMAGE ADJUST Menu icon.

Press the POINT DOWN button to move the red frame to the

item that you want to adjust. and then press the SET button.

The level of each item is displayed. Adjust each level by the

pressing the POINT LEFT/RIGHT button(s).

Move the red frame to the

item to be selected and then

press the SET button.

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Store icon

Press the SET button at this icon to

store the adjustment.

IMAGE ADJUST

Menu icon

Selected Image level

Press the POINT LEFT button to decrease contrast, and the POINT

RIGHT button to increase contrast. (From 0 to 63.)

Press the POINT LEFT button to adjust image darker, and the

POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press either the POINT LEFT button or the POINT RIGHT button to

obtain better balance of contrast. (From 0 to 15.)

Gamma

Press the POINT LEFT button to lighten color, and the POINT

RIGHT button to darker color. (From 0 to 63.)

Press the POINT LEFT button or the POINT RIGHT button to obtain

proper color. (From 0 to 63.)

Color

Tint

Press the POINT LEFT button to soften the image, and the POINT

RIGHT button to sharpen the image. (From 0 to 15.)

Sharpness

Press the POINT LEFT button to lighten red tone and the POINT

RIGHT button to darker tone. (From 0 to 63.)

White balance (Red)

Press the POINT LEFT button to lighten green tone and the POINT

RIGHT button to darker tone. (From 0 to 63.)

White balance (Green)

Press the POINT LEFT button to lighten blue tone and the POINT

RIGHT button to darker tone. (From 0 to 63.)

White balance (Blue)

Press the POINT LEFT/RIGHT but-

tons to adjust value.

When this function is "ON", it automatically enhances the contrast of

the bright and dark part of image.

When this function is "ON", it automatically produces a more vivid

image according to the image condition.

Auto grayscale

Auto fleshtone

COMPUTER INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button(s) to move the

red frame to the SCREEN Menu icon.

When Digital zoom + is selected, the ON-SCREEN MENU

disappears and the message “D. Zoom +” is displayed. Press the

SET button to expand image size. And press the POINT

UP/DOWN/LEFT/RIGHT button(s) to pan the image. The panning

function can work only when the image is larger than screen size.

A projected image can be also expanded by pressing D.ZOOM W

(Wide) button on Remote Control Unit.

To cancel the Digital Zoom +/– mode, press any button except

D.ZOOM W/T, SET, and POINT buttons.

Move the red frame to the function and

press the SET button.

Press the POINT DOWN button and move the red frame to the

function that you want to select and then press the SET button.

Wide

Digital zoom +

Provides image to fit screen size.

Normal

True

SCREEN MENU

SCREEN Menu icon

When Digital zoom – is selected, the ON-SCREEN MENU

disappears and the message “D. Zoom –” is displayed. Press the

SET button to compress image size.

A projected image can be also compressed by pressing the D.ZOOM

T (Tele) button on Remote Control Unit.

Digital zoom –

Provides image in its original size. When the original image size is

larger than screen size (800 x 600), this projector enters “Digital

zoom +” mode automatically.

Provides an image to fit the wide video aspect ratio (16 : 9) by

expanding image width uniformly. This function can be used for

providing a squeezed video signal at 16 : 9.

Reset all adjustment to previous figure.

Reset

Store

Closes the IMAGE MENU.

Quit

Other icons operate as follows.

To store the manually preset image level, move the red frame to

the Store icon and press the SET button. The message “OK?”

will appear. Select [Yes] to store the manual adjustment.

To set this manual adjustment, select the Custom by pressing

the IMAGE button or through the IMAGE SELECT MENU (refer

to P27).

NOTE

● This SCREEN Menu cannot be operated when

“1035i (HDTV)” or “1080i (HDTV)” is selected on

PC SYSTEM Menu (P22).

● Wide cannot be selected when “720p (HDTV)” is

selected on PC SYSTEM Menu (P22).

● True and Digital zoom +/– cannot be selected

when “RGB” is selected on PC SYSTEM Menu

(P22).

● This projector cannot display any resolution higher

than 1280 X 1024. If your computer’s screen

resolution is higher than 1280 X 1024, lower the

resolution before connecting projector.

● Digital zoom – cannot be operated when the image

resolution is SXGA (1280 x 1024).

● The image data in other than SVGA (800 x 600) is

modified to fit the screen size.

● The panning function may not operate properly if

the computer system set on PC ADJUST Menu is

used.

Store icon

“OK?” message

Move the red arrow pointer

to [Yes] and then press the

SET button.

VIDEO INPUT

SELECTING THE INPUT SOURCE

MENU OPERATION

DIRECT OPERATION

Choose Video by pressing the INPUT button on the Top Control or on

the Remote Control Unit.

If the projector cannot reproduce a proper video source, select correct

input source through the MENU OPERATION (see below).

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button to move the red

frame to the INPUT Menu icon.

Press the POINT DOWN button to move the red arrow to Video

and then press the SET button. The Source Select Menu will

appear.

Move the red

arrow to Video

and press the

SET button.

VIDEO

Move the red arrow to the source and press the SET

button.

Source Select Menu (VIDEO)

INPUT MENU

INPUT button

Video

Computer

Move the red arrow to the source that you want to select and

then press the SET button.

The projector automatically detects incoming the Video

signal, and adjusts itself to optimize its performance.

• When both VIDEO jack and S-VIDEO jack are

connected, S-VIDEO jack has priority over VIDEO jack.

• When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are

connected, Y-Pb/Cb-Pr/Cr jacks have priority over S-

VIDEO jack.

Auto

When the video input signal is connected to VIDEO jack,

select Video.

Video

When the video input signal is connected to S-VIDEO

jack, select S-Video.

S-Video

When the video input signal is connected to Y-Pb/Cb-

Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Y,Pb/Cb,Pr/Cr

VIDEO INPUT

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM MENU (COMPONENT VIDEO)

SELECTING THE VIDEO SYSTEM

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT buttons to move the red

frame to AV SYSTEM Menu icon.

Press the POINT DOWN button to move the red arrow to the

system that you want to select and then press the SET button.

If projector cannot reproduce a proper video image, it is necessary to

select a specific broadcast signal format among PAL, SECAM, NTSC,

NTSC 4.43, PAL-M, and PAL-N.

Move the red arrow to

the system and press

the SET button.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

The projector automatically detects the incoming Video signal, and

then adjusts itself to optimize its performance.

If the projector cannot reproduce a proper video image, it is necessary

to select a specific component video signal format among 480i, 575i,

480p, 575p, 720p, 1035i and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO JACK OR S-VIDEO JACK

Y, Pb/Cb, Pr/Cr JACKS

Projector automatically detects the incoming Video system, and

adjusts itself to optimize its performance.

When Video System is PAL-M or PAL-N, select system manually.

Auto

AV SYSTEM Menu icon

This box indicates the system

being selected.

Move the red arrow to

the system and press

the SET button.

AV SYSTEM Menu icon

This box indicates the system

being selected.

VIDEO INPUT

PICTURE IMAGE ADJUSTMENT

IMAGE LEVEL SELECT (MENU)

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button to move the red

frame to the IMAGE SELECT Menu icon.

Press the POINT DOWN button to move the red frame to the

level that you want to set and then press the SET button.

Move the red frame to the level

and press the SET button.

IMAGE SELECT MENU

IMAGE SELECT

Menu icon

IMAGE LEVEL SELECT (DIRECT)

Select the image level among Standard, Cinema, and Custom by

pressing the IMAGE button on Remote Control Unit.

Normal picture adjustment preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P33,34).

The level being selected.

Normal picture adjustment preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P33, 34).

Custom

IMAGE button

Standard

Cinema

Custom

VIDEO INPUT

Press the POINT LEFT/RIGHT but-

tons to adjust value.

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button(s) to move the

red frame to the IMAGE ADJUST Menu icon.

Press the POINT DOWN button to move the red frame to the

item that you want to adjust and then press the SET button. The

level of each item is displayed. Adjust each level by pressing the

POINT LEFT/RIGHT button(s).

Move the red frame to the

item to be selected and then

press the SET button.

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Press the POINT LEFT button to decrease contrast, and the POINT

RIGHT button to increase contrast. (From 0 to 63.)

Press the POINT LEFT button to adjust image darker, and the

POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press either the POINT LEFT button or the POINT RIGHT button to

obtain a better balance of contrast. (From 0 to 15.)

Gamma

Press the SET button at this icon to

display other items.

IMAGE ADJUST

Menu icon

Press POINT LEFT/RIGHT buttons

to adjust the value.

Press the POINT LEFT button to lighten color, and the POINT

RIGHT button to darker color. (From 0 to 63.)

Press the POINT LEFT button or the POINT RIGHT button to obtain

the proper color. (From 0 to 63.)

Color

Tint

Press the POINT LEFT button to soften the image, and the POINT

RIGHT button to sharpen the image. (From 0 to 15.)

Sharpness

Press the POINT LEFT button to lighten the red tone and the POINT

RIGHT button to darker tone. (From 0 to 63.)

White balance (Red)

Press the POINT LEFT button to lighten the green tone and the

POINT RIGHT button to darker tone. (From 0 to 63.)

White balance (Green)

Press the POINT LEFT button to lighten the blue tone and the

POINT RIGHT button to darker tone. (From 0 to 63.)

White balance (Blue)

NOTE : Tint cannot be adjusted when the video

system is PAL, SECAM, PAL-M or PAL-N.

Press the SET button at this icon to

store the value.

Press the SET button at this icon to

display previous items.

When this function is "ON", it automatically enhances the contrast of

the bright and dark part of image.

When this function is "ON", it produces a more vivid image according

to the image condition.

Auto grayscale

Auto fleshtone

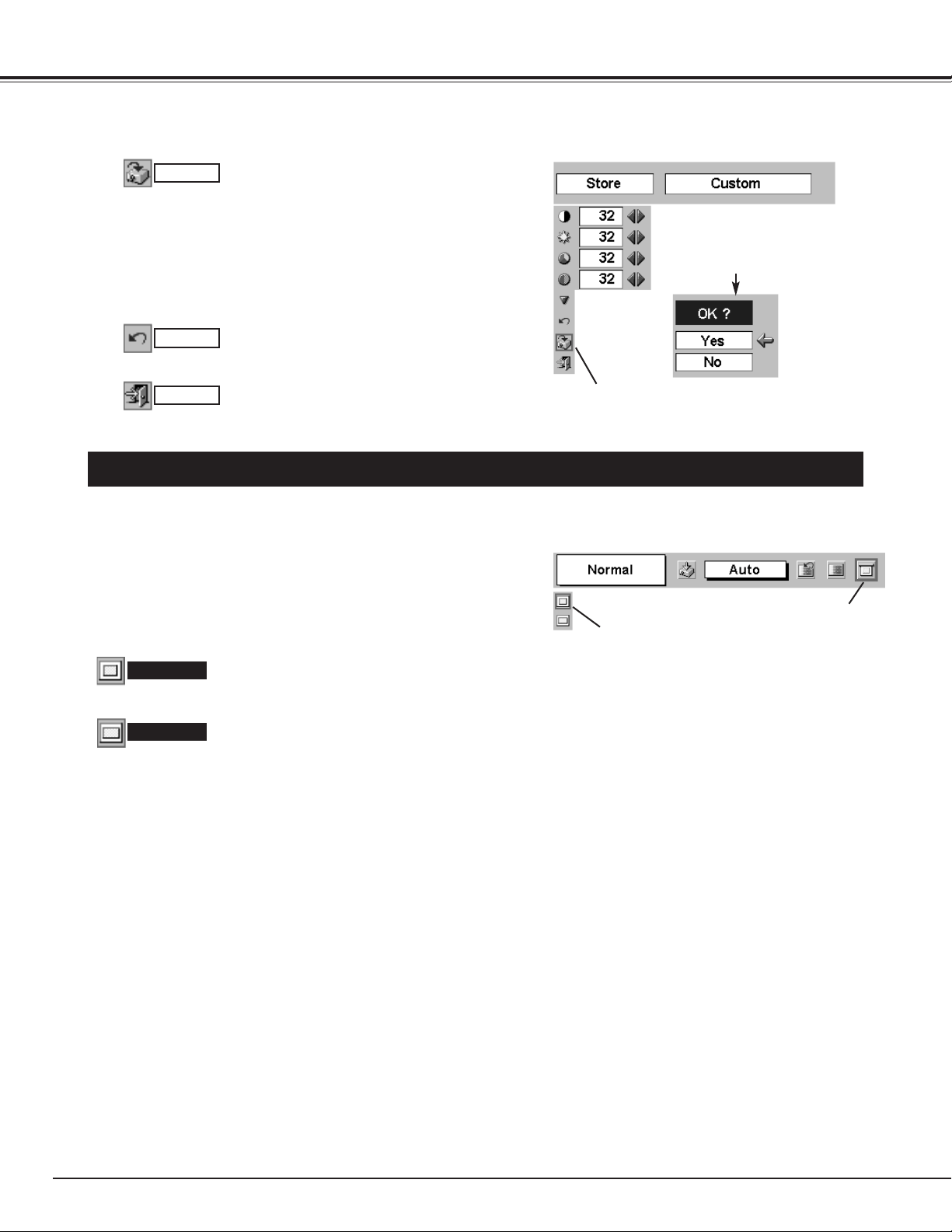

VIDEO INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button(s) to move the

red frame to the SCREEN Menu icon.

Press the POINT DOWN button and move the red frame to the

function that you want to select and then press the SET button.

NOTE : The SCREEN Menu cannot be operated

when “720p,” “1035i,” or “1080i” is selected

on the AV SYSTEM Menu (P31).

Move the red frame to the function and

press the SET button.

SCREEN MENU

SCREEN Menu icon

Provides image at a wide screen ratio of 16 : 9.

Wide

Provides image at a normal video aspect ratio of 4 : 3.

Normal

Store icon

Reset all adjustment to the previous figure.

Reset

Store

Closes the IMAGE MENU.

Quit

Other icons operate as follows.

“OK?” message

Move the red arrow pointer

to [Yes] and then press the

SET button.

To store a manually preset image level, move the red frame to

the Store icon and press the SET button. The message “OK?”

will appear. Select [Yes] to store the manual adjustment.

To set this manual adjustment, select Custom by pressing the

IMAGE button or through the IMAGE SELECT MENU (refer to

P32).

SETTING

Ceiling

When this function is “On,” the picture is top / bottom and left / right

reversed. This function is used to project the image from a ceiling

mounted projector.

Rear

When this function is “On,” picture is left / right reversed. This

function is used to project the image to a rear projection screen.

Ceiling function

Rear function

Keystone

When the image is distorted vertically, select Keystone. The ON-

SCREEN MENU disappears and the Keystone dialog box is

displayed. Correct the keystone distortion by pressing the POINT

UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page

20.

SETTING MENU

Press the MENU button and the ON-SCREEN MENU will

appear. Press the POINT LEFT/RIGHT button(s) to move the

red frame to the SETTING icon.

Language

The Language used in the ON-SCREEN MENU is selectable from

English, German, French, Italian, Spanish, Portuguese, Dutch,

Swedish, Chinese, Korean, and Japanese.

Display

Set the red frame to

the item and press

the SET button.

Press the POINT DOWN button to move the red frame to the

item that you want to set and then press the

SET button. The

Setting dialog box appears.

Blue back

When this function is “On,” the projector produces a blue image while

the input signal is not detected.

Logo

When this function is “On,” the projector displays the Canon logo

when starting up.

When pressing the SET

button at Language,

Language Menu appears.

Move the red frame to the

item and then press the

POINT LEFT/RIGHT

button(s).

SETTING MENU

SETTING Menu icon

This function decides whether to display the On-Screen Displays.

On ··· shows all the On-Screen Displays.

Off ···· sets On-Screen Displays disappeared except;

● ON-SCREEN MENU

● “Power off?” message (P19)

● P-TIMER

● “No signal” message (P36)

● “Wait a moment!” message

SETTING

This function turns the Projection Lamp off when this projector

detects signal interruption and is not used for a certain period in

order to reduce power consumption and maintain the Lamp-life.

(This projector is shipped with this function ON.)

Power Management function operates to turn the Projection Lamp off

when the input signal is interrupted and any button is not pressed

over 5 minutes. This function operates as follows;

1. When any input signal is interrupted, “No signal” and the count

down display appears (for 5 minutes).

2. After counting down for 5 minutes, the Projection Lamp and the

READY Indicator are turned off. (Cooling Fans keep running.)

3. The READY Indicator starts to flash after cooling down the

Projection Lamp about for 90 seconds (Power Management

mode).

In this Power Management mode, the Projection Lamp is

automatically turned on when the input signal is connected or

the projector is operated with any button on the Top Control or

on the Remote Control Unit again.

Power management

This function is used to reset the Lamp Replace Counter. When

replacing the Projection Lamp, reset the Lamp Replace Counter by

using this function. Refer to page 38 for operation.

Lamp counter reset

Remote control

This projector has two different remote control codes; the factory-set

normal code (Code 1) and the secondary code (Code 2). This

switching function prevents remote control interference when

operating several projectors or video equipment together.

When operating projector in “Code 2,” both projector and Remote

Control Unit must be switched to “Code 2.”

To change the code of Projector;

Set the Remote control in the SETTING MENU to “Code 2.”

To change the code of the Remote Control Unit;

Press both the MENU and the IMAGE buttons on the Remote

Control Unit together for over 10 seconds.

After changing the code, make sure the Remote Control Unit

operates properly.

To return to the normal code (Code 1), repeat the steps above.

NOTE : When the battery of Remote Control Unit is replaced, the

remote control code automatically returns to the normal

code (Code 1).

Time left until Lamp off.

APPENDIX

LAMP REPLACEMENT

LAMP REPLACE

When the life of the Projection Lamp of this projector draws to an end,

the LAMP REPLACE indicator lights yellow. If this indicator lights

yellow, replace the projection lamp with a new one promptly.

Follow these steps to replace the lamp assembly.

LAMP

ASSEMBLY

HANDLE

LAMP COVER

ORDER REPLACEMENT LAMP

The Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the

following information to the dealer.

●

Model No. of your projector : LV-S2

● Replacement Lamp Type No. : LV-LP14

(Service Parts No. 610 295 5712)

For continued safety, replace with a lamp assembly of

the same type.

Do not drop the lamp assembly or touch the glass bulb!

The glass can shatter and may cause injury.

Allow the projector to cool, for at least 45 minutes before

you open the Lamp Cover. The inside of a projector can

become very hot.

READY

LAMP

REPLACE

LAMP

NING

MP.

TOP CONTROL

CAUTION

SCREW

Turn off the projector and disconnect the AC plug. Allow the

projector to cool at least for 45 minutes.

Remove the 2 screws with a screwdriver and pull out Lamp

Assembly by grasping Handle.

Replace the Lamp Assembly with a new one and tighten 2

screws back into position. Make sure that the Lamp Assembly is

set properly. Replace Lamp Cover and tighten the screw.

To remove the Lamp Cover, remove the screw with a

screwdriver .

Connect the AC Power Cord to the projector and turn on the

projector.

Reset the Lamp Replace Counter.

Refer to “LAMP REPLACE COUNTER” on the next page .

SCREW

NOTE : Do not reset the Lamp Replace Counter when

Projection Lamp is not replaced.

This indicator lights yellow

when the life of the projection

lamp draws to an end.

Replace the Projection Lamp

with a new one promptly.

APPENDIX

LAMP REPLACE COUNTER

Be sure to reset the Lamp Replace Counter after the Lamp Assembly is replaced. When the Lamp Replace Counter is reset,

the LAMP REPLACE Indicator stops lighting.

NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.

Turn the projector on, press the MENU button and the ON-

SCREEN MENU will appear. Press the POINT LEFT/RIGHT

button(s) to move the red frame to the SETTING Menu icon

(refer to page 35, 36).

Press the POINT DOWN button to move the red frame to

“Lamp counter reset” and then press the

SET button. The

message "Lamp replace counter reset?" is displayed. Move

the red arrow to [Yes] and then press the SET button.

Another confirmation dialog box appears and select [Yes] to

reset the Lamp Replace Counter.

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper

handling may result in accidents, injury, or create a fire hazard.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a

shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR

lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous

use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in

which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an

authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check

carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out

from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one

should check the inside of the projector except those who are authorized trained technicians and who are

familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who

are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken

glass.

LAMP HANDLING PRECAUTIONS

Move the red frame to Lamp counter

reset and then press the SET

button. The message “Lamp

replace counter reset?” is displayed.

CLEANING PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.

Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

When the projector is not in use, attach Lens Cover.

Lightly wipe a cleaning cloth over Projection Lens.

Follow these steps to clean the Projection Lens:

MAINTENANCE

WARNING TEMP. INDICATOR

The WARNING TEMP. Indicator flashes red when the internal temperature of the projector exceeds the normal temperature.

This Indicator stops flashing when the temperature of the projector returns to normal.

When the WARNING TEMP. Indicator continues to flash, check the items listed below.

The Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that the Ventilation

Slots are not obstructed.

AIR FILTER CARE AND CLEANING

The Air Filter may be clogged with dust particles. Clean the Air Filter by following section AIR FILTER CARE AND

CLEANING below.

If the WARNING TEMP. Indicator remains on after performing the above checks, the Cooling Fans or the Internal

Circuits may be malfunctioning. Contact service personnel from an authorized dealer or a service station.

AIR FILTER(Large)

Turn off the projector, and disconnect the AC power cord from

the AC outlet.

Turn the projector upside down and remove the two Air Filters

(Large and Small) by pulling the latches upward.

The Removable Air Filter prevents dust from accumulating on the surface of the Projection Lens and the Projection Mirror.

Should the Air Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal

heat build up and adversely affect the life of the projector. Clean Air Filter following the steps below:

Clean the Air Filters with a brush or wash out dust and particles.

Replace each Air Filter properly. Make sure that the Air Filters

are fully inserted.

CAUTION

Do not operate the projector with the Air Filter removed.

Dust may accumulate on the LCD Panel and the Projection

Mirror, therefore degrading picture quality.

Do not put small parts into Air Intake Vents. It may result in

malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environment when operating a projector. Usage in these environments may

cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on the lens, liquid crystal panels, or optical elements

inside the projector. This condition may degrade the quality of a projected image.

When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

AIR FILTER(Small)

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check the following:

1. Make sure you have connected a projector to your computer or video equipment as described in the section

"CONNECTING THE PROJECTOR" on pages 11 ~ 13.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If a projector still does not produce an image, re-start your computer.

5. If an image still does not appear, unplug the projector from your computer and check your computer monitor's display.

The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, be

sure to turn the computer and monitor off before you power up the projector. Turn the projector on, and then the

computer.)

6. If the problem still exists, check the following chart.

No power.

● Plug the projector into your AC outlet.

● Make sure the READY Indicator lights.

● Wait 90 seconds after a projector is turned OFF before turning the projector back on.

NOTE : After pressing the Power ON-OFF button to OFF, make sure the projector works as

follows:

1. LAMP indicator lights bright and READY indicator turns off.

2. After 90 seconds, the READY indicator lights green again and the projector may

be turned on by pressing the Power ON-OFF button.

● Check WARNING TEMP. indicator. If the indicator flashes red, the projector cannot be

turned on.

(See "TURNING ON/OFF PROJECTOR" section on page 19.)

● Check Projection Lamp. (Refer to page 37.)

Image is out of

focus.

● Adjust focus of the projector.

● Make sure the projection screen is at least 3.6’ (1.1m) from the projector.

● Check Projection Lens to see if it needs cleaning.

NOTE : Moving a projector from a cool temperature location to a warm temperature location

may result in moisture condensation on the Projection Lens. In such an event,

leave the projector OFF and wait until condensation disappears.

Picture is Left/Right

reversed.

● Check Ceiling / Rear feature. (See “SETTING” section on page 35.)

Problem: Try these Solutions

Picture is

Top/Bottom

reversed.

● Check Ceiling feature. (See “SETTING” section on page 35.)

Some displays are

not seen during the

Operation.

● Check Display feature.(See “SETTING” section on page 35.)

No image.

● Check the connection between your computer or video equipment and the projector.

● Check the NO SHOW function. (Refer to page 21.)

● When turning the projector on, it takes about 30 seconds to display an image.

● Check the system that you select is corresponding with your computer or video

equipment.

● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).

No sound.

● Check audio cable connection from the audio input source.

● Adjust the audio source.

● Press the VOLUME (+) button.

● Press the MUTE button.

APPENDIX

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If the problem still persists

after following all operating instructions,

contact the sales dealer where you purchased the

projector or the service center.

Give the model number and explain the problem in detail. We will advise you of how to

obtain service.

Remote Control Unit

does not work.

● Check the battery.

● Make sure nothing is between the Infrared Remote Receiver and the Remote Control

Unit.

● Observe maximum operating distance 16.4’ (5m) between the receiver on the projector

and the Remote Control Unit.

● Make sure the code of the Remote Control Unit is set to conform to the projector.

(See “SETTING” section on page 35, 36.)

Problem: Try these Solutions

This symbol on the nameplate means the product is Listed by Underwriters

Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards

against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community. (EC)

APPENDIX

TECHNICAL SPECIFICATIONS

0.7" TFT Active Matrix type, 3 panels

Multi-media Projector

6.39lbs (2.9 kg)

10.24" x 2.99" x 9.63" (260mm x 76mm x 244.5mm)

(not including Adjustable Feet)

800 x 600 dots

1,440,000 (800 x 600 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz

Adjustable from 29” to 200”

500 TV lines (S-Video)

1 speaker, 1.4" x 0.8" (35mm x 20mm)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Owner’s Manual

AC Power Cord

Remote Control Unit and Battery

VGA Cable

Carrying Bag

Lens Cover

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution

Number of Pixels

Color System

Scanning Frequency

Projection Image size

(Diagonal)

Horizontal Resolution

Built-in Speaker

Operating Temperature

Storage Temperature

Accessories

LCD Panel System

● The specifications are subject to change without notice.

F 1.6 ~ 2.0 lens with f 20.3 mm ~ 28.2 mm with manual zoom and focus

3.6’ ~ 26.2’ (1.1 m ~ 8 m)

150 W

RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)

Projection Lens

Throw Distance

Projection Lamp

Video Input Jacks

Mini Jack (stereo) x 1

Audio Input Jacks

(VGA) HDB 15 Terminal x 1

Mini Jack (stereo) x 1

Mini DIN 8 pin x 1

Mini Jack (stereo) x 1

1.0 W RMS

Computer Input Terminals

Computer Audio Input Jack

Control Port Connector

Audio Output Jacks

Internal Audio Amp

0˚ to 10.7˚

Feet Adjustment

Power Source : Lithium Type (CR2025 / 3.0V)

Operating Range : 16.4’ (5m) / ±30˚

Dimensions : 2.1” x 0.28” x 5.3” (54mm x 7mm x 135mm)

Net Weight : 1.27oz (36 g) (including battery)

Remote Control Unit

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

High Definition TV Signal

USB Series B receptacle x 1

USB Connector

AC 100 ~ 120 V (2.5 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (1.4 A Max. Ampere), 50 / 60 Hz

(Continental Europe )

Voltage and

Power Consumption

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, give name and Type No. of it to the sales dealer.

● Wireless Remote Control Unit Type No. : LV-RC01

● Control Cable for PS/2Port Type No. : LV-CA25

● Control Cable for Serial Port Type No.: LV-CA26

● Control Cable for ADB Port Type No.: LV-CA27

● MAC Adapter Type No.: LV-AD02

● Ceiling Mount Hanger Type No.: LV-CL06

APPENDIX

CONFIGURATIONS OF THE TERMINALS

COMPUTER INPUT TERMINAL (ANALOG)

Terminal : HDB15-PIN

Connect the display output terminal of the computer to this terminal with the VGA Cable (supplied). When connecting the

Macintosh computer, MAC Adapter (not supplied) is required.

9 678

Pin Configuration

Terminal : Mini DIN 8-PIN

Connect control port (PS/2, Serial or ADB port) on your computer to this connector with Control Cable (not supplied).

8 7 6

Pin Configuration

CONTROL PORT CONNECTOR

Vcc

- Data

+ Data

Ground

USB CONNECTOR (Series B)

Pin Configuration

Connect USB port terminal on your computer or peripheral equipment to this connector with USB Cable (not supplied).

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red)

Ground (Green)

Ground (Blue)

No Connect

Horiz. sync.

Ground (Vert.sync.)

Sense 1

Sense 0

Vert. sync.

Reserved

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS / CTS

T X D

GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial

ADB

1AA6P1P3539-- (MS8P)

YT1-1333-000

PRINTED IN JAPAN

CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON U.S.A., INC.

One Canon Plaza, Lake Success, NY 11042, U.S.A.

CANON CANADA, INC.

6390 Dixie Road Mississauga, Ontario L5T 1P7 Canada

CANON LATIN AMERICA, INC.

703 Waterford Way Suite 400 Miami, Florida 33126 U.S.A.

CANON EUROPA N.V.

P.O.Box 2262, 1180 EG Amstelveen, The Netherlands

CANON COMMUNICATION & IMAGE FRANCE S.A.

102, Avenue du General de Gaulle, 92250 La Garenne Colombes, France

CANON (UK) LTD.

Woodhatch, Reigate, Surrey RH2 8BF, United Kingdom

CANON DEUTSCHLAND GmbH

Europark Fichtenhain A 10, 47807 Krefeld, Germany

CANON ITALIA S.p.A.

Palazzo L, Strada 6, 20089 Milanofiori-Rozzano (MI), Italy

CANON (Schweiz) A.G.

Industriestrasse 12, 8305 Dietlikon, Switzerland

CANON BENELUX N.V.

Neptunusstraat 1, 2132 JA Hoofddorp, The Netherlands

CANON BENELUX N.V./S.A.

Bessenveldstraat 7, 1831 Diegem (Machelen), Belgium

CANON GmbH

Zetschegasse 11, A-1232 Wien, Austria

CANON ESPANA S.A.

C/Joaquin Costa 41, 28002 Madrid, Spain

CANON SVENSKA AB

Stensätravägen 13, S-127 88 Skarholmen 2, Sweden

CANON NORGE A/S

Hallagerbakken 110, P. O. Box 2-33, Holmlia 1201 Oslo 12, Norway

CANON OY

Kornetintie 3, 00381 Helsinki, Finland

CANON HONGKONG CO., LTD.

9/F, The Hong Kong Club Building, 3A Chater Road, Central, Hong Kong

CANON SINGPORE PTE. LTD.

79 Anson Road #09-01/06, Singapore 079906

CANON AUSTRALIA PTY. LTD.

1 Thomas Holt Drive, North Ryde, Sydney, N.S.W.2113, Australia

CANON NEW ZEALAND LTD.

Suite 4, 2nd Floor, Asda Plaza, Fred Thomas Drive, P.O.Box 33-336, Takapuna, Auckland, New Zealand

Canon LV Series LV-S2

Product's Documents

User Manual

Specifications

Canon LV-S2 Questions and Answers

Related Products

Canon LV-5210 LV Series SVGA Portable Projector

Canon LV-WX300UST - 3000-Lumen WXGA Ultra-Short Throw DLP Projector

Canon LV Series LV-7355 XGA Conference Room Projector

Canon LV-7350 LV Series Projector

Canon LV-7265 LV Series XGA Conference Room Projector

Canon LV-7220 LV Series Multimedia Projector
