Instruction Manual and Installation Instructions
Washer dryer
WDU28...GB WDU28...SN
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WDU28560GB:
Your new washer dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 12
3
5 Positioning and connecting 13
3
* Getting to know the appliance 22
3
Z Laundry 25
3
P Overview of programmes 27
3
0 Programme default settings 32
3
\ Additional programme settings 33
3
1 Operating the appliance 35
3
Q Appliance settings 40
3
H Sensors 42
3
2 Cleaning and maintenance 42
4
3 Faults and what to do about them 46
4
4 After-sales service 51
4
[ Consumption values 52
4
J Technical data 53
4
8 Intended use
4
Intended use
4
■ This appliance is intended for private domestic use only.
4
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and ...
4
■ This appliance must only be used for drying and freshening up domestic laundry, consisting of items that have been washed with water and are suitable for tumble drying (see label on item). Using the appliance for any other purpose is outside of t...
4
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
5
■ Children must not play with this appliance.
5
■ Do not allow children to clean or maintain this appliance unsupervised.
5
■ Keep children under 3 years and pets away from this appliance.
5
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
■ The mains voltage on your power socket must match the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
■ The mains plug and the protective contact socket must match and the earthing system must be correctly installed.
6
■ The installation must have an adequate cross section.
6
■ The mains plug must be freely accessible at all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (all pole disconnection) must be built into the permanent installation in accordance with electrical...
6
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
7
Material damage/damage to the appliance
7
Operation
8
: Warning
8
Risk of explosions/fire!
8
■ Rinse the laundry thoroughly with warm water and detergent before drying it in the machine.
8
■ Do not place laundry in this appliance to be dried if the laundry has not been washed first.
8
■ Do not use the appliance if industrial chemicals have been used to clean the laundry.
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
■ During the last part of the drying cycle, the laundry in the drum is not heated (cooling cycle). This is to ensure that it remains at a temperature at which it will not be damaged.
9
■ Do not switch off the appliance before the drying cycle has finished unless you remove all items of laundry from the drum immediately and spread them out (to dissipate the heat).
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
10
Eye/skin irritation!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
■ Never take hold of the mains plug with wet hands.
10
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
■ Do not make any technical modifications to the appliance or its features.
10
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
11
■ Spare mains cables can be ordered from our customer service.
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
■ Do not allow these agents to come into contact with the surfaces of the appliance.
11
■ Clean the appliance with nothing but water and a soft, damp cloth.
11
■ Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
12
Environmental protection
12
Packaging/used appliance
12
Tips on economical use
12
■ Always fill the appliance with the maximum amount of laundry for each programme. ~ Page 27
12
■ Wash normally soiled laundry without pretreating.
12
■ For light and normal soiling in laundry, you can save energy and detergent.
12
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the appliance may deviate from this so that you get the optimum mix of energy-saving and washing results.
12
■ Energy-saving mode: If the appliance is not operated for a prolonged period (approx. 5 minutes), the Touch-Display lighting goes out before the programme starts and when the programme has ended to save energy, # flashes. Touch any area of Touch-D...
12
■ Automatic switch off: If the appliance is not operated for a prolonged period (at least 20 minutes, depending on the water level inside of appliance), it will automatically switch off before the programme starts or after the programme has ended. ...
12
■ If the laundry is then dried in the appliance, select the maximum possible spin speed. The less water the laundry contains, the less time and energy are required for drying.
12
5 Positioning and connecting
13
Positioning and connecting
13
Standard accessories
13
Note:
13
■ Installation and operating instructions
13
■ Customer Service location directory*
13
■ Warranty*
13
■ Supplementary sheet for the installation and operating instructions*
13
■ Cover caps for openings after the transport braces have been removed
13
■ Home Connect Installation Guides*
13
■ Spirit level for aligning
13
■ Wrench with:
13
– WAF13 for loosening the transport braces and
13
– WAF17 for aligning the appliance feet
13
Safety instructions
14
: Warning
14
Risk of injury!
14
Caution!
14
Damage to the appliance
14
Caution!
14
Water damage
14
Notes
14
Installation surface
14
Note:
14
Installation on a base or a wooden joist floor
14
Caution!
14
Damage to the appliance
14
Note:
14
Installing the appliance in a kitchenette
14
: Warning
14
Risk of death!
14
Notes
14
Removing the transport locks
15
Caution!
15
Damage to the appliance
15
Note:
15
1. Take the hoses out of the holders.
15
2. Unscrew and remove all four transport brace screws.
15
a) Remove the mains cable from the holders.
15
b) Remove the sleeves.
15

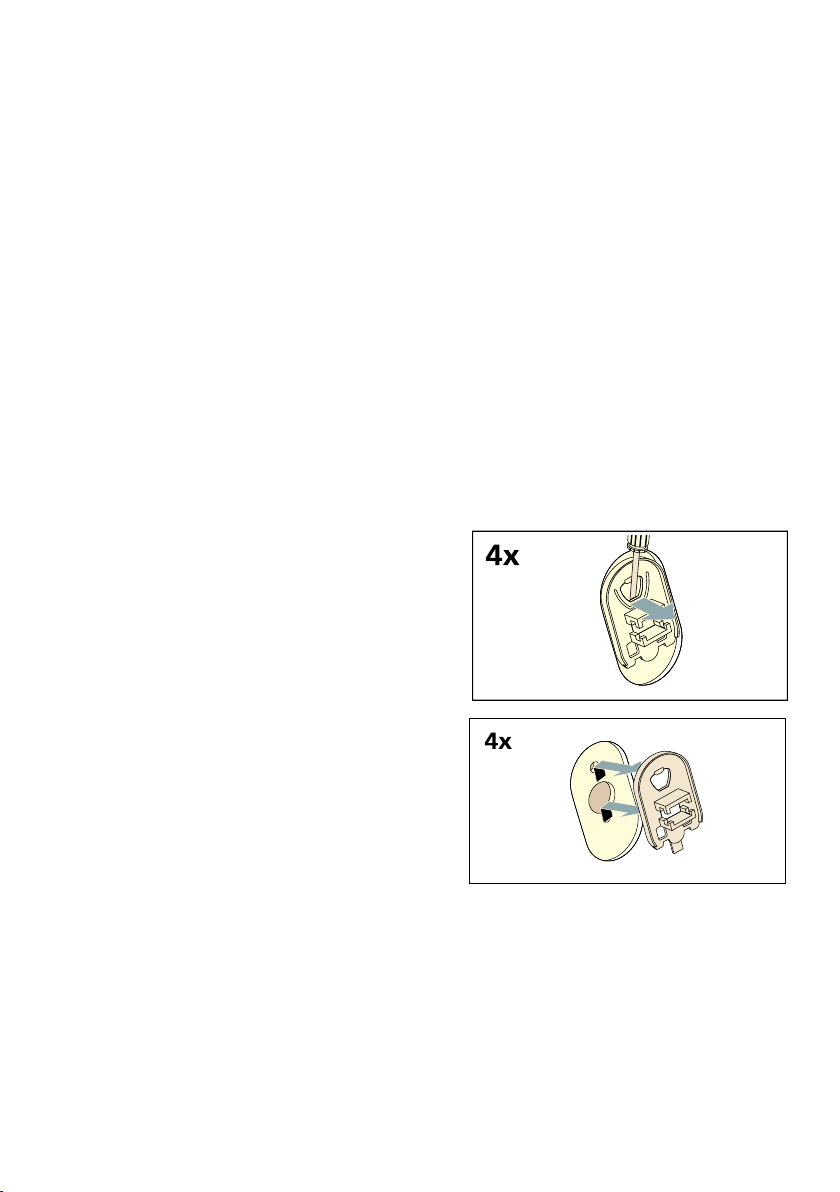

3. Fit the covers.
15
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
16
Tip:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16

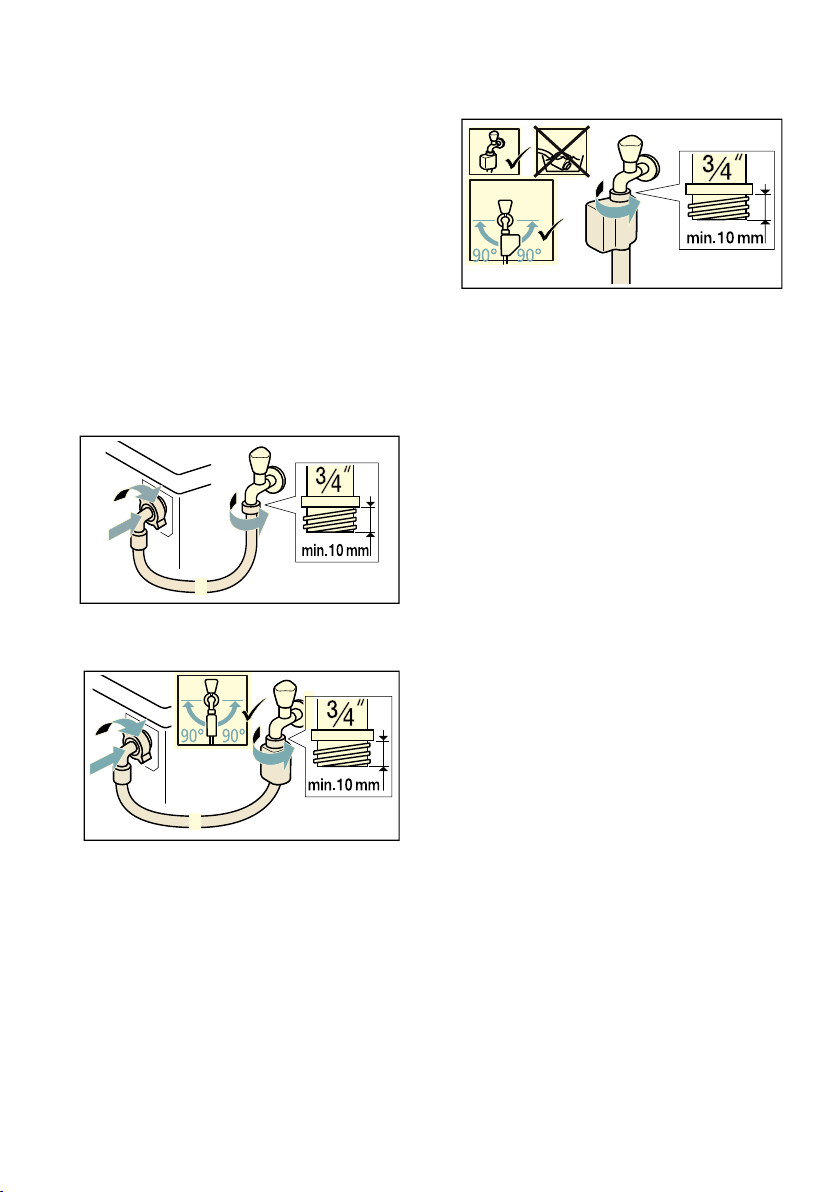

1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
17
– Model: Standard
17
– Model: AquaSecure
17
– Model: Aqua-Stop
17
Tip:
17
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
17
Water outlet
18
: Warning
18
Risk of scalding!
18
Caution!
18
Water damage
18
Caution!
18
Damage to the appliance/fabrics
18
Note:
18
Connection
18
■ Drainage into a washbasin
18
■ Drainage into a siphon
18
Note:
18
■ Drainage into a plastic pipe with rubber bushing or into a drainage pit
18
Note:
18
Alignment
19
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
19
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
19
3. Tighten the lock nut against the housing.
19
Electrical connection
19
: Warning
19
Risk of death!
19
Notes
19
Before washing for the first time
20
Note:
20
1. Insert mains plug.
20
2. Turn the water tap on.
20
3. Press the # button till the indicator lamp lights up, release the button. The appliance is switched on.
20
4. Close the door. Do not load any laundry.
20
5. Select the Drum Clean 90°C programme.
20
6. Open the detergent drawer.
20
7. Pour approx. 1 litre of water into dispenser II.
20
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
20
Note:
20
9. Close the detergent drawer.
20
10. Select A.
20
11. When the programme ends, press the # button till the indicator lamp turns off, release the button.
20
Transportation
20
Preparatory work:
20
1. Turn off the water tap.
20

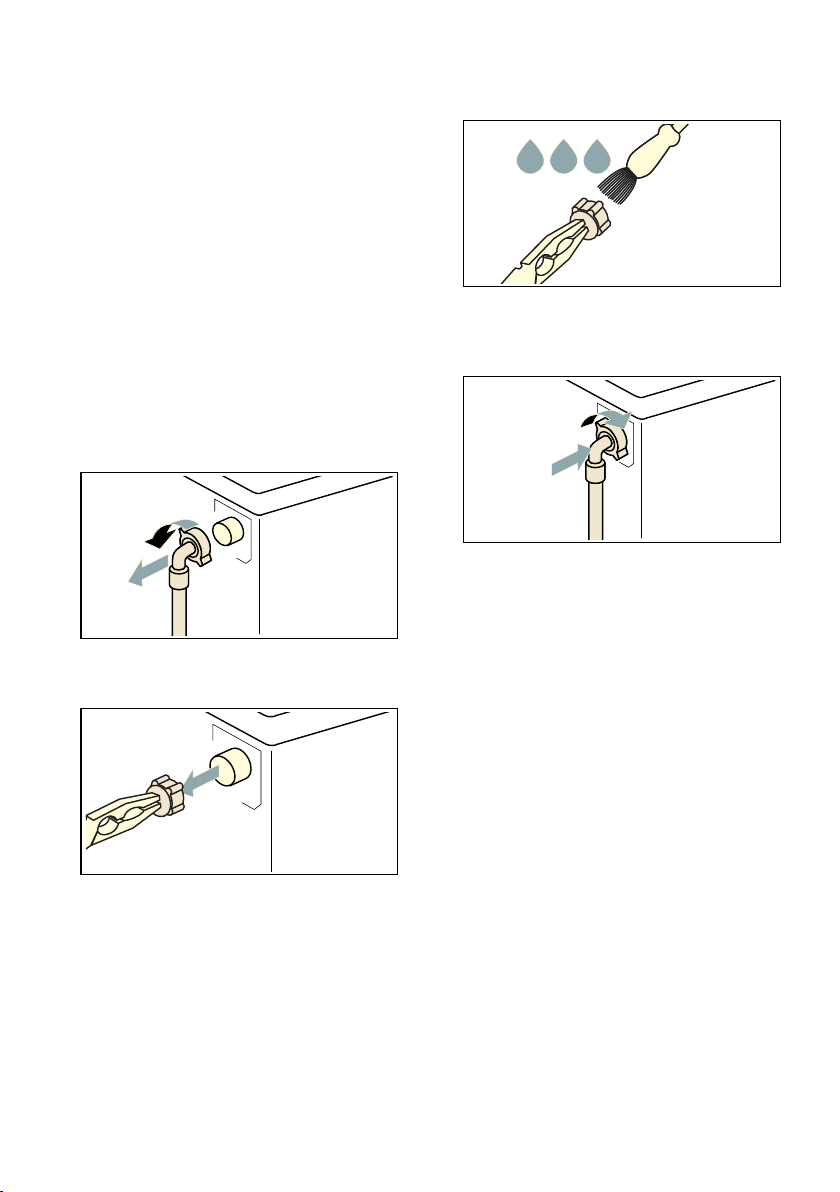

2. Reduce the water pressure in the supply hose. ~ Page 45
20
3. Drain any residual water. ~ Page 43
20
4. Disconnect the appliance from the mains.
20
5. Remove the hoses.
20

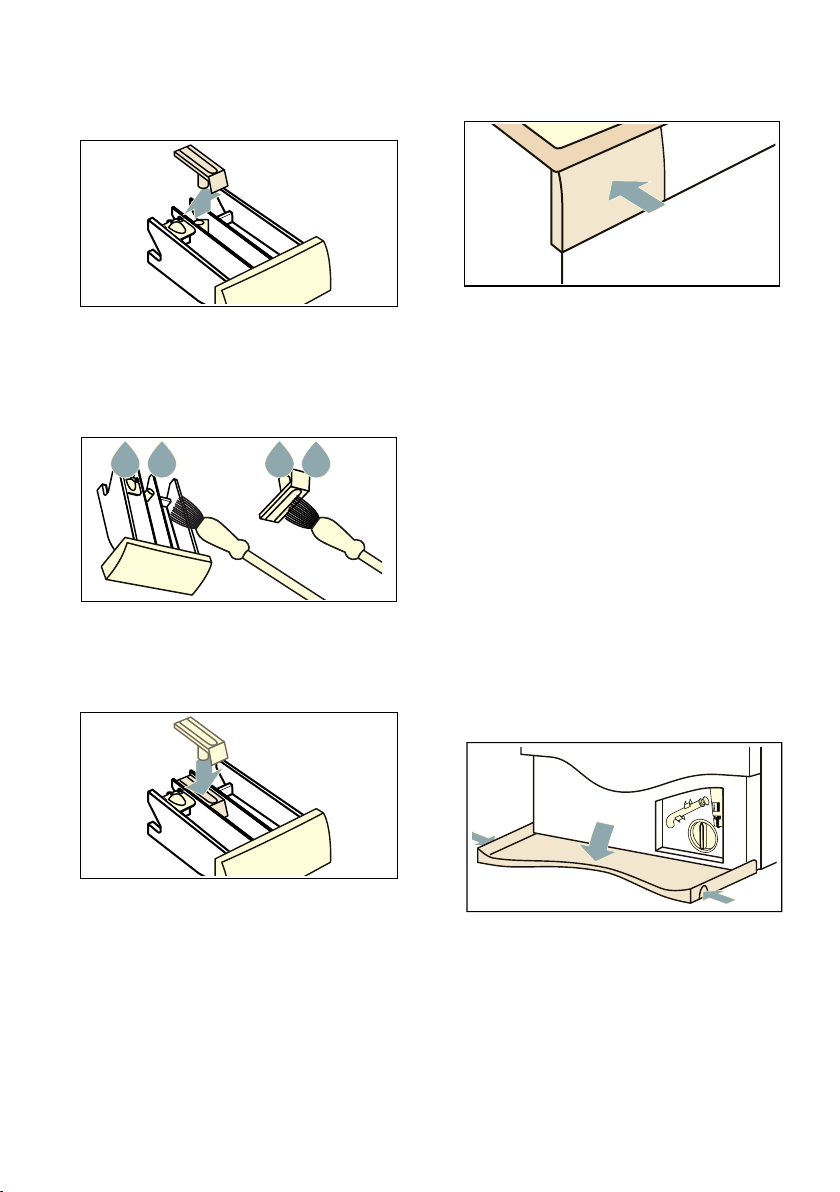

6. Empty the dispensers. ~ "Detergent drawer and housing" on page 42
20
Installing the transport locks:
20
1. Remove the covers and keep them in a safe place.
20
Note:
20

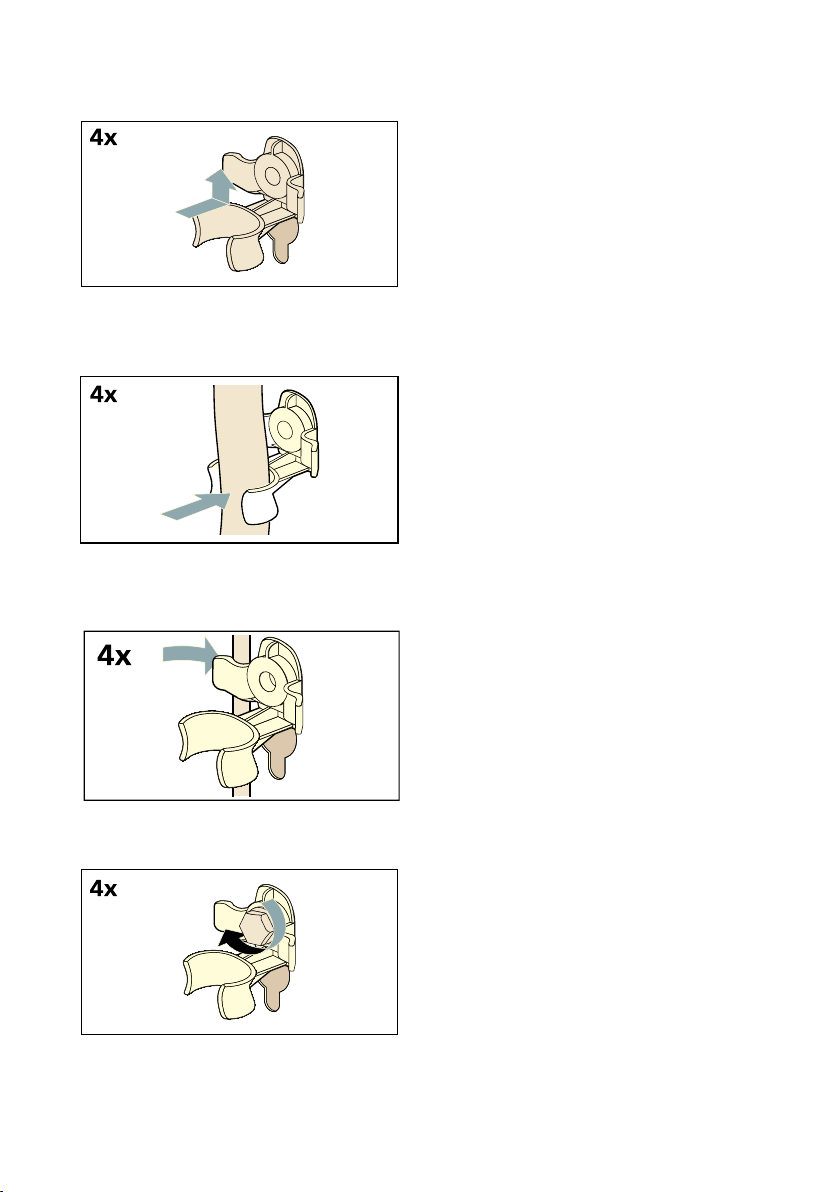

2. Insert all four sleeves.
21
a) Clip the hoses securely in the holders.
21
b) Clip the mains cable securely in the holders.
21
c) Insert and tighten the screws.
21
Notes
21
* Getting to know the appliance
22
Getting to know the appliance
22
Appliance
22
Control panel
23
Touch-Display
24
Programme default settings
24
Display
24
Setting
24
Description
24
Additional programme settings
24
Display
24
Setting
24
Status indicators for the programme progress (programme sequence)
25
Display
25
Setting
25
Z Laundry
25
Laundry
25
Preparing laundry for washing
25
Protecting your laundry and appliance
25
Caution!
25
Damage to the appliance/textiles
25
■ Always follow the manufacturer's instructions when dosing all detergents, cleaning aids, care products and cleaning agents.
25
■ Do not exceed maximum load. Overfilling will impair the washing result.
25
■ Keep detergents and agents for the pretreatment of laundry (e.g. stain remover, prewash sprays, etc.) away from the surfaces of the appliance. Using a damp cloth, immediately remove any fine spray residue and other residue or droplets.
25
■ Empty any pockets. Remove any foreign objects.
25
■ Remove metal parts (paper clips, etc.).
25
■ Trousers, knitwear and knitted textiles, e.g. jersey garments, T-shirts or sweatshirts, should be turned inside out.
25
■ Ensure that underwired bras are appliance-washable.
25
■ Wash delicates in a net or bag (tights, underwired bras, etc).
25
■ Close zips, button up covers.
25
■ Brush sand out of pockets and collars.
25
■ Remove curtain fittings or include in the net/bag.
25
Sorting laundry
25
■ Type of fabric/fibre
25
■ Colour
25
Note:
25
■ Soiling Wash laundry with the same level of soiling together.
25
– Light: Do not need to pretreat, select the Speed setting if necessary.
25
– Normal
25
– Heavy: Load less laundry, need to pretreat or soak laundry firstly.
26
– Stains: Remove/pretreat stains while they are fresh. First dab with soapy water; do not rub. Then wash the items of laundry with the appropriate programme. Stubborn or dried-in stains can sometimes only be removed by washing several times.
26
■ Symbols on the care labels
26
Preparing laundry for drying
26
Note:
26
■ a : You can select Cottons/Allergy+/MyTime + Dry
26
■ ` : You can select Easy-Care/Mixed Load/W Wool/ Down/Sportswear/Shirts + Dry
26
■ b = care symbol “Do not dry”
26
■ Delicates (silk, synthetic curtains).
26
■ Textiles which contain foam rubber or similar materials.
26
■ Textiles which were treated with flammable liquids, e.g. with stain remover, petroleum ether, thinners. Risk of explosion!
26
■ Textiles which still contain hairspray or similar substances.
26
Notes
26
P Overview of programmes
27
Overview of programmes
27
Selectable programme
27
Programme/Type of laundry
27
Options/Information
27

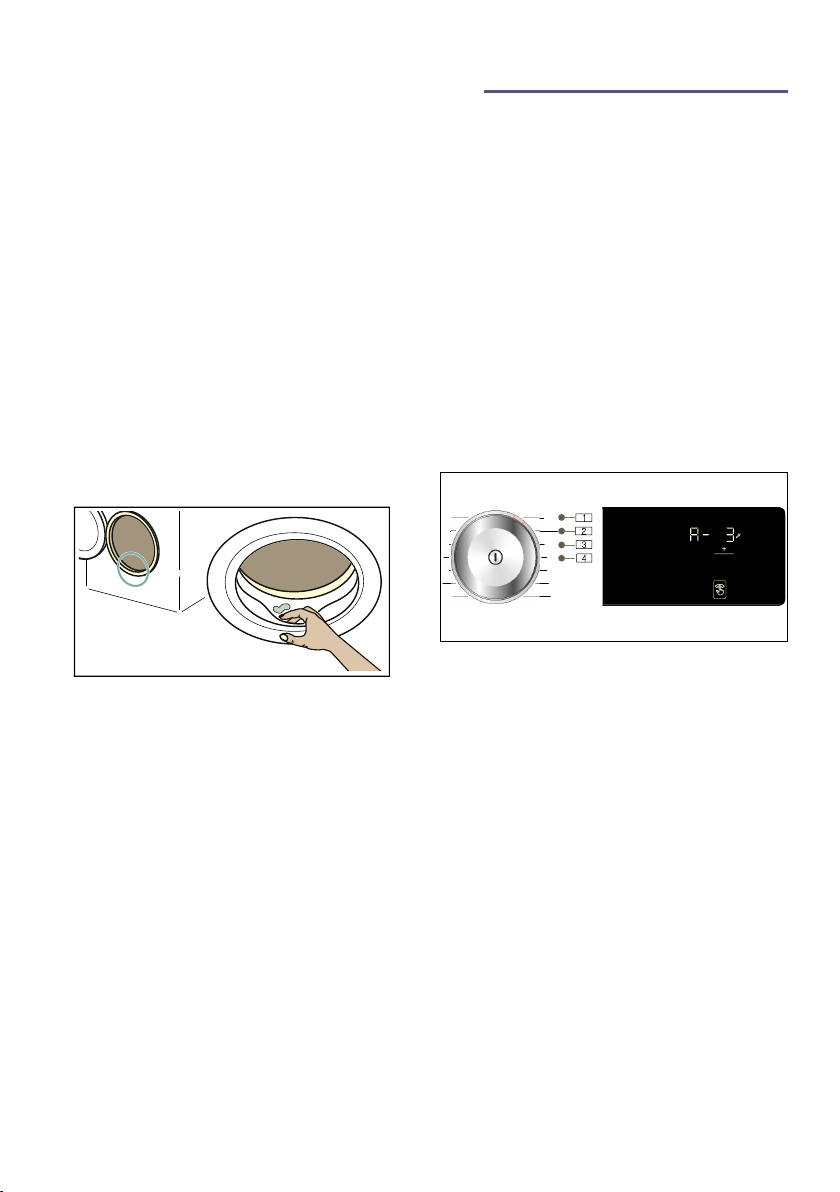

Note:
28
Notes
28
Note:
28
Notes
29
Note:
29
Notes
30
Note:
30
Notes
30
Drying table
31
Starching
32
Note:
32
1. Switch on the appliance.
32
2. Select the Rinse programme.
32
3. Measure starch into compartment © in accordance with the manufacturer's instructions (clean first if necessary).
32
4. Touch the A button.
32
Dyeing/bleaching
32
0 Programme default settings
32
Programme default settings
32
Temperature
32
Spin speed
32
Finish in
33
To do this:
33
1. Select a programme (except MyTime programme).
33
2. Select the ˜ button repeatedly until the required number of hours is displayed.
33
Note:
33
3. Select the A button.
33
Note:
33
After starting the programme (if a “Finish in” time has been selected and the programme has not yet started), you can change the preselected number of hours as follows:
33
1. Select the A button.
33
2. Touch the ˜ or ~ button to change the number of hours.
33
3. Select the A button.
33
\ Additional programme settings
33
Additional programme settings
33
Note:
33
Wash+Dry
33
Dry
33
» (Cupboard dry)
33
¾ (Cupboard dry+)
34
ö (Iron dry)
34
Speed
34
Note:
34
Eco
34
Note:
34
T (Prewash)
34
Note:
34
O (Rinse plus)
34
2 (Hygiene care)
34
Note:
34
p (Easy iron)
35
Note:
35
Z (Water plus)
35
â (Memory)
35
To store:
35
1. Switch on the appliance.
35
2. Select a programme.
35
3. If required, change the programme default settings and/or select programme additional settings.
35
4. Touch and hold â (Memory) button for approx. three seconds.
35
Á (Silent)
35
Note:
35
1 Operating the appliance
35
Operating the appliance
35
Preparing the appliance
35
Notes
35
1. Insert mains plug.
35
: Warning
35
Risk of death from electric shock!
35
2. Turn the water tap on.
36
3. Open the appliance door.
36
Switching on the appliance/ selecting a programme
36
Note:
36
Placing laundry into the drum
36
Notes
36
Dosing and adding detergent and care product
37
Caution!
37
Damage to the appliance
37
■ water hardness (ask your water supply company),
37
■ the manufacturer’s specifications on the packaging,
37
■ the amount of laundry,
37
■ soiling.
37
1. Pull out the detergent drawer.
37
: Warning
37
Eye / skin irritation!
37
2. Pour in detergent and/or cleaning product.
37
Notes
37
Position the measuring aid A for measuring the correct amount of liquid detergent:
37
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
37
2. Slide the measuring aid forwards, fold it down and click it into place.
37
3. Reinsert the drawer.
38
Note:
38
Starting the programme
38
Note:
38
Childproof lock
38
■ E (3s) lights up: The childproof lock is activated.
38
■ E (3s) flashes: If a button is touched while childproof lock is activated, the E (3s) button will flash.
38
Note:
38
Adding/removing laundry
39
■ The symbol Õ disappears, reloading is possible.
39
■ The symbol Õ lights up, reloading is not possible.
39
Notes
39
Changing the programme
39
If you have started the wrong programme by mistake, you can change the programme as follows:
39
1. Touch the A button.
39
2. Select another programme.
39
3. And touch the A button again. The new programme starts from the beginning.
39
Note:
39
Cancel the programme
39
For programmes washing at high temperatures:
39
1. Touch the A button.
39
2. To cool down laundry: Select Rinse.
39
3. Touch the A button.
39
For programmes washing at low temperatures:
39
1. Touch the A button.
39
2. Select Spin.
39
3. Touch the A button.
39
For programmes in drying process:
39
1. Switch the appliance off.
39
2. Switch the appliance on again.
39
3. To cool down laundry: Select the MyTime + Dry.
39
4. Touch the A button.
39
Programme end
39
Notes
39
Removing laundry/switching off the appliance
40
1. Press the # button till the indicator lamp turns off, release the button. The appliance is switched off.
40
2. Open the door and remove the laundry.
40
3. Turn off the water tap.
40
Note:
40
Notes
40
Q Appliance settings
40
Appliance settings
40
Automatic switch-off
40
Basic settings
40
■ The volume of the end signal.
40
■ The volume of the buttons.
40
■ The brightness of the Touch-Display.
40
■ Switching the Drum Clean information signal on/off.
40
End signal
41
Possible setting values:
41
Button signal
41
Possible setting values:
41
Brightness
41
Possible setting values:
41
Switching the drum-care information signal on/off
41
Possible setting values:
41
H Sensors
42
Sensors
42
Unbalanced load detection system
42
Note:
42
2 Cleaning and maintenance
42
Cleaning and maintenance
42
: Warning
42
Risk of death!
42
Caution!
42
Fire and explosion hazard!
42
Caution!
42
The appliance may be damaged!
42
Appliance housing/control panel
42
■ Remove the detergent residue immediately.
42
■ Wipe the housing and the control panel with a soft, damp cloth.
42
■ Do not use abrasive cloths, sponges or detergents (stainless steel cleaner).
42
■ Do not clean the appliance with a water jet.
42
Drum
42
Descaling
42
Detergent drawer and housing
42
If the appliance contains detergent or fabric softener residues:
42

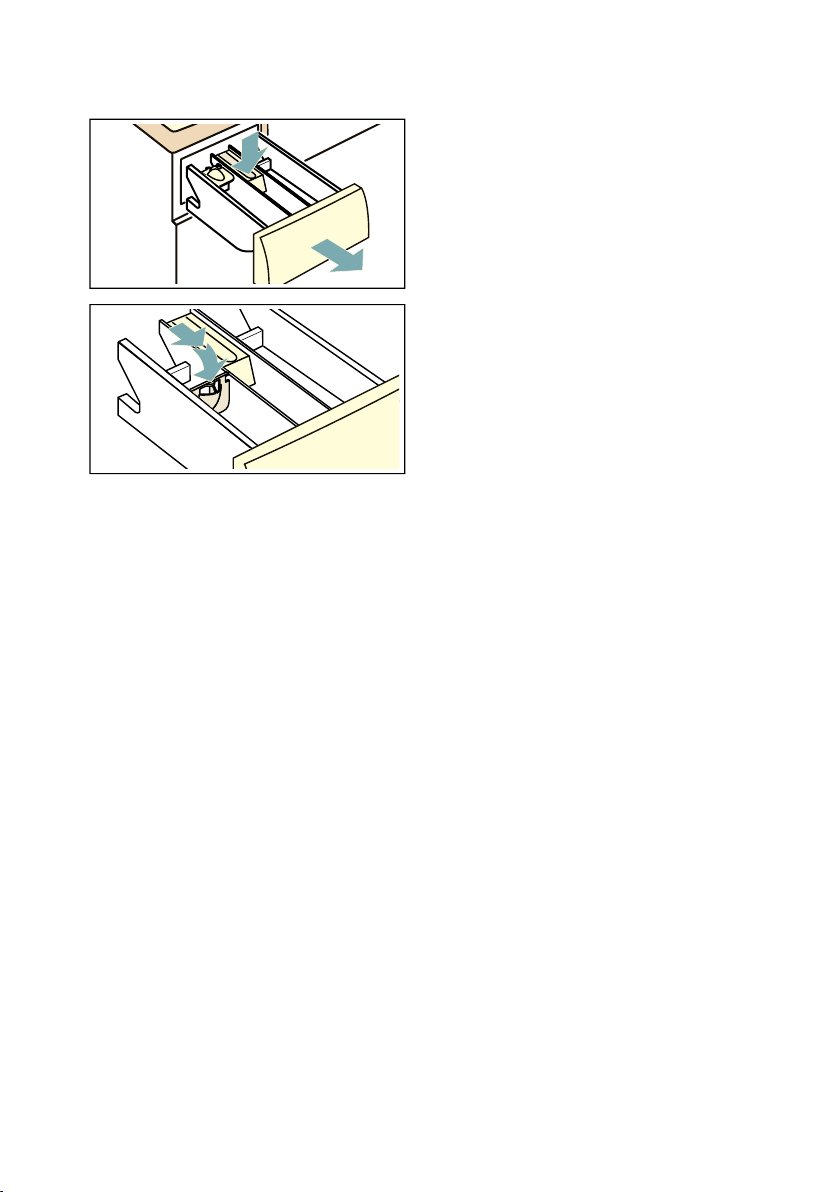

1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
42
2. To remove the insert: Push the insert upwards from below with your finger.
43
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
43
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
43
5. Push in the detergent drawer.
43
Note:
43
Drain pump is blocked
43
Note:
43
: Warning
43
Risk of scalding!
43
1. Switch off the appliance. Pull out the mains plug.
43
2. Open the service flap.
43
3. Take the drain hose out of the retainer.
44
4. Carefully unscrew the pump cover; residual water may leak out.
44
5. Refit and screw on the pump cover. The handle must be in a vertical position.
44
6. Close the service flap.
44
Note:
44
The drain hose at the siphon is blocked
44
1. Press the # button. Pull out the mains plug.
44
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
44
3. Clean the drain hose and siphon connecting piece.
44
4. Re-attach the drain hose and secure the connection point using the hose clamp.
44
Filter in the water supply is blocked
45
1. Turn off the water tap.
45
2. Select any programme (except Rinse/Spin/Drain programme).
45
3. Select the A button. Allow the programme to run for approx. 40 seconds.
45
4. Press the button #.
45
5. Pull out the mains plug.
45
1. Disconnect the hose from the rear of the appliance.
45
2. Use pliers to remove the filter.
45
3. Clean the filter with a small brush.
45
4. Connect the hose and check for leaks.
45
3 Faults and what to do about them
46
Faults and what to do about them
46
Emergency release
46
However, if the laundry has to be removed, the appliance door can be opened as follows:
46
: Warning
46
Risk of scalding!
46
: Warning
46
Risk of injury!
46
Caution!
46
Water damage!
46
1. Press the # button. Pull out the mains plug.
46
2. Open the service flap.
46
3. Drain the water. ~ Page 43
46
4. Pull the emergency release downwards with a tool and release.
46
Information on the display panel
47
Display
47
Cause/Remedy
47
Notes
47
Faults and what to do about them
48
Faults
48
Cause/Remedy
48
1. Empty and clean.
48
2. Refill.
48
1. Switch the appliance off and on again.
48
2. Wait for the display message àœ©˜ to disappear.
48
3. Touch and hold A for at least 5 s.
48
Note:
49
4 After-sales service
51
After-sales service
51
■ On the inside of the loading door
51
■ On the back of the appliance
51
[ Consumption values
52
Consumption values
52
Energy and water consumption, programme duration and residual moisture for the main washing programme (approximate values)
52
Programme
52
Load
52
Energy consumption*
52
Water consumption*
52
Programme duration*
52
J Technical data
53
Technical data
53
File type: PDF
File name: Bosch WDU28560GB Washer dryer.pdf
File size: 3.43 MB
File Language: English
Pages: 56
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Verified by
Kailyn Rutherford
on 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WDU28560GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WDU28568GB
WVH28424GB
WKD28351GB
WKD28541GB
WTWH7561GB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WDU28568GB
Bosch WDU28569GB
Bosch WDU28561GB
Bosch WDU28560SA
Bosch WDU28592
Bosch WDU28540
Bosch WDU28512
Bosch WDU28510
Bosch WDU8H549GB
Bosch WDU8H541GB
Bosch SGX68U55UC
Bosch PXE651FC1E
Bosch HBF133BS0A
Bosch DEM66AC00B/01
Bosch SMI50D05AU
Table of Contents
×
Your new washer dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 12
3
5 Positioning and connecting 13
3
* Getting to know the appliance 22
3
Z Laundry 25
3
P Overview of programmes 27
3
0 Programme default settings 32
3
\ Additional programme settings 33
3
1 Operating the appliance 35
3
Q Appliance settings 40
3
H Sensors 42
3
2 Cleaning and maintenance 42
4
3 Faults and what to do about them 46
4
4 After-sales service 51
4
[ Consumption values 52
4
J Technical data 53
4
8 Intended use
4
Intended use
4
■ This appliance is intended for private domestic use only.
4
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and ...
4
■ This appliance must only be used for drying and freshening up domestic laundry, consisting of items that have been washed with water and are suitable for tumble drying (see label on item). Using the appliance for any other purpose is outside of t...
4
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
5
■ Children must not play with this appliance.
5
■ Do not allow children to clean or maintain this appliance unsupervised.
5
■ Keep children under 3 years and pets away from this appliance.
5
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
■ The mains voltage on your power socket must match the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
■ The mains plug and the protective contact socket must match and the earthing system must be correctly installed.
6
■ The installation must have an adequate cross section.
6
■ The mains plug must be freely accessible at all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (all pole disconnection) must be built into the permanent installation in accordance with electrical...
6
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
7
Material damage/damage to the appliance
7
Operation
8
: Warning
8
Risk of explosions/fire!
8
■ Rinse the laundry thoroughly with warm water and detergent before drying it in the machine.
8
■ Do not place laundry in this appliance to be dried if the laundry has not been washed first.
8
■ Do not use the appliance if industrial chemicals have been used to clean the laundry.
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
■ During the last part of the drying cycle, the laundry in the drum is not heated (cooling cycle). This is to ensure that it remains at a temperature at which it will not be damaged.
9
■ Do not switch off the appliance before the drying cycle has finished unless you remove all items of laundry from the drum immediately and spread them out (to dissipate the heat).
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
10
Eye/skin irritation!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
■ Never take hold of the mains plug with wet hands.
10
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
■ Do not make any technical modifications to the appliance or its features.
10
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
11
■ Spare mains cables can be ordered from our customer service.
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
■ Do not allow these agents to come into contact with the surfaces of the appliance.
11
■ Clean the appliance with nothing but water and a soft, damp cloth.
11
■ Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
12
Environmental protection
12
Packaging/used appliance
12
Tips on economical use
12
■ Always fill the appliance with the maximum amount of laundry for each programme. ~ Page 27
12
■ Wash normally soiled laundry without pretreating.
12
■ For light and normal soiling in laundry, you can save energy and detergent.
12
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the appliance may deviate from this so that you get the optimum mix of energy-saving and washing results.
12
■ Energy-saving mode: If the appliance is not operated for a prolonged period (approx. 5 minutes), the Touch-Display lighting goes out before the programme starts and when the programme has ended to save energy, # flashes. Touch any area of Touch-D...
12
■ Automatic switch off: If the appliance is not operated for a prolonged period (at least 20 minutes, depending on the water level inside of appliance), it will automatically switch off before the programme starts or after the programme has ended. ...
12
■ If the laundry is then dried in the appliance, select the maximum possible spin speed. The less water the laundry contains, the less time and energy are required for drying.
12
5 Positioning and connecting
13
Positioning and connecting
13
Standard accessories
13
Note:
13
■ Installation and operating instructions
13
■ Customer Service location directory*
13
■ Warranty*
13
■ Supplementary sheet for the installation and operating instructions*
13
■ Cover caps for openings after the transport braces have been removed
13
■ Home Connect Installation Guides*
13
■ Spirit level for aligning
13
■ Wrench with:
13
– WAF13 for loosening the transport braces and
13
– WAF17 for aligning the appliance feet
13
Safety instructions
14
: Warning
14
Risk of injury!
14
Caution!
14
Damage to the appliance
14
Caution!
14
Water damage
14
Notes
14
Installation surface
14
Note:
14
Installation on a base or a wooden joist floor
14
Caution!
14
Damage to the appliance
14
Note:
14
Installing the appliance in a kitchenette
14
: Warning
14
Risk of death!
14
Notes
14
Removing the transport locks
15
Caution!
15
Damage to the appliance
15
Note:
15
1. Take the hoses out of the holders.
15
2. Unscrew and remove all four transport brace screws.
15
a) Remove the mains cable from the holders.
15
b) Remove the sleeves.
15
3. Fit the covers.
15
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
16
Tip:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
17
– Model: Standard
17
– Model: AquaSecure
17
– Model: Aqua-Stop
17
Tip:
17
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
17
Water outlet
18
: Warning
18
Risk of scalding!
18
Caution!
18
Water damage
18
Caution!
18
Damage to the appliance/fabrics
18
Note:
18
Connection
18
■ Drainage into a washbasin
18
■ Drainage into a siphon
18
Note:
18
■ Drainage into a plastic pipe with rubber bushing or into a drainage pit
18
Note:
18
Alignment
19
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
19
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
19
3. Tighten the lock nut against the housing.
19
Electrical connection
19
: Warning
19
Risk of death!
19
Notes
19
Before washing for the first time
20
Note:
20
1. Insert mains plug.
20
2. Turn the water tap on.
20
3. Press the # button till the indicator lamp lights up, release the button. The appliance is switched on.
20
4. Close the door. Do not load any laundry.
20
5. Select the Drum Clean 90°C programme.
20
6. Open the detergent drawer.
20
7. Pour approx. 1 litre of water into dispenser II.
20
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
20
Note:
20
9. Close the detergent drawer.
20
10. Select A.
20
11. When the programme ends, press the # button till the indicator lamp turns off, release the button.
20
Transportation
20
Preparatory work:
20
1. Turn off the water tap.
20
2. Reduce the water pressure in the supply hose. ~ Page 45
20
3. Drain any residual water. ~ Page 43
20
4. Disconnect the appliance from the mains.
20
5. Remove the hoses.
20
6. Empty the dispensers. ~ "Detergent drawer and housing" on page 42
20
Installing the transport locks:
20
1. Remove the covers and keep them in a safe place.
20
Note:
20
2. Insert all four sleeves.
21
a) Clip the hoses securely in the holders.
21
b) Clip the mains cable securely in the holders.
21
c) Insert and tighten the screws.
21
Notes
21
* Getting to know the appliance
22
Getting to know the appliance
22
Appliance
22
Control panel
23
Touch-Display
24
Programme default settings
24
Display
24
Setting
24
Description
24
Additional programme settings
24
Display
24
Setting
24
Status indicators for the programme progress (programme sequence)
25
Display
25
Setting
25
Z Laundry
25
Laundry
25
Preparing laundry for washing
25
Protecting your laundry and appliance
25
Caution!
25
Damage to the appliance/textiles
25
■ Always follow the manufacturer's instructions when dosing all detergents, cleaning aids, care products and cleaning agents.
25
■ Do not exceed maximum load. Overfilling will impair the washing result.
25
■ Keep detergents and agents for the pretreatment of laundry (e.g. stain remover, prewash sprays, etc.) away from the surfaces of the appliance. Using a damp cloth, immediately remove any fine spray residue and other residue or droplets.
25
■ Empty any pockets. Remove any foreign objects.
25
■ Remove metal parts (paper clips, etc.).
25
■ Trousers, knitwear and knitted textiles, e.g. jersey garments, T-shirts or sweatshirts, should be turned inside out.
25
■ Ensure that underwired bras are appliance-washable.
25
■ Wash delicates in a net or bag (tights, underwired bras, etc).
25
■ Close zips, button up covers.
25
■ Brush sand out of pockets and collars.
25
■ Remove curtain fittings or include in the net/bag.
25
Sorting laundry
25
■ Type of fabric/fibre
25
■ Colour
25
Note:
25
■ Soiling Wash laundry with the same level of soiling together.
25
– Light: Do not need to pretreat, select the Speed setting if necessary.
25
– Normal
25
– Heavy: Load less laundry, need to pretreat or soak laundry firstly.
26
– Stains: Remove/pretreat stains while they are fresh. First dab with soapy water; do not rub. Then wash the items of laundry with the appropriate programme. Stubborn or dried-in stains can sometimes only be removed by washing several times.
26
■ Symbols on the care labels
26
Preparing laundry for drying
26
Note:
26
■ a : You can select Cottons/Allergy+/MyTime + Dry
26
■ ` : You can select Easy-Care/Mixed Load/W Wool/ Down/Sportswear/Shirts + Dry
26
■ b = care symbol “Do not dry”
26
■ Delicates (silk, synthetic curtains).
26
■ Textiles which contain foam rubber or similar materials.
26
■ Textiles which were treated with flammable liquids, e.g. with stain remover, petroleum ether, thinners. Risk of explosion!
26
■ Textiles which still contain hairspray or similar substances.
26
Notes
26
P Overview of programmes
27
Overview of programmes
27
Selectable programme
27
Programme/Type of laundry
27
Options/Information
27
Note:
28
Notes
28
Note:
28
Notes
29
Note:
29
Notes
30
Note:
30
Notes
30
Drying table
31
Starching
32
Note:
32
1. Switch on the appliance.
32
2. Select the Rinse programme.
32
3. Measure starch into compartment © in accordance with the manufacturer's instructions (clean first if necessary).
32
4. Touch the A button.
32
Dyeing/bleaching
32
0 Programme default settings
32
Programme default settings
32
Temperature
32
Spin speed
32
Finish in
33
To do this:
33
1. Select a programme (except MyTime programme).
33
2. Select the ˜ button repeatedly until the required number of hours is displayed.
33
Note:
33
3. Select the A button.
33
Note:
33
After starting the programme (if a “Finish in” time has been selected and the programme has not yet started), you can change the preselected number of hours as follows:
33
1. Select the A button.
33
2. Touch the ˜ or ~ button to change the number of hours.
33
3. Select the A button.
33
\ Additional programme settings
33
Additional programme settings
33
Note:
33
Wash+Dry
33
Dry
33
» (Cupboard dry)
33
¾ (Cupboard dry+)
34
ö (Iron dry)
34
Speed
34
Note:
34
Eco
34
Note:
34
T (Prewash)
34
Note:
34
O (Rinse plus)
34
2 (Hygiene care)
34
Note:
34
p (Easy iron)
35
Note:
35
Z (Water plus)
35
â (Memory)
35
To store:
35
1. Switch on the appliance.
35
2. Select a programme.
35
3. If required, change the programme default settings and/or select programme additional settings.
35
4. Touch and hold â (Memory) button for approx. three seconds.
35
Á (Silent)
35
Note:
35
1 Operating the appliance
35
Operating the appliance
35
Preparing the appliance
35
Notes
35
1. Insert mains plug.
35
: Warning
35
Risk of death from electric shock!
35
2. Turn the water tap on.
36
3. Open the appliance door.
36
Switching on the appliance/ selecting a programme
36
Note:
36
Placing laundry into the drum
36
Notes
36
Dosing and adding detergent and care product
37
Caution!
37
Damage to the appliance
37
■ water hardness (ask your water supply company),
37
■ the manufacturer’s specifications on the packaging,
37
■ the amount of laundry,
37
■ soiling.
37
1. Pull out the detergent drawer.
37
: Warning
37
Eye / skin irritation!
37
2. Pour in detergent and/or cleaning product.
37
Notes
37
Position the measuring aid A for measuring the correct amount of liquid detergent:
37
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
37
2. Slide the measuring aid forwards, fold it down and click it into place.
37
3. Reinsert the drawer.
38
Note:
38
Starting the programme
38
Note:
38
Childproof lock
38
■ E (3s) lights up: The childproof lock is activated.
38
■ E (3s) flashes: If a button is touched while childproof lock is activated, the E (3s) button will flash.
38
Note:
38
Adding/removing laundry
39
■ The symbol Õ disappears, reloading is possible.
39
■ The symbol Õ lights up, reloading is not possible.
39
Notes
39
Changing the programme
39
If you have started the wrong programme by mistake, you can change the programme as follows:
39
1. Touch the A button.
39
2. Select another programme.
39
3. And touch the A button again. The new programme starts from the beginning.
39
Note:
39
Cancel the programme
39
For programmes washing at high temperatures:
39
1. Touch the A button.
39
2. To cool down laundry: Select Rinse.
39
3. Touch the A button.
39
For programmes washing at low temperatures:
39
1. Touch the A button.
39
2. Select Spin.
39
3. Touch the A button.
39
For programmes in drying process:
39
1. Switch the appliance off.
39
2. Switch the appliance on again.
39
3. To cool down laundry: Select the MyTime + Dry.
39
4. Touch the A button.
39
Programme end
39
Notes
39
Removing laundry/switching off the appliance
40
1. Press the # button till the indicator lamp turns off, release the button. The appliance is switched off.
40
2. Open the door and remove the laundry.
40
3. Turn off the water tap.
40
Note:
40
Notes
40
Q Appliance settings
40
Appliance settings
40
Automatic switch-off
40
Basic settings
40
■ The volume of the end signal.
40
■ The volume of the buttons.
40
■ The brightness of the Touch-Display.
40
■ Switching the Drum Clean information signal on/off.
40
End signal
41
Possible setting values:
41
Button signal
41
Possible setting values:
41
Brightness
41
Possible setting values:
41
Switching the drum-care information signal on/off
41
Possible setting values:
41
H Sensors
42
Sensors
42
Unbalanced load detection system
42
Note:
42
2 Cleaning and maintenance
42
Cleaning and maintenance
42
: Warning
42
Risk of death!
42
Caution!
42
Fire and explosion hazard!
42
Caution!
42
The appliance may be damaged!
42
Appliance housing/control panel
42
■ Remove the detergent residue immediately.
42
■ Wipe the housing and the control panel with a soft, damp cloth.
42
■ Do not use abrasive cloths, sponges or detergents (stainless steel cleaner).
42
■ Do not clean the appliance with a water jet.
42
Drum
42
Descaling
42
Detergent drawer and housing
42
If the appliance contains detergent or fabric softener residues:
42
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
42
2. To remove the insert: Push the insert upwards from below with your finger.
43
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
43
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
43
5. Push in the detergent drawer.
43
Note:
43
Drain pump is blocked
43
Note:
43
: Warning
43
Risk of scalding!
43
1. Switch off the appliance. Pull out the mains plug.
43
2. Open the service flap.
43
3. Take the drain hose out of the retainer.
44
4. Carefully unscrew the pump cover; residual water may leak out.
44
5. Refit and screw on the pump cover. The handle must be in a vertical position.
44
6. Close the service flap.
44
Note:
44
The drain hose at the siphon is blocked
44
1. Press the # button. Pull out the mains plug.
44
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
44
3. Clean the drain hose and siphon connecting piece.
44
4. Re-attach the drain hose and secure the connection point using the hose clamp.
44
Filter in the water supply is blocked
45
1. Turn off the water tap.
45
2. Select any programme (except Rinse/Spin/Drain programme).
45
3. Select the A button. Allow the programme to run for approx. 40 seconds.
45
4. Press the button #.
45
5. Pull out the mains plug.
45
1. Disconnect the hose from the rear of the appliance.
45
2. Use pliers to remove the filter.
45
3. Clean the filter with a small brush.
45
4. Connect the hose and check for leaks.
45
3 Faults and what to do about them
46
Faults and what to do about them
46
Emergency release
46
However, if the laundry has to be removed, the appliance door can be opened as follows:
46
: Warning
46
Risk of scalding!
46
: Warning
46
Risk of injury!
46
Caution!
46
Water damage!
46
1. Press the # button. Pull out the mains plug.
46
2. Open the service flap.
46
3. Drain the water. ~ Page 43
46
4. Pull the emergency release downwards with a tool and release.
46
Information on the display panel
47
Display
47
Cause/Remedy
47
Notes
47
Faults and what to do about them
48
Faults
48
Cause/Remedy
48
1. Empty and clean.
48
2. Refill.
48
1. Switch the appliance off and on again.
48
2. Wait for the display message àœ©˜ to disappear.
48
3. Touch and hold A for at least 5 s.
48
Note:
49
4 After-sales service
51
After-sales service
51
■ On the inside of the loading door
51
■ On the back of the appliance
51
[ Consumption values
52
Consumption values
52
Energy and water consumption, programme duration and residual moisture for the main washing programme (approximate values)
52
Programme
52
Load
52
Energy consumption*
52
Water consumption*
52
Programme duration*
52
J Technical data
53
Technical data
53
Search:
×
Search
