Further information and explanations are
available online:
Table of contents
1 Safety ...........................................4
1.1 General information................... 4
1.2 Intended use.............................. 4
1.3 Restriction on user group.......... 4
1.4 Safe installation ......................... 5
1.5 Safe use .................................... 6
1.6 Safe cleaning and mainten-
ance........................................... 9
2 Preventing material damage ....11
3 Environmental protection and
saving energy............................12
3.1 Disposing of packaging .......... 12
3.2 Save energy and conserve
resources................................. 12
3.3 Energy saving mode ............... 13
4 Installation and connection......13
4.1 Unpacking the appliance ........ 13
4.2 Contents of package ............... 13
4.3 Requirements for the install-
ation location ........................... 13
4.4 Removing the transit bolts ...... 14
4.5 Connecting the appliance ....... 15
4.6 Aligning the appliance............. 16
5 Before using for the first time ..17
5.1 Starting an empty washing
cycle ........................................ 17
6 Familiarising yourself with
your appliance...........................19
6.1 Appliance ................................ 19
6.2 Detergent drawer..................... 19
6.3 Control panel........................... 20
6.4 Operating logic........................ 20
7 Display .......................................22
8 Buttons ......................................25
9 Programmes ..............................28
10 Accessories.............................32
11 Laundry....................................32
11.1 Preparing the laundry............ 32
12 Detergents and care
products ..................................32
13 Basic operation .......................33
13.1 Switching on the appliance ... 33
13.2 Setting a programme ............ 33
13.3 Adjusting the programme
settings .................................. 33
13.4 Saving the programme set-
tings....................................... 33

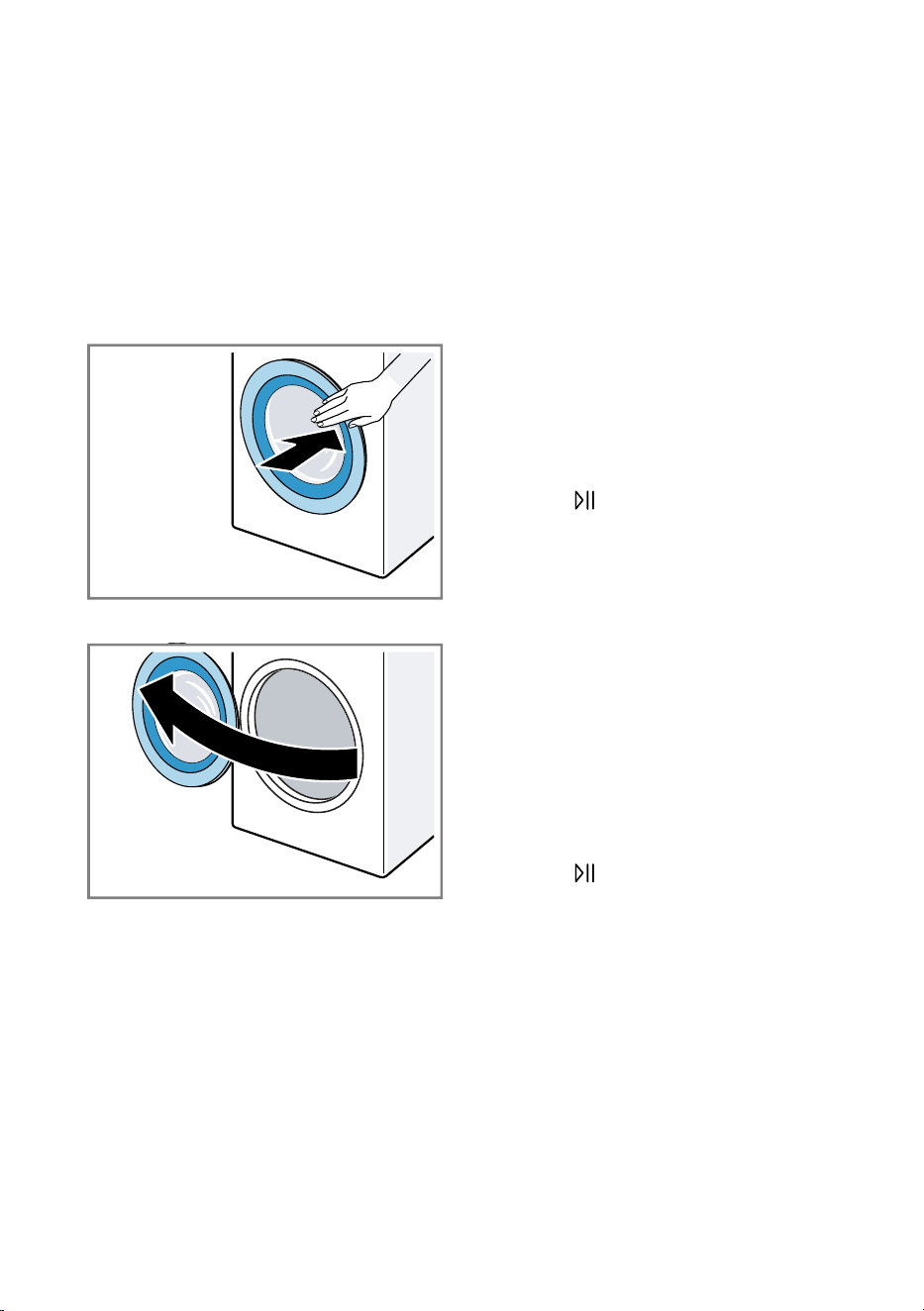

13.5 Opening the door .................. 34
13.6 Loading laundry..................... 34
13.7 Starting the programme ........ 34
13.8 Adding laundry ...................... 34
13.9 Cancelling the washing pro-
gramme ................................. 35
13.10 Cancelling the drying pro-
gramme ............................... 35
13.11 Unloading the laundry ......... 35
13.12 Put the appliance into
standby mode ..................... 35
14 Dryness level...........................35
14.1 Changing the dryness level... 36
15 Childproof lock........................36
15.1 Activating the childproof
lock........................................ 36
15.2 Deactivating the childproof
lock........................................ 36
en
3
16 Intelligent dosing system .......36
16.1 Pouring liquid detergent
and fabric softener into the
dispensers ............................. 36
16.2 Using the manual dosing
compartment ......................... 37
16.3 Adapting the / dis-
penser ................................... 37
16.4 Setting the basic dosage
amount .................................. 37
17 HomeConnect ........................38
17.1 Setting up the HomeCon-
nect app ................................ 38
17.2 Setting up HomeConnect..... 38
17.3 Activating Wi-Fi on the ap-
pliance ................................... 38
17.4 Deactivating Wi-Fi on the
appliance............................... 39
17.5 Installing the software up-
date ....................................... 39
17.6 Resetting the appliance
network settings .................... 39
17.7 Remote start .......................... 39
17.8 Data protection...................... 39
18 Basic settings..........................40
18.1 Overview of the basic set-
tings....................................... 40
18.2 Changing the basic set-
tings....................................... 40
19 Cleaning and servicing...........40
19.1 Cleaning the drum................. 40

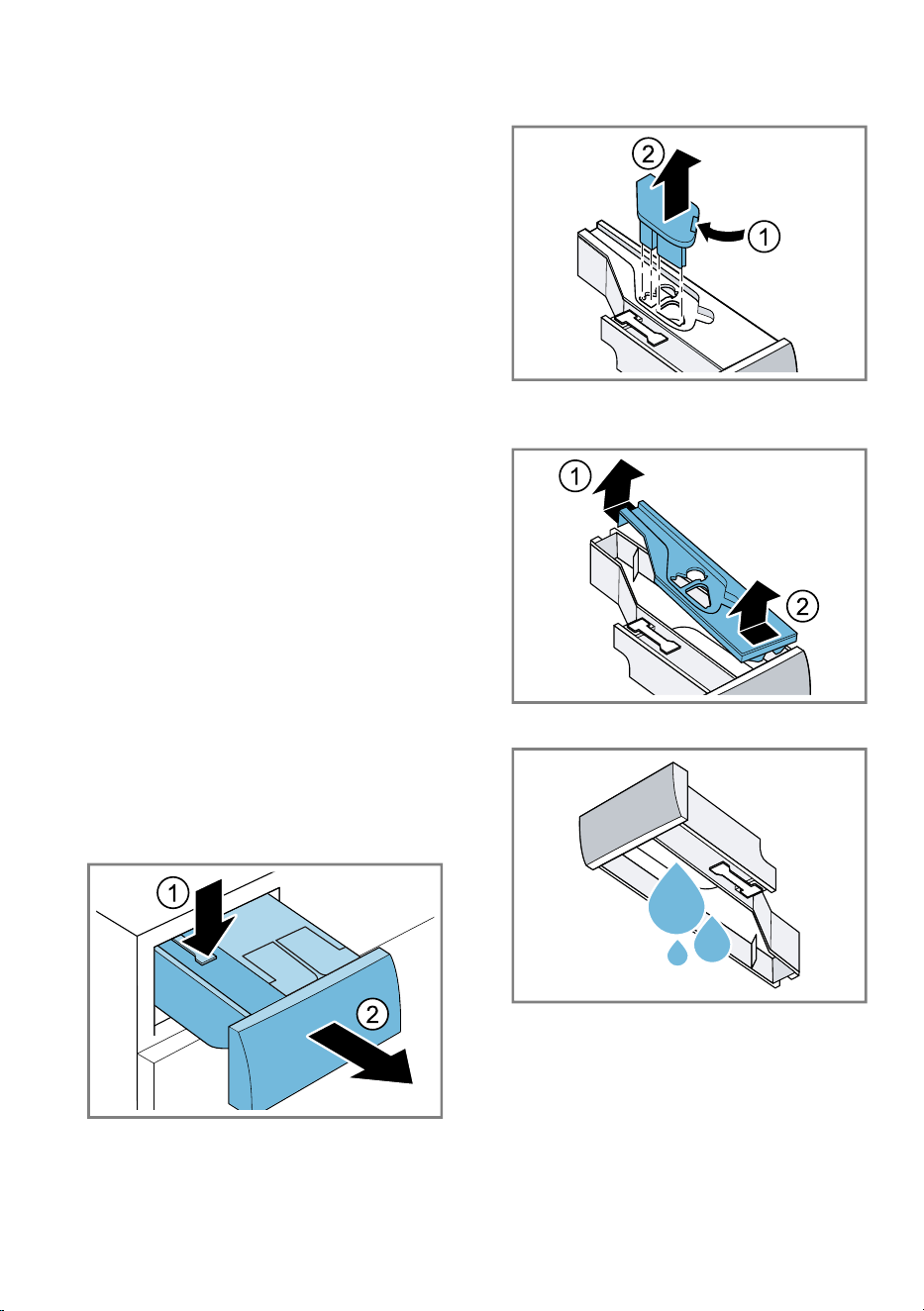

19.2 Cleaning the detergent
drawer.................................... 41

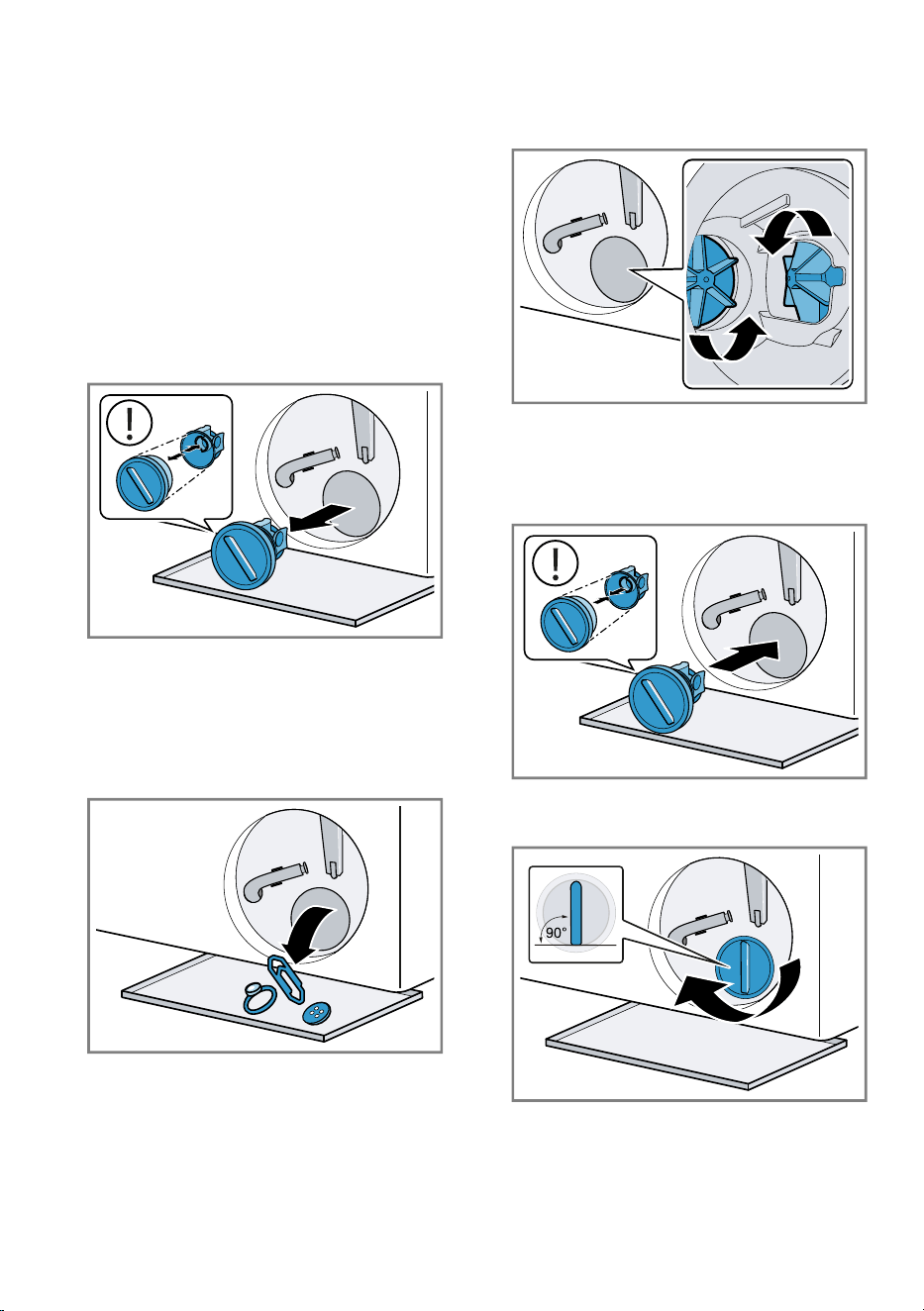

19.3 Cleaning the drain pump....... 42

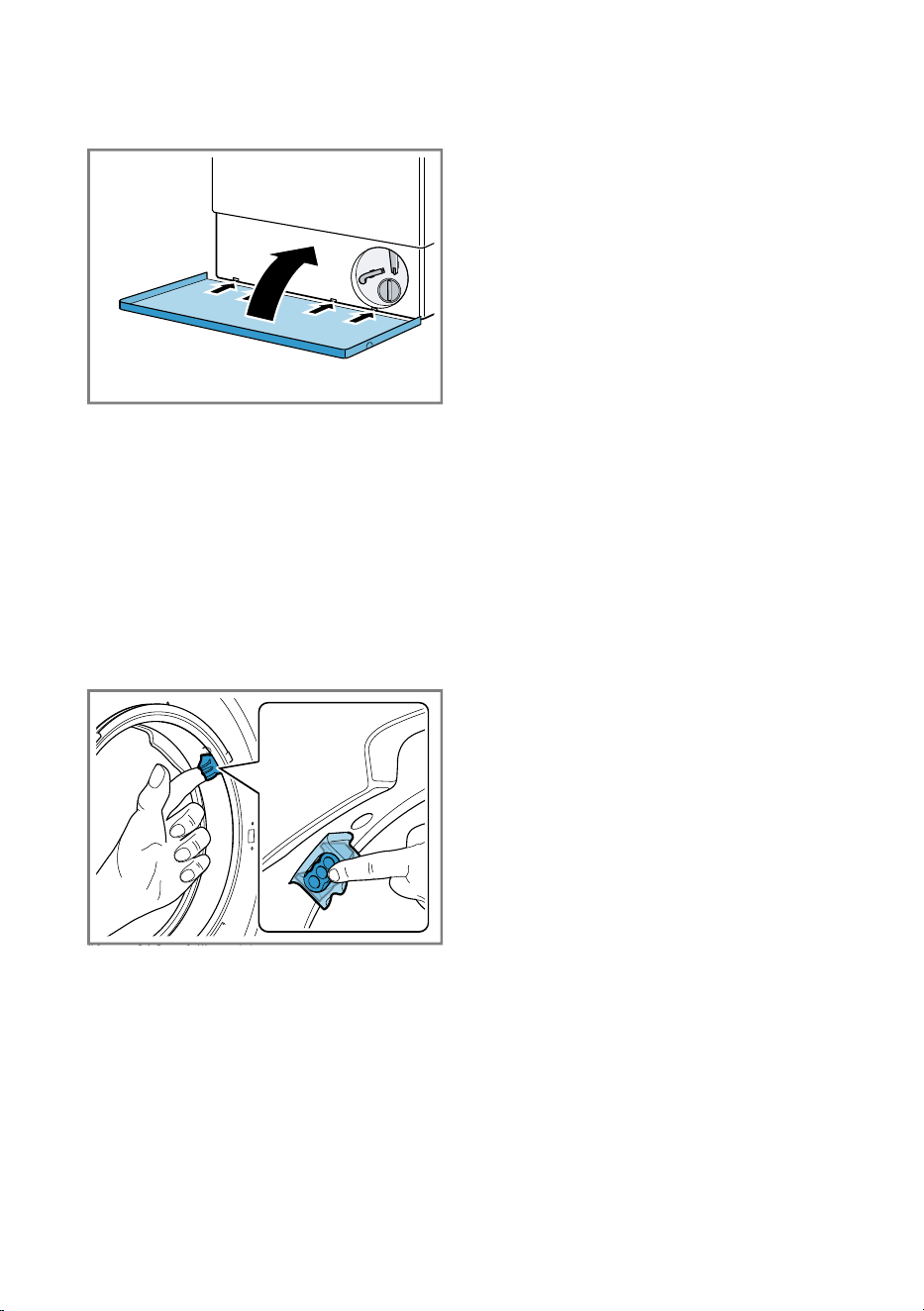

19.4 Cleaning the intake open-
ing in the rubber gasket........ 45
20 Troubleshooting......................46
20.1 Emergency release ............... 53
21 Transportation, storage and
disposal ...................................53
21.1 Removing the appliance ....... 53
21.2 Inserting the transit bolts....... 53
21.3 Using the appliance again .... 53
21.4 Disposing of old appliance ... 54
22 Customer Service....................54
22.1 Product number (E-Nr.),
production number (FD)
and consecutive numbering
(Z-Nr.) .................................... 54
22.2 AQUA-STOP guarantee ......... 55
23 Consumption values...............56
24 Technical data .........................57
25 Declaration of Conformity ......58
25.1 Statement of Compliance
for Great Britain ..................... 58
en Safety
4
1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ for washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ with tap water and commercially available detergents and care
products suitable for washing machines.
¡ for drying and freshening up fabrics that are washed with water
and suitable for dryers.
¡ in private households and in enclosed spaces in a domestic en-
vironment.
¡ up to an altitude of max. 4000m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
Safety en
5
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
▶ Connect and operate the appliance only in accordance with the
specifications on the rating plate.
▶ Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
▶ The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
▶ When using a residual current circuit breaker, only use a type
with the mark.
▶ Never equip the appliance with an external switching device,
e.g. a timer or remote control.
▶ Never connect the appliance to a circuit that is regularly
switched on and off by the energy supplier.
▶ When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
all-pole isolating switch must be installed in the permanent elec-
trical installation according to the installation regulations.
▶ When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance
parts or heat sources.
▶ Never let the power cord come into contact with sharp points or
edges.
▶ Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufac-
turer.
en Safety
6
▶ If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
WARNING‒Risk of injury!
The heavy weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
▶ Place the appliance on a clean, even, solid surface.
▶ Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
▶ Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
▶ Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶ Do not touch the sharp edges on the appliance.
▶ Wear protective gloves when installing and transporting the ap-
pliance.
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
Safety en
7
▶ If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box and
turn off the water tap.
▶ Call customer services. →Page54
An ingress of moisture can cause an electric shock.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶ Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
▶ With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
When spinning larger, waterproof items of laundry, imbalances
may arise and lead to injuries.
▶ Do not wash and spin larger items of laundry, such as blankets
or mattress covers, in the appliance.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
▶ Keep small parts away from children.
▶ Do not let children play with small parts.
WARNING‒Risk of explosion!
If there is coal dust or flour in the air around the appliance, this
may cause an explosion.
▶ Keep the area around the appliance clean during operation.
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con-
sumed.
▶ If accidentally swallowed, seek medical advice.
en Safety
8
▶ Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Highly flammable objects such as lighters or matches may ignite
during the drying process.
▶ Remove all highly flammable objects from any pockets in your
laundry before the drying process.
Unwashed laundry that has come into contact with solvents, oil,
wax, wax remover, paint, grease or stain remover may ignite when
drying is in progress.
▶ Do not place laundry in this appliance to be dried if the laundry
has not been washed first.
▶ Rinse the laundry thoroughly with warm water and detergent be-
fore drying it in the machine.
▶ Do not use the appliance if industrial chemicals have been used
to clean the laundry beforehand.
Laundry that has been pretreated with flammable cleaning agents
that contain solvents may cause an explosion in the appliance.
▶ Rinse pretreated laundry thoroughly with water before washing.
WARNING‒Risk of fire!
If drying is interrupted early, the laundry is not cooled sufficiently
and may ignite.
▶ Do not interrupt the drying programme early.
▶ If drying is interrupted early, remove the laundry immediately
and spread it out.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
▶ Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
▶ Do not sit on or lean against the appliance door.
▶ Do not place any objects on the appliance door.
Safety en
9
Reaching into the drum while it is still turning may cause hand in-
juries.
▶ Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk of scalding!
When you wash at high temperatures, the detergent solution gets
hot.
▶ Do not touch the hot detergent solution.
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care products
may spray out from the appliance. Contact with eyes or skin may
cause irritation.
▶ Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its
features.
▶ Repairs to the appliance should only be carried out by trained
specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
▶ Before cleaning, pull out the mains plug or switch off the fuse in
the fuse box.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
en Safety
10
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
▶ Do not use cleaning agents that contain solvents.
Preventing material damage en
11
Preventing material damage
2 Preventing material
damage
Preventing material damage
ATTENTION!
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
▶ Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
▶ Observe the maximum load capa-
city for each programme and do
not exceed it.
→"Programmes", Page28
Foam and foam rubber may deform
or melt during the drying process.
▶ Do not dry laundry that contains
foam or foam rubber.
The appliance is secured for trans-
portation using transit bolts. Transit
bolts which have not been removed
may result in material damage and
damage to the appliance.
▶ Before starting up the appliance,
remove the transit bolts completely
and keep them in a safe place.
▶ Before transport, fit the transit bolts
fully in order to prevent damage in
transit.
Material damage may be caused if
the water inlet hose is connected in-
correctly.
▶ Tighten the screw connections on
the water inlet until they are hand-
tight.
▶ Connect the water inlet hose dir-
ectly to the water tap, without any
additional connecting elements
such as adapters, extensions or
valves.
▶ Make sure that the valve housing
for the water inlet hose does not
come into contact with its sur-
roundings and is not subjected to
any external forces.
▶ Ensure that the inner diameter of
the water tap is at least 17mm.
▶ Make sure that the length of the
thread on the connection to the
water tap is at least 10mm.
If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
▶ Ensure that the water pressure in
the water supply system is at least
100kPa (1bar) and max.
1000kPa (10bar).
▶ If the water pressure exceeds the
maximum value specified, a pres-
sure-reducing valve must be in-
stalled between the drinking water
connection and the hose set of the
appliance.
▶ Do not connect the appliance to
the mixer tap of an unpressurised
hot-water boiler.
Modified or damaged water hoses
may result in material damage and
damage to the appliance.
▶ Never kink, crush, modify or cut
through water hoses.
▶ Only use the water hoses supplied
with the appliance or genuine
spare hoses.
▶ Never re-use water hoses that
have been used before.
Operating the appliance using water
that is dirty or too hot may lead to
material damage and damage to the
appliance.
▶ Only operate the appliance with
cold mains water.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
▶ Do not use harsh or abrasive de-
tergents.
en Environmental protection and saving energy
12
▶ Do not use cleaning products with
a high alcohol content.
▶ Do not use hard scouring pads or
cleaning sponges.
▶ Clean the appliance with nothing
but water and a soft, damp cloth.
▶ Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
Environmental protection and saving energy
3 Environmental protec-
tion and saving energy
Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶ Sort the individual components by
type and dispose of them separ-
ately.
3.2 Save energy and con-
serve resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programmes with low tem-
peratures and longer wash times and
use maximum load capacity.
a
Energy consumption and water
consumption is most efficient.
Add detergent based on the laun-
dry's degree of soiling.
a
For light to normal soiling, a smal-
ler amount of detergent is suffi-
cient. Observe the dosage recom-
mendation from the detergent
manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
a
At lower temperatures, the appli-
ance consumes less energy. For
light to normal soiling, lower tem-
peratures than indicated on the
care label are also sufficient.
Set the maximum spin speed if you
want to dry the laundry in the appli-
ance afterwards.
a
The drier the laundry, the shorter
the programme duration when dry-
ing which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in
the laundry and increases the
volume of the spin noise.
Wash the laundry without prewash.
a
Washing with prewash increases
the programme duration and in-
creases energy and water con-
sumption.
The appliance has a continuous
automatic load adjustment function.
a
Depending on the type of fabric
and load capacity, the continuous
automatic load adjustment func-
tion optimally adjusts the water
consumption and programme dur-
ation.
The appliance comes with an Aqua-
Sensor.
a
During the rinse cycle, the Aqua-
Sensor checks the degree of tur-
bidity of the rinsing water, and ad-
justs the duration and number of
rinse cycles accordingly.
Installation and connection en
13
3.3 Energy saving mode
If you do not use the appliance for a
brief period, it automatically switches
to energy-saving mode. All displays
go out and flashes.
Energy-saving mode ends when you
use the appliance again.
If you do not use the appliance for an
extended period, it automatically
switches to standby mode.
Installation and connection
4 Installation and con-
nection
Installation and connection
4.1 Unpacking the appliance
ATTENTION!
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
▶ Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the
appliance.
→"Disposing of packaging",
Page12
2. Check the appliance for visible
damage.
3.
Open the door. →Page34
4. Remove any accessories from the
drum.
5. Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION!
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
▶ Do not operate the appliance with
incomplete or defective accessor-
ies.
▶ Replace the accessories in ques-
tion before operating the appli-
ance.
→"Accessories", Page32
Note:The appliance has undergone
a function test at the factory. This
may cause water stains in the appli-
ance, which the first wash cycle re-
moves.
The delivery consists of the following:
¡ Washer dryer
¡ Accompanying documents
¡ Transit bolts
→"Removing the transit bolts",
Page14
¡ Cover caps
4.3 Requirements for the in-
stallation location
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶ Do not operate the appliance
without a cover cap.
en Installation and connection
14
WARNING
Risk of injury!
When using the appliance on a base,
the appliance may tip over.
▶ Always secure the feet of the appli-
ance to a base using the manufac-
turer's fixing brackets →Page32
before using the appliance for the
first time.
ATTENTION!
If residual water in the appliance
freezes, this may cause damage to
the appliance.
▶ Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
▶ Tilt the appliance carefully.
▶ Transport the appliance in an up-
right position.
Installation loca-
tion
Requirements
Base Secure the appli-
ance with fixing
brackets
→Page32.
Wooden joist
floor
Place the appli-
ance on a water-
resistant wooden
board (minimum
thickness of
30mm) which is
screwed tightly to
the floor.
Installation loca-
tion
Requirements
Kitchen unit Only install the
appliance under-
neath a continu-
ous worktop that
is securely con-
nected to adja-
cent cabinets.
Required niche
width: 60cm.
Against a wall Do not trap the
power cord or
the hoses
between the wall
and the appli-
ance.
4.4 Removing the transit
bolts
The appliance is secured for trans-
portation using transit bolts on the
rear of the appliance.
Note:Keep the transit bolt screws
and the sleeves in a safe place for fu-
ture transport.
→"Inserting the transit bolts",
Page53
1. Pull the hoses out of the holders.
Installation and connection en
15
2. Unscrew and remove all of
the screws for the 4 transit bolts
using a WAF 13 wrench.
3. Remove the power cable from the
holder.
4. Remove the 4 sleeves.
5. Put on the 4 cover caps.
6. Push the 4 cover caps downwards.
Note:To install the transit bolts to
transport the appliance, perform
these steps again in the reverse or-
der.
4.5 Connecting the appliance
Connecting the water inlet hose
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶ Do not immerse the electrical
AquaStop valve in water.
en Installation and connection
16
1. Connect the water inlet hose to a
tap (26.4mm=3/4").
2. Open the water tap carefully and
check that the connection points
are tight.
Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
ATTENTION!
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed con-
nection point.
▶ Secure the water outlet hose
against unintentional loosening.
Note:Observe the draining heights.
The draining heights are: minimum:
60cm, maximum: 100cm
Siphon Secure the con-
nection point with
a (24–40 mm)
hose clamp.
Sink Fix and secure
the water outlet
hose with an el-
bow.
→"Accessories",
Page32
Plastic pipe with
rubber sleeve
Fix and secure
the water outlet
hose with an el-
bow.
→"Accessories",
Page32
Connecting the appliance to the
electricity supply
Note:Your electrical domestic install-
ation for this appliance must comply
with the local legal provisions and
safety regulations, and should in-
clude a residual current circuit-
breaker.
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data →Page57.
2. Check the mains plug is inserted
properly.
4.6 Aligning the appliance
In order to reduce noise and vibra-
tion and to prevent the appliance
from moving, align the appliance cor-
rectly.
1. Use a WAF 17 wrench to loosen
the lock nuts in a clockwise direc-
tion.
Before using for the first time en
17
2. To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
3. Use a WAF 17 wrench to tighten
the lock nuts against the housing
until they are hand-tight.
In doing so, hold the foot tight and
do not adjust its height.
Before using for the first time
5 Before using for the
first time
Before using for the first time
Prepare the appliance for use.
5.1 Starting an empty wash-
ing cycle
Your appliance was inspected thor-
oughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.
1. Press .
The switch-on process takes a few
seconds.
2. Set the Cottons90°C programme.
3. Close the door.
4. Pull out the detergent drawer.
5. Add washing powder containing
oxygen bleach to the manual dos-
ing compartment.
To prevent foaming, use only half
of the amount of detergent recom-
mended by the detergent manufac-
turer for light soiling. Do not use
detergent suitable for woollens or
delicates.
6. Push in the detergent drawer.
7. Press to start the programme.
a The display shows the remaining
programme duration.
a After the programme has ended,
the display shows: "End".
Familiarising yourself with your appliance en
19
Familiarising yourself with your appliance
6 Familiarising yourself with your appliance
Familiarising yourself with your appliance
6.1 Appliance
You can find an overview of the parts of your appliance here.
1
2
4
6
3
5
8
7
7
On certain models, specific details such as the colour and shape may differ
from those pictured.
1
Maintenance flap for the drain
pump →Page42
2
Door
3
Detergent drawer →Page19
4
Control panel →Page20
5
Water outlet hose →Page16
6
Power cord →Page16
7
Transit bolts →Page14
8
Water inlet hose →Page15
6.2 Detergent drawer
Note:Observe the manufacturer's in-
structions on the use and dosage of
the detergent and care product and
the information in the programme de-
scriptions.
en Familiarising yourself with your appliance
20
2 31
1
Manual dosing compartment
→"Using the manual dosing
compartment", Page37
2
/ : Dispenser for fabric
softener or liquid detergent
→"Intelligent dosing system",
Page36
3
: Dispenser for liquid deter-
gent
→"Intelligent dosing system",
Page36
6.3 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2
1
3
2
1
1
Programmes →Page28
2
Buttons →Page25 and dis-
play →Page22
3
Buttons →Page25
6.4 Operating logic
Some areas of the display are but-
tons and respond to touch. You can
activate, deactivate or change set-
Familiarising yourself with your appliance en
21
tings by pressing the buttons. The ac-
tivated settings are highlighted
brightly on the display.
ATTENTION!
Pressing on the display with force
may cause damage.
▶ Do not apply heavy pressure on
the display.
▶ Do not press on the display using
pointed or sharp objects.
Displaying or hiding additional
buttons
Some buttons are hidden for a re-
duced display. If you display these
additional buttons on the display, you
can activate or deactivate the corres-
ponding settings.
1. To display the additional buttons,
briefly press Options.
a The display shows all additional
buttons.
2. To hide the additional buttons,
briefly press Options again.
Changing a setting value
If you activate certain settings, the
display shows selection buttons and
you can change the setting value.
▶ Press the selection buttons
→Page25.
The display shows the setting
value.
en Display
22
Display
7 Display
Display
The display shows the current settings, options or relevant information.
Example: Display
Display Description
0:40
1
Expected programme duration or programme time re-
maining in hours and minutes.
8h
1
Program end time
→"Buttons", Page25
6.0
1
Recommendation for the maximum load capacity for the
selected program in kg.
- 1400 Set spin speed in rpm.
→"Buttons", Page25
: No spin cycle, draining only
- 90 Set temperature in °C.
→"Buttons", Page25
(cold)
End Programme status: Programme end
Programme status: Crease and odour reduction
Programme status: Crease-reduction function
The dryness level is activated.
+ The dryness level is activated.
- The dryness level is activated.
1
Example
Display en
23
Display Description
The "Blood" stain type is activated.
The "Red wine" stain type is activated.
The "Cooking fat/cooking oil" stain type is activated.
Change the basic settings.
Flashes: Drum cleaning is required. Run the Cot-
tons90°C programme for cleaning and caring for the
drum and the outer tub.
→"Cleaning the drum", Page40
¡ Lights up: The appliance is connected to your home
network via Wi-Fi.
¡ Flashes: The appliance is trying to connect to your
home network via Wi-Fi.
→"HomeConnect ", Page38
Settings that are not available on the appliance have been
set via the HomeConnect app.
You can find more information in the HomeConnectapp.
¡ Lights up: The intelligent dosing system for liquid deter-
gent is activated.
¡ Flashes: The fill level of the dispenser is below the min-
imum level.
→"Intelligent dosing system", Page36
(liquid detergent)
¡ Lights up: The intelligent dosing system for liquid deter-
gent or fabric softener is activated.
¡ Flashes: The fill level of the dispenser is below the min-
imum level.
→"Intelligent dosing system", Page36
(liquid detergent)
(fabric softener)
50 ml
1
Basic dosage for detergent or fabric softener. →Page37
Flashes: The voltage control system has paused the pro-
gramme due to impermissible voltage drops or voltage
surges.
→" flashes and the programme is paused.", Page48
Note:The programme continues when the voltage is per-
missible again.
The appliance has detected too much foam.
→" or heavy foam build-up.", Page48
1
Example
en Display
24
Display Description
¡ Lights up: The door is locked.
– To add laundry, the door can be unlocked.
→"Adding laundry", Page34
– To open the door, you can cancel the programme.
→"Cancelling the washing programme", Page35
¡ Flashes: The door is not closed.
¡ No water pressure.
→"E:30 / -10, or H:95 and EndEnd.", Page47
¡ The water pressure from the tap is too low.
The detergent drawer has not been pushed in fully.
→" ", Page48
E:35 / -10
1
Error code, error display, signal.
→"Troubleshooting", Page46
1
Example
Buttons en
25
Buttons
8 Buttons
Buttons
The selection of programme settings depends on the programme that is set.
Button Selection Description
(mains
switch)
¡ Switch on
¡ Standby mode
¡ Restart the appli-
ance
Switch on the appliance or put it in
standby mode.
If the control panel does not respond,
press and hold for approximately
5seconds to restart the appliance.
Multiple selection To change a setting, press the or
selection button until the display
shows the required setting.
- 90 Adjust the temperature.
Set temperature in °C.
- 1400 Adjust the spin speed or deactivate
the spin cycle.
Set spin speed in rpm.
If is selected, the water is drained
and the spin cycle is deactivated. The
laundry stays wet inside the drum.
¡ Start
¡ Cancel
¡ Pause
Start, cancel or pause the pro-
gramme.
Finish in Up to 24 hours Set the programme end time.
The programme duration is already in-
cluded in the set number of hours.
Once the programme has started, the
programme duration is displayed.
Options ¡ Displaying or hiding
additional buttons
¡ If you briefly press the button, you
can display or hide additional but-
tons.
→"Displaying or hiding additional
buttons", Page21
Options Multiple selection
→"Basic settings", Page40
Speed Per-
fect
¡ Activate
¡ Deactivate
Activate or deactivate a shorter pro-
gramme duration.
Note:Energy consumption increases.
The washing result is not affected by
this.
en Buttons
26
Button Selection Description
Prewash ¡ Activate
¡ Deactivate
Activate or deactivate prewash, e.g.
for washing heavily soiled laundry.
Note:If the intelligent dosing system
is activated, the detergent will be dis-
pensed automatically for the prewash
and the main wash.
If the intelligent dosing system is de-
activated, place the detergent directly
in the drum for the prewash and into
the manual dosing compartment for
the main wash.
→"Detergent drawer", Page19
Extra Rinse ¡ Activate
¡ Deactivate
Activate or deactivate an additional
rinse cycle.
Recommended for particularly sensit-
ive skin or in regions with very soft
water.
Reduced
Ironing
¡ Activate
¡ Deactivate
Activate or deactivate the reduced
creasing programme.
In order to reduce creasing in the
laundry, the spin cycle and the spin
speed are adapted.
Note:The laundry has a higher resid-
ual moisture after washing. To reduce
creasing, hang up the laundry immedi-
ately after washing.
3 sec. ¡ Activate
¡ Deactivate
→"Childproof lock", Page36
Favourite ¡ Saving
¡ Setting
Press the button for approx. 3
seconds to save your customised pro-
gram settings.
→"Saving the programme settings",
Page33
If you briefly press the button, you can
set customised program settings for
your program.
Buttons en
27
Button Selection Description
Hygiene
Care
¡ Activate
¡ Deactivate
Activate or deactivate gentle pretreat-
ment of dry laundry with hot air up to
65 °C for increased hygiene de-
mands.
After the fabrics have been pretreated
with hot air, they are washed at low
temperatures.
Note:The drum lighting remains act-
ive for up to approx. 10 minutes after
the programme starts.
Anti Stain Multiple selection Select the type of stain.
The temperature, drum movement and
soaking time are all adjusted to suit
the type of stain.
i-DOS 1 ¡ Activate
¡ Deactivate
¡ Setting the basic
dosage amount
Briefly press the button to activate or
deactivate the intelligent dosing sys-
tem for liquid detergent .
Press and hold the button for approx.
3 seconds to set the basic dosage.
→Page37
i-DOS 2 ¡ Activate
¡ Deactivate
¡ Adapting the dis-
penser
¡ Setting the basic
dosage amount
Briefly press the button to activate or
deactivate the intelligent dosing sys-
tem for fabric softener or liquid de-
tergent .
Press the button for approximately 3
seconds to adapt the contents of the
/ dispenser or set the basic
dosage.
→"Intelligent dosing system",
Page36
Dry ¡ Activate
¡ Deactivate
Activate or deactivate drying without
washing beforehand.
Wash&Dry ¡ Activate
¡ Deactivate
Activate washing with subsequent dry-
ing.
¡ -
¡
¡ +
The dryness level defines how damp
or dry the laundry is after the pro-
gramme ends.
Remote
Start
¡ Activate
¡ Deactivate
¡ Opening the
HomeConnect set-
tings
Activate or deactivate remote start.
→Page39
en Programmes
28
Programmes
9 Programmes
Programmes
Note:The laundry's care labels provide you with additional information on pro-
gramme selection.
Programme Description Max.
load
(kg)
Wash
Max.
load
(kg)
Dry-
ing
Cottons Wash hard-wearing items made of cotton,
linen or blended fabrics.
Also suitable as a short programme for nor-
mally soiled laundry when you activate
Speed Perfect.
Programme setting:
¡ Max. 90 °C
¡ Max. 1400rpm
10.0
5.0
1
6.0
Eco 40-60 Wash items made from cotton, linen or blen-
ded fabrics.
Note:Fabrics which can be washed from
40°C up to 60°C as per the care
symbol can be washed together.
The washing performance corresponds to the
best possible washing performance class ac-
cording to the legal requirements.
For this programme, the washing temperature
is automatically adjusted depending on the
load size, in order to achieve the best pos-
sible energy efficiency with the best possible
washing result. You cannot change the wash-
ing temperature.
Programme setting:
Note:The temperature cannot be adjusted in
this programme and is set automatically.
¡ Max. - °C
¡ Max. 1400rpm
10.5 6.0
Delicates/Silk Wash delicate, washable items made from
silk, viscose and synthetic fabrics.
Use a detergent that is suitable for delicates
or silk.
2.0 –
2
1
Speed Perfect activated
2
Drying not possible
3
Washing not possible
Programmes en
29
Programme Description Max.
load
(kg)
Wash
Max.
load
(kg)
Dry-
ing
Note:Wash especially delicate items or items
with hooks, eyelets or clips in a mesh laundry
bag.
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
Wool Hand- or machine-washable items that are
made from wool or contain wool.
To prevent the laundry from shrinking, the
drum moves the items very gently with long
pauses.
Use a detergent that is suitable for wool.
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
2.0 1.0
Rinse Rinse and then spin the laundry, and drain the
water.
Programme setting: Max. 1400 rpm
– –
Spin/Drain Spin the laundry and drain the water.
If you only want to drain the water, activate .
The laundry is not spun.
Programme setting: Max. 1400 rpm
– –
App Select additional programmes directly via the
HomeConnect app.
A description of the programmes can be
found in the HomeConnect app.
Note:Your appliance must be connected to
your home network and registered in your
HomeConnect app.
→"HomeConnect ", Page38
– –
Sportswear Wash sports and leisure items made from
synthetic fibres, microfibre or fleece.
Use a detergent that is suitable for sports
items.
Do not use fabric softener.
Tip:Use the programme to wash heavily
soiled laundry.
2.0 2.0
1
Speed Perfect activated
2
Drying not possible
3
Washing not possible
en Programmes
30
Programme Description Max.
load
(kg)
Wash
Max.
load
(kg)
Dry-
ing
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
Auto Soft Wash delicate items made from cotton, or
synthetic or blended fabrics.
Gentle laundry care.
The degree of soiling and the type of fabric
are automatically detected. The washing pro-
cess is adapted.
Note:The temperature and spin speed cannot
be adjusted in this programme and are set
automatically.
The maximum temperature is 30 °C.
The maximum spin speed is 1000 rpm.
3.5 –
2
Iron Assist Reduce creases and airborne odours in suits,
shirts, down-filled fabrics, outdoor clothing
and items made of cotton, cashmere or silk.
Tip:To prevent creasing, remove the laundry
immediately after the programme has ended.
Notes
¡ The laundry is not dried or washed.
¡ If you use the Iron Assist programme of-
ten without washing in between, this may
cause odours in the appliance.
–
3
1.0
Super Quick
15' Wash &
Dry 45'
Wash and dry items made from cotton, linen,
or synthetic or blended fabrics.
Suitable for thin or light shirts, t-shirts or
sports textiles.
Short programme for small items of lightly
soiled laundry.
Note:If you only want to wash the laundry and
not dry it, press Wash&Dry.
Programme setting:
¡ Max. 40 °C
¡ Max. 1400rpm
2.0 1.0
1
Speed Perfect activated
2
Drying not possible
3
Washing not possible
Programmes en
31
Programme Description Max.
load
(kg)
Wash
Max.
load
(kg)
Dry-
ing
Mixed load Wash items made from cotton, linen, or syn-
thetic or blended fabrics.
Suitable for lightly soiled laundry.
Tip:Energy- and time-optimised programme
using hybrid technology.
Programme setting:
¡ Max. 60 °C
¡ Max. 1400rpm
4.0 2.5
Easy Care Wash items made from synthetic or blended
fabrics.
Suitable for lightly soiled laundry.
Tip:Energy- and time-optimised programme
using hybrid technology.
Programme setting:
¡ Max. 60 °C
¡ Max. 1400rpm
4.0 2.5
1
Speed Perfect activated
2
Drying not possible
3
Washing not possible
en Accessories
32
Accessories
10 Accessories
Accessories
Use original accessories. These have been made especially for your appliance.
Use Order num-
ber
Water inlet hose ex-
tension
Extend the water inlet hose for cold water
or AquaStop (approx. 2.50 m).
WMZ2381
Fixing brackets Improves the stability of the appliance. WMZ2200
Elbow Secure the water outlet hose in place. 00655300
Washing machine
cleaners
Cleaning products for maintaining the ap-
pliance interior.
00311929
Laundry
11 Laundry
Laundry
11.1 Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶ Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are
protected when you prepare your
laundry.
¡ Brush off sand and soil
¡ Sort the laundry according to col-
our and textiles and observe the
care labels
¡ Close all zips, hook and loop
fasteners, hooks and eyes
¡ Tie cloth belts, cloth straps and
cords together
¡ Remove curtain fittings and lead
strips
¡ Wash small or particularly delicate
items in a mesh washing bag
¡ Wash large and small items of
laundry together
¡ Wash laundry with fresh stains im-
mediately
¡ Pretreat laundry with dried stains
and wash several times
¡ Load the laundry unfolded into the
drum
¡ Spin the laundry before drying
¡ Before loading the drum, any laun-
dry that has been pre-treated with
chlorine bleach should be rinsed
several times
Detergents and care products
12 Detergents and care
products
Detergents and care products
You can protect your appliance and
your laundry by selecting and using
the correct detergents and care
products.
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
¡ When using liquid detergents, only
use liquid detergents that are self-
flowing
¡ Do not mix different liquid deter-
gents
¡ Do not mix detergent and fabric
softener
¡ Do not use products that have ex-
pired or are highly congealed
Basic operation en
33
¡ Do not use products containing
solvents, caustic agents or volatile
substances
¡ Do not use chlorine bleach
¡ Do not use dyes regularly as fixing
salt can damage stainless steel
¡ Do not use color-bleaching agents
in the appliance
¡ Do not pour vinegar into the dis-
pensers →Page36 of the intelli-
gent dosing system
Basic operation
13 Basic operation
Basic operation
13.1 Switching on the appli-
ance
Note:If you switch the appliance on
the first time after you have connec-
ted it to the electrical system, the
switch-on process takes up to one
minute.
Requirement:The appliance has
been correctly installed and connec-
ted.
→"Installation and connection",
Page13
▶ Press .
The switch-on process takes a few
seconds.
a An audible function test is carried
out.
Note:The lighting for the drum goes
out automatically.
13.2 Setting a programme
1. Press the required programme.
→"Programmes", Page28
2. If required, adjust the programme
settings. →Page33
13.3 Adjusting the pro-
gramme settings
Requirement:A programme is set.
→"Setting a programme", Page33
▶ Adjust the programme settings.
→"Buttons", Page25
Observe the information about op-
erating logic →Page20.
Notes
¡ The programme settings are not
saved permanently for the pro-
gramme.
¡ The setting is saved if you activate
or deactivate the intelligent dosing
system.
13.4 Saving the programme
settings
You can save your individual pro-
gramme settings as favourites.
Requirements
¡ A programme is set.
→"Setting a programme",
Page33
¡ The programme settings have
been adjusted.
→"Adjusting the programme set-
tings", Page33
en Basic operation
34
▶ Press and hold Favourite for ap-
prox. 3 seconds.
Press Favourite to call up the
saved programme.
Note:To overwrite the saved pro-
gramme, repeat the steps above.
13.5 Opening the door
1. Press on the edge of the door.
2. Open the door.
13.6 Loading laundry
Note:To prevent creasing, note the
maximum load for the programmes.
→"Programmes", Page28
Requirements
¡ The laundry is prepared and sor-
ted.
→"Laundry", Page32
¡ The drum is empty.
1. Open the door.
→"Opening the door", Page34
2. Place the laundry in the drum.
3. Close the door.
Ensure that there is no laundry
trapped in the door.
13.7 Starting the programme
Note:If the intelligent dosing system
is activated, make sure that the dis-
pensers have been filled →Page36
and the basic dosage has been set
→Page37.
Requirement:A programme is set.
→"Setting a programme", Page33
▶ Press .
a The drum rotates and load detec-
tion takes place. This can take up
to 2 minutes, after which water
enters the drum.
a The display shows the programme
duration or the programme end
time.
a After the programme has ended,
the display shows: "End".
13.8 Adding laundry
After the programme starts, you can
remove or add laundry depending on
the programme status.
1. Press .
During the washing cycle, the ap-
pliance pauses.
During the drying cycle, the appli-
ance checks whether it is possible
to add laundry.
Note:If you want to add laundry,
follow the instructions on the dis-
play.
→"Display", Page24
2. Open the door.
→"Opening the door", Page34
3. Add or remove laundry.
4. Close the door.
Dryness level en
35
5. Press .
13.9 Cancelling the washing
programme
1. Press .
2. Open the door.
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the Rinse programme.
– If the water level is high, start
the Spin programme or select a
suitable programme for draining.
→"Programmes", Page28
3.
Remove the laundry. →Page35
13.10 Cancelling the drying
programme
▶ Press .
The cooling process starts auto-
matically after approx. 30seconds
and cools down the laundry for a
few minutes while the drum is ro-
tating. The door is then automatic-
ally unlocked.
13.11 Unloading the laundry
1. Open the door.
→"Opening the door", Page34
2. Remove the laundry from the
drum.
13.12 Put the appliance into
standby mode
1. Press .
2. Wipe the rubber gasket dry and re-
move any foreign objects.
3. Leave the appliance door and de-
tergent drawer open so that resid-
ual water can evaporate.
Dryness level
14 Dryness level
Dryness level
In some programmes, a dryness
level is predefined. The dryness level
defines how dry or damp your laun-
dry is after the programme ends.
Dryness
level
Description
+ For multi-layered,
thick laundry that
does not dry readily.
For normal, single-
layered laundry.
- For normal, single-
layered laundry.
The laundry is still
slightly damp after
the programme
ends. To prevent
creasing after drying,
iron the laundry or
hang it up.
en Childproof lock
36
14.1 Changing the dryness
level
For some programmes, you can
change the dryness level so that your
laundry will be drier or more damp.
1. Set a washing and drying pro-
gramme or a drying programme.
→Page28
a The display shows the specified
dryness level.
2. Press .
a The display shows +, or -.
Childproof lock
15 Childproof lock
Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
15.1 Activating the childproof
lock
▶ Press and hold 3 sec. for ap-
prox. 3seconds.
a The control elements are locked.
a The childproof lock also remains
activated when the appliance is in
standby mode and in the event of
a power cut.
15.2 Deactivating the child-
proof lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶ Press and hold 3 sec. for ap-
prox. 3seconds.
Intelligent dosing system
16 Intelligent dosing sys-
tem
Intelligent dosing system
The appliance's intelligent dosing
system is activated at the factory and
automatically doses liquid detergent
and fabric softener for any pro-
grammes in which intelligent dosing
is possible.
Note:You can use the buttons
→Page25 to deactivate the intelli-
gent dosing system, e.g. in order to
manually dose washing powder
→Page37.
16.1 Pouring liquid detergent
and fabric softener into
the dispensers
If you are using the intelligent dosing
system or if the appliance displays a
notification during operation of the
appliance, fill the dispensers.
Notes
¡ Only pour suitable liquid detergent
and fabric softener into the dis-
pensers. →Page32
¡ If you add more liquid detergent or
fabric softener to the dispenser,
use the same product.
¡ If you want to replace the liquid de-
tergent or fabric softener in the dis-
penser with another product, clean
the detergent drawer beforehand
→Page41.
¡ If you are using the intelligent dos-
ing system, do not add additional
detergent or fabric softener into
the compartment for manual dos-
ing. This is to prevent overdosing
or foam formation.
1. Pull out the detergent drawer.
Intelligent dosing system en
37
2. Open the lid and pour liquid deter-
gent and fabric softener into
the relevant dispensers
→Page19.
Do not exceed the marking for the
maximum fill level when filling.
Note:You can also use both dis-
pensers for liquid detergent. Adapt
the dispenser for this. →Page37
3. Close the lid.
Note:To prevent the liquid deter-
gent or fabric softener from drying
out, close the lids immediately
after filling.
4. Push in the detergent drawer.
16.2 Using the manual dosing
compartment
If you are not using the intelligent
dosing system, if intelligent dosing is
not possible for a programme, or if
you want to add additional care
product, e.g. stain remover or starch,
use the manual dosing compartment.
Note:Observe the information about
detergents and care products
→Page32.
1. Pull out the detergent drawer.
2. Pour laundry detergent or care
product into the manual dosing
compartment →Page19.
3. Push in the detergent drawer.
16.3 Adapting the / dis-
penser
The / dispenser can dose fabric
softener or liquid detergent .
When it leaves the factory, the dis-
penser is set for fabric softener. If
you want to automatically dose a
second liquid detergent, adapt the
dispenser.
Notes
¡ If you adapt the contents of the
dispenser, the basic dosage for
this dispenser is reset.
¡ If you use both dispensers for li-
quid detergent, you must set a dis-
penser which is to be used during
washing.
→"Buttons", Page25
1. Press and hold i-DOS 2 for approx.
3 seconds.
2. Press i-DOS 2 repeatedly until the
display shows (liquid detergent)
or (fabric softener).
3. Wait briefly to save the setting.
16.4 Setting the basic dosage
amount
To allow for intelligent dosing, set the
basic dosage amount for the dis-
penser. The basic dosage amount
corresponds to the dosage recom-
mendation from the detergent manu-
facturer on the packaging. Set the
basic dosage amount that corres-
ponds to the dosage recommenda-
tion for 4.5kg of normally soiled
laundry. In doing so, note the water
hardness.
Tip:You can also set the basic
dosage amount in the HomeConnect
app.
en HomeConnect
38
1. Press and hold i-DOS 1 for approx.
3 seconds.
a The display shows the set basic
dosage amount.
2. To adjust the setting, press / .
3. Wait briefly to save the setting.
Note:To set the basic dosage
amount for the other dispenser, re-
peat the steps with i-DOS 2.
HomeConnect
17 HomeConnect
HomeConnect
This appliance is network-capable.
Connecting your appliance to a mo-
bile device lets you control its func-
tions via the HomeConnect app, ad-
just its basic settings and monitor its
operating status.
The HomeConnect services are not
available in every country. The avail-
ability of the HomeConnect function
depends on the availability of
HomeConnect services in your coun-
try. You can find information about
this at: www.home-connect.com.
The HomeConnect app guides you
through the entire login process. Fol-
low the instructions in the HomeCon-
nect app to configure the settings.
Tip:Please also follow the instruc-
tions in the HomeConnect app.
Notes
¡ Please note the safety precautions
in this instruction manual and
make sure that they are also ob-
served when operating the appli-
ance via the HomeConnect app.
→"Safety", Page4
¡ Operating the appliance on the ap-
pliance itself always takes priority.
During this time it is not possible
to operate the appliance using the
HomeConnect app.
17.1 Setting up the
HomeConnect app
1. Install the HomeConnect app on
your mobile device.
2. Start the HomeConnect app and
set up access for HomeConnect.
The HomeConnect app guides
you through the entire login pro-
cess.
17.2 Setting up HomeCon-
nect
Requirements
¡ The HomeConnectapp has been
installed on your mobile device.
¡ The appliance is receiving signals
from the WLAN home network (Wi-
Fi) at its installation location.
1. Press and hold Remote Start for
approx. 3seconds.
2. Follow the instructions in the
HomeConnect app.
17.3 Activating Wi-Fi on the
appliance
1. Press and hold Remote Start for
approx. 3seconds.
2. Press Remote Start repeatedly
until the display shows "oFF".
3. Press to activate the Wi-Fi.
a The display shows "on".
Notes
¡ If the Wi-Fi is activated, the display
alternately shows "on" and the sig-
nal strength of the Wi-Fi connec-
tion.
¡ To exit the HomeConnect settings,
press and hold Remote Start for
approx. 3 seconds.
HomeConnect en
39
17.4 Deactivating Wi-Fi on the
appliance
1. Press and hold Remote Start for
approx. 3seconds.
2. Press Remote Start repeatedly
until the display shows "on".
3. Press to deactivate the Wi-Fi.
a The display shows "oFF".
Note:To exit the HomeConnect set-
tings, press and hold Remote Start
for approx. 3 seconds.
17.5 Installing the software
update
Note:If a software update is avail-
able, a message appears in the
HomeConnectapp.
▶ To install the software update, fol-
low the instructions in the
HomeConnectapp.
a The control panel is partially
locked during the installation.
17.6 Resetting the appliance
network settings
1. Press and hold Remote Start for
approx. 3seconds.
2. Press Remote Start repeatedly
until the display shows "rES".
3. Press and hold for approx.
3seconds.
a The network settings are reset.
17.7 Remote start
Enable the appliance for remote start
via the HomeConnect app.
Note
Remote start will be deactivated in
the following circumstances:
¡ The appliance door is opened.
¡ Following a power cut.
Activating remote start
Requirements
¡ The appliance door is closed.
¡ The detergent drawer has been
pushed in.
▶ Press Remote Start.
a Remote Start lights up and the
appliance is enabled for remote
start via the HomeConnect app.
Deactivating remote start
▶ Press Remote Start.
a Remote Start goes out.
17.8 Data protection
Please see the information on data
protection.
The first time your appliance is
registered on a home network
connected to the Internet, your
appliance will transmit the following
types of data to the HomeConnect
server (initial registration):
¡ Unique appliance identification
(consisting of appliance codes as
well as the MAC address of the
Wi-Fi communication module in-
stalled).
¡ Security certificate of the Wi-Fi
communication module (to ensure
a secure data connection).
¡ The current software and hardware
version of your appliance.
¡ Status of any previous reset to
factory settings.
This initial registration prepares the
HomeConnect functions for use and
is only required when you want to
use the HomeConnect functions for
the first time.
Note:Please note that the
HomeConnect functions can only be
utilised with the HomeConnect app.
Information on data protection can be
retrieved in the HomeConnect app.
en Basic settings
40
Basic settings
18 Basic settings
Basic settings
You can configure the basic settings
for your appliance to meet your
needs.
Note:You can also adjust the the ba-
sic settings in the HomeConnect
app.
18.1 Overview of the basic
settings
1
2
3
4
5
67
Programme selector with programme
positions
1
Set the volume of the signal
at the end of the programme:
0 (off) to 4 (very loud)
2
Set the volume of the signal
tone emitted when the but-
tons are pressed:
0 (off) to 4 (very loud)
3
Set the display brightness:
1 (low) to 4 (very high)
5
Activate (On) or deactivate
(OFF) the reminder to clean
the drum.
6
Display the number of fin-
ished programmes.
7
Restore the appliance to the
factory settings (rES).
18.2 Changing the basic set-
tings
1. To call up the basic settings, press
and hold Options for approx. 3
seconds.
a The display shows .
2. Use the programme selector to se-
lect the required basic setting.
→Page40
3. Adjust the basic setting:
‒ To change the value, press
or .
‒ To reset the appliance to the
factory settings, press and hold
for approx.3seconds.
4. To save the changes, switch off
the appliance.
Cleaning and servicing
19 Cleaning and servi-
cing
Cleaning and servicing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
19.1 Cleaning the drum
CAUTION
Risk of injury!
Permanently washing at low temper-
atures and a lack of ventilation for
the appliance may damage the drum
and cause injury.
▶ Regularly run a programme for
cleaning the drum or wash at tem-
peratures of at least 60°C.
▶ Leave the appliance to dry after
every operation with the door
open, and leave the detergent
drawer to dry.
▶ Run the Cottons90°C programme
without laundry but with washing
powder that contains oxygen
Cleaning and servicing en
41
bleach or a a cleaning agent for
caring for the inside of the appli-
ance.
→"Accessories", Page32
19.2 Cleaning the detergent
drawer
If you want to replace the liquid de-
tergent or fabric softener in the dis-
penser with another product or if the
detergent drawer is dirty, clean the
detergent dispenser.
ATTENTION!
The pump unit contains electrical
components. Electrical components
may be damaged if they come into
contact with liquids.
▶ Do not clean the pump unit in the
dishwasher and do not immerse it
in water.
▶ Protect the electrical connection
on the rear against water, deter-
gent and fabric softener residue.
1. Put the appliance into standby
mode.
→"Put the appliance into standby
mode", Page35
2. Pull out the detergent drawer.
3. Press down on the insert and re-
move the detergent drawer.
4. Remove the pump unit.
5. Unclip the detergent drawer cover
and remove it.
6. Empty the detergent drawer.
en Cleaning and servicing
42
7. Clean the pump unit with a damp
cloth.
8. Clean the detergent drawer and
the cover with a soft, damp cloth
or hand shower.
9. Dry the detergent drawer, cover
and pump unit and reinsert them.
10.Clean the housing of the detergent
drawer in the appliance.
11.Push in the detergent drawer.
19.3 Cleaning the drain pump
Clean the drain pump regularly, at
least once a year, as well as in the
event of faults, e.g. blockages or rat-
tling noises.
Emptying the drain pump
1. Turn off the tap.
2. Put the appliance into standby
mode. →Page35
3. Disconnect the appliance's mains
plug from the power supply.
Cleaning and servicing en
43
4. Open and remove the mainten-
ance flap.
5. Slide a sufficiently large container
under the opening.
6. Take the drain hose out of the
holder.
7.
CAUTION-Risk of scalding!
When you wash at high temperat-
ures, the detergent solution gets
hot.
▶ Do not touch the hot detergent
solution.
To allow the detergent solution to
flow out into the container, remove
the sealing cap.
8. Firmly press on the sealing cap.
9. Insert the drain hose into the
holder.
en Cleaning and servicing
44
Cleaning the drain pump
Requirement:The drain pump is
empty. →Page42
1. Since water may remain in the
drain pump, unscrew the pump
cap carefully.
‒ The filter insert in the pump
housing may become stuck due
to coarse particles of dirt.
Loosen the dirt and remove the
filter insert.
The pump cap is comprised of two
parts which can be taken apart for
cleaning.
2. Clean the interior, the thread on
the pump cap and the pump hous-
ing.
3. Ensure that both impellers can
turn.
4. Insert the pump cap.
‒ Ensure that the parts of the
pump cap are correctly as-
sembled.
5. Screw the pump cap as far as it
will go.
The handle on the pump cap must
be in a vertical position.
Cleaning and servicing en
45
6. Insert and close the maintenance
flap.
19.4 Cleaning the intake
opening in the rubber
gasket
Regularly check the intake opening
in the rubber gasket for any block-
ages and clean the intake opening.
1. Open the appliance door.
2. Remove any blockages from the
intake opening.
Note:Do not use any sharp or poin-
ted objects.
en Troubleshooting
46
Troubleshooting
20 Troubleshooting
Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its features.
▶ Repairs to the appliance should only be carried out by trained specialist
staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out
and flashes.
Energy-saving mode is active
▶ Press .
"E:30 / -80" or deter-
gent solution is not
being pumped out.
The water outlet hose is connected too high, is kinked
or trapped, or has been extended impermissibly.
▶ Check the installation of the water outlet hose.
→Page13
Drain pipe or water outlet hose is blocked.
▶ Clean the drain pipe and the water outlet hose.
The drain pump is blocked or the pump cover is not
installed correctly.
▶ Check that the pump cover is installed correctly.
→Page42
▶
Clean the drain pump. →Page42
Detergent dosage is too high.
▶ If intelligent dosing is activated, reduce the basic
dosage. →Page37
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
"E:36 / -25 / -26" Drain pump is blocked.
▶
Clean the drain pump. →Page42
Troubleshooting en
47
Fault Cause and troubleshooting
"E:10 / -00 / -10 /
-20"
The pump for the intelligent dosing system is blocked.
1.
Clean the detergent drawer. →Page41
2. If the fault persists, call customer service.
→Page54
Note:Until the fault is rectified, you can deactivate the
intelligent dosing system and dose manually.
→Page25
"H:32" The appliance has interrupted the spin cycle because
the laundry is unevenly distributed.
▶ Redistribute the laundry in the drum.
"E:30 / -10", or
"H:95" and "End".
The tap is turned off.
▶ Turn on the tap.
The water inlet hose is kinked or jammed.
▶ Check the installation of the water inlet hose.
→Page13
The filter in the water inflow is blocked.
▶ Clean the filter in the water inflow.
The water pressure is low.
▶ Check whether the tap has sufficient water pres-
sure.
"E:35 / -10" The appliance is leaking.
1. Turn off the water tap.
2.
Call customer service. →Page54
"E:30/-20" Critical malfunction.
▶ Turn off the water tap.
With this error message, the appliance starts a drain-
ing process.
1. Wait approx. 5 minutes until the draining process
ends.
2. Restart the appliance.
If required, start the draining process again.
3. If the fault persists, call customer service.
→Page54
Detergent dosage is too high.
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
Additional water has been added.
▶ Do not add any extra water to the appliance while it
is operating.
en Troubleshooting
48
Fault Cause and troubleshooting
The detergent drawer has not been pushed in fully.
▶ Push in the detergent drawer.
The pump unit is not inserted correctly.
▶ Check that the pump unit is inserted correctly.
→Page41
flashes and the pro-
gramme is paused.
The appliance has detected fluctuations in the power
supply.
No action required. If the power supply is stable, the
programme continues to run as normal.
or heavy foam
build-up.
Detergent dosage is too high.
▶ Mix one tablespoon of fabric softener with 0.5litres
of water and pour the mixture into the compartment
for manual dosing (not for outdoor clothing,
sportswear or items stuffed with down).
▶ If intelligent dosing is activated, reduce the basic
dosage. →Page37
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
flashes. The door is not completely closed.
1. Ensure that there is no laundry trapped in the door.
2. Close the door.
Drum cleaning is required.
▶
Clean the drum. →Page40
The programme is
paused or has ended,
but the drum is rotat-
ing.
Not a fault. The cooling process is active.
No action required.
Note:Do not change the programme during the cool-
ing process. The cooling process takes up to 10
minutes.
All other error codes. Malfunction
1. Restart the appliance.
2. If the fault occurs again, disconnect the appliance
from the power supply for at least 30 seconds.
Unplug the appliance from the mains or switch off
the circuit breaker in the fuse box.
3. If the fault persists, call customer service.
→Page54
Please specify the exact error message when call-
ing. If possible, document the fault with photos and
videos.
Troubleshooting en
49
Fault Cause and troubleshooting
The display and but-
tons do not respond.
Software fault.
▶ To restart the appliance, press and hold for ap-
proximately 5seconds.
HomeConnect is not
working properly.
Different causes are possible.
▶
Set up HomeConnect again. →Page38
▶ Go to www.home-connect.com.
cannot be oper-
ated.
Not a fault. The drying phase is active.
No remedial action possible.
i-DOS 1/i-DOS 2 can-
not be pressed.
The selected programme or programme progress
does not allow intelligent dosing.
▶
Use the manual dosing compartment. →Page37
The programme does
not start.
Childproof lock is activated.
▶
Deactivate the childproof lock. →Page36
Finish in is activated.
▶
Check whether Finish in is activated. →Page25
The detergent drawer has not been pushed in fully.
▶ Push in the detergent drawer.
The programme is
paused or has been
interrupted, but the
door will not open.
The temperature is too high.
▶ Start the Rinse programme or wait until the temper-
ature has dropped.
Water level is too high.
▶ Start the Spin programme or a suitable draining
programme. →Page28
The door cannot be
opened due to a
power cut.
The door is locked.
▶ Open the door using the emergency release.
→Page53
Drum jerks after the
programme starts.
Not a fault. An internal motor test is started.
No action required.
Drum rotates, water
does not flow in.
Not a fault. Load detection is active for up to 2
minutes.
No action required.
No water is visible in
the drum.
Not a fault. Water is below the visible area.
No action required.
The spin cycle runs
several times.
Not a fault. The appliance eliminates an imbalance by
repeatedly redistributing the laundry.
No action required.
en Troubleshooting
50
Fault Cause and troubleshooting
The appliance is vi-
brating, 'wandering'
and making loud
noises during the spin
cycle.
Appliance is not correctly aligned.
▶
Align the appliance. →Page16
The appliance feet are not fixed.
▶
Secure the appliance's feet. →Page16
Transit bolts have not been removed.
▶
Remove the transit bolts. →Page14
High spin speed not
reached.
Reduced Ironing is activated.
▶ Select a programme that is suitable for the type of
fabric. →Page28
The appliance is using a reduced spin speed to elim-
inate an imbalance.
No action required.
The programme dura-
tion changes during
the wash cycle.
Not a fault. The programme sequence is optimised
electronically, another rinse cycle is switched on due
to heavy foam build-up, or an imbalance is eliminated.
No action required.
The drying time is too
long.
The ambient temperature is higher than 30°C.
▶ Ensure that the ambient temperature is below 30
°C.
The air circulation at the appliance's installation loca-
tion is insufficient.
▶ Ventilate the appliance's installation location.
Fluff has accumulated in the drum.
▶ Start the programme without any laundry or deter-
gent.
Water intake during
the drying phase.
Not a fault. The drying phase requires water.
No action required.
Spinning during the
drying phase.
Not a fault. Thermal spinning is active.
No action required.
Whooshing, hissing,
whirring or sucking
noises.
Not a fault. Water is pumped in, detergent and fabric
softener is dosed, function tests are performed, the
process fan is active, or detergent solution is pumped
out.
No action required.
Banging noises, rat-
tling in the drain
pump.
A foreign object is in the drain pump.
▶
Clean the drain pump. →Page42
Insufficient cleaning or
detergent residues on
the laundry.
Detergents may contain water-insoluble substances
that deposit on the laundry.
▶ Start the Rinse programme or brush out the laun-
dry after drying.
Troubleshooting en
51
Fault Cause and troubleshooting
Insufficient cleaning or
detergent residues on
the laundry.
The detergent in the dispenser is unsuitable or
thickened.
1.
Check whether the detergent is suitable. →Page32
2. Check whether the detergent in the dispenser has
thickened.
3. If the detergent is unsuitable or has thickened,
empty it out and clean the dispenser. →Page41
The basic dosage is not correctly adjusted.
▶
Set the basic dosage. →Page37
Fluff on the laundry. Fluff has accumulated in the drum.
▶ Start the programme without any laundry or deter-
gent.
The laundry is too wet
after the spinning
cycle.
A low spin speed is selected.
▶ Start the Spinprogramme.
▶ The next time you run a wash cycle, set a higher
spin speed.
The appliance is using a reduced spin speed to elim-
inate an imbalance.
1. Redistribute the laundry in the drum.
2. Start the Spinprogramme.
Reduced Ironing is activated.
▶
Set a suitable programme. →Page28
The laundry is too
damp.
The selected programme is unsuitable for the type of
fabric.
▶ Set a suitable programme for subsequent drying.
→Page28
The load is too large.
▶ Observe the programme's maximum load capacity.
→Page28
After the end of the programme, warm laundry feels
damper than it actually is.
1. Remove the laundry from the drum as soon as the
drying programme has finished.
2. Spread the items of laundry for cooling.
The selected dryness level is unsuitable.
▶
Change the dryness level. →Page36
The load is too small.
▶ Set a suitable programme for subsequent drying.
→Page28
The laundry has not been spun sufficiently.
en Troubleshooting
52
Fault Cause and troubleshooting
The laundry is too
damp.
▶ Always select the highest possible spin speed for
the washing programme in question.
Creasing. The selected programme is unsuitable for the type of
fabric.
▶
Set a suitable programme. →Page28
A high spin speed is selected.
▶ The next time you run a wash cycle, set a lower
spin speed.
The load is unsuitable.
▶ Observe the programme's maximum load capacity.
→Page28
▶
Prepare the laundry. →Page32
The laundry lies in the drum for too long after drying.
1. Remove the laundry from the drum as soon as the
drying programme has finished.
2. Spread the items of laundry for cooling.
Easy Care fabrics have been dried for too long.
▶
Change the dryness level. →Page36
Water is leaking out at
the water inlet hose.
The water inlet hose is not correctly connected or is
damaged.
▶ Check the installation of the water inlet hose.
→Page13
In the event of damage, call customer service.
→Page54
Water is leaking out at
the water outlet hose.
The water outlet hose is not connected correctly or is
damaged.
▶ Check the installation of the water outlet hose.
→Page13
Replace the water outlet hose if it is damaged.
Water is leaking from
below the door.
Dirt on the door or seal causes leaks.
▶ Clean the door and the seal.
Odours have formed
in the appliance.
Humidity and detergent residue may promote the
formation of bacteria.
▶
Clean the drum. →Page40
▶ If you are not using the appliance, leave the door
and detergent drawer open so that residual water
can evaporate.
Transportation, storage and disposal en
53
20.1 Emergency release
Releasing the door
Requirement:The drain pump is
empty. →Page42
1. ATTENTION! Escaping water may
cause material damage.
▶ Do not open the door if you can
see water through the glass.
Pull the emergency release down-
wards with a tool and release.
a The door lock is released.
2. Insert the maintenance flap and
lock it into place.
3. Close the maintenance flap.
Transportation, storage and disposal
21 Transportation, stor-
age and disposal
Transportation, storage and disposal
21.1 Removing the appliance
1. Turn off the tap.
2. Empty the water inlet hose.
3. Put the appliance into standby
mode.
→"Put the appliance into standby
mode", Page35
4. Unplug the appliance's mains plug.
5. Drain the water.
→"Cleaning the drain pump",
Page42
6. Detach the hoses.
7. Empty the dispensers.
21.2 Inserting the transit
bolts
Secure the appliance before trans-
portation using transit bolts in order
to prevent transport damage.
1. Use a screwdriver to remove the 4
cover caps.
Keep the cover caps.
2. Insert the 4 transit bolts.
→"Removing the transit bolts",
Page14
21.3 Using the appliance
again
▶ For further information, see
→"Installation and connection",
Page13 and
→"Starting an empty washing
cycle", Page17.
en Customer Service
54
21.4 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶ Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
▶ With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is la-
belled in accordance
with European Directive
2012/19/EU concerning
used electrical and elec-
tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determ-
ines the framework for
the return and recycling
of used appliances as
applicable throughout
the EU.
Customer Service
22 Customer Service
Customer Service
Function-relevant genuine spare parts
according to the corresponding Eco-
design Order can be obtained from
Customer Service for a period of at
least 10 years from the date on
which your appliance was placed on
the market within the European Eco-
nomic Area.
Note:Under the terms of the manu-
facturer's warranty the use of Cus-
tomer Service is free of charge.
Detailed information on the warranty
period and terms of warranty in your
country is available from our after-
sales service, your retailer or on our
website.
If you contact Customer Service, you
will require the product number (E-
Nr.), the production number (FD) and
the consecutive numbering (Z-Nr.) of
your appliance.
The contact details for Customer Ser-
vice can be found in the enclosed
Customer Service directory or on our
website.
22.1 Product number (E-Nr.),
production number (FD)
and consecutive num-
bering (Z-Nr.)
You can find the product number (E-
Nr.), the production number (FD) and
the consecutive numbering (Z-Nr.) on
the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Customer Service en
55
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
22.2 AQUA-STOP guarantee
In addition to warranty claims against
the seller under the purchase agree-
ment and in addition to our manufac-
turer's warranty, we offer compensa-
tion under the following conditions.
¡ If our Aqua-Stop system is defect-
ive and causes water damage, we
will make good the damage for
private users. To ensure protection
from water damage, the appliance
must be connected to the power
supply.
¡ The liability guarantee is valid for
the service life of the appliance.
¡ A claim can only be made under
the guarantee if the appliance has
been correctly installed and con-
nected with Aqua-Stop according
to our instructions; this also in-
cludes correctly fitting the Aqua-
Stop extension (genuine access-
ory). Our guarantee does not cover
defective supply lines or fittings up
to the Aqua-Stop connection on
the tap.
¡ If your appliance is fitted with
Aqua-Stop, you can in principle
leave your appliance unattended
during operation and the tap
turned on afterwards. The tap only
needs to be turned off if you are
away from home for a long period,
e.g. on holiday for several weeks.
en Consumption values
56
Consumption values
23 Consumption values
Consumption values
The following information is provided in accordance with the EU Ecodesign
Regulation. The values specified for programmes other than Eco 40-60 are only
given as a guide and were determined in accordance with the applicable stand-
ards EN60456 and EN62512. The automatic dosing function has been deactiv-
ated for this purpose.
Note on the comparison test: Deactivate the automatic dosing function unless
this function is the object of the test.
Programme Load
(kg)
Pro-
gramm
e dura-
tion
(hr:min
)
1
Energy
con-
sump-
tion
(kWh/
cycle)
1
Water
con-
sump-
tion (l/
cycle)
1
Max-
imum
temper-
ature
(°C) 5
mins
1
Spin
speed
(rpm)
1
Resid-
ual
mois-
ture
(%)
1
Eco 40-60
2
10.5 4:00 1.110 76.0 39 1390 53.00
Eco 40-60
2
5.3 3:00 0.500 50.0 30 1400 53.00
Eco 40-60
2
2.5 2:20 0.185 35.0 24 1400 53.00
Eco 40-60 +
Wash&Dry +
2
6.0 8:20 3.750 90.0 23 - -0.1
Eco 40-60 +
Wash&Dry +
2
3.0 4:20 2.000 52.0 22 - -0.1
Cottons
20°C
10.0 4:05 0.550 90.0 25 1400 50.00
Cottons
40°C
10.0 4:05 1.300 90.0 40 1400 50.00
Cottons
60°C
10.0 4:05 2.200 90.0 60 1400 50.00
Cottons
40°C +
Prewash
10.0 4:25 1.500 105.0 40 1400 50.00
Easy Care
40°C
4.0 2:35 0.900 68.0 43 1400 30.00
Mixed load
40°C
4.0 1:10 0.750 50.0 41 1400 45.00
1
Due to the influence of water pressure, hardness and inlet temperature, am-
bient temperature, type, amount and soiling of laundry, detergent used, fluc-
tuations in the power supply and the selected additional functions, the actual
values may deviate from the stated values.
2
Test programme in accordance with the EU Ecodesign Directive and the EU
Energy Labelling Regulation with cold water (15°C).
Technical data en
57
Programme Load
(kg)
Pro-
gramm
e dura-
tion
(hr:min
)
1
Energy
con-
sump-
tion
(kWh/
cycle)
1
Water
con-
sump-
tion (l/
cycle)
1
Max-
imum
temper-
ature
(°C) 5
mins
1
Spin
speed
(rpm)
1
Resid-
ual
mois-
ture
(%)
1
Wool
30°C
2.0 0:41 0.180 45.0 22 800 30.00
1
Due to the influence of water pressure, hardness and inlet temperature, am-
bient temperature, type, amount and soiling of laundry, detergent used, fluc-
tuations in the power supply and the selected additional functions, the actual
values may deviate from the stated values.
2
Test programme in accordance with the EU Ecodesign Directive and the EU
Energy Labelling Regulation with cold water (15°C).
Technical data
24 Technical data
Technical data
Appliance height 84.8cm
Appliance width 59.8cm
Appliance depth 62.2cm
Appliance depth
with door closed
65.4cm
Appliance depth
with door open
114.2cm
Weight 84.6kg
Maximum load 10.5kg
Mains voltage 220-240V,
50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 1900-2300W
Power consump-
tion
¡ Standby
mode: 0.50W
¡ Left-on mode:
0.50W
¡ Time until the
networked
standby mode
is set (Wi-Fi):
5mins
¡ Networked
standby mode
(Wi-Fi): 2.00W
Water pressure ¡ Minimum:
100kPa
(1bar)
¡ Maximum:
1000kPa
(10bar)
Length of the wa-
ter inlet hose
150cm
Length of the wa-
ter outlet hose
150cm
Length of the
power cord
182cm
This product contains light sources
from energy efficiency class F. These
light sources are available as a spare
part and must only be replaced by
trained specialist staff.
en Declaration of Conformity
58
More information about your model
can be found online at https://
eprel.ec.europa.eu/qr/1450887
1
.
This web address is linked to the offi-
cial EU EPREL product database.
Declaration of Conformity
25 Declaration of Con-
formity
Declaration of Conformity
BSH Hausgeräte GmbH hereby de-
clares that the appliance with Home
Connect functionality conforms to the
essential requirements and other rel-
evant provisions of Directive
2014/53/EU.
A detailed RED Declaration of Con-
formity can be found online at
www.bosch-home.com among the
additional documents on the product
page for your appliance.
Hereby, BSH Hausgeräte GmbH de-
clares that the appliance with
HomeConnect functionality is in
compliance with relevant statutory
requirements.
2
A detailed Declaration of Conformity
can be found online at www.bosch-
home.co.uk among the additional
documents on the product page for
your appliance.
2
2.4 GHz band (2400–2483.5MHz):
Max. 100mW
5-GHz band (5150–5350MHz +
5470–5725MHz): max. 150mW
BE BG CZ DK DE EE IE EL ES
FR HR IT CY LI LV LT LU HU
MT NL AT PL PT RO SI SK FI
SE NO CH TR IS UK (NI)
5GHz WLAN (Wi-Fi): For indoor use only.
AL BA MD ME MK RS UK UA
5GHz WLAN (Wi-Fi): For indoor use only.
25.1 Statement of Compli-
ance for Great Britain
The full Statement of Compliance ac-
cording to the Product Security and
Telecommunications Infrastructure
(Security Requirements for Relevant
Connectable Products) Regulations
2023 can be found online at
www.bosch-home.co.uk among the
additional documents on the product
page for your appliance.
Product type
This statement of compliance covers
the products described in this inform-
ation for use whose model identifier
group is seen on the title page. The
full model identifier is made up of the
characters before the slash in the
1
Only applies to countries in the European Economic Area
2
Only applies to Great Britain
Declaration of Conformity en
59
product number (E no.) which can be
found on the rating plate. Alternat-
ively, you can also find the model
identifier in the first line of the UK En-
ergy Label.
Name and address of manufacturer
BSH Hausgeräte GmbH, Carl-Wery-
Strasse 34, 81739 München, Ger-
many
This statement of compliance is pre-
pared by the manufacturer.
The manufacturer, BSH Hausgeräte
GmbH deems that it has complied
with
¡ provision 5.1-1 of ETSI EN 303
645 v2.1.1 and, where relevant,
provision 5.1-2 of ETSI EN 303
645 v2.1.1;
¡ provision 5.2-1 of ETSI EN 303
645 v2.1.1;
¡ provision 5.3-13 of ETSI EN 303
645 v2.1.1.
Support period
BSH Hausgeräte GmbH will provide
security updates that are necessary
to maintain the main functions free of
charge until at least 28/02/2034.
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct-
ory.
*9001771432*
9001771432 (040325)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
