User Manual for Side-by-Side Refrigerator
Model: 9S22FNI IX
Code : X603-13
Please read this instrucon carefully before using the appliance.
X603-13(영)_9S22FNI_IX(월풀).indd 1 2017-01-10 오후 1:52:46
2
1
Thank you for purchasing our fridge
Please note:
• We have provided many important safety messages in this manual. Please
always pay attention on the PRECAUTIONS and all safety messages.
• Keep the instruction for future reference.
Table of Contents
Refrigerator Safety ............................................................................................1
Refrigerator Preparation ...................................................................................3
Installation Guide ..............................................................................................4
The Appliance .................................................................................................... 5
Control Panel .....................................................................................................6
Care and Maintenance ......................................................................................7
Troubleshooting Guide ......................................................................................8
Installation Preparation ...................................................................................10

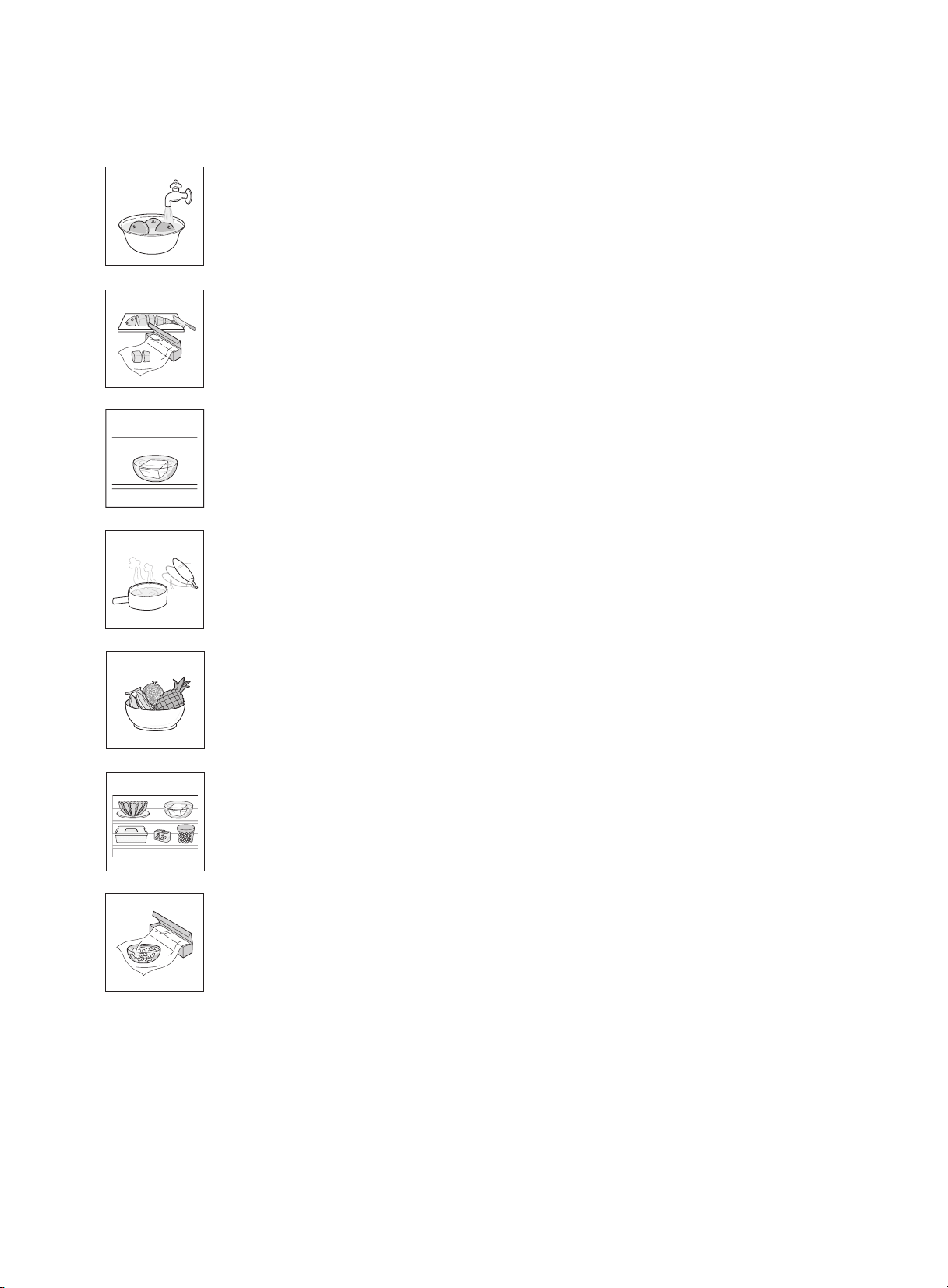

Food Storage Tips ............................................................................................12
X603-13(영)_9S22FNI_IX(월풀).indd 2 2017-01-10 오후 1:52:46
2
1
Caution
1. If the supply cord becomes damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
2. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Warning
Failure to follow the below instructions may cause fire,
electric shock, which may cause possibility of danger of
death or serious injury.
1. Never let the power cord be crushed by the
refrigerator itself or other (heavy) objects.
2. Never bend power cord excessively.
3. Do not plug several appliances into the same wall
outlet. Use an exclusive grounding receptacle for the
refrigerator.
4. Never hold the power cord or plug with wet hands.
5. Never use a damaged power cord or plug or loose
main socket.
6. Be sure to ground. Check if your wall outlet is
grounded (earthed).
7. Never unplug by pulling only the power cord wire.
Always grip the plug firmly.
8. Let the cord from the plug outlet be directed
downwards.
9. Never let the power cord touch or pass over heating
appliances.
10. When you find the power cord damaged or cut, call
the service agent immediately.
11. Do not install the refrigerator on a wet floor or in a
place with excessive humidity and moisture.
12. Never pour or spray water into the refrigerator (both
interior and exterior).
13. Do not place containers with water or liquid on top
of refrigerator. Water can spill into the refrigerator
and can cause electric shock hazards or damage.
14. Do not move or remove compartment shelves/
pockets while foods and containers are on them.
They can fall to hurt you and can break glass shelf
and interior parts.
15. Never store any flammable gas or liquid in the
refrigerator.
16. Never use flammable gas, benzene, thinners,
gasoline, spray etc. near the refrigerator. If a gas
leak is found near the refrigerator or in the kitchen,
ventilate it immediately without touching the power
plug or refrigerator.
17. Do not store medicine, academic research samples
which require strict temperature control in the
refrigerator.
18. Never insert fingers or hands into the bottom of the
refrigerator, especially into the bottom back. There
may be chance for being hurt by sharp metal edges
or can receive an electric shock.
19. Never repair, disassemble or amend the refrigerator
on your own. It is recommended that any service be
carried out by a qualified person.
20. Do not change fuse or LED lamp on your own. Call
the service agent to change them.
21. Do not let children hang on the refrigerator doors.
Refrigerator can fall and harm them.
22. When you get rid of your old refrigerator, be sure to
remove the door first. Children can be entrapped and
suffocated in an abandoned refrigerator.
23. Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear obstruction.
24. Do not use mechanical devices or other means to
accelerate the defrosting process.
25. Do not use electrical appliances inside the food
storage compartments of the appliance.
26. The ice-maker in the freezer should be only replaced
by the manufacturer or the service agent.
Caution
Failure to follow the below instructions may cause
possibility of risk of personal injury or material damage.
1. Be sure to unplug the refrigerator when it is not going
to be used for a long time.
2. Never touch foods and containers especially of metal
with wet hands in the freezer compartment. You can
be hurt by chilblains or cold burns.
3. Foods stored too long in the refrigerator can
deteriorate and become decayed. Never eat any
decayed or deteriorated food at all.
4. Never place bottles and containers of glass in the
freezer compartment. Glass containers and bottles
can break and hurt you.
Refrigerator Safety
Read these safety instructions thoroughly and carefully Read these safety instructions thoroughly and carefully before
using. Please keep this user guide for future reference.
X603-13(영)_9S22FNI_IX(월풀).indd 1 2017-01-10 오후 1:52:46
2
3
Unpack the refrigerator
• Remove all packaging materials (included foundation
pad, foam pad and gummed paper in the fridge)
before use.
• Clean both inside and outside of the fridge before use.
Use a humid rag and a mild detergent in warm water
for cleaning. Make sure to use clean water for the final
clean up.
• Make sure a separated dipolar earthed socket serving
only your refrigerator. It shall not share with any other
electrical equipment.
• Connect the earth wire well, the earthed polar of the
socket shall have reliable earthing wire.
Transportation
• Do not turn over, put across, extrude or shock the
fridge, the angle of bank cannot be over 45 degree.
• Do not make door or coping over strained to avoid
distortion.
• The fridge can be slightly lean back (no more than 20
degree) to make short distance move by the rolling of
back castor.
• When moving the refrigerator (horizontally or tilted),
more than 2 persons are required to hold it. (One to
hold top back handles, the other to hold the bottom
holder. ) If other parts are held instead, it is very
dangerous and likely to slip.
• Be sure to turn up the wheel first before moving the
refrigerator. The wheels can damage or scratch the
floor.
• If you are moving it for a long distance, never forget to
fasten the interior parts tightly with tapes. Otherwise,
the parts can collide and break each other.

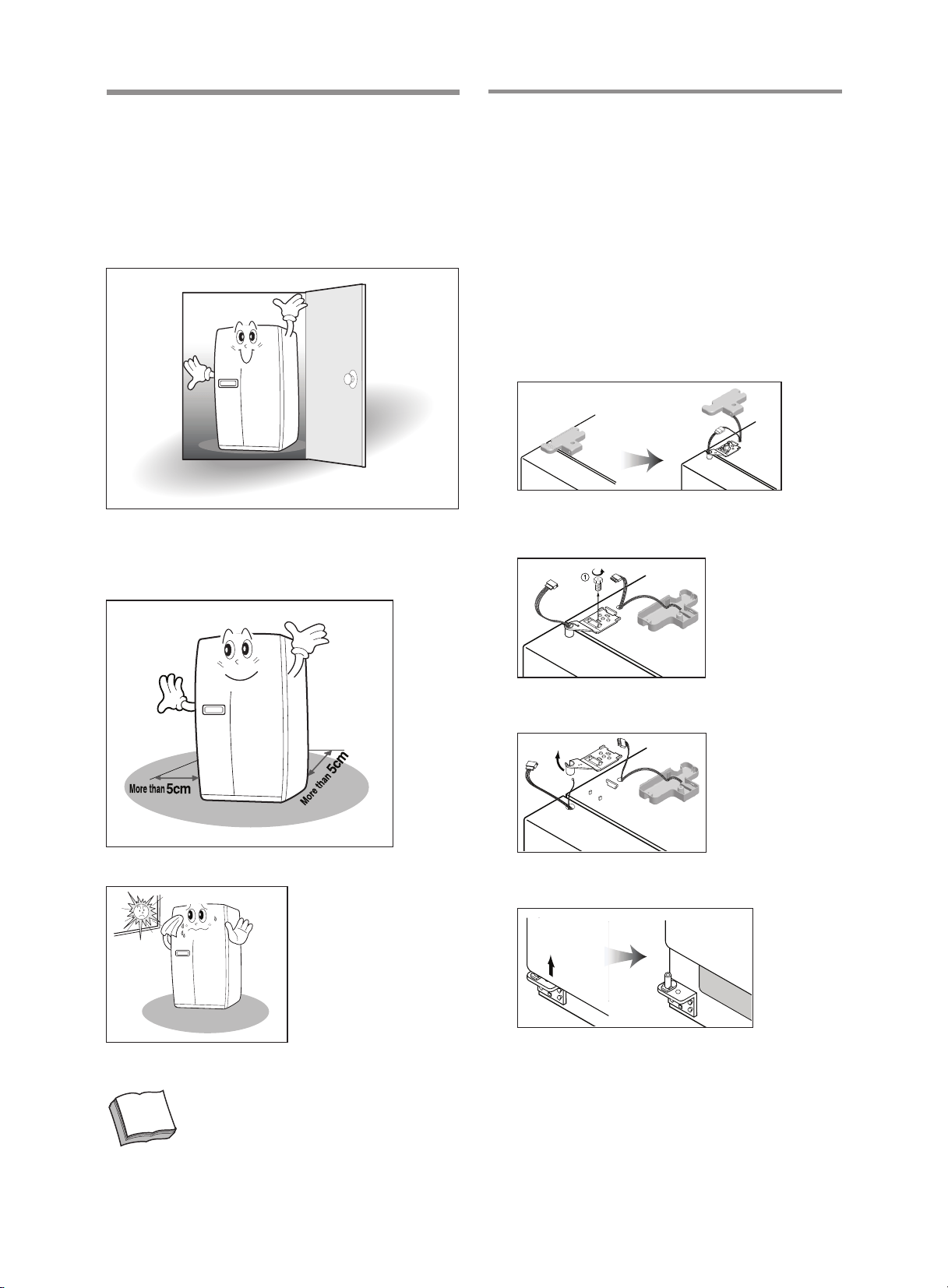

Placement
• The fridge shall be placed in the well ventilated place.
Far away from moist place or place there is water to
avoid rusting or weaken the insulation effect.
• The headroom of the fridge shall no less than 30cm,
the distance from the two sides and the back to the
wall shall no less than 10cm, to the convenience of
open and close the door and heat emission.
• The fridge shall be placed on the plat and hard ground
(if uneven, it can be adjusted by the leveling legs).
Installation Guide
Read these safety instructions carefully before use and
follow precautions for your safety.
Precautions in installation and power
connection
To prevent fire, electric shock or leakage
1. Never install the refrigerator on a wet floor or where
water can gather easily.
2. Check the following before power connection.
- Connect power plug only to a grounded wall socket
(an earthed mains).
- Do not plug refrigerator power together with other
appliances to the same socket.
3. Do not use an adapter plug or an extension cord.
4. Do not let the power cord be crushed by other (heavy)
objects.
• If you hear a strange noise, strong chemical odour
or find smoke etc. from the refrigerator after the
power is plugged in, pull out the plug immediately
and call the service agent.
• Wait about 5 minutes before you plug-in again in
order to prevent any damage to the compressor and
electrical devices of refrigerator.
• Wait 2~3 hours until the inside gets cold enough
after the first power plug-in, then store foods inside.
(There can be some smell of plastic parts on initial
operation of the refrigerator after plugging in. The
smell fades away as the refrigerator works and
doors are opened and closed.)
Precautions in use
To prevent personal injury, fire, electric shock, etc. read
this user guide carefully before use and keep it at hand
for any reference.
Refrigerator Preparation
X603-13(영)_9S22FNI_IX(월풀).indd 2 2017-01-10 오후 1:52:46
2
3
The Appliance
1. Freezer Door Bin
for short-term storage of food and ice-cream.
2. Freezer Door Bin
for storing frozen food.
3. Freezer shelf
4. Ice Cube Tray
5. Freezer Drawer
for storage of packed meat, fish or poultry.
6. Xpress Can Chiller
7. Refrigerator shelf
8. Vegetable crisper
9. Fruit crisper
10. Refreshment pocket
●
Do not store vegetable in the chilled room, or they can be frozen.
●
Do not touch or hold with wet hands foods (food container) in the freezer compartment. There is a risk
of chilblains (cold burn)
●
Do not store medicine, academic research samples etc. in the refrigerator.
●
Food in the refrigerator can be frozen if the ambient temperature of the refrigerator is below 5°C.
Freezer compartment Refrigerator compartment
Note
❶
❶
❷
❹
❼
❾
❽
❿
❸
❺
❻
X603-13(영)_9S22FNI_IX(월풀).indd 3 2017-01-10 오후 1:52:48
4
5

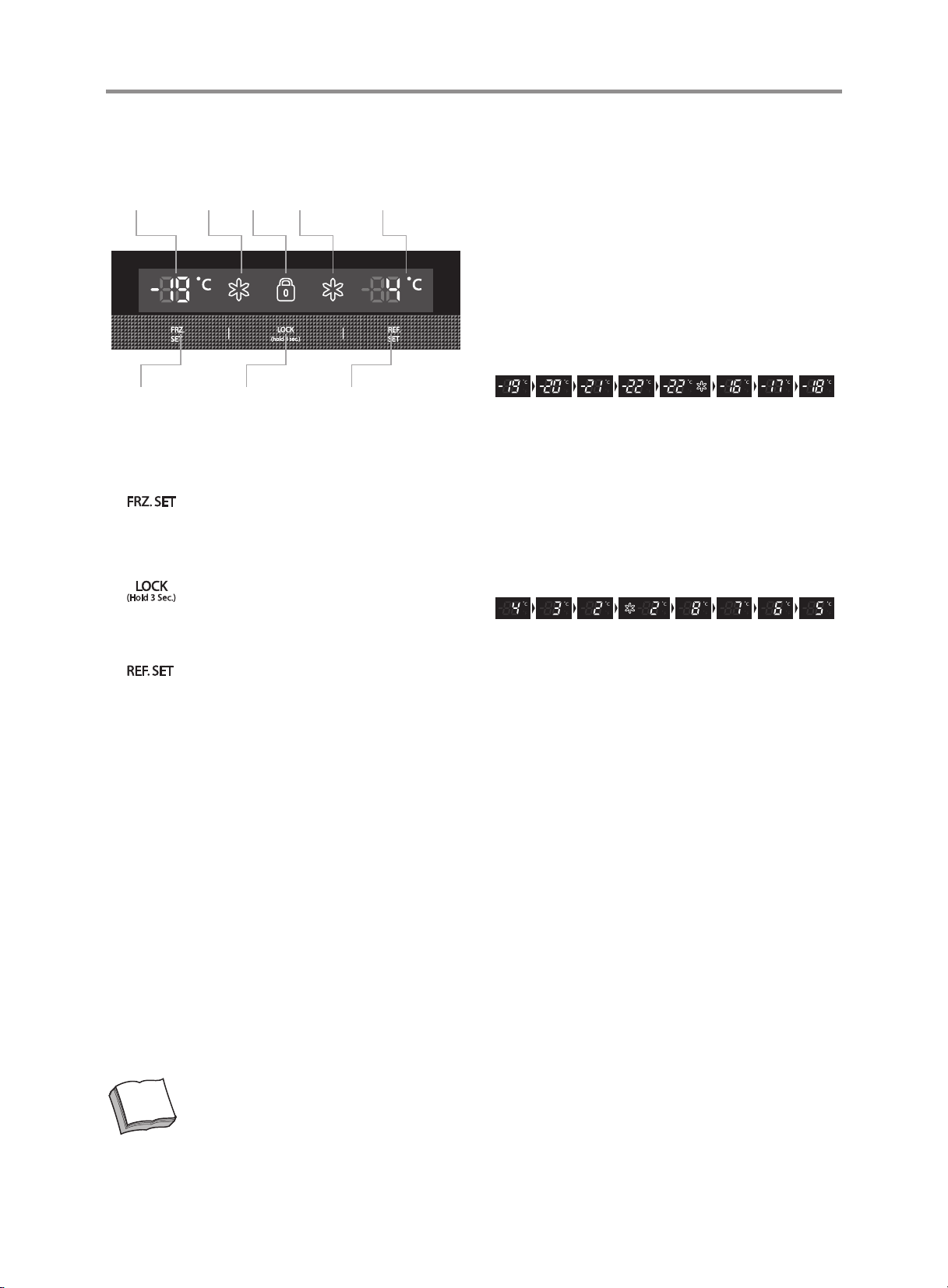

Control Panel
Button
1. Freezer Compartment Adjustment
Button: for adjustment of the freezer
compartment temperature and Fast
freezing operation.
2. Lock Button: Press button to prevent
unintentional changed on settings.
To unlock, press for 3 seconds and the Lock
Icon goes out.
3. Refrigerator Compartment Adjustment
Button: for adjustment of the refrigerator
compartment temperature and Fast
cooling operation.
Display Screen
A. Freezer Compartment Temperature Display
B. Fast Freezing Icon
C. Lock Icon
D. Refrigerator Compartment Temperature Display
E. Fast Cooling Icon
Alarm Display
Customers will be informed when temperature is
abnormally rises due to accidents. (for example, in time
of blackout)
1) Temperature display blinks, displaying the highest
inner temperature.
2) Alarm stops when ‘LOCK’ button is pressed, and
display shows temperature set value.
Refrigerator Use
1. Freezer Compartment Temperature control
Press the FRZ. SET button and the setting temperature
changes as the figure shows.
>>> Sequential Temperature Change <<<
2. Fast Freezing
To activate Fast Freezing, press the FRZ.SET button, until
Fast Freezing icon lights up on the display screen.
Press the button again to deactivate.
3. Refrigerator Compartment
Press the REF. SET button and the setting temperature
changes as the figure shows.
>>> Sequential Temperature Change <<<
4. Fast Cooling
To activate Fast Cooling, press the REF.SET button, until
Fast Freezing icon lights up on the display screen.
Press the button again to deactivate.
5. Vacation mode (You can stop operating the appliance
without unplugging)
Press FRZ.SET and REF.SET button at the same time for 5
seconds will turn off the appliance.
Under the ‘off’ mode Freezer and refrigerator
temperature displays “-- --”. Other LED lights go out and
all the operation of your appliance cease.
To deactivate, press FRZ.SET and REF.SET button
together for 5 seconds in order to switch the appliance
On.
• Interior lights of the refrigerator turn off when the doors are open for more than 10 minutes.
• In case either the freezer or refrigerator door is left open for more than a minute, door alarm rings with
1 minute intervals.
• Display Energy Save function
- 5 minutes after no buttons or doors are operated, all the display LED turns off. It will light up when
any button is pressed or doors open.
A
Freezer
Compartment
Temperature
1
Freezer
Compartment
Adjustment
2
Lock
Button
3
Refrigerator
Compartment
Adjustment
B
Fast
Freezing
Icon
E
Fast
Cooling
Icon
C
Lock
Icon
D
Refrigerator
Compartment
Temperature
Transportation
Note
X603-13(영)_9S22FNI_IX(월풀).indd 4 2017-01-10 오후 1:52:50
4
5
Care and Maintenance
Cleaning
1. Unplug the refrigerator before cleaning.
2. Remove the interior parts for cleaning
- Freezer & Refrigerator door bin:
Hold both ends and pull up
- Freezer & Refrigerator shelves:
Open the door fully, pull the shelves forward to
remove.
- Vegetable and Fruit crisper
Pull forward and lift up a little to remove.
3. Clean the inside of the fridge regularly to prevent odor.
Use soft towel with mild detergent for cleaning. Make
sure to use clean water for final cleaning.
4. Clean the dust at the back of the fridge and on the
ground regularly 9at least once a year).
Never use petrol, benzene, thinners, scouring pads or
harsh abrasives, for they can damage the surfaces.
Never use gasoline (petrol) benzene(benzol), thinner,
etc., for they can damage the surface
If fridge will not be used for a long period of time
Unplug the refrigerator to prevent risk of electric shock or
fire. Clean, wipe and dry thoroughly.
Power cut
When there is power outage, it is not suitable to put
fresh food in.
Try to reduce the number of door open.
Discard
Before you throw away the old refrigerator, please
remove doors to prevent children from trapped in the
fridge by accident
Transportation
X603-13(영)_9S22FNI_IX(월풀).indd 5 2017-01-10 오후 1:52:51
6
7
Please check the following troubleshooting tips before
you call for service!
Problem
It never gets cold inside.
Freezing & refrigerating is
not so good.
Checkup Point
❶ Is the refrigerator unplugged?
❷ Is the temperature set to [Low Mode]?
❸ Is the refrigerator under direct sunlight or is a
heat appliance placed near it?
❹ Is the space between the refrigerator back and the
wall too close?
Action
❶ Plug in the refrigerator.
❷ Set the temperature mode to Middle or High.
❸ Move to a place where there is no direct
sunlight, no heat appliances around.
❹ Keep sufficient space (more than 5cm)
between the back of the refrigerator and the wall.
Problem
Foods in the
refrigerator get frozen.
Checkup Point
❶ Is temperature set to [High]?
❷ Is the room temperature too low?
❸ Is food with moisture stored close to the cold air
spout?
Action
❶ Set the temperature to [Middle] or [Low].
❷ Food can be frozen if ambient temperature is below
5°C.
Move to a place where the temperature is over 5°C.
❸ Place food with moisture on the shelves close to the
doors.
Problem
Strange sounds from
the refrigerator.
Checkup Point
❶ Is the floor beneath the refrigerator uneven?
❷ Is the space between refrigerator back and the wall
too close?
❸ Do any objects or other stuff touch the refrigerator?
Action
❶ Move the refrigerator to a level and even floor.
❷ Keep sufficient space.
❸ Remove any object which touches the refrigerator.
Problem
Odour or unpleasant
smell from the inside.
Checkup Point
❶ Is the food stored uncovered or unwrapped?
❷ Are the shelves and pockets stained with food stuff?
❸ Is the food stored too long?
Action
❶ Be sure to cover and wrap the food.
❷ Clean them regularly. Once smell gets soaked into
those parts, it is not easy to remove.
❸ Do not store food for too long. A refrigerator is
neither a perfect nor a permanent food keeper.
Before You Call for Service...
X603-13(영)_9S22FNI_IX(월풀).indd 6 2017-01-10 오후 1:52:51
6
7

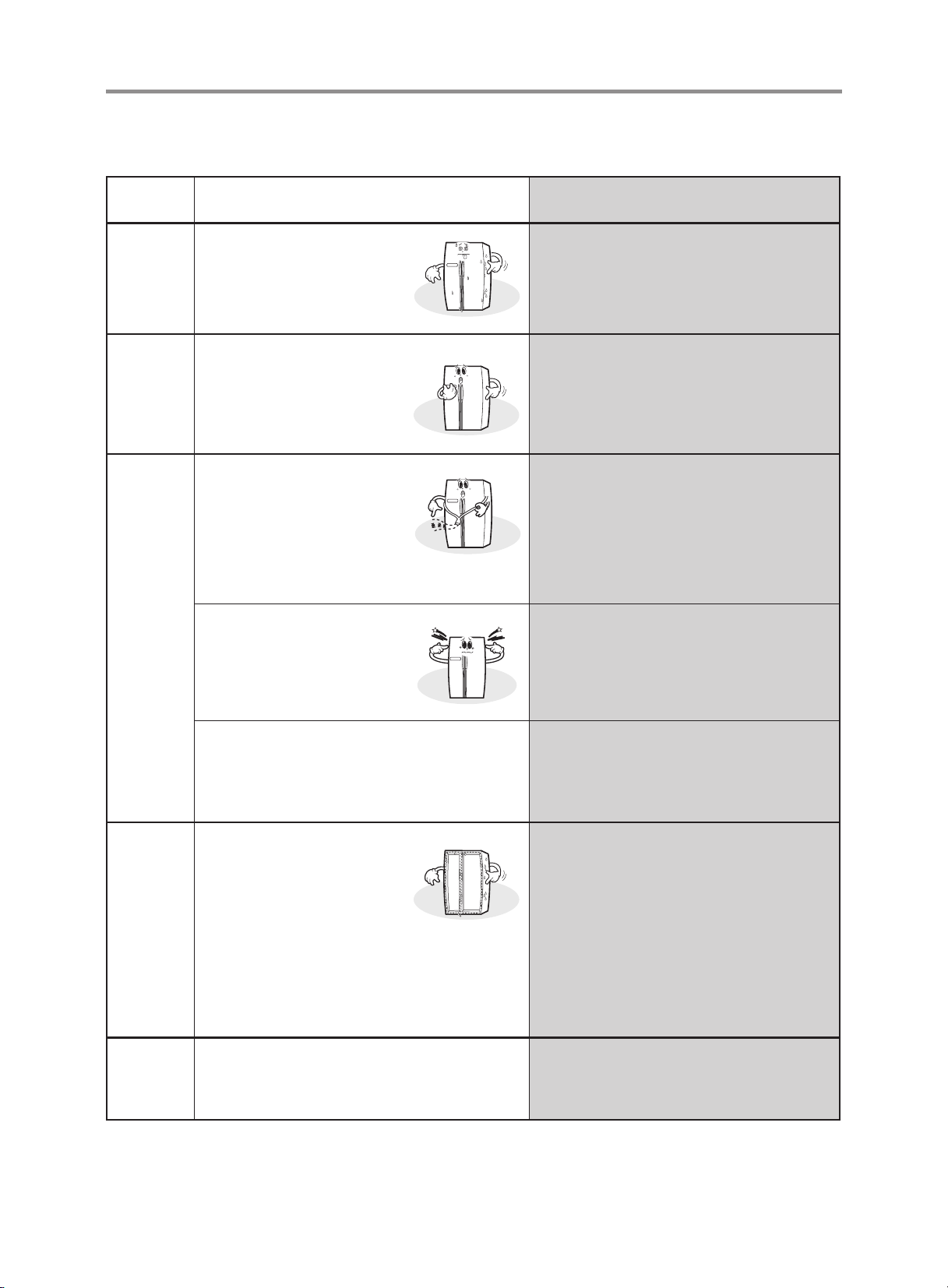

Something strange ?
Don’t worry. Here is the answer.
Case Explanation
Heat
Front and side of refrigerator
feels
warm or hot.
Pipes (refrigerant vessel) are placed beneath •
the surface to prevent moisture forming on
it.
Doors do
not open
easily
Doors do not open easily.
When you close the door and then open •
again immediately, the door is not easy to
open because warm air rushes in and creates
the pressure difference. In this case wait for
a minute, then it will open easily.
Strange
Sound
It sounds like water is flowing
from
the refrigerator.
When the compressor starts to run or stop, •
refrigerant which makes the inside cold
flowing in the pipes can make such a sound.
Defrosted water can also make such a sound. •
(This refrigerator adopts an automatic
defrosting system.)
Cracking or clicking sounds.
Inside parts shrink and/or expand due to •
temperature change --- When the inside gets
cold or when the door is open, such sounds
can be made.
Humming or buzzing sounds.
Compressor or fans for cold air circulation •
can make such working sound. (If the
refrigerator is not level, the sound can be
louder.)
Frost
& Dew
Dew or frost on the wall and/or
food container surface in the
freezer and refrigerator
compartment.
Frost and/or dew can be made in the following
cases;
H• igh temperature and/or high humidity
around the refrigerator.
When doors are open too long.•
Food with much moisture are stored •
uncovered or unwrapped.
S You can see the same appearance when
cold water is poured in a glass cup and
dew is forming on the surface of it.
Dew on the cabinet surface.
If it is highly humid around the refrigerator, •
moisture in the air sticks to the surface to
form dew.
Before You Call for Service...
X603-13(영)_9S22FNI_IX(월풀).indd 7 2017-01-10 오후 1:52:52
8
9
If the refrigerator cannot
pass through a door
during installation, follow
these steps.
(This guide refers to several models. The real features are
model dependent.)
Removing Freezer Door
S Remove front bottom cover first, if it is attached.
Unscrew top hinge cover with a screw driver.
Turn top hinge fastener counterclockwise 3~4 times.
Disconnect the harness wires.
Lift up the front of hinge to remove. (After the hinge is
removed the door can fall down forward. Be careful!)
Lift the door straight up to remove.
Installation Preparation
Check if the refrigerator can pass a
doorway or enter a door first.
Dimensions (including Door Handles)
(Width*Depth*Height) 906mm×735mm×1770mm
Find a suitable place to install
Sufficient space from the back of refrigerator to the wall
for free air ventilation.
Avoid direct sunlight.
● Once the installation place is ready,
follow the installation instructions. If the
surrounding temperature of refrigerator
is low (below 5oC), food can be frozen or
the refrigerator can function abnormally.
Note
1
2
3
4
X603-13(영)_9S22FNI_IX(월풀).indd 8 2017-01-10 오후 1:52:57
8
9
Removing Refrigerator Door
Unscrew top hinge cover with a screwdriver.
Insert a thin screwdriver into the
side groove of the cover to remove.
Turn top hinge fastener counterclockwise 3~4 times.
Disconnect harness wires (model dependent).
Lift the door straight up to remove.
Replacing Freezer Door
Let the top of door close to the cabinet and insert
the top hinge pin to the top hole of freezer door.
(Insert the back of hinge to the groove of protrusion
first, then front to the top hole of door.)
Turn the hinge fastener tightly to the end.
Connect harness wirings and screw down the
ground wire.
Replacing Refrigerator Door
Insert the bottom hole of refrigerator
door straight into the bottom hinge pin.
Let the top of door close to the cabinet and insert
the top hinge pin to the top hole of refrigerator door.
(Insert the back of hinge to the groove of protrusion
first, then front to the top hole of door.)
Turn the hinge fastener tightly to the end.
Connect harness wirings (model dependent) and
screw down the ground wire. Click and screw the top
hinge cover.
1
1
2
3
2
3
1
2
X603-13(영)_9S22FNI_IX(월풀).indd 9 2017-01-10 오후 1:53:01
10
11
Refrigerator Leveling &
Door Adjustment
(If needed)
The refrigerator must be level in order to maintain
optimal performance and desirable front appearance.
(If the floor beneath the refrigerator is uneven, the
freezer and refrigerator doors look unbalanced.)
In case freezer door is lower than
refrigerator door...
Insert a screw driver
(flat tip) into a groove of
the left wheel (bottom
of freezer) and turn it
clockwise until the door
is balanced. (Clockwise
to raise freezer door,
counterclockwise to
lower.)
※ If the freezer door is not balanced by step 1, then
follow the next steps.
Open the doors, unscrew
the front cover and
remove, if it is attached.
Insert a spanner (A part) into the hinge nut (1 part)
and unscrew the nut by turning clockwise.
Insert a spanner (B part) into the hinge nut (2 part)
and turn clockwise to lower the door.
If the door is aligned, fasten the nut (1) tightly by
turning counter-clockwise.
In case refrigerator door is lower than
freezer door...
Insert a screw driver (flat
tip) into a groove of the
right wheel (bottom of
refrigerator) and turn it
clockwise until the door
is balanced. (Clockwise to
raise refrigerator door,
counterclockwise to lower.)
※If the refrigerator door is not balanced by step 1, then
follow the next steps.
Insert a spanner (A part) into the hinge nut (1 part)
and unscrew the nut by turning clockwise.
Insert a spanner (B part) into the hinge nut (2 part)
and turn counter-clockwise to tighten the door.
If the door is aligned, fasten the nut (1) tightly by
turning.
Front Cover
After installation and/or door leveling, fasten front
cover with screws. (Remove the screws on the front
bottom panel first. Click and screw the cover.)
Caution
● The front of refrigerator needs to be just
a little higher than the back for easy door
closing, but if the wheel is raised too much for
door balance, i.e. the front of refrigerator is
much higher than the back, it can be difficult
to open the door.
1
2
2
1
3
3
4
4
5
X603-13(영)_9S22FNI_IX(월풀).indd 10 2017-01-10 오후 1:53:02
10
11
Food Storage Tips
Wash food before storing.
Divide and separate food into
smaller pieces.
Place watery food or food
with a lot of moisture in front
shelves (close to door side).
If they are placed close to the
cold air spout, they can be
frozen.
Warm or hot food should be
cooled down enough before
storing to reduce power
consumption and to enhance
refrigeration performance.
Be careful in storing tropical fruits
such as bananas, pineapples and
tomatoes, as they can easily
deteriorate in lower temperatures.
Keep enough space between
the foods. If too tight or too close,
cold air circulation is hindered,
resulting
in poor refrigeration.
Never forget to cover or wrap
food to prevent odours.
Caution
Caution
Caution
Caution
Caution
Caution
Caution
X603-13(영)_9S22FNI_IX(월풀).indd 11 2017-01-10 오후 1:53:03
Disposal of Used Electrical & Electronic Equipment
The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as
household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical &
electronic equipments waste.
In the European Union and Other European countries there are separate collection systems for used electrical and
electronic product. By ensuring the correct disposal of this product, you will help prevent potential hazards to the
environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The
recycling of materials will help conserve natural resources.
Please do not therefore dispose of your old electrical and electronic equipment with your household waste.
For more detailed information about recycling of this product, please contact your local city office or your household waste
disposal service.
X603-13(영)_9S22FNI_IX(월풀).indd 12 2017-01-10 오후 1:53:03
인쇄물 신규(수정) 의뢰서
문서번호 X603-13 담당자 파트장
구분 ■ 신규 / □ 수정
요청일자 2016. 05. 27
요청부서 Global OEM 파트 / / /
부품CODE 품명 규격 Buyer
60139-0002708-00 MANUAL B5, 총 16P, X603-13(영)9S22FNI_whirlpool
상세 내용
160527 - 신규 : 총 16p(1~16)
160530 - 수정 : 총 3p(8,9,11)
160624 - 수정 : 총 1p(표지)
160817 - 신규 : 총 1p(10), 수정 : 총 4p(1,2,7,8)
160819 - 수정 : 총 1p(2)
170109 - 수정 : 총 1p(표지)
170110 - 수정 : 총 1p(표지)
※ 별첨 : 관련 PDF 파일 1부
상기와 같이 신규(수정)을 의뢰 합니다.
2016. 05. 27
동부대우전자 냉장고공장 생산기술파트
X603-13(영)_9S22FNI_IX(월풀).indd 15 2017-01-10 오후 1:53:03
