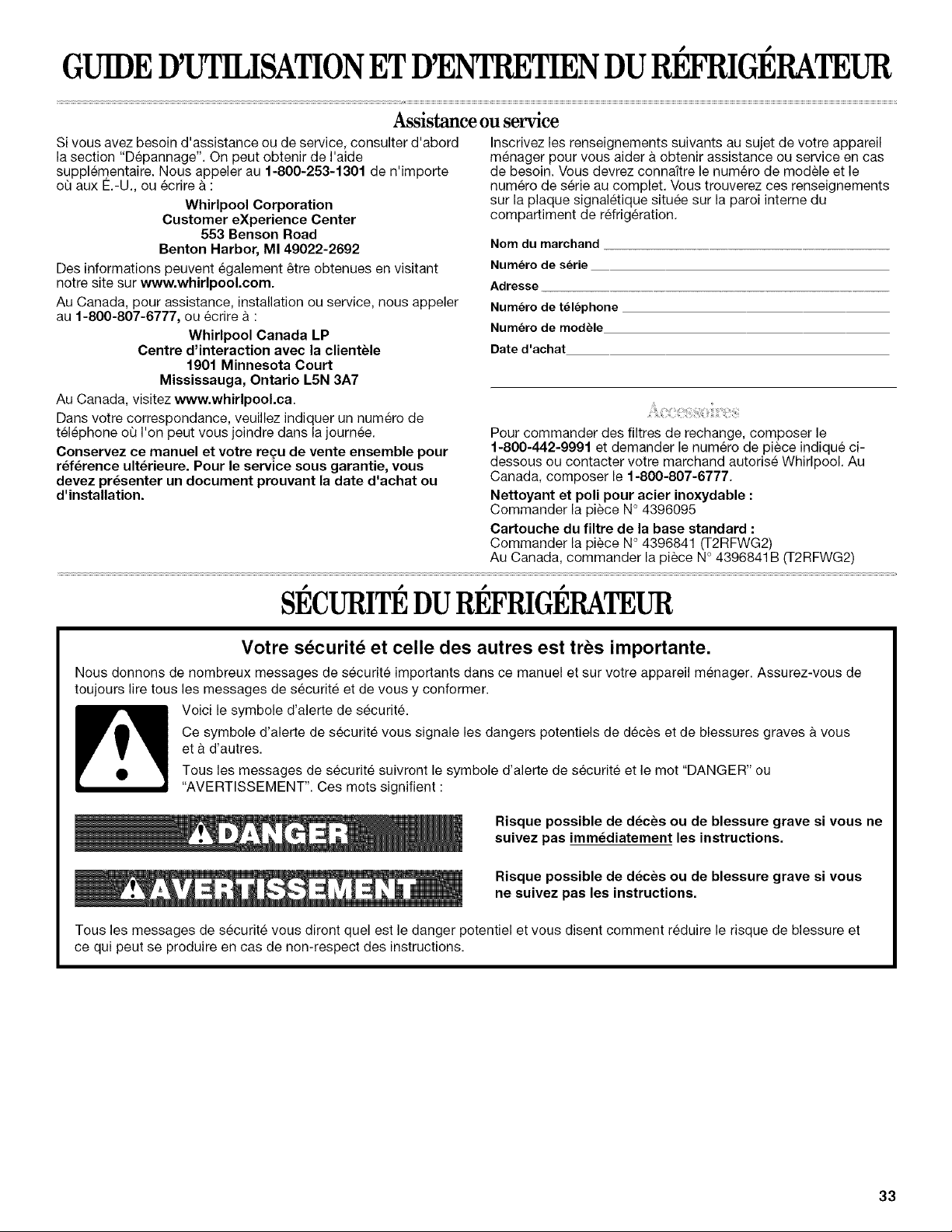

Assistance or Service

If you need assistance or service, first see the "Troubleshooting"

section. Additional help is available. Call us at 1-800-253-1301

from anywhere in the U.S.A., or write:

Whirlpool Corporation

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Information may also be obtained by visiting our website at

www.whirlpool.com.

In Canada, for assistance, installation or service, call us at

1-800-807-6777, or write:

Whirlpool Canada LP

Customer Interaction Centre

1901 Minnesota Court

Mississauga, Ontario LSN 3A7

In Canada, visit www.whirlpool.ca.

Please include a daytime phone number in your correspondence.

Keep this book and your sales slip together for future

reference. You must provide proof of purchase or installation

date for in-warranty service.

2318587

Whi_ .....el °

MAGINE _

Write down the following information about your appliance to help

you obtain assistance or service if you ever need it. You will need

to know your complete model number and serial number. You can

find this information on the model and serial number label, located

on the inside wall of the refrigerator compartment.

Dealer name

Serial number

Address

Phone number

Model number

Purchase date

To order replacement filters, call 1-800-442-9991 and ask for the

part number listed below or contact your authorized Whirlpool

dealer. In Canada, call 1-800-807-6777.

Stainless Steel Cleaner and Polish: Order Part #4396095

Standard Base Filter Cartridge:

Order Part #4396841 (T2RFWG2)

In Canada, Order Part #4396841B (T2RFWG2)

Whi, l_ol °

TOD0 LO QUE _AGINA_ _'

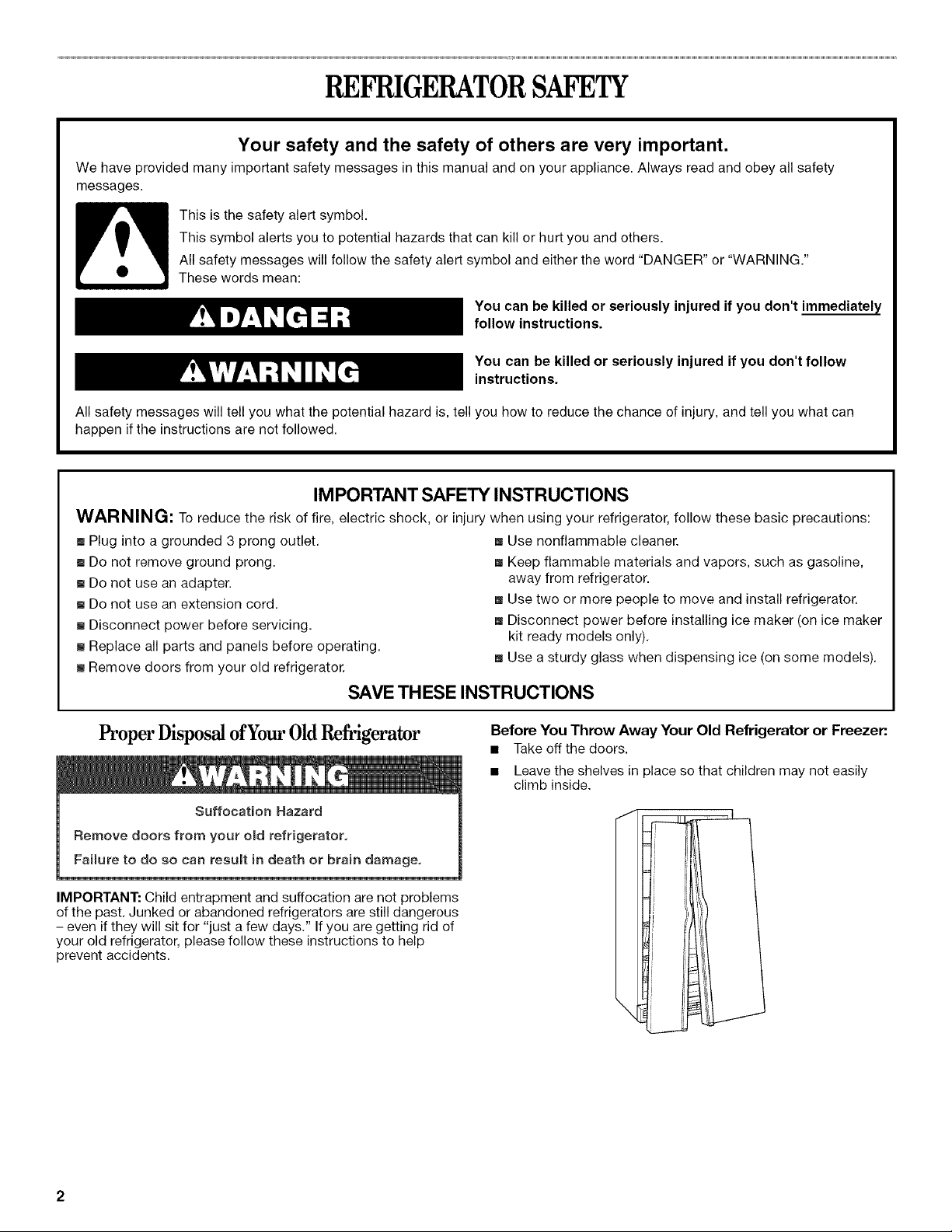

REFRIGERATORSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

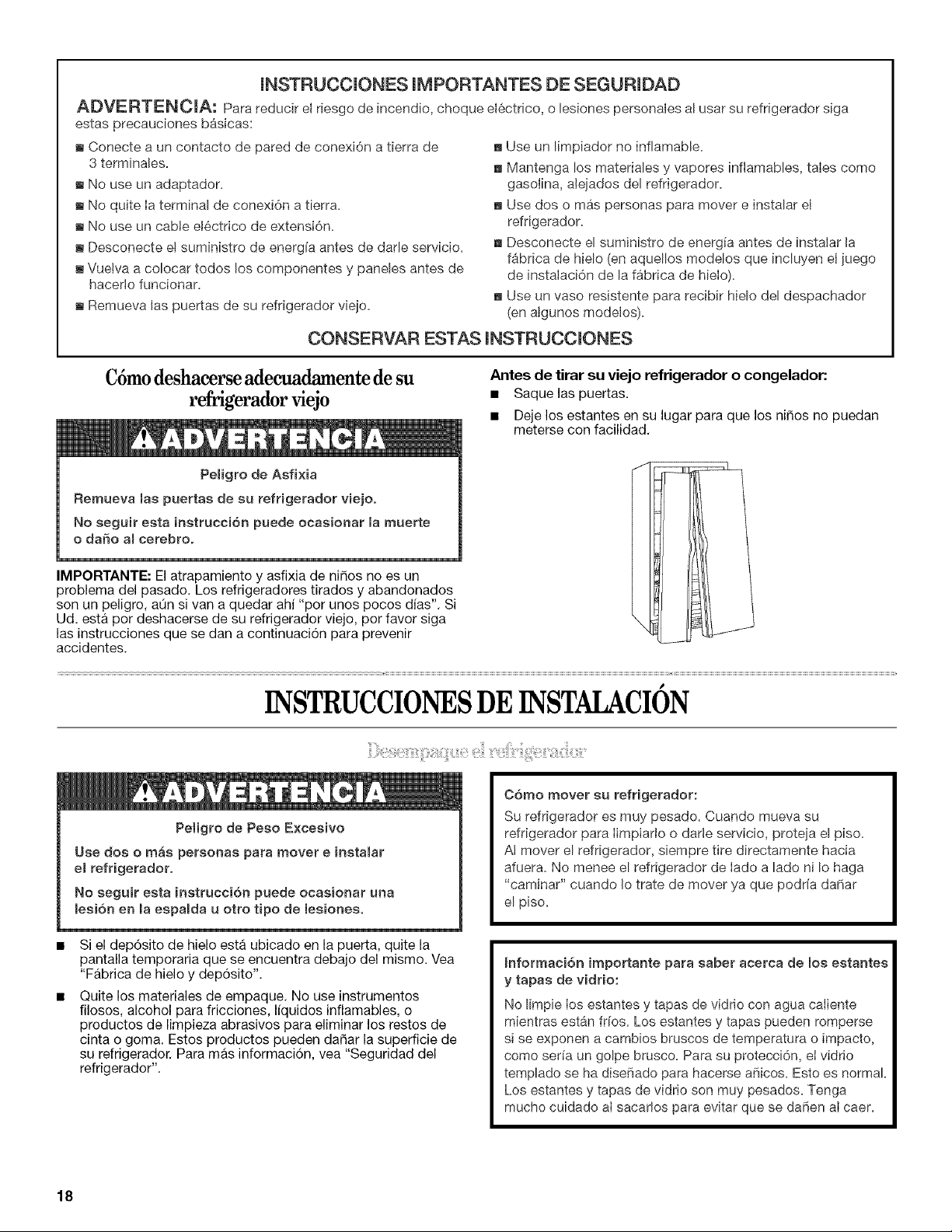

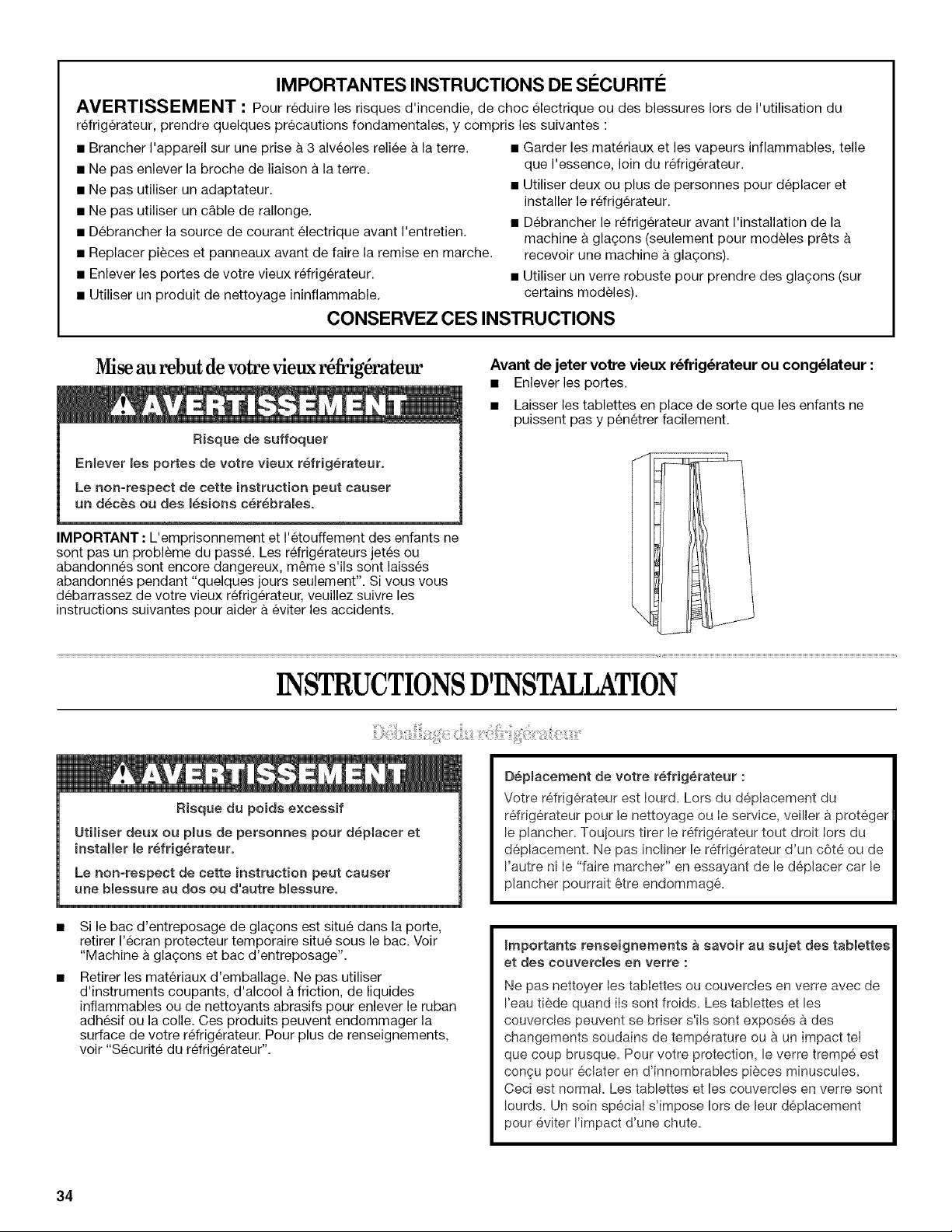

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

m Plug into a grounded 3 prong outlet.

m Do not remove ground prong.

m Do not use an adapter.

m Do not use an extension cord.

m Disconnect power before servicing.

m Replace all parts and panels before operating.

m Remove doors from your old refrigerator.

• Use nonflammable cleaner.

• Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

• Use two or more people to move and install refrigerator.

• Disconnect power before installing ice maker (on ice maker

kit ready models only).

• Use a sturdy glass when dispensing ice (on some models).

SAVE THESE INSTRUCTIONS

Proper Disposal ofYour OldRefrigerator

Before You Throw Away Your Old Refrigerator or Freezer:

• Take off the doors.

• Leave the shelves in place so that children may not easily

climb inside.

IMPORTANT: Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are still dangerous

- even if they will sit for "just a few days." If you are getting rid of

your old refrigerator, please follow these instructions to help

prevent accidents.

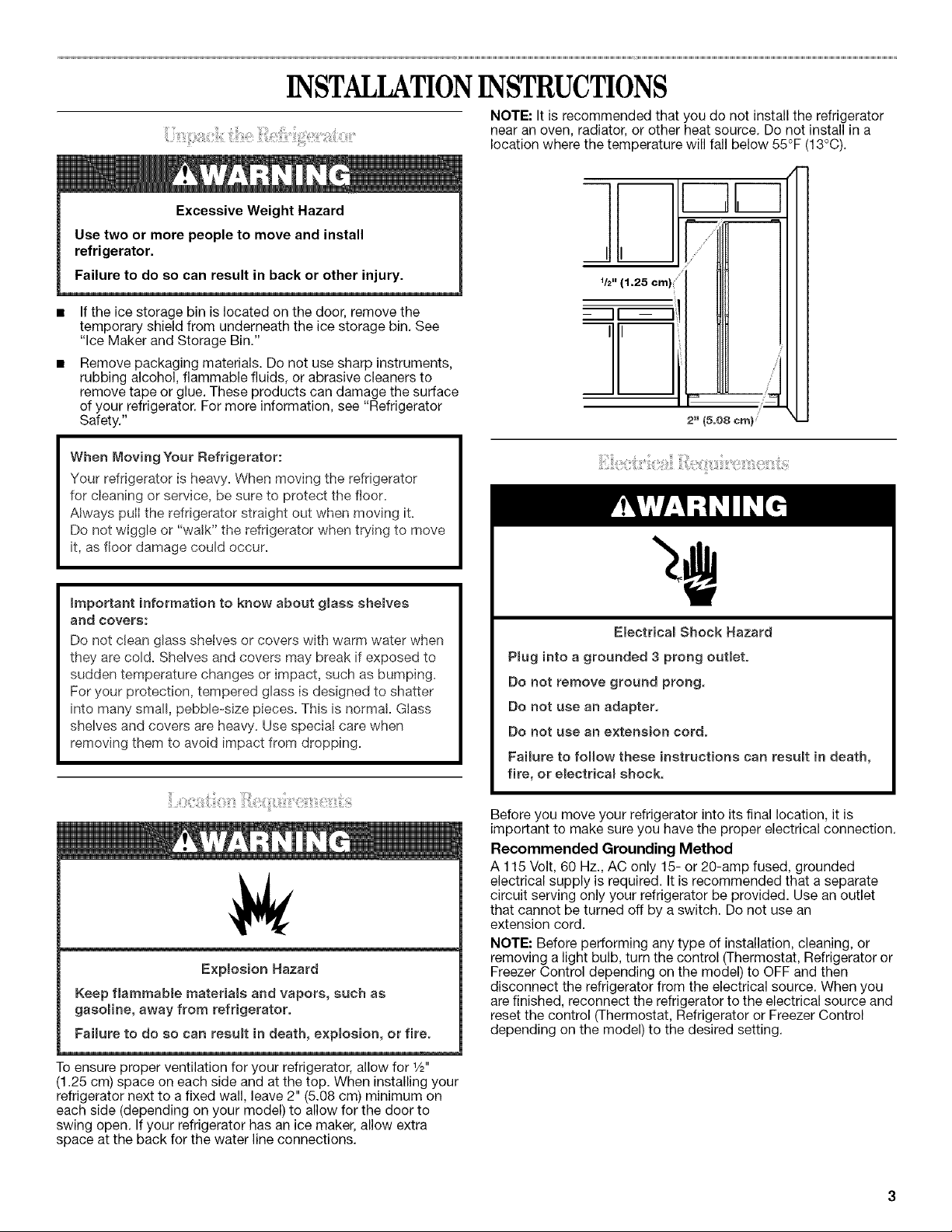

INSTALLATIONINSTRUCTIONS

NOTE: It is recommended that you do not install the refrigerator

near an oven, radiator, or other heat source. Do not install in a

location where the temperature will fall below 55°F (13°C).

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

If the ice storage bin is located on the door, remove the

temporary shield from underneath the ice storage bin. See

"Ice Maker and Storage Bin."

Remove packaging materials. Do not use sharp instruments,

rubbing alcohol, flammable fluids, or abrasive cleaners to

remove tape or glue. These products can damage the surface

of your refrigerator. For more information, see "Refrigerator

Safety."

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator

for cleaning or service, be sure to protect the floor.

Always pull the refrigerator straight out when moving it.

Do not wiggle or "walk" the refrigerator when trying to move

it, as floor damage could occur.

important information to know about glass shelves

and covers:

Do not clean glass shetves or covers with warm water when

they are cold. Shelves and covers may break if exposed to

sudden temperature changes or impact, such as bumping.

For your protection, tempered glass is designed to shatter

into many small, pebble-size pieces. This is normal. Glass

shelves and covers are heavy. Use specia! care when

removing them to avoid impact from dropping.

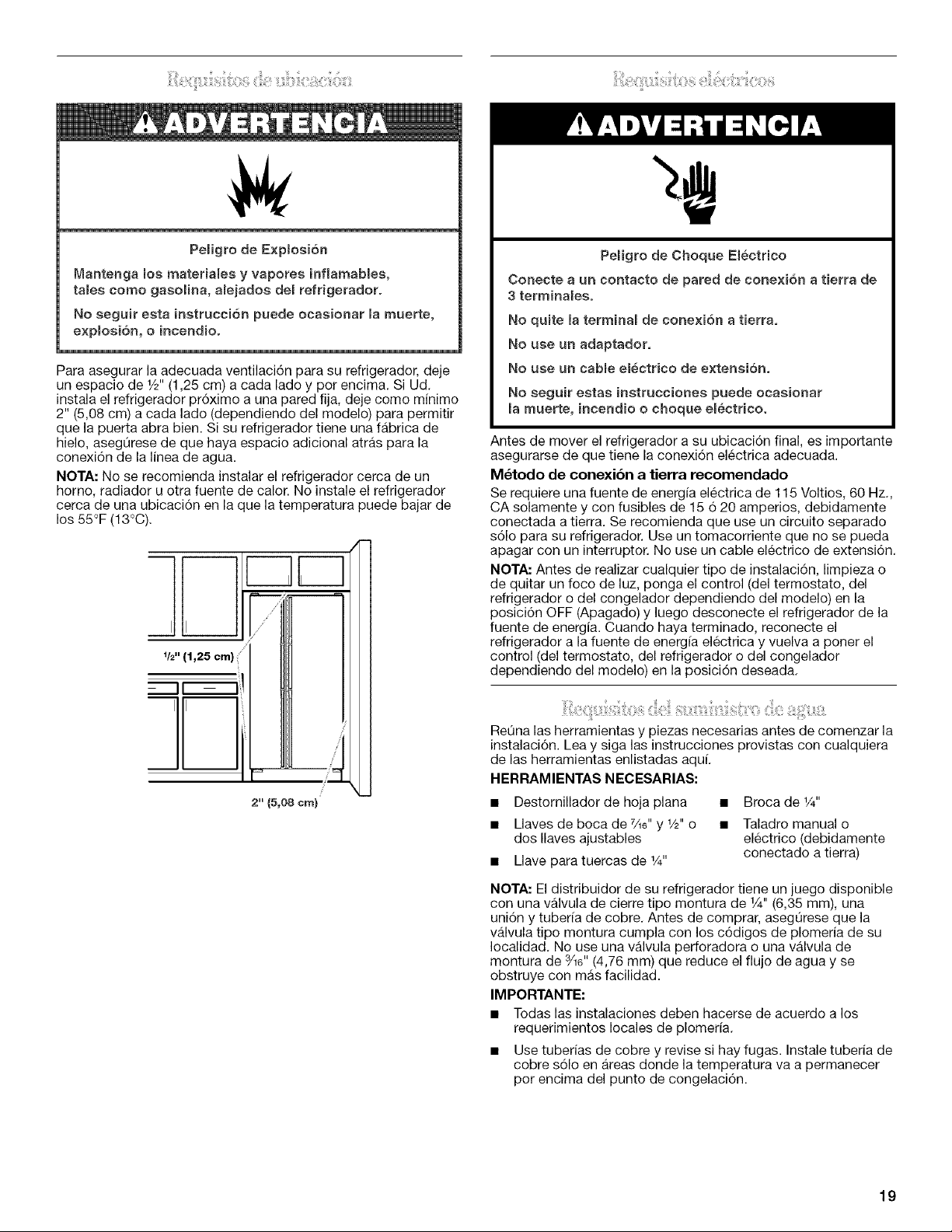

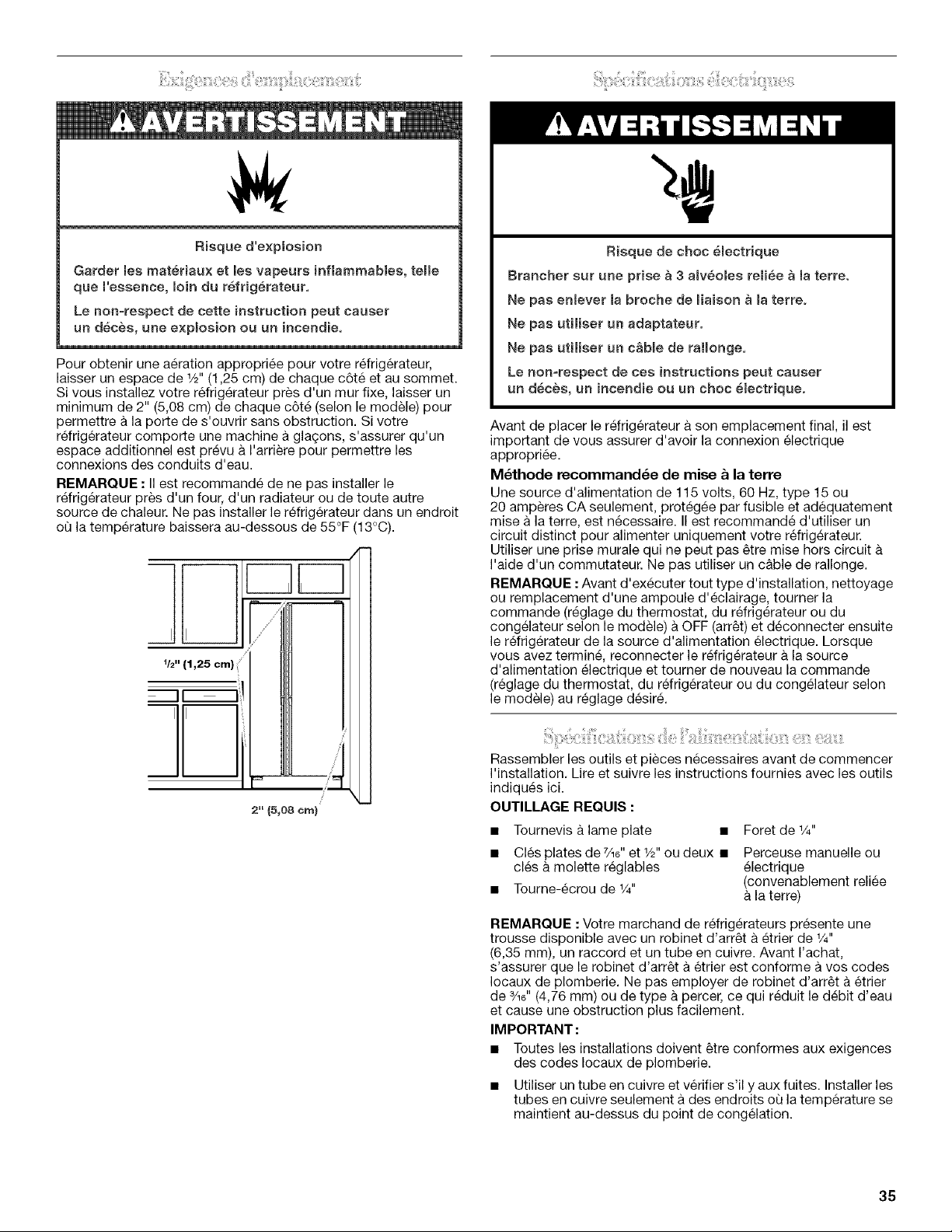

Explosion Hazard

Keep flammable materials and vapors, such as

gasomine, away from refrigerator.

Faimure to do so can reeumt in death, expmosion, or fire.

To ensure proper ventilation for your refrigerator, allow for 1/2"

(1.25 cm) space on each side and at the top. When installing your

refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on

each side (depending on your model) to allow for the door to

swing open. If your refrigerator has an ice maker, allow extra

space at the back for the water line connections.

y,"

1/2" (1.25 cm)(

II -- I!

2" {5.08 era}

Electdcam Shock Hazard

Pmuginto a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can reeumt in death,

fire, or electricam shock.

Before you move your refrigerator into its final location, it is

important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded

electrical supply is required. It is recommended that a separate

circuit serving only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use an

extension cord.

NOTE: Before performing any type of installation, cleaning, or

removing a light bulb, turn the control (Thermostat, Refrigerator or

Freezer Control depending on the model) to OFF and then

disconnect the refrigerator from the electrical source. When you

are finished, reconnect the refrigerator to the electrical source and

reset the control (Thermostat, Refrigerator or Freezer Control

depending on the model) to the desired setting.

....ii_!iiii_:i:i:,_:i_,::,i!:!:i_:::::::_i_:_pili!:,. ii:i_:_!i:ii:ii_,;_iii;_",_:!!_,:::::i_:::i_::!:_:::;i;:!!:

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

TOOLS NEEDED:

• Flat-blade screwdriver • %" Drill bit

• 7/16"and 1/2"Open-end or two • Hand drill or electric drill

adjustable wrenches (properly grounded)

• 1/4"nut driver

NOTE: Your refrigerator dealer has a kit available with a 1/4"

(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.

Before purchasing, make sure a saddle-type valve complies with

your local plumbing codes. Do not use a piercing-type or 3/16"

(4.76 mm) saddle valve which reduces water flow and clogs more

easily.

IMPORTANT:

• All installations must meet local plumbing code requirements.

• Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain

above freezing.

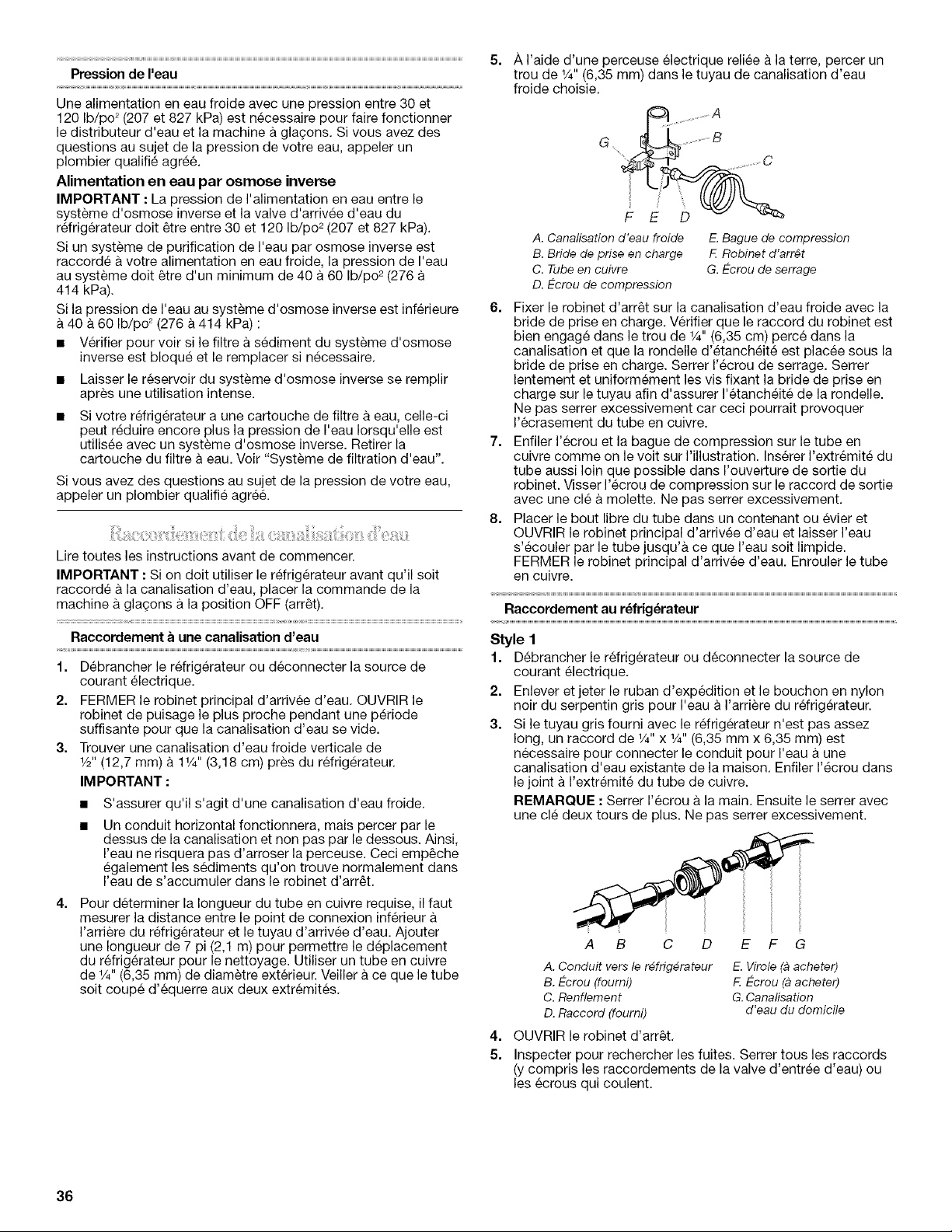

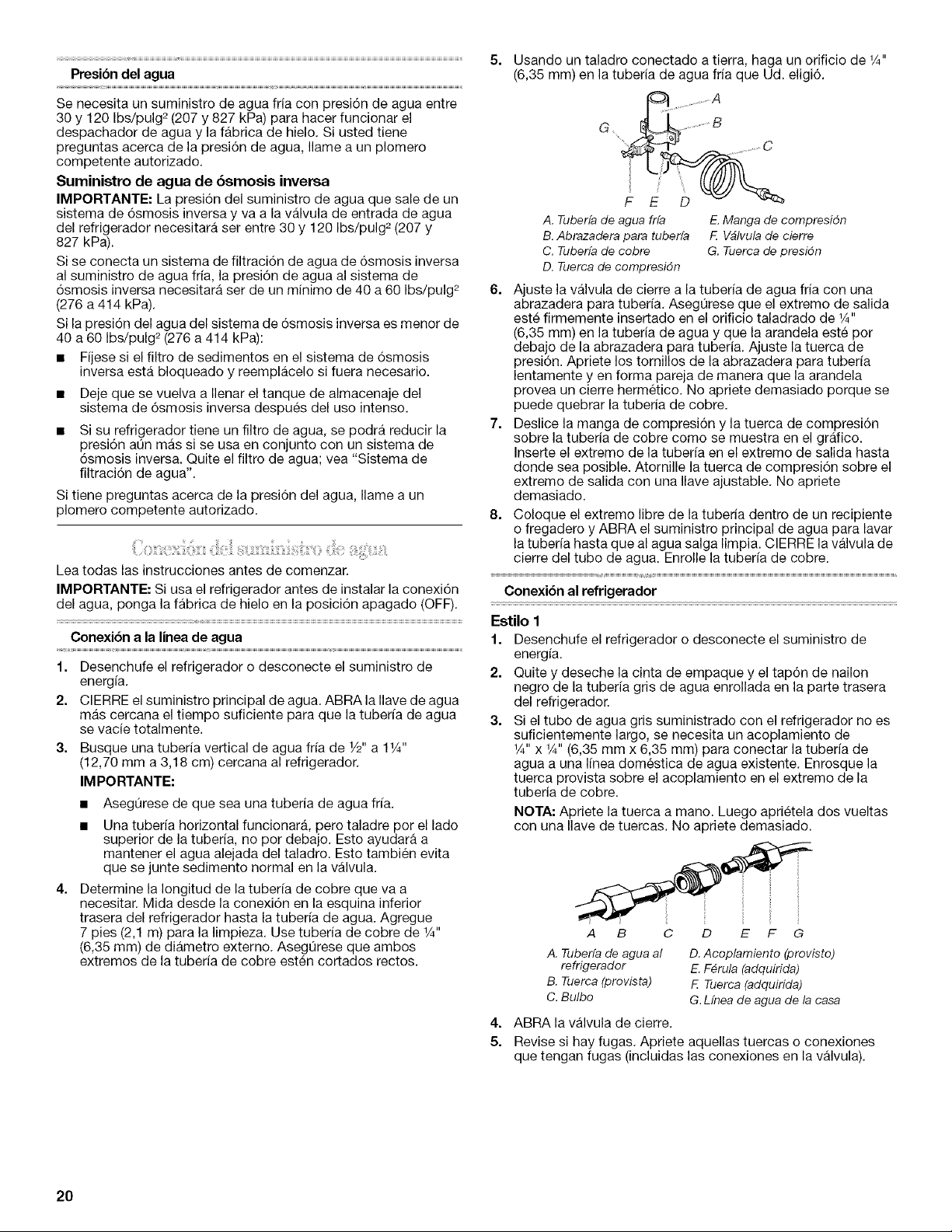

Water Pressure

A cold water supply with water pressure of between 30 and

120 psi (207 and 827 kPa) is required to operate the water

dispenser and ice maker. If you have questions about your water

pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the

refrigerator needs to be between 30 and 120 psi (207 and

827 kPa).

If a reverse osmosis water filtration system is connected to your

cold water supply, the water pressure to the reverse osmosis

system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than

40 to 60 psi (276 to 414 kPa):

• Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

• Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

• If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse

osmosis system. Remove the water filter. See "Water Filtration

System."

If you have questions about your water pressure, call a licensed,

qualified plumber.

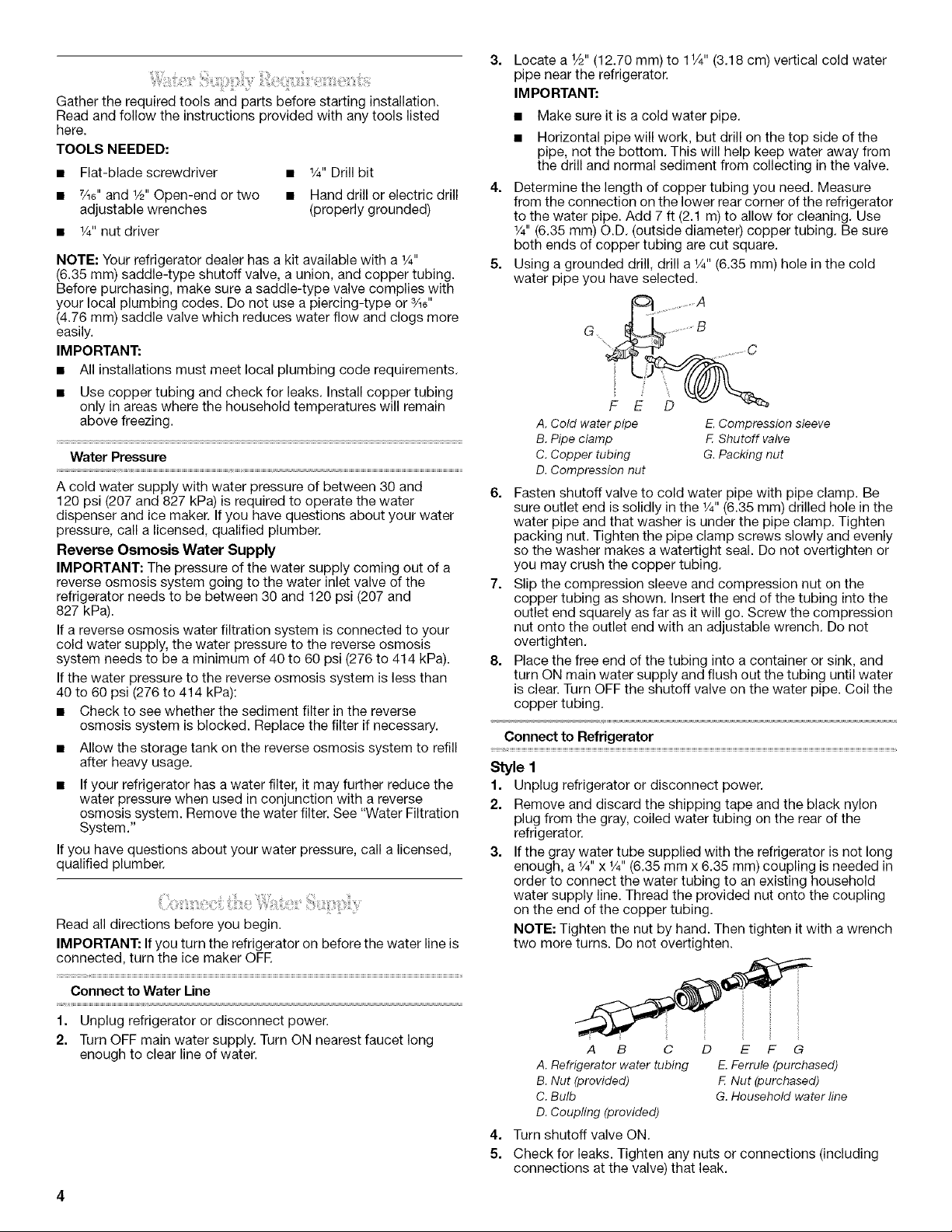

Read all directions before you begin.

IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFR

Connect to Water Line

3. Locate a 1_,,(12.70 mm) to 11A'' (3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

• Make sure it is a cold water pipe.

• Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from

the drill and normal sediment from collecting in the valve.

Determine the length of copper tubing you need. Measure

from the connection on the lower rear corner of the refrigerator

to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use

1/4"(6.35 mm) O.D. (outside diameter) copper tubing. Be sure

both ends of copper tubing are cut square.

Using a grounded drill, drill a 1/4"(6.35 mm) hole in the cold

water pipe you have selected.

....... A

G ..........................B

..........C

A. Cold water pipe E. Compression sleeve

B. Pipe clamp F.Shutoff valve

C. Copper tubing G.Packing nut

D. Compression nut

6. Fasten shutoff valve to cold water pipe with pipe clamp. Be

sure outlet end is solidly in the 1/4"(6.35 mm) drilled hole in the

water pipe and that washer is under the pipe clamp. Tighten

packing nut. Tighten the pipe clamp screws slowly and evenly

so the washer makes a watertight seal. Do not overtighten or

you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the

outlet end squarely as far as it will go. Screw the compression

nut onto the outlet end with an adjustable wrench. Do not

overtighten.

8. Place the free end of the tubing into a container or sink, and

turn ON main water supply and flush out the tubing until water

is clear. Turn OFF the shutoff valve on the water pipe. Coil the

copper tubing.

Connect to Refrigerator

Style 1

1. Unplug refrigerator or disconnect power.

2. Remove and discard the shipping tape and the black nylon

plug from the gray, coiled water tubing on the rear of the

refrigerator.

3. If the gray water tube supplied with the refrigerator is not long

enough, a 1/4"x 1/4"(6.35 mm x 6.35 mm) coupling is needed in

order to connect the water tubing to an existing household

water supply line. Thread the provided nut onto the coupling

on the end of the copper tubing.

NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

B c o : : G

A. Refrigerator water tubing E. Ferrule (purchased)

B. Nut (provided) F Nut (purchased)

C. Bulb G. Household water line

D. Coupling (provided)

Turn shutoff valve ON.

Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

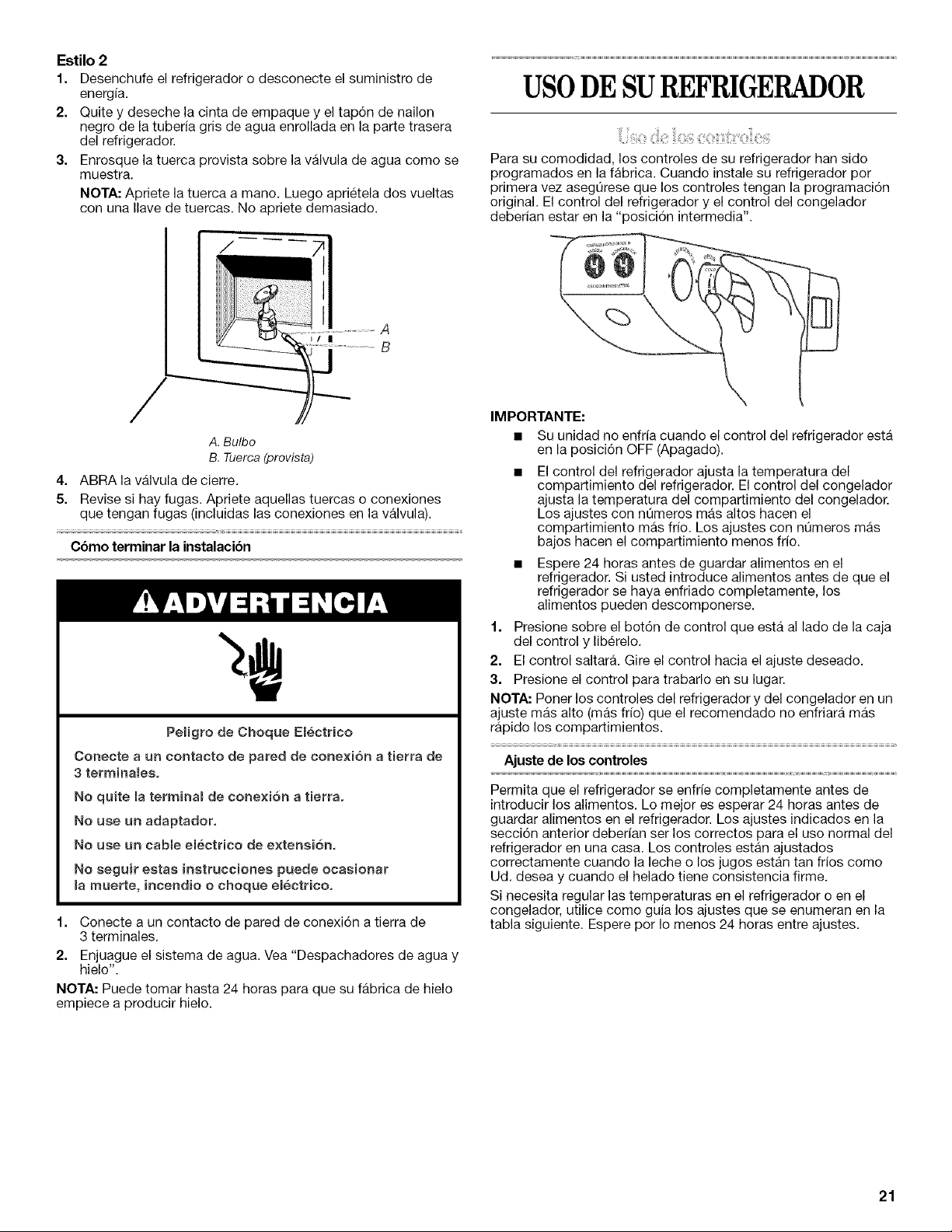

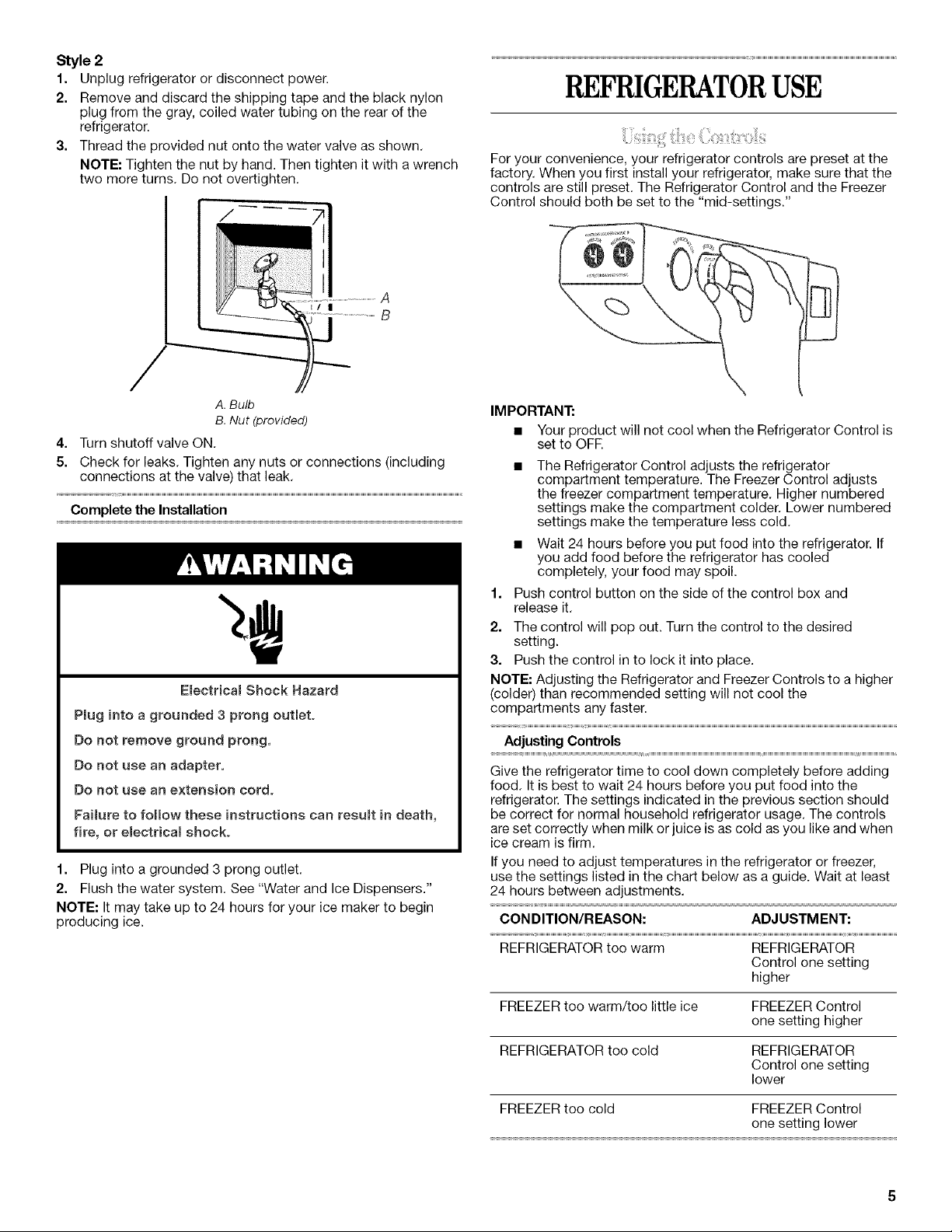

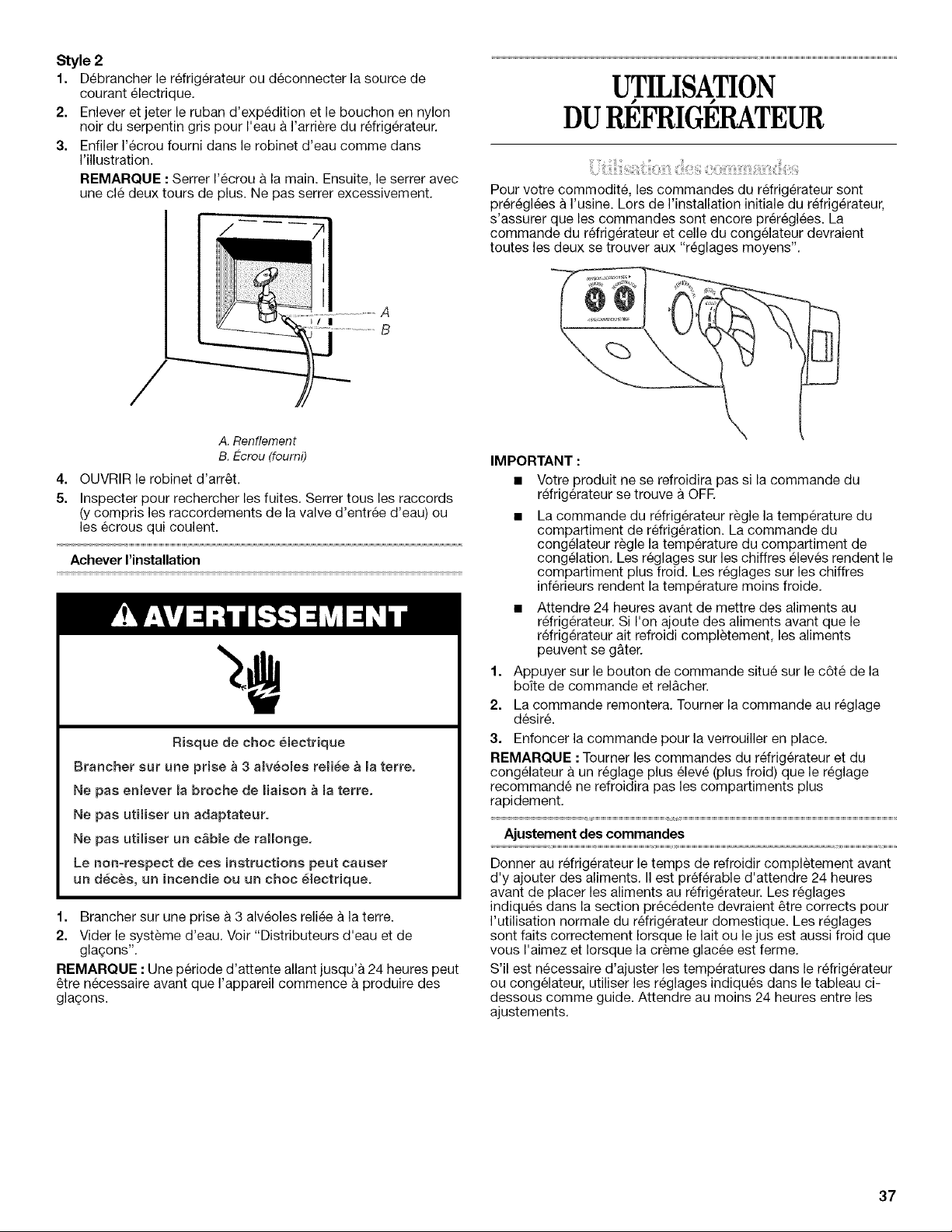

Style 2

1. Unplug refrigerator or disconnect power.

2. Remove and discard the shipping tape and the black nylon

plug from the gray, coiled water tubing on the rear of the

refrigerator.

3. Thread the provided nut onto the water valve as shown.

NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

REFRIGERATORUSE

For your convenience, your refrigerator controls are preset at the

factory. When you first install your refrigerator, make sure that the

controls are still preset. The Refrigerator Control and the Freezer

Control should both be set to the "mid-settings."

A. Bulb

B. Nut (provided)

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Complete the Installation

E(ectrical Shock Hazard

Pmuginto a grounded 3 prong outlet.

Do not remove ground prong,

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can resumt in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Flush the water system. See "Water and Ice Dispensers."

NOTE: It may take up to 24 hours for your ice maker to begin

producing ice.

IMPORTANT:

• Your product will not cool when the Refrigerator Control is

set to OFR

• The Refrigerator Control adjusts the refrigerator

compartment temperature. The Freezer Control adjusts

the freezer compartment temperature. Higher numbered

settings make the compartment colder. Lower numbered

settings make the temperature less cold.

• Wait 24 hours before you put food into the refrigerator. If

you add food before the refrigerator has cooled

completely, your food may spoil.

1. Push control button on the side of the control box and

release it.

2. The control will pop out. Turn the control to the desired

setting.

3. Push the control in to lock it into place.

NOTE: Adjusting the Refrigerator and Freezer Controls to a higher

(colder) than recommended setting will not cool the

compartments any faster.

Adjusting Controls

Give the refrigerator time to cool down completely before adding

food. It is best to wait 24 hours before you put food into the

refrigerator. The settings indicated in the previous section should

be correct for normal household refrigerator usage. The controls

are set correctly when milk or juice is as cold as you like and when

ice cream is firm.

If you need to adjust temperatures in the refrigerator or freezer,

use the settings listed in the chart below as a guide. Wait at least

24 hours between adjustments.

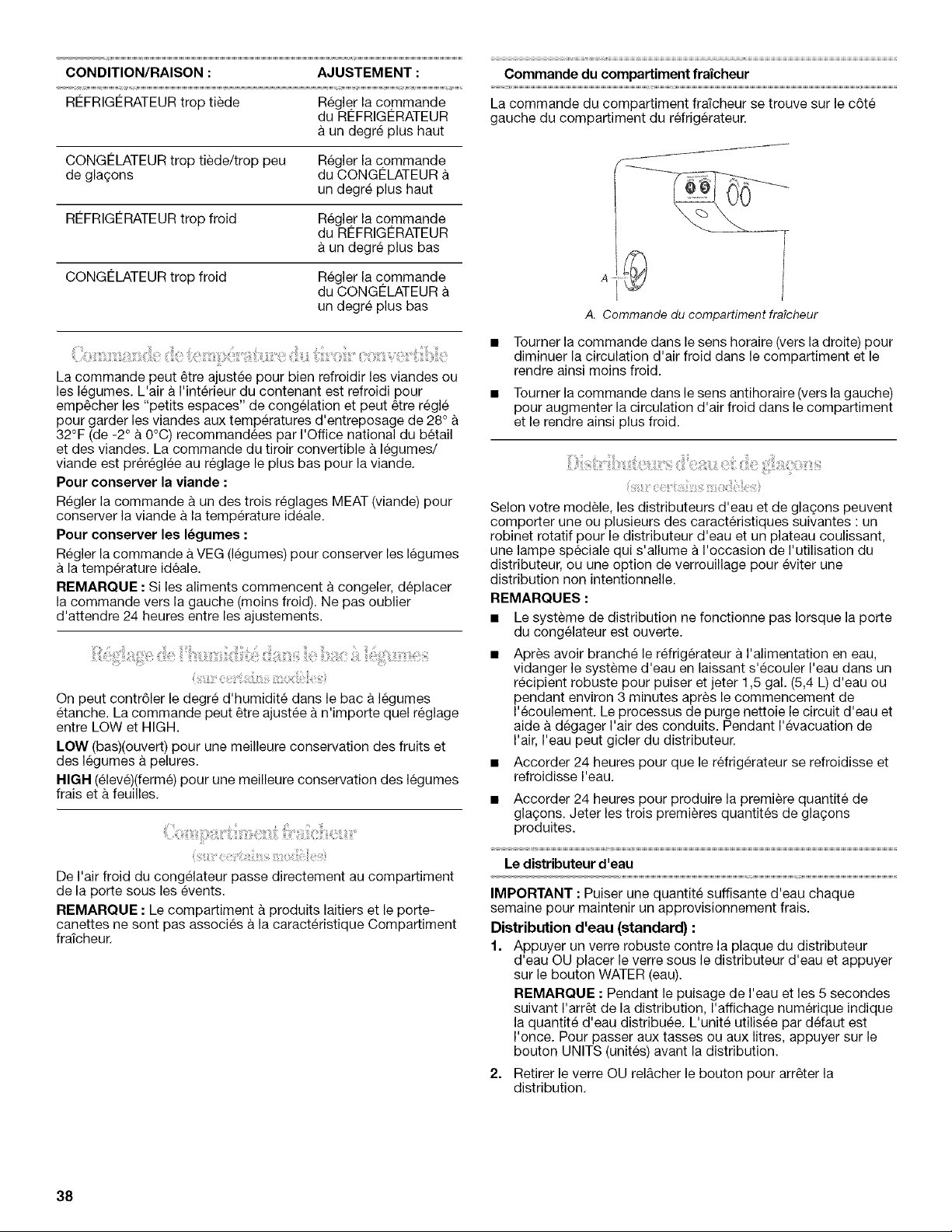

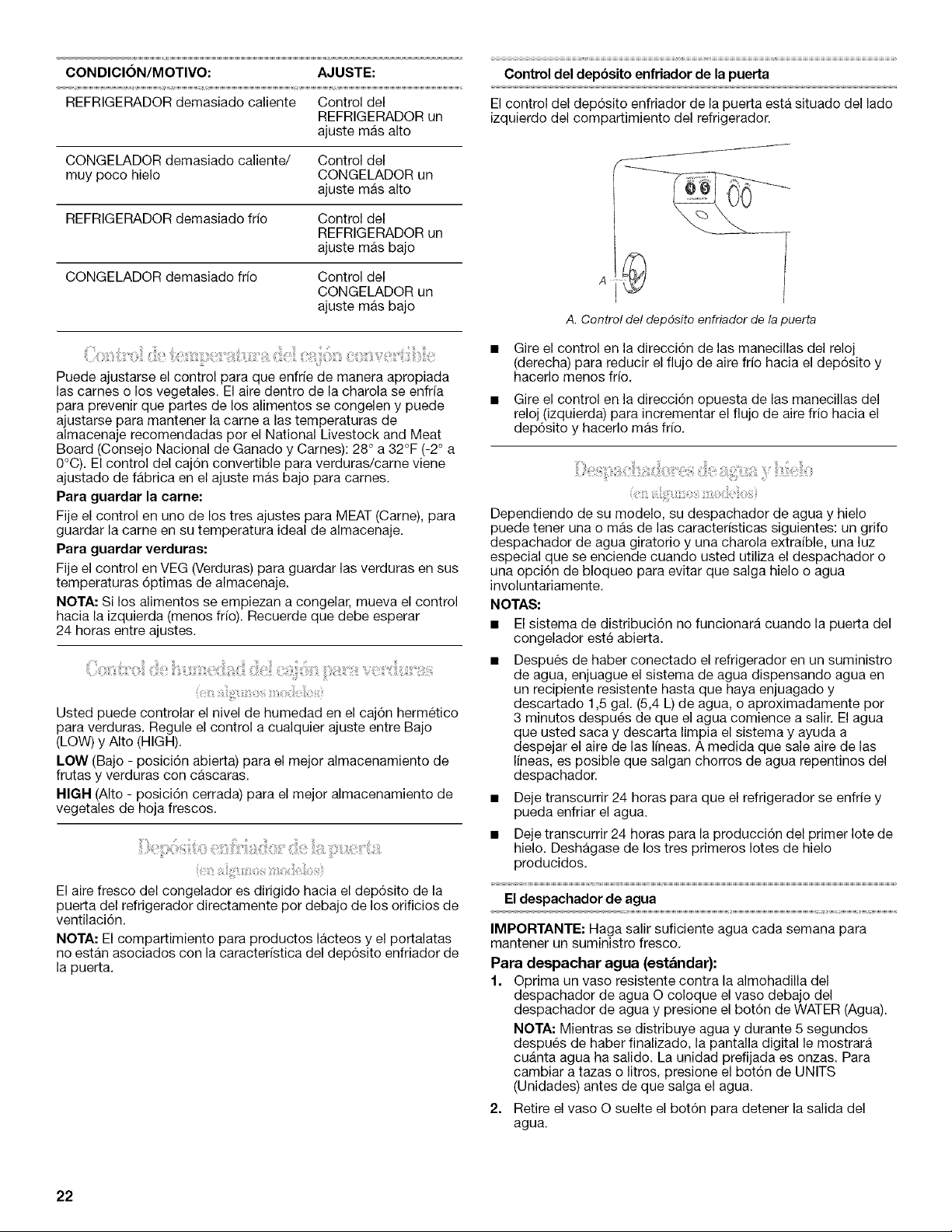

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR too warm REFRIGERATOR

Control one setting

higher

FREEZER too warm/too little ice FREEZER Control

one setting higher

REFRIGERATOR too cold REFRIGERATOR

Control one setting

lower

FREEZER too cold FREEZER Control

one setting lower

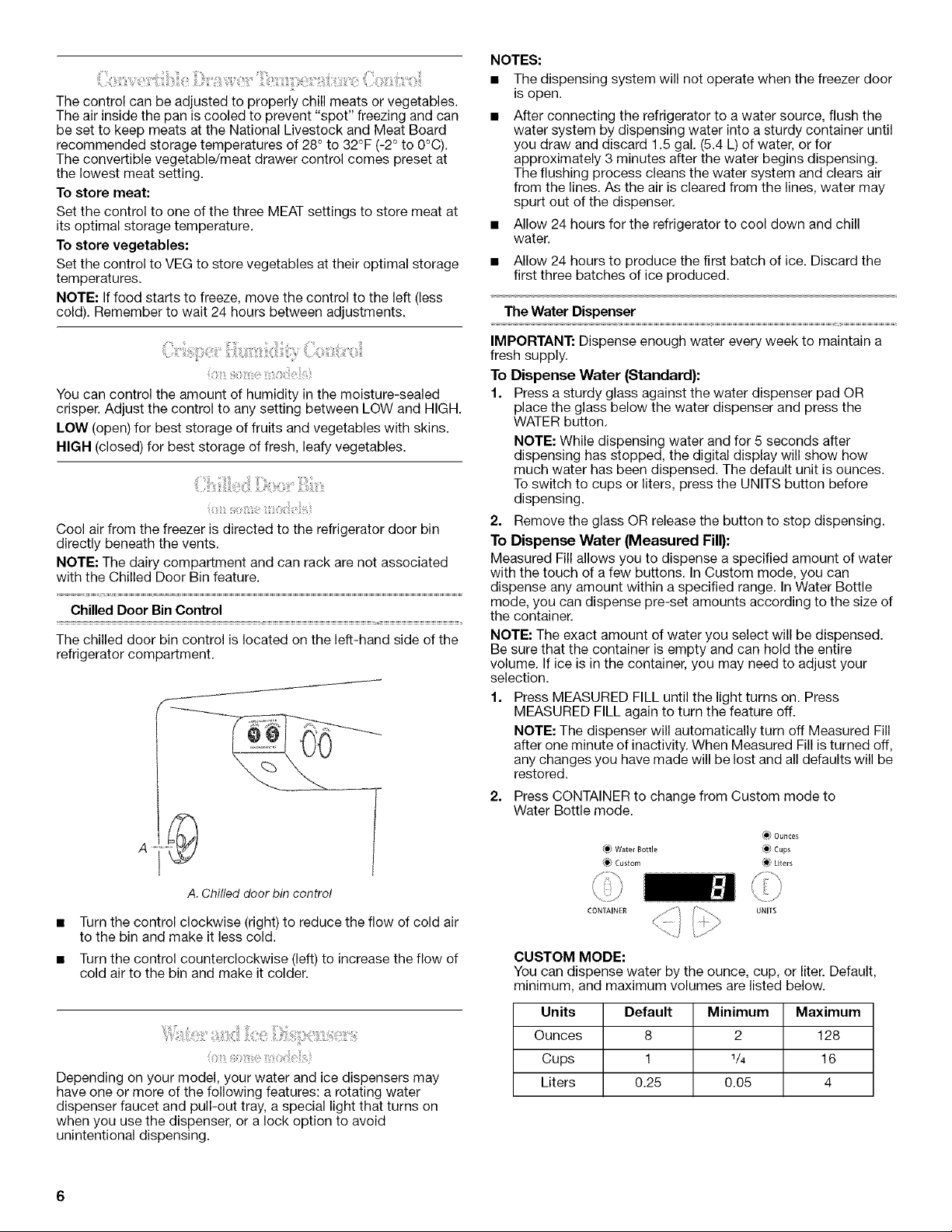

O:i_:_,_i,'_:!i_:i:iiiiiii:_!i!i!i_:!,_,ii}ii__:,:il?,i;_i:,_;:!!:;_¸¸'_'iiii!!,_i_I_

The control can be adjusted to properly chill meats or vegetables.

The air inside the pan is cooled to prevent "spot" freezing and can

be set to keep meats at the National Livestock and Meat Board

recommended storage temperatures of 28 ° to 32°F (-2 ° to 0°C).

The convertible vegetable/meat drawer control comes preset at

the lowest meat setting.

To store meat:

Set the control to one of the three MEAT settings to store meat at

its optimal storage temperature.

To store vegetables:

Set the control to VEG to store vegetables at their optimal storage

temperatures.

NOTE: If food starts to freeze, move the control to the left (less

cold). Remember to wait 24 hours between adjustments.

iO___K_ _{_i_i

You can control the amount of humidity in the moisture-sealed

crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) for best storage of fruits and vegetables with skins.

HIGH (closed) for best storage of fresh, leafy vegetables.

Cool air from the freezer is directed to the refrigerator door bin

directly beneath the vents.

NOTE: The dairy compartment and can rack are not associated

with the Chilled Door Bin feature.

Chilled Door Bin Control

The chilled door bin control is located on the left-hand side of the

refrigerator compartment.

A. Chilled door bin control

Turn the control clockwise (right) to reduce the flow of cold air

to the bin and make it less cold.

Turn the control counterclockwise (left) to increase the flow of

cold air to the bin and make it colder.

Depending on your model, your water and ice dispensers may

have one or more of the following features: a rotating water

dispenser faucet and pull-out tray, a special light that turns on

when you use the dispenser, or a lock option to avoid

unintentional dispensing.

NOTES:

• The dispensing system will not operate when the freezer door

is open.

• After connecting the refrigerator to a water source, flush the

water system by dispensing water into a sturdy container until

you draw and discard 1.5 gal. (5.4 L) of water, or for

approximately 3 minutes after the water begins dispensing.

The flushing process cleans the water system and clears air

from the lines. As the air is cleared from the lines, water may

spurt out of the dispenser.

• Allow 24 hours for the refrigerator to cool down and chill

water.

• Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

The Water Dispenser

IMPORTANT: Dispense enough water every week to maintain a

fresh supply.

To Dispense Water (Standard}:

1. Press a sturdy glass against the water dispenser pad OR

place the glass below the water dispenser and press the

WATER button.

NOTE: While dispensing water and for 5 seconds after

dispensing has stopped, the digital display will show how

much water has been dispensed. The default unit is ounces.

To switch to cups or liters, press the UNITS button before

dispensing.

2. Remove the glass OR release the button to stop dispensing.

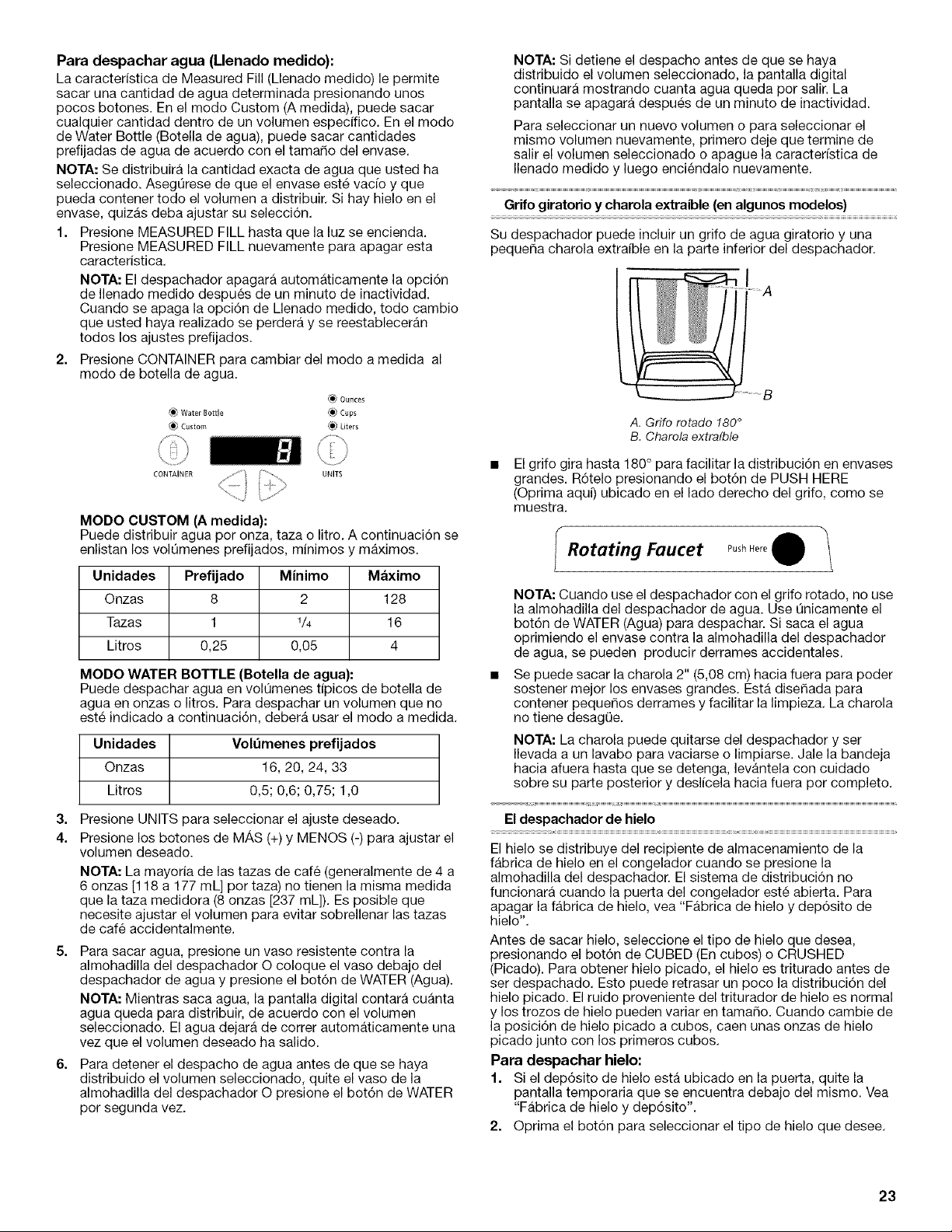

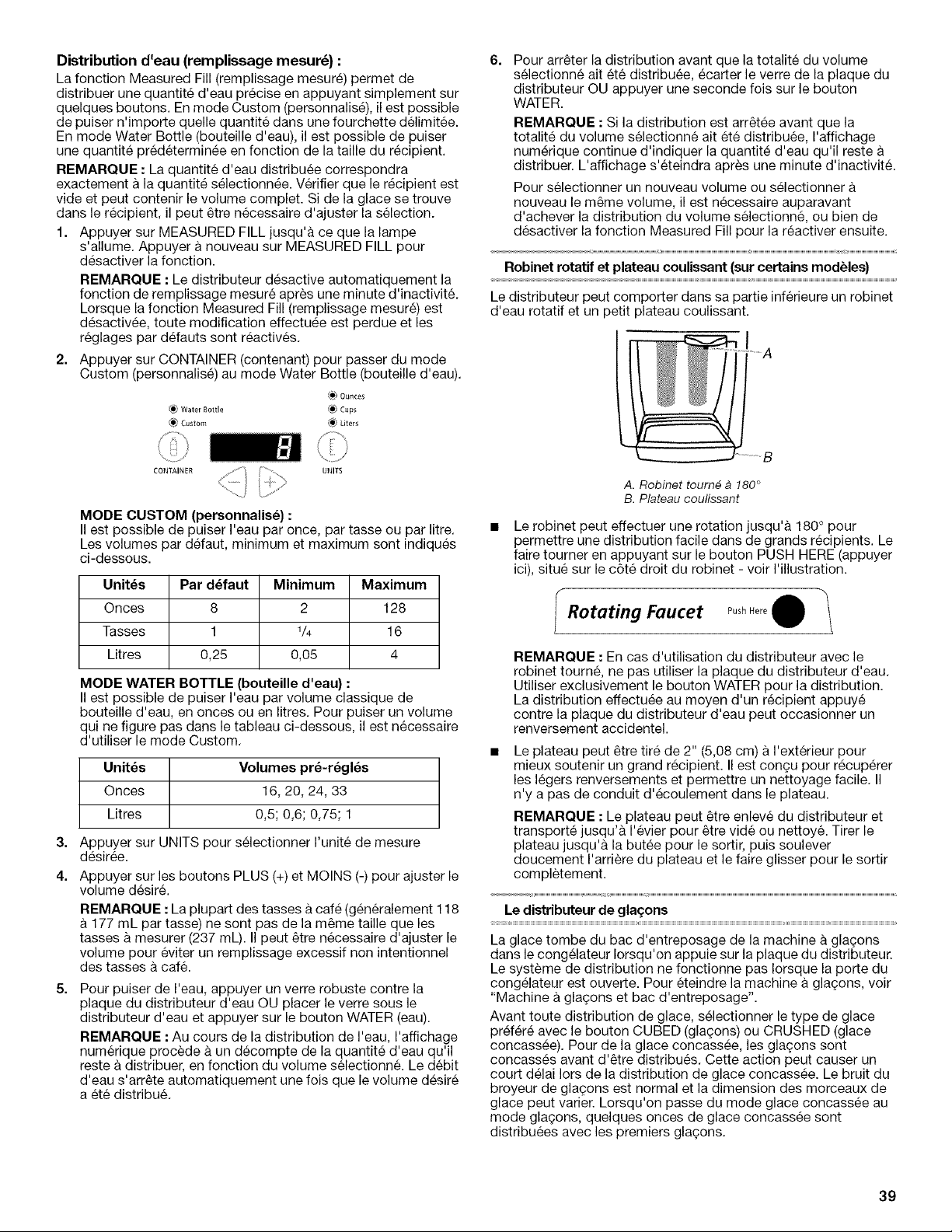

To Dispense Water (Measured Fill):

Measured Fill allows you to dispense a specified amount of water

with the touch of a few buttons. In Custom mode, you can

dispense any amount within a specified range. In Water Bottle

mode, you can dispense pre-set amounts according to the size of

the container.

NOTE: The exact amount of water you select will be dispensed.

Be sure that the container is empty and can hold the entire

volume. If ice is in the container, you may need to adjust your

selection.

1. Press MEASURED FILL until the light turns on. Press

MEASURED FILL again to turn the feature off.

NOTE: The dispenser will automatically turn off Measured Fill

after one minute of inactivity. When Measured Fill is turned off,

any changes you have made will be lost and all defaults will be

restored.

2. Press CONTAINER to change from Custom mode to

Water Bottle mode.

(_/Water _ottle (_/Cups

_ii_ Custom (_ Liters

CON rAINE£ //"'1 _ ......... UNI]S

4='_%

CUSTOM MODE:

You can dispense water by the ounce, cup, or liter. Default,

minimum, and maximum volumes are listed below.

Units Default Minimum Maximum

Ounces 8 2 128

Cups 1 V4 16

Liters 0.25 0.05 4

WATERBOTTLEMODE:

Youcandispensewaterbytypicalwaterbottlevolumesin

ouncesorliters.Todispenseavolumenotlistedinthetable

below,youmustuseCustommode.

Units Pre-setVolumes

Ounces 16,20,24,33

Liters 0.5,0.6,0.75,1.0

3. PressUNITStoselectyourdesiredsetting.

4. PressthePLUS(+)andMINUS(-)buttonstoadjustthe

volumeasdesired.

NOTE:Mostcoffeecups(commonly4to6oz[118to177roLl

percup)arenotthesamesizeasameasuringcup

(8oz[237mL]).Youmayneedtoadjustthevolumetoavoid

unintentionallyoverfillingcoffeecups.

5. Todispensewater,pressasturdyglassagainstthewater

dispenserpadORplacetheglassbelowthewaterdispenser

andpresstheWATERbutton.

NOTE:Whiledispensingwater,thedigitaldisplaywillcount

downhowmuchwaterremainstobedispensed,accordingto

thevolumeyouselected.Theflowofwaterwillautomatically

stoponcethedesiredvolumehasbeendispensed.

6. Tostopdispensingbeforetheselectedvolumehasbeen

dispensed,removetheglassfromthedispenserpadORpress

theWATERbuttonasecondtime.

NOTE:Ifyoustopdispensingbeforethedesiredvolumehas

beendispensed,thedigitaldisplaywillcontinuetoshowhow

muchwaterremainstobedispensed.Thedisplaywillturnoff

afteroneminuteofinactivity.

Toselecta newvolumeorselectthesamevolumeagain,you

mustfirstfinishdispensingtheselectedvolume,orturnthe

MeasuredFillfeatureoffandthenturnitbackon.

Rotating Faucet and Pull-out Tray (on some models)

Your dispenser may include a rotating water faucet and a small

pull-out tray at the bottom of the dispenser.

A. Faucet rotated !80 °

B. Pull-out tray

The faucet rotates up to 180° to allow for easy dispensing into

large containers. Rotate it by pressing PUSH HERE, located

on the right-hand side of the faucet as shown.

IRotatingFaucet F'ush Here O _'_

NOTE: When using the dispenser with the faucet rotated, do

not use the water dispenser pad. Only use the WATER button

to dispense. Dispensing by pressing the container against the

water dispenser pad may result in unintentional spilling.

The tray can be pulled out approximately 2" (5.08 cm) to

better support large containers. It is designed to catch small

spills and allow for easy cleaning. There is no drain in the tray.

NOTE: The tray can be removed from the dispenser and

carried to the sink to be emptied or cleaned. Pull the tray out

until it hits the stop, then gently lift up on the back of the tray

and slide it out the rest of the way.

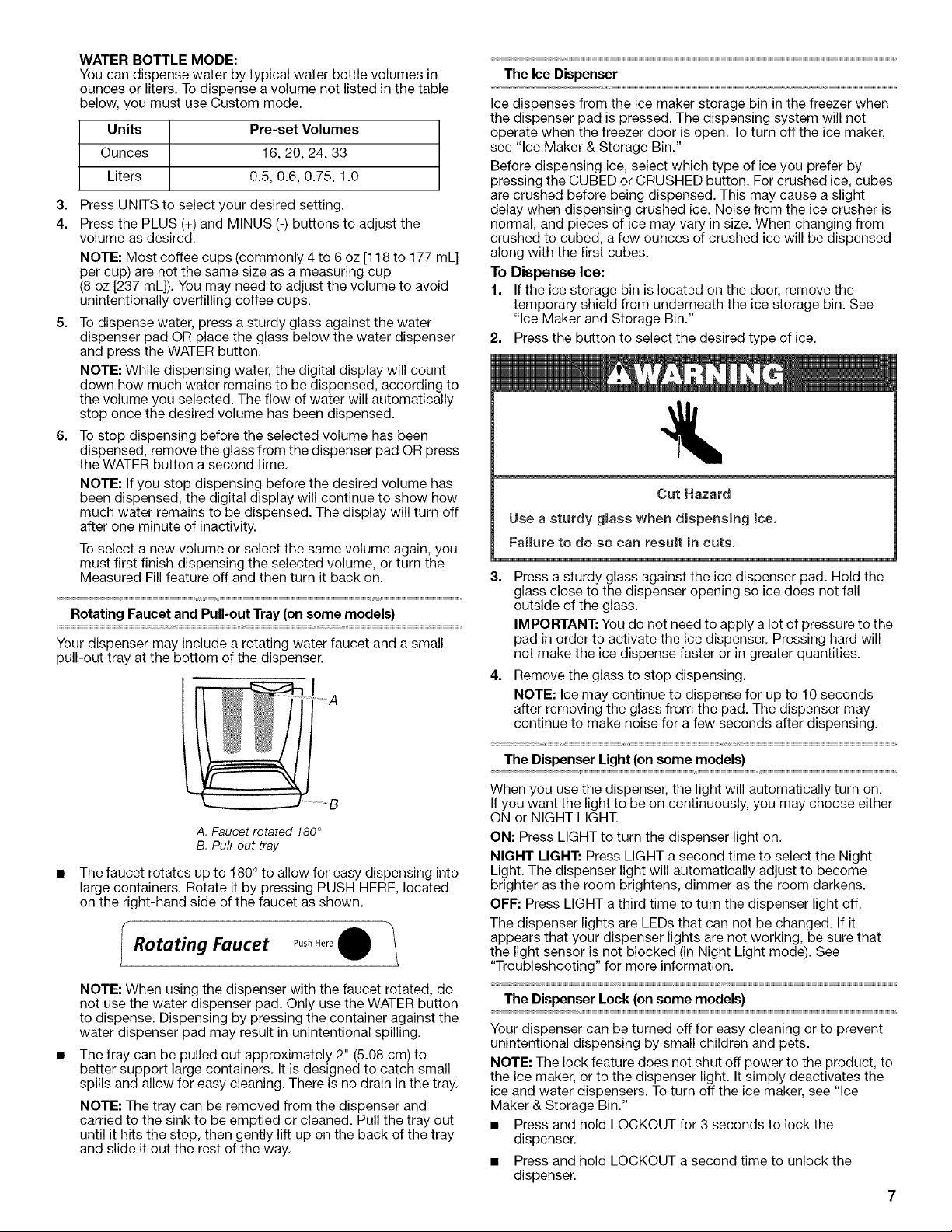

The Ice Dispenser

Ice dispenses from the ice maker storage bin in the freezer when

the dispenser pad is pressed. The dispensing system will not

operate when the freezer door is open. To turn off the ice maker,

see "Ice Maker & Storage Bin."

Before dispensing ice, select which type of ice you prefer by

pressing the CUBED or CRUSHED button. For crushed ice, cubes

are crushed before being dispensed. This may cause a slight

delay when dispensing crushed ice. Noise from the ice crusher is

normal, and pieces of ice may vary in size. When changing from

crushed to cubed, a few ounces of crushed ice will be dispensed

along with the first cubes.

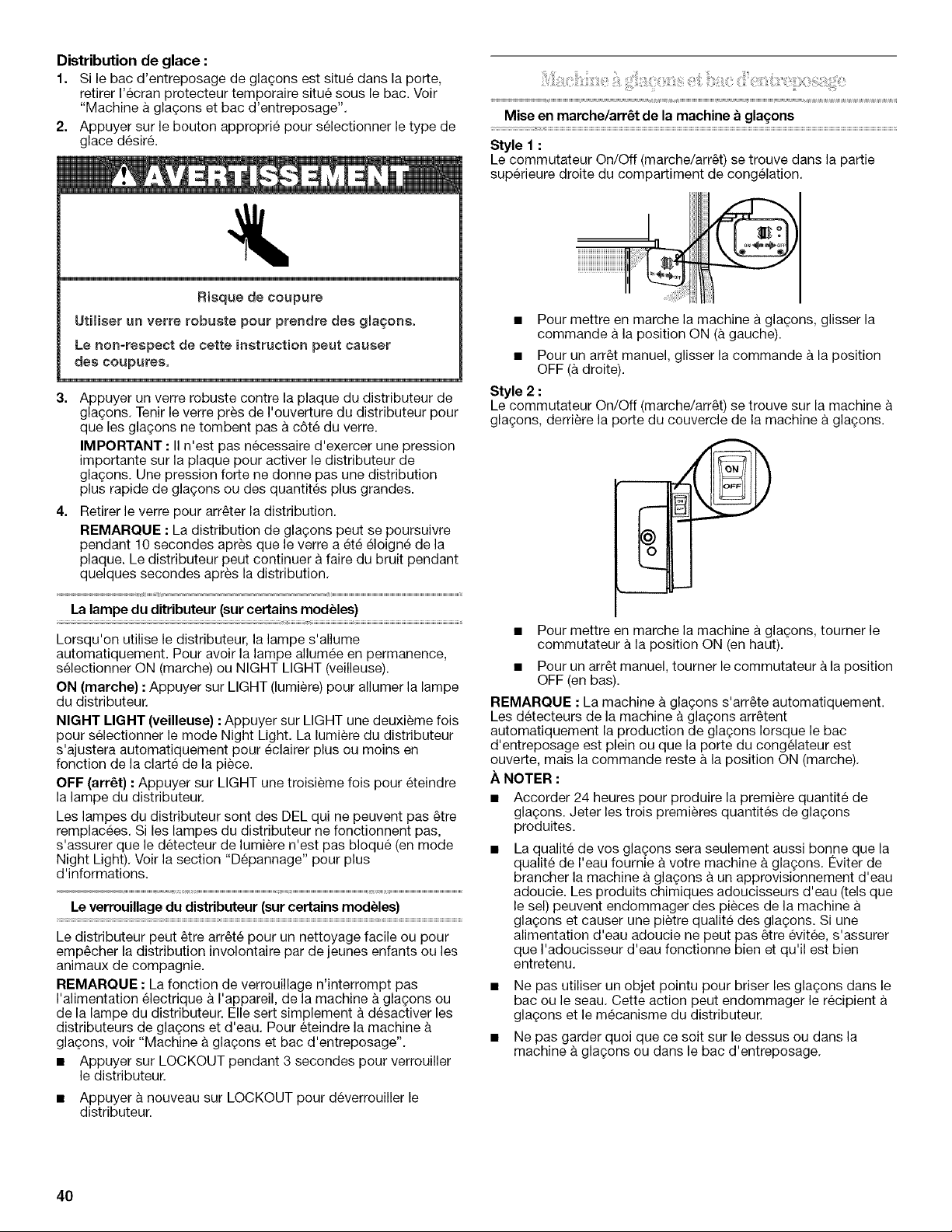

To Dispense Ice:

1. If the ice storage bin is located on the door, remove the

temporary shield from underneath the ice storage bin. See

"Ice Maker and Storage Bin."

2. Press the button to select the desired type of ice.

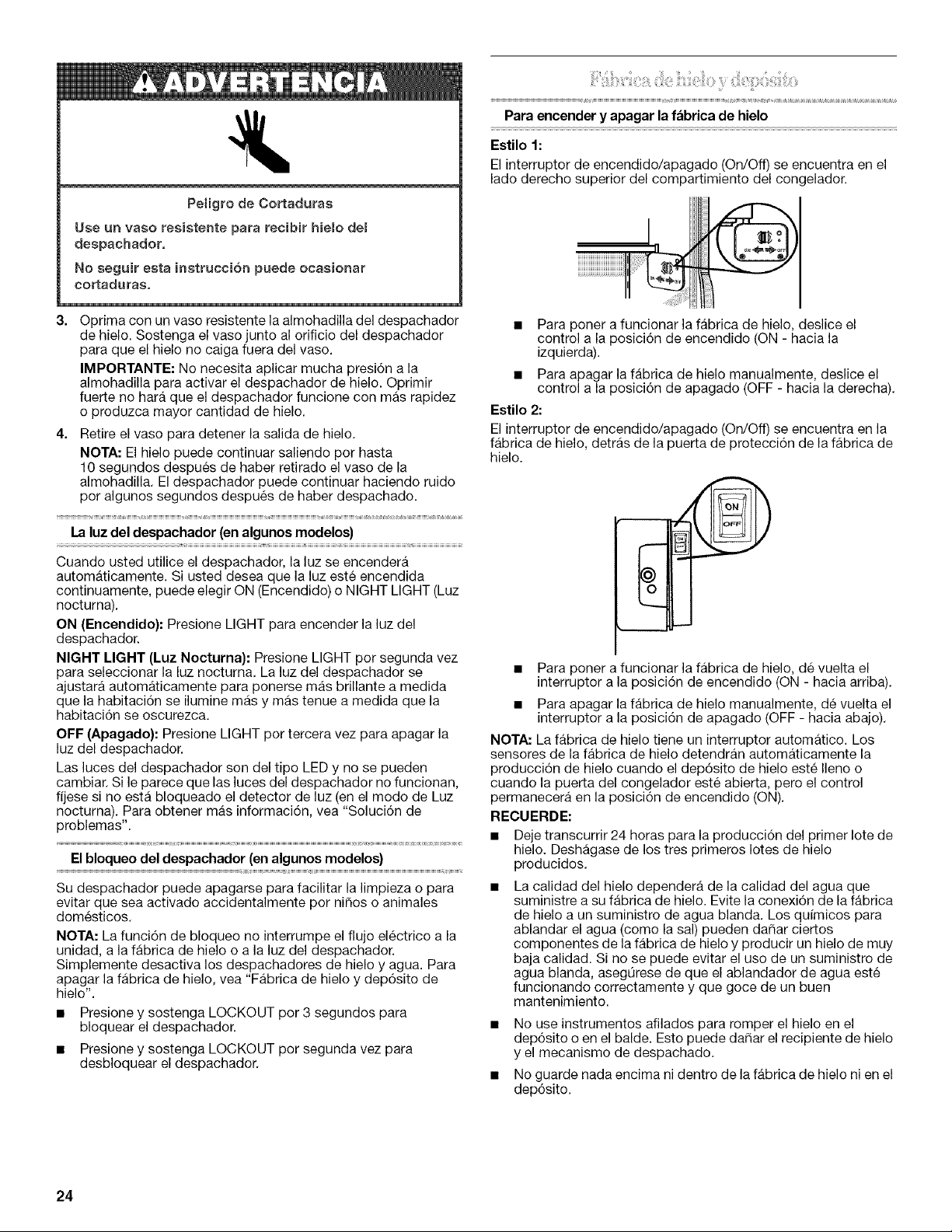

Cut Hazard

Use a sturdy g}ase when dispensing ice,

Failure to do so can result in cuts.

3. Press a sturdy glass against the ice dispenser pad. Hold the

glass close to the dispenser opening so ice does not fall

outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the

pad in order to activate the ice dispenser. Pressing hard will

not make the ice dispense faster or in greater quantities.

4. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for up to 10 seconds

after removing the glass from the pad. The dispenser may

continue to make noise for a few seconds after dispensing.

The Dispenser Light (on some models)

When you use the dispenser, the light will automatically turn on.

If you want the light to be on continuously, you may choose either

ON or NIGHT LIGHT.

ON: Press LIGHT to turn the dispenser light on.

NIGHT LIGHT: Press LIGHT a second time to select the Night

Light. The dispenser light will automatically adjust to become

brighter as the room brightens, dimmer as the room darkens.

OFF: Press LIGHT a third time to turn the dispenser light off.

The dispenser lights are LEDs that can not be changed. If it

appears that your dispenser lights are not working, be sure that

the light sensor is not blocked (in Night Light mode). See

"Troubleshooting" for more information.

The Dispenser Lock (on some models)

Your dispenser can be turned off for easy cleaning or to prevent

unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the product, to

the ice maker, or to the dispenser light. It simply deactivates the

ice and water dispensers. To turn off the ice maker, see "Ice

Maker & Storage Bin."

• Press and hold LOCKOUT for 3 seconds to lock the

dispenser.

• Press and hold LOCKOUT a second time to unlock the

dispenser.

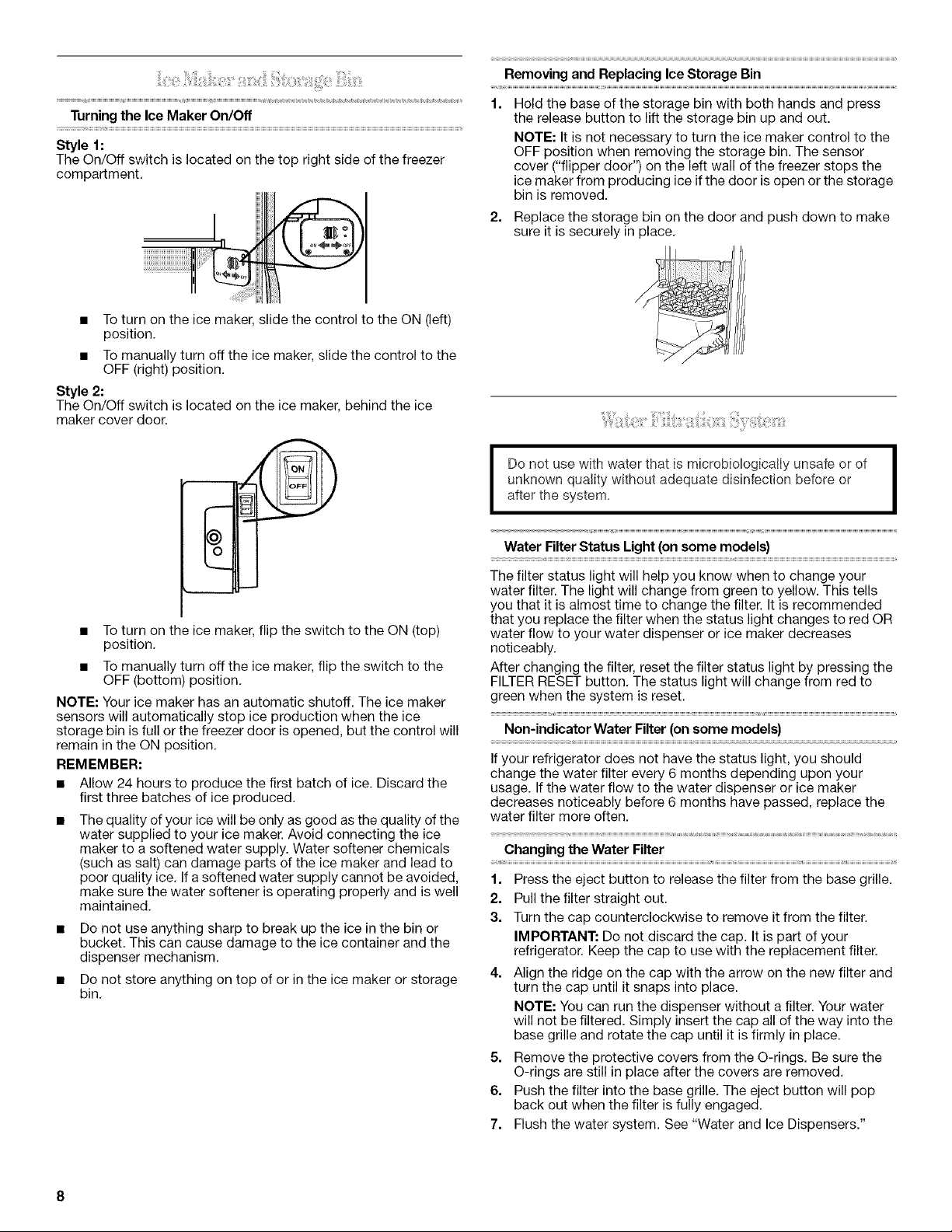

Turning the Ice Maker On/Off

Style 1:

The On/Off switch is located on the top right side of the freezer

compartment.

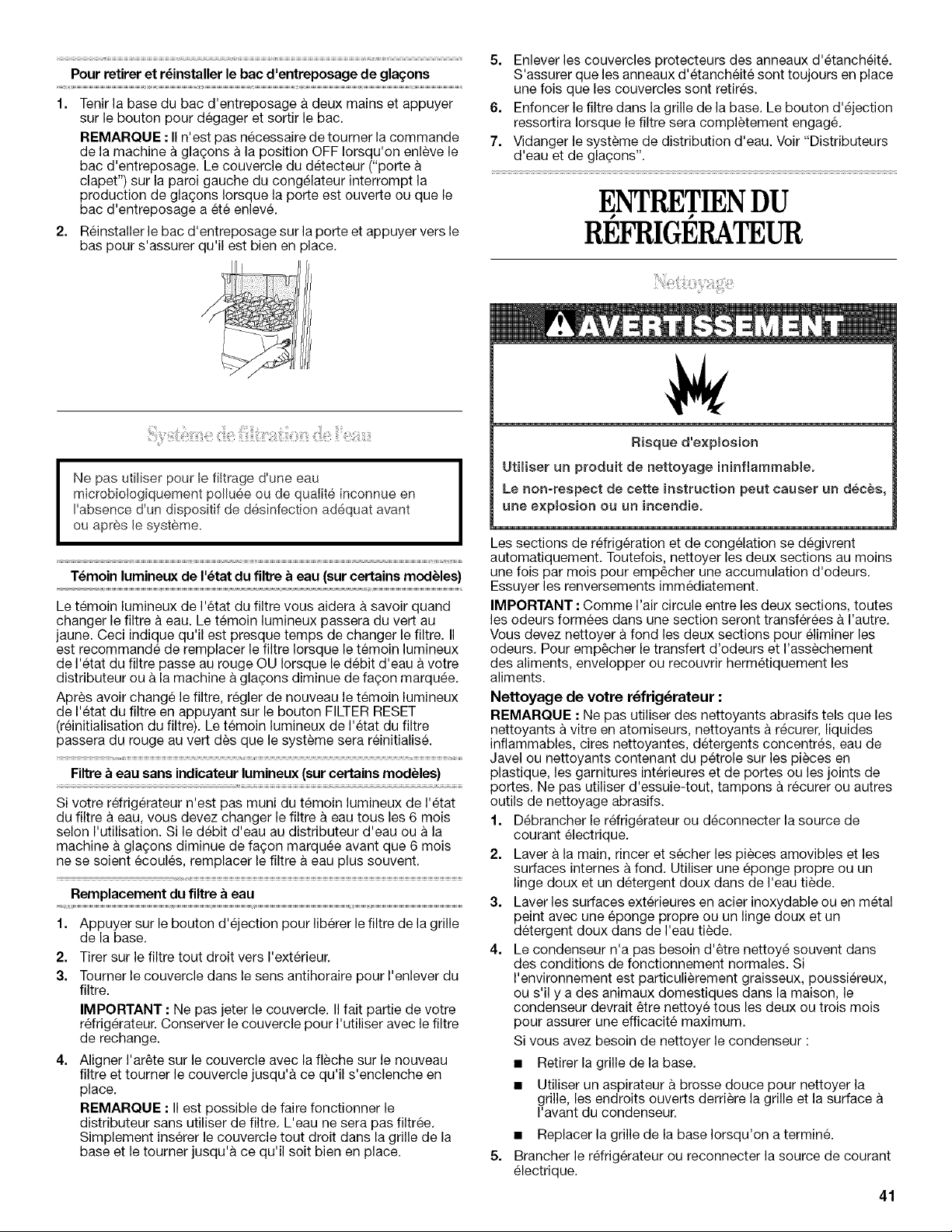

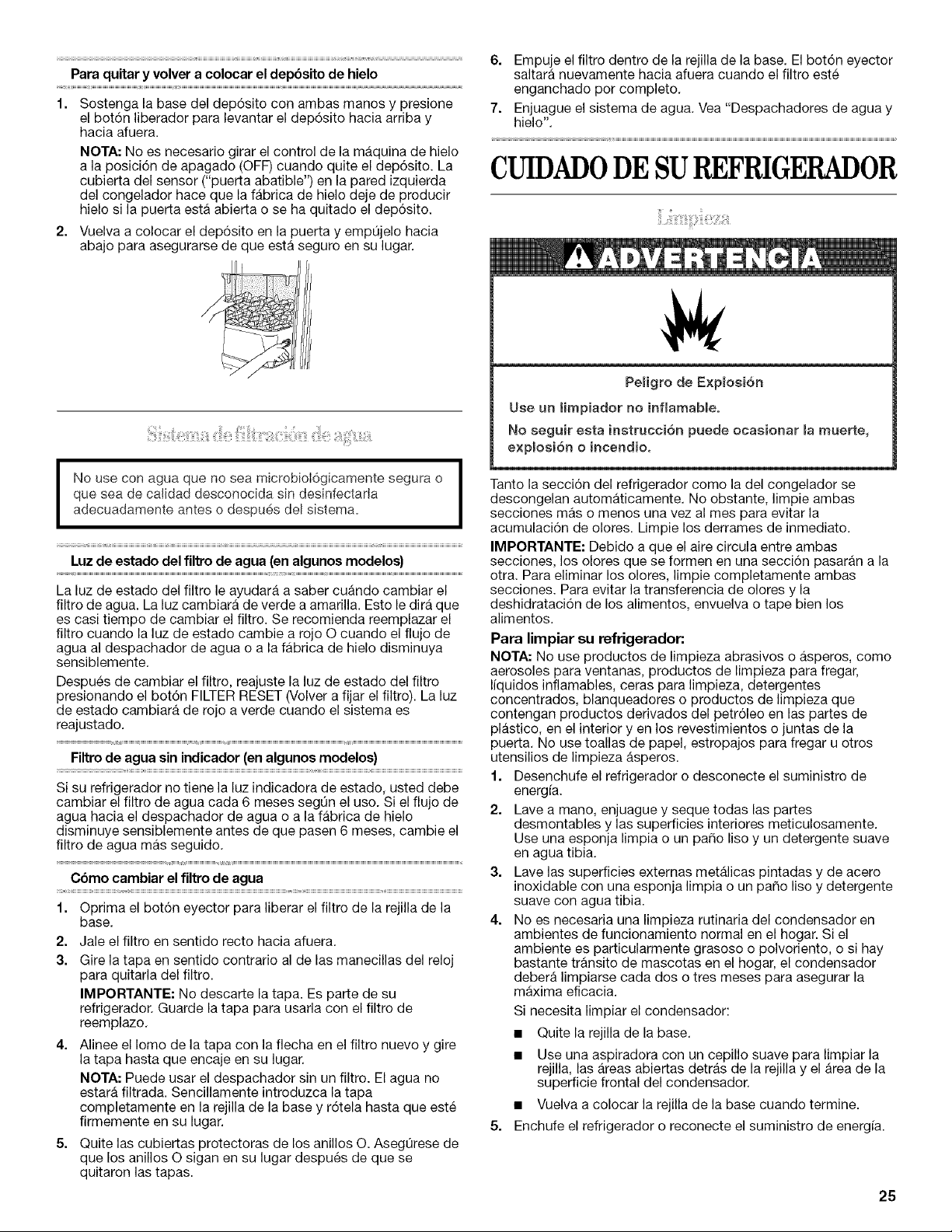

Removing and Replacing Ice Storage Bin

1. Hold the base of the storage bin with both hands and press

the release button to lift the storage bin up and out.

NOTE: It is not necessary to turn the ice maker control to the

OFF position when removing the storage bin. The sensor

cover ("flipper door") on the left wall of the freezer stops the

ice maker from producing ice if the door is open or the storage

bin is removed.

2. Replace the storage bin on the door and push down to make

sure it is securely in place.

• To turn on the ice maker, slide the control to the ON (left)

position.

• To manually turn off the ice maker, slide the control to the

OFF (right) position.

Style 2:

The On/Off switch is located on the ice maker, behind the ice

maker cover door.

L___

• To turn on the ice maker, flip the switch to the ON (top)

position.

• To manually turn off the ice maker, flip the switch to the

OFF (bottom) position.

NOTE: Your ice maker has an automatic shutoff. The ice maker

sensors will automatically stop ice production when the ice

storage bin is full or the freezer door is opened, but the control will

remain in the ON position.

REMEMBER:

• Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

• The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice

maker to a softened water supply. Water softener chemicals

(such as salt) can damage parts of the ice maker and lead to

poor quality ice. If a softened water supply cannot be avoided,

make sure the water softener is operating properly and is well

maintained.

• Do not use anything sharp to break up the ice in the bin or

bucket. This can cause damage to the ice container and the

dispenser mechanism.

• Do not store anything on top of or in the ice maker or storage

bin.

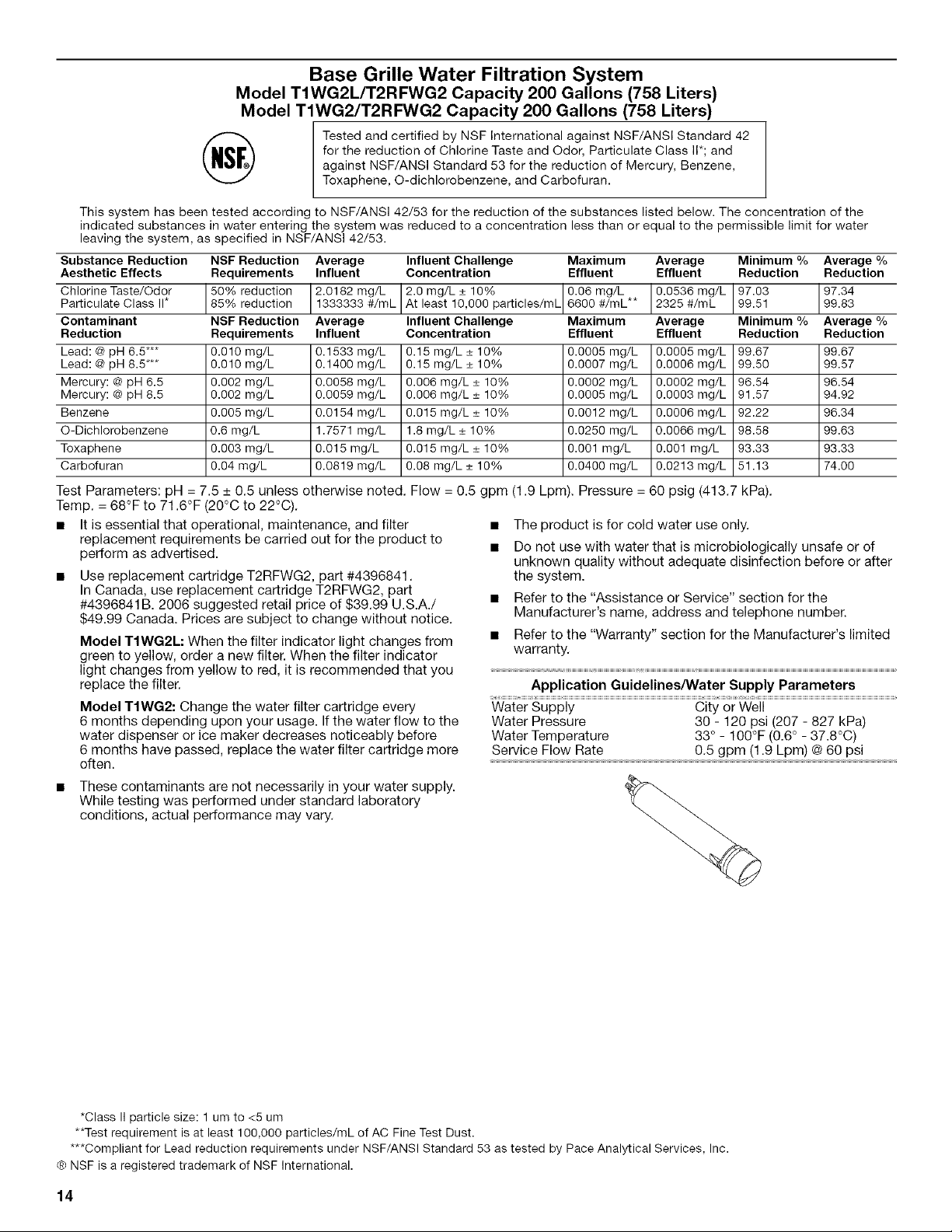

Do not use with water that is microbiologicatIy unsafe or of

unknown quality without adequate disinfection before or

after the system.

Water Filter Status Light (on some models)

The filter status light will help you know when to change your

water filter. The light will change from green to yellow. This tells

you that it is almost time to change the filter. It is recommended

that you replace the filter when the status light changes to red OR

water flow to your water dispenser or ice maker decreases

noticeably.

After changing the filter, reset the filter status light by pressing the

FILTER RESET button. The status light will change from red to

green when the system is reset.

Non-indicator Water Filter (on some models)

If your refrigerator does not have the status light, you should

change the water filter every 6 months depending upon your

usage. If the water flow to the water dispenser or ice maker

decreases noticeably before 6 months have passed, replace the

water filter more often.

Changing the Water Filter

1. Press the eject button to release the filter from the base grille.

2. Pull the filter straight out.

3. Turn the cap counterclockwise to remove it from the filter.

IMPORTANT: Do not discard the cap. It is part of your

refrigerator. Keep the cap to use with the replacement filter.

4. Align the ridge on the cap with the arrow on the new filter and

turn the cap until it snaps into place.

NOTE: You can run the dispenser without a filter. Your water

will not be filtered. Simply insert the cap all of the way into the

base grille and rotate the cap until it is firmly in place.

5. Remove the protective covers from the O-rings. Be sure the

O-rings are still in place after the covers are removed.

6. Push the filter into the base grille. The eject button will pop

back out when the filter is fully engaged.

7. Flush the water system. See "Water and Ice Dispensers."

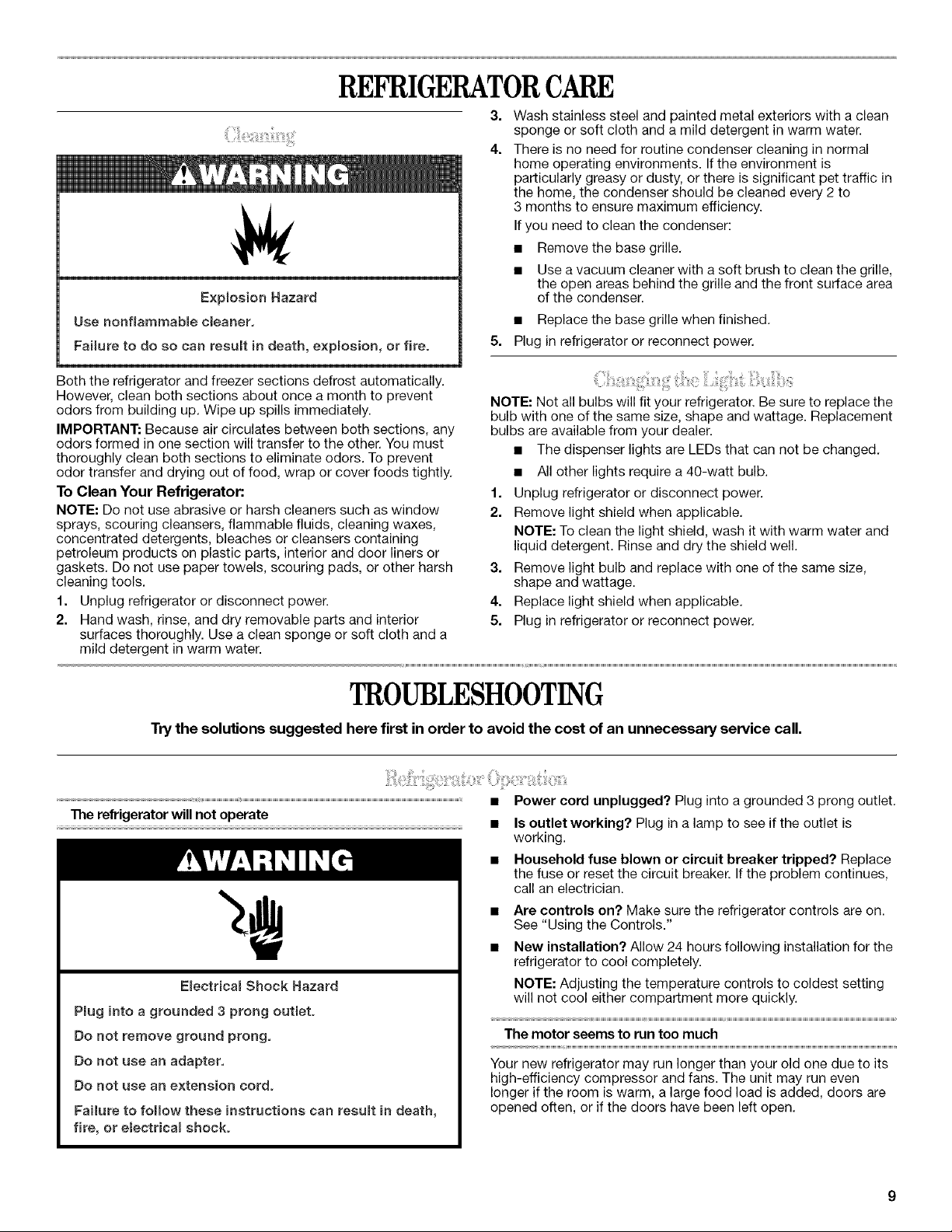

REFRIGERATORCARE

Explosion Hazard

Use nonflammabme cleaner,

Failure to do so can result in death, expmosion, or fire,

Both the refrigerator and freezer sections defrost automatically.

However, clean both sections about once a month to prevent

odors from building up. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any

odors formed in one section will transfer to the other. You must

thoroughly clean both sections to eliminate odors. To prevent

odor transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, bleaches or cleansers containing

petroleum products on plastic parts, interior and door liners or

gaskets. Do not use paper towels, scouring pads, or other harsh

cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a

mild detergent in warm water.

Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water.

There is no need for routine condenser cleaning in normal

home operating environments. If the environment is

particularly greasy or dusty, or there is significant pet traffic in

the home, the condenser should be cleaned every 2 to

3 months to ensure maximum efficiency.

If you need to clean the condenser:

• Removethe base grille.

• Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area

of the condenser.

• Replace the base grille when finished.

Plug in refrigerator or reconnect power.

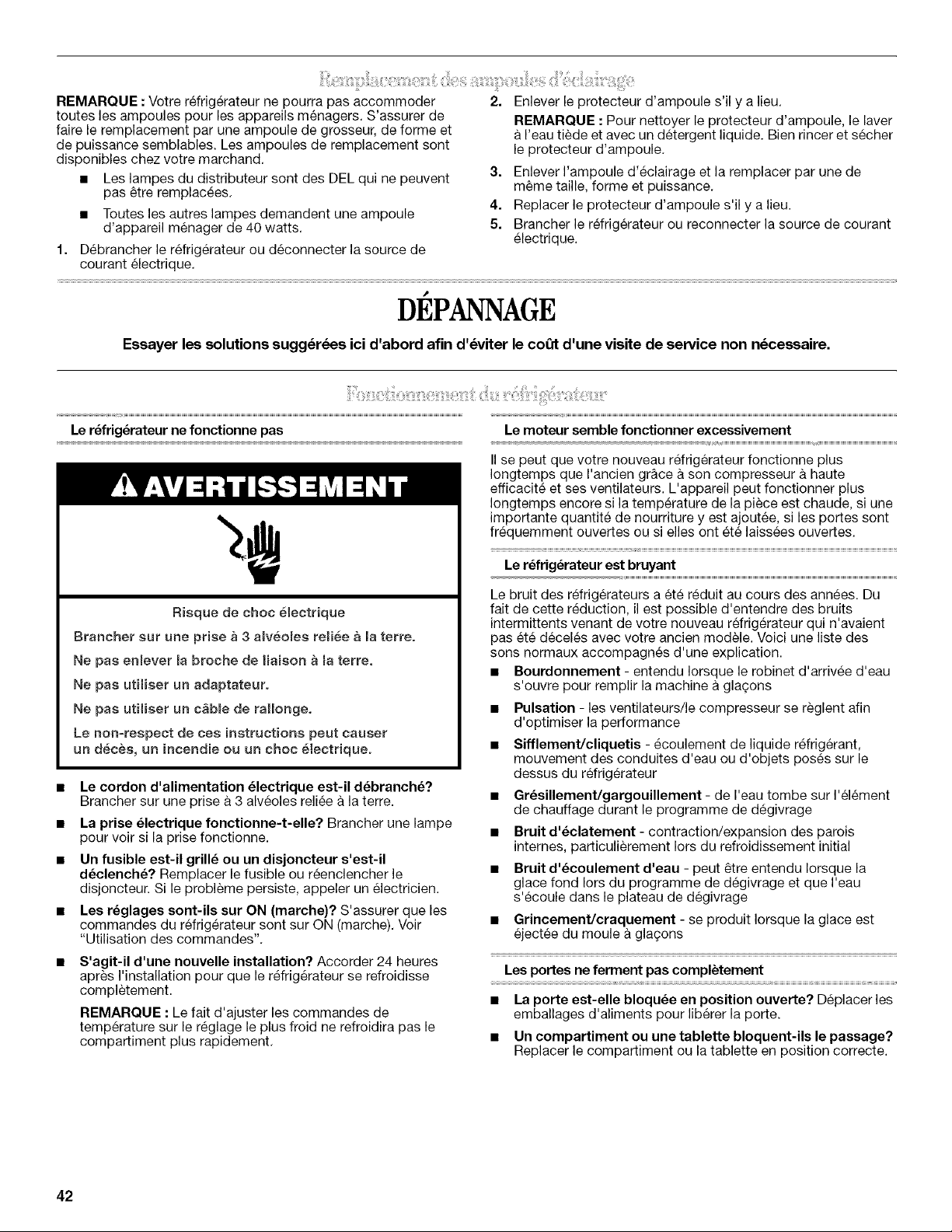

NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the

bulb with one of the same size, shape and wattage. Replacement

bulbs are available from your dealer.

• The dispenser lights are LEDs that can not be changed.

• All other lights require a 40-watt bulb.

1. Unplug refrigerator or disconnect power.

2. Remove light shield when applicable,

NOTE: To clean the light shield, wash it with warm water and

liquid detergent. Rinse and dry the shield well.

3. Remove light bulb and replace with one of the same size,

shape and wattage.

4. Replace light shield when applicable.

5. Plug in refrigerator or reconnect power.

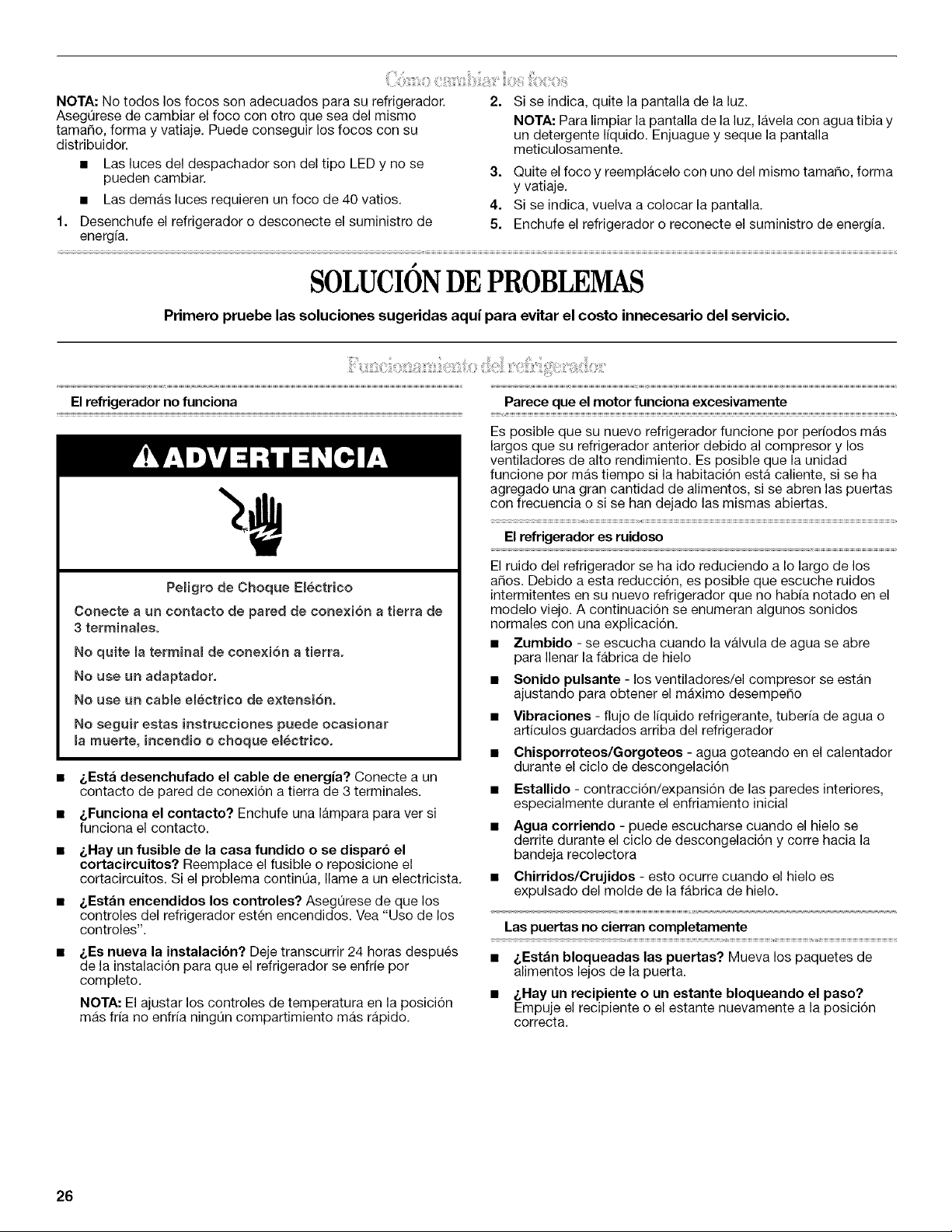

TROUBLESHOOTING

Trythe solutions suggested here first in order to avoid the cost of an unnecessary service call.

The refrigerator will not operate

E_ectrical Shock Hazard

P_ug into a grounded 3 prong outlet.

Do not remove ground prong,

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Power cord unplugged? Plug into a grounded 3 prong outlet.

Is outlet working? Plug in a lamp to see if the outlet is

working.

Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker. If the problem continues,

call an electrician.

Are controls on? Make sure the refrigerator controls are on.

See "Using the Controls."

New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its

high-efficiency compressor and fans. The unit may run even

longer if the room is warm, a large food load is added, doors are

opened often, or if the doors have been left open.

Therefrigerator is noisy

Refrigerator noise has been reduced over the years. Due to this

reduction, you may hear intermittent noises from your new

refrigerator that you did not notice from your old model. Below are

listed some normal sounds with an explanation.

• Buzzing - heard when the water valve opens to fill the ice

maker

• Pulsating - fans/compressor adjusting to optimize

performance

• Rattling - flow of refrigerant, water line, or from items placed

on top of the refrigerator

• Sizzling/Gurgling - water dripping on the heater during

defrost cycle

• Popping - contraction/expansion of inside walls, especially

during initial cool-down

• Water running - may be heard when water melts during the

defrost cycle and runs into the drain pan

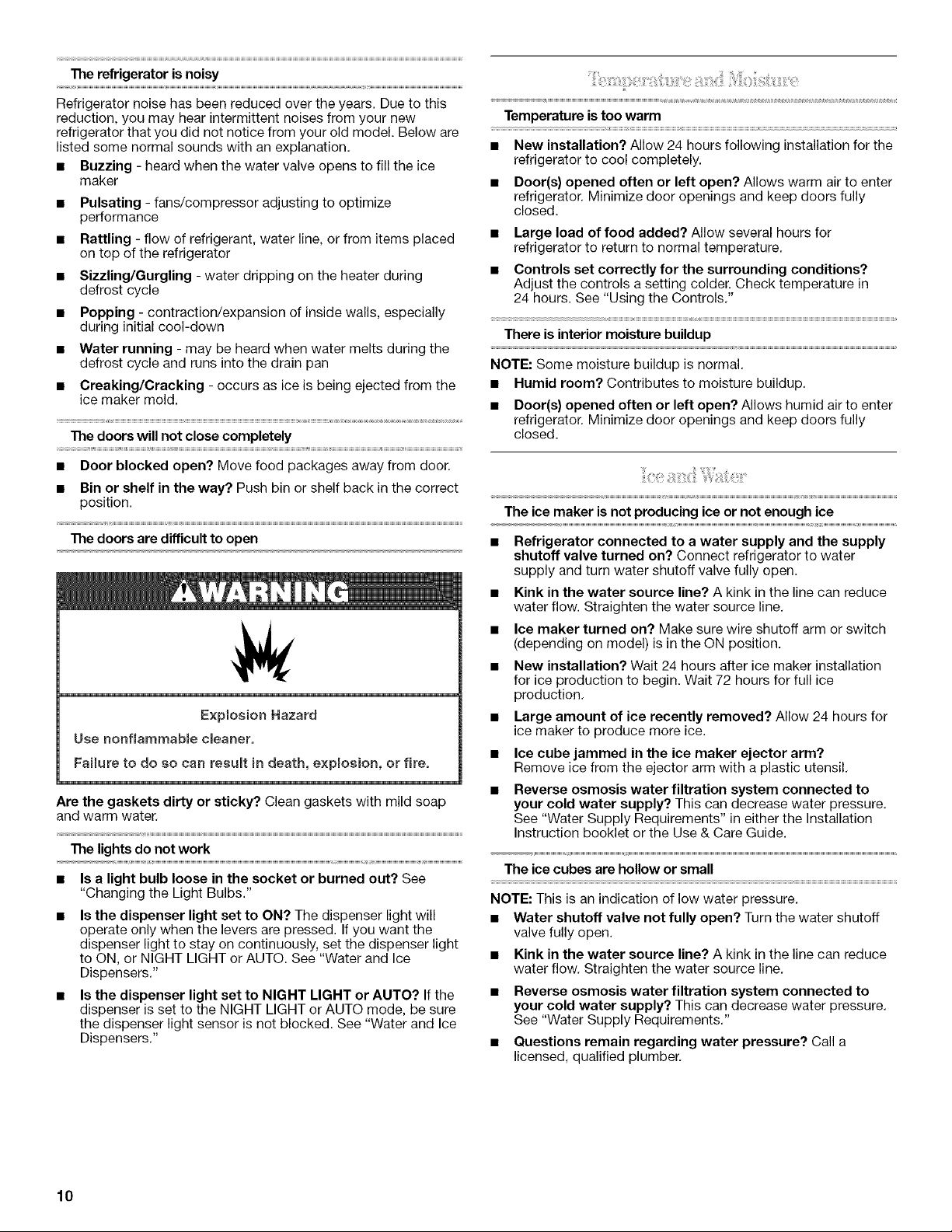

• Creaking/Cracking - occurs as ice is being ejected from the

ice maker mold.

The doors will not close completely

• Door blocked open? Move food packages away from door.

• Bin or shelf in the way? Push bin or shelf back in the correct

position.

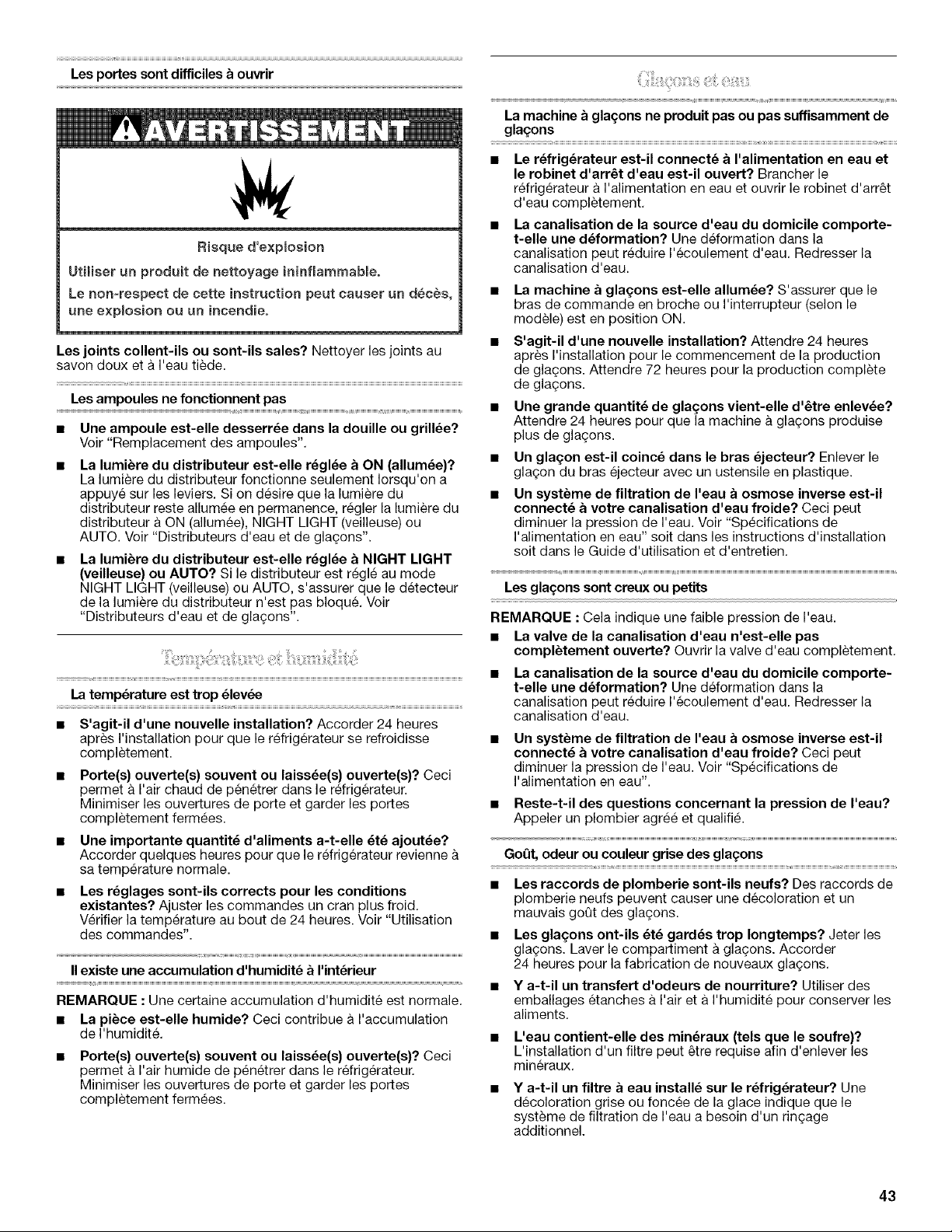

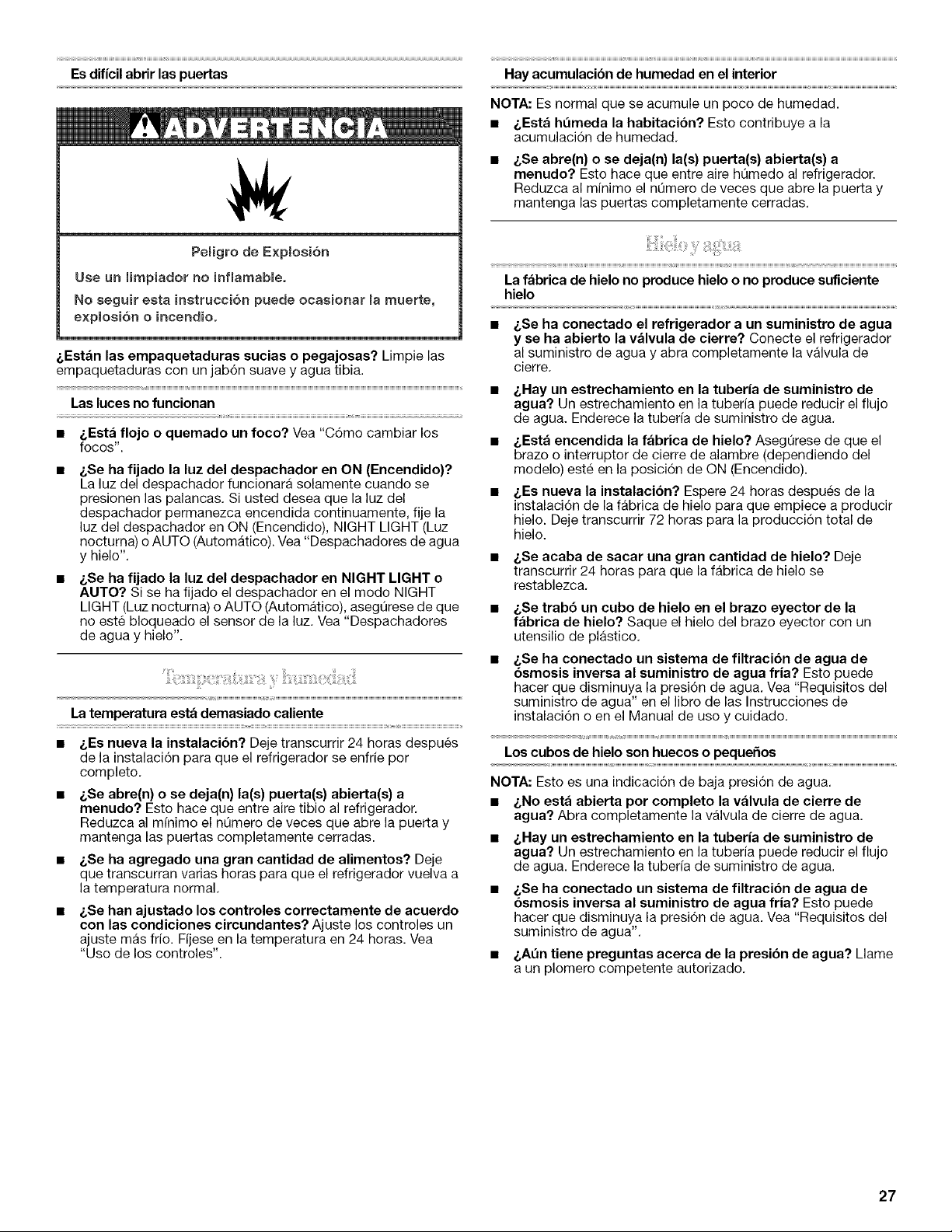

The doors are difficult to open

E×plosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, e×p_osion, or fire.

Are the gaskets dirty or sticky? Clean gaskets with mild soap

and warm water,

The lights do not work

• Is a light bulb loose in the socket or burned out? See

"Changing the Light Bulbs."

• Is the dispenser light set to ON? The dispenser light will

operate only when the levers are pressed. If you want the

dispenser light to stay on continuously, set the dispenser light

to ON, or NIGHT LIGHT or AUTO. See "Water and Ice

Dispensers."

• Is the dispenser light set to NIGHT LIGHT or AUTO? If the

dispenser is set to the NIGHT LIGHT or AUTO mode, be sure

the dispenser light sensor is not blocked. See "Water and Ice

Dispensers."

Temperature is too warm

• New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

• Door(s) opened often or left open? Allows warm air to enter

refrigerator. Minimize door openings and keep doors fully

closed.

• Large load of food added? Allow several hours for

refrigerator to return to normal temperature.

• Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in

24 hours. See "Using the Controls."

There is interior moisture buildup

NOTE: Some moisture buildup is normal.

• Humid room? Contributes to moisture buildup.

• Door(s) opened often or left open? Allows humid air to enter

refrigerator. Minimize door openings and keep doors fully

closed.

The ice maker is not producing ice or not enough ice

• Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water

supply and turn water shutoff valve fully open.

• Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line,

• Ice maker turned on? Make sure wire shutoff arm or switch

(depending on model) is in the ON position.

• New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice

production,

• Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice.

• Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

• Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See "Water Supply Requirements" in either the Installation

Instruction booklet or the Use & Care Guide.

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

• Water shutoff valve not fully open? Turn the water shutoff

valve fully open.

• Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

• Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See "Water Supply Requirements."

• Questions remain regarding water pressure? Call a

licensed, qualified plumber.

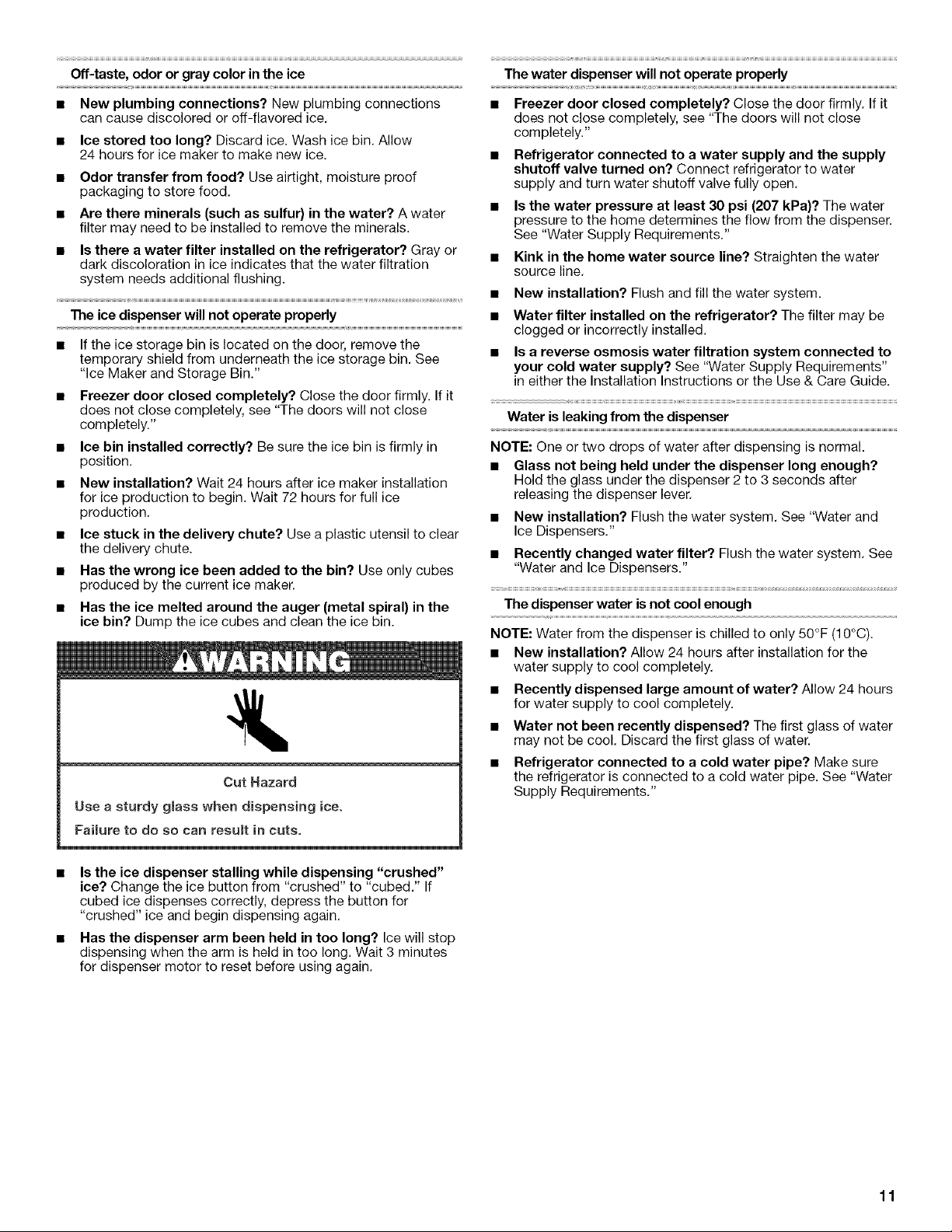

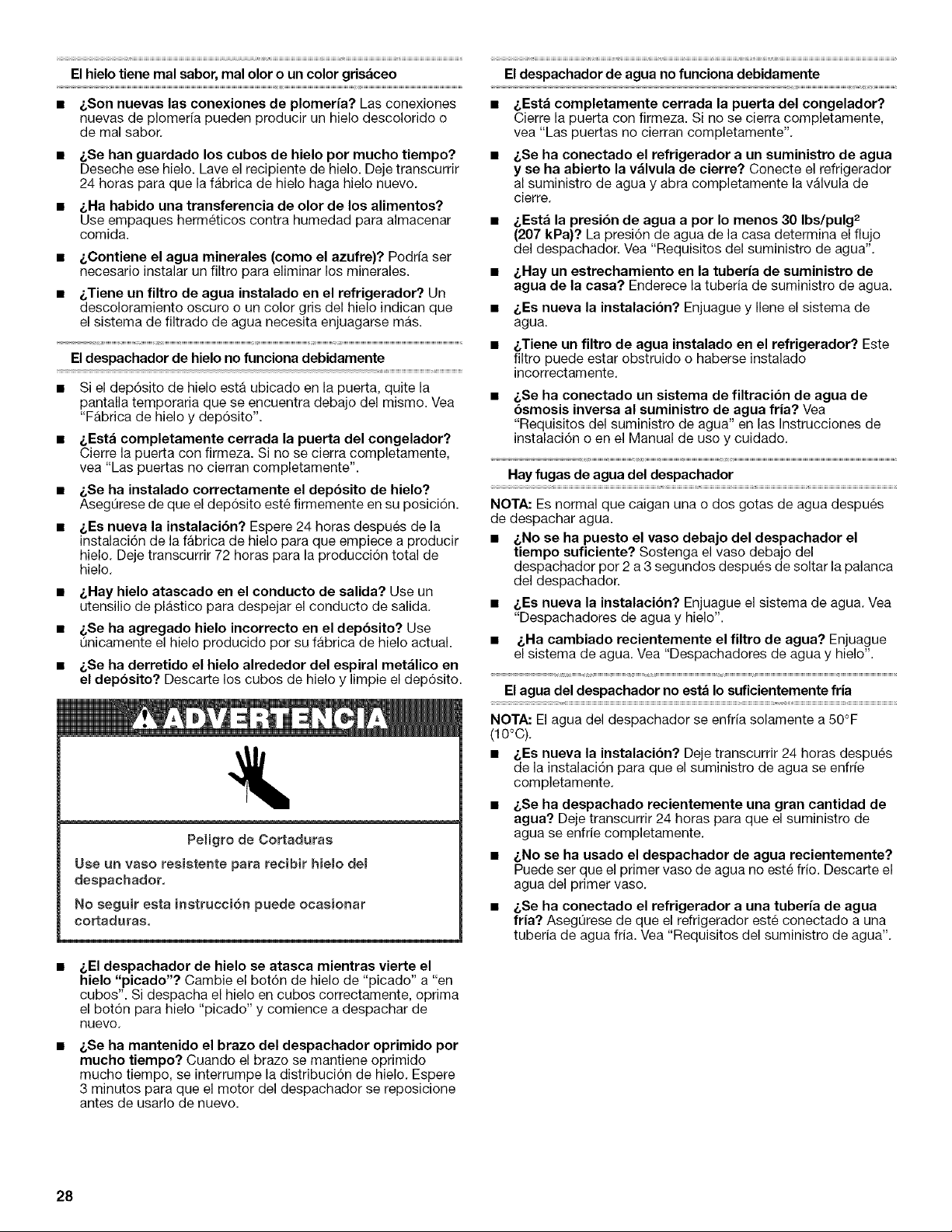

Off-taste, odor or gray color in the ice

• New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

• Ice stored too long? Discard ice. Wash ice bin. Allow

24 hours for ice maker to make new ice.

• Odor transfer from food? Use airtight, moisture proof

packaging to store food.

• Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

• Is there a water filter installed on the refrigerator? Gray or

dark discoloration in ice indicates that the water filtration

system needs additional flushing.

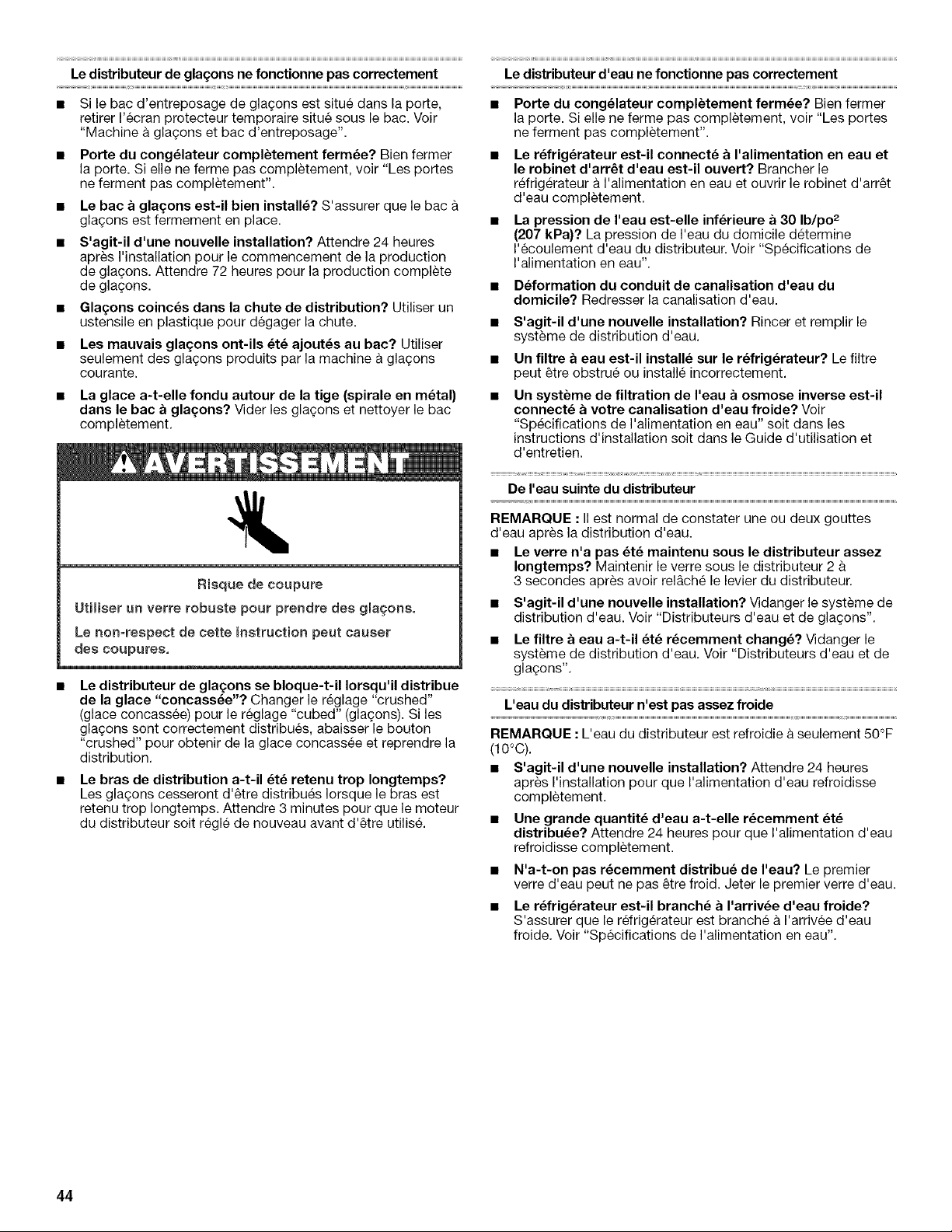

The ice dispenser will not operate properly

• If the ice storage bin is located on the door, remove the

temporary shield from underneath the ice storage bin. See

"Ice Maker and Storage Bin."

• Freezer door closed completely? Close the door firmly. If it

does not close completely, see "The doors will not close

completely."

• Ice bin installed correctly? Be sure the ice bin is firmly in

position.

• New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice

production.

• Ice stuck in the delivery chute? Use a plastic utensil to clear

the delivery chute.

• Has the wrong ice been added to the bin? Use only cubes

produced by the current ice maker.

• Has the ice melted around the auger (metal spiral} in the

ice bin? Dump the ice cubes and clean the ice bin.

Cut Hazard

Use a sturdy glass when diepensing ice.

Faimure to do so can reeu}t in cuts.

• Is the ice dispenser stalling while dispensing "crushed"

ice? Change the ice button from "crushed" to "cubed." If

cubed ice dispenses correctly, depress the button for

"crushed" ice and begin dispensing again.

• Has the dispenser arm been held in too long? Ice will stop

dispensing when the arm is held in too long. Wait 3 minutes

for dispenser motor to reset before using again.

The water dispenser will not operate properly

• Freezer door closed completely? Close the door firmly. If it

does not close completely, see "The doors will not close

completely."

• Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water

supply and turn water shutoff valve fully open.

• Is the water pressure at least 30 psi (207 kPa)? The water

pressure to the home determines the flow from the dispenser.

See "Water Supply Requirements."

Kink in the home water source line? Straighten the water

source line.

New installation? Flush and fill the water system.

Water filter installed on the refrigerator? The filter may be

clogged or incorrectly installed.

Is a reverse osmosis water filtration system connected to

your cold water supply? See "Water Supply Requirements"

in either the Installation Instructions or the Use & Care Guide.

Water is leaking from the dispenser

NOTE: One or two drops of water after dispensing is normal.

• Glass not being held under the dispenser long enough?

Hold the glass under the dispenser 2 to 3 seconds after

releasing the dispenser lever.

• New installation? Flush the water system. See "Water and

Ice Dispensers."

• Recently changed water filter? Flush the water system. See

"Water and Ice Dispensers."

The dispenser water is not cool enough

NOTE: Water from the dispenser is chilled to only 50°F (10°C).

• New installation? Allow 24 hours after installation for the

water supply to cool completely.

• Recently dispensed large amount of water? Allow 24 hours

for water supply to cool completely.

• Water not been recently dispensed? The first glass of water

may not be cool. Discard the first glass of water.

• Refrigerator connected to a cold water pipe? Make sure

the refrigerator is connected to a cold water pipe. See "Water

Supply Requirements."

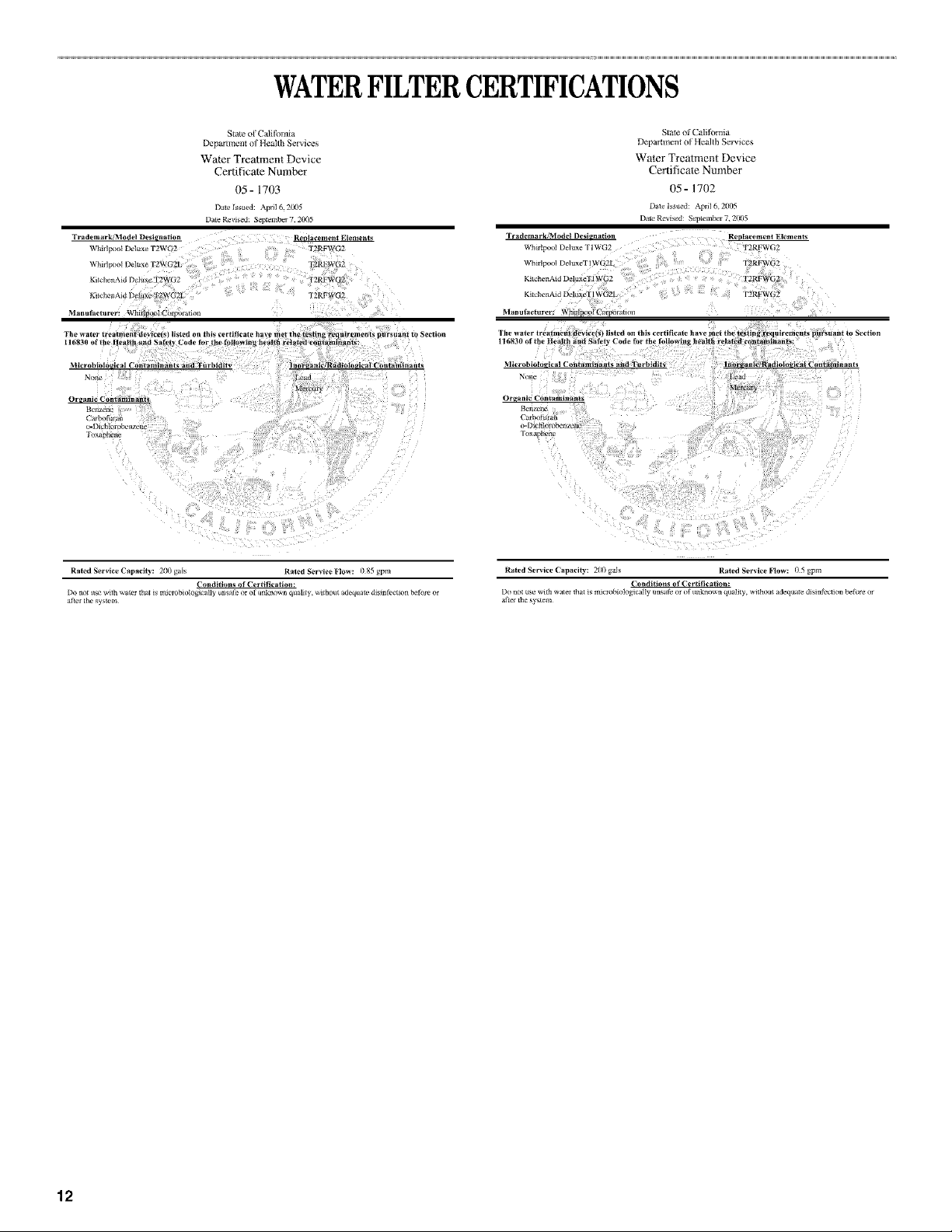

WATERFILTERCERTIFICATIONS

Trademark/Y_lodel Designation

Whlr]F Deluxe T2W(_2

Whlrlt Delu_e T2WG2L

Stole of Calitbrnia

Department of t lealth Scrvices

Water Treatment Device

Certificate Number

05 - 1703

Dawlssued: _r _lt_ 2003

DateR_'xlsed Sep _nab_r7.20{)5

R_'Dlacemeni Elemems

T2RbWG2

'12RI'WG2

"1_RFWG2

OrganleConlznlinants

Benz_ne

CarN_fi_ra

o-I)lchk_robcll_l'ne

_xa_heI_

State of Calilbrnia

Deparfirlcnt (if Health Services

Water Treatment Device

Certificate Nm33ber

05 - 1702

Dale Issued: April 6, 2005

Dale Revised: September 7, 2005

Trademark/Model Ilesi_nafion Replacement Elements

WhMpoo] Deluxe T1WG2 qER_'3VG2

Whirlpool DeluxeTI V¢(i2L ...... T2PdTWG 2

Kitchenaid Delui_i_2

KitchenAid DellixeT ! ¢_2L F2RI-'WT_

Manufacturer_ Vd_ _iN_01C ;ipo rat hill

listed lm this certificate have II

116830 of the 1t

Carbolman

RatedServiceCapacil): 200gals RlltedServiceFIow: 085gpnl

Conditions of CerttficaRon:

Do not Ii_e wi_ wa_r that is microbiological_ _msafe or of imknown q_a]ity, without adeq_ale disJtffcc_on befolc ol

:liter t_ system¸

Rated Service Capacfiy: 200 gals Rated Service Flow: fi 5 gpm

Conditions of Certification:

DO nol tie with waler Ihat is microb/ologically unsM_ or of unknown qua]ity, without adequale disinlection betore or

a{ter the system

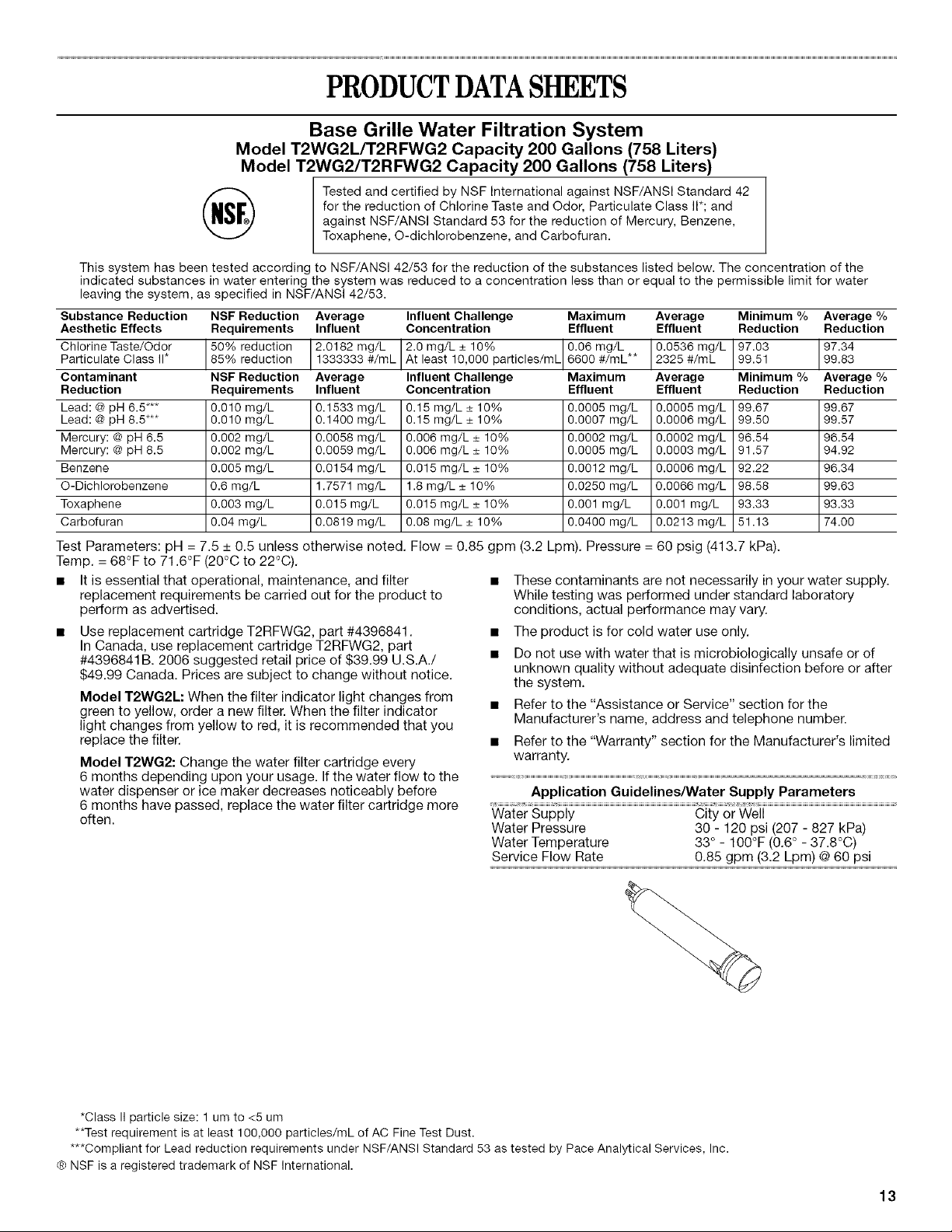

PRODUCTDATASHEETS

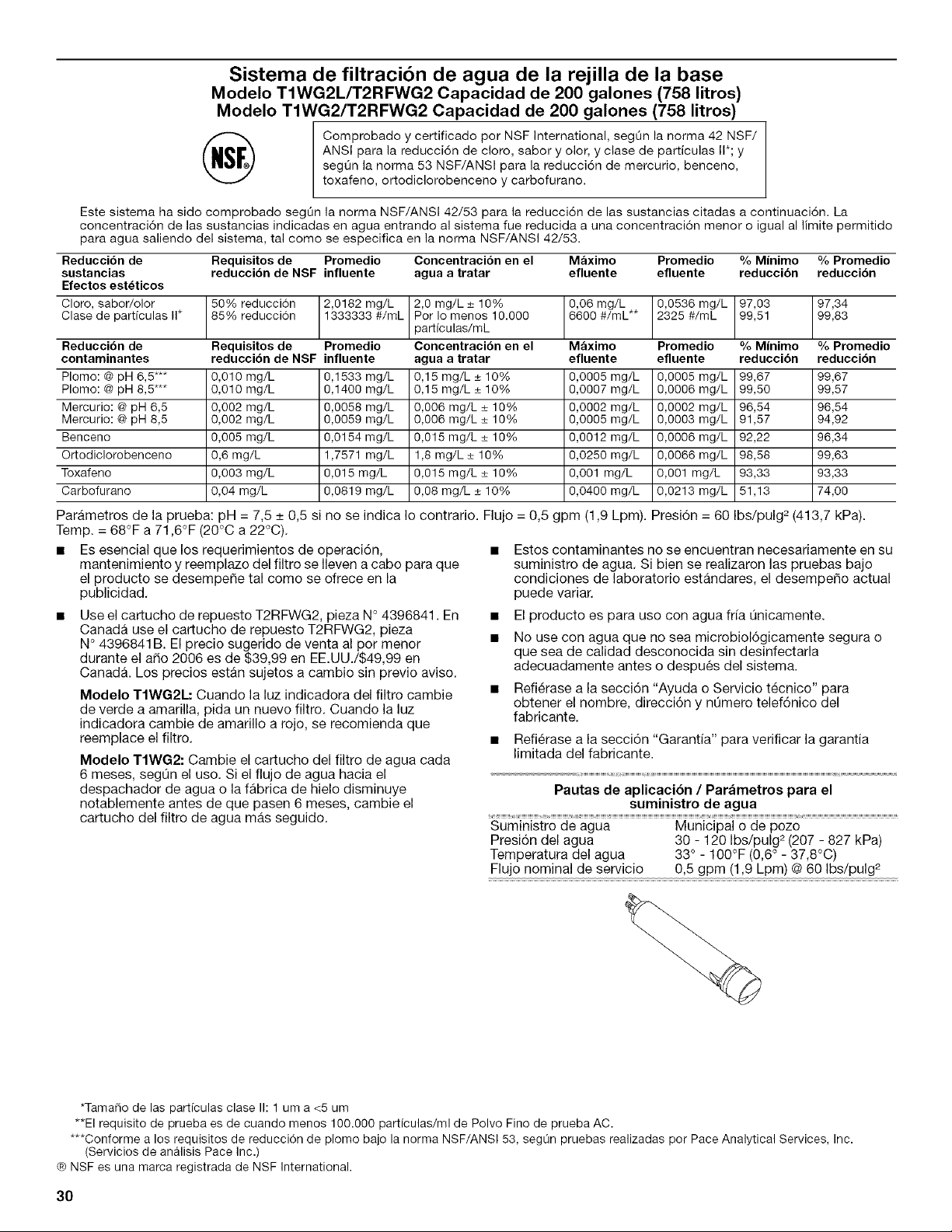

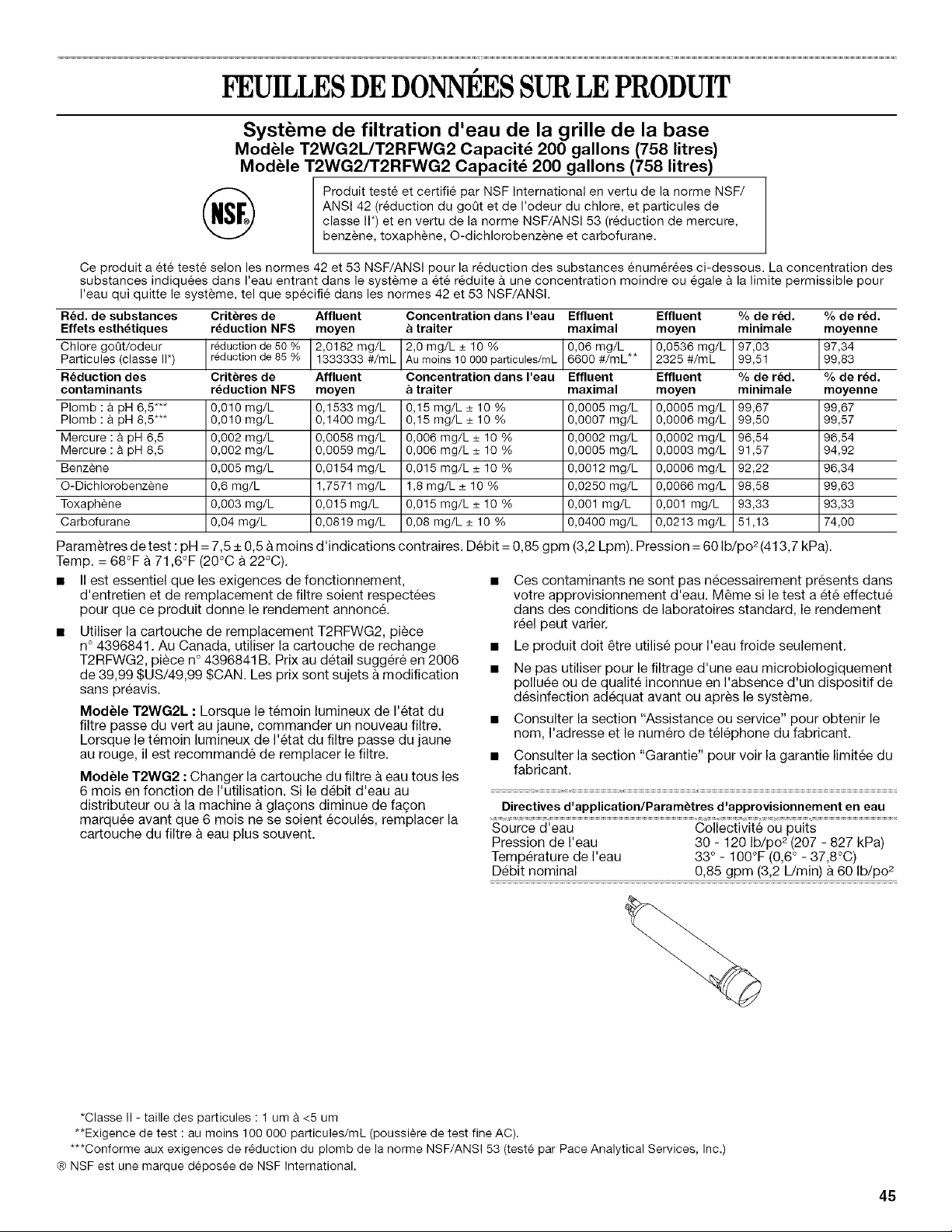

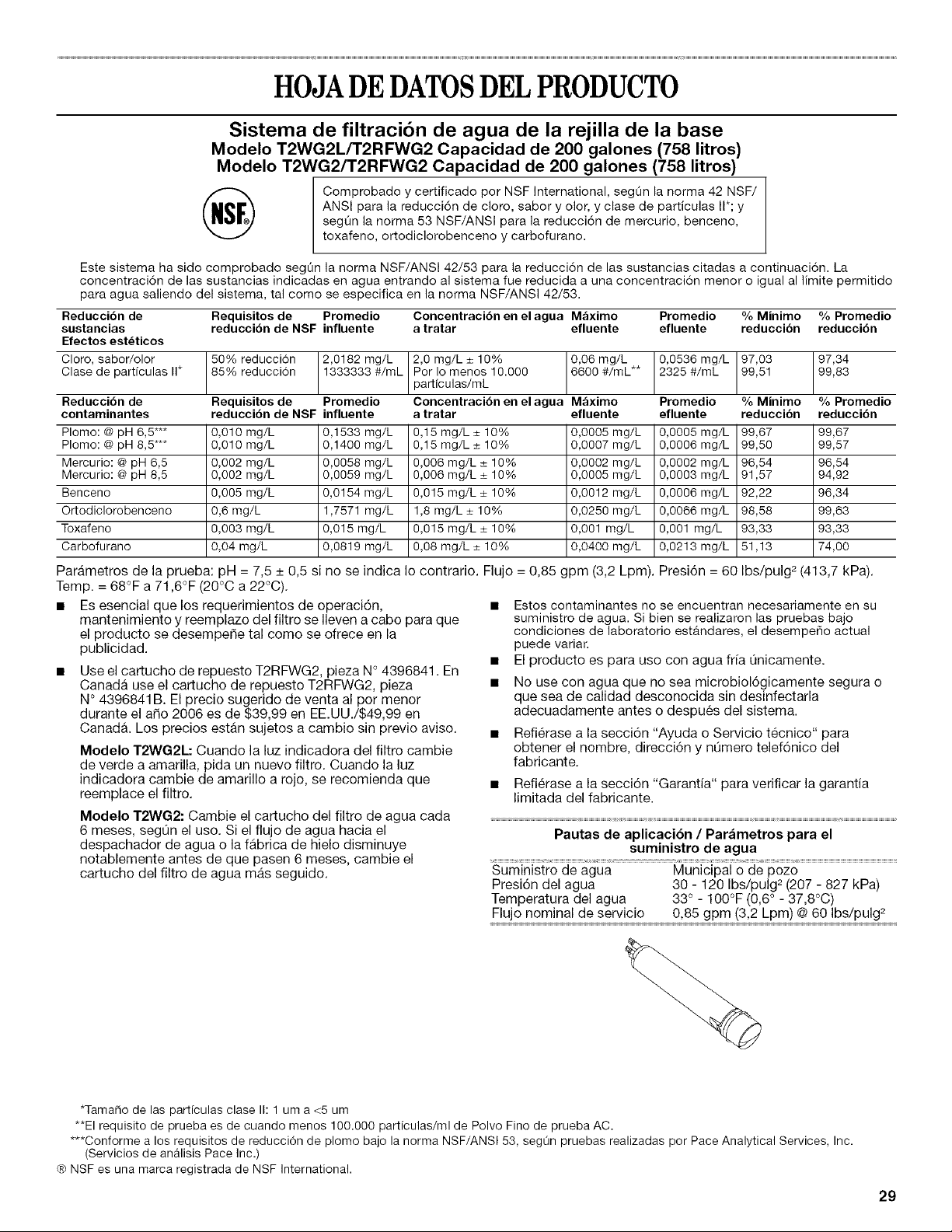

Base Grille Water Filtration System

Model T2WG2LfT2RFWG2 Capacity 200 Gallons (758 Liters)

Model T2WG2/T2RFWG2 Capacity 200 Gallons (758 Liters)

Tested and certified by NSF International against NSF/ANSI Standard 42

for the reduction of Chlorine Taste and Odor, Particulate Class II*; and

against NSF/ANSI Standard 53 for the reduction of Mercury, Benzene,

Toxaphene, O-dichlorobenzene, and Carbofuran.

This system has been tested according to NSF/ANSl 42/53 for the reduction of the substances listed below. The concentration of the

indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water

leaving the system, as specified in NSF/ANSl 42/53.

Substance Reduction NSF Reduction Average Influent Challenge Maximum Average Minimum % Average %

Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction

Chlorine Taste/Odor 50% reduction 2.0182 mg/L 2.0 mg/L _+10% 0.06 mg/L ** 0.0536 mg/L 97.03 97.34

Particulate Class I1" 85% reduction 1333333 #/mL At east 10,000 part c es/mL 6600 #/mL 2325 #/mL 99.51 99.83

Contaminant NSF Reduction Average Influent Challenge Maximum Average Minimum % Average %

Reduction Requirements Influent Concentration Effluent Effluent Reduction Reduction

Lead: @ pH 6.5*** 0.010 mg/L 0.1533 mg/L 0.15 mg/L _+10% 0.0005 mg/L 0.0005 mg/L 99.67 99.67

Lead: @ pH 8.5*** 0.010 mg/L 0.1400 mg/L 0.15 mg/L _+10% 0.0007 mg/L 0.0006 mg/L 99.50 99.57

Mercury: @ pH 6.5 0.002 mg/L 0.0058 mg/L 0.006 mg/L _+10% 0.0002 mg/L 0.0002 mg/L 96.54 96.54

Mercury: @ pH 8.5 0.002 mg/L 0.0059 mg/L 0.006 mg/L _+10% 0.0005 mg/L 0.0003 mg/L 91.57 94.92

Benzene 0.005 mg/L 0.0154 mg/L 0.015 mg/L _+10% 0.0012 mg/L 0.0006 mg/L 92.22 96.34

O-Dichlorobenzene 0.6 mg/L 1.7571 mg/L 1.8 mg/L _+10% 0.0250 mg/L 0.0066 mg/L 98.58 99.63

Toxaphene 0.003 mg/L 0.015 mg/L 0.015 mg/L _+10% 0.001 mg/L 0.001 mg/L 93.33 93.33

Carbofuran 0.04 mg/L 0.0819 mg/L 0.08 mg/L _+10% 0.0400 mg/L 0.0213 mg/L 51.13 74.00

Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C).

• It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to

perform as advertised.

• Use replacement cartridge T2RFWG2, part #4396841.

In Canada, use replacement cartridge T2RFWG2, part

#4396841B. 2006 suggested retail price of $39.99 U.S.A./

$49.99 Canada. Prices are subject to change without notice.

Model T2WG2L: When the filter indicator light changes from

green to yellow, order a new filter. When the filter indicator

light changes from yellow to red, it is recommended that you

replace the filter.

Model T2WG2: Change the water filter cartridge every

6 months depending upon your usage. If the water flow to the

water dispenser or ice maker decreases noticeably before

6 months have passed, replace the water filter cartridge more

often.

• These contaminants are not necessarily in your water supply.

While testing was performed under standard laboratory

conditions, actual performance may vary.

• The product is for cold water use only.

• Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after

the system.

• Refer to the "Assistance or Service" section for the

Manufacturer's name, address and telephone number.

• Refer to the "Warranty" section for the Manufacturer's limited

warranty.

Application Guidelines/Water Supply Parameters

Water Supply City or Well

Water Pressure 30 - 120 psi (207 - 827 kPa)

Water Temperature 33 ° - 100°F (0.6 ° - 37.8°C)

Service Flow Rate 0.85 gpm (3.2 Lpm) @ 60 psi

*Class II particle size: 1 um to <5 um

**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

***Compliant for Lead reduction requirements under NSF/ANSl Standard 53 as tested by Pace Analytical Services, Inc.

® NSF is a registered trademark of NSF International.

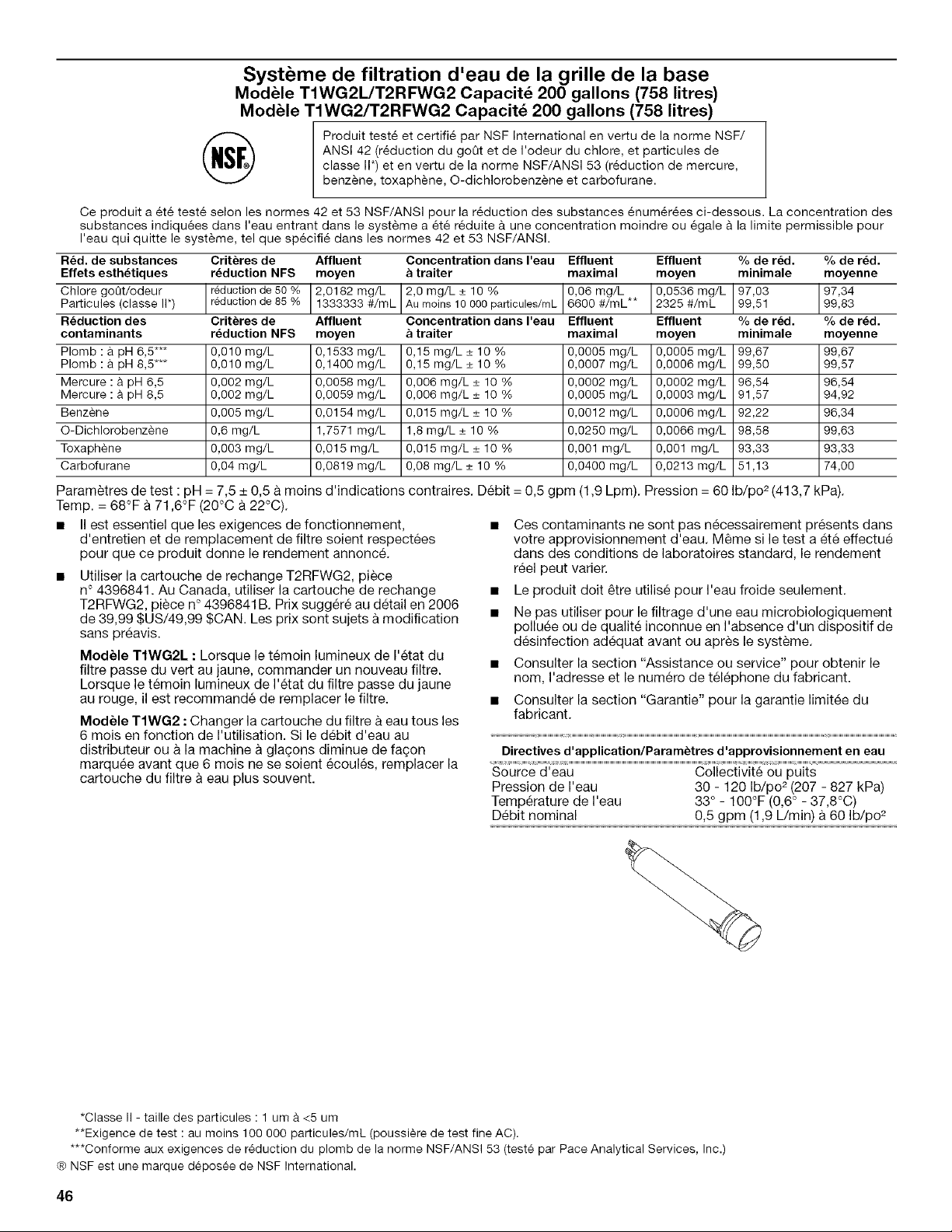

Base Grille Water Filtration System

Model TIWG2L/T2RFWG2 Capacity 200 Gallons (758 Liters)

Model TlWG2/T2RFWG2 Capacity 200 Gallons (758 Liters)

Tested and certified by NSF International against NSF/ANSI Standard 42

for the reduction of Chlorine Taste and Odor, Particulate Class II*; and

against NSF/ANSI Standard 53 for the reduction of Mercury, Benzene,

Toxaphene, O-dichlorobenzene, and Carbofuran.

This system has been tested according to NSF/ANSl 42/53 for the reduction of the substances listed below. The concentration of the

indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water

leaving the system, as specified in NSF/ANSl 42/53.

Substance Reduction NSF Reduction Average Influent Challenge Maximum Average Minimum % Average %

Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction

Chlorine Taste/Odor 50% reduction 2.0182 mg/L 2.0 mg/L _+10% 0.06 mg/L ** 0.0536 mg/L 97.03 97.34

Particulate Class II* 85% reduction 1333333 #/mL At east 10,000 part c es/mL 6600 #/mL 2325 #/mL 99.51 99.83
