• Page 1 - English - : Operating and Installation Instructions Gas cooktop To prevent accidents and machine damage read the Operating Manual before installation or use MNr 09 596 090enUS
• Page 2 - English - : WARNING If the information in this manual is not followed exactly a fire or explosion may result causing property damage personal injury or death Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance WHAT TO DO IF YOU SMELL GAS ß Do not try to light any appliance ß Do not touch any electrical switch ß Do not use any phone in your building ß Immediately call your gas supplier from a neighbors phone Follow the gas suppliers instructions ß If you cannot reach your gas supplier call the fire department Installation and service must be performed by a qualified installer service agency or the gas supplier In Massachusetts installation must be performed by a licensed plumber gas fitter Note to the installer Please leave this instruction book with the consumer for the local electrical gas inspectors use
• Page 3 - English - : IMPORTANT SAFETY INSTRUCTIONS4 Description of the appliance8 Before the first use 11 Using the cooktop 12 Control knobs12 Turning on 13 Regulating 14 Turning off 14 Cookware 15 Energy saving tips 16 Safety feature 17 Cleaning and care 18 Frequently asked questions 21 Technical Service23 IMPORTANT INSTALLATION SAFETY INSTRUCTIONS 26 Installation dimensions 29 Installation 30 Securing the appliance 33 After installation 33 Electrical connection34 Wiring diagram 35 Gas connection 36 Gas pressure regulator 37 Conversion to another type of gas38 Burner performance 39 Help protect our environment40 Contents
• Page 4 - English - : WARNING When using your gas appliance follow basic precautions including the following This gas cooktop conforms to all uniform safety codes and regulations Read all instructions before installation or use to prevent injury and appliance damage These instructions contain important information on installation safety use and maintenance of this appliance They will help you avoid injury and damage to the appliance Keep these operating instructions in a safe place and pass them on to any future user SAVE THESE INSTRUCTIONS Correct usage This appliance is intended for use in domestic households and in similar working and residential environments Only use this gas cooktop for residential purposes such as cooking and keeping food warm Other uses are not permitted and can be dangerous This appliance is not intended for outdoor use Persons who lack physical sensory or mental abilities or experience with the appliance should not use it without supervision or instruction by a responsible person Children Children should not be left unattended in an area where the appliance is in use Never allow children to sit or stand on any part of the appliance Caution Do not store items of interest to children in cabinets above the appliance Children climbing on the appliance to reach these items could be injured The appliance is hot during use and remains so for some time after being switched off Keep children away from the appliance Keep all pots and pans out of the reach of children Danger of burning or scalding Ensure that any packing material is disposed of safely and kept out of the reach of children Danger of suffocation IMPORTANT SAFETY INSTRUCTIONS
• Page 5 - English - : Technical safety Installation repair and maintenance work should be performed by a Miele authorized service technician in accordance with local building and safety codes Work by unqualified persons could be dangerous and may void the warranty Before installing the cooktop check for externally visible damage Do not operate a damaged appliance A damaged gas cooktop is a hazard Be certain your appliance is properly installed and grounded by a qualified technician To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system It is imperative that this basic safety requirement be met If there is any doubt have the electrical system of the house checked by a qualified electrician Before installation make sure that the voltage and frequency listed on the rating label correspond with the household electrical supply This data must correspond to prevent injury and appliance damage Consult a qualified electrician if in doubt Do not operate the appliance until it has been properly installed in the countertop Under no circumstance open the outer casing of the appliance This is a safety hazard and may damage the appliance Before servicing turn off the gas valve and disconnect the power supply by either removing the fuse unplugging the unit or manually quottrippingquot the circuit breaker While the appliance is under warranty repairs should only be performed by a Miele authorized ser vice technician Otherwise the warranty is void Defective components should be replaced by Miele original spare parts only Only with these parts can the manufacturer guarantee the safety of the appliance The appliance is not designed for use with an external timer or a remote control system Do not operate any appliance with a damaged cord or plug or if the appliance has been damaged in any manner Contact Mieles Technical Ser vice Department Do not use an extension cord to connect this appliance to electricity Extension cords do not guarantee the required safety of the appliance In the event of damage or defect turn off the appliance immediately Turn off the gas shut off valve and disconnect completely from the electrical supply Contact the Miele Technical Service Department Do not use the appliance until it has been repaired Ensure power is not supplied to the appliance while repair work is carried out IMPORTANT SAFETY INSTRUCTIONS
• Page 6 - English - : Safety The appliance is hot during use and remains so for some time after being switched off Be careful not to touch the appliance if it may still be hot Do not heat empty pots or pans This may cause damage to the cookware and the surrounding area Danger of fire Do not leave the cooktop unattended while in use Boilovers cause smoking and greasy spillovers may ignite Do not use water on grease fires Smother any fire or flame using a lid or use a dry chemical or foamtype extinguisher WARNING NEVER use this appliance as a space heater to heat or warm the room Doing so may result in carbon monoxide poisoning and overheating Protect your hands with oven mitts or potholders when using the appliance Use only dry heat resistant potholders Moist or damp potholders used on hot surfaces can result in steam burns Do not let the potholder touch the hot heating elements Do not use towels or other bulky items near the appliance Do not flambé under an exhaust hood Flames could be drawn up into the hood by the suction or the grease filters may ignite Spills containing salt or sugar should be removed immediately Do not store items on the appliance when not in use Items could melt or catch fire from residual heat or if the appliance is turned on inadvertently Always switch the burners off after use Do not store aerosols combustibles or any other easily flammable materials underneath or adjacent to the appliance Do not use plastic or aluminium foil on any part of the cooktop It melts at high temperatures Fire hazard Do not heat unopened containers Builtup pressure may cause the container to burst and result in injury Make sure all components of the gas burner are assembled correctly before using the cooktop Do not use pans that extend past the burner grate Using larger pans may cause the flames to spread out and damage the surrounding countertop or other countertop appliances For safety and stability do not use pans with a bottom diameter smaller than the burner grate IMPORTANT SAFETY INSTRUCTIONS
• Page 7 - English - : Only certain types of glass ceramic or other glazed cookware are suitable for use on a cooktop without breaking due to the sudden temperature change Do not use containers made of plastic or aluminium They may melt at high temperatures The burner grates supplied with the appliance must always be used Never place a pan on the burner by itself Do not let cooking grease or other flammable materials accumulate on the appliance Fire Hazard Place the grates on vertically to prevent any scratches The use of a gas cooktop leads to the formation of heat moisture and combustion products in the room where the appliance is installed Ensure proper attention is paid to the ventilation of the installation area windows kept open or a ventilation hood installed and running When using a portable appliance near the cooktop make sure that its power cord does not come in contact with the cooktop If there is a drawer directly underneath the appliance without a wooden base in between ensure that no aerosols combustible liquids or other easily flammable materials are kept in it If cutlery inserts are to be placed in the drawer they must be made of a heatresistant material Do not use roasting pans frying pans or grill stones large enough to cover several burners The resulting heat accumulation can damage the appliance If the gas cooktop is installed behind a cabinet door it must only be used with the door open Only close the cabinet door when the appliance is switched off If the gas cooktop has not been used for an unusually long time it should be thoroughly cleaned before using it again and checked that it is working properly by an authorized expert Before discarding an old appliance disconnect it from the gas and electrical supply and cut off the power cord to prevent it from becoming a hazard SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY IMPORTANT SAFETY INSTRUCTIONS
• Page 8 - English - : Cooktop a Auxiliary burner b Highspeed burner c Doubleinsert super burner d Normal burner e Normal burner f Grate three pieces Controls g Front left h Back left i Middle j Back right k Front right Description of the appliance

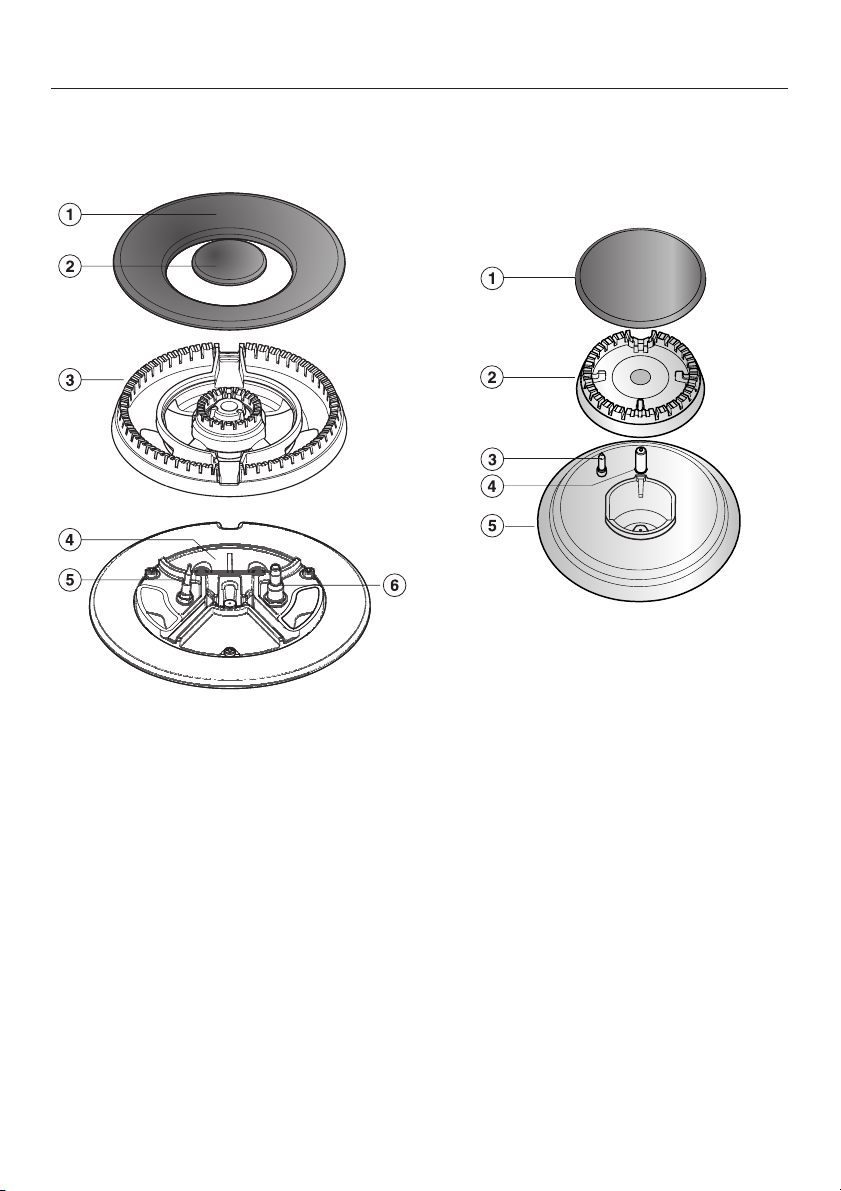

• Page 9 - English - : Burners Doubleinsert super burner a Outer burner cap b Inner burner cap c Burner head d Burner base e Ignition safety device f Ignitor Auxiliary normal and highspeed burners a Burner cap b Burner head c Ignition safety device d Ignitor e Burner base Description of the appliance
• Page 10 - English - : Standard accessories You can reorder standard accessories and optional accessories as needed Wok ring The wok ring supplied is included for added stability especially for woks with round bases Trivet For small and large pans see quotCookwarequot Description of the appliance
• Page 11 - English - : Cleaning the cooktop Remove any protective films Wash the removable parts of the gas burner in a mild solution of warm water and liquid dish soap Dry and reassemble the parts in the correct order see quotCleaning and carequot Wipe the cooktop with a damp cloth and dry thoroughly Metal components have a protective coating which may give off a slight odor the first time your new appliance is heated The harmless odor will dissipate after a short time and does not indicate a faulty connection or appliance defect Before the first use
• Page 12 - English - : To turn the burner on press and turn the knob toward the LEFT only To turn the burner off turn the knob to the RIGHT only The outer burner of the doubleinsert super burner requires you to press the knob down while turning it in order to get from the high flame to the low flame zone The appliance can be damaged if you turn the knob without pressing turn to the right to turn on turn to the left to turn off Control knobs With the control knob you ignite the burner and adjust the size of the flame Auxiliary normal and highspeed burners ß The gas supply is turned off amp Strongest flame Weakest flame Doubleinsert super burner ß The gas supply is turned off amp Strongest flame The inner and outer burners operate at the highest setting amp Strong flame The outer burner operates at the lowest setting the inner burner at the highest setting Weak flame The outer burner is switched off the inner burner operates at the highest settling Weakest flame The outer burner is switched off the inner burner operates at the lowest setting Using the cooktop
• Page 13 - English - : Turning on Do not leave the appliance unattended whilst it is being used To light the burner press the corresponding burner control knob and turn it to the left to the largest flame symbol Pressing a burner control knob automatically generates a spark at all burners on the cooktop This is normal and does not indicate a faulty appliance When a flame is visible keep the burner control knob pressed for 8 10 seconds then release it If the flame goes out prematurely turn the burner control knob to quotßquot Wait at least 1 minute before attempting to reignite You may have to keep the burner control knob pressed a little longer If the burner does not ignite even at the second attempt turn the burner control knob to quotßquot and read the chapter on quotFrequently asked questionsquot Turning on in the event of a power failure If there is a power loss you can ignite the flame manually eg with a match Press the burner control knob and turn it to the left to the largest flame symbol Keep the knob pressed and ignite the escaping gasair mixture with a match Keep the knob pressed for a further approx810seconds and then release it Using the cooktop
• Page 14 - English - : Regulating The inner and outer burners of the doubleinsert super burner are both controlled by one control knob There is a stop at the 6 oclock position that requires you to press the knob down while turning it in order to get from the high flame to the low flame zone To reduce the flames from a high to a low setting turn the burner control knob counterclockwise until resistance is felt Press the knob down until you pass the stop and release the pressure and set the cooktop the desired setting To increase the flames from a low to a high setting turn the burner control knob clockwise until resistance is felt Press the knob down until you pass the stop and release the pressure and set the cooktop the desired setting The flame should be regulated so that it never protrudes beyond the pot Since the outer part of the gas flame is much hotter than the center of the flame the flame tips should remain under the base of the pot Protruding flame tips give off unnecessary heat into the air and can damage pot handles and increase the risk of burning The burner can be continuously regulated between the highest and lowest flame Exception doubleinsert super burner Turning off Turn the burner control knob clockwise to quotßquot The gas supply is stopped and the flame goes out Do not turn the burner control knob clockwise beyond quotßquot Using the cooktop
• Page 15 - English - : Pan size Select the cookware to match the burner large diameter large burner small diameter small burner Using oversized pans may cause the flames to spread out and damage the surrounding countertop or other countertop appliances The proper pan size will also improve efficiency Pots with a smaller diameter than the grates and pots that do not sit securely without wobbling are hazardous and should not be used Suitable pans Unlike pans used on an electric cooktop the bases do not need to be even for good results When buying pots and pans keep in mind that it is generally not the base diameter but the upper diameter which is specified Only use heatresistant cookware Thick pan bases will give more even results as hot spots are reduced due to better heat distribution Thin pan bases will conduct the heat faster but not as evenly as thick pan bases Stir the food frequently to prevent burning Do not use pots or pans with edgesupported bases between the burner and the base of the wok pan above it Pan placement Always place the cookware on the grate The cookware must not be placed directly on the burner Position the cookware on the grate so that it cannot tip over A minimum amount of wobbling can never be completely ruled out Wok ring For added stability especially for wok pans with round bases use the wok ring supplied Make sure the wok ring is properly in place so that it wont move around See illustration Trivet The trivet must be used on the doubleinsert super burner if using very small cookware Prevents it from tipping over very large cookware Using the insert will prevent the flames from spreading causing the cooktop to discolor and the surrounding countertop to be damaged Cookware
• Page 16 - English - : If possible cook in covered pots or pans This prevents unnecessary heat loss Cook with less water The cooking time can be significantly reduced by using a pressure cooker After cooking or frying promptly set to a lower flame Generally wide shallow pans will heat quicker and cook more evenly than narrow tall ones Energy saving tips
• Page 17 - English - : Ignition safety control The appliance is equipped with an Ignition safety control This control cuts the gas supply if the flame goes out eg from a boilover or a draft Any further escape of gas is prevented To reignite the burner knob clockwise to quotßquot and then turn it on as usual The Ignition safety control works independently of the power supply It is active if the appliance is in use during a power failure Safety feature
• Page 18 - English - : Never use a steam cleaner to clean this cooktop Pressurized steam could cause permanent damage to the surface and to components Keep the ignitor in the burner dry If it gets wet it will not spark Clean the appliance after each use Let the appliance cool to a safe temperature before cleaning Dry your cooktop thoroughly after cleaning it to prevent lime deposits Soak baked or hardened spills Remove any soiling immediately Spilled food may discolor the burners or the stainless steel The surfaces of the burner parts and grates become slightly duller over time This is normal and does not indicate any impairment of the material To better maintain your appliance avoid the following cleaners containing soda ammonia thinners or chlorides cleaners containing descaling agents or lime removers stain and rust removers abrasive cleaners cleaners containing solvents dishwasher soap caustic oven cleaners glass cleaners scouring pads steel wool hard brushes metal scrapers sharp objects they could damage the seals between the frame and the countertop Cleaning and care
• Page 19 - English - : Cleaning Tips Stainless steel Clean with a sponge and a mild solution of liquid dish soap and warm water If necessary use the rough side of the sponge and the Miele Ceramic and stainless steel cleaner Make sure to only use the product in the direction of the grain To keep the surfaces from quickly becoming soiled again we recommend treatment with the Miele stainless steel care product Using a soft cloth apply the product in a thin even layer Printed surfaces flame symbols Remove any soiling which comes into contact with the printed flame symbols and the Miele logo right away Soiling particularly salty food or liquid and olive oil can cause damage if left on the printed surfaces for too long Do not use stainless steel cleaning agents on the printed surfaces This can rub off the print Grates Take off the grates Clean in the dishwasher or with a sponge and a mild solution of liquid dish soap and warm water If necessary use the rough side of the sponge Lighter spots on the grates may be caused from soap residue or from the rubbing of pot or pan bottoms Clean as indicated in the adjacent column Burner control knobs Clean with a sponge and a mild solution of liquid dish soap and warm water Not dishwashersafe Burner caps Clean with a sponge cloth a mild solution of liquid dish soap and warm water If necessary use the rough side of the sponge Not dishwashersafe Burner head Clean with a sponge and a mild solution of liquid dish soap and warm water If necessary use the rough side of the sponge Not dishwashersafe Make sure that the flame openings are completely dry after cleaning Ignitor Ignition safety control Wipe carefully with a damp cloth Do not allow the Ignitior to get wet otherwise it will not spark Cleaning and care
• Page 20 - English - : Auxiliary normal and highspeed burners Place the burner head b on to the burner base e so that the ignition safety device c and the ignitor d extend through their respective holes in the burner head The burner head must click into place correctly Place burner cap a flat over burner head b When correctly positioned it will not slide about To assemble the doubleinsert super burner Place burner head c onto burner base d so that the ignition safety device e and the ignitor f extend through their respective holes in the burner head The burner head must click into place correctly Place the burner caps a and b in position Important replace parts in the correct order after cleaning Cleaning and care
• Page 21 - English - : Repairs should only be carried out by an authorized technician in accordance with local and national safety regulations Unauthorized repairs could cause injury or appliance damage Problem Cause and solution The burner doesnt ignite when lit for the first time or when it has not been used for an unusually long time There might be air in the gas pipe Repeat lighting several times Wait at least 1 minute before attempting to reignite You may have to keep the burner control knob pressed a little longer The burner does not ignite after several attempts The burner is not assembled correctly Assemble the burner correctly The gas valve is closed Open the gas valve The burner is wet andor soiled Clean and dry the burner The flame holes in the burners are soiled and clogged Clean and dry the flame holes Frequently asked questions
• Page 22 - English - : Problem Cause and solution Gas flame goes out after ignition The flames dont reach the ignition safety device it doesnt get hot enough The burner is assembled incorrectly Position the burner parts correctly The ignition safety device is soiled Remove the soiling The shape of the gas flame varies The burner parts are not positioned correctly Position the burner parts correctly The burner head or the flame holes are soiled Remove the soiling Gas flame goes out The burner parts are not positioned correctly Position the burner parts correctly The burner ignitor is not working The circuit breaker has tripped Contact Miele Technical Service There is food residue between the ignitor and the burner cap There is food residue at the ignition safety device Remove the soiling Frequently asked questions
• Page 23 - English - : In the event of a fault which you cannot easily fix yourself please contact the Miele Technical Service Department at the address on the back of this booklet When contacting Technical Service please quote the serial number and model of the cooktop MieleCare MieleCare our Extended ServiceContract program gives you the assurance of knowing that yourappliance investment is covered by 5 years of worry free ownership MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts Only genuine Miele parts installed by factory trained professionals can guarantee the safety reliability and longevity of your Miele appliance Please note that unless expressly approved in writing by the Miele Service department Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele Our goal is to prevent unauthorized and untrained service personnel from working on your Miele products possibly doing further damage to them you andor your home To learn more about MieleCare Extended Service Contracts please contact your appliance dealer or visit us online at httpmieleusacommielecare Technical Service
• Page 25 - English - : Installation Instructions IMPORTANT SAVE FOR THE LOCAL ELECTRICAL INSPECTORS USE Information is subject to change Please refer to our website to obtain the most current product specification technical amp warranty information To prevent accidents and appliance damage read these instructions before installation or use Technical Service
• Page 26 - English - : Installation The minimum distances given in these Installation instructions are to combustible surfaces and must be observed to ensure safe operation Failure to do so increases the risk of fire The cabinetry and venting hood should be installed first to prevent damage to the cooktop Gas appliances should only be installed in a well ventilated area The countertop must be bonded with heat resistant 212F100C adhesive to prevent distortion or dissolving Any wall coverings must be heat resistant as well This appliance must not be used in a nonstationary location eg on a ship Deep fat fryers must not be installed directly next to gas cooktops Gas flames can ignite splattering oil A distance of at least 11 quot 300 mm should be maintained between these two appliances The cooktop must not be installed over a dishwasher washer dryer refrigerator or freezer Heat radiated by the cooktop may damage the appliances Install the appliance so that the power cord or gas piping does not come into contact with any portion of the cooktop which may become hot during use The power cord and a flexible gas connection line must be attached in such a way that they are not in contact with moving parts of kitchen elements eg a drawer and are not subject to mechanical stress The safety distances listed on the following pages must be carefully maintained Never use a sealant unless expressly stipulated The sealing tape of the appliance ensures adequate sealing to the countertop This appliance must be installed with its own shut off valve and the included gas pressure regulator Both the valve and the regulator must be easily accessible to the consumer after the appliance is installed This appliance must be disconnected from the gas supply during any pressure testing of the system performed in excess of ½ psi 35 kPa This appliance must be isolated at test pressures equal to or less than ½ psi 35 kPa Any pipe connections must be made using a thread sealant approved for gas connections Failure to correctly install these items could lead to a gas leak and subsequent explosion In Massachusetts installation must be performed by a licensed plumbergas fitter IMPORTANT INSTALLATION SAFETY INSTRUCTIONS
• Page 27 - English - : Safety distances above the appliance The minimum safety distance given by the hood manufacturer must be maintained between the cooktop and the hood above it See the installation instructions of the hood for these safety measurements If the hood manufacturers instructions are not available or if flammable objects are installed over the cooktop eg cabinets utensil rail etc a minimum safety distance of 30quot 760 mm must be maintained If there are several appliances beneath a hood and they have different minimum safety distances always observe the greatest distance IMPORTANT INSTALLATION SAFETY INSTRUCTIONS
• Page 28 - English - : Safety distances When installing a gas cooktop there may be cupboard or room walls of any size on the rear side and on one side right or left see illustrations The following minimum safety distances must be maintained a 2quot 50 mm minimum distance at the rear of the countertop cutout to the rear edge of the countertop b 5 78quot 150 mm minimum distance to the right of the countertop cutout to an adjacent piece of furniture e g tall cabinet or room wall c 5 78quot 150 mm minimum distance to the left of the countertop cutout to an adjacent piece of furniture e g tall cabinet or room wall Not allowed Recommended Not recommended Not recommended IMPORTANT INSTALLATION SAFETY INSTRUCTIONS
• Page 29 - English - : a Appliance front b Installation height c Gas connection dPower supply box with connection cableL4ft12 m e Stepped cutout for granite or marble worktops Please take careful note of the detailed diagrams for the cutout dimensions in granite and marble countertops Installation dimensions
• Page 30 - English - : Flush mounted gas cooktops are only suitable for installation in granite marble tiled or solid wood countertops If installing into a countertop made from any other material please check first with the countertop manufacturer that it is suitable for installing a flush mounted cooktop This appliance requires a 36 716quot 900 mm wide base unit for installation The cooktop must be accessible from below for servicing purposes and to ensure that the seal around it is not dislodged The cooktop may be installed in a suitable cutout in a granite or marble countertop in a suitable cutout in a tiled or solid wood countertop with a wooden support frame The frame must be provided on site and is not supplied with the appliance Installation
• Page 31 - English - : Granite and marble countertops a Countertop b Cooktop c Gap As the ceramic glass and the countertop cutout have a certain dimensional tolerances the size of gap c can vary Make the countertop cutout as shown in quotInstallation dimensionsquot Remember to maintain the minimum safety distances see quotIMPORTANT INSTALLATION SAFETY INSTRUCTIONSquot Feed the power cord down through the cutout Center the cooktop b in the cutout Connect the cooktop to the mains see quotElectrical connectionquot Connect the appliance to the gas supply see quotGas connectionquot Secure the appliance at the back and front using the brackets supplied See quotSecuring the appliancequot Check that the cooktop works Seal the remaining gap c with a silicone sealant that is heatresistant to at least 320 F 160 C For granite and marble countertops only use silicone sealant that is especially formulated for granite and marble and observe the sealant manufacturers instructions Installation
• Page 32 - English - : Solid wood and tiled worktops a Countertop b Cooktop c Gap d Wooden frame 14quot 7 mm to be provided on site As the ceramic glass and the countertop cutout have a certain dimensional tolerance the size of gap c can vary Make the countertop cutout as shown in quotBuildingin dimensionsquot Remember to maintain the minimum safety distances see quotIMPORTANT INSTALLATION SAFETY INSTRUCTIONSquot Fix the wooden frame d 116quot 2 mm below the top edge of the countertop see diagram Feed the power cord down through the cutout Center the cooktop b in the cutout Connect the cooktop to the mains see quotElectrical connectionquot Connect the appliance to the gas supply see quotGas connectionquot Secure the appliance at the back and front using the brackets supplied See quotSecuring the appliancequot Check that the cooktop works Seal the remaining gap c with a silicone sealant that is heatresistant to at least 320 F 160 C Please follow the manufacturers instructions For granite and marble tiles only use a silicone sealant that is specifically formulated for granite and marble and observe the sealant manufacturers instructions Installation
• Page 33 - English - : Secure the appliance as shown using the fixing brackets supplied 34quot 20 mm countertop 1 14quot 30 mm countertop 1 12quot 40 mm countertop After installation Check that all the burners are operating correctly The flame must not go out on the lowest setting or when the control is turned quickly from a high to a low setting On the highest setting the flame must have a distinctive and visible core Securing the appliance
• Page 34 - English - : This appliance must be grounded according to local or national codes All electrical work should be performed by a qualified electrician in accordance with local codes and with the National Electrical Code ANSI NFPA No 70 for the USA or Canadian Electrical Code Part I for Canada CSA Standard C 221 WARNING Disconnect the appliance from the main power supply before installation or service To reduce the risk of electric shock make sure that the appliance is properly grounded after installation Power supply The automatic ignition requires that the appliance be connected to a 120 VAC 60 Hz power supply The supply line should be protected by a 15 A fuse Actual power consumption during ignition only is 25 W This appliance is equipped witha4ft 12 m long power cord that is ready for connection to the appropriate outlet Place the power outlet so that it is accessible after the appliance has been installed in the countertop This appliance is equipped with a threeprong grounding plug to prevent shock hazards It should be plugged directly into a properly grounded outlet Do not cut or remove the grounding prong from the plug If the plug does not fit the outlet have the proper outlet installed by a licensed electrician To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system It is imperative that this basic safety requirement be met If there is any doubt have the electrical system of the house checked by a qualified electrician Note to the installer Please leave these instructions with the consumer or the appliance Electrical connection
• Page 35 - English - : Wiring diagram Caution Label all wires prior to disconnection when servicing controls Wiring errors can cause improper and dangerous operation Verify proper operation after servicing Electrical connection
• Page 36 - English - : Installation and service must be performed by a qualified installer service agency or gas supplier In Massachusetts installation must be performed by a licensed plumbergas fitter This appliance must be installed with its own shut off valve and the included gas pressure regulator Both the valve and the regulator must be easily accessible to the consumer to turn on or shut off the gas supply after the appliance is installed This appliance and its individual shut off valve must be disconnected from the gas supply during any pressure testing of that system performed in excess of ½ psi 35 kPa The appliance must be isolated from the gas supply line by closing its individual manual shut off valve at test pressures equal to or less than ½ psi 35 kPa Any pipe connections must be made using a thread sealant approved for gas connections Failure to correctly install these items could lead to a gas leak and subsequent explosion Leak testing of the appliance shall be conducted according to the manufacturers instructions The gas connection must be made in accordance with local codes or in the absence of local codes with the National Fuel Gas Code ANSI Z 211 NFPA 54 for the USA or the current Can CGA B 1491 and 2 Installation Codes for gas burning appliances for Canada Make sure that the maximum gas supply pressure before the gas pressure regulator is never more than ½ psi for both natural gas or LP gas The minimum required gas supply pressure to get the required gas input is 6quot wc for natural gas 10quot wc for LP gas Gas connection
• Page 37 - English - : Gas pressure regulator A pressure regulator that is convertible from natural to LP gas Propane or vice versa is included with the appliance The included regulator corresponds with the gas type of the appliance Verify before installing The adjusted pressure is natural gas 4quot wc LP gas 10quot wc a Appliance b ½quot NPT c Regulator As shown in the above diagram the included regulator must be used when connecting the Miele appliance to your gas supply This item has been customized by Miele to meet all applicable safety requirements Make sure the regulator is easily accessible for adjustment after the appliance has been installed For convenience an AGA or CGA approved flexible stainless steel gas hose accordion type may be used between the gas connection and the regulator This will allow the appliance to be lifted out of the countertop for cleaning or servicing Make sure that any drawers cabinet doors etc do not rub on this gas hose Do not use any regulator unless it has been supplied by Miele Doing so may cause a gas leak If there is any doubt concerning installation contact the Miele Technical Service Department After connecting the appliance check all fittings for gas leaks eg with soapy water When installed properly the flame will be steady and quiet It will also have a sharp blue inner core that will vary in length proportional to the burner size Flame adjustment will not be necessary Gas connection
• Page 38 - English - : The applinace should have been ordered for connection to either natural gas or LP gas propane If the appliance is not configured for the proper type of gas connection please contact your Miele Dealer Conversion to another type of gas
• Page 39 - English - : Rated load at high setting Burner Type of gas KM 2355 BTUhr kW Auxiliary burner Natural gas NG Liquid gas LP 3900 3000 Normal burner Natural gas NG Liquid gas LP 5900 6000 Highspeed burner Natural gas NG Liquid gas LP 9800 9500 Doubleinsert super burner Natural gas NG Liquid gas LP 13000 15000 Total Natural gas NG Liquid gas LP 38500 39500 Rated load at low setting Burner Type of gas KM 2355 BTUh kW Auxiliary burner Natural gas NG Liquid gas LP 1200 Normal burner Natural gas NG Liquid gas LP 1200 1100 Highspeed burner Natural gas NG Liquid gas LP 1700 1800 Doubleinsert super burner Natural gas NG Liquid gas LP Burner performance
• Page 40 - English - : Disposal of packing materials The cardboard box and packing materials are biodegradable and recyclable Please recycle Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of children Danger of suffocation Disposal of an old appliance Old appliances contain materials that can be recycled Please contact your local recycling authority about the possibility of recycling these materials Before discarding an old appliance disconnect it from the electrical supply and cut off the power cord to prevent it from becoming a hazard Help protect our environment
