Samsung WA52T7650AV/A4 6.0 Cu.ft. High Efficient Top Load Washer With Super Speed In Black Stainless Steel

User Manual - Transcript

• Page 1: Washer User manual WA52T7650A WA7650TDC6803850C00ENindd 1 1222019 70555 PM
• Page 2 - English - : 2 English Contents Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 CALIFORNIA PROPOSITION 65 WARNING 5 Important safety precautions 5 Installation 13 Unpacking your washer 13 Overview of your washer 14 Basic location requirements 16 Important note to installer 20 Stepbystep installation 20 Operating instructions 28 Loading your washer 28 Getting started 29 Washing a load of laundry 30 Control panel 30 Cycle overview 32 Options 34 Washing clothes using the cycle selector 38 ATC Auto Temperature Control 39 Special features 40 Detergent use 41 Features 42 Maintaining your washer 46 Cleaning the exterior 46 Cleaning the interior 46 Storing your washer 46 Preserving the top cover and the front frame 47 Cleaning mesh lter 47 Cleaning the dispensers 48 Self Clean 50 WA7650TDC6803850C00ENindd 2 1222019 70555 PM
• Page 3 - English - : English 3 Contents Troubleshooting 51 Checkpoints 51 Information codes 56 Specications 59 Fabric care chart 59 Helping the environment 61 Declaration of conformity 61 Specication sheet 62 Cycle chart 63 WA7650TDC6803850C00ENindd 3 1222019 70555 PM
• Page 4 - English - : 4 English Safety information SAVE THESE INSTRUCTIONS Safety information Congratulations on your new Samsung washer This manual contains important information on the installation use and care of your appliance Please take some time to read this manual to take full advantage of your washers many benets and features What you need to know about the safety instructions Please read this manual thoroughly to ensure that you know how to safely and efciently operate the extensive features and functions of your new appliance Please store the manual in a safe location close to the appliance for future reference Use this appliance only for its intended purpose as described in this instruction manual Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your washer Because the following operating instructions cover various models the characteristics of your washer may differ slightly from those described in this manual and not all warning signs may be applicable If you have any questions or concerns contact your nearest service center or nd help and information online at wwwsamsungcom Important safety symbols What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury death andor property damage CAUTION Hazards or unsafe practices that may result in personal injury andor property damage NOTE Indicates that a risk of personal injury or material damage exists WA7650TDC6803850C00ENindd 4 1222019 70556 PM
• Page 5 - English - : English 5 Safety information SAVE THESE INSTRUCTIONS These warning signs are here to prevent injury to yourself and others Please follow them explicitly After reading this manual store it in a safe place for future reference Read all instructions before using the appliance As with any equipment that uses electricity and moving parts potential hazards exist To safely operate this appliance familiarize yourself with its operation and exercise care when using it CALIFORNIA PROPOSITION 65 WARNING WARNING Cancer and Reproductive Harm wwwP65Warningscagov Important safety precautions WARNING To reduce the risk of re electric shock or injury to persons when using your appliance follow basic precautions including the following 1 Read all instructions before using this appliance 2 Do not wash or dry articles that have been previously cleaned in washed in soaked in or spotted with gasoline drycleaning solvents other ammable or explosive substances as they give off vapors that could ignite or explode 3 Do not allow children to play on or in the appliance Close supervision of children is necessary when the appliance is used near children 4 Before the appliance is removed from service or discarded remove the lid of the washing or drying compartment 5 Do not reach into the appliance if the drum is moving 6 Do not install or store this appliance where it will be exposed to the weather 7 Do not tamper with the controls 8 Do not repair or replace any part of the appliance or attempt any servicing unless it is specically recommended in the usermaintenance instructions or in published user repair instructions that you understand and have the skills to carry out WA7650TDC6803850C00ENindd 5 1222019 70556 PM
• Page 6 - English - : 6 English Safety information SAVE THESE INSTRUCTIONS Safety information 9 Do not add gasoline drycleaning solvents or other ammable or explosive substances to the wash water These substances give off vapors that could ignite or explode 10 Under certain conditions hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more HYDROGEN GAS IS EXPLOSIVE If the hot water system has not been used for 2 weeks or more before using a washer or combination washerdryer turn on all hot water faucets and let the water ow from each for several minutes This will release any accumulated hydrogen gas As the gas is ammable do not smoke or use an open ame during this time Critical installation warnings WARNING Plug the power cord into an AC 120 V 60 Hzwall socket rated at 15 amps or higher Use the socket for this appliance only In addition do not use an extension cord Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or re Do not use an electric transformer It may result in electric shock or re Ensure that the power voltage frequency and current match the products specications Failing to do so may result in electric shock or re Have this appliance installed by a qualied technician or service company Failing to do so may result in electric shock re an explosion problems with the product or injury Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis Unplug the power plug and clean it with a dry cloth Failing to do so may result in electric shock or re Plug the power plug into the wall socket in the right direction so that the cord runs towards the oor If you plug the power plug into the socket in the opposite direction the electric wires within the cable may be damaged and this may result in electric shock or re WA7650TDC6803850C00ENindd 6 1222019 70556 PM
• Page 7 - English - : English 7 Safety information SAVE THESE INSTRUCTIONS This appliance must be properly grounded Do not ground the appliance to a gas pipe plastic water pipe or telephone line Improper grounding may result in electric shock re an explosion or problems with the product Never plug the power cord into a socket that is not grounded correctly Make sure the socket you use is grounded in accordance with local and national codes Do not install this appliance near a heater or ammable material Do not install this appliance in a humid oily or dusty location or in a location exposed to direct sunlight or water rain drops Do not install this appliance in a location where gas may leak This may result in electric shock or re Plug the power plug into the wall socket rmly Do not use a damaged power plug damaged power cord or loose wall socket This may result in electric shock or re Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance This may result in electric shock or re Do not pull the power cord when unplugging the power plug Unplug the power plug by holding the plug Failing to do so may result in electric shock or re If the power plug or power cord are damaged contact your nearest service center Installation cautions CAUTION Position the appliance so that the power plug is easily accessible Failing to do so may result in electric shock or re due to electric leakage Install your appliance on a level and hard oor that can support its weight Failing to do so may result in abnormal vibrations noise or problems with the product WA7650TDC6803850C00ENindd 7 1222019 70556 PM
• Page 8 - English - : 8 English Safety information SAVE THESE INSTRUCTIONS Safety information Unplug the power plug when the appliance is not being used for long periods of time or during a thunderlightning storm Failing to do so may result in electric shock or re Critical usage warnings WARNING If the appliance is ooded cut the power immediately and contact your nearest service center If the appliance emits a strange noise a burning smell or smoke unplug the power plug immediately and contact your nearest service center Failing to do so may result in electric shock or re In the event of a gas leak such as propane gas LP gas etc ventilate the area immediately Do not turn any appliance or light on or off Do not use a ventilating fan A spark may result in an explosion or re Do not wash items contaminated with gasoline kerosene benzene paint thinner alcohol or other ammable or explosive substances This may result in electric shock re or an explosion Do not force the washer lid open while the washer is operating hightemperature washing dryingspinning Water owing out of the washer may cause burns or cause the oor to be slippery This may result in injury Forcing the lid open can damage the product or cause injury Make sure to remove the packaging sponge styrofoam attached to the bottom of the washer before using it Do not insert your hand under the washer This may result in injury Do not touch the power plug with wet hands This may result in electric shock Do not turn the appliance off by unplugging the power plug while the washer is in operation WA7650TDC6803850C00ENindd 8 1222019 70556 PM
• Page 9 - English - : English 9 Safety information SAVE THESE INSTRUCTIONS Plugging the power plug into the wall socket again may cause a spark and result in electric shock or re Keep all packaging materials well out of the reach of children as packaging materials can be dangerous to children If a child places a bag over their head the child may suffocate Do not let children or inrm persons use this washer unsupervised Failing to do so may result in electric shock burns or injury Do not insert your hand or a metal object under the washer while it is operating This may result in injury Do not attempt to repair disassemble or modify the appliance yourself Do not use any fuse such as copper steel wire etc other than the standard fuse If you need to repair or reinstall the appliance contact your nearest service center Failing to do so may result in electric shock re problems with the product or injury If any foreign substance such as water enters the appliance in any area other than the tub unplug the power plug and contact your nearest service center Failing to do so may result in electric shock or re If the water supply hose comes loose from the faucet and oods the appliance unplug the power plug Failing to do so may result in electric shock or re For waterproof fabrics only use the WATERPROOF cycle Do not use other cycles for waterproof fabrics This may result in injury or damage to the washer walls oor or clothing due to abnormal vibrations Set the temperature and spin according to the attached care label WARNING Failure to closely follow these instructions may result in an abnormal vibrating and outofbalance condition that could result in physical injury property damage andor appliance damage WA7650TDC6803850C00ENindd 9 1222019 70556 PM
• Page 10 - English - : 10 English Safety information SAVE THESE INSTRUCTIONS Safety information Usage cautions CAUTION If the washer is contaminated by a foreign substance such as detergent dirt food waste etc unplug the power plug and clean the washer using a damp soft cloth Failing to do so may result in discoloration deformation damage or rust The clear portion of the lid can be broken by a strong impact Take care when using the washer If the clear portion is cracked or broken it may result in injury After a water supply failure or when reconnecting the water supply hose open the faucet slowly Open the faucet slowly after a long period of nonuse The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage If a drain error occurs during an operation check if there is a draining problem If the washer is used when it is ooded because of a draining problem it may result in electric shock or re due to electric leakage Do not insert your hand under the washer This may result in injury Insert the laundry into the washer completely so that laundry does not get caught in the lid If laundry gets caught in the lid it may result in damage to the laundry or the washer or result in water leakage Ensure that the faucet is turned off when the washer is not being used Ensure that the water supply hose connectors are properly tightened Failing to do so may result in property damage or injury Open the faucet and check if the water supply hose connector is rmly tightened and that there is no water leaking before using the product If the water supply hose connectors are loose it may result in water leakage Do not stand on top of the appliance or place objects such as laundry lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance This may result in electric shock re problems with the product or injury WA7650TDC6803850C00ENindd 10 1222019 70556 PM
• Page 11 - English - : English 11 Safety information SAVE THESE INSTRUCTIONS Do not operate the appliance with wet hands This may result in electric shock Do not spray volatile material such as insecticide onto the surface of the appliance As well as being harmful to humans it may also result in electric shock re or problems with the product Do not place an object that generates a electromagnetic eld near the washer This may result in injury due to a malfunction Since the water drained during a hightemperature wash or drying cycle is hot do not touch the water This may result in burns or injury Do not operate the washer when the detergent dispenser is removed This may result in electric shock or injury due to water leakage Do not insert your hand into the detergent dispenser after opening it This may result in injury as your hand may be caught Do not place any nonlaundry objects such as shoes food waste or animals into the washer This can cause abnormal vibrations that can damage the washer and in the case of pets cause severe injury or death Do not press the buttons using sharp objects such as pins knifes ngernails etc This may result in electric shock or injury Do not wash laundry contaminated by oils creams or lotions usually found in skincare shops or massage clinics This may result in the rubber seal becoming deformed and water leakage Do not leave metal objects safety pins hair pins etc or bleach in the tub for long periods of time This may cause the tub to rust If rust appears on the surface of the tub apply a neutral cleansing agent to the surface and use a sponge to clean it Never use a metal brush Do not use dry cleaning detergent directly in the tub and do not wash rinse or spin laundry contaminated by dry cleaning detergent This may result in spontaneous combustion or ignition due to heat from the oxidation of the oil WA7650TDC6803850C00ENindd 11 1222019 70556 PM
• Page 12 - English - : 12 English Safety information SAVE THESE INSTRUCTIONS Safety information Do not use hot water from water coolingheating devices This may result in problems with the washer Do not use natural handwashing soap in the washer If it hardens and accumulates inside the washer it may cause problems with the product discoloration rust or bad odors Do not wash large laundry items such as bedding in the washing net Failing to do so may result in injury due to abnormal vibrations Place smaller items such as lace socks and lingerie in the washing net Do not use hardened detergent If it accumulates inside the washer it may result in water leakage Do not wash throw rugs or doormats If you wash throw rugs or doormats the sand will accumulate inside the washer It may result in error such as no draining Critical cleaning warnings WARNING Do not clean the appliance by spraying water directly onto it Do not use the strong acid cleaning agent Do not use benzene paint thinner or alcohol to clean the appliance This may result in discoloration deformation damage electric shock or re Before cleaning or performing maintenance unplug the appliance from the wall socket Failing to do so may result in electric shock or re WA7650TDC6803850C00ENindd 12 1222019 70556 PM
• Page 13 - English - : English 13 Installation Installation Follow these instructions carefully to ensure proper installation of the washer and to prevent accidents when using it WARNING Certain internal parts are intentionally not grounded and may present a risk electric shock only during servicing Service personnel Do not contact the following parts while the appliance is energized Control board heat sink motor inlet valve heater and pump Unpacking your washer Unpack your washer and inspect it for shipping damage Make sure you have received all the items shown below If your washer was damaged during shipping or you do not have all of the items contact 1800SAMSUNG 18007267864 To prevent personal injury or strain wear protective gloves whenever lifting or carrying the unit WARNING Packing materials can be dangerous to children Keep all packing material plastic bags polystyrene etc well out of childrens reach CAUTION When unpacking the washer 2 person collaboration is needed To remove the cushion bottom of the packing materials forward dumping is strictly prohibited When you lay the washer down to remove carton base should protect the side of washer and lay it carefully Never lay your washer on its back or front WA7650TDC6803850C00ENindd 13 1222019 70557 PM
• Page 14 - English - : 14 English Installation Installation Overview of your washer Make sure all the parts are included in the product package If you have a problem with the washer or the parts contact a local Samsung customer center or the retailer 01 Drain hose 02 Hose guide 03 Lid 04 Leveling feet 05 Water hose Cold 06 Water hose Hot 07 Control panel 08 Power cord WA7650TDC6803850C00ENindd 14 1222019 70557 PM
• Page 15 - English - : English 15 Installation Parts supplied Hose guide User manual Plastic zip hose tie Water intake cap Parts not supplied Water supply hoses Tools needed for installation Wrench Flat screwdriver Leveller Adjustable Plier Measuring tape NOTE If you lose an accessory and want to purchase a replacement contact the Samsung service center 1800SAMSUNG 18007267864 The design of the parts and accessories may differ from the pictures above Their design is subject to change without notice for product improvement Do not reuse old hoses Only use new water supply hoses when you install the washer Old water supply hoses can leak or burst causing ooding and property damage Conrm that there are rubber washers inside each coupling of the water supply hoses WA7650TDC6803850C00ENindd 15 1222019 70558 PM
• Page 16 - English - : 16 English Installation Installation Basic location requirements Electrical 120 Volt 60 Hz 15 AMP fuse or circuit breaker Individual branch circuit serving only your Washer is recommended Your washer is equipped with a power cord CAUTION Never use an extension cord Grounding Electrical grounding is required for this appliance This appliance must be grounded In the event of malfunction or breakdown grounding will reduce the risk of electric shock by providing a path of least resistance for electric current This appliance is equipped with a power cord having a threeprong grounding plug for use in a properly installed and grounded outlet The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances WARNING An improperly connected equipment grounding conductor can increase the risk of electrical shock Check with a qualied electrician or serviceman if you are not sure whether the appliance is properly grounded Do not modify the plug provided with the appliance if it does not t the outlet have a proper outlet installed by a qualied electrician Important safety precautions To prevent unnecessary risk of re electrical shock or personal injury all wiring and grounding must be done in accordance with the National Electrical Code ANSI FNPA No70 Latest Revision and local codes and ordinances It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance CAUTION Never connect the ground wire to plastic plumbing lines gas lines or hot water pipes Water To correctly ll your Washer in the proper amount of time water pressure of 20 to 116psi 137 to 800kPa is required Water pressure less than 20 psi may cause water valve failure or may not allow the water valve to shut off completely or may extend the ll time beyond what your Washer controls allow causing your Washer to turn off A time limit is built into the controls to prevent ooding in your home if a hose becomes loose WA7650TDC6803850C00ENindd 16 1222019 70558 PM
• Page 17 - English - : English 17 Installation The water faucets must be within 4 feet 122 cm to the back of your Washer to match the inlet hoses provided with your Washer NOTE Accessory inlet hoses are available in various lengths up to 10 feet 275 cm for faucets that are further away from the back of your washer To avoid the possibility of water damage Have water faucets easily accessible Turn off faucets when the washer is not in use Periodically check that there is no leakage from the water inlet hose ttings WARNING Check all connections at the water valve and faucet for leaks Drain facility The recommended height of the standpipe is 39 in 99 cm The drain hose must be routed through the drain hose clip to the standpipe The standpipe must be large enough to accept the outside diameter of the drain hose The drain hose is attached to the washer at the factory Flooring For best performance you must install your washer on a solidly constructed oor Wood oors may need to be reinforced to minimize vibration andor unbalanced load situations Carpeting and soft tile surfaces are contributing factors to vibration which can cause your washer to move slightly during the spin cycle Never install your washer on a platform or weakly supported structure Location considerations Do not install your washer in areas where water may freeze since your washer will always retain some water in its water valve pump and hose areas Frozen water can damage the belts the pump hoses and other components Alcove or closet installation Minimum clearances for closet and alcove installations Sides 1 in 25 mm Closet front 1 in 25 mm Rear 59 in 150 mm Top 21 in 533 mm If the washer and dryer are installed together the closet front must have at least a 72 in² 465 cm² unobstructed air opening Your washer alone does not require a specic air opening WA7650TDC6803850C00ENindd 17 1222019 70559 PM
• Page 18 - English - : 18 English Installation Installation Recessed area A B B A A A 1 in 25 cm B 270 in 686 cm Side view closet or conned area A B C D E A 21 in 533 cm B 1 in 25 cm C 29 716 in 744 cm D 59 in 15 cm E Gap between end of water valve and the wall Case 1 Assemble supply hose after installing Over 4 in 10 cm Case 2 Assemble supply hose before installing Over 3 in 8 cm WA7650TDC6803850C00ENindd 18 1222019 70559 PM
• Page 19 - English - : English 19 Installation Required dimensions for Installation C B A A 270 in 686 cm B 402 in 1022 cm C 460 in 1168 cm B A A 293 in 744 cm B 460 in 1168 cm A A 594 in 1510 cm B A C C A 480 in 3100 cm B 240 in 1550 cm C 30 in 76 cm NOTE Required spacing WA7650TDC6803850C00ENindd 19 1222019 70600 PM
• Page 20 - English - : 20 English Installation Installation Important note to installer Please read the following instructions carefully before installing your washer These instructions should be retained for future reference We recommend you hire a professional to install this washer Installation ow chart Removing the shipping bolts Front loading washers only Connecting the water and drain Adjusting the leveling feet Selecting a location Powering your washing machine Running a test cycle Run RINSESPIN with small amount of laundry about 45 towels as a test cycle Running Calibration Mode Finishing the installation Does your washer vibrate NO YES Check again before steps Stepbystep installation STEP 1 Selecting a location NOTE Before you install the washer make sure the location Has a hard level surface without carpeting or ooring that may obstruct ventilation Is away from direct sunlight Has adequate ventilation Is not exposed to freezing temperatures temperatures under 32 F or 0 C Is away from heat sources such as oil or gas Has enough space so that the washer doesnt rest on its power cord WA7650TDC6803850C00ENindd 20 1222019 70600 PM
• Page 21 - English - : English 21 Installation STEP 2 Connecting the water supply hose B A CAUTION Before installing the water supply hoses make sure there are rubber gaskets B inside the couplings A at both ends of each new water hose Installing the water supply hoses without rubber gaskets can cause water leakage CAUTION When you initially install the washer be sure to use new hoses Failing to do so may result in a water leakage or overow and may damage your property CAUTION Do not connect multiple water supply hoses together to increase the length of the supply hose Hoses connected this way can leak and the leakage can cause electrical shock If a hose is too short replace the hose with a longer high pressure hose WA7650TDC6803850C00ENindd 21 1222019 70600 PM
• Page 22 - English - : 22 English Installation Installation BA 1 Connect the ends of the water supply hoses to the hot and cold faucets 2 Tighten the ttings by hand until they are snug and then tighten them an additional twothirds of a turn with a plier CAUTION When you fasten the ttings do not fasten them too tightly or apply tape or sealant to the faucets or water supply intakes This can damage the ttings NOTE After you have connected the water supply hoses to the faucets ensure that they are connected correctly by pulling the water supply hoses downwards 3 Place the unconnected ends of the hoses into a bucket and open the faucets connected to the two water supply hoses for 10 or 15 seconds to remove any foreign substances from the hoses Close the faucets before continuing WA7650TDC6803850C00ENindd 22 1222019 70601 PM

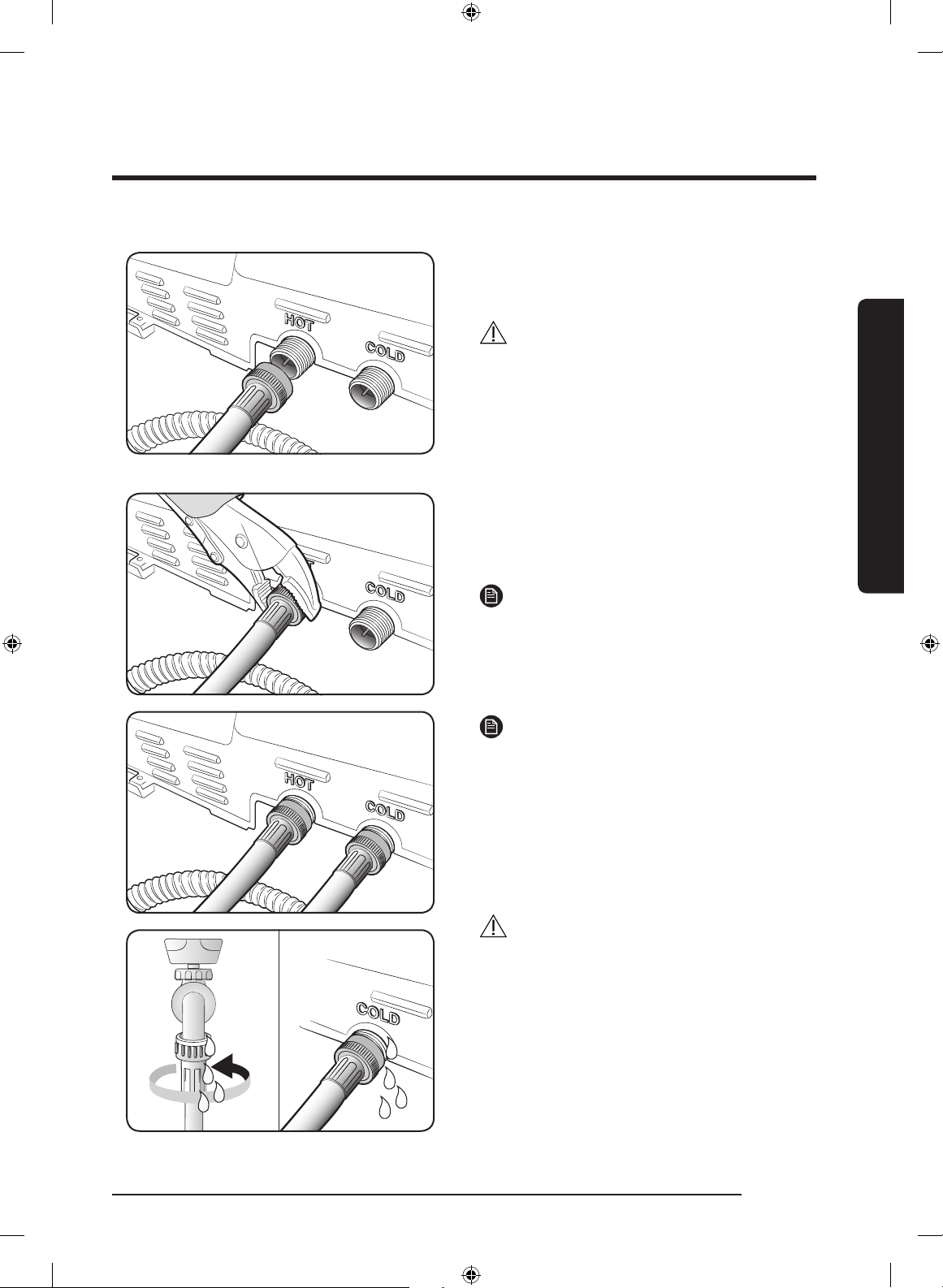

• Page 23 - English - : English 23 Installation 4 Connect the ends of the water supply hoses to the water supply intake connections at the back of the washer CAUTION The water supply hose connected to the hot faucet must be connected to the hot water supply intake and the water hose connected to the cold faucet must be connected to the cold water supply intake 5 Tighten the ttings by hand until they are snug and then tighten them an additional twothirds of a turn with a plier NOTE To ensure the correct water usage connect both the hot and cold water faucets If either or both are not connected an 4C no ll code can be displayed NOTE If you do not want to use the hot water supply hose insert the water intake cap into the hot water supply intake hole In this case you must select the Tap Cold for the water temperature If you select the Tap Cold all the lamps for the water temperature options are turned off CAUTION Conrm that the water supply hoses are not twisted or bent If the hoses are twisted or bent the hoses can leak and cause electric shock due to the water leakage 6 Turn on the hot and cold water supplies and check all the water supply intake connections and the faucets for water leaks WA7650TDC6803850C00ENindd 23 1222019 70602 PM
• Page 24 - English - : 24 English Installation Installation STEP 3 Connecting the drain hose A The end of the drain hose can be positioned in three ways In a Wall standpipe or Floor standpipe The height of end of standpipe must be no lower than 39 in 99 cm and no higher than 96 in 245 cm If drain pipe are built into the wall with water valves A fasten the drain hose to the water hose NOTE Make sure that the connection between the drain hose and the standpipe is not airtight C In a laundry tub The height of the tub must be no lower than 39 in 99 cm and no higher than 96 in 245 cm Assemble the supplied Hose guide at the end of the drain hose and put the hanger on laundry tub And fasten the drain hose to the leg of laundry tub WA7650TDC6803850C00ENindd 24 1222019 70602 PM
• Page 25 - English - : English 25 Installation A NOTE Connect the hose guide A within 35 in 76127 cm from the end of the drain hose If the drain hose is extended beyond the end of the hose guide mold or microorganisms could spread inside the washer NOTE The drain hose can be installed to a 96 in 245 cm maximum but the draining capability can be reduced at this height It can cause the washer to have an odor because of remaining water in the drain system NOTE If the drain hose is installed below 39 in 99 cm water can be drained in cycles due to a siphon phenomenon It causes the washer to display 4C STEP 4 Leveling your washer A See if the washer is level by checking the position of the tub 1 Slide the washer into position 2 Open the lid of the washer and pour the water into the tub to just below the pulsator level WA7650TDC6803850C00ENindd 25 1222019 70603 PM
• Page 26 - English - : 26 English Installation Installation B C 3 If the washer is level the pulsator A is positioned at the center of the water as shown in the gure If not level your washer by turning the front leveling feet clockwise or counterclockwise as necessary NOTE Turn the front leveling feet clockwise B to lower the washer and counterclockwise C to raise the washer STEP 5 Powering your washer Plug the power cord into a 3prong well grounded 120 volt 60 Hz approved electrical outlet protected by a 15amp fuse or comparable circuit breaker Your washer is grounded through the third prong of the power cord when plugged into a threeprong grounded electrical outlet Test run Make sure that you install your washer correctly by running the RINSESPIN after the installation is complete WA7650TDC6803850C00ENindd 26 1222019 70603 PM
• Page 27 - English - : English 27 Installation STEP 6 Running a test cycle Run a test cycle as follows to check if your washer is properly installed 1 Load about 6 pounds of laundry into the tub 2 Press POWER to turn on your washer 3 Select RINSESPIN by turning the Cycle Selector 4 Press STARTPAUSE to start the test cycle 5 The washer should not rock or vibrate excessively when water is supplied or when washing or spinning and should drain well during the spin cycle NOTE If water leaks while water is being supplied or drained check the water connections Refer to the STEP 2 Connecting the water supply hose section on page 21 for instructions NOTE If the washer rocks and vibrates excessively level your washer again Refer to the STEP 4 Leveling your washer section on page 25 for instructions STEP 7 Calibration Mode Your Samsung washer detects the laundry weight automatically For more accurate weight detection please run Calibration Mode after the installation To run Calibration Mode follow these steps 1 Remove laundry or any contents in the machine 2 Press and hold Temp and Delay End simultaneously for at least 3 seconds when the power is turned on 3 Press STARTPAUSE to activate Calibration Mode 4 The pulsator rotates clockwise and counterclockwise approximately 1 minute 5 When Calibration Mode is nished 0 appears on the display and the washer automatically turns off The washer is now ready for use WA7650TDC6803850C00ENindd 27 1222019 70603 PM
• Page 28 - English - : 28 English Operating instructions Operating instructions WARNING To reduce the risk of re electric shock or injury to persons when using your appliance follow basic precautions including the following Loading your washer Fill the tub with dry unfolded clothes evenly around in order to enhance washing efciency and prevent excess wear or wrinkling of the load For optimal washing performance make sure the laundry is piled up evenly Wash delicate items such as bras hosiery and other lingerie in the Delicates cycle with similar lightweight items When washing big bulky items or a few smaller items that dont ll the tub completely a rug a pillow stuffed toys or one or two sweaters for example add a few towels to improve spin performance Do not insert bulky items except for Bedding in this cycle NOTE During the spin cycle the washer may add additional water to redistribute the clothes and correct an imbalance inside the drum When washing heavily soiled loads do not overload your washer to ensure good cleaning results CAUTION Inatable items may cause damage to the laundry or the machine during the wash or drying process Regardless of the size blankets or quilts are safer and cleaner to wash one item at a time Two differentsized blankets in the same load may compromise the drying performance due to unbalanced loads WA7650TDC6803850C00ENindd 28 1222019 70604 PM
• Page 29 - English - : English 29 Operating instructions To input a blanket Fold the blanket into the blanketspecic net as shown and then insert in the tub below the plastic area of the tub CAUTION Make sure the laundry is inserted completely Any exposed part of the laundry may cause damage to the machine or the laundry itself or a water leak Do not overload the tub Make sure no part of the laundry is exposed outside of the tub To add a forgotten item 1 Press STARTPAUSE to pause the washer 2 Wait for the door to unlock automatically and then open the door 3 Add the item close the door and then press STARTPAUSE The cycle will resume Getting started 1 Load your washer 2 Add liquid or powder detergent and additives to the dispenser see the quotDetergent usequot section on page 42 3 Select the appropriate cycle and options for the load see the quotWashing a load of laundryquot section page 30 4 Close the lid 5 Press STARTPAUSE 6 The Wash Indicator illuminates 7 The estimated cycle time will appear in the display The time may uctuate to indicate the time remaining in the cycle NOTE The actual time required for a cycle may differ from the estimated time in the display depending on the water pressure water temperature detergent and laundry 8 Before your washer starts to ll it will make a series of clicking noises to check the door lock and do a quick drain NOTE When the cycle is complete the Door Lock indicator will go out and 0 will appear in the display Pressing POWER cancels the cycle and stops your washer The Wash Rinse and Spin indicators will illuminate during those portions of the cycle WA7650TDC6803850C00ENindd 29 1222019 70604 PM
• Page 30 - English - : 30 English Washing a load of laundry Washing a load of laundry WARNING To reduce the risk of re electric shock or injury to persons read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance Control panel 03 04 05 01 Cycle Selector Turn the Cycle Selector to select the desired cycle The indicator by the cycle name lights up 02 Display Provides instructions and diagnostics while keeping you updated on the cycle status and time remaining 03 Temp Press the button repeatedly to cycle through the different water temperature options Extra Hot Heavily soiled colorfast items Hot Whites and heavily soiled colorfast items Warm Colorfast items Eco Warm Moderately soiled colorfast items most wrinklefree items Cool Brightly colored very lightly soiled items Cold Cold water with no warm water added NOTE If you select the Tap Cold option all the lamps for the water temperature options are turned off WA7650TDC6803850C00ENindd 30 1222019 70605 PM
• Page 31 - English - : English 31 Washing a load of laundry 04 Spin Press the button repeatedly to cycle through the different spin speed options Extra High Removes more water from loads during spin High Use for underwear tshirts jeans and sturdy cottons Medium Use for jeans wrinklefree or washandwear items and synthetics Low Use for delicate items needing a slow spin speed No Spin Drains your washer without spinning Use for extremely delicate items that cannot tolerate any spin 05 Soil Press the button to select the soil levelwashing time Extra Heavy For heavily soiled loads Heavy For heavily soiled loads Normal For moderately soiled loads This setting is best for most loads Light For lightly soiled loads Extra Light For lightly soiled loads 06 Pre Soak It adds 18 minutes soaking time at the start of the wash cycle for better stain removal 07 Fabric Softener Add an additional rinse at the end of the cycle to more thoroughly remove laundry additives and perfumes 08 Extra Rinse Change from spray rinse mode to deep rinse mode and rinse once again 09 Super speed Press to shorten the washing time of the NORMAL HEAVY DUTY or WHITES cycles Shortened time may differ depending on the cycle load and options 10 My Cycle Press and hold for 3 seconds to save your own cycle Create andor use a cycle you have customized temperature spin speed soil level options etc 11 Delay End Delay the end of any cycle for up to 24 hours in onehour increments Displayed hour indicates the time the wash will be ended 12 Eco Plus To increase your energy savings on your wash cycles Less hot water consumption 13 Alarm off Press to turn on or off the alarm sound When the alarm is off the melody of cycle completion and the poweroff beep will not sound However button and alert sounds will remain on WA7650TDC6803850C00ENindd 31 1222019 70605 PM
• Page 32 - English - : 32 English Washing a load of laundry Washing a load of laundry 14 POWER Press once to turn your washer on Press again to turn your washer off If the washer is left on for more than 10 minutes without any buttons being pressed the power automatically turns off 15 STARTPAUSE Press to pause and restart cycles Cycle overview NOTE The washer detects the weight of the items and automatically adjusts the optimal water level washing time rinse counts and spin counts This may not be applicable on some cycles Cycle Description NORMAL For cottons bed linens table linens underwear towels or shirts The washing time and the number of rinses are automatically adjusted according to the load HEAVY DUTY For sturdy colorfast fabrics heavily soiled items WHITES For white items You can wash with or without bleach BEDDING WATERPROOF For bulky and large items such as comforters blankets and sheets and waterproof or water resistant items When washing comforters use liquid detergent CAUTION Do not wash waterproof items and nonwaterproof items together Check the specication label on each item to see if the item is waterproof Use the BEDDINGWATERPROOF cycle for waterproof or waterresistant items such as plastic mats ski pants raincoats and comforters which hardly absorb water PERM PRESS For washandwear synthetic fabrics and lightly to normally soiled items ACTIVE WEAR For exercise wear such as sports jerseys training pants shirtstops and other performance clothing This cycle provides effective soil removal with gentle action for special fabric care WA7650TDC6803850C00ENindd 32 1222019 70605 PM
• Page 33 - English - : English 33 Washing a load of laundry Cycle Description STEAM SANITIZE For heavily soiled colorfast garments less than 14lbs NOTE If you select pause during the heating portion of the Sanitize Cycle your Washer door will remain locked for your safety QUICK WASH For lightly soiled garments needed quickly DELICATES For sheer fabrics bras lingerie silk and other handwash only fabrics For best performance use liquid detergents DEEP WASH Use more water in washing and rinsing RINSE SPIN For loads that need rinsing and spinning only You can also select this cycle for additional rinsing and spinning after running other cycles SPIN ONLY For loads that needs spinning only You can also select this cycle for additional spinning after running other cycles SELF CLEAN Cleans the drum by removing dirt and bacteria from the drum Perform once every 20 washes Make sure the drum is empty WA7650TDC6803850C00ENindd 33 1222019 70605 PM
• Page 34 - English - : 34 English Washing a load of laundry Washing a load of laundry Options Child Lock Child Lock prevents children from playing with your washer Activating the Child Lock function Press and hold Temp and Spin simultaneously for approximately 3 seconds When you activate the Child Lock function the Child Lock indicator blinks Using the Child Lock function If the lid is opened when the Child Lock function is on dC is displayed and an alarm sounds If the water level in the tub is above the safe water level dC is displayed on the LED display and the washer starts to drain water by force after 30 seconds If the water level in the tub is above the safe water level and the Child Lock function is turned on while the door is open CL is displayed on the LED display even if the power of the washer is turned off and the washer drains water by force Even if the power of the washer is turned off if the lid is opened while the water level in the tub is above the Reset water level CL is displayed on the LED display without the alarm sounding and the washer starts to drain water When the draining operation nishes the power is automatically turned off again You have activated the Child Lock function while the washer is running the STARTPAUSE button will not work After the compulsory drain the CL blinks at 1 second intervals and the product enters the CL mode When the product is in the CL mode only the Power button works To cancel the CL mode you need to turn the power off and then on again To cancel the dC mode deactivate the Child Lock function To deactivate the Child Lock function press and hold Temp and Spin simultaneously for at least 3 seconds WA7650TDC6803850C00ENindd 34 1222019 70605 PM
• Page 35 - English - : English 35 Washing a load of laundry NOTE Adding laundry when Child Lock is on To add laundry deactivate the Child Lock function To deactivate the Child Lock function press and hold Temp and Spin simultaneously for at least 3 seconds See the Pause Option section on page 38 for additional details Deactivating the Child Lock function Press and hold both Temp and Spin simultaneously for approximately 3 seconds When you deactivate the Child Lock function the Child Lock indicator is turned off The Child Lock function prevents children or the inrm from accidently operating the washer and injuring themselves WARNING If a child enters the washer the child may become trapped and suffocate CAUTION Once you have activated the Child Lock function it continues working even if the power is turned off Forcing the lid open can result in injury or damage to the product NOTE To add laundry after you have activated the Child Lock function you must rst deactivate the Child Lock function Garment Plus You can add or take out laundry items even after the wash has started as long as the Garment Plus indicator is on Pressing StartPause unlocks the lid If you open the lid and want to continue the wash cycle close the lid and then press STARTPAUSE NOTE If you have activated the Child Lock you must deactivate it rst See page 34 My Cycle Lets you save a custom wash cycle temperature spin soil level etc and then recall and use it with one button convenience To save a cycle and selected options as your My Cycle follow these steps 1 Press POWER 2 Select a cycle using the Cycle Selector 3 After cycle selection set each option NOTE See the Cycle chart section on page 63 for available option settings with each cycle 4 You can then store the selected cycle and options by pressing and holding My Cycle for longer than 3 seconds The cycle and options you select will be displayed the next time you choose the My Cycle function 5 Press My Cycle to load and use the saved My Cycle options The My Cycle light will indicate activation Also the chosen cycle and option lights will icker WA7650TDC6803850C00ENindd 35 1222019 70606 PM
• Page 36 - English - : 36 English Washing a load of laundry Washing a load of laundry NOTE You can change the My Cycle settings by repeating the process above The last saved settings will be displayed the next time you choose the My Cycle function NOTE If you press My Cycle and release it within 3 seconds the previously saved cycle and options appear If you press and hold My Cycle for 3 second or longer the currently set cycle and options are saved and the LED blinks for 3 seconds Delay End You can set the washer to start your wash automatically at a later time by choosing a delay time The hour displayed indicates the time at which the wash will be ended 1 Set your wash cycle 2 Press Delay End repeatedly until the delay time is set 3 Press STARTPAUSE The Delay End indicator will be lit and the clock will begin counting down until it reaches the set time 4 To cancel a Delay End function press the Power button and then turn the washer on again Pre Soak Use this function when the laundry is heavily contaminated or stained This function improves the wash performance by adding a Pre Soak cycle If you select this function the total cycle time is increased by 18 minutes When the Pre Soak cycle starts the washer repeats a wash cycle after supplying water and then performs a 18minute soak cycle When the Pre Soak cycle is complete the congured wash cycle starts without draining water WA7650TDC6803850C00ENindd 36 1222019 70606 PM
• Page 37 - English - : English 37 Washing a load of laundry Mist Shower Mist Shower sprays water from a nozzle that is independent of the main water supply system It states that is soaks the laundry with water from the beginning of the rinse cycle and ensures an effective wash but its not part of the wash cycle its part of the rinse cycle so this needs to state that it ensures an effective rinse The Mist Shower function may not work if there is too large of a load in the machine Smart Care To enable this function you must rst download the Samsung Laundry app from the Play Store or the App Store and install it on a mobile device that has a camera function The Smart Care function has been optimized for Galaxy and iPhone mobile devices applicable models only 1 When the washer detects an issue to check an information code appears on the display To enter Smart Care mode press and hold Alarm off for 3 seconds 2 The washer starts the selfdiagnosis procedure and displays an information code if a problem is detected 3 Run the Samsung Laundry app on your mobile device and then tap Smart Care 4 Put the mobile device close to the washers display so that the smartphone camera and the washer face each other The information code will be recognized automatically by the app 5 When the information code is recognized correctly the app provides detailed information about the problem with applicable solutions NOTE The function name Smart Care may differ depending on the language If the washers display reects light the app may fail to recognize the information code If the app fails to recognize the information code you can enter the code manually on the app WA7650TDC6803850C00ENindd 37 1222019 70606 PM
• Page 38 - English - : 38 English Washing a load of laundry Washing a load of laundry Washing clothes using the cycle selector Your new washer makes washing clothes easy using Samsungs Fuzzy Control automatic control system When you select a wash program the machine will set the correct temperature washing time and washing speed 1 Press Power 2 Open the lid 3 Load the articles of clothing one at a time loosely into the drum without overlling it 4 Add liquid or powder detergent softener andor bleach if necessary to the appropriate compartments See the quotDetergent usequot section on page 41 5 Close the lid 6 Use the Cycle Selector to select the appropriate cycle according to the type of material NORMAL HEAVY DUTY WHITES BEDDINGWATERPROOF PERM PRESS ACTIVE WEAR STEAM SANITIZE QUICK WASH DELICATES DEEP WASH RINSESPIN and SPIN ONLY The relevant indicators will illuminate on the control panel 7 At this time you can control the wash temperature the number of rinse cycles the spinning speed and the delay time by pressing the appropriate option button 8 Press STARTPAUSE and the wash will begin The process indicator will light up and the remaining time for the cycle will appear in the display Pause Option To remove or add laundry items follow these steps 1 Press STARTPAUSE to unlock the lid NOTE The lid cannot be opened when the water is too HOT 2 Remove or add laundry items 3 Close the lid and then press START PAUSE to restart the wash NOTE If you have Child Lock on you must deactivate it rst See page 34 When the cycle is nished After the total cycle has nished the power will turn off automatically 1 Open the lid 2 Remove laundry WA7650TDC6803850C00ENindd 38 1222019 70606 PM
• Page 39 - English - : English 39 Washing a load of laundry ATC Auto Temperature Control ATC is the control function that the washer controls water temperature with temperature sensor thermistor NOTE Because there are numerous water temperatures depending on the customers environments cold areas warm areas various water temperatures settings of heater temperature etc ATC function in our washer maintains the certain level of wash temperature to output the best washing performance at each cycle NOTE If you select NORMAL cycle this cycle is the regulation and UL cycle Since new washers must reduce the amount of energy usage as a rst priority customers will notice more cold water entering the washer But this is normal not a problem In those regulation cycles Hot temperature is similar to acceptable adult bathwater temperature and warm temperature is similar to comfortable swimmingpool water temperature NOTE If customers want to wash clothes in specic water temperatures customers should choose a different cycle at each temperature HotWarmEco Warm WA7650TDC6803850C00ENindd 39 1222019 70606 PM
• Page 40 - English - : 40 English Washing a load of laundry Washing a load of laundry Special features Active Waterjet for prewash You can use the Active Waterjet function to handwash your items before you put them in the washer 1 Press POWER to turn on your washer 2 Open the lid 3 Press Active Waterjet to supply water 4 Handwash the items 5 When done press Active Waterjet again to stop the water NOTE If you want to handwash while the washer is operating press StartPause Hold to Start to stop operation and then follow steps 14 above NOTE The Active Waterjet function stops operating automatically when the washer detects the maximum water level The Active Waterjet function stops operating automatically 5 minutes after it begins To add more water press Active Waterjet again to resupply water If the Active Waterjet function is activated immediately after the washer turns on the washer will spray water for 1 second before supplying water through the Active Waterjet outlet To drain water added by the Active Waterjet function turn the power off Water will be drained automatically for few minutes and then you can turn the power on again when the water is completely drained CAUTION Do not block the Active Waterjet outlet with hands Water may leak outside the tub causing a system failure Do not use the Active Waterjet to wash shoes food or pets WA7650TDC6803850C00ENindd 40 1222019 70607 PM
• Page 41 - English - : English 41 Washing a load of laundry Due to differences in air pressure water coming from the Active Waterjet may splatter when you rst activate it Make sure the lid is closed tightly before you start a load of laundry Detergent use Your washer is designed to use high efciency HE detergents For the best cleaning results use a high efciency detergent such as Tide HE Wisk HE Cheer HE or Gain HE High efciency detergents contain suds suppressors that reduce or eliminate suds When fewer suds are produced the load tumbles more efciently and cleaning is maximized Brand names are trademarks of their respective manufacturers WARNING For best results use HE detergents only Do not use regular detergent organic detergent natural detergent or HE detergents with natural ingredients such as vinegar baking soda NOTE Reducing the amount of detergent may reduce the quality of cleaning It is important to pre treat stains sort carefully by color and soil level and avoid overloading WA7650TDC6803850C00ENindd 41 1222019 70607 PM
• Page 42 - English - : 42 English Washing a load of laundry Washing a load of laundry Features Automatic dispenser Your washer has separate compartments for dispensing detergent and colorsafe bleach and fabric softener Add all laundry additives to their respective compartments before starting your washer The automatic dispenser must always be in place before you start your washer DO NOT open the automatic dispenser when your washer is running NOTE Never exceed the manufacturers recommendations when adding detergent This compartment holds liquid detergent for the main wash cycle which is added to the load at the beginning of the cycle When using powdered detergent remove the liquid detergent compartment from the detergent drawer The washer will not dispense powdered detergent from the liquid detergent compartment To add detergent to the automatic dispenser 1 Open the dispenser drawer 2 Load the recommended amount of liquid or powder detergent into the detergent compartment before you start your wash 3 Close the drawer slowly and smoothly to avoid spilling splashing or premature dispensing of the contents NOTE It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle NOTE Do not put chlorine bleach in the dispenser drawer WA7650TDC6803850C00ENindd 42 1222019 70607 PM
• Page 43 - English - : English 43 Washing a load of laundry Loading the Liquid or Powder detergent compartment A 1 Pour the recommended amount of laundry detergent directly into the detergent compartment before starting your washer 2 If you are using colorsafe bleach add it with the detergent to the detergent compartment NOTE When adding colorsafe bleach with detergent it is best if both laundry products are in the same form liquid NOTE When using powdered detergent remove the liquid detergent compartment A from the detergent drawer The washer will not dispense powdered detergent from the liquid detergent compartment WA7650TDC6803850C00ENindd 43 1222019 70607 PM
• Page 44 - English - : 44 English Washing a load of laundry Washing a load of laundry Loading the Bleach compartment B CAUTION Use the liquid chlorine bleach only 1 Add chlorine bleach to the bleach compartment B DO NOT exceed the bleach compartment NOTE Avoid splashing or overlling the compartment Never pour undiluted liquid chlorine bleach directly onto the load or into the tub It is a powerful chemical and can cause fabric damage such as weakening of the bers or color loss if not used properly If you prefer to use colorsafe add it to the appropriate detergent compartment DO NOT pour colorsafe bleach into the Bleach compartment WA7650TDC6803850C00ENindd 44 1222019 70607 PM
• Page 45 - English - : English 45 Washing a load of laundry Loading the fabric softener compartment C 1 Pour the recommended amount of liquid fabric softener into the softener compartment C For smaller loads use less than one capful 2 Dilute the fabric softener with water until it reaches MAX FILL in the compartment 3 The dispenser automatically releases liquid fabric softener at the proper time during the rinse cycle NOTE Use the softener compartment ONLY for liquid fabric softeners DO NOT use the Downy Ball in the fabric softener compartment with this washer It will not add fabric softener at the appropriate time Use the detergent compartment Brand names are trademarks of their respective manufacturers Do not use liquid fabric softener that is too sticky as it may not mix with the water sufciently WA7650TDC6803850C00ENindd 45 1222019 70608 PM
• Page 46 - English - : 46 English Maintaining your washer Maintaining your washer WARNING Certain internal parts are intentionally not grounded and may present a risk electric shock only during servicing Service personnel Do not contact the following parts while the appliance is energized Control board heat sink motor inlet valve heater and pump Cleaning the exterior 1 Turn off the water faucets after nishing the days washing This will shut off the water supply to your washer and prevent the unlikely possibility of damage from escaping water Leave the lid open to allow the inside of your washer to dry out 2 Use a soft cloth to wipe up all detergent bleach or other spills as they occur 3 Clean the following as recommended Control Panel Clean with a soft damp cloth Do not use abrasive powders or cleaning pads Do not spray cleaners directly on the panel Cleaning the interior Clean the interior of your washer periodically to remove any dirt soil odor mold mildew or bacterial residue that may remain in your washer as a result of washing clothes Failure to follow these instructions may result in unpleasant conditions including odors andor permanent stains on your washer or laundry Hard water deposits may be removed if needed Use cleaners labeled Washer safe Storing your washer Washers can be damaged if water is not removed from hoses and internal components before storage Prepare your washer for storage as follows 1 Select the Quick Wash cycle and add bleach to the automatic dispenser Run your washer through the cycle without a load 2 Turn the water faucets off and disconnect the inlet hoses 3 Unplug your washer from the electrical outlet and leave your washer lid open to let air circulate inside the drum If your washer has been stored in belowfreezing temperatures allow time for any leftover water in your washer to thaw out before use WA7650TDC6803850C00ENindd 46 1222019 70608 PM
• Page 47 - English - : English 47 Maintaining your washer Preserving the top cover and the front frame Do not place any heavy or sharp objects or a detergent box on the washer They can scratch or damage the top cover of the unit NOTE S ince the entire washer has a highgloss nish the surface can be scratched or damaged Avoid scratching or damaging the surface when u sing the washer Cleaning mesh lter Clean the mesh lter of the water hose once or twice a year 1 Turn off the washer and then unplug the power cord 2 Close the faucet 3 Loosen and disconnect the water hose from the back of the washer Cover the hose with a cloth to prevent water from gushing out 4 Use pliers to pull out the mesh lter from the inlet valve 5 Submerge the mesh lter deeply in water so that the threaded connector is also submerged 6 Dry the mesh lter completely in a shaded area 7 Reinsert the mesh lter into the inlet valve and reconnect the water hose to the inlet valve 8 Open t he faucet NOTE If the mesh lter is clogged the 4C information code appears on the the washers display screen WA7650TDC6803850C00ENindd 47 1222019 70608 PM
• Page 48 - English - : 48 English Maintaining your washer Maintaining your washer Cleaning the dispensers The automatic dispenser may need to be cleaned periodically due to laundry additive buildup 1 Pull the dispenser drawer straight back until it stops 2 Push the ends of each side of the case at the same time When you feel the ends push pull out the dispenser drawer 3 Remove the inserts from the 3 compartments Rinse the inserts and the drawer with warm water to remove traces of accumulated laundry products WA7650TDC6803850C00ENindd 48 1222019 70608 PM
• Page 49 - English - : English 49 Maintaining your washer 4 To clean the drawer opening use a small nonmetal brush to clean the recess Remove all residue from the upper and lower parts of the recess B A 5 Return the inserts to the proper compartments and replace the drawer by placing the dispenser drawer rail B on top of the compartment rail A Tilt the dispenser drawer downward and insert it Then push the drawer in rmly and slowly WA7650TDC6803850C00ENindd 49 1222019 70609 PM
• Page 50 - English - : 50 English Maintaining your washer Maintaining your washer Self Clean Certain usage and environmental conditions may result in some residue buildup or odor in the washer tub To prevent this buildup of residue or odor causing bacteria and keep your washer tub fresh and clean perform the Self Clean cycle at least once a month or every 20 cycles Perform the recommended procedure below when using the Self Clean cycle 1 Remove all items from the washer tub and ensure the tub is empty Laundry left in the tub during the Self Clean cycle may be damaged 2 Press POWER 3 Turn the Cycle Selector to SELF CLEAN 4 Press STARTPAUSE Self Clean begins NOTE The water temperature for Self Clean is defaulted to Hot This temperature cannot be changed In the case where residue is present in the washer tub add 1 cup 8 oz 240 ml of liquid chlorine bleach to the bleach compartment before you start the Self Clean cycle Do not use or mix any other detergent or chemicals during the Self Clean cycle If necessary run a RINSESPIN Cycle after the Self Clean cycle has completed to help remove any remaining residue CAUTION Check the washer tub before using the Self Clean cycle Remove any remaining water in the tub by running a SPIN cycle prior to starting the Self Clean cycle If there is chlorine bleach left in the washer tub for an extended period of time rust can occur Self Clean reminder After 20 washing cycles the Self Clean LED reminder icon and the Self Clean cycle LED will blink on the control panel for an hour and then turn off automatically The reminder will appear on the control panel for 5 additional consecutive cycles before turning off The next reminder will not appear until another 20 cycles have been completed WA7650TDC6803850C00ENindd 50 1222019 70609 PM
