ii
IMPORTANT
••
••
• For your assistance in reporting the loss or theft of your Projector, please record
the Model and Serial Numbers located on the bottom of the projector and retain
this information.
••
••
• Before recycling the packaging, please ensure that you have checked the contents
of the carton thoroughly against the list of “Supplied accessories” on page 11.
Model No.:
Serial No.:
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse
need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which
is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains
plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric
shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug proceed as follows:
• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol or coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Portu-
guese, Chinese, Korean and Japanese. Carefully read through the operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch,
Italienisch, Niederländisch, Portugiesisch, Chinesisch, Koreanisch und Japanisch. Bitte lesen Sie die Bedienungsanleitung
vor der Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois, espagnol,
italien, néerlandais, portugais, chinois, coréen et japonais. Veuillez lire attentivement ces instructions avant de faire
fonctionner le projecteur.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska, italienska,
holländska, portugisiska, kinesiska, koreanska och japanska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español, italiano, holandés,
portugués, chino, coreano y japonés. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano, olandese,
portoghese, cinese, coreano e giapponese. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans, Nederlands,
Portugees, Chinees, Koreaans en Japans. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano, Holandês,
Português, Chinês, Coreano e Japonês. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.
Introduction
-1
Before using the projector, please read this operation manual carefully.
There are two important reasons for prompt warranty registration of your new SHARP Projector, using
the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING:
FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
Introduction
ENGLISH
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
See bottom of projector.
The enclosed computer cable must be used with the device. The cable is provided to ensure that the device
complies with FCC Class A verification.
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
-2
WARNING:
The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode.
During normal operation, when putting the projector into standby mode always use the STANDBY button on the
projector or on the remote control.
DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD.
FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

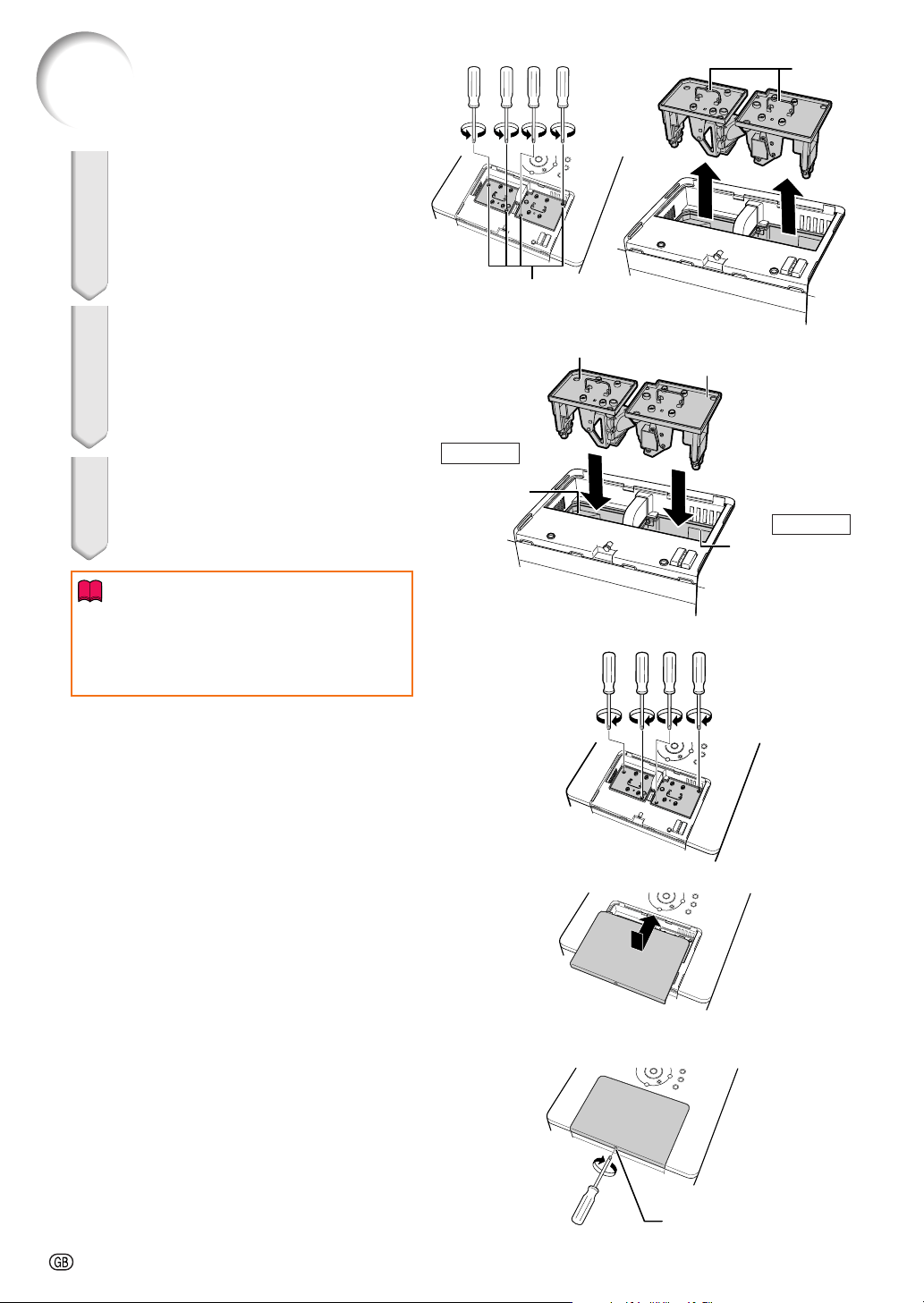

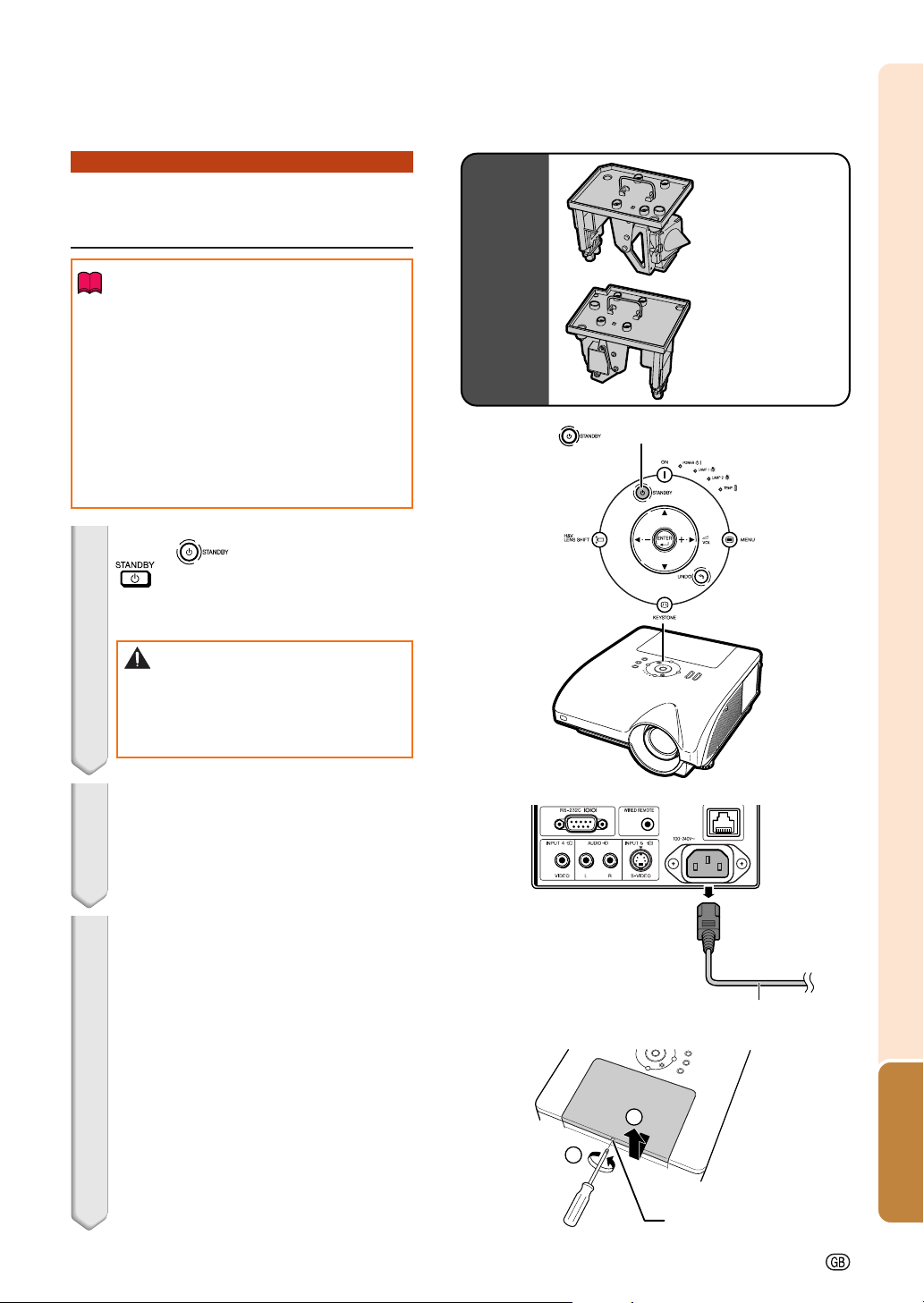

Caution Concerning Lamp Replacement
See “Replacing the Lamp” on page 96.
PRODUCT DISPOSAL
This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of
these materials may be regulated due to environmental considerations. For disposal or recycling information,
please contact your local authorities or, if you are located in the United States of America, the Electronic Industries
Alliance: www.eiae.org.
This SHARP projector uses a DLP
®
chip. This very sophisticated panel contains 786,432 pixels (micromirrors). As
with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there
are certain acceptable tolerances that the equipment must conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture
screen. This will not affect the picture quality or the life expectancy of the unit.
• DLP
®
and the DLP logo are registered trademarks of Texas Instruments.
• Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe
®
Reader
®
is a trademark of Adobe Systems Incorporated.
• Macintosh
®
is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• All other company or product names are trademarks or registered trademarks of their respective compa-
nies.
• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instru-
ments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse as-
semble or discompile the contents thereof.
Authorized representative responsible for the European Union Community Market
SHARP ELECTRONICS (Europe) GmbH
Sonninstraße 3, D-20097 Hamburg
E.U. ONLY
Introduction
-3
56

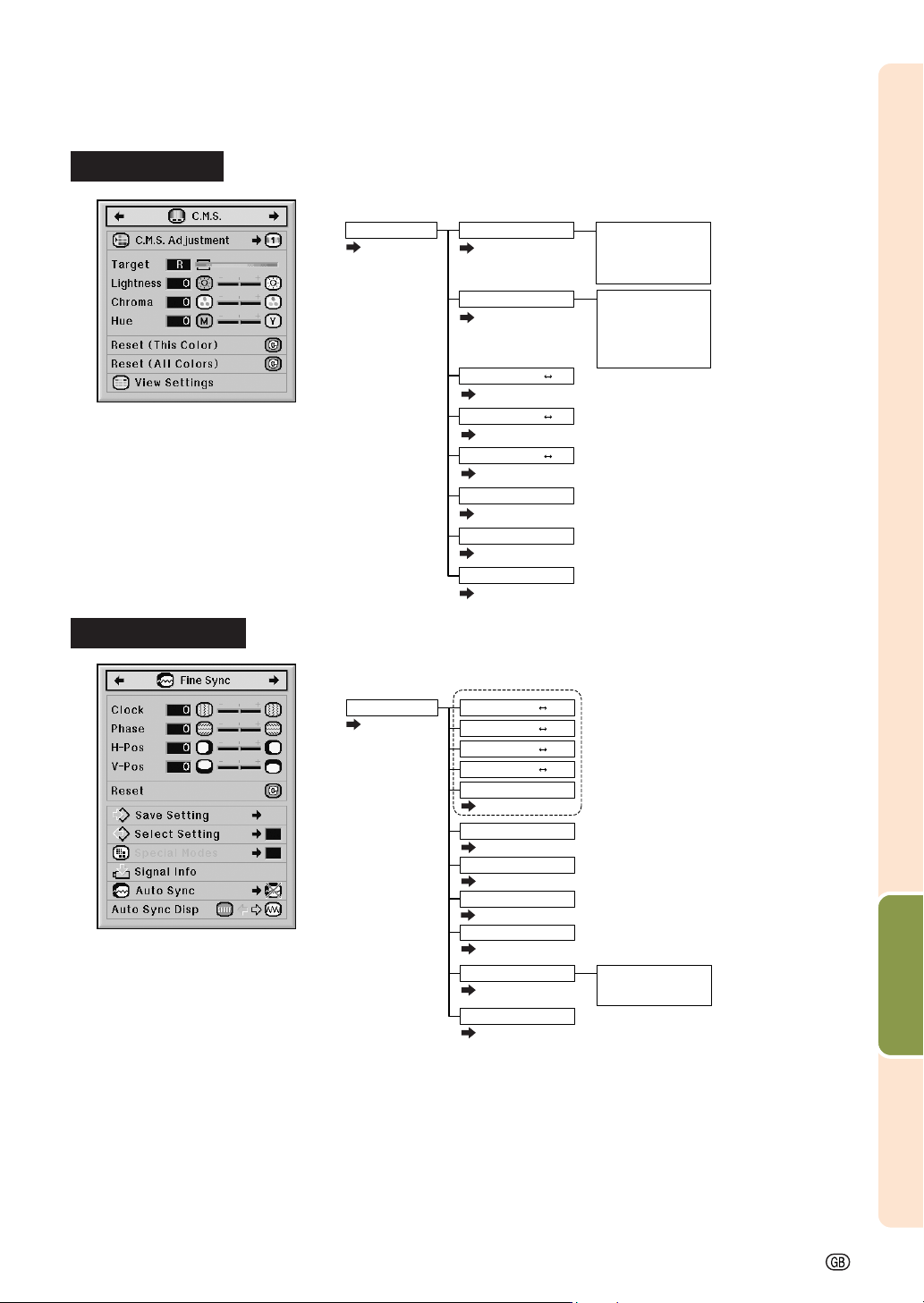

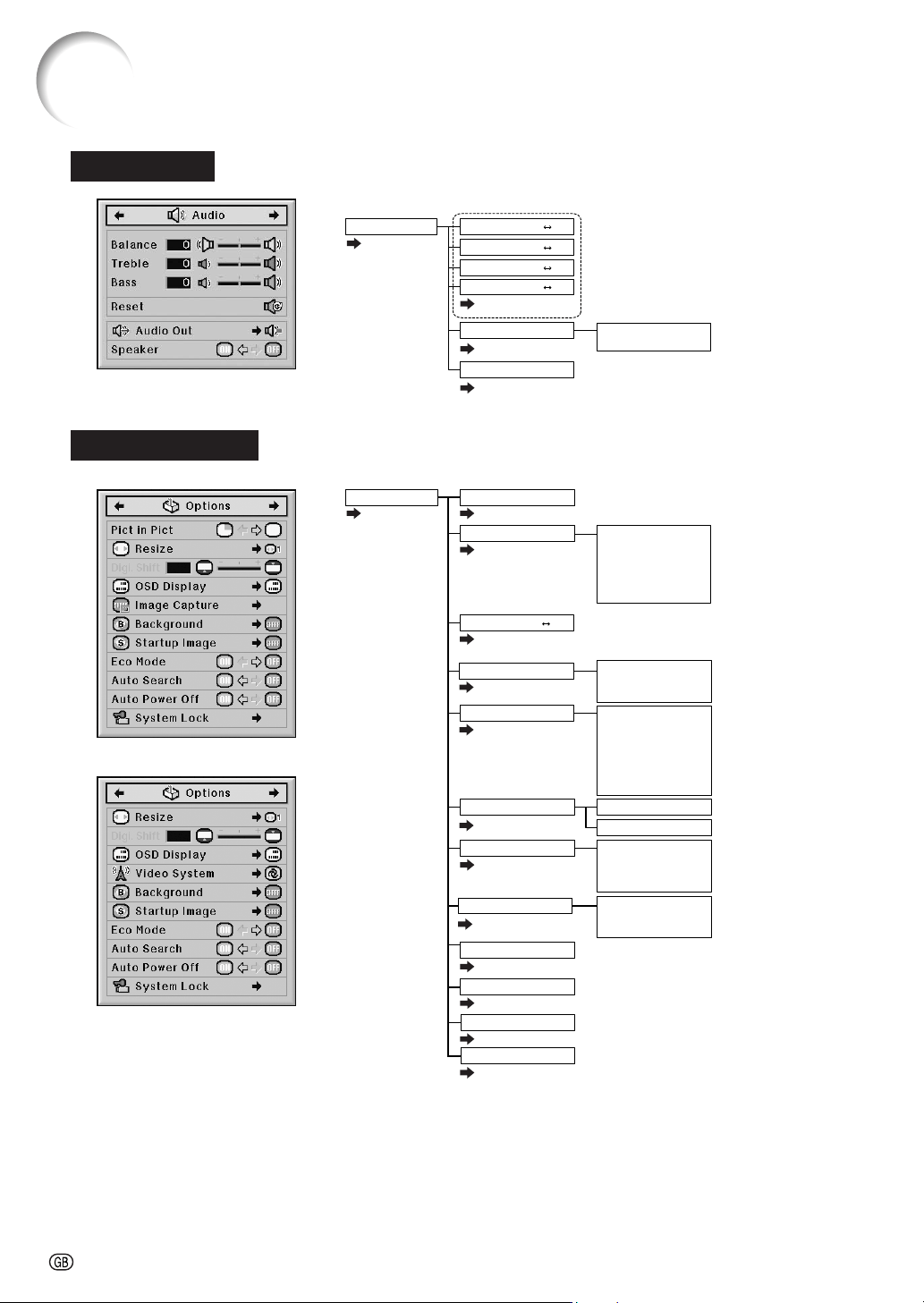

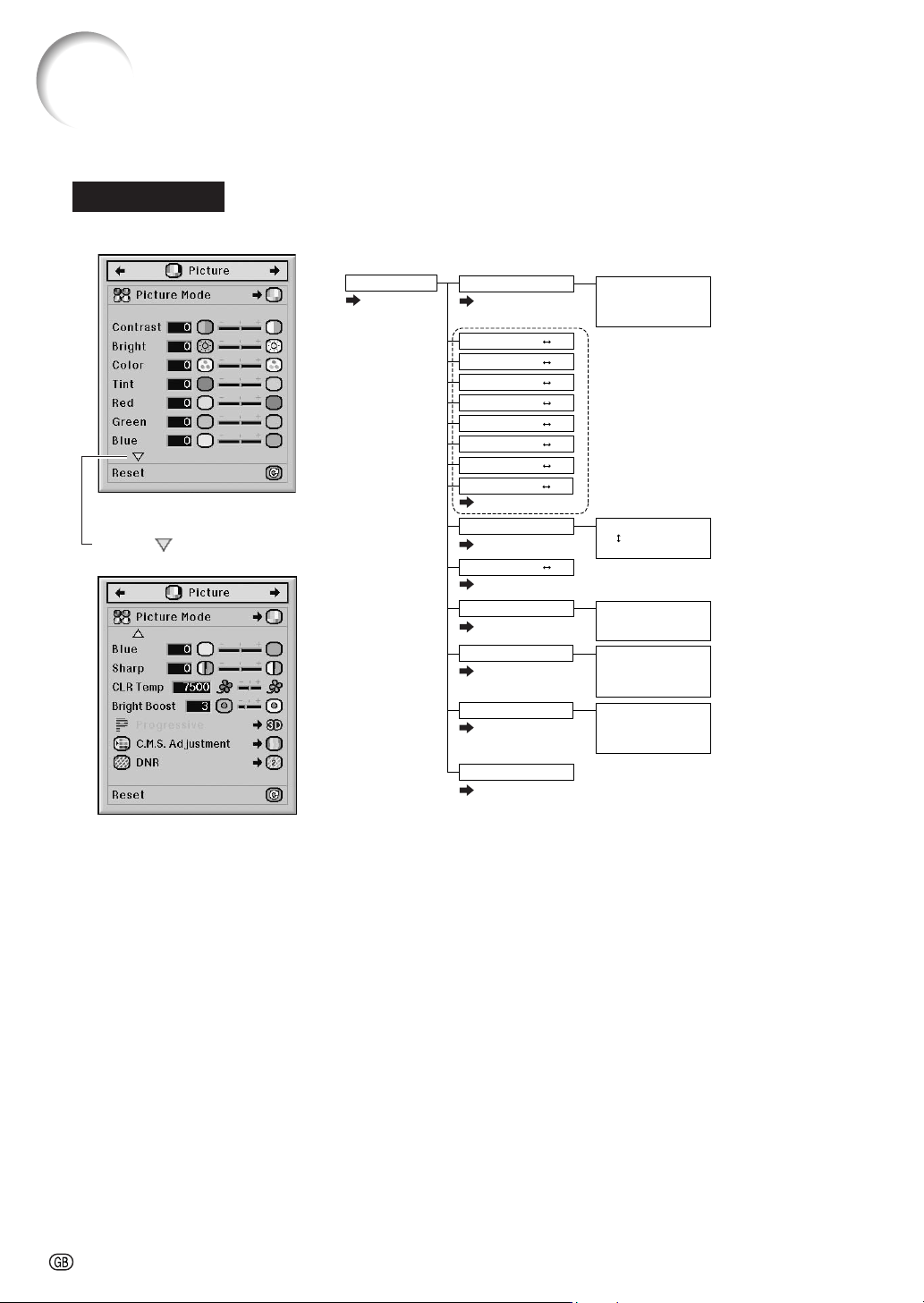

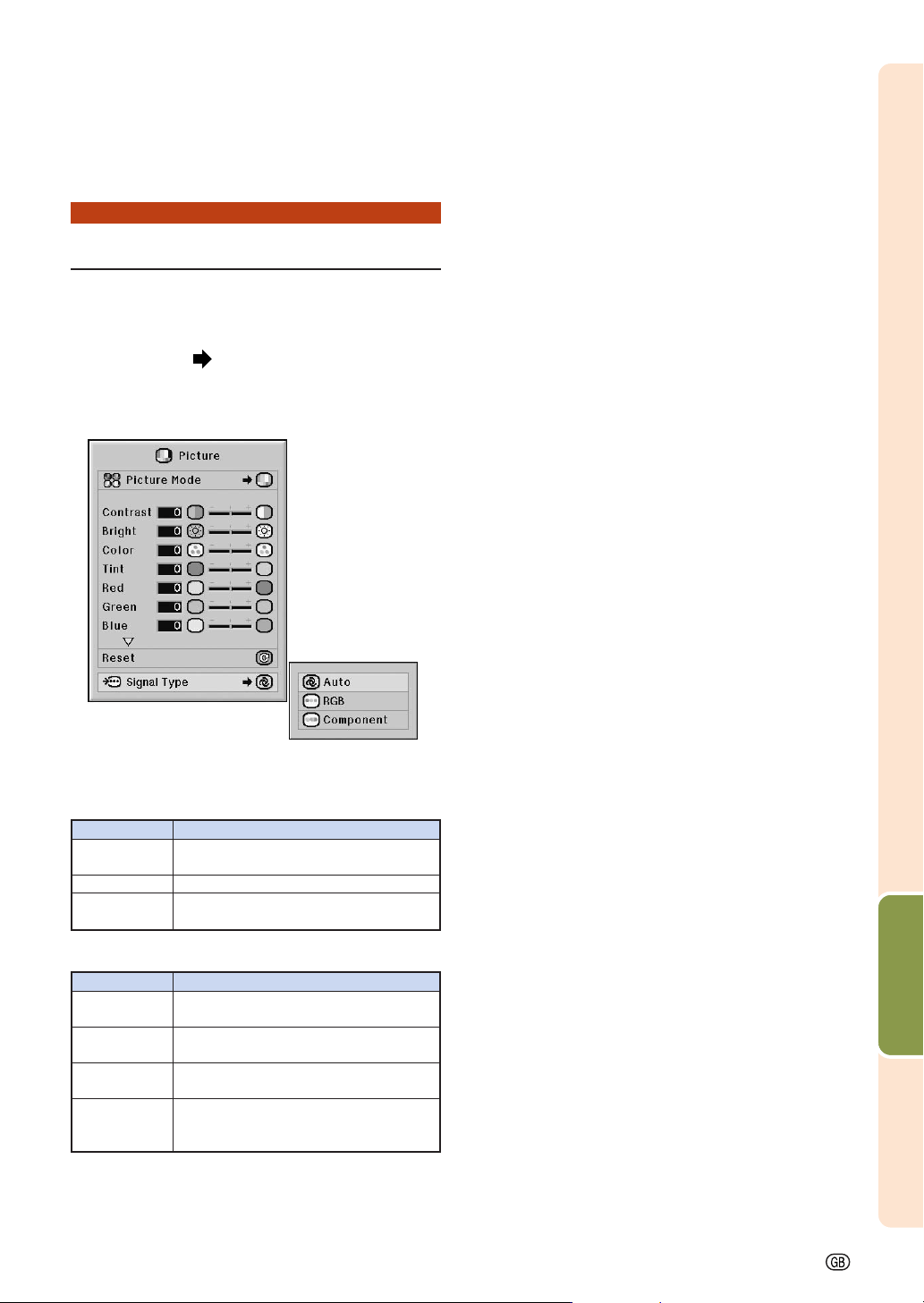

Menu items
The menu can be operated to achieve two functions, adjustments and settings. (For setting
the menu items, see pages 58 and 59. )

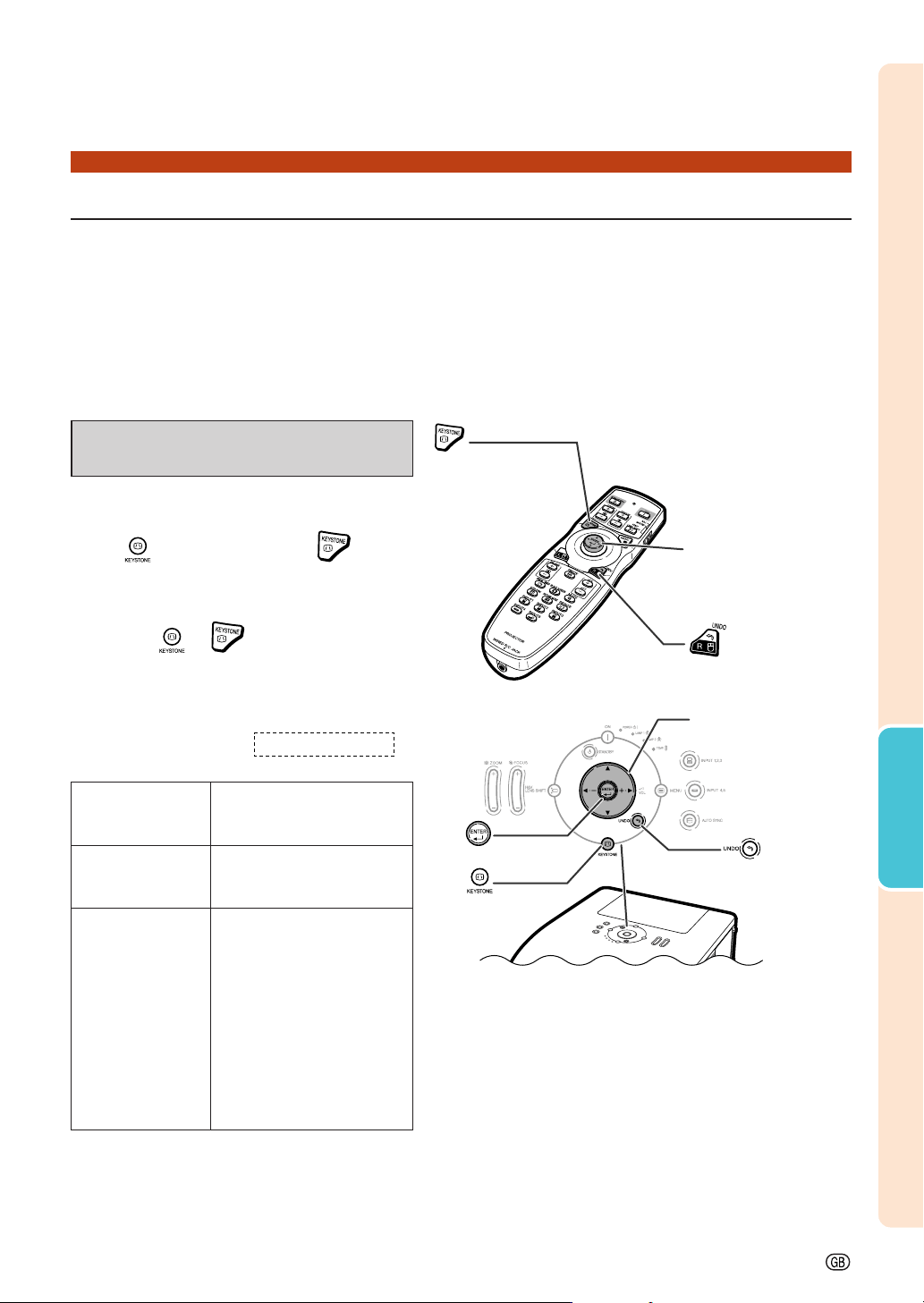

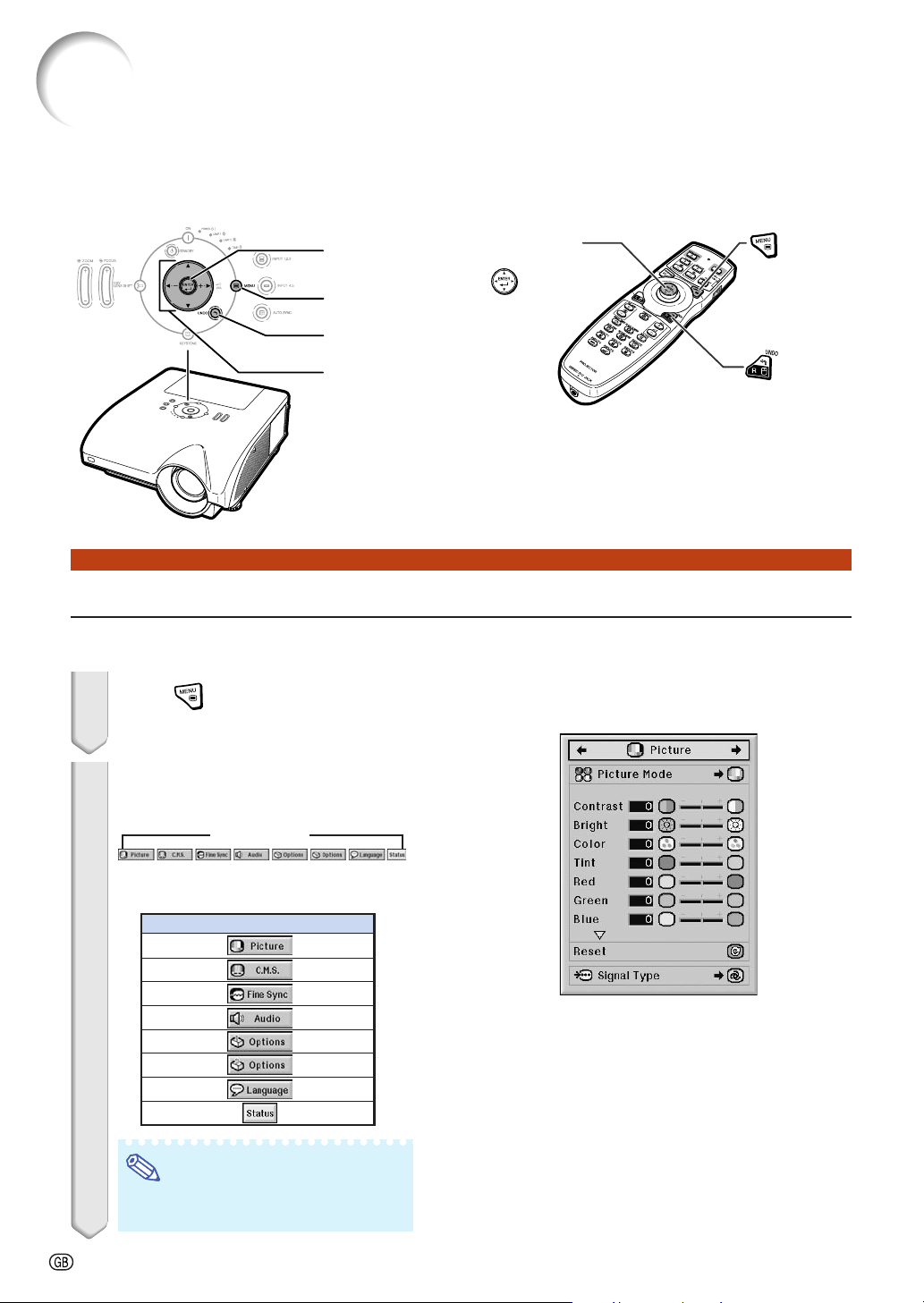

Using the Menu Screen
Menu Selections (Adjustments)

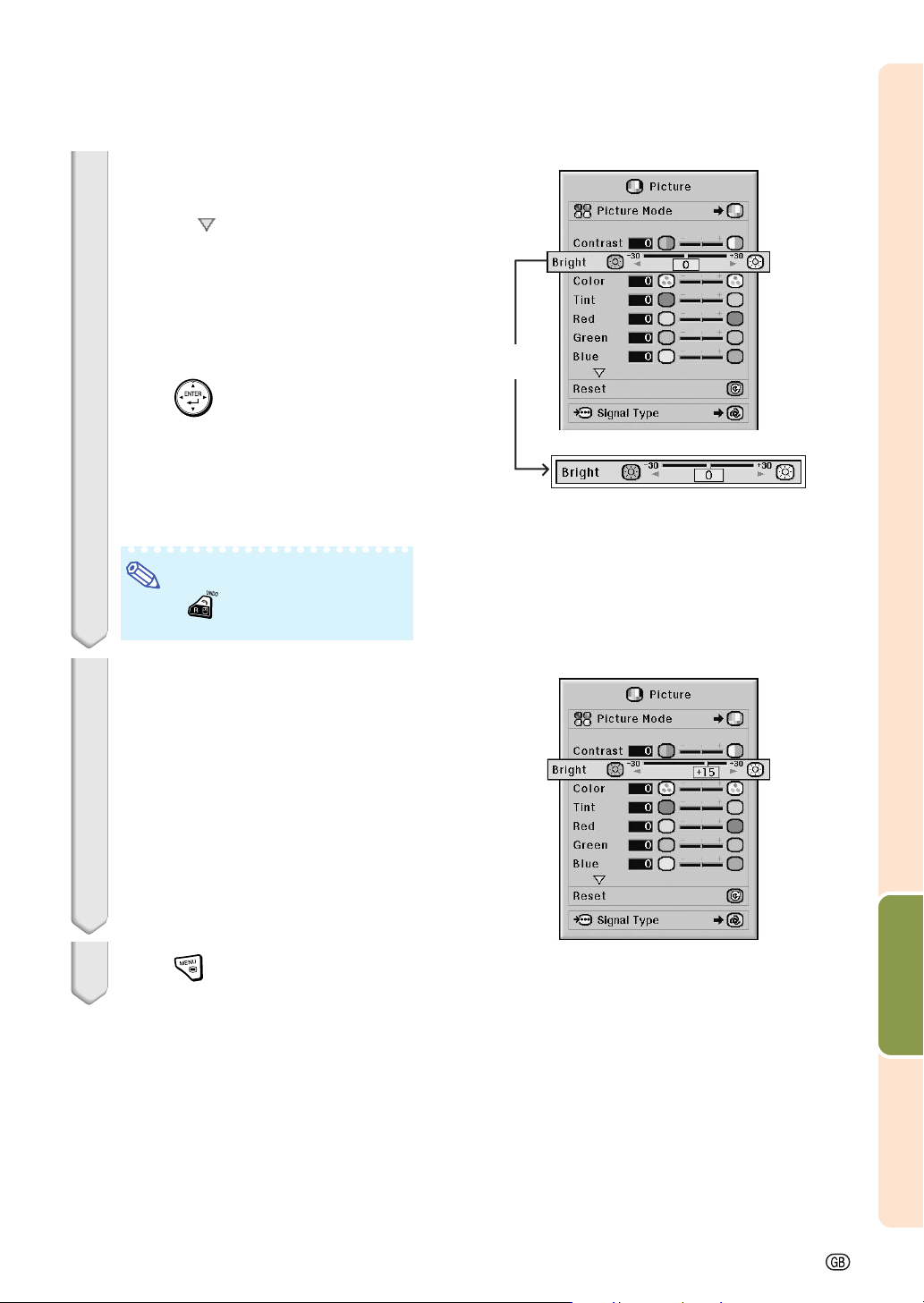

Example: Adjusting “Bright”
•This operation can also be performed by using the buttons on the projector.
ENTER
button
MENU button
UNDO button
Mouse/
adjustment
button ('/"/\/|)
Adjustment
buttons ('/"/\/|)
MENU button
UNDO button
ENTER button

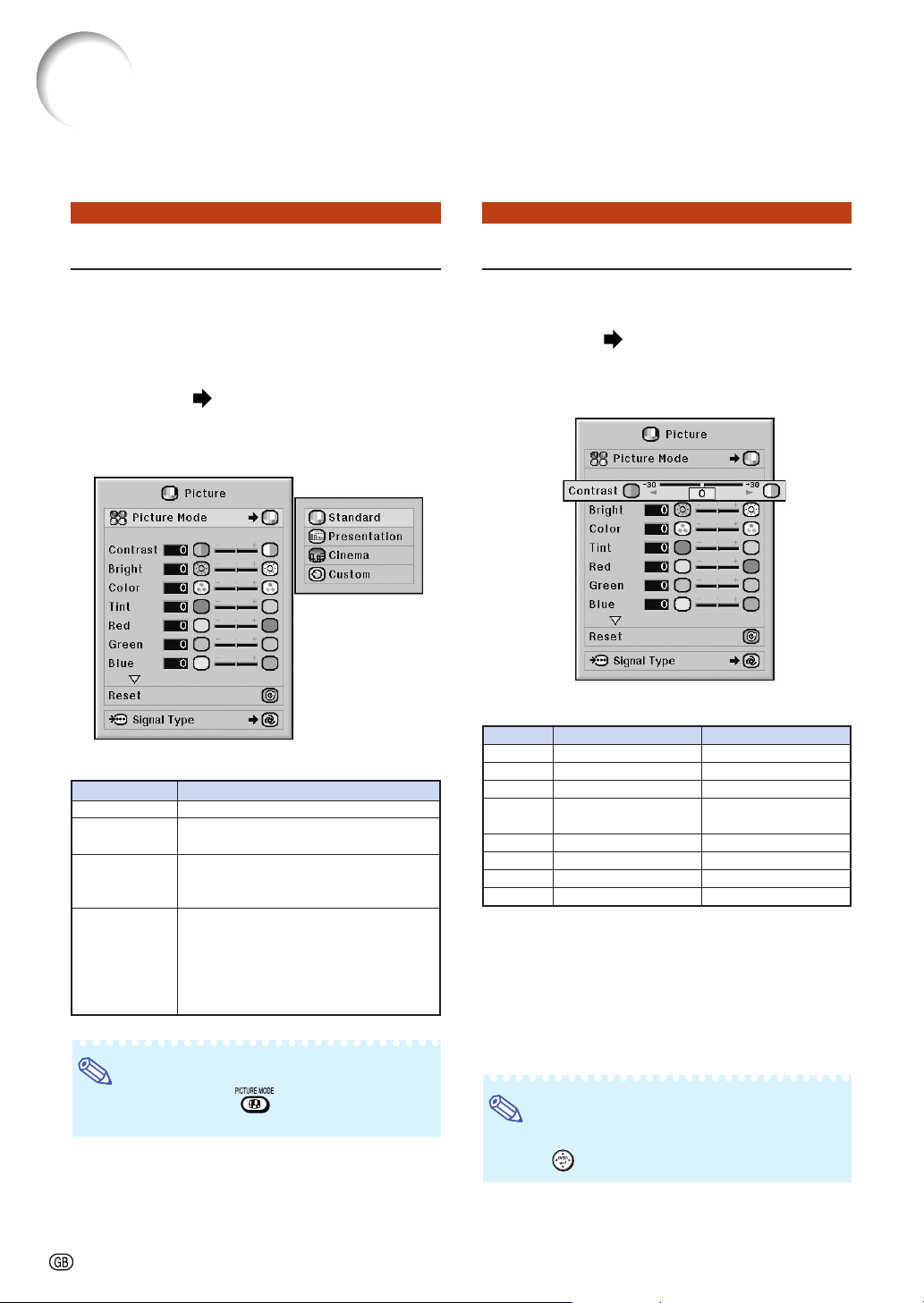

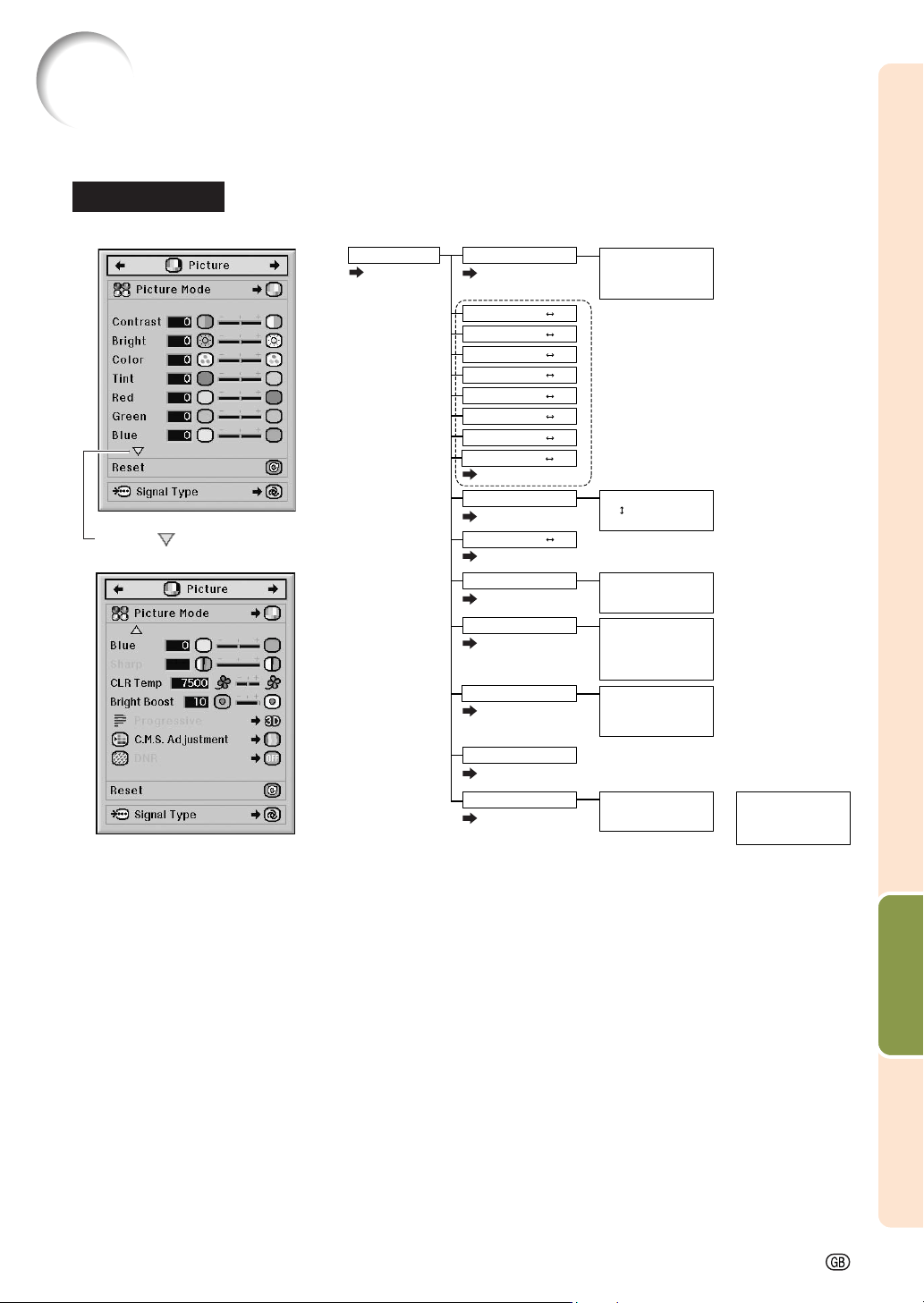

Example: “Picture” screen menu for
INPUT 1 (RGB) mode
1
Press .
•The “Picture” menu screen for the se-
lected input mode is displayed.
2
Press
\\
\\
\ or
||
||
| to display the other
menu items.
•There are eight menu items as shown
below.
Note

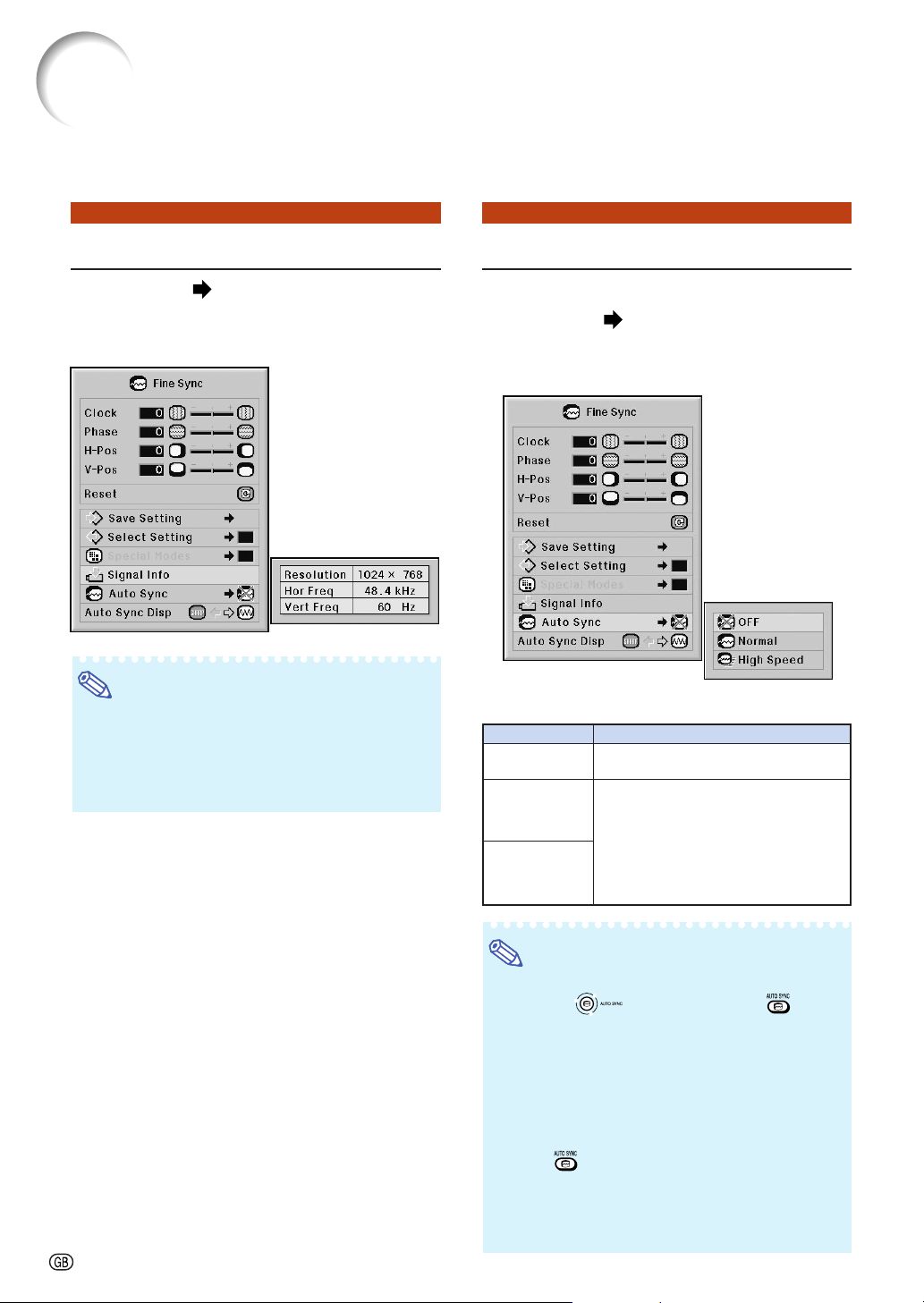

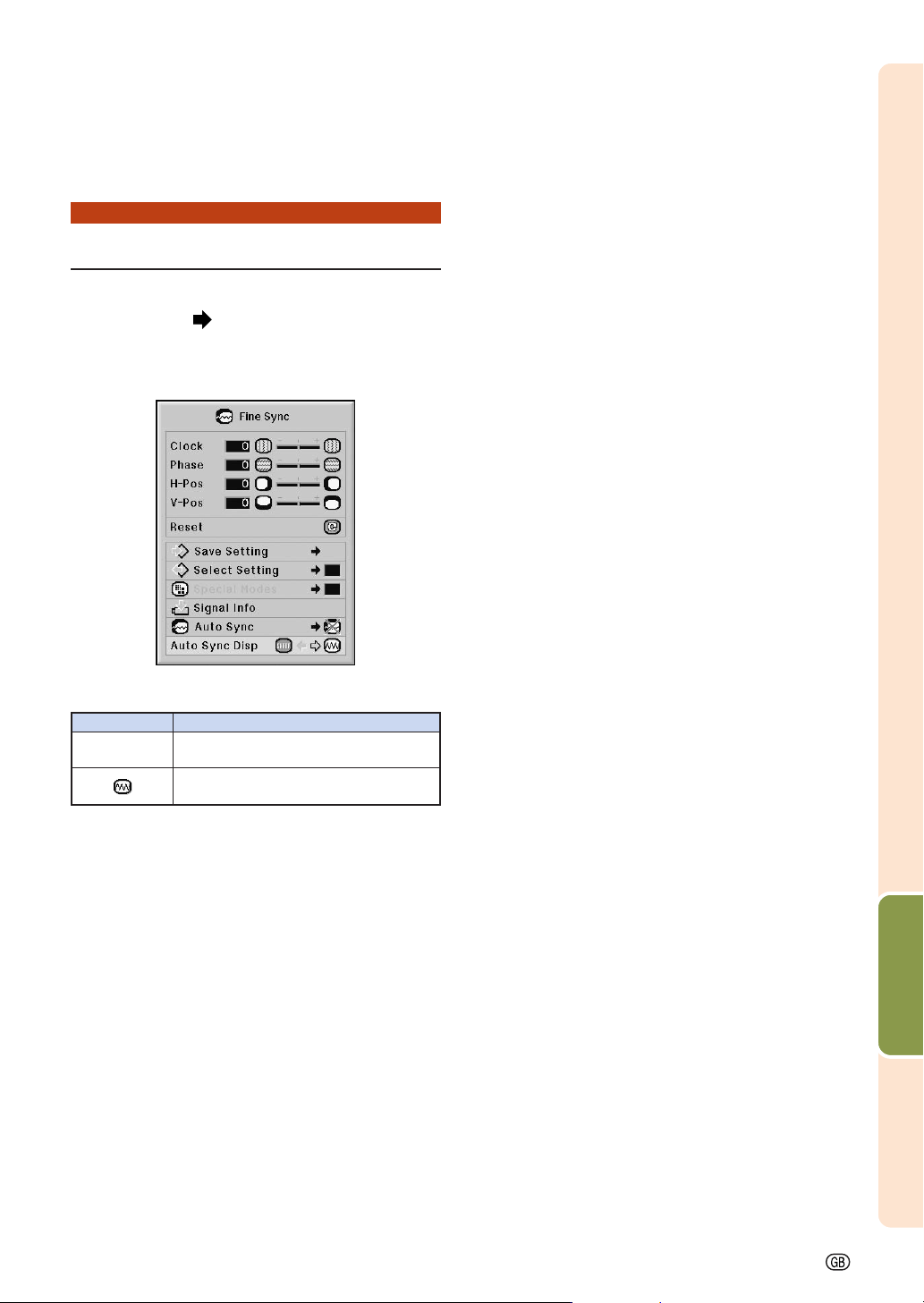

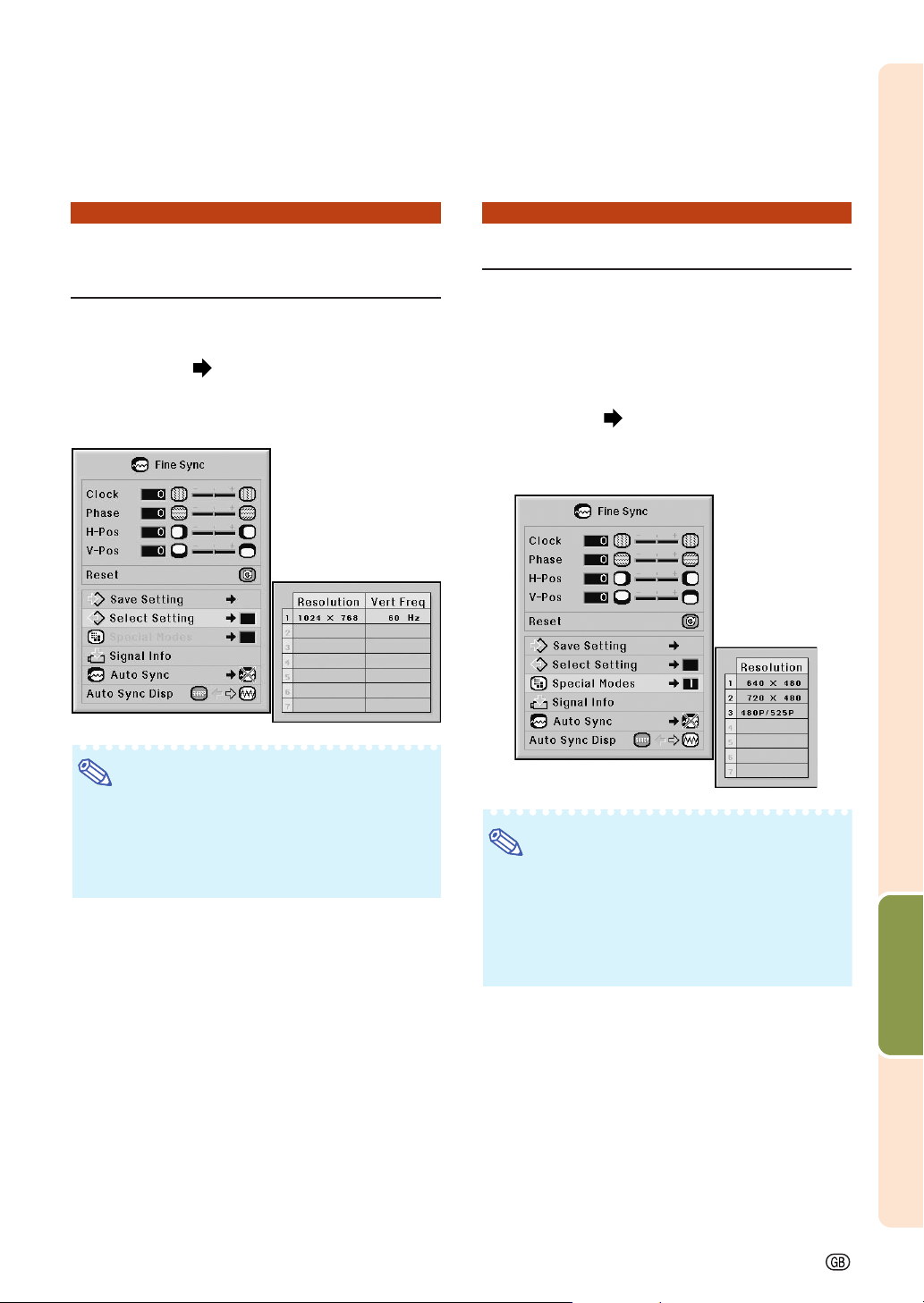

•The “Fine Sync” menu is not available
for selecting INPUT 4 or INPUT 5.
Menu item

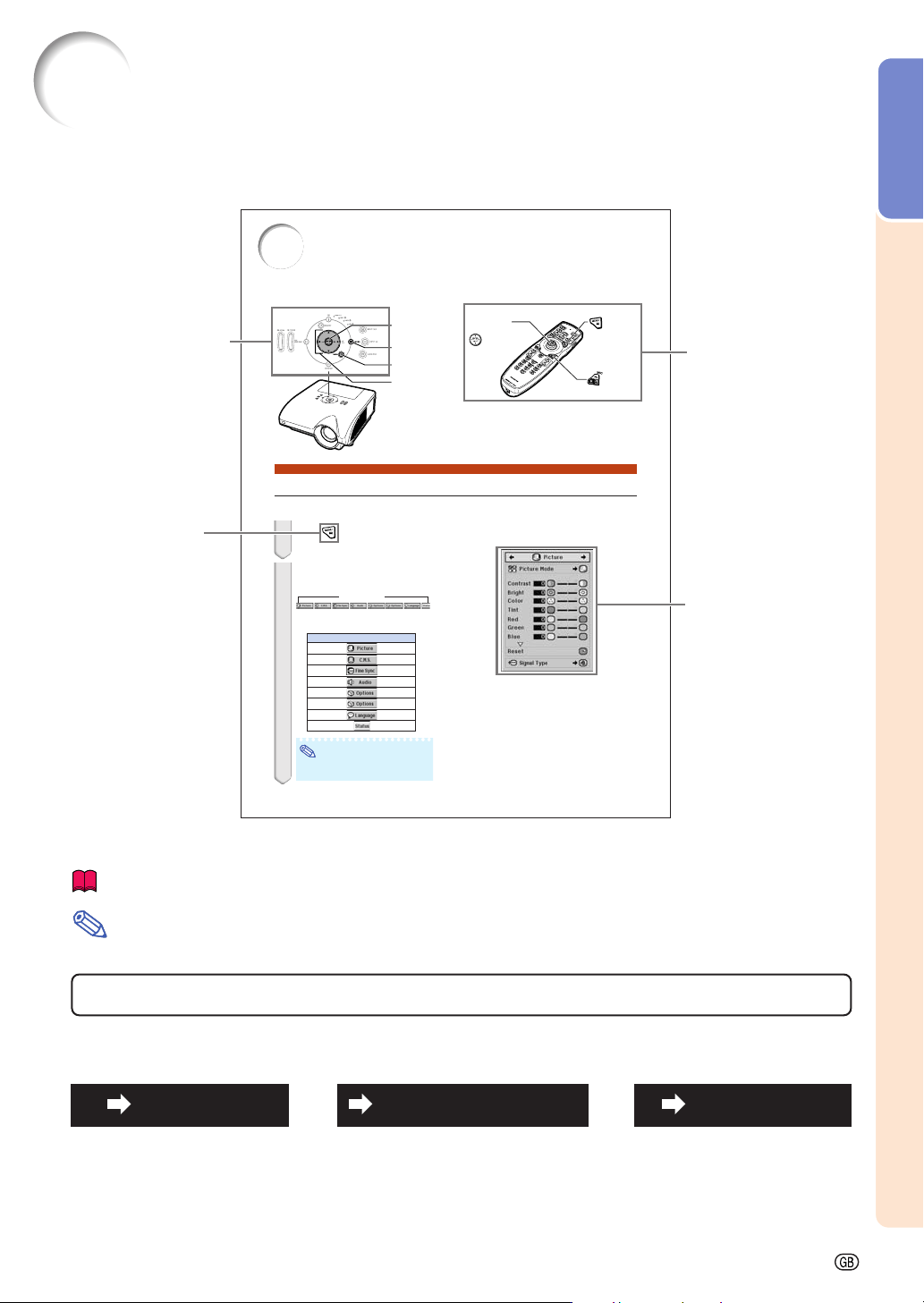

How to Read This Operation Manual
••
••
• In this operation manual, the illustrations and on-screen displays are simplified for explana-
tion. This may differ from the actual on-screen display.
Info
...........Indicates safeguards when using the projector.
For Future Reference

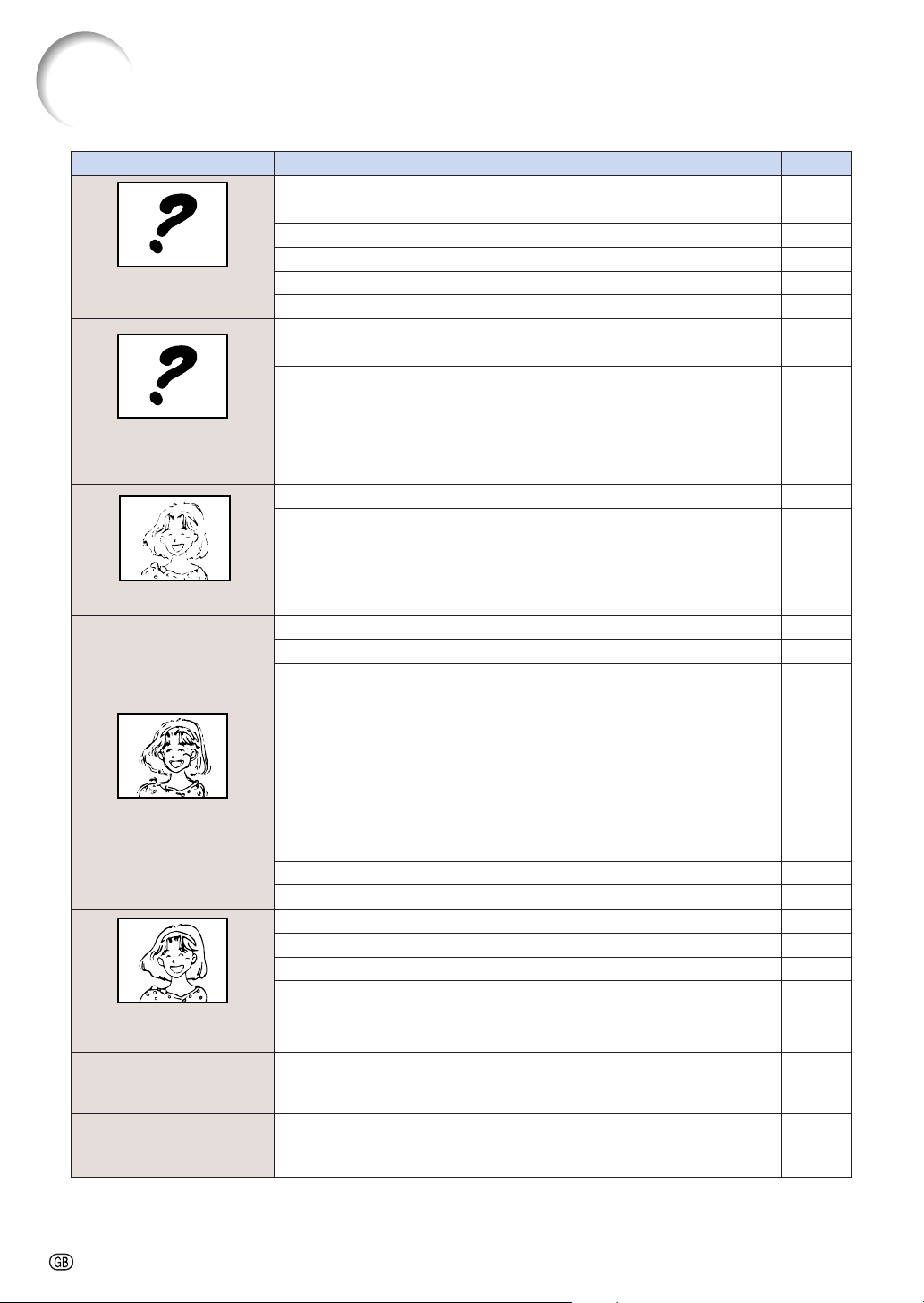

Maintenance Troubleshooting Index
Page 107
Pages 102 and 103
Page 93
On-screen display
Button used in
this step
Note
........Indicates additional information for setting up and operating the projector.
Buttons used in this
operation
Buttons used in this
operation
-4
Contents
Preparing
Introduction
How to Read This Operation Manual ............ 3
Contents.......................................................... 4
How to Access the PDF Operation Manuals
..... 7
IMPORTANT SAFEGUARDS .......................... 8

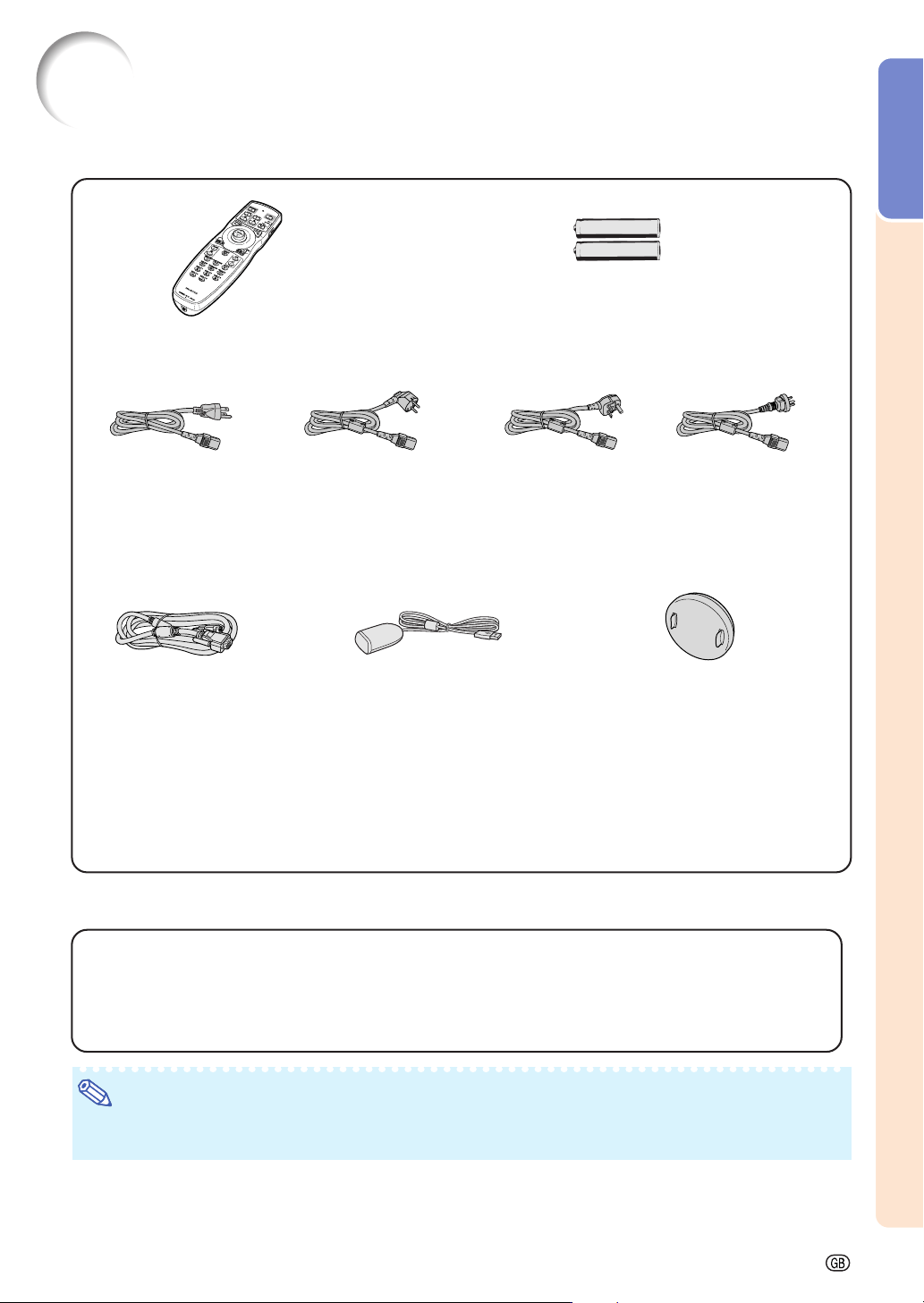

Accessories .................................................. 11

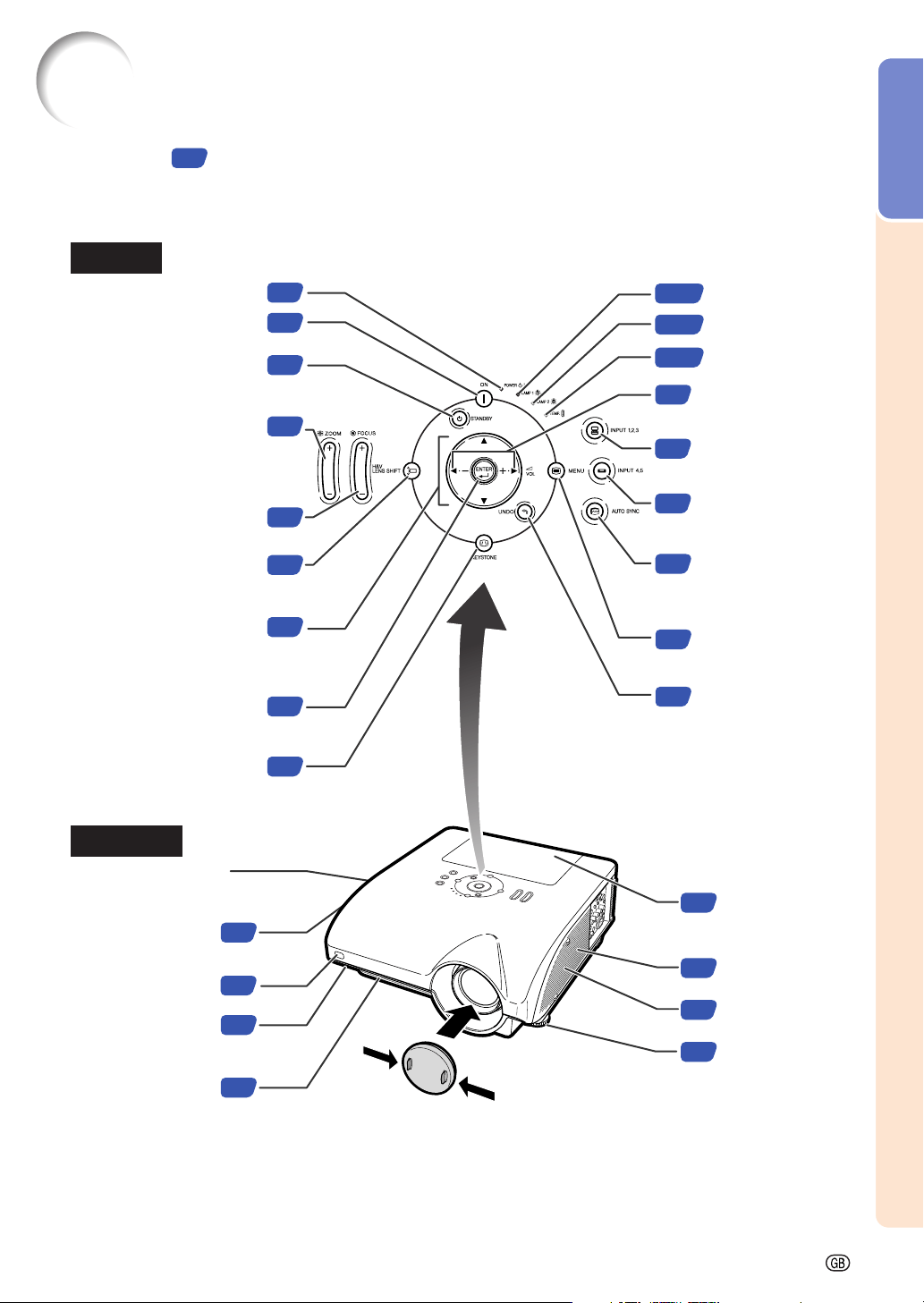

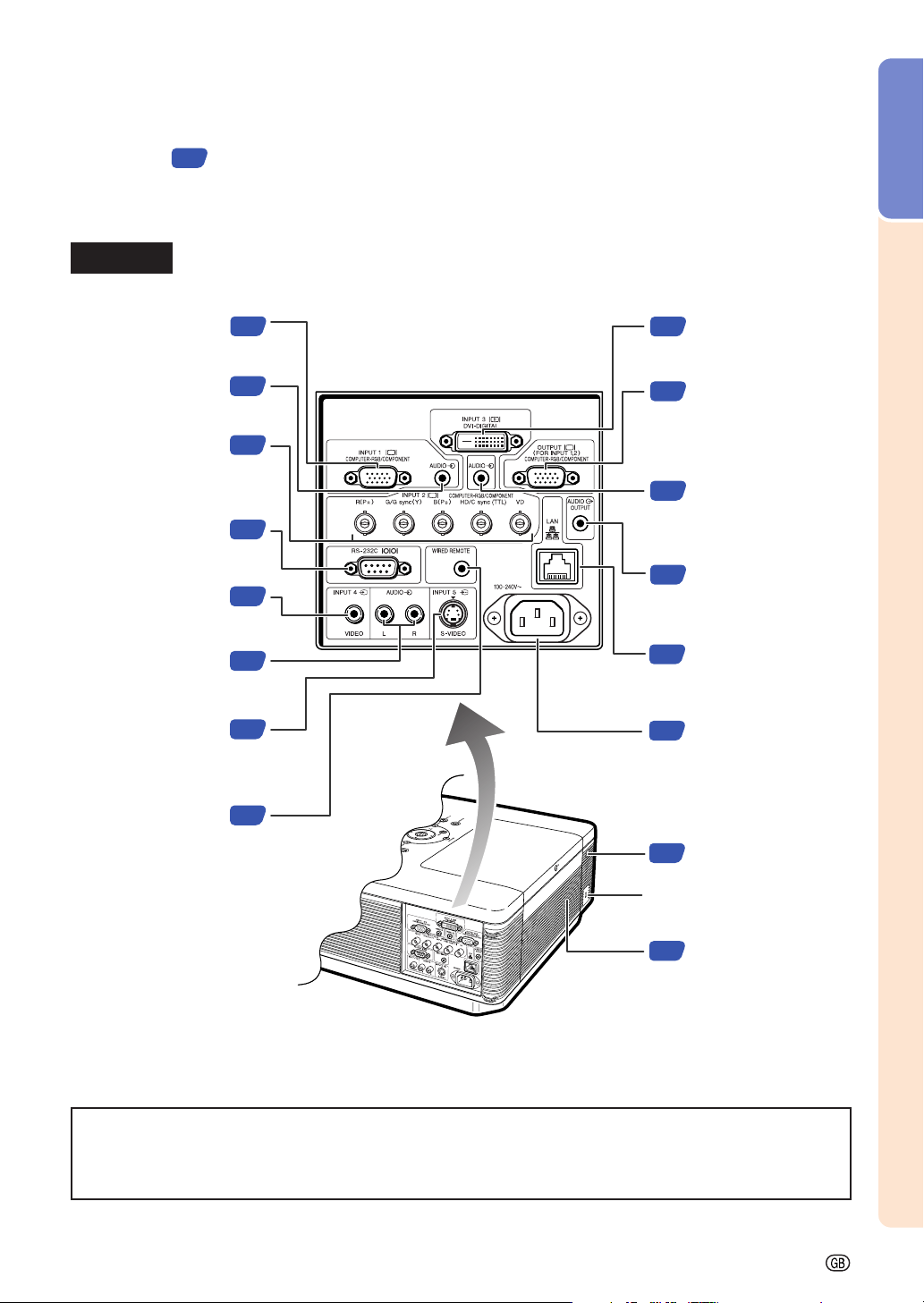

Part Names and Functions .......................... 13

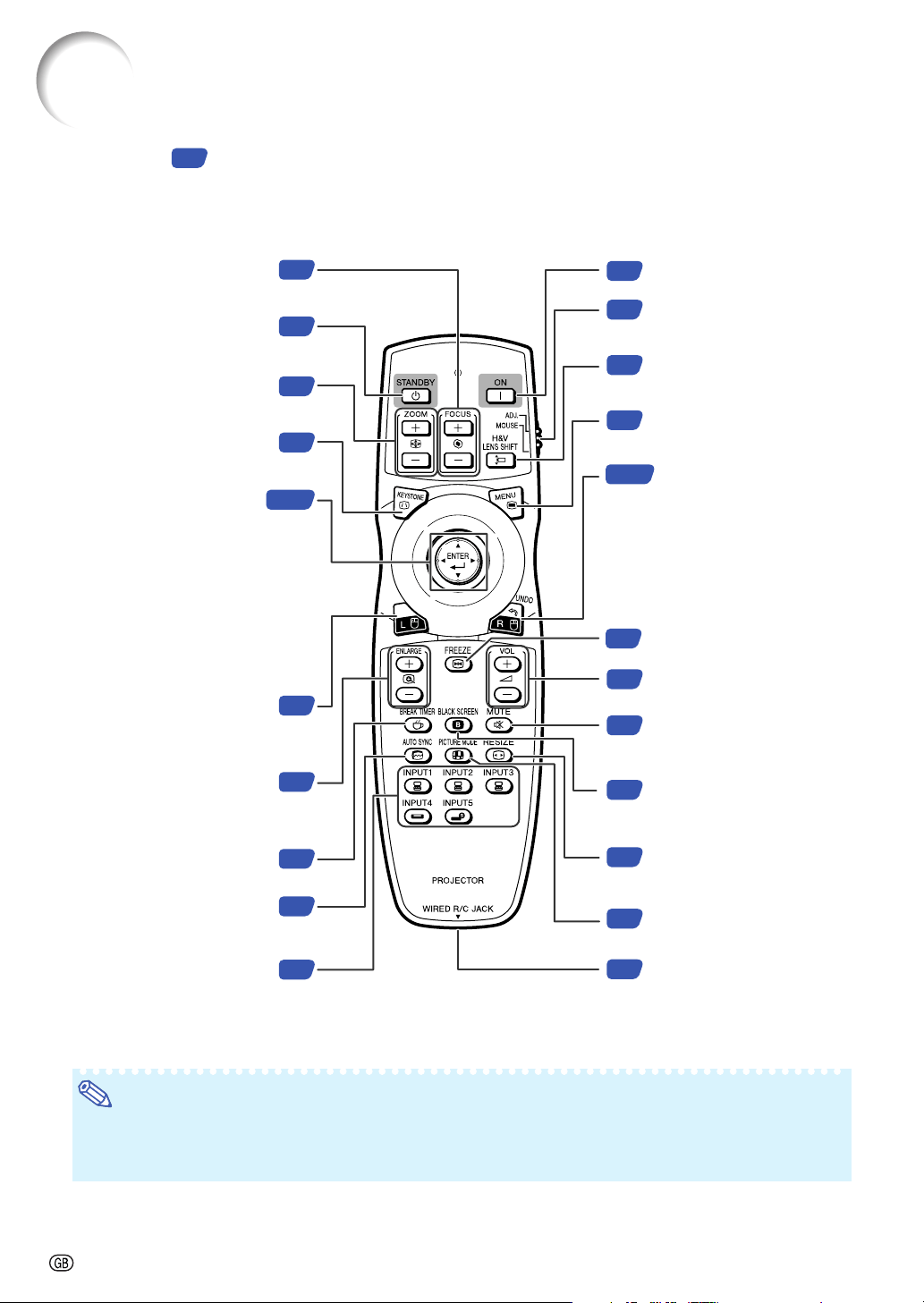

Using the Remote Control ........................... 17

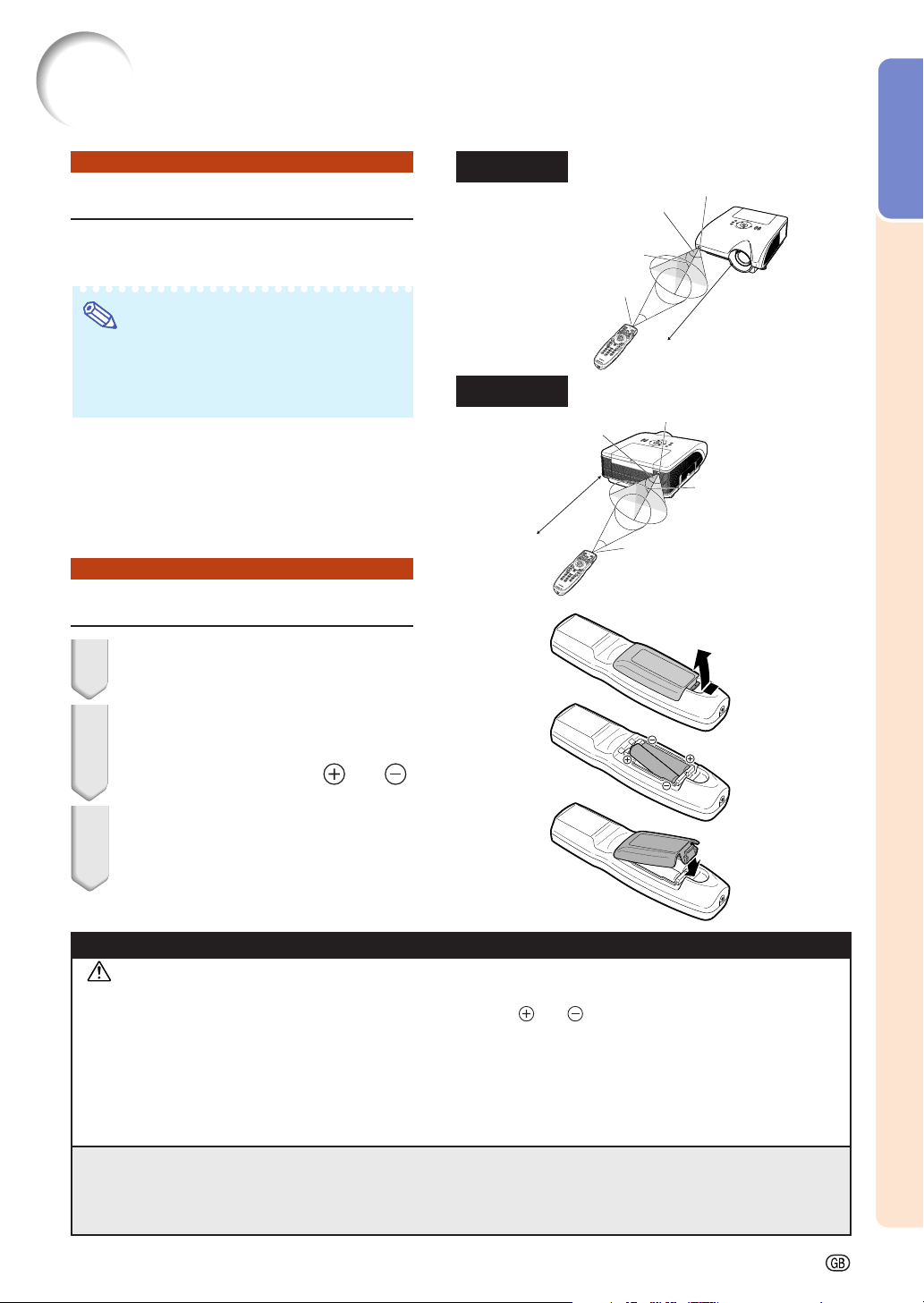

Usable Range .................................................... 17
Inserting the Batteries ....................................... 17

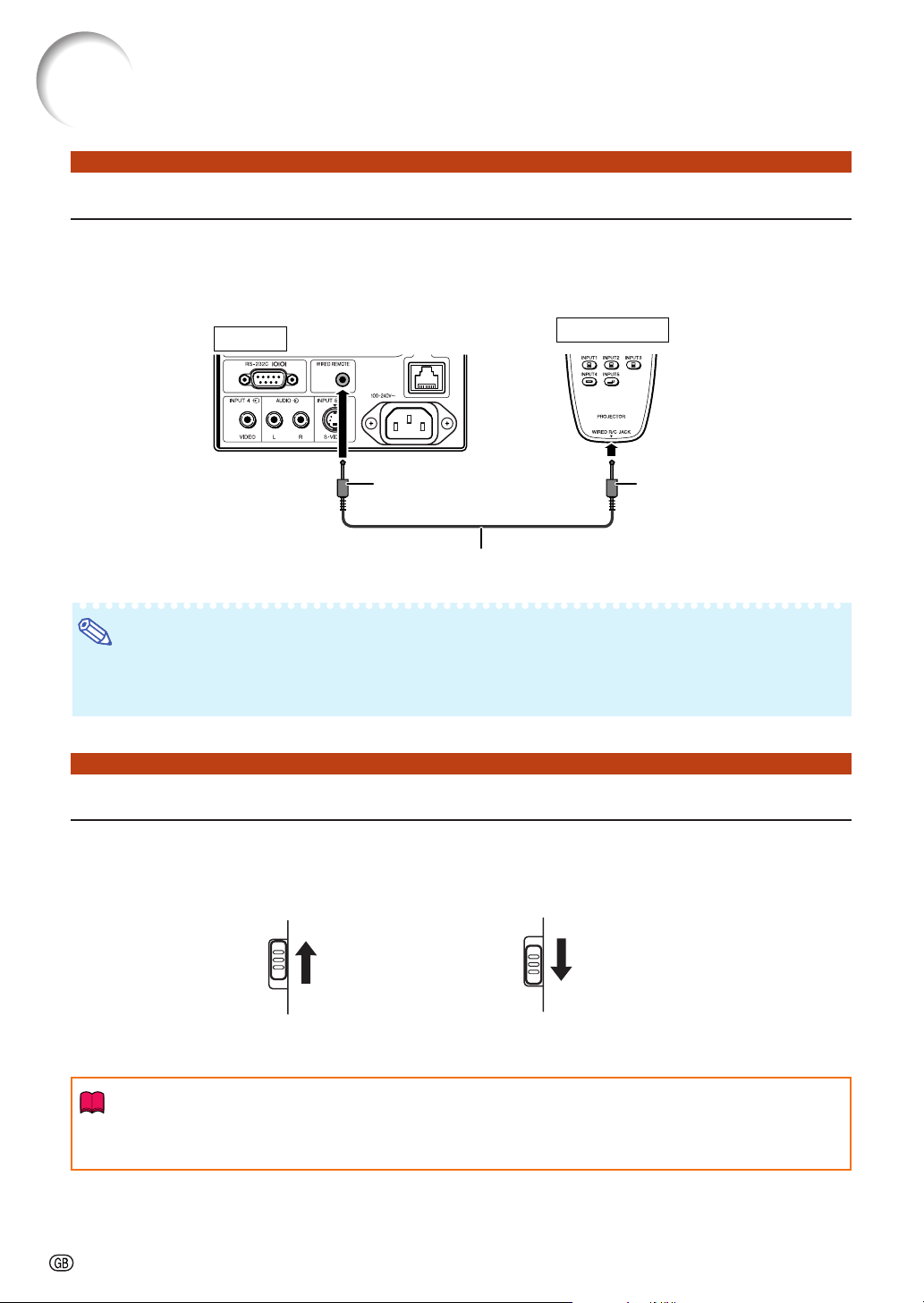

Using the Remote Control with a Signal Cable ..
18
Switching the Remote Control Mode ................. 18

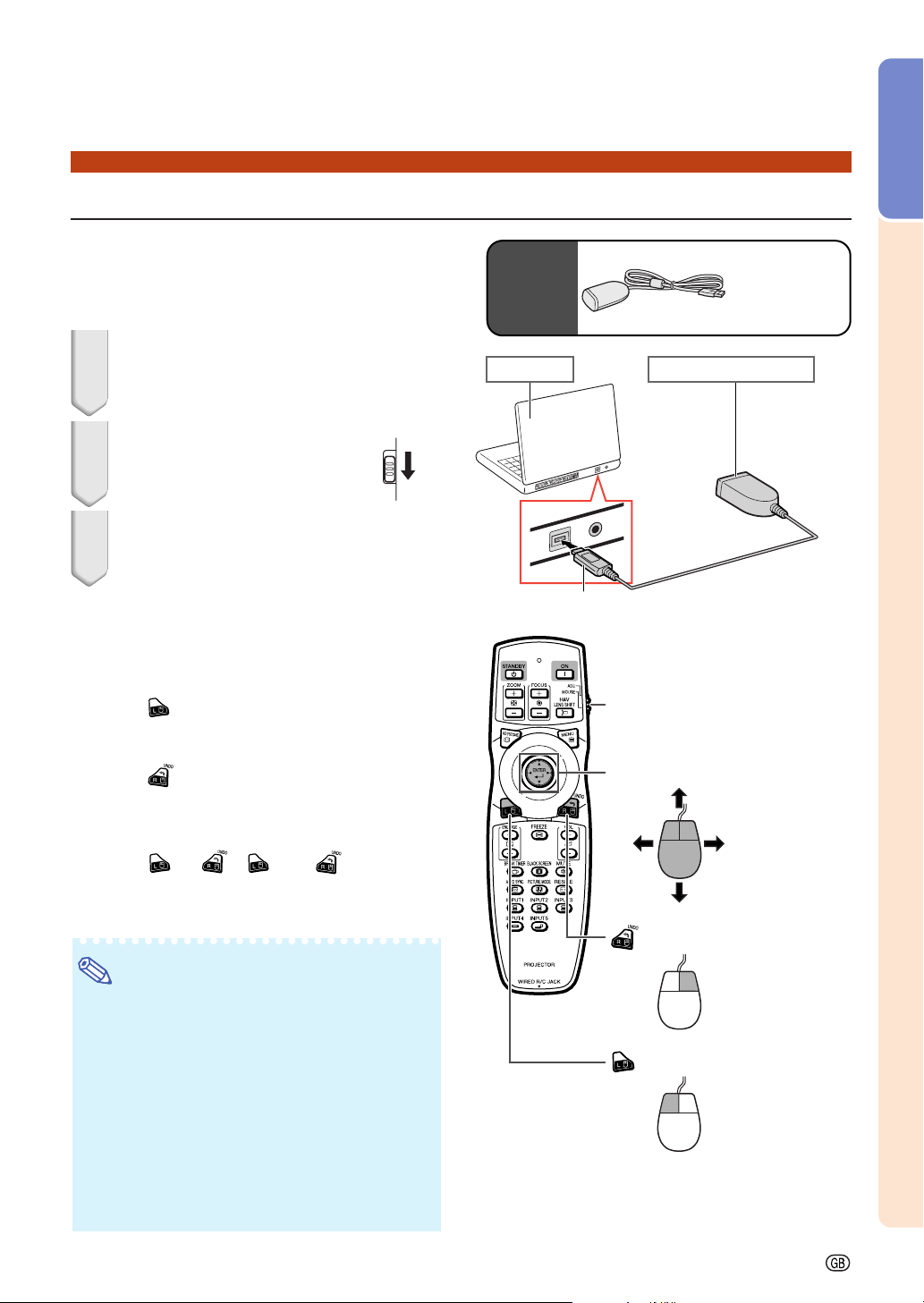

Using the Remote Control as a Wireless Compu-
ter Mouse .................................................... 19
Quick Start

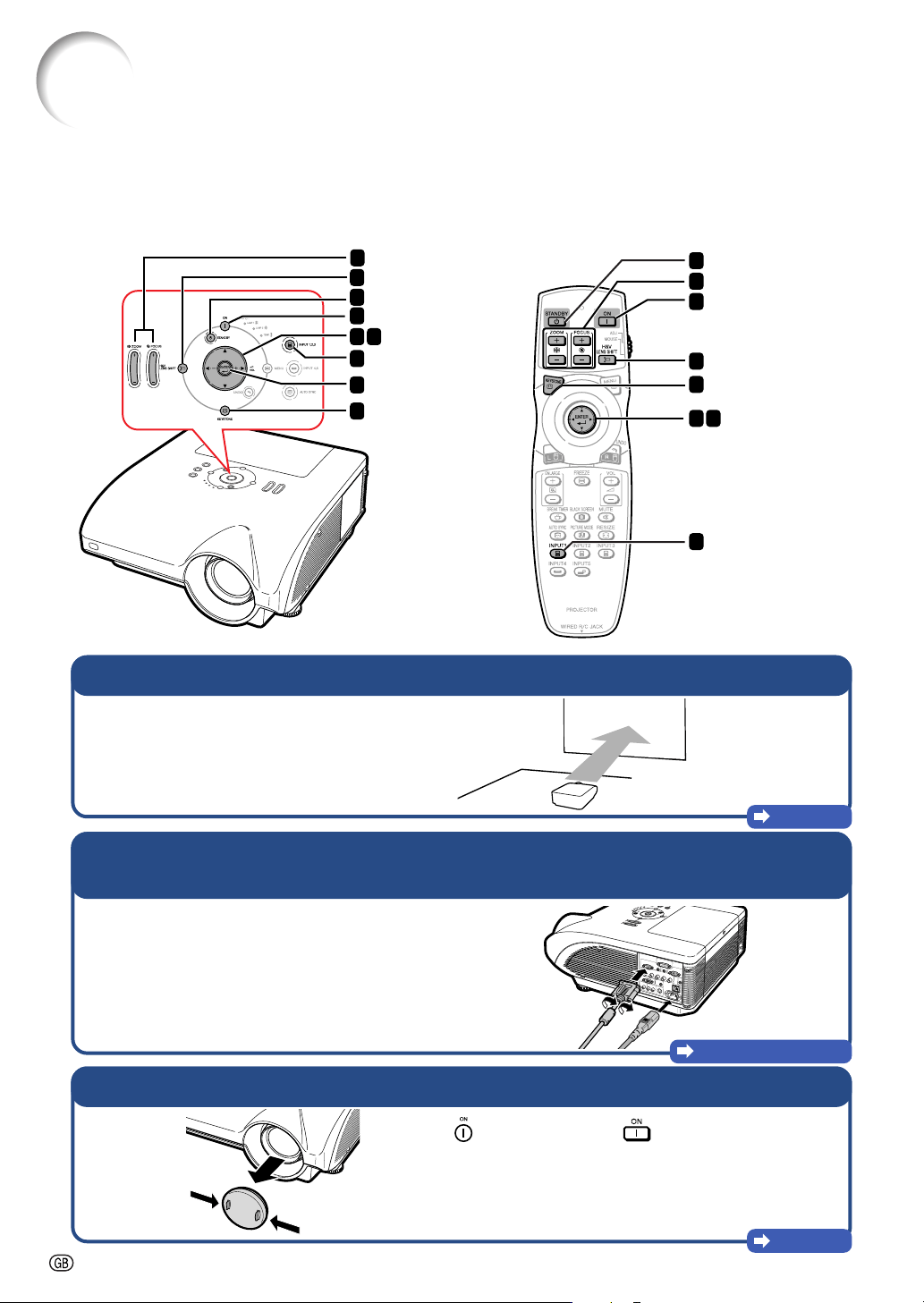

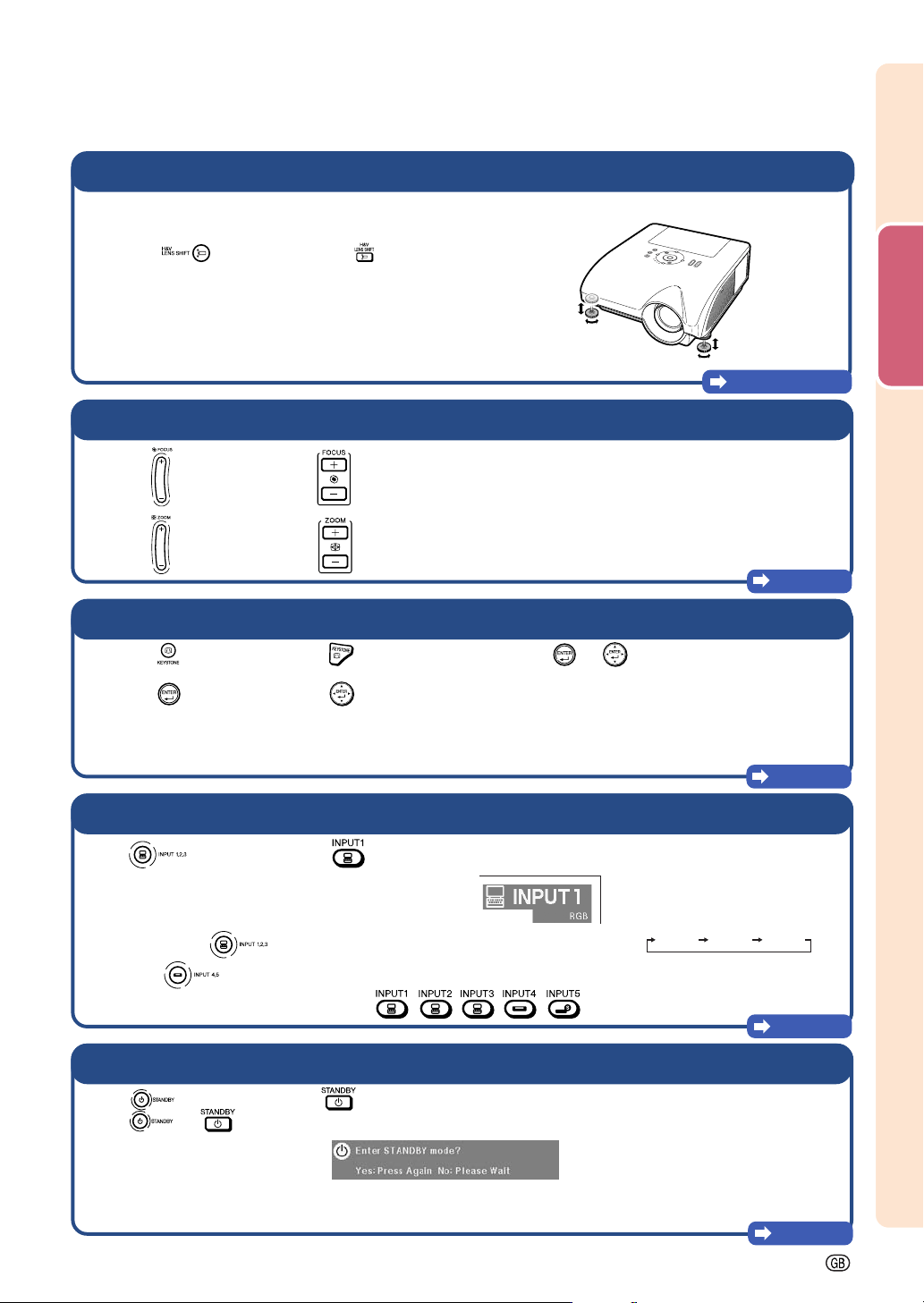

Quick Start .................................................... 20
Setup

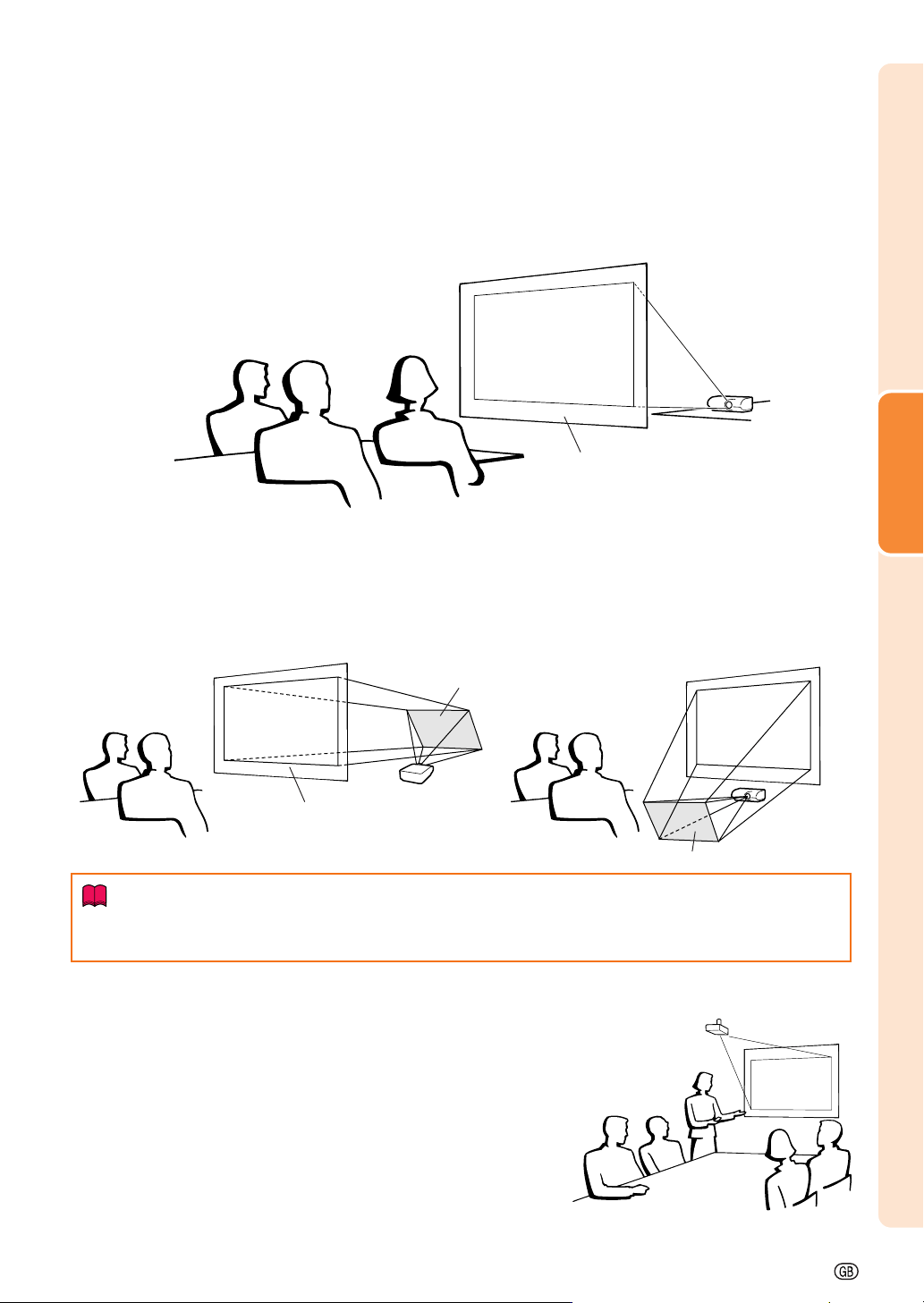

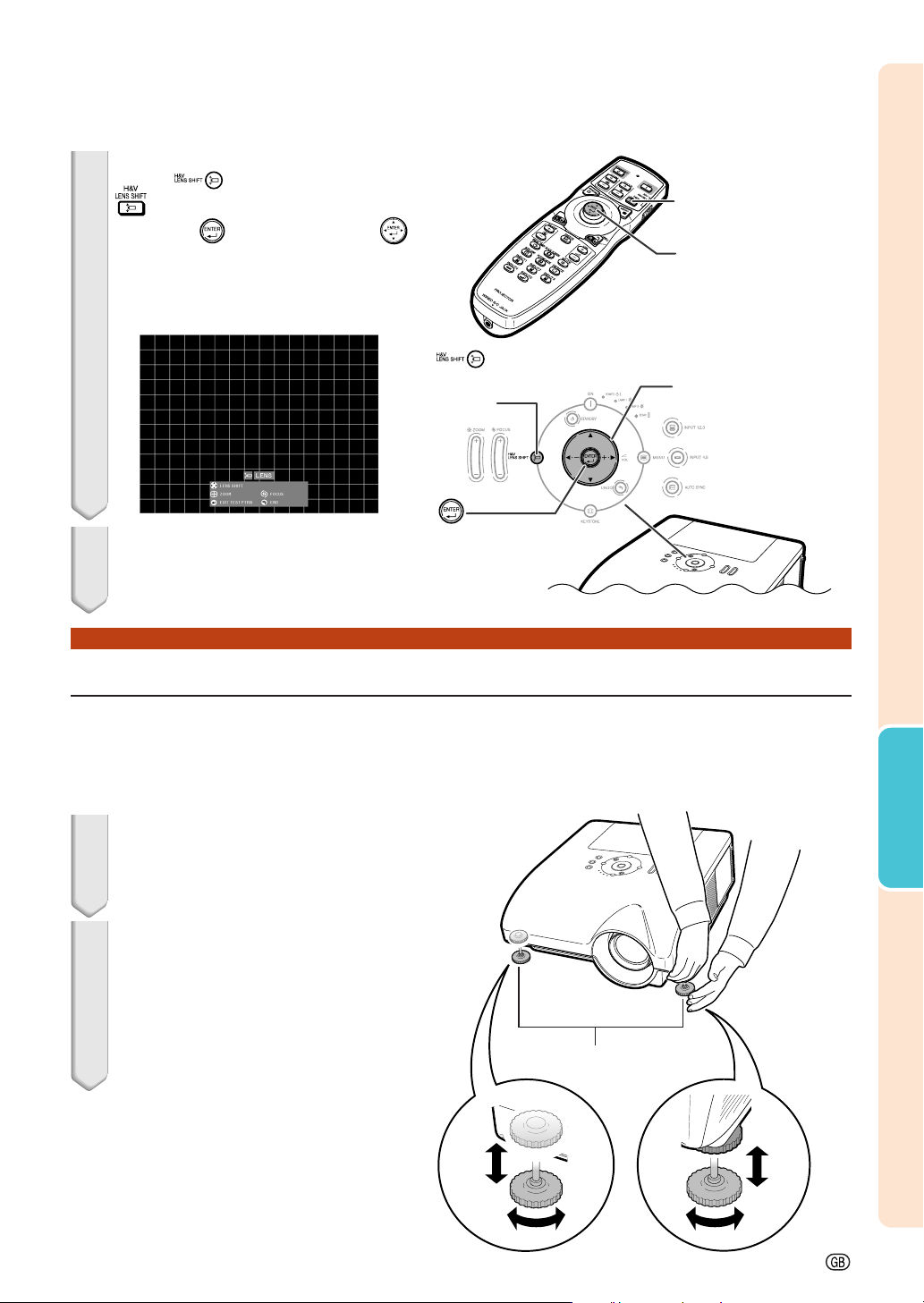

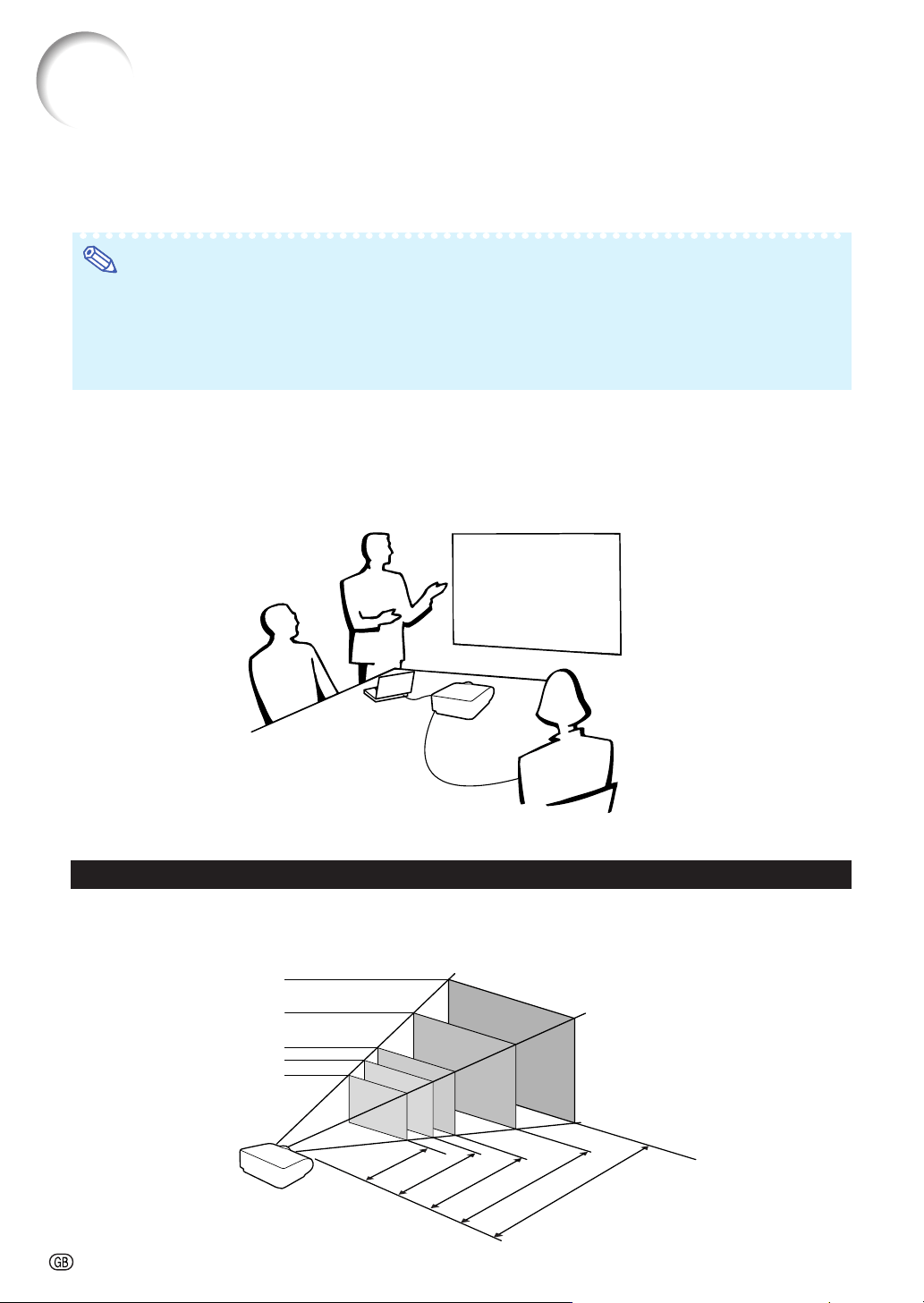

Setting Up the Projector .............................. 22
Setting Up the Projector .................................... 22
Projecting a Reversed Image ............................ 23
Connections
Connections ................................................. 24

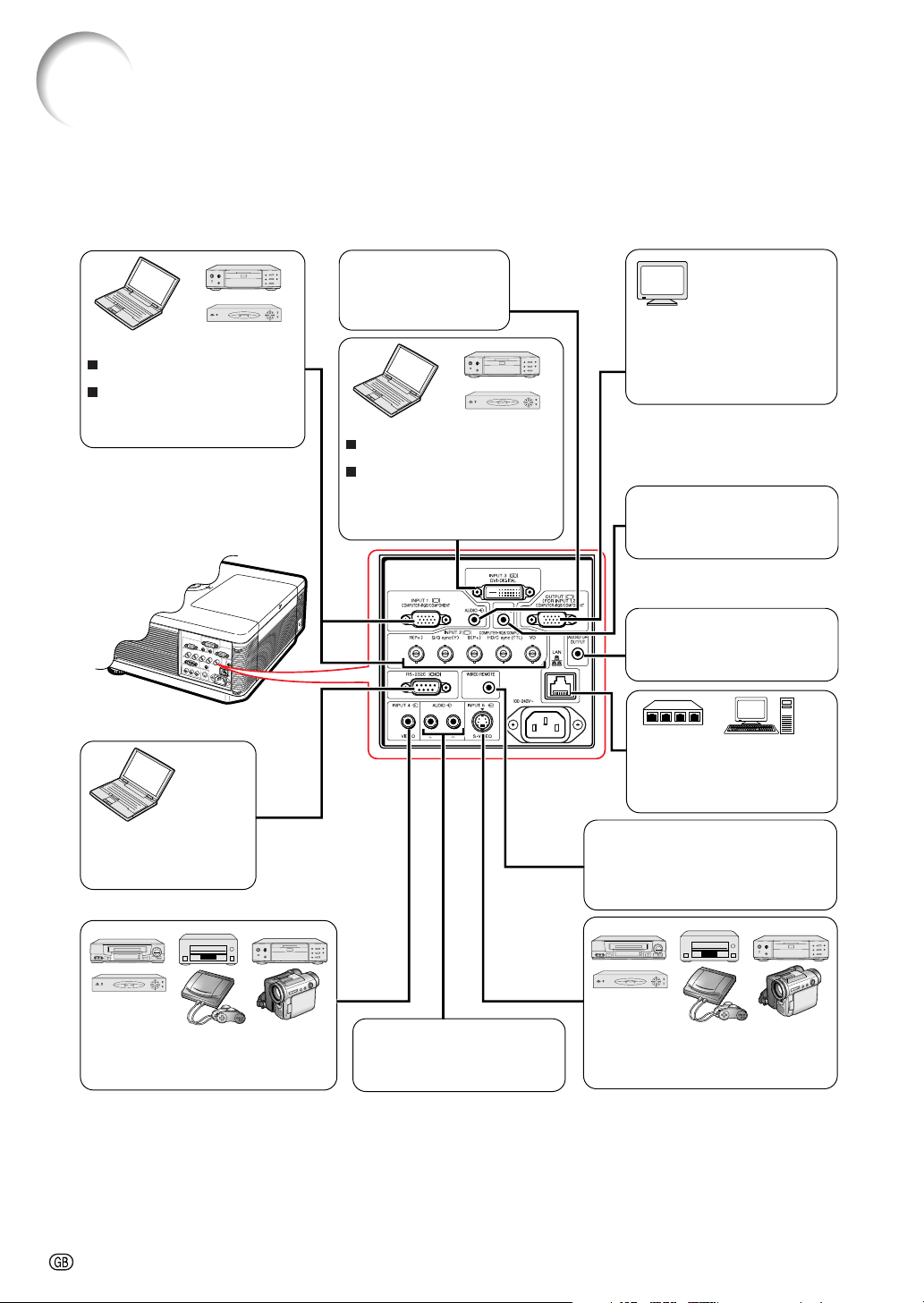

INPUT/OUTPUT Terminals and Connectable
Main Equipment .......................................... 24

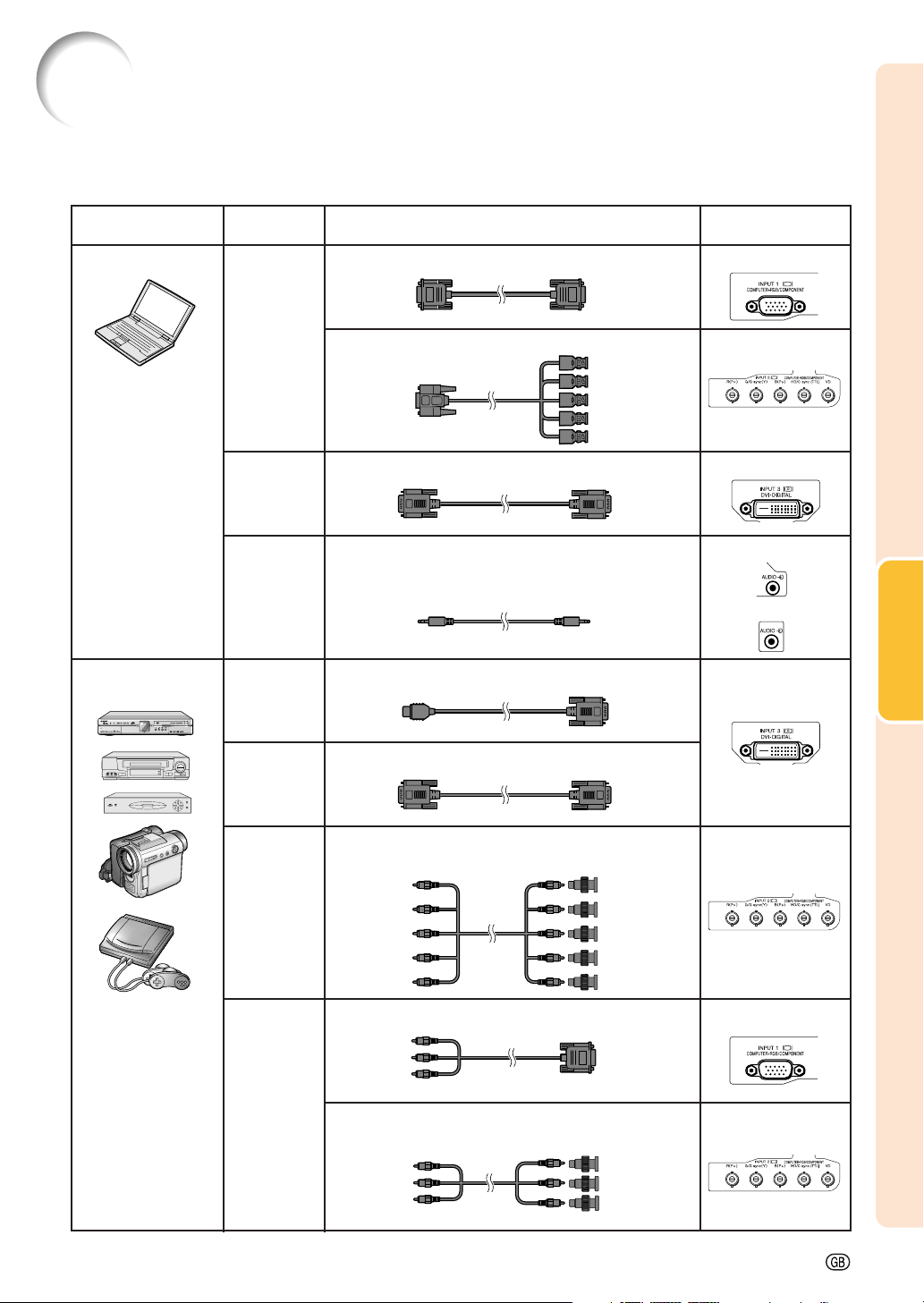

Samples of Cables for Connection ............. 25
Connecting to a Computer .......................... 27

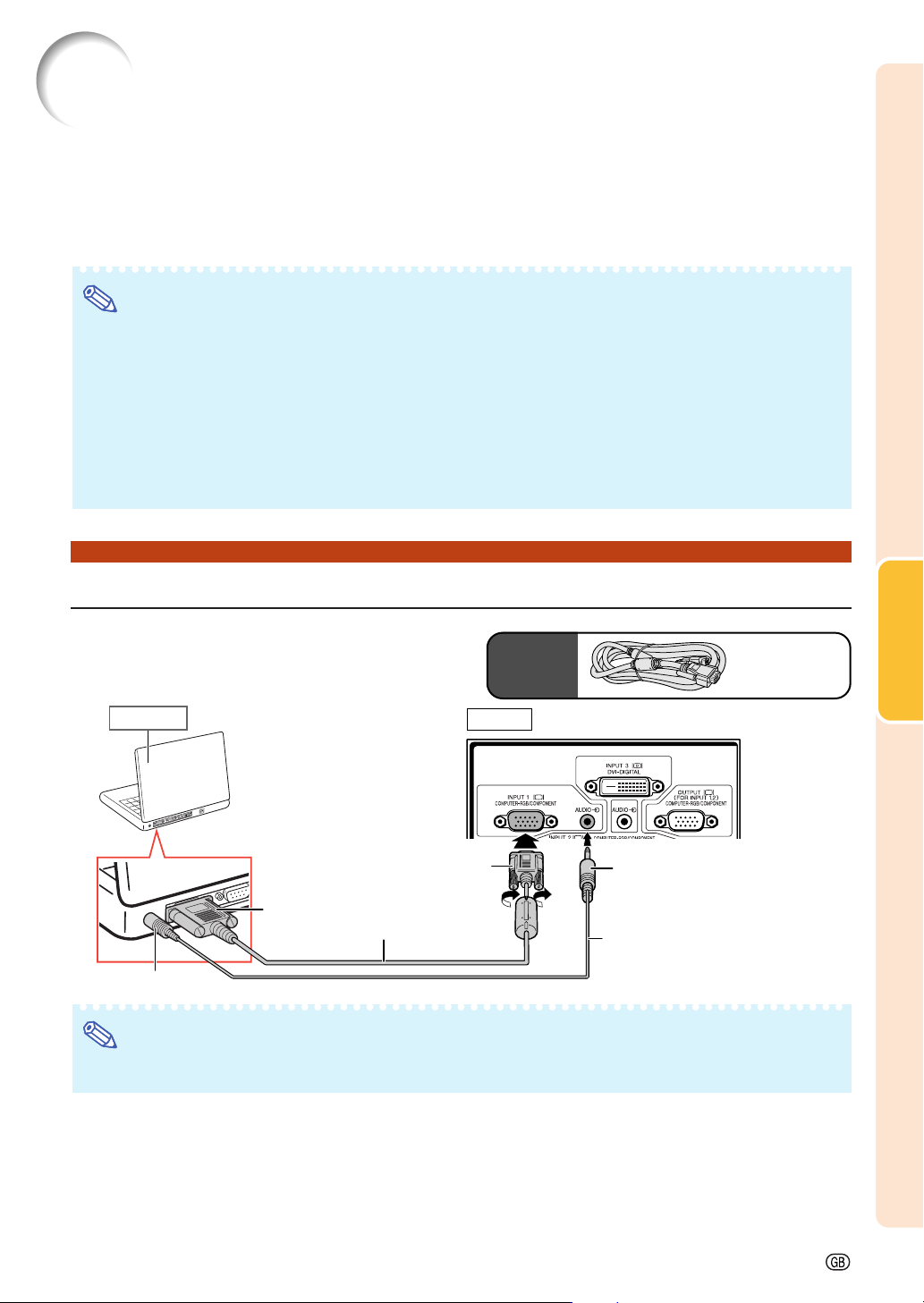

Connecting with the RGB Cable ....................... 27
Connecting with a 5 BNC to 15-pin D-sub
Cable ........................................................... 28

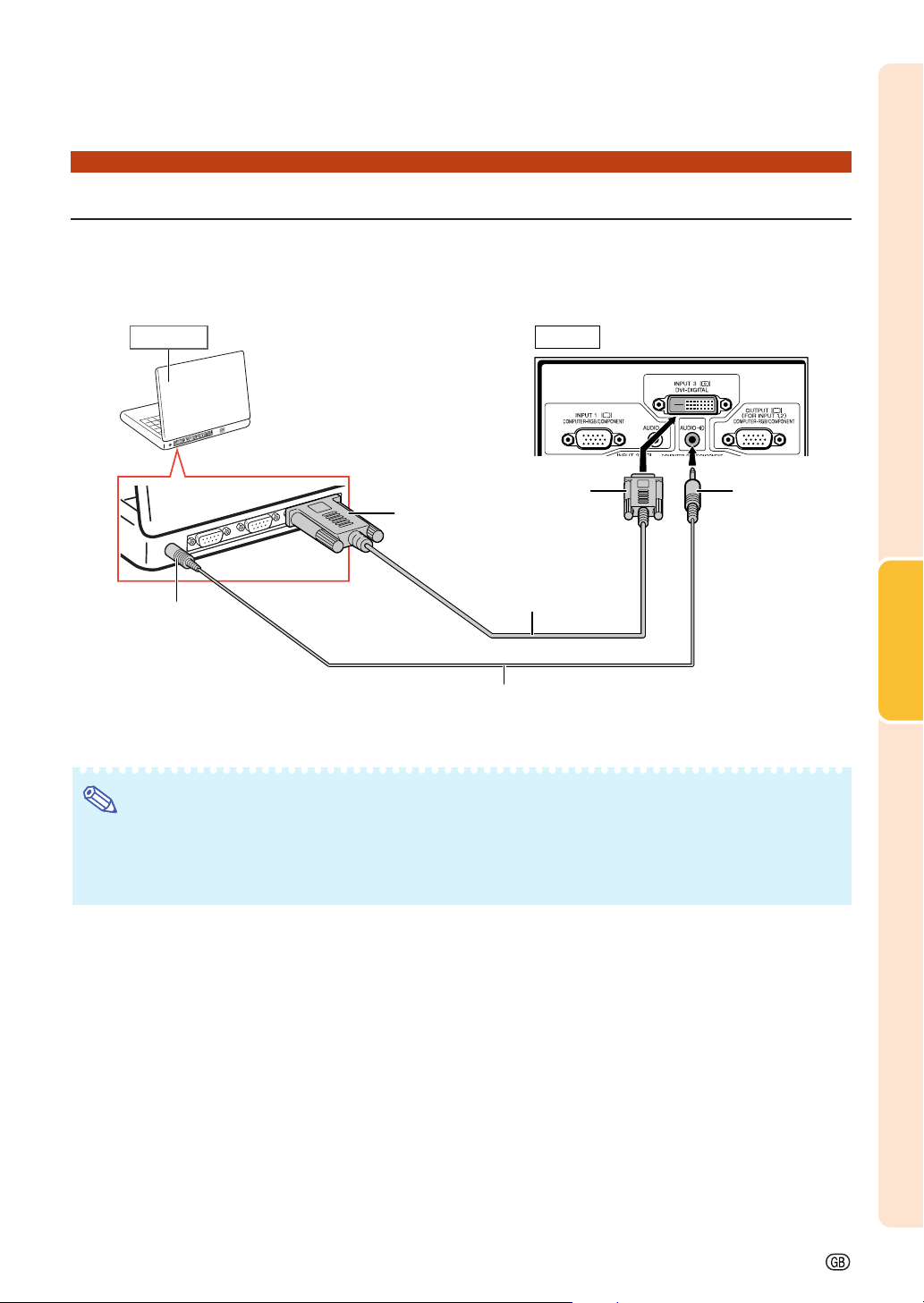

Connecting with a DVI Digital Cable ................. 29
Connecting to Video Equipment ................. 30
Connecting to Video Equipment That Has
an HDMI Output Terminal with a DVI to
HDMI Cable ................................................ 30

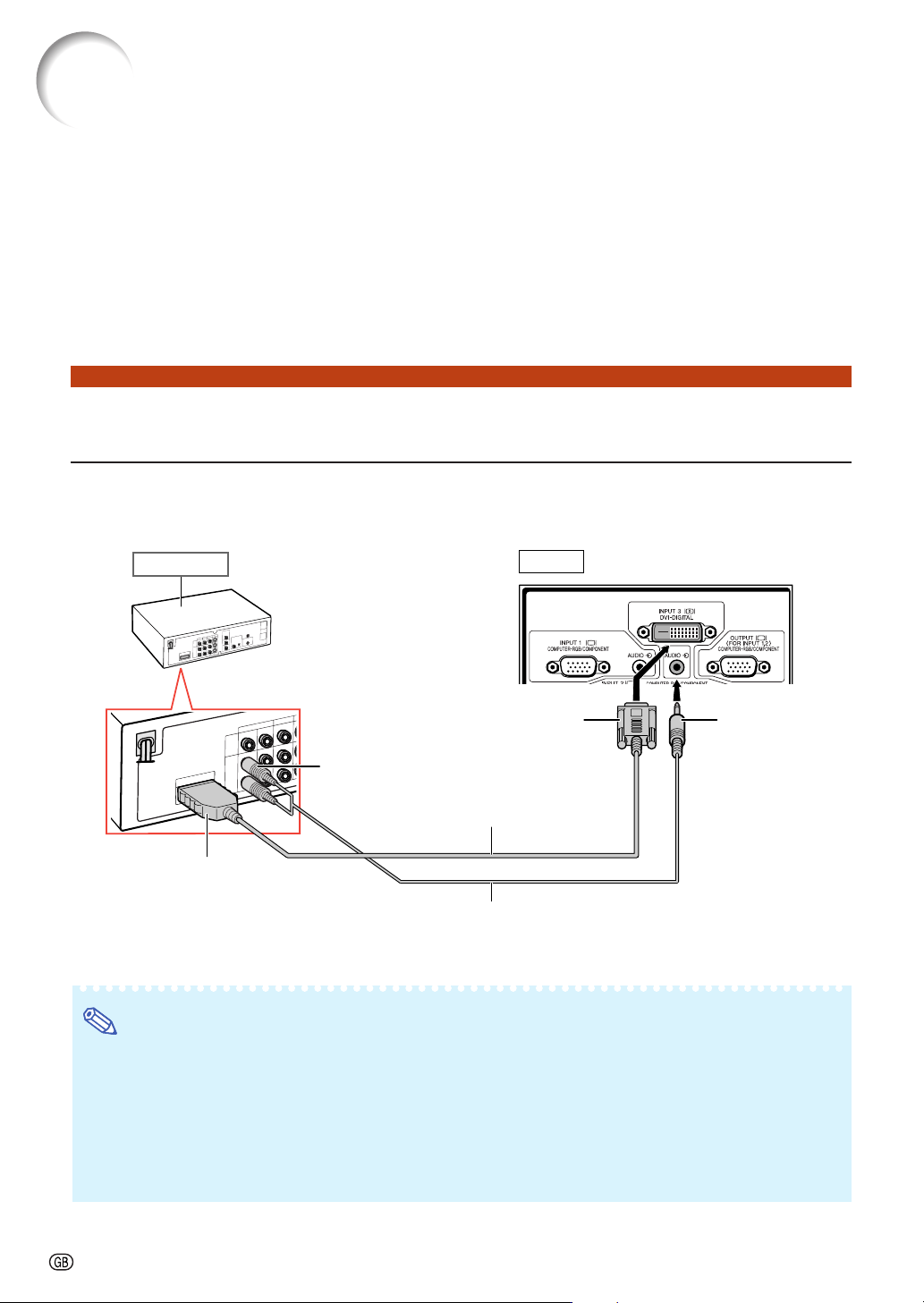

Connecting to Video Equipment That Has a DVI
Output Terminal with a DVI Digital Cable… 31
Connecting to RGB Video Equipment with a
5 RCA RGB Cable ....................................... 32
Connecting to Video Equipment That Has
Component Output Terminals ..................... 33
Connecting with an S-video Cable or a Compos-
ite Video Cable ............................................ 34

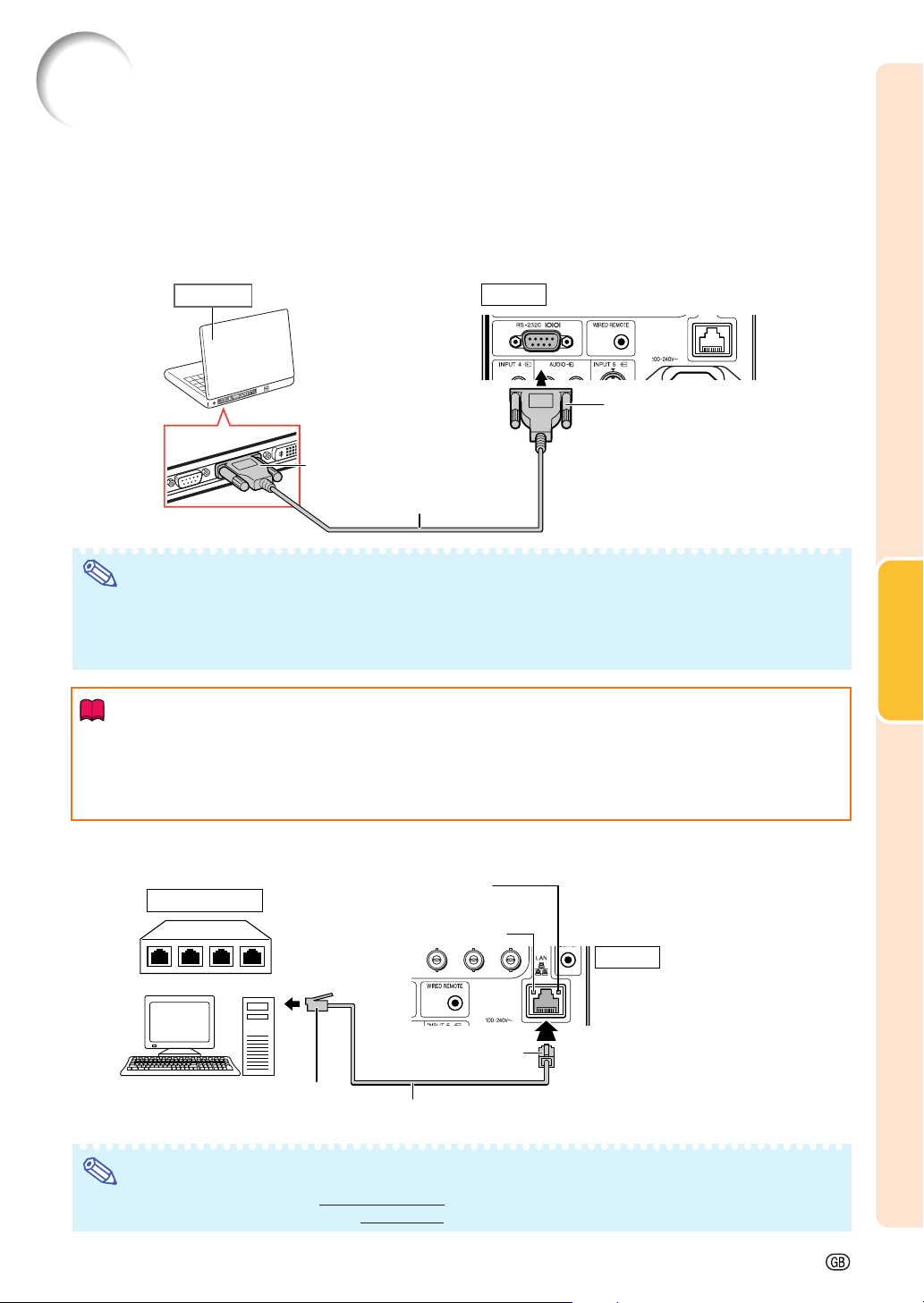

Controlling the Projector by a Computer ... 35
Connecting to a Monitor That Has an RGB
Input Terminal ......................................... 36

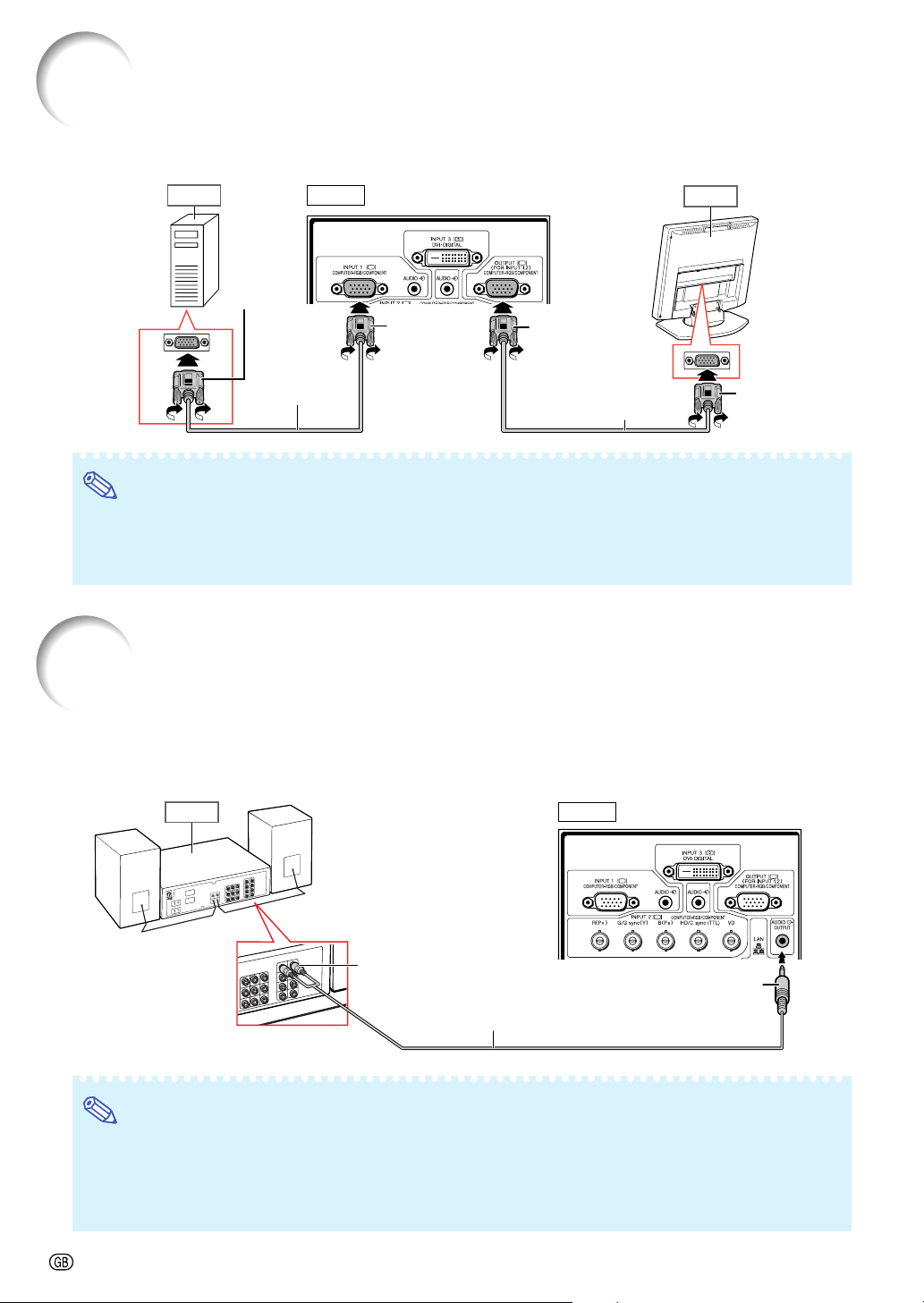

Connecting to an Amplifier or Other
Audio Equipment .................................... 36
Introduction
-5
Using
Basic Operation

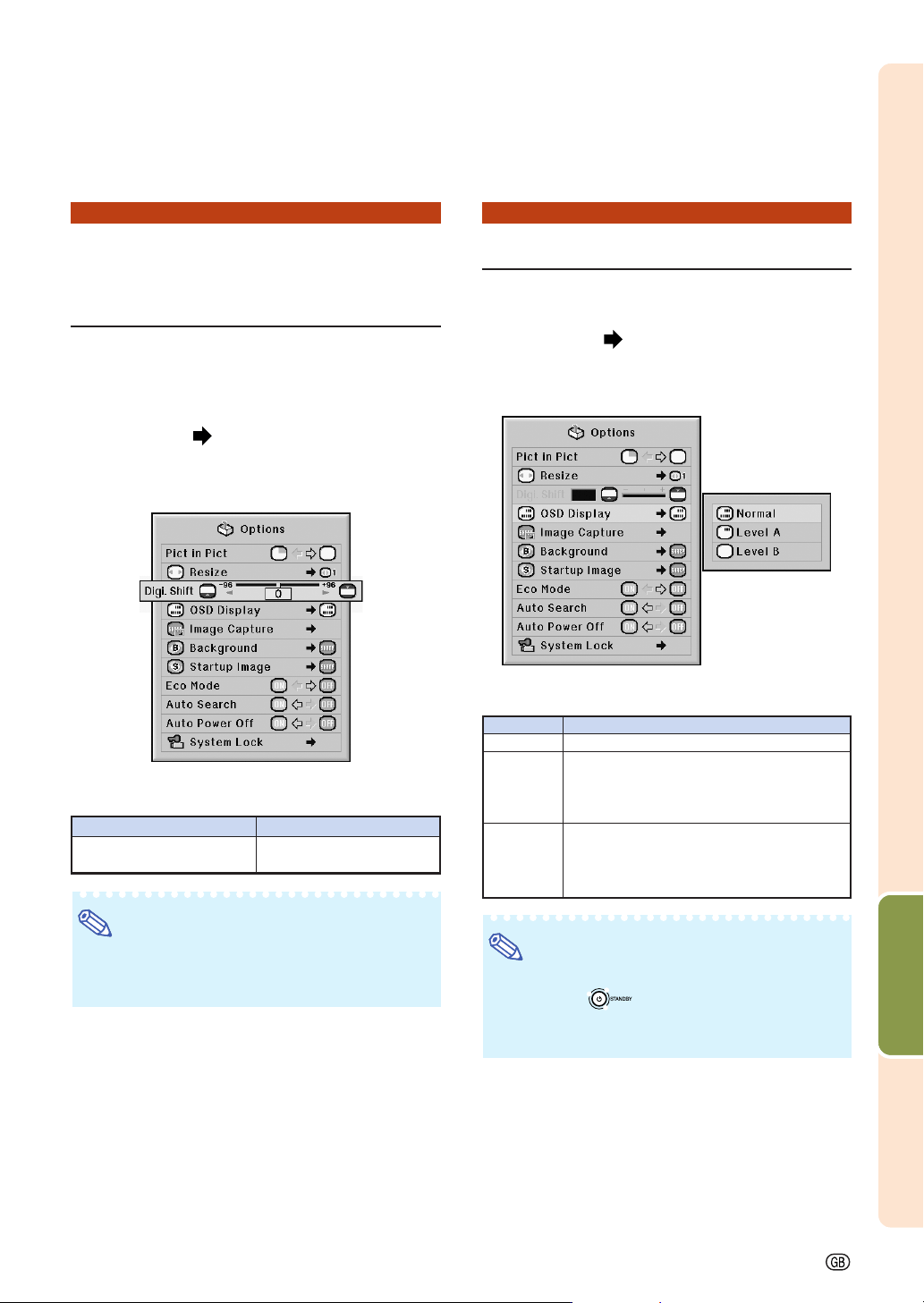

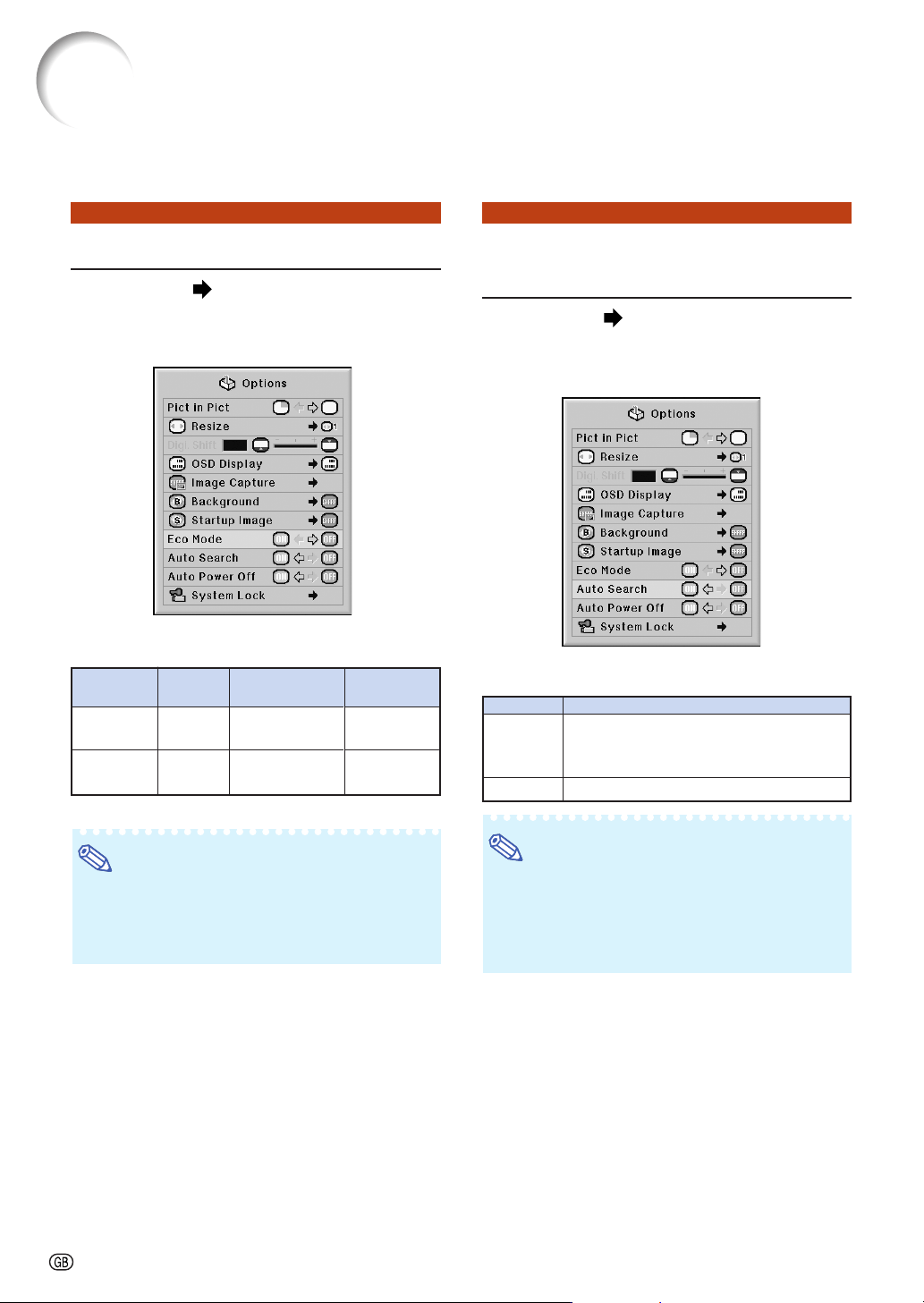

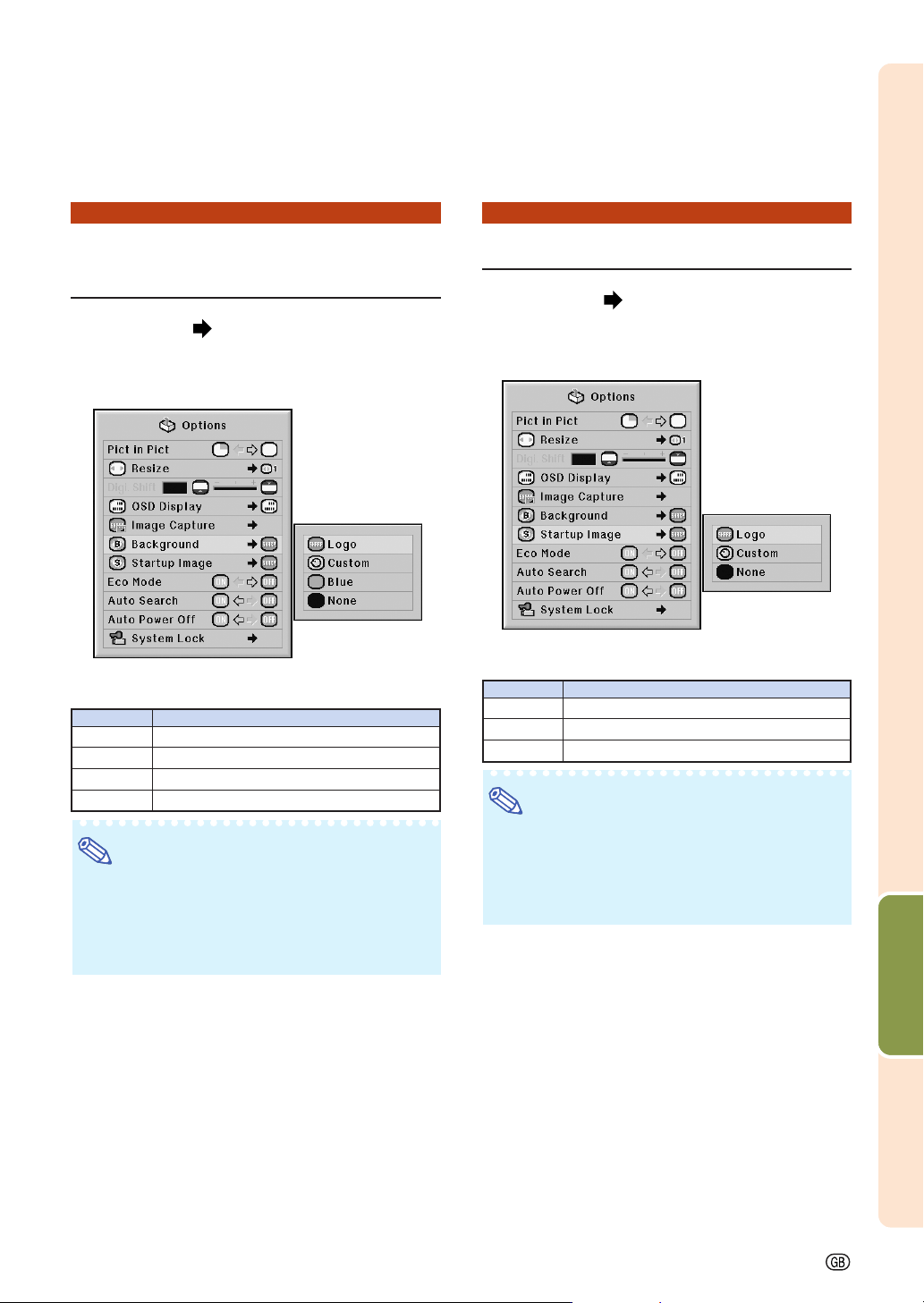

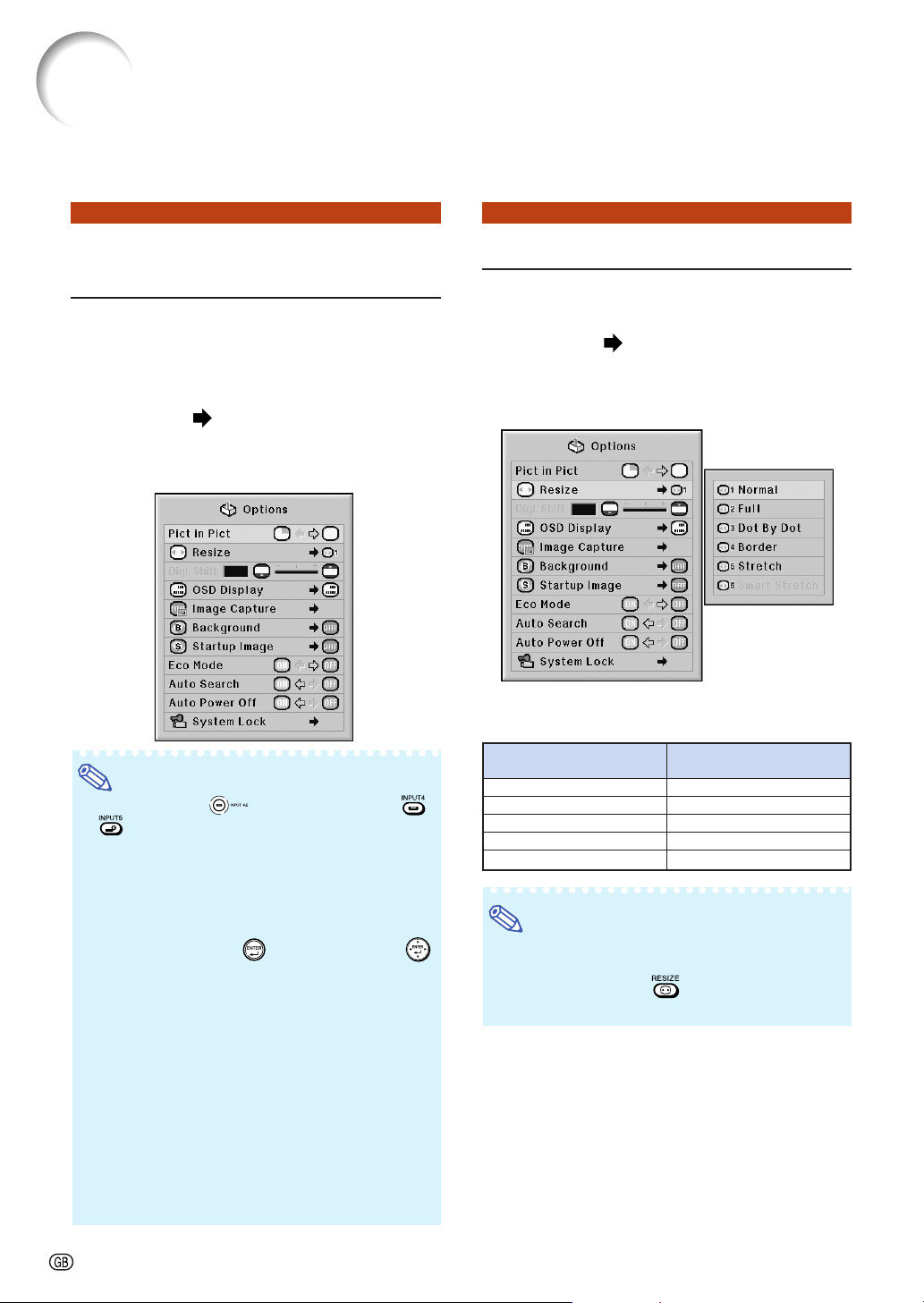

Using the “Options (1)” Menu ..................... 74
Displaying Dual Pictures (Pict in Pict) ............... 74
Setting the Resize Mode ................................... 74
Shifting the Projected Image Vertically
(Digital Shift) ................................................ 75

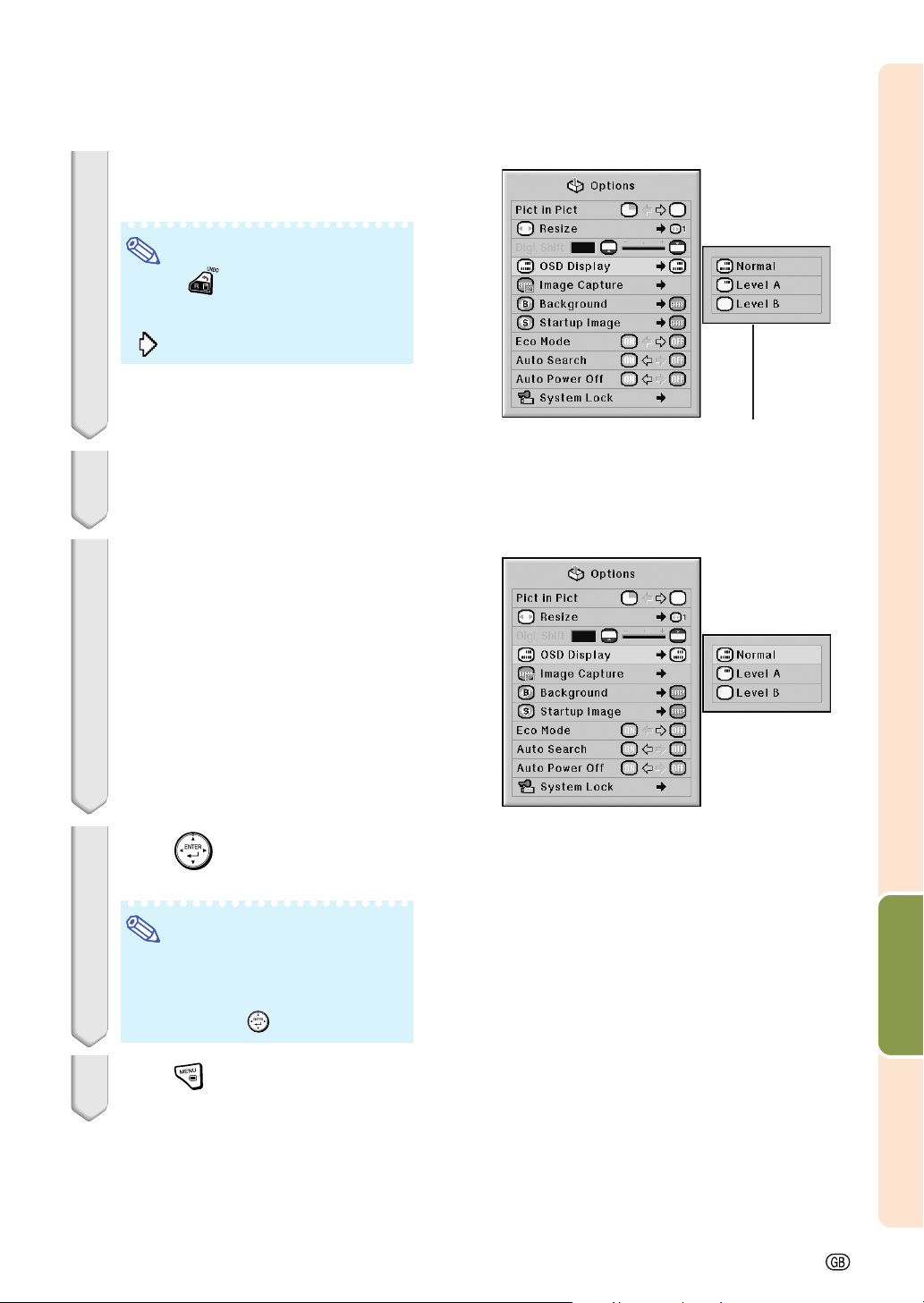

Setting On-screen Display................................. 75

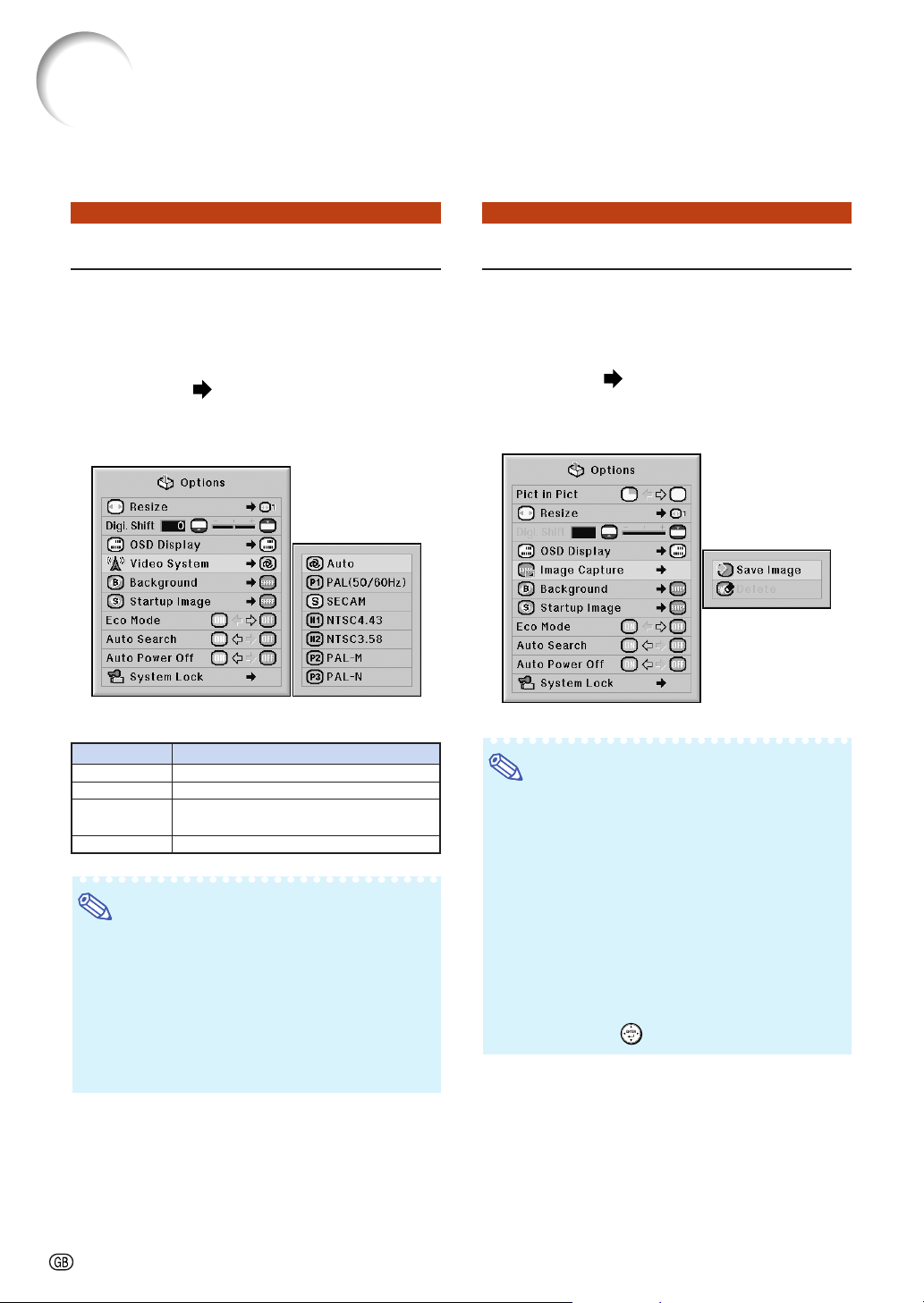

Setting the Video System................................... 76
Capturing Projected Images ............................. 76
Selecting the Background Image ...................... 77
Selecting the Startup Image .............................. 77
Eco Mode .......................................................... 78
Detecting the Input Signals Automatically ........ 78
Auto Power Off Function .................................... 79

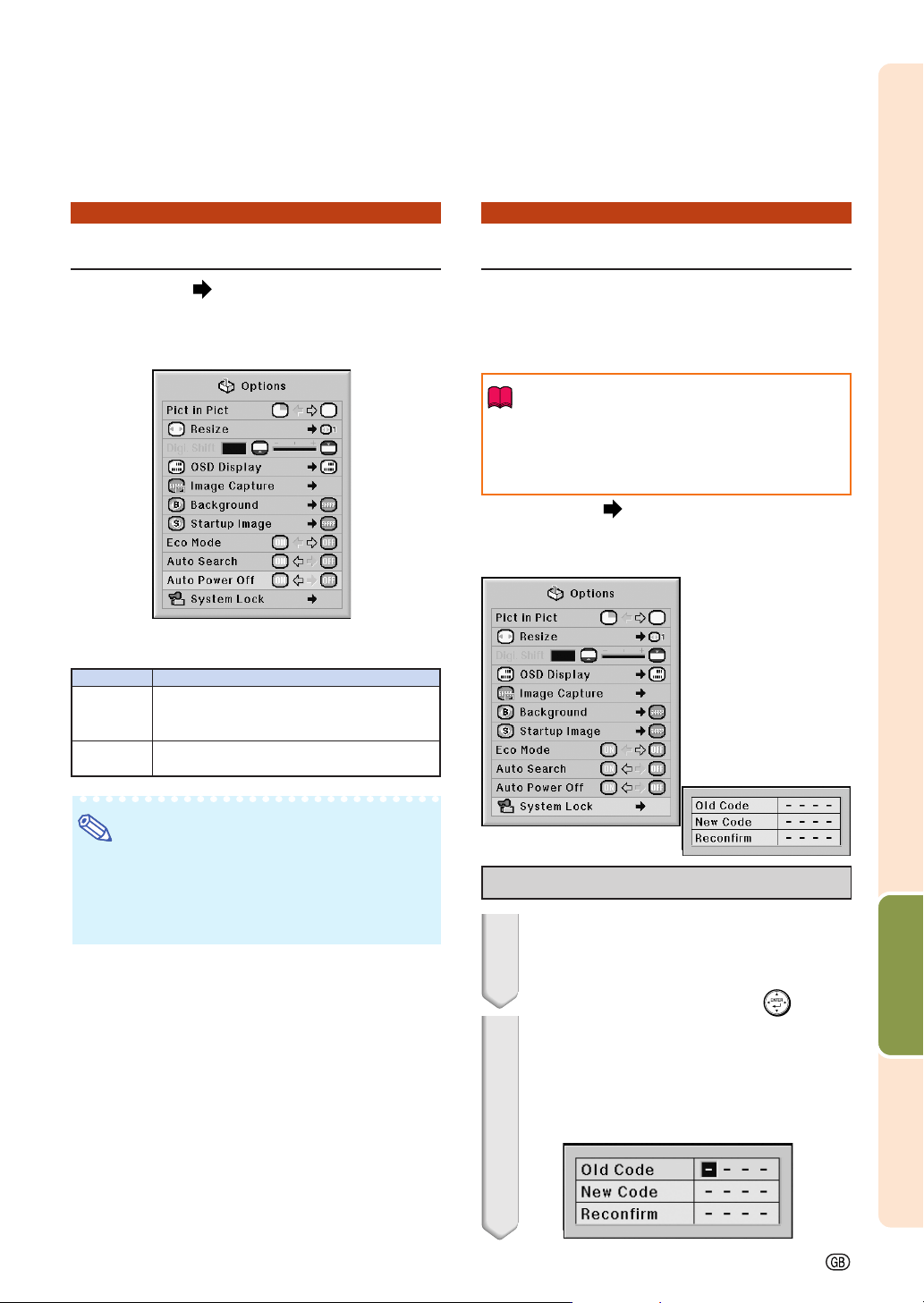

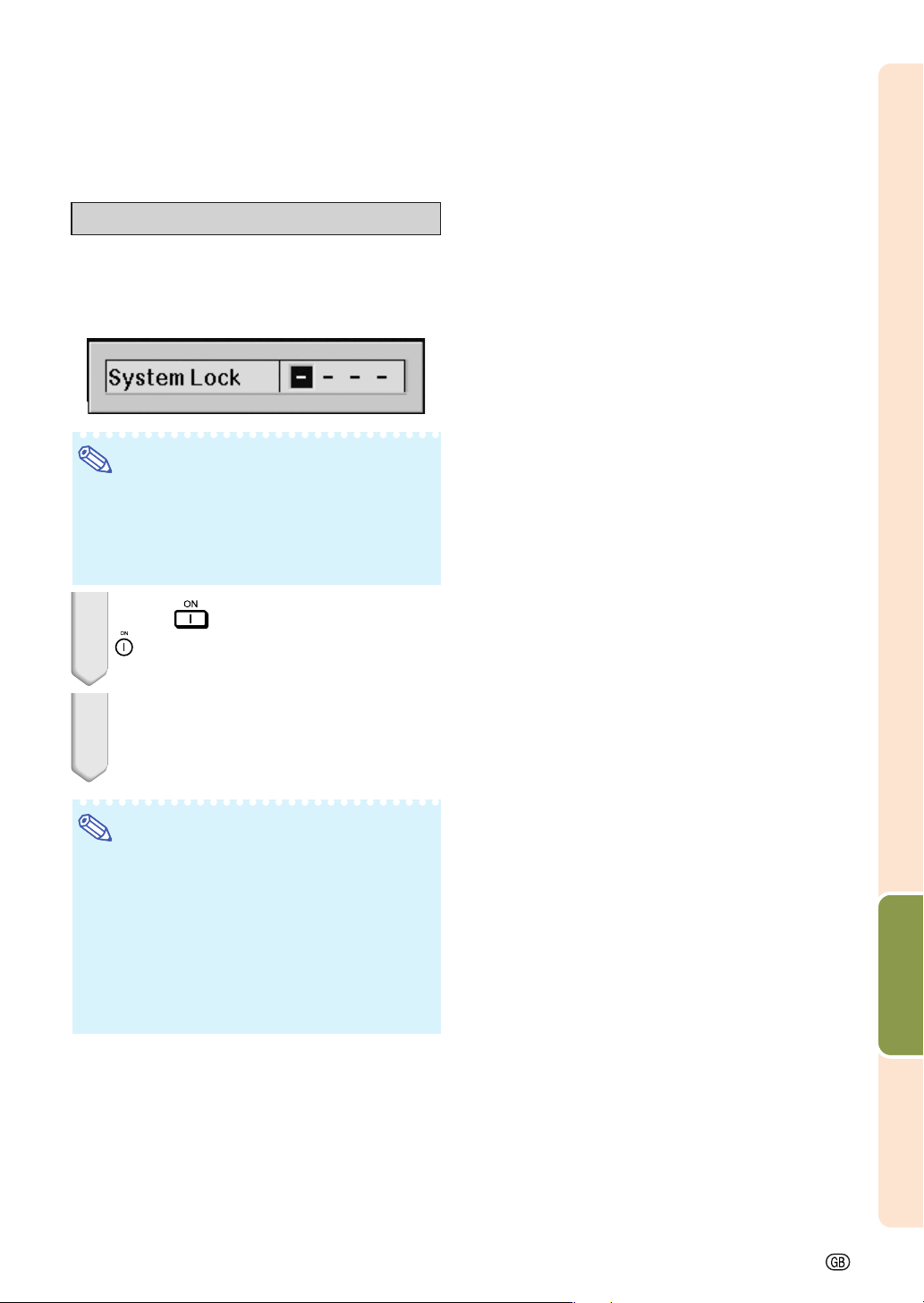

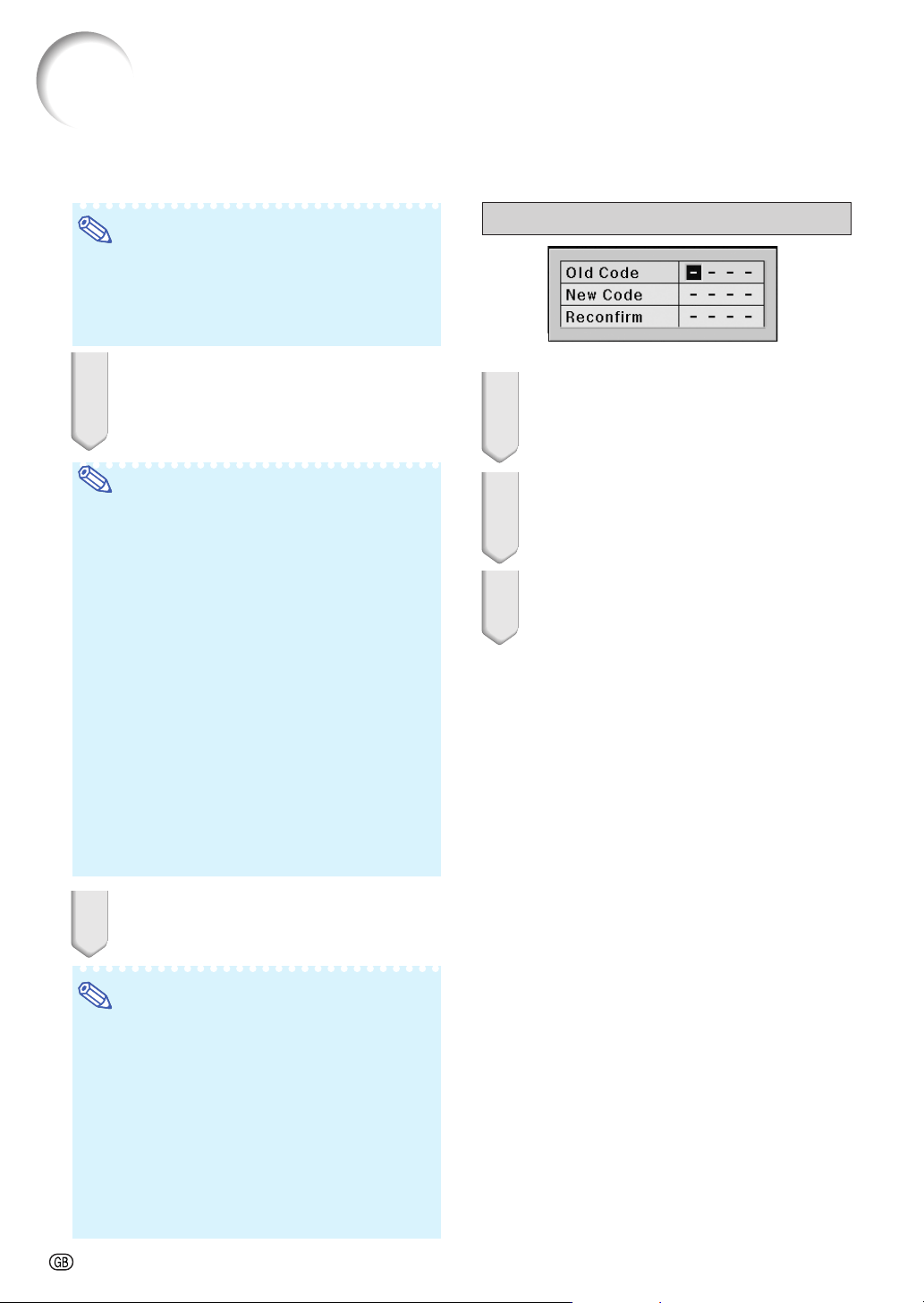

System Lock Function ....................................... 79
Helpful Functions Set during Installation
(“Options (2)” menu) .............................. 82

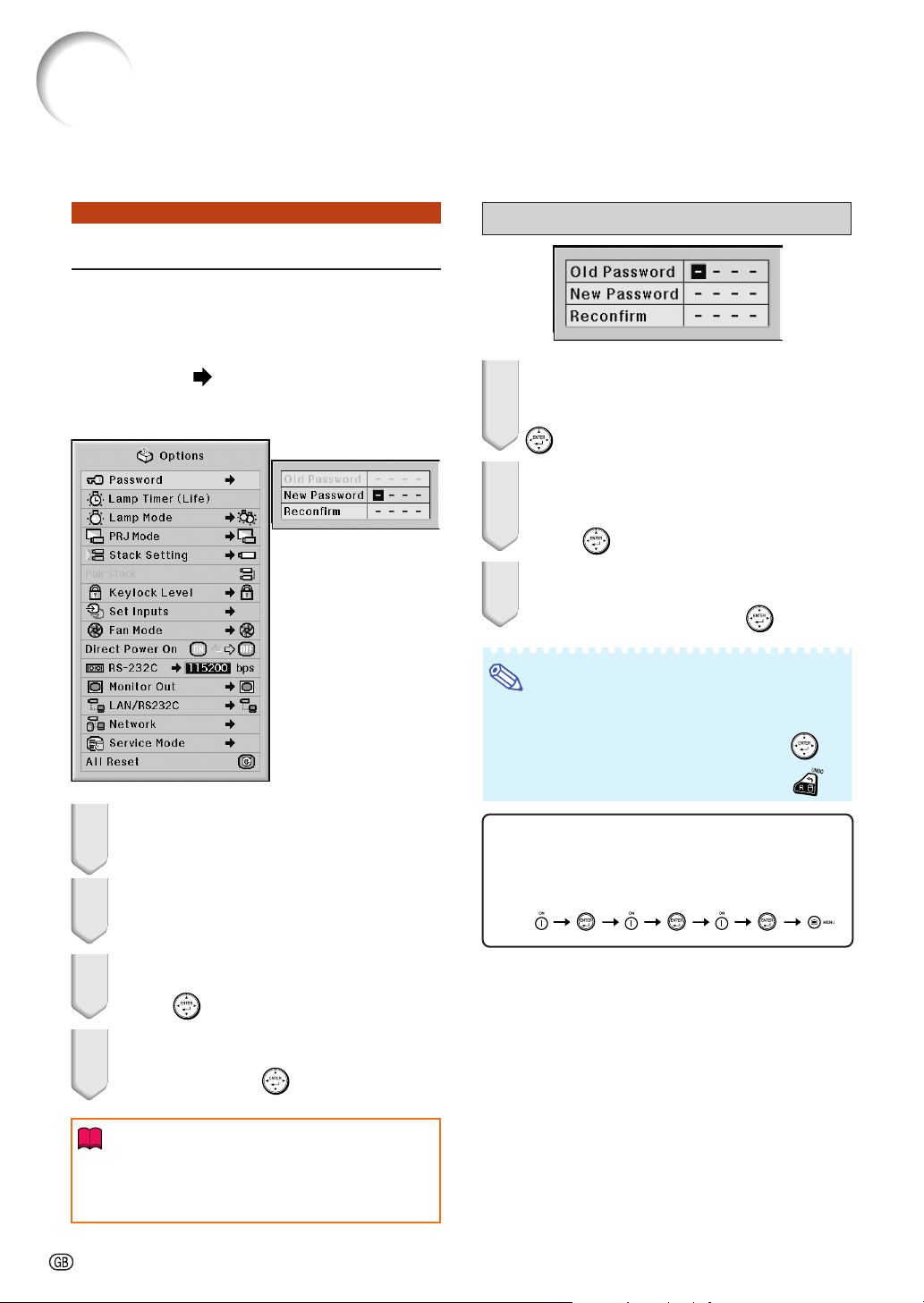

Setting a Password ............................................ 82

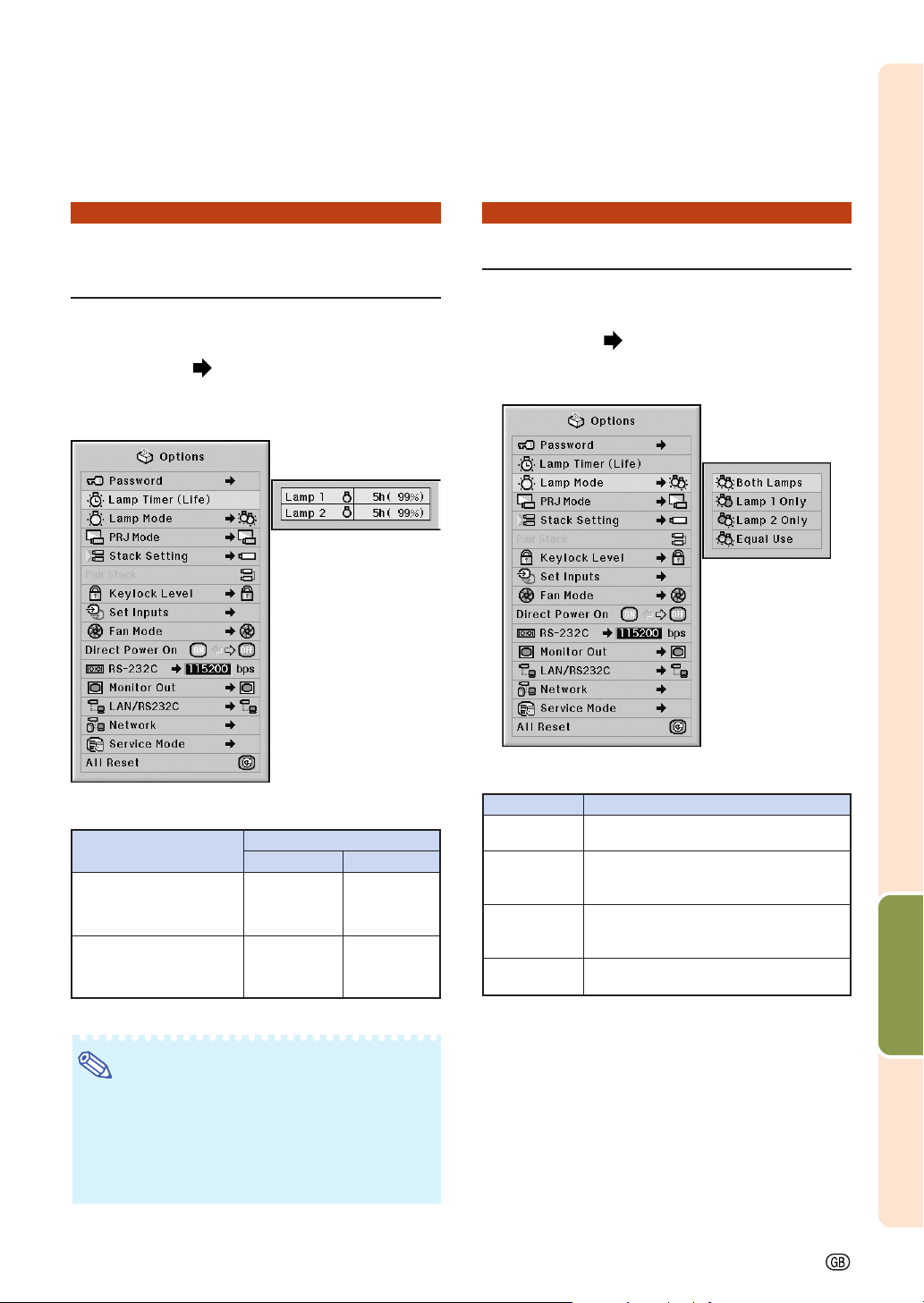

Checking the Lamp Life Status ......................... 83
Setting the Lamp Mode ..................................... 83

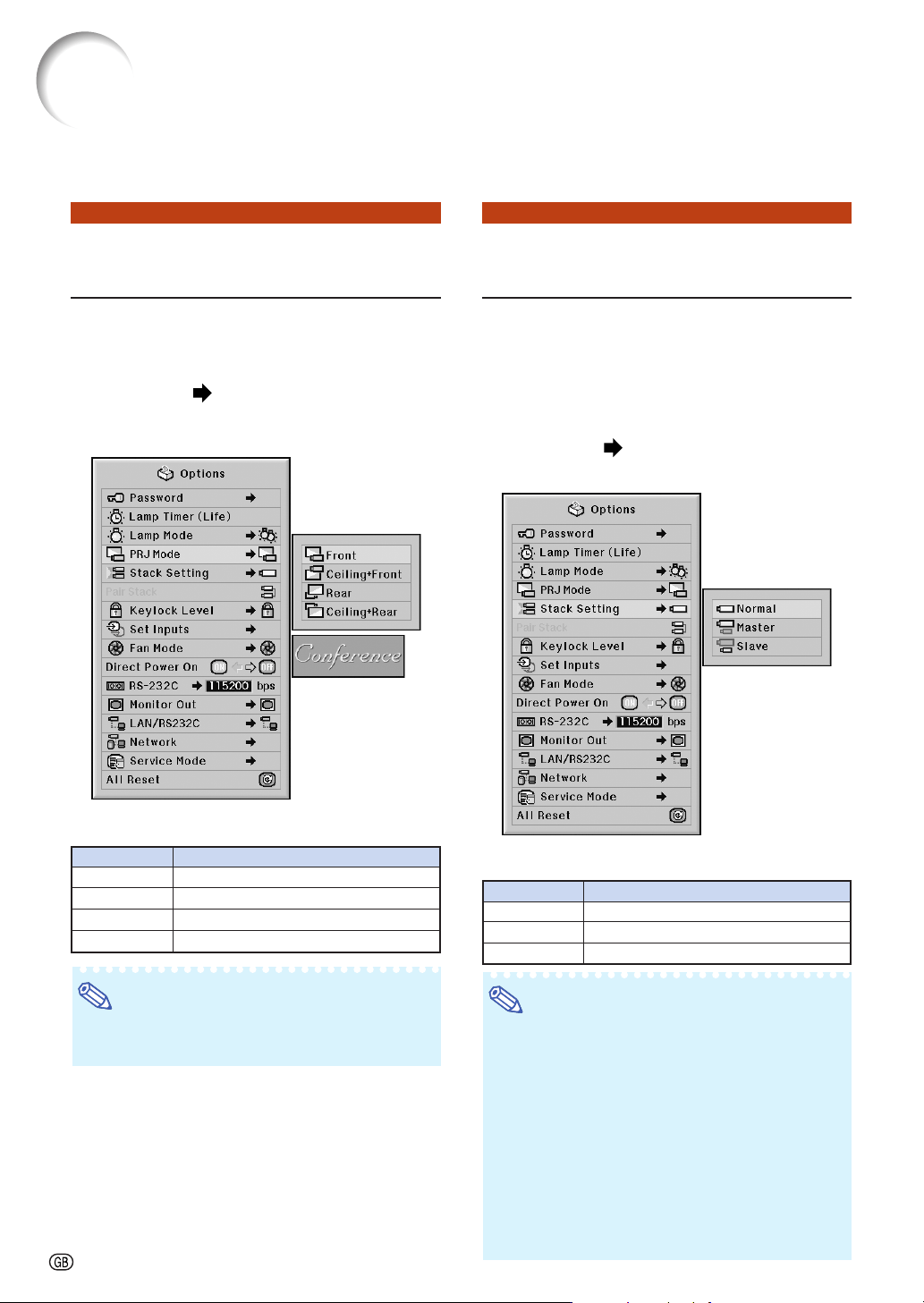

Reversing/Inverting Projected Images .............. 84
Controlling Multiple Projectors with the One
Remote Control ........................................... 84
Shortcut to Make Projector Stack Settings ........ 85

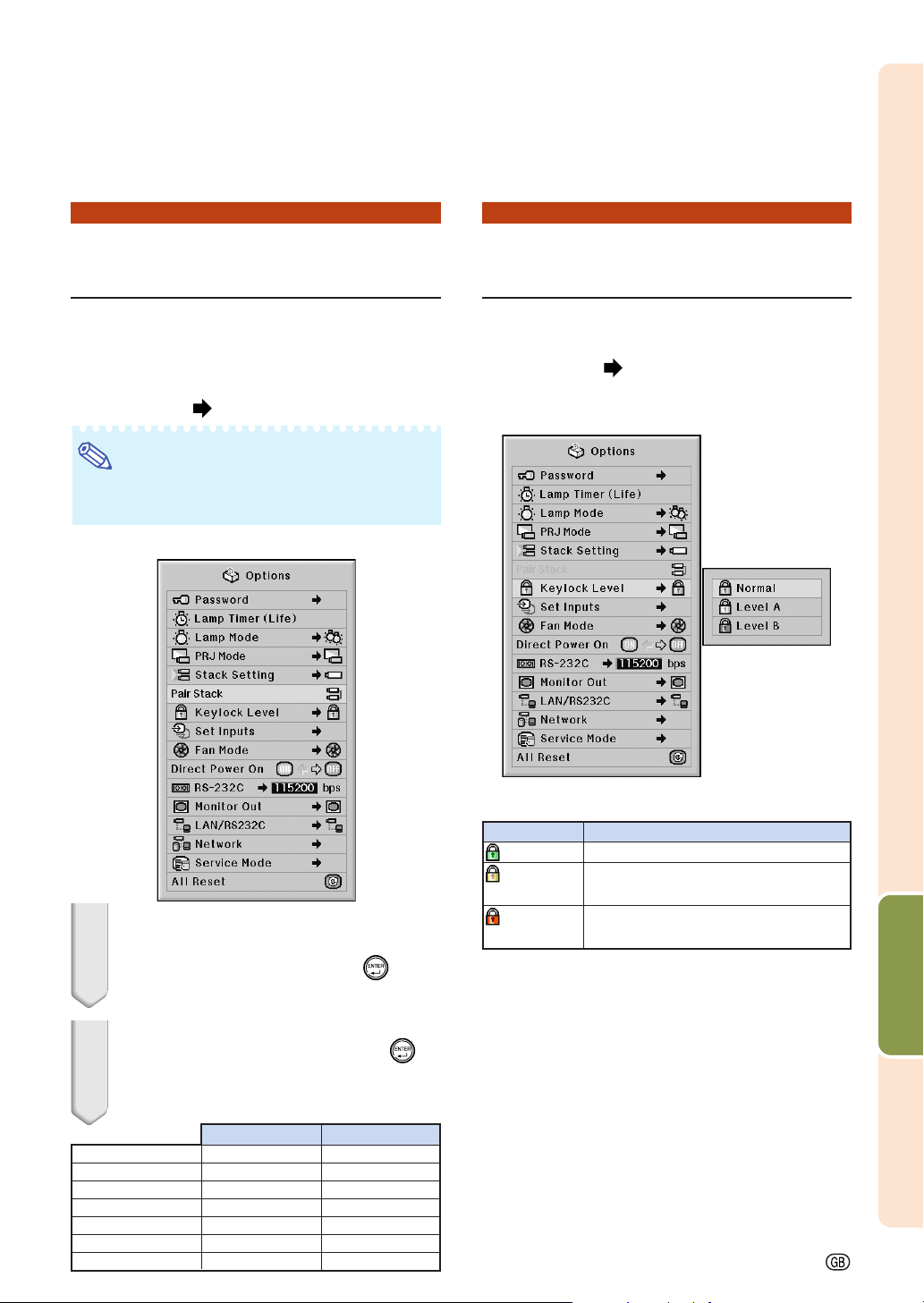

Locking the Operation Buttons on the Projector ...
85

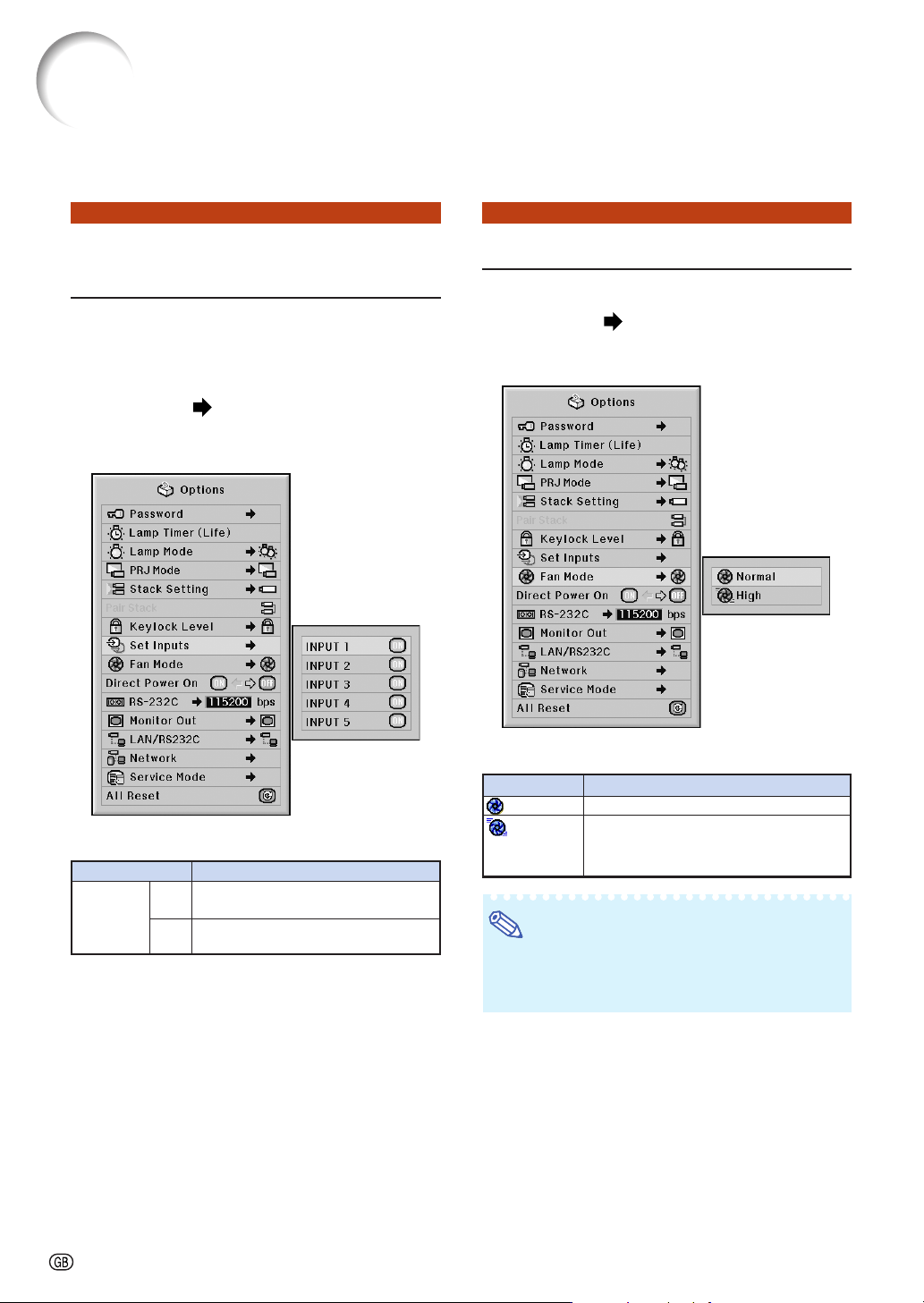

Bypassing Unused Input Selections ................. 86
Selecting the Fan Mode ....................................... 86
Direct Power On Function .................................... 87

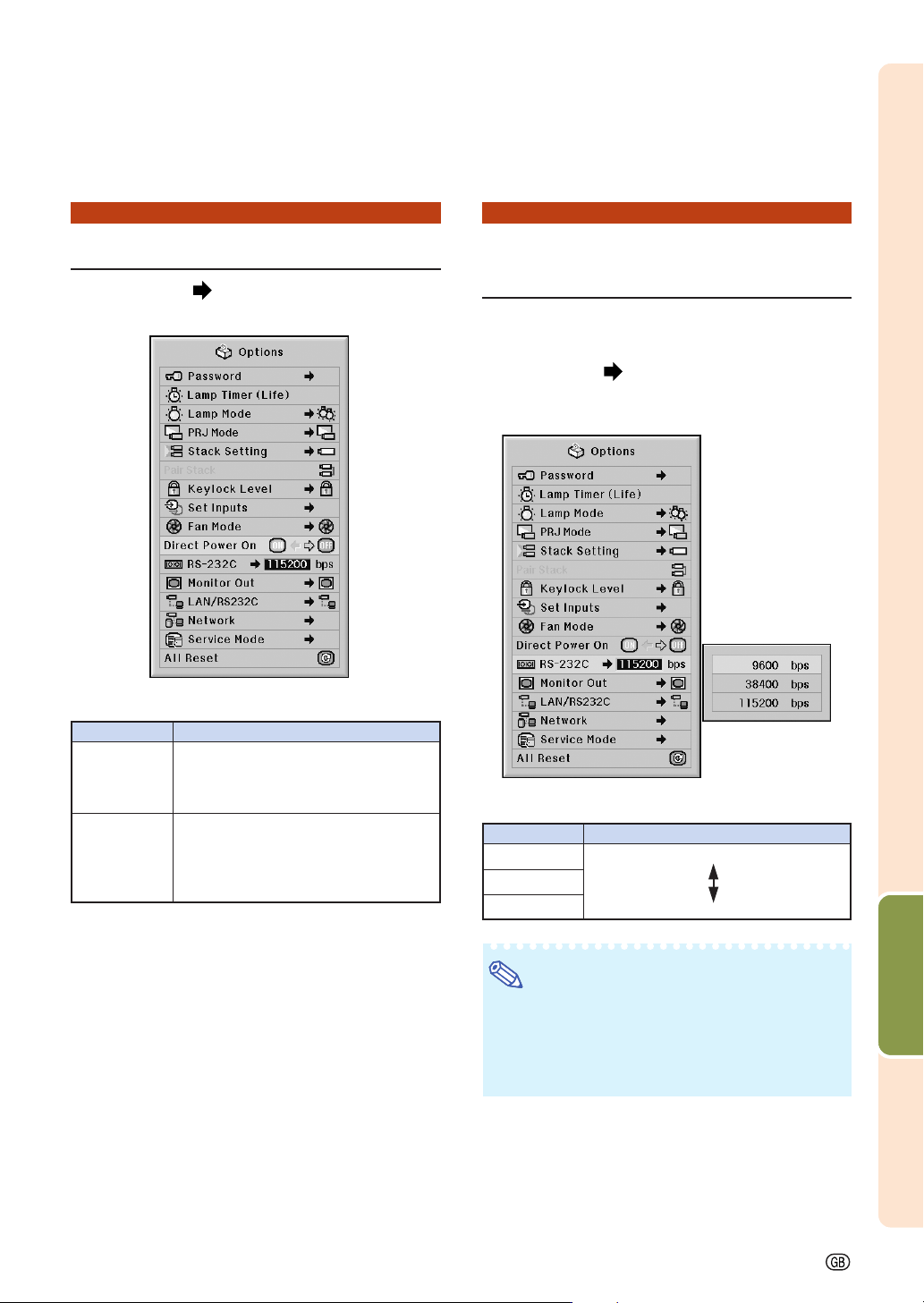

Selecting the Transmission Speed (RS-232C)
....... 87

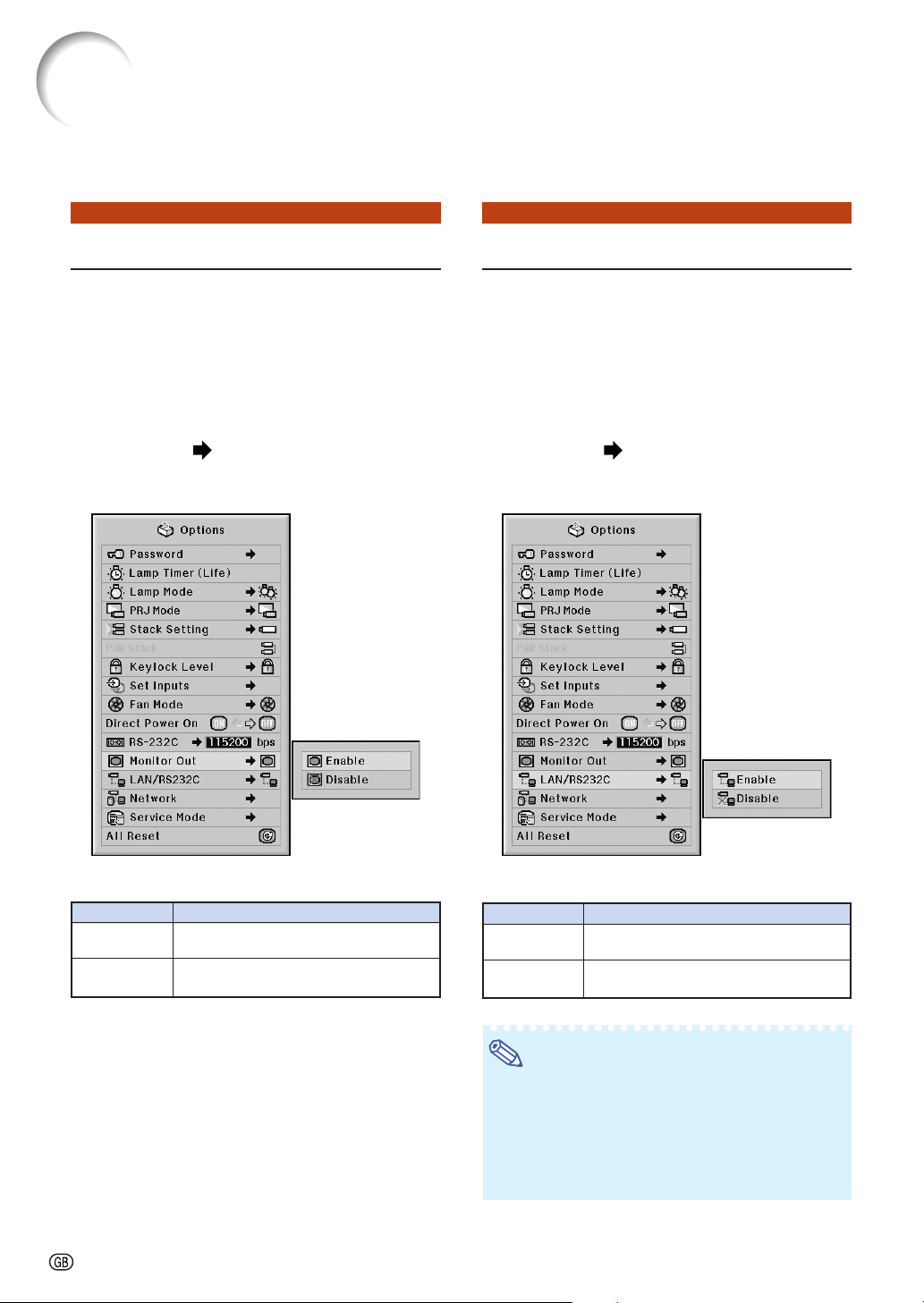

Monitor Output Settings ..................................... 88
LAN/RS232C Setting ......................................... 88

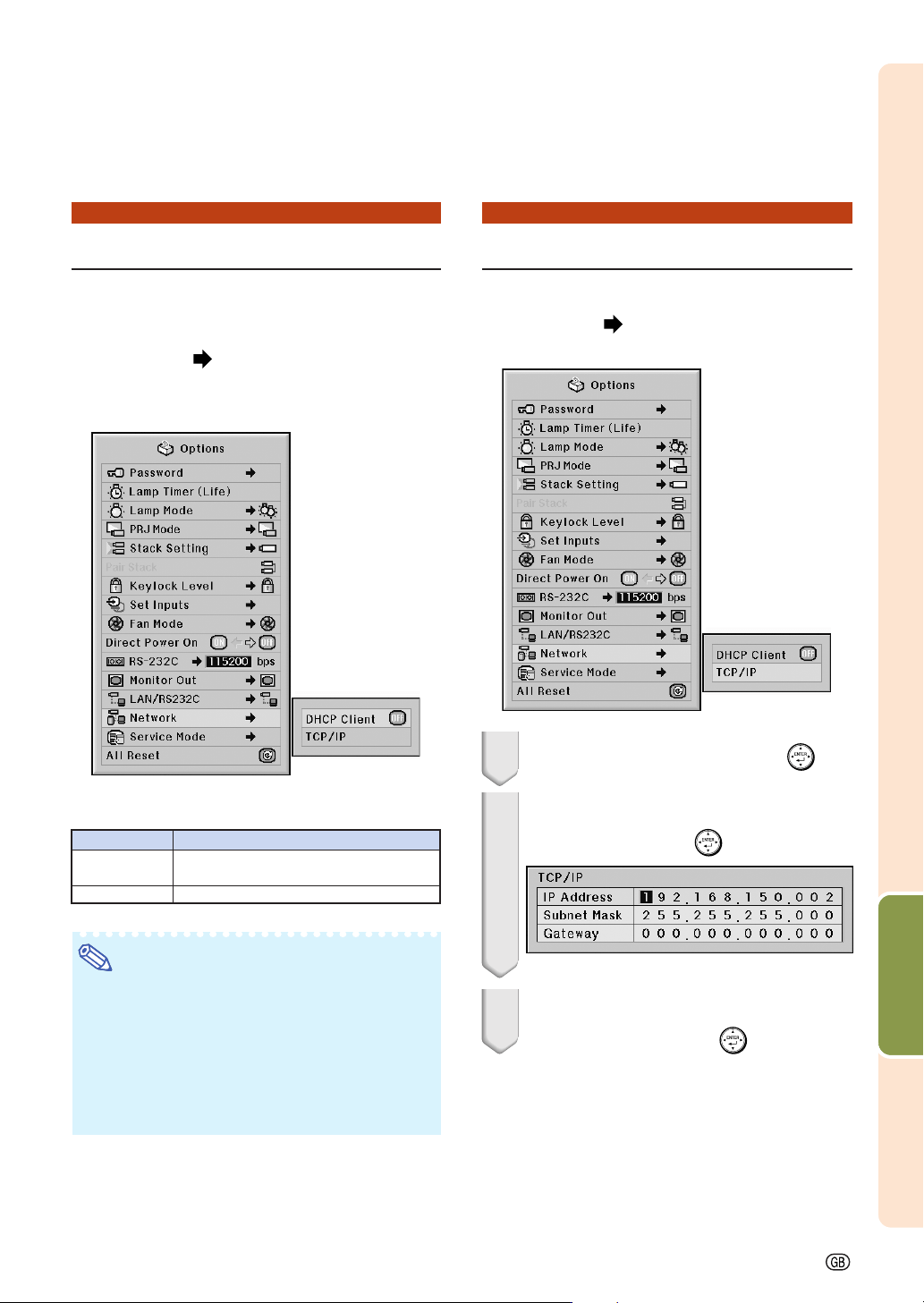

DHCP Client Setting .......................................... 89
TCP/IP Setting ................................................... 89

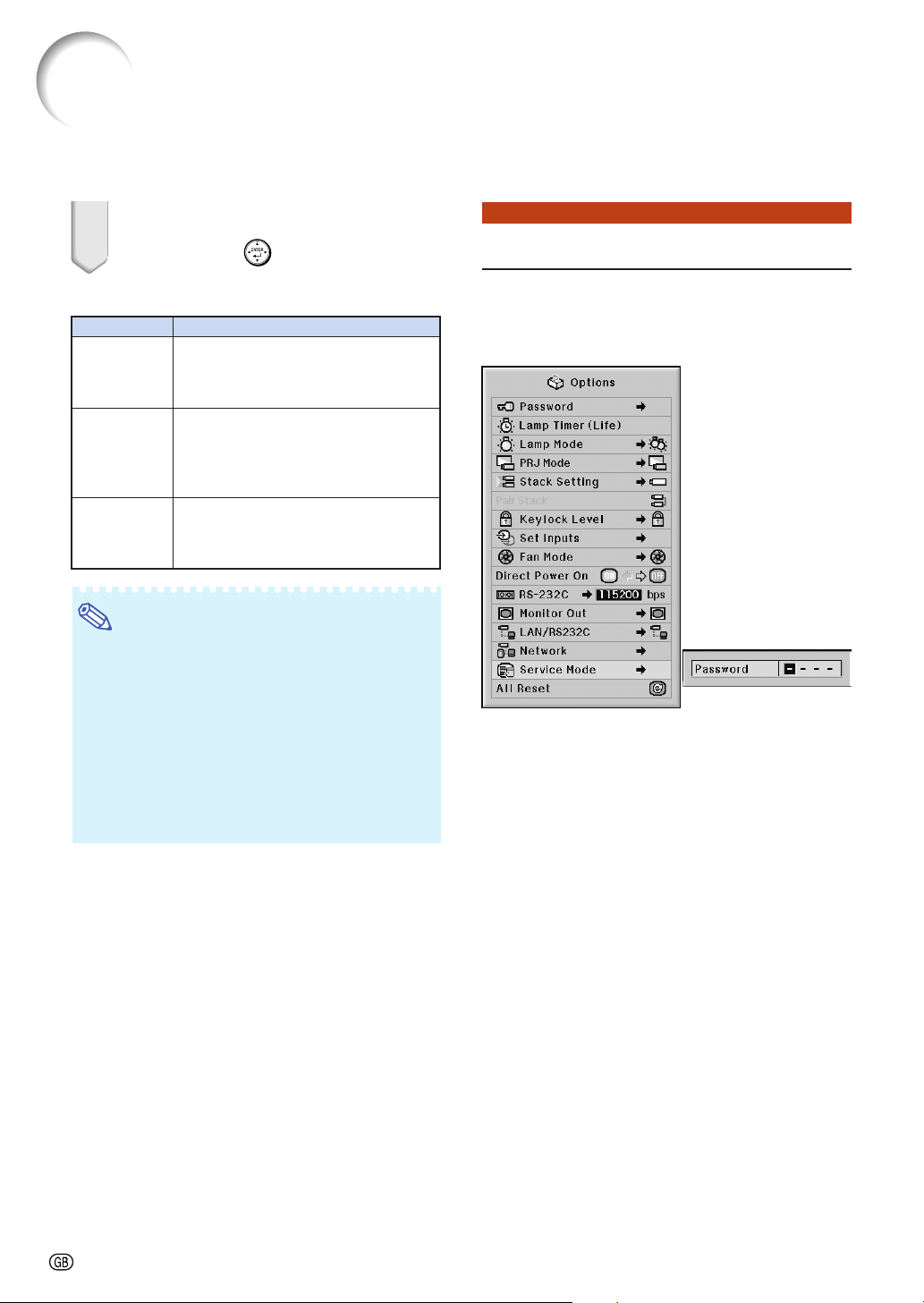

Service Mode .................................................... 90

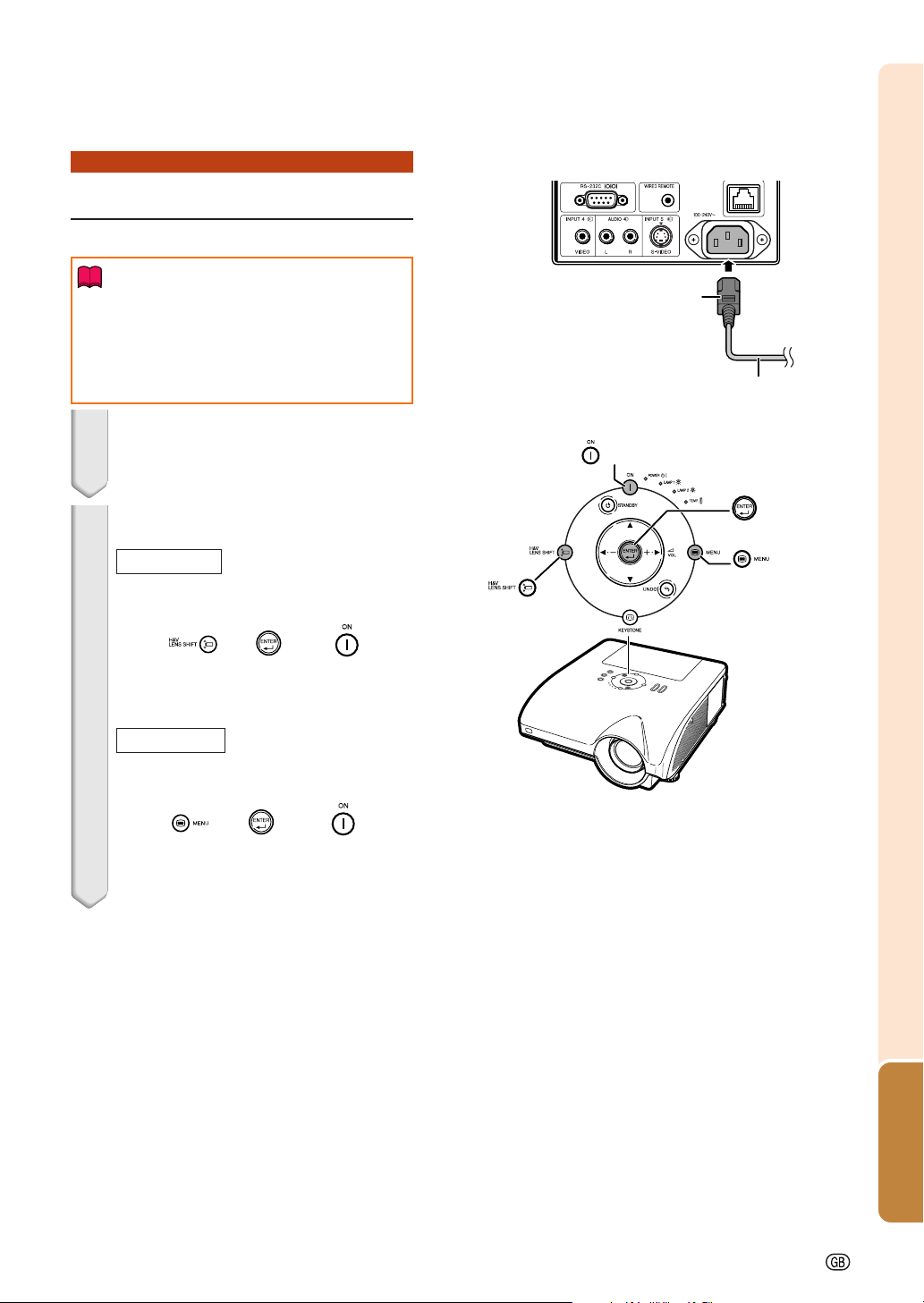

Returning to the Default Settings ....................... 91
Using the Other Menus (“Language” and
“Status” menus) ..................................... 92

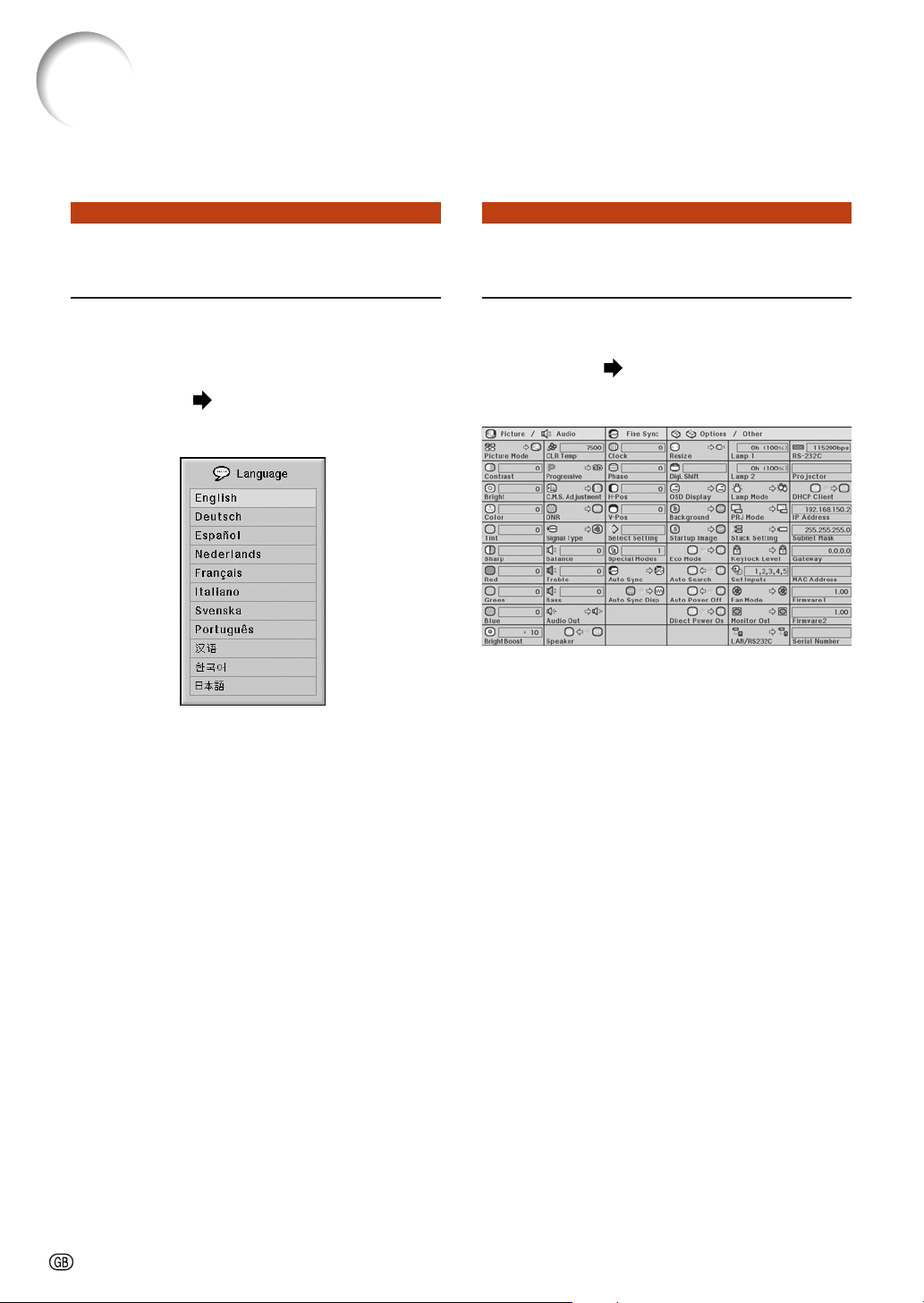

Selecting the On-screen Display Language ....... 92

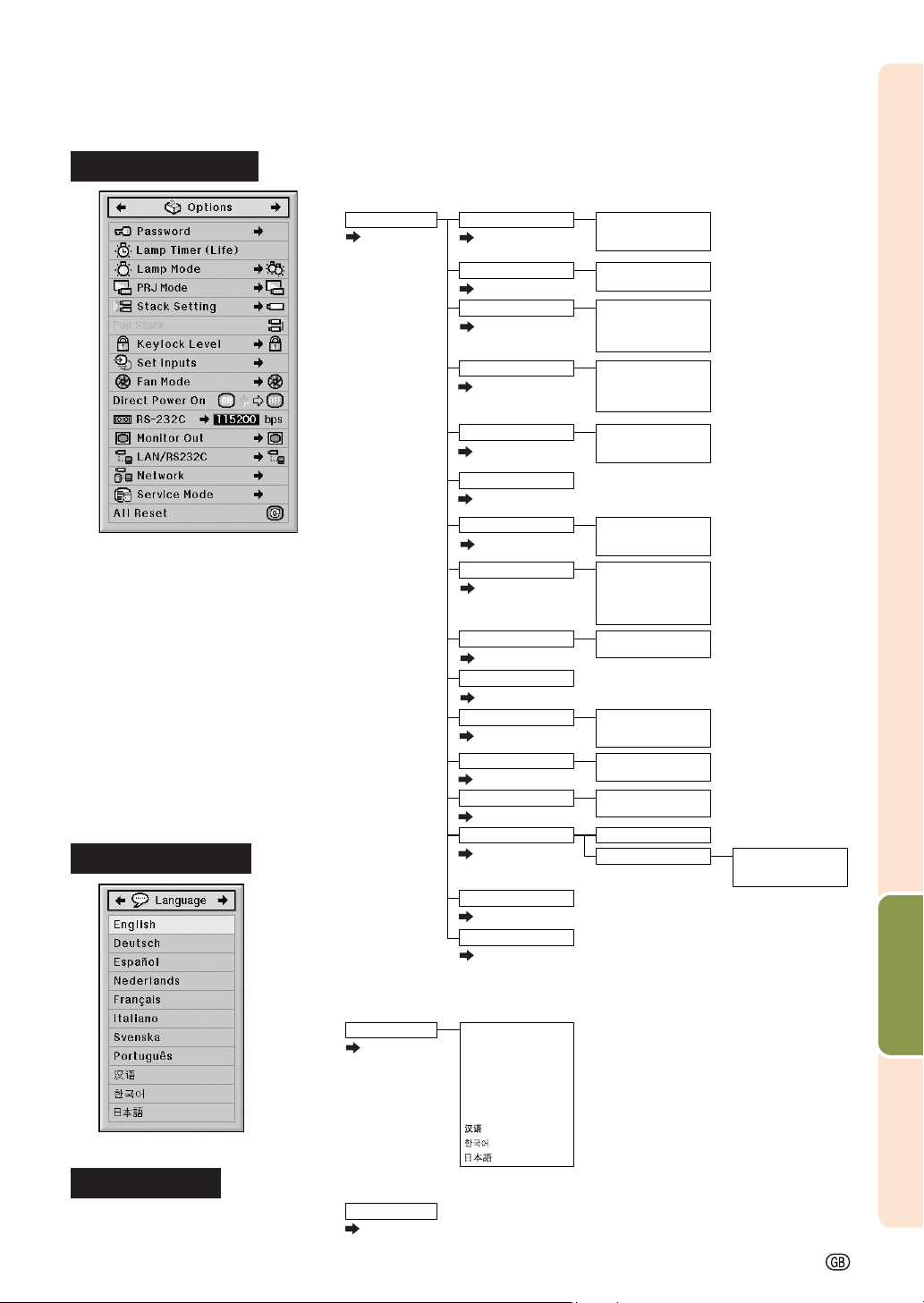

Overview of All Menu Settings ........................... 92

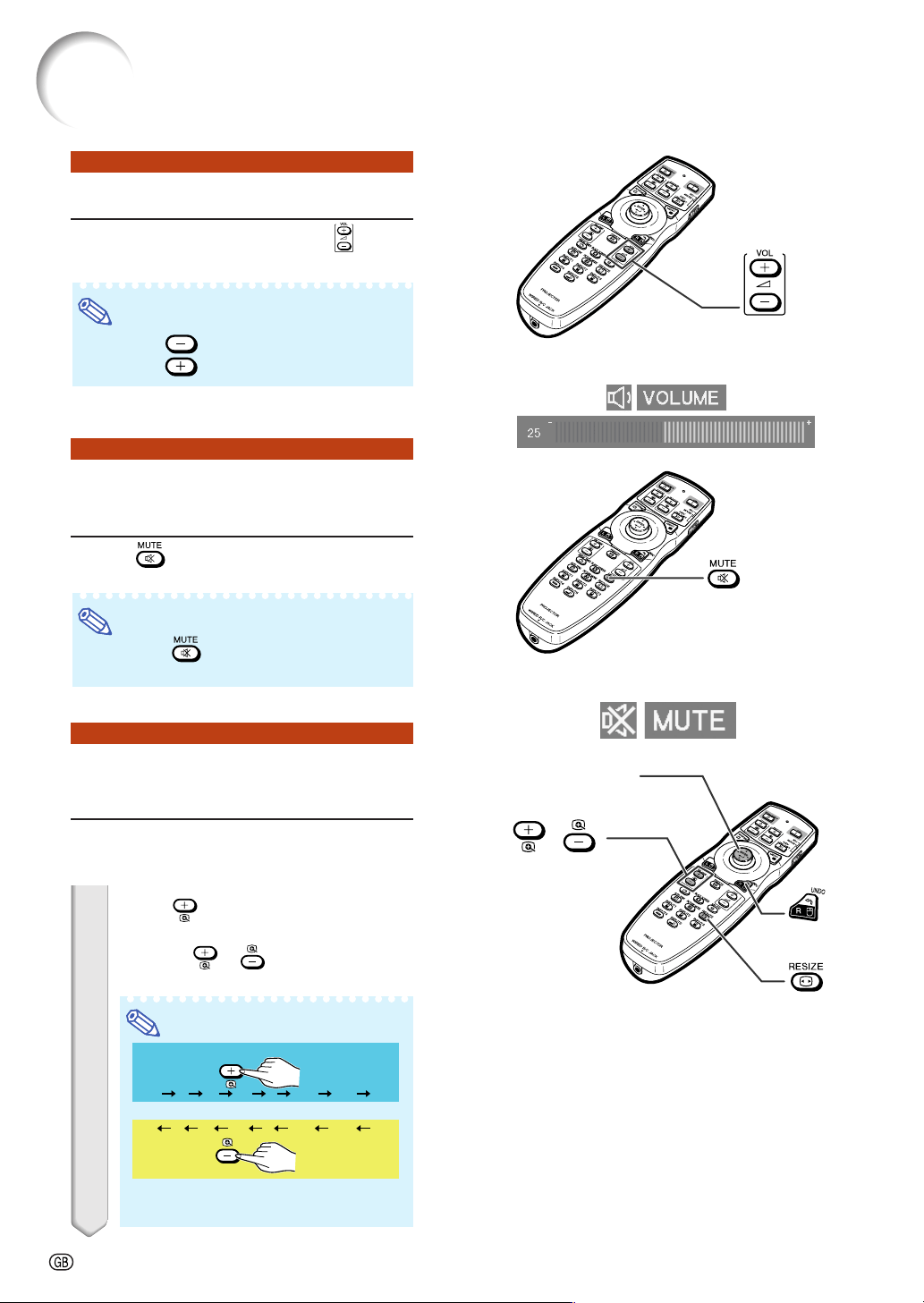

Adjusting the Volume ......................................... 46
Turning Off the Sound Temporarily .................... 46
Displaying an Enlarged Portion of an Image
....... 46

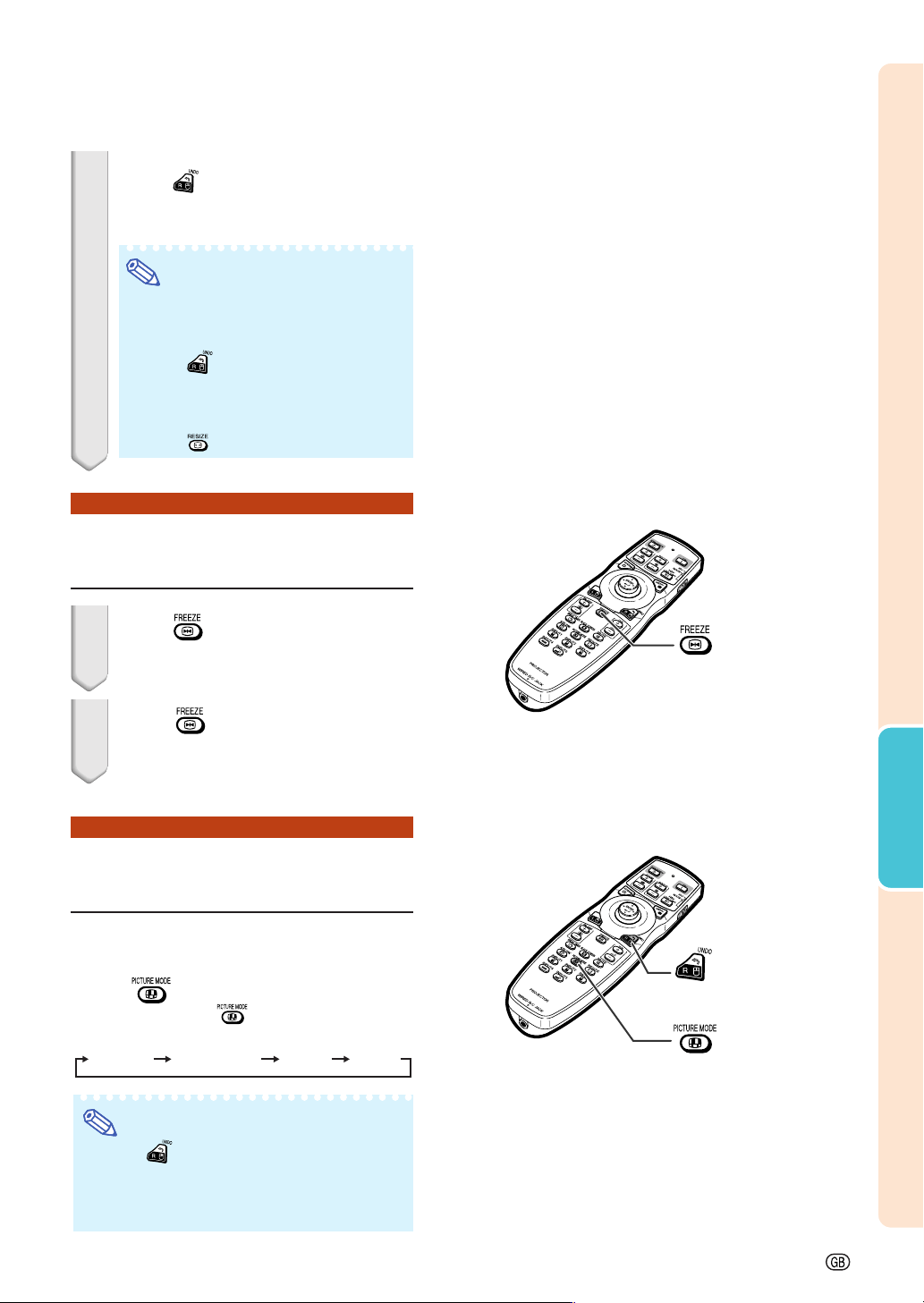

Freezing a Moving Image .................................. 47
Selecting the Picture Mode ............................... 47

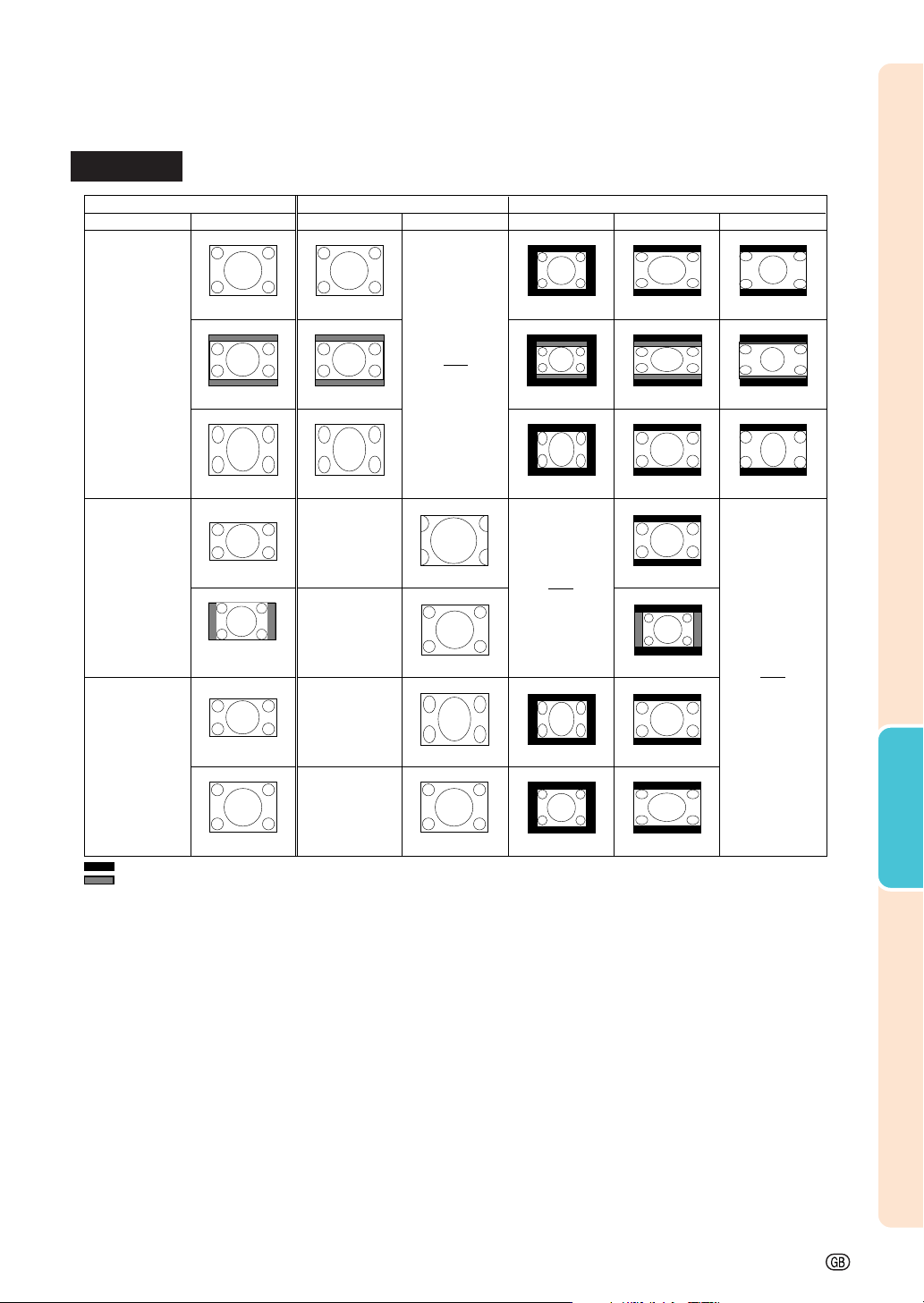

Resize Mode ...................................................... 48

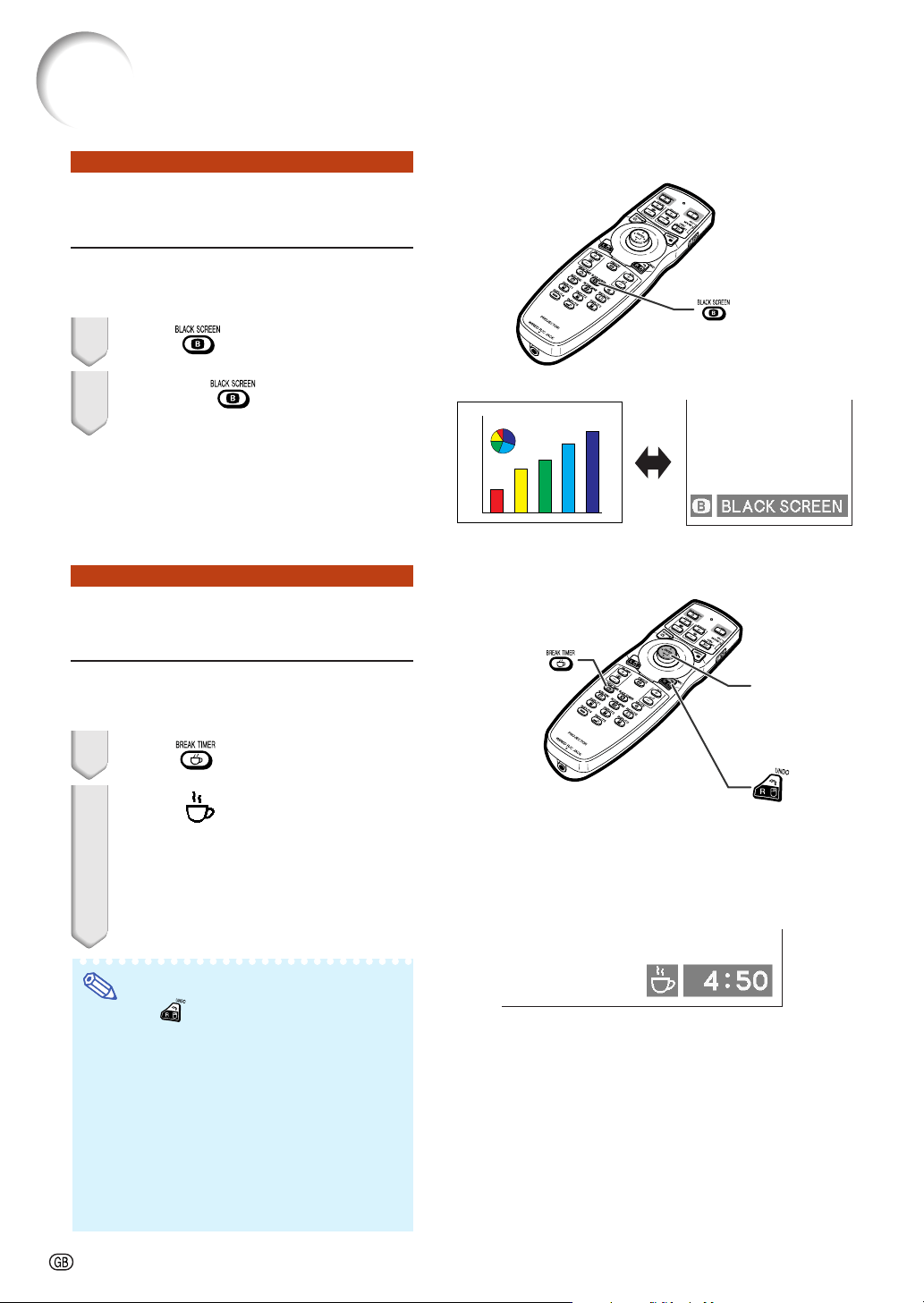

Displaying the Black Screen… .......................... 50
Displaying and Setting the Break Timer ............ 50
Turning the Projector On/Off ....................... 37
Image Projection .......................................... 38
Shifting the Lens… ............................................ 38
Using the Adjustment Feet ................................ 39
Adjusting the Focus ........................................... 40
Adjusting the Projected Image Size .................. 40

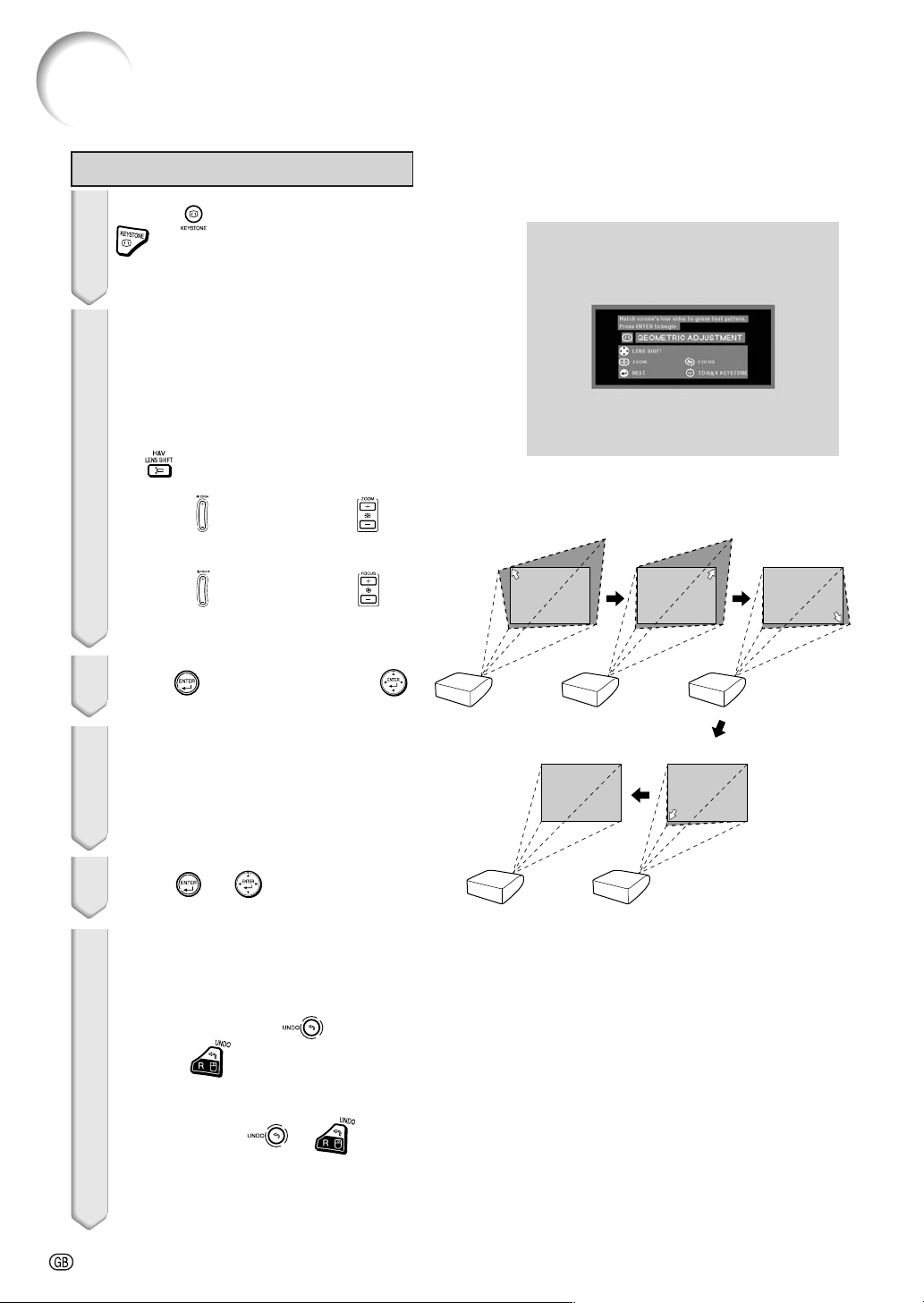

Correcting Trapezoidal Distortion ...................... 41

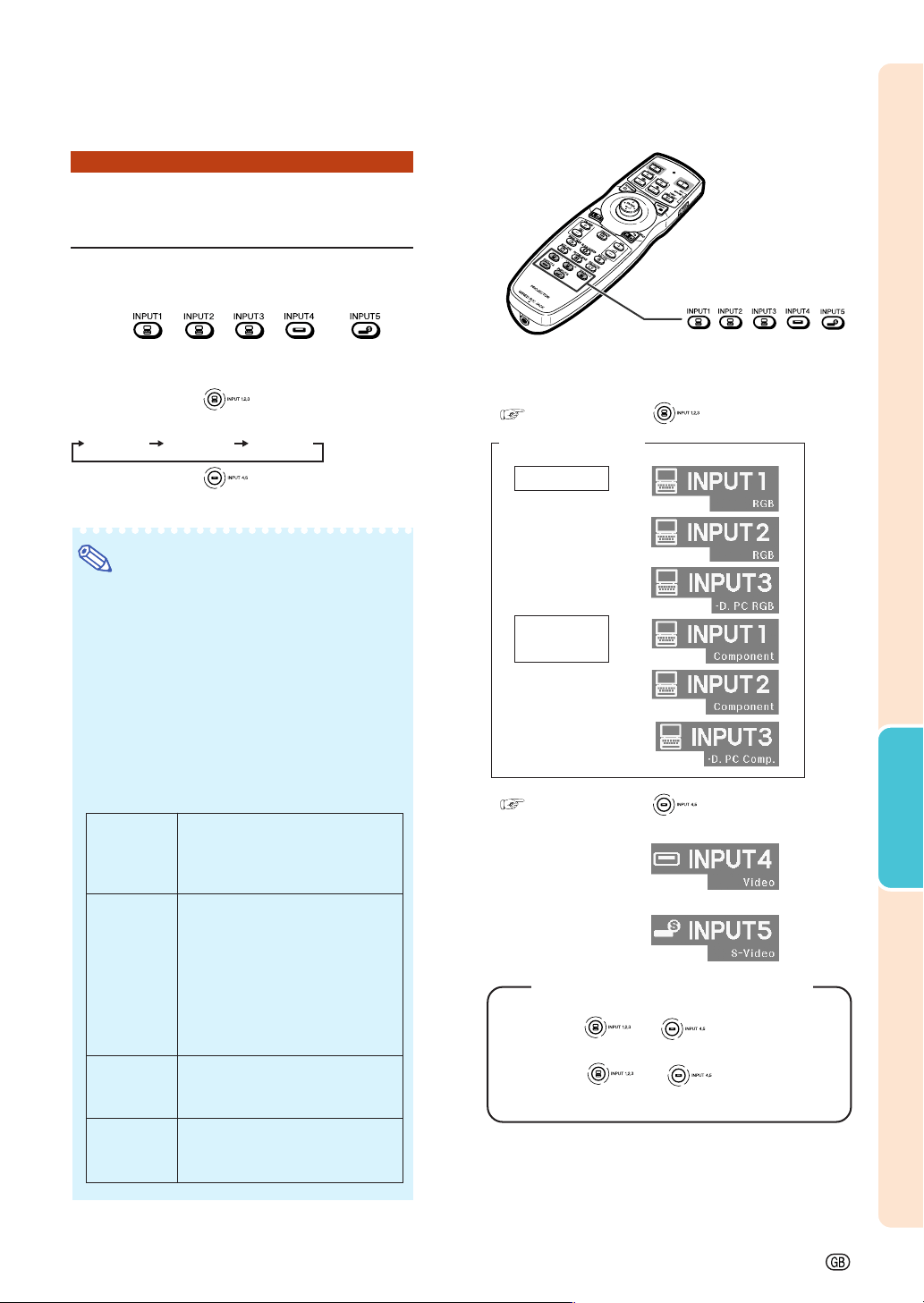

Switching the Input Mode .................................. 45
Useful Features
Menu Items ................................................... 51
Using the Menu Screen ............................... 56
Menu Selections (Adjustments) ......................... 56
Menu Selections (Settings) ................................ 58
Picture Adjustment (“Picture” menu) ......... 60
Selecting the Picture Mode ............................... 60
Adjusting the Image .......................................... 60

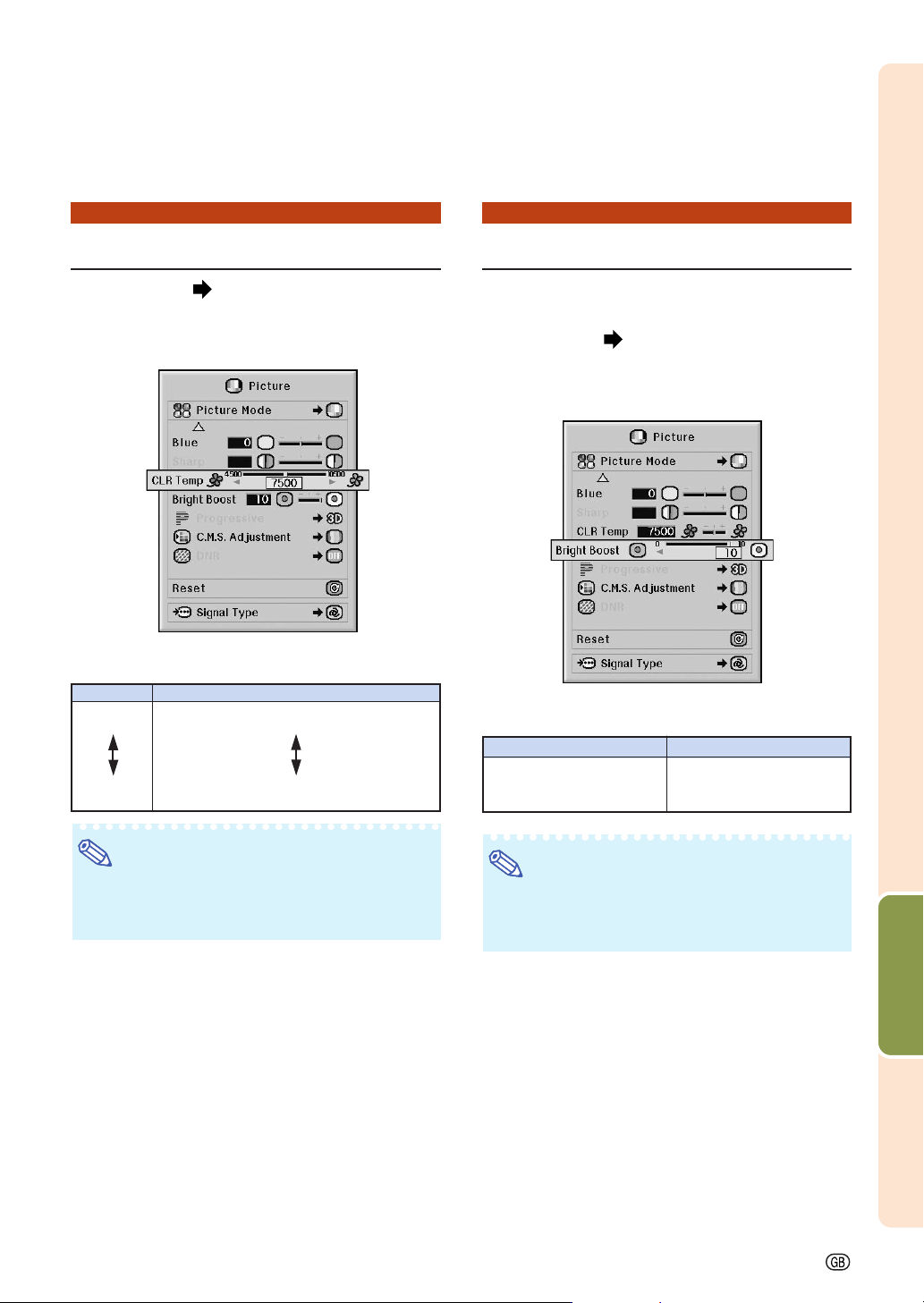

Adjusting the Color Temperature ....................... 61
Emphasizing the Contrast ................................. 61

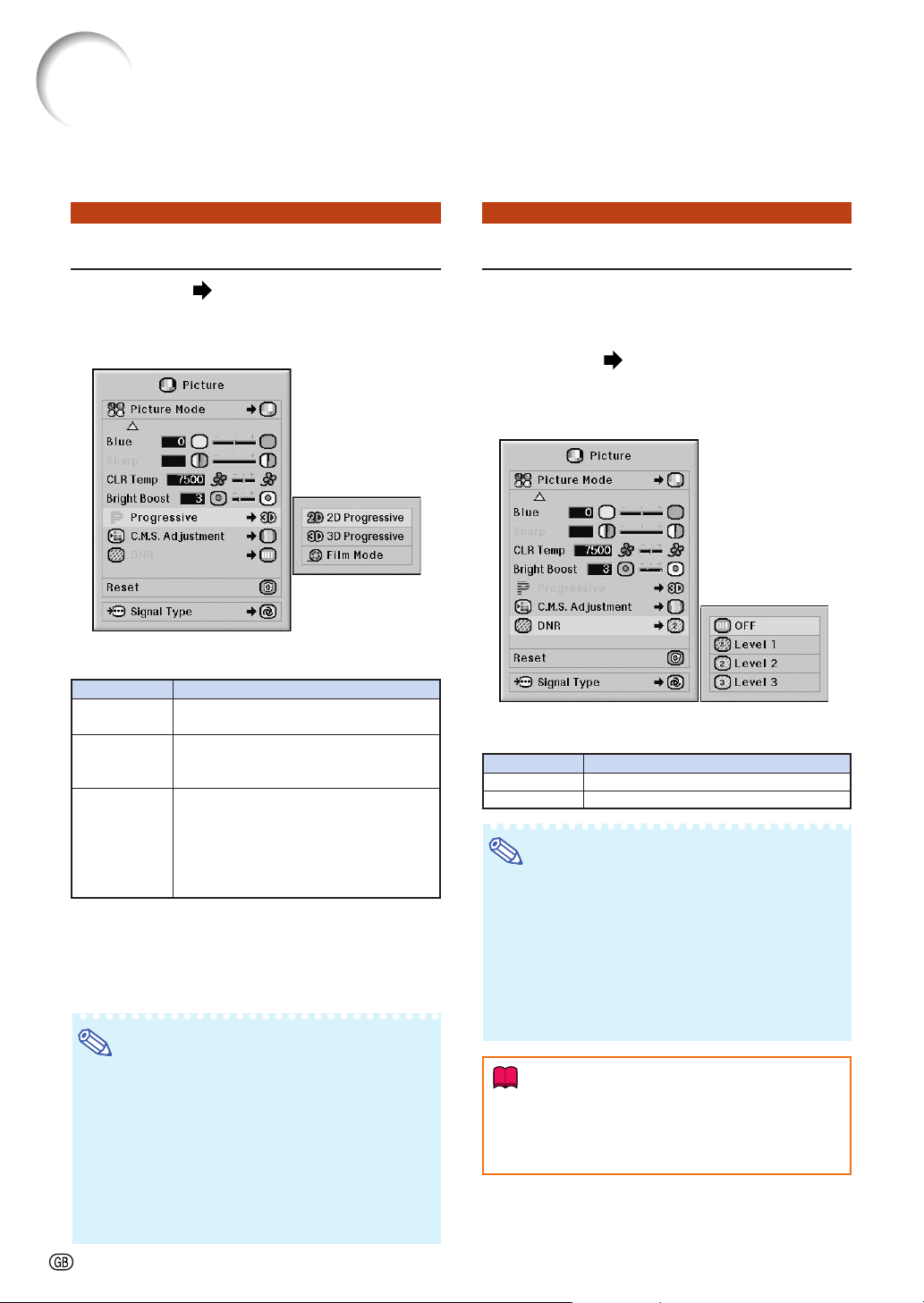

Selecting the Progressive Mode ........................ 62
Reducing Image Noise (DNR) ........................... 62
Signal Type Setting ............................................ 63
Color Management System
(“C. M. S.” menu) ..................................... 64
Selecting the Color Reproduction Mode ........... 64
Selecting the Target Color ................................. 64
Setting the Brightness of the Target Color ......... 65
Setting the Chromatic Value of the Target Color ...
65

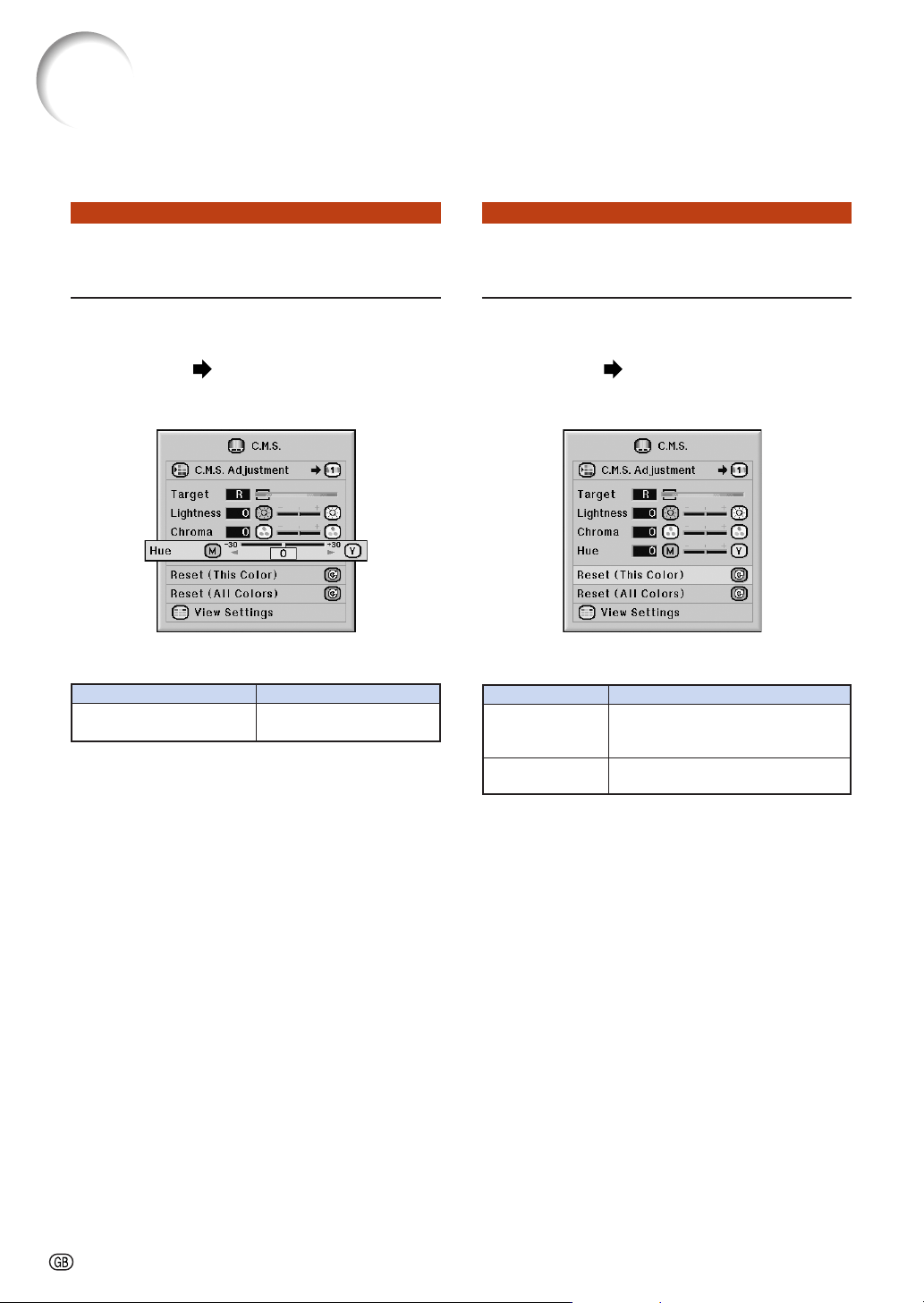

Setting the Hue of the Target Color ................... 66
Resetting User-defined Color Settings .............. 66

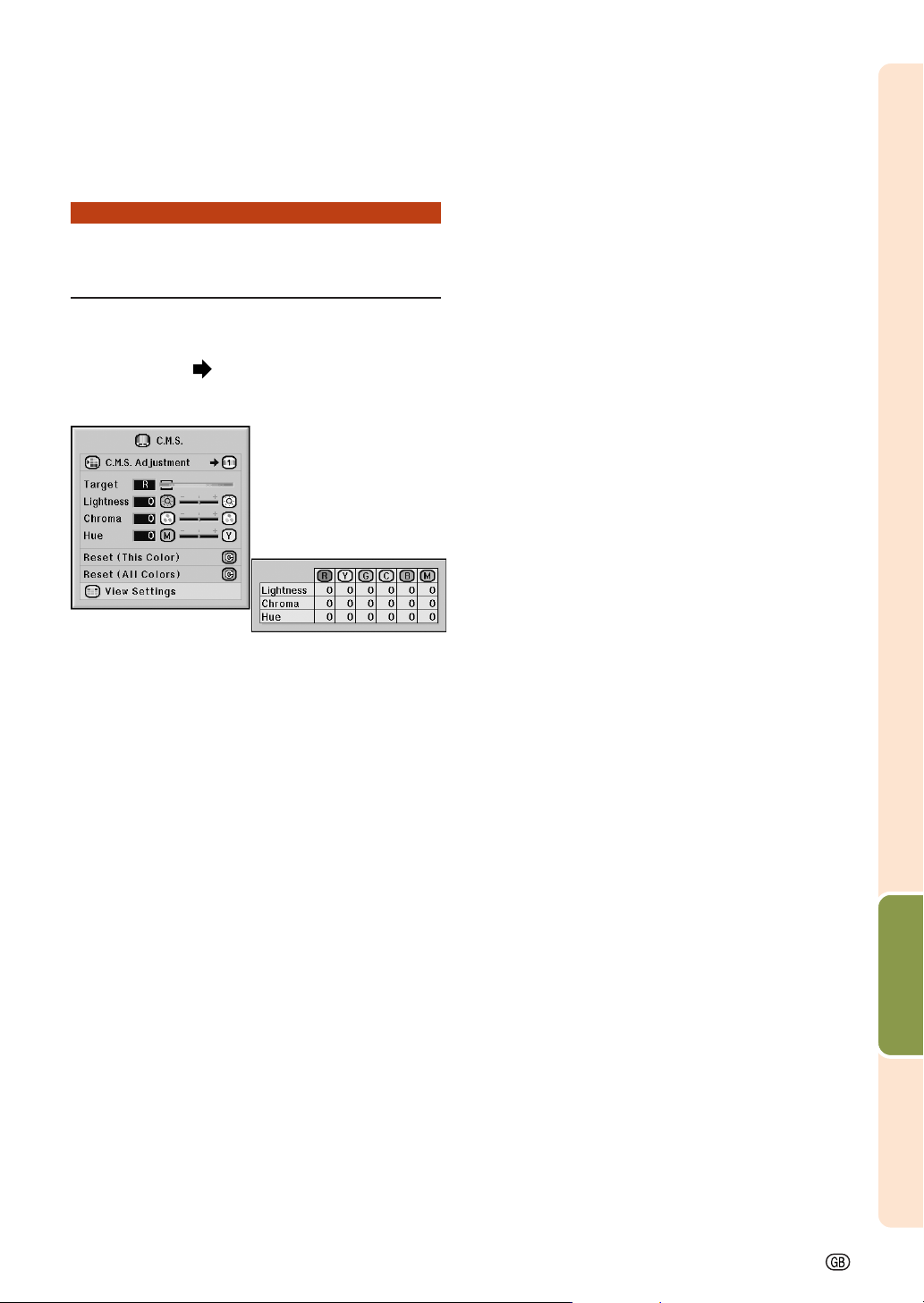

Overview of All Color Settings ........................... 67
Computer Image Adjustment
(“Fine Sync” menu) ................................ 68
Adjusting the Computer Image ......................... 68
Saving Adjustment Settings… ........................... 68
Selecting Adjustment Settings… ....................... 69
Special Mode Setting ........................................ 69
Checking the Input Signal ................................. 70
Auto Sync Adjustment ....................................... 70
Auto Sync Display Function .............................. 71
Audio Adjustment (“Audio” menu) ............. 72

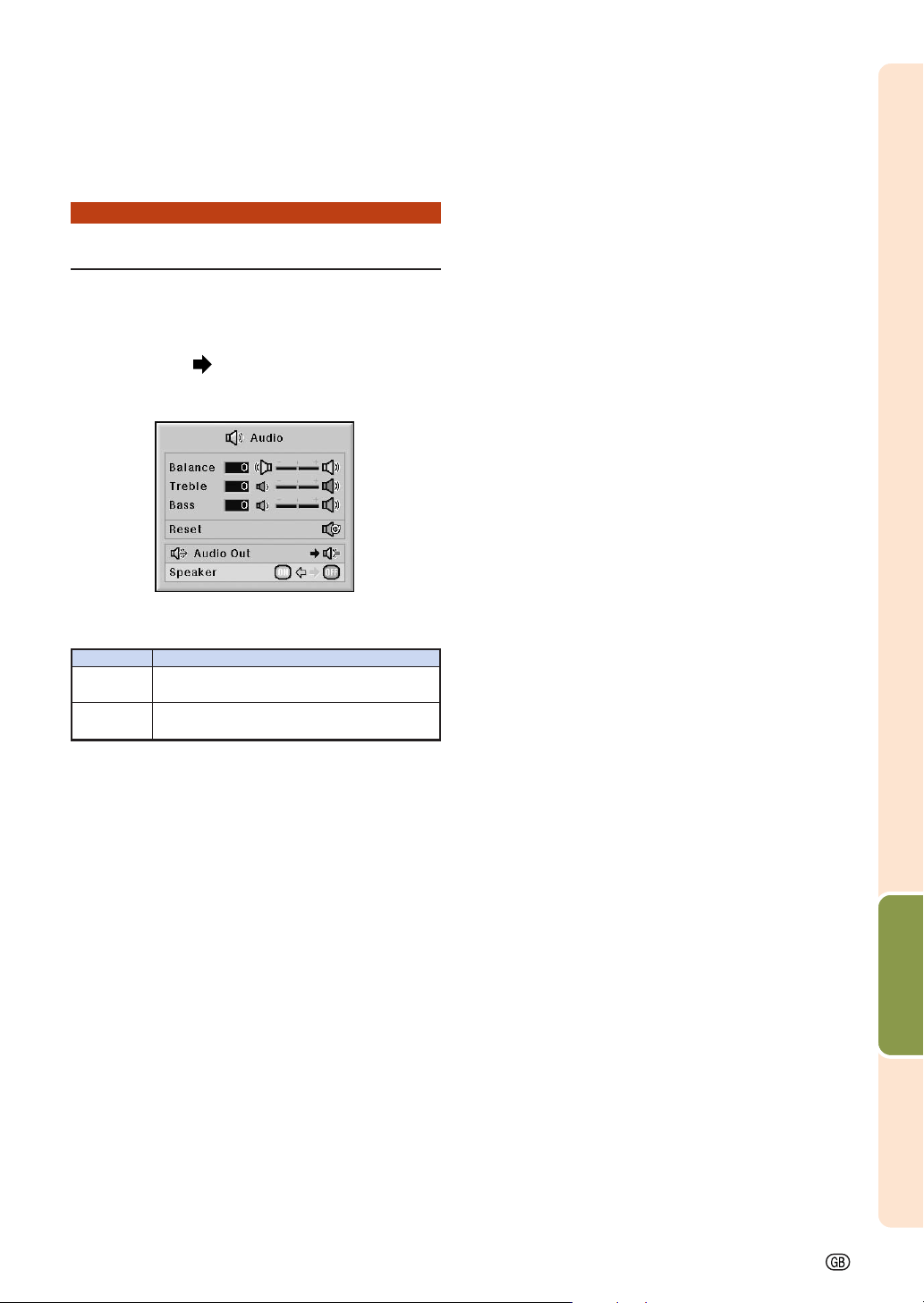

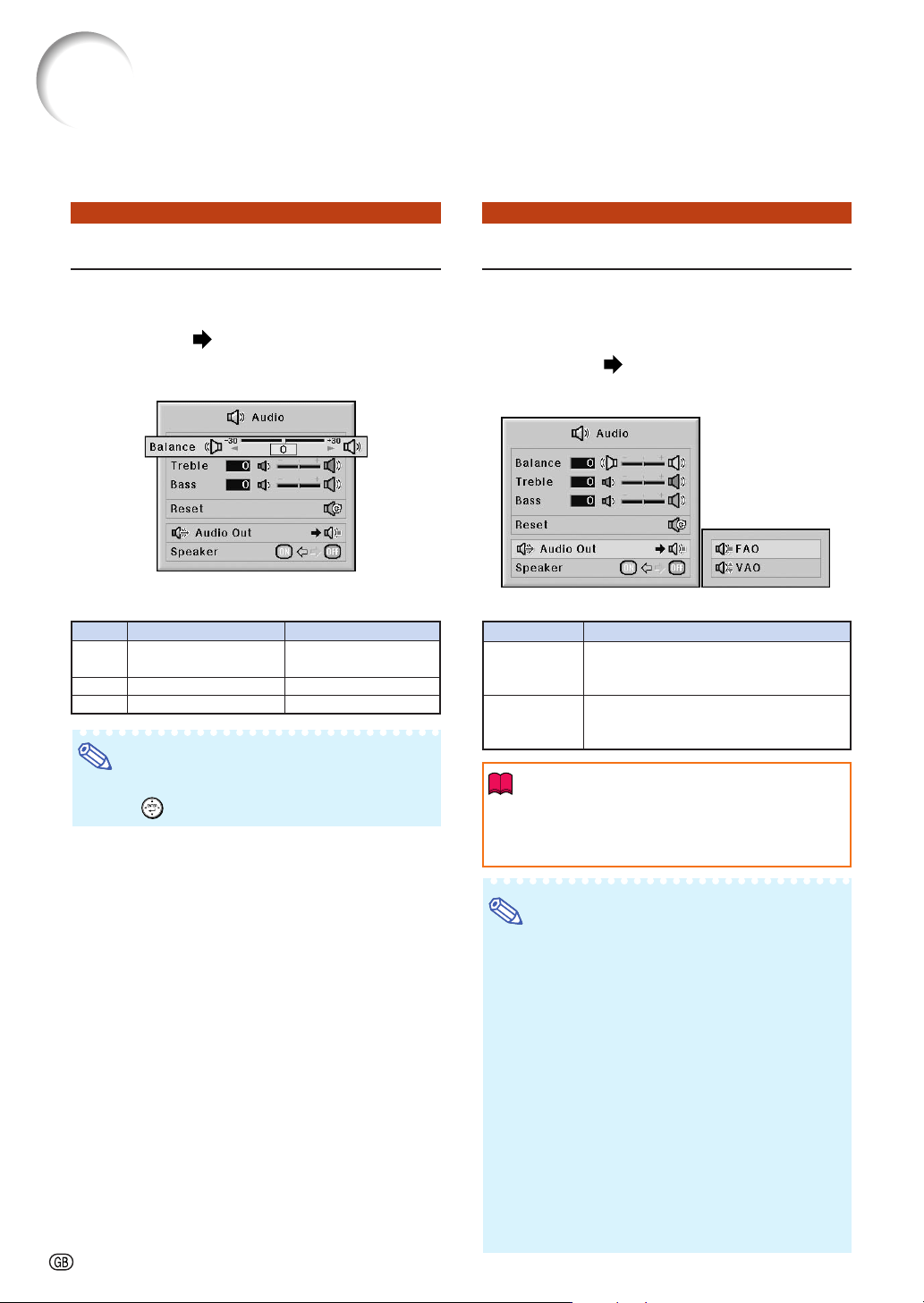

Adjusting the Audio ........................................... 72
Setting the Audio Output Type .......................... 72
Speaker Setting ................................................. 73
-6
Contents
The optional lenses are introduced on page 12. Please purchase the lens for your desired
usage.
Reference
Appendix
Maintenance ................................................. 93

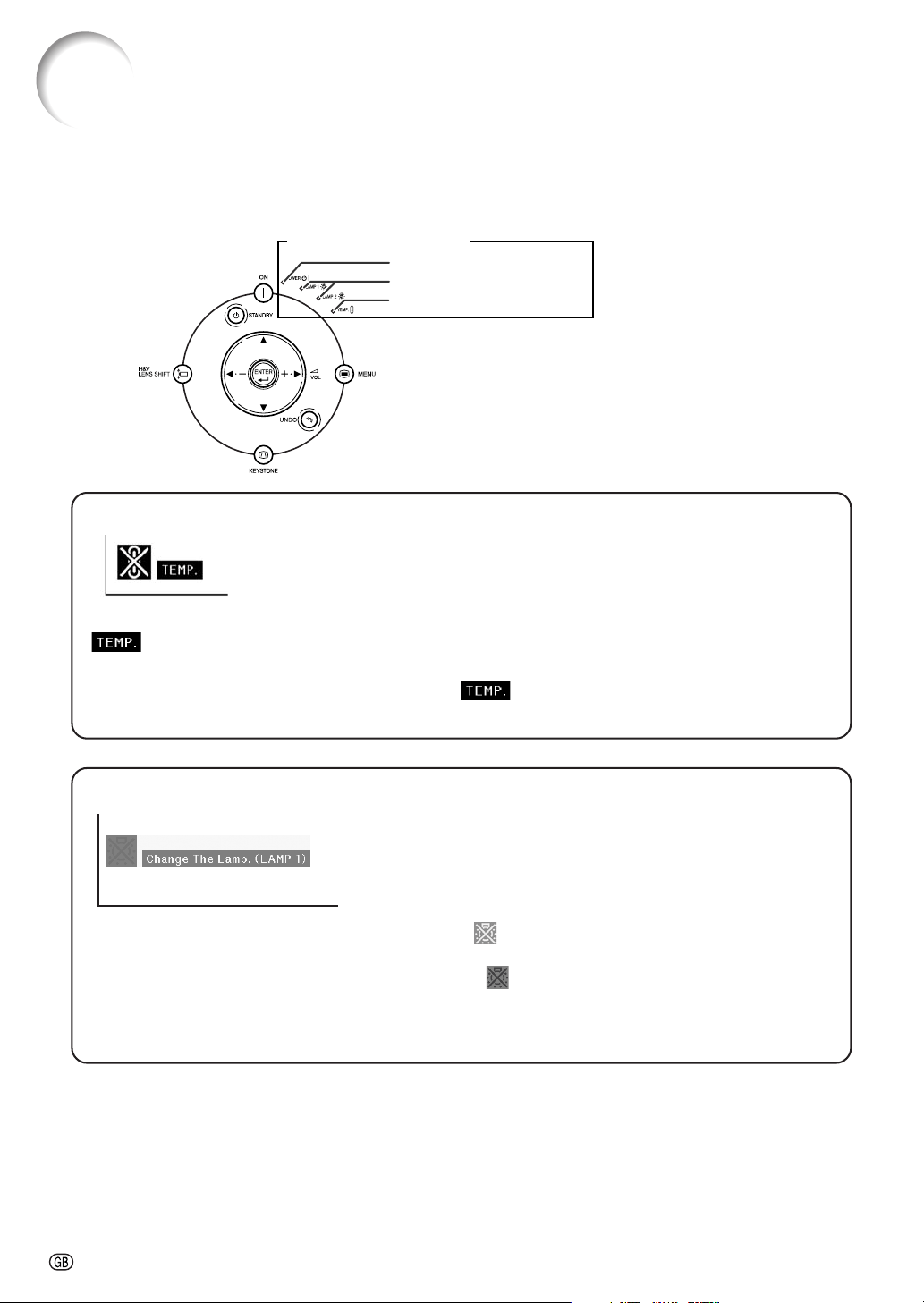

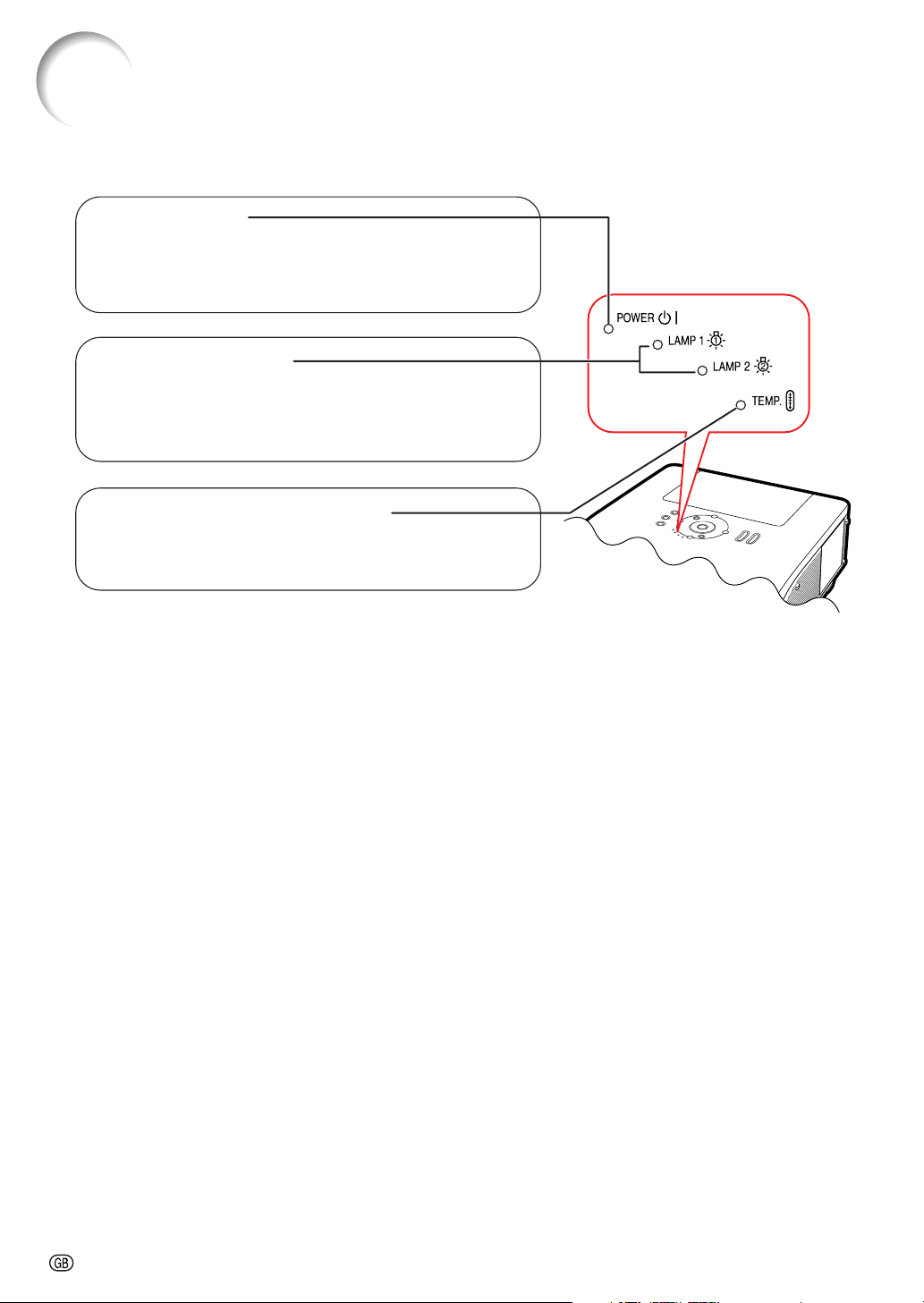

Maintenance Indicators ............................... 94
Regarding the Lamp .................................... 96
Lamp ................................................................. 96
Caution Concerning the Lamp .......................... 96
Replacing the Lamp .......................................... 96
Removing and Installing the Lamp Unit ............ 97
Resetting the Lamp Timer ................................. 99

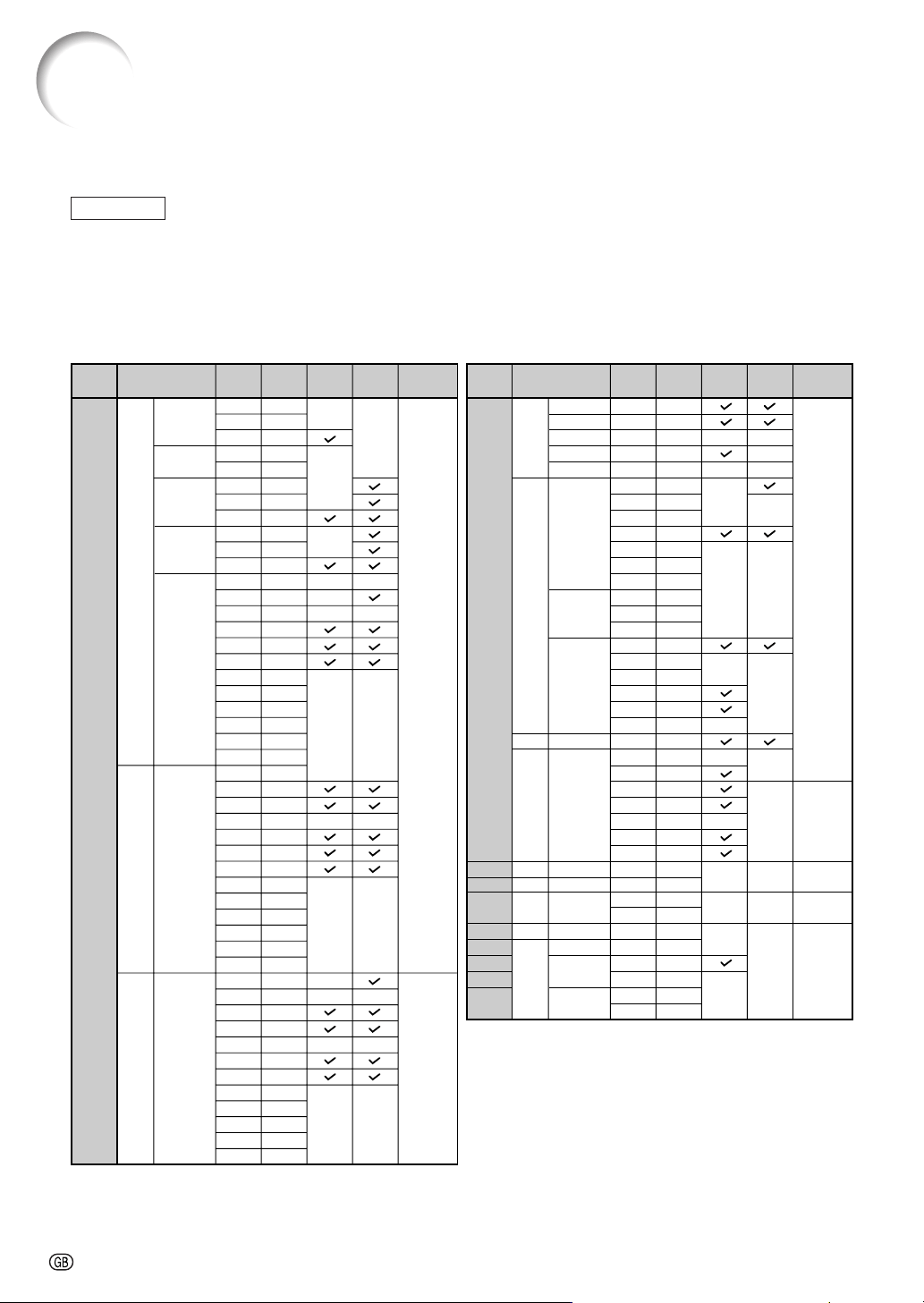

Computer Compatibility Chart .................. 100
Troubleshooting ......................................... 102
For SHARP Assistance .............................. 104
Specifications ............................................. 105
Glossary ...................................................... 106
Index ............................................................ 107
Introduction
-7
PDF operation manuals in several languages are included in the CD-ROM, so that you can
work with the projector. To utilize these manuals, you need to install Adobe
®
Reader
®
on your
computer (Windows
®
or Macintosh
®
).
Please download Adobe
®
Reader
®
from the Internet (http://www.adobe.com).
Accessing the PDF manuals
For Windows
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “PH70_” pdf file to access
the projector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “S_PH7_” pdf file to access
the setup manual.
For Macintosh
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3
When you want to view the operation manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “PH70_” pdf file to access
the projector manuals.
When you want to view the setup manual
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the “S_PH7_” pdf file to access
the setup manual.
How to Access the PDF Operation Manuals
Info
• If the desired pdf file cannot be opened by double clicking the mouse, start Adobe
®
Reader
®
first, then
specify the desired file using the “File”, “Open” menu.
SETUP MANUAL
Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.
Setting up the Screen .................................... 2
Screen Size and Projection Distance ........... 3
Connecting Pin Assignments ..................... 10
RS-232C Specifications and Commands ... 12
Setting up the Projector Network
Environment ............................................ 17
Controlling the Projector via LAN .............. 23
Setting the Projector Using
RS-232C or Telnet ................................... 28
Controlling the Projector Using
RS-232C or Telnet ................................... 31
Stack Projection ........................................... 38
Video Wall Projection ................................... 41
Resetting the Lamp Timer
of the Projector via LAN......................... 50
Troubleshooting ........................................... 52
Dimensions ................................................... 55
-8
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for
future reference.
3. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
6. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended
by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the
manufacturer.

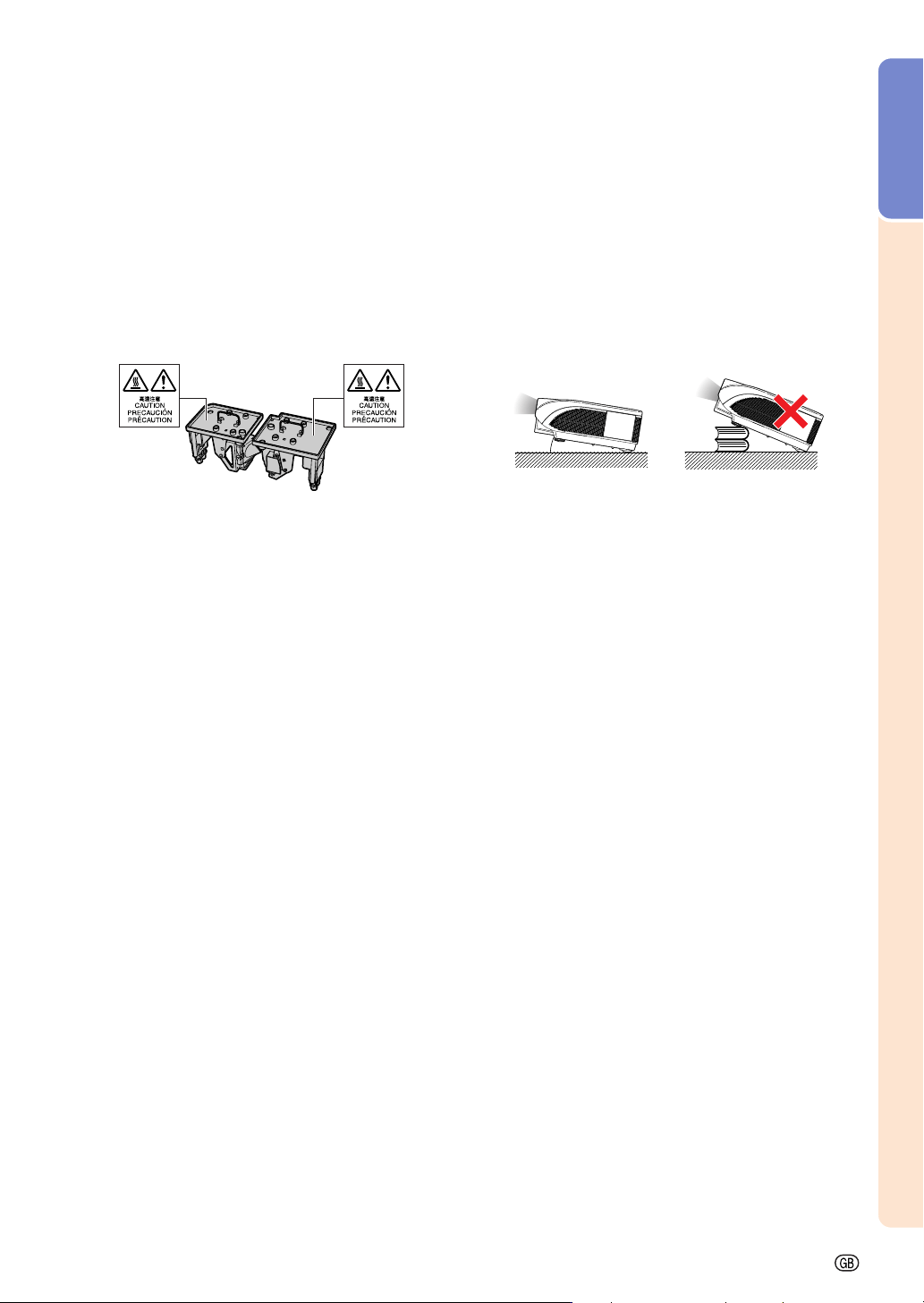

9. Transportation
A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the product and cart
combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization
This product is provided with one of the following types of
plugs. If the plug should fail to fit into the power outlet,
please contact your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a
grounding terminal.
This plug will only fit into a grounding type power
outlet.
IMPORTANT SAFEGUARDS
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
14. Lightning
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the product due to
lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or
electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to normal
operation.
e. If the product has been dropped or damaged in any
way.
f. When the product exhibits a distinct change in
performance, this indicates a need for service.
19. Replacement Parts
When replacement parts are required, ensure that the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
21
.
Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources such
as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
CAUTION: Please read all of these instructions before you operate this product and save these
instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered and manufactured to
assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR
FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic
rules for its installation, use and servicing.
Introduction
-9
Ensure that you read the following safeguards when
setting up your projector.
Caution concerning the lamp unit
■ Potential hazard of glass particles if lamp rup-
tures. In case of lamp rupture, contact your
nearest Sharp Authorized Projector Dealer
or Service Center for replacement. See “Re-
placing the Lamp” on page 96.
Caution concerning the setup of the pro-
jector
■ For minimal servicing and to maintain high
image quality, SHARP recommends that this
projector be installed in an area free from hu-
midity, dust and cigarette smoke. When the
projector is subjected to these environments,
the vents and lens must be cleaned more
often. As long as the projector is regularly
cleaned, use in these environments will not
reduce the overall operation life of the unit.
Internal cleaning should only be performed
by a Sharp Authorized Projector Dealer or
Service Center.
Do not set up the projector in places ex-
posed to direct sunlight or bright light.
■ Position the screen so that it is not in direct
sunlight or room light. Light falling directly on
the screen washes out the colors, making
viewing difficult. Close the curtains and dim
the lights when setting up the screen in a
sunny or bright room.
The projector may be safely tilted to a
maximum angle of 9 degrees.
■ Placement should be within 9 degrees of
horizontal.
If you have application requiring tilt angle
exceeding 9 degrees, please check with your
local Sharp sales office.
When using the projector in high-altitude
areas such as mountains (at altitudes of
approximately 1,500 meters (4,900 feet)
or more)
■ When you use the projector in high-altitude
areas with thin air, set “Fan Mode” to “High”.
Neglecting this can affect the longevity of the
optical system.
Warning about placing the projector in a
high position
■ When placing the projector in a high posi-
tion, make certain it is carefully secured to
avoid personal injury caused by the projec-
tor falling down.
Do not subject the projector to hard im-
pact and/or vibration.
■ Take care with the lens so as not to hit or
damage the surface of the lens.
Rest your eyes occasionally.
■ Continuously watching the screen for long
hours will cause eye strain. Take regular
breaks to rest your eyes.
Avoid locations with extremes of tem-
perature.
■ The operating temperature of the projector
is from 41°F to 104°F (+5°C to +40°C).
■ The storage temperature of the projector is
from –4°F to 140°F (–20°C to +60°C).
9°
-10
Using the projector in other countries
■ The power supply voltage and the shape of
the plug may vary depending on the region
or country you are using the projector in.
When using the projector overseas, make
sure you use an appropriate power cord for
the country you are in.
Temperature monitor function
■
If the projector starts to over-
heat due to setup problems or
blockage of the air vents, “ ”
and “ ” will illuminate in
the lower left corner of the picture. If the tem-
perature continues to rise, the lamp will turn off,
the temperature warning indicator on the pro-
jector will blink, and after a 90-second cooling-
off period the projector will enter the standby
mode. Refer to “Maintenance Indicators” on
page 94 for details.
Info
• The cooling fan regulates the internal tem-
perature, and its performance is automati-
cally controlled. The sound of the fan may
change during projector operation due to
changes in the fan speed. This does not
indicate malfunction.
• Even if you unplug the power cord after
projector operation, the cooling fan con-
tinues to run for a while. When you place
the projector into the storage case, make
sure that the cooling fan has stopped.
Optional lens installation
■ Be sure to have service personnel install the
optional lenses.
Do not block the intake and exhaust
vents.
■ Allow at least 11
13
/16 inches (30 cm) of space
between the exhaust vent and the nearest
wall or obstruction.
■ Ensure that the intake vents and the exhaust
vent are not obstructed.
■ If the cooling fan becomes obstructed, a pro-
tection circuit will automatically put the pro-
jector into standby mode to prevent overheat
damage. This does not indicate a malfunc-
tion (See pages 94 and 95.). Remove the pro-
jector power cord from the wall outlet and wait
at least 10 minutes. Place the projector where
the intake and exhaust vents are not blocked,
plug the power cord back in and turn on the
projector. This will return the projector to the
normal operating condition.
Caution regarding usage of the projector
■ When using the projector, take care not to sub-
ject it to hard impact and/or vibration, as this
can result in damage. Take extra care with the
lens. If you are not to use the projector for a
long time, make certain you unplug the power
cord from the wall outlet, and disconnect any
other cables connected to it.
■ Do not carry the projector by holding the lens.
■ When storing the projector, ensure you at-
tach the lens cap to the projector. (See page
13.)
■ Do not expose the projector to direct sunlight
or near heat sources. The projector may
change color or become deformed.
Other connected equipment
■ When connecting a computer or other audio-
visual equipment to the projector, make the
connections AFTER unplugging the power
cord of the projector from the AC outlet and
turning off the equipment to be connected.
■ Please read the operation manuals of the pro-
jector and the equipment to be connected for
instructions on how to make the connections.
IMPORTANT SAFEGUARDS
Introduction
-11
Accessories
Two R-6 batteries
(“AA” size, UM/SUM-3, HP-7 or similar)
Power cord*
For U.S., Canada, etc.
(6' (1.8 m))
9NK3090204900
For Europe, except U.K.
(6' (1.8 m))
9NK3090152700
*Use the power cord that corresponds to the wall outlet in your country.
Projector manual and
technical reference
CD-ROM
9NK3534022800
(1)
(2) (3)
(4)
Remote mouse receiver
(5'3" (1.6 m))
9NK3790197000
Cap for the standard zoom lens
(Only supplied with XG-PH70X)
9NK3797200400
Supplied accessories
RGB cable
(10' (3.0 m))
9NK3080431000
For U.K., Hong Kong
and Singapore
(6' (1.8 m))
9NK3090152900
For Australia, New
Zealand and Oceania
(6' (1.8 m))
9NK3090152600
Operation manual
(this manual)
9NK5010057700
Remote control
9NK5041808700
■ Cable
3 RCA to 15-pin D-sub cable (10' (3.0 m)) AN-C3CP2
■ Lamp
Lamp unit 1 AN-PH7LP1
Lamp unit 2 AN-PH7LP2
Note
• Some of the optional accessories may not be available depending on the region. Please check with your
nearest Sharp Authorized Projector Dealer or Service Center.
Optional accessories
-12
Accessories
■ Lens Projection distance for 100" screen size
Fixed wide lens (× 0.8) AN-PH10EX 5'4" (1.6 m)
Wide-zoom lens (× 1.5 – 1.8) AN-PH20EZ 10' – 12' (3.0 m – 3.7 m)
Standard zoom lens (× 1.8 – 2.2) AN-PH31EZ 12' – 14'8" (3.7 m – 4.5 m)
(attached to XG-PH70X)
Tele-zoom lens (× 2.25 – 3.00) AN-PH40EZ 15' – 20' (4.6 m – 6.1 m)
Tele-zoom lens (× 3.0 – 4.5) AN-PH50EZ 20' – 30' (6.1 m – 9.1 m)
Tele-zoom lens (× 4.5 –7.0) AN-PH60EZ 30' – 46'8" (9.1 m – 14.2 m)
Optional lenses
No lens is attached to XG-PH70X-N. The standard zoom lens is attached to XG-PH70X.
The optional lenses from Sharp are also available for specialized application. Please see
your nearest Sharp Authorized Projector Dealer for details on all the lenses. (Refer to the
lens operation manual when using a lens.) Also, be sure to have service personnel install the
optional lenses.
Throw Distance
The graph below is for 100 inches (254 cm) screen with 4:3 normal mode.
Screen
5101520253035 455040 (ft)
Standard zoom lens (AN-PH31EZ : Standard equipment with XG-PH70X)
12'–14'8" (3.7 m–4.5 m)
Throw distance ratio 1:1.8–2.2
Fixed wide lens (AN-PH10EX)
5'4" (1.6 m)
Throw distance ratio 1:0.8
Tele-zoom lens (AN-PH40EZ)
15'–20' (4.6 m–6.1 m)
Throw distance ratio 1:2.25–3.00
Tele-zoom lens (AN-PH50EZ)
20'–30' (6.1 m–9.1 m)
Throw distance ratio 1:3.0–4.5
Tele-zoom lens (AN-PH60EZ)
30'–46'8" (9.1 m–14.2 m)
Throw distance ratio 1:4.5–7.0
Wide-zoom lens (AN-PH20EZ)
10'–12' (3.0 m–3.7 m)
Throw distance ratio 1:1.5–1.8
Introduction
-13
37
37
45
70
40
40
73
39
41
56
39
56
56
56
46
17
45
14
14
·
94
14
·
94
14
·
94
97
93
ENTER button
For setting items selected
or adjusted on the menu.
KEYSTONE button
For entering the Keystone
Correction mode.
Carrying handle
For carrying the
projector.
STANDBY button
For putting the projector
into standby mode.
ON button
For turning the power on.
Adjustment buttons
('/"/\/|)
For selecting menu items
and other settings.
ZOOM button
For adjusting the projected
image size.
FOCUS button
For adjusting the focus.
39
Power indicator
MENU button
For displaying adjustment
and setting screens.
UNDO button
For undoing an operation
or returning to the previous
display.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
INPUT 1, 2, 3 button
For switching input mode
1, 2 or 3.
INPUT 4, 5 button
For switching input mode
4 or 5.
Volume buttons
For adjusting the speaker
sound level.
Temperature warning
indicator
Lamp indicator 2
Lamp indicator 1
Remote control
sensor
Speaker
Adjustment foot
(on the bottom of
the projector)
93
Intake vent
Adjustment foot
(on the bottom of
the projector)
Lamp unit cover
Intake vent
73
Speaker
H & V LENS SHIFT button
For shifting the lens horizontally
and vertically.
Projector
Part Names and Functions
• Attaching the lens cap
Push the lens cap on until it clicks
into position.
• Removing the lens cap
Pull the lens cap directly outward.
Numbers in refer to the main pages in this operation manual where the topic is explained.
Top View
Front View
-14
About the Indicators on the Projector
Power indicator
Red on
...
Normal (Standby)
Green on
...
Normal (Power on)
Red blinks
...
The intake vent cover is open.
(See page 93.)
Temperature warning indicator
Off
...
Normal
Red blinks/on
...
The internal temperature is abnormally
high. (See pages 94 and 95.)
Lamp indicators 1, 2
Green on
...
Normal
Green blinks
...
The lamp is warming up.
Red on
...
The lamp has been shut down abnormally or
needs to be changed. (See pages 94 and 95.)
Part Names and Functions
Introduction
-15
Projector (Side View)
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
Numbers in refer to the main pages in this operation manual where the topic is explained.
INPUT 1 terminal
Terminal for computer RGB
and component signals.
AUDIO input (1) terminal
Audio input terminal for
INPUT 1.
INPUT 2 terminals
BNC terminals for computer
RGB and component
signals.
INPUT 4 terminal
Terminal for connecting
video equipment.
INPUT 5 terminal
Terminal for connecting
video equipment with an
S-video terminal.
AUDIO input (4, 5) terminals
Shared audio input terminals for
INPUT 4 and 5.
RS-232C terminal
Terminal for controlling the
projector using a computer.
WIRED REMOTE terminal
For connecting the remote
control to the projector when
the signals from the remote
control cannot reach the
remote control sensor.
INPUT 3 terminal
Terminal for DVI digital RGB
and digital component signals.
OUTPUT (FOR INPUT 1, 2)
terminal
Output terminal for computer
RGB and component signals.
Shared for INPUT 1 and 2.
AUDIO input (2, 3) terminal
Shared audio input terminal for
INPUT 2 and 3.
AUDIO OUTPUT terminal
Audio output terminal shared
for INPUT 1–5.
Remote control sensor
Exhaust vent
The speed and pitch of
the cooling fan may
change during operation
in response to internal
temperature changes.
This is normal operation
and does not indicate a
malfunction.
AC socket
Connect the supplied Power
cord.
Kensington Security
Standard connector
LAN terminal
Terminal for controlling the
projector using a computer
via network.
37
17
93
35
29
36
28
36
27
27
28
35
34
18
34
34
Terminals Refer to “INPUT/OUTPUT Terminals and Connectable Main Equipment” on
page 24.
-16
Note
• All the buttons on the remote control, except the mouse/adjustment button and the ADJ./MOUSE switch,
are made of luminous material that is visible in the dark. Visibility will diminish over time. Exposure to light
will recharge the luminous buttons.
Remote Control
40
18
37
56
39
40
45
70
18
48
37
47
19
41
46
50
46
46
50
47
STANDBY button
For putting the projector into
standby mode.
ZOOM buttons
For adjusting the projected
image size.
KEYSTONE button
For entering the Keystone
Correction mode.
ENLARGE (enlarge/reduce)
buttons
For enlarging/reducing part of the
image.
INPUT 1, 2, 3, 4 and 5 buttons
For switching to the respective
input modes.
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
BREAK TIMER button
For setting the break time.
L-click button
For the left click while the
ADJ./MOUSE switch is the
MOUSE position.
FOCUS buttons
For bringing the projected image
into focus.
Mouse/adjustment button
('/"/\/|)
• For moving the computer
cursor while the
ADJ./MOUSE switch is the
MOUSE position.
• For selecting menu items
while the ADJ./MOUSE
switch is the ADJ. position.
ENTER button
For setting items selected or
adjusted on the menu.
FREEZE button
For freezing images.
RESIZE button
For switching the screen size.
BLACK SCREEN button
For temporarily display the black
screen.
PICTURE MODE button
For switching the picture mode.
WIRED R/C JACK
For connecting the remote control
to the projector when the signals
from the remote control cannot
reach the remote control sensor.
Volume buttons
For adjusting the speaker sound level.
MUTE button
For temporarily turning off the
sound.
R-click/UNDO button
• For the right click while the
ADJ./MOUSE switch is the
MOUSE position.
• For undoing an operation or
returning to the previous
display while the ADJ./MOUSE
switch is the ADJ. position.
MENU button
For displaying adjustment and
setting screens.
ON button
For turning the power on.
ADJ./MOUSE switch
For switching the remote control
modes.
H & V LENS SHIFT button
For shifting the lens horizontally
and vertically.
19
·
56
19
·
56
Numbers in refer to the main pages in this operation manual where the topic is explained.
Part Names and Functions
Introduction
-17
Using the Remote Control
Inserting the Batteries
1
Press the tab and lift open the battery
cover in the direction of the arrow
.
2 Insert the batteries.
• Insert the batteries making sure the po-
larities correctly match the
and
marks inside the battery compartment.
3 Insert the tabs on the end of the
battery cover into their slots and
press the cover into position.
Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.
Caution
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Insert the batteries making sure the polarities correctly match the
and marks inside the battery compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them
using a cloth.
• The batteries included with this projector may run down in a short period, depending on how they are kept.
Be sure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.
• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.
Usable Range
The remote control can be used to control the
projector within the ranges shown in the il-
lustration.
Note
• The signal from the remote control can be re-
flected off a screen for easy operation. How-
ever, the effective distance of the signal may
differ depending on the screen material.
When using the remote control:
• Ensure that you do not drop it or expose it to
moisture or high temperature.
• The remote control may malfunction under a
fluorescent lamp. In this case, move the pro-
jector away from the fluorescent lamp.
Front View
Rear View
Remote control
signal transmitters
Remote control sensor
Remote control
30°
30°
30°
23' (7 m)
Remote control sensor
Remote control
signal transmitters
Remote control
30°
30°
30°
23' (7 m)
-18
Using the Remote Control
Using the Remote Control with a Signal Cable
When the signals from the remote control cannot be reached due to the positioning of the projector, use a
ø3.5 mm minijack cable to connect the remote control to the projector. Now you can control the projector
with the remote control.
Note
• The wireless remote function is not possible when the ø3.5 mm minijack cable is connected to the projec-
tor. Should the wireless remote operation be required, the ø3.5 mm minijack cable should be discon-
nected from the projector.
Switching the Remote Control Mode
The remote control has two functions. One is projector control and the other is wireless computer mouse.
Slide the ADJ./MOUSE switch on the remote control to other side compatible to the desired usage.
Info
• When using the remote control as the wireless computer mouse, connect the supplied remote mouse
receiver to the computer. (See page 19.)
Side view
Remote control
To WIRED R/C JACK
To WIRED REMOTE terminal
ø3.5 mm minijack cable (commercially available or
available as Sharp service part QCNWGA038WJPZ)
ADJ.
MOUSE
ADJ.
MOUSE
Projector control Wireless computer mouse
Introduction
-19
Using the Remote Control as a Wireless Computer Mouse
When connecting the supplied remote
mouse receiver to the computer, you can use
the remote control as the wireless computer
mouse.
1 Connect the supplied remote
mouse receiver to the USB termi-
nal on the computer.
2 Slide the ADJ./MOUSE
switch on the remote con-
trol to the MOUSE position.
3 Use the mouse function.
• Point the remote control at the remote
mouse receiver.
■ When moving the cursor
Press '/"/\/|.
■ When left-clicking
Press
.
■ When right-clicking
Press
.
■ When your computer supports only a
one-click mouse (such as Macintosh
®
)
Press
or . ( and have com-
mon function.)
ADJ.
MOUSE
Remote mouse
receiver
Supplied
accessory
Note
• This function only works with the Microsoft
®
Windows
®
OS and Mac OS
®
. However, this func-
tion does not work with the following operation
systems that do not support USB.
• Versions earlier than Windows
®
95.
• Versions earlier than Windows
®
NT4.0.
• Versions earlier than Mac OS
®
8.5.
• Confirm that the computer recognizes the USB
connection.
• While the remote control is connected to the
projector with a signal cable, you cannot use
the wireless computer mouse function.
Computer
To USB terminal
Remote mouse receiver
Mouse/adjustment button ('/"/\/|)
ADJ./MOUSE switch
R-click button
L-click button
-20
Quick Start
Page 22
1. Place the projector facing a screen
Pages 27–29, 37
Page 37
Press
on the projector or on the remote control.
This section shows the basic operation (projector connecting with the computer). For details, see the page
described below for each step.
Setup and Projection
In this section, connection of the projector and the computer is explained using one example.
2. Connect the projector to the computer and plug the power
cord into the AC socket of the projector
3. Remove the lens cap and turn the projector on
When connecting equipment other than the computer,
see pages 30–36.
5
4
6
6
7
6
3
4
8
3
4
6
7
4 6
8
5
Quick Start
-21
Pages 38, 39
4. Adjust the angle
5. Adjust the focus and the zoom
Page 40
8. Tu rn the power off
Page 37
7. Select the input mode
Page 45
11
11
1 Press on the projector or on the remote control to adjust the focus.
22
22
2 Press
on the projector or on the remote control to adjust the zoom.
Press on the projector or on the
remote control to select the “INPUT 1” mode.
••
••
• When pressing on the projector, input mode switches in order of :
INPUT 1 INPUT 2 INPUT 3
.
Pressing
on the projector switches between “INPUT 4” and “INPUT 5”.
••
••
• When using the remote control, press
/
/
/
/
to switch the input mode.
Press
on the projector or on the remote control. While the confirmation message is displayed,
press
or again.
••
••
• You can unplug the power cord even if the projector is operating.
••
••
• Even if you unplug the power cord from the AC outlet, the cooling fan continues to run for a while.
Adjust the projector angle
••
••
•
Shift the lens horizontally and vertically.
11
11
1
Press
on the projector or on the
remote control.
22
22
2
Press
', ", \ or |
on the projector or the
remote control.
••
••
•
Adjust the projector angle by rotating the adjust-
ment feet.
6.
Correcting the image distortion due to the projection angle
11
11
1 Press
on the projector or on the
remote control.
22
22
2 Press
on the projector or on the
remote control.
33
33
3 Press ', ", \ or | to move the position for
the upper left of the image.
Page 41
44
44
4 Press or to set the position.
55
55
5 Repeat the same procedure with the positions
for the upper right, lower right and lower left of
the image.
••
••
•
When the position of the lower left is set, the
correction is made and the display disappears.
""
""
" On-screen Display (RGB)
""
""
" On-screen Display
-22
Setting Up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat
and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.
Note
• The projector lens should be centered in the middle of the screen. If the horizontal line passing through
the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
• For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling
directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights
when setting up the projector in a sunny or bright room.
Standard Setup (Front Projection)
■ Place the projector at the required distance from the screen according to the desired picture size. (For
details, refer to “SETUP MANUAL” contained on the supplied CD-ROM.)
Setting Up the Projector
Indication of the Projection Image Size and Projection Distance
For details, refer to “SETUP MANUAL” contained on the supplied CD-ROM.
Example : NORMAL Mode (4:3) for the standard zoom lens (AN-PH31EZ)
300"
200"
100"
84"
60"
Picture Size
240"×180"
160"
×
120"
80"
×
60"
67"
×
50"
48"
×
36"
Projection Distance
36'
–
44'
(11.0 m – 13.4 m)
24'
–
29'4
"
(7.3 m
–
8.9 m)
12'
–
14'8
"
(3.7 m
–
4.5 m)
10'1
"–
12'4
"
(3.1 m
–
3.8 m)
7'2
"–
8'10
"
(2.2 m – 2.7 m)
Setup
-23
Projecting a Reversed Image
Projection from behind the Screen
■ Place a translucent screen between the projector and the audience.
■ Reverse the image by setting “Rear” in the “PRJ Mode” menu. (See page 84.)
Projection Using a Mirror
■ Place a mirror (normal flat type) in front of the lens.
■ When the translucent screen is placed between the mirror and audience, set to “Front” in the “PRJ Mode”
menu. (See page 84.)
■ When the mirror is placed on the audience side, set to “Rear” in the “PRJ Mode” menu. (See page 84.)
Info
• When using a mirror, ensure that both the projector and the mirror are carefully placed so the projected
light does not shine into the eyes of the audience.
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceiling-mount
bracket for this installation.
Before mounting the projector, contact your nearest Sharp Au-
thorized Projector Dealer or Service Center to obtain the recom-
mended ceiling-mount bracket (sold separately).
• AN-PHCM20 ceiling-mount bracket, its AN-EP101AP extension
tube (for the U.S.A.).
• AN-NV6T ceiling-mount bracket, its AN-TK201 and AN-TK202
extension tubes (for countries other than the U.S.A.).
■ Invert the image by setting “Ceiling + Front” in “PRJ Mode”. See
page 84 for use of this function.
Translucent screen
Audience
Set to “Front”
Audience
Translucent screen
Mirror
Set to “Rear”
Audience
Mirror
-24
INPUT/OUTPUT Terminals and Connectable Main Equipment
AUDIO input (2, 3) terminal
Connecting an audio cable. (Shared
audio input terminal for INPUT 2
and 3.) (See pages 28 and 29.)
AUDIO input (1) terminal
Connecting an audio cable.
(Audio input terminal
dedicated to INPUT 1.) (See
page 27.)
AUDIO input (4, 5) terminals
Connecting an audio cable.
(Shared audio input terminals for
INPUT 4 and 5.) (See page 34.)
WIRED REMOTE terminal
For connecting the remote control when
the signals from the remote control cannot
reach the remote control sensor. (See
page 18.)
AUDIO OUTPUT terminal
Connecting an audio cable.
(Shared audio output terminal for
INPUT 1 – 5.) (See page 36.)
LAN terminal
(10 BASE-T/100 BASE-TX)
Connecting the computer or the
hub using a LAN cable. (See page
35.)
INPUT 5 terminal
Connecting video equipment with S-video
output terminal (VCR, DVD player, etc.).
(See page 34.)
RS-232C terminal
Connecting the computer to
control the projector.
(See page 35.)
INPUT 4 terminal
Connecting video equipment without
S-video output terminal. (See page 34.)
OUTPUT (FOR INPUT 1, 2)
terminal
Connecting the monitor when you
want to simultaneously watch the
projection image on the monitor.
(See page 36.)
INPUT 1, 2 terminal
Connecting the computer. (See
pages 27 and 28.)
Connecting video equipment with
component output terminal (DVD
player, DTV decoder, DVD recorder
with hard disc, etc.). (See page 33.)
INPUT 3 terminal
Connecting the computer. (See
page 29.)
Connecting video equipment with
HDMI or DVI output terminal (DVD
player, DTV decoder, DVD recorder
with hard disc, etc.). (See pages 30
and 31.)
Connections
Connections
-25
Terminal on the
projector
INPUT 1
INPUT 2
INPUT 3
AUDIO (for INPUT 1)
AUDIO (for INPUT 2, 3)
INPUT 3
INPUT 2
INPUT 1
INPUT 2
Equipment
Computer
Audio-visual
equipment
Terminal on
connected equipment
RGB
output
terminal
DVI digital
video
output
terminal
Audio
output
terminal
HDMI
output
terminal
DVI digital
video
output
terminal
RGB
output
terminal
Component
video
output
terminal
Cable
RGB cable (supplied)
5 BNC to 15-pin D-sub cable (commercially available)
DVI Digital cable (commercially available)
ø3.5 mm stereo or mono audio cable (commercially
available or available as Sharp service part
QCNWGA038WJPZ)
DVI to HDMI cable (commercially available)
DVI Digital cable (commercially available)
5 RCA RGB cable (commercially available)
BNC to RCA adaptors (commercially available)
3 RCA to 15-pin D-sub cable (optional: AN-C3CP2)
BNC to RCA adaptors (commercially available)
Component video cable (commercially available)
Samples of Cables for Connection
•For more details of connection and cables, refer to the operation manual of the connecting equipment.
•You may need other cables or connectors not listed below.
-26

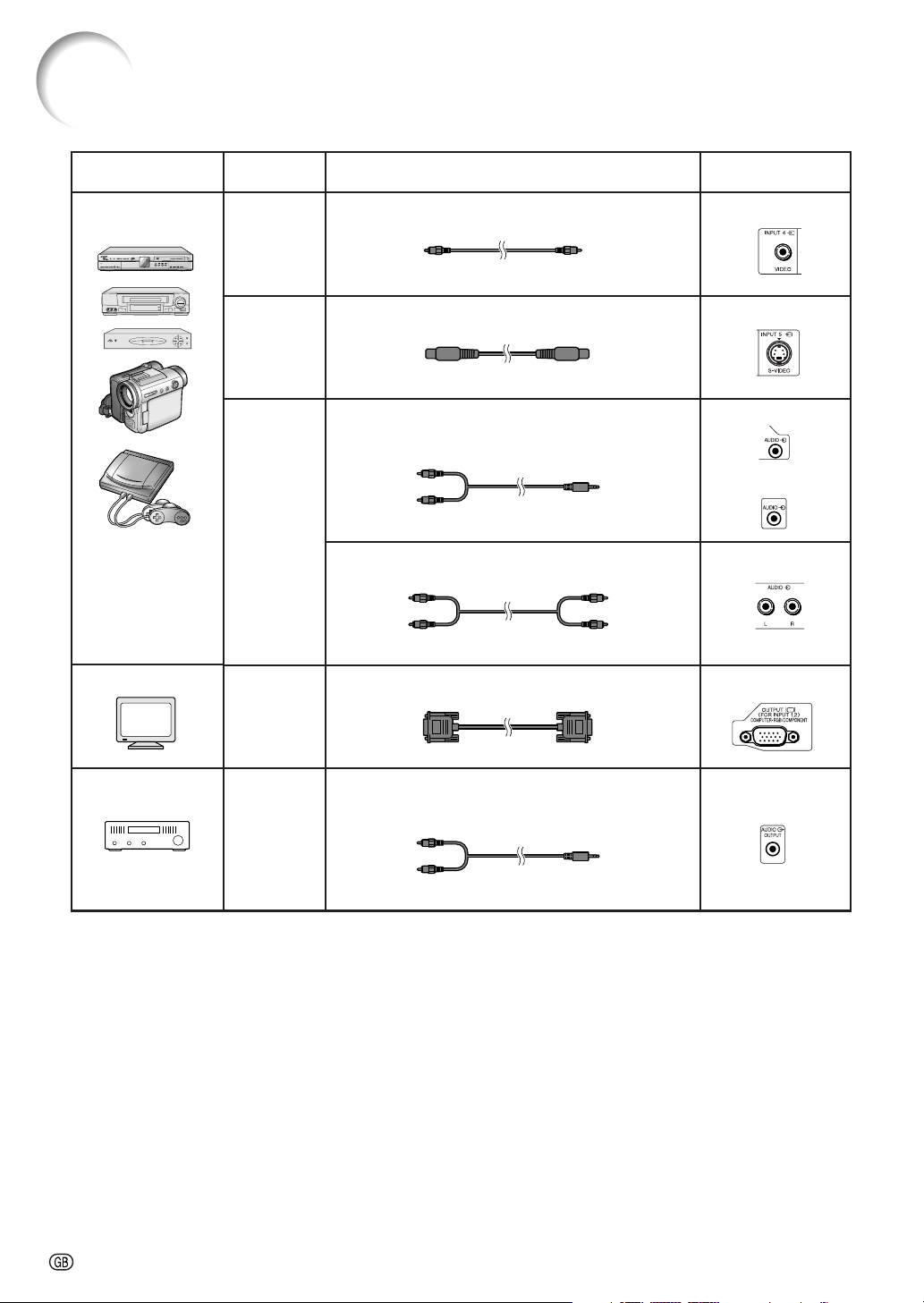

Terminal on the
projector
INPUT 4
INPUT 5
AUDIO (for INPUT 1)
AUDIO (for INPUT 2, 3)
AUDIO (for INPUT 4, 5)
OUTPUT
AUDIO OUTPUT
Equipment
Audio-visual
equipment
Monitor
Amplifier
Terminal on
connected equipment
Video
output
terminal
S-video
output
terminal
Audio
output
terminal
RGB
input
terminal
Audio
input
terminal
Cable
Video cable (commercially available)
S-video cable (commercially available)
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
RCA audio cable (commercially available)
RGB cable (supplied or commercially available)
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
Samples of Cables for Connection
Connections
-27
Connecting to a Computer
Before connecting, ensure the power cord of the projector from the AC outlet is unplugged,
and that the devices to be connected are turned off. After making all connections, turn on the
projector and then the other devices. When connecting a computer, ensure that it is the last
device to be turned on after all the connections are made.
Ensure the operation manuals of the devices to be connected have been read before making connections.
Note
• See page 100 “Computer Compatibility Chart” for a list of computer signals compatible with the projector.
Use with computer signals other than those listed may cause some of the functions to not work.
• Connecting computers other than the recommended types may result in damage to the projector, the
computer, or both.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest
Macintosh Dealer.
• Depending on the computer you are using, an image may not be projected unless the computer’s
external output port is switched on. (e.g. Press “Fn” and “F5” keys simultaneously when using a
SHARP notebook computer). Refer to the specific instructions in your computer’s operation manual to
enable your computer’s external output port.
Connecting with the RGB Cable
RGB cable
Supplied
accessory
Note
• With this connection, the projector is not compatible to the sync on green signals.
•
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.
To audio output terminal
To RGB output
terminal
To INPUT 1 terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available as Sharp
service part QCNWGA038WJPZ)
RGB cable
To AUDIO input (1) terminal
Computer
Side view
-28
Connecting with a 5 BNC to 15-pin D-sub Cable
The projector employs a 5 BNC computer input to prevent deterioration of image quality.
When connecting the input terminals on the projector to the computer directly, Connect the
R (P
R
), G/G sync (Y), B (P
B
), HD/C sync and VD cables of the 5 BNC to 15-pin D-sub cable
(commercially available) to the INPUT 2 terminals on the projector.
Note
• When connecting the projector to a compatible computer other than a PC (VGA/SVGA/XGA/SXGA/UXGA)
or Macintosh (i.e. Workstation), a separate cable may be needed. Please contact your dealer for more
information.
• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
• The HD/C sync terminal is only for TTL signal.
Computer
Side view
ø3.5 mm stereo or mono audio cable
(commercially available or available as
Sharp service part QCNWGA038WJPZ)
To INPUT 2 terminals
5 BNC to 15-pin D-sub cable
(commercially available)
To AUDIO input
(2, 3) terminal
To audio output
terminal
To RGB output
terminal
Connecting to a Computer
Connections
-29
Connecting with a DVI Digital Cable
The projector employs the DVI digital input terminal for direct input of digital video signals
from a computer.
Note
• When connecting the projector to a computer in this way, select “D. PC RGB” for “Signal Type” in the
“Picture” menu.
• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
Computer
Side view
ø3.5 mm stereo or mono audio cable
(commercially available or available as
Sharp service part QCNWGA038WJPZ)
To INPUT 3 terminal
DVI Digital cable
(commercially available)
To DVI digital
output terminal
To audio output
terminal
To AUDIO input
(2, 3) terminal
-30
Connecting to Video Equipment
Before connecting, ensure the power cord of the projector from the AC outlet is unplugged,
and that the devices to be connected are turned off. After making all connections, turn on the
projector and then the other devices.
The projector has a DVD digital terminal, computer-RGB/component terminal, S-video terminal
and video terminal for video input. Refer to the listed illustrations on how to connect audio-
visual equipment.
If your audio-visual equipment has an RGB output terminal or component output terminal,
use the computer-RGB/component terminals (INPUT 1 or 2) on the projector for video con-
nection.
Connecting to Video Equipment That Has an HDMI Out-
put Terminal with a DVI to HDMI Cable
Use a DVI to HDMI cable when connecting HDMI video equipment such as DVD players to the
INPUT 3 terminal.
Note
• Select the input signal type of the video equipment. See page 63.
• While the projector is connected to video equipment that has an HDMI output terminal, only the video
signal can be input to the projector. (Connect the AUDIO input (2, 3) terminal for audio input.)
• Depending on specifications of video equipment or DVI to HDMI digital cable, the signal transmission
may not work property. (The HDMI specification does not support all connections to video equipment that
has HDMI digital output terminal using a DVI to HDMI digital cable.)
• For details on compatibility for connection, see support information on DVI connection provided by the
video equipment manufacturer.
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
To HDMI output terminal
To AUDIO input
(2, 3) terminal
DVI to HDMI cable
(commercially available)
To audio output
terminals
Video Equipment
Side view
To INPUT 3 terminal
Connections
-31

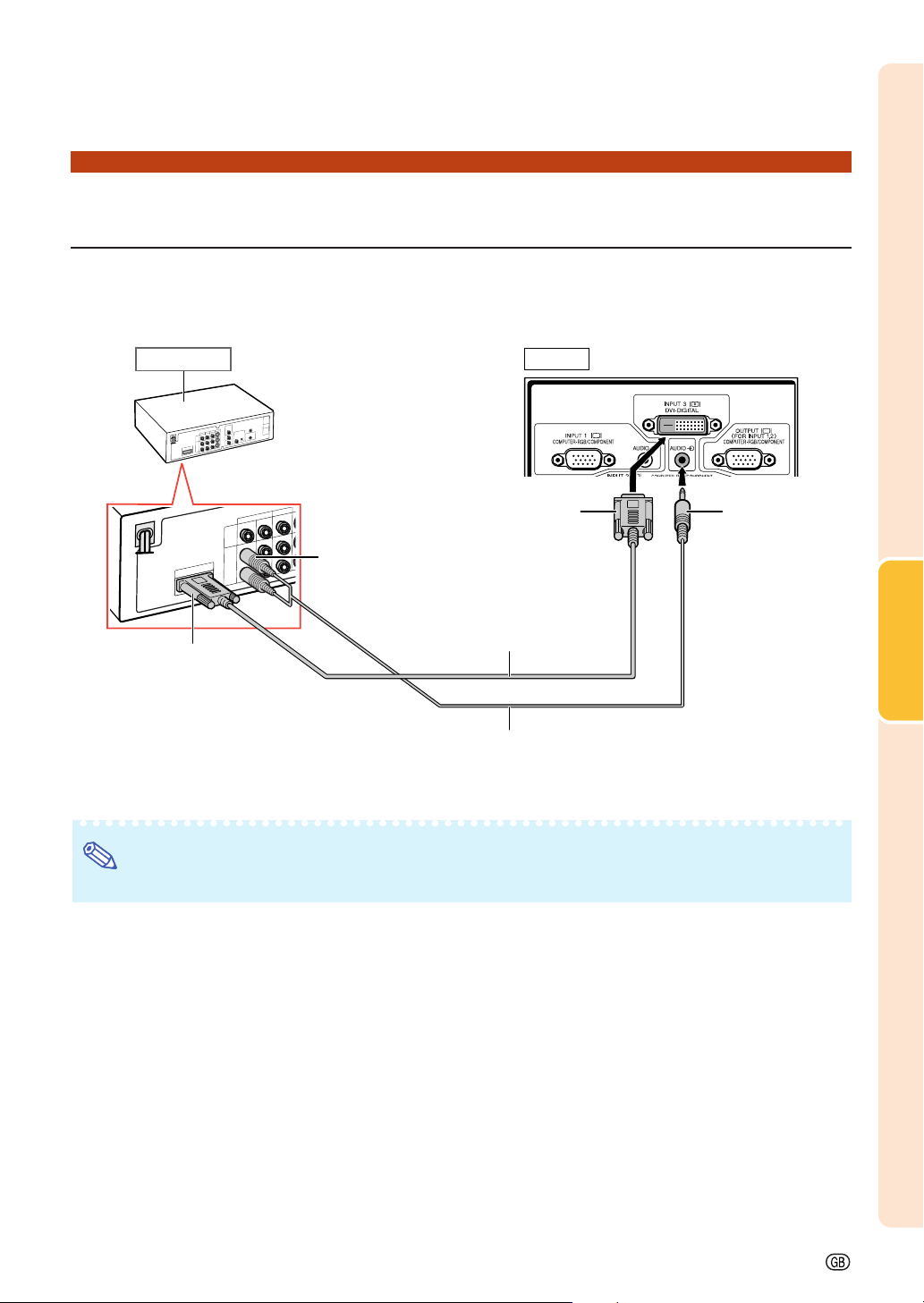

Connecting to Video Equipment That Has a DVI Output
Terminal with a DVI Digital Cable
Use a DVI Digital cable when connecting video equipment with the DVI output terminal such
as DVD players to the INPUT 3 terminal.
Note
• Select the input signal type of the video equipment. See page 63.
To INPUT 3 terminal
DVI Digital cable
(commercially available)
To audio output
terminals
To AUDIO input
(2, 3) terminal
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
To DVI output terminal
Video Equipment
Side view
-32

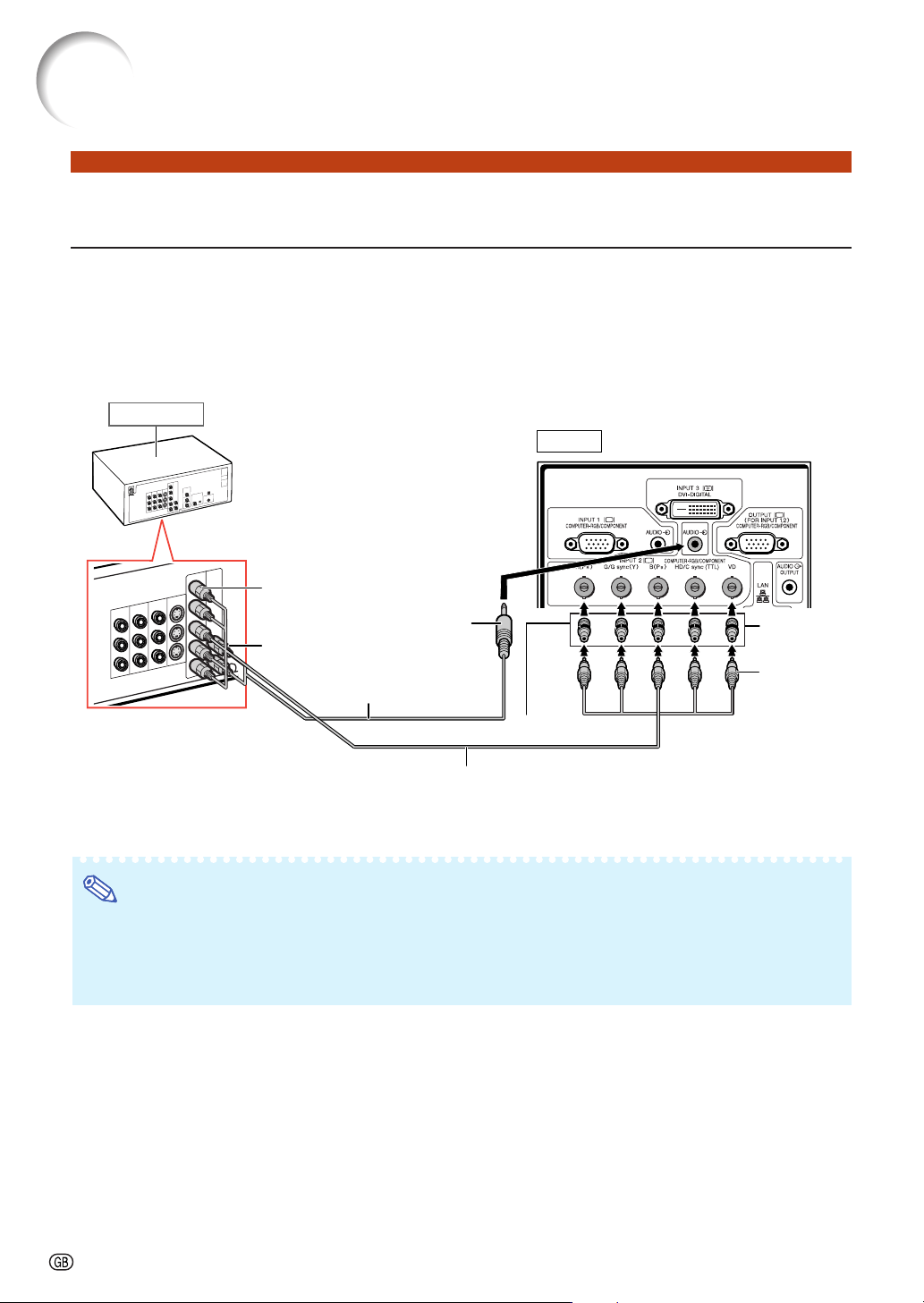

Connecting to RGB Video Equipment with a 5 RCA RGB
Cable
Use a 5 RCA RGB cable when connecting the RGB video equipment such as DVD players and
DTV* decoders to the INPUT 2 terminals.
* DTV is the umbrella term used to describe the new digital television system in the United
States.
Note
• When connecting the projector to the video equipment in this way, select “RGB” for “Signal Type” in the
“Picture” menu. See page 63.
• The HD/C sync and VD terminals may be used depending on the specifications of the DTV decoder
connected to this projector. Please refer to the operation manual of the DTV decoder for details.
• The HD/C sync terminal is only for TTL signal.
Connecting to Video Equipment
Side view
To INPUT 2
terminals
BNC to RCA adaptors
(
commercially available
)
5 RCA RGB cable
(commercially available)
To BNC to RCA
adaptors
To analog RGB
output terminals
Video Equipment
To AUDIO input
(2, 3) terminal
To audio output
terminals
ø3.5 mm stereo minijack to
RCA audio cable
(commercially available)
Connections
-33

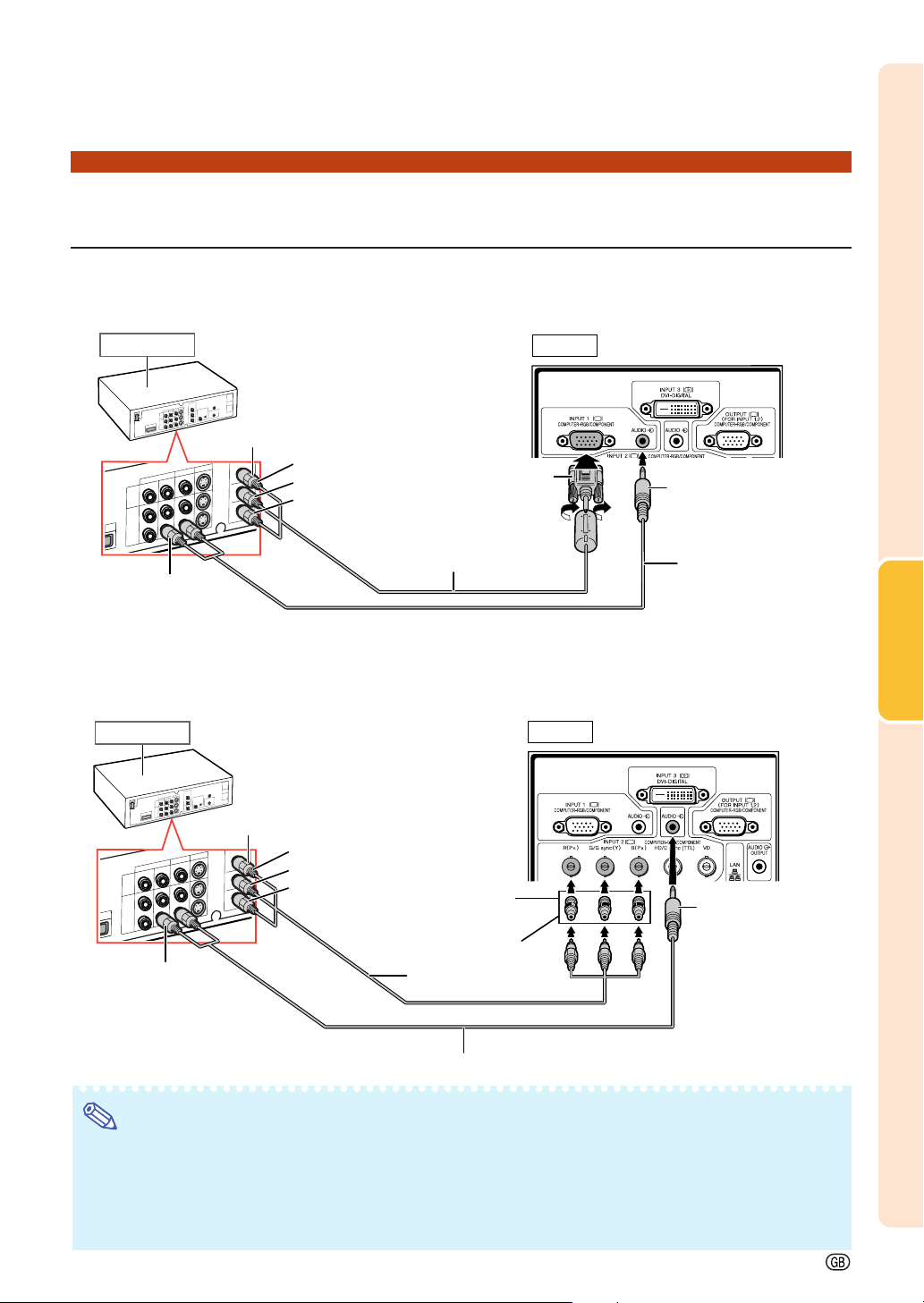

Connecting to Video Equipment That Has Component
Output Terminals
When connecting the video equipment that has component output terminals to the INPUT 1
terminal, use the 3 RCA to 15-pin D-sub cable (optional: AN-C3CP2).
When connecting the video equipment that has component output terminals to the INPUT 2
terminals, use the BNC to RCA adaptors (commercially available).
Note
• ø3.5 mm stereo minijack to RCA audio cable (commercially available) is required for audio input.
• Select “480P/525P” or “576P/625P” for “Special Modes” on the “Fine Sync” menu, if necessary. (See page
69.)
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-
mercially available cable that fits in the projector terminal you want to connect.
• The projector does not support RGBC signals via the Euro-scart.
To audio output
terminals
ø3.5 mm stereo minijack to
RCA audio cable
(commercially available)
To component video
output terminals
To INPUT 1
terminal
To AUDIO input (1) terminal
3 RCA to 15-pin D-sub cable
(optional: AN-C3CP2)
Y(green)
P
B(CB)(blue)
P
R(CR)(red)
Video Equipment
Side view
Side view
To audio output
terminals
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
To component video
output terminals
Y(green)
P
B(CB)(blue)
P
R(CR)(red)
Video Equipment
To AUDIO input (2, 3)
terminal
Component video cable
(commercially available)
To INPUT 2 terminals
(R(P
R)/G/G sync (Y)/B (PB))
BNC to RCA adaptors
(commercially available)
-34

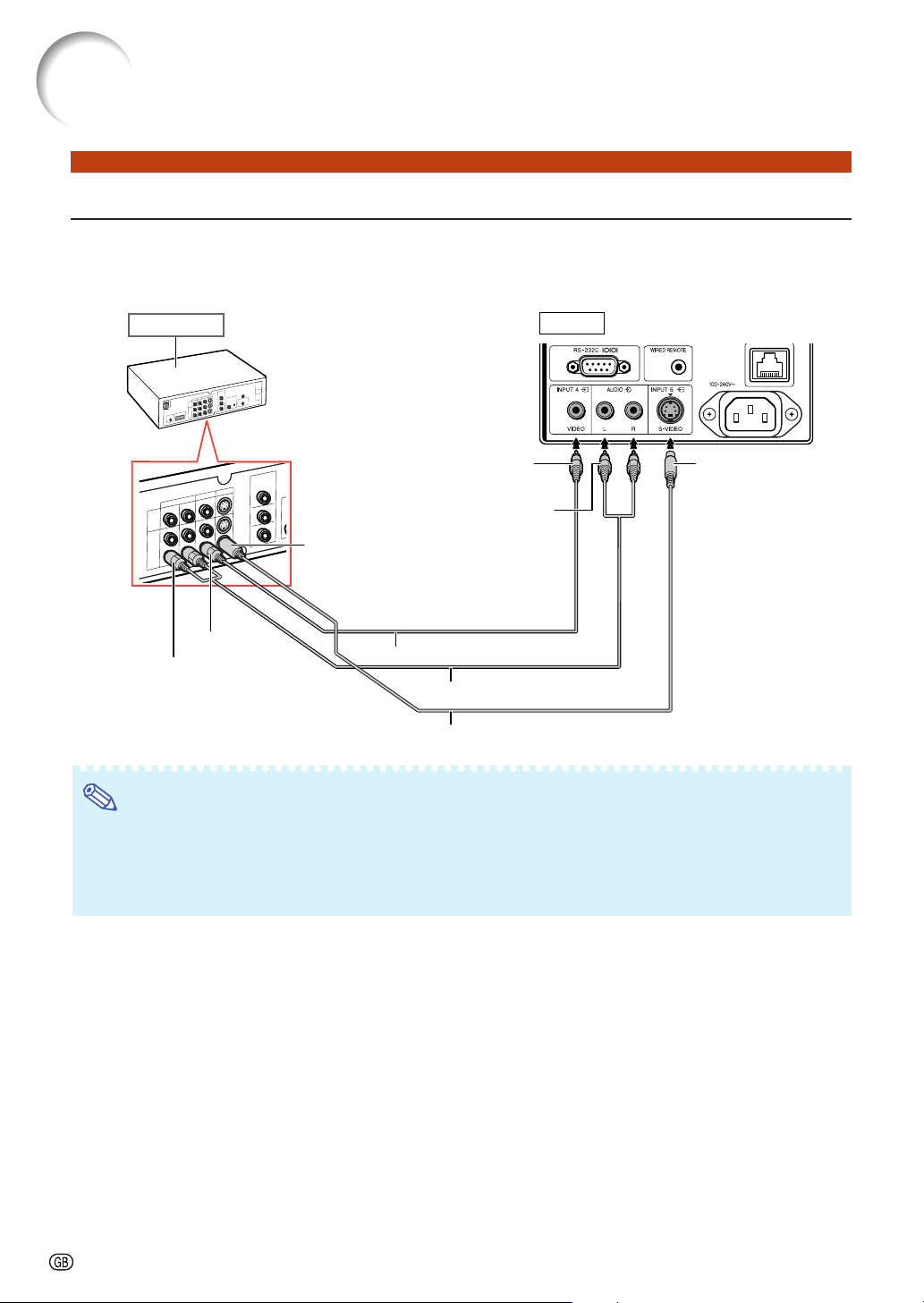

Connecting with an S-video Cable or a Composite Video Cable
Connect the video equipment to the INPUT 4 or 5 terminal using the S-video cable or com-
posite video cable (commercially available).
Note
• The S-video signal input to the S-VIDEO terminal is separated into color and luminance signals for real-
izing a higher-quality image.
• An RCA audio cable (commercially available) is required for audio input.
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-
mercially available cable that fits in the projector terminal you want to connect.
RCA audio cable (commercially available)
To video output
terminal
Composite video cable (commercially available)
To INPUT 5
terminal
To AUDIO input
(4, 5) terminals
To audio output
terminals
To S-video
output terminal
S-video cable (commercially available)
To INPUT 4
terminal
Video Equipment
Side view
Connecting to Video Equipment
Connections
-35
Controlling the Projector by a Computer
When the RS-232C terminal on the projector to the RS-232C serial terminal on the computer,
or when the LAN terminal on the projector to the LAN terminal on the computer, the com-
puter can be used to control the projector. Refer to the “SETUP MANUAL” contained on the
supplied CD-ROM for details.
When connecting to a computer using an RS-232C serial control cable
Note
• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
• Refer to “SETUP MANUAL” contained on the supplied CD-ROM for the RS-232C specifications and
commands.
Info
• Do not connect the RS-232C cable to a terminal other than the RS-232C terminal on the computer. This
may damage your computer or projector.
• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This
may damage your computer.
When connecting to the LAN terminal using a LAN cable
Note
•
When connecting to a hub, use straight-through Category 5 (CAT.5) type cable (commercially available).
• When connecting to a computer, use cross-over Category 5 (CAT.5) type cable (commercially available).
Side view
To RS-232C terminal
To RS-232C terminal
RS-232C serial control cable
(cross type, commercially available)
Computer
* To ensure safety, do not
connect the LAN terminal
with any cables such as a
telephone line that may
cause excessive voltage.
Hub or computer
TX/RX LED (yellow)
Illuminates when
transmitting/receiving data.
LINK LED (green)
Illuminates when linked.
To LAN terminal
To LAN terminal
LAN cable
(Category 5 type, commercially available)
Side view
-36
Connecting to a Monitor That Has an RGB Input Terminal
You can display computer images on a monitor using the RGB cables.
Note
• RGB signals and component signals input from the INPUT 1 or INPUT 2 terminals can be output to the
monitor.
• For inputting video signals from the INPUT 1 terminal, another RGB cable (commercially available) is
required.
Connecting to an Amplifier or Other Audio Equipment
Audio signals input from equipment connected to each audio input terminal of the projector
can be output to audio equipment.
Note
• ø3.5 mm stereo minijack to RCA audio cable (commercially available) is required for audio input.
• When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off
the power of the amplifier and then turn off the power of the projector.
• By using external audio components, the volume can be amplified for better sound.
• For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 72.
Monitor
Side view
To RGB output
terminal
Computer
To RGB input
terminal
To INPUT 1
terminal
RGB cable (supplied or
commercially available)
RGB cable (supplied
or commercially
available)
To OUTPUT
(FOR INPUT 1, 2) terminal
Amplifier
Side view
To audio input
terminals
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
To AUDIO OUTPUT
(1 – 5) terminal
Basic Operation
-37
Turning the Projector On/Off
Info
• If “Direct Power On” is set to “ON”, the projector will
be turned on automatically when you plug the power
cord into the AC outlet. (See page 87.)
• English is the factory preset language. If you want to
change the on-screen display to another language,
change the language according to the procedure on
page 92.
▼On-screen Display
Info
•
You can unplug the power cord even if the projector is op-
erating.
•
Even if you unplug the power cord from the projector, the
cooling fan continues to run for a while.
Power cord
Supplied
accessory
Connecting the Power Cord
Plug the supplied power cord into the
AC socket on the rear of the projector.
Then plug into the AC outlet.
Turning the Projector On
Before performing the steps in this section,
connect any equipment that you use with the
projector. (See pages 27–36.)
Remove the lens cap and press on the
projector or on the remote control.
• The power indicator illuminates green.
• After the lamp indicator illuminates, the projec-
tor is ready to start operation.
• When System Lock is set, the keycode input
screen appears. Enter the right keycode to
start projection. See page 79 for details.
Note
• The lamp indicator illuminates or blinks, in-
dicating the status of the lamp.
Green: The lamp is on.
Blinking green: The lamp is warming up.
Red:
The lamp is shut down abnor-
mally or the lamp should be
replaced.
•
When switching on the projector, a slight flicker-
ing of the image may be experienced within the
first minute after the lamp has been illuminated.
This is normal operation as the lamp’s control
circuitry is stabilizing the lamp output charac-
teristics. This does not indicate malfunction.
• If the projector is put into standby mode and
immediately turned on again, the lamp may
take some time to illuminate.
Turning the Power Off
(Put-
ting the Projector into Standby Mode)
1 Press
on the projector or
on the remote control, then
press that button again while the
confirmation message is dis-
played, to put the projector into
standby mode.
Power cord
To AC outlet
Side view
To AC socket
Lamp indicators 1, 2
Power indicatorSTANDBY
button
ON button
Lens cap
ON button
STANDBY
button
-38
Image Projection

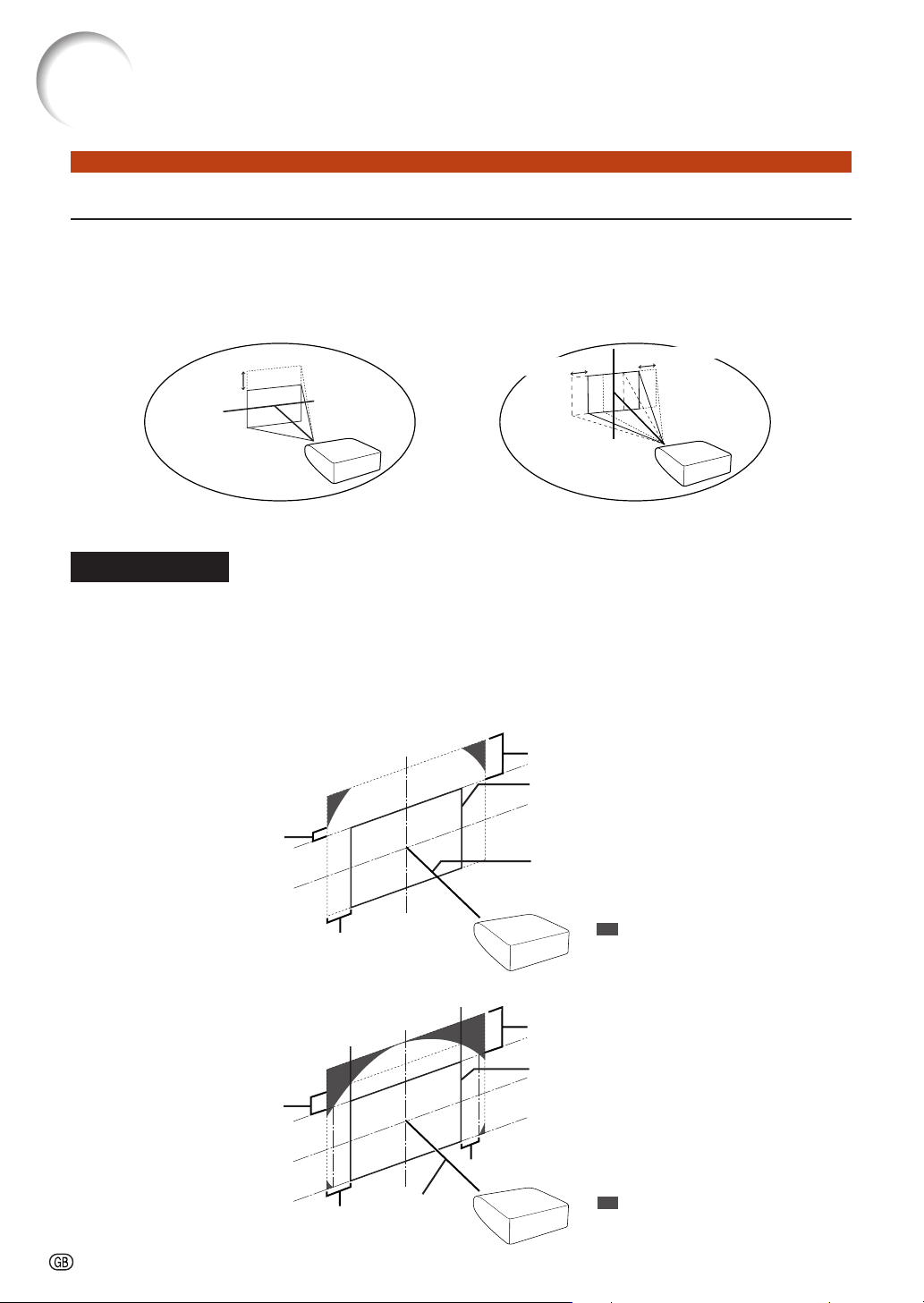

Shifting the Lens
In addition to the zoom function and adjustment of projection angle using the adjust-
ment feet, you can adjust the position of the projection using the lens shift function.
This is a useful function in cases such as when the screen cannot be moved.
Adjustable range
The adjustable range is shown below.
Horizontal range: ±15%
Vertical range: +50% (to the upper side)
The adjustable range has limitations even within the range shown above.
The image can be adjusted as shown on the diagram.
Adjustable
range
When moving upward or downward When moving in the left and right direction
Adjustable range
Adjustable range
Image center
Width of the image × 15%
Height of the image × 50%
Height of the image × 10%
AN-PH20EZ, AN-PH31EZ, AN-PH40EZ, AN-PH50EZ, AN-PH60EZ
The position of the image when
the vertical position of the image
is center and the horizontal
position is the lowest
: Areas on which the image is
masked with a shadow while
using the lens shift function.
Image center
Width of the image × 11%
Width of the image × 15%
Height of the image × 50%
Height of the image × 18%
AN-PH10EX
The position of the image when
the vertical position of the image
is center and the horizontal
position is the lowest
: Areas on which the image is
masked with a shadow while
using the lens shift function.
Basic Operation
-39
Using the Adjustment Feet
• When the position of the projected image cannot be adjusted with the lens shift function, use the adjustment
feet to adjust the projected angle.
• The height of the projector can be adjusted using the adjustment feet when the screen is located higher than
the projector, the screen is inclined or when the installation site is slightly inclined.
• Install the projector so that it is as perpendicular to the screen as possible.
1
While lifting the projector, rotate
the adjustment feet.
• The projector is adjustable up to approxi-
mately 9 degrees.
2 Lower the projector, and then ro-
tate the adjustment feet for the
fine adjustment.
• When lowering the projector, be careful
not to get your fingers caught in the area
between the adjustment feet and the
projector.
Adjustment feet
Up UpDown Down
ENTER button
Adjustment button
('/"/\/|)
H & V LENS SHIFT
button
Mouse/adjustment
button
('/"/\/|)
ENTER button
H & V LENS SHIFT
button
1 Press on the projector or
on the remote control.
• Pressing on the projector or
on the remote control displays the test
pattern. Checking the test pattern is use-
ful for more accurate adjustment.
2 Press ', ", \ or | on the pro-
jector or the remote control to
adjust the image position.
▼On-screen Display
-40
Note
• After you have pressed the FOCUS but-
tons or the ZOOM buttons on the remote
control or the projector, you can display the
test pattern by pressing the ENTER but-
ton. The test pattern is useful for making
more accurate adjustments.
• For fine adjustments, when pressing the H
& V LENS SHIFT buttons, the FOCUS but-
tons or the ZOOM buttons, the projected
image moves a small amount toward the
desired direction for approximately one
second. Hold down the buttons to move the
projected image quickly.
Adjusting the Focus
Press
on the projector or on
the remote control to adjust the fo-
cus.
Adjusting the Projected Image Size
Press
on the projector or on
the remote control to adjust the pro-
jected image size.
ZOOM button
FOCUS button
ZOOM
buttons
FOCUS buttons
Image Projection
▼On-screen Display
▼On-screen Display
Basic Operation
-41
ENTER button
KEYSTONE
button
UNDO button
Adjustment
button ('/"/\/|)
Mouse/adjustment
button ('/"/\/|)
ENTER button
UNDO button
KEYSTONE
button
For correcting an image desig-
nating the corner of the pro-
jected image
For correcting an image desig-
nating the horizontal or vertical
axes
For correcting the image dis-
tortion which cannot be cor-
rected with “H & V KEY-
STONE”.
*Only when “H & V KEY-
STONE” is set to the values
other than “0”, “IMAGE
RESIZING” can be adjusted.
(This function cannot be used
when correcting with “GEO-
METRIC ADJUSTMENT”.)
GEOMETRIC
ADJUSTMENT
H & V KEYSTONE
IMAGE RESIZING
↑
↑
Selecting the Type of the
Correction
Select the type of the keystone correction.
Press
on the projector or on the
remote control.
• “GEOMETRIC ADJUSTMENT” will be dis-
played.
• Each time
or is pressed, the display
toggles as follows:
GEOMETRIC → H & V KEYSTONE
ADJUSTMENT
The display ← IMAGE RESIZING *
disappears.
Correcting Trapezoidal Distortion
When the image is projected either from the top or from the bottom towards the screen at an angle, the image
becomes distorted trapezoidally.
The function for correcting trapezoidal distortion is called Keystone Correction.
There are the two types of the Keystone Correction.
1) “GEOMETRIC ADJUSTMENT” for correcting an image designating the corner of the projected im-
age
2) “H & V KEYSTONE” for designating the correction of the horizontal and vertical axes
-42
Geometric Adjustment
Upper Left Upper Right Lower Right
Lower Left
GEOMETRIC ADJUSTMENT
1 Press
on the projector or
on the remote control re-
peatedly until “GEOMETRIC
ADJUSTMENT” is displayed.
2 Press the buttons below to ad-
just the position, size or focus
of the projected image.
• Match screen’s four sides to green
test pattern.
• Pressing
''
''
',
""
""
",
\\
\\
\ or
||
||
| on the projector
or
on the remote control allows you
to shift the lens.
• Pressing
on the projector or on
the remote control allows you to adjust
the projected image size.
• Pressing
on the projector or on
the remote control allows you to adjust
the focus.
3 Press on the projector or
on the remote control.
4 Press ', ", \ or | to move the
position for the upper left of the
image.
• Move the upper left of the yellow frame
onto the upper left of the screen.
5 Press or to set the posi-
tion.
6
Repeat the same procedure with the
positions for the upper right, lower
right and lower left of the image.
• At this time, pressing on the pro-
jector or
on the remote control re-
turns to the previous screen.
• Before correcting the upper left of the
image, pressing
or returns
to the reset confirmation screen.
• When the position of the lower left is
set, the correction is made and the
display disappears.
Image Projection
▼On-screen Display
Basic Operation
-43
Vertical Keystone Correction
(Adjustment with
' / "
)
Horizontal Keystone Correction
(Adjustment with
\ / |
)
▼On-screen Display
H & V KEYSTONE
1 Press
on the projector or
on the remote control re-
peatedly until “H & V KEY-
STONE” is displayed.
• When the correction has already been
made with “GEOMETRIC ADJUST-
MENT”, the confirmation message for
resetting the correction before “H & V
KEYSTONE” is displayed, and then re-
set.
2 Press ' or " to parallelize the
left and right sides of the pro-
jected image.
3 Press \ or |
to parallelize the
upper and lower sides of the
projected image.
4 Press
or
to display “IM-
AGE RESIZING”.
• Only when “H & V KEYSTONE” is set
to the values other than “0”, “IMAGE
RESIZING” works.
▼On-screen Display
-44
Image Projection
IMAGE RESIZING
(Adjustment with
' / " / \ / |
)
5 Press ', ", \ or | to correct
the image distortion.
6 Press
or to set the po-
sition.
Basic Operation
-45
Switching the Input
Mode
Select the appropriate input mode for the con-
nected equipment.
Press , , , or on
the remote control to select the input
mode.
••
••
• When pressing on the projector, the
input mode switches in order of :
INPUT 1 INPUT 2 INPUT 3
••
••
• When pressing on the projector, the
input mode switches between “INPUT 4” and
“INPUT 5”.
Note
• When no signal is received, “NO SIGNAL”
will be displayed. When non-supported sig-
nal is received, “NOT REG.” is displayed.
• When “Auto Search” of the “Options (1)”
menu is set to “ON”, the input mode with
signal can automatically be detected and
displayed. (See page 78.)
• The input mode is not displayed when “OSD
Display” of the “Options (1)” menu is set to
“Level A” or “Level B”. (See page 75.)
About the Input mode
"On-screen Display of Input Mode (Example)
Using RGB
Using
component
INPUT 1/2/3 mode
INPUT 5 mode
Using S-video
INPUT 4 mode
Using video
Used for projecting images from
equipment that sends RGB signals
or component signals connected to
the INPUT 1 or 2 terminals.
Used for projecting images
from equipment connected to
the INPUT 3 terminal.
Used for projecting images
from equipment connected to
the INPUT 4 terminal.
Used for projecting images
from equipment connected to
the INPUT 5 terminal.
INPUT 1/
INPUT 2
(RGB/
component)
INPUT 3
(digital PC
RGB/digital
PC compo-
nent/digital
video RGB/
digital video
component)
INPUT 4
(video)
INPUT 5
(S-video)
INPUT buttons
/ ///
When pressing .
When pressing .
When “Auto Search” is set to “ON”
• Pressing
or once displays the
current input mode.
• Pressing
or again starts the
automatic input search.
* The “INPUT 3”
display is an
example. (When
“Signal Type” is set
to “D. PC RGB”)
* The “INPUT 3”
display is an
example. (When
“Signal Type” is set
to “D. PC Comp.”)
-46
"On-screen Display
Volume
buttons
×1 ×4 ×9 ×16 ×36 ×64×2 ×3
"On-screen Display
Adjusting the Volume
Press
\\
\\
\/
||
||
| on the projector or on the
remote control to adjust the volume.
Note
• Pressing
or \ will lower the volume.
Pressing
or | will raise the volume.
Turning Off the Sound
Temporarily
Press on the remote control to
temporarily turn off the sound.
Note
• Pressing again will turn the sound
back on.
Displaying an Enlarged
Portion of an Image
Graphs, tables and other portions of projected
images can be enlarged. This is helpful when
providing more detailed explanations.
1 Press
on the remote control.
• Enlarges the image.
• Pressing
or
enlarges or reduces
the projected image.
Note
• You can change the location of the en-
larged image using ', ", \ and |.
MUTE button
Mouse/adjustment
button ('/"/\/|)
ENLARGE
(enlarge/reduce)
buttons
UNDO
button
RESIZE
button
/
Image Projection
Basic Operation
-47
Freezing a Moving
1 Press on the remote control.
• The projected image is frozen.
2 Press again to return to the
moving image from the currently
connected equipment.
Selecting the Picture
Mode
You can select the suitable picture mode for the
projected image, such as movie or video game.
Press on the remote control.
• When pressing , the picture mode
changes in order of
Note
• Press to return to the “STANDARD”
mode.
• This function can also be accessed from the
OSD menu (see page 60).
STANDARD
PRESENTATION
CINEMA
CUSTOM
FREEZE button
PICTURE MODE
button
UNDO button
2 Press on the remote control
to cancel the operation.
• The magnification then returns to ×1.
Note
In the following cases, the image will
return to the normal size (×1).
• When switching the input mode.
• When
has been pressed.
• When the input signal is changed.
•
When the input signal resolution and re-
fresh rate (vertical frequency) change.
• When has been pressed.
-48
Resize Mode
Press on the remote control.
• Pressing changes the display as shown.
• To return to the standard image, press
while
“RESIZE” is displayed on the screen.
• This function can also be accessed from the OSD
menu (see page 74).
This function allows you to modify or customize the resize mode to enhance the input image. Depend-
ing on the input signal, you can choose a desired image.
COMPUTER
RESIZE button
Mouse/adjustment button
('/"/\/|)
UNDO button
Image Projection
STRETCH
For 4:3 screen For 16:9 screen
Input signal
Image type
NORMAL FULL BORDER
4:3 aspect ratio
5:4 aspect ratio
16:10 aspect ratio
16:9 aspect ratio
: Cutout area on which images cannot be projected
: Area where the signals are off screen
*The Digital Shift function can be used for these images.
Computer
Resolution
lower than
XGA
XGA
SXGA (1280 × 960)
Resolution
higher than
SXGA
SXGA (1280 × 1024)
1280 × 720
Select “Normal”
1280 × 768
1280 × 800
1360 × 768
1366 × 768
DOT BY DOT
*
*
*
*
*
*
4:3 aspect ratio
Other aspect ratios
SVGA (800 × 600)
XGA (1024 × 768)
SXGA (1280 × 960)
SXGA+ (1400 × 1050)
SXGA (1280 × 1024)
1280 × 720
1360 × 768
1366 × 768
1280 × 768
1280 × 800
1024 × 768
968 × 768
1024 × 576
1024 × 578
1024 × 576
1024 × 614
1024 × 640
1024 × 768
768 × 576
—
720× 576
—
960 × 576
922 × 576
1024 × 576
—
1024 × 576
NORMAL FULL BORDER STRETCHDOT BY DOT
800 × 600
1024 × 768
1280 × 960
1400 × 1050
1280 × 1024
1280 × 720
1360 × 768
1366 × 768
1280 × 768
1280 × 800
Basic Operation
-49
VIDEO
Input signal
Image type NORMAL FULLDTV/video
480I, 480P,
576I, 576P,
NTSC, PAL, SECAM
720P, 1035I, 1080I
540P
4:3 aspect ratio
4:3 aspect ratio
BORDER STRETCH SMART STRETCH
Letter box
Squeeze
16:9 aspect ratio
Select “Stretch”
Select “Stretch”
Select “Full”
Select “Full”
4:3 aspect ratio
in 16:9
16:9 aspect ratio
: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals
*The Digital Shift function can be used for these images.
For 4:3 screen For 16:9 screen
*
*
**
*
**
*
**
*
*
*
**
-50
Displaying the Black
Screen
This function allows you to tempo-
rarily display the black screen.
1 Press .
2 Pressing again will turn
the projected image back on.
Displaying and Setting
the Break Timer
This function allows you to show the re-
maining time for break during meeting.
1 Press .
2 While “ ” is displayed, press
', ", \ or | to set the break
timer.
• You can set anywhere between 1 and
60 minutes (in 1 units).
• The break timer starts to count down as
soon as
''
''
',
""
""
",
\\
\\
\ or
||
||
| is pressed.
Note
• Pressing
will cancel the break timer.
• Auto Power Off function will be temporarily
disabled during the break timer.
When no input signal is detected for more
than 15 minutes, the projector will automati-
cally enter the standby mode if the break
timer has elapsed.
• The break timer will be displayed on the
startup image. To change the screen dis-
played during the break timer, change the
setting of “Startup Image” (see page 77).
• When “Slave” is set for “Stack Setting”, the
break timer is not displayed. (See page 84.)
▼Projected Image
▼On-screen Display
BLACK SCREEN
button
Mouse/
adjustment
button
(
'
/
"
/
\
/
|
)
UNDO
button
BREAK TIMER
button
Image Projection
Useful Features
-51
Menu Items
The following shows the items that can be set in the projector.
“Picture” menu
INPUT 1 / INPUT 2 / INPUT 3
+30-30
+30-30
+30-30
+30-30
+30-30
+100
Signal Type
Auto
RGB
Component
INPUT 1/INPUT 2
D.PC RGB
D.PC Comp.
D.Video RGB
D.Video Comp.
INPUT 3
Tint
Color
Reset
Bright
+30-30
Contrast
Red
Green
Bright Boost
Progressive
4500K
10500K
Main Menu Sub Menu
CLR Temp
Page 60
Page 61
Page 60
Page 60
Page 61
Page 62
Page 60
Page 63
Picture Mode
Standard
Presentation
Cinema
Custom
*1
*1
*1
*1
*1
*1
*1
*3
*5
*1 *4
*2
2D Progressive
3D Progressive
Film Mode
Page 62
DNR
OFF
Level 1
Level 2
Level 3
+30-30
Blue
Page 64
C.M.S. Adjustment
Standard
Custom 1
Custom 2
Custom 3
sRGB
+30-30
Sharp
Pressing displays the items on the lower
part of the “Picture” menu.
*1 “Color”, “Tint”, “Red”, “Green”, “Blue”, “CLR Temp” and “Bright Boost” cannot be adjusted when “C. M. S. Adjust-
ment” is set to “sRGB”.
*2 “Sharp” can be adjusted only when 480
I
, 480P, 540P, 576
I
, 576P, 720P, 1035
I
, or 1080
I
signal is input.
*3 “Progressive” can be adjusted only when 480
I
or 576
I
signal is input.
*4 “sRGB” can be selected under the conditions below.
• When “Signal Type” is set to “RGB”, “D. PC. RGB” or “D. Video RGB”.
• When “Signal Type” is set to “Auto” and the input signal is distinguished as “RGB”.
*5 “DNR” can be adjusted only when 480
I
, 480P, 576
I
or 576P signal is input.
-52
Menu Items
INPUT 4 / INPUT 5
+30-30
+30-30
+30-30
+30-30
+30-30
+100
Tint
Color
Reset
Bright
+30-30
Contrast
Red
Green
Bright Boost
Progressive
4500K
10500K
Main Menu Sub Menu
CLR Temp
Page 60
Page 61
Page 60
Page 60
Page 61
Page 62
Page 60
Picture Mode
Standard
Presentation
Cinema
Custom
2D Progressive
3D Progressive
Film Mode
Page 62
DNR
OFF
Level 1
Level 2
Level 3
+30-30
Blue
Page 64
C.M.S. Adjustment
Standard
Custom 1
Custom 2
Custom 3
+30-30
Sharp
Pressing displays the items on the lower
part of the “Picture” menu.
“Picture” menu
Useful Features
-53
“Fine Sync” menu
*6 The “Fine Sync” menu is displayed only while the input mode is INPUT 1, INPUT 2 or INPUT 3.
*7 “Clock”, “Phase”, “H-Pos”, “V-Pos”, “Reset”, “Save Setting”, “Select Setting” and “Special Modes” can be ad-
justed only while the input mode is INPUT 1 or INPUT 2.
Fine Sync
+30-30
+60-60
+150-150
+150-150
Clock
Phase
H-Pos
V-Pos
Reset
Auto Sync Disp
Save Setting
Main Menu
Auto Sync
Page 68
Page 68
Page 68
Page 70
*6
*7
Page 71
OFF
Normal
High Speed
Select Setting
Page 69
Special Modes
Page 69
Signal Info
Page 70
Sub Menu
“C.M.S.” menu
View Settings
Reset (This Color)
C.M.S.
Main Menu
Page 64
Page 64
Page 66
Page 67
C.M.S. Adjustment
Standard
Custom 1
Custom 2
Custom 3
sRGB
Page 66
Reset (All Colors)
[R] Red
[Y] Yellow
[G] Green
[C] Cyan
[B] Blue
[M] Magenta
Target
Page 64
+30-30
+30-30
+30-30
Lightness
Chroma
Hue
Page 66
Page 65
Page 65
Sub Menu
-54
Menu Items
“Options (1)” menu
INPUT 4 / INPUT 5
INPUT 1 / INPUT 2 / INPUT 3
Pict in Pict
Options (1)
Main Menu Sub Menu
OSD Display
Auto
PAL (50/60Hz)
SECAM
NTSC4.43
NTSC3.58
PAL-M
PAL-N
Video System
Background
Image Capture Save Image
Delete
Logo
Custom
Blue
None
Normal
Full
Dot By Dot
Border
Stretch
Smart Stretch
Eco Mode [ON/OFF]
Auto Search [ON/OFF]
System Lock
Auto Power Off [ON/OFF]
Page 74
Page 75
Page 74
Resize
Page 74
Page 76
Page 76
Page 77
Page 78
Page 78
Page 79
Page 79
*10
*8
*9
*8
Digi. Shift
Page 75
Normal
Level A
Level B
Startup Image
Logo
Custom
None
Page 77
+96-96
“Audio” menu
+30-30
+30-30
+30-30
Speaker [ON/OFF]
Bass
Treble
+30-30
Balance
Reset
Audio Out
Audio
Main Menu
Page 72
Page 72
Page 72
Page 73
FAO
VAO
Sub Menu
*8 Item when inputting RGB signal through INPUT 1, INPUT 2 or INPUT 3
*9 Selectable items in “Resize” mode may differ depending on the signal.
*10 Item when selecting INPUT 4 or INPUT 5
Useful Features
-55
“Language” menu
“Status” menu
Main Menu Sub Menu
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
Language
Page 92
Status
Main menu
Page 92
“Options (2)” menu
LAN/RS232C
Monitor Out
RS-232C
Options (2)
Enable
Disable
INPUT 1 [ON/OFF]
INPUT 2 [ON/OFF]
INPUT 3 [ON/OFF]
INPUT 4 [ON/OFF]
INPUT 5 [ON/OFF]
9600 bps
38400 bps
115200 bps
Enable
Disable
Main Menu Sub Menu
Set Inputs
Page 82
Page 82
Page 86
Page 87
Service Mode
Page 90
Page 88
Page 88
Network
DHCP Client [ON/OFF]
TCP/IP
Page 89
All Reset
Password
Old Password
New Password
Reconfirm
Lamp 1
Lamp 2
Lamp Timer (Life)
Page 83
Both Lamps
Lamp 1 Only
Lamp 2 Only
Equal Use
Lamp Mode
Page 83
Front
Ceiling + Front
Rear
Ceiling + Rear
PRJ Mode
Page 84
Page 84
Stack Setting
Normal
Master
Slave
Pair Stack
Page 85
Page 85
Keylock Level
Normal
Level A
Level B
Page 86
Fan Mode
Normal
High
Page 87
Direct Power On [ON/OFF]
Page 91
IP Address
Subnet Mask
Gateway
*11
*11 Adjustable only when DHCP
Client is set to “OFF”
-56
Menu items
The menu can be operated to achieve two functions, adjustments and settings. (For setting
the menu items, see pages 58 and 59. )
Using the Menu Screen
Menu Selections (Adjustments)
Example: Adjusting “Bright”
• This operation can also be performed by using the buttons on the projector.
ENTER
button
MENU button
UNDO button
Mouse/
adjustment
button ('/"/\/|)
Adjustment
buttons ('/"/\/|)
MENU button
UNDO button
ENTER button
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
1 Press .
• The “Picture” menu screen for the se-
lected input mode is displayed.
2 Press
\\
\\
\ or
||
||
| to display the other
menu items.
• There are eight menu items as shown
below.
Note
• The “Fine Sync” menu is not available
for selecting INPUT 4 or INPUT 5.
Menu item
Useful Features
-57
3 Press
''
''
' or
""
""
" to select the item
you want to adjust.
• Pressing displays the items on the
lower part of the “Picture” menu.
To adjust the pro-
jected image while
viewing it
Press .
• The selected single adjustment item
(e.g. “Bright”) appears instead of the
menu.
• When pressing
''
''
' or
""
""
", the following
item (“Color” after “Bright”) will be dis-
played.
Note
• Press to return to the previous
screen.
4 Press
\\
\\
\ or
||
||
| to adjust the item
selected.
• The adjustment is stored.
5 Press .
• The menu screen will disappear.
Single
adjustment
item
-58
Menu items
Menu Selections (Settings)
Example: Setting “OSD Display”
• This operation can also be performed by using
the buttons on the projector.
1 Press
.
• The “Picture” menu screen for the se-
lected input mode is displayed.
2 Press
\\
\\
\ or
||
||
| to display the other
menu items.
• There are eight menu items as shown
below.
Note
• The “Fine Sync” menu is not available
for selecting INPUT 4 or INPUT 5.
Example: “Options (1)” screen menu
The menu can be operated to achieve two functions, adjustments and settings. (For adjust-
ing the menu items, see pages 56 and 57.)
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
ENTER
button
MENU button
UNDO button
Mouse/
adjustment
button ('/"/\/|)
Menu item
Using the Menu Screen
Useful Features
-59
Sub menu
3 Press
''
''
' or
""
""
" to select the
item you want to set.
Note
• Press to return to the previous
screen.
• In some menu, select the icon using
.
4 Press
||
||
| to shift the cursor to the
sub menu.
5 Press
''
''
' or
""
""
" to select the set-
ting of the item displayed in the
sub menu.
6 Press .
• The selected item is set.
Note
• Some adjustment items will display a
confirmation message. When setting
an item, press \ or | to select “Yes”
or “OK”, press
.
7 Press .
• The menu screen will disappear.
-60
You can adjust the projector’s picture to your preferences using the “Picture” menu.
Picture Adjustment (“Picture” menu)
Selecting the Picture Mode
This function allows you to select the picture
mode in accordance with brightness of the room
or content of the image to be projected.
In all picture modes, items on the “Picture” menu
can be adjusted and saved.
Menu operation
Page 58
Example: “Picture” screen menu for IN-
PUT 1 (RGB) mode
Description of Picture Modes
Note
• You can also press on the remote control
to select the picture mode. (See page 47.)
Adjusting the Image
Select a picture mode before adjusting the im-
age.
Menu operation
Page 56
Example: “Picture” screen menu for IN-
PUT 1 (RGB) mode
Description of Adjustment Items
*1 “Color”, “Tint”, “Red”, “Green” and “Blue” cannot
be adjusted when “C.M.S. Adjustment” on the
“C.M.S.” menu is set to “sRGB”. (See page 64.)
*2 “Sharp” can be adjusted only when 480I, 480P,
540P, 576I, 576P, 720P, 1035I or 1080I DTV sig-
nal is input during the INPUT 1, 2 or 3 mode; or
the input mode is set to INPUT 4 or 5.
Note
• To reset all adjustment items, select “Reset” and
press .
Selectable items
Standard
Presentation
Cinema
Custom
Description
For standard image
Brightens darker portions of image for
more enhanced presentations.
Gives greater depth to darker portions
of image for a more exciting theater
experience.
The factory preset value is the same as
the one of “Standard”.
Using the dedicated software allows
you to adjust the gamma curve.
Visit “http://sharp-world.com/projector/”
for details.
Selectable items
Press
\\
\\
\
Press
||
||
|
Contrast
Bright
Color
*1
Tint
*1
Red
*1
Green
*1
Blue
*1
Sharp
*2
For less contrast
For less brightness
For less color intensity
For making skin tones
purplish
For weaker red
For weaker green
For weaker blue
For less sharpness
For more contrast
For more brightness
For more color intensity
For making skin tones
greenish
For stronger red
For stronger green
For stronger blue
For more sharpness
Useful Features
-61
Adjusting the Color Temperature
Menu operation
Page 56
Example: “Picture” screen menu for IN-
PUT 1 (RGB) mode
Description of Color Temperature Settings
Note
• “CLR Temp” cannot be set when “C.M.S. Ad-
justment” on the “C.M.S.” menu is set to “sRGB”.
(See page 64.)
Selectable items
4500K
10500K
Description
For lower color temperature for warmer,
reddish incandescent-like images.
For higher color temperature for cooler,
bluish, fluorescent-like images.
Emphasizing the Contrast
This function emphasizes the bright portions of
images to obtain a higher contrast image.
Menu operation
Page 56
Example: “Picture” screen menu for IN-
PUT 1 (RGB) mode
Description of Bright Boost Setting
Press \ Press |
Note
• “Bright Boost” cannot be set when “C.M.S. Ad-
justment” on the “C.M.S.” menu is set to “sRGB”.
(See page 64.)
To increase brightness,
increase bright boost
setting.
To improve color reproduc-
tion, lower bright boost
setting.
-62
Selecting the Progressive Mode
Menu operation
Page 58
Example: “Picture” screen menu for IN-
PUT 1 (RGB) mode
Description of Progressive
*
The film source is a digital video recording with the original
encoded as is at 24 frames/second. The projector can con-
vert this film source to progressive video at 60 frames/sec-
ond with NTSC and PAL60Hz or at 50 frames/second with
PAL50Hz and SECAM to play back a high-definition image.
Note
•
In NTSC or PAL60Hz, even if the 3D Progressive
mode has been set, the three-two pull down enhance-
ment will be enabled automatically when the film
source has been entered.
•
When the image is blurred or noisy, switch to the
optimal mode.
•
When using progressive inputs, inputs are directly
displayed so that “2D Progressive”, “3D Progressive”
and “Film Mode” cannot be selected.
Description
Useful to display fast-moving images such
as sports and action films.
Useful to display relatively slowmoving
images such as drama and documentary
more clearly.
Reproduces the image of film source*
clearly. Displays the optimized image of film
transformed with three-two pull down (NTSC
and PAL60Hz) or two-two pull down
(PAL50Hz and SECAM) enhancement to
progressive mode images.
Selectable items
2D
Progressive
3D
Progressive
Film Mode
Picture Adjustment (“Picture” menu)
Reducing Image Noise (DNR)
Video digital noise reduction (DNR) provides high
quality images with minimal dot crawl and cross
color noise.
Menu operation
Page 58
Example: “Picture” screen menu for IN-
PUT 1 (RGB) mode
Description of DNR
Note
• Set a level so as to view a clearer picture.
Make sure to set “DNR” to “OFF” in the
following cases:
• When the image is blurry.
• When the contours and colors of moving im-
ages drag.
• When TV broadcasts with weak signals are pro-
jected.
Info
• This function is available for all signals with IN-
PUT 4 and 5.
• This function is available for 480I, 480P, 576I
and 576P signals with INPUT 1, 2 and 3.
Description
DNR does not function.
Sets the DNR level.
Selectable items
OFF
Level 1–3
Useful Features
-63
Signal Type Setting
This function allows you to select the input sig-
nal type RGB or component for INPUT 1, INPUT
2 or INPUT 3.
Menu operation
Page 58
Example: “Picture” screen menu for IN-
PUT 1 (RGB) mode
Description of Signal Type Settings
INPUT 1/INPUT 2
Description
Input signals are automatically recog-
nized as RGB or component.
Set when RGB signals are received.
Set when component signals are
received.
Selectable items
Auto
RGB
Component
INPUT 3
Description
Set when digital PC RGB signals are
received from a computer.
Set when digital PC component signals
are received from a computer.
Set when digital video RGB signals are
received from video equipment.
Set when digital video component
signals are received from video equip-
ment.
Selectable items
D. PC RGB
D. PC Comp.
D. Video RGB
D. Video Comp.
-64
Color Management System (“C. M. S.” menu)
This function allows you to individually adjust the display characteristics of six colors (R:
Red, Y: Yellow, G: Green, C: Cyan, B: Blue, M: Magenta).
Selecting the Color Repro-
duction Mode
This function allows you to select the color re-
production mode for the projected images.
Menu operation
Page 58
Example: “C.M.S.” screen menu
Description of C.M.S. Adjustment
Note
•
sRGB is an international standard of color repro-
duction regulated by the IEC (International
Electrotechnical Commission). As the fixed color
area has been decided by the IEC, the images
are displayed in a natural tint based on an original
image, when “C.M.S. Adjustment” is set to “sRGB”.
• You cannot set “Color”, “Tint”, “Red”, “Green”,
“Blue”, “CLR Temp”, “Bright Boost” on the “Pic-
ture” menu, when “
C.M.S. Adjustment
” is set to
“sRGB”.
• For additional information about the sRGB func-
tion, visit “http://www.srgb.com/”.
Info
• When “C.M.S. Adjustment” is set to “sRGB”, the
projected image may become dark, but this
does not indicate a malfunction.
Selectable items
Standard
Custom 1 – 3
sRGB
Description
Standard settings
“Lightness”, “Chroma” and “Hue” can be
adjusted for each of the six colors.
A natural tint based on an original im-
age from the computer.
Selecting the Target Color
This function allows you to select the target color
for adjusting the display characteristics.
Menu operation
Page 56
Example: “C.M.S.” screen menu
Description of Target Colors
Red Cyan
Yellow Blue
Green Magenta
Useful Features
-65
For more chromatic value of
the target color
For less chromatic value of
the target color
For more brightness of the
target color
For less brightness of the
target color
Setting the Brightness of the
Target Color
This function allows you to set the brightness of
the selected target color.
Menu operation
Page 56
Example: “C.M.S.” screen menu
Description of Brightness
Press \ Press |
Setting the Chromatic Value
of the Target Color
This function allows you to set the chromatic
value of the selected target color.
Menu operation
Page 56
Example: “C.M.S.” screen menu
Description of Chromatic Value
Press \ Press |
-66
For stronger yellow of the
target color
For stronger red of the
target color
Setting the Hue of the Target
Color
This function allows you to set the hue of the
selected target color.
Menu operation
Page 56
Example: “C.M.S.” screen menu
Description of Hue
Press \ Press |
Resetting User-defined
Color Settings
This function allows you to reset the specific tar-
get color or all of the six colors.
Menu operation
Page 56
Example: “C.M.S.” screen menu
Description of Reset
Description
“Lightness”, “Chroma” and “Hue” of
the color selected for “Target” are
reset.
“Lightness”, “Chroma” and “Hue” of
all colors are reset.
Selectable items
Reset (This Color)
Reset (All Colors)
Color Management System (“C. M. S.” menu)
-68
You can adjust the computer image, match the computer display mode, and confirm the
input signal using the “Fine Sync” menu.
Computer Image Adjustment (“Fine Sync” menu)
Adjusting the Computer
Use the Fine Sync function in case of irregulari-
ties such as vertical stripes or flickering in por-
tions of the screen.
Menu operation
Page 56
Example: “Fine Sync” screen menu for
INPUT 1 (RGB) mode
Description of Adjustment Items
Note
• You can automatically adjust the computer im-
age by setting “Auto Sync” on the “Fine Sync”
menu to “Normal” or “High Speed”, or pressing
on the projector or on the remote
control. See page 70 for details.
• To reset all adjustment items, select “Reset” and
press
.
Selectable items
Clock
Phase
H-Pos
V-Pos
Description
Adjusts vertical noise.
Adjusts horizontal noise (similar to
tracking on your VCR).
Centers the on-screen image by
moving it to the left or right.
Centers the on-screen image by
moving it up or down.
Saving Adjustment Settings
This projector allows you to store up to seven
adjustment settings for use with various com-
puters.
Menu operation
Page 58
Example: “Fine Sync” screen menu for
INPUT 1 (RGB) mode
Useful Features
-69
Special Mode Setting
Ordinarily, the type of input signal is detected and
the correct resolution mode is automatically se-
lected. However, for some signals, the optimal
resolution mode in “Special Modes” on the “Fine
Sync” menu may need to be selected to match
the computer display mode.
Menu operation
Page 58
Example: “Fine Sync” screen menu for
INPUT 1 (RGB) mode
Note
• If your computer displays patterns which repeat
every other line (horizontal stripes), flickering
may occur which makes the image hard to see.
• See “Checking the Input Signal” on page 70 for
information on the currently selected input sig-
nal.
Selecting Adjustment Set-
tings
Adjustment settings stored in the projector can
be easily accessed.
Menu operation
Page 58
Example: “Fine Sync” screen menu for
INPUT 1 (RGB) mode
Note
• If a memory has not been set, a resolution and
frequency setting will not be displayed.
• When selecting a stored adjustment setting with
“Select Setting”, you can set the projector in the
stored adjustments.
-70
Auto Sync Adjustment
Used to automatically adjust a computer image.
Menu operation
Page 58
Example: “Fine Sync” screen menu for
INPUT 1 (RGB) mode
Description of Auto Sync Adjustment
Note
• Auto Sync adjustment is also performed by
pressing on the projector or on the
remote control.
• The Auto Sync adjustment may take some time
to complete, depending on the image of the
computer connected to the projector.
• When the optimum image cannot be achieved
with Auto Sync adjustment, use manual adjust-
ments. (See page 68.)
• When
is pressed while “Auto Sync” is “OFF”
or “High Speed”, Auto Sync will be executed in
“High Speed” mode. If the button is pressed
again within one minute, Auto Sync will be ex-
ecuted in “Normal” mode.
Checking the Input Signal
Menu operation
Page 56
Example: “Fine Sync” screen menu for
INPUT 1 (RGB) mode
Note
• The projector will display the number of scanned
lines available from audio-visual equipment
such as a DVD player or Digital Video.
• The projector will display the resolution when
connecting the computer.
Selectable items
OFF
Normal
High Speed
Description
Auto Sync adjustment is not automati-
cally performed.
Auto Sync adjustment will occur when
the projector is turned on or when the
input signals are switched, when
connected to a computer.
“Normal” takes more time than “High
Speed” for more accurate Auto Sync
adjustment.
Computer Image Adjustment (“Fine Sync” menu)
Useful Features
-71
Auto Sync Display Function
Used to set the display during Auto Sync.
Menu operation
Page 56
Example: “Fine Sync” screen menu for
INPUT 1 (RGB) mode
Description of Auto Sync Display
Description
The image set as a background image
is projected. See page 77.
The computer image being adjusted is
displayed.
Selectable items
—
-72
You can adjust the projector’s audio to your preferences using the “Audio” menu.
Audio Adjustment (“Audio” menu)
Adjusting the Audio
This function allows you to adjust the projector’s
audio.
Menu operation
Page 56
Example: “Audio” screen menu
Description of Adjustment Items
Selectable items
Press \ Press |
Note
• To reset all adjustment items, select “Reset” and
press
.
Increased audio from
the right speaker
For stronger treble
For stronger bass
Balance
Treble
Bass
Increased audio from
the left speaker
For weaker treble
For weaker bass
Setting the Audio Output Type
This function determines whether the audio level
output from the AUDIO OUTPUT terminal is fixed
or variable by linking with VOLUME.
Menu operation
Page 58
Example: “Audio” screen menu
Description of Audio Out Settings
Info
•
When “Audio Out” has been set to “VAO”, first make
sure to lower the volume of the projector before turn-
ing the power on or off and when switching the input.
Note
When the projector is connected to audio equip-
ment:
•
It is recommended that “FAO” be selected on “Audio
Out”. Because the audio signal from the audio equip-
ment does not vary in strength with the volume level
of the projector, you can enjoy better sound.
•
When “FAO” be selected on “Audio Out”, video and
audio may not synchronize.
- When connecting audio equipment that has a func-
tion for adjusting audio delay time, adjust the de-
lay time for synchronizing video and audio.
- When the audio equipment does not have such a
function and the unsynchronized video and audio
bothers you, select “VAO” on “Audio Out”. Select-
ing “VAO” synchronizes video and audio automati-
cally.
Description
Audio output that does not vary in
strength with the volume level of the
source projector.
Audio output that varies in strength with
the volume level of the source projec-
tor.
Selectable items
FAO
(Fixed Audio
Output)
VAO
(Variable
Audio Output)
Useful Features
-73
Speaker Setting
This function allows you to turn the audio out-
put of the internal speaker on or off when the
projector is connected to an external amplifier.
Menu operation
Page 56
Example: “Audio” screen menu
Description of Speaker Settings
Selectable items
ON
OFF
Description
The audio signal is output from the internal
speaker.
The audio signal is not output from the
internal speaker.
-74
Using the “Options (1)” Menu
You can use the “Options (1)” menu to enhance the usage for the projector.
Displaying Dual Pictures
(Pict in Pict)
The Pict in Pict (picture in picture) function allows you to
display two pictures on the same screen. You can display
the image input from INPUT 4 or 5 as an inset picture over-
lapping the main picture input from INPUT 1, 2 or 3.
Menu operation
Page 56
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Note
• You can press on the projector or
,
on the remote control to select the inset
picture image.
• You can press ' / " / \ / | on the projector or
on the remote control to change the location of
the inset picture image.
(The inset picture frame will be displayed. To dis-
play the inset picture to the desired position, move
the frame and press
on the projector or
on the remote control.)
•
Inset picture can only be displayed in composite
video or S-video signal of NTSC/PAL/SECAM.
• The audio of the inset picture will come out of
the projector’s speakers.
• While the “Pict in Pict” function is working, the
“FREEZE” function only works for the inset picture.
•
The “Pict in Pict” function does not work when the
following signals are input to the main picture.
−UXGA/SXGA+/SXGA/WXGA signal
−
480I/480P/540P/576I/576P/720P/1035P/1080I signal
−Interlaced RGB signal
−
All signals (when “Resize” is set to “Dot by Dot”)
−
No signal (or when the resolution or refresh rate
(vertical frequency) of the signal is changed)
Setting the Resize Mode
Depending on the input signal, you can select
the screen image.
Menu operation
Page 58
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Selectable Items of Resize Mode
Note
• For details of the Resize mode, see pages 48
and 49.
• You can also press
on the remote control
to change the resize mode. (See page 48.)
When inputting RGB signal
Normal
Full
Dot By Dot
Border
Stretch
When inputting DTV/video
signal
Normal
Full
Border
Stretch
Smart Stretch
Useful Features
-75
Shifting the Projected Im-
age Vertically (Digital
Shift)
For easier viewing, this function shifts the im-
age projected on the screen up or down elimi-
nating either the upper or lower black band found
in 16:9 and other wide aspect ratios.
Menu operation
Page 56
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Description of Digital Shift
Note
•
The “Digital Shift” function works with the
“NORMAL”, “BORDER”, “STRETCH” or “SMART
STRETCH” image. (See page 49.)
Press \
Shifts the projected image
down.
Press |
Shifts the projected image
up.
Setting On-screen Display
This function allows you to turn the on-screen
messages on or off.
Menu operation
Page 58
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Description of OSD Display Settings
Note
• While “Keylock Level” is “Level A” or “Level B”,
pressing
displays “All buttons on
Projector are locked.” despite the “OSD Display”
setting.
Description
All on-screen displays are displayed.
INPUT/VOLUME/MUTE/BLACK SCREEN/
FREEZE/AUTO SYNC/ENLARGE/ “An in-
valid button has been pressed.” are not dis-
played.
All on-screen displays are not displayed. (ex-
cept the menu, H & V LENS SHIFT, KEY-
STONE, FOCUS, ZOOM, “All buttons on Pro-
jector are locked.” and warning displays)
Selectable items
Normal
Level A
Level B
-76
Using the “Options (1)” Menu
Setting the Video System
The video input system mode is factory preset
to “Auto”; however, a clear picture from the con-
nected audio-visual equipment may not be re-
ceived, depending on the video signal difference.
In that case, switch the video signal.
Menu operation
Page 58
Example: “Options (1)” screen menu for
INPUT 4 (video) mode
Description of Video Systems
Note
• The video signal can only be set in INPUT 4 or
INPUT 5 mode.
• When “Video System” is set to “Auto”, you may
not receive a clear picture due to signal differ-
ences. Should this occur, switch to the video
system of the source signal.
• While “Video System” is set to “Auto”, when
PAL-M or PAL-N signal is input, the image from
PAL signal will be displayed.
Description
When connected to PAL video equipment.
When connected to SECAM video equipment.
When reproducing NTSC signals in PAL
video equipment.
When connected to NTSC video equipment.
Selectable items
PAL (50/60 Hz)
SECAM
NTSC4.43
NTSC3.58
Capturing Projected Images
This projector allows you to capture projected
images (RGB signals) and set them as a startup
image, or background image when no signals are
being received.
Menu operation
Page 58
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Note
• Images can be captured only when they are
from XGA (1024 × 768) non-interlace signals in
INPUT 1, INPUT 2 or INPUT 3 mode with
“RESIZE” set to “Normal”.
• The saved image is reduced to 256 colors.
• Images from equipment connected to INPUT 4
or INPUT 5 terminal cannot be captured.
• Only one image can be captured and saved.
• The color of images may differ before and after
saving if an image is captured on which image
adjustment has been performed using the
“C.M.S.” function.
• To delete the captured image, select “Delete”,
and then press
.
Useful Features
-77
Selecting the Background
Menu operation
Page 58
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Description of Background Images
Note
• You can set a captured image as a background
image by selecting “Custom”.
• When “Custom” is selected, an image saved us-
ing “Image Capture” can be displayed as a back-
ground image.
Selectable items
Logo
Custom
Blue
None
Description
Default image
User customized image (e.g. company logo)
Blue screen
Black screen
Selecting the Startup Image
Menu operation
Page 58
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Description of Startup Images
Note
• You can set a captured image as a startup im-
age by selecting “Custom”.
• When “Custom” is selected, an image saved
using “Image Capture” can be displayed as a
startup image.
Selectable items
Logo
Custom
None
Description
Default image
User customized image (e.g. company logo)
Black screen
-78
Using the “Options (1)” Menu
Eco Mode
Menu operation
Page 56
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Description of Eco Mode
* This is a reference value and is not guaranteed.
Note
• When “Eco Mode” is set to “ON”, the power con-
sumption will decrease and the lamp life will
extend. (Projection brightness decreases ap-
proximately 14%.)
Brightness
Approx.
86%
100%
Selectable items
ON
OFF
Power consumption
(When using AC 100V)
Approx. 570 W
650 W
Lamp life
Approx.
2,500 hours*
Approx.
2,000 hours*
Detecting the Input Sig-
nals Automatically
Menu operation
Page 56
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Description of Auto Search
Selectable items
ON
OFF
Description
Automatically searches for and switches to
the input mode in which signals are being
received.
“Auto Search” does not function.
Note
• While the “Auto Search” function is detecting
the input signal, pressing a button on the pro-
jector or the remote control stops the “Auto
Search” function. After the “Auto Search” func-
tion finishes completely, press the desired button.
Useful Features
-79
Auto Power Off Function
Menu operation
Page 56
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Description of Auto Power Off
Note
• When “Auto Power Off” is set to “ON”, 5 min-
utes before the projector enters the standby
mode, the message “Enter STANDBY mode in
X min.” will appear on the screen to indicate
the remaining minutes.
Description
The projector automatically enters the
standby mode when no input signal is
detected for 15 minutes or longer.
The “Auto Power Off” function will be
disabled.
Selectable items
ON
OFF
System Lock Function
This function prevents unauthorized use of the pro-
jector. Once this function is activated, users must enter
the correct keycode each time the projector is turned
on. We suggest you record the keycode in a safe place
where only authorized users have access.
Info
•
If you lose or forget your keycode, contact your near-
est Sharp Authorized Projector Dealer or Service
Center (see page 104). Even if the product warranty
is valid, the keycode reset will incur a charge.
Menu operation
Page 58
Example: “Options (1)” screen menu for
INPUT 1 (RGB) mode
Setting the keycode
1 Select “System Lock” on the “Op-
tions (1)” menu, then press
||
||
|.
• A message is displayed.
• Read this message, and press
.
2 Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
• When setting the keycode for the first time,
press " on the projector for four times.
-80
Using the “Options (1)” Menu
Note
• If you input a wrong keycode, the cursor returns
to the first point of the “Old Code”.
• The preset keycode is 4 " buttons on the projec-
tor. If this keycode is set, the keycode input screen
does not appear when turning the power on.
3 Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
Note
• You cannot use the following buttons for
keycode:
• ON button
• STANDBY button
• ENTER button
• L-click button
• R-click/UNDO button
• MENU button
• ZOOM buttons
• FOCUS buttons
• H & V LENS SHIFT button
• System Lock function recognizes each but-
ton on the remote control or on the projec-
tor as an individual button, even if they share
the same button name. If you set the keycode
with the buttons on the projector, use only
those buttons on the projector. If you set the
keycode with the buttons on the remote con-
trol, use only those buttons on the remote
control.
4 Enter the same keycode in “Recon-
firm”.
Note
Not displaying the keycode input screen
when turning the projector on
• Press " on the projector for four times in steps
2 and 3 above.
When the System Lock is set
• When System Lock is set, the keycode input
screen appears after the power is turned on.
When it appears, enter the right keycode to start
projection. Failure to enter the keycode will
cause images not to be projected even when
signals are entered to the projector.
Changing the keycode
1 Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
2
Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
3 Enter the same keycode in “Recon-
firm”.
Useful Features
-81
When the system lock is set
If you have set the system lock, enter the
keycode and follow the procedure below to
release the system lock.
▼Input screen for keycode
Note
• When System Lock is set, the keycode input
screen appears after the power is turned on.
• If no keycode is entered, the image will not be
displayed, even if the projector receives the in-
put signal.
1 Press on the remote control or
on the projector to turn on the
projector.
2 When the keycode input screen ap-
pears, enter the right keycode to
start projection.
Note
• System Lock function recognizes each but-
ton on the remote control or on the projector
as an individual button, even if they share
the same button name. If you set the keycode
with the buttons on the projector, use only
those buttons on the projector. If you set the
keycode with the buttons on the remote con-
trol, use only those buttons on the remote
control.
-82
Helpful Functions Set during Installation (“Options (2)” menu)
Setting a Password
••
••
• There is no factory preset for the password, so
the “Options (2)” menu is enabled.
••
••
• If you do not want others to operate the “Op-
tions (2)” menu, set a password.
Menu operation
Page 58
Example: “Options (2)” screen menu
1 Select “Password” from the “Op-
tions (2)” menu, and press
||
||
|.
2 Press
''
''
' or
""
""
" to set the first digit in
“New Password” and then press
||
||
|.
3 Enter the remaining 3 digits and
press
.
4 Enter the same password in “Recon-
firm” and press
.
Info
• The password must be entered to use the
“Options (2)” menu when a password has
been set.
Changing the password
1 Press
''
''
',
""
""
" and
||
||
| to enter the pass-
word in “Old Password” and press
.
2 Press
''
''
',
""
""
" and
||
||
| to set the new
password in “New Password” and
press
.
3 Enter the same 4-digit password in
“Reconfirm” and press
.
Note
• If you do not want to set a password, leave the
fields blank in steps 2 and 3 and press .
• To cancel the password settings, press
.
If You Forget Your Password
If you forget the password, delete it using the fol-
lowing procedure and set a new password.
Press .
Useful Features
-83
Checking the Lamp Life
Status
You can confirm the cumulative lamp usage time
and the remaining lamp life (percentage).
Menu operation
Page 56
Example: “Options (2)” screen menu
Description of Lamp Timer (Life)
* This is a reference value and is not guaranteed.
Note
• It is recommended that the lamp be changed
when the remaining lamp life becomes 5%.
• The table above indicates rough estimates in the
case of using only in each mode shown.
• The lamp life may vary depending on the usage
condition.
Lamp usage condition
Operated exclusively
while “Eco Mode” is
“ON”.
Operated exclusively
while “Eco Mode” is
“OFF”.
Remaining lamp life
100% 5%
Approx. Approx.
2,500 hours* 125 hours*
Approx. Approx.
2,000 hours* 100 hours*
Setting the Lamp Mode
This function allows you to select the usage of
the two lamps installed in the projector.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of Lamp Mode
Description
Both lamps are used for greater
brightness.
The lamp 1 is used.
When the lamp 1 burns out, the lamp 2
automatically switches in use.
The lamp 2 is used.
When the lamp 2 burns out, the lamp 1
automatically switches in use.
Both lamps are used alternately for
certain periods.
Selectable items
Both Lamps
Lamp 1 Only
Lamp 2 Only
Equal Use
-84
Reversing/Inverting Pro-
jected Images
This projector is equipped with a reverse/invert
image function that allows you to reverse or in-
vert the projected image for various applications.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of PRJ Modes
Note
• This function is used for the reversed image and
ceiling-mount setups. (See page 23.)
Description
Normal image
Inverted image
Reversed image
Reversed and inverted image
Selectable items
Front
Ceiling + Front
Rear
Ceiling + Rear
Controlling Multiple Projectors
with the One Remote Control
This function allows you to control multiple projectors
with the one remote control during the stack projec-
tion or the video wall projection. When using this func-
tion, connect the projectors with LAN cables and as-
sign a projector as the master and the other projectors
as the slaves.
See page 35 for connecting LAN cables.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of Stack Setting
Note
•
When controlling multiple projectors with the one
remote control, settings via web browser are required.
Refer to the “SETUP MANUAL” contained on the
supplied CD-ROM for details.
•
Only when controlling two projectors with the one
remote control, using “Pair Stack” allows you to skip
settings via web browser. (See page 85.)
•
When “Slave” is selected on “Stack Setting”, the slave
projector cannot be controlled with the remote control.
To control the slave projector with the remote control,
connect the remote control to the projector. (See page 18.)
Helpful Functions Set during Installation (“Options (2)” menu)
Description
The stack setting is not available.
Set the projector as the master.
Set the projector as the slave.
Selectable items
Normal
Master
Slave
Useful Features
-85
Master Slave
IP Address 192.168.150.2 192.168.150.3
Subnet Mask 255.255.255.0 255.255.255.0
DHCP Client OFF OFF
Gateway 0.0.0.0 0.0.0.0
User Name (Reset) (Reset)
Password (Reset) (Reset)
Data Port 10002 10002
Shortcut to Make Projector
Stack Settings
Normally, settings via web browser are required for
the stack projection. You can skip the settings via
web browser by using “Pair Stack”, only when you
use the two projectors for the stack projection.
Menu operation
Page 56
Note
• Before setting “Pair Stack”, select “Master” or
“Slave” on “Stack Setting”.
Example: “Options (2)” screen menu
1 Select “Pair Stack” on the “Option
(2)” menu, and then press
.
• The confirmation screen will be displayed.
2 Select “OK”, and then press .
• The network settings of the projector will
change as shown below.
Locking the Operation But-
tons on the Projector
This function can be used to lock the use of cer-
tain operation buttons on the projector.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of Keylock Level
Description
All operation buttons are functional.
Only INPUT/VOLUME buttons on the
projector are available.
All operation buttons on the projector
are unavailable.
Selectable items
Normal
Level A
Level B
-86
Helpful Functions Set during Installation (“Options (2)” menu)
Bypassing Unused Input
Selections
This function allows you to skip the input mode
that you rarely use. You can skip the input modes
when pressing INPUT 1, 2, 3 button or INPUT 4, 5
button on the projector.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of Set Inputs
Selectable items Description
ON
Sets the INPUT 1–5 mode selectable
respectively.
OFF
Sets the INPUT 1–5 mode unavail-
able respectively.
INPUT 1–5
Selecting the Fan Mode
This function changes the fan rotation speed.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of Fan Mode
Note
• When “Fan Mode” is set to “High”, the fan rota-
tion speeds up, and the fan noise becomes
louder.
Description
Suitable for normal environments.
Select this when using the projector at
attitudes of approximately 1,500 meters
(4,900 feet) or more.
Selectable items
Normal
High
Useful Features
-87
Selecting the Transmis-
sion Speed (RS-232C)
Make sure that both the projector and computer
are set for the same baud rate.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of RS-232C
Note
• Refer to the “SETUP MANUAL” contained on
the supplied CD-ROM for RS-232C Specifica-
tions and Command Settings.
• Refer to the computer’s operation manual for
instructions for setting the computer’s baud rate.
Description
Transmission speed is slow.
Transmission speed is rapid.
Selectable items
9600 bps
38400 bps
115200 bps
Direct Power On Function
Menu operation
Page 56
Example: “Options (2)” screen menu
Description of Direct Power On
Description
The projector automatically turns on
when the power cord is plugged into
the AC outlet or the breaker switch is
turned on.
The projector is turned on manually
(see page 37), and does not turn on
automatically when the power cord is
plugged into the AC outlet or the
breaker switch is turned on.
Selectable items
ON
OFF
-88
Helpful Functions Set during Installation (“Options (2)” menu)
Monitor Output Settings
When the Monitor Out has been set to “Enable”,
the monitor output is activated and power is con-
sumed even in the standby mode. It is recom-
mended that the Monitor Out be set to “Disable”
when it is not connected. This reduces power
consumption when the projector is in the standby
mode.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of Monitor Out
Description
The monitor output function is activated
even if the projector is in standby mode.
The monitor output function is switched off
when the projector is in standby mode.
Selectable items
Enable
Disable
LAN/RS232C Setting
When the LAN/RS232C has been set to “Enable”,
the LAN/RS232C is activated and power is con-
sumed even in the standby mode. It is recom-
mended that the LAN/RS232C be set to “Disable”
when it is not connected.
This reduces power
consumption when the projector is in the standby
mode.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of LAN/RS232C
Note
• When you want to control the projector using
the LAN/RS232C function, select “Enable.”
• The item “LAN/RS232C” will be made unavail-
able for setting when “Master” or “Slave” is se-
lected on “Stack Setting”. (“LAN/RS232C” will
be set to “Enable” automatically.) (See page 84.)
Description
The LAN/RS232C function is activated
even if the projector is in standby mode.
The LAN/RS232C function is switched off
when the projector is in standby mode.
Selectable items
Enable
Disable
Useful Features
-89
DHCP Client Setting
Connect the LAN cable before turning the pro-
jector on. If not, the DHCP Client function does
not work.
Menu operation
Page 58
Example: “Options (2)” screen menu
Description of DHCP Client
Note
• Select “ON” for “DHCP Client”. “Obtaining IP
Address...” appears, then the message “The
network settings have been changed.”, IP Address,
Subnet Mask and Gateway will be displayed.
• If the DHCP server is not available, “Could not
obtain IP Address.” appears.
In this case, set the TCP/IP manually. (See
“TCP/IP Setting” at right.)
Description
Obtains configuration parameters for
TCP/IP network automatically.
Sets the TCP/IP manually.
Selectable items
ON
OFF
TCP/IP Setting
Set the TCP/IP manually.
Menu operation
Page 58
Example: “Options (2)” screen menu
1 Select “TCP/IP”, then press .
2 Enter “IP Address” using
''
''
',
""
""
",
||
||
|
and \, then press
.
3 Enter “Subnet Mask” using
''
''
',
""
""
",
||
||
| and \, then press
.
-90

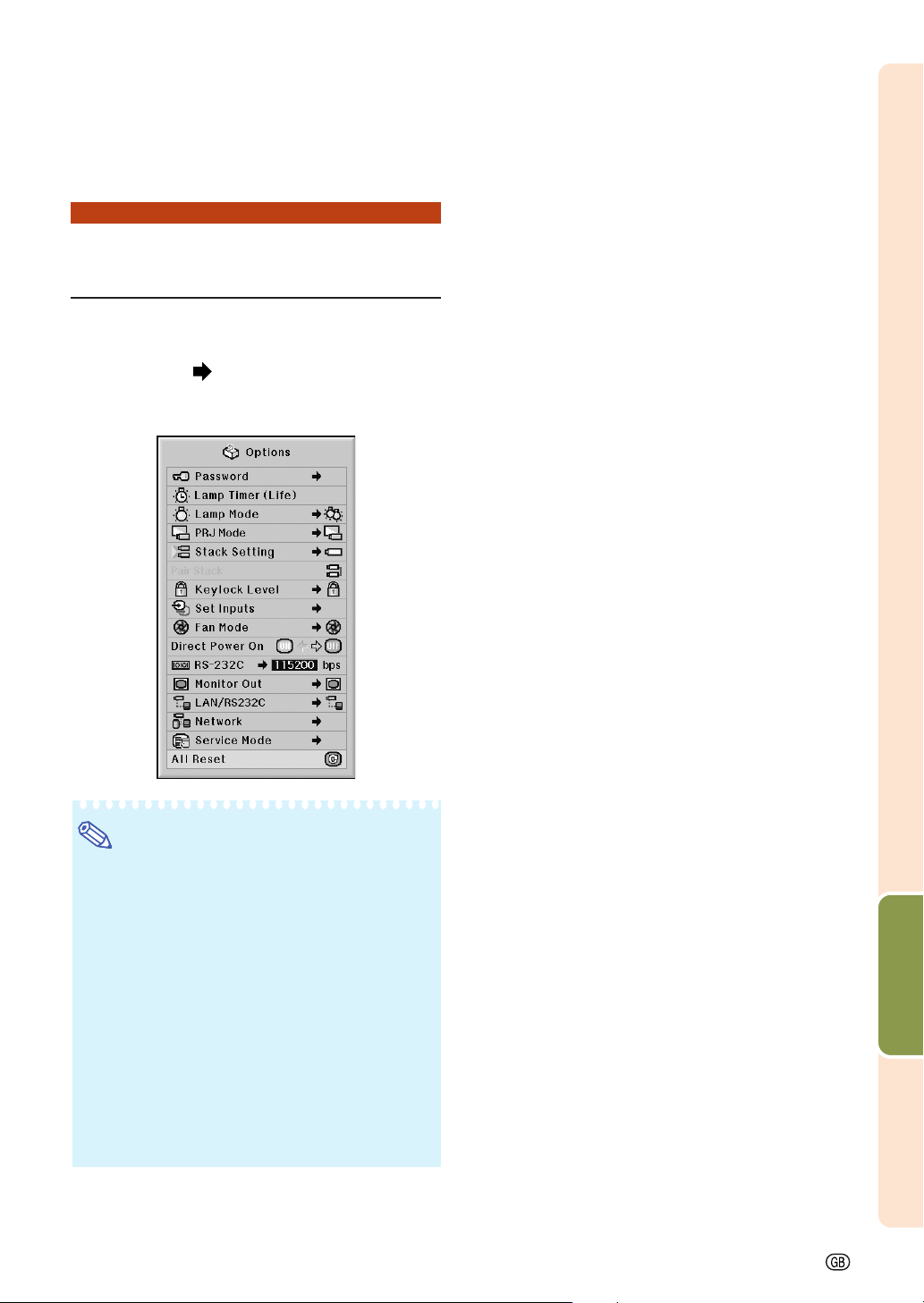

Service Mode
Only the service centers use the menu. Do not
use the menu.
Example: “Options (2)” screen menu
Description
Factory default setting:
192.168.150.002
Enter an IP address appropriate for the
network.
Factory default setting:
255.255.255.000
Set the subnet mask to the same as that
of the computer and equipment on the
network.
Factory default setting:
000. 000. 000. 000
* When not in use, set to:
“000. 000. 000. 000”.
Selectable items
IP Address
Subnet Mask
Gateway
Description of TCP/IP
Note
• Before setting “TCP/IP”, select “OFF” for “DHCP
Client”.
• Confirm the existing network’s segment (IP ad-
dress group) to avoid setting an IP address that
duplicates the IP addresses of other network
equipment or computers. If “192.168.150.002”
is not used in a network with an IP address of
“192.168.150.XXX”, you don’t have to change
the projector IP address.
• For details about each setting, consult your net-
work administrator.
Helpful Functions Set during Installation (“Options (2)” menu)
4 Enter “Gateway” using
''
''
',
""
""
",
||
||
| and
\, then press
.
Useful Features
-91
Returning to the Default
Settings
This function allows you to initialize the settings
you have made in the projector.
Menu operation
Page 56
Example: “Options (2)” screen menu
Note
About the network settings
• “IP Address”, “Subnet Mask”, “Gateway” and
other network setting items are initialized.
The following items or menu cannot be initialized.
• “C. M. S.” menu
“Lightness”, “Chroma” and “Hue” respectively
saved for Custom 1-3 on the “C.M.S.” menu.
• “Fine Sync” menu
Special Modes
• “Options (1)” menu
System Lock
• “Options (2)” menu
Lamp Timer (Life)
• “Language” menu
• Image stored using “Image Capture”
-92
Selecting the On-screen
Display Language
The projector can switch the on-screen display
language among 11 languages: English, German,
Spanish, Dutch, French, Italian, Swedish, Portu-
guese, Chinese, Korean or Japanese.
Menu operation
Page 58
Example: “Language” screen menu
Using the Other Menus (“Language” and “Status” menus)
Overview of All Menu Set-
tings
This function can be used to display all the ad-
justed settings as a list on the screen.
Menu operation
Page 56
Example: “Status” screen menu
Appendix
-93

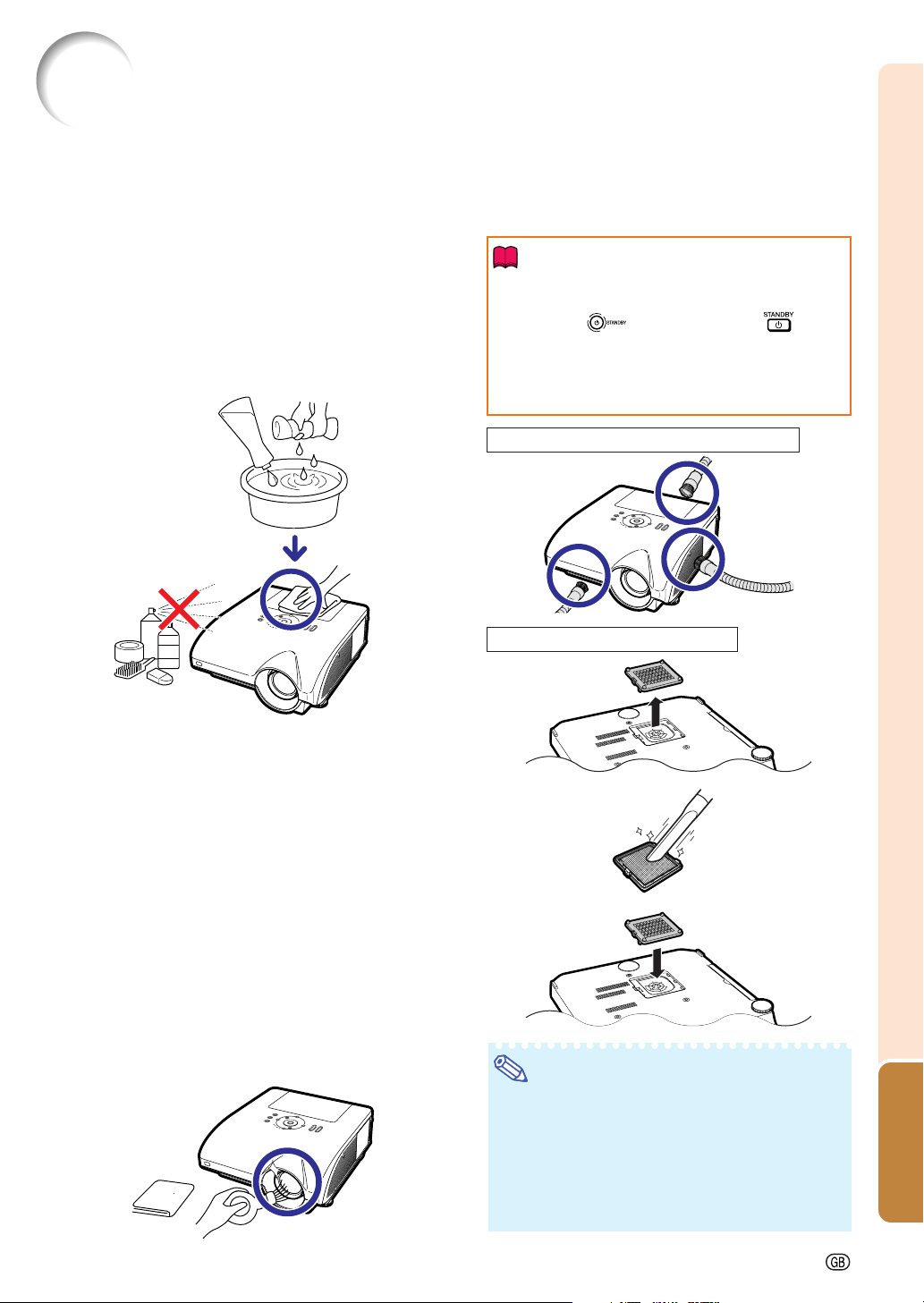

Cleaning the air vents and the intake vent cover
■ Use a vacuum cleaner to clean dust from the ex-
haust vent, the intake vents and the intake vent cover
(on the bottom of the projector).
Info
• If you want to clean the air vents and the intake
vent cover during projector operation, ensure
you press
on the projector or
on the
remote control and put the projector into standby
mode. After the cooling fan has stopped, unplug
the power cord from the AC socket and clean
the air vents and the intake vent cover.
Cleaning the exhaust and intake vents
Cleaning the projector
■ Ensure the power cord is unplugged before clean-
ing the projector.
■ The cabinet as well as the operation panel is made
of plastic. Avoid using benzene or thinner, as these
can damage the finish on the cabinet.
■ Do not use volatile agents such as insecticides on
the projector.
Do not attach rubber or plastic items to the projec-
tor for long periods.
The effects of some of the agents in the plastic may
cause damage to the quality or finish of the projector.
■ Wipe off dirt gently with a soft flannel cloth.
■ When the dirt is hard to remove, soak a cloth in a
mild detergent diluted with water, wring the cloth
well and then wipe the projector.
Strong cleaning detergents may discolor, warp or
damage the coating on the projector. Make sure to
test on a small, inconspicuous area on the projec-
tor before use.
Cleaning the lens
■ Use a commercially available blower or lens clean-
ing paper (for glasses and camera lenses) for clean-
ing the lens. Do not use any liquid type cleaning
agents, as they may wear off the coating film on the
surface of the lens.
■ As the surface of the lens can easily get damaged,
be careful not to scrape or hit the lens.
Maintenance
Cleaning
Paper
Mild detergent
diluted with water
Wax
Thinner
Mild detergent
Cleaning the intake vent cover
Note
•
The air vents and the intake vent cover should be
cleaned every 100 hours of use. Clean the air vents
and the intake vent cover more often when the pro-
jector is used in a dusty or smoky location.
•
Ensure the intake vent cover is securely installed.
The power will not turn on unless it is correctly in-
stalled.
-94
Power indicator
Lamp indicators 1, 2
Temperature warning indicator
Maintenance Indicators
Maintenance Indicators
■ The warning lights on the projector indicate problems inside the projector.
■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate
red, and the projector will enter the standby mode. After the projector has entered the standby
mode, follow the procedures given below.
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the setting location,
“ ” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will
turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and
then the projector will enter the standby mode. After “
” appears, ensure you perform the measures
described on page 95.
About the lamp indicator
“Change The Lamp. (LAMP 2)” is displayed when the remain-
ing life of the lamp 2 becomes 5% or less.
■ When the remaining lamp life becomes 5% or less, “ ” (yellow) and “Change The Lamp. (LAMP 1/2)”
will be displayed on the screen.
■ When the percentage becomes 0%, it will change to “
” (red), the lamp will automatically turn off. At
this time, the lamp indicator will illuminate in red.
If you try to turn on the projector a fourth time without replacing the lamp, the lamp whose life is 0%
will not light up.
Appendix
-95
Maintenance indicator
Problem
Cause Possible solution
Temperature
warning
indicator
Normal
Abnormal
Off
Red on
(Standby)
The internal
temperature is
abnormally high.
Abnormal
• Blocked air intake
• Relocate the projector to an area
with proper ventilation. (See page
9.)
• Cooling fan break-
down
• Internal circuit failure
• Clogged air intake
• Clogged intake vent
cover
• Ta ke the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center for repair. (See
page 104.)
• Clean the air vents and the intake
vent cover. (See page 93.)
Lamp
indicators
1, 2
Red on
(Standby)
The lamp does
not illuminate.
• Burnt-out lamp
• Lamp circuit failure
• Carefully replace the lamp. (See
page 97.)
• Ta ke the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center for repair. (See
page 104.)
• Please exercise care when
replacing the lamp.
Red on
Time to change
the lamp.
• Remaining lamp life
becomes 5% or less.
Green on
Green blinks
when the lamp
is warming up.
Info
• If the temperature warning indicator blinks and the projector enters the standby mode, the temperature
warning indicator starts to illuminate. Check whether any of the ventilation holes are blocked (see page 10)
and then try turning the power back on. Wait until the projector has cooled down completely before plugging
in the power cord and turning the power back on. (At least 10 minutes.)
• If the power is turned off for a brief moment due to power outage or some other cause while using the
projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red
and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power
cord in the AC outlet and then turn the power on again.
• The cooling fan keeps the internal temperature of the projector constant and this function is controlled
automatically. The sound of the cooling fan may change during operation because the fan speed may
change and this is not a malfunction.
The lamp does
not illuminate.
• The lamp is shut
down abnormally.
• Disconnect the power cord from
the AC outlet, and then connect it
again.
Power
indicator
Green on/
Red on
Red
blinks
The power
indicator blinks in
red when the
projector is on.
••
••
• The intake vent
cover is open.
••
••
• Securely install the cover.
••
••
• If the power indicator blinks even
when the intake vent cover is
securely installed, contact your
nearest Sharp Authorized Projector
Dealer or Service Center for
advice. (See page 104.)
-96
Lamp
■ It is recommended that the lamp units (optional: AN-PH7LP1 and AN-PH7LP2) be replaced when the
remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture
and color quality. The lamp life (percentage) can be checked with the on-screen display. See page 83.
■ Purchase a replacement lamp unit of type AN-PH7LP1 and AN-PH7LP2 from your place of purchase,
nearest Sharp Authorized Projector Dealer or Service Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service
of this projector under warranty, including lamp replacement, must be obtained through a Sharp Autho-
rized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer
or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information
www.lamprecycle.org or 1-800-BE-SHARP
Caution Concerning the Lamp
■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition
and the frequency of use. It is important to note that failure can often result in the bulb cracking.
■ When the lamp indicator and on-screen display icon are illuminated, it is recommended that the
lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In
case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to assure safe operation.
Replacing the Lamp
Caution
• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn
or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool
before removing the lamp unit.
■ Carefully change the lamp by following the instructions described in this section. *If you wish, you
may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.
* If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized
Projector Dealer or Service Center for repair.
Regarding the Lamp
U.S.A. ONLY
Appendix
-97
Optional
accessories
Lamp unit 1
AN-PH7LP1
Removing and Installing
the Lamp Unit
Info
• Ensure the lamp unit is removed using the
handle. Ensure the glass surface of the
lamp unit or the inside of the projector are
not touched.
• To avoid injury to yourself and damage to
the lamp, make sure you carefully follow
the steps below.
• Do not loosen other screws except for the
lamp unit cover and lamp unit.
(Only the silver screws are loosened.)
1 Press on the projector or
on the remote control to put
the projector into standby mode.
• Wait until the cooling fan stops.
Warning!
• Do not remove the lamp unit from the
projector right after use. The lamp and
parts around the lamp will be very hot
and may cause burn or injury.
2 Disconnect the power cord.
• Unplug the power cord from the AC
socket.
• Leave the lamp until it has fully cooled
down (about 1 hour).
3 Remove the lamp unit cover.
• Loosen the user service screw (1) that
secures the lamp unit cover. Remove the
lamp unit cover (2).
STANDBY button
Power cord
1
2
User service screw
Lamp unit 2
AN-PH7LP2
-98
Regarding the Lamp
4 Remove the lamp unit.
• Loosen the securing screws (two for
each lamp) from the lamp unit. Hold the
lamp unit by the handle and pull it in the
direction of the arrow. At this time, keep
the lamp unit horizontal and do not tilt it.
5 Insert the new lamp unit.
• Press the lamp unit firmly into the lamp
unit compartment. Fasten the securing
screws.
• Be sure that AN-PH7LP1 and AN-
PH7LP2 are respective type.
6 Replace the lamp unit cover.
• Align the lamp unit cover and slide it to
close. Then tighten the user service
screw to secure the lamp unit cover.
Info
• If the lamp unit and lamp unit cover are not
correctly installed, the power will not turn
on, even if the power cord is connected to
the projector.
Securing screws
Handle
Compartment for
AN-PH7LP1
Compartment for
AN-PH7LP2
AN-PH7LP2
AN-PH7LP1
For Lamp 1
For Lamp 2
User service screw
Appendix
-99
To AC socket
Power cord
ON button
ENTER button
MENU button
H&V LENS
SHIFT
button
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
• Make sure to reset the lamp timer only
when replacing the lamp. If you reset the
lamp timer and continue to use the same
lamp, this may cause the lamp to become
damaged or explode.
1 Connect the power cord.
• Plug the power cord into the AC socket
of the projector.
2 Reset the lamp timer.
For Lamp 1
• When you reset the timer for AN-
PH7LP1, while simultaneously holding
down
and , press
on the
projector.
• “LAMP 1 100%” is displayed, indicating
that the lamp timer is reset.
For Lamp 2
• When you reset the timer for AN-
PH7LP2, while simultaneously holding
down
and , press
on the
projector.
• “LAMP 2 100%” is displayed, indicating
that the lamp timer is reset.
-100
Computer Compatibility Chart
• Multiple signal support
Horizontal Frequency: 15–126 kHz
Ver tical Frequency: 43–200 Hz
Pixel Clock: 12–230 MHz
Sync signal: Compatible with TTL level
Computer
PC/
MAC/
WS
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
VGA
PC
PC
SVGA
XGA
VESA
Standard
Resolution
640
×
350
1,152
×
864
1,280
×
720
1,280
×
768
1,280
×
800
1,360
×
768
1,366
×
768
1,152
×
882
1,280
×
1,024
1,400
×
1,050
720
×
350
640
×
400
720
×
400
640
×
480
800
×
600
1,024
×
768
Display
Upscale
True
27.0 60
27.0 60
27.0 60
60
31.5 70
31.5 70
31.5
70
31.5
60
34.7
70
37.9
72
37.5
75
43.3
85
47.9
90
53.0
100
61.8
120
78.5
150
80.9
160
100.4 200
31.4 50
35.1 56
37.9 60
44.5 70
48.1 72
46.9 75
53.7 85
56.8 90
DVI
Support
VESA
Standard
Resolution Display
DVI
Support
64.0 100
77.2 120
98.3 150
102.1 160
125.6 200
98.8 120
31.5 70
37.9 85
37.9
27.0
85
37.9
85
26.2
50
PC/
MAC/
WS
Advanced
Intelligent
Compression
Advanced
Intelligent
Compression
54.3 60
67.5 75
75.7 80
77.3 85
65.9 72
54.8 60
67.4 74
64.0 60
1,600
×
1,200
SXGA
WXGA
SXGA+
UXGA
91.1 85
74.7 52
80.0 75
78.1 74
74.6 70
81.3 65
90.1 72
93.8 75
106.3 85
75.0 60
108.4 100
64.0 60
87.5 70
MAC 16"
MAC 21"
HP (WS)
WS
MAC 13"
MAC 19"
PC (WS)
SUN (WS)
Intelligent
Compression
Upscale
640
×
480
832
×
624
34.9
1,152
×
870
68.5
67
60.0
1,280
×
1,024
78.1 72
60.0 60
1,024
×
768
1,280
×
960
VGA
SVGA
SXGA
SXGA
XGA
True
48.4 60
75
85.9 85
1,152
×
900
60.9 66
71.9 76
49.6 75
75
90.2 100
64.0 70
64.1 72
45.0 60
47.6 60
47.8 60
47.8 60
62.7 75
113.2 140
35.5 43
40.3 50
48.4 60
58.1 72
68.7 85
60.0 75
73.5 90
77.2 96
80.6 100
56.5 70
• Compatible with sync on green signal
• UXGA, SXGA+ and SXGA compatible in advanced
intelligent compression
• AICS (Advanced Intelligent Compression and Ex-
pansion System) resizing technology
The following is a list of modes that conform to VESA. However, this projector supports other signals
that are not VESA standards.
The table below lists signal codes that are compatible with the projector. When the images are distorted or
cannot be projected, adjust the output signal of your computer and so forth while referring to the table below.
Appendix
-101
Note
• Depending on the notebook computer, the image cannot be displayed or noise may appear in simulta-
neous (CRT/LCD) mode. In this case, turn off the LCD display on the notebook computer. For more
details, refer to the operation manual of the notebook computer.
• When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen.
• When projecting the RGB interlace signal using INPUT 1/2 with “Signal Type” set to “Auto” or “RGB”, the
image may not be projected as desired. In this case, select either INPUT 4 (video) or INPUT 5 (S-video).
DTV
15.7
31.5
33.8
15.6
31.3
45.0
37.5
33.8
33.8
28.1
480
I/
525
I
480P/525P
540P
576
I/
625
I
576P/625P
720P/750P
720P/750P
1035
I/
1125
I
1080
I/
1125
I
1080
I/
1125
I
60
60
60
50
50
60
50
60
60
50
Signal Vertical Frequency (Hz) DVI Support (Compatible with HDCP) Horizontal Frequency (kHz)
-102
Troubleshooting
Check
• Projector power cord is not plugged into the wall outlet.
• Power to the external connected devices is off.
• The selected input mode is wrong.
• Cables incorrectly connected to side panel of the projector.
• Remote control batteries have run out.
•
External output has not been set when connecting notebook computer.
• Cables incorrectly connected to the side panel of the projector.
• “Bright” is set to minimum position.
• The “BLACK SCREEN” function is working.
• Image adjustments are incorrectly set.
(INPUT 1, INPUT 2, INPUT 3 only)
• Input signal type (RGB/Component) is incorrectly set.
(INPUT 4, INPUT 5 only)
• Video Input system is incorrectly set.
• Adjust the focus.
• The projection distance exceeds the focus range.
• There is fog on the lens. If the projector is carried from a cold
room into a warm room, or if it is suddenly heated,
condensation may form on the surface of the lens and the
image will become blurred. Please set up the projector at least
one hour before it is to be used. If condensation should form,
remove the power cord from the wall outlet and wait for it to
clear.
(Computer Input only)
• Perform “Fine Sync” Adjustments. (“Clock” Adjustment)
• Perform “Fine Sync” Adjustments. (“Phase” Adjustment)
• Turn off the LCD display of the notebook computer.
• Noise may appear depending on the computer.
• Cables incorrectly connected to side panel of the projector.
• Volume is set to minimum.
• The “MUTE” function is working.
• The “Speaker” menu is set to “OFF”.
• If the picture is normal, the sound is due to cabinet shrinkage
caused by room temperature changes. This will not affect
operation or performance.
• See “Maintenance Indicators”.
Problem
An unusual sound is
occasionally heard
from the cabinet.
Maintenance
indicator illuminates or
blinks in red.
Page
37
—
45
27–36
17
27
27–36
60
50
60
63
76
40
22
—
68
68
101
—
27–36
46
46
73
—
94
Sound is heard but no
picture appears.
Color is faded or poor.
Picture is blurred;
noise appears.
Picture appears but no
sound is heard.
No picture and no sound
or projector does not start.
Appendix
-103
CheckProblem Page
The projector cannot be
turned on or put into the
standby mode using the
ON or STANDBY button
on the projector.
All buttons on the
projector and the remote
control are unavailable.
Picture is green on
INPUT 1or 2
(COMPONENT).
Picture is pink (no green)
on INPUT 1, 2 or 3
(RGB).
Picture is too bright and
whitish.
The cooling fan
becomes noisy.
The lamp does not light
up even after the
projector turns on.
The lamp suddenly turns
off during projection.
The image sometimes
flickers.
The lamps take a long
time to turn on.
Picture is dark.
The remote control
cannot be used.
• If the “Keylock Level” menu is set to “Level A” or “Level B”, all or
specific buttons on the projector are unavailable. Use the
remote control to operate the projector.
• If the “Stack Setting” menu is set to “Slave” and the “Keylock
Level” menu is set to “Level B”, all buttons on the projector and
the remote control are unavailable. Connect the remote control
to the projector, and then use the remote control to operate the
projector.
• Change the input signal type setting.
• Image adjustments are incorrectly set.
• When temperature inside the projector increases, the cooling
fan runs faster.
• The lamp indicator is illuminating in red.
Replace the lamp.
• Cables incorrectly connected to the projector or the connected
equipment works improperly.
• If this happens frequently, replace the lamp.
• The lamps will eventually need to be changed.
The lamps have reached the end of its life. Replace the lamps.
• Operate the remote control while pointing it at the projector’s
remote control sensor.
• The remote control may be too far away from the projector.
• If direct sunlight or a strong fluorescent light is shining on the
projector’s remote control sensor, place the projector where it
will not be affected by strong light.
• The batteries may be depleted or inserted incorrectly. Make
sure the batteries are inserted correctly or insert new ones.
85
18
84
85
63
60
9, 10
93
–95
94
27–36
97
97
17
17
This projector is equipped with a microprocessor. Its performance could be adversely affected by
incorrect operation or interference. If this should happen, unplug the projector and plug it in again
after more than 5 minutes.
-104
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, first refer to the
“Troubleshooting” section on pages 102 and 103. If this operation manual does not answer
your question, please contact the SHARP Service departments listed below.
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
lcdsupport@sharpsec.com
http://www.sharplcd.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation Mexico
Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin American
Group
(305) 264-2277
www.servicio@sharpsec.com
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
08705 274277
http://www.sharp.co.uk/customersupport
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
http://www.sharp.fr
Spain Sharp Electronica Espana, S.A.
93 5819700
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
vision.suppor[email protected]
http://www.sharp.se
Austria Sharp Electronics (Europe) GMBH
Branch Office Austria
0043 1 727 19 123
http://www.sharp.at
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia
Pty. Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
(09) 634-2059, (09) 636-6972
http://www.sharp.net.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
c[email protected].co.jp
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
[email protected].co.jp
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
http://www.sharpkorea.co.kr
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
service@sharp-oa.com
Appendix
-105
Specifications
Multimedia Projector
XG-PH70X (standard zoom lens attached)/XG-PH70X-N (no lens attached)
NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/
DTV480I/DTV480P/DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I
0.7" DLP
®
chip × 1
No. of dots: 786,432 dots (1,024 [H] × 768 [V])
1.2 × electric zoom/focus lens, F1.8–F2.0, f = 25.6–31.3 mm (standard equipment with XG-PH70X)
260 W × 2
15-pin mini D-sub connector
Y: 1.0 Vp-p, sync negative, 75 Ω terminated
P
B
: 0.7 Vp-p, 75 Ω terminated
P
R
: 0.7 Vp-p, 75 Ω terminated
750 TV lines (DTV720P)
BNC connector
Y: 1.0 Vp-p, sync negative, 75 Ω terminated
P
B
: 0.7 Vp-p, 75 Ω terminated
P
R
: 0.7 Vp-p, 75 Ω terminated
15-pin mini D-sub connector, 5 BNC connector: RGB separate/composite sync (TTL)/sync
on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated
Horizontal sync. signal: TTL level (positive/negative) or composite sync (Apple only)
Vertical sync. signal: Same as above
DVI connector (24-pin), RGB (digital), 250 –1,000 mV, 50 Ω (Compatible with HDCP)
RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω
terminated
4-pin mini DIN connector
Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
ø3.5 mm stereo minijack, RCA terminal
0.5 Vrms, more than 22 kΩ
ø3.5 mm minijack
0.5 Vrms, less than 2.2 kΩ
9-pin D-sub connector
8-pin RJ-45 modular connector
12–230 MHz
43–200 Hz
15–126 kHz
3.0 W (stereo)
3.3 cm round × 2
AC 100–240 V
6.6 A (AC 100 V)–2.7 A (AC 240 V)
50/60 Hz
650 W (when “Eco Mode” is “OFF”)/570 W (when “Eco Mode” is “ON”) with AC 100 V
620 W (when “Eco Mode” is “OFF”)/550 W (when “Eco Mode” is “ON”) with AC 240 V
0.8 W (AC 100 V) – 1.1 W (AC 240 V) (When “Monitor Out” and “LAN/RS232C” are set to “Disable”.)
2,440 BTU/hour (when “Eco Mode” is “OFF”)/2,140 BTU/hour (when “Eco Mode” is “ON”)
with AC 100 V
2,330 BTU/hour (when “Eco Mode” is “OFF”)/2,070 BTU/hour (when “Eco Mode” is “ON”)
with AC 240 V
41°F to 104°F (+5°C to +40°C)
–4°F to 140°F (–20°C to +60°C)
Plastic
38 kHz
16
5
/32" × 7
3
/32" × 18
35
/64" (410 (W) × 180 (H) × 471 (D) mm) (main body only)
16
5
/32" × 7
37
/64" × 18
35
/64"
(410 (W) × 192.1 (H) × 471 (D) mm) (including adjustment foot
and projecting parts)
XG-PH70X: 32.9 lbs. (14.9 kg)
XG-PH70X-N: 30.3 lbs. (13.7 kg)
Remote control, Power cord for U.S., Canada, etc., Power cord for Europe, except U.K.,
Power cord for U.K., Hong Kong and Singapore, Power cord for Australia, New Zealand and
Oceania, RGB cable
, Remote mouse receiver, Cap for the standard zoom lens, Projector
manual and technical reference CD-ROM, Operation manual
Product type
Model
Video system
Display device
Standard zoom lens
Projection lamp
Component input (INPUT 1)/
output (OUTPUT) signal
Horizontal resolution
Component input (INPUT 2)
signal
RGB input (INPUT 1/2)/output
(OUTPUT) signal
RGB digital input signal (INPUT 3)
Video input signal
(INPUT 4)
S-video input signal
(INPUT 5)
Audio input signal
Audio output signal
(AUDIO OUTPUT 1–5)
RS-232C terminal
LAN terminal
Pixel clock
Vertical frequency
Horizontal frequency
Audio output
Speaker system
Rated voltage
Input current
Rated frequency
Power consumption
Power consumption (standby)
Heat dissipation
Operating temperature
Storage temperature
Cabinet
I/R carrier frequency
Dimensions (approx.)
Weight (approx.)
Replacement parts
As a part of policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
-106
Glossary
Advanced intelligent compression (Page 100)
High quality resizing of lower and higher resolu-
tion images to fit the projector’s native resolution.
Aspect ratio (Page 48)
Width and height ratio of an image. The normal
aspect ratio of a computer and video image is 4:3.
There are also wide images with an aspect ratio
of 16:9 and 21:9.
Auto Sync (Page 70)
Optimizes projected computer images by auto-
matically adjusting certain characteristics.
Background (Page 77)
Initial setting image projected when no signal is
being output.
Border (Page 48)
Projects a 4:3 image fully within a 16:9 screen by
keeping the aspect ratio at 4:3.
Clock (Page 68)
Clock adjustment is used to adjust vertical noise
when clock level is incorrect.
CLR Temp (Color temperature) (Page 61)
Function that can be used to adjust the color tem-
perature to suit the type of image input to the pro-
jector. Decrease the color temperature to create
warmer, reddish images for natural flesh tones,
or increase to create cooler, bluish images for a
brighter picture.
C.M.S. (Color Management System) (Page 64)
Function allows you individually adjust the display
characteristics of six colors (R: Red, Y: Yellow, G:
Green, C: Cyan, B: Blue, M: Magenta)
Dot by Dot (Page 48)
Mode that projects images in their native resolution.
Keylock Level (Page 85)
Mode that can lock the operation of projector but-
tons to prevent unauthorized adjustment.
Keystone Correction (Page 41)
Function to digitally correct a distorted image
when the projector is set up at an angle, smooth-
ens out jaggies on keystone images and com-
presses the image not only horizontally but verti-
cally keeping the 4:3 aspect ratio.
Phase (Page 68)
Phase shift is a timing shift between isomorphic
signals with the same resolution. When phase level
is incorrect, the projected image typically displays
horizontal flicker.
Pict in Pict (Page 74)
The Pict in Pict (picture in picture) function allows
you to display two pictures on the same screen.
You can display the image input from a video as
an inset picture overlapping the main picture in-
put from a computer.
Picture Mode (Page 60)
Image quality enhancement function that offers a
richer image by brightening the darker portions
of the image without altering the brightness of the
brighter portions. You can select four different
modes: STANDARD, PRESENTATION, CINEMA
and CUSTOM.
Progressive (Page 62)
The progressive display projects a smoother video
image. You can select three different modes: 2D
Progressive, 3D Progressive and Film Mode.
Resize (Page 48)
Allows you to modify or customize the picture dis-
play mode to enhance the input image. You can
select six different modes: NORMAL, FULL, DOT
BY DOT, BORDER, STRETCH and SMART
STRETCH.
Shifting the lens (Page 38)
Function to adjust the position of the projected im-
age for the position of the screen by shifting the lens
horizontally and vertically.
Smart Stretch (Page 49)
Projects the image fully in a 16:9 screen by en-
larging only the surrounding areas while keeping
the aspect ratio in the middle part of the image at
4:3.
sRGB (Page 64)
An international standard of color reproduction
regulated by the IEC (International Electrotechnical
Commission). As the fixed color area has been
decided by the IEC, the color changes according
to DLP features, so that the images are displayed
in a natural tint based on an original image, when
“C.M.S. Adjustment” is set to “sRGB”.
Stack Setting (Page 84)
Setting for the stack projection that allows you to
increase the brightness of an image by stacking
multiple projectors and projecting same image
simultaneously. You can control projectors for the
stack projection by assigning a projector as the
master and the other projectors as the slaves.
Stretch (Page 48)
Mode that stretches the 4:3 image horizontally to
display it fully on a 16:9 screen.
System Lock (Page 79)
If the “Keycode” set in the projector is not cor-
rectly entered, the projector will not operate even
if signals are entered.
Appendix
-107
AC socket ....................................................................... 37
ADJ./MOUSE switch ...................................................... 18
Adjustment buttons ........................................................ 56
Adjustment feet .............................................................. 39
Advanced intelligent compression .............................. 100
All Reset ........................................................................ 91
Aspect ratio .................................................................... 48
Audio .............................................................................. 72
AUDIO input (1) terminal ............................................... 27
AUDIO input (2, 3) terminal ........................................... 28
AUDIO input (4, 5) terminals ......................................... 34
Audio Out ....................................................................... 72
AUDIO OUTPUT terminal ............................................. 36
Auto Power Off ............................................................... 79
Auto Search ................................................................... 78
Auto Sync (Auto Sync adjustment) ............................... 70
AUTO SYNC button ....................................................... 70
Auto Sync Disp .............................................................. 71
Background.................................................................... 77
BLACK SCREEN button ................................................ 50
Border ............................................................................ 48
BREAK TIMER button ................................................... 50
Bright Boost ................................................................... 61
C.M.S. (Color Management System) ............................ 64
C.M.S. Adjustment ......................................................... 64
Carrying handle ............................................................. 13
Clock .............................................................................. 68
CLR Temp (Color Temperature) .................................... 61
DHCP Client .................................................................. 89
Digi. Shift........................................................................ 75
Direct Power On ............................................................ 87
DNR ............................................................................... 62
Dot By Dot ..................................................................... 48
Eco Mode ....................................................................... 78
ENLARGE buttons ......................................................... 46
ENTER button................................................................ 56
Exhaust vent .................................................................. 93
Fan Mode ....................................................................... 86
Fine Sync ....................................................................... 68
FOCUS buttons ............................................................. 40
FREEZE button ............................................................. 47
Gateway ......................................................................... 90
Geometric adjustment ................................................... 42
H & V keystone .............................................................. 43
H & V LENS SHIFT button ............................................ 39
Image Capture ............................................................... 76
Image resizing ............................................................... 44
INPUT 1 – 5 modes ....................................................... 45
INPUT 1 terminal ........................................................... 27
INPUT 2 terminals ......................................................... 28
INPUT 3 terminal ........................................................... 29
INPUT 4 terminal ........................................................... 34
INPUT 5 terminal ........................................................... 34
INPUT buttons ............................................................... 45
Intake vent ..................................................................... 93
IP Address ..................................................................... 90
Kensington Security Standard connector ..................... 15
Keycode ......................................................................... 79
Keylock Level ................................................................. 85
KEYSTONE button ........................................................ 41
Keystone Correction ...................................................... 41
Lamp .............................................................................. 96
Lamp indicators 1, 2 ...................................................... 94
Lamp Mode .................................................................... 83
Index
Lamp Timer (Life) .......................................................... 83
Lamp unit cover ............................................................. 97
LAN terminal .................................................................. 35
LAN/RS232C ................................................................. 88
Language ....................................................................... 92
L-click button .................................................................. 19
Lens cap ........................................................................ 13
MENU button ................................................................. 56
Monitor Out .................................................................... 88
Mouse button ................................................................. 19
MUTE button.................................................................. 46
Network .......................................................................... 89
Normal ........................................................................... 48
ON button ...................................................................... 37
Options (1) ..................................................................... 74
Options (2) ..................................................................... 82
OSD Display .................................................................. 75
OUTPUT (FOR INPUT 1, 2) terminal ........................... 36
Pair Stack....................................................................... 85
Password ....................................................................... 82
Phase ............................................................................. 68
Pict in Pict ...................................................................... 74
Picture ............................................................................ 60
Picture Mode ................................................................. 60
PICTURE MODE button ................................................ 47
Power cord ..................................................................... 37
Power indicator .............................................................. 14
PRJ Mode ...................................................................... 84
Progressive .................................................................... 62
R-click button ................................................................. 19
Remote control .............................................................. 17
Remote control sensor .................................................. 17
Remote mouse receiver ................................................ 19
Resize ............................................................................ 48
RESIZE button ............................................................... 48
RGB cable ..................................................................... 27
RS-232C ........................................................................ 87
RS-232C terminal .......................................................... 35
Save Setting .................................................................. 68
Select Setting ................................................................ 69
Service Mode ................................................................. 90
Set Inputs....................................................................... 86
Signal Info ...................................................................... 70
Signal Type .................................................................... 63
Smart Stretch ................................................................ 49
Speaker.......................................................................... 73
Special Modes ............................................................... 69
sRGB ............................................................................. 64
Stack Setting ................................................................. 84
STANDBY button ........................................................... 37
Startup Image ................................................................ 77
Status ............................................................................. 92
Stretch ........................................................................... 48
Subnet Mask .................................................................. 90
System Lock .................................................................. 79
TCP/IP ........................................................................... 89
Temperature warning indicator ...................................... 94
UNDO button ................................................................. 56
Video System ................................................................ 76
Volume buttons .............................................................. 46
WIRED R/C JACK ......................................................... 18
WIRED REMOTE terminal ............................................ 18
ZOOM buttons ............................................................... 40
SHARP CORPORATION
