3MP HD Dome
Security Camera
For use with Swann 7090, 7095 & 7200 Series HD NVRs
EN
INSTRUCTION MANUAL
1
Congratulations on your purchase of this 3
Megapixel HD Dome Security Camera. This is
a state-of-the-art dome security camera with
digital imaging technology for 9x the picture
sharpness of traditional security systems. The
2048 x 1536 resolution is able to generate super
clear video images. See everything during the
night with the latest infrared cut filter for amaz-
ing night vision to 100ft/30m. It’s built to suit any
conditions with weather resistant rating of IP67
for indoor & outdoor use.
Important note - All jurisdictions have specific
laws and regulations relating to the use of cam-
eras. Before using any camera for any purpose,
it is the buyer’s responsibility to be aware of all
applicable laws and regulations that prohibit or
limit the use of cameras.
Important safety instructions
1) Make sure the camera is fixed correctly and
stable if fastened in place.
2) Do not operate if wires and terminals are ex-
posed.
3) Never place strain of any kind on the network
cable connection. It’s designed to clip into place to
prevent slippage, but it won’t support any weight
and can be easily broken by a sharp tug. Exercise
caution.
4) This camera can only be used in combination
with Swann’s NVR-7090, NVR-7095 and NVR-7200
HD network video recorders.
Warning - Modifications not approved by the party
responsible for compliance could void user’s au-
thority to operate the equipment.
Introduction
2
Choosing a location for your Camera
Some things to consider when choosing a location -
1) What you want to monitor and where you’ll get the
best view of it.
2) How you’re going to connect the camera to your
monitoring system; remember that cables and
connections should be kept out of the weather.
3) It’s recommended to mount your camera at an
elevated position to minimise harm.
4) Place your camera as close to the area of interest
as practicable. The best position is from about 4m
(13ft) above looking slightly down, keeping in mind
the details you are looking for.
5) Although the sky looks nice when you look at the
live view from your camera, it is an unlikely direction
for an offender to approach, make sure your camera
has minimal sky in it as the light in daylight can make
the foreground of the image darker.
6) Think about the most likely way a potential offender
may approach your home, use your cameras to give
you the best coverage of these areas.
7) The camera’s casing is resistant to water, different
weather conditions and tampering. It would take
an overwhelming event of this kind to damage the
housing of the camera. However, the cable and
connector are vulnerable and require protection.
8) Even though the camera is weather and water-
resistant, prolonged exposure to adverse weather
conditions such as sunlight or excessive moisture,
may eventually damage the internal components of
the camera and adversely affect its performance.
9) Avoid bending your cables at sharp angles.
10) Don’t put your cable near live electrical wiring.
AC electricity generates radio “noise” which can
interfere with the signal from your camera.
3

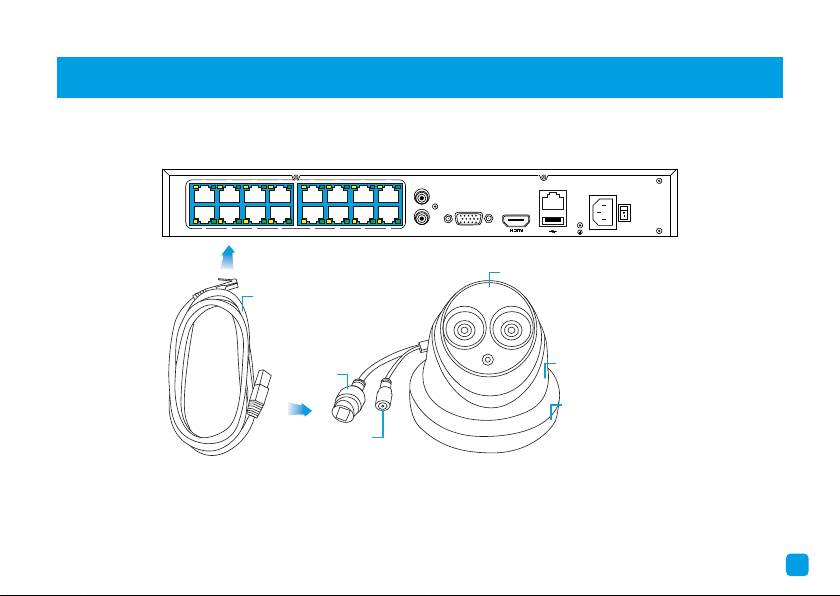

Connecting your Camera
To connect your camera to the NVR, simply connect the supplied Ethernet cable to the LAN connection on the
camera then plug the other end of the cable into one of the IP camera inputs on the back of the NVR.
The Ethernet cable is the same at both ends so it doesn’t matter which end plugs into the camera or the NVR.
For more information on how to configure your camera, please consult the user guides included with your NVR.
4321
9 10 11 12
5 6 7 8
16151413
AUDIO OUT
AUDIO IN
VGA
LAN
POE
Ethernet Cable
LAN
Power
Dome Camera
Dome Enclosure
Dome Ring
4
Mounting your Camera
• Position the camera in the location you want to mount to
then mark the mounting holes on the surface to position
the screws (a mounting template has been included). Using
the appropriate screws for the surface you are mounting to,
screw the camera into place.
• To adjust the camera to the desired focal position, use a
Phillips head screwdriver to loosen the lock screw.
• The dome enclosure can be rotated left or right and the
dome camera can be aimed in almost any direction from
wherever you choose to mount it.
• Make sure the camera’s focal position is always facing up
(you will see UP indented on the camera) otherwise the
image will be upside down. When finished tighten the lock
screw to secure the camera.
• Replace the dome ring by rotating it counter clockwise (if
mounted horizontally) or clockwise (if mounted vertically) to
lock it in to place.
Lock Screw
Mounting
Hole
Mounting
Hole
The camera can be mounted onto a flat
vertical or horizontal surface and must be
of sufficient strength to hold the camera -
• Rotate the dome ring counter
clockwise to remove it from the
camera.
5
Limited Warranty - Terms & Conditions
Swann Communications warrants this product
against defects in workmanship and material for
a period of one (1) year from its original purchase
date. You must present your receipt as proof of
purchase for warranty validation. Any unit which
proves defective during the stated period will
be repaired without charge for parts or labour
or replaced at the sole discretion of Swann. The
end user is responsible for all freight charges in-
curred to send the product to Swann’s repair cen-
tres. The end user is responsible for all shipping
costs incurred when shipping from and to any
country other than the country of origin.
The warranty does not cover any incidental, ac-
cidental or consequential damages arising from
the use of or the inability to use this product. Any
costs associated with the fitting or removal of this
product by a tradesman or other person or any
other costs associated with its use are the re-
sponsibility of the end user. This warranty applies
to the original purchaser of the product only and
is not transferable to any third party. Unauthor-
ized end user or third party modifications to any
component will render all warranties void. By law
some countries do not allow limitations on certain
exclusions in this warranty. Where applicable by
local laws, regulations and legal rights will take
precedence.
For Australia: Our goods come with guarantees
which cannot be excluded under Australian Con-
sumer Law. You are entitled to a replacement
or refund for a major failure and for compensa-
tion for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of ac-
ceptable quality.
6
FCC Verification
This equipment has been tested and found to comply with the limits for Class B digital device, pursu-
ant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected
• Consult the dealer or an experienced radio/TV technician for help
These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) These devices may not cause harmful interference.
(2) These devices must accept any interference received, including interference that may cause unde-
sired operation.
M836CAM160615E | © Swann 2015
Helpdesk/Technical Support
Technical Support E-mail: [email protected]
Telephone Helpdesk
USA Toll Free 1-800-627-2799
USA Parts & Warranty 1-800-627-2799
(M-F, 9am-5pm US PT)
AUSTRALIA 1800 788 210
NEW ZEALAND Toll Free 0800 479 266
UK 0808 168 9031
