Product Line Up Page 3
Advanced Power Inverter Page 5
Advanced Technology Page 7
Control Technology Page 10
Product Series Page 15
Main Features Page 22
System Controls Page 23
Specifications Page 24
Contents
COMFORT
TAKES ON
NEW MEANING
WITH THE POWER OF
TECHNOLOGY
NEW REFRIGERANT
Our technologically advanced
Mr. Slim Power Inverter systems
improve comfort, operate with
significantly less noise,
.... and provide increased energy savings.

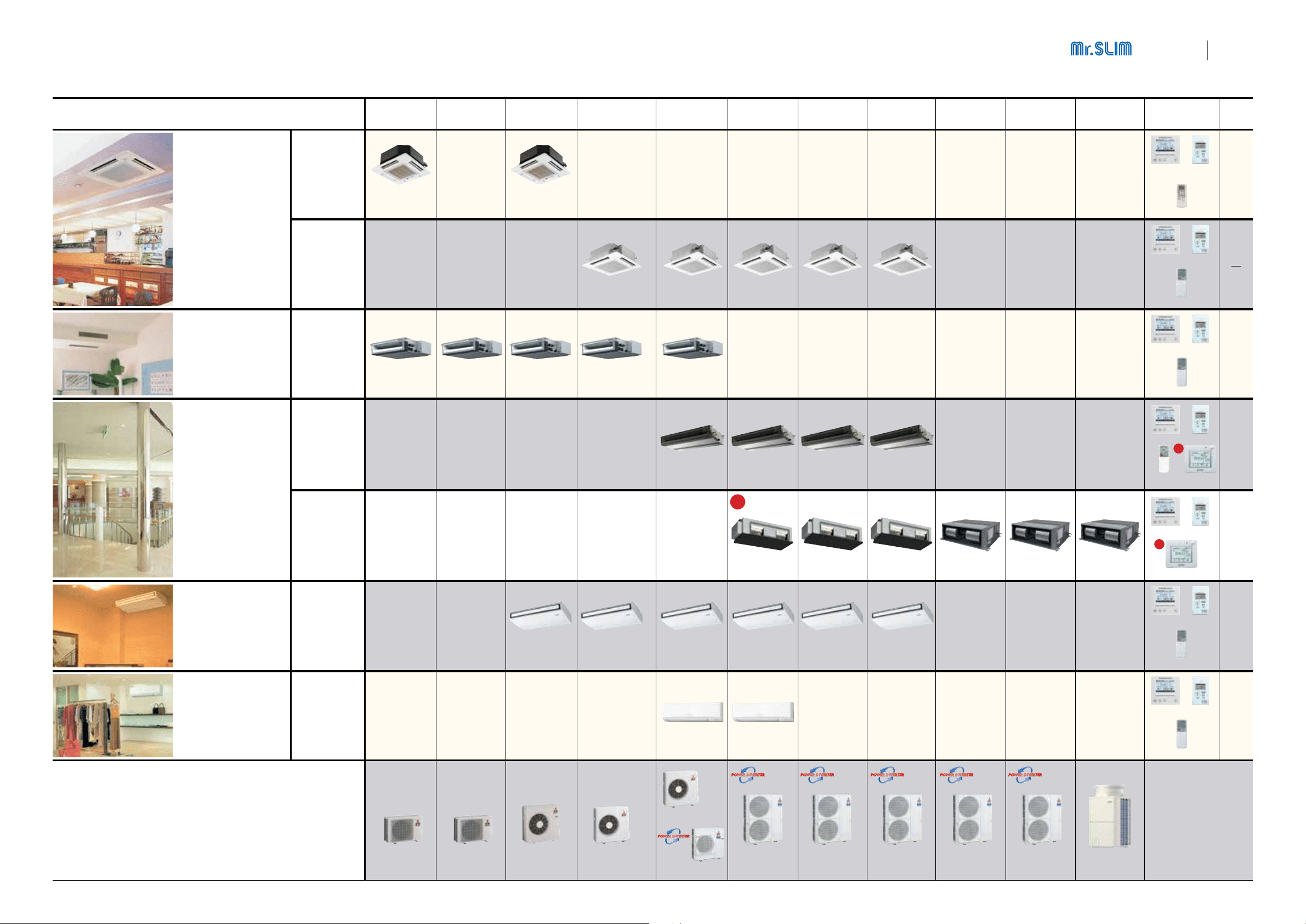

Product Line-up of Inverter Units
3-4
PEAD
Series
PEA
Series
PCA
Series
PKA
Series
PLA
Series
Compact cassette
Wide Power cassette
SLZ
Series
SEZ
Series
Outdoor unit
25.0kW
21
21
20
Product Line-up
3.5kW
SUZ-KA35VAD
SEZ-KD35VAQ (L)
2.5kW
SLZ-KA25VAQ (L)
SUZ-KA25VAD
SEZ-KD25VAQ (L)
17.0kW
PUHZ-RP170V/YKA2
20.0kW
PUHZ-RP200YKA2 PUHZ-RP250YKM
*SEZ/SLZ indoor units should be connected to an SUZ outdoor unit.
*PKA-RP71: only for PUHZ-RP outdoor connection.
*PEA-RP: No wireless remote controller as optional parts.
Remote
controller
See
page
5.0kW
SUZ-KA50VAD
SLZ-KA50VAQ (L)
SEZ-KD50VAQ (L)
PCA-RP50KAQ
15
16
19
standard for SLZ-VAL
optional for
SLZ-VAQ
optional for
SLZ-VAQ
17
18
6.0kW
SUZ-KA60VAD
PLA-RP60BA
SEZ-KD60VAQ (L)
PCA-RP60KAQ
14.0kW
PEA-RP140GAA
PEAD-RP140JAA
PEA-RP250WHA
PLA-RP140BA
PUHZ-RP140V/YKA2
PEA-RP125GAA
PEA-RP100GAA
NEW
NEW
NEW
PCA-RP140KAQ
12.5kW
PEAD-RP125JAA
PLA-RP125BA
PUHZ-RP125V/YKA2
PCA-RP125KAQ
10.0kW
PKA-RP100KAL
PUHZ-RP100V/YKA2
PEAD-RP100JAA
PLA-RP100BA
PCA-RP100KAQ
7.1kW
PEAD-RP71JAA
PKA-RP71KAL
SEZ-KD71VAQ (L)
* Combination only
with SUZ-KA71
PLA-RP71BA
PUHZ-RP71VHA5
SUZ-KA71VAD
PCA-RP71KAQ
* Combination only
with PUHZ-RP71
optional
optional
optional
standard for SEZ-VAL
optional for
SEZ-VAQ
optional for
SEZ-VAQ
optional
optional
optional
optional
optional
optional
optional
optional
standard
optional
optional
4-way
Ceiling
Cassette
Ceiling-
concealed
Ceiling-
suspended
Wall-
mounted
Compact
Bulkhead
optional for
PEAD
optional
PEA-RP200WJAPEA-RP170WJA
Outdoor unit

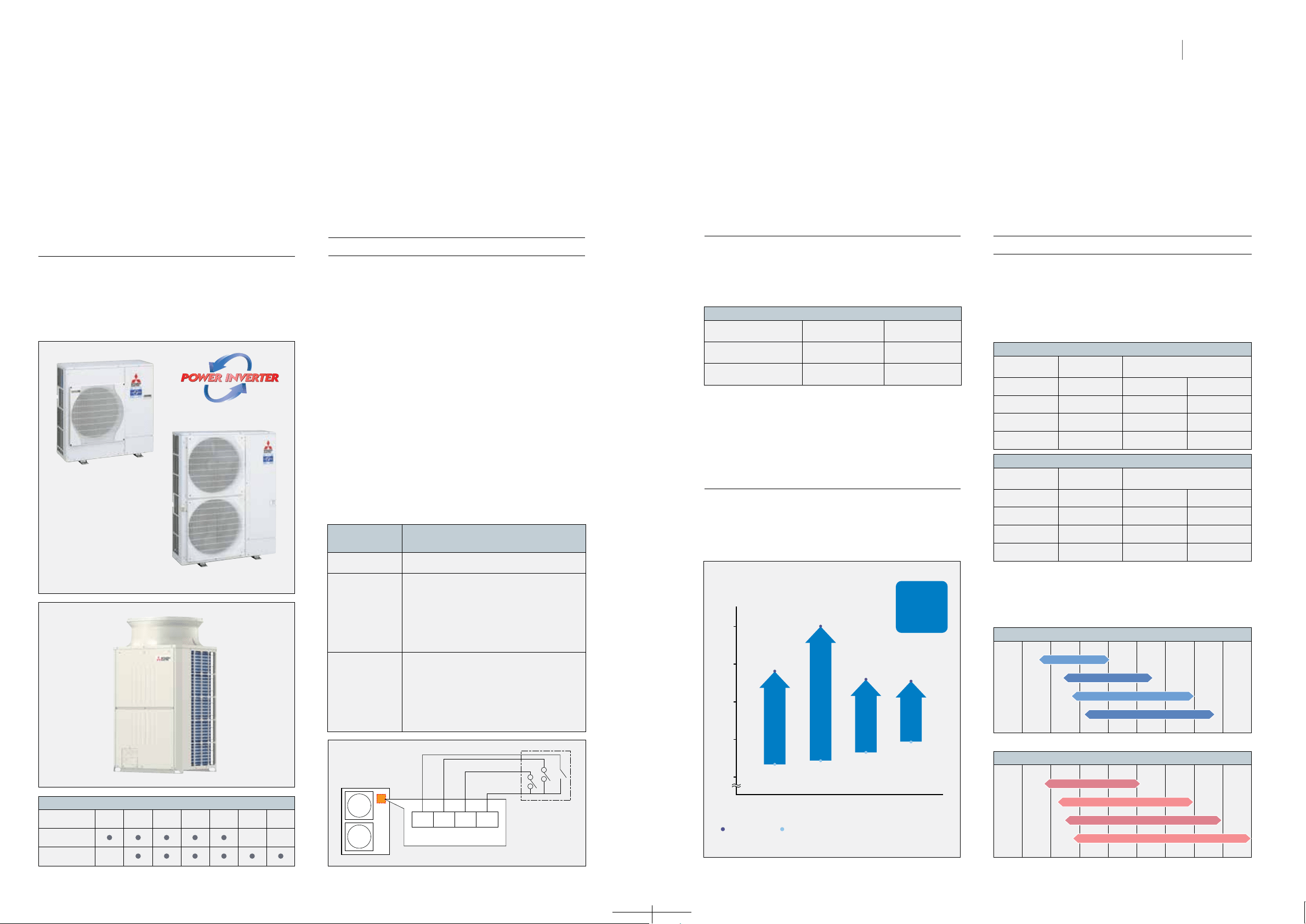

Advanced Power Inverter
05-06
Based on the connection of a demand response enabling device
(
DRED
)
to
the outdoor unit, Demand Response Mode is activated in response to
signals sent from the electric authority at times when it is necessary to
reduce peak demand.
The units with service reference number PUHZ-RP
•
VHA5R1-A and
PUHZ-RP
•
V/YKA2R1-A are demand response capable.
This capability is possible with the connection of a demand response
enabling device
(
DRED
)
to the terminal block interface
(
BT00C023G02
)
.
This item is supplied in a sealed bag located in the compressor chamber.
Connection of the terminal block interface is a mandatory requirement
for the installation of any PUHZ-RP
•
VHA5R1-A and PUHZ-RP
•
V/YKA2R1-A
units.
When installed the system is demand response capable; that is,
ready to
be connected to a demand response enabling device
(
DRED
)
*.
Mitsubishi Electric’s Power Inverter systems increase energy efficiency.
To better meet the needs of shops and oces, our outdoor units are oered
in three-phase power supply models in addition to the existing line-up of
single-phase models. Select the model to best match your needs from our
expanded model range.
DRM1 Compressor O
DRM2
Demand Response
Mode
(
DRM
)
Description of operation in this mode
Advanced Power Inverter
Demand Function
Three-phase
Outdoor Line-up
(
PUHZ-RP series
)
Single-phase
71
100 125 140 170 200 250
The air conditioner continues to cool or
heat during the demand response event,
but the electrical energy consumed by the
air conditioner in a half hour period is not
more than 50% of the total electrical energy
that would be consumed if operating at the
rated capacity in a half hour period.
DRM3
The air conditioner continues to cool or
heat during the demand response event,
but the electrical energy consumed by the
air conditioner in a half hour period is not
more than 75% of the total electrical energy
that would be consumed if operating at the
rated capacity in a half hour period.
Air Conditioner Demand Response Mode
Demand
controller
Terminal block
DRM1 DRM2 DRM3 C
*PUHZ-RP250 is excluded.
Please contact Mitsubishi Electric Australia Pty. Ltd. for details.
see specication on Page 24
PUHZ-RP100/125/140/170/200
PUHZ-RP250
PUHZ-RP71
see specication on Page 24
Wider Performance Range
Operation is now possible at lower speeds, thus cutting energy losses
produced by the repeated On/O operation of non-inverter models.
Comfort is improved while power consumption is reduced.
The maximum piping length is 75m.
Therefore there is a wide range of layout possibilities for
unit installation.
PUHZ-RP71
PUHZ-RP
100/125/140/170/200/250
Max. height dierence
Max. piping length
(one-way)
30m
30m
50m
75m
Max. piping length
Cooling capacity
(
kW
)
0 2 4 6 8 10 12 14 16 18kW
4-way ceiling cassette
High Power
More Power for Faster Cooling/Heating
Powerful Cooling/Heating Performance
The maximum operating cooling/heating capacity of the Mr. Slim
Power Inverter units have been improved (compared to conventional
non-inverter models) when operating in either low or high outdoor
temperatures.
71 class
100 class
125 class
140 class
7.7
9.7
12.4
14.0
8.1
11.4
14.0
15.3
105%
118%
113%
109%
R22
Non-inverter
R410A
Power inverter max. (PUHZ-RP)
4-way ceiling cassette
Heating capacity
(
kW
)
4-way ceiling cassette
71 class
100 class
125 class
140 class
8.4
10.4
14.0
16.1
10.2
14.0
16.0
18.0
121%
135%
114%
112%
R22
Non-inverter
R410A
Power inverter max. (PUHZ-RP)
Cooling capacity ranges
71 class 3.3-8.1 kW
100 class 4.9-11.4 kW
125 class 5.5-14.0 kW
140 class 6.2-15.3 kW
0 2 4 6 8 10 12 14 16 18kW
4-way ceiling cassette
Heating capacity ranges
71 class 3.5-10.2 kW
100 class 4.5-14.0 kW
125 class 5.0-16.0 kW
140 class 5.7-18.0 kW
Long Maximum Piping Length
41%
UP
32%
UP
57%
UP
80%
UP
Comparison of EER (cooling mode)
Comparison of EER between non-inverter and Power Inverter
(4-way ceiling cassette) models.
Power Inverter Model Non-inverter Model
EER
Outdoor Unit
4.0
3.5
3.0
2.5
2.0
71 class 100 class 125 class 140 class
2.47
3.27
2.22
4.00
2.33
3.29
2.17
3.40
Average
53%
UP
High Energy Efficiency
*EER are measured at rated condition.
Advanced Technology
07-08

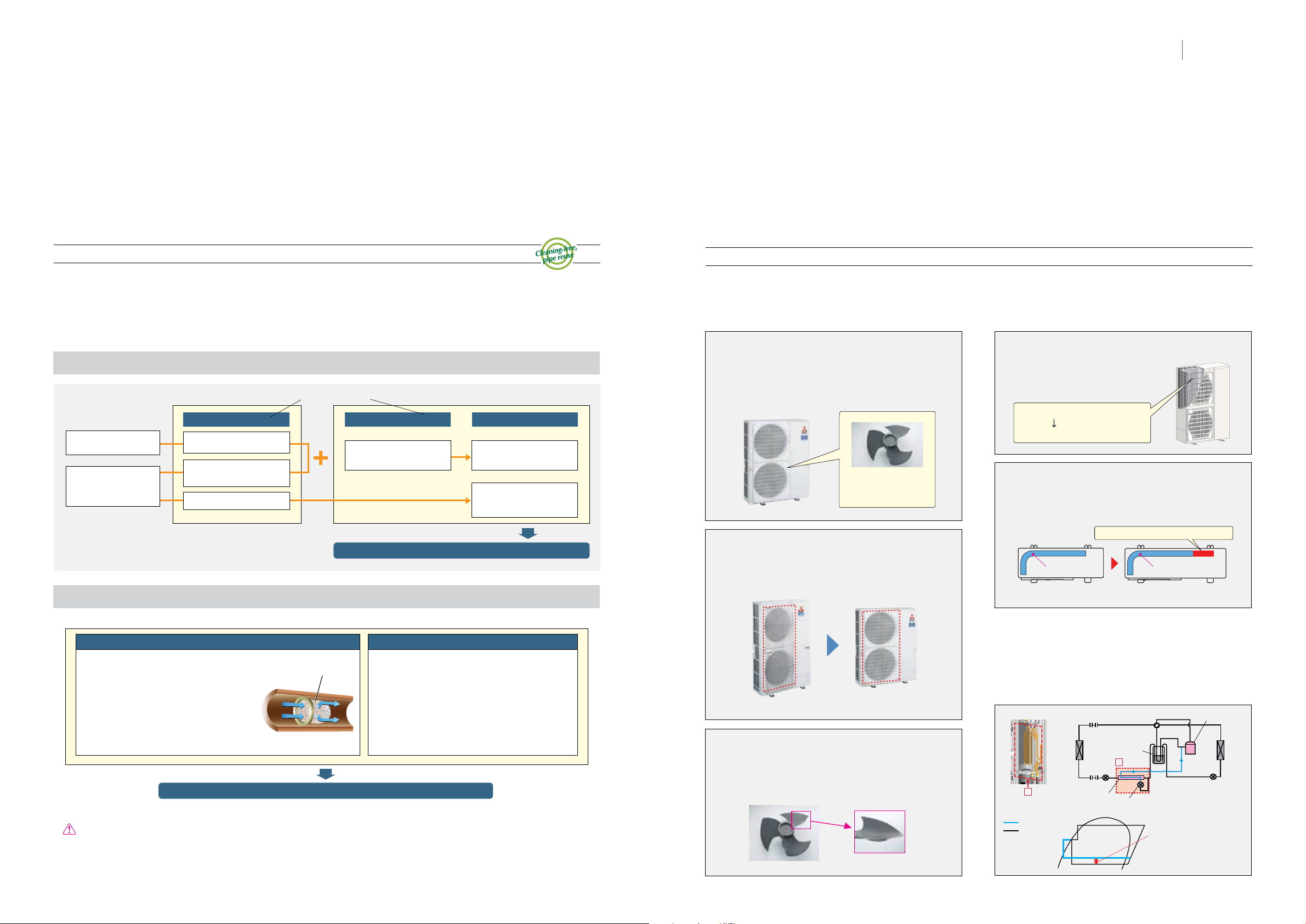

Cleaning-free Pipe Reuse Technology
<
PUHZ-RP71–200
>
Ability to use existing piping reduces pipe waste and replacement time
No Need to Clean at the Time of System Renewal
Chloride residue builds up in existing pipes and becomes a source of trouble. In addition, the iron particles and slime produced as a result of
compressor failure lead to problems. To counter this, various original Mitsubishi Electric technologies have been combined to enable the introduction
of “cleaning-free pipe reuse.”
This feature is available in the PUHZ-RP71-200
Cautions when using existing piping
•When removing an old air conditioning unit, please make sure to perform the pump-down process and recover the refrigerant and refrigerant oil.
•Check to ensure that the piping diameter and thickness match Mitsubishi Electric specications.
•Check to ensure that the are is compatible with R410A.
Cleaning pipe or replacing with new pipe is required
Result
R22 refrigerant R410A refrigerant
Accelerated deterioration
of refrigerant oil
Problem
High heat generated
during operation
Problem
Chloride residue
Increased chloride
residue
Iron particles and slime
Refrigerant circuit
malfunctions and
causes failure
At time of renewal
At time of
compressor failure
Countermeasure for Problem 1 Countermeasure for Problem 2
Technology 2
Friction Reduction
(moving parts in compressor)
Friction inside the compressor is reduced by using an
original Mitsubishi Electric technology called the
“Heat Caulking Fixing Method” or coating the edge of
the blade in the scroll compressor, thereby
suppressing the increase in temperature that causes
refrigerant oil deterioration.
Technology 1
Original High-quality Filtration
Our original high-quality ltration device called
the “Wide strainer” is equipped inside the
refrigerant inlet and outlet pipe. The “Wide
strainer” traps iron particles and provide
cleaning-free pipe reuse. In addition,
improvements to the metal used in the
bearings of our new scroll compressors provide
more robust units.
Existing piping can be used without cleaning
Why can’t existing piping be used?
Mitsubishi Electric’s Original Replacement Technologies
“Wide strainer”
1 2
see specication on Page 24
Advanced Energy-ecient Technologies
Highly ecient fan and grille for outdoor unit
The shapes of the fan and grille of the outdoor unit have been redesigned,
realising an increase in blowing capacity and more ecient heat exchange
while maintaining the same operating noise level.
Highly ecient heat exchanger
A high density and increase in surface area have improved the
heat-exchange eciency of the heat exchanger.
Fan rear edge
Outdoor unit fan opening increased <PUHZ-RP100-200>
The diameter of the opening for the fan in the outdoor unit has
been increased from 490 to 550mm. Blowing capacity has been
increased while maintaining the same fan rotation speed.
High-density heat exchanger
<PUHZ-RP100-200>
The pipe diameter has been changed
from 9.52 to 7.94mm, resulting in a
high-density heat exchanger.
Grille shape changed
<PUHZ-RP71-200>
The shape of the air outlet grille has been changed to reduce
pressure loss. This has helped to improve heat exchange
performance.
Inexed fan
<PUHZ-RP100-200>
Adoption of a fan with improved ventilation characteristics and
a newly designed rear edge that suppresses wind turbulence
raises fan operation eciency.
Heat-exchange surface area increased
<
PUHZ–RP100–200
>
Heat exchanger size extended horizontally, increasing the
surface area.
Heat exchanger
Heat exchanger
Increase in heat-exchanger surface area
Opening increased
from 490 to 550mm
in diameter
2 lines, 52 columns
2 lines, 64 columns
(
RP100 –200
)
Increasing the pressure of the
refrigerant sent to the compressor
reduces the compression load
w/ HIC circuit
w/o HIC circuit
Heat Interchanger (HIC)
LEV B
LEV C
LEV A
Heat
interchanger
(HIC)
A
A
Indoor
HEX
Outdoor
HEX
Power
receiver
Compressor
Cooling operation
<
PUHZ–RP
•
HA
> <
PUHZ–RP
•
KA
>
<
PUHZ–RP
•
HA
>
(image)
<
PUHZ–RP
•
KA
>
Heat Interchanger
(
HIC
)
Added
<PUHZ-RP140>
A HIC circuit has been added to improve energy eciency during cooling
operation. Liquid refrigerant is rerouted, transformed into a gas state and
injected back into the system to increase overall pressure of the refrigerant
being sent to the compressor, thereby reducing the load on the
compressor and raising eciency.
see specication on Page 24
Sine-wave drive soft PWM
Smooth AC wave pattern
The inverter has been made more compact by inserting the
circuitry inside a synthetic resin molding.
To ensure quiet operation, soft PWM control is used to prevent
the metallic whine associated with conventional inverters.
Advanced Technology for High Efficiency
Numerous Leading-edge Technologies
Assure High Efficiency
Reluctance DC Rotary Compressor
<
PUHZ-RP71
>
The reluctance DC motor has a rotor equipped with powerful
neodymium magnets. The magnetic torque produced by the neodymium
magnets and reluctance torque results in more ecient operation.
Highly Efficient DC Scroll Compressor
<
PUHZ-RP71–200
>
Higher eciency has been achieved by adding a
frame compliance mechanism to the DC scroll
compressor. The mechanism allows movement in
the axial direction of the frame supporting the
cradle scroll, thereby greatly reducing the leakage
and friction loss, and ensuring higher eciency at
all speeds.
DC Fan Motor
<
PUHZ-RP71–200
>
A highly ecient DC motor has been installed to drive the fan of
outdoor units, realising up to 60% higher eciency when compared to
an equivalent AC motor.
Vector-Wave Eco Inverter
This inverter monitors the varying compressor motor frequency and
creates the most ecient waveform for the motor speed. As a result,
operating eciency in all speed ranges is improved and less power is used.
Power Receiver and Twin LEV Control
<
PUHZ-RP71–200
>
Mitsubishi Electric has developed a power receiver and twin linear expansion
valves (LEVs) that optimise the performance of the compressor. By ensuring
optimum control in response to the operating waveform and outdoor
temperature, this technology is tailored to the characteristics of the new
refrigerant to enhance operating eciency.
DC compressor motor (rotor)
Thrust gas power: minimum
Cradle scrollFrame
Secondary back-pressure
chamber minimises
thrust friction loss.
Primary back-pressure
chamber minimises
leaking loss.
Thrust friction loss: minimum
Leaking loss: minimum
Fixed scroll
Neodymium magnets
+
Magnetic torque Reluctance torque
see specication on Page 24
Control Technology
09-10
Easier to read thanks to use of a full dot liquid-crystal display with
backlight, and easier to use with a menu format that has reduced the
number of operating buttons.
The amount of power consumed in each time period is managed so that
the demand value is not exceeded. The demand control function can be
set to start and nish in 5-minute units. Additionally, the level can be
adjusted to 0, 50, 60, 70, 80 or 90% of maximum capacity, and up to 4
patterns can be set per day. Air-conditioning operation is automatically
controlled to ensure that electricity in excess of the contracted volume
is not consumed.
Energy-efficient Control
Operation Control Functions
Precise control of power
consumption
<
PUHZ–RP71–200
>
Easy To Read & Easy To Use
Multi-language Display
Control panel operation in eight
different languages
Display Example [Operation Mode]
Full Dot LCD
Energy-
efficiency
Schedule
Using a temperature that is 1°C lower/higher for heating/cooling results
in a 10% reduction in power consumption.* Temperature Range
Restriction limits the maximum and minimum temperature settings,
contributing to the prevention of overheating/overcooling.
*Based on Mitsubishi Electric laboratory tests in controlled conditions
Temperature Range Restriction
prevents overheating/overcooling
Temperature
Range
Restriction
When using Auto-o Timer, even if one forgets to turn o the unit,
operation stops automatically after the preset time elapses, thereby
preventing wasteful operation. Auto-o Timer can be set in 10-minute
units, in a range between 30 minutes and 4 hours. Eliminating all anxiety
about forgetting to turn o the unit.
Turns heating/cooling off
automatically after preset time
elapses
Auto-off
Timer
After adjusting the temperature for initial heating in winter or cooling
on a hot summer day, it is easy to forget to return the temperature
setting to its original value. The Auto-return function automatically
resets the temperature back to the original setting after a
specied
period of time, thereby preventing overheating/overcooling.
The
Auto-return activation time can be set in 10-minute units, in a range
between 30 and 120 minutes.
*Auto-return cannot be used when Temperature Range Restrictions is in use.
Prevents wasteful operation by
automatically returning to the
preset temperature after specified
operating time
Auto-return
This function monitors the room temperature and automatically
activates the heating mode when the temperature drops below the
preset minimal temperature setting. It has the same function for
cooling, automatically activating the cooling mode when the
temperature rises above the preset maximum temperature setting.
Keep desired room temperatures
automatically
Night
Setback
Choose the desired language,
among the following languages.
Multi-
Ianguage
[Swedish]
[English] [Italian] [German][Spanish]
[Russian] [Portuguese]
[French]
■Setting pattern example
Start time
8:15
12:00
13:00
17:00
Finish time
12:00
13:00
17:00
21:00
Adjusted capacity level
80%
50%
90%
50%
Cooling/Dry
(Setting example of minimum temp. in 25°C)
Lower temperature limit
Possible temperature range setting
19(˚C) 30(˚C)
30(˚C)25(˚C)
To prevent excessive cooling
Lower temperatures cannot
be selected
Meeting room Changing room
Recommended for
In addition to operation start/stop, the operation mode, temperature
setting and airow direction can be locked. Unwanted adjustment of
temperature settings is prevented and an appropriate temperature is
constantly maintained, leading to energy eciency. This feature is also
useful in preventing erroneous operation or tampering.
Fixed temperature setting promotes
energy efficiency
Operation
Lock
Computer server facility
Recommended for
Oce
School
Hospital
Public hall
Oce Restaurant
Recommended for
PAR-31MAA
Advanced Technology for High Efficiency
Full Dot Liquid-crystal Display Adopted
PAR-31MAA
The Weekly Timer enables the setting of operation start and nish times
and adjusting the temperature as standard features. Up to 8 patterns
per day can be set, providing operation that matches the varying
conditions of each period, such as the number of customers in the store.
*Weekly Timer cannot be used when On/O Timer is in use.
Set up to 8 patterns per day including
temperature control
Weekly
Timer
Busy
hours
5
Setting Example (restaurant in summer time)
26
25
24
23
22
0
10 12 14 16 18 20 22 24
Temperature setting (°C)
Opening
time
Lunch time
Preparation
Dinner time
8-pattern setting
Closing time
Set to lower temperature Set to higher temperature
1
2
4
3
6
7
8
(Time)
Necessary to change temperature settings for cooling/heating times.
*Joint research conducted by Mitsubishi Electric.
O-peak
hours
Heat exchanger temperature (˚C)
Discharge temperature (˚C)
Outdoor-air temperature (˚C)
Accumulated operating time (×10hr)
Number of ON/OFF times (×100 times)
Operating current (A)
Intake-air temperature (˚C)
Heat exchanger temperature (˚C)
Filter operating time* (hr)
Outdoor UnitCompressor Indoor Unit
4
5
6
1
2
3
7
8
9
*The lter operating time is the time elapsed since the lter button is reset.
Rotation, Back-up and 2nd Stage Cut-in Functions
(
PAR-31MAA
)
<
PUHZ-RP71–200
>
(
1
)
Rotation and Back-up Functions
Function Outline
• Main and Sub units take turns operating according to a
rotation interval setting.
• If one unit malfunctions, the other unit automatically
begins operation
(
Back-up function
).
Easy Maintenance Function
<
PUHZ-RP71–200
>
• Nearly maintenance-free operation
• Monitor operation data of the indoor and outdoor units via the remote controller.
Remote controller also lets you set the operating frequency, allowing easier inspection.
(
2
)
2nd Stage Cut-in Function
Function Outline
• Number of units operating is based on room tempera-
ture and predetermined settings.
• When room temperature rises above the desired
setting, the standby unit starts (2-unit operation).
• When the room temperature falls 4°C below the prede-
termined setting, the standby unit stops (1-unit opera-
tion).
System Constraint
• This function is only available for rotation operation and
when the back-up function is in cooling mode.
Operation Pattern
System Image
O/U : Outdoor unit
I/U : Indoor unit
R/C : Wired remote controller
Operation Pattern
(
When cooling
)
[
Back-up function only
]
Start operation
Error occurs on main unit.
Main Sub
[
Rotation function
]
&
[
Back-up function
]
(When the request code is “313”, each unit operates alternately in daily cycle.)
Start operation
1–28 days 1–28 days
Main Sub Sub Main
Error occurs on main unit.
Main Sub
Main
unit
I/U-1
Sub
unit
I/U-2
Run
Stop
Abnormal condition
Run
Main
unit
I/U-1
Sub
unit
I/U-2
Run Stop Run
Stop
Abnormal condition
Run Stop Run
[
2nd stage cut-in function
]
Start operation
Room temp.
>
=
Set point
Sub unit starts operation
Room temp.
>
=
Set point –4°C
Sub unit stops
Main
unit
I/U-1
Sub
unit
I/U-2
Run
Stop Run Stop
O/U-1 O/U-2
I/U-1
R/C
I/U-2
Sub
unit
Main
unit
Control Technology
11-12
Wi-Fi Control unlocks the door to smarter heating
or cooling, for total home comfort wherever you
are. This innovative technology connects your
domestic high wall, oor mounted and ducted air
conditioner to your smartphone, tablet or online
account, giving you the freedom to fully control
each unit on-the-go via an internet connection
from anywhere in the world.
This innovative technology
places multiple functions of
your air-conditioner at your
ngertips. Turning the unit
ON/OFF, adjusting set
temperature, changing mode,
fan speed and airow direction
are all possible.
Superior Customisation
Key Features
With the ability to sense the
room temperature and now
automatically turn on of o to
take the room to the desires
temperature. Creating ultimate
comfort for your home. Winter
set minimum temperatures to
warm up your home and
Summer set maximum
temperatures to create comfort
cooling the room.
Download the WiFi App from
the App store or Google Play
Develop Operating Rules
Tailor your system to always
meet your needs. Unlock the
full potential of your
air-conditioner, programme
your system to automatically
turn on/o at specic times,
change settings, and develop
temperature rules to ensure
superior comfort day after day.
Customise the settings of each
air-conditioner in your home.
Purchase multiple adaptors to
manage all air-conditioners
independently on the same
account to ensure complete
control over your system. The
result is a tailored system to
your needs.
You will require a compatible
WPS router with WPA2-AES
encryption, with coverage
including the air-conditioners
installation location. A
PC/Tablet/Smartphone that is
iOS, Android compatible. A
MAC-558IF-E adaptor per indoor
unit. Compatible Mitsubishi
Electric Air-conditioner. For a
full list of requirements visit
mitsubishielectric.com.au/wi
Room Temperature Limits
Control Multiple Units
Available for Download
Minimum requirements
Wi-Fi Controller MAC-558IF-E
MAC-558IF-E
CONTROL
- View & Control from anywhere in the world
-Enhance energy savings
-Set up 7 days weekly schedule
-Wireless connection using WPS
New
Control Technology
13-14
PEAD/
PEA
Main screen Zone control screen
Zone Controller for PEAD/PEA Series
PAC-ZC40/80L-E
PAC-ZC40/8 0H-E
New
Control operation of up to 8 dampers
By controlling the operation of up to eight dampers, the waste of
operating air conditioning in unoccupied areas and areas where it is not
needed can be prevented. Detailed control makes it possible to set
operation to suit the user's needs.
LED indicator
The LED indicator in the lower part of the controller clearly shows the
operation mode. Easily conrm if the air conditioning is on or o from a
distance.
*Set to all green display before shipping.
Easy to see and use
• A large, full-dot liquid-crystal screen is incorporated, greatly simplifying
touch panel operation.
• The backlight makes operation in dark rooms possible.
Schedule setting
• Built-in weekly schedule function can control turning air conditioner on
and o, and opening and closing of each damper. Up
to eight patterns can be set for each week, enabling operation
suitable for each time zone to be set.
• Night setback function is incorporated. If the room temperature
is outside of the temperature range setting, heating or cooling
operation starts automatically. This can prevent condensation or
excessive temperature rise in the room.
Wi-Fi compatibility
Can be operated from tablet, smartphone, etc.
Occupancy and brightness sensors
The controller is equipped with a occupancy and brightness sensors that
are used to determine if the room is occupied. When no one is in the
room, operation switches to energy-saving mode. Excellent for ensuring
that the air conditioning gets turned o, and thereby contributing to
further energy savings.
Actual size: 120×140×25mm
(
H×W×D
)
<
Example
>
<
Occupancy sensor
>
<
Energy-saving mode
>
<
Zone controller
>
Detection distance, right/left detection angle
Up/Down detection angle
PAR-ZC01M-E
remote controller
11°
10m
31°
20°
Floor
10m
10m
Wall
110°
PAR-ZC01M-E
remote controller
Brightness sensor
If room light is on, energy-saving control is deactivated.
Occupancy sensor
Judges whether or not someone is in the room by detecting
human motion. If the room is unoccupied, air conditioning is
switched to Energy-saving mode.
Touch panel with backlight
A 4.3-inch touch-panel liquid-crystal screen with a backlight
has been incorporated.
Temperature sensor
Monitors the temperature near the remote controller.
LED indicator
Indicates the operation mode or room temperature using
colours.
*Setting is required.
Operation of up to 8 dampers and occupancy
and brightness sensors provides greater comfort
while improving energy-saving performance.
Touch panel
PAC-ZC40H-E
PAC-ZC80H-E
PAC-ZC40L-E
PAC-ZC80L-E
4 zones (max.)
8 zones (max.)
4 zones (max.)
8 zones (max.)
<
Optional parts
>
Wi-Fi Control Interface
Remote Sensor
Zone Remote Controller
240Volt
240Volt
24Volt
24Volt
MAC-558IF-E
PAC-SE41TS-E
PAR-ZC01M-E
Energy-saving mode settings can be selected (see table below).
Veranda
Living
Oven
Dining
Bed 2
Home theater
Master suite
Media
Entry
WR
WIP
Kitchen
Porch
Robe
Robe
Robe
Bed 4
Bed 3
The damper is closed.
When “Zone control” mode is selected among the energy-saving
mode settings shown below.
Air outletAir intake
Deactivate Even if no one is detected, Energy-saving mode is not set.
Temperature
setting slide
Use slide to set desired temperature from presently
set temperature.
Reduce airow Set airow to “Low”.
Operation/Stop Stop operation.
Zone control Turn o target zone settings.
110°
15
PLA Series
PLA-RP60/71
100/125/140BA
(
i-see Sensor: optional
)
optional
4-way
Ce iling
Cassette
PLA Series
16
Advancements in PLA series improve style and
performance for ensured indoor comfort
Wide Airflow
Wide-angle outlets distribute airow to all corners
of the room, ensuring the room is suciently
cooled/heated. Horizontal airow and a fan speed
reduced by 20% compared to conventional
models also contribute to increased comfort for
occupants.
Conventional model
PLA-RP
] ]
BA
Less Cold Draft
The horizontal airow function prevents
cold drafts from striking the body directly,
thereby keeping the body from becoming
over-chilled.
Horizontal airow
prevents drafty feeling
Independent Vane Direction
Setting
Use the wired remote controller to set the
airow pattern of each vane independently.
Easily adjust airow to the interior layout
and seasonal conditions, to help ensure an
even temperature distribution.
Using wired remote controller,
set airow direction for each vane
(manual setting also possible)
]
Wired remote controller
(
PAR-31MAA
)
has Independent
Vane Direction Setting.
This function is only available
when indoor unit connects
with PUHZ series.
Settings can be changed anytime
using a wired remote controller.
Vertical
ow
Horizontal
ow
Set by remote
controller
Fixed
Temperature gap with uneven
temperature distribution
Temperature gap is decreased,
and room is warmed uniformly
Swing mode
Vertical ow
Wave Airflow Mode for Heating
The airow direction at each
outlet changes intermittent-
ly, providing a con
sistent
temperature through
out the
room.
Vertical
ow
Vertical
ow
Vertical
ow
Vertical
ow
Simultaneous horizontal and vertical operation ensure
a comfortable room from corner to corner.
“Wave Airow” operation image
• Wave control eect thermograph
Auto Fan Speed Mode
The fan speed is adjusted automatically, thereby helping to maintain a
comfortable room environment at all times. At the start of operation, a high
fan speed provides quick heating/cooling of the room. Once the desired
temperature is reached, the fan speed is reduced for stable heating/cooling
and greater comfort.
HiLo AutoMi2 Mi1
Fan speed setting by remote controller
(
four levels
)
]Special setting is required for wireless remote controller.
Quiet Operation
An improved airow path and powerful high-
capacity ow fan contribute to the realisation of
quieter operation.
Power ow fan
“Pure White” Colour
Stylish, pure white-coloured panels and wired remote controller present a
clean, streamlined image that is a suitable match for any interior.
Other Features
•
Stylish indoor-unit vane covers (when unit is turned o)
• Maximum upward draining of 850mm
• Wireless remote controller available
• Duct ange for Fresh-air Intake
• Branch duct
Automatic Grille Lowering
Function
(
Option
)
Easy to use/Simple maintenance
An automatic grille lowering function capable of
stopping at eight dierent heights is available to
simplify lter maintenance.
Packaged elevating (up-down)
controller in the grille
(
PLP-6BAJ
)
can
be used when indoor unit connects
with PUHZ series and SUZ series.
1.2m
1.6m
2.0m
2.4m
2.8m
3.2m
3.6m
4.0m
Automatic
elevation to
four metres
4-way cassettes can be equipped with the i-see Sensor,
a radiation-based sensor that monitors oor-level
temperatures throughout the room to
ensure room comfort.
i-see Sensor works to
ensure even temperature
distribution and save
energy (requires optional
corner panel)
i-see Sensor improves energy efficiency and enhances room comfort (Option)
The i-see Sensor is an innovative Mitsubishi Electric technology that uses a
radiation-based sensor to monitor temperature throughout the entire room. When
connected to the air conditioner control panel, i-see Sensor works to maximise
room comfort through 360° sensing that covers the whole oor space.
The i-see Sensor rotates 90° and takes 5-second
measurements to accurately determine oor-level
temperatures on all sides of the room.
■i-see Sensor Operation
• The i-see Sensor calculates the temperature by measuring the infrared rays emanating from
the walls and oors, and measuring the oor-level temperature.
• The sensor rotates 360° once every two minutes when there is signicant temperature
disparity and once every ve minutes when a stable, even temperature has been reached.
90°
rotation
90°
rotation
90°
rotation
5sec
measurement
5sec
measurement
5sec
measurement
5sec
measurement
360°
Floor-level temperature
measured throughout the room.
2.7m
Set temperature: 20°C
with i-see Sensor + Auto Fan Speed
Without i-see Sensor
With i-see Sensor
Area which the
“i-see Sensor”
checks
Indoor temperature
detecting sensor
Indoor temperature
detecting sensor
Area which the
sensor checks
Set temperature: 23°C
without i-see Sensor
37°C
“I Feel” Temperature Control
The sensory temperature is calculated by measuring the air-intake temperature and
the oor temperature. This technology helps to avoid overcooling or overheating.
sensing
11.5m
2.7m
sensing
11.5m
25°C
13°C
37°C
25°C
13°C
Heating Heating
2.7m
Area which the
i-see Sensor
checks
Indoor temperature
detecting sensor
Indoor temperature
detecting sensor
Area which the
sensor checks
360°360°
sensing
11.5m
2.7m
sensing
11.5m
Only intake-air temperature at the
ceiling is measured, resulting in
uneven temperature distribution.
Both oor-level and intake-air tempera-
tures are measured, providing operation
that creates a comfortable room envi-
ronment from ceiling to oor.
Wired remote controller
(
PAR-31MAA
)
has automatic grille
lowering function.
This function is only available
when indoor unit connects with
PUHZ series.
Elevating (up-down)
controller
Indoor unit
Specications: 4-way ceiling-cassette (PLA)
PLA-RP60BA
SUZ-K A60VAD
Cooling Heating
Outdoor unit
Function
Capacity (min.-max.)
Input
Rated EER/COP
Power supply
Airow
(
Lo-Mi2-Mi1-Hi
)
Sound pressure level
Dimensions Width
Depth
Height
(
kW
)
(
kW
)
L/S
(
dB
)
(
kg
)
(mm)
(mm)
(mm)
Weight
* MEPS compliant at part load
* SUZ-K A
•
VAD is potentially demand response capable unit. DRC-101A is required.
CMM
PLA-RP71BA
12-14 -16-18 14-16-18-21
200-233-267-300 233-267-300-350
28-29-31-32 28-30-32-34
SUZ-K A71VAD
Cooling Heating
6.1 (2.3-6.3) 6.9 (2.5-8.0) 7.1 (2.8-8.1) 8.0 (2.6-10.2)
1.78 1.97 2.07 2.19
3.43 3.50 3.43 3.65
PLA-RP71BA
14-16-18-21
233-267-300-350
28-30-32-34
PUHZ-RP71VHA5
Cooling Heating
PLA-RP100BA
20-23-26-30
334-384-434-501
32-34-37-40
Unit: 25, Panel: 6
22-25-28-31
367- 417-467-517
34-36-39-41
Unit: 840, Panel: 950
Unit: 298, Panel: 35
Unit: 840, Panel: 950
24-26-29-32
400-434-484-534
36-39-42-44
Unit: 27, Panel: 6
PUHZ-RP100V/YKA2
Cooling Heating
PLA-RP125BA
V: Single-phase, 50Hz, 230V Y: Three-phase, 50Hz, 400V
Unit: 258, Panel: 35
Unit: 23, Panel: 6
PUHZ-RP125V/YKA2
Cooling Heating
PLA-RP140BA
PUHZ-RP140V/YKA2
Cooling Heating
13.0 (6.2-15.3)
3.97
3.27
16.0 (5.7-18.0)
4.43
3.61
12.5 (5.5-14.0)
3.80
3.29
14.0 (5.0-16.0)
3.71
3.77
10.0 (4.9-11.4)
2.50
4.00
11.2 (4.5-14.0)
2.95
3.80
2.09
3.40
2.17
7.1 (3. 3-8.1) 8.0 (3.5-10.2)
3.69
Rated AEER/ACOP
AEER/ACOP (part-load %)
]
3.36 3.44 3.38 3.60 3.10/3.08
3.95/3.89
3.44/3.423.10/3.08
4.13/4.05
3.56/3.543.67/3.63 3.54/3.503.22 3.49
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
18
PEA Series
PEA-RP170/200WJA/250WHA
optional
PEA-RP100/125/140GAA
Ce iling-
concealed
17
PEAD Series
PEAD-RP71/100/125/140JAA
optional
Ce iling-
concealed
Easier Handling
The new ducted fan coil unit
(
PEA-RP170/200/250
)
now has a
two-piece construction. This
allows separation of the indoor
unit heat exchanger and the fan
deck assembly for easier
handling into the roof space.
Computerised Dehumidification
The fan speed is controlled electronically in dehumidifying mode,
increasing the range and eciency of dehumidication.
Freedom in Installation
Versatile and easy installation is possible; for example, it is possible to
adjust the distance between the air-intake and air-outlet vents to
create the optimal airow conguration.
■ Long rectangular room ■ Room with xed ceiling
xtures
■ L-shaped room
Must be reassembled and installed
prior to using the system.
Flexible Duct Design Enables Use
of High-pressure Static Fan
A exible duct design and 150Pa external static high-pressure are
incorporated. The increased variation in airow options ensures
operation that best
matches virtually all
room layouts.
optional
NEW
optional
NEW
For elegance and style, the PEA series
compliments the room environment with
aesthetically pleasing ceiling installation and a
vast line-up of performance functions.
The thin, ceiling-concealed indoor units of the
PEAD series are the perfect answer for the air
conditioning requirements of buildings with
minimum ceiling installation space and
wide-ranging external static pressure.
Energy-saving efficiency has been improved,
thereby reducing electricity consumption and
contributing to a further reduction in operating
cost.
Compact Indoor Units
The height of the PEAD (7.1kW-14.0kW) models has been unied to
250mm. Compared to the previous PEA-RP models, the height has
been reduced by as much as 178mm, making installation possible in
low ceilings with minimal clearance space.
Lighter Weight
Compared to the previous PEA-RP
•
EAQ
(
7.1kW-14.0kW
)
models, unit
weight has been reduced by an average of 27kg. This signicant
weight reduction allows for increased ease of installation.
High Energy-Saving Efficiency
Compared to the previous PEA-RP
•
EAQ
(
7.1kW-14.0kW
)
models,
PEAD-RP models achieve enhanced energy eciency through
adopting a highly ecient DC fan motor. This contributes to a
reduction in electricity consumption.
Wide Selection of Fan Speeds and External
Static Pressure
Five-stage external static pressure conversions and three fan
speed
selections are available. Capable of being set to a maximum
of 125Pa,
units are applicable to a wide range of building types.
PEA-RP71-140EAQ PEAD-RP71-140JAA
7.1kW
10.0kW
12.5kW
14.0kW
Rated EER
Rated COP
Rated EER
Rated COP
Rated EER
Rated COP
Rated EER
Rated COP
2.86
3.35
3.28
3.54
2.95
3.64
2.90
3.74
Capacity Rated EER/COP Previous PEA-RP
3.50
4.00
3.61
4.12
3.33
4.00
3.32
3.96
22% UP
19% UP
10% UP
16% UP
13% UP
10% UP
14% UP
6% UP
PEAD-RP
250mm
Height
reduced by
178mm
up to
*1 Rated EER/COP for PEA-RP170/200WJA/250WHA are measured at ESP 75 Pa.
*2 MEPS compliant at part load
*3 Sound pressure level for PEA-RP125/140GAA are measured in anechoic chamber at ESP 50 Pa.
Sound pressure level for PEA-RP170/200WJA/250WHA are measured in anechoic chamber at ESP 150 Pa.
Indoor unit
Specications: Ceiling-concealed (PEAD)
PEAD-RP71JAA
SUZ-K A71VAD
Cooling Heating
Outdoor unit
Function
Capacity (min.-max.)
Input
Rated EER/COP
Power supply
Airow
(
Lo-Mid-Hi
)
Sound pressure level
Dimensions Width
Depth
Height
(
kW
)
(
kW
)
L/S
(
dB
)
(
kg
)
(mm)
(mm)
(mm)
Weight
* MEPS compliant at part load
* SUZ-K A
•
VAD is potentially demand response capable unit. DRC-101A is required.
CMM
PEAD-RP71JAA
24-29-34
400-483-567
33-38-42
External static pressure Pa
35/50/70/100/125
PUHZ-RP71VHA5
Cooling Heating
7.1 (2.8-8.1) 8.0 (2.6-10.2) 7.1 (3. 3-8.1) 8.0 (3.5-10.2)
2.10 2.04 2.03 2.00
3.38 3.92 3.50 4.00
PEAD-RP100JAA
PUHZ-RP100V/YKA2
Cooling Heating
V: Single-phase, 50Hz, 230V Y: Three-phase, 50Hz, 400V
250
1,400
732
38
17.5-21-25
292-350-417
30-34-39
1,100
29
2.77
3.61
2.72
10.0 (4.9-11.4) 11.2 (4.5-14.0)
4.12
Rated AEER/ACOP
AEER/ACOP (part-load %)
]
3.33 3.86 3.31 3.78 3.34/3.31 3.81/3.78
29.5-35.5-42
492-592-700
36-40-44
PEAD-RP125JAA
PUHZ-RP125V/YKA2
Cooling Heating
39
3.60
3.33
3.50
12.0 (5.5-14.0) 14.0 (5.0-16.0)
4.00
3.14/3.11 3.76/3.74
32-39-46
533- 650-767
40-44-49
Return air spigot size
(
mm
)
1,360×178
1,0 60×178
1,058×210
1,360×178 1,56 0×178
1,358×210 1,358×210 1,558×210
Supply air spigot size
(
mm
)
PEAD-RP140JAA
PUHZ-RP140V/YKA2
Cooling Heating
1,600
43
3.91
3.32
4.04
13.0 (6.2-15.3) 16.0 (5.7-18.0)
3.96
3.09/3.07
3.68/3.63
3.76/3.73
Indoor unit
Specications: Ceiling-concealed (PEA)
Outdoor unit
Function
Capacity (min.-max.)
Input
Rated EER/COP
]1
Power supply
Airow
(
Lo-
[
Mid
]
-Hi
)
Sound pressure level
]3
Dimensions Width
Depth
Height
(
kW
)
(
kW
)
L/S
(
dB
)
(
kg
)
(mm)
(mm)
(mm)
Weight
CMM
PEA-RP170WJA
Return air spigot size
(
mm
)
Supply air spigot size
(
mm
)
External static pressure Pa
PUHZ-RP170V/YKA2
Cooling Heating
16.0 (9.0-20.0) 20.0 (9.5-22.4)
5.00 6.00
3.20 3.33
PEA-RP200WJA
PUHZ-RP200YKA2
Cooling Heating
V: Single-phase, 50Hz, 230V Y: Three-phase, 50Hz, 400V
50 -61-72
833-1,017-1,200
34-42
560 -700
38-41-44
1,100×420
1,100×340
60/75/100/150
470
1,370
1,120
108
50Pa: 48-60, 100Pa: 43-54, 150Pa: 41-52
50Pa: 800-1,000, 100Pa: 716-900, 150Pa: 683-866
42-4539-42
1,102×330
921×250
50/100/150
400
1,400
634
63
5.92
3.19
6.89
18.9 (9.0-22.4) 22.4 (9.5-25.0)
3.25
Rated AEER/ACOP
AEER/ACOP (part-load %)
]2
PEA-RP140GAA
PUHZ-RP140V/YKA2
Cooling Heating
13.5 (6.2-15.3) 16.0 (5.7-18.0)
4.19 3.90
3.22 4.10
3.06/3.04
3.67/3.61
3.88/3.86
PEA-RP125GAA
PUHZ-RP125V/YKA2
Cooling Heating
12.5 (5.5-14.0) 14.0 (5.0-16.0)
3.97 3.27
3.15 4.28
2.98/2.96
3.69/3.63
4.01/3.98
PEA-RP100GAA
PUHZ-RP100V/YKA2
Cooling Heating
10.0 (4.9-11.4) 11.2 (4.5-14.0)
2.60 2.51
3.85 4.46
3.54/3.51 4.11/4.07 3.16/3.11 3.22/3.18 3.04
3.71
3.12
PEA-RP250WHA
PUHZ-RP250YKM
Cooling Heating
22.0 (11.2-27.0)
25.0 (12.5 -29.0)
6.11 6.89
3.60 3.62
58-71-84
967-1,183-1,400
40-43-46
3.27 3.37
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
19
PCA Series
20
PKA Series
PKA-RP71/100KAL
optional standard
Wall-
mounted
Quick Clean Grille
The intake grille lter can easily slide out completely, allowing easy
cleaning without any special tools making it easy to clean in minutes, washing
in water.
Closing automatically when the air conditioner is not running creating a
at surface that is aesthetically appealing.
4-way Piping Provides More Flexibility
in Selecting Installation Sites
Wired Remote Controller Available
(Option)
A separately sold wired remote controller and a terminal block are
available to suit various installation sites.
Drain Pump Option Available with
All Models
Installation of the drain pump enables a drain outlet as high as
800mm above the base of the indoor unit. Drain water can be
discharged easily even if the surface where the wall-mounted unit
does not have direct access outside, increasing the degree of freedom
for installation.
Elegant design and compact dimensions are
ideal for offices
and stores
Auto-flap Shutter
Front grille
Filter
800mm
Drain pump
Indoor unit
Indoor unit
Specications: Wall-mounted
(
PKA
)
PKA-RP71KAL
PUHZ-RP71VHA5
Cooling Heating
PKA-RP100KAL
V: Single-phase, 50Hz, 230V Y: Three-phase, 50Hz, 400V
20-23-26
333-383-433
41-45-49
365
1,170
295
21
18-20-22
300-333-367
39-42-45
PUHZ-RP100V/YKA2
Cooling Heating
10.0 (4.9-11.4) 11.2 (4.5-14.0)
2.90 3.10
3.45 3.61
7.1 (3. 3-8.1) 8.0 (3.5-10.2)
1.96 2.13
3.62 3.76
Outdoor unit
Function
Capacity (min.-max.)
Input
Rated EER/COP
3.20/3.17 3.34/3.313.42 3.56Rated AEER/ACOP
Power supply
Airow
(
Lo-Mid-Hi
)
Sound pressure level
Dimensions Width
Depth
Height
(
kW
)
(
kW
)
L/S
(
dB
)
(
kg
)
(mm)
(mm)
(mm)
Weight
CMM
PCA-RP50/60/71/100/125/140KAQ
optional
Ce iling-
suspended
A stylish indoor unit design and airflow
settings for
both high- and low-ceiling
interiors expand installation possibilities
Stylish Indoor Unit Design
A stylish square-like design is adopted for the
indoor units of all models. As a result, the
units blend in better with the ceiling.
PCA-GA
PCA-KA
Optional Drain Pump for
Full-capacity Models
The pumping height of the optional drain
pump has been increased from 400mm to
600mm, expanding exibility in choosing
unit location during installation work.
Drainage outlet can
be 600mm above
ceiling surface
Drain pump installation
possible
Ceiling
surface
Equipped with Automatic Air-speed Adjustment
In addition to the conventional 4-speed setting, units are now
equipped with an automatic air-speed adjustment mode. This setting
automatically adjusts the air-speed to conditions that match the
room environment. At the start of heating/cooling operation, the
airow is set to high-speed to quickly heat/cool the room. When the
room temperature reaches the desired setting, the
airow speed is de-
creased automatically
for stable comfortable
heating/cooling oper-
ation.
Start of
cooling/heating…
After room
temperature is stabilised…
Strong Gentle
Fresh Outside-air Intake
Units are equipped with a knock-
out hole that enables the induction
of fresh outside-air.
Airow volume (m
3
/min)
50
0
–50
–100
–150
–200
–250
–300
0 1 2 3 4
Static pressure (Pa)
l Outside-air intake characteristics
PCA-RP100–140KA
PCA- R P60/71KA
PCA-RP50KA
Capacity
High
ceiling
Standard
ceiling
Low
ceiling
50
60
71
100
125
140
3.5m
3.5m
3.5m
4.2m
4.2m
4.2m
2.7m
2.7m
2.7m
3.0m
3.0m
3.0m
2.5m
2.5m
2.5m
2.6m
2.6m
2.6m
Equipped with High- /Low-ceiling Modes
Units are equipped with high- and
low-ceiling operation modes that
make it possible to switch the air-
ow volume to match room height.
The ability to choose the optimum
airow volume makes it possible to
optimise the breezy
sensation felt
throughout the room.
Indoor unit
Specications: Ceiling-suspended (PCA)
PCA-RP50KAQ
SUZ-KA50VAD
Cooling Heating
PCA-RP60KAQ
SUZ-K A60VAD
Cooling Heating
PCA-RP71KAQ
167-183-217-250 250-267-283-317 267-283-300-333
32-34-37-40
960
25
33-35-37-40
1,280
35-37-39-41
SUZ-K A71VAD
Cooling Heating
4.9 (2.3-5.6) 5.5 (1.7-7.2) 5.7 (2.3-6.3) 6.9 (2.5-8.0) 7.1 (2.8-8.1) 7.9 (2.6-10.2)
1.49 1.68 1.67 2.02 2.06 1.96
3.29 3.27 3.41 3.42 3.45 4.03
PCA-RP71KAQ
PUHZ-RP71VHA5
Cooling Heating
PCA-RP100KAQ
PUHZ-RP100V/YKA2
Cooling Heating
PCA-RP125KAQ
PUHZ-RP125V/YKA2
Cooling Heating
PCA-RP140KAQ
PUHZ-RP140V/YKA2
Cooling Heating
10.0 (4.9-11.4) 11.2 (4.5-14.0) 12.0 (5.5-14.0) 14.0 (5.0-16.0) 13.0 (6.2-15.3) 16.0 (5.7-18.0)
2.63 3.02 3.66 3.88 3.97 4.43
3.80 3.71
7.1 (3. 3-8.1) 8.0 (3.5-10.2)
1.96 2.21
3.62 3.62 3.28 3.61 3.27 3.61
V: Single-phase, 50Hz, 230V Y: Three-phase, 50Hz, 400V
367-400-433-467 383-417-450-483 400-433-483-533
37-39-41-43 39-41-43-45 41-43-45-48
230
1,600
680
36
10-11-13-15 15-16-17-19 16-17-18 -20 22-24-26-28 23-25-27-29 24-26-29-32
32 38 39
Outdoor unit
Function
Capacity (min.-max.)
Input
Rated EER/COP
3.22 3.22 3.35 3.36 3.39 3.96 3.50/3.47 3.46/3.433.42 3.44 3.09/3.07 3.41/3.39 3.10/3.08
4.19/4.11 3.91/3.85
3.41/3.39Rated AEER/ACOP
Power supply
Airow
(
Lo-Mi2-Mi1-Hi
)
Sound pressure level
Dimensions Width
Depth
Height
(
kW
)
(
kW
)
L/S
CMM
(
dB
)
(
kg
)
(mm)
(mm)
(mm)
Weight
* MEPS compliant at part load
* SUZ-K A
•
VAD is potentially demand response capable unit. DRC-101A is required.
AEER/ACOP (part-load %)
]
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
21
SLZ /SEZ Series
Co mpact
Bulkhead
SLZ-KA25/50VAQ (L)
SEZ-KD25/35/50/60/71VAQ (L)
standard for
SLZ-VAL
standard for
SEZ-VAL
optional for SLZ/SEZ-VAQ
optional for SLZ/SEZ-VAQ
Main Features
22
*1 When multiple indoor units connected to an MXZ outdoor unit are running at the same time,
simultaneous cooling and heating is not possible.
*2 Please refer “System Control” on page 21 for details.
*3 Not available with PEA-RP170/200WJA and PEA-RP250WHA models.
*4 Schedule timer not available
External contact only
*5 Remote controller timer function only
*6 Only error display on remote controller
*7 PUHZ-RP250 is excluded.
PUHZ-RP
•
VHA5R1-A, PUHZ-RP
•
V /YKA2R1-A are only demand response capable with
the demand function. Please contact Mitsubishi Electric Australia Pty. Ltd. for details.
Main features of Mr. Slim Inverter Units
Felt Temperature Control
(
i-see Sensor
)
Pure White
Demand Function
Auto Vane
Fresh-air Intake
High-eciency Filter
Oil Mist Filter
Long-life Filter
Filter Check Signal
Horizontal Vane (Auto Swing)
High Ceiling Mode
Auto Fan Speed Mode
On/O Operation Timer
Auto Change Over *1
Auto Restart
Low-temperature Cooling
Low-noise Operation
(
Outdoor Unit
)
Rotation, Back-up and
2nd Stage Cut-in Function
PAR-31MAA Control *2
PAC-YT52CRA Control *2
System Group Control *2
M-NET Connection *2
Reuse of Existing Wiring
Drain Pump
Pump Down Switch
Flare Connection
Self-Diagnosis Function
(Check Code Display)
Failure Recall Function
Energy Saving
Combination
Outdoor unit
Indoor unit
Attractive
Air Quality
Air Distribution
Convenience
System Control
Installation
Maintenance
O
O
O
SLZ-VAQ
SUZ SUZ SUZ SUZ
SLZ-VAL
O
O
SEZ-VAQ
O
O
O
O
SEZ-VAL
O
O
O O
O
PLA
PUHZ PUHZ
PUHZ-YKM
SUZ
O
O O
O
O
O
O
O
O
O
PEAD PEA
SUZ
O
O
O
O
O O
PKA
O
O
O
O O
O
O
O
PCA-KAQ
PUHZPUHZ
PUHZ-KA
SUZ
O
O
O
O
O
O
O
O
O
O O O OO O
O O
O O O
O
O
O
*3
*6
*7 *7*7 *7 *7*7
*4
*5
O
PAC-ZC40/80H
(
L
)
-E Control
O O O O
Low Ceiling Mode
O
OO O O O O O
4-way
Ceiling
Cassette
Compact, quiet concealed indoor units equipped
with cutting-edge control
technologies for enhanced comfort
Fresh-air Intake
A duct hole is provided in
the main body, making it
possible to intake fresh air
from outside.
Energy-saving Operation
Boasting low electricity consumption, SLZ/SEZ series air conditioners
are the key to fresh, cost-eective room comfort.
Air Cleaning Filter
This built-in lter removes dust and other particulates helping to keep
the air clean. Maintenance is as simple as vacuuming. The long-life
lter in SLZ series air conditioners can be used for approximately 2,500
hours before requiring replacement.
Compact Designs
Models with capacity ranges for any room size. The dimensions of the
SLZ are perfect for 2-metre-square installations, and the SEZ unit is a
slim 200mm in height, making it ideal for tight installation spaces.
SLZ-K A25/50
650mm 650mm
208mm
SEZ-KD35/50
990mm 700mm
200mm
Impressively Quiet
S series units oer quiet operation at a hushed noise level of 23dB
(
SEZ-KD25/35
)
, ensuring a calm and comfortable environment. They’re
so quiet that you may nd yourself checking to see if they’re on.
23dB
Quiet!
l Noise level
Subway car
interior
Quiet passenger
car interior
(40km/h)
Library interior
Sound of
rustling leaves
Human
hearing limits
(Extremely quiet)
10dB40dB60dB80dB
25
120°
120°
118
Fresh-air intake
Refrigerant pipe
Electrical box
Drain pipe
Detail drawing of fresh-air intake
100
Cut-out hole
73.4
3- 2.8 hole
Burring hole
Ceiling surface
Indoor unit
Specications: 4-way cassette / Compact ceiling-concealed (SLZ, SEZ)
SLZ-KA25VAQ(L)
SUZ-K A25VAD
Cooling Heating
SLZ-KA50VAQ(L)
SUZ-KA50VAD
Cooling Heating
SEZ-KD25VAQ(L)
133-150-167 133-150-183 92-117-150
28-31-37 30-34-39 23-26-30
200
790
700
18
SUZ-K A25VAD
Cooling Heating
2.3 (1.5-3.2) 3.1 (1.3-4.5) 4.2 (2.3-5.2) 4.5 (1.7-6.5) 2.5 (1.5-3.2) 3.0 (1.3-4.5)
0.6 0.82 1.27 1.37 0.75 0.83
3.83 3.78 3.31 3.28 3.33 3.61
SEZ-KD35VAQ(L)
SUZ-K A35VAD
Cooling Heating
SEZ-KD50VAQ(L)
SUZ-KA50VAD
Cooling Heating
SEZ-KD60VAQ(L)
SUZ-K A60VAD
Cooling Heating
SEZ-KD71VAQ(L)
SUZ-K A71VAD
Cooling Heating
5.1 (2.3-5.6) 6. 4 (1. 7-7. 2) 5.6 (2.3-6.3) 7.4 (2.5-8.0) 6.5 (2.8-8.3) 8.1 (2.6-10.4)
1.64 1.81 1.77 2.05 2.06 2.18
3.11 3.54
3.7 (1.4-3.9) 4.2 (1.7-5.0)
1.09 1.13
3.39 3.72 3.16 3.61 3.16 3.72
V: Single-phase, 50Hz, 230V
167-208-250 200-250-300 200-267-333
30-34-37 30-34-38 30-35-40
Unit: 235, Panel: 20
Unit: 570, Panel: 650
Unit: 570, Panel: 650
Unit: 16.5, Panel: 3
—
—
23
8-9-10 8-9 -11 5.5-7-9
117-150 -18 3
23-28-33
200
990
700
200
1,190
700
21 27
7-9 -11 10-12.5-15 12-15-18 12-16 -20
Outdoor unit
Function
Capacity (min.-max.)
Input
Rated EER/COP
3.65
4.32
3.66 3.23 3.22 3.21 3.49 3.05
3.72
3.483.31 3.62 3.11 3.55 3.10 3.66Rated AEER/ACOP
Power supply
Airow
(
Lo-Mid-Hi
)
Sound pressure level
Dimensions Width
Depth
Height
(
kW
)
(
kW
)
L/S
CMM
(
dB
)
(
kg
)
(mm)
(mm)
(mm)
Weight
* MEPS compliant at part load
* SUZ-K A
•
VAD is potentially demand response capable unit. DRC-101A is required.
AEER/ACOP (part-load %)
]
5/15/35/50External static pressure Pa
660×150 860×150 1,060×150Supply air spigot size
(
mm
)
Optional Not Available
O
Standard
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
Specications
2423
System Controls
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
MAJOR SYSTEM CONTROL
FOR P SERIES AND S SERIES INDOOR UNITS
2-remote Controller
Control
With two remote controllers, control
can be performed locally and remotely
from two locations.
Operation Control by
Level Signal
Air conditioner can be started/
stopped remotely. In addition,
On/O operation by local remote
controller can be prohibited/permitted.
Operation Control by
Pulse Signal
Remote Display of
Operating Status
Operating status can be
displayed at a remote location.
Allows On/O operation with
timer
*For control by an external timer,
refer to B Operation Control by
Level Signal.
Timer Operation
• Wired Remote Controller
PAR-31MAA
PAC-YT52CRA
(for PKA, PAC-SH29TC-E is required)
• Wireless Remote Controller
PAR-SL97A-E (for SEZ and PLA-RP)
• Wireless Remote Controller Kit for PCA
PAR-SL94B-E
• Adapter for remote On/O PAC-SE55RA-E
• Relay box (to be purchased locally)
• Remote control panel (to be purchased
locally)
Standard functions of PAR-31MAA
A
B
C
D
E
Details
Major Optional Parts Required
System Examples
Wired remote controller Wireless remote controller
• Up to two remote controllers can be
connected to one group.
• Both wired and wireless remote controllers can
be used in combination.
• Operation other than On/O (e.g., adjust-
ment of temperature, fan speed, and airow)
can
be performed even when remote controller
operation is prohibited.
• Timer control is possible with an external timer.
• Connector cable for remote display
PAC-SA88HA-E / PAC-725AD
(10 pcs. x PAC-SA88HA-E)
• Relay box (to be purchased locally)
• Remote control panel (to be purchased
locally)
• The pulse signal can be turned On/O.
• Operation/emergency signal can be received
at a remote location.
• Operation/emergency signal can be received
at a remote location (when channeled
through the PAC-SF40RM
no-voltage signal, when channeled through
the PAC-SA88HA-E DC 12V signal).
• Weekly Timer:
On/O and up to 8 pattern temperatures can be
set for each calendar day. (Initial setting)
• On/O Timer:
On/O can be set once each within 72hr. in
intervals of 5-minute units.
• Auto-o Timer:
Operation will be switched o after a certain time
elapse. Set time can be changed from
30 min. to 4 hr. at 10 min. intervals.
*Simple Timer and Auto-o Timer
cannot be used at the same time.
• Remote display panel (to be purchased
locally)
• Connector cable for remote display
PAC-SA88HA-E / PAC-725AD
(10 pcs. x PAC-SA88HA-E)
• Relay box (to be purchased locally)
• Remote operation adapter
PAC-SF40RM
*Unable to use with wireless remote controller
PAR-31MAA Control
PAC-YT52CRA Control
System Group Control
M-NET Connections
• PAR-31MAA (Wired remote controller)
• PAC-YT52CRA (Wired remote controller)
<
S Series Outdoor Unit
>
• MAC-397IF-E/MAC-333IF-E (Interface)
• PAR-31MAA (Wired remote controller)
• PAC-YT52CRA (Wired remote controller)
<
P Series Outdoor Unit
>
• PAR-31MAA (Wired remote controller)
A
B
C
Details
Major Optional Parts Required
System Examples
S Series & P Series Indoor Unit
PAR-31MAA
PAC-YT52CRA
PAR-31MAA
PAC-YT52CRA
(Example of 1 : 1 system)
(Example of 1 : 1 system)
Relay box (to be purchased) locally)
Relay box (to be purchased) locally)
Adapter for
remote
On/O
Adapter for
remote
On/O
PAR-SL97A-E
PAR-SL97A-E
(Example of 1 : 1 system)
PAR-31MAA
(Example of 1 : 1 system x 2)
Relay box (to be purchased locally)
(Example of 1 : 1 system x 2)
* Set "Main" and "Sub"
remote controllers.
* When using wired and wireless
remote controllers
PAR-SL97A-E
(Example of Simultaneous Twin)
(Example of Simultaneous Twin)
Remote
display
panel
Remote
display
panel
PAC -
YT52CRA
PAR-31MAA
Remote
control
panel
Remote
control
panelWired remote
controller
Connector
cable for
remote display
Connector
cable for
remote
display
PAR-SL97A-E
(Example of 1 : 1 system x 2)
Relay box (to be purchased locally)
(Example of 1 : 1 system x 2)
Remote
control
panel
Remote
control
panelWired remote
controller
Remote operation adapter/
Connector cable for remote display +
Relay box
Remote operation adapter/
Connector cable for remote display +
Relay box
P Series Indoor Unit
S Series Outdoor
Indoor Unit
Outdoor Unit
P Series Outdoor
Standard equipment (for indoor units
compatible with wired remote controllers)
• One remote controller can control plural air
conditioners with the same settings
simultaneously.
• One remote controller can control up to 16
refrigerant systems.
• Up to two remote controller can be connected.
<
S Series Outdoor Unit
>
• MAC-333IF-E
• MELANS System controller
<
P Series Outdoor Unit
>
• PAC-SF83MA-E (M-NET converter)
• MELANS System controller
• Group of air conditioners can be controlled by
MELANS system controller (M-NET).
PAR-31MAA
PAC-YT52CRA
MAC-397IF-E
MAC-333IF-E
PAR-31MAA
PAC-YT52CRA
Outdoor
unit
Indoor unit
MAC-333IF-E
MELANS
system controller
AE-200E
City Multi
indoor unit
Outdoor
unit
Indoor unit
PAR-31MAA
PAC-YT52CRA
M-NET adapter
PAC-SF81MA-E
MELANS
system controller
AE-200E
PAR-31MAA
PAC-YT52CRA
PAR-31MAA
PAC-YT52CRA
PAR-31MAA
PAC-YT52CRA
PAR-31MAA
PAC-YT52CRA
Indoor
unit
Indoor
unit
System Controls
(
SUZ and Mr. Slim Power Inverter only
)
Versatile system controls can be realised by using optional parts, relay circuits, control panels, etc.
*Above specications are for outdoor units only.
SUZ-KA25VAD SUZ-KA35VAD SUZ-KA50VAD SUZ-KA60VAD SUZ-KA71VAD
Specification: Outdoor Unit
Outdoor unit
Power supply
Compressor output
Airow (cooling/heating)
Cooling mode
Heating mode
Height
Width
Depth
Sound pressure
level
(
dB
)
Sound level
Dimensions
Weight
Chargeless piping length
Max. piping length
Breaker size
(mm)
(mm)
(mm)
(
kW
)
CMM
(
L /S
)
(
dB
)
(
kg
)
(m)
(m)
(
A
)
*Above specications are for outdoor units only.
PUHZ-RP71VHA5 PUHZ-RP100V/ YKA2 PUHZ-RP125V/YKA2 PUHZ-RP140V/YKA2
Munsell 3.0Y 7.8/1.1
V: Single-phase, 50Hz, 230V Y: Three-phase, 50Hz, 400V
1.6 1.9 2.4 2.9
60
(
1,000
)
110
(
1,830
)
49
120
(
2,000
)
47
46
50 50
44
51
47 47
48
69
52 52
7066 70
943 1,338
950
330
1,050
330
67 V: 118 Y: 119 V: 120 Y: 121
30 30
50 75
Discharge thermo, HP switch
9.05/9.64 V: 12.64/13.58 Y: 4.42/4.75 V: 16.36/16.90 Y: 5.73/5.91
V: 32 Y: 16
V: 17.17/19.23 Y: 6.01/6.73
25 V: 40 Y: 16
Outdoor unit
Power supply
Compressor output
Airow (cooling/heating)
Cooling mode
Heating mode
Height
Width
Depth
Sound pressure
level
(
dB
)
Sound level
Dimensions
Weight
Chargeless piping length
Max. piping length
Protection device
(mm)
(mm)
(mm)
(
kW
)
CMM
(
L /S
)
(
dB
)
(
kg
)
(m)
(m)
Silent mode
Rated running current
(cooling/heating)
(
A
)
Breaker size
(
A
)
External nish
External nish Munsell 3.0Y 7.8/1.1
Single-phase, 50Hz, 230V
0.55 0.65 0.9 1.2
34 (568)/32 (534) 33 (551) 49 (817) 57 (950)/48 (800)
46 47 53
46 48 55
59 61 68
550 850
800 840
285 330
30 33 53
0.9
58 (960)/49 (816)
55
55
69
880
840
330
50 53
7
20 30
10 20
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
Optional Parts
2625
Specications
*Above specications are for outdoor units only.
PUHZ-RP170V/YKA2 PUHZ-RP200YKA2 PUHZ-RP250YKM
Outdoor unit
Power supply
Compressor output
Airow (cooling/heating)
Cooling mode
Heating mode
Height
Width
Depth
Sound pressure level
(
dB
)
Sound level
Dimensions
Weight
Chargeless piping length
Max. piping length
Protection device
Rated running current (cooling/heating)
(mm)
(mm)
(mm)
(
kW
)
CMM
(
L /S
)
(
dB
)
(
kg
)
(m)
(m)
Silent mode
(
A
)
Breaker size
(
A
)
External nish Munsell 3.0Y 7.8/1.1 Munsell 3.0Y 7.8/1.1 Munsell 5.0Y 8.0/1.0 or Similar
V: Single-phase, 50Hz, 230V Y: Three-phase, 50Hz, 400V
3.0 3.6 6.9
140
(
2,330
)
140
(
2,330
)
175
(
2,917
)
58 5858
56 56 48
59 59 58
76 76 78
1,338 1,338 1,650
1,050 1,050 920
330 330 740
V: 127 Y: 131 136 199
30 30 0
75 7575
Discharge thermo, HP switch
V: 19.4/23.9 Y: 6.8/8.3 8.2/9.7 9.7/11.0
V: 40 Y: 32 32 32
Single-phase, 230V/Three-phase, 400VSingle-phase, 230V50Hz
With the optional air protection guide, the operation at –15°C outdoor temperature is possible.
SUZ-KA
Upper limit
(
DB
)
Lower limit
(
DB
)
Upper limit
(
DB
)
Lower limit
(
DB
)
25/35
46°C
–10°C
24°C
–15°C
50
43°C
–15°C
24°C
–15°C
60/71
46°C
–15°C
24°C
–15°C
Heating
Cooling
PUHZ
46°C
–5°C
15.5°C
(
WB
)
–20°C
(
WB
)
250
71/100/125/140/170/200
46°C
–5°C
(
–15°C
)
21°C
–20°C
Notes for All Specifications
Rating conditions
(
AS/NZS 3823
)
Cooling - Indoor: 27°C
(
80°F
)
DB, 19°C
(
66°F
)
WB
Outdoor: 35°C
(
95°F
)
DB
Heating - Indoor: 20°C
(
68°F
)
DB
Outdoor: 7°C
(
45°F
)
DB, 6°C
(
43°F
)
WB
Refrigerant piping length (one-way): 5m
(
16ft.
)
* For PUHZ-RP250YKM: 7.5m (24ft.)
Total input based on the indicated voltage (indoor/outdoor)
Indoor Outdoor
Guaranteed Operating Range
Specifications: Outdoor Unit
Sound Pressure Level
• Sound pressure measurements were conducted in an anechoic chamber.
• The actual noise level depends on the distance from the unit and the acoustic environment.
*1 P series indoor units can be used in combination with SUZ outdoor units.
*2 Unable to use with wireless remote controller
Optional Parts
Refrigerant Piping
Part name Model name Application name
PUHZ-RP71PAC-SG59SG-E
PUHZ-RP100/125/140/170/200PAC-SH96SG-E
PLA-RPPAC-SH51SP-EAir outlet shutter plate
Air discharge guide
PUHZ-RP71PAC-SH63AG-E
PUHZ-RP100/125/140/170/200PAC-SH95AG-E
Air protection guide
PUHZ-RP71/100/125/140/170/200PAC-SK52STControl/service tool
PUHZ-RP71PAC-SG64DP-E
PUHZ-RP100/125/140/170/200PAC-SH97DP-E
PKA-RPPAC-SH94DM-E
PCA-RP50KAQPAC-SH83DM-E
PCA-RP71/100/125/140KAQPAC-SH84DM-EDrain pump
PCA-RP60KAQPAC-SH85DM-E
SEZ-KDPAC-KE07DM-E
PUHZ-RP71/100/125/140/170/200PAC-SG61DS-E
PLA-RPPAC-SH65OF-E
Drain socket
Flange for fresh-air intake
PUHZ-RPPAC-SG82DR-E
Liquid refrigerant dryer
for pipe ø9.52
MAC-558IF-EWi-Fi interface
All indoor units
(
excluding PEA-RP250WHA
)
MAC-399IF-EM-NET interface
SLZ-KA, SEZ-KD, PLA-RP60/71
*1
PEAD-RP71
*1
, PCA-RP50/60/71
*1
MAC-397IF-EMA & Contact terminal interface
SLZ-KA, SEZ-KD, PLA-RP60/71
*1
PEAD-RP71
*1
, PCA-RP50/60/71
*1
MAC-333IF-EM-NET &Terminal interface
SLZ-KA, SEZ-KD, PLA-RP60/71
*1
PEAD-RP71
*1
, PCA-RP50/60/71
*1
Wireless remote controller PAR-FL32MA-E PEAD-RP, PEA-RP
High eciency lter element PAC-SH59KF-E PLA-RP
Wireless remote controller
signal receiver
PAR-SA9CA-E SEZ-KD, PEAD-RP, PEA-RP
PAR-SA9FA-E PLA-RP
PAR-SL97A-E SEZ-KD, PLA-RP
Wireless remote controller
signal sender
Centralized drain pan
SUZ-KA25
SUZ-KA35
12
12
20
20
SUZ-KA50
SUZ-KA60
30
30
30
30
Liquid: ø6.35
Gas: ø9.52
Liquid: ø6.35
Gas: ø9.52
Liquid: ø6.35
SUZ-KA71 30 30
Gas: ø15.88
Liquid: ø9.52
Gas: ø12.7
Liquid: ø6.35
Gas: ø15.88
t 0.8
t 0.8
t 0.8
t 0.8
t 0.8
t 0.8
t 0.8
t 1.0
PUHZ-RP71
PUHZ-RP100/125/140
30
30
50
75
PUHZ-RP170/200 30 75
Liquid: ø9.52
Gas: ø15.88
t 0.8
t 1.0
t 0.8
t 1.0
t 0.8
t 1.0
Liquid: ø9.52
Gas: ø15.88
Liquid: ø9.52
Gas: ø25.4
Thickness (mm)Pipe size OD (mm)Capacity
Between indoor & outdoor units
Max. height dierence (m) Max. piping length (m)
t 1.0
t 0.8
Part name
PLA-RPPAC-SH51SP-EShutter plate
PLA-RPPAC-SA1ME-Ei-see sensor corner panel
PEAD-RP140PAC-KE95TB-E
PEAD-RP100/125PAC-KE94TB-EFilter box
PEAD-RP71PAC-KE93TB-E
PUHZ-RP71/100/125/140/170/200
PUHZ-RP71/100/125/140
PAC-SG73RJ-E
PAC-SG75RJ-E
Joint pipe
9.52‘ 12.7
15.88 19.05
PUHZ-RP71/100/125/140/170/200
PAC-SF83MA-EM-NET converter
PLA-RPPAC-SH53TM-E
PKA-RPPAC-SG94HR-E
PCA-RP50/60/71/100/125/140KAQ
PAC-SG96HR-E
Power supply terminal kit
PEAD-RP, PEA-RPPAC-SG97HR-E
PLA-RPPAC-SH52HR-E
All indoor unitsPAC-SE55RA-E
All indoor units
*2
(
excluding PKA-RP
)
PAC-SF40RM-E
All indoor units
(
excluding PEA-RP
•
GAA
)
PAC-SE41TS-E
PLA-RPPAC-SH48AS-E
PKA-RP for wired remote controller
PAC-SH29TC-E
Remote On/O adaptor
Remote operation adaptor
Remote sensor
Space panel
Terminal block
All indoor units
PAC-SA88HA-E
Connector cable
for remote display
All outdoor units
PAC-SC50KUAPower supply unit
PAC-ZC40H-E
PEAD-RP, PEA-RP
PAC-ZC80H-E
Zone controller
(
Interface & remote controller
)
PAC-ZC40L-E
PAC-ZC80L-E
PEAD-RP, PEA-RP
PAC-ZC01M-E
Zone remote controller
SUZ-KA
•
VADDRC-101AInterface for DRED
All indoor units
PAC-725AD
Multiple remote controller
adaptor
All indoor units
(
excluding SLZ-VAL and SEZ-VAL
)
PAR-31MAA
All indoor units
(
excluding SLZ-VAL and SEZ-VAL
)
PAC-YT52CRA
PCA-RP
Wireless remote controller kit
(Sender & Receiver)
Wired remote controller
PAR-SL94B-E
Multi-function casement
Model name Application name
PCA-RP50KAQPAC-SH88KF-E
PCA-RP60/71KAQPAC-SH89KF-EHigh eciency lter
PCA-RP100/125/140KAQPAC-SH90KF-E
PUHZ-RP250 30 75
Liquid: ø9.52
t 0.8
t 1.0
Gas: ø22.2
2827
Amount of Necessary Refrigerant
Amount of Necessary Refrigerant
(
R410A: kg
)
PUHZ-RP71
PUHZ-RP100/125/140
PUHZ-RP170/200 7.7 0.9 1.8 2.7 3.6
61 - 70m
SUZ-KA25
SUZ-KA35
SUZ-KA50
SUZ-KA60
SUZ-KA71
0.8
1.05
1.6
1.8
1.8
0.15
0.15
0.06
0.06
0.165
0.3
0.3
0.16
0.16
0.44
0.45
0.45
0.26
0.26
0.715
—
—
0.36
0.36
0.99
—
—
0.46
0.46
1.265
Xg = 30g/m ×
(
length-5
)m
Xg = 20g/m ×
(
length-7
)m
Xg = 55g/m ×
(
length-7
)m
30m25m20m15m10m7m
Factory charged Additional charged
Calculation
Piping length
Piping length
Piping length
Factory charged Additional charged
Factory charged Additional charged
3.5
5.5
10 - 30m
0.6
0.6
31 - 40m
1.2
1.2
41 - 50m
—
1.8
51 - 60m
—
2.4
61 - 75m
51 - 60m41 - 50m31 - 40m10 - 30m
In the Case of PUHZ-RP250YKM
Calculation of additional refrigerant charge
• Calculate the amount of additional charge based on the length of the piping extension and the size of the refrigerant line.
• Use the table below as a guide to calculating the amount of additional charging and charge the system accordingly.
• If the calculation results in a fraction of less than 0.1kg, round up to the next 0.1kg.
For example, if the result of the calculation was 11.38 kg, round the result up to 11.4 kg.
<
Additional Charge
>
Factory Charge: 9 kg
Additional
refrigerant charge
Liquid pipe size
Total length of
ø9.52×0.06
(
kg
)
= + 3.0 kg
(
m
)
×0.06
(
kg/m
)
NOTICE
* Air conditioners in this brochure contain and operate with refrigerant R410A and synthetic oils.
Before attempting any installation work you must read the installation instructions.
New tools, materials and procedures are required to install these products.
Under Australian Law, only persons suitably licensed are permitted to install and service air conditioning units. The buyer must ensure
that the person and/or company who is install, service or repair the air conditioner has the necessary licences, qualications and
experience to perform the work. Suitable access for warranty and service is required. Refer to conditions of warranty on the Mitsubishi
Electric website. For future improvement, specications, designs of product and availability are subject to change without notice.
Refer to Country, Commonwealth, State or Territory legislation, regulations and industry codes of practice, before installation of these
products.
Recovery and disposal of waste material must comply with Country, Commonwealth, State or Territory guidelines.
* Do not install indoor units in areas (e.g., mobile phone base stations) where the emission of VOCs such as phthalate compounds and
formaldehyde is known to be high as this may result in a chemical reaction.
* When installing or relocating or servicing the air conditioners, use only the specied refrigerant
(
R410A
)
to charge the refrigerant
lines.
Do not mix it with any other refrigerant and do not allow air to remain in the lines.
If air is mixed with the refrigerant, then it can be the cause of abnormal high pressure in the refrigerant lines, and may result in an
explosion and other hazards.
The use of any refrigerant other than that specied for the system will cause mechanical failure or system malfunction or unit
breakdown. In the worst case, this may lead to a serious impediment to securing product safety.
* Specications, designs and other content appearing in this brochure are current as at January 2015 and are subject to change without
notice. Diagrams are representations for illustrative purposes only.
Simply contact your nearest Mitsubishi Electric Specialist today and you can nd out all there is to
know about how to enhance your living environment. Our specialists are fully qualied to give you
all the right advice on which Mitsubishi Electric Air Conditioning System is right for you.
To locate your nearest Mitsubishi Electric Specialist go to our website
www.MitsubishiElectric.com.au
They will determine whether a Compact Inverter System or a Power Inverter System best suits your
needs, both in comfort and eciency. You can either visit one of our Specialist’s Showrooms, or they
will happily arrange for one of their Consultants to come to your home.
All Mitsubishi Electric Compact and Power Inverter Systems are MEPS (Minimum Energy Performance
Standards) Compliant, so you can be sure that they will give you the performance and eciency that
they were designed to deliver.
Warm, even heat in winter and cool,
comfort in summer is only a phone
call or click away.
L-179-7-C7654-K 1412
Natural Comfort for Everybody
AIR CONDITIONING SYSTEMS
www.MitsubishiElectric.com.au
1300 722 228
Specifications, designs and other content appearing in this brochure are current as at the time of printing
and are subject to change without notice. Diagrams are representation for illustrative purposes only.
R
evised publication, ef f ective February. 2017
Superseding publication L-179-7-C7654-K March 2015.
ELECTRONIC COPY: February 2017
