• PRODUCT OVERVIEW
• OPERATION
• MAINTENANCE
• TROUBLESHOOTING

OWNER’S MANUAL AIR CONDITIONER

PRODUCT OVERVIEW

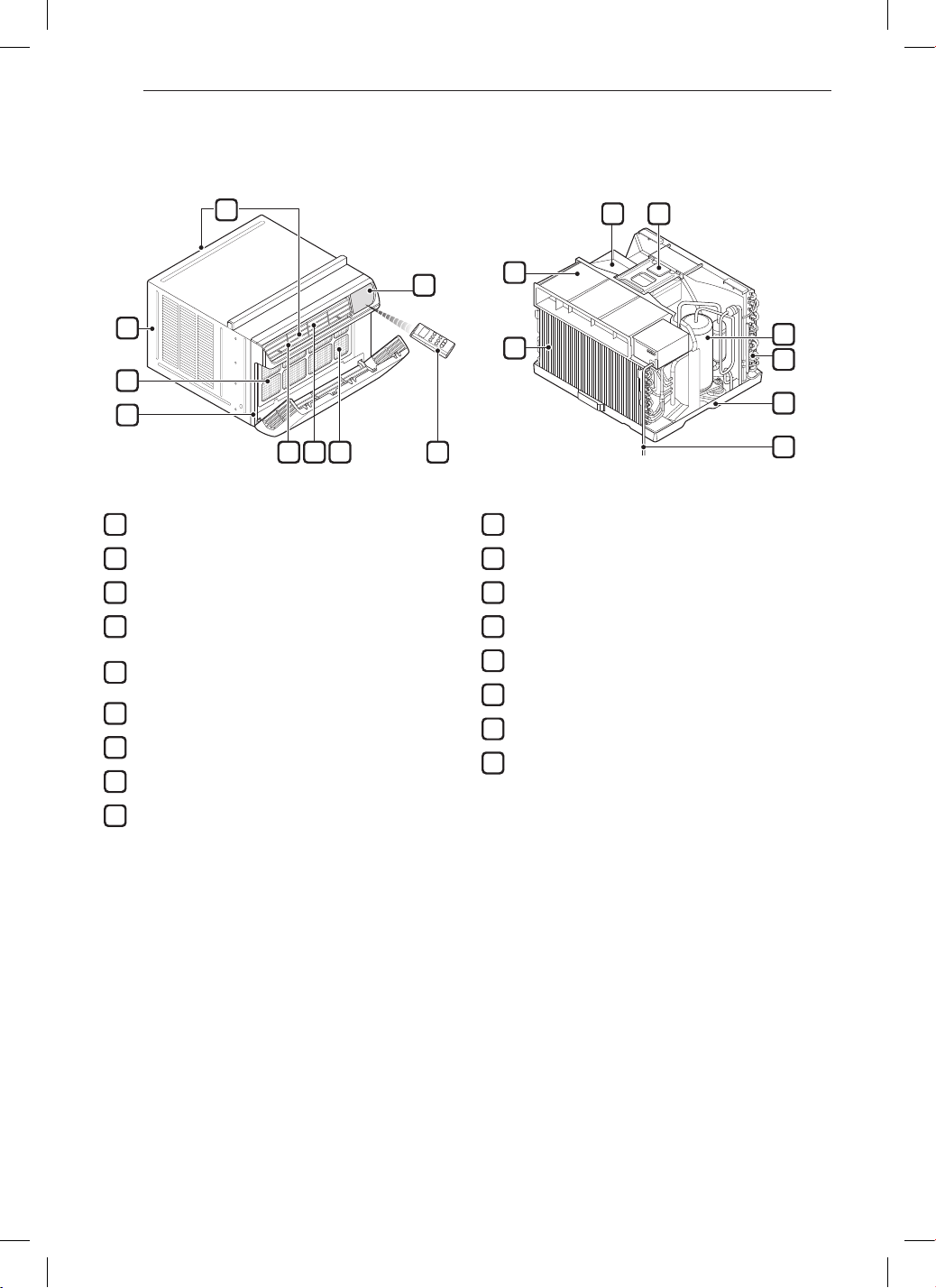

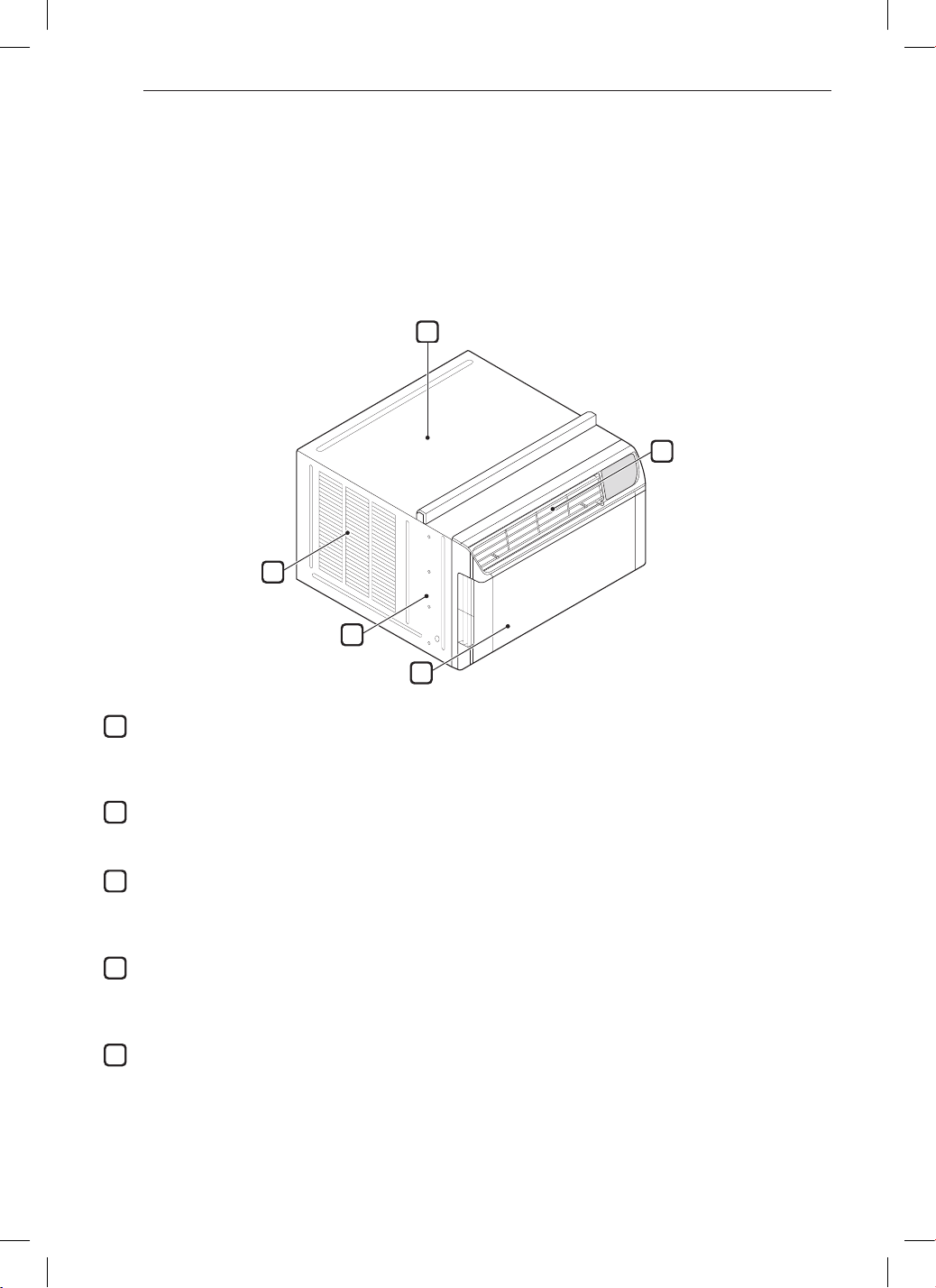

Exterior Parts

1. Control Panel
2. Remote Controller
3. Air Filter
4. Vertical Air Deflector (Horizontal Louver)
5. Horizontal Air Deflector (Vertical Louver)
6. Front Grille
7. Air Inlet
8. Cabinet
9. Air Outlet

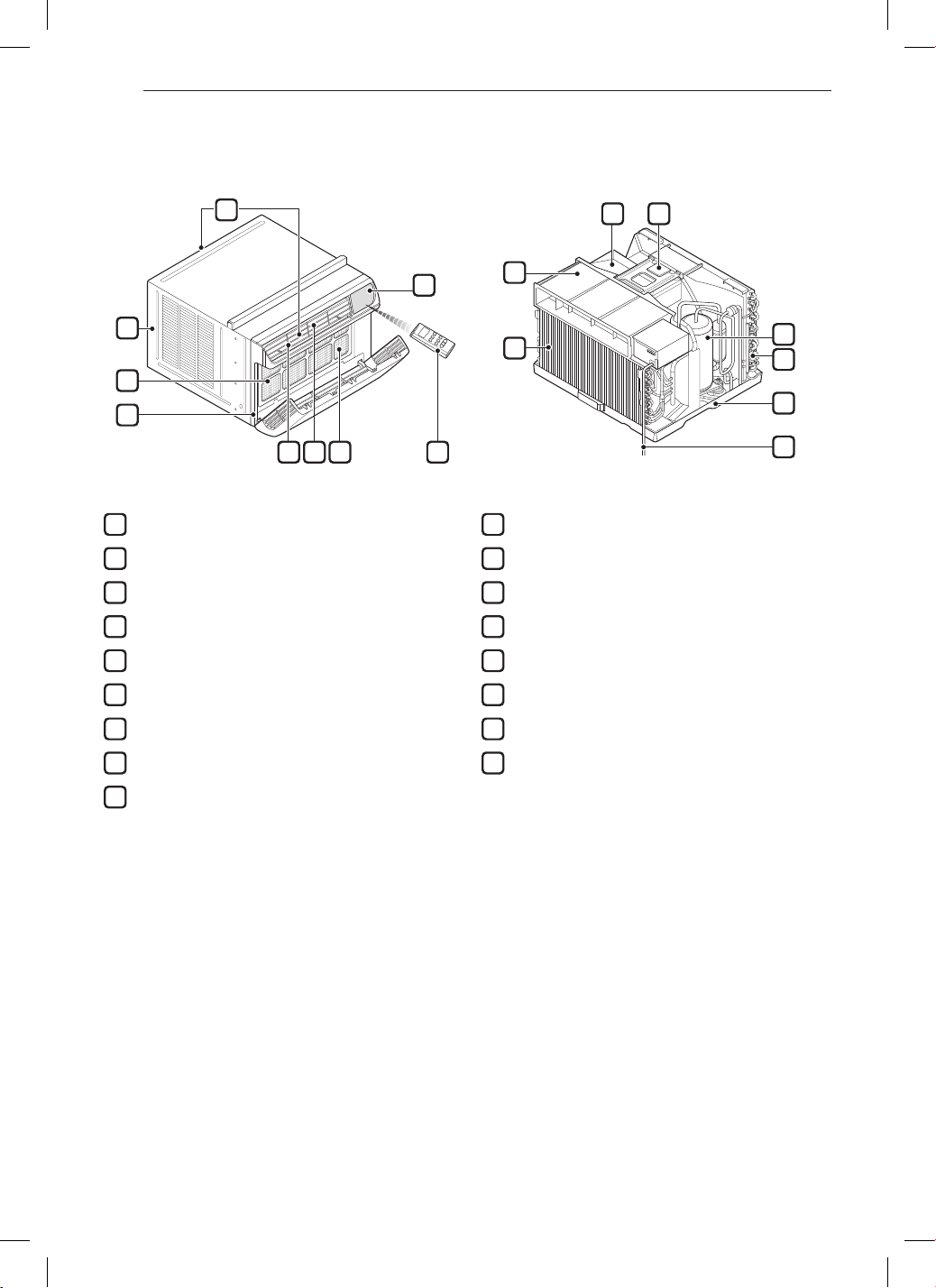

Interior Parts

1. Evaporator
2. Air Guide
3. Control Box
4. Brace
5. Compressor
6. Condenser
7. Base Pan
8. Power Cord

OPERATION

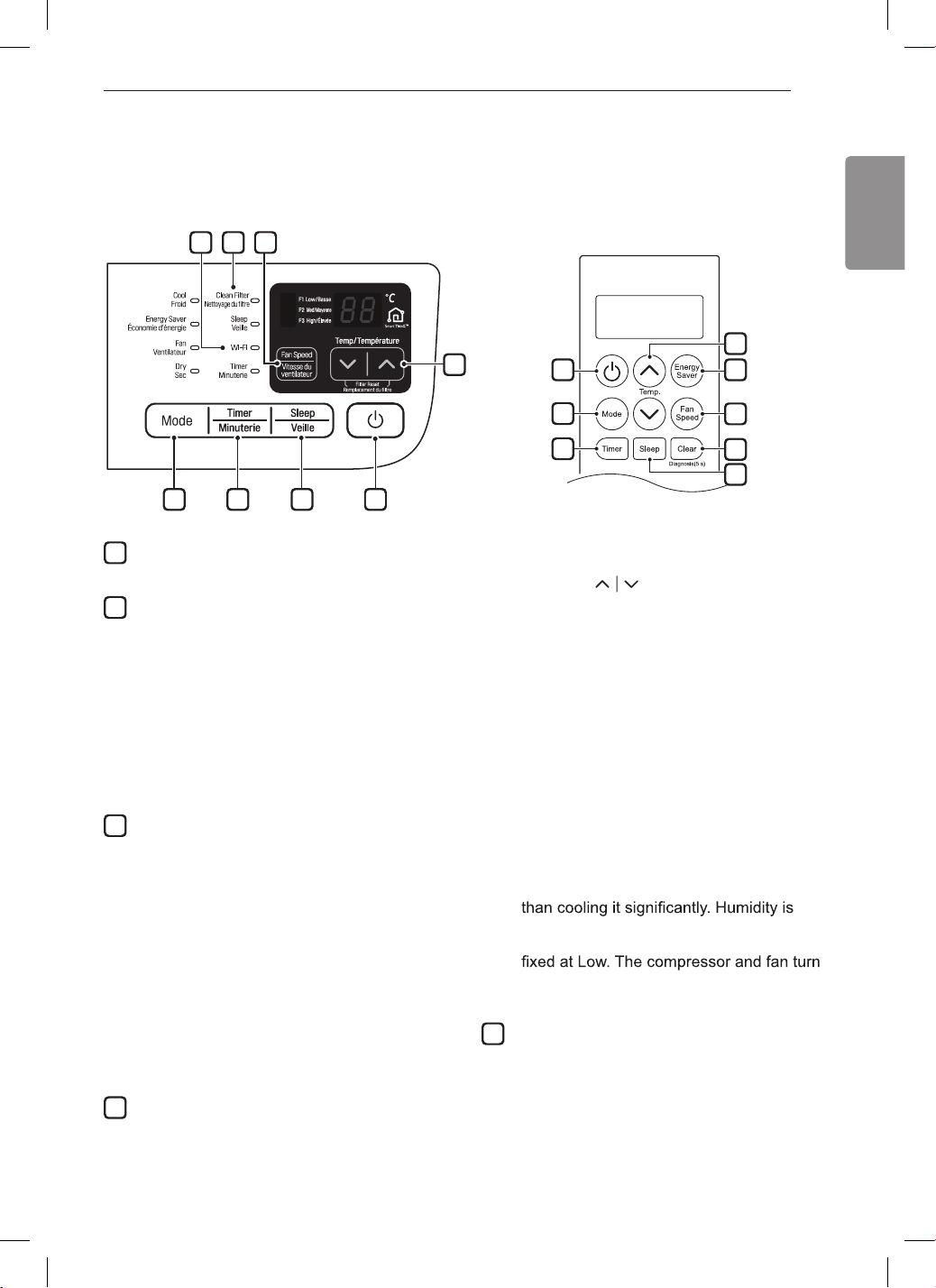

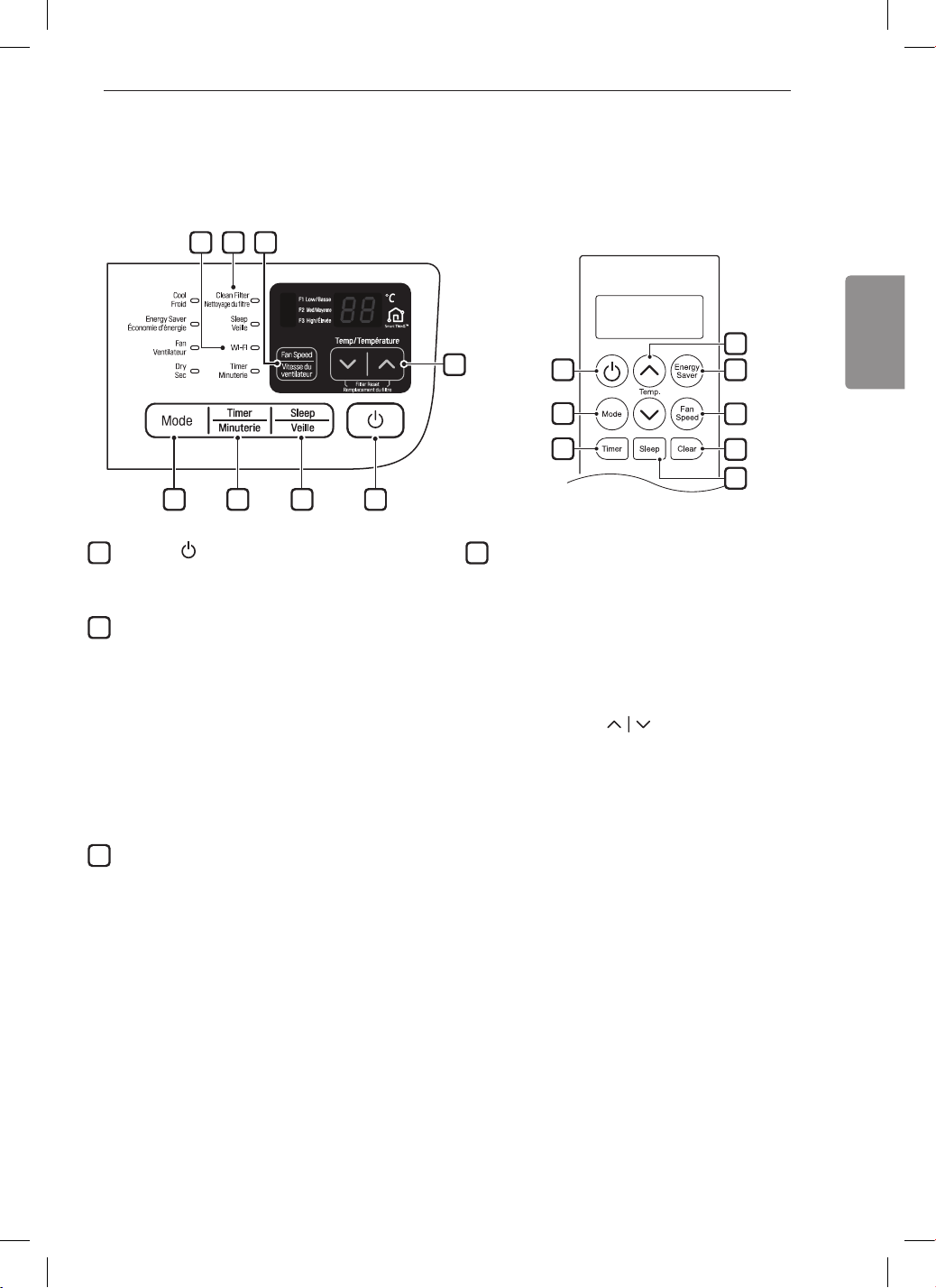

Control Panel and Remote Control

1. Power
   Press to turn the air conditioner ON or OFF.
2. Sleep Mode
   This mode keeps operating noise to a minimum and turns the air conditioner off after a set time. The timer can be set from 1 to 7 hours.
   In the Sleep Mode, the setting temperature increases by 1 °C after 30 minutes and additional 1 °C after another 30 minutes for a more comfortable sleep
   The setting temperature increases up to 2 °C from the preset temperature.
3. Delay ON/OFF Timer
   Delay ON - When the air conditioner is off, set it to automatically turn on from 1 to 24 hours later, at its previous mode and fan settings.

   See other models: 60SJ810V 49UH6500 LGH731 32LH510B 55UJ701V
   Delay OFF - When the air conditioner is on, set it to automatically turn off from 1 to 24 hours later.
   NOTE: Each press of the Timer button advances the timer by 1 hour. After the last press the display returns to the temperature setting.
4. Operation Mode
   Press the Mode button to cycle between 4 types of air conditioner operation: Cool / Energy Saver / Fan Only / Dry.
   Cool - This mode is ideal on hot days to cool and dehumidify the room quickly. Use the Temp buttons to set the desired room temperature and use the Fan Speed button to set the desired fan circulation speed.
   Energy Saver - In this mode the compressor and fan turn off when the set temperature is achieved. Approximately every 3 minutes the fan turns on to allow the unit sensor to accurately determine if more cooling is needed.
   Fan Only - In this mode the fan circulates air but the compressor does not run. Use the Fan Speed button to set fan speed to High, Medium or Low. In this mode, you cannot adjust the set temperature.
   Dry - This mode is ideal for rainy and damp days to dehumidify the room rather than cooling it significantly. Humidity is removed from the room by the combination of compressor operation and the fan speed fixed at Low. The compressor and fan turn off once the set temperature is reached. Fan speed cannot be adjusted in Dry mode.
5. Wi-Fi
   Enables connection of the air conditioner to the home Wi-Fi.
6. Clean Filter
   The Clean Filter LED lights up to notify you that the filter needs to be cleaned. After cleaning the filter, press Temp together on the control panel to turn off the Clean Filter light.
   NOTE: The filter reset must be done using the control panel, not the remote control. This feature is a reminder to clean the air filter for more efficient operation. The LED light turns on after 250 hours of operation.
7. Fan Speed
   Press to set the fan speed to Low (F1), Medium (F2), or High (F3).
8. Temperature Control
   The thermostat monitors room temperature to maintain the desired temperature. The thermostat can be set between 60 °F–86 °F (16 °C–30 °C). Press arrows to increase or decrease temperature setting.
9. Energy Saver
   In this mode the compressor and fan turn off when the set temperature is achieved. Approximately every 3 minutes the fan turns on to allow the unit sensor to accurately determine if more cooling is needed.
10. Clear
    Cancel Sleep and Timer settings.

NOTE

• Auto Restart: If the air conditioner turns off due to a power outage, it will restart automatically once the power is restored, with the same settings as were set before the unit turned off.
• Energy Saver: The unit defaults to the Energy Saver mode each time the unit is switched on except in Fan mode or when power is restored after an electrical power outage.
• The remote control will not function properly if the AC infrared sensor is exposed to direct light or if there are obstacles between the remote controller and the air conditioner.

Wireless Remote Control

Inserting Batteries

If the display screen of the remote control begins to fade, replace the batteries. Insert AAA (1.5 V) batteries before using the remote control.

1. Remove the cover on the back of the remote control.

2. Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly.


NOTE

• New batteries are supplied with the air conditioner for use in the remote control.
• Do not use a rechargeable battery. Make sure that the battery is new.
• In order to prevent discharge, remove the battery from the remote control if the air conditioner is not going to be used for an extended period of time.
• Keep the remote control away from extremely hot or humid places.
• To maintain optimal operation of the remote control, the remote sensor should not be exposed to direct sunlight.

Ventilation

Push the ventilation lever in to the closed position to maintain the best cooling performance. Pull the ventilation lever out to open the vent and draw fresh air into the room.

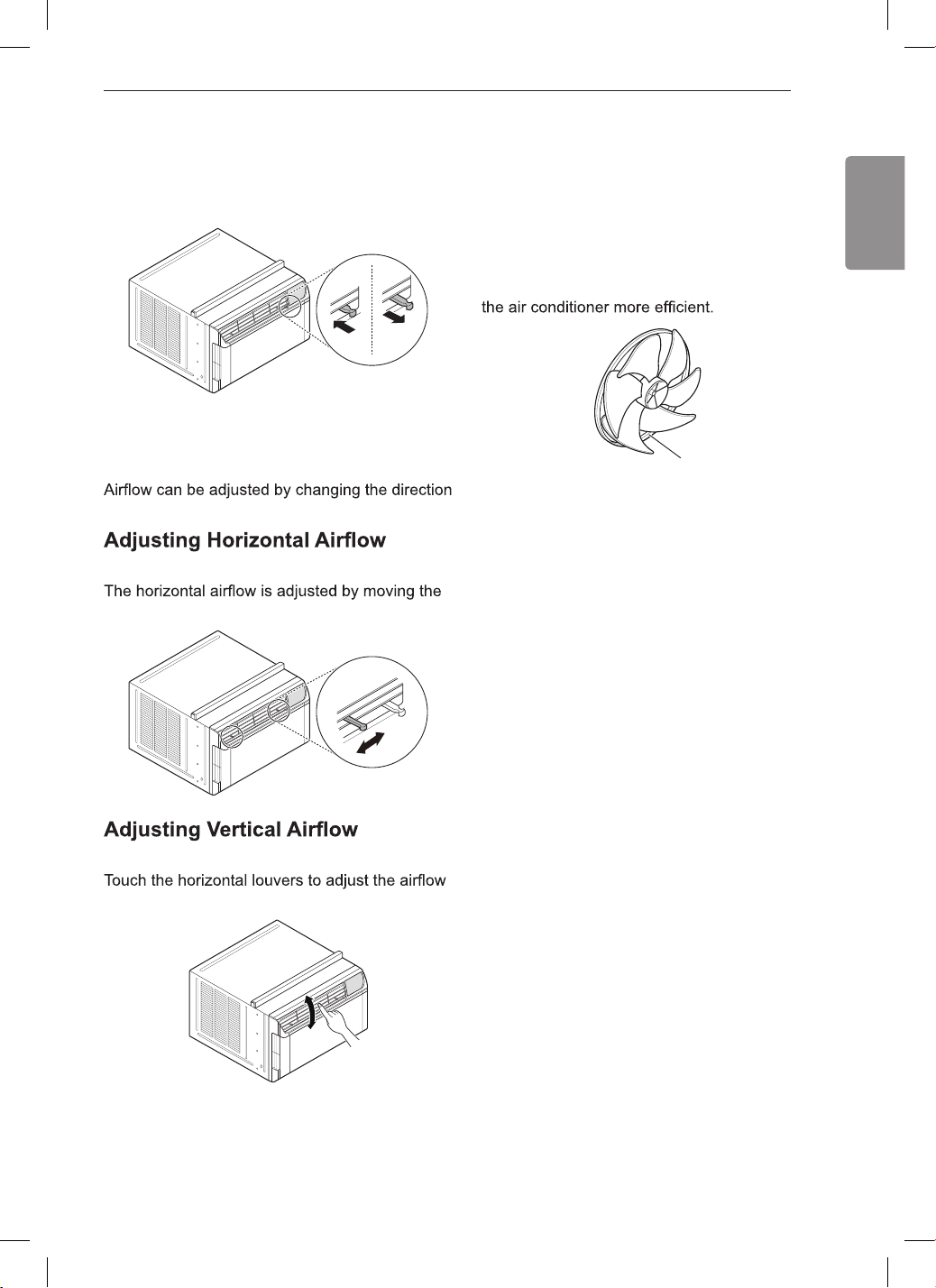

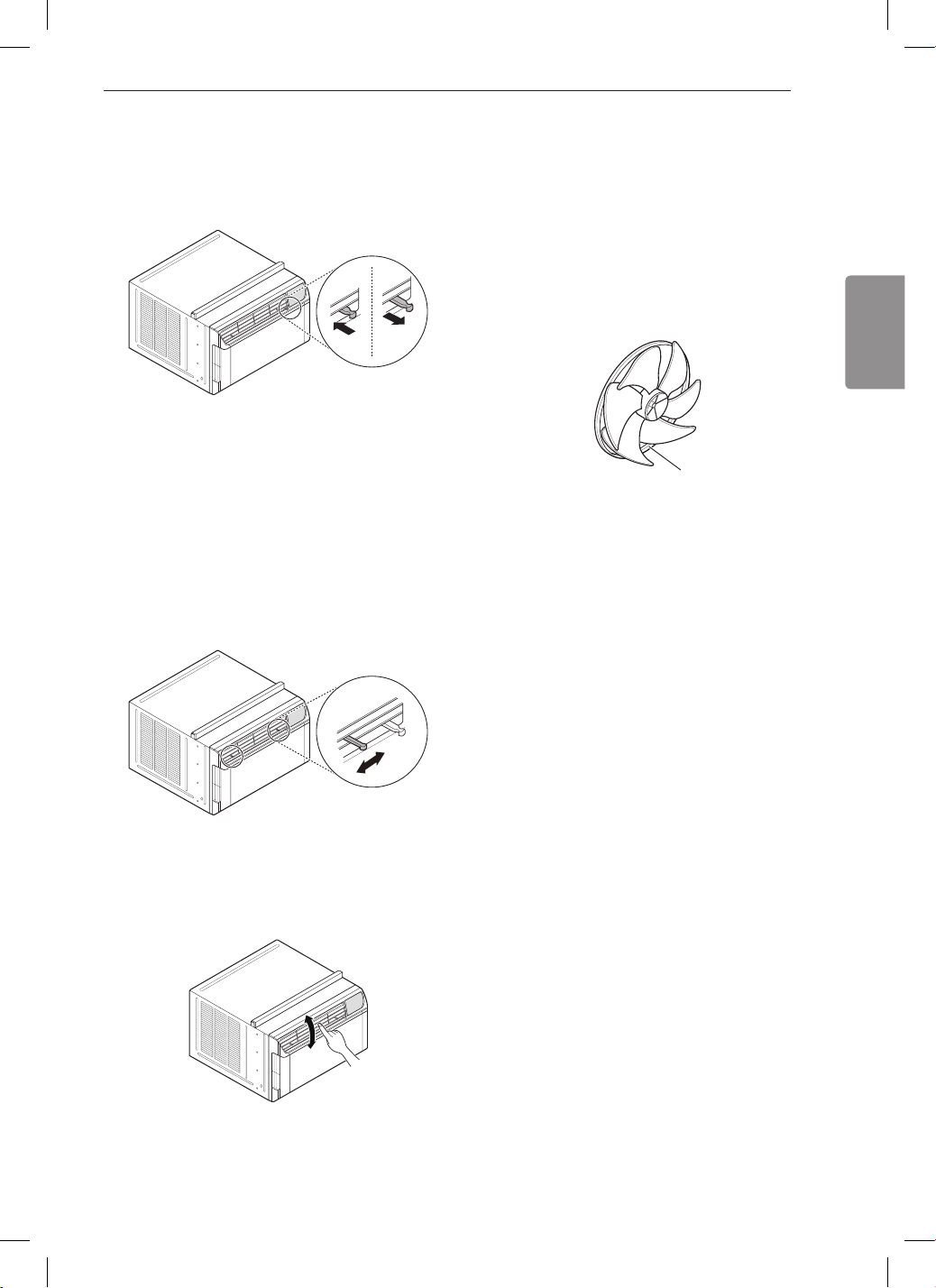

Air Direction

Airflow can be adjust by changing the direction of the air conditioner’s louvers.

Adjusting Horizontal Airflow Direction

The horizontal airflow is adjusted by moving the ​​levers of the vertical louvers to the left or right.

Adjusting Vertical Airflow Direction.

Touch the horizontal louvers to adjust the airflow up or down.

NOTE: When the weather is extremely hot, the unit may turn off automatically to protect the compressor.

Additional Features

Slinger Fan

This air conditioner is equipped with a slinger fan. (See drawing.)

The fan’s outer ring picks up the condensed water from the base pan if the water level gets high enough. The water is then picked up by the fan and expelled through the condenser, making the air conditioner more efficient.

MAINTENANCE

WARNING: Before cleaning or performing maintenance, disconnect the power supply and wait until the fan stops.

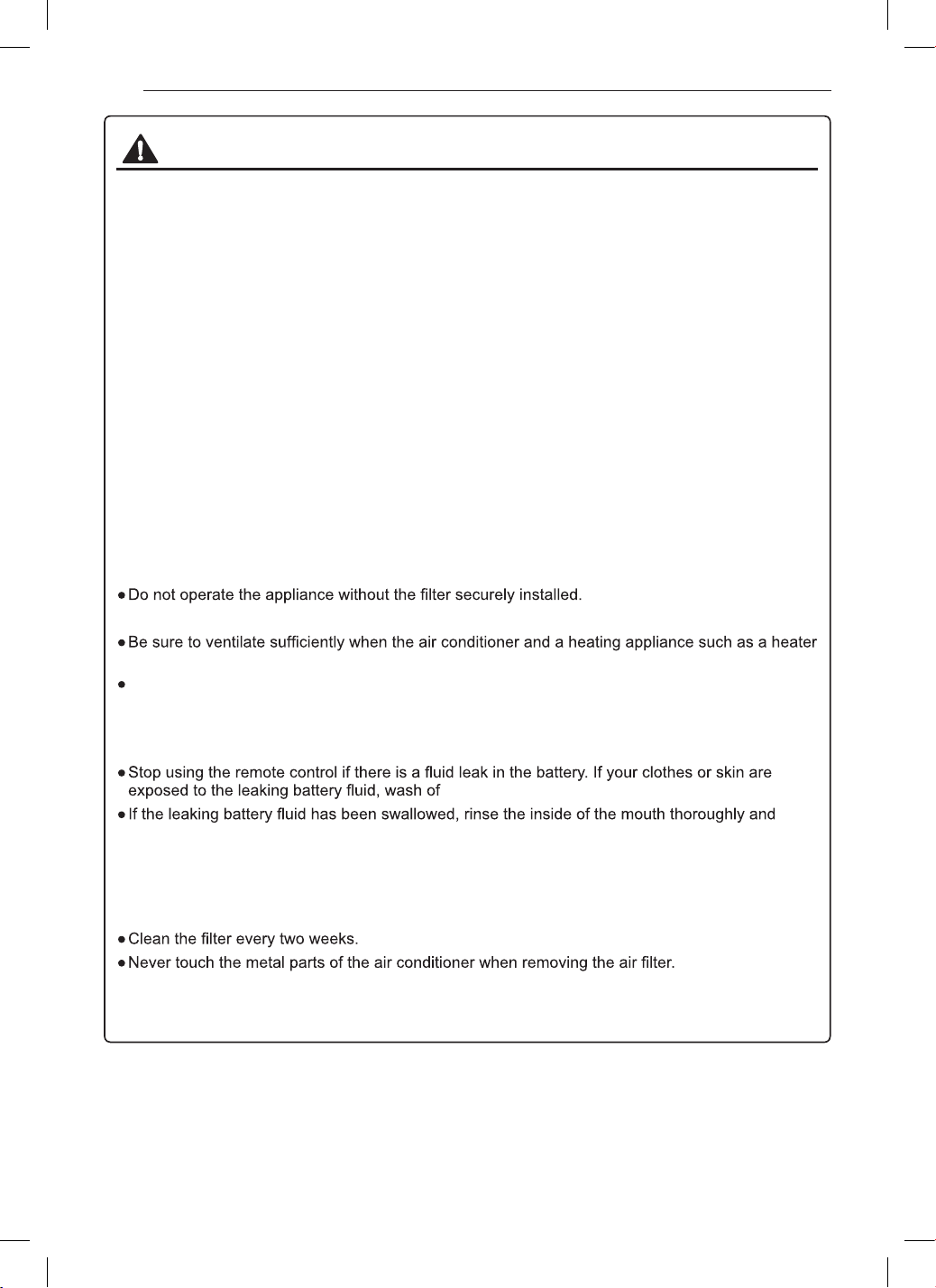

Air Filter

Check the air filter at least twice a month to see if cleaning is necessary. Trapped particles in the filter can build up and block the airflow, reducing cooling capacity and causing an accumulation of frost on the evaporator.

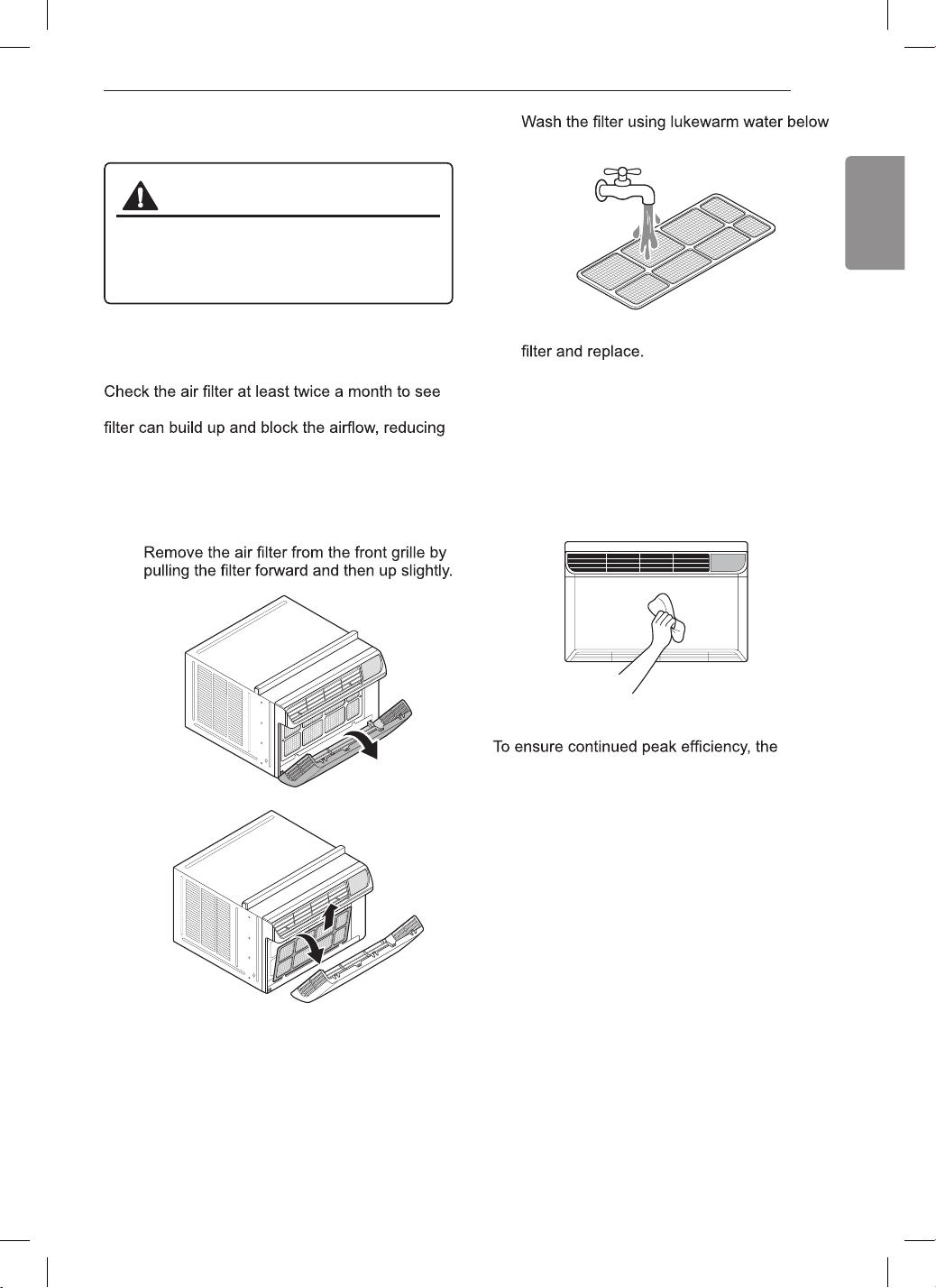

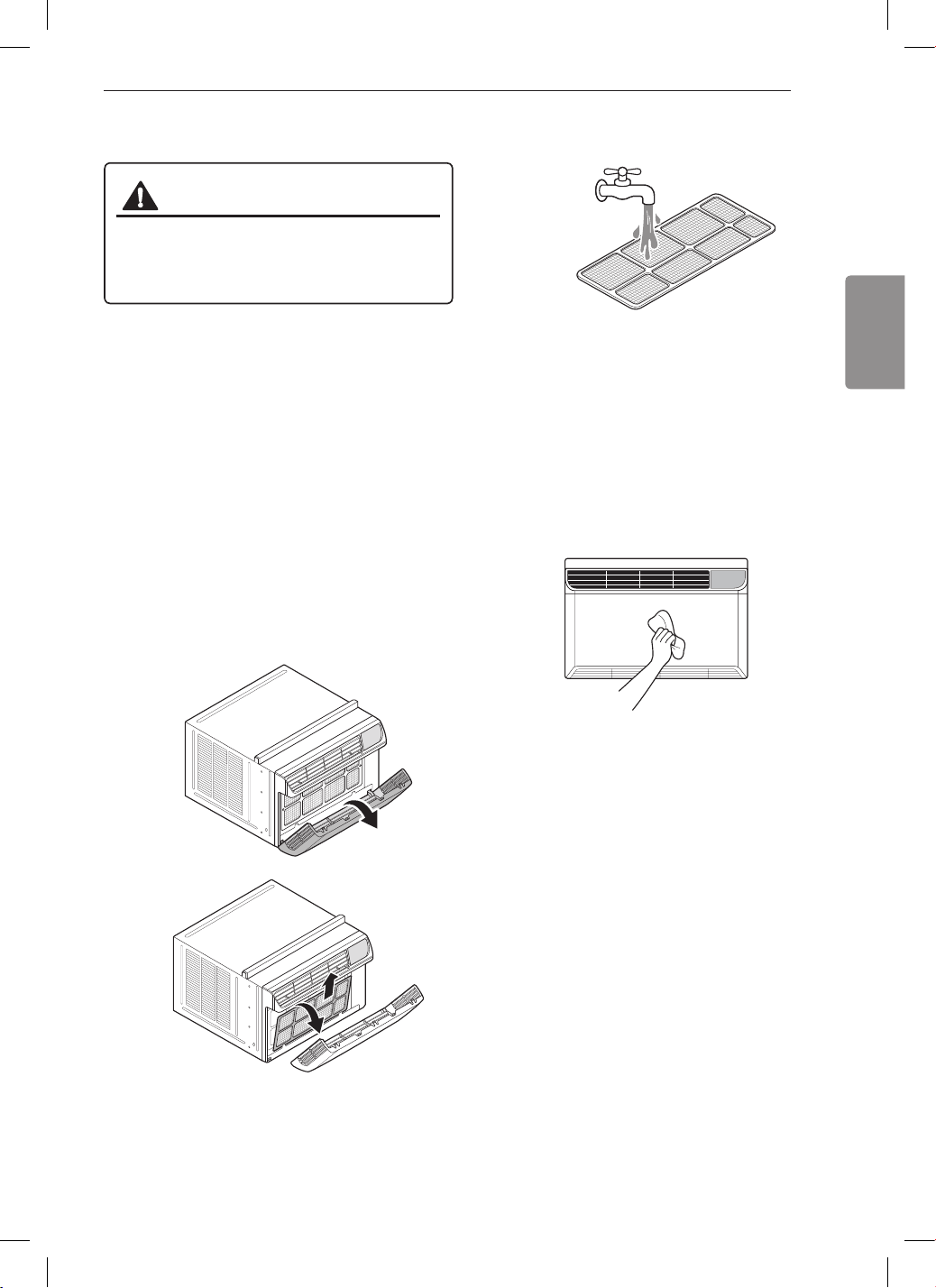

Cleaning the Air Filter

1. Remove the air filter from the front grille by pulling the filter forward and then up slightly.

2. Wash the filter using lukewarm water below 40 °C (104 °F).

3. Gently shake the excess water from the filter and replace.

Cleaning the Air Conditioner

• Wipe the front grille and inlet grille with a cloth dampened in a mild detergent solution.
• Wash the cabinet with mild soap or detergent and lukewarm water, then polish using liquid appliance wax.

NOTE

• To ensure continued peak efficiency, the condenser coils (outside of unit) should be checked periodically and cleaned if clogged with soot or dirt from outside air.
• For repair and maintenance, contact an Authorized Service Center. See the warranty page for details or call 1-888-LG-CANADA (542 2623).
  Have your model number and serial number available. They should be written on page 27 of this manual.

TROUBLESHOOTING

Before Calling for Service

The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service.

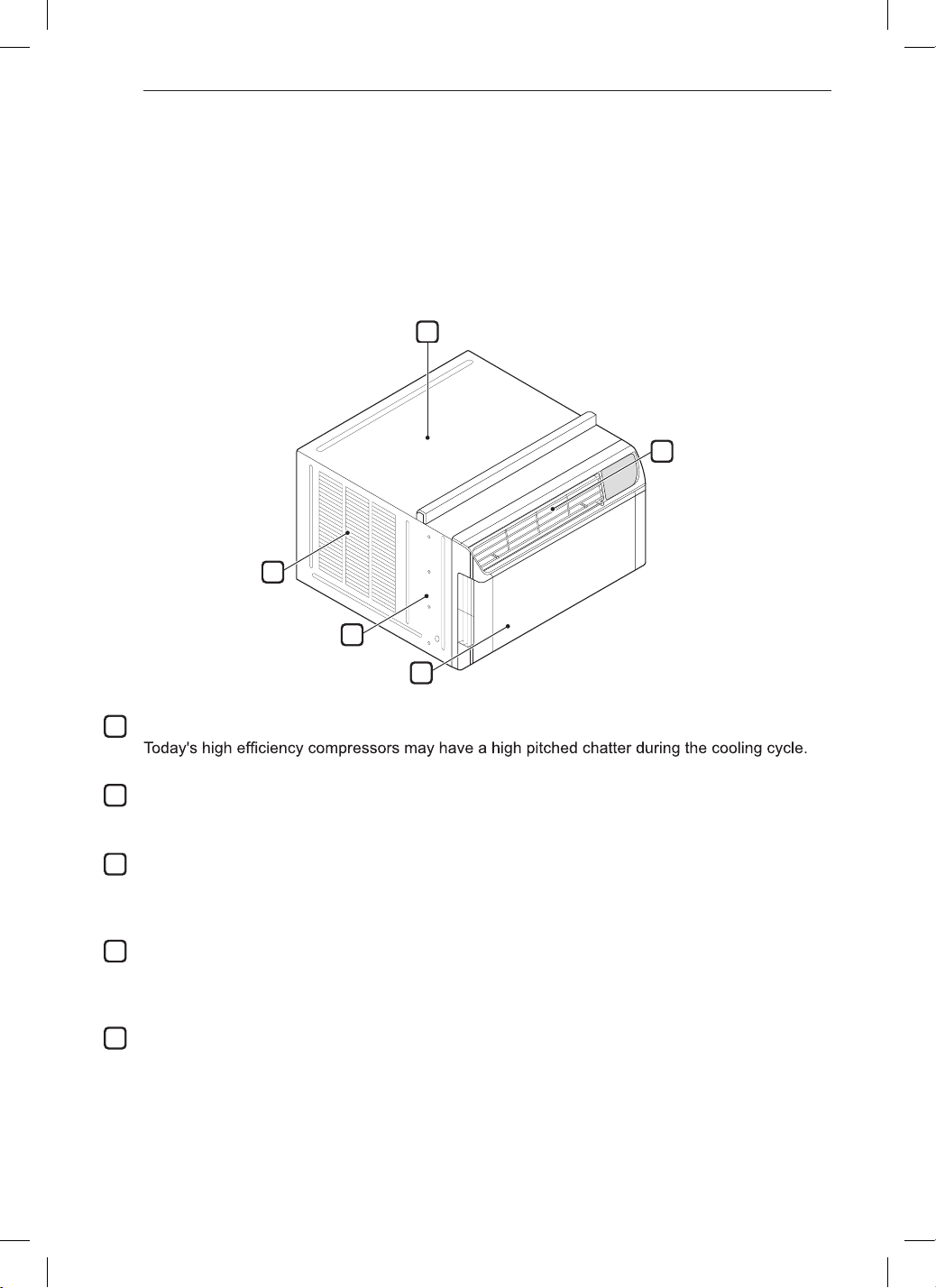

Normal Sounds You May Hear

1. High Pitched Chatter
2. Sound of Rushing Air
   At the front of the unit, you may hear the sound of rushing air being moved by the fan.
3. Gurgle/Hiss
   Gurgling or hissing noise may be heard due to refrigerant passing through evaporator during normal operation.
4. Vibration
   Unit may vibrate and make noise because of poor wall or window construction or incorrect installation.
5. Pinging or Swishing
   Droplets of water hitting condenser during normal operation may cause pinging or swishing sounds.

Wi-Fi
