User Manual Electric Eco Column Heater Dimplex OFRC24TIW

Contents

  • General
  • Fitting the castors
  • Operation
  • Controls

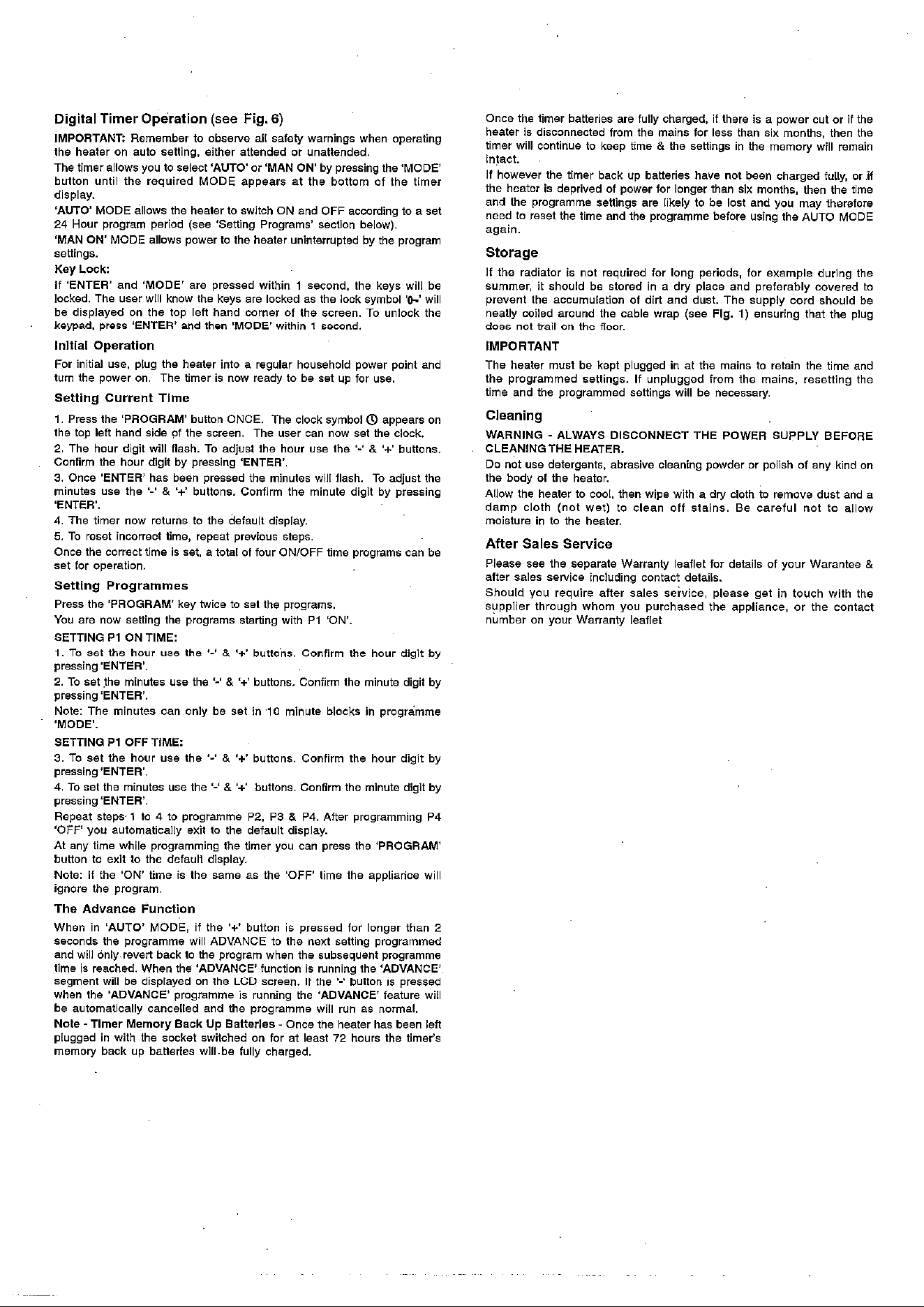

  • Digltal Timer Operation Storage
  • Cleaning
  • After Sales Service

Fitting the castors

  • Remove the carton containing the castor assemblies from the packing.
  • Fit the castors to the stub axles by applying hand pressure until each castor clicks into position. Note that the castors are designed to be a tight fit on the axles but will rotate in use.
  • The castors can only be fitted between the outer fins.
  • Turn the radiator upside down on a carpet or other soft surface to avoid damage
  • WARNING: THE RADIATOR IS HEAVY - ENSURE THAT IT IS SUPPORTED TO PREVENT IT FROM TOPPLING. Ask a second person to help with this if necessary. Position castor bracket onto the threaded pins on the control panel. Place the winged nut 'C' on the thread and tighten it securely.
  • Repeat the process for castor bracket 'B' onto the last fin.
  • Note: The 5 fin column radiator models - OFRC10 & OFRC10TI use curved castor brackets and must be fitted.
  • Lift the radiator clear of the floor, then turn it back upright and stand it on its castors as shown in Fig. 1. It is now ready for uso.

Positioning the Heater

  • Select the position for the radiator ensuring there is clearance from any furniture and fittings of at least 300mm above the heater and 150mm each side. The radiator should only be operated on a flat stable surface.



Storage

  • If the radiator le not required for long periods, for example during the sUMmer, it should be stored in a dry place and preferably covered to prevent the accumulation of dirt and dust. The supply cord should be neatly coiled around the cable wrap (see Flg. 1) ensuring that the plug does not trail on the floor.

IMPORTANT

  • The heater must be kept plugged in at the mains to retain the time and the programmed settings. If unplugged from the mains, resetting the time and the programmed settings will be necessary.

Cleaning

WARNING - ALWAYS DISCONNECT THE POWER SUPPLY BEFORE CLEANING THE HEATER.

  • Do not use detergents, abraslve cleaning powder or pollish of any kind on the body of the heater.
  • Allow the heater to cool, then wipe with a dry cloth to remove dust and a damp cloth (not wet) to clean off stains. Be careful not to allow moisture in to the heater.

After Sales Service

  • Please see the separate Warranty leaflet for details of your Warantee & after sales service including contact details.
  • Should you require after sales service, please get in touch with the supplier through whom you purchased the appliance, or the contact number on your Warranty leaflet.


Newest Added: RLY20-AU DHCER24M TLC20LX-AU ZAMORA PEMBERLEY

Also, These documents are for others Dimplex models: OFRC10, OFRC10B, OFRC15, OFRC15B, OFRC20, OFRC20B, OFRC24, OFRC24B, OFRC10TI, OFRC10TIB, OFRC15TI, OFRC15TIB, OFRC20TI, OFRC2OTIB, OFRC24TI, OFRC24TIB

Tags: Dimplex Tools - Home Improvement User Manuals, Dimplex Tools - Home Improvement Use Manual, Dimplex Heater, Dimplex Oil Heater Manual, Dimplex Column, Dimplex Eco Heater Manual, Dimplex Heaters User Manual

Dimplex OFRC24TIW | File type: PDF | Filename: ofrc24tiw.pdf | Size: 178.1 KB | Language: English | Other documents: 1 files.

Download User Manual

Product Infomation and Reviews - OFRC24TIW photo

OFRC24TIW Photo

T: @manualsFile

https://manualsFile.com

Dimplex OFRC24TIW Questions and Answers


Does the power light stay on even though it is switched off?
The power light will remain on until such time that the heater is switched off at the power supply point.

oil is starting to leak out the base - this heater is 4 years old - what happens if all the oil leeks out and can it be repaired?
Please note that as a rule, oil filled heaters are a non-serviceable, sealed unit and once the cavity is breached, there is no viable repair available.

I bought Dimplex Electric Eco Column Heater OFRC24TIW yesterday and I cant turn it one is there a trick?
Plug it in and bright red light above screen will come on showing you have power. Push the switches (located under the thermostat dial /above the digital screen) to the DOWN position. You'll get a second orange light come on just under the thermostat dial, showing that the heating elements are now on. 1 switch for 1200W, both switches for 2400W. Hope you now get warm... And if not, you've got a dud heater and should take it back!!!
