OWNER’S MANUAL
Mini Hi-Fi
System
Please read this manual carefully before operating your set and retain it for future
reference.
MODEL
CL88 (CL88, CLS88F, CLS88W)
2004_Rev01
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
MFL71447124
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sufcient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance, contact
an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure. To prevent
direct exposure to laser beam, do not try to open the
enclosure.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in
installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
NOTICE: For safety marking information including
product identication and supply ratings, please refer
to the main label on the bottom or the other surface
of the product.
Getting Started 3
Getting Started
1
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case
of an emergency, the Power Plug must remain readily
accessible.
Check the specication page of this owner’s manual
to be certain of the current requirements.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or re. Periodically
examine the cord of your device, and if its appearance
indicates damage or deterioration, unplug it,
discontinue use of the device, and have the cord
replaced with an exact replacement part by an
authorized service center. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the device.
CAUTION: Be careful to make sure children do not
put their hands or any objects into the *speaker duct.
* speaker duct: A hole for plentiful bass sound on
speaker cabinet (enclosure)
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Symbols
~
Refers to alternating current(AC).
0
Refers to direct current(DC).
Refers to class II equipment.
1
Refers to stand-by.
!
Refers to “ON” (power).
Refers to dangerous voltage.
Table of Contents4
1 Getting Started
2 Safety Information
6 Unique Features
7 Playable file Requirement
7 – Music file requirement
7 – Compatible USB Devices
7 – USB device requirement
8 Remote control
10 Front panel
12 Rear panel
2 Connecting
14 How to affix the ferrite core
14 – About Ferrite Core
15 Connecting to speakers
15 – Attaching the speaker light cables to the
unit
16 Optional Equipment Connection
16 – AUX IN 1 Connection
16 – AUX IN 2 Connection
17 – USB Connection
17 – Antenna Connection
3 Operating
18 Basic Operations
18 – CD/USB Operations
18 – Auto Play
19 – Selecting a folder and an MP3/WMA file
20 – Deleting a file/folder or format
21 Playback Effect
21 – DJ EFFECT
21 – DJ SCRATCHER
22 – AUTO DJ
22 – DJ PAD
23 – DJ LOOP
23 – PARTY ACCELERATOR
24 Using BLUETOOTH® wireless technology
24 – Listening to music stored on the Bluetooth
devices
27 Using the LG XBOOM App
27 – About “LG XBOOM” App
27 – Install “LG XBOOM” App onto Your
Bluetooth Device
28 – Activate Bluetooth with “LG XBOOM” App
29 Radio Operations
29 – Listening to the radio
29 – Improving poor FM reception
29 – Presetting the Radio Stations
29 – Deleting all the saved stations
30 – Seeing information about a Radio station
Table of Contents
Table of Contents 5
1
2
3
4
5
31 Sound adjustment
31 – Setting the sound mode
31 – Setting the USER EQ
32 Advanced Operations
32 – Recording to USB
34 – JUKE BOX Playback
35 Other Operations
35 – Turn off the sound temporarily
35 – CHILDSAFE Mode
35 – DEMO
35 – Resume stop
36 – Using Microphone
38 – LIGHTING
39 – Sleep Timer Setting
39 – Dimmer
39 – Auto power down
40 – AUTO POWER On
40 – Auto function change
41 Setting the Clock
41 – Setting the Clock through “LG XBOOM” App
41 – Using your player as an alarm clock
42 LG Sound Sync
43 WIRELESS PARTY LINK Connection
4 Troubleshooting
44 Troubleshooting
44 – General
45 – NOTES to release Demo mode
5 Appendix
46 General specifications
47 Speakers specifications
47 Trademarks and Licenses
48 Maintenance
48 – Notes on Discs
48 – Handling the Unit
Getting Started6
Getting Started
1
Unique Features
BLUETOOTH®
Listens to music stored on your Bluetooth device.
Playback effects
Listens to music with various sound and playback
effects.
USB Direct Recording
Records music to your USB device.
LG XBOOM
LG XBOOM is an app designed to let you take
control of some of LG’s latest audio devices. (Page
27-28)
LG Sound Sync
Controls volume level of this unit by the remote
control of your LG TV that is compatible with LG
Sound Sync.
Getting Started 7
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/WMA le compatibility with this unit is limited
as follows.
y Sampling frequency: within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y Bit rate: within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y Maximum les: Data CD: 999 / USB: 2,000
y Maximum folders: Data CD: 99 / USB: 200
y File extensions: “.mp3”/ “.wma”
y Certain MP3/WMA les may not be played
depending on the type or format of the le.
y CD-ROM le format: ISO 9660/ JOLIET
y We recommend that you use Easy-CD Creator,
which creates an ISO 9660 le system.
y A protected le by DRM (Digital rights
management) cannot be played on the unit.
y The DTS disc is not supported.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot use
it on LG players.
(Mastered/Live File System: Disc format system for
Windows Vista)
Compatible USB Devices
y MP3 Player: Flash type MP3 player.
y USB Flash Drive:
Devices that support USB2.0 or USB1.1.
y The USB function of this unit does not support all
USB devices.
USB device requirement
y Devices which require additional program
installation when you have connected it to a
computer, are not supported.
y Do not extract the USB device while in operation.
y For a large capacity USB, it may take longer than a
few minute to be searched.
y To prevent data loss, back up all data.
y If you use a USB extension cable or USB hub, the
USB device is not recognized.
y Using NTFS le system is not supported. (Only
FAT(16/ 32) le system is supported.)
y This unit recognizes up to 2,000 les.
y External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
y USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
y Some USB may not work with this unit.
Getting Started8
Getting Started
1

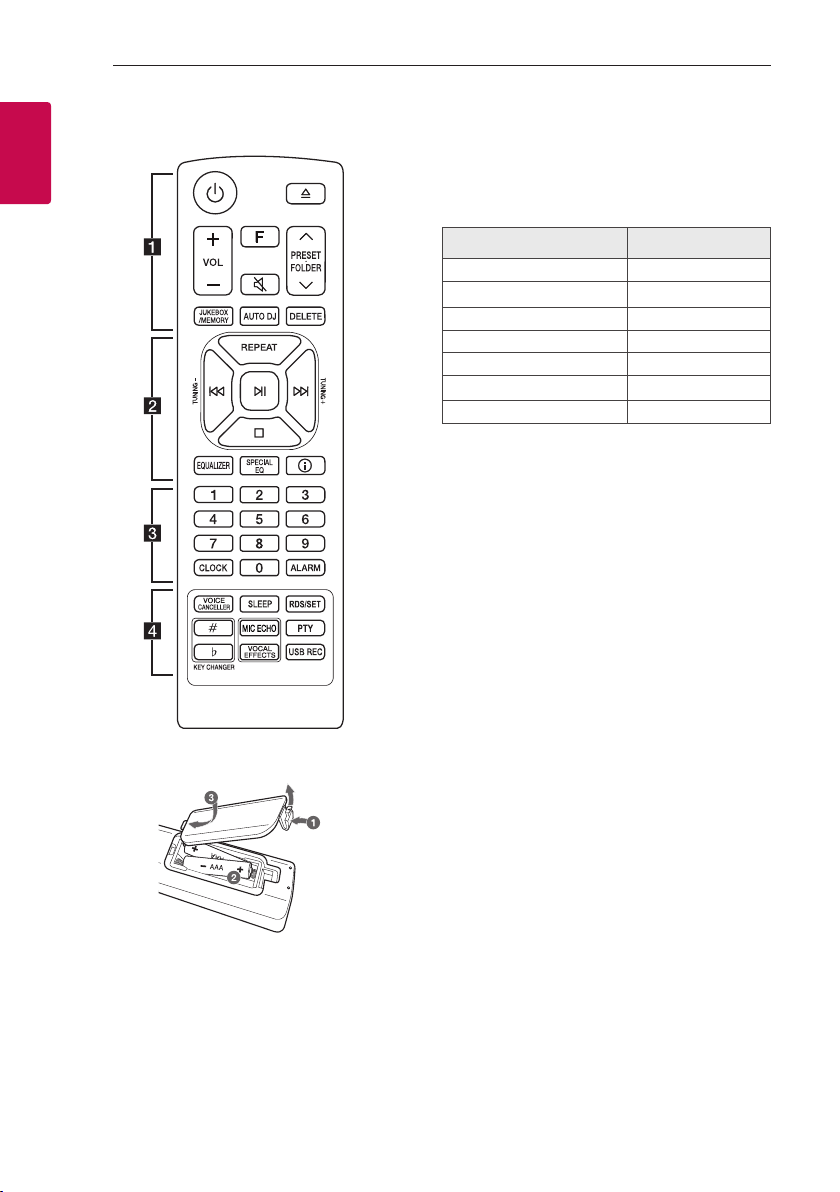

Remote control
Replacement of battery
(R03)
(R03)
Remove the battery cover on the rear of the remote
control, and insert the battery with 4 and 5
matched correctly.
• • • • • • • • • • • • • • a • • • • • • • • • • • • •
1 (Standby): Turns the power on or off.
B (Open/Close): Opens and closes the disc tray.
VOL (Volume) +/-: Adjusts speaker volume.
F (Function): Selects the function and input source.
Input source / Function Display
Disc CD
USB USB 1 / USB 2
AUX (3.5 mm) input AUX 1
AUX input AUX 2
Bluetooth BT
LG Sound Sync (Wireless) LG TV
Radio FM
[(Mute): Mutes the sound.
PRESET·FOLDER W/S:
- Chooses a preset number for a radio station.
(Page 29)
- Searches for a folder of MP3/WMA les. When
a CD/USB containing MP3/WMA les in several
folders is being played, press PRESET·FOLDER
W/S to select the folder you want to play.
JUKEBOX/MEMORY:
- Stores radio stations. (Page 29)
- Selects JUKE BOX mode. (Page 34)
- Makes JUKE BOX list.
AUTO DJ: Selects the AUTO DJ mode. (Page 22)
DELETE:
- Deletes MP3/WMA les. (USB only) (Page 20)
- Deletes a song on the JUKE BOX list.
- Deletes all the saved stations.
Getting Started 9
Getting Started
1
• • • • • • • • • • • • • • b • • • • • • • • • • • • •
REPEAT: Listens to your tracks/les repeatedly or
randomly.
TUNING-/+: Selects the radio stations.
C/V (Skip/Search):
- Skips backward or forward.
- Searches for a section within a track/le.
N (Play/Pause):
- Starts or pauses playback.
- Selects stereo/mono.
Z (Stop):
- Stops playback.
- Cancels DELETE function.
EQUALIZER: Chooses sound impressions.
SPECIAL EQ:
Chooses special equalizer.
J (Information):
- Sees information about your music. An MP3 le
often come with ID3 tag. The tag gives the Title,
Artist, Album or Time information.
- Sees Bluetooth device name of the unit in BT
READY.
- Sees the name of connected all Bluetooth device
in Bluetooth mode.
- When these units are successfully connected each
other in WIRELESS PARTY LINK mode, each of
connected device names appears in the each unit.
• • • • • • • • • • • • • • c • • • • • • • • • • • • •
0 to 9 numerical buttons: Selects numbered tracks,
les, or preset number.
CLOCK: Sets a clock and checks a time.
ALARM: With the ALARM function you can turn on
CD, USB play and tuner reception at a desired time.
• • • • • • • • • • • • • • d • • • • • • • • • • • • •
VOICE CANCELLER: You can reduce the vocal tones
during music playback from various input sources.
SLEEP: Sets the system to turn off automatically at
a specified time.
(Dimmer: The display window will be darkened by
half.)
RDS/SET :
- RDS (Radio Data System)
- Conrms the setting.
KEY CHANGER (L/l): Changes the key to suit your
vocal range.
MIC (Microphone) ECHO: Selects ECHO mode.
PTY: Searches radio stations by radio type.
VOCAL EFFECTS: Selects various vocal effects
mode.
USB REC:
- Records to USB.
- Stops Recording.
Getting Started10
Getting Started
1

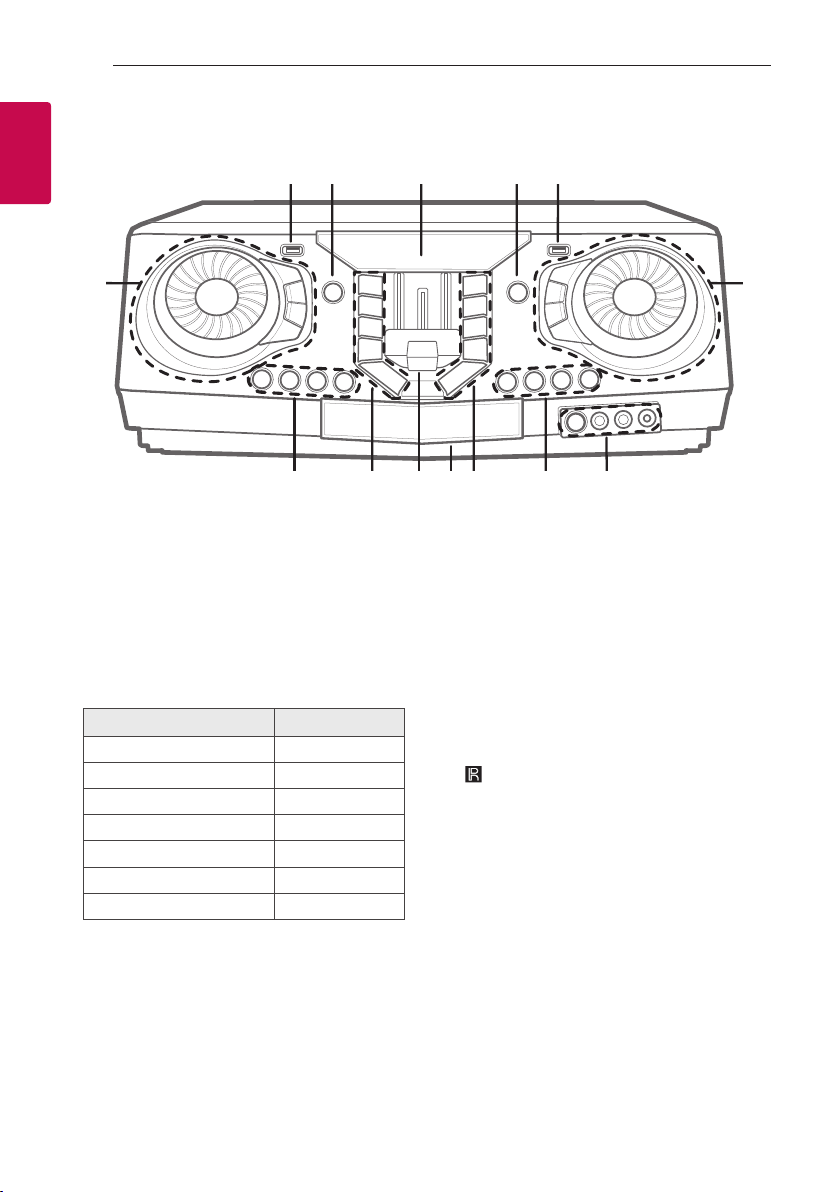

Front panel
a USB 1 Port
You can play sound files by connecting the USB
device.
b 1 (Standby)
Turns the power on or off.
c Display window
d F (Function)
Selects the function and input source.
Input source / Function Display
Disc CD
USB USB 1 / USB 2
AUX (3.5 mm) input AUX 1
AUX input AUX 2
Bluetooth BT
LG Sound Sync (Wireless) LG TV
Radio FM
e USB 2 Port
You can play sound files by connecting the USB
device.
f MASTER VOLUME
- Adjusts speaker volume.
- Selects the lighting effects.
- Selects vocal effects
LIGHTING
Selects the lighting mode.
MIC VOL (Microphone volume) -/+
Adjusts microphone volume.
MIC (Microphone) ECHO
Selects ECHO mode.
g
(Remote sensor)
MIC (Microphone) 1/2 jack
AUX IN 1 jack
h KEY CHANGER (L/l)
Changes the key to suit your vocal range.
VOICE CANCELLER
You can reduce the vocal tones during music
playback from various input sources.
VOCAL EFFECTS
Selects various vocal effects mode.
a b dc e
f
n
ghijklm
Getting Started 11
Getting Started
1
i 3 TWIN
Connects two speakers for TWIN mode in
WIRELESS PARTY LINK.
DJ LOOP
Selects DJ LOOP mode.
(DJ LOOP mode can use during CD/USB
playback.)
N (Play/Pause)
- Starts or pauses playback.
- Selects stereo/mono.
V (Skip/Search)
- Skips forward.
- Searches for a section within a track/file.
- Selects the radio stations.
PARTY ACCELERATOR MODE
Selects PARTY ACCELERATOR MODE.
j Disc tray
k PARTY ACCELERATOR lever
Slide the lever to create a party atmosphere.
l USB REC / DEMO
- Records to USB.
- Stops Recording.
- In power off status, if you press USB REC /
DEMO, show DEMO mode.
SPECIAL EQ / BASS BLAST (or BASS BLAST+)
- Chooses special equalizer.
- Press and hold to select BASS (or BASS+) effect
directly.
Z (Stop) / RDS
- Stops playback or cancels DELETE function.
- RDS (Radio Data System)
C (Skip/Search)
- Skips backward.
- Searches for a section within a track/le.
- Selects the radio stations.
B (Open/Close)
Opens and closes the disc tray.
m CLUB, DRUM, USER (DJ PAD)
Selects CLUB, DRUM or USER sound effect to
mix.
(If you want to use USER, you have to register a
source with “LG XBOOM” app.)
1, 2, 3, 4 (DJ PAD)
Press a desired sound pad.
n DJ SCRATCHER / LEVEL CONTROL & SEARCH
- Turns clockwise or counterclockwise to make
scratch sound.
- Turns clockwise or counterclockwise to control
the USER EQ level.
- Searches a folder or a file.
- Adjust DJ EFFECT level.
DJ EFFECT
Selects a desired DJ EFFECT.
SEARCH
Moves to folder or file in selection mode.
OK
Selects a folder when searching a file.
USER EQ
Selects the equalizer created by your own.
Getting Started12
Getting Started
1
Rear panel
a Power cord
y Connect the power cord to wall outlet
directly if possible. Or when you use an
extension cable, it is highly recommended
to use an extension cable of 110 V / 15 A
or 230 V / 15 A, otherwise the unit may
not operate properly because of the lack of
power supply.
y Do not overload the extension cord with
excessive electrical load.
>
Caution
b ANTENNA (FM)
c AUX IN 2 (L/R)
Connect an auxiliary device.
d SPEAKER LIGHTING SYSTEM
Connect the speaker lighting cables.
e SPEAKERS connector
b c d e
a
100 100
100
MID L
MID R
Getting Started 13
Getting Started
1
Useful functions for using the unit
Function Description To do Do this
BT Lock On/Off
(Page 26)
It allows you to connect a
Bluetooth device only on BT
(Bluetooth) and LG TV functions.
Initial setting of this function was
set to off.
ON
Press and hold N for 5 seconds in BT
(Bluetooth) function.
OFF
Press and hold N for 5 seconds in BT
(Bluetooth) function.
Auto Power On
(Page 40)
It allows the unit to turn on
automatically by input signals:
BT (Bluetooth) or LG TV
ON
Turn off the unit by pressing 1 on the unit
for 5 seconds.
OFF
Turn off the unit by pressing 1 on the unit
for 5 seconds.
Connecting14
Connecting
2
2 Connecting
How to affix the ferrite
core
Ferrite core may not be provided depending on each
nation’s regulations.
About Ferrite Core
You must afx a ferrite core in order to reduce or
eliminate electrical interference.
1. Pull the stopper [a] of the ferrite core to open.
2. Wind the power cord around the ferrite core
twice.
3. Close the ferrite core until it clicks.
100 100
100
MID LMID R
Connecting 15
Connecting
2
Connecting to speakers
Connect the speaker cable plugs to the SPEAKERS
connector. Make sure to connect the speaker’s plug
to the corresponding colored speaker connector
when connecting the plug.
Attaching the speaker light
cables to the unit
To connect the speaker light cable to the unit,
insert the cable to SPEAKER LIGHTING SYSTEM
connectors on the unit.
100 100
100
MID L
MID R
100 100
100
MID LMID R
y Make sure that the jacks and the speakers
are matched correctly.
y Make sure to connect the cables to
connectors tightly on the unit.
>
Caution
y Do not try to lift the speaker alone. It needs
two persons to lift the speaker. Otherwise
it may result in the speaker malfunction
and cause personal injury and/or property
damage.
y When you connect the speakers to the unit,
make sure to connect the speaker’s cable and
plug to the corresponding speaker connector.
y The speakers must be placed a minimum
of 20 cm from the unit for preventing the
vibration caused by the speakers.
20 cm20 cm
y Check the volume level before playing music
to prevent inrm, child, and pregnant women
from being shocked by the sudden and loud
sound from the unit.
y Do not use the unit in a limited space.
It may damage a person’s hearing. It is
recommended to use it in a wide space.
y Use the speaker supplied with this unit
only. Using any other speaker may cause
malfunction.
y The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
y Avoid looking at the speaker lights for a long
time. It may cause damage to eyesight.
>
Caution
Connecting16
Connecting
2
Optional Equipment
Connection

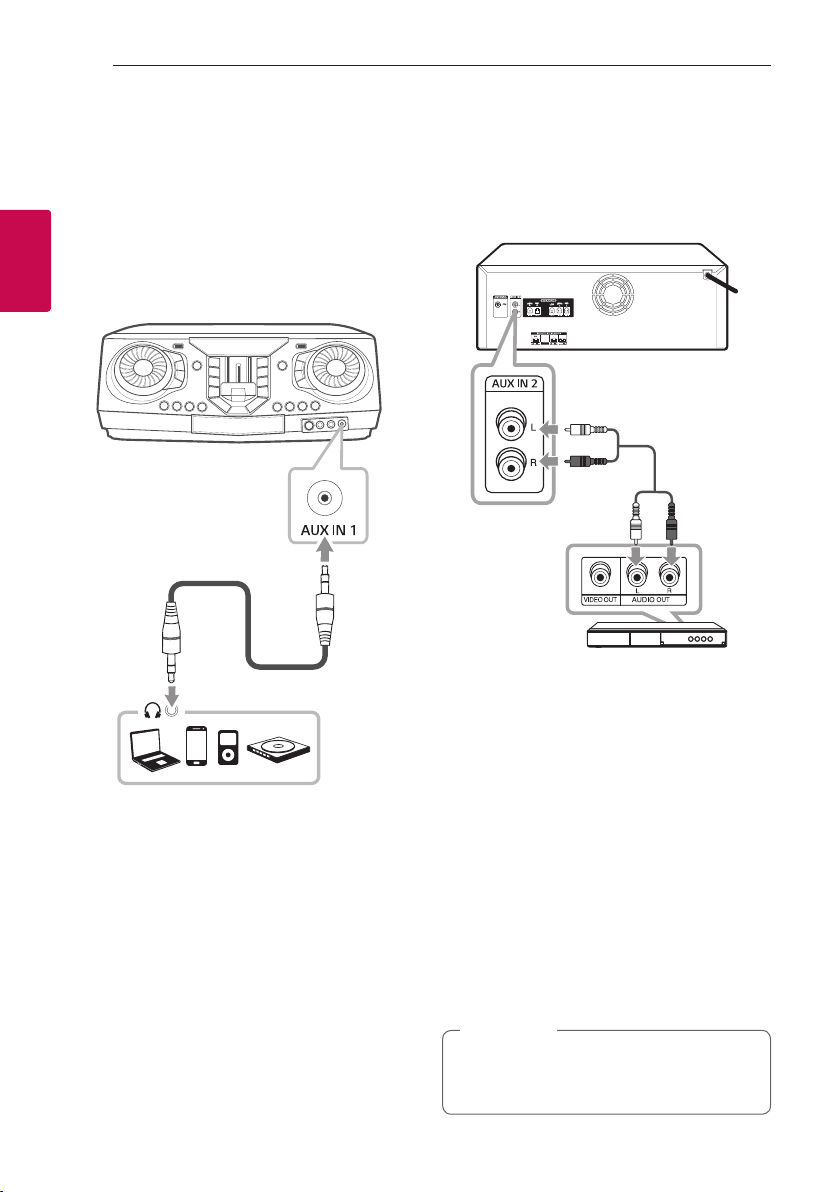

AUX IN 1 Connection
Connect an output (earphone or line out) of portable
device (MP3 or PMP etc) to the AUX IN 1 (3.5 mm)
connector.
3.5 mm stereo cable
AUX IN 2 Connection
Connect an output of auxiliary device (Camcorder, TV,
Player, etc) to the AUX IN 2 (L/R) connector.
If your device has only one output for audio(mono),
connect it to the left(white) audio jack on the unit.
100 100
100
MID L
MID R
White
Red
Audio cable
DVD, Blu-ray player etc.
Listening to music from your portable
player or external device
The unit can be used to play the music from many
types of portable player or external device.
1. Connect the portable player to the AUX IN 1
connector of the unit.
Or
Connect the external device to the AUX IN 2
connector of the unit.
2. Turn the power on by pressing 1.
3. Press
F to select AUX 1 or AUX 2 function.
4. Turn on the portable player or external device and
start it playing.
Automatically switches to the AUX 1 function
when you connect the portable device to the
AUX IN 1 connector.
,
Note
Connecting 17
Connecting
2

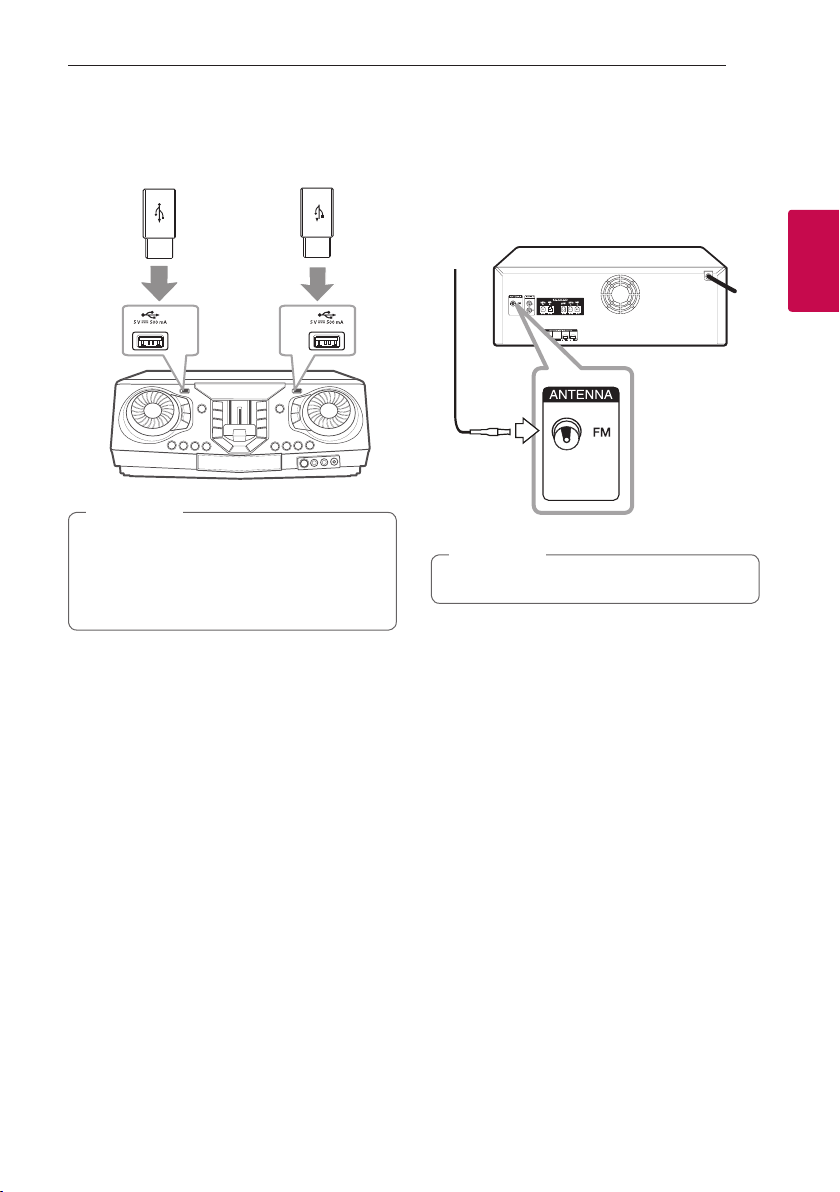

USB Connection
Connect a USB device (or MP3 player, etc.) to the
USB ports on the unit.
USB 2USB 1
USB device
Removing the USB device from the unit:
1. Choose a different function/mode or
press Z twice in a row.
2. Remove the USB device from the unit.
,
Note
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM wire antenna to the FM antenna
connector.
100 100
100
MID LMID R
FM antenna
Be sure to fully extend the FM wire antenna.
,
Note
Operating18
Operating
3
3 Operating
Basic Operations
CD/USB Operations
1. Insert the disc by pressing B.
Or connect the USB device to the USB port.
2. Select CD or USB function by pressing
F
.
To Do this
Stop
Press Z.
Playback
Press N.
Pause
Press N during playback.
Searching
for a section
within a track/
le
Press and hold C
/V during
playback and release it at the point
you want to listen to.
Selecting
a track/le
directly
Press 0 to 9 numerical buttons on
the remote control to go to the
desired le or track directly.
Skipping to
the next/
previous
track/le
- In stop status,
Press C
/V to go to the next/
previous track/le.
- During playback,
(1) By using C/V buttons:
Press V to go to the next track/
le.
Playing in less than 3 seconds,
press C to go to the previous
track/le.
Playing after 3 seconds, press C
to go to the beginning of the track/
le.
(2) By using SEARCH buttons:
Rotate DJ SCRATCHER / LEVEL
CONTROL & SEARCH or C/V
and press N to play the track/le.
Playing
repeatedly or
randomly
Press REPEAT on the remote
control repeatedly. Refer to the
note for details about the display
change.
y Repeat/Shufe playback operates as follows.
On Display Description
OFF
Plays songs in order and stops
the playback.
ONE
Plays a same song repeatedly.
FOLDER
Plays songs in a folder
repeatedly. (Except AUDIO CD)
ALL
Plays all the songs repeatedly.
SHUFFLE
Plays all the songs once
randomly, and stops the
playback.
y When you play JUKE BOX list, only ONE and
ALL are available.
y Even after restarting the unit or switching
one function to another, you can listen to
music from the point where it’s last been
played.
y If you leave the disc tray open for 5 minutes,
it will close automatically.
,
Note
Auto Play
- AUDIO/MP3/WMA CD is played automatically
after disc tray is opened and then closed.
- Automatically the unit switches to the CD
function if disc tray is opened and then closed
even when there is no disc in disc tray.
Operating 19
Operating
3
Selecting a folder and an MP3/
WMA file
On the unit
1. Press SEARCH and rotate DJ SCRATCHER /
LEVEL CONTROL & SEARCH or C/V until a
desired file appears. You can also search a folder if
you press SEARCH again.
2. Press OK or N to play the selected file. When
you search a folder, press OK to select a file in the
folder, then press OK or N again. The selected
file is played.
On the remote control
1. Press PRESET·FOLDER W/S repeatedly until a
desired folder appears.
2. Select the file you want by using C
/V.
3. Press N to play it.
y CD/USB Folders/Files are recognized as
below.
*
y If there is no le in a folder, the folder will not
appear.
y Folders will be presented as the following
order;
ROOT
FOLDER 1 FOLDER 3
FOLDER 7 FOLDER 8 FOLDER 5
FOLDER 6
y File will be played from $ le No.1 to $ le
No.14 one by one.
y Files and folders will be presented in order
recorded and may be presented differently
according to the record circumstances.
*ROOT: The rst screen you can see when a
computer recognize the CD/USB is “ROOT”.
,
Note
Operating20
Operating
3
Deleting a file/folder or format
You can delete le, folder on your USB or format the
USB.
1. Select USB function by pressing
F.
2. Press DELETE on the remote control repeatedly,
the display changes as followings.
DEL FILE
DEL DIR FORMAT
On Display Description
DEL FILE
Select the le you want to
delete.
DEL DIR
Select the folder you want to
delete.
FORMAT Select to format the USB device.
If you want to exit the current mode, press Z.
3. To delete file/folder or format, press and hold
DELETE on the remote control.
y Do not extract the USB device during
operation. (play, delete, etc.)
y Regular back up is recommended to prevent
data loss.
y The delete function may not be supported
according to the USB status. (lock, etc.)
>
Caution
Operating 21
Operating
3
Playback Effect
The unit supports various sound and playback effects :
DJ EFFECT, DJ SCRATCHER, AUTO DJ, DJ PAD,
DJ LOOP, PARTY ACCELERATOR
DJ EFFECT
It allows you to enjoy DJ EFFECT such as FLANGER/
PHASER/WAH/DELAY sound effect.
1. Press DJ EFFECT on the unit to select a desired
DJ EFFECT (FLANGER, PHASER, WAH, DELAY,
OFF).
2. Turn DJ SCRATCHER / LEVEL CONTROL
& SEARCH on the unit clockwise or
counterclockwise to adjust the DJ EFFECT level
between 0 to 15.
y The DJ EFFECT mode is displayed for 3
seconds when a DJ EFFECT key on the unit
is inputted.
y The current gage level is displayed when
adjusting gage.
y If the function changed or the unit is turned
off and on, DJ EFFECT mode with DJ EFFECT
is turned off.
y According to effect level and application time,
the DJ EFFECT may not effect when the DJ
effect cover the original sound.
,
Note
DJ SCRATCHER
You can output and mix the sound effects of the DJ
SCRATCHER.
Rotating DJ SCRATCHER / LEVEL CONTROL &
SEARCH on the unit to mix the scratch sound.
- You can hear effect of scratch sound depending
on the direction in which you rotate
DJ SCRATCHER / LEVEL CONTROL & SEARCH
on the unit.
Operating22
Operating
3
AUTO DJ
AUTO DJ blends the end of one song into the
beginning of another for seamless playback.
It equalizes volume across tracks/les for
uninterrupted playback.
Press AUTO DJ on the remote control repeatedly, the
display changes as followings.
SHUFFLE
SEQUENTIAL OFF
On Display Description
OFF -
SHUFFLE
The music is played randomly on
this mode.
SEQUENTIAL
The music is played repeatedly on
this mode.
y AUTO DJ mode does not support searching
for a section within a track/le or to play
repeatedly or randomly.
y If you move to other functions or stop the
music using Z on AUTO DJ mode, AUTO DJ
will be disabled.
y AUTO DJ is not supported in the music le
whose length is less than 60 seconds.
y Only SEQUENTIAL is selected when played
JUKE BOX list.
,
Note
DJ PAD
It allows you to mix CLUB, DRUM or USER sound
effect. Each mode has up to 4 sounds effect.
1. Press and hold DJ PAD (CLUB, DRUM or USER)
on the unit to select a desired DJ PAD sound
effect.
2. Press DJ PAD (1, 2, 3, 4) of desired sound on
the unit.
y If you want to use USER, you have to register
a source with “LG XBOOM” app.
If the source is not register to USER, “EMPTY”
or “NO SOUND” appears on the display
window.
y Initial DJ PAD mode is CLUB sound effect.
y DJ PAD mode is displayed for 3 seconds
when you press DJ PAD (CLUB, DRUM or
USER) on the unit.
y The DJ PAD sound is mixed when you press
DJ PAD (1, 2, 3, 4) on the unit.
y The currently playing DJ PAD sound is
stopped and the selected DJ PAD sound
outputs if you press a different DJ PAD
(1, 2, 3, 4) on the unit while DJ PAD sound
is playing.
,
Note
Operating 23
Operating
3
DJ LOOP
The certain section (about 1 sec) of sound is
repeatedly played. (CD, USB Only)
During playback, press and hold DJ LOOP on the unit
at the point you want. And you can cancel DJ LOOP
function by releasing it.
This function is released after operating 10
times or releasing DJ LOOP on the unit.
,
Note
PARTY ACCELERATOR
It allows you to create a party atmosphere.
1. Select the mode by pressing PARTY
ACCELERATOR MODE on the unit.
The sound effect will react differently according
to the mode.
MODE 1
MODE 2 USER
2. After selecting the mode, slide up the lever of
PARTY ACCELERATOR on the unit to create a
party atmosphere.
The sound effect will react according to moving
the lever of PARTY ACCELERATOR on the unit.
OFF
ACCEL 1 ACCEL 2 CLIMAX
If you want to use USER, you have to register
a source with “LG XBOOM” app. If the source is
not register to USER, “EMPTY” or “NO SOUND”
appears on the display window.
,
Note
Operating24
Operating
3
Using BLUETOOTH®
wireless technology
About Bluetooth
Bluetooth is wireless communication technology for
short range connection.
The sound may be interrupted when the connection
interfered by the other electronic wave or you
connect the Bluetooth in the other rooms.
Connecting individual devices under Bluetooth
wireless technology does not incur any charges. A
mobile phone with Bluetooth wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth wireless technology.
y Available Devices: Smart phone, MP3, Notebook,
etc.
y Version: 4.0
y Codec: SBC, AAC
Bluetooth Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
Listening to music stored on the
Bluetooth devices
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make
sure the Bluetooth feature is activated on your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed, it
does not need to be performed again.
1. Turn on the unit.
When Bluetooth connection lock is activated,
you can search Bluetooth device in BT
(Bluetooth) function.
,
Note
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device display
depending on the type of Bluetooth device. Your
unit appears as “LG CL88 (XX)”.
y XX means the last two digits of
Bluetooth address. For example, if your
unit has a Bluetooth address such as
9C:02:98:4A:F7:08, you will see “LG CL88
(08)” on your Bluetooth device.
y Depending on the Bluetooth device type,
some devices have a different pairing way.
For details about Bluetooth pairing,
refer to your Bluetooth device manual.
y You can connect this unit with up to 3
Bluetooth devices simultaneously using the
same method as described above, only in the
BT (Bluetooth) function.
y The multi phone pairing connection is only
supported on Android devices. (Multi phone
pairing connection may not be supported
depending on the connected device
specications.)
y Removable/detachable Bluetooth devices
(Ex: Dongle etc.) will not support multi phone
pairing.
,
Note
Operating 25
Operating
3
3. When this unit is successfully connected with
your Bluetooth device, “PAIRED” appears on the
display window and change to Bluetooth device
name soon. Then “BT” will appear on the display
window.
y "PAIRED" will momentarily appear on the
display when you connect other devices for
multi phone pairing.
y If the device name is unavailable, “_” will be
displayed.
,
Note
4. Listen to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
y When using Bluetooth technology, you have
to make a connection between the unit and
the Bluetooth device as close as possible and
keep the distance.
However, it may not work well in certain
situations as described below:
- There is an obstacle between the unit and
the Bluetooth device.
- There is a device using same frequency
with Bluetooth technology such as a
medical equipment, a microwave or a
wireless LAN device.
y If Bluetooth connection does not work well,
try pairing it again.
y Even if this unit is connected up to 3
Bluetooth devices in the Bluetooth mode,
you can play and control music by using only
one of the connected devices.
,
Note
y The sound may be interrupted when the
connection has interference from other
electronic devices.
y Depending on the type of the device, you
may not be able to use the BT (Bluetooth)
function.
y You can enjoy wireless system using phone,
MP3, Notebook, etc.
y The more distance between the unit and the
Bluetooth device, the lower the sound quality
becomes.
y Bluetooth connection will be disconnected
when the unit is turned off or the Bluetooth
device gets too far from the unit.
y When Bluetooth connection is disconnected,
connect the Bluetooth device to the unit
again.
y When a Bluetooth device is not connected,
“BT READY” appears on the display window.
y When you use the BT (Bluetooth) function,
adjust the volume to a proper level on the
Bluetooth device.
y When you connect Bluetooth device (iOS
device etc.) to this unit or operate the device,
the volume level can be synchronized with
each other.
y Bluetooth connection will be disconnected
when you change the BT (Bluetooth)
function to some other function. In “LG
XBOOM” app connection, only one device
which you are playing keeps Bluetooth
connection. You can control the Bluetooth
device with this unit but you cannot use
sound output.
y When entering the BT (Bluetooth) function,
this unit automatically connects to the last
connected Bluetooth device or the device
which played back last.
(Auto connection may not be supported
depending on the connected device
specications.)
,
Note
Operating26
Operating
3
Controls connected Bluetooth device
You can control connected Bluetooth device by the
unit; play, pause, stop, skip.
y Only Android OS and iOS is available to use
this function.
y This function may not be supported
depending on the Bluetooth device, or
operated differently.
,
Note
Bluetooth connection lock (BT LOCK)
You can limit Bluetooth connection to only
BT (Bluetooth) and LG TV function to prevent
unintended Bluetooth connection.
To turn on this function, press and hold N for about
5 seconds in BT (Bluetooth) function.
“ON-BT LOCK” appears then you can limit Bluetooth
connection.
To turn off this function, press and hold N for about
5 seconds in BT (Bluetooth) function.
“OFF-BT LOCK” appears.
Even if you set up Bluetooth connection lock to
On, this unit turns on by Auto Power function.
Turn off Auto Power function to prevent it.
(Page 40)
,
Note
Operating 27
Operating
3
Using the LG XBOOM
App
y Only Android OS is available to use “LG
XBOOM” app with this unit.
y It is recommended to use the latest version
of app.
,
Note
About “LG XBOOM” App
“LG XBOOM” app brings a suite of new features to
this unit.
To enjoy more features, you are recommended to
download and install free “LG XBOOM” app.
Below introduces you to a feature of “LG XBOOM”
app.
Multi Juke box: Your entertainment increases three
fold when you connect up to 3 Bluetooth phones
at the same time. Play music from three phones and
create a customized playlist from all phones.
Sampler Creator : Record effects on your
smartphone and very simply sync them via
Bluetooth to the system. Be as creative as you can
be.
Install “LG XBOOM” App onto
Your Bluetooth Device
There are two ways to install “LG XBOOM” app onto
your Bluetooth device.
Install “LG XBOOM” App through QR
code
1. Install “LG XBOOM” app through QR code. Use
the scanning software to scan the QR code.
2. Tap an icon for installation.
y Make sure that your Bluetooth device is
connected to the Internet.
y Make sure that your Bluetooth device
has a scanning software application. If you
don’t have one, download one from “Google
Android Market (Google Play Store)”.
y Depending on the area, QR code may not
work.
y You can nd the available application of this
unit by using “LG Audio” app.
- Android OS: Ver 5.0 (or later)
,
Note
Operating28
Operating
3
Install “LG XBOOM” App through
“Google Android Market (Google Play
Store)”
1. Tap the “Google Android Market (Google Play
Store)” icon.
2. In the search bar, type in the “LG XBOOM” and
search it.
3. In the search result list, find and tap “LG XBOOM”
to start downloading Bluetooth app.
4. Tap an icon for installation.
y Make sure that your Bluetooth device is
connected to the Internet.
y Make sure that your Bluetooth device is
equipped with “Google Android Market
(Google Play Store)”.
,
Note
Activate Bluetooth with “LG
XBOOM” App
“LG XBOOM” app helps to connect your Bluetooth
device to this unit.
Tap “LG XBOOM” app icon on the home screen to
open “LG XBOOM” app, and go to the main menu.
y “LG XBOOM” app will be available in the
software version as follow;
- Android O/S: Ver 5.0 (or later)
y If you use “LG XBOOM” app for operation,
there would be some differences between
“LG XBOOM” app and the supplied remote
control. Use the supplied remote control as
necessary.
y Depending on the Bluetooth device, “LG
XBOOM” app may not work.
y After connection of “LG XBOOM” app, music
may be output from your Bluetooth device. In
this case, try connecting procedure again.
y If you operate the other applications or
change the settings on your Bluetooth
device while using “LG XBOOM” app, “LG
XBOOM” app may operate abnormally.
y When “LG XBOOM” app operates abnormally,
check your Bluetooth device and the
connection of “LG XBOOM” app and then try
to connect again.
y Depending on the smart phone's operating
system, you have some differences for “LG
XBOOM” operation.
y Check Bluetooth setting on your Bluetooth
device if “LG XBOOM” app connection does
not work well.
,
Note
Operating 29
Operating
3
Radio Operations
Be sure that FM antenna is connected. (Page 17)
Listening to the radio
1. Press F until FM appears in the display window.
The last received station is tuned in.
2. Auto tuning:
Press and hold TUNING-/+ on the remote
control or C/V on the unit until the frequency
indication starts to change, then release.
Scanning stops when the unit tunes in a station.
Or
Manual tuning:
Press TUNING-/+ on the remote control or
C/V on the unit repeatedly.
3. Adjust the volume by pressing VOL +/- on the
remote control or rotating MASTER VOLUME
knob on the unit repeatedly.
Improving poor FM reception
Press N. This will change the tuner from stereo to
mono and usually improve the reception.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure to turn down the volume.
1. Press F until FM appears in the display window.
2. Select the desired frequency by pressing
TUNING -/+ on the remote control or C/V
on the unit.
3. Press JUKEBOX/MEMORY on the remote
control. A preset number will blink in the display
window.
4. Press PRESET·FOLDER W/S on the remote
control to select the preset number you want.
5. Press JUKEBOX/MEMORY on the remote
control. The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station,
press PRESET·FOLDER W/S or 0 to 9
numerical buttons on the remote control.
Deleting all the saved stations
1. Press DELETE on the remote control.
“DEL ALL” will flash up on the unit display.
2. Press DELETE on the remote control to erase all
the saved radio stations.
“DELETED ALL” will scroll on the display window.
Operating30
Operating
3
Seeing information about a
Radio station
The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about the
radio station being listened to. Press RDS/SET on
the remote control repeatedly to cycle through the
various data types:
PS
(Programme Service Name)
The name of the channel will appear in
the display.
PTY
(Programme Type Recognition)
The programme type (e.g. Jazz or News)
will appear in the display.
RT
(Radio Text)
A text message contains special
information from the broadcast station.
This text may scroll across the display.
CT
(Time controlled by the channel)
This shows the time as broadcast by the
station.
You can search the radio stations by programme type
by pressing RDS/SET on the remote control. The
display will show the last PTY in use. Press PTY one
or more times to select your preferred programme
type. Press and hold C/V. The tuner will search
automatically. When a station is found the search
will stop.
Operating 31
Operating
3
Sound adjustment
Setting the sound mode
This system has a number of pre-set equalizers. The
displayed items for the equalizer may be different
depending on sound sources and effects.
You can select a desired sound mode by using
EQUALIZER on the remote control.
On Display Description
BASS (BASS BLAST)
or
BASS+ (BASS BLAST+)
Reinforces the bass
and powerful sound.
POP
CLASSIC
ROCK
JAZZ
This program lends
an enthusiastic
atmosphere to the
sound, giving you the
feeling you are at an
actual rock, pop, jazz or
classic concert.
FOOTBALL
You can enjoy the
equalizer FOOTBALL
STADIUM.
STANDARD
You can enjoy
optimized sound.
You can select a desired sound mode by using
SPECIAL EQ on the remote control or SPECIAL EQ /
BASS BLAST (or BASS BLAST+) on the unit.
On Display Region Description
FUNK, REGUETON,
SAMBA,
MERENGUE, AXE,
SALSA, SERTANEJ,
FORRO
Latin
America
Optimized
equalizer
for the
music genre
preferred in
each region.
ARABIC Middle East
DANGDUT Indonesia
AFRO Africa
INDIA India
y On some speakers, sound may not be heard
or heard in low sound depending on the
sound mode.
y By pressing and holding SPECIAL EQ / BASS
BLAST (or BASS BLAST+) on the unit for 3
seconds, you can directly select BASS (BASS
BLAST) or BASS+ (BASS BLAST+) effect.
,
Note
Setting the USER EQ
You can adjust the sound level of Bass, Middle and
Treble as your preference.
1. Press USER EQ on the unit. “USER EQ” is
displayed.
2. Press USER EQ on the unit repeatedly until
desired setting appears in the display window.
3. Rotate DJ SCRATCHER / LEVEL CONTROL &
SEARCH on the unit to adjust the value.
Operating32
Operating
3
Advanced Operations
Recording to USB
You can record a various sound source to USB.
(CD, USB 1, AUX 1, AUX 2, FM)
1. Connect the USB device to the unit.
2. Press F to select a function you want to record.
3. Start the recording by pressing USB REC on the
remote control or USB REC / DEMO on the unit.
Function Status Result
CD, USB 1
Play/Pause Recorded until stop
Resume stop
(Page 35)
Quick recorded the latest
song
Full stop
Quick recorded All songs
In case below, scope is
limited.
- After File search (Page
19), quick recorded an
indexed song.
- Only while the Folder
name is displayed on the
display window, quick
recording All songs on
Folder. (Folder Search
Mode is released when
there is no button input
for a few seconds after
entering the folder search
mode.) (Page 19)
- After JUKE BOX On
(Page 34), quick
recorded All songs of
JUKE BOX.
AUX 1,
AUX 2,
FM
- Recorded until stop
- If you connect both USB 1 and USB 2,
press USB REC on the remote control or
USB REC / DEMO on the unit when USB 1 or
USB2 which you want to record blinks in the
display window.
To stop recording
To stop recording, press USB REC on the remote
control or USB REC / DEMO on the unit.
To select recording bit rate
1. Press and hold USB REC on the remote control
or USB REC / DEMO on the unit for 3 seconds.
2. Press C/V to select a bit rate.
3. Press USB REC on the remote control or
USB REC / DEMO on the unit to finish the
setting.
The making of unauthorized copies of
copy-protected material, including computer
programs, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
Operating 33
Operating
3
y For stable recording, the output sound level
goes down on its own when you record music
from CD to USB.
y You can only change volume level between
MIN and 30 during recording. (Only CD
function)
y When you stop recording, the le that has
been recorded at that time will be stored.
(Except when recording MP3/WMA les that
are in stop status.)
y Do not remove the USB device or turn off
the unit during USB recording. If does not, an
incomplete le may be made and not deleted
on PC.
y If USB recording does not work, the message
like “NO USB”, “ERROR”, “USB FULL”, “NOT
SUPPORT” or “FILE MAX” is displayed on the
display window.
y Multi card reader device or external HDD can
not be used for USB recording.
y A le is recorded by about 512 Mbyte when
you record for a long term.
,
Note
y You can record various sound using DJ
EFFECT, DJ SCRATCHER, DJ PAD or MIC.
(Except when recording USB/CD that are in
stop status.)
y You can control recorded microphone sound
according to microphone volume.
y You may not store more than 2,000 les.
y In case of the unsupported MP3/WMA le,
the le recording may be stopped.
y When you are recording during playback, the
sound now playing is output.
y VOICE CANCELLER or KEY CHANGER
will be reset, if you use recording function
during operating VOICE CANCELLER or KEY
CHANGER.
y VOICE CANCELLER or KEY CHANGER can
not be operated during recording.
y It’ll be stored as follows.
AUDIO CD MP3/WMA
53"$,@
53"$,@
"6%*0@
$%@3&$
$%@3&$
"6%*0@
1MBZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
"#$'JMFOBNF
%&''JMFOBNF
"6%*0@
"6%*0@
'*-&@3&$
'*-&@3&$
1MBZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
53"$,@
53"$,@
"6%*0@
$%@3&$
$%@3&$
"6%*0@
1MB
ZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
"#$'JMFOBNF
%&''JMFOBNF
"6%*0@
"6%*0@
'*-&@3&$'*-&@3&$
1MB
ZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
The other source* Tuner
05)&34@3&$
"6%*0@
"6%*0@
%+@.*9@3&$
.*9@
.*9@
56/&3@3&$
"6%*0@@'.
Play or pause status
Play or pause status
The other statusThe other status
*: AUX and the like.
Tuner: The current recording frequency is shown
,
Note
Operating34
Operating
3
JUKE BOX Playback
JUKE BOX function enables you to make a playlist of
your favorite tracks/les from a disc or USB device.
A playlist of up to 100 tracks/les can be entered.
Making JUKE BOX list
1. Press and hold JUKEBOX/MEMORY on the
remote control to enter the edit mode.
(Playing will be stopped when you press
JUKEBOX/MEMORY on the remote control.)
2. Select a track/file by pressing C/V on the
remote control.
3. Press JUKEBOX/MEMORY on the remote
control to save the track/file.
4. Repeat steps 2 - 3 to store other tracks/files.
(You can modify the list by pressing
PRESET·FOLDER W/S on the remote control to
select the JUKE BOX program number.)
5. Press JUKEBOX/MEMORY on the remote
control once again.
To play the JUKE BOX list, press N on the remote
control after you make the list.
When making or modifying the JUKE BOX list,
REPEAT mode is off.
,
Note
Enjoying JUKE BOX
Press JUKEBOX/MEMORY on the remote control
once. “ON - JUKE BOX” appears on the display
window.
To play JUKE BOX list, press N on the remote
control.
To cancel it, press JUKEBOX/MEMORY on the
remote control once.
“OFF - JUKE BOX” appears on the display window.
Editing JUKE BOX
1. Press and hold JUKEBOX/MEMORY on the
remote control to enter the edit mode.
(Playing will be stopped when you press
JUKEBOX/MEMORY on the remote control.)
2. Press PRESET·FOLDER W/S on the remote
control to select a track/file to edit.
3. Press C/V on the remote control.
4. Press JUKEBOX/MEMORY on the remote
control.
5. Repeat 2 to 4 to store the other tracks/files.
6. Press JUKEBOX/MEMORY on the remote
control once again.
To play the JUKE BOX list, press N on the remote
control after you edit the list.
Deleting JUKE BOX list
Deleting function works in the edit mode.
1. Press and hold JUKEBOX/MEMORY on the
remote control to enter the edit mode.
Or
Press DELETE on the remote control while JUKE
BOX is played to enter the edit mode.
2. Select a song by pressing PRESET·FOLDER
W/S on the remote control repeatedly.
3. Press DELETE on the remote control while a
song is selected.
y If there is no JUKE BOX list, “NO PROG”
appears on the display window when you
press JUKEBOX/MEMORY on the remote
control.
y JUKE BOX is switched off in the case below.
- Changing to a different function.
- Turning off and on the unit.
- Operating the numerical buttons on the
remote control.
- Playing a le by using SEARCH and
DJ SCRATCHER / LEVEL CONTROL &
SEARCH on the unit.
y JUKE BOX list is cleared in the case below.
- Removing the disc or the USB device.
- Deleting or recording music les in the USB
device.
,
Note
Operating 35
Operating
3
Other Operations
Turn off the sound temporarily
Press [ on the remote control to mute your sound.
You can mute your unit, for example, to answer the
telephone, the “MUTE” will appear in the display
window.
To cancel it, press [ on the remote control again or
change the volume level.
CHILDSAFE Mode
This function helps to prevent you from being
surprised when you turn on the unit in case that the
volume of the unit is set at a high level.
To turn on CHILDSAFE mode, press and hold OK on
the unit when the volume of the unit is “MIN”.
In CHILDSAFE mode, the volume increase gradually.
To turn off CHILDSAFE mode, press and hold OK on
the unit when the volume of the unit is “MIN” and
this mode is turned on.
In case of CD, USB or BT (Bluetooth) function,
CHILDSAFE mode does not work after about
2 minutes from power on the unit even if this
mode is enabled.
,
Note
DEMO
In the power off state, press USB REC / DEMO on
the unit once. The unit will power on and display the
each of functions with demo sound in the display
window.
To cancel the DEMO function, press USB REC /
DEMO on the unit once more.
Resume stop
The unit records the point where you pressed Z
depending on the disc or USB.
If you press Z twice, the unit will clear the stopped
point.
Operating36
Operating
3
Using Microphone
1. Connect your microphone to the MIC jack.
2. Play the music you want.
3. Sing along with the accompaniment.
Adjust the microphone volume by pressing MIC
VOL +/- on the unit.
y When not using the microphone, set the MIC
volume to minimum or turn off the MIC and
remove the microphone from the MIC jack.
y If the microphone is set too near the speaker,
a howling sound may be produced.
In this case, move the microphone away from
the speaker or decrease the sound level by
using the MIC VOL - on the unit.
y If sound through the microphone is extremely
loud, it may be distorted.
In this case, pressing MIC VOL - on the unit.
y You can give an echo effect to the sound
from the microphones by pressing MIC
ECHO.
,
Note
VOICE CANCELLER
You can reduce the vocal tones during music
playback from various input sources.
Press VOICE CANCELLER and “ON - VOICE
CANCELLER” will appear in display window.
To cancel it, press VOICE CANCELLER again.
The quality of the VOICE CANCELLER may be
different depending on the recording conditions of
music les.
y This function is available in the CD, USB or BT
(Bluetooth) function.
y If the function is not available, “NOT
SUPPORT” appears in the display window.
y This function is available to use only when a
microphone is connected.
y If a microphone is not connected, “INSERT
MIC” appears in the display window.
y It is not available on the mono source.
y To initialize it, change the function or
disconnect the microphone.
y This function may not be initialized depending
on the status of connected devices.
,
Note
Operating 37
Operating
3
KEY CHANGER
You can adjust the key to 9 steps (4 steps higher, 4
steps lower and the original key).
y To make key more sharp, one by one,
press the KEY CHANGER(L) repeatedly during
playback.
y To make the key more atten, one by one,
press the KEY CHANGER(l) repeatedly during
playback.
y This function is available in the CD, USB or BT
(Bluetooth) function.
y To initialize it, change the function, disconnect
the microphone or change the music.
y This function may not be initialized depending
on the status of connected devices.
y If the function is not available, “NOT
SUPPORT” appears in the display window.
y If a microphone is not connected, “INSERT
MIC” appears in the display window.
,
Note
VOCAL EFFECTS
When you connect your microphone to the MIC jack,
you can enjoy karaoke function by changing voice in
the various source.
To select various vocal effects mode, pressing VOCAL
EFFECTS repeatedly or pressing VOCAL EFFECTS
and then turning MASTER VOLUME on the unit
when vocal effects mode appears in the display
window.
BASS
SOPRANO HELIUM ROBOT
DUET MAN DUET WOMAN BASS ECHO1
SOPRANO ECHO1 HELIUM ECHO1
ROBOT ECHO1 DUET MAN1 DUET
WOMAN1 BASS ECHO2 SOPRANO
ECHO2 HELIUM ECHO2 ROBOT ECHO2
DUET MAN2 DUET WOMAN2 OFF
y If a microphone is not connected, “INSERT
MIC” appears in the display window.
y If you press KEY CHANGER or MIC ECHO
on VOCAL EFFECTS mode, after backing up
current VOCAL EFFECTS, turn off VOCAL
EFFECTS mode and operate KEY CHANGER
or ECHO mode.
y To turn off VOCAL EFFECTS mode, press and
hold VOCAL EFFECTS.
,
Note
Operating38
Operating
3
ECHO
When you connect your microphone to the MIC jack,
you can give an echo effect to the sound from the
microphones by pressing MIC ECHO.
ECHO 1
ECHO 2 OFF
y If a microphone is not connected, “INSERT
MIC” appears in the display window.
y If you press VOCAL EFFECTS on ECHO
mode, after backing up current ECHO,
turn off ECHO mode and operate VOCAL
EFFECTS mode.
To operate ECHO mode, press MIC ECHO
again, after backing up current VOCAL
EFFECTS.
,
Note
LIGHTING
This function offers a party atmosphere by operating
the lighting on the unit.
Press LIGHTING on the unit repeatedly or press
LIGHTING on the unit and then turn MASTER
VOLUME on the unit.
PARTY
WATER FOREST (MY STYLE)
OFF
y Lighting function is available in all functions.
y Lighting mode retains in its previous mode
when you first press LIGHTING on the unit,
press again to change modes.
y If you want to use MY STYLE, you have to
register a source with “LG XBOOM” app.
y Do not look directly at the light emitting part
when the LIGHTING is turned on.
y If the illumination brightness is glaring, switch
on the room lights or turn off the LIGHTING
of the unit.
y You can also turn off the light by pressing
and holding LIGHTING on the unit.
,
Note
Operating 39
Operating
3
Sleep Timer Setting
Press SLEEP on the remote control repeatedly to
select delay time between 10 and 180 minutes.
After the delay time, the unit will be turned off.
To cancel the sleep function, press SLEEP on the
remote control repeatedly until “OFF” appears.
y You can check the remaining time before the
unit is turned off. Press SLEEP on the remote
control to check or change the remaining
time.
y You can edit the remain time when the
remaining time or “DIMMER” is displayed.
,
Note
Dimmer
Press SLEEP on the remote control once.
The display window will be darkened by half.
To cancel it, press SLEEP on the remote control
repeatedly until “OFF” appears.
All the lighting turns off when dimmer is being
operated.
,
Note
Auto power down
This unit will turn itself off to save electricity in the
case were the main unit is not connected to an
external device and is not used for 15 minutes.
The unit will also turns itself off after six hours if
the main unit has been connected to another device
using the analog inputs.
Auto power down function is applied to only MAIN
unit in case of WIRELESS PARTY LINK connection.
In case of OTHER unit, Auto power down is available
after disconnection OTHER unit and MAIN unit.
How to disconnect the wireless
network connection or the wireless
device.
Turn off the unit by pressing the power button for
more than 5 seconds.
Operating40
Operating
3
AUTO POWER On
This unit automatically turns on by an input source:
Bluetooth or LG TV.
When you turn on your TV connected to this unit,
this unit recognizes the input signal and selects the
suitable function. You can hear the sound from the
unit.
If you try to connect your Bluetooth device, this unit
turns on and connects your Bluetooth device.
You can play your music.
When you turn off this unit by pressing 1 on the
unit for 5 seconds each time, you can turn on or off
the AUTO POWER function.
On Display Description
ON - AUTO POWER
AUTO POWER function is
turned on.
OFF - AUTO POWER
AUTO POWER function is
turned off.
y Depending on the connected device, this
function may not operate.
y Depending on the connected device, the unit
turns on but BT(Bluetooth) function may not
be connected.
y If you disconnect Bluetooth connection by
this unit, some Bluetooth devices try to
connect to the unit continually. Therefore it is
recommended to disconnect the connection
before turning off the unit.
y If you try to connect to the “LG XBOOM”
app, BT(Bluetooth) function of this unit is
turned on.
y If you turn on the unit using LG TV or
BT(Bluetooth) function, proper function of
this unit is turned on.
y If you have already paired with this unit, this
unit can automatically turn on by an input
source when this unit is turned off.
,
Note
Auto function change
This unit recognizes input signals such as
BT (Bluetooth), LG TV and AUX 1 and then
automatically changes to the suitable function.
When you try to connect Bluetooth
device
When you try to connect your Bluetooth device to
this unit, BT(Bluetooth) function is selected.
Play your music on the Bluetooth device.
When AUX IN 1 (3.5 mm stereo cable)
is connected
When you connect the portable device to the
AUX IN 1 connector, AUX 1 function is selected.
Play your music on the portable device.
When LG TV is connected
When you turn on your LG TV connected by LG
Sound Sync, this unit changes the function to LG TV.
You can hear the sound from your TV.
y This function is not available during recording
or deleting.
y This function only works with devices that
were previously connected.
y If the Bluetooth connection lock function is
set, Bluetooth and LG TV connection will be
only available on BT(Bluetooth) and LG TV
function. (Page 26)
,
Note
Operating 41
Operating
3
Setting the Clock
1. Turn the unit on.
2. Press and hold CLOCK on the remote control.
3. Select time mode by pressing C/V on the
remote control.
- AM 12:00 (for an AM and PM display) or 0:00
(for a 24 hour display)
4. Press RDS/SET on the remote control to confirm
your selection.
5. Select the hours by pressing C/V on the
remote control.
6. Press RDS/SET on the remote control.
7. Select the minutes by pressing C/V on the
remote control.
8. Press RDS/SET on the remote control.
Setting the Clock through “LG
XBOOM” App
Install “LG XBOOM” app on your Android device.
(Page 27-28)
Your unit’s clock will be automatically synchronized
with your device by activating Bluetooth connection
through “LG XBOOM” app.
Using your player as an alarm
clock
1. Turn the unit on.
2. Press and hold ALARM on the remote control.
3. Press C/V on the remote control to change
the hours and minutes and press RDS/SET on
the remote control to save.
4. Press C/V on the remote control to select
function and press RDS/SET on the remote
control to save.
- Press C/V on the remote control to select a
preset number when you select tuner and then,
press RDS/SET on the remote control.
If there is no preset number, this step is skipped.
5. Press C/V on the remote control to change
the volume and press RDS/SET on the remote
control to save.
y If you set the clock time, you can check the
time by pressing CLOCK on the remote
control even when the player is turned off.
y You can set alarm after you set the clock
time.
y If you set the clock time and alarm, you
can check the alarm setting information by
pressing ALARM on the remote control even
when the unit is turned off.
y You can select ALARM ON/OFF mode by
pressing ALARM on the remote control.
,
Note
Operating42
Operating
3
LG Sound Sync
You can control some functions of this unit by
your TV’s remote control with LG Sound Sync. It is
compatible with LG TV that supports LG Sound Sync.
Make sure your TV has the LG Sound Sync logo.
Controllable function by LG TV’s remote control:
Volume up/down, mute.
Refer to the TV’s instruction manual for the details of
LG Sound Sync.
1. Turn on the unit by pressing 1.
2. Press F
until LG TV function is selected.
3. Set up the sound output of TV to listen to the
sound through this unit:
TV setting menu [Sound]
[TV Sound output]
[LG Sound Sync (Wireless)]
“PAIRED” appears on the display window for
about 3 seconds and then you can see “LG TV”
on the display window if the TV and this unit are
connected normally.
y You can also use the remote control of
this unit while using LG Sound Sync. If you
use TV’s remote control again, the unit
synchronizes with the TV.
(According to TV Specications, the volume
and mute of this unit synchronize with TV.)
y If the connection fails, check the conditions of
this unit and your TV: power, function.
y Make sure of the condition of this unit and
the connection in the cases below when
using LG Sound Sync.
- The unit is turned off.
- Changing to a different function.
- Disconnecting the wireless connection
caused by interference or a distance.
y The amount of time to turn off this unit is
different depending on your TV.
y If you try to change the function on using
the LG TV function, volume will be changed
according to the LG TV volume level.
y Details of TV setting menu vary depending on
models of your TV.
y If you turned off the unit directly by pressing
1, LG Sound Sync will be disconnected.
To use this function again, you should
reconnect the TV and the unit.
y The volume may be increased when the TV
and this unit is connected by LG Sound Sync.
Decrease the TV volume and then connect
with this unit.
y When you turn on your LG TV connected
by LG Sound Sync or enter LG TV function,
this unit changes the function to LG TV
automatically.
y You should set the TV Sound output manually
depending on the TV version.
y If you control TV volume when this unit and
TV are connected by LG Sound Sync, this unit
may louder the volume due to synchronizing
volume with TV’s.
,
Note
Operating 43
Operating
3

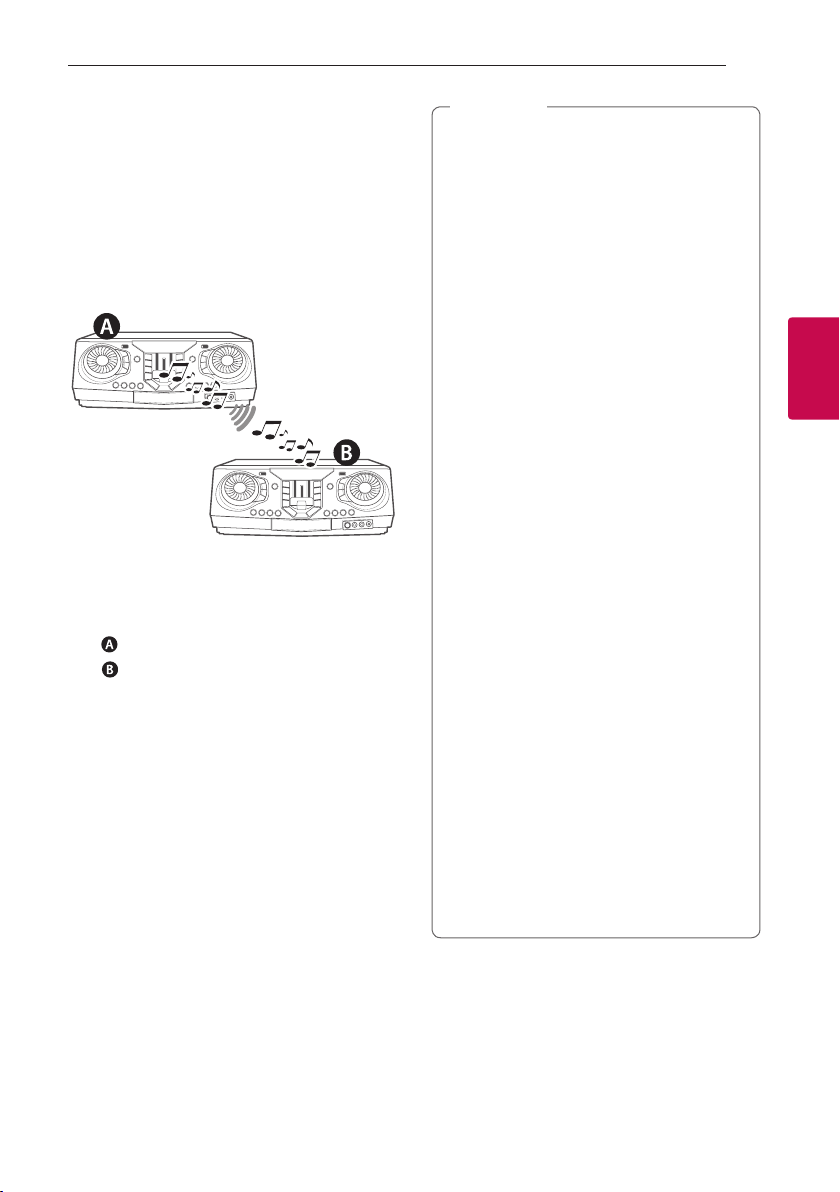

WIRELESS PARTY LINK
Connection
You can enjoy the sound by using two speakers.
For enjoying WIRELESS PARTY LINK, you need to
purchase another speaker.
It is compatible with unit that supports WIRELESS
PARTY LINK.
1. Press 3 TWIN on the unit.
ROLE SELECT appears in the display window.
2. Press
3 TWIN on the unit to select MAIN or
OTHER.
-
unit: Selects MAIN.
-
unit: Selects OTHER.
Two units try to connect with each other.
3. When these units are successfully connected
to each other, each of connected device names
appears in the each unit.
y If you are using the LG Sound Sync, this
function is not available. If you connect the LG
TV function, “NOT SUPPORT” appears in the
display window.
y You can use microphone in the OTHER unit
only. In case of OTHER unit, some functions
are supported only.
y When WIRELESS PARTY LINK is
disconnected, OTHER unit is changed to BT
(Bluetooth) function.
y If the connection is failed, “FAILED” appears in
the display window.
y Mute function is synchronized with each
other.
y WIRELESS PARTY LINK connection will be
disconnected when you turn off the unit or
press
3 TWIN on the unit.
y Sound of MAIN unit and OTHER unit may be
different depending on playback status or
source.
y Check the following information when
connecting to Bluetooth.
- You can connect only one Bluetooth device
in the MAIN unit. You cannot connect
Bluetooth device to the OTHER unit.
- WIRELESS PARTY LINK connection is only
supported on Android devices. (WIRELESS
PARTY LINK connection may not be
supported depending on the connected
device specications or OS.)
- Removable/detachable Bluetooth devices
(ex. Dongle etc.) will not support WIRELESS
PARTY LINK connection.
- When WIRELESS PARTY LINK is connected,
Bluetooth connection is not available in
status of recording or deleting.
- If you connect WIRELESS PARTY LINK
while you are playing connected Bluetooth
device, it may be reconnected again,
depending on phone specication.
,
Note
4 Troubleshooting
Troubleshooting44
Troubleshooting
4
Troubleshooting
General
Problem Cause & Solution
The unit does not work
properly
y Turn off the power of this unit and the connected external device (TV, Woofer,
DVD-player, Amplier, etc.) and turn them on again.
y Disconnect the power cord of this unit and the connected external device (TV,
Woofer, DVD-player, Amplier, etc.) and then try connecting again.
y Previous setting may not be saved when device power is shut off.
No Power
y The power cord is not plugged in. Plug in the power cord.
y Check whether electricity failed.
Check the condition by operating other electronic devices using the same AC
outlet.
No sound
y Check whether you select right function.
Press function button and check if you have selected the right function.
y Check to see if the speakers are connected correctly.
Speaker cables connected correctly.
The unit does not start
playback
y An unplayable disc is inserted. Check the playable disc.
y No disc is inserted. Insert a disc.
y The disc is dirty. Clean the disc. (Page 48)
y The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
Radio stations cannot be
tuned in properly
y The antenna is positioned or connected poorly.
Connect the antenna securely.
y The signal strength of the radio station is too weak.
Tune to the station manually.
y No stations have been preset or preset stations have been cleared (when tuning
by scanning preset channels).
Preset some radio stations, see page 29 for details.
Troubleshooting 45
Troubleshooting
4
Problem Cause & Solution
The remote control does
not work properly
y The remote control is too far from the unit.
Operate the remote control within about 7 m.
y There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
y The batteries in the remote control are exhausted.
Replace the batteries with new ones.
No speaker light
y Check whether the speaker light cables are connected to the unit correctly.
Connect the speaker light cables to the unit correctly.
y Check the speaker light effects by pressing LIGHTING on the unit. (Page 38)
LG Sound Sync does not
work
y Check whether your LG TV supports LG Sound Sync.
y Check connection of LG Sound Sync.
y Check sound setting of your TV and this unit.
The AUTO POWER
function does not work
y Check connection of the external device such as TV or Bluetooth device.
y Depending on the connected device, this function may not operate.
NOTES to release Demo mode
Problem Cause & Solution
Can not change input source with ‘F’ key such as
BT(Bluetooth), USB etc. and only DEMO mode is
showing in the display.
y Press ‘DEMO’ Key on the unit for 15 seconds.
Remote Control does not work properly.
5 Appendix
Appendix46
Appendix
5
General specifications
General
Power requirements Refer to the main label on the unit.
Power consumption
Refer to the main label on the unit.
Networked standby : 0.5 W
(If all network ports are activated.)
Dimensions (W x H x D) Approx. 450.0 mm x 167.0 mm x 332.0 mm
Operating temperature 5 °C to 35 °C
Operating humidity 5 % to 60 % RH
Inputs
Analog audio in (AUX IN 2) 3.5 Vrms, RCA jack (L, R)
Portable in (AUX IN 1) 1.8 Vrms (3.5 mm stereo jack)
Microphone (MIC 1/2) Sensitivity 20 mV, 6.3 mm jack x 2
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
System
Frequency Response 80 to 20,000 Hz
Signal-to-noise ratio More than 75 dB
Dynamic range More than 80 dB
Bus Power Supply (USB)
5 V 0 500 mA
Amplier (RMS Output power)
Total output 2,900 W RMS
HIGH 585 W RMS X 2 (6 Ω at 5 kHz, 30 % THD)
MID 590 W RMS X 2 (6 Ω at 1 kHz, 30 % THD)
LOW 550 W RMS X 1 (6 Ω at 70 Hz, 30 % THD)
y Design and specications are subject to change without notice.
Appendix 47
Appendix
5
Speakers specifications
Front speaker
Type
HIGH : 1 Way 1 Speaker
MID : 1 Way 1 Speaker
Impedance
HIGH : 6 Ω
MID : 6 Ω
Rated Input Power
HIGH : 585 W RMS
MID : 590 W RMS
Max. Input power
HIGH : 1,170 W RMS
MID : 1,180 W RMS
Dimensions (W x H x D) Approx. 320.0 mm x 454.0 mm x 309.0 mm
Subwoofer
Type 1 Way 1 Speaker
Impedance 6 Ω
Rated Input Power 550 W RMS
Max. Input power 1,100 W RMS
Dimensions (W x H x D) Approx. 337.0 mm x 454.0 mm x 312.0 mm
y Design and specications are subject to change without notice.
Trademarks and Licenses
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use
of such marks by LG Electronics is under license.
Other trademarks and trade names are those of their respective owners.
Appendix48
Appendix
5
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for old vinyl records.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally
packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit. Wiping with strong pressure may
damage the surface. Do not leave rubber or plastic
products in contact with the unit for a long period
of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not use
strong solvents such as alcohol, benzine, or thinner,
as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device.
If the optical pick-up lens and disc drive parts are
dirty or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
