Samsung DV80N62542W/EU Heat Pump Tumble Dryer A+++ 8kg

User Manual - Transcript

• Page 1: Heat Pump Dryer User manual DV9N82DV9N62DV8N62 Untitled33 1 7302019 65547 PM
• Page 2 - English - : English2 Contents Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 Important safety precautions 5 Critical installation warnings 7 Critical usage warnings 9 Usage cautions 10 Critical cleaning warnings 12 Instructions about the WEEE 13 Installation 14 Whats included 14 Installation requirements 16 Levelling 18 Drain hose if necessary 19 Installation checklist 22 Before using the dryer 22 Door reversal DV9N62DV8N62 only 23 Operations 28 Control panel 28 Getting started 35 Special features 39 SmartThings 40 Maintenance 44 Control panel 44 Exterior 44 Drum 44 Lint lter 44 Water tank 46 Heat exchanger 47 Untitled33 2 7302019 65547 PM
• Page 3 - English - : English 3 Contents Troubleshooting 49 Checkpoints 49 Information codes 51 Appendix 52 Fabric care chart 52 Protecting the environment 53 Specication 54 Consumption data 55 Sheet of household tumble driers 56 Untitled33 3 7302019 65547 PM
• Page 4 - English - : English4 Safety information Congratulations on your new Samsung dryer This manual contains important information on the installation use and care of your appliance Please take the time to read this manual to take full advantage of your dryers many benets and features What you need to know about the safety instructions Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining or operating your dryer Always contact your manufacturer about problems or conditions you do not understand Important safety symbols What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury death andor property damage CAUTION Hazards or unsafe practices that may result in personal injury andor property damage NOTE Indicates that a risk of personal injury or material damage exists Read the instructions These warning signs are here to prevent injury to yourself and others Please follow them explicitly After reading this manual store it in a safe place for future reference Read all instructions before using the appliance As with any equipment that uses electricity and moving parts potential hazards exist To safely operate this appliance familiarize yourself with its operation and exercise care when using it WARNING Risk of Fire Clothes dryer installation must be performed by a qualied technician Install the clothes dryer according to the manufacturers instructions and local codes To reduce the risk of severe injury or death follow all installation instructions Safety information Untitled33 4 7302019 65548 PM
• Page 5 - English - : English 5 Safety information Important safety precautions WARNING To reduce the risk of re electric shock or injury to persons when using your appliance follow basic precautions including the following 1 This appliance is not to be used by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety 2 For use in Europe This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision 3 Children should be supervised to ensure that they do not play with the appliance 4 If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualied persons in order to avoid a hazard 5 The new hosesets supplied with the appliance are to be used and that old hosesets should not be reused 6 For appliances with ventilation openings in the base that a carpet must not obstruct the openings Untitled33 5 7302019 65548 PM
• Page 6 - English - : Safety information English6 Safety information 7 For use in Europe Children of less than 3 years should be kept away unless continuously supervised 8 CAUTION In order to avoid a hazard due to inadvertent resetting of the thermal cutout this appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility 9 The tumble dryer is not to be used if industrial chemicals have been used for cleaning 10 The lint trap has to be cleaned frequently if applicable 11 Lint must not to be allowed to accumulate around the tumble dryer not applicable for appliances intended to be vented to the exterior of the building 12 Adequate ventilation has to be provided to avoid the back ow of gases into the room from appliances burning other fuels including open res 13 Do not dry unwashed items in the tumble dryer 14 Items that have been soiled with substances such as cooking oil acetone alcohol petrol kerosene spot removers turpentine waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer 15 Items such as foam rubber latex foam shower caps waterproof textiles rubber backed articles and clothes or pillows tted with foam rubber pads should not be dried in the tumble dryer 16 Fabric softeners or similar products should be used as specied by the fabric softener instructions Untitled33 6 7302019 65548 PM
• Page 7 - English - : English 7 Safety information 17 The nal part of a tumble dryer cycle occurs without heat cool down cycle to ensure that the items are left at a temperature that ensures that the items will not be damaged 18 Remove all objects from pockets such as lighters and matches 19 WARNING Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated 20 Exhaust air must not be discharged into a ue which is used for exhausting fumes from appliances burning gas or other fuels 21 The appliance must not be installed behind a lockable door a sliding door or a door with a hinge on the opposite side to that of the tumble dryer in such a way that a full opening of the tumble dryer door is restricted 22 WARNING The appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by a utility Heat pump model only The instructions shall also include the substance of the following WARNING In the appliance enclosure or in the builtin structure keep ventilation openings clear of obstruction WARNING Do not damage the refrigerant circuit Critical installation warnings WARNING The installation of this appliance must be performed by a qualied technician or service company Failure to do so may result in electric shock re an explosion problems with the product or injury Untitled33 7 7302019 65548 PM
• Page 8 - English - : Safety information English8 Safety information Plug the power cord into a wall socket and use the socket for this appliance only In addition do not use an extension cord Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or re Ensure that the power voltage frequency and current are the same as those of the product specications Failure to do so may result in electric shock or re Failure Plug the power plug into the wall socket rmly Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis Unplug the power plug and clean it with a dry cloth Failure to do so may result in electric shock or re Keep all packaging materials well out of the reach of children as packaging materials can be dangerous to children If a child places a bag over its head it may result in suffocation This appliance must be properly grounded Do not ground the appliance to a gas pipe plastic water pipe or telephone line This may result in electric shock re an explosion or problems with the product Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes Do not install or keep the product exposed to the outdoor elements Do not use a damaged power plug damaged power cord or loose wall socket This may result in electric shock or re If the plug power supply cord is damaged it must be replaced by the manufacturer or its service agent or a similar qualied technician in order to avoid a hazard This appliance should be positioned to be accessible to the power plug after installation Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance This may result in electric shock or re Do not pull the power cord when unplugging the power plug Unplug the power plug by holding the plug Failure to do so may result in electric shock or re Untitled33 8 7302019 65548 PM
• Page 9 - English - : English 9 Safety information This appliance must be properly grounded Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes See installation instructions for grounding this appliance Install this appliance in a location with solid level oor Failing to do so may result in abnormal vibrations noise or problems with the product Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew may appear on the outer surface of the appliance when the cooling operation is running do not install the appliance in a beauty salon This appliance should be positioned so that the power plug the water supply taps and the drain pipes are accessible Critical usage warnings WARNING Do not let children or pets on or into the product In addition when disposing of this product disassemble the door lock lever This may result in children falling and injuring themselves If children become locked in the product there is a danger of suffocation Do not try to access the inside of the product when the drum is rotating Do not sit on the product or lean against the door This may result in the product turning over and resulting in injury Dry the laundry only after it was spun by an appropriate washing machine Do not dry unwashed items in the tumble dryer Do not drink the condensed water Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated Do not dry laundry contaminated by inammable materials such as gasoline kerosene benzene thinner alcohol etc This may result in electric shock re or explosion Do not let pets chew or play with the dryer This may result in electric shock or injury When disposing of the product separate the door and the power cord before disposing of the product Failing to do so may result in damage to the power code or an injury Do not touch the power plug with wet hands This may result in electric shock Untitled33 9 7302019 65548 PM
• Page 10 - English - : Safety information English10 Safety information When gas city gas propane gas LP gas leaks do not touch this appliance or the power cord ventilate immediately At this time do not use the ventilating fan A spark may cause an explosion or re Do not repair replace or attempt to service any part of the appliance unless specically recommended in the userrepair instructions You must also have the skills necessary to service this appliance Do not attempt to repair disassemble or modify the appliance yourself Do not use any fusesuch as cooper steel wire etc other than the standard fuse When repairing or reinstalling the appliance is required contact your nearest service center Failure to do so may result in electric shock re problems with the product or injury The product you have purchased is designed for domestic use only The use for business purposes qualies as product misuse In this case the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse If the product generates strange noise smells of something burning or generates smoke immediately cutoff the power and contact the service center Otherwise it may cause an electric shock or re as a result Do not let children or pets play in or on your product The product door does not open easily from the inside and children may be seriously injured if trapped inside Usage cautions CAUTION Do not stand on top of the appliance or place objects such as laundry lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance This may result in electric shock re problems with the product or injury Do not touch the glass door and inside of the drum during or just after drying as it is hot This may result in burns The door glass becomes hot during washing and drying Therefore do not touch the door glass Also do not allow children to play around the washing machine or touch the door glass This may result in burns Do not press the buttons using sharp objects such as pins knifes ngernails etc This may result in electric shock or injury Untitled33 10 7302019 65548 PM
• Page 11 - English - : English 11 Safety information Do not dry laundry containing forming rubber latex or similar rubber textures If forming rubber is heated it may start a re Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be removed when washing the laundry In addition use the Cool Down cycle so that the laundry is not heated The oxidization heat of the oil may start a re Make sure that the pockets of all clothing to be dried are empty Hard sharp objects such as coins safety pins nails screws or stones can cause extensive damage to the appliance Do not dry clothing with large buckles buttons or other heavy metal zippers hooks and eyelets buttonup covers If necessary use the laundry net for small and lightweight laundry such as fabric tie belt apron strings and underwire bras which can dissolve or break during a cycle Dryer sheets are compatible with this model and are recommended for better drying performance Dryer sheets are also benecial in reducing the static electricity generated during a drying cycle Static electricity could lead to damage of laundry items and potentially the appliance Do not use the dryer near dangerous powders such as coal dust wheat our etc This may result in electric shock re or an explosion Do not place inammable materials near the product This may result in toxic gases from the product damage to parts electric shock re or an explosion The appliance should not be placed behind lockable doors etc Do not touch the rear side of the appliance during or immediately after drying is complete The appliance remains hot and may cause burns Contains uorinated greenhouse gases Hermetically sealed equipment Do not vent gases into the atmosphere Refrigerant Type R134a GWP 1430 Refrigerant Charging 037 kg 0529 tCO 2e Untitled33 11 7302019 65549 PM
• Page 12 - English - : Safety information English12 Safety information Critical cleaning warnings WARNING Do not clean the appliance by spraying water directly onto it Do not use benzene thinner or alcohol to clean the appliance This may result in discoloration deformation damage electric shock or re Before cleaning or performing maintenance unplug the appliance from the wall socket Failure to do so may result in electric shock or re Clean the lter case before and after using the dryer Clean the inside of the product on a regular basis by asking an authorized service engineer Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month Do not touch the heat exchanger with your hand Otherwise it may cause an injury The interior of the dryer should be cleaned periodically by qualied service personnel Untitled33 12 7302019 65549 PM
• Page 13 - English - : English 13 Safety information Instructions about the WEEE Correct Disposal of This Product Waste Electrical amp Electronic Equipment Applicable in countries with separate collection systems This marking on the product accessories or literature indicates that the product and its electronic accessories eg charger headset USB cable should not be disposed of with other household waste at the end of their working life To prevent possible harm to the environment or human health from uncontrolled waste disposal please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources Household users should contact either the retailer where they purchased this product or their local government ofce for details of where and how they can take these items for environmentally safe recycling Business users should contact their supplier and check the terms and conditions of the purchase contract This product and its electronic accessories should not be mixed with other commercial wastes for disposal For information on Samsungs environmental commitments and product regulatory obligations eg REACH WEEE or Batteries visit our sustainability page available via wwwsamsungcom Untitled33 13 7302019 65549 PM

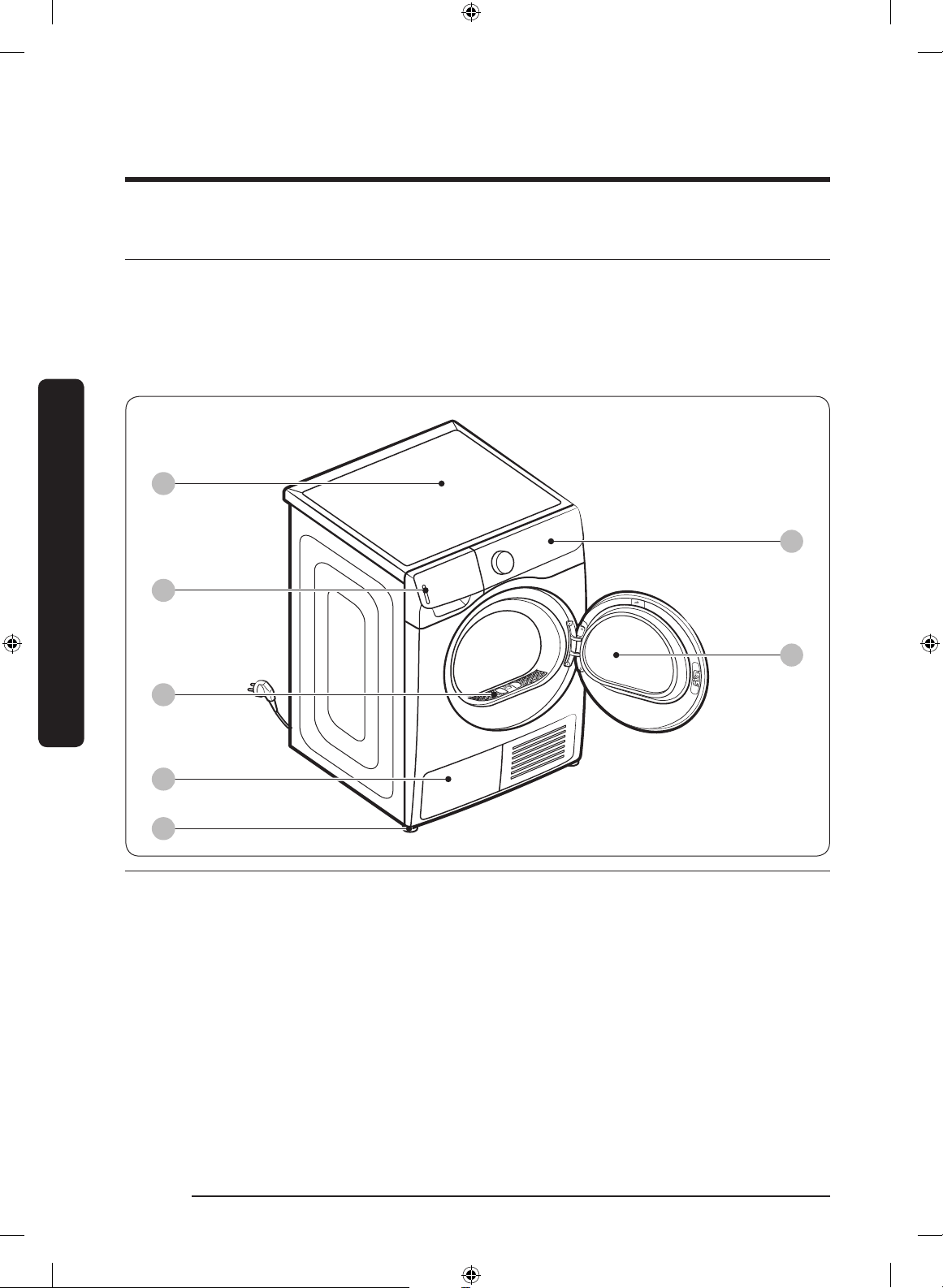

• Page 14 - English - : English14 Installation Whats included Carefully unpack the dryer Keep all packaging materials away from children The parts and location of parts shown below may differ from your dryer Before installation make sure the dryer has all the parts listed here If the dryer andor parts are damaged or missing contact the nearest Samsung customer service centre Dryer at a glance 01 Top cover 02 Water Tank 03 Lint lter 04 Heat exchanger 05 Levelling Leg 06 Door 07 Control Panel Installation Untitled33 14 7302019 65549 PM
• Page 15 - English - : English 15 Installation Accessories supplied Hose guide Cable tie Hose connector Long drain hose 2m User manual Rack Dry applicable models only Cleaning brush Accessories not supplied BracketStacking kit SKDH SKDA SKKDF Stacking kit SKKDD SKKDDX NOTE The stacking kit allows the dryer to be stacked on top of a washer Please note that the stacking kit can only be used with Samsung washers and dryers To purchase a bracket stacking kit SKDH SKDA SKKDF or stacking kit SKKDD SKKDDX contact a Samsung service centre or local appliance retailer The stacking kit differs with the washer model For stacking instructions with the dryer see the installation manual included in the stacking kit For information about modelspecic availability of the stacking kit see the installation manual included in the stacking kit Untitled33 15 7302019 65552 PM
• Page 16 - English - : Installation English16 Installation Installation requirements NOTE This dryer must be installed by a qualied installer If service is required due to poor or faulty installation it is considered the owners responsibility and may void the warranty Keep these instructions for future reference WARNING Do not plug the power cord into a wall outlet before the dryer is completely installed Have two or more persons help move the dryer Do not let children or pets play in on or around the dryer Proper supervision is necessary at all times Keep all packaging materials away from children Do not replace a damaged power cord or power plug yourself Have Samsung or a qualied service technician replace a damaged power cord or power plug Do not attempt to repair disassemble or modify the dryer For any repairs contact the nearest Samsung service centre Remove the doorlids from all discarded appliances to avoid children from suffocating If the dryer generates a strange noise burning smells or smoke unplug the power plug immediately and contact the nearest Samsung service centre Do not unplug the dryer while it is operating Do not place ammable objects near the dryer Untitled33 16 7302019 65552 PM
• Page 17 - English - : English 17 Installation Location requirements Select a level wellconstructed surface that will withstand vibrations Select a location where a grounded 3prong outlet is easily accessible WARNING Install the dryer indoors only Do not install the dryer in areas exposed to the weather Do not install the dryer where the temperature may fall below 5 C or rise above 35 C Do not install the dryer where gas may leak Do not block the cooling grills air inlet located at the dryer front Alcove or closet installation For alcove or closet installation the dryer requires the following minimum clearances Sides Top Front Rear 25 mm 25 mm DV8 550 mm DV6 490 mm 50 mm If installing the dryer with a washer the front of the alcove or closet must have an unobstructed air opening of at least 490 mm Electrical and grounding requirements The dryer requires an AC 220240 V 50 Hz electrical supply The dryer must be properly grounded If the dryer malfunctions or breaks down grounding reduces the risk of electric shock by providing a path of least resistance for the electric current The dryer comes with a power cord that has a 3prong grounding plug The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances If you have any questions regarding the electrical or grounding requirements please contact Samsung or a qualied electrician WARNING Plug into a grounded 3prong outlet Do not use a damaged power plug cord or loose or damaged wall outlet Do not use an adaptor or an extension cord Improper connection of the equipmentgrounding conductor may result in electric shock If you are unsure if the dryer is properly grounded check with a qualied electrician Do not modify the power plug power cord or power outlet in any way Do not connect the ground wire to plastic plumbing lines gas lines or hot water pipes Untitled33 17 7302019 65552 PM
• Page 18 - English - : Installation English18 Installation Levelling Before you install the dryer make sure you have read Installation requirements on page 16 Please note that the following instructions are for installation without using a drain hose For instructions for using a drain hose see the next section Drain hose if necessary For convenience consider installing the dryer next to your washer A B 1 Gently put the dryer on the desired location 2 Use a level A and check the levelness of the dryer from side to side and front to back 3 If the dryer is not level adjust the levelling leg B Turning the leg counterclockwise retracts the leg Turning the leg clockwise extends the leg 4 Once the dryer is level make sure the dryer stands rmly on the oor 5 Plug in the dryer C D NOTE The dryer can be levelled using either or both of the front and rear legs of the dryer To set the dryer to the same height as the washer fully retract C the levelling legs by turning them counter clockwise then loosen D the legs by turning them clockwise Extend the levelling leg only as much as necessary Extending the levelling leg more than necessary can cause the dryer to vibrate Untitled33 18 7302019 65553 PM
• Page 19 - English - : English 19 Installation Drain hose if necessary The dryer comes with a builtin water tank However if you do not want to use the water tank you may install the drain hose The provided accessory hose long drain hose can be used as an extension to the drain hose B A 1 Remove the drain hose from hole A and insert it into hole B Untitled33 19 7302019 65554 PM

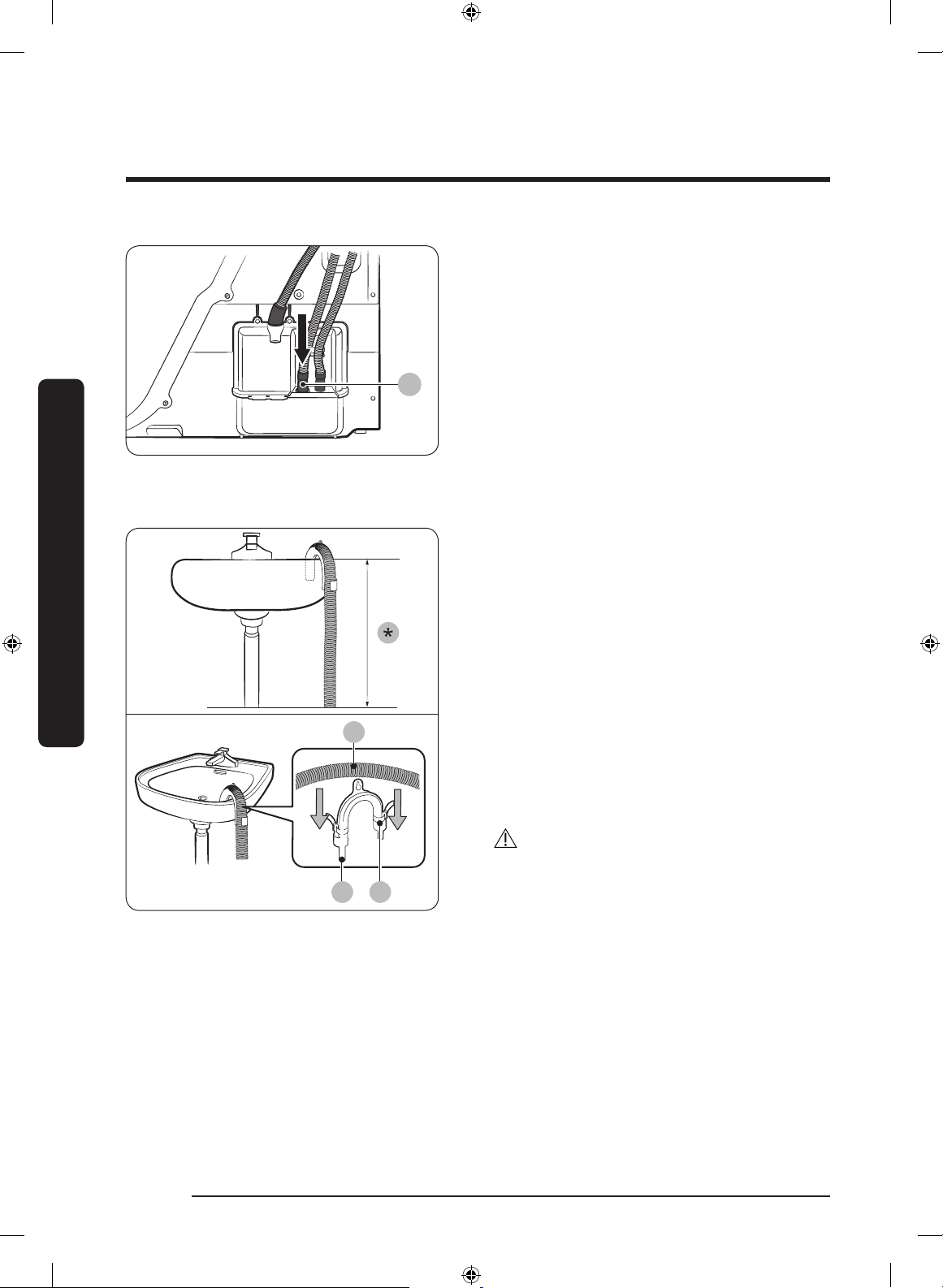

• Page 20 - English - : Installation English20 Installation A 2 Insert one end of the accessory hose long drain hose into hole A 3 Insert the other end outlet of the accessory hose to the drainage system in one of the following ways Over a wash basin A CB 1 Make sure to place the end of the accessory hose lower than 90 cm from the bottom of dryer 2 To bend some point of the accessory hose use the supplied plastic hose guide B and secure the guide to the wall with a hook or to the tap with a piece of string Assemble the drain hose A and the hose guide B and x them with the cabletie C 3 You can drain the condensed water by connecting the accessory hose long drain hose to the drainoutlet directly CAUTION Do not extend the drain hose Water may leak from the connected area Use a long drain hose Untitled33 20 7302019 65555 PM

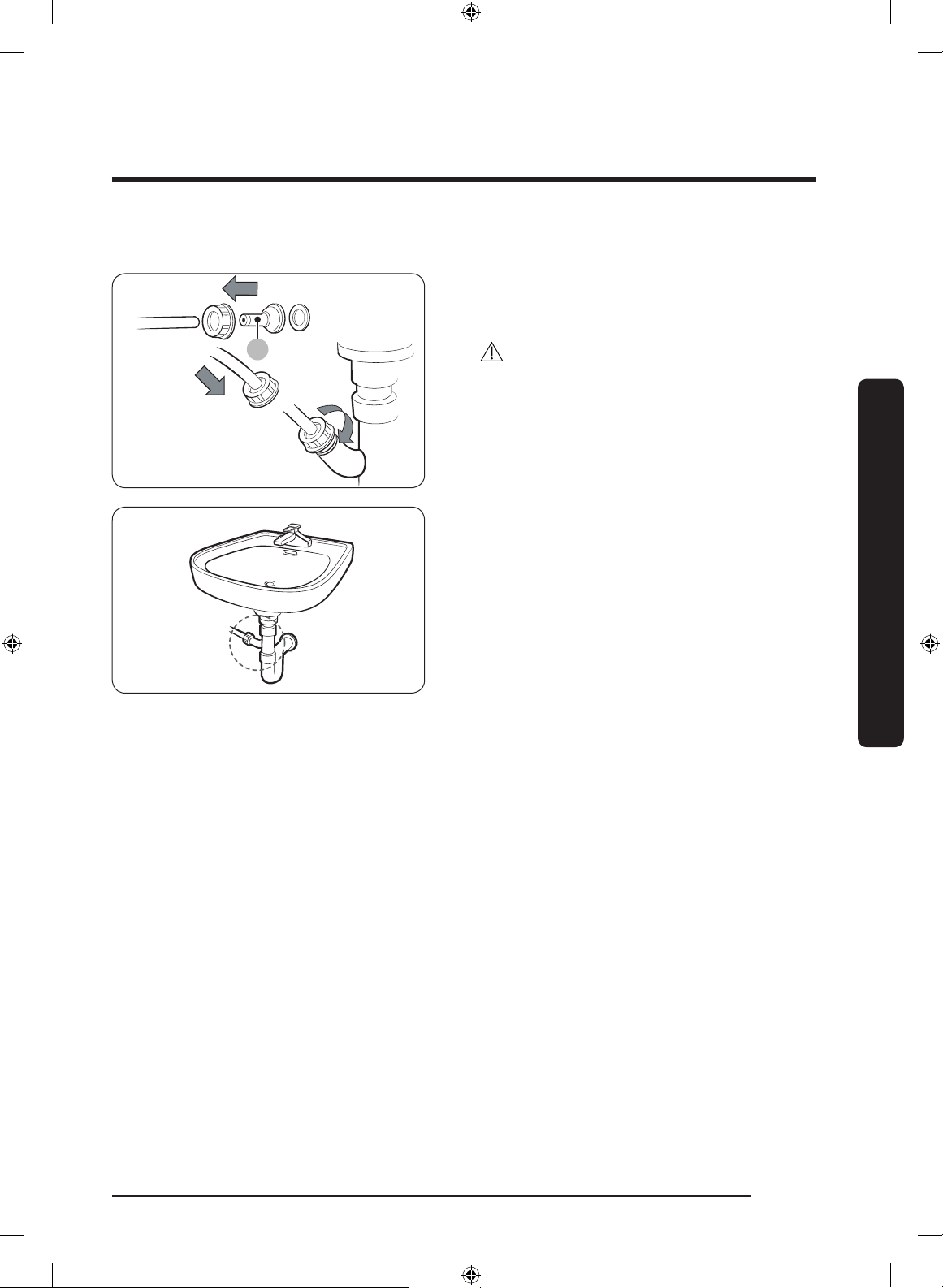

• Page 21 - English - : English 21 Installation By using the drain pipe of the wash basin A 1 Assemble the hose connector A and attach it to the end of the accessory hose as shown CAUTION To prevent water leak make sure to connect the hose and the connector rmly 2 Connect the hose adaptor directly to the drain pipe of the wash basin Untitled33 21 7302019 65555 PM
• Page 22 - English - : Installation English22 Installation Installation checklist The dryer is plugged into a properly grounded outlet All packaging material is completely removed and properly disposed The dryer is level and standing rmly on the oor Start the dryer to make sure that it runs heats and shuts off Run a TIME DRY cycle for 20 minutes to see if the HC information code is displayed If this is the case contact a local service centre After installation we recommend that you wait at least 1 hour before using the dryer Before using the dryer Make sure no accessory remains inside the drum Plug in the power cord just before operating the dryer Do not block the air inlet hole of the cooling grill at the front of the dryer Do not place inammable objects near the dryer and keep the surroundings clean Keep the dryer level with the ground Do not remove the adjustable levelling legs of the dryer They are necessary to keep the dryer level with the ground Untitled33 22 7302019 65555 PM
• Page 23 - English - : English 23 Installation Door reversal DV9N62DV8N62 only You might want to reverse the direction of the door depending on your site conditions or to your needs WARNING Make sure door reversal is performed by a qualied technician 1 Remove the door packing from the door 2 Remove the screws on the inner glass holder of the door First loosen and remove the 3 screws on the bottom Then loosen and remove the 3 screws on the top of the holder Untitled33 23 7302019 65556 PM
• Page 24 - English - : Installation English24 Installation 3 Detach the glass holder CAUTION Use caution not to drop any part of the holder when detaching it Property damage cracks or breaks or physical injury may occur 4 Remove the hinge screws and then detach the door Loosen and remove the 2 bolts on the door frame To prevent abrasion on the bolts use a hex screwdriver 5 Remove the upper screw on the left of the door frame and then insert it in the corresponding right hole of the door frame Do not remove the lower bracket screws Untitled33 24 7302019 65557 PM

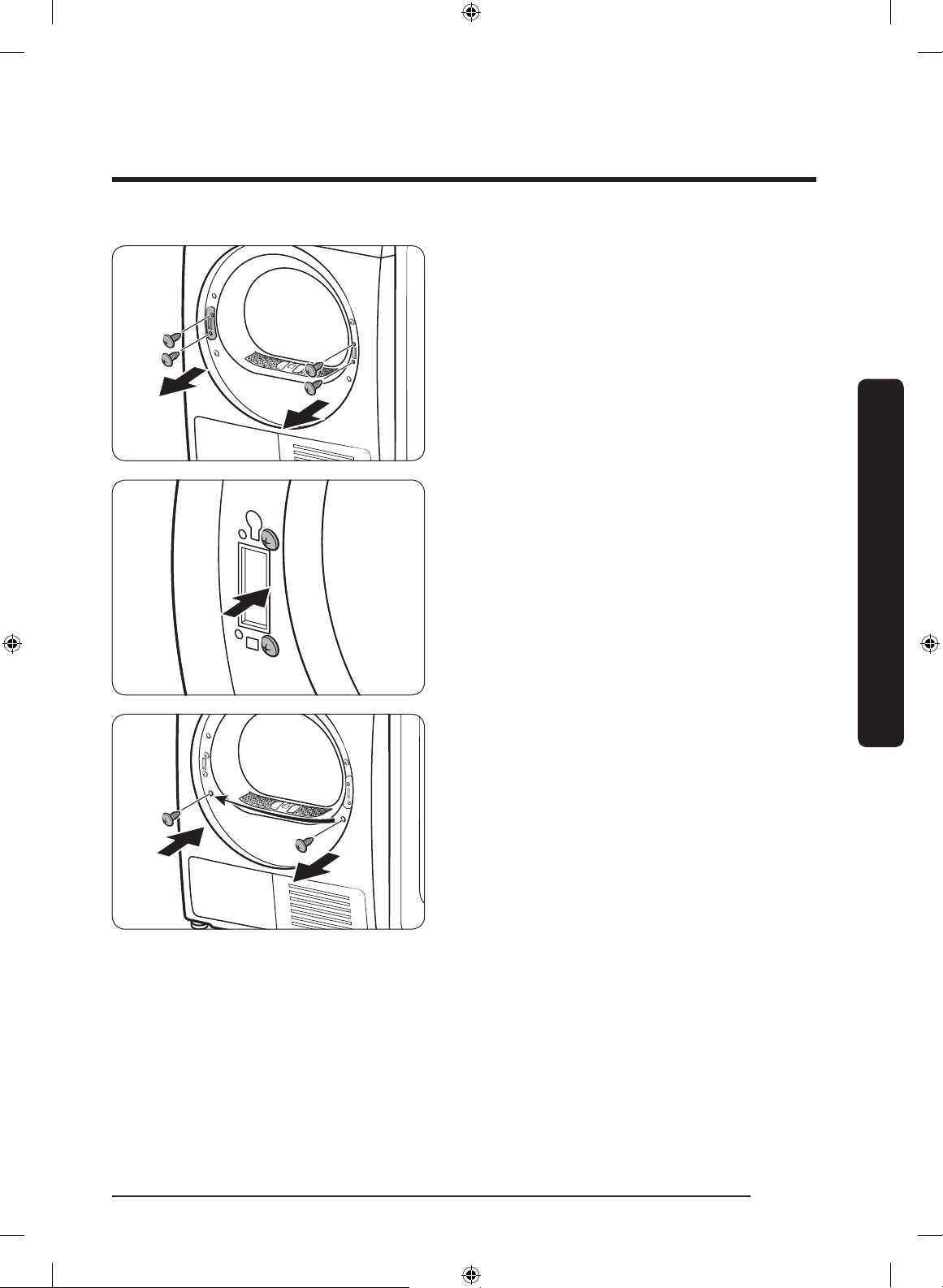

• Page 25 - English - : English 25 Installation 6 Remove the 2 bracket screws on the right frame and then remove the 2 holder screws on the left frame 7 Insert the 2 removed bracket screws in the left frame as shown See the gure on the right for the correct position of the screws 8 Remove the bottom screw on the left frame and then insert it in the corresponding hole on the right frame Untitled33 25 7302019 65558 PM
• Page 26 - English - : Installation English26 Installation 9 Insert the lever holder on the right frame and then tighten the 2 holder screws 10 Insert the door hinge in the opposite position of the door frame and then tighten the 2 bolt screws 11 Insert the inner glass holder in the door cover that has been installed on the left frame Untitled33 26 7302019 65559 PM

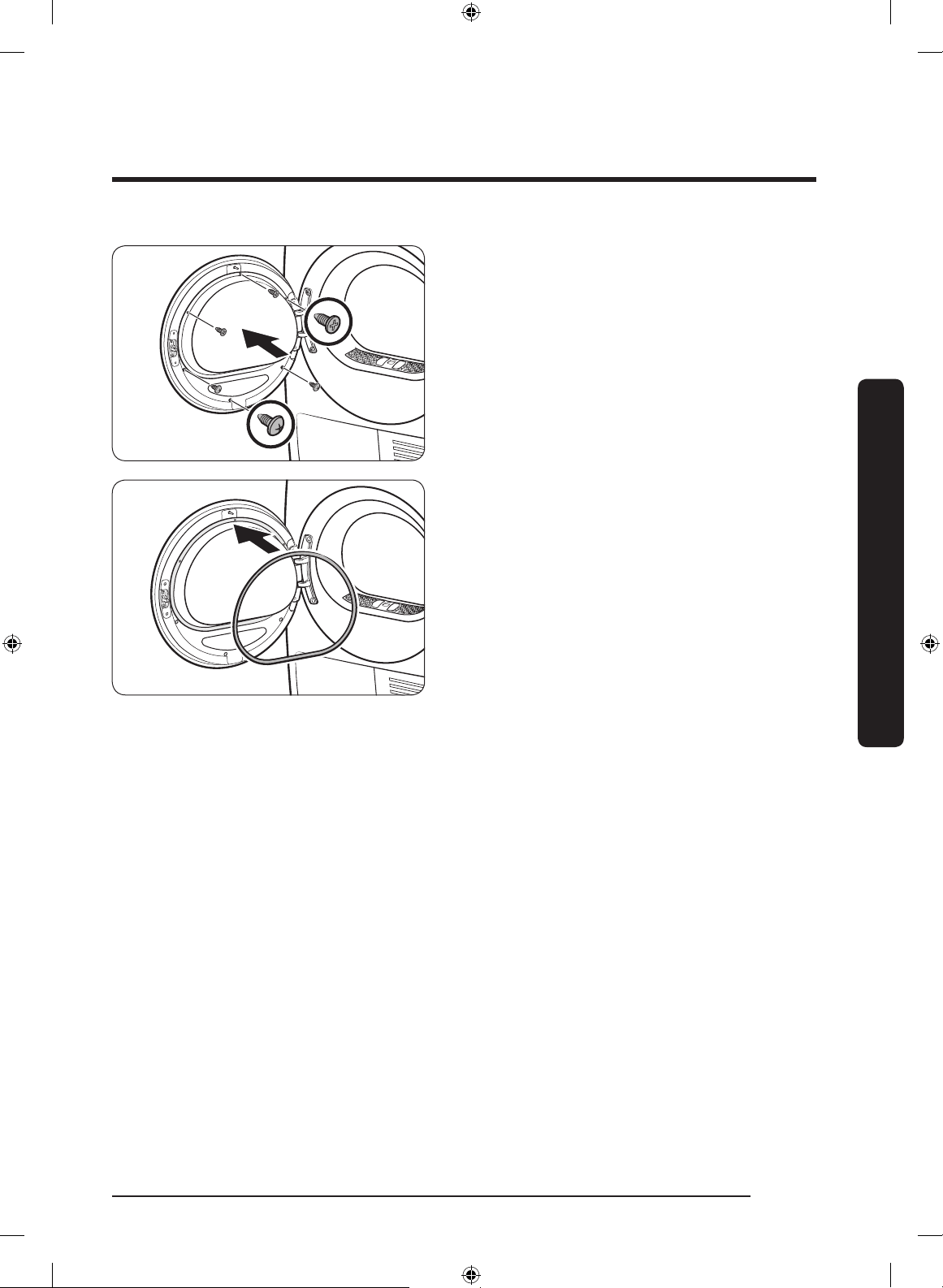

• Page 27 - English - : English 27 Installation 12 Tighten the 3 holder screws on the top Then tighten the 3 holder screws on the bottom 13 Attach the door packing to the door Untitled33 27 7302019 65559 PM
• Page 28 - English - : English28 Operations Control panel DVN82 03 04 05 07 08 09 DVN62 03 04 05 07 08 09 01 Digital Graphic Display Displays all cycle information including cycle time information codes and dryer status See the table below for status details Check lter alarm Cooling Heatexchanger clean alarm Delay End Water Tank Full Smart Check Child Lock Damp Alert WiFi Wrinkle Prevent Drying 02 Cycle Selector Turn the dial to select a cycle See the Cycle overview on page 30 for available cycles Operations Untitled33 28 7302019 65603 PM
• Page 29 - English - : English 29 Operations 03 Dry Time Press to adjust the cycle time for TIME DRY WARM AIR and COOL AIR DVN62 models only cycles The following time options unit minute are available 30 60 90 120 and 150 120 minutes and 150 minutes are not available for WARM AIR and COOL AIR DVN62 models only cycles The exact drying time differs depending on the humidity of the load Dry Level Press to select the dryness level in the AIR WASH COTTON MIXED LOAD SYNTHETICS and SILENT DRY DV9N82 models only cycles The dryness can be set in three levels 13 Level 1 is used to partially dry items that lay at or hang to dry Level 3 is the strongest and is used to dry larger or bulk loads Damp Alert This alert is available only with COTTON MIXED LOAD SYNTHETICS and SILENT DRY DV9N82 models only cycles If a load contains mixed fabrics the Damp Alert indicator blinks when the average dryness of the item is 80 dry This lets you take items that you dont want fully dried or that dry quickly out of the dryer early while letting others continue to dry Wrinkle Prevent Adds approximately 3 hours of intermittent tumbling at the end of the selected cycle to reduce wrinkles To activate press Wrinkle Prevent The wrinkle prevent indicator blinks and zero appears on the display Alarm Off Press to muteunmute the alarm The sound setting is retained when you turn the dryer off and turn it on again Drum Light Press to turn on or off the interior lamp The lamp stays lit for 2 minutes after it has turned on and then turns off automatically Smart Control After connecting the dryer to your home network using the SmartThings app you can control dryer remotely The Smart Control indicator blinks The loader enters waiting mode for remote commands For more information see the SmartThings section on page 40 StartPause Hold to Start Press and hold to start an operation or press to stop an operation temporarily Untitled33 29 7302019 65606 PM
• Page 30 - English - : Operations English30 Operations 11 Power Press to turn the dryer onoff If the dryer turns on for 10 minutes without any button being pressed the dryer automatically turns off Cycle overview Optimal Dry Cycle Description Max load kg COTTON For cottons bed linen table linen underwear towels and shirts MAX SYNTHETICS For blouses and shirts that are made of polyester Diolen Trevira polyamide Perlon nylon or other similar blends DELICATES For items to be handled with care such as lingerie 2 MIXED LOAD For mixed loads consisting of cotton and synthetic fabrics MAX AIR WASH Uses warm air to deodorise and refresh items You can select from 3 levels depending on the odour of the items This cycle is best to use for 12 items Level 1 For light odours default Level 2 For normal odours Level 3 For strong odours NOTE To maximise the deodorising effect dampen the garments with a little water Check the colourfastness of the fabric before adding water SUPER SPEED For mixed loads consisting of cotton and synthetic fabrics SILENT DRY DVN82 models only For mixed loads of cotton and synthetic fabrics that you want to dry silently This can be used with the Wrinkle Prevent option so you can start a cycle before going to bed and have it completed in the morning MAX IRON DRY This cycle nishes the drying process in a moist state which facilitates ironing Untitled33 30 7302019 65607 PM
• Page 31 - English - : English 31 Operations Cycle Description Max load kg WOOL For machine washable and tumble dryable wool only For best results turn laundry inside out before drying OUTDOOR CARE For outdoor wear such as skiwear and mountain clothing and also for fabrics such as spandex stretch and microber It is recommended to use this cycle after you have washed your laundry using the OUTDOOR CARE cycle with your washing machine BEDDING For bulky items such as blankets sheets comforters and light duvets Untitled33 31 7302019 65607 PM
• Page 32 - English - : Operations English32 Operations Manual Dry Cycle Description Max load kg QUICK DRY 35 For drying light cotton synthetics or items that needs quick drying The default dry time is 35 minutes TIME DRY Use to set a desired dry time 1 Turn the Cycle Selector to select TIME DRY 2 Press Dry Time to set the drying time between 30 minutes and 150 minutes Keep pressing Time cycles through the available time options in 30minute increments NOTE The actual cycle time may differ depending on the dryness of items WARM AIR For small predried items The dry time defaults to 30 minutes Timed cycle for all types of fabric except for wool and silk Dry laundry that is still slightly damp or has already been predried Also suitable for the subsequent drying of multilayered thick laundry that does not dry readily NOTE This cycle is suitable for drying individual woollen fabrics sports shoes and soft toys Only dry these using the basket for woollens COOL AIR DVN62 models only All types of fabric For freshening up or airing items of laundry that have not been worn for long Untitled33 32 7302019 65607 PM
• Page 33 - English - : English 33 Operations Cycle chart NOTE For best results follow the load size recommendations for each dry cycle Large load Fill the drum to about ¾ full Do not add items over this level as they need to tumble freely Medium load Fill the drum to about ½ full Small load Fill the drum with 35 items not more than ¼ full Cycle Recommended items Load size Dry Level COTTON For cottons bed linen table linen underwear towels and shirts MAX Available SYNTHETICS Synthetic or blended fabrics Available DELICATES Silk ne fabrics and lingerie Unavailable MIXED LOAD Mixed load consisting of cotton and synthetic fabrics MAX Available QUICK DRY 35 Synthetics and light cottons Unavailable TIME DRY All types of fabric time programme Unavailable WARM AIR Small Items amp damp clothing Everyday items suitable for heat drying Unavailable COOL AIR DVN62 models only All types of fabric For freshening up or airing items of laundry that have not been worn for long Unavailable AIR WASH Clothes with excessive accessories such as beads spangles lace buttons etc may be damaged or deformed Do not use this cycle for fabrics such as wool silk leather fur velvet printed tshirts etc that can be easily damaged by heat Available SUPER SPEED Synthetic or blended fabrics Unavailable SILENT DRY DVN82 models only Mixed load consisting of cotton and synthetic fabrics MAX Available IRON DRY This cycle nishes the drying process in a moist state which facilitates ironing Unavailable WOOL For machine washable and tumble dryable wool only Unavailable OUTDOOR CARE For outdoor wear such as skiwear and mountain clothing and also for fabrics such as spandex stretch and microber Unavailable Untitled33 33 7302019 65608 PM
• Page 34 - English - : Operations English34 Operations Cycle Recommended items Load size Dry Level BEDDING For bulky items such as blankets sheets comforters and light duvets Unavailable Untitled33 34 7302019 65608 PM
• Page 35 - English - : English 35 Operations Getting started Simple steps to start 1 Press Power to turn the dryer on 2 Load the dryer and close the door 3 Turn the Cycle Selector to select a cycle 4 Change the cycle settings Dry Time and Dry Level as necessary 5 Select necessary settings and options to your preference Damp Alert Wrinkle Prevent Alarm Off andor Delay End 6 Press and hold StartPause Hold to Start The dryer indicator lights up and the estimated cycle time appears on the display NOTE The number of available settings and options differs with the cycle To change the cycle during operation 1 Press StartPause Hold to Start to stop operation 2 Select a different cycle 3 Press and hold StartPause Hold to Start to start new cycle Sorting and loading Put only one wash load in the dryer at a time Avoid mixing heavy and lightweight items together To increase drying efciency when drying one or two items add a dry towel to the load For best results untangle items before inserting into the dryer Overloading restricts the tumbling process resulting in uneven drying and wrinkling Unless recommended on the care label avoid drying woollens or breglass items Avoid drying unwashed items Do not dry items soiled with oil alcohol gasoline etc Untitled33 35 7302019 65609 PM
• Page 36 - English - : Operations English36 Operations Rack Dry applicable models only Set the drying time up to 150 minutes according to the moisture and weight of the items to dry When drying laundry using the drying rack the TIME DRY cycle is recommended 1 Position the drying rack in the drum inserting the front lips of the rack into the holes of the door diaphragm A A Rack dry 2 Place items on the rack leaving enough space where air can circulate For clothing items fold and place at on the rack For shoes place shoes with their soles facing down 3 Close the door and press Power Select TIME DRY and then press Dry Time to select the drying time 4 Press and hold StartPause Hold to Start Untitled33 36 7302019 65610 PM
• Page 37 - English - : English 37 Operations Drying suggestions Items max 15 kg Description Washable sweaters block to shape and lay at on rack When drying the laundry using the rack fold and place the clothes on the rack to prevent the clothing from becoming wrinkled Stuffed toys cotton or polyester bre lled Stuffed toys foam or rubberlled Foam rubber pillows Sneakers To dry sports shoes place the shoes on the rack so that the soles of the shoes are facing downwards CAUTION Drying foam rubber plastic or rubber on a heat setting may cause damage to the items and lead to a re hazard To prevent damage to shoes use Rack Dry Untitled33 37 7302019 65610 PM
• Page 38 - English - : Operations English38 Operations Cycle guide Always follow the care label when drying If care label instructions are not available refer to the following table Bedspreads and comforters Use the High temperature settings Blankets For best results dry only one blanket at a time Cloth diapers Use the High temperature settings Downlled items Do not dry on a heat setting Doing so may cause a re hazard Only use the COOL AIR DVN62 models only cycle Foam rubber rug backs stuffed toys etc Do not dry on a heat setting Doing so may cause a re hazard Only use the COOL AIR DVN62 models only cycle Pillows Add a few dry towels to help tumble and uff items Do not dry kapok or foam pillows with heat Use only the COOL AIR DVN62 models only cycle Plastics shower curtains outdoor furniture covers etc Use COOL AIR DVN62 models only or TIME DRY CAUTION Use caution when drying items that are not listed above Untitled33 38 7302019 65610 PM
• Page 39 - English - : English 39 Operations Special features Delay End You can set the dryer to complete a selected cycle at your set time 1 Select a cycle with necessary options 2 Press the or Delay End buttons to set a time between 1 to 24 hours in 1hour increment 3 Press and hold StartPause Hold to Start The corresponding indicator blinks and the clock begins counting down to the set time NOTE To cancel the Delay End settings restart the dryer using the Power button Child Lock To prevent children or infants from accidentally starting or setting the dryer Child Lock locks all buttons except for the Power button To activatedeactivate Child Lock simultaneously press and hold the and Delay End buttons for 3 seconds NOTE If Child Lock is activated and the dryer is turned off and then on again Child Lock remains activated Smart Check If the dryer has detected an issue Smart Check allows you to check the status of the dryer using a smartphone Please note that Smart Check can only be used for Galaxy and iPhone series smartphones To use Smart Check make sure you have downloaded the Samsung Smart Washer app and then follow the steps below 1 Press and hold Dry Level and Damp Alert for 3 seconds The LEDs on the display panel rotate and the Smart Check code is displayed 2 On the smartphone open the Samsung Smart Washer app and tap the Smart Check button 3 Focus the smartphones camera on the Smart Check code shown on the display panel 4 If the information code is recognised the app provides detailed information for the issue and further instructions NOTE If the dryer reects light on the display the smartphone may fail to recognise the information code If the smartphone fails to recognise the code manually enter the information code into the smartphone Untitled33 39 7302019 65610 PM
• Page 40 - English - : Operations English40 Operations SmartThings WiFi connection On your smartphone go to the Settings and turn on the wireless connection and select an AP Access Point NOTE This device is designed for household use only Class B and can be used in all residential areas This device may cause wireless interference and neither the manufacturer or the installer of this device can provide a safety measure of any kind Recommended encryption methods are WPATKIP and WPA2AES Newly developed WiFi protocols or unapproved WiFi protocols are not supported The reception sensitivity of a wireless network may be affected by surrounding wireless environments If your Internet provider has registered the MAC address of your PC or the modem module for permanent use your Samsung dryer fails to connect to the Internet If this is the case contact your Internet provider The Internet rewall may interrupt your Internet connection If this happens contact your Internet provider If Internet failure continues after following the measurement of your Internet provider contact a local Samsung retailer or service centre For installing wired and wireless routers refer to the user manual of the router you use Samsung dryer supports the WiFi 24 GHz protocols Samsung dryer supports the IEEE80211 bgn 24 GHz SoftAP protocols IEEE80211n is recommended An unapproved wiredwireless router may fail to connect to Samsung dryer Download On an app market Google Play Store Apple App Store Samsung Galaxy Apps nd the SmartThings app with a search term of SmartThings Download and install the app on your device NOTE The SmartThings app is available on thirdparty devices with Android OS 60 Marshmallow or higher Samsung devices with Android OS 50 Lollipop or higher and iOS devices with iOS 100 or higher For iPhones it must be iPhone 6 or higher The app is optimised for Samsung smartphones Galaxy S and Note series Some functions of the app may operate differently on thirdparty devices The app is subject to change without notice for improved performance Untitled33 40 7302019 65610 PM
• Page 41 - English - : English 41 Operations Log in You must rst log into SmartThings with your Samsung account To create a new Samsung account follow the instructions on the app You dont need a separate app to create your account NOTE If you have a Samsung account use the account to log in A registered Samsung smartphone user automatically logs in To register your device to SmartThings 1 Make sure your smartphone is connected to a wireless network If not go to the Settings and turn on the wireless connection and select an AP Access Point 2 Select to run SmartThings on your smartphone 3 When a message of A new device is found select Add 4 If no message appears select and select your dryer in a list of devices available If your dryer is not listed select Device Type gt Specic Device Model and then add your dryer manually 5 Register your dryer to the SmartThings app as follows a Log into SmartThings with your Samsung account b Turn a WiFi connection on c Add your dryer to SmartThings Make sure your dryer is connected to SmartThings d When registration is complete your dryer appears on your smartphone Dryer app Integrated control You can monitor and control your dryer both at home and on the go Select the dryer icon on SmartThings The dryer page appears Check the operation status or notications related to your dryer and change options or settings if necessary Untitled33 41 7302019 65611 PM
• Page 42 - English - : Operations English42 Operations SmartThings Category Checkpoint Description Monitoring Drying status You can check the current cycle and its options and the remaining cycle time Smart Control The Smart Control status is shown for the dryer Self Check Use this to check if the dryer operates normally Energy monitoring Use this to monitor the energy consumption status Control StartPauseCancel Select a cycle and necessary options and then select StartPause Cancel to start an operation to stop temporarily or to cancel the current operation My Favorite Add frequently used cycles and options to My Favorite for later use Notication Cycle completed Noties you the current cycle is complete Remaining laundry applicable models only Noties you of any laundry left after a cycle is complete QRator Laundry Recipe Select the fabric type colour and soil level of your wash load and get recommendations for the most suitable wash programmes Laundry Planner Set the nish time for your wash cycle to suit your busy schedule HomeCare Wizard Get advice to help you maintain your washing machine to keep it in a perfect condition Check your most used cycles energy consumption and get notied when it is time to clean the pump lter Requires the SmartThings app available on Android and iOS Registration required Indicative results only Untitled33 42 7302019 65611 PM
• Page 43 - English - : English 43 Operations Open Source Announcement The software included in this product contains open source software You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailtoossrequestsamsungcom It is also possible to obtain the complete corresponding source code in a physical medium such as a CDROM a minimal charge will be required The following URL httpopensourcesamsungcomopensourceSMARTAT051seq0 leads to the download page of the source code made available and open source license information as related to this product This offer is valid to anyone in receipt of this information NOTE Hereby Samsung Electronics declares that the radio equipment type appliance is in compliance with Directive 201453EU The full text of the EU declaration of conformity is available at the following internet address The ofcial Declaration of conformity may be found at httpwwwsamsungcom go to Support gt Search Product Support and enter the model name WiFi max transmitter power 20 dBm at 2412 GHz 2472 GHz Untitled33 43 7302019 65611 PM
• Page 44 - English - : English44 Maintenance WARNING Do not clean the dryer by directly spraying water onto the dryer Do not clean the dryer with benzene thinner alcohol or acetone This may cause discolouration deformation damage electric shock or re Before cleaning the dryer be sure to unplug the power cord Control panel Clean with a soft damp cloth Do not use abrasive cleaners Do not spray cleaners directly on the panel Immediately wipe up any spills or liquids from the control panel Exterior Clean with a soft damp cloth Do not use abrasive cleaners Avoid using or placing sharp or heavy objects nearon the dryer Keep detergent and laundry supplies on the pedestal sold separately or in a separate storage container Drum Clean with a damp cloth with a mild nonabrasive cleaner suitable for stainless steel Wipe remaining residue with a clean dry cloth Lint lter Clean the lint lter after each load 1 Open the door and pull the lint lter upward to remove Maintenance Untitled33 44 7302019 65611 PM
• Page 45 - English - : English 45 Maintenance A 2 Open the outer lter and remove the inner lter A 3 Unfold both the inner lter and the outer lter 4 Remove the lint from both lters and then clean the lters with the cleaning brush NOTE To clean the lters thoroughly clean the lters in running water and then dry them completely 5 Put the inner lter into the outer lter and then reinsert the lint lter into the original position CAUTION Clean the lint lter after each load Otherwise the drying performance may decrease Do not operate the dryer without the inner lter inside the outer lter Using the dryer with a wet lint lter may cause mold bad odours or a decrease in drying performance Untitled33 45 7302019 65612 PM
• Page 46 - English - : Maintenance English46 Maintenance Water tank To avoid leaks empty the water tank after every load A 1 Using both hands pull the water tank A forward to remove B 2 Empty the water through the drain hole B and place the water tank back into place NOTE If you empty the water tank and press and hold StartPause Hold to Start the corresponding indicator turns off Untitled33 46 7302019 65613 PM
• Page 47 - English - : English 47 Maintenance Heat exchanger Clean the heat exchanger at least once a month or When the Buzzer rings and the heat exchanger indicator lights up on the display A 1 Gently press the top part of the outer cover A to open B 2 Unlock the xers B C 3 Remove the inner cover C Untitled33 47 7302019 65614 PM
• Page 48 - English - : Maintenance English48 Maintenance 4 Clean the heat exchanger with the provided cleaning brush or a vacuum cleaner with a brush attachment Take care not to bend or damage the heat exchanger ns when cleaning This may lead to a decrease in drying performance CAUTION To avoid physical injury and burns do not touch or clean the heat exchanger with bare hands Do not use water to clean the heat exchanger 5 Clean the inner cover with a smooth damp cloth 6 Reinsert the inner cover to its original position and then lock the xers 7 Close the outer cover NOTE After cleaning make sure the xers are locked Untitled33 48 7302019 65615 PM
• Page 49 - English - : English 49 Troubleshooting Checkpoints If you encounter an issue with the dryer rst check the table below and try the suggestions Symptom Action Dryer does not run Make sure the door is completely closed Make sure the power cord is plugged in Check the homes circuit breaker and fuses Empty the water tank Clean the lint lter Dryer does not heat Check the homes circuit breaker and fuses Select a heat setting other than COOL AIR DVN62 models only Check the lint lter and heat exchanger Clean them if necessary Dryer may be in the cooldown phase of the cycle Dryer does not dry Check the above plus Make sure the dryer is not overloaded Sort light and heavy items separately Reposition large bulky items to ensure even drying Check that the dryer is draining properly For small loads add a few dry towels Clean the lint lter and heat exchanger Dryer is noisy Check for coins buttons lighters etc Make sure the dryer is level and standing rmly on the oor The dryer may hum due to air moving through the drum and fan This is normal Dries unevenly Seams pockets and other parts of clothing are harder to dry than others This is normal Sort heavy and light items separately Dryer emits an odour The dryer may draw household odours in from the surrounding air and then exhaust them This is normal Dryer turns off before the load is dry Dryer load is too small Add more items and restart the cycle Dryer load is too large Remove items and restart the cycle Troubleshooting Untitled33 49 7302019 65615 PM
• Page 50 - English - : Troubleshooting English50 Troubleshooting Symptom Action Lint on clothes Make sure the lint lter is clean before every load Dry lintproducing items fuzzy towels separate from lint trappers such as black linen pants Divide larger loads into smaller loads Items still wrinkled after Wrinkle Prevent Small loads of 14 items work best Load fewer items Load similar type items Odours remain in items after COOL AIR DVN62 models only Make sure to thoroughly wash items with strong odours Untitled33 50 7302019 65615 PM
