1
User Manual
27PT6341
Thank you for choosing Philips.
Need help fast?
Read your Quick Use Guide and/or
Owner's Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.philips.com/usasupport
or call
1-888-PHILIPS (744-5477)
while with your product
(and Model / Serial number)
S
T
O
P
2
IN
TRODUC
TION
Welcome/Registration of Your TV
. . . . . . . . . . . . . . . . . . . . . .
3
Important Safety Instructions
. . . . . . . . . . . . . . . . . . . . . . . . . . .
4
CONNECTION GUIDE

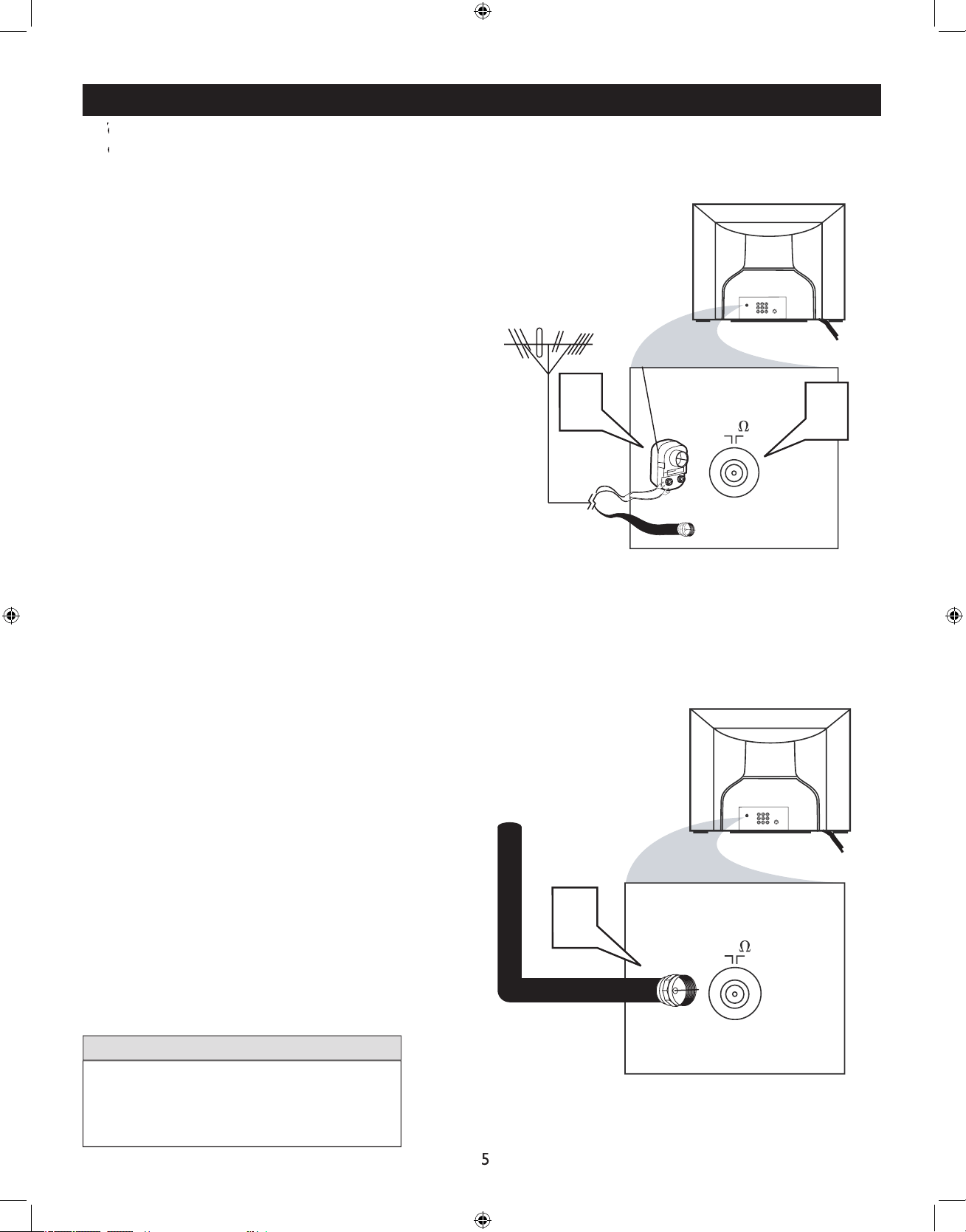

Basic Antenna and Cable Connections
. . . . . . . . . . . . . . . . . . .
5
Basic TV and Remote Control Operation
. . . . . . . . . . . . . . . .
6
Cable Box Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
AV(Audio/Video) Input Connection
. . . . . . . . . . . . . . . . . . . . .
8

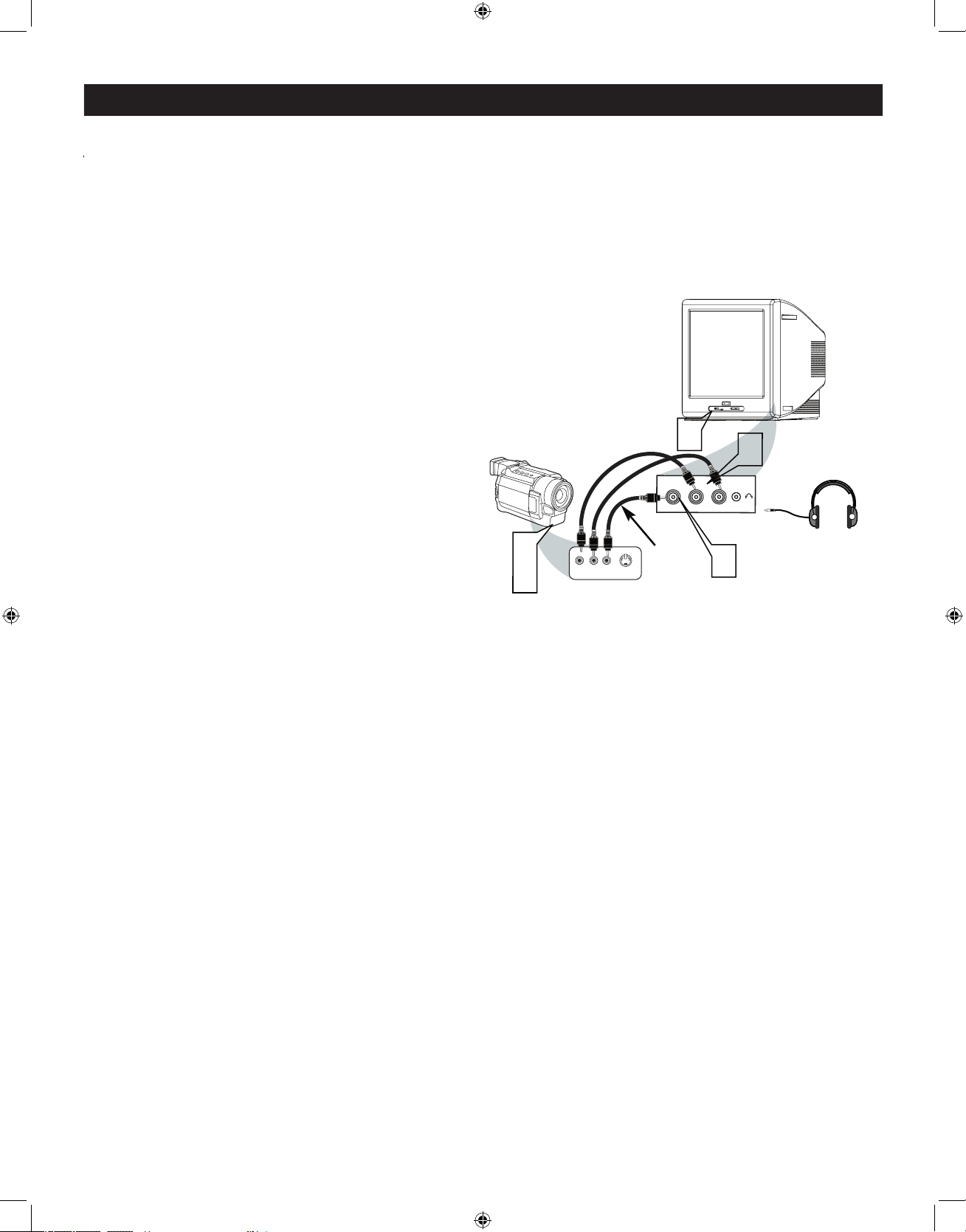

Side AV Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9

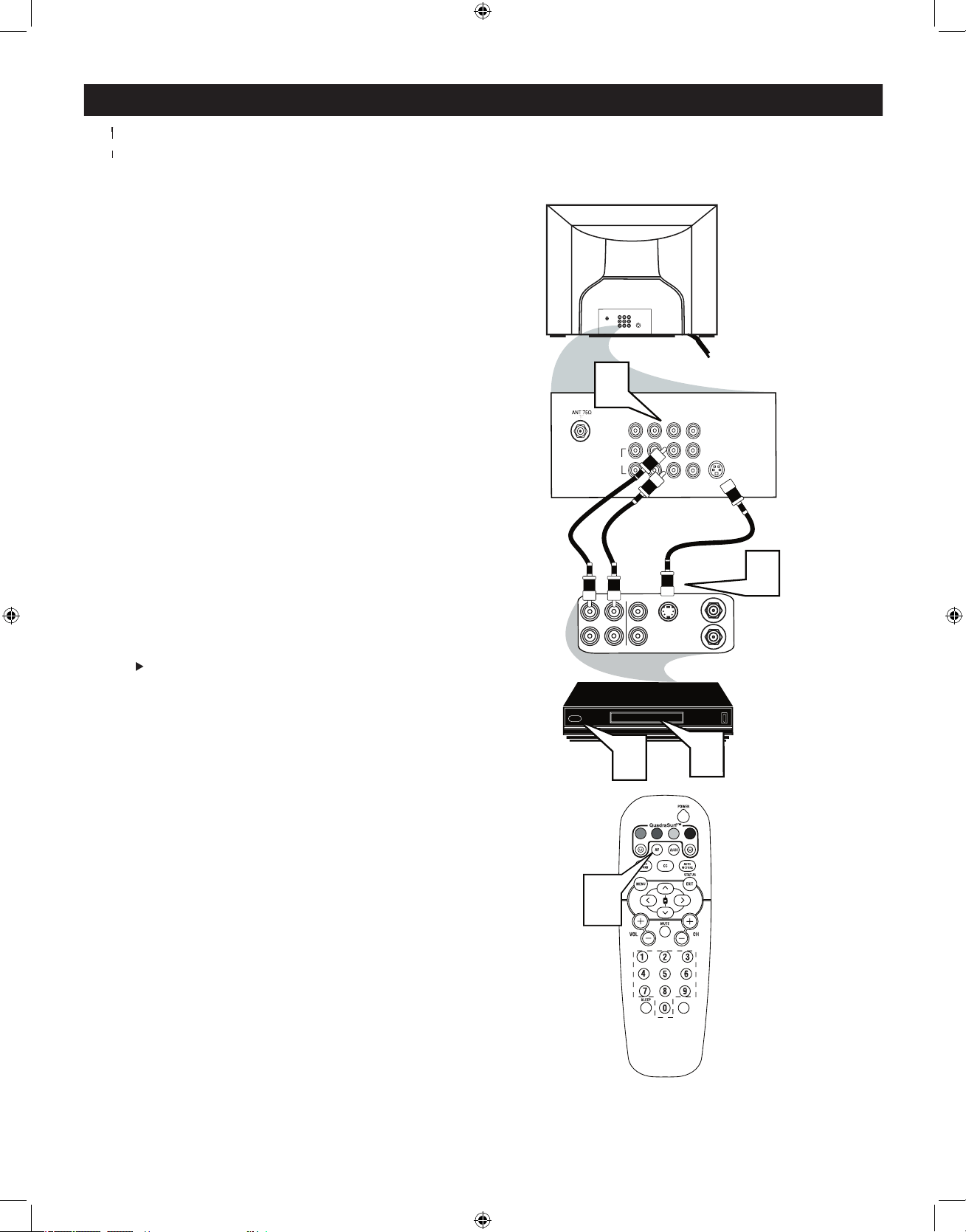

S-Video (S-VHS) Input Connections
. . . . . . . . . . . . . . . . . . . .
10

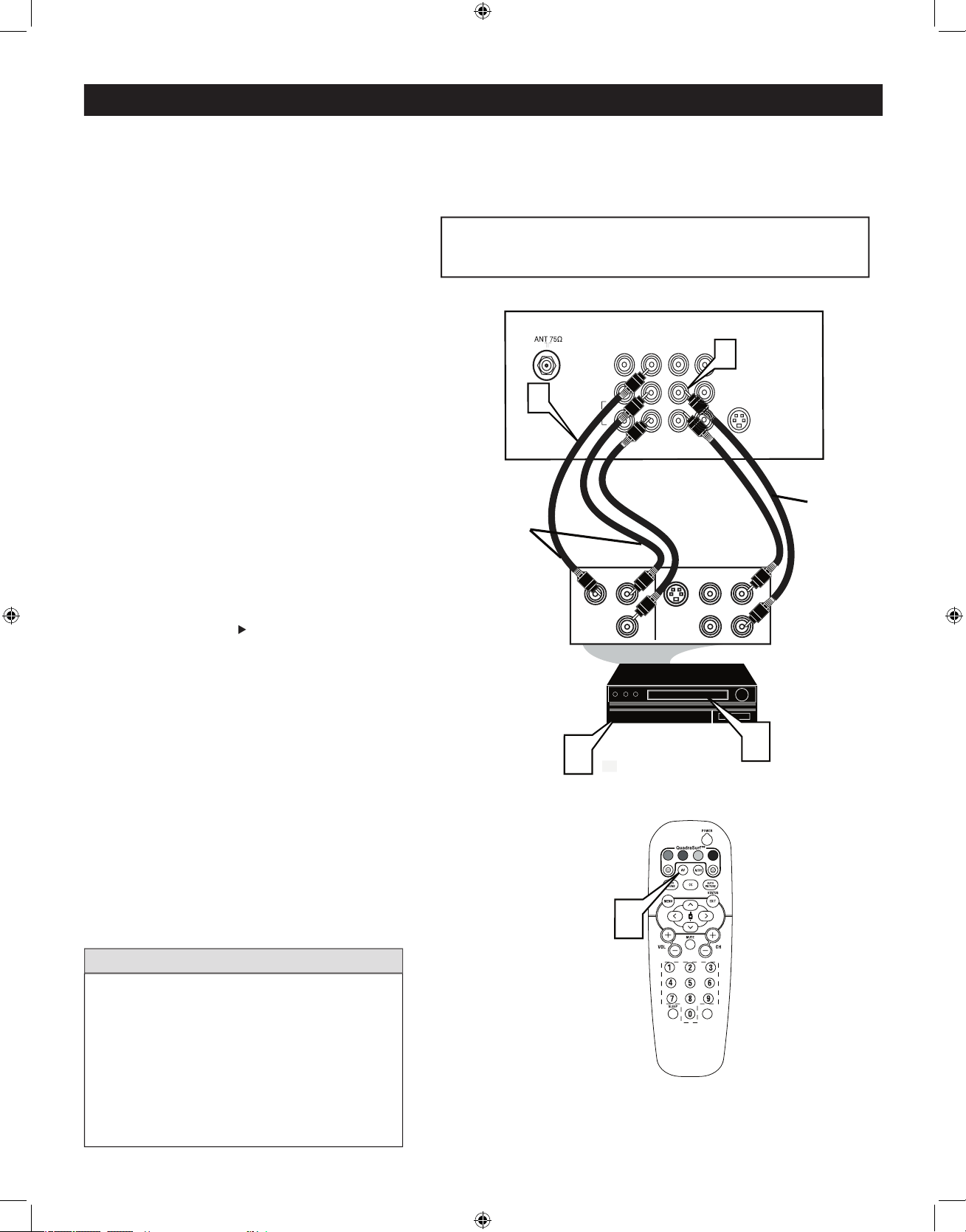

Component Video (CVI) Input Connections
. . . . . . . . . . . . .
11

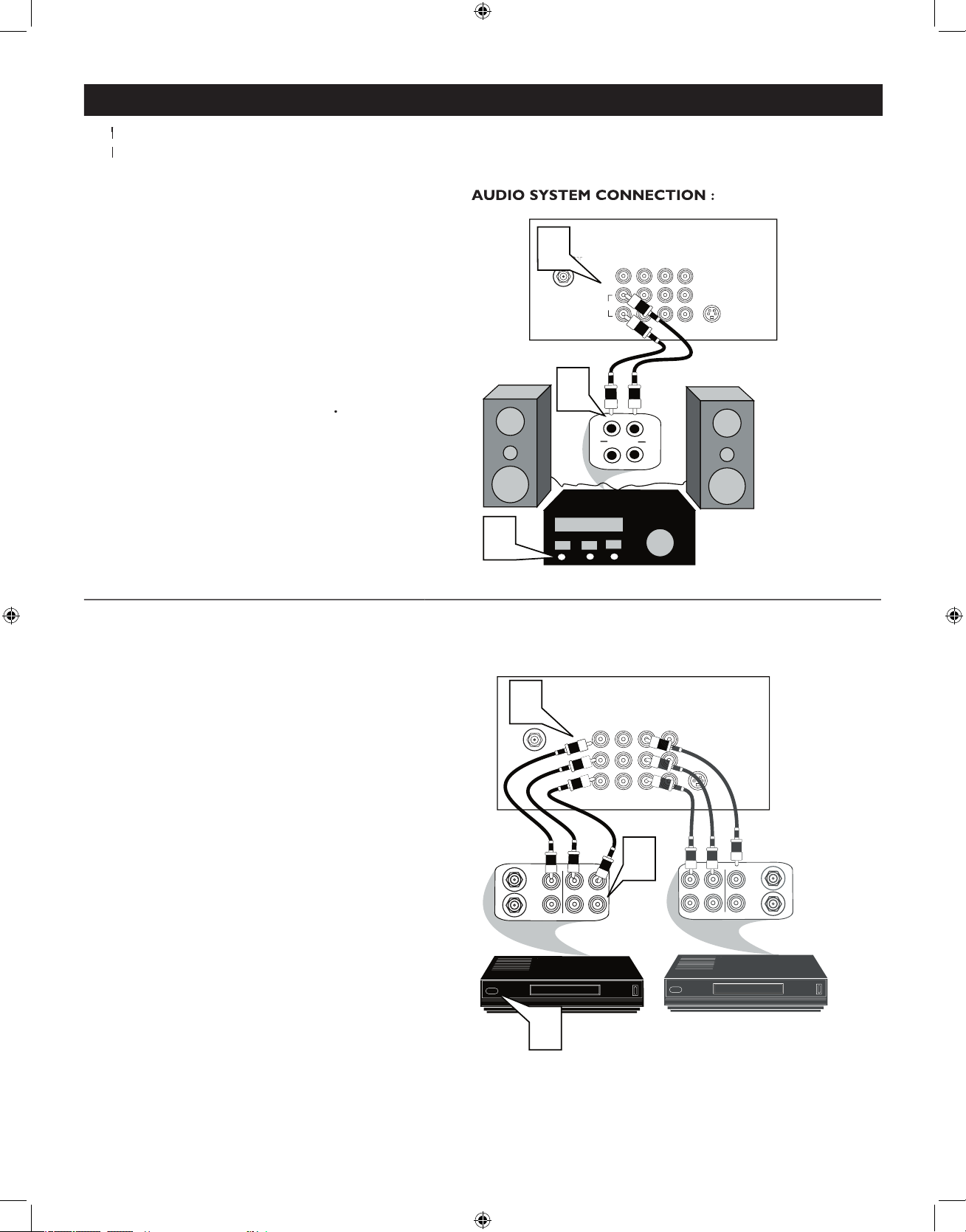

AV Output Jacks
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
INSTALLATION MENU

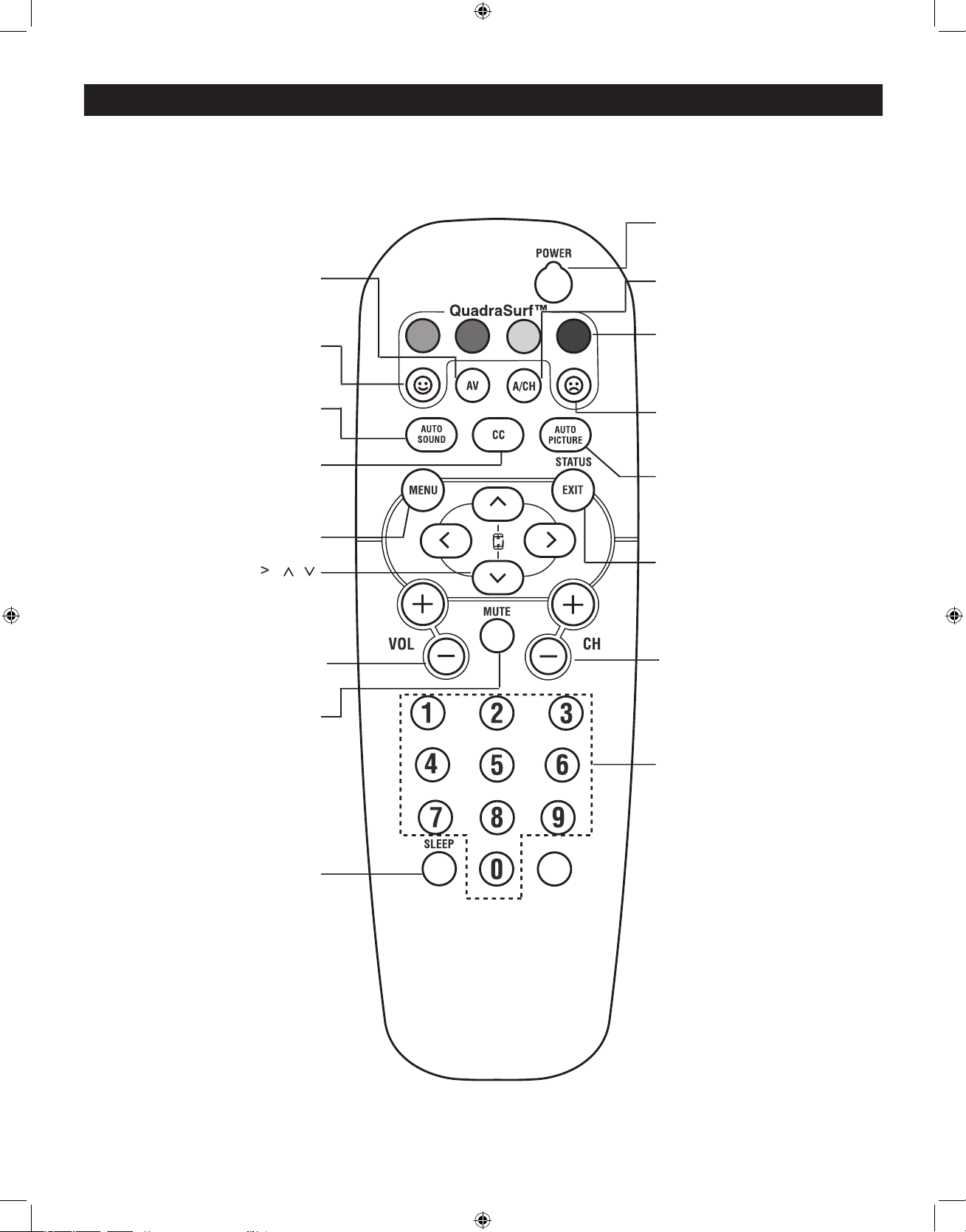

Remote Control Button Descriptions
. . . . . . . . . . . . . . . . . .
13
Language Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14

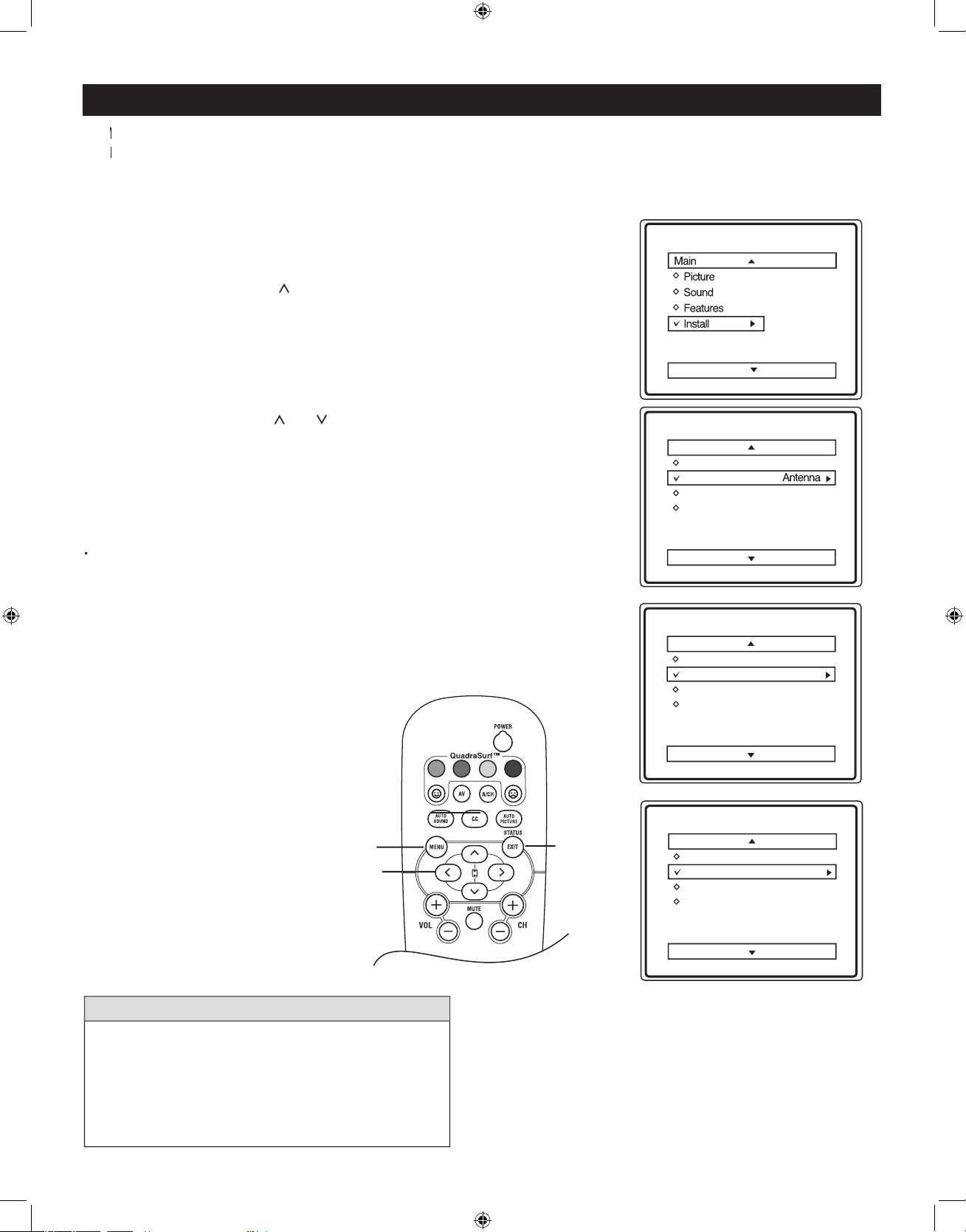

Tuner Mode Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Auto Program
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Channel Edit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17

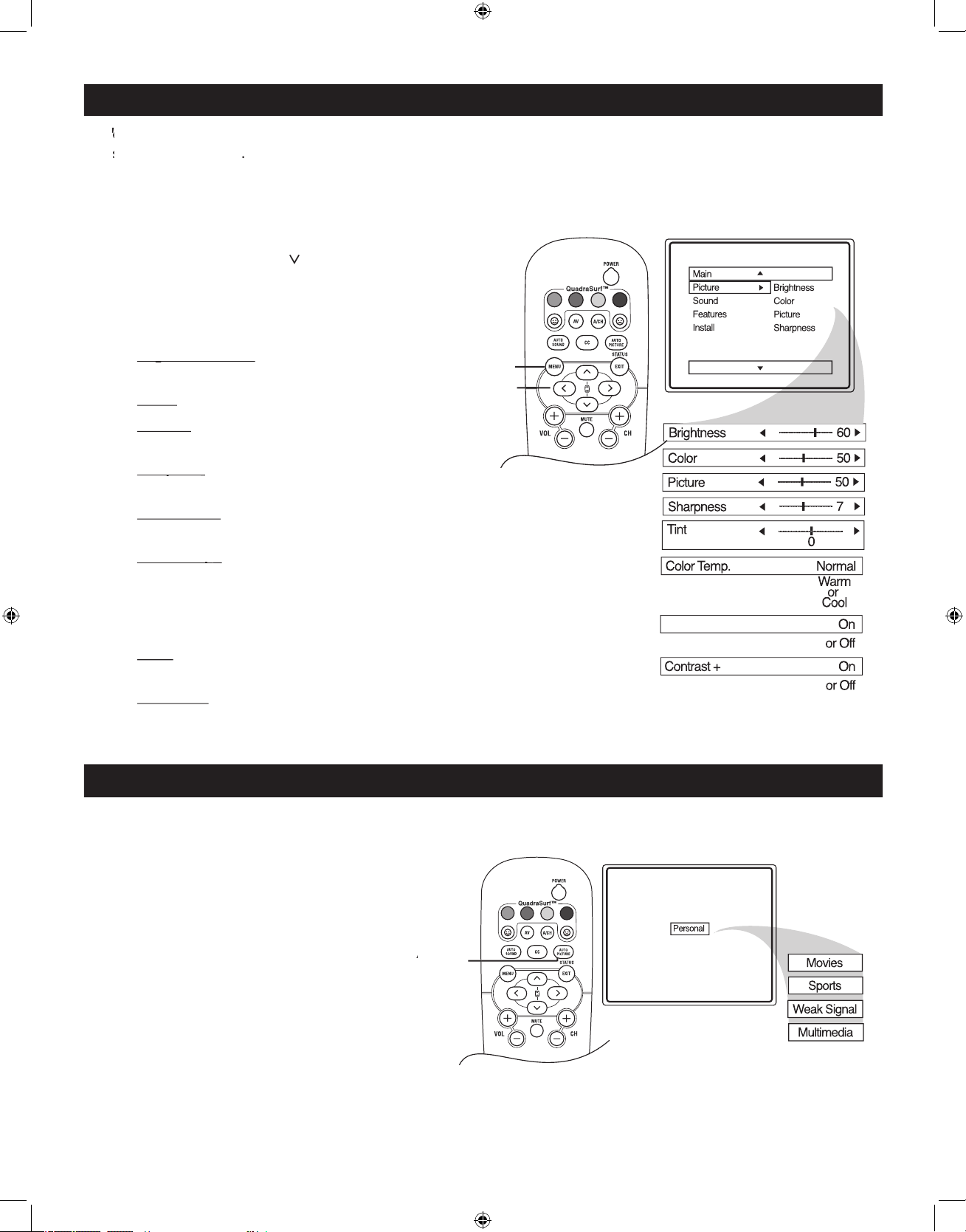

Picture Menu Controls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.18
Sound Menu Controls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Timer Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Timer Control - Activate
. . . . . . . . . . . . . . . . . . . . . . . . . .
20
Timer Control - Start or stop time
. . . . . . . . . . . . . . . . .
21
Timer Control - Start on a specific channel
. . . . . . . . . . .
22
Timer Control - Using display
. . . . . . . . . . . . . . . . . . . . . .
22
Demo Mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
4:3 Expand Format Control
. . . . . . . . . . . . . . . . . . . . . . . . . . .
23
FEATURES MENU

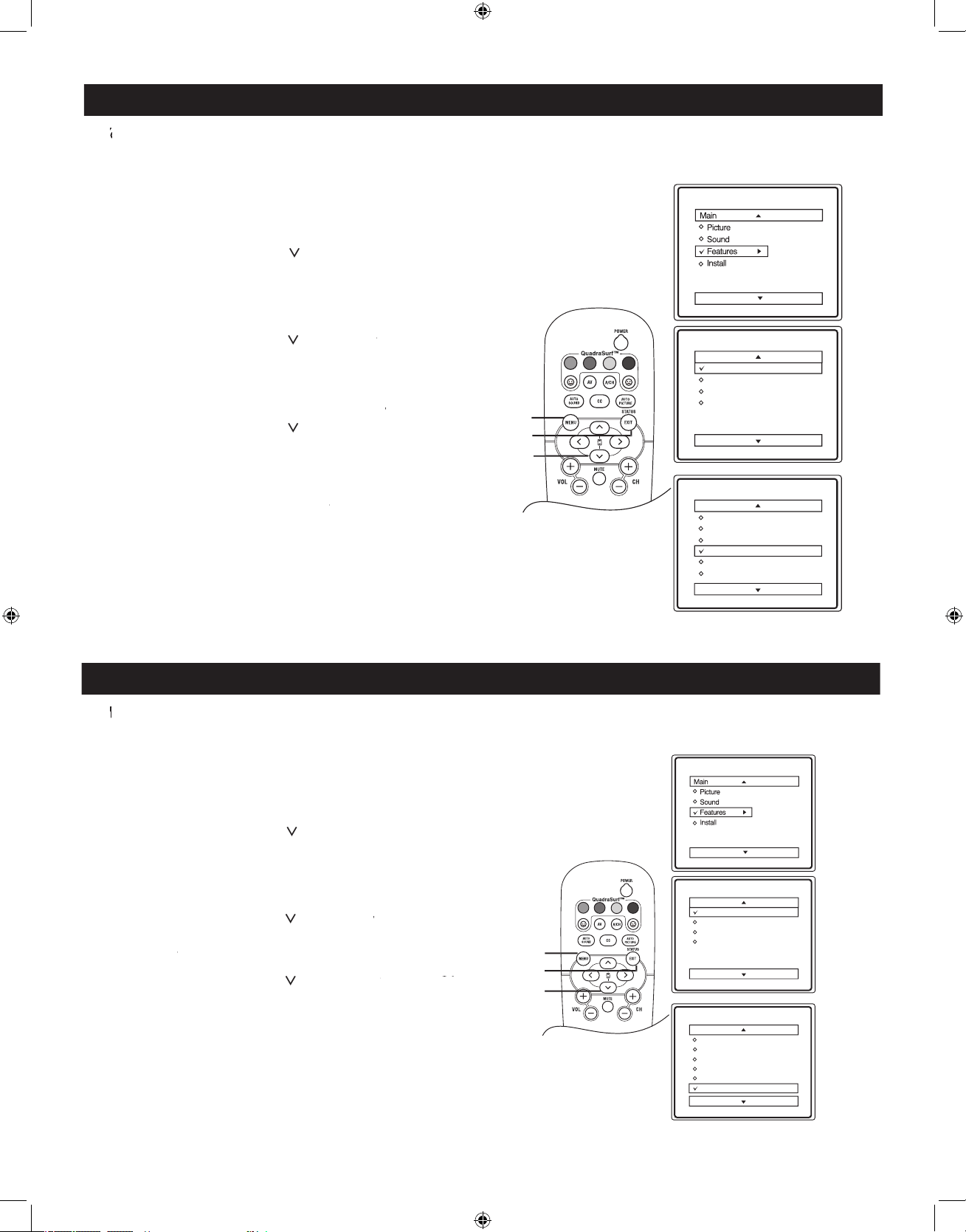

Understanding Autolock Controls
. . . . . . . . . . . . . . . . . . . . . .
24
Setting Up An Access Code
. . . . . . . . . . . . . . . . . . . . . . . . . .
25
Block Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Block / Clear All Channels At The Same Time
. . . . . . . . . . . .
27
Movie Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
TV Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Block Options
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Close Captioning
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Sleeptimer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sleeptimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Sleeptimer
31
OTHER FEATURES
Auto Picture
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Auto Sound
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
QuadraSurf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32-33
A/CH (Alternating Channels) .
. . . . . . . . . . . . . . . . . . . . . . . .
33
IMPORTANT INFORMATION
Glossary
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Cleaning and Care
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Troubleshooting Tips
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
Limited Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
CONTENTS
AutoLock
lets you block channels or programs that are not
suitable for children or with restricted TV or Movie ratings (Pg. 26).
Auto
lets you select from five pre-set controls according
to your preference. The five pre-set controls (Personal, Movie,
Sports, Weak Signal or Multimedia) lets you custom set the TV
picture to enhance the picture of the program you are watching (Pg.
18).
Auto
Sound
lets you select from four pre-set controls according
to your preference. The four pre-set controls (Personal, Voice,
Music, and Theatre) lets you custom set the TV sound to enhance
the sound of the program you are watching (Pg. 19).
Channel Edit
lets you add or skip channels from the list stored in
the TV memory. Channel Edit makes it easy to limit or expand the
number of channels that are available to you when you press the
Channel (+) or (–) buttons on your remote control (Pg. 17).
Closed Captioning
allows the viewer to read TV program
dialogue or voice conversations as onscreen text (Pg. 31).

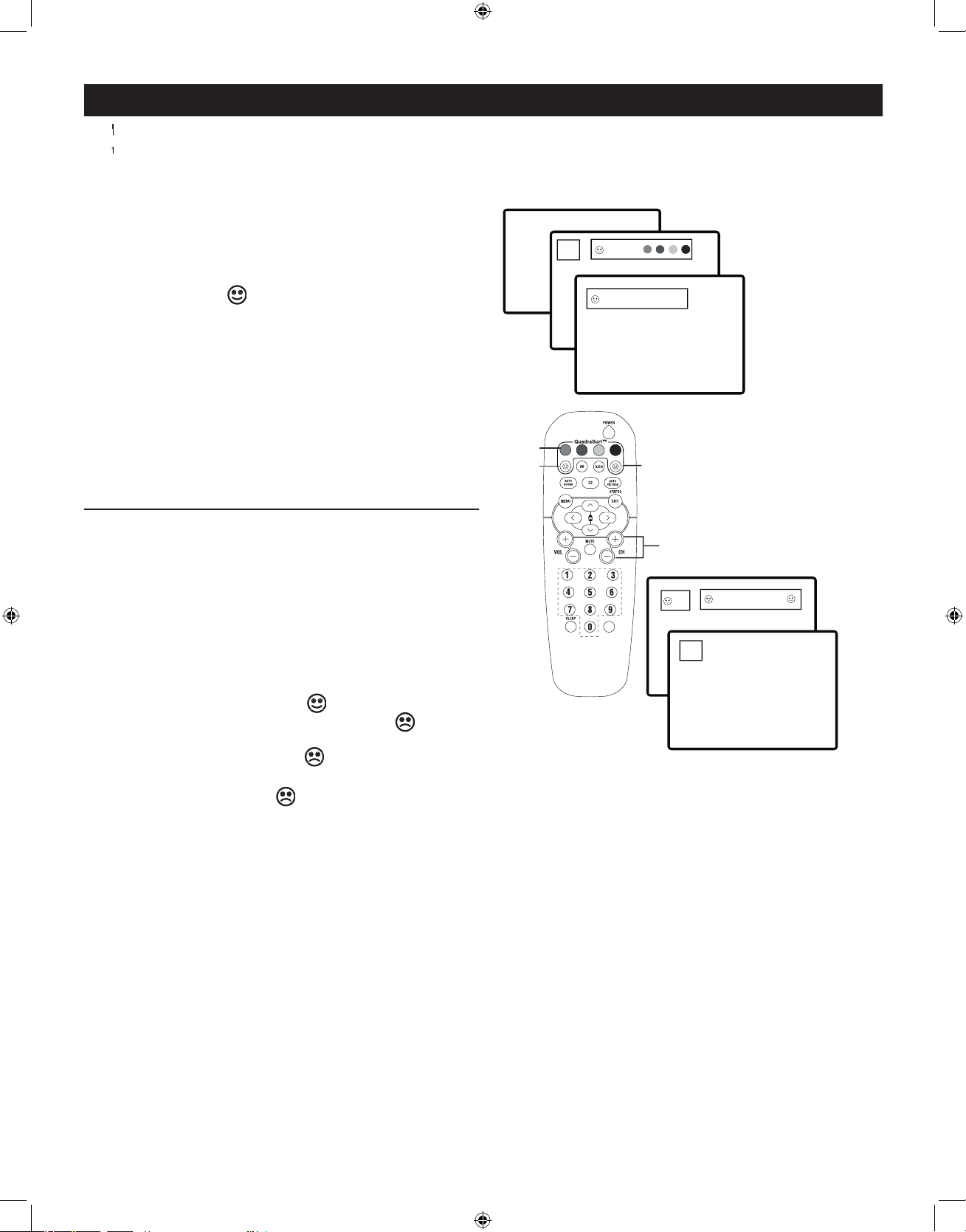

QUADRASURF
allows you to store and surf up to 10 channels
you choose for each colored button on the remote control
(Pg.32 - 33).
Sleeptimer
allows
the viewer to set a timer to automatically turn
the TV off
after a period of time (
Page
. 31)
As an Energy Star® Partner, Philips Consumer
Electronics has determined this product meets
the Energy Star® guidelines for energy efficiency
Energy Star® is a U.S. registered mark. Using
products with the Energy Star® label can save
energy. Saving energy reduces air pollution and lowers utility
bills.
AutoPicture, AutoSound, and Incredible Surround are
trademarks of Philips Consumer Electronics Company.
Copyright 2001 Philips Consumer Electronics.
FEATURES
NOTE
: After the FCC wi
thdraws all analog signals in 2009,
your analog TV will require a digital to analog converter box
to convert digital signals to analog so
that you can continue
to receive broadcast
er’s programs.
3
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out.
Complete and return your Product Registration Card at once, or register online at www.philips.com/usasupport
to ensure:
Return your Product Registration Card or register online at
www.philips.com/usasupport today to get the very most from your purchase.
Visit our World Wide Web Site at http://www.philips.com/usasupport
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.You’ve selected one of
the best-built, best-backed products available today.We’ll do every-
thing in our power to keep you happy with your purchase for many
years to come.
As a member of the PHILIPS “family,” you’re entitled to protection
by one of the most comprehensive warranties and outstanding
service networks in the industry.What’s more, your purchase guar-
antees you’ll receive all the information and special offers for which
you qualify, plus easy access to accessories from our convenient
home shopping network.
Most importantly, you can count on our uncompromising commit-
ment to your total satisfaction.
All of this is our way of saying welcome - and thanks for investing
in a PHILIPS product.
P.S. To get the most from your PHILIPS purchase, be
sure to complete and return your Product Registration
Card at once, or register online at:
www.philips.com/usasupport
For Customer Use
Enter below the Serial No. which is locat-
ed on the rear of the cabinet. Retain this
information for future reference.
Model No.__________________________
Serial No. ________________________
Know these
safetysymbols
This “bolt of lightning” indicates unin-
sulated material within your unit may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
The “exclamation point” calls atten-
tion to features for which you should
read the enclosed literature closely to pre-
vent operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should not
be placed on this apparatus.
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot, fully
insert.
ATTENTION: Pour éviter les choc élec-
triques, introduire la lame la plus large de la
fiche dans la borne correspondante de la
prise et pousser jusqu’au fond.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
t
s
*Proof of
Purchase
Returning the enclosed card guarantees
that your date of purchase will be on file,
so no additional paperwork will be
required from you to obtain warranty
service.
*Product Safety
Notification
By registering your product, you'll receive
notification - directly from the manufac-
turer - in the rare case of a product
recall or safety defect.
*Additional Benefits
Registering your product guarantees that
you'll receive all of the privileges to
which you're entitled, including special
money-saving offers.
4
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1
. Read these instructions.
2.
Keep these instructions.
3
. Heed all warnings.
4.
Follow all instructions.
5.
Do not use this TV near water.
6.
Clean only with a dry cloth.
7
. Do not block any of the ventilation openings. Install in accordance
with the manufacturers instructions.
8.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9.
Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and third grounding
prong. The wide blade or third prong are provided for your safety.
When the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10
. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11
. Only use attachments/accessories specified by the manufacturer.
12
. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the TV
When a cart is used, use caution when moving
the cart/TV combination to avoid injury from tip-over.
13
. Unplug this TV during lightning storms or when unused for long
periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is
required when the TV has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into apparatus, the TV has been exposed to rain
or moisture, does not operate normally, or has been dropped.
15
. This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org
16.
Damage Requiring Service - The TV should be serviced by qualified
service personnel when:
A
. The power supply cord or the plug has been damaged; or
B.
Objects have fallen, or liquid has been spilled into the TV; or
C.
The TV has been exposed to rain; or
D.
The TV does not appear to operate normally or exhibits a
marked change in performance; or
E.
The TV has been dropped, or the enclosure damaged.
17. Tilt/Stability
- All televisions must comply with recommended
international global safety standards for tilt and stability properties
of its cabinet design.
• Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet which could ultimately
overturn the product.
• Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product
damage and/or personal injury.
18. Wall or Ceiling Mountin
g - The TV should be mounted to a
wall or ceiling only as recommended by the manufacturer.
19. Power Lines
- An outdoor antenna should be located away from
power lines.
20. Outdoor Antenna Grounding
- If an outside antenna is
20. Outdoor Antenna Grounding - If an outside antenna is 20. Outdoor Antenna Grounding
connected to the receiver, be sure the antenna system is grounded so
as to provide some protection against voltage surges and built up static
charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70-
1984, provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding connectors, location
of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure below.
21
.
Object and Liquid Entry
- Care should be taken so that
objects do not fall and liquids are not spilled into the enclosure
through openings.
a)
Warning: To reduce the risk of fire or electric shock, this
apparatus should not be exposed to rain or moisture and objects
filled with liquids, such as vases, should not be placed on this
apparatus.
22.
Battery Usage CAUTION
- To prevent battery leakage that
may result in bodily injury, property damage, or damage to the unit:
• Install all batteries correctly, with + and - aligned as marked on
the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
Note to the CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
5
75
75‰
L
R
S-VIDE
O
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
1
Back of TV
Cable signal
coming from
Cable Company
Jack Panel Back of TV
75
1
2
75‰
L
R
S-VIDE
O
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
Antenna Connection
300 to 75Ω
Adapte
r
Combination
VHF/UHF Antenna
(Outdoor or Indoor)
Twin Lead
Wire
Round Cable
75Ω
Back of TV
Direct Cable Connection
75Ω Round
Coaxial Cable
BASIC ANTENNA AND CABLE CONNECTIONS
After using the Auto Program Control, press the
CH+ and - buttons to scroll through all the chan-
nels stored in the television’s memory.
HELPFUL HINTS
1
If your Cable TV signal or Antenna signal
is a round cable
(75 ohm) then you are ready
to connect to the TV.
If your antenna has flat twin lead wire
(300 ohm), you first need to switch the antenna
wires to the screws of a 75 ohm adapter.
If you have a Cable Converter Box :
Connect the Cable TV signal to the Cable
Signal IN(put) plug on the Converter.
2
Connect the Cable TV cable or Antenna cable
(or 300 to 75 adapter) to the 75 plug on the
TV.
If you have a Cable Converter Box : Connect
the OUT (put) plug from the Converter to the
75 plug on the TV.
Y
our home’s signal input might come from a single (75 ohm) round cable, a converter box or from an antenna. In
Y
our home’s signal input might come from a single (75 ohm) round cable, a converter box or from an antenna. In
Y
either case the connection to the TV is very easy.
Yeither case the connection to the TV is very easy.Y
Ω
Ω
Ω
6
BASIC TV AND REMOTE CONTROL OPERATION
1
Press the POWER button
to turn the TV
ON.
2
Press the VOLUME + button
to increase
the sound level, or the
VOLUME - button
to
lower the sound level.
Pressing both buttons at the same time
will display the on-screen menu. Once in the
menu, use these buttons to make adjustments
or selections.
3
Press the CHANNEL
<
or
>
or
> or
button to
select TV channels.
4
Point the remote control
toward the
remote sensor window on the TV when
operating the TV with the remote.
1
Remove the battery compartment lid
at
the back of the remote.
2
Place the batteries (2-AA) in the remote. Be
sure the (+) and (-) ends of the batteries line
up correctly as marked on the inside of the
case.
3
Reattach the battery lid.
REMOTE CONTROL
T
o load the supplied batteries into the remote :
T
o load the supplied batteries into the remote :
T
Back of Remote Control
Battery Compartment
2 AA-sized batteries
Battery compartment lid
Back of Remote
POWER
VOLUME
-
+
>
<
CHANNEL
POWER
VOLUME
-
+
>
<
CHANNEL
7
CABLE BOX CONNECTIONS
I
f your cable signal uses a cable box or decoder, follow the steps below to complete the connection.
1
Connect the Cable Company supplied
cable
to the signal IN(put) plug at the back of
the Cable Box.
2
Using a RCA type Video Cable,
connect one
end of the cable to the Video
(or ANT,
your cable box may be labeled differently)
Out
jack
on the cable box and the other end to the
AVI Video Input on the TV.
3
Connect one end
of the Audio Left and Right
Cable
to the left and right Audio Out L
& R jacks on the cable box
. Connect the
other end to the AV In Audio L & R Input jacks
on the TV.
NOTE :
Use the
AV
button on the TV remote control
to tune to the
AV
channel or the cable box
signal. Once tuned, change channels at the
cable box, not the television.
Cable Box (w/Audio/Video Outputs) :
L/Mono
VIDEO
S-VIDEO
CVI
Y
Pb
Pr
AUDIO
TO
TV/VCR
CABLE
IN
IR
USB
DVD-D OUT
AUDIO IN
SPDIF
VIDE
O
IN OUT
S-VIDEO
R L
AUDIO OUT
TV
PASSCARD
Y Pb Pr
OPTICAL
SPDIF
1
2
24
3
75‰
L
R
S-VIDEO
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
AV1
In
Monitor
out
Cable Signal IN
from the Cable
Company
Cable Box with A/V Outputs
Jack Panel Back of TV
Audio Cables
L (White) & R (Red)
Video Cable
(Yellow)
Cable Box (w/Audio/Video Outputs):
R
AV2
In
Pb
Y
8
AV (AUDIO/VIDEO) INPUT CONNECTION
T
he TV’s audio/video input jacks are for direct picture and sound connections between TV and a VCR (or similar
T
he TV’s audio/video input jacks are for direct picture and sound connections between TV and a VCR (or similar
T
device) that has audio/video output jacks. Follow steps below to connect an accessory device to the AV In Input
Tdevice) that has audio/video output jacks. Follow steps below to connect an accessory device to the AV In Input T
Jacks located at the back of the TV.
Jacks located at the back of the TV.
1
Connect the VIDEO (yellow)
cable to the
VIDEO AV In jack on the back of the TV.
2
Connect the AUDIO (red and white)
cables
to the AUDIO (left and right) AV In
jacks on the rear of the TV.
3
Connect the VIDEO (yellow) cable
to the
VIDEO OUT jack at the back of the VCR.
4
Connect the AUDIO (red and white)
cables
to the
AUDIO (left and right) OUT
jacks at the rear of the VCR.
5
Turn the VCR (accessory device) and the
TV on.
6
Press the AV button
on the remote control
to select the AV Channel. AV will appear on
the upper left corner of the TV screen.
7
With the VCR (or accessory device) ON and
a prerecorded tape (CD, DVD, etc.) inserted,
press the PLAY
Æ
button
to view the tape
on the television.
222
75
S-VIDEO
ANTENNA
OU
T
ANTENNA
IN
VIDE
O
AUDIO
IN
IN
OU
TOUT
LR
5
3
7
Y
Pb
2
1
Video Cable
(Yellow)
Audio Cables
(Red & White)
Back of TV
Back of Typical VCR
VCR
with
Audio/Video Outputs
VOL
VIDEO
AUDI
O
R
Pr
L/Mono
4
CVI
AV1 In
Monitor
out
AV2 In
9
SIDE AV CONNECTIONS
A
A
udio and Video side inputs are available for a quick connection of a VCR, Video camera, gaming device. Use the
CH+
or
CH-
button on the remote control to tune these inputs.
1
Connect the VIDEO (yellow) cable
from
the Video output on the Camera (or accessory
device) to the Video (yellow) Input located on
the SIDE (or FRONT) of the TV.
2
For Stereo Devices:
Connect the audio cable
(red and white) from the Audio Left and Right
Outputs on the Camera to the Audio In (white)
jack on the SIDE (or FRONT)of the television.
For Mono Devices:
Connect one end of the
audio cable from the Audio Out jack on the
device to the Audio In (white) jack on the SIDE
of the television.
3
Turn the TV and the accessory device
ON
.
4
Press the CH+ or CH- button
on the
remote control to tune the TV to the side
input jacks. “AV” will appear on the TV screen.
5
Press the PLAY
Æ
button on the accessory
device to view playback, or to access the
accessory device (camera, gaming unit, etc.).
S-VIDEO
VIDEOAUDIO
LEFT RIGHT
3
1
2
3
5
Side AV Inputs:
Side Jack
panel of TV
Vide
o
Cable
Audio
Cables
Jack Panel of Accessory Device
Optional
Headphones
V
ID
E
O
A
U
D
IO
L
R
10
S-VIDEO (S-VHS) INPUT CONNECTIONS
T
he S(uper)-Video connection on the rear of the TV can provide you with better picture detail and clarity for the
T
he S(uper)-Video connection on the rear of the TV can provide you with better picture detail and clarity for the
T
playback of accessory sources such as DBS (Digital Broadcast Satellite), DVD (Digital Video Disc), video games and S-
Tplayback of accessory sources such as DBS (Digital Broadcast Satellite), DVD (Digital Video Disc), video games and S-T
VHS VCR (video cassette recorder) tapes than the normal antenna picture connections.
NOTE :
The accessory device must have an S-VIDEO
OUT(put) jack in order for you to complete the
connection on this page.
1
Connect one end of the S-VIDEO CABLE
to the S-VIDEO jack to the back of the TV.
Connect one end of the Audio (red and white)
CABLES to the AV In AUDIO L and R (left and
right) jacks on the rear of the TV.
2
Connect the other end of the S-VIDEO
CABLE
to the S-VHS (S-Video) OUT jack on
the back of the VCR. Connect the other end
of the AUDIO (red and white) CABLES to the
AUDIO (left and right) OUT jacks on the rear
of the VCR.
3
Turn the VCR and TV on.
4
Press the AV buttons
on the remote control
to scroll the channels until SVHS appears in the
upper left corner of the TV screen.
5
Now you are ready to place a pre-recorded
video tape in the VCR and
press the PLAY
Æ
button
75‰
L
R
S-VIDE
O
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
L/Mono
VIDEO
S-VIDEO
CV
I
Y
Pb
Pr
AUDI
O
AV
1 In
R
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
IN
IN
OUTOUT
LR
S-VHS OUT
3
2
5
1
VOL
Monitor
out
AV2 I
n
4
Audio Cables
(Red & White)
S-Video
Cable
VCR or External
Accessory Device
(with S-Video Output)
Back of TV
11
COMPONENT VIDEO (CVI) INPUT CONNECTIONS
C
omponent Video inputs provide for the highest possible color and picture resolution on the playback of digital signal
source material, such as with DVD players. The colour difference signals (Pb, Pr) and the luminance(Y) signal are
connected and received separately, which allows for improved color bandwidth information (not possible when using
composite video or S-Video connections).
1
Connect the Component (Y, Pb, Pr)
Video OUT
jacks from the DVD player (or
similar device) to the (Y, Pb, Pr) in(put) jack
on the TV. When using the Component Video
Inputs, it is best not to connect a signal to the
AV in Video Jack.
2
Connect the red and white AUDIO
CABLES
to the Audio (left and right) output
jacks on the rear of the accessory device to the
Audio (L and R) AV Input Jacks on the TV.
3
Turn the TV and the DVD (or digital
accessory device) ON.
4
Press the AV button
on the remote control
to scroll the channels until CVI appears in the
upper left corner of the TV screen.
5
Insert a DVD disc into the DVD player and
press the PLAY
Æ
button on the DVD Player.
The description for the component video
connectors may differ depending on the DVD
player or accessory digital source equipment
used (for example, Y, Pb, Pr; Y, B-Y, R-Y; Y, Cr,
Cb). Although abbreviations and terms may
vary, the letters b and r stand for blue and red
color component signal. Refer to your DVD or
digital accessory user manual for definitions and
connection details.
HELPFUL HINTS
VIDEO
S-VIDEO
CVI
Y
Pb
Pr
AV
1 In
R
S-VIDEO
OUT
OUT
OUT
L
R
AUDIO
VIDEO
COMP VIDEO
Y
Pb
Pr
3
5
1
Component
Video Cables
(Green, Blue,
Red)
Audio
Cables
(Red &
White)
Accessory Device
Equipped with
Component Vide
o
Outputs
Back of TV
VOL
L/Mono
AUDIO
R
2
AV2 In
Monitor
out
4
The CVI connection will dominate over the AV1 in Video Input.
When a Component Video Device is connected as described, it is best
not to have a video signal connected to the AV1 in Video Input jack.
12
AV OUTPUT CONNECTIONS
T
he Audio/Video Output jacks are great for recording with a VCR or used to connect to external audio system for
T
he Audio/Video Output jacks are great for recording with a VCR or used to connect to external audio system for
T
better sound reproduction.
Tbetter sound reproduction.T
AUDIO SYSTEM CONNECTION :
1
Connect one end of the R(ight) and L(eft)
AUDIO
jacks on the TV to the R and L audio
input jacks on your amplifier or sound system.
Set the audio system’s volume to a normal
listening level.
2
Turn the TV and audio system on.
To
adjust the volume of the audio system, you
will need to change the volume at the external
audio system
,
not the television
.
SECOND VCR CONNECTION :
NOTE :
Refer to page 8 for the proper hookup of the
first VCR. Follow the instructions on how to tune to
the AV1 channel to view a pre-recorded tape.
The following steps allow you to connect a second VCR
to record the program while watching it.
1
Connect on end of the yellow Video
Cable to the AV Out Video plug. Connect
the other end to the VIDEO IN plug on
the second VCR.
2
Connect one end of the red and white
Audio cable
from the
AV Out AUDIO L
and
R
plugs on the TV to the
AUDIO IN
plugs on the VCR.
3
Turn the Second VCR ON
, insert a VHS
tape and its ready to record what’s being
viewed on the TV screen.
3
A
U
X
/
T
V
I
N
P
U
T
P
H
O
N
O
IN
P
U
T
R
L
2
L/Mono
Monito
r
Ou
t
VIDE
O
S-VIDE
O
CVI
Y
Pb
Pr
AV1
In
AUDI
O
1
1
R
Back of TV
Audio Cables
(Red and White)
AUDIO SYSTEM CONNECTION:
CVI
AV2
In
AUDIO SYSTEM CONNECTION :
VCR.
3
Y
Pb
Pr
ANTENNA
OU
T
ANTENNA
IN
VIDE
O
AUDI
O
IN
IN
OU
TOUT
LR
ANTENNA
OU
T
ANTENNA
IN
VIDE
O
AUDI
O
IN
IN
OUT OUT
RL
1
2
3
Monitor
ou
t
S-VIDE
O
CV
I
AV
1 In
R
Back of TV
Audio Cables
1st VCR
(refer to panel 4 for
proper connection)
Vide
o
Cable
2nd VCR with Audio and
Video Input Jacks
AUDIO SYSTEM CONNECTION:
L/Mono
VIDEO
AUDI
O
R
AV2 In
SECOND VCR CONNECTION :
13
VOL
REMOTE CONTROL BUTTON DESCRIPTIONS
MUTE
Button - To turn off the sound
from the TV.”MUTE” will appear on
the TV screen. Press again to restore
sound to its previous level.
POWER
Button - Press to turn
the TV
On
or put on
Standby
AUTO PICTURE
Button - To
choose from five pre-defined picture
settings. (Personal, Movies, Sports,
Weak Signal, or Multimedia).
CH(annel) + or CH(annel)-
Buttons - To select channels in
ascending or descending order.
STATUS / EXIT
Button - To display
current channel number. If the on-
screen menu is displayed, press this
button to remove it fromTV screen.
NUMBER (0-9)
Buttons - To select
TV channels or enter values in the on-
screen menu. For single channel entries,
press the numbered button for the
channel you desire. The TV will pause
for a second or two before changing to
the chosen channel.
AUTO SOUND
Button - To choose
from four pre-defined sound settings.
(Personal, Theatre, Music, or Voice).
CURSOR
Buttons (
<
,
>
,
<
,
>
)
- To highlight and select items on the
TV onscreen menu. Can be used to
toggle format of TV.
VOL(ume) + / -
Buttons - To
increase or decrease the TV sound
level.
A/CH
(Alternate Channel) Button -
Toggle between last viewed and current
channel.
MENU
Button - To display the main
menu.
CH(annel) + or CH(annel)-
SLEEP
Button - Set the TV to
automatically turn itself off after a period
of time. Press repeatedly to select 15,
30, 45, 60, 90, 120, 180 or 240 minutes.
FROWNIE
Button - Allows you
to skip channels from the “Quadra
Surf” list from the colored buttons.
CC
Button - Press to activate the
Closed Captioning Options. Press
repeatedly to scroll through all
available CC options.
QUADRASURF
Buttons - Red,
Green, Yellow, Blue) allows you to
store and surf up to 10 channels you
choose for each colored button.
AV
Button - Press to select an
Button - Press to select an
accessory signal input from the side AV
Inputs
SMILEY
Button - Press to add
channels to the “QuadraSurf” list.
Works with all the 4 colored buttons
14
Language
Tuner Mode
Auto Progra
m
Channel Edit
Language
Tuner Mode
Auto Program
Channel Edit
Install
Main
Langue
Mode synt.
Progr. auto.
Éditer progr.
Installation
VOL
LANGUAGE CONTROL
F
or French and Spanish speaking TV owners an on-screen LANGUAGE option present. With the LANGUAGE control
F
or French and Spanish speaking TV owners an on-screen LANGUAGE option present. With the LANGUAGE control
F
you can set the TV’s on-screen menu to be show in English or French.
Fyou can set the TV’s on-screen menu to be show in English or French.F
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR
<
or
>
to scroll
through the Install features until the word
LANGUAGE
is highlighted.
5
Press the CURSOR > repeatedly
to select
English or Francais (French).
6
When finished, press the STATUS / EXIT
button
on the remote control to remove the
menu from the TV’s screen.
>
>
< >
MENU
STATUS /
EXIT
15

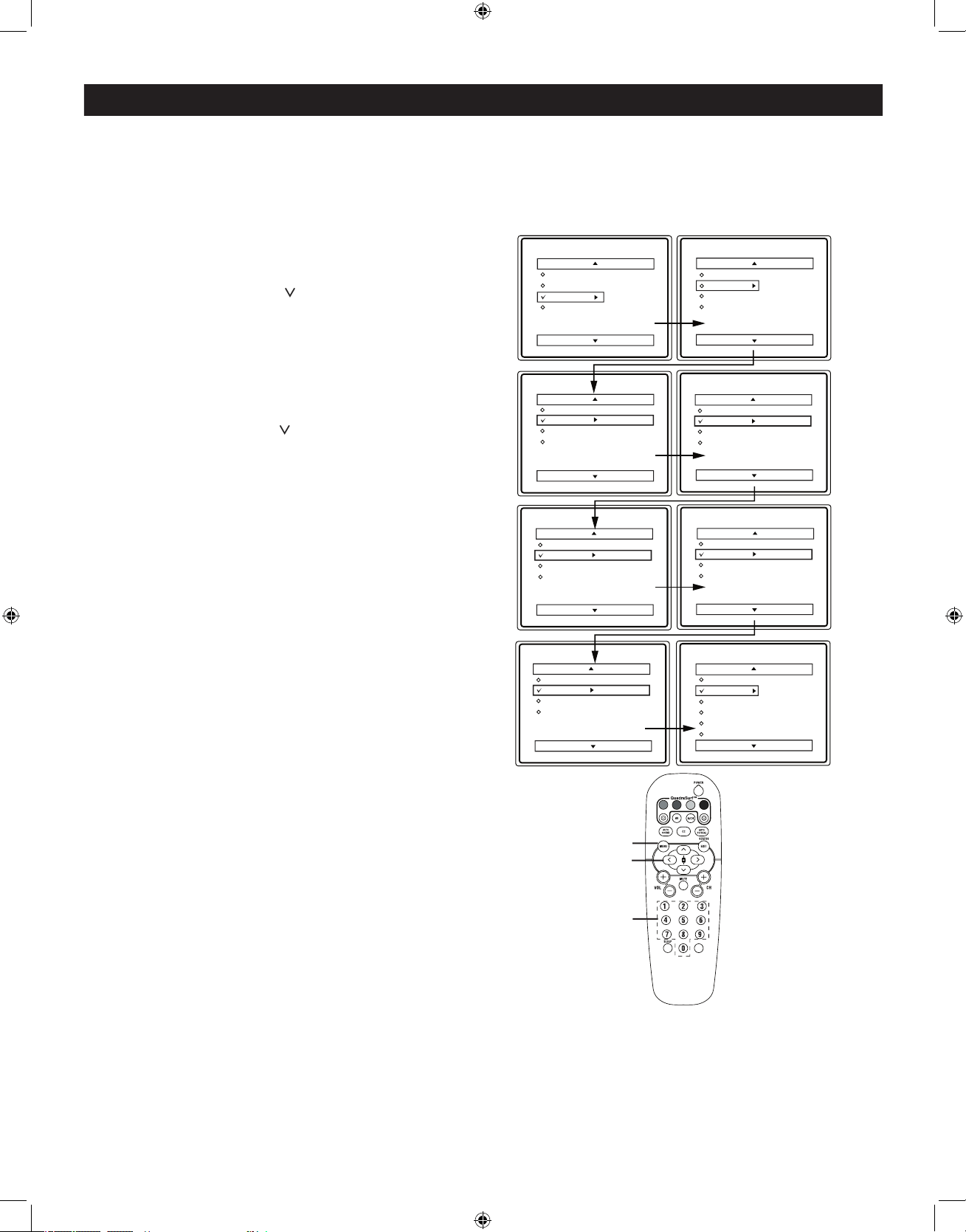

TUNER MODE CONTROL
T
he TUNER MODE control allows you to change the TV’s input signal to either ANTENNA, CABLE or AUTO mode.
T
he TUNER MODE control allows you to change the TV’s input signal to either ANTENNA, CABLE or AUTO mode.
T
It is important for the TV to know which type of signal to look for (Antenna or Cable). In the AUTO mode, when
TIt is important for the TV to know which type of signal to look for (Antenna or Cable). In the AUTO mode, when T
the AUTO PROGRAM feature is activated, the TV will automatically choose the correct mode.
When CABLE is selected, channels 1 - 125 are available.
When ANTENNA is selected, channels 2 - 69 are
available.
When AUTO is selected, the TV will automatically set
itself to the correct mode based on the type of signal it
detects when the AUTO PROGRAM feature is activated.
Language
Tuner Mode
Auto Program
Channel Edit
Language
Tuner Mode
Auto Progra
m
Channel Edit
Install
Language
Tuner Mode
Auto Progra
m
Channel Edit
Install
OR
Language
Tuner Mode
Auto Progra
m
Channel Edit
Install
OR
Cable
Auto
VOL
>
>
< >
STATUS /
EXIT
MENU
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR
<
or
>
to scroll
through the Install features until the word
TUNER MODE
is highlighted.
5
Press the CURSOR >
to select
ANTENNA, CABLE or AUTO
mode.
.
6
When finished, press the STATUS / EXIT
button
on the remote control to remove the
menu from the TV’s screen.
HELPFUL HINTS
16

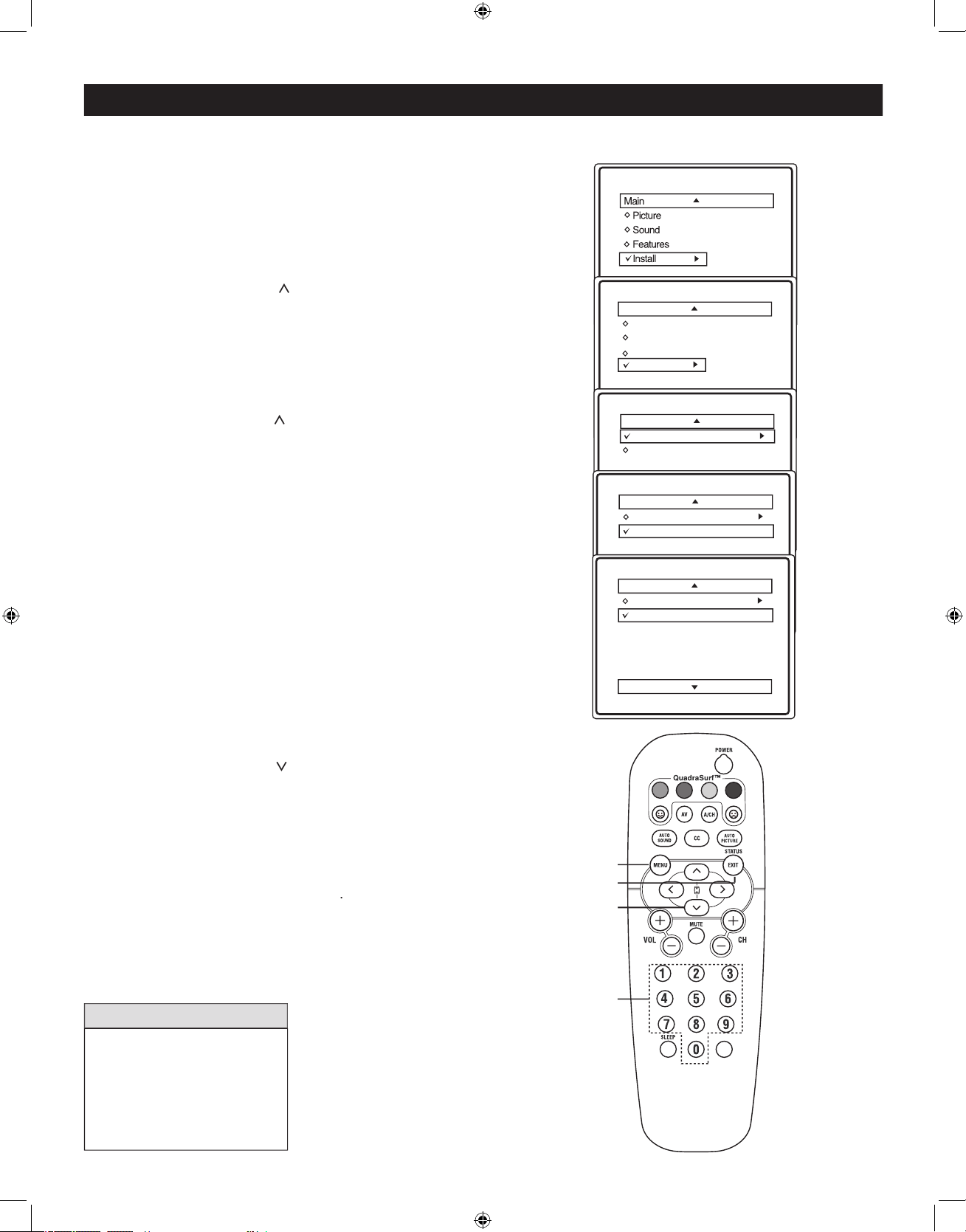

AUTO PROGRAM
Y
ou can auto install programs on your TV. This makes it easy for you to select only the TV stations in your area
Y
ou can auto install programs on your TV. This makes it easy for you to select only the TV stations in your area
Y
when the CH+ or CH– buttons are pressed.
Ywhen the CH+ or CH– buttons are pressed. Y
NOTE :
Ensure that the Antenna or Cable signal
connection has been completed before AUTO
PROGRAM is activated.
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR
<
or
>
or
> or
to scroll
through the Install features until the word
Auto Program
is highlighted.
5
Press
CURSOR >
to start the Auto
Program scanning of channels. Auto
Programming will store all available channels
in the TV’s memory then tune to the lowest
available channel when done.
.
6
When finished, press the STATUS /
EXIT button
on the remote control to
remove the menu from the TV’s screen.
58
59
VOL
Channel Edit
Channel Edit
>
>
< >
STATUS /
EXIT
MENU
17

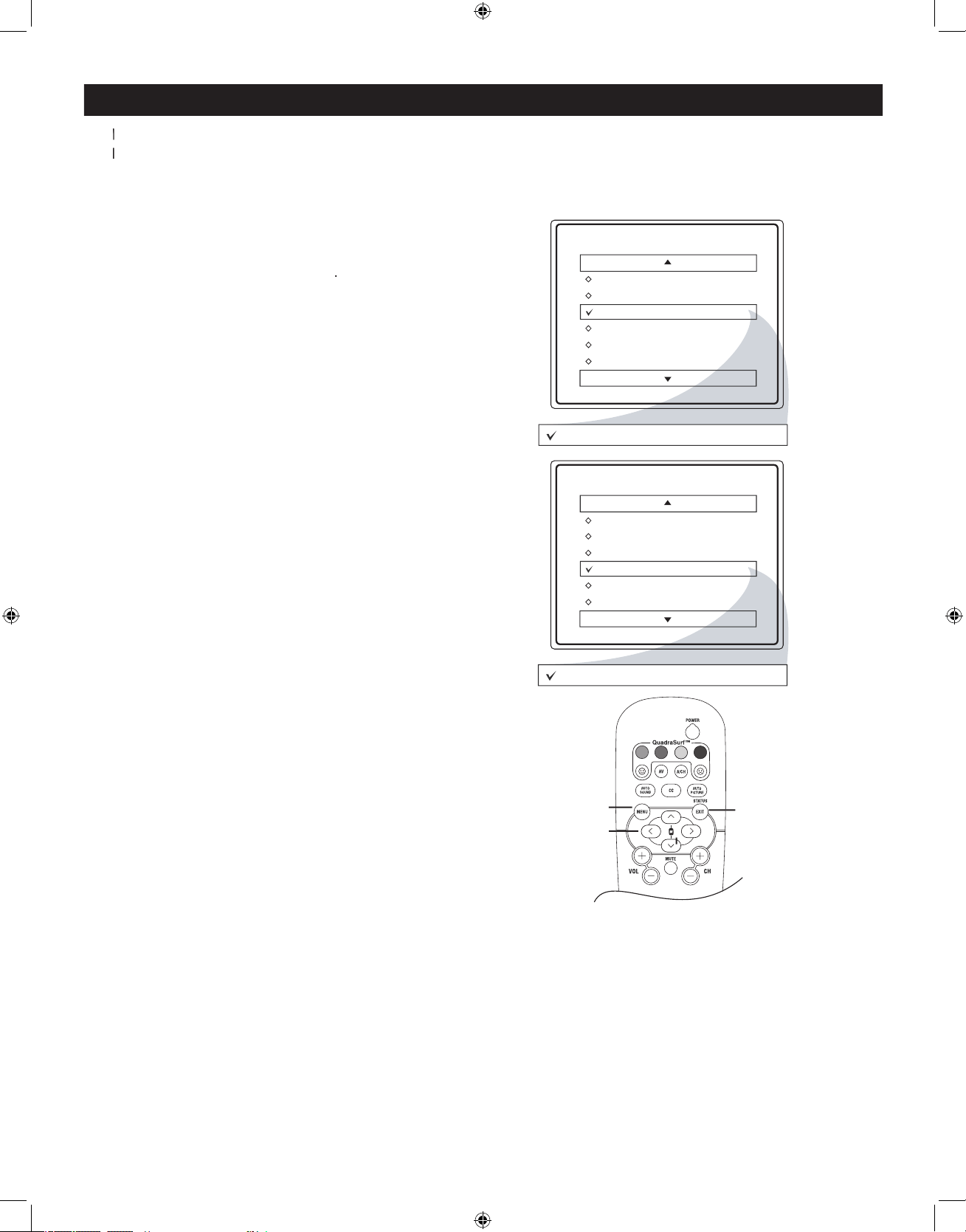

CHANNEL EDIT
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR
<
or
>
to scroll
through the Install features until the word
CHANNEL EDIT
is highlighted.
5
Press the CURSOR >
to select
CHANNEL
EDIT options.
6
With the CHANNEL EDIT options
displayed, and CHANNEL
highlighted;
you can use the
CURSOR > OR <
to scroll
through all available channel that you wish to
ADD
(skipped OFF) or
SKIP
(skipped ON)
from the TV’s memory. You can also use
the
NUMBERED buttons
to go directly
to a specific channel that you want to add or
skip. Or, you can use the
CH+
or
CH-
to
scan through the channels that have not been
skipped.
7
Using the CURSOR
>
,
scroll the menu to
highlight the word SKIPPED.
8
Use
CURSOR > to toggle between ON or
OFF.
If
ON
is selected the channel is skipped
when scrolling channels with
CH+
or
CH-.
If
OFF
is selected the channel is not skipped
when scrolling with
CH+
or
CH-
.
9
When finished, press STATUS / EXIT
button
on the remote control to remove the
menu from the screen.
C
hannel Edit makes it easy for you to
ADD
or
SKIP
channels from the list of channels stored in the TV’s memory.
An “X” appearing in front
of any channel will indicate
that channel has skipped
ON. When the CH+ or
CH- buttons are used, those
channels will be skipped.
HELPFUL HINTS
Language
Tuner Mode
Auto Program
Channel Edit
Install
Language
Tuner Mode
Auto Program
Channel Edit
Channel
Skipped
Channel Edit
Channel 3
Skipped
On
Channel Edit
Channel 3
Skipped
Off
Channel Edit
Channel 3
Skipped
On
VOL
>
>
< >
STATUS / EXIT
MENU
NUMBERED
BUTTONS
18
PICTURE MENU CONTROLS
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
menu
feature is highlighted.
3
Press
CURSOR >
or
<
to adjust
Brightness Control
Brightness Control
- until the darkest parts of the
picture are as bright as you want.
Color
- to add or remove color.
- adjust until the lightest parts of the
picture show good detail.
Sharpness
Sharpness
-
to improve sharpness in the
picture.
Tint Control
- adjust natural skin tones in the
picture quality.
Color Temp
Color Temp
- to select Normal, Cool,
or Warm picture preferences. For Normal, whites
will maintain their whiteness;
Cool will make the whites bluish; and Warm will
make the whites reddish.
DNR
- When set to On Dynamic Noise Reduction
helps to eliminate "noise" from the picture.
Contrast +
-
when set to
On
, the Contrast +
control helps to “sharpen” the picture quality. The
black portions of the picture become richer in
darkness and the whites become brighter.
T
o adjust your TV picture controls, select a channel and use the Picture Menu Controls listed below. Your selection is
T
o adjust your TV picture controls, select a channel and use the Picture Menu Controls listed below. Your selection is
T
stored as
Tstored as T
Personal
.
AUTO PICTURE
1
Press
AUTO PICTURE
button on the
remote
control. The current Smart Picture
setting will display on the screen.
2
Press
AUTO PICTURE
repeatedly to
select either
Personal, Movies, Sports,
Weak Signal
or
Multimedia
or Multimediaor
settings.
NOTE
:
The way you choose to set the Picture Menu
Controls will become your Personal setting.
W
hether you’re watching a movie or a sporting event, your TV has automatic video control settings to enhance
your current program source or content.
VOL
Tint
More...
DNR
VOL
AUTO
AUTO
>
>
< >
MENU
19
AUTO SOUND
1
Press
AUTO SOUND
button on the
remote control. The current
Auto Sound
setting will be displayed in the middle of the TV
screen.
2
Press
AUTO SOUND
repeatedly to
toggle between the four settings. (
Personal,
Voice, Music, or Theatre
).
NOTE
:
The way you choose to set the Sound Menu
Controls will become your Personal setting.
T
he Auto Sound feature allows the listener to select between four different pre-set sound options.
T
he Auto Sound feature allows the listener to select between four different pre-set sound options.
T
VOL
AUTO
SOUND
SOUND MENU CONTROLS
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Sound
menu
feature is highlighted.
3
Press
CURSOR >
or
<
to adjust
Treble
- The control will enhance the
high frequency sounds.
Bass
- The control will enhance the low
- The control will enhance the low
frequency sounds.
Balance
- Level of sound coming from the left
and right speakers.
AVL
(Auto Volume Leveler)
(Auto Volume Leveler)
-
When On, AVL
will level out the sound being heard when sudden
changes in volume occur during commercial breaks
or channel changes.
I
NCR. SURROUND
-
Select
Incr. Surround
or
Stereo
settings if you're in
Stereo mode
. Select
Mono
or
Spatial
if you're in Mono mode.
S
AP
SAPS
:
AP:AP
Secondary Audio Programming is sent as a third
audio channel, a SAP signal can be heard apart from
the current TV program sound.
Sound
-
toggles between
Stereo
or
Mono
settings.
Note: If Stereo is not present on a selected show
and the TV is in Stereo mode, the sound coming
from the TV will remain in the Mono mode.
T
o adjust your TV sound controls, select a channel and use the Sound Menu Controls listed below. Your selection is
T
o adjust your TV sound controls, select a channel and use the Sound Menu Controls listed below. Your selection is
T
stored as
Tstored as T
Personal
.
Stereo
or Incr. Surround
SAP
VOL
Stereo
or Mono
or On
>
- The control will enhance the
>
- The control will enhance the
>
< >
MENU
MENU
20
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Features
Time
Start Time
Stop Time
Channel
Activate
Display
Timer
VOL
Time
Start Time
Stop Tim
e
Channel
Activate
Display
12:18PM

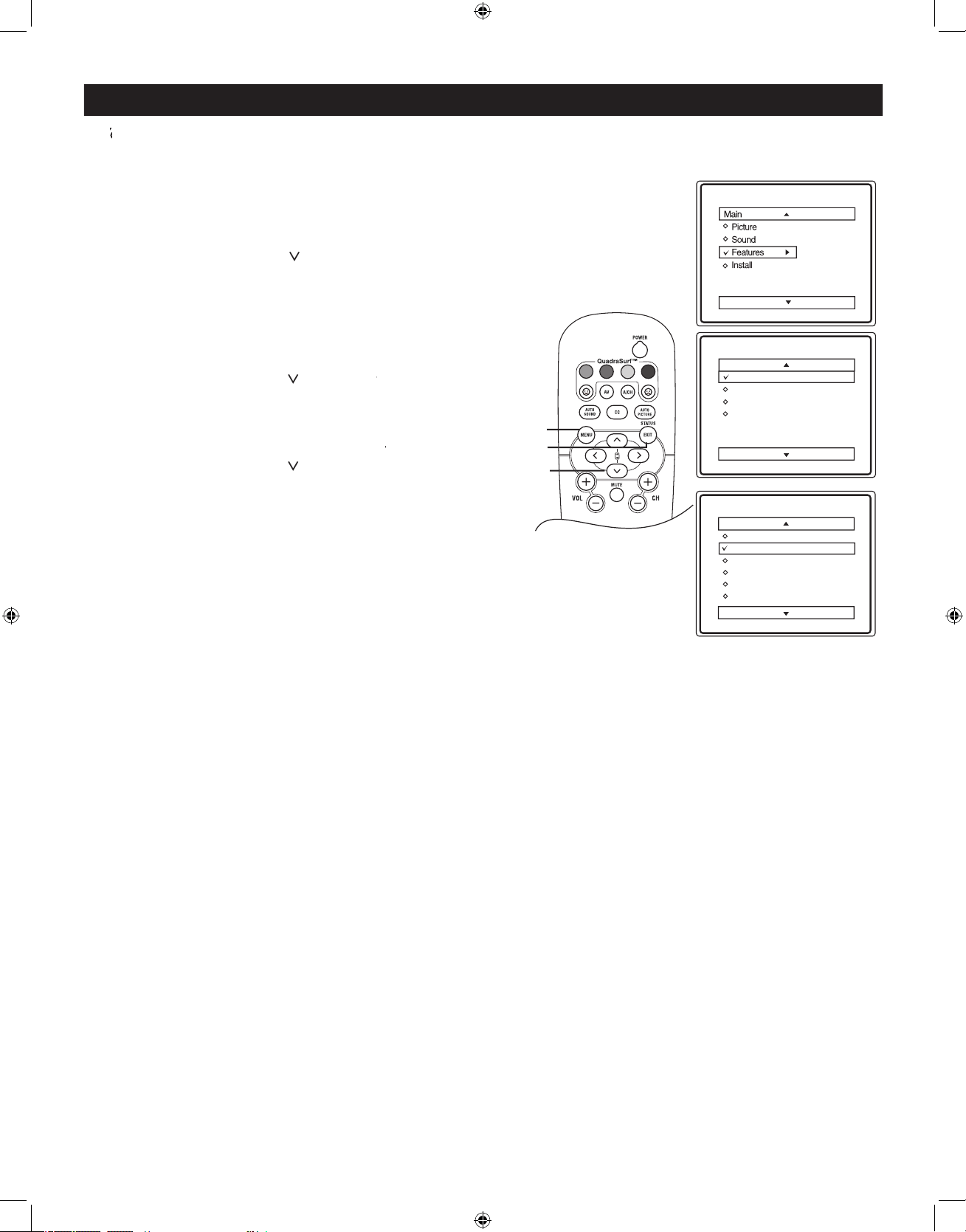

TIMER CONTROL - SETTING THE TV CLOCK
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Features
is highlighted.
3
Press
CURSOR >
to display the Feature menu.
4
Press
CURSOR
<
or
>
until
Timer
is
Timer is Timer
highlighted.
Press
CURSOR >
to display the
Timer
menu.
Timer menu.Timer
5
Enter the correct time by using the number buttons.
6
Press
CURSOR >
to change the AM or PM setting.
7
When finished, press the STATUS / EXIT
button
to remove the menu from the TV’s screen.
Y
our TV comes with an on-screen clock. During normal operation, the clock appears on the screen when the STATUS
Y
our TV comes with an on-screen clock. During normal operation, the clock appears on the screen when the STATUS
Y
/ EXIT button on the remote control is pressed or the Timer display control is ON.
/ EXIT button on the remote control is pressed or the Timer display control is ON.
Y/ EXIT button on the remote control is pressed or the Timer display control is ON.Y
TIMER CONTROL - ACTIVATE
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Features
is highlighted.
3
Press
CURSOR >
to display the Feature menu.
4
Press
CURSOR
<
or
>
until
Timer
is
Timer is Timer
highlighted.
Press
CURSOR >
to display the
Timer
menu.
Timer menu.Timer
5
Press
CURSOR
<
or
>
until
Activate
is
highlighted.
6
Press
CURSOR > or < repeatedly to select
Once, Daily or Off.
7
When finished, press the STATUS / EXIT
button
to remove the menu from the TV’s screen.
A
A
fter you have set the Time, Start Time, Stop Time and Start Channel, the timer must be set to come on Once, Daily
or turned off through the Activate control.
or turned off through the Activate control.
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Features
Time
Start Time
Stop Time
Channel
Activate
Display
Timer
VOL
Time
Start Time
Stop Tim
e
Channel
Activate
Display
12:18PM
Daily
>
>
< >
MENU
STATUS / EXIT
STATUS / EXIT
>
>
< >
MENU
STATUS / EXIT
STATUS / EXIT
21
TIMER CONTROL - START OR STOP TIME
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Features
is highlighted.
3
Press
CURSOR >
to display the Feature menu.
4
Press
CURSOR
<
or
>
until
Timer
is
Timer is Timer
highlighted.
5
Press
CURSOR >
to display the
Timer
menu.
Timer menu. Timer
Press
CURSOR
<
or
>
until
Start Time
or Stop Time
is highlighted.
6
Enter the correct time by using the number buttons.
7
Press
CURSOR > or <
to change the AM or PM
setting.
Note : The Activate Control must be set to Once or Daily for this
Start Time or Stop Time to take effect.
8
When finished, press the STATUS / EXIT
button
to remove the menu from the TV’s screen.
Y
ou can set the TV to turn itself On or Off, once or at the same time everyday.
Y
ou can set the TV to turn itself On or Off, once or at the same time everyday.
Y
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Features
Time
Start Time
Stop Time
Channel
Activate
Display
Timer
VOL
Time
Start Time
Stop Tim
e
Channel
Activate
Display
12:18PM
--:--
>
>
< >
MENU
STATUS / EXIT
STATUS / EXIT
22
TIMER CONTROL - START ON A SPECIFIC CHANNEL
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Features
is highlighted.
Press
CURSOR >
to display the
Feature
menu.
3
Press
CURSOR
<
or
>
until
Timer
is
Timer is Timer
highlighted.
4
Press
CURSOR >
to display the
Timer
menu.
Timer menu.Timer
Press
CURSOR
<
or
>
until
Channel
is
highlighted.
5
Press
the
Numbered buttons
to enter the
desired start-up channel
, OR
press the
>
or < buttons OR
the
CH+
or
CH- buttons
or CH- buttons or
repeatedly to enter the start-up channel you
want.
Note : The Activate Control must be set to Once or Daily for this
Channel control to take effect.
6
When finished, press the STATUS / EXIT
button
to remove the menu from the TV’s screen.
Y
ou can select a specific channel that the TV will tune to when the timer turns the set On.
Y
ou can select a specific channel that the TV will tune to when the timer turns the set On.
Y
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Features
Time
Start Time
Stop Time
Channel
Activate
Display
Timer
VOL
Time
Start Time
Stop Tim
e
Channel
Activate
Display
12:18PM
2
Æ
TIMER CONTROL - USING DISPLAY
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Features
is highlighted.
Press
CURSOR >
to display the
Feature menu.
3
Press
CURSOR
<
or
>
until
Timer
is
Timer is Timer
highlighted.
Press
CURSOR >
to display the
Timer
menu.
Timer menu.Timer
4
Press
CURSOR
<
or
>
until
Display
is
Display is Display
highlighted.
5
Press
CURSOR > or < repeatedly to select
ON or Off.
6
When finished, press the STATUS / EXIT
button
to remove the menu from the TV’s screen.
T
he Display control allows you to permanently display the time in the upper right hand corner of the screen.
T
he Display control allows you to permanently display the time in the upper right hand corner of the screen.
T
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Features
Time
Start Time
Stop Time
Channel
Activate
Display
Timer
VOL
Time
Start Time
Stop Time
Channel
Activate
Display
On
>
>
< >
MENU
STATUS / EXIT
STATUS / EXIT
>
>
< >
MENU
STATUS / EXIT
STATUS / EXIT
is
STATUS / EXIT
is
23
DEMO MODE
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Features
is highlighted.
3
Press
CURSOR >
to display the Feature menu.
4
Press
CURSOR
<
or
>
until
Digi Pic Demo
is
highlighted.
5
Press
CURSOR > or < to select ON or Off.
6
When finished, press the STATUS / EXIT
button
to remove the menu from the TV’s screen.
Note : You may also activate the Digi Pic Mode by
pressing
the
MUTE
button for approximately 3-4 seconds. The split
screen demo will appear for 20 seconds after which th
e TV
will automatically return to normal.
W
ith Demo Mode On, a split screen demo will be shown, left half and right half. When Demo mode is on, you will
W
ith Demo Mode On, a split screen demo will be shown, left half and right half. When Demo mode is on, you will
W
see the features in activation on the right half of the screen while the left half shows the image without activated
Wsee the features in activation on the right half of the screen while the left half shows the image without activated W
features.
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Features
VOL
Off Æ
4:3 EXPAND FORMAT CONTROL
1
-
The Expand 4:3 can be activated using
the
CURSOR
<
or
>
or
> or
when the onscreen menu
is not being displayed. Pressing these buttons will
toggle between
Standard 4:3
and
Expand 4:3
.
M
M
any times while watching movies from a DVD player, the image is shown in “letterbox” format. This is the format
shown in movie theaters. When shown on TV screen, the image will have areas of black on top and bottom of the
screen.
4:3
Expand 4:3
VOL
>
>
< >
When the Digi Pic Demo is set to
ON
the Active
Control will be de-activated. Active control is
available only when Digi Pic Demo is set to
OFF
.
HELPFUL HINTS
>
>
< >
MENU
STATUS / EXIT
STATUS / EXIT
24
UNDERSTANDING AUTOLOCK CONTROLS
MOVIE RATINGS
G: General Audience
- All ages admitted. Suitable for all ages.
PG: Parental Guidance Suggested
- Contains material
unsuitable for younger children.
PG-13: Parents Strongly Cautioned
- Contains material
unsuitable for children under the age of 13.
R: Restricted
- Suitable for adults above 17 years of age only.
NC-17:
No one under the age of 17 will be admitted.
X: Adults Only
- Contains one or more of the following: very
X: Adults Only - Contains one or more of the following: very X: Adults Only
graphic violence, very graphic and explicit or indecent sexual acts,
very coarse and intensely suggestive language.
A
utoLock is a feature that lets the TV receive and process data sent by broadcasters or other program providers with program content
advisory. When programmed by the viewer, a TV with AutoLock can respond to the content advisory and block program content
Aadvisory. When programmed by the viewer, a TV with AutoLock can respond to the content advisory and block program content A
that may be found objectionable (such as offensive language, violence, sexual situations, etc.). This feature is useful for adults to prevent
certain types of programs from being viewed by children.
AutoLock
offers various BLOCKING controls to choose from:
AutoLock offers various BLOCKING controls to choose from:AutoLock
Access Code
- An Access Code must be set to prevent children from unblocking questionable or censored programming set by their
parents.
Channel Block
- After an access code has been programmed, you can block individual channels including the A/V inputs.
Channel Block - After an access code has been programmed, you can block individual channels including the A/V inputs.Channel Block
Clear All
- Lets you clear all channels being blocked from your viewing set with the Channel Block Control.
Block All
- Lets you block ALL channels including A/V inputs.
No Rating
- ALL programming with no content advisory data can be blocked if
NO RATING
is set to ON.
Movie Ratings
- Certain blocking options exist which will block programming based on ratings patterned by the Motion Pictures
Association of America (MPAA).
TV Ratings
- Like the Movie Ratings, programs can be blocked from viewing using standard TV ratings set by TV broadcasters.
Unrated
- ALL unrated programs based on the Movie Ratings or Parental TV Guidelines can be blocked if
UNRATED
is set to ON.
TV RATINGS
TV-Y :
Designed for a very young audience, including children
ages 2-6
TV-Y7:
Appropriate for children age 7 and above who have
acquired the development skills needed to distinguish between
make-believe and reality.
TV-G :
Suitable for most audiences. Contains little or no violence,
no strong language, and little or no sexual dialogue or situations.
TV-PG:
Contains material unsuitable for younger children.
Could contain Moderate violence (V), some sexual situations (S),
infrequent coarse language (L), or some suggestive dialogue (D).
TV-14:
Contains some material unsuitable for children under
14 years of age. Contains one or more of the following: intense
violence (V), intense sexual situations (S), strong coarse language
(L), or intensely suggestive dialogue (D).
TV-MA
- Viewed by adults and therefore may be unsuitable for
children under 17. Contains one or more of the following: graphic
violence (V), explicit sexual situations (S), or crude indecent
language (L).
25
SETTING UP AN ACCESS CODE
1
-
Press MENU
button on the remote control to
display the onscreen menu.
2
Press
CURSOR
<
or
>
until
Features
is
highlighted.
3
Press
CURSOR >
to display the
Features menu
options (AutoLock or Format).
4
Press
CURSOR
<
or
>
until the word
AUTOLOCK
is highlighted.
5
Press
CURSOR >
and the screen will read,
“ACCESS CODE - - - - .“
6
Using the
NUMBERED buttons
enter
0 7 1 1
.
“
XXXX
” appears on the Access Code screen as
you press the numbered buttons.
“
INCORRECT CODE
” will appear on the screen
and you will need to enter 0 7 1 1 again.
7
The screen will ask you to enter a “New Code”.
Enter a “new” 4 digit code using the
NUMBERED buttons
on the remote control.
You will be asked to CONFIRM the code. Enter
the new code again “XXXX” will appear when you
enter your new code and then display the AutoLock
menu options.
Proceed to the next page to learn more....
O
ver the next few pages you’ll learn how to block channels . To get a better understanding of the rating terms for
certain programs refer to page 24.
Let’s start by learning how to set a personal access code :
Main
Pictur
e
Sound
Features
Instal
l
Timer
AutoLock
Active Control
Digi Pic Demo
Features
Timer
Start
Time
Channe
l
Activate
Displa
y
Features
Access Code
- - -
-
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Rating
OffStop Time
Channe
l
Activate
Displa
y
Features
Access Code
Features
Access Code
xxxx
Incorrect
Features
New Code
- - -
-
Features
Confirm Code
xxxx
VOL
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
xxxx
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Timer
AutoLock
Active Control
Digi Pic Demo
Confirmed
>
>
< >
MENU
NUMBERED
BUTTONS
26
BLOCK CHANNELS
1
-
Press the CURSOR
<
or
>
until the words
BLOCK CHANNELS
are highlighted
.
2
Press
CURSOR
>
to turn blocking
ON
or
OFF
for that channel. When
ON
is selected the channel
will be blocked.
3
Press
CH+ or CH-
to select other channels
you wish to block. Repeat step 2 to block the
new channel.
4
To Unblock a channel, use the
CH+
or
CH-
to scroll to the channel you wish to unblock. The
screen will show a message telling you that the
channel has been blocked by AutoLock and you have
to Enter your Access Code to unblock the channel.
5
Use the
NUMBERED
Buttons, key in your Access
Code. The Blocked channel will be unBlocked.
6
When finished, press the
STATUS / EXIT
button
on the remote control to remove the menu from
the screen.
NOTE :
If you forget your code, key
0 7 1 1
. This is the
factory default. Enter this code to create a new access
code.
A
A
fter your personal access code has been sent (see previous page), you are ready to select the channels or the A/V
inputs you want to block out or censor. Once you’ve entered your access code and the AutoLock features are
displayed on the screen :
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Rating
OffStop Time
Channe
l
Activat
e
Displa
y
Channel 12
Blocked By AutoLock
Channel Blocking
Access Code
- - - -
Block Channel
On
Enter your
Access Code t
o
view a
tuned
channel that is
blocked with
Block C
hannel.
VOL
>
>
< >
MENU
STATUS / EXIT
CH+ / -
27
BLOCK/CLEAR ALL CHANNELS AT THE SAME TIME
1
-
Press the CURSOR
<
or
>
to select either
CLEAR ALL
or
BLOCK ALL
.
2
If
CLEAR ALL
is selected, press
CURSOR >
to
clear all blocked channels. All channels will be
viewable. Now all blocked channels can be viewed.
If
BLOCK ALL
is selected, press
CURSOR >
to
turn the control
ON
or
OFF
. When
ON
is
selected, ALL available channels will be blocked
from viewing.
3
When finished, press the
STATUS/EXIT
button
on the remote control to remove the menu from
the screen.
NOTE :
If you forget your code, key
0 7 1 1
. This is the
factory default. Enter this code to create a new access
code.
T
his is a continuation of the previous page.
T
his is a continuation of the previous page.
T
After blocking specific channels there may come a time when you want to
block or clear all the channels at the same time.
Tblock or clear all the channels at the same time.T
Once you’ve entered your access code and the AutoLock features displayed on the screen;
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Ratin
g
Clear ?Stop Time
Channe
l
Activat
e
Displa
y
Clear All
Cleare
d
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Ratin
g
Off
Block All
On
VOL
>
>
< >
MENU
STATUS / EXIT
28
MOVIE RATINGS
1
-
Press CURSOR
<
or
>
to highlight the
words
MOVIE RATING.
2
Press
CURSOR
> button to display the
MOVIE RATING
options (G, PG, PG-13, R, NC-
17, or X)
3
Press
CURSOR
<
or
>
to highlight any of the
Movie Rating options. When highlighted, all
these options can be turned
ON
(
which will allow
blocking
) or
blocking
) or blocking
OFF
(
which will allow viewing
).
which will allow viewing
).which will allow viewing
4
Use
CURSOR
> to turn the rating option
ON
or
4
4
OFF
.
NOTE :
If you forget your code, key
0 7 1 1
. This is the
factory default. Enter this code to create a new access
code.
T
he AutoLock feature can block programs based on the Move Industry ratings.
T
he AutoLock feature can block programs based on the Move Industry ratings.
T
Once you’ve entered your access code and the AutoLock features are displayed on the screen;
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Ratin
g
TV Ratin
g
G
PG
PG-1
3
R
NC-17
X
Movie Rating
G
PG
PG-1
3
R
NC-17
X
Off
G
On
VOL
>
>
< >
NUMBER
BUTTONS
29
TV RATINGS
1
-
Press CURSOR
<
or
>
to highlight the
words
TV RATING.
2
Press
CURSOR
> button to display the
TV RATING
options (TV-Y, TV-Y7, TV-G, TV-
PG, TV-14 or TV-MA)
3
Press
CURSOR
<
or
>
to highlight any of the
TV Rating options. When highlighted, all
these options can be turned
ON
(
which will allow
blocking
) or
blocking
) or blocking
OFF
(
which will allow viewing
).
which will allow viewing
).which will allow viewing
NOTE :
Some TV Rating options also have sub-ratings. The
ratings of TV-Y7, TV-G, TV-14, TV-MA can be customized
to block V (violence), FV (fantasy violence), S (sex scenes), L
(coarse language), or D (Suggestive dialogue).
4
Press
CURSOR
> to turn the TV-Y or TV-G rating
4
4
ON
or
OFF
. Or, press
CURSOR
> to enter the
sub-menus for the TV-Y7, TV-PG, TV-14 or TV-MA
ratings.
5
If the TV-Y7, TV-PG, TV-14 or TV-MA sub-menu
is accessed, press
5
is accessed, press
5
CURSOR
<
or
>
to select one
of the options (Block All, V, S, L, D or FV).
5
of the options (Block All, V, S, L, D or FV).
5
6
Press
CURSOR
> to turn the option
ON
or
OFF
.
NOTE :
If you forget your code, key
0 7 1 1
. This is the
factory default. Enter this code to create a new access
code.
T
he AutoLock feature can block programs based on the TV Industry ratings.
T
he AutoLock feature can block programs based on the TV Industry ratings.
T
Once you’ve entered your access code and the AutoLock features displayed on the screen;
TV Rating
TV-Y
TV-Y
7
TV-G
TV-P
G
TV-14
TV-M
A
Off
TV-Y
On
TV-Y7
Block
All, FV
TV-G
Of
f
TV-14
Block All, V, S, L, D
TV-MA
Block
All, V, S, L
TV-PG
Block
All, V, S, L, D
VOL
>
>
< >
NUMBERED
BUTTONS
30
BLOCKING OPTIONS
1
-
Press
CURSOR
<
or
>
until the words
Block Options
is highlighted.
2
Press
CURSOR
> button to display the
Block Options (Unrated, No Rating or
Blocking) menu.
UNRATED :
All unrated programs based on the Movie
Ratings or Parental TV Guidelines can be blocked if this
feature is set to ON and the BLOCKING feature is set to
ON
.
NO RATING :
All programs with NO content advisory
data can be locked if it is set to ON and the BLOCKING
feature is set to
ON
.
BLOCKING :
Might be called the “master switch” for
AutoLock. When ON, all blocking / censoring will take
place. When OFF, all blocking is disabled.
3
Press
CURSOR
<
or
>
to highlight the desired
feature.
3
feature.
3
4
When highlighted, each feature can be turned
ON
or
4
or
4
OFF
using
CURSOR
> or <.
NOTE :
If you forget your code, key
0 7 1 1
. This is the
factory default. Enter this code to create a new access
code.
A
A
utoLock offers the viewer other blocking options as well. With these Blocking options, the censoring can be turned
ON or OFF.
Once you’ve entered your access code and the AutoLock features are displayed on the screen;
AutoLock
Setup Code
Clear Al
l
Block All
Movie Rating
TV Ratin
g
Block Option
s
Blocking
On
Unrated
On
No Rating
On
VOL
>
>
< >
NUMBER
BUTTONS
31
CLOSE CAPTIONING
1
-
Press the CC button
to display the current
Closed Caption settings.
2
Press the
CC button repeatedly
to choose
from the four Closed Caption options (CC
Off, CC1, CC Mute).
3
When finished, press the
STATUS/EXIT
button on
the remote control to remove the menu from the
3
the remote control to remove the menu from the
3
TV screen.
3
TV screen.
3
C
lose Captioning (CC) allows you to read the voice content of television programs on the TV screen. Designed to
help the hearing impaired, this feature uses onscreen “text boxes” to show dialogue and conversations while the TV
program is in progress.
1
Press
SLEEP
button on the remote control to
display the sleeptimer menu.
2
Press
SLEEP
button on the remote control
to select the amount of time (15, 30, 45, 60,
90, 120, 180 or 240 minutes) before the TV
automatically switches Off.
NOTE:
An onscreen countdown will appear during
the last minute before the TV switches
Off. If any button is pressed during the last
minute of the countdown, the Sleep Timer
setting will be cancelled.
SLEEPTIMER
T
he SleepTimer feature allows you to set a timer to automatically turn the TV off after a period of time you choose
T
he SleepTimer feature allows you to set a timer to automatically turn the TV off after a period of time you choose
T
- 15, 30, 45, 60, 90, 120, 180 or 240 minutes.
T- 15, 30, 45, 60, 90, 120, 180 or 240 minutes.T
CC Off
CC1
CC2
CC Off
VOL
CC Mute
>
>
< >
STATUS / EXIT
Sleep 15
Sleep 30
Sleep 45
Sleep 60
Sleep 90
Sleep 120
Sleep 180
Sleep 240
Sleep 15
Sleep off
VOL
SLEEP
You will not be able to
see Close Captions if the
broadcaster does not provide
Close Captioning text with the
program that is transmitted.
HELPFUL HINTS
CC
32
1
Press
CH+ or CH-
(or the Number
buttons)
to select a channel to add to the
SURF
list.
2
Press
SMILEY button
to ADD the
channel to one of the SURF list.
2
channel to one of the SURF list.
2
3
Press a
COLORED button (Red, Green,
Yellow or BLUE)
to add the channel to
that button’s Surf list. You can store up to 10
channels per colored button.
Repeat steps 1 through 3 to add additional
channels (up to ten) to each of the SURF list.
QUADRASURF
T
he QuadraSurf control allows you to setup four different personal channel Surf lists using the colored buttons (on
T
he QuadraSurf control allows you to setup four different personal channel Surf lists using the colored buttons (on
T
the remote control). Each colored button can hold up to ten channels in its quick viewing list.
Tthe remote control). Each colored button can hold up to ten channels in its quick viewing list.T
12
VOL
Select List!
12
12 Added!
12
Remove item ? - Press
12
QUADRASURF
SMILEY button
SMILEY button
SMILEY button
SMILEY button
4
Press the
COLORED QuadraSurf button
until the desired channel appears. The screen
will display the channel number with a colored
“Smiley” face to indicate the Colored button it
relates to.
5
While the colored
SMILEY face
channel
indicator is displayed, press the
FROWNIE
button on the remote control. The screen will
read “Remove item ? - Press .”
6
Press the
FROWNIE
button on the
remote control again to confirm.
Repeat steps 4 through 6 to remove other
channels from the Surf list.
To remove a channel from one of the SURF list
SMILEY face
SMILEY face
SMILEY face
SMILEY face
read “Remove item ? - Press .”
read “Remove item ? - Press .”
read “Remove item ? - Press .”
read “Remove item ? - Press .”
button on the
button on the
button on the
button on the
SMILEY
FROWNIE
CH + / -
33
1
Press one of the pre-programmed
COLORED
buttons on the remote control (Red, Green,
Yellow or Blue). The screen will display a
SMILEY
with the first programmed
SMILEY with the first programmed SMILEY
channel for that surf list.
2
While the colored
SMILEY
STILL appears
SMILEY STILL appears SMILEY
on the screen, press the same
COLORED
button on the remote control to tune to the
second channel programmed for that surf list.
3
Pressing the same
COLORED
button
while the
SMILEY
appears will tune
SMILEY appears will tune SMILEY
all the programmed channels. Pressing the
COLORED
button again will return you to
the first channel in the list.
After the
SMILEY
disappears from the
SMILEY disappears from the SMILEY
screen and the same
COLORED
button is
pressed, the surf channels will be displayed
starting with the FIRST programmed channel
again.
4
Repeat steps 1 - 3 for the other three
COLORED
buttons (Surf list) if desired.
5
Pressing the
FROWNIE
button on the
remote control while the SMILEY
appears
with the channel number will allow you to
remove it from the surf list (see previous page
for more details).
QUADRASURF
T
he QuadraSurf buttons on the remote control allow you to store up to 10 channels per button (40 in total). You
T
he QuadraSurf buttons on the remote control allow you to store up to 10 channels per button (40 in total). You
T
can program the AV input channels for each button making them a “source” button.
Tcan program the AV input channels for each button making them a “source” button.T
Assuming channels have been added to the four Quadra Surf lists (the four colored buttons, see previous page).
Yellow or Blue). The screen will display a
with the first programmed
with the first programmed
with the first programmed
with the first programmed
STILL appears
STILL appears
STILL appears
STILL appears
appears will tune
appears will tune
appears will tune
appears will tune
disappears from the
disappears from the
disappears from the
disappears from the
appears
appears
appears
appears
button on the
button on the
button on the
button on the
10
12
18
22
28
35
39
41
56
99
12
Remove Item? - Press
VOL
QUADRASUFR
SMILEY
FROWNIE
5
12
VOL
A/CH (ALTERNATING CHANNELS)
Y
our remote control has an
Y
our remote control has an
Y
A/CH
(Alternate Channel) button which allows you toggle between the current channel
you are watching and the previous channel.
Yyou are watching and the previous channel. Y
A/CH
1
Press
A/CH
on the remote control to toggle
between the current and previous channel.
34
GLOSSARY
4:3
4:3 is an aspect ratio of traditional squarish National Television Systems Committe (NTSC) TV screens; it stands for four
units of width for every three units of height.
Aspect Ratio
The ratio between the width and height of the TV picture on the screen. In a normal TV set the aspect ratio is 4
to 3 (4:3).
Audio Video (A/V)
A term often used when discussing a channel on a TV receiver or on video equipment, which has been
especially designed to accept VCR audio-video signals. This channel automatically activates special circuitry
within the TV set to prevent picture distortion and skewing. It is also used for audio-video processors, which
handle both types of signals.
Cable Converter Box
A device that allows your television to receive the expanded number of channels provided by broadcasters. Some of these
programs provided by the broadcast may not be free, you’ll have to pay to view them.
Coaxial Cable
Coaxial cable is a copper cable used to connect cable signal coming from Cable TV Company to the TV.
Composit Video Input
Connection
An analog encoded video signal that includes vertical and horizontal synchronizing information. Since both luminance
(brightness) and chrominance (color) signals are encoded together, only a signal connection wire is needed. A composite
video jack is usually a single RCA-type.
Component Video
Input Connection
Provides the highest possible color and picture resolution on the playback of digital signal source material like DVD players.
The color difference signals (Pb, Pr) and the luminance(Y) signals are connected separately which allows for improved
color bandwidth information (not possible when using composite video or S-Video connections).
Letterbox
Letterbox refers to the image of a wide-screen picture on a standard 4:3 aspect ratio television screen.
Luminance
The brightness or black-and-white component of a color video signal. Determines the level of picture detail.
NTSC
National television system committee. The organization that developed the analog television standard currently in use in the
U.S., Canada, and Japan. Now generally used to refer to that standard. The NTSC standard combines blue, red, and green
signals modulated as an AM signal with an FM signal for audio.
S-Video
Separated video. An encoded video signal which separates the brightness from color data. S-Video can greatly improve
the picture when connecting TVs to any high quality video source such as digital broadcast satellite (DBS) and DVDs.
WARNING
Concerning Stationary Images on the TV Screen:
Do not leave stationary or letterbox images on screen for
extended periods of time. This can cause uneven picture-tube
aging.
Normal use of the TV should involve the showing of pictures
that contain constantly moving and changing images that fill the
screen. Be careful not to leave nonmoving images on screen
for extended periods of time, or to display the same images
on screen too frequently, because subtle ghost images can be
left on the picture tubes. Sources of stationary images may be
DVD disks, laser disks, video games, CD-i disks, videotapes,
digital television boxes, broadcast channels, cable channels, sat-
ellite channels, and others. Here are some examples of station-
ary images (this is not an all-inclusive list; you may encounter
others in your viewing):
• DVD menus—listings of DVD disk content
• Letterbox black bars—shown at the top and bottom of the
TV screen when a wide screen (16:9) movie is viewed on a
TV with standard (4:3) aspect ratio.
• Video-game images and scoreboards
• Television station logos—present a problem if they are
bright and stationary; moving or low-contrast graphics are
less likely to cause uneven aging of the picture tube
• Stock-market tickers—presented at the bottom of the TV
screen
• Shopping channel logos and pricing displays—bright and
shown constantly or repeatedly in the same location on the
TV screen.
Placement of the TV
• To avoid cabinet warping, cabinet color changes, and
increased chance of set failure, do not place the TV where
temperatures can become excessively hot; for example, in
direct sunlight or near a heating appliance.
• Be sure to allow a free flow of air to and from the perfo-
rated back cover of the set.
Cleaning
• To avoid possible shock hazard, be sure the TV is unplugged
from the electrical outlet before cleaning.
• Regularly dust the TV with a dry, nonscratching duster to
keep the TV clean.
• When cleaning the TV, take care not to scratch or damage
the screen surface. Avoid wearing jewelry or using anything
abrasive. Do not use household cleaners. Wipe the front
screen with a clean cloth dampened with water. Use even,
easy, vertical strokes when cleaning.
• Gently wipe the cabinet surfaces with a clean cloth or
sponge dampened in a solution of cool, clear water and a
mild soap or detergent. Use a clean, dry cloth to dry the
wiped surfaces.
• Occasionally vacuum the ventilation holes or slots in the
back cover of the set.
• Never use thinners, insecticide sprays, or other chemicals on
or near the cabinet, as they might cause permanent damage
of the cabinet finish.
CLEANING AND CARE
35
TROUBLESHOOTING TIPS
Check this List of
Symptoms
and
Suggested Steps To Take
before requesting Service. You may be able to solve the problem yourself.
If you face problems connecting the TV to external devices, please refer to the User Guide of the external device or call their service centers
for help. Charges for TV installation and adjustments of customer controls are not covered under your warranty.
SYMPTOMS
SUGGESTED STEPS TO TAKE
Installation
Can't get the AV
channels on the TV
screen.
Press the
CH+ / CH-
button on the remote control repeatedly to select the desired AV channels.
Note: SVHS can only be selected if a S-VHS device is connected and powered on.
Installation
TV Displays
Wrong
Channel or No
Channels Above
13
Go to
TUNER MODE
in the television menu and select the correct signal source, then perform the
automatic installation again. (Refer to page 15).
Installation
Channel numbers
do not follow the
channel number
of the
programs.
Go to
TUNER MODE
in the television menu and select the correct signal source, then perform the
automatic installation again. (Refer to page 15).
Sound
Disturbing sound
(such as buzzing,
clicking, cracking,
humming, whistling,
etc).
It is normal to hear a disturbing sound (such as buzzing, clicking, cracking, humming, whistling, etc)
from a distance less than 2 meters (6 feet) with the television sound muted.
If problem occurs on one channel, you may have a signal problem. Please contact the cable provider
or local broadcaster regarding the specifi c channel.
Sound
Sound is not in
Stereo.
This could be due to any of the following reasons:
1. Not all transmitted broadcasts by the cable or broadcast stations are in STEREO. Try checking
with several major network stations to be sure that the station you selected is in STEREO.
2. When SAP is turned ON, the sound mode is automatically set to MONO.
3. Sound mode is set to MONO. Set the sound mode to STEREO. (Refer to page 19).
4. When using an AV input, the television will not display STEREO even though it is producing
stereo sound.
General
No power to the
TV
Check the TV power cord. Unplug the power cord from the TV, wait 10 seconds, then reinsert
the plug into your wall outlet. Power On the TV again.
Plug the power cord directly to the wall socket and not via an extension cord.
If you need to use an extension cord, check that the fuse on the AC power strip is not blown.
General
TV is not
responding to
Remote Control
Ensure the batteries are inserted into the remote control according to the illustration in the battery
compartment. Refer to page 6.
Reset the television by disconnecting the power plug from the wall
outlet for 10 seconds and then reconnecting it again.
General
Remote control is
not working
Ensure the batteries are inserted into the remote control according to the illustration in the battery
compartment. Refer to page 6.
Reset the television by disconnecting the power plug from the wall
outlet for 10 seconds and then reconnecting it again.
General
TV Displays white
lines in letterbox
when viewing a
DVD disc
Some DVD Discs are encoded with as much as 30% more video information to give the best
possible picture quality. With the DVD Player in the “letterbox” picture format, the playback of this
type of disc with extra video information can produce a number of small white lines in the
upper portion of the black letterbox area. With some of these discs, this problem is inherent
and does not require a service call.
36
SPECIFICATIONS
PICTURE / DISPLAY
Aspect ratio :
Picture Display
Picture Enhancement
SOUND
Sound Power (Output RMS)
Sound Enhancement
CONVENIENCE
ON SCREEN DISPLAY
LANGUAGES
CONNECTIVITY
Rear
Side
WEIGHT & DIMENSIONS :
Weight (incl. Packaging) :
Weight (excl. Packaging) :
Visible diagonal / screen size :
2 x 5w
Incredible Surround
Auto Program
Auto Volume Leveller (AVL)
Closed Captioning
Parental Lock
Specifications and information are subject to change without notice.
AV1: CVI, CVBS in
AV2: CVBS in, S-Video
AV3: Monitor Out
CVBS in, Headphone Out
45 kg / 99 lbs
40 kg / 88 lbs
27 inch / 68.6 cm
27" Real Flat Picture,
Auto Picture (5 modes)
Color, Contrast, Sharpness Control
27PT6341
4:3
English and French
37
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
PHILIPS LIMITED WARRANTY
NINETY (90) DAY LABOR / ONE (1) PARTS / TWO (2) YEAR DISPLAY
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the
person receiving the product as a gift against defects in materi-
als and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect arises and
a valid claim is received by Philips within the Warranty Period.
At its option, Philips will either (1) repair the product at no
charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has
been manufactured from new, or serviceable used parts and is
at least functionally equivalent or most comparable to the origi-
nal product in Philips current inventory, or (3) refund the origi-
nal purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product
or part is exchanged, any replacement item becomes your
property and the replaced item becomes Philips’ property.
When a refund is given, your product becomes Philips’ proper-
ty.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all require-
ments can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIM-
ITATIONS:
This Limited Warranty applies only to the new products manu-
factured by or for Philips that can be identified by the trade-
mark, trade name, or logo affixed to it. This Limited Warranty
does not apply to any non-Philips hardware product or any
software, even if packaged or sold with the product. Non-
Philips manufacturers, suppliers, or publishers may provide a
separate warranty for their own products packaged with the
bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained with-
in the product, or any non-Philips product or part not covered
by this warranty. Recovery or reinstallation of programs, data
or other information is not covered under this Limited
Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, misapplication, or non-Philips product, (b) to
damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product
or a part that has been modified without the written permis-
sion of Philips, or (d) if any Philips serial number has been
removed or defaced, or (e) product, accessories or consum-
ables sold “AS IS” without warranty of any kind by including
refurbished Philips product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage occurring to product during shipping.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifica-
tions.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-
SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-
UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICA-
BLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILI-
TY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of inci-
dental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
3121 233 48811
38
Alternating Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
3
A
uto Program
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
AutoLock Controls
Access Code
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
Blo
ck Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
6
Block/Clear All Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . .
2
7
Movie Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
TV Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Block Options
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
AV (Audio/Video
) Input Connection
. . . . . . . . . . . . . . . . . . . .
8
AV (Audio/Video
) Output Connection
. . . . . . . . . . . . . . . . . .
12
Basic Antenna and Cable Connection
. . . . . . . . . . . . . . . . . . . .
5
B
asic TV and Remote Control Operation
. . . . . . . . . . . . . . . .
6
C
able Box Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
C
hannel Edit (Add or Skip
Channel
s)
. . . . . . . . . . . . . . . . . . .
17
Cleaning and Care
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Close Captioning
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Component Video (
CVI) Input Connections
. . . . . . . . . . . . .
11
Demo mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Feature Highlights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Format
Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Glossary
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Language Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Picture Menu Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Brightness
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Color
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
18
C
olor Temperature (Color Te
mp)
. . . . . . . . . . . . . . . . .
18
Contrast
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
8
Color Temperature (Color Temp) Control
. . . . . . . . . . . .
18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Sharpness
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Tint
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Quadra
Surf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Surf
31-3
2
Registration of TV Information
. . . . . . . . . . . . . . . . . . . . . . . . .
3
Remote Control button descriptions
. . . . . . . . . . . . . . . . .
. . 1
3
Safety Instructions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
S
-Video (S-VHS) Input Connections
. . . . . . . . . . . . . . . . . . . .
10
S
ide AV Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
S
leepTimer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Auto
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
8
Auto
Sound
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
S
pecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
Sound
Menu Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
9
AVL (Automatic Volume Leveler)
. . . . . . . . . . . . . . . . . . .
19
Balance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
19
Bass
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Incr. Surround
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
9
Sound
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Ultra Bass
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Timer
Control
Timer ControlTimer
Setting the TV clock
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Activate
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
20
Start
or stop time
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
Start on a specific channel
. . . . . . . . . . . . . . . . . . . . . . . . . .
22
Using Display
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Troubleshooting Tips
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
Tuner Mode
Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Under
standing AutoLock Controls
. . . . . . . . . . . . . . . . . . . .
2
4
Warraty (L
imited)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
7
INDEX
39
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
2005 © Koninklijke Philips Electronics N.V. All rights reserved.
www.philips.com
3139 125
3
7541
