User Manual
20PT6446
Thank you for choosing Philips.
Need help fast?
Read your Quick Use Guide and/or
Owner's Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.usasupport.philips.com
or call
1-888-PHILIPS (744-5477)
while with your product
(and Model / Serial number)
S
T
O
P
2
CONTENTS
IN
TRODUC
TION
Welcome/Registration of Your TV
. . . . . . . . . . . . . . . . . . . . . .
3
Important Safety Instructions
. . . . . . . . . . . . . . . . . . . . . . . . . . .
4
CONNECTION GUIDE
Basic Antenna and Cable Connections
. . . . . . . . . . . . . . . . . . .
5
Basic TV and Remote Control Operation
. . . . . . . . . . . . . . . .
6
Cable Box Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
AV(Audio/Video) Input Connection
. . . . . . . . . . . . . . . . . . . . .
8
Side AV Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
S-Video (S-VHS) Input Connections
. . . . . . . . . . . . . . . . . . . .
10
Component Video (CVI) Input Connections
. . . . . . . . . . . . .
11
AV Output Jacks
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
INSTALLATION MENU
Remote Control Button Descriptions
. . . . . . . . . . . . . . . . . .
13
How to use the Language Controls
. . . . . . . . . . . . . . . . . . . . .
14
How to use the Tuner Mode Control
. . . . . . . . . . . . . . . . . .
15
Auto Program
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Channel Edit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Picture Menu Controls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.18
Sound Menu Controls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
The 4:3 Expand Format Control
. . . . . . . . . . . . . . . . . . . . . . .
20
FEATURES MENU
Understanding Autolock Controls
. . . . . . . . . . . . . . . . . . . . . .
21
Setting Up An Access Code
. . . . . . . . . . . . . . . . . . . . . . . . . .
22
Block Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Block / Clear All Channels At The Same Time
. . . . . . . . . . . .
24
Movie Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
TV Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Block Options
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Close Captioning
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Sleeptimer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sleeptimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Sleeptimer
28
OTHER FEATURES
QuadraSurf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-30
Alternating Channels with A/CH button
. . . . . . . . . . . . . . .
30
Auto Picture
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Auto Sound
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
IMPORTANT INFORMATION
Glossary
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Cleaning and Care
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Troubleshooting Tips
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
Limited Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
AutoLock
lets you block channels or programs that are not
suitable for children or with restricted TV or Movie ratings (Pg. 21).
Auto
lets you select from five pre-set controls according
to your preference. The five pre-set controls (Personal, Movie,
Sports, Weak Signal or Multimedia) lets you custom set the TV
picture to enhance the picture of the program you are watching (Pg.
18).
Auto
Sound
lets you select from four pre-set controls according
to your preference. The four pre-set controls (Personal, Voice,
Music, and Theatre) lets you custom set the TV sound to enhance
the sound of the program you are watching (Pg. 19).
Channel Edit
lets you add or skip channels from the list stored in
the TV memory. Channel Edit makes it easy to limit or expand the
number of channels that are available to you when you press the
Channel (+) or (–) buttons on your remote control (Pg. 17).
Closed Captioning
allows the viewer to read TV program
dialogue or voice conversations as onscreen text (Pg. 28).
QUADRASURF
allows you to store and surf up to 10 channels
you choose for each colored button on the remote control
(Pg.29 - 30).
Sleeptimer
allows
the viewer to set a timer to automatically turn
the TV off
after a period of time (
Page
. 28)
As an Energy Star® Partner, Philips Consumer
Electronics has determined this product meets
the Energy Star® guidelines for energy efficiency
Energy Star® is a U.S. registered mark. Using
products with the Energy Star® label can save
energy. Saving energy reduces air pollution and lowers utility
bills.
AutoPicture, AutoSound, and Incredible Surround are
trademarks of Philips Consumer Electronics Company.
Copyright 2001 Philips Consumer Electronics.
FEATURES
3
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out.
Complete and return your Product Registration Card at once to ensure:
Visit our World Wide Web Site at http://www.usasupport.philips.com
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You’ve selected one
of the best-built, best-backed products available today. We’ll do
everything in our power to keep you happy with your purchase for
many years to come.
As a member of the PHILIPS “family,” you’re entitled to protection
by one of the most comprehensive warranties and outstanding
service networks in the industry. What’s more, your purchase
guarantees you’ll receive all the information and special offers
for which you qualify, plus easy access to accessories from our
convenient home shopping network.
Most importantly, you can count on our uncompromising
commitment to your total satisfaction.
All of this is our way of saying welcome - and thanks for investing in
a PHILIPS product.
P.S. To get the most from your PHILIPS purchase,
be sure to complete and return your Product
Registration Card at once.
Know these
safety
symbols
This “bolt of lightning” indicates
uninsulated material within your unit
may cause an electrical shock. For the safety
of everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention
to features for which you should
read the enclosed literature closely to
prevent operating and maintenance problems.
WARNING:
To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION:
To prevent electric shock,
match wide blade of plug to wide slot, fully
insert.
ATTENTION:
Pour éviter les choc
électriques, introduire la lame la plus large de
la fiche dans la borne correspondante de la
prise et pousser jusqu’au fond.
*Proof of
Purchase
Returning the enclosed card guarantees
that your date of purchase will be on
file, so no additional paperwork will be
required from you to obtain warranty
service.
*Product Safety
Notification
By registering your product, you'll receive
notification - directly from the manufac-
turer - in the rare case of a product recall
or safety defect.
*Additional Benefits
of Product Ownership
Registering your product guarantees that
you'll receive all of the privileges to which
you're entitled, including special money-
saving offers.
Return your Product Registration Card today
to get the very most from your purchase
4
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1
. Read these instructions.
2.
Keep these instructions.
3
. Heed all warnings.
4.
Follow all instructions.
5.
Do not use this TV near water.
6.
Clean only with a dry cloth.
7
. Do not block any of the ventilation openings. Install in accordance
with the manufacturers instructions.
8.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9.
Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and third grounding
prong. The wide blade or third prong are provided for your safety.
When the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10
. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11
. Only use attachments/accessories specified by the manufacturer.
12
. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the TV
When a cart is used, use caution when moving
the cart/TV combination to avoid injury from tip-over.
13
. Unplug this TV during lightning storms or when unused for long
periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is
required when the TV has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into apparatus, the TV has been exposed to rain
or moisture, does not operate normally, or has been dropped.
15
. This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org
16.
Damage Requiring Service - The TV should be serviced by qualified
service personnel when:
A
. The power supply cord or the plug has been damaged; or
B.
Objects have fallen, or liquid has been spilled into the TV; or
C.
The TV has been exposed to rain; or
D.
The TV does not appear to operate normally or exhibits a
marked change in performance; or
E.
The TV has been dropped, or the enclosure damaged.
17. Tilt/Stability
- All televisions must comply with recommended
international global safety standards for tilt and stability properties
of its cabinet design.
• Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet which could ultimately
overturn the product.
• Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product
damage and/or personal injury.
18. Wall or Ceiling Mountin
g - The TV should be mounted to a
wall or ceiling only as recommended by the manufacturer.
19. Power Lines
- An outdoor antenna should be located away from
power lines.

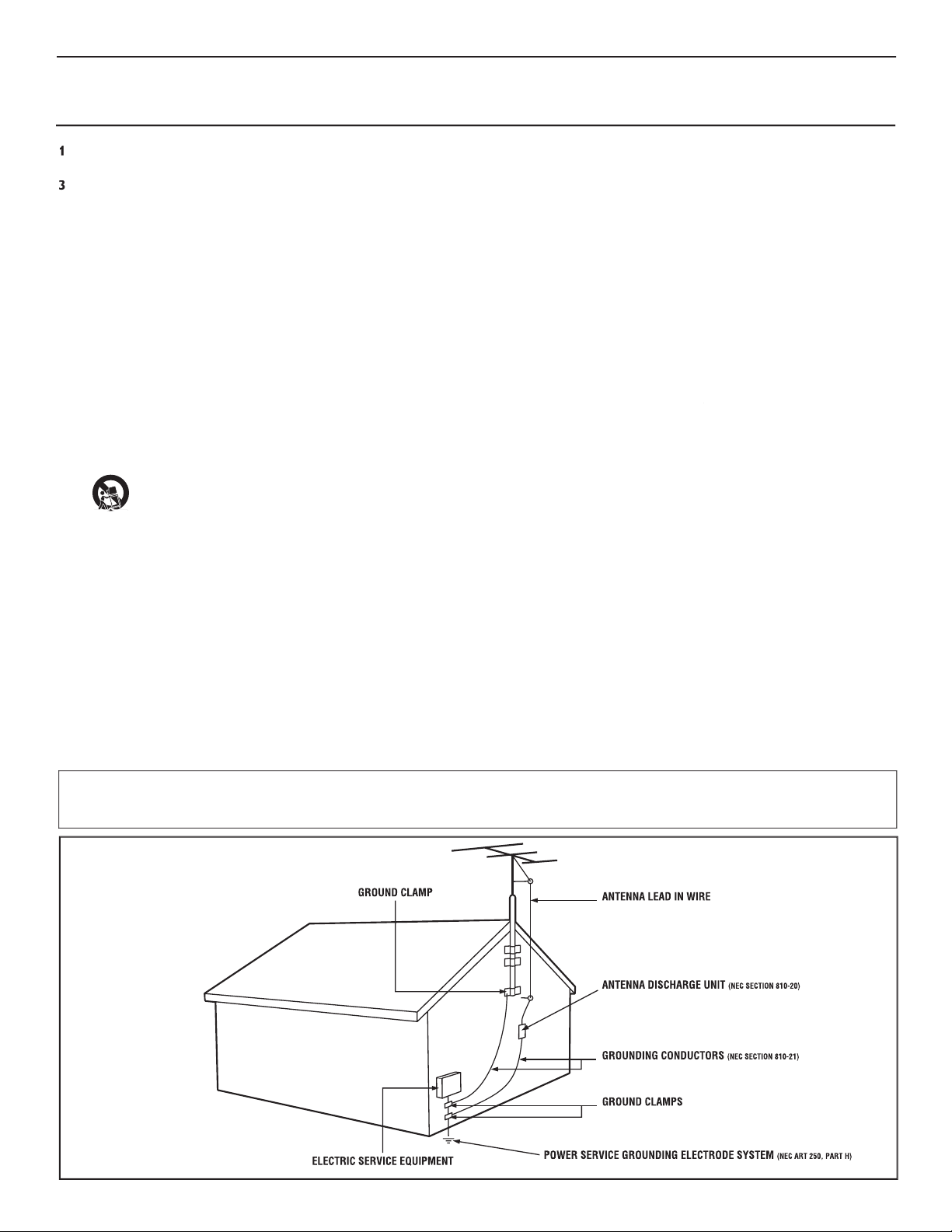

20. Outdoor Antenna Grounding
- If an outside antenna is
20. Outdoor Antenna Grounding - If an outside antenna is 20. Outdoor Antenna Grounding
connected to the receiver, be sure the antenna system is grounded so
as to provide some protection against voltage surges and built up static
charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70-
1984, provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding connectors, location
of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure below.
21
.
Object and Liquid Entry
- Care should be taken so that
objects do not fall and liquids are not spilled into the enclosure
through openings.
a)
Warning: To reduce the risk of fire or electric shock, this
apparatus should not be exposed to rain or moisture and objects
filled with liquids, such as vases, should not be placed on this
apparatus.
22.
Battery Usage CAUTION
- To prevent battery leakage that
may result in bodily injury, property damage, or damage to the unit:
• Install all batteries correctly, with + and - aligned as marked on
the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
Note to the CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
5
75
75‰
L
R
S-VIDE
O
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
1
Back of TV
Cable signal
coming from
Cable Company
Jack Panel Back of TV
75
1
2
75‰
L
R
S-VIDE
O
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
Antenna Connection
300 to 75Ω
Adapte
r
Combination
VHF/UHF Antenna
(Outdoor or Indoor)
Twin Lead
Wire
Round Cable
75Ω
Back of TV
Direct Cable Connection
75Ω Round
Coaxial Cable
BASIC ANTENNA AND CABLE CONNECTIONS
After using the Auto Program Control, press the
CH+ and - buttons to scroll through all the chan-
nels stored in the television’s memory.
HELPFUL HINTS
1
If your Cable TV signal or Antenna signal
is a round cable
(75 ohm) then you are ready
to connect to the TV.
If your antenna has flat twin lead wire
(300 ohm), you first need to switch the antenna
wires to the screws of a 75 ohm adapter.
If you have a Cable Converter Box :
Connect the Cable TV signal to the Cable
Signal IN(put) plug on the Converter.
2
Connect the Cable TV cable or Antenna cable
(or 300 to 75 ohm adapter) to the 75 plug on
the TV.
If you have a Cable Converter Box : Connect
the OUT (put) plug from the Converter to the
75 plug on the TV.
Y
our home’s signal input might come from a single (75 ohm) round cable, a converter box or from an antenna. In
Y
our home’s signal input might come from a single (75 ohm) round cable, a converter box or from an antenna. In
Y
either case the connection to the TV is very easy.
Yeither case the connection to the TV is very easy.Y
Ω
Ω
6
BASIC TV AND REMOTE CONTROL OPERATION
1
Press the POWER button
to turn the TV
ON.
2
Press the VOLUME + button
to increase
the sound level, or the
VOLUME - button
to
lower the sound level.
Pressing both buttons at the same time
will display the on-screen menu. Once in the
menu, use these buttons to make adjustments
or selections.
3
Press the CHANNEL UP + or DOWN -
button to select TV channels.
4
Point the remote control
toward the
remote sensor window on the TV when
operating the TV with the remote.

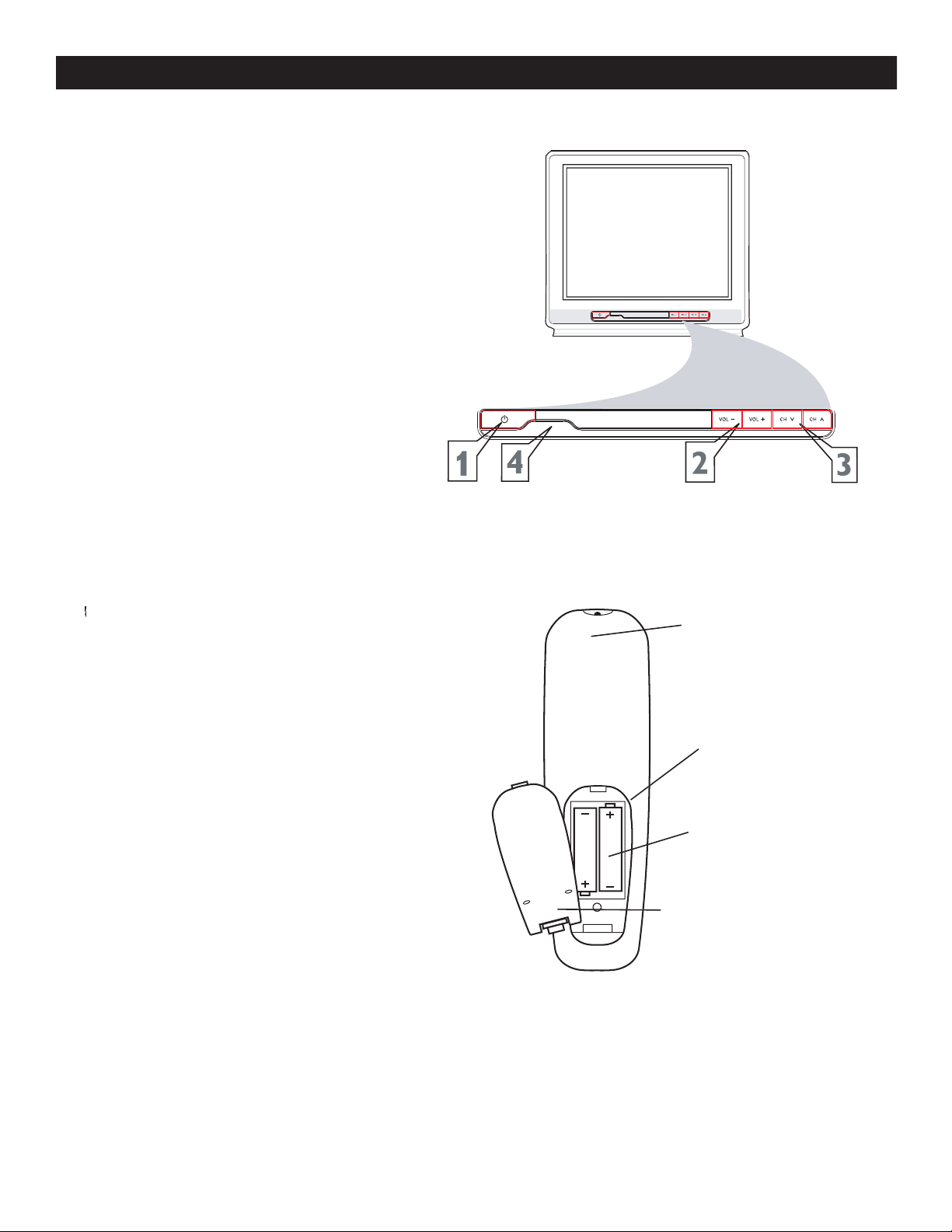

1
Remove the battery compartment lid
at
the back of the remote.
2
Place the batteries (2-AA) in the remote. Be
sure the (+) and (-) ends of the batteries line
up correctly as marked on the inside of the
case.
3
Reattach the battery lid.
REMOTE CONTROL
T
o load the supplied batteries into the remote :
T
o load the supplied batteries into the remote :
T
Back of Remote Control
Battery Compartment
2 AA-sized batteries
Battery compartment lid
Back of Remote
7
CABLE BOX CONNECTIONS
I
f your cable signal uses a cable box or decoder, follow the steps below to complete the connection.
1
Connect the Cable Company supplied
cable
to the signal IN(put) plug at the back of
the Cable Box.
2
Using a RCA type Video Cable,
connect one
end of the cable to the Video
(or ANT,
your cable box may be labeled differently)
Out
jack
on the cable box and the other end to the
AVI Video Input on the TV.
3
Connect one end
of the Audio Left and Right
Cable
to the left and right Audio Out L
& R jacks on the cable box
. Connect the
other end to the AV In Audio L & R Input jacks
on the TV.
NOTE :
Use the
AV
button on the TV remote control
to tune to the
AV
channel or the cable box
signal. Once tuned, change channels at the
cable box, not the television.
Cable Box (w/Audio/Video Outputs) :
L/Mono
VIDEO
S-VIDEO
CVI
Y
Pb
Pr
AUDIO
TO
TV/VCR
CABLE
IN
IR
USB
DVD-D OUT
AUDIO IN
SPDIF
VIDE
O
IN OUT
S-VIDEO
R L
AUDIO OUT
TV
PASSCARD
Y Pb Pr
OPTICAL
SPDIF
4
6
24
5
75‰
L
R
S-VIDEO
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
AV
In
AV
out
Cable Signal IN
from the Cable
Company
Cable Box with A/V Outputs
Jack Panel Back of TV
Audio Cables
L (White) & R (Red)
Video Cable
(Yellow)
Cable Box (w/Audio/Video Outputs):
R
8
AV (AUDIO/VIDEO) INPUT CONNECTION
T
he TV’s audio/video input jacks are for direct picture and sound connections between TV and a VCR (or similar
T
he TV’s audio/video input jacks are for direct picture and sound connections between TV and a VCR (or similar
T
device) that has audio/video output jacks. Follow steps below to connect an accessory device to the AV In Input
Tdevice) that has audio/video output jacks. Follow steps below to connect an accessory device to the AV In Input T
Jacks located at the back of the TV.
Jacks located at the back of the TV.
1
Connect the VIDEO (yellow)
cable to the
VIDEO AV In jack on the back of the TV.
2
Connect the AUDIO (red and white)
cables
to the AUDIO (left and right) AV In
jacks on the rear of the TV.
3
Connect the VIDEO (yellow) cable
to the
VIDEO OUT jack at the back of the VCR.
4
Connect the AUDIO (red and white)
cables
to the
AUDIO (left and right) OUT
jacks at the rear of the VCR.
5
Turn the VCR (accessory device) and the
TV on.
6
Press the AV button
on the remote control
to select the AV Channel. AV will appear on
the upper left corner of the TV screen.
7
With the VCR (or accessory device) ON and
a prerecorded tape (CD, DVD, etc.) inserted,
press the PLAY
Æ
button
to view the tape
on the television.
222
75
S-VIDEO
ANTENNA
OU
T
ANTENNA
IN
VIDE
O
AUDIO
IN
IN
OU
TOUT
LR
5
3
7
Y
Pb
2
1
Video Cable
(Yellow)
Audio Cables
(Red & White)
Back of TV
Back of Typical VCR
VCR
with
Audio/Video Outputs
VOL
VIDEO
CVI
AUDI
O
AV
In
AV ou
t
R
Pr
L/Mono
4
9

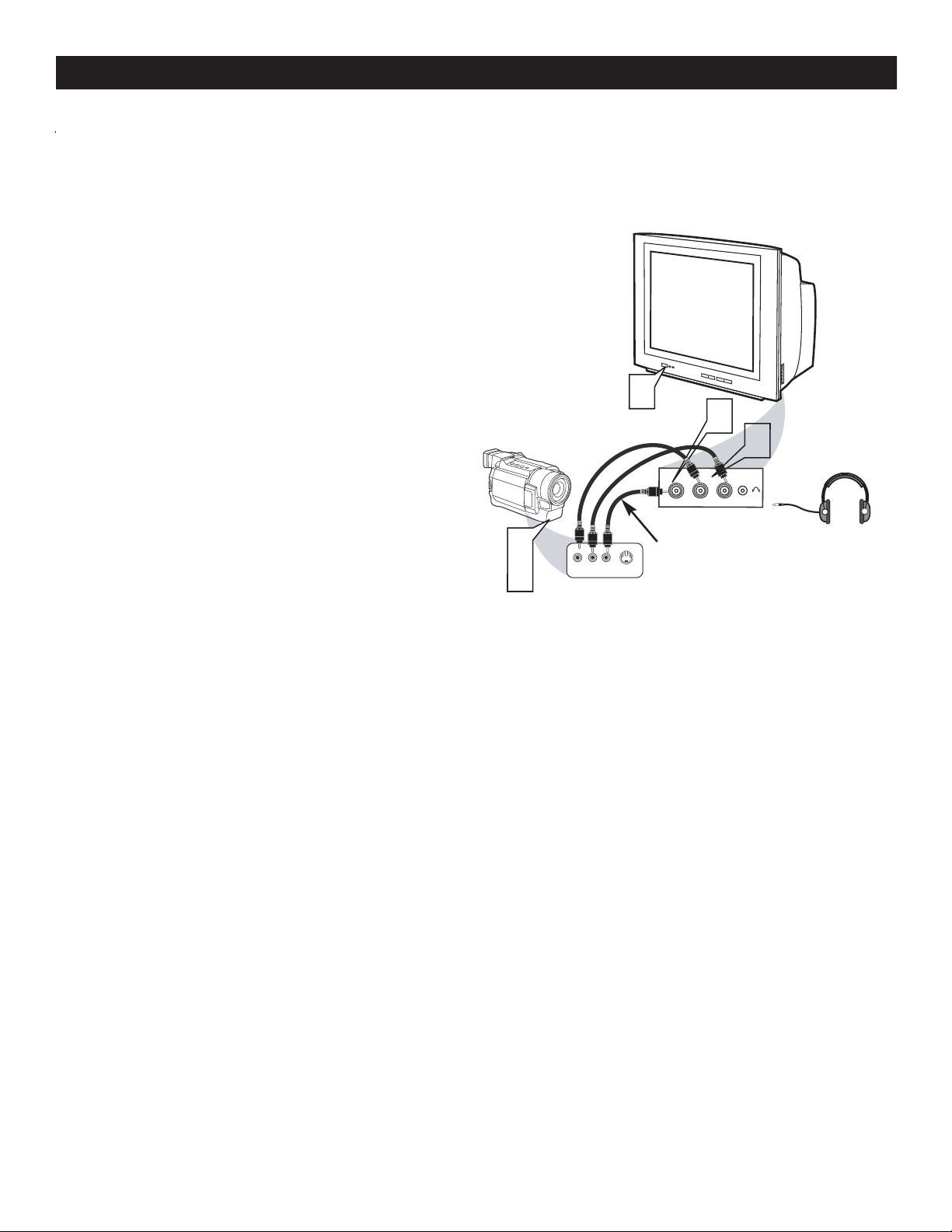

SIDE AV CONNECTIONS
A
A
udio and Video side inputs are available for a quick connection of a VCR, Video camera, gaming device. Use the
CH+
or
CH-
button on the remote control to tune these inputs.
1
Connect the VIDEO (yellow) cable
from
the Video output on the Camera (or accessory
device) to the Video (yellow) Input located on
the SIDE (or FRONT) of the TV.
2
For Stereo Devices:
Connect the audio cable
(red and white) from the Audio Left and Right
Outputs on the Camera to the Audio In (white)
jack on the SIDE (or FRONT)of the television.
For Mono Devices:
Connect one end of the
audio cable from the Audio Out jack on the
device to the Audio In (white) jack on the SIDE
of the television.
3
Turn the TV and the accessory device
ON
.
4
Press the CH+ or CH- button
on the
remote control to tune the TV to the side
input jacks. “AV” will appear on the TV screen.
5
Press the PLAY
Æ
button on the accessory
device to view playback, or to access the
accessory device (camera, gaming unit, etc.).
t
n
o
r
F
S-VIDEO
VIDEOAUDIO
LEFT RIGHT
3
1
2
3
5
Side AV Inputs:
Side Jack
panel of TV
Vide
o
Cable
Audio
Cables
Jack Panel of Accessory Device
Optional
Headphones
V
ID
E
O
A
U
D
IO
L
R
10
S-VIDEO (S-VHS) INPUT CONNECTIONS
T
he S(uper)-Video connection on the rear of the TV can provide you with better picture detail and clarity for the
T
he S(uper)-Video connection on the rear of the TV can provide you with better picture detail and clarity for the
T
playback of accessory sources such as DBS (Digital Broadcast Satellite), DVD (Digital Video Disc), video games and S-
Tplayback of accessory sources such as DBS (Digital Broadcast Satellite), DVD (Digital Video Disc), video games and S-T
VHS VCR (video cassette recorder) tapes than the normal antenna picture connections.
NOTE :
The accessory device must have an S-VIDEO
OUT(put) jack in order for you to complete the
connection on this page.
1
Connect one end of the S-VIDEO CABLE
to the S-VIDEO jack to the back of the TV.
Connect one end of the Audio (red and white)
CABLES to the AV In AUDIO L and R (left and
right) jacks on the rear of the TV.
2
Connect the other end of the S-VIDEO
CABLE
to the S-VHS (S-Video) OUT jack on
the back of the VCR. Connect the other end
of the AUDIO (red and white) CABLES to the
AUDIO (left and right) OUT jacks on the rear
of the VCR.
3
Turn the VCR and TV on.
4
Press the AV buttons
on the remote control
to scroll the channels until SVHS appears in the
upper left corner of the TV screen.
5
Now you are ready to place a pre-recorded
video tape in the VCR and
press the PLAY
Æ
button
75‰
L
R
S-VIDE
O
VIDE
O
AUDI
O
CV
IAV out
Y
Pb
Pr
AV in
L/Mono
VIDEO
S-VIDEO
CV
I
Y
Pb
Pr
AUDI
O
AV in
R
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
IN
IN
OUTOUT
LR
S-VHS OUT
3
2
5
4
1
VOL
AV out
Audio Cables
(Red & White)
S-Video
Cable
VCR or External
Accessory Device
(with S-Video Output)
Back of TV
11
COMPONENT VIDEO (CVI) INPUT CONNECTIONS
C
omponent Video inputs provide for the highest possible color and picture resolution on the playback of digital signal
source material, such as with DVD players. The colour difference signals (Pb, Pr) and the luminance(Y) signal are
connected and received separately, which allows for improved color bandwidth information (not possible when using
composite video or S-Video connections).
1
Connect the Component (Y, Pb, Pr)
Video OUT
jacks from the DVD player (or
similar device) to the (Y, Pb, Pr) in(put) jack
on the TV. When using the Component Video
Inputs, it is best not to connect a signal to the
AV in Video Jack.
2
Connect the red and white AUDIO
CABLES
to the Audio (left and right) output
jacks on the rear of the accessory device to the
Audio (L and R) AV Input Jacks on the TV.
3
Turn the TV and the DVD (or digital
accessory device) ON.
4
Press the AV button
on the remote control
to scroll the channels until CVI appears in the
upper left corner of the TV screen.
5
Insert a DVD disc into the DVD player and
press the PLAY
Æ
button on the DVD Player.
The description for the component video
connectors may differ depending on the DVD
player or accessory digital source equipment
used (for example, Y, Pb, Pr; Y, B-Y, R-Y; Y, Cr,
Cb). Although abbreviations and terms may
vary, the letters b and r stand for blue and red
color component signal. Refer to your DVD or
digital accessory user manual for definitions and
connection details.
HELPFUL HINTS
L
VIDEO
S-VIDEO
CVI
Y
Pb
Pr
AUDIO
AV
In
R
S-VIDEO
OUT
OUT
OUT
L
R
AUDIO
VIDEO
COMP VIDEO
Y
Pb
Pr
3
5
4
1
2
Component
Video Cables
(Green, Blue,
Red)
Audio
Cables
(Red &
White)
Accessory Device
Equipped with
Component Vide
o
Outputs
Back of TV
VOL
L/Mono
AUDIO
R
12
AV OUTPUT CONNECTIONS
T

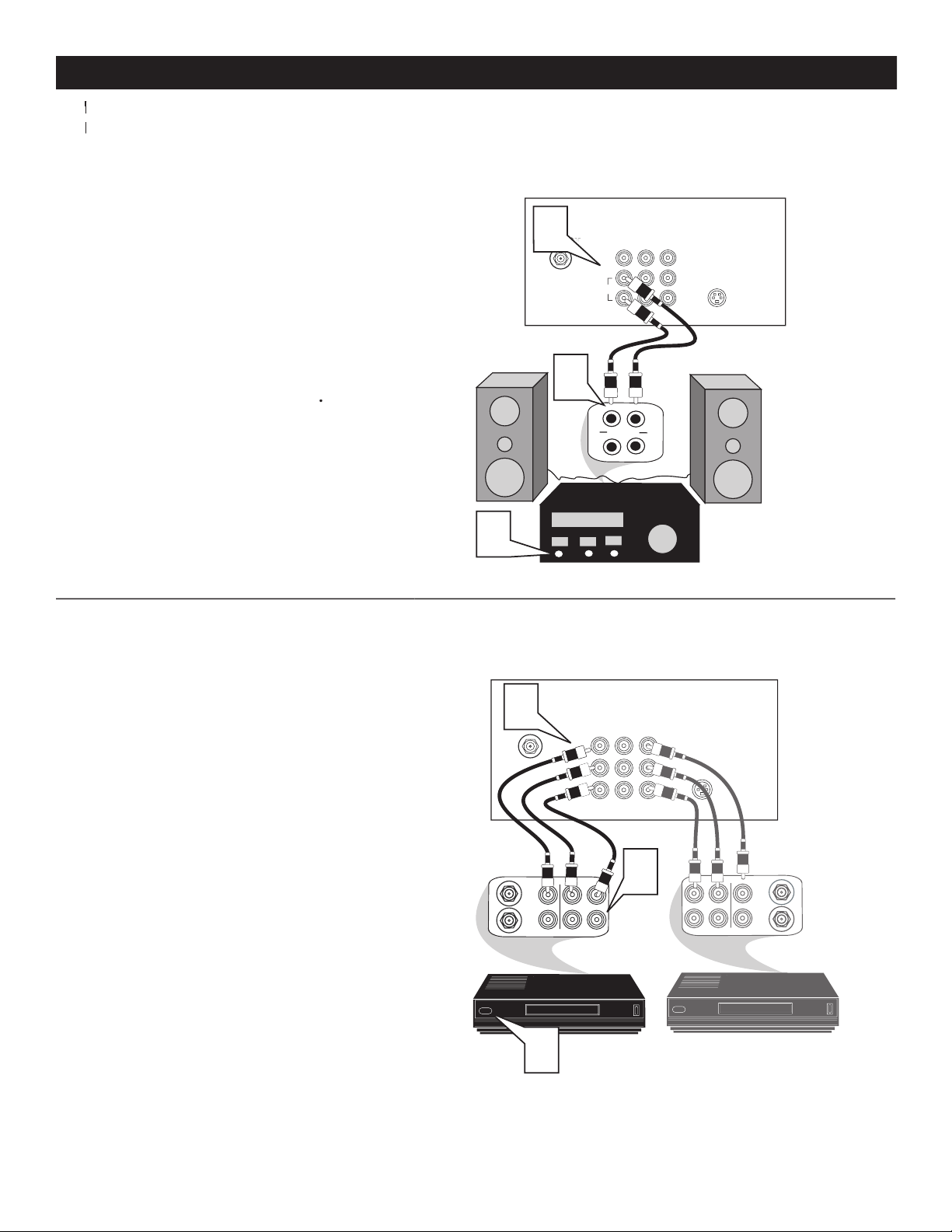

he Audio/Video Output jacks are great for recording with a VCR or used to connect to external audio system for
T
he Audio/Video Output jacks are great for recording with a VCR or used to connect to external audio system for
T
better sound reproduction.
Tbetter sound reproduction.T
AUDIO SYSTEM CONNECTION :
1
Connect one end of the R(ight) and L(eft)
AUDIO
jacks on the TV to the R and L audio
input jacks on your amplifier or sound system.
Set the audio system’s volume to a normal
listening level.
2
Turn the TV and audio system on.
To
adjust the volume of the audio system, you
will need to change the volume at the external
audio system
,
not the television
.
SECOND VCR CONNECTION :
NOTE :
Refer to page 8 for the proper hookup of the
first VCR. Follow the instructions on how to tune to
the AV1 channel to view a pre-recorded tape.
The following steps allow you to connect a second VCR
to record the program while watching it.
1
Connect on end of the yellow Video
Cable to the AV Out Video plug. Connect
the other end to the VIDEO IN plug on
the second VCR.
2
Connect one end of the red and white
Audio cable
from the
AV Out AUDIO L
and
R
plugs on the TV to the
AUDIO IN
plugs on the VCR.
3
Turn the Second VCR ON
, insert a VHS
tape and its ready to record what’s being
viewed on the TV screen.
3
A
U
X
/
T
V
I
N
P
U
T
P
H
O
N
O
IN
P
U
T
R
L
2
L/Mono
AV Ou
t
VIDE
O
S-VIDE
O
CVI
Y
Pb
Pr
AV
In
AUDIO
1
1
R
Back of TV
Audio Cables
(Red and White)
AUDIO SYSTEM CONNECTION:
AUDIO SYSTEM CONNECTION :
VCR.
3
Y
Pb
Pr
ANTENNA
OU
T
ANTENNA
IN
VIDE
O
AUDI
O
IN
IN
OU
TOUT
LR
ANTENNA
OU
T
ANTENNA
IN
VIDE
O
AUDI
O
IN
IN
OUT OUT
RL
1
2
3
AV Out
S-VIDE
O
CV
I
AV
In
R
Back of TV
Audio Cables
1st VCR
(refer to panel 4 for
proper connection)
Vide
o
Cable
2nd VCR with Audio and
Video Input Jacks
AUDIO SYSTEM CONNECTION:
L/Mono
VIDEO
AUDIO
R
SECOND VCR CONNECTION :
13
VOL

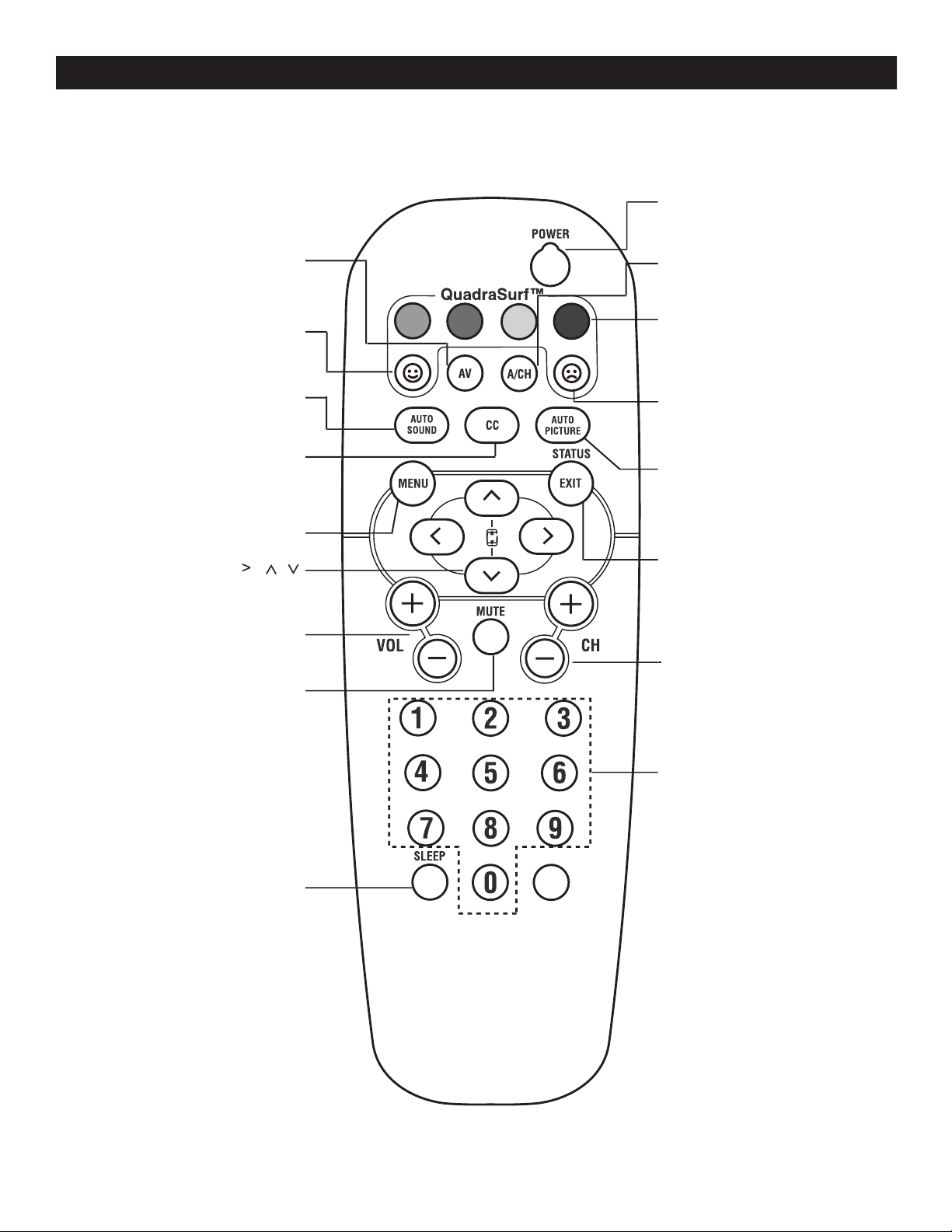

REMOTE CONTROL BUTTON DESCRIPTIONS
MUTE
Button - To turn off the sound
from the TV.”MUTE” will appear on
the TV screen. Press again to restore
sound to its previous level.
POWER
Button - Press to turn
the TV
On
or put on
Standby
AUTO PICTURE
Button - To
choose from five pre-defined picture
settings. (Personal, Movies, Sports,
Weak Signal, or Multimedia).
CH(annel) + or CH(annel)-
Buttons - To select channels in
ascending or descending order.
STATUS / EXIT
Button - To display
current channel number. If the on-
screen menu is displayed, press this
button to remove it fromTV screen.
NUMBER (0-9)
Buttons - To select
TV channels or enter values in the on-
screen menu. For single channel entries,
press the numbered button for the
channel you desire. The TV will pause
for a second or two before changing to
the chosen channel.
AUTO SOUND
Button - To choose
from four pre-defined sound settings.
(Personal, Theatre, Music, or Voice).
CURSOR
Buttons (
<
,
>
,
<
,
>
)
- To highlight and select items on the
TV onscreen menu.
VOL(ume) + / -
Buttons - To
increase or decrease the TV sound
level.
A/CH
(Alternate Channel) Button -
Toggle between last viewed and current
channel.
MENU
Button - To display the main
menu.
CH(annel) + or CH(annel)-
SLEEP
Button - Set the TV to
automatically turn itself off after a period
of time. Press repeatedly to select 15,
30, 45, 60, 90, 120, 180 or 240 minutes.
FROWNIE
Buttons - Allows you
to skip channels from the “Quadra
Surf” list from the colored buttons.
CC
Button - Press to activate the
Closed Captioning Options. Press
repeatedly to scroll through all
available CC options.
QUADRASURF
Buttons - Red,
Green, Yellow, Blue) allows you to
store and surf up to 10 channels you
choose for each colored button.
AV
Button - Press to select an
Button - Press to select an
accessory signal input from the side AV
Inputs
SMILEY
Buttons - Press to add
channels to the “QuadraSurf” list.
Works with all the 4 colored buttons
14
Language
Tuner Mode
Auto Progra
m
Channel Edit
Language
Tuner Mode
Auto Progra
m
Channel Edit
Instal
l
Main
Idioma
Sintonía
Auto Programa
Editor Canal
Instala
r
Langue
Mode synt.
Progr. auto
Editer Progr.
Installation
VOL

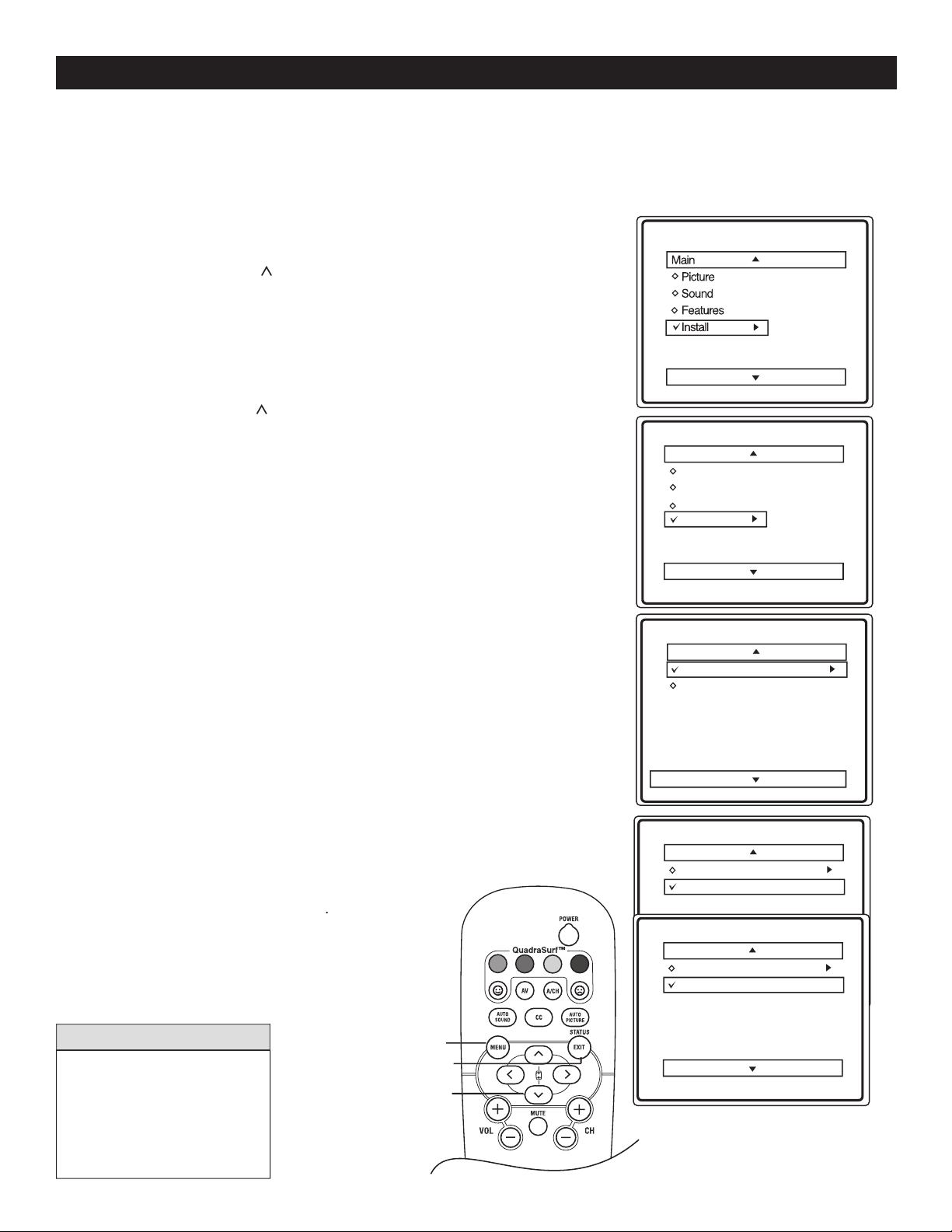

HOW TO USE THE LANGUAGE CONTROL
F
or French and Spanish speaking TV owners an on-screen LANGUAGE option present. With the LANGUAGE control
F
or French and Spanish speaking TV owners an on-screen LANGUAGE option present. With the LANGUAGE control
F
you can set the TV’s on-screen menu to be show in English, French or Spanish.
Fyou can set the TV’s on-screen menu to be show in English, French or Spanish.F
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR
<
or
>
to scroll
through the Install features until the word
LANGUAGE
is highlighted.
5
Press the CURSOR > repeatedly
to select
English, Francais (French), or Espanol (Spanish).
6
When finished, press the STATUS / EXIT
button
on the remote control to remove the
menu from the TV’s screen.
>
>
< >
MENU
STATUS /
EXIT
15

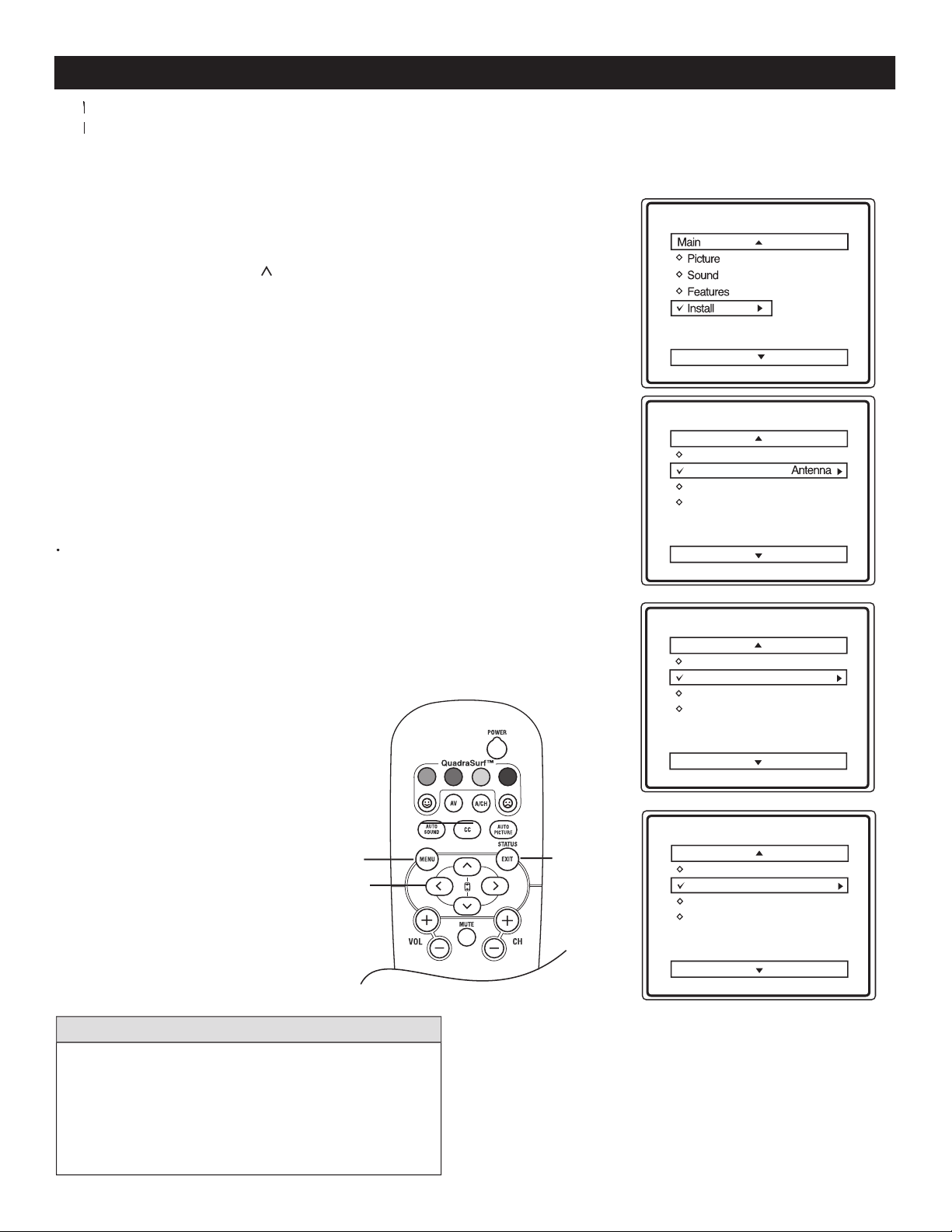

HOW TO USE THE TUNER MODE CONTROL
T
he TUNER MODE control allows you to change the TV’s input signal to either ANTENNA, CABLE or AUTO mode.
T
he TUNER MODE control allows you to change the TV’s input signal to either ANTENNA, CABLE or AUTO mode.
T
It is important for the TV to know which type of signal to look for (Antenna or Cable). In the AUTO mode, when
TIt is important for the TV to know which type of signal to look for (Antenna or Cable). In the AUTO mode, when T
the AUTO PROGRAM feature is activated, the TV will automatically choose the correct mode.
When CABLE is selected, channels 1 - 125 are available.
When ANTENNA is selected, channels 2 - 69 are
available.
When AUTO is selected, the TV will automatically set
itself to the correct mode based on the type of signal it
detects when the AUTO PROGRAM feature is activated.
Language
Tuner Mode
Auto Program
Channel Edit
Language
Tuner Mode
Auto Progra
m
Channel Edit
Install
Language
Tuner Mode
Auto Progra
m
Channel Edit
Install
OR
Language
Tuner Mode
Auto Progra
m
Channel Edit
Install
OR
Cable
Auto
VOL
>
>
< >
STATUS /
EXIT
MENU
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR < or >
to scroll
through the Install features until the word
TUNER MODE
is highlighted.
5
Press the CURSOR >
to select
ANTENNA, CABLE or AUTO
mode.
.
6
When finished, press the STATUS / EXIT
button
on the remote control to remove the
menu from the TV’s screen.
HELPFUL HINTS
16
AUTO PROGRAM
Y
ou can auto install programs on your TV. This makes it easy for you to select only the TV stations in your area
Y
ou can auto install programs on your TV. This makes it easy for you to select only the TV stations in your area
Y
when the CH+ or CH– buttons are pressed.
Ywhen the CH+ or CH– buttons are pressed. Y
When CABLE is selected, channels 1 - 125 are available.
When ANTENNA is selected, channels 2 - 69 are available.
When AUTO is selected, the TV will automatically set itself to
the correct mode based on the type of signal it detects when the
AUTO PROGRAM feature is activated.
HELPFUL HINTS
NOTE :
Ensure that the Antenna or Cable signal
connection has been completed before AUTO
PROGRAM is activated.
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR < or >
to scroll
through the Install features until the word
TUNER MODE
is highlighted.
5
Press
CURSOR >
to start the Auto
Program scanning of channels. Auto
Programming will store all available channels
in the TV’s memory then tune to the lowest
available channel when done.
.
6
When finished, press the STATUS /
EXIT button
on the remote control to
remove the menu from the TV’s screen.
58
59
VOL
Channel Edit
Channel Edit
>
>
< >
STATUS /
EXIT
MENU
17
CHANNEL EDIT
1
Press the MENU button
on the remote
control to show the on-screen menu.
2
Press the CURSOR
<
or
>
to scroll
through the on-screen menu until the word
INSTALL
is highlighted.
3
Press the CURSOR >
to display the
INSTALL
menu features.
4
Press the CURSOR
<
or
>
to scroll
through the Install features until the word
CHANNEL EDIT
is highlighted.
5
Press the CURSOR >
to select
CHANNEL
EDIT options.
6
With the CHANNEL EDIT options
displayed, and CHANNEL NO.
highlighted;
you can use the
CURSOR > OR <
to scroll
through all available channel that you wish
to
ADD
(skipped OFF) or
SKIP
(skipped
ON) from the TV’s memory. You can also
use the
NUMERIC buttons
to go directly
to a specific channel that you want to add or
skip. Or, you can use the
CH+
or
CH-
to
scan through the channels that have not been
skipped.
7
Using the CURSOR V,
scroll the menu to
highlight the word SKIPPED.
8
Use
CURSOR > to toggle between ON or
OFF.
If
ON
is selected the channel is skipped
when scrolling channels with
CH+
or
CH-.
If
OFF
is selected the channel is not skipped
when scrolling with
CH+
or
CH-
.
9
When finished, press STATUS / EXIT
button
on the remote control to remove the
menu from the screen.
C
hannel Edit makes it easy for you to
ADD
or
SKIP
channels from the list of channels stored in the TV’s memory.
An “X” appearing in front
of any channel will indicate
that channel has skipped
ON. When the CH+ or
CH- buttons are used, those
channels will be skipped.
HELPFUL HINTS
Install
Language
Tuner Mode
Auto Program
Channel Edit
Channel No.
Skipped
Channel Edit
Channel No. 3
Skipped
Off
Language
Tuner Mode
Auto Progra
m
Channel Edit
Channel Edit
Channel No.
3
Skipped
On
Channel Edit
Channel No.
3
Skipped
On
VOL
>
>
< >
STATUS / EXIT
MENU
18
PICTURE MENU CONTROLS
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
menu
feature is highlighted.
3
Press
CURSOR >
or
<
to adjust
Brightness Control
Brightness Control
- until the darkest parts of the
picture are as bright as you want.
Color
- to add or remove color.
- adjust until the lightest parts of the
picture show good detail.
Sharpness
Sharpness
-
to improve sharpness in the
picture.
Tint Control
- adjust natural skin tones in the
picture quality.
Color Temp
Color Temp
- to select Normal, Cool,
or Warm picture preferences. For Normal, whites
will maintain their whiteness;
Cool will make the whites bluish; and Warm will
make the whites reddish.
Contrast +
-
when set to
On
, the Contrast +
control helps to “sharpen” the picture quality. The
black portions of the picture become richer in
darkness and the whites become brighter.
T
o adjust your TV picture controls, select a channel and use the Picture Menu Controls listed below. Your selection is
T
o adjust your TV picture controls, select a channel and use the Picture Menu Controls listed below. Your selection is
T
stored as
Tstored as T
Personal
.
AUTO PICTURE
1
Press
AUTO PICTURE
button on the
remote
control. The current Smart Picture
setting will display on the screen.
2
Press
AUTO PICTURE
repeatedly to
select either
Personal, Movies, Sports,
Weak Signal
or
Multimedia
or Multimediaor
settings.
NOTE
:
The way you choose to set the Picture Menu
Controls will become your Personal setting.
W
hether you’re watching a movie or a sporting event, your TV has automatic video control settings to enhance
your current program source or content.
VOL
Color Temp
Contrast +
>
>
< >
MENU
VOL
AUTO
AUTO
19
SOUND MENU CONTROLS
1
-
Press the MENU
button on the remote control
to display the onscreen menu.
2
Press
CURSOR
<
or
>
until the
Sound
menu
feature is highlighted.
3
Press
CURSOR >
or
<
to adjust
Treble
- The control will enhance the
high frequency sounds.
Bass
- The control will enhance the low
- The control will enhance the low
frequency sounds.
Balance
- Level of sound coming from the left
and right speakers.
AVL
(Auto Volume Leveler)
(Auto Volume Leveler)
-
When On, AVL
will level out the sound being heard when sudden
changes in volume occur during commercial breaks
or channel changes.
I
NCR. SURROUND
-
Select
Incr. Surround
or
Stereo
settings if you're in
Stereo mode
. Select
Mono
or
Spatial
if you're in Mono mode.
Ultra Bass
-
Toggles Ultra Bass On or Off. When
On, low frequency sound will be enhanced.
Sound
-
Toggles between
Stereo
or
Mono
settings.
Note: If Stereo is not present on a selected show
and the TV is in Stereo mode, the sound coming
from the TV will remain in the Mono mode.
T
o adjust your TV sound controls, select a channel and use the Sound Menu Controls listed below. Your selection is
T
o adjust your TV sound controls, select a channel and use the Sound Menu Controls listed below. Your selection is
T
stored as
Tstored as T
Personal
.
AUTO SOUND
1
Press
AUTO SOUND
button on the
remote control. The current
Smart Sound
setting will be displayed in the middle of the TV
screen.
2
Press
AUTO SOUND
repeatedly to
toggle between the four settings. (
Personal,
Voice, Music, or Theatre
).
NOTE
:
The way you choose to set the Sound Menu
Controls will become your Personal setting.
T
he Auto Sound feature allows the listener to select between four different pre-set sound options.
T
he Auto Sound feature allows the listener to select between four different pre-set sound options.
T
VOL
AUTO
SOUND
Spatial
or Mono
Incr. Surround
or Stereo
or
Ultra Bass
VOL
>
>
< >
MENU
20
THE 4:3 EXPAND FORMAT CONTROL
1
-
Press
MENU
button on the remote control to
display the onscreen menu.
2
Press
CURSOR
>
until
Features
is highlighted.
3
Press
CURSOR >
to display the
Features menu
options (AutoLock or Format).
4
Press
CURSOR
>
to highlight
Format
.
5
Press
CURSOR > or <
to select one of the two
options
4:3 or Expand 4:3.
4:3 -
Standard format for the TV.
Expand 4:3 -
Enlarges the picture to fill out the
entire screen area, eliminating the “letterbox” effect.
6
When finished, press
STATUS / EXIT
button on
the remote control to remove the menu from the
TV’s screen.
NOTE :
The Expand 4:3 and can also be activated using
the
CURSOR
<
or
>
or
> or
when the onscreen menu is not
being displayed. Pressing these buttons will toggle between
Standard 4:3
and
Expand 4:3
.
M
M
any times while watching movies from a DVD player, the image is shown in “letterbox” format. This is the format
shown in movie theaters. When shown on TV screen, the image will have areas of black on top and bottom of the
screen.
4:3
Expand 4:
3
Format
4:3 Expand
Features
AutoLoc
k
Format
VOL
4:3
>
>
< >
MENU
STATUS /
EXIT
21
UNDERSTANDING AUTOLOCK CONTROLS
MOVIE RATINGS
G: General Audience
- All ages admitted. Suitable for all ages.
PG: Parental Guidance Suggested
- Contains material
unsuitable for younger children.
PG-13: Parents Strongly Cautioned
- Contains material
unsuitable for children under the age of 13.
R: Restricted
- Suitable for adults above 17 years of age only.
NC-17:
No one under the age of 17 will be admitted.
X: Adults Only
- Contains one or more of the following: very
X: Adults Only - Contains one or more of the following: very X: Adults Only
graphic violence, very graphic and explicit or indecent sexual acts,
very coarse and intensely suggestive language.
A
utoLock is a feature that lets the TV receive and process data sent by broadcasters or other program providers with program content
advisory. When programmed by the viewer, a TV with AutoLock can respond to the content advisory and block program content
Aadvisory. When programmed by the viewer, a TV with AutoLock can respond to the content advisory and block program content A
that may be found objectionable (such as offensive language, violence, sexual situations, etc.). This feature is useful for adults to prevent
certain types of programs from being viewed by children.
AutoLock
offers various BLOCKING controls to choose from:
AutoLock offers various BLOCKING controls to choose from:AutoLock
Access Code
- An Access Code must be set to prevent children from unblocking questionable or censored programming set by their
parents.
Channel Block
- After an access code has been programmed, you can block individual channels including the A/V inputs.
Channel Block - After an access code has been programmed, you can block individual channels including the A/V inputs.Channel Block
Clear All
- Lets you clear all channels being blocked from your viewing set with the Channel Block Control.
Block All
- Lets you block ALL channels including A/V inputs.
No Rating
- ALL programming with no content advisory data can be blocked if
NO RATING
is set to ON.
Movie Ratings
- Certain blocking options exist which will block programming based on ratings patterned by the Motion Pictures
Association of America (MPAA).
TV Ratings
- Like the Movie Ratings, programs can be blocked from viewing using standard TV ratings set by TV broadcasters.
Unrated
- ALL unrated programs based on the Movie Ratings or Parental TV Guidelines can be blocked if
UNRATED
is set to ON.
TV RATINGS
TV-Y :
Designed for a very young audience, including children
ages 2-6
TV-Y7:
Appropriate for children age 7 and above who have
acquired the development skills needed to distinguish between
make-believe and reality.
TV-G :
Suitable for most audiences. Contains little or no violence,
no strong language, and little or no sexual dialogue or situations.
TV-PG:
Contains material unsuitable for younger children.
Could contain Moderate violence (V), some sexual situations (S),
infrequent coarse language (L), or some suggestive dialogue (D).
TV-14:
Contains some material unsuitable for children under
14 years of age. Contains one or more of the following: intense
violence (V), intense sexual situations (S), strong coarse language
(L), or intensely suggestive dialogue (D).
TV-MA
- Viewed by adults and therefore may be unsuitable for
children under 17. Contains one or more of the following: graphic
violence (V), explicit sexual situations (S), or crude indecent
language (L).
22
SETTING UP AN ACCESS CODE
1
-
Press MENU
button on the remote control to
display the onscreen menu.
2
Press
CURSOR
<
or
>
until
Features
is
highlighted.
3
Press
CURSOR >
to display the
Features menu
options (AutoLock or Format).
4
Press
CURSOR
<
or
>
until the word
AUTOLOCK
is highlighted.
5
Press
CURSOR >
and the screen will read,
“ACCESS CODE - - - - .“
6
Using the
NUMBERED buttons
enter
0 7 1 1
.
“
XXXX
” appears on the Access Code screen as
you press the numbered buttons.
“
INCORRECT CODE
” will appear on the screen
and you will need to enter 0 7 1 1 again.
7
The screen will ask you to enter a “New Code”.
Enter a “new” 4 digit code using the
NUMBERED buttons
on the remote control.
You will be asked to CONFIRM the code. Enter
the new code again “XXXX” will appear when you
enter your new code and then display the AutoLock
menu options.
Proceed to the next page to learn more....
O
ver the next few pages you’ll learn how to block channels . To get a better understanding of the rating terms for
certain programs refer to page 21.
Let’s start by learning how to set a personal access code :
Main
Pictur
e
Sound
Features
Instal
l
AutoLock
Format
Features
AutoLock
Format
Timer
Start
Time
Stop Time
Channe
l
Activate
Displa
y
Features
AutoLoc
k
Format
Access Code
- - -
-
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Rating
OffStop Time
Channe
l
Activate
Displa
y
Features
AutoLock
Format
Access Code
XXXX
Features
AutoLock
Format
Access Code
XXXX
Incorrect
Features
AutoLock
Format
New Code
- - -
-
Features
AutoLock
Format
Confirm Code
XXXX
VOL
>
>
< >
MENU
NUMBERED
BUTTONS
23
BLOCK CHANNELS
1
-
Press the CURSOR
<
or
>
until the words
BLOCK CHANNELS
are highlighted
.
2
Press
CURSOR
>
to turn blocking
ON
or
OFF
for that channel. When
ON
is selected the channel
will be blocked.
3
Press
CH+ or CH-
to select other channels
you wish to block. Repeat step 2 to block the
new channel.
4
To Unblock a channel, use the CH+ or CH- to scroll
to the channel you wish to unblock. The screen
will show a message telling you that the channel has
been blocked by AutoLock and you have to Enter
your Access Code to unblock the channel.
5
Use the NUMBER Buttons, key in your Access Code.
The Blocked channel will be UnBlocked.
6
When finished, press the
STATUS / EXIT
button
on the remote control to remove the menu from
the screen.
NOTE :
If you forget your code, key 0 7 1 1. This is the
factory default. Enter this code to create a new access
code.
A
A
fter your personal access code has been sent (see previous page), you are ready to select the channels or the A/V
inputs you want to block out or censor. Once you’ve entered your access code and the AutoLock features are
displayed on the screen :
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Ratin
g
OffStop Time
Channe
l
Activate
Displa
y
Channel 12
Blocked By AutoLock
Channel Blocking
Access Code
- - - -
Block Channel
On
Enter your
Access Code to
view a
tuned
channel that is
blocked wit
h
Block C
hannel.
VOL
>
>
< >
MENU
STATUS / EXIT
24
BLOCK/CLEAR ALL CHANNELS AT THE SAME TIME
1
-
Press the CURSOR
<
or
>
to select either
CLEAR ALL
or
BLOCK ALL
.
2
If
CLEAR ALL
is selected, press
CURSOR >
to
clear all blocked channels. All channels will be
viewable. Now all blocked channels can be viewed.
If
BLOCK ALL
is selected, press
CURSOR >
to
turn the control
ON
or
OFF
. When
ON
is
selected, ALL available channels will be blocked
from viewing.
3
When finished, press the
STATUS/EXIT
button
on the remote control to remove the menu from
the screen.
NOTE :
If you forget your code, key
0 7 1 1
. This is the
factory default. Enter this code to create a new access
code.
T
his is a continuation of the previous page.
T
his is a continuation of the previous page.
T
After blocking specific channels there may come a time when you want to
block or clear all the channels at the same time.
Tblock or clear all the channels at the same time.T
Once you’ve entered your access code and the AutoLock features displayed on the screen;
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Ratin
g
Clear ?Stop Time
Channe
l
Activat
e
Displa
y
Clear All
Cleare
d
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Rating
TV Ratin
g
Off
Block All
On
VOL
>
>
< >
MENU
STATUS / EXIT
25
MOVIE RATINGS
1
-
Press CURSOR
<
or
>
to highlight the
words
MOVIE RATING.
2
Press
CURSOR
> button to display the
MOVIE RATING
options (G, PG, PG-13, R, NC-
17, or X)
3
Press
CURSOR
<
or
>
to highlight any of the
Movie Rating options. When highlighted, all
these options can be turned
ON
(
which will allow
blocking
) or
blocking
) or blocking
OFF
(
which will allow viewing
).
which will allow viewing
).which will allow viewing
4
Use
CURSOR
> to turn the rating option
ON
or
4
4
OFF
.
NOTE :
If you forget your code, key 0 7 1 1. This is the
factory default. Enter this code to create a new access
code.
T
he AutoLock feature can block programs based on the Move Industry ratings.
T
he AutoLock feature can block programs based on the Move Industry ratings.
T
Once you’ve entered your access code and the AutoLock features are displayed on the screen;
AutoLock
Block Channe
l
Setup Code
Clear Al
l
Block Al
l
Movie Ratin
g
TV Ratin
g
G
PG
PG-1
3
R
NC-17
X
Movie Rating
G
PG
PG-1
3
R
NC-17
X
Off
G
On
VOL
>
>
< >
NUMBER
BUTTONS
26
TV RATINGS
1
-
Press CURSOR
<
or
>
to highlight the
words
TV RATING.
2
Press
CURSOR
> button to display the
TV RATING
options (TV-Y, TV-Y7, TV-G, TV-
PG, TV-14 or TV-MA)
3
Press
CURSOR
<
or
>
to highlight any of the
TV Rating options. When highlighted, all
these options can be turned
ON
(
which will allow
blocking
) or
blocking
) or blocking
OFF
(
which will allow viewing
).
which will allow viewing
).which will allow viewing
NOTE :
Some TV Rating options also have sub-ratings. The
ratings of TV-Y7, TV-G, TV-14, TV-MA can be customized
to block V (violence), FV (fantasy violence), S (sex scenes), L
(coarse language), or D (Suggestive dialogue).
4
Press
CURSOR
> to turn the TV-Y or TV-G rating
4
4
ON
or
OFF
. Or, press
CURSOR
> to enter the
sub-menus for the TV-Y7, TV-PG, TV-14 or TV-MA
ratings.
5
If the TV-Y7, TV-PG, TV-14 or TV-MA sub-menu
is accessed, press
5
is accessed, press
5
CURSOR
<
or
>
to select one
of the options (Block All, V, S, L, D or FV).
5
of the options (Block All, V, S, L, D or FV).
5
6
Press
CURSOR
> to turn the option
ON
or
OFF
.
NOTE :
If you forget your code, key 0 7 1 1. This is the
factory default. Enter this code to create a new access
code.
T
he AutoLock feature can block programs based on the TV Industry ratings.
T
he AutoLock feature can block programs based on the TV Industry ratings.
T
Once you’ve entered your access code and the AutoLock features displayed on the screen;
TV Rating
TV-Y
TV-Y
7
TV-G
TV-P
G
TV-14
TV-M
A
Off
TV-Y
On
TV-Y7
Block
All, FV
TV-G
Of
f
TV-14
Block All, V, S, L, D
TV-MA
Block
All, V, S, L
TV-PG
Block
All, V, S, L, D
CC
VOL
>
>
< >
NUMBER
BUTTONS
27
BLOCKING OPTIONS
1
-
Press
CURSOR
<
or
>
until the words
BLOCKING OPTIONS are highlighted.
2
Press
CURSOR
> button to display the
Blocking Options (BLOCKING, UNRATED
or NO RATING) menu.
BLOCKING :
Might be called the “master switch” for
AutoLock. When ON, all blocking / censoring will take
place. When OFF, all blocking is disabled.
UNRATED :
All unrated programs based on the Movie
Ratings or Parental TV Guidelines can be blocked if this
feature is set to ON and the BLOCKING feature is set to
ON
.
NO RATING :
All programs with NO content advisory
data can be locked if it is set to ON and the BLOCKING
feature is set to
ON
.
3
Press
CURSOR
<
or
>
to highlight the desired
feature.
3
feature.
3
4
When highlighted, each feature can be turned
ON
or
4
or
4
OFF
using
CURSOR
> or <.
NOTE :
If you forget your code, key 0 7 1 1. This is the
factory default. Enter this code to create a new access
code.
A
A
utoLock offers the viewer other blocking options as well. With these Blocking options, the censoring can be turned
ON or OFF.
Once you’ve entered your access code and the AutoLock features are displayed on the screen;
AutoLock
Setup Code
Clear Al
l
Block All
Movie Rating
TV Ratin
g
Block Option
s
Blocking
On
Unrated
On
No Rating
On
VOL
>
>
< >
NUMBER
BUTTONS
28
CLOSE CAPTIONING
1
-
Press the CC button
to display the current
Closed Caption settings.
2
Press the
CC button repeatedly
to choose
from the four Closed Caption options (CC
Off, CC1, CC Mute).
3
When finished, press the
STATUS/EXIT
button on
the remote control to remove the menu from the
3
the remote control to remove the menu from the
3
TV screen.
3
TV screen.
3
C
lose Captioning (CC) allows you to read the voice content of television programs on the TV screen. Designed to
help the hearing impaired, this feature uses onscreen “text boxes” to show dialogue and conversations while the TV
program is in progress.
1
Press
SLEEP
button on the remote control to
display the sleeptimer menu.
2
Press
SLEEP
button on the remote control
to select the amount of time (15, 30, 45, 60,
90, 120, 180 or 240 minutes) before the TV
automatically switches Off.
NOTE:
An onscreen countdown will appear during
the last minute before the TV switches
Off. If any button is pressed during the last
minute of the countdown, the Sleep Timer
setting will be cancelled.
SLEEPTIMER
T
he SleepTimer feature allows you to set a timer to automatically turn the TV off after a period of time you choose
T
he SleepTimer feature allows you to set a timer to automatically turn the TV off after a period of time you choose
T
- 15, 30, 45, 60, 90, 120, 180 or 240 minutes.
T- 15, 30, 45, 60, 90, 120, 180 or 240 minutes.T
CC Off
CC1
CC2
CC Off
VOL
>
>
< >
STATUS / EXIT
Sleep 15
Sleep 30
Sleep 45
Sleep 60
Sleep 90
Sleep 120
Sleep 180
Sleep 240
Sleep 15
Sleep off
VOL
SLEEP
You will not be able to
see Close Captions if the
broadcaster does not provide
Close Captioning text with the
program that is transmitted.
HELPFUL HINTS
29
1
Press
CH+ or CH-
(or the Number
buttons)
to select a channel to add to the
SURF
list.
2
Press
SMILEY button
to ADD the
channel to one of the SURF list.
2
channel to one of the SURF list.
2
3
Press a
COLORED button (Red, Green,
Yellow or BLUE)
to add the channel to
that button’s Surf list. You can store up to 10
channels per colored button.
Repeat steps 1 through 3 to add additional
channels (up to ten) to each of the SURF list.
QUADRASURF
T
he QuadraSurf control allows you to setup four different personal channel Surf lists using the colored buttons (on
T
he QuadraSurf control allows you to setup four different personal channel Surf lists using the colored buttons (on
T
the remote control). Each colored button can hold up to ten channels in its quick viewing list.
Tthe remote control). Each colored button can hold up to ten channels in its quick viewing list.T
12
VOL
Select List!
12
12 Added!
12
Remove item ? - Press
12
QUADRASURF
SMILEY button
SMILEY button
SMILEY button
SMILEY button
4
Press the
COLORED QuadraSurf button
until the desired channel appears. The screen
will display the channel number with a colored
“Smiley” face to indicate the Colored button it
relates to.
5
While the colored
SMILEY face
channel
indicator is displayed, press the
FROWNIE
button on the remote control. The screen will
read “Remove item ? - Press .”
6
Press the
FROWNIE
button on the
remote control again to confirm.
Repeat steps 4 through 6 to remove other
channels from the Surf list.
To remove a channel from one of the SURF list
SMILEY face
SMILEY face
SMILEY face
SMILEY face
read “Remove item ? - Press .”
read “Remove item ? - Press .”
read “Remove item ? - Press .”
read “Remove item ? - Press .”
button on the
button on the
button on the
button on the
SMILEY
FROWNIE
30
1
Press one of the pre-programmed
COLORED
buttons on the remote control (Red, Green,
Yellow or Blue). The screen will display a
SMILEY
with the first programmed
SMILEY with the first programmed SMILEY
channel for that surf list.
2
While the colored
SMILEY
STILL appears
SMILEY STILL appears SMILEY
on the screen, press the same
COLORED
button on the remote control to tune to the
second channel programmed for that surf list.
3
Pressing the same
COLORED
button
while the
SMILEY
appears will tune
SMILEY appears will tune SMILEY
all the programmed channels. Pressing the
COLORED
button again will return you to
the first channel in the list.
After the
SMILEY
disappears from the
SMILEY disappears from the SMILEY
screen and the same
COLORED
button is
pressed, the surf channels will be displayed
starting with the FIRST programmed channel
again.
4
Repeat steps 1 - 3 for the other three
COLORED
buttons (Surf list) if desired.
5
Pressing the
FROWNIE
button on the
remote control while the SMILEY
appears
with the channel number will allow you to
remove it from the surf list (see previous page
for more details).
QUADRASURF
T
he QuadraSurf buttons on the remote control allow you to store up to 10 channels per button (40 in total). You
T
he QuadraSurf buttons on the remote control allow you to store up to 10 channels per button (40 in total). You
T
can program the AV input channels for each button making them a “source” button.
Tcan program the AV input channels for each button making them a “source” button.T
Assuming channels have been added to the four Quadra Surf lists (the four colored buttons, see previous page).
Yellow or Blue). The screen will display a
with the first programmed
with the first programmed
with the first programmed
with the first programmed
STILL appears
STILL appears
STILL appears
STILL appears
appears will tune
appears will tune
appears will tune
appears will tune
disappears from the
disappears from the
disappears from the
disappears from the
appears
appears
appears
appears
button on the
button on the
button on the
button on the
10
12
18
22
28
35
39
41
56
99
12
Remove Item? - Press
VOL
QUADRASUFR
SMILEY
FROWNIE
5
12
VOL
(ALTERNATING CHANNELS)
Y
our remote control has an
Y
our remote control has an
Y
A/CH
(Alternate Channel) button which allows you toggle between the current channel
you are watching and the previous channel.
Yyou are watching and the previous channel. Y
A/CH
1
Press
A/CH
on the remote control to toggle
between the current and previous channel.
31
GLOSSARY
4:3
4:3 is an aspect ratio of traditional squarish National Television Systems Committe (NTSC) TV screens; it stands for four
units of width for every three units of height.
Aspect Ratio
The ratio between the width and height of the TV picture on the screen. In a normal TV set the aspect ratio is 4
to 3 (4:3).
Audio Video (A/V)
A term often used when discussing a channel on a TV receiver or on video equipment, which has been
especially designed to accept VCR audio-video signals. This channel automatically activates special circuitry
within the TV set to prevent picture distortion and skewing. It is also used for audio-video processors, which
handle both types of signals.
Cable Converter Box
A device that allows your television to receive the expanded number of channels provided by broadcasters. Some of these
programs provided by the broadcast may not be free, you’ll have to pay to view them.
Coaxial Cable
Coaxial cable is a copper cable used to connect cable signal coming from Cable TV Company to the TV.
Composit Video Input
Connection
An analog encoded video signal that includes vertical and horizontal synchronizing information. Since both luminance
(brightness) and chrominance (color) signals are encoded together, only a signal connection wire is needed. A composite
video jack is usually a single RCA-type.
Component Video
Input Connection
Provides the highest possible color and picture resolution on the playback of digital signal source material like DVD players.
The color difference signals (Pb, Pr) and the luminance(Y) signals are connected separately which allows for improved
color bandwidth information (not possible when using composite video or S-Video connections).
Letterbox
Letterbox refers to the image of a wide-screen picture on a standard 4:3 aspect ratio television screen.
Luminance
The brightness or black-and-white component of a color video signal. Determines the level of picture detail.
NTSC
National television system committee. The organization that developed the analog television standard currently in use in the
U.S., Canada, and Japan. Now generally used to refer to that standard. The NTSC standard combines blue, red, and green
signals modulated as an AM signal with an FM signal for audio.
S-Video
Separated video. An encoded video signal which separates the brightness from color data. S-Video can greatly improve
the picture when connecting TVs to any high quality video source such as digital broadcast satellite (DBS) and DVDs.
WARNING
Concerning Stationary Images on the TV Screen:
Do not leave stationary or letterbox images on screen for
extended periods of time. This can cause uneven picture-tube
aging.
Normal use of the TV should involve the showing of pictures
that contain constantly moving and changing images that fill the
screen. Be careful not to leave nonmoving images on screen
for extended periods of time, or to display the same images
on screen too frequently, because subtle ghost images can be
left on the picture tubes. Sources of stationary images may be
DVD disks, laser disks, video games, CD-i disks, videotapes,
digital television boxes, broadcast channels, cable channels, sat-
ellite channels, and others. Here are some examples of station-
ary images (this is not an all-inclusive list; you may encounter
others in your viewing):
• DVD menus—listings of DVD disk content
• Letterbox black bars—shown at the top and bottom of the
TV screen when a wide screen (16:9) movie is viewed on a
TV with standard (4:3) aspect ratio.
• Video-game images and scoreboards
• Television station logos—present a problem if they are
bright and stationary; moving or low-contrast graphics are
less likely to cause uneven aging of the picture tube
• Stock-market tickers—presented at the bottom of the TV
screen
• Shopping channel logos and pricing displays—bright and
shown constantly or repeatedly in the same location on the
TV screen.
Placement of the TV
• To avoid cabinet warping, cabinet color changes, and
increased chance of set failure, do not place the TV where
temperatures can become excessively hot; for example, in
direct sunlight or near a heating appliance.
• Be sure to allow a free flow of air to and from the perfo-
rated back cover of the set.
Cleaning
• To avoid possible shock hazard, be sure the TV is unplugged
from the electrical outlet before cleaning.
• Regularly dust the TV with a dry, nonscratching duster to
keep the TV clean.
• When cleaning the TV, take care not to scratch or damage
the screen surface. Avoid wearing jewelry or using anything
abrasive. Do not use household cleaners. Wipe the front
screen with a clean cloth dampened with water. Use even,
easy, vertical strokes when cleaning.
• Gently wipe the cabinet surfaces with a clean cloth or
sponge dampened in a solution of cool, clear water and a
mild soap or detergent. Use a clean, dry cloth to dry the
wiped surfaces.
• Occasionally vacuum the ventilation holes or slots in the
back cover of the set.
• Never use thinners, insecticide sprays, or other chemicals on
or near the cabinet, as they might cause permanent damage
of the cabinet finish.
CLEANING AND CARE
32
TROUBLESHOOTING TIPS
Check this List of
Symptoms
and
Suggested Steps To Take
before requesting Service. You may be able to solve the problem yourself.
If you face problems connecting the TV to external devices, please refer to the User Guide of the external device or call their service centers
for help. Charges for TV installation and adjustments of customer controls are not covered under your warranty.
SYMPTOMS
SUGGESTED STEPS TO TAKE
Installation
Can't get the AV
channels on the TV
screen.
Press the
CH+ / CH-
button on the remote control repeatedly to select the desired AV channels.
Note: SVHS can only be selected if a S-VHS device is connected and powered on.
Installation
TV Displays
Wrong
Channel or No
Channels Above
13
Go to
TUNER MODE
in the television menu and select the correct signal source, then perform the
automatic installation again. (Refer to page 15).
Installation
Channel numbers
do not follow the
channel number
of the
programs.
Go to
TUNER MODE
in the television menu and select the correct signal source, then perform the
automatic installation again. (Refer to page 15).
Sound
Disturbing sound
(such as buzzing,
clicking, cracking,
humming, whistling,
etc).
It is normal to hear a disturbing sound (such as buzzing, clicking, cracking, humming, whistling, etc)
from a distance less than 2 meters (6 feet) with the television sound muted.
If problem occurs on one channel, you may have a signal problem. Please contact the cable provider
or local broadcaster regarding the specifi c channel.
Sound
Sound is not in
Stereo.
This could be due to any of the following reasons:
1. Not all transmitted broadcasts by the cable or broadcast stations are in STEREO. Try checking
with several major network stations to be sure that the station you selected is in STEREO.
2. When SAP is turned ON, the sound mode is automatically set to MONO.
3. Sound mode is set to MONO. Set the sound mode to STEREO. (Refer to page 19).
4. When using an AV input, the television will not display STEREO even though it is producing
stereo sound.
General
No power to the
TV
Check the TV power cord. Unplug the power cord from the TV, wait 10 seconds, then reinsert
the plug into your wall outlet. Power On the TV again.
Plug the power cord directly to the wall socket and not via an extension cord.
If you need to use an extension cord, check that the fuse on the AC power strip is not blown.
General
TV is not
responding to
Remote Control
Ensure the batteries are inserted into the remote control according to the illustration in the battery
compartment. Refer to page 6.
Reset the television by disconnecting the power plug from the wall
outlet for 10 seconds and then reconnecting it again.
General
Remote control is
not working
Ensure the batteries are inserted into the remote control according to the illustration in the battery
compartment. Refer to page 6.
Reset the television by disconnecting the power plug from the wall
outlet for 10 seconds and then reconnecting it again.
General
TV Displays white
lines in letterbox
when viewing a
DVD disc
Some DVD Discs are encoded with as much as 30% more video information to give the best
possible picture quality. With the DVD Player in the “letterbox” picture format, the playback of this
type of disc with extra video information can produce a number of small white lines in the
upper portion of the black letterbox area. With some of these discs, this problem is inherent
and does not require a service call.
33
SPECIFICATIONS
PICTURE / DISPLAY
Aspect ratio :
Picture Display
Picture Enhancement
SOUND
Sound Power (Output RMS)
Sound Enhancement
CONVENIENCE
ON SCREEN DISPLAY
LANGUAGES
CONNECTIVITY
Rear
Side
WEIGHT & DIMENSIONS :
Weight (incl. Packaging) :
Weight (excl. Packaging) :
Visible diagonal / screen size :
2 x 3w
Incredible Surround
Auto Program
Auto Volume Leveller (AVL)
Closed Captioning
Parental Lock
Specifications and information are subject to change without notice.
AV1: CVI, CVBS in
AV2: CVBS in, S-Video
AV3: Monitor Out
CVBS in, Headphone Out
24.6 kg / 54.15 lbs
21.6 kg / 47.52 lbs
20 inch / 50.8 cm
20" Real Flat Picture,
Auto Picture (5 modes)
Color, Contrast, Sharpness Control
20PT6446
4:3
English, French, Spanish
34
(Warranty: 4835 710 27400)
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
90 Days Labor & One (1) Year Parts & Two (2) Years Display
90 Days Labor & One (1) Year Parts & Two (2) Years Display
PHILIPS LIMITED WARRANTY
PHILIPS CONSUMER ELECTRONICS
warrants this prod-
uct against defect in material or workmanship, subject to any con-
ditions set forth as follows:
PROOF OF PURCHASE:
You must have proof of the date
of purchase to receive warranted repair on the product. A sales
receipt or other document showing the product and the date
that you purchased the product as well as the authorized retailer
included, is considered such proof.
COVERAGE:
(If the product is determined to be defective)
LABOR:
For a period of ninety (90) days from the date of pur-
chase, Philips will repair or replace the product, at its option, at
no charge, or pay the labor charges to any Philips authorized
repair facility. After the period of ninety (90) days, Philips will no
longer be responsible for charges incurred.
PARTS:
For a period of one (1) year from the date of purchase,
Philips will supply at no charge, new or rebuilt replacement parts
in exchange for defective parts. Philips authorized service centers
will provide removal and installation of the part under the speci-
fied labor warranty.
DISPLAY:
For a period of two (2) years from the date of pur-
chase, Philips will supply, at no charge, a new or rebuilt active
display device in exchange for the defective display. Philips author-
ized service centers will provide removal and installation of the
parts under the specified labor warranty.
EXCLUDED FROM WARRANTY COVERAGE
Your warranty does not cover:
• Labor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation or
repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for which
it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.
• Damage occurring to product during shipping when improperly
packaged or cost associated with packaging.
• Product lost in shipment and no signature verification of receipt
can be provided.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Products sold AS IS or RENEWED.
TO OBTAIN WARRANTY SERVICE IN THE U.S.A.,
PUERTO RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN WARRANTY SERVICE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE
CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental
or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may
not apply to you. In addition, if you enter into a service contract
agreement with the PHILIPS partnership within ninety (90) days of
the date of sale, the limitation on how long an implied warranty
lasts does not apply.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
35
Alternating Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
A
utomatic Program
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
AutoLock Controls
Access Code
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Blo
ck Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
Block/Clear All Channels
. . . . . . . . . . . . . . . . . . . . . . . . . . .
2
4
Movie Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
TV Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Blocking Options
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
AV (Audio/Video
) Input Connection
. . . . . . . . . . . . . . . . . . . .
8
AV (Audio/Video
) Output Connection
. . . . . . . . . . . . . . . . . .
12
B
asic TV and Remote Control Operation
. . . . . . . . . . . . . . . .
6
C
able Box Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
C
hannel Edit (Add or Skip
Channel
s)
. . . . . . . . . . . . . . . . . . .
17
Cleaning and Care
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Close Captioning
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Component Video (
CVI) Input Connections
. . . . . . . . . . . . .
11
Feature Highlights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
Format
Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Glossary
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Language Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Picture Menu Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Brightness
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Color
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
18
C
olor Temperature (Color Te
mp)
. . . . . . . . . . . . . . . . .
18
Contrast
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
8
Color Temperature (Color Temp) Control
. . . . . . . . . . . .
18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Sharpness
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Tint
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Quadra
Surf
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Surf
29-30
Registration of TV Information
. . . . . . . . . . . . . . . . . . . . . . . . .
3
Remote Control button descriptions
. . . . . . . . . . . . . . . . .
. . 1
3
Safety / Precautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
S
-Video (S-VHS) Input Connections
. . . . . . . . . . . . . . . . . . . .
10
S
ide AV Connections
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
S
leepTimer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Smart
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
8
Smart Sound
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
S
pecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
Sound
Menu Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
9
AVL (Automatic Volume Leveler)
. . . . . . . . . . . . . . . . . . .
19
Balance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
19
Bass
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Incr. Surround
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
9
Sound
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Ultra Bass
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Tuner Mode
Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Under
standing AutoLock Controls
. . . . . . . . . . . . . . . . . . . .
21
Warraty (L
imited)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
INDEX
36
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
2005 © Koninklijke Philips Electronics N.V. All rights reserved.
www.philips.com
3139 125
3599
2
